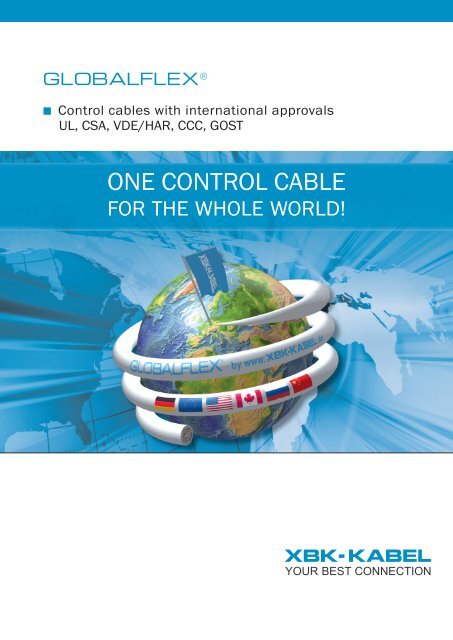

GLOBALFLEX ®<br />

Control <strong>cable</strong>s with international approvals<br />

UL, CSA, VDE/HAR, CCC, GOST<br />

ONE CONTROL CABLE<br />

FOR THE WHOLE WORLD!<br />

XBK- KABEL<br />

YOUR BEST CONNECTION


2 Industrial <strong>control</strong> <strong>cable</strong>s<br />

For a connection without borders<br />

- our unique GLOBALFLEX ® -range.<br />

<strong>One</strong> Type <strong>for</strong> <strong>the</strong> most important<br />

international markets with approvals<br />

<strong>for</strong> EUROPE (HAR/IEC),<br />

USA, CANADA (UL/CSA) and<br />

ASIA (CCC-China/GOST-Russia)<br />

These <strong>cable</strong>s are available as<br />

GLOBALFLEX ® -<strong>control</strong> <strong>cable</strong>s.<br />

Your advantages at a glance<br />

Approvals<br />

• global applications<br />

• improved oil and heat resistance<br />

• excellent quality<br />

• reduction of storage and logistical expenses<br />

• international approvals<br />

UL<br />

CSA<br />

VDE<br />

CCC<br />

GOST<br />

= Underwriters Laboratories Inc. (USA)<br />

= Canadian Standards Association (Canada)<br />

= Verband der Elektrotechnik Elektronik<br />

In<strong>for</strong>mationstechnik e.V. / Harmonisation<br />

supervised by VDE<br />

= China Compulsory Certifi cation<br />

= Gosudarstvennaja Standartisacija Rossii<br />

(Russian standard)<br />

XBK-KABEL


Industrial <strong>control</strong> <strong>cable</strong>s 3<br />

Survey of GLOBALFLEX ® -range<br />

GLOBALFLEX ®<br />

GLOBALFLEX ® -CY<br />

GLOBALFLEX ® -H05VV5-F<br />

GLOBALFLEX ® -H05VVC4V5-K<br />

GLOBALFLEX ® -PREMIUM<br />

GLOBALFLEX ® -PREMIUM-CY<br />

Nominal voltage 300/500 V 300/500 V 300/500 V 300/500 V 300/500 V 300/500 V<br />

PVC extensively oil resistant and resistant to chemicals - - - -<br />

PVC enhanced oil-resistant - - <br />

Colour of sheath grey transparent grey grey grey grey<br />

Colour of inner sheath - grey - grey - grey<br />

Copper conductor fi ne wired, class 5 <br />

Without screening - - -<br />

Screening with tinned copper braid - - - <br />

Registered by VDE No. 7014 - - - -<br />

VDE/HAR - - <br />

UL (USA) S S - - <br />

CSA (Canada) S S - - <br />

CCC (China) S - <br />

GOST (Russian Federation) <br />

ROHS Con<strong>for</strong>mity <br />

Meets REACH requirements <br />

Cold resistant down to °C when occasionally moved -5 -5 -5 -5<br />

Heat resistant up to °C when occasionally moved +70 +70 +70 +70<br />

Cold resistant down to °C when fi xed -40 -40 -40 -40<br />

Heat resistant up to °C when fi xed +80 +80 +80 +80<br />

-5 (acc. to HAR) -5 (acc. to HAR)<br />

-5 (acc. to UL/CSA) -5 (acc. to UL/CSA)<br />

+70 (acc. to HAR) +70 (acc. to HAR)<br />

+90 (acc. to UL/CSA) +90 (acc. to UL/CSA)<br />

-40 (acc. to HAR) -40 (acc. to HAR)<br />

-40 (acc. to UL/CSA) -40 (acc. to UL/CSA)<br />

+70 (acc. to HAR) +70 (acc. to HAR)<br />

+90 (acc. to UL/CSA) +90 (acc. to UL/CSA)<br />

Minimum bending radius <strong>for</strong> fl exible use 15x 20x 15x 20x 12,5x 20x<br />

Minimum bending radius <strong>for</strong> fi xed installation 4x 6x 4x 6x 4x 6x<br />

UV resistant S S - - - -<br />

Termite resistant S S - - - -<br />

Microbe resistant S S - - - -<br />

Phthalate free S S - - - -<br />

= available as standard, confi rmation by appropriate certifi cates if necessary; CCC or GOST with optional marking of outer sheath = special manufacturing<br />

S = special manufacturing (no stock, MOQ needed)<br />

XBK-KABEL


4 Industrial <strong>control</strong> <strong>cable</strong>s<br />

FLEX turns into<br />

GLOBALFLEX ®<br />

and FLEX-CY turns into<br />

GLOBALFLEX ® -CY<br />

1 2 3 1 2<br />

3 4<br />

5<br />

1 Sheath 1 Sheath 4 Core insulation<br />

2 Core insulation 2 Screening 5 Copper conductor<br />

3 Copper conductor<br />

3 Inner sheath<br />

GLOBALFLEX ®<br />

GLOBALFLEX ® -CY<br />

Production range 2 - 100 cores, 0,5 up to 120 mm²,<br />

registered by VDE No. 7014! CCC on request.<br />

GLOBALFLEX-<strong>control</strong> <strong>cable</strong>s are largely resistant<br />

to acids, bases and usual oils.They are tough and<br />

flexible. The high quality PVC insulation and sheath<br />

materials offer optimum smaller outer diameter and<br />

consequently reduced installation spaces. The core<br />

insulation meets highest electrical and technical<br />

claims. The high test voltage (4000 V AC) stands <strong>for</strong><br />

highest insulation confidence. The VDE certificate<br />

with production <strong>control</strong> affirm <strong>the</strong> CE con<strong>for</strong>mity of<br />

<strong>the</strong>se 500 V <strong>cable</strong>s to <strong>the</strong> EG-low voltage directive.<br />

GLOBALFLEX-CY offers additionally<br />

GLOBALFLEX-CY-<strong>control</strong> <strong>cable</strong>s assure an<br />

interference free transmission of signals and pulses<br />

by <strong>the</strong>ir high density of screening (approx. 80-85 %).<br />

Mechanical strength of <strong>the</strong> <strong>cable</strong> is enhanced by <strong>the</strong><br />

PVC inner bedding applied. The tinned screening<br />

captivates by functionality and look.<br />

RoHS<br />

<br />

Reach<br />

<br />

registered by VDE No. 7014<br />

with GOST-R - approval<br />

with CCC - approval on request<br />

100 % RoHS<br />

100 % REACH<br />

with CE con<strong>for</strong>mity to <strong>the</strong><br />

EG-low voltage directive<br />

Industrial <strong>control</strong> <strong>cable</strong>s GLOBALFLEX GLOBALFLEX-CY<br />

Registrered by VDE No. 7014<br />

Copper conductor<br />

Insulation<br />

Stranding<br />

bare, fi ne wired acc. to DIN EN 60228 cl.5<br />

Special PVC, according to type TI2 to EN 50363-3 but with enhanced<br />

requirements regarding mechanical properties.<br />

cores stranded in layers<br />

Inner sheath - PVC-based special mixture<br />

Screening (acc. to EMC - electromagnetic compatibility) - tinned copper braid<br />

Sheath<br />

PVC-based special mixture, silvergrey, RAL 7001 (GLOBALFLEX-CY with<br />

transparent sheath), fl ame retardant and self-extinguishing (IEC 60332.1.2)<br />

Nominal voltage / Test voltage 300/500 V / 4000 V 300/500 V / 4000 V<br />

Insulation - Specifi c volume resistance > 20 MΩ x km > 20 MΩ x km<br />

Temperature range - fl exible -5 °C up to +70 °C -5 °C up to +70 °C<br />

Temperature range - fi xed installation -40 °C up to +80 °C -40 °C up to +80 °C<br />

Minimum bending radius - fl exible / fi xed installation 15x / 4x 20x / 6x<br />

XBK-KABEL


Industrial <strong>control</strong> <strong>cable</strong>s 5<br />

H05VV5-F turns into<br />

GLOBALFLEX ® -H05VV5-F<br />

and H05VVC4V5-K turns into<br />

GLOBALFLEX ® -H05VVC4V5-K<br />

1 2 3 1 2<br />

3 4<br />

5<br />

1 Sheat 1 Sheath 4 Core insulation<br />

2 Core insulation 2 Screening 5 Copper conductor<br />

3 Copper conductor<br />

3 Inner sheath<br />

GLOBALFLEX ® -H05VV5-F<br />

GLOBALFLEX ® -H05VVC4V5-K<br />

EN 50525-2-51 / VDE 0285-525-2-51 approved<br />

Production range 2 - 100 cores (from 61 cores in<br />

dependence on VDE), 0,5 - 120 mm² (from 4,0 mm²<br />

in dependence on VDE)<br />

GLOBALFLEX-<strong>control</strong> <strong>cable</strong>s are installed in dry,<br />

moist and wet rooms (also water-oil-mixtures)<br />

but not suitable <strong>for</strong> outdoor use. The PVC outer<br />

sheath is largely resistant to usual oils and is<br />

regularly laboratory tested <strong>for</strong> resistance to oils.<br />

GLOBALFLEX-H05VV5-F-<strong>control</strong> <strong>cable</strong>s are<br />

extremely flexible and particularly suitable <strong>for</strong> laying<br />

where <strong>the</strong>re is a need <strong>for</strong> free movement. These<br />

<strong>cable</strong>s are successfully used as measuring and<br />

<strong>control</strong> <strong>cable</strong>s in tool machinery, plant installation,<br />

power stations and in data equipment.<br />

GLOBALFLEX-H05VVC4V5-K offers additionally<br />

GLOBALFLEX-H05VVC4V5-K-<strong>control</strong> <strong>cable</strong>s<br />

assure an interference free transmission of signals<br />

and pulses by <strong>the</strong>ir high density of screening.<br />

Mechanical strength of <strong>the</strong> <strong>cable</strong> is enhanced by <strong>the</strong><br />

PVC inner bedding applied. The tinned screening<br />

captivates by functionality and look.<br />

RoHS<br />

<br />

Reach<br />

<br />

with VDE / HAR approval<br />

with GOST-R - approval<br />

with CCC<br />

100 % RoHS<br />

100 % REACH<br />

with CE con<strong>for</strong>mity to <strong>the</strong><br />

EG-low voltage directive<br />

Industrial <strong>control</strong> <strong>cable</strong>s GLOBALFLEX-H05VV5-F GLOBALFLEX-H05VVC4V5-K<br />

Approvals EN 50525-2-51 / VDE 0285-525-2-51<br />

Copper conductor<br />

bare, fi ne wired acc. to EN 60228 cl.5<br />

Insulation PVC mixture type TI2 acc. to EN 50363-3<br />

Stranding<br />

cores stranded in layers<br />

Inner sheath - PVC special mixture<br />

Screening (acc. to EMC - electromagnetic compatibility) - tinned copper braid<br />

Sheath PVC mixture type TM2 acc. to EN 50363-4-1, silver grey RAL 7001,<br />

fl ame retardant and enhanced oil resistant<br />

Nominal voltage / Test voltage 300/500 V / 4000 V 300/500 V / 4000 V<br />

Insulation - Specifi c volume resistance > 20 MΩ x km > 20 MΩ x km<br />

Temperature range - fl exible -5 °C up to +70 °C -5 °C up to +70 °C<br />

Temperature range - fi xed installation -40 °C up to +80 °C -40 °C up to +80 °C<br />

Minimum bending radius - fl exible / fi xed installation 15x / 4x 20x / 6x<br />

XBK-KABEL


6 Industrial <strong>control</strong> <strong>cable</strong>s<br />

4-Norm turns into<br />

GLOBALFLEX ® -PREMIUM<br />

and 4-Norm-CY turns into<br />

GLOBALFLEX ® -PREMIUM-CY<br />

1 2 3 1 2<br />

3 4<br />

5<br />

1 Sheath 1 Sheath 4 Core insulation<br />

2 Core insulation 2 Screening 5 Copper conductor<br />

3 Copper conductor<br />

3 Inner sheath<br />

GLOBALFLEX ® -PREMIUM<br />

GLOBALFLEX ® -PREMIUM-CY<br />

Production range 2 - 50 cores, 0,5 up to<br />

2,5 mm² with UL, CSA, VDE/HAR, GOST-R,<br />

CCC - approval and from 2 - 100 cores, 0,5 up to<br />

120 mm² with UL, CSA - approval<br />

GLOBALFLEX-PREMIUM-<strong>control</strong> <strong>cable</strong>s are<br />

installed in dry and moist rooms at medium<br />

mechanical stress and as connectiong <strong>cable</strong>s <strong>for</strong><br />

static and non-continuous flexing applications.<br />

These <strong>cable</strong>s are particularly resistant to chemicals<br />

and can be used under extreme conditions. They<br />

offer various possibilities as e.g. one <strong>cable</strong> design<br />

acceptable <strong>for</strong> several export markets, only one<br />

type of <strong>cable</strong> to stock giving lower inventory costs<br />

and most important a faster solution to your export<br />

orders. As a result of multi approval HAR, UL and<br />

CSA, application exist almost <strong>world</strong>wide.<br />

GLOBALFLEX-PREMIUM-CY offers additionally<br />

GLOBALFLEX-PREMIUM-CY-<strong>control</strong> <strong>cable</strong>s<br />

assure an interference free transmission of signals<br />

and pulses by <strong>the</strong>ir high density of screening.<br />

Mechanical strength of <strong>the</strong> <strong>cable</strong> is enhanced by <strong>the</strong><br />

PVC inner bedding applied. The tinned screening<br />

captivates by functionality and look.<br />

with UL and CSA - approval<br />

UL AWM 2587<br />

CSA AWM I. A/B II. A/B<br />

with VDE/HAR - approval<br />

H05VV-F respectively H05VVC4V5-K<br />

with GOST-R - approval<br />

with CCC - approval<br />

RoHS<br />

100 % RoHS<br />

Reach<br />

100 % REACH<br />

with CE con<strong>for</strong>mity to <strong>the</strong><br />

EG-low voltage directive<br />

Industrial <strong>control</strong> <strong>cable</strong>s GLOBALFLEX-PREMIUM GLOBALFLEX-PREMIUM-CY<br />

Approvals<br />

UL, CSA, VDE/HAR, GOST-R, CCC<br />

Copper conductor<br />

Insulation<br />

Stranding<br />

bare, fi ne wired acc. to EN 60228 Kl.5<br />

Special PVC, according to type TI2 to EN 50363-3 but with enhanced<br />

requirements regarding mechanical properties.<br />

cores stranded in layers<br />

Inner sheath - PVC-based special mixture<br />

Screening (acc. to EMC - electromagnetic compatibility) - tinned copper braid<br />

Sheath<br />

PVC-based special mixture, silver grey RAL 7001, oil resistant, fl ame<br />

retardant and self-extinguishing (IEC 60332.1.2 and CSA FT1 ULVW-1)<br />

Nominal voltage / acc. to UL + CSA / Test voltage 300/500 V / 600 V / 4000 V 300/500 V / 600 V / 4000 V<br />

Insulation - Specifi c volume resistance > 20 MΩ x km > 20 MΩ x km<br />

Temperature range acc. to HAR fl exible: -5 °C up to +70 °C / fixed: -40 °C up to +70 °C<br />

Temperature range acc. to UL / CSA fl exible: -5 °C up to +90 °C / fixed: -40 °C up to +90 °C<br />

Minimum bending radius - fl exible / fi xed installation 12,5x / 4x 20x / 6x<br />

XBK-KABEL


Our Product Range 7<br />

OUR COMPLETE RANGE OF CONTROL CABLES<br />

PVC - <strong>control</strong> <strong>cable</strong>s<br />

VDE-HAR-PUR - <strong>control</strong> <strong>cable</strong>s<br />

• GLOBALFLEX<br />

• GLOBALFLEX-CY<br />

• H05BQ-F / H07BQ-F<br />

• CFLEX<br />

• 2YSLCY-JB 0,6/1kV<br />

Halogen free <strong>control</strong> <strong>cable</strong>s<br />

• FLEX-H<br />

• CFLEX-H<br />

• 2YSLCYK-JB 0,6/1kV<br />

• FLEX-SY<br />

• FLEX-OE-H<br />

• CFLEX-OE-H<br />

• SOFTFLEX • ARCTICFLEX -30<br />

Electronic <strong>control</strong> <strong>cable</strong>s<br />

• WARMFLEX +90 • HOTFLEX +105<br />

• LiYY<br />

• LiYCY<br />

• FLEX-0,6/1kV black<br />

• LiYCY twisted pair<br />

• LiYY - UL - CSA<br />

Control <strong>cable</strong>s with<br />

international approvals<br />

• LiYCY - UL - CSA<br />

• GLOBALFLEX-H05VV5-F<br />

• GLOBALFLEX-PREMIUM<br />

• GLOBALFLEX-H05VVC4V5-K<br />

• GLOBALFLEX-PREMIUM-CY<br />

Additional <strong>cable</strong>s at a glance<br />

• Power <strong>cable</strong>s<br />

• Telecommunication lines<br />

• Data <strong>cable</strong>s<br />

• PVC-shea<strong>the</strong>d <strong>cable</strong>s<br />

• Renewable energy<br />

• Rubber insulated industrial <strong>cable</strong>s<br />

• Silicone <strong>cable</strong>s<br />

XBK-KABEL


YOUR BEST CONNECTION<br />

XBK-KABEL<br />

Xaver Bechtold GmbH<br />

XBK-KABEL<br />

MADE IN GERMANY<br />

Quality since 1926<br />

Unterdorf 101<br />

D-78628 Rottweil<br />

Germany<br />

Telefon +49-741-254-0<br />

Telefax +49-741-254-143<br />

E-Mail info@xbkkabel.de<br />

www.xbk-kabel.de

Hooray! Your file is uploaded and ready to be published.

Saved successfully!

Ooh no, something went wrong!
