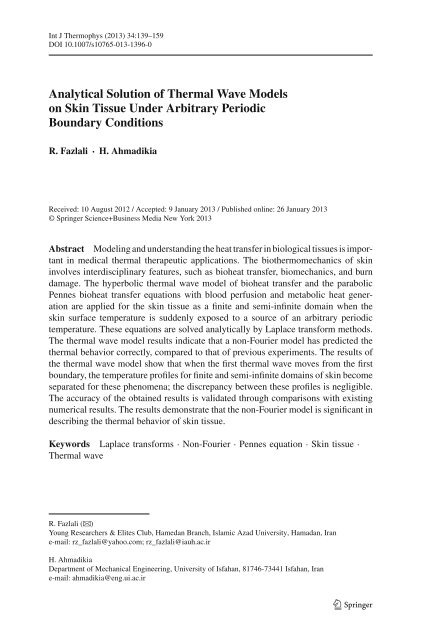

Int J Thermophys (2013) 34:139–159<br />
DOI 10.1007/s10765-013-1396-0<br />
Analytical Solution of Thermal Wave Models<br />
on Skin Tissue Under Arbitrary Periodic<br />
Boundary Conditions<br />
R. Fazlali · H. Ahmadikia<br />
Received: 10 August 2012 / Accepted: 9 January 2013 / Published online: 26 January 2013<br />
© Springer Science+Business Media New York 2013<br />
Abstract Modeling and understanding the heat transfer in biological tissues is important<br />
in medical thermal therapeutic applications. The biothermomechanics of skin<br />
involves interdisciplinary features, such as bioheat transfer, biomechanics, and burn<br />
damage. The hyperbolic thermal wave model of bioheat transfer and the parabolic<br />
Pennes bioheat transfer equations with blood perfusion and metabolic heat generation<br />
are applied for the skin tissue as a finite and semi-infinite domain when the<br />
skin surface temperature is suddenly exposed to a source of an arbitrary periodic<br />
temperature. These equations are solved analytically by Laplace transform methods.<br />
The thermal wave model results indicate that a non-Fourier model has predicted the<br />
thermal behavior correctly, compared to that of previous experiments. The results of<br />
the thermal wave model show that when the first thermal wave moves from the first<br />
boundary, the temperature profiles for finite and semi-infinite domains of skin become<br />
separated for these phenomena; the discrepancy between these profiles is negligible.<br />
The accuracy of the obtained results is validated through comparisons with existing<br />
numerical results. The results demonstrate that the non-Fourier model is significant in<br />
describing the thermal behavior of skin tissue.<br />
Keywords Laplace transforms · Non-Fourier · Pennes equation · Skin tissue ·<br />
Thermal wave<br />
R. Fazlali (B)<br />
Young Researchers & Elites Club, Hamedan Branch, Islamic Azad University, Hamadan, Iran<br />
e-mail: rz_fazlali@yahoo.com; rz_fazlali@iauh.ac.ir<br />
H. Ahmadikia<br />
Department of Mechanical Engineering, University of Isfahan, 81746-73441 Isfahan, Iran<br />
e-mail: ahmadikia@eng.ui.ac.ir<br />
123
140 Int J Thermophys (2013) 34:139–159<br />
List of Symbols<br />
Variables<br />
A Frequency factor (1/s)<br />
C Thermal wave speed in the medium (m · s −1 )<br />
c b Specific heat of blood (J · kg −1 · ◦C −1 )<br />
c t Specific heat of tissue (J · kg −1 · ◦C −1 )<br />
E a Activation energy (J · kmol −1 )<br />
H Heaviside theta function<br />
I 0 Zero rank-modified Bessel function<br />
I 1 First rank-modified Bessel function<br />
k Thermal conductivity of tissue (W · m −1 · ◦C −1 )<br />
L Skin thickness (m)<br />
q ext Heat generated (W · m −3 )<br />
q met Metabolic heat generation (W · m −3 )<br />
R Universal gas constant (J · mol −1 · K −1 )<br />
T Tissue temperature ( ◦ C)<br />
T a Blood temperature ( ◦ C)<br />
T c Minimum temperature of skin surface boundary condition ( ◦ C)<br />
T s Maximum temperature of skin surface boundary condition ( ◦ C)<br />
t Time (s)<br />
t 0 Period time (s)<br />
x Distance along the surface (m)<br />
U Unit step function<br />
Greek Symbols<br />
α Thermal diffusivity (m 2 · s −1 )<br />
Δ Duration time of a period that the boundary condition of skin surface is<br />
equal to T s (s)<br />
δ Dirac delta function<br />
ρ b Density of blood (kg · m −3 )<br />
ρ t Density of skin tissue (kg · m −3 )<br />
τ q Thermal relaxation time (s)<br />
Ω Dimensionless thermal damage<br />
ϖ b Blood perfusion rate (ml · ml −1 · s −1 )<br />
Subscripts<br />
b<br />
P<br />
t<br />
Blood<br />
Pennes equation<br />
Tissue<br />
123
Int J Thermophys (2013) 34:139–159 141<br />
1 Introduction<br />
The skin is the most extensive living organ of the human body. The skin consists<br />
of three layers: epidermis, dermis, and hypodermis (fat subcutaneous tissue). Its<br />
contribution to the body is essential and includes sensory, thermoregulation, host<br />
defense, etc. Advances in laser, microwave, and similar technologies have led to<br />
recent developments in the thermal treatment of skin diseases and injured skin tissue<br />
such as skin cancer and skin burn. Understanding heat transfer and related thermomechanical<br />
properties in soft tissue such as skin is important in medical applications.<br />
The thermal behavior of heat transfer in skin tissue is a kind of heat conduction<br />
problem that is coupled with complicated physiological problems such as blood<br />
circulation, metabolic heat generation, and other processes. Skin is affected by<br />
many factors such as age, gender, etc. Furthermore, simple elastomeric constitutive<br />
models are not suitable to describe the complicated mechanical behavior of the<br />
skin [1].<br />
Solving the heat transfer problem in soft organs such as skin has attracted the attention<br />
of many researchers. The Fourier model (Pennes equation) introduced by Pennes<br />
[2] and some non-Fourier models such as the thermal wave model of bioheat transfer<br />
and the dual-phase-lag (DPL) model were applied in modeling bioheat transfer across<br />
the tissue.<br />
One of the most complicated problems in the heat transfer of skin tissue is blood<br />
perfusion. Arkin et al. [3] have investigated the effect of blood perfusion in heat transfer<br />
on the tissues. They argued that the Pennes interpretation of the vascular contribution<br />
to heat transfer in perfuse tissues fails to account for the actual thermal equilibration<br />
process between the flowing blood and the surrounding tissue. Lang et al. [4] used<br />
the nonlinear three-dimensional heat transfer model based on temperature-dependent<br />
blood perfusion in order to predict the temperature distribution. Xu et al. [5] used<br />
the Pennes equation for modeling heat transfer in skin tissue. They applied the Green<br />
function method for solving the Pennes equation.<br />
Zhao et al. [6] solved the one-dimensional Pennes equation with a two-level finite<br />
difference scheme. They compared the numerical and experimental results in order<br />
to validate the new numerical scheme. Shih et al. [7] adopted the Laplace transform<br />
method for solving the Pennes equation with an in-surface sinusoidal heating condition.<br />
They observed that the temperature oscillation in the initial period caused<br />
by the sinusoidal heating on the skin was unstable. Liu and Xu [8] performed the<br />
blood perfusion estimation by the phase shift method in the temperature response<br />
to sinusoidal heating for the Pennes equation. In their research, the sinusoidal heating<br />
flux was considered constant, while this parameter was changeable in Ref. [7].<br />
Erdmann et al. [9] studied the optimization of the temperature distribution for regional<br />
hyperthermia based on the Pennes model by the finite element method. Ng et al.<br />
[10,11] predicted the skin burn injury and thermal profiles within heated human<br />
skin using the boundary element method. Durkee et al. [12] presented the exact<br />
analytical solution to the multiregional time-dependent bioheat equation (Pennes<br />
equation).<br />
123
142 Int J Thermophys (2013) 34:139–159<br />
Fourier’s law assumes that any thermal distribution on the body is instantaneously<br />
felt throughout the body. This means that the propagation speed of thermal distribution<br />
is infinite. This assumption is reasonable in the majority of engineering applications.<br />
This assumption is not true in the particular thermal condition, where heat conduction<br />
shows a non-Fourier feature or thermal wave phenomena, or hyperbolic heat conduction.<br />
The phase-lag behavior in the thermal wave may be justified if the layer has a<br />
very small thickness [13] or the time scale of the problem is very short [14]. Hader<br />
et al. [15] investigated the thermal behavior of a thin slab, under the effect of a fluctuating<br />
volumetric thermal disturbance described by the hyperbolic and dual-phase-lag<br />
heat conduction models. They found that the use of non-Fourier models is essential at<br />
high frequencies of the volumetric disturbance. The validity of using the microscopic<br />
hyperbolic heat conduction model under a harmonic fluctuating boundary heating<br />
source was investigated by Naji et al. [16]. They found that the use of the microscopic<br />
hyperbolic heat conduction model is essential when the value of the angular velocity<br />
of the fluctuating temperature is greater than 1 × 10 9 rad · s −1 for most metallic layers<br />
independent of their thickness.<br />
The modification of Fourier’s law presented by Cattaneo [17] and Vernotte [18] is<br />
a linear extension of the Fourier equation. The hyperbolic heat conduction model was<br />
extended to describe the thermal behavior of an anisotropic material by Al-Nimr and<br />
Naji [19]. In general, when materials (such as skin tissue) have a large relaxation time,<br />
the thermal wave phenomenon is observed in heat transfer conduction. Liu et al. [20]<br />
introduced a general form of the thermal wave model of bioheat transfer (TWMBT)<br />
in living tissues for the first time. Liu and Lu [21] and Lu et al. [22,23] reported<br />
that some thermal wave effects in bioheat transfer cannot be described by the Pennes<br />
equation. Mitra et al. [24] performed different experiments on processed meat with<br />
different boundary conditions. They observed wave-like phenomena in conduction<br />
heat transfer.<br />
Non-Fourier heat conduction of living tissue due to different kinds of heating methods<br />
are studied by employing a thermal wave model of bioheat transfer, such as heating<br />
by contact with hot material [25], laser heating [26–30], microwave heating [31,32],<br />
radio-frequency heating [33], and the dual-phase-lag model [34].<br />
In this study, the non-Fourier heat transport of skin biothermomechanics is solved<br />
analytically, where the skin surface temperature is exposed to a suddenly hot source<br />
of an arbitrary periodic temperature. The closed form of the temperature distribution<br />
function is obtained analytically for both the Pennes equation (Fourier) and thermal<br />
wave equation (non-Fourier) models for the skin as a finite and semi-infinite domain.<br />
The Pennes and thermal wave equations are solved analytically by the Laplace transform<br />
and the effect of metabolic heat. The thermal damage for skin for both Fourier<br />
and non-Fourier models are studied here.<br />
The finding of this study generates an exact analytical solution of the Pennes and<br />
thermal wave models of bioheat transfer for skin tissue as a finite and semi-infinite<br />
domain by considering an arbitrary periodic temperature for the skin surface boundary<br />
condition. Studying the thermal behaviors of skin tissue with this boundary condition<br />
by numerical solutions for Pennes, thermal wave, and dual-phase-lag bioheat transfer<br />
models is future work of the authors.<br />
123
Int J Thermophys (2013) 34:139–159 143<br />
2 Heat Transfer Models<br />
2.1 Pennes Bioheat Transfer Equation (PBHTE)<br />
For bioheat transfer, the Pennes equation is well established. This equation is based on<br />
the classical Fourier law. The Pennes bioheat transfer equation (PBHTE) is expressed<br />
as [2]<br />
ρ t c t<br />
∂T<br />
∂t<br />
+ ρ b ϖ b c b (T − T a ) = k ∂2 T<br />
∂x 2 + q met + q ext (1)<br />
Equation 1 is known as a parabolic bioheat equation. In this study, q ext is considered<br />
as zero.<br />
2.2 Thermal Wave Model of Bioheat Transfer (TWMBT)<br />
Cattaneo [17] and Vernotte [18] reported a modified unsteady heat conduction equation<br />
based on the concept of the finite heat propagation velocity as<br />
∂q(x, t)<br />
q(x, t) + τ q =−k∇T (x, t) (2)<br />
∂t<br />
BasedonEq.1, for a heat flux with the characteristic time τ q as well as the Pennes<br />
equation, a general form of the thermal wave model of bioheat transfer (TWMBT) in<br />
living tissues is expressed by Liu et al. [20]:<br />
τ q ρ t c t<br />
∂ 2 T<br />
∂t 2<br />
+ (ρ tc t + τ q ρ b ϖ b c b ) ∂T<br />
∂t<br />
+ ρ b ϖ b c b (T − T a )<br />
)<br />
(<br />
= k ∂2 T<br />
∂x 2 + ∂q met<br />
∂q ext<br />
q met + τ q + q ext + τ q<br />
∂t<br />
∂t<br />
(3)<br />
where τ q = α/C 2 is the thermal relaxation time [24,35].<br />
3 Analytical Solution of the Problem<br />
3.1 Arbitrary Periodic Surface Temperature Heating on a Finite-Domain Skin<br />
The skin surface temperature is exposed to a suddenly hot source with a temperature<br />
of T s (t). The skin tissue is considered as a perfect and infinitely wide and long layer.<br />
The adiabatic thermal condition is selected for the right boundary of the skin tissue.<br />
The geometrical problem and boundary conditions are shown in Fig. 1a.<br />
3.1.1 Solution of Thermal Wave Bioheat Transfer Equation (TWMBT)<br />
The bioheat transfer equation of a thermal wave as given in Eq. 3 is applied to describe<br />
the wave-like heat transfer process through the skin tissue. For simplicity, the new<br />
variable is defined as<br />
123
144 Int J Thermophys (2013) 34:139–159<br />
T(0,t)=T s<br />
Skin<br />
T x (L,t)=0<br />
T(0,t)=T s<br />
Skin<br />
T x (∞,t)=0<br />
x=L<br />
x<br />
x<br />
(a)<br />
skin as a finite domain<br />
(b)<br />
skin as a semi-infinite domain<br />
Fig. 1 Geometrical problem<br />
θ = T − T a (4)<br />
Equation 3, with respect to the constant q met and q ext = 0, can be rewritten in terms<br />
of a new variable and it becomes<br />
where<br />
τ q γ 1<br />
∂ 2 θ<br />
∂t 2 + (γ 1 + τ q γ 2 ) ∂θ<br />
∂t + γ 2θ = ∂2 θ<br />
∂x 2 + q m (5)<br />
γ 1 = ρ tc t<br />
k ,<br />
γ 2 = ρ bϖ b c b<br />
, q m = q met<br />
k<br />
k<br />
(6)<br />
The initial and boundary conditions can be written as<br />
θ(x, 0) = 0, θ t (x, 0) = 0 (7)<br />
θ(0, t) = T s (t) − T a = θ s (t), θ x (L, t) = 0 (8)<br />
If the boundary condition at the skin surface is periodic with an arbitrary function,<br />
we can write it in the Fourier series form. By considering the step function form at the<br />
skin surface that is shown in Fig. 2, the Fourier series form of the surface boundary<br />
condition can be written as<br />
123<br />
∞∑<br />
∞∑<br />
θ s (t) = T s (t) − T a = a 0 + a n cos(ω n t) + b n sin(ω n t) (9)<br />
n=1<br />
n=1
Int J Thermophys (2013) 34:139–159 145<br />
Fig. 2 Surface boundary<br />
condition<br />
where ω n = 2nπ/t 0 and the coefficients are obtained as<br />
a 0 =<br />
( )<br />
(Tb −T a )+(T c −T a )(t 0 −)<br />
t 0<br />
a n = 2 t 0<br />
[<br />
(Tb −T a ) sin(ω n )<br />
ω n<br />
b n =− 2 t 0<br />
[<br />
(Tb −T a )(cos(ω n )−1)<br />
ω n<br />
]<br />
+ (T c−T a )(sin(ω n t 0 )−sin(ω n ))<br />
ω n<br />
]<br />
+ (T c−T a )(cos(ω n t 0 )−cos(ω n ))<br />
ω n<br />
(10)<br />
By using the superposition theorem, this problem is divided into three sub-problems<br />
with the following boundary conditions:<br />
θ 1 (0, t) = a 0 , θ x (L, t) = 0 (11)<br />
θ 2 (0, t) = cos (ω n t) , θ x (L, t) = 0 (12)<br />
θ 3 (0, t) = sin (ω n t) , θ x (L, t) = 0 (13)<br />
By taking the Laplace transform of Eq. 5 and applying the initial conditions, the<br />
partial differential equation is changed into the following ordinary differential equation:<br />
d 2 θ<br />
dx 2 − P2 θ =− q m<br />
s ,<br />
P = √<br />
τ q γ 1 s 2 + (γ 1 + τ q γ 2 )s + γ 2 (14)<br />
The constant boundary condition problem (Eq. 11) is solved with q m and the other<br />
boundary conditions are solved with considering q m = 0, because Eq. 5 is nonhomogeneous<br />
due to term q m .<br />
The solution of Eq. 14 and applying the Laplace transform of boundary conditions<br />
(Eq. 11), can be obtained through<br />
¯θ 1 (x, s) = a 0 cosh (P(x − L))<br />
s cosh (PL)<br />
− q m cosh (P(x − L))<br />
sP 2 cosh(PL)<br />
+ q m<br />
sP 2 (15)<br />
The inverse theorem is applied for the inverse Laplace transform. For complementary<br />
information about the inverse theorem, refer to [36]. The first term of Eq. 15 has a pole<br />
123
146 Int J Thermophys (2013) 34:139–159<br />
at s = 0 and two other simple poles at s = S m + , and s = S− m , these poles are obtained<br />
as follows:<br />
⎡<br />
S m ± = 1<br />
( ) ]<br />
⎣−(γ 1 + τ q γ 2 ) ± √ (γ1 + τ q γ 2 )<br />
2τ q γ 2 − 4τ q γ 1<br />
[γ ⎤ 2 λm<br />
2 + ⎦ ,<br />
1 L<br />
( ) 2m − 1<br />
λ m =<br />
π, m = 1, 2, ... (16)<br />
2<br />
By calculating the residues at s = 0, s = S m + , and s = S− m , the inverse Laplace<br />
transform of the first term of Eq. 15 is obtained by<br />
θ 11 (x, t) = a 0 cosh ( √<br />
γ2 (x −L) ) ⎛<br />
( )<br />
∞<br />
cosh ( √<br />
γ2 L ) + ∑ 2a 0 e S+ m t λ m i cosh λm i<br />
L<br />
⎝<br />
(x −L) ⎞<br />
⎠<br />
L<br />
m=1<br />
2 S m + (2τ q γ 1 S m + +γ 1 +τ q γ 2 ) sinh (λ m i)<br />
⎛<br />
( )<br />
∞∑ 2a 0 e S− m t λ m i cosh λm i<br />
L<br />
+ ⎝<br />
(x − L) ⎞<br />
⎠<br />
L 2 Sm − (2τ q γ 1 Sm − (17)<br />
+ γ 1 + τ q γ 2 ) sinh (λ m i)<br />
m=1<br />
The poles of the second term of Eq. 15 are derived as follows:<br />
s = 0, s =− 1 τ q<br />
, s =− γ 2<br />
γ 1<br />
, s = S + m , s = S− m (18)<br />
By calculating the residues based on the above poles, the inverse Laplace transform<br />
of the second term of Eq. 15 is obtained as<br />
θ 12 (x, t) =− q m cosh ( √<br />
γ2 (x − L) )<br />
γ 2 cosh ( √<br />
γ2 L ) + q m τ q<br />
( )e − t q<br />
τq m γ 1<br />
+ ( ) e − γ 2<br />
γ1 t<br />
τq γ 2 − γ 1 γ1 − τ q γ 2 γ2<br />
(<br />
∞∑ 2q m e S+ m t cosh ( λ m i ( x<br />
−<br />
L<br />
− 1 )) )<br />
S + m=1 m λ m i(2τ q γ 1 S m + + γ 1 + τ q γ 2 ) sinh (λ m i)<br />
(<br />
∞∑ 2q m e S− m t cosh ( λ m i ( x<br />
−<br />
L<br />
− 1 )) )<br />
Sm − λ m i(2τ q γ 1 Sm − (19)<br />
+ γ 1 + τ q γ 2 ) sinh (λ m i)<br />
m=1<br />
The inverse Laplace transform of the third term of Eq. 15 is obtained by<br />
θ 13 (x, t) = q m<br />
⎛<br />
⎝ 1 γ 2<br />
−<br />
τ qe − t<br />
τq<br />
τ q γ 2 − γ 1<br />
+<br />
γ 1 e − γ 2 t<br />
γ 1<br />
( )<br />
γ 2 τq γ 2 − γ 1<br />
⎞<br />
⎠ (20)<br />
Finally, by adding Eqs. 17, 19, and 20, the closed form of the function θ 1 (x, t) is<br />
obtained by<br />
123<br />
θ 1 (x, t) = θ 11 (x, t) + θ 12 (x, t) + θ 13 (x, t) (21)
Int J Thermophys (2013) 34:139–159 147<br />
In this section, q m is assumed to be zero in Eq. 14. With a similar method, the inverse<br />
Laplace transforms of the solutions of this equation can be obtained by applying the<br />
boundary conditions (Eqs. 12, 13) in the Laplace domain.<br />
(√<br />
)<br />
cosh −τ q γ 1 ωn 2 + (γ 1 + τ q γ 2 )i ⌢ ω n + γ 2 (x − L) e iω nt<br />
θ 2 (x, t) =<br />
(√<br />
)<br />
2 cosh −τ q γ 1 ωn 2 + (γ 1 + τ q γ 2 )i ⌢ ω n + γ 2 L<br />
(√<br />
)<br />
cosh −τ q γ 1 ωn 2 + (γ 1 + τ q γ 2 )i ⌢ ω n + γ 2 (x − L) e −iω nt<br />
+<br />
(√<br />
)<br />
2 cosh −τ q γ 1 ωn 2 − (γ 1 + τ q γ 2 )i ⌢ ω n + γ 2 L<br />
⎡<br />
∞∑ 2S<br />
+ ⎣<br />
m + λ mi cosh ( λ m i ( x<br />
L<br />
− 1 )) ⎤<br />
e S+ m t<br />
(<br />
m=1 L 2 S m +2 (2τq<br />
+ ωn) 2 γ 1 S m + )<br />
⎦<br />
+ γ 1 + τ q γ 2 sinh (λm i)<br />
⎡<br />
∞∑ 2S<br />
+ ⎣<br />
m −λ mi cosh ( λ m i ( x<br />
L<br />
− 1 )) ⎤<br />
e S− m t<br />
(<br />
m=1 L 2 Sm −2 (2τq<br />
+ ω n<br />
2)<br />
γ 1 Sm − )<br />
⎦ (22)<br />
+ γ 1 + τ q γ 2 sinh (λm i)<br />
(√<br />
)<br />
cosh −τ q γ 1 ωn 2 + (γ 1 + τ q γ 2 )iω n + γ 2 (x − L) e iω nt<br />
θ 3 (x, t) =<br />
(√<br />
)<br />
2i cosh −τ q γ 1 ωn 2 + (γ 1 + τ q γ 2 )iω n + γ 2 L<br />
(√<br />
)<br />
cosh −τ q γ 1 ωn 2 − (γ 1 + τ q γ 2 )iω n + γ 2 (x − L) e −iω nt<br />
−<br />
(√<br />
)<br />
2i cosh −τ q γ 1 ωn 2 − (γ 1 + τ q γ 2 )iω n + γ 2 L<br />
⎡<br />
∞∑<br />
2ω<br />
+ ⎣<br />
n λ m i cosh ( λ m i ( x<br />
L<br />
− 1 )) ⎤<br />
e S+ m t<br />
(<br />
m=1 L 2 S m +2 (2τq<br />
+ ω n<br />
2)<br />
γ 1 S m + )<br />
⎦<br />
+ γ 1 + τ q γ 2 sinh (λm i)<br />
⎡<br />
∞∑ 2ω<br />
+ ⎣<br />
n λ m i cosh ( λ m i ( x<br />
L<br />
− 1 )) ⎤<br />
e S− m t<br />
( )<br />
⎦ (23)<br />
m=1 L 2 Sm<br />
−2 + ωn<br />
2 (2τ q γ 1 Sm − + γ 1 + τ q γ 2 ) sinh (λ m i)<br />
Finally, the closed form of function θ(x, t) is obtained by<br />
∞∑<br />
∞∑<br />
θ(x, t) = θ 1 (x, t) + a n θ 2 (x, t) + b n θ 3 (x, t) (24)<br />
n=1<br />
n=1<br />
3.1.2 Solution of the Pennes Bioheat Transfer Equation (PBHTE)<br />
The Pennes bioheat transfer equation as given in Eq. 1 is applied here to describe the<br />
parabolic heat transfer process through the skin tissue. Substituting Eq. 4 by Eq. 1, it<br />
123
148 Int J Thermophys (2013) 34:139–159<br />
gives<br />
γ 1<br />
∂T<br />
∂t<br />
+ γ 2 θ = ∂2 θ<br />
∂x 2 + q m (25)<br />
The boundary and initial conditions are similar to that of the thermal wave model.<br />
Taking the Laplace transform of Eq. 25 and considering the initial condition, we have<br />
the following:<br />
d 2 θ<br />
dx 2 − (γ 1s + γ 2 ) θ =− q m<br />
s<br />
(26)<br />
Substituting the boundary conditions of Eq. 11 for the general solution of Eq. 26,the<br />
function ¯θ P1 (x, s) on the Laplace domain is expressed as<br />
¯θ P1 (x, s) =<br />
[ ] [√<br />
a0<br />
s − q m cosh γ1 s + γ 2 (x − L) ]<br />
s (γ 1 s + γ 2 ) cosh ( √<br />
γ1 s + γ 2 L ) + q m<br />
s (γ 1 s + γ 2 )<br />
By employing the inverse theorem, the inverse Laplace transform of Eq. 27 is obtained<br />
by<br />
(<br />
θ P1 (x, t) = a 0 − q ) [√<br />
m cosh γ2 (x − L) ]<br />
γ 2 cosh ( √<br />
γ2 L ) + q m<br />
γ 2<br />
(( [√ ∞∑ 2 cosh γ1 S P + γ 2 (x − L) ] )(<br />
))<br />
e S P t<br />
+<br />
S P Lγ 1 sinh (√ γ 1 S P + γ 2 L ) √ q m<br />
a 0 γ1 S P + γ 2 − √<br />
γ1 S p + γ 2<br />
n=1<br />
(27)<br />
(28)<br />
where<br />
S P =− γ 2<br />
− 1 ( ) 2 λm<br />
, λ m =<br />
γ 1 γ 1 L<br />
( 2m − 1<br />
2<br />
)<br />
π, m = 1, 2, ... (29)<br />
In this section, q m is assumed to be zero in Eq. 26. With a similar method, the inverse<br />
Laplace transform of the solutions of this equation by applying the boundary conditions<br />
(Eqs. 12, 13), can be obtained as<br />
θ P2 (x, t) =<br />
(√<br />
)<br />
cosh γ 1 i ⌢ ω n + γ 2 (x − L) e iωnt<br />
(√<br />
) +<br />
2cosh γ 1 i ⌢ ω n + γ 2 L<br />
+<br />
(√<br />
)<br />
cosh −γ 1 i ⌢ ω n + γ 2 (x − L)<br />
)<br />
2cosh( √−γ1<br />
i ⌢ ω n + γ 2 L<br />
[ √ ∞∑ 2SP γ1 S P + γ 2 cosh (√ γ 1 S P + γ 2 (x − L) ) ]<br />
e S P t<br />
(<br />
S<br />
2<br />
P<br />
+ ωn<br />
2 )<br />
Lγ1 sinh (√ γ 1 S P + γ 2 L )<br />
m=1<br />
e −iωnt<br />
(30)<br />
123
Int J Thermophys (2013) 34:139–159 149<br />
θ P3 (x, t) =<br />
(√<br />
)<br />
cosh γ 1 i ⌢ ω n + γ 2 (x − L) e iωnt<br />
2i cosh (√ γ 1 iω n + γ 2 L )<br />
+<br />
m=1<br />
(√<br />
)<br />
cosh −γ 1 i ⌢ ω n + γ 2 (x − L) e −iωnt<br />
− 2i cosh (√ −γ 1 iω n + γ 2 L )<br />
[ √ ∞∑ 2ωn γ1 S P + γ 2 cosh (√ γ 1 S P + γ 2 (x − L) ) ]<br />
e S P t<br />
(<br />
S<br />
2<br />
P<br />
+ ωn<br />
2 )<br />
Lγ1 sinh (√ γ 1 S P + γ 2 L )<br />
(31)<br />
Finally, the closed form of the function θ P (x, t) is obtained by<br />
∞∑<br />
∞∑<br />
θ P (x, t) = θ P1 (x, t) + a n θ P2 (x, t) + b n θ P3 (x, t) (32)<br />
n=1<br />
n=1<br />
3.2 Arbitrary Periodic Surface Temperature Heating on a Semi-infinite Domain Skin<br />
In this case, the skin is assumed as a semi-infinite domain. Thus, the new boundary<br />
condition in the Laplace domain is defined as<br />
¯θ x (∞, s) = 0 (33)<br />
The geometrical problem and boundary conditions are shown in Fig. 1b. The boundary<br />
conditions at the skin surface are similar to that of Eqs. 11–13.<br />
3.2.1 Solution of Thermal Wave Bioheat Transfer Equation (TWMBT)<br />
By using the Laplace transform of the boundary conditions of Eq. 11 at the skin surface<br />
and replacing the boundary condition at x = L with Eq. 33, the solution of Eq. 14 is<br />
obtained as<br />
¯θ 1 (x, s) =<br />
The inverse Laplace transform of Eq. 34 is calculated by<br />
( a0<br />
s − q m<br />
sP 2 )<br />
e −Px + q m<br />
sP 2 (34)<br />
θ 1 (x, t) = £ −1 [ ¯θ 1 (x, s) ] =<br />
∫ t<br />
0<br />
G 1 (t − v) Q (x,v) dv + £ −1 ( q m<br />
sP 2 )<br />
(35)<br />
where<br />
G 1 (t) = £ −1 ( a 0<br />
s − q m<br />
sP 2 )<br />
, Q (x, t) = £ −1 ( e −Px) (36)<br />
123
150 Int J Thermophys (2013) 34:139–159<br />
The function Q (x, t) is simplified as follows:<br />
( (<br />
£ −1 e −Px) =£<br />
[exp<br />
−1 −x<br />
√τ q γ 1<br />
(s+ 1 )(<br />
s+ γ ) )]<br />
2<br />
τ q γ 1<br />
⎡ ⎛<br />
√<br />
(<br />
=exp − γ )<br />
√√√√ ⎛<br />
⎞⎞⎤<br />
2<br />
£ −1 ⎢ ⎜<br />
⎣exp ⎝−x √ ( )<br />
τq γ 1<br />
1<br />
γ 1 − τ q γ 2 s ⎝s+ ( ) ⎠⎟⎥<br />
γ 1 γ 1 − τ q γ 2 τq<br />
⎠⎦ ,<br />
γ 1<br />
γ 1 −τ q γ 2<br />
γ 1<br />
>τ q (37)<br />
γ 2<br />
In order to obtain the inversion of Eq. 37, the following equation is applied [37]:<br />
(<br />
£<br />
[exp<br />
−1 −x √ )] ⎡ ⎛ √<br />
κs 2 + s<br />
√ = £ −1 ⎣exp ⎝ −x κs ( s + 1 ) ⎞⎤<br />
κ<br />
√ ⎠⎦<br />
a a<br />
= δ (t − xb) s 1 (x, t) + H (t − xb) s 2 (x, t) (38)<br />
where<br />
( )<br />
s 1 (x, t) = e − 2κ t 1<br />
I0<br />
√t<br />
2κ<br />
2 −x 2 b 2 ,<br />
xbe − 2κ<br />
t<br />
s 2 (x, t) =<br />
2κ √ t 2 − b 2 x I 2 1<br />
( )<br />
1 √t<br />
2κ<br />
2 − x 2 b 2<br />
(39)<br />
where b = √ κ/a. δ and H represent the Dirac delta and Heaviside theta functions,<br />
respectively. With a similar method and using the Laplace transform of the boundary<br />
conditions of Eqs. 12 and 13 at the skin surface and assuming the skin as a semi-infinite<br />
domain, the closed form of functions θ(x, t) is obtained by<br />
∫ t<br />
θ(x, t) = D 1 +<br />
123<br />
+<br />
+<br />
∞∑<br />
n=1<br />
∞∑<br />
n=1<br />
0<br />
a n<br />
⎛<br />
⎝<br />
b n<br />
⎛<br />
⎝<br />
∫ t<br />
(G 1 (t − v) D 2 ) dv + H (t − xb)<br />
∫ t<br />
0<br />
∫ t<br />
0<br />
xb<br />
(G 2 (t − v) D 2 ) dv + H (t − xb)<br />
(G 3 (t − v) D 2 ) dv + H (t − xb)<br />
(G 1 (t − v) D 3 ) dv<br />
∫ t<br />
xb<br />
∫ t<br />
xb<br />
⎞<br />
(G 2 (t − v) D 3 ) dv⎠<br />
⎞<br />
(G 3 (t − v) D 3 ) dv⎠<br />
(40)
Int J Thermophys (2013) 34:139–159 151<br />
where<br />
⎛<br />
⎞<br />
D 1 = q m<br />
⎝ 1 −<br />
τ qe − τq<br />
t<br />
γ 1 e − γ 2 t<br />
γ 1<br />
+ ( ) ⎠ (41)<br />
γ 2 τ q γ 2 − γ 1 γ 2 τq γ 2 − γ 1<br />
⎛<br />
D 2 =δ (v − xb) exp ⎝−<br />
(<br />
v γ 1 − τ q γ 2 + γ 2<br />
2τ q γ 1<br />
γ 1<br />
)<br />
⎞<br />
(( )<br />
γ1 − τ<br />
⎠ q γ 2 √ )<br />
I 0 v<br />
2τ q γ 2 − x 2 b 2 (42)<br />
1<br />
xb ( ) (<br />
) (( )<br />
γ 1 − τ q γ 2 exp − v(γ 1−τ q γ 2 +1) γ1 −τ<br />
2τ q γ 1<br />
I q γ 2<br />
√ )<br />
1 2τ q γ 1 v 2 − x 2 b 2<br />
D 3 =<br />
√ (43)<br />
2τ q γ 1 v 2 − x 2 b 2<br />
⎛<br />
( )<br />
G 1 (t − v) = a 0 − q m<br />
⎝ 1 − τ qe − t−v<br />
⎞<br />
τq<br />
+<br />
γ 1e − γ 2 (t−v)<br />
γ 1<br />
( ) ⎠ (44)<br />
γ 2 τ q γ 2 − γ 1 γ 2 τq γ 2 − γ 1<br />
G 2 (t − v) = cos (ω n (t − v)) , G 3 (t − v) = sin (ω n (t − v)) , b = √ τ q γ 1 (45)<br />
3.2.2 Solution of the Pennes Bioheat Transfer Equation (PBHTE)<br />
By substituting the boundary conditions of Eq. 11 at the skin surface and Eq. 33 for<br />
Eq. 26, the function ¯θ P1 (x, s) is obtained as<br />
¯θ P1 (x, s) =<br />
(<br />
a0<br />
s −<br />
)<br />
q m<br />
e −√ γ 1 s+γ 2 x +<br />
s (γ 1 s + γ 2 )<br />
q m<br />
s (γ 1 s + γ 2 )<br />
(46)<br />
The inverse Laplace transform of Eq. 46 is calculated by<br />
θ P1 (x, t) = 1 2<br />
√<br />
1<br />
(<br />
a 0 − q )<br />
m<br />
γ 2<br />
γ<br />
( ) (<br />
qm<br />
− e −γ t £ −1<br />
γ 2<br />
((<br />
) )<br />
e −γ t £ −1 1<br />
1<br />
(√ √ ) − (√ √ ) e −√ √<br />
γ 1 sx<br />
s− γ s+ γ<br />
e −√ γ 1<br />
√ sx<br />
s<br />
)<br />
( ) ( )<br />
qm 1<br />
+ £ −1<br />
γ 2 s − 1<br />
(s + γ )<br />
(47)<br />
where γ = γ 2 /γ 1 . In order to obtain the inversion of Eq. 47, the following equations<br />
are applied [37]:<br />
£ −1 (<br />
£ −1 (<br />
)<br />
e −z√ s<br />
√ s + a<br />
e −z√ s<br />
s<br />
)<br />
= √ 1<br />
(<br />
e −z2 /4t − ae za e a2t erfc a √ t +<br />
πt<br />
( ) z<br />
= erfc<br />
2 √ t<br />
z<br />
2 √ t<br />
)<br />
z ≥ 0 (48)<br />
(49)<br />
123
152 Int J Thermophys (2013) 34:139–159<br />
Finally, the closed form of functionθ P1 (x, t)is obtained by<br />
θ P1 (x, t) = 1 (<br />
2 √ a 0 − q ) (<br />
m √γ<br />
e −γ t e<br />
− √ γ √ (<br />
γ 1 x e γ t erfc − √ √ )<br />
γ1 x<br />
γ t +<br />
γ γ 2 2 √ t<br />
+ √ γ e √ γ √ ( √ ))<br />
γ 1 √γ x e γ t γ1 x<br />
erfc t +<br />
2 √ t<br />
( ) (√ ) ( )<br />
qm<br />
+ e −γ t γ1 x<br />
erfc<br />
γ 2 2 √ qm (1<br />
+ − e<br />
−γ t ) (50)<br />
t γ 2<br />
By substituting the boundary conditions of Eq. 12 at the skin surface and Eq. 33 for<br />
Eq. 26 and taking q m = 0, the function ¯θ P2 (x, s) is obtained as<br />
(<br />
s<br />
¯θ P2 (x, t) =<br />
s 2 + ωn<br />
2<br />
)<br />
e −√ γ 1 s+γ 2 x<br />
(51)<br />
The inverse Laplace transform of Eq. 51 is calculated as follows:<br />
( ) ∫t<br />
θ P2 (x, t) = e −γ t 1<br />
2 √ (θ P21 (t − v) θ P22 (x, t)) dv (52)<br />
γ + iω n<br />
where<br />
0<br />
θ P21 (t − v) =−iω n e (t−v)(γ −iωn) + δ (t − v) (53)<br />
θ P22 (x, t) = √ (<br />
γ + iω n e −√ √<br />
γ +iω n γ1 x e (γ +iωn)t erfc − √ √ )<br />
√ γ1 x<br />
γ + iω n t +<br />
2 √ t<br />
+ √ γ + iω n e √ (<br />
√<br />
γ +iω n γ1 √γ<br />
√ )<br />
x e (γ +iωn)t √ γ1 x<br />
erfc + iωn t +<br />
2 √ t<br />
(54)<br />
By substituting the boundary conditions of Eq. 13 at the skin surface and Eq. 33 for<br />
Eq. 26 and taking q m = 0, the function ¯θ P3 (x, s) is<br />
( )<br />
ωn<br />
¯θ P3 (x, t) =<br />
s 2 + ωn<br />
2 e −√ γ 1 s+γ 2 x<br />
(55)<br />
The inverse Laplace transform of Eq. 55 is obtained by<br />
123<br />
θ P3 (x, t) = e−γ t<br />
4i<br />
(( ) ( ) )<br />
1<br />
1<br />
√ Y 1 (x, t) − √ Y 2 (x, t)<br />
γ + iωn γ − iωn<br />
(56)
Int J Thermophys (2013) 34:139–159 153<br />
where<br />
(<br />
Y 1 (x, t)=a 1 e −za 1e a2 1 t erfc<br />
Y 2 (x, t)=a 2 e −za 2e a2 2 t erfc<br />
√<br />
−a 1 t +<br />
z<br />
2 √ t<br />
( √<br />
−a 2 t +<br />
z<br />
2 √ t<br />
)<br />
(<br />
+a 1 e za 1e a2 1 t erfc<br />
)<br />
+a 2 e za 2e a2 2 t erfc<br />
)<br />
√<br />
a 1 t +<br />
z<br />
2 √ t<br />
( √<br />
a 2 t +<br />
z<br />
2 √ t<br />
)<br />
(57)<br />
(58)<br />
and<br />
a 1 = √ γ + iω n , a 2 = √ γ − iω n , z = √ γ 1 x (59)<br />
Finally, the closed form of the equation θ P (x, t) is obtained by<br />
∞∑<br />
∞∑<br />
θ P (x, t) = θ P1 (x, t) + a n θ P2 (x, t) + b n θ P3 (x, t) (60)<br />
n=1<br />
n=1<br />
3.3 Thermal Damage<br />
The burn evaluation is one of the most essential characteristics in the bioengineering<br />
science of skin tissue. The thermal damage begins when the basal layer temperature<br />
rises to 44 ◦ C[38]. The basal layer is located between the epidermis and dermis layers<br />
of the skin. A quantitative analysis of thermal damage was first proposed by Moritz<br />
and Henriques [39,40] based on the fact that the tissue damage could be represented<br />
as an integral of a chemical process rate:<br />
=<br />
∫ t<br />
0<br />
A exp (−E a /RT) dt (61)<br />
where A is a material parameter equivalent to a frequency factor, E a is the activation<br />
energy, and R is the universal gas constant. The constantsA and E a are obtained experimentally.<br />
By fitting these experimental data, a linear relation is observed betweenE a<br />
and ln(A), expressed as [41]<br />
E a = 21149.324 + 2688.367ln(A) (62)<br />
4 Results and Discussion<br />
In this study, the arterial blood and maximum temperature of the skin surface boundary<br />
condition are considered as T a = 376 ◦ C and T s = 100 ◦ C, respectively. The blood<br />
perfusion rate is considered as W b = ρ b ϖ b = 0.5kg · m −3 · s −1 here [7]. The<br />
other blood properties and one-layer skin properties are given in Table 1. Itisworth<br />
mentioning that the blood and tissue properties in all the results are based on data<br />
given in Table 1.<br />
123
154 Int J Thermophys (2013) 34:139–159<br />
Table 1 Thermophysical properties of blood and skin tissue [42,43]<br />
Parameters<br />
Skin density<br />
Skin specific heat<br />
Thermal conductivity of skin<br />
Metabolic heat generation<br />
Skin depth<br />
Blood density<br />
Blood specific heat<br />
Value<br />
1190 kg · m −3<br />
3600 J · kg −1 · K −1<br />
0.235 W · m −1 · K −1<br />
368.1 W · m −3<br />
0.006 m<br />
1060 kg · m −3<br />
3770 J · kg −1 · K −1<br />
Fig. 3 Temperature distribution at x = 0.0001 m for both the Pennes and thermal wave models of bioheat<br />
transfer<br />
The accuracy of the obtained analytical solutions is validated through comparison<br />
with the existing numerical results. Therefore, the temperature profiles for both the<br />
Pennes and thermal wave models for skin as a finite domain are obtained by applying<br />
the parameters introduced by Liu et al. [34], shown in Fig. 3. They assumed that the<br />
skin surface is exposed to a sudden heat source of constant temperature of 100 ◦ C and<br />
after contacting for 15 s, the heat source is removed and skin is cooled by a coolant<br />
of 0 ◦ C for 30 s. In this case, T c = 0 ◦ C, Δ = 15 s, t 0 = 45 s, and τ q = 10 s are<br />
considered. In fact, the results of the first period are compared with the numerical<br />
results of Liu et al. [34]inFig.3. By comparing the obtained results here with that of<br />
Liu et al. [34]atx = 0.0001 m, good agreement is observed. Of course, the results of<br />
this study have a little difference with the numerical results of Liu et al. [34], especially,<br />
at the locations where the thermal shocks (instantaneous jumping) have occurred. In<br />
the numerical solution of the thermal wave model due to the thermal shock, a large<br />
123
Int J Thermophys (2013) 34:139–159 155<br />
Fig. 4 Comparison between temperature response for the skin as a finite and semi-infinite domain at t =<br />
100 s and 250 s for Pennes bioheat transfer equation<br />
amount of oscillations was observed. The oscillations were decreased by increasing<br />
the accuracy of the numerical solution. In the thermal wave bioheat transfer model,<br />
the thermal wave propagation speed is finite, so instantaneous jumping is observed<br />
in the skin tissue temperature (see Fig. 3). The magnitude of the relaxation time τ q<br />
is an important characteristic of the thermal modeling of biomedical tissue and has<br />
an important effect on the temperature prediction. Mitra et al. [24] observed similar<br />
experimental wave-like results. These results show that the Pennes bioheat transfer<br />
model could not predict the instantaneous jump in the skin temperature, while the<br />
thermal wave model could predict this phenomenon correctly.<br />
In the thermal wave model of bioheat transfer, the thermal relaxation time generally<br />
is considered as τ q = 16 s for the skin tissue in previous research [24]; thus, τ q = 16 s is<br />
used here. The temperature profiles along the skin depth for both skins, having finite<br />
and semi-infinite domains at two different times for the Pennes and thermal wave<br />
models of bioheat transfer are shown in Figs. 4 and 5, respectively. Here, T c = 37 ◦ C,<br />
Δ = 45 s, and t 0 = 90 s are applied. The Pennes equation is based on an infinite speed<br />
of thermal wave propagation and due to this assumption, the type of bottom surface<br />
boundary condition gains an important effect on the temperature distribution even<br />
during the initial stages of heating. Figure 4 illustrates that the discrepancy between<br />
the results of the finite and semi-infinite skin domains is increased with increasing<br />
time. As shown is Fig. 5, in the results of the thermal wave model, there is good<br />
agreement in the finite and semi-infinite skin domains up to about 100 s, but after<br />
this time reaches about t = 102.47 s, the temperature profiles related to the skin as<br />
finite and semi-infinite domains become separated since the first thermal wave reaches<br />
x = L. This discrepancy is related to the right surface boundary condition. As for the<br />
finite domain, at the thermal wave reaches x = L, the adiabatic boundary condition<br />
123
156 Int J Thermophys (2013) 34:139–159<br />
Fig. 5 Comparison between temperature response for the skin as a finite and semi-infinite domain at t =<br />
100 s and 250 s for thermal wave model of bioheat transfer<br />
Fig. 6 Temperature response for the skin as a finite domain at x = 0.0001 m for both the Pennes and<br />
thermal wave models of bioheat transfer<br />
at x = L is not a suitable assumption because it means that heat cannot transfer into<br />
the depth more than x = L. Therefore, the results of Figs. 4 and 5 are not reality at<br />
large times and only illustrate that the boundary condition of the end of the skin is<br />
not important in the results of the thermal wave model while the first thermal wave is<br />
reached at x = L.<br />
123
Int J Thermophys (2013) 34:139–159 157<br />
Fig. 7 Temperature response for the skin as a finite domain at x = 0.0016 m for both the Pennes and<br />
thermal wave models of bioheat transfer<br />
The temperature response of the Pennes and thermal wave models for two selected<br />
blood perfusion rates at two different spatial locations, x = 0.0001 m and x =<br />
0.0016 m, are shown in Figs. 6 and 7, respectively. Here, T c =37 ◦ C, Δ = 5 s, and t 0 =<br />
10 s are applied. In these figures, for the temperature profile of the thermal wave model,<br />
a wave-like behavior is observed. As shown in Figs. 6 and 7, the first instantaneous<br />
temperature jump profile at the locations of x = 0.0001 m and 0.0016 m occurred at<br />
about t = 1.7 s and t = 27.3 s, respectively. The effect of the blood perfusion rate<br />
in tissue heat transfer is investigated. In general, the skin temperature decreases with<br />
an increase in the blood perfusion rate, where large amounts of heat can be carried<br />
away through the rate of blood perfusion. Figure 6 shows that the blood perfusion rate<br />
has little effect on the temperature distribution near the skin surface (x = 0.0001 m).<br />
On the other hand, Fig. 7 shows that the blood perfusion rate has a relatively large<br />
influence on heat transfer at the skin depth (x = 0.0016 m).<br />
The variation of thermal damage with time for both the Pennes and thermal wave<br />
models with τ q = 16 s, T c = 37 ◦ C,Δ = 5 s, and t 0 = 10 s at the locations of<br />
x = 0.0001 m and 0.0016 m is shown in Fig. 8. In this study, the thermal damage<br />
of skin is calculated by using the burn integration of Eq. 61, with the frequency<br />
factor A = 3.1 × 10 98 and the ratio of activation energy to universal gas constant<br />
E a /R = 75 000 [40]. A wave-like behavior can also be observed in the results of<br />
the thermal damage of the thermal wave model. The results in Fig. 8 illustrate that,<br />
in general, the thermal damage predicted by the Pennes and thermal wave models<br />
are different. This difference is due to the lack of consideration with respect to the<br />
non-Fourier effects on the materials that have the great thermal relaxation times when<br />
exposed to sudden temperature variations. Thus, it can be deduced that on neglecting<br />
these conditions, large deviations are observed in the predictions of the temperature<br />
distribution, thermal damage, and thermal stress.<br />
123
158 Int J Thermophys (2013) 34:139–159<br />
Fig. 8 Thermal damage profile for the skin as a finite domain at x = 0.0001 m and 0.0016 m for both the<br />
thermal wave model and Pennes equation<br />
5 Conclusions<br />
The thermal behavior of skin tissue was investigated here. The thermal wave and<br />
Pennes bioheat transfer models were applied for the energy equation in skin as finite<br />
and semi-infinite domains. The governing equations were solved analytically by means<br />
of the Laplace transform. The inverse theorem is applied to calculate the inverse<br />
Laplace transform. The thermal damage was studied at x = 0.0001 m and 0.0016 m<br />
locations. The obtained results were compared with those obtained by Liu et al. [34]<br />
to validate the accuracy of the analytical solution here. This comparison shows good<br />
agreement between both results. The results show that wave-like behavior is observed<br />
for the thermal wave model and the thermal relaxation time τ q has an important effect<br />
on the temperature distribution. The results indicate that the thermal wave model<br />
could predict the instantaneous jump in the temperature profile, consistent with the<br />
experimental results obtained by Mitra et al. [24], while the Pennes equation does not<br />
show a prediction of this kind of jump in the temperature profile.<br />
The results of the Pennes equation for skin as either a finite or semi-infinite domain<br />
are compared. There is a discrepancy between the temperature responses from the<br />
finite and semi-infinite domains even during the initial stage heating. On the other<br />
hand, the relaxation time of skin is great and the speed of the thermal wave is finite.<br />
The results of the thermal wave model show that two graphs of finite and semi-infinite<br />
models of skin tissue are quite identical before the first thermal wave is propagated<br />
at the right boundary of the tissue. The temperature profiles become separated. This<br />
phenomenon show that the boundary condition at the end of the skin is not important<br />
in the results of the thermal wave model when the first thermal wave reached x = L.<br />
123
Int J Thermophys (2013) 34:139–159 159<br />
The thermal damage results show that the obtained burn times for the Pennes and<br />
thermal wave models are different in general. The thermal wave behavior is observed<br />
in the thermal damage profile.<br />
References<br />
1. Y.C. Fung, Biomechanics: Motion, Flow, Stress, and Growth (Springer, New York, 1990)<br />
2. H.H. Pennes, J. Appl. Physiol. 1, 93 (1948)<br />
3. H. Arkin, L.X. Xu, K.R. Holmes, IEEE Trans. Biomed. Eng. 41, 97 (1994)<br />
4. L. Lang, B. Erdmann, M. Seebass, IEEE Trans. Biomed. Eng. 46, 1129 (1999)<br />
5. F. Xu, T.J. Lu, K.A. Seffen, J. Mech. Phys. Solids 56, 1852 (2008)<br />
6. J.J. Zhao, J. Zhang, N. Kang, F. Yang, Appl. Math. Comput. 171, 320 (2005)<br />
7. T.C. Shih, P. Yuan, W.L. Lin, H.S. Kou, Med. Eng. Phys. 29, 946 (2007)<br />
8. J. Liu, L.X. Xu, IEEE Trans. Biomed. Eng. 46, 1037 (1999)<br />
9. B. Erdmann, J. Lang, M. Seebass, Ann. N.Y. Acad. Sci. 858, 36 (1998)<br />
10. E.Y.K. Ng, H.M. Tan, E.H. Ooi, Burns 35, 987 (2009)<br />
11. E.Y.K. Ng, H.M. Tan, E.H. Ooi, Phil. Trans. R. Soc. Lond., Ser. A 368, 655 (2010)<br />
12. J.W. Durkee Jr, P.P. Antich, C.E. Lee, Phys. Med. Biol. 35, 847 (1990)<br />
13. M.A. Hader, M.A. Al-Nimr, Heat Transf. Eng. 23, 35 (2002)<br />
14. A.F. Khadrawi, M.A. Al-Nimr, M. Hammad, Int. J. Thermophys. 23, 581 (2002)<br />
15. M.A. Hader, M.A. Al-Nimr, B.A. Abu Nabah, Int. J. Thermophys. 23, 1669 (2002)<br />
16. M. Naji, M.A. Al-Nimr, M. Hader, Int. J. Thermophys. 24, 545 (2003)<br />
17. C. Cattaneo, Comp. Rend. 247, 431 (1958)<br />
18. P. Vernotte, Comp. Rend. 246, 3154 (1958)<br />
19. M.A. Al-Nimr, M. Naji, Int. J. Thermophys. 21, 281 (2000)<br />
20. J. Liu, Z. Ren, C. Wang, Chin. Sci. Bull. 40, 1493 (1995)<br />
21. J. Liu, W.Q. Lu, Space Med. Med. Eng. 10, 391 (1997)<br />
22. W.-Q. Lu, J. Liu, Y. Zeng, Eng. Anal. Bound. Elem. 22, 167 (1998)<br />
23. W.-Q. Lu, J. Liu, Y. Zeng, J. Eng. Thermophys. 19, 728 (1998)<br />
24. K. Mitra, S. Kumar, A. Vedavarz, M.K. Moallemi, J. Heat Transfer, Trans. ASME 117, 568 (1995)<br />
25. K.C. Liu, Int. J. Therm. Sci. 47, 507 (2008)<br />
26. M. Jaunich, S. Raje, K. Kim, K. Mitra, Z. Guo, Int. J. Heat Mass Transf. 51, 5511 (2008)<br />
27. F. Xu, T.J. Lu, K.A. Seffen, E.Y.K. Ng, Appl. Mech. Rev. 62, 50801 (2009)<br />
28. M.M. Tung, M. Trujillo, J.A. Lopez Molina, M.J. Rivera, E.J. Berjano, Math. Comput. Modell. 50,<br />
665 (2009)<br />
29. K. Ting, K.T. Chen, S.F. Cheng, W.S. Lin, C.R. Chang, Jpn. J. Appl. Phys. 47, 361 (2008)<br />
30. J. Zhou, J.K. Chen, Y. Zhang, Comput. Biol. Med. 39, 286 (2009)<br />
31. S. Ozen, S. Helhel, S. Bilgin, Radiat. Environ. Biophys. 50, 483 (2011)<br />
32. S. Ozen, S. Helhel, O. Cerezci, Burns 34, 45 (2008)<br />
33. J.A. Lopez Molina, M.J. Rivera, M. Trujillo, F. Bordio, J.L. Lequerica, F. Hornero, E.J. Berjano, Open<br />
Biomed. Eng. J. 2, 22 (2008)<br />
34. K.C. Liu, P.J. Cheng, Y.N. Wang, J. Therm. Sci. 15, S61 (2011)<br />
35. D.Y. Tzou, Macro to Micro-scale Heat Transfer: The Lagging Behavior (Taylor and Francis, Washington,<br />
DC, 1997)<br />
36. V.S. Arpaci, Conduction Heat Transfer (Addison-Wesley, New York, 1966)<br />
37. A. Erdely, M.F. Oberhettinger, F.G. Tricomi, Tables of Integral Transforms (McGraw-Hill, New York,<br />
1954)<br />
38. A.M. Stoll, L.C. Greene, J. Appl. Physiol. 14, 373 (1959)<br />
39. A.R. Moritz, F.C. Henriques, Am. J. Pathol. 23, 695 (1947)<br />
40. F.C. Henriques, A.R. Moritz, Am. J. Pathol. 23, 531 (1947)<br />
41. F. Xu, K.A. Seffen, T.J. Lu, IAENG Int. J. Comput. Sci. 35, 1 (2008)<br />
42. F. Xu, K.A. Seffen, T.J. Lu, Int. J. Heat Mass Transf. 51, 2237 (2008)<br />
43. F. Xu, T. Lu, Introduction to Skin Biothermomechanics and Thermal Pain (Science Press, Beijing and<br />
Springer, Berlin, 2011)<br />
123
