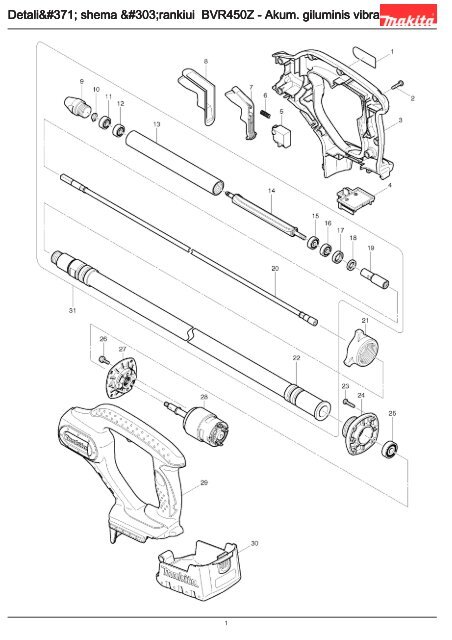

Detalių shema įrankiui BVR450Z - Akum. giluminis vibratorius1


Detalių shema įrankiui BVR450Z - Akum. giluminis vibratoriusNr. Detalės nr. Vardas1 862644-2 BVR450 NAME PLATE2 266045-0 TAPPING SCREW 4X203 188121-9 HOUSING SET4 643812-4 TERMINAL5 650580-2 SWITCH SGE120C-46 231298-0 COMPRESSION SPRING 67 419511-8 SWITCH LEVER8 421961-5 WATERPROOF COVER9 322935-8 CAP10 961002-0 RETAINING RING S-611 210018-5 BALL BEARING 62612 210018-5 BALL BEARING 62613 331503-6 PIPE 2514 322934-0 UNBALANCER15 211016-2 BALL BEARING 626LLB16 211016-2 BALL BEARING 626LLB17 421578-4 RUBBER RING18 443101-5 FELT RING19 322969-1 JOINT20 163420-0 FLEXIBLE WIRE21 416244-6 NUT 3622 163419-5 FLEXIBLE HOSE23 266045-0 TAPPING SCREW 4X2024 316893-8 BEARING BOX25 211056-0 BALL BEARING 629LLB26 911118-1 PAN HEAD SCREW M4X1227 318038-4 SUPPORTER28 629836-4 DC MOTOR29 188121-9 HOUSING SET30 158051-8 COVER COMPLETE2


Detalių shema įrankiui BVR450Z - Akum. giluminis vibratorius3


Detalių shema įrankiui BVR450Z - Akum. giluminis vibratoriusNr. Detalės nr. Vardas1 862644-2 BVR450 NAME PLATE2 266045-0 TAPPING SCREW 4X203 187351-9 HOUSING SET4 643812-4 TERMINAL5 650580-2 SWITCH SGE120C-46 231298-0 COMPRESSION SPRING 67 419511-8 SWITCH LEVER8 421961-5 WATERPROOF COVER9 322935-8 CAP10 961002-0 RETAINING RING S-611 210018-5 BALL BEARING 62612 210018-5 BALL BEARING 62613 331503-6 PIPE 2514 322934-0 UNBALANCER15 211016-2 BALL BEARING 626LLB16 211016-2 BALL BEARING 626LLB17 421578-4 RUBBER RING18 443101-5 FELT RING19 326203-1 JOINT20 163534-5 FLEXIBLE WIRE21 416244-6 NUT 3622 163537-9 FLEXIBLE HOSE23 266045-0 TAPPING SCREW 4X2024 316893-8 BEARING BOX25 211056-0 BALL BEARING 629LLB26 911118-1 PAN HEAD SCREW M4X1227 318867-5 SUPPORTER28 629947-5 DC MOTOR29 187351-9 HOUSING SET30 158051-8 COVER COMPLETE4
