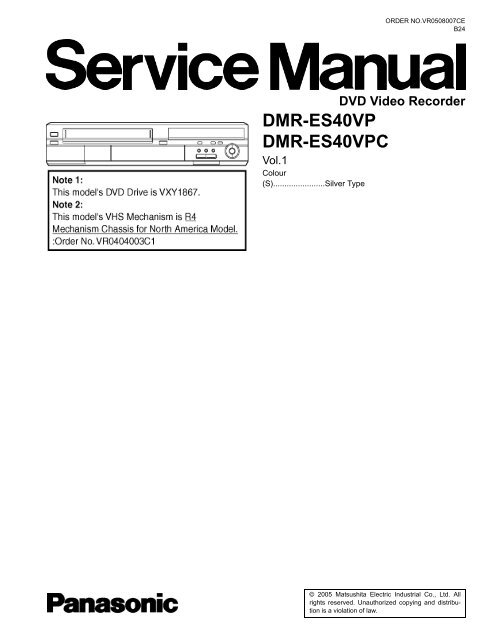

ORDER NO.VR0508007CEB24DVD Video RecorderDMR-ES40VPDMR-ES40VPCVol.1Colour(S).......................Silver Type© 2005 Matsushita Electric Industrial Co., Ltd. Allrights reserved. Unauthorized copying and distributionis a violation of law.

TABLE OF CONTENTSPAGE1 Safety Precaution -------------------------------------------------31.1. General guidelines-----------------------------------------31.2. Caution for fuse replacement ---------------------------32Warning--------------------------------------------------------------42.1. Prevention of Electrostatic Discharge (ESD)to Electrostatic Sensitive (ES) Devices---------------42.2. Precaution of Laser Diode -------------------------------52.3. Handling the Lead-free Solder--------------------------53 Service Navigation------------------------------------------------63.1. Service Information ----------------------------------------63.2. (DVD) Service Navigation--------------------------------64 Specifications ------------------------------------------------------95Features------------------------------------------------------------ 105.1. Quick start function (REC) ----------------------------- 106 Location of Controls and Components------------------ 116.1. Each Buttons ---------------------------------------------- 117 Operation Instructions ---------------------------------------- 137.1. (DVD) Taking out the Disc from RAM-DriveUnit when the Disc cannot be ejected byOPEN/CLOSE button ----------------------------------- 137.2. (VHS) Removing Cassette Tape manually -------- 148 Service Mode ----------------------------------------------------- 168.1. (DVD) Self-Diagnosis and Special ModeSetting------------------------------------------------------- 168.2. (VHS) Self-Diagnosis and Special ModeSetting------------------------------------------------------- 239 Service Fixture & Tools --------------------------------------- 2910 Disassembly and Assembly Instructions--------------- 3010.1. Disassembly Flow Chart-------------------------------- 3010.2. P.C.B. Positions------------------------------------------- 3110.3. Caution with inserting cassette tape whendisassembling the unit ---------------------------------- 3110.4. Top Case --------------------------------------------------- 3210.5. Front Panel ------------------------------------------------ 3210.6. Front Jack P.C.B. & Front P.C.B. --------------------- 3310.7. Rear Panel with Fan Motor ---------------------------- 3310.8. VTR Mechanism Unit------------------------------------ 3410.9. Main P.C.B. ------------------------------------------------ 3510.10. DVD-RAM Drive ------------------------------------------ 3510.11. Digital P.C.B. ---------------------------------------------- 3610.12. DV Jack P.C.B.-------------------------------------------- 3710.13. Power & Digital I/F P.C.B. ------------------------------ 3711 Measurements and Adjustments -------------------------- 3811.1. Service Positions----------------------------------------- 3811.2. (DVD) Caution after parts replacing parts---------- 4211.3. (VHS) Caution after replacing parts ----------------- 4311.4. (DVD) Standard Inspection Specificationsafter Making Repairs ------------------------------------ 4512 Miscellaneous ---------------------------------------------------- 4612.1. Abbreviations---------------------------------------------- 46PAGE2

1 Safety Precaution1.1. General guidelines1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated ordamaged by the short circuit.2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properlyinstalled.3. After servicing, make the following leakage current checks to prevent the customer from being exposed to shock hazards.1.1.1. Leakage current cold check1. Unplug the AC cord and connect a jumper between thetwo prongs on the plug.2. Measure the resistance value, with an ohmmeter,between the jumpered AC plug and each exposed metalliccabinet part on the equipment such as screwheads,connectors, control shafts, etc. When the exposed metallicpart has a return path to the chassis, the readingshould be between 1MΩ and 5.2MΩ.When the exposed metal does not have a return path tothe chassis, the reading must be .Figure 11.1.2. Leakage current hot check(See Figure 1.)1. Plug the AC cord directly into the AC outlet. Do not usean isolation transformer for this check.2. Connect a 1.5kΩ, 10 watts resistor, in parallel with a0.15μF capacitors, between each exposed metallic parton the set and a good earth ground such as a water pipe,as shown in Figure 1.3. Use an AC voltmeter, with 1000 ohms/volt or more sensitivity,to measure the potential across the resistor.4. Check each exposed metallic part, and measure the voltageat each point.5. Reverse the AC plug in the AC outlet and repeat each ofthe above measurements.6. The potential at any point should not exceed 0.75 voltsRMS. A leakage current tester (Simpson Model 229 orequivalent) may be used to make the hot checks, leakagecurrent must not exceed 1/2 milliampere. In case a measurementis outside of the limits specified, there is a possibilityof a shock hazard, and the equipment should berepaired and rechecked before it is returned to the customer.1.2. Caution for fuse replacement3

2 Warning2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive(ES) DevicesSome semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called ElectrostaticSensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistor-sand semiconductor"chip" components. The following techniques should be used to help reduce the incidence of component damagecaused by electrostatic discharge (ESD).1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on yourbody by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,which should be removed for potential shock reasons prior to applying power to the unit under test.2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminumfoil, to prevent electrostatic charge buildup or exposure of the assembly.3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)"can generate electrical charge sufficient to damage ES devices.5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Mostreplacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparableconductive material).7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective materialto the chassis or circuit assembly into which the device will be installed.CautionBe sure no power is applied to the chassis or circuit, and observe all other safety precautions.8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushingtogether of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient todamage an ES device).4

2.2. Precaution of Laser Diode2.3. Handling the Lead-free Solder2.3.1. About lead free solder (PbF)Distinction of PbF P.C.B.:P.C.B.s (manufactured) using lead free solder will have a PbF stamp on the P.C.B.Caution:• Pb free solder has a higher melting point than standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Pleaseuse a high temperature soldering iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ±10°C).• Pb free solder will tend to splash when heated too high (about 1100°F/600°C).• When soldering or unsoldering, please completely remove all of the solder on the pins or solder area, and be sure to heat thesoldering points with the Pb free solder until it melts enough.5

3 Service Navigation3.1. Service Information3.2. (DVD) Service Navigation3.2.1. Flow chart for contirmation6

3.2.2. Confirm “RAM-Drive Last Error” in Service ModeExecute Service Mode1. Press [VHS to DVD DUBBING], [OPEN/CLOSE] and [STOP] keys simultaneously for 5 seconds when P-off.FL Display:*After finishing display “(9). Factor of Drive Error occurring”, press [0] [2] ~[9] [9] keys of the Remote Controller so that 99memories can be displayed as maximum.2. Press [4] [2] keys of remote controller.Example of FL Display:(1) Error Number is displayed for 5 seconds.(2) Time when the error has occurred (1/2) is displayed for 5 seconds.(3) Time when the error has occurred (2/2) is displayed for 5 seconds.(4) Last Drive Error code No.1 is displayed for 5 seconds.7

(5) Last Drive Error code No2. (1/2) is displayed for 5 seconds.(6) Last Drive Error code No2. (2/2) is displayed for 5 seconds.(7) Error occurring Disc type is displayed for 5 seconds.(8) Unused (No display).(9) Factor of Drive Error occurring is left displayedError Occurring Disc State8

4 Specifications9

5 Features5.1. Quick start function (REC)1. GeneralA few seconds after tuning on the unit,you can start recording to DVD-RAM.You can switch the operation of this function (ON/OFF) on the menu screen.2. Quick start(REC) principleIn the power-off at Quick start, only power supplies for video IC,tuner and storage media are cut off.When the REC button is pushed a few second after the power button is pushed, Audio and Video data are stored inDDR SDRAM before a storage media (DVD-RAM) preparation.*Preparation time → DVD-RAM: About 8secondsAfter a storage media (DVD-RAM) preparation,Audio and Video data are transfer from DDR SDRAM to thestorage media.10

6 Location of Controls and Components6.1. Each Buttons11

7 Operation Instructions7.1. (DVD) Taking out the Disc from RAM-Drive Unit when the Disc cannot beejected by OPEN/CLOSE button7.1.1. (DVD) Forcible Disc Eject7.1.1.1. (DVD) When the power can be turned off.1. Turn off the power and press [STOP], [CH UP] keys on the front panel simultaneously for 5 seconds.7.1.1.2. (DVD) When the power can not be turned off.1. Press [POWER] key on the front panel for over 10 seconds to turn off the power forcibly, and press [STOP] [CH UP] keys onthe front panel simultaneously for 5 seconds.7.1.2. (DVD) When the Forcible Disc Eject can not be done.1. Turn off the power and pull out AC cord.2. Remove the Top Case.3. Remove the Front Panel.4. Remove screw (A) and Earth Angle.5. Remove 4 screws (B) and Upper Base Unit from DVD-RAM Drive.6. Take out the disc and put the Opener Roller on fully position for direction of Arrow.7. Put the Upper Base Unit so that the Opener Roller is inserted into the groove.8. Check center of Opener Roller is seen through the Opener position Checking Hole, and tighten 4 screws (B).13

7.2. (VHS) Removing Cassette TapemanuallyWhen the cassette tape could not be uninstalled from an electricalmalfunction, there are 2 ways to remove a cassette tape.7.2.1. (VHS) Removal by compulsoryunloading.If Service Mode can be activated when the power can not beturned on, this operation is able.1. Press [FF] and [EJECT] button simultaneously for morethan 3 seconds and set the Service Mode to 7.2. Press [STOP] button in order to unload the mechanism.(Pay attention to tape slack)Service Mode Display:7 ** ** (STOP) → 7 0L ** (EJECT)7.2.2. (VHS) Removal by manual operationby rotating the Loading Motorwith the batteries.1. Disconnect the AC plug, and remove the Top Panel andthe Front Panel by referring to the Disassembly Procedures.2. Connect three batteries (1.5V spec.) to the Loading Motorin series for supplying 4.5V to rotate the Loading Motor asshown below.3. Stop unloading just before unloading will be completed asshown below, and then the tape becomes slack as shownbelow.4. Rotate the S-Reel by a small minus screwdriver toremove the slack tape as shown below.5. Then unload again to remove the cassette tape as shownbelow.14

7.2.3. (VHS) Take out Cassette Tapemanuallyafter removing the mechanism1. Disconnect the AC plug, and remove the Top Panel, FrontPanel and the Mechanism by referring to "14 Assemblingand Disassembling"2. Remove the Screw and remove the Loading Motor asshown below.6. Attach Loading Motor and tighten the screw.7. Set the Position Switch to EJECT POSITION certainlyand attach the mechanism to chassis as shown below.3. Rotate the Main Cam Gear counter-clockwise until justbefore the unloading will be completed as shown below. .4. Rotate the Capstan Motor clockwise to remove the slacktape as shown below.5. Rotate the Main Cam Gear counter-clockwise again toremove the cassette-tape as shown below.15

8 Service Mode8.1. (DVD) Self-Diagnosis and Special Mode Setting8.1.1. (DVD) Self-Diagnosis FunctionsSelf-Diagnosis Function provides information for errors to service personnel by “Self-Diagnosis Display” when any error hasoccurred.U**, H** and F** are stored in memory and held.Display on FL will be cancelled when the power is turned off or AC input is turned off during self-diagnosis display is ON.You can check latest error code by transmitting [0] [1] of Remote Controller in Service Mode.Automatic Display on FL will be cancelled when the power is turned off or AC input is turned off during serf-diagnosis display is ON.Error Code Diagnosis contents Description Monitor Display Automatic FL displayU30 Remote control code error Display appears when main unit and remote No displaycontroller codes are not matched.U59Abnormal inner temperaturedetectedDisplay appears when the drive temperatureexceeds 70°C.The power is turned off forcibly.For 30 minutes after this, all key entries aredisabled. (Fan motor operates at the highestspeed for the first 5 minutes. For the remaining25 minutes, fan motor is also stopped.)The event is saved in memory as well.U99 Hang-up Displayed when communication error hasoccurred between Main microprocessor andTimer microprocessor.No displayNo display“*” is remote controller code of themain unit.Display for 5 seconds.“U59 is displayed for 30 minutes.F00 No error information Initial setting for error code in memory(Error code Initialization is possible with errorcode initialization and main unit initialization.)No displayF58 Drive hardware error When drive unit error is detected, the event is No displaysaved in memory.F34 Initialization error when main When initialization error is detected after startingNo displayup main microprocessor for programmicroprocessor is started upfor program recording recording, the power is turned off automatically.The event is saved in memory.UNSUP-PORTUnsupported disc error*An unsupported format disc was played, “This disc isalthough the drive starts normally.incompatible.”*The data format is not supported, althoughthe media type is supported.*Exceptionally in case of the disc is dirty.Displayed is left until the [POWER]key is pressed.No displayNo displayNo displayDisplay for 5 seconds.NO READ Disc read error *A disc is flawed or dirty.*A poor quality failed to start.*The track information could not be read.HARDERRDrive error The drive detected a hard error. No display Display for 5 seconds.SELFCHECKUNFOR-MATRestoration operationUnformatted disc errorSince the power cord fell out during a power No displayfailure or operation, it is under restorationoperation.*It will OK, if a display disappears automatically.If a display does not disappear, there isthe possibility that defective Digital P.C.B. /RAM drive.You have inserted an unformatted DVD-RAM This disc is not formattedpropfrly.or DVD-RW that is unformatted or recordedon other equipment.Do you want to formatthe disc in DiscManagement?16

Error Code Diagnosis contents Description Monitor Display Automatic FL displayPLEASEWAITUnit is in termination process Unit is in termination process now.“BYE” is displayed and power will be turnedoff.In case “Quick Start” of setup menu is ON, itis displayed in restoration operation for ACoff.No displayF60DVD module has not beenstarted.Defect of Digital P.C.B.Mode: No changeNo displayF09 Serial Communication Error Please confirm Serial Communication terminalof Microprocessor.No displaybetween VHS Microprocessorand Timer Microprocessor. NOTE:If F09 appears just after updating Firmware,pull off and insert AC plug, then it will disappear.8.1.2. (DVD) Special Modes SettingItem FL display Key operationMode name Description Front KeyTEST Mode*All the main unit's parameters (include tuner)are initialized.Press [VHS to DVD DUBBING],[REC] and [OPEN/CLOSE] keyssimultaneously for five secondswhen power is off.Service ModeForced disc ejectSetting every kind of modes for servicing.*Details are described in “8.1.3. ServiceMode at a glance”.When the power is off, press [VHSto DVD DUBBING], [OPEN/CLOSE]and [STOP] keys simultaneously for5 seconds.Removing a disc that cannot be ejected. The display before execution When the power is off, pressThe tray will open and unit will shift to P-off leaves.mode.[STOP] and [CH UP] keys simultaneouslyfor 5 seconds.*When Timer REC is ON, execute " Forceddisc eject " after releasing Timer REC.While Demonstration Lock is being set, thisForced disc eject function is not accepted.Forced power-offAgingWhen the power button is not effective while Display in P-off mode.power is ON, turn off the power forcibly.*When Timer REC is ON, execute “ForcedPower-off” after releasing Timer REC.Perform sequence of modes as * Aging Display following the then mode.Description shown below continually.Press [Power] key over than 10 seconds.When the power is ON, press [CHDOWN], [VHS to DVD DUBBING]and [OPEN/CLOSE] simultaneouslyfor over 5 seconds and lessthan 10 seconds.NOTE1:If Unit has not turned into Agingmode by operations shown above,execute TEST MODE once and reexecuteoperation shown above.(*All the main unit’s parametersinclude tuner are initialized by TESTmode.)NOTE2:If the unit has hung-up because ofpressing keys for over 10 seconds,once turn off the power, and re-executethis command.*When releasing Aging mode, press[POWER] key.17

Item FL display Key operationMode name Description Front KeyAging Contents (Example):Demonstrationunlocklock/Ejection of the disc is prohibited.*When lock the tray.The lock setting is effective until unlocking thetray and not released by “Main unit initialization”of service mode.“LOCK” is displayed for 3 seconds.*When unlock the tray.When the power is on, press[STOP] and [POWER] keys simultaneouslyfor 5 seconds.When the power is on, press[STOP] and [POWER] keys simultaneouslyfor 5 seconds.“UNLOCK” is displayed for 3 seconds.*When press OPEN/CLOSE key Press [OPEN/CLOSE] key while thewhile the tray being locked. tray being locked.ATP InitializationATP setting is initialized, and the unit turns offautomatically.Display “LOCK” for 3 seconds.It is same with display in stop mode. When the power is on (E-E mode),press [CH UP] and [CH DOWN]simultaneously for 5 seconds.Progressive initializationThe progressive setting is initialized to Interlace.The display before executionleaves.When the power is on (E-E mode),press [STOP] and [VHS to DVDDUBBING] simultaneously for 5seconds.18

8.1.3. (DVD) Service Modes at a glanceService mode setting: While the power is off, press [STOP], [VHS to DVD DUBBING] and [OPEN / CLOSE] simultaneously for fiveseconds (OPERATION SELECT should be set to DVD).Item FL display Key operationMode name Description (Remote controller key)Release Items Item of Service Mode executing is cancelled. Press [0] [0] or [Return] in servicemode.Error Code DisplayLast Error Code of U/H/F held by Timer is displayedon FL.*Details are described in “8.1.1. Self-DiagnosisFunctions”.Press [0] [1] in service modeROM Version DisplayRegion code, MAIN firm version, TIMER firm Region codeversion, DRIVE firmware versions and VHSMicroprocessor version are displayed on FLfor five seconds per each version in order, butVHS ROM correction version will be left displayed.MAIN firm versionPress [0] [2] in service modeTIMER firm versionDRIVE firm versionROM versionVHS Microprocessor versionVHS ROM correction versionWhite Picture Output‘’ * ’’ are version displays.White picture is output as component Output *Initial mode is “Interlace”.from AV Decoder.*White picture(Saturation rate : 100%)*It is enable to switch Interlace/Progressiveby “I/P switch: [1] [4]”Switch Interlace/ProgressivePress [1] [1] in service mode.Press [1] [4] in White Picture Outputmode.*I/P are switched alternately.Magenta Picture OutputMagenta picture is output with Component *Initial mode is “Interlace”.Output from AV Decoder.*Magenta picture(Saturation rate: 100%)*It is enable to switch Interlace/Progressiveby “I/P switch: [1] [4]”Switch Interlace/ProgressivePress [1] [2] in service mode.Press [1] [4] in Magenta PictureOutput mode.*I/P are switched alternately.19

Item FL display Key operationMode name Description (Remote controller key)RTSC Return in XP(A & V)L1 input signal is encoded (XP), decoded Initial mode: EE2/ Interlace/ XP/ Press [1] [3] in service mode.(XP) and output decoded signal to external Audio 48kHzwithout DISC recording and DISC playback.Switch Interlace/ProgressivePress [1] [4] in RTSC Return XPmode.*I/P are switched alternately.I/P SwitchSwitch Interlace and Progressive in EE mode. Initial mode is Interlace*Initial setting is “Interlace”.*This command is effective during executing“White Picture Output”, “Magenta Picture Output”and “RTSC Return in XP (A & V)” modes.Switch Interlace/ProgressivePress [1] [4] in I/P Switch mode.*I/P are switched alternately.Audio Mute (XTMUTE)Check whether mute is applied normally bythe timer microprocessor.Press [2] [1] in service mode.Audio Mute (XDMUTE)Check whether mute is applied normally bythe Digital P.C.B..Press [2] [2] in service mode.Audio Pattern OutputThe audio pattern stored in the internal memoryis outputInitial mode (Audio 48kHz)(Lch: 1kHz/-18dB)(Rch: 400Hz/-18dB)*Audio sound clock switching operation ofDAC can be confirmed by sub command [2] Audio 44.1kHz/48kHz switching[4].Press [2] [3] in service mode.Press [2] [4] in Audio Pattern Outputmode.*48 kHz / 44.1 kHz are switchedalternately.Laser Used Time IndictionCheck laser used time (hours) of drive.Press [4] [1] in service mode.Delete the Laser UsedTimeLaser used time stored in the memory of theunit is deleted.l(*****) is the used time display inhour.lLaser used time of DVD/ CD inPlayback/Recording mode iscounted.Press [9] [5] in service mode.20

Item FL display Key operationMode name Description (Remote controller key)RAM Drive Last Error RAM Drive error code display.1. Error Number is displayed for 5 Press [4] [2] in service mode.*For details about the drive error code, refer seconds.to the Service Manual for the specific RAMDrive.*Details are described in “3.2.2. ConfirmWhen “INFO******” is being displayed,past 99 error histories canbe displayed by pressing [0] [1] - [9][9]“RAM-Drive Last Error” in Service Mode”.2. Time when the error has occurred(1/2) is displayed for 5 seconds.YY: YearMM: MonthDD: Day3. Time when the error has occurred(2/2) is displayed for 5 seconds.hh: Hourmm: Minutess: Second4. Last Drive Error code No.1 is displayedfor 5 seconds.5. Last Drive Error code No.2 (1/2)is displayed for 5 seconds.6. Last Drive Error code No.2 (2/2)is displayed for 5 seconds.7. Error occurring Disc type is displayedfor 5 seconds.DISC 1: DVDDISC 2: CDDISC 3: DVD-RAM 2.6GBDISC 4: DVD-RAM 4.7GBDISC 5: DVD-RDISC : Unknown Disc8. Unused (No display)9. Factor of Drive Error occurring isleft displayedDelete the Last DriveErrorDelete the Last Drive Error information storedon the DVD RAM-Drive.Press [9] [6] in service mode.Turn on all FL/LEDsAll segments of FL and all LEDs are turnedon.All segments are turned on.Press [5] [1] in service mode.21

Item FL display Key operationMode name Description (Remote controller key)S1 signal output Forcibly superimpose the S1 signal (approx.4.5V DC) on the EE chroma signal, and checkthe output on the S terminal.Press [5] [2] in service mode.S2 signal outputForcibly superimpose the S2 signal (approx.2V DC) on the EE chroma signal, and checkthe output on the S terminal.Press [5] [3] in service mode.Front connection inspectionPress all front keys and check the connectionbetween Main P.C.B. and Front key Switches.Press [5] [4] in service mode.Display the accumlatedworking timeDisplay the accumulated unit's working time.(1) Each time a key is pressed, segmentturned on increases one byone.(2) Total umber of keys that havebeen pressed.Press [6] [4] in service mode.Delete the Error HistoryDelete Error History information stored on theunit.(Indicating unit: hour)Press [9] [7] in service mode.Tray OPEN/CLOSE TestThe RAM drive tray is opened and closedrepeatedly.Press [9] [1] in service mode*When releasing this mode, pull offAC plug.Error code initializationInitialization of the last error code held bytimer (Write in F00)“*” is number of open/close cycletimes.Press [9] [8] in service mode.Initialize ServiceLast Drive Error, Error history and ErrorCodes stored on the unit are initialized to factorysetting.Press [9] [9] in service mode.Finishing service mode Release Service Mode. Display in STOP (E-E) mode. Press power button on the frontpanel or Remote controller in servicemode.22

8.2. (VHS) Self-Diagnosis and Special Mode Setting8.2.1. (VHS) Self-Diagnosis FunctionsThis model has a self-diagnosis and display function. If the VHS section detects trouble during installation or during use, one of thefollowing Error Codes will automatically appear in the display on VHS side. Error Codes are displayed in the form of a single Englishletter followed by two numbers, as for example "H01".Note:1. The indication "U" is displayed on the FIP while power remains on.2. The indication "H" or "F" is displayed on the FIP, and the power is automatically turned off. When the power is turned on again,the Error indication code will disappear and the unit will return to normal display mode (either clock or counter is displayed).3. This Error indication code will be stored in the microprocessor even after the AC plug being disconnected.The two-digit number portion of the stored Error indication code can be re-displayed in "second" display portion (the last 2 digitsof the FIP) by placing the unit is Service Mode Number 3 When turning on Service Data Display as for example "01" or "02"etc. If a second error occurs, the most recent error will be displayed and stored until 3 self-diagnosis histories in maximum.4. To erase the stored Error Code data, Press FF and EJECT buttons on VCR simultaneously for over 5 seconds in ServiceMode 3.Error Number at a glanceMemory No.Reason Automatic display Memory(Error No.)H01The cylinder could not be started.YesYes(Error of the cylinder or the cylinder driver.)H02 The CAP FG could not be detected. Yes YesF03 Mechanism lock during without the unloading and the cassette-up. Yes YesF04 Mechanism lock during unloading Yes YesF05S-reel pulse cannot be detected when a cassette tape is inserted.NoYes(Error of the S-reel system or the Capstan system.)F06 Mechanism lock during the Cassette-up. Yes YesF09Communication Error between VHS Microprocessor (IC6001) and Timer MicroprocessorYesYes(IC7501)H07 The recording circuit can not be operated in REC mode. Yes YesH08 The recording circuit is operated in except for REC mode. Yes YesU11 Cylinder clogs during the PLAY mode. Yes YesF15S-reel pulse cannot be detected when a cassette tape is inserted.NoYes(Error of the S-reel system or the Capstan system.)H16 Detection of the Cylinder lock during the constant rotation No YesH17 Detection of S-reel lock during the constant tape running Yes YesH18 Detection of T-reel lock during the constant tape running Yes YesF20NG1 in the PG Shifter Automatic AdjustmentYesYes(The cylinder rotation is unstable during the automatic adjustment.)F21NG2 in the PG Shifter Automatic AdjustmentYesYes(The vertical sync signal is lacked while over 5 seconds on the alignment tape.)F22NG3 in the PG Shifter Automatic AdjustmentYesYes(The installing position of Heads to the cylinder is our of specification.)F23NG4 in the PG Shifter Automatic AdjustmentYesYes(The servo is not locked to the cylinder for more than 10 sec.)H80 An exceptional ejection depends on a Error No Yes23

8.2.2. (VHS) Special Modes SettingItem FL display Key operationMode name Description Front KeyTracking CenterTape Tracking is adjusted to center No display.During PLAYBACK, press [(VHS) CHFIX position.UP] and [(VHS) CH DOWN] keyssimultaneously.VHS Service ModeIn order to make service easy, a partof inside information of a microprocessoris displayed on FIP.*Details are described in "8.2.3.(VHS) Service Mode".Press [FF], and [EJECT] keys simultaneouslyfor 3 seconds when poweris off.Releasing Timer Program Releasing Continuation Timer ProgramNo display.While in Timer REC mode, press[(VHS) STOP] key for 3 seconds.Eject Ejecting Cassette Tape No display. While in other than Timer REC mode,press [(VHS) STOP] key for 3 secondsor press [STOP] key of theRemote Controller for 3 seconds inVHS mode.8.2.3. (VHS) Service ModesSet OPERATION SELECT to VHS.When power is OFF, press [FF] and [EJECT] keys simulta- neously for 3 seconds to into Service Mode.In Service Mode, press [FF] and [EJECT] keys simultaneously to add Service Number.8.2.3.1. (VHS) Service Mode and Service Data at a glanceService Contents Contents of Indication on minute Contents of Indication on second RemarksNumber0 Indication for the VHS modeProcess numberinner data of (Real time)(Real time)IC6001VCR mode(OPM)Management number of the processingduring mechanism shifting1 Indication for the Starting / finishing edges detecting Data of receiving key (Real time)inner data of dataIC6001(Real time)00: Both starting / finishing edges Indicate the receiving code when thehave not been01: Starting edge is detecting nowkey of VCR or remote controllerbeing operated.02: Finishing edge is detecting now03: Both starting / finishing edgesare detecting now24

ServiceNumber2 Indication for the Mechanism positioninner data of (Real time)IC60010L: EJECT position02: DOWN position03: RREW position04: LOAD position05: REV position06: PLAY position07: POFF position08: STOP_R position09: STOP_F position- : FF/REW position- : Intermediate betweeneach positionsContents Contents of Indication on minute Contents of Indication on second Remarks3 Self-diagnosis history(1st)Error number of history 14 Self-diagnosis historyError number of history 2(2nd)5 Self-diagnosis history(3rd)8.2.3.2. Example of FIPError number of history 3Ordering for the Motors(Real time)0*, 2*: CYL off,CAP off1*: CYL off,CAP on (fwd)3*: CYL off,CAP on (rev)8*, A*: CYL on,CAP off9*: CYL on,CAP on (fwd)B*: CYL on,CAP on (rev)*0: Motor off*1: Loading*2: Unloading*3: Break (Load + Unload)There are next conditions in thismode for enable the mechanismoperations without a cassette tape.l The starting / finishing edges arenot detected.l The reel lock is not detectedl The tape and the positions are notdetected., And so on.Press the EJET key for over 3 secondsin this mode, and then the VCRis shifted into the special modes,such as PG Adjustment, Model CodeSetting, and so on.The orders for the motors are as follows.Bit 7: CYL ON/OFFBit 6: ------------------Bit 5: CAP FWD/REVBit 4: CAP ON/OFFBit 3: ------------------Bit 2: ------------------Bit 1: UNLOADING(H)Bit 0: LOADING(H)Supplementary data 1 and 2 of history1.BYTE is memorized for an Error.In the Self-Diagnosis Memory, next 3Supplementary data 1 and 2 of history2.2 BYTE: Its supplementary1 BYTE: Its Error numberdataSupplementary data 1 and 2 of history3.6 Indication for the Real time servo data (4 digits)inner data of (Real time)IC6001Higher rank 1 BYTE of SERVO data Lower rank 1 BYTE of SERVO data7 Manual mechanismoperationIn these modes, the supplementarydata 3 and 4 instead of the Errornumber and supplementary data 1and 2 are indicated only while pressingSTOP key.Real time mechanism position Real time ordering for the Motors Press the STOP key, and then the0L: EJECT position02: DOWN position03: RREW position04: LOAD position05: REV position06: PLAY position07: POFF position08: STOP_R position09: STOP_F position- : FF/REW position- : Intermediate betweeneach positions0*, 2*: CYL off,CAP off1*: CYL off,CAP on (fwd)8*, A*: CYL on,CAP off9*: CYL on,CAP on (fwd)B*: CYL on,CAP on (rev)*0: Motor off*1: Loading*2: Unloading*3: Break (Load + Unload)cassette tape is unloaded.8.2.4. (VHS) Self-Diagnosis History Memory Function8.2.4.1. (VHS) Condition for memorizing of the self-diagnosis history1. The self-diagnosis result and the supplementary data are the condition memorized just as an Error is detected.2. There are the histories from number 1 to number 3.3. The latest Error is memorized on history number 1,and then the old histories are shifted to the history number 2, 3.4. Put out data from the memory number 3 by the shift is deleted.5. If the latest Error is same with the history number 1 (2nd-latest), it is not memorized.(The same Error number is not memorized in succession)25

8.2.4.2. (VHS) Condition for clearing the self-diagnosis history1. A case of that press the FF key and the EJECT key simultaneously over 5 seconds.2. A case of that the factory jumper (TW1004) is shorted.8.2.4.3. (VHS) Indication of the self-diagnosis history.1. The self-diagnosis histories and its supplementary data could be indicated on the FIP with Service mode of number from 3 to5.2. The procedure of setting the service mode and the format if the indication are same as usual.Both the Error numbers and its supplementary data of history 1, 2and 3 are indicated by selecting the Service mode 3, 4 and 5 asshown above.In case of that any Error has not been memorized, the Error number and its supplementary data is indicated as " - ".8.2.4.4. (VHS) Display of Supplementary Data 3 and 4During displaying the Self-Diagnosis History, press [STOP] key on front panel to change the display.*Example of DisplayA: Service Mode Number.B: Supplementary Data 3...Mechanism process shifting Number.C: Supplementary Data 4...LM(Loading Motor information)*Display ofmeans that " Loading Motor turns ON when [EJECT] button was pressed, but an error hasoccurred while mechanism was between REV position and LOAD position.[EJECT] [FF] [REW]10: PLAY → passing REV11: passing REV12: passing REV → LOADU0: PLAY → STOP FU1: STOP F → FFU2: FF starting upA0: PLAY → STOP FA1: STOP → REWA2: REW starting up(Capstan STOP)13: LOAD → DOWN14: DOWN → EJECT15: EJECT completion[PLAY] [REC] [STILL]20: Cylinder starting up, Phase drawing 30: Cylinder starting up, Phase drawing 40:Turning forward21: Audio muting, VV selection 31: REC signal output 41:Speed is 0, Capstan is OFF[P.ON] [STILL → PLAY] [CUE]-- Process of turning on power 48: Tape sending 49: x2 speed sending, Turning point of Calculatingremains[P.OFF] [CUE → PLAY] [REV]70: PLAY → P.OFF 4A: Finishing edge Checking, Tape sending 80: PLAY → P.OFF4-: PLAY Checking, Tape sending 81: RewindingP.OFF → REV26

(LM Information)Result of request of driving Loading Motor.DisplayDescription1 There was no change of mechanism position. (Loading Motor was OFF)2 There was some change of mechanism position. (Loading Motor was ON)8.2.5. (VHS) Description of Self Diagnosis MemoryIn this Self-Diagnosis Function, in case error has occurred continuously, maximum of the newest 3 error data arememorized.And in order to analyze cause of error, the error number and the supplementary data of mode, mechanism position andso on are memorized.8.2.5.1. (VHS) Error Number and Supplementary DataThe Supplementary Data as shown below are memorized to each error number.Error No. Reason Supplementary DataData 1 Data 2 Data 3 Data 401 The cylinder could not be started.VHS mode - - -(Error of the cylinder or the cylinder driver.)02 The CAP FG could not be detected. VHS mode - Process No. Number of FG03 Mechanism lock during without the unloading and the VHS mode Standby position Process No. LM informationcassette-up.04 Mechanism lock during unloading VHS mode - Process No. LM information05 S-reel pulse cannot be detected when a cassette VHS mode Tape position Process No. LM informationtape is inserted.(Error of the S-reel system or the Capstan system.)06 Mechanism lock during the Cassette-up. VHS mode Standby position Process No. LM information07 The recording circuit can not be operated in REC VHS mode - Process No. -mode.08 The recording circuit is operated in except for REC VHS mode - Process No. -mode.09 Serial communication Error between VHS Microprocessor- - - -(IC6001) and Timer Microprocessor (IC7501).11 Cylinder clogs during the PLAY mode. VHS mode - Process No. -15 S-reel pulse cannot be detected when a cassette VHS mode Value of S-Reel Pulse Process No. -tape is inserted.(Error of the S-reel system or the Capstan system.)counted16 Detection of the Cylinder lock during the constant VHS mode Tape position Process No. -rotation17 Detection of S-reel lock during the constant tape runningVHS mode Tape position Process No. Number of FG18 Detection of T-reel lock during the constant tape runningVHS mode Tape position Process No. Number of FG20 NG1 in the PG Shifter Automatic Adjustment VHS mode - Process No. -(The cylinder rotation is unstable during the automaticadjustment.)21 NG2 in the PG Shifter Automatic Adjustment VHS mode - Process No. -(The vertical sync signal is lacked while over 5 secondson the alignment tape.)22 NG3 in the PG Shifter Automatic Adjustment VHS mode - Process No. -(The installing position of Heads to the cylinder is ourof specification.)23 NG4 in the PG Shifter Automatic Adjustment VHS mode - Process No. -(The servo is not locked to the cylinder for more than10 sec.)80 An exceptional ejection depends on a Error VHS mode Refer to *Note 3 Process No. -27

Note 1: Details of "VHS mode" of the Supplementary Data 1 (These values are hexadecimal indication)0: STOP, 1: EJECT, 2: REW, 3: FF, 4:REV, 5: CUE, 6: SLOW, 7: POWEROFF, 8: PLAY, 9: STIL,A: REC, B: REC PAUSE, C: ADUB, D: ADUB PAUSE, E: INSERT, F: INSERT PAUSENote 2: Explanation of "Tape position" of the Supplementary DataThe Tape position Data is the area data of S-reel that is used for judgment of reducing speed in the Main microprocessorIC6001, and as the tape position is moved from the starting edge to the finishing edge, the value becomes smaller.The Tape Data does not become "0" even if the tape reaches the finishing edge as the hub remains, and the tape position valuesare different between the large hub and the small hub as the each diameters are different from each other.Tape TypeThe aim of Tape position between the starting edge and the finishingedge60 min. or less type (Large Hub) The Tape position is divided into 6 stages between the Tape beginningedge: "A " and the Tape end edge: "5".90 min. or over type (Small Hub) The Tape position is divided into 14 stages between the Tape beginningedge: "E " and the Tape end edge: "1".l "A" and "E" is hexadecimal. "A" =10 (Decimal), "E" =14 (Decimal).l Hexadecimal indication from "A" to "E" are shown below.Note 3: Supplementary Data 2 (Reason of Ejection)Supplementary Data 2Reason1 S-reel pulse is less than 3 when the loading has been completed.(Miss catching the tape)2 Pulse Timer over during the short rewind at the DOWN position.(Error of S-photo sensor system, S-reel system, Capstan system)3 Mechanism lock from the DOWN position to the LOAD position during the loading.4 Both ends have been detected at the LOAD position when the loading is started.28

9 Service Fixture & Tools(For DVD)Part Number Description Pcs CompatibilityRFKZ0125 Extension FFC (Power & Digital I/F P.C.B. - DVD-RAM Drive / 40 Pin) 1 Same as DMR-E50 / E55 /ES10 / ES30V seriesRFKZ0168 Extension Cable (Power & Digital I/F P.C.B. - FAN / 3 Pin) 1 Same as DMR-E50 / ES30VseriesRFKZ0126 Extension Cable (RAM Drive - Power & Digital I/F P.C.B. / 4 Pin) 1 Same as DMR-E30 / ES10 /ES30V seriesRFKZ0327 Extension Cable (Main P.C.B. - Power & Digital I/F P.C.B. / 15 pin / 40 mm) 1 NewRFKZ0240 Extension Cable (Main P.C.B. - Power & Digital I/F P.C.B. / 19 pin / 40 mm) 2 Same as DMR-E75V / ES30VExtension Cable (Main P.C.B. - Power & Digital I/F P.C.B. / 19 pin / 40 mm) seriesRFKZ0260 Extension Cable (Power & Digital I/F P.C.B. - Digital P.C.B. / 88 Pin) 1 Same as DMR-ES10 / EH50/ES30V seriesRFKZ0215 Extension Cable (MainP.C.B. - Front (Jack) P.C.B. / 12 Pin) 1 Same as DMR-E55 / ES30VseriesRFKZ0238 Extension Cable (Main P.C.B. - Front P.C.B. / 8 Pin) 1 Same as DMR-E75V / ES30Vseries(For VHS)Part Number Description Pcs CompatibilityVFM8080HQFP NTSC VHS Alignment Tape 1 Same as E75V / ES30VVFK0329 Post Adjustment Screwdriver 1 Same as E75V / ES30VVFK0330 Fine Adjustment Gear Driver 1 Same as E75V / ES30V29

10 Disassembly and Assembly Instructions10.1. Disassembly Flow ChartThe following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the servicing.To assemble the unit, reverse the steps shown in the chart below.30

10.2. P.C.B. Positions10.3. Caution with inserting cassette tape when disassembling the unitNote1:For description of the disassembling procedure, see the section 11.4.Note2:Video Cassette might not enter when a strong lighting is applied to VHS Mechanism when Video Cassette is inserted. Pleaseweaken the lighting or cover with the top panel etc.31

10.4. Top Case1. Remove the 4 screws (A) and 3 screws (B).2. Slide Top Case rearward and open the both ends at rearside of the Top Case a little and lift the Top Case in thedirection of the arrows.10.5. Front Panel1. Remove one screw (A).2. Unlock tab (A) and tab (B) simultaneously.3. Unlock tab (C) and tab (D) simultaneously.4. Unlock 3 tabs (E) respectively, and pull out Front Panelwith connector slightly.32

Note:When attaching Front Panel, in order to hook Cassette DoorOpener Lever to Cassette Door, push up cassette door inthe direction of arrow and insert a front panel.10.7. Rear Panel with Fan Motor1. Disconnect Fan Connector.2. Remove 5 Screws (A) and 1 Screw (B).3. Unlock 2 Locking Tabs (A) to remove Rear Panel withFan Motor.10.6. Front Jack P.C.B. & FrontP.C.B.1. Remove 5 screws (A) to remove Front P.C.B.2. Remove 2 screws (B), and unlock 1 Locking Tabs (B) toremove Front Jack P.C.B.10.7.1. Only Fan Motor1. Disconnect Fan Connector.2. Remove 2 Screws (A) to Remove Fan Motor.33

10.8. VTR Mechanism Unit1. Disconnect 3 Connectors (P1531, P2501 and P4002).2. Remove 3 Black Screws (A), Screw (B) , Screw (C) andScrew (D).3. Lift up VTR Mechanism Unit perpendicularly so to disconnectConnectors (P2571 and P3001).Note:Pay attention to stiff connections of P2571 and P3001,when removing VTR Mechanism Unit.10.8.1. Caution for attaching VTR MechanismUnit1. Because Position SW should be set to "Eject Position",refer to fig.(A) and set the position switch so that the bossand arrow mark come on a straight line.1.Attach VTR Mechanism Unit so that Boss of Position SWis put into long hole of Main Cam Gear, refer to Fig. (B).34

10.9. Main P.C.B.1. Disconnect 3 Connectors.2. Remove 1 Screw (A) and remove Main P.C.B.10.10. DVD-RAM Drive1. Remove 3 Screws (A).2. Lift up DVD-RAM Drive slightly.3. Disconnect Connector (A) and FFC from DVD-RAMDrive.35

10.11. Digital P.C.B.1. Remove 3 Screws (A).2. Disconnect connector (A) and FFC from Digital P.C.B..3. Lift up Digital P.C.B. slightly so to disconnect connector(B) to remove Digital P.C.B..CAUTION:When replacing Digital P.C.B., pay attention to insertingFFC.10.11.1. Removing and attaching Heat SinkUnit for IC5001(Removing)1. Push Rivets by finger as shown below.2. Pull off Pin of Rivets.3. Remove Heat Sink Unit.4. Remove Heat Transfer Sheet.(Attaching)1. Paste Heat Transfer Sheet on to IC5001.2. Put Heat Sink Unit on to Heat Transfer Sheet.3. Insert Housing of rivets through Spring of Heat sink Unitas shown below.4. Insert Pin of Rivets.36

10.12. DV Jack P.C.B.1. Remove 4 Screws (A) and DVD Angle.10.13. Power & Digital I/F P.C.B.1. Remove 3 Screws (A) and DV Jack Angle.2. Remove Fan Motor (refer to 11.7.1.).3. Disconnect 3 Connectors (A) and 2 Connectors (B).4. Remove 2 screws (B).5. Remove Power and Digital I/F P.C.B.2. Remove 2 Screws (B).3. Pull out the DV Jack P.C.B. in the direction of the arrow.37

11 Measurements and Adjustments11.1. Service PositionsNote:For description of the disassembling procedure, see the section 10.11.1.1. Checking and Repairing of Power & Digital I/F P.C.B.38

11.1.2. Checking and Repairing of Main P.C.B.39

11.1.3. Checking and Repairing of Digital P.C.B.40

11.1.4. Checking and DVD-RAM Drive41

11.2. (DVD) Caution after parts replacing parts11.2.1. (DVD) After replacing the RAM Drive with new one11.2.2. (DVD) When the unit does not operate normally after replacing the Timer Microprocessoror Main P.C.B.When the unit does not operate normally after replacing the Timer Microprocessor or Main P.C.B. with new one, reset Timer Microprocessor.Step Operation Descriptions1 While power is OFF, short TW7501 (BACK-UP) and the GND momentarily.Memory will be initialized then the unit operates normally.42

11.3. (VHS) Caution after replacing partsPG Shifter Automatic Adjustment and X-VALUE & LINEARITY (P2 and P3 Posts) ADJUSTMENT should be performed afterreplacing DD Cylinder, Timer Microprocessor or Main P.C.B.Note:The “X-VALUE & LINEARITY (P2 and P3 Posts) ADJUSTMENT” is not necessary after only replacement of Timer Microprocessoror Main P.C.B.11.3.1. (VHS) Adjustment Procedures after replacing DD Cylinder, Timer Microprocessoror Main P.C.B.ADJUSTMENT PROCEDUREPROCEDURETurn on the Service Mode1.Press the FF key and the EJECT key simultaneously for more than 3 seconds.Activate the Service Mode 22. While keep pressing FF key, press the EJECT key twice.F.I.P. DISPLAYActivate the Entering Mode.3. Press the EJECT key for more than 3 seconds.Set the Mode 2.4. Press the CH UP key once.Insert the alignment cassette tape (VFM8080HQFP)5. The PG Shifter Adjustment starts automatically.When the sequence of the automatic adjustment has been terminated, the following action has beenmade.l SUCCEED: The cassette tape is ejected.l ERROR: The "F20", "F21", "F22" or "F23" is displayed. Refer to next PG Shifter AdjustmentSelf-Diagnosis Indication Table regarding the details of the indications.Exit from Service Mode.6. Press FF and EJECT keys simultaneously in 6 times.Then the FIP becomes normal indication.(Normal Indication)PG SHIFTER AUTOMATIC ADJUSTMENT SELF-DIAGNOSIS INDICATIONF20F21F22F23NG1 in the PG Shifter Automatic Adjustment(The cylinder rotation is unstable during the automatic adjustment.)NG2 in the PG Shifter Automatic Adjustment(The vertical sync signal is lacked while over 5 seconds on the alignment tape.)NG3 in the PG Shifter Automatic Adjustment(The installing position of Heads to the cylinder is our of specification.NG4 in the PG Shifter Automatic Adjustment(The servo is not locked to the cylinder for more than 10 sec.)NOTE:When DD Cylinder was replaced, the Tape Interchangeability adjustment (X-Value Adjustment, P2 and P3 Posts Adjustment)shown below should be performed after the PG Shifter Automatic Adjustment.43

11.3.2. (VHS) X-VALUE & LINEARITY (P2 and P3 Posts) ADJUSTMENTl Main symptoms and Adjustment pointEnvelope Post Name Adjustment MethodP2 PostTurn P2 Post counter-clockwise(Approx. 1/2 revolution)P2 PostTurn P2 Post clockwise(Approx. 1/4 revolution)P3 PostTurn P3 Post clockwise(Approx. 1/2 revolution)P3 PostTurn P3 Post counter-clockwise(Approx. 1/4 revolution)P2 Post P3 Post Turn P2 Post clockwise(Less than 1 revolution)Turn P3 Post counter-clockwise(Less than 1revolution)11.3.3. (VHS) Caution after replacing VHS Microprocessor (IC6001)After replacing VHS Microprocessor (IC6001), If the unit does not operate normaly, short TL6002 and TL6004 momentarily whilepower is ON, then IC6001 is reset and operate normaly.44

11.4. (DVD) Standard Inspection Specifications after Making RepairsAfter making repairs, we recommend performing the following inspection, to check normal operation.No. Procedure Item to Check1 Turn on the power, and confirm items pointed out. Items pointed out should reappear.2 Insert RAM disc. The Panasonic RAM disc should be recognized.3 Enter the EE (TU IN / AV IN - AV OUT) mode. No abnormality should be seen in the picture, sound or operation.4 Perform auto recording and playback for one minute using the RAM No abnormality should be seen in the picture, sound or operation.disc.5 If a problem is caused by a VCD, DVD-R, DVD-Video, Audio-CD, or No abnormality should be seen in the picture, sound or operation.MP3, playback the test disc.6 After checking and making repairs, upgrade the firmware to the latestversion.*[UNFORMAT] display means the unit is already updated to newestMake sure that [FIRM_SUCCESS] appears in the FL displays.same version. Then version up is not necessary.7 Transfer [9][9] in the service mode setting, and initialize the service Make sure that [CLr S] appears in the FL display.settings (return various settings and error information to their After checking it, turn the power off.default values. The laser time is not included in this initialization).8 When replacing of RAM drive, transfer [9] [5] in the service modesetting to delete Laser used time.Use the following checklist to establish the judgement criteria for the picture and sound.Make sure that [CLr 1] appears in the FL display.After that, turn power off.Item Contents Check Item Contents CheckBlock noiseDistorted soundCrosscut noiseNoise (static, background noise, etc.)Dot noiseThe sound level is too low.Picture Picture disruptionSound The sound level is too high.Not bright enoughThe sound level changes.Too brightFlickering colorColor fading45

12 Miscellaneous12.1. Abbreviations12.1.1. DVDINITIAL/LOGOA A0~UPACLKAD0~UPADATAALEAMUTEAREQARFASIASOASYNCB BCKBCKINBDOBLKCKBOTTOMBYPBYTCKC CAVCBDOCDCDSCKCDSRDATACDRFCDVCHNDATACKSLCLVCOFTRCPACPCSCPDTCPUADRCPUADTCPUIRQCPRDCPWRCSCSYNCINCSYNCOUTD DACCKDEEMPDEMPHDIG0~UPDINDMSRCKDMUTEDODOUT0~UPDRFDRPOUTDREQDRESPDSCDSLFDVDABBREVIATIONSADDRESSAUDIO CLOCKADDRESS BUSAUDIO PES PACKET DATAADDRESS LATCH ENABLEAUDIO MUTEAUDIO PES PACKET REQUESTAUDIO RFSERVO AMP INVERTED INPUTSERVO AMP OUTPUTAUDIO WORD DISTINCTION SYNCBIT CLOCK (PCM)BIT CLOCK INPUTBLACK DROP OUTSUB CODE BLOCK CLOCKCAP. FOR BOTTOM HOLDBYPATHBYTE CLOCKCONSTANT ANGULAR VELOCITYCAP. BLACK DROP OUTCOMPACT DISCCD SERIAL DATA CLOCKCD SERIAL DATACD RF (EFM) SIGNALCOMPACT DISC-VIDEOCHANNEL DATASYSTEM CLOCK SELECTCONSTANT LINEAR VELOCITYCAP. OFF TRACKCPU ADDRESSCPU CHIP SELECTCPU DATACPU ADDRESS LATCHCPU ADDRESS DATA BUSCPU INTERRUPT REQUESTCPU READ ENABLECPU WRITE ENABLECHIP SELECTCOMPOSITE SYNC INCOMPOSITE SYNC OUTD/A CONVERTER CLOCKDEEMPHASIS BIT ON/OFFDEEMPHASIS SWITCHINGFL DIGIT OUTPUTDATA INPUTDM SERIAL DATA READ CLOCKDIGITAL MUTE CONTROLDROP OUTDATA OUTPUTDATA SLICE RF (BIAS)DROP OUT SIGNALDATA REQUESTDATA RESPONSEDIGITAL SERVO CONTROLLERDATA SLICE LOOP FILTERDIGITAL VIDEO DISCINITIAL/LOGOABBREVIATIONSE ECECRENCSELETMCLKETSCLKERROR TORQUE CONTROLERROR TORQUE CONTROL REFER-ENCEENCODER SELECTEXTERNAL M CLOCK (81MHz/40.5MHz)EXTERNAL S CLOCK (54MHz)F FBALFCLKFEFFIFEOFGFSCFSCKFOCUS BALANCEFRAME CLOCKFOCUS ERRORFOCUS ERROR AMP INVERTED INPUTFOCUS ERROR AMP OUTPUTFREQUENCY GENERATORFREQUENCY SUB CARRIERFS (384 OVER SAMPLING) CLOCKG GND COMMON GROUNDING (EARTH)H HA0~UPHD0~UPHINTHRXWHOST ADDRESSHOST DATAHOST INTERRUPTHOST READ/WRITEILMOPIECOUTIPFRAGIREFISELLDONLPCLRCKMA0~UPMCKMCKIMCLKMDATAMDQ0~UPMDQMMLDMPEGODCOFTROSCIOSCOOSDP1~UPPCDPCKPDVDPEAKPLLCLKPLLOKPWMCTLPWMDAPWMOA, BIEC958 FORMAT DATA OUTPUTINTERPOLATION FLAGI (CURRENT) REFERENCEINTERFACE MODE SELECTLASER DIODE CONTROLLASER POWER CONTROLL CH/R CH DISTINCTION CLOCKMEMORY ADDRESSMEMORY CLOCKMEMORY CLOCK INPUTMEMORY SERIAL COMMAND CLOCKMEMORY SERIAL COMMAND DATAMEMORY DATA INPUT/OUTPUTMEMORY DATA I/O MASKMEMORY SERIAL COMMAND LOADMOVING PICTURE EXPERTS GROUPOPTICAL DISC CONTROLLEROFF TRACKINGOSCILLATOR INPUTOSCILLATOR OUTPUTON SCREEN DISPLAYPORTCD TRACKING PHASE DIFFERENCEPLL CLOCKDVD TRACKING PHASE DIFFERENCECAP. FOR PEAK HOLDCHANNEL PLL CLOCKPLL LOCKPWM OUTPUT CONTROLPULSE WAVE MOTOR DRIVE APULSE WAVE MOTOR OUT A, B46

INITIAL/LOGOR RERFENVRFORSRSELRSTRSVS SBI0, 1SBO0SBT0, 1SCKSCKRSCLSCLKSDASEG0~UPSELCLKSENSIN1, 2SOUT1, 2SPDISPDOSPENSPRCLKSPWCLKSQCKSQCXSRDATASRMADRSRMDT0~7SSSTATSTCLKSTD0~UPSTENABLESTSELSTVALIDSUBCSBCKSUBQSYSCLKT TETIBALTIDTINTIPTISTPSNTPSOTPSPTRCRSTRONTRSONABBREVIATIONSREAD ENABLERF ENVELOPERF PHASE DIFFERENCE OUTPUT(CD-ROM) REGISTER SELECTRF POLARITY SELECTRESETRESERVESERIAL DATA INPUTSERIAL DATA OUTPUTSERIAL CLOCKSERIAL DATA CLOCKAUDIO SERIAL CLOCK RECEIVERSERIAL CLOCKSERIAL CLOCKSERIAL DATAFL SEGMENT OUTPUTSELECT CLOCKSERIAL PORT ENABLESERIAL DATA INSERIAL DATA OUTSERIAL PORT DATA INPUTSERIAL PORT DATA OUTPUTSERIAL PORT R/W ENABLESERIAL PORT READ CLOCKSERIAL PORT WRITE CLOCKSUB CODE Q CLOCKSUB CODE Q DATA READ CLOCKSERIAL DATASRAM ADDRESS BUSSRAM DATA BUS 0~7START/STOPSTATUSSTREAM DATA CLOCKSTREAM DATASTREAM DATA INPUT ENABLESTREAM DATA POLARITY SELECTSTREAM DATA VALIDITYSUB CODE SERIALSUB CODE CLOCKSUB CODE Q DATASYSTEM CLOCKTRACKING ERRORBALANCE CONTROLBALANCE OUTPUT 1BALANCE INPUTBALANCE INPUTBALANCE OUTPUT 2OP AMP INPUTOP AMP OUTPUTOP AMP INVERTED INPUTTRACK CROSS SIGNALTRACKING ONTRAVERSE SERVO ONINITIAL/LOGOV VBLANKVCCWXVCDCONTVDDVFBVREFVSSWAITWDCKWEHWSRXXALEXAREQXCDROMXCSXCSYNCXDSXHSYNCOXHINTXIXINTXMWXOXREXSRMCEXSRMOEXSRMWEXVCSXVDSXVSYNCOABBREVIATIONSV BLANKINGCOLLECTOR POWER SUPPLYVOLTAGEVIDEO CD CONTROL (TRACKINGBALANCE)DRAIN POWER SUPPLY VOLTAGEVIDEO FEED BACKVOLTAGE REFERENCESOURCE POWER SUPPLY VOLTAGEBUS CYCLE WAITWORD CLOCKWRITE ENABLE HIGHWORD SELECT RECEIVERX' TALX ADDRESS LATCH ENABLEX AUDIO DATA REQUESTX CD ROM CHIP SELECTX CHIP SELECTX COMPOSITE SYNCX DATA STROBEX HORIZONTAL SYNC OUTPUTXH INTERRUPT REQUESTX' TAL OSCILLATOR INPUTX INTERRUPTX MEMORY WRITE ENABLEX' TAL OSCILLATOR OUTPUTX READ ENABLEX SRAM CHIP ENABLEX SRAM OUTPUT ENABLEX SRAM WRITE ENABLEX V-DEC CHIP SELECTX V-DEC CONTROL BUS STROBEX VERTICAL SYNC OUTPUT47

12.1.2. VHS3-1. ABBREVIATIONS443NT [L]A. COMPA. COMPOA. D.P [L]A. D/L [L]A. DEF [S]A. DEF [S] [L]A. DUB P [L]A. DUB [H]A. ERASEA. H. SWA. HEAD [R]A. HEAD [W]A. IN [L]A. IN [R]A. MUT [H]A. MUTE [H]A. OUT [L]A. OUT [R]A. RF OUTA/VS/S. DATAAC ONLINEAC. O/EE. HAFC S CAFC [S]AFC. DEFARFC OUTART. VART. V. MMART. V/H/NAT. V/H/NATSW/TEST/NOR/SEAUDIO IN [L]AUDIO IN [R]AUDIO OUT [L]AUDIO OUT [R]AUDIO SELECT [H]AUDIO. LAUDIO. RAV CNTAV CTLAV CTL/S. CLKAV. C.M.AVCNT/METER. RAVSW/METER. LB MODE. HB.G.PBACKUP 5VBAND. U.E.BANDVL. DBI/MI [L]4.43 NTSC LAUDIO COMPONENT SIGNALAUDIO COMPONENT SIGNALAUDIO DUBBING PAUSE LAUDIO DUBBING PAUSE LAUDIO DEFEATAUDIO DEFEATAUDIO DUBBING PAUSE LAUDIO DUBBING HAUDIO ERASEAUDIO HEAD SWITCHING PULSEAUDIO HEAD (REC)AUDIO HEAD (PLAY)AUDIO INPUT (L)AUDIO INPUT (R)AUDIO MUTE HAUDIO MUTE HAUDIO OUTPUT (L)AUDIO OUTPUT (R)AUDIO RF SIGNAL OUTPUTAV SW/SERIAL DATAAC ONLINEAC ONLINE/EE HAFC S CURVEAFC S CURVEAFC DEFEATAUDIO RF SIGNAL OUTPUTARTIFICIAL VERTICAL SYNC SIGNALARTIFICIAL VERTICAL SYNCSIGNAL MONO MULTIARTIFICIAL VERTICAL SYNCSIGNAL H/NORMALARTIFICIAL VERTICAL SYNC SIGNALTEST/NORMAL/SERVICEAUDIO INPUT (L)AUDIO INPUT (R)AUDIO OUTPUT (L)AUDIO OUTPUT (R)AUDIO SELECT HAUDIO (L)AUDIO (R)AV CONTROLAV CONTROLAV CONTROL/SERIAL CLOCKAV CONTROL MODEAV CONTROL/LEVEL METER (R)AV SW/LEVEL METER (L)B MODE HBURST GATE PULSEBACK UP 5VBAND UBAND VLBILINGUAL/MIX LBILBIL [L]BIL. [H]BIL/M1 [L]BS CLOCKBS DATABS LCH INBS MIX [H]BS MON [H]BS MONI [H]BS RCH INBS VIDEOBS VIDEO/BS1BS [H]BS. LEVELBS. M [H]BS/VTR [H]BUS CLKBUS LSNBUS TLKBUZZERCAP ECCAP M GNDCAP. ETCAP. FG1CAP. FG2CAS. SWCCNCCPCHMCHPCINEM [L]CINEMA [L]CINEMA/MIXCKLCKSCLCLKCLK (C.G)CLOCK. INCLPCOL/B/W/NORCOLOR [H]CONVCSCTL GNDCTL HEAD [+]CTL HEAD [−]CTL [+]CTL [−]CUE BIASCURRENT LIMCYL ETBILINGUALBILINGUAL LBILINGUAL HBILINGUAL LBS CLOCKBS DATABS L CHANNEL INPUTBS MIX HBS MONITOR HBS MONITOR HBS R CHANNEL INPUTBS VIDEO SIGNALBS VIDEO SIGNALBS HBS LEVELBS MONITOR HBS/VTR HBUS CLOCKBUS LISTENBUS TALKBUZZERCAPSTAN TORQUE CONTROLCAPSTAN MOTOR GNDCAPSTAN TORQUE CONTROLCAPSTAN FG1 PULSECAPSTAN FG2 PULSECASSETTE SWPLAYBACK CONTROL SIGNAL (−)PLAYBACK CONTROL SIGNAL (+)CONTROL SIGNAL (+)CONTROL SIGNAL (−)CINEMA LCINEMA LCINEMA/MIXRATCH LOCKSHIFT LOCKCLOCKCLOCKCLOCKCLOCK INPUTCLAMPCOLOUR/BLACK & WHITE/NORMALCOLOUR HCONVERTORCHIP SELECTCONTROL GNDCONTROL HEAD (+)CONTROL HEAD (−)CONTROL HEAD (+)CONTROL HEAD (−)CUE BIASCURRENT LIMMITERCYLINDER TORQUE CONTROL48

CYL GNDD.F.M. REC [H]D. FM REC [L]D. GNDD. REC [H]D4/S. LEDD4/STILLEDDAC [CLK]DAC/FSCSDAREC [H]DATADECODER [L]DECODER [R]DEWDEW SNSDFMRE [H]E. REC 5VECECREDT TRIG [L]EDIT [H]EE [H]EE [H]/INS [M]EE. VV. TREJECT. POEJECT/VDETENV. SELENVE. OUTENVE. SELENV SELECTEP [H]EP/LP [H]EP/LP/SPEP/SS [H]EPROMCSEX. REC 5VFF/REW [L]FG1 INFG2 INFILTER ADJUSTMENTFLY ERASE [H]FLY ON [H]FLY. E [H]FM MUT [H]FM MUTE [H]FM OUT [L]FM OUT [R]FM PACK OUT [L]FM PACK OUT [R]FM/BS SEL [L]FM/BS SEL [R]FS. CLKFUL. E [H]FULL. E [H]CYLINDER GNDDELAIED FM RECORDING HDELAIED FM RECORDING LDIGITAL GNDDELAYED RECORDING HD4/STILL LEDD4/STILL LEDTUNER DAC (CLOCK)TUNER DAC/FS CHIP SELECTDELAYED AUDIO RECORDING HDATADECODER (L)DECODER (R)DEWDEW SENSORDELAYED FM AUDIO RECORDING HEXCEPT RECORDING 5VERROR TORQUE CONTROLERROR TORQUE CONTROLREFERENCE VOLTAGEEDIT TRIGGER LEDIT HEE HEE H/INSERT MEE/VV/TRICK PLAYEJECT POSITIONEJECT/REVERSE SLOW LOCKENVELOPE SELECTENVELOPE OUTPUTENVELOPE SELECTENVELOPE SELECTLP HLP HLP/SPLP/SLOW/STILL/STOP HEPROM CHIP SELECTEXCEPT RECORDING 5VFIRST FORWARD/REWIND LFG1 PULSE INPUTFG2 PULSE INPUTFILTER ADJUSTMENTFLYING ERASE HEAD ON HFLYING ERASE HEAD ON HFLYING ERASE HEAD ON HFM AUDIO MUTE HFM AUDIO MUTE HFM OUTPUT (L)FM OUTPUT (R)FM PACK OUTPUT (L)FM PACK OUTPUT (R)FM/BS SELECT (L)FM/BS SELECT (R)FS CLOCKFULL ERASE HEAD ON HFULL ERASE HEAD ON HFULL. E. 12VGND [A]GND [TU]GND/N. SW. 12VH. SYNCH. AMP. SWH. P H. P H. P GNDH. P OUT [L]H. P OUT [R]H. SWHEAD PHONE [L]HEAD PHONE [R]HEAD SWHEATER [+]HEATER [−]HSSHTR [+]HTR [−]I RFEICLIFIN SELA1IN SELA2IN SELA3INS L/R [L]INS. [H]INSEL A1INSEL A2INSERTINSERT [H]IO CSJOG1JOG S3 LED/FOWRDJOG/F. LEDJSB [H]JST. CLCKJST. CLKJST. CLOCKL. OUTL. CH [H]L. CH [L]LED (MAIN)LED (STEREO)LED (SUB)LED CKLLED CKSLED DATALINE IN 1 [L]LINE IN 1 [R]LINE IN 2 [L]LINE IN 2 [R]LINE IN VLINE IN [L]FULL ERASE 12VGND (ANALOG)GND (TUNER)GND/NON SW 12VHORIZONTAL SYNCHEAD AMP SW PULSEHEAD PHONE (R)HEAD PHONE (L)HEAD PHONE GNDHEAD PHONE OUTPUT (L)HEAD PHONE OUTPUT (R)HEAD SW PULSEHEAD PHONE (L)HEAD PHONE (R)HEAD SWHEATER (+)HEATER (−)HORIZONTAL SYNC SIGNALHEATER (+)HEATER (−)REFERENCE CURRENTCONTROL AGC CIRCUITINTERMEDIATE FREQUENCYINPUT SELECT A1 POSITIONINPUT SELECT A2 POSITIONINPUT SELECT A3 POSITIONINSERT Lch/Rch LINSERT HINPUT SELECT A1 POSITIONINPUT SELECT A2 POSITIONINSERTINSERT HINPUT/OUTPUT CHIP SELECTJOG1JOG LED/FORWARD LEDJOG LED/FORWARD LEDJSB HJUST CLOCKJUST CLOCKJUST CLOCKLch OUTPUTLch HLch LLED (MAIN)LED (STEREO)LED (SUB)LED SERIAL CLOCKLED SERIAL CLOCKLED SERIAL DATALINE INPUT 1 (L)LINE INPUT 1 (R)LINE INPUT 2 (L)LINE INPUT 2 (R)LINE INPUT VIDEOLINE INPUT (L)49

LINE IN [R]LINE OUT [L]LINE OUT [R]LP [H]LPTRI [L]Lch/A. DUBM GNDM REGMAIN OUTMAIN [L]MAIN/MONOMAX INMES [H]MESE [H]MESE [L]METER 5VMETER [L]METER [R]METER. L/AVSMETER. R/AVCMI/BI [L]MIC GNDMIC INMIC IN [L]MIC IN [R]MIC [H]MIX [H]MIX [H]/CINEMA [L]MIX/CINEMIX/CINEMA [L]MN. H/M. LMN. H/MAI. LMN2/MES. LMODE SELMODE SWMODE. S. INMODE. S. OUTMONO [H]MONO [H]/MAIN [L]MONO2 [L]MONO2/MESE [FM(L)]MOTOR GNDMUTEN. A. REC [L]N. SW 12VN. SW. 5. DETNICAMNICAM [L]NOL [H]NOR/SOFT [H]NORMAL [H]NR BIASNTSC [L]OCHOUTLINE INPUT (R)LINE OUTPUT (L)LINE OUTPUT (R)LP HLP TRICK PLAY LLch/AUDIO DUBBINGMOTOR GNDMOTOR REGULATORMAIN OUTPUTMAIN LMAIN/MONAURALMAXIMAM INPUTMESECAM HMESECAM HMESECAM LLEVEL METER 5VLEVEL METER (L)LEVEL METER (R)LEVEL METER (L)LEVEL METER (R)MIX H/BILIGUALMIC GNDMIC INPUTMIC INPUT (L)MIC INPUT (R)MIC HMIX HMIX H/CINEMA SOUND LMIX H/CINEMA SOUND LMIX H/CINEMA SOUND LMONAURAL H/MAIN LMONAURAL H/MAIN LMONAURAL 2/MESECAM LAUDIO MODE SELECTAUDIO MODE SWAUDIO MODE SELECT INPUTAUDIO MODE SELECT OUTPUTMONAURAL HMONAURAL H/MAIN LMONAURAL 2MONAURAL 2/MESECAM (FM L)MOTOR GNDMUTENORMAL AUDIO RECORDINGNON SW 12VNON SW 5V DETECTNICAMNICAM LPAL H/4.43 NTSC M/3.58 NTSC LNORMAL/SOFT TAPE PLAY HNORMAL HNR BIASNTSC LCONTROL AGC CIRCUITOUTPUTP-OFF [H]P-OFF [L]P. FAILP. OFF [H]P. OFF [L]PAL [H]PAL [L]/NTSC [H]PB ADJ OUTPB OUTPB. HPFGPHOTSN +BPICT. CNTPLAY LED/RVS LEDPLAY. POPLAY/R. LEDPLY/DEWPOWER OFF [L]PREROLL [H]PWRFAILR. CH [H]R. CH [L]R. STR/S/FRCH [H]REC 12VREC CHROMAREC HREC INREC OUT [L]REC STARTREC VR [C]REC VR [L]REC VR [R]REC YREC [H]REC. CREC. YREC/EE CTLREEL-TREEL-SREGULATOR FILTERRESETREV M F/RREV M V1REV M V2REV MOTOR F/RREV MOTOR V1REV MOTOR V2REV MOTOR [+]REV MOTOR [−]REV. M. GNDRF. CHROMAPOWER OFF HPOWER OFF LPOWER FAILURE DETECTPOWER OFF HPOWER OFF LPAL HPAL L/NTSC HPLAYBACK ADJUST OUTPUTPLAYBACK OUTPUTPLAYBACK HPG/FGPHOTO SENSOR +BPICTURE CONTROLPLAY LED/REVERSE LEDPLAY POSITIONPLAY LED/REVERSE LEDPLAY/DEW HPOWER OFF LPREROLL HPOWER FAILURE DETECTRch HRch LRESETREVERSE H/STOP M/FORWARD LRch HRECORDING 12VRECORDING CHROMINANCE SIGNALRECORDING HRECORDING INPUTRECORDING OUTPUT LRECORDING STARTRECORDING VOLUME (COMMON)RECORDING VOLUME (L)RECORDING VOLUME (R)RECORDING LUMINANCE SIGNALRECORDING HRECORDING CHROMINANCE SIGNALRECORDING LUMINANCE SIGNALRECORDING/EE CONTROLREEL PULSE (TAKE-UP)REEL PULSE (SUPPLY)REGULATOR FILTERRESETREVIEW MOTORFORWARD/REVERSEREVIEW MOTOR V1REVIEW MOTOR V2REVIEW MOTORFORWARD/REVERSEREVIEW MOTOR V1REVIEW MOTOR V2REVIEW MOTOR (+)REVIEW MOTOR (+)REVIEW MOTOR GNDRF CHROMINANCE SIGNAL50

RF OUTRF YRF. Y. INRF. Y. OUTROTAR. SWROTARYRSTRST [L]Rch/INSTS INS OUTS-PHOTOS-RL. PLSS. CLKS. CLK/AVS. DATAS. DATA/AS. PHOTOS. TAB [L]S/P/NSC INSC OUTSCK SELECTSEL OUT [L]SEL OUT [R]SHUTTLE 1SIFSLMUT [H]SLNID [+]SLNID [−]SLW TR. MMSLW TR. REFSNS. GNDSOFT [H]SOFT [H]/NORMALSOLENOID ON [L]SP [H]SP/L/SLPSSS [L]STEREO LEDSTEREO [H]STEREO [L]STOP. POSTOP/5VSTOP1/TAPE SELSTOP1/PAL:STSTOP2. POSTOP2/S-TABSTREO [H]SUB BIASSUB. SWSVHS CAS [L]SW. 5. DETSYNC [L]RF OUTPUTRF LUMINANCE SIGNALRF LUMINANCE SIGNAL INPUTRF LUMINANCE SIGNAL OUTPUTROTARY SWROTARY SWRESETRESET LRch/INSERTSERIAL DATA INPUTSERIAL DATA OUTPUTSUPPLY PHOTO TRANSISTORSUPPLY REEL PULSESERIAL CLOCKSERIAL CLOCK/AVSERIAL DATASERIAL DATASUPPLY PHOTO TRANSISTORSAFETY TAB SW ON LSECAM/PAL/NTSCSERIAL CLOCK INPUTSERIAL CLOCK OUTPUTSERIAL CLOCK SELECTSELECT OUTPUT (L)SELECT OUTPUT (R)SHUTTLE 1SOUND INTERMEDIATE FREQUENCYINPUT SELECT MUTE HSOLENOID (+)SOLENOID (−)SLOW TRACKING MONO MULTISLOW TRACKING REFERENCEVOLTAGESENSOR GNDSOFT TAPE PLAY HSOFT TAPE PLAY H/NORMAL HSOLENOID ON LSP HSP/LPSLOW/STILL/STOPSTEREO LEDSTEREO HSTEREO LSTOP POSITIONSTOP POSITION/5VSTOP1 POSITION/TAPE SELECTSTOP1 POSITION/PALSTOP 2 POSITIONSTOP 2 POSITION/SAFETY TAB SWSTEREO HSUB BIASSUB SWS-VHS CASSETTE LSW 5V DETECTSYNC LSYSCON 5VSYSTEMT-PHOTOT-RL. PLST. BUSCLKT. BUSLSNT. BUSTLKT. END [L]T. PHOTOTAPE END [L]TAPE END [L]/CAMTESTTPZTRIC [L]TRICK [L]TRK. ENVTU. AUDIOTU. GNDTU. V. INTU. VIDEOTUN NOR INTUN RTUN. AUDIO INTUNER 12VTUNER LTUNER V INTUNER [L]TUNER [N]TUNER [R]TUNER. 12TUOFF [H]TV. AUDIOTV/VTRTXTON [L]U. REG45VUNREGUNREG19VV. REFV. EE [H]V. EE [L]VCO REFVD. INVD. OUTVIDEO EE [L]VIDEO INVIDEO OUTVMVM DOWN [L]VSSVTR [H]VTR. 12VX INX OUTSYSTEM CONTROL 5VSYSTEM SWTAKE-UP PHOTO TRANSISTORTAKE-UP REEL PULSETIMER BUS CLOCKTIMER BUS LISTENTIMER BUS TALKTAPE END LTAKE-UP PHOTO TRANSISTORTAPE END LTAPE END L/CAMERA PAUSETEST MODETRAPEZOIDAL WAVE CIRCUITTRIC PLAY LTRIC PLAY LAUTO TRACKING ENVELOPE DETECTTUNER AUDIOTUNER GNDTUNER VIDEO SIGNAL INPUTTUNER VIDEOTUNER NORMAL INPUTTUNER AUDIO (R)TUNER AUDIO INPUTTUNER 12VTUNER AUDIO (L)TUNER VIDEO SIGNAL INPUTTUNER AUDIO (L)TUNER AUDIO (NORMAL)TUNER AUDIO (R)TUNER 12VTUNER OFF HTV AUDIOTV/VTRTEXT ON LUNREGULATOR 45VUNREGULATORUNREGULATOR 19VREFERENCE VOLTAGEVIDEO EE HVIDEO EE LREFERENCE OSCILLATERVIDEO SIGNAL INPUTVIDEO SIGNAL OUTPUTVIDEO EE LVIDEO SIGNAL INPUTVIDEO SIGNAL OUTPUTMOTOR VOLTAGEMOTOR VOLTAGE DOWN LVERTICAL SYNC SIGNALVTR HVTR 12VOSCILLATOR INPUTOSCILLATOR OUTPUT51

Service ManualDVD Video RecorderDMR-ES40VPDMR-ES40VPCVol. 1Colour(S)...........Silver TypeVR0508007CEDiagrams and ReplacementParts ListS1. About Indication of The Schematic DiagramsS1.1. Important Safety NoticeCOMPONENTS IDENTIFIED WITH THE MARK HAVE THE SPECIAL CHARACTERISTICS FOR SAFETY.WHEN REPLACING ANY OF THESE COMPONENTS USE ONLY THE SAME TYPE.1.Although reference number of the parts is indicated on the P.C.B. drawing and/or schematic diagrams,it is NOT mounted on the P.C.B. when it is displayed with "$" mark.2.It is only the "Test Round" and no terminal (Pin) is available on the P.C.B. when the TP (Test Point) indicatedas "●" mark.3.The voltage being indicated on the schematic diagram is measured in "Standard-Playback" modewhen there is no specify mode is mentioned.4.Although the voltage and waveform available on here is measured with standard frame, it may be differfrom actual measurement due to modification of circuit and so on.5.The voltage being indicated here may be include observational-error (deviation) due to internal-resistanceand/or reactance of equipment. Therefore, handle the value indicated on here as reference.6.Use the parts number indicated on the Replacement Parts List .7.Indication on Schematic diagrams:Circuit name being connected.OFTRFEPThis signal is connectedto the EFP schematic diagramName of SignalTable of contentsS1. About Indication of The Schematic Diagrams .......................... S-1S1.1. Important Safety Notice ....................................................... S-1S2. Voltage and Waveform Chart ................................................... S-2S2.1. Main P.C.B. ........................................................................... S-2S2.2. Power and Digital I/F P.C.B. .................................................. S-4S2.3. Front Jack P.C.B. .................................................................. S-4S2.4. FL Drive P.C.B. ...................................................................... S-4S3. Power Supply Block ................................................................ S-5S3.1. Power Supply Block Diagram ............................................... S-5S3.2. Digital I/F Regulator Block Diagram ...................................... S-6S3.3. Video Block Diagram(1) ........................................................ S-7S3.4. Video Block Diagram(2) ........................................................ S-8S3.5. Audio Block Diagram ............................................................. S-9S3.6. System Control and Servo Block Diagram .......................... S-10S3.7. Timer Block Diagram ........................................................... S-11S4. Schematic Diagram ................................................................ S-12S4.1. Interconnection Diagram ..................................................... S-12S4.2. IO_Tuner(I) Schematic Diagram ......................................... S-16S4.3. Video(V) Schematic Diagram .............................................. S-20S4.4. VHS_Audio(A) Schematic Diagram .................................... S-24S4.5. SYSCON/Servo/Timer(S) Schematic Diagram ................... S-28S4.6. D_IF(IF) Schematic Diagram .............................................. S-32S4.7. Power(P) Schematic Diagram ............................................. S-36S4.8. DV_Jack Schematic Diagram ............................................. S-40S4.9. Front Schematic Diagram ................................................... S-40S4.10. Front Jack Schematic Diagram ......................................... S-41S5. Print.Circuit.Board. ................................................................. S-42S5.1. Main P.C.B. ......................................................................... S-42S5.1.1. Main P.C.B.(Component Side) .......................................S-42S5.1.2. Main P.C.B.(Foil Side) ...................................................... S-46S5.1.3. Main P.C.B. Address Information ..................................... S-50S5.2. Power and Digital I/F P.C.B. ................................................ S-52S5.3. DV Input P.C.B. ................................................................... S-56S5.4. Front Jack P.C.B ................................................................. S-57S5.5. FL Drive P.C.B. .................................................................... S-58S6. Replacement Parts List .......................................................... S-59S7. Exploded Views ...................................................................... S-69S7.1. Frame and Casing Section(1) ............................................. S-69S7.2. Frame and Casing Section(2) ............................................. S-70S7.3. Video Mechanism Section ................................................... S-71S7.4. Packing Parts and Accessories Section .............................. S-72S-1

S2. Voltage and Waveform ChartS2.1. Main P.C.B.REF No. PIN No. REC PB EEIC1511 1 1.2 1.2 1.2IC1511 2 2.4 2.4 2.4IC1511 3 0.2 0.1 0.2IC1511 4 0 0 0IC1512 1 0 0 0IC1512 2 1.2 1.2 1.2IC1512 3 5 5 5IC1512 4 0 0 0IC2501 1 12.2 12.2 12.2IC2501 2 0.1 0.1 0.1IC2501 3 0 0 0IC2501 4 0.1 0.1 0.1IC2501 5 0 0 0IC2501 6 0 0 0IC2501 7 16.1 16.2 16.1IC2501 8 0 0 0IC2501 9 2.8 2.8 2.8IC2501 10 1.6 1.6 1.6IC2501 11 1.6 1.6 1.6IC2501 12 0.6 0.6 0.6IC2501 13 1.5 1.5 1.5IC2501 14 2.4 2.4 2.4IC2501 15 2.5 2.5 2.5IC2501 16 2.5 2.5 2.5IC2501 17 2.5 2.5 2.5IC2501 18 1.3 1.3 1.3IC2501 19 5 5 5IC2501 20 3.8 3.6 3.8IC2501 21 12.2 12.2 12.2IC2501 22 3.8 3.6 3.8IC2501 23 3.8 3.6 3.8IC2501 24 0 0 0IC2501 25 3.8 3.6 3.8IC2501 26 0 0 0IC2501 27 0 0 0IC3001 1 0 0 0IC3001 2 0 0 0IC3001 3 0 0 0IC3001 4 5.1 5.1 5.1IC3001 5 2.1 2 2.1IC3001 6 2.6 2.5 2.6IC3001 7 2.8 2.8 2.8IC3001 8 1.8 1.4 1.8IC3001 9 1.8 1.3 1.8IC3001 10 2.3 1.9 2.3IC3001 11 2.6 3 2.6IC3001 12 1.8 0.6 1.8IC3001 13 0 0 0IC3001 14 2.7 2.3 2.7IC3001 15 2.8 2.8 2.8IC3001 16 2 2 2IC3001 17 2.8 2.8 2.8IC3001 18 1.9 1.9 1.9IC3001 19 2.8 2.8 2.8IC3001 20 0 0 0IC3001 21 2.8 2.8 2.8IC3001 22 5 5 5IC3001 23 2.3 2.3 2.3IC3001 24 0.5 0.6 0.5IC3001 25 0 0 0IC3001 26 3 2.8 3IC3001 27 0.5 0.6 0.5IC3001 28 0 0 0IC3001 29 2.4 2.4 2.4IC3001 30 2.8 2.9 2.8REF No. PIN No. REC PB EEIC3001 31 0.4 0.4 0.4IC3001 32 2.4 2.5 2.4IC3001 33 2 2.1 2IC3001 34 2 2.2 2IC3001 35 3 3 3IC3001 36 0 2.3 0IC3001 37 3 3 3IC3001 38 2.1 2.2 2.1IC3001 39 1.4 1.4 1.4IC3001 40 2.1 2.1 2.1IC3001 41 2.9 3 2.9IC3001 42 2 2 2IC3001 43 2.1 2.1 2.1IC3001 44 0 0 0IC3001 45 3.2 3.2 3.2IC3001 46 3.2 3.2 3.2IC3001 47 5 5 5IC3001 48 4.9 5 4.9IC3001 49 3.2 3.2 3.2IC3001 50 5 5 5IC3001 51 2.1 2.1 2.1IC3001 52 5 5 5IC3001 53 2.6 2.6 2.6IC3001 54 0 0 0IC3001 55 2.1 2.1 2.1IC3001 56 0 0 0IC3001 57 2.2 2.2 2.2IC3001 58 2.3 2.3 2.3IC3001 59 5 5 5IC3001 60 5 5 5IC3001 61 4.1 4.1 4.1IC3001 62 2.3 2.3 2.3IC3001 63 2.2 2.2 2.2IC3001 64 2.5 2.5 2.5IC3001 65 2.2 2.2 2.2IC3001 66 2.5 2.5 2.5IC3001 67 2.2 2.2 2.2IC3001 68 1.2 1.2 1.2IC3001 69 1.9 1.9 1.9IC3001 70 2.7 0.9 2.7IC3001 71 0.5 0.4 0.5IC3001 72 5 5 5IC3001 73 4.1 4.2 4.1IC3001 74 4 4.1 4IC3001 75 2.7 2.8 2.7IC3001 76 2.2 2.2 2.2IC3001 77 2.8 2.8 2.8IC3001 78 0 0 0IC3001 79 0 0 0IC3001 80 2.5 2.5 2.5IC3001 81 0.7 0.7 0.7IC3001 82 0 0 0IC3001 83 3.4 3.4 3.4IC3001 84 5 5 5IC3001 85 2.5 2.3 2.5IC3001 86 2.3 2.3 2.3IC3001 87 2.5 2.4 2.5IC3001 88 0 0 0IC3001 89 0 2.3 0IC3001 90 0 2.3 0IC3001 91 0 2.3 0IC3001 92 5.1 5.1 5.1IC3001 93 0.5 0.5 0.5IC3001 94 2.5 2.5 2.5IC3001 95 2.5 2.5 2.5REF No. PIN No. REC PB EEIC3001 96 2.5 2.5 2.5IC3001 97 0 0 0IC3001 98 2.3 2.5 2.3IC3001 99 0 0 0IC3001 100 2.6 2.5 2.6IC3701 1 1.7 1.7 1.7IC3701 2 0 0 0IC3701 3 2.7 2.7 2.7IC3701 4 5 5 5IC3701 5 1.8 1.7 1.8IC3701 6 4.8 5 4.8IC3701 7 1.4 1.4 1.4IC3701 8 4.7 4.7 4.7IC3701 9 0.1 0 0.1IC3701 10 2.7 2.7 2.7IC3701 11 0 0 0IC3701 12 1.4 1.4 1.4IC3701 13 4.7 5 4.7IC3701 14 1.4 1.4 1.4IC3701 15 0 0 0IC3701 16 0 0 0IC3701 17 2.6 2.7 2.6IC3701 18 0 0 0IC3701 19 1.4 1.4 1.4IC3701 20 4.7 4.9 4.7IC3701 21 1.4 1.4 1.4IC3701 22 0 0 0IC3701 23 0.1 0 0.1IC3701 24 2.7 2.7 2.7IC3701 25 5 5 5IC3701 26 1.8 1.8 1.8IC3701 27 1.8 1.8 1.8IC3701 28 2 2 2IC3701 29 2 2 2IC3701 30 2.2 2.2 2.2IC3701 31 0 0 0IC3701 32 2.2 2.2 2.2IC3701 33 2.2 2.2 2.2IC3701 34 2.2 2.2 2.2IC3701 35 2.2 2.2 2.2IC3701 36 1.8 1.8 1.8IC3701 37 1.8 1.8 1.8IC3701 38 0 0 0IC3701 39 1.9 1.9 1.9IC3701 40 5 5 5IC3701 41 2.8 2.8 2.8IC3701 42 0 0 0IC3701 43 2.8 2.8 2.8IC3701 44 5 5 5IC3701 45 2.8 2.8 2.8IC3701 46 2.8 2.8 2.8IC3701 47 1.9 1.9 1.9IC3701 48 4.7 4.7 4.7IC3701 49 2.8 2.8 2.8IC3701 50 0 0 0IC3701 51 2.8 2.8 2.8IC3701 52 5 5 5IC3701 53 2.8 2.8 2.8IC3701 54 2.9 2.9 2.9IC3701 55 1 1 1IC3701 56 0 0 0IC3701 57 4.9 4.9 4.9IC3701 58 4.9 4.8 4.9IC3701 59 5 5 5IC3701 60 0 0 0REF No. PIN No. REC PB EEIC3701 61 0 0 0IC3701 62 0.8 0.8 0.8IC3701 63 0.8 0.8 0.8IC3701 64 5 5 5IC3701 65 1.3 1.1 1.3IC3701 66 0 0 0IC3701 67 1.8 1.5 1.8IC3701 68 0 0 0IC3701 69 2.1 2.1 2.1IC3701 70 0 0 0IC3701 71 1.3 1.1 1.3IC3701 72 5 5 5IC3701 73 1.3 1.1 1.3IC3701 74 0 0 0IC3701 75 2.1 2.1 2.1IC3701 76 0 0 0IC3701 77 0 0 0IC3701 78 5 5 5IC3701 79 0 0 0IC3701 80 0 0 0IC3902 1 4.8 4.8 4.8IC3902 2 2.2 1.9 2.2IC3902 3 5.1 5.1 5.1IC3902 4 2.2 1.9 2.2IC3902 5 0 0 0IC3902 6 2 2 2IC4501 1 2.4 2.4 2.4IC4501 2 0 0 0IC4501 3 2.4 2.4 2.4IC4501 4 0.1 0 0.1IC4501 5 0 0 0IC4501 6 2.5 2.5 2.5IC4501 7 2 2 2IC4501 8 0 0 0IC4501 9 0 0 0IC4501 10 0 0 0IC4501 11 0 0 0IC4501 12 2 2 2IC4501 13 0 0 0IC4501 14 0 0 0IC4501 15 0 0 0IC4501 16 2.5 2.5 2.5IC4501 17 0.5 0.5 0.5IC4501 18 2.5 2.5 2.5IC4501 19 2.5 2.5 2.5IC4501 20 2 0 2IC4501 21 1.9 0 1.9IC4501 22 2 0 2IC4501 23 0 0 0IC4501 24 2.1 0.7 2.1IC4501 25 5 5 5IC4501 26 2.1 0 2.1IC4501 27 0 2.4 0IC4501 28 4.3 4.3 4.3IC4501 29 3.9 1.8 3.9IC4501 30 3.7 1.8 3.7IC4501 31 1.1 1.8 1.1IC4501 32 2.5 2.5 2.5IC4501 33 2.5 2.5 2.5IC4501 34 0.5 0.5 0.5IC4501 35 2.5 2.5 2.5IC4501 36 0 0 0IC4501 37 2 2 2IC4501 38 0 0 0IC4501 39 0 0 0REF No. PIN No. REC PB EEIC4501 40 5 5 5IC4501 41 0 0 0IC4501 42 4.1 4.1 4.1IC4501 43 4 4 4IC4501 44 3.3 3.3 3.3IC4501 45 1.6 1.6 1.6IC4501 46 4.9 4.2 4.9IC4501 47 2.5 2.5 2.5IC4501 48 2.5 2.5 2.5IC4501 49 1 1 1IC4501 50 0.9 0.9 0.9IC4501 51 6 6 6IC4501 52 6 6 6IC4501 53 6 6 6IC4501 54 0 0 0IC4501 55 0 0 0IC4501 56 0 0 0IC4501 57 6.1 6.1 6.1IC4501 58 12.2 12.2 12.2IC4501 59 6.1 6.1 6.1IC4501 60 0 0 0IC4501 61 2.5 2.5 2.5IC4501 62 2.4 2.4 2.4IC4501 63 0 0 0IC4501 64 0 0 0IC4801 1 6.1 6.1 6.1IC4801 2 6.1 6.1 6.1IC4801 3 6.1 6.1 6.1IC4801 4 6.1 6.1 6.1IC4801 5 6.1 6.1 6.1IC4801 6 0 0 0IC4801 7 0 0 0IC4801 8 0 0 0IC4801 9 0 0 0IC4801 10 0 0 0IC4801 11 6.1 6.1 6.1IC4801 12 6.1 6.1 6.1IC4801 13 6.1 6.1 6.1IC4801 14 6.1 6.1 6.1IC4801 15 6.1 6.1 6.1IC4801 16 12.2 12.2 12.2IC4802 1 6.1 6.1 6.1IC4802 2 6.1 6.1 6.1IC4802 3 6.1 6.1 6.1IC4802 4 0 0 0IC4802 5 6.1 6.1 6.1IC4802 6 6.1 6.1 6.1IC4802 7 6.1 6.1 6.1IC4802 8 12.2 12.2 12.2IC4803 1 4.6 4.6 4.6IC4803 2 0 0 0IC4803 3 1.2 1.2 1.2IC4803 4 8.9 8.9 8.9IC4803 5 12.4 12.4 12.4IC4804 1 - - -IC4804 2 4.4 4.4 4.4IC4804 3 4.4 4.4 4.4IC4804 4 - - -IC4804 5 - - -IC4804 6 - - -IC4804 7 - - -IC4804 8 3.3 3.3 3.3IC4804 9 4.4 4.4 4.4IC4804 10 4.4 4.4 4.4IC4804 11 4.4 4.4 4.4REF No. PIN No. REC PB EEIC4804 12 4.4 4.4 4.4IC4804 13 4.4 4.4 4.4IC4804 14 4.4 4.4 4.4IC4804 15 0 0 0IC4804 16 4.4 4.4 4.4IC4804 17 - - -IC4804 18 4.4 4.4 4.4IC4804 19 - - -IC4804 20 4.9 4.9 4.9IC4804 21 4.9 4.9 4.9IC4804 22 0 0 0IC4804 23 4.4 4.4 4.4IC4804 24 4.4 4.4 4.4IC4804 25 4.4 4.4 4.4IC4804 26 4.4 4.4 4.4IC4804 27 4.4 4.4 4.4IC4804 28 4.4 4.4 4.4IC4804 29 4.4 4.4 4.4IC4804 30 8.9 8.9 8.9IC4804 31 4.4 4.4 4.4IC4804 32 4.4 4.4 4.4IC6001 1 4.8 4.8 4.8IC6001 2 0 0 0IC6001 3 0 0 0IC6001 4 4.7 4.7 4.7IC6001 5 4.9 4.9 4.8IC6001 6 4.9 4.9 4.9IC6001 7 0.7 0.7 0.7IC6001 8 0.7 0.7 0.7IC6001 9 3.2 3.2 3.2IC6001 10 0 0 0IC6001 11 0 0 0IC6001 12 0 0 4.8IC6001 13 0 0 0IC6001 14 4.8 4.8 4.9IC6001 15 3.7 3.7 3.7IC6001 16 0 0 0IC6001 17 0 0 0IC6001 18 0 0 0IC6001 19 0 0 0IC6001 20 0 0 0IC6001 21 4.8 4.9 4.9IC6001 22 0 0 0IC6001 23 4.4 4.4 4.3IC6001 24 2 2 2IC6001 25 0 0 0IC6001 26 0 0 0IC6001 27 4.8 4.8 4.8IC6001 28 4.8 4.8 4.8IC6001 29 4.8 4.8 4.8IC6001 30 4.7 4.7 4.8IC6001 31 4.8 4.8 4.8IC6001 32 4.8 4.8 4.8IC6001 33 0 0 0IC6001 34 4.9 4.9 4.9IC6001 35 0 0 0IC6001 36 0 0 0IC6001 37 4.9 4.9 4.9IC6001 38 2.2 2.2 2.2IC6001 39 2.2 2.2 2.2IC6001 40 0 0 0IC6001 41 0 0 0IC6001 42 0 0 0IC6001 43 4.9 4.9 4.9IC6001 44 0 0 0S-2

REF No. PIN No. REC PB EEIC6001 45 0 0 0IC6001 46 0 0 0IC6001 47 1.4 1.4 1.4IC6001 48 2.2 2.2 2.2IC6001 49 0 0 0IC6001 50 1 1 1IC6001 51 5.1 5.1 5.1IC6001 52 0 1.5 1.5IC6001 53 5.1 5.1 5.1IC6001 54 2 2.1 2IC6001 55 1.4 1.4 1.5IC6001 56 1.3 1.3 1.3IC6001 57 0 0 0IC6001 58 4.8 4.8 4.8IC6001 59 0 0 0IC6001 60 0 0 0IC6001 61 0 0 0IC6001 62 0 0 0IC6001 63 0 0 0IC6001 64 0 0 0IC6001 65 0 0 0IC6001 66 0 0 0IC6001 67 0 0 0IC6001 68 4.1 4.1 4.1IC6001 69 3.9 3.9 3.9IC6001 70 4.3 4.3 4.3IC6001 71 4.2 4.2 4.2IC6001 72 4.1 4.1 4.1IC6001 73 0.1 0.1 0.1IC6001 74 0 0 0IC6001 75 4.6 4.6 4.6IC6001 76 0 0 0IC6001 77 4.8 4.8 4.8IC6001 78 0 0 0IC6001 79 5 5 5IC6001 80 0.1 0.1 0.1IC6001 81 0 0 0IC6001 82 0 0 0IC6001 83 0 0 0IC6001 84 0 0 0IC6001 85 0 0 0IC6001 86 2.5 2.5 2.5IC6001 87 2.5 2.5 2.5IC6001 88 0 0 0IC6001 89 0 0 0IC6001 90 2.4 2.4 2.4IC6001 91 2.5 2.5 2.5IC6001 92 2.5 2.5 2.5IC6001 93 0 0 0IC6001 94 2.5 2.5 2.5IC6001 95 2.5 2.5 2.5IC6001 96 2.5 2.5 2.5IC6001 97 2.5 2.5 2.5IC6001 98 5 5 5IC6001 99 4.9 4.9 4.9IC6001 100 0 0 0IC6201 1 4.9 4.9 4.9IC6201 2 4.9 4.9 4.9IC6201 3 0 0 0IC6201 4 0 0 0IC6201 5 0 0 0IC6301 1 5 5 5IC6301 2 0 0 0IC6301 3 4.6 4.6 4.6IC6301 4 5.8 5.8 5.8REF No. PIN No. REC PB EEIC7301 1 - - -IC7301 2 0.3 0.3 0.3IC7301 3 2.5 2.5 2.5IC7301 4 0.5 0.5 0.5IC7301 5 2.3 2.3 2.3IC7301 6 2.3 2.3 2.3IC7301 7 4.8 4.5 4.8IC7301 8 - - -IC7301 9 - - -IC7301 10 - - -IC7301 11 - - -IC7301 12 - - -IC7301 13 2.8 2.8 2.8IC7301 14 2.7 2.7 2.7IC7301 15 2.2 2.2 2.2IC7301 16 - - -IC7301 17 3.4 3.4 3.4IC7301 18 3.4 3.4 3.4IC7301 19 5 5 5IC7301 20 - - -IC7301 21 2.2 2.2 2.2IC7301 22 3.4 3.4 3.4IC7301 23 0 3.3 0IC7301 24 4.9 4.9 4.9IC7301 25 0 0 0IC7301 26 1.7 1.7 1.7IC7301 27 4.9 4.9 4.9IC7301 28 1.7 1.7 1.7IC7301 29 2.2 2.2 2.2IC7301 30 2.1 2.1 2.1IC7301 31 0 0 0IC7301 32 2.2 2.2 2.2IC7401 1 3.2 3.2 3.2IC7401 2 0.2 0.2 0.2IC7401 3 1.9 1.9 1.9IC7401 4 0 0 0IC7401 5 2.8 2.8 2.8IC7401 6 0.2 0.2 0.2IC7401 7 3.2 3.2 3.2IC7401 8 5 5 5IC7402 1 5 5 5IC7402 2 - - -IC7402 3 0 0 0IC7402 4 3.4 3.4 3.4IC7402 5 4.9 4.9 4.9IC7402 6 - - -IC7402 7 - - -IC7402 8 5.8 5.8 5.8IC7501 1 5 5 5IC7501 2 0 0 0IC7501 3 4.7 4.7 4.7IC7501 4 4.9 4.9 4.9IC7501 5 4.9 4.9 4.9IC7501 6 4.9 4.9 4.9IC7501 7 4.9 4.9 4.9IC7501 8 4.9 4.9 4.9IC7501 9 2.5 2.5 2.5IC7501 10 2.3 2.3 2.3IC7501 11 0 0 0IC7501 12 2 2 2IC7501 13 2.4 2.4 2.4IC7501 14 0 0 0IC7501 15 4.9 4.9 4.9IC7501 16 4.7 4.7 4.7IC7501 17 0 0 0REF No. PIN No. REC PB EEIC7501 18 1.8 1.8 0IC7501 19 4.8 4.8 4.8IC7501 20 4.9 4.9 4.9IC7501 21 4.8 4.9 4.9IC7501 22 4.9 4.9 4.9IC7501 23 0 0 0IC7501 24 5 5 5IC7501 25 5 5 5IC7501 26 3.2 3.2 3.2IC7501 27 3.7 3.7 3.7IC7501 28 0 0 0IC7501 29 4.9 4.9 4.9IC7501 30 4.9 4.9 4.9IC7501 31 0 0 0IC7501 32 5 5 5IC7501 33 2.2 2.2 4.5IC7501 34 0 0 0IC7501 35 -3.7 -3.7 -3.7IC7501 36 -3.7 -3.8 -3.8IC7501 37 -5.2 -5.2 -5.2IC7501 38 -5.2 -5.2 -5.2IC7501 39 -5.2 -5.2 -5.2IC7501 40 -5.2 -5.2 -5.2IC7501 41 -2 -5 -8IC7501 42 1.1 -5 -5IC7501 43 1.1 -5 -5IC7501 44 -5 -5 -5IC7501 45 -1.9 -5 -5IC7501 46 -5 -5 -8.1IC7501 47 4.1 -1.1 -5IC7501 48 -5 -5 -8.1IC7501 49 1 -2 -5.1IC7501 50 1 -2 -5.1IC7501 51 -2 -2 -5.1IC7501 52 -5 -2 -5.1IC7501 53 -5 -5.1 -5.1IC7501 54 -1.9 1 -2IC7501 55 1.2 1 -5.1IC7501 56 4.2 -2 -8.1IC7501 57 -8.1 -8.1 -8.1IC7501 58 3.1 3.1 3.1IC7501 59 0 0 0IC7501 60 5 5 5IC7501 61 3.9 3.9 3.9IC7501 62 4.1 4.1 4.1IC7501 63 4.1 4.3 4.2IC7501 64 4.8 4.8 4.8IC7502 1 4.9 4.9 4.9IC7502 2 4.9 4.9 4.9IC7502 3 0 0 0IC7502 4 - - -IC7502 5 - - -Q1501 E 0 0 0Q1501 C 4.6 4.7 4.7Q1502 E 0 0 0Q1502 C 4.9 4.9 4.9Q3001 E 1.6 1.6 1.6Q3001 C 5 5 5Q3001 B 2.2 2.2 2.2Q3002 E 5.1 5.1 5.1Q3002 C 5.7 5.7 5.7Q3002 B 5.9 5.9 5.9Q3003 E 5.1 5.1 5.1Q3003 C 5.7 5.7 5.7Q3003 B 5.9 5.9 5.9REF No. PIN No. REC PB EEQ3004 E 1.7 1.7 1.7Q3004 C 5.1 5.1 5.1Q3004 B 3.4 3.4 3.4Q3901 E 3 3 3Q3901 C 5.1 5.1 5.1Q3901 B 3.6 3.6 3.6Q3902 E 2.2 2.2 2.2Q3902 C 0 0 0Q3902 B 1.5 1.5 1.5Q4001 E -19.4 0 0Q4001 C 10.4 0 0Q4001 B -28.1 0.7 0.7Q4002 E -19.4 0 0Q4002 C 0 0 0Q4002 B -28.1 0.7 0.7Q4081 E 0 0 0Q4081 C 5.1 0.3 0.3Q4081 B -0.6 0.3 0.3Q4084 E 5.7 5.7 5.7Q4084 C 5.6 0.3 0.3Q4084 B 4.9 5.7 5.7Q4501 E 12.4 12.4 12.4Q4501 C 12.3 12.3 12.3Q4501 B 11.7 11.7 11.7Q4502 E 5.1 5.1 5.1Q4502 C 5.7 5.7 5.7Q4502 B 5.8 5.8 5.8Q4801 E 0 0 0Q4801 C 0 0 0Q4801 B 0 0 0Q4802 E 0 0 0Q4802 C 0 0 0Q4802 B 0 0 0Q6305 E 5 5 5Q6305 C 5.7 5.7 5.7Q6305 B 5.8 5.8 5.8Q7401 E 2.4 2.4 2.4Q7401 C 0 0 0Q7401 B 1.7 1.7 1.7Q7402 E 0 0 0Q7402 C 0.1 0.1 0.1Q7402 B 0.6 0.6 0.6QR4001 E 5.1 5.1 5.1QR4001 C -28.1 5 5QR4001 B 4.8 0 0QR4082 E 0 0 0QR4082 C 0 5.7 5.7QR4082 B 4.8 0 0QR4501 E 0 0 0QR4501 C 0 0 0QR4501 B 4.6 4.6 4.6QR4802 E 0 0 0QR4802 C 0 0 0QR4802 B 0 -0.2 0QR4804 E 5.8 5.8 5.8QR4804 C 0 0 0QR4804 B 5.8 5.8 5.8QR4805 E 0 0 0QR4805 C 0 0 0QR4805 B 0 -0.2 0QR4806 E 0 0 0QR4806 C 0 0 0QR4806 B 0 -0.2 0QR4807 E 0.1 0.1 0.1QR4807 C 0 0 0REF No. PIN No. REC PB EEQR4807 B 0 0 0QR4810 E 0 0 0QR4810 C 0 0 0QR4810 B 4.8 4.8 4.8QR4811 E 0 0 0QR4811 C 0 0 0QR4811 B 4.8 4.8 4.8QR4812 E 0 0 0QR4812 C 0 0 0QR4812 B 4.8 4.8 4.8QR4813 E 4.8 4.8 4.8QR4813 C 4.8 4.8 4.8QR4813 B 0 0 0QR4816 E 0 0 0QR4816 C 0 0 0QR4816 B 0 -0.2 0QR7401 E 36.3 36.3 36.3QR7401 C 36.3 36.3 36.3QR7401 B 0.1 0.1 0.1S-3

S2.2. Power and Digital I/F P.C.B.REF No. PIN No. REC PB EEIC11201 1 2.7 2.7 2.7IC11201 2 1.5 1.5 1.5IC11201 3 0 0 0IC11201 4 11.8 11.8 11.8IC11201 5 -438 -438 -438IC11202 1 2.2 2.2 2.2IC11202 2 2.2 2.2 2.2IC11202 3 0 0 0IC11202 4 13.2 13.2 13.2IC11202 5 -303 -303 -303IC11301 1 3.7 3.7 3.7IC11301 2 2.4 2.4 2.4IC11301 3 0 0 0IC11302 1 4.4 4.4 4.4IC11302 2 2.4 2.4 2.4IC11302 3 0 0 0IC11401 1 0 0 0IC11401 2 - - -IC11401 3 11.9 11.9 12IC11401 4 11.9 11.9 12IC11401 5 14 14 14.1IC11501 1 12.4 12.4 12.4IC11501 2 4.4 4.4 4.4IC11501 3 1.2 1.2 1.2IC11501 4 1.1 1.1 1.1IC11501 5 0.8 0.8 0.8IC11501 6 0 0 0IC11501 7 10.4 10.4 10.4IC11501 8 12.4 12.4 12.4IC31002 1 5.9 5.9 5.9IC31002 2 0 0 0IC31002 3 4.1 4.1 4.1IC31002 4 5.9 5.9 5.9IC31002 5 5 5 5IC31003 1 3.3 3.3 3.3IC31003 2 - - -IC31003 3 1.3 1.3 1.3IC31003 4 0 0 0IC31003 5 2.3 2.3 2.3IC31003 6 - - -IC31003 7 - - -IC31003 8 3.8 3.8 3.8IC31004 1 3.3 3.3 3.3IC31004 2 - - -IC31004 3 1.3 1.3 1.3IC31004 4 0 0 0IC31004 5 4.7 4.7 4.7IC31004 6 - - -IC31004 7 - - -IC31004 8 3.8 3.8 3.8IC37001 1 5.8 5.8 5.8IC37001 2 1.8 1.8 1.8IC37001 3 1.8 1.8 1.8IC37001 4 0 0 0IC37001 5 1.8 1.8 1.8IC37001 6 1.8 1.8 1.8IC37001 7 1.8 1.8 1.8IC37001 8 12.4 12.4 12.4IC45001 1 1.2 1.2 1.2IC45001 2 0 0 0IC45001 3 4.7 4.7 4.7IC45001 4 5.9 5.9 5.9IC45001 5 5 5 5IC45002 1 10.5 10.5 10.5IC45002 2 5 5 5REF No. PIN No. REC PB EEIC45002 3 5 5 5IC45002 4 0 0 0IC45002 5 1.4 1.8 1.4IC45002 6 1 1.5 1IC45002 7 12.1 12.3 12.1IC45002 8 12.4 12.4 12.4IC45003 1 3.7 3.7 3.7IC45003 2 2.4 2.4 2.4IC45003 3 2.4 2.4 2.4IC45003 4 0 0 0IC45003 5 2.4 2.4 2.4IC45003 6 2.4 2.4 2.4IC45003 7 3.8 3.8 3.8IC45003 8 10.5 10.5 10.5P37101 1 4.9 4.9 4.9P37101 2 4.9 4.9 4.9P37101 3 3.2 3.2 3.2P37101 4 3.2 3.2 3.2P37101 5 3.2 3.2 3.2P37101 6 5 5 5P37101 7 0 0 0P37101 8 5 5 5P37101 9 0 0 0P37101 10 3.1 3.1 3.1P37101 11 0 0 0P37101 12 0 0 5P37101 13 0 0 0P37101 14 5 5 5P37101 15 2.3 2.3 2.3P37101 16 0 0 0P37101 17 5 5 5P37101 18 0 0 0P37101 19 0 0 0P37101 20 4.7 4.7 4.7P37101 21 0 0 0P37101 22 0 0 0P37101 23 0 0 0P37101 24 0 0 0P37101 25 0 0 0P37101 26 0 0 0P37101 27 0 0 0P37101 28 0 0 0P37101 29 2.5 2.5 2.5P37101 30 0 0 0P37101 31 2.5 2.5 2.5P37101 32 0 0 0P37101 33 0 0 0P37101 34 0 0 0P37101 35 0 0 0P37101 36 1.4 1.4 1.4P37101 37 0 0 0P37101 38 3.3 3.3 3.3P37101 39 2.4 2.4 2.4P37101 40 0 0 0P37101 41 2.4 2.4 2.4P37101 42 3.3 3.3 3.3P37101 43 0 0 0P37101 44 0 0 0P37101 45 0 0 0P37101 46 0 0 0P37101 47 0.5 0.5 0.5P37101 48 0 0 0P37101 49 0 0 0P37101 50 0 0 0P37101 51 0.6 0.6 0.6REF No. PIN No. REC PB EEP37101 52 5 5 5P37101 53 0 0 0P37101 54 0 0 0P37101 55 0.7 0.7 0.7P37101 56 3.2 3.2 3.2P37101 57 0 0 0P37101 58 3.1 3.1 3.1P37101 59 0.5 0.5 0.5P37101 60 0 0 0P37101 61 0 0 0P37101 62 0 0 0P37101 63 0.7 0.7 0.7P37101 64 0 0 0P37101 65 0 0 0P37101 66 0 0 0P37101 67 0 0 0P37101 68 3.3 3.3 3.3P37101 69 0 0 0P37101 70 3.3 3.3 3.3P37101 71 0 0 0P37101 72 3.3 3.3 3.3P37101 73 0 0 0P37101 74 3.3 3.3 3.3P37101 75 0 0 0P37101 76 0 0 0P37101 77 0 0 0P37101 78 5 5 5P37101 79 0 0 0P37101 80 0 0 0P37101 81 0 0 0P37101 82 1.8 1.8 1.8P37101 83 3.5 3.5 3.5P37101 84 1.8 1.8 1.8P37101 85 0 0 0P37101 86 1.8 1.8 1.8P37101 87 0.7 0.7 0.7P37101 88 1.8 1.8 1.8Q11301 1 4.7 4.7 4.7Q11301 2 3.7 3.7 3.7Q11301 3 0 0 0Q11301 4 1.5 1.5 1.5Q11302 1 5.4 5.4 5.4Q11302 2 4.4 4.4 4.4Q11302 3 0 0 0Q11302 4 2.2 2.2 2.2Q11403 E 0 0 0Q11403 C 3.7 3.7 3.7Q11403 B 0 0 0Q11501 1 1.1 1.1 1.1Q11501 2 1.1 1.1 1.1Q11501 3 10.7 10.7 10.7Q11501 4 12.4 12.4 12.4Q11501 5 1.1 1.1 1.1Q11501 6 1.1 1.1 1.1Q37001 E 5.1 5.1 5.1Q37001 C 12.4 12.4 12.4Q37001 B 5.7 5.7 5.7Q37002 E 1.5 1.5 1.5Q37002 C 5 5 5Q37002 B 2.1 2.1 2.1Q37003 E 1.9 1.7 1.9Q37003 C 0 0 0Q37003 B 1.3 1.1 1.3QR11402 E 0 0 0QR11402 C 0 0 0REF No. PIN No. REC PB EEQR11402 B 4.8 4.8 4.8QR11501 E 0 0 0QR11501 C 4.4 4.4 4.4QR11501 B 0 0 0QR11502 E 0 0 0QR11502 C 0 0 0QR11502 B 4.7 4.7 4.7QR45006 E 0 0 0QR45006 C 0 0 0QR45006 B 4.8 4.8 4.8QR45007 E 0 0 0QR45007 C 5.8 5.8 5.8QR45007 B 0 0 0QR45008 E 0 0 0QR45008 C 5.8 5.8 5.8QR45008 B 0 0 0QR45009 E 0 0 0QR45009 C 0 0 0QR45009 B 2.3 2.6 2.3S2.3. Front Jack P.C.B.REF No. PIN No. REC PB EEIC7801 1 4.9 4.9 4.9IC7801 2 0 0 0IC7801 3 4.9 4.9 4.9S2.4. FL Drive P.C.B.REF No. PIN No. REC PB EEQR27501 E 0 0 0QR27501 C 3.9 3.9 3.9QR27501 B 0 0 0QR27503 E 0 0 0QR27503 C 0 0 0QR27503 B 4.8 4.8 4.8QR27505 E 0 0 0QR27505 C 3.6 3.6 3.6QR27505 B 0 0 0REF No. PIN No. REC PB EEQR27501 E 0 0 0QR27501 C 3.9 3.9 3.9QR27501 B 0 0 0QR27503 E 0 0 0QR27503 C 0 0 0QR27503 B 4.8 4.8 4.8QR27505 E 0 0 0QR27505 C 3.6 3.6 3.6QR27505 B 0 0 0S-4

S3. Power Supply BlockS3.1. Power Supply Block DiagramAC SOCKETP11101F11101(125V3A)VA11101,L11101L11102SURGESUPPRESSORANDSURGEABSORBERD11101,C11108RECTIFIER3412T11201SW TRANSFORMERP11P231110IC11401(REG.DR+12V)5 VINVo34DR+12V4B19D112015B287X SW+17VTODIGITAL I/FSECTIONIC11201(SWITCHING IC)4VCCQ11301(FEED BACK)1ZCDRAIN 541DR+5VF/B2GND332IC11301(ERROR VOLTAGE DET.)D11202D11203K1A3R2DR P ON HP31901 P60018FROMMAIN P.C.B.IC6001- 19IC11202(SWITCHING IC)4VCCD11205T11202SW TRANSFORMER4 P12019181716Q11403POWER ON/OFFCONTROL SW.QR11402( H :ON)IP1190121F-F+P31903 P60031P31903 P60032TOMAIN P.C.B.DP7501- 32TOMAIN P.C.B.DP7501- 11ZCDRAIN 56 P215F/B2GND389B1B2141312IP1190221X SW-7VD11206D11207X SW+4VQ11302(FEED BACK)X SW+3.2V41TODIGITAL I/FSECTION32IC11302(ERROR VOLTAGE DET.)X SW+5.8VK1A3R2IP11903X SW+12V12X SW+36VHOTCOLDS-5DMR-ES40VP/PCPower Supply Block Diagram

S3.2. Digital I/F Regulator Block DiagramX SW +36VX SW -7VXSW +36V P31903 P600310XSW -7V P31903 P60036TOMAIN P.C.B.X SW +17VXSW +17VP31903 P60036TOCAPSTANDRIVE UNITX SW +5.8VFROMPOWER SUPPLYBLOCK SECTIONX SW +12VX SW +4VIC31003(REG.D +3.3V)8 V INON H5V OUT 1IC45001(REG.AU +5V)XSW +12VD +3.3VP31901 P60015,6P37101 P600168,70,72,74TOMAIN P.C.B.TODIGITAL P.C.B.4 V INV OUT 5AU +5VP37101 P600117ON H3DR +5VDR +12VDR +5VDR +12VP114014P114011,2P1021P1023,4TODVD-RAM DRIVEIC31002(REG.D+5V)1 V INV OUT 5D +5VP31901 P60019CONT3FROMMAIN P.C.B.IC7501- 16P6003 P319039POWER OFF LTOMAIN P.C.B.Q11501(REG.D +1.8V)4 SG 35 D6 DD 2D 1XSW +5.8VP31901 P60013,4D +1.8VP31901 P600182,84,86,88IC11501(DC-DC CONVERTER)TODIGITAL P.C.B.1 V IN2 ON/OFFEXT 7FB 5IC31004(REG.ANA +3.3V)QR11501,11502(POWER ON H OUT)8 CS8 V INV OUT 1ANA +3.3VP37101 P600138,42ON H5DMR-ES40VP/PCDigital I/F RegulatorBlock DiagramS-6

S3.3. Video Block Diagram(1)JK3902REAR A/V OUT JACKIC3701(VIDEO I/O PROCESSOR)CPS V OUT16VIDEOOUTDVDAFROMDIGITALP.C.B.P6001 P3710151P6001 P3710147P6001 P3710159P31902 P600210P31902 P600212P31902 P600214C OUT DMY OUT DMG PYOUT DMDVD C IN41DVD Y IN39DVD G/Py IN47SW1BIASCLAMP6M LPF12M LPF6M LPF6M LPFBIASCLAMPSW2DRV MIX+Py/G SWPb/B SW6dB756dB756dB756dB75C75 OUTY/C MIXV75 SAGY75 OUTY75 SAGPy/G OUTPy/G SAG30282926273736CPN Y OUTCPN C OUTIC3902(DVD/VTR V SELECTOR SW.)DVD4H2L6VTR1Y3C4JK3903REAR AV JACK14S-VIDEOOUTVIDEOOUTVHS/DVDCOMMONOUTTO/FROMDIGITALP.C.B.JK4600FRONT A/V JACKJK3802L2S-VIDEO INJK3903REAR A/V JACKL1S-VIDEO INP6001 P3710163P6001 P3710155P6001 P371011P6001 P3710125L2VIDEO IN 74231L1VIDEO IN6CYL2 SW16C4Y36TOSYSTEMCONTROLP31902 P600215P31902 P600216P31901 P600112P31901 P600111PP46004PP46002PP46006LINE 1V INCPN C IN1CPN Y IN1L1 CS DETPb/B SAG32FROMDVD OUT HIC6001-SYSTEM CONTROL1SECTIONPr/R/C OUTDVD VY OUT35JK3902REAR A/V OUT JACKPr/R/C SAG34COMPONENTVIDEO OUTPY OUTY22(GREEN)PB OUTPB/CB18(BLUE)PR OUTPR/CR14(RED)VTR OSDQ3901,Q3902VIDEO IN1BUFFERCPN C OUTIC6001(SYSTEM CONTROL)OSD VIDEO IN52 OUT IN 50C OUT A CPNCIN DM P6002 P31902 P37101 P600169687TOY/V OUT ADIGITALV YIN DMP6002 P31902 P37101 P600165P.C.B.883Y/V OUT B 71L1/2/3 SW DETIC6001- 4PP4600 PS60029 4PS60029PS600211PS60027Q7401B PBOUT DMR PROUT DMI2C5DTI2C5CKBUFFERCPN C IN2CPN Y IN2L2 CS DETTUNERVIDEO INDVD B/Pb IN51BIASDVD R/Pr IN43BIASSDA57SCL58L1/L2/L3 SW DET.48S1/S2 DET216S1/S2 DET19TUNER3CLAMPVIDEO2 IN12CLAMPC2 IN17BIASY2 IN14CLAMPC/S DET213VIDEO1 IN5CLAMPC1 IN10BIASY1 IN7CLAMPC/S DET166M LPF6M LPFPr/R/C SWIIC-BUS CONTROLCLAMPV-SW ASW AVYMIX AY-SW A+ MIX AC-SW A0dBV-SW BSW BVYMIX B6dB756dB750dB0dBPb/B OUT33TUNER VIDEO OUTMIX V OUTgfedcY-SW B+ MIX BC-SW BaDMR-ES40VP/PCVideo Block DiagramS-7

S3.4. Video Block Diagram(2)A:DVD VIDEO EE SIGNAL:REC SIGNAL:PB SIGNALdagecfTU7401U/V TUNER PACKVIDEO 6VIDEO OUT 18IC3001 (AUDIO/VIDEO SIGNAL PROCESSOR)151719212326333537ATT-6dBATT-10dBATT-10dBATT-10dBGCLGCLGCLRPATT-4dBDO/RECDOY-LPFVIDEOAGCRPY-NOISEREDUCTIONSQPBSDSDRATPNON-LINEARDE-EMPHASISSQPBSQPBEQHP-NCTRAP-NCRPHPFPHASECOMPARATORPRFEED BACKCLAMPVIDEO ALCPB APCKILLERREC APCACC DET2MHzLPFACCAPC SWACC SWCLEARSYNCEXTINTB.DPILOTERASERBPFSQUELCHPPRPILOTADDNTSC/PALCONVERTERRPRP4.43PAL MPALCONV DELAYCHROMAACCCOLOURKILLERMAINCONV 2+MAINCONV 1RC LPF1PEXTINTC LPF2COLOURKILLER6dBAMPRP+C-SQUELCHV-AMPVCAC CCDCCDLPF762957554645DATA 74CLOCK 73TW3001VIDEOENVEQ3004AMPTO/FROMSYSTEM CONTROL SECTIONIIC DATAIC6001- 72IIC CLOCKIC6001- 713840LPFDEHNON-LINEAREMPHASISCHROMAACC DETB.EMIXLEVELADJUSTC-ACC:ONTHROUGHfh HPFCTL TRAPH SW 80FROMSYSTEM CONTROL SECTIONHEAD SWIC6001- 18495136Y-CCDDELAYET LPFNOFRECTRAPFREC TRAPPRREC TRAP/Hi-Fi TRAPC-DELAYC3005,L3002PEAKINGFILTER129MAINDE-EMPHASISMAIN EMPHASISCARRIER OFFSETW.C/D.CREC FBC+ALCPB AGC+APLfo/DEVIATIONADJUSTMENTFMMODULATIONRECFILTERCH2CH1SP2SP2SP18586SP LSP COMSP RP30016P30015P30014TO/FROMDD CYLINDERVIDEO HEAD8SUBLPFDEMODLIMG-EQ+RECMUTEVCASP187TOAUDIO SECTIONFSCIC4501- 45TOSYSTEM CONTROL SECTIONFSCIC6001- 48X30023.58MHzQ3001BUFFER6769655363X'TALVCOOSCILLATOR2FSCC CLOCKDRIVERSQPBSQPBDLTO C CCDSQPBP-EQFMAGC629MHzTRAPRPINTEXTSPEPEP2CH2CH1EP1EP2EP1899091EP LEP COMEP RP30013P30012P30011TO/FROMDD CYLINDERVIDEO HEADDMR-ES40VP/PCVideo Block DiagramS-8

S3.5. Audio Block DiagramDVD AUDIO SIGNALAUDIO MAIN SIGNAL PATH IN REC MODEAUDIO MAIN SIGNAL PATH IN PLAYBACK MODEIC4501(AUDIO PROCESSOR)NORMALSELECTSWITCH61IC3001(AUDIO PROCESSOR)2PRVCAfhTRAPRECEQ.PREAMP9896Q4001,Q4002P40024P40023PB H :ONQR4001L :ONA+5VD.REC HIC6001- 20A.HEAD(R)A.HEAD(W)FROMSYSTEMCONTROLSECTIONTO/FROMA/C HEAD626JK3903(REAR JACK)IN(R)IN(L)JK4600(FRONT JACK)IN(R)IN L/MONOL1L22420325PP4600 PS60025 8PP46007PS60026TUN RL1 IN RDVD RL1 IN LL2 IN RTUN LL2 IN LDVD L89631410131564INPUTSELECTSWITCHRCHINPUTSELECTSWITCHLCHAGC&SWITCHAGC&SWITCHPNR L CHPNR R CHSW NOISEFM MODULATOR/DEMODULATORBPFSW NOISELPFHOLDTIMINGOUTPUTSELECTSWITCHR CHOUTPUTSELECTSWITCHL CH+FM MODULATOR/DEMODULATORLPFAGCBPF5357VCOFO453021MUTE36CTL27FM MIXTW4501QR4811RCHMUTEQR4812LCHMUTEQR4813MUTEDRIVEIC4801(VHS/DVD SELECTOR SW)511412LHLHENVETW450210L313IC4802(BUFFER)35QR4807MUTEDRIVEQR4810INV.17LINE OUT RLINE OUT LQ4801MUTEQ4802MUTECOM MUTEFSCIC3001-JK3903REAR JACK221863DVD OUT HIC6001- 1COMMON MUTE HIC6001- 73FM MUTE HIC6001- 28AUDIO HEAD SWIC6001- 19VHS/DVDCOMMON OUTOUT(R)OUT(L)LINEFROMVIDEOSECTIONFROMSYSTEMCONTROLSECTIONTO/FROMSYSTEMCONTROLIIC CLOCKIC6001- 71IIC DATAIC6001- 724243IIC BUSINTERFACEPREAMP &SWITCH292422P30017P30018P30019D.REC HIC6001- 20LHi-FiAUDIOHEADRTU7401U/V TUNERSIF OUT 15FL730113IC7301(AUDIO MULTIPLEX DECODER)21 INPUTR OUT 29L OUT 30TUNER IN RTUNER IN LIC4804(AUDIO BUFFER & SELECTOR SWITCH)32INPUTSELECTORSWITCHR CH109VHS RVHS LQR4816MUTEQR4802AUDIO2L1 IN RL1 IN LL2 IN R121131L CHAGC2829ADC RADC LP6002 P3190218P6002 P3190219MUTEP3710131P3710129P6001P6001TODIGITALP.C.B.TO/FROMDIGITALP.C.B.P6001 P371012P6001 P371011P31901 P600111P31901 P600112I2C5CKI2C5DTL2 IN L32202118IIC BUSINTERFACEAGC+2625FROMTIMERSECTIONFROMDIGITALP.C.B.XDMUTE LIC4402- 16XTMUTE LIC7501- 64IC45003(AUDIO BUFFER)P6001 P3710115QR45006,QR45007MUTEDRIVEQR45008,QR45009MUTEDRIVEL OUTL OUTMUTE LP31901 P60011QR4804QR4806MUTEQR4805MUTEX SW5.8VJK3902REAR OUTPUT JACK2420DVDOUT(R)OUT(L)P6001 P3710141MIX R OUT DMDVD R OUT31MIX R OUT DMP319021P6002JK4801DIGITAL AUDIO OUTFROMDIGITALP.C.B.P6001 P3710139MIX L OUT DMDVD L OUT57MIX L OUT DMP31902 P600241PCM/BITSTREAMP6001 P37101 P31901 P6001367IECOUTIEC OUTDMR-ES40VP/PCAudio Block DiagramS-9

S3.6. System Control and Servo Block DiagramCAPSTANMOTORCOILSHALLIC0201 (CAPSTAN MOTOR DRIVE)A115A216A31722 H3-23 H3+MOTORDRIVEDIFFERENTIALAMPLIFIRETORQUECONTROLTLAMPECAMPVM19TL9EC10P0201 P25712P0201 P25715P0201 P25716X SW+17VTL2502CAP TLIC6001 (SYSTEM CONTROL/SERVO/TIMER)11 CURRENT LIMIT H76 CAP ET5V(D) 3712MHz IN 3812MHz OUT 39X6001(12MHz)IC6201(RESET)MAIN P.C.B.+5VHALLHALL24 H1-25 H1+26 H2-27 H2+DEFAMPPOSITIONSIGNALPROCESSTORQUEDIRECTIONSELECTED/S11P0201 P25717TL2015CAP FG74 CAP R/F86 CAP FG OUT1 OUT+5V2VH+21HALLPOWERCAPSTANFGHEADP0201 P2571387 CAP FG INRESET L34TL6004TL6002IC2501 (LOADING MOTOR & CYLINDER MOTOR DRIVE)IC6301(SWITCHING REG.+5V)LOADINGMOTORM+ OUT 12-OUT 24AMPAMPPRE-DRIVECONTROLLOGICF IN5R IN684 LOADING H83 UNLOADING HPOWER ON H 75+5V(IC2501- 19 /P2571- 1 )1 OUT IN 4SW3X SW+5.8VFROMPOWERCYLINDERMOTORCOILSM122M223M325+ + +91 O REFIC7501(TIMER CPU)HALLICCOM20PG+15PG-16MOTORDRIVEDIFFERENTIALAMPLIFIREPRE-DRIVEMOTORDRIVESIGNALGENERATORFG/PGCOMPOSERSELECTORDIFFERENTIALAMPLIFIREDIFFERENTIALAMPLIFIRE-VCC 19 +5V14N96 CTL AMP REF77 CYL ETVTR TIMER CS 15VTR S-DATA OUT 68VTR S-DATA IN 69VTR S-DATA CLK 7022 P.FAIL L27626163VTRTIMER CS INVTRS-DATA INVTRS-DATA OUTVTRS-DATA CLOCKPG OUT171890 CYL PFGCONTROLHEADP40025P4002694 CTL HEAD(-)95 CTL HEAD(+)IR 14PS6002 PP46003 10IC7801(REMOTE CTL.RECEIVER)1 IR3+5VFRONT JACK P.C.B.MODESWS1532TW2002PB CTL82 EX.FF/REW L97 PB CTL OUTVTRKEY 2 6PS6002 PP46005 8< OPERATION KEY >S7806POWERS7805FF12345SW1SW2SW3SW4SW1SW2SW3SW433 POSITION SW132 POSITION SW231 POSITION SW330 POSITION SW4VTRKEY 1 5PS6002 PP46002 11S7813EJECTS7812REW8 T.PHOTO7 S.PHOTO27 SAFETY TABL+5V+5VIC1511(T-REEL SENSOR)IC1512(S-REEL SENSOR)2 121TL24IIC CLOCK 71IIC DATA 72IIC CLOCKIIC DATATO/FROMVIDEO IC(IC3001)/AUDIO IC(IC4501)Q1501TAKE-UPPHOTOSENSORD1501SENSORLEDQ1502SUPPLYPHOTOSENSORS1531SAFETYTAB SW43 43TL2379 S.REEL80 T.REELDMR-ES40VP/PCSystem Control & ServoBlock DiagramS-10

S3.7. Timer Block DiagramMAIN P.C.B.IC7501(TIMER CPU)DP7501X75019 8MHz OUT10 8MHz INFROMP31903 P6003DIGITAL I/F P.C.B.T11202- 192FROMDIGITAL I/F P.C.B.T11202- 20P31903 P6003132 F+1 F-TIMER DISPLAY4G 44G 83G 112G 142G 181G 211G 251G 29P1P3P4P6P7P8P9P11P12P13P14P15P16P1828 26 24 22 20 19 17 15 13 12 10 9 7 5IC6001(SYSTEM CONTROL/SERVO/TIMER)VTR TIMER CS 15VTR S-DATA OUT 68VTR S-DATA IN 69VTR S-DATA CLK 70VTR27TIMER CS IN62VTRS-DATA IN61VTRS-DATA OUT63VTRS-DATA CLOCKSEG1 41SEG16 56SEG17 36SEG18 35DIG1 40IC7502(RESET)DIG4 37X SW+5.8V 2 VDD VOUT 115 RESETFRONT P.C.B.X SW +12.5VIC37001(FAN MOTOR DRIVE)KEY IN16P7502 PP275011< OPERATION KEY >Q37001(FAN MOTOR DRIVE)1 37 5P31903 P6003518FAN PWMOUTS27501OPEN/CLOSEFAN MOTORMP370011P370013P31903 P6003733 FAN LOCKKEY IN25P7502 PP275012S27508TO DVDS27505PLAYS27504CH UPS27509SELECTKEY IN3 4P7502 PP275013S27507TO VHSS27506RECS27503STOPS27502CH DOWNTODIGITALP.C.B.P6001 P37101 P31903 P6003612SCLK60 TBUS CLKIC6001(SYSTEM CONTROL/SERVO/TIMER)LED3 81P7502 PP275016QR27501(DUBBING LED DRIVE)DUB REDD27501LED1 58P7502 PP275015QR27503(DVD LED DRIVE)DVDD27503AD +5VLED2 17P7502 PP275014QR27505(VHS LED DRIVE)VHSD27505DMR-ES40VP/PCTimer Block DiagramS-11

S4. Schematic DiagramS4.1. Interconnection DiagramN1/4DMR-ES40VP/PCInterconnectinSchematic DiagramMFANLKP37001K1KA03AA0301FANDCOUTGNDFANLOCKJ123456P2571K1KA08A00290782165432112345678P4001K1MZ02A0000321P4002K1MN06A00033654321123MAIN PCBVJB06F99P6001K1KB15AA0032P31901K1KA15A00118MUTE_L11MUTE_LSYNC_DET22SYNC_DETX_SW5R8VX_SW5R8VX_SW12V345345X_SW5R8VX_SW5R8VX_SW12VX_SW12V66X_SW12V5VCAP VMFG1GND[FG]TLECCAP R/FM GNDFULL EFULL ECTL HEAD[+]CTL HEAD[-]A HEAD[R]A HEAD[W]GND[E]A E INIECOUTDR_P_ON_HD5VGNDI2C5_CK78910117891011IECOUTDR_P_ON_HD5VGNDI2C5_CKI2C5_DT1212I2C5_DTSCURVE01313SCURVE0SCURVE11414SCURVE1GND1515GNDI5VCAP VMFG1GND[FG]TLECCAP R/FM GNDFULL EFULL ECTL HEAD[+]CTL HEAD[-]A HEAD[R]A HEAD[W]N.A GNDA E INP6002K1KB19AA0032MIXROUT_DMAU_GNDAU_GND123123P31902K1KA19A00007MIXROUT_DMAUGNDAUGNDMIXLOUT_DM44MIXLOUT_DMGND55GNDCPNCIN_DM66CPNCIN_DMGND77GNDCAPSTAN DRIVEVJB02552FE HEADAC HEADV_YIN_DMGNDCOUT_DM89108910V_YIN_DMGNDCOUT_DMGND1111GNDHTU7401ENG56D08G1FYOUT_DMGNDGPYOUT_DMBPBOUT_DM1213141512131415YOUT_DMGNDGPYOUT_DMBPBOUT_DMRPROUT_DM1616RPROUT_DMG5 4 3 267AUDIOCHSWREG 5VTV/VCRVIDEONCS-12MECHA UDGNDADC_RADC_LP6003K1KB19AA0032171819F- 11F-F+ 22F+GND-7VFAN_PWM_OUTX_SW17V34561718193456DGNDAADC_RAADC_LP31903K1KA19A00007GNDX_SW-7VFANPWMOUTX_SW17V

S-132/4DMR-ES40VP/PCInterconnectinSchematic Diagram19753246839403738343530312627222319161712131011151418212025242928333236FP60219753246839403738343530312627222319161712131011151418212025242928333236K1MN40A00022P600218642357919171513111012141618K1KB19AA0032P60021342K1KA04BA0050P1021342K1KA04AA0301P1140143211018162230283444464232384036242620121495 67 8131119292527334345413121233539371517P6001K1KB88A00002186423579141512131011K1KB15AA0032P60014 32 11018162230283444464232384036242620121495678131119292527334345413121233539371517K1KA88A00003P37101123P37001K1KA03AA0301186423579141512131011K1KA15A00118P3190118642357919171513111012141618K1KA19A00007P31902164235K1KA19A00007P31903164235K1KB19AA0032P6003IOCS16-DMACK-DMACK-PD1AG-RESET-RESET-NIOR-IORDYDMARQDMARQDIOW-DIOW-DASP-INTRQINTRQ DD11DD11DD13DD13DD14DD14DD12DD12DD10DD10CS1-CS1-CSELCSELDD15DD15CS0-CS0- DD8DD8DD6DD6GNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDGNDDD7DD7KEYDD1DD1DD0DD0DD5DD5DD3DD3DD2DD2DD4DD4DA2DA2DA0DA0DA1DA1DD9DD9DIGITAL PCBD_I/F PCB5VDRIVE PCBVJB7210612V12VMGNDVJB09138VJB79115DGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDMIXROUT_DMMIXROUT_DMMIXROUT_DMMIXROUT_DMANA3R3VANA3R3VANA3R3VANA3R3VICEOUTAADC_RAADC_RAADC_RAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAADC_LAADC_LAADC_LMIXLOUT_DMMIXLOUT_DMMIXLOUT_DMMIXLOUT_DMCOUT_DMCOUT_DMD5VD5VYOUT_DMYOUT_DMGPYOUT_DMGPYOUT_DMRPROUT_DMRPROUT_DMV_YIN_DMV_YIN_DMCPNCIN_DMCPNCIN_DMSCURVE0SCURVE0SCURVE0SCURVE0I2C5CKI2C5CKXINTPXINTPI2C5DTI2C5DTXDMUTEXDMUTESCURVE1SCURVE1SCURVE1SCURVE1XEWEP_OFF_LP_OFF_LAU5VAU5VSBPTMSBPTMSCLKSCLKXINTMXINTMXMPREQXMPREQSBMTPSBMTPDIOR-[KEYPIN]DPDIAG-[C][RESERVED]CSDASP_NC1IORDSYNC_DETSYNC_DETBPBOUT_DMBPBOUT_DMXFWEIECOUTIECOUTIECOUTFANLOCKFANDCOUTX_SW12VX_SW12VX_SW12VX_SW12VDR_P_ON_HDR_P_ON_HI2C5_CKI2C5_CKI2C5_DTI2C5_DTX_SW5R8VX_SW5R8VX_SW5R8VX_SW5R8VMUTE_LMUTE_LADC_LADC_RAU_GNDAU_GNDFAN_PWM_OUTX_SW17VX_SW17V-7VF- F-F+ F+FANPWMOUTX_SW-7VFANDRGNDDR12VDR12VDR5V

HGFE11 10 9 8 7 6 5 4 3 218 17 16 15 14 13 12TU7401ENG56D08G1FAUDIOCHSWREG 5VTV/VCRVIDEONCBTNCIF OUTSCLSDAAFTOUT[US]AUDIOOUTSIFOUTBTL+30VINNCVIDEOOUTP3001#K1MN09A00022K1MN09A00029A R 99 A RA COM 88 A COMA L 77 A LSP L 66 SP LSP COM 55 SP COMSP R 44 SP RLP EP L 33 LP EP LLP EP COM 22 LP EP COMLP EP R 11 LP EP RCYLK1MN07A00019(VJS3537E007G)P2501K1MN07A00019(VJS3537E007G)orPG+ 77 PG+MECHA UPG- 66 PG-GND 55 GNDCOM 44 COMM3 33 M3M222M2M1 11 M1LOADING MK1KA02A00375P1531K1KA02A00375LOADING M[-]22LOADING M[-]LOADING M[+]11LOADING M[+]GNDGPYOUT_DMBPBOUT_DMRPROUT_DMDGNDADC_RADC_LP6003K1KB19AA003213141516171819F- 11F-F+ 22F+GND-7VFAN_PWM_OUTX_SW17VFANLOCKMGNDP_OFF_L38VXINTPSCLKXINTMSBPTMSBMTPXMPREQXTMUTE_LSYS_PFAIL34567891011121314151617181913141516171819345678910111213141516171819GNDGPYOUT_DMBPBOUT_DMRPROUT_DMDGNDAADC_RAADC_LP31903K1KA19A00007GNDX_SW-7VFANPWMOUTX_SW17VFANLOCKMGNDP_OFF_LX_SW36VXINTPSCLKXINTMSBPTMSBPTPXMPREQXTMUTE_LSYS_PFAILororDCBFRONT JACK PCBVJB04888(TO FRONT_JACK)PS6002K1KB12B00040PP4600K1KA12B00129GND121GNDCPN_Y_IN2112CPN Y IN2GND103GNDCPN_CIN294CPN C IN2L2_RIN85L2 IN[R]L2SW76L2 SWL2_LIN67L2 IN[L]KEY258KEY 2L2_VIN249VIDEO IN2IR 103 IRKEY1211KEY 15V AD1125V[AD](TO MAIN) (TO FRONT)P7502K1KB08B00043PP27501K1KA08B00210KEY_IN1KEY_IN1KEY_IN2KEY_IN2KEY_IN3KEY_IN3LED2LED2LED1LED1LED3LED35V[AD]5V[AD]GNDGND1234567812345678FRONT PCBVJB07A85A3/4DMR-ES40VP/PCInterconnectinSchematic Diagram123456789101112S-14

S-1520191817161514131211 214/4DMR-ES40VP/PCInterconnectinSchematic Diagram191715131416181342K2HZ104B0015P668021816223028344448525660646872747066625854504642323840362426201214131119292527334347515559636771736965615753494541312123353937151775 7677 7879 8081 8283 8485 8687 881816223028344448525660646872747066625854504642323840362426201214 1311192925273343475155596367717369656157534945413121233539371517757677787980818283848586878814523K1KA05BA0061P6680114523*P60051917151314161818642357919171513111012141618K1KA19A00007P3190318642357919171513111012141618K1KB19AA0032P6003GNDGNDGNDGNDGNDGNDDIGITAL PCBMGNDMGNDVJB79115DV JACKDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDMIXROUT_DMMIXROUT_DMANA3R3VANA3R3VANA3R3VANA3R3VICEOUTAADC_RAADC_RAADC_RAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAUGNDAADC_LAADC_LAADC_LMIXLOUT_DMMIXLOUT_DMD3R3VD3R3VD3R3VD3R3VD3R3VD3R3VD3R3VD3R3VCONV_TUCONV_TUCOUT_DMCOUT_DMD5VD5VCHSELCHSELYOUT_DMYOUT_DMANA5VANA5VGPYOUT_DMGPYOUT_DMGPYOUT_DMGPYOUT_DMBPYOUT_DMRPROUT_DMRPROUT_DMRPROUT_DMRPROUT_DMX_SW3R2VX_SW3R2VV_YIN_DMV_YIN_DMD1R8VD1R8VD1R8VD1R8VD1R8VD1R8VD1R8VD1R8VCPNCIN_DMCPNCIN_DMCSYNC_DETXINTPXINTPXDMUTEXDMUTEXEWEP_OFF_LP_OFF_LP_OFF_LP_OFF_LAU5VAU5VSBPTMSBPTMSCLKSCLKXINTMXINTMXMPREQXMPREQXMPREQXMPREQSBMTPSBMTPSBMTPTPB+TPB+TPB+TPB-TPB-TPB-TPA+TPA+TPA+TPA-TPA-TPA-VJB001K8SYNC_DETBPBOUT_DMBPBOUT_DMBPBOUT_DMX_SW_3R2VX_SW_3R2VXFWEIECOUTFANLOCKFANLOCKADC_LADC_RFAN_PWM_OUTXTMUTE_LXTMUTE_LSYS_PFAILSYS_PFAILX_SW17VX_SW17V38V-7VF- F-F+ F+FANPWMOUTX_SW-7VX_SW36VSBPTP

S4.2. IO_Tuner(I) Schematic DiagramNJK4801B3ZAZ0000016SSS AIECOUTD_GNDREF_GNDSD5VJK3902K1U717B00005DVD_R_OUT1/4PY DVD_L_OUT PB DVD_V_OUT PRDMR-ES40VP/PCIO_Tuner Section(Main P.C.B.(1/4))Schematic Diagram(I)CDVD_CPN_OUTCYCOM_CPN_OUTYCPN_C_IN2CPN_Y_IN2L2_DETL2_V_INSSSS32123 2421 2219 2017 1815 16 13 14 124 2 1 5 8 3 107 9C48310.1C4832F2A0J470A599ML4801VWJ0795=5LB4101J0JCC0000103C4101$LB3103J0JCC0000103LB4103J0JCC0000103C4103$LB3102J0JCC0000103C39080.01LB3104J0JCC0000103R391275[F]R390775[F]R391475[F]R391575[F]LB3101J0JCC0000103LB3106J0JCC0000103LB3107J0JCC0000103R4858220R390975[F]R4860220R390875[F]R39229100LVSIO5VYOUT_DML3701G0C220JA0019C37016V47C37020.01[KB]1u[KB]C3731C3726 6V470[M]C3727 6V47C3728 6V330[M]6V330[M]C3730C3732 6V47C3733 6V470[M]C3734 6V47C3735 6V470[M]0.01C3736C3737 0.01C37380.01K3901VWJ0795=15K3902VWJ0795=7.5K3903VWJ0795=7.5KJTSSSSSSCOUT_DMRPROUT_DMGPYOUT_DML123_SWIDE_BBPBOUT_DMSYNC_DETR3701100K[0.5%]C3729C3705C37080.033[KB]1u[KB]44 DRV VCC2C3703 0.145 AV2 R/C INC3704 6V22[KA][43]DVD R/PR IN46 VREF [42]DRV GND347 DVD G/PY IN [41]DVD C IN0.152 DRV VCC3C3706 0.153 AV2 B INC3707 6V2254 VREG [60]V/C SYNC OUTR3702 15K[0.5%]55 CLKR [59]SYNC DET OUTR3703 220R3704 22041424358 SCL6040 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 2148 DET OUT B49 AV2 G IN50 TEST151 DVD B/PB IN56 SYN GND57 SDA59DVCC1CLK MONIDVD Y INSEPA V INDRV GND1SW A/B OUTSYN VCCPY/G OUTPY/G SAGY/V OUT APR/R/C OUTLINE 3 OUTPR/R/C SAGSLICER VIDEO APB/B OUTLINE 2 OUTPB/B SAGIC3701C1AB00001918C OUT AS1/S2 OUTTEST2C/S DET3 2019SW GND2 18C 2 IN 1716ADR 15Y 2 IN 14C/S DET2 1312DGND1 11C 1 IN 10DET OUT A61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80C75 OUTY/V OUT BV75 SAGSW VCC1V75 OUTSLICER VIDEO BY75 SAGY75 OUTSGNDC OUT BDRV VCC1[23]S1/S2 DET3[22]DRV GND2[21]Y 3 INSW GND1C 3 INBL SW INVIDEO 3 INS1/S2 DET2VIDEO 2 INS1/S2 DET1[80]TEST3 Y 1 IN[79]BLSW OUT C/S DET1[78]DVCC2VIDEO 1 INSW VCC2TUNERDGND2BS TUNER987654321C3713 0.01C3715 0.01C3716 0.01[KB]C3717 0.01[KB]C3718 0.01[KB]C3719 0.01[KB]C3720 0.01[KB]C3721 0.01[KB]C3722 0.01[KB]R371010KC3724 0.01R3711C372510K$(47P)C37230.01L3702G0C220JA0019C37096V47C37100.1[KB]C37110.1[KB]R3707 1MC37120.1[KB]R370875R3932560Q3901IIC3902C1AB000019353H2 1CHANGE75sanaLC3927 0.1u[KB]C3928 F2A0J101A245R3933560Q3902R39361K456SVV_Y_IN_DMMIX_V_OUTC39251u[KB]C39261u[KB]HSTCPNC_IN_DML123_SWIDE_ACL3701R3934$R3935$SDVD_OUT_HSVVOSD_V_OUTDVD_VY_OUTDVD_C_OUTR3937470R3938470SX_SW_5R8VL7401G0A100HA0023S-16GAL1_IN_L

2/4DMR-ES40VP/PCIO_Tuner Section(Main P.C.B.(1/4))Schematic Diagram(I)COM_CPN_OUTSSSSTSLINEIN1[R]COMROUTLINEIN1[L]COMLOUTCPSL1 INCOMVOUTCPN L1 IN10Y79CPN_C_IN2CPN_Y_IN2L2_DETL2_V_INDVD_POFF_LUNREG_38VJK3903K1U718B0000323 2421 22192017181516131412C4 621C53Y10118Y79C4107R4862100K$C4102$C4111C4105$C4104$$R4863100KC4109$R392475R3926 1KC3918 0.1R392875R4859470R4861470R391368 R392975C39190.01C3933F2A0J471A247LB4105J0JCC0000103LB4102J0JCC0000103LB4107J0JCC0000103LB4104J0JCC0000103LB3108J0JCC0000103LB3105J0JCC0000103LB3110J0JCC0000103LB3111J0JCC0000103C4827VWJ0795=5R48400R3932560R3933560Q3902Q3901R39361KR3937470R3938470R3939470C3932 0.01470R3940R7416100KQR7401UNR511200LQ74022SD1819A0LR7401LB74071K[D]ERJ3GEY0R00VD7401MAZ4300NMFQR4801$[UNR511300L]C740150V1S-17IC7401C0BBBB000024C74030.1[KB]C7404R74046V47$(US)C7405 ECJ1VB0J105K8VCCOUTC7438C7437 $$7OUT-C74060.1(16V10)R740322006 51 2 3 4-+R7409LB7405ERJ3GEY0R00VR7407 13K$(US)R7410 0[22]R7411 0[22]1234+VSSR7405 1KQR4803$[UNR521600L]R7406 15KR7408 2200IC7402C0CBCDD00006VONCGNDCNSOP-8DVINNCNCCONT8765C7407$ECJ2YB1A105KC7408C7419$K7410C7420$VWJ0795=17.5C7433 0.01[KB]LB7409J0JBC0000015LB7410J0JBC0000015LB7403ERJ3GEY0R00VC74216V47C74320.01[KB]C7434$C74220.01C7423$LB7411J0JBC0000015LB7408J0JBC0000015LB7412J0JBC0000015L7402VWJ0795=59 8 5 4 3 211 107 618 17 16 15 14 13 12A_GNDSCURVE_0SCURVE_1CH_SWTUN_V_IN1TV_VCRTU7401ENG56D08G1FAUDIOCHSWREG 5VTV/VCRVIDEONCBTNCIF OUTSCLSDAAFTOUT[US]AUDIOOUTSIFOUTBTL+30VINNCVIDEOOUTASSSVS

HSTCPNC_IN_DML123_SWIDE_ACLR3935$SDVD_OUT_HSVVOSD_V_OUTDVD_VY_OUTDVD_C_OUTR3937470R3938470SX_SW_5R8VL7401G0A100HA0023GAAAAL1_IN_LL1_IN_RL2_IN_LL2_IN_RAAASAAVHS_LVHS_RFM_MUTE_HMUTE_LDVD_OUT_LDVD_OUT_RFESSSAMIX_L_OUT_DMMIX_R_OUT_DMCOM_MUT_HA_5VR4801 680R4802 680QR4816UNR521600LR4804R48056802200R4803QR4802UNR521600L680QR4804UNR511100LK4801VWJ0795=5QR4805UNR521600LQR4806UNR521600LC48011000P[JC]C48021000P[JC]QR4807UNR511300LR4822820Q4801820R4823470R4806470R4807Q4802C482916V10R48151KQR4811UNR521500LQR4813UNR511300LQR4812UNR521500LC483016V10R48161KC4822 0.1IC4803C0CBCDC00027(NJM2370U09-D(TE1))5VINON[H]1GND24VOUTNRC4833 ECQV1H104JL33C4835 0.1[ZF]C4838 F2A1C471A236C4841 0.1K4802VWJ0795=10R48101KDCBC480416V10R4808 100K100KR480912346 5781234IC4801C0JBAR000438Y0Y2YY3Y1lnhlbltVEEVSSR4812C48071KIC4802C0ABBB000108-VDDC4808 0.0116V220[M]-X2X1XX0X3AB15 16141312119 108765R48131KC4803 16V10R4855 100KR4856 100KR48111KC480516V10C480616V10C4809 16V10C4810 16V10QR4810UNR521300L(UN5213-TX)R4814 47KIC4804C1AB00001920(BD3824FS-E2)R4819 3R3MR4817 100R4818 100R4820 10KR4821 10KF2A1H4R7A234C4811C4844 $(F2A1H1R0A236)C4843 $(F2A1H1R0A236)F2A1H1R0A236C4816R4824 1KF2A1H1R0A236C4817R4825 1KF2A1H1R0A236C4818C4821C4819 F2A1C221A01982PF2A1H1R0A236C4820R4826 D0HB123ZA002C4824 $(0.1) C4823D/A2 CAP10.01[KB]C4826 $(0.1)D/A1 TUORR4827D0HB123ZA002R4829D0HB123ZA002C4828 82PR4830D0HB123ZA002R4832R483316 15 14 13 12 11 10 9 8 7 6 5 4RFBIASSELECTLSRF_OUTEXT32POFF_HEXT31SCLEXT22SDAEXT21GND17 18 19 20 21 22 23 24 25 26 27 28EXT12REGFILEXT11LINEOUT2TUOLLINEOUT1NCOUTRC4836F2A1H1R0A236NCOUTL0.1C483447K47K3TUIRVCCC4837F2A1C471A236 FRONT2 TUILC4839 F2A1H1R0A236R48341KC4840F2A1H1R0A2362R48360R4837 029 30 31 321NCFRONT1R48351KC4842F2A1H1R0A236C4814$[22]C4815$[22]C4812F2A1V100A184C4813F2A1V100A184AA_REG12VAVTR_P_ON_HS3/4DMR-ES40VP/PCIO_Tuner Section(Main P.C.B.(1/4))Schematic Diagram(I)ADC_RSADC_LSAU_GNDSX_SW12VS123456789101112S-18

R3937470R3938470R3939470R74011K[D]D7401MAZ4300NMFC740150V1C7405 ECJ1VB0J105KC74060.11234IC7402C0CBCDD00006VONCGNDCNSOP-8DVINNCNCCONT8765C7407$ECJ2YB1A105KC7408$$6V470.01C7423$1118 17 16 15 14 13 12SCLSDAAFTOUT[US]AUDIOOUTSIFOUTBTL+30VINNCVIDEOOUTK7411$K7412$54K7413$[VWJ0795=5]1]D0HB123ZA002R4832R48335 4NCOUTR28GND2ECQV1H104JL3C4833C4836F2A1H1R0A236NCOUTLVOUTNR0.1C48343C4835 0.1[ZF]47K47K3TUIRVCCF2A1C471A236C4838C4837F2A1C471A236 FRONT2 TUILC4839 F2A1H1R0A236R48341KC4840F2A1H1R0A2362C4841 0.1R48360R4837 029 30 31 321NCFRONT1R48351KC4842F2A1H1R0A236C4814$[22]C4815$[22]K4802VWJ0795=10IC7301AN5832SA-E1VC7435 22PC7436 22PC7309 ECJ1VF1C334ZC7310 0.1[KB]C7319F2A0J470A245C7301 50V2R2C7311 0.22[KB]C7302 0.033[KB]R73033300C73200.01 C7303 0.1[KB]NC NOISEDET1000PC7312C7313 50V4R7R73100C7314 50V2R2R7305 330[22]R7301 10KC7304 0.022[KB]R7306 330[22]C7315 50V2R2R73111KC7305 0.1[KB]R7307 180KC730650V3R316 15 14 13 12 11 10 9 8 7 6 5 4NCPILOTDETL+RREFPLLSAPDETVCC17 18 19 20 21 22 23 24 25 26 27 28L7301VWJ0795=5SIF/BBINPUTMUTESIFREFFOMOSTEREOREF1MODESDAAGCSWGNDFL7301EFCT4R5MS5W2I2C/PARAPE3SPEFILSCL/SPEDETAGCDETR730833016V10C7321SPETIMEROUTC7316 0.022[KB]C7307 50VR3316V10C73223WBDETLOUT0.022[KB]C7317C7308 16V1029 30 31 322WBTIMENCR7309330C7318 50V2R21NCL-R_REFR7417$R7418$R7415680Q74012SB1218A0LK7414$[VWJ0795=7.5]K7415$[VWJ0795=5]ADC_RSADC_LSAU_GNDSX_SW12VSI2C5CKI2C5DTSSTUN_RATUN_LA4/4DMR-ES40VP/PCIO_Tuner Section(Main P.C.B.(1/4))Schematic Diagram(I)11 12131415161718192021S-19

S4.3. Video(V) Schematic DiagramN1/4DMR-ES40VP/PCVideo Section(Main P.C.B.(2/4))Schematic Diagram(V)OUT_NORMALIN_NORMALA_5VAAAP4002K1MN06A00033CTL HEAD[+]CTL HEAD[-]A HEAD[R]A HEAD[W]GND[E]A E INP4001C2099680PK4002R2099 6800VWJ0795MC4082470P[KB]R408110KQ40812SD1992A0AR4082 33004654321T4081G2A472C0000361 2 3LSSSSSSIAX_SW_5R8VBIAS_HDREC_HREF_GNDVREG5VVTR_P_ON_HIO5VREG12VK3001$[VWJ0795=5]C4085$R40862200QR4082UNR521300LQ40842SB0710A0LR40872200C4081C4084L4061G0C221KA00650.022[KB]1800PR40090C40836V47C40010.033[B]KK4001VWJ0795=10IC3002$(C0CBCDG00006)V INON HV OUTNCGND1 2 3 4 5JC3051$[F1H1A105A028]C3043$K3002$[VWJ0795=5]C305216V10QR4001UNR511100LR40011KQ4002Q40012SD114900LQ3002B1AAGD000016Q3003B1AAGD000016R40051KIR3003470[D]C300416V10C301316V10C30160.1[KB]D3001MAZ4056NHFD3002VWJ0795=5IC3001C1AB00002083R401115KR401222KHC401716V10R30011500C3001150PC401916V10R3002 6200S-20C30020.1[KB]GC30030.1[KB]

2/4DMR-ES40VP/PCVideo Section(Main P.C.B.(2/4))Schematic Diagram(V)OUT_NORMALIN_NORMALA_5VCTL_HEAD_MCTL_HEAD_PH_SWTRK_ENVP3001#K1MN09A00022123456789ARA_COMALFApPAPPASSSSAAAAAP4002K1MN06A00033CTL HEAD[+]6CTL HEAD[-]5A HEAD[R]4A HEAD[W]3GND[E]2A E IN1P4001K1MZ02A00003FULL EFULL E21LP EP RLP EP COMLP EP LSP RSP COMSP LA LA COMA R(TO CYLINDER)A_GNDJ1VEE0U97FM_GNDorC2099680PR2099 6800K4002VWJ0795=582KB]R408110K01[B]QR4001UNR511100LR40011KR40051KQ4002Q40012SD114900LC4004 1800PR4003 15KC40056V22C40096V3315KR40061800PC4007C400650V4R7C4008 50V3R3R4004 270R400710KC4011 0.01[KB]R4008 330KC4012 50V4R7C40130.01C5001 0.01[KB]C5002 0.01[KB]K3027 VWJ0795=50.01[KB]C5003C50050.1[KB]0.01[KB]C5004K3024 VWJ0795=12.5K3009 VWJ0795=20C50070.1R30352200C5006F2A0J101A245L500168uC50081u[KB]IC3001C1AB0000208310099 98RECEQSW2EP97 96 95 94 93 92 91SW3SPSW4Audio ALC90 89 88 87 86 85SW49 SW48 SW47 SW46 SW45 SW4484 83 82 81SW5015KONRECONPREAMPONSP2SP2SP2SP2PRR3009R4011R401215K22K12SW1fhTRAPCH1SP2CH2SP2VCASP2CH1SP2CH2EVVDETHPFColor LevelDETERTORTANKFM_MUT80793SW43SW42DETDETCOMO78B-Y InvertR30011500C3001150PC4017 16V10C4019 16V10R3002 6200C3002 0.1[KB]C3003 0.1[KB]4567891011BandGapSW7MainEmphasisFBG+ALCMain EmphasisGC+APLCarrier OffsetSW6W.C/D.CSW10fo/DevAdjSW11R PFM MODDETRECFilterDETM AGCTRAP629SW5RP-EQRDLSW9SW8EXTINTSW41RSPSPSW40INT EXTSW38HPFACC2MLPFL-SECAMSW39RECMuteSW37LPFL-SECAMADJUSTB.EMIX LEVELSW36L-SECAML-SECAMCCDCONTREG APCMESECAMDet-talCR DET/OSC7776757473727170C3028 F2A1H4R7A234R3011 $(100)R3012 $(100)R3013 10K C3029C3030S-21F2A1HR47A2340.022[KB]TW3001VIDEO ENVEVWJ0795=5

S-2210987654321FEDCBAG1211H3/4DMR-ES40VP/PCVideo Section(Main P.C.B.(2/4))Schematic Diagram(V)K3005VWJ0795=10L3002270u27uL3003C3008F2A1H4R7A234C401716V10C401916V10C3012F2A0J470A245C30060.1[KB]C30091u[KB]C30110.1[KB]C30020.1[KB]C300522PC30140.1[KB]C30500.1[KB]C30071u[KB]C30480.01[KB]C30101u[KB]C30530.1[KB]150PC3001C30030.1[KB]TUN_V_IN1AVR_LDVD_C_OUTSVHS_PB_HDVD_VY_OUTOSD_VIDEO_INMIX_V_OUT1500R3023R3006VWJ0795=5R3021 2200330R3031R3002 6200R3032 3900R30011500R3022 33002SD1819A0LQ3004SSSIIII

R30011500C3001150PC4017C401916V1016V10R3002 620056789BandGapSW7Main EmphasisCarrier OffsetSW6W.C/D.Cfo/DevAdjFM MODRECFilterDET7675747372C3028F2A1H4R7A234R3011 $(100)R3012 $(100)TW3001VWJ0795=539002200WJ0795=53300A0LC3048L300327uL30020.01[KB]270uC3008C3009C3010C3012C3011C3050C3014C3002C3003C3005C3006C30070.1[KB]F2A1H4R7A2341u[KB]1u[KB]F2A0J470A2450.1[KB]0.1[KB]0.1[KB]0.1[KB]0.1[KB]22P1u[KB]101112131415161718192021222324252627282930717069686766656463626160595857565554535251R3013R3014L3006G1C120JA0036C30400.01C30410.0110K1KC3029C3030C3031C3034C3035C3032C3033L3005C3036C3037C3038C3039K3010F2A1HR47A2340.022[KB]0.033[KB]F2A1H2R2A2344700PF2A1H4R7A2340.1[KB]27uF2A0J470A2450.1[KB]4PF2A1H1R0A234R3016 $(3300)C30440.1[KB]R30171K31 32 33 34 35 36 37 38 39 4041 42 43 44 45 46 47 48 49 501u[KB]C3015C3017 0.1[KB]0.1[KB]C30740.1[KB]C3019C3020 F2A1H3R3A234C3021 F2A1V100A184C3023 0.01[KB]C3022 $R30306R8MC3024 330P68uL3004C3025 0.01C3026$[F2A0J470A245]K3007VWJ0795=7.5K3037$K3006R3046$(10K)R3047$(10K)DVD_C_OUTSYS_GNDOSD_GNDART_V_H_NFSCIIC_CLKIIC_DATAPPPPPPPPPPSW5PPSSRRSW9SW8EXTINTSW40INT EXTRHPF2MLPFL-SECAMSW39RECMuteLPFL-SECAMB.ECCDCONTMESECAMDetCR DETVIDEO ENVEGCLGCLATTATTATT ATT-6DB-10DB-10DB -10DBR*SDECKMainDe Emphasis35PinGCLATTR*SDECK-4DBSW13PRSW22REC FBG+ALCPB AGC+APLR*SDECKSqueV-AMPlchR*SDECKPG AGC DetSW10SW11R PSUB LPFSW16SW21ClearSyncVideo ALCClampPGFeed BackDEMOSW23R*SVHSR*SDECKDLIMDETVideo AGCD0DetD0/RECFM AGCTRAP629G-EQSW24TRAP-NCD0 PCS-DetSW20HP-NCSW12ATPSW18RSW52RPP-EQSQPB SQPBDLRSW14YNRN.LDEHET LPFSW19EmphSQPBSQPBSVHS+L-SECAMRPSW15SECAMSQPB EQN.L.DelayY-LPFDe-Emph+SSEQSW17C-Sque lchSVHS+L-SECAMSDSW25SD6dBAMPSW38fh HPFACCCTL TrapSW344.43PALREC TRAPC-DBPFMPALelay HIFI TRAPDELAYPilotPilot AddEraseRRSW26INTC.K NP Conv B.DRSW31 SW32MainMainConv2Conv1RSW51SW37L-DetRC-ACC4PhaseSW33ChromaC.K ACCC-ACC:ONCLPF2CLPF1APC SWRCCDLPFSW29C-CCDADJUSTMIX LEVELSW36L-SECAML-SECAMSW35RSW30VCAModeControlChromaACC DetACC SWACC DstDiscriREC AFC PB APC KillerREG APCY-CCD2fscDownX-talLCVCOConvVCO/OSCClock DriverX3002#H0D357400067orAIQ3001SSSyncSepPGGCLGCLGCLLPFEXTR*L-SECAMSW27CCD-CONTSSSS4/4DMR-ES40VP/PCVideo Section(Main P.C.B.(2/4))Schematic Diagram(V)11 12131415161718192021S-23

S4.4. VHS_Audio(A) Schematic DiagramN1/4DMR-ES40VP/PCVHS_Audio Section(Main P.C.B.(3/4))Schematic Diagram(A)MX_SW_5R8VREG12VX_SW12VVTR_P_ON_HA_REG12VOUT_NORMALIN_NORMALFSCIIC_DATAIIC_CLKLC4521 16V10R45074700R45134700C45190.1R4504820[D]TL1002R4526 24K16V10C4526KC45206V22C45240.1[KB]A_5VJTL4502TL4501IR4539 1KR4540 1KIC4501AN3656NFBPBV48SIF INR45276800K4513VWJ0795=10C4516 16V10SSSII47VDEM REFVVSSVQ45012SB0710A0LQR4501UNR521100LL4503100uQ4502B1AAGD000016(2SC1959YT2M)D4502MAZ4056NHF(MA4056N-HTA)IVL45011R2uA5VL4501K4702VWJ0795=17.546MAIN REF45VCO-f0adj LOGIN44REG4342LOGICDATACLK41HGS-24C4538C45250.0116V1005 54 53 52 51 50 49SUB LEVDETMAIN OUTMTS VCC(5V)DC OUT RNCDEC(R)SWSW19SW17SW20MUTESW21SW18NORMALSW16PNR Rch

2/4DMR-ES40VP/PCVHS_Audio Section(Main P.C.B.(3/4))Schematic Diagram(A)A_REG12VOUT_NORMALSIF ININ_NORMALFSCDEM REFMAIN REF484746454443424140393837R4539 1KR4540 1K39K36353433TL4502C4516 16V10C45176V22R45381KR4525C4515 6V33TL4501C4514 16V10R45276800R4526 24KC452616V10C4521 16V10IIC_DATAIIC_CLKR4508FM_MUTE_H4700IC4513 6V22VVVSSSIC45220.047[B]R4522510C4535 0.015[B]VCO-f0adj LOGINREGDATALOGICCLKVCC(5V)ZZ-PROMGNDGNDRECADJMUTE CTNR DET1NR DET2NR REFNR DET2 NR REFTV)DEC(R)SWSW19SW17SW20MUTESW21SW18NORMALSW16PNR RchSW9H/SPCPBLPFRchSW12PBHPFNOISE EDITLINER SWRECCCA 0HIF/NORPB FM INOUTENVAH SW3230 31296 27 28R45001KR4534C4512C4537TL4507C4511120K0.22[KB]56P[GC][22]0.1[KB]L4502R4529 680TW4502VWJ0795=5390uK4506ENVE D4501B0AAED000003(1SS254T-77)S-25DREC_HABS_NORM_LA_H_SWSSS

HGFEDCBREF_GNDVHS_RVHS_LDVD_OUT_RDVD_OUT_LL1_IN_RL1_IN_LL2_IN_RL2_IN_LRLC4538C45250.0116V10064 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49SUB LEVDETMAIN OUTMTS VCC(5V)DC OUT RNCLED PORT LVCC(12V)LSW22NA0NAICOMP(EXT4)SUB REF (EXT4)-29dBVDEC(R)SWDEC(L)SWAGC/SW19SW17INPUT SW(L)SW20MUTESW21SW1SW2SW18NORMALSW16PNR RchHIFIHIFIPNR LchINPUT SW(R)R4501 56KC4773 ERJ3GEYJ682VC4774 ERJ3GEYJ682VR4515 56KBS IN[R]1E32BS IN[L]34CUEDET5VREF16REF17(TV)E486V22C4523R4509R450247K47KR4503R451147K47KIIIIIR4505 6200C4502 16V10IIVVSSR4553 10K16V10C4503A3/4DMR-ES40VP/PCVHS_Audio Section(Main P.C.B.(3/4))Schematic Diagram(A)123456789101112S-26

AUDIO LIMTERSW4SW NOISES/HMIX MIXREC LPFLchVCOSW13DETDREC_HABS_NORM_LA_H_SWALARA_COMTUN_LTUN_RFM_GNDA_GNDRLHTV)LLSW22T4)-29dBVDEC(R)SWDEC(L)SWAGC/SW19SW17INPUT SW(L)SW20MUTESW21SW1SW2SW18NORMALSW16PNR RchHIFIHIFIPNR LchSW9H/SPCRch BPFLch BPFPBLPFFMLMTRchNOISE EDITLINER SWHOLD TSW14HPFSW12PBAGCRECSW15AMP AMPCCA 0HIF/NORPB FM INOUTENVAH SWHEADVCCSW11HA1HA2CCAOUT17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32R45001KR4534C4512C4537TL4507C4511120KC4509 0.01C4508C45340.1[KB]C4510 0.01C4507C45060.22[KB]56P[GC][22]0.033[KB]0.015[B]6V2216V10K4509VWJ0795=10K4507VWJ0795=7.5K4502VWJ0795=10L4502R4529 680TW4502VWJ0795=5C4518390uK4506ENVE D4501B0AAED000003(1SS254T-77)0.01FM MIXTW4501VWJ0795=7.5SSSVVVINPUT SW(R)BS IN[R]E3BS IN[L]CUEDETVREF11REF12E43E14E25678910111213141516R4521 5106V22C4523R45204700C45056V33C45010.047[B]R4509R4502R4503R451147K47K47K47KR4518R451975K75KIIR4553 10KR4505 6200R45066200R4557 10KR4510 6200R45126200C4502 16V1016V10C450316V10C4504IK4504VWJ0795=5(TV)(TV)VV4/4DMR-ES40VP/PCVHS_Audio Section(Main P.C.B.(3/4))Schematic Diagram(A)11 12131415161718192021S-27

S4.5. SYSCON/Servo/Timer(S) Schematic DiagramN1/4DMR-ES40VP/PCSYSCON/Servo/Timer Section(Main P.C.B.(4/4))Schematic Diagram(S)MSYNC_DETDVD_POFF_LL123_SWIDE_ACL7507K7503VWJ0795=5R7543$(10K)QR7501$[UNR511300L]R75078R2[D]LKJIHDP7501A2BD00000133(TO FRONT) P7502K1KB08B000431 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 3287654321CL75061GS1S2S3$[2SD132800L]S4S5S6S7S82GS9S10S11S12S133GS14S154GS16S17S18Q7501R7537R7538R7518R7541R7542R7562R7563R7539R7564R7565R7540R7524K7502$(47K)VWJ0795=5$(47K)$(47K)$(47K)$(47K)$(47K)$(47K)$(47K)$(47K)$(47K)$(47K)$(47K)R7508VWJ0795=5D7502$[MAZ4056NHF]LED3LED1LED2KEY_IN3KEY_IN2KEY_IN1QR7503$[UNR521200L]K7504$(47K)R7554IIIGND5V[AD]LED3LED1LED2KEY_IN3KEY_IN2KEY_IN1F+NX1GP1P2P31GP4P5P61GP7P82GP9P10P112GP12P133GP14P154GP16P17P184GNXF-S18S171G2G3G4GS1S2S3S4S5S6S7S8R7520 22KC7501$(100P)C7503$(100P)TL750433343536373839404142434445464748R7527100KC7502$(100P)LB7505ERJ3GEY0R00VC7505100P$(47K)R7503R7526 100C7506100P47KR7502100R7528C7517100P47KR7501100R7529R7504 100R7505 100R7506 100C75401uR755610KTL750328 27 26 25 24 23 22 21 20 19 18 1749 50 51 52 53 54 55 56S9OP-CLKNSW5VOP-STARTGNDOP-CMDGNDXRESET32 31 30 29SEG17DIG4DIG3DIG2DIG1SEG1SEG2SEG3SEG4SEG5SEG6SEG7SEG8S10P7501$[B6B-ZR-3R4](TO JIGU)SEG18S11VDD[31]TEST2[32]SYNCDET[33]FAN_LOCK[34]SYS_P_FAIL[49]SEG9[50]SEG10SEG11S12654321VDDSEG12S13SEG13S14VT_CSSEG14MN101C87ABCIC7501S15XINTPOUTSEG15S16XMPREQSEG1657 58 59 60 61 62 63RESETXINTMVPPSBPTMSYS/FL[19]DR_P_ON[18]FANPWMOUT[17]128HZ[62]VT_RXD[63]VT_CLK[64]XMUTETBUS_TXDSBMTPPFAIL_LTBUS_RXDSCLKIRTBUS_CLKVTR_S_INJC_PONVT_TXDVTR_S_OUTDI_PON_HVTR_S_CLKNRSTMMODXTMUTEX0X1VSSOS1OS2VDDVREFKEY1KEY2KEY3S1/S2P_SAVE_HXINTMOUT6416151413121110987654321C7539$[KA](6V33)R7509R7521R7522R7519R7530D750110KR7517 0R7516 100R7515 100R7514 100R7510 100$(47K)330$(47K) R7513$(47K) R751282008200R7511 8200H0A327200098X7502X7501H0D800400020KEY_IN3KEY_IN2KEY_IN1C7515R7561K7501VWJ0795=5C7514C7513C7512C7511C7510C7509C7508C7507C7518PH750147K1 20.122P22P22P22P0.10.010.010.010.01SYS_PFAILFAN_LOCKDR_PON_HXINTMXMPREQXINTPFAN_PWMRESETDI_PON5NCVOUT12R150127KT PHOTOVDDQ1501PNB2302MF4NCGND3IC7502C0EBE0000457or C0EBE0000194or C0EBE0000247C75160.1R1503150[D]SENSORD1501B3EA00000072RESETR150227KS PHOTOQ1502PNB2302MFC6012 0.1R1513 120[22]C7504$[F2A0J102A581]IC1511B3NAA000004921 4IC1512B3NAA00000492331 4BACK_UPTW7501VWJ0795=5R1512 27KT_REELS_REELR1511 27KC75386V470[M]TL23TL24D6306MAZ4056NHFD775Q63052SD0601A0LT REELS REELIK5H5GAVAVAVAVR_LA_H_SWDREC_HABS_NORM_LBIAS_HS-28TW2001VWJ0795=10LED2IR10KR6004KEY2KEY1C60201000P[KB]R6801$(100K)

S-292/4DMR-ES40VP/PCSYSCON/Servo/Timer Section(Main P.C.B.(4/4))Schematic Diagram(S)ctionREF_GNDSCURVE_0SCURVE_1I2C5DTI2C5CKD5VIECOUTSYNC_DETMUTE_LADC_RADC_LD_GNDYOUT_DMBPBOUT_DMGPYOUT_DMCOUT_DMRPROUT_DMV_Y_IN_DMCPNC_IN_DMMIX_L_OUT_DMAU_GNDMIX_R_OUT_DMUNREG_38VREG12VVTR_P_ON_HX_SW12VX_SW_5R8V2700R6309R6801$(100K)R1513 120[22]R1511 27KR1512 27KC6301$C63020.01TW7501VWJ0795=5K6099VWJ0795=5TL24TL231 432IC1512B3NAA00000491 432B3NAA0000049IC1511C63086V47$[F2A0J102A581]C7504C75386V470[M]C63036V47D7751D6001186423579141512131011K1KB15AA0032P600121K5H5012A0010IP6001D6306MAZ4056NHF41 23IC6301C0CBCDC00020Q63052SD0601A0L18642357919171513111012141618K1KB19AA0032P600318642357919171513111012141618K1KB19AA0032P6002XINTMXMPREQFAN_LOCKFAN_PWMS_REELT_REELXINTPDR_PON_HXTMUTESBMTPSBPTMSCLKDI_PONSYS_PFAILVVVVVIIIIIIIIIIIIIIIIIIIAAAAAGNDGNDGNDGNDGNDGNDGNDGNDI2C5_DTMUTE_LIECOUTX_SW12VX_SW12VX_SW5R8VX_SW5R8VSYNC_DET(TO DVD I/F)(TO DVD I/F)(TO DVD I/F)I2C5_CKDR_P_ON_HSCURVE1SCURVE0DGNDADC_LADC_RGPYOUT_DMRPROUT_DMBPBOUT_DMCOUT_DMAU_GNDAU_GNDCPNCIN_DMMIXROUT_DMMIXLOUT_DMV_YIN_DMYOUT_DM-7VMGND38VSCLKXINTMXINTPSBMTPSBPTMXMPREQX_SW17VP_OFF_LFANLOCKXTMUTE_LFAN_PWM_OUTF+F-VSSVOUTT REELS REELFVINONBACK_UPSYS_PFAILD5V

H5V[AD]LED3LED1LED2KEY_IN3KEY_IN2KEY_IN17654321LED3LED1LED2KEY_IN3KEY_IN2KEY_IN1GNDOP-CMDGNDXRESETP7501$[B6B-ZR-3R4](TO JIGU)321100P C7505100P C7506100P C7517RESETSBPTMSBMTPSCLKVTR_S_INVTR_S_OUTVTR_S_CLKXTMUTER7511 8200KEY_IN3KEY_IN2KEY_IN1T PHOTOQ1501PNB2302MFSENSORD1501B3EA00000072S PHOTOQ1502PNB2302MFC6012 0.1B3NAA0000049231 4T_REELS_REELS REELTL24D6306MAZ4056NHFGFEDCAV AVR_LA A_H_SWV DREC_HA ABS_NORM_LV BIAS_HA FM_MUTE_HI CH_SW(TO FRONT_JACK)PS6002K1KB12B00040GNDCPN_Y_IN2GNDCPN_CIN2L2_RINL2SWL2_LINKEY2L2_VIN2IRKEY15V ADV L2_V_INA L2_IN_LV L2_DETA L2_IN_RV CPN_C_IN2V CPN_Y_IN2121110987654321KEY2IRKEY1S1532K0ZZ00000598(MNS00650ZMB0)MODE SW54321C6018 0.01C6001C6002C6201$(0.1)TL6002K6098VWJ0795=10TL600418P22PP_FAILX6001H0D120500009C6006 100PL6001C6007 82P5IC6201C0EBH0000172(PST3142NR)12R6002ELJFA5R6JFR60011KC6008 470PL6101VWJ0795=5C61040.01R62013300C60190.1[22]C6009 0.01431KCL6030CL6031C61021uR61011MC61010.01R6102470SAFETYTAB SWS1531K0C111A0000640 39 38 37 36 35 34 33 32 3150 49 48 47 46 45 44 43 42 41C6103560P30POS.SW3POS.SW2POS.SW1R610318052 29RESET[L]32KHz.IN32KHz.OUT+5V[D]12MHz.IN12MHz.OUTGND[OSC]DUB_HSVHS[H]2832K.START[L]LC.OSC INLC.OSC OUTNUB[GND]FSC.LPFOSD.FSC INOSD[GND]CVIN51L6102G0C1R5JA001953R6017C6015 0.033[KB]54 HLFS_TAB[L] 272200C6016 1000P26BIAS[H]VHOLD55C6014 1000PCL602625PB X5[H]/CVIN25624AVR[L]NUA[GND]57100R6018LED123ABS_NORM[28]FM_MUTE[29]LINE_H[30]POS.SW4[52]CVOUT[53]OSD5VDVDLED5822F_WRITE59CL6025TW2001VWJ0795=1021TEST260CL602420D.REC[H]SVHS_PB(H)61CL60232200R600819AUDIO.H.SW6218VIDEO.H.SW63CL602217LED264CL6021LED2CL602716EP[H]65CL6011R6024 22015TIMER_CS66CL6012TL6001R6020 22014REMOCONIC6001C2CBJG00059167IR220R6012VTR_S_OUT13ART.V/H/NIC.DATA.OUT68220R6013VTR_S_INCL602869 IC.DATA.IN12220R602210KR6004TEST2TL6010VTR_S_CLKCL602911CURRENT_LIMITIC.DATA.CLOCK70R600618K220R602310MO/ST/BI71220R60299[77]CYL.ET728[78]P.FAIL[L]737[79]S.REEL.PULSE[80]T.REEL.PULSEIIC.CLKTRACKING_ENVEIIC.DATAT-PHOTO[1]DVD_OUT_H[2]CODE[3]DC_CH_H[4]L123_SWIDE_B256HZ/ROMCORE/COM_MUTES-PHOTOCAP R/F74KEY2R6010R6009R6026R6027R6028C6010C60116VHS_KEY2PON[H]75KEY11KR25615VHS_KEY1CAP.ET7610KR255147712P12P37810K10K10K10K10KS_REEL279T_REEL80 1TV/VCR5V[AD]+5V[A]PB.CTL.OUTCTL.AMP.REFCTL.HEAD[+]CTL.HEAD[-]S_CASEIREFOPEFPFGGND[A]FG.AMP.INFG.AMP.OUTVPPLOADING[H]UNLOADING[H]EX.FF/REW[L]10081 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99C6020R6011R6007C6005R6019R6014R60151001000P[KB]18K18K50V3R310K$C205316V10[KS]LED3C2051R68016V22[N]$(100K)PB CTLTW2002VWJ0795=5C20550.1C25510.056[KB]QR6801$[UNR511300L]C20543900P[KB]R2563C25620.056[KB]R6803470K1KR6802 $(0)C25610.056[KB]K2597VWJ0795=5TL2502BSYS_GNDOSD_GNDFSCOSD_VIDEO_INOSD_V_OUTVREG5VSVHS_PB_HIIC_CLKIIC_DATACOM_MUT_HCTL_HEAD_MCTL_HEAD_PP2571K1KA08A00290IIVVVVVVIVVAAVVVLED1CAP TLA3/4DMR-ES40VP/PCSYSCON/Servo/Timer Section(Main P.C.B.(4/4))Schematic Diagram(S)123456789101112S-30

B3NAA0000049231 4S REEL VIN ONTL24D6306MAZ4056NHFC63036V47C6301$4VOUT3VSSIC6301C0CBCDC00020T_REELS_REEL1 2C63086V47K6099VWJ0795=5R6801$(100K)H_SWART_V_H_NTRK_ENVL123_SWIDE_BDVD_OUT_HTV_VCRVVVIIIC20516V22[N]PB CTLTW2002VWJ0795=5C20550.1QR6801$[UNR511300L]C20543900P[KB]R6802 $(0)C25190.0113 2IC2501C1AB00001767VM2OUT1L GNDM3RNFM2252423K2098VWJ0795=12.5R2501 1R2[22]R2502 1R5[22]21P1531K1KA02A00375R2563R6803470K1KCTL_HEAD_MCTL_HEAD_PR20013900C20031uC2001R20021MD2001D200233PTL2015R25031800[D]C2504C2505C2515 0.01C2507D2502MAZ4160NMFC25060.22[KB]0.022[KB]0.022[KB]1000P[KB]R252018KR2565100C2501 0.1C2502C2508C25520.056[KB]C250916V226V2201800PC25180.010.1[KB]R2564100C2511R2515220R2521C25120.1[KB]R2516 R2514220 2201KC2513C25100.1[KB]1u7654321P2501K1MN07A00019or (VJS3537E007G)C25510.056[KB]C25620.056[KB]C25610.056[KB]R255210KK2597VWJ0795=547KR256235V220[M]C2571TL2502P2571K1KA08A0029012345678LOADING M[-]LOADING M[+]LOADING M[-]LOADING M[+]MECHAMCAP FG5 46269 8 712 11 1013OUT2FINRINVGGNDCSTCT1CT2PCICNFM1VMCOMVCCPFGPG OUTPG-PG+EC14 15 16 17 18 19 2720 21 22PG+PG-GNDCOMM3M2M1CAP TLVV5VCAP VMFG1GND[FG]TLECCAP R/FM GNDction4/4DMR-ES40VP/PCSYSCON/Servo/Timer Section(Main P.C.B.(4/4))Schematic Diagram(S)11 12131415161718192021S-31

S-32S4.6. D_IF(IF) Schematic DiagramGLKJIHMN1/4DMR-ES40VP/PCD_IF Section(Power and Digital I/F P.C.B.(1/2))Schematic Diagram(IF)18642357919171513111012141618K1KA19A00007P31902K45001$[VWJ0023=5]K45002VWJ0795=7.5C410C4100.1C45006C45007 0.1ECQV1H104JL3C45003C450010.1C33738ECJ1VB1H103KR45002D0HB202ZA002100R45001D0HB222ZA002R4500310KR3700418KR37003D0HB392ZA002R45010220R34011820R37001R37002 $R37006 4707281 3 46 5C0ABBA000146IC3700172813465IC45002C0ABBB00011954321IC45001C0DBAHD00013C45002$(10V47)C45004F2A0J471A247C31902 $[F2A1V5600013]C45005F2A0J101A592C45008F2A1C101A699ECEA1CKA220BC37002GNDDR_P_ON_HX_SW5R9VX_SW12R5V21 3ZJ37002K9ZZ0000127921 3ZJ37003K9ZZ0000127921 3ZJ37001K9ZZ00001279123P37001K1KA03AA0301J0JCC0000103LB340022SD0874A0LQ37001C33735ECEA0JKN470BC33740ECEA0JKN470BC45009ECEA1CKN100B186423579141512131011K1KA15A00118P31901L37101VWJ0795=5AADC_RAADC_L(TO MAIN)FANLOCKGNDGNDGNDGNDGNDGNDGNDGNDGND(BODY=12)IN1+VEEVO1IN1-VO2VCCIN2-IN2+VOUTVINNRON[H]AUGNDAUGNDDGNDRPROUT_DMGPYOUT_DMBPBOUT_DMV_YIN_DMYOUT_DMCOUT_DMCPNCIN_DMMIXROUT_DMMIXLOUT_DMX_SW12VX_SW12VI2C5_CKIECOUTSCURVE1SCURVE0I2C5_DTDR_P_ON_HX_SW5R8VX_SW5R8VMUTE_LSYNC_DETPPPPFANDCOUTD5VorA OUTA-INA+INV+B OUTB-INB+IN

S-332/4DMR-ES40VP/PCD_IF Section(Power and Digital I/F P.C.B.(1/2))Schematic Diagram(IF).B.(1/2))18642357919171513111012141618K1KA19A00007P31903K45002VWJ0795=7.5C450201000PC450191000P0.1C45006C45007 0.1C450130.047[B]D0HB103ZA002R450051KR45019D0HB183ZA002R45004R45002D0HB202ZA0021D0HB222ZA002R45003R45007D0HB183ZA00247KR45009R450181KD0HB103ZA002R45008R4500647K10KR45014R4501510KR37002 $R37006 470$R37008R37010 47072813465IC45003C0ABBA00005472813465IC45002C0ABBB000119C45010F2A1C470A698C45012F2A1C470A698C45014F2A1E4R7A641C45005F2A0J101A592C45008F2A1C101A699F-X_SW-7VX_SW17VF+X_SW36VMGNDD45001$[B0AAED000003]QR45007UNR521100LUNR521100LQR45008UNR521100LQR45009QR45006UNR521100L9 ECEA1CKN100B(TO MAIN)SCLKMGNDXINTMXINTPSBPTMFANLOCKFANPWMOUTP_OFF_LSBPTPXTMUTE_LXMPREQF+F-GND(BODY=12)(BODY=12)(BODY=12)IN1+IN1+VEEVEEVO1VO1IN1-IN1-VO2VO2VCCVCCIN2-IN2-IN2+IN2+PPPPPPX_SW36VX_SW17VX_SW-7VSYS_PFAILS-33

H$(10V47)K45001$[VWJ0023=5]K45002VWJ0795=7.5GR45010D0HB392ZA002C45009ECEA1CKN100BR37006 470R37002 $C45011ECEA1CKN100BR45011D0HB392ZA002R45012D0HB622ZA002R45013D0HB622ZA002R3700522R37007470Q37002FK31001VWJ0795=12.5EPPPPD1R8VX_SW4VX_SW3R2VD_P_OFF_LK31000K31003 $R310063300C370010.1[KB]C370036V47[KS]C37111$R310053300C31008F1J0J106A014R31007100D31002L3710268uDC0CBCBD00048IC310038 7 6 5V OUT V INNC NCCN NCGND ON[H]1 2 3 4C0CBCBD00048IC310048 7 6 5V INNCNCV OUTNCCNGND ON[H]1 2 3 4K31002CC31006F1H1A105A028C31007ECJ1VB0J105KC310010.01[KB]R31004$(470)C31009F1H1A105A028C31010ECJ1VB0J105KC310040.01[KB]C31011$[6V47][KS]IC31005$[C0EBE0000457]BIC31002C0CBCDC00052(S-815A50AMC)5VOVIN1C31002F1H1A105A028GND2R3100122K4NCCNT3D31001C31003F1J0J106A014R31002220C31005ECJ1VB0J105KR31003$(470)3R3V_DETC31012$(0.1)4 35NC NCGNDOUT VDD21C31013$(0.01)R31008$(15K)C31014$(0.01)QR31001$[UNR521200L]A3/4DMR-ES40VP/PCD_IF Section(Power and Digital I/F P.C.B.(1/2))Schematic Diagram(IF)123456789101112S-34

S-3520191817161514131211 214/4DMR-ES40VP/PCD_IF Section(Power and Digital I/F P.C.B.(1/2))Schematic Diagram(IF).B.(1/2))K31002K45002VWJ0795=7.5$(3P)C37104C37105$(3P)C370010.1[KB]$(1000P)C37101C371060.1[KB]C371020.1[KB]C371030.1[KB]C371100.1[KB]0.1[KB]C371000.01[KB]C371090.1[KB]$[F1J0J106A014]C37115$[F1J0J106A014]C371160.1[KB]C37107$[F1J0J106A014]C37113C371080.1[KB]C37114F1J0J106A014D33004700R371024700R37101R37103ERJ3GEY0R00VR3700522R3700922R37011470R37002 $R37006 470$R37008R37010 470R37007470R37104$R37105 $3 46 5F2C37112$[6V100][KS]$[6V47][KS]C31011C370036V47[KS]C370046V330[KS]D31002LB37102LB37103J0JKB0000003LB37101LB37100LB37105LB37106J0JKB0000003LB37104VWJ0795=5LB37003VWJ0795=5LB37001LB37002VWJ0795=5LB37107Q370029 ECEA1CKN100B1 ECEA1CKN100BQ370034 32 11018162230283444485256606468727470666258545046423238403624262012149567813111929252733434751555963677173696561575349454131212335393715177576777879808182838485868788P37101K1KA88A00003L3710268uL37100VWJ0795=5AADC_RAADC_LSCLKXINTMXINTPSBPTMP_OFF_LXMPREQGND ON[H]AUGNDAUGNDAUGNDAUGNDAUGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDDGNDRPROUT_DMGPYOUT_DMBPBOUT_DMV_YIN_DMYOUT_DMCOUT_DMCPNCIN_DMMIXROUT_DMMIXLOUT_DMIECOUTSCURVE1SCURVE0SYNC_DETNCI2C5CKD5VXFWEANA5VSBMTPD1R8VD1R8VD1R8VD1R8VD3R3VD3R3VD3R3VD3R3VCHSELI2C5DTAU5VXDMUTEANA3R3VANA3R3VX_SW_3R2VX_SW_3R2VCONV_TUCN

S4.7. Power(P) Schematic DiagramN1/4DMR-ES40VP/PCPower SectionPower and Digital I/F P.C.B.(2/2)Schematic Diagram(P)2A 250VCAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE ONLY WITH THE SAME TYPE 2A 250V FUSE.ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQUESD’INCENDIE N’UTILISERQUE DES FUSIBLE DE MEME TYPE 2A 250VMD11401B0JAMG000010LKANP11101K2AB2B00000821orZA11101EYF52BCY2A 250VF11101K5D202BK0005250V2AZA11102EYF52BCYorSEE THESERVICE MANUAL(UL RECOGNIZED)VA11101#ERZVA5V471orC11101#ECQU2A223MLCC11103#ECKWNA101MBVorC11104#ECKWNA101MBVL11101#G0B832L00001or3 42 1C11105#ECKWNA471MBVC11102#ECQU2A683MLCorC11106#ECKWNA471MBVR11101$[ERDS1TJ474]470K[1/2W]L11102#G0B832L00001or3 42 1D11101B0EDKT0000093 412C11108 F2B2E2210011250V220LB11101J0JKB0000003D11102B0AAGR0000033 2 1456P1PTP2B1B2T11201G4D2A000025410 11 127 8 9D11402B0JAMG000010D11403B0JCNG000003D11404B0JCNG000003D11406B0JAME000025C1F216orororLB11102J0JKB0000003D11405B0JAME000025LB11103$(J0JHC0000048)C11109$[#ECKWNA102MEV]orC1F2A6V2JC11107#ECKWNA102MEVIIC11201 RADIATIONZA11201 $[VSC5606]ZA11202 $[XYN3+J8FJ]24IC11201C0DACZH00030LB11201J0JHC0000048R11201 100[22]R11202 100[22]C11201EEUFM1V680B35V68[FM]D11201B0AADM000003Q11301#B3PBA000023743 2C11301$[22](0.1)16135R1120315K[22]HC11205F1B3A3920001or3900P[1KV]R11204 680K[22]D11204MAZ73000BCC11211330P[22]C112021000P[KB][22]S-36R1120736K[G][22]R112081200[G][22]C11203220P[22]D11203MA2J11100LC112043300P[KB][22]R11206470[G][22]R112056800[G][22]D11202MAZ80910MLQ114032SD0601AHLR1140410KorIC#C0DAGR11217 $(10)[22]D11209$[B0AADM000003]T11202G4D2A0000253

S-372/4DMR-ES40VP/PCPower SectionPower and Digital I/F P.C.B.(2/2)Schematic Diagram(P).B.(2/2)C11405F2A0J222A5566V2200[JX]F2A1C102A62516V1000[JX]C11403C11401F2A1E221005025V220[JF]C1140916V120[FM]EEUFM1C121BC1140716V120[FM]EEUFM1C121BC11402F2A1E221005025V220[JF]C11406F2A0J102A5516V1000[JX]C1140416V560[JX]F2A1C561A629D11405B0JAME000025D11406B0JAME000025B0JCNG000003D11404D11401B0JAMG000010B0JAMG000010D11402D11403B0JCNG000003D11301MA2J11100LMA2J11100LD11302IP11901C11301$[22](0.1)0.1[22]C11410$[22](1u)C11411C114080.1[22]C114120.1[22]0.1[KB][22]C11302ECJ2VB1E473KC113032MEV2MEV]43 21#B3PBA0000237Q1130110KR11404R113021K[22]R11301390[22]R11402$[22](1K)R113036800[22]$[22](4700)R11401R113072400[G][22]$[22](39K)R11310R11309150[G][22]$[22][G](1500)R11311R11305$[22][G](27K)2400[G][22]R11306R11403 4700[22]R113043300[22]R1130847[G][22]10 11 127 9853142C0DAZJH00003IC11401VWJ0795=5K11402K11401ERJ3GEY0R00VG0A100HA0023L11404G0A100HA0023L11401G0A100HA0023L11403G0A100HA0023L11402G0A220GA0026L11405526134$[B1DHDD000022]Q11401QR11401$[UNR221300L]QR11402UNR221100L1342K1KA04AA0180P11401MGNDGNDDR_P_ON_HX_SW17V1 23CRA#C0DAEMB00003IC113012SD0601AHLQ11403orIFIFIFIFDDDDGSDR12VDR12VDRGNDDR5V

HC11205F1B3A3920001or3900P[1KV]R11204 680K[22]D11204MAZ73000BCC112021000P[KB][22]R1120736K[G][22]R112081200[G][22]MA2J11100LC112043300P[KB][22]R11206470[G][22]R112056800[G][22]Q114032SD0601AHLR1140410KorIC#C0DAGFEIC11202 RADIATIONZA11203 $[VSC5606]ZA11204 $[XYN3+J8FJ]1234IC11202C0DACZH000305LB11202J0JHC0000048R1121210K[22]R11217 $(10)[22]R11218 $(10)[22]R11209 $(10)[22]R11210C11206EEUFM1V680B35V68[FM]$(10)[22]D11209$[B0AADM000003]D11205$(B0AADM000003)9 8 7 6 2 5 4 3P1PTP2B1B2T11202G4D2A0000253D11801MA2C18500EIP11903ERJ3GEY0R00V11 12 13 14 15 16 17 18 19 2012D11901B0JAME000025D11902MA2C18500E21IP11902K5H1022A0011HR119010[22]D11701B0JCPD000021D11704B0JCPD000021C1F210D11601B0JAQE000004D11501B0JAMG000010D11502B0JAMG000010DC11208330P[22]D11207B0AACK000004R1121112K[22]D11206MAZ80820LLC11801F2A1H560000950V56[JF]C11210F1B3A2720001or2700P[1KV]D11208MAZ73000BCC112071000P[KB][22]R1121520K[G][22]R112161K[G][22]C112093900P[KB][22]R11214200[G][22]R112135600[G][22]Q11302#B3PBA000023741C3 2C11304$[22](0.1)HOTBCOLDorIC#C0DAA3/4DMR-ES40VP/PCPower SectionPower and Digital I/F P.C.B.(2/2)Schematic Diagram(P)123456789101112S-38

S-3920191817161514131211 214/4DMR-ES40VP/PCPower SectionPower and Digital I/F P.C.B.(2/2)Schematic Diagram(P).(2/2)F2A1A1010072C1190210V100[JF]56000090V56[JF]C11801C11503EEUFM1E221BC1150910V470[JF]F2A1A4710038F2A1A1010072C1190110V100[JF]C11501F2A1C561A62916V560[JX]C116016V2200[JX]F2A0J222A556C117016V1000[JX]F2A0J102A551EEUFM1C121BC1150216V120[FM]F2A0J681A550C117026V680[JX]C11602F2A0J102A5516V1000[JX]B0JAQE000004D11601B0JAMG000010D11501B0JCPD000021D11701D11704B0JCPD000021B0JAMG000010D11502D118012C18500EB0JAME000025D11901MA2C18500ED11902B0JCPD000021D11703B0JCPD000021D11702D11503 B0JCPD00002121K5H1022A0011IP1190221IP11901K5H1022A0011211903R00VC11304$[22](0.1)68PC11507C11505 0.1C11506 0.1[KB]C11504 0.1C11508 4700P[KB]$[22](10)C115100.1[KB][22]C11305ECJ2VB1E473KC1130643 21#B3PBA0000237Q1130210KR114041K[22]R11313R11312390[22]R119010[22]R1150551KR11504 7500[0.5%] R11503 9100[0.5%]1800[0.5%]R1150227M[36]D1BFR0270001R11501R11305$[22][G](27K)2400[G][22]R11306R11403R113143300[22]R11506 4700R11320100[G][22]2400[G][22]R11318820[G][22]R11319R113172400[G][22]R1131522K[22]R11316$[22][G](27K)J0JHC0000048LB11901J0JHC0000048LB11902J0JHC0000048LB11801J0JHC0000048LB1150111 201917151312 14 16 18K1ERJ3GL11502G0A100HA0023G0A100HA0023L11501G0A100HA0023L11601G0A100HA0023L11701526134B1DHDD000022Q11501QR11402UNR221100LQR11502UNR221300LQR11501UNR221300LF-MGNDGNDX_SW4VF+X_SW-7VD_P_OFF_LX_SW5R9VX_SW3R2VD1R8VX_SW36VX_SW12R5V72813465IC11501C0DBAKG00007L11503G0A150ZA0041#C0DAEMB00003IC113011 23CRA#C0DAEMB00003IC113022SD0601AHLQ11403ororororHHIFIFIFIFIFIFIFIFIFIFIFIFEXTV5VINDDDDGCSSCCGNDVREFFB

S4.8. DV_Jack Schematic Diagram / S4.9. Front Schematic DiagramGFR27501220DUB_REDR27503330R27505330D27501B3AAA0000752DVDD27503B3ACA0000273VHSD27505B3ADA0000173QR27501QR27503QR27505SELECTS27509R275322200OPEN/CLOSES27501EVQ11G04MER275161500D2VS27507R275081200RECS27506CH UPS27504R275172200CH DOWNS27502R27511 1500DP66801K1KA05BA0061TPA+TPA-GNDTPB+123451234P66802K2HZ104B0015TPA+TPB-TPA-TPB+TPB-V2D R27509S27508 1200PLAYS27505STOPS2750387654321C(TO MAIN)PP27501K1KA08B00210GND5V[AD]LED3LED1LED2KEY_IN3KEY_IN2KEY_IN1to SYSCON/SERVO/TIMERBADMR-ES40VP/PCDV_JackSchematic DiagramDMR-ES40VP/PCFrontSchematic Diagram12345S-40678910

S4.10. Front Jack Schematic DiagramGFIC7801PNA4618M13VTEDPP4600K1KA12B00129GNDCPN Y IN2GNDCPN C IN2L2 IN[R]L2 SWL2 IN[L]KEY 2VIDEO IN2IRKEY 15V[AD]123456789101112R78012201 2 3C78010.1S1 INR78021800POWERS7806R78071800EJECTS7813FFS7805REWS7812JK4600K2HA307A0009or246135JK3802K1CB106A0012or7 6 5 4 3 21CR38041KR3801 75R3802 75C3802 0.1R3803 75C4304100P[JC]C43051000P[KB]C43061000P[KB]LB3301J0JCC0000103LB3303J0JCC0000103LB3302J0JCC0000103C4303100P[JC]LB4301J0JCC0000103LB4302J0JCC0000103BADMR-ES40VP/PCFront JackSchematic Diagram12345S-41678910

S-42GLKJIHMN1/4DMR-ES40VP/PCMain P.C.B.(Component Side)W389W392W356W367W354W383W361W376W344W255W369W326W249W428W331W332W451W448W252W374W328W370W348W350W329W261W351W269W362W427W455W450W459W431W379W385W386W360W345W253W349W382W390W368W445W355W366W441W353W346W384W440W358W267W265W266W259W273W256W260W165W263W264W238W239W271W270W272 W268W254W429W443W442W444W446W378W457W430W460W347W438W437W458W452W453W426W447W454W449W247W432W234W229W235W227W357W439W388W381W373W225W248W230W226W228W330W327W359W377W251W372W387W363W364W250W333W262W380W352W246W224W245W244W393W391W257W258W365W240W241W394W375K3902K3903L7401K4002K3002K3001D3002D3001Q3002C3004C3013R3003Q3003C3052C4807K3005TW2002TW2001R3006121819P6003121819P6002121415P600116P4002145 8P2571167P25011P1531L4801L3702L3701L3003L3002K4802K4801K3901K3037K3009K3007K2098K25971 2 3JK4801242322212019181716151413 121110 98 7654 32 1JK3902J1C4832C4830C4829C4810C4809C4806C4805C4804C4803C4019C4017C3928C3735C3734C3733C3732C3730C3728C3727C3726C3709C3707C3704C3701C3026C3021C3020C3012C3008C2571S5. Print.Circuit.Board.S5.1. Main P.C.B.S5.1.1. Main P.C.B.(Component Side)S-42

S-432/4Side)DMR-ES40VP/PCMain P.C.B.(Component Side)W181W180W169W178W176W255W249W164W252W185W188W261W183W54W90W64W48W51W84W81W82W253W74W167W189W87W57W186W267W203W202W168W265W266W89W79W91W56W86W201W196W162W256W260W197W140W170W137W142W153W42W75W66W83W143W141W195W165W163W190W38W53W263W238W41W194W191W272 W268W85W69 W65W95W254W52W80W63W67W43W39W149W44W152W151W148W49W78W88W94W72W55W247W234W229W235W232W227W225W248W230W233W155W228W139W50W37W40W154W251W70W192W184W182W144W179W145W156W150W175W193W147W138W177W199W93W96W62W68W71W73W77W187W250W146W171W166W224W174W47W45W46W92W76W257W258W172W242W173W243W200W1981 10 154 5DP7501X7502K4002K30051 5S1532R3006R2503R1503-+Q150112145 8P25716L3004L3003K6098K3037K3007K2098K2597123 4IC1511D2502D2002D2001D1501C6308C6005C3026C3021C3020C3012C2509C2502C2053NC2051X7501R7508R750712PH75011278P750216P7501K7504K7503K7502K7501K6099D7502D7501C7539S-29S-43

S-4410987654321FEDCBAG1211H3/4DMR-ES40VP/PCMain P.C.B.(Component Side)(Component Side)W218W207W308W311W342W314W417W289W411W423W302W206W205W221W315W322W304W286W305W396W285W276W303W301W428W331W332W313W321W397W328W323W424W335W300W294W210W211W402W291W407W405W298W329W427W421W422W431W297W334W282W296W299W336W274W222W310W412W434W316W307W413W341W309W325W395W318 W319W306W217W429W416W430W435W415W401W408W399W295W403W290W406W404W414W418W279W433W410W432W436W209W234W229W235W277W278W213W338W230W339W215W214W236W216W228212W237W330W327W340W293W292W420W419W312W324W425W317W320W409W333W280W284W275W398W287W288W231W343W337W400W283W281C4525C4807C4843C4844K7413K7415K7414TW450218 8 7 2TU7401R74012 1P4001L7402L4503K7410D7401C7421C7404C7401C7322C7321X3002TW450112 89P3001L5001L4502501L3002K4801K4509K4507K4504K4502K3027K3024K3007242322212019181716151413 121110 98 7654 32 1JK390311108654 32 1D4501C5006C4842C4840C4839C4838C4837C4836C4833C4830C4829C4827C4820C4819C4818C4817C4816C4813C4812C4811C4810C4806C4803C4535C4534C4526C4523C4522C4521C4517C4516C4515C4514C4513C4507C4506C4505C4504C4503C4502C4501C4019C4017C4012C4009 C4008C4006C4005C3933C3039C3036C3034C3032 C3029C3028

S-4520191817161514131211 214/4Side)DMR-ES40VP/PCMain P.C.B.(Component Side)W218W207W61W206W205W221W59W10W20W60W204W21W223W33W16W17W110W100W210W211W58W134W121W220W123W222W11W54W29W12W48W9W51W14W35W57W120W56W161W126W36W153W19W4W23W208W53W105W217W2W1W52W43 W149W31W135W124 W117W44W152W151W148W49W22W55W106W34W24W101W102W109W8W99W107W209W234W229W235W232W160W108W213W230W233W155W112W122W215W214W216W228W212W97W13W15W7W98W130W128W6W50W154W131W28W18W113W119W125 W156W115W129W150W159W147W104W30W32W132 W118W146W157W116W136W133W127W219W111W47W25W158W45W27W114W46W26W3W510 15 20 25 29 32TW4502TW300164 31T4081R4504Q4502Q4081-+Q1502121112PS60022 1P4001L7301L4061K4702K4513K400113 FL7301D4502C7322C7321C7319C7318C7315C7314C7313C7308C7307C7306C7301C4520C4083C4001X6001X3002R1503L6102L6101L5001L4502L4501L3005L3004K4509K4507K4504K3024K30071 234IC1512D4501D1501C5006C4535C4522C4517C4516C4515C4514C4513C3039C3036C3034C3032 C3029C3028TW750112S153116P7501D7751D6306D6001C7538C7504C6303

S-46S5.1.2. Main P.C.B.(Foil Side)GLKJIHMN1/4DMR-ES40VP/PCMain P.C.B.(Foil Side)W713W711 W710W734W719W732W731W708W709W714W712W718W717W715W716C7518TL7503C7517R7522R7521C7506C7505CL6026CL6027CL6028CL6029MK2MK3MK57MK58MK59TL6010TL6001TL2502TL2015TL23R6803R6802R6801R6024R6020R6019R6014R6011R6008R6007R6006R6004R3031R3030R3023R3022R3021R3002R2565R2564R2563R2562R2552R2521R2520R2516R2515R2514R2502R2501R2099R2002R2001R1513R1512R1501QR6801Q30043 24 1IC630111001 30315051IC30011 1 3142526276 71920IC2501C6012C3074C3053C3050C3048C3041C3025C3024C3023C3022C3019C3017C3015C3014C3011C3009C3007C3006C3003C3002C2561C2552C2551C2519C2518C2515C2513C2512C2511C2510C2508C2507C2506C2505C2504C2501C2099C2055C2054C2003C2001MK9MK10TL7504TL6002R7565 R7564R7563R7562R7561R7556R7554R7543R7542R7541R7540R7539R7538R7537R7530R7529R7528R7527R7526R7524R7520R7519R7518R7517R7516R7515R7514R7513R7512R7511R7510R7506R7505R7504R7503R7502R7501QR7503QR7501Q7501LB75051234 5IC7502644948 333217161IC7501CL7507CL7506C7540C7516C7515C7514C7513C7512C7511C7510C7509C7508C7507C7503C7502C7501S-46

S-472/4DMR-ES40VP/PCMain P.C.B.(Foil Side)W734W739W740W742W761W760W757W758W744W759W738W732W730W731W741W733CL3701C4815C3016C7438C7437Q3902Q3901C3043MK3MK7MK8MK64MK62TL2502R4860R4858R4856R4855R4814R4813R4812R4811R4810R4809R4808R4806R4804R4803R4802R4801R4012R4006R4005R4001R3940R3939R3938R3937R3936R3935R3934R3933R3932R3922R3915R3914R3912R3909R3908R3907R3711R3710R3708R3707R3704R3703R3702R3701R30320303R3022R3021R3002R3001R2565R2516R2515R2514R2099QR4816QR4813QR4812QR4811QR4810QR4806QR4805QR4804QR4802QR4001Q4002Q4001LB4103LB4101LB3107LB3106LB3104LB3103LB3102LB31011 458IC480216 91 8IC48014613IC39021 2 0214041606180IC3701153IC30021 30315051IC3001125C4831C4808C4802C4801C4103C4101C3932C3927C3926C3925C3908C3738C3737C3736C3731C3729C3725C3724C3723C3722C3721C3720C3719C3718C3717C3716C3715C3713C3712C3711C3710C3708C3706C3705C3703C3702C3074C3051C3050C3048C3024C3023C3022C3019C3017C3015C3014C3011C3010C3009C3007C3006C3005C3003C3002C3001C2512C2511C2510C2099C2003S-47

S-4810987654321FEDCBAG1211H3/4DMR-ES40VP/PCMain P.C.B.(Foil Side)(Foil Side)W727W720W705W704W701W703W702W707W728W723W724W725W726W721W729W722W709W714W706W715L6001R7509R7522R7521C7506C7505C5008CL6012CL6021CL6022CL6023CL6024CL6025CL6011R6018CL6030CL6031CL6026CL6027CL6028CL6029MK1MK2MK3MK4MK6MK5MK59MK60TL1002R7311R7310R7309R7308R7307R7306R7305R7303R7301R4087R4086R4082R4081R4009QR4082Q40841173216IC7301C7320C7317C7316C7312C7311C7310C7309C7305C7304C7303C7302C4519C4085C4084C4082C4081TL6010TL6004TL4507TL4502TL4501TL2015TL24R6803R6201R6103R6102R6101R6029R6028R6027R6026R6024R6023R6022R6020R6019R6017R6014R6013R6012R6010R6009R6008R6007R6004R6002R6001R4540R4539R4538R4534R4529R4525R4522R4508R4500R4R3047R3046R3035R3030R3022R3021R3017R3016R3014R3013R3012R3011R3009R3002R2563R2561R2551R2002R1511R1501Q3004Q3001L3006K4506K3010K30061234 5IC62011 303150518081100IC600117323348IC45011 303150518081100IC3001C6201C6104C6103C6102C6101C6019C6018C6016C6015C6014C6012C6011C6010C6009C6008C6007C6006C6002C6001C5007C5005C5004C5003C5002C5001C4537C4518C4512C4511C4510C4509C4508C4013C3074C3053C3044C3041C3040C3038C3037C3035C3033C3031C3030C3025C3024C3023C3022C3019C3017C3015C3014C3011C3006C3003C3002C2562C2055C2054C2001R6309R6015R1502Q6305IP6001C6302 C6301C6020

S-4920191817161514131211 214/4DMR-ES40VP/PCMain P.C.B.(Foil Side)W755W756W727W737W753W736W747W746W749W735 W750 W751W752W748W754W723W724W757W758W738W725W721W729C4814C5008R4823R4822C7435C7436K7412K7411MK3MK4MK6MK5MK63MK64R7418R7417R7416R7415R7411R7410R7409R7408R7407R7406R7405R7404R7403R4513R4507QR7401QR4501Q7402Q7401Q4501LB7412LB7411LB7410LB7409LB7408LB7407LB7405LB74031 458IC74021 458IC7401C7434C7433C7432C7423C7422C7420C7419C7408C7407C7406C7405C7403TL4507TL4502TL4501R4863R4862R4861R4859R4856R4855R4840R4837R4836R4835R4834R4833R4832R4830R4829R4827R4826R4825R4824R4821R4820R4819R4818R4817R4816R4815R4814R4813R4812R4811R48R4808R4807R4806R4805R4557R4553R4540R4539R4538R4534R4529R4527R4526R4525R4522R4521R4520R4519R4518R4515R4512R4511R4510R4509R4508R4506R4505R4503R4502R4501R4500R4012R4011R4008R4007R4006R4005R4004R4003R4001R3940R3939R3929R3928R3926R3924R3922R3915R3914R3913R3035R3032030R3022R3021R3014R3013R3012R3011R3009R3002R3001QR4813QR4812QR4811QR4810Q4802Q4801QR4807QR4803QR4801QR4001Q4002Q4001LB4107 LB4105LB4104LB4102LB3111LB3110LB3108LB3107LB3106LB3105L3006K4506K30101 1 61732IC4804431 5IC480358IC480216 91 8IC48011 16173233484964IC45011 303150518081100IC3001C5007C5005C5004C5003C5002C5001C4841C4835C4834C4828C4826C4824C4823C4822C4821C4808C4774C4773C4538C4537C4524C4518C4512C4511C4510C4509C4508C4111C4109C4107C4105C4104C4102C4013C4011C4007C4004C3932C3919C3918C3908C30743038C3037C3035C3033C3031C3030C3024C3023C3022C3019C3017C3015C3014C3011C3006C3005C3003C3002C3001

S5.1.3. Main P.C.B. Address InformationCapacitorC2001 H-8 FC2003 K-10 FC2051 I-16 CC2053 J-15 CC2054 G-8 FC2055 G-8 FC2099 J-12 FC2501 L-9 FC2502 L-13 CC2504 L-10 FC2505 L-10 FC2506 L-10 FC2507 L-10 FC2508 K-10 FC2509 L-13 CC2510 K-11 FC2511 K-10 FC2512 K-11 FC2513 K-10 FC2515 L-10 FC2518 K-10 FC2519 L-10 FC2551 K-9 FC2552 K-10 FC2561 K-10 FC2562 F-8 FC2571 K-10 CC3001 G-12 FC3002 H-12 FC3003 H-12 FC3004 J-9 CC3005 G-12 FC3006 G-12 FC3007 I-12 FC3008 I-10 CC3009 I-12 FC3010 J-12 FC3011 H-12 FC3012 I-10 CC3013 J-9 CC3014 H-11 FC3015 H-11 FC3016 J-13 FC3017 H-11 FC3019 H-11 FC3020 I-11 CC3021 H-10 CC3022 H-11 FC3023 H-10 FC3024 G-11 FC3025 G-10 FC3026 I-11 CC3028 F-11 CC3029 F-11 CC3030 F-11 FC3031 F-11 FC3032 F-11 CC3033 F-10 FC3034 E-11 CC3035 E-11 FC3036 F-12 CC3037 F-10 FC3038 G-10 FC3039 F-12 CC3040 G-10 FC3041 G-10 FC3043 J-13 FC3044 F-10 FC3048 I-12 FC3050 H-11 FC3051 J-13 FC3052 K-9 CC3053 H-10 FC3074 H-11 FC3701 L-6 CC3702 L-16 FC3703 L-15 FC3704 L-7 CC3705 L-15 FC3706 L-15 FC3707 L-7 CC3708 K-15 FC3709 K-7 CC3710 L-15 FC3711 K-15 FC3712 K-16 FC3713 B-15 CC3713 K-17 FC3715 K-17 FC3716 K-17 FC3717 K-17 FC3718 K-17 FC3719 B-15 CC3719 K-17 FC3720 K-16 FC3721 K-16 FC3722 K-16 FC3723 K-17 FC3724 K-17 FC3725 K-16 FC3726 M-6 CC3727 M-5 CC3728 M-5 CC3729 M-16 FC3730 M-5 CC3731 M-16 FC3732 L-5 CC3733 M-5 CC3734 L-5 CC3735 L-5 CC3736 L-17 FC3737 L-17 FC3738 L-17 FC3908 G-17 FC3918 D-18 FC3919 E-18 FC3925 I-16 FC3926 I-15 FC3927 I-16 FC3928 I-6 CC3932 H-17 FC3933 E-4 CC4001 B-16 CC4004 G-13 FC4005 G-10 CC4006 G-9 CC4007 G-13 FC4008 G-9 CC4009 G-9 CC4011 G-12 FC4012 F-10 CC4013 F-12 FC4017 G-10 CC4019 G-9 CC4081 C-6 FC4082 C-5 FC4083 B-16 CC4084 C-6 FC4085 C-6 FC4085 C-6 FC4101 J-18 FC4102 F-18 FC4103 J-18 FC4104 F-18 FC4105 G-18 FC4107 G-18 FC4109 F-18 FC4111 F-18 FC4501 E-9 CC4502 E-9 CC4503 E-10 CC4504 E-9 CC4505 F-10 CC4506 F-9 CC4507 F-10 CC4508 E-12 FC4509 E-12 FC4510 E-12 FC4511 E-11 FC4512 E-11 FC4513 D-11 CC4514 D-11 CC4515 D-12 CC4516 D-11 CC4517 D-11 CC4518 E-11 FC4519 C-5 FC4520 C-17 CC4521 D-9 CC4522 D-11 CC4523 D-9 CC4524 D-13 FC4525 D-9 CC4526 D-9 CC4534 F-10 CC4535 E-11 CC4535 D-11 CC4537 D-11 FC4538 D-13 FC4773 D-13 FC4774 D-13 FC4801 J-18 FC4802 J-18 FC4803 H-7 CC4804 H-7 CC4805 H-6 CC4806 G-6 CC4807 G-6 CC4808 H-16 FC4809 H-6 CC4810 H-6 CC4811 E-5 CC4812 F-6 CC4813 F-6 CC4814 F-14 FC4815 K-13 FC4816 F-5 CC4817 F-6 CC4817 F-5 CC4818 E-6 CC4819 E-5 CC4820 E-6 CC4821 F-16 FC4822 D-17 FC4823 E-16 FC4824 F-16 FC4826 F-16 FC4827 E-5 CC4828 F-16 FC4829 G-5 CC4830 G-5 CC4831 K-18 FC4832 K-4 CC4833 D-5 CC4834 F-15 FC4835 D-17 FC4836 E-6 CC4837 F-7 CC4838 E-5 CC4839 E-6 CC4840 F-6 CC4841 D-17 FC4842 F-7 CC4843 E-6 CC4844 E-6 CC5001 F-12 FC5002 F-12 FC5003 F-12 FC5004 F-12 FC5005 F-11 FC5006 F-10 CC5007 F-11 FC5008 E-11 FC6001 F-6 FC6002 F-6 FC6005 I-16 CC6006 F-7 FC6007 F-7 FC6008 F-7 FC6009 E-7 FC6010 F-8 FC6011 F-8 FC6012 H-7 FC6014 F-7 FC6015 E-7 FC6016 F-7 FC6018 F-6 FC6019 F-6 FC6020 E-5 FC6101 F-7 FC6102 E-8 FC6103 E-7 FC6104 E-6 FC6201 F-6 FC6301 D-6 FC6302 D-6 FC6303 D-16 CC6308 K-13 CC7031 B-16 CC7302 C-7 FC7303 B-7 FC7304 C-7 FC7305 C-7 FC7306 B-14 CC7307 B-14 CC7308 B-14 CC7309 B-7 FC7310 B-7 FC7311 B-7 FC7312 C-8 FC7314 B-15 CC7315 B-14 CC7316 B-8 FC7316 B-8 FC7317 B-8 FC7318 B-14 CC7320 B-7 FC7321 B-11 CC7322 B-11 CC7401 C-6 CC7403 C-17 FC7404 C-4 CC7405 B-17 FC7406 B-17 FC7407 C-17 FC7408 C-17 FC7419 B-16 FC7420 B-16 FC7421 C-5 CC7422 B-17 FC7423 B-16 FC7432 C-17 FC7433 B-18 FC7434 C-17 FC7435 D-15 FC7436 D-15 FC7437 K-15 FC7438 J-14 FC7501 K-5 FC7502 K-5 FC7503 K-5 FC7503 K-5 FC7504 F-18 CC7505 H-4 FC7506 H-4 FC7507 I-5 FC7508 I-5 FC7509 I-5 FC7510 J-5 FC7511 J-5 FC7512 J-5 FC7513 J-5 FC7515 J-6 FC7516 L-6 FC7517 H-5 FC7518 J-5 FC7538 F-18 CC7539 M-15 CC7540 K-6 FCL3701 J-16 FCL6011 F-7 FCL6012 F-9 FCL6021 F-8 FCL6022 F-8 FCL6023 F-8 FCL6024 F-8 FCL6025 F-7 FCL6026 G-6 FCL6027 G-7 FCL6028 H-7 FCL6029 G-7 FCL6030 F-6 FCL6031 F-7 FCL7506 I-4 FCL7507 M-4 FDiodeD1501 H-14 CD2001 H-14 CD2002 I-14 CD2502 L-11 CD3001 J-9 CD3002 J-9 CD4501 E-11 CD4502 C-17 CD6001 E-18 CD6306 D-16 CD7401 C-6 CD7501 K-16 CD7502 I-17 CD7751 E-18 CDP7501 J-18 CFuseF7502 L-5 FFilterFL7301 B-12 CIntegrated CircuitIC1511 I-16 CIC1512 E-16 CIC2501 L-10 FIC3001 G-11 FIC3002 K-13 FIC3701 K-16 FIC3902 I-16 FIC4501 D-12 FIC4801 H-16 FIC4802 H-16 FIC4803 D-17 FMainP.C.BIC4804 F-16 FIC6001 G-7 FIC6201 F-6 FIC6301 K-9 FIC7301 B-7 FIC7401 C-17 FIC7402 C-17 FIC7501 K-5 FIC7502 L-6 FIP6001 D-6 FEarth WireJ1 I-9 CConnectorJK3902 I-4 CJK3903 E-4 CJK4801 K-4 CCoilL3002 G-10 CL3003 I-11 CL3004 G-12 CL3005 F-12 CL3006 F-10 FL3701 M-7 CL3702 J-7 CL4061 B-16 CL4501 D-12 CL4502 E-11 CL4503 C-8 CL5001 E-11 CL6001 F-6 FL6101 E-15 CL6102 F-15 CL6801 K-4 CL7301 B-15 CL7401 J-8 CL7402 C-5 CLB3101 H-18 FLB3102 I-18 FLB3103 I-18 FLB3104 I-18 FLB3105 E-18 FLB3106 H-18 FLB3107 G-18 FLB3108 E-18 FLB3110 D-18 FLB3111 D-18 FLB4101 J-18 FLB4102 F-18 FLB4103 I-18 FLB4104 F-18 FLB4105 G-18 FLB4107 F-18 FLB7403 B-17 FLB7405 C-17 FLB7407 C-17 FLB7408 B-18 FLB7409 B-18 FLB7410 B-18 FLB7411 B-18 FLB7412 B-17 FLB7505 L-5 FTest PointMK1 F-7 FMK10 K-5 FMK2 G-7 FMK3 G-11 FMK4 G-11 FMK5 D-12 FMK57 M-8 FMK58 I-9 FMK59 G-10 FMK6 D-12 FMK60 B-9 FMK62 H-13 FMK64 G-15 FMK7 L-16 FMK8 K-16 FMK9 K-5 FTL1002 C-5 FTL2015 H-8 FTL23 I-6 FTL24 E-6 FTL2502 J-10 FTL4501 C-11 FTL4502 C-11 FTL4507 E-11 FTL6001 K-9 FTL6002 M-7 FTL6004 F-6 FTL6010 G-6 FTL7503 K-5 FTL7504 L-5 FConnectorP1531 M-10 CP2501 K-10 CP2571 K-11 CP3001 F-10 CP4001 C-12 CP4002 J-10 CP6001 M-7 CP6002 M-8 CP6003 M-10 CP7501 H-18 CP7502 M-18 CPH7501 H-18 CPS6002 C-18 CTransistorQ1501 M-13 CQ1502 B-13 CQ3001 E-10 FQ3002 J-8 CQ3003 J-8 CQ3004 H-10 FQ3901 I-16 FQ3902 I-16 FQ4001 H-13 FQ4002 G-13 FQ4081 C-16 CQ4084 C-6 FQ4501 C-14 FQ4502 C-17 CQ4801 F-17 FQ4801 G-18 FQ4802 F-18 FQ6305 D-6 FQ7401 C-15 FQ7402 C-17 FQ7501 M-5 FTransistor-resistorQR4001 G-13 FQR4082 C-6 FQR4501 C-15 FQR4802 I-17 FQR4803 F-18 FQR4804 J-18 FQR4805 J-18 FQR4806 J-18 FQR4807 F-18 FQR4810 G-15 FQR4811 G-16 FQR4812 G-17 FQR4813 G-17 FQR4816 J-17 FQR6801 J-7 FQR7401 C-17 FQR7501 L-5 FQR7503 L-5 FResistorR1501 H-7 FR1502 C-8 FR1503 H-14 CR1511 E-6 FR1512 I-7 FR1513 I-7 FR2001 K-10 FR2002 H-8 FR2099 I-12 FR2501 K-10 FR2502 K-10 FR2503 K-12 CR2514 K-10 FR2515 K-10 FR2516 K-11 FR2520 K-10 FR2521 K-10 FR2551 F-8 FR2552 K-9 FR2561 F-8 FR2562 J-10 FR2563 G-8 FR2564 K-10 FR2565 K-10 FR3001 G-12 FR3002 G-12 FR3003 J-8 CR3006 K-10 CR3009 F-11 FR3011 F-11 FR3012 F-11 FR3013 F-11 FR3014 F-11 FR3016 G-10 FR3017 E-10 FR3021 H-12 FR3022 H-12 FR3023 I-10 FR3030 H-10 FR3031 I-10 FR3032 G-12 FR3035 F-11 FR3046 E-10 FR3047 E-10 FR3701 L-15 FR3702 L-16 FR3703 K-15 FR3704 K-15 FR3707 K-15 FR3708 K-16 FR3710 K-17 FR3711 K-17 FR3907 H-18 FR3908 I-18 FR3909 I-18 FR3912 I-18 FR3913 E-18 FR3914 G-18 FR3915 G-17 FR3922 G-17 FR3924 E-18 FR3926 D-18 FR3928 D-18 FR3929 D-17 FR3932 I-16 FR3933 I-16 FR3934 I-16 FR3935 I-16 FR3936 I-16 FR3937 I-16 FR3938 I-16 FR3939 H-17 FR3940 H-17 FR4001 H-13 FR4003 F-13 FR4004 G-12 FR4005 G-13 FR4006 G-13 FR4007 G-12 FR4008 G-12 FR4009 C-6 FR4011 F-13 FR4012 G-13 FR4081 C-6 FR4081 C-6 FR4086 C-6 FR4087 C-6 FR4500 E-11 FR4501 D-13 FR4502 E-12 FR4503 E-12 FR4504 C-17 CR4505 E-12 FR4506 E-12 FR4507 C-14 FR4508 D-10 FR4509 F-13 FR4510 F-13 FR4511 F-13 FR4512 F-12 FR4513 C-15 FR4515 D-13 FR4518 E-13 FR4519 E-13 FR4520 F-12 FR4521 E-12 FR4522 D-11 FR4525 D-11 FR4526 D-13 FR4527 D-13 FR4529 E-11 FR4534 E-11 FR4538 D-11 FR4539 C-11 FR4540 C-11 FR4553 E-12 FR4557 E-13 FR4802 I-17 FR4803 I-17 FR4804 J-18 FR4805 F-18 FR4806 G-17 FR4807 F-17 FR4808 H-16 FR4809 H-16 FR4810 H-16 FR4811 G-16 FR4812 G-15 FR4813 G-16 FR4814 G-15 FR4815 G-16 FR4816 G-17 FR4817 F-16 FR4818 F-16 FR4819 E-17 FR4820 E-16 FR4821 E-17 FR4822 G-17 FR4823 F-18 FR4824 E-17 FR4825 F-17 FR4826 F-16 FR4827 F-16 FR4829 F-16 FR4830 F-16 FR4832 E-15 FR4833 E-15 FR4834 F-16 FR4835 F-15 FR4836 E-15 FR4837 E-16 FR4840 F-18 FR4855 G-16 FR4856 G-16 FR4858 J-18 FR4859 G-18 FR4860 I-18 FR4861 F-18 FR4862 F-18 FR4863 F-18 FR6001 F-7 FR6002 F-6 FR6004 G-6 FR6006 I-6 FR6007 H-7 FR6008 G-6 FR6009 E-8 FR6010 E-8 FR6011 H-7 FR6012 F-8 FR6013 F-8 FR6014 H-7 FR6015 D-5 FR6017 F-7 FR6018 E-7 FR6019 H-7 FR6020 G-7 FR6022 F-8 FR6023 F-8 FR6024 G-7 FR6026 F-8 FR6027 F-8 FR6028 F-8 FR6029 F-8 FR6101 E-7 FR6102 E-7 FR6103 E-7 FR6201 F-6 FR6309 D-6 FR6801 I-7 FR6802 I-7 FR6803 H-8 FR7301 B-7 FR7303 B-7 FR7305 B-8 FR7306 B-8 FR7307 B-7 FR7309 B-8 FR7310 B-10 FR7311 B-9 FR7401 C-6 CR7403 C-17 FR7404 C-17 FR7405 C-17 FR7406 C-17 FR7407 D-17 FR7408 D-17 FR7409 D-17 FR7410 B-16 FR7411 B-16 FR7415 C-16 FR7416 D-17 FR7417 C-15 FR7418 C-15 FR7501 K-5 FR7503 L-5 FR7504 I-4 FR7505 I-5 FR7506 I-5 FR7507 M-17 CR7508 I-18 CR7509 G-4 FR7510 J-5 FR7511 I-5 FR7512 I-5 FR7513 J-5 FR7514 J-5 FR7514 J-5 FR7515 J-5 FR7516 J-5 FR7517 J-5 FR7518 K-4 FR7519 K-5 FR7520 L-5 FR7520 K-5 FR7521 G-4 FR7522 G-4 FR7524 J-4 FR7527 L-5 FR7528 K-5 FR7529 K-5 FR7530 J-5 FR7537 K-5 FR7538 K-4 FR7539 K-4 FR7540 K-4 FR7541 K-4 FR7542 K-4 FR7543 L-5 FR7554 L-5 FR7556 K-6 FR7561 J-6 FR7562 J-4 FR7563 J-4 FR7564 J-4 FR7565 J-4 FSwitchS1531 D-17 CS1532 K-15 CTuner UnitTU7401 B-5 CCrystal OsillatorX3002 F-11 CX6001 F-16 CX7501 J-17 CX7502 J-17 CAddress InformationC.....Component SideF......Foil SideS-50

S-51

S-52S5.2. Power and Digital I/F P.C.B.GLKJIHMN1/4DMR-ES40VPower andDigital IW92W43W105W4W104W103W102W100W101W97W61W94W80W90W87W74W69W68W65W46W45W39W34W33W31W6W1W16W60W19W70W17W12W14W13W93W62W18W53W40W29W89W11W30W52W28W3W82W67W75W88W79W63W15W73W84W83W86W50W44W72W91W81W54W38W32W42W85L37102C37004LB37003LB37002LB37001K31003K31000K31001C11107L37100C37003C37112C31011D31001D3100220L1150331ZJ3700231ZJ37001D4500144434241403938373635343332313029282726252423222120191817161514131211109876543218887868584838281807978777675747372717069686766656463626160595857565554535251504948474645P371011819 12P3190312LB37104LB37103K45001C45014C45013C45012C45010N C33740NC33735C11503C11509L11502IC11302C11601L11601D11902 D11901C11902C11901C11602

S-532/4DMR-ES40VPower andDigital IW505W504W503W502W501W506C37118C37117C31007C37113C37116C37115C37114R11501Q37003Q37002C31001C31002C31003C31004C310051234 5IC31002LB37102R31001R31002R31003LB37107C31006C31008C31009R31004R31005R31006R31007C310101 458IC31004K310021 458IC31003IP11902IP11901QR31001R31008C31013C31014C310121234 5IC31005R45015R45014R37011R37010R37008R37009R37006R37007R37005R37002C37001QR45009QR45008QR45007QR45006D11703 D11702C37100LB37105LB37100R37102R37101LB37101C37103C37111C37110C37109C37108C37107C37106LB37106R45019R45018R45009R45006R37105R37104C45020C45019C37105C37104C37101R45008R45007R45005R45004R45003002R371031 458IC450031 4IC45002C37102C33738C11504C11505C11506C11507C11508C11510D115031 458IC11501LB115014613Q11501QR11501QR11502R11502R11503R11504 R11505R11506R11320R11319R11318R11315R11314R11313R11312C11306C11305C1130443 21Q11302R11901R11317R11316LB11902LB11901S-53

S-5410987654321FEDCBAG1211H3/4DMR-ES40VPower andDigital I(Component Side)W23W99 W98W80W77W65W58W57W56W55W46W45W36W35W22W9 W8W7W5W2W95W66W51W37W24W53W40W52W71W27W26W48W25W59W49W21W20W96W64W78W76W47C11109C11107L37101C37002L11405P1110111109875 4 3 2 16T11201K45002C11406K11402292011T11202L11503D11209D1120711819 12P31902K45001C45014C45013C45012NC45011C45010NC45009C45008C45005C45004C45003C45002N C33740NC33735C11503C11509L11502IC11302C1140312541245IC11401C11409L1140414P11401C11407IC11301D11801C1180131ZJ370031415 12P3190113P37001C31902123 4L11101L11402C11405C11401C11601ZA11102ZA11101VA11101R11101LB11102LB11101123 4L1110212345IC1120212345IC11201D11208D11205D11204D11201D11102C11210C11206C11205C11201C11108C11106C11105C11104C11103C11102C11101L11701L11601L11501L11403L11401D11902 D11901D11601D11502D11501D11405D11406D11401D11402C11902C11901C11702C11701C11602C11502C11501C11404C11402

136434136441R45009R450061 4IC45002R45003IP11902IP11901R1C11R11313C113043 2Q11302R11320 R1C11506C11507C11505R11504 R11505QR11501R11506IC115018 51 4R11501R11503C11504C11508DLB11501R11502Q11501C11510C45001IC450011 558C45007C45006R45002R45001+R45010R45011R45013R45012D11704-D11101D11701LB3400241R11901R11317R11316LB11801LB11202R34011C11410C11411R11401 R11402Q11401QR11401C11412C11408IP11903R11218R11217R11211R11212R11209R11210C11208R11215D11206C11207R11214R11213C11209R11216LB11201R11202R11201C11211D11403R11203C11203D11404R11204D11202R11205C11204R11206D11203W500R370041 4IC370018 5R37003R37001Q37001R11311 R11310R11309 R11308 R11307K11401R11304D11301D11302R11403C11303R11404R11306R11305C11302R11303R11301R11302C11301LB11103R11207C11202R11208Q113013 2QR11402Q11403(Foil Side)4/4DMR-ES40VPower andDigital I11 12131415161718192021S-55

P66802S5.3. DV Input P.C.B.G5 1P66801F(Component Side)E4213DC(Foil Side)BADMR-ES40VP/PCDV Input P.C.B.12345S-56678910

1 3W8W2W4W3W5IC7801S5.4. Front Jack P.C.BGFEDS7812JK3802PP4600JK4600S7805W1S7813S7806C7801R78016R3804R7802R7807C380243R3801LB3303LB3301R38025512641C752 3C4304LB4302C4305LB4301C4303LB3302R3803C4306B122111(Component Side)(Foil Side)ADMR-ES40VP/PCFront Jack P.C.B.12345S-57678910

W6W2W3W4W5S27508D27501S27507S27509S27506S27505D27503S27504S27503S27502D27505S2750187PP2750121S5.5. FL Drive P.C.B.GFED(Component Side)CR27501R27503QR27503R27505QR27505BQR27501R27532R27508R27509R27516R27517R27511A(Foil Side)DMR-ES40VP/PCFL Drive P.C.B.12345S-58678910

S6. Replacement Parts ListNote:1.* Be sure to make your orders of replacement parts according to this list.2. IMPORTANT SAFETY NOTICEComponents identified with the mark have the special characteristics for safety.When replacing any of these components, use only the same type.3. Unless otherwise specified,All resistors are in OHMS, K=1,000 OHMS. All capacitors are in MICRO-FARADS (uf), P=uuF.4. The marking (RTL) indicates the retention time is limited for this item. After the discontinuationof this assembly in production, it will no longer be available.E.S.D. standerds for Electrostatically Sensitive Devices, refer to “PREVENTION OFELECTROSTATIC DISCHARGE (ESD) TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES”section.Definition of Parts supplier:1. Parts marked with [PAVC-CSG] in the remarks column are supplied fromPAVC COMPANY CS Group (PAVC-CSG).S-59

S-60

S-61

S-62

S-63

S-64

S-65

S-66

DMR-ES40VP-S06 / 07 / M1 / M2Ref.No. Part No. Part Name & DescriptionPcs Remarks Ref.No. Part No. Part Name & DescriptionPcs Remarks30 VKC0295 PCB HOLDER 1R3801 ERJ3GEYJ750V 1/10W 75 1 31 VKC0295 PCB HOLDER 1R3802 ERJ3GEYJ750V 1/10W 75 1 32 VMX3115 MECHA SPACER(F) 1R3803 ERJ3GEYJ750V 1/10W 75 1 33 VMX3229 MECHA SPACER(R) 1R3804 ERJ3GEYJ102V 1/10W 1K 1 34 VMX3277 SPACER 1R7801 D0GB221JA041 1/10W 220 1 35 XTV26+5FFJ SCREW 1R7802 D0GB182JA007 1/10W 1.8K 1 36 XTW3+10PN SCREW 1R7807 D0GB182JA007 1/10W 1.8K 1 37 XSN3+4FJK SCREW 1 39 VGM2077 TOP PANEL 1S7805 EVQ11G07K SWITCH,FF 1 40 RFKNVXY1867 RAM DRIVE UNIT 1 (RTL)(SPG)S7806 EVQ11G07K SWITCH,POWER 1 40-1 RMV0307 BARRIER 1 (SPG)S7812 EVQ11G07K SWITCH,REW 1 41 RHD30111-3 SCREW 1S7813 EVQ11G07K SWITCH,EJECT 1 42 RHD30111-3 SCREW 143 RHD30111-3 SCREW 144 RHD30111-3 SCREW 1■ 07 VEP07A85A 1 (FL DRIVE P.C.B.) 45 RHD30111-3 SCREW 146 RHD30111-3 SCREW 147 RHD30111-3 SCREW 1D27501 B3AAA0000752 DIODE 1 48 RHD30111-3 SCREW 1D27503 B3ACA0000273 DIODE 1 49 RHD30111-3 SCREW 1D27505 B3ADA0000173 DIODE 1 50 RHD30111-3 SCREW 151 RHD30111-3 SCREW 1PP27501 K1KA08B00210 CONNECTOR(8P) 1 52 RHD30111-3 SCREW 153 RHD30111-3 SCREW 1QR27501 UNR521100L TRANSISTOR 1 54 RHD30111-3 SCREW 1QR27503 UNR521100L TRANSISTOR 1 55 RHD30111-3 SCREW 1QR27505 UNR521100L TRANSISTOR 1 56 RHD30111-3 SCREW 158 RHD30115-3 SCREW 1R27501 D0GB221JA041 1/10W 220 1 59 RHD30115-3 SCREW 1R27503 D0GB331JA007 1/10W 330 1 60 RHD30115-3 SCREW 1R27505 D0GB331JA007 1/10W 330 1 61 VHD1453-2 SCREW 1R27508 ERJ3GEYJ122V 1/10W 1.2K 1 62 VHD1453-2 SCREW 1R27509 ERJ3GEYJ122V 1/10W 1.2K 1 63 VHD1453-2 SCREW 1R27511 D0GB152JA007 1/10W 1.5K 1 67 VHD0690-1 SCREW 1R27516 D0GB152JA007 1/10W 1.5K 1 68 VHD0690-1 SCREW 1R27517 D0GB222JA041 1/10W 2.2K 1 69 VHD0690-1 SCREW 1R27532 D0GB222JA041 1/10W 2.2K 1 70 VHD0690-1 SCREW 171 VHD0690-1 SCREW 1S27501 EVQ11G04M SWITCH,OPEN/CLOSE 1 72 VHD0690-1 SCREW 1S27502 EVQ11G07K SWITCH,CH DOWN 1 73 VHD0690-1 SCREW 1S27503 EVQ11G07K SWITCH,STOP 1 74 VHD0690-1 SCREW 1S27504 EVQ11G07K SWITCH,CH UP 1 75 VHD0690-1 SCREW 1S27505 EVQ11G07K SWITCH,PLAY 1 76 VHD0690-1 SCREW 1S27506 EVQ11G07K SWITCH,REC 1 77 RHD30113 SCREW 1S27507 EVQ11G07K SWITCH,D2V 1 78 RHD30113 SCREW 1S27508 EVQ11G07K SWITCH,V2D 1 79 RHD30113 SCREW 1S27509 EVQ11G07K SWITCH,SELECT 1 80 RHD30113 SCREW 1■ M1 M1_GAISO 1■ M2 M2_GAISO 16 VEP04888A FRONT JACK P.C.B. 1 (RTL)1 VEE1B46 WIRE WITH CONNECTOR(5P) 1 7 VEP07A85A FL DRIVE P.C.B. 1 (RTL)2 VEE1B87 WIRE WITH CONNECTOR(4P) 1 27 RYP1286-S FRONT PANEL ASS'Y 1 (P)3 VWJ1796 FFC(40P) 1 27 RYP1286A-S FRONT PANEL ASS'Y 1 (PC)4 VEP06F99A MAIN P.C.B. 1 (RTL) 27-1 RGU2375-S DUB BUTTON (2) 15 VEP001K8A DV JACK P.C.B. 1 (RTL) 27-3 RKW0791-Q FRONT WINDOW 18 VEP09138A DIGITAL I/F P.C.B. 1 (RTL) 27-4 RKW0781-Q DUB WINDOW 19 VEP79115B DIGITAL P.C.B. 1 (RTL)(P) 27-5 RGL0673-W PANEL LIGHT 19 RFKBES40VPC DIGITAL P.C.B. 1 (RTL)(PC) 27-6 RGU2369-W POWER BUTTON 110 VWJ1727 FFC(7P) 1 27-7 RGU2370-S EJECT BUTTON 111 VWJ1728 FFC(6P) 1 27-8 RGU2371-S OPEN BUTTON 112 VJF0442 CLAMPER 1 27-10 RGU2411-S SELECT BUTTON 113 L6FALCCE0012 SMALL DC FAN MOTOR 1 27-11 RKF0722-S BLINDER PANEL 1 14 RGR0360A-A REAR PANEL 1 (P) 27-12 RKF0723-S TRAY DOOR 1 14 RGR0360A-B REAR PANEL 1 (PC) 27-14 RGU2374-H DUB BUTTON (1) 117 RMA1897 CENTER ANGLE 1 27-15 RYF0762D-S DOOR ASS'Y 118 RMA1947 DVD ANGEL 1 27-16 VMB2521 BLINDER SPRING 119 RMA1948 FRONT ANGEL 1 27-17 VMB3410 TRAY SPRING 121 RMZ0791 BARRIER 1 27-18 RYF0763B-S SD SLOT ASS'Y 122 RKA0178-X LEG 1 27-19 RHD26045-L SCREW 123 RKA0178-X LEG 1 27-20 RHD26045-L SCREW 124 VKA0382 LEG CUSHION 1 27-21 RHD26045-L SCREW 125 VKA0382 LEG CUSHION 1 27-22 RHD26045-L SCREW 128 VHD1452-2 SCREW 1 27-23 RHD26045-L SCREW 1

S-68

S7. Exploded ViewsS7.1. Frame & Casing Section (1)786739681437707771727374756976791340-1804035860281041426111 3635629 (RTL)E DIGITAL3P.C.B.59 4543TO DRIVEP.C.B.2TO DIGITALI F P.C.B.44466333471150E4 (RTL)MAIN P.C.B.1051121848E8 (RTL)DIGITAL I FP.C.B.1749213134E5 (RTL)DV JACK P.C.B.525330TO DIGITALP.C.B.1545522563224232519S-69

S7.2. Frame & Casing Section (2)E 6FRONT JACKP.C.B. (RTL)27-1927-2027-2127-2227-232727-2427-727-627-2527-155727-57EFL DRIVE P.C.B.(RTL)27-827-1027-427-1427-127-1127-1627-2627-2727-327-1827-1227-17S-70

S7.3. Video Mechanism Section101135160137134101-1122A118122-2122-1 122-3142138136156157161103115141145144114128120121127148126119147146117TO MAIN P.C.B.104A129111130130-1153154 155143151113105149133158102159125116124150110 139 106152132112131108S-71

S7.4. Packing Parts & Accessories SectionA6A7A8BATTERY(REMOTE CONT.)A1A2A3A4A1-1PC2PC4A5PC1S-72
