The Amarok

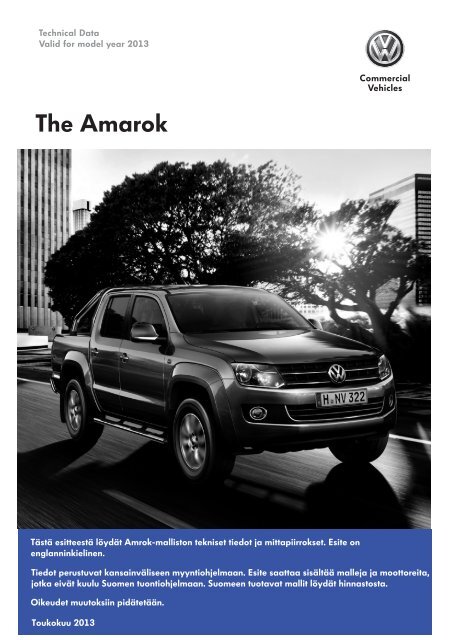

Technical DataValid for model year 2013CommercialVehiclesThe AmarokTästä esitteestä löydät Amrok-malliston tekniset tiedot ja mittapiirrokset. Esite onenglanninkielinen.Tiedot perustuvat kansainväliseen myyntiohjelmaan. Esite saattaa sisältää malleja ja moottoreita,jotka eivät kuulu Suomen tuontiohjelmaan. Suomeen tuotavat mallit löydät hinnastosta.Oikeudet muutoksiin pidätetään.Toukokuu 2013


Information on fuel consumption and CO 2 emissions can be found within the technical data.Not all combinations of engine, gearbox and auto body design are possible. Please discuss your individual requirements with your Volkswagen Commercial Vehicles dealer. Only yourVolkswagen Commercial Vehicles dealer is able to check the necessary combination requirements as well as verify the accuracy and completeness of data in the purchasing system.The payloads listed here have been established allowing for factory options or other tailored solutions that are not included in the standard scope of delivery and services. The actualpayload of a vehicle, which is calculated by the difference between the gross vehicle weight and the curb weight, can only be established by weighing the individual vehicle.The product name Caddy ® is a registered brand name of Caddie S.A. and is used by Volkswagen Commercial Vehicles with the kind approval of Caddie S.A.TDI ® , DSG ® , Shiftmatic ® , 4MOTION ® and BlueMotion ® are registered brand names of Volkswagen AG and other companies in the Volkswagen Group in Germany as well as in othercountries. The fact that a brand name in this document is not marked with ® does not mean that it is not a registered brand name and/or that this brand name may be used withoutthe written approval of the Volkswagen AG. Not all brand names mentioned are necessarily a part of these technical details.Our vehicles are equipped with summer tyres as standard. As of the 12.04.2010, in the Federal Republic of Germany you are legally oblieged to equipe your vehicle in icy conditions,packed snow, slash, ice or hoar frost with winter tyres or all seasons tyres. Please contact your Volkswagen Commercial Vehicles dealer for assistance.Take-back and recycling of end of life vehicles:Volkswagen meets the challenges of modern society and takes them into consideration in all new products of the Volkswagen brand. This naturally also applies to protection of theenvironment and resources. All new Volkswagens can therefore be recycled in an environment-friendly way and can be returned free of charge, subject to fulfilment of nationallegislation. For details concerning take-back and recycling of end of life vehicles, please contact your local Volkswagen dealer, refer to the Internet on www.volkswagen.de or call thehotline +49 800 - Volkswagen (+49 800 865 579 2436), free for callers in Germany.The data provided in this data sheet is in accordance with the information available at the time of going to print and are based on the features of the German market.Your Volkswagen dealer can provide you with information on country-specific differences.Subject to change without notice.02 – General information – The Amarok


Fuel consumption and CO 2 emissions.With manual gearbox, fuel consumption (litres/100 km) and combined CO 2 emissions (g/km) 1) , fuel tank capacity approx. 80 litresEngine/model2.0 l TDI(103 kW)rear-wheel drive2.0 l TDI(103 kW)rear-wheel driveBlueMotion Technology2.0 l TDI(103 kW)4MOTION 2)Amarok DoubleCaburban 8.8 – 9.3 8.0 – 8.6 9.1 – 9.6 8.2 – 8.7extra-urban 6.2 – 6.7 6.1 – 6.6 6.3 – 6.8 6.3 – 6.8combined 7.2 – 7.7 6.8 – 7.3 7.3 – 7.8 7.0 – 7.5CO 2 emissions combined 189 – 202 179 – 192 192 – 205 185 – 1972.0 l TDI(103 kW)4MOTION permanentBlueMotion TechnologyEngine/model2.0 l TDI(132 kW)rear-wheel drive2.0 l TDI(132 kW)rear-wheel driveBlueMotion Technology2.0 l TDI(132 kW)4MOTION 2)2.0 l TDI(132 kW)4MOTION permanentBlueMotion TechnologyAmarok DoubleCaburban 8.6 – 9.1 8.0 – 8.5 8.7 – 9.2 8.1 – 8.6extra-urban 6.7 – 7.2 6.5 – 7.0 6.8 – 7.3 6.6 – 7.1combined 7.4 – 7.9 7.0 – 7.5 7.5 – 8.0 7.1 – 7.6CO 2 emissions combined 194 – 208 185 – 197 197 – 211 187 – 199With automatic gearbox, fuel consumption (litres/100 km) and combined CO 2 emissions (g/km) 1) , fuel tank capacity approx. 80 litresEngine/model2.0 l TDI(132 kW)4MOTION permanentAmarok DoubleCaburban 9.8 – 10.1 8.6 – 9.1extra-urban 7.0 – 7.6 6.8 – 7.4combined 8.0 – 8.5 7.5 – 8.0CO 2 emissions combined 211 – 224 197 – 2112.0 l TDI(132 kW)4MOTION permanentBlueMotion Technology1) Attachment parts relevant to the fuel consumption and emissions have been taken into consideration. 2) Amarok DoubleCab with 4MOTION permanent or selectable possible.The fuel consumption and emission values listed here have been ascertained in accordance with the measuring method stipulated (the version of the EC directive 715/2007 which iscurrently valid). CO 2 emissions arising from the production and provision of fuel and/or other energy sources are not taken into consideration when determining the CO 2 emissions inaccordance with directive 1999/94/EC. These figures do not refer to a particular vehicle and do not constitute part of the offer but are purely for comparison purposes between the varioustypes of vehicle. In addition to the fuel efficiency of a vehicle, driving behaviour as well as other non-technical factors play a role in determining a vehicle’s fuel consumption and CO 2emissions. CO 2 is the main greenhouse gas responsible for global warming.– Fuel consumption and CO 2 emissions – The Amarok The Amarok – Fuel consumption and CO 2 emissions –


Engines.Diesel engines 2.0 l TDI engine (103 kW) 2.0 l TDI engine (132 kW)Mixture preparation/injection method common rail direct injection BiTurbo common rail direct injectionNo. of cylinders 4 4Cubic capacity, cm 3 1,968 1,968Output, kW at rpm 103 at 3,500 132 at 4,000Max. torque, Nm/rpm 340/1,600 – 2,250 400/1,500 – 2,250EU exhaust emission directive according to EC regulation 715/2007 Euro 5* according to EC regulation 715/2007 Euro 5*Diesel particulate filter (DPF) standard standard6-speed manual gearbox standard standard8-speed automatic gearbox – –Rear-wheel drive standard standard4MOTION permanent standard standard4MOTION selectable optional optionalBlueMotion Technology rear-wheel drive, 4MOTION permanent rear-wheel drive, 4MOTION permanentType of fuel diesel, in accordance with DIN EN 590 diesel, in accordance with DIN EN 590Diesel engines2.0 l TDI engine (132 kW)Mixture preparation/injection methodBiTurbo common rail direct injectionNo. of cylinders 4Cubic capacity, cm 3 1,968Output, kW at rpm 132 at 4,000Max. torque, Nm/rpm 420/1,750EU exhaust emission directive according to EC regulation 715/2007 Euro 5*Diesel particulate filter (DPF)standard6-speed manual gearbox –8-speed automatic gearboxstandardRear-wheel drive –4MOTION permanentstandard4MOTION selectable –BlueMotion Technology4MOTION permanentType of fuel diesel, in accordance with DIN EN 590output [kW]103 kW140120100806040202.0 l TDI, manual gearbox (Euro 5)340 Nm103 kW40035030025020015010050torque [Nm]output [kW]132 kW140120100806040202.0 l TDI, manual gearbox (Euro 5)400 Nm132 kW40035030025020015010050torque [Nm]output [kW]132 kW140120100806040202.0 l TDI, automatic gearbox (Euro 5)420 Nm132 kW50045040035030025020015010050torque [Nm]10002000 3000 4000 500010002000 3000 4000 500010002000 3000 4000 5000engine speed [rpm]engine speed [rpm]engine speed [rpm]*Road tax ratings in Germany are in accordance with the code numbers laid down by the Federal Motor Transport Authority.– Engines – The AmarokThe Amarok – Engines –


Performance.EngineOutput(kW)Acceleration(kph, s)0 – 80 0 – 100FlexibilityTop speed(kph, s)(kph) 2)80 – 120 1)Amarok DoubleCab 3)2.0 l TDI 103 7.9 – 8.1 12.9 – 13.3 12.0 – 13.0 164 – 1692.0 l TDI BlueMotion Technology 103 7.9 – 8.1 12.9 – 13.3 12.0 – 13.0 164 – 1692.0 l TDI 4MOTION 103 8.1 – 8.3 13.1 – 13.5 13.0 – 14.0 162 – 1672.0 l TDI 4MOTION permanent,BlueMotion Technology 103 8.1 – 8.3 13.1 – 13.5 13.0 – 14.0 162 – 1672.0 l TDI 132 7.1 – 7.3 10.3 – 10.7 10.5 – 11.5 179 – 1842.0 l TDI BlueMotion Technology 132 7.1 – 7.3 10.3 – 10.7 10.5 – 11.5 179 – 1842.0 l TDI 4MOTION 132 7.3 – 7.5 10.6 – 11.0 11.0 – 12.0 178 – 1832.0 l TDI 4MOTION permanent,BlueMotion Technology 132 7.3 – 7.5 10.6 – 11.0 11.0 – 12.0 178 – 1832.0 l TDI 4MOTION permanent,automatic gearbox 132 7.5 – 7.7 10.9 – 11.3 8.5 – 9.5 174 – 1792.0 l TDI 4MOTION permanent,automatic gearbox,BlueMotion Technology 132 7.5 – 7.7 10.9 – 11.3 8.5 – 9.5 174 – 1791) Measured in 5th gear, or position D with an automatic gearbox. 2) Reached in 5th gear, or 7th gear with an automatic gearbox. 3) Attachment parts relevant to the driving performancehave been taken into consideration.– Performance – The Amarok The Amarok – Performance –


Weights.Grossvehicleweight(kg)EngineOutput(kW)SeatsUnladen weightwith driver(kg) 1), 2from – toPayload(kg) 1), 2from – toAxle load limitfront/rear(kg)Trailer weightbraked, 12 %gradient/unbraked(kg)Gross trainweight12 % gradient(kg)Amarok DoubleCab2,820 2.0 l TDI 103 5 1,868 – 2,096 952 – 724 1,315/1,620 2,800/750 5,5502.0 l TDIBlueMotion Technology 103 5 1,868 – 2,096 952 – 724 1,315/1,620 2,800/750 5,5502.0 l TDI 4MOTION 103 5 1,931 – 2,175 889 – 645 1,375/1,620 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,BlueMotion Technology 103 5 1,931 – 2,175 889 – 645 1,375/1,620 3,000/750 5,5502.0 l TDI 132 5 1,888 – 2,116 932 – 704 1,325/1,620 2,800/750 5,5502.0 l TDIBlueMotion Technology 132 5 1,888 – 2,116 932 – 704 1,325/1,620 2,800/750 5,5502.0 l TDI 4MOTION 132 5 1,951 – 2,195 869 – 625 1,385/1,620 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,BlueMotion Technology 132 5 1,951 – 2,195 869 – 625 1,385/1,620 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,automatic gearbox 132 5 1,975 – 2,203 845 – 617 1,415/1,620 3,200/750 5,9502.0 l TDI 4MOTIONpermanent,automatic gearbox,BlueMotion Technology 132 5 1,975 – 2,203 845 – 617 1,415/1,620 3,200/750 5,9503,040 3) 2.0 l TDI 103 5 1,889 – 2,117 1,151 – 923 1,325/1,860 3,000/750 5,5502.0 l TDIBlueMotion Technology 103 5 1,889 – 2,117 1,151 – 923 1,325/1,860 3,000/750 5,5502.0 l TDI 4MOTIONselectable 103 5 1,968 – 2,196 1,072 – 844 1,375/1,860 3,000/750 5,5502.0 l TDI 132 5 1,909 – 2,137 1,131 – 903 1,335/1,860 3,000/750 5,5502.0 l TDIBlueMotion Technology 132 5 1,909 – 2,137 1,131 – 903 1,335/1,860 3,000/750 5,5502.0 l TDI 4MOTIONselectable 132 5 1,988 – 2,216 1,052 – 824 1,385/1,860 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,automatic gearbox 132 5 1,996 – 2,224 1,044 – 816 1,415/1,860 3,200/750 5,9502.0 l TDI 4MOTIONpermanent,automatic gearbox,BlueMotion Technology 132 5 1,996 – 2,224 1,044 – 816 1,415/1,860 3,200/750 5,9501) Equipment can result in an increase/decrease in the unladen weight and consequently affect the payload. Please consult your Volkswagen Commercial Vehicle partner. 2) For AmarokDoubleCab with a hardtop (optional extra), the unladen weight increases by 90 kg and the payload is accordingly lower. 3) With heavy-duty suspension.Roof load limit 100 kg .Trailer nose weight 120 kg with manual gearbox, 130 kg with automatic gearbox.For commercial use: in accordance with EU directive 3820/85, a tachograph is stipulated by law as of a gross train weight of 3.5 tonnes. Retrofitting of a tachograph is possible on allvehicles.The payloads listed here have been established allowing for factory options or other tailored solutions that are not included in the standard scope of delivery and services. The actualpayload of a vehicle, which is calculated by the difference between the gross vehicle weight and the curb weight, can only be established by weighing the individual vehicle.– Weights – The AmarokThe Amarok – Weights –


Weights.Grossvehicleweight(kg)EngineOutput(kW)SeatsUnladen weightwith driver(kg) 1)from – toPayload(kg) 1)from – toAxle load limitfront/rear(kg)Trailer weightbraked, 12 %gradient/unbraked(kg)Gross trainweight12 % gradient(kg)Amarok DoubleCab Chassis2,820 2.0 l TDI 103 5 1,750 – 1,944 1,070 – 876 1,315/1,620 2,800/750 5,5502.0 l TDIBlueMotion Technology 103 5 1,750 – 1,944 1,070 – 876 1,315/1,620 2,800/750 5,5502.0 l TDI 4MOTION 103 5 1,813 – 2,023 1,007 – 797 1,375/1,620 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,BlueMotion Technology 103 5 1,813 – 2,023 1,007 – 797 1,375/1,620 3,000/750 5,5502.0 l TDI 132 5 1,770 – 1,964 1,050 – 856 1,325/1,620 2,800/750 5,5502.0 l TDIBlueMotion Technology 132 5 1,770 – 1,964 1,050 – 856 1,325/1,620 2,800/750 5,5502.0 l TDI 4MOTION 132 5 1,833 – 2,043 987 – 777 1,385/1,620 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,BlueMotion Technology 132 5 1,833 – 2,043 987 – 777 1,385/1,620 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,automatic gearbox 132 5 1,857 – 2,051 963 – 769 1,415/1,620 3,200/750 5,9502.0 l TDI 4MOTIONpermanent,automatic gearbox,BlueMotion Technology 132 5 1,857 – 2,051 963 – 769 1,415/1,620 3,200/750 5,9503,040 2) 2.0 l TDI 103 5 1,771 – 1,965 1,269 – 1,075 1,325/1,860 3,000/750 5,5502.0 l TDIBlueMotion Technology 103 5 1,771 – 1,965 1,269 – 1,075 1,325/1,860 3,000/750 5,5502.0 l TDI 4MOTIONselectable 103 5 1,850 – 2,044 1,190 – 996 1,375/1,860 3,000/750 5,5502.0 l TDI 132 5 1,791 – 1,985 1,249 – 1,055 1,335/1,860 3,000/750 5,5502.0 l TDIBlueMotion Technology 132 5 1,791 – 1,985 1,249 – 1,055 1,335/1,860 3,000/750 5,5502.0 l TDI 4MOTIONselectable 132 5 1,870 – 2,064 1,170 – 976 1,385/1,860 3,000/750 5,5502.0 l TDI 4MOTIONpermanent,automatic gearbox 132 5 1,878 – 2,072 1,162 – 968 1,415/1,860 3,200/750 5,9502.0 l TDI 4MOTIONpermanent,automatic gearbox,BlueMotion Technology 132 5 1,878 – 2,072 1,162 – 968 1,415/1,860 3,200/750 5,9501) Equipment can result in an increase/decrease in the unladen weight and consequently affect the payload. Please consult your Volkswagen Commercial Vehicle partner. 2) With heavydutysuspension.Roof load limit 100 kg.Trailer nose weight 120 kg with manual gearbox, 130 kg with automatic gearbox.For commercial use: in accordance with EU directive 3820/85, a tachograph is stipulated by law as of a gross train weight of 3.5 tonnes. Retrofitting of a tachograph is possible on allvehicles.The payloads listed here have been established allowing for factory options or other tailored solutions that are not included in the standard scope of delivery and services. The actualpayload of a vehicle, which is calculated by the difference between the gross vehicle weight and the curb weight, can only be established by weighing the individual vehicle.– Weights – The Amarok The Amarok – Weights –


Dimensional drawings.Amarok DoubleCab*/Amarok DoubleCab Trendline*Amarok DoubleCab Highline*508508230194428°89825023°23.6°309512615254780230195428° 25023°23.6°898309512615254780222818341222155516201364222818341222155516201364203203load area 2.52 m 2 load area 2.52 m 2wading depth 500 mm wading depth 500 mmturning circle 12.95 m turning circle 12.95 mAmarok DoubleCab Chassis*23028°2501944* 8983095497923°98622281834203* +10 mm with Amarok DoubleCab Chassis Highline.wading depthturning circle500 mm12.95 m*In the front/rear view, the measure of ground clearance under the front or rear axle is shown. With 4MOTION selectable (with engine/tank underrun protection): ground clearance underthe front axle 192 mm, 244 mm between the axles, ramp angle 21.4°.All measurements listed are based on series vehicles. Because of manufactoring tolerances/tyre sizes/type of chassis, the actual dimensions may differ slightly from the values stated here.The vehicle drawings are not to scale.– Dimensional drawings – The AmarokThe Amarok – Dimensional drawings –


Tyre label.Summer tyres Size Rolling resistance Wet grip Noise emission205 R 16 C E – C C – B245/70 R 16 E – C C245/65 R 17 E – C C –255/60 R 18 E – C E – B –265/60 R 18 E C255/55 R 19 C C –Winter tyres Size Rolling resistance Wet grip Noise emission205 R 16 C F – E C –245/70 R 16 E E245/65 R 17 E E – C –Fuel efficiency – the right tyre type can help you save on fuel.Wet grip – a shorter braking distance increases safety.External rolling noise – a quieter tyre increases your driving comfort and has a positive effect on the environment due to lower noise levels.Placing an order for a specific tyre brand is not possible due to logistical and production process reasons.– Tyre label – The Amarok The Amarok – Tyre label –


The Amarok265.1190.38.18 • Printed in GermanySubject to change without noticeIssue: November 2012www.volkswagen-commercial-vehicles.comYour Volkswagen Dealer
