Crease Areas<br />
Goal Crease Area<br />
• 5.08 cm (2 in.) painted blue in a 2.43 m (8 ft.) semi circle<br />
• The measurement shall be taken from the exact same location as the HC ice hockey<br />
crease<br />
On-Ice Official’s Crease Area (Ref’s Circle)<br />
• Same size and location as ice hockey<br />
<strong>RINGETTE</strong> <strong>CANADA</strong> <strong>LINE</strong> <strong>MARKINGS</strong><br />

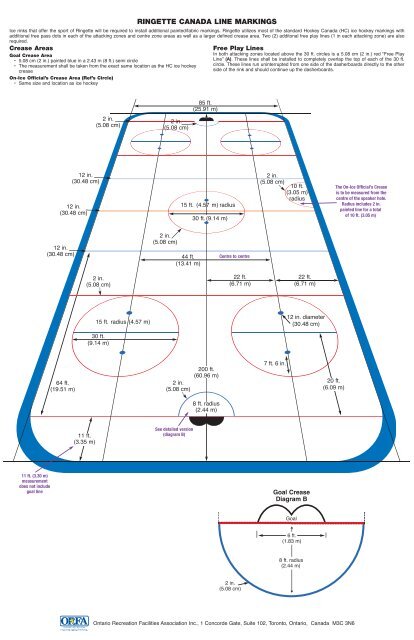

Ice rinks that offer the sport of <strong>Ringette</strong> will be required to install additional painted/fabric markings. <strong>Ringette</strong> utilizes most of the standard Hockey Canada (HC) ice hockey markings with<br />
additional free pass dots in each of the attacking zones and centre zone areas as well as a larger defined crease area. Two (2) additonal free play lines (1 in each attacking zone) are also<br />
required.<br />
11 ft. (3.30 m)<br />
measurement<br />
does not include<br />
goal line<br />
12 in.<br />
(30.48 cm)<br />
12 in.<br />
(30.48 cm)<br />
64 ft.<br />
(19.51 m)<br />
12 in.<br />
(30.48 cm)<br />
11 ft.<br />
(3.35 m)<br />
2 in.<br />
(5.08 cm)<br />
2 in.<br />
(5.08 cm)<br />
15 ft. radius (4.57 m)<br />
30 ft.<br />
(9.14 m)<br />
2 in.<br />
(5.08 cm)<br />
2 in.<br />
(5.08 cm)<br />
See detailed version<br />
(diagram B)<br />
85 ft.<br />
(25.91 m)<br />
15 ft. (4.57 m) radius<br />
44 ft.<br />
(13.41 m)<br />
2 in.<br />
(5.08 cm)<br />
30 ft. (9.14 m)<br />
200 ft.<br />
(60.96 m)<br />
8 ft. radius<br />
(2.44 m)<br />
Free Play Lines<br />
In both attacking zones located above the 30 ft. circles is a 5.08 cm (2 in.) red “Free Play<br />
Line” (A). These lines shall be installed to completely overlap the top of each of the 30 ft.<br />
circle. These lines run uninterrupted from one side of the dasherboards directly to the other<br />
side of the rink and should continue up the dasherboards.<br />
Centre to centre<br />
22 ft.<br />
(6.71 m)<br />
2 in.<br />
(5.08 cm)<br />
2 in.<br />
(5.08 cm)<br />
10 ft.<br />
(3.05 m)<br />
radius<br />
7 ft. 6 in.<br />
Goal Crease<br />
Diagram B<br />
20 ft.<br />
(6.09 m)<br />
<strong>Ontario</strong> Recreation Facilities <strong>Association</strong> Inc., 1 Concorde Gate, Suite 102, Toronto, <strong>Ontario</strong>, Canada M3C 3N6<br />
Goal<br />
6 ft.<br />
(1.83 m)<br />
8 ft. radius<br />
(2.44 m)<br />
22 ft.<br />
(6.71 m)<br />
12 in. diameter<br />
(30.48 cm)<br />
The On-Ice Official’s Crease<br />
is to be measured from the<br />
centre of the speaker hole.<br />
Radius includes 2 in.<br />
painted line for a total<br />
of 10 ft. (3.05 m)
C<br />
B<br />
1 Concorde Gate, Suite 102, Toronto, <strong>Ontario</strong>, Canada M3C 3N6<br />
telephone 416.426.7062 • 1.800.661.6732 (1.800.661.ORFA) • fax 416.426.7385 • www.orfa.com<br />
Bisecting Lines<br />
In each of the 30 ft. circles a 2 in. blue bisecting line shall be installed<br />
completely across the inside of the circle centre of each circle (C).<br />
Free Pass Circles<br />
Each of the five (5) 30 ft. circles (2 in each of the attacking zones and 1 at<br />
centre ice) shall have an additional two (2) 1 ft. blue free pass dots painted for<br />
a total of 10 additional free pass dots. The measurements for locating these<br />
dots is taken from the middle of the 2 ft. ice hockey markings using a<br />
measurement of 7 ft. 6 in (B).<br />
2 in.<br />
(5.08 cm)<br />
Free Pass Circles<br />
<strong>RINGETTE</strong> <strong>CANADA</strong> <strong>LINE</strong> <strong>MARKINGS</strong>*<br />
Blue Line<br />
see insert next page<br />
Free Pass Circle<br />
O.R.F.A. Supports <strong>Ringette</strong> Canada’s Ice Sheet Marking Guidelines<br />
*as interpreted by O.R.F.A<br />
15 ft. radius (4.57 m)<br />
30 ft. diameter (9.1 m)<br />
Free Play Line<br />
On-Ice Official’s Circle Goal Line<br />
Goal<br />
Net<br />
Goal<br />
Crease
