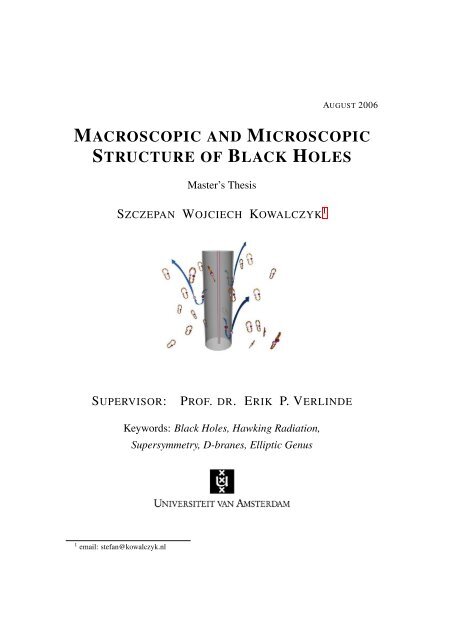

AUGUST 2006<br />
MACROSCOPIC AND MICROSCOPIC<br />
STRUCTURE OF BLACK HOLES<br />
Master’s Thesis<br />
SZCZEPAN WOJCIECH KOWALCZYK 1<br />
SUPERVISOR: PROF. DR. ERIK P. VERLINDE<br />
1 email: stefan@kowalczyk.nl<br />
Keywords: Black Holes, Hawking Radiation,<br />
Supersymmetry, D-branes, Elliptic Genus
ABSTRACT<br />
This thesis is an introduction to classical, quantum, <strong>and</strong> stringy <strong>black</strong> holes with special<br />
focus on <strong>black</strong> hole entropy.<br />
We start with a brief review <strong>of</strong> the geometry <strong>of</strong> classical <strong>black</strong> holes in a variety <strong>of</strong><br />
different coordinate systems. The curious analogy between thermodynamics <strong>and</strong> the<br />
laws <strong>of</strong> <strong>black</strong> hole mechanics is demystified. We try to give an answer to the question<br />
whether general relativity can be interpreted as a statistical theory by studying a<br />
derivation <strong>of</strong> the Einstein equations from thermodynamical principles. Using quantum<br />
field theory in Rindler space we give an explicit derivation <strong>of</strong> the Hawking effect. In<br />
the main part <strong>of</strong> this thesis we try to underst<strong>and</strong> the <strong>microscopic</strong> origin <strong>of</strong> the entropy<br />
<strong>of</strong> certain extremal, BPS-saturated <strong>black</strong> holes by making use <strong>of</strong> D-brane technology.<br />
As a prelude to this famous entropy matching due to Strominger <strong>and</strong> Vafa, we examine<br />
the so-called correspondence principle between strings <strong>and</strong> <strong>black</strong> holes. We also explain<br />
why extremal <strong>black</strong> holes are sometimes called supersymmetric solitons. In order<br />
to illustrate some st<strong>and</strong>ard counting techniques, we count 1/2-BPS heterotic states on<br />
T 4 × T 2 . Finally, we focus on modular forms, elliptic genera <strong>and</strong> other mathematical<br />
tools, which we use to review the counting <strong>of</strong> dyons in N = 4 string theory.
ACKNOWLEDGEMENTS<br />
I would like to thank my advisor, Pr<strong>of</strong>. dr. Erik Verlinde, for motivating me to dive<br />
into the physics <strong>of</strong> <strong>black</strong> holes <strong>and</strong> explaining many things to me ever since we met at<br />
the student initiated seminar.<br />
I am also very grateful to Pr<strong>of</strong>. dr. Jan de Boer, Pr<strong>of</strong>. dr. Klaas L<strong>and</strong>sman, <strong>and</strong><br />
Pr<strong>of</strong>. dr. Erik Verlinde for writing recommendation letters for me, which helped me<br />
getting into the State University <strong>of</strong> New York at Stony Brook.<br />
Last but not least, I would like to thank my girlfriend, Rebecca Hegeman, <strong>and</strong> my<br />
family for always being there for me.
CONTENTS<br />
1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2<br />
2. Black Holes in Einstein Gravity . . . . . . . . . . . . . . . . . . . . . . . 6<br />
2.1 Einstein gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6<br />
2.2 The Schwarzschild <strong>black</strong> hole . . . . . . . . . . . . . . . . . . . . . 7<br />
2.3 Charged <strong>black</strong> holes . . . . . . . . . . . . . . . . . . . . . . . . . . . 10<br />
2.3.1 The extreme Reissner-Nordström solution . . . . . . . . . . . 12<br />
3. Motivation for Black Hole Thermodynamics . . . . . . . . . . . . . . . . 14<br />
3.1 Two derivations <strong>of</strong> the first <strong>black</strong> hole law . . . . . . . . . . . . . . . 15<br />
3.2 Black hole entropy <strong>and</strong> the generalized second law . . . . . . . . . . 18<br />
3.3 The holographic principle . . . . . . . . . . . . . . . . . . . . . . . . 19<br />
3.4 Derivation <strong>of</strong> Einstein equations from thermodynamics . . . . . . . . 20<br />
3.5 Wald entropy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24<br />
4. Quantum Black Holes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26<br />
4.1 Rindler space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26<br />
4.2 Field theory in Rindler space . . . . . . . . . . . . . . . . . . . . . . 28<br />
4.2.1 Derivation <strong>of</strong> the Hawking effect . . . . . . . . . . . . . . . . 30<br />
4.3 Path integral approach . . . . . . . . . . . . . . . . . . . . . . . . . 33<br />
5. Extremal Black Holes in String Theory . . . . . . . . . . . . . . . . . . . 38<br />
5.1 Perturbative microstates in string theory . . . . . . . . . . . . . . . . 38<br />
5.2 Correspondence principle between strings <strong>and</strong> <strong>black</strong> holes . . . . . . 40<br />
5.3 Extremal <strong>black</strong> holes <strong>and</strong> extended supersymmetry . . . . . . . . . . 41<br />
5.4 Type II supergravity . . . . . . . . . . . . . . . . . . . . . . . . . . . 46<br />
5.5 Form fields <strong>and</strong> D-branes . . . . . . . . . . . . . . . . . . . . . . . . 49<br />
5.6 Dualities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51<br />
5.7 Counting <strong>of</strong> 1/2 BPS heterotic states on T 4 × T 2 . . . . . . . . . . . 52<br />
5.8 D=5 Reissner-Nordström <strong>black</strong> holes . . . . . . . . . . . . . . . . . . 55<br />
5.8.1 Derivation <strong>of</strong> <strong>macroscopic</strong> entropy . . . . . . . . . . . . . . . 56<br />
5.8.2 Derivation <strong>of</strong> <strong>microscopic</strong> entropy . . . . . . . . . . . . . . . 61
5.9 Link with the Strominger-Vafa result . . . . . . . . . . . . . . . . . . 63<br />
6. Mathematical Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66<br />
6.1 Modular forms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66<br />
6.2 (Weak) Jacobi forms . . . . . . . . . . . . . . . . . . . . . . . . . . 68<br />
6.3 Elliptic genus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69<br />
6.3.1 Definition <strong>and</strong> properties . . . . . . . . . . . . . . . . . . . . 69<br />
6.3.2 A geometrical description . . . . . . . . . . . . . . . . . . . 71<br />
7. Counting N = 4 Dyons via Automorphic Forms . . . . . . . . . . . . . . 74<br />
7.1 Electric-magnetic duality, S-duality <strong>and</strong> dyons <strong>of</strong> charge eθ/2π . . . . 74<br />
7.2 Making use <strong>of</strong> the attractor mechanism . . . . . . . . . . . . . . . . . 76<br />
7.3 The Dijkgraaf-Verlinde-Verlinde degeneracy formula . . . . . . . . . 77<br />
7.3.1 Consistency checks . . . . . . . . . . . . . . . . . . . . . . . 79<br />
7.4 State counting <strong>and</strong> the elliptic genus . . . . . . . . . . . . . . . . . . 80<br />
8. Outlook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81<br />
Appendix A: Geodesic Deviation <strong>and</strong> the Raychaudhuri Equation . . . . . . . . 90<br />
Appendix B: Samenvatting in het Nederl<strong>and</strong>s . . . . . . . . . . . . . . . . . . 90<br />
Bibliography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90<br />
1
1. INTRODUCTION<br />
Theoretical physics is founded on two pillars: quantum theory <strong>and</strong> general relativity.<br />
The former is extremely successful in describing physics at <strong>microscopic</strong> scales, while<br />
the latter is equally successful in describing physics at cosmological scales. However,<br />
the two are very different. For example general relativity is deterministic, whereas<br />
quantum theory is not. Attempts to unify them into a quantum theory <strong>of</strong> gravity stum-<br />
ble upon the problem <strong>of</strong> the non-renormalizability <strong>of</strong> the theory. Yet one could ask:<br />
is it really necessary to have a unified theory <strong>of</strong> quantum gravity? The answer is yes.<br />
In the case <strong>of</strong> purely classical interactions, one could, without such a unified theory,<br />
obtain exact position <strong>and</strong> velocity <strong>of</strong> particles, thus violating Heisenberg’s uncertainty<br />
principle. Both quantum theory <strong>and</strong> general theory are supposed to apply everywhere<br />
<strong>and</strong> there cannot be two separate everywhere’s. Nature works <strong>and</strong> does not care about<br />
our renormalization problems. So our mission is clear. We have to find a theory <strong>of</strong><br />
quantum gravity. With this in mind, <strong>black</strong> holes are very interesting objects to study.<br />
For a complete underst<strong>and</strong>ing <strong>of</strong> <strong>black</strong> holes we need to apply both the idea <strong>of</strong> dynam-<br />
ical spacetime geometry <strong>and</strong> <strong>of</strong> quantum physics simultaneously.<br />
Classically, <strong>black</strong> holes are completely <strong>black</strong>. Objects inside their event horizon<br />
are eternally trapped. Their gravitational pull does not allow even light rays to escape.<br />
In the seventies it was found that there was a very close analogy between the laws that<br />
govern <strong>black</strong> hole physics <strong>and</strong> the four laws <strong>of</strong> thermodynamics [1]. The laws <strong>of</strong> <strong>black</strong><br />
hole mechanics become the laws <strong>of</strong> thermodynamics if one replaces the surface gravity<br />
κ <strong>of</strong> the <strong>black</strong> hole by the temperature T <strong>of</strong> a body in thermal equilibrium, the mass M<br />
<strong>of</strong> the <strong>black</strong> hole by the energy <strong>of</strong> the system E, etc. At a classical level this seems to<br />
be just a formal analogy with no physical meaning, since classically <strong>black</strong> holes have<br />
strictly zero temperature. However, Hawking showed, under very general assumptions,
1. Introduction 3<br />
that quantum mechanics implies that <strong>black</strong> holes emit particles [2]. In his so-called<br />
semi-classical approximation 1 , the <strong>black</strong> hole radiation is exactly thermal <strong>and</strong> contains<br />
no information about the state <strong>of</strong> the <strong>black</strong> hole. This leads to the famous “information<br />
loss paradox”, since infalling particles can carry information, while outgoing ones<br />
cannot [3]. As Hawking argued, this would lead to non-unitary evolution, so that the<br />
basic principles <strong>of</strong> quantum mechanics would have to be modified. Intuitively, it is<br />
clear that information should not be lost in reality (<strong>and</strong> thus that the semi-classical<br />
approximation breaks down at some point), but should somehow be returned in subtle<br />
corrections <strong>of</strong> the outgoing radiation.<br />
The above mentioned analogy between the laws <strong>of</strong> <strong>black</strong> holes <strong>and</strong> the laws <strong>of</strong><br />
thermodynamics, combined with the Hawking effect, suggests to assign to a <strong>black</strong><br />
hole <strong>of</strong> area A a ‘<strong>macroscopic</strong>’ or ‘thermodynamic’ entropy 2<br />
Smacro = A<br />
. (1.1)<br />
4<br />
This ‘<strong>macroscopic</strong>’ entropy can be measured far away from the <strong>black</strong> hole <strong>and</strong> is de-<br />
termined by its mass M, angular momentum J <strong>and</strong> charge Q. A quantum theory <strong>of</strong><br />
gravity should also be able to specify the microstates <strong>of</strong> the <strong>black</strong> hole which give rise<br />
to this macrostate. If there are N states corresponding to such a <strong>black</strong> hole, then the<br />
associated ‘<strong>microscopic</strong>’ or ‘statistical’ entropy is<br />
Smicro = log N. (1.2)<br />
These two entropies are expected to agree. The <strong>microscopic</strong> origin <strong>of</strong> <strong>black</strong> hole en-<br />
tropy was not understood until the discovery <strong>of</strong> so-called “D-branes”, dynamical ob-<br />
jects in string theory.<br />
In [4, 5] it was proposed to take the fundamental strings themselves as c<strong>and</strong>idates<br />
for the <strong>black</strong> hole microstates. This string-<strong>black</strong> hole correspondence principle pre-<br />
dicts the <strong>black</strong> hole entropy in terms <strong>of</strong> string states correctly up to a constant <strong>of</strong> order<br />
1 In the semi-classical approximation the gravitational field is treated classically (it is a solution <strong>of</strong> the<br />
Einstein equation) while the matter field is treated quantum mechanically in this classical background<br />
(one replaces the flat Minkowski metric in the wave equation by the curved metric that solves the<br />
Einstein equation).<br />
2 For the moment we set c = � = GN = kB = 1.
1. Introduction 4<br />
unity <strong>and</strong> it also explains the final state <strong>of</strong> a Schwarzschild <strong>black</strong> hole as a highly<br />
excited single string state.<br />
For charged extremal <strong>black</strong> holes (i.e., <strong>black</strong> holes with Q = M) one can apply<br />
even more quantitative tests. These turn out to be “BPS solitons” when embedded into<br />
theories with extended supersymmetry [6]. The essential properties <strong>of</strong> such objects are<br />
determined by supersymmetry, <strong>and</strong> because <strong>of</strong> this it is possible to do calculations in<br />
the weak coupling perturbation regime <strong>and</strong> then to increase the string coupling, thereby<br />
moving to a regime where the backreaction onto spacetime has led to the formation <strong>of</strong><br />
a <strong>black</strong> hole, see figure 1.1.<br />
Fig. 1.1: It turns out that one can study (the <strong>microscopic</strong> <strong>structure</strong> <strong>of</strong>) <strong>black</strong> holes at strong<br />
string coupling by doing ‘easy’ calculations in the weak string coupling regime.<br />
This weak ↔ strong coupling became a very powerful tool after it was discovered<br />
that charged <strong>black</strong> holes have a dual, perturbative description in terms <strong>of</strong> D-branes [7].<br />
Strominger <strong>and</strong> Vafa showed, by making use <strong>of</strong> these D-branes, how one can derive<br />
the Bekenstein-Hawking area-entropy relation for a class <strong>of</strong> five-dimensional extremal<br />
<strong>black</strong> holes in string theory by counting the degeneracy <strong>of</strong> BPS soliton bound states<br />
[8]. At the end <strong>of</strong> this brief introduction, <strong>and</strong> at the beginning <strong>of</strong> the real work, let us<br />
state that <strong>black</strong> holes are very interesting objects to study <strong>and</strong> may well turn out to be<br />
the ‘Hydrogen atom’ <strong>of</strong> quantum gravity.
2. BLACK HOLES IN EINSTEIN GRAVITY<br />
In this chapter we examine the geometry <strong>of</strong> classical <strong>black</strong> holes in a variety <strong>of</strong> differ-<br />
ent coordinate systems. Each coordinate system turns out to have its own advantages<br />
<strong>and</strong> disadvantages.<br />
2.1 Einstein gravity<br />
The crucial idea <strong>of</strong> Einstein gravity is that spacetime is dynamical: the geometry <strong>of</strong><br />
spacetime is determined by the distribution <strong>of</strong> matter, whereas the motion <strong>of</strong> matter is<br />
determined by the spacetime geometry.<br />
Mathematically speaking, spacetime is a four dimensional (pseudo-) Riemannian<br />
manifold with metric gµν. We choose our signature to be (− + + +). Once we re-<br />
strict the action to be at most quadratic in derivatives <strong>and</strong> ignore the possibility <strong>of</strong> a<br />
cosmological constant, the unique gravitational action is the Einstein-Hilbert action<br />
SEH = 1<br />
2κ2 �<br />
d 4 x √ −gR. (2.1)<br />
Here κ is related to Newton’s constant by κ 2 = 8πGN, g is the trace <strong>of</strong> the metric, <strong>and</strong><br />
R is the Ricci scalar. The coupling <strong>of</strong> matter to gravity is determined by the principle<br />
<strong>of</strong> minimal coupling. This principle basically amounts to taking a law <strong>of</strong> physics<br />
valid in inertial coordinates in flat spacetime, writing it in a coordinate-invariant form<br />
(usually this boils down to replacing partial derivatives by covariant ones), <strong>and</strong>, finally,<br />
asserting that the resulting law remains true in curved spacetime. We define an energy-<br />
momentum tensor <strong>of</strong> matter by<br />
where SM is the action for matter.<br />
Tµν = −2 δSM<br />
√ , (2.2)<br />
−g δg µν
2. Black Holes in Einstein Gravity 7<br />
The Einstein equations, which are the Euler-Lagrange equations that one gets by<br />
varying the combined action SEH + SM with respect to the metric,<br />
Rµν − 1<br />
2 gµνR = κ 2 Tµν, (2.3)<br />
where Rµν is the Ricci tensor, form the a central result <strong>of</strong> Einstein gravity<br />
The left-h<strong>and</strong> side is a reflection <strong>of</strong> the geometry <strong>of</strong> spacetime, while the right-h<strong>and</strong><br />
side contains all information about the location <strong>and</strong> motion <strong>of</strong> the matter.<br />
2.2 The Schwarzschild <strong>black</strong> hole<br />
First let’s take a look at the simplest <strong>black</strong> hole that general relativity predicts: a spher-<br />
ically symmetric static uncharged <strong>black</strong> hole. It is described by the Schwarzschild<br />
metric<br />
ds 2 �<br />
= − 1 − 2GM<br />
�<br />
dt<br />
r<br />
2 �<br />
+ 1 − 2GM<br />
�−1 dr<br />
r<br />
2 + r 2 dΩ 2 , (2.4)<br />
where dΩ 2 ≡ dθ 2 + sin 2 θdφ 2 is the metric on the unit two-sphere.<br />
According to Birkh<strong>of</strong>f’s theorem the Schwarzschild solution is the unique spheri-<br />
cally symmetric vacuum solution.<br />
In vacuum Tµν = 0. By taking the trace <strong>of</strong> equation (2.3) this implies R = 0,<br />
which in turn implies Rµν = 0. So the vacuum solutions to Einstein’s equations are<br />
precisely the Ricci-flat spacetimes.<br />
The coefficients <strong>of</strong> the Schwarzschild metric in the form (2.4) become infinite at<br />
r = 0 <strong>and</strong> r = 2GM. It is well known that r = 0 represents an honest singularity<br />
(as may be verified by calculation <strong>of</strong> the invariant RµνλψR µνλψ ), whereas r = 2GM is<br />
just a coordinate singularity which disappears when going to appropriate coordinates.<br />
An observer in free fall at r = 2GM would not notice anything unusual. Globally,<br />
however, the horizon is a very special place, since to a distant observer it represents<br />
the boundary <strong>of</strong> the world, or, more precisely, the boundary <strong>of</strong> the part <strong>of</strong> the world<br />
which can influence his detectors.<br />
One way in which we can study a spacetime is by looking at its causal <strong>structure</strong>.<br />
This can be done by studying the behavior <strong>of</strong> light cones. Setting ds 2 = 0 in equation
2. Black Holes in Einstein Gravity 8<br />
(2.4) gives us for radial null curves (for constant angles θ <strong>and</strong> φ)<br />
�<br />
0 = − 1 − 2GM<br />
�<br />
dt<br />
r<br />
2 �<br />
+ 1 − 2GM<br />
�−1 dr<br />
r<br />
2 , (2.5)<br />
thus<br />
dt<br />
dr<br />
�<br />
= ± 1 − 2GM<br />
�−1 . (2.6)<br />
r<br />
Clearly, in Schwarzschild coordinates, light cones appear to close up as we approach<br />
the Schwarzschild radius r = 2GM. Does this mean that a light ray that approaches<br />
r = 2GM never gets there? No! This is just an illusion, caused by the fact that our<br />
coordinates are not well behaved at the horizon. Therefor we would like to find a<br />
coordinate system that is better behaved at the horizon.<br />
We can explicitly solve the above equation (2.6) to obtain<br />
�<br />
� ��<br />
r<br />
t = ± r + 2GM ln − 1 + const. (2.7)<br />
2GM<br />
The expression in square brackets is known as the tortoise coordinate r ∗ . Since beyond<br />
r < 2GM our coordinates are not good anyway, we don’t have to be worried about the<br />
logarithm. We have that<br />
dr ∗ �<br />
�<br />
r<br />
= d r + 2GM ln<br />
2GM<br />
�� �<br />
− 1 = 1 − 2GM<br />
�−1 dr. (2.8)<br />
r<br />
Plugging this into the Schwarzschild metric gives<br />
ds 2 �<br />
= 1 − 2GM<br />
��<br />
− dt<br />
r<br />
2 + dr ∗2<br />
�<br />
+ r 2 dΩ 2 . (2.9)<br />
Here r should be thought <strong>of</strong> as a function <strong>of</strong> r ∗ . And indeed, in these coordinates we<br />
see that none <strong>of</strong> the metric coefficients is infinite at the horizon. However, we also see<br />
that in these coordinates the horizon has been pushed to r ∗ = −∞, which is not so<br />
nice. In a moment we will introduce new coordinates to repair this awkward behavior.<br />
Notice that the lines v ≡ t + r ∗ = constant (at constant angles θ <strong>and</strong> φ) are the<br />
geodesics <strong>of</strong> infalling light rays. This can immediately be read <strong>of</strong> from equation (2.7).<br />
The outgoing ones satisfy u ≡ t − r ∗ = constant. In the (v, r) coordinates we can<br />
follow future-directed timelike paths across the event horizon r = 2GM (thereby<br />
arriving in region III in figure 2.1).
2. Black Holes in Einstein Gravity 9<br />
Note that for infalling null curves we have dv/dr = 0, whereas outgoing null<br />
curves satisfy<br />
dv<br />
dr = d(t − r∗ + 2r∗ )<br />
dr<br />
= d(2r∗ )<br />
dr<br />
�<br />
= 2 1 − 2GM<br />
�−1 . (2.10)<br />
r<br />
So we see that this time the light cones don’t close up but tilt over. In the region<br />
0 < r < 2GM the local future light cone points entirely toward the singularity at<br />
r = 0.<br />
At first sight it may look as if we were done. After all, our spacetime includes<br />
r ≤ 2GM. However, we have no guarantee that there are no other directions in which<br />
to extend our manifold. In fact there are other directions. For example, we could have<br />
taken (u, r) as our new coordinates, making it possible to cross the horizon across past-<br />
directed curves (thereby arriving in region IV in figure 2.1). In this way one arrives<br />
at a different place than by crossing the horizon along future-directed curves in (v, r)<br />
coordinates.<br />
Let us now introduce new coordinates that are good all over the place:<br />
¯v = e v/4GM , ū = −e −u/4GM<br />
(2.11)<br />
In these new coordinates (¯v, ū, θ, φ), known as the Kruskal coordinates 1 , the metric<br />
becomes<br />
ds 2 = − 32G3M 3<br />
e<br />
r<br />
−r/2GM dūd¯v + r 2 dΩ 2 . (2.12)<br />
Since the metric components are nonsingular at r = 2M we can analytically continue<br />
the solution to the whole region −∞ < ū, ¯v < ∞. This is the extended Schwarzschild<br />
solution, shown in figure 2.1.<br />
For every r, t we have two solutions for ū <strong>and</strong> ¯v. Therefore the region r < 2GM<br />
occurs twice in (ū,¯v) space; these two regions are indicated by III <strong>and</strong> IV. Region III<br />
is the <strong>black</strong> hole. Once an observer has entered region III, he or she will not be able<br />
to escape from it, <strong>and</strong> will fall into the singularity at r = 0 within finite proper time.<br />
1 The related coordinates (T, R, θ, φ), where T ≡ (¯v + ū)/2 <strong>and</strong> R ≡ (¯v − ū)/2, are sometimes also<br />
called Kruskal coordinates. The nice thing about taking (T, R, θ, φ) is that in that case one coordinate<br />
is timelike while the remaining ones are spacelike.
2. Black Holes in Einstein Gravity 10<br />
u<br />
I I<br />
r=0<br />
r=0<br />
T<br />
III<br />
IV<br />
I<br />
v<br />
r=2GM<br />
R<br />
r=2GM<br />
Fig. 2.1: The Schwarzschild solution in Kruskal coordinates.<br />
Region IV is simply the time-reverse <strong>of</strong> region III. It can be thought <strong>of</strong> as a white hole.<br />
The central region, |ū| ≪ 1, |¯v| ≪ 1, will turn out to be very important in our study<br />
<strong>of</strong> the quantum mechanics <strong>of</strong> the <strong>black</strong> hole. If we ignore the curvature in this central<br />
region, <strong>and</strong> replace it by flat space, we have the so-called Rindler space.<br />
2.3 Charged <strong>black</strong> holes<br />
In this section we will briefly describe some main facts about electrically charged <strong>black</strong><br />
holes. For compactness we set G = 1 from now on. The energy-momentum tensor for<br />
electromagnetism is given by<br />
Tµν = FµρF ρ ν − 1<br />
4 gµνFρσF ρσ , (2.13)<br />
where Fµν is the electromagnetic field strength tensor. Thus the gravitational field<br />
equations are<br />
Rµν − 1<br />
2 gµνR = κ 2<br />
�<br />
FµρF ρ ν − 1<br />
ρσ<br />
gµνFρσF<br />
4<br />
�<br />
. (2.14)<br />
A generalized version <strong>of</strong> Birkh<strong>of</strong>f’s theorem now states that the unique spherically<br />
symmetric solution <strong>of</strong> equation (2.14) is the Reissner-Nordström solution<br />
ds 2 = −C(r)dt 2 + dr2<br />
C(r) + r2 dΩ 2 , (2.15)
where<br />
2. Black Holes in Einstein Gravity 11<br />
C(r) = 1 − 2M<br />
r<br />
Q2<br />
+ . (2.16)<br />
r2 In this expression Q is the charge <strong>of</strong> the <strong>black</strong> hole. By definition<br />
Qe = 1<br />
�<br />
4π<br />
⋆<br />
F, (2.17)<br />
where S 2 ∞ is an asymptotic spacelike sphere at infinity <strong>and</strong> ⋆ F is the dual <strong>of</strong> the field<br />
strength two-form F = 1<br />
2 Fµνdx µ ∧ dx ν . Here µ, ν denote the indices t, r, φ, θ.<br />
Although isolated magnetic charges have never been observed in nature, we may<br />
write in general Q = � Q 2 e + Q 2 m where Qe is the electric <strong>and</strong> Qm the magnetic charge<br />
(which is defined like the electric charge (2.17) but without the star). In the electrically<br />
charged case the radial component <strong>of</strong> the electric field is Er = Frt = Qe/r 2 <strong>and</strong> in<br />
the magnetically charged case Br = Fθφ = Qm/r 2 . (The electric field is curl free,<br />
whereas the magnetic field is divergence free.)<br />
Clearly for a charged <strong>black</strong> hole the horizon <strong>structure</strong> is more complicated than for<br />
the Schwarzschild <strong>black</strong> hole. By solving<br />
1 − 2M<br />
r<br />
S 2 ∞<br />
Q2<br />
+ = 0 (2.18)<br />
r2 we get two horizons: an inner one (r−) <strong>and</strong> an outer one (r+) located at<br />
� �<br />
r± = M 1 ± 1 − Q2<br />
M 2<br />
�<br />
. (2.19)<br />
There are three cases to distinguish: Q 2 > M 2 , Q 2 < M 2 , <strong>and</strong> Q 2 = M 2 .<br />
In the case Q 2 > M 2 the metric is completely regular all the way down to r = 0.<br />
At r = 0 we have a singularity: a naked one, which according to the cosmic censorship<br />
conjecture is not physical. It is however good to note that objects satisfying Q 2 > M 2<br />
do exist in nature (an electron is an example <strong>of</strong> such an object), but just cannot be<br />
described by classical general relativity.<br />
The case M 2 > Q 2 is called the non-extreme Reissner-Nordström <strong>black</strong> hole <strong>and</strong><br />
is certainly the most realistic case, but we will not discuss it here.<br />
Our main point <strong>of</strong> focus will be on the somewhat less realistic, though mathemat-<br />
ically easier to study, so-called extreme Reissner-Nordström <strong>black</strong> holes, for which
2. Black Holes in Einstein Gravity 12<br />
the charge is equal to the mass, Q 2 = M 2 . In this case the two horizons coincide at<br />
r+ = r− = M.<br />
2.3.1 The extreme Reissner-Nordström solution<br />
Plugging Q2 = M 2 into equation (2.16) gives<br />
�<br />
C(r) = 1 − Q<br />
�2 . (2.20)<br />
r<br />
The metric thus takes the form<br />
ds 2 � �2 r − Q<br />
= − dt<br />
r<br />
2 � �2 r<br />
+ dr<br />
r − Q<br />
2 + r 2 dΩ 2 . (2.21)<br />
It is convenient to define a shifted radial coordinate<br />
ρ ≡ r − Q. (2.22)<br />
We can write the metric as<br />
ds 2 � �2 ρ<br />
= − dt<br />
ρ + Q<br />
2 � �2 ρ + Q<br />
+ d(ρ + Q)<br />
ρ<br />
2 + (ρ + Q) 2 dΩ 2<br />
(2.23)<br />
�<br />
= − 1 + Q<br />
�−2 dt<br />
ρ<br />
2 �<br />
+ 1 + Q<br />
�2 [dρ<br />
ρ<br />
2 + ρ 2 dΩ 2 ]. (2.24)<br />
And since dρ 2 + ρ 2 dΩ 2 is just the flat metric in three spatial dimensions, we can write<br />
where<br />
ds 2 = −H −2 (�x)dt 2 + H 2 (�x)d�x 2 , (2.25)<br />
H = 1 + Q<br />
. (2.26)<br />
|�x|<br />
For N <strong>black</strong> holes with charges Qi (or equivalently multiple masses Mi) sitting at<br />
positions �xi we have [9]<br />
H = 1 +<br />
N�<br />
i=1<br />
Qi<br />
. (2.27)<br />
|�x − �xi|<br />
Such a stationary configuration <strong>of</strong> N extremal <strong>black</strong> holes is possible because <strong>of</strong> the<br />
exact cancelation <strong>of</strong> the electric repulsion <strong>and</strong> gravitational attraction. This is called<br />
the no-force property.
2. Black Holes in Einstein Gravity 13<br />
We can find an additional special property <strong>of</strong> the extremal <strong>black</strong> hole geometry as<br />
follows. Near the horizon ρ = 0 the metric (see (2.23) <strong>and</strong> (2.24)) behaves like<br />
Defining another new coordinate<br />
so that dz/dr = Q 2 /r 2 = z/r, we find<br />
ds 2 → − ρ2<br />
Q 2 dt2 + Q2<br />
ρ 2 dρ2 + Q 2 dΩ 2 2<br />
z ≡ Q2<br />
ρ<br />
(2.28)<br />
(2.29)<br />
ds 2 → Q2<br />
z 2 (−dt2 + dz 2 ) + Q 2 dΩ 2 2. (2.30)<br />
This is AdS2×S 2 , the direct product <strong>of</strong> an Anti-de-Sitter spacetime ((SO(2, 1)/SO(1, 1))<br />
with a sphere. This is a maximally symmetric space. It is interesting to note that the<br />
Reissner-Nordström spacetime is also maximally symmetric <strong>and</strong> asymptotically flat.<br />
The extreme Reissner-Nordström <strong>black</strong> hole will turn out to possess a certain super-<br />
symmetry which makes it an interesting <strong>and</strong> relatively easy object to study.
3. MOTIVATION FOR BLACK HOLE THERMODYNAMICS<br />
An amazing result from <strong>black</strong> hole physics is that one can derive a certain set <strong>of</strong> laws<br />
for <strong>black</strong> holes that has the same <strong>structure</strong> as the laws <strong>of</strong> thermodynamics. They are<br />
called the laws <strong>of</strong> <strong>black</strong> hole mechanics [1]. One can think <strong>of</strong> these “<strong>black</strong> hole laws”<br />
as theorems within the theory <strong>of</strong> general relativity. In this section we will investigate<br />
the question whether this curious analogy between thermodynamics <strong>and</strong> <strong>black</strong> hole<br />
laws is more than a formal coincidence.<br />
Let us first introduce some terminology. We assume that the reader is familiar with<br />
Killing vectors (see for example [10] or [11]). A vector ξ is called a Killing vector if<br />
it satisfies the Killing equation<br />
∇µξν + ∇νξµ = 0, (3.1)<br />
where ∇µ is the covariant derivative. Remember that if a spacetime has a Killing<br />
vector, we can find a coordinate system in which the metric is independent <strong>of</strong> one <strong>of</strong><br />
the coordinates, <strong>and</strong> the quantity pµξ µ will be constant along geodesics with tangent<br />
vector p µ . If a Killing vector field ξ µ is null along some null hypersurface Σ, we say<br />
that Σ is a Killing horizon 1 <strong>of</strong> ξ µ .<br />
Now let K be a Killing horizon with normal Killing field ξ µ . The Killing horizon<br />
is defined by the equation ξ ν ξν = 0. Therefore the gradient ∇ µ (ξ ν ξν) is normal to the<br />
horizon. By definition ξ µ is also normal to the horizon. So the two must be proportional<br />
to each other. In other words, there exist a proportionality function κS on K. κS is<br />
defined by the equation<br />
∇ µ (ξ ν ξν) = −2κSξ µ<br />
(3.2)<br />
1 It can be proven that in Einstein gravity event horizons <strong>of</strong> stationary <strong>black</strong> holes are always Killing<br />
horizons (i.e., one can always find an appropriate Killing vector field). See [12].
3. Motivation for Black Hole Thermodynamics 15<br />
<strong>and</strong> is called the surface gravity 2 . It turns out that this so-called surface gravity is<br />
actually a constant function on the horizon,<br />
κS = const. (3.3)<br />
This is the case whenever Einstein’s equations hold, with the energy-momentum tensor<br />
satisfying the dominant energy condition (which basically means that the energy <strong>and</strong><br />
pressure always remain positive), see [1].<br />
This constancy <strong>of</strong> the surface gravity for a stationary <strong>black</strong> hole is called the zeroth<br />
law <strong>of</strong> <strong>black</strong> hole mechanics. It is reminiscent <strong>of</strong> the zeroth law <strong>of</strong> thermodynam-<br />
ics, which states that the temperature is uniform everywhere in a system in thermal<br />
equilibrium. This suggests that surface gravity is analogous to temperature.<br />
The first law <strong>of</strong> <strong>black</strong> hole mechanics is a law <strong>of</strong> energy conservation. It gives a<br />
relation between the change in mass (δM), horizon area (δA), charge (δQ), <strong>and</strong> angular<br />
momentum (δJ) <strong>of</strong> a <strong>black</strong> hole when it is perturbed, as follows<br />
δM = κS<br />
δA + µδQ + ΩδJ. (3.4)<br />
8π<br />
Obviously, it has the same mathematical form as the first law <strong>of</strong> thermodynamics<br />
dE = T dS − P dV + µdN. (3.5)<br />
Note that the µ in equation (3.5) st<strong>and</strong>s for the chemical potential, but in equation (3.4)<br />
is does not. (We will soon find out where it does st<strong>and</strong> for.) Above we concluded that<br />
surface gravity is analogous to temperature. We can now guess that area plays the role<br />
<strong>of</strong> entropy.<br />
3.1 Two derivations <strong>of</strong> the first <strong>black</strong> hole law<br />
We will now present a short derivation <strong>of</strong> equation (3.4). Obviously, we will not find<br />
the ΩδJ term, since the <strong>black</strong> hole we study is not spinning. Starting from equation<br />
2 One can think <strong>of</strong> the surface gravity κS as the limiting force which would have to be exerted at<br />
infinity to keep an object stationary at the horizon. Another - basically the same - way <strong>of</strong> thinking about<br />
it, is that surface gravity is the acceleration <strong>of</strong> a static particle near the horizon as measured at spatial<br />
infinity.
(2.16) we have<br />
So<br />
3. Motivation for Black Hole Thermodynamics 16<br />
C ′ (r+)dr+ = dC(r+) = − 2dM<br />
r+<br />
1<br />
2 C′ (r+)r+dr+ = −dM + Q<br />
+ 2Q<br />
r2 dQ. (3.6)<br />
+<br />
r+<br />
dQ. (3.7)<br />
Now we can plug in the area <strong>of</strong> the (outer) horizon into this equation using A = 4πr 2 +,<br />
so dA = 8πr+dr+ <strong>and</strong> we get<br />
dM = −1<br />
16π C′ (r+)dA + µdQ, (3.8)<br />
where we put µ ≡ Q/r+. We see that this indeed looks like equation (3.4), but without<br />
the ΩδJ term. This is as expected, since our <strong>black</strong> hole is not spinning.<br />
In order to find this spinning term one has to consider a rotating <strong>black</strong> hole. We<br />
will now give another derivation <strong>of</strong> equation (3.4), but this time for a rotating <strong>black</strong><br />
hole. The metric for a charged rotating <strong>black</strong> hole is the Kerr-Newman metric, [13]<br />
[14]. We will use it in the form<br />
ds 2 � �<br />
2 2 ∆ − a sin θ<br />
= −<br />
dt<br />
Σ<br />
2 − 2a sin2 θ(r2 + a2 − ∆)<br />
dtdφ +<br />
Σ<br />
� �<br />
2 2 2 2 2 (r + a ) − ∆a sin θ<br />
+<br />
sin<br />
Σ<br />
2 θdφ 2 + Σ<br />
∆ dr2 + Σdθ 2 , (3.9)<br />
where � Σ = r 2 + a 2 cos 2 θ,<br />
∆ = r 2 + a 2 + Q 2 − 2Mr.<br />
Here a is the angular momentum per unit mass, a = J/M. Notice that for a = 0 the<br />
Kerr-Newman metric reduces to the Reissner-Nordström metric.<br />
Now we will study the variation <strong>of</strong> the area <strong>of</strong> the event horizon <strong>of</strong> a Kerr <strong>black</strong><br />
hole (A) with respect to M <strong>and</strong> J. Let us first write down an explicit equation for A:<br />
A =<br />
=<br />
�<br />
�<br />
r=r+<br />
r=r+<br />
dθdφ √ gθθgφφ<br />
�<br />
dθdφ Σ (r2 + + a2 ) 2 sin2 Σ<br />
= 4π(2Mr+ − Q 2 ), (3.10)
3. Motivation for Black Hole Thermodynamics 17<br />
where the rotating version <strong>of</strong> equation (2.19) was used, namely<br />
r+ = M + � M 2 − a 2 − Q 2 . (3.11)<br />
We are now ready to calculate the variation <strong>of</strong> A with respect to M <strong>and</strong> J ≡ Ma.<br />
Ignoring the δQ contribution for the moment we have from equation (3.10) that<br />
Let’s work this out:<br />
So, since<br />
we get<br />
1<br />
8π δA = r+δM + Mδr+. (3.12)<br />
δr+ = δ(M + � M 2 − a2 − Q2 )<br />
= δM + 1<br />
2 (M 2 − a 2 − Q 2 1<br />
−<br />
) 2 2(MδM − aδa)<br />
= δM + (r+ − M) −1 (MδM − aδa). (3.13)<br />
δa = δ(J/M) = 1 a<br />
δJ − δM (3.14)<br />
M M<br />
1<br />
8π = r+δM + MδM + (r+ − M) −1 {(M 2 + a 2 )δM − aδJ}. (3.15)<br />
Rewriting this gives<br />
δM = r+ − M<br />
8π(r2 + + a2 a<br />
δA +<br />
) r2 δJ. (3.16)<br />
+ + a2 We see that κS should equal (r+ − M)/(r 2 + + a 2 ) <strong>and</strong> ΩH = a/(r 2 + + a 2 ) in order to<br />
get the desired<br />
δM = κS<br />
8π δA + ΩHδJ. (3.17)<br />
Note that if we would also have varied with respect to Q we would have found an<br />
additional µδQ term in the above equation, as one can immediately see from equation<br />
(3.10).
3. Motivation for Black Hole Thermodynamics 18<br />
3.2 Black hole entropy <strong>and</strong> the generalized second law<br />
So what do we learn from this first law <strong>of</strong> <strong>black</strong> hole mechanics? By comparing<br />
equations (3.4) <strong>and</strong> (3.5) it seems that <strong>black</strong> holes have entropy (<strong>and</strong> that their entropy<br />
is proportional to their area). This was already anticipated by Bekenstein, who noted<br />
that we can violate the second law <strong>of</strong> thermodynamics by throwing matter into a <strong>black</strong><br />
hole. It is clear that the second law must be reformulated in the presence <strong>of</strong> <strong>black</strong><br />
holes. The way this is done is by associating a certain entropy with each <strong>black</strong> hole<br />
<strong>and</strong> reformulating the second law to a generalized second law (GSL) which states that<br />
the sum <strong>of</strong> the entropy outside the <strong>black</strong> hole <strong>and</strong> the entropy <strong>of</strong> the <strong>black</strong> hole itself<br />
will never decrease [15].<br />
It is not obvious at all that this should work, <strong>and</strong> actually at a purely classical level<br />
it simply appears to be false. Perhaps the easiest way to see why, is by considering a<br />
box containing entropy in the form <strong>of</strong> radiation which can be lowered to the horizon<br />
<strong>of</strong> a <strong>black</strong> hole <strong>and</strong> be dropped in. Now, in principle, for an ideal infinitesimal box all<br />
<strong>of</strong> its energy can be extracted at infinity, so when the box falls into the <strong>black</strong> hole, no<br />
mass is added to the <strong>black</strong> hole. Therefore its area <strong>and</strong> thus its entropy is unchanged.<br />
The entropy <strong>of</strong> the exterior, however, has decreased. It thus appears that the GSL is<br />
simply not true at a purely classical level.<br />
Another problem was that if <strong>black</strong> holes really have entropy, they must have a<br />
temperature because <strong>of</strong> the thermodynamic identity 1/T = ∂S/∂E. Since E ∼ M<br />
<strong>and</strong> S ∼ A ∼ M 2 we have that ∂S/∂M ∼ M ∼ T −1 <strong>and</strong> our guess would thus be that<br />
<strong>black</strong> holes have a temperature T ∼ M −1 . Indeed, Hawking’s calculation [2] shows<br />
that a <strong>black</strong> hole <strong>of</strong> mass M indeed has a temperature<br />
<strong>and</strong> we get that<br />
T =<br />
�<br />
, (3.18)<br />
8πGM<br />
S = A<br />
. (3.19)<br />
4G�<br />
We will look at a derivation <strong>of</strong> this using the path integral approach in section 4.3.<br />
This solves yet another mystery, because it looked like the units did not match, since
3. Motivation for Black Hole Thermodynamics 19<br />
entropy is dimensionless, whereas horizon area is length squared. But now we see that<br />
indeed S = A/4 where the area is measured in units <strong>of</strong> the Planck length.<br />
There are also second <strong>and</strong> third laws <strong>of</strong> <strong>black</strong> hole mechanics, which we will not<br />
discuss here, see for example [1].<br />
3.3 The holographic principle<br />
At this point it is worthwhile to pause for a moment <strong>and</strong> wonder about the strange fact<br />
that <strong>black</strong> hole entropy scales with its area <strong>and</strong> not with its volume, as we are used<br />
for thermodynamic systems. (Consider for example a simple thermodynamic system<br />
<strong>of</strong> volume V divided in little unit cubes which can take either value 0 or 1. The total<br />
number <strong>of</strong> states for such a system is 2 V . To get the entropy we have to take the<br />
logarithm <strong>of</strong> this quantity, so we indeed see that S ∝ V .)<br />
Imagine the following. Suppose we have a volume V somewhere in the universe;<br />
for simplicity let’s take it to be a sphere with radius R. It seems logical that the amount<br />
<strong>of</strong> information (or entropy) in this volume depends on the volume V ∝ R 3 . Our claim,<br />
<strong>and</strong> also the claim <strong>of</strong> the holographic principle which is due to ’t Ho<strong>of</strong>t [16], is that<br />
this is not the case! The amount <strong>of</strong> information we can store in a sphere with radius R<br />
is proportional to the area A ∝ R 2 . So, so to speak, if we can put a maximum <strong>of</strong> 100<br />
Gigabyte into a spherical laptop with radius R, we can put only 400 (<strong>and</strong> not 800!)<br />
Gigabyte into a laptop <strong>of</strong> radius 2R.<br />
We can underst<strong>and</strong> this as follows. Our volume V can be turned into a <strong>black</strong> hole<br />
in the same region by throwing matter in. Its entropy will than be equal to the area<br />
SBH ∼ A surrounding V , in suitable units. Thus, we learn that it is impossible for<br />
the entropy <strong>of</strong> our volume to scale with the volume, since we always can make a <strong>black</strong><br />
hole with entropy proportional to area out <strong>of</strong> it.<br />
So in short, the holographic principle states that information (entropy) scales with<br />
area <strong>and</strong> not with volume, as one would expect. More precisely, it states that a field<br />
theory on a two-dimensional closed surface suffices to describe all processes that take<br />
place in the three-dimensional volume within this surface. Further evidence for holog-
3. Motivation for Black Hole Thermodynamics 20<br />
raphy is given by the AdS/CFT correspondence [17], which basically is a dictionary<br />
encoding the equivalence between string theory on five dimensional Anti-de-Sitter<br />
space <strong>and</strong> conformal fields on its four dimensional boundary.<br />
3.4 Derivation <strong>of</strong> Einstein equations from thermodynamics<br />
Let us turn the logic around <strong>and</strong> show that not only does general relativity give ther-<br />
modynamic kind <strong>of</strong> identities, but that one actually can derive the Einstein equations<br />
from thermodynamics principles.<br />
In this section we will study Jacobson’s derivation [18] <strong>of</strong> the Einstein equations<br />
from thermodynamical principles in some detail. In turns out that locally the Einstein<br />
equations can be derived from the proportionality <strong>of</strong> entropy <strong>and</strong> horizon area together<br />
with the fundamental relation δQ = T dS. If this is indeed the right way to do things,<br />
gravity should not be quantized but rather seen as a many particle effect (just like, for<br />
example, sound waves). For some general relativity background (geodesic deviation,<br />
Raychaudhuri equation, etc.), see Appendix A.<br />
Jacobson considered locally static horizons <strong>and</strong> created locally accelerated ob-<br />
servers in order to study information entering the spacetime through the local past<br />
horizon <strong>of</strong> the local Rindler space. Assuming local equilibrium he then derived the<br />
Einstein equations. He was thus led to the conclusion that the Einstein equations give<br />
an effective field description <strong>of</strong> some more fundamental fields, <strong>and</strong> actually do not<br />
describe a fundamental force: the Einstein equation is an equation <strong>of</strong> state.<br />
So what exactly is meant here? It is clear what we mean by heat in thermodynam-<br />
ics: it is energy that flows between degrees <strong>of</strong> freedom that are not <strong>macroscopic</strong>ally<br />
observable. We will define heat to be energy that flows across some causal horizon<br />
(not necessarily a <strong>black</strong> hole event horizon). Next, we have to say what we mean with<br />
the temperature <strong>of</strong> the system into which the heat is flowing. We define it to be the<br />
Unruh temperature [19] associated with a uniformly accelerated observer hovering just<br />
inside the horizon. Since different accelerated observers will measure different things,<br />
the same observer should be used to measure the heat flow (which is defined by the
3. Motivation for Black Hole Thermodynamics 21<br />
energy flux through the horizon). Another quantity appearing in the relation Q = T dS<br />
that needs our attention is the entropy, S. We use a comoving volume element which<br />
moves along with the energy towards the horizon to define the entropy. As the volume<br />
element falls towards the horizon it is flattened (as seen by an outside observer) <strong>and</strong> the<br />
entropy <strong>of</strong> the volume element scales as the surface area <strong>of</strong> the local horizon. Having<br />
identified all the relevant quantities, we will now derive the (local) Einstein equations.<br />
Let p be some point in the spacetime. According to the equivalence principle we<br />
can find local coordinates in which the metric is Minkowski with vanishing first deriva-<br />
tives at p. A local horizon can be created by considering Lorentz boosted observers<br />
near p, <strong>and</strong> is called a “local Rindler horizon”. In Jacobson’s terminology, we have<br />
a small spacelike 2-surface element P through p, whose past directed null normal<br />
congruence to one side (the “inside”) has vanishing expansion <strong>and</strong> shear at p (see Ap-<br />
pendix A). It is always possible to choose this P such that both the expansion <strong>and</strong><br />
shear vanish close to p. He calls the past horizon <strong>of</strong> such a p the “local Rindler horizon<br />
<strong>of</strong> P”.<br />
Let χ µ be a (local) Killing field generating boosts orthogonal to P <strong>and</strong> vanishing<br />
at P. Note that our Rindler spacetime is local, <strong>and</strong> thus posses only local symmetries,<br />
which means that χ µ has the Killing property only in a spacelike neighborhood <strong>of</strong> p. (It<br />
exists also in the future <strong>and</strong> past <strong>of</strong> p, but does not satisfy Killing’s equation there.) The<br />
heat flow is defined to be Tµνχ µ , where Tµν is the matter energy-momentum tensor.<br />
Now let us consider any such local Rindler horizon through a spacetime point p<br />
(see figure 3.1). We assume that all the heat flux across the horizon is energy carried<br />
by matter. Since we take the thermodynamic limit we can assume all fluctuations in<br />
Tµν to be negligible. The heat flux to the past <strong>of</strong> P can now be obtained by integrating<br />
the boost-energy current <strong>of</strong> the matter, Tµνχ µ , over a pencil <strong>of</strong> generators <strong>of</strong> the “in-<br />
side” past horizon H <strong>of</strong> P. The χ µ can be reparameterised by using vectors k µ , which<br />
are tangent to the horizon generators for an affine parameter λ, which vanishes at a<br />
neighborhood <strong>of</strong> point p <strong>and</strong> is negative to the past <strong>of</strong> P, as follows: χ µ = −κλk µ ,<br />
where κ is the acceleration <strong>of</strong> the Killing orbit on which the norm <strong>of</strong> χ is one. The<br />
volume dV over which we integrate is the volume <strong>of</strong> the spacelike hypersurface gen-
3. Motivation for Black Hole Thermodynamics 22<br />
¢¡<br />
a<br />
Q<br />
Fig. 3.1: Spacetime diagram showing the heat flux δQ across the local Rindler horizon H <strong>of</strong> a<br />
2-surface element P. Each point in the diagram represents a two dimensional spacelike<br />
surface. The hyperbola is a uniformly accelerated worldline, <strong>and</strong> χ a is the approximate<br />
boost Killing vector on H. Adapted from [18].<br />
erated by the timelike geodesic vector field k µ . This is the natural normal vector to the<br />
volume. Putting all this in one equation, we get<br />
�<br />
δQ = −κ<br />
λTµνk<br />
H<br />
µ k ν dλdA, (3.20)<br />
where we substituted dV = dλdA (where A is the area element on a cross section <strong>of</strong><br />
the horizon) since near the horizon the volume becomes flatter <strong>and</strong> flatter, as seen by<br />
the observer on χ µ . This gives us, on the one h<strong>and</strong>, from dS = δQ/T , an expression<br />
for dS. On the other h<strong>and</strong>, as we have seen, entropy seems to be proportional with<br />
area <strong>and</strong> we can assume that the entropy variation associated with a piece <strong>of</strong> horizon<br />
satisfies dS = ηδA, where δA is the area variation <strong>of</strong> a cross section <strong>of</strong> a pencil <strong>of</strong><br />
generators <strong>of</strong> H <strong>and</strong> η is a constant (equal to 1/4). So by working out δA we can find<br />
some condition. It will turn out that this condition is precisely the Einstein equation.<br />
One can show that the change <strong>of</strong> the horizon area is<br />
dA<br />
dλ<br />
= θA, (3.21)<br />
with θ the expansion <strong>of</strong> the congruence <strong>of</strong> null geodesics k µ , which generates the<br />
horizon. Integrating (3.21) the horizon area element at affine parameter λ is<br />
A(λ) = A0e R λ<br />
0 dλ′ θ . (3.22)
3. Motivation for Black Hole Thermodynamics 23<br />
where A0 is the surface element <strong>of</strong> the horizon at λ = 0. Exp<strong>and</strong>ing the exponent we<br />
find<br />
A(λ) ≈ A0(1 + λθ(0) + λ2<br />
2<br />
dθ<br />
(0)). (3.23)<br />
dλ<br />
Noting that, due to the fact that the accelerated observer observes a local heat bath<br />
which is homogeneous, there is no contribution from the first order term <strong>and</strong> that we<br />
can use the Raychaudhuri equation (8.11) to work out dθ/dλ. We get<br />
A(λ) ≈ A0<br />
�<br />
1 + λ2<br />
2 Rµνk µ k ν<br />
�<br />
. (3.24)<br />
Here we used the fact that the local Rindler horizon was chosen to be instantaneously<br />
stationary at P, so that θ <strong>and</strong> σ (the shear) vanish at P. We can thus neglect the con-<br />
tributions from θ 2 <strong>and</strong> σ 2 = σµνσ µν when integrating to find θ near P. Summarizing<br />
all this,<br />
�<br />
δA = − λRabk<br />
H<br />
µ k ν dλdA. (3.25)<br />
As announced, comparing (3.20) <strong>and</strong> (3.25) we conclude that<br />
or, for λ �= 0,<br />
− 2πλTµνk µ k ν dλdA = ηλRµνk µ k ν dλdA, (3.26)<br />
− 2π<br />
η Tµνk µ k ν = Rµνk µ k ν . (3.27)<br />
Because the k µ are null vector fields we can add a term fgµνk µ k ν proportional to the<br />
metric to the right h<strong>and</strong> side (3.27). As we will see in a moment, this corresponds to<br />
the freedom one has in adding an integration constant in the Einstein equation. There<br />
is a close relation between f <strong>and</strong> Λ, the cosmological constant. We have<br />
− 2π<br />
η Tµνk µ k ν = Rµνk µ k ν + fgµνk µ k ν . (3.28)<br />
Since δQ = T dS holds for any family <strong>of</strong> geodesics, the above equation holds for all<br />
null vector fields on the horizon <strong>and</strong> we have<br />
2π<br />
η Tµν + Rµν + fgµν = 0. (3.29)
3. Motivation for Black Hole Thermodynamics 24<br />
We would like to find out what f is. A way to find this is out, is to take the diver-<br />
gence <strong>of</strong> equation (3.29). The divergence <strong>of</strong> the energy momentum tensor vanishes<br />
(by definition) <strong>and</strong> using the Bianchi identities<br />
we find<br />
∇µ(Rµν − R<br />
2 gµν) = 0 (3.30)<br />
f = − R<br />
2<br />
with C some constant. Plugging this f into equation 3.29 gives<br />
Rµν − 1<br />
2 gµνR + Cgµν = − 2π<br />
η Tµν<br />
+ C (3.31)<br />
(3.32)<br />
which is precisely the Einstein equation if we identify C with (minus) the cosmological<br />
constant, C = Λ, <strong>and</strong> with η = 1/4.<br />
A perhaps somewhat preliminary conclusion <strong>of</strong> all this would be that the general<br />
theory <strong>of</strong> relativity can be interpreted as a statistical theory. The equivalence principle<br />
corresponds to the statement that the neighborhood <strong>of</strong> each point in spacetime is in<br />
local thermodynamic equilibrium.<br />
3.5 Wald entropy<br />
We saw that for the Einstein-Hilbert action (2.1) we get the Bekenstein-Hawking equa-<br />
tion S = AH/4. In general (in string theory) we can get a more complicated action I<br />
with corrections involving the Riemann tensor <strong>and</strong> other fields. This will modify the<br />
laws <strong>of</strong> <strong>black</strong> hole thermodynamics. However, Wald [20] has a ‘simple’ solution for<br />
this: he gives the following formal expression for the entropy<br />
�<br />
ˆS<br />
δI<br />
:= 2π<br />
S2 ɛ<br />
δRµναβ<br />
µν ɛ ρσ√ hd 2 Ω. (3.33)<br />
Here Rµναβ is regarded as formally independent <strong>of</strong> the metric.<br />
As an example let us calculate the Wald entropy for the Einstein-Hilbert action<br />
L = 1<br />
16π Rµναβg µα g νβ . (3.34)
We get<br />
Thus<br />
3. Motivation for Black Hole Thermodynamics 25<br />
∂L<br />
∂Rµναβ<br />
= 1 1<br />
16π 2 (gµαg νβ − g να g µβ ). (3.35)<br />
ˆS = 1<br />
�<br />
8 S2 1<br />
2 (gµαg νβ − g να g µβ √<br />
2<br />
)ɛµνɛαβ hd σ)). (3.36)<br />
Only the tt <strong>and</strong> rr terms in the metric survive. So we get<br />
ˆS = 1<br />
�<br />
8<br />
For the Schwarzschild <strong>black</strong> hole<br />
so we get<br />
g tt =<br />
g rr =<br />
which is indeed what we hoped to get.<br />
S2 2g tt g rr√ hd 2 σ. (3.37)<br />
�<br />
1 − 2GM<br />
�<br />
, (3.38)<br />
r<br />
�<br />
1 − 2GM<br />
�−1 , (3.39)<br />
r<br />
ˆS = 1<br />
�<br />
4 S2 √<br />
2<br />
hd σ = A/4, (3.40)<br />
Wald’s redefinition <strong>of</strong> entropy is needed (besides the proper inclusion <strong>of</strong> higher<br />
curvature terms on the supergravity side) to find agreement between geometric entropy<br />
computed in four-dimensional N = 2 supergravity <strong>and</strong> the statistical entropy found by<br />
state counting [21].
4. QUANTUM BLACK HOLES<br />
First, we shall describe the st<strong>and</strong>ard picture <strong>of</strong> Rindler space arising from the near-<br />
horizon approximation <strong>of</strong> the Schwarzschild metric. Then we derive the Hawking<br />
effect following the treatment by ’t Ho<strong>of</strong>t in [22]. Some attention will be paid to<br />
the gravitational back reaction. We also comment on the information loss paradox, or<br />
better said, on information recovery. Finally, we discuss an alternative approach which<br />
makes use <strong>of</strong> Feynman’s path integral method.<br />
4.1 Rindler space<br />
Let us start with motivating the introduction <strong>of</strong> the Rindler geometry. It is not difficult<br />
to see that the (t − r)-part <strong>of</strong> the Schwarzschild metric (2.4) is very well approximated<br />
by flat space near the horizon. Introducing the positive coordinate x defined by<br />
r = 2M + x2<br />
8M<br />
(4.1)<br />
near the horizon r ≈ 2M (or r ≈ 0) we get for the Schwarzschild metric the approxi-<br />
mation<br />
ds 2 ≈ −(κx) 2 dt 2 + dx 2<br />
+ (2M)<br />
� �� �<br />
2−dim Rindler space<br />
2 dΩ 2<br />
,<br />
� �� �<br />
(4.2)<br />
2−sphere<br />
where κ = 1/4M is the surface gravity <strong>of</strong> the Schwarzschild metric <strong>and</strong> where we<br />
used the near horizon expansion<br />
1 − 2M<br />
r<br />
= 1 −<br />
2M<br />
2M + x2<br />
8M<br />
= 1 + x2<br />
16M 2 − 1<br />
1 + x2<br />
16M 2<br />
= x2 x4<br />
+ O( ). (4.3)<br />
16M 2 M 4<br />
We can easily check that x = 0 is just a coordinate singularity <strong>and</strong> that Rindler space-<br />
time is just (a part <strong>of</strong>) Minkowski space in unusual coordinates by introducing Kruskal-<br />
type coordinates<br />
U = −xe −κt , V = xe κt . (4.4)
One indeed checks that<br />
dUdV =<br />
4. Quantum Black Holes 27<br />
�<br />
∂U ∂U<br />
dx +<br />
∂x ∂t dt<br />
��<br />
∂V ∂V<br />
dx +<br />
∂x ∂t dt<br />
�<br />
= (−e −κt dx + κxe −κt dt)(e κt dx + κxe κt dt)<br />
= (κx) 2 dt 2 − dx 2 = −ds 2 , (4.5)<br />
which is Minkowski space in null coordinates 1 . So the Rindler coordinates with x > 0<br />
cover precisely the U < 0, V > 0 region <strong>of</strong> Minkowski space.<br />
For the study <strong>of</strong> uniformly accelerated observers (simply called ‘Rindler observers’;<br />
we encountered them already in section 3.4) it is convenient to introduce new coordi-<br />
nates (ξ, η) on the right wedge <strong>of</strong> two-dimensional Minkowski space (x > |t|), given<br />
by<br />
t = a −1 e aξ sinh aη, (4.6)<br />
x = a −1 e aξ cosh aη, (4.7)<br />
where a is a positive constant. As one can easily check, the near horizon two-dimensional<br />
Rindler metric becomes<br />
Lines <strong>of</strong> constant ξ are hyperbolae<br />
ds 2 = e 2aξ (dη 2 − dξ 2 ). (4.8)<br />
x 2 − t 2 = a −2 e 2aξ = constant, (4.9)<br />
<strong>and</strong> represent the world lines <strong>of</strong> uniformly accelerated observers, while lines <strong>of</strong> con-<br />
stant η are straight (from (4.6) <strong>and</strong> (4.7) we see that x ∝ t). This is indicated in figure<br />
4.1.<br />
We can also define coordinates in the region II by<br />
t = −a −1 e aξ sinh aη, (4.10)<br />
x = −a −1 e aξ cosh aη. (4.11)<br />
We will use the coordinates (ξ, η) for both region I <strong>and</strong> II although their ranges are not<br />
the same in each region. We will simply indicate to which region we are referring. The<br />
1 Setting U = T − X <strong>and</strong> V = T + X we get the st<strong>and</strong>ard form ds 2 = −dT 2 + dX 2 .
4. Quantum Black Holes 28<br />
t<br />
constant<br />
z<br />
constant<br />
Fig. 4.1: Rindler spacetime is a wedge <strong>of</strong> Minkowski spacetime. Lines <strong>of</strong> constant ξ represent<br />
the world lines <strong>of</strong> uniformly accelerated observers.<br />
advantage is that we will be able to use the same metric, namely the one in equation<br />
(4.8), for both region I <strong>and</strong> II.<br />
The important point to keep in mind is that Rindler space is a model for a gravita-<br />
tional field, although there are no real gravitational forces present.<br />
4.2 Field theory in Rindler space<br />
For the above discussion we could safely ignore two spatial directions, but now we<br />
want to study four <strong>and</strong> not two dimensional Minkowski space, so let us repair this:<br />
we consider Minkowski space described by the coordinates t, z <strong>and</strong> ˜x = (x, y) <strong>and</strong><br />
introduce new coordinates ξ, η <strong>and</strong> ˜x, given by<br />
z = a −1 e aξ cosh aη,<br />
t = a −1 e aξ sinh aη, (4.12)<br />
˜x = ˜x.<br />
Note that the coordinate z is playing the role <strong>of</strong> the coordinate x in section 4.1.<br />
In this section we will consider a quantum field theory, possibly with interacting<br />
particles, in a flat Minkowski background. The Hamiltonian, HM, <strong>of</strong> such a theory can<br />
usually be written as<br />
HM =<br />
�<br />
HM(�x)d 3 �x, (4.13)
4. Quantum Black Holes 29<br />
where HM is the Hamiltonian density. A time boost in Rindler space is generated by<br />
the operator<br />
HR =<br />
�<br />
(H(�x)z − Pz(�x)t)d 3 �x. (4.14)<br />
This can be understood by analogy by looking at how the boost matrix<br />
�<br />
cosh α<br />
�<br />
sinh α<br />
sinh α cosh α<br />
works on a vector (z, t). In the infinitesimal case we get<br />
� � � � � � � � �<br />
z 1 α z z + αt z<br />
→<br />
=<br />
=<br />
t α 1 t αz + t t<br />
We have that<br />
�<br />
�<br />
t<br />
+ α<br />
z<br />
(4.15)<br />
�<br />
. (4.16)<br />
δϕ(z, t) = tδzϕ − zδtϕ. (4.17)<br />
Usually one considers the operator HR at t = 0,<br />
�<br />
HR = HM(�x)zd 3 �x. (4.18)<br />
In contrast with (4.13), this is not bounded from below. We would like to write this as<br />
with<br />
H1 =<br />
HR = H1 − H2, (4.19)<br />
�<br />
�<br />
z>0<br />
H(�x)zd 3 �x, (4.20)<br />
H2 = H(�x)|z|d<br />
z
4. Quantum Black Holes 30<br />
In the limit ξ → −∞ the last two terms do not contribute <strong>and</strong> we get plane waves.<br />
There is, however, a problem in that there is an asymptotic region at ξ → −∞ into<br />
which wave packets may disappear at η → ∞ or may come from at η → −∞. We<br />
need a boundary condition at ξ = −∞ in order to formulate scattering against the<br />
Rindler horizon. We do not know this boundary condition <strong>and</strong> would like to find it.<br />
The explanation for this weird situation is that there seems to be thermal (Hawking)<br />
radiation emerging from the region ξ = −∞. We will now consider the derivation<br />
<strong>of</strong> this phenomenon. Good references are Gerard ’t Ho<strong>of</strong>t’s article in [22] <strong>and</strong> the<br />
excellent book by Birrell <strong>and</strong> Davies [23].<br />
4.2.1 Derivation <strong>of</strong> the Hawking effect<br />
Let us consider only non-interacting scalar particles. Other cases are quite similar. For<br />
a scalar field Φ in Minkowski space we can make an expansion (see [24] for a nice<br />
introduction to quantum field theory)<br />
�<br />
Φ(�r, t) =<br />
d 3� k<br />
�<br />
2k0( � k)(2π) 3<br />
Things get nicer if we work in lightcone coordinates<br />
We define new annihilation operators a1 by<br />
�<br />
a( �k)e i�k�r−ik0t †<br />
+ a ( � −i<br />
k)e � �<br />
k�r+ik0t<br />
. (4.24)<br />
u = (t − z)/2, v = (t + z)/2, (4.25)<br />
k+ = k0 + k3, k− = k0 − k3. (4.26)<br />
a( � k) � k0 =: a1( ˜ k, k+) � k+. (4.27)<br />
It turns out to be convenient to Fourier transform a1 with respect to the logarithm <strong>of</strong><br />
k+ (see [22]). We will call the new annihilation operator obtained in this way a2, so<br />
a1( ˜ k, k+) � k+ = (2π) −1/2<br />
� ∞<br />
where µ 2 = ˜ k 2 + m 2 = k+k−.<br />
−∞<br />
dωa2( ˜ k, ω)e −iω ln(k+/µ) , (4.28)
From the Minkowski Hamiltonian<br />
we get the Rindler Hamiltonian<br />
4. Quantum Black Holes 31<br />
HM(r, t) = 1<br />
2 ((� ∂ϕ) 2 + (∂tϕ) 2 + m 2 ϕ 2 ) (4.29)<br />
HR =<br />
�<br />
zHM(�r, 0)d 3 �r, (4.30)<br />
<strong>and</strong> one can check by plugging a bit modified version <strong>of</strong> (4.24) <strong>and</strong> (4.28) into (4.30)<br />
that<br />
HR =<br />
�<br />
d 2˜<br />
� ∞<br />
k dωa<br />
−∞<br />
†<br />
2( ˜ k, ω)a2( ˜ k, ω). (4.31)<br />
So indeed, our claim that a2 is an annihilation operator was well grounded; it corre-<br />
sponds to a Rindler energy ω.<br />
Nevertheless a2 is not the annihilation operator we want to work with. As is well<br />
motivated in [22] we are interested in an operator aI( ˜ k, ω) that is defined as follows:<br />
<strong>and</strong> similarly<br />
aI( ˜ k, ω) √ 1 − e 2πω = a2( ˜ k, ω) + e −πω a †<br />
2(− ˜ k, ω), (4.32)<br />
aII( ˜ k, ω) √ 1 − e 2πω = a2( ˜ k, −ω) + e −πω a †<br />
2(− ˜ k, ω). (4.33)<br />
These transformations are called Bogolyubov transformations. One can check that the<br />
value <strong>of</strong> Φ in region I depends only on aI <strong>and</strong> its Hermitean conjugate, <strong>and</strong> similarly<br />
for aII. The above definitions are motivated by the fact that we can exp<strong>and</strong> Φ(�r, t) as<br />
� ∞<br />
d<br />
Φ(�r, t) = dω<br />
2˜ k<br />
�<br />
4π(2π) 3 ei˜ k˜r<br />
where<br />
0<br />
�<br />
K(−ω, µu, µv) � a2( ˜ k, ω) + e −πω a †<br />
2(− ˜ k, −ω) � +<br />
K ∗ (−ω, µu, µv) � a †<br />
2(− ˜ k, ω) + e −πω a2( ˜ k, −ω) ��<br />
, (4.34)<br />
� ∞<br />
K(ω, α, β) =<br />
0<br />
dx<br />
x xiω e −ixα−iβ/x<br />
(4.35)<br />
is an integration kernel; see [22] for some properties <strong>of</strong> K. From the commutation<br />
relations<br />
[aI( ˜ k, ω), a †<br />
I (˜ k ′ , ω ′ )] = δ 2 ( ˜ k − ˜ k ′ )δ(ω − ω ′ ) (4.36)
(<strong>and</strong> similarly for [aII, a †<br />
II ]) <strong>and</strong><br />
4. Quantum Black Holes 32<br />
[aI, aI] = [aII, aII] = [aI, aII] = [aII, aI] = 0 (4.37)<br />
we see that all observables in region II commute with all aI, a †<br />
I . Our conclusion is<br />
that not a2 <strong>and</strong> a †<br />
2, but aI <strong>and</strong> a †<br />
I are the proper annihilation <strong>and</strong> creation operators for<br />
region I (<strong>and</strong> aII <strong>and</strong> a †<br />
II for region II).<br />
Let us now study the vacuum Ω as defined by an observer in Minkowski space:<br />
a |Ω〉 = a1 |Ω〉 = a2 |Ω〉 = 0 , for all k, ω. (4.38)<br />
In our Rindler basis this turns, using the Bogolyubov transformations (4.32) <strong>and</strong> (4.33),<br />
into<br />
aI( ˜ k, ω) |Ω〉 − e −πω a †<br />
II (−˜ k, ω) |Ω〉 = 0, (4.39)<br />
aII( ˜ k, ω) |Ω〉 − e −πω a †<br />
I (−˜ k, ω) |Ω〉 = 0, = 0. (4.40)<br />
So we learn that the vacuum only consists <strong>of</strong> states with equal number operators nI =<br />
nII, since the above implies that when acting on the vacuum Ω we have<br />
nI := a †<br />
I (˜ k, ω)aI( ˜ kω) = e −πω a †<br />
Ia† II = e−πωa †<br />
IIa† I = a†<br />
IIaII =: nII. (4.41)<br />
We thus find by plugging<br />
into (4.39) that<br />
�<br />
n<br />
fn<br />
Ω = �<br />
fn |n, n〉 (4.42)<br />
√ n |n − 1, n〉 = e −πω �<br />
<strong>and</strong> we thus see that the coefficients fn satisfy<br />
n<br />
n<br />
√<br />
fn n + 1 |n, n + 1〉, (4.43)<br />
fn+1 = e −πω fn. (4.44)<br />
Consequently, we can write the Minkowski vacuum in the Rindler basis as<br />
|Ω〉 = � √<br />
1 − e−2πω ˜k,ω<br />
∞�<br />
e −πnω |n, n〉. (4.45)<br />
n=0
4. Quantum Black Holes 33<br />
The strange conclusion we can make now, is that the Rindler observer detects par-<br />
ticles radiating in all directions at some temperature TR! To see this we write down the<br />
probability that a Rindler observer in region I, while looking at the states Ω, observes<br />
nI particles with energy ω <strong>and</strong> transverse momentum ˜ k in region I. From (4.42) <strong>and</strong><br />
(4.45) we see that this is<br />
PnI<br />
= �<br />
nII<br />
We can write this as<br />
〈Ω|nI, nII〉〈nI, nII|Ω〉 = |fnI |2 = (1 − e −2πω ) −1 e −2πnIω . (4.46)<br />
e −β(E−F ) , (4.47)<br />
where E = nω is the energy, β = 1/T the inverse temperature, <strong>and</strong> F the free energy.<br />
The Rindler temperature can be read <strong>of</strong> to be TR = 1/2π.<br />
Now, for the distant observer the central region <strong>of</strong> the Kruskal space <strong>of</strong> a <strong>black</strong> hole<br />
is just Rindler space. All the particles he sees are ingoing particles. There seem to be<br />
no particles coming out (in the local Minkowski frame). We thus need the state |Ω〉 to<br />
describe these. So the reason why an observer in the Kruskal region I will see thermal<br />
radiation with a temperature T is that he thinks he sees the state |Ω〉. Finally, notice<br />
that when Rindler space is replaced by Kruskal space we must insert an extra factor<br />
<strong>of</strong> 4M in the unit <strong>of</strong> time. Therefore the temperature <strong>of</strong> the expected radiation from a<br />
<strong>black</strong> hole is<br />
which is the Hawking temperature [2].<br />
TH = 1/8πM, (4.48)<br />
4.3 Path integral approach<br />
There is also an elegant derivation <strong>of</strong> the Hawking temperature which makes use <strong>of</strong><br />
path integrals. The evaluation <strong>of</strong> the generating function W [J] for the Green functions<br />
<strong>of</strong> the quantum field theory (at J = 0) gives us the partition function, which can<br />
be compared to the partition function ln Z = −βF <strong>of</strong> a thermodynamic system at<br />
temperature T = β −1 . Let us now take a brief look at how this goes.
4. Quantum Black Holes 34<br />
As is well know, the generating function W [J] is a functional integral over the<br />
exponent <strong>of</strong> the action:<br />
where<br />
�<br />
W [J] =<br />
�<br />
S[φ, J] =<br />
Dφe iS[φ,J] , (4.49)<br />
d 4 x[L(φ, ∂µφ) + Jφ] (4.50)<br />
is the action; L is the Lagrangian density, <strong>and</strong> J is a source current. One could try to<br />
take the Einstein-Hilbert action <strong>and</strong> just try to do the integral. But this gives an infinite<br />
result. What one should do, instead, is to consider a finite region <strong>and</strong> add a boundary<br />
term to the action. The action looks then like<br />
S[g, 0] = 1<br />
�<br />
�<br />
√ D 1<br />
−gRd x +<br />
16π<br />
8π<br />
M<br />
∂M<br />
√ −hBd D−1 ξ (4.51)<br />
where hµν is the induced metric on the boundary ∂M <strong>of</strong> a D-dimensional spacetime,<br />
ξ µ are the coordinates on this boundary, <strong>and</strong> B is essentially the trace <strong>of</strong> the extrinsic<br />
curvature (the second fundamental form). We will not treat this in detail, but by doing<br />
this, <strong>and</strong> going to imaginary time, one can evaluate this action <strong>and</strong> find it to be<br />
for the Schwarzschild action, <strong>and</strong><br />
S[g(S), 0] = iπ<br />
M (4.52)<br />
κ<br />
S[g(KN), 0] = iπ<br />
κ (M − ΦHQ) (4.53)<br />
for the Kerr-Newman metrics (3.9). So how do we get our partition function? The<br />
dominant contribution to the path integral (4.49) comes from the fields (in our case<br />
metrics) that minimize the action (thus solutions <strong>of</strong> the equations <strong>of</strong> motion). So in the<br />
case <strong>of</strong> rotating charged <strong>black</strong> holes we find<br />
ln W [0] = ln Z � iS[g(KN), 0]. (4.54)<br />
On the other h<strong>and</strong> we know that the partition function <strong>of</strong> a gr<strong>and</strong> canonical ensemble at<br />
inverse temperature β with chemical potentials µi associated with conserved charges<br />
Ni is given (by definition) by<br />
ln Z = −β(E − T S − �<br />
µiNi). (4.55)<br />
i
4. Quantum Black Holes 35<br />
For the case we are considering β equals 2π/κ (for a motivation, see the end <strong>of</strong> this<br />
section) <strong>and</strong> we find combining equations (4.53), (4.54), (4.55) that<br />
1<br />
1<br />
M = T S +<br />
2 2 ΦHQ + ΩHJ, (4.56)<br />
where ΦH <strong>and</strong> ΩH are our ‘conserved charges’ at the horizon: respectively the co-<br />
rotating electrostatic potential, <strong>and</strong> the angular velocity. Comparing this with the fol-<br />
lowing equation for M, due to Smarr [25],<br />
1 κ<br />
M =<br />
2 8π AH + 1<br />
2 ΦHQ + ΩHJ, (4.57)<br />
<strong>and</strong> restoring all constants that we have not been writing we indeed find<br />
T =<br />
<strong>and</strong> also the Bekenstein-Hawking formula<br />
�c 3<br />
8πGNMkB<br />
(4.58)<br />
S = c3AH . (4.59)<br />
4GD�<br />
Let us give a concrete example — which is at the same time a shortcut to find the<br />
Hawking temperature — <strong>of</strong> how this imaginary time trick is being used in practice.<br />
We will take the Schwarzschild metric for simplicity.<br />
In the (T, R, θ, φ) Kruskal coordinates from chapter 2 the Schwarzschild metric<br />
takes the form<br />
with<br />
ds 2 = −<br />
32M 3<br />
r<br />
T 2 − X 2 =<br />
e −r/2GM (dT 2 − dX 2 ) + r 2 dΩ 2<br />
(4.60)<br />
�<br />
1 − r<br />
�<br />
e<br />
2M<br />
r/2M , (4.61)<br />
X + T<br />
X − T = et/2M , (4.62)<br />
(cf. equations (2.11) <strong>and</strong> (2.12)). From equation (4.61) we see that the singularity<br />
at r = 0 corresponds to the surface −T 2 + X 2 = −1. A smart way <strong>of</strong> avoiding this<br />
singularity is by defining a new coordinate ˜ T = iT , so that r = 0 is being avoided since<br />
it corresponds to ˜ T 2 + X 2 = −1, which has no real solutions. The metric becomes<br />
ds 2 =<br />
32M 3<br />
r<br />
e −r/2GM (d ˜ T 2 + dX 2 ) + r 2 dΩ 2<br />
(4.63)
with<br />
4. Quantum Black Holes 36<br />
˜T 2 + X 2 =<br />
� r<br />
2M<br />
�<br />
− 1 e r/2M , (4.64)<br />
X − i ˜ T<br />
X + i ˜ T = et/2M . (4.65)<br />
Note that on the contour where ˜ T <strong>and</strong> X are real, r is real <strong>and</strong> larger than 2M. As<br />
promised, we define an imaginary time coordinate τ by<br />
τ = it = i2M ln X − i ˜ T<br />
X + i ˜ T<br />
(4.66)<br />
The logarithm <strong>of</strong> a complex number can be easily found: it is not defined on the<br />
negative real axis, <strong>and</strong> every other point the complex number (a + ib) can be written as<br />
re iφ (with r > 0, −π < φ < π) so we see that ln(a + ib) = ln|a 2 + b 2 | + iArg(a + ib).<br />
Thus from 4.66 we have<br />
τ = i2M[ln(X − i ˜ T ) − ln(X + i ˜ T )] (4.67)<br />
= i2Mi(Arg(X − i ˜ T ) − Arg(X + i ˜ T )) = 4MArg(X + i ˜ T ) (4.68)<br />
This is an angular coordinate with period β = 4M ·2π = 8πM. The functional integral<br />
defining the generating function should therefore be over matter fields <strong>and</strong> metrics with<br />
this periodicity in τ. But this is just the partition function Z for a canonical ensemble<br />
<strong>of</strong> the fields at temperature T = β −1 = (8πM) −1 . For a Schwarzschild <strong>black</strong> hole<br />
the surface gravity is known to be κ = (4M) −1 , so that the temperature is indeed<br />
T = κ/2π in accordance with the above.
5. EXTREMAL BLACK HOLES IN STRING THEORY<br />
There is only one c<strong>and</strong>idate theory, named string theory, that can provide us with an<br />
answer to the question what the microstates <strong>of</strong> a <strong>black</strong> hole are. In this chapter we will<br />
examine the <strong>macroscopic</strong> <strong>and</strong> <strong>microscopic</strong> <strong>structure</strong> <strong>of</strong> <strong>black</strong> holes in string theory.<br />
Some good references for this chapter are [26, 27, 28, 29, 30, 31, 32].<br />
5.1 Perturbative microstates in string theory<br />
As we have seen in the previous chapters, <strong>black</strong> holes should be thought <strong>of</strong> as thermo-<br />
dynamical systems. Since we know that thermodynamics is only an approximation <strong>of</strong><br />
a more fundamental description in terms <strong>of</strong> microstates <strong>of</strong> the system, we would like<br />
to find out what these microstates <strong>of</strong> a <strong>black</strong> hole are. Roughly speaking, a system<br />
with an entropy S has e S microstates. As we have seen before, for the Schwarzschild<br />
<strong>black</strong> hole Sbh ∼ A ∼ M 2 M 2<br />
. The associated number <strong>of</strong> states thus grows like e . At<br />
this point it is interesting to think about whether this agrees or not with the number <strong>of</strong><br />
perturbative string states at mass level M, as this is what one would perhaps expect<br />
(or hope for?). One could object that associating perturbative string states with a <strong>black</strong><br />
hole is absurd. In the end, perturbative string states are obtained by quantizing a string<br />
in a flat background spacetime, so how can they be equivalent with a <strong>black</strong> hole? This<br />
is certainly a legitimate question. To jump ahead a bit, let us say something about this.<br />
As we will see, as the string coupling strength gS increases, the mass M <strong>of</strong> the pertur-<br />
bative state is unaltered both in the classical (independence <strong>of</strong> gS) as in the quantum<br />
world (no corrections due to supersymmetry). Now the gravitational field <strong>of</strong> the state<br />
is determined by GNM (in four dimensions) <strong>and</strong> since GN is proportional to g2 S , we<br />
find that as gS increases, the gravitational field increases. There is thus a back reaction<br />
on the perturbative state <strong>and</strong>, eventually, it may be described by a curved spacetime
5. Extremal Black Holes in String Theory 39<br />
with large curvature. Thus, at least in principle, it might be possible to associate cer-<br />
tain <strong>black</strong>-hole spacetimes with perturbative states. We will see that this is the case for<br />
extreme (BPS) <strong>black</strong> holes.<br />
Consider the open bosonic string, with mode expansion<br />
X µ = x µ + l 2 sp µ � 1<br />
τ + ils<br />
n<br />
n�=0<br />
αµ n cos(nσ). (5.1)<br />
Remember that in this expression the oscillator coefficients α µ n are creation operators<br />
for n ≤ 0 <strong>and</strong> annihilation operators for n ≥ 0. We will take units in which the string<br />
length scale ls = 1/ √ πT (where T is the string tension) is 1. Then one can easily<br />
show that the mass eigenvalues are given by the eigenvalues <strong>of</strong><br />
where<br />
1<br />
2 M 2 = N − 1, (5.2)<br />
N =<br />
∞�<br />
α i −nα i n, (5.3)<br />
n=1<br />
is the number operator (where there is an implied sum over i, the 24 transverse dimen-<br />
sions <strong>of</strong> the bosonic string). Our goal is to estimate the number dn <strong>of</strong> states at level n.<br />
It is convenient to define a generating function<br />
G(w) ≡ tr w N =<br />
∞�<br />
dnw n , (5.4)<br />
with |w| < 1. We will now examine the behavior <strong>of</strong> G(w) <strong>and</strong> use Cauchy’s equation<br />
to get an approximation <strong>of</strong> dn<br />
dn = 1<br />
�<br />
2πi C<br />
n=0<br />
G(w)<br />
dw. (5.5)<br />
wn+1 where C is a closed loop around w = 0. Plugging in the expression for the number<br />
operator N, we have (using the geometric series to get rid <strong>of</strong> the sum over i) that<br />
tr w N ∞�<br />
= tr w αi −nαi ∞�<br />
�<br />
1<br />
n =<br />
1 − wm �24 . (5.6)<br />
Let us try to simplify<br />
m=1<br />
f(w) ≡<br />
m=1<br />
∞�<br />
(1 − w m ) (5.7)<br />
m=1
5. Extremal Black Holes in String Theory 40<br />
by using (once again) the geometric series <strong>and</strong> a Taylor expansion for the logarithm:<br />
ln f(w) =<br />
∞�<br />
ln(1 − w m ) = −<br />
m=1<br />
∞�<br />
m,p=1<br />
wmp p =<br />
∞�<br />
p=1<br />
wp p(1 − wp . (5.8)<br />
)<br />
Close to w = 1 we can Taylor exp<strong>and</strong> w p as w p ∼ = 1 + p(w − 1) + . . .. We get<br />
<strong>and</strong> thus<br />
when w ∼ 1.<br />
From (5.5) we get that<br />
ln f(w) ∼ = −1<br />
1 − w<br />
∞�<br />
p=1<br />
p −2 = − π2<br />
6(1 − w)<br />
� � 2 4π<br />
G(w) ∼ exp<br />
1 − w<br />
dn ∝ e 4π√ n<br />
(5.9)<br />
(5.10)<br />
as n → ∞. (5.11)<br />
Therefore, from (5.2), the number <strong>of</strong> states <strong>of</strong> a free string increases as<br />
ρ(M) ∝ e √ 2πM . (5.12)<br />
That is, with an M in the exponent. Note that this is very different from the <strong>black</strong> hole<br />
requirement that the number <strong>of</strong> states increases as<br />
which has an M 2 in the exponent.<br />
ρbh(M) ∝ e 4πGN M 2<br />
, (5.13)<br />
5.2 Correspondence principle between strings <strong>and</strong> <strong>black</strong> holes<br />
In [4] Susskind speculates that all <strong>black</strong> hole states are in one to one correspondence<br />
with single string states. Susskind’s proposition is based on the following. By in-<br />
creasing the string coupling, the size <strong>of</strong> a highly excited string becomes less than its<br />
Schwarzschild radius. We should thus think <strong>of</strong> it as a <strong>black</strong> hole. Decreasing the<br />
coupling, on the other h<strong>and</strong>, generically makes the size <strong>of</strong> a <strong>black</strong> hole smaller, <strong>and</strong><br />
eventually even smaller than the string scale. In such a case, the metric becomes ill-<br />
defined <strong>and</strong> we can no longer interpret the <strong>black</strong> hole as being a <strong>black</strong> hole. Susskind
5. Extremal Black Holes in String Theory 41<br />
suggests that we should describe this configuration in terms <strong>of</strong> some string state. At<br />
weak coupling the <strong>black</strong> hole can be thought <strong>of</strong> as a small number <strong>of</strong> (or to leading<br />
order just one) highly excited strings. There seems to be a problem, however. As we<br />
have shown in section 5.1, the entropy <strong>of</strong> a free string is proportional to the mass <strong>of</strong><br />
the string state, whereas the Bekenstein-Hawking entropy is proportional to the square<br />
<strong>of</strong> the mass <strong>of</strong> the <strong>black</strong> hole. As a resolution to this discrepancy, Susskind’s suggests<br />
that in the above M versus M 2 comparison the effect <strong>of</strong> a large gravitational redshift<br />
is not taken into account.<br />
In [5] Horowitz <strong>and</strong> Polchinski give a more precise, although still somewhat qual-<br />
itative, formulation <strong>of</strong> the relation between strings <strong>and</strong> <strong>black</strong> holes. Based on this fact<br />
that for <strong>black</strong> holes in string theory generically the Schwarzschild radius in string units<br />
decreases when the string coupling is reduced, they formulate a correspondence prin-<br />
ciple, which states that (i) when the size <strong>of</strong> the horizon drops below the size <strong>of</strong> a string,<br />
the typical <strong>black</strong> hole states becomes a typical state <strong>of</strong> strings (<strong>and</strong> so-called D-branes)<br />
with the same charges, <strong>and</strong> (ii) the mass does not change abruptly during the transi-<br />
tion. Their approach does not give right numerical coefficients, but it does give the<br />
correct dependence on mass <strong>and</strong> charge for a large variety <strong>of</strong> cases. For the exact right<br />
numerical coefficients we have to introduce some more concepts, which we will do in<br />
the following sections.<br />
5.3 Extremal <strong>black</strong> holes <strong>and</strong> extended supersymmetry<br />
Let us next review the supersymmetry algebra <strong>and</strong> its representations. We can view<br />
extremal Reissner-Nordström <strong>black</strong> holes as ‘supersymmetric solitons’ because they<br />
behave very much like BPS objects where M ≥ Q is the BPS bound. The reason why<br />
we can associate BPS states with extremal <strong>black</strong> holes is that they have the crucial<br />
property that they cannot receive quantum corrections, which is similar to the fact that<br />
extremal <strong>black</strong> holes have vanishing temperature <strong>and</strong> thus don’t radiate. In this section<br />
we will clarify all this.<br />
Supersymmetry is a symmetry between fermions <strong>and</strong> bosons <strong>and</strong> supersymmetric
5. Extremal Black Holes in String Theory 42<br />
theories are theories with conserved spinorial currents. For each such current we get<br />
four conserved charges. We can organize these charges into a Weyl spinor, or, in gen-<br />
eral, into N Weyl spinors Q A α if we have N spinorial currents (<strong>and</strong> thus 4N conserved<br />
charges). Here A = 1, ..., N counts the supersymmetries <strong>and</strong> α = 1, 2 is a Weyl spinor<br />
index. A theorem <strong>of</strong> Haag, Lopuzanski <strong>and</strong> Sohnius states that the most general form<br />
<strong>of</strong> the supersymmetry algebra 1 (in four spacetime dimensions), is given by<br />
{Q A α, ¯ Q B ˙ β } = 2δ A Bσ µ<br />
α ˙ β Pµ, (5.14)<br />
{Q A α, Q B β } = 2ɛαβZ AB . (5.15)<br />
The Q bars are the hermitean conjugates <strong>and</strong> have opposite chirality (this is indicated<br />
by the dot), so ¯ Q B ˙ β = (Q B β )† ; the 2 × 2 matrices σ µ with µ = 1, 2, 3 are the Pauli<br />
matrices, <strong>and</strong> σ 0 is the identity matrix; ɛαβ is antisymmetric with ɛ12 = +1; the matrix<br />
Z AB is also antisymmetric <strong>and</strong> the operators in it commute with all the operators in<br />
the super Poincaré algebra which explains why they are called central charges; by<br />
definition we set Z 12 ≡ Z, which we may choose without loss <strong>of</strong> generality to be non-<br />
negative. Let us for concreteness take N = 2 <strong>and</strong> start with massive representations,<br />
M 2 > 0. We may work in the rest frame Pµ = (M,�0). By forming two appropriate<br />
linear combinations aα = Q 1 α + ɛαβQ 2 β <strong>and</strong> bα = Q 1 α − ɛαβQ 2 β<br />
can bring the algebra to the form<br />
{aα, a †<br />
β } = 4(M + Z)δαβ,<br />
{bα, b †<br />
β } = 4(M − Z)δαβ,<br />
<strong>of</strong> the generators, we<br />
{aα, b †<br />
β } = {aα, bβ} = 0. (5.16)<br />
Note that (up to a non-relevant normalization factor) these are precisely the anticom-<br />
mutation relations satisfied by two independent sets <strong>of</strong> fermion annihilation <strong>and</strong> cre-<br />
ation operators. Starting with some state |ψ〉 that is annihilated by the annihilation<br />
operators aα <strong>and</strong> bα we can construct a total <strong>of</strong> 16 states using the creation operators<br />
a † α <strong>and</strong> b † α. Since quantum mechanics is a unitary theory we require the absence <strong>of</strong><br />
1 This is is an extension <strong>of</strong> the usual Poincaré algebra (the Lie algebra <strong>of</strong> the 10-dimensional Poincaré<br />
Lie group <strong>of</strong> isometries <strong>of</strong> Minkowski space).
5. Extremal Black Holes in String Theory 43<br />
negative norm states, i.e., we have 〈φ|{aα, a † α}|φ〉 ≥ 0 for any state |φ〉 (<strong>and</strong> similarly<br />
for bα). This implies that the mass is bounded by the central charge. This is called the<br />
BPS-bound:<br />
M ≥ |Z|. (5.17)<br />
In the case M = Z we have to be careful, since in this case the representation contains<br />
null states. These have to be divided out in order to get unitary representations, which<br />
corresponds to |ψ〉 being annihilated by one set <strong>of</strong> creation operators (b † α if Z > 0).<br />
Such ‘BPS’-states are thus constructed using only the a †<br />
β<br />
creation operators. As a<br />
consequence they are invariant under half <strong>of</strong> the supersymmetry algebra. They are<br />
so-called ‘short’ massive representations <strong>of</strong> the supersymmetry algebra.<br />
An interesting feature <strong>of</strong> BPS states is that they cannot receive quantum correc-<br />
tions, assuming that the full theory is supersymmetric. This is the case because the<br />
relation M = Z is a consequence <strong>of</strong> the supersymmetry algebra. The analogy with ex-<br />
tremal Reissner-Nordström <strong>black</strong> holes, which have exactly vanishing Hawking tem-<br />
perature, is clear.<br />
The extreme Reissner-Nordström <strong>black</strong> hole is sometimes called a supersymmetric<br />
soliton. In the remainder <strong>of</strong> this section we will explain this terminology.<br />
First let us say what we mean by a soliton. A soliton is a stationary, regular, <strong>and</strong><br />
stable finite energy solution to the equations <strong>of</strong> motion. Some <strong>of</strong> these features are<br />
immediately clear for the extreme Reissner-Nordström <strong>black</strong> hole: it is static <strong>and</strong> thus<br />
in particular it is stationary; it has a finite mass M <strong>and</strong> thus finite energy; it is regular in<br />
the sense that it has no naked singularity. It is also stable, at least when considered as<br />
a solution <strong>of</strong> N = 2 supergravity into which it can be embedded, as we will see below.<br />
The next question is: what do we mean by a ‘supersymmetric’ soliton? A solution is<br />
called supersymmetric if it is invariant under a rigid transformation, which can be seen<br />
as an analogue <strong>of</strong> an isometry. By ‘being invariant’ we mean here<br />
δɛ(x)Φ |Φ0= 0. (5.18)<br />
That is to say, a field configuration Φ0 is supersymmetric if there exists a choice ɛ(x) <strong>of</strong><br />
the supersymmetry transformation parameters such that the configuration is invariant.
5. Extremal Black Holes in String Theory 44<br />
The notation should speak for itself: one should perform a supersymmetry variation<br />
<strong>of</strong> all the fields Φ <strong>and</strong> then evaluate it at Φ0; this should be zero. It is instructive<br />
to note that the transformation parameters ɛ(x) are fermionic analogues <strong>of</strong> Killing<br />
vectors. (They are called Killing spinors <strong>and</strong> equation (5.18) is the Killing spinor<br />
equation.) Killing vectors are the generators <strong>of</strong> spacetime symmetries. The trivial<br />
vacuum (Minkowski space) has ten Killing vectors. A generic spacetime has none,<br />
whereas more symmetric spacetimes can have some. For example the RN <strong>black</strong> hole<br />
has 4 Killing vectors (1 for time, 3 for rotation invariance). Similarly, we have ‘Killing<br />
spinors’ ɛ(x) which are supersymmetry transformation parameters.<br />
As mentioned above, the extreme RN <strong>black</strong> hole can be embedded into N = 2<br />
supergravity. This can be done by adding two gravitini ψ A µ . The extreme RN <strong>black</strong><br />
hole is not only a solution <strong>of</strong> Einstein-Maxwell theory, but also <strong>of</strong> the extended theory,<br />
with ψ A µ = 0. It also possess Killing spinors <strong>and</strong> is thus a supersymmetric solution in<br />
the above sense. Actually the only condition comes from the gravitino variation<br />
δɛψµA = ∇µɛA − 1 −<br />
Fab 4 γaγ b γµεABɛ B = 0, (5.19)<br />
where we suppressed the spinor indices <strong>and</strong> introduced some new notation. We use<br />
four-dimensional Majorana spinors, but project onto one chirality. This is encoded<br />
it the placement <strong>of</strong> the index A = 1, 2: letting γ5 work on ɛ A gives ɛ A , whereas<br />
for a lower index A we pick up a minus sign. Half <strong>of</strong> the components <strong>of</strong> ɛA, ɛ A are<br />
independentFµν is the graviphoton field strength <strong>and</strong> the minus superscript indicates<br />
its antiselfdual part:<br />
F ± µν = 1<br />
2 (Fµν ± i ⋆ Fµν). (5.20)<br />
One can now check (we will not do this) that the extreme RN <strong>black</strong> hole has Killing<br />
spinors which can be split in a part h(�x) which is completely fixed in terms <strong>of</strong> the<br />
coefficients in the metric, <strong>and</strong> a part at infinity<br />
where the part at infinity satisfies an additional equation<br />
ɛA(h(�x)) = h(�x)ɛA(∞), (5.21)<br />
ɛA(∞) + iγ 0 Z<br />
|Z| ɛABɛ B (∞) = 0. (5.22)
5. Extremal Black Holes in String Theory 45<br />
Consequently, half <strong>of</strong> the parameters are fixed in terms <strong>of</strong> others, which means that<br />
we half <strong>of</strong> the maximum, which is 8/2=4, Killing spinors. Furthermore, it can be<br />
shown that the extreme RN <strong>black</strong> hole is part <strong>of</strong> a hypermultiplet. The factor Z/|Z|<br />
is the central charge. In local supersymmetric theories central charge transformations<br />
are local U(1) transformation. The corresponding gauge field is a graviphoton. The<br />
central charge is a linear combination <strong>of</strong> the electric <strong>and</strong> magnetic charge <strong>of</strong> this U(1):<br />
Z = 1<br />
� �<br />
− 2F = p − iq. So |Z| = p2 + q2 = Q = M gives us our relation between<br />
4π<br />
the extreme RN <strong>black</strong> hole <strong>and</strong> the supersymmetric BPS limit. The extreme RN <strong>black</strong><br />
hole has thus all the features we expect from a BPS state:<br />
• It is invariant under half <strong>of</strong> the supersymmetry transformations.<br />
• It sits in a short multiplet.<br />
• It saturates the supersymmetric mass bound.<br />
The strange no-force property that admits that a number <strong>of</strong> extremal <strong>black</strong> holes can<br />
sit next to each other without feeling each others presence (see chapter 2) can now be<br />
understood as a consequence <strong>of</strong> the additional supersymmetry.<br />
Our next goal will be to try to find a <strong>microscopic</strong> description <strong>of</strong> the Reissner-<br />
Nordström <strong>black</strong> hole. It turns out that the simplest example one can consider in<br />
string theory is its five dimensional analogue. We will need to consider low energy<br />
effective field theory describing string theory. This is a generalization <strong>of</strong> Einstein-<br />
Maxwell theory. The number <strong>of</strong> spacetime dimensions involved is ten. There are also<br />
more fields involved: they are precisely the massless modes that arise in (perturbative)<br />
string theory. Higher massive modes decouple <strong>and</strong> do not appear in the low energy<br />
effective theory. We will now study type II supergravity which is the field theory that<br />
describes such massless modes. As the name already implies, supergravity is the union<br />
<strong>of</strong> general relativity (a theory <strong>of</strong> gravity) <strong>and</strong> supersymmetry.
5. Extremal Black Holes in String Theory 46<br />
5.4 Type II supergravity<br />
Supersymmetry is a symmetry between bosons <strong>and</strong> fermions <strong>and</strong> the massless states<br />
in (super)string theory include both bosons <strong>and</strong> fermions. However, since <strong>black</strong> holes<br />
are solutions <strong>of</strong> the classical bosonic field equations, we will only be interested in the<br />
bosonic degrees <strong>of</strong> freedom. Closed string theories have massless (bosonic) modes<br />
associated with a symmetric, traceless, rank-2 tensor (the graviton field Gµν), an an-<br />
tisymmetric rank-2 tensor (the Kalb-Ramond field Bµν), <strong>and</strong> the dilaton 2 field φ. In<br />
type II string theories, these states arise in the NS-NS sector. Before we continue, let<br />
us remind ourselves <strong>of</strong> some string theory basics.<br />
In string theory a two-dimensional non-linear sigma-model with action<br />
�<br />
SW S = 1<br />
4πα ′<br />
d<br />
Σ<br />
2 σ √ −hh αβ (σ)∂αX µ ∂βX ν Gµν(X) (5.23)<br />
is being used to model the motion <strong>of</strong> a string in a curved spacetime background with<br />
metric Gµν(X). The integration is over the world-sheet Σ. There are two coordinates<br />
(σ 0 , σ 1 ) = σ <strong>and</strong> hαβ(σ) is the world-sheet metric. The coordinates <strong>of</strong> the string in<br />
spacetime are X µ (σ). The parameter α ′ is related to the string tension T <strong>and</strong> the string<br />
length scale lS via α ′ = 1<br />
2πT<br />
1 = 2l2 S <strong>and</strong> is the only independent dimensionful parameter<br />
in string theory. One can impose different conditions on the boundaries <strong>of</strong> the-world<br />
sheet. One <strong>of</strong> them is<br />
∂1X µ |∂Σ= 0. (5.24)<br />
This is the Neumann boundary condition <strong>and</strong> it describes open strings. One can also<br />
fix the endpoints <strong>of</strong> the string. This is the Dirichlet boundary condition<br />
∂0X µ |∂Σ= 0. (5.25)<br />
Since the momentum at the end <strong>of</strong> the string is not conserved, Dirichlet boundary con-<br />
ditions require the string to be coupled to another dynamical object. Such objects are<br />
called D-branes. They are non-perturbative objects since they have a tension propor-<br />
tional to 1/gS. D-branes are very important in underst<strong>and</strong>ing the <strong>microscopic</strong> origin<br />
2 The expectation value <strong>of</strong> the dilaton fixes the string coupling constant via gS = 〈e φ 〉.
5. Extremal Black Holes in String Theory 47<br />
<strong>of</strong> <strong>black</strong> hole entropy. At this point let us just state that one can form so-called Dp-<br />
branes by imposing Neumann conditions along time <strong>and</strong> p directions, <strong>and</strong> Dirichlet<br />
conditions among the remaining D − p − 1 directions. (Here D is the dimension <strong>of</strong> the<br />
spacetime.) We will come back to this in the next section.<br />
Type II string theory consists <strong>of</strong> closed oriented strings <strong>and</strong> the world-sheet action<br />
is extended to a (1,1) supersymmetric action by adding world-sheet fermions ψ µ (σ).<br />
For these fermions one can choose the boundary conditions independently to be either<br />
periodic (Ramond) or anti-periodic (Neveu-Schwarz). We thus have four scenarios:<br />
NS-NS, NS-R, R-NS, R-R. The states in the NS-NS <strong>and</strong> R-R sectors are bosonic, the<br />
ones in the R-NS <strong>and</strong> NS-R sectors are fermionic.<br />
As stated above, the massless spectrum <strong>of</strong> the NS-NS sector for both type IIA<br />
<strong>and</strong> IIB string theory consists <strong>of</strong> Gµν, Bµν, φ. They are constructed using the Neveu-<br />
Schwarz (half-integer moded) world-sheet fermion creation operators for both left-<br />
<strong>and</strong> right-movers. In the R-R sector we also have massless bosonic states. They are<br />
constructed using the Ramond (integer moded) world-sheet fermion creation operators<br />
for both left- <strong>and</strong> right-movers. For the R-R sector we have to distinguish between the<br />
IIA <strong>and</strong> IIB theories. Let us look at IIA for the moment. We can do this without loss<br />
<strong>of</strong> generality, since one can relate the (chiral) IIB to the (non-chiral) IIA theory via<br />
T-duality. The R-R states may be represented by form fields C(1) <strong>and</strong> C(3) (for type IIB<br />
these are C(0), C(2) <strong>and</strong> C(4)), where<br />
C(n) ≡ 1<br />
n! Cµ1µ2...µndx µ1 ∧ dx µ2 ∧ ... ∧ dx µn . (5.26)<br />
We could as well have represented these fields by C(7) <strong>and</strong> C(5). They are related by<br />
the 8-dimensional epsilon tensor. It is a known fact [26] that the condition for the tree-<br />
level Weyl invariance <strong>of</strong> the string world-sheet action is preserved in the (quantum)<br />
string theory boils down to the vanishing <strong>of</strong> the associated (renormalization-group)<br />
beta functions for these fields. As a result, one gets the following effective action<br />
(which is a good approximation in the low energy limit α ′ → 0) in the so-called string
frame:<br />
SIIA =<br />
5. Extremal Black Holes in String Theory 48<br />
1<br />
2κ 2 10<br />
�<br />
+<br />
� �<br />
d 10 x(−G) 1/2 e −2φ R(G)<br />
[e −2φ (4dφ ∧ ∗ dφ − 1<br />
2 H(3) ∧ ∗ H(3)) − 1<br />
2 F(2) ∧ ∗ F(2)<br />
− 1<br />
2 ˜ F(4) ∧ ∗ F(4) − 1<br />
2 B(2) ∧ F(4) ∧ F(4)]<br />
�<br />
. (5.27)<br />
We see that all terms from the NS-NS sector are coupled to the dilaton, while terms<br />
from the R-R sector are not. In this expression G is the determinant <strong>of</strong> Gµν (the<br />
metric appearing in the non-linear sigma model (5.23)). κ10 has the dimensions <strong>of</strong><br />
a ten-dimensional gravitational coupling, but can not be be directly identified with the<br />
physical gravitational coupling. The reason for this is simply that a rescaling <strong>of</strong> κ<br />
can be compensated (as can be seen from equation (5.27)) by a shift <strong>of</strong> the dilaton’s<br />
vacuum expectation value. It is clear what the relation between κ10, α ′ <strong>and</strong> gS should<br />
be, namely κ10 = (α ′ ) 2 gS · const. In fact,<br />
2κ 2 10 = (2π) 7 (α ′ ) 4 g 2 S. (5.28)<br />
Furthermore we have the dilaton 1-form dφ, which is simply ∂µφdx µ . The field-<br />
strength forms are related to the potentials by<br />
F(2) = dC(1), F(4) = dC(3) <strong>and</strong> H(3) = dB(2)<br />
where B(2) is the 2-form associated with Bµν, <strong>and</strong><br />
(5.29)<br />
˜F(4) = F(4) + C(1) ∧ H(3). (5.30)<br />
Finally, Hodge duals in D dimensions (so in our case, D = 10) are defined by<br />
∗ C(p) = (−G)1/2<br />
p!(D − p)! ɛν1ν2...νD−pµ1µ2...µpC µ1µ2...µp dx ν1 ∧ dx ν2 ∧ ... ∧ dx νD−p . (5.31)<br />
It is easy to transform this ‘string frame’ action into the ‘Einstein frame’ action, in<br />
which there is no dilaton factor in the curvature term, by plugging in the field redefini-<br />
tion<br />
Gµν = e φ/2 gµν. (5.32)
This gives<br />
SIIA =<br />
1<br />
2κ 2 10<br />
− 1<br />
2<br />
5. Extremal Black Holes in String Theory 49<br />
�<br />
� �<br />
d 10 x(−g) 1/2 R(g)<br />
[dφ ∧ ∗ −φ 1<br />
dφ + e<br />
2 H(3) ∧ ∗ H(3) + e 3φ/2 F(2) ∧ ∗ F(2)<br />
+e φ/2 ˜ F(4) ∧ ∗ ˜ F(4) + B(2) ∧ F(4) ∧ F(4)]<br />
�<br />
(5.33)<br />
for the effective bosonic action in the Einstein frame. Another possibility would be to<br />
absorb the dilaton vacuum expectation value in the prefactor <strong>of</strong> the action, see [30].<br />
We see that type II string theory effective action involves various field strengths. In<br />
the same fashion as an electron is coupled by its charge to the Maxwell gauge potential<br />
Aµ, one would expect that there should be some objects in the underlying string theory<br />
that couple to the associated gauge form fields. Indeed, such extended objects exist:<br />
they are called p-branes, where p st<strong>and</strong>s for the number <strong>of</strong> spatial dimensions. In fact,<br />
p-branes are higher dimensional analogues <strong>of</strong> the extremal Reissner-Nordström <strong>black</strong><br />
hole. Before we come back to this, let us study our form fields a bit more.<br />
5.5 Form fields <strong>and</strong> D-branes<br />
Starting with the gauge field Aµ, which is coupled naturally to the world line X µ (τ)<br />
<strong>of</strong> some charged particle by a term<br />
�<br />
Aµ<br />
dX µ<br />
dτ (5.34)<br />
dτ<br />
in the action, <strong>and</strong> whose vector potential 1-form Aµdx µ ≡ A(1) transforms as A(1) →<br />
A(1) + dΛ0 (where Λ(0) is a function) we get the field strength 2-form F(2) = dA(1).<br />
The Maxwell equations in four dimensions are<br />
dF(2) = 0 <strong>and</strong> d ∗ F(2) = ∗ J(1), (5.35)<br />
where J(1) = Jµdx µ is the current one form. Since we are in four dimensions, ∗J(1) is<br />
a 3-form <strong>and</strong> we can find the electric charge by integrating over some spatial volume<br />
V3 which is enclosed by some surface S2. Using Gauss’ theorem we get<br />
� �<br />
∗<br />
Q = J(1) =<br />
V 3<br />
S 2<br />
∗ F(2). (5.36)
5. Extremal Black Holes in String Theory 50<br />
Now let us look at an analogous thing in string theory.<br />
Analogously to the gauge field/world line coupling above, one has the coupling <strong>of</strong><br />
the Kalb-Ramond field to the string world-sheet by<br />
�<br />
S ∼<br />
Bµνɛ αβ ∂αX µ ∂βX ν d 2 σ. (5.37)<br />
We have dH(3) = ddB(2) = 0. The electric charge Q1 <strong>of</strong> the string in 10 dimensions<br />
is given by<br />
Q1 =<br />
�<br />
S 7<br />
∗H(3). (5.38)<br />
This can be generalized for higher dimensional charges. Obviously, the generalization<br />
<strong>of</strong> (5.34) <strong>and</strong> (5.37) for a general antisymmteric (p + 1) dimensional tensor gauge field<br />
is a term in the action <strong>of</strong> the form<br />
�<br />
Cµ1µ2...µp+1ɛ α0α1...αp ∂α0X µ1 ∂α1X µ2 ...∂αpX µp+1 d p+1 σ. (5.39)<br />
So what this describes, is the coupling <strong>of</strong> the C(p+1) gauge field to the (p + 1) dimen-<br />
sional world volume <strong>of</strong> some extended object. This object has p spatial dimensions <strong>and</strong><br />
is called a p-brane. The electric charge <strong>of</strong> a p-brane that is enclosed by a hypersurface<br />
S8−p is given by<br />
� 8−p<br />
∗<br />
Qp = F(p+2), (5.40)<br />
S<br />
where F(p+2) = dC(p+1) is the field strength, which is invariant under gauge transfor-<br />
mations C(p+1) → C(p+1) + dΛ(p).<br />
In the effective action for type II superstrings (5.27) we see both the field strengths<br />
H3 <strong>and</strong> Fn appear. There is quite a difference between these. The H3 comes from<br />
the NS-NS form field B(2) which is coupled electrically to the string world sheet or its<br />
excitations. The Fn, with n even, are derived from the R-R fields C(n−1) <strong>and</strong> do not<br />
couple electrically. This suggests that R-R field strengths F(n) are naturally associated<br />
with branes having p = n − 2 dimensions.<br />
Since perturbative string states are neutral with respect to the charges associated<br />
with the R-R fields, we have to add non-perturbative dynamical objects that do have R-<br />
R charges to type II string theory. (By R-R charges we mean electric charges associated
5. Extremal Black Holes in String Theory 51<br />
with the R-R gauge form fields.) These objects are called Dp-branes. The D st<strong>and</strong>s<br />
for Dirichlet: there has also to be an open string sector where open strings end on<br />
p-dimensional planes [7]. Thus, the open string world sheet has Dirichlet boundary<br />
conditions in the directions perpendicular to the branes. These Dp-branes do couple<br />
electrically to the associated R-R fields. (Just as the fundamental string is coupled to<br />
the NS-NS field Bµν.) It is precisely this enlargement <strong>of</strong> string theory that lead to the<br />
underst<strong>and</strong>ing <strong>of</strong> <strong>black</strong> hole entropy in terms <strong>of</strong> associated microstates.<br />
But before we construct explicit <strong>black</strong> hole solutions <strong>of</strong> the type II supergravity<br />
field equations (whose entropy we shall be able to explain in terms <strong>of</strong> Dp-branes) let<br />
us briefly discuss dualities in string theory <strong>and</strong> give an example to get to know some<br />
<strong>of</strong> the techniques for doing <strong>microscopic</strong> entropy calculations.<br />
5.6 Dualities<br />
By a duality we mean two different ways to look at the same physics. The first duality<br />
symmetry we will consider, T-duality, is a symmetry that relates compactifications on<br />
a manifold <strong>of</strong> (large) volume V to ones with (small) volume 1/V . Obviously, the<br />
simplest case is compactification on a circle with radius R. It turns out that type IIA<br />
compactified on a circle with radius R is equivalent to type IIB compactified on a circle<br />
with radius 1/R, <strong>and</strong> likewise for heterotic E8 × E8 <strong>and</strong> heterotic SO(32).<br />
Next we consider S-duality. This is a (conjectured) non-perturbative duality. (Non-<br />
perturbative because it acts on the dilaton as gS → 1/gS.) S-duality is a weak ↔ strong<br />
duality: it relates the weak coupling regime <strong>of</strong> one theory to the strong coupling regime<br />
<strong>of</strong> another one. In particular, IIB theory is self-dual under S-duality <strong>and</strong> Heterotic<br />
SO(32) is S-dual to Type I theory. Type IIB string theory is believed to have an exact<br />
non-perturbative SL(2, Z) symmetry. We will have more to say about S-duality in<br />
chapter 7.
5. Extremal Black Holes in String Theory 52<br />
5.7 Counting <strong>of</strong> 1/2 BPS heterotic states on T 4 × T 2<br />
In this section we will count 1/2 BPS states as example to illustrate some st<strong>and</strong>ard<br />
counting techniques. We will consider heterotic string theory on T 4 × T 2 with the<br />
following coordinates:<br />
T 4<br />
����<br />
6789<br />
× ˜ S 1<br />
����<br />
5<br />
× S 1<br />
����<br />
4<br />
For convenience we will set α ′ = 1 in this section.<br />
× M 4<br />
����<br />
0123<br />
. (5.41)<br />
We consider a string around the ”5” direction, winding it ω times <strong>and</strong> with momen-<br />
tum n. The question is how many such states there are, subject to the usual Virasoro<br />
constraints that the left moving Hamiltonian is<br />
<strong>and</strong> the other constraint is<br />
where<br />
2 M<br />
−<br />
2 M<br />
−<br />
4 + NR + p2R 2<br />
4 + NL − 1 + p2L 2<br />
pL,R =<br />
= 0, (5.42)<br />
= 0, (5.43)<br />
� � �<br />
1 n<br />
∓ wR . (5.44)<br />
2 R<br />
We look at the right moving ground state, so NR = 0 an thus, from (5.42) we get that<br />
M = √ 2pR, (5.45)<br />
which looks like a BPS bound. Furthermore, the right moving superstring has a 16<br />
dimensional representation (8v for the NS sector, <strong>and</strong> 8s for the R sector) <strong>and</strong> this is<br />
thus a short representations (a long one would be 256 dimensional). From these two<br />
facts we see that this is BPS state. The question we want to consider is: how many<br />
such BPS states are there?<br />
The second equation says we can have arbitrary left-moving oscillations. The left-<br />
moving string is a 26 dimensional bosonic string. We choose one direction for the<br />
string to carry momentum <strong>and</strong> one for time, so we have 24 left moving oscillator.<br />
We have spacetime bosons X i , <strong>and</strong> internal bosons Y I which parametrize the torus
5. Extremal Black Holes in String Theory 53<br />
<strong>of</strong> E8 × E8. Let us denote the oscillators <strong>of</strong> X i as α i n <strong>and</strong> <strong>of</strong> Y I as β I n. Then the<br />
left-moving oscillations can be written as<br />
NL = �<br />
n>0<br />
(nα i −nα i n + nβ I −nβ I n), (5.46)<br />
where i = 1, ..., 8 because there are 8 transverse dimensions in 10 dimensions <strong>and</strong><br />
I = 1, ..., 16 because the rank <strong>of</strong> E8 × E8 is 16. To take care <strong>of</strong> the zero-point energy<br />
we introduce N = NL − 1 <strong>and</strong> from (5.43) we get<br />
N = NL − 1 = p2 R − p2 L<br />
2<br />
= nω. (5.47)<br />
We are interested in Ω(N), the number <strong>of</strong> states. Basically this is the harmonic oscil-<br />
lator problem with 24 oscillators. This Ω(N) appears in the partition function on the<br />
world-sheet,<br />
Z(β) = Tre −βN = � Ω(N)e −βN , (5.48)<br />
<strong>and</strong> we can us this to find Ω(N) by doing an inverse Laplace transform<br />
Ω(N) = 1<br />
�<br />
2πi<br />
e βN Z(β)dβ. (5.49)<br />
So our problem is reduced to finding this inverse Laplace transform. We would like<br />
to know the asymptotics <strong>of</strong> Ω(N) at large N, or in other words, at large temperature.<br />
Plugging in the expansions for N into (5.48), we get<br />
Z(β) = Tre −β(P (nα i −n αi n+nβ I −n βI n)−1 . (5.50)<br />
By introducing q = e −β <strong>and</strong> using the geometric series for 1 + q n + q 2n + ... we get<br />
Z(β) =<br />
1<br />
q �<br />
n (1 − qn . (5.51)<br />
) 24<br />
The trick is to use the fact that this is a modular form <strong>of</strong> weight 12 (it also appears in<br />
the one loop partition function <strong>of</strong> the bosonic string), namely<br />
Z(β) =<br />
� �12 β<br />
Z<br />
2π<br />
� 4π 2<br />
β<br />
�<br />
. (5.52)
5. Extremal Black Holes in String Theory 54<br />
We can relate high temperature with low temperature partition function by this equa-<br />
tion. For convenience, let’s introduce<br />
So at high temperature we get<br />
<strong>and</strong> thus<br />
˜β ≡ 4π2<br />
β , ˜q ≡ e− ˜ β<br />
(5.53)<br />
β → 0 ⇒ ˜ β → ∞ ⇒ ˜q → 1. (5.54)<br />
Z( ˜ β) =<br />
1<br />
˜q � (1 − ˜q n 1<br />
�<br />
) 24 ˜q<br />
= e 4π2<br />
β (5.55)<br />
for ˜q → 1 The above implies the following behavior at large N, or, at high temperature:<br />
Ω(N) = 1<br />
�<br />
2πi<br />
e βN e 4π2<br />
� �12 β<br />
β dβ<br />
2π<br />
(5.56)<br />
In our case we have a central charge c = 24. The more general expression is<br />
Ω(N) = 1<br />
�<br />
2πi<br />
e βN e 4π2<br />
� �12 c β<br />
β 24 dβ<br />
2π<br />
(5.57)<br />
We now want to do a saddle point approximation, so let us spend a few words on<br />
this. Basically, we want to find where the exponent has its peak. Let us do this a bit<br />
more general: suppose (<strong>and</strong> this is indeed what we want) that we want to calculate an<br />
integral<br />
� ∞<br />
A = dx e −ξf(x)<br />
−∞<br />
(5.58)<br />
in the limit <strong>of</strong> large ξ. Assuming f(x) has a global minimum at some x0 we can Taylor<br />
exp<strong>and</strong> f(x) <strong>and</strong> get to quadratic order<br />
f(x) ≈ f(x0) + 1<br />
2 f ′′ (x0)(x − x0) 2 . (5.59)<br />
Assuming that our global minimum is sufficiently separated from other local minima<br />
<strong>and</strong> whose value is sufficiently smaller than the value <strong>of</strong> those, the dominant contri-<br />
bution to the integral comes from a small region around x0. Our integral turns into a<br />
st<strong>and</strong>ard Gaussian integral <strong>and</strong> the result for ξ goes to infinity is simply<br />
A ≈ e −ξf(x0)<br />
�<br />
2π<br />
ξf ′′ �1/2 . (5.60)<br />
(x0)
5. Extremal Black Holes in String Theory 55<br />
Let us now use this method, called the saddle point approximation, for (5.57). We<br />
assume the second derivative (which is a 1/β 3 term) to be small. Then we can easily<br />
find the maximum,<br />
Plugging this value <strong>of</strong> β in give<br />
f(β) = βN + 4π2<br />
β<br />
f ′ (β) = 0 at β = β0 = 2π<br />
√ N<br />
(5.61)<br />
(5.62)<br />
f(β0) = 4π √ N = 4π √ nω (5.63)<br />
So now we simply apply the above saddle point approximation <strong>and</strong> get (in our case<br />
c = 24)<br />
Ω(N) ∼ e 4π√ N = e 4π √ nω . (5.64)<br />
Clearly, for some general central charge c, we get what is called Cardy’s formula,<br />
�<br />
cN<br />
f(β0) = 2π<br />
(5.65)<br />
6<br />
<strong>and</strong> the number <strong>of</strong> states is<br />
Ω(N) ∼ e 2π<br />
√<br />
cN<br />
6 . (5.66)<br />
This kind <strong>of</strong> manipulations were already studies by Ramanujan <strong>and</strong> Cardy because<br />
what we have been doing is basically equivalent to counting the number <strong>of</strong> ways to<br />
partition an integer N using integers <strong>of</strong> 24 colors. Physically, what we have been<br />
solving is the problem <strong>of</strong> distributing integer energy among 24 oscillators.<br />
5.8 D=5 Reissner-Nordström <strong>black</strong> holes<br />
In this important section we will investigate the simplest example <strong>of</strong> a <strong>black</strong> hole in<br />
string theory for which a <strong>microscopic</strong> description can be found. For this we will need<br />
the five dimensional analogue <strong>of</strong> the charged <strong>black</strong> hole solution (2.15) that we already<br />
studies in chapter 2:<br />
ds 2 �<br />
= 1 − 2M Q2<br />
+<br />
r2 r4 �<br />
dt 2 �<br />
− 1 − 2M Q2<br />
+<br />
r2 r4 �−1 dr 2 − r 2 dΩ 2 3. (5.67)
5. Extremal Black Holes in String Theory 56<br />
The gauge potential 1-form has an 1/r 2 dependence because we are in four spatial<br />
dimensions<br />
A = Q<br />
dt. (5.68)<br />
r2 Analogously to the four dimensional case, this may, in the extremal case M = Q, be<br />
cast into an isotropic form by introducing a new coordinate ρ ≡ � r 2 − Q. We get<br />
ds 2 = H −2 dt 2 − H(dρ 2 + ρdΩ 2 3), (5.69)<br />
A = (1 − H −1 )dt, H = 1 + Q<br />
. (5.70)<br />
ρ2 We will now try to connect this 5D <strong>black</strong> hole with string theory via the effective field<br />
theory describing string theory in the low-energy limit.<br />
5.8.1 Derivation <strong>of</strong> <strong>macroscopic</strong> entropy<br />
From our discussion in sections 5.4 <strong>and</strong> 5.5 it follows that a solution <strong>of</strong> the field equa-<br />
tions that one gets from the effective action (5.33) for the metric gµν, with non-zero<br />
field strength F(n), gives the gravitational field associated with an (n − 2)-brane hav-<br />
ing the associated NS-NS or R-R charge. This motivates us to spilt our coordinates<br />
into two groups. One for the n − 1 = p + 1 dimensions <strong>of</strong> the p-brane world volume<br />
with Poincaré invariance (‘longitudinal’) <strong>and</strong> one for the rotational invariance <strong>of</strong> the<br />
remaining 10−(p+1) = 9−p directions (‘transversal’). So let us split our coordinates<br />
x µ as x a , with a = 0, 1, ..., p for the longitudinal ones, <strong>and</strong> y i , with i = (p + 1), ..., 9<br />
for the transversal ones. We would like to know the metric. It turns out that the line<br />
element <strong>of</strong> this configuration in the string frame is <strong>of</strong> the form<br />
ds 2 = H(r) −1/2<br />
�<br />
(dx 0 ) 2 −<br />
p�<br />
a=1<br />
(dx a ) 2<br />
�<br />
− H(r) 1/2<br />
Let us say briefly where this expression comes from.<br />
9�<br />
(dy i ) 2 . (5.71)<br />
i=p+1
5. Extremal Black Holes in String Theory 57<br />
Ansatz<br />
A logical ansatz would be something like the 5D Reissner-Nordström <strong>black</strong> hole, so<br />
we assume the metric to have the form<br />
ds 2 = e 2A(r) ηabdx a dx b − e 2B(r) δijdy i dy j , (5.72)<br />
where r is the radial coordinate, r = � y i y i . For the dilaton <strong>and</strong> antisymmetric tensor,<br />
our ansatz is<br />
φ = f(r), (5.73)<br />
C012...p = e C(r) − 1, (5.74)<br />
Now the claim is that there is a solution for the classical field equations following from<br />
(5.33) in which all <strong>of</strong> the functions A, B, C, f are determined by a single harmonic<br />
function H(r) [33], as follows<br />
ds 2 = Hp(r) −(7−p)/8 ηabdx a dx b − Hp(r) (p+1)/8 δijdy i dy j , (5.75)<br />
e φ = Hp(r) (3−p)/4 , (5.76)<br />
C(p+1) = (Hp(r) −1 − 1)dx 0 ∧ dx 1 ∧ ... ∧ dx p . (5.77)<br />
where the harmonic function Hp(r) is given by<br />
Hp(r) = 1 + L7−p p<br />
, (5.78)<br />
r7−p with<br />
L 7−p<br />
p = 2κ10<br />
√<br />
πqp<br />
(2π<br />
(7 − p)Ω8−p<br />
√ α ′ ) 3−p , (5.79)<br />
where qp is an integer <strong>and</strong> Ωn is the volume <strong>of</strong> the unit n-sphere. This looks so com-<br />
plicated because it is for general p. For example for p = 5 this reduces (using (5.28))<br />
to<br />
L 2 5 = q5gsα ′ . (5.80)<br />
By transforming (5.75) using (5.32) <strong>and</strong> (5.76) we indeed get a line element that in the<br />
string frame looks like<br />
ds 2 = Hp(r) −1/2 ηabdx a dx b − Hp(r) 1/2 δijdy i dy j . (5.81)
5. Extremal Black Holes in String Theory 58<br />
Do any <strong>of</strong> these solutions give the metric <strong>of</strong> a <strong>black</strong> hole? Well, maybe. At this point<br />
it is clear that there are two problems:<br />
• The warp factors Hp(r) are wrong.<br />
• The dilaton is singular at the event horizon.<br />
Extremality <strong>and</strong> supersymmetry<br />
The above solutions (5.81) are extreme solitons, as one can check comparing the mass<br />
that can be read <strong>of</strong> from Hp(r), <strong>and</strong> the charge associated with the C(p+1) form gauge<br />
potential that one gets by integrating ∗ F(p+2), namely<br />
2π<br />
Mp = Qp = qp<br />
gs<br />
�<br />
2π √ α ′<br />
�−(1+p) . (5.82)<br />
(Note that this diverges as gs → 0, as expected for non-perturbative objects.) It is<br />
important to note that the solitons have qp units <strong>of</strong> some fundamental Dp-brane charge.<br />
We would like to get our 5D Reissner-Nordtröm metric back, <strong>and</strong> by looking at<br />
(5.78) this seems to have the best chances if we compactify the x 1 , ..., x 5 coordinates<br />
on a five torus, <strong>and</strong> take p = 5.<br />
Indeed, this is a good choice in the light <strong>of</strong> a result that follows from supersym-<br />
metry considerations. The point is that the solution is invariant under 16 supercharges<br />
Qα + P ˜ Qα, where Q acts on the rightmovers, ˜ Q on the leftmovers, <strong>and</strong> P represents<br />
the operator that reflects the directions y i transverse to the brane. By looking at two<br />
reflection operators P1 <strong>and</strong> P2 we find that the preserved supersymmetry charges sat-<br />
isfy<br />
Qα + P1 ˜ Qα = Qα + P2 ˜ Qα = Qα + P1(P −1 P2) ˜ Qα. (5.83)<br />
This can be shown to imply that the number <strong>of</strong> directions that are transverse one brane<br />
<strong>and</strong> parallel to the other is a multiple <strong>of</strong> four [34]. So because <strong>of</strong> the above extremality<br />
<strong>and</strong> supersymmetry argument we may combine the p = 5 solutions with the p = 1<br />
solutions. We call the coordinates on the p = 1 soliton x 0 <strong>and</strong> x 1 . The remaining four<br />
coordinates x a are transverse to the 1-brane but parallel to the 5-brane.
5. Extremal Black Holes in String Theory 59<br />
Compactification <strong>and</strong> ‘smearing’<br />
The directions x 2 , ..., x 5 are compactified on T 4 ⊂ T 5 <strong>of</strong> volume V4 which leads to a<br />
smearing <strong>of</strong> the D1-branes. This is analogous to the situation <strong>of</strong> the ‘method <strong>of</strong> images’<br />
used in Kaluza-Klein theory. Let us for example look only at the compactification in<br />
the x 2 direction on a circle <strong>of</strong> radius R. The D1-branes are then replaced by an infinite<br />
array <strong>of</strong> parallel branes a distance 2πR apart. This gives an effective harmonic function<br />
˜H1 for the array. For r ≫ R this function varies as<br />
� ˜r 2 − (x 2 ) 2 � −5/2 . (5.84)<br />
It is as if the D1-branes also wrap x2 √<br />
. The effective number <strong>of</strong> D2-branes is q1 α ′ /R.<br />
This case is easily generalized to the case where all coordinates are compactified on<br />
T 4 . The effective number ˜q5 <strong>of</strong> D5-branes is given by<br />
˜q5 = (2π√α ′ ) 4<br />
q1. (5.85)<br />
This is the number that should be plugged into (5.79) which then gives ˜ H1 from (5.78)<br />
with p = 5. Now by the ‘harmonic function sum rule’ [35] we can simply take products<br />
<strong>of</strong> the warp factors <strong>and</strong> get for the combined system<br />
ds 2 =H −1/4<br />
5<br />
− H 3/4<br />
5<br />
V4<br />
˜H −3/4<br />
1 [(dx 0 ) 2 − (dx 1 ) 2 ] − H −1/4 ˜H 5<br />
1/4<br />
1 [(dz 2 ) 2 + ... + (dx 5 ) 2 ]<br />
˜H 1/4<br />
1 [(dy 6 ) 2 + ... + (dy 9 ) 2 ], (5.86)<br />
e φ = H −1/2<br />
5<br />
˜H 1/2<br />
1 , (5.87)<br />
C(5) = [H −1<br />
5 − 1]dx 0 ∧ dx 1 ∧ ... ∧ dx 5 , C(1) = [ ˜ H −1<br />
1 − 1]dx 0 ∧ dx 1 . (5.88)<br />
This solves one <strong>of</strong> our problems. The dilaton is now finite at the event horizon r = 0.<br />
Our final mission is to repair the warp factor.
5. Extremal Black Holes in String Theory 60<br />
Adding momentum in the x 1 -direction<br />
The solution is to add momentum along the x 1 -direction. This leads [35] to the final<br />
form <strong>of</strong> the metric<br />
ds 2 =H −1/4<br />
5<br />
− H −1/4<br />
5<br />
˜H −3/4<br />
1 [(dx 0 ) 2 − (dx 1 ) 2 + HP (dx 0 − dx 1 ) 2 ]<br />
˜H 1/4<br />
1 [(dx 2 ) 2 + ... + (dx 5 ) 2 ] − H 3/4 ˜H 5<br />
1/4<br />
1 [dr 2 + r 2 dΩ 2 3]. (5.89)<br />
The harmonic functions may be written in the form<br />
Using (5.28), (5.79) <strong>and</strong> (5.85),<br />
˜H1 = 1 + r2 1<br />
r 2 , H5 = 1 + L2 5<br />
r2 , HP = r2 P<br />
r<br />
2 . (5.90)<br />
r 2 1 = q1gsα ′ 2π√α ′ ) 4<br />
, L<br />
V4<br />
2 5 = q5gsα ′ , r 2 P = ng 2 sα ′ 2π√α ′ ) 4 α<br />
V4<br />
′<br />
, (5.91)<br />
R2 with R the radius <strong>of</strong> the circle upon which the x 1 coordinate is compactified <strong>and</strong> n an<br />
integer specifying the momentum P = n/R on the circle.<br />
The entropy <strong>of</strong> this solution<br />
Taking the (eight-dimensional) volume <strong>of</strong> the time slice at the horizon, we get the<br />
‘area’ AH <strong>of</strong> the event horizon, which is, taking the limit r → 0 (from above) equal to<br />
AH = � (r −3/4<br />
1<br />
L −1/4<br />
rP )2πR �� (r 1/4<br />
5<br />
1 L −1/4<br />
5 ) 4 V4<br />
�� (r 1/4<br />
1 L 3/4<br />
5 )2π 2�<br />
= 4π 3 RV4r1L5rP . (5.92)<br />
The surface gravity is zero. Thus the temperature <strong>of</strong> this extreme <strong>black</strong> hole is zero.<br />
This is not surprising since this in an extreme <strong>black</strong> hole. It does however have an<br />
entropy. The entropy associated with this <strong>black</strong> hole simplifies to<br />
Sbh = AH<br />
4G10<br />
= 2π √ q1q5n (5.93)<br />
<strong>and</strong> is thus independent <strong>of</strong> both the string coupling gS <strong>and</strong> the size <strong>of</strong> the compact<br />
dimension. It only depends on the integers q1, q5 <strong>and</strong> n.<br />
Next, we will show how one gets this formula on the <strong>microscopic</strong> side.
5. Extremal Black Holes in String Theory 61<br />
5.8.2 Derivation <strong>of</strong> <strong>microscopic</strong> entropy<br />
The above constructed <strong>black</strong> hole solution can be interpreted as a bound state <strong>of</strong> q5<br />
D5-branes <strong>and</strong> q1 D1-branes with some momentum n/R. The reason behind this is<br />
that, as we have shown in (5.82), the soliton solution has qp units <strong>of</strong> p-brane charge<br />
(we also argued that Dp-branes are sources <strong>of</strong> R-R charges).<br />
lows<br />
Now, our configuration (5.89) breaks the 10-dimensional Lorentz symmetry as fol-<br />
SO(1, 9) → SO(1, 1) × SO(4)� × SO(4)⊥. (5.94)<br />
The SO(1, 1) acts on the D1-brane world sheet (x 0 , x 1 ). The SO(4)� acts on the<br />
rest <strong>of</strong> the D5-brane world volume (x 2 , ..., x 5 ). The final factor SO(4)⊥ acts on the<br />
remaining dimensions (y 6 , ..., y 9 ) that are transverse to both. Since the rigid branes<br />
don’t carry linear nor angular momentum, it is an important question to ask, what<br />
degrees <strong>of</strong> freedom do carry the momentum n/R. Well, an obvious possibility is the<br />
these degrees are the massless states <strong>of</strong> open strings that begin <strong>and</strong> end on D-branes.<br />
(The massive excitations <strong>of</strong> the D-branes themselves do not play any role when the<br />
coupling is weak, since they have masses proportional to g −1<br />
S .) Now there are four<br />
possibilities: 1-1 states, 5-5 states, 1-5 states <strong>and</strong> 5-1 states (by this notation we mean<br />
that in an n-m state the open string begins on a Dn-brane <strong>and</strong> ends on a Dm-brane).<br />
For the 1-1 <strong>and</strong> 5-5 state we are taken away from the maximal degeneracy state, which<br />
is the <strong>black</strong> hole state, by the separation <strong>of</strong> the individual D1- <strong>and</strong> D5-branes from<br />
each other. We thus only consider the 1-5 <strong>and</strong> 5-1 states. These give a total <strong>of</strong> 4q1q5<br />
bosons <strong>and</strong> an equal number <strong>of</strong> fermions.<br />
What we want to do, is to distribute the momentum n/R among the 4q1q5 bosons<br />
<strong>and</strong> fermions. This is basically the same problem as we have seen before, in section<br />
5.1 where we estimated the number <strong>of</strong> bosonic string states at mass level n. There is,<br />
however, a small complication, because now also have fermions.<br />
As before, we solve the problem by using a generating function (this is the partition<br />
function)<br />
Z(w) ≡ tr w N =<br />
∞�<br />
dnw n , (5.95)<br />
n=0
5. Extremal Black Holes in String Theory 62<br />
where N = P R <strong>and</strong> dn is the number <strong>of</strong> states with eigenvalue n <strong>of</strong> N (so it has<br />
momentum n/R). Doing analogous steps to the one in section 5.1 we get<br />
tr w N =<br />
∞�<br />
� m 1 + w<br />
1 − wn �4q1q5 . (5.96)<br />
m=1<br />
The fermionic contribution in the numerator is even simpler than the bosonic. In the<br />
one dimensional bosonic case we have many multiparticle states, α−n|0〉, (α−n) 2 |0〉,<br />
etc., which, as we have seen lead to<br />
tr w P ∞<br />
n=1 α−nαn =<br />
∞�<br />
tr w α−nαn =<br />
n=1<br />
∞�<br />
∞�<br />
n=1 i=1<br />
(w n ) i =<br />
∞�<br />
n=1<br />
(1 − w n ) −1 . (5.97)<br />
In the case that our modes were fermions, ψ−n, we would, by Pauli’s exclusion<br />
principle, not be able to make multiparticle states (ψ−n) 2 |0〉, so our partition function<br />
is simply<br />
result<br />
or<br />
tr w P ∞<br />
n=1 ψ−nψn =<br />
∞�<br />
tr w ψ−nψn =<br />
n=1<br />
∞�<br />
(1 + w n ). (5.98)<br />
Finally, we may estimate dn for large values <strong>of</strong> n, as we did in section 5.1 with the<br />
n=1<br />
dn ∼ e 2π√ q1q5n , (5.99)<br />
Sbh = 2π √ q1q5n (5.100)<br />
Basically, this is the Strominger-Vafa result [8]. There are however some differences,<br />
which we explain in the next section. Before we do that let us note that we can permute<br />
the three charges among themselves in all possible ways. Note that by doing four T-<br />
dualities along the T 4 we can exchange the D1 <strong>and</strong> D5 branes with each other, leaving<br />
the momentum P unchanged. Another set <strong>of</strong> dualities can map D1-D5-P to P-D1-D5.<br />
Via S-duality this then can be mapped to P-NS1-NS5. (Therefore, keeping only the<br />
first two charges the D1-D5 bound state is dual to the P-NS1 bound state, which is<br />
simply an elementary string carrying vibrations.) For more details see section 2.5 <strong>of</strong><br />
[36].
5. Extremal Black Holes in String Theory 63<br />
5.9 Link with the Strominger-Vafa result<br />
The case treated by Strominger <strong>and</strong> Vafa in their break-through article [8] was only a<br />
little bit different. They took (type IIB string theory) on the K3 manifold instead <strong>of</strong><br />
our T 4 . So in their case there are<br />
Q5 D5−branes wrapping K3 × S 1 , <strong>and</strong><br />
Q1 D1−branes wrapping S 1 .<br />
Again, the D1-brane can move in four directions transverse direction inside the D5-<br />
brane, <strong>and</strong> we have 4Q1Q5 bosons <strong>and</strong> as many fermions. Now bosons have central<br />
charge 1, whereas the fermions have central charge 1/2. This gives a central charge <strong>of</strong><br />
the corresponding conformal field theory for this situation<br />
The Cardy formula, equation (5.66), gives us the answer<br />
(1 + 1/2)4Q1Q5 = 6Q1Q5. (5.101)<br />
Ω(N) = e 2π<br />
√<br />
cN<br />
6 = e 2πQ1Q5N<br />
, (5.102)<br />
where N is the momentum. In fact, Strominger <strong>and</strong> Vafa use axion charge QH <strong>and</strong><br />
electric charge QF <strong>of</strong> the fundamental string. By the axion charge QH we mean the flux<br />
<strong>of</strong> the H-field; it st<strong>and</strong>s for the charge <strong>of</strong> the NS5-brane. By applying S-duality QH<br />
<strong>and</strong> QF become equal to the Q1 <strong>and</strong> Q5 charges <strong>of</strong> the D1- <strong>and</strong> D5-branes above. So<br />
this is the link between what we did in the previous section, <strong>and</strong> what Strominger <strong>and</strong><br />
Vafa do in their paper. They get for the degeneracy <strong>of</strong> the BPS solitons (or equivalently<br />
the growth <strong>of</strong> the so-called elliptic genus, which they introduce in their paper) for large<br />
charge QH<br />
S = 2π<br />
�<br />
QH( 1<br />
2 Q2 F + 1), (5.103)<br />
which agrees to leading order with the Bekenstein-Hawking entropy for large Q 2 F ,<br />
�<br />
QHQ<br />
SBH = 2π<br />
2 F<br />
. (5.104)<br />
2
5. Extremal Black Holes in String Theory 64<br />
Strominger <strong>and</strong> Vafa speculate that the elliptic genus is a more relevant physical<br />
quantity than the actual number <strong>of</strong> BPS states, which may depend on the moduli <strong>of</strong> the<br />
K3. The point is that the elliptic genus is an appropriately weighted sum (with weights<br />
±1) <strong>and</strong> is moduli independent. However, either quantity will give the same leading<br />
degeneracy as a function <strong>of</strong> the charges, <strong>and</strong> therefore this subtlety is unimportant<br />
for their paper. Nevertheless, for many other purposes, like our counting <strong>of</strong> dyons in<br />
N = 4 string theory in chapter 7, the elliptic genus turned out to be very important.
6. MATHEMATICAL TOOLS<br />
6.1 Modular forms<br />
A function <strong>of</strong> rational character on the plane can have two (or more?) complex periods.<br />
A nice example <strong>of</strong> such a function is Jacobi’s sinus amplitudinus [37]. Let f be such a<br />
(nonconstant, single-valued) function with periods ω: f(x + ω) = f(x). These form a<br />
module L over Z. (Any integer combination <strong>of</strong> periods n1ω1 + n2ω2 is also a period.)<br />
For ‘most’ functions L is trivial (most functions are not periodic), for some functions<br />
(like the sinus) it is <strong>of</strong> rank one (L = 2πZ), <strong>and</strong> for some (like this so-called sinus<br />
amplitudinus) L is <strong>of</strong> rank two. Jacobi [37] proved that there are no other possibilities.<br />
In the third case, we call L a period lattice, <strong>and</strong> f an elliptic function.<br />
The question one can ask now is: What are all the possible pairs <strong>of</strong> primitive peri-<br />
ods for a fixed lattice L = ω1Z ⊕ ω2Z? (For example, ω1 + 6ω2 <strong>and</strong> ω2 will do just as<br />
well as ω1 <strong>and</strong> ω2.) One can write one pair in terms <strong>of</strong> another, like<br />
ω ′ 2 = aω2 + bω1, (6.1)<br />
ω ′ 1 = cω2 + dω1, (6.2)<br />
where a, b, c, d ∈ Z. It is easily seen that the determinant <strong>of</strong> the transformation matrix<br />
should be −1 or +1. Without further comment, we choose it (we can do this 1 ) to be<br />
+1. So what we learn from this, is that two pairs <strong>of</strong> primitive periods are related by a<br />
linear substitution � a b<br />
c d<br />
�<br />
∈ SL(2, Z). (6.3)<br />
Conversely, any such substitution produces new primitive periods from old ones. The<br />
corresponding period ratios ω = ω2/ω1 are related by the associated fractional linear<br />
1 This can be done by imposing the condition that the period ratio ω = ω2/ω1 should have positive<br />
imaginary part.
substitution by<br />
6. Mathematical Tools 67<br />
ω ↦→<br />
aω + b<br />
cω + d<br />
(6.4)<br />
from the projective group P SL(2, Z) = SL(2, Z)/(±1). This is called the modular<br />
group <strong>of</strong> first level Γ1. Two tori (tori can be written as C/L) are (conformally) equiv-<br />
alent if <strong>and</strong> only if their periods are related by a substitution <strong>of</strong> this kind.<br />
tions<br />
One easily checks that an element from P SL(2, Z) is generated by the transforma-<br />
T : ω → ω + 1, S : ω → −1/ω. (6.5)<br />
The change ω → ω ′ = (aω + b)/(cω + d) is called a modular transformation. The<br />
generators T <strong>and</strong> S satisfy S 2 = (ST ) 3 .<br />
A modular form <strong>of</strong> weight 2n ∈ N is an analytic function f on the open half-plane<br />
H that transforms under the modular group Γ1 according to<br />
� �<br />
aω + b<br />
f = (cω + d)<br />
cω + d<br />
2n f(ω). (6.6)<br />
Such a form is <strong>of</strong> period 1 <strong>and</strong> so can be exp<strong>and</strong>ed in whole powers <strong>of</strong> the parameter<br />
q = e 2πiω in a neighborhood <strong>of</strong> q = 0 (so at ω = i∞ so to speak). It is furthermore<br />
required that this expansion contains no negative powers <strong>of</strong> q. Also, f is to be pole-free<br />
at ∞. When f vanishes at infinity, we call it a cusp form. If we do not require f to be<br />
pole-free at infinity, f is said to be a modular function. It has a Fourier expansion <strong>of</strong><br />
the form<br />
f(ω) = �<br />
n≥−N<br />
anq n<br />
(6.7)<br />
which converges for 0 < q < ɛ ≤ 1 for some ɛ. (If N > 0 then f is said to have a pole<br />
<strong>of</strong> order N at infinity. (So one speaks <strong>of</strong> a modular form precisely when f converges<br />
for all |q| < 1, which implies N ≤ 0; a0 is it’s value an infinity.)<br />
A typical example <strong>of</strong> a modular function is the Eisenstein series. A typical example<br />
<strong>of</strong> a modular form is the Dedekind eta-function. Or perhaps one should say that raised<br />
to a certain power this becomes a real modular form.
6. Mathematical Tools 68<br />
6.2 (Weak) Jacobi forms<br />
The definition <strong>of</strong> a Jacobi function that we give here is a generalization <strong>of</strong> the one<br />
in [38]. We include half integer index, in order to incorporate elliptic genera <strong>of</strong> odd-<br />
dimensional Calabi-Yau Manifolds. Let 0 ≤ k ∈ Z <strong>and</strong> 0 ≤ m ∈ Z/2. We call a<br />
function φ from the upper half-plane H × C → C a Jacobi function <strong>of</strong> weight k <strong>and</strong><br />
index r if it transforms like<br />
�<br />
aω + b<br />
φ<br />
cω + d ,<br />
�<br />
z<br />
= (cω + d)<br />
cω + d<br />
k rcz2<br />
2πi<br />
e cω+d φ(ω, z), (6.8)<br />
φ(ω, z + λω + µ) = (−1) 2r(λ+µ) e −2πir(λ2 ω+2λz) φ(ω, z), (6.9)<br />
where � a b<br />
c d<br />
<strong>and</strong> which has Fourier expansion <strong>of</strong> the form<br />
φ(ω, z) =<br />
�<br />
∈ SL(2, Z), λ, µ ∈ Z (6.10)<br />
�<br />
m≥−M,l∈Z+r<br />
c(n, l)q m y l<br />
(6.11)<br />
(where q = e 2πiω , y = e 2πiz , <strong>and</strong> M ∈ Z), which converges for all 0 < |q| < ɛ ≤ 1<br />
<strong>and</strong> z ∈ C. One easily checks that the product <strong>of</strong> two Jacobi functions with weights<br />
k, k ′ <strong>and</strong> indices r, r ′ is a Jacobi function <strong>of</strong> weight k + k ′ <strong>and</strong> index r + r ′ , so the class<br />
just defined is closed under multiplication. We see that a modular function is a special<br />
kind <strong>of</strong> Jacobi function: namely a Jacobi function <strong>of</strong> index r = 0. (φ(ω, 0) transforms<br />
as a modular function <strong>of</strong> weight k. Also, for r = 0 we have c(m, l) = 0 if l �= 0.)<br />
An important fact, which is essentially proven in [38], is that the coefficients c(m, l)<br />
depend only on 4rm − l 2 <strong>and</strong> on l mod 2r. A weak Jacobi form is a special kind <strong>of</strong><br />
Jacobi function, namely one with a Fourier expansion <strong>of</strong> the form<br />
φ(ω, z) = �<br />
m≥0,l∈Z+r<br />
c(m, l)q m y l , (6.12)<br />
which converges for all |q| < 1. The reason why we are interested in this weak Jacobi<br />
form, is that the elliptic genus <strong>of</strong> a Calabi-Yau manifold <strong>of</strong> complex dimensions d is<br />
given by a weak Jacobi form <strong>of</strong> weight zero <strong>and</strong> index m = d/2, [39].
6. Mathematical Tools 69<br />
In physics it seems we must use weak Jacobi forms <strong>and</strong> not Jacobi forms because<br />
L0 − c/24 > 0 in the Ramond sector <strong>of</strong> a unitary theory. Let us now give the definition<br />
<strong>of</strong> the elliptic genus, <strong>and</strong> study some <strong>of</strong> its properties.<br />
6.3 Elliptic genus<br />
Let us now give a proper definition <strong>of</strong> the elliptic genus for a Kähler manifold M <strong>of</strong><br />
complex dimensions d, study some properties <strong>of</strong> its properties <strong>and</strong> give a geometrical<br />
description [40, 41, 42].<br />
6.3.1 Definition <strong>and</strong> properties<br />
Lets start with an elliptic curve E with modulus τ <strong>and</strong> a line bundle labeled by z ∈<br />
Jac(E) ∼ = E. Recall that a an elliptic curve is basically a type <strong>of</strong> a cubic curve whose<br />
solutions are confined to a region <strong>of</strong> space that is topologically equivalent to a torus.<br />
In fact, an elliptic curve or (complex) torus, provided with a complex <strong>structure</strong>, can be<br />
defined by the quotient<br />
Eτ = C/(Z + τZ). (6.13)<br />
The complex parameter τ determines the complex <strong>structure</strong> <strong>of</strong> the torus, <strong>and</strong> is called<br />
the modulus <strong>of</strong> the torus. One can find the modulus <strong>of</strong> a torus by considering so-called<br />
periods. Each torus has, up to scalings, a unique holomorphic one-form λ = adx,<br />
where a is an arbitrary scaling factor, <strong>and</strong> x is a global complex coordinate. Now<br />
the first homology <strong>of</strong> the torus is spanned by two fundamental 1-cycles, which can be<br />
chosen to be the paths joining the origin with the points τ, <strong>and</strong> 1 (all in C). These are<br />
closed curves on the torus <strong>and</strong> we call them γ1 <strong>and</strong> γ2 respectively. The modulus can<br />
than be found from the quotient <strong>of</strong> the periods<br />
�<br />
γ1<br />
τ =<br />
λ<br />
�<br />
γ2 λ.<br />
(6.14)<br />
Different fundamental cycles give values for τ which are related by modular transfor-<br />
mations.
6. Mathematical Tools 70<br />
Next let us introduce q = e 2πiτ , y = e 2πiz . The elliptic genus is then defined as<br />
χ(M; q, y) = TrH(M)(−1) F y FL q L0− d<br />
8 ¯q ¯ L0− d<br />
8 , (6.15)<br />
where F = FL + FR <strong>and</strong> H(M) is the Hilbert space <strong>of</strong> the N = 2 supersymmetric<br />
field theory with (d-dimensional) target space M. Physically, the elliptic genus count<br />
the number <strong>of</strong> string states with ¯ L0 = 0. It is a genus because it satisfies the following<br />
relations. It is additive under disjoint union,<br />
χ(M ⊔ M ′ ; q, y) = χ(M; q, y) + χ(M ′ ; q, y). (6.16)<br />
For any product space M × M ′ we have<br />
And, finally,<br />
in the sense <strong>of</strong> a complex bordism.<br />
χ(M × M ′ ; q, y) = χ(M; q, y) · χ(M ′ ; q, y). (6.17)<br />
χ(M = ∂N; q, y) = 0, (6.18)<br />
For q = 0 the elliptic genus reduces to a weighted sum over the Hodge numbers,<br />
which is essentially the Hirzeburch χy-genus,<br />
χ(M; 0, y) = �<br />
(−1) p+q y<br />
p,q<br />
p− d<br />
2 h p,q (M). (6.19)<br />
Recall that the Hodge numbers are the dimensions <strong>of</strong> the Hodge cohomology,<br />
h p,q = dim H p,q (M) = dim ker ¯ ∂p,q<br />
im ¯ , (6.20)<br />
∂p,q−1<br />
where ¯ ∂p,q indicates the anti-holomorphic differential ¯ ∂ (which maps a (p, q)-form to<br />
a (p, q + 1)-form) restricted to (p, q)-forms.<br />
For y = 1 the elliptic genus simply reduces the Euler number <strong>of</strong> M,<br />
χ(M; q, 1) = χ(M) = �<br />
(−1) n bn, (6.21)<br />
where bn are the Betti numbers. The second equality is the Euler-Poincaré theorem.<br />
For any topological space, the n-th Betti number bn is defined as the rank <strong>of</strong> the n-th<br />
homology group. The relation between Betti numbers <strong>and</strong> Hodge numbers is<br />
bn = �<br />
h p,q . (6.22)<br />
p+q=n<br />
n
6. Mathematical Tools 71<br />
6.3.2 A geometrical description<br />
First, let us recall the notions <strong>of</strong> a Chern character <strong>and</strong> a Todd class. By the splitting<br />
principle <strong>and</strong> the Whitney product formula, we can write the Chern class <strong>of</strong> a vector<br />
bundle E, denoted by c(E), as [43]<br />
c(E) =<br />
r�<br />
(1 + xi), (6.23)<br />
i=1<br />
where xi is the first Chern class <strong>of</strong> the complex line bundle Li in the Whitney sum; xi<br />
is called a Chern root. Let x1, ..., xn be Chern roots <strong>of</strong> a rank r vector bundle E → M.<br />
Then the Chern character <strong>of</strong> the vector bundle is defined as<br />
r�<br />
ch(E) = e xi . (6.24)<br />
Here e xi is to be regarded as a formal power series. (And in fact it is a polynomial,<br />
since the Chern roots are expressed in symmetric functions which are cohomology<br />
classes that vanish for degree > r.) The Todd class is defined as<br />
i=1<br />
td(E) = � xi 1<br />
i = 1r = 1 + −xi 1 − e 2 c1 + 1<br />
12 (c21 + c2) + 1<br />
24 c1c2 + ... (6.25)<br />
If we take as bundle E the (holomorphic) tangent bundle <strong>of</strong> the some variety X then<br />
we just write td(X).<br />
We defined these two concepts in order to introduce the Hirzebruch-Riemann-Roch<br />
formula, which states that<br />
n�<br />
i=0<br />
(−1) i dim H i (X, E)) = deg((ch(E) · td(X))n), (6.26)<br />
with X a non-singular, projective variety <strong>of</strong> dimension n, <strong>and</strong> E a holomorphic vector<br />
bundle over X. On the right h<strong>and</strong> side <strong>of</strong> (6.26), ch(E) · td(X) is to be calculated in<br />
the so-called Chow ring CH(X), <strong>and</strong> then the n-subscript indicates that we have to<br />
take the part <strong>of</strong> the result which lies in CH n (X). We will not do anything with Chow<br />
rings here, so we will not give the definition; this can be found in Appendix A <strong>of</strong> [44].<br />
For smooth manifolds M, this makes an alternative geometrical definition <strong>of</strong> the<br />
elliptic genus possible. For any vector bundle V define the formal sums<br />
�<br />
V = �<br />
q k<br />
k�<br />
V, SqV = �<br />
q<br />
k≥0<br />
k≥0<br />
q k S k V, (6.27)
6. Mathematical Tools 72<br />
where ∧ k <strong>and</strong> S k denote the k’th exterior <strong>and</strong> symmetric product respectively. Now<br />
let TM <strong>and</strong> ¯ TM be holomorphic <strong>and</strong> anti-holomorphic tangent bundles <strong>of</strong> M. Then one<br />
can define the bundle<br />
�<br />
�<br />
�<br />
d<br />
−<br />
Eq,y = y 2<br />
n≥1<br />
−q n−1 y<br />
TM ⊗ �<br />
−q n y −1<br />
¯TM ⊗ Sq nTM ⊗ Sq n ¯ TM<br />
�<br />
. (6.28)<br />
The elliptic genus can then we defined via the Hirzebruch-Riemann-Roch formula as<br />
�<br />
χ(M; q, y) = ch(Eq,y)td(M). (6.29)<br />
M
7. COUNTING N = 4 DYONS VIA AUTOMORPHIC FORMS<br />
In this final chapter we will focus on the dyonic spectrum <strong>of</strong> N = 4 string theory in<br />
four dimensions. Dyonic states are states that are both electric <strong>and</strong> magnetic at the<br />
same time. These preserve only 1/4 <strong>of</strong> the supersymmetries <strong>and</strong> are quite mysterious<br />
since they can not be treated perturbatively in any description. This in contrast with<br />
purely electric (or magnetic) states which preserve 1/2 <strong>of</strong> the supercharges <strong>and</strong> whose<br />
degeneracies are easily determined (they correspond to the heterotic string states that<br />
are in the right-moving ground state). We will study a proposal <strong>of</strong> Dijkgraaf, Verlinde<br />
<strong>and</strong> Verlinde [45] for the exact degeneracy <strong>of</strong> these dyonic BPS states. Recently, their<br />
proposal was confirmed [46].<br />
Let us do some preparatory work first.<br />
7.1 Electric-magnetic duality, S-duality <strong>and</strong> dyons <strong>of</strong> charge eθ/2π<br />
S-duality is a (conjectured) equivalence between weakly coupled <strong>and</strong> strongly cou-<br />
pled string theory; it relates the perturbative expansion around zero to an expansion<br />
around infinite coupling. It is thus not an equivalence that holds order-by-order in<br />
string perturbation theory. S-duality is a far-reaching equivalence that involves non-<br />
trivial relations among all orders <strong>of</strong> perturbation theory.<br />
Let us begin with considering the free Maxwell equations (so we take J = 0 in<br />
(5.35)), dF = 0 <strong>and</strong> d(∗F ) = 0, or, written out with indices<br />
where F µν<br />
d<br />
∂µF µν = 0, (7.1)<br />
∂µF µν<br />
d<br />
= 0, (7.2)<br />
= 1<br />
2 ɛµναβ Fαβ. One observes that these stay perfectly valid under the trans-
7. Counting N = 4 Dyons via Automorphic Forms 75<br />
formation F ↔ ∗F , or equivalently,<br />
F µν ↔ F µν<br />
d , (7.3)<br />
which is called electric-magnetic duality (or “abelian S-duality”) since it interchanges<br />
the E <strong>and</strong> B field. Note that the above Maxwell equations are different in nature: the<br />
former is an equation <strong>of</strong> motion, derived from the action, while the latter is a Bianchi<br />
identity.<br />
This can be extended to the quantum theory provided the Dirac quantization con-<br />
dition is satisfied [47]. This means that if a particle <strong>of</strong> electric <strong>and</strong> magnetic charge<br />
(Qe, Qm) exists, <strong>and</strong> another <strong>of</strong> charges (Q ′ e, Q ′ m), then<br />
QeQ ′ m − QmQ ′ e ∈ 2πZ. (7.4)<br />
The simplest solution is that the electric charge is a multiple <strong>of</strong> e, <strong>and</strong> the magnetic<br />
charge is a multiple <strong>of</strong> 2π/e, so we get a lattice<br />
Qe = en1, Qm = 2π<br />
e n2, (7.5)<br />
with n1, n2 integers. Note that at this moment something <strong>of</strong> the strong ↔ weak cou-<br />
pling (or S-duality) becomes apparent, since a theory with an electrically charged field<br />
(e, 0) <strong>and</strong> a magnetically charged field (0, 2π/e) is invariant under (7.3) if we also take<br />
e → 2π/e, interchanging strong <strong>and</strong> weak coupling.<br />
We can get a general solution to the Dirac quantization condition by including a<br />
θ-parameter for the gauge field; the electric charges shift by an amount proportional to<br />
the magnetic charge [48],<br />
At this point it is useful to form the combination<br />
θ<br />
Qe = en1 + en2<br />
2π , Qm = 2π<br />
e n2. (7.6)<br />
τ = θ<br />
2π<br />
i<br />
+ . (7.7)<br />
e2 The solution <strong>of</strong> the Dirac quantization condition (7.6) is invariant under θ → θ + 2π,<br />
with n1 → n1 − n2, which can be rephrased as<br />
τ → τ + 1, n1 → n1 − n2. (7.8)
7. Counting N = 4 Dyons via Automorphic Forms 76<br />
Furthermore, one can check that under electric-magnetic duality <strong>and</strong> θ → θ + 2π we<br />
have<br />
τ → − 1<br />
τ , n1 ↔ n2. (7.9)<br />
So these generate the familiar SL(2, Z).<br />
We will use electromagnetism with an angle θ, as above, <strong>and</strong> the special combina-<br />
tion which we called τ to show how one gets the entropy formula [49]<br />
SBH = π � q 2 eq 2 m − (qe · qm) 2 , (7.10)<br />
for the Bekenstein-Hawking entropy for 1/4-BPS <strong>black</strong> holes that we will encounter in<br />
the following.<br />
7.2 Making use <strong>of</strong> the attractor mechanism<br />
From (7.5) the ratio <strong>of</strong> qe <strong>and</strong> qm is equal to e 2 up to some constant <strong>and</strong> we can write<br />
(in this section we will write p <strong>and</strong> q for qe <strong>and</strong> qm respectively)<br />
√ pq ∼ |ep + iq<br />
e |2 = e 2 |p + iq<br />
e 2 |2 . (7.11)<br />
We can write this in a more general form by using τ as in the previous section<br />
τ = θ<br />
2π<br />
i<br />
+ . (7.12)<br />
e2 The angle θ can vary <strong>and</strong> for θ = 0 we get our equation (7.11) back; the generalized<br />
expression is<br />
1<br />
|�p + τ�q| 2 . (7.13)<br />
τ2<br />
Here τ2 is the imaginary part <strong>of</strong> τ <strong>and</strong> one can check that for θ = 0 we indeed get back<br />
(7.11) for θ = 0, since (7.13) is just<br />
e 2 |�p + �qθ i�q<br />
+<br />
2π e2 |2 . (7.14)<br />
The thing we would like to do is to minimize this function (7.13) <strong>of</strong> τ. The so-<br />
called attractor mechanism [50] explains why this we should minimize this at the hori-<br />
zon <strong>of</strong> the <strong>black</strong> hole. So let us minimize<br />
1<br />
|�p + τ�q| 2 = 1<br />
�<br />
|�p| 2 + (τ 2 1 + τ 2 2 )|�q| 2 + 2τ1(�p · �q) 2<br />
�<br />
τ2<br />
τ2<br />
(7.15)
7. Counting N = 4 Dyons via Automorphic Forms 77<br />
first with respect to τ1 <strong>and</strong> plug the result into the minimization with respect to τ2.<br />
Minimizing with respect to τ1 gives<br />
Minimizing with respect to τ2 gives<br />
− |�p|2<br />
τ 2 2<br />
τ1 = −<br />
(�p · �q)<br />
. (7.16)<br />
|�q| 2<br />
− τ 2 1<br />
τ 2 |�q|<br />
2<br />
2 + |�q| 2 − 2τ1(�p · �q)<br />
τ 2 2<br />
By plugging in the τ1 that we found in (7.16) we get<br />
So<br />
<strong>and</strong> we get out desired formula<br />
− 1<br />
τ 2 � 2 (�p · �q)<br />
|�p| +<br />
2<br />
2<br />
|�q| 2 − |�q|2 τ 2 2 −<br />
= 0. (7.17)<br />
2(�p · �q)2<br />
|�q| 2<br />
�<br />
= 0 (7.18)<br />
(�p · �q) 2 − |�p| 2 |�q| 2 = −|�q| 4 τ 2 2 , (7.19)<br />
|�q| 2 τ2 = � |�p| 2 |�q| 2 − (�p · �q) 2 . (7.20)<br />
7.3 The Dijkgraaf-Verlinde-Verlinde degeneracy formula<br />
In this section, we shall recall an interesting conjecture, due to R. Dijkgraaf, E. Ver-<br />
linde <strong>and</strong> H. Verlinde (DVV), which relates the exact degeneracies <strong>of</strong> 1/4 BPS states<br />
in N = 4 string theory, to Fourier coefficients <strong>of</strong> certain automorphic forms [45].<br />
N = 4 string theory has two perturbative formulations, one in terms <strong>of</strong> the heterotic<br />
string compactified on T 6 , <strong>and</strong> a dual one in terms <strong>of</strong> type II strings compactified on<br />
K3 × T 2 . The moduli space factorizes into<br />
SL(2, R)<br />
U(1)<br />
× SO(6, 22, R)<br />
SO(6) × SO(22)<br />
<strong>and</strong> points related by an action <strong>of</strong> the duality group<br />
(7.21)<br />
Γ = SL(2, R) × SO(6, 22, R) (7.22)<br />
are conjectured to be equivalent under non-perturbative dualities. In the point <strong>of</strong> view<br />
<strong>of</strong> the heterotic string we have 28 electric charges qe <strong>and</strong> 28 magnetic charges qm which
7. Counting N = 4 Dyons via Automorphic Forms 78<br />
both lie on the Γ 22,6 lattice. We see that the Bekenstein-Hawking entropy for 1/4-BPS<br />
<strong>black</strong> holes, which is given by 1<br />
SBH = π � q 2 eq 2 m − (qe · qm) 2 (7.23)<br />
is invariant under the duality group (7.22). This entropy equation stays invariant un-<br />
der qe ↔ (−)qm which, <strong>of</strong> course, is related to the first factor <strong>of</strong> (7.22), being an<br />
electromagnetic S-duality which acts on electric charges qeΛ <strong>and</strong> magnetic charges q Λ m,<br />
Λ = 0, ..., 27 transforming in the 28 <strong>of</strong> the second factor.<br />
DVV proposed that the exact degeneracies, or, to be more precise, the number<br />
<strong>of</strong> bosonic minus the number <strong>of</strong> fermionic BPS-multiplets for a given electric <strong>and</strong><br />
magnetic charge, should be given by<br />
�<br />
d(qe, qm) =<br />
dρdσdν eiπ(q2 mρ+q2 eσ+2qe·qmν) . (7.24)<br />
Φ(ρ, σ, ν)<br />
The integral is over the contour 0 ≤ ρ, ν, σ ≤ 2π. The function Ω(ρ, ν, σ) is manifestly<br />
SL(2, Z) invariant, which suggest that it can be written as a modular form in<br />
� �<br />
ρ ν<br />
Ω =<br />
ν σ<br />
(7.25)<br />
It is natural to identify the matrix Ω with the period matrix <strong>of</strong> a genus two Riemann<br />
surface. This period matrix Ω transforms under Sp(2, Z), which can be written as a<br />
4 × 4 matrix decomposed onto four real 2 × 2 blocks, A, B, C, D,<br />
� �<br />
A B<br />
C D<br />
with<br />
Then Ω transforms as follows under Sp(2, Z),<br />
(7.26)<br />
A T D − C T B = DA T − CB T = 12, (7.27)<br />
A T C = C T A, B T D = D T B. (7.28)<br />
Ω → Ω ′ = (AΩ + B)(CΩ + D) −1<br />
1 See section 7.2 for a quantitative explanation <strong>of</strong> where this expression comes from.<br />
(7.29)
7. Counting N = 4 Dyons via Automorphic Forms 79<br />
In fact, Ω is the unique automorphic form <strong>of</strong> weight 10 <strong>of</strong> the modular group Sp(2, Z).<br />
Combining the electric <strong>and</strong> magnetic charges into a vector<br />
� �<br />
qm<br />
q =<br />
the degeneracy formula takes the form<br />
�<br />
d(qe, qm) =<br />
qe<br />
(7.30)<br />
dΩ eiπq·Ω·q<br />
. (7.31)<br />
Φ(Ω)<br />
This can be seen as a ‘logical’ generalization <strong>of</strong> the 1/2-BPS purely electric case, in<br />
which case the number <strong>of</strong> multiplets is given by<br />
�<br />
d(qe) =<br />
dσ eiπσq2 e<br />
, (7.32)<br />
η(σ) 24<br />
where the integral over σ is from 0 to 1 <strong>and</strong> η(σ) is the Dedekind η-function.<br />
DVV carried out several consistency checks, some <strong>of</strong> which we will briefly discuss.<br />
7.3.1 Consistency checks<br />
One consistency check one can do, that was done by DVV, is to extract the large<br />
charge behavior <strong>of</strong> d(qe, qm) by computing the contour integral in (7.24) by residues.<br />
Of course, what one expects to find, is agreement with (7.23), <strong>and</strong> indeed it can be<br />
shown that in the large charge limit<br />
d(qe, qm) ∼ e π<br />
√<br />
q2 eq2 m−(qe·qm)2 . (7.33)<br />
This check can be done by picking the residue at the divisor D = ρσ − ν 2 + ν <strong>and</strong><br />
using<br />
where<br />
See [45], [51] <strong>and</strong> [52] for some more details.<br />
Φ = D 2 η 24 (ρ ′ )η 24 (σ ′ )/det 12 (Ω), (7.34)<br />
ρ ′ = − σ<br />
ρσ − ν2 , σ′ = − ρ<br />
. (7.35)<br />
ρσ − ν2 As another check, <strong>and</strong> continuing our discussion <strong>of</strong> Sp(2, Z) above, let us note that<br />
the SL(2, Z) duality transformations are identified with the subgroup <strong>of</strong> Sp(2, Z) that
7. Counting N = 4 Dyons via Automorphic Forms 80<br />
leave the genus two modular form Φ(Ω) invariant, which leads us to the conclusion<br />
that the presented degeneracies are manifestly duality symmetric. (Using the modular<br />
invariance <strong>of</strong> Φ, one can cancel the action <strong>of</strong> SL(2, Z) by a change <strong>of</strong> the integration<br />
contour γ → γ ′ , <strong>and</strong> deform γ ′ back to γ while avoiding singularities.)<br />
7.4 State counting <strong>and</strong> the elliptic genus<br />
The way in which the elliptic genus makes its entrance in the counting <strong>of</strong> N = 4 dyons<br />
is via the cusp form Φ, which was an infinite product representation<br />
Φ(ρ, σ, ν) = e 2πi(ρ+σ+ν)<br />
�<br />
�<br />
1 − e 2πi(kρ+lσ+mν)<br />
�c(4kl−m2 )<br />
, (7.36)<br />
(k,l,m)>0<br />
where (k, l, m) > 0 means that k, l ≥ 0 <strong>and</strong> m ∈ Z, m < 0 for k = l = 0. The<br />
coefficients c(k) are the Fourier coefficients <strong>of</strong> the elliptic genus <strong>of</strong> K3,<br />
χ(K3; ρ, ν) = �<br />
c(4h − m 2 )e 2πi(hρ+mz) . (7.37)<br />
h≥0,m∈Z<br />
It is known [41] that the elliptic genus <strong>of</strong> K3, which is defined by<br />
χ(K3, τ, z) = Tr(−1) F c<br />
2πi(τ(L0−<br />
e 24 )+zFL)<br />
(7.38)<br />
plays an import role in the counting <strong>of</strong> certain string states. In the above expression<br />
the trace is over the RR-sector <strong>of</strong> a superconformal sigma-model <strong>and</strong> F = FL + FR is<br />
the sum <strong>of</strong> the left- <strong>and</strong> right- moving fermion number. One can think <strong>of</strong> the elliptic<br />
genus as a partition function. An interesting identity for the elliptic genus that we will<br />
just quote (a pro<strong>of</strong> can be found in [42]) is a relation between orbifold elliptic genera<br />
<strong>of</strong> the symmetric product manifolds in terms <strong>of</strong> that <strong>of</strong> a Kähler manifold M is<br />
�<br />
p N χ(S N M; q, y) = �<br />
(7.39)<br />
N=0<br />
n>0,m≥0,l<br />
where the coefficients c(m, l) are defined via the expansion<br />
χ(M; q, y) = �<br />
m≥0,l<br />
1<br />
(1 − p n q m y l ) c(nm,l)<br />
c(m, l)q m y l . (7.40)<br />
There is a nice physical interpretation <strong>of</strong> this identity in terms <strong>of</strong> second quantized<br />
string theory [42].
8. OUTLOOK<br />
At the end <strong>of</strong> this thesis we come to the starting point <strong>of</strong> recent research work on <strong>black</strong><br />
holes in the context <strong>of</strong> string theory. Much can be said at this point, but let us only<br />
mention briefly (quite arbitratily): 1. Near-extremal <strong>black</strong> holes, 2. Mathur’s fuzzball<br />
proposal, <strong>and</strong> 3. Topological strings <strong>and</strong> the OSV conjecture. All three could be a<br />
subject for a thesis <strong>of</strong> its own, so we will just scratch the surfaces.<br />
Near-extremal <strong>black</strong> holes<br />
The Strominger-Vafa result can be generalized to near-extremal <strong>black</strong> holes, as was<br />
soon realized by Callan <strong>and</strong> Maldacena [53]. In the near-extremal case the entropy<br />
becomes a function <strong>of</strong> the mass <strong>of</strong> the <strong>black</strong> hole as well as its four charges. Probably<br />
the most prominent application <strong>of</strong> going away from the BPS limit <strong>and</strong> studying near-<br />
BPS states is the derivation <strong>of</strong> Hawking radiation from the D-brane perspective. By<br />
adding a small amount <strong>of</strong> right-moving momentum to a purely left-moving BPS state<br />
one gets a near-BPS state. Intuitively one can imagine that what happens in the D-<br />
brane picture is that left- <strong>and</strong> right-moving open strings interact to form closed string<br />
states <strong>and</strong> leave the brane. This is indicated in picture 8.1. A nice review <strong>of</strong> various<br />
aspects <strong>of</strong> near extremal <strong>black</strong> holes is Maldacena’s PhD thesis [27].<br />
Note that extremal <strong>black</strong> holes do not Hawking radiate (as we already discussed).<br />
This is clear from the picture: you get Hawking radiation only when a left mover<br />
attaches to a right mover <strong>and</strong> they leave the brane as a closed string (this is the near-<br />
extremal case).
8. Outlook 82<br />
Fig. 8.1: In the D-brane picture left- <strong>and</strong> right-moving open strings can interact, form closed<br />
string states <strong>and</strong> leave the brane as Hawking radiation.<br />
Mathur’s fuzzball proposal<br />
Mathur et al, see e.g. [36], set up a whole program in which the aim is to give all mi-<br />
croscopic states <strong>of</strong> a <strong>black</strong> hole an own gravitational solution. This so-called ‘fuzzball’<br />
approach looks on the one h<strong>and</strong> very promising, but is on the other h<strong>and</strong> quite con-<br />
troversial. For example, in the recent article on the Farey tail expansion for N = 2<br />
attractor <strong>black</strong> holes [54], quite the contrary seems to be the case. The major part <strong>of</strong><br />
the <strong>black</strong> hole entropy is carried by one particular <strong>black</strong> hole background, with no one<br />
to one correspondence between microstates <strong>and</strong> gravitational backgrounds.<br />
Topological strings <strong>and</strong> the OSV conjecture<br />
The claim <strong>of</strong> the OSV conjecture [55] is that there is a direct relation between <strong>black</strong><br />
hole entropy <strong>and</strong> the topological string partition function, |Ztop| 2 = ZBH. An excellent<br />
review is [52].
APPENDIX<br />
Appendix A: Geodesic Deviation <strong>and</strong> the Raychaudhuri Equation<br />
As is well known, the defining property <strong>of</strong> flat geometry is the postulate that initially<br />
parallel lines always remain parallel. In curved space this is not true (think for example<br />
<strong>of</strong> a sphere). To study this ‘curved behavior’ we consider a family <strong>of</strong> non-crossing<br />
geodesics, γs(λ). Here for each s ∈ R, γs(λ) is a geodesic parameterized by the affine<br />
parameter λ. On the two-dimensional surfaces that these geodesics define we pick<br />
coordinates s <strong>and</strong> t. We can think <strong>of</strong> our surface as a set <strong>of</strong> points x µ (s, t). It is natural<br />
to define vector fields T µ (tangent vectors) <strong>and</strong> S µ (deviation vectors) as indicated in<br />
figure A.1, namely by<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
t<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
T µ = ∂xµ<br />
∂t <strong>and</strong> Sµ = ∂xµ<br />
∂s<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¦<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
¥<br />
Geodesics<br />
Tangent vector<br />
¢¡ £<br />
¡ £<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
£<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
¤<br />
Deviation vector<br />
s<br />
(8.1)<br />
Fig. 8.2: A set <strong>of</strong> geodesics with tangent vectors <strong>and</strong> deviation vectors. The vector field consisting<br />
<strong>of</strong> the deviation vectors measures the deviation between nearby geodesics.<br />
We want to look at how S µ changes in the T direction, so we define the “relative
velocity <strong>of</strong> geodesics” as<br />
8. Outlook 84<br />
V µ = (∇T S) µ = T ρ ∇ρS µ<br />
<strong>and</strong> also the “relative acceleration <strong>of</strong> geodesics”<br />
(8.2)<br />
A µ = (∇T V ) µ = T ρ ∇ρV µ . (8.3)<br />
A straightforward calculation (see [10], page 146) shows that the relative acceleration<br />
between two neighboring geodesics is proportional to the curvature:<br />
A µ = R µ νρσT ν T ρ S σ<br />
This equation is called the geodesic deviation equation.<br />
(8.4)<br />
Instead <strong>of</strong> looking at a one-parameter family <strong>of</strong> geodesics we will now consider an<br />
entire congruence <strong>of</strong> geodesics. A congruence in O ⊂ M, where O is an open subset<br />
<strong>of</strong> a manifold M, is a family <strong>of</strong> curves such that through each point p ∈ O there passes<br />
exactly one curve in this family. Clearly, we get a vector field for each congruence <strong>and</strong><br />
the other way around. A congruence is said to be smooth if the corresponding vector<br />
field is smooth.<br />
Our goal in the rest <strong>of</strong> this section will be to define the expansion, shear, <strong>and</strong> twist<br />
<strong>of</strong> timelike geodesic congruences in a spacetime (M, gµnu) <strong>and</strong> derive an equation (the<br />
Raychaudhuri equation) for their rate <strong>of</strong> change as one moves along the curves in the<br />
congruence. One can imagine setting up a set <strong>of</strong> three normal vectors orthogonal to our<br />
timelike geodesic <strong>and</strong> looking at their failure to be parallel transported as we follow<br />
their evolution along the geodesics.<br />
cated.<br />
We will also briefly discuss the null geodesic case which is slightly more compli-<br />
Let T µ = dx µ /dτ be the tangent vector field to a four-dimensional timelike geodesic<br />
congruence; T µ is normalized, TµT µ = −1, <strong>and</strong> obeys the geodesic equation T λ ∇λT µ =<br />
0. We define a tensor field Bµν by<br />
Bµν = ∇νTµ<br />
(8.5)
8. Outlook 85<br />
Physically, Bµν measures the failure <strong>of</strong> S µ to be parallel transported along the congru-<br />
ence. Next we define a “spatial metric” 1<br />
The expansion θ is defined by<br />
hµν = gµν + TµTν<br />
θ = B µν hµν<br />
(8.6)<br />
(8.7)<br />
<strong>and</strong> it describes the change <strong>of</strong> a volume <strong>of</strong> a sphere <strong>of</strong> test particles centered at some<br />
point when moving along their central geodesic. Next we define the shear σµν, which<br />
represents a distortion in the shape <strong>of</strong> our collection <strong>of</strong> test particles from a sphere into<br />
an ellipsoid, by<br />
Finally, we define the twist or rotation<br />
Thus, we can decompose Bµν as<br />
σµν = B(µν) − 1<br />
3 θhµν<br />
(8.8)<br />
ωµν = B[µν]. (8.9)<br />
Bµν = 1<br />
3 θhµν + σµν + ωµν. (8.10)<br />
Now the geodesic deviation equation (8.4) yields equations for the rate <strong>of</strong> change<br />
<strong>of</strong> θ, σµν, <strong>and</strong> ωµν:<br />
dθ<br />
dτ<br />
= −1<br />
3 θ2 − σµνσ µν + ωµνω µν − RµνT µ T ν<br />
(8.11)<br />
This is the timelike version <strong>of</strong> the Raychaudhuri equation. It gives a relation be-<br />
tween the rate <strong>of</strong> change <strong>of</strong> the expansion, <strong>and</strong> the shear <strong>and</strong> twist <strong>of</strong> timelike geodesics<br />
as one moves along the curves in the congruence.<br />
One can also consider null geodesics. The derivation <strong>of</strong> the null version <strong>of</strong> Ray-<br />
chaudhuri’s equation is slightly more complicated (see for example [10] Appendix F,<br />
or [11] chapter 9.2)] <strong>and</strong> we will not treat it here. The main difference is that for null<br />
1 One can think <strong>of</strong> this as some kind <strong>of</strong> projection: any vector from the tangent space TpM can<br />
be projected onto a subspace corresponding to vectors normal to T µ by the ‘projection tensor’ h µ ν =<br />
g µρ hρν = δ µ ν + T µ Tν.
8. Outlook 86<br />
geodesics studying the evolution <strong>of</strong> vectors in a three-dimensional subspace normal to<br />
the tangent field doesn’t make sense, since tangent vectors to null curves are normal<br />
to themselves. Instead, we can study a two-dimensional subspace <strong>of</strong> spatial vectors<br />
normal to the null tangent vector field k µ = dx µ /dλ. The difficulty is that observers in<br />
different Lorentz frames will have different notions <strong>of</strong> what constitutes a spatial vec-<br />
tor, so there is no unique way <strong>of</strong> defining this subspace. For more details we refer the<br />
reader to Appendix F <strong>of</strong> [10]. This difference between the three <strong>and</strong> two dimensional<br />
subspaces in respectively the timelike <strong>and</strong> null geodesic case results in a pre-factor <strong>of</strong><br />
1/2 instead <strong>of</strong> 1/3 in the null Raychauhuri equation, which reads<br />
where<br />
dθ<br />
dλ<br />
= −1<br />
2 θ2 − ˆσµν ˆσ µν + ˆωµν ˆω µν − Rµνk µ k ν , (8.12)<br />
θ = ˆ h µν Bµν<br />
ˆ (8.13)<br />
ˆσµν = ˆ B(µν) − 1<br />
2 θˆ hµν<br />
(8.14)<br />
ˆωµν = ˆ B[µν] (8.15)<br />
are again to be interpreted as the expansion, shear, <strong>and</strong> twist <strong>of</strong> the congruence. The<br />
hatted tensor field ˆ Bµν is given by<br />
ˆBµν = 1<br />
2 θˆ hµν + ˆσµν + ˆωµν, (8.16)<br />
<strong>and</strong> the hatted metric ˆ h µν is the metric on our two-dimensional subspace. Let us be a<br />
little bit more precise about what is meant by this. The tangent vectors in the tangent<br />
space Vp at a point p ∈ M which are orthogonal to k µ form a three-dimensional<br />
subspace ˜ Vp. Now define ˆ Vp to be the vector subspace <strong>of</strong> equivalence classes <strong>of</strong> vectors<br />
in ˜ Vp, with the equivalence relation<br />
x µ ∼ y µ ⇐⇒ x µ − y µ = ck µ<br />
(8.17)<br />
for some c ∈ R. The spacetime metric gµν gives now rise to a ‘hatted metric’ on<br />
ˆVp. This hatted metric is denoted by ˆ hµν. The reason why we put no hat on θ is that<br />
ˆh µν ˆ Bµν = h µν Bµν as one can easily verify.
8. Outlook 87<br />
Appendix B: Samenvatting in het Nederl<strong>and</strong>s<br />
Dit stukje is — in gewijzigde vorm — verschenen op http://www.natuurkunde.nl/<br />
Van zwarte gaten heeft iedereen wel eens gehoord. “Een zwart gat is een bijzonder<br />
soort object in het heelal, waar als gevolg van het sterke zwaartekrachtsveld geen licht<br />
<strong>of</strong> materie kan ontsnappen”, is wat Wikipedia ons vertelt. Maar dat is nog niet het hele<br />
verhaal. Zwarte gaten zijn namelijk zo zwart nog niet. Dat komt door een vreemde<br />
eigenschap van het vacuüm. Je zou denken dat vacuüm ‘niks’ is. Maar dat is niet zo:<br />
uit het ‘niks’ worden aan één stuk door deeltjes en antideeltjes gevormd die vervolgens<br />
weer snel verdwijnen, althans, tenzij er ééntje in een zwart gat valt.<br />
Zwarte gaten<br />
In dit stukje zal ik ervan uitgaan dat u in ieder geval een vaag beeld hebt van wat een<br />
zwart gat is, maar meer dan dat hoeft ook niet. Dat zwarte gaten zwart zijn klinkt<br />
ergens wel logisch. Maar als u zich er wat meer in verdiept blijkt al snel dat zwarte<br />
gaten eigenlijk ‘grijs’ zijn. Ze slokken wel alles op, dat is waar, maar er komen ook<br />
deeltjes uit! Wel altijd deeltjes van ‘hetzelfde soort’. Het maakt niet uit wat u in<br />
het zwarte gat hebt gegooid, <strong>of</strong> het nou een fles was waar nog statiegeld op zat (dat<br />
statiegeld kunt u dan trouwens wel vergeten) <strong>of</strong> een tafel <strong>of</strong> een stoel, er komt altijd<br />
hetzelfde uit.<br />
Tja, zult u zich afvragen, hoe kan dat eigenlijk? Zwarte gaten zijn toch van die<br />
zware sterren waar de ontsnappingssnelheid groter is dan de lichtsnelheid. En niks<br />
kan sneller dan het licht. Dus niks kan ontsnappen, zelfs licht niet. Hoe kunnen die<br />
deeltjes dan wèl ontsnappen?<br />
Vacuüm is niet niks<br />
Helemaal niks bestaat niet in de kwantum mechanica. De onzekerheidsrelaties van<br />
Heisenberg vertellen ons dat dat niet kan. In de kwantum mechanica is namelijk niks<br />
zeker, en als het vacuüm echt helemaal leeg zou zijn, zou u zeker weten dat het exact
8. Outlook 88<br />
leeg is, maar aangezien niks zeker is, kan vacuüm dus simpelweg niet helemaal leeg<br />
zijn. Volgt u het nog?<br />
De natuur lost dit probleem op een wonderbaarlijke manier op. Er worden constant<br />
paren deeltjes en antideeltjes uit het niks gevormd die snel weer verdwijnen door tegen<br />
elkaar aan te botsen (zie figuur 8.3). Zulke deeltjes heten ‘virtuele deeltjes’.<br />
Fig. 8.3: Het vacuüm is niet niks. Er worden constant paren deeltjes en antideeltjes uit het<br />
niks gevormd die snel weer verdwijnen door tegen elkaar aan te botsen. Deze deeltjes<br />
noemen we virtuele deeltjes.<br />
Maar om op het verhaal van de zwarte gaten terug te komen: stelt u zich eens voor<br />
dat er zo een deeltje-antideeltje paar wordt gevormd net naast een zwart gat. Het kan<br />
dan gebeuren dat het antideeltje het zwarte gat invalt, terwijl het deeltje de <strong>and</strong>ere kant<br />
op gaat. Ze kunnen dan niet meer tegen elkaar aanbotsen en verdwijnen. Voor ons lijkt<br />
het er dan op <strong>of</strong> er een deeltje door het zwarte gat is uitgezonden (zie figuur 8.4).<br />
De energie van het zwarte gat neemt op deze manier af. Denk maar aan energiebe-<br />
houd. Het deeltje wat onze kant op is gevlogen heeft een zekere energie en omdat<br />
energie behouden is moet het zwarte gat wel een zelfde hoeveelheid energie zijn ver-<br />
loren. Nu is energie via E = mc 2 equivalent is aan massa. We zien dus dat een zwart<br />
gat op deze manier massa kwijtraakt. Dit is het Hawking effect.
8. Outlook 89<br />
Fig. 8.4: Virtuele deeltjes in de buurt van een zwart gat.<br />
Kwantum zwarte gaten<br />
Waarom is het eigenlijk interessant om zwarte gaten te bestuderen? Daar zijn meerdere<br />
redenen voor. De belangrijkste is dat zwarte gaten zowel erg zwaar als erg klein zijn.<br />
Daarom kan men natuurkundige theorieën die gebruikt worden om zwarte gaten te<br />
beschrijven ook gebruiken om de Big Bang te bestuderen. Toen was immers ook alle<br />
materie heel dicht op elkaar gepakt.<br />
Voor de meeste verschijnselen in de natuur volstaat het om <strong>of</strong>wel kwantum me-<br />
chanica <strong>of</strong>wel relativiteitstheorie te gebruiken. Maar voor het bestuderen van een zwart<br />
gat zijn allebei de theorieën tegelijk nodig en dat brengt een lastig probleem met zich<br />
mee. Het punt is dat kwantum mechanica en relativiteitstheorie elkaar niet zo mogen.<br />
Zodra men berekeningen gaat doen waarbij beide theorieën tegelijk gebruikt worden,<br />
komt er steeds een vervelend ‘oneindig’ uit. Er is dus een nieuwe theorie - zeg maar<br />
een theorie van ‘kwantum gravitatie’ - nodig om verder te komen. Momenteel is de<br />
enige serieuze k<strong>and</strong>idaat voor zo een theorie de snaartheorie. Deze scriptie gaat voor<br />
een groot gedeelte over hoe men gebruik makend van snaartheorie een goed begrip van<br />
zwarte gaten kan krijgen. Aan de <strong>and</strong>ere kant kan een goed begrip van zwarte gaten de<br />
snaartheorie, die nog steeds een theorie in wording is, wellicht een stap verder brengen.
BIBLIOGRAPHY<br />
[1] J. M. Bardeen, B. Carter, <strong>and</strong> S. W. Hawking, “The Four laws <strong>of</strong> <strong>black</strong> hole<br />
mechanics”, Commun. Math. Phys. 31, 161–170, 1973.<br />
[2] S. W. Hawking, “Particle creation by <strong>black</strong> holes”, Commun. Math. Phys. 43,<br />
199–220, 1975.<br />
[3] S. W. Hawking, “Breakdown <strong>of</strong> predictablility in gravitational collapse”, Phys.<br />
Rev. D14, 2460–2473, 1976.<br />
[4] L. Susskind, “Some speculations about <strong>black</strong> hole entropy in string theory”,<br />
1993, [arXiv:hep-th/9309145].<br />
[5] G. T. Horowitz <strong>and</strong> J. Polchinski, “A correspondence principle for <strong>black</strong> holes<br />
<strong>and</strong> strings”, Phys. Rev. D55, 6189–6197, 1997, [arXiv:hep-th/9612146].<br />
[6] G. W. Gibbons, “Supersymmetric soliton states in extended supergravity the-<br />
ories”, In: Proceedings, Unified theories <strong>of</strong> elementary particles, 145-151,<br />
München 1981.<br />
[7] J. Polchinski, “Dirichlet-branes <strong>and</strong> Ramond-Ramond charges”, Phys. Rev. Lett.<br />
75, 4724–4727, 1995, [arXiv:hep-th/9510017].<br />
[8] A. Strominger <strong>and</strong> C. Vafa, “Microscopic origin <strong>of</strong> the Bekenstein-Hawking en-<br />
tropy”, Phys. Lett. B379, 99–104, 1996, [arXiv:hep-th/9601029].<br />
[9] J. B. Hartle <strong>and</strong> S. W. Hawking, “Solutions <strong>of</strong> the Einstein-Maxwell equations<br />
with many <strong>black</strong> holes”, Commun. Math. Phys. 26, 87–101, 1972.
Bibliography 91<br />
[10] S. M. Carroll, Spacetime <strong>and</strong> geometry: An introduction to general relativity,<br />
Addison-Wesley, 2004.<br />
[11] R. M. Wald, General Relativity, Chicago University Press, 1984.<br />
[12] S. W. Hawking <strong>and</strong> G. F. R. Ellis, The large scale <strong>structure</strong> <strong>of</strong> space-time, Cam-<br />
bridge University Press, 1973.<br />
[13] R. P. Kerr, “Gravitational field <strong>of</strong> a spinning mass as an example <strong>of</strong> algebraically<br />
special metrics”, Phys. Rev. Lett. 11, 237–238, 1963.<br />
[14] E. T. Newman, E. Couch, K. Chinnapared, A. Exon, A. Prakash, <strong>and</strong> R. Torrence,<br />
“Metric <strong>of</strong> a Rotating Charged Mass”, J. Math. Phys. 6, 918–919, 1965.<br />
[15] J. D. Bekenstein, “Generalized second law <strong>of</strong> thermodynamics in <strong>black</strong> hole<br />
physics”, Phys. Rev. D9, 3292–3300, 1974.<br />
[16] G. ’t Ho<strong>of</strong>t, “Dimensional reduction in quantum gravity”, 1993, [arXiv:gr-<br />
qc/9310026].<br />
[17] J. M. Maldacena, “The large N limit <strong>of</strong> superconformal field theories <strong>and</strong> super-<br />
gravity”’, Adv. Theor. Math. Phys. 2, 231–252, 1998, [arXiv:hep-th/9711200].<br />
[18] T. Jacobson, “Thermodynamics <strong>of</strong> space-time: The Einstein equation <strong>of</strong> state”,<br />
Phys. Rev. Lett. 75, 1260–1263, 1995, [arXiv:gr-qc/9504004].<br />
[19] W. G. Unruh, “Notes on <strong>black</strong> hole evaporation”, Phys. Rev. D14, 870, 1976.<br />
[20] R. M. Wald, “Black hole entropy in the Noether charge”, Phys. Rev. D48, 3427–<br />
3431, 1993, [arXiv:gr-qc/9307038].<br />
[21] G. Lopes Cardoso, B. de Wit, <strong>and</strong> T. Mohaupt, “Corrections to <strong>macroscopic</strong> su-<br />
persymmetric <strong>black</strong>-hole entropy”, Phys. Lett. B451, 309–316, 1999, [arXiv:hep-<br />
th/9812082].<br />
[22] G. ’t Ho<strong>of</strong>t, “Quantum gravity <strong>and</strong> <strong>black</strong> holes”, In: Proceedings, Nonperturba-<br />
tive quatum field theory, 201-226, Cargese 1987.
Bibliography 92<br />
[23] N. D. Birrell <strong>and</strong> P. C. W. Davies, Quantum fields in curved space, Cambridge<br />
University Press, 1982.<br />
[24] L. H. Ryder, Quantum field theory, Cambridge University Press, 1985.<br />
[25] L. Smarr, “Mass formula for Kerr <strong>black</strong> holes”, Phys. Rev. Lett. 30, 71–73, 1973.<br />
[26] J. Polchinski, String Theory (two volumes), Cambridge University Press, 1998.<br />
[27] J. M. Maldacena, Black holes in string theory, Ph.D. thesis, Princeton University,<br />
1996, [arXiv:hep-th/9607235].<br />
[28] K. Skenderis, “Black holes <strong>and</strong> branes in string theory”, Lect. Notes Phys. 541,<br />
325–364, 2000, [arXiv:hep-th/9901050].<br />
[29] A. W. Peet, “TASI lectures on <strong>black</strong> holes in string theory”, 2000, [arXiv:hep-<br />
th/0008241].<br />
[30] T. Mohaupt, “Black holes in supergravity <strong>and</strong> string theory”, Class. Quant. Grav.<br />
17, 3429–3482, 2000, [arXiv:hep-th/0004098].<br />
[31] D. Bailin <strong>and</strong> A. Love, Cosmology in gauge field theory <strong>and</strong> string theory, Bris-<br />
tol, IOP, 2004.<br />
[32] C. V. Johnson, D-branes, Cambridge University Press, 2003.<br />
[33] G. T. Horowitz <strong>and</strong> A. Strominger, “Black strings <strong>and</strong> p-branes”, Nucl. Phys.<br />
B360, 197–209, 1991.<br />
[34] J. Polchinski, S. Chaudhuri, <strong>and</strong> C. V. Johnson, “Notes on D-Branes”, 1996,<br />
[arXiv:hep-th/9602052].<br />
[35] A. A. Tseytlin, “Harmonic superpositions <strong>of</strong> M-branes”, Nucl. Phys. B475, 149–<br />
163, 1996, [arXiv:hep-th/9604035].<br />
[36] S. D. Mathur, “The fuzzball proposal for <strong>black</strong> holes: An elementary review”,<br />
Fortsch. Phys. 53, 793–827, 2005, [arXiv:hep-th/0502050].
Bibliography 93<br />
[37] C. G. J. Jacobi, Fundamenta Nova Theoriae Functionarum Ellipticarum,<br />
Bornträger, Köninsberg, 1829, reprinted in Gesammelte Werke, vol. 1, 49-239.<br />
[38] M. Eichler <strong>and</strong> D. Zagier, The Theory <strong>of</strong> Jacobi Forms, Birkhäuser, 1985.<br />
[39] C. D. D. Neumann, “The elliptic genus <strong>of</strong> Calabi-Yau 3-folds <strong>and</strong> 4-folds, product<br />
formulae <strong>and</strong> generalized Kac-Moody algebras”, J. Geom. Phys. 29, 5–12, 1999,<br />
[arXiv:hep-th/9607029].<br />
[40] P. L<strong>and</strong>weber (Ed.), Elliptic curves <strong>and</strong> modular forms in algebraic topology,<br />
Lecture Notes in Mathamatics 1326, Springer-Verlag, 1986.<br />
[41] T. Kawai, Y. Yamada, <strong>and</strong> S. Yang, “Elliptic genera <strong>and</strong> N=2 superconformal<br />
field theory”, Nucl. Phys. B414, 191–212, 1994, [arXiv:hep-th/9306096].<br />
[42] R. Dijkgraaf, G. W. Moore, E. P. Verlinde, <strong>and</strong> H. L. Verlinde, “Elliptic genera <strong>of</strong><br />
symmetric products <strong>and</strong> second quantized strings”, Commun. Math. Phys. 185,<br />
197–209, 1997, [arXiv:hep-th/9608096].<br />
[43] M. Nakahara, Geometry, topology <strong>and</strong> physics, Bristol, IOP, 1990.<br />
[44] R. Hartshorne, Algebraic Geometry, Springer, 1977.<br />
[45] R. Dijkgraaf, E. P. Verlinde, <strong>and</strong> H. L. Verlinde, “Counting dyons in N = 4 string<br />
theory”, Nucl. Phys. B484, 543–561, 1997, [arXiv:hep-th/9607026].<br />
[46] D. Shih, A. Strominger, <strong>and</strong> X. Yin, “Recounting dyons in N = 4 string theory”,<br />
2005, [arXiv:hep-th/0505094].<br />
[47] P. A. M. Dirac, “Quantised singularities in the electromagnetic field”, Proc. Roy.<br />
Soc. Lond. A133, 60–72, 1931.<br />
[48] E. Witten, “Dyons <strong>of</strong> charge eθ/2π”, Phys. Lett. B86, 283–287, 1979.<br />
[49] M. Cvetic <strong>and</strong> A. A. Tseytlin, “Solitonic strings <strong>and</strong> BPS saturated dyonic <strong>black</strong><br />
holes”, Phys. Rev. D53, 5619–5633, 1996, [arXiv:hep-th/9512031].
Bibliography 94<br />
[50] S. Ferrara <strong>and</strong> R. Kallosh, “Supersymmetry <strong>and</strong> Attractors”, Phys. Rev. D54,<br />
1514–1524, 1996, [arXiv:hep-th/9602136].<br />
[51] G. Lopes Cardoso, B. de Wit, J. Kappeli, <strong>and</strong> T. Mohaupt, “Asymptotic degener-<br />
acy <strong>of</strong> dyonic N = 4 string states <strong>and</strong> <strong>black</strong> hole entropy”, JHEP 12, 075, 2004,<br />
[arXiv:hep-th/0412287].<br />
[52] B. Pioline, “Lectures on <strong>black</strong> holes, topological strings <strong>and</strong> quantum attractors”,<br />
2006, [arXiv:hep-th/0607227].<br />
[53] J. Callan, C. G. <strong>and</strong> J. M. Maldacena, “D-brane Approach to Black Hole Quan-<br />
tum Mechanics”, Nucl. Phys. B472, 591–610, 1996, [arXiv:hep-th/9602043].<br />
[54] J. de Boer, C. N. Cheng, R. Dijkgraaf, J. Manschot, <strong>and</strong> E. Verlinde, “A Farey<br />
tail for attractor <strong>black</strong> holes”, 2006, [arXiv:hep-th/0608059].<br />
[55] H. Ooguri, A. Strominger, <strong>and</strong> C. Vafa, “Black hole attractors <strong>and</strong> the topological<br />
string”, Phys. Rev. D70, 106007, 2004, [arXiv:hep-th/0405146].
