ti7003.N - Ronda

A
B
C

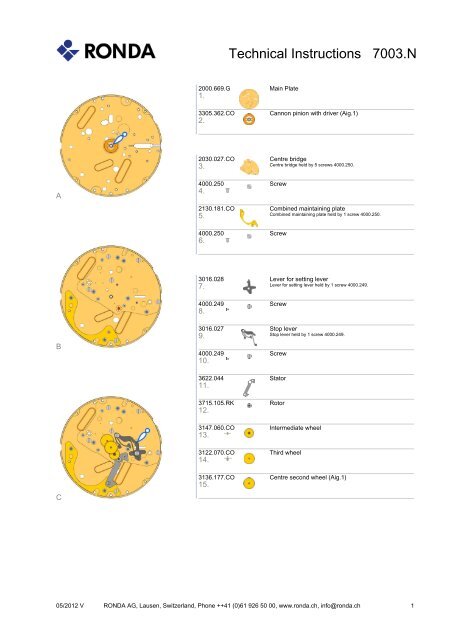

Technical Instructions 7003.N
2000.669.G Main Plate
1.
3305.362.CO Cannon pinion with driver (Aig.1)
2.
2030.027.CO Centre bridge
3.
Centre bridge held by 5 screws 4000.250.
4000.250 Screw
4.
2130.181.CO Combined maintaining plate
5.
Combined maintaining plate held by 1 screw 4000.250.
4000.250 Screw
6.
3016.028 Lever for setting lever
7.
Lever for setting lever held by 1 screw 4000.249.
4000.249 Screw
8.
3016.027 Stop lever
9.
Stop lever held by 1 screw 4000.249.
4000.249 Screw
10.
3622.044 Stator
11.
3715.105.RK Rotor
12.
3147.060.CO Intermediate wheel
13.
3122.070.CO Third wheel
14.
3136.177.CO Centre second wheel (Aig.1)
15.
05/2012 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 1

D
E
F
Technical Instructions 7003.N
2020.169.G Train wheel bridge
16.
Train wheel bridge held by 3 screws 4000.244.
4000.244 Screws
17.
3603.080 Battery insulator
18.
3601.120.G Battery clamp +
19.
Battery clamp held by 1 screw 4000.248.
4000.248 Screw
20.
3503.071 Tube
21.
3612.195 Electronic module
22.
Electronic module held by 4 screws 4000.250.
4000.250 Screw
23.
3603.081 Spacer
24.
2130.182.G.M01.7003N Electronic module cover
25.
Electronic module cover held by 4 screws 4000.244.
4000.244 Screws
26.
3600.032.HGF Battery 381
27.
05/2012 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 2

G
H
I
Technical Instructions 7003.N
2000.669.G Main Plate
28.
3017.054.CO Setting lever
29.
3905.063 Setting lever jumper (3 positions)
30.
The setting lever jumper must be tensioned and inserted into the
setting lever. Use one screw 4000.282. Use Moebius 8200 to grease.
4000.282 Screw
31.
3001.046 Sliding pinion
32.
3015.077 Yoke (3 positions)
33.
Tensioning the spring arm.
3004.200 Corrector setting wheel
34.
Use Moebius 8200 on both setting wheels.
3004.200 Corrector setting wheel
35.
Use Moebius 8200 on both setting wheels.
3015.078.CO Rocking bar (3 positions)
36.
Tensioning the spring arm.
2130.194 Setting mechanism cover
37.
Use 4 screws 4000.305
4000.305 4 Screws
38.
3000.194.CO Setting stem
39.
Prior to the insertion of the stem, some greace must be placed on the
square part of the stem.
3004.204 Intermediate setting wheel
40.
Use moebius 9020.
3007.079.CO Minute wheel
41.
Use moebius 9020.
2130.185 Minute train bridge
42.
Insert the minute train bridge in the main plate and fix it with 1 screw
4000.278.
4000.278 Screw
43.
3301.296.CO Hour wheel (Aig.1)
44.
Use moebius 9020.
3147.066.CO Date corrector setting wheel
45.
05/2012 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 3

J
K
L
Technical Instructions 7003.N
2000.672.G Main plate retro (12h)
46.
Main plate retro held by 4 screws 4000.248.
4000.248 Screw
47.
3004.220 Tens indicator driving wheel
48.
The short tooth of the tens indicator driving wheel must point to the
center of the movement.
3500.072 Tens jumper
49.
2130.187 Tens jumper maintaining plate
50.
Tens jumper maintaining plate held by 2 screws 4000.279.Tensioning
the spring arm.
4000.279 Screw
51.
3004.208.CO Date indicator driving wheel
52.
3147.061 Intermediate date wheel
53.
3404.006.CO Day cam (12h)
54.
Place parts as shown on graphics.
3406.032 Day rack
55.
3406.031 Day rack lever
56.
3507.059.CO Date corrector wheel
57.
2130.191 Date indicator plate (12h)
58.
3905.068 Date corrector spring
59.
Date corrector spring held by 1 screw 4000.244.
3905.066 Day rack lever spring
60.
Tensioning the spring arm.
3500.069 Day jumper
61.
Tensioning the spring arm.
3500.068 Date jumper
62.
3504.234.AD.1.A Units indicator (standard)
63.
Nick of the indicator at 3 o`clock.
05/2012 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 4

M
N
O
Technical Instructions 7003.N
2130.192 Date maintaining plate (12)
64.
Date maintaining plate held by 1 screw 4000.250.
4000.250 Screw
65.
3905.064 Date jumper spring
66.
Insert the date jumper spring in the provided opening.
3004.244 Day finger
67.
Stem pos III: Turn crown forwards until the date jumps. Stem pos II:
Move the date until the nick is at 3 o`clock. Position the end of the
teeth against the day came pinion while turning softly in
counterclockwise direction.
3004.212 Days driving wheel
68.
Insert the tooth of the wheel in the flange gap, while turning softly in
counterclockwise direction to ensure correct position of the day finger.
3401.082.FI Day indicator pinion
69.
3147.062 Tens intermediate wheel
70.
Place the arrow of the tens intermediate wheel in front of the half tooth
of the tens indicator driving wheel.
3315.003 Friction spring
71.
3504.231.AD.1.A Tens indicator (standard)
72.
Nick of the indicator at 3 o`clock.
2130.193.G Date mechanism maintaining plate (12h)
73.
Date mechanism maintaining plate held by 3 screws 4000.320.
4000.320 Screw
74.
3506.077.G Intermediate dial support
75.
Polished version first.
3506.076.G Dial support
76.
8200 Moebius 8200
77.
9014 Moebius 9014
78.
124 Jismaa 124
79.
9020 Moebius 9020
80.
05/2012 V RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch 5

Electronic measurements 7003.N
Battery 381
Voltage 1.55 V
Setting stem in position I, calendar not in gear,
60 s measuring interval for rate and consumption:
Typical consumption
Maximal consumption
1.32 µA
3.10 µA
Instantaneous rate -10s/M. .. +20s/M.
Lower working voltage limit 1.30 V
Setting stem in position III, 60 s measuring interval:
Typical consumption
Maximal consumption
0.10 µA
0.30 µA
03/2012 RONDA AG, Lausen, Switzerland, Phone ++41 (0)61 926 50 00, www.ronda.ch, info@ronda.ch EM 1
