Sida<br />

Page<br />

F-<strong>12</strong><br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

Reservdelskatalog<br />

Parts Catalogue<br />

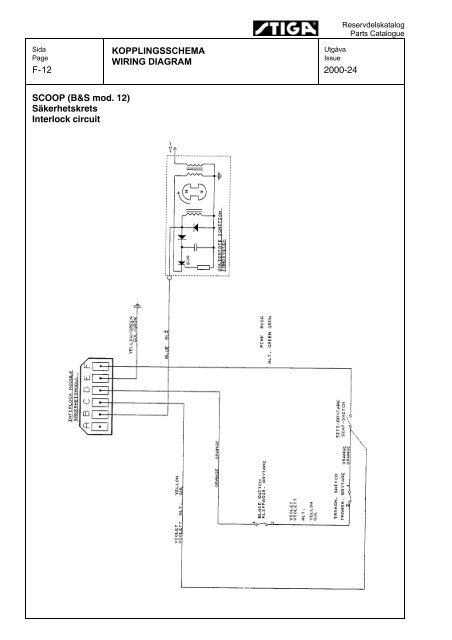

<strong>SCOOP</strong> (B&S <strong>mod</strong>. <strong>12</strong>)<br />

Säkerhetskrets<br />

Interlock circuit


Reservdelskatalog<br />

Parts Catalogue<br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Sida<br />

Page<br />

F- 13<br />

<strong>SCOOP</strong> ES, <strong>SCOOP</strong> 972M, GARDEN<br />

Säkerhetskrets<br />

Interlock circuit


Sida<br />

Page<br />

F-14<br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

Reservdelskatalog<br />

Parts Catalogue<br />

<strong>SCOOP</strong> ES (B&S <strong>mod</strong>. <strong>12</strong>)<br />

Startkrets<br />

Starting circuit


Reservdelskatalog<br />

Parts Catalogue<br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Sida<br />

Page<br />

F- 15<br />

<strong>SCOOP</strong> 972M (B&S <strong>mod</strong>. 19), GARDEN<br />

Startkrets<br />

Starting circuit


Sida<br />

Page<br />

F-16<br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

Reservdelskatalog<br />

Parts Catalogue<br />

<strong>SCOOP</strong> ES, <strong>SCOOP</strong> 972M, GARDEN<br />

Laddningskrets<br />

Charging circuit


Reservdelskatalog<br />

Parts Catalogue<br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Sida<br />

Page<br />

F- 17<br />

<strong>SCOOP</strong> ES, <strong>SCOOP</strong> 972M, GARDEN<br />

Tändningskrets<br />

Ignition circuit


Sida<br />

Page<br />

F-18<br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

Reservdelskatalog<br />

Parts Catalogue<br />

VILLA (generation I)<br />

Säkerhetskrets<br />

Interlock circuit


Reservdelskatalog<br />

Parts Catalogue<br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Sida<br />

Page<br />

F- 19<br />

VILLA (generation I)<br />

Startkrets<br />

Starting circuit


Sida<br />

Page<br />

F-20<br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

Reservdelskatalog<br />

Parts Catalogue<br />

VILLA (generation I)<br />

Laddningskrets<br />

Charging circuit


Reservdelskatalog<br />

Parts Catalogue<br />

Utgåva<br />

Issue<br />

<strong>2000</strong>-<strong>24</strong><br />

KOPPLINGSSCHEMA<br />

<strong>WIRING</strong> <strong>DIAGRAM</strong><br />

Sida<br />

Page<br />

F- 21<br />

VILLA (generation I)<br />

Tändningskrets<br />

Ignition circuit
