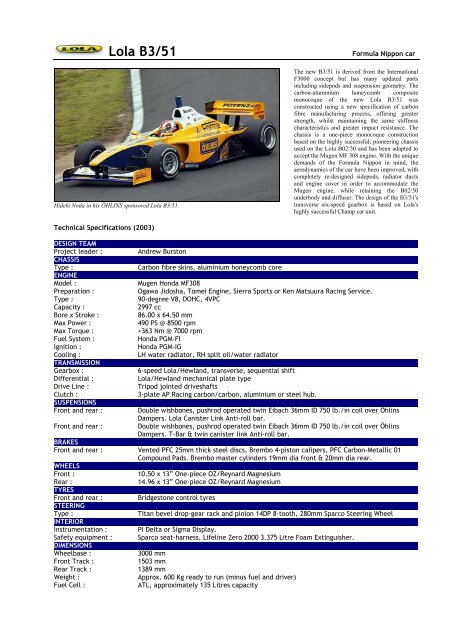

<strong>Lola</strong> <strong>B3</strong>/<strong>51</strong> Formula Nippon car<br />
Hideki Noda in his ÖHLINS sponsored <strong>Lola</strong> <strong>B3</strong>/<strong>51</strong>.<br />
Technical Specifications (20<strong>03</strong>)<br />
The new <strong>B3</strong>/<strong>51</strong> is derived from the International<br />
F3000 concept but has many updated parts<br />
including sidepods and suspension geometry. The<br />
carbon-aluminium honeycomb composite<br />
monocoque of the new <strong>Lola</strong> <strong>B3</strong>/<strong>51</strong> was<br />
constructed using a new specification of carbon<br />
fibre manufacturing process, offering greater<br />
strength, whilst maintaining the same stiffness<br />
characteristics and greater impact resistance. The<br />
chassis is a one-piece monocoque construction<br />
based on the highly successful; pioneering chassis<br />
used on the <strong>Lola</strong> B02/50 and has been adapted to<br />
accept the Mugen MF 308 engine. With the unique<br />
demands of the Formula Nippon in mind, the<br />
aerodynamics of the car have been improved, with<br />
completely re-designed sidepods, radiator ducts<br />
and engine cover in order to accommodate the<br />
Mugen engine, while retaining the B02/50<br />
underbody and diffuser. The design of the <strong>B3</strong>/<strong>51</strong>'s<br />
transverse six-speed gearbox is based on <strong>Lola</strong>'s<br />
highly successful Champ car unit.<br />
DESIGN TEAM<br />
Project leader : Andrew Burston<br />
CHASSIS<br />
Type : Carbon fibre skins, aluminium honeycomb core<br />
ENGINE<br />
Model : Mugen Honda MF308<br />
Preparation : Ogawa Jidosha, Tomei Engine, Sierra Sports or Ken Matsuura Racing Service.<br />
Type : 90-degree V8, DOHC, 4VPC<br />
Capacity : 2997 cc<br />
Bore x Stroke : 86.00 x 64.50 mm<br />
Max Power : 490 PS @ 8500 rpm<br />
Max Torque : +363 Nm @ 7000 rpm<br />
Fuel System : Honda PGM-FI<br />
Ignition : Honda PGM-IG<br />
Cooling : LH water radiator, RH split oil/water radiator<br />
TRANSMISSION<br />
Gearbox : 6-speed <strong>Lola</strong>/Hewland, transverse, sequential shift<br />
Differential : <strong>Lola</strong>/Hewland mechanical plate type<br />
Drive Line : Tripod jointed driveshafts<br />
Clutch : 3-plate AP Racing carbon/carbon, aluminium or steel hub.<br />
SUSPENSIONS<br />
Front and rear : Double wishbones, pushrod operated twin Eibach 36mm ID 750 lb./in coil over Öhlins<br />
Dampers. <strong>Lola</strong> Canister Link Anti-roll bar.<br />
Front and rear : Double wishbones, pushrod operated twin Eibach 36mm ID 750 lb./in coil over Öhlins<br />
Dampers. T-Bar & twin canister link Anti-roll bar.<br />
BRAKES<br />
Front and rear : Vented PFC 25mm thick steel discs, Brembo 4-piston calipers, PFC Carbon-Metallic 01<br />
Compound Pads. Brembo master cylinders 19mm dia front & 20mm dia rear.<br />
WHEELS<br />
Front : 10.50 x 13” One-piece OZ/Reynard Magnesium<br />
Rear : 14.96 x 13” One-piece OZ/Reynard Magnesium<br />
TYRES<br />
Front and rear : Bridgestone control tyres<br />
STEERING<br />
Type : Titan bevel drop-gear rack and pinion 14DP 8-tooth, 280mm Sparco Steering Wheel<br />
INTERIOR<br />
Instrumentation : PI Delta or Sigma Display.<br />
Safety equipment : Sparco seat-harness, Lifeline Zero 2000 3.375 Litre Foam Extinguisher.<br />
DIMENSIONS<br />
Wheelbase : 3000 mm<br />
Front Track : 15<strong>03</strong> mm<br />
Rear Track : 1389 mm<br />
Weight : Approx. 600 Kg ready to run (minus fuel and driver)<br />
Fuel Cell : ATL, approximately 135 Litres capacity
LOLA ANNOUNCES CONTRACT TO SUPPLY CHASSIS FOR 20<strong>03</strong> FORMULA NIPPON 30/09/2002<br />
World's leading racing car constructors win prestigious order from Japan's top formula.<br />
Huntingdon, England. - <strong>Lola</strong> Cars International today announced the completion of a formal agreement between the<br />
company and Japan Racing Promotions (JRP), organisers of the Japanese Formula Nippon Championship, to supply<br />
<strong>Lola</strong>'s <strong>03</strong>/<strong>51</strong> chassis for the Nippon series for the forthcoming 20<strong>03</strong> and subsequent race seasons. With strong grid<br />
numbers, excellent television and high sponsor involvement, Formula Nippon is again set to continue its impressive<br />
growth. The Formula has long been established as a very positive career option for race drivers headed towards<br />
Formula One. Of the current Grand Prix drivers, Michael Schumacher, Jacques Villeneuve, Ralf Schumacher (Nippon<br />
Champion 1996), Eddie Irvine, Pedro de la Rosa (Nippon Champion 1997) and Mika Salo have all raced in Nippon, en<br />
route to Formula One. Formula Nippon began in April 1996 as the replacement of the former Japanese Formula 3000<br />
Championship and has developed since this time with safety and performance always being the two most important<br />
criteria for the series. The 20<strong>03</strong> <strong>Lola</strong> Nippon chassis, for the next generation of the Formula, is a new specification<br />
from <strong>Lola</strong> which upholds the ethos of the Championship for highly competitive, safe, racing. The 20<strong>03</strong> formula will<br />
run Honda Mugen engines, Bridgestone slick tyres and advanced wing and suspension packages. The move into<br />
Formula Nippon marks a return to Japan for <strong>Lola</strong>, the company having enjoyed great success there during the 1980's<br />
and early 1990's, before <strong>Lola</strong> then re-focussed on the US Champ Car Series. Rick Gorne, international consultant for<br />
<strong>Lola</strong> Cars International, has been working with Katsu Homma, JRP director, to finalise the arrangements for the<br />
introduction of the <strong>Lola</strong> chassis. Gorne says, "<strong>Lola</strong> has all the credentials required of a chassis manufacturer for this<br />
Championship, with so much of the company's experience being highly relevant. Both the JRP and <strong>Lola</strong> know that it is<br />
important for F Nippon to have a chassis of the very highest international technical standards. The new <strong>Lola</strong> <strong>B3</strong>/<strong>51</strong><br />
will fulfil this need and ensure that the teams racing in F Nippon will be equipped with a sophisticated chassis that<br />
offers all the safety and performance advantages expected from the world's leading customer racecar company."<br />
Katsu Homma of Japan Racing Promotions outlined the decision to award <strong>Lola</strong> the new contract by saying, "Bringing<br />
<strong>Lola</strong> on board with the Formula Nippon Championship to deliver the next generation chassis is a new departure for us,<br />
but is a very welcome progression. It will allow us to maintain the cost controls required, while providing us with a<br />
high specification racecar. We're looking forward to working with <strong>Lola</strong> to introduce the new car next season, after an<br />
extensive test programme." "This is an important new racecar for our portfolio," says Martin Birrane, Chairman, <strong>Lola</strong><br />
Cars International. "It is a prestigious contract for one of the top class series in motorsport today. So many young<br />
drivers experience Formula Nippon on their way to the top and we're pleased that we're once more supplying this<br />
excellent Championship."<br />
20<strong>03</strong> FORMULA NIPPON ENTRY LIST<br />
Team – Team Director – Car No. – Driver, age – Nation – Date of Birth – Chassis – Engine – Tuner<br />
PIAA NAKAJIMA RACING – Satoru Nakajima<br />
1 Takashi Kogure, 23 JPN 1980.08.01 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
2 André Lotterer, 22 GER 1981.10.19 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
OLYMPIC KONDO RACING TEAM – Masahiko Kondo<br />
3 Yuji Tachikawa, 28 JPN 1975.07.05 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
4 Dominik Schwager , 27 GER 1976.09.18 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
TEAM 5ZIGEN – Keiji Matsumoto<br />
5 Ryo Michigami, 30 JPN 1973.<strong>03</strong>.01 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
6 James Courtney, 23 AUS 1980.06.29 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
6 Ryo Fukida, 24 JPN 1979.06.26 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
TEAM LE MANS – Hiroyoshi Donuma<br />
7 Toshihiro Kaneishi, 24 JPN 1978.12.19 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
8 Takeshi Tsuchiya, 31 JPN 1972.11.04 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
PLANEX EBBRO NOVA – Katsumi Kiyohara<br />
9 Haruki Kurosawa, 26 JPN 1977.09.26 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
OIZUMI TEAM NOVA – Katsumi Kiyohara<br />
10 Hiroki Katoh, 35 JPN 1968.02.23 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
10 Tetsuya Fujisawa, 38 JPN 1965.11.06 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
10 Yudai Igarashi, 25 JPN 1978.09.24 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
COSMO OIL RACING TEAM CERUMO – Naosuke Osawa<br />
11 Tsugio Matsuda, 24 JPN 1979.06.18 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
12 Yuji Ide, 28 JPN 1975.01.21 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/OGAWA JIDOSHA<br />
TEAM IMPUL – Kazuyoshi Hoshino<br />
19 Satoshi Motoyama, 32 JPN 1971.<strong>03</strong>.04 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
20 Benoit Treluyer, 26 FRA 1976.12.07 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
TEAM 22 – Akio Morimoto<br />
22 Juichi Wakasaka, 31 JPN 1972.07.29 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
CARROZZERIA Team MOHN – Minoru Ooba<br />
28 Hideki Noda, 34 JPN 1969.<strong>03</strong>.07 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/SIERRA SPORTS<br />
DoCoMo TEAM DANDELION RACING – Norimitsu Yoshida<br />
40 Richard Lyons, 24 NIR 1979.08.08 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE<br />
41 Naoki Hattori, 37 JPN 1966.06.13 LOLA <strong>B3</strong>/<strong>51</strong> MUGEN MF308/TOMEI ENGINE
THE LOLA <strong>B3</strong>/<strong>51</strong> – DESCRIPTION<br />
<strong>Lola</strong> has competed in the highly competitive Japanese Formula Nippon series (Japan's premier national category)<br />
since entering the fray in 1987, winning the championship 8 times in 11 seasons, including in 1997 with Nova<br />
Engineering team and Pedro de la Rosa. 20<strong>03</strong> sees the first new Nippon car by <strong>Lola</strong> since the B99/<strong>51</strong>.The new <strong>B3</strong>/<strong>51</strong> is<br />
derived from the International F3000 concept but has many updated parts including sidepods and suspension<br />
geometry. Building on experience gained in cars for sole use in International series around the world over the last ten<br />
years and making full use of the company's increased technical capabilities and resources, <strong>Lola</strong> have designed the<br />
chassis to reflect the aesthetic qualities of contemporary Formula One cars, offering improved driver comfort and<br />
increased passive safety measures. The carbon-aluminium honeycomb composite monocoque of the new <strong>Lola</strong> <strong>B3</strong>/<strong>51</strong><br />
was constructed using a new specification of carbon fibre manufacturing process, offering greater strength, whilst<br />
maintaining the same stiffness characteristics and greater impact resistance. The chassis is a one-piece monocoque<br />
construction based on the highly successful; pioneering chassis used on the <strong>Lola</strong> B02/50 and has been adapted to<br />
accept the Mugen MF 308 engine. With the unique demands of the Formula Nippon in mind, the aerodynamics of the<br />
car have been improved, with completely re-designed sidepods, radiator ducts and engine cover in order to<br />
accommodate the Mugen engine, while retaining the B02/50 underbody and diffuser. The design of the hubs and<br />
suspension has been modified from the B02/50 to allow teams to continue to use their existing stock of wheels and<br />
tyres, underlining <strong>Lola</strong>'s commitment to helping teams control costs in the new formula. The proven braking system<br />
has been retained from the B2/50. The design of the <strong>B3</strong>/<strong>51</strong>'s transverse six-speed gearbox is based on <strong>Lola</strong>'s highly<br />
successful Champ car unit, allowing ratio changes to be made without removing the underbody or draining the oil.<br />
The gearbox has also been strengthened to accommodate the extra power and grip levels seen in Formula Nippon.<br />
<strong>Lola</strong> have taken the opportunities afforded by their world-wide racing experience and drawn on these to produce a<br />
car that has been designed specifically for Formula Nippon, but carries over many design features already proven to<br />
provide reliability, longevity and cost-effective performance.<br />
SUCCESSFUL TEST FOR LOLA FORMULA NIPPON CAR 27/11/2002<br />
Richard Lyons is first to sample <strong>B3</strong>/<strong>51</strong><br />
<strong>Lola</strong> Cars International debuted their brand new Formula Nippon car at Snetterton today yesterday with the <strong>B3</strong>/<strong>51</strong><br />
completing 65 trouble free laps. After morning fog delayed the test until lunchtime, Formula Nippon frontrunner<br />
Richard Lyons conducted the initial shakedown laps before embarking on more lengthy runs throughout the afternoon.<br />
The Ulsterman, who intends to compete with the chassis in next years Formula Nippon series was very impressed as<br />
he put the first miles on the car. " My initial impressions of the car are all good and we ran through everything that<br />
we had planned," said the 23-year-old."As the track conditions were tricky to say the least, the car handled<br />
excellently and gave me a lot of confidence. There is no doubt that it is a very capable car and to have no real<br />
problems at the very first test is encouraging." With the wet track making lap times unrepresentative the first test of<br />
the carbon-aluminium honeycomb composite chassis pleased Katsu Homma of Japan Racing Promotions, who was<br />
overseeing the test. "We are very excited by this solid start to the programme and our relationship with <strong>Lola</strong> Cars.<br />
The reliability and performance of the car are very confidence building." Co-ordinating the first run for the <strong>B3</strong>/<strong>51</strong> was<br />
<strong>Lola</strong>' s Formula Nippon project leader Andrew Burston who was more than pleased with the initial performance of the<br />
car. " We didn't manage to get off wet tyres but we found a reasonable balance after just a handful of laps. The test<br />
also proved to be 100% reliable so we are very satisfied." The first Formula Nippon chassis will now be freighted to<br />
Japan later this week where it will be prepared for another test at Motegi on December 17. <strong>Lola</strong> Cars will then be<br />
despatching another seventeen chassis direct to Japan by mid January. The car’s most striking features are the<br />
sidepods, radiator ducts and engine cover that houses the Mugen MF 308 engine. Several Zytek engineers were on<br />
hand at the test and were also pleased with the mating of the engine to the <strong>B3</strong>/<strong>51</strong>. <strong>Lola</strong> have taken the opportunities<br />
afforded by their world-wide racing experience and drawn on these to produce a car that has been designed<br />
specifically for Formula Nippon, but carries over many design features already proven to provide reliability, longevity<br />
and cost-effective performance. Building on experience gained in cars for sole use in International series around the<br />
world over the last ten years and making full use of the company's increased technical capabilities and resources,<br />
<strong>Lola</strong> have designed the chassis to reflect the aesthetic qualities of contemporary Formula One cars, offering improved<br />
driver comfort and increased passive safety measures.<br />
FORMULA NIPPON - THE STAR MAKER<br />
Formula Nippon replaced Formula 3000 in Japan. <strong>Lola</strong> chassis have won this Japanese premier national category,<br />
Formula Nippon title eight times in twelve years. <strong>Lola</strong> Cars International announced the completion of a formal<br />
agreement between the company and Japan Racing Promotions (JRP), organisers of the Japanese Formula Nippon<br />
Championship, to supply <strong>Lola</strong>'s <strong>03</strong>/<strong>51</strong> chassis for the Nippon series for the forthcoming 20<strong>03</strong> and subsequent race<br />
seasons. With strong grid numbers, excellent television and high sponsor involvement, Formula Nippon is again set to<br />
continue its impressive growth. The Formula has long been established as a very positive career option for race<br />
drivers headed towards Formula One. Of the current Grand Prix drivers, Michael Schumacher, Jacques Villeneuve,<br />
Ralf Schumacher (Nippon Champion 1996), Eddie Irvine, Pedro de la Rosa (Nippon Champion 1997) and Mika Salo have<br />
all raced in Nippon, en route to Formula One. More recently new Jordan F1 recruit Ralph Firman added his name to<br />
that exclusive list after he was crowned champion in 2002. The <strong>B3</strong>/<strong>51</strong> made its track debut at Snetterton in<br />
November 2002 with the <strong>B3</strong>/<strong>51</strong> completing 65 trouble free laps. Formula Nippon frontrunner Richard Lyons conducted<br />
the initial shakedown laps, the Ulsterman, who intends to compete with the chassis in next years Formula Nippon<br />
series was very impressed as he put the first miles on the car. "My initial impressions of the car are all good and we<br />
ran through everything that we had planned," said the 23-year-old. "As the track conditions were tricky to say the<br />
least, the car handled excellently and gave me a lot of confidence. There is no doubt that it is a very capable car and<br />
to have no real problems at the very first test is encouraging."
20<strong>03</strong> FORMULA NIPPON<br />
Rank No. Driver Team Rd.1 Rd.2 Rd.3 Rd.4 Rd.5 Rd.6 Rd.7 Rd.8 Rd.9 Rd.10 TOTAL<br />
1 19 SATOSHI MOTOYAMA IMPUL 10 10 10 0 0 10 6 0 6 4 56<br />
2 20 BENOIT TRELUYER IMPUL 0 6 0 0 6 3 10 10 0 0 35<br />
3 22 JUICHI WAKISAKA TEAM 22 0 2 0 10 4 4 0 1 0 10 31<br />
4 7 TOSHIHIRO KANEISHI LeMans 4 0 2 0 0 0 0 6 10 0 22<br />
4 2 ANDRE LOTTERER PIAA NAKAJIMA 6 3 0 1 0 6 4 0 2 0 22<br />
6 40 RICHARD LYONS DoCoMo 0 0 0 4 10 2 0 0 4 0 20<br />
7 12 YUJI IDE COSMO OIL 3 0 4 6 0 0 0 4 0 2 19<br />
8 8 TAKESHI TSUCHIYA LeMans 0 0 6 3 2 0 1 0 1 3 16<br />
9 5 RYO MICHIGAMI 5ZIGEN 0 4 3 2 3 0 0 0 0 1 13<br />
10 1 TAKASHI KOGURE PIAA NAKAJIMA 0 1 0 0 1 0 0 0 3 6 11<br />
11 11 TSUGIO MATSUDA COSMO OIL 2 0 0 0 0 1 2 2 0 0 7<br />
12 41 NAOKI HATTORI DoCoMo 0 0 0 0 0 0 0 3 0 0 3<br />
6 JAMES COURTNEY 5ZIGEN - - - - - - 3 0 0 0 3<br />
14 28 HIDEKI NODA CARROZZERIA M. 1 0 0 0 0 0 0 0 0 0 1<br />
6 RYO FUKUDA 5ZIGEN 0 0 1 0 0 - - - - - 1<br />
Round 1 22-23March Suzuka Circuit<br />
Round 2 5-6 April Fuji Speedway<br />
Round 3 26-27 April MINE Circuit<br />
Round 4 7-8 June Twin Ring Motegi<br />
Round 5 5-6 July Suzuka Circuit<br />
IMAGE GALLERY<br />
Round 6 26-2 July Sportsland SUGO<br />
Round 7 30-31 Aug. Fuji Speedway<br />
Round 8 20- 21 Sept. MINE Circuit<br />
Round 9 18-19 Oct. Twin Ring Motegi<br />
Round 10 1-2 Nov. Suzuka Circuit<br />
Tsugio Matsuda in his COSMO OILS sponsored machine. Yudai Igarashi at Suzuka ’<strong>03</strong>.<br />
Dominik Schwager at Fuji Speedway with his OLYMPIC TEAM KONDO <strong>Lola</strong> <strong>B3</strong>/<strong>51</strong>.<br />
SOURCES<br />
http://www.so-net.ne.jp/yuratakuya/showten/customcar/p4.html<br />
http://www.so-net.ne.jp/s-taikyu/sprgl/index_pg20<strong>03</strong>.html<br />
http://www.mugen-power.com/en/fne.htm<br />
http://www.superfaiths.com/mugen/fnippon/team.html<br />
http://www.dandelion-racing.com/machine20<strong>03</strong>.html<br />
http://www.lola-group.com/site/press/f3000-intro.cfm?choice=2&edit_id=746<br />
http://www.f-nippon.co.jp/indexe.html<br />
© Compilation by Rainer Nyberg 20<strong>03</strong>-11-05 Fact-sheet <strong>03</strong>/120
