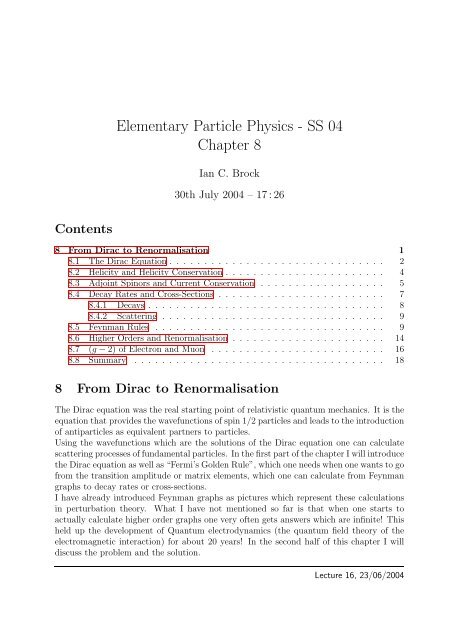

Contents<br />
<strong>Elementary</strong> <strong>Particle</strong> <strong>Physics</strong> - <strong>SS</strong> <strong>04</strong><br />
<strong>Chapter</strong> 8<br />
Ian C. Brock<br />
30th July 20<strong>04</strong> – 17 : 26<br />
8 From Dirac to Renormalisation 1<br />
8.1 The Dirac Equation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2<br />
8.2 Helicity and Helicity Conservation . . . . . . . . . . . . . . . . . . . . . . . 4<br />
8.3 Adjoint Spinors and Current Conservation . . . . . . . . . . . . . . . . . . 5<br />
8.4 Decay Rates and Cross-Sections . . . . . . . . . . . . . . . . . . . . . . . . 7<br />
8.4.1 Decays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8<br />
8.4.2 Scattering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9<br />
8.5 Feynman Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9<br />
8.6 Higher Orders and Renormalisation . . . . . . . . . . . . . . . . . . . . . . 14<br />
8.7 (g − 2) of Electron and Muon . . . . . . . . . . . . . . . . . . . . . . . . . 16<br />
8.8 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18<br />
8 From Dirac to Renormalisation<br />
The Dirac equation was the real starting point of relativistic quantum mechanics. It is the<br />
equation that provides the wavefunctions of spin 1/2 particles and leads to the introduction<br />
of antiparticles as equivalent partners to particles.<br />
Using the wavefunctions which are the solutions of the Dirac equation one can calculate<br />
scattering processes of fundamental particles. In the first part of the chapter I will introduce<br />
the Dirac equation as well as “Fermi’s Golden Rule”, which one needs when one wants to go<br />
from the transition amplitude or matrix elements, which one can calculate from Feynman<br />
graphs to decay rates or cross-sections.<br />
I have already introduced Feynman graphs as pictures which represent these calculations<br />
in perturbation theory. What I have not mentioned so far is that when one starts to<br />
actually calculate higher order graphs one very often gets answers which are infinite! This<br />
held up the development of Quantum electrodynamics (the quantum field theory of the<br />
electromagnetic interaction) for about 20 years! In the second half of this chapter I will<br />
discuss the problem and the solution.<br />
Lecture 16, 23/06/20<strong>04</strong>
8.1: The Dirac Equation 2<br />
8.1 The Dirac Equation<br />
The Klein-Gordon equation was introduced in <strong>Chapter</strong> 1, when I discussed antiparticles.<br />
A particle in free space is described by the de Broglie wave function:<br />
Ψ(x, t) = N exp[i(p · x − Et)] = Ne −ipx<br />
Starting from the relativistic energy-momentum relationship and substituting operators<br />
gives the Klein-Gordon equation:<br />
∂ 2 Ψ<br />
∂ 2 t = (∇2 − m 2 )Ψ<br />
The equation is suitable for describing spinless bosons, as no spin variable has been introduced.<br />
The Klein-Gordon equation is second order in the derivatives, which is the reason<br />
for the negative energy solutions. The Klein-Gordon equation also has another problem,<br />
in that it does not guarantee a positive-definite probability density for position, due to<br />
the 2nd order time derivative. Although we now know the implications of negative energy<br />
solutions, it provided the motivation for Dirac to try to find an equation that was linear<br />
in the derivatives and Lorentz invariant, in the hope that the probability problem and the<br />
one of of negative energy solutions could be solved.<br />
The simplest form that can be written down is that for massless particles, in the form of<br />
the Weyl equations:<br />
∂Ψ<br />
∂t<br />
<br />
<br />
∂Ψ ∂Ψ ∂Ψ<br />
= ± σ1 + σ2 + σ3<br />
∂x ∂y ∂z<br />
If this equation is valid it should also satisfy the Klein-Gordon equation. We square and<br />
compare coefficients to find:<br />
σ 2 1 = σ 2 2 = σ 2 3 = 1<br />
σ1σ2 + σ2σ1 = 0 etc.<br />
m = 0<br />
These results hold for both signs on the right-hand side of the Weyl equation and so must<br />
both be considered. The σ’s cannot be numbers, since they do not commute. In fact<br />
the equations define the 2 × 2 Pauli matrices which you should already know from atomic<br />
physics:<br />
σ1 =<br />
0 1<br />
1 0<br />
<br />
0 −i<br />
, σ2 =<br />
i 0<br />
<br />
1 0<br />
, σ3 =<br />
0 −1<br />
The equations can also be written in terms of the energy and momentum operators:<br />
Eχ = −σ · pχ<br />
Eφ = +σ · pφ<br />
From Dirac to Renormalisation Lecture 16, 23/06/20<strong>04</strong><br />
<br />
.
8.1: The Dirac Equation 3<br />
where E and p are the operators. χ and φ are two-component wavefunctions called spinors.<br />
They are separate solutions of the two Weyl equations. As I will discuss in a few minutes<br />
the equations have in total four solutions corresponding to particle and antiparticle states<br />
with two spin substates of each.<br />
If the fermion mass is included we need to enlarge the equations by including a mass term,<br />
which leads to the Dirac equation:<br />
EΨ = (α · p + βm)Ψ<br />
The matrices α and β are 4×4 matrices operating on four-component spinor wavefunctions.<br />
They are given by:<br />
<br />
0<br />
α =<br />
σ<br />
<br />
σ<br />
,<br />
0<br />
<br />
I<br />
β =<br />
0<br />
<br />
0<br />
,<br />
−I<br />
where each element denotes a 2 × 2 matrix and ‘1’ denotes the unit 2 × 2 matrix and σ<br />
are the Pauli matrices. The matrix α has three components. This representation is the<br />
so-called Dirac-Pauli representation of the matrices – other representations are possible.<br />
A more common way to write the Dirac equation is in its covariant form, replacing the<br />
operators by derivatives:<br />
<br />
<br />
µ ∂<br />
iγ − m Ψ = 0<br />
∂x µ<br />
(iγ µ ∂µ − m) Ψ = 0<br />
where the γµ (with µ = 0, 1, 2, 3) are related to the above matrices via:<br />
γ µ ≡ (β, βα)<br />
Note that Ψ is a four-element column matrix. However, it is not a 4-vector. I will return<br />
to combinations that are 4-vectors a bit later. Writing out the matrices explicitly we have:<br />
γ 0 <br />
I 0<br />
0 σ<br />
=<br />
, γ =<br />
, γ<br />
0 −I<br />
−σ 0<br />
5 <br />
0 I<br />
= .<br />
I 0<br />
It is useful to define the product matrix:<br />
γ 5 ≡ iσ 0 σ 1 σ 2 σ 3 =<br />
0 I<br />
I 0<br />
It is also very common to write down the Dirac equation in momentum space. Before and<br />
after an interaction with particle propagate as plane waves in free space. The fermion field<br />
can then be written as:<br />
Ψ(x) = u(p)e −ipµxµ<br />
From Dirac to Renormalisation Lecture 16, 23/06/20<strong>04</strong>
8.2: Helicity and Helicity Conservation 4<br />
where u now only depends on energy and momentum and not on the position of the particle.<br />
u is then a solution of:<br />
(γ µ pµ − m)u(pµ) = 0<br />
Although this equation does not look very different it is. The Dirac equation contains<br />
derivatives. The above equation is a pure matrix equation and as such is much easier to<br />
solve. One can construct four independent solutions to the Dirac equation – two of them<br />
have positive energy and two of them have negative energy/ The positive energy four-spinor<br />
solutions are:<br />
u (1,2) = √ <br />
E + m<br />
χ (1,2)<br />
p·σ<br />
E+m χ(1,2)<br />
<br />
χ (1) =<br />
1<br />
0<br />
Rewriting the negative energy solutions such that E > 0 we have:<br />
v (1) (p) = u (4) (−p) = √ E + m<br />
p·σ<br />
E+m χ(2)<br />
<br />
, χ (2) <br />
0<br />
=<br />
1<br />
χ (2)<br />
v (2) (p) = −u (3) (−p) = √ p·σ<br />
E + m E+mχ(1) χ (1)<br />
where E is the energy of the particle or antiparticle defined by E = p 2 + m 2 .<br />
The normalisation I have adopted is that from Halzen and Martin of 2E particles per unit<br />
volume.<br />
Using the definition of v given above, they satisfy the Dirac equation with the sign of pµ<br />
reversed:<br />
(γ µ pµ + m)v(pµ) = 0<br />
8.2 Helicity and Helicity Conservation<br />
For a massless particle with positive energy we have E = |p|. Inserting this in the first<br />
equation for the spinors we have:<br />
The quantity<br />
σ · p<br />
χ = −χ<br />
|p|<br />
H ≡<br />
σ · p<br />
|p|<br />
= −1<br />
is called the helicity or handedness of a particle. It measures the sign of the component of<br />
the spin of the particle, jz = ± 1 in the direction of motion (z-direction). The z-component<br />
2<br />
of spin and the momentum vector p together define a screw sense. H = +1 corresponds<br />
to a right-handed screw while H = −1 corresponds to a left-handed screw. The solution<br />
From Dirac to Renormalisation Lecture 16, 23/06/20<strong>04</strong>
8.3: Adjoint Spinors and Current Conservation 5<br />
of the equation given above represents a left-handed, positive energy particle. It can also<br />
represent a particle with negative energy −E and momentum −p. In this case:<br />
−Eχ = −σ · (−p)χ<br />
H =<br />
σ · (−p)<br />
= +1<br />
|p|<br />
Thus the equation represents either a left-handed particle or a right-handed antiparticle<br />
state.<br />
From the definition you can see that helicity is a well-defined Lorentz-invariant quantity for<br />
a massless particle. Such particles travel with the velocity of light. If one makes a Lorentz<br />
transformation to another reference frame with velocity v < c, it is therefore impossible to<br />
reverse the helicity. Neutrinos have a very small mass and for all practical purposes are<br />
well described by one of the two Weyl equations. Solutions of the Dirac equation are not<br />
pure helicity eigenstates, due to the mass term. Rather they are an admixture of the LH<br />
and RH functions. However, at high energies, when the particles are highly relativistic,<br />
the Weyl equations provide a good description also for massive particles.<br />
An important consequence of this is that for interactions involving vector or axial vector<br />
fields (i.e. those mediated by vector or axial vector bosons), helicity is conserved in the<br />
relativistic limit. As the mediators of the strong, electromagnetic and weak interactions<br />
are vector bosons, whose coupling is either vector or a mixture of vector and axial vector this<br />
constraint applies to all fundamental interactions. The reason for helicity conservation is<br />
that such interactions do not mix the LH and RH solutions of the Weyl equations. Writing<br />
these as ΨL ≡ χ and ΨR ≡ φ, consider as an illustration the momentum operator U = p<br />
operating on a mixture of LH and RH helicity states, i.e. Ψ ∗ UΨ, where Ψ = aΨL + bΨR,<br />
a and b are constants and Ψ ∗ is the complex transpose of the two-component spinor Ψ. I<br />
have omitted the space-time dependence e −ipx , as it cancels in the product. Making use of<br />
the Weyl equations one finds that the cross terms are zero since Ψ ∗ L ΨR − Ψ ∗ R ΨL = 0. If U<br />
were a scalar operator the cross terms would be proportional to Ψ ∗ L ΨR + Ψ ∗ R ΨL = 0 and<br />
would not disappear.<br />
In scattering processes at high energy a LH particle remains LH and RH remains RH.<br />
This fact together with the conservation of angular momentum determines the angular<br />
distributions in many interactions. It also implies that if one makes a beam of RH electrons<br />
these will only interact with LH positrons and not with RH positrons. For studies which<br />
one wants to make with polarised particles this is a great help, as one only needs to polarise<br />
one of the beams.<br />
8.3 Adjoint Spinors and Current Conservation<br />
The adjoint spinor is defined as:<br />
¯Ψ = Ψ † γ 0 = (Ψ ∗ 1, Ψ ∗ 2, −Ψ ∗ 3, −Ψ ∗ 4)<br />
********************* Begin skip *********************<br />
From Dirac to Renormalisation Lecture 16, 23/06/20<strong>04</strong>
8.3: Adjoint Spinors and Current Conservation 6<br />
From the conservation of probability, the rate of decrease of the number of particles in a<br />
given volume is equal to the total flux of particles out of that volume. Thus:<br />
− ∂<br />
<br />
<br />
ρ dV = j ·<br />
∂t<br />
<br />
ˆn dS = ∇ · j dV<br />
V<br />
S<br />
where I have used Green’s (or Gauss’) theorem. The probability and flux density are<br />
therefore related by the “continuity” equation:<br />
∂ρ<br />
∂t + ∇ · j = 0<br />
Expressing this in terms of the 4-vector j µ = (ρ,j) we have<br />
∂µj µ = 0<br />
I have not shown that the quantity so defined is a 4-vector, but one can.<br />
Returning to the Dirac equation:<br />
(iγ µ ∂µ − m)Ψ = 0<br />
we can also write it in terms of the adjoint spinor as:<br />
i∂µ ¯ Ψγ µ + m ¯ Ψ = 0<br />
Multiplying the Dirac equation from the left by ¯ Ψ and the adjoint equation from the right<br />
by Ψ and adding we obtain:<br />
¯Ψγ µ ∂µΨ + ∂µ ¯ Ψ γ µ <br />
Ψ = ∂µ<br />
¯Ψγ µ<br />
Ψ = 0<br />
Thus<br />
j µ = ¯ Ψγ µ Ψ<br />
satisfies the continuity equation and suggests that we should identify j µ with the probability<br />
and flux densities. In order to avoid problems with negative probability densities Pauli and<br />
Weisskopf inserted the charge of the electron −e into j µ , so that ρ is the charge density<br />
instead of the probability density:<br />
j µ = −e ¯ Ψγ µ Ψ<br />
j µ is the electron four-vector density, often called the electron current. To complete the<br />
identification one must show that j µ transforms as a 4-vector, which again can be done.<br />
********************* End skip *********************<br />
From Dirac to Renormalisation Lecture 16, 23/06/20<strong>04</strong><br />
V
8.4: Decay Rates and Cross-Sections 7<br />
The quantity<br />
j µ = ¯ Ψγ µ Ψ<br />
is the electron four-vector density, often called the electron current. It can be shown to<br />
transform as a 4-vector.<br />
For future reference it is convenient to write down the different forms of currents consistent<br />
with Lorentz covariance. Ψ and ¯ Ψ are not 4-vectors, but one can form the following bilinear<br />
quantities:<br />
¯ΨΨ Scalar +under P<br />
¯Ψγ µ Ψ Vector −under P (space components)<br />
¯Ψγ 5 Ψ Pseudoscalar −under P<br />
¯Ψγ 5 γ µ Ψ Axial Vector +under P (space components)<br />
I have left out the tensor, as it is very rarely needed.<br />
8.4 Decay Rates and Cross-Sections<br />
In order to calculate the decay rate or scattering cross-section one needs 2 ingredients:<br />
• The amplitude (M) or matrix element for the process and<br />
• The phase space or density of final states available.<br />
The amplitude contains all the dynamical information and we calculate it by evaluating the<br />
relevant Feynman diagrams using the Feynman rules appropriate to the interaction we are<br />
considering. The phase space factor contains only kinematical information; it depends on<br />
the masses, energies and momenta of the participants and reflects the fact that a process<br />
is more likely to occur if there is a lot of “room to manoeuvre” in the final state. For<br />
example the decay of a heavy particle into many light secondaries has a large phase space<br />
factor, as there are many different ways to apportion the available energy. In the β-decay<br />
of the neutron there is almost no extra mass to spare and the phase space factor is very<br />
small.<br />
The transition rate for a given process is determined using Fermi’s “Golden Rule” given<br />
by:<br />
transition rate = 2π<br />
¯h |M|2 × (phase space)<br />
A non-relativistic derivation of the Golden Rule can be found most books on quantum<br />
mechanics. For a relativistic version you have to consult a quantum field theory book. End of<br />
Lecture<br />
16<br />
From Dirac to Renormalisation Lecture 17, 25/06/20<strong>04</strong>
8.4: Decay Rates and Cross-Sections 8<br />
8.4.1 Decays<br />
Suppose particle 1 decays into several other particles 2, 3, 4, ..., n. The decay rate is given<br />
by the formula:<br />
3<br />
2 S c d p2<br />
dΓ = |M|<br />
2¯hm1 (2π) 3 3 c d p3<br />
2E2 (2π) 3 3 c d pn<br />
· · ·<br />
2E3 (2π) 3 <br />
2En<br />
×(2π) 4 δ 4 (p1 − p2 − p3 · · · − pn)<br />
where pi = (Ei/c, pi) is the 4-momentum of the ith particle. The delta function enforces<br />
the conservation of energy and momentum. We assume that the decaying particle is at<br />
rest: p1 = (m1c,0). S is the product of statistical factors: 1/j! for each group of j identical<br />
particles in the final state. The above formula gives the differential rate for a decay where<br />
the momentum of particle 2 lies in the range d3p2 about the value p2, etc. Normally we are<br />
not interested in individual momenta and so we integrate over the outgoing momenta to<br />
get the total decay rate Γ for the mode we are considering. If there are only two particles<br />
in the final state the result is:<br />
Γ = S<br />
<br />
c<br />
<br />
2 2 1 |M|<br />
δ<br />
¯hm1 4π 2 E2E3<br />
4 (p1 − p2 − p3) d 3 p2 d 3 p3<br />
If we have a 2-body decay into massless secondaries π 0 → γγ then one can show that<br />
(exercise?):<br />
Γ =<br />
S<br />
|M|<br />
16π¯hm1<br />
2<br />
i.e. the integration can be carried out independently of the form of |M| 2 (strictly true<br />
in the case of spin 0 particles and also if we want the spin averaged amplitude). M is<br />
evaluated at the momenta dictated by the conservation laws: p3 = −p2 and |p2| = mc/2.<br />
One can consider the more general case of a 2-body decay in which the outgoing particles<br />
have masses m2 and m3. In this case we have:<br />
Γ =<br />
S|p|<br />
8π¯hm 2 1c |M|2<br />
where p is the magnitude of either outgoing momentum. It is given in terms of the 3 masses<br />
involved:<br />
<br />
c<br />
|p| = m<br />
2m1<br />
4 1 + m4 2 + m4 3 − 2m2 1m2 2 − 2m2 1m2 3 − 2m2 2m2 3<br />
If both decay particles are massless then |p| = m1c/2, as we had above. The spin factor is<br />
S = 1<br />
2 for π0 → γγ, whereas it is S = 1 for π 0 → ν¯ν The final formula for 2-body decay is<br />
very simple and general. If there are three or more particles in the final state the integrals<br />
cannot be done until the form of M is known.<br />
From Dirac to Renormalisation Lecture 17, 25/06/20<strong>04</strong>
8.5: Feynman Rules 9<br />
8.4.2 Scattering<br />
Suppose particles 1 and 2 collide, producing particles 3, 4, ..., n. The cross-section is given<br />
by:<br />
dσ = |M| 2 ¯h 2 S<br />
4 (p1 · p2) 2 − (m1m2c2 ) 2<br />
2 c d p3<br />
(2π) 3 2 c d p4<br />
2E3 (2π) 3 2 c d pn<br />
· · ·<br />
2E4 (2π) 3 <br />
2En<br />
×(2π) 4 δ 4 (p1 + p2 − p3 − p4 · · · − pn)<br />
This equation determines the cross-section for a process in which the momentum of particle<br />
3 lies in the range d 3 p3 about the value p3, that of particle 4 lies in the range d 3 p4 about<br />
the value p4 and so on. We often want to consider the case where we look at the angle<br />
at which particle 3 emerges. We then integrate over all the other momenta and over the<br />
magnitude of p3; what’s left gives us dσ/dΩ, the differential cross-section for the scattering<br />
of particle 3 into solid angle dΩ.<br />
By far the most common process that we will encounter is:<br />
1 + 2 → 3 + 4<br />
We start in the CM frame. In this frame p2 = −p1. Hence p1 · p2 = E1E2/c 2 + p 2 1. One can<br />
then show that:<br />
(p1 · p2) 2 − (m1m2c 2 ) 2 = (E1 + E2)|p1|/c<br />
Thus<br />
dσ =<br />
2 ¯hc S|M|<br />
8π<br />
2c (E1 + E2)|p1|<br />
d 3 p3 d 3 p4<br />
E3E4<br />
δ 4 (p1 + p2 − p3 − p4)<br />
Again one can carry out the integration without knowing the explicit form of M and we<br />
obtain:<br />
dσ<br />
dΩ =<br />
2 ¯hc S|M|<br />
8π<br />
2<br />
(E1 + E2) 2<br />
|pf|<br />
|pi|<br />
where pf is the magnitude of either outgoing momentum and pi is the magnitude of either<br />
incoming momentum. This equation applies to almost all scattering processes that we will<br />
consider.<br />
8.5 Feynman Rules<br />
If we are given a matrix element we now know how to calculate a cross-section or a decay<br />
rate. How do we calculate the matrix element? To start with I will discuss QED and restrict<br />
myself to electrons, positrons and photons. Extending to the other leptons is trivial (they<br />
are just a repeat of electrons and positrons). Extension to quarks is also straightforward<br />
– one just has to take into account the different charge of the quarks and remember that<br />
they come in 3 colours.<br />
Free electrons and positrons are represented by the wave functions:<br />
From Dirac to Renormalisation Lecture 17, 25/06/20<strong>04</strong>
8.5: Feynman Rules 10<br />
ψ(x) = ae−ip·xu (s) (p) ψ(x) = aeip·xv (s) (p)<br />
with s = 1, 2 for the 2 spin states<br />
The spinors satisfy the Dirac equations in momentum space<br />
(γ µ pµ − m)u = 0 (γ µ pµ + m)v = 0<br />
and their adjoints satisfy<br />
ū(γ µ pµ − m) = 0 ¯v(γ µ pµ + m) = 0<br />
The solutions are orthogonal<br />
ū (1) u (2) = 0 ¯v (1) v (2) = 0<br />
normalised<br />
ūu = 2m ¯vv = −2m<br />
and<br />
<br />
complete<br />
s=1,2 u(s) ū (s) = (γ µ pµ + m) <br />
s=1,2 v(s) ¯v (s) = (γ µ pµ − m)<br />
I gave a set of solutions in the last lecture.<br />
⇒ Transparency A complete set of spinors (spinor.tex)<br />
We will normally (but not always) average over the electron and positron spins, and in<br />
that case it does not matter that the solutions are not pure spin up and spin down. End of<br />
Lecture<br />
********************* Begin skip *********************<br />
17<br />
A free photon is represented by the wave function:<br />
A µ (x) = ae −ip·x ɛ µ<br />
(s)<br />
where s = 1, 2 for the two spin states (or polarisations) of the photon. The polarisation<br />
vectors satisfy the momentum space Lorentz condition The Lorentz condition in the<br />
Maxwell equations is given by ∂µA µ = 0. The Maxwell equations in terms of the 4-vector<br />
A µ = (V, A) are:<br />
[∂µ (∂ µ A ν − ∂ ν A µ )] = 4π ν<br />
J<br />
c<br />
The equation is invariant under a gauge transformation A µ → A µ + ∂ µ λ, where λ is an<br />
arbitrary function of space and time. This gauge freedom can be exploited to impose an<br />
extra constraint on the potential ∂µA µ = 0. One then has:<br />
[✷A ν ≡ ∂µ∂ µ A ν ] = 4π ν<br />
J<br />
c<br />
The potential still has a further gauge freedom provided that ✷λ = 0. I will not discuss<br />
the details here. Most often the Coulomb gauge will be used, where A 0 = 0, which implies<br />
that ∇ · A = 0. Thus the polarisation vectors satisfy:<br />
ɛ µ pµ = 0<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
8.5: Feynman Rules 11<br />
The solutions are orthogonal:<br />
and normalised:<br />
In the Coulomb gauge we have:<br />
µ ∗<br />
ɛ (1) ɛµ (2) = 0<br />
ɛ µ ∗ ɛµ = 1<br />
ɛ 0 = 0 ɛ · p = 0<br />
one can then show that the polarisation vectors obey the completeness relation:<br />
∗<br />
ɛ(s) ɛ i (s) j = δij − ˆpiˆpj<br />
s=1,2<br />
A convenient pair (in the Coulomb gauge, where ɛ · p = 0 and p points in the z direction)<br />
is:<br />
ɛ(1) = (1, 0, 0) ɛ(2) = (0, 1, 0)<br />
A massless particle has only two possible spin states.<br />
********************* End skip *********************<br />
The procedure to calculate the amplitude M for a particular Feynman graph is sketched<br />
in the transparency and given in somewhat more detail below:<br />
⇒ Transparency Feynman rules (chapter08 figs.sxi)<br />
1. Notation. Label the incoming and outgoing 4-momenta p1, p2, ..., pn and the corresponding<br />
spins s1, s2, ..., sn; label the internal 4-momenta q1, q2, ..., qn. Assign arrows<br />
to the lines: arrows on external fermion lines indicate whether it is an electron or a<br />
positron; arrows on internal fermion lines are assigned so that the direction of flow<br />
is preserved (i.e. every vertex must have one arrow entering and one arrow leaving).<br />
2. External lines. External lines contribute the following factors:<br />
• Incoming electrons: u<br />
• Outgoing electrons: ū<br />
• Incoming positrons: ¯v<br />
• Outgoing positrons: v<br />
• Incoming photons: ɛ µ<br />
µ ∗<br />
• Outgoing photons: ɛ<br />
3. Vertex factors. Each vertex contributes a factor<br />
igeγ µ<br />
The dimensionless coupling constant ge is related to the charge of the positron via<br />
ge = e = √ 4πα. For up-type quarks we must use 2<br />
√<br />
4πα and for down-type quarks<br />
√ 3<br />
4πα.<br />
we use 1<br />
3<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
8.5: Feynman Rules 12<br />
4. Propagators. Each internal line contributes a factor:<br />
Electrons and positrons:<br />
Photons:<br />
i(γ µ qµ+m)<br />
q2−m2 −igµν<br />
q2 5. Conservation of energy and momentum. For each vertex write a delta function of<br />
the form:<br />
(2π) 4 δ 4 (k1 + k2 + k3)<br />
where the k’s are the 4-momenta coming into the vertex. If the arrow for a particle<br />
leads out of the vertex, then k is minus the 4-momentum of the line. If the arrow for<br />
an antiparticle comes into the vertex (i.e. we have an outgoing antiparticle) then k<br />
is also minus the 4-momentum of the line.<br />
6. Integrate over internal momenta. For each internal momentum q write a factor<br />
and integrate.<br />
d 4 q<br />
(2π) 4<br />
7. Cancel the delta function. The result at the end will include a factor<br />
(2π) 4 δ 4 (p1 + p2 + ... − pn)<br />
corresponding to overall energy-momentum conservation. Cancel this factor and<br />
what remains is −iM.<br />
The procedure is then to write down all diagrams contributing to the process in question,<br />
calculate the amplitude for each and add them up to get the total amplitude, which is then<br />
inserted into the appropriate formula for the cross-section or lifetime.<br />
One extra factor must not be forgotten. Fermions have antisymmetric wavefunctions.<br />
Therefore we have to insert a minus sign in combining amplitudes that differ only in the<br />
interchange of two identical external fermions. As the total amplitude will eventually be<br />
squared, it does not matter which diagram you associate the minus sign with.<br />
8. Antisymmetrisation. Include a minus sign between diagrams that differ only in the<br />
interchange of two incoming (or outgoing) electrons (or positrons), or an incoming<br />
electron with an outgoing positron (or vice versa).<br />
Fermion loops need some special attention which I will say a bit about later.<br />
The propagator has a form consistent with what one may naively expect. The exchange of<br />
particles of high mass is suppressed by a factor 1/m 2 , as are large 4-momentum transfers.<br />
I will not say any more in these lectures on how one can extract the explicit form.<br />
********************* Begin skip *********************<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
8.5: Feynman Rules 13<br />
The explicit form of the propagator can be extracted from the Lagrangian. In general the<br />
Lagrangian density contains a part Lfree for each participating field and an interaction term<br />
Lint. As discussed at the beginning of the lectures, the form of the interaction term is given<br />
by imposing local gauge invariance. The propagator is obtained by applying the Euler-<br />
Lagrange equation to the spin-specific free Lagrangian. This yields the free field equation<br />
for the particle, which is then written in momentum space using the usual prescription.<br />
The propagator is i multiplied by the inverse of the field corresponding to the motion<br />
operator.<br />
• Spin 0 is the Klein-Gordon operator. In Hilbert space this is:<br />
∂µ∂ µ + m 2 φ = 0<br />
In momentum space using i∂µ → pµ this becomes:<br />
p 2 − m 2 φ = 0<br />
Hence the propagator is given by:<br />
DF (spin 0; p) =<br />
i<br />
p 2 − m 2<br />
• Spin 1/2 is the Dirac operator. In Hilbert space this is:<br />
In momentum space we have<br />
[iγ µ ∂µ − m] ψ = 0<br />
[p − m] ψ = 0<br />
where p = pµγ µ . Hence the propagator is given by:<br />
DF (spin 1/2; p) =<br />
i<br />
p − m<br />
= i p + m<br />
p 2 − m 2<br />
• Spin 1 with mass is the Proca operator. In Hilbert space we have:<br />
∂µ (∂ µ A ν − ∂ ν A µ ) + m 2 A ν = 0<br />
In momentum space this is given by:<br />
2 2<br />
−p + m ν<br />
gµν + pµpν A = 0<br />
where the metric gµν is given by<br />
gµν =<br />
The propagator is then given by:<br />
⎛<br />
⎜<br />
⎝<br />
1 0 0 0<br />
0 −1 0 0<br />
0 0 −1 0<br />
0 0 0 −1<br />
⎞<br />
⎟<br />
⎠<br />
DF (Spin 1; m = 0; p) = −i gµν − pµpν/m 2<br />
p 2 − m 2<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
8.6: Higher Orders and Renormalisation 14<br />
• Massless spin 1 is the Maxwell operator. In Hilbert space we have:<br />
[∂µ (∂ µ A ν − ∂ ν A µ )] = 0<br />
With the Lorentz condition ∂µA µ = 0, we have in momentum space:<br />
2 ν<br />
−p gµν A = 0<br />
which implies that the propagator is as I gave above for the photon:<br />
DF (Spin 1; m = 0; p) = −i gµν<br />
p 2<br />
Note that one cannot simply take the limit of the Proca operator as m → 0 to<br />
obtain the propagator for a massless particle. Current conservation ensures that<br />
pµpν/m 2 → 0 for massless particles.<br />
********************* End skip *********************<br />
The propagators as defined above are only valid for stable particles. For the Z and W ±<br />
boson one has to include the Breit-Wigner form of the resonance.<br />
8.6 Higher Orders and Renormalisation<br />
While the basics for QED were laid down in the 30’s it took until the 50’s before it was<br />
really established as a proper theory. The reason is that if you consider higher order<br />
Feynman graphs and try to calculate them you typically get infinity! For example if you<br />
consider electron-muon scattering, one diagram that one must consider is where the virtual<br />
photon splits into an electron-positron pair for a short time (called vacuum polarisation).<br />
⇒ Transparency Electron-muon scattering higher order (emuscat.mnf)<br />
Bubble looks fairly harmless. However, when you calculate the graph the momentum of<br />
the electron or positron is not defined and so you have to integrate over all possible values.<br />
When you do so you find that if k is the 4-momentum of the electron (and q − k is the<br />
momentum of the positron), the integral diverges as ln |k|!<br />
Such infinities appear very many loop diagrams. How to get out of the problem? For large<br />
values of q2 , i.e. hard scattering the integral has a term that goes as:<br />
I(q 2 ) = α<br />
3π ln<br />
2 M<br />
where M 2 is a large cut-off value rather than the true infinite value. I said that at each<br />
electromagnetic vertex one has to write the factor √ 4πα = e. If, however, instead of e you<br />
write:<br />
<br />
eR ≡ e<br />
−q 2<br />
1 − e2<br />
2 M<br />
ln<br />
12π2 m2 From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong><br />
1/2
8.6: Higher Orders and Renormalisation 15<br />
and if eR is finite then remarkably all such graphs give you a finite correction. Now you<br />
have to think what is the e that one inserts in such graphs? The charge you measure is<br />
defined in terms of electron scattering at long range. Thus the charge you measure also<br />
includes the effect of such higher order graphs. If this is in fact eR and this is finite, then<br />
I should calculate the graphs with e (which may well be infinite), but at the end I should<br />
write the result in terms of eR that subtracts an infinite cut-off term and leaves me with a<br />
finite answer! Or instead I just use eR everywhere and as such have automatically included<br />
such higher order corrections (be careful there are a number of technical details in the<br />
calculations that have to clarified when you do this).<br />
One also finds that masses have to be corrected in a similar way. The measured mass is<br />
given by an (infinite) naked mass minus an (infinite) correction. In order for renormalisation<br />
to work it is necessary that all the divergent terms can all be absorbed into the masses<br />
and coupling strengths.<br />
If you think this is strange, I don’t blame you. The proof of the pudding is first of all<br />
whether it works! In fact it works extremely well. As you may of heard the Lamb shift<br />
between the S and P states in hydrogen probes exactly such effects as you are looking<br />
at different distances between the electron and the nucleus. Close to the nucleus there is<br />
a cloud of e + e − pairs that are polarised due to the charge of the nucleus. This cloud is<br />
exactly the sort of correction graph that I just drew.<br />
An intuitive explanation of this effect can be seen by considering the screening of a charge<br />
q by a dielectric medium. The negative end of the dipole is attracted towards q and the<br />
positive end is repelled. The “halo” of negative charge partially cancels the field due to q.<br />
⇒ Transparency Charge screening (screen1.jpg)<br />
⇒ Transparency Vacuum fluctuations and coupling strengths vs. distance (screen2.jpg)<br />
In QCD, i.e. due to the self-interaction of the gluons, this in fact works the other way round!<br />
While the vacuum polarisation diagrams that contain fermion-antifermion pairs result in a<br />
reduction of the effective colour charge, those with gluon loops lead to an increase at large<br />
distances. Which of the 2 wins is given by the factor:<br />
a ≡ 2f − 11n<br />
where f = 6 is the number of quark flavours and n = 3 is the number of colours. So in<br />
our world, the QCD coupling decreases at short distances, which leads to the effect known<br />
as asymptotic freedom, i.e. even though quarks interact strongly with each other, at short<br />
distances we can regard them as free particles and as such measure their properties and<br />
even “observe” them.<br />
As a result of the renormalisation the coupling strengths are no longer constants, but vary<br />
with q 2 . For the electromagnetic coupling strength αQED, while the value at q 2 = 0 is<br />
≈ 1/137 at MZ = 91 GeV its value is ≈ 1/128. As we have already seen, the variation of<br />
the strong coupling strength is stronger:<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
8.7: (g − 2) of Electron and Muon 16<br />
⇒ Transparency αs vs. q 2 (cernlep8 5-<strong>04</strong>.jpg)<br />
The plot shows the same trend as the one in the previous chapter, which was from the<br />
PDG. They show that LEP and PETRA data are very consistent when treated in a similar<br />
way. In addition the variation of αS with q 2 within a single experiment is clearly seen. A<br />
similar trend is seen in the measurements made at HERA:<br />
⇒ Transparency αs vs. q 2 (20<strong>04</strong> LLouise Poeschl6.jpg)<br />
In most of these measurements the energy of the measured jets sets the scale, i.e. the<br />
value of αS that one measures. These are not all the same (as they are in e + e − ), as the<br />
proton is a composite object and the struck quark can therefore carry a variable fraction<br />
of the proton momentum. In addition, ep interactions are a scattering process and not an<br />
annihilation process; hence the q 2 varies from one event to the next. In e + e − q 2 is (mostly)<br />
just given by the c.m. energy √ s.<br />
The masses of particles also depend on the q 2 of the process that measures them. First<br />
evidence for such a variation of the b quark mass has been shown (albeit model dependent)<br />
by the LEP experiments.<br />
⇒ Transparency Running b quark mass (cernlep10 5-<strong>04</strong>.jpg)<br />
8.7 (g − 2) of Electron and Muon<br />
Turning back to QED, another effect of the vacuum polarisation is that it leads to a<br />
slight modification of the magnetic dipole momentum of elementary fermions. One of the<br />
great triumphs of the Dirac equation is that it explained why the magnetic moment of the<br />
electron is:<br />
with S = 1σ<br />
and the gyromagnetic ratio<br />
2<br />
µ = −g e<br />
2m S<br />
g = 2<br />
There is however a small correction to this number, which can be both precisely calculated<br />
and measured. The calculations have been made to several orders of perturbation theory:<br />
⇒ Transparency Some leading diagrams contributing to the magnetic moment (g-2-feyn.jpg)<br />
The theoretical expectation is:<br />
g − 2<br />
2<br />
theory<br />
e<br />
= 0.5<br />
<br />
α<br />
<br />
− 0.32848<br />
π<br />
<br />
α<br />
2 + 1.19<br />
π<br />
= (115 965 230 ± 10) × 10 −11<br />
<br />
α<br />
3 + · · ·<br />
π<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
8.7: (g − 2) of Electron and Muon 17<br />
while the measured value is:<br />
<br />
g − 2<br />
2<br />
exp<br />
e<br />
= (115 965 218 59 ± 38) × 10 −11<br />
where the uncertainty in the theory actually comes mainly from the uncertainty in the<br />
value of α. You see a remarkable agreement between experiment and data.<br />
Measurements have also been made of (g − 2) for the muon. Over the past few years a<br />
group at Brookhaven has been working extremely hard to improve the accuracy of the<br />
measurements. The idea of the experiment is illustrated in the next transparency:<br />
⇒ Transparency Sketch of the main idea behind a g − 2 experiment (g-2.jpg)<br />
In the experiment at BNL, polarised muons are injected into a superconducting storage<br />
ring. The ring provides a very uniform static dipole field, B. If the g factor of a muon<br />
were exactly equal to two, the spins and momenta of the muons would stay parallel during<br />
storage. This would mean that the cyclotron frequency, ωc, of the muon is equal to its spin<br />
precession frequency, ωa. However, due to the anomaly on the magnetic moment, the spin<br />
precesses faster than the momentum ωs = ωc(1 + aµγ).<br />
From the theoretical side, an idea of the Feynman graphs that have to be calculated and<br />
the size of the various contributions is given in the transparency:<br />
⇒ Transparency Prediction for muon g − 2 (pw eps03 talk.pdf, P.42)<br />
The results for µ + and µ − are summarised in the following transparency:<br />
⇒ Transparency Muon g − 2 measurements and predictions (g2results2.eps)<br />
For the record the numbers are:<br />
aµ + = 11 659 203(8) × 10−10<br />
aµ − = 11 659 214(9) × 10−10<br />
aµ = 11 659 208(6) × 10 −10<br />
a e+ e −<br />
µ = 11 659 181(8) × 10 −10<br />
a τ µ = 11 659 196(7) × 10 −10<br />
(0.7 ppm)<br />
(0.7 ppm)<br />
(0.5 ppm)<br />
(0.7 ppm)<br />
(0.6 ppm)<br />
The average measured value from aµ differs from the predictions made using the e + e − and<br />
the τ decay data by 2.7σ and 1.4σ respectively. The 2 different theoretical predictions<br />
come from using e + e − → hadrons data at lower energies or using τ decay data for this<br />
energy range. There appear to be some incompatible measurements between 850 MeV and<br />
1 GeV. Discrepancies at lower energies have now disappeared after a reevaluation of the<br />
e + e − data.<br />
It is unlikely that one will see much improvement in these measurements (the predictions<br />
may well improve), as the proposal to continue the experiment at BNL with the aim of<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
8.8: Summary 18<br />
achieving an accuracy of 0.4 ppm, which should be sensitive to electroweak corrections was<br />
unfortunately not approved.<br />
The difference between the 2 values is somewhat under 3 standard deviations. While<br />
this cannot yet be seen as overwhelming evidence that there is some physics beyond the<br />
standard model it does provide a hint. It may indicate that there are some new, as yet<br />
unobserved, particles that can also contribute to the vacuum polarisation. One favourite<br />
explanation is supersymmetry, that introduces integer spin partners of all fermions and<br />
half-integer partners of all bosons. There are good theoretical arguments for the existence<br />
of supersymmetry, but no direct experimental evidence has yet been seen.<br />
8.8 Summary<br />
Infinity - infinity give wonderful agreement between experiment and theory!<br />
In this chapter I gave a very brief overview of the Dirac equation. I showed in principle how<br />
one can calculate cross-sections and decay rates using the Fermi Golden Rule and Feynman<br />
graphs. I discussed what happens when one tries to calculate higher orders. Although the<br />
expected contributions are small, in fact the graphs often given infinite contributions.<br />
These are resolved using the procedure called renormalisation, which absorbs these infinite<br />
corrections into a redefinition of the masses and charges of the fundamental particles. While<br />
this procedure may seem to be very arbitrary, the proof of the pudding, is that it works<br />
wonderfully. I have illustrated the level of agreement between theory and experiment with<br />
the (g − 2) measurements. I will show more comparisons in <strong>Chapter</strong> 10. End of<br />
Lecture<br />
18<br />
From Dirac to Renormalisation Lecture 18, 01/07/20<strong>04</strong>
