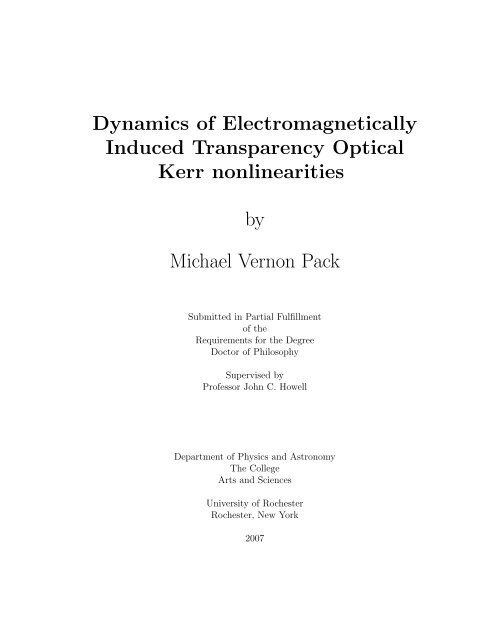

Dynamics of Electromagnetically Induced Transparency Optical Kerr ...

Dynamics of Electromagnetically

Induced Transparency Optical

Kerr nonlinearities

by

Michael Vernon Pack

Submitted in Partial Fulfillment

of the

Requirements for the Degree

Doctor of Philosophy

Supervised by

Professor John C. Howell

Department of Physics and Astronomy

The College

Arts and Sciences

University of Rochester

Rochester, New York

2007

To my wife,

Janene Kaufman Pack,

for all of her love and support.

ii

iii

Curriculum Vitae

The author was born in Logan, Utah on the 23rd December, 1974. He graduated

from Holbrook High School in 1993. He attended Brigham Young University

from 1996 untill 2001 and graduated with a BS degree in physics and electrical

engineering and an MS degree in electrical engineering.

He worked at Sandia

National Laboratory in Albuquerque, NM from 2001 to 2003. He came to the

University of Rochester in the fall of 2003, and received a MA degree in physics in

2004. Under the supervision of Dr. John C. Howell, he has performed his doctoral

research in the fields of quantum optics and atomic, and optical physics.

CURRICULUM VITAE

iv

Publications

M.V. Pack, P. K. Setu, and J.C. Howell, “Using slow light to improve quantum

non-demolition measurements using electromagnetically-induced-transparencyenhanced

Kerr nonlinearities” (submitted to Phys. Rev. A)

M.V. Pack, R.M. Camacho, and J.C. Howell, “Transients of the

electromagnetically-induced-transparency-enhanced refractive Kerr nonlinearity:

Experiment” Phys. Rev. A (in press)

M.V. Pack, R.M. Camacho, and J.C. Howell, “Electromagnetically induced

transparency lineshapes for large probe fields and optically thick media” Phys.

Rev. A (in press)

R. M. Camacho, M. V. Pack, J. C. Howell, A. Schweinsberg, R. W. Boyd,

“Wide-bandwidth, tunable, multiple-pulse-width optical delays using slow light

in cesium vapor” Phys. Rev. Lett. 98, 153601 (2007).

R. M. Camacho, M. V. Pack, and J. C. Howell, “Slow light with large fractional

delays by spectral hole-burning in rubidium vapor” Phys. Rev. A 74, 033801

(2006).

M. V. Pack, R. M. Camacho, and J. C. Howell, “Transients of the


Theory” Phys. Rev. A 74, 013812 (2006).

R. M. Camacho, M. V. Pack, and J. C. Howell, “Low-distortion slow light

using two absorption resonances” Phys. Rev. A 73, 063812 (2006).

M. V. Pack, D. J. Armstrong, and A. V. Smith, “Measurement of the χ (2)

tensor of GdCa 4 O(BO 3 ) 3 and YCa 4 O(BO 3 ) 3 crystals” J. Opt. Soc. Am. B 22,

417 (2005).

C. D. Nordquist, A. Muyshondt, M. V. Pack, P. S. Finnegan, C. W. Dyck,

I. C. Reines, G. M. Kraus, T. A. Plut, G. R. Sloan, C. L. Goldsmith, and C.

T. Sullivan, “An X-band and Ku-band RF MEMS switched coplanar strip filter”

IEEE Microw. Wireless Compon. Lett, 14, 425 (2004).

M. V. Pack, D. J. Armstrong, A. V. Smith, “Second harmonic generation with

focused beams in a pair of walkoff-compensating crystals” Opt. Comm. 221, 211

(2003).

M. V. Pack, D. J. Armstrong, and A. V. Smith, “Measurement of the χ (2)


v

tensor of KTiOPO 4 , KTiOAsO 4 , KTiOPO 4 and KTiOAsO 4 crystals” Appl. Opt.

43, 3319 (2004).

M. V. Pack, D. J. Armstrong, and A. V. Smith, “Measurement of the χ (2)

tensor of the potassium niobate crystal” J. Opt. Soc. Am. B 20, 2109 (2003).

D. J. Armstrong, M. V. Pack, and A. V. Smith, “Instrument and method

for measuring second-order nonlinear optical tensors” Rev. Sci. Inst. 74, 3250

(2003).

Michael V. Pack, Darrell J. Armstrong, Arlee V. Smith, Michael E.

Amiet, “Second harmonic generation with focused beams in a pair of walkoffcompensating

crystals” Opt. Comm. 221, 211 (2003).

J. Peatross and M. V. Pack , “Visual introduction to Gaussian beams using a

single lens as an interferometer” Am. J. Phys. 69, 1169 (2001).


vi

Presentations

M. V. Pack, R. M Camacho, and J.C. Howell, “Large fractional delays in hot

atomic vapors” SPIE Photonics West, San Jose, CA **Invited** (January 2007)

M. V. Pack, R. M Camacho, and J.C. Howell, “Low-light-level all optical

switching” Frontier in Optics, Rochester, NY (Oct 2006)

M. V. Pack, R. M Camacho, and J.C. Howell, “Dynamics of the EIT Kerr

nonlinearity” Slow light OSA, Wasington, DC (June 2006)


switching” CLEO/QELS, Baltimore, MD (May 2005)


switching” SPIE Photonics West, San Jose, CA **Invited** (January 2005)

M. V. Pack and D. Armstrong and A. V. Smith, “Measurements of the second

order nonlinear tensors for KTiOPO 4 , KTiOAsO 4 , KTiOPO 4 , KTiOAsO 4 , KDP,

and KNBO 4 ” OSA Annual Meeting, Tucsun, AZ (Oct. 2003)

M. V. Pack and D. Armstrong and A. V. Smith, “The D-factory: Measuring

the second order nonlinear tensor of crystals” CLEO/QELS, Baltimore, MD (May

2003)

vii

Acknowledgements

There are many people who have made my time at the University of Rochester

both enjoyable and enlightening, and I would like to thank them.

First, I am thankful to my advisor John Howell for the things I have learned

from him and the pleasant working environment he creates.

I lucked into an

advisor who’s philosophy is “happy cows give good milk”, and who’s genuine

enthusiasm for physics and life is not exceeded by anyone I have met. This enthusiasm

is witnessed by John’s inability to stay out of the lab in Rochester while he

was on sabbatical in Italy. While the technical skills I have acquired at Rochester

are important, the other aspects of research such as teamwork, public relations,

and how to search out and formulate new research problems are the real gems I

am taking with me. In my experience, John is singularly adept at teaching these

skills, and I am thankful to have learned them from him.

I have worked with a number of graduate students while at Rochester, and

have benefited by our exchange of ideas and tricks of the trade. I have worked

predominantly with Ryan Camacho with Ryan emphasizing the slow-light work,

and me emphasizing the EIT Kerr nonlinearity work. In our frequent discussions

ACKNOWLEDGEMENTS

viii

of physics, Ryan has helped me sharpen my understanding and arguments by not

ceding any argument until my ideas were fully developed. Ryan’s insightful questions

have often launched our research in new directions. I am also thankful for

similar interactions with other members of our research group including Praveen

Setu, Irfan Ali-Khan, Curtis Broadbent, and Ben Dixon.

I have also enjoyed collaborations with Kevin Wright and Nick Bigelow, as well

as Aarron Schweinsberg and Bob Boyd. Each research group has had something

unique to offer, and I am glad to have been able to work with three of the best.

Finally, I would never have been in a position to start much less finish this

thesis except for the support of my parents and my wife. My parents provided

me with the opportunities which made this possible, and Janene, my wife, has

helped me realized my goals with her encouragement and support. Janene has

done the little things that have made many late nights at the lab and writing

papers possible, and she has also done the big things such as proof reading this

thesis.

Thank you all.

ix

Abstract

This thesis presents theoretical derivations and experimental demonstrations

of Kerr optical nonlinearities and their dynamics. The Kerr nonlinearity studied is

based on electromagnetically induced transparency (EIT), and is known for having

an unusually large cross-phase modulation (XPM) [1]. Also, quantum nondemolition

(QND) measurements of photon number using the EIT Kerr nonlinearity are

discussed.

We first discuss the EIT line shapes in hot atomic vapors both with and without

buffer gasses, and for the specific case of EIT line shapes on the D 1 line of

rubidium. Using a Bloch-vector formalism to describe EIT, we derive new expressions

describing the dynamical evolution of the EIT Kerr nonlinearity and the

rise-time of the EIT Kerr effect.

The theory of the EIT Kerr dynamics is confirmed by experiments using hot

rubidium vapor in a buffer gas. These experimental observations confirm that the

rise-time of the EIT Kerr effect is linearly proportional to the optical thickness of

the EIT medium and inversely proportional to the width of the EIT transparency

resonance.

ABSTRACT

x

We find that the EIT Kerr effect is relatively slow, and that its rise-time is

inversely proportional to the EIT Kerr susceptibility. The implications of the slow

rise-time to QND measurements is investigated, and it is found that by matching

the group velocities of the probe and signal optical fields, the signal to noise ratio

for QND measurements is improved. Predictions for the EIT Kerr dynamics with

slow group velocity for the signal field were confirmed experimentally in rubidium

vapor with group velocities of about 10 4 m/s for both probe and signal optical

fields.

xi

Table of Contents

1 Introduction 1

1.1 Introduction to Electromagnetically Induced Transparency . . . . 3

1.2 EIT enhanced nonlinear optics . . . . . . . . . . . . . . . . . . . . 6

1.3 EIT Kerr nonlinearity . . . . . . . . . . . . . . . . . . . . . . . . 7

1.4 Other research related to EIT Kerr nonlinearities . . . . . . . . . 10

1.5 Applications of the EIT Kerr nonlinearity . . . . . . . . . . . . . 16

1.5.1 Number resolving photon counters . . . . . . . . . . . . . 17

1.5.2 Quantum state preparation . . . . . . . . . . . . . . . . . 17

1.5.3 Quantum logic gates . . . . . . . . . . . . . . . . . . . . . 18

1.6 Outline of dissertation . . . . . . . . . . . . . . . . . . . . . . . . 19

2 Theory of Electromagnetically induced transparency 23

2.1 Back of the envelope theory of EIT . . . . . . . . . . . . . . . . . 24

2.2 Perturbative solution for EIT . . . . . . . . . . . . . . . . . . . . 28

2.3 Bloch-vector solution for EIT . . . . . . . . . . . . . . . . . . . . 39

CONTENTS

xii

2.4 Transient Solution for EIT . . . . . . . . . . . . . . . . . . . . . . 43

2.5 Doppler broadening . . . . . . . . . . . . . . . . . . . . . . . . . . 46

2.6 Coherence preserving collisions in

buffer gasses and wall coatings . . . . . . . . . . . . . . . . . . . . 52

2.7 Magnetic sublevels and hyper-fine levels . . . . . . . . . . . . . . 56

2.8 Miscellaneous experimental considerations . . . . . . . . . . . . . 62

3 Theory of the dynamics of the EIT Kerr nonlinearity 67

3.1 The EIT Kerr nonlinearity . . . . . . . . . . . . . . . . . . . . . . 69

3.1.1 EIT Kerr dynamics . . . . . . . . . . . . . . . . . . . . . . 72

3.1.2 Rise-times in optically thin media . . . . . . . . . . . . . . 74

3.1.3 Rise times in optically thick media . . . . . . . . . . . . . 76

3.2 QND measurements & Kerr nonlinearities . . . . . . . . . . . . . 80

3.2.1 QND measurement and SNR . . . . . . . . . . . . . . . . . 81

3.2.2 SNR for EIT Kerr Measurements . . . . . . . . . . . . . . 88

4 EIT Kerr dynamics Experiment 93

4.1 Experiment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

4.2 CW measurements . . . . . . . . . . . . . . . . . . . . . . . . . . 99

4.3 Transients Measurements . . . . . . . . . . . . . . . . . . . . . . . 105

4.4 Discussion of Measurements . . . . . . . . . . . . . . . . . . . . . 111

5 EIT Kerr nonlinearity with slow signal group velocity 116

CONTENTS

xiii

5.1 Slow Light EIT Kerr nonlinearity . . . . . . . . . . . . . . . . . . 117

5.2 Experimental apparatus . . . . . . . . . . . . . . . . . . . . . . . 126

5.3 Slow signal EIT Kerr measurements . . . . . . . . . . . . . . . . . 131

5.4 Discussion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

6 Conclusions and perspective 140

Bibliography 147

A Appendix 1: EIT on the rubidium D1 line 158

A.1 Choice of Polarizations . . . . . . . . . . . . . . . . . . . . . . . . 158

A.2 Transition matrix elements . . . . . . . . . . . . . . . . . . . . . . 160

A.3 EIT in rubidium 85 . . . . . . . . . . . . . . . . . . . . . . . . . . 161

A.4 important parameters for rubidium . . . . . . . . . . . . . . . . . 167

A.5 EIT in rubidium 87 . . . . . . . . . . . . . . . . . . . . . . . . . . 168

xiv

List of Tables

Table Title Page

4.1 Experimental parameters for EIT Kerr measurements . . . . . . . 98

A.1 Comparison of EIT for several choices of polarization . . . . . . . 171

A.2 Dipole matrix elements for Rb 85 D 1 line with F = 2 . . . . . . . . 171



A.5 Dipole matrix elements for Rb 87 D 1 line with F = 2 . . . . . . . . 172

xv

List of Figures

Figure Title Page

1.1 Level diagram–EIT Λ system . . . . . . . . . . . . . . . . . . . . 3

1.2 Three-level EIT systems–Λ, V , and ladder . . . . . . . . . . . . . 5

1.3 Various EIT Kerr systems . . . . . . . . . . . . . . . . . . . . . . 9

1.4 Autler-Townes splitting–dressed state picture . . . . . . . . . . . . 11

1.5 Nonlinear magneto-optical rotation . . . . . . . . . . . . . . . . . 14

2.1 Transformation to bright-dark basis . . . . . . . . . . . . . . . . . 25

2.2 Level diagram–three level atom . . . . . . . . . . . . . . . . . . . 29

2.3 Transformation to dressed state picture . . . . . . . . . . . . . . . 33

2.4 Probe absorption–large single-photon detuning . . . . . . . . . . . 35

2.5 Doppler integration . . . . . . . . . . . . . . . . . . . . . . . . . . 36

2.6 Error bounds–Perturbative calculation . . . . . . . . . . . . . . . 39

2.7 Transformation from GSC to susceptibility . . . . . . . . . . . . . 46

2.8 EIT line shapes for various circumstances . . . . . . . . . . . . . . 51

LIST OF FIGURES

xvi

2.9 EIT linewidth VS rate of VCCPC . . . . . . . . . . . . . . . . . . 55

2.10 Clebsch-Gordon coefficients for Rb 8 5 D 1 line . . . . . . . . . . . . 58

2.11 Bright Rabi frequencies Rb 8 5 . . . . . . . . . . . . . . . . . . . . 60

2.12 Average optical pumping rate R ave . . . . . . . . . . . . . . . . . 61

2.13 Four wave mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

2.14 Visual definition of EIT terms . . . . . . . . . . . . . . . . . . . . 66

3.1 Level diagram four-level atom . . . . . . . . . . . . . . . . . . . . 68

3.2 Susceptibility dynamics . . . . . . . . . . . . . . . . . . . . . . . . 73

3.3 Rise time VS Raman detuning theory . . . . . . . . . . . . . . . . 74

3.4 EIT Kerr rise time (thick media . . . . . . . . . . . . . . . . . . . 79

3.5 Simple QND diagram . . . . . . . . . . . . . . . . . . . . . . . . . 82

4.1 Schematic of EIT Kerr dynamics of experiments . . . . . . . . . . 94

4.2 Level diagram EIT Kerr dynamics experiment . . . . . . . . . . . 97

4.3 Probe absorption measured (T=58 ◦ C) . . . . . . . . . . . . . . . 100

4.4 Measured Stark shift due to signal . . . . . . . . . . . . . . . . . . 101

4.5 Measured Stark shift due to coupling/probe . . . . . . . . . . . . 102

4.6 Raw data homodyne signal–CW . . . . . . . . . . . . . . . . . . . 103

4.7 Processed data homodyne signal–CW . . . . . . . . . . . . . . . . 104

4.8 Raw data homodyne signal–transient . . . . . . . . . . . . . . . . 105

4.9 Processed data homodyne signal–transient . . . . . . . . . . . . . 106

4.10 GSC dynamics–measured . . . . . . . . . . . . . . . . . . . . . . . 108

LIST OF FIGURES

xvii

4.11 Rise and fall times (T=58 ◦ C) . . . . . . . . . . . . . . . . . . . . 109

4.12 Rise and fall times (different Temperatures) . . . . . . . . . . . . 110

4.13 Rise and fall times VS optical depth . . . . . . . . . . . . . . . . 111

4.14 Comparison of theory and measured–GSC dynamics . . . . . . . . 112

5.1 Theory for XPM with slow signal group velocity . . . . . . . . . . 120

5.2 Diagram of slow signal experiment . . . . . . . . . . . . . . . . . 127

5.3 Doppler valleys of Rb 85 and Rb 87 D 1 line . . . . . . . . . . . . . . 129

5.4 Beam areas for slow signal experiment . . . . . . . . . . . . . . . 130

5.5 Probe absorption for EIT in slow signal . . . . . . . . . . . . . . . 131

5.6 Signal absorption . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

5.7 Probe phase for signal pulses of various duration . . . . . . . . . . 134

5.8 Probe phase with slow and fast signal pulses . . . . . . . . . . . . 135

5.9 Probe phase for various signal group velocities–theory . . . . . . . 136

5.10 Width of probe phase pulse VS signal group velocity . . . . . . . 138

6.1 EIT Kerr experiment using an optical cavity . . . . . . . . . . . . 143


A.2 Dark states in rubidium 85 . . . . . . . . . . . . . . . . . . . . . . 164

A.3 Dark states in rubidium 85 . . . . . . . . . . . . . . . . . . . . . . 165

A.4 Rubidium 85 D lines hyperfine splittings . . . . . . . . . . . . . . 167

A.5 Rubidium 87 D lines hyperfine splittings . . . . . . . . . . . . . . 168

xviii


A.7 Dark states in rubidium 87 . . . . . . . . . . . . . . . . . . . . . . 170

1

Chapter 1

Introduction

The field of nonlinear optics explores how the interaction between light and

and a medium modifies the medium’s optical characteristics. For example, the

index of refraction can change as a function of the intensity of the light, which

is known as the Kerr nonlinearity. Other nonlinear effects include generation of

harmonic frequencies, frequency mixing between multiple fields (e.g.

sum and

difference frequency generation), and phase conjugate mirror effects. Generally,

these nonlinear effects are only significant for optical fields with large intensities.

Since the invention of the laser, nonlinear optics has become an integral part of

optical communications, remote sensing, spectroscopy, and quantum information

science.

Over the past decade, there has been increasing interest in realizing low-lightlevel

nonlinear optics using coherently prepared media (CPM). By decreasing

the intensity required to achieve nonlinear optical effects, many new applications

become possible. One intriguing application is cross-phase modulation (XPM),

2

where the Kerr nonlinearity is used to perform a quantum nondemolition (QND)

measurement of photon number. For a long time the largest Kerr nonlinearities

were still quite small (χ (3) ∼ 10 −22 m 2 /V 2 ) limiting QND measurements to intense

fields with large numbers of photons. These QND measurements are of greatest

interest for small numbers of photons where individual number states can be

resolved.

Using electromagnetically induced transparency (EIT), Schmidt and Imamoğlu

[1] showed that it is theoretically possible to achieve Kerr nonlinearities that are

ten orders of magnitude larger than conventional Kerr nonlinearities. Their analysis

concluded, “This shows that our scheme makes possible conditional phase shifts

of the order of π with single photons, which should be beneficial for quantum nondemolition

measurements of weak signals and quantum logic gate operation....The

principal result here is that one can obtain arbitrarily large XPM phase shifts of

the probe field by arbitrarily weak signal fields.”

[1] This conclusion is overly

optimistic because it ignores the rise-time of the EIT Kerr effect. However, it provides

a reasonable glimpse into the possibilities offered by low-light-level nonlinear

optics.

The focus of this work is to better understand the limitations and potential of

the EIT enhanced Kerr nonlinearity by exploring the dynamics and rise-time of

the EIT Kerr effect.

1.1. INTRODUCTION TO ELECTROMAGNETICALLY

INDUCED TRANSPARENCY 3

γ

2

3

γ

2

2

ΩP

ΩC

1

Figure 1.1: Simple level diagram of an EIT Λ system with probe Ω p and coupling Ω c fields in

single-photon resonance and Raman resonance.

1.1 Introduction to Electromagnetically Induced

Transparency

Consider the three-level system shown in Fig. 1.1 with three electronic states |1〉,

|2〉, and |3〉, and two dipole allowed transitions |2〉 ↔ |3〉 and |1〉 ↔ |3〉, that

are resonant with a probe optical field with Rabi frequency Ω p and a coupling

optical field with Rabi frequency Ω c . If the system is in Raman resonance (i.e.

the frequency difference between the optical fields ω p −ω c is equal to the frequency

difference between ground state energies ω 12 ≡ (E 1 − E 2 )/), there is coherent

superposition of ground states called the dark state that is defined as

|−〉 ≡ Ω p|1〉 − Ω c |2〉

, (1.1)

Ω



where Ω ≡ √ Ω 2 c + Ω 2 p is the bright Rabi frequency. This dark state is decoupled

from the excited state because probability amplitude for the electronic transition

|2〉 → |3〉 destructively interferes with probability amplitude for the transition

|1〉 → |3〉. Once in the dark state an electron is “trapped” and cannot be excited

to state |3〉 making the medium transparent to the optical fields.

There is also a superposition of ground states orthogonal to the dark state

called the bright state |+〉 which is coupled to the excited state with Rabi frequency

Ω. Once an atom is excited from the bright state to level |3〉 it spontaneously

decays into either the bright or dark states with equal probability. This

results in coherent preparation and eventual trapping of atoms in this dark state.

This phenomenon was first observed in the late 1970’s by Alzetta et al. [2, 3],

and was given the name of coherent population trapping (CPT) by Gray et al.

[4]. This phenomenon is also commonly referred to as electromagnetically induced

transparency (EIT), which is a term first coined by Harris in 1990 [5].

EIT can be found in many different types of electronic level structures with

different number of levels [6]. Figure 1.2 shows examples of each of these systems

with with level |2〉 being the “excited” state, and the dark state given by Eq. (1.1).

EIT typically implies the assumption that the probe field is much smaller than

the coupling field (Ω c ≫ Ω p ). Although this assumption is often convenient for

simplifying the mathematics, it is not necessary. In this work we discuss Λ-type

EIT systems exclusively.



3

2

1

Ω C

1

Ω

2

P

Ω

1

C

Ω P

3

Ω C

Ω P

2

3

(a) (b) (c)

Figure 1.2: Level diagrams for three different typed os EIT systems; (a) Λ, (b) V , and (c) ladder.

Both the Λ and V systems will be Doppler free when the coupling and probe fields copropagate.

The ladder system is Doppler free when the coupling and probe fields counter propagate.

In the past 15 years EIT have developed into a very active research area.

Much of this work in the early to mid 1990’s centered on using EIT for lasing

without inversion (LWI). In LWI, EIT suppresses stimulated absorption but not

stimulated emission such that when population is injected into the excited state

gain is achieved without inversion [7–11]. EIT has also been applied to various

precession measurement tasks such as magnetometery [12–15], spectroscopy [16,

17], and improving frequency standards [18]. The value of EIT for precession

measurement is due to the fact that the transparency resonance can be very

narrow {e.g. an EIT linewidth with a full width at half maximum (FWHM) of

20-100 of Hz is not uncommon [19, 20]}, making EIT a very sensitive meter for

the Raman detuning and any environmental changes which affect it.

The narrow transparency resonance of EIT has a correspondingly steep dis-

1.2. EIT ENHANCED NONLINEAR OPTICS 6

persion curves as dictated by the Kramer-Krönig relations. This steep dispersion

results in slow group velocities for pulses with frequencies near the EIT transparency

resonance. In 1999 several groups used the steep dispersion of EIT to

observe the slowing of light by seven orders of magnitude, reducing the group velocity

to 10’s of meters per second [21–23]. Using similar EIT slow-light techniques

several groups “stopped” a light pulse ∗ , and holographically stored the light for a

short time before coherently retrieving the pulse [24–26]. In recent work, Longdell

et al. have achieved storage times of up to ten second for light pulses in EIT media

[27]. The incorporation of EIT and a CPM have been used to create single

photon states, store these photons, and then retrieve them while preserving their

quantum properties [28].

1.2 EIT enhanced nonlinear optics

Apart from the EIT Kerr nonlinearity, which we will discuss separately, there

have been many advances in using EIT to provide more efficient low-light-level

nonlinear optical media. The field of EIT enhanced nonlinear optics began in the

mid 1990’s only a few years after the first experiments in EIT. In 1995 Hemmer et

∗ In stopped light there are no photons stored in the medium, only a holographic imprint of

the pulse stored in the coherence of the medium. The term stopped light really refers to stopping

a dark state polarition (a quasi-particle consisting of a superposition of photon and exciton and

enabled by the dark state of EIT). The dark state polariton is stopped by adiabatically turning

off the cw coupling field, which continuously slows down the probe field until it “stops”. When

the coupling field goes completely to zero such that the dark state polariton is stationary, there

are no photons in dark state polariton, which consists entirely of the coherence between ground

states. Thus, “stopped” light is essentially the same as a hologram.

1.3. EIT KERR NONLINEARITY 7

al. demonstrated that EIT could be used to realize efficient phase conjugate effects

[29], and in 1996 several groups demonstrated efficient frequency conversion

via EIT [30, 31]. Other subjects that have been studied in connection with EIT

include coherent Raman scattering [32], four-wave mixing [33–36], generating single

photons [28, 37], generating correlated photons [38–40], and number squeezing

of optical fields [41].

1.3 EIT Kerr nonlinearity

The EIT Kerr nonlinearity was originally proposed by Schmidt and Imamoğlu

in 1996 [1]. The Schmidt-Imamoğlu proposal adds a fourth energy level and an

additional optical field, labeled the signal field, to the Λ EIT system in Fig. 1.1,

transforming the Λ into the shape of an N [see Fig 1.2(a)].

The signal field

induces an AC Stark shift † that perturbs the ground states perturbing of the EIT

system away from Raman resonance. The combination of Stark shift and steep

dispersion due to EIT result in a significant change in the index of refraction,

and the resulting XPM of the optical fields is the EIT Kerr nonlinearity. The

advantage of the EIT Kerr effect is that for continuous wave (cw) fields, it can

be arbitrarily large by either increasing the optical thickness of the EIT medium

or by decreasing the EIT linewidth making the dispersion steeper. For pulsed

† The AC Stark shift is also known as the light shift and the dynamic Stark shift.


applications, which are the focus of this work, the dynamics of the EIT Kerr

nonlinearity limit the XPM [42].

Similar to the refractive Kerr nonlinearity, Harris and Yamamoto proposed a

scheme for an absorptive EIT Kerr nonlinearity in which the EIT medium “absorbs

two photons, but does not absorb one photon.” [43]. Although there are

technically two EIT Kerr nonlinearities (i.e. absorptive and refractive), in this

work we typically refer to the refractive EIT Kerr nonlinearity as the EIT Kerr

nonlinearity. While we always explicitly refer to the absorptive EIT Kerr nonlinearity

as being absorptive.

While both EIT Kerr nonlinearities have been observed in cw conditions [44–

48], only the dynamics of the absorptive Kerr nonlinearity have been observed

and characterized [49–51]. The experiments described in this work are the first

observations of the dynamics of the refractive EIT Kerr nonlinearity.

Several other schemes for EIT Kerr nonlinearities followed the original

Schmidt-Imamoğlu proposal.

A few of these EIT Kerr schemes are shown in

Fig. 1.3. The original four-level N systems proposed by Schmidt and Imamoğlu is

shown in Fig. 1.3(a) [1]. Matsko et al. suggested that M-type systems like the one

shown in Fig. 1.3(b) also exhibit large EIT Kerr nonlinearities [52, 53]. The tripod

scheme shown in Fig. 1.3(c) was proposed by Petrosyan and Malakyan [54, 55].

Harris and Hau showed that the nonlinear interaction between probe and signal

fields in an N system is limited by temporal walk-off. The temporal walk-off


(a)

(b)

Ω S

ΩS

Ω C 2

Ω

P

Ω

C

Ω Ω

P C 1

(c)

(d)

Ω P

Ω C

Ω Ω C

1

P

Ω S

Ω S

Ω C2

Ω S

Atomic

Species #1

Atomic

Species #2

Figure 1.3: Level diagrams for various systems exhibiting EIT Kerr nonlinearities; (a) N system,

(b) M system, (c) a tripod system, and (d) the matched group velocity system.

1.4. OTHER RESEARCH RELATED TO EIT KERR

NONLINEARITIES 10

is the result of the different group velocities of the probe and signal pulses. The

probe pulse propagates with a slow group velocity due to EIT ‡ . While, the signal’s

group velocity is close to c the speed of light in vacuum [56]. To overcome

this temporal walk-off and increase the interaction length several research groups

proposed double Λ schemes, where the signal field would also be part of an EIT

system and propagate with a slow group velocity [57, 58]. Figure 1.3(d) shows a

diagram for the double Λ proposal by Lukin and Imamoğlu, in which the signal

EIT is obtained using a second atomic species [57]. Petrosyan and Kurizki have

also proposed a slightly more elegant double Λ scheme that requires only a single

atomic system [58].

1.4 Other research related to EIT Kerr nonlinearities

In addition to the research discussed above there has been a tremendous amount of

related work that provides valuable context for our research. Due to the sheer volume

of work related to quantum coherence and coherent transients in multi-level

systems, our review cannot be comprehensive. We focus on the most important

historical developments and those experiments that are closely related to the EIT

Kerr effect.

‡ The coupling field is assumed to be cw.



2

ΩP

3

Undressed


ΩC

1

hΩ C

2

Ω P

Dressed State


3'

1'

Figure 1.4: Transformation to the dressed state picture in which the atom is dressed by the

coupling field. In the dressed state picture the Autler-Townes splitting of the excited state

becomes evident.

First, there are primarily three historical ideas that laid the framework for

EIT; the Hanle effect [59], Fano interference [60], and Autler-Townes splitting

[61]. The field of quantum coherence and interference dates back to 1921 with the

Hanle effect and quantum beats. The Hanle effect occurs when a medium with a V

shaped electronic structure [e.g. see Fig. 1.2(b)] absorbs linearly polarized light.

When a magnetic field Zeeman shifts the excited states, the light emitted from the

medium will have a precessing linear polarization [59]). Fano interference occurs

when two ionization pathways (autoionization and photoionization) interfere to

inhibit absorption and ionization. [60]. The difference between EIT and Fano

interference is that, in Fano interference the medium starts in a single electronic

level not a coherent superposition of atomic levels.

Finally, Autler-Townes splitting is very closely related to EIT [61]. Autler-

Townes splitting can be understood by considering any of the three level systems



shown in Fig. 1.2. When the atom is dressed by the coupling field, there are two

dressed states |2 ′ 〉 and |3 ′ 〉 as shown in Fig. 1.4. These two dressed states are an

Autler-Townes doublet with an energy difference of ∆U = |Ω c | = µ|E c |, where

µ is the dipole moment and E c is the amplitude of the coupling electric field. In

one paradigm for EIT, EIT is interpreted as the destructive interference between

the Autler-Townes doublet. In three-level systems, like the one shown in Fig. 1.4,

the distinction between EIT and Autler-Townes splitting is somewhat artificial

because there is no way of isolating the two effects.

In optical dense media where radiation trapping is significant it is impossible

to use CPT to obtain EIT because CPT requires spontaneous emission [62–65].

Radiation trapping causes the spontaneously emitted photon to be recaptured and

reradiated several times before leaving the region of EIT resulting in prohibitive

decoherence and destroying EIT. In these cases stimulated rapid adiabatic passage

(STIRAP) can be used to obtain EIT [62, 63]. In STIRAP the medium starts in

a non coherent dark state (i.e. it starts in a single electronic state) and the fields

are evolved adiabatically such that the system remains trapped in the dark state

as it evolves to a coherent dark state [66, 67].

There is also a great deal of theoretical research studying EIT in cavities.

There are two reasons why EIT in cavities is interesting. First, like EIT enhanced

nonlinearities, cavities can help increase the strength of nonlinear optical inter-



actions [68–70].

Some researchers, mostly at the University of Arkansas, have

performed experiments with EIT in cavities to study optical bistability [46].

The propagation of optical pulses in EIT media has been studied extensively,

but it seems this field is still far from maturity. We have already mentioned that

EIT can be used to obtain very slow group velocities. When the coupling field is

cw and the probe field is pulsed, the probe pulse will propagate at a group velocity

v g,p ≈

c

1 + χ p /2 + ω p

2

∂χ p

,

∂ω p

where ω p is the probe frequency, and χ p ≪ 1 is the probe susceptibility. However,

for matched pulses § in an EIT media, all fields propagate with group velocities near

c the speed of light in vacuum [71]. Also, when two pulses with sufficiently energy

enter a coherently prepared EIT media, they will naturally evolve towards matched

pulses[72]. There is a dark area theorem for EIT similar to the area theorem of

self induced transparency that describes certian aspects of this evolution towards

matched pulses [73]. Various solutions for temporal soliton have also been found

for EIT media; simultons [74, 75], adiabatons [76–79], etc. [80–82]. Some of these

solitons propagate at a slow group velocity, while others propagate with group

velocity near c [81, 82]. For the EIT Kerr nonlinearity spatial Thirring solitons,

have been predicted [83].

§ In matched pulses both the probe and coupling fields are pulsed with the same field amplitudes

and phase modulation– i.e. Ω p (t) = κΩ c (t), where κ is a constant of proportionality.



F e = 1

Ω (σ )

c

+

Ω p

(σ −)

Applying

B-field

F g = 1

m = -1 m =0 m = +1

(a)

(b)

µ B B z

Figure 1.5: Level diagram exhibiting the relation between nonlinear magneto-optic rotation and

electromagnetically induced transparency. Right- and left-hand circular polarized light interact

with an atom with a ground hyper-fine level F g = 1 and excited hyperfine level F e = 1. In the

absence of a magnetic field (a) Raman resonance is established leading to coherent population

trapping. When a magnetic field is applied (b) Zeeman splitting shifts the ground (excited)

magnetic sublevels by mµ B,g B z (mµ B,e B z ), where mu B,i is the magnetic moment for level i

and B z is the magnitude of the magnetic field which is directed along the direction of optical

propagation.

EIT-Kerr dynamics are also closely related to a considerable amount of work

that has been performed under the broad umbrella of coherent transients in multilevel

systems. Park et al. and Chen et al. have observed absorption transients in

Λ-EIT media induced by rapid changes to the Raman (two-photon) detuning [51,

84]. Similarly, Godone et al. have observed transients due to phase modulation

of Raman beams in a Λ system [85]. Many others have also studied transients in

three level EIT systems under a number of different contexts such as: coherent

Raman beats [86], Zeeman splitting [87–89], EIT in semiconductors [16, 90] and

coherent population trapping in closed loop systems [91, 92].

Nonlinear magneto-optical rotation (NMOR) shares many similarities with

EIT. In fact there are some experiments that can either be explianed either as EIT



or as NMOR with different insights coming from the different perspectives. For

example, consider the atomic level structure shown in Fig. 1.5(a). The probe and

coupling fields are equal strength with the same frequency and orthogonal circular

polarizations.

Taken together, the probe and coupling field can be considered

as one field with linear polarization, and the angle of the linear polarization is

determined by the relative phase between the probe and coupling field.

CPT

causes the atom to become trapped in the dark state |−〉 = 1/ √ 2(|g, −1〉 +

|g, +1〉) . Non-zero Raman detunings can be achieved using a magnetic field in

the direction of optical propagation to Zeeman shift the magnetic sublevels [this

is shown in Fig. 1.5(b)]. Away from Raman resonance the coupling and probe

fields experience phase shifts with opposite signs rotating the linear polarization

of the combined probe/coupling field. This rotation of the optical polarization is

what is meant by NMOR.

One of the slowest group velocity measured using EIT was in a NMOR experiment

[21]. In this experiment, which used a room temperature rubidium vapor

with paraffin coated walls, the atoms were allowed to establish equilibrium with

a linearly polarized field. The polarization angle was then modulated; in the language

of EIT one would say the probe field was phase modulated. The phase

For this system the Clebsch-Gordon coefficients for the σ ± polarized light is ∓1/ √ 2. This

difference in sign for the two circular polarizations accounts of the pulse sign in the dark state

superposition.

1.5. APPLICATIONS OF THE EIT KERR NONLINEARITY 16

modulation of the probe and coupling fields propagated through the medium at

8 m/s.For a review of NMOR see Budker [93].

There are also several reviews of CPT and EIT [6, 94–96] and its subfields

[66, 93, 97–100].

1.5 Applications of the EIT Kerr nonlinearity

As we have already mentioned there are several applications that would benefit

from larger Kerr nonlinearities. For example, there are classical applications

such as all optical switching for fiber communication networks.

In this work

we have focused more on the quantum and few photon applications of the EIT

Kerr effect. In particular we focus on the possibility of QND measurements of

photon number with single photon resolution. The ability to detect and resolve

individual optical number states would have several uses in quantum information

processing (QIP) including; long-distance quantum teleportation [101], Bell-state

measurements [102], quantum bit regeneration [103], optical Fock state synthesis

[104], multiphoton correlation measurements [105], simultaneous closure of all of

Bell’s inequalities loopholes [106, 107], and better-than-diffraction-limited photolithography

[108]. We elaborate on a couple of these potential uses of few-photon

Kerr nonlinearities.


1.5.1 Number resolving photon counters

QND measurement of photon number may be the best way to improve upon the

current state of photon counters/detectos and satisfy the demanding requirements

of quantum computing and QIP. The current state of the art photon counters are

Gieger-mode avalanche photodiodes with quantum efficiencies in the range of 0.2-

0.7, and these detectors cannot distinguish between one photon and many photons.

Also, most optical QIP experiments use weak coherent states and post-selection.

Because weak coherent states have finite probabilities of having multiple photons,

these experiments are operated at low photon flux (i.e. coherent states with much

less than one photon on average) to minimize the number of multi-photon states

post-selected as single photon states. By being able to distinguish between 1, 2

and more photons, a QND measurement would enable QIP experiments to operate

with higher photon flux.

1.5.2 Quantum state preparation

Kerr nonlinearities are helpful for quantum state preparation in two ways: as

projective measurements and for entangling two previously uncorrelated wavepackets.

QND measurements project the signal field into an eigen state of the

measurement basis. For Kerr QND measurements the measurement basis is the

number states. Thus, Kerr QND measurements provide a method for obtaining

optical number states form any optical source (thermal or laser). Deterministic


optical quantum computing requires single photons on demand. Being able to

preselect single photon states using a QND measurement would go a long was

towards satisfying this demand. EIT Kerr nonlinearities can also entangle two

previously uncorrelated wavepackets [57, 58]. This is accomplished using a QND

measurement without a classical measurement of the probe/meter field. Finally,

Kerr QND measurements could be used to create macroscopic quantum states

(i.e. Schrödinger cat states) [96].

1.5.3 Quantum logic gates

In their original paper Schmidt and Imamoğlu speculated the the EIT Kerr effect

“should be beneficial for...quantum logic gate operation” [1]. This is an important

application from the perspective of optical quantum computing because in

many ways photons make ideal qubits. They experience little decoherence. It is

straightforward to move photons between nodes of a quantum network or computer.

Entangled photons are straightforward to obtain (i.e. via parametric down

conversion). Finally, single qubit quantum logic operations are trivial (e.g. a

Hadamard gate is simply a 50/50 beam splitter, and a phase shift is a wave

plate). However, deterministic two-qubit quantum logic operations using photons

have been elusive because photon-photon interactions are so weak (i.e. traditionally

nonlinear optics has required intense optical fields). Linear optics quantum

computing (LOQC) somewhat circumvents this issue using probabilistic two-qubit

1.6. OUTLINE OF DISSERTATION 19

quantum gates, but LOQC has its own set of issues which are beyond the scope

of this work [109, 110].

Several architectures based on optical Kerr nonlinearities have been proposed

for quantum computing [111–115]. For example, a Kerr nonlinearity that is strong

enough to induce a π phase shift with a single photon could be used as a controlled

phase gate. Even a weak Kerr nonlinearity (i.e. much less π phase shift per

photon) can be used to implement a CNOT gate [116].

Several groups have

predicted high fidelity quantum logic gate operation using EIT Kerr nonlinearities

[117–119]. Although, Shapiro found that a fully quantum theory of Kerr effect

predicts poor fidelity for Kerr based quantum logic gates [120, 121], the fidelity

of Kerr based quantum logic gates is still being debated.

Even if high fidelity Kerr quantum logic gates are not possible, the EIT Kerr

effect may still benefit quantum computing by enabling improved single photon

sources and detectors.

1.6 Outline of dissertation

The most intriguing applications of the EIT Kerr nonlinearity are pulsed applications.

Thus, a good understanding of the dynamics of the EIT Kerr nonlinearity

is essential for successfully realizing these applications, and understanding what

are the limitations of the EIT Kerr nonlinearity.

Most papers discussing the EIT Kerr nonlinearity and its applications ignore


the rise-time of the EIT Kerr effect (i.e. treat it as though it is instantaneous). For

example, Schmidt and Imamoğlu overlooked the rise-time of the Kerr nonlinearity

when they predicted that the EIT Kerr effect “makes possible conditional phase

shifts of the order of π with single photons” [1]. When the dynamics are considered,

the largest phase shift per photon that can be achieved is about 1/100th of a

radian even under the most ideal conditions. Overlooking the EIT Kerr rise-time

is common even in papers explicitly discussing dynamical properties of pulsed

EIT Kerr systems (see for example [56, 57, 122]). These “transient” analysies

limit their discussion to group velocities and transmission bandwidths. Recently,

there has been greater attention given to dynamics of the EIT Kerr nonlinearity

[42, 120, 123].

One of the advantages of the EIT Kerr nonlinearity is that for cw applications,

it can be arbitrarily large.

The EIT Kerr effect can be made larger by either

decreasing the linewidth of the EIT resonance or increasing the medium’s optical

depth αL, both of which are theoretically boundless (α is the absorption coefficient

and L is the thickness of the medium). However, for pulsed applications the correct

figure of merit is the ratio between the size of the EIT Kerr effect and its rise-time.

As we will show in this work, the EIT Kerr rise-time is directly proportional to

the optical depth and inversely proportional to the EIT linewidth. Thus, the ratio

between the size of the EIT Kerr effect and its rise-time is a constant with respect

to both the EIT linewidth and optical depth.


The objective of this dissertation is to first explore the dynamics of the EIT

Kerr effect, and consider how these dynamics relate to QND measurements of

photon number based on the EIT Kerr effect.

Chapter 2 is a theoretical discussion of EIT. We begin by considering the

experimentally naive scenario of a three-level Λ EIT system with a single velocity

class. We review two methods for calculating the steady state susceptibilities in

EIT; the perturbative and Bloch-vector methods. The Bloch-vector method is

then applied to the problem of transient solutions of EIT. Next, we generalize the

three-level Bloch-vector solution to include Doppler broadening, buffer gas, and

multiple magnetic sublevels in anticipation of our experiment.

Chapter 3 is a theoretical discussion of the EIT Kerr nonlinearity and QND

measurements using Kerr nonlinearities. We first discuss the cw aspects of the

EIT Kerr nonlinearity before deriving expressions for its dynamical evolution.

Next, we consider QND measurements of photon number using Kerr nonlinearities,

and derive expressions for the signal to noise ratio for these QND measurements.

This analysis of the EIT Kerr dynamics and QND measurements illustrates the

limitations of the EIT Kerr effect due to its relatively slow rise-time.

Chapter 4 describes our experimental observations of the EIT Kerr dynamics.

The experiment is performed using rubidium 85 atoms with buffer gas in a room

temperature vapor cell. The measurements of EIT Kerr dynamics and rise-time


show agreement between theory and experiment for variations in optical thickness,

EIT linewidth, and size of the Stark shift.

In Chapter 5 we consider a matched group velocity experiment designed to

overcome some of the limitations imposed by the slow EIT Kerr rise-time. This is

similar to the Lukin-Imamoğlu double Λ proposal shown in Fig. 1.3(d) [57]. We

first derive a simple theory which accounts for signal and probe pulse propagation,

EIT Kerr interaction, and EIT Kerr dynamics. Then, we present experimental

observations of an EIT Kerr system with a slow group velocity for the signal field.

Finally, we conclude by summarizing our results and their implications for

potential EIT Kerr applications. We also discuss open questions related to this

work and future directions.

23

Chapter 2

Theory of Electromagnetically

induced transparency

Electromagnetically induced transparency (EIT) is the result of quantum interference

between multiple transitions to a single final electronic state. In order

to obtain this interference the initial electronic states must be mutually coherent

(i.e. the medium is coherently prepared).

In this chapter we provide a detailed mathematical description of EIT in various

systems and circumstances. The first three sections (i.e. Secs. 2.1-2.3)

present steady state solutions for EIT assuming a single velocity class ∗ and the

three-level system shown in Fig. 2.2. Section 2.1 provides a physical intuitive

“back-of-the-envelope” discussion of EIT, but is of little utility for comparison

with experiments. The perturbative solution in Sec. 2.2 also provides valuable

insight, but is limited by the assumption of small probe fields (i.e. Ω p ≪ Ω c ). Fi-

∗ Room temperature atomic vapors have multiple velocity classes due to Doppler broadening.

A velocity class is defined as the collection of atoms whose velocity along the direction of laser

propagation lie in the range v 1 < v ≤ v 2 , such that the doppler shift associated with frequency

difference ∆v = v 2 − v 1 is equal to the atoms homogeneous linewidth γ (i.e. γ = ω 0 ∆v/c).

2.1. BACK OF THE ENVELOPE THEORY OF EIT 24

nally, the Bloch-vector solution in Sec. 2.3 is too complicated to be very insightful,

but it is accurate.

Section 2.4 derives transient solutions of EIT using the Bloch-vector formalism.

Finally, Secs. 2.5, 2.6, and 2.7 generalize the Bloch-vector solution to account

for Doppler broadening, buffer gas, and the magnetic sublevel and hyperfine levels

associated with real atomic systems.

2.1 Back of the envelope theory of EIT

A simple back-of-the-envelope calculation illustrates the dominant mechanisms of

EIT and provides a valuable reference point before beginning a detailed theoretical

treatment of EIT. Although there are other mechanisms, such as stimulated rapid

adiabatic passage (STIRAP) [63], for obtaining the atomic coherence required for

EIT, CPT is the most common mechanism for achieving EIT. To derive an approximate

solution for CPT, it is sufficient to perform a detailed balancing analysis

between pumping from the bright state to dark states (e.g. optical pumping) and

pumping from dark to bright (e.g. decoherence). Figure 2.1 shows a three-level Λ

EIT system in both the physical basis and the bright/dark basis. The bright and

dark states are respectively defined as

|+〉 ≡ Ω p|1〉 − Ω c |2〉

Ω

, and|−〉 ≡ Ω∗ c|1〉 + Ω ∗ p|2〉

,

Ω


γ/2

3

γ/2

3

γ

γ /2

/2

Ω P

Ω C

Ω

2

Γ

(a)

1

+

Γ

(b)

-

Figure 2.1:

To understand EIT in a three-level Λ system sometimes it is helpful to transform

from the physical basis (a) to the bright/dark basis (b). Raman resonance is

assumed, and γ (Γ) is the decay rate from the excited (ground) state.

where Ω = √ |Ω p | 2 + |Ω c | 2

is the “bright” Rabi frequency, and we recall that

Ω p ≡ µ p E p / (Ω c ≡ µ c E c /) are the probe and coupling Rabi frequencies. The

probe and coupling fields are cw monochromatic fields.

There are two processes moving atoms from the bright to the dark state;

optical pumping R and population exchange between ground states Γ. The optical

pumping rate from the bright state to the dark state is

R =

γΩ 2 /4

Ω 2 + ∆ 2 γ/γ ⊥ + γγ ⊥

, (2.1)

where γ is the spontaneous decay rate out of state |3〉, γ ⊥

≡ γ/2 + γ ′ is the

transverse decay rate (i.e. the decay rate for the coherence terms ρ 31 and ρ 32 ),

and γ ′ is the decoherence due to dephasing (i.e. no change in population). Thus,


the total rate of transfer from bright to dark state is

R |+〉→|−〉 = R + Γ/2, (2.2)

There are also two processes transferring atoms from the dark to bright state;

non-zero Raman detuning resulting in phase change for the coherence between

ground states, and population exchange between ground states Γ. Thus, the rate

of population transfer from the dark state to the bright state is

R |−〉→|+〉 = Γ/2 + δ 2 R/R, (2.3)

where δ R ≡ ω p − ω 2 − ω c + ω 1 is the Raman detuning.

Using detailed balancing between the dark and bright states we see that the

number density of atoms in the bright state is

N + =

NR |−〉→|+〉

R |−〉→|+〉 + R |+〉→|−〉

, (2.4)

where the total number density of atoms is N = N + + N − , and the absorption of

the optical fields is

αL ∝ N + ∝ ΓR+δ2 R

, (2.5)

R 2 +ΓR+δR

2

where α is an absorption coefficient and L is the length of the medium.


Two important details are illustrated by Eq. 2.5. First, the medium only

becomes “transparent” if the EIT condition R ≫ Γ is satisfied. Second, when

the EIT condition satisfied and the probe and coupling fields are near singlephoton

resonance, the line shape of the transparency resonance is approximately

Lorentzian with a linewidth of 2R for full width at half maximum (FWHM).

Finally, we note that the essential resource which enables EIT is ground states

coherence ρ 21 being equal to the dark ground states coherence ρ (−)

21 = −Ω c Ω ∗ p/Ω 2 .

In practice, it is relatively trivial to achieve the desired ratio between ground state

populations (i.e. ρ 22 /ρ 11 ≈ ρ (−)

22 /ρ (−)

11 = Ω 2 c/Ω 2 p, where ρ (−)

22 = Ω 2 c/Ω 2 and ρ (−)

11 =

Ω 2 p/Ω 2 are the dark state populations for levels |2〉 and |1〉). For example, mutually

incoherent † probe and coupling fields will achieve the desired ratio between ground

state populations as long as the EIT condition is met and δ R ≪ γ, but there will

not be EIT because ρ 21 = 0. Both coherent and incoherent optical pumping

processes reach equilibrium with ρ 22 /ρ 11 = Ω 2 c/Ω 2 p, but only the coherent process

(i.e. CPT) has an equilibrium of ρ 21 = ρ (−)

21 .

† Optical fields are incoherent when they have large uncorrelated phase fluctuations.

2.2. PERTURBATIVE SOLUTION FOR EIT 28

2.2 Perturbative solution for EIT

To make our discussion of EIT more rigorous we consider the master equation for

the three-level system shown in Fig. 2.2, which is

˙ρ = 1 [H, ρ] − D, (2.6)

i

where the coherent evolution is determined by the Hamiltonian

⎛

H =

⎜

⎝

δ R /2 0 − Ω∗ C

2

0 −δ R /2 − Ω∗ P

2

− Ω C

2

− Ω P

2

∆

⎞

. (2.7)

⎟

⎠

The decay/repumping matrix is

⎛

D =

⎜

⎝

⎞

Γ(ρ 11 − 1/2) − γ ρ 2 33 Γ ⊥ ρ 12 γ ⊥ ρ 13

Γ ⊥ ρ 21 Γ(ρ 22 − 1/2) − γ ρ 2 33 γ ⊥ ρ 23

, (2.8)

⎟

⎠

γ ⊥ ρ 31 γ ⊥ ρ 32 γρ 33

where γ ⊥

= (γ + γ ′ + Γ)/2 is the transverse decay rate for the excited state

coherences ρ 23 and ρ 13 . The rate of population exchange between ground states

Γ is due to atoms diffusing between the optical region and a reservoir with ρ 11 =

ρ 22 = 1/2 and ρ 21 = 0. The decay rate for the ground state coherence (GSC) ρ 21

is given by Γ ⊥ = (Γ ′ + Γ), where Γ ′ is the dephasing rate for the GSC.


γ/2

2

−δ R /2

Ω P

∆

Γ

3

γ/2

Ω C

1

δ R

/2

Figure 2.2:

Diagram of a three-level Λ-type atom with a strong coupling field and a weak

probe field. The detunings are defined as ∆ = (∆ P + ∆ C )/2, and δ R = ∆ P − ∆ C ,

where ∆ P = (ω 1 − ω 2 ) − ω P and ∆ C = (ω 1 − ω 3 ) − ω C . Also, the Rabi frequencies

are defined as Ω i = µ i E i / where i = {P, C} (signifying probe and coupling fields

respectively), the dipole moments µ i are assumed to be real, and E i is the the

electric field. The spontaneous emission rate out of the excited state is given by

γ and the ground state decoherence rate Γ is the same for both ground states.

Written out explicitly the master equations are

˙ρ 33 = −γρ 33 + Im {Ω ∗ 2ρ 32 + Ω ∗ 1ρ 31 } (2.9)

˙ρ 22 = γ (

2 ρ 33 − Γ ρ 22 − 1 )

− Im {Ω ∗

2

2ρ 32 } (2.10)

˙ρ 11 = γ (

2 ρ 33 − Γ ρ 11 − 1 )

− Im {Ω ∗

2

1ρ 31 } (2.11)

˙ρ 32 =

(

i∆(Ω S ) − i δ )

R(Ω S )

− γ ⊥ ρ 32 (2.12)

2

+i Ω C

2 (ρ 22 − ρ 33 ) + i Ω P

2 ρ∗ 21


˙ρ 31 =

(

i∆(Ω S ) + i δ )

R(Ω S )

− γ ⊥ ρ 31 (2.13)

2

+i Ω P

2 (ρ 11 − ρ 33 ) + i Ω C

2 ρ 21

and

˙ρ 21 = (iδ R (Ω S ) − Γ ⊥ )ρ 21 − i Ω P

2 ρ∗ 32 + i Ω∗ C

2 ρ 31. (2.14)

In its most general form, the steady state analytic solution of Eq.

(2.6) is

extremely complicated and provides little insight, which is why approximate solutions

are typically used [6, 95, 96, 124–126]. One of the more common techniques

uses perturbation theory and assumes a small probe field (i.e. Ω p ≪ Ω p ) to obtain

a solution that is first order accurate in Ω P and accurate to all orders for all other

parameters [124–126]). This perturbative solution is simple and insightful, but it

breaks down for large single-photon detuning ∆ ≫ γ ⊥ and moderately large probe

fields (i.e. Ω p ∼ Ω c /10). As we will show, these limitation make the perturbative

solution poorly suited for calculations of EIT in Doppler broadened medium.

Thus, for Doppler broadened media we use the Bloch-vector solution from Sec.

2.3 instead of the perturbative solution.

The steady state solution of the master equation is solved by setting all time

derivatives in Eqs. (2.9)-(2.9) equal to zero and simultaneously solving these six

equations constrained by the normalization equation ρ 11 + ρ 22 + ρ 33 = 1. We do


this by first rearranging the density matrix into a real vector

⃗p = [ρ 11 , ρ 22 , ρ 33 , Re(ρ 21 ), Im(ρ 21 ), . . .

Re(ρ 32 ), Im(ρ 32 ), Re(ρ 31 ), Im(ρ 31 )] T .

The master equation can now be expressed as a simple matrix equation

˙⃗p = (M + Ω P P )⃗p, (2.15)

where M is a matrix containing terms independent of Ω p , and the matrix P has

all the terms that are multiplied by Ω p . The the top three rows corresponding to

the ˙ρ 11 , ˙ρ 22 or ˙ρ 33 equations are linearly dependent, so one of these rows must be

replaced with the normalization condition ρ 11 + ρ 22 + ρ 33 = 1. The steady state

solution is then

⃗p (ss) = ( ˜M + Ω P ˜P ) −1 ⃗v, (2.16)

where the tildes denote that one row matrix has been replaced by the normalization

condition and ⃗v = [0, 0, 1, 0, 0, 0, 0, 0, 0] T arises from the 1 on the right hand

side of the normalization condition. This exact steady state solution ⃗p (ss) is used

for all numerical calculations discussed in this work, but it does not produce an

insightful analytic result.

The perturbative solution is found by defining the steady-state solution as a


power series in ɛ

∞∑

⃗p (ss) = ɛ n ⃗p n , (2.17)

n=0

where ɛ is a dummy variable to indicate the order of the perturbation. Applying

Eq. (2.17), the master equation becomes

( ˜M

∑ ∞

+ ɛΩ P ˜P ) ɛ n ⃗p n = ⃗v. (2.18)

n=0

Multiplying out, collecting terms of the same order in ɛ, and setting ɛ = 1, we

find that the perturbation solutions are

⃗p 0 = ˜M −1 ⃗v,

(2.19a)

and

⃗p n = (−Ω P ) n (

˜M

−1 ˜P

) n

⃗p0 . (2.19b)

In most discussions of EIT the first order approximation ⃗p (a) = ⃗p 0 + ⃗p 1 is used.

For the case of zero decoherence (Γ ⊥ = 0) the perturbative solution gives a

probe susceptibility of

χ (a)

P (δ R) = Nµ2 p

2ɛ 0

ρ 12

≈ α 0

2δ R

Ω 2 C /γ + 4∆ P δ R /γ − 2iδ R

, (2.20)


Virtual level

Primary level

Ω C

Ω P

Ω P

Undressed


Dressed State


Figure 2.3: Schematic of transformation to the dressed state picture in which the coupling field

dresses the atom splitting in the excited energy level into to new energy levels; the primary

energy level and a virtual virtual energy level.

where α 0 = N|µ p | 2 /2ɛ 0 γ is the incoherent absorption coefficient, µ p is the dipole

moment for the probe transition, N is the atomic number density, and we

have assumed γ ′ = 0. Like Sec. 2.1, Eq. (2.20) also predicts an approximately

Lorentzian transparency resonance when the EIT condition is satisfied and near

single-photon resonance ∆ ≪ γ ⊥ .

Near single-photon resonance the dominant feature of EIT is a transparency

resonance in an absorbing background. However, far from single-photon resonance

(i.e. ∆ ≫ γ ⊥ ) the dominant feature of EIT is an absorbing resonance in a mostly

transparent background. The physics of this process is best understood using the

dressed state picture shown in Fig. 2.3. When the atom is dressed by a large

coupling field the excited energy level splits into two energy levels that we call the

primary and virtual energy levels. Figure 2.4 shows the probe absorption due to

transition to the primary and virtual energy levels. The primary energy level can

be thought of as the original excited energy level ac-Stark shifted by Ω 2 C /4∆ C,


and the absorption due to the primary transition can be approximated by

L 1 (δ R ) =

α 0 Lγ 2 ˜ρ 2 gg

(δ R + ∆ C + Ω 2 C /4∆ . (2.21)

C) 2 + γ 2 ˜ρ 2 gg

The virtual energy level is near Raman resonance δ R = 0, and the absorption due

to the virtual transition is approximately given by

L 2 (δ R ) =

α 0 Lγ 2 ˜ρ 2 ee

(δ R − Ω 2 C /4∆ , (2.22)

C) 2 + γ 2 ˜ρ 2 ee

where ˜ρ ee = Ω 2 C /4∆2 C and ˜ρ gg = 1− ˜ρ ee . EIT results from the interference between

these two transitions. The total absorption is approximately

( [ ( )] ) √L1

L T otal = (δ R ) + exp i cot −1 δR − δ √L2 2

vc

(δ R ) , (2.23)

δ vc /4

where the phase term mimics the interference responsible for EIT, and δ vc =

Ω 2 C /4∆ C is the Raman detuning at the center of the virtual transition. Figure 2.4

(a) shows the agreement between Eq. (2.22) and the exact steady state solution

of Eq. (2.6).

Several of the features exhibited in Fig. 2.4 are important for systems with

multiple velocity classes such as those discussed in Secs. 2.5 and 2.6. First,

the Raman detuning corresponding to the center of the virtual transition (i.e.

δ vc ≈ Ω 2 /4∆) moves closer to Raman resonance for larger single-photon detunings.


1

0.8

(a)

L 2 Eq. (8)

EIT exact

Ω C

=0

Virtual

Transition

x10

(b)

2

c

Ω /4∆

c

Probe Absorption

(α L=1) 0

0.6

0.4

Primary

Transition

Virtual

Transition

Absorption

FWHM

2 2

γ Ω

c

/2∆ c

0.2

0

-50 -40 -30 -20 -10 0 10

Raman Detuning (GHz)

-2 -1 0 1 2

Raman Detuning (GHz)

Figure 2.4: EIT in the far detuned case. Grey solid line shows the probe absorption for EIT

when γ = 2π × 6 MHz and ∆ C = 5γ. The dashed grey curve shows the probe absorption in

the absence of a coupling field, and the black solid line shows the probe absorption for a virtual

transition as calculated in Eq. (2.22).

For EIT in Doppler broadened systems there will typically be a few velocity classes

near single-photon resonance, but most velocity classes will have large singlephoton

detunings. The absorption due to the far detuned velocity classes occur at

Raman detunings in the transparency window of the near resonant velocity classes

(i.e. resonant velocity classes have a transparency window for Raman detunings

|δ R | ≤ Ω 2 /γ while the far detuned velocity classes have peak absorption at Raman

detunings δ R = δ vc ≈ Ω 2 /4∆ ≪ Ω 2 /γ.) Thus, the EIT linewidths in Doppler

broadened media are much narrower than single velocity class EIT systems.

Figure 2.5 shows how the superposition of absorption peaks from different

velocity classes combine to create a narrower EIT resonance. When ∆ ≫ γ ⊥ , the

absorption resonances become sufficiently narrow that they can be approximated


Probe Absorption (arb. units)

5

4

3

2

1

v=±v p

v= - v p/6

v= ± vp/3

v= 0

Doppler

averaged

EIT line

Single

velocity

EIT line

0

-15 -10 -5 0 5

Raman detuning (kHz)

Figure 2.5: Probe absorption versus Raman detuning for a Doppler averaged EIT line shape

and the probe absorption for several different velocity classes which contribute to the Doppler

averaging. The parameters used to calculate these absorption curves are Γ = 0, γ =≈ 2π ×

6 MHz, v p = 50cγ/ω 0 = 222 m/sec.

by Dirac delta functions–i.e.

L 2 (δ R ) ≈ πα 0LΩ 2 γ ⊥

δ(δ

4∆ 2 R − Ω 2 /4∆)

≈ πα 0 Lγ ⊥ δ(∆ − Ω 2 /4δ R ), for ∆ ≫ γ ⊥ . (2.24)

We will revisit this expression in Sec. 2.5 when we discuss Doppler broadened

media.

As mentioned previously the perturbative solution has limited utility (i.e. it

is not valid when the probe field approaches the same order of magnitude as the

coupling field and the single-photon detuning is large ∆ ≫ γ ⊥ ). For large single-


photon detunings and “large” probe fields the virtual transition is still valid if Eq.

(2.22) is modified to obtain

L 2 (δ R ) =

≈

α 0 Lγ 2 ˜ρ 2 ee

(δ R − FΩ 2 C /4∆ C) 2 + γ 2 ˜ρ 2 eeF , 2

πα 0Lγ ⊥

δ(∆ − Ω 2 /4δ R ), for ∆ ≫ γ ⊥ , (2.25)

F

where F = √ 1 + |Ω P | 2 |Ω C | 2 ∆ 2 /γ 2 ⊥ Ω4 . Finally, in both Eqs. (2.22) and(2.25)

we have assumed no decoherence.

The effects of nonzero decoherence can be

approximated by a second ad-hoc change such that

L 2 (Γ ≠ 0) ≈ 2R2 L 2 (Γ = 0)

( √ 2R + Γ) 2 , (2.26)

where we recall that R = γΩ 2 /4(∆ 2 γ/γ ⊥ + γγ ⊥ ).

An error bound for the perturbative solution ⃗p (a) can be calculated by considering

the convergence rate of the perturbation power series from Eq. (2.17). From

Eq. (2.19b) we have the inequality

||⃗p n || ≤ B n ||⃗p 0 ||, for n > 0, (2.27)

where B ≡ |Ω P | max |λ j | and max |λ j | is the maximum magnitude for the eigen-


values of matrix product ˜M −1 ˜P . Thus, the upper bound for the error is

‖⃗p SS − ⃗p (a) ‖

‖⃗p SS ‖

≤ B 2 , if B < 1. (2.28)

Through numerical experimentation we found that for a given probe detuning

∆ p the maximum value for B is given by

⎧

∣

⎪⎨

∣ Ω P ∣∣

∆P

Ω C

≪ γ ⊥

B ≈

∣ , (2.29)

⎪⎩

4Ω

∣ P Ω C ∆ P ∣∣

∆P ≫ γ

Ω 2 C γ+8√ 2∆ 2 P Γ ⊥

where ∆ C = ∆ P − Ω 2 C /4∆ P for ∆ p > γ. There are a couple features of Eq. (2.28)

worthy of mention. First, Ω p ≪ Ω c is typically given as the validity condition

for the perturbative solution, which is correct near resonance. However, far from

resonance B is large when Ω p ≪ Ω c and Γ ≈ 0. This fact makes the perturbative

solution poorly suited to Doppler broadened media where the far detuned velocity

classes play the dominant role in determining the EIT line shape and linewidth.

In Doppler broadened media, the error bound is determined by the velocity

class with the largest value of B (i.e. B max ≡ max(B)). Figure 2.6 shows how the

ratio Ω p /B max varies as a function of the coupling amplitude for a medium with

80 velocity classes. Two different decoherence rates are considered.

2.3. BLOCH-VECTOR SOLUTION FOR EIT 39

0.03

Large Probe

0.02

______

Ω P Ω C

FWHM≈

3.5 γ

=250 Hz Γ ⊥

ΩP

max

0.01

FWHM

≈Ω(Γ /γ) 1/2

Γ ⊥

=0

Weak Probe

0

0 0.5 1 1.5 2

Ω C

γ

/

FWHM ≈

Ω 2

____

N v

γ

Figure 2.6: Limiting value of the Ω P /B max versus coupling Rabi frequency for calculating

accuracy limits using Eq. 2.29. The limits of the Doppler integration are ±40γc/ω ◦ , i.e.

∆ = {−40γ, 40γ}.

2.3 Bloch-vector solution for EIT

The Bloch-vector method for calculating EIT susceptibilities has several advantages

over the perturbative calculation.

First, Bloch-vector solution makes no

assumptions about the relative strengths of the probe and coupling field. Second,

it becomes more accurate for large single-photon detunings.

Third, it is

straightforward to use the Bloch-vector formalism to derive transient solutions for

EIT.

The Bloch-vector method uses the fact that in most experimentally relevant

EIT scenarios, the excited state coherences ρ 23 and ρ 13 can be adiabatically eliminated,

and the master equation can be reduced to a Bloch-vector equation. This


approach to solving EIT problems was pioneered by Bennink [127]. The justification

for adiabatically eliminating the excited state coherences is strengthened

significantly by large single-photon detunings making it ideal for calculations in

Doppler broadened media.

The excited state coherences are adiabatically eliminated by setting the time

derivatives in Eqs. (2.12) and (2.13) equal to zero and solving to obtain

Ω P2

(ρ 22 − ρ 33 ) + Ω C

ρ 32 ≈ −

2

ρ ∗ 21

(2.30)

∆ + iΓ ⊥

and

Ω C2

(ρ 11 − ρ 33 ) + Ω P

ρ 31 ≈ −

2

ρ 21

. (2.31)

∆ + iΓ ⊥

The density matrix can be rewritten as a Bloch-vector equation for the two ground

states

d

{

dt ⃗ρ = (R + Γ) −⃗ρ + T ⃗ × ⃗ρ + (1 − 3ρ 33 ) F ⃗ }

, (2.32)

and a first-order differential equation for the excited state population

d

dt ρ 33 = −γρ 11 − (R + Γ)⃗ρ · ⃗F + (1 − 3ρ 33 )R. (2.33)


In the Eqs. (2.32) and (2.33) have used the following definitions

⎛

⎞

⎛

⎞

⃗ρ =

⎜

⎝

u

v

w

≡

⎟ ⎜

⎠ ⎝

2 Re{e −iθ ρ 21 }

2 Im{e −iθ ρ 21 }

ρ 22 − ρ 11

, (2.34)

⎟

⎠

⃗F ≡ R (1 − 3ρ 33)

R + Γ

⎛

⎜

⎝

2e −iθ ρ (−)

21

0

ρ (−)

22 − ρ (−)

11

⎞

, (2.35)

⎟

⎠

⃗T ≡

δ R

R + Γŵ + ∆

F

Γ (1 − 3ρ 33 ) ⃗ , (2.36)

R ≡ Ω2 Γ ⊥ /4

, (2.37)

∆ 2 + Γ 2 ⊥

where ŵ = (0, 0, 1) T is the unit vector in the direction of w. The phase θ is defined

as θ ≡ arg(ρ (−)

21 ).

It has been shown in Ref. [127] that the steady state solutions to Eqs. (2.32)

and (2.33) are

and

⃗ρ ss = (1 − 3ρ 33 ) ⃗ F + ⃗ T × ⃗ F + ⃗ T ( ⃗ T · ⃗F )

1 + T 2 (2.38)

ρ ss

33 =

R − (R + Γ) F ⃗ ∣

· ⃗ρ

(

γ + 3 R − (R + Γ) F ⃗ ∣

· ⃗ρ

∣

ρ33 =0

∣

ρ33 =0

) (2.39)

where T = | ⃗ T |.


In anticipation of the fact that ρ 33

≈ 0 for the experimental conditions in

chapters 4 and 5, we set ρ 33 = 0 throughout the remainder of this work.

Finally, it is straightforward to relate the atomic parameters to the susceptibilities

for the fields. We recall that the probe and coupling susceptibilities are

χ P = N|µ|2

ɛ 0 Ω p

ρ 32 , (2.40)

and

χ C = N|µ|2

ɛ 0 Ω c

ρ 31 . (2.41)

By assuming δ R ≪ γ ⊥ and ρ 22 /ρ 11 = |Ω c /Ω p | 2‡ , we can rewrite the expressions

for the excited state coherences (i.e. Eqs. 2.30 and 2.31 in a more intuitive form;

ρ 32 ≈

(

ρ 22 Ω P 1 − ρ 21 /ρ (−)

21

2(∆ − δ R /2 + iΓ ⊥ )

) ∗

(2.42)

and

ρ 31 ≈

(

)

ρ 11 Ω C 1 − ρ 21 /ρ (−)

21

2(∆ − δ R /2 + iΓ ⊥ ) . (2.43)

The crucial term in Eqs.

2.42 and 2.42 is the ground state coherence (GSC)

ρ 21 . In future sections it becomes evident that EIT, the EIT Kerr effect and its

dynamics are all tied to ρ 21 and its evolution. The central role of the GSC is

‡ The first assumption coupled with the EIT condition implies the second assumption. Recall

that both coherent and incoherent optical pumping achieve the same ratio between ground state

populations. Also, these assumptions are well justified for the experimental parameters used in

this work.

2.4. TRANSIENT SOLUTION FOR EIT 43

partially revealed by plugging Eq. (2.42) into Eq. (2.40) to obtain

χ p (ρ 21 ) ≈ Nρ 22|µ| 2

2ɛ ◦

(

1 −

) ∗

ρ 21 /ρ (−)

21

. (2.44)

∆ − δ R /2 + iγ ⊥

2.4 Transient Solution for EIT

The time dependent Bloch-vector equation in Eq. (2.32) can be decoupled into

three independent ordinary differential equations:

⎧

( d

2

dτ + 2 d ) ⎪⎨

2 dτ + 1 + T 2

⎪⎩

u ′ − u ′ f

v ′ − v ′ f

⎫

⎪⎬

= 0 (2.45)

⎪⎭

and

( ) d (w

dτ + 1 ) ′ − w f

′ = 0, (2.46)

where τ = (R + Γ)t and we have used the transformation of variables

⎛

⎜

⎝

⎞

u ′

v ′

= 1

⎟ T

⎠

w ′

⎛

⎜

⎝

⎞ ⎛

T w 0 −T u

0 T 0

⎟ ⎜

⎠ ⎝

T u 0 T w

u

v

w

⎞

. (2.47)

⎟

⎠

The initial conditions are given by ⃗ρ(t = 0) = ⃗ρ i ,

˙u ′ (0) = −T v ′ i − u ′ i + (1 + T 2 )u ′ f, (2.48)


and

˙v ′ (0) = T u ′ i − v ′ i. (2.49)

The subscript f denotes the final steady state values which are derived from the

steady state solution Eq. (2.38) with ρ 33 = 0 (we are assume that for t ≥ 0 all

parameters are constant.).

The solutions to Eqs. (2.45) and (2.46) are

u ′ (τ) − u ′ f = Ae −τ cos(T τ + φ), (2.50)

v ′ (τ) − v ′ f = Ae −τ sin(T τ + φ), (2.51)

and

w ′ (τ) − w ′ f = ( w ′ i − w ′ f)

e −τ , (2.52)

where

tan φ = v′ f − v′ i

u ′ f − , and A = u′ i − u ′ f

u′ i

cos φ

= v′ i − v ′ f

sin φ . (2.53)

When u, v, and w are plotted parametrically as a function of time, these equations

describe an exponentially decaying spiral.

For future discussions of the field susceptibilities it is convenient to transform

from a Bloch-vector back to a density matrix. This is simplest if ∆ = 0, in which


case

ρ 21 (t) = u+iv = ρ 21,f +(ρ 21 (0)−ρ 21,f ) exp [(iT − 1)(R + Γ)t] , for t ≥ 0; (2.54)

where ρ 21,f = lim t→∞ ρ 21 (t) is the final steady state GSC. Also, for future reference

we note that for ∆ = 0 the steady state GSC is given by

ρ (ss)

21 (δ R ) =

ρ (−)

21 R

(R + Γ) − iδ R

, (2.55)

which is the equation for a circle when the real and imaginary parts of the GSC

are plotted parametrically as a function of the Raman detuning. Finally, we note

that thinking in terms of the GSC is an equivalent alternative to discussing EIT in

terms of Lorentzian absorption lines with corresponding dispersion lines. Figure

2.7 is a visual representation of the mapping between GSC and susceptibilities. We

will change between these two representations depending on which representation

yields greater insight. The dashed line in Fig. 2.7(a) is an example of a transient

spiral calculated from Eq. (2.54) for the case when ρ 21 (t = 0) = ρ (ss)

21 (δ R = 0)

and ρ 21,f = ρ (ss)

21 (δ R = 1.2R). The choice of other parameters can be found in the

figure caption.

2.5. DOPPLER BROADENING 46

0.5

(a)

Ground State

Coherence

21

/ ρ

(-)) 21

(b)

1

Probe

Susceptibility

0.5 Re(χ ) ∝ -Im (

Im

ρ

( 21 (-)

/ρ 21

)

0

-0.5

ρ (ss) (1.2R)

21

ρ (ss) (0 )

ρ

(ss) (δ

21 R

)

ρ 21

(t)

0 0.5 1

Re

ρ

( 21 (-)

/ρ 21

)

21

ρ

Im(χ ) ∝ Re( 1-

P

0.5

0

-4 -2 0 2 4 -0.5

δ R /2R

0

P )

ρ21

/ρ /

21

(-))

Figure 2.7: (a) Steady state (solid line) and transient (dashed line) ground state coherence are

plotted in the complex plane, while (b) the probe susceptibility is plotted as a function of the

Raman detuning δ R . All plots are theory with R ≈ 5Γ, and all variables except the Raman

detuning are held constant. The transient ground state coherence curve (dashed) started with

steady state for δ R = 0, then suddenly the Raman detuning changed to 2R. To show the

mapping between ground state coherence and probe susceptibility four shapes corresponding to

four Raman detunings have been plotted on both the steady-state ground state coherence and

susceptibility curves.

2.5 Doppler broadening

Up to this point our model for EIT has only three energy levels, two dipole allowed

transition, and one velocity class. The experimental systems discussed in Chapters

4 and 5 are significantly more complicated than this, but the above theory is still

applicable if we understand how it applies it to the real physical system. § In this

section and the next two sections we generalize the theory to include Doppler

broadening, velocity changing coherence preserving collisions (VCCPC), and the

§ Many researchers work hard to make their physical system similar to the simplified theory.

We have adopted the approach of embracing the complexity of our experiment and modifying

our theory to accommodate our experiment.


complex structure of magnetic sublevels and hyperfine levels encountered in real

atoms.

In hot atomic vapors the velocity of the atoms parallel to the propagation of

the optical fields shifts the atomic frequencies due to the Doppler effect. For a

given velocity class of atoms (i.e. the set of atoms with velocity v in the range

v 1 < v ≤ v 2 such that ∆vω 0 /c = 2γ ⊥ , where ∆v = v 2 − v 1 .) the detunings become

δ R (v) = δ R (0) + vω 21 /c (2.56)

∆(v) = ∆(0) + vω 0 /c, (2.57)

where ω 0 = ω 3 − (ω 2 + ω 2 )/2, ω 21 = ω 2 − ω 1 , and ω n = E n / with E n being the

energy of level n. We have assumed that the EIT fields are perfectly copropagating.

For Doppler broadened media we must average quantities such as the probe

susceptibility over all velocity classes. For example,

χ p (δ R ) =

=

∫ ∞

−∞

∫ ∞

−∞

dvχ P [δ R (v), ∆(v)] exp(−v2 /v 2 p)

v p

√ π

d∆χ P [δ R (∆), ∆] 2 ln 2 exp [−(∆ − ∆ 0) 2 4 ln 2/∆ 2 D ]

∆ D

√ π

, (2.58)

where δ R is shorthand for δ R (v = 0), ∆ 0 = ∆(v = 0), v p = √ 2k B T/m is the most

probable velocity in the Maxwellian velocity distribution, m is the atomic mass,

and ∆ D = 2 √ ln 2v p ω 0 /c is the Doppler broadened FWHM.


For simplicity, we will restrict our discussion to the case when ∆ 0 = 0. As

we began discussing in Sec. 2.2 Doppler broadening results in a narrowing of the

EIT resonance because absorption from the far detuned velocity classes fills in the

transparency wings of the near resonant velocity classes making the transparency

resonance narrow.

In Doppler broadened media with greater than 20 velocity

classes, the EIT line shape is almost entirely determined by the far detuned velocity

classes. These far detuned velocity classes have narrow absorption spikes

that can be approximated by Dirac delta functions [see Eqs. (2.24) and (2.25)].

In order to obtain the most accurate for EIT line shapes in Doppler broadened

media we use the Bloch-vector solution. The steady state GSC is given by

ρ 21 = F u

2

{

1 +

[ (

¯δ

i −

1 + T 2

¯δ + F )]}

w∆

. (2.59)

γ

Applying this result to Eqs. (2.40) and (2.42) yields

χ p ≈ − Nµ2 pρ 22

2ɛ 0

[

Γ⊥ + ¯δR (

1+T −i + ¯δ + 2 Fw ∆/γ ) ] ∗

, (2.60)

(R + Γ ⊥ )(∆ − δ R /2 − iγ ⊥ )

where ¯δ R = δ R /(R + Γ ⊥ ), and we have used the identity F u = 2Rρ (−)

23 /(R + Γ ⊥ )

in the last line. Under the assumptions of ω 21 = 0, Γ ⊥ = 0 and F w ≫ F u , we find


that the imaginary part of the susceptibility is

Im(χ p ) ≈

32α 0 δ 2 R γ2 ⊥

( )

∆ 2

+ 1

γ⊥

2

[ ( )

Ω 4 4δR (∆ 2 +γ⊥ 2 2 (

)

Ω 2 γ ⊥

− ∆ γ ⊥

+ Fu 2 ∆2 + 1

γ⊥

2

)], (2.61)

where we have defined α 0 = Nµ 2 /4ɛ 0 γ ⊥ and we have used the definition of the

optical pumping rate R = Ω 2 γ ⊥ /4(∆ 2 + γ⊥ 2 ). In the limit of large single-photon

detunings Eq. (2.61) describes a “virtual” absorption peak centered at Ω 2 /2∆

with a peak height of

h = 2Nσ p /(1 + F 2 u∆ 2 /γ 2 ⊥)

and the FWHM is

w = Ω 2 γ ⊥

√1 + F 2 u∆ 2 /γ 2 ⊥ /4∆2 .

This absorption peak has an approximately Lorentzian line shape, and its area is

given by

A(∆) =

≈

∫ 2Ω 2 /∆

−2Ω 2 /∆

dδ R Im[χ p (δ R )] ≈ π 2 h w (2.62)

πα 0 Ω 2 γ ⊥

4∆ 2√ 1 + F 2 u∆ 2 /γ 2 ⊥

.


Thus, the Doppler averaged absorption line is approximately

Im(χ p )

≈

≈

∫ ∞

(

A(∆) exp

− ∆2 4 ln 2

∆ 2 D

) (

δ

δ R − Ω2

4∆

d∆

√

−∞

∆ D π/ ln 2/2

√ ( )

2Nσ p γ ⊥ π ln 2 exp

ln 2Ω4

−

4δR 2 ∆2 D

√ . (2.63)

∆ D 1 + F

2

u Ω 4 /16δR 2 γ2 ⊥

)

This expression for the Doppler averaged line shape is valid for both the largeand

weak-probe limits. In the weak-probe limit the absorption area in Eq. (2.62)

is A(∆) ≈ πα 0 Ω 2 γ ⊥ /4∆ 2 and the line shape simplifies to

Im(χ p ) ≈ 2Nσ pγ ⊥

√

π ln 2

∆ D

)

ln 2Ω4

exp

(− , (2.64)

4δR 2 ∆2 D

and the EIT linewidth (FWHM) is Ω 2 /∆ D . In the weak-probe limit the effects

of non-zero decoherence (i.e. Γ ⊥ ≠ 0) can be accounted with the substitution

∆ D → ˜∆, where

√

1

˜∆ =

1

∆ 2 D

+ Γ√ 2

Ω 2 γ . (2.65)

This substitution becomes necessary when not all velocity classes satisfy the EIT

condition creating a coherence cutoff such that far detuned velocity classes with

∆ > ˜∆ do not contribute to the line shape of EIT.

In the large-probe limit the absorption area in Eq.

(2.62) is A(∆) ≈


L / )

Absorption ( α max(α L)

1

0.8

0.6

0.4

U-shape

0.2

weak probe

V-shape

large probe

0

1.5 1 0.5 0 0.5 1 1.5

FWHM )

Raman Detuning ( δ R/

Lorentzian

single velo.

Figure 2.8: Absorption line shapes for the probe field in different regimes of EIT. The solidblack

curve is a perfect Lorentzian corresponding to a single velocity class. The solid-grey and

dashed-black curves show respectively the large-probe and weak-probe limits for the case of

degenerate ground states (i.e. ω 21 = 0) and Doppler broadening with N v = 40. All curves

assume single-photon resonance (i.e. ∆ 0 = 0) and Γ ⊥ = 0.

πα 0 Ω 2 γ 2 ⊥ /4F u∆ 3 , and the line shape becomes

Im(χ p ) ≈

2Nσ p γ ⊥

√

π ln 2

∆ D

√

1 + F

2

u Ω 4 /16δ 2 R γ2 ⊥

. (2.66)

√

with a linewidth (FWHM) of Ω P Ω C /γ ⊥ 3.

Figure 2.8 shows the probe absorption for EIT under three different sets of

conditions: a single velocity class and multiple velocity classes in the weak- and

large-probe limits. All three transparency lines are normalized to have the same

FWHM in order to compare the line shapes. The Lorentzian shape for a single

velocity class provides a reference for U and V shaped lines corresponding to the

weak- and large-probe limits with multiple velocity classes.

2.6. COHERENCE PRESERVING COLLISIONS IN

BUFFER GASSES AND WALL COATINGS 52

2.6 Coherence preserving collisions in

buffer gasses and wall coatings

One of the primary obstacles in EIT related experiments is reducing the decoherence

to tolerable levels. In hot atomic vapors this means reducing the transit-time

decoherence. For example, room temperature rubidium atoms have a velocity of

about v p − 250 m/s, resulting in a transit-time decoherence rate of 100 kHz for

a beam diameter of 2.5 mm. Typically, either a buffer gas or a wall coating is

used to keep atoms in the optical region without losing coherence. EIT atoms like

rubidium can undergo thousands of velocity changing collisions with other buffer

gas atoms or coated walls before they lose their GSC that is crucial for EIT.

These velocity changing coherence preserving collisions (VCCPC) have the

secondary effect of causing the GSC created in the near resonant velocity classes

(i.e. the optical pumping rate R is largest near resonance) to diffuse to the far

detuned velocity classes. If the collision rate R c is fast enough that on average

each atom experiences all of the velocity classes in the coherence time τ c = 1/2Γ ⊥

(i.e. R c ≥ N v /τ c , where N v = ∆ D /2γ ⊥ is the number of velocity classes), then

each atom will see the same average optical pumping rate

R vccpc = 2√ ln 2

∆ D

√ π

∫ ∞

−∞

d∆ R(∆) exp(−∆ 2 4 ln 2/∆ 2 D)

≈ R(0)/N v (2.67)



regardless of its current velocity class. This leads to a uniform distribution of

GSC, and several interesting effects for the EIT line shape. When the condition

R c ≥ N v /τ c is satisfied we call the system a VCCPC system.

To understand the implications of a uniform ground state coherence on the EIT

line shape we use the Bloch-vector formalism of Sec. 2.3 with the assumptions

Γ = 0 and Ω C ≥ 5Ω P and ∆(v = 0) = 0. Using Eq. (2.30) the GSC for all

velocity classes can be expressed as

ρ 21 =

ρ (−)

21

1 − iδ R /R vccpc

. (2.68)

The probe susceptibility is found by plugging Eq. (2.68) into Eq. (2.44) to obtain

(

) ∗

χ p (∆) ≈ − Nµ2 p

−iδ R

, (2.69)

2ɛ 0 (R vccpc − iδ R )(∆ − iγ ⊥ )

where we have assumed δ R ≪ γ ⊥ . Finally, integrating over all velocity classes the

Doppler averaged probe susceptibility is

δ R

χ p ≈ −A

, (2.70)

R vccpc + iδ R



where A is a constant

A = Nγ √

⊥µ 2 p ln 2/π

2ɛ 0 ∆ D

≈

∫ ∞

0

d∆

(

exp

− ∆2 4 ln 2

∆ 2 D

∆ 2 + γ 2 ⊥

Nµ2 p 1

. (2.71)

4ɛ 0 γ ⊥ N v

)

In contrast to EIT in non-VCCPC Doppler broadened media, the farthest detuned

velocity classes contribute least to the EIT line shape because for far detuned

velocity classes (i.e. for |v| ≫ cγ ⊥ ω 0 ) the probe susceptibility has the symmetry

χ p (v) ≈ −χ p (−v) such that χ p (v) ≈ +χ p (−v) ≈ 0.

Equation (2.70) is simply a Lorentzian shaped transparency resonance with

FWHM of 2R ave . It is as though the blurring of velocity classes has made Doppler

broadened line into a single homogeneous line with linewidth 2N v γ ⊥

= ∆ D

(FWHM). Empirical studies show that VCCPC systems are effectively approximated

as a single homogeneous line for conditions deviating from the case we

have considered, such as when the decoherence is non-zero (Γ ≠ 0), the system

is away from resonance (∆(v = 0) ≠ 0), and the ground energy levels are not

degenerate (ω 21 ≠ 0).

Figure 2.9 shows how the linewidth and line shape change as a function of the

collision rate. The black curve shows the FWHM of the transparency resonance

and the grey curve shows the root mean square (rms) difference between the

Approximating a Doppler broadened VCCPC system as a single homogeneous absorption

line over looks the fact that Doppler-broadened lines is gaussian and not Lorentzian, but discrepancies

resulting from this difference are typically small.



20

0.1

FWHM (kHz)

16

12

Non-VCCPC

8

VCCPC

4

0

0.1 1 10 10 10 10

Velocity Changing Collision Rate (kHz)

0.08

0.06

0.04

2 3 4 0 0.02

RMS difference from Lorentzian

Figure 2.9: EIT linewidth (black) versus the rate of velocity-changing, coherence-preserving

collisions (VCCPC). The grey curve shows the RMS difference between the EIT line shape and

a Lorentzian line shape with the same amplitude and FWHM.

numerical simulation of a system with velocity changing collisions and a Lorentzian

transparency window of the same width and depth. The parameters chosen for

this simulation are in the weak-probe limit. In the non-VCCPC region (i.e. the

VCCPC condition R c ≥ N v /τ c is far from being satisfied), the system is a typical

Doppler broadened system with linewidth Ω 2 / ˜∆. Once the VCCPC condition is

satisfied there is no longer a coherence cutoff and the EIT linewidth decreases to

Ω 2 /∆ D . Also, in the VCCPC region the line shape is essentially Lorentzian for

collision rates satisfying the VCCPC condition.

2.7. MAGNETIC SUBLEVELS AND HYPER-FINE LEVELS 56

2.7 Magnetic sublevels and hyper-fine levels

In Chapters 4 and 5, the experiments use the D 1 line of rubidium which has many

more electronic states than the three-level EIT systems considered up to this

point. Both Rb 85 and Rb 87 isotopes are used in the experiments but only Rb 85 is

considered here (Rb 87 is discussed briefly in the Appendix). The D 1 line of Rb 85

has four hyperfine, 24 magnetic sublevels and 66 dipole allowed transitions making

it substantially more complicated than the three-level EIT system we previoiusly

considered. However, the essence of EIT in this system is the same as the threelevel

Λ system (i.e. optical pumping and decoherence between bright and dark

states). The theory developed for three-level systems is applicable to the D 1 line

of rubidium if averaged quantities are used (e.g. the average optical pumping rate

R ave and an effective homogeneous linewidth γ eff ; both are derived shortly).

In anticipation of the experiments of Chapters 4 and 5, we consider orthogonal

linear polarization for the probe and coupling fields ‖ . For the choice of quantization

axis parallel to the coupling beam polarization, Fig. 2.10 shows the level

diagram for Rb 85 with the coupling coefficients for the probe and coupling transitions.

There are other dipole allowed transitions not shown in Fig. 2.10. The

‖ There are several reason why the probe and coupling fields have orthogonal linear polarization,

and all of them are important for achieving EIT with good contrast. First, choosing

the the fields to have circular polarizations results in there being non-coherent dark state (i.e.

dark states which are individual magnetic sublevels not coherent superpositions of sublevels for

an appropriate choice of quantization axis). These non-coherent dark-states make the medium

transparent regardless of the Raman detuning, and destroying the EIT contrast. Second, for

parallel linear polarizations there are no dark states that are simultaneously dark for transitions

to both excited hyper-fine levels. Finally, experimentally it is convenient to have different

polarization for the two fields so that they can be separated using polarization.


probe and coupling fields’ interaction with these transitions creates an ac-Stark

shifts the ground hyperfine levels and changes the hyperfine splitting. The energy

shift to the hyperfine splitting is

∆U =

Ω2 p

4∆ hf

+

Ω2 c

4∆ hf

=

Ω2

4∆ hf

, (2.72)

such that the hyperfine splitting becomes ∆ hf (Ω) ≈ ∆ hf (0) + ∆U and for Rb 85

we have ∆ hf (0) = 3.035 GHz. For now, we ignore these transitions, but we will

consider them again in chapters 4 and 5.

Although it is far from obvious by looking at the level diagram in Fig. 2.10,

there is exactly one coherent superposition of ground states that is completely

decoupled from both F ′ = 2 and F ′ = 3 excited hyperfine levels. This is the

only truly dark state.

There are also four other partially dark states that are

only weakly coupled to the excited states, and seven other bright states that are

strongly coupled to the excited states. Details about the completely dark state

can be found in the Appendix.

The coupling between the ground and excited states can be calculated by

solving for the eigenvalues of the time independent Hamiltonian. The time independent

Hamiltonian is obtained using a rotating reference frame with the rotating

wave approximation, and by only considering those dipole allowed transitions

explicitly shown in Fig. 2.10. The eigenvalues and eigenvectors are evaluated


hω P

2

27

1

3

1

3

2

27

5

8

1

8

5

27

27

3

27

27

2

−1

−1

2

−

−

27

3

3

27

hω C

m F =-3 m F =-2 m F =-1 m F =0 m F =1 m F =2

m F =3

F -

(a)

F’=3

F’=2

F=3

F=2

hω P

(b)

15

10

6

1

1

27

27

27

3

27

−1

4

−1

1

4

1

−

0

3

27

27

27

27

3

1

27

1

3

6

27

10

27

15

27

m F =-3 m F =-2 m F =-1 m F

=0

m F =1 m F =2

m F =3

F’=3

F’=2

hω C

F=3

F=2

Figure 2.10: Transitions excited by the vertically polarized probe laser (grey lines) and

horizontally polarized coupling laser (black lines). The quantization axis is chosen along

the horizontal polarization. Also shown are the hyperfine matrix elements for each

excited transition, which are related to the Clebsch-Gordon coefficients by the factor

(−1) √ { }

F ′ +J+1+I J J

(2F ′ ′

1

+ 1)(2J + 1)

F ′ , where I = 3/2 is the nuclear spin, J = J

F I

′ =

1/2 are the orbital plus spin angular momenta for the ground and excited state respectively,

and we have use the Wigner 6-j symbol (see Ref. cite for details).


numerically for the case when δ R = 0 and ∆ ≫ Ω + , where

Ω + = 2µ D1

√E 2 P + E2 C /√ 3, (2.73)

is the bright Rabi frequency for the D 1 line and for rubidium µ D1 = 2.54 ×

10 −29 Cm. The smallest eigenvalues are the Stark shifted energies for the ground

states, and these energy shifts (i.e. ∆U i with i = 1, 2, . . . 12) can be calculated as

a Rabi frequency for each ground state

Ω i ≡ √ −4∆U i ∆, i = {1, 2, . . . , 12}. (2.74)

The degree of coupling between ground and excited states is given by the ratio

Ω i /Ω + , such that Ω i /Ω + = 1 is a bright state and Ω i /Ω + = 0 is a completely dark

state.

Figure 2.11 shows the degree of coupling for each of ground state energy eigen

states plotted as a function of the ratio between probe and coupling amplitudes

E P /E C . The experiments discussed in Chapters 4 and 5 lie in the region 0.2 ≥

Ω P /Ω C ≤ 0.6, and the decoherence rate Γ in Chapters 4 and 5 is large enough

that the completely dark state is not appreciably darker than the partially dark

states.

The effective optical pumping rate can be approximated as the average of the

optical pumping rates out of each bright state and into one of the five “dark”


Rabi Frequency (Ω /Ω )

i +

Bright States

1

0.8

0.6

0.4

Quasi-dark States

0.2

0

Completely Dark State

0 0.2 0.4 0.6 0.8 1

E P

/ E C

Figure 2.11: Normalized Rabi frequencies Ω i /Ω + plotted versus the ratio E P /E C . There are 12

Rabi frequencies; 7 bright states, 4 quasi dark states, and 1 completely dark state.

states. The optical pumping rate out of bright state m is given by

R m =

5∑ ∑12

P

n=1

l=1

(|e〉 l

∣ ∣∣|+〉m

)

R |e〉l →|−〉 n

, (2.75)

∣ ) ∣∣|+〉m

where P

(|e〉 l

is the conditional probability that in steady state the atom

will be in the excited state |e〉 l , given that it is in either an excited state or bright

state |+〉 m . R |e〉l →|−〉 n

is the spontaneous decay rate from excited state |e〉 l to dark

state |−〉 n . The effective optical pumping rate is then

R ave = 1 7∑

R m , (2.76)

7

m=1

where we have assumed that all bright states are equally populated (in reality


0.42

2

B=R ave γ eff /Ω +

0.40

0.38

5/12

0.36

0 0.2 0.4 0.6 0.8 1

E P /EC

Figure 2.12: Plot of B = R ave γ eff /Ω 2 + versus the ratio E P /E C . Also plot is the value 5/12=0.417,

which is the ratio of the number of dark states to ground states. Over the range 0.2 ≥ E P /E C ≤

0.6 B is approximately 3/8.

there are small variations in the relative populations of bright states but this is a

small correction).

Figure 2.12 shows the numerical calculation of R ave γ eff /Ω 2 + for the D 1 line

of Rb 85 as a function of E P /E C . Naively one might expect R ave = 5γ eff /12Ω 2 +

because there are five dark states out of a total of twelve ground states. However,

calculations reveals that the optical pumping rate is slightly smaller than this

because the branching ratios from those excited states coupled to the bright states

are weighted towards spontaneous decay into the bright state. Evaluating Eq.

(2.76) we find that over the range 0.2Ω C ≤ Ω p ≥ 0.6Ω C

R ave ≈ 3Ω2 +

8γ eff

, (2.77)

2.8. MISCELLANEOUS EXPERIMENTAL CONSIDERATIONS 62

where γ eff is the effective homogeneous linewidth that arises due to a combination

of Doppler broadening and buffer gas effects.

Finally, we need to calculate the effective homogeneous linewidth γ eff in order

to apply the simple three-level EIT theory to rubidium. It can be calculated using

the definition

1

γ eff

≡

∫

γ ∞

√ ⊥

π/ ln 2∆D

−∞

(

exp

− ∆2 4 ln 2

∆ 2 D

∆ 2 + γ 2 ⊥

)

d∆, (2.78)

where 2γ ⊥ is the homogeneous FWHM, and ∆ D is the inhomogeneous FWHM.

For Rb 85 with a N 2 buffer gas the measured increase in homogeneous linewidth is

16.3 MHz per Torr N 2 [128–130]. In the experiments, the rubidium vapor cells have

20 Torr of N 2 gas resulting in a homogeneous linewidth of 2γ ⊥ ≈ 330 MHz. The

inhomogeneous broadening is due to Doppler broadening and the Doppler broadened

FWHM is ∆ D = 530 MHz for rubidium vapor at temperature of 350 K ∗∗ .

Thus, the effective linewidth is γ eff ≈ 650 MHz.

2.8 Miscellaneous experimental considerations

There are various other considerations which affect real experimental systems.

Some of these are four-wave mixing, various forms of decoherence, and spatial

varying field amplitudes. We mention these briefly to make the reader aware of

them, but will not go into detail.

∗∗ For high enough buffer gas densities Doppler broadening can actually be reduced due to

Dicke narrowing [131], but our experiments do not approach these densities.


5P 3/2

F=3

F=2

Ω C

↔

b

b

Ω

P

(a)

∆ 5P 1/2

Ω 4

hf

W

↔ Ω C

5S 1/2

↔

Ω

Ω C

P

b

F=3

F=2

5P 1/2

(b)

∆ S

↔

b

Ω S

Ω 4W

5S 1/2

Figure 2.13: Level diagrams for four-wave mixing created in our experimental EIT system.

First, in the experiments there are two systems that exhibit four wave mixing,

and these are diagramed in Fig. 2.13. In Fig. 2.13(a) only the probe and coupling

beams are necessary to excite the four-wave mixing process and create a third field

with Rabi frequency Ω 4W and frequency ω 4W = 2ω c − ω p . The four wave mixing

process in Fig. 2.13(b) requires the probe and coupling fields with the signal field

discussed in the next chapter, and it results in a fourth field with Rabi frequency

Ω 4W and frequency ω 4W = ω p + ω s − ω c . In both of these cases the Maxwell wave

equation can be written using the slowly varying envelope approximation (SVEA)

as

where in Fig.

( ∂

c∂t + ∂ )

Ω 4W ∝ ρ 21γ ⊥

, (2.79)

∂z ∆ i

2.13(a), ∆ i is the hyperfine splitting of the ground states, and

in Fig. 2.13(b), ∆ i is the signal detuning. In both cases the intensity of the


four-wave mixing product Ω 4W

grows quadratically with optical depth. In Fig.

2.13(a), the probe field also experiences some gain due to four-wave mixing, and

in Fig. 2.13(b), the probe experiences absorption. The four-wave mixing gain is

proportional to the magnitude of the GSC in contract to EIT which is proportional

to Re(1−ρ 21 /ρ (−)

21 ). Thus, four-wave mixing gain has a slightly wider FWHM than

EIT and a non-Lorentzian line shape. Finally, as a function of Raman detuning

There are several forms of decoherence that must be overcome if one is to obtain

good EIT. Some of the sources of decoherence are limited dwell time in the beam †† ,

magnetic fields, spin exchange relaxation (i.e. Rb-Rb collision), buffer gas collisions

(i.e. Rb-N 2 collisions), and imperfectly aligned probe and coupling beams ‡‡ .

For the experiments discussed in this work, the dominant form of decoherence

is the limited dwell time in the beams. The diffusion coefficient for rubidium in

a nitrogen buffer gas at standard temperature and pressure is D 0 = 0.15 cm 2 /s

[128, 130, 132]. It is possible to calculate that the Rb-N 2 collision cross-section is

σ c ≈ 3 × 10 −15 cm 2 by using the approximate equation for the diffusion coefficient

D ≈

π¯v

8N N σ c

,

where ¯v = √ 8k B T/πm is the mean velocity of the atoms, N N

is the number

density of nitrogen.

For 20 Torr of nitrogen, we see that the mean free path

†† This is the same thing as transit-time decoherence.

‡‡ If the probe and coupling beams are not perfectly copropagating parallel to one another,

then they will see the same atom as having different velocities and different Doppler shifts.


length is l = 1/N N σ c ≈ 5 µm, and the collision rate is R c = ¯vl ≈ 10γ, where γ =

5.75 MHz is the natural linewidth for the D 1 line of rubidium. The diffusion time

for an atom to move from the center to out of the optical beam is approximately

t d ≈ r 2 /l 2 R c , where r is the beam radius. For the above parameters and a 2 mm

beam radius the average dwell time in the beam is about 0.5 ms corresponding to

a decoherence rate of about 2 kHz. In Chapters 4 and 5, we see this decoherence

rate corresponds well with the measured decoherence rates. The Rb-Rb collision

cross-section is about 2×10 −14 cm 2 .which is larger than the N 2 -Rb collision crosssection.

However, for the rubidium density discussed in this work is sufficiently

small that the decoherence rate due to spin exchange collisions never exceeds the

10’s of Hz.

As a consequence of the decoherence encountered in experimental systems

we are typically more concerned with the depth of the EIT ˜αL = αR/(R + Γ).

Figure 2.14 shows experimental probe absorption data from Chapter 4 with our

definitions for the linewidth FWHM, probe absorption αL = ρ 22 α 0 L, and EIT

depth ˜αL, where α 0 = N|µ p | 2 /2ɛ 0 γ is the probe absorption coefficient if all the

population were in the probe ground state. These definitions are used throughout

the remainder of this work.

The optical pumping rate has a spatial dependence due to spatial variations in

the field intensities (i.e. the beams are approximately gaussian). Thus, quantities

that depend on the optical pumping rate such as the rise-times and transparency


6

Probe absorption (αL)

4

2

0

αL

αL

∼

FWHM

Raman

resonance

-20 -10 0 10 20 30

Raman Detuning (kHz)

Figure 2.14: Visual representation of various terms used to describe EIT.

FWHM must be averaged spatially. This is discussed in detail towards the end of

chapter 4.

67

Chapter 3

Theory of the dynamics of the

EIT Kerr nonlinearity

The EIT Kerr nonlinearity arises when a signal field Ω s (see Fig. 3.1) ac-Stark

shifts one or both of the EIT ground states perturbing the EIT Λ system away

from Raman resonance. Perturbations of the Raman resonance change the index

of refraction for both probe field Ω p

and coupling field Ω c , resulting in phase

modulation of the fields proportional to the intensity of the signal field.

This type of Kerr nonlinearity has several advantages over more conventional

Kerr systems. First, the cross-phase modulation can be large with minimal selfphase

modulation, in contrast most other Kerr media which necessarily have large

self-phase modulation.

Second, the cross-phase modulation is one-directional.

The signal intensity creates a phase modulation on the probe, but the probe does

not phase modulate the signal. Third, for cw fields the size of the cross-phase

modulation is tunable by changing the slope of the EIT dispersion. This slope

can be increased by either making the EIT linewidth narrower or increasing the

68

γ

2

3

∆

γ

2

4

∆ S

γ

Ω C

Ω S

2

Ω P

δ R

2

Γ

δ R

2

1

Figure 3.1: Simple EIT Kerr system in a four-level N-type system. The detunings are defined

as ∆ P = (ω 3 − ω 2 ) − ω P , ∆ C = (ω 3 − ω 1 ) − ω C , ∆ S = (ω 4 − ω 2 ) − ω S , ∆ = (∆ P + ∆ C )/2, and

δ R = ∆ C − ∆ P . Also, the Rabi frequencies are defined as Ω i = µ i E i / where i = {P, C, S}, µ i

is the dipole moment, and E i is the the electric field. The spontaneous emission rate out of the

excited state is given by γ and Γ is the decoherence rate for the ground states.

optical depth of the EIT medium (e.g. by making the medium longer or more

dense). Theoretically the EIT Kerr effect can be arbitrarily large for cw fields.

Large optical nonlinearities are interesting because they open the door to quantum

nonlinear optics (i.e. nonlinear optics with wavepackets at the few-photon

level) and other low-light-level applications. Many of the most intriguing applications

require a strong nonlinear response to pulses with small energies. This

implies that the nonlinearities must be both fast and large. In these applications

the correct figure of merit is not the size of the nonlinear susceptibility, but the

ratio between the size and rise-time of the nonlinear susceptibility.

The EIT Kerr effect is slow compared to parametric nonlinear processes. Also,

the rise-time and size of the EIT Kerr susceptibility are directly proportional

3.1. THE EIT KERR NONLINEARITY 69

making their ratio a constant. Thus, increasing the size of the cw EIT Kerr effect

does not increase the figure of merit for pulsed EIT Kerr effects.

This chapter is divided into two sections. First, in Sec. 3.1 we present the

steady state and transient theory for the EIT Kerr nonlinearity. In Sec. 3.2, we

discuss the application of Kerr nonlinearities to QND measurements and derive

the signal to noise ratio for these measurements. In this chapter we only consider

EIT Kerr QND measurements when the signal group velocity is approximately

c the speed of light in vacuum. However, it is possible to generalize the theory

to include arbitrary group velocities for the signal, which is done in Sec. 5.1 of

Chapter 5.

3.1 The EIT Kerr nonlinearity

Figure 3.1 shows a typical system for refractive EIT Kerr nonlinearities. Various

parameters such as the Raman detuning δ R , single-photon detuning ∆ and Rabi

frequencies Ω i where i = {P, C, S} are defined in the figure caption. The EIT Kerr

system consists of a Λ EIT system ∗ discussed in chapter 2 and a signal field Ω s

which is detuned by ∆ s from the |1〉 → |4〉 transition. The signal field Stark shifts

ground state |1〉 by Ω 2 S /4∆ S, which changes the Raman detuning and ground state

to

δ R (Ω S ) = δ R (0) + |Ω S | 2 /4∆ S . (3.1)

∗ Figure 3.1 uses the same definitions for fields and detunings as Fig. 2.2 from chapter 2.


The decoherence rate of ground state is modified,

Γ(Ω S ) = Γ(0) + |Ω S | 2 γ/4∆ 2 S, (3.2)

due to weak optical pumping to state |4〉 followed by spontaneous decay back

to the ground states. Typically, the signal detuning is chosen to be large (i.e.

∆ s ≫ γ) such that the change in Raman detuning is significant while the change

in decoherence is negligible and can be ignored. Throughout the remainder of this

chapter we ignore the signal field contribution to the decoherence.

The nonlinear susceptibility for the EIT Kerr effect is defined

χ (3)

p,ss ≡ ∂χ ∣

p ∣∣∣Es

. (3.3)

∂|E s | 2 =0

Returning to the theory from chapter 2, we recall that on single-photon resonance

∆ = 0 the probe susceptibility is

χ p ≈ αc

ω p

δ R + iΓ

, (3.4)

R + Γ − iδ R

where α = ρ 22 α 0 is the probe absorption coefficient and ρ 22 ≈ |Ω c | 2 /Ω 2 c is population

in state |2〉. Combining Eqs. (3.1), (3.5), and (3.4) we see that the third-order


susceptibility “Kerr” susceptibility is

χ (3)

p,ss

≈

|µ| 2

2∆ s 2 ω p

c

v g,p

, (3.5)

where v g,p

= 2R/˜α is the group velocity of the probe, and we have assumed

δ R (0) = 0 † .

As long as the Raman detuning stays in the linear regime (i.e. δ R (Ω s ) ≪ R)

the cross phase modulation of the probe field will be

φ = Lω p χ (3)

p,ss|E s | 2 /2c, (3.6)

where L is the length of the EIT medium, and we assume χ p ≪ 1 (this assumption

is consistent with atomic vapors). However, this cross-phase modulation (XPM)

can be written more generally as

φ ≈ ω pL

2c Re [χ p(Ω S ) − χ p (0)] . (3.7)

Our primary focus is the linear regime for the EIT Kerr effect because of its

applications to QND measurements, but there are also some interesting effects in

the nonlinear regime.

† The assumption of Raman resonance in the absence of a signal field is continued throughout

this chapter.


3.1.1 EIT Kerr dynamics

The EIT Kerr transients and rise times result from the slow evolution of the GSC

ρ 21 when the signal field perturbs the Raman detuning. The dynamics of an EIT

system were derived in Sec. 2.4. For the purpose of discussing the EIT Kerr

dynamics we restrict our discussion to the case of zero single-photon detuning

∆ = 0 and a single homogeneous line. We also assume γ ≫ 5Ω ≥ δ R .

For optically thin media (i.e. ˜αL ≪ 1), the EIT Kerr dynamics can be determined

by a straightforward application of the EIT transient theory of Sec. 2.4.

To determine the rise and fall dynamics of the EIT Kerr effect we consider two

cases. First, at time t = 0 the atoms are in steady state for Raman resonance.

Then a signal field is suddenly turned on, Stark shifting the system away from

Raman resonance. We call this the rising dynamics. The second case is simply

the reverse. At time t = 0 the system is in steady state with the signal field on,

and then the signal is suddenly turned off. This is the falling dynamics. In both

cases the transients of the GSC are given by

ρ 21 (t) = ρ 21,f + (ρ 21 (0) − ρ 21,f )e t(iδ R−R−Γ) , for t ≥ 0, (3.8)

where the initial GSC is ρ 21 (0), the final steady state GSC is ρ 21,f , and δ R is the


0.5

Im

ρ

(-)

( 21

/ρ 21

)

0

(a)

ρ (ss) (1.2R)

21

ρ

(ss) (δ

21 R

)

ρ 21

(t)

ρ (ss) (0 )

21

0 0. 5 1

Re

ρ

( 21 (-)

/ρ 21

)

Porbe Susceptibility

1

0.8

0.6

0.4

0.2

(b)

Im(χ p

)

Re(χ p

)

0

0 2 4 6 8 10

Time (t /R)

Figure 3.2: The transients of the EIT Kerr nonlinearity plotted looking at (a) the ground state

coherence (GSD) and (b) the probe susceptibility. In (a) the real part of GSC is plotted versus

the imaginary part of the GSC parametrically as functions of time. The dashed red (green) line

shows the rise (fall) dynamics, and the black solid line shows all possible steady state values.

In (b) the rise dynamics for the real and imaginary parts of the probe susceptibility are plotted

as a functions of time. The parameters used for these calculations are R ≈ 5Γ and for t ≤ 0

δ R = 0, while for t > 0 δ R = 1.2R).

Raman detuning for t > 0. We also recall that the steady state GSC is given by

ρ (ss)

21 (δ R ) =

ρ (−)

21 R

(R + Γ) − iδ R

. (3.9)

Finally, we recall from chapter 2 that χ p ∝ i(1 − ρ 21 /ρ (−)

21 ).

Figure 3.2 shows two different ways of understanding the EIT Kerr dynamics.

In Fig. 3.2(a) the rise of the EIT Kerr effect (red dashed line) is seen as the GSC

spiraling from δ R = 0 to its new steady state δ R = 1.2R. The fall of the EIT

Kerr effect (green dashed line) is a straight line back towards the dark state GSC.

In Fig. 3.2(b) the rising transients for the probe susceptibility are plotted as a

function of time. Both the real and imaginary parts of the susceptibility oscillate


Rise tiem (τR )

10 -1

10 0 δ

/ R

τ Ref,rise

τ Abs,rise

10 -2

10 -1 10 0 10 1

Raman detuning ( ) R

Figure 3.3: Solid lines show the 1/e rise time for absorption and refraction resulting from the

EIT Kerr nonlinearity. Rise times are plotted logarithmically as a function of the magnitude

of the Raman detuning δ R . All quantities are dimensionless and normalized by the optical

pumping rate R, and Γ/R = .2. For small detunings the rise times asymptotically approach

τ Abs = 2.15/(R + Γ) and τ Ref = 1/(R + Γ). For large two-photon detunings the rise times

asymptotically approach τ Abs = 1.2/δ R and τ Ref = 0.63(R + Γ)/δR 2 . These asymptotes are

shown as the dashed lines.

as damped simple harmonic oscillators. For the probe susceptibility the falling

transients, which are not shown, would be a decaying exponential.

3.1.2 Rise-times in optically thin media

From transient curves, like those in Fig. 3.2, it is possible to find the 1/e rise

times for the refractive and absorptive parts of the EIT Kerr nonlinearity. Figure

3.3 shows these rise times as a function of Raman detuning. Also shown as dashed

lines are the asymptotic values for the rise times times. The fall times correspond

to rise times with δ R ≪ R because regardless of the initial Raman detuning for


the fall dynamics, the final steady state is always in Raman resonance. As Fig.

3.3 shows there are two regimes for which the asymptotic rise times are accurate:

a nonlinear regime with δ R ≫ R and a linear regime with δ R ≪ R.

For most applications of the refractive EIT Kerr nonlinearity, it is desirable to

work in the linear regime near Raman resonance. This is the case we primarily

focus on. Besides the obvious advantages of being linear, the linear regime also

provides the maximum nonlinear susceptibility with the minimum absorption. In

the linear regime, the asymptotic expressions for the 1/e rise and fall times are

given by

lim τ Ref, rise = lim τ Ref, fall = 1

δ R →0 δR →0 R + Γ

(3.10)

and the absorptive rise and fall times are

lim τ Abs, rise = 1 + c 1

δ R →0 R + Γ

(3.11)

and

lim τ Abs, fall = 1

δ R →0 R + Γ , (3.12)

where c 1 = ln{2 + ln[2 + ln(2 + . . .)]}, and the subscripts Ref and Abs refer rise

times for the refractive and absorptive changes.

These rise and fall times can be understood intuitively as the ratio ∆θ/ ˙θ, where

∆θ is the total total phase change of the GSC and ˙θ is the rate at which the GSC


phase changes ‡ . The rate of GSC phase change is always ˙θ = δ R [this can be

deduced from Eq. (3.8)]. The total phase change can be deduced by considering

that in the linear regime Eq. (3.9) simplifies to

( )

21 (z) ≈ ρ(−) 21 R

R + Γ exp δ R

i , (3.13)

R + Γ

ρ (ss)

such that ∆θ = δ R /(R + Γ). Combining these two results we expect the rise time

to be approximately

τ ∼ ∆θ/ ˙θ = 1/(R + Γ).

In the nonlinear regime the above analysis is more challenging an less insightful.

In this regime the asymptotic rise times are

lim τ Abs, rise = arccos (e−1 + (R + Γ)/δ R )

(3.14)

δ R →∞ δ R

and

lim τ Ref, rise = (1 − e−1 )(R + Γ)

. (3.15)

δ R →∞

δ 2 R

3.1.3 Rise times in optically thick media

It is more challenging to calculate the EIT Kerr rise times in optically thick

media because both the fields and atoms are simultaneously evolving. Adding to

‡ For consistency throughout this work, we use θ for the phase of the GSC, and φ for the

phase of the probe field


the complication is the fact that the evolution of the fields (atoms) is conditional

on the state of the atoms (fields). This interplay between atoms and fields results

in a longer rise time. We will show that the rise time is proportional to the optical

thickness of the medium.

In the linear regime, the rise time in optically thick media can be estimated

as τ ≈ ∆θ/ ˙θ, similar to the optically thin case. To do this we must first calculate

the steady state change GSC phase.

We recall that the susceptibilities are

χ p ≈ −i α (

)

0c

∗

ρ 22 1 − ρ 21 /ρ (−)

21

(3.16)

ω p

and

χ c ≈ −i α 0c

ω c

ρ 11

(

1 − ρ 21 /ρ (−)

21

)

. (3.17)

In the SVEA, the Maxwell equations for the fields are

( ∂

∂z + 1 )

( )

∂

Ω P = − α 0ρ 22

1 − ρ∗ 21

Ω

c ∂t

2 ρ (−)∗ P (3.18)

21

and

( ∂

∂z + 1 )

( )

∂

Ω C = − α 0ρ 11

1 − ρ 21

Ω

c ∂t

2 ρ (−) C . (3.19)

21

Assuming steady state and negligible probe absorption, we can make the approx-


imation |Ω P (z)| ≈ |Ω P (0)|, and Eq. (3.18) can be integrated in space to obtain

Ω P (z) ≈ Ω P (0)e − α 0 ρ(−) 22

hz−Rz

2 0 ρ∗ 21 (z′ )/ρ (−)∗

(

≈

Ω P (0) exp

− zα 0ρ (−)

22

2

iδ R

R + Γ

21 (z ′ ) dz ′i

)

, (3.20)

where we have used the fact that in steady state ρ 21 (z)/ρ (−)

21 (z) ≈ exp(δ R /(R+Γ)).

Similarly,

(

)

zα 0 ρ (−)

11 iδ R

Ω C (z) ≈ Ω C (0) exp

. (3.21)

2 R + Γ

Finally, the ground state coherence as a function of position is

(

ρ 21 (z) ≈ ρ (−)

21 (0) exp i (1 + αz/2)δ )

R

. (3.22)

R + Γ

From Eq. (3.22) we see that ∆θ(z) = (1 + α 0 z/2)δ R /(R + Γ) making the rise time

approximately

τ ≈ ∆θ/ ˙θ = 1 + α 0z/2

R + Γ .

In order to obtain a more accurate expression for the EIT Kerr rise time we

numerically simulated the EIT Kerr effect in an optically thick system and calculated

the rise time as a function of optical depth. The results of this simulation

are shown in Fig. 3.4. By curve fitting the numerical derived rise times we found


8

7

6

Absorp.

rise-time

Rise Time τ(R+Γ)

5

4

3

2

1

Absorp.

fall-time

Refractive

rise & fall times

0

0 2 4 6 8 10

Optical Depth (αL)

Figure 3.4: Numerical simulations of the EIT Kerr 1/e rise time as a function of optical depth.

Rise times were calculated using the fields.

that the optically thick equivalents of Eqs. (3.10)-(3.12) are

lim τ Ref, rise = lim τ Ref, fall = 1 + ˜α pz/4

δ R →0 δR →0 R + Γ , (3.23)

and the absorption rise and fall times are

lim τ Abs, rise = 1 + (1 + ˜α pz/2)c 1

δ R →0 R + Γ

(3.24)

and

lim τ Abs, fall = 1 + 3c 1 ˜α p z/8

. (3.25)

δ R →0 R + Γ

The EIT Kerr dynamics for optically thick media in the nonlinear regime

3.2. QND MEASUREMENTS & KERR NONLINEARITIES 80

δ R ∼ R are not considered here. We also do not consider the effects of the signal

group velocity, but they are discussed in Chapter 5.

3.2 QND measurements & Kerr nonlinearities

Quantum non-demolition (QND) measurement of photon number is only one of

several application of the EIT Kerr nonlinearity. However in evaluating the effects

of the EIT Kerr rise time on potential applications, it is insightful to focus on

QND measurements because all potential EIT Kerr applications are either based

on QND measurements or are based on similar operating principles.

Some of the EIT Kerr applications based on QND measurements are creating

optical number states, high efficiency photon counting detection, preselection for

single photons for single-photon-on-demand sources (a prerequisite for deterministic

QIP), and as a trigger for quantum bit regeneration [103, 104].

There are also several related applications of the EIT Kerr effect that do not

directly involve QND measurements but operate on nearly identical principles.

These applications include: quantum computing with optical nonlinearities, twoqubit

quantum gates such as the controlled phase gate, quantum entanglement of

two optical wavepackets, and quantum state preparation for macroscopic quantum

states (i.e. schrodinger cat states).

Each of these applications makes similar demands of the EIT Kerr nonlinearity

to what would be required for a QND measurement capable of resolving a single


photon. QND measurements for large photon numbers have been observed previously

[133, 134], but a QND measurement capable of resolving a small photon

number has not been realized. Although we have not actually performed a QND

measurement in this work, the measurements discussed here provide valuable insight

into the limitations and potential of the EIT Kerr nonlinearity for QND

measurements.

3.2.1 QND measurement and SNR

Before discussing EIT Kerr nonlinearities and QND measurements, we consider

the simpler case of an idealized Kerr nonlinearity with instantaneous rise time.

The primary figure of merit for the QND measurements is the signal to noise ratio

(SNR) to be defined shortly. There are also several other criteria that must be

satisfied in order for the measurement to be a QND measurement [135, 136]. We

will show that these criteria can be expressed in terms of the SNR.

Figure 3.5 shows an experimental arrangement for a photon number QND

measurement using a Kerr medium. The signal and probe fields come together

and interact in a Kerr medium, resulting in the phase modulation of the probe

[i.e.

E p (L, t) = E p (0, t) exp(iφ(t)),

where φ(t) = ω p χ (3)

p,ss|E s (L, t)| 2 /2c is the phase modulation]. The field amplitudes


Probe

Beam

Signal

Pulse

PBS

Kerr

Medium

Local

Oscillator

PD

PBS

i sig(t)

50/50

BS

PD

PD

i (t)

diff

Balanced

Homodyne

Detection

Figure 3.5: Simplified diagram of a QND measurement of photon number using an optical Kerr

nonlinearity and balanced homodyne detection.

for the signal and probe fields are

E l (z, t) = E l (z, t)e iω l(z/c−t)

l = {s, p}, (3.26)

where E l (z, t) are the slowly varying amplitudes of the fields. The probe field is

a monochromatic cw field and the signal is a transform limited pulse that is zero

for times t < 0 and z > 0. Also, we assume that the signal pulse has a temporal

width τ sig that is long compared the length of the Kerr medium (i.e. τ sig ≫ L/c).

The probe phase is measured via balanced homodyne detection, resulting in a

difference current of

i diff (t) = 2ηq eleA cɛ 0 |E p E LO |

sin[φ(t)], (3.27)

ω p 2

where A is the area of the beams, E LO is the amplitude of the local oscillator,


η is the quantum efficiency of the photo diodes (PD), and q ele is the charge per

electron. The signal of interest is the time integral of the difference current, and

this charge can be expressed in terms of quantum mechanical operators as

∫ t

〈 ˆQ〉(t) = dt ′ i diff (t ′ ) (3.28)

t−T int

= ηq [(

ele

¯n LO + ¯n p + 2 √¯n LO¯n p 〈sin

2

ˆφ〉

) (

− ¯n LO + ¯n p − 2 √¯n LO¯n p 〈sin ˆφ〉

)]

,

≈ 2ηq ele

√¯nLO¯n p C 1¯n s ,

where we have assumed the small angle approximation (sin φ ≈ φ), and the integration

time is T int § . The other parameters in Eq. (3.28) are defined as

¯n p ≡ 〈ˆn p 〉 = T int I p /Aω p and ¯n LO ≡ 〈ˆn LO 〉 = ¯n P /κ 2 (3.29)

are the expectation value for the number of photon in the cw probe and local

oscillator fields over a time interval T int . The local oscillator is much larger than

the probe (i.e. κ 2 ≪ 1). C 1 ≡ φ/¯n s is the proportionality constant between the

phase modulation φ averaged over the time interval [t − T int , t] and ¯n s ≡ 〈ˆn s 〉

is the expectation value for the number of signal photons. C 1 ∝ χ (3)

pss should be

thought of as the “size” of the Kerr effect (i.e. in cw operation or if the Kerr

effect is instantaneous then C 1

is proportional to the nonlinear susceptibility).

§ In order to achieve the maximum SNR the integration time which should be chosen such

that T int ∼ (τ sig + τ Kerr ), where τ Kerr being the rise time of the Kerr nonlinearity.


The variance of the charge is given by

√〈(∆ ˆQ) 2 〉 = q ele

√ η

[¯n p

(1 + 1 κ 2

)

] 1/2

+ 2¯n2 p

C 2 1 〈(∆ˆn s ) 2 〉 , (3.30)

κ 2

such that the SNR is

SNR =

〈

√

ˆQ〉

√

≈ 2C 1¯n s η¯np , (3.31)

〈(∆ ˆQ) 2 〉

where it is assumed that the probe and local oscillator fields are both coherent

states (i.e. they obey the statistics 〈(∆n i ) 2 〉 = ¯n i for i = p, LO, the signal field is

a number state (i.e. 〈(∆n s ) 2 〉 = 0), and ∆X ≡ X − 〈X〉 .

There are several quantifiable criteria that must be simultaneously satisfied

in order for a measurement to be a QND measurement. Also, many of the EIT

Kerr applications require a certain number resolution. Fortunately, it is relatively

straightforward to express the resolution and QND criteria in terms of the SNR.

The problem of resolving individual number states using a QND Kerr measurement

was considered by Haus in Ref. [136]. It was found that given the signal

field is in a particular number state n s , the probability for correctly identifying

the photon number is given by

P (n s |n s ) ≈ erf(SNR/2 √ 2n s ), (3.32)

This SNR does not include technical noise.


where erf(x) = ∫ x

0 dy2 exp(−y2 )/ √ π is the error function [136]. A SNR of 4 will

provide 95% probability of correct detection, and a SNR of 10 gives a probability

of a detection error is below 10 −6 . Because the resolution of a QND measurement

is exponential in the SNR, QND measurements may be the ideal method to satisfy

the demanding requirements for detection efficiency in linear optics quantum

computing [109].

There are three criteria that must be satisfied for a measurement to be a QND

measurement.

1. A QND measurement should be non-demolition. This means that the signal

should not be destroyed by its interaction with the probe. Tracing over the

probe, the signal observable at the output should be highly correlated with

the signal observable at the input. In our case, this signal observable is the

number of signal photons. Expressed mathematically, the “nondemolition”

condition is C s

defined as

= C(∆ˆn in

s , ∆ˆn out ) ≈ 1, where the correlation function is

s

C(∆ ˆX, ∆Ŷ ) ≡ 〈∆

√

ˆX∆Ŷ 〉 . (3.33)

〈∆ ˆX 2 〉〉〈∆Ŷ 2 〉〉

2. The QND measurement should be a measurement (i.e. when we measure the

probe observable, we should obtain information about signal observable). In

our case, the probe observable is the charge ˆQ which is proportional to the

probe phase. This “measurement” condition can be expressed mathemati-


cally using another correlation function (i.e. C m = C(∆ˆn in

s , ∆ ˆQ) > 0). For

a perfect QND measurement C m = 1.

3. Finally, a QND measurement should be quantum (i.e. the probe and signal

observables should be quantum correlated). In other words, the conditional

variance between signal and probe observables should be below the standard

quantum limit. This characteristic of QND measurements is often referred

to as the quantum state preparation property, and it implies that if neither

signal or probe observable is squeezed, then the probe and signal will be

non-separable. This “quantum” condition can be expressed mathematically

by the inequality

V s|p = V (∆ˆn out

s |∆ ˆQ) < 1 (3.34)

(

= 〈∆ˆn out2

s 〉 1 − C 2 (∆ˆn out

s , ∆ ˆQ)

)

/〈ˆn out

s < 1〉,

where V s|p is a conditional variance, and the last line is only true for observables

with Gaussian statistics. Also, we follow the convention of Refs.

[135, 137] by normalizing the conditional variance to the standard quantum

limit, such that quantum correlations are implied by V s|p < 1.

A measurement is considered to be QND if both C s + C m > 1 and V s|p < 1.

With the exception of the first criterion, these QND criteria can be expressed

in terms of the SNR. Satisfying the first criterion, non-demolition of the signal,


requires knowledge of the specifics of the Kerr measurement. For the EIT Kerr

effect, the signal intensity after the medium is

(

I s (L) ≈ I s (0) exp −

α 0Lγ

∆ s (1 + κ 1 )

)

,

where κ 1 ≡ |Ω c /Ω p | 2 and ∆ s ≫ γ. Thus, the correlation function is C s ≈

exp[−α 0 Lγ/∆ s (1 + κ 1 )]. As long as α 0 Lγ ≪ ∆ s (1 + κ 1 ) the first condition C s ≈ 1

is satisfied. This also enables the simplification

C m = 1/ √ 1 + ¯n 2 s/SNR 2 〈(∆n s ) 2 〉, (3.35)

and the conditional variance is

V s|p = (1 − C m 2 ). (3.36)

This implies that both the measurement condition C m ≈ 1 and the quantum state

preparation condition are satisfied when SNR/¯n s ≫ 1/ √ 〈(∆n s ) 2 〉 ‖ . Assuming

the signal, probe, and local oscillator fields are all coherent states, the conditions

‖ All three of the QND measurement criteria seem to have been developed under the assumption

that the input noise for both signal and probe observables is at the standard quantum

limit-i.e. 〈(∆n s ) 2 〉 = 〈n s 〉 and 〈(Q) 2 〉 = 〈Q〉. All of the conditions lose their utility when one of

the variances goes to zero. This is somewhat unfortunate because one of the primary conditions

of a QND measurement is that repeated QND measurements obtain the same results. However,

according to the three criteria given for QND measurements repeated non-ideal QND measurements

become progressively more poor because the variance of the input signal is smaller with

each repeated measurement.


for a good EIT Kerr QND measurement simplify to α 0 Lγ ≪ ∆ s (1 + κ 1 ) and

SNR ≫ √¯n s .

3.2.2 SNR for EIT Kerr Measurements

In order for the results of Sec. 3.2.1 to be useful, we must apply these results to the

EIT Kerr nonlinearity, which does not have an instantaneous rise time. In fact,

the EIT Kerr rise time is typically rather slow (in the msec. to µsec. range for the

experiments we discuss). Understanding the EIT Kerr rise time and dynamics are

essential in optimizing the SNR and determining the limitations of the EIT Kerr

effect. We consider only the linear regime δ R ≪ R, and in this section we focus

primarily on optically-thin media ˜αL ∼ 1 although some of the results also apply

to optically thick media. Most of the discussion of EIT Kerr QND measurements

in optically thick media is reserved for chapter 5. Finally, in anticipation of the

experimental systems in Chapters 4 and 5, we consider the specific case that the

probe, signal, and coupling transitions are all on the D 1 line of an alkali metal

vapor (i.e. |µ D1 | 2 = πγɛ 0 c 3 /ω0, 3 and ω 0 ≈ ω i with i = {c, p, s}) ∗∗ .

For both optically thin and thick media the phase modulation of the probe

∗∗ In the chapter 4 experiment the signal is on the D 2 line not the D 1 . The only significant

change would be that the D 2 and D 1 dipole moments are related by |µ D2 | 2 = 2|µ D1 | 2 such that

for chapter 4 C 1 in the last line of Eq. (3.41) should be a factor of two larger.


field can be written as

φ(L, t) = ω P χ (3) ∫ t

p,ssL

c 2 ɛ 0 0

dt ′ h(t ′ )I s (0, t − t ′ ), (3.37)

where h(t) is the normalized impulse response function for the Kerr nonlinearity †† .

For optically thin media the EIT Kerr impulse response function is

⎧

⎪⎨

exp[−t/τ eit ]

τ Kerr

t ≥ 0

h thin (t) ≈

⎪⎩ 0 otherwise

, (3.38)

where it is assumed L/v g,s ≪ τ eit and the signal’s propagation delay through the

cell can be ignored [42]. The difference current then becomes

i diff (t) ≈ 2ηq elen p ω P χ (3)

p,ssL

√ × . . . (3.39)

T int κ1 c 2 ɛ 0

⎧

( ) ∫ ⎪⎨ exp −

t t

τ Kerr 0 dt′ I s(t ′ )

τ Kerr

τ Kerr ≫ τ sig

.

⎪⎩ I s (t) τ Kerr ≪ τ sig

The maximal SNR is achieved when τ eit ≫ τ sig and T int = 5τ eit /4.

Even though the time dependent current i diff is highly dependent on the EIT

Kerr dynamics, the integrated charge 〈 ˆQ〉 is independent of the dynamics if the

integration time is sufficiently long.

In the limit of extremely long integration

†† The assumption of an impulse response function implies that the Kerr response is a linear

in the signal intensity i.e. the linear regime with δ R ≪ R.


times the charge becomes

p,ssL

lim 〈Q〉 = 2ηq elen p ω s χ (3)

√

T int →∞ T int κ1 c 2 ɛ 0

n s ω s

A . (3.40)

As long as the integration time is long enough to satisfy the inequality T int ≥

(τ sig + τ eit ), we can reasonably approximate 〈Q〉 ≈ lim Tint →∞〈Q〉. Throughout the

remainder of this chapter, we assume T int = τ eit and τ sig ≪ τ eit . The fact that the

signal 〈 ˆQ〉 is independent of the dynamics is important for ensuring the accuracy

of the QND measurement. However, the SNR is not independent of the dynamics,

which raises the question of how it can be maximized and what is its maximum

value.

Using Eq. (3.40) we find that for an EIT Kerr nonlinearity

C 1 ≈ ω2 sLχ (3)

p,ss

2Ac 2 ɛ 0 T int

,

≈

πγ

2∆ s A k 2 0

˜αL

4RT int

, (3.41)

where in the last line we have used the D 1 dipole moment µ D1 to simplify the

expression. From the definition for ¯n p in Eq. (3.29) we have

n p = (1 + ˜αL/4)Ak2 0

π(1 + κ 1 )

T int

τ eit

, (3.42)

where we have used the fact that τ eit = (1 + ˜αL/4)/(R + Γ). The SNR is largest


for optically thick media, in which case the SNR simplifies to

SNR

n s

≈

√ √ √ πη 1 γ ˜αL τeit

√ . (3.43)

2 k 0 A ∆ s 1 + κ 1 T int

There are three parameters that can be optimized to increase the SNR; optical

depth ˜αL, beam area A, and signal detuning ∆ s . The beam area has a lower limit

of A ≥ 2π/k0 2 due to diffraction. Also, the optical depth and signal detuning are

not truly independent. We recall that the nondemolition criterion required that

the inequality ∆ S /γ ≫ √ α 0 L/(1 + κ 1 ) be satisfied.

Thus, the nondemolition

criterion and measurement criterion have competing objectives. It is not possible

to adjust the optical depth and signal detuning to increase the SNR without also

increasing the absorption of the signal.

Let us suppose that in a given experiment it is possible to focus down to the

diffraction limit A = 2π/k 2 0

and that 5% absorption of the signal field can be

tolerated (i.e. αL/(1 + κ 1 ) ≤ 0.05∆ 2 s/γ 2 ). Also, assume that τ eit ≫ τ sig such

that T int ≈ τ eit . Then, the SNR can be no larger than 0.16 √ η. The maximum

phase shift per signal photon achievable under these circumstances is φ/¯n s =

C 1 = γ/4∆ s ≪ √ 1 + κ 1 /4 √ α 0 L. Although the phase shift could theoretically

be made large by decreasing the signal detuning, for practical reasons the signal

detuning is typically ∆ s

≥ 10γ, making the maximum phase shift per signal

photon about two hundredth of a radian ‡‡ . From this discussion, it may seem

‡‡ This result is similar to the result found by Harris and Hau [56] for a pulsed signal and


that the prospects are not good for single-photon resolution using EIT Kerr QND

measurements. However, there are some work-arounds to this problem that are

discussed in Chapters 5 and 6.

For example, it is possible to decrease the integration time T int by slowing

down the group velocity of the signal field.

When the group velocities of the

probe and signal are matched, the phase modulation on the probe will be much

shorter temporally and a shorter integration time is required. The details of this

process are discussed in Chapter 5.

pulsed probe. In the case considered by Harris and Hau the signal and probe pulses had a

limited interaction length due to temporal walk-off arising from the different group velocities for

probe and signal fields. The probe has a very slow group velocity due to EIT, and the signal

group velocity is approximately c. In our case the signal is pulsed but the probe is cw, and

the limitation on the maximum phase shift is due to the dependence of the EIT Kerr rise time

on optical thickness. There are greater similarities between the two cases than are immediately

apparent, and these are discussed in chapter 5

93

Chapter 4

EIT Kerr dynamics Experiment

Over the past ten years there has been considerable interest in the EIT Kerr

nonlinearity and its potential applications. We have shown that the dynamics of

the EIT Kerr effect play an important role in determining the limitation of the

EIT Kerr effect for pulsed applications. This chapter discusses the first reported

experiments measuring the dynamics of the EIT Kerr nonlinearity.

The first section details the experimental parameters and apparatus. We then

present steady state measurements of the EIT Kerr effect in Sec.

4.2, before

presenting the transient EIT Kerr measurements in Sec. 4.3. Finally, in Sec.

4.4 we discuss the agreement between theory and experiment, and explain why

certain small discrepancies exist.

4.1 Experiment

Using the Mach-Zehnder interferometer as shown in Fig. 4.1, we observed the

transients of EIT on the D 1 line of rubidium 85. The transients are created

4.1. EXPERIMENT 94

ECDL2

AOM

80 MHz

Signal

50/50

BS

ECDL1

Homodyne

Detection

λ

2

PBS

Pump

Probe

AOM

1.5 GHz

Computer

DAQ

50/50 BS 50/50 BS

Spectral

filter

PBS

Mach-Zehnder

Interferometer

Rb Cell

PZT

Magnetic Shielding

PBS

Figure 4.1: Schematic of the experimental apparatus. The probe beam is sent through a Mach-

Zehnder interferometer to measure changes in the relative phase between the two arms of the

interferometer. The coupling and signal beams interact with the probe in the rubidium cell before

being separated from the probe via polarization and spectral filtering. A computer controlled

data acquisition system records and averages the difference signal from balanced homodyne

detection.

by pulsing the signal beam that was about 2 GHz red detuned from the Rb 85

D 2 line. Previous experiments have used frequency modulation spectroscopy to

observe similar Stark shifts and refractive EIT Kerr nonlinearities [47], but such

experiments are unable to observe the transient behavior because they require

lock-in amplification. Thus, this is the first direct observation of the dynamics

and rise times of the refractive EIT Kerr nonlinearity.

Mutually coherent coupling and probe fields were obtained from the same external

cavity diode laser (ECDL1) with wavelength λ = 795 nm. ECDL1 was


tuned to the coupling frequency. The probe frequency was obtained by double

passing through a 1.5 GHz acousto-optic modulator (AOM) such that the frequency

difference between probe and coupling was 3 GHz, which is the ground

hyperfine splitting for Rb 85 . Deriving both EIT fields from a single laser ensured

the excellent phase coherence necessary for good EIT. Additionally, we are able

to control the frequency difference between probe and coupling precisely via the

microwave frequency synthesizer driving the AOM.

The signal was obtained from a second laser (ECDL2) with wavelength λ =

780 nm, and pulses were created using a 80 MHz AOM with a rise time of 50 ns.

Both ECDL lasers are New Focus Vortex lasers. The signal and coupling beams

are combined on a 50/50 beam splitter (BS) and are both horizontally polarized in

order to be transmitted through a polarizing beam splitter (PBS) into the probe

arm of the Mach-Zehnder interferometer (MZI).

The MZI provides measurements of relative phase changes between the two

arms of the interferometer. The MZI has a strong reference/local-oscillator arm

and a weaker probe arm ∗ . After the probe has propagated through the rubidium

cell, both polarization and spectral filtering are used to isolate the probe field

from the coupling, signal, and any four-wave mixing products. The mirror after

∗ Both arms of the interferometer have the same power after the first 50/50 beam splitter

(BS), but the probe arm becomes significantly weaker due to attenuation from the rubidium

cell, spectral filter, and various other optics.


the rubidium cell is mounted on a piezo-electric actuator to control the relative

phase between the MZI arms.

At the output of the Mach-Zehnder interferometer the homodyne signal is

measured using two reverse biased Hamamtsu S2830 photodiodes soldered for

differential detection. After the photodiodes a 1 MHz low-noise transimpedance

amplifier prepares the signal for computer controlled data acquisition (DAQ). CW

measurements are recorded using the computer, and the fast transient data are

recorded and averaged using a 1.5 GHz bandwidth oscilloscope. The homodyne

signal is given by

Q ∝ |E LO | |E p | sin [φ pzt + Re(χ p )k 0 L/2] , (4.1)

where E LO is the amplitude of the field in the local-oscillator arm, E p is the

probe field amplitude immediately before the last 50/50 BS, φ pzt

is the piezo

controlled phase difference between the MZI arms. The other parameters have

been defined in early chapters. If amplitude measurements are desired instead of

phase measurements, the local-oscillator beam and one of the photo diodes can

be blocked.

The apparatus for the rubidium cell consists of three layers of magnetic shielding

with a long solenoid inside the innermost layer of magnetic shielding.

In

addition to containing 20 torr of nitrogen buffer gas, the rubidium cell contains


5P 3/2

5P 1/2 λ = 780 nm

ΩC↔ΩS

ΩP

λ = 795 nm

F=3

F=2

↔↔

5S 1/2

y-position (mm)

2

1

0

-1

-2

-2 -1 0 1 2

x-position (mm)

Figure 4.2: Level diagram of rubidium 85 D 1 and D 2 lines with the primary transitions excited

by the probe, coupling, and signal fields. The inset shows the approximate beam sizes and

shapes for the probe (w p,x = 1 mm and w p,y = 1.8 mm), coupling (w c = 2.1 mm), and signal

(w s = 2.2 mm) fields.

both rubidium isotopes in their natural abundance † .

The cell is cylindrical in

shape with a length of 30 mm and a diameter of 25.4 mm. The number density

of rubidium atoms is controlled by heating the cell with electrical strip heaters

positioned between the outer and middle layers of magnetic shielding.

Figure 4.2 shows the hyperfine levels for the Rb 85 D 1 and D 2 lines with laser

transitions that are driven in the experiment. The hyperfine splittings ‡ for the

5P 1/2 (361 MHz) and 5P 3/2 (220 MHz) hyperfine levels are much smaller than

the Doppler width (600 MHz), such that the individual hyperfine levels cannot

be resolved. This is convenient because we can treat the excited states as a single

† The natural abundance of rubidium isotopes are 27.8% Rb 87 and 72.2% Rb 85

‡ The hyperfine splitting for Rb 85 and Rb 87 D 1 and D 2 lines can be found in Appendix 1.


hyper-fine level. Finally, the signal field Stark shifts both ground hyperfine levels

resulting in a total change in Raman detuning of

δ R (Ω S ) = δ R (0) +

Ω 2 ∆ hf

4∆ S (∆ S + ∆ hf ) , (4.2)

where ∆ hf = 2π × 3.0357 GHz is the hyperfine splitting of the ground states.

The inset in Fig. 4.2 shows the approximate 1/e 2 intensity beam shapes for the

coupling, probe, and signal fields (in the experiment the beams were not perfectly

centered). The coupling and signal beams were essentially identical with beam

radius of w c ≈ w s ≈ 2.2 mm, while the probe beam was smaller and slightly

elliptical w p,x ≈ 1.0 mm and w p,y ≈ 1.8 mm.

Table 4.1: Several measured parameters for the EIT line shapes with no signal

present. The beam powers were measured immediately before the PBS in front

of the vapor cell. αL is the maximum absorption experienced far from Raman

resonance. ˜αL is the difference between maximum absorption and the absorption

minimum near Raman resonance, and EIT FWHM is self-explanatory.

Temper- Power αL ˜αL EIT

ature Coupl. Total EIT Depth FWHM)

58 ◦ C 340(20) µW 5.2(3) 3.7(1) 11.5(7) kHz

58 ◦ C 1.0(1) µW 5.3(2) 4.3(1) 31.9(1.2) kHz

58 ◦ C 1.9(1) µW 5.5(2) 4.6(1) 58.1(1.8) kHz

48 ◦ C 1.0(1) µW 2.0(1) 1.5(1) 31.9(7) kHz

52 ◦ C 1.0(1) µW 3.3(1) 2.6(1) 33.2(7) kHz

72 ◦ C 1.0(1) µW 20.4(9) 16.4(7) 41(3) kHz

4.2. CW MEASUREMENTS 99

4.2 CW measurements

To verify the dependence of the EIT Kerr dynamics on optical depth, EIT

linewidth, and Raman detuning, we measured the transient and CW response

of EIT to the signal field while varying the cell temperature (optical thickness

αL), coupling intensity (EIT linewidth (R + Γ)), and signal intensity (Stark shift

δ R ). The different parameters at which data was taken is summarized in Table

4.1. Each row in Table 4.1 corresponds to a different set of data in which both

cw and transient measurements were taken for several signal powers ranging from

0.2 mW to 4.9 mW. In all measurements the probe power was 40 µW, and the

signal detuning was ∆ S = 2π × 1.9 GHz.

Figure 4.3 shows the cw probe absorption as a function of Raman detuning for

several different signal powers, with a cell temperature of 58 ◦ C and a coupling

power of 0.34 mW (first row in Table 4.1). Figures 4.6-4.11 also use this same

data set. In addition to the shift in absorption minimum resulting from the Stark

shift, the transparency also becomes broader and less deep with increasing signal

power. These effects are mostly due to the additional decoherence created by the

signal field (i.e. Γ(Ω S ) = Γ(0) + Ω 2 S γ/4∆2 S ). This additional decoherence is most

noticeable when the optical pumping is of the same order of magnitude as the

decoherence rate R ∼ Γ, which is the case for the data corresponding to row 1

of Table 4.1. For all other sets of parameters in Table 4.1 the optical pumping R

is a factor of 3-6 times larger than for row 1 and the broadening is significantly


5

Probe absorption (αL)

4

3

2

P s = 4.5 mW

P s = 2.5 mW

P s = 1.5 mW

P s = 0.4 mW

P = 0

s

-20 -10 0 10 20 30


Figure 4.3: Probe absorption versus Raman detuning for different cw signal powers. The signal

detuning is ∆ S = 2π×1.9 GHz and the coupling (probe) power is 340 µW (40 µW). The fact

that with no signal field Raman resonance is already shifted away from the expected zero is due

mostly to the 20 Torr N 2 buffer gas shifting the hyperfine splitting (∆ω hf = 2π × 240 Hz per

Torr N 2 ). The probe and coupling also cause a small (about 1 kHz) Stark shift at these powers.


Stark Shift (kHz)

12

10

8

6

4

2

Strark Shift due to

Signal Field Only

theory

αL=1.7, P C

= 1 mW

αL=2.6, P = 1 mW

C

αL=3.8, P C

=340 µ W

αL=4.3, P = 1 mW

C

αL=4.6, P =1.9 mW

C

αL=16.4, P C

= 1 mW

0

0 1 2 3 4 5 6

Signal Power (mW)

Figure 4.4: Stark shift due to the signal field for several settings of coupling power and EIT

optical depth.

less noticeable. In discussing the measurement data we use row 1 of table 4.1 to

show all of the steps in the experiment. The same experimental procedures and

analysis were also carried out for the other rows of table 4.1 although they are

not discussed in the same detail as row 1.

From Fig. 4.3 it is possible to find the Stark shift as a function of signal power

by determining the displacement of the absorption minimum for the probe. These

measured signal Stark shifts are shown in Fig. 4.4 for all rows of Table 4.1.

There is also a Stark shift due to the coupling field interacting with the probe

transitions and vice-versa due to the probe field interacting with the coupling

transitions. This Stark shift is plotted as a function of coupling power in Fig.


FWHM (kHz)

Stark Shift (kHz)

80

EIT Linewidth

60 (FWHM)

40

20

0

5

4

3

2

1

0

Stark shift due to Coupling

and Probe fields only

theory

αL≈1.5

αL≈2.6

αL≈4.5

αL≈16

theory

αL≈1.5

αL≈2.6

αL≈4.5

αL≈16

0 0.5 1 1.5 2 2.5

Coupling Power (mW)

Figure 4.5: Stark shift due to the coupling and probe fields as a function of coupling power.

Also, shown is the FWHM of the EIT resonance versus coupling power. The signal was off for

all of these measurements.

4.5. Also, plotted in Fig. 4.5 is the transparency linewidth versus coupling power.

The linewidth and Stark shift are also slightly dependent on the probe power,

but probe power is sufficiently small that it can be neglected. Figures 4.4 and 4.5

exhibit the expected linear dependence on intensity § .

Using homodyne detection we measured both real and imaginary part of the

probe susceptibility. Figure 4.6 shows cw homodyne data corresponding to the

first row of table 1. The homodyne signal was measured by first adjusting the

piezo voltage such that φ pzt = 0 and then stepping the the Raman detuning over

§ Note that for large optical depth, ˜αL ≈ 16 the EIT linewidth was slightly wider than for

smaller optical depth and all other parameters the same. This may be due to gain from four-wave

mixing.


2

Homodyne signal (arb. units)

1

0

-1

-2

-3

-30 -20 -10 0 10 20 30 40 50


Figure 4.6: Raw CW homodyne data for coupling power of 340 µW. Two sets of data are shown;

one for P s = 0 and the other for P s = 4.5 mW. The dotted lines show the homodyne envelope

(i.e. the maximum and minimum values which the homodyne signal can obtain).

the desired range of Raman detuning with a dwell time of 200 ms at each Raman

detuning.

In Fig. 4.6 the homodyne signal is plotted versus Raman detuning for the first

row of Table 4.1 (black lines are in the absences of the signal field, and green lines

correspond to a signal power of 4.5 mW). The dashed curves show the envelopes for

the maximum and minimum homodyne signals. These envelopes are determined

by measuring the homodyne signal while the phase φ pzt is scanned over several

periods and fitting the measured homodyne current to a sinusoid. This is repeated

at each Raman detuning. In Fig. 4.7 we have used the data from Fig. 4.6 to

calculate the real and imaginary parts of the probe susceptibility. The homodyne


3

2

Probe susceptibility (αL/2)

2

1

0

3

2

1

0

-30

Re(χ p

)

Im(χ p

)

δ = 8 kHz

R

δ = 0

R

-20 -10 0 10 20 30 40 50


1

0

-1

1

0

-1

Probe susceptibility (∆φ in Rad.)

Figure 4.7: Measured absorption αL and phase shift ∆φ derived from the homodyne data in

Fig. 4.6. In addition to obtaining refraction information we are able to confirm the absorption

measurements shown in Fig. 4.3.

envelop gives the absorptive (imaginary) part of the probe susceptibility, and the

refractive (real) part of the probe susceptibility is extracted using Eq. (4.1).

Using homodyne detection to measure the absorption has a couple of advantages

over measuring the transmitted intensity directly.

First, it increases the

dynamic range because we are measuring the field amplitude E P directly instead

of measuring the probe intensity I P

∝ |E P | 2 . Without this increased dynamic

range it would not have been possible to measure EIT line shapes with optical

depths of ˜α P = 16.4. Also, when we scan the piezo-controlled phase φ pv we obtain

a sinusoidal signal that can be used for lock-in amplification to extract the signal

out of the noise.

4.3. TRANSIENTS MEASUREMENTS 105

Homodyne Signal (arb. units)

1

0

-1

Homodyne

Envelope

Signal

0 100 200 500 600 700 800

Time ( µ sec.)

Figure 4.8: Homodyne measurements as a function of time (P s = 4.5 mW, P c = 340 µW). The

signal was turned on at t = 0 and then turned off again at t = 500 µs. Similar to Fig. 4.6, the

envelope shows the maximum and minimum values obtainable by the homodyne signal.

4.3 Transients Measurements

Homodyne detection was also used to measure the transient response of the EIT

fields to the fast turn-on and turn-off of the signal field. In this case, the frequency

difference between the probe and coupling field was optimized for peak probe

transmission with the signal field off. The signal was then turned on abruptly and

left on for approximately 1 ms, and then the signal is turned off abruptly. Figure

4.8 shows the transient homodyne signal and homodyne envelope when the peak

signal power was 4.5 mW and all other parameters are given by the first row in

Table 4.1. The square dashed curve shows the shape of the signal pulse. From

these measurements, the absorptive and refractive transients of the probe field can


Phase shift (rad.)

Absorption ( αL/2)

1

0.8

0.6

0.4

0.2

0

1.5

1

0.5

0

0 50 100 150

Time ( µ sec.)

Re(χ p ) and Im(χ p )

0 10 20


30

P s =4.5 mW

P s =2.5 mW

P s =1.5 mW

P s =0.8 mW

P s =0.4 mW

P s =0.2 mW

500 550 600 650 700

Figure 4.9: Change in refraction and absorption as a function of time for different values of peak

signal power. Both refraction and absorption are measured relative to their respective values

when the signal is off.

be extracted. Figure 4.9 shows the change in probe absorption and probe phase

for different choices of peak signal power. These curves were extracted from the

transient homodyne measurements identically to the process used to obtain Fig.

4.7. The inset in Fig. 4.9 shows the cw absorption and dispersion curves from

Fig. 4.7 in the absence of a signal . The vertical lines in the inset show the Stark

shifts corresponding to several signal powers.

This inset is intended as a tool

to help visualize the change in the real and imaginary parts of the susceptibility

corresponding to a given signal power and Stark shift.

There are several characteristics of these transients worth noting. First, the


steady-state changes in absorption and refraction correspond well with the crossings

in the inset where vertical Stark shift lines cross the susceptibility. For example,

the change in refraction reaches a maximum near P s = 2.5 mW, and for

signal powers greater than P s = 2.5 mW the steady-state change in refraction

decreases. Also, for small signal powers (e.g. P S = 0.2 mW and P S = 0.4 mW)

the steady state change in refraction is larger than the change in absorption.

This corresponds with the fact that near Raman resonance the real part of the

susceptibility is linear in Raman detuning while the imaginary part is quadratic.

However, we will see that there is also a linear change in the absorption due to

the signal field’s contribution to decoherence (i.e. Γ(Ω S ) = Γ(0) + 2Ω 2 S γ ⊥/∆ 2 S ).

Finally, for small signal powers (i.e. in the linear regime with δ R ≪ R) the rise

time is a constant, but in the nonlinear regime δ R ∼ R corresponding to large

signal powers the rise times become slightly shorter and the oscillatory nature of

the transients becomes more noticeable.

Additional insight comes from considering the dynamics of the GSC. In Fig.

4.10 we have used the inverse mapping of Eq. (2.44) to obtain the measured

GSC transients. The real part of the GSC is plotted versus the imaginary part of

the GSC parametrically as a function of time. The rise time dynamics look very

similar to transient trajectory shown in the theory plot in Fig. 2.7. The fall time

dynamics are essentially straight lines back towards the dark state GSC. In Sec.

4.4 we return to this plot and compare it to the theory from chapter 3.


0.5

0.4

Dynamics of Ground State Coherence

Rise Dynamics

Im

ρ

( 21 (-)

/ρ 21

)

0.3

0.2

0.1

P s =4.5 mW

0

P s =2.5 mW

P s =1.5 mW Fall Dynamics

P s =0.4 mW

-0.1

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

ρ 21

( )

Re (-)

/ρ 21

Figure 4.10: Trajectories of the ground state coherence GSC in the complex plane. GSC was

derived using Eq. 4.1 and the refraction and absorption transients in Fig. 4.9. Steady state

GSC values (black line) and transient data (non-black textured lines) are both shown. The

curved/spiraling lines show the rise time dynamics (δ R ≠ 0), while the straighter lines show the

fall time dynamics (δ R = 0).


200

100

Rise time ( µ sec.)

50

20

10

5

2

theory τ (Ref..)

rise

theory τ (Amp.)

rise

meas. τ (Ref.)

rise

meas. τ (Ref.)

fall

meas. τ (Amp.)

rise

meas. τ (Amp.)

fall

0.5 1 2 5 10 20

Stark shift (kHz)

Figure 4.11: Rise times of the refraction and absorption resulting from the EIT Kerr nonlinearity

(P c = 340). Squares and triangles show the measured refractive rise and fall times. Diamonds

and circles show the measured absorptive rise and fall times, and solid curves are theory for the

rise times. The values ˜αL = 3.75 and R + Γ = 2π kHz are used to obtain the theory curve fit.

Figure 4.11 shows measured 1/e rise and fall times for the transient measurements

presented in Fig. 4.9 corresponding the the first row of Table 4.1. The

solid lines are theoretical rise times from Fig. 3.3 modified to account for optical

thickness [i.e. the refractive rise times are multiplied by (1 + ˜αL/4) and the

absorptive rise times are multiplied by 1 + ˜αLc 1 /(2 + 2c 1 )]. The fall times are

essentially independent of the size of the Stark shift as expected because δ R = 0

always when the signal field is off. The theory curves agree very well with the

measured rise times, except for the absorptive rise and fall times for small Stark

shifts. For small Stark shifts the change in absorption is very small (see Fig. 4.9)

making this discrepancy of little practical importance.


100

(a)

(b)

Rise & fall times (µsec.)

10

2

100

10

2

αL ~ = 1.7

R+Γ = 12 kHz

~ αL = 4.3

R+Γ = 12 kHz

1 10

(c)

~ αL = 2.6

R+Γ = 12 kHz

~ αL = 4.6

R+Γ = 20 kHz

1 10


(d)

Figure 4.12: Rise and fall time measurements for the conditions (a) T = 48 ◦ C and P c = 1 mW,

(b) T = 52 ◦ C and P c = 1 mW, (c) T = 58 ◦ C and P c = 1 mW, and (d) T = 58 ◦ C and

P c = 1.9 mW. The definitions for measured data and curve fits are the same as in Fig. 4.11,

and the parameters used in the curve-fits are given in each figure.

Figure 4.12 shows the rise time plots for the data sets corresponding to the

second through fifth rows of Table 4.1. For each data set in Fig. 4.12, we include

the EIT half width at half maximum HWHM=R + Γ, and EIT depth which were

used to calculate the theory curves.

Finally, Fig. 4.13 shows the measured and theoretical rise times in the linear

regime as a function of optical thickness. The measured refractive rise and fall

times fit the theory curve well. For small optical depths (i.e. αL < 6) the

absorptive rise time agrees with theory. However, the absorptive fall times differ

from the theory, and both absorptive rise and fall times disagree with theory for

large optical depths. It is not clear why these differences exist. However, these

4.4. DISCUSSION OF MEASUREMENTS 111

100

Rise Time (µs.)

80

60

40

20

Ref. rise (meas.)

Ref. rise (theory)

Ref. fall (meas.)

Ref. fall (theory)

Abs. rise (meas.)

Abs. rise (theory)

Abs. fall (meas.)

Abs. fall (theory)

0

0 2 4 6 8 10 12 14 16

Optical Depth (αL)

Figure 4.13: Rise and fall times for the refractive and absorptive parts of the EIT Kerr nonlinearity

versus optical depth. The Stark shift is small (δ R ≪ (R + Γ)) for all measurements and

theory.

discrepancies only effect the absorptive rise time and they are not important for

applications based on the refractive EIT Kerr nonlinearity.

4.4 Discussion of Measurements

The measured EIT Kerr transients show good agreement with the theory derived

in chapters 2 and 3. However, there are a few small discrepancies between theory

and experiment, which have rather simple explanations. They mostly arise from

either approximations in the theory or the fact that in the experimental quantities

are averaged over spatially varying intensities (i.e. the experiment uses gaussian

beams rather the plane waves assumed in the theory).

Most of the approximations made in the theory are well justified, but our


Im

ρ

( 21 (-)

/ρ 21

)

Measured GSC Dynamics

0.6

0.4

0.2

0

(a)

0 0.2 0.4 0.6 0.8

ρ

( 21

)

Re (-)

/ρ 21

Im

ρ

( 21 (-)

/ρ 21

)

Theoretical GSC Dynamics

0.6

0.4

0.2

0

(b)

0 0.2 0.4 0.6 0.8

ρ

( 21

)

Re (-)

/ρ 21

Figure 4.14: (a) measured transient (solid line with dots) and steady state (solid line) GSC and

(b) transient (dashed line and steady state (solid line) GSC calculated using the theory from

Chapter 3. Both plots show the normalized real part of the GSC plotted versus the imaginary

part of the GSC. The GSC’s are plotted parametrically as a function of time (transient data),

or as a function of Raman detuning (steady state data). The transient data show GSC starting

out in steady state for zero Raman detuning, and evolving toward steady state when the Raman

detuning is δ R ≈ 1.2(R + Γ). After which the Raman detuning is sharply switched back to zero,

and the GSC again evolves toward steady state.

choice of neglecting the increased decoherence created by the signal field [i.e.

Γ(Ω S ) ≈ Γ(0) + Ω 2 Sγ/4∆ 2 S] (4.3)

leads to some rather noticeable differences between theory and experiment . First,

in Fig. 4.3 it is obvious that increased decoherence at large signal powers makes

the transparency resonance broader and shallower.

The effects of the signal dependent decoherence are also obvious in Fig. 4.10,

Neglecting the signal dependent decoherence is a good approximation because it doesn’t

change the predictions fundamentally and it makes the theory much simpler. However, this

omission results in noticeable but small inaccuracy when the approximate theory is compared

to the exact theory or experiment.


where this decoherence makes the steady state GSC non-circular. Figure 4.14

compares the measured GSC (a) to the idealized theory (b).

By ignoring the

signal dependent decoherence, the theory predicts that the steady state GSC

[Fig. 4.14(b) solid line] makes a circle. The measurements show a deformed

circle that comes to a cusp near Raman resonance. An exact theory including the

signal-dependent decoherence agrees with these measurements.

The transients

curves for theory and experiment are also slightly different due to the omission of

signal dependent decoherence in the theory. In spite of these small differences the

measured and theory curves look remarkably similar.

The EIT Kerr theory assumes plane waves, but the experiment uses approximately

Gaussian beams. Many of the EIT Kerr predictions for plane waves must

be modified when we average over spatially varying field intensities. For example,

when plane waves are considered the EIT rise time has a very simple relation to

the EIT linewidth–i.e

τ Ref = 1 + ˜αL/4

HW HM , (4.4)

where the EIT half width at half maximum is HWHM = R + Γ. However, when

we average the rise dynamics become

∫ ∫

Re[χ p (t)] ≈

{ [

dxdyRe[χ SS

p (x, y)] 1 − exp − 1 + ˜αL/4 ]}

, (4.5)

R(x, y) + Γ


and EIT line shape becomes

Im[χ p (δ R )] ≈ α p

∫ ∫

δ 2 R

dxdy

δR 2 + R2 (x, y) . (4.6)

These modification require that an extra multiplicative factor f is added to Eq.

(4.4), such that

τ Ref = f 1 + ˜αL/4

HW HM . (4.7)

Calculating the factor f is further complicated by the fact that spatial diffusion

coarse grains the spatial averaging. The characteristic diffusion length is l D (x, y) =

√¯vl/R(x, y), where ¯v is mean velocity, l is the mean free path length between

Rb 87 –N 2 collisions. Most atoms in a characteristic volume ‖ encounter the same

average field intensity during an optical pumping period regardless of variations

in the field intensities such that

∫ ∫

R(x, y) ≈

dx ′ dy ′ Ω2 (x ′ , y ′ )

γ eff

exp [ (x − x ′ ) 2 + (y + y ′ ) 2] /2l D 2 (x, y). (4.8)

A couple of simple observations allow us to calculate f for our experimental

conditions.

In the experiment we have described transit-time broadening the

dominant source of decoherence Γ, which means that the diffusion length is related

to the beam waist by R/Γ ∼ (w p /l D ) 2 (the probe beam waist w p is the smallest

‖ The characteristic volume is defined simply as a cube with sides given by the characteristic

diffusion length.


beam waist). Thus, when R ∼ Γ, the diffusion length is approximately equal to

the beam diameter and f ≈ 1. By comparing the measured rise times with the

measured linewidths, we are able to find f empirically. For coupling powers of

P c = 0.34 mW, P c = 1 mW, and P c = 1.9 mW, we find that f ≈ 1, f ≈ 1.3,

f ≈ 1.4 respectively. This agrees with the fact that as the optical pumping rate

increases, the diffusion length decreases and the value of f should monotonically

approaches its maximum value. The maximum value of f ≈ 1.5 can be calculated

using spatial averaging while assuming an infinitesimal diffusion length ∗∗ .

Finally, regardless of our efforts to decrease the decoherence Γ and increase the

optical pumping rate R, the best transparency we could achieve is ˜αL ≈ 5/6αL.

We believe that the maximum transparency was limited by the fact that 4 out of

5 of the dark states are only partially dark states. For a ratio of Ω 2 P /Ω2 c = 0.2, the

partially dark states have a transparency of about ˜αL ≈ 7/8αL. In the experiment

there is about a 2 kHz decoherence rate due to limited dwell time for the atoms

in the laser beams.

∗∗ In order that calculate f = 1.5 we had to make a few educated assumptions about the

overlap of the probe and coupling beams.

116

Chapter 5

EIT Kerr nonlinearity with slow

signal group velocity

In optically thick media (αL ≫ 1), the dynamics of the EIT Kerr effect depends

on the relative group velocities of the probe and signal fields. In Chapter 3,

when the EIT Kerr dynamics and the SNR for QND measurement were derived

for optically thick media, it was assumed that the signal group velocity v g,s was

close to c and that the EIT medium was short relative to the duration of the

signal pulse (i.e. L ≪ v g,s τ sig ). In this chapter, we discuss how the group velocity

of the signal affects the EIT Kerr dynamics and the SNR for QND measurements.

The most important effect we discuss is that the maximum SNR and XPM are

achieved when the signal group velocity is slowed till it equals the slow-light group

velocity of the probe.

Although matching the probe and signal group velocities is a necessary condition

for achieving the maximum SNR and XPM, it is not a sufficient condition.

To illustrate this point, consider the case when the probe and coupling fields are

5.1. SLOW LIGHT EIT KERR NONLINEARITY 117

matched pulses. In this case, rather than slowing the signal’s group velocity, the

probe’s group velocity is increased to approximately c; thus achieving matched

group velocities. Although the group velocities are matched, the desired increase

in phase shift and SNR is not achieved because the signal group velocity is not

matched to the EIT Kerr dynamics.

To achieve the effects we discuss in this

chapter, the signal group velocity must be slowed to the slow-light group velocity

of the probe.

In Sec. 5.1, we generalize the EIT Kerr dynamics theory from Chapter 3 to

account for the group velocities. In Secs. 5.2 and 5.3, we present the details of

experimental observations for the EIT Kerr dynamics when the group velocity of

the signal is slow.

5.1 Slow Light EIT Kerr nonlinearity

Our analysis of the EIT Kerr effect and dynamics in Chapter 3 led us to the

conclusion that under the most ideal conditions, QND measurements using the

EIT Kerr nonlinearity could only achieve a SNR of less than one per photon and a

phase shift of a few hundredths of a radian per photon in the signal field. However,

in Chapter 3 we did not consider the possibility of changing the group velocity for

the signal.

We recall from Chapter 3 that the QND signal is the integrated charge

〈Q〉/¯n s = 2q ele η¯n p C 1 / √ κ 2 , (5.1)


where ¯n p ∝ T int is the expectation value for the number of probe photons in the

integration time T int , C 1 = ¯φ/¯n s ∝ 1/T int is the XPM per signal photon and ¯φ is

the average XPM over the integration time. If the integration time is sufficiently

long, the signal will be independent of the EIT Kerr dynamics.

However, the

signal to noise ratio

SNR ≡

〈Q〉

√

〈(∆Q)2 〉 ≈ 2C 1¯n s

√ η¯np ∝ 1/ √ T int , (5.2)

is not independent of the dynamics. In Chapter 3, we assumed the impulse response

function h(t) for the XPM had a width proportional to the refractive EIT

Kerr rise-time τ eit = (1 + ˜αL/2)/(R + Γ), which is true when signal pulse propagates

with group velocity v g,s ≈ c. Recall that the impulse response function was

defined such that the time dependent phase modulation is

φ(L, t) ∝

∫ t

0

dt ′ h(t ′ )I s (0, t − t ′ ), (5.3)

where I s (z, t) is the signal intensity. However, when the probe and signal group

velocities are similar, the impulse response function and the required integration

time can change significantly in optically thick media.

To calculate the XPM impulse response function, we consider the linearized


equation of motion for the GSC ρ 12 = ρ ∗ 21

∂

(

)

∂t ρ 12 = Rρ (−)

12 − (iδ R (Ω S ) + R + Γ)ρ 12 , (5.4)

and the Maxwell wave equations for the fields in the SVEA are

( )

∂

∂t + v ∂

g,s Ω S = 0, (5.5)

∂z

and

( ∂

∂t + c ∂ ∂z

)

Ω P ≈ iω 0

2 (χ pΩ P )

≈ −˜αc ( Ω P − ρ 12 Ω 2 /Ω ∗ C)

. (5.6)

In the last line of Eq. (5.6) we have used the fact that

χ P ≈ i N|µ 32| 2

ɛ 0 γ

(

1 − ρ12 Ω 2 /Ω ∗ CΩ P

)

. (5.7)

Obtaining a general analytic solution for these equations is difficult, but they

are straightforward to simulate numerically. Figure 5.1 shows several simulations

of Eqs. (5.4)-(5.6) for different signal group velocities. The signal intensity (top)

and probe phase (bottom) are plotted as a function of the time they exit the

medium. The group velocity of the probe and all other parameters except v g,s


Normalized Signal

Intensity (arb. units)

1

0.8

0.6

0.4

0.2

v g,s = 25v g,p

v g,s = 2v g,p

v g,s = v g,p

v g,s = v /2 g,p

Probe Phase (rad.)

0

-0.2

-0.4

-0.6

-0.8

0 L/v

g,p

Time (arbitrary units)

2L/v g,p

Figure 5.1: Numerical simulations of the EIT Kerr dynamics for various ratios of probe and

signal group velocities. The signal intensity and probe phase are both plotted as a function of

the time they exit the EIT Kerr medium.

were held constant. The optical depth was ˜αL = 270, and the width of the signal

pulse was F W HM = 10R.

When the group velocities are matched, the phase pulse is approximately the

same shape as the signal intensity, and the the largest peak phase modulation has

is obtained. When the group velocities are not matched, the edges of the phase

pulse correspond to times t 1 = t 0 + L/v g,p and t 2 = t 0 + L/v g,s where t 0 is the

time that the signal peak enters the medium. Thus, the peak height of the phase

pulse is roughly proportional to ∣ ∣ t1 − t 2 −1 ∣

= ∣vg,p − v g,s L ∣ ∣ ∣ , for ∣t1 − t 2 ≥ τsig .

This result can be derived analytical by further simplifying Eqs. (5.4)-(5.6) under

the assumptions of the linear regime (δ R ≪ 1), a weak probe field (Ω C ≫ Ω P ),


no decoherence (Γ = 0), and Raman resonance in the absence of the signal field

[δ R (Ω s = 0) = 0]. Also, for simplicity we assume that at the medium entrance,

the fields Ω P (0, t) and Ω C (0, t) are real positive constants. These assumptions allow

us to write Ω P (z, t) ≈ exp(iφ(z, t))Ω P (0, t) and ρ 21 (z, t) ≈ exp(iθ(z, t))|ρ (−)

21 |,

where |φ(z, t)| ≪ 1 and |θ(z, t)| ≪ 1 such that Eqs. (5.4)-(5.6) simplify to

∂

∂t θ ≈ R (φ − θ)) − δ R, (5.8)

δ R (z, t) = Ω2 s(0, t − z/v g,s )

4∆ s

(5.9)

and

( ∂

∂t + c ∂ )

φ ≈ − ˜αc (φ − θ) . (5.10)

∂z 2

These equations can be thought of as describing two separate processes; the

generation of the probe phase and the propagation of the probe phase. By analyzing

these two processes individually and then recombining them, it is straightforward

to calculate an optically thick impulse response function h thick (t).

First, let us consider the propagation of the probe phase modulation in the

absence of the signal field. With δ R = 0 Eq. (5.8) can be integrated exactly to

obtain

(

θ(z, t) ≈ R φ − 1 ∂φ

R ∂t + 2 )

∂ 2 φ

R 2 ∂t + . . . . (5.11)

2


Plugging Eq. (5.11) into Eq. (5.10) and simplifying gives to first order

(

∂

n g,p

∂t + c ∂ )

φ = 0, (5.12)

∂z

where the group index for the probe is n g,p = 1 + c˜α/2R and the probe group

velocity is v g,p = c/n ∗ g,p . By leaving out higher order terms we are neglecting

absorption and higher order dispersion terms. To understand the broadening of a

phase pulse we consider that the index of refraction for a Lorentzian EIT resonance

is

√

1 + χp ≈ 1 + χ p /2 = 1 + αc (

− δ )

R

2ω p R + δ3 R

+ i αc δR

2

R 3 2ω p R + . . . , (5.13)

2

and the different orders of dispersion † are given by

β j = ∂j

ω n(ω). (5.14)

∂ωj Agrawal [138] has shown that the pulse broadening due to dispersion alone is

∗ It is interesting to note that nominally the group and phase velocities have reversed roles.

The phase modulation propagates at the group velocity, while the probe energy propagates at

the phase velocity. Typically we think of the energy propagating at the group velocity. This

reversal of roles is in name only and the situation we describe is consistent with what is known

of the group and phase velocities. However, this nominally role reversal illustrates the fact that

one must be explicit and careful when discussing the velocity of light in EIT systems.

† Technically these dispersion terms apply to amplitude pulses and not phase pulses. However,

our assumption of 1 ≫ φ ensures that on average ∂ 2 φ/∂t j ≫ (∂φ/∂t) j for i ≥ 2, which means

that to a good approximation these expressions also apply to the dispersion of a phase pulse.


given by

[ ( 2

∆t(z)

∆t(0) = β2 z

1 +

+

2∆t (0)) 1 ( ) ] 2 1/2

β3 z

, (5.15)

2 2 4∆t 3 (0)

where the pulse width ∆t is the temporal variance of the pulse. Similarly, the

broadening due to absorption alone is

[

] 1/2

∆t(z)

∆t(0) ≈ αz

1 +

, (5.16)

2∆t 2 (0)R 2

where both Eqs. (5.15) and (5.16) assume Gaussian beams. In the limit of

large optical depth the dispersive pulse broadening can be minimized by choosing

∆t(0) = (3˜αL/4) 1/3 /R, which gives a dispersive broadened pulse width of

∆t(z) = ∆t(0) √ 3/2. For this initial pulse width, absorptive broadening will be

the dominant form of broadening for large optical thicknesses, and the final pulse

width will be ∆t(L) ≈ √˜αL/R. This is a lower bound for the pulse width after

propagating through a Lorentzian EIT medium regardless of the initial pulse

shape if the phase modulation.

When the Stark shift from the signal field is included in Eq. (5.8), it acts as

a source term for the phase modulation φ. To understand the generation of the

phase pulse, it is simplest to think about an optically thin medium αL ≈ 1. In

an optically thin medium we can ignore the probe phase φ in Eq. (5.8), and the


medium phase θ is calculated by integrating Eq. (5.8) to obtain

θ(z, t) ≈

∫ ∞

0

δ R (z, t − τ) exp(−Rτ)dτ. (5.17)

We are primarily interested in the case when v g,s ∼ v g,p such that v g,s ≪ c, and

this allows us to ignore the time derivative in Eq. (5.10). Thus, Eq. (5.10) can

be integrated in space to obtain

∫ z

φ 0 (z, t) ≈ ˜α θ(z ′ , t) exp [−˜α(z − z ′ )/2] dz ′ (5.18)

2 0

≈ ˜α ∫ z ∫ ∞

e−˜αz/2 dz ′ e˜αz′ /2

dτe −Rτ δ R (z ′ , t − τ)

2

≈

∫ ∞

−∞

0

0

dτh(z, τ)δ R (t − τ, 0),

where the impulse response function of the medium is

⎧⎪

h(z, t) = 1 − exp [−˜αz 0/2(1 + v g,p /v g,s )] ⎨ exp[− ˜α v g,p

2 v g,s

(z 0 − z)]

1 + v g,p /v g,s ⎪ ⎩ exp [ − ˜α (z − z 2 0) ]

0 < z ≤ z 0 , L

,

z 0 < z ≤ L

(5.19)

and where z 0 = tv g,s . Equation (5.19) is approximately equal to Eq. (3.38) in the

limit v g,s ≫ v g,p .

To generalize our results to the case of optically thick media, we rewrite the


wave equation for the probe phase [i.e. Eq. (5.20)] to include a source term:

(

∂

n g,p

∂t + c ∂ )

φ = P φ , (5.20)

∂z

where P φ (z, t) ∝ ∫ dz ′ h m (z ′ , t)δ R (z − z ′ , t) is the source term analogous to the

polarization of the medium in a wave equation for the electric field. Also,

h m (z, t) = 4˜α exp (−˜α|v g,st − z|/2) (5.21)

is the optically thin impulse response function when the group velocities are

matched (i.e. v g,s = v g,p ). Using Eqs. (5.9) and (5.21) and making the change

of variables ξ = z and τ = t − z/v g,p allows us to integrate Eq. (5.20) exactly to

obtain

φ(L, t) = ω pχ (3) ∫

pssL

c 2 ɛ 0

dt ′ h thick (L, t ′ )I s (0, t − t ′ ) (5.22)

where

h thick (L, t) ≈

∫ L−t vg,p

vg,s

vg,p L−t v g,p

dξ Rv g,p exp ( − ˜α 2 |ξ|)

2(v g,p − v g,s )L . (5.23)

It is interesting to note that in the limit

lim h thick (L, t) = h m (L, t). (5.24)

v g,s →v g,p

The integration time must be as large as the final pulse width [i.e.

T int ≈

5.2. EXPERIMENTAL APPARATUS 126

(2 + √˜αL)/(R + Γ)], which results in a SNR of

SNR

n s

≈

2γ √ 2˜αLη

∆ S k 0

√

A(1 + κ2 ))

√

τEIT

∆t(L)

(5.25)

≈

2γ √ 2˜αLη

∆ S k 0

√

A(1 + κ2 )) (˜αL)1/4 /2.

5.2 Experimental apparatus

To observe the EIT Kerr dynamics described in Sec. 5.1 and in Chapter 3, we used

the experimental system shown in Fig. 5.2. This is essentially the same experimental

apparatus used in Chapter 4, except the probe-coupling EIT is resonant

with Rb 87 instead of Rb 85 and we have added a signal-coupling field to form an

EIT pair with the signal field. The four laser frequencies used in the experiment

are the probe, coupling, signal, and signal-coupling fields. Figure 5.3 shows these

frequencies relative to the D 1 transitions of Rb 87 and Rb 85 .

The probe and coupling beams form an EIT pair for Rb 87 , and they are close to

Raman resonance for the Rb 87 (F = 2 ↔ F ′ = 2 ↔ F = 1) two-photon transition

as shown in Fig. 5.3(a). In addition to Raman resonance condition, EIT also

requires strong phase correlations between the probe and coupling fields, which

we achieve by deriving both probe and coupling beam from the same laser. The

laser is tuned to the coupling frequency, and part of the beam is picked off and sent

through a 6.8 GHz electro-optic modulator (EOM) to create the probe frequency.


Homodyne

Detection

PD

PD

50/50

BS

Probe

50/50

BS

Signal-

Coupling

Computer

DAQ

Spectral

filter

PBS

Magnetic

Shielding

PBS

Signal

Coupling

PZT

APD

Rb Cell

Rb Cell

Probe

Signal-

Coupling

Coupling

Signal

Figure 5.2: Diagram of the experiment. At the first 50/50 beam splitter (BS) the probe field

is divided into two arms of a Mach-Zehnder interferometer. In one arm of the interferometer,

the probe interacts with the coupling, signal, and signal-coupling fields in a rubidium cell.

These fields are then filtered using polarization (PBS), spatial (pick-off mirror), and spectral

filters before the probe field is interfered on a 50/50 BS with the reference arm of the Mach-

Zehnder interferometer. Balanced homodyne detection is recorded via a computer controlled

data acquisition (DAQ) system to measure changes in the probe phase. (PD=photo diodes,

APD= avalanche photo diode, BS=beam splitter, PBS=polarizing beam splitter, PZT= piezoelectric

actuated mirror)


After the EOM, the probe field is obtained by frequency filtering ‡ to select only

the lower side band of the frequency modulated field. We found that the best

contrast for EIT of the probe is achieved when the probe beam diameter is small

compared to the coupling beam diameter, and when coupling and probe beams

are perfectly parallel to within experimental accuracy (i.e. slightly better than

1 mrad). Also, EIT is best when the coupling and probe fields have orthogonal

linear polarizations. The beam areas and their overlap are shown in Fig. 5.4.

The signal and signal-coupling beams create EIT in the Rb 85 atoms, and are

detuned from single-photon resonance as shown in Fig. 5.3(a). They are also

derived from a single laser to ensure strong phase correlations. The signal-coupling

frequency is obtained by upshifting the laser frequency by 3.2 GHz using a double

passed 1.6 GHz acousto-optic modulator (AOM). The signal frequency is obtained

by upshifting the laser frequency using a 200 MHz AOM. This AOM is also used

to pulse the signal field with a minimum rise-time of 30 nsec. Both lasers used in

the experiment were Newfocus Vortex lasers. Similar to the probe and coupling

beams, the signal and signal-coupling also have orthogonal linear polarizations,

and have parallel propagation directions to within experimental accuracy. Also,

the signal beam was smaller than the signal-coupling to ensure good contrast for

the signal EIT (see Fig. 5.4).

The signal and probe converge in the cell at an angle of 7 mrad and overlap

‡ The frequency filter is a temperature controlled solid etalon with finesse of 100 and free

spectral range of 40 GHz.


F’=2

F’=1

(a)

F’=2,3

Rb 85

Rb 87 Coupling

Probe

F=2

Signal

F=3

Signal-

Coupling

F=1

F=2

Transmission

1

0.8

0.6

0.4

0.2

0

Rb 87

Rb 85

Probe

Coupl.

Signal

Signal-

Coupl.

F=2

(b)

F=3

F=2

-5 -4 -3 -2 -1 0 1 2 3 4 5

Frequency - 377,107.46 (GHz)

F=1

Figure 5.3: (a) Level diagram and (b) laser frequencies relative to the Rb 85 and Rb 87 D 1 Doppler

valleys.


1

2

Beam Circumfrance ( 1/e )

Sig.Coupl .

Signal

Probe

Coupl.

Position (mm)

0

-1

-2

-2 -1 0 1 2

Position (mm)

Figure 5.4: 1/e 2 intensity beam radius for the probe, coupling, signal, and signal-coupling

beams. The probe and signal beams were smaller than the coupling and signal-coupling beams

respectively in order to ensure good EIT for the entire probe and coupling beams. The probe

beam is also smaller than the signal beam in order to obtain a uniform Stark shift.

through the rubidium cell. The vapor cell contains both rubidium isotopes in their

natural abundance (72% Rb 85 and 28% Rb 87 ). It also contains 20 Torr of nitrogen

(N 2 ) buffer gas. The rubidium cell was a 30 mm long cylinder with a diameter

of 25.4 mm, and was magnetically shielded. For the experiments discussed here,

the optical depth on resonance with the Rb 87 (F = 2 → F ′ = 1) transition (i.e.

the probe transition) is αL ≈ 7. For the Rb 85 (F = 3 → F ′ = {2, 3}) transition,

(i.e. the signal transition) the on-resonance optical depth is αL ≈ 40. The large

optical depth for Rb 85 transitions is why the signal and signal-coupling fields are

not on resonance [see Fig. 5.3(b)].

5.3. SLOW SIGNAL EIT KERR MEASUREMENTS 131

Probe Absorption (αL/2)

3

2

1

signal

no sig.

coupl. sig.

coupl. no sig.

0

-150 -100 -50 0 50 100 150

Probe Raman Detuning (kHz)

Figure 5.5: Probe absorption as a function of Raman detuning.

5.3 Slow signal EIT Kerr measurements

Figure 5.5 shows the probe absorption as a function of Raman detuning for four

different cases: 1) both signal and signal-coupling off, 2) signal on and signalcoupling

off, 3) signal off and signal-coupling on, and 4) both signal and signalcoupling

on. When the signal-coupling is off, the group velocity of the signal is

approximately c, and when the signal-coupling is on, the signal group velocity

is approximately c × 10 −4 . Ideally, slowing the signal group velocity would be

the only effect of the signal-coupling field, but Fig. 5.5 shows that the signalcoupling

field also has the side effects of making the probe EIT become shallower


Signal Absorption ( αl/2 )

and Refraction ( ω [n-1]/c )

s

1

0.5

0

αL/2

ω (n-1)/c

p

-0.5

-200 -100 0 100 200

Signal Raman Detuning (kHz)

Figure 5.6: Measured signal absorption αL as a function of Raman detuning. Also, plotted is

the dispersion curve calculated as the Hilbert transform of the signal absorption.

and Stark shifting the Raman resonance for the probe and coupling fields. The

shape of the probe EIT resonance is qualitatively the same with and without the

signal coupling field making qualitative comparisons possible. However, a direct

quantitative comparison is difficult due to the signal-coupling’s effects on the line

shape.

In addition to the absorption curves shown in Fig. 5.5, we used homodyne

detection to measure the probe phase as a function of Raman detuning (not

shown). In the absences of the signal-coupling the dispersion was measured to

have a slope of about 5×10 −2 rad/kHz and with signal-coupling on the slope was

3×10 −2 rad/kHz. From these values we infer a probe group velocity of about

4-6 km/s depending on whether the signal-coupling is on or off.


Figure 5.6 shows the signal absorption (blue) as a function of the Raman

detuning for the signal and signal-coupling frequencies. The dispersion curve (red)

was calculated by taking the Hilbert transform of the absorption curve. The EIT

for the signal resulted in a signal group delay of about 1.5 µsec with about 80%

transmission of the signal energy. For a 30 mm long vapor cell, this group delay

implies a signal group velocity of 20 km/s. When we tried to obtain larger signal

group delays by tuning the signal frequency closer to resonance EIT for both the

signal and probe deteriorated quickly with only a marginal increase in the signal

group delay. We believe this was due to radiation trapping in Rb 85 resulting from

the combination of large optical density for Rb 85 and the larger beam diameters

for the signal and signal-coupling beams.

Thus, in the experiment, the signal

group velocity was limited to the regime v g,s ∼ 5v g,p and the probe optical depth

was limited to ˜αL ∼ 3 − 6.

For our transient measurements of the EIT Kerr nonlinearity, we optimized the

Raman detunings for both EIT pairs to obtain maximum transmission and then

pulsed the signal field. Figure 5.7 shows the measured probe phase in the absence

of a signal-coupling field [shown in Fig. 5.7(a)]. Also, shown in Fig. 5.7(b) is the

signal intensity at the output of the rubidium cell. Time t = 0 is determined as

the expectation time for the signal pulse to leave the vapor cell. For long signal

pulses the probe phase has essentially the same pulse shape as the signal intensity–

only slightly wider and delayed. For short signal pulses, the leading edge of the


Phase Shift

(rad.)

0.2

0.1

(a)

Signal Intensity

(arb. units)

0

5

4

3

2

1

0

-60

-40 -20 0 20 40 60 80 100

time (µsec.)

(b)

Figure 5.7: (a) measured EIT Kerr phase pulses and (b) measured signal intensity for different

signal widths.

phase pulse is approximately the integral of the signal intensity, and the falling

edge of the phase pulse is a decaying exponential as predicted by Eq. 3.39. The

probe phase data is also slightly rounded and delayed due to the transimpedance

amplifier used after the homodyne detection. The transimpedance amplifier has

a measured propagation delay of 2 µs and a rise-time of 5 µs.

Deconvolving the effects of the transimpedance amplifier, we found that the

1/e fall-time of the shortest phase pulses is about 13 µs, which is consistent with

the observations from Chapter 4, where τ eit = f(1 + αL/4)/HW HM and where

f ≈ 1.4, αL = 6, and R = 2π × 45 kHz .

We repeated the measurements shown in Fig.

5.7 with the signal-coupling


30

w/o Sig.-Coupl.

Phase Shift (mrad.)

20

10

with Sig.-Coupl.

0

-10 0 10 20 30 40 50 60 70

Time (µsec.)

Figure 5.8: Measured (dots) and theory (solid) for the EIT Kerr phase pulses plotted versus

time (with t = 0 defined as the expectation time for the signal pulse leaving the vapor cell).

field on. The effects of the slow signal group velocity are most noticeable for short

signal pulses. Figure 5.8 shows the probe phase as a function of time when the

signal-coupling is either on or off (i.e. the signal group velocity is v g,s ≈ 2×10 4 m/s

or v g,s ≈ c). The signal pulse width before the cell is τ sig = 7 µs, and t = 0 is the

expectation time for the signal pulse leaving the cell. The dots are the measured

probe phase and the solid lines are numerical simulations of Eqs. (5.4-5.6), where

the simulations used the measured parameters from the experiment–e.g. optical

depths, EIT Kerr rise-time, signal absorption etc. The good agreement between

measurements and the numerical simulations give us confidence in the theory.

There are two types of effects due to the signal-coupling: effects due to the

slow signal group velocity, and effects due to changes in the probe EIT line shape.


Probe Phase (mrad.)

20

15

10

5

v g,s = 0.5vg,p

v g,s = v g,p

v g,s = 5vg,p

v = 20v

g,s

g,p

0

-20 -10 0 10 20 30 40

Time (µsec.)

Figure 5.9: Numerical simulations of EIT Kerr phase pulse for different signal group velocities.

For these simulation ˜αL = 3, τ s ig=7 µs, τ eit = 1/R = 15 µs.

The slower signal group velocity causes the peak phase to advance in time. Also,

for slow enough signal group velocities, the rising slope of the probe phase will

become shallower and the falling slope will become slightly steeper. The signalcoupling

field also has the side effect of changing to the EIT line shape for the

probe EIT. In Fig.

5.8 these side effects make the phase pulse shorter with a

slightly longer fall-time.

Although experimental limitations prevented matching the signal and probe

group velocities, using numerical simulations it is possible to explore the parameter

space for matched group velocities. Figure 5.9 shows the probe phase for numerical

simulations using the same parameters as the experiment when the signal-coupling


is on (i.e. τ eit =15 µs, αL = 3, τ sig =7 µs, v g,p = 6 km/s etc.) with different group

velocities for the signal pulse. Phase pulses are plotted for four different signal

group velocities. The v g,s = 20v g,p and v g,s = 5v g,p are qualitatively similar to

the measured probe phase in Fig. 5.7. For slower group velocities with v g,s =<

5v g,p , one can see the rising slope of the phase becomes shallower and the phase

pulse becomes more symmetric about its peak. For this relatively small optical

thickness, matching the group velocities does not increase the peak phase shift or

decrease the optimal integration time as it would in an optically thicker sample.

In order to achieve the benefits of slow group velocities, the EIT medium

must be optically thick. For matched group velocities in optically thick media

we expect an integration time of T match

int

≈ (2 + √˜αL)/R. While for fast signal

group velocities (i.e. v g,s ≈ c), the integration time is T fast

int

≈ (1 + ˜αL/4)/R. For

˜αL < 10 the integration time is shorter for a fast signal group velocity than for

matched group velocities.

Figure 5.10 shows the pulse-width of the phase plotted as a function of the

ratio v g,s /v g,p , when the medium’s optical thickness is ˜αL = 3, ˜αL = 6, and

˜αL = 12. For the optical depth used in the experiment (i.e. ˜αL = 3), there is

no narrowing of the phase pulse FWMH when group velocities become matched § .

However, for large optical thicknesses, the pulse-width decreases when the group

velocities are matched. However, even for ˜αL = 12 the decrease in the pulse-width

§ This is just a restatement of what is already obvious from Fig. 5.7

5.4. DISCUSSION 138

35

FWHM of Probe phase pulse

30

25

20

15

αL = 3

αL = 6

αL = 12

10

0.5 1 2 5 10 20

Normalized group velocity of signal (v /v g,p)

g,s

Figure 5.10: Phase pulse width (FWHM) plotted versus the ratio between the group velocities

for the probe and signal fields. Numerical simulations were performed with three optical depths

˜αL for the EIT. The signal pulse width was 7 µs and the optically thin EIT rise-time was

τ eit = 1/R = 15 µs.

is still less than a factor of two. Thus, the optical thickness of the medium must

be very large before matched group velocities significantly improves the SNR for

QND measurements.

5.4 Discussion

For QND measurement using the EIT Kerr nonlinearity, it is theoretically possible

to improve the SNR by matching the group velocities for the probe and signal

fields. However, the advantages offered by matched group velocities only become

significant for very large optical thicknesses (i.e. αL > 30).

We have observed some of the effects of nearly matched group velocities using

5.4. DISCUSSION 139

EIT in two isotopes of rubidium. However, we have not been able to experimentally

obtain the large optical depths and slow signal group velocities required to

see decreased pulse widths for the probe phase modulation on the probe and large

improvements in the SNR for QND measurements.

It may be possible to improve on this experiment using a different distribution

of rubidium isotopes and/or a longer rubidium cell in order to decrease the

radiation trapping. Also, using cold atoms would eliminate the problems associated

with overlapping Doppler valleys. However, using cold atoms would require

trapping both isotopes of rubidium simultaneously. The benefits achieved by a

better matched group velocity experiment probably would not justify the additional

work.

140

Chapter 6

Conclusions and perspective

As mentioned in the introduction, EIT enhanced Kerr nonlinearities may enable

many exciting and challenging few-photon applications such as QND measurements

with single photon resolution. However, some of the early optimism regarding

the EIT Kerr effect should be tempered. Without resorting to optical

cavities and/or slow group velocities for the signal field, the EIT Kerr effect can

only achieve a maximum cross-phase modulation (XPM) of a few hundredths of a

radian per photon under ideal conditions ∗ . Also under ideal conditions, the signal

to noise ration (SNR) for QND detection of a single photon is less than one for

the EIT Kerr effect † .

The reasons for these limitations is the slow rise-time of the EIT Kerr effect. In

∗ For the ideal conditions we assume a single velocity class of atoms with the atomic linewidth

equal to the natural linewidth, the dipole moment for the signal field is for the D 2 line of an

alkali atom. We also assume no decoherence, the fields are focused down to the diffraction limit,

and the N system originally proposed by Schmidt and Imamoğlu [1].

† This result assumes a constraint of at least 90% transmission for the signal field

141

the linear EIT Kerr regime (i.e. δ R ≪ R) the rise-time for XPM is proportional to

the depth of the EIT ˜αL and the optical pumping time t R ≡ 1/R [i.e. τ ref = (1 +

˜αL/4)/(R + Γ) ≈ ˜αL/4R, where it is assumed that the medium is optically thick

(i.e. ˜αL ≫ 1) and the EIT condition R ≫ Γ is met]. For cw applications of the

EIT Kerr effect it is theoretically possible to make the nonlinear susceptibility (i.e.

χ (3)

pss ∝ ˜αL/R) arbitrary large by either increasing the optical depth of the medium

and/or decreasing the optical pumping rate. However for pulsed applications such

as the few-photon applications that interest us, the figure of merit is the ratio

between the nonlinear susceptibility and the rise-time, and this figure of merit

cannot be increased by changing either the optical depth or the optical pumping

rate.

The EIT Kerr nonlinearity is still one of the best, if not the best, candidate for

realizing few-photon applications, but researchers must be clever in their methods

of utilizing the EIT Kerr effect. We have investigated using a slow group velocity

for the signal field, and found that theoretically this method could be used to

achieve arbitrarily large XPM and SNR for QND measurements. However, experimentally

matching the signal and probe group velocities is challenging due to complications

in creating EIT simultaneously for two nearly resonant atomic species.

Also, matched group velocity experiments require very large optical depths before

significant improvements in XPM and SNR can be observed. These large optical

depths also pose significant experimental problems.

142

Recently there have been a couple of proposals to create matched signal and

probe group velocities using a single atomic species [58, 119]. These eliminate

some of the problems we encountered in our two atomic species experiment, but

they still require extremely large optical thicknesses to achieve their objectives.

Also, they introduce new experimental problems by demanding precise control of

magnetic fields.

There are other proposals using EIT and slow light to achieve strong Kerr

nonlinearities. For example, Friedler et al. have proposed using the long range

dipole-dipole interactions between two slow-light pulses, where the slow light is

due to EIT in a ladder system [83]. The large dipole moments required for this

interaction result from the fact that the highest energy level in the ladder level

system is a Rydberg state with large quantum number n.

Some of the best results in XPM and QND measurements have used cavity

QED [139, 140]. In fact, QND measurements of single photons have very recently

been realized using microwave photons and super-conducting cavities [140]. However,

in these experiments the photon can only be coupled into the cavity via the

spontaneous emission from an excited atom travelling through the cavity. The

photon remains trapped in the cavity until it is either absorbed by a probe atom

traversing the cavity (more likely), or the photon leaks out of the cavity (less

likely). This type of QND measurement is not useful for measuring the number

of photons in a travelling wave.

143

Figure 6.1: Conceptual diagram for an EIT Kerr experiment using cold atoms and an optical

cavity.

The best QND measurements of photon number for optical fields have also used

optical cavities, but not in the strong-coupling regime of Cavity QED [133, 134].

In these experiments a conventional Kerr nonlinearity was used with an optical

cavity to increase the intensity of the signal field interacting with the atoms ‡ .

In EIT Kerr experiments an optical cavity could also be used to increase the

XPM. This could be accomplished in an experiment like the one shown in Fig.

6.1. In Fig. 6.1 two red detuned laser create a dipole trap for a cold atom cloud.

The EIT fields (i.e. probe and coupling) enter from the top, and the signal field

passes through a confocal Fabry-Perot etalon with finesse § Q. The atomic cloud

is at the center of the optical cavity. The signal intensity inside the cavity is Q

‡ This conventional Kerr nonlinearity is simply a three-level ladder system, and is exactly

identical to the system Schmidt and Imamoğlu used to compare with the EIT Kerr nonlinearity

and demonstrate 10 orders of magnitude increase in the size of the Kerr nonlinearity.

§ The symbol Q is used to signify the quality factor of the cavity, which is the same thing a

finesse.

144

times larger than outside the cavity resulting in a XPM that is Q times larger.

For QND measurements the results from chapter 3 for the rubidium D 1 line can

be generalized to account for a cavity, such that Eq. (3.43) becomes

SNR

n s

≈

√ √

πη 1 Qγ ˜αL

√ , (6.1)

2 k 0 A ∆ s 1 + κ 1

where it is assumed that T int = τ eit . The nondemolition condition also must be

modified such that ∆/γ ≫ √ Q˜αL/(1 + κ 1 ). Unlike the no-cavity scenario considered

in chapter 3, the SNR can theoretically be increased indefinitely without

violating the nondemolition condition by simultaneously increasing Q and ∆ while

keeping the ratio ∆/ √ Q constant.

Using realistic parameters for the experiment shown in Fig. 6.1 it should be

possible to realize a QND measurement capable of resolving individual number

states. Consider the case of a cold atomic cloud of Rb 87 , with EIT on the D 1

line and the signal field on the D 2 line. Assuming the parameters are A = 8π 2 λ 2 0,

κ 1 = 5, η = 0.7, Q = 10 4 , ˜αL = αL = 4 , and ∆ s ≈ 600γ, then the signal

absorption is about 15% and the SNR for a single photon of about eight. Thus, it

is realistically possible to achieve single photon QND measurements. To achieve

this same result by matching group velocities would require an optical depth of

˜αL ≈ 10 9 with perfect transparency for the probe field, which is not realistic.

We are assuming that the atomic cloud has a length of 0.5 mm with a diameter of 0.1mm

and about 10 5 atoms. The 5 to 1 aspect ratio of the atom cloud keeps the absorption of the

probe field to a minimum while keeping αL large for the signal field.

145

Finally, we return to the question of using the EIT Kerr nonlinearity as an

optical two-qubit quantum logic gate. As we have already mentioned in chapter 1,

there are several architectures for optical quantum computing that are based on

Kerr nonlinearities and/or QND measurements [111–116, 141]. However, Shapiro

has shown theoretically that optical gates based on Kerr nonlinearities have poor

fidelity [120, 121]. This is in contrast to other researchers who have used a completely

quantum analysis to predict good fidelity using the EIT Kerr effect in a

quantum phase gate [118, 142].

It is interesting to contrast the conclusions of Refs. [120] and [118]. In Ref.

[118] the conclusion is, that their “study shows that the implementation of efficient

EIT-based nonlinear two-qubit gates for traveling single photons is possible” [118].

While Ref. [120], which is titled Single-photon Kerr nonlinearities do not help

quantum computation, comes to the conclusion that “Unfortunately, the phase

noise that is associated with the causal, noninstantaneous nature of the response

function precludes high-fidelity operation” of EIT-based nonlinear two-qubit gates

[120]. Both references use a completely quantum analysis, and both account for

the dynamics of the Kerr nonlinearity, although their methods are significantly

different. Ref. [120] derives general analytic expressions for Kerr nonlinearities

in general, and Ref.

[118] uses numerical simulations of the EIT Kerr effect

specifically.

The crux of the problem lies with understanding the dynamics of the Kerr

146

nonlinearity and noise in the Kerr nonlinearity due to vacuum fluctuations. In

this work we have discussed the dynamics of the EIT Kerr nonlinearity at length,

but we have not discussed the vacuum fluctuations because our treatment is semiclassical.

It is well known that the quantum vacuum AC Stark shifts the energy levels;

this energy shift is typically referred to as the Lamb shift. Thus, the noise degrading

the fidelity of quantum logic gates based on the EIT Kerr nonlinearity arises

from fluctuations in the Raman detuning due to the Lamb shift. To our knowledge

the affects of the Lamb shift noise on EIT have not been studied, but such

a study should answer questions raised about the fidelity of EIT Kerr quantum

gates and their utility for quantum computing and QIP. This noise may also be

significant for other EIT Kerr applications.

147

Bibliography

[1] H. Schmidt and A. Imamoǧlu, “Giant Kerr nonlinearities obtained by electromagnetically

induced transparency,” Opt. Lett. 21, 1936 (1996).

[2] G. Alzetta, A. Gozzini, and G. Orriols, “An experimental method for the

observations of R. F. transitions and laser beam tansitions in oreinted Na

vapors,” Nuovo Cimento B 36, 5 (1976).

[3] G. Alzetta, L. Moi, and G. Orriols, “Nonabsorption hyperfine resonances in

a sodium vapor irradiated by a multimode dyelaser,” Nuovo Cimento B 52,

5209 (1979).

[4] H. R. Gray and C. R. Stround, “Coherent trapping of atomic populations,”

Opt. Lett. 3, 218 (1978).

[5] S. E. Harris, J. E. Field, and A. Imamoğlu, “Nonlinear optical processes

using electromagnetically induced transparency,” Phys. Rev. Lett. 64, 1107

(1990).

[6] E. Arimondo, in Progress in Optics, edited by E. Wolf (Elsevier Science,

Amsterdam, 1996), Vol. 35, p. 275.

[7] O. A. Kocharovskaya and Y. I. Khanin, “Coherent amplification of an ultrashortpulse

in a three-level medium without a population inversion,” JETP

Lett. 48, 630 (1988).

[8] M. O. Scully, S.-Y. Zhu, and A. Gavrielides, “Degenerate quantum-beat

laser: Lasing without inversion and inversion without lasing,” Phys. Rev.

Lett. 62, 2813 (1989).

[9] S. E. Harris, “Lasers without inversion: Interferences of lifetime broadened

resonances,” Phys. Rev. Lett. 62, 1033 (1989).

[10] E. S. Fry et al., “Atomic coherence effects within the sodium D 1 line: Lasing

without inversion via population trapping,” Phys. Rev. Lett. 70, 3235

(1993).

BIBLIOGRAPHY 148

[11] Y. Zhu, “Lasing without inversion in a V-type system: Transient and steadystate

analysis,” Phys. Rev. A 53, 2742 (1995).

[12] P. Hemmer, S. Ezekiel, and J. C.C. Leiby, “Stabilization of a microwave

oscillator using a resonance raman transition in a sodium beam,” Opt. Lett.

8, 440 (1983).

[13] M. Scully and M. Fleischhauer, “High-sensitivity magnetometer based on

index-enhanced media,” Phys. Rev. Lett. 69, 1360 (1992).

[14] M. Fleischhauer and M. Scully, “Quantum sensitivity limits of an optical

magnetometer based on atomic phase coherence,” Phys. Rev. A 49, 1973

(1994).

[15] D. Budker, V. Yashchuk, and M. Zolotorev, “Nonlinear magneto-optic effects

with ultranarrow widths,” Phys. Rev. Lett. 81, 5788 (1998).

[16] M. Linberg and R. Binder, “Dark states in coherent semiconductor spectroscopy,”

Phys. Rev. Lett. 75, 1403 (1995).

[17] R.Wynands and A. Nagel, “Precision spectroscopy with coherent dark

states,” Appl. Phys. B 68, 1 (1999).

[18] F. Levi, A. Godone, J. Vanier, S. Micalizio, and G. Modugno, “Line-shape

of dark line and maser emission profile in CPT,” Eur. Phys. J. D 12, 53

(2000).

[19] S. Brandt, A. Nagel, R. Wynands, and D. Meschede, “Buffer-gas-induced

linewidth reduction of coherent dark resonances to below 50 Hz,” Phys. Rev.

A 56, R1063 (1997).

[20] M. Erhard and H. Helm, “Buffer-gas effects on dark resonances: Theory and

experiment,” Phys. Rev. A 63, 043813 (2001).

[21] D. Budker, D. F. Kimball, S. M. Rochester, and V. V. Yashchuk, “Nonlinear

magneto-optics and reduced group velocity of light in atomic vapor with slow

ground state relaxation,” Phys. Rev. Lett. 83, 1767 (1999).

[22] L. Hau, S. Harris, Z. Dutton, and C. Behroozi, “Light speed reduction to

17 metres per second in an ultracold atomic gas,” Nature 397, 594 (1999).

[23] M. Kash et al., “Ultraslow group velocity and enhanced nonlinear optical

effects in a coherently driven hot atomic gas,” Phys. Rev. Lett. 82, 5229

(1999).


[24] C. Liu, Z. Dutton, C. H. Behroozi, and L. V. Hau, “Observation of coherent

optical information storage in an atomic medium using halted light pulses,”

Nature 409, 490 (2001).

[25] D. Phillips, M. Fleischhauer, A. Mair, R. Walsworth, and M. D. Lukin,

“Storage of light in atomic vapor,” Phys. Rev. Lett. 86, 783 (2001).

[26] O. Kocharovskaya, Y. Rostovtsev, and M. O. Scully, “Stopping light via hot

atoms,” Phys. Rev. Lett. 86, 628 (2001).

[27] M. J. S. J. J. Longdell, E. Fravel and N. B. Manson, “Stopped light with

storage times greater than one second using electromagnetically induced

transparency in a solid,” Phys. Rev. Lett 95, 063601 (2004).

[28] M. D. Eisaman, A. Andre, F. Massou, M. Fleischhauer, A. S. Zibrov,

and M. D. Lukin, “Electromagnetically induced transparency with tunable

single-photon pulses,” Nature 438, 837 (2005).

[29] P. R. Hemmer, D. P. Katz, J. Donoghue, M. Cronin-Golomb, M. S. Shahriar,

and P. Kumar, “Efficient low-intensity optical phase conjugation based on

coherent population trapping in sodium,” Opt. Lett. 20, 982 (1995).

[30] M. Jain, H. Xia, G. Y. Yin, A. J. Merriam, and S. E. Harris, “Efficient

nonlinear frequency conversion with maximal atomic coherence,” Phys. Rev.

Lett. 77, 4326 (1996).

[31] Y.-Q. Li and M. Xiao, “Enhancement of nondegenerate four-wave mixing

based on electromagnetically induced transparency in rubidium atoms,”

Opt. Lett. 21, 1064 (1996).

[32] M. D. Lukin, M. Fleischhauer, A. S. Zibrov, H. G. Robinson, and V. L.

Velichansky, “Spectroscopy in dense coherent media: Line narrowing and

interference effects,” Phys. Rev. Lett. 79, 2959 (1997).

[33] G. Zhang, K. Hakuta, and B. Stoicheff, “Nonlinear optical generation using

electromagnetically induced transparency in atomic hydrogen,” Phys. Rev.

Lett. 71, 3099 (1993).

[34] M. Jain, G. Yin, J. Field, and S. Harris, “Observation of electromagnetically

induced phase matching,” Opt. Lett. 18, 998 (1993).

[35] C. Dorman and J. Marangos, “Symmetric photon-photon coupling by atoms

with zeeman-split sublevels,” Phys. Rev. A 58, 4121 (1998).

[36] M. T. Johnsson and M. Fleischhauer, “Quantum theory of resonantly enhanced

four-wave mixing: Mean-field and exact numerical solutions,” Phys.

Rev. A 66, 043808 (2002).


[37] L. M. Duann, M. D. Lukin, J. I. Cirac, and P. Zoller, “Long-distance quantum

communication with atomic ensembles and linear optics,” Nature 414,

413 (2001).

[38] D. A. Braje, V. Balić, S. Goda, G. Yin, and S. E. Harris, “Generation of

paired photons with controllable waveforms,” Phys. Rev. Lett. 93, 183601

(2004).

[39] V. Balić, D. A. Braje, P. Kolchin, G. Yin, and S. E. Harris, “Generation of

paired photons with controllable waveforms,” Phys. Rev. Lett. 94, 183601

(2005).

[40] P. Kolchin, S. Du, C. Belthangady, G. Yin, and S. E. Harris, “Generation

of narrow-bandwidth paired photons: Use of a single driving laser,” Phys.

Rev. Lett. 97, 113602 (2006).

[41] C. F. McCormick, V. Boyer, E. Arimondo, and P. D. Lett, “Strong relative

intensity squeezing by four-wave mixing in rubidium vapor,” Opt. Lett. 32,

178 (2007).

[42] M. V. Pack, R. M. Camacho, and J. C. Howell, “Transients of the


Theory,” Phys. Rev. A 74, 013812 (2006).

[43] S. E. Harris and Y. Yamamoto, “Photon switching by quantum interference,”

Phys. Rev. Lett. 81, 3611 (1998).

[44] N. Mulchan, D. G. Ducreay, R. Pina, M. Yan, and Y. Zhu, “Nonlinear

excitation by quantum interference in a doppler-broadened rubidium atomic

system,” J. Opt. Soc. Am. B 17, 820 (2000).

[45] D. A. Braje, V. Balić, G. Y. Yin, and S. E. Harris, “Low-light-level nonlinear

optics with slow light,” Phys. Rev. A 68, 041801(R) (2003).

[46] H. Wang, D. Goorskey, and M. Xiao, “Controlling light by light with threelevel

atoms inside an optical cavity,” Opt. Lett. 27, 1354 (2002).

[47] H. Kang and Y. Zhu, “Observation of large Kerr nonlinearity at low light

intensities,” Phys. Rev. Lett. 91, 093601 (2003).

[48] H. Chang, Y. Du, J. Yao, C. Xie, and H. Wang, “Observation of crossphase

shift in hot atoms with quantum coherence,” Europhys. Lett. 65, 485

(2004).

[49] M. Yan, E. G. Rickey, and Y. Zhu, “Observation of absoprtive photon

switching by quantum interference,” Phys. Rev. A 64, 041801(R) (2001).


[50] Y.-F. Chen, G.-C. Pan, and I. A. Yu, “Transient behaviors of photon switching

by quantum interference,” Phys. Rev. A 69, 063801 (2004).

[51] S. J. Park, H. Cho, T. Y. Kwon, and H. S. Lee, “Transient cohernce oscillation

induced by a detuned raman field in a rubidum Λ system,” Phys. Rev.

A 69, 023806 (2004).

[52] A. D. Greentree et al., “Intensity-dependent dispersion under conditions of

electromagnetically induced transparency in coherently prepared multistate

atoms,” Phys. Rev. A 67, 023818 (2003).

[53] A. B. Matsko, I. Novikova, G. R. Welch, and M. S. Zubairy, “Enhancement

of Kerr nonlinearity by multiphoton coherence,” Opt. Lett. 28, 96 (2003).

[54] S. Rebic, D. Vitali, and C. Ottaviani, “Quantum theory of a polarization

phase gate in an atomics tripod configuration,” Opt. and Spect. 99, 264

(2005).

[55] D. Petrosyan and Y. P. Malakyan, “Magneto-optical rotation and crossphase

modulation via coherently driven four-level atoms in a tripod configuration,”

Phys. Rev. A 70, 023822 (2004).

[56] S. E. Harris and L. V. Hau, “Nonlinear optics at low light levels,” Phys.

Rev. Lett. 82, 4611 (1999).

[57] M. D. Lukin and A. Imamoglu, “Nonlinear optics and quantum entanglement

of ultraslow single photons,” Phys. Rev. Lett. 84, 1419 (2000).

[58] D. Petrosyan and G. Kurizki, “Symmetric photon-photon coupling by atoms

with zeeman-split sublevels,” Phys. Rev. A 65, 033833 (2002).

[59] W. Hanle, “über magnetische beeinflussung der polarisation der resonanzfluoreszenz,”

Z. Phys. 30, 93 (1924).

[60] U. Fano, “Effects of configuration interaction on intensities and phase

shifts,” Phys. Rev. 124, 1866 (1961).

[61] S. H. Autler and C. H. Townes, “Stark effect in rapidly varying fields,” Phys.

Rev. 100, 703 (1955).

[62] M. Fleischhauer, “Optical pumping in dense atomic media: Limitations due

to reabsorption and spontaneously emitted photons,” Europhys. Lett. 45,

659 (1999).

[63] M. Fleischhauer, “Electromagnetically induced transparency and coherentstate

preparation in optically thick media,” Opt. Exp. 4, 107 (1999).


[64] A. B. Matsko, I. Novikova, M. O. Scully, and G. R. Welsh, “Radiation

trapping in coherent media,” Phys. Rev. Lett. 87, 133601 (2001).

[65] A. B. Matsko, I. Novikova, and G. R. Welsh, “Radiation trapping under

conditions of electromagnetically induced transparency,” J. Mod. Opt. 49,

367 .

[66] K. Bergmann, H. Theuer, and B. W. Shore, “Coherent population transfer

among quantum states of atoms and molecules,” Rev. Mod. Phys. 70, 1003

(1998).

[67] N. V. Vitanov, T. Halfmann, B. W. Shore, and K. Bergman, “Laser-induced

population transfer by adiabatic passage techniques,” Annu. Rev. Phys.

Chem. 52, 763 (2001).

[68] S. Rebić, S. M. Tan, A. S. Parkins, and D. F. Walls, “Large Kerr nonlinearity

with a single atom,” J. Opt. B: Quant. Semiclass. Opt 1, 490 (1999).

[69] T. Opatrny and D.-G. Welsch, “Coupled cavities for enhancing the crossphase-modulation

in electromagnetically induced transparency,” Phys. Rev.

A 75, 023805 (2001).

[70] S. Rebić, An Investigation of Giant Kerr Nonlinearity, Ph.D. thesis, University

of Auckland, 2002.

[71] S. Harris, “Normal modes fro electromagnetically induced transparency,”

Phys. Rev. Lett. 72, 52 (1994).

[72] S. Harris and Z.-F. Lou, “Preparation energy for electromagnetically induced

transparency,” Phys. Rev. A 52, R928 (1995).

[73] J. H. Eberly and V. Kozlov, “Wave equation for dark coherence in three-level

media,” Phys. Rev. Lett. 88, 243604 (2002).

[74] M. Konopnicki and J. Eberly, “Simultaneous propagation of short differentwavelength

optical pulses,” Phys. Rev. A 24, 2567 (1981).

[75] M. Konopnicki, P. Drummond, and J. Eberly, “Theory of lossless propagation

of simultaneous different-wavelength optical pulses,” Opt. Commun.

36, 313 (1981).

[76] F. Hioe and R. Grobe, “Matched optical solitary waves for three- and fivelevel

systems,” Phys. Rev. Lett. 73, 2559 (1994).

[77] R. Grobe, F. Hioe, and J. Eberly, “Formation of shape-preserving pulses

in a nonlinear adiabatically integrable system,” Phys. Rev. Lett. 73, 3183

(1995).


[78] E. Cerboneschi and E. Arimondo, “Transparency and dressing for optical

pulse pairs through a double-Λ absorbing medium,” Phys. Rev. A 52, R1823

(1995).

[79] Kasapi, M. Jain, G. Yin, and S. Harris, “Electromagnetically induced transparency

propagation dyanimcs,” Phys. Rev. Lett. 74, 2447 (1995).

[80] M. Fleischhauer and A. S. Manka, “Propagation of laser pulses and coherent

population transfer in dissipative three-level systems: An adiabatic dressedstate

picture,” Phys. Rev. A 54, 794 (1996).

[81] H. Eleuch and R. Bennaceur, “An optical soliton pair among absorbing

three-level atoms,” J. Opt. A 5, 528 (2003).

[82] A. V. Rybin, I. P. Vadeiko, and A. R. Bishop, “Theory of slow-light solitons,”

Phys. Rev. E 72, 026613 (2005).

[83] I. Friedler, G. Kurizki, O. Cohen, and M. Segev, “Spatial Thirring-type

solitons via electromagnetically induced transparency,” Opt. Lett 30, 3374

(2005).

[84] Y.-F. Chen, G.-C. Pan, and I. A. Yu, “Frequency-modulation-induced transient

oscillation in the spectra of electromagnetically induced transparency,”

J. Opt. Soc. Am. B 21, 1647 (2004).

[85] A. Godone, S. Micalizio, and F. Levi, “Rabi resonances in the l excitation

scheme,” Phys. Rev. A 66, 063807 (2002).

[86] K. Harada, K. Motomura, T. Koshimizu, H. Ueno, and M. Mitsunaga, “Coherent

Raman beats from dark states,” J. Opt. Soc. Am. B 22, 1105 (2005).

[87] A. Mair and M. D. Lukin, “Phase coherence and control of stored photonic

information,” Phys. Rev. A 65, 031802(R) (2002).

[88] P. Valente, H. Failache, and A. Lezama, “Comparative study of the transient

evolution of Hanle electromagnetically induced transparency and absorption

resonances,” Phys. Rev. A 65, 023814 (2001).

[89] A. S. Zibrov and A. B. Matsko, “Optical ramsey fringes induced by zeeman

coherence,” Phys. Rev. A 64, 013814 (2001).

[90] Y. Wu and X. Yang, “Electromagnetically induced transparency in V-, Λ-,

and cascade-type schemes beyond steady-state analysis,” Phys. Rev. A 71,

053806 (2005).


[91] E. A. Korsunsky, N. Leinfellner, A. Huss, S. Baluschev, and L. Windholz,

“Phase-dependent electromagnetically induced transparency,” Phys. Rev. A

59, 2302 (1999).

[92] W. Maichen, F. Renzoni, I. Mazets, E. Korsunsky, and L. Windholz, “Transient

coherent population trapping in a closed loop interaction scheme,”

Phys. Rev. A 53, 3444 (1996).

[93] D. Budker, W. Gawlik, D. F. Kimball, S. M. Rochester, V. V. Yashchuks,

and A. Weis, “Resonant nonlinear magneto-optical effects in atoms,” Rev.

Mod. Phys. 74, 1153 (2002).

[94] S. E. Harris, “Electromagnetically induced transparency,” Physics Today

50, 36 (1997).

[95] J. P. Marangos, “Topical review electromagnetically induced transparency,”

J. Mod. Opt. 45, 471 (1998).

[96] M. Fleischhauer, A. Imamoǧlu, and J. P. Marangos, “Electromagnetically

induced transparency: Optics in coherent media,” Rev. Mod. Phys. 77, 633

(2005).

[97] M. D. Lukin, P. Hemmer, and M. O. Scully, in Adv. At., Mol., Opt. Phys.,

edited by B. Bederson and H. Walther (Elsevier Inc., San Diego, 2000),

Vol. 42, p. 347.

[98] N. V. Vitanov, M. Fleischhauer, B. W. Shore, and K. Bergmann, in Adv.

At., Mol., Opt. Phys., edited by B. Bederson and H. Walther (Elsevier Inc.,

San Diego, 2001), Vol. 46, p. 55.

[99] A. B.Matsko, O. Kocharovskaya, Y. Rostovtsev, A. S. Z. G. R. Welch, and

M. O. Scully, in Adv. At., Mol., Opt. Phys., edited by B. Bederson and H.

Walther (Elsevier Inc., San Diego, 2001), Vol. 46, p. 191.

[100] M. Lukin, “Trapping and manipulating photon states in atomic ensembles,”

Rev. Mod. Phys. 75, 457 (2003).

[101] J. Howell and J. Yeazell, “Nondestructive single-photon trigger,” Phys. Rev.

A 62, 032311 (2000).

[102] K. Mattle, H. Weinfurter, P. G. Kwiat, and A. Zeilinger, “Dense coding in

experimental quantum communication,” Phys. Rev. Lett, 76, 4656 (1996).

[103] I. L. Chuang and Y. Yamamoto, “Quantum bit regeneration,” Phys. Rev.

Lett. 76, 4281 (1996).


[104] G. D’Ariano, L. Maccone, M. G. A. Paris, and M. F. Sacchi, “Optical fockstate

synthesizer,” Phys. Rev. A 61, 053817 (2000).

[105] J. C. Howell, A. Lamas-Linares, and D. Bouwmeester, “Experimental violation

of a spin-1 Bell inequality using maximally entangled four-photon

states,” Phys. Rev. Lett. 88, 030401 (2002).

[106] G. Weihs, T. Jennewein, C. Simon, H. Weinfurter, and A. Zeilinger, “Violation

of Bell’s inequality under strict einstein locality conditions,” Phys.

Rev. Lett. 81, 5039 (1998).

[107] M. Rowe et al., “Experimental violation of a Bell’s inequality with effiecient

detection,” .

[108] A. N. Boto, P. Kok, D. S. Abrams, S. L. Braunstein, C. P. Williams, and

J. P. Dowling, “Quantum interferometric optical lithography: Exploiting entanglement

to beat the diffraction limit,” Phys. Rev. Lett. 85, 2733 (2000).

[109] E. Knill, R. Laflamme, and G. Milburn, “A scheme for efficient quantum

computation with linear optics,” Nature 409, 46 (2001).

[110] P. Kok, W. J. Munro, K. Nemoto, T. C. Ralph, J. P. Dowling, and G. J.

Milburn, “Linear optical quantum computing with photonic qubits,” Rev.

Mod. Phys. 79, 135 (2007).

[111] G. J. Milburn, “Quantum optical fredkin gate,” Phys. Rev. Lett. 62, 2124

(1989).

[112] I. L. Chuang and Y. Yamamoto, “Simple quantum computer,” Phys. Rev.

A 52, 3489 (1995).

[113] J. C. Howell and J. A. Yeazell, “Quantum computation through entangling

single photons in multipath interferometers,” Phys. Rev. Lett. 85, 198

(2000).

[114] J. C. Howell and J. A. Yeazell, “Nondestructive single-photon trigger,” Phys.

Rev. A 62, 032311 (2000).

[115] G. M. DAriano, C. Macchiavello, and L. Maccone, “Quantum computations

with polarized photons,” Fortschr. Phys. 48, 573 (2000).

[116] K. Nemoto and W. J. Munro, “Nearly deterministic linear optical controlled-

NOT gate,” Phys. Rev. Lett. 93, 250502 (2004).

[117] W. J. Munro, K. Nemoto, and T. P. Spiller, “Weak nonlinearities: A new

route to optical quantum compution,” New J. Phys. 7, 137 (2005).


[118] C. Ottaviani, S. Rebic, D. Vitali, and P. Tombesi, “Quantum phase-gate

operation based on nonlinear optics: Full quantum analysis,” Phys. Rev. A

73, 010301(R) (2006).

[119] Z.-B. Wang, K.-P. Marzlin, and B. C. Sanders, “Large cross-phase modulation

between slow copropagating weak pulses in 87Rb,” Phys. Rev. Lett.

97, 063901 (2006).

[120] J. H. Shapiro, “Single-photon kerr nonlinearities do not help quantum computation,”

Phys. Rev. A 73, 062305 (2006).

[121] J. H. Shapiro and M. Razavi, “Continuous-time cross-phase modulation and

quantum computation,” New J. Phys. 9, 16 (2007).

[122] H. Schmidt and A. Imamoglu, “High-speed properties of a phase-modulation

scheme based on electromagnetically induced transparency,” Opt. Lett. 23,

107 (1998).

[123] J.-Q. Shen, Z.-C. Ruan, and S. He, “Influence of the singal light on the

transient optical properties of a four-level EIT medium,” Phys. Lett. A

330, 487 (2004).

[124] S. Alam, Lasers without inversion and electromagnetically induced transparency

(SPIE, Washington, 1999).

[125] A. Javan, O. Kocharovshaya, H. Lee, and M. O. Scully, “Narrowing of

EIT resonance in a doppler broadened medium,” Phys. Rev. Lett. 81, 3611

(2001).

[126] M. O. Scully and M. S. Zubairy, Qunatum Optics (Cambridge University

Press, Cambridge, 1997).

[127] R. S. Bennink, Frequency Conversion of Optical Signals Using Coherently

Prepared Media, Ph.D. thesis, University of Rochester, Instute of Optics,

2004.

[128] J. Vanier and A. Audoin, The quantum physics of atomic frequency starndarads

(Adam Hilger, Philadelphia, 1989).

[129] M. D. Rotondaro and G. P. Perram, “Collisional broadening and shift of the

rubidium D 1 and D 2 lines (5 2 s 1/2 → 5 2 p 1/2 , 5 2 p 3/2 ) by rare gases H 2 , D 2 ,

N 2 , CH 4 and CF 4 ,” J. Quant. Spectrosc. Radiat. Transfer 57, 497 (1997).

[130] J. Vanier, J.-F. Simard, and J.-S. Boulanger, “Relaxation and frequency

shifts in the ground state of Rb 85 ,” Phys. Rev. A 9, 1031 (1974).


[131] D. Budker and D. F. Kimball, Atomic physics: an exploration through problems

and solutions (Oxford University Press, Oxford, 2004).

[132] F. A. Franz and C. Volk, “Spin relaxation of rubidium atoms in sudden

and quasimolecular collisions with light-noble-gas atoms,” Phys. Rev. A 14,

1711 (1976).

[133] P. Grangier, J.-F. Roch, and G. Roger, “Observation of backaction-evading

measurement of an optical intensity in a three-level atomic nonlinear system,”

Phys. Rev. Lett. 66, 1418 (1991).

[134] J. P. Poizat and P. Grangier, “experimental realization of a quantum optical

tap,” Phys. Rev. Lett. 70, 271 (1993).

[135] J.-P. Poizat, J.-F. Roch, and P. Grangier, “Characterization of quantum

nondemolition measurements in optics,” Ann. Phys. Fr. 19, 265 (1994).

[136] H. A. Haus, Electromagnetic Noise and Quantum Optical Measurement (Spinger

Verlag, Berlin, 2000).

[137] H. A. Bachor, A Guide to Experiments in Qunatum Optics (Willey, Cambridge,

1999).

[138] G. P. Agarwal, Nonlinear Fiber Optics; Third Edition (Academic Press, San

Diego, 2001).

[139] Q. A. Turchette, C. J. Hood, W. Lange, H. Mabuchi, and H. J. Kimble,

“Measurement of conditional phase shifts for quantum logic,” Phys. Rev.

Lett. 75, 4710 (1995).

[140] S. Gleyzes et al., “Quantum jumps of light recording the birth and death of

a photon in a cavity,” Nature 446, 297 (2007).

[141] K. Nemoto and W. J. Munro, “Universal quantum computation on the

power of quantum non-demolition measurements,” Phys. Lett. A 334, 104

(2005).

[142] S. Rebic, C. Ottaviani, G. D. Giuseppe, D. Vitali, and P. Tombesi, “Assessment

of a quantum phase-gate operation based on nonlinear optics,” Phys.

Rev. A 74, 032301 (2006).

[143] D. Steck, “Rubidium 87 D line data,” , unpublished, available on-line at

http://steck.us/alkalidata, (unpublished).

[144] D. M. Brink and G. R. Satchler, Angular Momentum (Oxford University

Press, Oxford, 1962).

158

Appendix A

Appendix 1: EIT on the

rubidium D1 line

In a complicated level system like the D 1 lines of rubidium, EIT can be significantly

more complicated than EIT in three-level systems. The purpose of this

appendix is to supply some of the missing details for Chapter 3 by discussing

EIT on the Rb 85 and Rb 87 D 1 lines. This appendix can also be looked at as a

template for understanding EIT in other complicated level structures. We restrict

our discussion to the case where the probe and coupling fields have orthogonal

linear polarizations.

A.1 Choice of Polarizations

First, there are several reasons for our choice of orthogonal linear polarizations.

The primary reason for our choice of polarization is that through experimentation

with various polarizations we found that orthogonal linear polarizations for the

probe and coupling fields provided the best contrast for EIT (by EIT contrast

A.1. CHOICE OF POLARIZATIONS 159

we mean that the ratio between absorption on and off Raman resonance was the

greatest). Following our empirical observations, we come up with Table A.1 to

explain the reasons we should have anticipated good EIT contrast for orthogonal

linear polarizations.

Perhaps the most important criteria good EIT contrast is whether a particular

choice of polarizations results in parasitic dark states (DS). By parasitic DS we

mean a DS that is not a coherent superposition of both ground hyperfine levels.

Such a DS would be dark regardless of Raman detuning between the probe a

coupling fields resulting in poor EIT contrast.

The second most important condition is the number of completely dark states.

Although this criteria is somewhat invalidated by the existence of partial dark

states, it still seems to be a good indicator of how good the transparency can be.

For optically thick media four-wave mixing can become important. Unfortunately,

orthogonal linear polarizations do create four wave mixing, and when the

frequency filter was removed from our experiment we did detect a signal due to

four-wave mixing. These four wave mixing product was an order of magnitude

smaller than the probe, and were mostly ignored in the experiment.

Finally, for the purposes of combining and separating the probe and coupling

fields in the experiment, it is convenient that they have orthogonal polarizations.

From Table A.1 it is evident that apart from four wave mixing, orthogonal

A.2. TRANSITION MATRIX ELEMENTS 160

linear polarizations have all the desired features, whereas the other choices of

polarization do not.

A.2 Transition matrix elements

For convenience and completeness we give the transition matrix elements here for

the D 1 lines of Rb 85 . Much of this information can be found in numerous references

[127, 128, 143]. Thus, in order to not duplicate information unnecessarily

this section will be brief. If there is missing information, consult one of the many

references on single electron atoms and rubidium.

First, the Wigner-Eckart theorem states that radial and angular parts of the

dipole moment expectation value can be factored such that

〈n, F, m F |er q |n ′ , F ′ , m ′ F 〉 = 〈n, F ||er||n ′ , F ′ 〉〈F, m F |F ′ , 1, m ′ F , q〉,

where

⎧

〈n, F ||er||n ′ , F ′ 〉 = 〈J||er||J ′ 〉(−1) √ ⎪⎨ J J ′ 1

F ′ +1+J+I

(2F ′ + 1)(2J + 1)

⎪⎩ F ′ F I

⎫

⎪⎬

(A.1) ,

⎪⎭

and where we have used the Wigner 6-j notation (i.e.

the curl bracket term).

The angular momenta are defined as: F ≡ J + I and J ≡ L + S, where I is the

angular momentum of the nucleus, S is the spin angular momentum of the electron

A.3. EIT IN RUBIDIUM 85 161

and L is the orbital angular momentum of the electron. The prime denotes as

excited state, and we have used the short hand of dropping the n and n ′ . The

Clebsch-Gordon coefficients are given by

⎜

⎝

〈F, m F |F ′ , 1, m ′ F , q〉 = (−1) F ′ −1+m F

√

(2F + 1)

⎛

⎞

F ′ 1 F

⎟

⎠ ,

m ′ F q −m F

(A.2)

where we have used the Wigner 3-j notation.

There are interesting properties

and symmetries of these expression that are explained adequately elsewhere [127,

128, 143, 144]. To add to the confussion, there are a couple of conventions for

calculating the dipole matrix elements; we follow the more common convention

(i.e. less Russian) of Brink and Satchler [144]. For Rb 85 the dipole matrix elements

for the D 1 line are given in Table A.2

A.3 EIT in rubidium 85

By choosing the quantization axis parallel to the coupling polarization (i.e. ɛ c =

z = ɛ 0 , where z is the unit vector for the quantization axis) we only need to

consider the dipole allowed transitions shown in Fig. A.1. For concreteness we

also choose the probe polarization in the y direction such that ɛ p = y = i(ɛ −1 +

ɛ +1 )/ √ 2.

When only one excited hyperfine level is considered at a time there are five dark

states for the F ′ = 2 hyperfine level and five dark states for the F ′ = 3 hyperfine


(a)

F’=3

F’=2

2

1

1

2

27

3

3

27

5

8

1

8

5

27

27

3

27

27

2

−1

−1

2

−

−

27

3

3

27

m =-3 F

m F

=-2 m F

=-1 m F

=0 m F

=1 m F

=2 m F

=3

F=3

F=2

(b)

F’=3

F’=2

15

27

10

27

6

27

1

3

1

27

−1

4

−1

1

4

1

−

0

3

27

27

27

27

3

1

27

1

3

6

27

10

27

15

27

m F =-3 m F =-2 m F =-1 m F

=0

m F =1 m F =2

m F =3

F=3

F=2

Figure A.1: Dipole matrix elements for the transitions used in EIT with orthogonal linear

polarizations.


level. For Doppler broadened atomic vapors in a buffer gas it is important that

the dark state be simultaneously dark for both excited hyperfine levels because

the Doppler broadened linewidth is greater than the hyperfine splitting. To find

a completely dark state (i.e. a state that is simultaneously dark for both excited

hyperfine levels) we must find a superposition of the five F ′ = 3 dark states that

is also a superposition of the F ′ = 2 dark states. It is helpful to divide each set

of dark states further into two sets; dark states involving only A) the | F =3

m=−2〉, | 3 0〉,

| 3 2〉, | 2 −1〉, and | 2 1〉 ground states, and B) dark states involving only the | F =3

m=−3〉, | 3 −1〉,

| 3 1〉, | 3 3〉, | 2 −2〉, | 2 0〉, and | 2 2〉 ground states.

Transitions for dark states involving subset A of ground states are shown in

Fig. A.2. The three dark states corresponding to subset A are

|M〉 3A = 2 ( | −1〉 2 − | +1〉 ) 2 + a √ 5 ( | −2〉 3 + | 3

(A.3)

8 + 10α 2

+2〉 )

|L〉 2A =

|C〉 3A = | 3 0〉

(

1

−1〉 + a √

6

| 3 0〉 − 1

√

1 + 11α2 /30

| 2

√

5

| −2〉

3

)

(A.4)

(A.5)

and

(

| +1〉 2 + a − √ 1

6

| 3 0〉 + 1

|R〉 2A √

1 + 11α2 /30

√

5

| +2〉

3

)

(A.6)


(a)

−

4

27

10

27

1

3

1

3

10

27

4

27

(b)

5

27

2

27

1

3

−1

3

(c)

1

3

1

3

5

27

−

2

27

Figure A.2: Dipole matrix elements for dark states in Rb 85 D 1 line that involve the | F =3

m=−2〉, | 3 0〉,

| 3 2〉, | 2 −1〉, and | 2 1〉 ground states.


(a)

(d)

15

27

6

27

1

27

1

3

2

27

−1

3

1

3

1

27

6

27

15

27

−

2

27

−1

3

(b)

(e)

15

27

−1

3

−1

27

8

27

1

27

−

2

27

(c)

(f)

1

27

2

27

1

27

1

3

8

27

15

27

Figure A.3: Dipole matrix elements for dark states in Rb 85 D 1 line that involve the | F =3

m=−3〉,

| 3 −1〉, | 3 1〉, | 3 3〉, | 2 −2〉, | 2 0〉, and | 2 2〉) ground states.

where a ≡ iΩ p /Ω c , and the subscript means hyperfine level F = 3 or F = 2 and

the subset of ground states is subset A. There is no superposition of these dark

states that is simultaneously dark for transitions to both excited hyperfine levels.

There is a superposition of dark states associated with subset B of the ground

states (i.e. magnetic sublevels | F =3

m=−3〉, | 3 −1〉, | 3 1〉, | 3 3〉, | 2 −2〉, | 2 0〉, and | 2 2〉). The dark


states for subset B shown in Fig. A.3. These dark states are

|M〉 2B = 1 √

3

2 |2 0〉 +

8

(

|

2

−2 〉 + | 2 2〉 )

(A.7)

|L〉 2B =

(√ )

8|

2

−2 〉 + a| −1〉

3 / √ 8 + a 2 . (A.8)

and

|R〉 2B =

(√

8|

2

2 〉 − a| 3 1〉)

/ √ 8 + a 2 , (A.9)

|M〉 3B =

√ (

6 |

2

−2〉 + | 2 2〉 ) − | 2 0〉 + a √ 5 ( | −3〉 3 − | 3 3〉 )

√

13 + 10a

2

|L〉 3B =

(√

6|

2

−2 〉 + a √ 5| −3〉 3 + a √ )

3| −1〉

3 / √ 6 + 8a 2 (A.10)

and

(√

|R〉 3B = 6|

2

2 〉 − a √ 5| 3 3〉 − a √ )

3| 3 1〉 / √ 6 + 8a 2 . (A.11)

The completely dark state is given by

|DD〉 =

√

2

√

13 + 10a2 |M〉 3B + 3 √ 3 + 4a 2 (|L〉 3B + |R〉 3B )

2 √ 20 + 23a 2 . (A.12)

A.4. IMPORTANT PARAMETERS FOR RUBIDIUM 167

4

3

2

F=1

5P 3

2

120.960(20)

63.420(31)

29.260(29)

85

Rb

5P 1

2

F=3

F=2 361.936(14)

5S 1

2

F=3

F=2 3035.732440(10)

Figure A.4: Hyperfine splittings, in MHz, of the 5S 1/2 5P 1/2 and 5P 3/2 energy levels in rubidium

85.

A.4 important parameters for rubidium

There are several parameters of rubidium that we have used in our calculations but

are not part of the main text. We collect those parameters here for easy reference.

The lifetimes for the D 1 (D 2 ) line is 27.70±0.04 ns (26.24±0.04 ns). These are

the same for both isotopes of rubidium. From these lifetimes the dipole moments

for the D 1 (D 2 ) transition is calculated to be 〈J||er||J ′ 〉=2.534(3)×10 −29 Cm

(〈J||er||J ′ 〉=3.584(4)×10 −29 Cm). The mass and natural abundance of rubidium

85 is 84.911800 amu and 72.17%. While the mass and natural abundance of

rubidium 87 is 86.909184 amu and 27.84%. The hyperfine splittings for the Rb 85

levels 5S 1/2 5P 1/2 5P 3/2 are shown in Fig. A.4. The hyperfine splittings for for

the Rb 87 levels 5S 1/2 5P 1/2 5P 3/2 are shown in Fig. A.5.


3

2

1

F=0

5P 3 2

266.650(9)

156.947(7)

72.218(4)

87

Rb

5P 1

2

F=2

F=1 816.656(30)

5S 12

F=2

F=1 6834.682610904 29(9)

Figure A.5: Hyperfine splittings, in MHz, of the 5S 1/2 5P 1/2 and 5P 3/2 energy levels in rubidium

87.

A.5 EIT in rubidium 87

EIT in Rb 87 is slightly different from Rb 85 because in Rb 87 the hyperfine splitting

for 5P 1/2 is 816 MHz which is larger than the Doppler broadening. Thus, the dark

states do not have to be simultaneously dark for both excited hyperfine levels

Tables A.4 and A.5.

With the choice of orthogonal linear polarizations leads to the EIT transitions

shown in Fig. A.6. Again we can divide the dark states into two subsets. Subset

A has four dark states and involves magnetic sublevels | 1 −1〉, | 1 1〉, | 2 −2〉, | 2 0〉, and

| 2 2〉. Subset B has two dark states includes magnetic sublevels | 1 0〉, | 2 −1〉, and | 2 1〉.

Fig.

A.7 shows the transitions involved in those dark states which require a

superposition of multiple states (| 2 0〉 is also a dark state for the F ′ = 2 hyperfine

level). There three dark states for the F ′ = 2 hyperfine level, and there are three

dark states associated with the F ′ = 1 hyperfine level.


(a)

F’=2

F’=1

1

12

1

12

1

2

−1

12

1

3

m F

=-2 m F

=-1 m F

=0 m F

=1 m F

=2

−1

12

1

2

F=2

F=1

(b)

F’=2

1

2

1

2

1

12

F’=1

1

−

3

−1

12

1

12

m F

=-2 m F

=-1 m F

=0 m F

=1 m F

=2

0

1

2

1

12

1

2

1

3

F=2

F=1

Figure A.6: Dipole matrix elements for the transitions used in EIT with orthogonal linear

polarizations in rubidium 87.


(a)

(d)

1

1

1

1

1

−

3

2

12

12

2

1

3

−1

12

1

2

1

2

1

12

(b)

(e)

−1

12

1

3

1

2

1

12

−1

12

1

2

(c)

1

3

1

12

Figure A.7: Dipole matrix elements for the dark states on Rb 87 D 1 . Not shown is the dark

state | 2 0〉 because it is an incoherent dark state (i.e. it doesn’t require a superposition of ground

states.)


Table A.1: Comparison of EIT for several choices of polarization

Comparison of polarizations for EIT on the D1 line of Rubidium 85.

Lin⊥Lin Lin‖Lin Cir⊥Cir Cir‖Cir

# of Dark States (DS) 1 0 0 5

Parasitic DS? No No Yes Yes

4-Wave Mixing Yes Yes Yes No

Probe⊥Coupling? Yes No Yes No

Table A.2: Dipole matrix elements for Rb 85 D 1 line with F = 2

Dipole matrix elements for rubidium D 1 transitions from the F = 2 ground hyperfine

level. All coefficients must be multiplied by 〈J = 1/2||er||J ′ = 1/2〉/ √ 27.

F=2

m F

√

= −2 m F

√

= −1 m F

√

= 0 m F

√

= 1 m F = 2

σ + 2 3 3 2 —

F ′ = 2 π −2 −1 0 1 2

σ − ) — − √ 2 − √ 3 − √ 3 − √ 2

σ + −1 − √ 3 − √ 6 − √ 10 − √ √ √ √ √ √

15

F ′ = 3 π 5 8 9 8 5

σ 1 − √ 15 − √ 10 − √ 6 − √ 3 −1


Clebsch-Gordon coefficients for rubidium D 1 transitions from the F = 3 ground

hyperfine level. All coefficients are divided by 〈J = 1/2||er||J ′ = 1/2〉/ √ 27.

F=3

m

√

= −3 m

√

= −2 m

√

= −1 m

√

= 0 m = 1 m = 2 m = 3

σ + 15

√ 10

√ 6

√ 3

√ 1

√ — —

F ′ = 2 π — 5 8

√ 9

√ 8

√ 5

√ —

σ −

√

—

√

—

√

1

√ 3

√ 6

√ 10 15

σ + 3 5 6 6 5 3 —

F ′ = 3 π -3 -2 -1 0 1 2 3

σ − — − √ 3 − √ 5 − √ 6 − √ 6 − √ 5 − √ 3



Dipole matrix elements for the Rb 87 5S 1/2 → 5P 1/2 transitions from the ground

hyperfine level F = 1. To obtain the dipole moment each element must be multiplied

by 〈J = 1/2||er||J ′ = 1/2〉/ √ 12.

F=2

m F = −1 m F = 0 m F = 1

σ + -1 -1 —

F ′ = 1 π 1 0 -1

σ − ) — 1 1

σ + −1 − √ 3 − √ √ √

6

F ′ = 2 π 3 2 3

σ 1 − √ 6 − √ 3 −1


Dipole matrix elements for the Rb 87 5S 1/2 → 5P 1/2 transitions from the ground

hyperfine level F = 2. To obtain the dipole moment each element must be multiplied

by 〈J = 1/2||er||J ′ = 1/2〉/ √ 12.

F=2

m F

√

= −2 m F

√

= −1 m F = 0 m F = 1 m F = 2

σ + 6

√ 3 1

√ — —

F ′ = 1 π — 3 2

√ 3

√ —

σ −

√

—

√

—

√

1

√ 3 6

σ + 2 3 3 2 —

F ′ = 2 π -2 -1 0 1 2

σ − — − √ 2 − √ 3 − √ 3 − √ 2

Dynamics of Electromagnetically Induced Transparency Optical Kerr ...

Create successful ePaper yourself

Delete template?

Save as template?
