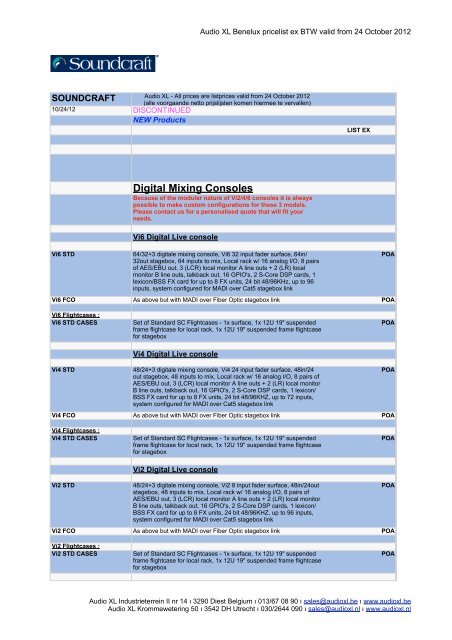

SOUNDCRAFT SALESPRICES 20-10-2012.numbers - Calis ...

Audio XL Benelux pricelist ex BTW valid from 24 October 2012

SOUNDCRAFT

Audio XL - All prices are listprices valid from 24 October 2012

(alle voorgaande netto prijslijsten komen hiermee te vervallen)

10/24/12 DISCONTINUED

NEW Products

LIST EX

Vi6 STD

Digital Mixing Consoles

Because of the modular nature of Vi2/4/6 consoles it is always

possible to make custom configurations for these 3 models.

Please contact us for a personalised quote that will fit your

needs.

Vi6 Digital Live console

64/32+3 digitale mixing console, Vi6 32 input fader surface, 64in/

32out stagebox, 64 inputs to mix, Local rack w/ 16 analog I/O, 8 pairs

of AES/EBU out, 3 (LCR) local monitor A line outs + 2 (LR) local

monitor B line outs, talkback out, 16 GPIO's, 2 S-Core DSP cards, 1

lexicon/BSS FX card for up to 8 FX units, 24 bit 48/96KHz, up to 96

inputs, system configured for MADI over Cat5 stagebox link

Vi6 FCO As above but with MADI over Fiber Optic stagebox link POA

POA

Vi6 Flightcases :

Vi6 STD CASES

Set of Standard SC Flightcases - 1x surface, 1x 12U 19" suspended

frame flightcase for local rack, 1x 12U 19" suspended frame flightcase

for stagebox


POA

Vi4 STD

48/24+3 digitale mixing console, Vi4 24 input fader surface, 48in/24

out stagebox, 48 inputs to mix, Local rack w/ 16 analog I/O, 8 pairs of

AES/EBU out, 3 (LCR) local monitor A line outs + 2 (LR) local monitor

B line outs, talkback out, 16 GPIO's, 2 S-Core DSP cards, 1 lexicon/

BSS FX card for up to 8 FX units, 24 bit 48/96KHZ, up to 72 inputs,

system configured for MADI over Cat5 stagebox link


POA


Vi4 STD CASES



for stagebox


POA

Vi2 STD

48/24+3 digitale mixing console, Vi2 8 input fader surface, 48in/24out

stagebox, 48 inputs to mix, Local rack w/ 16 analog I/O, 8 pairs of

AES/EBU out, 3 (LCR) local monitor A line outs + 2 (LR) local monitor

B line outs, talkback out, 16 GPIO's, 2 S-Core DSP cards, 1 lexicon/

BSS FX card for up to 8 FX units, 24 bit 48/96KHZ, up to 96 inputs,

system configured for MADI over Cat5 stagebox link


POA


Vi2 STD CASES



for stagebox

POA

Audio XL Industrieterrein II nr 14 ı 3290 Diest Belgium ı 013/67 08 90 ı sales@audioxl.be ı www.audioxl.be

Audio XL Krommewetering 50 ı 3542 DH Utrecht ı 030/2644 090 ı sales@audioxl.nl ı www.audioxl.nl



Vi1-32

32 mic/line inputs, 32 outputs (24 busses, LCR master, LCR + LR

monitor busses), 2 pairs of AES/EBU I/O, S/PDIF I/O, MIDI I/O, 1

expansion slot for optional cards (see list for cards), 4 x Lexicon FX

processors, DSP power for up to 64 input- and 32 outputs channels

of processing, 22" Vitronics Widescreen, 16 input /8 +2 output faders,

32 rotary encoders, dual PSU, compact footprint

18120,00


Vi1 DLX CASE

Vi1 19" suspended :

Deluxe 'Belgian made' surface Flightcase for Vi1 with 20cm

Doghouse incl hinged lid, carpet internal finish, wheels,Bulldog, Vi1

logo

12 units 19" rack with suspended XL (60cm internal depth) 19" frame,

4 wheels of which 2 with brakes, sliding doors in front & back, 4

handles

Vi1/2/4/6 Options & accessories

980 € nett price

750 € nett price

Vi Surfaces :

Vi2 Control Surface 16 channel faders to control up to 96 mix inputs, 32 + 3 outputs POA



Vi Local racks :

Local Rack Cat5

Local Rack FCO

standard local rack for Vi2/4/6 96 inputs to mix: 3 DSP's, 16 AE/EBU

I/O's, 4 Mic/16 line inputs, 24 line outs, I/O patchpanels included,Cat5

stagebox link

standard local rack for Vi2/4/6 96 inputs to mix: 3 DSP's, 16 AE/EBU

I/O's, 4 Mic/16 line inputs, 24 line outs, I/O patchpanels

included,Optical stagebox link

POA

POA

Vi Stageboxes :

Stagebox Cat5 64in/32out loaded stagebox: Cat5 local rack link 9770

Stagebox FCO 64in/32out loaded stagebox: Optical local rack link 11200

Stagebox empty EMPTY stagebox for up to 64in/32out: Cat5 or optical config possible 3600

Call us for other custom configurations of Local Rack & Stageboxes

Vi Optional Local rack cards and panels :

RS2422SP 16ch Digital AES/EBU card 790

RS2423SP 4ch Analogue Mic Input Card - required for talk-back mic 790

RS2424SP 8ch Analogue Line Output Card 560

RS2425SP 8ch Analogue Line Input Card 790

RS2426SP optical MADI 64in/64out Card 1010

RS2563SP (Optical) Local Rack single mode MADI card 1210

RS2485SP CobraNet 32ch i/o Card 1570

RS2497SP Aviom 16ch output Card 1680

RS2360SP ADAT 16ch i/o Card 790

RS2564SP TDIF card 790

RS2552SP 16ch Sdi De-embedder card 2240

RS2553SP Dolby E dual decoder card 6720

RS2442SP Lexicon FX / BSS Graphics card 4480

RS2401SP Soundcraft S-core DSP card 6940

RS2435 Integral spare psu 820

RS2409SP (Cat5) Local Rack MADI Card 790

RS2488SP (Cat5) 2U panel with Amphenol connectors 590

RS2495SP (Optical) 2U panel with 2 x "Fibrecast" connectors 2020

RS2561SP (Optical) 2U panel with 2 x "Fibrecast" expanded beam optical conns (20m) 2690

RS2415SP 4U XLR breakout box 1010

RS2545SP 1U 16F XLR breakout box 680

RS2546SP 1U 16M XLR breakout box 680

RS2547SP 1U 4F/4M/4F/4M XLR breakout box - for use with additional AES/EBU card 680

RS2565SP 1U 8F/8M XLR breakout box - for use with additional Line In/Line Out cards 680

Vi Optional Stage rack cards and panels :

RS2399SP 8ch Analogue Mic/Line Input Card 700

RS2399SPTX 8ch Analogue Mic/Line Input Card with transformers (8) 1480




RS2400SP 8ch Analogue Line Output Card 390

RS2446SP 8ch Digital Input Card - AES/EBU 560

RS2447SP 8ch Digital Output Card - AES/EBU 560

RS2496SP CobraNet 32ch i/o Card 1800

RS2498SP Aviom 16ch Output Card 1800

RS2487SP Blank Card 60

RS2413SP Integral spare psu 820

RS2434SP (Cat5) Stage-box MADI Card 900

RS2562SP (Optical) Stage-box single mode MADI card 1240

RS2448SP (Optical) Stage-box multi mode MADI card (standard) 1080

RS2489SP (Cat5) 2U panel with Amphenol connectors 520

RS2449SP (Optical) 2U panel with 2 x "Fibrecast" connectors 1910

Vi1 Specific I/O Options :

A947.043000 1U 16 mic/line input XLR panel (1-16) 550

A947.043100 1U 16 mic/line input XLR panel (17-32) 550

A947.043500 1U 16 line output XLR panel (1-16) 450

A947.043600 1U 16 line output XLR panel (17-32) 450

A947.043700 1U 8 line output + 4 AES pairs output XLR panel 450

A947.041023 1U blank panel - in place of 1U 16 i/o panel 60

Vi Cables & accessories :

RZ2746 100m Cat5 cable terminated with Amphenol connectors, on reel 1430

RZ2709

RZ2714

RZ2702

RZ2701

5m 50/125 multimode optical fibre with "Fibrecast" connectors - for

local Stagebox use

50m 50/125 multimode optical fibre with "Fibrecast" connectors,

supplied on reel

150m 50/125 multimode optical fibre with "Fibrecast" connectors,


200m 50/125 multimode optical fibre with "Fibrecast" connectors,


1840

2850

3360

3970

RZ2715

Spare 5m Cat5e cable terminated with Amphenol connectors - for

310

local Stagebox use

RL0267-01 Spare 5m Vi6 Control Surface to Local Rack cable loom 820

Vi Dustcovers & accessories :

BF10.947008 Vi1 Dust cover 130

TZ2483 Vi4 Dust Cover 210

TZ2477 Vi6 Dust Cover 210

A947.006000 Vi4/Vi6 Script Tray in plexi 620

Performer2

Performer3

SI Performer Digital console

24 mic/line in (upto max 80 inputs !),8 VCA's, full 4 band param. EQ

on all inputs, 20 Aux/Groups busses, 8 matrix, 4 Lexicon FX, true

LCR, fully free assignable layers (inputs/FX/VCA...), DMX512 control

with dedicated output bus, Totem user interface, 2 expansion slots for

optional cards, HiQnet connection, AES/EBU I/O, dual stereo inputs,

MIDI I/O + WC in, ViSi iPad compatible

32 mic/line in (upto max 80 inputs !),8 VCA's, full 4 band param. EQ

on all inputs, 20 Aux/Groups busses, 8 matrix, 4 Lexicon FX, true

LCR, fully free assignable layers (inputs/FX/VCA...), DMX512 control

with dedicated output bus, Totem user interface, 2 expansion slots for

optional cards, HiQnet connection, AES/EBU I/O, dual stereo inputs,

MIDI I/O + WC in, ViSi iPad compatible

8480

10170

SI Compact Digital console

Si Compact16 19" Digital console with 16 mic/line inputs, 4 stereo FX returns, 4

Lexicon FX processors, 14 + 2 busses with 16 outputs, Totem user

interface, 1 expansion slot for optional cards, HiQnet connection,

AES/EBU I/O, dual stereo inputs, MIDI I/O + WC in

Si Compact24

Digital console with 24 mic/line inputs, 4 stereo FX returns, 4 Lexicon

FX processors, 14 + 2 busses with 16 outputs, 4 bal. analog inserts,

Totem user interface, 1 expansion slot for optional cards, HiQnet

connection, AES/EBU I/O, dual stereo inputs, MIDI I/O + WC in

4590

5790




Si Compact32

Digital console with 32 mic/line inputs, 4 stereo FX returns, 4 Lexicon

FX processors, 14 + 2 busses with 16 outputs, 4 bal. analog inserts,

Totem user interface, 1 expansion slot for optional cards, HiQnet

connection, AES/EBU I/O, dual stereo inputs, MIDI I/O + WC in

7630,00

Si Series Options & Accessories :

A520.001000SP Si Series MADI option card - multi mode Optical 960

A520.005000SP Si Series MADI option card - Cat5 850

A520.002000SP Si Series AES 2 stereo in, 2 stereo out on XLRs 750

A520.003000SP Si Series AES 8in, 8out on sub D, BNC wordclock out 750

A520.004000SP Si Series Aviom 16ch output card - Cat5 1700

A520.006000SP Si Series Cobranet 32ch I/O card 1700

Si Compact 16 acc. Kit

Si C24/P2 acc. Kit

Si C32/P3 acc. Kit

Accessory kit for Si Compact 16 including, dust cover, heavy duty

Soundcraft branded lanyard, Console LED light with intensity switch

Accessory kit for Si Compact 24 including, dry wipe magnetic note

pad with fine tip pen, dust cover, heavy duty Soundcraft branded

lanyard, Console LED light with intensity switch

Accessory kit for Si Compact 32 including, dry wipe magnetic note

pad with fine tip pen, dust cover, heavy duty Soundcraft branded

lanyard, Console LED light with intensity switch

90,00

100,00

140,00

Compact Stagebox for all Digital consoles

Compact Stagebox Cat5 4U 19" Compact stagebox with 32 mic/line inputs, 8 analog outputs, 4

stereo pairs of AES/EBU outputs, 8 GPIO in/out contacts, comes with

MADI Cat5 card installed, 2 single card expansion slots, redudant

PSU's, compatible with all Soundcraft/Studer Si Compact/Si/Vi Digital

consoles

Compact Stagebox Optical 4U 19" Compact stagebox with 32 mic/line inputs, 8 analog outputs, 4

stereo pairs of AES/EBU outputs, 8 GPIO in/out contacts, comes with

MADI Optical card installed, 2 single card expansion slots, redudant

PSU's, compatible with all Soundcraft/Studer Si Compact/Si/Vi Digital

consoles

4770,00

4880,00

Analog Mixing Consoles

MH4 Series Live Consoles

MH4-40 40 mono + 4 stereo inputs, 12 aux + 8 groups in FOH mode or 16

mono monitor busses, 8 VCA's, Meterbridge, 1x CPS800 PSU,

Littlites

MH4-48 48 mono + 4 stereo inputs, 12 aux + 8 groups in FOH mode or 16

mono monitor busses, 8 VCA's, Meterbridge, 1x CPS800 PSU,

Littllites

23990


MH4 Series Accessories :

CPS2000 Link CPS2000 spare power supply includes short DC link cable 4760

CPS2000 CPS2000 spare power supply 4155

CPS800 Link CPS800 spare power supply includes short DC link cable 3410

CPS800 CPS800 spare power supply 2805

MH2 Series Live Consoles

MH2-24

MH2-32

MH2-40

MH2-48

24 mono + 4 stereo inp., 10 aux + 8 groups, 8 VCA's, internal PSU,

Littlites


Littlites


Littlites


Littlites

11430

13500

15580

17660

MH2 Series Accessories :

DPS4 Spare external power supply includes DC cable 940




GB8 Series Live Consoles

GB8 24 24 mono + 4 stereo inp., 8 aux + 8 groups, meterbridge, internal PSU 4120

GB8 32 32 mono + 4 stereo inp., 8 aux + 8 groups, meterbridge, internal PSU 5060



GB8 Series Accessories :

DPS3 Spare power supply includes DC cable 675

DPS3 Spare power supply, no cable 565

TZ2463 Dustcover GB8 24ch 50





GB4 16 16 mono + 2 stereo inputs, 8 aux + 4 groups, internal PSU 2060

GB4 24 24 mono + 2 stereo inputs, 8 aux + 4 groups, internal PSU 2810

GB4 32 32 mono + 2 stereo inputs, 8 aux + 4 groups, internal PSU 3560



DPS3 Spare power supply includes DC cable 675

DPS3 Spare power supply, no cable 565






GB2 12 RM

12 mono + 2 stereo inputs, 6 aux + 2 groups, 19" rackmount, internal


PSU

GB2 16 RM 16 mono iputs, 6 aux, 19" rackmount, internal PSU 1310



GB2 32 32 mono + 2 stereo inputs, 6 aux + 4 groups, internal PSU 2820





M Series

M4 Mixing console, 4 + 4 + 4, 4aux, L-R-M, S/PDIF out 540

M8 Mixing console, 8 + 4 + 4, 4aux, L-R-M, S/PDIF out 640

M12 Mixing console, 12 + 4 + 4, 4 aux, L-R-M, S/PDIF out 740

PE1719-02 Rackmount kit voor M4 55

EPM Series

EPM6 Mixing console, 6 mono, 2 stereo, 2 aux, L-R 245

EPM8 Mixing console, 8 mono, 2 stereo, 2 aux, L-R 285

EPM12 Mixing console, 12 mono, 2 stereo, 2 aux, L-R, including rackmount 375

MPM Series

MPMi12 Mixing console, 12 mono, 2 stereo, 2sub, L-R, including rackmount 515

MPMi20 Mixing console, 20 mono, 2 stereo, 2sub, L-R 680

FX Series




FX16ii Mixing console, 16 mono, 2sub, L-R + Lexicon reverb 840

EFX8 Mixing console, 8 mono, 2 stereo, 2 aux, L-R + Lexicon reverb 400

EFX12

Mixing console, 12 mono, 2 stereo, 2 aux, L-R + Lexicon reverb,

485

including rackmount

MFXi8 Mixing console, 8 mono, 2 stereo, 2 sub, L-R + Lexicon reverb 550

MFXi12

Mixing console, 12 mono, 2 stereo, 2 sub, L-R + Lexicon reverb,

630

including rackmount

MFXi20 Mixing console, 20 mono, 2 stereo, 2 sub, L-R + Lexicon reverb 795

LX7 II Series

LX7II 16ch Mixing console, 16 + 6, 6 aux, 4 group, L-R-M 1300

LX7II 24ch Mixing console, 24 + 6, 6 aux, 4 group, L-R-M 1680

LX7II 32ch Mixing conole, 32 + 6, 6 aux, 4 group, L-R-M 1925

LX7 II Accessories :

TZ2419 Dust cover LX7 II 16 channel 45

TZ2420 Dust cover LX7 II 24 channel 50

TZ2434 Dust cover LX7 II 32 channel 55

Rackmount Kits

RW5744 Rackmount kit EPM6 40

RW5745 Rackmount kit EPM8 and EFX8 40

RW5746 Rackmount kit EPM12 and EFX12 25

RW5753 Rackmount kit MPM12 and MFX12 25

RW5765 Rackmount kit MFX8 50

RW5766 Rackmount kit FX16ii 50

Desklites

18XHI4 Littlite serie HI 45CM XLR4 90

18XRHI4 Littlite HI 45CM XLR4 haaks 110

SOUNDCRAFT SALESPRICES 20-10-2012.numbers - Calis ...

Create successful ePaper yourself

Delete template?

Save as template?
