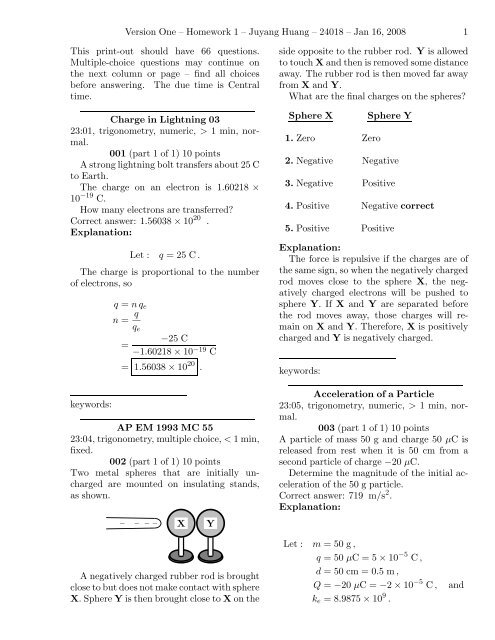

<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 1<br />
This print-out should have 66 questions.<br />
Multiple-choice questions may continue on<br />
the next column or page – find all choices<br />
before answering. The due time is Central<br />
time.<br />
Charge in Lightning 03<br />
23:01, trigonometry, numeric, > 1 min, normal.<br />
001 (part 1 of 1) 10 points<br />
A strong lightning bolt transfers about 25 C<br />
to Earth.<br />
The charge on an electron is 1.60218 ×<br />
10 −19 C.<br />
How many electrons are transferred<br />
Correct answer: 1.56038 × 10 20 .<br />
Explanation:<br />
Let : q = 25 C .<br />
The charge is proportional to the number<br />
of electrons, so<br />
keywords:<br />
q = n q e<br />
n = q q e<br />
−25 C<br />
=<br />
−1.60218 × 10 −19 C<br />
= 1.56038 × 10 20 .<br />
AP EM 1993 MC 55<br />
23:04, trigonometry, multiple choice, < 1 min,<br />
fixed.<br />
002 (part 1 of 1) 10 points<br />
Two metal spheres that are initially uncharged<br />
are mounted on insulating stands,<br />
as shown.<br />
−<br />
−<br />
− −<br />
X<br />
Y<br />
side opposite to the rubber rod. Y is allowed<br />
to touch X and then is removed some distance<br />
away. The rubber rod is then moved far away<br />
from X and Y.<br />
What are the final charges on the spheres<br />
Sphere X<br />
1. Zero Zero<br />
Sphere Y<br />
2. Negative Negative<br />
3. Negative Positive<br />
4. Positive Negative correct<br />
5. Positive Positive<br />
Explanation:<br />
The force is repulsive if the charges are of<br />
the same sign, so when the negatively charged<br />
rod moves close to the sphere X, the negatively<br />
charged electrons will be pushed to<br />
sphere Y. If X and Y are separated before<br />
the rod moves away, those charges will remain<br />
on X and Y. Therefore, X is positively<br />
charged and Y is negatively charged.<br />
keywords:<br />
Acceleration of a Particle<br />
23:05, trigonometry, numeric, > 1 min, normal.<br />
003 (part 1 of 1) 10 points<br />
A particle of mass 50 g and charge 50 µC is<br />
released from rest when it is 50 cm from a<br />
second particle of charge −20 µC.<br />
Determine the magnitude of the initial acceleration<br />
of the 50 g particle.<br />
Correct answer: 719 m/s 2 .<br />
Explanation:<br />
A negatively charged rubber rod is brought<br />
close to but does not make contact with sphere<br />
X. Sphere Y is then brought close to X on the<br />
Let : m = 50 g ,<br />
q = 50 µC = 5 × 10 −5 C ,<br />
d = 50 cm = 0.5 m ,<br />
Q = −20 µC = −2 × 10 −5 C ,<br />
k e = 8.9875 × 10 9 .<br />
and
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 2<br />
The force exerted on the particle is<br />
F = k e<br />
|q 1 | |q 2 |<br />
r 2<br />
‖⃗a‖ = k e<br />
‖⃗q‖ ‖ ⃗ Q‖<br />
m d 2<br />
keywords:<br />
= m a<br />
= k e<br />
∣ ∣ 5 × 10 −5 C ∣ ∣ ∣ ∣−2 × 10 −5 C ∣ ∣<br />
(0.05 kg) (0.5 m 2 )<br />
= 719 m/s 2 .<br />
Hanging Charges<br />
23:05, trigonometry, numeric, > 1 min, normal.<br />
004 (part 1 of 1) 10 points<br />
Two identical small charged spheres hang in<br />
equilibrium with equal masses as shown in<br />
the figure. The length of the strings are equal<br />
and the angle (shown in the figure) with the<br />
vertical is identical.<br />
The acceleration of gravity is 9.8 m/s 2<br />
and the value of Coulomb’s constant is<br />
8.98755 × 10 9 N m 2 /C 2 .<br />
q<br />
m<br />
θ<br />
a<br />
L<br />
q<br />
m<br />
From the right triangle in the figure above,<br />
we see that<br />
sin θ = a L .<br />
Therefore<br />
a = L sin θ<br />
= (0.15 m) sin(5 ◦ )<br />
= 0.0130734 m .<br />
The separation of the spheres is r = 2 a =<br />
0.0261467 m . The forces acting on one of the<br />
spheres are shown in the figure below.<br />
T cos θ<br />
F<br />
e<br />
θ<br />
mg<br />
T<br />
θ<br />
T sin θ<br />
Because the sphere is in equilibrium, the<br />
resultant of the forces in the horizontal and<br />
vertical directions must separately add up to<br />
zero:<br />
∑<br />
Fx = T sin θ − F e = 0<br />
0.15 m<br />
∑<br />
Fy = T cos θ − m g = 0 .<br />
5 ◦<br />
0.03 kg 0.03 kg<br />
Find the magnitude of the charge on each<br />
sphere.<br />
Correct answer: 4.4233 × 10 −8 C.<br />
Explanation:<br />
Let : L = 0.15 m ,<br />
m = 0.03 kg ,<br />
θ = 5 ◦ .<br />
and<br />
From the second equation in the system<br />
above, we see that T =<br />
m g , so T can be<br />
cos θ<br />
eliminated from the first equation if we make<br />
this substitution. This gives a value<br />
F e = m g tan θ<br />
= (0.03 kg) ( 9.8 m/s 2) tan(5 ◦ )<br />
= 0.0257217 N ,<br />
for the electric force.<br />
From Coulomb’s law, the electric force between<br />
the charges has magnitude<br />
|F e | = k e<br />
|q| 2<br />
r 2 ,
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 3<br />
where |q| is the magnitude of the charge on<br />
each sphere.<br />
Note: The term |q| 2 arises here because the<br />
charge is the same on both spheres.<br />
This equation can be solved for |q| to give<br />
√<br />
|F e | r<br />
|q| =<br />
2<br />
=<br />
keywords:<br />
k e<br />
√<br />
(0.0257217 N) (0.0261467 m) 2<br />
(8.98755 × 10 9 N m 2 /C 2 )<br />
= 4.4233 × 10 −8 C .<br />
Serway CP 15 11<br />
23:05, trigonometry, numeric, > 1 min, normal.<br />
005 (part 1 of 2) 10 points<br />
Three charges are arranged in a triangle as<br />
shown.<br />
The Coulomb constant is 8.98755 ×<br />
10 9 N · m 2 /C 2 .<br />
y<br />
5 nC<br />
+<br />
−<br />
−3 nC<br />
0.3 m<br />
0.1 m<br />
+<br />
6 nC<br />
What is the net electrostatic force on the<br />
charge at the origin<br />
Correct answer: 1.38102 × 10 −5 N.<br />
Explanation:<br />
x<br />
F 1,2 θ<br />
F 1,3<br />
F<br />
The repulsive force<br />
q 1 q 2<br />
F 1,2 = k C<br />
r1,2<br />
2<br />
= 8.98755 × 10 9 N · m 2 /C 2<br />
(<br />
5 × 10 −9 C ) ( 6 × 10 −9 C )<br />
×<br />
(0.3 m) 2<br />
= 2.99585 × 10 −6 N<br />
acts along the negative x-axis, and the attractive<br />
force<br />
q 1 |q 3 |<br />
F 1,3 = k C<br />
r1,3<br />
2<br />
= 8.98755 × 10 9 N · m 2 /C 2<br />
(<br />
5 × 10 −9 C ) ( −3 × 10 −9 C )<br />
×<br />
(0.1 m) 2<br />
= −1.34813 × 10 −5 N<br />
acts along the negative y-axis.<br />
Thus<br />
F net = [ (2.99585 × 10 −6 N) 2<br />
+(−1.34813 × 10 −5 N) 2] 1/2<br />
= 1.38102 × 10 −5 N .<br />
Let : q 1 = 5 nC = 5 × 10 −9 C ,<br />
q 2 = 6 nC = 6 × 10 −9 C ,<br />
q 3 = −3 nC = −3 × 10 −9 C ,<br />
r 1,2 = 0.3 m ,<br />
r 1,3 = 0.1 m , and<br />
k C = 8.98755 × 10 9 N · m 2 /C 2 .<br />
006 (part 2 of 2) 10 points<br />
What is the direction of this force (as an angle<br />
between −180 ◦ and 180 ◦ measured from the<br />
positive x-axis, with counterclockwise positive)<br />
Correct answer: −102.529 ◦ .<br />
Explanation:
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 4<br />
The electric field strength E ∝ 1 r 2 , so<br />
tan θ = F 1,3<br />
F 1,2<br />
( )<br />
θ = tan −1 F1,3<br />
F 1,2<br />
( 1.34813 × 10<br />
= tan −1 −5 )<br />
N<br />
2.99585 × 10 −6 N<br />
= 77.4712 ◦<br />
E A<br />
E B<br />
=<br />
keywords:<br />
1<br />
r 2 A<br />
1<br />
r 2 B<br />
= r2 B<br />
r 2 A<br />
=<br />
(2 r)2<br />
r 2 = 4 .<br />
below the negative x-axis. From the positive<br />
x-axis, the angle is<br />
−180 ◦ + 77.4712 ◦ = −102.529 ◦ .<br />
Two Charge Field<br />
23:13, trigonometry, multiple choice, > 1 min,<br />
wording-variable.<br />
008 (part 1 of 3) 10 points<br />
Two point-charges at fixed locations produce<br />
an electric field as shown below.<br />
keywords:<br />
AP B 1993 MC 68<br />
23:07, trigonometry, multiple choice, < 1 min,<br />
fixed.<br />
007 (part 1 of 1) 10 points<br />
The diagram shows an isolated, positive<br />
charge Q, where point B is twice as far away<br />
from Q as point A.<br />
A<br />
X<br />
B<br />
+Q A B<br />
Y<br />
0 10 cm 20 cm<br />
The ratio of the electric field strength at<br />
point A to the electric field strength at point<br />
B is<br />
1. E A<br />
E B<br />
= 8 1 .<br />
2. E A<br />
E B<br />
3. E A<br />
E B<br />
= 2 1 .<br />
4. E A<br />
E B<br />
= 1 1 .<br />
5. E A<br />
E B<br />
= 1 2 .<br />
Explanation:<br />
= 4 1 . correct<br />
Let : r B<br />
= 2 r A<br />
.<br />
A negative charge placed at point X would<br />
move<br />
1. toward charge B. correct<br />
2. toward charge A.<br />
3. along an equipotential plane.<br />
Explanation:<br />
The electric field runs from a positive potential<br />
to a negative potential, so it points<br />
from a positive charge to a negative charge.<br />
Therefore the charge B is positive. A negative<br />
charge will move toward a positive potential,<br />
which creates lower potential energy and a<br />
higher kinetic energy.<br />
009 (part 2 of 3) 10 points<br />
The electric field at point X is
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 5<br />
1. stronger than the field at point Y . correct<br />
2. weaker than the field at point Y .<br />
3. the same as that the field at point Y .<br />
Explanation:<br />
The field at X is stronger than the field<br />
at Y , since the number of field lines per unit<br />
volume at X is greater than the number of<br />
field lines per unit volume at Y .<br />
010 (part 3 of 3) 10 points<br />
Estimate the ratio of the magnitude of<br />
charge A to the magnitude of charge B. Your<br />
answer must be within ± 5%.<br />
Correct answer: 1.88889 .<br />
Explanation:<br />
The number of field lines is proportional to<br />
the magnitude of the charge.<br />
keywords:<br />
Q A<br />
≈ −17 = −1.88889<br />
Q B 9<br />
∣ Q A ∣∣∣<br />
∣ ≈ 1.88889 .<br />
Q B<br />
Maximum force on one charge<br />
23:05, calculus, multiple choice, > 1 min,<br />
fixed.<br />
011 (part 1 of 1) 10 points<br />
Charge Q is on the y axis a distance a from<br />
the origin and charge q is on the x axis a<br />
distance d from the origin.<br />
What is the value of d for which the x<br />
component of the force on q is the greatest<br />
1. d = 0<br />
2. d = a<br />
3. d = √ 2 a<br />
4. d = a 2<br />
5. d = a √<br />
2<br />
correct<br />
6. d = q Q a<br />
7. d = q Q<br />
√<br />
2 a<br />
8. d = q a<br />
Q 2<br />
9. d = q a<br />
√<br />
Q 2<br />
Explanation:<br />
We have the force on charge q on the x axis<br />
due to charge Q on the y axis<br />
⃗F = 1<br />
4 π ɛ 0<br />
q Q<br />
r 2 ˆr ,<br />
where r = √ a 2 + d 2 . So the x component of<br />
the force on q is<br />
F x = 1 q Q<br />
4 π ɛ 0 r 2 cos θ<br />
= 1<br />
4 π ɛ 0<br />
q Q<br />
a 2 + d 2<br />
d<br />
√<br />
a 2 + d 2<br />
= 1<br />
4 π ɛ 0<br />
q Q d<br />
(a 2 + d 2 ) 3/2 .<br />
For maximum x component of the force,<br />
∂ F x<br />
= 0 is required. Therefore<br />
∂d<br />
keywords:<br />
∂F x<br />
∂d =<br />
q Q a 2 − 2 d 2<br />
4 π ɛ 0 (a 2 + d 2 ) 5/2 = 0<br />
a 2 − 2 d 2 = 0<br />
d = √ a . 2<br />
Charged Semicircle<br />
23:10, calculus, numeric, > 1 min, normal.<br />
012 (part 1 of 3) 10 points<br />
Consider the setup shown in the figure below,<br />
where the arc is a semicircle with radius<br />
r. The total charge Q is negative, and distributed<br />
uniformly on the semicircle. The<br />
charge on a small segment with angle ∆θ is<br />
labeled ∆q.
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 6<br />
y<br />
y<br />
∆θ A<br />
k |∆q| cos θ<br />
II I<br />
4. ∆E x =<br />
−<br />
x<br />
r<br />
θ<br />
r<br />
−<br />
III IV<br />
k |∆q| sin θ<br />
5. ∆E<br />
x<br />
x =<br />
r<br />
O<br />
6. ∆E x = k |∆q| r 2<br />
− −−<br />
−−<br />
B<br />
7. ∆E x = k |∆q| (sin θ) r 2<br />
−<br />
−−−−<br />
−<br />
− −−<br />
−<br />
∆q is given by<br />
1. None of these<br />
2. ∆q = Q<br />
3. ∆q = Q ∆θ<br />
2π<br />
4. ∆q = 2 Q ∆θ<br />
π<br />
5. ∆q = Q ∆θ correct<br />
π<br />
6. ∆q = Q 2 π<br />
8. ∆E x = k |∆q| (cos θ) r 2<br />
9. ∆E x = k |∆q| (cos θ) r<br />
10. ∆E x = k |∆q| (sin θ) r<br />
Explanation:<br />
Negative charge attracts a positive test<br />
charge. At O, ∆E points toward ∆q . According<br />
to the sketch, the vector ∆E x is pointing<br />
along the negative x axis. The magnitude of<br />
the ∆E x is given by<br />
∆E x = ∆E cos θ = k |∆q|<br />
r 2 cos θ .<br />
7. ∆q = 2 Q π<br />
8. ∆q = Q π<br />
9. ∆q = 2 π Q<br />
10. ∆q = π Q<br />
Explanation:<br />
The angle of a semicircle is π, thus the<br />
charge on a small segment with angle ∆θ is<br />
∆q = Q ∆θ<br />
π<br />
013 (part 2 of 3) 10 points<br />
The magnitude of the x-component of the<br />
electric field at the center, due to ∆q, is given<br />
by<br />
1. ∆E x = k |∆q|<br />
r 2<br />
2. ∆E x =<br />
3. ∆E x =<br />
k |∆q| sin θ<br />
r 2<br />
k |∆q| cos θ<br />
r 2<br />
.<br />
correct<br />
014 (part 3 of 3) 10 points<br />
Determine the magnitude of the electric field<br />
at O . The total charge is −7.5 µC, the radius<br />
of the semicircle is 14 cm, and the Coulomb<br />
constant is 8.98755 × 10 9 N · m 2 /C 2 .<br />
Correct answer: 2.18941 × 10 6 N/C.<br />
Explanation:<br />
Let : Q = −7.5 µC ,<br />
r = 14 cm , and<br />
k = 8.98755 × 10 9 N · m 2 /C 2 .<br />
By symmetry of the semicircle, the y-<br />
component of the electric field at the center<br />
is<br />
E y = 0 .<br />
Combining part 1 and part 2,<br />
∆E x =<br />
k |∆q| cos θ<br />
r 2<br />
= k |Q|<br />
π r 2<br />
cos θ ∆θ
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 7<br />
Therefore, the magnitude of the electric field<br />
at the center is given by<br />
E = E x =<br />
= 2 k |Q|<br />
π r 2 .<br />
∫ π/2<br />
−π/2<br />
k |Q|<br />
π r 2<br />
cos θ dθ<br />
For the above values, the magnitude is given<br />
by<br />
E = 2 ( 8.98755 × 10 9 N · m 2 /C 2) |(−7.5 µC)|<br />
π (14 cm) 2<br />
= 2.18941 × 10 6 N/C .<br />
The direction is along negative x axis.<br />
y<br />
y<br />
∆θ A II I<br />
−<br />
x<br />
θ<br />
r<br />
− E<br />
III IV<br />
x<br />
O<br />
keywords:<br />
−<br />
−−−−<br />
−<br />
− −−<br />
−<br />
− −−<br />
−−<br />
B<br />
Flux Through a Pyramid<br />
24:01, trigonometry, numeric, > 1 min, normal.<br />
015 (part 1 of 1) 10 points<br />
A (6 m by 6 m) square base pyramid with<br />
height of 4 m is placed in a vertical electric<br />
field of 52 N/C.<br />
6 m<br />
52 N/C<br />
4 m<br />
Calculate the total electric flux which goes<br />
out through the pyramid’s four slanted surfaces.<br />
Correct answer: 1872 N m 2 /C.<br />
Explanation:<br />
By Gauss’ law,<br />
Let : s = 6 m ,<br />
h = 4 m , and<br />
E = 52 N/C .<br />
Φ = ⃗ E · ⃗A<br />
Since there is no charge contained in the pyramid,<br />
the net flux through the pyramid must<br />
be 0 N/C. Since the field is vertical, the flux<br />
through the base of the pyramid is equal and<br />
opposite to the flux through the four sides.<br />
Thus we calculate the flux through the base<br />
of the pyramid, which is<br />
keywords:<br />
Φ = E A = E s 2<br />
= (52 N/C) (6 m) 2<br />
= 1872 N m 2 /C .<br />
Flux Through a Submarine<br />
24:02, trigonometry, numeric, > 1 min, normal.<br />
0<strong>16</strong> (part 1 of 1) 10 points<br />
The following charges are located inside a submarine:<br />
5 µC, −9 µC, 27 µC, and −84 µC.<br />
Calculate the net electric flux through the<br />
submarine.<br />
Correct answer: −6.88954 × 10 6 N · m 2 /C.<br />
Explanation:<br />
Let : q 1 = 5 µC = 5 × 10 −6 C ,<br />
q 2 = −9 µC = −9 × 10 −6 C ,<br />
q 3 = 27 µC = 2.7 × 10 −5 C ,<br />
q 4 = −84 µC = −8.4 × 10 −5 C .<br />
From Gauss’s Law:<br />
Φ = q 1 + q 2 + q 3 + q 4<br />
ɛ 0<br />
= (5 × 10−6 C) + (−9 × 10 −6 C)<br />
8.854 × 10 −12 C 2 /N · m 2<br />
and<br />
+ (2.7 × 10−5 C) + (−8.4 × 10 −5 C)<br />
8.854 × 10 −12 C 2 /N · m 2<br />
= −6.88954 × 10 6 N · m 2 /C .
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 8<br />
keywords:<br />
Long Cylindrical Insulator 03<br />
24:03, trigonometry, numeric, > 1 min, normal.<br />
017 (part 1 of 1) 10 points<br />
Consider a long, uniformly charged, cylindrical<br />
insulator of radius R with charge density<br />
1 µC/m 3 . (The volume of a cylinder with<br />
radius r and length l is V = π r 2 l.)<br />
The value of the Permittivity of free space<br />
is 8.85419 × 10 −12 C 2 /N · m 2<br />
R<br />
1 cm<br />
What is the magnitude of the electric field<br />
inside the insulator at a distance 1 cm from<br />
the axis (1 cm < R)<br />
Correct answer: 564.705 N/C.<br />
Explanation:<br />
Let : r = 1 cm = 0.01 m ,<br />
ρ = 1 µC/m 3<br />
= 1 × 10 −6 C/m 3 , and<br />
ɛ 0 = 8.85419 × 10 −12 C 2 /N · m 2 .<br />
Consider a cylindrical Gaussian surface of<br />
radius r and length l much less than the<br />
length of the insulator so that the component<br />
of the electric field parallel to the axis is<br />
negligible.<br />
R<br />
r<br />
l<br />
The flux leaving the ends of the Gaussian<br />
cylinder is negligible, and the only contribution<br />
to the flux is from the side of the cylinder.<br />
Since the field is perpendicular to this surface,<br />
the flux is<br />
Φ s = 2 π r l E ,<br />
and the charge enclosed by the surface is<br />
Using Gauss’ law,<br />
Q enc = π r 2 l ρ .<br />
Φ s = Q enc<br />
ɛ 0<br />
2 π r l E = π r2 l ρ<br />
ɛ 0<br />
.<br />
Thus<br />
E =<br />
ρ r<br />
2 ɛ<br />
( 0<br />
1 × 10 −6 C/m 3) (0.01 m)<br />
=<br />
2 (8.85419 × 10 −12 C 2 /N · m 2 )<br />
keywords:<br />
= 564.705 N/C .<br />
Uniformly Charged Sphere 04<br />
24:03, trigonometry, multiple choice, < 1 min,<br />
fixed.<br />
018 (part 1 of 2) 10 points<br />
Given :<br />
V sphere = 4 π R3<br />
, and<br />
3<br />
A sphere = 4 π R 2 .<br />
Consider a sphere, which is an insulator,<br />
where charge is uniformly distributed<br />
throughout.<br />
Consider a spherical Gaussian surface with<br />
radius R , which is concentric to the sphere<br />
2<br />
with a radius R.<br />
Q is the total<br />
charge inside<br />
the sphere.<br />
p<br />
R<br />
R<br />
2
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 9<br />
The total amount of flux flowing through<br />
the Gaussian surface is given by<br />
6. ‖ E‖ ⃗ = k Q2<br />
1. Φ = Q 2 R 2 .<br />
.<br />
Explanation:<br />
ɛ 0 Gauss’s Law gives us<br />
2. Φ = Q .<br />
4 ɛ<br />
4 π r 2 E = Q encl<br />
0 ɛ 0<br />
3. Φ = Q<br />
(<br />
.<br />
4 R<br />
2 ɛ 0<br />
4. Φ = Q<br />
= Q 3 π 2<br />
. correct<br />
ɛ 0<br />
4<br />
8 ɛ 0<br />
5. Φ = 2 Q<br />
3 π R3<br />
.<br />
= Q ,<br />
ɛ 0 8 ɛ 0<br />
Q<br />
E = ( ) 2 R<br />
4 π 8 ɛ 0<br />
2<br />
Q<br />
=<br />
Φ = 4 π r 2 4 π ɛ<br />
E<br />
0 2 R 2<br />
= Q encl<br />
= k Q<br />
.<br />
2 R<br />
ɛ 2 .<br />
0<br />
Φ = Q encl<br />
keywords:<br />
ɛ<br />
⎡ 0<br />
( ) 3<br />
⎤<br />
4 π R<br />
= Q 3 2 ⎢<br />
ɛ 0 ⎣ 4 π<br />
⎥<br />
⎦<br />
3 R3<br />
= Q .<br />
8 ɛ 0<br />
019 (part 2 of 2) 10 points<br />
The magnitude of the electric field ‖ E‖ ⃗ at R 2<br />
q 2<br />
is given by<br />
1. ‖ E‖ ⃗ = k Q<br />
2 R 2 . correct<br />
q 1<br />
2. ‖ E‖ ⃗ = k Q<br />
R 2 .<br />
O<br />
3. ‖ E‖ ⃗ = 2 k Q<br />
R 2 .<br />
A<br />
4. ‖ E‖ ⃗ = 2 k Q2<br />
B<br />
R 2 .<br />
C<br />
5. ‖ E‖ ⃗ = k Q2<br />
R 2 .<br />
6. Φ = 4 Q<br />
ɛ 0<br />
.<br />
Explanation:<br />
Basic Concept: Gauss’ Law.<br />
Solution: For spherical symmetric case,<br />
) 3<br />
Shell Game 01 v2<br />
24:07, trigonometry, multiple choice, < 1 min,<br />
fixed.<br />
020 (part 1 of 3) 10 points<br />
Consider the following spherically symmetric<br />
situation: We have a charge q 1 on a metallic<br />
ball at the center, inside of a conducting shell<br />
of inner radius R 2 and outer radius R 3 . There<br />
is a total charge of q 2 on the shell.<br />
R 3 , q 2<br />
′′<br />
R 2 , q 2<br />
′<br />
R 1 , q 1<br />
a<br />
b<br />
c
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 10<br />
Find E at A where OA = a.<br />
1. E A<br />
= k q 1<br />
a 2 correct<br />
2. E A<br />
= k q 1<br />
2 a 2<br />
3. E A<br />
= k q 1<br />
b 2<br />
4. E A<br />
= k q 1<br />
c 2<br />
5. E A<br />
= 0<br />
6. E A<br />
= k q 1<br />
3 a 2<br />
q 1<br />
7. E A<br />
= k √<br />
2 a 2<br />
8. E A<br />
= k 2 q 1<br />
a 2<br />
9. E A<br />
= k 3 q 1<br />
a 2<br />
10. E A<br />
= k 4 q 1<br />
a 2<br />
Explanation:<br />
Pick a Gaussian surface (sphere since we<br />
are in spherical symmetry) center at the point<br />
charge and of radius a. This surface contains<br />
only the point charge, so q encl = q 1 . The<br />
formula for E gives<br />
8. E B<br />
= k q 1 − q 2<br />
b 2<br />
9. E B<br />
= k 3 q 1<br />
b 2<br />
10. E B<br />
= k 4 q 1<br />
b 2<br />
Explanation:<br />
For an electrostatic situation, inside of a<br />
conductor, there is no charge; i.e., q inside = 0.<br />
Also, ⃗ E inside = 0 and there is no flux inside,<br />
Φ inside = 0.<br />
Thus<br />
E B<br />
= 0 .<br />
Notice also that since the electric field at B<br />
is zero, the total enclosed charge is zero, or<br />
q 1 + q ′ 2 = 0. Therefore<br />
q ′ 2 = −q 1 .<br />
This verifies that the charge on the inner<br />
surface of a conducting shell is −q 1 , where<br />
q 1 is the charge is the charge enclosed by the<br />
shell.<br />
022 (part 3 of 3) 10 points<br />
Find E at C, where OC = c.<br />
1. E C<br />
= 0<br />
E A<br />
= k q 1<br />
a 2 .<br />
021 (part 2 of 3) 10 points<br />
Find E at B, where OB = b.<br />
1. E B<br />
= 0 correct<br />
2. E B<br />
= k q 1<br />
a 2<br />
3. E B<br />
= k q 1<br />
b 2<br />
4. E B<br />
= k q 1<br />
2 b 2<br />
5. E B<br />
= k q 1<br />
c 2<br />
6. E B<br />
= k q 2<br />
2 b 2<br />
7. E B<br />
= k q 1 + q 2<br />
√<br />
2 b 2<br />
2. E C<br />
= k q 1<br />
a 2<br />
3. E C<br />
= k q 1 + q 2<br />
b 2<br />
4. E C<br />
= k q 1 − q 2<br />
2 a 2<br />
5. E C<br />
= k q 1<br />
c 2<br />
6. E C<br />
= k q 1<br />
2 b 2<br />
7. E C<br />
= k q 1 + q 2<br />
c 2<br />
8. E C<br />
= k q 1 − q 2<br />
c 2<br />
9. E C<br />
= k 3 q 1<br />
c 2<br />
10. E C<br />
= k 4 q 1<br />
c 2<br />
Explanation:<br />
correct
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 11<br />
Here the Gaussian surface is a sphere centered<br />
at the point charge q 1 and of radius c.<br />
The enclosed charge in this sphere is all the<br />
charge, or q 1 + q 2 . The electric field at C is<br />
keywords:<br />
E C<br />
= k q 1 + q 2<br />
c 2 .<br />
Solid Conducting Sphere<br />
24:08, trigonometry, multiple choice, < 1 min,<br />
fixed.<br />
023 (part 1 of 1) 10 points<br />
A positive charge of 10 −6 coulomb is placed<br />
on an insulated solid conducting sphere.<br />
Which of the following is true<br />
1. When a second conducting sphere is<br />
connected by a conducting wire to the first<br />
sphere, charge is transferred until the electric<br />
potentials of the two spheres are equal.<br />
correct<br />
2. The electric field inside the sphere is constant<br />
in magnitude, but not zero.<br />
3. The electric field in the region surrounding<br />
the sphere increases with increasing distance<br />
from the sphere.<br />
4. An insulated metal object acquires a net<br />
positive charge when brought near to, but not<br />
in contact with, the sphere.<br />
5. The charge resides uniformly throughout<br />
the sphere.<br />
Explanation:<br />
Every point in the conductor becomes equipotential,<br />
and the electric field is defined as<br />
the gradient of the electric potential, so inside<br />
the conducting sphere, all points are equipotential<br />
and there is no electric field.<br />
Outside the conducting sphere, the electric<br />
field is the same when there are net charges at<br />
the center of the sphere, so the electric field<br />
decreases with increasing distance from the<br />
sphere.<br />
If there is no net charge on the insulated<br />
metal object when brought near to, but not<br />
in contact with the sphere, there is also no<br />
net charge on it. Only the charge distribution<br />
changes.<br />
Since there is repulsion among like charges,<br />
charges reside uniformly on the surface of the<br />
sphere.<br />
keywords:<br />
Field From a Charged Plate JM<br />
24:06, trigonometry, multiple choice, < 1 min,<br />
fixed.<br />
024 (part 1 of 1) 10 points<br />
A uniformly charged conducting plate with<br />
area A has a total charge Q which is positive.<br />
The figure below shows a cross-sectional view<br />
of the plane and the electric field lines due to<br />
the charge on the plane. The figure is not<br />
drawn to scale.<br />
+Q<br />
+<br />
E<br />
E<br />
+<br />
+<br />
+ P<br />
+<br />
+<br />
Find the magnitude of the field at point P ,<br />
which is a distance a from the plate. Assume<br />
that a is very small when compared to the<br />
dimensions of the plate, such that edge effects<br />
can be ignored.<br />
1. ‖ ⃗ E‖ = Q<br />
ɛ 0 A<br />
2. ‖ ⃗ E‖ = Q<br />
2 ɛ 0 A correct<br />
3. ‖ E‖ ⃗ = Q<br />
4 ɛ 0 A<br />
4. ‖ E‖ ⃗ Q<br />
=<br />
4 π ɛ 0 a 2<br />
5. ‖ ⃗ E‖ = Q<br />
4 π ɛ 0 a<br />
6. ‖ ⃗ E‖ = 2 ɛ 0 Q A<br />
7. ‖ ⃗ E‖ = ɛ 0 Q A
¡<br />
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 12<br />
8. ‖ ⃗ E‖ = 4 π ɛ 0 a 2 Q<br />
9. ‖ ⃗ E‖ = 4 π ɛ 0 a Q<br />
Coaxial Cable 01<br />
24:05, calculus, multiple choice, < 1 min, normal.<br />
025 (part 1 of 4) 10 points<br />
A long coaxial cable consists of an inner cylindrical<br />
conductor with radius R 1 and an outer<br />
cylindrical conductor shell with inner radius<br />
R 2 and outer radius R 3 as shown. The cable<br />
extends out perpendicular to the plane<br />
shown. The charge on the inner conductor<br />
per unit length along the cable is λ and the<br />
corresponding charge on the outer conductor<br />
per unit length is −λ (same in magnitudes<br />
but with opposite signs) and λ > 0.<br />
−Q<br />
10. ‖ ⃗ E‖ = ɛ 0 Q a 2<br />
Explanation:<br />
Basic Concepts Gauss’ Law, electrostatic<br />
properties of conductors.<br />
Solution: Let us consider the Gaussian<br />
surface shown in the figure.<br />
+Q<br />
+<br />
+<br />
E + E<br />
+ S<br />
+<br />
+<br />
Due to the symmetry of the problem, there<br />
is an electric flux only through the right and<br />
left surfaces and these two are equal. If the<br />
cross section of the surface is S, then Gauss’<br />
Law states that<br />
keywords:<br />
Φ TOTAL<br />
= 2 E S<br />
= 1 ɛ 0<br />
Q<br />
A S , so<br />
E =<br />
Q<br />
2 ɛ 0 A .<br />
Q<br />
R 2<br />
R 3<br />
R 1<br />
Find the magnitude of the electric field at<br />
the point a distance r 1 from the axis of the<br />
inner conductor, where R 1 < r 1 < R 2 .<br />
1. E = 0<br />
λ<br />
2. E = correct<br />
2 π ɛ 0 r 1<br />
3. E =<br />
λ<br />
√<br />
2 π ɛ0 r 1<br />
4. E =<br />
λ<br />
√<br />
3 π ɛ0 r 1<br />
5. E =<br />
2 λ<br />
√<br />
3 π ɛ0 r 1<br />
6. E = λ R 1<br />
4 π ɛ 0 r 1<br />
2<br />
7. E = λ R 1<br />
3 π ɛ 0 r 1<br />
2<br />
8. E = λ2 R 1<br />
4 π ɛ 0 r 1<br />
2<br />
9. E =<br />
λ<br />
2 π ɛ 0 R 1<br />
10. None of these.<br />
Explanation:<br />
Pick a cylindrical Gaussian surface with the<br />
radius r 1 and apply the Gauss’s law; we obtain<br />
E · l · 2 π r 1 = Q ɛ 0<br />
λ<br />
E = .<br />
2 π ɛ 0 r 1<br />
026 (part 2 of 4) 10 points<br />
The electric field vector points<br />
1. in the negative ˆr direction
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 13<br />
2. in the positive ˆr direction correct<br />
Explanation:<br />
The field points from positive charge to<br />
negative change.<br />
Since the center conductor is negatively<br />
charged, the electric field vector points in the<br />
negative ˆr direction.<br />
027 (part 3 of 4) 10 points<br />
Find the magnitude of the electric field at the<br />
point a distance r 2 from the axis of the inner<br />
conductor, where R 3 < r 2 .<br />
1. E = 0 correct<br />
2. E =<br />
3. E =<br />
4. E =<br />
5. E =<br />
λ<br />
2 π ɛ 0 r 2<br />
λ<br />
√<br />
2 π ɛ0 r 2<br />
λ<br />
√<br />
3 π ɛ0 r 2<br />
2 λ<br />
√<br />
3 π ɛ0 r 2<br />
6. E = λ R 1<br />
4 π ɛ 0 r 2<br />
2<br />
7. E = λ R 1<br />
3 π ɛ 0 r 2<br />
2<br />
8. E = λ2 R 1<br />
4 π ɛ 0 r 2<br />
2<br />
9. E =<br />
λ<br />
2 π ɛ 0 R 1<br />
10. None of these.<br />
Explanation:<br />
Pick a cylindrical Gaussian surface with the<br />
radius r 2 and apply the Gauss’s law. Because<br />
there is no net charge inside the Gaussian<br />
surface, the electric field E = 0 .<br />
028 (part 4 of 4) 10 points<br />
For a 100 m length of coaxial cable with inner<br />
radius 1 mm and outer radius 1.5 mm.<br />
Find the capacitance C of the cable.<br />
Correct answer: 13.7207 nF.<br />
Explanation:<br />
Let : l = 100 m ,<br />
R 1 = 1 mm ,<br />
R 2 = 1.5 mm .<br />
and<br />
We calculate the potential across the capacitor<br />
by integrating −E · ds. We may choose<br />
a path of integration along a radius; i.e.,<br />
−E · ds = −Edr.<br />
V = − 1 ∫<br />
q<br />
R1<br />
2 π ɛ 0 l R 2<br />
∣<br />
= − 1 q<br />
2 π ɛ 0 l<br />
ln r<br />
∣<br />
= q<br />
2 π ɛ 0 l ln R 2<br />
R 1<br />
.<br />
dr<br />
r<br />
R 1<br />
R 2<br />
Since C = q , we obtain the capacitance<br />
V<br />
C =<br />
keywords:<br />
2 π ɛ 0 l<br />
( )<br />
R2<br />
ln<br />
R 1<br />
= 2 π (8.85419 × 10−12 c 2 /N · m 2 )<br />
( ) 1.5 mm<br />
ln<br />
1 mm<br />
× (100 m)<br />
= 13.7207 nF .<br />
Charge in a Closed Surface<br />
24:02, calculus, numeric, > 1 min, normal.<br />
029 (part 1 of 2) 10 points<br />
A closed surface with dimensions a = b =<br />
0.4 m and c = 0.36 m is located as in the figure.<br />
The electric field throughout the region<br />
is nonuniform and given by ⃗ E = (α + β x 2 ) î<br />
where x is in meters, α = 3 N/C, and<br />
β = 2 N/(C m 2 ).
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 14<br />
y<br />
a<br />
E<br />
× (0.133632 N m 2 /C)<br />
= 1.1832 × 10 −12 C .<br />
z<br />
c<br />
What is the magnitude of the net charge<br />
enclosed by the surface<br />
Correct answer: 1.1832 × 10 −12 C.<br />
Explanation:<br />
Let : a = b = 0.4 m ,<br />
c = 0.36 m ,<br />
α = 3 N/C , and<br />
β = 2 N/(C m 2 ) .<br />
The electric field throughout the region is<br />
directed along the x-axis and the direction of<br />
d A ⃗ is perpendicular to its surface. Therefore,<br />
⃗E is parallel to d A ⃗ over the four faces of<br />
the surface which are perpendicular to the<br />
yz plane, and E ⃗ is perpendicular to d A ⃗ over<br />
the two faces which are parallel to the yz<br />
plane. That is, only the left and right sides<br />
of the right rectangular parallel piped which<br />
encloses the charge will contribute to the flux.<br />
The net electric flux through the cube is<br />
∫<br />
∫<br />
∆Φ = E x d A ⊥ − E x d A ⊥<br />
right side<br />
b<br />
a<br />
left side<br />
= a b [ α + β(a + c) 2 − α − β a 2]<br />
= a b β (2 a c + c 2 )<br />
= a b c β (2 a + c)<br />
= (0.4 m) (0.4 m) (0.36 m)<br />
× [2 N/(C m 2 )] [2 (0.4 m) + 0.36 m]<br />
= 0.133632 N m 2 /C ,<br />
so the enclosed charge is<br />
q = ɛ 0 ∆Φ<br />
= [8.85419 × 10 −12 C 2 /(N m 2 )]<br />
x<br />
030 (part 2 of 2) 10 points<br />
What is the sign of the charge enclosed in the<br />
surface<br />
1. positive correct<br />
2. negative<br />
3. Cannot be determined<br />
Explanation:<br />
Since there is more flux coming out of the<br />
surface than going into the surface, the sign<br />
of the enclosed charge must be positive.<br />
Flux Through a Loop 01<br />
24:01, calculus, numeric, > 1 min, normal.<br />
031 (part 1 of 1) 10 points<br />
A 40 cm diameter loop is rotated in a uniform<br />
electric field until the position of maximum<br />
electric flux is found. The flux in this position<br />
is measured to be 520000 N · m 2 /C.<br />
What is the electric field strength<br />
Correct answer: 4.13803 × 10 6 N/C.<br />
Explanation:<br />
Let : r = 20 cm = 0.2 m and<br />
By Gauss’ law,<br />
∮<br />
Φ =<br />
Φ = 520000 N · m 2 /C .<br />
⃗E · d ⃗ A<br />
The position of maximum electric flux will be<br />
that position in which the plane of the loop is<br />
perpendicular to the electric field; i.e., when<br />
⃗E · d ⃗ A = E dA. Since the field is constant,<br />
E =<br />
Φ = E A = Eπ r 2<br />
Φ<br />
π r 2<br />
= 520000 N · m2 /C<br />
π (0.2 m) 2<br />
= 4.13803 × 10 6 N/C .
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 15<br />
keywords:<br />
Three Point Charges 17<br />
25:01, trigonometry, multiple choice, > 1 min,<br />
normal.<br />
032 (part 1 of 3) 10 points<br />
Consider three point charges at the vertices of<br />
an equilateral triangle. Let the potential be<br />
zero at infinity.<br />
The value of the Coulomb constant is<br />
8.98755 × 10 9 N · m 2 /C 2 .<br />
1.5 µC<br />
ĵ<br />
60 ◦<br />
0.2 m<br />
3 µC P −5 µC<br />
What is the electrostatic potential at the<br />
point P at the center of the base of the equilateral<br />
triangle given in the diagram<br />
Correct answer: −101917 V.<br />
Explanation:<br />
Let : q 1 = 1.5 µC = 1.5 × 10 −6 C ,<br />
q 2 = 3 µC = 3 × 10 −6 C ,<br />
q 3 = −5 µC = −5 × 10 −6 C ,<br />
a = 0.2 m , and<br />
k e = 8.98755 × 10 9 N · m 2 /C 2 .<br />
The potential at P is given by<br />
∑ q i<br />
V = k e .<br />
r i<br />
From the sketch below, the height h is given<br />
by √<br />
( a<br />
) √<br />
2 3<br />
h = a 2 − =<br />
2 2 a .<br />
Notice that q 1 > 0,q 2 > 0, and q 3 < 0.<br />
(<br />
q1<br />
V P = k e<br />
h + q 2<br />
a/2 + q )<br />
3<br />
a/2<br />
( )<br />
q1<br />
√ + q 2 + q 3<br />
3<br />
= 2 k e<br />
a<br />
= 2 ( 8.98755 × 10 9 N · m 2 /C 2)<br />
0.2 m<br />
i<br />
î<br />
×<br />
( 1.5 × 10 −6 C<br />
√<br />
3<br />
= −101917 V .<br />
+ 3 × 10 −6 C<br />
−5 × 10 −6 C )<br />
033 (part 2 of 3) 10 points<br />
What is the vertical component of the electric<br />
force on the 1.5 µC charge due to the 3 µC<br />
charge<br />
1. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 cot 30 ◦<br />
2. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 cot 60 ◦<br />
3. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 cos 30 ◦ correct<br />
4. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 cos 60 ◦<br />
5. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 tan 30 ◦<br />
6. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 tan 60 ◦<br />
7. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2<br />
8. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 sin 45 ◦<br />
9. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 tan 45 ◦<br />
10. F = k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 cot 45 ◦<br />
Explanation:<br />
F v = F cos α<br />
= k e q 1 q 2<br />
r 2<br />
cos α<br />
= k e (1.5 µC) (3 µC)<br />
(0.2 m) 2 cos 30 ◦<br />
034 (part 3 of 3) 10 points<br />
Find the total electrostatic energy of the system,<br />
again with the zero reference at infinity.<br />
Correct answer: −0.80888 J.
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 <strong>16</strong><br />
Explanation:<br />
keywords:<br />
The total electrostatic energy of the system<br />
is the sum of the electrostatic energies<br />
between each pair of charges:<br />
U = U 12 + U 23 + U 31<br />
The electrostatic energy between the charges<br />
q i and q j is given by<br />
U ij =<br />
q i q j<br />
4 π ɛ 0 r<br />
−Q<br />
where r is the distance between the charges,<br />
so, since k e = 1 ,<br />
4 π ɛ 0<br />
]<br />
U = k e a<br />
[q 1 q 2 + q 2 q 3 + q 3 q 1<br />
= ( 8.98755 × 10 9 N · m 2 /C 2)<br />
[<br />
× (0.2 m) (1.5 × 10 −6 C) (3 × 10 −6 C)<br />
+ (3 × 10 −6 C) (−5 × 10 −6 C)<br />
]<br />
+ (−5 × 10 −6 C) (1.5 × 10 −6 C)<br />
= −0.80888 J .<br />
1. No charge flows.<br />
keywords:<br />
Moving a Charge<br />
25:02, trigonometry, numeric, > 1 min, normal.<br />
035 (part 1 of 1) 10 points<br />
It takes 120 J of work to move 1 C of charge<br />
from a positive plate to a negative plate.<br />
What voltage difference exists between the<br />
plates<br />
Correct answer: 120 V.<br />
Explanation:<br />
Let : W = 120 J and<br />
q = 1 C .<br />
The voltage difference is<br />
V = W q = 120 J<br />
1 C = 120 V .<br />
AP B 1993 MC 70<br />
25:03, trigonometry, multiple choice, < 1 min,<br />
fixed.<br />
036 (part 1 of 1) 10 points<br />
Two negatively charged spheres with different<br />
radii are shown in the figure below.<br />
−Q<br />
The two conductors are now conneted by a<br />
wire.<br />
Which of the following occurs when the two<br />
spheres are connected with a conducting wire<br />
2. Negative charge flows from the larger<br />
sphere to the smaller sphere until the electric<br />
field at the surface of each sphere is the<br />
same.<br />
3. Negative charge flows from the larger<br />
sphere to the smaller sphere until the electric<br />
potential of each sphere is the same.<br />
4. Negative charge flows from the smaller<br />
sphere to the larger sphere until the electric<br />
field at the surface of each sphere is the<br />
same.<br />
5. Negative charge flows from the smaller<br />
sphere to the larger sphere until the electric<br />
potential of each sphere is the same. correct<br />
Explanation:<br />
When the wire is connected, charge will flow<br />
until each surface is at the same potential.<br />
When disconnected the potential of each
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 17<br />
sphere is given by<br />
V = k e q<br />
r .<br />
The smaller sphere is at a more negative potential<br />
than the larger sphere, so negative<br />
charge will flow from the smaller sphere to<br />
the large one until they are at the same potential.<br />
keywords:<br />
Equipotential Surfaces 02<br />
25:03, trigonometry, multiple choice, > 1 min,<br />
fixed.<br />
037 (part 1 of 2) 10 points<br />
Consider the figure<br />
+Q A −Q<br />
+ −<br />
y<br />
+ −<br />
+ −<br />
x<br />
+ −<br />
C D<br />
+ −<br />
+ −<br />
#1 B #2<br />
Of the following elements, identify all that<br />
correspond to an equipotential line or surface.<br />
1. line AB only correct<br />
2. line CD only<br />
3. both AB and CD<br />
4. neither AB nor CD<br />
Explanation:<br />
Consider the electric field<br />
+Q A −Q<br />
+ −<br />
y<br />
+ −<br />
+ −<br />
+<br />
C D<br />
−<br />
+ −<br />
+ −<br />
#1 B #2<br />
An equipotential line or surface (AB) is<br />
normal to the electric field lines.<br />
x<br />
038 (part 2 of 2) 10 points<br />
Consider the figure<br />
C<br />
− A<br />
−q<br />
B<br />
+<br />
+q<br />
D<br />
Of the following elements, identify all that<br />
correspond to an equipotential line or surface.<br />
1. line AB only<br />
2. line CD only correct<br />
3. both AB and CD<br />
4. neither AB nor CD<br />
Explanation:<br />
Consider the electric field:<br />
A<br />
−<br />
An equipotential line or surface (CD) is<br />
normal to the electric field lines.<br />
keywords:<br />
Starting a Car 03<br />
25:04, trigonometry, numeric, > 1 min, normal.<br />
039 (part 1 of 1) 10 points<br />
The gap between electrodes in a spark plug<br />
is 0.06 cm. To produce an electric spark<br />
in a gasoline-air mixture, an electric field of<br />
3 × 10 6 V/m must be achieved.<br />
On starting a car, what is the magnitude of<br />
the minimum voltage difference that must be<br />
C<br />
D<br />
B<br />
+
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 18<br />
supplied by the ignition circuit<br />
Correct answer: 1800 V.<br />
Explanation:<br />
Let : E = 3 × 10 6 V/m and<br />
d = 0.06 cm = 0.0006 m .<br />
Assuming the electric field between the two<br />
electrodes is constant, then the potential difference<br />
between the electrodes is<br />
keywords:<br />
V = E d<br />
= ( 3 × 10 6 V/m ) (0.0006 m)<br />
= 1800 V .<br />
Accelerating an Electron<br />
25:05, trigonometry, numeric, > 1 min, normal.<br />
040 (part 1 of 1) 10 points<br />
Through what potential difference would an<br />
electron need to be accelerated for it to<br />
achieve a speed of 4 % of the speed of light<br />
(2.99792 × 10 8 m/s), starting from rest<br />
Correct answer: 408.799 V.<br />
Explanation:<br />
Let : s = 4% = 0.04 ,<br />
c = 2.99792 × 10 8 m/s ,<br />
m e = 9.10939 × 10 −31 kg ,<br />
q e = 1.60218 × 10 −19 C .<br />
The speed of the electron is<br />
v = 0.04 c<br />
= 0.04 ( 2.99792 × 10 8 m/s )<br />
= 1.19917 × 10 7 m/s ,<br />
By conservation of energy<br />
1<br />
2 m e v 2 = −(−q e ) ∆V<br />
and<br />
v 2<br />
∆V = m e<br />
2 q e<br />
= ( 9.10939 × 10 −31 kg )<br />
(<br />
1.19917 × 10 7 m/s ) 2<br />
×<br />
2 (1.60218 × 10 −19 C)<br />
= 408.799 V .<br />
keywords:<br />
Point Charge<br />
25:05, trigonometry, numeric, > 1 min, normal.<br />
041 (part 1 of 1) 10 points<br />
At distance r from a point charge q, the electric<br />
potential is 600 V and the magnitude of<br />
the electric field is 200 N/C.<br />
Determine the value of q.<br />
Correct answer: 2.00277 × 10 −7 C.<br />
Explanation:<br />
Let : k e = 8.98755 × 10 9 N · m 2 /C 2 ,<br />
V = 600 V , and<br />
e = 200 N/C .<br />
E = k e q<br />
r 2 and V = k e q<br />
r , so that V E = r.<br />
The potential is<br />
V = k e q<br />
r<br />
= k e q<br />
V<br />
E<br />
= k e q E<br />
V<br />
q = V 2<br />
k e E<br />
(600 V) 2<br />
=<br />
(8.98755 × 10 9 N · m 2 /C 2 ) (200 N/C)<br />
= 2.00277 × 10 −7 C .<br />
keywords:<br />
Conducting Spheres 02<br />
25:09, trigonometry, multiple choice, > 1 min,<br />
wording-variable.<br />
042 (part 1 of 4) 10 points<br />
Consider two “solid” conducting spheres with<br />
radii r 1 = 4 R and r 2 = 3 R ; i.e.,<br />
r 2<br />
r 1<br />
= 3 R<br />
4 R = 3 4 .
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 19<br />
The two spheres are separated by a large<br />
distance so that the field and the potential at<br />
the surface of sphere #1 only depends on the<br />
charge on #1 and the corresponding quantities<br />
on #2 only depend on the charge on<br />
#2.<br />
Place an equal amount of charge on both<br />
spheres, q 1 = q 2 = Q .<br />
#1<br />
r 1<br />
q 1<br />
r 2<br />
q 2 #2<br />
After the electrostatic equilibrium on each<br />
sphere has been established, what is the ratio<br />
of the potentials V 2<br />
at the “centers” of the<br />
V 1<br />
two solid conducting spheres<br />
1. V 2<br />
V 1<br />
= 4 3 correct<br />
2. V 2<br />
V 1<br />
= 3 4<br />
3. V 2<br />
V 1<br />
= 3 2<br />
4. V 2<br />
V 1<br />
= 3 8<br />
5. V 2<br />
= <strong>16</strong> V 1 9<br />
6. V 2<br />
= 9<br />
V 1 <strong>16</strong><br />
7. V 2<br />
= 9 V 1 8<br />
8. V 2<br />
= 9<br />
V 1 32<br />
9. V 2<br />
V 1<br />
= 1<br />
Explanation:<br />
For a solid conducting sphere, the charge is<br />
uniformly distributed at the surface. From<br />
Gauss’ Law, the electric field outside the<br />
sphere is given by E(r) = k Q r 2 , where Q<br />
is the total charge on the sphere and r is the<br />
distance from the center of the sphere. By integration<br />
with respect to r, the potential can<br />
be expressed as V (r) = k Q , so the potential<br />
r<br />
at the surface of the sphere is<br />
V (r) = k Q r , (1)<br />
where R is radius of the sphere and r ≤ R .<br />
For the electrostatic case, the potential is<br />
constant throughout a conducting body, so<br />
the potential at the center is the same as<br />
anywhere on the conductor.<br />
Thus at two centers<br />
k q 2<br />
V 2 r<br />
= 2<br />
V 1 k q 1<br />
r 1<br />
= r 1<br />
r 2<br />
= 4 R<br />
3 R<br />
= 4 3 .<br />
043 (part 2 of 4) 10 points<br />
What is the ratio of the electric fields E 2<br />
E 1<br />
at<br />
the “surfaces” of the two spheres<br />
1. E 2<br />
E 1<br />
= <strong>16</strong> 9 correct<br />
2. E 2<br />
E 1<br />
= 9<br />
<strong>16</strong><br />
3. E 2<br />
= 9 E 1 8<br />
4. E 2<br />
= 9<br />
E 1 32<br />
5. E 2<br />
E 1<br />
= 4 3<br />
6. E 2<br />
E 1<br />
= 3 4<br />
7. E 2<br />
E 1<br />
= 3 2<br />
8. E 2<br />
E 1<br />
= 3 8<br />
9. E 2<br />
E 1<br />
= 1<br />
Explanation:
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 20<br />
For a conducting sphere, the charge is uniformly<br />
distributed at the surface. Based on<br />
Gauss’ law, the electric field on the surface of<br />
a conducting sphere of radius R with charge<br />
Q is<br />
Q<br />
E(r) = k e , where r ≥ R . (2)<br />
r2 Thus on the surface r = R of the two<br />
spheres,<br />
E 2<br />
E 1<br />
=<br />
k q 2<br />
r 2 2<br />
k q 1<br />
(<br />
r1<br />
r 2 1<br />
) 2<br />
=<br />
r 2<br />
( 4 R<br />
=<br />
3 R<br />
( 2 4<br />
=<br />
3)<br />
= <strong>16</strong> 9 .<br />
) 2<br />
044 (part 3 of 4) 10 points<br />
Now “connect” the two spheres with a wire.<br />
r 1<br />
r 2<br />
5. E 2<br />
= <strong>16</strong> E 1 9<br />
6. E 2<br />
= 9<br />
E 1 <strong>16</strong><br />
7. E 2<br />
= 9 E 1 8<br />
8. E 2<br />
= 9<br />
E 1 32<br />
9. E 2<br />
E 1<br />
= 1<br />
Explanation:<br />
When the spheres are connected by a wire,<br />
charge will flow from one to the other until<br />
the potential on both spheres is the same.<br />
As noted, V 2<br />
V 1<br />
= 1, defines equilibrium.<br />
The spheres are connected by a wire and no<br />
current is flowing (at equilibrium), therefore<br />
the ends of the wire are at the same potential<br />
V 2 = V 1 . (3)<br />
For a conducting sphere, the charge is uniformly<br />
distributed at the surface. Based on<br />
Gauss’ law, on the surface of a conducting<br />
sphere of radius R with charge Q is<br />
Q<br />
E(r) = k e , where r ≥ R , and<br />
r2 V (r) = k Q r , where r ≤ R .<br />
#1<br />
q 1<br />
q 2 #2<br />
Thus on the surface r = R of the two<br />
spheres,<br />
There will be a flow of charge through the<br />
wire until equilibrium is established.<br />
What is the ratio of the electric fields E 2<br />
E 1<br />
at<br />
the “surfaces” of the two spheres<br />
1. E 2<br />
E 1<br />
= 4 3 correct<br />
2. E 2<br />
E 1<br />
= 3 4<br />
3. E 2<br />
E 1<br />
= 3 2<br />
4. E 2<br />
E 1<br />
= 3 8<br />
E 2<br />
E 1<br />
=<br />
=<br />
=<br />
= r 1<br />
r 2<br />
k q 2<br />
r2<br />
2<br />
k q 1<br />
r1<br />
2<br />
k q 2 1<br />
r 2 r 2<br />
k q 1 1<br />
r 1 r 1<br />
V 2<br />
1<br />
r 2<br />
V 1<br />
1<br />
r 1<br />
, since V 1 = V 2<br />
(4)
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 21<br />
= 4 R<br />
3 R<br />
= 4 3 .<br />
7<br />
4 q 1 = 2 Q<br />
q 1 = 8 7 Q .<br />
045 (part 4 of 4) 10 points<br />
Now, what is the charge q 1 on sphere #1<br />
1. q 1 = 8 7 Q correct<br />
2. q 1 = 6 7 Q<br />
3. q 1 = 7 8 Q<br />
4. q 1 = 7 6 Q<br />
5. q 1 = 4 7 Q<br />
6. q 1 = 3 7 Q<br />
7. q 1 = 7 4 Q<br />
8. q 1 = 7 3 Q<br />
9. q 1 = Q<br />
Explanation:<br />
When the spheres are connected by a wire,<br />
charge will flow from one to the other until<br />
the potential on both spheres is the same.<br />
In this case, this implies that<br />
k e<br />
q 1<br />
r 1<br />
= k e<br />
q 2<br />
r 2<br />
,<br />
q 2 = r 2<br />
r 1<br />
q 1<br />
= 3 R<br />
4 R q 1<br />
or<br />
= 3 4 q 1 . (5)<br />
The total charge of the system remains constant;<br />
i.e., from the initial condition q 1 =<br />
q 2 = Q, the total change on both spheres is<br />
q 1 + q 2 = 2 Q. Using q 2 from Eq. 5, we have<br />
q 1 + q 2 = 2 Q<br />
q 1 + 3 4 q 1 = 2 Q<br />
And the charge on sphere # 2 is q 2 = 6 7 Q ,<br />
since q 1 + q 2 = 8 7 Q + 6 7 Q = 2 Q .<br />
Check Eq. 4: On the surfaces of the two<br />
spheres,<br />
( ) ( ) 2<br />
E 2 q2 r1<br />
=<br />
E 1 q 1 r 2<br />
⎛ ⎞<br />
6<br />
⎜<br />
= ⎝<br />
7 Q ( ) 2<br />
⎟ 4 R<br />
8<br />
⎠<br />
7 Q 3 R<br />
( ) ( 2 3 4<br />
=<br />
4 3)<br />
= 4 3 .<br />
Third of eighteen versions.<br />
keywords:<br />
Change in Potential e2<br />
25:04, calculus, multiple choice, < 1 min, normal.<br />
046 (part 1 of 1) 10 points<br />
A uniform electric field of magnitude 250 V/m<br />
is directed in the positive x-direction. Suppose<br />
a 12 µC charge moves from the origin to<br />
point A at the coordinates, (20 cm, 50 cm).<br />
y<br />
250 V/m<br />
O<br />
(20 cm, 50 cm)<br />
A<br />
What is the absolute value of the change in<br />
potential from the origin to point A<br />
Correct answer: 50 V.<br />
Explanation:<br />
Let : x = 20 cm ,<br />
y = 50 cm ,<br />
‖ ⃗ E‖ = 250 V/m .<br />
and<br />
x
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 22<br />
The potential difference from O to A is<br />
defined as<br />
∆V = V A − V O = −<br />
∫ A<br />
O<br />
⃗E · d⃗s .<br />
We know that E ⃗ = (250 V/m) î . We need<br />
to choose a path to integrate along. Because<br />
the electric force is conservative, it doesn’t<br />
matter which path we take; they all give the<br />
same answer. There are two choices of path<br />
for which the math is simple (see the figure<br />
below.)<br />
y<br />
E<br />
O<br />
Path I:<br />
II<br />
I<br />
(x, y)<br />
B<br />
A<br />
I<br />
x<br />
which is the same as the result for the other<br />
path.<br />
keywords:<br />
Potential Diagrams 02<br />
25:04, calculus, multiple choice, > 1 min,<br />
wording-variable.<br />
047 (part 1 of 4) 10 points<br />
Consider a sphere with radius R and charge<br />
Q<br />
Q<br />
V A − V O = (V A − V B ) + (V B − V O ),<br />
From O to B, ⃗ E and d⃗s are both along the<br />
x-axis, so ⃗ E · d⃗s = E dx. From B to A, ⃗ E and<br />
d⃗s are perpendicular, so ⃗ E · d⃗s = 0.<br />
and the following graphs:<br />
∝ 1 r<br />
∫ B<br />
V A − V O = −<br />
= −<br />
= −E<br />
O<br />
∫ x<br />
0∫ x<br />
O<br />
⃗E · d⃗s −<br />
E dx −<br />
∫ A<br />
B<br />
∫ y<br />
0<br />
0 dy<br />
dx = −E ∆x<br />
= −(250 V/m) (0.2 m)<br />
= −50 V .<br />
⃗E · d⃗s<br />
Q.<br />
G.<br />
0<br />
R<br />
∝ 1 r<br />
r<br />
The absolute value is<br />
|∆V | = 50 V .<br />
0<br />
R<br />
r<br />
Path II: In this case, E ⃗ · d⃗s = E cos θ ds .<br />
where cos θ = x ⇒ x = l cos θ .<br />
l<br />
∝ 1 r 2<br />
∫ l<br />
V A − V O = −E cos θ ds<br />
O<br />
= −E l cos θ<br />
= −E x .<br />
X .<br />
0<br />
R<br />
r
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 23<br />
∝ 1 r<br />
1. Y correct<br />
2. S<br />
P.<br />
3. L<br />
0<br />
R<br />
r<br />
4. X<br />
Z.<br />
M.<br />
Y.<br />
S.<br />
L.<br />
0<br />
0<br />
0<br />
0<br />
0<br />
R<br />
∝ 1 r<br />
R<br />
R<br />
R<br />
R<br />
∝ 1 r<br />
∝ 1 r 2<br />
∝ 1 r 2<br />
∝ 1 r 2<br />
∝ 1 r 2<br />
Which diagram describes the electric field<br />
vs radial distance [E(r) function] for a conducting<br />
sphere<br />
r<br />
r<br />
r<br />
r<br />
r<br />
5. Z<br />
6. G<br />
7. Q<br />
8. P<br />
9. M<br />
Explanation:<br />
The electric field for R < r with<br />
the sphere conducting and/or uniformly<br />
non-conducting: Because the charge distribution<br />
is spherically symmetric, we select a<br />
spherical gaussian surface of radius R < r,<br />
concentric with the conducting sphere. The<br />
electric field due to the conducting sphere is<br />
directed radially outward by symmetry and is<br />
therefore normal to the surface at every point.<br />
Thus, E ⃗ is parallel to dA ⃗ at each point. Therefore<br />
E ⃗ · dA ⃗ = E dA and Gauss’s law, where E<br />
is constant everywhere on the surface, gives<br />
∮<br />
Φ E = ⃗E · dA<br />
⃗<br />
∮<br />
= E dA<br />
∮<br />
= E dA<br />
= E ( 4 π r 2) = q in<br />
,<br />
ɛ 0<br />
where we have used the fact that the surface<br />
area of a sphere A = 4 π r 2 . Now, we solve for<br />
the electric field<br />
E =<br />
q in<br />
4 π ɛ 0 r 2<br />
=<br />
Q<br />
, where R < r . (1)<br />
4 π ɛ 0 r2 This is the familiar electric field due to a point<br />
charge that was used to develop Coulomb’s<br />
law.
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 24<br />
as in Part 1.<br />
The electric field for r < R with the<br />
E =<br />
Q<br />
4 π ɛ 0 r 2 , where R < r , (1) = k Q r ,<br />
R3 where R < r . (3)<br />
sphere conducting: In the region inside The electric field for r < R with the<br />
the conducting sphere, we select a spherical sphere uniformly non-conducting: In<br />
gaussian surface r < R, concentric with the this case we select a spherical gaussian surface<br />
conducting sphere. To apply Gauss’s law<br />
at a radius r where r < R, concentric<br />
in this situation, we realize that there is no with the uniformly charged non-conducting<br />
charge within the gaussian surface (q in = 0), sphere. Let us denote the volume of this<br />
which implies that<br />
sphere by V ′ . To apply Gauss’s law in this<br />
E = 0 , where r < R . (2)<br />
situation, it is important to recognize that the<br />
charge q in within the gaussian surface of the<br />
E ∝ 1 volume V ′ is less than Q. Using the volume<br />
r 2<br />
charge density ρ ≡ Q<br />
E<br />
V , we calculate q in :<br />
Y.<br />
q in = ρ V<br />
( ′<br />
) 4<br />
0 R<br />
r<br />
= ρ<br />
3 π r3 .<br />
048 (part 2 of 4) 10 points<br />
By symmetry, the magnitude of the electric<br />
Which diagram describes the electric field vs<br />
field is constant everywhere on the spherical<br />
radial distance [E(r) function] for a uniformly<br />
gaussian surface and is normal to the surface<br />
charged non-conducting sphere<br />
at each point. Therefore, Gauss’s law in the<br />
1. S correct<br />
2. L<br />
region r < R gives<br />
∮<br />
∮<br />
E dA = E dA<br />
3. X<br />
4. Z<br />
= E ( 4 π r 2) = q in<br />
.<br />
ɛ 0<br />
Solving for E gives<br />
5. G<br />
E =<br />
q in<br />
4 π ɛ 0 r 2<br />
6. Q<br />
ρ 4<br />
7. P<br />
= 3 π r3<br />
4 π ɛ 0 r 2<br />
8. Y<br />
= ρ r .<br />
3 ɛ 0<br />
9. M<br />
Because ρ =<br />
Q (by definition) and since<br />
Explanation:<br />
4<br />
The electric field for R < r with<br />
3 π R3<br />
the sphere conducting and/or uniformly k = 1 , this expression for E can be written<br />
as<br />
non-conducting: In the region outside the 4 π ɛ 0<br />
uniformly charged non-conducting sphere, we<br />
have the same conditions as for the conducting<br />
sphere when applying Gauss’s law, so<br />
E =<br />
Q r<br />
4 π ɛ 0 R 3
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 25<br />
Note: This result for E differs from the one we<br />
obtained in the Part 3. It shows that E → 0<br />
as r → 0. Therefore, the result eliminates the<br />
problem that would exist at r = 0 if E varied<br />
as 1 inside the sphere as it does outside the<br />
r2 sphere. That is, if E ∝ 1 for r < R, the field<br />
r2 would be infinite at r = 0, which is physically<br />
impossible. Note: Also the expressions for<br />
Parts 1 and 2 match when r = R.<br />
S.<br />
E<br />
0<br />
R<br />
E ∝ 1 r 2<br />
049 (part 3 of 4) 10 points<br />
Which diagram describes the electric potential<br />
vs radial distance [V (r) function] for a<br />
conducting sphere<br />
1. Z correct<br />
2. G<br />
3. Q<br />
4. P<br />
5. Y<br />
6. S<br />
7. L<br />
8. X<br />
9. M<br />
Explanation:<br />
The electric potential for R < r with<br />
the sphere conducting and/or uniformly<br />
non-conducting: In the previous parts we<br />
found that the magnitude of the electric field<br />
outside a charged sphere of radius R is<br />
E = k Q r 2 , where R < r ,<br />
where the field is directed radially outward<br />
r<br />
when Q is positive.<br />
In this case, to obtain the electric potential<br />
at an exterior point, we use the definition for<br />
electric potential:<br />
V = −<br />
∫ r<br />
= −k Q<br />
= k Q r<br />
E dr<br />
∞<br />
∫ r<br />
∞<br />
dr<br />
r 2<br />
, where R < r . (4)<br />
Note: This result is identical to the expression<br />
for the electric potential due to a point charge.<br />
The electric potential for r < R with<br />
the sphere conducting: In the region inside<br />
the conducting sphere, the electric field E =<br />
0 . Therefore the electric potential everywhere<br />
inside the conducting sphere is constant; that<br />
is<br />
Z.<br />
V = V (R) = constant , where R < r .<br />
V<br />
0<br />
R<br />
V ∝ 1 r<br />
r<br />
(5)<br />
050 (part 4 of 4) 10 points<br />
Which diagram describes the electric potential<br />
vs radial distance [V (r) function] for a<br />
uniformly charged non-conducting sphere<br />
1. G correct<br />
2. Q<br />
3. P<br />
4. Y<br />
5. S<br />
6. L<br />
7. X
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 26<br />
4. Cannot be determined<br />
V r = V R + ∆V<br />
= k Q ∫ r<br />
R − Explanation:<br />
E dr<br />
We know that the potential due to a collection<br />
of N point charges is given by<br />
R<br />
= k Q R − k Q ∫ r<br />
R 3 r dr , from Eq. 6<br />
R<br />
= k 2 Q<br />
2 R + k Q (<br />
R 2<br />
2 R 3 − r 2)<br />
V = 1 ∑<br />
N q i<br />
4 π ɛ 0 r<br />
i=1 i<br />
= k 3 Q<br />
2 R − k Q<br />
2 R 3 r2 = 1 ( q<br />
4 π ɛ 0 a + −q )<br />
= 0<br />
a<br />
8. Z<br />
= k Q (<br />
3 − r<br />
2 ) ,<br />
2 R<br />
where r < R .<br />
9. M<br />
Explanation:<br />
The electric potential for R < r with<br />
the sphere conducting and/or uniformly<br />
V<br />
V ∝ 1 r<br />
non-conducting: In the region outside the<br />
uniformly charged non-conducting sphere, we<br />
G.<br />
have the same conditions as for the conducting<br />
sphere when applying the definition for<br />
the electric potential; therefore,<br />
0 R<br />
r<br />
∫ r<br />
V = − E dr<br />
keywords:<br />
∞<br />
∫ r<br />
dr<br />
Finding Zero Potential<br />
= −k Q<br />
∞ r 2<br />
25:06, trigonometry, multiple choice, < 1 min,<br />
= k Q fixed.<br />
, where R < r . (4)<br />
051 (part 1 of 4) 10 points<br />
r<br />
All of the charges shown are of equal magnitude.<br />
The electric potential for r < R with<br />
the sphere uniformly non-conducting:<br />
Because the potential must be continuous at<br />
r = R , we can use this expression to obtain<br />
the potential at the surface of the sphere; i.e.,<br />
−q +q<br />
the potential at a point on the conducting<br />
sphere is V = k Q a a<br />
r<br />
From Part 2 we found that the electric field<br />
inside an uniformly charged non-conducting<br />
(a)<br />
sphere is<br />
What is the electric potential E at the origin<br />
Assume zero potential at infinity.<br />
E = k Q r , where r < R . (6)<br />
R3 We can use this result in the definition for<br />
the electric potential to evaluate the potential<br />
difference ∆V = V r − V R (where V R = k Q R as<br />
shown in Eq. 4) at some interior point of the<br />
1. zero correct<br />
2. positive<br />
3. negative<br />
sphere, so
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 27<br />
052 (part 2 of 4) 10 points<br />
a<br />
a<br />
−q +q<br />
+q<br />
(b)<br />
2a<br />
What is the electric potential E at the origin<br />
1. zero<br />
2. positive correct<br />
3. negative<br />
4. Cannot be determined<br />
Explanation:<br />
V = 1 ( −q<br />
4 π ɛ 0 a + q a + q )<br />
> 0<br />
2 a<br />
053 (part 3 of 4) 10 points<br />
3. negative<br />
4. Cannot be determined<br />
Explanation:<br />
V = 1 ( −q<br />
4 π ɛ 0 2 a + −q<br />
2 a + q )<br />
= 0<br />
a<br />
054 (part 4 of 4) 10 points<br />
−q<br />
+q<br />
a<br />
+q<br />
(d)<br />
2a<br />
2a<br />
What is the electric potential E at the origin<br />
1. zero correct<br />
−q<br />
a<br />
+q<br />
−q<br />
2a<br />
2a<br />
2. positive<br />
3. negative<br />
4. Cannot be determined<br />
Explanation:<br />
V = 1 ( −q<br />
4 π ɛ 0 a + q<br />
2 a + q )<br />
= 0 .<br />
2 a<br />
(c)<br />
What is the electric potential E at the origin<br />
1. zero correct<br />
2. positive<br />
keywords:<br />
Charge on a Capacitor<br />
26:01, trigonometry, numeric, > 1 min, normal.<br />
055 (part 1 of 1) 10 points
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 28<br />
A 15 pF capacitor is connected across a 75 V<br />
source.<br />
What charge is stored on it<br />
Correct answer: 1.125 × 10 −9 C.<br />
Explanation:<br />
Let : C = 15 pF = 1.5 × 10 −11 F and<br />
V = 75 V .<br />
The capacitance is<br />
keywords:<br />
C = q V<br />
q = C V<br />
= (1.5 × 10 −11 F) (75 V)<br />
= 1.125 × 10 −9 C<br />
Capacitance Comparison 02<br />
26:02, trigonometry, multiple choice, > 1 min,<br />
fixed.<br />
056 (part 1 of 1) 10 points<br />
A parallel plate capacitor is connected to a<br />
battery.<br />
5. None of these.<br />
Explanation:<br />
The capacitance of a parallel plate capacitor<br />
is<br />
C = ɛ 0<br />
A<br />
d .<br />
Hence doubling d halves the capacitance,<br />
and Q = C V is also halved<br />
keywords:<br />
(<br />
C ′ = ɛ 0<br />
A<br />
2 d = 1 2 ɛ 0<br />
A<br />
d = 1 )<br />
2 C .<br />
Plate Separation<br />
26:02, trigonometry, numeric, > 1 min, normal.<br />
057 (part 1 of 1) 10 points<br />
A parallel-plate capacitor has a plate area of<br />
12 cm 2 and a capacitance of 7 pF.<br />
The permittivity of a vacuum is 8.85419 ×<br />
10 −12 C 2 /N · m 2 .<br />
What is the plate separation<br />
Correct answer: 0.00151786 m.<br />
Explanation:<br />
+Q −Q<br />
Let : A = 12 cm 2 = 0.0012 m 2 ,<br />
C = 7 pF = 7 × 10 −12 F , and<br />
ɛ 0 = 8.85419 × 10 −12 C 2 /N · m 2 .<br />
¢ £<br />
d<br />
¤ ¥<br />
2 d<br />
If we double the plate separation,<br />
1. the capacitance is doubled.<br />
2. the electric field is doubled.<br />
3. the potential difference is halved.<br />
4. the charge on each plate is halved. correct<br />
C = ɛ 0 A<br />
d<br />
d = ɛ 0 A<br />
( C<br />
8.85419 × 10 −12 C 2 /N · m 2)<br />
=<br />
keywords:<br />
7 × 10 −12 F<br />
× ( 0.0012 m 2)<br />
= 0.00151786 m .<br />
AP B 1993 MC 15 <strong>16</strong>
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 29<br />
26:03, trigonometry, multiple choice, > 1 min,<br />
C<br />
fixed.<br />
123 = C 12 C 3<br />
C 3 + C 12<br />
1<br />
= 1 + 1 = C 3 + C 12<br />
C 123 C 12 C 3 C 12 C 3<br />
058 (part 1 of 2) 10 points<br />
(6 µF) (3 µF)<br />
Consider the circuit<br />
=<br />
6 µF + 3 µF<br />
2 µF<br />
= 2 µF .<br />
3 µF<br />
c<br />
a<br />
b<br />
C 123 and C 4 are parallel, so<br />
5 µF<br />
C = C 4 + C 123<br />
4 µF<br />
= 7 µF .<br />
100 V<br />
What is the equivalent capacitance for this<br />
network<br />
1. C equivalent = 10 7 µF<br />
2. C equivalent = 3 2 µF<br />
3. C equivalent = 7 3 µF<br />
4. C equivalent = 7 µF correct<br />
5. C equivalent = 14 µF<br />
Explanation:<br />
C 1<br />
c<br />
a<br />
C 4<br />
C 2<br />
E B<br />
1. Q 1 = 360 µC<br />
2. Q 1 = 500 µC correct<br />
3. Q 1 = 710 µC<br />
4. Q 1 = 1, 100 µC<br />
5. Q 1 = 1, 800 µC<br />
Explanation:<br />
Let : C 4 = 5 µF<br />
E B = 100<br />
C 3<br />
and<br />
b<br />
V .<br />
Q 4 = C 4 V<br />
= (5 µF) (100 V)<br />
Let : C 1 = 2 µF ,<br />
C 2 = 4 µF ,<br />
C 3 = 3 µF ,<br />
= 500 µC .<br />
C 4 = 5 µF , and<br />
E B = 100 V .<br />
keywords:<br />
The equivalent capacitance of capacitors C 1<br />
and C 2 (parallel) is C 12 = C 1 + C 2 = 6 µF .<br />
C 12 and C 3 are in series, so<br />
059 (part 2 of 2) 10 points<br />
What is the charge stored in the 5-µF lowerright<br />
capacitor<br />
The charge stored in a capacitor is given by<br />
Q = C V , so,<br />
Capacitor Circuit 02<br />
26:03, trigonometry, numeric, > 1 min, normal.<br />
060 (part 1 of 2) 10 points<br />
A capacitor network is shown below.
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 30<br />
100 V<br />
9 µF<br />
y<br />
15 µF<br />
15 µF<br />
15 µF<br />
15 µF<br />
z<br />
15 µF 15 µF<br />
What is the equivalent capacitance between<br />
points y and z of the entire capacitor network<br />
Correct answer: 14.4545 µF.<br />
Explanation:<br />
Let : C a = C = 15 µF ,<br />
C b = C = 15 µF ,<br />
C c = C = 15 µF ,<br />
C d = C = 15 µF ,<br />
C e = C = 15 µF ,<br />
C f = C = 15 µF ,<br />
ER<br />
C x = 9 µF = 9 × 10 −6 F<br />
E B = V = 100 V .<br />
Cx<br />
C a<br />
Ce<br />
C f<br />
For capacitors in series,<br />
y<br />
z<br />
C b<br />
Cc<br />
C d<br />
and<br />
The capacitors C b , C c , and C d are in series,<br />
so<br />
1<br />
C bcd<br />
= 1 C + 1 C + 1 C = 3 C<br />
C bcd = 1 3 C .<br />
This reduces the circuit to<br />
ER<br />
Cx<br />
y<br />
z<br />
C a<br />
Ce<br />
C f<br />
Cbcd<br />
The capacitors C e and C bcd are parallel, so<br />
C bcde = C + C bcd = C + 1 3 C = 4 3 C .<br />
This reduces the circuit to<br />
ER<br />
Cx<br />
y<br />
z<br />
C a<br />
C f<br />
Cbcde<br />
The capacitors C a , C bcde and C f are in series,<br />
so<br />
1<br />
= 1 C abcdef C + 3<br />
4 C + 1 C = 11<br />
4 C<br />
C abcdef = 4<br />
11 C .<br />
This reduces the circuit to<br />
y<br />
1<br />
C series<br />
= ∑ 1<br />
C i<br />
V series = ∑ V i ,<br />
and the individual charges are the same.<br />
For parallel capacitors,<br />
C parallel = ∑ C i<br />
Q parallel = ∑ Q i ,<br />
and the individual voltages are the same.<br />
ER<br />
Cx<br />
Cabcdef<br />
z<br />
These capacitors are parallel, so<br />
C yz = C x + C abcdef<br />
= C x + 4<br />
11 C<br />
= 9 µF + 4 (15 µF)<br />
11<br />
= 14.4545 µF .
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 31<br />
061 (part 2 of 2) 10 points<br />
Case Two<br />
What is the charge on the 9 µF capacitor<br />
C 1 C ′ 2<br />
centered on the left directly between points y<br />
and z<br />
Correct answer: 0.0009 C.<br />
κ<br />
Explanation:<br />
C ≡ q V<br />
V<br />
q = C x V<br />
= (9 × 10 −6 F) (100 V)<br />
= 0.0009 C .<br />
1. None of these.<br />
2. C′ 12<br />
= 2<br />
C 12 1 + κ .<br />
3. C′ 12<br />
= κ .<br />
C 12<br />
4. C′ 12<br />
= 1 + κ<br />
C 12 2 κ .<br />
keywords:<br />
5. C′ 12<br />
= 1 + κ .<br />
C 12 2<br />
Capacitors in Series<br />
6. C′ 12<br />
=<br />
2 κ<br />
26:05, trigonometry, multiple choice, > 1 min, C 12 1 + κ . correct<br />
fixed.<br />
Explanation:<br />
062 (part 1 of 3) 10 points<br />
Consider the two cases shown below. In Case<br />
<strong>One</strong> two identical capacitors are connected to<br />
a battery with emf V . In Case Two, a dielectric<br />
slab with dielectric constant κ fills the<br />
gap of capacitor C 2 . Let C be the resultant<br />
capacitance for Case <strong>One</strong> and C ′ the resultant<br />
capacitance for Case Two.<br />
Case <strong>One</strong><br />
C 12 = C 1 C 2<br />
.<br />
C<br />
C 1 C 1 + C 2<br />
2<br />
The ratio C′ 12<br />
C 12<br />
of the resultant capacitances is<br />
Let : C 1 = C 2 = C and<br />
C ′ 2 = κ C 2 = κ C ,<br />
where κ is dielectric constant.<br />
V = constant. C 1 and C 2 are in series, so<br />
For Case <strong>One</strong>,<br />
For Case Two,<br />
1<br />
C 12<br />
= 1 C 1<br />
+ 1 C 2<br />
= C 2 + C 1<br />
C 1 C 2<br />
C 12 = C 1 C 2<br />
C 1 + C 2<br />
= C2<br />
2 C = C 2 .<br />
V<br />
C ′ 12 = C 1 C ′ 2<br />
C 1 + C ′ 2<br />
= κ C2<br />
(1 + κ) C = κ C<br />
1 + κ .
Therefore<br />
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 32<br />
C 12<br />
′ =<br />
2 κ<br />
C 12 1 + κ .<br />
4. U ′<br />
063 (part 2 of 3) 10 points<br />
of potential differences across<br />
V 2<br />
6. U ′<br />
2 κ<br />
1 + κ .<br />
V 2 = Q 2<br />
= V C 12<br />
= V C 2 C 2 2 .<br />
V 2 ′ = Q′ 2<br />
C 2<br />
′ = V C′ 12<br />
C 2<br />
′<br />
= V 1+κ<br />
κ C<br />
κ C = V<br />
1 + κ .<br />
V 2<br />
′<br />
= 2<br />
V 2 1 + κ .<br />
064 (part 3 of 3) 10 points<br />
of total energy stored in the<br />
U<br />
U = κ .<br />
The ratio V ′<br />
2<br />
capacitor C 2 for the two cases is<br />
1. V ′<br />
2<br />
V 2<br />
=<br />
2. V ′<br />
2<br />
V 2<br />
= κ .<br />
3. V ′<br />
2<br />
V 2<br />
= 2<br />
1 + κ . correct<br />
4. V ′<br />
2<br />
V 2<br />
= 1 + κ<br />
2 κ .<br />
5. V 2<br />
′<br />
= 1 + κ .<br />
V 2 2<br />
6. None of these.<br />
Explanation:<br />
For Case <strong>One</strong>,<br />
For Case Two,<br />
Therefore<br />
The ratio U ′<br />
capacitors for the two cases is<br />
1. None of these<br />
2. U ′<br />
U = 2<br />
1 + κ .<br />
3. U ′<br />
U = 1 + κ<br />
2 κ .<br />
5. U ′<br />
U = 1 + κ<br />
2<br />
U =<br />
Explanation:<br />
For Case <strong>One</strong>,<br />
For Case Two,<br />
Therefore<br />
keywords:<br />
.<br />
2 κ<br />
1 + κ . correct<br />
U = 1 2 C 12 V 2 .<br />
U ′ = 1 2 C′ 12 V 2 .<br />
U ′<br />
U = C′ 12<br />
C 12<br />
=<br />
2 κ<br />
1 + κ .<br />
Dielectric in a Capacitor 01<br />
26:05, trigonometry, multiple choice, > 1 min,<br />
wording-variable.<br />
065 (part 1 of 1) 10 points<br />
a) An isolated capacitor has a dielectric slab κ<br />
between its plates.<br />
b) The capacitor is charged by a battery.<br />
c) After the capacitor is charged, the battery<br />
is removed.<br />
d) The dielectric slab is then moved half way<br />
out of the capacitor.<br />
e) Finally, the dielectric is released and is set<br />
free to move on its own.<br />
κ<br />
The dielectric will<br />
1. be pulled back into the capacitor. correct<br />
2. remain in place.<br />
κ
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 33<br />
3. be pushed out of the capacitor.<br />
Explanation:<br />
The capacitance of a capacitor with a dielectric<br />
slab is<br />
C in = κ C out , where κ > 1 .<br />
NOTE<br />
When the battery is removed, the charge<br />
on the plates of the capacitor will remain<br />
constant. Charge is neither created nor destroyed.<br />
U out = 1 2<br />
U in = 1 2<br />
= 1 2<br />
Q 2<br />
C out<br />
,<br />
Q 2<br />
C in<br />
Q 2<br />
κ C out<br />
= 1 κ U out , so<br />
U in < U out ,<br />
and<br />
where U out is with an air-filled gap and U in<br />
is with a dielectric-filled gap. A system will<br />
move to a position of lower potential energy.<br />
After the dielectric is moved half way out<br />
of the capacitor, the potential energy stored<br />
in the capacitor will be larger than it would<br />
have been with the dielectric left in place.<br />
Therefore, the dielectric will be pulled back<br />
into the capacitor.<br />
keywords:<br />
Dipole in an External Field 0<br />
26:08, calculus, multiple choice, > 1 min,<br />
fixed.<br />
066 (part 1 of 1) 10 points<br />
A dipole (electrically neutral) is placed in an<br />
external field.<br />
(a)<br />
− +<br />
(b)<br />
−<br />
+<br />
− +<br />
(c)<br />
−<br />
+<br />
(d)<br />
For which situation(s) shown above is the<br />
net force on the dipole equal to zero<br />
1. (a) only<br />
2. (c) only<br />
3. (c) and (d) correct<br />
4. (a) and (c)<br />
5. (b) and (d)<br />
6. (a) and (d)<br />
7. (a), (b), and (c)<br />
8. (b), (c), and (d)<br />
9. Another combination<br />
10. None of these<br />
Explanation:<br />
Basic Concepts: Field patterns of point<br />
charge and parallel plates of infinite extent.<br />
The force on a charge in the electric field is<br />
given by<br />
⃗F = q E ⃗<br />
and the torque is defined as<br />
⃗T = ⃗r × ⃗ F<br />
∆E ⃗ = k ∆q<br />
r 2 ˆr<br />
⃗E = ∑ ∆ ⃗ E i .<br />
Symmetry of the configuration will cause<br />
some component of the electric field to be<br />
zero.
<strong>Version</strong> <strong>One</strong> – <strong>Homework</strong> 1 – <strong>Juyang</strong> <strong>Huang</strong> – <strong>24018</strong> – <strong>Jan</strong> <strong>16</strong>, 2008 34<br />
Gauss’ law states<br />
∮<br />
Φ S =<br />
⃗E · d ⃗ A = Q ɛ 0<br />
.<br />
Solutions: The electric dipole consists of<br />
two equal and opposite charges separated by<br />
a distance. In either situation (c) or (d), the<br />
electric field is uniform and parallel everywhere.<br />
Thus, the electric force on one charge<br />
is equal but opposite to that on another so<br />
that the net force on the whole dipole is zero.<br />
By contrast, electric fields are nonuniform for<br />
situations both (a) and (b).<br />
keywords:
