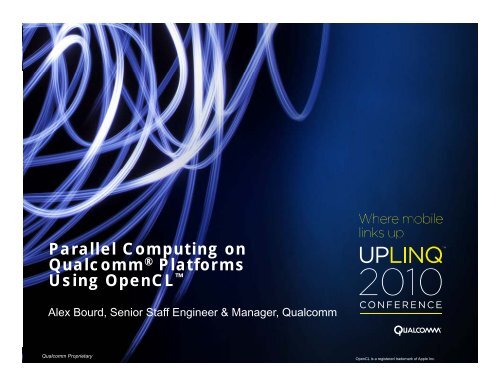

<strong>Parallel</strong> <strong>Computing</strong> on<br />
<strong>Qualcomm</strong><br />
® <strong>Platforms</strong><br />
<strong>Using</strong> <strong>OpenCL</strong> <br />
Alex Bourd, Senior Staff Engineer & Manager, <strong>Qualcomm</strong><br />
<strong>Qualcomm</strong> Proprietary<br />
<strong>OpenCL</strong> is a registered trademark of Apple Inc.
How can I harness all this power<br />
• Traditional parallel processing<br />
leverages similar, closely coupled<br />
processors<br />
• Mobile devices have many built-in<br />
processors, each with unique<br />
capabilities<br />
• Challenge: Capture and coordinate<br />
the power of disparate processors<br />
to solve a problem.<br />
• Harnessing this power opens up the<br />
opportunity for many applications,<br />
not previously possible on mobile<br />
devices<br />
2<br />
<strong>Qualcomm</strong> Proprietary
<strong>OpenCL</strong> – The Missing Piece<br />
• ”<strong>OpenCL</strong> (Open <strong>Computing</strong> Language)<br />
is the first open, royalty-free standard<br />
for general-purpose parallel<br />
programming of heterogeneous<br />
systems.”<br />
– Source: www.khronos.org<br />
• <strong>OpenCL</strong> provides a single<br />
programming API, single memory<br />
management model, and handles<br />
synchronization of data for different<br />
compute processors.<br />
• <strong>OpenCL</strong> makes applications a reality<br />
3<br />
<strong>Qualcomm</strong> Proprietary
Interaction with the real world<br />
Augmented Reality<br />
Object and Facial Recognition<br />
Gaming<br />
Fashion<br />
Landmarks<br />
Traffic scanning<br />
Navigation<br />
Sue<br />
Face tracking<br />
4<br />
<strong>Qualcomm</strong> Proprietary
Low Light Image Enhancement Effort<br />
<strong>OpenCL</strong><br />
% Speed-up over C2D<br />
100<br />
90<br />
80<br />
70<br />
60<br />
50<br />
40<br />
30<br />
20<br />
10<br />
0<br />
Speed-up vs Effort<br />
1 2 3 4 5 6<br />
Effort (Man-weeks)<br />
•Wavelet-based image de-noising<br />
algorithm<br />
•Speed-up shown of GTX260<br />
GPU vs. Core2Duo CPU<br />
•Optimizations include global<br />
memory coalescing, tileprocessing,<br />
loop unrolling and<br />
NDRange optimizations.<br />
Core2Duo is a registered trademark of Intel Inc.<br />
5<br />
<strong>Qualcomm</strong> Proprietary
3D Processing: Depth Queue Enhancement<br />
6<br />
<strong>Qualcomm</strong> Proprietary
7<br />
<strong>Qualcomm</strong> Proprietary
Heterogeneous Compute Devices on Modern<br />
Mobile <strong>Platforms</strong><br />
• A modern mobile processor contains multiple general purpose compute<br />
devices<br />
– Multiple CPUs with vector units<br />
• 2 <strong>Qualcomm</strong> Enhanced ARM CPUs<br />
@ 1.5GHz = 24 GFLOPS<br />
• Latency sensitive, control oriented<br />
– DSP<br />
• QDSP6 Multimedia DSP 2.4 GFLOPS<br />
• Fixed point signal Processing<br />
– GPGPU<br />
• Adreno @ 350MHz = 89.6 GFLOP<br />
• Latency tolerant, stream oriented<br />
• These compute devices must work well together to realize the computing<br />
potential of the system<br />
ARM is a registered trademark of ARM Inc.<br />
8<br />
<strong>Qualcomm</strong> Proprietary
General Purpose vs. Custom Devices<br />
• An Embedded <strong>OpenCL</strong> Platform has one or more <strong>OpenCL</strong> devices<br />
– Multicore CPU, GPGPU, DSP<br />
• These devices support programming via the <strong>OpenCL</strong> C API<br />
However:<br />
• Power is the absolute limiter in mobile:<br />
– Joule’s law dominates Moor’s law – performance is limited by power usage<br />
• Complex data types such as H.264 are better suited to dedicated HW<br />
• <strong>Qualcomm</strong> also incorporates additional Embedded Custom Devices for improved<br />
power and efficiency<br />
– Image effects processor<br />
– Image CODECs<br />
– Video CODECs<br />
– Audio CODECs<br />
– GPS device<br />
9<br />
<strong>Qualcomm</strong> Proprietary
Integrating Programmable and Custom Devices<br />
• Custom Device compute resources do not support <strong>OpenCL</strong> C<br />
– They might not be programmable<br />
– Their Instruction Set Architecture is insufficient for implementing general purpose APIs<br />
• Custom Devices need to become a part of <strong>OpenCL</strong> runtime<br />
– So that the application can use <strong>OpenCL</strong> scheduling mechanisms to distribute its<br />
workload<br />
– <strong>OpenCL</strong> memory mechanisms can be used to share data.<br />
• <strong>Qualcomm</strong> has proposed an Custom Device Extension for Khronos <strong>OpenCL</strong> to<br />
allow:<br />
– Standardized device-to-device synchronization with minimal CPU involvement<br />
• Including Custom and <strong>OpenCL</strong> C devices<br />
– Specialized HW devices to execute custom kernels using the host <strong>OpenCL</strong> kernel API<br />
• A kernel may accept 0 or more config parameters to define run-time behavior of the device<br />
– To enable proprietary firmware kernels<br />
• Proprietary kernels may be implemented for <strong>OpenCL</strong><br />
10<br />
<strong>Qualcomm</strong> Proprietary
<strong>Qualcomm</strong> <strong>OpenCL</strong> Plans<br />
• <strong>Qualcomm</strong> plans to support <strong>OpenCL</strong> CLfor our customers to both:<br />
– Take advantage of high performance processing units on our chipsets<br />
– Leverage the performance and power efficiency of key fixed function<br />
processors<br />
• Our customers can leverage <strong>Qualcomm</strong> parallel compute technology to:<br />
– Provide applications, not possible before, for a large volume of handheld<br />
mobile devices<br />
– Bring into play previously dedicated or difficult to access compute devices<br />
• <strong>Qualcomm</strong> Enhanced NEON , QDSP, Adreno Graphics compute processors<br />
– Efficiently share data processing between compute devices<br />
– Implement value added video and imaging functionality<br />
• CODECs, Effects, Image recognition<br />
– Take advantage mobile power efficiency for complex applications<br />
NEON is a trademark of ARM Inc.<br />
11<br />
<strong>Qualcomm</strong> Proprietary
Current <strong>Qualcomm</strong> Platform<br />
• Current solution supports individual processing units sharing data through format<br />
conversions and memory copies<br />
• CPU does synchronization and control<br />
C++,<br />
Java, etc<br />
OpenGL<br />
ES 2.0<br />
Processor<br />
QCT ONLY<br />
DirectShow ®<br />
OpenMAX<br />
DirectShow<br />
MSM<br />
Multi-core<br />
CPU<br />
Processor<br />
GPGPU<br />
Processor<br />
QDSP<br />
Processor<br />
Video<br />
CODEC<br />
Processor<br />
Image<br />
Processor<br />
(VFE)<br />
CPU<br />
GPU<br />
DSP<br />
Memory<br />
Memory<br />
Memory<br />
Video<br />
CODEC<br />
Memory<br />
Image<br />
Memory<br />
• Data exchanged through format conversions (stride, pixel depth, color formats) and memory copies<br />
Java is a trademark of Sun Microsystems Inc. OpenGL is a registered trademark of Silicon Graphics Inc. OpenMAX is a registered trademark of the Khronos Group Inc. DirectShow is a registered trademark of the Microsoft Corporation<br />
12<br />
<strong>Qualcomm</strong> Proprietary
<strong>Qualcomm</strong>’s <strong>OpenCL</strong> Platform<br />
1-4 vector processors<br />
1-2GHz<br />
8-64 GFLOPS<br />
Multi-core<br />
CPU<br />
Processor<br />
GPGPU<br />
Graphics<br />
Processor<br />
32-128 ALUs (shader processors)<br />
200-400 MHz<br />
13 - 102 GFLOPS<br />
Adreno ®<br />
Graphics<br />
2D/Vector<br />
GPU<br />
<strong>OpenCL</strong> programmable API plus:<br />
• Fixed function subsystems for<br />
performance and power efficiency<br />
• Consistent data format and data<br />
memory layout between fixed and<br />
parallel compute subsystems<br />
• Consistent synchronization<br />
methods without CPU intervention<br />
• Consistent process control<br />
Video<br />
CODEC<br />
Processor<br />
<strong>OpenCL</strong> Application<br />
Computation,<br />
synchronization, process<br />
control, data sharing for<br />
heterogeneous processing<br />
environment<br />
HD Video<br />
Encoding/Decoding<br />
QDSP<br />
Processor<br />
Vector rendering,<br />
compositing<br />
Image<br />
Processor<br />
(VFE)<br />
Pixel format conversion,<br />
Image compression<br />
Image enhancement,<br />
Scale & rotate<br />
Signal Processing<br />
0.6-2.4 GFLOPS<br />
13<br />
<strong>Qualcomm</strong> Proprietary
