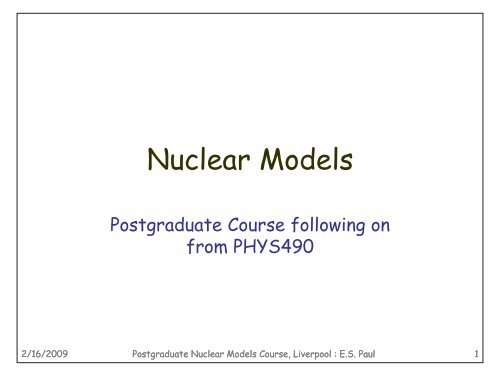

<strong>Nuclear</strong> <strong>Models</strong><br />
Postgraduate Course following on<br />
from PHYS490<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 1
<strong>Nuclear</strong> <strong>Models</strong><br />
1. Introduction<br />
2. Spherical Shell Model<br />
3. <strong>Nuclear</strong> Deformation<br />
4. Vibrational Motion<br />
5. Collective <strong>Nuclear</strong> Rotation<br />
6. <strong>Nuclear</strong> Pairing<br />
7. Cranked Shell Model<br />
8. Strutinsky Shell Correction<br />
9. Broken Symmetries<br />
10. Band Termination<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 2
1. Introduction<br />
The Unique Nucleus<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 3
<strong>Nuclear</strong> <strong>Physics</strong><br />
• The nucleus is one of nature’s most interesting quantal<br />
few-body systems<br />
• It brings together many types of behaviour, almost all of<br />
which are found in other systems but which in nuclei<br />
interact with one another<br />
• The major elementary excitations in nuclei can be<br />
associated with single-particle or collective modes<br />
• While these modes can exist in isolation, it is the<br />
interaction between them that gives nuclear spectroscopy<br />
py<br />
its rich diversity<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 4
The Nucleus is Unique!<br />
• The nucleus is a unique ensemble of strongly interacting<br />
fermions (nucleons)<br />
• Its large, yet finite, number of constituents controls<br />
the physics of this mesoscopic system<br />
• Both single-particle (out-of-phase) and collective (in-<br />
phase) effects occur<br />
• There is an analogy to a herd of wild animals. Individual<br />
id animals may break out of the herd but are rapidly<br />
drawn back to the safety of the collective<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 5
Generation of Angular Momentum<br />
• There are two basic ways<br />
of generating high-spin<br />
states in a nucleus<br />
1. Collective (in-phase)<br />
motions of the nucleons:<br />
vibrations, rotations etc<br />
2. Single-particle effects:<br />
pair breaking, particlehole<br />
excitations. The<br />
individual spins of a few<br />
nucleons j i generate the<br />
total nuclear spin<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 6
Collective Level Scheme<br />
• This nucleus has 347 known levels l and 516 gamma rays !<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 7
Noncollective Level Scheme<br />
• 148 Gd is an example of a<br />
nucleus showing single-<br />
particle behaviour<br />
• Complicated set of<br />
energy levels<br />
• No regular features<br />
e.g. band structures<br />
• Some states are<br />
isomeric<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 8
Do Nuclei Really Rotate?<br />
• Should we talk about collective motion in nuclei?<br />
• We need to identify fast and slow degrees of freedom<br />
• For example, in molecules electronic motion is the<br />
fastest, vibrations are 10 2 times slower and rotations 10 6<br />
times slower. These motions have very different time<br />
scales so the wavefunction can be separated into a<br />
product of the terms<br />
• For nuclei the differences are much smaller. Collective<br />
and single-particle modes can perhaps be separated, but<br />
they will interact strongly !<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 9
Single-particle/Collective Modes<br />
• Collective and single-particle modes will interact strongly<br />
• Core polarisation<br />
• Coriolis Forces: ‘backbending’,<br />
modification of shell structure,<br />
quenching of pairing<br />
• Finite size effects: ‘band termination’,<br />
blocking of collective excitations<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 10
What is a Model?<br />
• Quantum mechanics governs basic nuclear behaviour<br />
• The forces are complicated and cannot be written down<br />
explicitly<br />
• It is a many-body problem of great complexity<br />
• In the absence of a comprehensive nuclear theory we<br />
turn to models<br />
• A model is simply a way of looking at the nucleus that<br />
gives a physical insight into a wide range of its properties<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 11
2. Spherical Shell Model<br />
• Single-Particle Shell Model<br />
• Square Well, Harmonic Oscillator, Woods-Saxon<br />
• Spin-Orbit Obit Coupling<br />
• Shell Structure<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 12
Experimental Shell Effects<br />
• The energies of the<br />
first excited 2 + states<br />
in nuclei peak at the<br />
magic numbers of<br />
protons or neutrons<br />
• ‘B(E2)’ values (∝ 1/τ<br />
where τ is the mean<br />
lifetime) of the 2<br />
+<br />
states reach a minimum<br />
at the magic numbers<br />
• ‘Magic’ nuclei are<br />
spherical and the least<br />
collective<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 13
First 2 + Energies<br />
Z<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 14<br />
N
Systematics Near Z(N) = 50<br />
N = 50<br />
Z = 50<br />
• 100 Sn (Z=N=50) and 132 Sn (N=82) are doubly magic nuclei<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 15
Neutron Separation Energies<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 16
Shell Model – Mean Field<br />
N nucleons in<br />
a nucleus<br />
A nucleon in the<br />
Mean Field of<br />
N-1 nucleons<br />
• Assumption – ignore detailed two-body interactions<br />
• Each particle moves in a state independent of other<br />
particles<br />
• The Mean Field is the average smoothed-out<br />
interaction with all the other particles<br />
• An individual nucleon only experiences a central force<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 17
Shell Model Hamiltonian<br />
• If the short range interaction potential between two<br />
nucleons i and j is v(r ij ), then the average potential<br />
acting on each particle is:<br />
V i (r i ) = 〈 ∑ j v(r ij ) 〉<br />
• The Hamiltonian, H = ∑ i T i + ∑ ij v(r ij ), can be rewritten:<br />
H’ = ∑ i [T i + V i (r i )] + λ [∑ ij v(r ij ) - ∑ i V i (r i )]<br />
mean field residual interaction<br />
• For λ = 1, H’ = H. The shell model assumption is that<br />
λ → 0, i.e. the central interaction is much larger than<br />
the residual interactions<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 18
Choice of Potential<br />
• A central potential V(r i ) only depends on the distance<br />
r i and is made up of a superposition of short-range<br />
internucleonic potentials:<br />
V(r i ) = ∫v|r i – r’| ρ(r’) dr’<br />
• ‘ρ(r’)’ is the density distribution of the nucleus<br />
• The internucleonic potential may be represented by a<br />
delta function: v(r ij ) = -V 0 δ(r ij )<br />
• Then: V(r i ) = V 0 ρ(r)<br />
• The Schrödinger equation is: [T + V] Ψ(r) = E Ψ(r)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 19
Some Potential Wells<br />
• Square Well: V(r) = -V 0 for r ≤ R 0<br />
= 0 for r > R 0<br />
• Gaussian Well: V(r) = -V 0 exp[-(r/a) 2 ]<br />
• Exponential Well: V(r) = -V 0 exp[-2r/a]<br />
• Yukawa Well: V(r) = -(V 0 /r) exp[-r/a]<br />
• Harmonic Oscillator: V(r) = -V (/R) 0 [1-(r/R 0 2 ]<br />
• Woods-Saxon: V(r) = -V 0 / {1 + exp[(r-R 0 )/a]}<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 20
Well Comparisons<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 21
Square Well Potential<br />
Infinite square<br />
well potential<br />
• Simplest form of potential<br />
• Since we have a spherically<br />
symmetric potential we can<br />
separate the solutions into<br />
angular and radial parts<br />
• Radial solutions are Bessel<br />
functions which satisfy the<br />
boundary condition R nl (R) = 0<br />
• The eigenvalues are:<br />
R nl = {A/√(κr)} J l+½ (κr)<br />
where A is a constant and κ is<br />
the wave number of the nucleon:<br />
κ 2 = (2M/ħ 2 )[E nl + V]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 22
Square Well Labels<br />
• The levels are labelled by n and l (‘s’ = 0, ‘p’ = 1, ‘d’ = 2,<br />
‘f’ = 3, ‘g’ = 4, ‘h’ = 5, ‘i’ = 6, ‘j’ = 7, ‘k’ = 8)<br />
• Each level has 2(2l + 1) substates<br />
• The first few levels (different from H atom):<br />
Level Occupation Total<br />
1s 2 2<br />
1p 6 8<br />
1d 10 18<br />
2s 2 20<br />
1f 14 34<br />
2p 6 40<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 23
Harmonic Oscillator Potential<br />
Simple harmonic<br />
oscillator potential<br />
• Easy to handle analytically<br />
• Form of potential:<br />
V HO (r) = -V + ½mr 2 ω 2<br />
• Solutions are Laguerre<br />
polynomials<br />
• Eigenenergies are labelled by<br />
the oscillator quantum number N:<br />
E N = (N + 3/2) ħω<br />
• For each N there are degenerate<br />
levels l with n and l that satisfy:<br />
2(n-1) + l = N, N ≥ 0, 0 ≤ l ≤ N<br />
• The parity of each shell is (-1) N<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 24
Harmonic Oscillator Degeneracies<br />
• For each N there are degenerate energy levels with n<br />
and l that satisfy:<br />
2(n-1) + l = N, N ≥ 0, 0 ≤ l ≤ N<br />
• Even N contains only l even states; odd N, odd l<br />
• The degeneracy condition i is:<br />
∆l = 2 and ∆n = 1<br />
(e.g. N = 4 3s, 2d, 1g orbits)<br />
• It is the fundamental reason for shell structure, i.e.<br />
clustering of levels<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 25
Harmonic Oscillator Labels<br />
• The number of degenerate levels for a given N is<br />
(N+1)(N+2)<br />
N allowed l E N Occupation Total<br />
0 0 3/2 2 2<br />
1 1 5/2 6 8<br />
2 2,0 7/2 12 20<br />
3 3,1 9/2 20 40<br />
4 4,2,0 20 11/2 30 70<br />
5 5,3,1 13/2 42 112<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 26
(Wrong) Magic Numbers<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 27
Spin-Orbit Potential<br />
• In Atomic <strong>Physics</strong> the spin-orbit interaction comes<br />
about due to the interaction of an electron’s magnetic<br />
moment with the magnetic field generated by its<br />
motion about the nucleus<br />
• A similar interaction was introduced for nuclei to<br />
empirically fit the observed magic numbers<br />
• A term is added to the potential:<br />
V(r) → V(r) + µ l.ss<br />
• The new term makes the force felt by a nucleon<br />
dependent on the direction of its spin<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 28
Spin Orbit Energy<br />
• The spin-orbit term does not violate<br />
spherical symmetry and leaves l, j<br />
and j z as good quantum numbers,<br />
although l z and s z are not<br />
• The spin-orbit energy is:<br />
E l.s = {[4j(j+1)-4l(l+1)-1]/8}ħ 2 µ<br />
The vectors L and<br />
S precess about J<br />
• By making µ < 0, the magic numbers<br />
can be reproduced<br />
• States t with j = l + ½ are lower in<br />
energy than those states with j = l -<br />
½ (opposite way round to spin-orbit<br />
interaction ti in atoms !)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 29
Modified Harmonic Oscillator<br />
• The harmonic oscillator<br />
shells are shown to the<br />
left in this diagram<br />
• In the middle, an l 2 term<br />
is added to make the<br />
potential more realistic<br />
• A spin orbit term l.s is<br />
added to the right with<br />
its strength adjusted to<br />
obtain the correct<br />
nuclear magic numbers<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 30
Woods-Saxon Potential<br />
V 0 ~ 50 MeV<br />
R 0 ~ 6-7 fm (A=125-190)<br />
a ~ 0.5 fm<br />
4a = ‘skin thickness’<br />
• The Woods-Saxon (WS) nuclear potential is ‘supposedly’<br />
the most realistic<br />
• The potential has the form:<br />
V(r) = -V 0 / { 1 + exp[(r - R 0 ) / a] }<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 31
WS vs. MHO Potentials<br />
• The Woods-Saxon (WS)<br />
potential is the most realistic<br />
• The l 2 term in the Modified<br />
Harmonic Oscillator (MHO)<br />
potential flattens the bottom<br />
of the potential making it look<br />
more like the Woods-Saxon<br />
shape<br />
• There are slight differences<br />
between the MHO and WS<br />
energy levels, e.g. the<br />
ordering of the 2d 5/2 and 1g 7/2<br />
levels is interchanged<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 32
3. <strong>Nuclear</strong> Deformation<br />
• Shape parameterisation<br />
• Quadrupole deformation, β and γ<br />
• Triaxiality<br />
• Anisotropic Harmonic Oscillator, Nilsson Model<br />
• Large deformation<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 33
Evidence for Deformation<br />
1. Large electric quadrupole moments Q 0<br />
2. Low-lying rotational bands (E ∝ I[I+1] )<br />
The origin of deformation lies in the long range<br />
component of the nucleon-nucleon residual interaction:<br />
a quadrupole-quadrupole interaction gives increased<br />
binding energy for nuclei which lie between closed<br />
shells if the nucleus is deformed. d In contrast, the<br />
short range (pairing) component favours sphericity<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 34
Simple <strong>Nuclear</strong> Shapes<br />
• In the description of a ‘drop’<br />
of nuclear matter with a sharp<br />
surface, the equipotential<br />
surface R(θ,φ) can be<br />
expressed as a sum over<br />
spherical harmonics Y λµ (θ,φ):<br />
R(θ,φ) = R 0 [1 + ∑ λ ∑ µ α λµ Y λµ (θ,φ)]<br />
• Here R 0 is the radius of a<br />
sphere and the α λµ coefficients<br />
represent distortions from the<br />
equilibrium i spherical shape<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 35
Volume Conservation<br />
• By integrating over the shape of the nucleus, the volume<br />
for small deformation is:<br />
V ≈ (4π/3) [1 + 3α 00 /√(4π)] R 0<br />
3<br />
• To account for the incompressibility of nuclear matter<br />
we demand volume conservation under distortions and<br />
hence set α 00 = 0<br />
• A factor C(α λµ ) may be introduced to satisfy the<br />
conservation of volume more precisely:<br />
R(θ,φ) = C(α λµ ) R 0 [1 + ∑ λ ∑ µ α λµ Y λµ (θ,φ)]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 36
Most Important Multipoles<br />
• The λ = 1 term describes the displacement of the centre<br />
of mass and therefore cannot give rise to intrinsic<br />
excitation of the nucleus – ignore !<br />
• The λ = 2 term is the most important term and describes<br />
quadrupole deformation<br />
• The λ = 3 term describes octupole shapes which can look<br />
like pears (µ = 0), bananas (µ = 1) and peanuts (µ =2,3)<br />
• The λ = 4 term describes hexadecapole shapes<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 37
Variety of Shapes<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 38
Theoretical Deformations<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 39
Quadrupole Deformation<br />
The Euler angles<br />
relate the intrinsic<br />
(nucleus) and lab<br />
frame axes<br />
• The description of the nuclear<br />
shape simplifies if we make the<br />
principal axes of our coordinate<br />
system, i.e. (x, y, z), coincide with<br />
the nuclear axes (1, 2, 3)<br />
• Then α 22 = α 2-2 , and α 21 = α 2-1 = 0<br />
• The two independent coefficients<br />
α 20 and α 22 , together with the<br />
three Euler angles, then<br />
completely define the system<br />
• The shape then simplifies to:<br />
R = C R 0 [1 + α 20 Y 20 + α 22 (Y 22 +Y 2-2 )]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 40
β 2 and γ Parameters<br />
• An alternative parameterisation in the system of principal<br />
axes introduces the polar coordinates (β 2 , γ) through the<br />
relations:<br />
α 20 = β 2 cos γ and α 22 = -1/√2 β 2 sin γ<br />
• The parameter β 2 measures the total deformation:<br />
β<br />
2<br />
2 =∑ µ |α 2µ | 2<br />
• The parameter γ measures the lengths along the principal<br />
axes. For γ = 0°, the shape is prolate with the z-axis as<br />
the (long) symmetry axis<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 41
Quadrupole β 2 and γ Parameters<br />
prolate<br />
x > y = z<br />
60°<br />
oblate<br />
x = z > y<br />
Axially symmetric shapes<br />
γ = n 60°<br />
0°<br />
prolate<br />
x = y < z<br />
oblate<br />
x = y > z -60°<br />
prolate<br />
x = z < y<br />
oblate<br />
x < y = z<br />
Triaxial shapes : x ≠ y ≠ z<br />
γ ≠ n 60°<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 42
Lund Convention<br />
• In order to specify the<br />
triaxiality of a deformed<br />
quadrupole intrinsic<br />
shape, the range of γ<br />
values,<br />
0° ≤ γ≤60° is sufficient<br />
i • However, in order to<br />
specify a cranked system,<br />
we need three times this<br />
range, corresponding to<br />
the three principal axes<br />
about which the system<br />
can be cranked<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 43
Deformation Systematics<br />
Theory<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 44
Approximate Value of β 2<br />
• From an empirical fit to E2 transition rates (not valid<br />
near closed shells) it is found:<br />
T 4 γ (E2; 2 + → 0 + ) = (4 ± 2) x 10 10 Z 2 E γ4 A -1<br />
• This can be used for a ‘Grodzins’ estimate of the<br />
quadrupole deformation parameter:<br />
β 2 ≈ { 1225 / [ A 7/3 E(2 + ) ] } 1/2<br />
with the 2 + energy expressed in MeV<br />
• The energy of the 2 + state of an even-even nucleus hence<br />
gives an insight into the nuclear deformation. The lower<br />
the 2 + energy, the larger is β 2 and also the nuclear<br />
moment of inertia<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 45
First 2 + Energies<br />
Z<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 46<br />
N
Triaxiality<br />
• All three principal axes have different lengths:<br />
R x ≠ R y ≠ R z<br />
i.e. ‘short’, ‘long’ and ‘intermediate’ t axes<br />
• There is no symmetry axis (however, there is reflection<br />
symmetry) so K is not a good quantum number<br />
• The low-spin energy levels l in even-even nuclei move<br />
around as a function of γ<br />
• For γ≠0° an effective quadrupole deformation<br />
parameter may be defined:<br />
β 2 2 1/2<br />
eff = β { 4 sin (3γ) / [9 - √(81 -72 sin (3γ) )] } 2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 47
Asymmetric Rotor Model<br />
• The Asymmetric Rotor Model (ARM) investigates rigid<br />
triaxial shapes<br />
• The energies of the first two 2 + states are:<br />
E(2 + ) = (6ħ 2 /2I) {9[1 ± √(1 - 8/9 sin 2 (3γ))] /4 sin 2 (3γ)}<br />
• Hence from the experimental energies of the first 2 +<br />
states, a value of |γ| can be deduced<br />
• The higher spin states of the ground-state and γ-bands<br />
move around in energy as γ changes<br />
• Increasing γ tends to lower the energy levels of the<br />
γ-band relative to the ground-state band<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 48
ARM Energy Levels<br />
• These are the<br />
lowest energy<br />
levels of an<br />
asymmetric rigid-<br />
rotor predicted by<br />
the ARM<br />
• Note that the<br />
second 2 + state<br />
falls below the<br />
first 4 + state for<br />
|γ| ≥ 15°<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 49
More ARM Relations<br />
• For the odd-spin members of the γ band:<br />
E(3 + ) = E 1 (2 + ) + E 2 (2 + ) and E(5 + ) = 4 E 1 (2 + ) + E 2 (2 + )<br />
• Percentage differences for N = 76 isotones:<br />
Nucleus |γ| R 3 (%) R 5 (%)<br />
128<br />
Te 26.6° -1.21<br />
130<br />
Xe 27.6° +1.55<br />
132<br />
Ba 26.3° -0.98<br />
134 Ce 25.3° -179 -1.79<br />
136<br />
Nd 25.7° +0.38 +13.2<br />
138<br />
Sm 27.0° +0.79 +18.7<br />
140<br />
Gd 26.8° -2.53 +16.5<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 50
γ-rigidity or γ-softness?<br />
• The ARM considers<br />
the rotation of a rigid<br />
triaxial shape<br />
• The other extreme is<br />
a completely flat<br />
potential with respect<br />
to γ, with γ oscillating<br />
uniformly between<br />
γ = 0° (prolate) and<br />
γ = 60° (oblate)<br />
• Since the average is<br />
γ = 30°, we compare<br />
the two models at this<br />
value<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 51
Gamma-Band Staggering<br />
• As γ increases, a staggering arises between the odd-spin<br />
and even-spin members of the band<br />
• One way to measure this is to form the ratio:<br />
S(4,3,2) = { [ E 2 (4 + ) – E 1 (3 + ) ] - [ E 1 (3 + ) – E 2 (2 + ) ] } / E 1 (2 + )<br />
• The energies, in units of E 1 (2 + ), are:<br />
Model E + + + 2 (2 ) E 1 (3 ) E 2 (4 ) S(432) S(4,3,2)<br />
γ-rigid (30°) 2.0 3.0 5.67 +1.67<br />
γ-unstable 2.5 4.5 4.5 -2.0<br />
• Spherical Harmonic Vibrator: S(4,3,2) = -1.0<br />
• Symmetric Rotor (γ = 0°): S(4,3,2) = +0.33<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 52
S(4,3,2) Ratios vs. γ<br />
• The S(432) S(4,3,2)<br />
values for various<br />
types of motion<br />
are shown here as<br />
a function of the<br />
γ deformation<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 53
Do Triaxial Nuclei Really Exist?<br />
• Considerable effort has been made over the last<br />
twenty years to obtain conclusive evidence of (static)<br />
triaxial nuclear shapes<br />
• These efforts have recently been intensified by the<br />
experimental evidence of chirality (handedness) and<br />
the wobbling (precession) mode in nuclei (discussed<br />
later)<br />
• Triaxiality is an essential prerequisite for the<br />
manifestation of both of these effects in the<br />
atomic nucleus !<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 54
Anisotropic Harmonic Oscillator<br />
• The Anisotropic Harmonic Oscillator (AHO) potential<br />
for a spheroidal nucleus deformed along the z-axis may<br />
be written:<br />
V 2 osc = ½M[ω<br />
2<br />
⊥ (x 2 + y 2 ) + ω z2 z 2 ]<br />
• Here ω ⊥ and ω z represent the frequencies of the simple<br />
harmonic motion perpendicular and parallel to the<br />
nuclear symmetry axis, respectively, and are functions<br />
of the nuclear deformation:<br />
ω z ≈ ω 0 [1 – 2/3 δ], ω ⊥ ≈ ω 0 [1 + 1/3 δ]<br />
and ω 3 2 0 = ω ⊥2 ω z for volume conservation<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 55
Harmonic Oscillator Quantum<br />
• The Harmonic Oscillator quantum ω 0 is usually taken to<br />
have an isospin dependence:<br />
ħω 0 = 41 A -1/3 [1 ± (N-Z)/3A] MeV<br />
where the minus sign is used for protons and the plus<br />
sign for neutrons<br />
• In the ‘stretched’ coordinate system, the potential may<br />
then be written simply as:<br />
V osc = ½ħω 0 (ε 2 ) ρ 2 [1 – 2/3 ε 2 P 2 (cos θ t )]<br />
where ε 2 is (yet) another deformation parameter<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 56
δ, β and ε Parameters<br />
• Three deformation parameters are often used:<br />
1. Delta: δ = ∆R/R<br />
2. Epsilon: ε 2 defines a rotational ellipsoid<br />
3. Beta: β 2 defines a rotational quadrupoloid<br />
• If the deformation is not so large, then the following<br />
approximations hold:<br />
ε 2 ≈ 0.946 β 2 (1 - 0.1126β 2 )<br />
δ ≈ 0.946 β 2 (1 - 0.2700β 2 )<br />
• Also the hexadecapole β 4 parameter has opposite sign<br />
to the ε 4 parameter: ε 4 ≈ -0.85 β 4<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 57
Solutions of the AHO<br />
• The eigenvalues of the AHO potential are:<br />
E(n z ,n ⊥ ) = [n z + ½] ħω z + [n ⊥ + 1] ħω ⊥<br />
or<br />
E(N,n z ,n ⊥ ) ≈ [N +3/2] ħω 0 –1/3δ[2n z -n ⊥ ] ħω 0<br />
with N = n z + n ⊥<br />
• The latter expression is simply the energies of a<br />
Spherical Harmonic Oscillator minus a correction term,<br />
proportional to the deformation<br />
• The energy levels are labelled by the asymptotic<br />
quantum numbers:<br />
Ω π [N n z Λ]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 58
AHO Labels<br />
• The energy levels l are labelled ll by the asymptotic<br />
quantum numbers: Ω π [N n z Λ]<br />
• ‘N’: N = n x + n y +n z (= n z + n ⊥ ) is the oscillator quantum<br />
number<br />
• ‘n z ’: n z describes the z-axis component of N<br />
• ‘Λ’: Λ = l z is the projection of l onto the z-axis<br />
• ‘Ω’: Ω = Λ + Σ is the projection of j = l + s onto the z-<br />
axis<br />
• ‘π’: π = (-1) l is the parity of the state<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 59
The Λ, Σ, Ω Quantum Numbers<br />
• Spin projections: Ω = Λ + Σ = Λ ± ½<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 60
AHO Degeneracies<br />
• Some of the degeneracies of the SHO are lifted<br />
• Consider the N = 4 shell spherical oscillator shell which<br />
has degeneracy (N + 1)(N + 2) = 30 with l = 4, 2, 0.<br />
• The onset of deformation causes these levels to split<br />
into (N + 1) levels, each of degeneracy 2(n ⊥ + 1):<br />
n z n ⊥ Occupation<br />
4 0 2<br />
3 1 4<br />
2 2 6<br />
1 3 8<br />
0 4 10<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 61
Levels of the AHO<br />
• The splitting of the<br />
N = 4 oscillator shell<br />
is shown here when<br />
deformation is<br />
introduced<br />
• Note that levels with<br />
large n z (and hence<br />
small n ⊥ ) are favoured<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 62
Nilsson Model<br />
• Nilsson added terms proportional to l 2 and l.ss similar to<br />
the spherical case<br />
• The resulting Modified d Harmonic Oscillator (MHO) or<br />
Nilsson potential may be written as:<br />
V MHO = V osc – κħω 0 [2l t .s + µ(l t<br />
2<br />
- 〈l t2 〉 N ]<br />
where κ and µ are adjustable parameters. They are<br />
different for each major oscillator shell<br />
• The l t .ss term imitates tes the nuclear spin-orbit interaction<br />
n<br />
in the stretched coordinate system<br />
• The l 2 t2 term deepens the effective potential ti for<br />
particles near the nuclear surface<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 63
Remaining Degeneracies<br />
Nilsson Diagram<br />
• The l t .s and l t2 terms<br />
lift the 2(n ⊥ + 1)<br />
degeneracy of the<br />
N = n z + n ⊥ states<br />
• States with different<br />
Ω now have different<br />
energy<br />
• Each Ω π [N n z Λ] state<br />
is only twofold<br />
degenerate,<br />
corresponding to<br />
particles with ±Ω<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 64
Nilsson Single-Particle Diagrams<br />
N<br />
Z<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 65
Splitting of Ω States<br />
• Low Ω states favour<br />
prolate shapes<br />
• High Ω states<br />
favour oblate<br />
shapes<br />
• Note that each Ω<br />
state is now only<br />
twofold degenerate<br />
(±Ω)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 66
Splitting of Ω States<br />
David Campbell<br />
Florida State<br />
University<br />
it<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 67
Asymptotic Quantum Numbers<br />
• Because of the additional l.s and l 2 terms the<br />
physical quantities labelled by n z and Λ are not<br />
constants of the motion, but only approximately so<br />
• These quantum numbers are called asymptotic as<br />
they only come good as ε 2 → ∞<br />
• However, the quantum numbers N, Ω and π are always<br />
good labels provided that:<br />
1. the nucleus is not rotating and<br />
2. there are no residual interactions<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 68
Proton Nilsson Diagram<br />
• A ‘Nilsson Diagram’<br />
shows nuclear energy<br />
levels as a function of a<br />
quadrupole deformation<br />
parameter (β 2 , ε 2 or δ)<br />
• In this diagram, the<br />
large spherical shell<br />
gap at Z = 50 is rapidly<br />
diminished by the onset<br />
of deformation for both<br />
prolate (β 2 > 0) and<br />
oblate (β 2 < 0) shapes<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 69
Intruder Orbitals<br />
• The slope of Nilsson<br />
levels is related to the<br />
single-particle matrix<br />
element of the<br />
quadrupole operator:<br />
dE/dβ = - 〈k|r 2 Y 20 |k〉<br />
• Unnatural-parity low<br />
Ω prolate orbitals may<br />
‘intrude’ down into a<br />
lower shell at large<br />
deformation<br />
• This is the origin of<br />
superdeformation<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 70
Large Deformations<br />
• Deformed shell gaps<br />
(new ‘magic numbers’)<br />
emerge when the ratio<br />
of the major and minor<br />
nuclear axes are equal<br />
to the ratio of small<br />
integers<br />
• A superdeformed<br />
d<br />
shape has a major to<br />
minor axis ratio of 2:1<br />
• A hyperdeformed<br />
shape has a major to<br />
minor axis ratio of 3:1<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 71
Superdeformed 152 Dy<br />
• The SD band in<br />
152<br />
Dy is a very<br />
regular structure<br />
t<br />
with equally<br />
spaced gamma-ray<br />
transitions<br />
Original SD γ-ray spectrum<br />
from 1986 (Daresbury)<br />
• The spacing is<br />
relatively small,<br />
i.e. the band has a<br />
large moment of<br />
inertia (close to<br />
the rigid body<br />
value)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 72
Superdeformed Axis Ratios<br />
• The moment of inertia of a rigid sphere is:<br />
I rig = (A 5/3 /72) ħ 2 MeV -1<br />
• The moment of inertia of a prolate ellipsoid undergoing<br />
rigid rotation is:<br />
I rig = (A 5/3 /72) (1 + x 2 )/ 2x 2/3 ħ 2 MeV -1<br />
where x is the ratio of major to minor axes<br />
• The moment of inertia is not always a good indicator of<br />
nuclear deformation (e.g. pairing)<br />
• The quadrupole moment (charge distribution) is a<br />
better indicator:<br />
Q 0 = (2/5) Z R 2 (x 2 –1)/ x 2/3 eb<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 73
SD Systematics<br />
Nucleus Q 0 (eb) Axis Ratio<br />
36<br />
Ar 1.18 1.55<br />
60<br />
Zn 2.75 1.54<br />
82<br />
Sr 3.54 1.47<br />
91<br />
Tc 8.1 1.85<br />
108 Cd >9.5 >1.8<br />
132<br />
Ce 7.4 1.45<br />
152 Dy 17.5 185 1.85<br />
192<br />
Hg 17.7 1.61<br />
236<br />
U 32 1.84<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 74
SD Regions<br />
Z<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 75<br />
A
4. Vibrational Motion<br />
• Spherical Harmonic Vibrator<br />
• Particle-vibration coupling<br />
• Rotation-Vibration ti ti Model<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 76
Spherical Harmonic Vibrator<br />
• A dynamic deformation<br />
• We assume the nucleus<br />
is spherical in its ground<br />
state and the excited<br />
states are due to<br />
harmonic oscillations of<br />
the nuclear surface<br />
• For a quadrupole vibration, raton, the potential nta may be written: wrtt V vib = ∑ µ {½C 2 |α 2µ | 2 +½B 2 |dα 2µ /dt| 2 }<br />
where C 2 is a parameter representing the restoring<br />
potential and B 2 is associated with the mass carried by<br />
the vibration. This mode is possible since C 2 , determined<br />
by the surface tension, is low<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 77
Vibrator Eigenvalues<br />
• The eigenvalues of the spherical harmonic vibrator<br />
are:<br />
E n = E 0 + n ħω 2 with ω 2 = √(C 2 /B 2 )<br />
• E 0 represents the intrinsic and zero point motion of<br />
the oscillations<br />
• The energy levels for different n are equally spaced<br />
• Each phonon carries angular momentum 2 (Y 2 ) and has<br />
positive parity<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 78
• For an E2 transition:<br />
Allowed Transitions<br />
• For quadrupole vibrations,<br />
electromagnetic<br />
transitions are only<br />
allowed between states<br />
with:<br />
∆n = ±1<br />
〈I=2,n=1||E2||I=0,n=0〉 I 2 0 0 = √(5) Q vib e<br />
where Q vib is calculated from the Liquid Drop Model:<br />
Q vib = (3ZR 2 /4π) √(ħ/2B 2 ω 2 )<br />
• The magnetic moment is constant for λ = 2 states and<br />
therefore M1 transitions are not allowed<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 79
Multiphonon Vibrational States<br />
N = 3 (3 phonon)<br />
N = 2 (2 phonon)<br />
124<br />
Sn,<br />
spherical<br />
N = 1 (1 phonon)<br />
N = 0<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 80
Octupole Vibrations<br />
• For octupole vibrations,<br />
each phonon n carries<br />
angular momentum 3<br />
(Y 3 ) and negative parity<br />
• The energy of the first excited state (3 - ) is roughly<br />
twice the energy of the quadrupole case<br />
• For real nuclei, an anharmonic oscillator is needed. This<br />
removes the degeneracy of the n = 2 states (0 + , 2 + , 4 + )<br />
of the quadrupole vibrator. It also displaces the λ = 2<br />
and λ = 3 states relative to each other<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 81
Vibrational Movies…<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 82
Beta (Y 20 ) Vibration<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 83
Gamma (Y 22 ) Vibration<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 84
Octupole (Y 30 ) Vibration<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 85
Octupole (Y 31 ) Vibration<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 86
Octupole (Y 32 ) Vibration<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 87
Octupole (Y 33 ) Vibration<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 88
Particle-Vibration Coupling<br />
• For an odd-A nucleus<br />
near a closed shell with<br />
small deformation, the<br />
odd particle may couple<br />
to the surface vibrations<br />
of the core<br />
• The Hamiltonian is: H = [H int + H vib ] + H coup = H 0 + H coup<br />
• If we assume the interaction H coup → 0, the motions are<br />
decoupled from one another and the eigenfunctions will<br />
take a product form: H 0 Ψ = EΨ with Ψ = Ψ int Ψ vib<br />
• Consider coupling an h 9/2 proton to the 3 - state in 208 Pb,<br />
forming states in 209 Bi. Seven ‘degenerate’ states are<br />
formed by coupling spin vectors 3 and 9/2<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 89
Vibration or Rotation?<br />
• The simple ratio of<br />
the 4 + and 2 +<br />
energy levels of an<br />
even-even nucleus<br />
gives an indication<br />
of the types of<br />
excitation<br />
• For a vibrator:<br />
E ∝ n<br />
E(4 + )/E(2 + ) = 2.0<br />
• For a rotor:<br />
E ∝ I(I+1)<br />
E(4 + )/E(2 + ) = 3.33<br />
Te (Z = 52) systematics show that they are vibrational<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 90
Development of Collectivity<br />
• Another limiting value of the E(4 + )/E(2 + ) ratio is 2.5,<br />
corresponding to a γ-soft rotor, or γ-unstable oscillator<br />
(O(6) limit of the interacting tin boson model: IBM)<br />
• Adding protons to tin:<br />
Nucleus E(4 + )/E(2 + ) Behaviour<br />
116<br />
Sn (Z=50) 1.65 spherical<br />
118<br />
Te (Z=52) 1.99 vibrational<br />
120<br />
Xe (Z=54) 2.47 γ-soft<br />
122<br />
Ba (Z=56) 2.89 transitional<br />
124<br />
Ce (Z=58) 3.15 rotational<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 91
E(4 + )/E(2 + ) Values<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 92
Evolution of Structure<br />
• This diagram shows<br />
the evolution of level<br />
structure from<br />
closed shell (doubly<br />
magic, spherical) to<br />
midshell (rotational,<br />
deformed) nuclei<br />
• The corresponding<br />
E(4 + )/E(2 + ) ratios<br />
are also shown<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 93
Rotation-Vibration Model<br />
• The RVM model considers a well deformed (static),<br />
axially symmetric even-even nucleus and allows small<br />
fluctuations (dynamic) about the equilibrium shape β 0<br />
• After a ‘few’ approximations the energy spectrum may<br />
be written as:<br />
E = ½є [I(I+1) –K 2 R ] + є βn β + є γn γ<br />
where the є parameters are energies associated with<br />
rotations and vibrations<br />
• є R is related to β 0 and the nuclear moment of inertia I<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 94
RVM Quantum Numbers<br />
• The quantum numbers are constrained such that:<br />
K = 0, 2, 4,…<br />
I = 0, 2, 4,… for K = 0<br />
= K, K+1, K+2,… for K ≠ 0<br />
n β = 0, 1, 2,…<br />
n γ = K/2, K/2 + 2, K/2 + 4,…<br />
• So what are the possible low-lying l energy levels l ?<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 95
RVM Band Structure<br />
• For K = n β = n γ = 0, we expect a set of levels:<br />
l<br />
E = ½є R I(I+1)<br />
with I = 0, 2, 4,… ‘ground-state band’ represents pure<br />
rotation<br />
• A rotational ti band can be built on a β vibration by setting<br />
n β = 1. The energy levels are:<br />
E = є β + ½є R I(I+1)<br />
again with I = 0, 2, 4,… ‘β band’ (α 20 varies)<br />
• To include a γ vibration requires a nonzero K. So<br />
beginning with K = 2 and n γ = 1, the levels are:<br />
E = є γ + ½є R [I(I+1) – 4]<br />
this time with I = 2, 3, 4,… ‘γ band’ (α 22 varies)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 96
β and γ Bands<br />
• β-vibrational and γ-<br />
vibrational bands<br />
coexist with the<br />
rotational groundstate<br />
band in<br />
deformed nuclei<br />
• Such bands are found<br />
predominantly in the<br />
regions:<br />
150 ≤ A ≤ 190 and<br />
A ≥ 230<br />
which are far from<br />
shell closures<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 97
E0 Transitions<br />
• β vibrations give rise to enhanced E0 transitions due to<br />
radial shape oscillations in β<br />
• A measure of E0 strength is ‘rho squared’ :<br />
ρ 2 (E0) = |M(E0)/eR 2 | 2<br />
where M(E0) is the monopole moment operator:<br />
M(E0) = ∫ρ(r)r 2 dτ<br />
• The ρ 2 values are usually yquoted in units of ρ 2 (E0) x 10 3<br />
• In the RVM model we expect values around 200, but<br />
these are somewhat larger than experiment<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 98
More Vibrational Bands<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 99
Octupole Vibrational Bands<br />
238<br />
U<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 100
Nonadiabatic Vibration<br />
• For the surface modes of<br />
vibration, the frequency<br />
(velocity) of the<br />
oscillations is much smaller<br />
than that of the individual<br />
nucleonic motion<br />
• The motion is ‘adiabatic’<br />
(as is nuclear rotation) and<br />
individual quantum levels<br />
are evident<br />
• However, ‘nonadiabatic’<br />
collective motion can<br />
occur: ‘giant resonances’<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 101
Giant Resonances<br />
Monopole<br />
L = 0<br />
Isoscalar<br />
Isovector<br />
Dipole<br />
L = 1<br />
Quadrupole<br />
L = 2<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 102
5. Collective <strong>Nuclear</strong><br />
Rotation<br />
• <strong>Nuclear</strong> moments of inertia<br />
• Rotational band properties, signature<br />
• Particle-rotor t coupling<br />
• High-K bands, wobbling motion<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 103
Gammasphere<br />
• The Hulk<br />
• News Item<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 104
Moment of Inertia<br />
• Deformation provides an element of anisotropy allowing<br />
the definition of a nuclear orientation and the possibility<br />
of observing rotation<br />
• Classically the energy associated with rotation is:<br />
E 2 2 rot = ½ I ω = I / 2 I ; ω = I / I<br />
• Collective rotation involves the coherent contributions<br />
from many nucleons and gives rise to a smooth relation<br />
between energy and spin:<br />
E = (ħ 2 /2I) I[I + 1]<br />
which h defines the ‘static’ ti moment of inertia, sometimes<br />
denoted I (0)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 105
Energy Levels of a Rotor<br />
• The energy levels of a rotor<br />
are proportional p rti to I(I+1)<br />
• The ratios of energy levels<br />
for a rotor are:<br />
E(4 + )/E(2 + ) = 3.333<br />
E(6 + )/E(2 + ) = 7.0<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 106
Rotational Frequency<br />
• The intensive variable ω<br />
(rotation about the x axis)<br />
is related to the extensive<br />
variable I by the relation:<br />
ħω = dE/dI x<br />
≈ ½[E(I+1) – E(I-1)<br />
• Here I x is the projection of I<br />
onto the rotation axis (x):<br />
I x = √[I(I+1)-K 2 ] ħ<br />
The rotational frequency ω is distinct from the oscillator<br />
quantum ω 0 . In practice ω « ω 0 and the collective<br />
rotation can be considered as an adiabatic motion<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 107
Rigid Body Moment of Inertia<br />
• The rigid-body moment of inertia for a spherical nucleus<br />
is:<br />
I rig = (2/5) MR 2 = (2/5) A 5/3 m N r<br />
2<br />
0<br />
where m N is the mass of a nucleon (M = A m N ) and<br />
R = r 0 A 1/3 with r 0 = 12 1.2 fm<br />
• For a deformed nucleus:<br />
I rig = (2/5) A 5/3 m N r 02 [1 + 1/3 δ]<br />
where δ = ∆R / R 0<br />
• Typically nuclear moments of inertia are less than 50%<br />
of the rigid-body value at low spin<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 108
<strong>Nuclear</strong> Moments of Inertia<br />
• <strong>Nuclear</strong><br />
moments of<br />
inertia are<br />
lower than the<br />
rigid-body<br />
value – a<br />
consequence<br />
of nuclear<br />
pairing<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 109
<strong>Nuclear</strong> Rotation<br />
• The assumption of the ideal flow<br />
of an incompressible nonviscous<br />
fluid (Liquid Drop Model) leads<br />
to a hydrodynamic moment of<br />
inertia (surface waves):<br />
I hydro = I rig δ 2<br />
• This estimate is much too low !<br />
• We require short-range pairing ii<br />
correlations to account for the<br />
experimental values<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 110
Kinematic and Dynamic MoI’s<br />
• Assuming maximum alignment on the<br />
x-axis (I x ~ I), the kinematic moment<br />
of inertia is defined:<br />
I (1) = (ħ 2 I) [dE(I)/dI] -1 = ħ I/ω<br />
• The dynamic moment of inertia<br />
(response of system to a force) is:<br />
• Note that I (2) = I (1) + ω dI (1) /dω<br />
I (2) = (ħ 2 ) [d 2 E(I)/dI 2 ]<br />
-1 = ħ dI/dω<br />
• Rigid body: I (1) = I (2) Nucleus at high spin: I (1) ≈ I (2)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 111
General Rotation<br />
• A deformed rotor has a Hamiltonian of the form:<br />
H 2 2 rot = Σ k A k R k , A k = ħ /2I k<br />
where I k is the moment of inertia about the k th axis<br />
• For triaxial shapes the moments of inertia are:<br />
I k = (4/3) I 0 sin 2 [γ + k 2π/3 ]<br />
• For an axial nucleus deformed along the z-axis,<br />
I 1 = I 2 = I 0 and I 3 = 0, and the Hamiltonian is:<br />
H 2 2 22 2 2<br />
rot = (ħ /2I 0 ) [R 1 + R ] = (ħ /2I 0 ) R<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 112
Irrotational Moments of Inertia<br />
• This diagram shows<br />
the variation of the<br />
moments of inertia I k<br />
as a function of the<br />
triaxiality parameter γ<br />
• For a prolate nuclear<br />
shape (γ = 0°), I 1 = I 2<br />
and I 3 = 0<br />
• For γ = 30° , I 2 reaches<br />
a maximum and this<br />
represents the ‘most<br />
collective’ shape<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 113
Angular Momentum Coupling<br />
• Provided that the collective rotation is slow relative to<br />
the single-particle motion (adiabatic condition), the<br />
nuclear Hamiltonian can be separated into intrinsic and<br />
rotational parts:<br />
H = H int + H rot<br />
with eigenvalues Ψ = Ψ int Ψ rot<br />
• The intrinsic motion has angular momentum J, which is<br />
not a conserved quantity. It couples to the collective<br />
rotation R to give total spin:<br />
I = R + J<br />
• The total spin I is a constant of the motion together<br />
with its projection M<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 114
Various Spin Projections<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 115
Rotation Matrices<br />
• The intrinsic wavefunction can be characterised by the<br />
K projection. The three variables I 2 , M and K completely<br />
specify the state of motion The eigenfunctions are given<br />
by:<br />
Ψ rot = |IMK 〉 = √[(2I +1)/8π 2 ] D IMK (θ,φ,ψ)<br />
where the functions D IMK are ‘rotation matrices’<br />
• Note: Î 2 D IMK = I(I+1)ħ 2 D IMK<br />
; Î Z D IMK = Kħ D IMK<br />
Î ± D IMK = √[I(I+1) – K(KK1)]ħ D IMKK1<br />
• The rotational energy is:<br />
(1/2I 2 x )(Î 2 – Î z2 ) Ψ rot i.e. E rot = (ħ 2 /2I x )[I(I+1) – K 2 ]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 116
Signature Quantum Number ‘r’<br />
• For K = 0, the D IMK functions reduce to spherical<br />
harmonics Y IM and the nuclear wavefunction is:<br />
•<br />
Ψ r,IMK=0 = (1/√2) Ψ r,K=0 Y IM<br />
• The quantum number r is the ‘signature’ , related to the<br />
invariance of the system when rotated 180° about an axis<br />
perpendicular to the symmetry axis (z): operator R(π)<br />
• A second rotation by 180° brings the system back to its<br />
original orientation. Hence:<br />
R 2 (π) Ψ r,IMK = r 2 Ψ r,IMK = Ψ r,IMK<br />
• The allowed values of r are: (-1) I<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 117
Bands of Good Signature<br />
• For K = 0, we may classify rotational bands in terms of<br />
the signature quantum number<br />
• For r = +1, the allowed spins are:<br />
I = 0, 2, 4,…<br />
• For r = -1, the allowed spins are:<br />
I = 1, 3, 5,…<br />
• Hence for each signature we obtain a rotational band<br />
with the energy levels separated by 2ħ<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 118
Rotational Bands with K ≠ 0<br />
• For K ≠ 0, the total nuclear wavefunction takes the<br />
antisymmetrised form in order to satisfy the rotation<br />
(reflection) symmetry:<br />
Ψ IMK = √[(2I+1)/16π 2 ] {Ψ K D IMK + (-1) I+K Ψ -K D IM-K }<br />
where Ψ -K corresponds to a projection of the spin –K and<br />
is obtained by the operation R(π) Ψ K<br />
• The consequence of R(π) invariance for K ≠ 0 is that the<br />
intrinsic states Ψ K and Ψ -K , with eigenvalues ±K of J z , are<br />
degenerate and constitute only a single sequence of<br />
states with spins:<br />
I = K, K+1, K+2,…<br />
i.e. states with alternating signature<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 119
Particle-Rotor Coupling<br />
• For an axially symmetric deformed d rotor:<br />
H rot = (ħ 2 /2I 0 0) R 2 = (ħ 2 /2I 0 0) [I –J] 2<br />
= (ħ 2 /2I 0 ) [I.I + J.J -2I.J]<br />
where the I.J couples the degrees of freedom of the<br />
valence particles to the rotational motion and is<br />
analogous to the classical Coriolis and centrifugal forces<br />
• Now consider J to consist of a single particle<br />
(J →j) coupled to an even-even core<br />
H rot = (ħ 2 /2I 0 ) [(I 2 –I z2 ) + (j 2 –j z2 )–(I + j - + I - j + )]<br />
The final term couples intrinsic and rotational states<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 120
Particle-Rotor Coupling Schemes<br />
• (a) shows the strong-coupling limit or deformation-<br />
aligned (DAL) coupling scheme<br />
• (b) shows the weak-coupling limit or rotation-aligned<br />
(RAL) coupling scheme<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 121
Strong Coupling (DAL)<br />
• This limit is recognised when the level splitting of the<br />
deformed shell-model single-particle energies for<br />
different Ω values is large compared with the Coriolis<br />
perturbation, i.e. large deformation or small Coriolis<br />
matrix elements (low j, high Ω)<br />
• The angular momentum vector j precesses around the<br />
deformation axis and K is approximately a good quantum<br />
number<br />
• The energy spectrum is given by the set of levels:<br />
E rot = (ħ 2 /2I 0 0) ) [I(I+1) –K 2 ]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 122
Decoupling Limit (RAL)<br />
• For weakly deformed nuclei, or fast enough rotation, the<br />
Coriolis force may be so strong that the coupling of the<br />
valence nucleon to the deformed core is negligible<br />
• The Coriolis force tends to align the nucleonic angular<br />
momentum j with that of the rotational angular<br />
momentum R<br />
• In this limit, the rotation band has spins:<br />
I = j, j+2, j+4,…<br />
• The energies are: E rot = (ħ 2 /2I 0 0) (I - j x )(I – j x +1)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 123
K = ½ Bands in Odd-A Nuclei<br />
• The rotational energy of a K = ½ band is:<br />
E(I) = (ħ 2 /2I a(-1) I+½ 0 ) [I(I+1) + (I+½)]<br />
where a is the decoupling parameter<br />
• Bands can mix if ∆K = ±1<br />
• For K = ½ bands there is a<br />
diagonal matrix element of<br />
the form: 〈K=½|j + |K=-½〉<br />
where j + = j x + ij y which<br />
perturbs the energy<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 124
High K (I z ) Bands<br />
• If we have many paired<br />
nucleons outside the closed<br />
shell in the ground state t<br />
then alignment with the x-<br />
axis becomes difficult<br />
because the valence<br />
nucleons lie closer to the<br />
z-axis axis, i.e. they have high<br />
Ω values<br />
K = I z = ∑j z = ∑Ω<br />
• The sum K of these<br />
projections onto the<br />
deformation (z) axis is now<br />
a good quantum number<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 125
K Forbidden Transitions<br />
• It is difficult for rotational bands with high K values to<br />
decay to bands with smaller K since the nucleus has to<br />
change the orientation on of its angular momentum.<br />
• For example, the K π = 8 - band head in 178 Hf is isomeric<br />
with a lifetime of 4 s. This is much longer than the<br />
lifetimes of the rotational states built on it.<br />
• The K π = 8 - band head is formed by breaking a pair of<br />
protons and placing them in the ‘Nilsson configurations’:<br />
Ω [N n 3 Λ] = 7/2 [4 0 4] and 9/2 [5 1 4]<br />
• In this case: K = 7/2 + 9/2 = 8 and π = (-1) N(1) .(-1) N(2) = -1<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 126
K Isomers in 178 Hf<br />
• A low lying state with<br />
spin I = 16 and K = 16 in<br />
178 Hf is isomeric with a<br />
half life of 31 years !<br />
• It is yrast (lowest state<br />
for a given spin) and is<br />
‘trapped’ since it must<br />
change K by 4 units in its<br />
decay<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 127
K Forbiddenness<br />
• Strictly, in the decay of a high-K h band-head, d K can only<br />
change by an amount up to the multipolarity λ of the<br />
transition<br />
• The ‘degree of K forbiddenness’ is:<br />
ν = |∆K| - λ<br />
• The ‘hindrance factor’ is:<br />
f = F W = T 1/2γ / T<br />
W<br />
1/2<br />
where T 1/2γ is the partial γ-ray half-life and T<br />
W<br />
1/2 is the<br />
theoretical Weisskopf estimate<br />
• The ‘reduced hindrance factor’ is:<br />
f ν = f 1/ν = [ T 1/2γ / T<br />
W<br />
1/2 ] 1/ν<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 128
Hindrance Factors<br />
• The solid line shows<br />
the dependence of F W<br />
on ∆K for some E1<br />
transitions according<br />
to an empirical rule:<br />
log F W = 2{|∆K| - λ}<br />
= 2ν<br />
• i.e. F W values increase<br />
approximately by a<br />
factor of 100 per<br />
degree of K<br />
forbiddenness<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 129
Wobbling Motion and Triaxiality<br />
• Wobbling is a fundamental mode due to triaxiality which<br />
occurs when the axis of collective rotation does not<br />
coincide with one of the principal axes<br />
• For a deformed rotor the Hamiltonian is:<br />
H rot = (ħ 2 /2I x ) I x<br />
2<br />
+ (ħ 2 /2I y ) I y2 + (ħ 2 /2I z ) I z<br />
2<br />
• For a well-deformed but triaxial nucleus with I x » I y ≠ I z<br />
the energy of the wobbling rotor is:<br />
E(I,n W ) = (ħ 2 /2I x ) I(I+1) + ħω W (I) (n W + ½)<br />
where n W is the number of wobbling phonons and ω W is<br />
the wobbling frequency<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 130
Wobbling Frequency<br />
• The wobbling frequency is related to the rotational<br />
frequency as:<br />
with<br />
ω W = ω rot √[ (I x - I y)(I x - I z ) / (I y I z ) ]<br />
ω rot = ħ I / I x<br />
• Note for an axially symmetric prolate nucleus, I z goes to<br />
zero and ω W → ∞, i.e. there is no wobbling motion<br />
• A family of wobbling bands is expected for n W = 0, 1, 2,…<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 131
Wobbling Motion<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 132
Wobbling Bands in 165 Lu<br />
• A family of wobbling<br />
bands is expected to<br />
show very similar<br />
internal structure<br />
• TSD (Triaxial<br />
SuperDeformed) bands<br />
1, 2 and 3 in 165 Lu<br />
represent bands with 0,<br />
1 and 2 wobbling<br />
phonons, respectively<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 133
Electromagnetic Properties<br />
• A characteristic signature<br />
of wobbling motion is the<br />
occurrence of ∆I = ±1<br />
interband transitions with<br />
unusually large B(E2) out<br />
values that compete with<br />
the strong ∆I = 2 inband<br />
transitions, B(E2) in<br />
• ∆n W = 2 transitions are<br />
forbidden<br />
• Measured multipole mixing ratios for the interband<br />
∆I = 1 transitions in 165 Lu show them to be ~90% E2<br />
and only ~10% M1 !<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 134
6. <strong>Nuclear</strong> Pairing<br />
• Pairing and superfluidity<br />
• Odd-even mass difference<br />
• Quasiparticles<br />
• Coriolis antipairing and backbending<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 135
Experimental Evidence<br />
• The ground states of all even-even nuclei have I π = 0 +<br />
• The binding energies of odd-even nuclei are less than the<br />
mean value of the two neighbouring even-even nuclei<br />
• Doubly odd nuclei are even less bound<br />
• <strong>Nuclear</strong> moments of inertia are only 30-50% of the rigid-<br />
body value at low spin<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 136
Time Reversed Orbits<br />
• The greatest overlap<br />
would occur if two<br />
particles could orbit<br />
in the same level<br />
• Not allowed (PEP) !<br />
• The next greatest<br />
overlap occurs for<br />
particles in ‘time<br />
reversed’ orbits<br />
• The spins cancel to<br />
give I π = 0 +<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 137
Coupling Two Particles<br />
• The short-range (pairing) residual interaction yields<br />
an energetically favoured 0 + state<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 138
Scattering Between Orbits<br />
• Pairs of particles scatter from one<br />
orbit to another, induced by the<br />
pairing interaction<br />
• The particles change orbits in pairs<br />
so I π = 0 +<br />
• Since the orbits have<br />
different energies, the<br />
Fermi surface is smeared<br />
out over a region ±∆<br />
(±1.5 MeV)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 139
Odd-Even Mass Difference<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 140
Pairing Energies<br />
• The neutron separation energy is:<br />
S n = B(A,Z) –B(A-1,Z) = M(A-1,Z) –M(A,Z) + M n<br />
where B(A,Z) in the nuclear binding energy<br />
• The proton separation energy is:<br />
S p = B(A,Z) – B(A-1 1, Z-1) = M(A-1 1,Z-1) – M(A,Z) + M H<br />
• The pairing energies are:<br />
P n (A,Z) = S n (A,Z) – S n (A-1,Z) (neutron)<br />
P p (A,Z) = S p (A,Z) – S p (A-1,Z-1) 1Z 1) (proton)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 141
Pairing Hamiltonian<br />
• The Hamiltonian including a two-body monopole (i.e. I = 0)<br />
pairing interaction is:<br />
H = H sp + H pair = ∑є u [a u<br />
†<br />
a u + a ū<br />
†<br />
a ū ] - G∑a u1<br />
†<br />
a ū1<br />
†<br />
a ū2 a u2<br />
• Here a † and a are particle creation and annihilation<br />
operators<br />
• The first term is the sum of single-particle energies<br />
• The second term contains the pairing interaction that<br />
annihilates a pair of particles in time reversed orbits<br />
|u 2 〉 and |ū 2 〉 and simultaneously creates a pair in time<br />
reversed orbits |u 1 〉 and |ū 1 〉<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 142
Chemical Potential λ<br />
• The energy increase of the condensate per particle<br />
added defines the chemical potential λ<br />
• The Hamiltonian is: H’ = H – λÑ = H sp + H pair – λÑ<br />
where Ñ is the particle number operator<br />
• The two-body monopole pairing interaction is:<br />
H pair = -¼G P † P<br />
where the pair creation and annihilation operators are:<br />
P † = ∑ a † u a † ū<br />
and P = ∑ a ū a u<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 143
Pairing Strength G<br />
• The strength of the pairing term G is a positive constant<br />
• It is larger for high-j orbitals and depends on the spatial<br />
overlap of the two nucleons<br />
• The strength decreases with mass since in heavier nuclei<br />
the outer nucleons are further apart<br />
• The strength is also lower for protons than neutrons<br />
because of Coulomb repulsion<br />
• Approximately:<br />
G p = 17/A MeV and G n = 23/A MeV<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 144
Pairing Gap ∆<br />
• The pairing term contains the product of two creation<br />
and two annihilation operators<br />
• In order to simplify the calculations, the term P † P<br />
(product) is replaced by P † + P (sum) and:<br />
H pair = -½∆ [P † + P]<br />
which h introduces the pairing ii gap parameter ∆<br />
• Particle number is now not conserved ! The chemical<br />
potential λ is now treated as a Lagrange multiplier l and is<br />
varied to produce the correct particle number:<br />
〈Ψ|Ñ|Ψ〉 Ñ = N λ = - ∂E/∂N<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 145
Single Particle Levels with Pairing<br />
• An energy gap between<br />
the ground state and<br />
first excited state t of<br />
~ ∆ opens up<br />
• The excited states<br />
become bunched<br />
togetherth<br />
• A rough estimate of<br />
the energy required to<br />
create a particle-hole<br />
excitation ti is 2∆<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 146
<strong>Nuclear</strong> Ground State<br />
• Nuclei in their ground states are in specific<br />
configurations: some pairs of nucleons are above the<br />
Fermi surface (λ) and some states below the Fermi<br />
surface are empty<br />
• With pairing, states are not always full or always empty<br />
but filled for part of the time or empty for part of the<br />
time<br />
• The probability of a given level є u being occupied by a<br />
particle is:<br />
P u (є u ) = ½{ 1 + (є u – λ) / √[ (є u – λ) 2 + ∆ 2 ] }<br />
• Now P u (є u ) ≠ 0 or 1 around the Fermi surface !<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 147
Quasiparticles<br />
• A further simplification is to replace the pairwise<br />
interacting particles by a gas of noninteracting<br />
‘quasiparticles’, whose energies are then simply additive<br />
• A quasiparticle may be considered as a mixture of a<br />
particle and hole states<br />
• The Bogoliubov-Valatin l transformation ti changes the<br />
particle basis (a † ,a) into the quasiparticle basis (α † ,α):<br />
α u<br />
†<br />
= U u a u† + V u a ū<br />
; a u† = U u α u† -V u α ū<br />
α<br />
† ū = U u a ū† - V u a u ; a ū† = U u α ū† + V u α u<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 148
The Quasiparticle Vacuum<br />
• The transformation coefficients U u and V u can be<br />
obtained following a BCS treatment (superconductivity)<br />
• The BCS wavefunction is of the form:<br />
|Ψ † † BCS 〉 = Π u [U u + V u a u† a ū† ] |0〉<br />
where |0〉 〉 denotes the vacuum state of the particles<br />
and |Ψ BCS 〉 represents the quasiparticle vacuum<br />
• U u and V u represent occupation amplitudes (‘empty’ and<br />
‘filled’, respectively) and hence:<br />
|U 2 2 u | + |V u | = 1<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 149
Quasiparticle Energies<br />
• Expressions for U u and V u are:<br />
U u = (1/√2) ){ 1 + (є + λ) / E 1/2<br />
u ) u }<br />
V u = (1/√2) { 1 + (є u – λ) / E u } 1/2<br />
• The quasiparticle energy of a state |u〉 relative to the<br />
ground state is:<br />
E u = √[ (є u – λ) 2 + ∆ 2 ]<br />
where є u is the single-particle energy. Note that the<br />
lowest excited state of a paired nucleus is at a higher<br />
energy than for the unpaired case<br />
• The pair gap parameter may be expressed: ∆ = G∑U u V u<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 150
Destruction of Pairing<br />
• Strong external<br />
influences may destroy<br />
the superfluid nature<br />
of the nucleus<br />
• In the case of a superconductor, a strong magnetic field<br />
can destroy the superconductivity: i the ‘Meissner Effect’<br />
• For the nucleus, the analogous role of the magnetic field<br />
is played by the Coriolis force, which at high spin, tends<br />
to decouple pairs from spin zero and thus destroy the<br />
superfluid pairing correlations<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 151
Coriolis Antipairing Effects<br />
• Classically the Coriolis force is given by:<br />
F Cor = -2m [ω х v]<br />
• Coriolis Antipairing (CAP): the magnitude of ∆ gradually<br />
and smoothly decreases and the nuclear moment of<br />
inertia (∝ ω 2 ) increases<br />
• Rotational Alignment: At spin ~ 12ħ, the Coriolis force is<br />
strong enough to break a specific pair of valence<br />
nucleons and align their individual id angular momenta along<br />
the rotation axis<br />
• High-j low-Ω particles are the most susceptible<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 152
Demise Of Pairing<br />
• CAP and rotational<br />
alignments diminish the<br />
magnitude of the<br />
nuclear pairing<br />
• Eventually the nucleus<br />
may enter an unpaired<br />
phase at high spin<br />
• In addition to static<br />
pairing, dynamic pairing<br />
correlations occur<br />
resulting from<br />
fluctuations in ∆<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 153
Backbending<br />
• The breaking of a specific nucleonic pair and the<br />
rotational alignment of the angular momenta leads to<br />
a characteristic ‘S’ shape of the nuclear Spin vs<br />
Frequency<br />
• A contribution of the nuclear spin now comes from single<br />
particles:<br />
I = R + J<br />
with ih J ≈ (j x,max + j x,max – 1) in accordance with the PEP<br />
• The nucleus ‘changes gear’, i.e. slows down while<br />
maintaining the angular momentum<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 154
Backbending<br />
• The moment of inertia<br />
increases with increasing<br />
rotational frequency<br />
• Around spin 10ħ a<br />
dramatic rise occurs<br />
(rotational frequency) 2<br />
• The characteristic ti ‘S’<br />
shape is called a backbend<br />
( 158 Er)<br />
• A more gradual increase is<br />
called an upbend ( 174 Hf)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 155
Backbending Movie<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 156
Backbending Demonstration<br />
This movie shows Mark<br />
Riley’s “backbending<br />
machine” built here in<br />
Liverpool<br />
This movie shows<br />
backbending in the 1960s<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 157
Band Crossings<br />
• Backbending can be<br />
interpreted as the<br />
crossing of two<br />
bands<br />
• The ‘G’ band (Ground<br />
state) is a fully<br />
paired configuration<br />
• The ‘S’ band (Super<br />
or Stockholm)<br />
contains one broken<br />
pair<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 158
Quadrupole Pairing<br />
• Higher order pairing correlations may occur leading to<br />
configuration-dependent pairing which depends on the<br />
relative orientation of nuclei orbits in a deformed<br />
potential<br />
• The Y 21 quadrupole component has the largest effect<br />
on the moment of inertia. The nuclear shape still has<br />
Y 20 symmetry and hence the quadrupole pairing is of a<br />
dynamical nature<br />
• The generalised pair creation operator is:<br />
P † λ † 뵆 = ∑ 〈u 1 |r Y λµ |u 2 〉 a u1† a<br />
†<br />
ū2<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 159
Neutron-Proton Pairing<br />
• The concept of<br />
superconductivity,<br />
related to like nucleon<br />
pairs coupled to spin I = 0<br />
and isospin T = 1, can be<br />
extended to neutron-<br />
proton pairs with T = 0<br />
• The greatest overlap<br />
occurs if the particles<br />
are in the same orbitals<br />
• Strong neutron-proton<br />
pairing can occur for<br />
nuclei with N = Z<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 160
Nucleon Pairing<br />
• The isovector (T=1)<br />
n-p pairing (c) is<br />
similar to the n-n (a)<br />
and p-p p( (b)pairing<br />
• The isoscalar (T=0)<br />
n-p pairing (d) is<br />
clearly different<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 161
7. Cranked Shell Model<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 162
Cranking<br />
• A rotation is externally imposed on a nucleus about the<br />
x axis. The Schrödinger equation is:<br />
iħ ∂Ψ lab /∂t = H lab Ψ lab<br />
• Ui Using the rotation operator<br />
R x = exp [-iI x ωt]<br />
with Ψ lab = R x Ψ int and H lab = R x H int R<br />
-1<br />
x , the SE within the<br />
intrinsic i i frame becomes:<br />
iħ ∂Ψ int /∂t = [H int – ħωI x ] Ψ int<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 163
The Routhian<br />
• The cranked Hamiltonian or Routhian (just the energy in<br />
the rotating frame) is then:<br />
H ω = H int – ħωI x<br />
where ωI x is analogous to the classical Coriolis and<br />
centrifugal forces<br />
• In terms of single-particle states, the cranking<br />
Hamiltonian is:<br />
H ω = ∑ ω i h (i) = ∑ i [h int (i) – ħωj x (i)]<br />
where j x (i) are the components of the nucleonic angular<br />
momenta on the rotation axis (x)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 164
Single-Particle Routhians<br />
• The single-particle Routhian can be evaluated by solving<br />
the eigenvalue envalue equation:<br />
h ω |ν ω 〉 = e ω ω ν |ν 〉<br />
where |ν ω 〉 are the single-particle eigenfunctions in the<br />
rotating frame<br />
• The Routhian is simply the energy in the rotating frame<br />
of reference: e<br />
ω<br />
ν<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 165
The Alignment<br />
• The alignment is just the expectation value of j x : 〈j x 〉<br />
and is equal to the (negative) differential of the<br />
Routhian with respect to rotational frequency, i.e.<br />
de νω /dω = -ħ 〈ν ω |j x |ν ω 〉<br />
• Those orbits with large j x values, and hence low Ω<br />
values, are most affected by the rotation, i.e. the<br />
Coriolis Corols and centrifugal centrfugal forces<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 166
Symmetries of Rotating Nuclei<br />
• The time-reversal (twofold) degeneracy of the ±Ω<br />
states is lifted by the ωj x term<br />
j x<br />
• Axially symmetric potentials exhibit invariance with<br />
respect to rotations ti by 180° (π) about the three<br />
principal axes (reflection symmetry)<br />
• However, the cranking Hamiltonian is only invariant for<br />
rotation of π about the x axis<br />
R x (π) = exp(-iπI x )<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 167
Signature Quantum Number<br />
• A rotation of 2π leaves the wavefunction unchanged,<br />
except for a possible phase factor (±1), i.e.<br />
R x2 (π) Ψ = r 2 Ψ = (-1) A Ψ with r 2 = ±1<br />
• The eigenvalues r of the rotation operator R x (π), called<br />
signature, are good quantum numbers, i.e. . constants of<br />
the motion<br />
• The signature exponent quantum number α is defined:<br />
r = exp(-iπα)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 168
Signature Quantum Numbers<br />
• The signature is:<br />
r = ±1 (even A) α = 0, 1<br />
r = ±i (odd A) α = ±½<br />
• The spins are restricted<br />
according to<br />
α = I mod 2<br />
Only good quantum<br />
numbers: π and α<br />
• Total signature: α tot = ∑α<br />
• Total parity: π tot = Ππ<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 169
Signature Partners<br />
• Signature is a good<br />
quantum number at high<br />
spin<br />
• A splitting between the<br />
α = 0/1 (even A) or α =<br />
±½ (odd A) states gives<br />
rise to two distinct<br />
‘signature partner’ bands<br />
• For an orbital with angular momentum j the ‘favoured’<br />
band has signature: α f = j mod 2<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 170
CSM Calculations<br />
• Including pairing the CSM Hamiltonian is:<br />
H νω = H sp – ∆(P † + P) – λÑ – ωI x<br />
with H<br />
ω = ∑h ω , H sp = ∑h sp , I x = ∑j x and the total energy<br />
E = ∑e νω , i.e. a sum of the single-particle Routhians,<br />
e νω = 〈h νω 〉<br />
• The parameters λ (-∂E/∂N) and ω (-∂E/∂I) can be<br />
considered as Lagrange multipliers needed to constrain<br />
the particle number and angular momentum, respectively:<br />
〈Ñ〉 = N and 〈I = √[ I(I+1) –K 2 x 〉 [ ]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 171
Quasiparticle Diagrams<br />
• Here is an<br />
example of a<br />
Woods-Saxon<br />
quasiparticle<br />
diagram<br />
• Label (π, α)<br />
A (C) (+,+½)<br />
B (D) (+,-½)<br />
E (G) (-,-½)<br />
F (H) (-,+½)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 172
Comparison to Experiment<br />
• The results of cranking<br />
calculations provide<br />
Routhians rather than<br />
energies<br />
• The experimental data<br />
must be transformed<br />
into the intrinsic frame<br />
to afford detailed<br />
d<br />
comparisons<br />
• Quantities are<br />
approximated as<br />
quotients of finite<br />
differences<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 173
Moments of Inertia<br />
• The frequency for γ ray 1 is:<br />
ω(I) = (1/ħ) dE(I)/dI x ≈ E γ1 /2ħ<br />
• Expressions for the moments of inertia are:<br />
I (1) (I) = ħ 2 { (2I-1) / (E(I+1) – E(I-1) } = ħ 2 (2I-1) /E γ1<br />
I (2) (I-1) = ħ 2 { 4 / (E γ1 – E γ2 ) = 4ħ 2 / ∆E γ<br />
• The dynamic moment of inertia corresponds to spin I-1<br />
and the associated frequency should be calculated l at I-1.<br />
In practice, the average frequency is used:<br />
ω(I-1) ( ≈ (E γ1 + E γ2 ) / 4ħ<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 174
Experimental Routhian and<br />
Alignment<br />
• The experimental Routhian may be expressed as:<br />
E ω expt(I) = ½{ E(I+1) + E(I-1) } – ω(I) I x (I)<br />
but we are interested in obtaining a quasiparticle<br />
Routhian and so must subtract the collective rotational<br />
energy:<br />
e’(I) = E ω expt(I) - E ω ref(I)<br />
• Similarly, il l we remove the collective spin to produce the<br />
quasiparticle alignment:<br />
i x (I) = I x (I) – I x,ref (I)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 175
Choice of Reference<br />
• The reference removes the collective effects of rotation<br />
and leaves the energies and spins solely from the valence<br />
quasiparticles, in the rotating frame<br />
• The reference can be obtained from the ground state<br />
band (zero quasiparticle, vacuum) of a (neighbouring)<br />
even-even nucleus<br />
• At low spin, it is found that I ∝ ω 2 . Hence a ‘variable<br />
moment of inertia’ (VMI) reference can be fitted,<br />
introducing ‘Harris Parameters’ I 0 , I 1 :<br />
I (1) ref = I 0 + I 1 ω 2<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 176
Harris Parameters<br />
• The Harris Parameters can be obtained by fitting:<br />
I x,ref (ω) = ω{I 0 + I 1 ω 2 } + i x<br />
to the reference band. Note that i x = 0 for the ground-<br />
state band of an even-even nucleus<br />
• The energy reference is then given by:<br />
E ω fdω 2 4 2 ref = -ħ∫I x,ref = -½ω I 0 - ¼ ω I 1 + ⅛ħ /I 0<br />
where the final term, an integration constant, ensures<br />
that the ground-state energy, E ω ref(I=0), is zero<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 177
Expt. Alignments and Routhians<br />
• Experimental results<br />
for N = 74 isotones are<br />
shown here<br />
• A clear ‘backbend’ is<br />
seen for 132 Ce while the<br />
heavier nuclei show<br />
‘upbends’<br />
• E and F correspond to<br />
proton h 11/2 orbitals,<br />
and these are the<br />
quasiparticles that align<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 178
Band Crossings<br />
• Band crossings can be classified by the rotational<br />
frequency at which they occur ω c and the gain in<br />
alignment ∆i x at the crossing<br />
• Experimentally: These quantities can be obtained by<br />
plotting e’ vs. ω and i x vs. ω<br />
• Theoretically: Crossing frequencies can be obtained<br />
from CSM quasiparticle diagrams.<br />
• The gain is alignment is given by the slopes of the<br />
interacting levels, E and F:<br />
∆i x = -(1/ħ) { de’ E /dω + de’ F /dω }<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 179
Signature Splitting<br />
• The signature splitting between the components of an<br />
orbital is the difference in excitation energy (or<br />
Routhian) at a fixed frequency, e.g.<br />
∆e’ FE (ω) = e’ F (ω) – e’ E (ω)<br />
• The magnitude of the signature splitting is related to<br />
the admixture of the Ω = ½ component in the<br />
wavefunction and is larger for low Ω values<br />
• The Coriolis interaction connects states with Ω = ±1<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 180
Staggering Parameter<br />
• One way to enhance<br />
signature effects is to<br />
plot the<br />
staggering parameter S(I)<br />
S(I) = E(I) – E(I-1) - ½[ E(I+1) – E(I) + E(I-1) – E(I-2)]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 181
Signature Inversion<br />
• In some odd-odd nuclei<br />
at low spin the<br />
signatures are the<br />
‘wrong way round’ i.e.<br />
the ‘favoured’ signature<br />
is energetically<br />
unfavoured !<br />
• At hih higher spin the<br />
signatures revert to<br />
their ‘expected’<br />
ordering<br />
Doubly odd La systematics<br />
• This is still not fully<br />
understood<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 182
8. Strutinsky Shell Correction<br />
• Shell correction energy<br />
• Cranked Nilsson Strutinsky Model<br />
• Total Routhian Surfaces<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 183
Shell Effects<br />
• A nuclear ‘property’ (e.g.<br />
binding energy) usually<br />
shows an irregular<br />
behaviour with mass A<br />
(or Z or N). It is made<br />
up of an oscillatory part<br />
∆E on top of a smooth<br />
part E smooth<br />
• Strutinsky’s s idea was to use the shell model to obtain<br />
∆E as the local variation from the average smoothed<br />
(shell model) value, but then to use the Liquid Drop<br />
Model to calculate l the real ‘smooth’ behaviour E smooth<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 184
Strutinsky Shell Correction<br />
• To obtain both the global<br />
(liquid drop) and local<br />
(shell model) variations<br />
with δ, Z and A, Strutinsky<br />
developed a method to<br />
combine the best<br />
properties of both models<br />
(a) Liquid drop: g F (e) = g AV (e)<br />
(b) and (c) show shell effects.<br />
A change in nuclear binding<br />
arises from: g AV (e) – g F (e)<br />
• He considered the<br />
behaviour of the level<br />
density g(e) in the two<br />
models and calculated the<br />
‘fluctuation’ energy<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 185
Level Density<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 186
Strutinsky Procedure<br />
• The nuclear (binding) energy is considered to have to<br />
have an oscillatory ypart ∆E shell, caused by yquantal<br />
effects (shell model), superposed upon a smoothly<br />
varying liquid drop part E LD :<br />
E = E LD + ∆E shell<br />
• Strutinsky proposed that only ∆E shell (‘microscopic’)<br />
should be calculated within the framework of the shell<br />
model, while the smoothly varying part E LD<br />
(‘macroscopic’) should be taken from the Liquid Drop<br />
Model<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 187
Strutinsky Procedure (cont)<br />
• Similarly, the total shell-model energy E SH does not<br />
vary smoothly and is composed of oscillatory and<br />
smooth parts:<br />
E SH =∑ 1A є i = Ĕ SH + ∆E SH<br />
• The real and smoothed level densities can be defined<br />
by g(є) and ğ(є), respectively<br />
• The number of levels between є and є + dє is given by<br />
g(є) dє and the level density is:<br />
g(є) = ∑ i δ(є – є i )<br />
where δ(є – є i ) is the Dirac delta dl function<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 188
Strutinsky Procedure (cont)<br />
• The particle number can be evaluated as:<br />
A = ∫ λ g(є) dє<br />
• The total shell-model energy and the smoothed part are<br />
then given, respectively, as:<br />
E SH = ∫ λ є g(є) dє<br />
and Ĕ SH = ∫ λ’ єğ(є) dє<br />
• Note that λ≠ λ’ ’ because of a smearing of the Fermi<br />
surface when calculating Ĕ SH<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 189
Strutinsky Procedure (cont)<br />
• The total energy of the nucleus may finally be written<br />
as:<br />
E = E LD + ∆E SH = E LD + [E SH – Ĕ SH ]<br />
where E LD is the macroscopic contribution and [E SH – Ĕ SH ]<br />
is the microscopic shell correction<br />
• Note that the shell correction can be positive or negative<br />
• Negative values give increased binding and stability<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 190
Shell Correction Energies<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 191
Superheavy Island<br />
• Shell effects,<br />
particularly<br />
hexadecapole<br />
deformation, can<br />
stabilise very heavy<br />
nuclei<br />
• Such superheavy nuclei<br />
only exist because of<br />
subtle quantum<br />
mechanical effects<br />
leading to a localised<br />
region (‘island’) of<br />
increased stability<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 192
Strutinsky Method for Spin<br />
• The Strutinsky technique can be extended to include<br />
rotation<br />
• We introduce another ‘level density’:<br />
g 2 (є) = ∑ i 〈j x 〉 i δ(є – є i )<br />
• The total t single-particle l energy is obtained from the<br />
cranking Hamiltonian as:<br />
where I = ∫ λ g 2 (є) dє<br />
E SP (I) = ∫ λ є g(є) dє + ħω I<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 193
Strutinsky Method for Spin<br />
• The smoothed energy is:<br />
Ĕ(є) = ∫ λ’ єğ(є) dє + ħω ğ 2 (є) dє<br />
• The cranked Nilsson Strutinsky method includes<br />
deformation (ε 2 , ε 4 , γ) and spin<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 194
Cranked Nilsson Strutinsky<br />
• The total energy is:<br />
E (ε 2 ,ε 4 ,γ, I) = E LD (ε 2 ,ε 4 ,γ, I) + ∆E SH (ε 2 ,ε 4 ,γ, I)<br />
• The macroscopic energy contribution is can be calculated<br />
from:<br />
E LD = E surf + E Coul + (9ħI) 2 /2I rig<br />
• This method usually ignores pairing correlations and is<br />
hence only valid for high-spin states (I > 20 ħ)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 195
Total Routhian Surfaces<br />
• This method is based on the Woods-Saxon potential and<br />
includes pairing. The total energy of a nucleus (Z, N) as a<br />
function of deformation β’ = (β 2 , β 4 , γ) is:<br />
E(ω,Z,N,β’) = E macro (ω,Z,N,β’) + ∆E shell (ω,Z,N,β’)<br />
• The total Routhian is:<br />
+ ∆E pair (ω,Z,N,β’)<br />
E(ω,Z,N,β’) = E(ω=0,Z,N,β’)<br />
+ [〈Ψ ω |H ω (Z,N,β’)|Ψ ω 〉 - 〈Ψ|H ω=0 (Z,N,β’)|Ψ〉]<br />
-½ω 2 [I macro (A,β’) - I Strut (N,Z,β’)]<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 196
Total Routhian Surfaces (cont)<br />
• The term E(ω=0,Z,N,β’) corresponds to the liquid-drop<br />
energy, the single-particle shell correction energy, and<br />
the pairing in energy at zero rotational ti frequency<br />
• ‘[〈Ψ ω |H ω (Z,N,β β’)|Ψ ω 〉 - 〈Ψ|H ω=0 (Z,N,β β’)|Ψ〉]’ is the<br />
change in energy due to rotation<br />
• The term ½ω 2 [I macro (A,β’) - I Strut (N,Z,β’)] represents a<br />
renormalisation of the LDM energy which is required<br />
due to unrealistically large proton and neutron radii<br />
used in some parameterisations of the Woods-Saxon<br />
potential<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 197
TRS Maps<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 198
9. Broken Symmetries<br />
• Reflection Asymmetry: Octupole Bands<br />
• Handedness: Chiral Bands<br />
• Magnetic Rotation: ti Shears Bands<br />
• Transitional Nuclei: Critical Points<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 199
Reflection Asymmetry<br />
• If a nucleus is ‘reflection asymmetric’ (i.e. the odd<br />
multipole deformation parameters are non-zero, e.g.<br />
β 3 ≠ 0 is the most important) then the nuclear<br />
wavefunction in its intrinsic frame is not an eigenvalue<br />
of the parity operator:<br />
Ψ 2 (x ,y ,z) ≠ Ψ 2 (-x, -y, -z)<br />
• If β 3 ≠ 0 for a nucleus it is said to possess octupole<br />
deformation<br />
• The deformation can however be static, 〈β 3 〉 ≠ 0, or<br />
dynamic, 〈β 3 〉 = 0 (oscillating octopule shape)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 200
Octupole Band Structures<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 201
Octupole Vibrations in 238 U<br />
• This nucleus<br />
shows three<br />
octupole<br />
vibrational<br />
bands with<br />
dff different K<br />
values<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 202
Parity Splitting<br />
• For a static octupole shape, the negative parity states<br />
are interleaved (midway between) with the positive<br />
parity states<br />
• A measure of such a feature is the ‘parity splitting’,<br />
defined as:<br />
δE = E(I) - -½[ E(I+1) + + E(I-1) + ]<br />
• This quantity generally decreases towards zero with<br />
increasing spin and suggests that rotation may stabilise<br />
the octupole shape<br />
• A similar quantity is the difference in alignment:<br />
∆i x = i x- - i<br />
+<br />
x<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 203
Octupole Vibration or Deformed?<br />
• For an octupole<br />
vibrational<br />
phonon coupled<br />
to the positiveparity<br />
states:<br />
∆i x = 3 ħ<br />
• For a static<br />
octupole<br />
deformation:<br />
∆i x = 0<br />
x<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 204
Reflection (A)symmetry<br />
1 band 2 bands 2 bands 4 bands<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 205
Electric Dipole Moment<br />
• In a nucleus with octupole<br />
deformation, the centre of<br />
mass and centre of charge<br />
tend to separate, creating a<br />
non-zero electric dipole<br />
moment<br />
• Bands of opposite parity<br />
connected by strong E1<br />
transitions occur<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 206
Enhanced E1 Transitions<br />
• In heavy nuclei, E1 strengths typically lie between<br />
10 -4 and 10 -7 Wu<br />
• In nuclei with octupole deformation, the E1 strengths<br />
can be much higher: 10 -3 –10 -2 Wu<br />
• The intrinsic dipole moment of an octupole deformed<br />
nucleus is:<br />
D 0 = C LD A Z e β 2 β 3<br />
with the liquid drop constant C LD = 0.0007 fm<br />
• In a Strutinsky type approach, macroscopic and<br />
microscopic effects can be considered and:<br />
D = D macro + D shell<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 207
Experimental Dipole Moments<br />
• Experimental values of D 0 can be obtained by measuring<br />
B(E1)/B(E2) ratios, related simply to γ-ray energies and<br />
intensities<br />
• The B(E1) reduced transition rate is:<br />
B(E1;I→I-1) = (3/4π) e 2 D 0<br />
2<br />
|〈 I i K i 1 0 | I f K f 〉| 2<br />
• The B(E2) reduced d transition rate is:<br />
B(E2;I→I-2) = (5/16π) e 2 Q<br />
2<br />
0 |〈 I i K i 2 0 | I f K f 〉| 2<br />
• Hence if Q 0 is known (e.g. from the quadrupole<br />
deformation β 2 ) then a value for D 0 can be extracted, i.e:<br />
D 0 = √[5B(E1)/16B(E2)] Q 0<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 208
Simplex Quantum Number<br />
• The only symmetries for a rotating reflection<br />
symmetric nucleus are parity p and signature r<br />
• For a reflection asymmetric shape (e.g. octupole) these<br />
are no longer good quantum numbers but the nucleus is<br />
invariant with respect to a combination of rotation of<br />
180° about the x axis (R(π)) and change of parity (P)<br />
• The ‘simplex’ operator is defined as:<br />
S = P R(π) -1<br />
with eigenvalues: s = -pr = ±i , ±1<br />
(p = s exp[iπI])<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 209
Parity Doublets<br />
• For K ≠ 0, four ∆I = 2 (E2) bands are formed based on<br />
states with K ± and (K+1) ±<br />
• The simplex quantum number can be used to classify<br />
these structures<br />
• For an even-even nucleus:<br />
s = +1 describes states (0 + ), 1 - , 2 + , 3 - , 4 + …<br />
s = -1 describes states (0 - ), 1 + , 2 - , 3 + , 4 - …<br />
• For an odd-A nucleus:<br />
s = +i describes states 1/2 + , 3/2 - , 5/2 + , 7/2 - ,…<br />
s = -i describes states 1/2 - , 3/2 + , 5/2 - , 7/2 + ,…<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 210
Parity Doublets in 223 Th<br />
• The nucleus 223 Th shows<br />
parity doublets<br />
• The two ∆I = 2 bands, shown<br />
to the left, are connected by<br />
strong E1 transitions and have<br />
simplex s = -i<br />
• The two ∆I = 2 bands, to the<br />
right, have simplex s = +i<br />
s = -i s = +i<br />
• M1 transitions also connect<br />
some of the bands<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 211
Octupole Magic Numbers<br />
• Octupole correlations<br />
occur between orbitals<br />
which differ in both<br />
orbital (l) and total (j)<br />
angular momenta by 3<br />
• Magic numbers occur at<br />
34, 56, 88 and 134<br />
• Nuclei with both proton<br />
and neutron numbers<br />
close to these are the<br />
best candidates to show<br />
octupole effects<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 212
Rotational Invariance<br />
• From Kris Starosta (Michigan State University)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 213
Space Inversion Invariance<br />
• From Kris Starosta (Michigan State University)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 214
Chirality (Handedness)<br />
• ‘I call any geometric figure, or<br />
group of points, chiral, and say<br />
it has chirality, if its image in a<br />
plane mirror, ideally realised,<br />
cannot be brought to coincide<br />
with itself’ Lord Kelvin 1904<br />
• Examples of chiral systems are<br />
found throughout h nature and in<br />
several disciplines of science<br />
• Axial vectors of angular momenta<br />
systems of opposite chirality are<br />
related by time reversal<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 215
Chiral Geometry<br />
• Spontaneous n chiral symmetry breaking can occur in<br />
triaxial doubly odd nuclei when there are three mutually<br />
perpendicular p spin vectors of differing lengths that can<br />
form a left-handed or right-handed configuration<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 216
Odd-Odd Mass 130 Nuclei<br />
• Region of triaxial shapes (x ≠ y ≠ z)<br />
• Consider the πhh 11/2 νhh 11/2 configuration<br />
n<br />
1. The proton Fermi surface lies at the bottom of the<br />
h 11/2 subshell: the proton single-particle j aligns along<br />
the short axis<br />
2. The neutron Fermi surface lies at the top of the h 11/2<br />
subshell: the neutron single-particle j aligns along the<br />
long axis<br />
3. The irrotational moment of inertia is largest for γ =<br />
30°: the core angular momentum aligns along the<br />
intermediate t axis<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 217
Irrotational Moments of Inertia<br />
• This diagram shows<br />
the variation of the<br />
moments of inertia I k<br />
as a function of the<br />
triaxiality parameter γ<br />
• For a prolate nuclear<br />
shape (γ = 0°), I 1 = I 2<br />
and I 3 = 0<br />
• For γ = 30° , I 2 reaches<br />
a maximum and this<br />
represents the ‘most<br />
collective’ shape<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 218
Chiral Operator<br />
• The chiral operator is a combination of time reversal and<br />
rotation by 180°: Ô = TR y (π)<br />
• The left-handed and right-handed systems are related<br />
to each other by this operator:<br />
|L〉 = Ô|R〉 and |R〉 = Ô|L〉<br />
• For a prolate nucleus, chiral symmetry is good: |R〉 = |L〉<br />
• However, for the triaxial odd-odd case: |R〉 ≠ |L〉<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 219
Restoration of Chiral Symmetry<br />
• Note that |R〉 and |L〉 are not solutions of the nuclear<br />
Hamiltonian in the lab frame and chiral symmetry must<br />
be restored by forming wavefunctions ns of the form<br />
(similar to the octupole case):<br />
|+〉 = (1/√2) [|R〉 + |L〉]<br />
|-〉 = (i/√2) [|R〉 -|L〉]<br />
• This leads to the doubling of the states and the<br />
occurrence of two (near) degenerate ∆I = 1 bands of<br />
the same parity<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 220
Chiral Twin Bands<br />
Two near degenerate ∆I = 1 bands of the same parity arise<br />
(cf octupole bands: two ∆I = 1 bands of opposite parity)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 221
Cranking Symmetries<br />
• If the nuclear spin I lies<br />
along one of the principal<br />
axes, one ∆I = 2 band arises<br />
• If the spin lies in the plane<br />
defined by two principal<br />
axes, one ∆I = 1 band arises<br />
• If the spin moves out of<br />
these planes, two degenerate<br />
∆I = 1 bands occur (chiral<br />
twins)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 222
Magnetic Rotation<br />
• In spherical lead nuclei,<br />
regular bands of intense M1<br />
transitions have been found<br />
• The valence proton and<br />
neutron orbitals lie<br />
perpendicular to each other<br />
and produce a magnetic<br />
moment vector that breaks<br />
the spherical symmetry of<br />
the system and allows<br />
‘magnetic’ rotation<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 223
Shears Mechanism<br />
• In magnetic rotation, higher<br />
angular momentum is generated<br />
by the reorientation of the<br />
neutron and proton spin<br />
vectors<br />
• Originally perpendicular, the<br />
vectors close like the blades<br />
of a pair of shears to generate<br />
the higher angular momentum<br />
states<br />
• The B(M1) strength decreases<br />
with increasing spin as µ ⊥<br />
decreases<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 224
Shears Systematics<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 225
Antimagnetic Rotation<br />
• Expected in weakly deformed nuclei<br />
• In 106 Cd the spin is generated by<br />
closing the πg<br />
-1<br />
9/2 vectors ( j<br />
-1<br />
π bottom diagram )<br />
• Each πgg 9/2 hole combines with one<br />
νh 11/2 particle forming a pair of backto-back<br />
shears<br />
• Note that the magnetic moment for<br />
this situation is zero, i.e. µ ⊥ = 0<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 226
Antimagnetic Rotation in 106 Cd<br />
• The yrast band appears to stop at 26 + with a measured<br />
drop in B(E2) values, or collectivity it (cf band termination)<br />
ti 2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 227
Transitional Nuclei<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 228
Interacting Boson Model<br />
• Bosons are constructed from fermion pairs<br />
• <strong>Nuclear</strong> collective excitations are described in terms<br />
of N interacting s (l = 0) and d (l = 2) bosons<br />
• Algebraic model based on U(6) group<br />
• Limits:<br />
• SU(3) rotational<br />
• U(5) vibrational<br />
• O(6) gamma-unstable<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 229
Critical Point Symmetries<br />
gamma soft<br />
vibrator<br />
rotor<br />
• The Casten Triangle<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 230
10. Band Termination<br />
• Favoured and unfavoured termination<br />
• Abrupt and smooth termination<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 231
Introduction: Band Termination<br />
• A deformed prolate nucleus can increase its angular<br />
momentum by collective rotation about an axis<br />
perpendicular to its symmetry axis<br />
• However, the nucleus is a many-body quantal system and<br />
such collective behaviour must have an underlying<br />
microscopic basis<br />
• There is a limiting angular momentum that a given<br />
configuration can generate<br />
• Successive alignments occur until all the valence particles<br />
are aligned and move in equatorial orbits giving the<br />
nucleus an oblate appearence<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 232
Band Termination: 158 Er<br />
neutron<br />
backbend<br />
proton<br />
backbend<br />
No more ( rays<br />
Gamma Ray Energy<br />
• A band ‘terminates’ when all valence particles outside a<br />
doubly magic (spherical) core are aligned<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 233
Band Termination in 158 Er<br />
• When the valence np protons and nn neutrons align, the<br />
total spin is: I = ∑<br />
np<br />
i j i (p) + ∑<br />
nn<br />
i j i (n)<br />
and the rotational band is said to ‘terminate’<br />
• At termination ti 158 Er can be considered d as a spherical<br />
146<br />
Gd core plus 4 protons and 8 neutrons, generating<br />
a maximum spin 46ħ<br />
• The configuration is: π(h 11/2 ) 4 ⊗ ν(i 13/2 ) 2 (h 9/2 ) 3 (f 7/2 ) 3<br />
• The terminating spin value of I max = 46 is generated as:<br />
(11/2+9/2+7/2+5/2) / / / + (13/2+11/2) / + (9/2+7/2+5/2) / / + (7/2+5/2+3/2)<br />
/ / 2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 234
Favoured Oblate States<br />
• Full termination represents the maximum alignment of<br />
all the valence particles outside a doubly magic core,<br />
consistent with the Pauli Exclusion Principle<br />
• Certain noncollective states representing maximal<br />
m<br />
alignment of a subset of the valence particles may be<br />
yrast leading to the observation of (energetically)<br />
favoured noncollective oblate states at a certain spin<br />
• Example: In<br />
157,158 Er energetically favoured states are<br />
seen at (I max –6),corresponding to two f 7/2 neutrons<br />
still being paired, i.e. they contribute 0 spin rather than<br />
7/2 + 5/2 = 6<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 235
Noncollective Oblate States in 121 I<br />
• Low-lying states are seen at<br />
I = 39/2 and 55/2<br />
• 121 I can be considered as a<br />
core ( 114 Sn) plus 3 valence<br />
protons and 4 valence<br />
neutrons<br />
• The configuration is<br />
π {h 11/2 g 7/22 } ν {h 11/24 }<br />
with maximum spin 55/2<br />
• If two of the protons remain<br />
paired we get the 39/2 state<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 236
Rigid Rotor Plot<br />
• The favoured nature of<br />
noncollective oblate<br />
states can be seen by<br />
plotting energy levels<br />
against spin<br />
• A rotating liquid-drop<br />
energy reference is<br />
subtracted:<br />
E LD = (ħ 2 /2I rig ) I(I+1)<br />
I ie 007 rig scaled to 158 Er, i.e. (ħ 2 /2I rig ) = 0.007 {158/A} 5/3 MeV<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 237
Shape Coexistence<br />
• Noncollective oblate<br />
states may coexist<br />
with collective<br />
rotational structures<br />
• In 119 I, collective<br />
structures are seen<br />
to the left and oblate<br />
states to the right<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 238
Smooth Band Termination<br />
• A novel type of ‘smooth’ band termination has been<br />
observed in several nuclei of the mass A = 110 region<br />
• Bands extend to very high energy (frequency) and the<br />
spacings between the γ rays increase (moment of<br />
inertia decreases)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 239
Drift Through the γ Plane<br />
• Smooth termination has<br />
been interpreted in the<br />
framework of the<br />
Cranked Nilsson<br />
Strutinsky method<br />
• It represents a gradual<br />
shape change from<br />
collective prolate (γ = 0°)<br />
to noncollective oblate<br />
(γ = 60°) over a wide spin<br />
range<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 240
Abrupt and Smooth Termination<br />
• The contrasting high-<br />
spin behaviour of<br />
117 Xe<br />
and 122 Xe is shown here<br />
• The rotational nature of<br />
122<br />
Xe abruptly breaks<br />
down above I = 22 ħ<br />
• The behaviour of 117 Xe<br />
appears more smooth<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 241
Termination Modes<br />
• Abrupt or<br />
favoured<br />
termination is<br />
shown at the<br />
top<br />
• Smooth or<br />
unfavoured<br />
termination is<br />
shown at the<br />
bottom<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 242
Termination Systematics<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 243
Band Termination in 152 Gd<br />
David Campbell<br />
Florida State<br />
University<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 244
Beyond Termination<br />
• At termination, several valence particles are aligned with<br />
the ‘rotation’ axis outside an ‘inert’ closed core (‘doubly<br />
magic’ spherical core)<br />
• How do we generate higher spin states?<br />
• We must break the core and form energetically<br />
expensive particle-hole excitations across the magic<br />
shell gaps of the core<br />
• A classic (state-of-the-art) case is the nucleus 157 Er<br />
which was studied with the Gammasphere spectrometer<br />
in Berkeley<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 245
157<br />
Er at High Spin<br />
• New high-energy h (15 (1.5-2.5 25 MeV), high-spin h transitions<br />
have been identified above I π = 87/2 - , 89/2 - and 93/2 +<br />
(new) terminating states<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 246
157<br />
Er Spectrum<br />
Several (weak) transitions are seen in the energy range<br />
1.0 – 2.5 MeV. Measured ∆I=2 transitions are labelled as<br />
Q (quadrupole) and ∆I=1 transitions as D (dipole)<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 247
157<br />
Er Rigid-Rotor Plot<br />
• Favoured oblate<br />
states are shown in<br />
gold<br />
• It costs a lot of<br />
energy to generate<br />
states of higher<br />
spin<br />
• The Z=64 proton<br />
core has to be<br />
broken to generate<br />
the highest spins<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 248
157<br />
Er Termination States<br />
• Relative to the 146 Gd<br />
core (Z=64, N=82), the<br />
[π{h 11/2 } 4 ]<br />
+<br />
16<br />
proton configuration is<br />
coupled to the neutron<br />
configurations (left) to<br />
produce energetically<br />
favoured noncollective<br />
oblate states<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 249
New Bands in 157,158 Er<br />
γ 5 spectra<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 250
Return of Collectivity in 158 Er<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 251
Triaxial SD Band in 158 Er<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 252
The End<br />
2/16/2009 Postgraduate <strong>Nuclear</strong> <strong>Models</strong> Course, Liverpool : E.S. Paul 253
