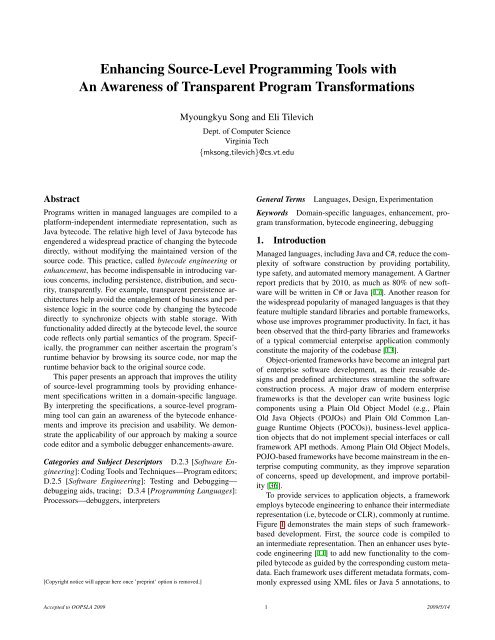

Enhancing Source-Level Programming Tools withAn Awareness of Transparent Program TransformationsMyoungkyu Song and Eli TilevichDept. of Computer ScienceVirginia Tech{mksong,tilevich}@cs.vt.eduAbstractPrograms written in managed languages are compiled to aplatform-independent intermediate representation, such asJava bytecode. The relative high level of Java bytecode hasengendered a widespread practice of changing the bytecodedirectly, without modifying the maintained version of thesource code. This practice, called bytecode engineering orenhancement, has become indispensable in introducing variousconcerns, including persistence, distribution, and security,transparently. For example, transparent persistence architectureshelp avoid the entanglement of business and persistencelogic in the source code by changing the bytecodedirectly to synchronize objects with stable storage. Withfunctionality added directly at the bytecode level, the sourcecode reflects only partial semantics of the program. Specifically,the programmer can neither ascertain the program’sruntime behavior by browsing its source code, nor map theruntime behavior back to the original source code.This paper presents an approach that improves the utilityof source-level programming tools by providing enhancementspecifications written in a domain-specific language.By interpreting the specifications, a source-level programmingtool can gain an awareness of the bytecode enhancementsand improve its precision and usability. We demonstratethe applicability of our approach by making a sourcecode editor and a symbolic debugger enhancements-aware.Categories and Subject Descriptors D.2.3 [Software Engineering]:Coding Tools and Techniques—Program editors;D.2.5 [Software Engineering]: Testing and Debugging—debugging aids, tracing; D.3.4 [Programming Languages]:Processors—debuggers, interpreters[Copyright notice will appear here once ’preprint’ option is removed.]General TermsLanguages, Design, ExperimentationKeywords Domain-specific languages, enhancement, programtransformation, bytecode engineering, debugging1. IntroductionManaged languages, including Java and C#, reduce the complexityof software construction by providing portability,type safety, and automated memory management. A Gartnerreport predicts that by 2010, as much as 80% of new softwarewill be written in C# or Java [17]. Another reason forthe widespread popularity of managed languages is that theyfeature multiple standard libraries and portable frameworks,whose use improves programmer productivity. In fact, it hasbeen observed that the third-party libraries and frameworksof a typical commercial enterprise application commonlyconstitute the majority of the codebase [13].Object-oriented frameworks have become an integral partof enterprise software development, as their reusable designsand predefined architectures streamline the softwareconstruction process. A major draw of modern enterpriseframeworks is that the developer can write business logiccomponents using a Plain Old Object Model (e.g., PlainOld Java Objects (POJOs) and Plain Old Common LanguageRuntime Objects (POCOs)), business-level applicationobjects that do not implement special interfaces or callframework API methods. Among Plain Old Object Models,POJO-based frameworks have become mainstream in the enterprisecomputing community, as they improve separationof concerns, speed up development, and improve portability[36].To provide services to application objects, a frameworkemploys bytecode engineering to enhance their intermediaterepresentation (i.e, bytecode or CLR), commonly at runtime.Figure 1 demonstrates the main steps of such frameworkbaseddevelopment. First, the source code is compiled toan intermediate representation. Then an enhancer uses bytecodeengineering [11] to add new functionality to the compiledbytecode as guided by the corresponding custom metadata.Each framework uses different metadata formats, commonlyexpressed using XML files or Java 5 annotations, toAccepted to OOPSLA 2009 1 2009/5/14

Custom MetadataSource CodeIntermediate Code(Bytecode)EnhancedBytecodeCompilerEnhancer(static or at classloadtime)Application CodeFramework CodeVMFigure 1. Enhancing intermediate code via bytecode engineering.mark framework-related program constructs. Further, the enhancercan run as a separate tool or be integrated with aclass loader. Finally, the enhanced bytecode, which differsin functionality from the original source code, is executedby the framework.Although intermediate code enhancement has enteredthe mainstream of enterprise software development due tothe widespread use of frameworks, no standard techniquehas been introduced to capture and document the enhancements.Metadata guiding the enhancement process not onlyis custom for each framework, but also specifies what programconstructs are relevant for a particular framework (e.g.,which fields are persistent) rather than how the intermediatecode should be enhanced. As a result, the enhancementsare, at best, documented through an informal narrative (i.e.,documentation) or treated as a black box.Lacking any formal description of bytecode enhancements,source code does not faithfully reflect the full semanticsof an enhanced program. For source-level programmingtools, this inability to express all the functionality ofa program in source code leads to reducing the utility ofthose programming tools that rely on the one-to-one correspondencebetween the running version of a program and itssource-level representation. The presence of bytecode enhancementsnot only hinders the ability to understand thereal behavior of a program by browsing its source code, butalso makes it non-trivial to map the execution of a programto its source code. The programmer may need to understandthe observed behavior of a program, while relating the observedbehavior of the enhanced intermediate code back tothe original source and vice versa.Although optimizing compilers have long changed intermediaterepresentations to improve performance, the techniquesdeveloped for dealing with such optimized code(i.e., debugging optimized code) are unsuitable for dealingwith enhanced bytecode. While optimizations are alwayssemantics-preserving transformations (sometimes under certaininput), enhancements change the semantics of a programin custom and difficult-to-generalize ways.The optional Java class file’s attribute LineNumberTableprovides little value as a mechanism for mapping enhancedbytecode to the original source code. An enhancer cannotadjust the LineNumberTable of an enhanced class, as theenhancements are expressed only in bytecode and have norepresentation in source code.Even though Aspect Oriented Programming (AOP) [24]is often used for introducing crosscutting concerns, the AOPlanguages such as AspectJ [23] do not capture all the enhancementscommonly introduced directly at the bytecodelevel, which include changing program construct names, removingprogram constructs, and generating new classes.This paper presents an approach that improves the utilityand precision of source-level programming tools by capturingand documenting bytecode enhancements. First, wehave classified commonly-used bytecode enhancements byexamining the API of two widely-used bytecode engineeringtoolkits and by reverse-engineering the enhancementsperformed by two commercial enterprise frameworks. Basedon our classification, we have created a declarative, domainspecificlanguage for describing bytecode enhancements. Todemonstrate the expressiveness of our language, we used itto describe the enhancements performed by several industrialand research systems that use bytecode engineering. Finally,we have used our approach to make a source code editorand a symbolic debugger enhancement-aware, therebyimproving their precision and utility.This paper makes the following contributions:• A novel approach to improving the precision and utilityof source-level programming tools in the presence ofintermediate code enhancements.• The Structural Enhancement Rule (SER) language, aDomain-Specific Language (DSL) for concisely expressingstructural enhancements that modern enterpriseframeworks commonly apply to intermediate code.• A debugging architecture that enables symbolic debuggingof programs whose intermediate code has beentransparently enhanced.Accepted to OOPSLA 2009 2 2009/5/14

The rest of this paper is structured as follows. Section2 provides a background for this work, demonstrating howintermediate code enhancement is used in implementing acommercial persistence architecture. Section 3 presents ourapproach to expressing and leveraging intermediate code enhancementinformation. Section 4 reflects on our experiencesof implementing and evaluating two enhancementsawareprogramming tools: a code editor and a symbolic debugger.Section 5 compares our approach with the existingstate of the art. Section 6 discusses future work directions,and Section 7 presents concluding remarks.2. BackgroundIn modern enterprise software development, the programmerexpresses business logic components using applicationclasses that do not inherit from special framework types orhave any other functionality besides business logic. Then extrafunctionality is added to the intermediate code 1 of theapplication classes via bytecode enhancement to enable enterpriseframeworks to provide services, thereby implementingvarious (usually non-functional) concerns, including persistence,transactions, and security. This development modelrelieves the programmer from the burden of having to implementthese important concerns by hand. The programmersimply uses metadata (such as XML files or Java 5 annotations)to designate specific application objects as interactingwith a framework, and all the tedious details of enabling theinteraction happen entirely behind the scenes. Despite theconvenience afforded by the use of such intermediate codeenhancement, as we demonstrate next, its use compromisesthe utility and precision of source-level programming tools.2.1 Transparent Persistence FrameworksThe following example comes from the domain of transparentpersistence, which is used by several persistence frameworksin industrial software development, including Hibernate[6] and JDO [37]. A transparent persistence architecturecombines features of both orthogonally persistent languages[5, 28, 29, 4] and data access libraries, such as Java DatabaseConnectivity (JDBC)[44] and Open Database Connectivity(ODBC)[30].When program data outlives the program’s execution,the data is said to be persistent. Transparent persistencearchitectures provide a software framework for managingthe program data marked as persistent by the programmer.The management entails synchronizing the persistent dataand its stable storage representation.A representative of a transparent persistence infrastructurefor Java is Java Data Objects (JDO) [37]. JDO usesstatic post-compile enhancement to enable Java objects withpersistence capabilities. The programmer writes Java objectsto be persisted as regular Java Beans [43]. A sepa-1 In the rest of the manuscript, we use the terms intermediate code andbytecode interchangeably.rate JDO metafile (in XML) specifies which fields of a classshould be persisted and how they map to stable storage. Finally,as specified by the metadata, the JDO enhancer addspersistence-specific methods and fields to each persistentclass, enabling its instances to interact with the JDO runtime.In particular, the enhancer changes a persistent class toimplement interface PersistenceCapable and wraps all readand write accesses to a persistent field with special methodsthat interact with the JDO runtime. Thus, before the valueof a persistent field is retrieved or modified, an appropriateJDO-specific action is triggered, thereby ensuring that afresh copy of the data is retrieved from stable storage and allthe changes in the application space are properly persisted.The design of JDO satisfies the stated goal of introducingpersistent capabilities transparently. JDO enables rankand file programmers to focus on what data is being persistedand treating how the data is persisted as a black box.Enterprise programmers may be aware that some bytecodeenhancement is taking place, but the specific enhancementsare not relevant to their primary concern—expressing the requiredbusiness logic.2.2 Example: Mortgage Authorization ApplicationConsider a mortgage authorization application used by abank to calculate the maximum amount of mortgage eligibility,according to a set of business rules that use a customer’ssalary and credit score. The application uses severaltransparently persistent classes, including SalaryLeveland CreditLevel , whose objects are persisted in a relationaldatabase such as MySQL or Oracle using the JDO framework.Consider the code listing in Figure 2, showing a methoddisplayMaxMortgageEligibility. The method displaysthe amount of maximum mortgage eligibility given a displayobject and a projected salary increase amount. As isusually the case, the method manipulates different concernsof the application: business logic and graphical user interface.Assume that the GUI part of the method containsa bug: method getMortgageField returns null, therebycausing a NullPointerException to be thrown in thenext statement. Although the bug is in the GUI logic of themethod and has nothing to do with persistence or enhancements,the JDO bytecode enhancements complicate sourcelevel debugging of the code. As an illustration, consider theenhanced bytecode of the method displayed in Figure 3.The programmer stepping through displayMaxMortgage-Eligibility with a standard debugger will encounter theenhancements, including various new methods, includingjdoGetSalaryLevel and jdoGetCreditLevel, whichcan be misleading, obfuscating the location of the bug. Althoughtracing the enhanced bytecode with a standard debuggermay accidentally lead the programmer to discovera suspect bytecode instruction, matching the instruction tothe corresponding statement in the original source code mayAccepted to OOPSLA 2009 3 2009/5/14

3.1 Structural EnhancementsIntermediate code enhancement is concerned with structuralchanges, which are large scale program transformations. Thepurpose of SER is to document structural enhancements insufficient enough detail to improve the precision and utilityof source-level programming tools that manipulate the originalsource code of an enhanced program. To ensure that SERprovides the requisite facilities for expressing common intermediatecode enhancements, we first catalog and classifycommon structural enhancements.To determine what constitutes a structural enhancement,we have reverse-engineered several industrial and researchsystems that use bytecode enhancement. 2 In addition, wehave also examined the capabilities of two major Java bytecodeengineering libraries Apache BCEL[2] and Javassist[38].Structural enhancements are the subset of general programtransformations that affect the structure of an objectorientedprogram, including classes, methods, and fields, aswell as limited changes to method bodies. Structural enhancementsto method bodies are primarily confined to replacingdirect field accesses with setter and getter methodsas well as with other wrapper methods.A more strict definition of structural enhancement is asfollows. Modify a program, confining the set of changes tothe following operations:• Adding a new class or interface.• Changing the type of a class or an interface (i.e., changingthe parent interfaces and/or classes)• Adding a new method or field• Removing a method or field• Changing the signature of a method (e.g., adding or removingparameters or changing the return type).• Changing the type of a field• Replacing direct field accesses with setter/getter methods3.2 Semantics of Structural EnhancementsNext we provide a more formal treatment of the programtransformations that constitute the structural enhancementoperations commonly applied to intermediate code.Figure 5 lists the symbols that we use in describing theenhancement operations, with the sets of transformed programconstructs appearing first. The original program consistsof a set of classes. During the enhancement, new classescan be generated and added to the program. In the originalprogram, a class can implement some interfaces. An enhancercan add new interfaces to the set of implemented interfacesand can also change the super class. Methods and2 Reverse-engineering these systems is perfectly legal, as they follow anopen-source development model. Reverse- engineering enhanced bytecodeturned out to be more effective than understanding the source code of theenhancers.fields can be added to and removed from a class. Finally, existingmethods can serve as templates for other methods. Werefer to this operation as “replication.” For example, a newwrapper method could be created based on some existingmethod–the new method will have the same signature, but adifferent name. There are no explicit constructs for changinga field or a method–this transformation can be expressedby removing the old version and subsequently adding a newone.Figure 6 demonstrates the semantics of structural enhancementoperations using set operations. Adding new programelements to existing ones is described using ∪, the setunion operator. Removing program elements is described using\, the set difference operator. Replicating program elementsis described using ↦→ and ∪, which designate a newelement being created based on some existing element andadded to the set, but the existing element still remaining inthe set.A set of original classes, C = {c 1 , c 2 , . . . , c n }A set of added classes, C + = {c + 1 , c+ 2 , . . . , c+ n }A set of original interfaces, I = {i 1 , i 2 , . . . , i n }A set of added interfaces, I + = {i + 1 , i+ 2 , . . . , i+ n }A set of original methods, M = {m 1 , m 2 , . . . , m n }A set of replicated methods, M ′ = {m ′ 1, m ′ 2, . . . , m ′ n}A set of added methods, M + = {m + 1 , m+ 2 , . . . , m+ n }A set of removed methods, M − = {m − 1 , m− 2 , . . . , m− n }A set of original fields, F = {f 1 , f 2 , . . . , f n }A set of added fields, F + = {f + 1 , f + 2 , . . . , f + n }A set of removed fields, F − = {f − 1 , f − 2 , . . . , f − n }〈c〉p denotes a class c of program p〈C〉p denotes a set of classes C of program p〈i〉c denotes a interface i implemented by class c〈I〉c denotes a set of interfaces I implemented by class c〈m〉c denotes a method m of class c〈M〉c denotes a set of methods M of class c〈f〉c denotes a field f of class c〈F 〉c denotes a set of fields F of class cext denotes class inheritance relationshipimpl denotes interface inheritance relationship3.3 SER Language DesignFigure 5. Syntax definitionThe Structural Enhancement Rules (SER) language is adeclarative, domain-specific language that was designed tobe easy to learn, use, and understand. To show how SER canserve as an effective medium for expressing intermediatecode enhancements, we introduce it by example.Accepted to OOPSLA 2009 5 2009/5/14

AddClass(〈C〉p, 〈C + 〉p) = ∪ i∈C 〈i〉p ∪ ∪ j∈C +〈j〉pAddSuperClass(〈C〉p , 〈C + 〉p) = ∪ i∈C 〈i〉p ext ∪ j∈C + 〈j〉pRemoveSuperClass(〈C〉p, 〈C − 07〉p) = ∪ i∈C 〈i〉p \ ∪ j∈C −〈j〉pAddSuperInterface(〈I〉c , 〈I + 〉c) = ∪ i∈I 〈i〉c impl ∪ j∈I + 〈j〉cRemoveSuperInterface(〈R〉c, 〈R − 10〉c) = ∪ i∈R 〈i〉c \ ∪ j∈R −〈j〉cAddMethod(〈M〉c, 〈M + 〉c) = ∪ i∈M 〈i〉c ∪ ∪ j∈M +〈j〉cRemoveMethod(〈M〉c, 〈M − 13 End〉c) = ∪ i∈M 〈i〉c \ ∪ j∈M −〈j〉cReplicateMethod(〈M〉c) = 〈M〉c ↦→ 〈M ′ 14〉c = ∪ i∈M 〈i〉c ∪ ∪ j∈M ′〈j〉cAddField(〈F 〉c, 〈F + 〉c) = ∪ i∈F 〈i〉c ∪ ∪ j∈F +〈j〉cRemoveField(〈F 〉c, 〈F − 〉c) = ∪ i∈F 〈i〉c \ ∪ j∈F −〈j〉cField[Get | Set]Replacer(〈F 〉c) = 〈F 〉c ↦→ 〈M ′ 〉c = ∪ i∈F 〈i〉c ∪ ∪ j∈M 〈j〉c ∪ ∪ k∈M ′〈k〉c010203040506080911121516Figure 6. Structural Enhancement Operations.Program REMOTINGBeginModule REMOTING_PROXYBeginVar Pattern fieldPBeginmodifiers = "private"type = REMOTING_IFACE.EnhClass.Namename = "obj"EndEnhClass.AddField(fieldP).......Module REMOTING_IFACEBegin.......Describing the JDO EnhancementFigure 7 shows the SER script, which documents the enhancementsperformed by the JDO enhancer, discussed inSection 2. The script starts with the keyword Program followedby the name of the script. SER scripts can use eachother by means of the keyword Using. The body of thescript is delineated by the Begin and End keywords ratherthan curly braces. We have deliberately made SER look differentfrom the C family of languages. Another distinctivefeature of SER is not using semicolons to terminate programstatements–each statement is expected to start from a newline. Each script makes available to the programmer two reflectiveobjects, OrgClass and EnhClass, representing theoriginal class and the enhanced class, respectively. This designdecision is guided by the observation that bytecode enhancementeither modifies an existing class or generates abrand new class, using some original class as a template.In both cases, the program in the enhanced class can beexpressed as a function of the corresponding constructs inthe original class. Each reflective class object has built-inattributes Name and Type, which represent their name andclass type (i.e., class or interface), respectively. The statementon line 3 expresses that the enhancer will modify theoriginal class rather than generate a brand new one.In addition, to the attributes, the reflective class objectsmake available to the programmer both accessor and modifiermethods. The accessor methods of SER mirror the onesin the Java Reflection API [19], with two notable exceptions.First, SER accessor methods return declarative iterators,which can only be passed as parameters to SER modifiermethods as we discuss later. Second, accessor methodscan accept as parameters Pattern objects, which describeproperties of program constructs. For example, the Patternstarting on line 5 is named fieldP, and it describes all thefields or methods that are private. The statement on line0102030405060708091011121314Program JDO Using SUPER_JDO_SERBeginEnhClass.Name = OrgClass.NameEnhClass.AddInterface("javax.jdo.spi.PersistenceCapable")Var Pattern fieldPBeginmodifiers = "private"EndVar Iterator fieldIter =OrgClass.Fields(fieldP)-- add method that’ll have prefix,-- ‘jdoSet’ or ‘jdoGet’.EnhClass.AddMethod(FieldSetReplacer("jdoSet", fieldIter))EnhClass.AddMethod(FieldGetReplacer("jdoGet", fieldIter))EndFigure 7. SER Script for the JDO Enhancement.9 uses the fieldP Pattern to obtain an Iterator of allthe private fields in the original class. SER Patterns providerecords describing every existing property of a programconstruct, including its name, type, modifiers, and signature.A Pattern can include any combination of records, as necessary.The SER modifier methods can only be applied to theEnhClass reflective object. SER provides modifier methodsfor adding and deleting all the language constructs,including constructors, fields, and methods. Changing aconstruct can be expressed by removing it first and thenadding a new construct back. The statement on line 4 documentsthe enhanced class modified to implement interfacePersistenceCapable. Every modifier method can acceptAccepted to OOPSLA 2009 6 2009/5/14

1718-- the secondary partition.EnhClass.RemoveField(field2SplitIter).......0102030405060708091011121314151614Program REMOTINGBeginModule REMOTING_PROXYBeginVar Pattern fieldPBeginmodifiers = "private"type = REMOTING_IFACE.EnhClass.Namename = "obj"EndEnhClass.AddField(fieldP).......EndModule REMOTING_IFACEBegin.......Figure 8. SER script for the Remoting enhancement.an iterator as a parameter, and then every element representedby the iterator will be added. Methods and fields must01 Program JDO Using SUPER_JDO_SERbe02explicitlyBeginadded to the EnhClass object, even if the enhancer03modifiesEnhClass.Namean existing=classOrgClass.Namerepresented by OrgClass.A04shorthandEnhClass.AddInterfacenotation EnhClass = OrgClass representscopying all the("javax.jdo.spi.PersistenceCapable")language constructs of the original class tothe05enhancedVar Patternclass. Thistmpshorthand is useful when the enhanced06classBegindiffers from the original class only by a smallmargin.07modifiers = "private"08SER also provides special constructs for replacing directfield09accesses with setter and getter methods. To that end,SER provides methods FieldSetReplacer and Field-GetReplacer,10respectively, which can be taken as parameters11to the modifier method AddMethod. These methods takea12prefix for the getter or setter method names and an iteratorrepresenting the fields, accesses to which are replaced. Thestatements13on lines 12 and 13 express the rule that JDO replacesdirect field accesses with setter and getter methods,whose names start with “jdoSet” and “jdoGet”, respectively.EndVar Itererator fieldIter =OrgClass.Fields(tmp)-- add method that’ll have prefix,-- ‘jdoSet’ or ‘jdoGet’.EnhClass.AddMethod(FieldSetReplacer("jdoSet", fieldIter))EnhClass.AddMethod(FieldGetReplacer("jdoGet", fieldIter))EndDescribing the Remoting enhancementA SER program can be comprised of multiple modules,which can refer to each other’s reflective objects. A standardSER program is likely to contain multiple modules, eachrepresenting the enhancements applied to a different class.Figure 8 shows a fragment of an enhancement that transformsdirect references into proxy references in order to enabletheir execution on a remote machine. In this enhancement,used in several research systems [32, 31, 46], for eachoriginal class, proxy, implementation, and interface classesare generated. The Pattern starting on line 5 refers to thetype of the EnhClass of REMOTING IFACE, which is anothermodule in the same script. In this case, the Name of01020304050607080910111213141516171819202122Program HIBERNATE Using SUPER_HIBERNATE_SERBegin-- class name that’ll have new class name-- containing ‘EnhancerByCGLIB’.EnhClass.Name =OrgClass.Name + “*EnhancerByCGLIB*”EnhClass.AddInterface("org.hibernate.proxy.HibernateProxy")EnhClass.AddInterface("net.sf.cglib.proxy.Factory")EnhClass.AddSuperclass(OrgClass.Name)Var Pattern publicPBeginmodifiers = “public”EndVar Iterator methodIter =OrgClass.Methods(publicP)Var Pattern namePBeginname = “CGLIB*” + nameEnd-- add method that’ll have new method name-- containing ‘CGLIB’EnhClass.AddMethod(methodIter.CreateNewIterator(nameP))EndFigure 9. SER Script for the Hibernate Enhancement.the EnhClass in the other module represents the type of thefield added on line 11.Describing the Hibernate EnhancementAs an example of a more advanced feature of SER, considerthe script that appears in Figure 9. This description captureshow Hibernate [6], another widely-used commercial persistencearchitecture uses bytecode enhancement. Unlike JDO,Hibernate does not modify persistent classes; instead, it createsproxy classes that extend the original persistent classes,as is expressed by the statement on line 8. Furthermore, theexact name of the created proxy classes as well as the namesof their methods start with hard-coded prefixes (“Enhancer-ByCGLIB”, “CGLIB”), appended with randomly-generatedintegers.To express that the names of proxy methods are based onthe names of the corresponding methods in the original persistentclasses, SER introduces the ability to create a derivativeiterator, given an iterator and a pattern. On line 14, anIterator describing the public methods in the OrgClass isobtained. Then on line 15, a new Pattern describes addingthe prefix CGLIB∗ to the name of a program construct. Finally,on line 21, the AddMethod method takes as its parameterthe return value of method CreateNewIterator,Accepted to OOPSLA 2009 7 2009/5/14

010203040506070809101112131415161718Program SPLIT_CLASSBegin-- field to be split.Var Pattern _tmpBeginname = “y”EndVar Iterator field2SplitIter= OrgClass.Fields(_tmp)Module SPLIT_MAIN_PARTITIONBeginEnhClass.Name = OrgClass.Name-- add all fields from the original classVar fieldIter1 = OrgClass.Fields()EnhClass.AddField(fieldIter1)-- remove the fields that’ll go to-- the secondary partition.EnhClass.RemoveField(field2SplitIter).......Figure 10. SER script for ‘split a class to minimize theamount of network transfer’ enhancement.01 Program REMOTING02 Beginwhich creates a new iterator by applying a pattern, nameP,03 Module REMOTING_PROXYto an iterator, methodIter. In effect, the one-liner on line04 Begin21 declaratively expresses that the public methods in the05 Var Pattern fieldPnewly-generated EnhClass will have names that start with06 Begin“CGLIB”, followed by some random number, and ending07modifiers = "private"with the corresponding method’s name in the OrgClass.08type = REMOTING_IFACE.EnhClass.NameFor example, of a persistent class has a method named foo,09name = "obj"the generated proxy’s corresponding method could be named10EndCGLIB123foo.11 EnhClass.AddField(fieldP)In essence, SER provides programming support for manipulatingsets of methods, constructors, and fields. An it-12 .......13 Enderator14representing a set of class constructs can be obtainedbased15onModule a pattern.REMOTING_IFACESER has a functional feel in that SERdoes16notBeginallow changing iterators, but rather makes it possibleto derive.......new iterators by applying a pattern to an existingiterator. Also, program constructs can only be added toor removed from EnhClass, thus simplifying the API.SER language summaryFigure 11 summarizes the SER programming constructs.The language follows a minimalistic design, introducingnew constructs only if necessary, with the goal of makingit easier to learn and understand. SER conveys the enhancementsdeclaratively and does not have explicit conditionalor looping constructs. As a result, a SER script does notcontain a sufficient level of detail to be used as input for abytecode enhancer, but it is descriptive enough to documentthe enhancements for source-level programming tools as wediscuss in Section 4.In validating the usability of SER, we have documentedfour enhancements used in production and research systems:JDO [37], Hibernate [6], Remoting [46], and Split Class[8, 47]. The scripts describing these enhancements in theirentirety can be downloaded from the project’s website [40].In the discussion above, we have presented only fragmentsof these scripts to demonstrate various language features ofSER. SER is an interpreted language, and its interpreter canbe integrated into existing programming tools. We discussthe SER interpreter’s design In Section 3.4, and how weused the interpreter to enhance two existing source-levelprogramming tools in Sections 4.2 and 4.3.3.4 SER language interpretationThe purpose of documenting enhancements with a SERscript is to provide a bi-directional mapping between thesource code of a class and its enhanced bytecode representation.The SER interpreter can take either a Java source fileor a bytecode class file as parameters, corresponding to theoriginal or enhanced versions of a class, respectively. Anotherrequired parameter is the SER script associated withthe input file. Although it would be possible for the interpreterto search for SER scripts based on the input files’names, in the current implementation it uses a configurationfile that specifies which SER files work with which Java orSERScriptDescribing the Split Class enhancementSER Script ParserConsider the script depicted in Figure 10, which describes Org.Enh.one of the enhancements required to split a class into partitions,01 soProgram that only JDO theUsing fieldsSUPER_JDO_SERused by a remote computation SrcProcessor ProcessorcodeJavaSrc. code BytecodeByte‐be 02 transferred Begin across the network. This enhancement entailsselecting 03 EnhClass.Name a subset of fields= of OrgClass.Namethe original class and placingthem04intoEnhClass.AddInterfacea newly created class, representing the primarypartition, which("javax.jdo.spi.PersistenceCapable")will be sent across the network. In SER,Enh.Byte‐CodeSymbolTableSymbolicUndoOrg.SrcCodethe05selectionVarofPatternthe requiredtmpfields is accomplished by first InfoInfo06 BeginSER Interpreteradding to EnhClass all the fields contained in the originalclass07(Line 15).modifiersAnd then= the"private"fields intended for the secondarypartition are removed (Line 18).08 EndFigure 12. SER Interpreter.09 Var Itererator fieldIter =OrgClass.Fields(tmp)Accepted 10 to -- OOPSLA add method 2009 that’ll have prefix,8 2009/5/141112-- ‘jdoSet’ or ‘jdoGet’.EnhClass.AddMethod(FieldSetReplacer("jdoSet", fieldIter))

Program script-name1 [Using script-name2]Begin[Module module-name Begin...End]...EndA SER script can include other scripts and can be divided into modules.OrgClass / EnhClassReflective class objects: original and enhanced class.Var Pattern pattern-nameBeginproperty=‘‘value’’...EndPatterns for matching program constructs, based on their properties.Var Iterator iterator-nameAn iterator for a collection of program constructs.Constructors/Methods/Fields([pattern-name])Return a collection of program constructs, [possibly matching pattern-name]Field[Get/Set]Replacer(prefix, iterator-name)Replace direct accesses to the fields specified by iterator-namewith getter/setter methods starting with prefix, and return them as an iteratoriter-name.CreateNewIterator(pattern-name)Create a new iterator by applying pattern-name to iter-name[Add|Remove]Interface/Superclass/Method/Field([iterator-name|pattern-name])Add or remove program elements specified by iterator-name or pattern-name to or from EnhClassFigure 11. SER language constructs.class files. If the SER file cannot be located, the interpretersignals an error.When processing a SER script, the interpreter parses themain script and all the included scripts specified with theUsing keyword. Figure 12 demonstrates the interpreter’sprocess flow, which differs depending on the type of theinput file used to parameterize the interpreter.If a Java source file, containing the original source code,is passed to the interpreter, the file is processed using theEclipse JDT API [15]. Then the enhancement informationprocessed by the SER parser is combined with the one of theoriginal Java source. The result is stored into a symbol tablemodule that implements a quick lookup mechanism capableof retrieving, in constant time, all the enhancements appliedto a given program construct. Finally, an external API to thesymbol table makes it possible to retrieve the enhancementinformation. In summary, the API uses JDT AST constructsas lookup keys to retrieve the enhancements associated withthem. For example, sending a class object as a parameter willreturn a list of lists, containing the methods, constructors,and fields that the bytecode enhancer adds to this class. Ofcourse, some of these lists could be empty.If a binary class file, containing the enhanced bytecode,is passed to the interpreter, the file is processed using theJavassist library [38]. Then the enhancement informationprocessed by the SER parser is combined with the one of theenhanced bytecode. The result is stored in a format that wecall Symbolic Undo, which is a collection of instructions thatcan be used to map every enhancement back to the originalsource code. We will detail the exact format of SymbolicUndo when we discuss a symbolic debugger for enhancedprograms that we implemented as a case study.4. Case Studies: Enhancements-AwareProgramming ToolsTo evaluate the applicability of our approach, we have augmentedtwo existing source-level programming tools with anawareness of bytecode enhancements. Specifically, we haveadded a new browsing view to a widely-used source codeeditor to present the bytecode enhancements applied to theprogram constructs of the displayed compilation unit. Wehave also created a new debugging architecture that enablesa symbolic debugger running an enhanced program to dis-Accepted to OOPSLA 2009 9 2009/5/14

play the original source code, undoing the enhancements atruntime.4.1 Example ApplicationsTo check the effectiveness of the enhancements-aware tools,we have applied both of them to four different applications,each using a different bytecode enhancement scheme. Thefirst two applications use transparent persistence architectures,albeit with drastically different enhancement strategies.While JDO modifies persistent classes, Hibernate generatesproxy classes that inherit from them. Another differencebetween JDO and Hibernate is the time when theenhancement takes place: while JDO enhances persistentclasses as a static post-compilation step, Hibernate generatesproxy classes at class load time.Two other applications come from the domain of distributedcomputing. The first application performs an RMIRemoting enhancement, in which the original, local classis rewritten into a remote implementation class, and newproxy and RMI remote interface classes are generated. Thisrewrite is performed by several systems designed to makedistributed computing in Java more intuitive, both at thesource level such as JavaParty [33], and transparently at thebytecode level such as J-Orchestra [46].Another enhancement from the distributed computing domainmodifies the structure of a data class to optimize thenetwork transfer of its instances. Class fields are divided intoa set that is used by a remote server and the one that is not,and the class is rewritten into two partitions containing thosesets, using the Split Class binary refactoring [47]. Finally,the partition to be transferred across the network is made toimplement Serializable to enable the marshaling of itsinstances. Because the rewrite adds a new capability, it isclassified as an enhancement.We expressed each enhancement scheme in SER. For thetransparent persistence architectures, we reverse-engineeredthe enhancements by comparing the original and enhancedversions of multiple application classes. In the distributedapplication cases, we simply documented in SER the transformationsinformally described in the respective researchpublications [46, 47].4.2 Source Editor with Zoom-in-on-enhancementsViewIntermediate code enhancement introduces new functionalitybehind the scenes, transparently to the programmer. Furthermore,leaving the programmer unaware of the specificchanges applied directly to the bytecode has been recognizedas a key benefit of the technique—it improves separationof concerns, with the programmer being responsiblefor business logic only. Nevertheless, as we argue next,making the bytecode enhancement information accessible tothe programmer can yield software engineering benefits. Forexample, bytecode enhancers follow a certain convention inchoosing the names of program constructs that they add. InFigure 13. Documentation for the JDO Enhancement.Figure 14. Documentation for the Hibernate Enhancement.particular, JDO starts the names of all the added setter/gettermethods with prefix jdoSet/Get. There is nothing, however,that would prevent the programmer from writing amethod starting with these prefixes, thus creating a difficultto diagnose name clash. By examining the enhancementsthat will be applied to a class, the programmer can quicklyidentify such inappropriately-named program constructs. Asanother example, consider the restriction of Hibernate ofnot being able to persist instances of final classes andany classes that have final methods. This restriction seemscompletely arbitrary, unless the programmer can examinehow Hibernate enhances the persistent classes. This restrictionbecomes immediately apparent, as soon as the pro-Accepted to OOPSLA 2009 10 2009/5/14

grammer observes that persistence-enabling proxies generatedby Hibernate extend the persistent classes. As yet anotherexample, certain performance bottlenecks in the enhancedcode can be identified by examining the enhancements.For example, the use of RMI in remoting enhancementscan be detrimental to performance in some networkingenvironments. As a final example, some bugs in metadata,which describes which program constructs are to beenhanced, can be more easily identified if the enhancementcode is visible.Figure 15. Documentation for the Proxy class Enhancement.Figure 16. Documentation for the Split class Enhancement.In this case study, we have integrated the SER interpreterwith an Eclipse Java code editor. Whenever the programmerselects a class whose bytecode is subject to enhancement, anew view pops up displaying an abbreviated description ofthe enhancements. We call this view window a zoom-in-onenhancementsview. Following the Eclipse tooling strategy,the view is visible only if activated, so if they so choose, theprogrammers are free to remain oblivious about the natureand specifics of enhancements. In the case if the originalclass is modified at the bytecode level, the enhancements areshown as special comments in the main editor. Since not allthe information about the enhancements in known at sourceedit time, the enhancements cannot be expressed in sourcecode form. If a single class is associated with several classescreated during an enhancement, each of the created classesis displayed in a separate view.Figures 13, 14, 15, and 16 show the screen-shots of thezoom-in-on-enhancements views, which document the enhancementsused in the example applications described inSection 4.1. The views have been integrated with Eclipse.Figure 17 presents a collaboration diagram that showsthe backend processing triggered by the source editor tolaunch a zoom-in-on-enhancements view. When the SER interpreter’smain module receives a Java source file as input,the corresponding SER script is identified (using a configurationfile), loaded, and parsed. The interpreter employs severalabstract syntax tree walkers (using Visitors) to traversethe Java program, collecting the information about how thegeneral enhancement instructions in the SER script will affectthe specific program constructs (e.g., fields, methods,constructors, etc.). The collected enhancement informationis stored in a symbol table for fast searching and retrieval. Finally,the interpreter compiles a complete documentation ofthe enhancements, which it uses to parameterize the zoomin-on-enhancementviewer.4.3 A Symbolic Debugger for Enhanced IntermediateCodeBecause intermediate code enhancements are not representedat the source code level, source-level debugging ofsuch enhanced bytecode is nontrivial. Application code isenhanced to be able to interact with a framework, and theenhancements cannot be simply turned off to facilitate debugging.Thus, tracing, analyzing, and fixing flawed programswhose bytecode has been enhanced with a standarddebugger is misleading—the debugger will show all the enhancedprogram’s code faithfully, both the original logic andthe transparently introduced enhancements. From the debuggingperspective, enhancements obfuscate the originalsource code’s logic.The debugging of transparently enhanced programs canbe facilitated by making a symbolic debugger aware of theenhancements. The debugger could execute an enhancedprogram, but report the source code information pertainingto the original source code. As our proof of concept, we havecreated a new debugging architecture that leverages the facilitiesoffered by the Java Platform Debugger ArchitectureAccepted to OOPSLA 2009 11 2009/5/14

ASTWalkerJavaSource1: input5: returnInterpreterMain4: get AST info2:search request3: request AST info8: input enhancement infoSER ScriptParserSERScript:execute:refer:processed data6: request to build Symbol Table:processesSymbolTableBuilder7: build Symbol TableSymbolTableZoom‐in‐on‐EnhancementViewer:process:fileFigure 17. The zoom-in-on-enhancement view collaboration diagram.(JPDA) [42]. We then applied the new architecture to augmentthe capabilities of the standard debugger distributedwith Sun’s JDK with an awareness of the enhancements indebugged programs.Figure 18 demonstrates our new debugging architecture,which integrates a SER interpreter. When debugging enhancedbytecode, the debugger also takes the SER descriptionof the enhancements as input. The integrated SER interpreterthen computes symbolic undo instructions that mapthe enhanced bytecode to the original source code.EnhancedBytecodeSERScriptSER InterpreterSymbolic DebuggerJDI InterfaceJPDA ArchitectureMappingInstructionFigure 18. Debugging transparently enhanced programs.To reverse the enhancements that add and change programconstructs, our debugging architecture introduces theskip and reverse symbolic undo instructions, which can beapplied to classes, methods, fields, and entire packages. Thedebugger organizes the symbolic undo instructions as a hierarchicalcollection through the “contains” relationship (i.e.,packages contain classes, classes contain methods, etc.). Allthe instructions are sorted in the order of their qualifiedfull names, so that they could be efficiently located throughbinary search in logarithmic time. The debugger executesthe symbolic undo instructions on the encountered enhancements,so that the information reported to the user pertainsto the original programmer written code.The symbolic undo instructions work as follows. Theskip instruction suppresses the output of those program elementsthat, in the original version, have not been representedin source code. Skip operations raise a special purposedebugging event whose semantics is similar to the regulardebugger’s step event; however, the output associatedwith handling the event is suppressed. The reverse instructionchanges the name of a program construct displayedthrough the standard debugging output. For example, if anenhancer has changed the name of a class, a reverse instructionwill direct the debugger to report the class’s originalname.From the user’s perspective, our symbolic debugger is aplug-in replacement for the standard JDK command-line debugger,providing the capabilities to step through the code,set breakpoints, print variable values, etc. The implementationleverages the Java Platform Debugger Architecture(JPDA)[42], which consists of several layers of protocolsand interfaces provided by the Java Virtual Machine. Thefunctionality required for symbolically undoing transparentenhancements is implemented by inserting additional translationlogic to the standard operations used by debuggersbased on JPDA. JPDA includes a client interface for accessingthe debugging services, which are connected to the JVMthrough an event queue. To receive events from the queue,the client must set a breakpoint by calling an API method.Triggering a breakpoint delivers a debugging event to anevent handler method that can access all the breakpoint’s information,including its location, value of variables,etc.Event Queue1:remove2:return ‘eventSet’6:return ‘MapStructure’Event HandlerThreadReferenceSERInterpreter SymbolicDebugger SymbolicUndoModule5: loadMapStructure3:setCurrentThread4:vmInterrupted7:undoInstructionFigure 19. The symbolic debugger’s collaboration diagram.Accepted to OOPSLA 2009 12 2009/5/14

Debugging with our symbolic debugger(1)Debugging with JDB(2)(3)(4)(5)Figure 20. Debugging enhanced code: Debugger with an enhancements awareness vs. JDBEvents are also triggered when the step command movesthe debugger to the next source code line. The values ofmember and local variables can be printed at any point aftera breakpoint has been triggered or the step command hasbeen executed. Our symbolic debugger intercepts each debuggingevent and executes a corresponding symbolic undoinstruction, thus mapping the enhanced bytecode back to theoriginal version of the code.Figure 19 shows a collaboration diagram that detailsthe runtime architecture of our symbolic debugger. Thediagram depicts the main events driving the execution ofour symbolic debugger. The main module of the debugger,SymbolicDebugger, manages the symbolic undo information,using the services of the EventHandler. The EventHandlerreceives debugging events from the JPDA EventQueueand delegates them to SymbolicDebugger by callingvmInterrupted. SymbolicDebugger then evaluates the receivedevent against the symbolic undo information, whichcan be generated on demand, and symbolically undoes anyencountered enhancement. By using JPDA, which is threadaware,our debugger can effectively handle multi-threadedprograms.As a demonstration of the utility of the new debugger, weinserted a bug to the example mortgage eligibility applicationpresented in Section 2. We then traced the bug usingboth our augmented debugger and JDB. In our experiences,the enhancements introduced by the JDO framework complicatethe debugging process. Figure 20 shows two screenshots, corresponding to debugging with our symbolic debuggerand JDB, respectively. Points marked as (1) and (3) markthe start of the traced method, in their respective debugger’sdisplays. Individual debugging steps are circled. Point(2) shows the original code as displayed by our debugger.Points (4) and (5) show the bytecode instructions that wouldbe skipped and reversed by our debugger, respectively. Ourexperience suggests that our debugger has the potential tobecome an effective aid in locating bugs in enhanced programs.Nevertheless, only a controlled user study can confirmthe veracity of this conjecture. We plan to conduct sucha study as future work.5. Related WorkOur approach to augmenting source-level programmingtools with an awareness of intermediate code enhancementsis related to several research areas including the debuggingof transformed code, program transformation languages, andstructural program differencing.5.1 Debugging Transformed CodeDebugging Optimized Code. Modern compilers have powerfulcode optimization capabilities. Compilers optimizecode via performance-improving transformations. However,because compilers transform an intermediate representationof a program, the relationship between such a transformedrepresentation and the original source code of a program becomesobscured. Specifically, performance-improving transformationsreorder and delete existing code as well as insertnew code. Thus, debugging optimized code is hindered byAccepted to OOPSLA 2009 13 2009/5/14

the changes in data values and code location. A significantamount of research aims at the problem of debugging optimizedcode [20, 21, 7, 27, 16, 9, 18]. The proposed solutionsenable source-level debuggers to display the informationabout an optimized program, as if the original (unoptimized)version of the code was being debugged.The techniques for debugging optimized code deal withthe challenges arising as a result of optimizing compilerstransforming intermediate code to improve performance.While these transformations can be quite extensive, theyare usually confined to method bodies and do not alterthe debugged program’s semantics. By contrast, structuralenhancement aims at larger-scale program transformationsthat can add new classes and interfaces to a program. Thus,source level debugging of structurally enhanced programsrequires different debugging techniques such as the presentedsymbolic undo.Debugging for AOP. Aspect-Oriented Programming(AOP) [24] can be viewed as an enhancement technology,and several approaches aim at debugging support forAOP [14, 34, 22]. However, debugging aspect-oriented programsis different from debugging transparently enhancedprograms. AOP provides a domain-specific language forprogramming enhancements such as AspectJ [23], and anAOP debugger traces the bytecode generated by AspectJ toits aspect source file. By contrast, transparent bytecode enhancementshave no source code representation. Thus, theapproaches to debugging AOP software cannot be applied todebugging transparently enhanced programs.In addition, AspectJ as a language cannot express all thestructural enhancement transformations. For example, it isimpossible to express in AspectJ that the name of a programconstruct (e.g., class, field, or method) be changed. AspectJdoes not provide facilities for removing a program construct,something that program enhancers need to do on a regularbasis. For example, the split class enhancement movesfields from a class to another class, thus removing them fromthe original class. Finally, program enhancers often generatenew classes and interfaces and reference them in the enhancedprogram. AspectJ is not designed for expressing howto generate a new class, whose structure is based on some existingprogram construct. Thus, we could not have used AspectJinstead of SER to represent structural enhancements.5.2 Program Transformation LanguagesSER is a domain-specific language for expressing how bytecodeis enhanced structurally. Other domains also featuredomain-specific languages for expressing program transformations.JunGL [48], a domain-specific language for refactoring,combines functional and logic query language idioms.JunGL represents programs as graphs and manipulates refactoringsvia graph transformations. The language providespredicates to facilitate the querying of graph structures.JunGL uses demand-driven evaluation to prevent scriptsfrom becoming prohibitively complex.Sittampalam et al. [39] specify program transformationsdeclaratively and generate executable program transformersfrom specifications. The Prolog language is augmented withfacilities for incremental evaluation of regular path queries.The augmented language is used to specify program transformationsby expressing a program and its transformedcounterpart. The transformations can be combined with astrategy script, based on Stratego [49], to specify the traversalsof a program and the order of the transformations.Whitfield and Soffa’s code-improving transformationframework consists of a case tool and a specification language[50]. The specification language, called Gospel, declaresprogram transformations; the case tool, called Genesis,generates a program transformer given a Gospel specification.A Gospel script consists of a declaration section,containing variables declarations, a precondition section,containing code pattern descriptions and control dependenceconditions, and an action section, containing a set of transformationoperations.The Coccinelle [41] tool introduces the SmPL languagefor locating and automatically fixing bugs. SmPL programsspecify how in response to some runtime condition, a programshould be transformed to fix a bug and log the changes.FSMLs [10] is a domain specific modeling language fordescribing the framework-provided knowledge, includingframework instantiation, procedures for implementing interfaces,and proper usage of framework services. FSMLsbears similarity to our approach in its ability to provide a bidirectionalmapping between framework features and theirabstract representation.JAVACOP [1] introduces a declarative rule languagefor expressing programmer-defined types, called pluggabletypes. The types are described as user-defined rules, whichJAVACOP uses for transforming the abstract syntax tree of aprogram.Because these program transformation languages weredesigned specifically for their respective domains, we couldnot have used any of them for our purposes. The main designgoal of our SER language was to be able to expressstructural enhancements used by bytecode enhancers declarativelyand to provide special constructs for domain-specifictransformations such as adding getter/setter methods.5.3 Program DifferencingSER scripts describe generalized structural program differences.Program differencing is an active research area andseveral new differencing algorithms have been proposed recently.Previtali et al.’s technique [35] generates version differencesof a class at bytecode level. Their algorithm producesthe information on added, removed, or modified classes.Dmitriev incorporates program change history into a Javamake utility that selectively recompiles dependent sourceAccepted to OOPSLA 2009 14 2009/5/14

files [12]. The JDIFF [3] algorithm identifies changes betweentwo versions of an object-oriented program using anaugmented representation of a control-flow graph. M. Kimet al. [25] infer generalized structural changes at or abovethe level of a method header, represented as first-order relationallogic rules. These techniques could be leveraged togenerate SER scripts automatically by generalizing the differencesbetween the original and enhanced versions of multipleclasses.Our own Rosemari system [45] generalizes structural differencesbetween two versions of a representative example.Such examples are usually supplied by framework vendorsto guide the developers in upgrading their legacy applicationsfrom one framework version to another. Rosemari featuresa DSL for describing program transformations, but canbe retargeted to present structural changes in SER instead.5.4 Symbolic ExecutionThe idea of symbolic undo, used in implementing our debugger,is influenced by symbolic execution [26], which analyzesa program by executing it with symbolic inputs, butwithout actually running it. By analogy, our symbolic undotechnique enables source level debugging of enhanced bytecodeby mapping it back, via symbolic operations, to its originalsource code, also without affecting the program’s execution.6. Future WorkThe initial evaluation results of our approach have been positive.To demonstrate the effectiveness of our approach, wehave conducted two case studies. Specifically, we have augmentedtwo source-level programming tools with enhancement-awareness,so that the tools could handle programs thatuse four different bytecode enhancement strategies.As future work, we plan to conduct user studies to evaluatethe value of our approach for programmers with differentlevels of expertise. One such study could evaluate whether asymbolic undo debugger is more effective than a regular debuggerin helping the programmer to locate and fix bugs.Another study could evaluate the value of integrating the enhancementinformation with a programming editor.We plan to create a debugger for SER scripts. Althoughthe declarative nature of SER scripts makes it easier to ensuretheir correctness, bugs still can be introduced, particularlyif a SER script is developed by someone other than aframework developer. Having a SER debugger is likely toimprove the usability of our approach.We plan to extend our approach to programs that havebeen transparently enhanced more than once, possibly bydifferent enhancers. For example, the same application canuse multiple frameworks, each enhancing intermediate codein its own way.Bytecode enhancement could add functionality in languagesother than the host language, including query languagessuch as SQL or Datalog. Our approach would haveto be extended to add the enhancements-awareness to programmingtools handling multi-language applications.There could be potential benefit in synthesizing thesource code representation of bytecode-only enhancements.To that end, the SER interpreter would have to be integratedwith a decompiler that is enhancements-aware. The successof this approach would mainly depend on the decompiler’sefficiency and precision.Generating SER scripts automatically will reduce theframework programmer’s effort and make our methodologymore appealing to the average programmer. A promising approachwould require generalizing program differencing, atarget of several recent research efforts [25].Finally, we would like to make our symbolic debuggeravailable as an Eclipse IDE plug-in.7. ConclusionsThis paper has argued about the value of enhancing sourcelevelprogramming tool with an awareness of transparentprogram transformations. To enable such awareness, wehave introduced SER, a declarative language that conciselydescribes structural enhancements. To validate our approach,we have augmented two existing source-level programmingtools with an awareness of bytecode enhancement. We havealso expressed in SER four enhancement strategies followedby different enhancers and used our augmented programmingtool to handle the enhanced programs. As part of enhancinga source level debugger, we have introduced a newdebugging architecture that makes it possible to calculatereverse-mapping instructions based on a SER specification.Bytecode enhancement has already entered the mainstreamof enterprise software development, and future enhancersare likely to transform programs in even more complexways. As a result, source code alone will become evenless sufficient in presenting a realistic picture about the functionalityof a program. Our approach of making programmingtools aware of bytecode enhancements has the potentialto address this problem, and help programmers enjoythe benefits of transparent bytecode enhancement withoutsuffering any of its disadvantages.AvailabilityAll the software described in the paper is available from:http://research.cs.vt.edu/vtspaces/ser/.References[1] C. Andreae, J. Noble, S. Markstrum, and T. Millstein.A framework for implementing pluggable type systems.SIGPLAN Not., 41(10):57–74, 2006.[2] Apache Jakarta Project. The Byte Code Engineering Library.http://jakarta.apache.org/bcel/manual.html.Accepted to OOPSLA 2009 15 2009/5/14
