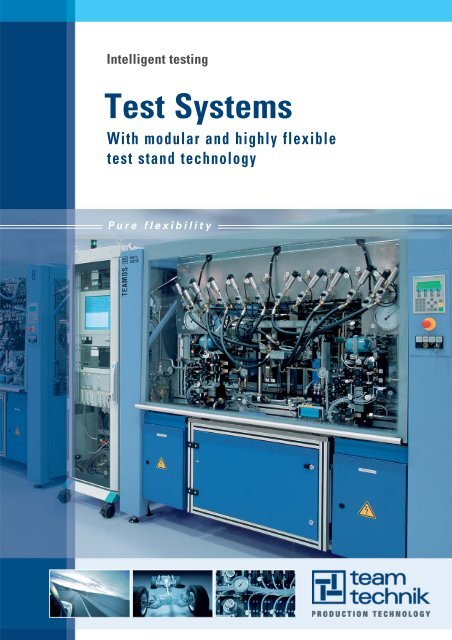

Intelligent testing<br />
<strong>Test</strong> <strong>Systems</strong><br />
With modular and highly flexible<br />
test stand technology<br />
Pure flexibility
Flexibility through modularity<br />
New test stand technology<br />
for powertrain components<br />
Flexible test systems for automated<br />
function testing<br />
<strong>teamtechnik</strong> develops and builds technologically<br />
sophisticated test systems for EOL-testing.<br />
<strong>teamtechnik</strong> systems are characterised by their high<br />
degree of flexibility, thanks to the modular structure of<br />
mechanics, of measuring and control technology and<br />
software.<br />
Modularity: the key to success<br />
The customer receives a highly productive and flexible<br />
system. The modularity of the basic structure means<br />
that systems can be dismantled and converted quickly<br />
and inexpensively, giving <strong>teamtechnik</strong> customers that<br />
vital competitive edge and enabling investments to be<br />
tailored to suit changing requirements.
<strong>teamtechnik</strong> TEST CENTER<br />
The new modular and compact test stand design reduces<br />
space requirements and investment costs by approximately<br />
20-40%. The TEST CENTER can be extended efficiently<br />
and quickly with the addition of more stations to deal<br />
with increases in demand or number of variants of<br />
the products tested. The modularity and structure of the<br />
testing processes allow maintenance of individual stations<br />
independent of system operation.<br />
Flexibility due to modular system structure<br />
_ Flexibility in terms of planning and implementation<br />
_ Flexibility in terms of degree of automation<br />
_ Flexibility in terms of output or product changes<br />
_ Flexibility in terms of variant production<br />
_ Flexibility in terms of system expansion and conversion
Automated measurement technology -<br />
the <strong>teamtechnik</strong> core competence<br />
<strong>teamtechnik</strong> test systems link automation with highly<br />
sophisticated measurement technology. Our experienced<br />
engineers find innovative solutions for new high-tech<br />
products - Common Rail technology, for example.<br />
Modular measurement technology designed for the<br />
requirements of modern, flexible production is the key<br />
characteristic of <strong>teamtechnik</strong> test systems. The goal are<br />
reliable automation solutions flexibly structured for<br />
economical testing.
Convincing software solutions<br />
_ Modular, flexible and extendable<br />
_ User-friendly<br />
_ Decentralised data recording module<br />
_ Measurement, control and evaluation<br />
processes as real-time modules<br />
_ Interfaces between component controller,<br />
test stand and host system<br />
_ Flexible programming<br />
_ Creation of test sequences with editor<br />
_ Modular test application<br />
Quality and cost-effectiveness guaranteed<br />
by <strong>teamtechnik</strong> test technology <strong>Test</strong> Media<br />
_ High measuring accuracy and long-term stability<br />
_ High technical availability<br />
_ Interfaces with customer-specific database systems<br />
_ Maintenance-friendly test stand architecture<br />
Air testing for all hydraulic<br />
components<br />
At <strong>teamtechnik</strong>, flow, leak and function tests are<br />
successfully carried out with air even on products<br />
which will subsequently be operated with fluids.<br />
_ Air<br />
_ Hydraulic oil<br />
_ Petrol substitute<br />
_ Diesel substitute<br />
_ Brake fluid
Assembly and testing -<br />
Process competence from one source<br />
<strong>teamtechnik</strong> has been developing and building intelligent<br />
complete systems for assembly and testing for over 30<br />
years. These systems have a uniform data structure and<br />
straightforward interface solutions. In order to achieve<br />
the highest quality standards we integrate a wide range<br />
of reliable process technologies.<br />
There are over 700 standardised and therefore tested<br />
assembly and test processes available in the <strong>teamtechnik</strong><br />
process pool.<br />
The systems are flexible in their level of automation and<br />
can be developed up to robot based systems.
Assembly <strong>Test</strong>ing<br />
Integrated assembly and test system for cam phasers<br />
Expectations of our customers:<br />
"We expect our supplier to deliver process know-how<br />
and implement every process to make a complete<br />
product that has been 100% tested."<br />
<strong>teamtechnik</strong> engineers have comprehensive product<br />
and process know-how for mechatronic components in<br />
the automotive field. In partnership with the customers<br />
they develop cost-optimised solutions - from standalone<br />
test stands to fully automated test systems.<br />
<strong>teamtechnik</strong> -<br />
the engineering partner for your SOP<br />
H<strong>und</strong>reds of systems installed worldwide.<br />
Our experienced project leaders are on hand right<br />
from the start, from the quotation phase. They manage<br />
the project team and work closely with the customer<br />
who is kept up-to-date with all developments. This<br />
allows us to ensure that everything goes smoothly<br />
when series production starts.
020.D.02.0408©<strong>teamtechnik</strong> <strong>GmbH</strong><br />
Service -<br />
Global and always nearby.<br />
High availability throughout the<br />
life cycle of a system<br />
More than 50 technicians work for <strong>teamtechnik</strong> worldwide.<br />
We are where our customers need us. The <strong>teamtechnik</strong><br />
service centre manages a dense network of<br />
local service stations and guarantees the best service<br />
ro<strong>und</strong> the clock. Contact persons and responsibilities<br />
are carefully matched.<br />
<strong>teamtechnik</strong> -<br />
The company for innovative production technology<br />
Other locations<br />
<strong>teamtechnik</strong> Production Technology Sp. z o.o., Poland<br />
<strong>teamtechnik</strong> Corp., Atlanta (USA)<br />
<strong>teamtechnik</strong> China, Shanghai<br />
<strong>teamtechnik</strong> Asia Pacific Pte Ltd, Singapore<br />
Representations<br />
Austria, Italy, Sweden, UK,<br />
Argentina, Mexico, Korea, Taiwan, Thailand<br />
Why not get in touch?<br />
<strong>teamtechnik</strong> <strong>Maschinen</strong> <strong>und</strong> <strong>Anlagen</strong> <strong>GmbH</strong><br />
Planckstraße 40, 71691 Freiberg, Germany<br />
Telephone +49 (0) 71 41-70 03-0, Fax 70 03-145<br />
info@<strong>teamtechnik</strong>.com<br />
Get inspired for the future. www.<strong>teamtechnik</strong>.com
