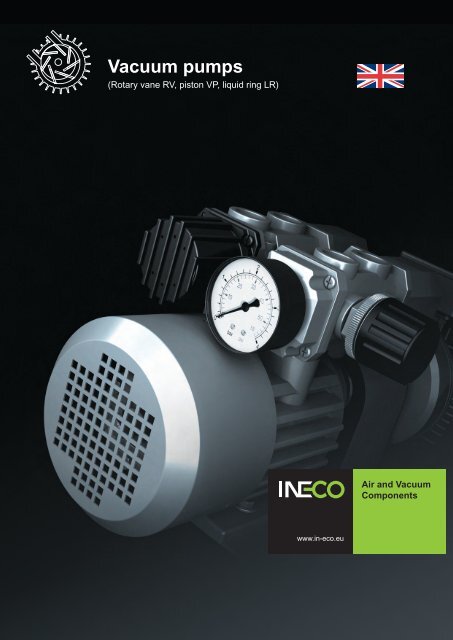

Vacuum pumps (Rotary vane RV, piston VP, liquid ring LR) - IN-ECO

1Rotary vane pumps_1_RV

1Rotary vane pumps_Rotary vane vacuum pumps (compressors) aresuitable for use in the area of heavy vacuumand pressure. They can be used for the evacuationand transport of air or dry gases whichare not toxic, aggressive or explosive. Theyrepresent the simplest and most suitablesystem wherever you need a precise source ofvacuum without additions. They are applicablefor sucking off in the small closed systems.1645231) Stator2) Rotor3) Carbonlamellas4) Input5) Output6) CompressionchamberPrinciple:The principle of operation of the rotary vanevacuum pump is based on the rotating lamellas.Rotor (2) is situated excentric on the topin the cylindrical stator (1), so rotor is almosttouching the stator. The lamellas (4) arepushed towards the wall of the stator by centrifugalforce. Between two lamellas and statorit comes to the volume change of the compressionchambers (7) by stator rotation, due to thisfact the gas is sucked.6Characteristics:- oil-free operation- source of the vacuum without additions- compact and reliable construction- easy installation and maintenance- low weight and dimensions- continuous running without vibrations- economic operation

06.03.2013IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euRotary vane pumps and compressors RV 22, RV 26ModelDischargecapacity(L/min)50/60HzVacuum(mbar)(abs)Motor (IP54), 50 Hz / 60HzPower Voltage Current( kW ) 50/60Hz ( V ) 50/60Hz ( A ) 50/60HzThermalprotectorNoisiness(dB)Weight(kg)blower connection(innerthread)Single phaseRV 22 120/135 120 0,31 / 0,38 230 (110) 1,6 / 1,8 (3,5) áno 59 / 62 13 3/8RV 26 130/155 150 0,31 / 0,38 230 (110) 1,9 / 2,2 (3,8) áno 59 / 62 14 3/8Performance curves / VacuumPerformance curves (50 Hz)Performance curves are defined for the air transportation with the temperature 15°C set for the suction by the atmosphericpressure 1013 mbar with the permissible deviation +/- 10%. Total pressure difference is valid for the temperature of thesuction air and the ambient operating temperature 25°C.Discharge capacity (l/min) →200175150125100755025100 200 300 400 500 600 700 800 900 1000vacuum (mbar) ←50HZRV 2260HZRV 26200175150125100755025RV blowers/exhausters meet Directive 2002/95/EC of European Parliamentand of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.RV blowers/exhausters conform to theEuropean Community’s MachineryDirective (CE).

06.03.2013IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euRotary vane pumps and compressors RV 33, RV 53, RV 63, RV 83ModelDischargecapacity(L/min)50/60HzUltimatevacuum(mbar)(abs)50/60HzOperatevacuum(mbar)(abs)Motor (IP54), 50 Hz / 60HzPower Voltage Current( kW ) 50/60Hz ( V ) 50/60Hz ( A ) 50/60HzNoisiness(dB)Weight(kg)blowerconnection(innerthread)Three phasesRV 33 235/280 160/134 400 0,30 / 0,37 200-240 ∆ / 345-415 Y 1,5 ∆/ 1 Y 65/70 21 3/4”RV 53 405/480 140/100 400 0,70 / 0,75 200-240 ∆ / 345-415 Y 2,5 ∆/ 1,7 Y 66/71 27 3/4”RV 63 575/685 140/100 400 1,35 / 1,50 200-240 ∆ / 345-415 Y 4,6 ∆/ 2,3 Y 67/73 36 3/4”RV 83 1130/1350 120/76 466 2 / 2,2 200-240 ∆ / 345-415 Y 10,5∆/ 8 Y 72/76 80 1”RV blowers/exhausters meet Directive 2002/95/EC of European Parliamentand of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.RV blowers/exhausters conform to theEuropean Community’s MachineryDirective (CE).

06.03.2013IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euRotary vane pumps and compressors RV 33, RV 53, RV 63, RV 83Performance curves / PressurePerformance curvesPerformance curves are defined for the air transportation with the temperature 15°C set for the suction by the atmosphericpressure 1013 mbar with the permissible deviation +/- 10%. Total pressure difference is valid for the temperature of thesuction air and the ambient operating temperature 25°C.50HZ60HZDischarge capacity(l/min) →16001400120010008006004002001600140012001000800600400200100Performance curves / VacuumRV 6350HZRV 53RV 33200 300 400 500pressure (mbar) →RV 8350HZ60HZ60HZ16001400120010008006004002001600600140012001000800600400200100200 300 400 5006001600160014001400120060HZ1200100050HZ100080080060060050HZ60HZ400400200200160016001400100 200 300 400 500 600 700 800 900 1000 1400RV 60HZ 8312001200100050HZ1000Performance curvesPerformance curves are defined for the air transportation with the temperature 15°C set for the suction by the atmosphericpressure 1013 mbar with the permissible deviation +/- 10%. Total pressure difference is valid for the temperature of thesuction air and the ambient operating temperature 25°C.Discharge capacity(l/min) →800600400200100 200 300 400 500 600 700 800 900 1000vacuum (mbar) ←RV 63RV 53RV 33800600400200RV blowers/exhausters meet Directive 2002/95/EC of European Parliamentand of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.RV blowers/exhausters conform to theEuropean Community’s MachineryDirective (CE).

06.03.2013IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euRotary vane pumps and compressors RV 33, RV 53, RV 63, RV 83DimensionSeries C D F G H I M NRV 33 12 353 265 255 197 223 400 480RV 53 12 353 265 270 197 223 400 560RV 63 12 310 283 270 238 271 460 650238 H4xC12650 N275 G*1650 N310 D283 F283 F310 D460 M238 H271 ISeries C D F G H I M NRV 83 12 427 357 304 264 298 567 709C264 H775 NG1"PT427D357F*1427 D567 M264 H298 I325 IRV blowers/exhausters meet Directive 2002/95/EC of European Parliamentand of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.RV blowers/exhausters conform to theEuropean Community’s MachineryDirective (CE).

2Piston pumps VP(Piston vacuum pump)_2.1_Models of the standard pump2.2_Laboratory models

2Piston pumps VP(Piston vacuum pump)_The best attributes of piston and membrane equipmentare combined together into the piston vacuumpumps (compressors) - into one small and compactunit. Deeper vacuum can be reached by the seriesconnection of the pistons (for double pistonsversion). The flow will be increased by parallelconnection. Due to the fact that operation of thepiston pumps is oil-free, these pumps are suitablefor those applications where contamination of themedium by oil mist is undesirable.5672Principle:The basic principle of the piston pumps is basedon linear reversible movement of the piston (1) inthe cylinder (2). The piston is moving by piston rod(3), which is driven by the winch by force of cammechanism (4) – conversion of rotary motion tolinear. The piston is sealed towards the cylinder bythe piston ring (5), which has high thermal conductivityand low friction without need to lubricate it. Bymovement of the piston in the cylinder downwardthe air is sucked through a one-way suction valve(6) into the compression chamber. By movement ofthe piston upwards, the air is pushed away by theone-way exhaust valve(7).314Characteristics:- not required operation liquid - oil-free operation- the pumps reach deep vacuum- low noisiness- compact construction- low weight- do not contaminate the transported gas- easy installation- low temperature at the pump head- long life-time

2Piston pumps VP(Piston vacuum pump)_2.1Models of the standard pump

2Piston pumps VP(Piston vacuum pump)_2.1Models of the standard pump

28.03.2013IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euPiston pumps VPModel VP 40, VP 90S, VP 120S, VP 120PVakuum 50Hz110100908070VP 120PFlow (l/min.)6050VP 120S403020VP 90SVP 40100 100 200 300 400 500 600 700 800 900 1000Pressure (bar)Model VP 40 VP 90S VP 120S VP 120PInput power (W) 180 W 250 W 300 W 300 WNoise Level dB(A) 58 dB 63 dB 66 dB 66 dBWeight 5,2 kg 7,4 kg 7,4 kg 7,4 kgID of Inlet / outlet port ø inner thread 1/4” inner thread 1/4” inner thread 1/4” inner thread 1/4”Max. Vacuum Rate 880 mbar 987 mbar 987 mbar 907 mbarMax. Volume Flow 40 L / min 45 L / min 65 L / min 105 L / minRated Voltage (V) 230V / 50Hz 230V / 50Hz 230 V / 50Hz 230 V / 50HzThermal Protector 135 ± 5% °C 135 ± 5% °C 135 ± 5% °C 135 ± 5% °CCover IP IP 54 IP 54 IP 54 IP 54Product Dimension (mm) 190 x 105 x165 mm 250 x 128 x 176 mm 250 x 128 x 176 mm 250 x 128 x 176 mmInstallation Dimension (mm) 126 x 86,5 mm (M6) 203,5 x 89 mm (M6) 203,5 x 89 mm (M6) 203,5 x 89 mm (M6)The single phase machines are designed with a +/- 10 % tolerance. Information presented is based on test results from nominal units. Specifications are subject to change withoutnotice.Piston pumps VP blowers/exhausters meet Directive 2002/95/EC of EuropeanParliament and of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.Piston pumps VP blowers/exhausters conform to theEuropean Community’s Machinery Directive (CE).

28.03.2013IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euPiston pumps VPModel VP 200P, VP 200S, VP 400P, VP 400S480Vakuum 50Hz450420390360330Flow (l/min.)300270240VP 400SVP 400P2101801501209060VP 200PVP 200S300 100 200 300 400 500 600 700 800 900 1000Pressure (bar)Model VP 200S VP 200P VP 400S VP 400PInput power (W) 500 W 500 W 1 kW 1 kWNoise Level dB(A) 66,5 dB 66 dB 66 dB 66 dBWeight 10,2 kg 9,2 kg 29 kg 29 kgID of Inlet / outlet port ø inner thread 1/4” inner thread 1/4” inner thread 1/2” inner thread 1/2”Max. Vacuum Rate 987 mbar 907 mbar 987 mbar 907 mbarMax. Volume Flow 105 L / min 180 L / min 300 L / min 400 L / minRated Voltage (V) 230V / 50Hz 230V / 50Hz 230 V / 50Hz 230 V / 50HzThermal Protector 145 ± 5% °C 145 ± 5% °C 145 ± 5% °C 145 ± 5% °CCover IP IP 54 IP 54 IP 54 IP 54Product Dimension (mm) 270 x 135 x 202 mm 250 x 128 x 203 mm 450 x 350 x 280 450 x 350 x 280 mmInstallation Dimension (mm) 225 x 90 mm (M6) 203,5 x 89 mm (M6) 240 x 320 mm (M6) 240 x 320 (M6)The single phase machines are designed with a +/- 10 % tolerance. Information presented is based on test results from nominal units. Specifications are subject to change withoutnotice.Piston pumps VP blowers/exhausters meet Directive 2002/95/EC of EuropeanParliament and of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.Piston pumps VP blowers/exhausters conform to theEuropean Community’s Machinery Directive (CE).

2Piston pumps VP(Piston vacuum pump)_2.2Laboratory models

2Piston pumps VP(Piston vacuum pump)_2.2Laboratory models

28.03.2013IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euPiston pumps VPModely VP LABV 10, VP LABV 20, VP LABV 30VP LABV 10Vakuum 50Hz5040VP LABV 30Flow (l/min.)3020VP LABV 2010VP LABV 10VP LABV 200 100 200 300 400 500 600 700 800 900 1000Pressure (bar)Model VP LABV 10 VP LABV 20 VP LABV 30Input power (W) 60 W 85 W 180 WNoise Level dB(A) ≤ 58 dB ≤55 dB ≤65 dBWeight 5,5 kg 6,8 kg 8,5 kgID of Inlet / outlet port ø 9 mm 9 mm 9 mmMax. Vacuum Rate 826 mbar 987 mbar 907 mbarMax. Volume Flow 16 L / min 36 L / min 48 L / minRated Voltage (V) 230V / 50Hz 230V / 50Hz 230 V / 50HzVP LABV 30Cover IP IP 54 IP 54 IP 54Product Dimension (mm) 370 x 170 x 256 370 x 170 x 256 370 x 170 x 256The single phase machines are designed with a +/- 10 % tolerance. Information presented is based on testresults from nominal units. Specifications are subject to change without notice.Piston pumps VP blowers/exhausters meet Directive 2002/95/EC of EuropeanParliament and of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.Piston pumps VP blowers/exhausters conform to theEuropean Community’s Machinery Directive (CE).

IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovak RepublicT +421 44 4304662F +421 44 4304663E info@in-eco.euwww.in-eco.euPiston pumps VPModely VP LABV 150P, VP LABV 250P, VP LABV 150S, VP LABV 250S240Vakuum 50Hz210VP LABV 250P180Flow (l/min.)15012090VP LABV 150PVP LABV 250S60VP LABV 150S300 100 200 300 400 500 600 700 800 900 1000Pressure (bar)Model VP LABV 150P VP LABV 250P VP LABV 150S VP LABV 250SInput power (W) 300 W 560 W 300 W 560 WNoise Level dB(A) ≤ 66 dB ≤ 66 dB ≤ 66 dB ≤ 67 dBWeight 11,5 kg 13 kg 11,5 kg 13 kgID of Inlet / outlet port ø 9 mm 9 mm 9 mm 9 mmMax. Vacuum Rate 906 mbar 906 mbar 986 mbar 986 mbarMax. Volume Flow 120 L / min 220 L / min 75 L / min 125 L / minRated Voltage (V) 230V / 50Hz 230V / 50Hz 230 V / 50Hz 230 V / 50HzCover IP IP 54 IP 54 IP 54 IP 54Product Dimension (mm) 340 x 187,4 x 305 340 x 187,4 x 305 340 x 187,4 x 305 340 x 187,4 x 305The single phase machines are designed with a +/- 10 % tolerance. Information presented is based on test results from nominal units. Specifications are subject to change withoutnotice.Piston pumps VP blowers/exhausters meet Directive 2002/95/EC of EuropeanParliament and of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.Piston pumps VP blowers/exhausters conform to theEuropean Community’s Machinery Directive (CE).

3Liquid ring pump

3Liquid ring pump_Liquid ring vacuum pumps LR are designed primarilyfor exhaustion of vapors and gases in various industriessuch as food and chemical industry. They are also usedfor evaporation, drying and packaging of the goods.Their big advantage is the fact they can evacuate gaseswith particles of liquid (vapor) as well as medium witha slight mechanical contamination (without abrasiveeffect).Principle:Rotor with fixed blades (1) is rotating in the stator (2),in which is situated eccentrically. Water ring is createdfrom the service liquid (3) by the centrifugal force.The vacuum is formed and the pressure is changedin the compression chambers (4) between the bladesand water ring. During the operation, the pump has tobe supplied by adequate quantity of service liquid toachieve desired performance. Service liquid is also veryuseful for cooling of the liquid ring vacuum pump and forreceiving possible contamination of sucked gas.Characteristics:21- oil-free operation- they are suitable for suction of gases and vapors- they can reach relatively deep vacuum- they are able to work simultaneouslywith the gas and liquid- anti cavitation protection is ensured byinstallation of anti-cavitation valve- safe operation with minimal maintenance- smooth running without vibration- economic operation43

11.08.2011IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovenská RepublikaT +421 44 4304662F +421 44 4304663E info@in-eco.skLiquid ring pumpTypeFrequency(Hz)Suction(m 3 /h)vacuum(mbar)(abs)ServicefatorMotor (IP55)Output Rated voltage Rated current( kW ) ( V ) ( A )soundpressurelevel(dB)weight(kg)oper.liquidqty.(m3/h)Three phasesLR 060-H06LR 061-H1650 28 33 1,08 0,75 200-240 ∆ / 345-415 Y 4,6 ∆/ 2,5 Y 6260 32 33 1,06 1,1 200-275 ∆ / 345-480 Y 5,2 ∆/ 3,1 Y 6750 48 33 1,83 1,5 200-240 ∆ / 345-415 Y 7,5 ∆/ 4,3 Y 6560 53 33 1,38 2,2 200-275 ∆ / 345-480 Y 9,2 ∆/ 4,6 Y 6917 0,2022 0,23Liquidring pump meet Directive 2002/95/EC of European Parliamentand of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.Liquidring pump conform to theEuropean Community’s MachineryDirective (CE).

←←←←←←11.08.2011IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovenská RepublikaT +421 44 4304662F +421 44 4304663E info@in-eco.skLiquid ring pumpPerformance curvesSuction capacity and power consumption depending on inlet pressureThe Characteristics are applicable for compression of 20 ℃(68 F) dry air from inlet pressure to atmospheric pressure(30inch Hg a) for nominal speed and drive with three phase motors. Ring liquid is water at 15 ℃(59 F) . The tolerance ofsuction capacity is -10% and of the power consumption +10%. With different operating conditions performance characteristicschange ( e.g.differing gas opera-ting liquid conditions,conveying of additional liquids and/or pumping of gas-steammixtures).50 Hz / RPM 2850/min 60 Hz / RPM 3450/min7070Suction Capacity (m 3 /h)605040302010LR 060-H16LR 061-H060 100 200 300 400 500 600 700 800 900 1000Inlet pressure P 1(mbar abs.)←Suction Capacity (m 3 /h)605040302010LR 060-H16LR 061-H060 100 200 300 400 500 600 700 800 900 1000Inlet pressure P 1(mbar abs.)←3.02.53.02.5LR 060-H16Power Consumption (kW)2.01.51.00.5LR 060-H16LR 061-H06Power Consumption (kW)2.01.51.00.5LR 061-H0600 100 200 300 400 500 600 700 800 900 1000Inlet pressure P 1(mbar abs.)←00 100 200 300 400 500 600 700 800 900 1000Inlet pressure P 1(mbar abs.)←8.01.0water Requirement(L/min)6.0water Requirement(L/min)Inlet pressure P 1(mbar abs.)←4.02.00LR 060-H16LR 061-H060 100 200 300 400 500 600 700 800 900 10000.80.60.40LR 060-H16LR 061-H060 100 200 300 400 500 600 700 800 900 1000Inlet pressure P 1(mbar abs.)←Liquidring pump meet Directive 2002/95/EC of European Parliamentand of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.Liquidring pump conform to theEuropean Community’s MachineryDirective (CE).

11.08.2011IN-ECO, spol. s r.o.Radlinského 13034 01 RužomberokSlovenská RepublikaT +421 44 4304662F +421 44 4304663E info@in-eco.skLiquid ring pumpDimensionLR 060-H06 / LR 061-H16A1A273.5G1G1/4G1/2171218G1/490G1/4G1/49.762.7 100125144.510.5413.5139.5165Typ A1 A2LR 060-H16 368,4 287,9LR 061-H06 386,7 287,9Spare part list LR 060 - H06 / LR 0161 - H161) Casing2) Port plate3) Impeller4) Lantern5) Motor6) Mechanical sealMaterial:Stainless steelStainless steelBronzeCast iron with teflon coatingIE1 motorPot leadLiquidring pump meet Directive 2002/95/EC of European Parliamentand of the Council of 27 January 2003 on the restriction of the useof certain hazardous substances in electrical and electronic equipment.Liquidring pump conform to theEuropean Community’s MachineryDirective (CE).
