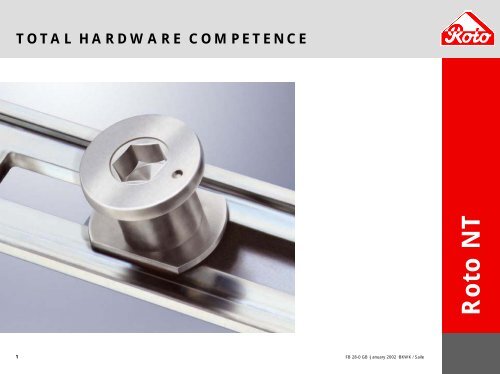

TOTAL HARDWARE COMPETENCERoto NT1FB 28-0 GB ·January 2002 ·BKWK / Saile

THE SURFACE TREATMENT: ROTOsilProcess: similar to ROTOnor Zinc plated Chromate Dipping (ROTOsil)Advantage: Optically superior in mattsilver Environmentally friendly Corrosion resistant to RAL-RG 607/3Roto NT2FB 28-0 GB ·January 2002 ·BKWK / Saile

HINGE SIDES FOR PVC WINDOWS Hinge side K Hinge side A Hinge side V Hinge side RRoto NT3FB 28-0 GB ·January 2002 ·BKWK / Saile

HINGE SIDES FOR TIMBER WINDOWS Hinge side E5 Hinge side A Hinge side V Hinge side RRoto NT4FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR PVC WINDOWSBASIC SECURITY STANDARD1234567891011121314151617181920Turn & tilt espagnoletteVariable turn & tilt espagnoletteBullet catchCorner driveBottom corner lock (turn & tilt)Special corner driveStay guideScissor stayStay arm KBearing KCorner lockCentre lockCorner pivot KCorner pivot rest KSash lifter / Mishandling deviceSash lifter / Mishandling device (frame)Tilt strikerStrikerBullet catchPacker for scissor stayRoto NT5FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR PVC WINDOWSSECURITY CLASS 11234567891011121314151617181920212223Turn & tilt espagnoletteVariable turn & tilt espagnoletteBullet catchCorner driveBottom corner lock (turn & tilt)Special corner driveStay guideScissor stayStay arm KBearing KCorner lockCentre lockCentre lock verticalCorner pivot KCorner pivot rest KSash lifter / Mishandling deviceAnti-drill plateSash lifter / Mishandling device (frame)Tilt strikerStrikerSecurity strikerBullet catchPacker for scissor stayRoto NT6FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR PVS WINDOWSSECURITY CLASS 2123456789101112131415161718192021Security turn & tilt espagnoletteBullet catchCorner driveBottom corner lock (turn & tilt)Special corner driveSecurity stay guideScissor stayStay arm KBearing KCorner lockSecurity centre lockCorner pivot KCorner pivot rest KSash lifter / Mishandling deviceAnti-drill plateSash lifter / Mishandling device (frame)Tilt striker (steel)Security striker (steel)Bullet catchLockable handlePacker for scissor stayRoto NT7FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR PVC WINDOWSBASIC SECURITY STANDARD FOR 2-LEAFED WINDOWRoto NT8FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR PVC WINDOWSSECURITY CLASS 1 FOR 2-LEAFED WINDOWRoto NT9FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR PVC WINDOWSARCHED WINDOWS1234567891011121314151617181920Arch component stayTurn & tilt espagnoletteTilt lock boltArch scissor stayArch centre lockArch centre lock (short)Arch component verticalArch componentBottom corner lock (turn & tilt)Arch corner lockAdjustable bearing KBearing pinCorner pivot KCorner pivot rest KBullet catchSash lifter / Mishandling deviceSash lifter / Mishandling device (frame)Tilt strikerStrikerBullet catchRoto NT10FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR PVC WINDOWSINCLINED WINDOWS1234567891011121314151617181920Stay guideStay armEnd pieceTurn & tilt espagnoletteArch componentCentre lockExtension rodBottom corner lock (turn & tilt)Arch corner driveCorner driveBearing KBearing pinCorner pivot KCorner pivot rest KBullet catchSash lifter / Mishandling deviceSash lifter / Mishandling device (frame)Tilt strikerStrikerBullet catchRoto NT11FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR TIMBER WINDOWSBASIC SECURITY STANDARD12345678910111213141516171819Turn & tilt espagnoletteVariable turn & tilt espagnoletteBullet catchCorner driveBottom corner lock (turn & tilt)Special corner driveStay guideScissor stayStay arm E5Bearing E5Corner lockCentre lockCorner pivot E5Corner pivot rest E5Sash lifter / Mishandling deviceSash lifter / Mishandling device (frame)Tilt strikerStrikerBullet catchRoto NT12FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR TIMBER WINDOWSSECURITY CLASS 112345678910111213141516171819202122Turn & tilt espagnoletteVariable turn & tilt espagnoletteBullet catchCorner driveBottom corner lock (turn & tilt)Special corner driveStay guideScissor stayStay arm E5Bearing E5Corner lockCentre lockCentre lock (vertical)Corner pivot E5Corner pivot rest E5Sash lifter / Mishandling deviceAnti-drill plateSash lifter / Mishandling device (frame)Tilt striker (steel)StrikerSecurity striker (steel)Bullet strikerRoto NT13FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR TIMBER WINDOWSSECURITY CLASS 21234567891011121314151617181920Security turn & tilt espagnoletteBullet catchCorner driveBottom corner lock (turn & tilt)Special corner driveSecurity stay guideScissor stayStay arm E5Bearing E5Corner lockSecurity centre lockCorner pivot E5Corner pivot rest E5Sash lifter / Mishandling deviceAnti-drill plateSash lifter / Mishandling deviceTilt striker (steel)Security striker (steel)Bullet catchLockable handleRoto NT14FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR TIMBER WINDOWSBASIC SECURITY STANDARD FOR 2-LEAFED WINDOWRoto NT15FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR TIMBER WINDOWSSECURITY CLASS 1 FOR 2-LEAFED WINDOWRoto NT16FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FOR TIMBER WINDOWSARCHED WINDOWS1234567891011121314151617181920Arch component stayTurn & tilt espagnoletteTilt lock boltArch scissor stayArch centre lockArch centre lock (short)Arch component verticalArch componentBottom corner lock (turn & tilt)Arch corner lockAdjustable bearing E5Bearing pinCorner pivot E5Corner pivot rest E5Bullet catchSash lifter / Mishandling deviceSash lifter / Mishandling device (frame)Tilt strikerStrikerBullet catchRoto NT17FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO NT FÜR HOLZFENSTERSCHRÄGFENSTER1234567891011121314151617181920Stay guideStay arm E5End pieceTurn & tilt espagnoletteArch componentCentre lockExtension rodBottom corner lock (turn & tilt)Arch corner driveCorner driveBearing E5Bearing pinCorner pivot E5Corner pivot rest E5Bullet catchSash lifter / Mishandling deviceSash lifter / Mishandling device (frame)Tilt strikerStrikerBullet catchRoto NT18FB 28-0 GB ·January 2002 ·BKWK / Saile

THE PROFILED FACEPLATE. No parts standing proud offaceplate, therefore maxuse of rebate. Flat support guide. Optically superior.Roto NT19FB 28-0 GB ·January 2002 ·BKWK / Saile

THE CLIP CONNECTION. Secured in place untilfixing. Precise fitting at connectingpoints. Functionality is secured bysolid connection. No connecting plate thatstands proud. Defined screw positions fortrouble free use ofautomated screw feedmachine.Roto NT20FB 28-0 GB ·January 2002 ·BKWK / Saile

THE LOCKING CAM VARIATIONS. Locking cam EAdj. compression. Locking cam PAdj. compressionand securitymushroom head. Locking cam VAdj. height andcompression,and securitymushroom head.Roto NT21FB 28-0 GB ·January 2002 ·BKWK / Saile

THE LOCKING CAM GUIDE. Superior smoothness dueto flat guide of the lockingcam ensures extremedurability. Advantage of the Roto flatcam still incorporated in theRoto round cam.E P V Large travel of 36mmprovides optimumengagement in striker.Roto NT22FB 28-0 GB ·January 2002 ·BKWK / Saile

THE LOCKING CAM V Height-, compression adj.and security functionintegrated in one. Height adj.: +1,2 mm / -0,8mm. Compression: ± 0,8 mm.+ 0,8 mm- 0,8 mm+ 0,8 mm- 0,8 mm Mushroom head. New type of multifunctionallocking system.Roto NT23FB 28-0 GB ·January 2002 ·BKWK / Saile

THE ADJUSTMENT TOOL. Rebate related correctionsin height and compressionwith special adjustmenttool. Controlled adjustmentmade possible even incritical places. Special adjustment toolallows precise on-siteadjustment.Roto NT24FB 28-0 GB ·January 2002 ·BKWK / Saile

TURN MODE WITH „HOLD OPEN“ FUNCTION As a standard, the hingehas an in-built frictionfunction to hold thewindow open.Roto NT25FB 28-0 GB ·January 2002 ·BKWK / Saile

THE CLIP PARTS. All sash components (evenaccessories like sash lifter)are fitted with clip parts. Usable on standard or cutin eurogrooves for timberand PVC. Integrated screw guide. Perfect bite enables fittingand fixing to be separated. Time and cost reduction.Roto NT26FB 28-0 GB ·January 2002 ·BKWK / Saile

THE STAY ARM.80mm Variable tilt opening byturning the stay fixing fromstay size 250 (80 or140mm). Stay 150 only80mm. Integrated anti slam device.40mm Wear and tear reducingstay arm connection to stayguide. Hinging and un-hingingpos. over pin and over stayarm.Roto NT27FB 28-0 GB ·January 2002 ·BKWK / Saile

THE TILT STRIKER. 24mm away from thecorner. Tilt striker always on thebottom same parts forsingle and double windows. Also in steel for highsecurity.Roto NT28FB 28-0 GB ·January 2002 ·BKWK / Saile

32.2-2.2STRIKER WITHOUT A BASEPLATE. Greater clearance. Achieves a higher securityclassification in accordancewith DIN V ENV 1627 ff. Non-handed.Clearance Falzluftbereich 9,8 -159.8-15▒0.8mm(± 0,8 mm)812 +3.0Roto NT29FB 28-0 GB ·January 2002 ·BKWK / Saile

THE NIGHT VENT. Easy to retro-fit. Only frame part required. With standard corner drive. No need for positioning jig. Easy and useful ventilation.Roto NT30FB 28-0 GB ·January 2002 ·BKWK / Saile

THE NIGHT VENT. Easy to retro-fit. Only frame part required. With standard corner drive. No need for positioning jig. Easy and useful ventilation.Roto NT31FB 28-0 GB ·January 2002 ·BKWK / Saile

THE STRIKERS. Striker length and screwaxis are same. Strikers can be changedwithout replacing centrelocks. All striker variants can beused with all locking camvariations. Easy to retro-fit if highersecurity is required.Roto NT32FB 28-0 GB ·January 2002 ·BKWK / Saile

THE MAGNETIC BULLET CATCH. Used for balcony doors /windows. Retro-fit.Roto NT33FB 28-0 GB ·January 2002 ·BKWK / Saile

THE SASH LIFTER. Sash and frame part nonhanded. Sash part clips onespagnolette. Frame part adjustable overeccentric cam. Sash lifter is pre-assembledon french windowespagnolette. Run-up block is notrequired.Roto NT34FB 28-0 GB ·January 2002 ·BKWK / Saile

THE SASH LIFTER. Sash and frame part nonhanded. Sash part clips onespagnolette. Frame part adjustable overeccentric cam. Sash lifter is pre-assembledon french windowespagnolette. Run-up block is notrequired.Roto NT35FB 28-0 GB ·January 2002 ·BKWK / Saile

UNIFORM LOOK FOR ALL APPLICATIONS.Roto NT is used for: All types of turn & tiltwindows PatioTilt / Sliding elements DoorSafeMulti-locking system forentrance doors to housesand apartments. DoorLineHinges for entrance doors.Roto NT36FB 28-0 GB ·January 2002 ·BKWK / Saile

UNIFORM LOOK FOR ALL APPLICATIONS. The colour of the RotoLineand DecoLine ranges ofwindow handles match thatof the Roto NT fittings toachieve a harmonious andoptically attractive overallimpression.Roto NT37FB 28-0 GB ·January 2002 ·BKWK / Saile

THE ADVANTAGES TO THE FABRICATOR (I). Profiled faceplate allows larger rebate tolerance. The surface treatment ROTOsil – optically superior anddurable. System designed for automating. Automated assemble incombination with clip-in components. Components securely connected without connecting plate.Defined screw positions. All parts connecting to corner drive, centre lock, stay guideand espagnolette are connected in a straight line. Defined connection points without travel reduction on allcomponents. Adjustable cams.Roto NT38FB 28-0 GB ·January 2002 ·BKWK / Saile

THE ADVANTAGES TO THE FABRICATOR (II). Strikers have same screw axis. Hinging and un-hinging over pin and stayarm. Locking cams are functional and durable. Cam is guided flat. Easy and smooth adjustment (compression, side, height). Easy retro-fit of burglar-retardant components. Security concept conforming to DIN V ENV 1627ff. Ultra slim hinge combinations.Roto NT39FB 28-0 GB ·January 2002 ·BKWK / Saile

THE ADVANTAGES TO THE FABRICATOR (III). Low wear and tear connection on stay arm and faceplate. Easy fit accessories (bullet catch, night vent, sash lifter/mishandling device). Fewer parts provide logistic advantage.Roto NT40FB 28-0 GB ·January 2002 ·BKWK / Saile

THE ADVANTAGE TO THE END-USER (I). Optic silver surface. profiled faceplate. extreme slim hinge side available in all RAL-colours. less visible parts. Function and security large tolerances (expansion and contraction). 5 year warranty. RAL-approved. smooth operation (flat cam guidance, stay arm withsliding connection). security is standard can be easily upgraded.Roto NT41FB 28-0 GB ·January 2002 ·BKWK / Saile

THE ADVANTAGE TO THE END-USER (II). User comfort easy adjustment. friction in turn mode. smooth operation. easy hinging and un-hinging of sash. Accessories anti-slam is standard. tilt opening restrictor is standard. night vent as easy retro-fit. mishandling device and sash lifter integrated in onecomponent. bullet catch for balcony doors and windows. electronic components can be linked to sensor andalarm equipment.Roto NT42FB 28-0 GB ·January 2002 ·BKWK / Saile

MAGNETIC WINDOW CONTACT. Magnetic system formonitoring locking mode.System achieves up to VdSClass C standard. Themagneticcontactisinstalled by simply clippingit to the centre lock. Functions with cable-freeradio signal forunproblematic retro-fit.Roto NT43FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO MVS Hardware integratedsensors. Magnetic sensor lockingandopening monitoringsystems. Can be linked to alarms. Conforms to VdS-Class B. Concealed in rebate.Roto NT44FB 28-0 GB ·January 2002 ·BKWK / Saile

ROTO MTS Hardware integratedsensors. Magnetic sensor lockingand opening monitoringsystems. Can be linked to heating,ventilation, air-conditioning,window and buildingcontrol system, as well asalarm installation. Concealed in rebate.Roto NT45FB 28-0 GB ·January 2002 ·BKWK / Saile

FENSTERÖFFNER EVS Automatic opening andclosing of turn & tiltwindows. Improved air qualitythrough controlledventilation. More comfort by means ofremote control operation.Integration in a building´stechnical control system.Roto NT46FB 28-0 GB ·January 2002 ·BKWK / Saile
