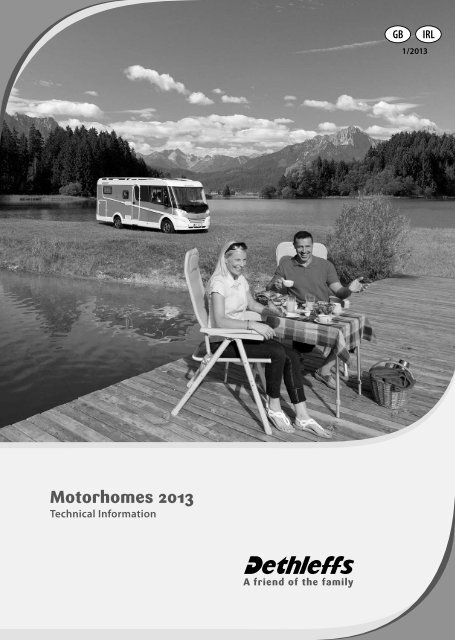

GB1/2013IRLXXXXMotorhomes 2013Technical Information1

DETHLEFFS Plus pointsOnly a Dethleffs Motorhome comes with these advantages:Experience and qualityIf you talk about experience, then look no further than Dethleffs.The company founder Arist Dethleffs invented the caravanin Germany in 1931. This is 80 years experience in leisurevehicle production resulting in quality and proved detail solutionsof each motorhome. Trust in over 350 competent Dethleffspartners all over Europe. Together with our partners welive a special philosophy: Dethleffs – A Friend of the Family. Nowonder that Dethleffs are one of the leading manufacturers ofleisure vehicles in Europe.Price/PerformanceIf you opt for a Dethleffs, you go for quality and specification fora fair and attractive price.At Dethleffs you will find your dream vehicleNo matter if you look for van conversions, Low Profiles, A Classesor Coachbuilt bed models: with one of the most.For the perfect restSleeping comfort made by Dethleffs: The most fixed beds comestandard with high-quality cold foam mattresses and excellentslat bases provided by ergonomic wooden slatted frame. Youwill enjoy the perfect sleeping comfort.Unique room climate due to „AirPlus“Due to the ‘AirPlus’ technology warm air can rise behind the winterboards and overhead lockers, this helps to prevent condensationand provides a healthy interior climate.Winter and weather resistancePerfect insulation performance, an integral interior climate conceptand special Winter Comfort Packages turn your DethleffsMotorhome into a perfect winter domicile.Cook like a chefJust like at home: the Dethleffs gourmet kitchen centre providesan optimised room division. The split hob cover enables you tomaximise your work space if not all burners are in use. Additionalclever ideas: height adjustable locker shelves and large drawerunits to accommodate all of your kitchenware and food-stuffs.What else you should know:Dethleffs Motorhomes come standard with broad gaugechassis. Alongside a dynamic exterior optic, this enables considerablyimproved and safer, more stable driving characteristics.The Dethleffs unique cab bonnet on A Class models reducessolar radiation and thus prevents an excessive generation ofheat in the cab interior.Dethleffs water ingress warranty 6 years(provided that annual inspections with costs areundertaken by a Dethleffs approved workshop)Dethleffs – an awarded choice!As a friend of the family Dethleffs always listen to the customers'demands. Our tradition is also the involvement of ourmotorhomers and caravan fans in the vehicle developmentprocess. No wonder, Dethleffs take a top position for the readers'voting on a regular basis.Current examples are the "King-Customer-Awards" bringing usto the pole positions. Also the readers' voting of the Promobilbrought us to the first and to second positions within threecategories.2

INDEXPage2 - 3 Dethleffs Plus Factors / Index / Layout keyCompact Class: Low Profile A Class Coachbuilt4 - 9 Globebus ✔ ✔ –10 - 15 Globe S ✔ – ✔Advantage Class: Low Profile A Class Coachbuilt16 - 23 Advantage ✔ ✔ –24 - 29 Globe4 ✔ – –30 - 37 Magic Edition ✔ ✔ –30 - 37 Magic Edition 4 ✔ – –Esprit Class: Low Profile A Class Coachbuilt38 - 45 Esprit ✔ ✔ ✔46 - 47 Winter Comfort Packages / Storage Space48 General InformationLegendOptional extras4 (6*)The following definitions will help you to understand thetechnical data.4 = Standard number of belted seats(6*) = Maximum number of seatsFor more than 4 passengers the optional safety package isnecessary. Basically the authorised total weight as well as theaxle load must not be exceeded.Water boiler (red. volume) = The basis for calculation of the"mass in running order" is the reduced water tank volume.Some optional extras cannot be fitted on several models. Pleasecontact your Dethleffs dealer for advice as regards technical specification/installationand further optional extras. The optional fittingsprices are valid for batch production only. Packages are only availablewith a binding order of a new vehicle. All weight indications areapproximate values. The fitting of optional extras will increase thevehicle’s weight and reduce the maximum user payload.3

Globebus – Standard specification (Low Profile/A Class)Chassis / Base vehicle• Fiat Ducato X/250 with Common-Rail-Turbo diesel technology andMultijet direct injection• Current Fiat technology with EURO 5 engine• Front wheel drive• ABS/EBD• Fuel tank 90l• Driver and passenger airbags*• Interruption of fuel supply and retraction of steering column(in case of a collision)• Disc brakes• Rear and front axle stabiliser• Wider tyres, chassis with stronger suspension spring, anti theft deviceand revolution counter• Electric window lift (A Class only in conjunction with cab door)• A Class: Electrical and heated cab mirrors• Radio pre-wiring*• Cab air conditioning package*• Central locking for cab (Low Profile)• Wide, powder-coated edging• Break-down kit• ESP including Traction+*• A Class: Cruise control*• Wheel trims*• LED day-time-running lightsConstruction• Insulation with expanded Polystyrene (EPS)• 41 mm floor thickness, 34 mm wall and roof thickness• Smooth sides in White standardExterior colours available at extra charge• Cab door N/S*• A Class: Cab blinds*• Low Profile: design-oriented, Dethleffs specific front bumperwith LED day-time-running lights• A Class: LED day-time-running lights embedded into the front• Modern rear moulding with LED rear lights• 3rd brake light embedded into the rear wall• Rear garage for Globebus 11, 14 and 15• Access locker doors with catch locks• Electric entrance step• Convex entrance door with interior trim, pockets and waste bin• Dethleffs Pilote seats with height/ inclination adjustment and twoupholstered arm rests (A Class: with 3-point inertia safety belt system)• Swivel seats N/S and O/S• Overhead lockers for cab• Opening insulating windows with flyscreen and blind• Mini Heki (clear glass skylight with blind)• Height-adjustable headrests for seats in living roomOn-board technology/ Installations• Gas locker for up to 2x11 kg bottles• Powerful AGM leisure battery 95 Ah• Starter and leisure battery with automatic switch-over (also for fridge)• Electrical charger for both starter and leisure battery 12V/ 18 A• CEE 230 V external socket with safety device• Powerful Truma Combi 6 gas heating with integrated 10 l boiler• Powerful submerged water pumpOn-board technology / Installations (continuation)• Warm water system with mixer tap• On-board control panel alternative*• LED wardrobe illumination• Earth leakage circuit breaker (ELCB)• Awning light*• Smoke detector*Kitchen• 3-burner hob, sink with glass cover• Fridge with freezer compartment, convex door and automatedenergy switch-over• Oven with grill*• Cutlery drawer on smooth steel runners• Halogen spots• Spice rack with noble chromed rail (depending on layout)• Kitchen illuminated plinthBathroom• Swivel cassette toilet or fixed toilet, both with electronic flush(depening on layout)• Cabinet, storage compartments, hooks, big mirrors, flush fitting halogenspotlights and height-adjustable shower head in all bathrooms• High-quality plastic walls/ doors (not for T/I 2 shower curtain instead)• Intelligent wash room concept with 3D bathroom (T/I 8)Living area• Furniture finished in sturdy plywood, locker doors partly in high-qualityMDF (medium density fibre board)• Fixed beds and pull-down beds with bed laths and cold foam mattress• Low-level bed for better access to the double bed (for T/I 1)• AirPlus ventilation system - for an optimised ventilation of the interior toreduce condensation• Flat screen TV compartment with extendable bracket*• Fabric covered wardrobe (depending on layout)• Carpets*• Flyscreen door*InteriorCalva Apple wood with soft furnishing Maritima or Joy.* Standard UK specification which is above standard European specificationThe Dethleffs world of coloursThere are many optional exterior colours available. Youwill find the different possibilities on the charts of thefollowing pages.4

GLOBEBUSLow ProfileType / Model T 1 T 2 T 4 T 8 T 11 T 15GlobebusCompact ClassTechnical DataLength/width/height cm 596/215/262 596/215/262 671/215/262 661/215/262 626/215/262 626/215/262Internal height cm 190 190 190 190 190 190Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 345 345 380 404 345 345Beds Front cm - - - - - -Mid cm 160x90/75 160x90/75 160x90/75 165x90x75 160x90/75 160x90/75Alternative cm - - 195x210/155/205 - - -Rear cm 190x140/135 205x130/95 210x80 / 205x70 195x160/145 195x165/160 195x155/145Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115)Chassis Low frame Low frame Low frame Low frame Low frame Low frameWeight net kg 2473 2536 2590 2592 2537 2552Mass in running order (MIRO) (approx.) kg 2663 2726 2780 2782 2727 2742Payload (approx.) kg 836 773 719 717 772 757Maximum authorised weight (approx.) kg 3499 3499 3499 3499 3499 3499Designated passenger seats 3.5 t 4 4 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4 4 4Heating Combi 6 Combi 6 Combi 6 Combi 6 Combi 6 Combi 6Fridge/ thereof freezer compartment l 90 / 8 90 / 8 100 / 9 160 / 30 90 / 9 160 / 30Water tank incl. boiler (red. volume)/lwaste water tank capacitiesl114 (20)/ 90 114 (20)/ 90 114 (20)/ 90 114 (20)/ 90 114 (20)/ 90 114 (20)/ 90Storage space C 1 B 2 D 2 C 2 C 2 C 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 4 / 1 3 / 2 4 / 1 4 / 2 4 / 1 4 / 25

GLOBEBUSA ClassType / Model I 1 I 2 I 4 I 8 I 11 I 15Technical DataLength/width/height cm 600/215/262 600/215/262 675/215/262 665/215/262 630/215/262 630/215/262Internal height cm 190 190 190 190 190 190Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 345 345 380 404 345 345Beds Front cm 185x150/135 185x150/135 185x150/135 185x150/135 185x150/135 185x150/135Mid cm - - - - - -Alternative cm - - 195x210/155/205 - - -Rear cm 190x140/135 205x130/95 210x80 / 205x70 195x160/145 195x165/160 195x155/145Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115)Chassis Low frame Low frame Low frame Low frame Low frame Low frameWeight net kg 2616 2679 2719 2560 2696 2711Mass in running order (MIRO) (approx.) kg 2806 2869 2909 2750 2846 2861Payload (approx.) kg 693 630 590 749 653 638Maximum authorised weight (approx.) kg 3499 3499 3499 3499 3499 3499Designated passenger seats 3.5 t 4 4 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4 4 4Heating Combi 6 Combi 6 Combi 6 Combi 6 Combi 6 Combi 6Fridge/ thereof freezer compartment l 90 / 8 90 / 8 100 / 9 160 / 30 90 / 9 160 / 30Water tank incl. boiler (red. volume)/lwaste water tank capacitiesl114 (20)/ 90 114 (20)/ 90 114 (20)/ 90 114 (20)/ 90 114 (20)/ 90 114 (20)/ 90Storage space C 1 B 2 D 2 C 2 C 2 C 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 4 / 1 3 / 2 4 / 1 4 / 2 4 / 1 4 / 26

globeBUs – Optional ExtrasWeight (kg)CodeLow ProfileA ClassChassis/ Base vehicleWeight upgrade 4250 kg Fiat (Ducato Maxi for I 4 only) 1633 – ○Alloy wheels 15" Anthracite Silver polished – 1751 ○ ○Alloy wheels16" Anthrazite Silver polished – 1750 – ○Tow bar 35 273 ○ ○Automated gearbox (6 gears) 17 011 ○ ○Wooden cab dash – 806 ○ ○Cab insulating mat large 2 427 ○ ○Cab insulating mat for windscreen and side windows 1 934 ○ ○Motorbike rack - depending on layout (cannot be used with tow bar in the same time,for some models only available in conjunction with weight increase)40 274 ○ ○Mud flap rear (standard for drop chassis extension and rear corner steadies) 2 880 ○ ○Mud flat front 2 298 ○ ○Fog lamps 1 296 – ○Rear corner steadies (2 pieces) 6 390 ○ ○Cab blinds Remis 2,5 434/648 ○ ◉Increased suspension spring for front axle (Ducato Light) 5 1889 – ○ExteriorAccess locker doors sizes depend on model type.For further information please contact your local dealer.7 331 ○ ○GRP roof 0,6 kg/m² 242 ○ ○Roof rack with ladder for high-level rear moulding(Please note: collision risk because of limited roof area)2 / 10 418/1755 ○ ○Roof railing accessory: cross elements and ladder for roof railing for high-level rear moulding(Please note: collision risk because of limited roof area)7 1754 ○ ○Midi-Heki over pull-down bed 10 246 – ○Cycle rack for 3 cycles 8,7 938 ○ ○Cycle rack for 4 cycles 10,2 815 ○ ○Flush fitting window 5 415 ○ ○Window in T-hood 8 243 ○ –ExteriorWindow in bathroom (standard for T/I 2) 5 372 ○ ○Insulation Styrofoam 0,9 kg/m² 1966 ○ ○Awning Omnistor 3 till 6m depending on model;For further information please contact your local dealer.21-40 div. ○ ○Entrance step 3 315 ○ –InteriorCompartment in floor 26 1985 ○ ○FurnitureWardrobe instead of bench (no bed convert crossways possible) – 271 ○ ○Bed convert single beds to double bed (T/I 4) 3 1883 ○ ○Soft furnishingMassage mattress 10 1579 ○ ○7 zones Premium cold foam mattress with visco foam for double bed – 1949 ○ ○7 zones Premium cold foam mattress with visco foam for single beds – 1947/1948 ○ ○Optional fabric – div. ○ ○◉ Standard ○ Option ̶ Not possible ◆ Obligatory Please read notes with regards to the optional extras on page 3!8

globebus – Optional ExtrasElectrics/ InstallationLED illumination package (interior illumination in LED) – 1661 ○ ○2nd leisure battery 95 Ah 27 830 ○ ○Indirect illumination 2 705 ○ ○Solar system (2 Siemens M50 modules, 1 controler SR 13, 2 x 60 Watt) 15 922 ○ ○Gas installationCrash sensor for gas system – 1902 ○ ○BBQ 30 mbar 1 878 ○ ○Switch over system Duo Control CS (weight without gas bottle) 5 1577 ○ ○Water supply/ InstallationInsulated waste water tank 2 665 ○ ○Exterior shower (cold water) 1 793 ○ ○Pressure water pump SF126 PRO (Shurflo pump) – 736 ○ ○Switch for water pump 1 397 ○ ○Heating/ Air conditioningHeating: Truma Combi E 6 kW with 10l boiler 2 330 ○ ○Heating: heat exchanger Sirrocco Arizona 400 3 472 ○ ○Heating: Webasto additional heating 7 517 ○ ○Floor heating (electrical) 9 763 ○ ○Air conditioning Telair Silent 7300H-230V 34 609 ○ ○KitchenFridge vent covers 1 282 ○ ○Extractor fan (circulating air) 2 344 ○ ○BathroomWooden grill for shower - 1657 ○ ○Multimedia systemFlatscreen 19" 6 1896 ○ ○SAT Parabol system Flatsat Easy Classic 65 13 1741 ○ ○SAT Parabol system Teleco Flatsat Easy 65 Twin 21,3 1813 ○ ○SAT Parabol system Teleco Flatsat Easy 65 (without receiver) 21,3 1812 ○ ○SAT Parabol system Teleco Flatsat Easy 65 (with receiver) 22,3 1814 ○ ○Pre-wiring (Navi to TV locker) 2 1945 ○ ○Navigation system Pioneer AVIC-F 940 BT 4 1822 ○ ○Navigation module CARATEC (only in conjunction with Moniceiver) 2 1643 ○ ○Radio pre-wiring with Sound package 2 659 ○ ◉RDS / CD Pioneer (only in conjunction with radio pre-wiring) 2 1639 ○ ○DVD - Tuner incl.Radio + CD (Pioneer) (only in conjunctionwith radio pre-wiring) 2 503 ○ ○DVD - Radio Moniceiver JVC AVX 740 3 1644 ○ ○Reversing cam pre-wiring 2 277 ○ ○Reversing cam CARATEC in many different variants;For further information please contact your local dealer.Misc3 1642+1640 ○ ○"Cuddle" package (bedspread, cuddle blanket, 2 pillows, table cloth) 1 1590 ○ ○Fire extinguisher 2 kg 3 1878 ○ ○Registration documents – – ◆ ◆Weight (kg)CodeLow ProfileA ClassCompaCt Class Globebus9

globe sLow ProfileType / Model T 570 T 584 T 661 T 677 T 685 T 690Technical DataLength/width/height cm 638/233/267 638/233/267 698/233/267 693/233/267 698/233/267 698/233/267Internal height cm 195 195 195 195 195 195Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 380 380 380 404 380 380Beds Front cm - - - - - -Mid cm 165x100/75 175x100 175x100/75 175x100 165x100/75 175x100Alternative cm - - 210x210/110 - - -Rear cm 205x135/110 200x135/110 210x85 / 200x75 210x155 200x150 200x135/110Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115)Chassis Low frame Low frame Low frame Low frame Low frame Low frameWeight net kg 2530 2515 2595 2595 2595 2610Mass in running order (MIRO) (approx.) kg 2725 2710 2790 2790 2790 2805Payload (approx.) kg 774 789 709 709 709 694Maximum authorised weight (approx.) kg 3499 3499 3499 3499 3499 3499Designated passenger seats 3.5 t 4 4 (6) 4 4 (6) 4 4 (6)Designated passenger seats 3.85 t 4 6 4 6 4 6Heating Combi 6 Combi 6 Combi 6 Combi 6 Combi 6 Combi 6Fridge/ thereof freezer compartment l 141 / 23 113 / 14 113 / 14 113 / 14 141 / 23 113 / 14Water tank incl. boiler (red. volume)/waste water tank capacitiesl125 (20)/ 90 107 (20)/ 90 125 (20)/ 90 107 (20)/ 90 125 (20)/ 90 107 (20)/ 90Storage space B1 / - B1 / - D1 / - C1 / - F1 / - B1 / -Standard swivel seat for driver and passenger yes / yes - / - yes / yes - / - yes / yes - / -Battery / charger Ah / A 75 / 18 75 / 18 75 / 18 75 / 18 75 / 18 75 / 18Power outlets 230 V / 12 V 4 / 2 3 / 2 4 / 2 3 / 2 3 / 2 4 / 2COMPACT Class Globe S11

globe sCoachbuiltType / Model A 547 A 598 A 653 A 677 A 678Technical DataLength/width/height cm 598/232/312 647/232/312 678/232/312 697/232/312 697/232/312Internal height cm 198 198 198 198 198Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 345 404 380 404 404Beds Front cm 200x145 200x145 200x145 200x145 200x145Mid cm - 185x105 - 185x105 185x105Alternative cm - - - - -Rear cm 205x135/115 2x(215x85) 215x205/200 205x130 2x (215x85)Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115)Chassis Low frame Low frame Low frame Low frame Low frameWeight net kg 2538 2631 2634 2710 2671Mass in running order (MIRO) (approx.) kg 2733 2826 2838 2905 2866Payload (approx.) kg 766 673 661 594 633Maximum authorised weight (approx.) kg 3499 3499 3499 3499 3499Designated passenger seats 3.5 t 4 4 (6) 4 (4) 6 (6) 6 (7)Designated passenger seats 3.85 t 4 6 4 6 7Heating Combi 6 Combi 6 Combi 6 Combi 6 Combi 6Fridge / thereof freezer compartment l 108 / 14 108 / 14 108 / 14 108 / 14 108 / 14Water tank incl. boiler (red. volume) /lwaste water tank capacities102 (50)/ 95 102 (50)/ 95 102 (50)/ 95 102 (50)/ 95 102 (50)/ 95Storage space C 2 E 2 G 2 C 1 E 2Standard swivel seat for driver and passenger yes / yes - / - yes / yes - / - - / -Battery/ charger Ah / A 75 / 18 75 / 18 75 / 18 75 / 18 75 / 18Power outlets 230 V / 12 V 3 / 2 3 / 2 3 / 2 3 / 2 3 / 212

A 701The Dethleffs world of coloursFor GLOBE S range you can choose from the followingcolour combinations (some for extra charge):ChassiscolourGLOBE SLow Profile and CoachbuiltConversion colourWhiteWhite Code 5713Dolphingrey metallic Code 5197comapct Class Globe S738/232/3121982000/750215/70R 15C404200x145-215x205/145205x80/195x802.0 JTD85 (115)Low frame27082903596349944Combi 6108 / 14102 (50)/ 95D 2yes / yes75 / 183 / 2Please note that the skirts as well as the roof always remain white.Conversion design partly with varnished graphics.13

Globe s – Optional ExtrasWeight (kg)CodeLow ProfileCoachbuiltChassis / Base vehicleFiat Ducato MultiJet 130 light (2.3 l / 130 BHP) - (depending on layout) 15 – ○ ○Fiat Ducato MultiJet 150 light (2.3 l / 148 BHP) - (depending on layout) 15 – ○ ○Fiat Ducato MultiJet 180 light (3.0 l / 177 BHP) - (depending on layout) 65 – ○ ○Weight upgrade 3850 kg Fiat (Ducato Light) – 808 ○ ○Alloy wheels 15" Anthracite Silver polished – 1751 ○ ○Tow bar 35 273 ○ ○Tow bar incl. reinforcement for drop chassis extension 35 273 – ○Tow bar incl. drop chassis extension 90 273 – ○Automated gearbox (6 gears) 17 011 ○ ○SEATS: Swivel seat for driver (only in conjunction with Pilote seat) 20 725 ○ ◉SEATS: Swivel seat for passenger (only in conjunction with Pilote seat) 20 724 ○ ◉Mud flap rear (standard in conjunction with drop chassis extension and rear corner steadies rear) 2 880 ○ –Rear corner steadies (2 pieces) 6 390 ○ ○Cab blinds Remis 2,5 434 ○ ○ExteriorAccess locker door rear garage N/S 7 331 – ○GRP roof 0,6 kg/m² 242 ○ ◉Garage 63 476 – ○Roof rack with ladder for low-level rear moulding(Please note: Collision risk because of limited roof area)17 852 ○ ○Cycle rack for 3 cycles 8,7 938 ○ ○Cycle rack for 4 cycles 10,2 815 ○ ○Window for T-hood 8 243 ○ –Window for bathroom (for only T 685) 5 372 ○ –Insulation Styrofoam 0,9 kg/m² 1966 ○ –Awning Omnistor 3 till 6m depending on model;For further information please contact your local dealer.21-40 div. ○ ○InteriorKitchen illuminated plinth 2 607 ○ ○Additional seat next to seating lounge (A 678) 11 435 – ○Furniture/ LayoutsWood décor Calva Apple – 1631 ○ –Alternative overhead locker doors (for wood décor Dekor Goldulme) – 1969 ○ ○Additional cushions for make up bed (only in conjunction with free-standing table leg) 3 339 ○ ○Free-standing table leg fix (not in conjunction with option 339) 5 1870 ○ –Soft furnishingAdditional textile wall unit in Coachbuilt area – 1572 – ○Optional fabric – div. ○ –Fabric Sumatra (special edition fabric for Globe S) – 1609 ○ ○14

Globe s – Optional ExtrasWeight (kg)CodeLow ProfileCoachbuiltElectrics/ InstallationLED illumination package (interior illumination in LED) – 1661 – ○2nd leisure battery 95 Ah 27 830 ○ –Solar system (2 Siemens M50 modules, 1 controler SR 13, 2 x 60 Watt) 15 922 ○ –Gas installationCrash sensor for gas system – 1902 ○ ○BBQ 30 mbar 1 878 ○ ○Switch over system Duo Control CS (weight without gas bottle) 5 1577 ○ ○Water supply/ InstallationInsulated waste water tank 2 665 ○ ○Exterior shower (cold water) 1 793 ○ ○Switch for water pump 1 397 ○ ○Heating/ Air conditioningALDE warm water heating 30-50 761 ○ ○ALDE heat exchanger 5 565 ○ ○Heating: Truma Combi E 6 kW with 10l boiler 2 330 ○ ○Electrical floor heating 9 763 ○ –KitchenFridge vent cover 1 282 ○ ○Extractor fan (circulating air) 2 344 ○ ○BathroomWooden grill for shower 1855 – ○Multimedia systemsRadio pre-wiring with Sound package 2 659 ○ ○RDS / CD Pioneer (only in conjunction with radio pre-wiring) 2 1639 ○ ○DVD - Tuner incl.Radio + CD (Pioneer) (only in conjunction with radio pre-wiring) 2 503 ○ ○Misc"Cuddle" package (bedspread, cuddle blanket, 2 pillows, table cloth) 1 1590 ○ ○Fire extinguisher 2 kg 3 1878 ○ ○Registration documents – – ◆ ◆Compact Class Globe S◉ Standard○ Option̶ Not possible◆ ObligatoryPlease read notes about optional extras on page 3!15

Advantage – Standard specification (Low Profile/ A Class/ Coachbuilt)Chassis/ Base vehicle• Fiat Ducato X/250 with Common-Rail-Turbo diesel technology andMultijet direct injection• Current Fiat technology with EURO 5 engine• Fuel tank 90l• Front wheel drive• ABS/EBD• Driver and passenger airbags*• Interruption of fuel supply and retraction of steering column(in case of collision)• Front axle stabiliser• AL-KO high platform chassis (not for T/I 5701, 5871 and 6511)• Fiat ladder frame with broad gauge chassis rear axle(T/I 5701, 5871 and 6511)• Wider tyres, chassis with stronger suspension springs, anti theft deviceand revolution counter• Central locking for cab (Low Profile)• Electrical window lift (A Class in conj. with cab door)• Radio pre-wiring*• Cab air conditioning*• Wide, powder-coated edging• ESP including Traction*• A Class: Cruise control*• Wheel trims*• Safety package*• Break-down kitConstruction• Insulation with expanded Polystyrene (EPS)• 41 mm floor thickness, 34 mm wall and roof thickness• Side walls in White smooth aluminium standard; exterior coloursavailable for an extra charge• Rear garage/ compartment (not for T/I 5701)or under-floor compartment (T/I 7011, 7091)• Garage doors with catch locks• Opening windows with flyscreen and blind• Swivel driver and passenger seats• Mini Heki• Dethleffs Pilote seats with height/ inclination adjustment and twoupholstered arm rests (A Class: with 3-point inertia safety belt system)• Convex entrance door with waste bin• Mechanical entrance step (electrical is an option)• Coupé entrance insulated• Entrance grab handle made of Aluminium• Mud flap rear• A Class: repair friendly, two-piece front• Modern rear moulding with LED rear lights• 3rd brake light embedded into the rear wall• Low Profile: design oriented, Dethleffs specific front bumperwith LED day-time-running lights• A Class: day-time-running lights in headlights• A Class: Cab door N/S*• Heki III*On-board technology/ Installations• Gas locker for up to 2 x 11 kg bottles• Starter and leisure battery with automatic switch-over (also for fridge)• Electrical charger for both starter and leisure battery 12 V/ 18A• CEE 230 V external socket with safety device• Insulated waste water tankOn-board technology / Installations (continuation)• Powerful Truma Combi 6 gas heating with integrated 10 l boiler• Powerful submerged water pump• Warm water supply with one mixer tap• On-board control panel alternative*• Illuminated plinth over the door• Wardrobe LED illumination• Earth leakage circuit breaker (ELCB)• Awning lightKitchen• Kitchen centre with 3-split glass lid over sink and 3-burner hob for anoptimised utilisation of working surface and hobs (not for T/I 5701)• Sink and hob in stainless steel• Fridge with freezer compartment, convex door and automated energyswitch-over• Oven with grill*• Spacious drawers on smooth steel runners• Kitchen overhead locker with plinth• Spice rack with noble chromed rail• Illuminated kitchen plinthBathroom• Swivel cassette toilet with electr. flush or fixed toilet(depending on layout)• Cabines, storage compartments, hooks, big mirrors, flush fitting halogenspotlights and height-adjustable shower head in all bathrooms• Different concepts depending on model e.g. with separated showercompartment, pivoting wall (Vario bathroom) or sliding wash basinstands. Mainly the bathrooms feature water-proof plastic side walls.(T/I 6871, 7151, 7151 EB)Living area• Furniture finished in sturdy plywood, locker doors partly in high-qualityMDF (medium desity fibre board)• Fixed beds with wooden bed laths and cold foam mattresses• Folding seat base extensions• AirPlus ventilation system - for an optimised ventilation of the interiorto reduce condensation• Flat screen TV compartment with extendable bracket• Magazine holder with rubber bands and knobs (depending on layout)• Fabric covered wardrobe (depending on layout)• Flyscreen door*• Carpets*• A Class: Pull-down bed*InteriorWood décors: Calva Apple with soft furnishing Maxim or MaritimaOption:Cypress Villa with soft furnishing Macao or Cabana* Standard UK specification which is above standard European specificationThe Dethleffs world of coloursThere are many optional exterior colours available.You will find the different possibilities on the charts ofthe following pages.16

ADVANTAGELow ProfileType / Model T 5701 T 5871 T 6511 T 6811 T 6871Technical DataLength/width/height cm 626/233/287 636/233/287 686/233/287 731/233/287 731/233/287Internal height cm 198 198 198 198 198Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 380 380 380 410 410Beds Front cm - - - - -Mid cm 210x115/75 165x105/ 75 210x115/80 210x115/100 210x125/80Alternative cm - - 210x200/185 210x200/155 -Rear cm 205x135/110 210x150 2x 200x75 2x 200x75 210x150/135Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115)Chassis Ladder frame Ladder frame Ladder frame AL-KO high platform AL-KO high platformWeight net kg 2699 2719 2807 2862 2859Mass in running order (MIRO) (approx.) kg 2894 2914 3002 3052 3049Payload (approx.) kg 605 585 497 447 450Maximum authorised weight (approx.) kg 3499 3499 3499 3499 3499Designated passenger seats 3.5 t 4 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4 4Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 100 / 9 190 / 35 190 / 35Water tank incl. boiler (red. volume)/waste water tank capacitiesl125 (20)/ 90 125 (20)/ 90 125 (20)/ 90 125 (20)/ 93 125 (20)/ 93Storage space B 2 C 2 D 2 D 2 C 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 6 / 1 4 / 2 5 / 1 4 / 2 6 / 1Advantage Class AdvantagePlease note all weights and information refer to the standard UK specification.17

ADVANTAGELow ProfileType / Model T 7011 T 7091 T 7151 T 7151 EBTechnical DataLength/width/height cm 731/233/287 731/233/287 751/233/287 751/233/287Internal height cm 198 198 198 198Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 410 410 450 450Beds Front cm - - - -Mid cm 210x115/85 210x125/90 210x115/100 210x115/100Alternative cm 200x205/160 - - 210x200Rear cm 195x80 205x75 195x130/85 200x150 2x 200x80Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115)Chassis AL-KO high platform AL-KO high platform AL-KO high platform AL-KO high platformWeight net kg 2862 2859 2869 2872Mass in running order (MIRO) (approx.) kg 3052 3049 3049 3062Payload (approx.) kg 447 450 450 437Maximum authorised weight (approx.) kg 3499 3499 3499 3499Designated passenger seats 3.5 t 4 4 4 4Designated passenger seats 3.85 t 4 4 5 5Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities125 (20)/ 93 125 (20)/ 93 125 (20)/ 93 125 (20)/ 93Storage space G 1+A B 1+H+A F 2 D 2Standard swivel seat for driver and passenger Ja / Ja Ja / Ja Ja / Ja Ja / JaBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 4 / 2 5 / 2 5 / 2 5 / 218

ADVANTAGEA ClassType / Model I 5701 I 5871 I 6511 I 6811 I 6871Technical DataLength/width/height cm 630/233/287 640/233/287 690/233/287 735/233/287 735/233/287Internal height cm 198 198 198 198 198Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 380 380 380 410 410Beds Front cm 200x150 200x150 200x150 200x150 200x150Mid cm - - - - -Alternative cm - - 210x200/185 210x200/155 -Rear cm 205x135/110 210x150 2x 200x75 2 x (200x75) 210x150/135Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115)Chassis Ladder frame Ladder frame Ladder frame AL-KO high platform AL-KO high platformWeight net kg 2878 2836 2869 2919 2916Mass in running order (MIRO) (approx.) kg 3073 3031 3064 3109 3106Payload (approx.) kg 777 819 786 741 744Maximum authorised weight (approx.) kg 3850 3850 3850 3850 3850Designated passenger seats 3.5 t 4 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4 4Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 100 / 9 190 / 35 190 / 35Water tank incl. boiler (red. volume)/waste water tank capacitiesl125 (20)/ 90 125 (20)/ 90 125 (20)/ 90 125 (20)/ 93 125 (20)/ 93Storage space B 2 C 2 D 2 D 2 C 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 6 / 1 4 / 2 5 / 1 4 / 2 6 / 1Advantage Class Advantage19

ADVANTAGEA ClassType / Model I 7011 I 7091 I 7151 I 7151 EBTechnical DataLength/width/height cm 735/233/287 735/233/287 755/233/287 755/233/287Internal height cm 198 198 198 198Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 410 410 450 450Beds Front cm 200x150 200x150 200x150 200x150Mid cm - - - -Alternative cm 200x205/160 - - 210x200Rear cm 195x80 / 205x75 195x130/85 200x150 200x80 / 200x80Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115)Chassis AL-KO high platform AL-KO high platform AL-KO high platform AL-KO high platformWeight net kg 2919 2916 2926 2929Mass in running order (MIRO) (approx.) kg 3109 3106 3116 3119Payload (approx.) kg 741 744 734 731Maximum authorised weight (approx.) kg 3850 3850 3850 3850Designated passenger seats 3.5 t 4 4 4 4Designated passenger seats 3.85 t 4 4 5 5Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities125 (20)/ 93 125 (20)/ 93 125 (20)/ 93 125 (20)/ 93Storage space G 1+A B 1+H+A F 2 D 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 4 / 2 5 / 2 5 / 2 5 / 2ADVANTAGE Style Package (25 kg) (15 kg)Package components Low Profile A ClassFlush fitting windows ✔ ✔High-level rear moulding with roof railing ✔ ✔Cab entrance step ✔ –Alternative headlights – ✔Window in T-hood ✔ –✔ component◉ standard̶ not possible20

Chassis colourThe Dethleffs world of coloursFor the Advantage range you can choose from the following colour combinations (some for an extra charge).ADVANTAGELow ProfileWhiteTitansilvermetallicConversionBright Sand Cacao Grey Laguna Blue Milky GreenWhite Code 5713 5338 5335 5334 5337 5336ProfondoredmetallicCode 5341 6204Imperialblue Code 5426 6205aDVANTAGE Class ADVANTAGEDolphingreymetallicCode 6206ADVANTAGEA ClassWhiteTitansilvermetallicConversionBright Sand Cacao Grey Laguna Blue Milky GreenCode. 1999 1665 1671 1669 498 1670Please note that the roof as well as all skirts and other mounted parts will remain white.Conversion design partly with varnished graphics.ADVANTAGE – Optional ExtrasWeight (kg)CodeLow ProfileA ClassChassis / Base vehicleFiat Ducato MultiJet 130 light (2.3 l / 130 BHP) - (depending on layout) 15 – ○ ○Fiat Ducato MultiJet 150 light (2.3 l / 148 BHP) - (depending on layout) 15 – ○ ○Fiat Ducato MultiJet 180 light (3.0 l / 177 BHP) - (depending on layout) 65 – ○ ○Fiat Ducato MultiJet 130 Maxi (2.3 l / 130 BHP) - (depending on layout) 65 – ○ ○Fiat Ducato MultiJet 150 Maxi (2.3 l / 148 BHP) - (depending on layout) 65 – ○ ○Fiat Ducato MultiJet 180 Maxi (3.0 l / 177 BHP) - (depending on layout) 115 – ○ ○Weight upgrade 3850 kg Fiat (Ducato Light) – 808 ○ ○Weight upgrade 4250 kg Fiat (only in conjunction with Ducato Maxi) 1633 ○ ○Weight upgrade 4500 kg Alko 2-axle (only in conjunction with Ducato Maxi) – 1585 ○ ○Alloy wheels 15" Anthracite Silver polished – 1751 ○ ○Alloy wheels 16" Anthracite Silver polished – 1750 ○ ○Tow bar 35 273 ○ ○Automated gearbox (6 gears) 17 011 ○ ○Wooden cab dash – 806 ○ ○Cab insulating mat (large) 2 427 ○ ○Cab insulating mat windscreen and side windows 1 934 ○ ○Air suspension rear axle (ALKO) (Advantage on AL-KO upon request) 35 1658 – ○Air suspension front and rear axle (ALKO) (Advantage on AL-KO upon request) 85 1796 – ○21

ADVANTAGE – Optional ExtrasWeight (kg)CodeLow ProfileA ClassChassis / Base vehicleMotorbike rack - depending on layout (cannot be used with tow bar at the same time,for some layouts only in conjuction with weight upgrade)40 274 ○ ○Alternative headlights 3 1763 – ○Bi-Xenon headlights (only in conjunction with alternative integral headlights) 2 507 – ○Pilote seat Basic Plus in Dethleffs design with height/inclination adjustmentand lumbar support/ pump5 1659 ○ –Seat heating and lumbar support/pump for Pilote seat (A Class) 8 1659 – ○Mud flap front 2 298 ○ ○Static cornering lamps incl. fog lamps 1 296 – ○Rear corner steadies (2 pieces) 6 390 ○ ○Cab blinds Remis 2,5 434 ○ –Increased suspension spring for front axle for Ducato Light 5 1889 – ○Increased suspension spring for front axle for Ducato Maxi 5 1889 – ○ExteriorAccess locker door rear garage (N/S) 7 331 ○ ○GRP roof 0,6 kg/m² 242 ○ ○Roof rack with ladder for high-level rear moulding(Please note: collision risk because of limited roof area)2 / 10 418/1755 ○ ○Roof rails accessory: cross elements + ladder for high-level rear moulding(Please note: collision risk because of limited roof area)7 1754 ○ ○Midi-Heki over pull-down bed 10 246 – ○Electrical entrance step (Omnistep) 7 848 ○ ○Bicycle rack for 3 cycles 8,7 938 ○ ○Bicycle rack for 4 cycles 10,2 815 ○ ○Flush fitting windows 5 415 ○ ○Window in T-hood 8 243 ○ –Additional window for the rear (T/I 5701) 5 292 ○ ○Window in bathroom 5 372 ○ ○ExteriorPanorama window (no bed convert possible) 6 1664 ○ ○Insulation Styrofoam 0,9 kg/m² 1966 ○ ○Awning Omnistor 3 till 6m (Depending on layout there are different sizes!For further information please contact your local dealer)21-40 div. ○ ○Entrance step 3 315 ○ –InteriorPlinth for Heki 3 605 ○ ○Storage compartment in floor 26 1985 ○ ○Multiflex floor without storage boxes (AL-KO layouts)(not in conjunction with Alde warm water heating)26 1985 ○ ○Storage boxes for Multiflex floor (only in conjunction with Multiflex floor) 8 1638 ○ ○Furniture / LayoutsWardrobe instead of lounge bench (O/S) for T/I 5701 (no bed convert crossways possible) – 271 ○ ○Overhead locker doors with 3 cream-coloured Plexi-glass stripes (wood décor Cypress Villa) – 1869 ○ ○Electrical operation for pull-down bed 5 1683 – ○Free-standing table leg lowerable (incl. the option bed convert seating lounge crossways) 5 1870+1944 ○ –Soft furnishingMassage mattress 10 1579 ○ ○7 zones Premium cold foam mattress with visco-elastic foam for double bed – 1949 ○ ○7 zones Premium cold foam mattress with visco-elastic foam for single beds – 1947/1948 ○ ○Optional fabric – div. ○ ○22

ADVANTAGE – Optional ExtrasElectrics/ InstallationsLED illumination package (interior illumination in LED) – 1661 ○ ○2nd leisure battery 95 Ah 27 830 ○ ○Solar system (2 Siemens M50 modules, 1 controler SR 13, 2 x 60 Watt) 15 922 ○ ○Gas installationCrash sensor for gas system – 1902 ○ ○BBQ 30 mbar 1 878 ○ ○Switch over system Duo Control CS (weight without gas bottle) 5 1577 ○ ○Water supply/ InstallationInsulated waste water tank 2 665 ○ ○Exterior shower (cold water) 1 793 ○ ○Pressure water pump SF126 PRO (Shurflo pump) – 736 ○ ○Switch for water pump 1 397 ○ ○Heating/ Air conditioningALDE warm water heating 30-50 761 ○ ○ALDE heat exchanger 5 565 ○ ○Additional pump 230 V for ALDE heating 1 314 ○ ○ALDE warm water floor heating(only in conjunction with ALDE heating, no Multiflex floor possible)10 1603 ○ ○Heating: Heat exchanger Sirocco Arizona 400 3 472 ○ ○Heating: Webasto additional heating 7 517 ○ ○Floor heating (electrical) 9 763 ○ ○Air conditioning Telair Silent 7300H-230V 34 609 ○ ○KitchenFridge vent covers 1 282 ○ ○Extractor fan (circulating air) 2 344 ○ ○Microwave (not in conjunction with oven) 15 718 ○ ○BathroomWooden grill for shower - 1657 ○ ○Multimedia systemsFlatscreen 19" 6 1896 ○ ○SAT Parabol system Flatsat Easy Classic 65 13 1741 ○ ○SAT Parabol system Teleco Flatsat Easy 65 Twin 21,3 1813 ○ ○SAT Parabol system Teleco Flatsat Easy 65 (without receiver) 21,3 1812 ○ ○SAT Parabol system Teleco Flatsat Easy 65 (with receiver) 22,3 1814 ○ ○Pre-wiring (Navi to TV locker) 2 1945 ○ ○Navigation system Pioneer AVIC-F 940 BT 4 1822 ○ ○Navigation module Caratec (only in conj. with Moniceiver) 2 1643 ○ ○Radio pre-wiring with Sound package 2 659 ○ ◉RDS / CD Pioneer (only in conj. with radio pre-wiring) 2 1639 ○ ○DVD - Tuner incl.Radio + CD (Pioneer) (only in conj. with radio pre-wiring) 2 503 ○ ○DVD - Radio Moniceiver JVC AVX 740 3 1644 ○ ○Reversing cam pre-wiring 2 277 ○ ○Reversing cam CARATEC available in many different variants(For more information please contact your local dealer)3 1642+1640 ○ ○Misc"Cuddle" package (bedspread, cuddle blanket, 2 pillows, table cloth) 1 1590 ○ ○Fire extinguisher 2 kg 3 1878 ○ ○Registration documents – – ◆ ◆Weight (kg)CodeLow ProfileA ClassaDVANTAGE Class ADVANTAGE◉ Standard ○ Option ̶ Not possible ◆ Obligatory Please read notes with regards to the optional extras on page 3!23

Globe4 – Standard specification (Low Profile)Chassis / Base vehicle• Fiat Ducato X/250 with Common-Rail-Turbo diesel technology andMultijet direct injection• Current Fiat technology with EURO 5 engine• Fuel tank 90l• Front wheel drive• AL-KO low platform chassis• ABS/EBD/ASR• Driver and passenger airbags*• Interruption of fuel supply and retraction of steering column(in case of a collision)• Disc brakes, front axle stabiliser• Broad gauge chassis for rear axle• Wider tyres, chassis with stronger suspension springs, anti-theftdevice and revolution counter• Radio pre-wiring*• Cab air conditioning*• Central locking for cab• Electrical window lift• Painted bumper• LED day-time-running lights• Break-down kit• Wheel trims*• Safety package*Construction• 41 mm floor thickness, 34 mm wall and roof thickness• Sidewalls in White smooth Aluminium standard• Rear garage/ compartment (T 5881-4, T 6671-4, T 7151-4)• Rear skirt incorporating clear glass light clusters• Opening insulating windows with flyscreen and blind• Mini Heki• Heki III*• Dethleffs Pilote seats with height/ inclination adjustment andtwo upholstered arm rests• Electrical entrance step• Driver and passenger swivel seats (not for T 5881-4)• Storage racks in cab area• Access locker doors with catch locksOn-board technology / Installations• Gas locker for up to 2x11 kg bottles• Powerful AGM leisure battery 95 Ah• Starter and leisure battery with automatic switch-over (also for fridge)• Powerful submerged water pump• Electrical charger for both starter and leisure battery 12 V/ 18A• CEE 230 V external socket with safety device• Warm water supply with mixer tap• Powerful Truma Combi 6 gas heating with integrated boiler 10 l• On-board control panel alternative• Wardrobe LED illumination• Earth leackage circuit breaker (ELCB)• Awning light• Smoke detector*Kitchen• Kitchen centre with 3-split glass lid over sink and 3-burner hob for anoptimised utilisation of working surface and hobs (depending on layout)• Sink and hob in stainless steel• Large fridge with freezer compartment, convex door and automatedenergy switch-over• Oven with grill*• Spacious drawers on smooth steel runners• Height-adjustable locker shelves in some kitchen units• Spice rack with noble chromed rail• Illuminated kitchen plinthBathroom• Swivel cassette toilet or fixed toilet, both with electronic flush(depening on layout)• Cabinets, storage compartments, hooks, big mirrors, flush fitting halogenspotlights and height-adjustable shower head in all bathrooms• Different concepts depending on model type e.g. with separated showercompartment or sliding wash basin stand. Mainly the bathrooms featurewater-proof plastic side walls and doors• Intelligent wash room concept with 3D bathroom (T7151-4)Living area• Furniture finished in sturdy plywood, locker doors partly in high-qualityMDF (medium density fibreboard)• Fixed beds with wooden bed laths and cold foam mattresses• Single beds with lift-up heading section• Pull-down bed*• AirPlus ventilation system - for an optimised ventilation of the interior toreduce condensation• Folding seat base extensions with additional storage space• Flat screen TV compartment*• News paper holder (depending on layout)• Fabric covered wardrobe (depending on layout)• Carpets*• Flyscreen door*InteriorWood décor: Calva Apple with soft furnishing Macao or Joy.* Standard UK specification which is above standard European specificationThe Dethleffs world of coloursThere are many optional exterior colours available.You will find the different possibilities on the charts ofthe following pages.24

GLOBE4Low ProfileType / Model T 5881-4 T 6401-4 T 6671-4 T 6911-4 T 7151-4Technical DataLength/width/height cm 663/233/285 708/233/285 743/233/285 733/233/285 773/233/285Internal height cm 212 212 212 212 212Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 380 390 410 404 460Beds Front cm 200x140/100 200x140/100 200x140/100 200x140/100 200x140/100Mid cm 185x135 210x125/110 210x125/110 175x105/75 210x125/110Alternative cm - - - 210x200/115 -Rear cm 210x85/200x85 200x135/105 210x145 200x80 / 200x75 200x150Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115) 85 (115)Chassis ALKO low frame ALKO low frame ALKO low frame ALKO low frame ALKO low frameWeight net kg 2818 2890 2902 2966 2932Mass in running order (MIRO) (approx.) kg 3008 3080 3092 3156 3122Payload (approx.) kg 842 770 758 694 728Maximum authorised weight (approx.) kg 3850 3850 3850 3850 3850Designated passenger seats 3.5 t 6 4 4 4 4Designated passenger seats 3.85 t 6 4 4 4 4Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/waste water tank capacitiesl125 (20)/ 93 125 (20)/ 93 125 (20)/ 93 125 (20)/ 93 125 (20)/ 93Storage space E 2 B 2 C 2 D 2 F 2Standard swivel seat for driver and passenger - / - yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 5 / 3 5 / 2 6 / 2 5 / 2 4 / 2Advantage Class GLOBE425

globe4 Style PackagePackage componentsFlush fitting windowsHigh-level rear mouldingwith roof railingRound edgingCab entrance stepWindow in T-hood(29 kg)Low Profile✔✔✔✔✔✔ component◉ standard̶ not possibleThe Dethleffs world of coloursFor the Globe4 range you can choose from the following colour combinations (some for an extra charge):GLOBE4Low ProfileConversionWhite Titansilver metallic Polarblue metallicWhite Code 5713 5708 5705Chassis colourProfondoredmetallicCode 5341 5340Imperialblue Code 5426 5706DolphingreymetallicCode 5339Please note that the roof as well as all skirts and other mounted parts will remain white. Conversion design partly with varnished graphics.26

Globe4 – Optional ExtrasWeight (kg)CodeT 5881-4T 6401-4T 6671-4T 6911-4T 7151-4Chassis / Base vehicleFiat Ducato MultiJet 130 light (2.3 l / 130 BHP) - (depending on layout) 15 – ○ ○ ○ ○ ○Fiat Ducato MultiJet 150 light (2.3 l / 148 BHP) - (depending on layout) 15 – ○ ○ ○ ○ ○Fiat Ducato MultiJet 180 light (3.0 l / 177 BHP) - (depending on layout) 65 – ○ ○ ○ ○ ○Fiat Ducato MultiJet 130 Maxi (2.3 l / 130 BHP) - (depending on layout) 65 – ○ ○ ○ ○ ○Fiat Ducato MultiJet 150 Maxi (2.3 l / 148 BHP) - (depending on layout) 65 – ○ ○ ○ ○ ○Fiat Ducato MultiJet 180 Maxi (3.0 l / 177 BHP) - (depending on layout) 115 – ○ ○ ○ ○ ○Weight upgrade 3850 kg Fiat (Ducato Light) – 808 ○ ○ ○ ○ ○Advantage Class GLOBE4Weight upgrade 4250 kg Fiat (Ducato Maxi) 1633 ○ ○ ○ ○ ○Weight upgrade 4500 kg Alko 2 axles (Ducato Maxi) – 1585 ○ ○ ○ ○ ○Alloy wheels 15" Anthracite Silver polished – 1751 ○ ○ ○ ○ ○Alloy wheels 16" Anthracite Silver polished – 1750 ○ ○ ○ ○ ○Tow bar 35 273 ○ ○ ○ ○ ○Automated gearbox (6 gears) 17 011 ○ ○ ○ ○ ○Wooden cab dash – 806 ○ ○ ○ ○ ○Cab insulating mat (large) 2 427 ○ ○ ○ ○ ○Cab insulating mats for windscreen and side windows 1 934 ○ ○ ○ ○ ○Air suspension rear axle (ALKO) (Advantage on AL-KO upon request) 35 1658 ○ ○ ○ ○ ○Air suspension front and rear axle (ALKO) (Advantage on AL-KO upon request) 85 1796 ○ ○ ○ ○ ○Motorbike rack - depending on layout (cannot be used with tow bar at the same time, forsome layouts only in conjuction with weight upgrade)40 274 ○ ○ ○ ○ ○Pilote seat Basic Plus in Dethleffs Design with height/inclination adjustment,seat heating and lumbar support/pump5 1659 ○ ○ ○ ○ ○SEATS: Swivel seat for passenger (only in conjunction with Pilote seat) 20 724 ○ ◉ ◉ ◉ ◉Mud flap rear (standard for drop chassis extension and rear corner steadies) 2 880 ◉ ○ ◉ ○ ◉Mud flap front 2 298 ○ ○ ○ ○ ○Rear corner steadies (2 pieces) 6 390 ○ ○ ○ ○ ○Cab blinds Remis 2,5 434 ○ ○ ○ ○ ○ExteriorAccess locker door rear garage (N/S) 7 331 ○ – ○ ○ ○GRP roof 0,6 kg/m² 242 ○ ○ ○ ○ ○Roof rack with ladder for high-level rear moulding(Please note: collision risk because of limited roof area)2 / 10 418/1755 ○ ○ ○ ○ ○Roof rails accessory: cross elements + ladder for high-level rear moulding(Please note: collision risk because of limited roof area)7 1754 ○ ○ ○ ○ ○Bicycle rack for 3 cycles 8,7 938 ○ ○ ○ ○ ○Bicycle rack for 4 cycles 10,2 815 ○ ○ ○ ○ ○Flush fitting window 5 415 ○ ○ ○ ○ ○Sliding window (behind the living door for T 5881-4 and T 6911-4) 1 279 ○ – – ○ –Window in T-hood (incl. round edging) 12 243+395 ○ ○ ○ ○ ○◉ Standard○ Option̶ Not possible◆ ObligatoryPlease read notes with regards to the optional extras on page 3!27

Globe4 – Optional ExtrasWeight (kg)CodeT 5881-4T 6401-4T 6671-4T 6911-4T 7151-4ExteriorAdditional window for the rear 5 292 – ○ – – –Window for bathroom 5 372 ○ – ○ ○ –Panorama window (no bed convert possible) 6 1664 – ○ ○ ○ ○Insulation Styrofoam 0,9 kg/m² 1966 ○ ○ ○ ○ ○Round edging 4 395 ○ ○ ○ ○ ○Awning Omnistor 3 till 6m depending on model;For further information please contact your local dealer.21-40 div. ○ ○ ○ ○ ○Entrance step 3 315 ○ ○ ○ ○ ○Furniture/ LayoutsElectrical pull-down bed operation 5 1683 ○ ○ ○ ○ ○Additional cushion to make up bed (free-standing table leg) 3 339 – – – ○ –Bed convert for seating lounge crossways (free-standing lowerable table leg) – 1944 – ○ ○ – ○Free-standing and fix table leg(not in conjunction with "add. cushions to make up bed")Free-standing and lowerable table leg(incl. bed convert for seating lounge crossways)Soft furnishing5 1870 – ○ ○ ○ ○5 1870+1944 – ○ ○ – ○Massage mattress 10 1579 – ○ – ○ ○7 zones Premium cold foam mattress with visco foam for double bed – 1949 – ○ ○ – ○7 zones Premium cold foam mattress with visco foam for single beds – 1947/1948 – – – ○ –Optional fabric – div. ○ ○ ○ ○ ○Electrics/ InstallationLED illumination package (interior illumination in LED) – 1661 ○ ○ ○ ○ ○2nd leisure battery 95 Ah 27 830 ○ ○ ○ ○ ○Indirect illumination 2 705 ○ ○ ○ ○ ○Solar system (2 Siemens M50 modules, 1 controler SR 13, 2 x 60 Watt) 15 922 ○ ○ ○ ○ ○Gas installationCrash sensor for gas system – 1902 ○ ○ ○ ○ ○BBQ 30 mbar 1 878 ○ ○ ○ ○ ○Switch over system Duo Control CS (weight without gas bottle) 5 1577 ○ ○ ○ ○ ○Water supply/ InstallationInsulated waste water tank 2 665 ○ ○ ○ ○ ○Exterior shower (cold water) 1 793 ○ ○ ○ ○ ○Pressure water pump SF126 PRO (Shurflo pump) – 736 ○ ○ ○ ○ ○Switch for water pump 1 397 ○ ○ ○ ○ ○28

Globe4 – Optional ExtrasHeating/ Air conditioningALDE warm water heating 30-50 761 ○ ○ ○ ○ ○ALDE heat exchanger 5 565 ○ ○ ○ ○ ○Additional pump 230 V for ALDE heating 1 314 ○ ○ ○ ○ ○Heating: heat exchanger Sirocco Arizona 400 3 472 ○ ○ ○ ○ ○Heating: Webasto additional heating 7 517 ○ ○ ○ ○ ○Floor heating (electrical) 9 763 ○ ○ ○ ○ ○Air conditioning Telair Silent 7300H-230V 34 609 ○ ○ ○ ○ ○KitchenFridge vent cover 1 282 ○ ○ ○ ○ ○Microwave (not in conjunction with oven) 15 718 ○ ○ ○ ○ ○BathroomWooden grill for shower - 1657 ○ ○ ○ ○ ○Multimedia systemsFlatscreen19" 6 1896 ○ ○ ○ ○ ○SAT Parabol system Flatsat Easy Classic 65 13 1741 ○ ○ ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 Twin 21,3 1813 ○ ○ ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 (without receiver) 21,3 1812 ○ ○ ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 (with receiver) 22,3 1814 ○ ○ ○ ○ ○Pre-wiring (Navi to TV locker) 2 1945 ○ ○ ○ ○ ○Navigation system Pioneer AVIC-F 940 BT 4 1822 ○ ○ ○ ○ ○Navigation module Caratec (only in conjunction with Moniceiver) 2 1643 ○ ○ ○ ○ ○Radio pre-wiring with Sound package 2 659 ○ ○ ○ ○ ○RDS / CD Pioneer (only in conjunction with radio pre-wiring) 2 1639 ○ ○ ○ ○ ○DVD - Tuner incl.Radio + CD (Pioneer) (only in conjunction with radio pre-wiring) 2 503 ○ ○ ○ ○ ○DVD - Radio Moniceiver JVC AVX 740 3 1644 ○ ○ ○ ○ ○Reversing cam pre-wiring 2 277 ○ ○ ○ ○ ○Reversing cam CARATEC in many different variants;For further information please contact your local dealer.Misc3 1642+1640 ○ ○ ○ ○ ○"Cuddle" package (bedspread, cuddle blanket, 2 pillows, table cloth) 1 1590 ○ ○ ○ ○ ○Fire extinguisher 2 kg 3 1878 ○ ○ ○ ○ ○Registration documents – – ◆ ◆ ◆ ◆ ◆Weight (kg)CodeT 5881-4T 6401-4T 6671-4T 6911-4T 7151-4Advantage Class GLOBE4◉ Standard○ Option̶ Not possible◆ ObligatoryPlease read notes with regards to the optional extras on page 3!29

Magic Edition (Low Profile/ A Class) Magic Edition 4 (Low Profile)Standard specificationChassis / Base vehicle• Fiat Ducato X/250 with Common-Rail-Turbo diesel technology andMultijet direct injection• ABS/EBD• Newest Fiat technology with EURO 5 engine• Driver airbag (Low Profile)• Fuel tank 90l• Interruption of fuel supply and retraction of steering column (in case ofa collision)• Disc brakes, rear and front axle• Broad gauge chassis• AL-KO low platform chassis (Magic Edition 4)• Wider tyres, chassis with stronger suspension springs• Revolution counter• Anti-theft device• Central locking for cab (Low Profile)• Electrical window lift (A Class in conjunction with cab doors)• Electrical and heated cab mirrors (A Class)• Front bumper in modern Dethleffs specific design (Low Profile)• Break-down kitConstruction• 2nd access locker door rear N/S (option for Magic Edition 4)• 41 mm floor thickness, 34 mm wall and roof thickness• Plastic skirts always in White• Mini Heki• Opening windows with flyscreen and blind• Entrance door with trim, useful storage compartments and bin(not for Magic Edition 4)• Coupé entrance, insulated with large step (not for Magic Edition 4)• Storage racks in cab area (Low Profile))• Dethleffs Pilote seats with height/ inclination adjustment and twoupholstered arm rests• Electrical entrance step (for Magic Edition 4)On-board technology / Installations• Gas locker for up to 2x11 kg bottles• Powerful 95 Ah AGM leisure battery• Starter and leisure battery with automatic switch-over (also for fridge)• Electrical charger for both starter and leisure battery 12 V/ 18 A• CEE 230 V external socket with safety device• Powerful submerged water pump• Warm water supply with one mixer tap• Powerful Truma Combi 6 gas heating with integrated boiler 10 l• On-board control panel standard with analogue display• Wardrobe LED illumination• Earth leakage circuit breaker (ELCB)• Awning lightKitchen• Kitchen centre with 3-split glass lid over sink and 3-burner hob for anoptimised utilisation of work surface and hobs• Sink and hobs in stainless steel• Fridge with freezer compartment, convex door and automated energyswitch-over• Illuminated kitchen plinth• Spacious drawers on smooth steel runners• Height-adjustable shelves in some kitchen lockers• Spice rack with noble chromed railBathroom• Swivel cassette toilet and electrical flush• Cabinets, storage compartments, hooks, big mirrors, embedded spotlightsand height adjustable shower head for all bathrooms• Intelligent wash room concept with 3D bathroom(T 7151-4 DB, EB, DBM)Living area• Furniture finished in sturdy plywood, locker doors partly in high-qualityMDF (medium density fibreboard)• Fixed beds with wooden bed laths and cold foam mattresses• Single beds with lift-up heading section• Pull-down bed with access ladder and security net against falling out(A Class)• AirPlus ventilation system - for an optimised ventilation of the interior toreduce condensation• Folding seat base extensions with additional storage space• Flat screen TV compartmentInteriorWood décor: Cypress Villa/ Black, Cypress Villa/ Silverand Cypress Villa/ WhiteWood décor/ Soft furnishing:Magic Edition Black: Mambo (real leather)Magic Edition Silver: Silversun (textile)Magic Edition White: Lima (textile)The Dethleffs world of coloursThere are many optional exterior colours available. Youwill find the different possibilities on the charts of thefollowing pages.30

magic editionLow ProfileType / Model T 1 DB T 1 DBM T 1 EB T 1 SGTechnical DataLength/width/height cm 736/233/267 736/233/267 736/233/267 736/233/267Internal height cm 195 195 195 195Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 404 404 404 404Beds Front cm - - - -Mid cm 210x115/60 210x115/60 210x115/60 210x115/60Alternative cm - - 210x215/190 -Rear cm 210x160 200x150 200x75 / 215x75 210x165Basic engine 2.3 JTD 2.3 JTD 2.3 JTD 2.3 JTDkW (BHP) 96 (130) 96 (130) 96 (130) 96 (130)Chassis Low frame Low frame Low frame Low frameWeight net kg 2927 2927 2927 2927Mass in running order (MIRO) (approx.) kg 3122 3122 3122 3122Payload (approx.) kg 728 728 728 728Maximum authorised weight (approx.) kg 3850 3850 3850 3850Designated passenger seats 3.5 t 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/waste water tank capacitiesl125 (20)/ 90 125 (20)/ 90 125 (20)/ 90 125 (20)/ 90Storage space C 2 F 2 G 2 G 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 3 / 2 3 / 2 3 / 2 3 / 2Magic EditionADVANTAGE Class31

magic editionA ClassType/ Model I 1 DB I 1 DBM I 1 EB I 1 SGTechnical DataLength/width/height cm 745/233/267 745/233/267 745/233/267 745/233/267Internal height cm 195 195 195 195Towing weight 12% braked/ unbraked kg 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 404 404 404 404Beds Front cm 200x140 200x140 200x140 200x140Mid cm - - - -Alternative cm - - 210x215/190 -Rear cm 210x160 200x150 215x75 / 200x75 210x165Basic engine 2.3 JTD 2.3 JTD 2.3 JTD 2.3 JTDkW (BHP) 96 (130) 96 (130) 96 (130) 96 (130)Chassis Low frame Low frame Low frame Low frameWeight net kg 3074 3074 3074 3074Mass in running order (MIRO) (approx.) kg 3269 3269 3269 3269Payload (approx.) kg 581 581 581 581Maximum authorised weight (approx.) kg 3850 3850 3850 3850Designated passenger seats 3.5 t 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities125 (20)/ 90 125 (20)/ 90 125 (20)/ 90 125 (20)/ 90Storage space C 2 F 2 G 2 G 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 3 / 2 3 / 2 3 / 2 3 / 232

Magic edition package (142kg) (137 kg) (74 kg) (202 kg) (197 kg) (150 kg)Package components T-Black T-Silver T-White I-Black I-Silver I-WhiteEngine upgrade 2.3 JTD (130 BHP) ✔ ✔ ✔ ✔ ✔ ✔Furniture Cypress Villa / black ✔ - - ✔ - -Furniture Cypress Villa / silver - ✔ - - ✔ -Furniture Cypress Villa / white - - ✔ - - ✔Flyscreen door ✔ ✔ ✔ ✔ ✔ ✔Rear corner steadies ✔ ✔ - ✔ ✔ -Radio pre-wiring including Sound package ✔ ✔ ✔ ✔ ✔ ✔Extractor fan ✔ ✔ - ✔ ✔ -Removable loose fitting carpets ✔ ✔ - ✔ ✔ -Cab carpets ✔ ✔ - ✔ ✔ -On-board Control Panel Luxus ✔ ✔ ✔ ✔ ✔ ✔Heki III ✔ ✔ ✔ ✔ ✔ ✔Indirect illumination ✔ ✔ ✔ ✔ ✔ ✔Cab dash in black / silver ✔ ✔ - ✔ ✔ -Conversion: silver ✔ ✔ - ✔ ✔ -Flush fitting windows ✔ ✔ - ✔ ✔ -High-level rear moulding incl. roof rails ✔ ✔ - ✔ ✔ -Round edging ✔ ✔ ✔ ◉ ◉ ◉Cab blinds ✔ ✔ ✔ ✔ ✔ ✔Alloy wheels ✔ ✔ ✔ ✔ ✔ ✔Sunroof in cab ✔ ✔ - * * *Flatscreen TV bracket ✔ ✔ ✔ ✔ ✔ ✔Real leather Mambo ✔ - - ✔ - -Soft furnishing Silversun - ✔ - - ✔ -Soft furnishing Lima - - ✔ - - ✔Alternative headlights for A Class models - - - ✔ ✔ ✔Pull-down bed - - - ✔ ✔ ✔Rear garage in conjunction with drop chassis extension ✔ ✔ ✔ ✔ ✔ ✔Cab door N/S - - - ✔ ✔ ✔Large fridge with separated freezer compartment ✔ ✔ ✔ ✔ ✔ ✔Cab in black (metallic) ✔ - - - - -Cab in silver (metallic) - ✔ - - - -Cab in white - - ✔ - - -Chassis Package T ✔ ✔ ✔ - - -Chassis Package I - - - ✔ ✔ ✔ADVANTAGE Class Magic EdItion✔ component ◉ standard ̶ not possible * depending on layout33

magic edition 4Low Profile-4Type / Model T 7151-4 DB T 7151-4 DBM T 7151-4 EBTechnical DataLength/width/height cm 766/233/285 766/233/285 766/233/285Internal height cm 204 204 204Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 460 460 460Beds Front cm 200x140/100 200x140/100 200x140/100Mid cm 210x125/110 210x125/110 210x125/110Mid cm - - 210x200Rear cm 210x150 200x150 2 x (200x80)Basic engine 2.3 JTD 2.3 JTD 2.3 JTDkW (BHP) 85 (115) 85 (115) 85 (115)Chassis ALKO low frame ALKO low frame ALKO low frameWeight net kg 2972 2972 2972Mass in running order (MIRO) (approx.) kg 3162 3162 3162Payload (approx.) kg 688 688 688Maximum authorised weight (approx.) kg 3850 3850 3850Designated passenger seats 3.5 t 4 4 4Designated passenger seats 3.85 t 4 4 4Heating Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities125 (20)/ 93 125 (20)/ 93 125 (20)/ 93Storage space C 2 F 2 D 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 4 / 2 4 / 2 4 / 234

Magic edition 4 package (183 kg) (178 kg) (129 kg)Paketbestandteile T-Black T-Silver T-WhiteEngine upgrade 2.3 JTD (130 BHP) ✔ ✔ ✔Furniture Cypress Villa / black ✔ - -Furniture Cypress Villa / silver - ✔ -Furniture Cypress Villa / white - - ✔Flyscreen door ✔ ✔ ✔Rear corner steadies ✔ ✔ -Radio pre-wiring including Sound package ✔ ✔ ✔Extractor fan * * *Removable loose fitting carpets ✔ ✔ -Cab carpets ✔ ✔ -On-board Control Panel Luxus ✔ ✔ ✔Indirect illumination ✔ ✔ ✔Cab dash in black / silver ✔ ✔ -Conversion: silver ✔ ✔ -Flush fitting windows ✔ ✔ -High-level rear moulding incl. roof rails ✔ ✔ -Ladder + cross members for roof rails ✔ ✔ -Round edging ✔ ✔ -Cab blinds ✔ ✔ -Alloy wheels ✔ ✔ ✔Sunroof in cab ✔ ✔ ✔Flatscreen TV bracket ✔ ✔ ✔Real leather Mambo ✔ - -Soft furnishing Silversun - ✔ -Soft furnishing Lima - - ✔Pull-down bed ✔ ✔ ✔Rear garage in conjunction with drop chassis extension ✔ ✔ ✔Cab door N/S - - -Large fridge with separated freezer compartment ✔ ✔ ✔Cab in black (metallic) ✔ - -Cab in silver (metallic) - ✔ -Cab in white - - ✔Chassis pack for ALKO chassis ✔ ✔ ✔ADVANTAGE Class Magic Edition 4✔ component ◉ standard ̶ not possible * depending on layout35

Magic edition + ME 4 – Optional ExtrasWeight (kg)CodeME-Low ProfileME4-Low ProfileME-A ClassChassis/ Base vehicleFiat Ducato MultiJet 130 light (2.3 l / 130 BHP) 15 – ○ ○ ○Fiat Ducato MultiJet 150 light (2.3 l / 150 BHP) 15 – ○ ○ ○Fiat Ducato MultiJet 180 light (3.0 l / 180 BHP) 65 – ○ ○ ○Fiat Ducato MultiJet 130 heavy (2.3 l / 130 BHP) 65 – ○ ○ ○Fiat Ducato MultiJet 150 heavy (2.3 l / 150 BHP) 65 – ○ ○ ○Fiat Ducato MultiJet 180 heavy (3.0 l / 180 BHP) 115 – ○ ○ ○Weight upgrade 3850 kg Fiat (light chassis) – 808 ○ ○ ○Weight upgrade 4250 kg Fiat (heavy chassis) – 1633 ○ – ○Weight upgrade 4500 kg Alko 2 axles (heavy chassis) – 1585 – ○ –Automated gearbox (6 gears) 17 011 ○ ○ ○Static cornering light incl. fog lamps 1 296 ○ ○ –Wooden cab dash 2 806 ○ ○ ○Cab insulating mat (large) 2 427 ○ ○ ○Cab insulating mat for windscreen and side windows 1 934 ○ ○ ○Pilote seat Basic Plus with height / inclination adjustment and upholstered arm rests 5 1659 ○ ○ ◉Mud flap front 2 298 ○ ○ ○Cab blinds Remis 2,5 434 ○ ○ –Increased suspension spring for Ducato light / Ducato heavy 5 1889 – – ○Exterior2nd garage door rear N/S (different sizes) – div. ○ – ○GRP roof 0,6 kg/m² 242 ○ ○ ○Roof railing 17 852 ○ ○ ○Roof rack with ladder for high-level rear moulding(Please note: collision risk because of limited roof area)2 / 10 418/1755 ○ ○ ○Roof railing accessory: cross elements and ladder for high-level rear moulding(Attention: collission risk because of small room area)7 1754 ○ ○ ○Mini Heki 1 1898 ○ ○ ○Midi Heki over pull-down bed 10 246 – – ○Cycle bracket for 3 cycles 8,7 938 ○ ○ ○Cycle bracket for 4 cycles 10,2 815 ○ ○ ○Window in bathroom 5 372 ○ ○ ○Insulation Styrofoam 0,9 kg/m² 1966 ○ ○ ○Awning Omnistor 4 till 5m; For further information please contact your local dealer. 27-36 div. ○ – –InteriorKitchen illuminated plinth 2 607 ○ ○ ○Multiflex floor without storage boxes 26 1985 ○ – ○FurnitureElectrical operation for pull-down bed 60 1683 – ○ ○Bed convert single beds to double bed 3 1883 ○ ○ ○Soft furnishingMassage mattress 10 1579 ○ ○ ○7 zones Premium cold foam mattress with visco foam for double bed – 1949 ○ ○ ○7 zones Premium cold foam mattress with visco foam for single beds – 1947/48 ○ ○ ○Fabric covered wardrobe 2 1975 ○ ○ ○◉ Standard ○ Option ̶ Not possible ◆ Obligatory Please read notes with regards to the optional extras on page 3!36

Magic edition + ME 4 – Optional ExtrasWeight (kg)CodeME-Low ProfileME4-Low ProfileME-A ClassElectrics/ InstallationLED illumination package (interior illumination in LED) – 1661 ○ ○ ○2nd leisure battery 95 Ah 27 830 ○ ○ ○Awning light 12 V 1 667 ○ ○ ○Safir Vario voltage transformer 12 V / 230V 3 1977 ○ ○ ○Gas installationCrash sensor for gas system – 1902 ○ ○ ○BBQ 30 mbar 1 878 ○ ○ ○Switch over system Duo Control CS (weight without gas bottle) 5 1577 ○ ○ ○Water supply/ InstallationInsulated waste water tank 2 665 ○ ○ ○Exterior shower (cold water) 1 793 ○ ○ ○Pressure water pump SF 126 PRO (Shurflo pump) – 736 ○ ○ ○Switch for water pump 1 397 ○ ○ ○Heating/ Air conditioningALDE warm water heating 30-50 761 ○ ○ ○ALDE heat exchanger 5 565 ○ ○ ○Additional pump 230 V f. ALDE heating 1 314 ○ ○ ○Heating: heat exchanger Sirocco Arizona 400 3 472 ○ ○ ○Heating: Webasto additional heating 7 517 ○ ○ ○Electrical floor heating 9 763 ○ ○ ○Air conditioning Telair Silent 7300H-230V (Please note: collision risk because of limited roof area) 34 609 ○ ○ ○KitchenFridge vent cover 1 282 ○ ○ ○Microwave (not in conjunction with oven) 15 718 ○ ○ ○BathroomWooden grill for shower 2,5 1657 ○ ○ ○Multimedia systemsFlat screen 19" 6 1896 ○ ○ ○SAT Parabol system Flatsat Easy Classic 65 13 1741 ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 Twin 21,3 1813 ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 (without receiver) 21,3 1812 ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 (with receiver) 22,3 1814 ○ ○ ○Pre-wiring (Navi to TV locker) 2 1945 ○ ○ ○Navigation system Pioneer AVIC - F 940 BT 3 1822 ○ ○ ○Navigation module Caratec (with Moniceiver only) 2 1643 ○ ○ ○RDS / CD Pioneer (only in conjunction with radio pre-wiring) 2 1639 ○ ○ ○DVD - Tuner incl. Radio + CD (Pioneer) (only in conjunction with radio pre-wiring) 2 503 ○ ○ ○DVD-Radio Moniceiver JVC AVX 740 3 1644 ○ ○ ○Reversing cam pre-wiring 2 277 ○ ○ ○Reversing cam CARATEC in many different variants;For further information please contact your local dealer.2-4 div. ○ ○ ○Misc"Cuddle" package (bedspread, cuddle blanket, 2 pillows, table cloth) 1 1590 ○ ○ ○Fire extinguisher 2 kg 3 1878 ○ ○ ○Registration documents – – ◆ ◆ ◆ADVANTAGE Class Magic Edition + ME 437

eSPRIT – Standard specification (Low Profile/ A Class/ Coachbuilt)Chassis/ Base vehicle• Fiat Ducato X/250 with Common-Rail-Turbo diesel technology andMultijet direct injection• Newest Fiat technology with EURO 5 engine• Fuel tank 90l• Front wheel drive• ABS/EBD• Driver and passenger airbags• Interruption of fuel supply and retraction of steering column(in case of a collision)• Front axle stabiliser• AL-KO low platform chassis• Wider tyres, chassis with stronger suspension springs, anti-theftdevice and revolution counter• Electrical window lift (Low Profile)• Electrical and heated mirrors (A Class)• Radio pre-wiring*• Cab air conditioning*• Wide, powder-coated edging• Break-down kit• A Class: Cruise control*• Wheel trims*• Safety package*Construction• Insulation with expanded Polystyrene (EPS)• 41 mm floor thickness, 34 mm wall and roof thickness• Sidewalls in White smooth Aluminium• GRP floor (GRP, PU-profiles and Styrofoam Sandwich construction)for optimal protection• Rear garage/ compartment (A 6820-2, 7870-2, T/I 7150-2, 7150-2 EB)or under floor compartment (7010-2, 7090-2)• External access locker doors with catch locks• Opening insulated window with blind• Swivel driver and passenger seats (not for Coachbuilt)• Opening window in T-bonnet (Low Profile)• A Class: cab door N/S*• Mini Heki• Heki III*• Dethleffs Pilote seats with height/ inclination adjustment and twoupholstered arm rests (A Class: with 3-point inertia safety belt system)• Entrance round shaped door with waste bin• Electrical entrance step*• Heated functional double floor with full load possiblity;Height: 20cm, for Coachbuilt 40cm• Aluminium entrance grab handle• Mud flaps rear• A Class: repair friendly, two-piece front• Rear in modern design with LED rear lights• 3rd brake light embedded into the rear wall• Low Profile: design-oriented, Dethleffs specific front bumperwith LED day-time-running lights• A Class: LED day-time-running lights integrated in headlamps• Fold-away Overcab bed (A 7870-2)On-board technology/ Installations• Gas locker for up to 2 x 11 kg bottles• Powerful AGM leisure battery 95 Ah• Starter and leisure battery with automatic switch-over (also for fridge)• Electrical charger for both starter and leisure battery 12V/18A• CEE 230 V external socket with safety device• Insulated waste water tank• Powerful Truma Combi 6 gas heating with boiler 10 l• Warm water supply with mixer tap• On-board control panel alternativeOn-board technology/ Installations (continuation)• Illuminated plinth above entrance door• Wardrobe illumination with LED lamp• Earth leakage circuit breaker (ELCB)• Awning light• Pressure water pump• Smoke detector*Kitchen• Kitchen centre with 3-split glass lid over sink and 3-burner hob for anoptimised utilisation of work surface and hobs• Sink and hob in stainless steel• Large fridge with freezer compartment, convex door and automatedenergy switch-over• Oven with grill*• Spacious drawers on smooth steel runners• Kitchen overhead locker with plinth• Waste bin• Spice rack with noble chromed rail• Indirect LED illumination underneath the kitchen working plate• Illuminated kitchen plinthBathroom• Swivel cassette toilet with electronic flush• Cabinets, storage compartments, hooks, big mirrors, flush fittingspotlights and height adjustable shower head• Different concepts depending on model - mainly available is the showercubicle with waterproof plastic side walls and door.• New washroom concept with 3D bathroom (T/I 7150-2, 7150-2 EB)Living area• Furniture finished in sturdy plywood, locker doors partly in high-qualityMDF (medium density fibreboard)• Fixed beds with wooden bed laths and cold foam mattresses• Overcab bed and pull-down bed with fall-out protection and ladder• Pull-down bed*• Folding seat base extensions with additional storage space• AirPlus ventilation system - for an optimised ventilation of the interior toreduce condensation• Flatscreen TV bracket• Bed convert single beds to double bed with additional cushions(for 7150-2 EB)• Free-standing table leg (not for A 7870-2)• Comfortable L-shaped lounge (not for A 7870-2)• Newspaper holder with rubber bands and buttons (depending on layout)• Carpets*• Flyscreen door*InteriorWood décor: Noble Acacia and soft furnishings Cabana and Tiziano.Option: Noble Acacia with Plexiglass stripes in wood structureIn addition the high-quality real leather Benidorm can be chosen as anoption.* Standard UK specification which is above standard European specificationThe Dethleffs world of coloursThere are many optional exterior colours available.You will find the different possibilities on the charts ofthe following pages.38

ESPRITLow ProfileType / Model T 7010-2 T 7090-2 T 7150-2 T 7150-2 EBeSPRITESPRIT ClassTechnical DataLength/width/height cm 731/233/283 731/233/283 751/233/283 751/233/283Internal height cm 198 198 198 198Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 410 410 450 450Beds Front cm - - - -Mid cm 210x115/85 210x125/90 210x115/100 210x115/100Alternative cm - - - 210x200Rear cm 195x80 / 205x75 195x130/85 200x150 2 x 200x80Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115)Chassis ALKO low frame ALKO low frame ALKO low frame ALKO low frameWeight net kg 2914 2914 2919 2919Mass in running order (MIRO) (approx.) kg 3104 3104 3109 3109Payload (approx.) kg 746 746 741 741Maximum authorised weight (approx.) kg 3850 3850 3850 3850Designated passenger seats 3.5 t 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities166 (20)/ 100 166 (20)/ 100 166 (20)/ 100 166 (20)/ 100Storage space G 1+A B 1+H+A F 2 D 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 4 / 2 5 / 2 5 / 2 5 / 239

ESPRITA ClassType / Model I 7010-2 I 7090-2 I 7150-2 I 7150-2 EBTechnical DataLength/width/height cm 735/233/283 735/233/283 755/233/283 755/233/283Internal height cm 198 198 198 198Towing weight 12% braked/unbraked kg 2000/750 2000/750 2000/750 2000/750Tyres 215/70R 15C 215/70R 15C 215/70R 15C 215/70R 15CWheel base cm 410 410 450 450Beds Front cm 200x150 200x150 200x150 200x150Mid cm - - - -Alternative cm - - - 210x200Rear cm 195x80 / 205x75 195x130/85 200x150 2 x 200x80Basic engine 2.0 JTD 2.0 JTD 2.0 JTD 2.0 JTDkW (BHP) 85 (115) 85 (115) 85 (115) 85 (115)Chassis ALKO low frame ALKO low frame ALKO low frame ALKO low frameWeight net kg 3071 3071 3081 3081Mass in running order (MIRO) (approx.) kg 3261 3261 3271 3271Payload (approx.) kg 589 589 579 579Maximum authorised weight (approx.) kg 3850 3850 3850 3850Designated passenger seats 3.5 t 4 4 4 4Designated passenger seats 3.85 t 4 4 4 4Heating Combi 6 E Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities166 (20)/ 100 166 (20)/ 100 166 (20)/ 100 166 (20)/ 100Storage space G 1+A B 1+H+A F 2 D 2Standard swivel seat for driver and passenger yes / yes yes / yes yes / yes yes / yesBattery/ charger Ah / A 95 / 18 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 4 / 2 5 / 2 5 / 2 5 / 240

ESPRITCoachbuiltType / Model A 6820-2 A 7870-2 A 7870-2 SGespritESPRIT ClassTechnical DataLength/width/height cm 726/233/323 851/233/323 851/233/323Internal height cm 209 209 209Towing weight 12% braked/unbraked kg 1750/750 1800/750 1800/750Tyres 225/75R 16C 225/75R 16C 225/75R 16CWheel base cm 407 460/80 460/80Beds Front cm 205x75/195x75 210x150 210x150Mid cm - 195x135 195x135Alternative cm 210x205/155 - -Rear cm 215x170/150 210x150 210x150Basic engine 2.3 JTD 2.3 JTD 2.3 JTDkW (BHP) 96 (130) 96 (130) 96 (130)Chassis ALKO low frame ALKO low frame ALKO low frameWeight net kg 3388 3830 3830Mass in running order (MIRO) (approx.) kg 3598 4155 4155Payload (approx.) kg 902 845 845Maximum authorised weight (approx.) kg 4500 5000 5000Designated passenger seats 3.5 t 2 (4*) 6 6Designated passenger seats 3.85 t 4 6 6Heating Combi 6 E Combi 6 E Combi 6 EFridge/ thereof freezer compartment l 190 / 35 190 / 35 190 / 35Water tank incl. boiler (red. volume)/lwaste water tank capacities147 / 137 147 / 137 147 / 137Storage space G 2 C 2 C 2Standard swivel seat for driver and passenger - / - - / - - / -Battery/ charger Ah / A 95 / 18 95 / 18 95 / 18Power outlets 230 V / 12 V 11 / 2 5 / 2 5 / 2* only in conj. with option "additional seat"41

The Dethleffs world of coloursFor the Esprit smooth sides variants you can choose from the following colour combinations (some for extra charge).ESPRITLow ProfileWhiteTitansilvermetallicConversionBright Sand Cacao Grey Laguna Blue Milky GreenWhite Code. 5713 5338 5335 5334 5337 5336ChassisProfondoredmetallicCode. 5341 6204Imperialblue Code. 5426 6205DolphingreymetallicCode. 6206ESPRITA ClassWhiteTitansilvermetallicConversionBright Sand Cacao Grey Laguna Blue Milky GreenCode. 1999 1665 1671 1669 498 1670ESPRITCoachbuiltWhiteConversionTitansilver metallicWhite Code. 5713 5708ChassisProfondoredmetallicCode. 5341 5340Imperialblue Code. 5426 5706Please note that the roof as well as skirts and other mounted parts will remain white. Conversion design partly with varnished graphics.42

ESPRIT Style Package (15 kg) (18 kg) (15 kg)Package components Low Profile A Class CoachbuiltFlush fitting windows ✔ ✔ ✔High-level rear mouldingwith roof railing ✔ ✔ ✔Cab entrance step ✔ – ✔Styling package for Coachbuilt – – ✔Alternative headlights – ✔ –✔ component ◉ standard ̶ not possibleESPRIT Class EspritESPRIT – Optional ExtrasWeight (kg)CodeLow ProfileA ClassCoachbuilt A 6820-2Coachbuilt A 7870-2Chassis / Base vehicleFiat Ducato MultiJet 130 light (2.3 l / 130 BHP) - (depending on layout) 15 – ○ ○ – –Fiat Ducato MultiJet 150 light (2.3 l / 148 BHP) - (depending on layout) 15 – ○ ○ – –Fiat Ducato MultiJet 180 light (3.0 l / 177 BHP) - (depending on layout) 65 – ○ ○ – –Fiat Ducato MultiJet 130 Maxi (2.3 l / 130 BHP) -(depending on layout) 65 – ○ ○ ◉ ◉Fiat Ducato MultiJet 150 Maxi (2.3 l / 148 BHP) - (depending on layout) 65 – ○ ○ – –Fiat Ducato MultiJet 180 Maxi (3.0 l / 177 BHP) - (depending on layout) 115 – ○ ○ – –Fiat Ducato MultiJet 150 Maxi (2.3 l / 148 BHP) 50 – – – ○ ○Fiat Ducato MultiJet 180 Maxi (3.0 l / 177 BHP) 50 – – – ○ ○Weight upgrade 3850 kg Fiat (Ducato Light) – 808 ○ ○ – –Weight upgrade 4250 kg Fiat (Ducato Maxi) – 1633 ○ ○ – –Weight upgrade 4500 kg Alko 2 axles (Ducato Maxi) – 1585 ○ ○ ◉ –Alloy wheels 15" Anthracite Silver polished – 1751 ○ ○ – –Alloy wheels 16" Anthracite Silver polished – 1750 ○ ○ ○ –Alloy wheels 16" Anthracite Silver polished (3 axles) – 1750 – – – ○Tow bar 35 273 ○ ○ ○ ○Automated gearbox (6 gears) 17 011 ○ ○ ○ ○Wooden cab dash – 806 ○ ○ ○ ○Cab insulating mat large 2 427 ○ ○ ○ ○Cab insulating mat for windscreen and side windows 1 934 ○ ○ ○ ○Air suspension rear axle (ALKO) 35 1658 ○ ○ ○ –Air suspension rear axle (ALKO) 35 1658 – – – ○Air suspension front and rear axle (ALKO) 85 1796 ○ ○ ○ –Air suspension front and rear axle (ALKO) 85 1796 – – – ○Alternative headlights 3 1763 – ○ – –Bi-Xenon headlights (only in conjunction with alternative integral headlights) 2 507 – ○ – –Pilote seat Basic Plus in Dethleffs design with height/inclination adjustment,seat heating and lumbar support/ pump5 1659 ○ ○ ○ ○Seats: Swivel seat for passenger (only in conjunction with Pilote seat) 20 724 ◉ ◉ – ○Mud flap front 2 298 ○ ○ ○ ○◉ Standard ○ Option ̶ Not possible ◆ Obligatory Please read notes with regards to the optional extras on page 3!43

ESPRIT – Optional ExtrasWeight (kg)CodeLow ProfileA ClassCoachbuilt A 6820-2Coachbuilt A 7870-2Chassis / Base vehicleStatic cornering light including fog lamps 1 296 – ○ – –Rear corner steadies (2 pieces) 6 390 ○ ○ ○ ○Cab blinds Remis 2,5 648 – ○ – –Cab blinds Remis 2,5 434 ○ – ○ ○Increased suspension spring for front axle (Ducato Light/Maxi) 5 1889 – ○ – –ExteriorOpening Coachbuilt window (N/S) 2 622 – – ○ ○Access locker door rear garage N/S 7 331 ○ ○ ○ ○Robust GRP roof 0,6 kg/m² 242 ○ ○ ○ ○Roof rack with ladder for high-level rear moulding(Please note: Collision risk because of limited roof area)2 / 10 418/1755 ○ ○ ○ ○Roof rails accessory: Cross elements and ladder for roof for high-level rear moulding(Please note: Collision risk because of limited roof area)7 1754 ○ ○ ○ ○Midi-Heki over pull-down bed 10 246 – ○ – –Midi-Heki over Coachbuilt single beds 10 246 – – ○ –Heki III Panorama skylight with plinth (Please note: Collision risk because of limited roof area) 15 849+605 ○ ○ ○ ○Cycle rack for 3 cycles 8,7 938 ○ ○ – ○Cycle rack for 4 cycles 10,2 815 ○ ○ – ○Flush fitting windows 5 415 ○ ○ ○ ○Window in bathroom (depending on layout/ not for T/I 7150-2) 5 372 ◉ ◉ ○ ○Panorama window (no bed convert possible) 6 1664 ○ ○ – –Insulation Styrofoam 0,9 kg/m² 1966 ○ ○ ○ ○Awning Omnistor 3 till 6m depending on model;For further information please contact your local dealer.21-40 div. ○ ○ ○ ○InteriorShelving system rear: Aluline (not in conjunction with lowered bed) 5 1979 – – – ○Shelving system rear: bicycle rack (not in conjunction with Aluline) 5 1930 – – – ○Loundry box (2 passengers' registration only) 3 1606 – – ○ –Additional seat rear N/S 41 1605 – – ○ –Additional seat rear O/S 41 1604 – – ○ –Furniture/ LayoutsOverhead locker doors with Plexi-glass stripes in wood optic – 1969 ○ ○ ○ ○Electrical pull-down bed operation 5 1683 – ○ – –Soft furnishingMassage mattress 10 1579 ○ ○ ○ ○7 zones Premium cold foam mattress with visco-foam for double bed – 1949 ○ ○ – ○7 zones Premium cold foam mattress with visco-foam for double bed – 1947/1948 ○ ○ ○ –Optional fabric – div. ○ ○ ○ ○Real leather Benidorm – 1529 ○ ○ ○ ○Electrics/ InstallationLED illumination package (interior illumination in LED) – 1661 ○ ○ ○ ○2nd leisure battery 95 Ah 27 830 ○ ○ ○ ○Indirect illumination 2 705 ○ ○ ○ ○Solar system (2 Siemens M50 modules, 1 controler SR 13, 2 x 60 Watt) 15 922 ○ ○ ○ ○Inverter Waeco 2000 W (for A 6820/ ALPA only 1500 W) 8,4 1775 – – ○ –Gas installationCrash sensor for gas system – 1902 ○ ○ ○ ○BBQ 30 mbar 1 878 ○ ○ ○ ○Switch over system Duo Control CS (weight without gas bottles) 5 1577 ○ ○ ○ ○44

ESPRIT – Optional ExtrasWeight (kg)CodeLow ProfileA ClassCoachbuilt A 6820-2Coachbuilt A 7870-2Water supply/ InstallationExterior shower (cold water) 1 793 ○ ○ ○ ○Pressure water pump SF126 PRO (Shurflo pump) – 736 ○ ○ ○ ○Switch for water pump 1 397 ○ ○ ○ ○Heating/ Air conditioningALDE warm water heating 30-50 761 ○ ○ ○ ○ALDE heat exchanger 5 565 ○ ○ ○ ○Additional pump 230 V for ALDE heating 1 314 ○ ○ ○ ○Heating: Heat exchanger Sirocco Arizona 400 3 472 ○ ○ ○ ○Heating: Webasto additional heating 7 517 ○ ○ ○ ○Heated Coachbuilt bed 1740 – – ○ ○Air conditioning Telair Silent 7300H-230V(Please note: Collision risk because of limited roof area)34 609 ○ ○ ○ ○Air conditioning Saphir Vario 27 1986 – – – ○Air conditioning Saphir Comfort 24 1791 – – ○ –Saphir Vario voltage converter 12/230V 3 1977 – – ○ ○KitchenExtendable kitchen (exterior) 10 1943 – – – ○Fridge vent cover 1 282 ○ ○ ○ ○Extractor fan (circulating air) 2 344 ○ ○ ○ ○Microwave (not in conjunction with oven) 15 718 ○ ○ – ○BathroomWooden grill for shower - 1657 ○ ○ ○ ○Multimedia systemsFlatscreen 19" 6 1896 ○ ○ ○ ○Flatscreen 22" 8 1799 – – ○ –SAT Parabol system Flatsat Easy Classic 65 13 1741 ○ ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 Twin 21,3 1813 ○ ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 (without receiver) 21,3 1812 ○ ○ ○ ○SAT Parabol system Teleco Flatsat Easy 65 (with receiver) 22,3 1814 ○ ○ ○ ○Pre-wiring (Navi to TV locker) 2 1945 ○ ○ ○ ○Navigation system Pioneer AVIC-F 940 BT 4 1822 ○ ○ ○ ○Navigation module Caratec (only in conjunction with Moniceiver) 2 1643 ○ ○ ○ ○Radio pre-wiring with Sound package 2 659 ○ ◉ ○ ○RDS / CD Pioneer (only in conjunction with radio pre-wiring) 2 1639 ○ ○ ○ ○DVD - Tuner incl.Radio + CD (Pioneer) (only in conjunction with radio pre-wiring) 2 503 ○ ○ ○ ○DVD - Radio Moniceiver JVC AVX 740 3 1644 ○ ○ ○ ○DVD - Tuner incl. Radio + CD (Pioneer) for interior 3 1594 – – ○ –Reversing cam pre-wiring 2 277 ○ ○ ○ ○Reversing cam CARATEC in many different variants. For further information please contact your localdealer.3 1642+1640 ○ ○ ○ ○Misc"Cuddle" package (bedspread, cuddle blanket, 2 pillows, table cloth) 1 1590 ○ ○ ○ ○Fire extinguisher 2 kg 3 1878 ○ ○ ○ ○Registration documents – – ◆ ◆ ◆ ◆ESPRIT Class Esprit◉ Standard○ Option̶ Not possible◆ ObligatoryPlease read notes with regards to the optional extras on page 3!45

WINTER COMFORT PACKAGESWinterised and weatherproof, wintersation with DethleffsWinter camping is a trend and fascinating again and again. Therebythere is much depending on the right vehicle technique! Dethleffshave always been number one in producing winterised vehicles -especially in Scandinavian countries where the winterisation of amotorhome is extremely important.For the perfect Dethleffs' comfort even during the winter time weoffer you the optional winter packages TRUMA or ALDE. Enjoy yourwinter holidays with the comfort by Dethleffs and the optionalTRUMA or ALDE winter packages.Winter Comfort Package TRUMA (29 kg)Winter Comfort Package ALDE(67 kg)Package componentsGLOBEBUS, ADVANTAGE,GLOBE 4,MAGIC EDITION/4Package componentsADVANTAGE,GLOBE 4,MAGIC EDITION/4Truma heating Combi 6◉Alde warm water heating✔Electrical element 230 V for Combi 6✔Insulated waste water tank✔Insulated waste water tankWaste water tank and pipes electr. heatedInsulated under-floor pipesSwitch for water pumpStyrofoam insulation✔✔✔✔✔Waste water tank and pipes electr. heatedInsulated under-floor pipesSwitch for water pumpStyrofoam insulation✔✔✔✔Winter Comfort Package LUXUS TRUMA* (75-80 kg) ALDE** (49 kg)Package components GLOBEBUS, ADVANTAGE, ADVANTAGEGLOBE 4, MAGIC EDITION/4Auxiliary heating Webasto ✔ ✔Electrical floor heating ✔ –ALDE Electrical floor heating – ✔Additional battery (95 AH) ✔ ✔Cab insulation mat ✔ ✔Cab carpets ✔ ✔* only in conj. with Winter Comfort Package TRUMA** only in conj. with Winter Comfort Package ALDE46

STORAGE SPACERoom for your luggage and more...Dethleffs Motorcaravans offer many different spacious storagecompartments. The technical data indicates which type is standardand which is available as optional extra. Smaller storage compartmentssuch as bench lockers are not shown in this scheme.Please note that these drafts are not drawn to scale as they areonly examples. The proportion may vary depending on the model,wheel base.For exact dimensions of the storage compartments and doorsplease contact your local dealer.A B 1 B 2 C 1Underfloor storageStorage space under doublebed lengthwaysGarage under double bedlengthways with lowered rearStorage space under doublebed widthwaysC 2 D 1 D 2 E 2Garage under double bedwidthways with lowered rearStorage space under singlebedsGarage under single beds withlowered rearGarage under bunk beds widthwaysF 2 * G 1 G 2 HGarage under island bedStorage space under lounge (orsingle beds)Storage space under lounge (orsingle beds) with lowered rearStorage space high (partiallywith exterior and interioraccess)* F 1 for Globe S T 685 only: storage compartment under the double bed mid47

General InformationThe ‘Mass In Running Order’ according to the EuropeanRegulations 92/21 EG and EN 1646-2 includes the emptyvehicle weight, the driver’s weight calculated at 85 kg, a90% fuel capacity, filled water tank capacity (partly reducedcapacity, see technical data), 1 x 11 kg gas bottle (100%filled) and a cable reel.The term ‘Maximum Authorised Weight’ must not beexceeded when optional extras and personal items aretaken into account. Supported only by your official Dethleffsdealer. The sizes and weights are approximate values.The mass in running order applies for a standard modelwithout any optional extras. Upon the publication of this‘Motorcaravan Technical Information 01/2013‘ all previouspublications are invalid.The ‘Motorcaravan Technical Information 01/2013‘ is validfrom 01.10.2012. Dethleffs reserve the right to alter technicaland material specifications and standard equipment atany time as material and conditions demand.Please note: The price of Dethleffs products in variousEuropean countries will differ. This is due to differing levelsof specification in the individual countries and varyingrates of VAT or luxury tax.E 1625 / 09.12 / 8.000 / Subject to change, errors excepted. © www.inhouse-online.deDethleffs GmbH & Co. KGArist-Dethleffs-Straße 12 · 88316 Isny im AllgäuPhone: +49 (0) 75 62 98 70www.dethleffs.co.uk - info@dethleffs.co.uk48
