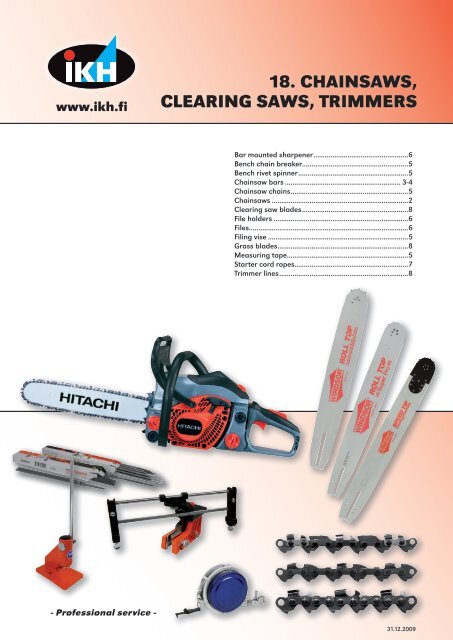

<strong>18.</strong> <strong>CHAIN<strong>SAWS</strong></strong>,<strong>CLEARING</strong> <strong>SAWS</strong>, <strong>TRIMMERS</strong>Bar mounted sharpener...................................................6Bench chain breaker.........................................................5Bench rivet spinner...........................................................5Chainsaw bars.............................................................. 3-4Chainsaw chains...............................................................5Chainsaws.........................................................................2Clearing saw blades.........................................................8File holders........................................................................6Files.....................................................................................6Filing vise...........................................................................5Grass blades......................................................................8Measuring tape.................................................................5Starter cord ropes............................................................7Trimmer lines.....................................................................8- Professional service -31.12.2009
CS25EC(S)CHAINSAW 28,5 cm³ with top handleHI62010001• displacement 28,5 cm³, 2-stroke• power 1,0 kW• bar 10” (25 cm)• chain 3/8”/.050”• fuel tank 2,5 dl• oil tank 1,8 dl• S-Start: soft and smooth engine recoil starter• lightweight and well balanced top handlechainsaw for carpenters• dimensions L 268 x W 235 x H 220 mm• weight 2,9 kg• packing size: 1EAN 4934528820047CHAIN 3/8" LO-PRO .050" (1,3 MM)ORE033Note! top handle sawsare for experiencedusers only!CS33ET(30)CHAINSAW 32,3 cm³ with top handleHI62010425• displacement 32,3 cm³, 2-stroke• power 1,2 kW• low emission Purefire-engine• bar 12” (30 cm)• chain 3/8”/.050”• fuel tank 3,0 dl• oil tank 1,9 dl• low-vibration rubber coated handle• auto choke return• S-Start: soft and smooth engine recoil starter• lightweight and well balanced top handlechainsaw for carpenters• dimensions L 278 x W 264 x H 220 mm• weight 4,0 kg• packing size: 1EAN 4934528829538BAR 12” (30 CM) .050” (1,3 MM)WS12PKU50SSR / ORE002CHAIN 3/8” LO-PRO .050” (1,3 MM)ORE034Note! top handle sawsare for experiencedusers only!CHAINSAW 25,4 cm³ with top handleXTP112• displacement 25,4 cm³, 2-stroke• bar 10” (25 cm)• chain 3/8”/.050”• fuel tank 2,3 dl• chain oil tank 1,6 dl• fuel unleaded gasoline (98 octane)• fuel / oil mixture ratio 40:1 (2,5%)(e.g. Viima 2-stroke oil WK2TY)• dimensions L 265 x W 220 x H 220 mm• weight 2,8 kg• packing size: 1/72EAN 6418914773011Note! top handle sawsare for experiencedusers only!CS33EA(30S)CHAINSAW 32,3 cm³HI62010825• displacement 32,3 cm³, 2-stroke• power 1,2 kW• low emission Purefire-engine• bar 12” (30 cm)• chain 3/8”/.050”• fuel tank 3,0 dl• oil tank 1,9 dl• low-vibration rubber coated handle• S-Start: soft and smooth engine recoil starter• lightweight and powerful chainsaw for professional use• dimensions L 396 x W 262 x H 238 mm• weight 4,0 kg• packing size: 1EAN 4934528828227BAR 12” (30 CM) .050” (1,3 MM)WS12PKU50SSR / ORE002CHAIN 3/8” LO-PRO .050” (1,3 MM)ORE034CS33EA(35S)CHAINSAW 32,3 cm³HI62010826• displacement 32,3 cm³, 2-stroke• power 1,2 kW• low emission Purefire-engine• bar 14” (35 cm)• chain 3/8”/.050”• fuel tank 3,0 dl• oil tank 1,9 dl• low-vibration rubber coated handle• S-Start: soft and smooth engine recoil starter• lightweight and powerful chainsaw for professional use• dimensions L 396 x W 262 x H 238 mm• weight 4,5 kg• packing size: 1EAN 4934528829644BAR 14” (35 CM) .050” (1,3 MM)WS14PKU50SSR / ORE009CHAIN 3/8” LO-PRO .050” (1,3 MM)ORE035CS33EB(30)CHAINSAW 32,3 cm³HI62010827• displacement 32,3 cm³, 2-stroke• power 1,2 kW• low emission Purefire-engine• bar 12” (30 cm)• chain 3/8”/.050”• fuel tank 3,5 dl• oil tank 2,5 dl• low-vibration rubber coated handle• S-Start: soft and smooth engine recoil starter• lightweight and powerful chainsaw for professional use• dimensions L 389 x W 226 x H 280 mm• weight 4,2 kg• packing size: 1EAN 4966376177967BAR 12” (30 CM) .050” (1,3 MM)WS12PKU50SSR / ORE002CHAIN 3/8” LO-PRO .050” (1,3 MM)ORE03418/231.07.2012
CS40EA(33PS)CHAINSAW 39,6 cm³HI62010829• displacement 39,6 cm³, 2-stroke• power 1,8 kW• low emission Purefire-engine• bar 13” (33 cm)• chain .325”/.050”• fuel tank 3,8 dl• oil tank 2,4 dl• low-vibration rubber coated handle• S-Start: soft and smooth engine recoil starter• compact, lightweight and powerful chainsaw for professional use• dimensions L 378 xW 229 x H 269 mm• weight 4,5 kg• packing size: 1EAN 4966376182695BAR 13” (33 CM) .058” (1,5 MM)WS13PKU58SPYJ / ORE006CHAIN .325” .058” (1,5 MM)ORE048CHAIN .325” .050” (1,3 MM)WS50J56 / ORE031CS33ELCHAINSAW 43,0 cm³HI62010701• displacement 43,0 cm³, 2-stroke• power 2,09 kW• decompressor valve - to startwith 70 % less effort• bar 13” (33 cm)• chain .325”/.050”• fuel tank 4,0 dl• oil tank 2,45 dl• low-vibration rubber coated handle• lightweight and well balanced chainsaw for professional use• dimensions L 379 x W 239 x H 269 mm• weight 4,0 kg• packing size: 1EAN 4934528828227BAR 13” (33 CM) .058” (1,5 MM)WS13PKU58SPYJ / ORE006CHAIN .325” .058” (1,5 MM)ORE048CS40EMCHAINSAW 49,3 cm³HI62010801• displacement 49,3 cm³, 2-stroke• power 2,51 kW• decompressor valve - to start with 70 % less effort• bar 16” (40 cm)• chain .325”/.058”• fuel tank 5,5 dl• oil tank 2,6 dl• low-vibration rubber coated handle• lightweight and well balanced chainsaw for professional use• dimensions L 420 x W 245 x H 270 mm• weight 5,1 kg• packing size: 1EAN 4934528828319BAR 16” (40 CM) .058” (1,5 MM)WS16CJL58SPYJ / ORE014CHAIN .325” .058” (1,5 MM)ORE05018/2a31.07.2012
CHAINSAW ACCESSORIESBarsBAR-TAIL MOUNTING TYPESCarlton 03/10GB ETWindsor PKUOREGON® A041/K041Carlton 30/26GB SNWindsor STOREGON® A0740.322” / 8,2 mm 0.322” / 8,2 mmAlpina, Bosch, Dolmar, Echo, Efco, Einhell, Hitachi, Husqvarna,Ikra, Makita, McCullough, Oleo-Mac, Partner, Poulan, Shindaiwa,Tanaka, ZenoahCarlton 16/01GB UHLWindsor CJL / ELOREGON® A095/K095Oleo-Mac, StihlCarlton 08/38GB MWindsor MCOREGON® A3180.322” / 8,2 mm0.250” / 6,4 mmAlpina, Homelite, Husqvarna, Jonsered, McCullough, Oleo-Mac,Partner, Shindaiwa, ZenoahCarlton 17/81GB HVWindsor EM / HP / HS / HUOREGON® D009Black & Decker, McCulloughCarlton 31/42GB SNWindsor 40OREGON® D0250.355” / 9,0 mm 0.475” / 12,1 mmAlpina, Dolmar, Husqvarna, Makita, Partner, Shindaiwa, SoloStihlBARSRoll Top Mini• nickel chromium alloy construction, laminated• suitable for small/casual user sawsOrder no. Length Pitch Gauge Drivelinks Nose sprocket MountingPack.size EANWS12PKU50SSR 12” (30 cm) 3/8 Lo-Pro .050” (1,3 mm) 45 pcs 9-teeth PKU 1/10 7332437002733WS14CJL50SSR 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 52 pcs 9-teeth CJL 1/10 7332437023257WS14MC50SSR 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 49 pcs 9-teeth MC 1/10 7332437003105WS14PKU50SSR 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 52 pcs 9-teeth PKU 1/10 7332437003273WS14ST50SSR 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 50 pcs 9-teeth ST 1/10 7332437003334Pro-Lite 91 (SP/GP, SPE/GPE)• high performance guide bars for use in professional applicationswith reduced kickback OREGON 91 chain. Pro 91 bars are ideallysuited for arborists and tree surgeons.• made from silicon-alloy steel for high strength and light weight.• slim contour offers excellent manoeuvrability.• for use exclusively with 91 chains.• suitable for lightweight petrol saws used by professional users.22Order no. Length Pitch Gauge Drivelinks Nose sprocket MountingPack.size EANORE002 12” (30 cm) 3/8 Lo-Pro .050” (1,3 mm) 45 pcs 9-teeth A041 1/10 5400182005506ORE003 12” (30 cm) 3/8 Lo-Pro .050” (1,3 mm) 44 pcs 9-teeth A074 1/10 5400182695905ORE007 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 52 pcs 9-teeth A095 1/10 5400182128960ORE008 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 49 pcs 9-teeth A318 1/10 5400182500421ORE009 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 52 pcs 9-teeth A041 1/10 5400182010203ORE010 14” (35 cm) 3/8 Lo-Pro .050” (1,3 mm) 50 pcs 9-teeth A074 1/10 540018202105618/2b31.07.2012
BARSRoll Top Super Pro• laminated nickel chromium alloy construction• light and maneuverable• suitable for mid size saws2Order no. Length Pitch Gauge Drivelinks Nose sprocket MountingPack.size EANWS134063SPYJ 13” (33 cm) .325 .063” (1,6 mm) 56 pcs 10-teeth 40 1/10 7332437023417WS15CJL50SPYJ 15” (38 cm) .325 .050” (1,3 mm) 64 pcs 10-teeth CJL 1/10 7332437003365WS15HS58SPNA 15” (38 cm) 3/8 .058” (1,5 mm) 56 pcs 11/12--teeth HS 1/10 7332437003556WS154063SPNJ 15” (38 cm) .325 .063” (1,6 mm) 63 pcs 11/12--teeth 40 1/10 7332437003655WS16CJL58SPYJ 16” (40 cm) .325 .058” (1,5 mm) 66 pcs 10-teeth CJL 1/10 7332437003860WS18CJL58SPYJ 18” (45 cm) .325 .058” (1,5 mm) 72 pcs 10-teeth CJL 1/10 7332437005482WS18CJL58SPNJ 18” (45 cm) .325 .058” (1,5 mm) 72 pcs 11/12-teeth CJL 1/10 7332437054657WS18HS58SPNA 18” (45 cm) 3/8 .058” (1,5 mm) 68 pcs 11/12-teeth HS 1/10 7332437005772WS20HS58SPNA 20” (50 cm) 3/8 .058” (1,5 mm) 72 pcs 11/12-teeth HS 1/10 7332437007165Slim cut2Pack.Order no. Length Pitch Gauge Drivelinks Nose sprocket Mounting size EANWS13CJL50SCPYJ 13” (33 cm) .325 .050” (1,3 mm) 56 pcs 10-teeth CJL 1/10 7332437081882Pro-Lite 21BPX (SLB, SLG, SLH)• laminated sprocket nose Pro-Lite bars are designed for full timeprofessional use in pulp, firewood cutting and heavy duty farmuse. Ideal for modern high speed saws• slim contour and low weight bar gives excellent maneuverability• LUBRI-DAM oil-retaining feature prevents oil from running out ofthe bar’s tail, keeps more oil on the bar and chain• suitable for high speed saws from 35 to 65cc2Order no. Length Pitch Gauge Drivelinks Nose sprocket MountingPack.size EANORE001 13” (33 cm) .325 .050” (1,3 mm) 56 pcs 10-teeth K095 1/10 5400182148302ORE005 13” (33 cm) .325 .058” (1,5 mm) 56 pcs 10-teeth K095 1/10 5400182013587ORE006 13” (33 cm) .325 .058” (1,5 mm) 56 pcs 10-teeth K041 1/10 5400182010999ORE013 15” (38 cm) .325 .058” (1,5 mm) 64 pcs 12--teeth K095 1/10 5400182033073ORE014 16” (40 cm) .325 .058” (1,5 mm) 66 pcs 10-teeth K095 1/10 5400182126447ORE015 18” (45 cm) .325 .058” (1,5 mm) 72 pcs 10-teeth K095 1/10 5400182126478Pro-Lite 95VPX (MPG, MPB)• specifically developed to meet the needs of today’s lightweightprofessional saws the Micro-Lite laminated bar is designed to beused as part of a system with the Micro-Lite .325” chain 95VPX.This narrow kerf combination takes less power from the saw.• slim contour and low weight bar give excellent manoeuvrability.• thickness of side laminates is reduced to work with narrow-kerf.325” pitch 95VPX chain.• LUBRI-DAM oil-retaining feature prevents oil from running out ofthe bar’s tail, keeps more oil on the bar and chain.• suitable for saws of 38cc to 58cc.2Order no. Length Pitch Gauge Drivelinks Nose sprocket MountingPack.size EANORE004 13” (33 cm) .325 .050” (1,3 mm) 56 pcs 10-teeth K095 1/10 5400182187332ORE011 15” (38 cm) .325 .050” (1,3 mm) 64 pcs 10-teeth K095 1/10 5400182187325Speed Tip• replaceable sprocket nose• nickel chromium steel for longe life in demand• induction hardened rail and nose• 5 rivets to secure the replaceable nose• suitable for mid to large size saws2Order no. Length Pitch Gauge Drivelinks Nose sprocket MountingPack.size EANWS18CJL58STJ 18” (45 cm) .325 .058” (1,5 mm) 72 pcs 12-teeth CJL 1/10 7332437005529WS24EM58STA 24” (60 cm) 3/8 .058” (1,5 mm) 84 pcs 11-teeth EM 1/10 7332437008063WS32HU63STA 32” (80 cm) 3/8 .063” (1,6 mm) 105 pcs 11-teeth HU 1/10 733243700939818/331.07.2012
CHAINSAW ACCESSORIESSaw chainsCHAINS CROSS REFERENCE TABLE2Pitch Gauge Windsor Stihl Oregon Carlton Husqvarna3/8” Lo-Pro .043” (1,1 mm) 43RG 61PMN 90SG N4C-BL -3/8” Lo-Pro .050” (1,3 mm) 50R 63PM 91VS N1C H43X3/8” Lo-Pro .050” (1,3 mm) 50RG 63PM1 91VG N1C-BL H43X.325” .050” (1,3 mm) 50J 23RM 20BP K1C H22.325” .058” (1,5 mm) 58J 25RM 21BP K2C H273/8” .058” (1,5 mm) 58A 35RM 73DG A2EP H55SAW CHAINS3/8” Lo-Pro, 90SG, Micro-Lite• Micro-Lite narrow kerf chain used incombination with Micro-Lite bars requiresless power from the saw than standardcutting systems.• low-vibration, low-kickback chamfer-chiselcutters have an angular shape with twincutting corners that offer outstandingperformance along with durability and easy,forgiving maintenance comparable toround-cornered chains.• Lubrilink tie straps help keep oil where it isneeded-on the chain.• Lubriwell oil holes in all drive links helpcarry oil around thefull length of the guide bar’s groove.• recommended for electric saws andgasoline saws up to 35cc2Pack.Order no. Pitch Gauge Drivelinks size EANORE030 3/8 Lo-Pro .043” (1,1 mm) 44 pcs 1/30 54001825048943/8” Lo-Pro, 91VXL• this high performance low profile chainis ideal for professional users, usinglightweight chain saws in commercialoperations such as tree surgery andpruning.• ramp-shaped depth gauges reduce kickback• Vibe-Ban chassis design reduces vibration25% or more at the handles• Lubrilink tie straps help keep oil where it isneeded-on the chain• Lubriwell oil holes in all drive links help carryoil around the full length of the guide bar’sgroove• recommended for lightweight petrol saws,for bars from 12” to 16” (30 - 40 cm)2Order no. Pitch Gauge DrivelinksPack.size EANORE033 3/8 Lo-Pro .050” (1,3 mm) 40 pcs 1/30 5400182900016ORE034 3/8 Lo-Pro .050” (1,3 mm) 45 pcs 1/30 5400182896234ORE039 3/8 Lo-Pro .050” (1,3 mm) 47 pcs 1/30 5400182897392ORE040 3/8 Lo-Pro .050” (1,3 mm) 49 pcs 1/30 5400182897255ORE035 3/8 Lo-Pro .050” (1,3 mm) 52 pcs 1/30 54001828962413/8” Lo-Pro, 91VG• low-kickback, low-vibration chain ideal forhomeowners and occasional users.• chamfer “Chisel” cutters have an angularshape with twin cutting corners that offeroutstanding performance along with durabilityand easy, forgiving maintenance comparableto round-corner chain.• ramp-shaped depth gauges and the use ofbumper tie straps between cutter locationoffer excellent protection against kickback.• Vibe-Ban chassis design reduces vibration25% or more at the handles.• Lubrilink tie straps help keep oil where it isneeded-on the chain.• Lubriwell oil holes in all drive links helpcarry oil around the full length of the guidebar’s groove.• recommended for electric and lightweightpetrol hobby saws up to 35cc for bars from12” to 16” (30 - 40 cm).2Order no. Pitch Gauge DrivelinksPack.size EANORE036 3/8 Lo-Pro .050” (1,3 mm) 40 pcs 1/30 5400182180982ORE037 3/8 Lo-Pro .050” (1,3 mm) 44 pcs 1/30 5400182173496ORE038 3/8 Lo-Pro .050” (1,3 mm) 45 pcs 1/30 5400182181002ORE043 3/8 Lo-Pro .050” (1,3 mm) 53 pcs 1/30 5400182178101ORE045 3/8 Lo-Pro .050” (1,3 mm) 57 pcs 1/30 540018217346518/431.07.2012
FILING GUIDES• pocket size filing quide,easy to carry• packing size: 1/6for .325” chainsWS23W6920• suitable for .325 pitchchains• use with Ø 4,8 mmround file (roundfile not included)EAN 7332437017324for 3/8” chainsWS23W6922• suitable for 3/8 Lo-Propitch chains• use with Ø 4,0 mmround file (roundfile not included)EAN 7332437017355SHARPENING START KITS• Includes:- round file with plastic handle- flat file with plastic handle- filing quides for round and flat file- bar groove cleaner tool• packing size: 1/16SHARPENING START KITS• Includes:- round file with handle- flat file with handle- filing quides for round and flat file- bar groove cleaner tool• packing size: 1/20for 3/8” chainsWS23W4025• Ø 4,0 mm• suitable for 1/4 and3/8 pitch chainsEAN 7332437083848for .325” chainsWS23W4825• Ø 4,8 mm• suitable for .325 pitchchainsEAN 7332437083862for 3/8” chainsORE110• Ø 4,0 mm• suitable for 1/4 and3/8 pitch chainsEAN 5400182032519for .325” chainsORE111• Ø 4,8 mm• suitable for .325 pitchchainsEAN 5400182000976FILE HOLDERS with round file• includes round file and filing quide with angle indicators• packing size: 1/20BAR MOUNTED SHARPENERWS22W2000• for precise and easy saw chain sharpening• mounting for chainsaw bar• can be used with round- or flat files• file not including• packing size: 1EAN 73324370754854,0 mmWS22W1040• Ø 4,0 mm• suitable for 1/4 and3/8 pitch chainsEAN 73324370816844,5 mmWS22W1045• Ø 4,5 mm• suitable for 3/8pitch chainsEAN 73324370817144,8 mmWS22W1048• Ø 4,8 mm• suitable for .325pitch chainsEAN 73324370816915,5 mmWS22W1055• Ø 5,5 mm• suitable for 3/8 and.404 pitch chainsEAN 7332437081707FILE HOLDERS with round file• includes round file and filing quide with angle indicators• packing size: 1/20BAR MOUNTED SHARPENERORE109• for precise and easy saw chain sharpening• mounting for chainsaw bar• can be used with round- or flat files• file not including• packing size: 1EAN 54001828708384,0 mmORE105• Ø 4,0 mm• suitable for 1/4 and3/8 pitch chainsEAN 54001820386724,5 mmORE106• Ø 4,5 mm• suitable for 3/8pitch chainsEAN 54001820452744,8 mmORE107• Ø 4,8 mm• suitable for .325pitch chainsEAN 54001820482515,5 mmORE108• Ø 5,5 mm• suitable for 3/8 and.404 pitch chainsEAN 5400182033714FILE HANDLEWS29W2100• plastic file handle• packing size: 1EAN 7332437081721FILE HANDLEWS29W2100• wooden file handle• packing size: 1EAN 540018288917518/631.07.2012
ROUND FILES• 12 pcs / packageOrder no. SizePack.size EANWS21W0845 200 x 4,5 mm 1 7332437074952WS21W0855 200 x 5,5 mm 1 7332437074983FLAT FILES• 12 pcs / packagePack.Order no. Sizesize EANWS20W0616 150 x 16 x 2,5 mm 1 7332437074990ROUND FILES• 12 pcs / packageOrder no. SizePack.size EANORE101 200 x 4,0 mm 1/25 5400182021018ORE102 200 x 4,5 mm 1/25 5400182009610ORE103 200 x 4,8 mm 1/25 5400182046363ORE104 200 x 5,5 mm 1/25 5400182025641FLAT FILES• 12 pcs / packagePack.Order no. Sizesize EANORE100 150 x 14 x 2,5 mm 1/25 5400182008231SAW FILE FLATVA009• single-cut, other side rounded DIN 7262F• 250 x 25 x 4 mm, weight 186 g• fine cut• packing size: 1/6EAN 4019003019687SAW FILE SWORDVA016• 150 x 20 x 5 mm, weight 64 g• fine cut• packing size: 1/6EAN 4019003019700CHAIN SAW FILES• fine cut• packin size (bulk): /10Order no.single packedOrder no.bulkSize Weight EANVA2303403200A VA2303403200 200 x 4,0 mm 20 g 4019003019427/4019003001910VA2303483200A VA2303483200 200 x 4,8 mm 26 g 4019003019434/4019003001927VA2303553200A VA2303553200 200 x 5,5 mm 37 g 4019003019441/401900300193418/6a31.07.2012
FILING VISEWS24W1000• for holding chainsaw barfirmly when filing• mounting for wood stump• packing size: 1EAN 7332437075492BENCH RIVETSPINNERWS11W1000• for fast and efficient rivet spinning• suitable for 1/4, .325, 3/8 and .404 pitch chains• packing size: 1EAN 7332437075393FILING VISEORE112• for holding chainsaw barfirmly when filing• mounting for wood stump• packing size: 1/12EAN 5400182184683BENCH CHAINBREAKERWS10W1000• for fast and easychain breaking• suitable for 1/4, .325, 3/8and .404 pitch chains• packing size: 1EAN 7332437075386CHAIN BREAKER HEADWS10W1000-118/6b31.07.2012
MEASURINGTAPE 15 mORE113• length 15 m• heavy-duty gears for smooth operation• powerful auto-rewind spring• strong metal tape with clear graduations and markings• durable metal body• packing size: 1/24EAN 5400182621836STARTER CORD ROPES• suitable for all engines withpull startOrder no. SizePack.size EANWS42W1030 3,0 mm x 50 m 1 7332437075546WS42W1035 3,5 mm x 50 m 1 7332437075553WS42W1040 4,0 mm x 50 m 1 7332437075560WS42W1045 4,5 mm x 50 m 1 7332437075577STARTER CORD ROPES• suitable for all engines withpull startOrder no. SizePack.size EANORE150 3,5 mm x 30,5 m 1 5400182858867ORE151 4,0 mm x 30,5 m 1 5400182858874ORE152 4,5 mm x 30,5 m 1 5400182858881FELLING WEDGES• plastic• lightweight and durableOrder no. LengthPack.size EANWS32W1055 130 mm 1/25 7332437075508WS32W1080 200 mm 1/25 7332437075515WS32W1100 240 mm 1/25 7332437075522FELLING WEDGES• plastic• lightweight and durableOrder no. LengthPack.size EANORE115 130 mm 1 5400182027591ORE116 200 mm 1 5400182032281ORE117 240 mm 1 5400182010715BREAKING BARXK6201• material steel• rubber coated handle• length 800 mm• width 70 mm• working angle 90-180°• packing size: 1EAN 6418914746565BREAKING BARFS126050• hardened boron steel• very resistant, madefrom one peace• swing hook, sharpened blade• two step leverage action• steady grip• length 768 mm• packing size: /4EAN 6411503194525LIFTING HOOKFS126020• for lifting and moving light timber• hardened boron steel with ground tip• rubber coated handle ensures good grip• weight 420 g• length 235 mm• packing size: 1/4EAN 6411503190008BLOCK SHEARSFS126030• for lifting and moving light timber• hardened boron steel with ground tip• rubber coated handle ensures good grip• lever mechanism with epoxy coating• widest grip range 195 mm• weight 459 g• length 288 mm• packing size: 1/4EAN 6411503190602Saw chainoils on page23/24bHelmetson page37/13Gloveson page37/22aAxeson page5/4aBrush hookson page5/4aChain sawsharpenerson page13/2918/731.07.2012
BRUSH CUTTERSBRUSH CUTTER 42,7 cm³XTP103• engine type 2-stroke engine• cylinder displacement 42,7 cm³• power 1,25 kW• engine speed 9000 rpm• cutting head speed 6500 rpm• cutting equipment trimmer head,triangle blade, saw blade• fuel unleaded gasoline (98 octane)• fuel / oil mixture ratio 40:1 (2,5%)(e.g. Viima 2-stroke oil WK2TY)• fuel tank volume 1,2 l• noise level LpA 90 dB(A) / LWA 110 dB(A)• vibration level 7,5 m/s²• weight (excl. cutting equipment) 7,4 kg• packing size: 1/48EAN 6418914761377BRUSH CUTTER 31,0 cm³XTP107• engine type 4-stroke engine• cylinder displacement 31 cm³• power 0,7 kW• engine speed 9000 rpm• cutting head speed 6500 rpm• cutting equipment trimmer head,triangle blade, saw blade• fuel unleaded gasoline (98 octane)• fuel tank volume 1 l• oil tank volume 50 ml• fuel consumption 500 g/kWh• recommended oil type: SAE30(e.g. Viima Small engine oil WK4T)• noise level LpA 91 dB(A) / LWA 112 dB(A)• vibration level 15 m/s²• weight (excl. cutting equipment) 6 kg• packing size: 1/48EAN 641891476141418/801.08.2012
BRUSH CUTTERSCG47EY(T)BRUSH CUTTER 46,5 cm³HI62040601• displacement 46,5 cm³, 2-cycle• power 1,75 kW• low emission and high efficiency PureFire II-engine• fuel tank 10,0 dl• vibration reduced handle• left and right handles are separately adjustable• bent tube Ø 30 mm• standard accessories: hanging belt,3-tooth grass blade and wrench• dimensions L 1805 x W 630 x H 640 mm• weight 8,7 kg• packing size: 1EAN 4934528471850CG31EBS(P)BRUSH CUTTER 31,0 cm³HI62040601• displacement 31 cm³, 2-cycle• power 1,0 kW• low emission and high efficiency PureFire II-engine• fuel tank 6,7 dl• fuel consumption 0,8 l/h• bent tube Ø 26 mm• standard accessories: hanging belt, Tap&Goline head, grass blade and wrench• dimensions L 1790 x W 700 x H 480 mm• weight 6,7 kg• packing size: 1EAN 496637617953418/8a01.08.2012
<strong>TRIMMERS</strong>TRIMMER 26 cm³XTP102• engine type 2-stroke engine• cylinder displacement 26 cm³• power 0,8 kW• engine speed 9000 rpm• trimmer head speed 7800 rpm• string thickness 2 mm• trimming area 300 mm• fuel unleaded gasoline (98 octane)• fuel / oil mixture ratio 40:1 (2,5%)(e.g. Viima 2-stroke oil WK2TY)• fuel tank volume 0,75 l• weight 5,2 kg• noise level LpA 100 dB(A) / LWA 110 dB(A)• vibration level 13 m/s²• packing size: 1/48EAN 6418914761360Hedgetrimmerson page27/18CG22EABTRIMMER 21,1 cm³HI62040207• displacement 21,1 cm³, 2-cycle• power 0,63 kW• low emission and high efficiency PureFire -engine• fuel tank 4,3 dl• S-Start, for easy starting• vibration damper• bent tube Ø 24 mm• standard accessories: Tap&Go line head and wrench• dimensions L 1545 x W 295 x H 516 mm• weight 4,4 kg• packing size: 1/25EAN 4966376185245TRIMMER LINE HEADfor easy clip trimmer linesWS61W3001• for easy clip trimmer lines• includes 4 pcs easy clip trimmerlines (2,7 x 260 mm)• packing size: 1EAN 733243708377018/8bTRIMMER LINES90 pcs, easy clipWS60W4027• 2,7 x 260 mm• 90 pcs / package• packing size: 1EAN 7332437083787TRIMMER LINES45 pcs, easy clipORE082• 2,65 x 260 mm• 45 pcs / package• packing size: 1/45EAN 540018277625301.08.2012
ORE096ORE097<strong>CLEARING</strong> SAW BLADES• heavy-duty, high quality steel• recommended for straight shaft trimmersOrder no. SizePack.size EANORE090 200 x 1,5 x 20 mm Z22 1/10 5400182696889ORE091 200 x 1,5 x 25,4 mm Z22 1/10 5400182696872ORE092 225 x 1,8 x 20 mm Z24 1/10 5400182696902ORE093 225 x 1,8 x 25,4 mm Z24 1/10 5400182696896GRASS BLADES for brushcutters• hardened, high quality steel• high performance• durableORE094ORE095Order no. SizePack.size EANORE094 255 x 2,25 x 25,4 mm Z3 1/10 5400182040835ORE095 300 x 2,25 x 25,4 mm Z3 1/10 5400182113058ORE096 200 x 1,5 x 25,4 mm Z4 1/10 5400182016922ORE097 200 x 1,5 x 25,4 mm Z8 1/10 5400182021247WSGRA4200WSGRA8200GRASS BLADES for brushcutters• heavy-duty, high quality steel• 3-tooth and 4-tooth blades are reversible (longer life)• mounting hole 25,4 mm / 20 mm* (* = with bush)Order no. SizePack.size EANWSGRA4200 200 x 1,5 mm Z4 1 7332437000784WSGRA8200 200 x 1,5 mm Z8 1 7332437000890Yellow RoundTRIMMER LINES• round shape trimmer line• fits almost all standard trimmer headsYellow StarTRIMMER LINES• 5-edge (star shape) trimmer line• fits almost all standard trimmer headsOrder no. SizePack.size EANORE070 1,60 mm x 15 m 1/88 5400182147770ORE071 2,00 mm x 15 m 1/88 5400182147787ORE072 2,40 mm x 15 m 1/88 5400182147794Order no. SizePack.size EANORE073 2,00 mm x 130 m 1/8 5400182188414ORE074 2,40 mm x 90 m 1/8 5400182188421ORE075 3,00 mm x 60 m 1/8 5400182188506DuolineTRIMMER LINES• round shape trimmer line• tough inner core for extended durability• fits almost all standard trimmer headsOrder no. SizePack.size EANORE077 2,40 mm x 15 m 1/88 5400182794400ORE078 3,00 mm x 15 m 1/66 5400182794417ORE080 3,00 mm x 60 m 1/8 5400182618584ORE081 3,50 mm x 40 m 1/8 5400182886419Duoline+TRIMMER LINES• 4-edge (helicoidal shape) trimmer line• 15 dB reduction in noise level comparedwith traditional round nylon lines (6000 rpm)• tough inner core for extended durability• fits almost all standard trimmer headsOrder no. SizePack.size EANORE076 2,00 mm x 15 m 1/88 5400182902553ORE079 2,00 mm x 130 m 1/8 5400182902560PENTA POWERTRIMMER LINES• 5-edge• fits almost all standardtrimmer headsOrder no. SizePack.size EANWS60W1120 2,00 mm x 122 m 1 7332437078059WS60W1220 2,00 mm x 365 m 1 7332437078103WS60W1224 2,40 mm x 259 m 1 7332437078110WS60W1230 3,00 mm x 165 m 1 7332437078127PENTA PROTRIMMER LINES• 5-edge• tough inner core for extended durability• fits almost all standard trimmer headsOrder no. SizePack.size EANWS60W2020 2,00 mm x 15 m 1 7332437078141WS60W2120 2,00 mm x 122 m 1 7332437078189WS60W2130 3,00 mm x 55 m 1 7332437078202WS60W2133 3,30 mm x 46 m 1/12 7332437078219WS60W2220 2,00 mm x 365 m 1 7332437078233WS60W2224 2,40 mm x 259 m 1 7332437078240WS60W2230 3,00 mm x 165 m 1 733243707825718/901.08.2012
SPARK PLUGSOrder no.Pack.size EANWS40WSE8 1 5400182899426WS40WSRF6 1 5400182899488SPARK PLUGS CROSS REFERENCE TABLENGK Bosch ChampionWS40WSF5 ORE132 BPM7A WS8F CJ7YWS40WSE8 ORE131 BM6/7A WS8E CJ8WS40WRE011 ORE130 B2LM W9E0 J19LMWS40WSRF6 ORE133 BPMR7A WSR6F RCJ6YSPARK PLUGSOrder no.Pack.size EANORE130 1/10 5400182698524ORE131 1/10 5400182698531ORE132 1/10 5400182698517ORE133 1/10 5400182902119COMBINATION SPANNERSPack.Order no.size EANWS41W1316 slotted 13 x 16 mm 88 mm 150 mm Husqvarna, Partner, Jonsered 10 5400182825173COMBINATION SPANNERSOrder no.Pack.size EANORE140 slotted 13 x 16 mm 88 mm 151 mm Husqvarna, Partner, Jonsered /10 5400182825173ORE141 slotted 13 x 19 mm 68 mm 151 mm Stihl, Husqvarna, Oleo-Mac /10 5400182825296ORE142 slotted 13 x 19 mm 85 mm 151 mm Echo, Partner, Poulan /10 5400182825234ORE143 slotted 13 x 19 mm 55 mm 151 mm Stihl, Husqvarna, Dolmar /10 5400182825227ORE144 Torx 13 x 19 mm 78 mm 215 mm Stihl, Dolmar /10 5400182825258ORE145 slotted (N*) 17 x 19 mm 68 mm 171 mm Stihl Dolmar /10 5400182825326ORE146 Torx 19 mm 52 mm 215 mm Stihl, Alpina /10 5400182825265ORE147 slotted 19 x 21 mm 80 mm 152 mm Dolmar /10 5400182825272N* = narrow flat head18/1001.08.2012
DA200E(SP)DRILL 32,2 cm³HI62080102• displacement 32,2 cm³, 2-cycle• power 1,17 kW• fuel tank 0,7 l• shaft diameter: 25,0 mm• auger capacity max.: 250 mm(ice drill not included)• operated by one-person• handle angle adjustable• S-start: Soft smooth start• noise level 94,5 dB(A)• vibration (left/right) 6,3/7,2 m/s2• dimensions (without ice drill)L 452 x W 300 x H 408 mm• weight 8,0 kg• packing size: 1EAN 4934528818020ADAPTER FOR ICE DRILLSHI62992530ICE DRILL Ø 130 mmHI62992545ICE DRILL Ø 150 mmHI62992550ICE DRILL Ø 200 mmHI62992555ICE DRILL Ø 250 mmHI62992560DW25EG(SKPN)DRILL 26,9 cm³HI62100304• displacement 26,9 cm³, 2-cycle• power 0,88 kW• fuel tank 0,67 l• chuck and icedrill not included• max. bit diameter:- wood: 25 mm (1”)- steel: 12,7 mm (1/2”)- concrete: 12,7 mm (1/2”)- ice: 130 mm - 250 mm (5” - 10”)• gear ratio 24,3:1• no-load speed 330 rpm• spindle lock• dual handle• operated by one-person• S-start: Soft smooth start• noise level 94,5 dB(A)• dimensions (without ice drill)L 360 x W 290 x H 355 mm• weight 6,2 kg• packing size: 1EAN 4934528810390ADAPTER FOR ICE DRILLSHI62992520ICE DRILL Ø 130 mmHI62992545ICE DRILL Ø 150 mmHI62992550ICE DRILL Ø 200 mmHI62992555ICE DRILL Ø 250 mmHI62992560DW25EF(SKP)DRILL 26,9 cm³HI62100203• displacement 26,9 cm³, 2-cycle• power 0,88 kW• fuel tank 0,67 l• chuck capacity: 12,7 mm (1/2”)(ice drill not included)• max. bit diameter:- wood: 25 mm (1”)- steel: 12,7 mm (1/2”)- concrete: 12,7 mm (1/2”)- ice: 130 mm - 250 mm (5” - 10”)• gear ratio 24,3:1• no-load speed 330 rpm• gear lock mechanism• operated by one-person• S-start: Soft smooth start• noise level 94,5 dB(A)• dimensions (without ice drill)L 380 x W 240 x H 280 mm• weight 4,9 kg• packing size: 1EAN 4934528810284ADAPTER FOR ICE DRILLSHI62992520ICE DRILL Ø 130 mmHI62992545ICE DRILL Ø 150 mmHI62992550ICE DRILL Ø 200 mmHI62992555ICE DRILL Ø 250 mmHI62992560DW25EF(SRP)DRILL 26,9 cm³HI62100303• displacement 26,9 cm³, 2-cycle• power 0,88 kW• fuel tank 0,67 l• chuck capacity: 12,7 mm (1/2”)(ice drill not included)• max. bit diameter:- wood: 25 mm (1”)- steel: 12,7 mm (1/2”)- concrete: 12,7 mm (1/2”)- ice: 130 mm - 250 mm (5” - 10”)• gear ratio 19,7:1• no-load speed 390 rpm• reversible function• gear lock mechanism• keyless chuck with double sleeve• operated by one-person• S-start: Soft smooth start• noise level 94,5 dB(A)• dimensions (without ice drill)L 412 x W 236 x H 281 mm• weight 5,5 kg• packing size: 1EAN 4934528810291ADAPTER FOR ICE DRILLSHI62992520ICE DRILL Ø 130 mmHI62992545ICE DRILL Ø 150 mmHI62992550ICE DRILL Ø 200 mmHI62992555ICE DRILL Ø 250 mmHI6299256018/1114.12.2010
DRILL 51,7 cm³XTP111• displacement 51,7 cm³, 2-cycle• power 1,82 kW• shaft diameter Ø 20 mm• auger diameter Ø 200 mm• auger length 800 mm• fuel unleaded gasoline (98 octane)• fuel / oil mixture ratio 40:1 (2,5%)(e.g. Viima 2-stroke oil WK2TY)• fuel tank volume 1,1 l• noise level LWA 103 dB(A)• weight 10 kg• packing size: 1EAN 6418914773004ICE DRILL Ø 130 mmHI62992545ICE DRILL Ø 150 mmHI62992550ICE DRILL Ø 200 mmHI62992555ICE DRILL Ø 250 mmHI62992560SPARE BLADES FOR Ø 130 mm ICE DRILLHI62992565SPARE BLADES FOR Ø 150 mm ICE DRILLHI62992570SPARE BLADES FOR Ø 200 mm ICE DRILLHI62992575SPARE BLADES FOR Ø 250 mm ICE DRILLHI62992580ADAPTERS FOR ICE DRILLS• for DA200 and DW25-model drillsMora Ice ArcticICE DRILLS• ice drill for DA200 and DW25-model drills• serrated blades for maximum cutting performanceOrder no. SizePack.size EANHI62992545 Ø 130 mm 1 7034354731146HI62992550 Ø 150 mm 1 7391846239390HI62992555 Ø 200 mm 1 7391846239598HI62992560 Ø 250 mm 1 7391846239697Order no. Suitable for modelPack.size EANHI62992520 DW25 /1 6418914756953HI62992530 DA200 /1 6418914756960SPARE BLADESFOR ICE DRILLOrder no. Ice drill diam.Pack.size EANHI62992565 Ø 130 mm 1 7350006971181HI62992570 Ø 150 mm 1 7350006971198HI62992575 Ø 200 mm 1 7350006971204HI62992580 Ø 250 mm 1 739184600966518/1201.08.2012
