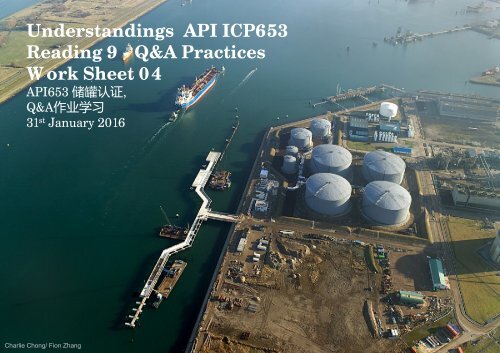

<strong>Understanding</strong>s <strong>API</strong> <strong>ICP653</strong><br />
<strong>Reading</strong> 9 - Q&A Practices<br />
Work Sheet <strong>04</strong><br />
<strong>API</strong>653 储 罐 认 证 ,<br />
Q&A 作 业 学 习<br />
31 st January 2016<br />
Charlie Chong/ Fion Zhang
Tank Farms<br />
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang
Adobe Acrobat Reader Hotkeys<br />
Ctrl + G = find again<br />
Ctrl + L = full screen<br />
Ctrl + M = zoom to<br />
Ctrl + N = go to page (insert number in box)<br />
Ctrl + Q = quit program<br />
Ctrl + + = zoom in<br />
Ctrl + - = zoom out<br />
Ctrl + 0 = fit in window<br />
Ctrl + 1 = actual size<br />
Ctrl + 2 = fit width<br />
Ctrl + 3 = fit visible<br />
Ctrl + 4 = reflow<br />
Ctrl + Shift + A = deselect all<br />
Ctrl + Shift + F = search query<br />
Ctrl + Shift + G = search results<br />
Ctrl + Shift + J = cascade windows<br />
Ctrl + Shift + K = tile windows horizontally<br />
Ctrl + Shift + L = tile windows vertically<br />
Charlie Chong/ Fion Zhang<br />
http://allhotkeys.com/adobe_acrobat_reader_hotkeys.html
Ctrl + Shift + S = save a copy<br />
Ctrl + Shift + P = page setup<br />
Ctrl + Shift + W = search word assistant<br />
Ctrl + Shift + X = search select indexes<br />
Ctrl + Shift + Page Up = first page<br />
Ctrl + Shift + Page Down = last page<br />
Ctrl + Shift + + = rotate clockwise<br />
Ctrl + Shift + - = rotate counterclockwise<br />
Ctrl + Alt + W = close all<br />
Alt + Left Arrow = go to previous view<br />
Alt + Right Arrow = go to next view<br />
Alt + Shift + Left Arrow = go to previous document<br />
Alt + Shift + Right Arrow = go to next document<br />
F4 = thumbnails<br />
F5 = bookmarks<br />
F8 = hide toolbars<br />
F9 = hide menu bar<br />
Charlie Chong/ Fion Zhang<br />
http://en.wikipedia.org/wiki/Table_of_keyboard_shortcuts<br />
http://help.adobe.com/en_US/acrobat/using/WS58a<strong>04</strong>a822e3e50102bd615109794195ff-7aed.w.html
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang<br />
Fion Zhang at Shanghai<br />
31 st January 2016
<strong>API</strong> 653 Exam Administration -- Publications<br />
Effectivity Sheet FOR: November 2015, March<br />
2016 and July 2016<br />
Listed below are the effective editions of the publications required for this<br />
exam for the date(s) shown above.<br />
<strong>API</strong> Recommended Practice 571, Damage Mechanisms Affecting Fixed Equipment in<br />
the Refining Industry, Second Edition, April 2011<br />
Charlie Chong/ Fion Zhang
<strong>API</strong> 653 Exam Administration -- Publications<br />
Effectivity Sheet FOR: November 2015, March<br />
2016 and July 2016<br />
Listed below are the effective editions of the publications required for this<br />
exam for the date(s) shown above.<br />
<strong>API</strong> Recommended Practice 571, Damage Mechanisms Affecting Fixed Equipment in<br />
the Refining Industry, Second Edition, April 2011<br />
Charlie Chong/ Fion Zhang
ATTENTION: Only the following sections / mechanisms from RP 571 are<br />
included on the exam:<br />
Section 3, Definitions<br />
Par. 4.2.7 Brittle Fracture<br />
4.2.16 Mechanical Fatigue<br />
4.3.2 Atmospheric Corrosion<br />
4.3.3 Corrosion Under insulation (CUI)<br />
4.3.8 Microbiologically Induced Corrosion (MIC)<br />
4.3.9 Soil Corrosion<br />
4.3.10 Caustic Corrosion<br />
4.5.1 Chloride Stress Corrosion Cracking (Cl-SCC)<br />
4.5.3 Caustic Stress Corrosion Cracking (Caustic Embrittlement)<br />
5.1.1.10 Sour Water Corrosion (Acidic)<br />
5.1.1.11 Sulfuric Acid Corrosion<br />
Charlie Chong/ Fion Zhang
• <strong>API</strong> Recommended Practice 575, Inspection of Atmospheric and Low-<br />
Pressure Storage Tanks, Third Edition, April 2014<br />
• <strong>API</strong> Recommended Practice 577 – Welding Inspection and Metallurgy,<br />
Second Edition, December 2013<br />
• <strong>API</strong> Standard 650, Welded Tanks for Oil Storage, Twelfth Edition, March<br />
2013 with Addendum 1 (September 2014), Errata 1 (July 2013), and<br />
Errata 2 (December 2014).<br />
• <strong>API</strong> Recommended Practice 651, Cathodic Protection of Aboveground<br />
Petroleum Storage Tanks, Fourth Edition, September 2014.<br />
• <strong>API</strong> Recommended Practice 652, Lining of Aboveground Petroleum<br />
Storage Tank Bottoms, Fourth Edition, September 2014<br />
• <strong>API</strong> Standard 653, Tank Inspection, Repair, Alteration, and<br />
Reconstruction, Fifth Edition, November 2014.<br />
Charlie Chong/ Fion Zhang
• American Society of Mechanical Engineers (ASME), Boiler and Pressure<br />
Vessel Code, 2013 Edition<br />
i. ASME Section V, Nondestructive Examination, Articles 1, 2, 6, 7 and 23<br />
(section SE-797 only)<br />
ii. Section IX, Welding and Brazing Qualifications (Welding Only)<br />
See end of this study note for <strong>API</strong> Official BOK<br />
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang
http://independent.academia.edu/CharlieChong1<br />
http://www.yumpu.com/zh/browse/user/charliechong<br />
http://issuu.com/charlieccchong<br />
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang<br />
http://greekhouseoffonts.com/
The Magical Book of Tank Inspection ICP<br />
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang
闭 门 练 功<br />
Charlie Chong/ Fion Zhang
闭 门 练 功<br />
Charlie Chong/ Fion Zhang
<strong>API</strong> 650 PRACTICE QUESTIONS<br />
Section 1 – Scope<br />
Q1. <strong>API</strong> 650 covers the design, materials, fabrication, erection, and testing of<br />
aboveground steel storage tanks. What is the maximum internal pressure for<br />
tanks not covered by<br />
appendix F of this standard?<br />
a) Maximum pressure shall not exceed 15 psig<br />
b) Maximum pressure shall not exceed 15 psia<br />
c) Maximum pressure shall not exceed the weight of the roof plates<br />
d) Maximum pressure shall not exceed the weight of the floor plates<br />
Reference: <strong>API</strong>-650, Paragraph 1.1.1<br />
ANS:C<br />
Charlie Chong/ Fion Zhang
Q2. <strong>API</strong>-650 applies only to tanks whose entire bottom is uniformly supported<br />
and tanks in ___ that have a maximum operating temperature of _____°F.<br />
a) Any petrochemical service and temperature not exceeding 120°F<br />
b) Non-refrigerated service and temperature not exceeding 200°F<br />
c) Non-refrigerated service and temperature not exceeding 120°F<br />
d) Any petrochemical service and temperature not exceeding 200°F<br />
Reference: <strong>API</strong>-650, Paragraph 1.1.1<br />
ANS:B<br />
Charlie Chong/ Fion Zhang
Q3. An aboveground storage tank is to be subjected to a small internal<br />
service pressure. To which standard or Code may the tank be designed?<br />
a) <strong>API</strong>-650 providing the requirements of Appendix F are met<br />
b) <strong>API</strong>-653 providing the requirements of Appendix F are met<br />
c) ASME-Section VIII, Div. 1 providing the requirements of Appendix F are<br />
met<br />
d) ASME-Section VIII, Div. 2 providing the requirements of Appendix F are<br />
met<br />
Reference: <strong>API</strong>-650, Paragraph 1.1.1<br />
ANS:A<br />
Charlie Chong/ Fion Zhang
Q4. According to Table 1-1, what is the status of Appendix O?<br />
a) This Appendix is a Recommendation<br />
b) This Appendix is a Requirement<br />
c) This Appendix is Mandatory<br />
d) This Appendix is Purchaser’s option<br />
Reference: <strong>API</strong>-650, Paragraph 1.1.19 and Table 1-1<br />
ANS:D<br />
Q5. What is the purpose of the ( ) next to a paragraph number?<br />
a) The paragraph requires a decision or action by the <strong>API</strong><br />
b) The paragraph requires a decision or action by the Inspector<br />
c) The paragraph requires a decision or action by the purchaser<br />
d) The paragraph requires a decision or action by the fabricator<br />
Reference: <strong>API</strong>-650, Paragraph 1.1.2 and Note<br />
ANS:C<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 1, Scope<br />
Charlie Chong/ Fion Zhang
Section 2 – Materials<br />
Q1. <strong>API</strong>-650 lists materials to be used in the construction of tanks covered by<br />
the standard. Is it permissible to use materials other than those listed in the<br />
standard?<br />
a) No only materials listed in <strong>API</strong>-650 may be used in tank fabrication<br />
b) Yes as long as the manufacturer accepts full liability for tank failure<br />
c) Yes providing it is certified as meeting all requirements of a material listed<br />
in <strong>API</strong>-650 and is approved by the <strong>API</strong>-653 Inspector<br />
d) Yes providing it is certified as meeting all the requirements of a material<br />
listed in <strong>API</strong>-650 and is approved by the purchaser<br />
Reference: <strong>API</strong>-650, Paragraph 2.1.1<br />
ANS: D<br />
Charlie Chong/ Fion Zhang
Q2. If a new or unused plate cannot be completely identified, may it still be<br />
used in the construction of tanks within the scope of <strong>API</strong>-650?<br />
a) Yes only if the material passes the tests prescribed in Appendix S<br />
b) Yes only if the material passes the tests prescribed in Appendix N<br />
c) Yes only if the material passes the tests prescribed in ASME Section V<br />
d) Yes only if the material passes the tests prescribed in ASME Section VIII,<br />
Div. 2<br />
Reference: <strong>API</strong>-650, Paragraph 2.1.2 ANS:B<br />
Q3. What is the maximum permitted underrun for shell, roof, and bottom<br />
plates?<br />
a) 0.10 inch from the computed design thickness or minimum permitted<br />
thickness<br />
b) 0.01 inch from the computed design thickness or minimum permitted<br />
thickness<br />
c) 0.001 inch from the computed design thickness or minimum permitted<br />
thickness<br />
d) 0.02 inch from the computed design thickness or minimum permitted<br />
thickness<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.1.2.3 ANS:B<br />
Charlie Chong/ Fion Zhang
Q4. Shell plates are limited to what maximum thickness?<br />
a) Shell plates are limited to a maximum thickness of 1.250 inches<br />
b) Shell plates are limited to a maximum thickness of 1.875 inches<br />
c) Shell plates are limited to a maximum thickness of 1.750 inches<br />
d) Shell plates are limited to a maximum thickness of 1.075 inches<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.1.4 ANS: C<br />
Q5. Which of the following is not a requirement for shell plates that are thicker<br />
than 1.5 inches?<br />
a) Plates thicker than 1.5 inches shall be free of mill scale and painted<br />
b) Plates thicker than 1.5 inches shall be made to fine-grain practice<br />
c) Plates thicker than 1.5 inches shall be impact tested<br />
d) Plates thicker than 1.5 inches shall be normalized or quench tempered<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.1.4 ANS: A<br />
Charlie Chong/ Fion Zhang
Q6. What is the maximum shell plate thickness permitted for a tank fabricated<br />
of ASTM A36 material?<br />
a) This plate material is limited to 1.750 inches<br />
b) This plate material is limited to 1.075 inches<br />
c) This plate material is limited to 1.050 inches<br />
d) This plate material is limited to 1.500 inches<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.2 a<br />
ANS: D<br />
Q7. What is the maximum shell plate thickness permitted for a tank fabricated<br />
of ASTM A285, Grade C material?<br />
a) This plate material is limited to 1.000 inches<br />
b) This plate material is limited to 1.250 inches<br />
c) This plate material is limited to 1.500 inches<br />
d) This plate material is limited to 1.750 inches<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.2 d<br />
ANS: A<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650:<br />
4.2.2 ASTM Specifications Plates that conform to the following ASTM<br />
specifications are acceptable as long as the plates are within the stated<br />
limitations. a) ASTM A36M/A36 for plates to a maximum thickness of 40 mm<br />
(1.5 in.). None of the specifications for the appurtenant materials listed in<br />
Table 1 of ASTM A36M/A36 are considered acceptable for tanks constructed<br />
under this standard unless it is expressly stated in this standard that the<br />
specifications are acceptable.<br />
d) ASTM A285M/A285, Grade C, for plates to a maximum thickness of 25 mm<br />
(1 in.).<br />
Charlie Chong/ Fion Zhang
Q8. All welding to repair surface defects shall be done with ______.<br />
a) Cellulose coated electrode b) High nickel content electrode<br />
c) Low-hydrogen electrode d) Gas tungsten process<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.6.2<br />
ANS:C<br />
Q9. When conducting impact tests, how many specimens are required from a<br />
single test coupon?<br />
a) Impact tests shall be performed on a single specimen taken from a single<br />
test coupon<br />
b) Impact tests shall be performed on two specimens taken from a single test<br />
coupon<br />
c) Impact tests shall be performed on three specimens taken from a single<br />
test coupon<br />
d) Impact tests shall be performed on four specimens taken from a single test<br />
coupon<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.8.3 ANS: C<br />
Charlie Chong/ Fion Zhang
Q10. In situations where it is not possible to obtain full size specimens, what<br />
is the required width along the notch for subsize specimens?<br />
a) 60% of the material thickness<br />
b) 80% of the material thickness<br />
c) 90% of the material thickness<br />
d) 75% of the material thickness<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.8.5 ANS: B<br />
Q11. Unless data is available to justify a different temperature, what must the<br />
design metal temperature be for an aboveground storage tank to be installed<br />
in Birmingham, Alabama?<br />
a) The design temperature shall be assumed to be 25°F<br />
b) The design temperature shall be assumed to be 15°F<br />
c) The design temperature shall be assumed to be 20°F (?)<br />
d) The design temperature shall be assumed to be 10°F<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.9.3 and Figure 2-2 ANS:?<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650:<br />
4.2.9.5 For a plate whose thickness is insufficient to permit preparation of fullsize<br />
specimens [10 mm × 10 mm (0.394 in. × 0.394 in.], tests shall be made<br />
on the largest subsize specimens that can be prepared from the plate.<br />
Subsize specimens shall have a width along the notch of at least 80 % of the<br />
material thickness.<br />
Figure 4.2—Isothermal Lines of Lowest One-Day Mean Temperatures (°F)<br />
Charlie Chong/ Fion Zhang
Annex L (normative) <strong>API</strong> Standard 650 Storage Tank Data Sheet<br />
Design Metal Temperature*: Enter either lowest 1-day mean temperature plus<br />
8 °C (15 °F) or a lower temperature as specified by the Purchaser if operating<br />
conditions and/or local atmospheric conditions control fracture toughness<br />
issues.<br />
°F<br />
Charlie Chong/ Fion Zhang
Q12. Unless data is available to justify a different temperature, what must the<br />
design metal temperature be for an aboveground storage tank to be installed<br />
in Indianapolis, Indiana?<br />
a) The design temperature shall be assumed to be 5°F<br />
b) The design temperature shall be assumed to be -5°F<br />
c) The design temperature shall be assumed to be 0°F<br />
d) The design temperature shall be assumed to be 10°F<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.9.3 and Figure 2-2 ANS: -10°F+15°F=5°F<br />
Q13. What is the required average longitudinal impact value of three<br />
specimens taken from a 1.375 inch thick A 516M-60(415) normalized Group<br />
IIIA test coupon?<br />
a) 30 foot-pounds<br />
b) 20 foot-pounds<br />
c) 15 foot-pounds<br />
d) 13 foot-pounds<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.10.2 and Figures 2-3 and 2-4 ANS: C<br />
Charlie Chong/ Fion Zhang
Annex L (normative) <strong>API</strong> Standard 650 Storage Tank Data Sheet<br />
Design Metal Temperature*: Enter either lowest 1-day mean temperature plus<br />
8 °C (15 °F) or a lower temperature as specified by the Purchaser if operating<br />
conditions and/or local atmospheric conditions control fracture toughness<br />
issues.<br />
Charlie Chong/ Fion Zhang
Q14. What is the required average longitudinal impact value of three<br />
specimens taken from a 1.5 inch thick A 516M-70(485) as rolled Group V test<br />
coupon?<br />
a) 35 foot-pounds<br />
b) 25 foot-pounds<br />
c) 20 foot-pounds<br />
d) 30 foot-pounds<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.10.2 and Figures 2-3 and 2-4 ANS: D<br />
Charlie Chong/ Fion Zhang
Table 4.5b—Minimum Impact Test Requirements for Plates (USC) (See<br />
Note)<br />
Charlie Chong/ Fion Zhang
Q15. Longitudinal impact tests are performed on three specimens, taken from<br />
a 1.5 inch thick A 516M-70(485) as rolled test coupon with the following<br />
results:<br />
• Specimen #1 – 42 foot-pounds,<br />
• Specimen #2 – 18 foot-pounds,<br />
• Specimen # 3 – 31 foot-pounds.<br />
Is the impact test acceptable?<br />
a) Yes the average impact value exceeds 30 foot-pounds<br />
b) Yes only one specimen is less than 2/3 the specified minimum value<br />
c) No the average impact value of Specimen # 1 exceeds 2/3 the required<br />
average impact value and one specimen is less than 2/3 the specified<br />
minimum value<br />
d) No Specimen #2 is less than 2/3 the specified minimum<br />
Reference: <strong>API</strong>-650, Paragraph 2.2.8.3 and Figures 2-3 and 2-4 ANS: D<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650:<br />
4.2.9.3 An impact test shall be performed on three specimens taken from a<br />
single test coupon or test location.<br />
The average value of the specimens (with no more than one specimen value<br />
being less than the specified minimum value) shall comply with the specified<br />
minimum value.<br />
If more than one value is less than the specified minimum value, or if one<br />
value is less than two-thirds the specified minimum value, three additional<br />
specimens shall be tested, and each of these must have a value greater than<br />
or equal to the specified minimum value.<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 2, Materials<br />
Charlie Chong/ Fion Zhang
Section 3 – Design<br />
Q1. According to <strong>API</strong>-650, tack welds _______<br />
a) May be installed by welders who need practice<br />
b) Can be considered as adding to the strength of a welded joint<br />
c) Are not considered as having any strength value in the finished structure<br />
d) Have strength value in the finished structure provided they are performed<br />
by a qualified welder to a qualified welding procedure<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.3.2 ANS: C<br />
Q2. What is the minimum size fillet weld permitted when joining a 1” thick<br />
plate to a ¾” thick plate?<br />
a) 3/16”<br />
b) 1/4”<br />
c) 3/8”<br />
d) 1/2”<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.3.3 ANS: B, 1/3 of ¾ = ¼”<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650:<br />
5.1.3.3 The minimum size of fillet welds shall be as follows: On plates 5 mm<br />
(3/16 in.) thick, the weld shall be a full- fillet weld, and on plates more than 5<br />
mm (3/16 in.) thick, the weld thickness shall not be less than one-third the<br />
thickness of the thinner plate at the joint and shall be at least 5 mm (3/16 in.).<br />
Charlie Chong/ Fion Zhang
Q3. For lap-welded joints that are tack welded, what is the minimum amount<br />
of lap permitted?<br />
a) The lap need not exceed 2”<br />
b) The lap need not exceed 1”<br />
c) The joint shall be lapped at least 5 times the minimum required thickness of<br />
the thinner plate<br />
d) The joint shall be lapped at least 5 times the nominal thickness of the<br />
thinner plate<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.3.5 ANS: D<br />
Q4. The welded joint pictured here is defined as what type of joint?<br />
a) Double-V butt joint<br />
b) Square-groove butt joint<br />
c) Double-U butt joint<br />
d) Double-square butt joint<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.5.1 ANS: A<br />
Charlie Chong/ Fion Zhang
Q5. Vertical shell joints may be partial penetration groove welds welded from<br />
both sides.<br />
a) True<br />
b) False<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.5.2 a ANS:B<br />
Q6. <strong>API</strong> 650 requires the vertical joints in adjacent shell courses to be offset.<br />
What is the minimum required offset between the first course of an AST,<br />
which is 1.25” thick and the second course which is 1” thick?<br />
a) The minimum offset shall be 5 times the second shell course height<br />
b) The minimum offset shall be 5 times the thickness of the second course<br />
c) The minimum offset shall be 5 times the first shell course height<br />
d) The minimum offset shall be 5 times the thickness of the first shell course<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.5.2 b ANS: D<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 5.1.5.1 General<br />
b) Vertical joints in adjacent shell courses shall not be aligned, but shall be<br />
offset from each other a minimum distance of 5t, where t is the plate<br />
thickness of the thicker course at the point of offset.<br />
Charlie Chong/ Fion Zhang
Q7. Three-plate laps in tank bottoms shall be at least ____ from each other,<br />
from the tank shell, from butt-welded annular-plate joints, and from joints<br />
between annular plates and the bottom.<br />
a) 1.2 inches<br />
b) 12 inches<br />
c) 1.2 feet<br />
d) 12 feet<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.5.4 ANS:B<br />
Q8. What is the maximum size of fillet weld permitted in the attachment<br />
between the lowest course shell plate and the bottom plate?<br />
a) 3/8 inch<br />
b) 5/16 inch<br />
c) 1/2 inch<br />
d) 1/4 inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.5.7 ANS: C<br />
Charlie Chong/ Fion Zhang
Q9. What is the minimum size fillet weld required on each side of the shell<br />
plate attaching shell plate to the annular plate? The shell plate is 1.25” thick.<br />
a) 3/8 inch<br />
b) 3/16 inch<br />
c) 1/4 inch<br />
d) 5/16 inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.5.7ANS: D<br />
Q10. A 110 ft diameter tank shall have a top angle not less than ____ inches.<br />
a) 2 X 2 X 3/8<br />
b) 2 X 3 X 3/8<br />
c) 3 X 3 X 3/8<br />
d) 3 X 2 X 3/8<br />
Reference: <strong>API</strong>-650, Paragraph 3.1.5.9 ANS: C<br />
Charlie Chong/ Fion Zhang
5.1.5.7 Shell-to-Bottom Fillet Welds a) For bottom and annular plates with a<br />
nominal thickness 13 mm (1/2 in.), and less, the attachment between the<br />
bottom edge of the lowest course shell plate and the bottom plate shall be a<br />
continuous fillet weld laid on each side of the shell plate. The size of each<br />
weld shall not be more than 13 mm (1/2 in.) and shall not be less than the<br />
nominal thickness of the thinner of the two plates joined (that is, the shell<br />
plate or the bottom plate immediately under the shell) or less than the<br />
following values:<br />
Charlie Chong/ Fion Zhang
) For annular plates with a nominal thickness greater than 13 mm (1/2 in.),<br />
the attachment welds shall be sized so that either the legs of the fillet welds or<br />
the groove depth plus the leg of the fillet for a combined weld is of a size<br />
equal to the annular-plate thickness (see Figure 5.3c), but shall not exceed<br />
the shell plate thickness.<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 5.1.5.9 Roof and Top-Angle Joints<br />
e) Except as specified for open-top tanks in 5.9, for tanks with frangible joints<br />
per 5.10.2.6, for self-supporting roofs in 5.10.5, and 5.10.6, and for tanks with<br />
the flanged roof-to-shell detail described in Item f below, tank shells shall be<br />
supplied with top angles of not less than the following sizes:<br />
Charlie Chong/ Fion Zhang
Q11. The ______ shall state the design metal temperature, the design<br />
specific gravity, the corrosion allowance, and the design wind velocity.<br />
a) The purchaser<br />
b) The fabricator<br />
c) The Inspector<br />
d) Erector<br />
Reference: <strong>API</strong>-650, Paragraph 3.2.1 ANS: A<br />
Q12. According to <strong>API</strong>-650, tanks meeting the minimum requirements of the<br />
standard may be subjected to a partial vacuum of _____.<br />
a) One inch of mercury<br />
b) One inch of water pressure<br />
c) One pound per square inch absolute<br />
d) One centimeter of water pressure<br />
Reference: <strong>API</strong>-650, Paragraph 3.2.4ANS: B<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650:<br />
5.2 Design Considerations 5.2.1 Loads Loads are defined as follows.<br />
a) Dead Load (DL): The weight of the tank or tank component, including any<br />
corrosion allowance unless otherwise noted. b)<br />
b) Design External Pressure (Pe): Shall not be less than 0.25 kPa (1 in. of<br />
water) except that the Design External Pressure (Pe) shall be considered<br />
as 0 kPa (0 in. of water) for tanks with circulation vents meeting Annex H<br />
requirements. Refer to Annex V for design external pressure greater than<br />
0.25 kPa (1 in. of water). Requirements for design external pressure<br />
exceeding this value and design requirements to resist flotation and<br />
external fluid pressure shall be a matter of agreement between the<br />
Purchaser and the Manufacturer (see Annex V). Tanks that meet the<br />
requirements of this standard may be subjected to a partial vacuum of 0.25<br />
kPa (1 in. of water), without the need to provide any additional supporting<br />
calculations.<br />
c) Design Internal Pressure (Pi): Shall not exceed 18 kPa (2.5 lbf/in.2).<br />
Charlie Chong/ Fion Zhang
Q13. An AST is 116 ft in diameter and constructed of A 516M-70(485) Group<br />
V as rolled material. How many hardness tests are required on one<br />
circumferential weld?<br />
a) One<br />
b) Two<br />
c) Three<br />
d) Four<br />
Reference: <strong>API</strong>-650, Paragraph 3.3.4 ANS: D<br />
Q14. The purchaser orders an aboveground storage tank and insists on a<br />
corrosion allowance in the bottom plates of .125 inches. What is the minimum<br />
thickness permitted for bottom plates in this tank?<br />
a) Minimum thickness of bottom plate is 1/4 inch<br />
b) Minimum thickness of bottom plate is 1/2 inch<br />
c) Minimum thickness of bottom plate is 3/8 inch<br />
d) Minimum thickness of bottom plate is 5/16 inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.4.1 ANS: C<br />
Charlie Chong/ Fion Zhang
5.3.4 Weld Hardness<br />
a) Weld metal and Heat Affected Zone (HAZ) hardnesses shall comply with<br />
the H2S Supplemental Specification listed on the Data Sheet, Line 5,<br />
when specified by the Purchaser.<br />
b) When specified by the Purchaser, the hardness of the weld metal for shell<br />
materials in Group IV, IVA, V, or VI shall be evaluated by one or both of<br />
the following methods.<br />
1. The welding-procedure qualification tests for all welding shall include<br />
hardness tests of the weld metal and heat- affected zone of the test plate.<br />
The methods of testing and the acceptance standards shall be agreed<br />
upon by the Purchaser and the Manufacturer.<br />
2. All welds deposited by machine or an automatic process shall be hardness<br />
tested on the product-side surface. Unless otherwise specified, one test<br />
shall be conducted for each vertical weld, and one test shall be conducted<br />
for each 30 m (100 ft) of circumferential weld. The methods of testing and<br />
the acceptance standards shall be agreed upon by the Purchaser and the<br />
Manufacturer.<br />
Charlie Chong/ Fion Zhang
Q15. What is the minimum projection, of trimmed bottom plates, beyond the<br />
outside edge of the weld attaching bottom to the shell?<br />
a) Minimum projection is 0.01 inch<br />
b) Minimum projection is 0.10 inch<br />
c) Minimum projection is 1.00 inch<br />
d) Minimum projection is 10.0 inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.4.2 ANS: C<br />
Q16. Annular bottom plates shall have a radial width that provides at least<br />
____ between the inside of the shell and any lap-welded joint in the<br />
remainder of the bottom.<br />
a) 12 inches<br />
b) 24 inches<br />
c) 1.2 inches<br />
d) 2.4 inches<br />
Reference: <strong>API</strong>-650, Paragraph 3.5.2 ANS: A<br />
Charlie Chong/ Fion Zhang
Q17. How far must annular bottom plates project outside the shell?<br />
a) Annular bottom plates shall project at least 1 inch when trimmed<br />
b) Annular bottom plates shall project at least 1/2 inch beyond the edge of the<br />
weld<br />
c) Annular bottom plates shall project at least 2 inches outside the shell<br />
d) Annular bottom plates shall project at least 5t (t = thickness of the shell<br />
course) outside the shell<br />
Reference: <strong>API</strong>-650, Paragraph 3.5.2 ANS: A<br />
• Trimmed bottom plates shall project at least 1 inches<br />
outside the shell<br />
• Annular bottom plates shall project at least 2 inches<br />
outside the shell<br />
Charlie Chong/ Fion Zhang
Q18. The thickness of the first shell course of an aboveground storage tank is<br />
1 5/8th inches. The hydrostatic test stress in the first shell course is 33,000<br />
psi. What is the minimum permissible thickness of the annular bottom plates?<br />
a) Minimum permitted thickness is 5/8th inch<br />
b) Minimum permitted thickness is 9/16th inch<br />
c) Minimum permitted thickness is 3/4 inch (?)<br />
d) Minimum permitted thickness is 11/16th inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.5.3 and Table 3-1 ANS: A<br />
Q19. According to <strong>API</strong>-650, what is the minimum allowable nominal shell<br />
thickness of an AST that is 86 feet in diameter?<br />
a) Minimum nominal shell thickness is 3/16th inch<br />
b) Minimum nominal shell thickness is 1/4 inch<br />
c) Minimum nominal shell thickness is 9/32nd inch<br />
d) Minimum nominal shell thickness is 5/16th inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.6.1.1ANS: B<br />
Charlie Chong/ Fion Zhang
Table 5.1b—Annular Bottom-Plate Thicknesses (tb) (USC)<br />
Charlie Chong/ Fion Zhang
Q20. Unless otherwise agreed to by the purchaser, what is the minimum<br />
nominal width of shell plates?<br />
a) Minimum width of shell plates is 84 inches<br />
b) Minimum width of shell plates is 96 inches<br />
c) Minimum width of shell plates is 72 inches<br />
d) Minimum width of shell plates is 120 inches<br />
Reference: <strong>API</strong>-650, Paragraph 3.6.1.2 ANS: C<br />
Q21. Aboveground storage tank manufacturers are required to furnish a<br />
drawing to the purchaser listing all but which of the following for each course?<br />
a) The material specification<br />
b) The allowable stress<br />
c) The nominal thickness used<br />
d) The nominal thickness of coatings<br />
Reference: <strong>API</strong>-650, Paragraph 3.6.1.7ANS: D<br />
Charlie Chong/ Fion Zhang
Q22. In calculating the net plate thickness for an AST fabricated of A 516M<br />
Grade 450(60) material, what would be the product design stress value used<br />
in the calculation?<br />
a) 24,000<br />
b) 21,300<br />
c) 32,000<br />
d) 23,300<br />
Reference: <strong>API</strong>-650, Paragraph 3.6.2.1 and Table 3-2 ANS: B<br />
Q23. The fabricator of an AST obtains the approval of the purchaser to use<br />
the alternative shell design permitted in Appendix A in the design of a 60 foot<br />
diameter tank using 3/8th inch A 516M Grade 450(60) plate. What allowable<br />
stress would be used in the design calculations?<br />
a) 21,300 b) 24,000 c) 21,000 d) 32,000<br />
Reference: <strong>API</strong>-650, Paragraph 3.6.2.3 ANS: C<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650:<br />
A.3 Design A.3.1 The maximum tensile stress before the joint efficiency<br />
factor is applied shall be 145 MPa (21,000 lbf/in.2). A.3.2 Stresses shall be<br />
computed on the assumption that the tank is filled with water (specific gravity<br />
= 1.0) or with the liquid to be stored if it is heavier than water. A.3.3 The<br />
tension in each ring shall be computed 300 mm (12 in.) above the centerline<br />
of the lower horizontal joint of the course in question. When these stresses<br />
are computed, the tank diameter shall be taken as the nominal diameter of<br />
the bottom course.<br />
Charlie Chong/ Fion Zhang
Q24. What is the maximum diameter of tank that permits the 1-foot method of<br />
calculation for required thickness?<br />
a) Tanks 50 feet in diameter and less<br />
b) Tanks 120 feet in diameter and less<br />
c) Tanks 180 feet in diameter and less<br />
d) Tanks 200 feet in diameter and less<br />
Reference: <strong>API</strong>-650, Paragraph 3.6.3.1: ANS: D<br />
Q25. Openings in tank shells, larger than that required to accommodate a<br />
____ flanged or threaded nozzle shall be reinforced.<br />
a) 2 inch<br />
b) 2.5 inch<br />
c) 3 inch<br />
d) 3.5 inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.2.1 ANS: A<br />
Charlie Chong/ Fion Zhang
Q26. When installing openings in a shell plate, the edge of the fillet weld<br />
around the periphery of the reinforcing pad shall be spaced at least the<br />
greater of _______ from the centerline of any butt-welded shell joints.<br />
a) Eight inches or ten times the weld size<br />
b) Eight times the weld size or ten inches<br />
c) Eight times the weld size or six inches<br />
d) Eight inches or six times the weld size<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.3.1 a ANS: B<br />
Q27. When installing openings adjacent to each other, how much space must<br />
there be between the welds around the periphery of the reinforcing plate?<br />
a) Eight times the larger weld or ten inches from each other<br />
b) Eight inches or six times the larger weld from each other<br />
c) Eight times the larger weld or six inches from each other<br />
d) Eight times the larger weld or eight inches from each other<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.3.1 b ANS: C<br />
Charlie Chong/ Fion Zhang
5.7.3 Spacing of Welds around Connections<br />
5.7.3.1 For non-stress-relieved welds on shell plates over 13 mm (1/2 in.)<br />
thick, the minimum spacing between penetration connections and adjacent<br />
shell-plate joints shall be governed by the following.<br />
a) The toe of the fillet weld around a non-reinforced penetration or around the<br />
periphery of a reinforcing plate, and the outer edge of a butt-weld around<br />
the periphery of a thickened insert plate or insert plate, shall be spaced at<br />
least the greater of eight times the weld size or 250 mm (10 in.) from the<br />
centerline of any butt-welded shell joints, as illustrated in Figure 5.6,<br />
dimensions A or B.<br />
b) The toe of the fillet weld around a non-reinforced penetration or around the<br />
periphery of a reinforcing plate, and the outer edge of a butt-weld around<br />
the periphery of a thickened insert plate or insert plate, shall be spaced at<br />
least the greater of eight times the larger weld size or 150 mm (6 in.) from<br />
each other, as illustrated in Figure 5-6, dimension E.<br />
Charlie Chong/ Fion Zhang
Figure 5.6—Minimum Weld Requirements for Openings in Shells<br />
According to 5.7.3<br />
Charlie Chong/ Fion Zhang
Figure 5.6—Minimum Weld Requirements for Openings in Shells<br />
According to 5.7.3<br />
Charlie Chong/ Fion Zhang
Figure 5.6—Minimum Weld Requirements for Openings in Shells<br />
According to 5.7.3<br />
Charlie Chong/ Fion Zhang
Q28. A minimum distance of ____ shall be maintained between the toe of a<br />
weld around a non-reinforced penetration and the toe of the shell-tobottom<br />
weld.<br />
a) Ten inches b) Eight inches c) Six inches d) Three inches<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.3.3 ANS: D<br />
Q29. Subject to the acceptance of the purchaser, the manufacture may locate<br />
a circular shell opening in a horizontal butt-welded shell joint provided<br />
______.<br />
a) Minimum spacing dimensions are met and a liquid penetrant examination<br />
of the welded joint is conducted<br />
b) Minimum spacing dimensions are met and a radiographic examination of<br />
the welded joint is conducted<br />
c) Minimum spacing dimensions are met and an ultrasonic examination of<br />
the welded joint is conducted<br />
d) Minimum spacing dimensions are met and a magnetic particle examination<br />
of the welded joint is conducted<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.3.4 ANS: B<br />
Charlie Chong/ Fion Zhang
Figure 5.6—Minimum Weld Requirements for Openings in Shells<br />
According to 5.7.3<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 5.7.3.4 Nozzles and manholes should not be placed in shell weld<br />
seams and reinforcing pads for nozzles and manholes should not overlap<br />
plate seams (i.e. Figure 5.9, Details a, c, and e should be avoided). If there is<br />
no other feasible option and the Purchaser accepts the design, circular shell<br />
openings and reinforcing plates (if used) may be located in a horizontal or<br />
vertical butt-welded shell joint provided that the minimum spacing dimensions<br />
are met and a radiographic examination of the welded shell joint is conducted.<br />
The welded shell joint shall be fully radiographed for a length equal to three<br />
times the diameter of the opening, but the weld seam being removed need<br />
not be radiographed. Radiographic examination shall be in accordance with<br />
8.1.3 through 8.1.8.<br />
Charlie Chong/ Fion Zhang
Q30. All flush-type clean-out fittings and flush-type shell connections shall be<br />
thermally stress relieved after assembly and prior to installation in the tank.<br />
What are the temperature range and time requirements for this stress relief<br />
activity?<br />
a) 1100°F to 1200°F for 1 hour per inch of reinforcing plate thickness<br />
b) 1100°F to 1200°F for 1/2 hour per inch of shell thickness<br />
c) 1100°F to 1200°F for 1 hour per inch of shell thickness<br />
d) 1100°F to 1200°F for 1 & 1/2 hour per inch of shell thickness<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.4.1 ANS: C<br />
Q31. Subject to the acceptance of the purchaser, the fabricator may stress<br />
relieve at a temperature of 1000°F when it is impractical to stress relieve at a<br />
minimum temperature of 1100°F providing _____.<br />
a) The shell plate is first pre-heated to 300°F<br />
b) The holding time is increased to 2 hours per inch of thickness<br />
c) The holding time is increased to 4 hours per inch of thickness<br />
d) The holding time is increased to 10 hours per inch of thickness<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.4.5 ANS: C<br />
Charlie Chong/ Fion Zhang
Q32. What is the minimum required thickness for a manhole cover plate to be<br />
used with a 24 inch manhole? The maximum design liquid level of the tank is<br />
45 feet.<br />
a) Minimum thickness of cover plate is 9/16th inch<br />
b) Minimum thickness of cover plate is 5/8th inch<br />
c) Minimum thickness of cover plate is 1/2 inch<br />
d) Minimum thickness of cover plate is 11/16th inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.5.1 and Table 3-3 ANS: A<br />
Q33. What is the bolt circle diameter for a cover plate used with a 30 inch<br />
diameter manhole?<br />
a) 32 ¾ inch<br />
b) 36 ¼ inch<br />
c) 38 ¾ inch<br />
d) 42 ¼ inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.5.2 and Table 3-5 ANS: B<br />
Charlie Chong/ Fion Zhang
Q34. The purchaser has ordered a 36 inch manhole to be installed in the first<br />
course of an AST. The thickness of the shell plate and the reinforcing plate<br />
is 1.375 inches. What is the required hole diameter that must be cut in the<br />
tank to accommodate this manhole?<br />
a) 36 & 1/4 inch b) 36 & 1/2 inch c) 36 & 3/4 inch d) 36 & 5/8 inch<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.5.3 and Table 3-7 ANS: C<br />
Q35. <strong>API</strong> 650 requires telltale holes in reinforcing plates. What is the required<br />
dimension of this hole and what should be done with it after the initial repad<br />
pressure test?<br />
a) The hole shall be 3/8 inch diameter and shall be left open to the<br />
atmosphere<br />
b) The hole shall be 1/4 inch diameter and shall be left open to the<br />
atmosphere<br />
c) The hole shall be 3/8 inch diameter and shall be closed after testing<br />
d) The hole shall be 1/4 inch diameter and shall be closed after testing<br />
Reference: <strong>API</strong>-650, Paragraph 3.7.6.1 ANS:<br />
Charlie Chong/ Fion Zhang
Table 5.7b—Dimensions for Shell Nozzles: Pipe, Plate, and Welding<br />
Schedules (USC)<br />
Charlie Chong/ Fion Zhang
Table 5.7b—Dimensions for Shell Nozzles: Pipe, Plate, and Welding<br />
Schedules (USC)<br />
Charlie Chong/ Fion Zhang
Q36. What is the maximum size un-reinforced opening permitted in flat cover<br />
plates without increasing the thickness of the cover plate?<br />
a) 4 inch pipe size providing the edge of the opening is not more than ¼ the<br />
height or diameter of the opening closer to the center of the cover plate<br />
b) 3 inch pipe size providing the edge of the opening is not more than ¼ the<br />
height or diameter of the opening closer to the center of the cover plate<br />
c) 2 inch pipe size providing the edge of the opening is not more than ¼ the<br />
height or diameter of the opening closer to the center of the cover plate<br />
d) 1 & ½ inch pipe size providing the edge of the opening is not more than ¼<br />
the height or diameter of the opening closer to the center of the cover plate<br />
Reference: <strong>API</strong>-650, Paragraph 3.8.3.1 ANS: C<br />
Q37. What is the maximum size opening that may be placed in a cover plate?<br />
a) 12 inches pipe size<br />
b) 8 inches pipe size<br />
c) 6 inches pipe size<br />
d) 3 inches pipe size<br />
Reference: <strong>API</strong>-650, Paragraph 3.8.3.2 ANS: A<br />
Charlie Chong/ Fion Zhang
Q38. An aboveground storage tank has a design liquid height of 40 feet. The<br />
purchaser intends to install product mixing equipment in the cover plate of a<br />
30 inch manhole. What is the required minimum thickness of the cover plate?<br />
a) The minimum thickness shall be at least .625 inches<br />
b) The minimum thickness shall be at least .75 inches<br />
c) The minimum thickness shall be at least .9375 inches<br />
d) The minimum thickness shall be at least .875 inches<br />
Reference: <strong>API</strong>-650, Paragraph 3.8.3.2 ANS: D<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 5.8.3 Cover Plates<br />
A cover plate with a nozzle attachment for product-mixing equipment shall<br />
have a thickness at least 1.4 times greater than the thickness required by<br />
Table 5.3a and Table 5.3b. The added thickness (or pad plate) for<br />
replacement of the opening cutout in the cover plate shall be based on Table<br />
5.3a and Table 5.3b. The 40 % increase in thickness within a radius of one<br />
diameter of the opening may be included as part of the area of replacement<br />
required. The mixer- nozzle attachment to the cover plate shall be a fullpenetration<br />
weld. The manhole bolting-flange thickness shall not be less than<br />
1.4 times the thickness required by Table 5.3a and Table 5.3b. The manhole<br />
nozzle neck shall be designed to support the mixer forces with a minimum<br />
thickness not less than the requirements<br />
Charlie Chong/ Fion Zhang
Table 5.3b—Thickness of Shell Manhole Cover Plate and Bolting Flange<br />
(USC)<br />
11/16 x 1.4 x 40/43.9 = 0.877”<br />
Charlie Chong/ Fion Zhang
Q39. A 24 inch manhole is to be installed in a roof plate and it is anticipated<br />
that work may be carried on through the manhole while the tank is in use.<br />
What is the diameter of the opening to be cut in the roof plate and what is<br />
the outside diameter of the reinforcing plate?<br />
a) The diameter of the opening is 24.625” and the OD of the reinforcing plate<br />
is 42”<br />
b) The diameter of the opening is 24.625” and the OD of the reinforcing plate<br />
is 46”<br />
c) The diameter of the opening is 24.750” and the OD of the reinforcing plate<br />
is 42”<br />
d) The diameter of the opening is 24.750” and the OD of the reinforcing plate<br />
is 46”<br />
Reference: <strong>API</strong>-650, Paragraph 3.8.4 ANS: B<br />
Charlie Chong/ Fion Zhang
Figure 5.16—Roof Manholes (see Table 5.13a and Table 5.13b)<br />
Charlie Chong/ Fion Zhang
Q40. What is the minimum thickness permitted for rectangular roof opening<br />
cover plates?<br />
a) Minimum thickness shall not be less than .875 inches<br />
b) Minimum thickness shall not be less than .750 inches<br />
c) Minimum thickness shall not be less than .625 inches<br />
d) Minimum thickness shall not be less than .500 inches<br />
Reference: <strong>API</strong>-650, Paragraph 3.8.6.2 ANS: D<br />
Q41. Stiffening ring splice welds shall be located at least _____ from any<br />
vertical shell weld.<br />
a) 24 inches<br />
b) 18 inches<br />
c) 12 inches<br />
d) 6 inches<br />
Reference: <strong>API</strong>-650, Paragraph 3.9.3.4 ANS: D<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 5.9.3.4 Welds joining stiffening rings to the tank shell may cross<br />
vertical tank seam welds. Any splice weld in the ring shall be located a<br />
minimum of 150 mm (6 in.) from any vertical shell weld. Stiffening rings may<br />
also cross vertical tank seam welds with the use of coping (rat hole) of the<br />
stiffening ring at the vertical tank seam. Where the coping method is used, the<br />
required section modulus of the stiffening ring and weld spacing must be<br />
maintained.<br />
Charlie Chong/ Fion Zhang
Q42. When stiffening rings are to be used as walkways, what is the required<br />
width of the stiffening ring?<br />
a) The width shall be not less than 36 inches clear of the projecting curb<br />
angle on the top of the tank shell<br />
b) The width shall be not less than 3 feet 6 inches clear of the projecting curb<br />
angle on the top of the tank shell<br />
c) The width shall be not less than 24 inches clear of the projecting curb<br />
angle on the top of the tank shell<br />
d) The width shall be not less than 2 feet 4 inches clear of the projecting curb<br />
angle on the top of the tank shell<br />
Reference: <strong>API</strong>-650, Paragraph 3.9.4 ANS: C<br />
Q43. How far below the top of the curb angle should a stiffening ring, that is to<br />
be used as a walkway, be located?<br />
a) 3 feet 6 inches b) 36 inches c) 6 feet 3 inches d) 63 inches<br />
Reference: <strong>API</strong>-650, Paragraph 3.9.4ANS: A<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 5.9.4 Stiffening Rings as Walkways A stiffening ring or any portion<br />
of it that is specified as a walkway shall have a width not less than 710 mm<br />
(28 in.) clear of projections including the angle on the top of the tank shell.<br />
The clearance around local projections shall not be less than 610 mm (24 in.).<br />
Unless the tank is covered with a fixed roof, the stiffening ring (used as a<br />
walkway) shall be located 1100 mm (42 in.) below the top of the curb angle<br />
and shall be provided with a standard railing on the unprotected side and at<br />
the ends of the section used as a walkway.<br />
Charlie Chong/ Fion Zhang
Q44. All roofs and supporting structures shall be designed to support dead<br />
loads plus a uniform live load of not less than _____ of projected area<br />
a) 25 pounds per square inch<br />
b) 25 pounds per square foot<br />
c) 25 pounds per square yard<br />
d) 25 pounds per square meter<br />
Reference: <strong>API</strong>-650, Paragraph 3.10.2.1 ANS: B<br />
Q45. What is the minimum nominal thickness permitted for roof plates?<br />
a) 3/16 inch or 5.76 pounds per square foot<br />
b) 3/16 inch or 6.75 pounds per square foot<br />
c) 3/16 inch or 7.65 pounds per square foot<br />
d) 3/16 inch or 12-gauge sheet<br />
Reference: <strong>API</strong>-650, Paragraph 3.10.2.2 ANS: C<br />
Charlie Chong/ Fion Zhang
Q46. A roof where the continuous fillet weld between the roof plates and the<br />
top angle does not exceed 3/16", the slope at the top angle attachment does<br />
not exceed 2" in 12", and the shell-to-roof compression ring details are limited<br />
to Figure F-2 (a)-(d) may be considered what type of roof?<br />
a) A 1 in 6 roof<br />
b) A dangerous roof design and should be avoided<br />
c) A roof with inherent compensation<br />
d) A frangible roof<br />
Reference <strong>API</strong>-650, Paragraph 3.10.2.5.1 ANS: D<br />
Q47. Rafters shall be spaced so that in the outer ring, their centers are not<br />
more than _____ apart measured along the circumference of the tank.<br />
a) 3π feet or 9.42 feet b) 2π feet or 6.28 feet<br />
c) 4π feet or 12.56 feet d) 2.5π feet or 7.85 feet<br />
Reference: <strong>API</strong>-650, Paragraph 3.10.4.4ANS: B<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 3, Design<br />
Charlie Chong/ Fion Zhang
Section 4 – Fabrication<br />
Q1. What method(s) is/are permitted for straightening material?<br />
a) Pressing or other non-injurious method prior to layout or shaping<br />
b) Heating and hammering after layout or shaping<br />
c) Jacking into shape after final assembly<br />
d) Jacking into shape and holding with tack welds<br />
Reference: <strong>API</strong>-650, Paragraph 4.1.1.2 ANS: A<br />
Q2. When plates are to be butt-welded, shearing is limited to what maximum<br />
thickness?<br />
a) 5/8th inch<br />
b) 3/8th inch (9.5mm)<br />
c) 3/16th inch<br />
d) Shearing is not permitted<br />
Reference: <strong>API</strong>-650, Paragraph 4.1.2ANS: B<br />
Charlie Chong/ Fion Zhang
Q3. When plates are to be used in lap-welded joints, shearing is limited to<br />
what maximum thickness<br />
a) 3/16th inch b) 3/8th inch<br />
c) 1/2 inch d) 5/8th inch (15mm)<br />
Reference: <strong>API</strong>-650, Paragraph 4.1.2 ANS: D<br />
Q4. What are the requirements regarding mill test reports according to <strong>API</strong>-<br />
650?<br />
a) No material shall be used in the construction of an AST unless it is<br />
accompanied by a mill test report<br />
b) Mill test reports are required only on shell plate material<br />
c) Mill test reports shall be furnished to the purchaser only when specified in<br />
the original purchase order<br />
d) Mill test reports shall be furnished to the purchaser prior to final acceptance<br />
of the AST<br />
Reference: <strong>API</strong>-650, Paragraph 4.2.1ANS: C<br />
Charlie Chong/ Fion Zhang
Q5. Mill and shop inspection releases the manufacturer from responsibility for<br />
replacing defective material.<br />
a) True<br />
b) False<br />
Reference: <strong>API</strong>-650, Paragraph 4.2.2 ANS: B<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 4, Fabrication<br />
Charlie Chong/ Fion Zhang
Day Break<br />
Charlie Chong/ Fion Zhang
Day Break<br />
Charlie Chong/ Fion Zhang<br />
http://news.xinhuanet.com/english2010/photo/2011-03/31/c_13807187_3.htm
Day Break<br />
Charlie Chong/ Fion Zhang<br />
http://veryfatoldman.blogspot.com/2014/<strong>04</strong>/singapore-kopitiam-culture.html
Day Break<br />
Day Break<br />
Charlie Chong/ Fion Zhang<br />
http://mylovelybluesky.com/2014/03/kedai-kopi-chung-wah/
Day Break<br />
Charlie Chong/ Fion Zhang
Day Break<br />
Charlie Chong/ Fion Zhang
Section 5 – Erection<br />
Q1. What welding process is not permitted when impact testing of the<br />
material is required?<br />
a) Shielded metal-arc<br />
b) Gas metal-arc<br />
c) Oxyfuel<br />
d) Submerged arc<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.1 ANS: C<br />
Q2. Welding may be performed manually, automatically, or semiautomatically<br />
according to the procedures described in ____ of the ASME<br />
Code.<br />
a) Section VIII, Division 1<br />
b) B31.3<br />
c) Section VIII, Division 2<br />
d) Section IX<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.1ANS: D<br />
Charlie Chong/ Fion Zhang
Q3. No welding of any kind shall be performed when the temperature of the<br />
base metal is less than ____°F<br />
a) Sixty b) Thirty-two c) Zero d) Negative fifteen<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.2 ANS: C<br />
Q4. When base metal thickness is greater than 1.25 inches or the base metal<br />
temperature is 0°F -32°F, what requirement must be met?<br />
a) The base metal within 3 inches of the starting point of the welding shall be<br />
heated to a temperature warm to the hand (140°F)<br />
b) The base metal within 3 inches of the starting point of the welding shall be<br />
heated to a temperature of not less than 200°F<br />
c) The base metal within 3 inches of the starting point of the welding shall be<br />
heated to a temperature of not less than 60°F<br />
d) The base metal within 3 inches of the starting point of the welding shall be<br />
heated to a temperature of not less than 45°F<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.2 ANS: A<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>653: 10.4.2.3 No welding of any kind shall be performed when the<br />
surfaces of the parts to be welded are wet from rain, snow, or ice; when rain<br />
or snow is falling on such surfaces; or during periods of high winds unless the<br />
welder and the work are properly shielded. No welding of any kind shall be<br />
performed when the temperature of the base metal is less than 0 °F. When<br />
the temperature of the base metal is between 0 °F and 32 °F or the thickness<br />
is in excess of 1 in., the base metal within 3 in. of the place where welding is<br />
to be started shall be heated to a temperature warm to the hand<br />
(approximately 140 °F) before welding. (See 10.4.4.3 for preheat<br />
requirements for shell plates over 1½ in. thick.)<br />
10.4.4.3 For horizontal and vertical joints in tank shell courses constructed of<br />
material over 1 ½ in. thick (based on the thickness of the thicker plate at the<br />
joint), multi-pass weld procedures are required, with no pass more than 3/4-in.<br />
thick permitted. A minimum preheat of 200 °F is required of these welds.<br />
Charlie Chong/ Fion Zhang
Q5. What is the maximum acceptable undercut for horizontal butt joints?<br />
a) 1/64th inch<br />
b) 1/32nd inch<br />
c) 3/64th inch<br />
d) 3/32nd inch<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.4 ANS: B<br />
Q6. What is the maximum acceptable undercut for vertical butt joints?<br />
a) 3/32nd inch<br />
b) 3/64th inch<br />
c) 1/32nd inch<br />
d) 1/64th inch<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.4 ANS: D<br />
Charlie Chong/ Fion Zhang
Q7. What is the maximum permissible weld reinforcement for a vertical joint in<br />
plate thickness 1.25”?<br />
a) 3/16th inch b) 1/8th inch c) 1/4th inch d) 3/32nd inch<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.5 ANS: A<br />
Q8. When tack welds are used during the assembly of vertical joints, what<br />
requirement is stipulated by <strong>API</strong>-650?<br />
a) Tack welds that are to be removed do not require a qualified procedure or<br />
welder<br />
b) Tack welds that are to be left in place shall be made using a qualified<br />
procedure only<br />
c) Tack welds that are to be removed may be made using a welder in training<br />
d) Tack welds that are to be left in place shall be made using a qualified<br />
procedure and welder<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.8 ANS: D<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 8.1.3.4 The finished surface of the weld reinforcement at the location<br />
of the radiograph shall either be flush with the plate or have a reasonably<br />
uniform crown not to exceed the following values:<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>653: Table 10.1—Maximum Thicknesses on New Welds<br />
Charlie Chong/ Fion Zhang
Q9. What is the requirement when protective coatings are used on surfaces<br />
to be welded?<br />
a) The coating must be removed prior to welding<br />
b) The coating shall be included in the welder’s performance qualification<br />
tests<br />
c) The coating shall be included in the welding procedure qualification<br />
d) The coating shall be identified on the purchase order<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.1.9 ANS: C<br />
Q10. The welding of the ____ shall be practically complete prior to weldingout<br />
the bottom joints.<br />
a) Nozzle reinforcement periphery welds<br />
b) Shell-to-bottom weld<br />
c) All vertical and horizontal shell welds<br />
d) All external attachment welds<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.2.2 ANS: B<br />
Charlie Chong/ Fion Zhang
Q11. In a vertical joint of an AST, what is the maximum misalignment of 1.5”<br />
thick plate?<br />
a) Maximum misalignment is .150 inch<br />
b) Maximum misalignment is .145 inch<br />
c) Maximum misalignment is .135 inch<br />
d) Maximum misalignment is .125 inch<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.3.1 ANS: D (10% of 1.5” or 1/8”, max)<br />
Q12. In a horizontal joint of an AST, what is the maximum projection of an<br />
upper plate beyond the face of the plate below it? The plate thickness is .25<br />
inch.<br />
a) Maximum projection is .0625 inch<br />
b) Maximum projection is .0500 inch<br />
c) Maximum projection is .1250 inch<br />
d) Maximum projection is .09375 inch<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.3.2 ANS: A, for t
<strong>API</strong>653: 10.4.4 Shells<br />
10.4.4.1 Plates to be joined by butt welding shall be matched accurately and<br />
retained in position during welding. Misalignment in completed vertical joints<br />
over 5/8-in. thick shall not exceed 10 % of the plate thickness, with a<br />
maximum of 1/8 in. Misalignment in joints 5/8-in. thick or less shall not exceed<br />
1/16 in. Vertical joints shall be completed before the lower horizontal weld is<br />
made.<br />
10.4.4.2 In completed horizontal butt joints, the upper plate shall not project<br />
beyond the face of the lower plate at any point by more than 20 % of the<br />
thickness of the upper plate, with a maximum projection of 1/8 in., except that<br />
a projection of 1/16 in. is acceptable for upper plates less than 5/16-in. thick.<br />
10.4.4.3 For horizontal and vertical joints in tank shell courses constructed of<br />
material over 1 1/2-in. thick (based on the thickness of the thicker plate at the<br />
joint), multi-pass weld procedures are required, with no pass more than 3/4-in.<br />
thick permitted. A minimum preheat of 200 °F is required of these welds.<br />
Charlie Chong/ Fion Zhang
Q13. Multi-pass weld procedures are required for circumferential and vertical<br />
joints in tank shell courses constructed of material that is more than 1.5<br />
inches thick. What is the maximum weld pass size permitted and what is the<br />
minimum pre-heat temperature?<br />
a) No weld pass over ¾ inch with a minimum pre-heat of 300°F<br />
b) No weld pass over ½ inch with a minimum pre-heat of 200°F<br />
c) No weld pass over ¾ inch with a minimum pre-heat of 200°F<br />
d) No weld pass over ½ inch with a minimum pre-heat of 300°F<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.3.4 ANS: C<br />
10.4.4.3 For horizontal and vertical joints in tank shell courses constructed of<br />
material over 1 1/2-in. thick (based on the thickness of the thicker plate at the<br />
joint), multi-pass weld procedures are required, with no pass more than<br />
3/4-in. thick permitted. A minimum preheat of 200 °F is required of these<br />
welds.<br />
Charlie Chong/ Fion Zhang
Q14. The initial weld pass inside the shell of the shell-to-bottom weld shall be<br />
cleaned and examined for its entire circumference. This examination shall be<br />
visually and by which of the following?<br />
a) Magnetic particle or ultrasonic or suitable liquid penetrant process<br />
b) Magnetic particle or suitable liquid penetrant process or a vacuum box and<br />
bubble method<br />
c) Magnetic particle or radiography or vacuum box and bubble method<br />
d) Magnetic particle or acoustic emission or eddy current<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.4.1 ANS: B<br />
Charlie Chong/ Fion Zhang
Q15. The required examination of the initial weld pass as described in <strong>API</strong>-<br />
650 may be waived subject to agreement between the purchaser and the<br />
AST manufacturer provided all but which of the following examinations are<br />
performed on the entire circumference of the weld(s)<br />
a) Examine either side of the finished weld by MT, PT, or right angle vacuum<br />
box<br />
b) Visually examine the initial weld (inside and outside)<br />
c) Visually examine the finished joint welded surfaces (inside and outside the<br />
shell)<br />
d) Examine either side of the finished weld by MT, PT, UT, or RT<br />
Reference: <strong>API</strong>-650, Paragraph 5.2.4.2 ANS: D<br />
Charlie Chong/ Fion Zhang
Q16. What are the dimensions of a standard vacuum testing box?<br />
a) 6” wide by 30” long<br />
b) 6” wide by 24” long<br />
c) 6” wide by 36” long<br />
d) 6” wide by 32” long<br />
Reference: <strong>API</strong>-650, Paragraph 5.3.3.1 ANS: A<br />
Q17. In an examination of a tank’s bottom weld seams by vacuum box testing,<br />
what is the required partial vacuum pressure?<br />
a) At least 1 lbf/in 2 gauge (psig)<br />
b) At least 2 lbf/in 2 gauge (psig)<br />
c) At least 3 lbf/in 2 gauge (psig)<br />
d) At least 4 lbf/in 2 gauge (psig)<br />
Reference: <strong>API</strong>-650, Paragraph 5.3.3.4 ANS: C<br />
Charlie Chong/ Fion Zhang
Q18. If an alternative to vacuum box testing is used, whose approval is<br />
required?<br />
a) The Manufacturer<br />
b) The <strong>API</strong>-653 Inspector<br />
c) The local jurisdiction<br />
d) The purchaser<br />
Reference: <strong>API</strong>-650, Paragraph 5.3.3.5 ANS: D<br />
Q19. After fabrication is completed but prior to filling an aboveground storage<br />
tank with test water, reinforcing plates shall be tested. What method of test<br />
and pressure shall be used?<br />
a) A hydrostatic pressure test at up to 15 lbf/in 2 (psig)<br />
b) A pneumatic pressure test at up to 15 lbf/in 2 (psig)<br />
c) A vacuum test at a partial pressure of 2 lbf/in 2 (psig)<br />
d) A pneumatic pressure test at up to 25 lbf/in 2 (psig)<br />
Reference: <strong>API</strong>-650, Paragraph 5.3.5 ANS: B<br />
Charlie Chong/ Fion Zhang
Q20. A new aboveground storage tank must be tested. If water is available for<br />
testing the shell, the tank shall be filled to any of the following levels except?<br />
a) To the maximum design liquid level<br />
b) Tanks with tight roofs, to 2 inches above the weld connecting the roof plate<br />
of compression bar to the top angle of the shell<br />
c) To overflowing to ensure all air is vented from the tank<br />
d) To a level lower than specified in a) or b) when restricted by overflows or<br />
freeboard agreement between the manufacturer and the purchaser<br />
Reference: <strong>API</strong>-650, Paragraph 5.3.6 ANS: C<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 7.3.5 Testing of the Shell After the entire tank and roof structure is<br />
completed, the shell (except for the shell of tanks designed in accordance with<br />
Annex F) shall be tested by one of the following methods, as specified on the Data<br />
Sheet, Line 14. 1) If water is available for testing the shell, the tank shall be filled<br />
with water as follows:<br />
(1) to the maximum design liquid level, H;<br />
(2) for a tank with a tight roof, to 50 mm (2 in.) above the weld connecting the roof<br />
plate or compression bar to the top angle or shell;<br />
(3) to a level lower than that specified in Sub-item 1 or 2 when restricted by overflows,<br />
an internal floating roof, or other freeboard by agreement between the Purchaser<br />
and the Manufacturer, or<br />
(4) to a level of seawater producing a bottom of shell hoop stress equal to that<br />
produced by a full-height fresh water test.<br />
The tank shall be inspected frequently during the filling operation, and any welded<br />
joints above the test-water level shall be examined in accordance with Item 2 below.<br />
This test shall be conducted before permanent external piping is connected to the tank.<br />
Attachments to the shell defined in 5.8.1.1, located at least 1 m (3 ft) above the water<br />
level, and roof appurtenances may be welded during the filling of the tank. After<br />
completion of the hydro-test, only non-structural small attachments may be welded to<br />
the tank in accordance with 7.2.1.11.<br />
Charlie Chong/ Fion Zhang
Q21. The purchaser of an AST that is designed to be gas tight required the<br />
roof to be tested pneumatically. What maximum pressure would be applied to<br />
a tank with ¼” thick roof plates?<br />
a) The maximum pneumatic pressure permitted is .053 psi<br />
b) The maximum pneumatic pressure permitted is .071 psi<br />
c) The maximum pneumatic pressure permitted is .083 psi<br />
d) The maximum pneumatic pressure permitted is .091 psi<br />
Reference: <strong>API</strong>-650, Paragraph 5.3.7.1 and 3.10.2.2<br />
Solution: 3/16” thick plate = 7.65 lb/ft ∴1/16” = 2.55 lb/ft ANS: B<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 7.3.7 Testing of the Roof 7.3.7.1 Upon completion, the roof of a<br />
tank designed to be gas-tight (except for roofs designed under 7.3.7.2, F.4.4,<br />
and E.7.5) shall be tested by one of the following methods. a) Applying<br />
internal air pressure not exceeding the weight of the roof plates and applying<br />
to the weld joints a bubble solution or other material suitable for the detection<br />
of leaks. b) Vacuum testing the weld joints in accordance with 8.6 to detect<br />
any leaks. 7.3.7.2 Upon completion, the roof of a tank not designed to be gastight,<br />
such as a tank with peripheral circulation vents or a tank with free or<br />
open vents, shall receive only visual examination of its weld joints, unless<br />
otherwise specified by the Purchaser.<br />
Charlie Chong/ Fion Zhang
Q22. During the filling of an aboveground storage tank for testing, leakage<br />
was observed in a horizontal seam. Repairs are to be completed with the test<br />
water in the tank. The tank is 61 feet high and the leak is discovered 29 feet<br />
below the top of the tank. Where must the water level be during the repair?<br />
a) The water level shall be not less than 30 feet from the top of the tank<br />
b) The water level shall be not more than 32 feet from the bottom of the tank<br />
c) The water level shall be at the maximum design liquid level<br />
d) The water shall be removed from the tank<br />
Reference: <strong>API</strong>-650, Paragraph 5.4.4 ANS:A, 61-29=32’, answer The water<br />
level shall be more than 31 feet from the top of the tank<br />
<strong>API</strong>650: 7.4.4 Repairs of defects discovered after the tank has been filled with water<br />
for testing shall be made with the water level at least 0.3 m (1 ft) below any point being<br />
repaired or, if repairs have to be made on or near the tank bottom, with the tank empty.<br />
Welding shall not be done on any tank unless all connecting lines have been<br />
completely blinded. Repairs shall not be attempted on a tank that is filled with oil or<br />
that has contained oil until the tank has been emptied, cleaned, and gas freed.<br />
Repairs on a tank that has contained oil shall not be attempted by the Manufacturer<br />
unless the manner of repair has been approved in writing by the Purchaser and the<br />
repairs are made in the presence of the Purchaser’s inspector.<br />
Charlie Chong/ Fion Zhang
Q23. A 60 foot high aboveground storage tank is designed with an internal<br />
floating roof. What is the maximum out-of-plumbness permitted on the 54.5<br />
foot fixed roof columns?<br />
a) 2.94 inches<br />
b) 3.27 inches<br />
c) 1.31 inches<br />
d) 1.18 inches<br />
Reference: <strong>API</strong>-650, Paragraph 5.5.2 ANS:B/ 57.5x12/200 = 3.27, smaller<br />
than 5<br />
Q24. What is the maximum roundness tolerance (radius tolerance) permitted<br />
on an AST that is 110 feet in diameter and where is this tolerance applied?<br />
a) ¾” measured 10 feet above the bottom corner weld<br />
b) ¾” measured 1 foot below the top shell angle joint<br />
c) ¾” measured 1 foot above the bottom corner weld<br />
d) ¾” measured 10 feet below the top shell angle joint<br />
Reference: <strong>API</strong>-650, Paragraph 5.5.3 ANS: C<br />
Charlie Chong/ Fion Zhang
7.5.2 Plumbness a) The maximum out-of-plumbness of the top of the shell<br />
relative to the bottom of the shell shall not exceed 1/200 of the total tank<br />
height. The out-of-plumbness in one shell course shall not exceed the<br />
permissible variations for flatness and waviness as specified in ASTM<br />
A6M/A6, ASTM A20M/A20, or ASTM A480M/A480, whichever is applicable. b)<br />
The maximum out-of-plumbness of roof columns, guide poles, or other<br />
vertical internal components shall not exceed 1/200 of the total height. The<br />
1/200 criteria shall also apply to fixed roof columns. For tanks with internal<br />
floating roofs, apply the criteria of this section or Annex H, whichever is more<br />
stringent.<br />
H.4.5 Roof Penetrations Columns, ladders, and other rigid vertical<br />
appurtenances that penetrate the deck shall be provided with a seal that will<br />
permit a local deviation of ±125 mm (±5 in.). Appurtenances shall be plumb<br />
within a tolerance of ±75 mm (±3 in.).<br />
Charlie Chong/ Fion Zhang
7.5.3 Roundness Radii measured at 0.3 m (1 ft) above the bottom corner<br />
weld shall not exceed the following tolerances:<br />
Charlie Chong/ Fion Zhang
Q25. Peaking at vertical welds and banding at horizontal welds shall not<br />
exceed ____.<br />
a) 1 inch b) ¾ inch c) ½ inch d) ¼ inch<br />
Reference: <strong>API</strong>-650, Paragraph 5.5.4 (a and b) ANS: C<br />
Q26. Peaking and banding are determined using a horizontal sweep board for<br />
peaking and a straight edge vertical sweep board for banding. What is the<br />
required length of these<br />
sweep boards?<br />
a) 48 inches<br />
b) 24 inches<br />
c) 42 inches<br />
d) 36 inches<br />
Reference: <strong>API</strong>-650, Paragraph 5.5.4 (a and b) ANS: D<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 7.5.4 Local Deviations Local deviations from the theoretical shape (for<br />
example, weld discontinuities and flat spots) shall be limited as follows.<br />
a) Deviations (peaking) at vertical weld joints shall not exceed 13 mm (1/2 in.).<br />
Peaking at vertical weld joints shall be determined using a horizontal sweep board<br />
900 mm (36 in.) long. The sweep board shall be made to the nominal radius of the<br />
tank.<br />
b) Deviations (banding) at horizontal weld joints shall not exceed 13 mm (1/2 in.).<br />
Banding at horizontal weld joints shall be determined using a straight edge vertical<br />
sweep board 900 mm (36 in.) long.<br />
c) Flat spots measured in the vertical plane shall not exceed the appropriate plate<br />
flatness and waviness requirements given in 7.5.2.<br />
<strong>API</strong>563: 10.5.4 Peaking<br />
With a horizontal sweep board 36-in. long, peaking shall not exceed 1/2 in. The sweep<br />
board shall be made to the true outside radius of the tank.<br />
<strong>API</strong>563: 10.5.5 Banding<br />
With a vertical sweep board 36-in. long, banding shall not exceed 1 in.<br />
Charlie Chong/ Fion Zhang
Horizontal Peaking Board, peaking of vertical weld.<br />
Vertical Banding Board, banding of horizontal weld.<br />
Charlie Chong/ Fion Zhang<br />
http://www.naehss.org/PastSchools/2011/LargeTankStorageIntegrity.pdf
Q27. The top of the concrete ringwall (where installed) of an AST must be<br />
level within ± 1/8” in any 30 feet of circumference. What is the total<br />
circumferential tolerance measured from the average elevation?<br />
a) ±1/8” b) ±3/16” c) ±1/2” d) 1/4”<br />
Reference <strong>API</strong>-650, Paragraph 5.5.5.2 (a) ANS: D<br />
Q28. Where a concrete ringwall is not provided, the foundation under the<br />
shell shall be level to within what tolerances?<br />
a) ±1/8” in any 30’ of the circumference and ±1/2” in the total circumference<br />
measured from the average elevation<br />
b) ±1/8” in any 10’ of the circumference and ±1/2” in the total circumference<br />
measured from the average elevation<br />
c) ±1/8” in any 10’ of the circumference and ±1/4” in the total circumference<br />
measured from the average elevation<br />
d) ±1/8” in any 30’ of the circumference and ±1/4” in the total circumference<br />
measured from the average elevation<br />
Reference <strong>API</strong>-650, Paragraph 5.5.5.2 (b) ANS: B<br />
Charlie Chong/ Fion Zhang
Q29. For foundations specified to be sloped from a horizontal plane, the<br />
actual elevation shall not deviate from the calculated differences by more than<br />
which of the following where concrete ringwalls are provided?<br />
a) ±1/8” in any 30’ of the circumference and ±1/4” in the total circumference<br />
measured from the average elevation<br />
b) ±1/8” in any 10’ of the circumference and ±1/2” in the total circumference<br />
c) ±1/8” in any 10’ of the circumference and ±1/2” in the total circumference<br />
measured from the average elevation<br />
d) ±1/8” in any 30’ of the circumference and ±1/4” in the total circumference<br />
Reference <strong>API</strong>-650, Paragraph 5.5.5.3 (a) ANS: D<br />
Charlie Chong/ Fion Zhang
Q30. For foundations specified to be sloped from a horizontal plane, the<br />
actual elevation shall not deviate from the calculated differences by more<br />
than which of the following where concrete ringwalls are not provided?<br />
a) ±1/8” in any 30’ of the circumference and ±1/2” in the total circumference<br />
measured from the average elevation<br />
b) ±1/8” in any 10’ of the circumference and ±1/2” in the total circumference<br />
c) ±1/8” in any 10’ of the circumference and ±1/4” in the total circumference<br />
measured from the average elevation<br />
d) ±1/8” in any 30’ of the circumference and ±1/4” in the total circumference<br />
Reference <strong>API</strong>-650, Paragraph 5.5.5.3 (b) ANS: B<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 5, Erection<br />
Charlie Chong/ Fion Zhang
Section 6 – Methods of inspecting Joints<br />
Q1. With regards to radiographic examination of welded joints, <strong>API</strong>-650<br />
considers plates to be the same thickness when the difference in their<br />
specified or design thickness is not greater than ____.<br />
a) 1/32nd inch<br />
b) 1/16th inch<br />
c) 3/32nd inch<br />
d) 1/8th inch<br />
Reference: <strong>API</strong>-650, Paragraph 6.1 ANS: D<br />
<strong>API</strong>650: 8.1 Radiographic Method<br />
For the purposes of this paragraph, plates shall be considered of the same<br />
thickness when the difference in their specified or design thickness does not<br />
exceed 3 mm (1/8 in.).<br />
Charlie Chong/ Fion Zhang
Q2. Which of the following joints do not require radiographic examination?<br />
a) Bottom-plate welds<br />
b) Shell butt welds<br />
c) Flush-type connections with butt welds<br />
d) Annular-plate butt welds<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.1 ANS: A<br />
Q3. Vertical butt welds in plates not greater than 3/8th inch thick, require one<br />
spot radiograph to be taken in the first _____ of completed vertical joint of<br />
each type and thickness by each welder or welding operator.<br />
a) 100 feet<br />
b) 50 feet<br />
c) 25 feet<br />
d) 10 feet<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.2(a) ANS: D<br />
Charlie Chong/ Fion Zhang
Q4. One additional spot radiograph shall be taken in each additional ____ of<br />
vertical joint of<br />
the same type and thickness.<br />
a) 10 feet<br />
b) 200 feet<br />
c) 100 feet<br />
d) 25 feet<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.2(a) ANS: C<br />
Q5. What percentage of the selected spot radiographs must be at junctions of<br />
vertical and horizontal welded joints?<br />
a) 25 percent<br />
b) 50 percent<br />
c) 75 percent<br />
d) 15 percent<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.2(a) ANS: A<br />
Charlie Chong/ Fion Zhang
Q6. For butt welded joints in plates over 3/8” to not over 1” in thickness are<br />
required to be radiographically examined to the same extent as plates 3/8”<br />
and less. What additional spot examination does <strong>API</strong>-650 require for these<br />
welded joints?<br />
a) 50 percent of all vertical and horizontal junctions<br />
b) 75 percent of all vertical and horizontal junctions<br />
c) 100 percent of all vertical and horizontal junctions<br />
d) 25 percent of all horizontal joints between the first and second course<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.2(b) ANS: C<br />
Q7. The radiographic film for all junctions of vertical and horizontal joints shall<br />
show at least ____ of weld length on each side of the vertical intersection.<br />
a) 3 inches<br />
b) 2 inches<br />
c) 1 inch<br />
d) 4 inches<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.2(b) and (c) ANS: B<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 8.1.2.2<br />
b) For butt-welded joints in which the thinner shell plate is greater than 10 mm<br />
(3/8 in.) but less than or equal to 25 mm (1 in.) in thickness, spot radiographs<br />
shall be taken according to Item a. In addition, all junctions of vertical and<br />
horizontal joints in plates in this thickness range shall be radiographed; each<br />
film shall clearly show not less than 75 mm (3 in.) of vertical weld and 50 mm<br />
(2 in.) of weld length on each side of the vertical intersection. In the lowest<br />
course, two spot radiographs shall be taken in each vertical joint: one of the<br />
radiographs shall be as close to the bottom as is practicable, and the other<br />
shall be taken at random (see the center panel of Figure 8.1).<br />
Charlie Chong/ Fion Zhang
Q8. The butt weld around the periphery of an insert manhole or nozzle shall<br />
be ____.<br />
a) Completely examined by liquid penetrant methods<br />
b) Completely examined by ultrasonic methods<br />
c) Completely examined by magnetic particle methods<br />
d) Completely examined by radiographic methods<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.2(d) ANS: D<br />
Q9. After the initial spot radiograph in the first 10 feet of horizontal butt joint,<br />
additional spot radiographs shall be taken at what increment?<br />
a) One radiograph shall be taken in each additional 200 feet<br />
b) One radiograph shall be taken in each additional 100 feet<br />
c) One radiograph shall be taken in each additional 300 feet<br />
d) One radiograph shall be taken in each additional 150 feet<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.3 ANS: A<br />
Charlie Chong/ Fion Zhang
Q10. What is the minimum weld length that must be clearly shown on each<br />
radiograph?<br />
a) 2 inches<br />
b) 3 inches<br />
c) 6 inches<br />
d) 8 inches<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.2.8 ANS: C<br />
Q11. Personnel who perform and evaluate radiographic examinations<br />
according to <strong>API</strong>-650 shall be qualified and certified by the manufacturer as<br />
meeting the requirements as generally outlined in _____.<br />
a) Level II or Level III of ASNT SNAT-TC-1B<br />
b) Level II or Level III of ASNT SNT-TC-1B<br />
c) Level II or Level III of ASNT SNAT-TC-1A<br />
d) Level II or Level III of ASNT SNT-TC-1A<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.3.2ANS: D<br />
Charlie Chong/ Fion Zhang
Q12. The acceptance standards for radiographic examinations shall be in<br />
accordance with which of the following?<br />
a) Paragraph UW-51(b) in Section VIII of the ASME Code<br />
b) Paragraph PW-51(b) in Section I of the ASME Code<br />
c) Paragraph 341.3.2 in B31.3 Process Piping of the ASME Code<br />
d) Paragraph RB-3233 in the National Board Inspection Code (NBIC)<br />
Reference: <strong>API</strong>-650, Paragraph 6.1.5 ANS: A<br />
Q13. If a section of weld is shown by a radiograph to be unacceptable under the<br />
provisions of <strong>API</strong>-650, paragraph 6.1.5 or the radiograph does not define the<br />
limits of the deficient welding, which of the following requirements apply?<br />
a) One additional spot shall be taken and at least 3” of weld shall be represented<br />
b) Two spots adjacent to the section shall be examined by radiography<br />
c) Two spots ten feet from each side of the original radiography shall be<br />
examined<br />
d) Two spots, chosen randomly by the purchaser’s inspector, shall be examined<br />
by radiography<br />
Reference <strong>API</strong>-650, Paragraph 6.1.6 ANS: B<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 8.1.6 Determination of Limits of Defective Welding When a<br />
section of weld is shown by a radiograph to be unacceptable under the<br />
provisions of 8.1.5 or the limits of the deficient welding are not defined by the<br />
radiograph, two spots adjacent to the section shall be examined by<br />
radiography; however, if the original radiograph shows at least 75 mm (3 in.)<br />
of acceptable weld between the defect and any one edge of the film, an<br />
additional radiograph need not be taken of the weld on that side of the defect.<br />
Charlie Chong/ Fion Zhang
Q14. After an aboveground storage tank is completed, what shall be done<br />
with the radiographs?<br />
a) They shall become the property of the insurance company<br />
b) They shall become the property of the manufacturer<br />
c) They shall become the property of the purchaser<br />
d) They shall become the property of the <strong>API</strong><br />
Reference <strong>API</strong>-650, Paragraph 6.1.8.2 ANS: C<br />
Q15. According to <strong>API</strong>-650, magnetic particle examination shall be performed<br />
to a written procedure. The examiner shall have his/her vision checked and<br />
be able to read which of the following?<br />
a) The magnetic particle written procedure at a distance not less than 12<br />
inches<br />
b) A Jaeger Type 3 standard chart at a distance not less than 12 inches<br />
c) A Jaeger Type 1 standard chart at a distance not less than 12 inches<br />
d) A Jaeger Type 2 standard chart at a distance not less than 12 inches<br />
Reference <strong>API</strong>-650, Paragraph 6.2.2 and 6.2.3 (a) ANS: D<br />
Charlie Chong/ Fion Zhang
Q16. Ultrasonic examination shall be performed in accordance with a written<br />
procedure. Examiners shall be qualified and certified by the manufacturer as<br />
meeting the requirements of certification as generally outlined in which of the<br />
following?<br />
a) Level II or Level III of ASNT SNAT-TC-1B<br />
b) Level II or Level III of ASNT SNT-TC-1B<br />
c) Level II or Level III of ASNT SNAT-TC-1A<br />
d) Level II or Level III of ASNT SNT-TC-1A<br />
Reference <strong>API</strong>-650, Paragraph 6.3.2 and 6.3.3 ANS: D<br />
Charlie Chong/ Fion Zhang
Q17. Liquid penetrant examination shall be performed in accordance with a<br />
written procedure. The examiner shall have his/her vision checked and be<br />
able to read which of the following?<br />
a) The liquid penetrant written procedure at a distance not less than 12 inches<br />
b) A Jaeger Type 2 standard chart at a distance not less than 12 inches<br />
c) A Jaeger Type 1 standard chart at a distance not less than 12 inches<br />
d) A Jaeger Type 3 standard chart at a distance not less than 12 inches<br />
Reference <strong>API</strong>-650, Paragraph 6.4.2 and 6.4.3 (a) ANS: B<br />
Charlie Chong/ Fion Zhang
Q18. Undercutting of welds attaching nozzles, manholes, cleanout openings,<br />
and permanent attachments shall not exceed which of the following?<br />
a) Undercutting shall not exceed 1/64th inch<br />
b) Undercutting shall not exceed 3/32nd inch<br />
c) Undercutting shall not exceed 1/32nd inch<br />
d) Undercutting shall not exceed 3/64th inch<br />
Reference <strong>API</strong>-650, Paragraph 6.5.1 (b) ANS: A<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 6, Methods of Inspecting Joints<br />
Charlie Chong/ Fion Zhang
Section 7 – Welding Procedure and Welder Qualifications<br />
Q1. Who is responsible for preparing the welding procedure specification,<br />
performing the qualification tests, and preparing the procedure qualification<br />
record?<br />
a) The welding operator or welder<br />
b) The purchaser’s inspector<br />
c) The purchaser’s welding engineer<br />
d) The erection manufacturer or the fabrication manufacturer if other than the<br />
erection manufacturer<br />
Reference <strong>API</strong>-650, Paragraph 7.2.1.1 ANS: D<br />
Charlie Chong/ Fion Zhang
Q2. The manufacturer has the approval of the purchaser to use a material<br />
listed in <strong>API</strong>-650 but not included in the applicable table of ASME Section IX.<br />
What Group number would this material be included in if the minimum tensile<br />
strength is specified at 73,000 psi?<br />
a) This material would be included in Group number 2<br />
b) This material would be included in Group number 1<br />
c) This material would be included in Group number 3<br />
d) This material can not be used in AST construction<br />
Reference <strong>API</strong>-650, Paragraph 7.2.1.3 ANS: A<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 9.2.1.3 Material specifications listed in Section 4 of this standard but<br />
not included in Table QW-422 of Section IX of the ASME Code shall be<br />
considered as P-No. 1 material with group numbers assigned as follows<br />
according to the minimum tensile strength specified:<br />
a) less than 485 MPa (70 ksi)—Group 1;<br />
b) equal to or greater than 485 MPa (70 ksi) but less than 550 MPa (80 ksi)—<br />
Group 2;<br />
c) equal to or greater than 550 MPa (80 ksi)—Group 3.<br />
Separate welding procedures and performance qualifications shall be<br />
conducted for A841M/A841 material.<br />
Charlie Chong/ Fion Zhang
Q3. When impact tests of the heat-affected zone are required, how shall this<br />
requirement be treated?<br />
a) Heat treated condition of the base metal shall be a non-essential variable<br />
b) Heat treated condition of the base metal shall be an essential variable<br />
c) Heat treated condition of the base metal shall be a supplementary essential<br />
variable<br />
d) Heat treated condition of the base metal does not need to be addressed on<br />
the welding procedure specification<br />
Reference <strong>API</strong>-650, Paragraph 7.2.1.4ANS: C<br />
Charlie Chong/ Fion Zhang
Q4. If a protective coating has been applied to weld edge preparations, how is<br />
this condition treated on the welding procedure specification?<br />
a) The coating shall be removed and does not affect the weld and therefore<br />
does not need to be addressed<br />
b) The coating shall be included as an essential variable<br />
c) The coating shall be included as a non-essential variable<br />
d) The coating shall be included as a supplementary essential variable<br />
Reference <strong>API</strong>-650, Paragraph 7.2.1.4 ANS: B<br />
Charlie Chong/ Fion Zhang
Q5. Materials to be used at a design metal temperature below ____, the<br />
qualification of the welding procedure for vertical joints shall include impact<br />
tests of the weld metal.<br />
a) 50°F (10°C)<br />
b) 32°F<br />
c) 60°F<br />
d) 0°F<br />
Reference <strong>API</strong>-650, Paragraph 7.2.2.3 ANS: A<br />
Q6. Welder qualification tests conducted by one manufacturer shall not<br />
qualify a welder or welding operator to do work for another manufacturer.<br />
a) True<br />
b) False<br />
Reference <strong>API</strong>-650, Paragraph 7.3.1 ANS: A<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>650: 9.2.2.3 For all materials to be used at a design metal temperature<br />
below 10°C (50°F), the qualification of the welding procedure for vertical joints<br />
shall include impact tests of the weld metal. If vertical joints are to be made by<br />
a machine, automatic, or semiautomatic process, impact tests of the heataffected<br />
zone shall also be made.<br />
Charlie Chong/ Fion Zhang
Q7. Traceability to a welder or welding operator, either by welder’s<br />
identification stamp or “weld map”, is required on all but which of the following?<br />
a) Shell horizontal weld joints<br />
b) Shell vertical weld joints<br />
c) Annular plate butt welds (when annular plates are required)<br />
d) Roof plate welds and flange-to-nozzle neck welds<br />
Reference <strong>API</strong>-650, Paragraph 7.4 ANS: D<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 7, Welding Procedure and Welder<br />
Qualifications<br />
Charlie Chong/ Fion Zhang
Break of the day<br />
Charlie Chong/ Fion Zhang
Break of the day<br />
Charlie Chong/ Fion Zhang
Break of the day<br />
Charlie Chong/ Fion Zhang
Break of the day<br />
Charlie Chong/ Fion Zhang
Break of the day<br />
http://fatboo.com/2011/01/braddell-roti-prata.html<br />
Charlie Chong/ Fion Zhang
Section 8 - Marking<br />
Q1. A nameplate shall identify aboveground storage tanks made in<br />
accordance with <strong>API</strong>-650. Where must this nameplate be located on the<br />
completed tank?<br />
a) This nameplate shall be attached to the tank shell adjacent to a manhole<br />
or to a manhole reinforcing plate immediately to the right of the manhole<br />
b) This nameplate shall be attached to the tank shell adjacent to a vertical<br />
weld joint at least 48” above the shell-to-bottom weld joint<br />
c) This nameplate shall be attached to the tank shell adjacent to a manhole<br />
or to a manhole reinforcing plate immediately above the manhole<br />
d) This nameplate shall be attached to the tank shell adjacent to a manhole<br />
or to a manhole reinforcing plate immediately below the manhole<br />
Reference <strong>API</strong>-650, Paragraph 8.1.2 ANS: C<br />
Charlie Chong/ Fion Zhang
Q2. The manufacturer of an AST is required to certify to the purchaser that<br />
the tank has been constructed in accordance with <strong>API</strong>-650. How is this<br />
certification accomplished?<br />
a) The manufacturer shall provide the purchaser with a U-1 Data Report form<br />
b) The manufacturer shall provide the purchaser with letter<br />
c) The manufacturer shall provide the purchaser with an ASME acceptable<br />
“Certificate of Compliance”<br />
d) The manufacturer shall provide the purchaser with a notarized certificate of<br />
compliance<br />
Reference <strong>API</strong>-650, Paragraph 8.3 ANS: B<br />
<strong>API</strong>650: 10.3 Certification The Manufacturer shall certify to the Purchaser, by a letter<br />
such as that shown in Figure 10.2, that the tank has been constructed in accordance<br />
with the applicable requirements of this standard. An as-built data sheet in accordance<br />
with Annex L shall be attached to the certification letter. NOTE At the Purchaser’s<br />
request or at the erection Manufacturer’s discretion, additional pertinent information<br />
may be shown on the nameplate, and the size of the nameplate may be increased<br />
proportionately.<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650 Section 8, Marking<br />
Charlie Chong/ Fion Zhang
Appendix A – Optional Design Basis for Small Tanks<br />
Q1. What is the maximum shell thickness including corrosion allowance<br />
permitted for tanks that comply Appendix A of <strong>API</strong>-650?<br />
a) 7/8th inch b) 3/4th inch<br />
c) 5/8th inch d) 1/2 inch<br />
Reference <strong>API</strong>-650, Paragraph A.2.1ANS: D<br />
Q2. What is the maximum tensile strength, before the joint efficiency is<br />
applied, permitted in the design of small tanks in accordance with Appendix A<br />
of <strong>API</strong>-650?<br />
a) 21000 psi<br />
b) 21500 psi<br />
c) 21000 ksi<br />
d) 21500 ksi<br />
Reference <strong>API</strong>-650, Paragraph A.3.1 ANS:A<br />
Charlie Chong/ Fion Zhang
Q3. When computing the tension in each ring (course) of a small tank<br />
designed in accordance with Appendix A of <strong>API</strong>-650, where is this tension<br />
computed?<br />
a) The tension shall be computed 12 inches above the centerline of the<br />
course in question<br />
b) The tension shall be computed 12 inches above the centerline of the lower<br />
horizontal joint of the course in question<br />
c) The tension shall be computed 12 inches above the centerline of the tank<br />
in question<br />
d) The tension shall be computed 12 inches below the centerline of the upper<br />
horizontal joint of the course in question<br />
Reference <strong>API</strong>-650, Paragraph A.3.3 ANS: B<br />
Q4. What joint efficiency factor shall be used in the design of small tanks<br />
designed in accordance with Appendix A of <strong>API</strong>-650 when spot<br />
radiographic examination is applied?<br />
a) 1.00 b) 0.90 c) 0.85 d) 0.70<br />
Reference <strong>API</strong>-650, Paragraph A.3.4 ANS: C<br />
Charlie Chong/ Fion Zhang
5. What joint efficiency factor shall be used in the design of small tanks<br />
designed in accordance with Appendix A of <strong>API</strong>-650 when spot radiographic<br />
examination is omitted?<br />
a) 1.00<br />
b) 0.90<br />
c) 0.85<br />
d) 0.70<br />
Reference <strong>API</strong>-650, Paragraph A.3.4 ANS: D<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-Standard 650<br />
Appendix A - Optional Design Basis for Small Tanks<br />
Charlie Chong/ Fion Zhang
<strong>API</strong> 651- CATHODIC PROTECTION QUESTIONS<br />
Section 4 - Corrosion of Above Ground Steel Storage Tanks<br />
Q1. According to <strong>API</strong> Recommended Practice - 651, there are four<br />
components in each corrosion cell. Theses components are an anode and all<br />
but which of the following?<br />
a) DC current supplied by batteries<br />
b) A cathode<br />
c) A metallic path connecting the anode and cathode<br />
d) An electrolyte<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.1 ANS: A<br />
Charlie Chong/ Fion Zhang
Q2. The base metal goes into solution (corrodes) by releasing electrons and<br />
forming positive metal ions. This statement describes what takes place at<br />
what component of a corrosion cell?<br />
a) The cathode<br />
b) The electrolyte<br />
c) The metallic connection between the cathode and the anode<br />
d) The anode<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.1(a) ANS: D<br />
Q3. Which of the following is the most correct statement regarding the<br />
cathode?<br />
a) Moderate corrosion takes place at the cathode<br />
b) No corrosion takes place at the cathode<br />
c) All corrosion takes place at the cathode<br />
d) A chemical reaction takes place using electrons released at the electrolyte<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.1(b) ANS: B<br />
Charlie Chong/ Fion Zhang
Q4. The electrolyte contains ions and conducts positive current from the<br />
anode to the cathode. The most common electrolyte for external tank bottom<br />
surfaces is ____, while the most common for internal surfaces is ____.<br />
a) Water, sludge and moist soil<br />
b) Moist soil, water and sludge<br />
c) Acidic soil, water and sludge<br />
d) Moist soil, product and sludge<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.1(d) ANS: B<br />
Q5. The two most common types of corrosion to tank bottoms are ______<br />
and ______.<br />
a) Stress corrosion and galvanic<br />
b) Erosion and erosion/corrosion<br />
c) General and pitting<br />
d) Stray current and bimetallic<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.2 ANS: C<br />
Charlie Chong/ Fion Zhang
Q6. Which type of corrosion results in relatively uniform metal loss?<br />
a) Erosion and erosion/corrosion<br />
b) Stray current<br />
c) General<br />
d) Pitting<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.2 ANS: C<br />
Q7. Which type of corrosion may only affect relatively small areas, while<br />
substantial areas of the surface are unaffected by corrosion?<br />
a) Galvanic<br />
b) General<br />
c) Brittle<br />
d) Pitting<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.2 ANS: D<br />
Charlie Chong/ Fion Zhang
Q8. Composition of the metal is a factor in determining which areas become<br />
anodes and which become cathodes. What else can cause corrosion?<br />
a) Differences between weld metal, heat affected zone, and parent metal<br />
b) Differences in thickness between adjacent plates<br />
c) Improper fit-up of the welded joint<br />
d) Slag inclusion in the weld metal<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.3 ANS: A<br />
Charlie Chong/ Fion Zhang
Q9. Which of the following is a correct statement regarding oxygen<br />
concentration of the electrolyte.<br />
a) Oxygen concentration in the electrolyte has no impact on the corrosion cell<br />
b) Areas of lower oxygen concentrations become anodic and areas of higher<br />
concentrations become cathodic.<br />
c) Areas of lower oxygen concentrations become cathodic and areas of<br />
higher concentrations become anodic<br />
d) Areas of lower oxygen concentrations become acidic and areas of higher<br />
concentrations become alkaline<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.4 ANS: B<br />
Charlie Chong/ Fion Zhang<br />
http://www2.ucdsb.on.ca/tiss/stretton/chem2/corrosion.html
Oxygen Concentration Corrosion<br />
2H 2 O → 2OH - + 2H +<br />
Fe → Fe 2+ + 2e -<br />
Fe 2+ + 2OH - → Fe(OH) 2<br />
2e - + 2H + + ½ O2 → H 2 O<br />
Charlie Chong/ Fion Zhang<br />
http://alchetron.com/RUSTING-OF-IRON-2146-W
Oxygen Concentration Corrosion<br />
2H 2 O → 2OH - + 2H +<br />
Fe → Fe 2+ + 2e -<br />
Fe 2+ + 2OH - → Fe(OH) 2<br />
2e - + 2H + + ½ O2 → H 2 O<br />
2H +<br />
2OH - 2e - http://alchetron.com/RUSTING-OF-IRON-2146-W<br />
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang<br />
http://imgarcade.com/1/shame-on-you-obama/
Charlie Chong/ Fion Zhang
Q10. Soil characteristics substantially affect what?<br />
a) What type of product may be stored in the tank<br />
b) What the maximum fill height of the tank is<br />
c) The type and rate of corrosion on a structure in contact with soil<br />
d) Perk rate for dissipation of small leaks from the tank bottom<br />
Reference: <strong>API</strong>-651 Paragraph 4.1.5 ANS: C<br />
Q11. What is another term used for "stray currents"?<br />
a) Short circuits<br />
b) Positive currents<br />
c) Impressed currents<br />
d) Interference currents<br />
Reference: <strong>API</strong>-651 Paragraph 4.2.1 ANS: D<br />
Charlie Chong/ Fion Zhang
Q12. The most common and potentially the most damaging stray currents are:<br />
a) Direct currents<br />
b) Alternating currents<br />
c) Intermittent currents<br />
d) Close proximity alternating currents<br />
Reference: <strong>API</strong>-651 Paragraph 4.2.1 ANS: A<br />
Q13. Which of the following is not likely to be a source of stray currents?<br />
a) Static electricity<br />
b) Welding machines<br />
c) Impressed current cathodic protection systems<br />
d) Railroads<br />
Reference: <strong>API</strong>-651 Paragraph 4.2.1 ANS: A<br />
Charlie Chong/ Fion Zhang
Q14. Two metals with different compositions connected in an electrolyte is a<br />
general description of:<br />
a) A battery<br />
b) A current suppressor<br />
c) A short circuit<br />
d) Galvanic corrosion<br />
Reference: <strong>API</strong>-651 Paragraph 4.2.2 ANS: D<br />
Q15. All but one of the following is listed as major factors which influence the<br />
severity of internal corrosion. Which is not a factor?<br />
a) The pH level of the fluid in contact with the steel bottom<br />
b) The amount of nitrogen in the fluid in contact with the steel bottom<br />
c) Suspended solids in the fluid in contact with the steel bottom<br />
d) Conductivity of the fluid in contact with the steel bottom<br />
Reference: <strong>API</strong>-651 Paragraph 4.2.3 ANS: B<br />
Charlie Chong/ Fion Zhang
Q16. Three major types of internal corrosion to be considered are general<br />
corrosion, pitting corrosion, and to a lesser extent in tanks, environmental<br />
cracking.<br />
a) True<br />
b) False<br />
Reference: <strong>API</strong>-651 Paragraph 4.2.3 ANS: A<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-651 Section 4, corrosion of Aboveground Steel Storage<br />
Tanks<br />
Charlie Chong/ Fion Zhang
Section 5 - Determination of Need for Cathodic Protection<br />
Q1. <strong>API</strong> Recommended Practice 651 states that the need for cathodic<br />
protection must be determined for all storage facilities. Decisions governing<br />
the need for cathodic protection should be based on all but which of the<br />
following?<br />
a) Data from corrosion surveys and operating records<br />
b) National Board and ASME recommendations<br />
c) Prior test results with similar systems in similar environments<br />
d) National, state, and local code requirements and the recommendations in<br />
<strong>API</strong>-651<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.1 ANS: B<br />
Charlie Chong/ Fion Zhang
Q2. When should corrosion control by cathodic protection for new ASTs be<br />
provided?<br />
a) After final welding and before hydrostatic testing<br />
b) After all stress relief has been carried out<br />
c) In the initial design<br />
d) After the tank is in service for 6 months<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.1.1ANS: C<br />
Q3. Generally tanks in petroleum service use ______ on the internal surfaces<br />
to control internal corrosion.<br />
a) AC Current instead of DC current cathodic protection systems<br />
b) Coatings<br />
c) Cathodic protection in conjunction with coatings<br />
d) Since pure hydrocarbon fluids are usually not corrosive experience shows<br />
that internal corrosion will never occur therefore, corrosion control is not<br />
necessary<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.1.3 ANS: B<br />
Charlie Chong/ Fion Zhang
Q4. Cathodic protection is an effective means of corrosion control only if it is<br />
possible to pass electrical current between what two components?<br />
a) Anode and cathode<br />
b) Tank shell and roof support system<br />
c) Roof to bottom through roof support structures<br />
d) Tank shell and tank bottom<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.1.4ANS: A<br />
Q5. A full evaluation of tank history should be performed prior to _______.<br />
a) Filling the tank for the 25th time<br />
b) Painting the exterior surface of the tank<br />
c) Temporarily removing the tank from service<br />
d) Determining the need for cathodic protection<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.2.1 ANS: D<br />
Charlie Chong/ Fion Zhang
Q6. Such items as site plan, soil properties, previous repairs, existing<br />
cathodic protection of nearby structures, maintenance history, and expected<br />
life should be investigated and determined when conducting the<br />
____________.<br />
a) Evaluation of the location of a refinery<br />
b) Probability study of tank settlement<br />
c) Evaluation of tank design/construction history<br />
d) Evaluation of tank repairs and alterations<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.2.1.1ANS: C<br />
Q7. Of the following items which is not an item that should be investigated<br />
and determined in the evaluation of types of service?<br />
a) Type of product stored<br />
b) Product temperature<br />
c) Ambient temperature<br />
d) Presence and depth f water bottoms<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.2.1.2 ANS: C<br />
Charlie Chong/ Fion Zhang
Q8. Such items as tank inspections per <strong>API</strong> Standard 653, corrosion rate<br />
records, stray current problems, design and performance of previous<br />
protection systems, and structure-to-soil potential surveys should be<br />
investigated and determined when conducting the ______.<br />
a) Evaluation of tank repair/alteration/construction history<br />
b) Evaluation of tank design/construction history<br />
c) Evaluation of types of service<br />
d) Evaluation of inspection/corrosion history<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.2.1.3ANS: D<br />
Q9. The cushion material under the tank has a significant effect on external<br />
corrosion of the tank bottom. The material can also influence:<br />
a) The effectiveness and applicability of external cathodic protection<br />
b) The effectiveness and applicability of internal cathodic protection<br />
c) The decision to use or not use a rectifier or DC generator set to supply<br />
current<br />
d) The type of product that may be stored in the tank<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.1.1 ANS: A<br />
Charlie Chong/ Fion Zhang
Q10. What is an advantage of using fine particles for the cushion material?<br />
a) The fine particles should be uniform which makes it easier to transport<br />
b) Fine particles provide a more dense cushion to help reduce the influx and<br />
outflow of oxygen<br />
c) Fine particles will not permit the passage of product should a leak occur in<br />
the tank bottom<br />
d) Fine particles will hold moisture longer permitting it to stabilize and prevent<br />
acid from forming in the electrolyte<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.1.1 ANS: B<br />
Q11. What is the main disadvantage in using large size particles in the soil<br />
cushion material?<br />
a) The large particles may puncture the tank bottom<br />
b) The large particles may trap moisture and allow general corrosion to form<br />
c) If large particles are used, differential aeration corrosion may result where<br />
the particles contact the tank bottom<br />
d) The large particles are more difficult to transport<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.1.1ANS: C<br />
Charlie Chong/ Fion Zhang
Q12. A soil resistivity of about 1250 OHM-CM would indicate the soil is<br />
probably ____.<br />
a) Mildly corrosive 2000-10000<br />
b) Very corrosive 10000 less corrosive<br />
Q13. The results of soil resistivity surveys can be used to determine<br />
________.<br />
a) When it is time to replace the cushion material under the tank bottom<br />
b) The need for cathodic protection<br />
c) The amount of compression of the cushion material under the tank<br />
d) The best place to install a corrosion test bed<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.1.2 ANS: B<br />
Charlie Chong/ Fion Zhang
Table 1—General Classification of Resistivity<br />
Charlie Chong/ Fion Zhang
Q14. A properly designed concrete tank cushion constructed on stable,<br />
properly prepared subsoil may be effective in all but which of the following?<br />
a) Cracks in the tank bottom weld seams<br />
b) Intrusion of groundwater<br />
c) Soil-side corrosion<br />
d) The need for cathodic protection<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.2.1ANS: A<br />
Q15. Cracks through the concrete cushion may permit water and<br />
contaminants to permeate to the steel tank bottom and provide a path for<br />
proper electrical current flow.<br />
a) True<br />
b) False<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.2.1 ANS: B<br />
Charlie Chong/ Fion Zhang
Q16. Corrosion of the steel tank bottom installed on a concrete cushion may<br />
result from moisture accumulation caused by all but which of the following?<br />
a) Condensation<br />
b) Blowing snow or rain<br />
c) Humidity in the air surrounding the tank<br />
d) Flooding<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.2.2 ANS: C<br />
Charlie Chong/ Fion Zhang
Q17. Why would it be more important to provide proper support under<br />
cushions of new asphalt than for concrete?<br />
a) Asphalt is inherently alkaline and therefore does not have the potential of<br />
preventing corrosion<br />
b) Asphalt is not inherently alkaline and therefore does not have the potential<br />
of preventing corrosion<br />
c) Asphalt may degrade and become a corrosive substance<br />
d) Asphalt may crack allowing moisture to reach the tank bottom where it will<br />
react violently with the asphalt and the steel tank bottom<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.3.1ANS: B<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>651: 5.3.6 Continuous Asphalt Pad<br />
A pad of new asphalt may provide many of the same advantages and<br />
disadvantages as a concrete pad for reducing corrosion and eliminating the<br />
need for cathodic protection. Proper support to prevent cracks and to prevent<br />
accumulation of water between the pad and the tank bottom is an important<br />
consideration. Asphalt degrades with time and can provide a path for water<br />
and dissolved contaminants to come into contact with the steel tank bottom,<br />
allowing corrosion to occur. Cathodic protection, if applied, may or may not<br />
aid in stopping corrosion when the asphalt becomes deteriorated. In fact,<br />
deteriorated asphalt may shield cathodic protection current in a manner<br />
similar to a disbonded coating on a pipeline. The condition of the external<br />
surface of the tank bottom as well as the asphalt can be determined if<br />
coupons are cut from the tank bottom. For new tank construction, use of<br />
asphalt pads is discouraged.<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>651: 5.3.4 Crushed Limestone or Clam Shell Pad<br />
In certain locations, the tank pad could consist of a layer of crushed limestone<br />
or clam shells. Such tank pads without the use of cathodic protection have<br />
produced mixed results. The tank pad should be fine and uniform, since<br />
differential aeration corrosion cells will cause pitting at contact areas between<br />
the large particles and the metal. The intrusion of water from rain or<br />
groundwater makes the environment under the tank alkaline, which may<br />
reduce corrosion. If contaminants are present in the pad, or with time infiltrate<br />
the pad, corrosion may accelerate. Thus, the use of crushed limestone or<br />
clam shells does not clearly eliminate the need for cathodic protection.<br />
Charlie Chong/ Fion Zhang
Q18. How can the condition of the external surface of tank bottom and the<br />
asphalt cushion be determined?<br />
a) Raise the entire tank and inspect the tank bottom and the asphalt<br />
b) Take a core sample from the asphalt for testing. This test will reveal the<br />
amount of steel that has gone into solution and been trapped in the asphalt<br />
c) Conduct a soil resistivity survey around the periphery of the tank<br />
containment<br />
d) By cutting coupons from the tank bottom<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.3.2 ANS: D<br />
Q19. A soil analysis reveals the pH of a native soil cushion to be 6.25. This<br />
soil is considered to be:<br />
a) Moderately corrosive<br />
b) Mildly corrosive (the least of the multiple choice)<br />
c) Corrosive<br />
d) Very corrosive<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.4.1 and Table 2 ANS: B<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>651: 5.3.2.1 Sand Pad Material<br />
The following are issues to sand pad material.<br />
g) Measuring pH indicates the hydrogen ion content of a soil.<br />
• Corrosion of steel is fairly independent of pH when it is in the range of 5.0<br />
to 8.0.<br />
• The rate of corrosion increases appreciably when pH is < 5.0 and<br />
• decreases when pH is > 8.0.<br />
pH may be determined in accordance with ASTM G51 or equivalent.<br />
Charlie Chong/ Fion Zhang
Q20. A soil analysis reveals the sulfates level of a native soil cushion to be<br />
5525ppm. This soil is considered to be<br />
a) Moderately corrosive<br />
b) Mildly corrosive<br />
c) Corrosive<br />
d) Very corrosive<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.4.1 and Table 2ANS: D<br />
Q21. What is the most common material used as a cushion beneath storage<br />
tank bottoms?<br />
a) Clean concrete<br />
b) Clean sand<br />
c) Clean Asphalt<br />
d) Clean modified aggregate<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.5 ANS: B<br />
Charlie Chong/ Fion Zhang
Q22. The use of oiled sand beneath tank bottoms does not eliminate the need<br />
for cathodic protection and in fact may cause cathodic protection to be less<br />
effective because:<br />
a) The oiled sand has higher resistivity (outcome)<br />
b) The sand is unable to conduct electrical current<br />
c) The oil acts as an insulator and blocks all current flow (root cause)<br />
d) The oil creates a vapor bearer entrapping water and contaminants next to<br />
the tank bottom<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.5 ANS: A<br />
5.3.5 Oiled Sand Pad<br />
Historically, in some cases oil has been added to the sand for<br />
various reasons, including compaction and corrosion control.<br />
However, if cathodic protection is applied, the higher resistivity<br />
of oiled sand may prevent it from being effective. For new tank<br />
construction, use of oiled sand is discouraged.<br />
Charlie Chong/ Fion Zhang
Q23. There are several ways the tank cushion can become contaminated.<br />
Three of the following are methods of cushion contamination, which one is<br />
not?<br />
a) In coastal areas salt spay may be washed down the side of the tank<br />
b) Fertilizer from spraying operations in rural areas<br />
c) Airborne chemicals from industrial operations<br />
d) Residual build-up of electrons in the sand cushion<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.6.1 ANS: D<br />
Charlie Chong/ Fion Zhang
Q24. Leakage of product from the tank bottom can cause accelerated<br />
corrosion by creating ____.<br />
a) Stray current corrosion<br />
b) Corrosion cells where none existed before<br />
c) More positively charged electrons<br />
d) A film that would block electrical current flow<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.6.2 ANS: B<br />
Q25. When a layer of crushed-limestone or clam-shell is used for the tank<br />
cushion, why is it important to ensure the particles are fine and uniform?<br />
a) Large particles could puncture the tank bottom<br />
b) Differential aeration corrosion cells will cause pitting at contact areas<br />
between the large particles and the metal<br />
c) Large particles may allow the formation of dissolved gas pockets which<br />
could become a hazard if hot tap work is performed on the tank bottom<br />
d) Large particle will eventually fracture and create voids in the tank cushion<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.7 ANS: B<br />
Charlie Chong/ Fion Zhang
Q26. What is an advantage of using crushed-limestone or clam-shell under tank<br />
bottoms?<br />
a) This material is plentiful and relatively inexpensive<br />
b) Contamination is easier to detect because of discoloration<br />
c) Water from rain or groundwater makes the environment under the tank alkaline,<br />
which may reduce corrosion<br />
d) The use of this material eliminates the need for cathodic protection<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.3.7 ANS: C<br />
Q27. Heated tanks or tanks storing hot product can cause:<br />
a) Increased water intrusion due to causing snow to melt and run down the tank<br />
sides<br />
b) Excessive drying out of concrete foundations resulting in premature<br />
deterioration and failure<br />
c) Accelerated corrosion on the internal surface especially in tanks with water<br />
bottoms<br />
d) Accelerated corrosion on the external surface due to elevated temperature is<br />
the area is wet<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.4.1 ANS: D<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>651: 5.4 Other Factors Affecting Cathodic Protection<br />
5.4.1 Contents of Tank<br />
Aboveground storage tank temperature can influence corrosion on tank bottoms.<br />
Accelerated corrosion can occur on the external surface of the bottom of heated<br />
tanks due to elevated temperatures if the area is wet.<br />
NOTE The corrosion rate of steel may double with every 18 °F (10 °C) increase<br />
in temperature above 77 °F (25 °C).<br />
Aboveground storage tanks containing products above ambient temperature may<br />
require an increase in cathodic protection design current density to achieve<br />
adequate protection on the external surface of the bottom. Conversely, sufficient<br />
heat could dry out a well-drained tank pad, thus, increasing its resistivity and<br />
reducing performance of cathodic protection. However, tank operators should be<br />
aware that if water penetrates the previously dried out tank pad (such as: flooding,<br />
condensation, blowing rain or snow, poor drainage, rooftop water), the resistivity<br />
of the tank pad can decrease, developing a more corrosive condition. For this<br />
situation, the installation of a cathodic protection system should be installed.<br />
Charlie Chong/ Fion Zhang
Q29. During the installation of a new steel bottom over an existing steel bottom,<br />
which has been repaired, if water or other electrolyte intrudes into the annulus,<br />
what can happen?<br />
a) A galvanic cell may form which will cause the new steel tank bottom to<br />
corrode at an accelerated rate<br />
b) An electrochemical reaction may take place creating hazardous gasses<br />
c) A galvanic cell may form which will cause the old tank bottom to corrode at an<br />
accelerated rate<br />
d) A galvanic cell may form which will turn the old tank bottom into an anode<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.4.3.2 ANS: A<br />
Q30. With the installation of _____ in a diked area prior to new tank construction,<br />
most cathodic protection systems are rendered ineffective.<br />
a) A secondary containment system utilizing a perforated impervious membrane<br />
b) A secondary containment system utilizing an impervious membrane<br />
c) A secondary containment system utilizing a metallic impregnated screen<br />
membrane<br />
d) A secondary containment system utilizing a non-impervious membrane<br />
Reference: <strong>API</strong> RP 651, Paragraph 5.4.3.3 ANS: B<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-651 Section 5, Determination of Need for Cathodic<br />
Protection<br />
Charlie Chong/ Fion Zhang
Section 6- Methods of Cathodic Protection for Corrosion<br />
Control<br />
Q1. What is the basic principle that makes cathodic protection effective.<br />
a) Cathodic protection is a technique for preventing corrosion by making the<br />
entire surface of the metal to be protected act as the rectifier<br />
b) Cathodic protection is a technique for preventing corrosion by making the<br />
entire surface of the metal to be protected act as the corrosion cell<br />
c) Cathodic protection is a technique for preventing corrosion by making the<br />
entire surface of the metal to be protected act as the cathode<br />
d) Cathodic protection is a technique for preventing corrosion by making the<br />
entire surface of the metal to be protected act as the anode<br />
Reference: <strong>API</strong>-651, Paragraph 6.1 ANS: C<br />
Charlie Chong/ Fion Zhang
Q2. What are the two systems of cathodic protection?<br />
a) Galvanic and repressed current<br />
b) Galvanic and impressed current<br />
c) Galvanic and reversed current<br />
d) Galvanic and induced current<br />
Reference: <strong>API</strong>-651, Paragraph 6.1 ANS: B<br />
Q3. Galvanic cathodic protection systems use a metal, that is more active<br />
than the structure to be protected, to supply the current required to stop<br />
corrosion. What is another term(s) used to describe this material?<br />
a) Anode, commonly referred to as a galvanic or sacrificial anode<br />
b) Cathode, commonly referred to as a galvanic or sacrificial cathode<br />
c) Ribbon cathode, commonly referred to as a sacrificial ribbon cathode<br />
d) Impressed current anode, commonly referred to as the impressed anode<br />
Reference: <strong>API</strong>-651, Paragraph 6.2.1 ANS: A<br />
Charlie Chong/ Fion Zhang
Q4. Where on the galvanic series is clean and shiny mild steel?<br />
a) Clean and shiny mild steel has a value of –1.1 volts<br />
b) Clean and shiny mild steel has a value of –1.0 volts<br />
c) Clean and shiny mild steel has a value of –0.8 volts<br />
d) Clean and shiny mild steel has a value of –0.5 to -0.8 volts (v.s CSE)<br />
Reference: <strong>API</strong>-651, Paragraph 6.2.1 and Table 3 ANS:D<br />
Q5. The most common metals used as galvanic anodes in soil are:<br />
a) Lead and copper<br />
b) Aluminum alloy (5% zinc) and Mild steel (clean and shiny)<br />
c) Magnesium and zinc<br />
d) Mild steel in concrete and cast iron<br />
Reference: <strong>API</strong>-651, Paragraph 6.2.1 ANS: C<br />
Charlie Chong/ Fion Zhang
Q6. Of the following, which is not an advantage of galvanic cathodic<br />
protection systems?<br />
a) No external power is needed<br />
b) Capital investment is low for small-diameter tanks<br />
c) Method is limited to use in low-resistivity soils<br />
d) Interference problems (stray currents) are rare<br />
Reference: <strong>API</strong>-651, Paragraph 6.2.2 ANS: C<br />
Q7. Impressed current cathodic protection systems use:<br />
a) Alternating current<br />
b) Direct current usually provided by a rectifier<br />
c) Direct current usually provided by a dry cell battery<br />
d) Either direct current or alternating current depending upon which is<br />
available<br />
Reference: <strong>API</strong>-651, Paragraph 6.3.1 ANS: B<br />
Charlie Chong/ Fion Zhang
Q8. Of the following, which is not a disadvantage of impressed current<br />
cathodic protection systems?<br />
a) High current output<br />
b) High maintenance costs<br />
c) High operating costs<br />
d) High capital cost for small installations<br />
Reference: <strong>API</strong>-651, Paragraph 6.3.3 ANS: A<br />
Q9. A cathodic protection rectifier has two major components; what are they?<br />
a) A step-down transformer to reduce the AC supply voltage and rectifying<br />
elements to convert DC to AC output<br />
b) A step-down transformer to reduce the AC supply voltage and rectifying<br />
elements to convert AC to DC output<br />
c) A step-down transformer to reduce the DC supply voltage and rectifying<br />
elements to convert DC to AC output<br />
d) A step-down transformer to reduce the AC supply voltage and rectifying<br />
elements to regulate the AC output<br />
Reference: <strong>API</strong>-651, Paragraph 6.3.3 ANS: B<br />
Charlie Chong/ Fion Zhang
Q10. Impressed current anodes used in soil are not made of:<br />
a) Graphite<br />
b) High silicon cast iron<br />
c) Zinc<br />
d) Mixed metal oxides on titanium<br />
Reference: <strong>API</strong>-651, Paragraph 6.3.5 ANS: C<br />
Q11. Impressed current anodes may be installed underneath the tank.<br />
a) True<br />
b) False<br />
Reference: <strong>API</strong>-651, Paragraph 6.3.5 ANS: A<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-651 Section 6, Methods of Cathodic Protection for<br />
Corrosion Control<br />
Charlie Chong/ Fion Zhang
Section 8 – Criteria for Cathodic Protection<br />
Q1. <strong>API</strong>-651 provides criteria for determining the adequacy of cathodic<br />
protection of aboveground storage tanks. What document is referenced for a<br />
more detailed description?<br />
a) ASME Section V, Nondestructive Examination<br />
b) <strong>API</strong>-Standard 650, Welded Steel Tanks for Oil Storage<br />
c) <strong>API</strong>-Standard 653, Tank Inspection, Repair, Alteration, and Reconstruction<br />
d) NACE RP-01-69<br />
Reference: <strong>API</strong>-651, Paragraph 8.2.1 ANS: D<br />
8.2 Protection Criteria<br />
8.2.1 There are several criteria used to determine if adequate cathodic<br />
protection has been achieved on aboveground storage tanks. For a more<br />
detailed description, refer to the latest edition of NACE RP0193.<br />
Charlie Chong/ Fion Zhang
NACE RP0193-2001 Standard Recommended Practice - External Cathodic<br />
Protection of On-Grade Metallic Storage Tank Bottoms.<br />
NACE RP0169-2002 Control of External Corrosion on Underground or<br />
Submerged Metallic Piping Systems.<br />
Charlie Chong/ Fion Zhang
Q2. In determining if adequate cathodic protection is being achieved, which of<br />
the following would be correct?<br />
a) A negative (cathodic) potential of at least 850 mV with cathodic current<br />
applied<br />
b) A positive (cathodic) potential of at least 850 mV with cathodic current<br />
applied<br />
c) A negative (cathodic) potential of at least 85.0 mV with cathodic current<br />
applied<br />
d) A positive (cathodic) potential of at least 85.0 mV with cathodic current<br />
applied<br />
Reference: <strong>API</strong>-651, Paragraph 8.2.2.1 ANS: A<br />
Charlie Chong/ Fion Zhang
Q3. How must the required negative potential be measured?<br />
a) This potential shall be measured with respect to a saturated copper/copper<br />
sulfate reference electrode (CSE) contacting the metal tank bottom<br />
b) This potential shall be measured with respect to a saturated copper/copper<br />
sulfate reference electrode (CSE) contacting the electrolyte<br />
c) This potential shall be measured with respect to a saturated copper/copper<br />
sulfate reference electrode (CSE) contacting the metal casing of the<br />
rectifier<br />
d) This potential shall be measured with respect to a saturated copper/copper<br />
sulfate reference electrode (CSE) contacting the positive terminal of the<br />
power source<br />
Reference: <strong>API</strong>-651, Paragraph 8.2.2.1 ANS: B<br />
Charlie Chong/ Fion Zhang
Q4. In determining if adequate cathodic protection is being achieved, which of<br />
the following would be correct?<br />
a) Negative polarized potential of at least 8.50 mV relative to a CSE<br />
b) Negative polarized potential of at least 85.0 mV relative to a CSE<br />
c) Negative polarized potential of at least 850 mV relative to a CSE<br />
d) Negative polarized potential of at least .850 mV relative to a CSE<br />
Reference: <strong>API</strong>-651, Paragraph 8.2.2.2 ANS: C<br />
Q5. Name a common method of measuring polarized potential.<br />
a) Measuring the distance between the tank bottom and the anode<br />
b) Measuring the AC current relative to the DC current<br />
c) Using the “instant on” method<br />
d) Using the “instant off” method<br />
Reference: <strong>API</strong>-651, Paragraph 8.2.2.2 ANS: D<br />
Charlie Chong/ Fion Zhang
Q6. In determining if adequate cathodic protection is being achieved, which of<br />
the following would be correct?<br />
a) A minimum of 1000 mV of cathodic polarization measured between the<br />
tank bottom metallic surface and a standard reference electrode<br />
contacting the electrolyte<br />
b) A minimum of 850 mV of cathodic polarization measured between the tank<br />
bottom metallic surface and a standard reference electrode contacting the<br />
electrolyte<br />
c) A minimum of 100 mV of cathodic polarization measured between the tank<br />
bottom metallic surface and a standard reference electrode contacting the<br />
electrolyte<br />
d) A minimum of -0.85 mV of cathodic polarization measured between the<br />
tank bottom metallic surface and a standard reference electrode<br />
contacting the electrolyte<br />
Reference: <strong>API</strong>-651, Paragraph 8.2.2.3 ANS: C<br />
Charlie Chong/ Fion Zhang
Q7. The standard method of determining the effectiveness of cathodic<br />
protection on a tank bottom is the __________ measurement<br />
a) Resistivity<br />
b) DC current<br />
c) Tank-to-soil<br />
d) Interference current<br />
Reference: <strong>API</strong>-651, Paragraph 8.3.1 ANS: C<br />
Charlie Chong/ Fion Zhang
Q8. How is the tank-to-soil potential measurement performed?<br />
a) This measurement is performed using a low-impedance voltmeter and a<br />
stable, reproducible reference electrode contacting the electrolyte<br />
b) This measurement is performed using a high-impedance voltmeter and a<br />
stable, regenerative reference electrode contacting the electrolyte<br />
c) This measurement is performed using a high-impedance voltmeter and a<br />
stable, reproducible reference electrode contacting the electrolyte<br />
d) This measurement is performed using a high-impedance voltmeter and an<br />
unstable, non-reproducible reference electrode contacting the electrolyte<br />
Reference: <strong>API</strong>-651, Paragraph 8.3.1 ANS: C<br />
Charlie Chong/ Fion Zhang
Q9. Tank-to-soil potential measurements are typically taken with current<br />
applied; however, corrections for ______ in the soil must be made.<br />
a) IW drop(s)<br />
b) IR drop(s)<br />
c) ER drop(s)<br />
d) IE drop(s)<br />
Reference: <strong>API</strong>-651, Paragraph 8.3.2 ANS: B<br />
Q10. Correction for IR drop in the soil is often necessary for measurements<br />
made at the tank perimeter even if the reference electrode is placed<br />
immediately adjacent to the tank. This is especially true if ______ is/are close<br />
to the tank.<br />
a) Distributed anodes<br />
b) The cathodic protection power supply rectifier<br />
c) The sacrificial anode<br />
d) The DC power supply (battery)<br />
Reference: <strong>API</strong>-651, Paragraph 8.3.2 ANS: A<br />
Charlie Chong/ Fion Zhang
Q11. Monitoring the actual structure-to-soil potential under the tank should be<br />
considered. How can this be accomplished?<br />
a) Permanently installed reference electrode or by burying reference<br />
electrode every 20 feet around the perimeter of the tank<br />
b) Inserting a reference electrode under the tank through a perforated tube or<br />
attaching a reference electrode to the tank shell<br />
c) Permanently installed reference electrode or by inserting a reference<br />
electrode under the tank through a perforated tube<br />
d) Permanently installed bare copper wire connected to the tank bottom or by<br />
inserting a reference electrode under the tank through a perforated tube<br />
Reference: <strong>API</strong>-651, Paragraph 8.3.4 ANS: C<br />
Charlie Chong/ Fion Zhang
Q12. Other standard reference electrodes may be substituted for the<br />
saturated copper/copper sulfate reference electrode. Which of the following is<br />
not a common substitute?<br />
a) Reference electrode ➪ Zinc, Voltage ➪ +0.25<br />
b) Reference electrode ➪ Saturated KCI calomel Voltage ➪ -0.78<br />
c) Reference electrode ➪ Silver/silver chloride Voltage ➪ -0.80<br />
d) Reference electrode ➪ Aluminum alloy (5% zinc) Voltage ➪ +0.08<br />
Reference: <strong>API</strong>-651, Paragraph 8.4 and Table 4 ANS: D<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-651 Section 8, Criteria for Cathodic Protection<br />
Charlie Chong/ Fion Zhang
Section 11 – Operation and Maintenance of Cathodic<br />
Protection Systems<br />
Q1. Why is it important to conduct potential surveys when there is an adequate<br />
liquid level in a tank?<br />
a) Bottom-to-electrolyte potential readings may indicate adequate protection for<br />
the portion of the tank in contact with the soil but when the tank is full and all<br />
of the bottom is in contact, protection may not be sufficient<br />
b) Bottom-to- anode potential readings may indicate adequate protection for the<br />
portion of the tank in contact with the soil but when the tank is full and all of<br />
the bottom is in contact, protection may not be sufficient<br />
c) Bottom-to-cathode potential readings may indicate adequate protection for the<br />
portion of the tank in contact with the soil but when the tank is full and all of<br />
the bottom is in contact, protection may not be sufficient<br />
d) Bottom-to-electrolyte potential readings may indicate adequate protection for<br />
the portion of the tank in contact with the soil but when the tank is full and all<br />
of the bottom is in contact, protection may be far more than necessary<br />
Reference: <strong>API</strong>-651, Paragraph 11.1.3 ANS: A<br />
Charlie Chong/ Fion Zhang
Q2. Measurements of the native structure-to-soil potential should be made<br />
___.<br />
a) Immediately after any cathodic protection system is energized (?)<br />
b) Within two days after any cathodic protection system is energized<br />
c) Within 6 months after any cathodic protection system is energized<br />
d) Prior to energizing a new cathodic protection system<br />
Reference: <strong>API</strong>-651, Paragraph 11.3.1 ANS: D<br />
Q3. After a system has been energized, it may take _____ for polarization to<br />
a steady state to<br />
take place.<br />
a) Two and a half years<br />
b) One year<br />
c) Several months<br />
d) Fifteen minutes<br />
Reference: <strong>API</strong>-651, Paragraph 11.3.1 ANS: C<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>651: 11.3 Cathodic Protection Surveys<br />
11.3.1 General<br />
11.3.1.1 Prior to energizing a new cathodic protection system, measurements<br />
of the native structure-to-soil potential should be made. Immediately after any<br />
cathodic protection system is energized or repaired, a survey should be<br />
conducted to determine that it operates properly. An initial survey to verify<br />
that it satisfies applicable criteria should be conducted after adequate<br />
polarization has occurred. (?) Polarization to a steady state may take several<br />
months after the system is energized.<br />
Keywords:<br />
■ after adequate polarization has occurred.<br />
■ Immediately after any cathodic protection system is energized or repaired,<br />
Charlie Chong/ Fion Zhang
Q4. To ensure the effectiveness of cathodic protection, how often should<br />
cathodic protection surveys be taken?<br />
a) Every two years<br />
b) Annually<br />
c) Bi-annually<br />
d) Quarterly<br />
Reference: <strong>API</strong>-651, Paragraph 11.3.2 ANS: B<br />
Q5. How often should all sources of impressed current be checked?<br />
a) At intervals not exceeding two years<br />
b) At intervals not exceeding one year<br />
c) At intervals not exceeding two months<br />
d) At intervals not exceeding two weeks<br />
Reference: <strong>API</strong>-651, Paragraph 11.3.3.1ANS: C<br />
Charlie Chong/ Fion Zhang
11.3.2 Inspection, Testing, and Maintenance of Cathodic Protection<br />
Facilities<br />
11.3.2.1 Inspection and tests of cathodic protection facilities should be made<br />
to ensure their proper operation and maintenance.<br />
11.3.2.2 All sources of impressed current should be checked at intervals not<br />
exceeding two months unless specified otherwise by regulation. Evidence of<br />
proper function may be current output, normal power consumption, a signal<br />
indicating normal operation, or satisfactory electrical state of the protected<br />
structure. A satisfactory comparison between the rectifier operation on a<br />
bimonthly basis and the rectifier operation during the annual survey implies<br />
the protected status of affected structures is similar. This does not take into<br />
account possible effects of foreign current sources.<br />
Charlie Chong/ Fion Zhang
Q6. Tank bottoms shall be examined for evidence of corrosion at least once<br />
each year by conducting an internal inspection and taking coupon cutouts.<br />
a) True<br />
b) False<br />
Reference: <strong>API</strong>-651, Paragraph 11.3.3.4 ANS: B<br />
Q7. Records to demonstrate the need for corrosion control measures should<br />
be retained for<br />
a) 5 years<br />
b) 10 years<br />
c) 15 years<br />
d) As long as the facility remains in service<br />
Reference: <strong>API</strong>-651, Paragraph 11.4.7 ANS: D<br />
Charlie Chong/ Fion Zhang
Q8. Records related to the effectiveness of cathodic protection should be<br />
retained for a ______ period unless a shorter period is specifically<br />
permitted by regulation<br />
a) 5 years<br />
b) 10 years<br />
c) 15 years<br />
d) As long as the facility remains in service<br />
Reference: <strong>API</strong>-651, Paragraph 11.4.7 ANS: A<br />
<strong>API</strong>651:11.4.7<br />
• Records sufficient to demonstrate the need for corrosion control measures<br />
should be retained as long as the facility involved remains in service.<br />
• Records related to the effectiveness of cathodic protection should be<br />
retained for a period of five years unless a shorter period is specifically<br />
allowed by regulation.<br />
Charlie Chong/ Fion Zhang
<strong>API</strong>651:11.4.7<br />
• Records sufficient to demonstrate the need for corrosion control measures<br />
should be retained as long as the facility involved remains in service.<br />
• Records related to the effectiveness of cathodic protection should be<br />
retained for a period of five years unless a shorter period is specifically<br />
allowed by regulation.<br />
Charlie Chong/ Fion Zhang
Answers to <strong>API</strong>-651 Section 11,<br />
Operation and Maintenance of Cathodic Protection Systems<br />
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang
ANS: ANS:<br />
Charlie Chong/ Fion Zhang
ANS: ANS:<br />
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang
Charlie Chong/ Fion Zhang
Good Luck!<br />
Charlie Chong/ Fion Zhang
Good Luck!<br />
Charlie Chong/ Fion Zhang
