®<br />
Bitronics D/3 Orion ®<br />
Bitronics D/3 Orion<br />
<strong>Modbus</strong> <strong>Plus</strong> <strong>to</strong> <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong><br />
<strong>Modbus</strong> <strong>Plus</strong> <strong>to</strong> <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong><br />
OrionLX Interface Application<br />

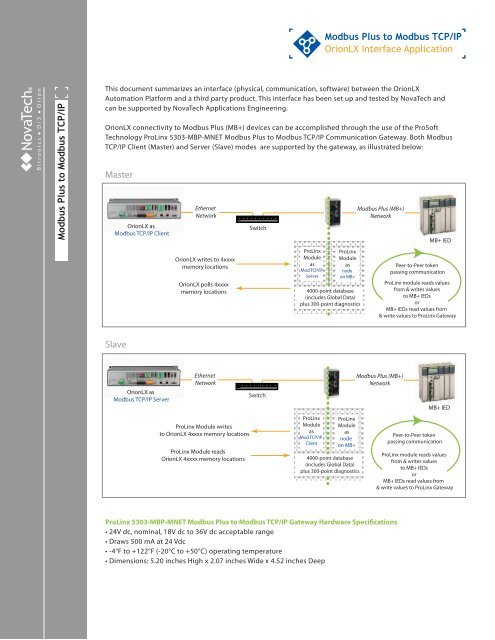

This document summarizes an interface (physical, communication, software) between the OrionLX<br />
Au<strong>to</strong>mation Platform and a third party product. This interface has been set up and tested by NovaTech and<br />
can be supported by NovaTech Applications Engineering.<br />
OrionLX connectivity <strong>to</strong> <strong>Modbus</strong> <strong>Plus</strong> (MB+) devices can be accomplished through the use of the ProSoft<br />
Technology ProLinx 5303-MBP-MNET <strong>Modbus</strong> <strong>Plus</strong> <strong>to</strong> <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> Communication Gateway. Both <strong>Modbus</strong><br />
<strong>TCP</strong>/<strong>IP</strong> Client (Master) and Server (Slave) modes are supported by the gateway, as illustrated below:<br />
Master<br />
OrionLX as<br />
<strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> Client<br />
Slave<br />
OrionLX as<br />
<strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> Server<br />
Ethernet<br />
Network<br />
OrionLX writes <strong>to</strong> 4xxxx<br />
memory locations<br />
OrionLX polls 4xxxx<br />
memory locations<br />
Ethernet<br />
Network<br />
ProLinx Module writes<br />
<strong>to</strong> OrionLX 4xxxx memory locations<br />
ProLinx Module reads<br />
OrionLX 4xxxx memory locations<br />
Switch<br />
Switch<br />
ProLinx<br />
Module<br />
as<br />
Mod <strong>TCP</strong>/<strong>IP</strong><br />
Server<br />
ProLinx<br />
Module<br />
as<br />
Mod <strong>TCP</strong>/<strong>IP</strong><br />
Client<br />
ProLinx<br />
Module<br />
as<br />
node<br />
on MB+<br />
4000-point database<br />
(includes Global Data)<br />
plus 300-point diagnostics<br />
ProLinx<br />
Module<br />
as<br />
node<br />
on MB+<br />
4000-point database<br />
(includes Global Data)<br />
plus 300-point diagnostics<br />
<strong>Modbus</strong> <strong>Plus</strong> (MB+)<br />
Network<br />
<strong>Modbus</strong> <strong>Plus</strong> (MB+)<br />
Network<br />
ProLinx 5303-MBP-MNET <strong>Modbus</strong> <strong>Plus</strong> <strong>to</strong> <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> Gateway Hardware Specifi cations<br />
• 24V dc, nominal, 18V dc <strong>to</strong> 36V dc acceptable range<br />
• Draws 500 mA at 24 Vdc<br />
• -4°F <strong>to</strong> +122°F (-20°C <strong>to</strong> +50°C) operating temperature<br />
• Dimensions: 5.20 inches High x 2.07 inches Wide x 4.52 inches Deep<br />
MB+ IED<br />
Peer-<strong>to</strong>-Peer <strong>to</strong>ken<br />
passing communication<br />
ProLinx module reads values<br />
from & writes values<br />
<strong>to</strong> MB+ IEDs<br />
or<br />
MB+ IEDs read values from<br />
& write values <strong>to</strong> ProLinx Gateway<br />
MB+ IED<br />
Peer-<strong>to</strong>-Peer <strong>to</strong>ken<br />
passing communication<br />
ProLinx module reads values<br />
from & writes values<br />
<strong>to</strong> MB+ IEDs<br />
or<br />
MB+ IEDs read values from<br />
& write values <strong>to</strong> ProLinx Gateway
®<br />
Bitronics D/3 Orion ®<br />
Bitronics D/3 Orion<br />
The ProLinx module provides:<br />
Copyright © 2010 NovaTech, LLC. All rights reserved. All brand<br />
and product names mentioned in this document are trademarks<br />
of their respective owners. NovaTech is a registered trademark<br />
of NovaTech, LLC. The information in this literature is subject <strong>to</strong><br />
change without notice and is not <strong>to</strong> be construed as a warranty.<br />
IA_<strong>Modbus</strong><strong>Plus</strong><strong>to</strong><strong>Modbus</strong><strong>TCP</strong><strong>IP</strong>_112310<br />
Contact:<br />
<strong>Modbus</strong> <strong>Plus</strong> <strong>to</strong> <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong><br />
OrionLX Interface Application<br />
One serial configuration port for upload and download<br />
One RJ45 Ethernet port with <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> Ethernet<br />
pro<strong>to</strong>col (MBAP on Service Port 502; Encapsulated<br />
<strong>Modbus</strong> on Service Port 2000)<br />
Dual <strong>Modbus</strong> <strong>Plus</strong> ports (ports are hardware-redundant,<br />
not independently configurable.)<br />
ProLinx #5303-MBP-MNET Pro<strong>to</strong>col Support<br />
<strong>Modbus</strong> <strong>Plus</strong><br />
• 64 nodes supported with up <strong>to</strong> 5 route path entries per node<br />
• Global In data supported<br />
- 64 nodes with 32 16-bit 4x registers maximum per node<br />
• Global Out data supported<br />
- Up <strong>to</strong> 32 16-bit 4x registers maximum output from the gateway node<br />
• Supports reading and writing only 4x Holding Registers (<strong>Modbus</strong> Function Codes 3 & 16)<br />
Please note: Bit reads and writes are not supported in the current <strong>Modbus</strong> <strong>Plus</strong> driver.<br />
<strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> – Supports Client (Master) and Server (Slave) functions<br />
• Supports Function Codes 1, 2, 3, 4, 5, 6, 15, & 16; for binary and word reads and writes<br />
• Simultaneously supports up <strong>to</strong> 5 Servers on Service Port 502 and up <strong>to</strong> 5 Servers on Service Port 2000<br />
• Offers one Client with up <strong>to</strong> 200 configurable commands <strong>to</strong> poll other Servers on the <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> network;<br />
may mix commands <strong>to</strong> Service Port 502 or 2000<br />
Application Notes<br />
- Data is exchanged between networks by reading from, writing <strong>to</strong>, and s<strong>to</strong>ring in the gateway’s memory<br />
database, which holds 4000 16-bit words of user application data.<br />
- Requires configuration and record-keeping <strong>to</strong> cross-map <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> and <strong>Modbus</strong> <strong>Plus</strong>.<br />
- “Industrial” ratings: 24V dc powered and -40F <strong>to</strong> +1220F operating temperature.<br />
Ordering<br />
The ProLinx 5303-MBP-MNET <strong>Modbus</strong> <strong>Plus</strong> <strong>to</strong> <strong>Modbus</strong> <strong>TCP</strong>/<strong>IP</strong> Gateway can be ordered from NovaTech<br />
in Lenexa, Kansas at (913)451-1880 or from a ProSoft distribu<strong>to</strong>r (www.prosoft-technology.com). The<br />
material in this document was obtained from the latest ProSoft documentation. For more information<br />
please contact ProSoft at (661)716-5100.<br />
NovaTech, LLC<br />
Orion Utility Au<strong>to</strong>mation<br />
13555 West 107th Street<br />
Lenexa, KS 66215<br />
T: 913.451.1880<br />
F: 913.451.2845<br />
E: sales@novatech-llc.com<br />
www.novatechweb.com<br />
