Metering Valves FITOK EN
Available @ https://fitok.ch and https://schalcher-engineering.ch
FITOK Group has been an industry-leading developer and manufacturer of superior quality instrumentation valves and fittings. We have the capability to manufacture and supply 5 different product categories, including:
■ General Instrumentation Valves and Fittings
■ Medium & High Pressure Valves and Fittings
■ High Purity & Ultra High Purity Products
■ Sampling Systems
■ Tubing
Our mission is to provide the best quality products and the most professional services to our customers. The performance of our products is guaranteed during the whole manufacturing cycle from our employment of customized materials which should be controlled more strictly than just according to ASTM requirements to our implementation of production and testing exceeding the industry standards.
Since our inception, FITOK has been applying sound quality control standards in all activities. FITOK is an ISO 9001 :2015 certified company and our products have been certified by different industry authorities and third-party inspection institutions in different countries to have obtained a variety of certificates, among which there are the TA-Luft, ABS, ASTM F1387, ISO15848, TPED, E-Mark, CRN, DVGW, PED, API and DOT certificates.
Benefiting from our global facilities, we are able to optimize the most cost-effective resources worldwide. Paired with flexible manufacturing systems, we deliver a wide range of the best quality products within a competitive lead time and the most professional services to our customers in an array of applications and industries.
- No tags were found...
You also want an ePaper? Increase the reach of your titles
YUMPU automatically turns print PDFs into web optimized ePapers that Google loves.

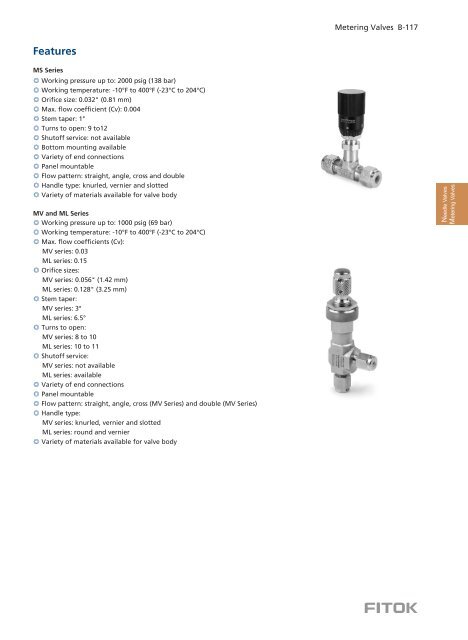

<strong>Metering</strong> <strong>Valves</strong> B-117<br />
Features<br />
MS Series<br />
◎ Working pressure up to: 2000 psig (138 bar)<br />
◎ Working temperature: -10° F to 400° F (-23° C to 204°<br />
C)<br />
◎ Orifice size: 0.032" (0.81 mm)<br />
◎ Max. flow coefficient (Cv): 0.004<br />
◎ Stem taper: 1°<br />
◎ Turns to open: 9 to12<br />
◎ Shutoff service: not available<br />
◎ Bottom mounting available<br />
◎ Variety of end connections<br />
◎ Panel mountable<br />
◎ Flow pattern: straight, angle, cross and double<br />
◎ Handle type: knurled, vernier and slotted<br />
◎ Variety of materials available for valve body<br />
MV and ML Series<br />
◎ Working pressure up to: 1000 psig (69 bar)<br />
◎ Working temperature: -10° F to 400° F (-23° C to 204°<br />
C)<br />
◎ Max. flow coefficients (Cv):<br />
MV series: 0.03<br />
ML series: 0.15<br />
◎ Orifice sizes:<br />
MV series: 0.056" (1.42 mm)<br />
ML series: 0.128" (3.25 mm)<br />
◎ Stem taper:<br />
MV series: 3°<br />
ML series: 6.5°<br />
◎ Turns to open:<br />
MV series: 8 to 10<br />
ML series: 10 to 11<br />
◎ Shutoff service:<br />
MV series: not available<br />
ML series: available<br />
◎ Variety of end connections<br />
◎ Panel mountable<br />
◎ Flow pattern: straight, angle, cross (MV Series) and double (MV Series)<br />
◎ Handle type:<br />
MV series: knurled, vernier and slotted<br />
ML series: round and vernier<br />
◎ Variety of materials available for valve body<br />
Needle <strong>Valves</strong><br />
<strong>Metering</strong> <strong>Valves</strong>
