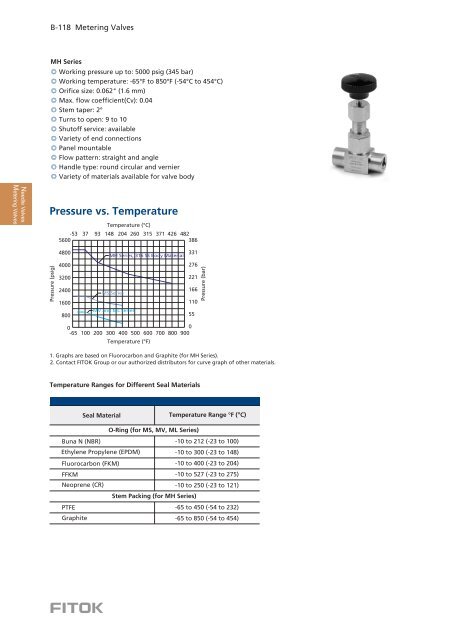

B-118 <strong>Metering</strong> <strong>Valves</strong><br />
MH Series<br />
◎ Working pressure up to: 5000 psig (345 bar)<br />
◎ Working temperature: -65° F to 850° F (-54° C to 454°<br />
C)<br />
◎ Orifice size: 0.062" (1.6 mm)<br />
◎ Max. flow coefficient(Cv): 0.04<br />
◎ Stem taper: 2°<br />
◎ Turns to open: 9 to 10<br />
◎ Shutoff service: available<br />
◎ Variety of end connections<br />
◎ Panel mountable<br />
◎ Flow pattern: straight and angle<br />
◎ Handle type: round circular and vernier<br />
◎ Variety of materials available for valve body<br />
Needle <strong>Valves</strong><br />
<strong>Metering</strong> <strong>Valves</strong><br />
Pressure vs. Temperature<br />
Pressure (psig)<br />
Temperature (°C)<br />
-53 37 93 148 204 260 315 371 426 482<br />
5600<br />
386<br />
4800<br />
331<br />
MH Series, 316 SS Body Material<br />
4000<br />
276<br />
3200<br />
221<br />
2400<br />
166<br />
MS Series<br />
1600<br />
110<br />
MV and ML Series<br />
800<br />
55<br />
0 0<br />
-65 100 200 300 400 500 600 700 800 900<br />
Pressure (bar)<br />
Temperature (°F)<br />
1. Graphs are based on Fluorocarbon and Graphite (for MH Series).<br />
2. Contact <strong>FITOK</strong> Group or our authorized d istributors for curve graph of other materials.<br />
Temperature Ranges for Different Seal Materials<br />
Seal Material<br />
Temperature Range °F ( ° C)<br />
O-Ring (for MS, MV, ML Series)<br />
Buna N ( NBR)<br />
Ethylene Propylene (EPDM)<br />
Fluorocarbon (FKM)<br />
-10 to 212 (-23 to 100)<br />
-10 to 300 (-23 to 148)<br />
-10 to 400 (-23 to 204)<br />
FFKM<br />
Neoprene (CR)<br />
PTFE<br />
Graphite<br />
-10 to 527 (-23 to 275)<br />
-10 to 250 (-23 to 121)<br />
Stem Packing (for MH Series)<br />
-65 to 450 (-54 to 232)<br />
-65 to 850 (-54 to 454)
