Welding Helmet ACE Code Technical Features Cartridge dimensions mm Lens dimensions mm Switching speed Shade density Sensitivity Dark to light Delay time Optical Sensor Lens visual angle Operating temperature Storage temperature Power supply / Weight ACE La maschera ACE ha una lente con area superiore del 30% a quelle standard. Eccellente visibilità a schermo chiaro. La nuova tecnologia della lente Ace è in grado di reagire anche in arco <strong>TIG</strong> in basso amperaggio. Include il sistema di inserimento lente graduata. I 4 sensori d’arco indipendenti assicurano la sensibilità dell’arco necessaria per le condizio- ni di lavoro piu’ impegnative. Il tempo di oscurameto dello schermo è di 1/20,000 secondi. La maschera ha un aziona- mento a spinta (brevettato) per facilitare la regolazione con una mano sola. The ACE mask has lens with a 30% larger viewing area than the standard ones. Ultra clear light state viewing capability is unsurpassed. The new ACE lens technology responds to extremely low DC inverter <strong>TIG</strong> arcs (5 ampers and below). Includes built-in magnifying-lens holding system. The 4 indipendent arc sensors provide continuous arc-sen- sing capability for demanding application. The lens darkening reaction time is 1/20,000 sec. The mask has a push control (patented) to get easier the adjustment with only one hand. Description SI062MA 132X115X10 97X60 Light to Dark 0,05 mS Dark state: #9 ~ #13 – Light state: #4 HI: sensitive LO:insensitive Dark to light: 0.1 ~ 1.0 sec 4 sensors Improving the visual angle of the lens -5°C ~ +55°C -20°C ~ +80°C replaceable battery with solar assist (CR2450, 3V lithium battery) 100 g

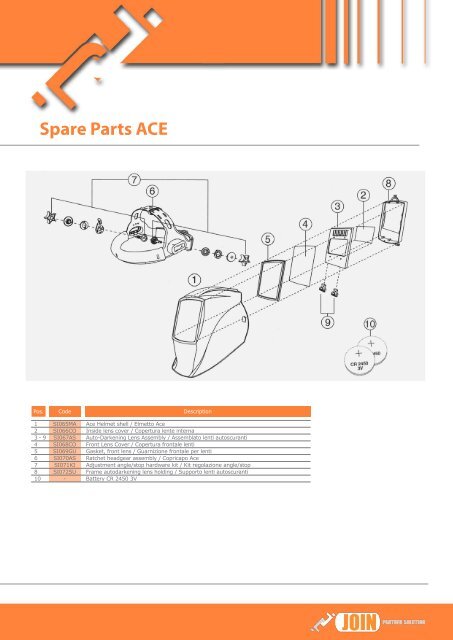

Spare Parts ACE Pos. Code Description 1 SI065MA Ace Helmet shell / Elmetto Ace 2 SI066CO Inside lens cover / Copertura lente interna 3 - 9 SI067AS Auto-Darkening Lens Assembly / Assemblato lenti autoscuranti 4 SI068CO Front Lens Cover / Copertura frontale lenti 5 SI069GU Gasket, front lens / Guarnizione frontale per lenti 6 SI070AS Ratchet headgear assembly / Copricapo Ace 7 SI071KI Adjustment angle/stop hardware kit / Kit regolazione angle/stop 8 SI072SU Frame autodarkening lens holding / Supporto lenti autoscuranti 10 - Battery CR 2450 3V
Page 1: Date: 23/04/09 Rev. 03
Page 4 and 5: J-ARC 140 / J-ARC 160 Sono saldatri
Page 6 and 7: J-TIG 185P AC/DC / J-TIG 300P AC/DC
Page 8 and 9: J-CUT 40 / J-CUT 70 Sono macchine d
Page 10 and 11: NOTE ______________________________
Page 12 and 13: Code Tension Class MIG/MAG Welding
Page 14 and 15: TIG Welding Torches Code Tension Cl
Page 16 and 17: TIG Welding Torches Code Tension Cl
Page 18 and 19: Welding Helmet LAX Code Technical F
Page 22 and 23: DIN 9 WELDING MASK FILTER GLASSES D
