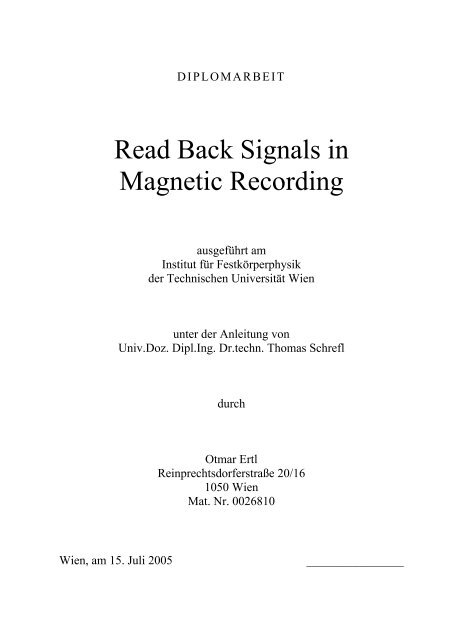

DIPLOMARBEIT<br />
<strong>Read</strong> <strong>Back</strong> <strong>Signals</strong> <strong>in</strong><br />
<strong>Magnetic</strong> Record<strong>in</strong>g<br />
ausgeführt am<br />
Institut für Festkörperphysik<br />
der Technischen Universität Wien<br />
unter der Anleitung von<br />
Univ.Doz. Dipl.Ing. Dr.techn. Thomas Schrefl<br />
durch<br />
Otmar Ertl<br />
Re<strong>in</strong>prechtsdorferstraße 20/16<br />
1050 Wien<br />
Mat. Nr. 0026810<br />
Wien, am 15. Juli 2005 ________________
Kurzfassung<br />
Diese Arbeit widmet sich der Berechnung des <strong>Signals</strong> von Leseköpfen, wie sie <strong>in</strong><br />
herkömmlichen Festplatten Verwendung f<strong>in</strong>den. Dabei wird zuerst auf analytische Methoden<br />
zurückgegriffen, die es erlauben, den Verlauf des <strong>Signals</strong> für e<strong>in</strong> vere<strong>in</strong>fachtes 2-<br />
dimensionales Modell zu ermitteln. Insbesondere wird das Reziprozitätstheorem verwendet.<br />
Der Großteil dieser Arbeit beschäftigt sich dann mit der Simulation des Lesevorgangs mittels<br />
der Methode der f<strong>in</strong>iten Elemente. Dabei wird die Landau-Lifshitz-Gilbert Gleichung gelöst,<br />
die das dynamische mikromagnetische Verhalten e<strong>in</strong>es magnetischen Modells beschreibt. Um<br />
die Auswirkungen des Sensorstroms auf den Lesekopf zu berücksichtigen, muss die<br />
Stromverteilung für <strong>in</strong>homogene Leiter berechnet werden. Da es sich bei e<strong>in</strong>em modernen<br />
Lesekopf um e<strong>in</strong>en magnetoresistiven Sensor handelt, hängt die Leitfähigkeit von der<br />
Magnetisierung des Lesekopfes ab. Die berechnete Stromverteilung erzeugt wiederum e<strong>in</strong><br />
Magnetfeld, das auf die Magnetisierung des Lesekopfs e<strong>in</strong>wirkt. Die programmtechnische<br />
Umsetzung und die Realisierung solcher Simulationen von Leseköpfen waren die primären<br />
Ziele dieser Diplomarbeit.<br />
Im letzten Teil dieser Arbeit wird anhand e<strong>in</strong>es 3-dimensionalen Modells e<strong>in</strong>es Lesekopfes<br />
die Funktionalität des Computerprogramms erprobt. Es werden der Gleichgewichtszustand,<br />
die Sensorkennl<strong>in</strong>ie und das Relaxationsverhalten berechnet. Weiters wird der E<strong>in</strong>fluss der<br />
magnetischen Schilde des Lesekopfes untersucht. Zum Schluss wird das Lesesignal von<br />
perfekten magnetischen Übergängen beziehungsweise von periodischen Bitmustern bestimmt.<br />
Mit dem im Zuge der Diplomarbeit erstellten Computerprogramm ist e<strong>in</strong> Werkzeug<br />
geschaffen worden, das die komplette Simulation des Lesevorganges, und auch die<br />
Entwicklung von Leseköpfen am Computer erlaubt. Dabei können die dynamischen und<br />
statischen Eigenschaften von Leseköpfen bestimmt werden.<br />
2
Abstract<br />
This thesis concentrates on calculat<strong>in</strong>g the read back signals of read heads, as used <strong>in</strong><br />
conventional hard disks. First the read back signal of a simplified 2-dimensional model is<br />
determ<strong>in</strong>ed by analytical means. Here the reciprocity pr<strong>in</strong>ciple is used.<br />
The ma<strong>in</strong> part of this work deals with the simulation of the read back process with the F<strong>in</strong>ite<br />
Element Method. The Landau-Lifshitz-Gilbert equation is solved, which describes the<br />
dynamic micromagnetic behavior of a magnetic model. To take effects of the sense current of<br />
the read head <strong>in</strong>to account, the current distribution for <strong>in</strong>homogeneous conductors has to be<br />
evaluated. Modern read heads use magnetoresistive effects. Thus the conductivities depend on<br />
the magnetization of the read head. The calculated current distribution generates a magnetic<br />
field, act<strong>in</strong>g on the magnetization of the read head itself. The programm<strong>in</strong>g and the<br />
implementation to make such simulations possible were the primary targets of this work.<br />
In the last part of this thesis the functionality of the program is tested with a simple 3dimensional<br />
model of a read head. The equilibrium state, the sensor curve, and the relaxation<br />
behavior are calculated. Moreover the <strong>in</strong>fluence of the magnetic shields is exam<strong>in</strong>ed. At last<br />
the read back signal is calculated for perfect transitions and for periodic bit patterns.<br />
This work resulted <strong>in</strong> a tool for simulat<strong>in</strong>g the whole read back process, which also allows the<br />
computer-based development of read heads. Furthermore the dynamic and static<br />
micromagnetic properties of read heads can be calculated.<br />
3
Contents<br />
Contents<br />
KURZFASSUNG................................................................................................................................................... 2<br />
ABSTRACT........................................................................................................................................................... 3<br />
CONTENTS........................................................................................................................................................... 4<br />
1 INTRODUCTION ....................................................................................................................................... 7<br />
2 BASICS....................................................................................................................................................... 11<br />
2.1 OHM’S LAW........................................................................................................................................ 11<br />
2.2 MAXWELL’S EQUATIONS .................................................................................................................... 11<br />
2.3 BASIC EQUATIONS OF MAGNETOSTATICS ........................................................................................... 12<br />
2.4 INHOMOGENEOUS CONDUCTORS......................................................................................................... 14<br />
2.5 GIBBS’ FREE ENERGY ......................................................................................................................... 15<br />
2.5.1 Magnetostatic Energy.................................................................................................................... 16<br />
2.5.2 Stray Field Energy......................................................................................................................... 16<br />
2.5.3 Exchange Energy........................................................................................................................... 16<br />
2.5.4 Magnetocrystall<strong>in</strong>e Anisotropy Energy ......................................................................................... 17<br />
2.6 EFFECTIVE FIELD ................................................................................................................................ 18<br />
2.7 LANDAU-LIFSHITZ-GILBERT EQUATION ............................................................................................. 18<br />
2.8 MAGNETORESISTANCE........................................................................................................................ 20<br />
2.8.1 Magnetoresistance of Ferromagnets............................................................................................. 20<br />
2.8.2 Anisotropic Magnetoresistance Effect........................................................................................... 21<br />
2.8.3 Giant Magnetoresistance Effect .................................................................................................... 22<br />
2.8.4 Tunnel<strong>in</strong>g Magnetoresistive Effect ................................................................................................ 26<br />
2.9 RECORDING SCHEMES......................................................................................................................... 26<br />
2.9.1 Longitud<strong>in</strong>al Record<strong>in</strong>g................................................................................................................. 27<br />
2.9.2 Perpendicular Record<strong>in</strong>g .............................................................................................................. 27<br />
3 ANALYTICAL CALCULATIONS ......................................................................................................... 29<br />
3.1 RECIPROCITY PRINCIPLE..................................................................................................................... 29<br />
3.2 LONGITUDINAL RECORDING ............................................................................................................... 29<br />
3.2.1 Head Field..................................................................................................................................... 30<br />
3.2.2 Signal Field ................................................................................................................................... 34<br />
3.2.3 Signal of a Perfect Transition........................................................................................................ 34<br />
4
Contents<br />
3.2.4 Signal of Written Bits..................................................................................................................... 35<br />
3.3 PERPENDICULAR RECORDING ............................................................................................................. 36<br />
3.4 SIGNAL FIELD IN GAP ......................................................................................................................... 38<br />
4 NUMERICAL METHODS....................................................................................................................... 41<br />
4.1 FINITE ELEMENT METHOD.................................................................................................................. 42<br />
4.1.1 Dirichlet Boundary Conditions ..................................................................................................... 44<br />
4.1.2 Neumann Boundary Conditions..................................................................................................... 44<br />
4.1.3 L<strong>in</strong>ear equation solver................................................................................................................... 45<br />
4.2 STRAY FIELD CALCULATION............................................................................................................... 46<br />
4.3 ADAPTIVE CROSS-APPROXIMATION TECHNIQUE ................................................................................ 48<br />
4.4 CONDUCTOR MODEL .......................................................................................................................... 49<br />
4.4.1 Conductivity .................................................................................................................................. 49<br />
4.4.2 Electric Potential........................................................................................................................... 50<br />
4.4.3 Current Distribution...................................................................................................................... 50<br />
4.4.4 <strong>Magnetic</strong> Field of Current............................................................................................................. 51<br />
4.4.5 Hybrid FEM/BEM for Current Field............................................................................................. 52<br />
4.4.6 Example: Long Wire...................................................................................................................... 54<br />
4.4.7 Example: Coil................................................................................................................................ 55<br />
4.5 TIME INTEGRATION ............................................................................................................................. 57<br />
5 READ HEAD DESIGN ............................................................................................................................. 59<br />
5.1 BIAS SCHEMES.................................................................................................................................... 59<br />
5.1.1 Demagnetiz<strong>in</strong>g Factor................................................................................................................... 59<br />
5.1.2 Hard Bias ...................................................................................................................................... 60<br />
5.1.3 Exchange Bias ............................................................................................................................... 60<br />
5.1.4 Synthetic Antiferromagnet............................................................................................................. 61<br />
5.1.5 Sense Current ................................................................................................................................ 62<br />
5.1.6 Crystall<strong>in</strong>e Anisotropy................................................................................................................... 64<br />
5.2 SHIELDING .......................................................................................................................................... 64<br />
5.3 THERMAL STABILITY .......................................................................................................................... 64<br />
6 FEM SIMULATIONS............................................................................................................................... 65<br />
6.1 MODEL................................................................................................................................................ 65<br />
6.1.1 <strong>Magnetic</strong> Model............................................................................................................................. 65<br />
6.1.2 Conductor Model........................................................................................................................... 67<br />
6.2 RESULTS ............................................................................................................................................. 69<br />
6.2.1 Equilibrium State........................................................................................................................... 69<br />
6.2.2 Transfer Curve .............................................................................................................................. 70<br />
6.2.3 Influence of Shields ....................................................................................................................... 72<br />
5
Contents<br />
6.2.4 Relaxation...................................................................................................................................... 73<br />
6.2.5 Signal of a Perfect Transition........................................................................................................ 74<br />
6.2.6 <strong>Read</strong> <strong>Back</strong> Signal........................................................................................................................... 75<br />
7 OUTLOOK................................................................................................................................................. 77<br />
APPENDIX A ...................................................................................................................................................... 78<br />
APPENDIX B ...................................................................................................................................................... 80<br />
LIST OF FIGURES ............................................................................................................................................ 83<br />
BIBLIOGRAPHY ............................................................................................................................................... 86<br />
DANKSAGUNG.................................................................................................................................................. 90<br />
LEBENSLAUF .................................................................................................................................................... 91<br />
6
Introduction<br />
1 IntroductionEquation Section 1<br />
The idea to use magnetism for record<strong>in</strong>g orig<strong>in</strong>ates from Oberl<strong>in</strong> Smith (1840-1926), an<br />
<strong>in</strong>ventor, <strong>in</strong>dustrialist, and mechanical eng<strong>in</strong>eer. His idea based on a visit to Thomas Edison’s<br />
laboratory <strong>in</strong> 1878. Lack<strong>in</strong>g time to pursue further development - it is not known whether he<br />
built a work<strong>in</strong>g device - he published a description of magnetic record<strong>in</strong>g <strong>in</strong> Electrical World,<br />
Sep. 8, 1888 [1]. Figure 1.1 shows the orig<strong>in</strong>al draw<strong>in</strong>g of Oberl<strong>in</strong> Smith. It demonstrates the<br />
basic pr<strong>in</strong>ciple of magnetic audio record<strong>in</strong>g used up to now. The audio waves are transformed<br />
by the microphone (A) <strong>in</strong>to an electrical signal and are recorded <strong>in</strong> the form of magnetization<br />
patterns on a str<strong>in</strong>g covered with iron fil<strong>in</strong>gs (C), pass<strong>in</strong>g through an electromagnet (B). To<br />
reduce noise a battery (F) supplies bias current. The str<strong>in</strong>g is moved from the supply reel (D)<br />
to the take up reel (E).<br />
Probably <strong>in</strong>spired by Oberl<strong>in</strong> Smith’s article Valdemar Poulson built the first work<strong>in</strong>g<br />
magnetic record<strong>in</strong>g device (see Figure 1.1). He used an <strong>in</strong>ductive head mov<strong>in</strong>g over a wire<br />
wrapped drum. In the follow<strong>in</strong>g decades a lot of improvements were <strong>in</strong>vented, but as<br />
<strong>in</strong>formation carrier ma<strong>in</strong>ly wire wrapped drums were used. Later tapes coated with magnetic<br />
powder replaced them.<br />
Figure 1.1: The orig<strong>in</strong>al draw<strong>in</strong>g of Oberl<strong>in</strong> Smith (1888) and Valdemar Poulson’s<br />
telegraphone [2].<br />
7
Introduction<br />
In the late forties and the early fifties the first comput<strong>in</strong>g mach<strong>in</strong>es where developed. To store<br />
program and data <strong>in</strong>formation punched paper cards or punched paper tapes where used. Later<br />
magnetic tape record<strong>in</strong>g was used, which had a big disadvantage. The random data request of<br />
tapes was very time consum<strong>in</strong>g, because the non-sequential access required long rew<strong>in</strong>d and<br />
fast-forward times. That is why there was the demand for a fast random access storage<br />
system.<br />
In the late 1940s a new computer design program started at the University at Berkeley to<br />
develop an <strong>in</strong>termediate sized computer based on a magnetic drum memory. To get rapid data<br />
access, high rotational speeds were used, which generated <strong>in</strong>terest <strong>in</strong> non-contact record<strong>in</strong>g<br />
heads. Among the tested head designs, there was also a head with a wide gap and a drum with<br />
a soft magnetic layer beneath the usual magnetic layer, the so called Soft-Under-Layer (SUL).<br />
The result was that the magnetite dipoles were oriented perpendicular to the surface and not<br />
along the surface circumferentially [3] (1949).<br />
In 1956 IBM announced the first commercial magnetic disk drive, the Random Access<br />
Method of Account<strong>in</strong>g and Control (RAMAC) 350. This drive had a storage capacity of 5 MB<br />
and a data density of 2 kbit/<strong>in</strong> 2 . 50 24-<strong>in</strong> alum<strong>in</strong>um disks coated with iron oxide pa<strong>in</strong>t acted as<br />
media. The whole stack of disks had a weight of 250 kg. Air pressure held the distance of<br />
25 µm between head and disk. The complex air pressure mechanism was very expensive. That<br />
is why only one actuator-arm assembly with a head pair - one for the upper surface and one<br />
for the lower surface of a disk - was used (see Figure 1.2). Nevertheless the access time was<br />
less than a second.<br />
Figure 1.2: The first computer disk drive RAMAC. The pneumatically driven actuator arm<br />
and some of the 50 disks are visible [4].<br />
8
Introduction<br />
In 1955, before the RAMAC was announced, IBM decided to start the development of the<br />
next generation hard disks. The targets of the so called Advanced Disk File (ADF) project<br />
were a 10 times larger capacity and a 1/10 the access time compared to RAMAC. The faster<br />
access time could only be reached by us<strong>in</strong>g one head for each disk surface. It was clear that<br />
the uneconomic air pressure system had to be replaced by fly<strong>in</strong>g heads (air bear<strong>in</strong>g sliders).<br />
Fly<strong>in</strong>g heads allow a smaller head-disk spac<strong>in</strong>g, which f<strong>in</strong>ally allows higher l<strong>in</strong>ear data<br />
densities. The experiences of the RAMAC lead to the decision to use a harder media. They<br />
chose soft magnetic steel disks. Oxidiz<strong>in</strong>g <strong>in</strong> a steam atmosphere leads to a hard th<strong>in</strong> layer on<br />
their surface. In addition the manufactur<strong>in</strong>g costs were less than that of RAMAC’s alum<strong>in</strong>um<br />
disks.<br />
The project was very risky, because of lack<strong>in</strong>g knowledge about air bear<strong>in</strong>g heads and about<br />
perpendicular record<strong>in</strong>g. In 1960, due to several failures and major problems (e.g. the surface<br />
quality of the steel disks was unacceptable), IBM turned away from perpendicular record<strong>in</strong>g<br />
and towards longitud<strong>in</strong>al record<strong>in</strong>g. Due to major achievements <strong>in</strong> longitud<strong>in</strong>al record<strong>in</strong>g<br />
perpendicular record<strong>in</strong>g became un<strong>in</strong>terest<strong>in</strong>g for many decades.<br />
All magnetic storage devices were us<strong>in</strong>g coils to read out magnetic <strong>in</strong>formation. In 1971<br />
however, a new type of transducer us<strong>in</strong>g the anisotropy magneto-resistance effect (AMR) was<br />
reported by R. B. Hunt [5]. AMR heads generate larger read back signals than <strong>in</strong>ductive heads<br />
for common relative velocities between disk and head. Another advantage of AMR heads<br />
over <strong>in</strong>ductive heads is their lower resistance and <strong>in</strong>ductivity result<strong>in</strong>g <strong>in</strong> lower Johnson noise.<br />
In 1991 the first commercial hard disks us<strong>in</strong>g AMR read heads were available and broke the<br />
100 Mbit/<strong>in</strong> 2 record<strong>in</strong>g density barrier.<br />
In 1988 Baibich et al. [6] discovered a new magneto-resistance effect. Due to its large change<br />
<strong>in</strong> resistance compared to AMR this effect was called Giant Magneto-Resistance (GMR).<br />
GMR read heads were first <strong>in</strong>troduced <strong>in</strong> commercial hard disks by IBM <strong>in</strong> 1997. The<br />
<strong>in</strong>vention of AMR and GMR read heads has accelerated the growth <strong>in</strong> data density (see Figure<br />
1.3).<br />
9
Introduction<br />
Figure 1.3: The development of bit sizes and storage densities over the last years [7].<br />
Before the <strong>in</strong>troduction of magnetoresistive (MR) sensors <strong>in</strong> read heads the density doubled<br />
every three years. When AMR read heads reached the market the doubl<strong>in</strong>g time was reduced<br />
to two years. And when the GMR head was <strong>in</strong>troduced, the density has been doubled each<br />
year from 1998 to 2001. In the last years the growth rate decreased to 25-40%.<br />
It is clear that this exponential growth cannot last forever. The major limitation, which<br />
worries disk-drive builders most, is the so called superparamagnetic limit.<br />
Superparamagnetism occurs for very small bits. Then the energy barrier is very small, so that<br />
the magnetization can switch due to thermal fluctuations. The limit actually depends on the<br />
media.<br />
There are several different attempts to <strong>in</strong>crease these limit with special media. One possibility<br />
is to use antiferromagnetically coupled media [8] [9]. So the media exists of a second<br />
ferromagnetic layer, which is antiferromagnetically coupled with the actual data layer. Both<br />
layers are always magnetized <strong>in</strong> opposite directions, lead<strong>in</strong>g to a better thermal stability.<br />
Other approaches are the re<strong>in</strong>troduction of perpendicular record<strong>in</strong>g, the usage of patterned<br />
media [10], where the bit cells are predef<strong>in</strong>ed as isolated magnetic doma<strong>in</strong>s <strong>in</strong> a nonmagnetic<br />
matrix, or thermally or optically assisted magnetic record<strong>in</strong>g [11]. At last to reach a maximum<br />
data density there are experiments adapt<strong>in</strong>g an atomic force microscope to store <strong>in</strong>formation<br />
at the scale of <strong>in</strong>dividual atoms [12].<br />
10
2 BasicsEquation<br />
Section (Next)<br />
2.1 Ohm’s Law<br />
Basics<br />
Georg Simon Ohm (1789-1854) found that the current I through most materials is<br />
proportional to the applied voltage V.<br />
V = R⋅ I<br />
(2.1)<br />
The proportional coefficient is called resistance R. The more general form of this equation is<br />
shown below.<br />
σ⋅ E = j (2.2)<br />
E [V/m] denotes the electric field, and j [A/m 2 ] the current density. σ [A/Vm] is a property<br />
of matter named conductivity. Generally the conductivity is a tensor, but here all conductors<br />
will be assumed to be isotropic.<br />
2.2 Maxwell’s Equations<br />
James Clerk Maxwell (1831-1879) was the first who jo<strong>in</strong>ed the theories of electricity and<br />
magnetism. He proposed follow<strong>in</strong>g four equations to describe both theories (<strong>in</strong> SI).<br />
� ∫ DdA= ∫ρdV<br />
(2.3)<br />
∂V<br />
V<br />
� ∫ BdA= 0<br />
(2.4)<br />
∂V<br />
∂<br />
� ∫Eds=− d<br />
∂t<br />
∫B<br />
A<br />
(2.5)<br />
∂A<br />
A<br />
∂<br />
� ∫ Hds= ∫jdA+ d<br />
∂t<br />
∫D<br />
A<br />
(2.6)<br />
∂A<br />
A A<br />
These four <strong>in</strong>tegral equations can also be written as equivalent differential equations.<br />
11
Basics<br />
div D =ρ<br />
(2.7)<br />
div B = 0<br />
(2.8)<br />
∂B<br />
curlE<br />
=− (2.9)<br />
∂t<br />
∂D<br />
curl H = j + (2.10)<br />
∂t<br />
D [C/m 2 ] is the electric displacement, B [T] is the magnetic <strong>in</strong>duction, E [V/m] is the electric<br />
field, H [A/m] is the magnetic field and j [A/m 2 ] denotes the current density. The third<br />
equation (2.9) is the Law of Induction found by Michael Faraday (1791-1867), who first<br />
recognized that an alternat<strong>in</strong>g magnetic field produces a current. The last equation (2.10) is<br />
the generalization of Ampere’s Law:<br />
� ∫ Hds= ∫jdA.<br />
(2.11)<br />
∂A<br />
A<br />
The magnetic <strong>in</strong>duction B and the magnetic field H are related by<br />
( )<br />
B=μ H+ M =μ H+ J, (2.12)<br />
0 0<br />
and the displacement D and the electric field E by<br />
Here<br />
D=ε 0E+<br />
P. (2.13)<br />
μ = π× is the permeability of vacuum, and<br />
−7<br />
0 4 10 Vs/Am<br />
ε = × is<br />
−12<br />
0 8.8542 10 As/Vm<br />
the absolute dielectric constant of vacuum. M [A/m] denotes the total magnetization, J [T] the<br />
magnetic polarization, and P the electric polarization [C/m 2 ].<br />
Tak<strong>in</strong>g the divergence of both sides <strong>in</strong> (2.10) and us<strong>in</strong>g (2.7) lead to the cont<strong>in</strong>uum equation<br />
∂ρ<br />
div j + = 0 . (2.14)<br />
∂t<br />
2.3 Basic Equations of Magnetostatics<br />
In case of vanish<strong>in</strong>g field E = 0 , non-dielectric materials ( P = 0 ), and vanish<strong>in</strong>g current<br />
density j = 0 , (2.10) simplifies to<br />
12
Basics<br />
curl H = 0 . (2.15)<br />
So H is a irrotational field and can therefore be expressed as gradient of a scalar field Ψ ,<br />
called magnetic potential.<br />
H =−grad Ψ<br />
(2.16)<br />
The magnetic potential of a volume V with a given magnetic polarization J can be calculated<br />
by solv<strong>in</strong>g the Poisson equation<br />
ρm<br />
ΔΨ = − μ<br />
with the jump condition<br />
0<br />
out <strong>in</strong><br />
∂Ψ ∂Ψ σ<br />
− =−<br />
∂n ∂n μ<br />
∂V<br />
m<br />
0<br />
(2.17)<br />
(2.18)<br />
at the boundary ∂ V . Here ρ m and σ m are magnetic charge densities <strong>in</strong> the volume V and at<br />
its boundary ∂ V . These charges are only virtual, because there are no magnetic monopoles <strong>in</strong><br />
reality. These virtual charges are useful to calculate the magnetic potential of a polarization<br />
distribution. They can be obta<strong>in</strong>ed by tak<strong>in</strong>g the divergence and the face divergence of the<br />
magnetic polarization J.<br />
ρ =−div J, σ =−Div<br />
J (2.19)<br />
m m<br />
The face divergence is def<strong>in</strong>ed as difference of the normal components of outer and <strong>in</strong>ner<br />
field.<br />
( )<br />
out <strong>in</strong> out <strong>in</strong><br />
Div J = J −J ⋅ n = J −J<br />
(2.20)<br />
n n<br />
Assum<strong>in</strong>g that the magnetic potential is regular at <strong>in</strong>f<strong>in</strong>ity,<br />
1<br />
Ψ→ for r →∞, (2.21)<br />
r<br />
the solution of (2.17) and (2.18) is<br />
1 ⎛ ρ σ ⎞<br />
Ψ= dV + dA<br />
4<br />
∫ ∫� . (2.22)<br />
m m<br />
⎜ ⎟<br />
πμ0 ⎝ r r<br />
V ∂V<br />
⎠<br />
13
Basics<br />
2.4 Inhomogeneous Conductors<br />
To calculate the read back signal of magnetoresistive heads, it is necessary to calculate the<br />
current distribution, because the conductivity does not only depend on locus, but also on the<br />
magnetization:<br />
σ=σrMr (, (,)) t . (2.23)<br />
Consequently a general treatment is necessary to calculate the electric potential and the<br />
current density. The electrical field can be splitted <strong>in</strong>to two parts, an irrotational and a<br />
solenoidal part:<br />
with<br />
and<br />
E= Efree + E eddy<br />
(2.24)<br />
curlE 0<br />
(2.25)<br />
free =<br />
divE 0 . (2.26)<br />
eddy =<br />
It can be shown, that the irrotational part of the electrical field, denoted with E free , is caused<br />
by external applied voltage or current. The solenoidal part denoted by E eddy is due to magnetic<br />
<strong>in</strong>duction described by Faraday’s law (2.9) and orig<strong>in</strong>ates from eddy currents. For the moment<br />
we can neglect eddy currents. Later they can be partially taken <strong>in</strong>to account by choos<strong>in</strong>g<br />
higher damp<strong>in</strong>g constants <strong>in</strong> the LLG equation (see Section 2.7) [41] [42]. This implies, that<br />
the total electrical field is irrotational<br />
curlE = 0<br />
(2.27)<br />
and can be written as gradient of a scalar potential function Φ , also called electric potential<br />
E =−grad Φ.<br />
(2.28)<br />
Furthermore the whole problem is considered to be quasi-static. In other words the<br />
displacement current term <strong>in</strong> (2.10) can be neglected<br />
curl H = j. (2.29)<br />
14
Basics<br />
This is justified, because the sense current through MR sensors is normally held constant and<br />
the current density is quite large for the small dimensions of a MR read<strong>in</strong>g head. (The current<br />
density is only limited due to the heat dissipation. Typical values for the critical current<br />
density are 10 7 -10 8 A/cm 2 .) So local charge concentrations are immediately compensated.<br />
Apply<strong>in</strong>g the divergence operator on both sides of equation (2.29) gives<br />
div j = 0 . (2.30)<br />
Thus the source term of the cont<strong>in</strong>uum equation (2.14) vanishes. Comb<strong>in</strong><strong>in</strong>g (2.2), (2.28), and<br />
(2.30) leads to a generalized form of Laplace equation<br />
div( σgrad Φ ) = 0.<br />
(2.31)<br />
If the electric potential is known, it is possible to evaluate the current density us<strong>in</strong>g<br />
j =−σgrad Φ.<br />
(2.32)<br />
2.5 Gibbs’ Free Energy<br />
The equilibrium state of an isothermal and isobaric thermodynamic system is characterized by<br />
the m<strong>in</strong>imum of its Gibbs’ free energy E.<br />
∫<br />
E = F − J⋅H dV<br />
(2.33)<br />
ext<br />
F = U −T⋅ S+ p⋅ V is the free energy, where U is the <strong>in</strong>ner energy, T the absolute<br />
temperature, S the entropy, and V the volume of the magnetic system. For constant<br />
temperatures and neglected magnetostrictive effects, which means keep<strong>in</strong>g the volume and<br />
the temperature constant, the free energy is reduced to U. The <strong>in</strong>ner energy U can be<br />
calculated as the sum of the stray field energy E S , the exchange energy E exch , and the<br />
magnetocrystall<strong>in</strong>e anisotropy energy E ani , so the total Gibbs’ free energy can be written as<br />
E = ES+ Eexch + Eani+ EH.<br />
(2.34)<br />
Here E H is the magnetostatic energy and arises from the external field H ext . The equilibrium<br />
state of such a magnetic system is determ<strong>in</strong>ed by<br />
15
Basics<br />
δ E<br />
= 0 . (2.35)<br />
δJ<br />
2.5.1 Magnetostatic Energy<br />
The energy associated with a magnetized body <strong>in</strong> the presence of an external field H ext is<br />
called magnetic field energy and can be calculated via<br />
∫<br />
E =− J⋅H dV . (2.36)<br />
H ext<br />
V<br />
This energy will cause the magnetization to align parallel to the external field <strong>in</strong> order to<br />
m<strong>in</strong>imize the energy.<br />
2.5.2 Stray Field Energy<br />
The stray field energy term writes similar to the magnetic field energy.<br />
1<br />
ES =− ⋅ S dV<br />
2 ∫ J H (2.37)<br />
V<br />
The additional factor ½ takes <strong>in</strong>to account, that the stray field H S , which is also called<br />
demagnetiz<strong>in</strong>g field, is caused by the magnetization itself. This is <strong>in</strong> contrast to the magnetic<br />
energy where an external field is given, which is not <strong>in</strong>fluenced by the magnetization. The<br />
stray field can be determ<strong>in</strong>ed by calculat<strong>in</strong>g the magnetic scalar potential Ψ S as described <strong>in</strong><br />
Section 2.3. Then the stray field can be calculated us<strong>in</strong>g (2.16):<br />
H =−grad Ψ . (2.38)<br />
S S<br />
2.5.3 Exchange Energy<br />
In the approach of micromagnetics the quantum mechanical sp<strong>in</strong> operators are substituted by<br />
classical magnetization vectors. Thus, the exchange energy <strong>in</strong> the Heisenberg model [13] can<br />
be expressed as<br />
N N<br />
exch =−∑∑ i j<br />
ij ⋅S ⋅S<br />
. (2.39)<br />
i= 1 j≠i E J<br />
16
Basics<br />
Here J ij represents the exchange <strong>in</strong>tegral. In case of ferromagnetism the exchange <strong>in</strong>tegral is<br />
positive and leads to the observed strong coupl<strong>in</strong>g and parallel alignment of sp<strong>in</strong>s.<br />
Consider<strong>in</strong>g only nearest neighbor (n.n.) angular momentums and assum<strong>in</strong>g a constant<br />
exchange <strong>in</strong>tegral Jij � J lead to<br />
N n. n.<br />
i j<br />
Eexch =−J ∑∑S ⋅S<br />
. (2.40)<br />
i= 1 j≠i The assumption of a constant exchange <strong>in</strong>tegral is justified, because experiments show only<br />
small differences when measur<strong>in</strong>g along different crystallographic directions.<br />
As angular moments are described by a cont<strong>in</strong>uous function J = J() r <strong>in</strong> micromagnetics, the<br />
sum can be approached by a volume <strong>in</strong>tegral,<br />
A<br />
E = ( ∇ J ) + ( ∇ J ) + ( ∇J<br />
) dV<br />
2 ∫ . (2.41)<br />
2 2 2<br />
exch<br />
J s V<br />
x y z<br />
Here J s is the spontaneous polarization, and the exchange constant A [J/m] is proportional to<br />
the exchange <strong>in</strong>tegral J. The value of A has been found experimentally for a lot of magnetic<br />
materials.<br />
2.5.4 Magnetocrystall<strong>in</strong>e Anisotropy Energy<br />
In general a ferromagnetic material does not show isotropic magnetization behavior.<br />
Experimentally certa<strong>in</strong> directions can be found, which favor magnetization (easy axes) and<br />
others which do not (hard axes). This leads to a new energy term.<br />
ani ani<br />
V<br />
( )<br />
E = ∫ f J dV<br />
(2.42)<br />
Here f ani denotes a direction dependent function. In case of hexagonal systems (e.g. Co) a<br />
uniaxial anisotropy can be assumed. Therefore f ani can be expressed as series expansion<br />
f ( θ ) = K + K s<strong>in</strong> θ+ K s<strong>in</strong> θ+ ... . (2.43)<br />
ani<br />
2 4<br />
0 1 2<br />
θ denotes the angle between J and the c-axis of the hexagonal system and 0 K , 1 K , 2<br />
are the so called anisotropy constants. In practice all higher terms are neglected.<br />
K , etc.<br />
In case of cubic systems, their cubic symmetry can be taken <strong>in</strong>to account, if f ani is written as<br />
17
Basics<br />
2 2 2 2 2 2 2 2 2<br />
( ) ( )<br />
f ( α , α , α ) = K + K α α +α α +α α + K α α α + ... . (2.44)<br />
ani<br />
1 2 3 0 1 1 2 2 3 3 1 2 1 2 3<br />
α 1 , 2 α , and α 3 denote the direction cos<strong>in</strong>es of the cubic lattice vectors to the direction of the<br />
magnetic polarization J.<br />
In both cases the first term K 0 can be neglected, because it does not depend on angle and is<br />
therefore a constant term.<br />
2.6 Effective Field<br />
The effective magnetic field H eff which acts on the magnetization can be calculated by the<br />
variation of Gibbs’ Free Energy.<br />
δE<br />
2A δfani<br />
( J)<br />
H =− = ΔJ− + H + H + H<br />
eff 2<br />
S ext curr<br />
δJ J s δJ<br />
(2.45)<br />
Here the first term corresponds to the exchange field H exch , and the second one to the<br />
anisotropy field H ani . The additional contribution H curr is the field due to currents. In fact this<br />
field is a contribution to the external field H ext , but here it is written separately, because from<br />
now on ext H is used to describe homogeneous fields, whereas H curr are fields due to currents,<br />
and can be calculated us<strong>in</strong>g the Biot-Savart Law<br />
1 r−r′ Hcurr () r = ×<br />
4π<br />
∫ j<br />
r−r′ V<br />
3<br />
dV ′ , (2.46)<br />
which was empirically found by Jean Baptiste Biot and Félix Savart <strong>in</strong> 1820.<br />
2.7 Landau-Lifshitz-Gilbert Equation<br />
To f<strong>in</strong>d out the equilibrium state of a magnetic system equation (2.35) can be used. To get<br />
<strong>in</strong>formation about the magnetization dynamics, i.e. about the dynamic behavior of the<br />
magnetic polarization J, it is necessary to apply a full 3-dimensional treatment of the time<br />
evolution of the magnetic polarization, which is described by the Gilbert equation of motion<br />
18
s<br />
Basics<br />
∂J α ∂J<br />
=−γ J× Heff + J × . (2.47)<br />
∂t J ∂t<br />
This equation is mathematically equivalent to the Landau-Lifshitz-Gilbert equation (LLG)<br />
∂Jγ γ α<br />
=− J× Heff − J× ( J× H eff ) . (2.48)<br />
∂ t +α J +α<br />
2 2<br />
( 1 ) s ( 1 )<br />
Here J s is the spontaneous polarization and γ is the gyromagnetic ratio<br />
5<br />
γ= 2.210175× 10 m/As . The first term <strong>in</strong> this equation describes the precessional movement<br />
of the magnetic polarization vector J around the effective field H eff . The second<br />
phenomenological term stands for the energy dissipation dur<strong>in</strong>g the movement and causes a<br />
movement towards the direction of the effective field. The motion of the magnetization is<br />
visualized <strong>in</strong> Figure 2.1a. The strength of the damp<strong>in</strong>g is characterized by the dimensionless<br />
Gilbert damp<strong>in</strong>g constant α . Large α means strong damp<strong>in</strong>g. There are many processes<br />
which contribute to the damp<strong>in</strong>g <strong>in</strong> magnetic solids, for example magnon-magnon, magnon-<br />
phonon <strong>in</strong>teractions, or eddy currents. So the damp<strong>in</strong>g constant is an <strong>in</strong>tr<strong>in</strong>sic property of<br />
matter and can also be varied <strong>in</strong> practice, for <strong>in</strong>stance by dop<strong>in</strong>g [14]. In general, except for<br />
th<strong>in</strong> layers (see Section 6.2.4), high damp<strong>in</strong>g constants lead to coherent motion of the<br />
magnetization and therefore to faster reversal processes. Figure 2.1b shows the field of a<br />
simulated write head as function of time for different Gilbert damp<strong>in</strong>g constants. It can be<br />
seen that for damp<strong>in</strong>g constants of about 0.5 the fastest switch<strong>in</strong>g time is achieved [43].<br />
∂ J<br />
In equilibrium, thus if = 0 , equation (2.47) simplifies to<br />
∂t<br />
J× H eff = 0,<br />
(2.49)<br />
which means that <strong>in</strong> equilibrium the magnetic polarization J is aligned either parallel or<br />
antiparallel to the effective field H eff . The unrealistic case of antiparallel alignment is<br />
irrelevant, because this solution is not stable, and <strong>in</strong> this case small deviations lead to a<br />
movement <strong>in</strong> direction of the effective field due to the damp<strong>in</strong>g term <strong>in</strong> (2.48) (see also Figure<br />
2.1a).<br />
19
a)<br />
Heff<br />
J<br />
−J x Jx Heff<br />
−J x Heff<br />
b)<br />
Basics<br />
Figure 2.1: a) Illustration of the damped precession of the magnetic polarization J around<br />
the effective field Heff, taken from [15]. b) Influence of the Gilbert damp<strong>in</strong>g constant on the<br />
field rise time <strong>in</strong> magnetic read heads. Head field strength as a function of time for different<br />
Gilbert damp<strong>in</strong>g constants with<strong>in</strong> the head [43]. The dashed l<strong>in</strong>e depicts the current profile.<br />
The solid l<strong>in</strong>es give the head field for α = 1, 0.5, 0.1, and 0.02. The fastest field rise time is<br />
achieved with <strong>in</strong>termediate damp<strong>in</strong>g (α = 0.5).<br />
2.8 Magnetoresistance<br />
2.8.1 Magnetoresistance of Ferromagnets<br />
A change <strong>in</strong> resistance of a material under an applied field is known as magnetoresistance.<br />
This effect was first discovered <strong>in</strong> 1856 by Lord Kelv<strong>in</strong> who was exam<strong>in</strong><strong>in</strong>g the resistance of<br />
an iron sample. He found a 0.2% <strong>in</strong>crease of resistance when he applied a field <strong>in</strong> longitud<strong>in</strong>al<br />
direction, and a 0.4% decrease for the transversal direction.<br />
Thus, a positive and a negative change of resistance is possible, although <strong>in</strong>tuitively one<br />
expects only positive magnetoresistance, because electrons are forced to take longer paths due<br />
to the magnetic field, which leads to more scatter<strong>in</strong>g. Nevertheless negative<br />
magnetoresistance occurs, which has to be expla<strong>in</strong>ed <strong>in</strong> a different way. Mott [16] [17] could<br />
give a first explanation for this behavior. Figure 2.2 shows the typical band configuration of a<br />
transition metal. The bands are spontaneously split without external field. This phenomenon is<br />
also called band ferromagnetism. Scatter<strong>in</strong>g of electrons from the s- to the d-bands occurs<br />
only, if there are any unoccupied states available. Figure 2.2 shows the electron configuration<br />
at low temperatures. Here the sp<strong>in</strong> up d-band is fully occupied. Thus scatter<strong>in</strong>g can only occur<br />
20
Basics<br />
for sp<strong>in</strong> down electrons. An applied magnetic field may <strong>in</strong>crease the sp<strong>in</strong> polarization and<br />
allows fewer s to d transitions, result<strong>in</strong>g <strong>in</strong> lower resistance.<br />
Figure 2.2: The sp<strong>in</strong>-split bands of a ferromagnet [18].<br />
2.8.2 Anisotropic Magnetoresistance Effect<br />
The resistance of several ferromagnetic materials shows a dependence on the angle between<br />
magnetization and current. This effect is known as anisotropic magnetoresistance (AMR). Its<br />
orig<strong>in</strong> is connected with the sp<strong>in</strong>-orbit <strong>in</strong>teraction and its <strong>in</strong>fluence on s-d scatter<strong>in</strong>g.<br />
This phenomenon can be described by assum<strong>in</strong>g different resistivities for currents parallel and<br />
perpendicular to the magnetic field and leads to follow<strong>in</strong>g relation:<br />
0<br />
2<br />
( 1 RAMR<br />
cos )<br />
ρ=ρ + ⋅ θ . (2.50)<br />
Here θ is the angle between the current and the magnetization, and R AMR is the<br />
magnetoresistance ratio. Typical values of R AMR are about 2%.<br />
The concept of us<strong>in</strong>g the AMR effect for read<strong>in</strong>g heads was first proposed by Hunt <strong>in</strong> 1971<br />
[5]. AMR read heads were used from 1992 to 1998 <strong>in</strong> commercial hard disks. Their advantage<br />
was the much higher signal amplitude for smaller bits (higher data densities) compared to<br />
<strong>in</strong>ductive read heads. Additionally magnetoresistive heads have reduced noise and <strong>in</strong>ductance,<br />
and the output voltage is not dependent on the relative velocity of the head and the data layer.<br />
21
2.8.3 Giant Magnetoresistance Effect<br />
Basics<br />
Giant magnetoresistance was first reported by Baibich et al. <strong>in</strong> 1988 [6]. They discovered that<br />
the resistance of Fe/Cr multilayers decreased 50% when they applied a magnetic field (see<br />
Figure 2.3).<br />
Figure 2.3: Giant magnetoresistance <strong>in</strong> Fe/Cr multilayers [18].<br />
Without apply<strong>in</strong>g an external field the magnetic layers are antiparallel coupled. If a strong<br />
enough field is applied to align the magnetization of adjacent magnetic layers, the resistivity<br />
of the multilayers drops significantly. Thus resistivity is lower <strong>in</strong> case of parallel alignment<br />
and higher for the antiparallel configuration. Multilayers require very high saturation fields to<br />
overcome the strong antiferromagnetic coupl<strong>in</strong>g. Therefore the field sensitivity of such<br />
multilayers is actually lower compared to sensors us<strong>in</strong>g the AMR effect. These considerations<br />
motivated the <strong>in</strong>vention of an alternative GMR structure for sensors shown <strong>in</strong> Figure 2.4. It<br />
consists of four ma<strong>in</strong> layers. There are two ferromagnetic layers which are separated by a<br />
nonmagnetic layer, called spacer layer (mostly Cu). All these layers are only few nanometers<br />
thick. The magnetization of one ferromagnetic layer is fixed via the exchange anisotropy of an<br />
antiferromagnetic layer (see Section 5.1.2). The magnetization of the other ferromagnetic<br />
layer can rotate freely and is therefore called free layer. In contrast to multilayer structures<br />
this structure does not show any hysteresis.<br />
22
Basics<br />
Figure 2.4: Schematic model of a sp<strong>in</strong>-valve GMR head (CIP mode) with exchange-p<strong>in</strong>ned<br />
layer and longitud<strong>in</strong>al hard bias [19].<br />
The change <strong>in</strong> resistance of the GMR effect can be mathematically approximated by<br />
follow<strong>in</strong>g formula:<br />
( θ θ )<br />
⎛ 1−cos 1− 2 ⎞<br />
ρ = ρ0⎜1+ RGMR<br />
⋅<br />
⎟<br />
⎝ 2 ⎠<br />
(2.51)<br />
Figure 2.5 shows the dependence of the resistivity as function of the angle between the<br />
magnetization orientations of the two ferromagnetic layers. To achieve highest sensitivity, the<br />
work<strong>in</strong>g po<strong>in</strong>t of the GMR sp<strong>in</strong> valve should be chosen at maximum slope. If there is no<br />
external field, the magnetization of the free layer should be ideally perpendicular to the<br />
p<strong>in</strong>ned layer magnetization. To adjust the magnetization of the free layer, hard bias magnets<br />
are used as shown <strong>in</strong> Figure 2.4.<br />
Figure 2.5: Change <strong>in</strong> resistance of a sp<strong>in</strong> valve compared to AMR (NiFe) vs.<br />
magnetization orientation [19].<br />
23
Basics<br />
There are two different modes a sp<strong>in</strong> valve can be operated, the current-<strong>in</strong>-plane (CIP) mode,<br />
and the current-perpendicular-to-plane (CPP) mode. The difference between these two modes<br />
is the current direction. In the first case the sense current is parallel to the layers of the GMR<br />
element, while for the second case the current is applied perpendicular to the layers. The two<br />
different modes are illustrated <strong>in</strong> Figure 2.6.<br />
Figure 2.6: The two different modes of a sp<strong>in</strong> valve. The current is applied either<br />
longitud<strong>in</strong>al (CIP) or perpendicular (CPP) to the layer structure [7].<br />
Up to now only the CIP configuration is used <strong>in</strong> commercial hard disks. For smaller read head<br />
designs the CPP mode becomes more and more <strong>in</strong>terest<strong>in</strong>g, because the output voltage for<br />
CPP heads is roughly <strong>in</strong>versely proportional to the square root of the sensor area. In addition<br />
the change <strong>in</strong> resistance is higher, because the sense current is not shunted by the conductive<br />
spacer layer, which does not contribute to magneto-resistance. Besides the CPP structure<br />
allows smaller read gaps, thus smaller distances between the two shields, because the shields<br />
can be used as leads. This design allows read gaps down to 20 nm, compared to 60 nm for<br />
CIP heads. CPP heads are thermally more stable, because the layer structure is <strong>in</strong> contact to<br />
the relative large shields lead<strong>in</strong>g to a better heat dissipation.<br />
The orig<strong>in</strong> of the GMR effect is the sp<strong>in</strong> dependent scatter<strong>in</strong>g of FM/NM/FM multilayers.<br />
The sp<strong>in</strong> dependent scatter<strong>in</strong>g at <strong>in</strong>terfaces is the ma<strong>in</strong> contribution. Figure 2.7 shows a<br />
schematic picture of the potential landscape of a GMR layer structure for the two sp<strong>in</strong><br />
24
Basics<br />
channels <strong>in</strong> the parallel and <strong>in</strong> the antiparallel state, <strong>in</strong>dicat<strong>in</strong>g the different orig<strong>in</strong>s of<br />
scatter<strong>in</strong>g. Only deviations from the periodic atomic potentials are shown, as no scatter<strong>in</strong>g<br />
takes place <strong>in</strong> a regular periodic lattice. The size of the potential step and of the scatter<strong>in</strong>g<br />
potentials at imperfections of the <strong>in</strong>terfaces depends on the degree of match<strong>in</strong>g of the<br />
electronic structures of the ferromagnetic layers and the nonmagnetic spac<strong>in</strong>g layer. In order<br />
to obta<strong>in</strong> a large GMR ratio, good electronic structure match<strong>in</strong>g is required for one sp<strong>in</strong><br />
direction and bad match<strong>in</strong>g for the opposite sp<strong>in</strong> direction. It is clear that giant<br />
magnetoresistance only occurs <strong>in</strong> layers with thicknesses much smaller than the electron<br />
mean-free path.<br />
Figure 2.7: Potential landscape <strong>in</strong>side the FM/NM/FM active part of a sp<strong>in</strong>-valve, for the<br />
two sp<strong>in</strong> channels <strong>in</strong> the parallel state (a,b) and <strong>in</strong> the antiparallel state (c), <strong>in</strong>dicat<strong>in</strong>g the<br />
different orig<strong>in</strong>s of scatter<strong>in</strong>g [20].<br />
The GMR effect can be qualitatively described by a very simplified two current model. The<br />
current densities are assumed to be homogenous for both sp<strong>in</strong> directions. If the resistances for<br />
the ‘+’ and ‘-‘ channels <strong>in</strong> the parallel state are denoted with R + and R − , then the total<br />
resistance for the parallel state is<br />
25
R<br />
↑↑<br />
R+ R−<br />
=<br />
R + R<br />
+ −<br />
Basics<br />
. (2.52)<br />
R+ + R−<br />
The resistance of both channels for the antiparallel configuration is set to result<strong>in</strong>g <strong>in</strong><br />
2<br />
a total resistance of<br />
R + R<br />
= . (2.53)<br />
4<br />
+ −<br />
R ↑↓<br />
For the GMR ratio follows<br />
( ) 2<br />
R − R<br />
Δ R R − R ↑↓ ↑↑ + −<br />
= = . (2.54)<br />
R R 4R<br />
R<br />
↑↑<br />
+ −<br />
This value is always positive, which means that the resistance <strong>in</strong> the anti-parallel<br />
configuration is higher than <strong>in</strong> the parallel configuration, which is consistent with (2.51).<br />
2.8.4 Tunnel<strong>in</strong>g Magnetoresistive Effect<br />
Another magnetoresistive effect is the tunnel<strong>in</strong>g magnetoresistive (TMR) effect. The design<br />
of a TMR element is quite similar to a GMR element <strong>in</strong> CPP mode. The ma<strong>in</strong> difference is the<br />
<strong>in</strong>sulat<strong>in</strong>g layer between p<strong>in</strong>ned and free layer. The orig<strong>in</strong> is also different, because TMR is<br />
due to sp<strong>in</strong> dependent tunnel<strong>in</strong>g and not due to sp<strong>in</strong> dependent scatter<strong>in</strong>g. With TMR<br />
elements changes <strong>in</strong> resistance up to 25% can be achieved at room temperature. The<br />
application <strong>in</strong> read heads is restricted because of the high resistance, which limits the<br />
operat<strong>in</strong>g frequency and causes Johnson and Shot noise.<br />
2.9 Record<strong>in</strong>g Schemes<br />
There are three possibilities to align the written bits <strong>in</strong> the data layer. Longitud<strong>in</strong>al to track,<br />
perpendicular to track, or transversal to the data layer called longitud<strong>in</strong>al, perpendicular and<br />
transversal record<strong>in</strong>g respectively. Only first both record<strong>in</strong>g schemes are of technical <strong>in</strong>terest,<br />
because transversal written bits are hard to detect, because of their small stray fields.<br />
Although there were also attempts to use the perpendicular scheme <strong>in</strong> the early years, the<br />
longitud<strong>in</strong>al mode is well established and is used <strong>in</strong> all commercial hard disk drives.<br />
26
Basics<br />
Nowadays there are aga<strong>in</strong> efforts to use perpendicular record<strong>in</strong>g because of the theoretical<br />
higher data density limit.<br />
2.9.1 Longitud<strong>in</strong>al Record<strong>in</strong>g<br />
The pr<strong>in</strong>ciple of longitud<strong>in</strong>al record<strong>in</strong>g is illustrated <strong>in</strong> Figure 2.8. For the writ<strong>in</strong>g process a<br />
r<strong>in</strong>g head is used, which generates a stray field at the gap above the record<strong>in</strong>g layer, so that it<br />
is magnetized <strong>in</strong> longitud<strong>in</strong>al direction. To retrieve the written <strong>in</strong>formation, the read head<br />
detects the stray field of the data layer, which has its maxima at the transitions of two opposite<br />
magnetized bits. In longitud<strong>in</strong>al record<strong>in</strong>g the read back signal is roughly proportional to the<br />
first derivation of the magnetization.<br />
Figure 2.8: A comparison of longitud<strong>in</strong>al record<strong>in</strong>g and perpendicular record<strong>in</strong>g [7].<br />
2.9.2 Perpendicular Record<strong>in</strong>g<br />
As shown <strong>in</strong> Figure 2.8 an additional soft magnetic underlayer is necessary for perpendicular<br />
record<strong>in</strong>g. This soft under layer (SUL) closes the magnetic circuit. The yoke of the write head<br />
has a small write pole, which bundles the flux to achieve high writ<strong>in</strong>g fields, and a wide return<br />
27
Basics<br />
pole, so that the flux density is small and can not <strong>in</strong>fluence the magnetization of the record<strong>in</strong>g<br />
layer. Here the read back signal is directly proportional to the magnetization of the data layer.<br />
28
Analytical Calculations<br />
3 Analytical CalculationsEquation Section (Next)<br />
3.1 Reciprocity Pr<strong>in</strong>ciple<br />
For any two volum<strong>in</strong>a V 1 and V 2 with given magnetization the follow<strong>in</strong>g equation is valid.<br />
∫ ∫<br />
Mr ( ) ⋅ H( r) dV = Mr ( ) ⋅H(<br />
r ) dV<br />
(3.1)<br />
1 2 1 1 2 1 2 2<br />
V V<br />
1 2<br />
Here 1 H and 2<br />
H denote the magnetic fields caused by the magnetizations <strong>in</strong> volumes 1 and 2<br />
respectively. This fact is called reciprocity pr<strong>in</strong>ciple, and its proof is illustrated below.<br />
Partial <strong>in</strong>tegration of (3.1) and tak<strong>in</strong>g equations (2.16) and (2.19) <strong>in</strong>to consideration lead to<br />
�∫<br />
∫<br />
σ ( r) ⋅Ψ ( r) dA − ρ ( r) ⋅Ψ ( r)<br />
dV =<br />
m 1 2 1 1 m 1 2 1 1<br />
∂V1<br />
V1<br />
�∫<br />
∫<br />
σ ( r ) ⋅Ψ ( r ) dA − ρ ( r ) ⋅Ψ ( r ) dV .<br />
m 2 1 2 2 m 2 1 2 2<br />
∂V2<br />
V2<br />
The f<strong>in</strong>al substitution of both magnetic potentials us<strong>in</strong>g (2.22) shows equality.<br />
3.2 Longitud<strong>in</strong>al Record<strong>in</strong>g<br />
Longitud<strong>in</strong>al record<strong>in</strong>g means that the magnetization of written bits shows <strong>in</strong> track direction.<br />
To read <strong>in</strong>formation it is necessary to detect the stray field of the stored bits. For longitud<strong>in</strong>al<br />
record<strong>in</strong>g the stray field reaches its maximum at the transitions, where opposite oriented<br />
magnetizations come together.<br />
(3.2)<br />
Figure 3.1 shows a schematic model of a read head. In the middle of two shields there is the<br />
sens<strong>in</strong>g layer. In case of a GMR sensor this layer is equal to the free layer. The shields are<br />
assumed to have <strong>in</strong>f<strong>in</strong>ite permeability and <strong>in</strong>f<strong>in</strong>ite extension. The plane, which conta<strong>in</strong>s the<br />
bottom sides of the two shields and the sens<strong>in</strong>g layer, is called air bear<strong>in</strong>g surface (ABS).<br />
29
Analytical Calculations<br />
With the help of the reciprocity pr<strong>in</strong>ciple we are now able to calculate the effective signal<br />
field<br />
eff<br />
H sig caused by the data layer at the sens<strong>in</strong>g layer. Here only the z-component of the field<br />
will be considered. The field components <strong>in</strong> the other direction can be neglected s<strong>in</strong>ce the<br />
sensor only registers the z-component anyway. The effective field<br />
field H = H ( r ) , which acts on the magnetization of the sens<strong>in</strong>g layer (SL).<br />
sig sig<br />
eff<br />
H sig is the average signal<br />
eff<br />
1<br />
Hsig = Hsig= Hsig() dV<br />
V ∫ r (3.3)<br />
SL VSL<br />
We assume that the magnetization of the sens<strong>in</strong>g layer is uniform. With this condition the<br />
reciprocity pr<strong>in</strong>ciple is applied on the volume of the sens<strong>in</strong>g layer V SL and the volume of the<br />
data layer.<br />
eff<br />
V M H = Mr () ⋅H()<br />
r dV<br />
(3.4)<br />
SL SL sig H<br />
V<br />
∫<br />
DL<br />
Here H H is the so called head field. It is the field which is generated by the magnetization of<br />
the sens<strong>in</strong>g layer.<br />
3.2.1 Head Field<br />
z<br />
x<br />
Shield<br />
Shield<br />
t<br />
µ → ∞ µ → ∞<br />
g g<br />
Figure 3.1: A schematic 2-dimensional model of a read head for longitud<strong>in</strong>al record<strong>in</strong>g.<br />
The head field of the read<strong>in</strong>g head due to the magnetization of the sense layer can be<br />
calculated us<strong>in</strong>g the Karlquist approximation [21]. This approximation assumes a l<strong>in</strong>ear<br />
MR<br />
d<br />
Data Layer<br />
30
Analytical Calculations<br />
develop<strong>in</strong>g of the magnetic potential Ψ between the shields and the sens<strong>in</strong>g layer at the ABS.<br />
The magnetic potential is assumed to vanish at the ABS of the shields due to their high<br />
permeability.<br />
⎧ 1 x < t/2<br />
⎪<br />
⎪ g+ t/2+ x<br />
Ψ ( x,0) = C⋅MSL ⋅⎨ t/2 ≤ x < g+ t/2<br />
⎪ g<br />
⎪<br />
⎩<br />
0 g+ t/2≤ x<br />
Figure 3.2: The magnetic potential at the ABS under Karlquist approximation.<br />
This function is shown <strong>in</strong> Figure 3.2. The amplitude of this function is proportional to the<br />
magnetization of the sens<strong>in</strong>g layer. The magnetization of the sens<strong>in</strong>g layer can be replaced by<br />
(3.5)<br />
top<br />
face charges m 0 SL M σ =μ at the bottom and bottom<br />
m 0 SL M<br />
σ =−μ at the top side under the terms of<br />
(2.19). The top face charge can be neglected, because the sens<strong>in</strong>g layer height is usually much<br />
larger than the distance between ABS and data layer surface. Common fly<strong>in</strong>g heights are<br />
about 10 nm. The magnetic charge at the bottom side leads to a jump of the magnetic field<br />
H − H =− M . Due to the symmetry of the surface charge <strong>in</strong> the near region<br />
<strong>in</strong> out<br />
z z SL<br />
z<br />
H (0,0) = M / 2<br />
(3.6)<br />
H SL<br />
Ψ(x,0)<br />
C⋅MSL<br />
-t/2-g -t/2 t/2 t/2+g x<br />
can be assumed. This is the necessary condition, which allows the determ<strong>in</strong>ation of the<br />
unknown proportional factor C <strong>in</strong> (3.5).<br />
31
Analytical Calculations<br />
To calculate the magnetic potential for the whole half space with the boundary condition<br />
given <strong>in</strong> (3.5) one has to solve the Laplace equation<br />
ΔΨ ( xz , ) = 0.<br />
(3.7)<br />
This can be done analytically by a Fourier transformation <strong>in</strong> x [19]. The general solution of<br />
this boundary value problem is<br />
∞<br />
z Ψ(<br />
x,0)<br />
Ψ ( x, z) =− dx′<br />
π ∫ . (3.8)<br />
′<br />
−∞<br />
( ) 2 2<br />
x− x + z<br />
Apply<strong>in</strong>g (3.8) on the boundary condition (3.5) yields<br />
with<br />
C⋅MSL Ψ ( x, z) = Γ ( x+ g, z) −Γ ( x, z) +Γ( − x+ g, z) −Γ( −x,<br />
z)<br />
g ⋅π<br />
( )<br />
( ( ) ) ( )<br />
2 2 + /2<br />
(3.9)<br />
z ⎛ x t ⎞<br />
Γ ( xz , ): = ln x+ t/2 + z − x+ t/2<br />
arctan⎜<br />
⎟.<br />
(3.10)<br />
2<br />
⎝ z ⎠<br />
Now we are able to evaluate the head field by tak<strong>in</strong>g the gradient of the magnetic potential.<br />
⎛γ x( x + gz , ) −γx( xz , ) −γx( − x+ gz , ) +γx( −xz<br />
, ) ⎞<br />
CMSL<br />
⎜ ⎟<br />
H H ( xz , ) = ⋅ 0<br />
g ⎜ ⎟<br />
(3.11)<br />
π ⎜γ z( x + gz , ) −γ z( xz , ) +γz( − x+ gz , ) −γz( −xz<br />
, ) ⎟<br />
⎝ ⎠<br />
Here x γ and γ z are the derivatives of Γ .<br />
∂ ⎛ x+ t/2⎞<br />
γ x ( xz , ): = Γ ( xz , ) =−arctan⎜ ⎟<br />
∂x ⎝ z ⎠ (3.12)<br />
2<br />
2<br />
( ( ) )<br />
∂<br />
γ z ( xz , ): = Γ ( xz , ) = 1+ 1/2⋅ ln z + x+ t/2<br />
∂z<br />
(3.13)<br />
Now we have to determ<strong>in</strong>e the proportional constant C. Here we assume that 2g � t,<br />
which<br />
yields<br />
H<br />
2CM ⎛ g+ t/2⎞<br />
4CM<br />
(0,0) = ln ⎜ ⎟�<br />
. (3.14)<br />
πg ⎝ t/2 ⎠ πt<br />
z<br />
H<br />
SL SL<br />
Compar<strong>in</strong>g with (3.6) gives<br />
32
Analytical Calculations<br />
t<br />
C<br />
8<br />
π<br />
= . (3.15)<br />
Insert<strong>in</strong>g <strong>in</strong> (3.11) leads to the f<strong>in</strong>al result for the head field<br />
⎛γ x( x + gz , ) −γx( xz , ) −γx( − x+ gz , ) +γx( −xz<br />
, ) ⎞<br />
MSL t ⎜ ⎟<br />
H H ( xz , ) = ⋅ 0<br />
8 g ⎜ ⎟<br />
. (3.16)<br />
⎜γ z( x + gz , ) −γ z( xz , ) +γz( − x+ gz , ) −γz( −xz<br />
, ) ⎟<br />
⎝ ⎠<br />
Now a normalized head field H H can be <strong>in</strong>troduced, which is <strong>in</strong>dependent from the sensor<br />
magnetization<br />
H<br />
n<br />
H<br />
⎛γ x( x + gz , ) −γ x( xz , ) −γ x( − x+ gz , ) + γ x(<br />
−xz<br />
, ) ⎞<br />
t ⎜ ⎟<br />
( xz , ) = ⋅ 0<br />
8 g ⎜ ⎟<br />
. (3.17)<br />
⎜<br />
z( x + gz , ) − z( xz , ) + z( − x+ gz , ) − z(<br />
−xz<br />
, ) ⎟<br />
⎝γ γ γ γ ⎠<br />
Figure 3.3 shows the normalized head field at z = − 10 nm and for t = 5 nm and g = 27.5 nm ,<br />
so that the total gap is 60 nm. For longitud<strong>in</strong>al record<strong>in</strong>g only the x-component contributes,<br />
because the magnetization po<strong>in</strong>ts ma<strong>in</strong>ly <strong>in</strong> this direction.<br />
H x<br />
0.06<br />
0.04<br />
0.02<br />
0.00<br />
-0.02<br />
-0.04<br />
-0.06<br />
-100 -50 0 50 100<br />
x [nm]<br />
H z<br />
-0.02<br />
-100 -50 0 50 100<br />
x [nm]<br />
Figure 3.3: The x- and the z-component of the normalized head field of a read head with<br />
60 nm gap, and sens<strong>in</strong>g layer thickness 5 nm, 10 nm below the ABS.<br />
0.06<br />
0.05<br />
0.04<br />
0.03<br />
0.02<br />
0.01<br />
0.00<br />
-0.01<br />
33
3.2.2 Signal Field<br />
Analytical Calculations<br />
Now we are able to calculate the effective signal field from (3.4)<br />
eff 1<br />
n<br />
Hsig = () ⋅ H () dV<br />
V ∫ Mr H r . (3.18)<br />
SL V<br />
DL<br />
In case of a mov<strong>in</strong>g head with velocity v the effective signal field can be written as function<br />
of time<br />
eff 1<br />
n<br />
Hsig () t = ( ) ⋅ H ( − t) dV<br />
V ∫ Mr H r v . (3.19)<br />
SL V<br />
DL<br />
The advantage of us<strong>in</strong>g the reciprocity pr<strong>in</strong>ciple is that the head field has to be calculated only<br />
once. Then the signal field can be determ<strong>in</strong>ed by fold<strong>in</strong>g the head field with the magnetization<br />
of the record<strong>in</strong>g layer.<br />
3.2.3 Signal of a Perfect Transition<br />
The maximum signal field is achieved for perfect transitions, which are def<strong>in</strong>ed <strong>in</strong> case of<br />
longitud<strong>in</strong>al record<strong>in</strong>g by<br />
J ( x, z) =± J ⋅ sgn( x)<br />
. (3.20)<br />
x s<br />
Here J s is the spontaneous polarization, which is <strong>in</strong> the range of 0.3 T to 0.5 T for common<br />
record<strong>in</strong>g layers. For the head field shown <strong>in</strong> Figure 3.3 we get a pulse for the effective signal<br />
field, which is shown <strong>in</strong> Figure 3.4 for a 10 nm thick data layer positioned 10 nm below the<br />
ABS. The maximum signal field is reached whenever the center of the head is exactly over<br />
the transition. The full width at half maximum is about 50 nm and is therefore <strong>in</strong> the order of<br />
the distance between the two shields (60 nm).<br />
34
µ 0 Hsig [T]<br />
0.030<br />
0.025<br />
0.020<br />
0.015<br />
0.010<br />
0.005<br />
Analytical Calculations<br />
0.000<br />
-200 -100 0 100 200<br />
x [nm]<br />
Figure 3.4: The effective signal field as function of the relative position of the read head <strong>in</strong><br />
respect to a perfect transition (Js = 0.5 T).<br />
3.2.4 Signal of Written Bits<br />
The maximum read back signal is achieved for perfect transitions. In practice written bits do<br />
not have perfect transitions. Figure 3.5 shows the results of two record<strong>in</strong>g simulations with a<br />
head velocity of 10 m/s and 20 m/s.<br />
Figure 3.5: These two figures show the x-component of the magnetization (Js = 0.5 T) of<br />
the data layer after a write process with head velocity 10 m/s (left) and 20 m/s (right). Red<br />
color represents magnetization <strong>in</strong> positive x-direction and blue color magnetization <strong>in</strong><br />
negative x-direction. The scale is <strong>in</strong> µm, thus the bit length is approximately 40 nm. The<br />
data layer thickness is 12 nm.<br />
35
Analytical Calculations<br />
The head velocity <strong>in</strong>fluences the bit quality. The higher the velocity, the worse the quality of<br />
the bit transitions is.<br />
For both data layer structures the read back signals were calculated. Aga<strong>in</strong> a head with 60 nm<br />
gap, 5 nm free layer, and a fly<strong>in</strong>g height of 10 nm was assumed. The spontaneous<br />
magnetization of the data layer was aga<strong>in</strong> J s = 0.5 T , but the data layer thickness was 12 nm.<br />
Figure 3.6 show smaller amplitudes for the effective field compared to the amplitude of the<br />
perfect transition. The worse transition quality of the faster written bits leads to a smaller<br />
signal.<br />
µ 0 Hsig [T]<br />
0.020<br />
0.015<br />
0.010<br />
0.005<br />
0.000<br />
-0.005<br />
-0.010<br />
-0.015<br />
-0.020<br />
0 50 100 150<br />
x [nm]<br />
200 250 300<br />
µ 0 Hsig [T]<br />
0 50 100 150 200 250 300<br />
x [nm]<br />
Figure 3.6: The effective fields of the record<strong>in</strong>g layers (shown <strong>in</strong> Figure 3.5) as function of<br />
the head’s position. The dashed l<strong>in</strong>es <strong>in</strong>dicate the boundaries of the record<strong>in</strong>g layer model.<br />
3.3 Perpendicular Record<strong>in</strong>g<br />
For perpendicular record<strong>in</strong>g we can use the reciprocity pr<strong>in</strong>ciple aga<strong>in</strong>. We only have to take<br />
the SUL <strong>in</strong>to account (see Figure 3.7). Analogically to the shields the SUL is also assumed to<br />
have <strong>in</strong>f<strong>in</strong>ite permeability. Then the problem is equivalent to assum<strong>in</strong>g a second read head,<br />
mirrored at the SUL surface as shown <strong>in</strong> Figure 3.7 [22]. In addition the two shields with their<br />
high permeability act as second mirror. Therefore the head field for perpendicular record<strong>in</strong>g<br />
can be approximated by a series expansion of head fields of the orig<strong>in</strong>al head and its<br />
reflections at the SUL surface and the ABS. If the distance ABS to SUL is denoted with L, the<br />
series expansion of the head field for the perpendicular case can be written us<strong>in</strong>g (3.17)<br />
0.020<br />
0.015<br />
0.010<br />
0.005<br />
0.000<br />
-0.005<br />
-0.010<br />
-0.015<br />
-0.020<br />
36
Analytical Calculations<br />
n n<br />
⎛HH, x( x, z− 2 iL) + HH, x(<br />
x, −z− 2( i+ 1) L)<br />
⎞<br />
∞ ⎜ ⎟<br />
n<br />
H H ( xz , ) = ∑⎜0<br />
⎟.<br />
(3.21)<br />
k = 0 ⎜ n n<br />
HH, z( x, z−2 iL) −HH, z(<br />
x, −z− 2( i+ 1) L)<br />
⎟<br />
⎝ ⎠<br />
Figure 3.7: The simplified read head model (left) for perpendicular record<strong>in</strong>g. In the right<br />
picture the mirror heads are <strong>in</strong>dicated, which replace the SUL with its high permeability<br />
[22].<br />
The headfield for perpendicular record<strong>in</strong>g is shown <strong>in</strong> Figure 3.8. Here the gap was aga<strong>in</strong><br />
60 nm and the sens<strong>in</strong>g layer thickness 5 nm. The fly<strong>in</strong>g height was assumed to be 10 nm and<br />
the distance ABS to SUL 20 nm. The series expansion was aborted after the first 10 terms.<br />
For perpendicular record<strong>in</strong>g, where the data layer is ma<strong>in</strong>ly magnetized <strong>in</strong> z-direction, only<br />
H contributes to the signal field. So for perpendicular record<strong>in</strong>g the signal field is<br />
n<br />
H , z<br />
approximately proportional to the magnetization of the data layer. In contrast to longitud<strong>in</strong>al<br />
record<strong>in</strong>g the bits are detected and not their transitions.<br />
37
H x<br />
0.06<br />
0.04<br />
0.02<br />
0.00<br />
-0.02<br />
-0.04<br />
-0.06<br />
-100 -50 0 50 100<br />
x [nm]<br />
Analytical Calculations<br />
H z<br />
0.06<br />
0.05<br />
0.04<br />
0.03<br />
0.02<br />
0.01<br />
0.00<br />
-0.01<br />
-0.02<br />
-100 -50 0 50 100<br />
x [nm]<br />
Figure 3.8: The x- and the z-component of the normalized head field for perpendicular<br />
record<strong>in</strong>g.<br />
3.4 Signal Field <strong>in</strong> Gap<br />
After calculat<strong>in</strong>g the signal field H sig of the data layer at the air-bear<strong>in</strong>g surface we are now<br />
able to estimate the run of the magnetic field between the two shields. By averag<strong>in</strong>g H sig over<br />
the MR sensor’s height h we can determ<strong>in</strong>e the effective field<br />
eff<br />
h<br />
1<br />
sig sig<br />
h 0<br />
sig<br />
eff<br />
H sig act<strong>in</strong>g on the sensor.<br />
H = H = ∫ H ( z) dz<br />
(3.22)<br />
To get Hsig ( z ) we assume that the field <strong>in</strong> gap- (x-) direction Hg( z ) is constant between<br />
sensor and shield and only depends on z.<br />
As shown <strong>in</strong> Figure 3.9 we use Ampere’s Law on the dashed marked path, which gives<br />
and f<strong>in</strong>ally<br />
H ( z) ⋅ dz + H ( z + dz) ⋅g−H( z) ⋅ g = 0<br />
(3.23)<br />
sig g g<br />
dH g<br />
Hsig ( z) =− g . (3.24)<br />
dz<br />
38
z<br />
Analytical Calculations<br />
Figure 3.9: a) Application of Ampere’s Law on the dashed path, b) application of Gauss’s<br />
Law on the dashed box.<br />
In addition we use Gauss’ Law for a box with <strong>in</strong>f<strong>in</strong>itesimal small height dz over the sens<strong>in</strong>g<br />
layer:<br />
x<br />
a) g g<br />
b)<br />
−μ ⋅μ ⋅H ( z) ⋅ t+ 2 ⋅μ ⋅H ( z) ⋅ dz+μ ⋅μ ⋅ H ( z+ dz) ⋅ t = 0.<br />
(3.25)<br />
r 0 sig 0 g r 0 sig<br />
Here μ r is the relative permeability of the sens<strong>in</strong>g layer. The last equation is equivalent to<br />
1 dH sig<br />
Hg( z) =− ⋅μr ⋅t⋅ (3.26)<br />
2 dz<br />
Comb<strong>in</strong><strong>in</strong>g (3.24) and (3.26) gives a differential equation.<br />
2<br />
dHsig<br />
2<br />
1<br />
Hsig ( z) = ⋅μr⋅g⋅t⋅ (3.27)<br />
2 dz<br />
Assum<strong>in</strong>g the boundary conditions<br />
ABS<br />
H (0) = H and H ( h)<br />
= 0<br />
(3.28)<br />
sig sig sig<br />
leads to the solution<br />
⎛h−z⎞ s<strong>in</strong>h ⎜ ⎟<br />
λ<br />
Hsig ( z) = Hsig⋅<br />
⎝ ⎠<br />
with λ=<br />
⎛h⎞ s<strong>in</strong>h ⎜ ⎟<br />
⎝λ⎠ ABS r<br />
μ ⋅g⋅t . (3.29)<br />
2<br />
Here λ is the flux propagation length. Now the effective field can be calculated under the<br />
terms of (3.22):<br />
Hsig<br />
t<br />
Hg Hg<br />
Hg<br />
dz<br />
z<br />
x<br />
Hsig<br />
t<br />
dz<br />
g g<br />
39
H = H<br />
eff ABS<br />
sig sig<br />
λ cosh( h / λ) −1<br />
h s<strong>in</strong>h( h/<br />
λ)<br />
Analytical Calculations<br />
For large flux propagation lengths λ � h , which is normally the case, (3.30) simplifies to<br />
(3.30)<br />
h<br />
eff ABS λ ⎛ − ⎞<br />
λ<br />
Hsig = Hsig⎜1−e ⎟.<br />
(3.31)<br />
h ⎝ ⎠<br />
So the signal field roughly decreases exponentially between the shields from the ABS<br />
upwards.<br />
40
4 Numerical MethodsEquation<br />
Numerical Methods<br />
Section (Next)<br />
Micromagnetic simulations require a discrete representation of the cont<strong>in</strong>uous magnetization<br />
distribution on a computer. Due to the strong ferromagnetic coupl<strong>in</strong>g the magnetization does<br />
not vary rapidly over short distances. So the discretization size can be much larger than the<br />
atomic lattice constant. Usual lengths of significant magnetization changes (widths of doma<strong>in</strong><br />
walls) are <strong>in</strong> the order of some nanometers for hard magnetic materials, for soft magnetic<br />
materials even one or two orders of magnitude larger. To keep numerical errors small, the<br />
discretization size should be smaller than the doma<strong>in</strong> wall widths.<br />
Dynamic micromagnetic calculations require two major tasks. The first part is to calculate the<br />
stray field. For this purpose a partial differential equation (PDE) of the form<br />
Lu [ ( r)] = s(<br />
r )<br />
(4.1)<br />
has to be solved. Here L denotes the differential operator, s is called source term and u is the<br />
unknown function, which fulfills this PDE. For stray field calculations u represents the<br />
magnetic potential. We also have to solve an equation of type (4.1) for the electric potential of<br />
an <strong>in</strong>homogeneous conductor (see (2.31)). For this purpose the F<strong>in</strong>ite Element Method is<br />
used.<br />
As second task we have solve an <strong>in</strong>itial-value problem (IVP) of the form:<br />
y� = f(, t y), y( t ) = y . (4.2)<br />
0 0<br />
In case of the LLG equation y represents the magnetization. Therefore y 0 would be the <strong>in</strong>itial<br />
magnetization. Here the time has to be discretized. We use a time <strong>in</strong>tegration rout<strong>in</strong>e, which<br />
automatically adapts the time steps. So for fast physical processes a smaller time step is<br />
chosen to <strong>in</strong>crease accuracy.<br />
41
4.1 F<strong>in</strong>ite Element Method<br />
Numerical Methods<br />
The F<strong>in</strong>ite Element Method (FEM) is a well established tool for solv<strong>in</strong>g partial differential<br />
equations (PDE). The ma<strong>in</strong> advantage of FEM is the good applicability on arbitrary shaped<br />
geometries. Usually tetrahedrons are used to fractionalize the model. In addition the<br />
discretization size, i.e. the size of the tetrahedrons, can be easily varied over the whole model.<br />
The general form of a PDE is<br />
Lu [ � ( r)] = f(<br />
r)<br />
. (4.3)<br />
Here L denotes the differential operator, f is called source term and u� is the unknown exact<br />
solution, which fulfills this PDE. The ma<strong>in</strong> idea of FEM is to discretize the solution. So a set<br />
of N basis functions ϕi ( r) is assumed. Now all l<strong>in</strong>ear comb<strong>in</strong>ations of these basis functions<br />
are considered:<br />
N<br />
∑<br />
u() r = u ⋅ϕ () r . (4.4)<br />
i=<br />
1<br />
i i<br />
Then the numerical solution u is that l<strong>in</strong>ear comb<strong>in</strong>ation, which fits best to the true solution<br />
u� . Thus the coefficients u i have to be determ<strong>in</strong>ed.<br />
To measure the quality of different solutions the residual function R( r) is <strong>in</strong>troduced<br />
R(): r = Lu [()] r − f()<br />
r . (4.5)<br />
The smaller the residual the smaller the error of the solution is. Now we can make different<br />
demands on the residual <strong>in</strong> order to get a good solution. One popular method is the Galerk<strong>in</strong><br />
Method, whose conditions for the residual are<br />
∫ R() r wi() r dr = 0 1≤i≤<br />
N . (4.6)<br />
V<br />
In other words, the solution has to fulfill the PDE only <strong>in</strong> average. Here wi ( r ) are N weight<br />
functions, which have to satisfy certa<strong>in</strong> conditions to lead actually to a small residual. One<br />
possibility is to set these weight functions equal to the basis functions.<br />
w() r =ϕ() r 1≤i≤N<br />
. (4.7)<br />
i i<br />
The basis functions usually are piecewise l<strong>in</strong>ear functions with the property<br />
42
Numerical Methods<br />
ϕ ( x ) =δ . (4.8)<br />
i j ij<br />
Each basis function ϕ i refers to the i-th node of the tetrahedral mesh. Figure 4.1 shows such<br />
functions for a 2-dimensional mesh, which are also called “hat functions” due to their<br />
appearance.<br />
Figure 4.1: Typical basis functions of two neighbor<strong>in</strong>g nodes of a 2-dimensional mesh.<br />
For our simulations we need to solve Laplace and Poisson equations of the form<br />
( )<br />
∇ σ() r ∇ u() r = s()<br />
r . (4.9)<br />
Here s( r ) is the source term, which vanishes <strong>in</strong> case of a Laplace equation. The additional<br />
factor σ( r ) also <strong>in</strong>cludes the generalized Laplace equation for <strong>in</strong>homogeneous conductors<br />
(see (2.31)). Now we apply the Galerk<strong>in</strong> Method, which leads to<br />
( ( ) )<br />
∫ ∇ σ() r ∇u() r −s() r ϕ i () r dV = 0,<br />
(4.10)<br />
V<br />
Partial <strong>in</strong>tegration yields<br />
∫ ∫ ∫<br />
σ() r ∇u() r ∇ϕ i() r dV = � σ() r ∇u() r ϕi() r dA− s() r ϕi()<br />
r dV . (4.11)<br />
V ∂V<br />
V<br />
We take <strong>in</strong>to account that the solution u is a l<strong>in</strong>ear comb<strong>in</strong>ation of all basis functions ϕ i :<br />
N<br />
∑ ∫ ∫ ∫<br />
u σ() r ∇ϕ () r ∇ϕ () r dV = � σ() r ∇u() r ϕ () r dA− s() r ϕ () r dV . (4.12)<br />
j j i i i<br />
j= 1 V ∂V<br />
V<br />
With the def<strong>in</strong>itions<br />
43
Numerical Methods<br />
Aij = ∫ σ() r ∇ϕ j () r ∇ϕi()<br />
r dV , (4.13)<br />
V<br />
si =−∫s() r ϕi()<br />
r dV , (4.14)<br />
V<br />
∂u()<br />
r<br />
bi = ∫ σ() r ∇u() r ϕ i() r dA= ∫ σ() r ϕi()<br />
r dA<br />
∂n<br />
� � (4.15)<br />
∂V ∂V<br />
(4.12) can be written as<br />
N<br />
∑ Au ij j<br />
j=<br />
1<br />
= bi + si = ri<br />
. (4.16)<br />
Here the system matrix A = ( Aij<br />
) is symmetric and positive def<strong>in</strong>ite. s i is the source term,<br />
and b i is due to boundary conditions and only contributes, if the i-th node is situated at the<br />
surface ∂ V ( r i ∈∂V<br />
). In this case we have to determ<strong>in</strong>e the <strong>in</strong>tegral <strong>in</strong> (4.15) by tak<strong>in</strong>g<br />
boundary conditions <strong>in</strong>to account. Here we have to dist<strong>in</strong>guish between Dirichlet and<br />
Neumann boundary conditions. r i denotes the right hand side and is the sum of the boundary<br />
and the source term.<br />
4.1.1 Dirichlet Boundary Conditions<br />
In case of Dirichlet boundary conditions the value of the i-th node u( r ) = b is known. So the<br />
whole i-th equation can be replaced by<br />
i i<br />
ui = bi.<br />
(4.17)<br />
This would destroy the symmetry of the matrix A ij . To ma<strong>in</strong>ta<strong>in</strong> its symmetry, which is<br />
convenient for solv<strong>in</strong>g a system of l<strong>in</strong>ear equations, the matrix entry A ii is just multiplied by a<br />
6<br />
large number ( ~10 ). Then the right hand side is set to b i multiplied with the new coefficient<br />
A ii .<br />
4.1.2 Neumann Boundary Conditions<br />
In case of Neumann boundary conditions the normal component of σ() r ∇u()<br />
r , that is<br />
n⋅σ() r ∇ u() r =− j()<br />
r , is given at the boundary of the mesh. Here j() r can be <strong>in</strong>terpreted as a<br />
44
Numerical Methods<br />
current flow<strong>in</strong>g out of the volume. Normally the Neumann boundary conditions are given<br />
either for each boundary triangle<br />
j() r = j , ∀r ∈Δ<br />
(4.18)<br />
ijk ijk<br />
or for each boundary node of the mesh<br />
j( r) = j , ∀r ∈∂V<br />
. (4.19)<br />
i i i<br />
For the first case we get for the boundary <strong>in</strong>tegral term <strong>in</strong> (4.15)<br />
1<br />
σ() r ∇u() r ϕ () r dA=− j() r ϕ () r dA=−∑ j ϕ () r dA=− ∑A<br />
j<br />
3<br />
�∫ � ∫ ∫<br />
. (4.20)<br />
i i ijk i ijk ijk<br />
∂V ∂V Δijk Δijk<br />
j< k<br />
Δijk<br />
j< k<br />
For the second case we get for the current j by l<strong>in</strong>ear <strong>in</strong>terpolation between the sampl<strong>in</strong>g<br />
po<strong>in</strong>ts (po<strong>in</strong>ts at the boundary) us<strong>in</strong>g the test functions i ϕ<br />
∑<br />
j() r = j ⋅ϕ () r . (4.21)<br />
i<br />
i i<br />
Then the result of the boundary <strong>in</strong>tegral is<br />
�∫ �∫<br />
σ() r ∇u() r ϕ () r dA=− j() r ϕ () r dA=<br />
i i<br />
∂V ∂V<br />
1<br />
−∑ ∫ ( jiϕ i() r + jjϕ j() r + jkϕk() r ) ϕ i() r dA=− ∑Aijk<br />
( 2 ji + jj + jk)<br />
.<br />
12<br />
Δijk Δ<br />
Δ<br />
ijk<br />
ijk<br />
j< k j< k<br />
4.1.3 L<strong>in</strong>ear equation solver<br />
The FEM method leads to a system of l<strong>in</strong>ear equations (4.16)<br />
(4.22)<br />
Au ij j = ri<br />
⇔ Au ⋅ = r (4.23)<br />
with a sparse symmetric and positive def<strong>in</strong>ite matrix A. To solve this system of l<strong>in</strong>ear<br />
equations a Cholesky factorization method for sparse matrices seemed to be practicable [23].<br />
The advantage of this method over iterative methods is the <strong>in</strong>sensibility of “bad” meshes. The<br />
convergence fails with iterative methods if the tetrahedrons show much difference from<br />
regular tetrahedrons, so that they have small angles. This is problematic for meshes of th<strong>in</strong><br />
layers, as used <strong>in</strong> GMR elements.<br />
45
4.2 Stray Field Calculation<br />
Numerical Methods<br />
The numerical calculation of the stray field is not very efficient, if it is calculated us<strong>in</strong>g (2.22),<br />
because for each po<strong>in</strong>t <strong>in</strong> space one has to calculate the whole volume <strong>in</strong>tegral <strong>in</strong> (2.22). So<br />
the calculation requires comput<strong>in</strong>g of<br />
calculate the stray field more efficiently with numerical means.<br />
2<br />
ON ( ) . Fredk<strong>in</strong> and Koehler [24] proposed a way to<br />
As described <strong>in</strong> Section 2.3 the field of a given magnetization, <strong>in</strong> this case the stray field, can<br />
be represented as gradient of a magnetic scalar potential.<br />
H =−grad Ψ . (4.24)<br />
S S<br />
The magnetic potential of a given magnetization <strong>in</strong> a volume V can be calculated by solv<strong>in</strong>g<br />
the Poisson equation<br />
ΔΨ = divM<br />
(4.25)<br />
S<br />
with the jump condition at the boundary ∂ V<br />
out <strong>in</strong><br />
∂Ψ S ∂Ψ S − =−Mn ⋅<br />
∂n ∂n<br />
∂V<br />
. (4.26)<br />
Now the idea of Fredk<strong>in</strong> and Koehler was to split the magnetic scalar potential <strong>in</strong>to two parts<br />
Ψ=Ψ S,1 +Ψ S,2.<br />
(4.27)<br />
Inside the volume V Ψ S ,1 is the solution of a Poisson equation<br />
ΔΨ = M (4.28)<br />
<strong>in</strong><br />
S ,1 div<br />
with Neumann boundary conditions<br />
<strong>in</strong><br />
∂Ψ S ,1<br />
= ⋅<br />
∂n<br />
Mn<br />
∂V<br />
. (4.29)<br />
Outside of V this part of the magnetic potential is set to zero:<br />
Ψ = . (4.30)<br />
out<br />
S ,1 0<br />
Ψ S ,1 can be solved now as performed <strong>in</strong> Section 4.1. The boundary term and the source term<br />
are calculated as follows:<br />
46
Numerical Methods<br />
∫ ∫ ∫<br />
si =− div Mϕ i( r) dV = M⋅grad ϕi( r) dV −� Mϕi( r) dA,<br />
(4.31)<br />
∫<br />
V V ∂V<br />
bi = � Mϕi() r dA.<br />
(4.32)<br />
∂V<br />
Both terms contribute to the right hand side, result<strong>in</strong>g <strong>in</strong><br />
N<br />
r = M⋅grad ϕ ( r) dV = M ϕ ( r)grad ϕ ( r ) dV . (4.33)<br />
∫ ∑ ∫<br />
i i j j i<br />
V j=<br />
1 V<br />
Here the <strong>in</strong>tegral can be calculated analytically for each tetrahedron of the mesh.<br />
S<strong>in</strong>ce the total potential S S,1 S,2<br />
satisfy the Laplace equation<br />
<strong>in</strong> out<br />
S,2 S,2<br />
Ψ =Ψ +Ψ must fulfill equations (4.25) and (4.26), Ψ ,2 must<br />
ΔΨ = 0, ΔΨ = 0<br />
(4.34)<br />
with boundary conditions<br />
and<br />
out <strong>in</strong><br />
∂Ψ S,2 ∂Ψ S,2<br />
− = 0<br />
∂n ∂n<br />
∂V<br />
out <strong>in</strong> <strong>in</strong><br />
S,2 S,2 S,1<br />
∂V<br />
S<br />
(4.35)<br />
Ψ −Ψ =Ψ . (4.36)<br />
Fortunately the last equations also describe the magnetic scalar potential of a dipole layer with<br />
moment Ψ S ,1 at the surface ∂ V . The scalar potential of such a dipole layer is known:<br />
1<br />
r−r′ Ψ () r = � Ψ ( r′ ) dA′<br />
. (4.37)<br />
∫<br />
S,2 4π<br />
∂V<br />
<strong>in</strong><br />
S,13<br />
r−r′ i<br />
In practice the magnetic potential Ψ S ,2 can be evaluated at each node S,2 S,2 i<br />
i<br />
with FEM. Generally the potential vector ( S ,2 )<br />
j<br />
with the vector ( Ψ S ,1 ) ,<br />
i j<br />
S,2 ij S,1<br />
Ψ =Ψ ( r ) , if used<br />
Ψ can be calculated by a matrix multiplication<br />
Ψ = M Ψ . (4.38)<br />
47
Here the matrix = ( M ij )<br />
Numerical Methods<br />
M describes a dipole <strong>in</strong>teraction of all boundary nodes of V, with all<br />
nodes of V, and is normally fully populated. This matrix has to be calculated only once,<br />
because it does not depend on the boundary conditions. For large models this matrix requires<br />
a lot of memory. So it is more convenient to calculate only the <strong>in</strong>teraction between boundary<br />
and boundary nodes, and evaluate the magnetic potential Ψ S ,2 by solv<strong>in</strong>g the Laplace<br />
equation <strong>in</strong> (4.34) with Dirichlet boundary conditions. In addition the <strong>in</strong>teraction matrix is<br />
compressed as described <strong>in</strong> next section.<br />
4.3 Adaptive Cross-Approximation Technique<br />
The discretization of boundary <strong>in</strong>tegral equations leads to large dense matrices that have no<br />
explicit structure <strong>in</strong> general. However, by suitable renumber<strong>in</strong>g and permut<strong>in</strong>g the boundary<br />
nodes, the dense matrix can be written <strong>in</strong> a form that conta<strong>in</strong>s blocks that can be approximated<br />
by low-rank matrices [25]. The renumber<strong>in</strong>g of the nodes is done by geometrical criterions.<br />
Consecutive boundary nodes should be located close to each other. A simple example of the<br />
cluster<strong>in</strong>g is given <strong>in</strong> Figure 4.2. Boundary nodes that are located close to each other are<br />
comb<strong>in</strong>ed <strong>in</strong> a cluster. A large distance between cluster results <strong>in</strong> entries <strong>in</strong> the renumbered<br />
boundary matrix that are well separated from each other. For example the cluster with the<br />
nodes {6,7,8,9,10} and the cluster {1,2,3,4,5} are admissible cluster pairs. This pair of<br />
clusters leads to a block <strong>in</strong> the boundary matrix which can be approximated by a low-rank<br />
matrix. The boundary matrix correspond<strong>in</strong>g to the cluster<strong>in</strong>g is also shown <strong>in</strong> Figure 4.2. The<br />
off-diagonal blocks of the matrix represent far-field <strong>in</strong>teractions.<br />
This technique leads to compressed <strong>in</strong>teraction matrices, which save a lot of memory.<br />
Additionally the algorithmic complexity for sett<strong>in</strong>g up the boundary matrix and for matrix-by-<br />
vector products is reduced from<br />
2<br />
ON ( ) to ON ( ) .<br />
48
Numerical Methods<br />
Figure 4.2: The left figure shows a set of 10 nodes after renumber<strong>in</strong>g and the cluster<strong>in</strong>g.<br />
The right figure shows the associated boundary matrix structure. The large off-diagonal<br />
blocks, correspond<strong>in</strong>g to far field <strong>in</strong>teractions of two clusters, can be approximated by lowrank<br />
matrices [25].<br />
4.4 Conductor Model<br />
The sense current through the MR sensor generates a magnetic field, which has to be taken<br />
<strong>in</strong>to account. The current is even used for bias<strong>in</strong>g <strong>in</strong> AMR heads (see Section 6.1.2).<br />
Therefore the sense current cannot be neglected.<br />
So we have a conductor model <strong>in</strong> addition to the magnetic model. As there are materials<br />
which are magnetic and conductive these two models can overlap. The current model consists<br />
of materials with different conductivities and magnetoresistive effects as described <strong>in</strong> Section<br />
2.8. So the current density must be assumed as function of locus and as function of<br />
magnetization.<br />
σ=σrM (, )<br />
(4.39)<br />
Aga<strong>in</strong> we use a tetrahedral mesh and the F<strong>in</strong>ite Element Method to calculate the electric<br />
potential and further the current distribution.<br />
4.4.1 Conductivity<br />
In case of non-magnetoresistive materials we have constant conductivities. In<br />
magnetoresistive materials, however, the conductivity has to be evaluated from the<br />
magnetization (see (2.50) or (2.51)). To specify conductivity and magnetoresistance there are<br />
49
Numerical Methods<br />
several material parameters, listed and described <strong>in</strong> Table 4.1. The listed parameters are<br />
assigned for each material. The tetrahedrons <strong>in</strong>herit the properties of the material, which they<br />
are assigned to.<br />
If a magnetoresistive material is specified, the conductivity has to be calculated first, <strong>in</strong> order<br />
to be able to calculate the current density. In case of a AMR (Type = 1) or GMR element<br />
(Type = 2) the magnetic material or two magnetic materials, respectively, have to be<br />
specified, which <strong>in</strong>fluence the conductivity. To calculate the conductivity for a tetrahedron of<br />
a GMR material, the nearest po<strong>in</strong>ts to the midpo<strong>in</strong>t of the tetrahedron <strong>in</strong> both materials are<br />
searched first. This is done us<strong>in</strong>g the Approximate Nearest Neighbor (ANN) Search<br />
Algorithm [26]. Then the effective conductivity can be obta<strong>in</strong>ed us<strong>in</strong>g (2.50) or (2.51).<br />
Parameter Description<br />
σ Conductivity <strong>in</strong> Ω -1 m -1<br />
Type 0 Normal conductor, 1 AMR, 2 GMR<br />
MR-Ratio The maximum change <strong>in</strong> resistance.<br />
Only relevant if Type is not equal to 0.<br />
<strong>Magnetic</strong> Material 1 Only relevant for AMR or GMR, def<strong>in</strong>es number of (1 st )<br />
magnetic material, which <strong>in</strong>fluences the conductivity.<br />
<strong>Magnetic</strong> Material 2 Only relevant for GMR, def<strong>in</strong>es number of 2 nd material,<br />
which <strong>in</strong>fluences conductivity.<br />
Table 4.1: Material parameters for the conductor model.<br />
4.4.2 Electric Potential<br />
To get the electric potential Φ Equation (2.31)<br />
div( σgrad Φ ) = 0<br />
(4.40)<br />
has to be solved. In addition we have to specify boundary conditions. There are two<br />
possibilities: Either the potential or the out-/<strong>in</strong>flow<strong>in</strong>g current has to be declared. F<strong>in</strong>ally this<br />
problem can be solved by apply<strong>in</strong>g the FEM approach as described <strong>in</strong> Section 4.1.<br />
N<br />
Φ () r = Φ ⋅ϕ () r (4.41)<br />
∑<br />
i= 1<br />
i i<br />
The result gives the values of the electric potential at the nodal po<strong>in</strong>ts.<br />
4.4.3 Current Distribution<br />
Then the current distribution can be evaluated us<strong>in</strong>g (2.32)<br />
50
Numerical Methods<br />
j =−σgrad Φ.<br />
(4.42)<br />
With the calculated electric potential (4.41) we are able to determ<strong>in</strong>e the current distribution<br />
for each tetrahedron ijkl. Insert<strong>in</strong>g <strong>in</strong> (4.42) gives<br />
( grad grad grad grad )<br />
j =−σ Φ ⋅ ϕ +Φ ⋅ ϕ +Φ ⋅ ϕ +Φ ⋅ ϕ . (4.43)<br />
ijkl ijkl i i j j k k l l<br />
4.4.4 <strong>Magnetic</strong> Field of Current<br />
When the current distribution is known for each element, the next task is to determ<strong>in</strong>e the<br />
additional magnetic field due to the current. The current is uniform for each tetrahedron. So<br />
the Biot-Savart Law (2.46) can be written as<br />
or<br />
1<br />
Hijkl () r = jijkl<br />
×<br />
4π<br />
∫<br />
Vijkl<br />
r−r′ r−r′ 3<br />
dV ′<br />
(4.44)<br />
1 1<br />
Hijkl () r = j ′ ijkl × ∇ dV ′<br />
4 ∫<br />
. (4.45)<br />
π r−r′ Vijkl<br />
Integration delivers (see Appendix A)<br />
1 1<br />
Hijkl () r = jijkl × d ′<br />
4 �∫<br />
A . (4.46)<br />
π r−r′ ∂Vijkl<br />
So the field of a tetrahedron with uniform current density can be calculated by <strong>in</strong>tegrat<strong>in</strong>g<br />
over its surface triangles:<br />
1 ⎛ 1 1 1 1 ⎞<br />
Hijkl () r = jijkl × ⎜ d ′ + d ′ + d ′ + d ′ ⎟<br />
4 ⎜ ∫ A<br />
− ′ ∫ A<br />
− ′ ∫ A<br />
− ′ ∫ A . (4.47)<br />
π<br />
− ′ ⎟<br />
⎝<br />
r r r r r r r r<br />
Δijk Δjlk Δilk Δijl<br />
⎠<br />
Fortunately the <strong>in</strong>tegrals <strong>in</strong> (4.47) can be solved analytically for triangle surfaces, result<strong>in</strong>g <strong>in</strong><br />
quite complicated formulas [27] [28]. The total field due to the current can be obta<strong>in</strong>ed by<br />
summation over all tetrahedral elements ijkl. Now we are able to determ<strong>in</strong>e the magnetic field<br />
at all nodes r i of the magnetic model. Generally the effective field can be written as<br />
multiplication of the <strong>in</strong>teraction matrix and the current density vector.<br />
∑<br />
Hr ( ) = A ⋅j<br />
. (4.48)<br />
i ij j<br />
jl<br />
51
Numerical Methods<br />
Here A ij are 3× 3-submatrices<br />
describ<strong>in</strong>g the <strong>in</strong>teraction of the j-th tetrahedron of the<br />
conductor model with the i-th node of the magnetic model. Thus the matrix A= ( A ) is a<br />
( 3n) ( 3m)<br />
× -Matrix, where n denotes the number of nodes of the magnetic model and m the<br />
number of tetrahedrons <strong>in</strong> the conductor model. Usually the matrix A is fully populated and<br />
requires a lot of memory. The multiplication with such a matrix is very time consum<strong>in</strong>g. To<br />
speed up the calculation and save memory an adaptive cross-approximation technique can be<br />
used (see chapter 4.3). Unfortunately this technique needs a lot of memory when calculat<strong>in</strong>g<br />
the approximation of the <strong>in</strong>teraction matrix A for large magnetic and conductor models.<br />
4.4.5 Hybrid FEM/BEM for Current Field<br />
To overcome the storage problem we proposed an alternative way to calculate the magnetic<br />
field <strong>in</strong> the magnetic model. Here we use a common mesh for the magnet and the conductor<br />
model. Similar to the stray field calculation (see Section 2.5.2) we can reduce the <strong>in</strong>teraction<br />
matrix to a boundary <strong>in</strong>teraction matrix.<br />
Start<strong>in</strong>g from Equation (2.29)<br />
curl H = j, (4.49)<br />
apply<strong>in</strong>g the curl-operator on both sides, and consider<strong>in</strong>g that div H = 0 lead to a Poisson<br />
equation for each component of H.<br />
Δ H =−curl<br />
j (4.50)<br />
with boundary condition (see Appendix B)<br />
out <strong>in</strong><br />
∂H ∂H<br />
− = n× j<br />
∂n ∂n<br />
∂V<br />
. (4.51)<br />
Now the magnetic field can be calculated quite similar to the stray field, described <strong>in</strong> Section<br />
4.2. We split the magnetic field <strong>in</strong>to two parts<br />
H = H1+ H 2,<br />
(4.52)<br />
where H 1 is the solution of<br />
Δ H =− j (4.53)<br />
<strong>in</strong><br />
1 curl<br />
ij<br />
52
Numerical Methods<br />
with<strong>in</strong> the volume V. Outside the magnetic field H 1 is set to zero<br />
out<br />
H 1 = 0 . (4.54)<br />
Then the boundary condition writes as<br />
∂H<br />
∂n<br />
<strong>in</strong><br />
1<br />
=− n× j<br />
∂V<br />
. (4.55)<br />
Now H 1 can be calculated with<strong>in</strong> the volume V as described <strong>in</strong> Section 4.1. The source term<br />
is determ<strong>in</strong>ed by<br />
∫<br />
s = curl jϕ ( r ) dV . (4.56)<br />
i i<br />
V<br />
Here the source term is a vector. Each component refers to one of the three Poisson equations<br />
<strong>in</strong> (4.53). Partial <strong>in</strong>tegration gives<br />
si = � ∫ n× jϕi() r dA − ∫j×<br />
grad ϕi()<br />
r dV . (4.57)<br />
∂V<br />
V<br />
The boundary <strong>in</strong>tegral becomes<br />
<strong>in</strong><br />
∂H1<br />
bi = ∫ ϕ i() r dA =− × ϕi()<br />
dA<br />
∂ ∫ n j r<br />
n<br />
� � . (4.58)<br />
∂V ∂V<br />
So the first <strong>in</strong>tegral <strong>in</strong> the source term and the boundary term cancel each other. The right<br />
hand side is therefore<br />
∫<br />
r =− j× grad ϕ(<br />
r ) dV . (4.59)<br />
i i<br />
V<br />
The gradient of the test function and the current density are constant for each tetrahedron, so<br />
the <strong>in</strong>tegral (4.59) can be calculated as sum over all tetrahedrons, which are enclosed to the<br />
i-th node.<br />
The second part H 2 has to fulfill<br />
and further<br />
Δ H = 0, Δ H = 0<br />
(4.60)<br />
<strong>in</strong> out<br />
2 2<br />
53
out <strong>in</strong> <strong>in</strong><br />
2 2 1<br />
∂V<br />
Numerical Methods<br />
H − H = H (4.61)<br />
to guarantee (4.50) and (4.53). Aga<strong>in</strong> we have an equivalent problem as <strong>in</strong> Section 4.2, but for<br />
three dimensions. Analogously the field H 2 can be evaluated by<br />
( − ′ )<br />
1 r r n<br />
H () r = ( ′ ) dA<br />
π � ∫ H r<br />
. (4.62)<br />
′<br />
2<br />
4 ∂V<br />
<strong>in</strong><br />
1<br />
r−r 3<br />
To save memory we only create an <strong>in</strong>teraction matrix from boundary to boundary, and solve<br />
the Laplace equation (4.60) aga<strong>in</strong> to calculate H 2 .<br />
4.4.6 Example: Long Wire<br />
To verify the program and the calculated fields, some relative simple models are simulated,<br />
which can also be calculated analytically. The first example is a long straight Cu-wire with<br />
length l = 200 mm and wire radius r = 2 mm . The conductivity of Cu is<br />
7 -1 -1<br />
σ= 5.961⋅10 Ω m . At least we have to specify the boundary conditions of the wire. At one<br />
side the electric potential was set to V 1 = 0 . The boundary condition of the opposite end was<br />
chosen <strong>in</strong> a way, that the total <strong>in</strong>flow<strong>in</strong>g current has a value of I = 1 mA . With these<br />
parameters the total resistance of the Cu-wire can be calculated: R = 267 µ Ω . Us<strong>in</strong>g Ohm’s<br />
Law (2.1) we get for the electric potential V 2 = 0.267 µV . This analytically calculated value<br />
matches well with that of the FEM calculation 2<br />
0.278 µV<br />
FEM<br />
FEM<br />
V = . The error ( 2<br />
V is about<br />
4.2% larger than V 2 ) is traced back to the mesh. The mesh has to approximate a cyl<strong>in</strong>drical<br />
surface with triangles. So the cross sectional area of the mesh model is smaller than that of the<br />
realistic model. This leads to a larger resistance and further to a larger voltage.<br />
I<br />
2<br />
The current density of the realistic model is j = = 79.58 A/m . The magnetic field of an<br />
2<br />
r π<br />
<strong>in</strong>f<strong>in</strong>ite long straight wire with constant current can be easily calculated due to the symmetry<br />
<strong>in</strong> respect of rotations around the wire’s axis. The only non-zero field component is that <strong>in</strong><br />
azimuthal direction and can be determ<strong>in</strong>ed us<strong>in</strong>g Ampere’s Law (2.6).<br />
� ∫ H⋅ ds= ∫j×<br />
dA<br />
(4.63)<br />
∂A<br />
A<br />
54
Numerical Methods<br />
Integration of Ampere’s law gives for the radial field<br />
H<br />
( )<br />
⎧ ρ<br />
⎪<br />
j : 0≤ρ<<br />
r<br />
⎪ 2<br />
. (4.64)<br />
ϕ ρ =⎨ 2<br />
⎪<br />
r<br />
j : r ≤ρ<br />
⎪⎩ 2ρ<br />
This function is plotted <strong>in</strong> Figure 4.3, and shows a l<strong>in</strong>ear <strong>in</strong>crease, reach<strong>in</strong>g its maximum at<br />
the wire’s surface and decl<strong>in</strong>es proportional to 1/ρ outside.<br />
H ϕ [A/m]<br />
0.10<br />
0.08<br />
0.06<br />
0.04<br />
0.02<br />
0.00<br />
0<br />
0 10 20 30 40 50<br />
ρ [mm]<br />
Figure 4.3: Hϕ for an <strong>in</strong>f<strong>in</strong>ite long wire is plotted over the distance from the middle axis.<br />
The second curve shows the error of the numerical calculation.<br />
The second curve <strong>in</strong> Figure 4.3 shows the relative error of the FEM calculation compared to<br />
(4.64). The error is negative and <strong>in</strong>creases accord<strong>in</strong>g to amount with <strong>in</strong>creas<strong>in</strong>g ρ . The model<br />
with f<strong>in</strong>ite length used for the FEM calculation is the reason for that. The f<strong>in</strong>ite length has a<br />
greater effect for larger radial distances. The discont<strong>in</strong>uities of the error curve are due to the<br />
Adaptive Cross-Approximation Technique (see Section 4.3). For small ρ we have a very<br />
good match of the numerical and analytical calculated fields.<br />
4.4.7 Example: Coil<br />
A coil as shown <strong>in</strong> Figure 4.4 is the second example. For the coil wire we have aga<strong>in</strong> the same<br />
7 -1 -1<br />
parameters as for the straight wire ( σ= 5.961⋅10 Ω m , I = 1 mA , r = 2 mm ). The radius<br />
of the coil is r′ = 20 mm , the length is l = 100 mm , and it has N = 20 w<strong>in</strong>d<strong>in</strong>gs. The model<br />
additionally has two straight leads with lengthl L = 80 mm . Similar to the straight wire we can<br />
now calculate the difference of the electric potential by analytical means:<br />
-10<br />
-8<br />
-6<br />
-4<br />
-2<br />
Error [%]<br />
55
V<br />
2l + N2πr′ ≈ = 3.57 µV<br />
σrπ L<br />
2 2<br />
Numerical Methods<br />
(4.65)<br />
With the FEM we get V 2 = 3.81µV . The difference is aga<strong>in</strong> due to the smaller cross sectional<br />
area of the meshed model.<br />
H z (r=0) [A/m]<br />
0.20<br />
0.15<br />
0.10<br />
0.05<br />
0.00<br />
0<br />
-100 -50 0 50 100 150 200<br />
z [mm]<br />
Figure 4.4: The model of the coil (left). The color code shows the l<strong>in</strong>ear decrease of the<br />
electric potential <strong>in</strong>side the wire. The chart (right) shows the magnetic field of a solenoid <strong>in</strong><br />
z-direction at the middle axis. The two dotted l<strong>in</strong>es identify the position of the solenoid.<br />
The second graph shows the relative error of the coil’s magnetic field calculated with FEM<br />
calculation compared to the solenoid’s field.<br />
The magnetic field for a perfect solenoid (hollow cyl<strong>in</strong>der with <strong>in</strong>f<strong>in</strong>itesimal th<strong>in</strong> nappe) with<br />
length L, face current density J and radius r′ can be calculated exactly along the middle axis<br />
(z-axis):<br />
⎛ ⎞<br />
J L−z z<br />
Hz( z)<br />
= ⋅ ⎜ + ⎟.<br />
(4.66)<br />
2 ⎜ 2 2 2 2<br />
( L− z) + r′<br />
z + r′<br />
⎟<br />
⎝ ⎠<br />
When we now approximate the coil by such a solenoid and set the face current density equal<br />
to<br />
NI<br />
J = , we have the possibility to compare the field of the solenoid H z with that of the<br />
L<br />
calculated field of our model. The run of the magnetic field along the middle axis of the<br />
solenoid is shown <strong>in</strong> Figure 4.4. In addition the relative error of the FEM calculated coil<br />
compared with the solenoid is given. So the quantitative values are aga<strong>in</strong> consistent.<br />
10<br />
8<br />
6<br />
4<br />
2<br />
Error [%]<br />
56
4.5 Time <strong>in</strong>tegration<br />
Numerical Methods<br />
Us<strong>in</strong>g the LLG equation, the time evolution of the magnetization can be calculated. The<br />
discretization of realistic problems leads to an <strong>in</strong>itial-value problem (4.2) with up to a million<br />
unknowns.<br />
To solve such problems the free solver CVODE is used [29] [30], which offers iterative and<br />
direct multistep methods. Multistep methods make use of the past values of the solution.<br />
For our purposes the iterative backward differentiation formula (BDF) seemed to fit best to<br />
solve our problem, <strong>in</strong> order to achieve fastest convergence times. The nonl<strong>in</strong>ear system is<br />
solved us<strong>in</strong>g a Newton method, which requires only a few iterations. In order to improve the<br />
performance, CVODE allows precondition<strong>in</strong>g. By declar<strong>in</strong>g an estimated Jacobian matrix the<br />
convergence time can be drastically decreased.<br />
CVODE is capable of choos<strong>in</strong>g the time step size automatically. For rapidly chang<strong>in</strong>g<br />
processes a smaller time step is chosen to <strong>in</strong>crease accuracy.<br />
Figure 4.5 schematically shows the complete simulation cycle. First the mesh model and the<br />
material parameters are read. Then the boundary matrices for the FEM/BEM methods for the<br />
stray field and the current field are set up. Afterwards the <strong>in</strong>itial magnetization is read and set,<br />
and the time <strong>in</strong>tegration starts.<br />
CVODE solves the LLG equation, and requests the right hand side of the LLG equation for<br />
certa<strong>in</strong> po<strong>in</strong>ts of time. CVODE passes the actual time and the magnetic polarization J i of<br />
each node to the LLG calculation rout<strong>in</strong>e, which calculates the right hand side of the LLG<br />
equation. All magnetic fields which contribute to the total effective magnetic field H eff are<br />
calculated for each nodal po<strong>in</strong>t. Then the effective field is <strong>in</strong>serted <strong>in</strong> the right hand side of the<br />
LLG equation, which leads to new functions f i of time and magnetic polarization of the i-th<br />
node. These functions are transmitted back to the solver, which decides to modify the<br />
magnetic polarization. If the desired precision is not fulfilled the new magnetic polarizations<br />
are passed to the LLG calculation rout<strong>in</strong>e aga<strong>in</strong>, and the cycle is repeated. Otherwise the<br />
solver chooses the next time step and the system time is <strong>in</strong>creased. The whole procedure is<br />
repeated until a user chosen f<strong>in</strong>al time is reached.<br />
57
Time Integration<br />
CVODE<br />
∂J<br />
∂t<br />
i<br />
= f ( t,<br />
J , J ,..., J )<br />
i 1 2 N<br />
Numerical Methods<br />
START<br />
<strong>Read</strong> geometry (FE mesh)<br />
and material parameters<br />
Calculate the B matrix for<br />
the hybrid FE/BE method<br />
Set the <strong>in</strong>itial magnetization<br />
t, J1, J2,..., J N<br />
f1, f2,..., f N<br />
Increase time (t)<br />
t < tf<strong>in</strong>al<br />
END<br />
Hexch + Hani + HS+ Hcurr + Hext<br />
�������������<br />
H<br />
Figure 4.5: Schematic diagram of the simulation cycle. Adapted from [31].<br />
eff<br />
LLG<br />
f1, f2,..., f N<br />
σ ( J )<br />
Φ, j<br />
H ext () t<br />
58
5 <strong>Read</strong> Head DesignEquation<br />
5.1 Bias Schemes<br />
<strong>Read</strong> Head Design<br />
Section (Next)<br />
For AMR and GMR read<strong>in</strong>g heads, magnetic layers with a uniform predef<strong>in</strong>ed magnetization<br />
direction are necessary. Besides a s<strong>in</strong>gle doma<strong>in</strong> state is desirable, to avoid Barkhausen noise<br />
due to mov<strong>in</strong>g doma<strong>in</strong> walls. Therefore the magnetizations of these layers have to be forced<br />
<strong>in</strong>to a certa<strong>in</strong> direction by bias<strong>in</strong>g. The most important bias schemes used <strong>in</strong> MR read heads<br />
are expla<strong>in</strong>ed below.<br />
5.1.1 Demagnetiz<strong>in</strong>g Factor<br />
The field of a magnetized body, the stray field, or also called demagnetiz<strong>in</strong>g field H S , acts on<br />
the magnetization itself. This field is proportional to the magnetization M and opposite<br />
directed with<strong>in</strong> the body. So the demagnetiz<strong>in</strong>g field can be written as<br />
N =− H M (5.1)<br />
S d<br />
Here N d is the demagnetiz<strong>in</strong>g factor, which is generally a tensor and only depends on the<br />
shape of the body. Pr<strong>in</strong>cipal axis transformation leads to three demagnetiz<strong>in</strong>g factors a N , N b ,<br />
N c for each axis one respectively. For their sum<br />
Na + Nb + Nc<br />
= 1<br />
(5.2)<br />
always holds. The longest axis corresponds to the smallest demagnetiz<strong>in</strong>g factor. It is also the<br />
preferred direction for the magnetization, because then the stray field energy has its m<strong>in</strong>imum<br />
(see (2.37)).<br />
A GMR element basically exists of two ferromagnetic layers, which should be magnetized<br />
perpendicular <strong>in</strong> respect to each other <strong>in</strong> ground state. Moreover the free layer should be able<br />
to rotate freely. Therefore the shape of these layers has to be almost quadratic (with an aspect<br />
ratio close to 1) <strong>in</strong> order not to discrim<strong>in</strong>ate a magnetization direction.<br />
59
<strong>Read</strong> Head Design<br />
On the other hand the signal field decays with distance from the record<strong>in</strong>g layer (see Section<br />
3.4) and therefore a higher effective (average) signal field is reached for smaller sensor<br />
heights. Thus a compromise must be found. Usual width-to-height ratios are between 1.2 and<br />
1.5.<br />
5.1.2 Hard Bias<br />
To align the magnetization of the free layer hard magnets are used (see Figure 2.4). Usually<br />
the GMR element is placed between two hard magnets, whose static magnetic field effects the<br />
perpendicular alignment <strong>in</strong> respect to the p<strong>in</strong>ned layer. The permanent magnetic fields also<br />
<strong>in</strong>fluence the magnetization of the p<strong>in</strong>ned layer. Therefore the bias<strong>in</strong>g field for the p<strong>in</strong>ned<br />
layer has to overcome the hard bias field.<br />
5.1.3 Exchange Bias<br />
Exchange bias is based on the exchange anisotropy, which was discovered by Meiklejohn and<br />
Bean 50 years ago [32]. They <strong>in</strong>vestigated small Co particles coated with its<br />
antiferromagnetic oxide CoO. A field cool<strong>in</strong>g process, i.e. heat<strong>in</strong>g up above the Néel<br />
temperature and cool<strong>in</strong>g under apply<strong>in</strong>g a magnetic field, leads to a shift of the hysteresis<br />
loop, which is shown <strong>in</strong> Figure 5.1. The exchange bias effect can be characterized by the<br />
displacement of the hysteresis loop, denoted by H ex .<br />
Figure 5.1: The shift of the hysteresis loop after a field cool<strong>in</strong>g treatment of a<br />
ferromagnetic/antiferromagnetic system [19] and the temperature dependence of the<br />
exchange bias field for NiFe(4-8nm)/Cu(2.2nm)/CoFe(2nm)/IrMn(15nm) sp<strong>in</strong> valves with<br />
different free layer thicknesses [33].<br />
60
<strong>Read</strong> Head Design<br />
The exchange bias field depends on the thicknesses of the antiferromagnet and the<br />
ferromagnetic layer. If the antiferromagnet is thicker than the ferromagnetic layer the<br />
exchange bias field decreases with the thickness of the ferromagnet t p like<br />
H<br />
J<br />
1<br />
t p<br />
− [34].<br />
ex<br />
ex = . (5.3)<br />
µ 0 Ms, ptp Here J ex is the exchange bias <strong>in</strong>teraction parameter [J/m 2 ]. This k<strong>in</strong>d of dependence leads to<br />
the conclusion, that the exchange anisotropy is an <strong>in</strong>terface effect. The maximum exchange<br />
bias field, which can be achieved for usual layer thicknesses, is about 0.05 T [20]. The<br />
exchange bias field decreases l<strong>in</strong>early with temperature [33]. Figure 5.1 shows the<br />
temperature dependence of the exchange bias field for NiFe(4-8nm)/Cu(2.2nm)/CoFe(2nm)/<br />
IrMn(15nm) sp<strong>in</strong> valves with different free layer thicknesses.<br />
The exchange bias effect is used to align the magnetization of the p<strong>in</strong>ned layer perpendicular<br />
to the record<strong>in</strong>g layer. The advantage of this bias scheme is that the free layer is not<br />
<strong>in</strong>fluenced by the antiferromagnet. Unfortunately the stray field of the p<strong>in</strong>ned layer causes an<br />
unwanted torsion of the free layer’s magnetization, which leads to a displacement of the<br />
equilibrium state towards the antiparallel state. The result is an asymmetric sensor curve.<br />
5.1.4 Synthetic Antiferromagnet<br />
To reduce the asymmetry of the transfer curve of the sp<strong>in</strong> valve, a stronger exchange bias is<br />
required. The limitation of the exchange bias field leads to an alternative sp<strong>in</strong> valve design<br />
[35]. Instead of the direct coupl<strong>in</strong>g of the antiferromagnet with the p<strong>in</strong>ned layer, an additional<br />
ferromagnetic layer is <strong>in</strong>troduced which is separated by a very th<strong>in</strong> (0.7-0.9 nm) nonmagnetic<br />
layer (mostly Ru) as shown <strong>in</strong> Figure 5.2. This layer structure is also called a synthetic<br />
antiferromagnet, because the p<strong>in</strong>ned layer is antiferromagnetically coupled with the additional<br />
ferromagnetic layer by <strong>in</strong>terlayer exchange coupl<strong>in</strong>g (IEC).<br />
61
<strong>Read</strong> Head Design<br />
Figure 5.2: A comparison (left) of a conventional sp<strong>in</strong> valve and a sp<strong>in</strong> valve us<strong>in</strong>g a<br />
synthetic ferromagnet to fix the p<strong>in</strong>ned layer [20]. The <strong>in</strong>terlayer exchange constant (right)<br />
for two Ni80Co20 layers as function of the Ru spacer layer thickness [32].<br />
The IEC effect has its orig<strong>in</strong> <strong>in</strong> quantum <strong>in</strong>terference of electron states [36]. The exchange<br />
coupl<strong>in</strong>g constant J IEC [J/m 2 ] depends on the nonmagnetic layer thickness t NM like<br />
⎛ tNM<br />
⎞<br />
s<strong>in</strong> ⎜2π +Φ<br />
Λ<br />
⎟<br />
J = J<br />
⎝ ⎠<br />
(5.4)<br />
IEC<br />
0 2<br />
tNM<br />
as shown <strong>in</strong> Figure 5.2. Λ , Φ , and J 0 are constants, depend<strong>in</strong>g on the composition of the<br />
layers. The advantage of sp<strong>in</strong>-valves with a synthetic antiferromagnetic p<strong>in</strong>ned layer is the<br />
very large exchange field of IEC up to 0.5 T. This is an <strong>in</strong>crease of a factor 10 compared to<br />
the direct exchange coupl<strong>in</strong>g with an antiferromagnet. So the stability aga<strong>in</strong>st external fields<br />
is much better due to the higher anisotropy. Moreover the demagnetiz<strong>in</strong>g fields of the two<br />
ferromagnetic layers Fp,1 and Fp,2 cancel each other partially, which leads to a reduced<br />
<strong>in</strong>fluence on the free layer.<br />
5.1.5 Sense Current<br />
The sense current flow<strong>in</strong>g through the GMR sensor generates a magnetic field. This field also<br />
<strong>in</strong>fluences the p<strong>in</strong>ned layer magnetization. For conventional simple sp<strong>in</strong> valves there is one<br />
current direction which is more favorable. The ma<strong>in</strong> part of the current flows through the Cu<br />
layer, due to its higher conductivity compared to the other layers. So the current field either<br />
adds up with the demagnetiz<strong>in</strong>g field of the p<strong>in</strong>ned layer or weakens the field act<strong>in</strong>g on the<br />
62
<strong>Read</strong> Head Design<br />
free layer (see Figure 5.3). Unfortunately the more favorable current direction causes a<br />
decl<strong>in</strong>e of the exchange bias field.<br />
Figure 5.3: The effect of the sense current direction on the free layer (FL). For the first<br />
case (left) the current field Hcurr partially cancels the stray field HS of the p<strong>in</strong>ned layer (PL)<br />
and weakens the exchange bias field Hexch. For the other current direction (right) the stray<br />
field and the exchange bias field are supported by the current field.<br />
Shield<br />
µ → ∞<br />
Hcurr<br />
I<br />
HS<br />
FL Cu PL<br />
Hexch<br />
Hcurr<br />
I I<br />
I<br />
Hmirr<br />
FL Cu PL<br />
Shield<br />
µ → ∞<br />
Figure 5.4: The layers of the GMR element also see mirror currents due to the high<br />
permeability of the shields. The field of these mirror currents is able to reduce the field of<br />
the orig<strong>in</strong>al current at the free layer and the p<strong>in</strong>ned layer.<br />
Hcurr<br />
Hcurr<br />
FL Cu PL<br />
Hmirr<br />
I<br />
HS<br />
Hexch<br />
63
<strong>Read</strong> Head Design<br />
In presence of shields with high permeability the free layer sees an additional mirror current,<br />
which must also be considered, especially for small gap distances. These mirror currents<br />
reduce the current field as shown <strong>in</strong> Figure 5.4.<br />
5.1.6 Crystall<strong>in</strong>e Anisotropy<br />
Similar to the shape anisotropy the crystall<strong>in</strong>e anisotropy can be used for bias<strong>in</strong>g. For<br />
example a field cool<strong>in</strong>g treatment of a material can generate an <strong>in</strong>tr<strong>in</strong>sic anisotropy.<br />
Nevertheless this bias scheme is not often used <strong>in</strong> GMR sensors, because the free layer should<br />
be able to rotate freely and the p<strong>in</strong>ned layer is normally biased by exchange anisotropy.<br />
5.2 Shield<strong>in</strong>g<br />
To avoid <strong>in</strong>fluence of external fields and neighbor<strong>in</strong>g bit transitions, shields with high<br />
permeability enclose the GMR element. Shields normally consist of Permalloy (Ni80Fe20).<br />
The relative permeability of Permalloy is <strong>in</strong> the order of<br />
4<br />
10 .<br />
The gap distance between both shields is limited to 60 nm for CIP sp<strong>in</strong> valves and 20 nm for<br />
CPP sp<strong>in</strong> valves (see Section 2.8.3). In order to have an improvement of the read back signal<br />
the gap distance should not exceed the bit length.<br />
5.3 Thermal Stability<br />
The sense current leads to a heat<strong>in</strong>g of the GMR element. The properties of the GMR sensor<br />
are temperature dependent. For <strong>in</strong>stance the exchange bias field decreases with temperature<br />
(see Figure 5.2). Moreover the noise <strong>in</strong>creases. To achieve thermal stability a constant sens<strong>in</strong>g<br />
current is applied <strong>in</strong>stead of a constant voltage. Then the change <strong>in</strong> resistance is determ<strong>in</strong>ed<br />
by measur<strong>in</strong>g the change <strong>in</strong> voltage. The heat production of the current limits the current<br />
density. The heat dissipation is especially a problem for GMR sensors work<strong>in</strong>g <strong>in</strong> CIP mode,<br />
because for the CPP mode the shields are used as leads. Therefore the electric conductance<br />
between GMR sensor and shields is larger, which normally also leads to a larger thermal<br />
conductance due to the Wiedemann-Franz Law.<br />
64
FEM Simulations<br />
6 FEM SimulationsEquation Section (Next)<br />
6.1 Model<br />
The model of the read head used <strong>in</strong> the follow<strong>in</strong>g calculations is very simplified, because of a<br />
shortage of detailed <strong>in</strong>formation. Despite cooperation with hard disk manufacturers, their<br />
<strong>in</strong>formation was very restricted. Nevertheless we were able to simulate the qualitative<br />
behavior and to prove the functionality of our code. The whole read head model is separated<br />
<strong>in</strong>to two parts: A conductor model and a magnetic model.<br />
6.1.1 <strong>Magnetic</strong> Model<br />
A simple GMR read head basically exists of five parts, which def<strong>in</strong>e the magnetic behavior:<br />
The free layer, the p<strong>in</strong>ned layer, the hard bias, the shields, and f<strong>in</strong>ally the antiferromagnet for<br />
fix<strong>in</strong>g the p<strong>in</strong>ned layer. The magnetic net moment of an antiferromagnetic material is zero.<br />
Apart from exchange coupl<strong>in</strong>g the antiferromagnet does not contribute to the magnetic<br />
behavior. Therefore the antiferromagnetic part can be neglected, if the exchange coupl<strong>in</strong>g is<br />
taken <strong>in</strong>to account by add<strong>in</strong>g the exchange bias field to the effective field with<strong>in</strong> the p<strong>in</strong>ned<br />
layer.<br />
The geometry of the FEM model for the calculations is shown <strong>in</strong> Figure 6.1. The free layer<br />
and the p<strong>in</strong>ned layer dimensions are h GMR = 80 nm <strong>in</strong> height and w GMR = 100 nm <strong>in</strong> lateral<br />
FL<br />
PL<br />
direction. Their thicknesses are t = 5 nm and t = 2 nm , and their spontaneous<br />
FL<br />
polarizations are J = 1.2 T , which is the average of a composite free layer (NiFe/CoFe) and<br />
s<br />
J = 1.885 T (CoFe) respectively. Both layers are assumed to have no anisotropy and are<br />
PL<br />
s<br />
Cu<br />
separated from each other by a t = 2.7 nm th<strong>in</strong> nonmagnetic Cu layer. The two hard bias<br />
magnets have uniaxial anisotropy <strong>in</strong> lateral direction<br />
HB<br />
5 3<br />
K 1 = 2.5⋅ 10 J/m and a spontaneous<br />
HB<br />
polarization of J = 1T.<br />
Their lateral distance from the GMR layer structure is 10 nm. The<br />
s<br />
exchange bias field is always set to H ex = 0.05 T , unless otherwise noted. This corresponds<br />
65
FEM Simulations<br />
approximately to the exchange coupl<strong>in</strong>g with the p<strong>in</strong>ned layer for a 8 nm IrMn<br />
antiferromagnet. The two shields are assumed to be made of Permalloy (NiFe) with<br />
Shields<br />
spontaneous polarization J = 1T,<br />
and their dimensions are 50 nm× 100 nm× 50 nm . The<br />
s<br />
gap between the two shields is 60 nm. The Gilbert damp<strong>in</strong>g constant for the whole model is<br />
always 0.1 unless otherwise noted. The exchange constants are<br />
PL<br />
A<br />
−11<br />
= 1.2⋅ 10 J/m ,<br />
HB<br />
A<br />
are summarized <strong>in</strong> Table 6.1.<br />
−11<br />
= 1.0⋅ 10 J/m , and<br />
Shields<br />
A<br />
FL<br />
A<br />
−11<br />
= 1.3⋅ 10 J/m ,<br />
−11<br />
= 1.3⋅ 10 J/m . All magnetic properties<br />
The GMR element of the model is meshed with a size of 5 nm. The mesh of the shields has a<br />
general size of 50 nm, but it is ref<strong>in</strong>ed near the gap and near the track region.<br />
Figure 6.1: The magnetic model used for the FEM calculations. The mesh size for the<br />
shields (green) is 50 nm, and is ref<strong>in</strong>ed to 5 nm near the track and near the sp<strong>in</strong> valve<br />
layers. The hard bias magnets (purple), the free layer (dark blue), and the p<strong>in</strong>ned layer<br />
(light blue) are also meshed with triangle size of 5 nm.<br />
z<br />
y<br />
x<br />
66
FEM Simulations<br />
<strong>Magnetic</strong> Material Js [T] K1 [J/m 3 ] A [J/m] Hex [T] Α<br />
Free Layer 1 0 1.3E-11 0 0.1 *<br />
P<strong>in</strong>ned Layer 1.885 0 1.2E-11 0.05 *<br />
0.1 *<br />
Hard Bias 1 2.5E5 1.3E-11 0 0.1 *<br />
Shields 1 0 1.0E-11 0 0.1 *<br />
Table 6.1: The values of the spontaneous polarization, the anisotropy constant, the<br />
exchange constant, and the antiferromagnetic exchange coupl<strong>in</strong>g field, and the Gilbert<br />
damp<strong>in</strong>g constant, which are assumed for our magnetic model. The asterisk-marked values<br />
are valid unless otherwise noted.<br />
6.1.2 Conductor Model<br />
For the current model we have to consider all conductive parts of the model. This also<br />
<strong>in</strong>cludes the antiferromagnet or capp<strong>in</strong>g layers. The conductor model is shown <strong>in</strong> Figure 6.2.<br />
However, only the most important layers are taken <strong>in</strong>to account for our simulations. So we<br />
neglect the th<strong>in</strong> capp<strong>in</strong>g layers, although they make a m<strong>in</strong>or contribution to the conductance.<br />
Thus our conductor model conta<strong>in</strong>s the free layer, p<strong>in</strong>ned layer, nonmagnetic spacer layer<br />
(Cu), the antiferromagnetic layer, and parts of the leads.<br />
Figure 6.2: The FEM conductor model is shown. This simplified model shows the four<br />
ma<strong>in</strong> layers of a GMR element, which contribute most to the conductance: The free layer<br />
(dark blue) the nonmagnetic Cu layer (orange), the p<strong>in</strong>ned layer (light blue), and the<br />
antiferromagnet (yellow). Additionally the high conductive leads (p<strong>in</strong>k) are shown.<br />
x<br />
y<br />
z<br />
67
FEM Simulations<br />
The sense current through the sp<strong>in</strong> valve is applied at the lateral surfaces of the conductor<br />
model and has a value of 3 mA.<br />
The effective conductivities of the <strong>in</strong>dividual parts are estimated from the measured<br />
conductivities <strong>in</strong> Figure 6.3 [37]. These conductivities differ much from the bulk values,<br />
because the electron mean-free path is larger than the layer thicknesses.<br />
Figure 6.3: The effective conductivities for a typical sp<strong>in</strong> valve taken from [37].<br />
In our simulation the free layer has a conductivity of<br />
PL 6 −1 −1<br />
σ = 3.5⋅10 Ω m , the Cu layer<br />
FL 6 −1 −1<br />
σ = 310 ⋅ Ω m , the p<strong>in</strong>ned layer<br />
Cu 6 −1 −1<br />
σ = 4.5⋅10 Ω m , the antiferromagnet<br />
AF 6 −1 −1<br />
Lead 7 −1 −1<br />
σ = 110 ⋅ Ω m and f<strong>in</strong>ally the leads σ = 110 ⋅ Ω m . Here the conductivities of free<br />
layer, p<strong>in</strong>ned layer and the Cu layer are not constant, because it is assumed that these layers<br />
contribute to the GMR effect. Their maximum change <strong>in</strong> conductivity, the GMR ratio, was<br />
assumed to be 10%. So the effective GMR ratio of the whole layer structure is smaller,<br />
because the sense current is shunted by the antiferromagnet. All values assumed for the<br />
conductor model are listed <strong>in</strong> Table 6.2.<br />
Conductor σ [Ω -1 m -1 ] Type MR-Ratio <strong>Magnetic</strong> Material 1 <strong>Magnetic</strong> Material 2<br />
Free Layer 3.0E6 2 (GMR) 0.1 Free Layer P<strong>in</strong>ned Layer<br />
Cu Layer 4.5E6 2 (GMR) 0.1 Free Layer P<strong>in</strong>ned Layer<br />
P<strong>in</strong>ned Layer 3.5E6 2 (GMR) 0.1 Free Layer P<strong>in</strong>ned Layer<br />
Antiferromagnet 1.0E6 0 - - -<br />
Lead 1.0E7 0 - - -<br />
Table 6.2: The properties for all parts of the conductor model. Here the conductivities, the<br />
type of magnetoresistance, and the magnetic materials, which <strong>in</strong>fluence the conductivity,<br />
are given. (Compare with Table 4.1).<br />
68
6.2 Results<br />
FEM Simulations<br />
In the follow<strong>in</strong>g the results of the simulations are presented. Naturally the model described<br />
above of a read head is not perfect at all. It was not the target to design a perfect read head,<br />
but to be able to simulate the read back process. Although the used read head model is not<br />
technically mature, the results of the simulations show qualitative accordance with reality.<br />
6.2.1 Equilibrium State<br />
Ideally the magnetizations of the p<strong>in</strong>ned and the free layer should be perpendicular to each<br />
other <strong>in</strong> equilibrium state, so that the magnetization of the p<strong>in</strong>ned layer shows <strong>in</strong> z-direction,<br />
and that of the free layer <strong>in</strong> y-direction. Then the total resistance would be 32.87 Ω and the<br />
potential difference 98.6 mV. In reality such a perfect configuration is not achievable.<br />
The equilibrium states of our model for the two different current directions are shown <strong>in</strong><br />
Figure 6.4. For the more favorable current direction the magnetizations are almost<br />
perpendicular to each other <strong>in</strong> the center of the GMR element. Unfortunately the free layer<br />
magnetization is twisted downwards due to the demagnetiz<strong>in</strong>g field of the p<strong>in</strong>ned layer.<br />
Similarly the p<strong>in</strong>ned layer is rotated <strong>in</strong> the same direction due to the hard bias. Both effects<br />
lead to an asymmetric transfer curve (see Section 6.2.2).<br />
Figure 6.4: The normalized magnetization of the free layer and the p<strong>in</strong>ned layer <strong>in</strong><br />
equilibrium state for the two different current directions. The color code gives the zcomponent<br />
of the normalized magnetization, red corresponds to the positive and blue to the<br />
negative z-direction. Thus the red arrows represent the p<strong>in</strong>ned layer magnetization. The<br />
right hand side gives the configuration for the more favorable current direction, because<br />
here the current field cancels partially the demagnetiz<strong>in</strong>g field of the p<strong>in</strong>ned layer.<br />
69
FEM Simulations<br />
If the current flows <strong>in</strong> the more favorable direction the exchange bias field is weakened (see<br />
Section 5.1.5), which can also be seen <strong>in</strong> Figure 6.4, when consider<strong>in</strong>g the torsion of the<br />
magnetization of the p<strong>in</strong>ned layer.<br />
6.2.2 Transfer Curve<br />
To get the transfer curve of the sp<strong>in</strong> valve, a triangle pulsed external field as shown <strong>in</strong> Figure<br />
6.5 is applied. Its amplitude is 0.1 T and its period time is 8 ns. As we will see later <strong>in</strong> Section<br />
6.2.4, the chang<strong>in</strong>g of the external field is slow enough, so that the GMR sensor is always<br />
near equilibrium.<br />
H z [T]<br />
0.15<br />
0.10<br />
0.05<br />
0.00<br />
-0.05<br />
-0.10<br />
-0.15<br />
0 2 4 6 8 10<br />
Time [ns]<br />
Figure 6.5: The external applied field, which is applied <strong>in</strong> z-direction to evaluate the<br />
transfer curve of the GMR sensor.<br />
70
Output [V]<br />
0.108<br />
0.107<br />
0.106<br />
0.105<br />
0.104<br />
0.103<br />
0.102<br />
0.101<br />
-0.10 -0.05 0.00 0.05 0.10<br />
H z [T]<br />
FEM Simulations<br />
ΔR/R [%]<br />
Current <strong>in</strong> pos. y-direction<br />
Current <strong>in</strong> neg. y-direction<br />
Current <strong>in</strong> pos. y-direction, Hex = 0.1T<br />
1<br />
0<br />
-1<br />
-2<br />
-3<br />
-4<br />
-0.10 -0.05 0.00 0.05 0.10<br />
Hz [T]<br />
Figure 6.6: The output voltage (left) and the relative change <strong>in</strong> resistance (right, <strong>in</strong> respect<br />
to the equilibrium state) over the external applied field <strong>in</strong> z-direction for both current<br />
direction and a larger exchange bias field.<br />
The correspond<strong>in</strong>g outputs for both current directions and a stronger exchange bias are given<br />
<strong>in</strong> Figure 6.8. A positive external field leads to a parallel alignment of the magnetizations of<br />
both layers, result<strong>in</strong>g <strong>in</strong> a low resistance. If the external field is applied <strong>in</strong> negative z-<br />
direction, the resistance <strong>in</strong>creases, because the magnetic configuration approaches the<br />
antiparallel state. However, if the magnetic field overcomes the exchange bias field, the<br />
p<strong>in</strong>ned layer magnetization is not fixed anymore and rotates towards negative z-direction. So<br />
for large negative external fields we have aga<strong>in</strong> a parallel state and therefore low resistance.<br />
As expected the favorable current direction shows less asymmetry <strong>in</strong> change of resistance<br />
around the equilibrium state than the opposite current direction. Moreover the GMR sensor is<br />
more sensitive, because the slope of the transfer curve at zero field is larger. The output<br />
voltage for this case is also higher, because here the magnetization vectors are more likely<br />
aligned antiparallel (see equilibrium state <strong>in</strong> Figure 6.4), lead<strong>in</strong>g to larger resistance.<br />
In case of a stronger exchange bias field, H ex = 0.1T , we have a much better transfer curve<br />
for higher external fields. (Unfortunately such high exchange fields are rather unrealistic. To<br />
<strong>in</strong>crease the bias field for the p<strong>in</strong>ned layer, synthetic antiferromagnets, as described <strong>in</strong> Section<br />
71
FEM Simulations<br />
5.1.4, are used <strong>in</strong> modern sp<strong>in</strong> valves.) The transfer curve and the slope at zero po<strong>in</strong>t do not<br />
differ much compared to the low exchange bias field. However, for large fields we have a<br />
much better sensor performance <strong>in</strong> respect to sensitivity and symmetry. The higher voltage <strong>in</strong><br />
equilibrium is due to the larger angle between both magnetizations. The large exchange bias<br />
field reduces the deflection due to the hard bias, while the free layer magnetization stays<br />
unmodified, because of the widely unchanged demagnetiz<strong>in</strong>g field of the p<strong>in</strong>ned layer.<br />
6.2.3 Influence of Shields<br />
Now the shields are taken <strong>in</strong>to account. It is expected that the shields have an <strong>in</strong>fluence on the<br />
transfer curve due to the mirror currents (see Section 5.1.5). Indeed the shields have a large<br />
<strong>in</strong>fluence. Aga<strong>in</strong> the transfer curve is evaluated by apply<strong>in</strong>g the external field shown <strong>in</strong> Figure<br />
6.5 on the GMR element. The shields are not exposed to the external field. The result is given<br />
<strong>in</strong> Figure 6.7.<br />
Output Voltage [V]<br />
0.109<br />
0.108<br />
0.107<br />
0.106<br />
0.105<br />
0.104<br />
0.103<br />
0.102<br />
-0.10 -0.05 0.00 0.05 0.10<br />
H z [T]<br />
ΔR/R [%]<br />
without shields<br />
with shields<br />
-0.10 -0.05 0.00 0.05 0.10<br />
H z [T]<br />
Figure 6.7: The transfer curves for the sp<strong>in</strong> valve with and without shields (for both<br />
Hexch = 0.1 T).<br />
The presence of shields generally leads to a greater output voltage, particularly at zero field.<br />
The orig<strong>in</strong> of this effect is based on mirror currents. They reduce the current field which<br />
works aga<strong>in</strong>st the demagnetiz<strong>in</strong>g field of the p<strong>in</strong>ned layer. Therefore the demagnetiz<strong>in</strong>g field<br />
2<br />
1<br />
0<br />
-1<br />
-2<br />
-3<br />
-4<br />
-5<br />
72
FEM Simulations<br />
has a greater <strong>in</strong>fluence. The result is a more likely antiparallel state, which is equivalent to a<br />
higher total resistance.<br />
This proves that the shield also have an <strong>in</strong>fluence on the read head behavior and cannot be<br />
neglected <strong>in</strong> micromagnetic simulations.<br />
6.2.4 Relaxation<br />
The micromagnetic behavior of the GMR sensor depends on the Gilbert damp<strong>in</strong>g constant.<br />
Start<strong>in</strong>g from an equilibrium state with an external field of H ext = 0.03 T <strong>in</strong> positive z-<br />
direction, the relaxation to the new equilibrium state when suddenly switch<strong>in</strong>g off the field, is<br />
shown <strong>in</strong> Figure 6.8.<br />
Output Voltage [V]<br />
0.1060<br />
0.1055<br />
0.1050<br />
0.1045<br />
0.1040<br />
0.1035<br />
0.1030<br />
0.0 0.2 0.4 0.6 0.8<br />
Time [ns]<br />
α = 0.1<br />
α = 0.2<br />
α = 0.3<br />
α = 0.5<br />
α = 1<br />
Figure 6.8: The output signal over time for a relaxation from equilibrium state with<br />
Hext = 0.3 T to the equilibrium state without field for different Gilbert damp<strong>in</strong>g constants.<br />
For large Gilbert damp<strong>in</strong>g constants we have strong damp<strong>in</strong>g, result<strong>in</strong>g <strong>in</strong> a quite large<br />
relaxation time (larger than 0.4 ns). New read heads work with a read frequency up to 2 GHz.<br />
Therefore such large relaxation times would weaken the read back signal. Fortunately realistic<br />
damp<strong>in</strong>g constants are about α ∼ 0.1,<br />
which lead to an undercritical damp<strong>in</strong>g, result<strong>in</strong>g <strong>in</strong><br />
damped oscillations. Smallest relaxation times are achieved for critical damp<strong>in</strong>g with<br />
damp<strong>in</strong>g constants around 0.3.<br />
73
6.2.5 Signal of a Perfect Transition<br />
FEM Simulations<br />
To calculate the signal of a perfect transition a track width of 120 nm, a data layer thickness<br />
of 12 nm, and a spontaneous polarization of J s = 0.44 T was assumed. The read back signal<br />
was <strong>in</strong>vestigated for both k<strong>in</strong>d of transitions ( →← and ←→).<br />
Figure 6.9 and Figure 6.10 show the read back signal of the read head with and without<br />
shields for the different k<strong>in</strong>d of transitions. The head velocity was 20 m/s. For this calculation<br />
the Gilbert damp<strong>in</strong>g constant was 0.3 and 1.0 for the GMR sensor and the shield respectively.<br />
The signal peaks for the full read head simulation (with shields) are more localized compared<br />
to the simulation without shields. The asymmetric transfer curve leads to a large difference <strong>in</strong><br />
amplitude height for both cases. Aga<strong>in</strong> the output voltage is shifted up for the read back signal<br />
with shields due to mirror currents, as we have already seen <strong>in</strong> Figure 6.7.<br />
Output Voltage [V]<br />
0.1070<br />
0.1065<br />
0.1060<br />
0.1055<br />
0.1050<br />
0.1045<br />
0.1040<br />
-300 -200 -100 0 100 200 300<br />
x [nm]<br />
ΔR/R [%]<br />
0.2<br />
0.0<br />
-0.2<br />
-0.4<br />
-0.6<br />
-0.8<br />
-1.0<br />
-1.2<br />
-1.4<br />
-1.6<br />
-300 -200 -100 0 100 200 300<br />
without shields<br />
with shields<br />
x [nm]<br />
Figure 6.9: The read back signal and the relative change <strong>in</strong> resistance for a perfect →←<br />
transition.<br />
74
Output Voltage [V]<br />
0.1074<br />
0.1072<br />
0.1070<br />
0.1068<br />
0.1066<br />
0.1064<br />
0.1062<br />
0.1060<br />
x [nm]<br />
FEM Simulations<br />
0.1058<br />
-300 -200 -100 0 100 200 300<br />
ΔR/R [%]<br />
1.0<br />
0.8<br />
0.6<br />
0.4<br />
0.2<br />
0.0<br />
-0.2<br />
-300 -200 -100 0 100 200 300<br />
without shields<br />
with shields<br />
x [nm]<br />
Figure 6.10: The read back signal and the relative change <strong>in</strong> resistance for a perfect ←→<br />
transition.<br />
6.2.6 <strong>Read</strong> <strong>Back</strong> Signal<br />
F<strong>in</strong>ally the read back signal was calculated. As replacement for the data layer, a bit pattern as<br />
shown <strong>in</strong> Figure 6.11 was used. It consists of 30 bits with perfect transitions, which are<br />
alternately magnetized <strong>in</strong> positive and negative x-direction. The assumed bit length was<br />
60 nm, which is equal to the gap of the read head model. The track width was 120 nm, which<br />
is larger than the free layer width. The thickness was 12 nm and the fly<strong>in</strong>g height of the head,<br />
i.e. the distance between ABS and the data layer was 10 nm. The spontaneous polarization<br />
was 0.44 T.<br />
Figure 6.12 shows the read back signal for a read head with and without shields. Accord<strong>in</strong>g to<br />
the transfer curve the output signal for the whole read head (with shields) is aga<strong>in</strong> shifted up,<br />
due to mirror current effects. The shields lead to an <strong>in</strong>crease of the amplitude. Therefore the<br />
read back signal is much better, although the signal for s<strong>in</strong>gle perfect transitions was lower<br />
than that without shields (see previous section). This fact can be traced back to the wider<br />
peaks <strong>in</strong> the absence of the shields, so that the signals of consecutive transitions partially<br />
cancel each other.<br />
75
Output Voltage [V]<br />
0.1080<br />
0.1075<br />
0.1070<br />
0.1065<br />
0.1060<br />
0.1055<br />
0.1050<br />
FEM Simulations<br />
Figure 6.11: The model of a perfect bit pattern. It consists of 30 perfectly written bits and<br />
is used for our read back signal calculations. The track width is 120 nm and the bit length<br />
60 nm. The layer thickness is 12 nm and the spontaneous polarization is 0.44 T. The bits<br />
are alternately magnetized <strong>in</strong> positive and negative x-direction.<br />
0.1045<br />
0 100 200 300 400<br />
x [nm]<br />
ΔR/R [%]<br />
1.0<br />
0.5<br />
0.0<br />
-0.5<br />
-1.0<br />
-1.5<br />
0 100 200 300 400<br />
without shields<br />
with shields<br />
x [nm]<br />
Figure 6.12: The read back signal for the periodic bit pattern calculated for the GMR<br />
sensor and for the whole read head (with shields).<br />
76
7 OutlookEquation<br />
Section (Next)<br />
Outlook<br />
This work was a first step to take arbitrary current distributions <strong>in</strong>to account <strong>in</strong> micromagnetic<br />
simulations. The program solves the LLG equation and simultaneously calculates the current<br />
distribution, which can be <strong>in</strong>fluenced by the magnetization. So it can be used for read back<br />
signal calculations. Of course it is also possible to calculate the read back signal of<br />
perpendicular record<strong>in</strong>g layers. Here the additional SUL has to be taken <strong>in</strong>to account. Sp<strong>in</strong><br />
valves with synthetic antiferromagnet can also be calculated, if the <strong>in</strong>terlayer exchange<br />
coupl<strong>in</strong>g is <strong>in</strong>troduced.<br />
Possible enhancements of this program are the consideration of eddy currents [41] [42] or<br />
f<strong>in</strong>ite temperatures. To take fluctuations at f<strong>in</strong>ite temperatures <strong>in</strong>to account, a stochastic,<br />
thermal field H th is added to the effective field <strong>in</strong> the LLG equation [38]<br />
∂J α ∂J<br />
=−γ J× ( Heff + Hth) + J × . (7.1)<br />
∂t J ∂t<br />
s<br />
Future hard disks will make use of sp<strong>in</strong> valves operat<strong>in</strong>g <strong>in</strong> CPP mode. Therefore simulations<br />
of CPP sp<strong>in</strong> valves become more and more <strong>in</strong>terest<strong>in</strong>g. A current perpendicular to the layer<br />
structure leads to sp<strong>in</strong> transfer, which has to be taken <strong>in</strong>to account by an additional term,<br />
called sp<strong>in</strong> torque term [39]<br />
∂J α ∂J<br />
Cj<br />
=−γ J× H ′<br />
eff + J× + J× J × J. (7.2)<br />
∂t J ∂t<br />
J J′<br />
2<br />
s s s<br />
Here J ′ is the magnetization of a reference layer, which polarizes the electrons. The polarized<br />
current transfers the sp<strong>in</strong> to the actual magnetic polarization J and causes an additional<br />
motion of J. j is the local current density. For CPP sp<strong>in</strong> valves the magnetization is transferred<br />
from the p<strong>in</strong>ned layer to the free layer or vice versa.<br />
The application of this program is not restricted to read head simulations. It can also be<br />
applied, for example, on magnetic tunnel junctions (MTJs), which are used <strong>in</strong> MRAMs<br />
(<strong>Magnetic</strong> Random Access Memory).<br />
77
Appendix A<br />
The theorem<br />
Appendix A<br />
∫grad f dV = � ∫ f dA<br />
(A.1)<br />
V ∂V<br />
is often used <strong>in</strong> literature, but it is normally limited to cont<strong>in</strong>uously differentiable functions.<br />
Nevertheless this relation is also frivolously applied for functions with first order<br />
s<strong>in</strong>gularities, as for example<br />
1<br />
f () r = with V<br />
r−r ′<br />
′∈ r . (A.2)<br />
We were not able to f<strong>in</strong>d any proof, which shows the validity of the above theorem for this<br />
function. Thus it is given here by our own.<br />
3<br />
Let us assume any constant vectorc<br />
∈ � and start from the equality<br />
divcf= c grad f . (A.3)<br />
Integration over the whole volume V gives<br />
divcfdV = � cgrad<br />
f dV . (A.4)<br />
∫ ∫<br />
V V<br />
If f has cont<strong>in</strong>uous first order partial derivatives we can apply the Divergence Theorem<br />
result<strong>in</strong>g <strong>in</strong><br />
� ∫ c f dA= ∫cgrad<br />
f dV . (A.5)<br />
∂V<br />
V<br />
c is constant and therefore it can be brought <strong>in</strong> front of the <strong>in</strong>tegral.<br />
c� ∫ f dA= c∫grad<br />
f dV . (A.6)<br />
∂V<br />
V<br />
Last equation holds for any c, therefore c can be cancelled, and the theorem (A.1) is verified.<br />
78
Appendix A<br />
In case we have the function as given <strong>in</strong> (A.2), we have to divide the volume V <strong>in</strong>to a small<br />
sphere with radius ε around the s<strong>in</strong>gularity r ′ denoted with Kε ( r ′ ) and the rest of V. Then<br />
the theorem (A.1) can be written as<br />
∫ grad f dV + ∫ grad f dV = �∫ f dA− �∫ f dA+ � ∫ f dA.<br />
(A.7)<br />
V / Kε( r′ ) Kε( r′ ) ∂V ∂Kε( r′ ) ∂Kε(<br />
r′<br />
)<br />
For the volume V / Kε ( r ′ ) with the outer surface ∂ V and the <strong>in</strong>ner surface ∂Kε ( r ) the<br />
theorem holds, because the s<strong>in</strong>gularity is excluded. To prove the theorem, we only have to<br />
show, that<br />
∫ ∫<br />
grad f dV = � f dA<br />
. (A.8)<br />
Kε( r′ ) ∂Kε(<br />
r′<br />
)<br />
The equality is valid, if both sides vanish for ε → 0 . Without loss of generality, it is sufficient<br />
to show the equality for the first vector component. Then the <strong>in</strong>tegrand of the left hand side is<br />
( f ) = 3<br />
grad x<br />
x − x′<br />
, (A.9)<br />
r−r′ which is asymmetric around r ′ . Therefore the left hand side <strong>in</strong> (A.8) vanishes. For the right<br />
hand side we have<br />
1<br />
⎛ ⎞<br />
4πε<br />
= ∫ dA = f dA ≥ ⎜ f d ⎟<br />
Kε( ′ − ′ ∫ ⎜ ∫ A<br />
r r<br />
⎟<br />
∂ r ) ∂Kε( r′ ) ⎝∂Kε( r′<br />
) ⎠<br />
� � � . (A.10)<br />
So this side also vanishes, if ε→ 0 , q.e.d.<br />
x<br />
79
Appendix B<br />
Appendix B<br />
To calculate the magnetic field of conductive materials (4.50) has to be solved:<br />
Δ H =−curl<br />
j. (B.1)<br />
In addition boundary conditions are needed to make this problem solvable. The derivation of<br />
the boundary conditions for a surface po<strong>in</strong>t r is given here. We have to calculate<br />
∂ ∂<br />
∂n ∂n<br />
out <strong>in</strong><br />
( H () r − H () r ) = lim ( H( r+ nε) −H( r−nε) )<br />
ε→0<br />
. (B.2)<br />
n denotes the unit vector normal to the boundary face <strong>in</strong> po<strong>in</strong>t r. We start from the Biot-<br />
Savart Law (2.46)<br />
1 r± nε−r′ Hr ( ± nε ) = ×<br />
4π ∫ j<br />
V r± nε−r′ Now we separate a half sphere<br />
Volume V.<br />
3<br />
dV ′ . (B.3)<br />
1/2<br />
Kη () r with radius η (η � ε ) and midpo<strong>in</strong>t r from the<br />
1 r± nε− r′ 1 r± nε−r′ Hr ( ± nε ) = × dV ′ + × dV ′<br />
4π ∫ j<br />
4π<br />
∫ j<br />
3 3<br />
1/2 1/2<br />
V / Kη ( r) r± nε− r′ Kη<br />
( r)<br />
r± nε−r′ (B.4)<br />
In this half sphere the current density j is assumed to be constant. If j is a cont<strong>in</strong>uous function,<br />
1/2<br />
the mean value theorem tells us that there exists a po<strong>in</strong>t r ′′ ∈ K for which<br />
± η<br />
1 r± nε− r′ 1 r± nε−r′ Hr ( ± nε ) = × dV ′ + ( ′′ ) ×<br />
dV ′<br />
4π ∫ j jr<br />
4π<br />
∫<br />
. (B.5)<br />
3 ±<br />
3<br />
1/2 1/2<br />
V / Kη ( r) r± nε− r′ Kη<br />
( r)<br />
r± nε−r′ The <strong>in</strong>tegrand of the second <strong>in</strong>tegral can be expressed as gradient of a scalar term<br />
1 r± nε−r′ 1 1<br />
Hr ( ± nε ) = × dV ′ + ( ′′ ) × ∇′<br />
dV ′<br />
4π ∫ j jr<br />
4π<br />
∫<br />
. (B.6)<br />
r± nε−r′ 3<br />
±<br />
1/2 1/2<br />
V / Kη ( r) r± nε−r′ Kη<br />
( r)<br />
80
Appendix B<br />
Moreover the second <strong>in</strong>tegral can be transformed <strong>in</strong>to a surface <strong>in</strong>tegral by apply<strong>in</strong>g the<br />
theorem, proved <strong>in</strong> Appendix A<br />
1 r± nε−r′ 1 1<br />
Hr ( ± nε ) = × dV ′ + ( ′′ ) ×<br />
d ′<br />
4π ∫ j j r<br />
4π<br />
� ∫<br />
A . (B.7)<br />
r n r r± nε−r′ 3<br />
±<br />
1/2 1/2<br />
V / Kη ( r) ± ε− ′<br />
∂Kη<br />
( r)<br />
Now we are able to calculate the difference <strong>in</strong> (B.2). Due to the difference and ε→ 0 the first<br />
<strong>in</strong>tegral and the rotund surface of the half sphere do not contribute ( η � ε ), which leads to<br />
1 dA′ 1 dA′<br />
Hr ( + nε) −Hr ( −nε ) = jr ( ′′ ) × − ( ′′ ) ×<br />
π ∫ jr<br />
+ ε− ′ π∫ . (B.8)<br />
r n r r−nε−r ′<br />
+ −<br />
4 4<br />
Cη( r) Cη(<br />
r)<br />
Here Cη( r ) denotes a circle with radius η and radius r. Derivation <strong>in</strong> direction n gives<br />
∂ 1 εdA′<br />
∂n4π C r+ nε−r′ ( Hr ( + nε) −Hr ( −nε ) ) =− ( jr ( ′′ + ) + jr ( ′′ −)<br />
) ×<br />
3<br />
∫<br />
η ( r)<br />
. (B.9)<br />
The substitution ρ= r−r ′ and the simultaneous consideration that n is perpendicular to<br />
( − ′ )<br />
r r lead to<br />
∂ 1 ε<br />
( Hr ( + nε) −Hr ( −nε ) ) =− ( jr ( ′′ + ) + jr ( ′′ −)<br />
) × n<br />
ρdρdϕ. (B.10)<br />
3/2<br />
∂n4π ρ +ε<br />
Calculat<strong>in</strong>g the <strong>in</strong>tegral yields<br />
2π<br />
η<br />
∫∫ 2 2<br />
0 0(<br />
)<br />
∂ out <strong>in</strong> jr ( ′′ + ) + jr ( ′′ ) ⎛<br />
− ε ⎞<br />
( H () r − H () r ) = n×<br />
⎜1− ⎟.<br />
(B.11)<br />
∂n 2 ⎜ 2 2<br />
η +ε ⎟<br />
⎝ ⎠<br />
Now the limit can be calculated <strong>in</strong> (B.2)<br />
∂<br />
∂n<br />
out <strong>in</strong> j( r′′ + ) + j( r′′<br />
−)<br />
H r − H r = n×<br />
. (B.12)<br />
2<br />
( () () )<br />
And f<strong>in</strong>ally, for η→ 0 we get the result<br />
∂<br />
∂n out <strong>in</strong><br />
( )<br />
H () r − H () r = n× j() r . (B.13)<br />
In case of an <strong>in</strong>terface between two volumes V 1 and 2<br />
<strong>in</strong>terface j 1 and j 2 respectively, we have a jump for the normal derivation of H<br />
V with different current densities at the<br />
81
∂<br />
∂n 2 1 2 1<br />
( H () r − H () r ) =− n× ( j () r −j()<br />
r )<br />
Appendix B<br />
. (B.14)<br />
82
List of Figures<br />
List of Figures<br />
Figure 1.1: The orig<strong>in</strong>al draw<strong>in</strong>g of Oberl<strong>in</strong> Smith (1888) and Valdemar Poulson’s<br />
telegraphone [2].................................................................................................................7<br />
Figure 1.2: The first computer disk drive RAMAC. The pneumatically driven actuator<br />
arm and some of the 50 disks are visible [4].....................................................................8<br />
Figure 1.3: The development of bit sizes and storage densities over the last years [7]. ........10<br />
Figure 2.1: a) Illustration of the damped precession of the magnetic polarization J<br />
around the effective field Heff, taken from [15]. b) Influence of the Gilbert<br />
damp<strong>in</strong>g constant on the field rise time <strong>in</strong> magnetic read heads. Head field<br />
strength as a function of time for different Gilbert damp<strong>in</strong>g constants with<strong>in</strong> the<br />
head [43]. The dashed l<strong>in</strong>e depicts the current profile. The solid l<strong>in</strong>es give the<br />
head field for α = 1, 0.5, 0.1, and 0.02. The fastest field rise time is achieved with<br />
<strong>in</strong>termediate damp<strong>in</strong>g (α = 0.5).......................................................................................20<br />
Figure 2.2: The sp<strong>in</strong>-split bands of a ferromagnet [18]..........................................................21<br />
Figure 2.3: Giant magnetoresistance <strong>in</strong> Fe/Cr multilayers [18]. ............................................22<br />
Figure 2.4: Schematic model of a sp<strong>in</strong>-valve GMR head (CIP mode) with exchangep<strong>in</strong>ned<br />
layer and longitud<strong>in</strong>al hard bias [19]...................................................................23<br />
Figure 2.5: Change <strong>in</strong> resistance of a sp<strong>in</strong> valve compared to AMR (NiFe) vs.<br />
magnetization orientation [19]. .......................................................................................23<br />
Figure 2.6: The two different modes of a sp<strong>in</strong> valve. The current is applied either<br />
longitud<strong>in</strong>al (CIP) or perpendicular (CPP) to the layer structure [7]. .............................24<br />
Figure 2.7: Potential landscape <strong>in</strong>side the FM/NM/FM active part of a sp<strong>in</strong>-valve, for<br />
the two sp<strong>in</strong> channels <strong>in</strong> the parallel state (a,b) and <strong>in</strong> the antiparallel state (c),<br />
<strong>in</strong>dicat<strong>in</strong>g the different orig<strong>in</strong>s of scatter<strong>in</strong>g [20]............................................................25<br />
Figure 2.8: A comparison of longitud<strong>in</strong>al record<strong>in</strong>g and perpendicular record<strong>in</strong>g [7]. .........27<br />
Figure 3.1: A schematic 2-dimensional model of a read head for longitud<strong>in</strong>al<br />
record<strong>in</strong>g..........................................................................................................................30<br />
Figure 3.2: The magnetic potential at the ABS under Karlquist approximation....................31<br />
Figure 3.3: The x- and the z-component of the normalized head field of a read head<br />
with 60 nm gap, and sens<strong>in</strong>g layer thickness 5 nm, 10 nm below the ABS....................33<br />
Figure 3.4: The effective signal field as function of the relative position of the read<br />
head <strong>in</strong> respect to a perfect transition (Js = 0.5 T)...........................................................35<br />
Figure 3.5: These two figures show the x-component of the magnetization (Js = 0.5 T)<br />
of the data layer after a write process with head velocity 10 m/s (left) and 20 m/s<br />
83
List of Figures<br />
(right). Red color represents magnetization <strong>in</strong> positive x-direction and blue color<br />
magnetization <strong>in</strong> negative x-direction. The scale is <strong>in</strong> µm, thus the bit length is<br />
approximately 40 nm. The data layer thickness is 12 nm. ..............................................35<br />
Figure 3.6: The effective fields of the record<strong>in</strong>g layers (shown <strong>in</strong> Figure 3.5) as<br />
function of the head’s position. The dashed l<strong>in</strong>es <strong>in</strong>dicate the boundaries of the<br />
record<strong>in</strong>g layer model......................................................................................................36<br />
Figure 3.7: The simplified read head model (left) for perpendicular record<strong>in</strong>g. In the<br />
right picture the mirror heads are <strong>in</strong>dicated, which replace the SUL with its high<br />
permeability [22]. ............................................................................................................37<br />
Figure 3.8: The x- and the z-component of the normalized head field for perpendicular<br />
record<strong>in</strong>g..........................................................................................................................38<br />
Figure 3.9: a) Application of Ampere’s Law on the dashed path, b) application of<br />
Gauss’s Law on the dashed box. .....................................................................................39<br />
Figure 4.1: Typical basis functions of two neighbor<strong>in</strong>g nodes of a 2-dimensional mesh......43<br />
Figure 4.2: The left figure shows a set of 10 nodes after renumber<strong>in</strong>g and the<br />
cluster<strong>in</strong>g. The right figure shows the associated boundary matrix structure. The<br />
large off-diagonal blocks, correspond<strong>in</strong>g to far field <strong>in</strong>teractions of two clusters,<br />
can be approximated by low-rank matrices [25]. ............................................................49<br />
Figure 4.3: Hϕ for an <strong>in</strong>f<strong>in</strong>ite long wire is plotted over the distance from the middle<br />
axis. The second curve shows the error of the numerical calculation.............................55<br />
Figure 4.4: The model of the coil (left). The color code shows the l<strong>in</strong>ear decrease of<br />
the electric potential <strong>in</strong>side the wire. The chart (right) shows the magnetic field of<br />
a solenoid <strong>in</strong> z-direction at the middle axis. The two dotted l<strong>in</strong>es identify the<br />
position of the solenoid. The second graph shows the relative error of the coil’s<br />
magnetic field calculated with FEM calculation compared to the solenoid’s field. .......56<br />
Figure 4.5: Schematic diagram of the simulation cycle. Adapted from [31]. ........................58<br />
Figure 5.1: The shift of the hysteresis loop after a field cool<strong>in</strong>g treatment of a<br />
ferromagnetic/antiferromagnetic system [19] and the temperature dependence of<br />
the exchange bias field for NiFe(4-8nm)/Cu(2.2nm)/CoFe(2nm)/IrMn(15nm) sp<strong>in</strong><br />
valves with different free layer thicknesses [33].............................................................60<br />
Figure 5.2: A comparison (left) of a conventional sp<strong>in</strong> valve and a sp<strong>in</strong> valve us<strong>in</strong>g a<br />
synthetic ferromagnet to fix the p<strong>in</strong>ned layer [20]. The <strong>in</strong>terlayer exchange<br />
constant (right) for two Ni80Co20 layers as function of the Ru spacer layer<br />
thickness [32]...................................................................................................................62<br />
Figure 5.3: The effect of the sense current direction on the free layer (FL). For the first<br />
case (left) the current field Hcurr partially cancels the stray field HS of the p<strong>in</strong>ned<br />
layer (PL) and weakens the exchange bias field Hexch. For the other current<br />
direction (right) the stray field and the exchange bias field are supported by the<br />
current field. ....................................................................................................................63<br />
Figure 5.4: The layers of the GMR element also see mirror currents due to the high<br />
permeability of the shields. The field of these mirror currents is able to reduce the<br />
field of the orig<strong>in</strong>al current at the free layer and the p<strong>in</strong>ned layer. .................................63<br />
84
List of Figures<br />
Figure 6.1: The magnetic model used for the FEM calculations. The mesh size for the<br />
shields (green) is 50 nm, and is ref<strong>in</strong>ed to 5 nm near the track and near the sp<strong>in</strong><br />
valve layers. The hard bias magnets (purple), the free layer (dark blue), and the<br />
p<strong>in</strong>ned layer (light blue) are also meshed with triangle size of 5 nm..............................66<br />
Figure 6.2: The FEM conductor model is shown. This simplified model shows the four<br />
ma<strong>in</strong> layers of a GMR element, which contribute most to the conductance: The<br />
free layer (dark blue) the nonmagnetic Cu layer (orange), the p<strong>in</strong>ned layer (light<br />
blue), and the antiferromagnet (yellow). Additionally the high conductive leads<br />
(p<strong>in</strong>k) are shown..............................................................................................................67<br />
Figure 6.3: The effective conductivities for a typical sp<strong>in</strong> valve taken from [37]. ................68<br />
Figure 6.4: The normalized magnetization of the free layer and the p<strong>in</strong>ned layer <strong>in</strong><br />
equilibrium state for the two different current directions. The color code gives the<br />
z-component of the normalized magnetization, red corresponds to the positive and<br />
blue to the negative z-direction. Thus the red arrows represent the p<strong>in</strong>ned layer<br />
magnetization. The right hand side gives the configuration for the more favorable<br />
current direction, because here the current field cancels partially the<br />
demagnetiz<strong>in</strong>g field of the p<strong>in</strong>ned layer. .........................................................................69<br />
Figure 6.5: The external applied field, which is applied <strong>in</strong> z-direction to evaluate the<br />
transfer curve of the GMR sensor. ..................................................................................70<br />
Figure 6.6: The output voltage (left) and the relative change <strong>in</strong> resistance (right, <strong>in</strong><br />
respect to the equilibrium state) over the external applied field <strong>in</strong> z-direction for<br />
both current direction and a larger exchange bias field...................................................71<br />
Figure 6.7: The transfer curves for the sp<strong>in</strong> valve with and without shields (for both<br />
Hexch = 0.1 T). ..................................................................................................................72<br />
Figure 6.8: The output signal over time for a relaxation from equilibrium state with<br />
Hext = 0.3 T to the equilibrium state without field for different Gilbert damp<strong>in</strong>g<br />
constants. .........................................................................................................................73<br />
Figure 6.9: The read back signal and the relative change <strong>in</strong> resistance for a perfect<br />
→← transition................................................................................................................74<br />
Figure 6.10: The read back signal and the relative change <strong>in</strong> resistance for a perfect<br />
←→ transition................................................................................................................75<br />
Figure 6.11: The model of a perfect bit pattern. It consists of 30 perfectly written bits<br />
and is used for our read back signal calculations. The track width is 120 nm and<br />
the bit length 60 nm. The layer thickness is 12 nm and the spontaneous<br />
polarization is 0.44 T. The bits are alternately magnetized <strong>in</strong> positive and negative<br />
x-direction........................................................................................................................76<br />
Figure 6.12: The read back signal for the periodic bit pattern calculated for the GMR<br />
sensor and for the whole read head (with shields). .........................................................76<br />
85
Bibliography<br />
Bibliography<br />
[1] O. Smith, Electrical World, September 8, 1888.<br />
[2] S. E. Schoenherr, Record<strong>in</strong>g Technology History, http://history.acusd.edu/gen/<br />
record<strong>in</strong>g/notes.html, University of San Diego, January 27, 2005.<br />
[3] A. S. Hoagland, “History of <strong>Magnetic</strong> Disc Storage Based on Perpendicular<br />
Record<strong>in</strong>g”, IEEE Trans. Magn., vol. 39, no. 4, pp. 1871-1875, July 2003.<br />
[4] B. Hayes, “Terabyte Territory”, American Scientist, vol. 90, no. 3, pp. 212-216,<br />
May/June 2002.<br />
[5] R. Hunt, “A magnetoresistive readout transducer”, IEEE Trans. Magn., vol. MAG-7,<br />
no. 1, pp. 150-154, March 1971.<br />
[6] M. N. Baibich, J. M. Broto, A. Fert, F. Nguyen Van Dau, F. Petroff, P. Eitenne, G.<br />
Creuzet, A. Friederich, J. Chazelas, “Giant Magnetoresistance of (001)Fe/(001)Cr<br />
<strong>Magnetic</strong> Superlattices“, Phys. Rev. Lett., vol. 61, no. 21, pp. 2472-2475, November<br />
1988.<br />
[7] Hitachi Global Storage Technologies, Hitachi <strong>Research</strong> and Technology, http://www.<br />
hitachigst.com/hdd/research/, April 22, 2005.<br />
[8] E. E. Fullerton, D. T. Margulies, M. E. Schabes, M. Carey, B. Gurney, A. Moser.,<br />
M. Best, G. Zeltzer, K. Rub<strong>in</strong>, H. Rosen, M. Doerner, “Antiferromagnetically<br />
coupled magnetic media layers for thermally stable high-density record<strong>in</strong>g”, Appl. Phys.<br />
Lett., vol. 77, no. 23, pp. 3806-3808, December 2000.<br />
[9] E. E. Fullerton, D. T, Margulies, N. Supper, H. Do, M. Schabes, A. Berger, A.<br />
Moser, “Antiferromagnetically Coupled <strong>Magnetic</strong> Record<strong>in</strong>g Media”, IEEE Trans.<br />
Magn., vol. 39, no. 2, pp. 639-644, March 2003.<br />
[10] C. T. Rettner, S. Anders, T. Thomson, M. Albrecht, Y. Ikeda, M. E. Best, B. D.<br />
Terris, “<strong>Magnetic</strong> Characterization and Record<strong>in</strong>g Properties of Patterned Co70Cr18Pt12<br />
Perpendicular Media”, IEEE Trans. Magn., vol. 38, no. 4, pp. 1725-1730, July 2002.<br />
86
Bibliography<br />
[11] H. Katayama, M. Hamamoto, J. Sato, Y. Murakami, K. Kojima, “New<br />
Developments <strong>in</strong> Laser-Assisted <strong>Magnetic</strong> Record<strong>in</strong>g”, IEEE Trans. Magn., vol. 36, no.<br />
1, pp. 195-199, January 2000<br />
[12] P. Vettiger, M. Despont, U. Drechsler, U. Dürig, W. Häberle, M. I. Lutwyche, H. E.<br />
Rothuizen, R. Stutz, R. Widmer, G. K. B<strong>in</strong>nig, “The ‘Millipede’ – more than one<br />
thousand tips for future AFM data storage”, IBM J. Res. Dev., vol. 44, no. 3, pp. 323-<br />
340, May 2000.<br />
[13] P. Mohn, Magnetism <strong>in</strong> the Solid State: An Introduction, Spr<strong>in</strong>ger Verlag, Berl<strong>in</strong>, 2003.<br />
[14] W. Bailey, P. Kabos, F. Mancoff, S. Russek, “Control of Magnetization Dynamics <strong>in</strong><br />
Ni81Fe19 Th<strong>in</strong> Films Through the Use of Rare-Earth Dopants”, IEEE Trans. Magn., vol.<br />
37, pp. 1749-1754, July 2001.<br />
[15] M. Kirschner, Exchange Bias <strong>in</strong> Ferro-/Antiferromagnetic Bilayers, Diploma Thesis,<br />
Work<strong>in</strong>g <strong>Group</strong> <strong>Magnetic</strong> Materials and Micromagnetics, Vienna University of<br />
Technology, 2003.<br />
[16] N. F. Mott, “The Electrical Conductivity of Transition Metals“, Proc. Roy. Soc. (Lond.)<br />
A, no. 153, pp. 699-717, 1935.<br />
[17] N. F. Mott, “Electrons <strong>in</strong> Transition Metals“, Adv. Phys., no. 13, pp. 325-422, 1964.<br />
[18] S. Blundell, Magnetism <strong>in</strong> condensed matter, Oxford Univ. Press, New York, 2001.<br />
[19] S. X. Wang, A. M. Tarator<strong>in</strong>, <strong>Magnetic</strong> Information Storage Technology, Academic<br />
Press, San Diego, 1999.<br />
[20] R. Coehoorn, Novel Magnetoelectronic Materials and Devices, Lecture Notes, 2003.<br />
[21] M. M. Aziz, Signal and Noise Properties of Longitud<strong>in</strong>al Th<strong>in</strong>-Film Disk Media,<br />
Master Thesis, Electronic and Information Storage Systems <strong>Research</strong> <strong>Group</strong>, University<br />
of Manchester, 1999.<br />
[22] H. Muraoka, Y.Sugita, Y. Nakamura, “Simplified Expression of Shielded MR Head<br />
Response for Double-Layer Perpendicular Medium“, IEEE Trans. Magn., vol. 35, no. 5,<br />
pp. 2235-2237, September 1999.<br />
[23] T. A. Davis, Algorithm 8xx: a concise sparse Cholesky factorization package,<br />
http://www.cise.ufl.edu/research/sparse/ldl/, January 5, 2004.<br />
[24] D. R. Fredk<strong>in</strong>, T. R. Koehler, “Hybrid Method for Comput<strong>in</strong>g Demagnetiz<strong>in</strong>g Fields“,<br />
IEEE Trans. Magn., vol. 26, no. 2, pp. 415-417, March 1990.<br />
87
Bibliography<br />
[25] S. Kurz, O. Ra<strong>in</strong>, S. Rjasanow, “The adaptive cross-approximation technique for the<br />
3D boundary-element method”, IEEE Trans. Magn., vol. 38, no. 2, pp. 421-424, March<br />
2002.<br />
[26] D. M. Mount, ANN Programm<strong>in</strong>g Manual, http://www.cs.umd.edu/~mount/ANN/,<br />
University of Maryland, 2005.<br />
[27] D. A. L<strong>in</strong>dholm, “Three-Dimensional Magnetostatic Fields from Po<strong>in</strong>t-Matched<br />
Integral Equations with L<strong>in</strong>early Vary<strong>in</strong>g Scalar Sources”, IEEE Trans. Magn. , vol. 20,<br />
no. 5, pp. 2025-2032, September 1984.<br />
[28] S. Pissanetzky, “Comments on ‘Analytical Computation of <strong>Magnetic</strong> Vector Potential<br />
for Tetrahedral Conductors’”, IEEE Trans. Magn., vol. 29, no. 2, pp. 1282-1283, March<br />
1993.<br />
[29] S. D. Cohen, A. C. H<strong>in</strong>dmarsh, “CVODE User Guide“, Lawrence Livermore National<br />
Laboratory report, UCRL-MA-118618, 1994.<br />
[30] S. D. Cohen, A. C. H<strong>in</strong>dmarsh, “CVODE, a stiff/nonstiff ODE solver <strong>in</strong> C”,<br />
Computers <strong>in</strong> Physics, vol. 10, no. 2, pp. 138-143, March/April 1996.<br />
[31] P. Speckmayer, Electron Microscopy and Micromagnetic Simulation of FePt and CoPt<br />
Nanoparticles, Diploma Thesis, Work<strong>in</strong>g <strong>Group</strong> <strong>Magnetic</strong> Materials and<br />
Micromagnetics, Vienna University of Technology, 2004.<br />
[32] W. H. Bean and C. P. Meiklejohn, “New <strong>Magnetic</strong> Anisotropy”, Phys. Rev., vol. 102,<br />
pp. 1413, 1956.<br />
[33] S. Tanoue, K. Tabuchi, “Magnetoresistance characteristics of NiFe/Cu/CoFe/IrMn<br />
sp<strong>in</strong> valves”, J. Vac. Sci. Technol. B, vol. 19, no. 2, pp. 563-566, March 2001.<br />
[34] J. Nogués, C. Leighton, I. K. Schuller, “Correlation between antiferromagnetic<br />
<strong>in</strong>terface coupl<strong>in</strong>g and exchange bias“, Phys. Rev. B, vol. 61, pp. 1315, 2000.<br />
[35] H. A. M. Van den Berg, W. Clemens, G. Gieres, G. Rupp, W. Schelter, M. Veith,<br />
“GMR sensor scheme with artificial antiferromagnetic subsystem”, IEEE Trans. Magn.,<br />
vol. 32, no. 5, pp. 4624-4626, September 1996.<br />
[36] P. Bruno, “Theory of <strong>in</strong>terlayer exchange coupl<strong>in</strong>g”, Phys. Rev. B, vol. 52, no. 1, pp.<br />
411-439, July 1995.<br />
[37] A. T. McCallum, S. E. Russek, “Current density distribution <strong>in</strong> a sp<strong>in</strong> valve<br />
determ<strong>in</strong>ed through <strong>in</strong> sito conductance measurement”, Appl. Phys. Lett., vol. 84, no.<br />
17, pp. 3340-3342, April 2004.<br />
88
Bibliography<br />
[38] W. F. Brown Jr., Micromagnetics, Wiley, New York, 1963.<br />
[39] S. J. Slonczewski, “Current-driven excitation of magnetic multilayers”, J. Magn. Magn.<br />
Mater., vol. 159, no. 1-2, pp. L1-L7, June 1996.<br />
[40] R. L. Comstock, Introduction to Magnetism and <strong>Magnetic</strong> Record<strong>in</strong>g, Wiley, New<br />
York, 1999.<br />
Parts of this work have been published:<br />
[41] G. Hrkac, T. Schrefl, M. Kirschner, F. Dorfbauer, D. Suess, O. Ertl, J. <strong>Fidler</strong>,<br />
“Three-dimenisonal micromagnetic f<strong>in</strong>ite element simulations <strong>in</strong>clud<strong>in</strong>g eddy currents“,<br />
J. Appl. Phys., vol. 97, no. 10, May 2005, <strong>in</strong> press.<br />
[42] G. Hrkac, T. Schrefl, O. Ertl, M. Kirschner, D. Suess, J. <strong>Fidler</strong>, “Influence of Eddy<br />
Currents on Magnetization Processes <strong>in</strong> Sub-Micron Permalloy Structures”, IEEE<br />
Trans. Magn., <strong>in</strong> press.<br />
[43] O. Ertl, T. Schrefl, D. Suess, M. E. Schabes, “Influence of the Gilbert damp<strong>in</strong>g<br />
constants on the flux rise time of write head fields“, J. Magn. Magn. Mater., vol. 290-<br />
291, part 1, pp. 518-521, April 2005.<br />
[44] M. E. Schabes, T. Schrefl, D. Suess, O. Ertl, “Dynamic Micromagnetic Studies of<br />
Anisotropy Effects <strong>in</strong> Perpendicular Write Heads”, IEEE Trans. Magn., <strong>in</strong> press.<br />
[45] T. Schrefl, M. E. Schabes, D. Suess, O. Ertl, M. Kirschner, F. Dorfbauer, G.<br />
Hrkac, J. <strong>Fidler</strong>, “Partition<strong>in</strong>g of the Perpendicular Write Field <strong>in</strong>to Head and SUL<br />
Contributions”, IEEE Trans. Magn., <strong>in</strong> press.<br />
89
Danksagung<br />
Ich möchte all jenen me<strong>in</strong>en Dank aussprechen, die mich bei der Diplomarbeit unterstützt<br />
oder motivierend auf mich e<strong>in</strong>gewirkt haben.<br />
Insbesondere möchte ich mich bei me<strong>in</strong>em Betreuer Doz. Thomas Schrefl für se<strong>in</strong>e ständige<br />
Bereitschaft, mir bei Fragen oder Anliegen weiterzuhelfen, bedanken. Weiters seien Florian<br />
Dorfbauer, G<strong>in</strong>o Hrkac, Markus Kirschner und Dieter Süss erwähnt, die mir viele hilfreiche<br />
Tipps zur Diplomarbeit gaben. Generell möchte ich allen danken, die zum ausgezeichneten<br />
Arbeitsklima <strong>in</strong>nerhalb der Arbeitsgruppe Mikromagnetismus beitrugen.<br />
Chee Lim vom Samsung Advanced Institute of Technology möchte ich für die (wenigen)<br />
Informationen zu aktuellen Leseköpfen danken.<br />
Me<strong>in</strong>en Eltern möchte ich danken, dass sie mir durch ihre f<strong>in</strong>anzielle Unterstützung das<br />
Studium ermöglicht haben.<br />
Me<strong>in</strong>er Freund<strong>in</strong> Katr<strong>in</strong> danke ich für ihre Unterstützung während me<strong>in</strong>er Diplomarbeit.<br />
90
Lebenslauf<br />
Otmar Ertl<br />
Re<strong>in</strong>prechtsdorferstraße 20/16<br />
1050 Wien<br />
Tel.: +43/650/9461912<br />
PERSÖNLICHE ANGABEN<br />
AUSBILDUNG<br />
AUSZEICHNUNGEN<br />
� Staatsangehörigkeit: Österreich<br />
� Geburtsdatum: 22. Februar 1982<br />
� Geburtsort: Vöcklabruck<br />
� Eltern: Mag. Karl Ertl und Renate Ertl<br />
� 1988 bis 1992 Volksschule Vöcklabruck<br />
� 1992 bis 2000 BRG Schloss Wagra<strong>in</strong>, Vöcklabruck<br />
� Juni 2000 Ablegung der Reifeprüfung mit ausgezeichnetem<br />
Erfolg<br />
� seit Okt. 2000 Studium der technischen Physik an der TU Wien<br />
� Juni 2002 Abschluss des 1. Studienabschnitts mit<br />
ausgezeichnetem Erfolg<br />
� 2. Platz (1999) und 1. Platz (2000) beim Bundeswettbewerb der<br />
österreichischen Mathematikolympiade<br />
� Bronzemedaille (1999) und Silbermedaille (2000) bei der<br />
<strong>in</strong>ternationalen Mathematikolympiade<br />
91
