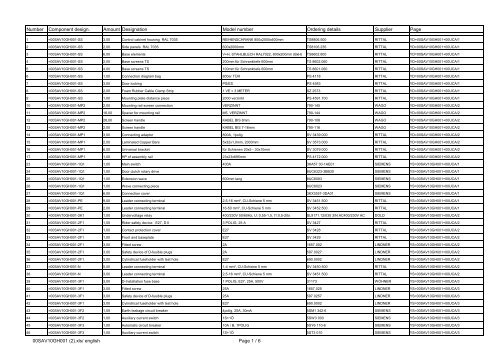

<strong>Number</strong> <strong>Component</strong> <strong>design</strong>. <strong>Amount</strong> <strong>Designation</strong> <strong>Model</strong> <strong>number</strong> Ordering details Supplier Page<br />
1 =00SAV10GH001-SS 3,00 Control cabinet housing RAL 7035 REIHENSCHRANK 800x2000x600mm TS8806.500 RITTAL YD=00SAV10GH001+00UCA/1<br />
2 =00SAV10GH001-SS 2,00 Side panels RAL 7035 600x2000mm TS8106.235 RITTAL YD=00SAV10GH001+00UCA/1<br />
3 =00SAV10GH001-SS 6,00 Base elements V+H, STAHLBLECH RAL7022, 800x200mm (BxH) TS8602.800 RITTAL YD=00SAV10GH001+00UCA/1<br />
4 =00SAV10GH001-SS 2,00 Base screens TS 200mm für Schranktiefe 600mm TS 8602.060 RITTAL YD=00SAV10GH001+00UCA/1<br />
5 =00SAV10GH001-SS 4,00 Base screens TS 100mm für Schranktiefe 600mm TS 8601.060 RITTAL YD=00SAV10GH001+00UCA/1<br />
6 =00SAV10GH001-SS 1,00 Connection diagram bag 800er TÜR PS 4118 RITTAL YD=00SAV10GH001+00UCA/1<br />
7 =00SAV10GH001-SS 3,00 Door locking PS/ES PS 4583 RITTAL YD=00SAV10GH001+00UCA/1<br />
8 =00SAV10GH001-SS 2,00 Foam Rubber Cable Clamp Strip 1 VE = 3 METER SZ 2573 RITTAL YD=00SAV10GH001+00UCA/1<br />
9 =00SAV10GH001-SS 1,00 Mounting plate distance piece 2000 verzinkt PS 4591.700 RITTAL YD=00SAV10GH001+00UCA/1<br />
10 =00SAV10GH001-MP2 2,00 Mounting rail screen connection VERZINNT 790-145 WAGO YD=00SAV10GH001+00UCA/2<br />
11 =00SAV10GH001-MP2 16,00 Spacer for mounting rail M5, VERZINNT 790-144 WAGO YD=00SAV10GH001+00UCA/2<br />
12 =00SAV10GH001-MP2 28,00 Screen handle KABEL BIS 8mm 790-108 WAGO YD=00SAV10GH001+00UCA/2<br />
13 =00SAV10GH001-MP2 2,00 Screen handle KABEL BIS 7-16mm 790-116 WAGO YD=00SAV10GH001+00UCA/2<br />
14 =00SAV10GH001-MP1 3,00 Connecting adaptor 800A, 1polig SV 3439.000 RITTAL YD=00SAV10GH001+00UCA/2<br />
15 =00SAV10GH001-MP1 2,00 Laminated Copper Bars 5x32x1,0mm, 2000mm SV 3573.000 RITTAL YD=00SAV10GH001+00UCA/2<br />
16 =00SAV10GH001-MP1 6,00 Universal bracket für Schienen 20x5 - 30x10mm SV 3079.000 RITTAL YD=00SAV10GH001+00UCA/2<br />
17 =00SAV10GH001-MP1 1,00 HP of assembly rail 23x23x695mm PS 4172.000 RITTAL YD=00SAV10GH001+00UCA/2<br />
23 =00SAV10GH001-1Q1 1,00 Main switch 400A 3KA57 30-1AE01 SIEMENS YS=00SAV10GH001+00UCA/1<br />
24 =00SAV10GH001-1Q1 1,00 Door clutch rotary drive 8UC6323-3BB30 SIEMENS YS=00SAV10GH001+00UCA/1<br />
25 =00SAV10GH001-1Q1 1,00 Extension wave 600mm lang 8UC6083 SIEMENS YS=00SAV10GH001+00UCA/1<br />
26 =00SAV10GH001-1Q1 1,00 Wave connecting piece 8UC6023 SIEMENS YS=00SAV10GH001+00UCA/1<br />
27 =00SAV10GH001-1Q1 6,00 Connection cover 3KX3557-3DA01 SIEMENS YS=00SAV10GH001+00UCA/1<br />
28 =00SAV10GH001-PE 9,00 Leader connecting terminal 2,5-16 mm², CU-Schiene 5 mm SV 3451.500 RITTAL YS=00SAV10GH001+00UCA/1<br />
29 =00SAV10GH001-PE 2,00 Leader connecting terminal 16-50 mm², CU-Schiene 5 mm SV 3452.500 RITTAL YS=00SAV10GH001+00UCA/1<br />
30 =00SAV10GH001-2K1 1,00 Undervoltage relay 400/230V 50/60Hz, U: 0,55-1,5, t1:0,5-20s SL9171.12/030 3/N AC400/230V AC DOLD YS=00SAV10GH001+00UCA/2<br />
31 =00SAV10GH001-2F1 1,00 Rider safety device E27, D II 3 POLIG, 25 A SV 3427 RITTAL YS=00SAV10GH001+00UCA/2<br />
32 =00SAV10GH001-2F1 1,00 Contact protection cover E27 SV 3428 RITTAL YS=00SAV10GH001+00UCA/2<br />
33 =00SAV10GH001-2F1 1,00 Front and baseplate E27 SV 3429 RITTAL YS=00SAV10GH001+00UCA/2<br />
34 =00SAV10GH001-2F1 3,00 Fitted screw 2A 1657.002 LINDNER YS=00SAV10GH001+00UCA/2<br />
35 =00SAV10GH001-2F1 3,00 Safety device of D-fusible plugs 2A 597.0027 LINDNER YS=00SAV10GH001+00UCA/2<br />
36 =00SAV10GH001-2F1 3,00 Cylindrical fuseholder with test hole E27 690.0002 LINDNER YS=00SAV10GH001+00UCA/2<br />
37 =00SAV10GH001-N 5,00 Leader connecting terminal 1-4 mm², CU-Schiene 5 mm SV 3450.500 RITTAL YS=00SAV10GH001+00UCA/2<br />
38 =00SAV10GH001-N 3,00 Leader connecting terminal 2,5-16 mm², CU-Schiene 5 mm SV 3451.500 RITTAL YS=00SAV10GH001+00UCA/2<br />
39 =00SAV10GH001-3F1 3,00 D-Installation fuse base 1 POLIG, E27, 25A, 500V 31173 WÖHNER YS=00SAV10GH001+00UCA/3<br />
40 =00SAV10GH001-3F1 3,00 Fitted screw 25A 1657.025 LINDNER YS=00SAV10GH001+00UCA/3<br />
41 =00SAV10GH001-3F1 3,00 Safety device of D-fusible plugs 25A 597.0257 LINDNER YS=00SAV10GH001+00UCA/3<br />
42 =00SAV10GH001-3F1 3,00 Cylindrical fuseholder with test hole E27 690.0002 LINDNER YS=00SAV10GH001+00UCA/3<br />
43 =00SAV10GH001-3F2 1,00 Earth-leakage circuit breaker 4polig, 25A, 30mA 5SM1 342-6 SIEMENS YS=00SAV10GH001+00UCA/3<br />
44 =00SAV10GH001-3F2 1,00 Auxiliary current switch 1S+1Ö 5SW3 000 SIEMENS YS=00SAV10GH001+00UCA/3<br />
45 =00SAV10GH001-3F3 1,00 Automatic circuit breaker 10A / B, 1POLIG 5SY6 110-6 SIEMENS YS=00SAV10GH001+00UCA/3<br />
46 =00SAV10GH001-3F3 1,00 Auxiliary current switch 1S+1Ö 5ST3 010 SIEMENS YS=00SAV10GH001+00UCA/3<br />
00SAV10GH001 (2).xls/ english Page 1 / 6
<strong>Number</strong> <strong>Component</strong> <strong>design</strong>. <strong>Amount</strong> <strong>Designation</strong> <strong>Model</strong> <strong>number</strong> Ordering details Supplier Page<br />
47 =00SAV10GH001-X11 16,00 3 leader passage clamp 0,08-2,5mm², schräg 280-641 WAGO YS=00SAV10GH001+00UCA/3<br />
48 =00SAV10GH001-X11 8,00 3 leader protective grounding clamp 0,08-2,5mm², schräg 280-637 WAGO YS=00SAV10GH001+00UCA/3<br />
49 =00SAV10GH001-3E1 1,00 Switchgear cabinet light AB 800mm, 18W-LEUCHSTOFF, OHNE KABEL LL18-SK-R RICHTER YS=00SAV10GH001+00UCA/3<br />
50 =00SAV10GH001-3E1 1,00 Mains cable 4m / LL LL-N-40 RICHTER YS=00SAV10GH001+00UCA/3<br />
51 =00SAV10GH001-3E2 1,00 Switchgear cabinet light AB 800mm, 18W-LEUCHSTOFF, OHNE KABEL LL18-SK-R RICHTER YS=00SAV10GH001+00UCA/3<br />
52 =00SAV10GH001-3E2 1,00 Cable connection 0,8m / LL LL-V-08 RICHTER YS=00SAV10GH001+00UCA/3<br />
53 =00SAV10GH001-3E3 1,00 Switchgear cabinet light AB 800mm, 18W-LEUCHSTOFF, OHNE KABEL LL18-SK-R RICHTER YS=00SAV10GH001+00UCA/3<br />
54 =00SAV10GH001-3E3 1,00 Cable connection 0,8m / LL LL-V-08 RICHTER YS=00SAV10GH001+00UCA/3<br />
55 =00SAV10GH001-3F4 1,00 Automatic circuit breaker 10A / B, 1POLIG 5SY6 110-6 SIEMENS YS=00SAV10GH001+00UCA/3<br />
56 =00SAV10GH001-3F4 1,00 Auxiliary current switch 1S+1Ö 5ST3 010 SIEMENS YS=00SAV10GH001+00UCA/3<br />
57 =00SAV10GH001-3X1 1,00 Earthing contact plug socket 220-240V AC, 16A 67 901 MURRELEKTRONIK YS=00SAV10GH001+00UCA/3<br />
58 =00SAV10GH001-4F1 1,00 Automatic circuit breaker 10A / B, 1POLIG 5SY6 110-6 SIEMENS YS=00SAV10GH001+00UCA/4<br />
59 =00SAV10GH001-4F1 1,00 Auxiliary current switch 1S+1Ö 5ST3 010 SIEMENS YS=00SAV10GH001+00UCA/4<br />
60 =00SAV10GH001-4B1 1,00 Enclosure Internal Thermostat +5...+55 C SK 3110.000 RITTAL YS=00SAV10GH001+00UCA/4<br />
61 =00SAV10GH001-4F2 1,00 Automatic circuit breaker 10A / B, 1POLIG 5SY6 110-6 SIEMENS YS=00SAV10GH001+00UCA/4<br />
62 =00SAV10GH001-4F2 1,00 Auxiliary current switch 1S+1Ö 5ST3 010 SIEMENS YS=00SAV10GH001+00UCA/4<br />
63 =00SAV10GH001-4M1 1,00 Filter exhaust 230V AC, 64W, 323x323mm SK 3326.107 RITTAL YS=00SAV10GH001+00UCA/4<br />
64 =00SAV10GH001-4M1 1,00 Withdrawal filter 323x323 mm SK 3326.207 RITTAL YS=00SAV10GH001+00UCA/4<br />
65 =00SAV10GH001-4M2 1,00 Filter exhaust 230V AC, 64W, 323x323mm SK 3326.107 RITTAL YS=00SAV10GH001+00UCA/4<br />
66 =00SAV10GH001-4M2 1,00 Withdrawal filter 323x323 mm SK 3326.207 RITTAL YS=00SAV10GH001+00UCA/4<br />
67 =00SAV10GH001-5T1 1,00 Control Transformer 400VA; 400/230V 4AM4642-5AT10-0FA0 SIEMENS YS=00SAV10GH001+00UCA/5<br />
68 =00SAV10GH001-X21 2,00 3 leader protective grounding clamp 0,08-2,5mm², schräg 280-637 WAGO YS=00SAV10GH001+00UCA/5<br />
69 =00SAV10GH001-X21 1,00 2 leaders base lead 0,08-4mm², Durchgangsklemme 281-916 WAGO YS=00SAV10GH001+00UCA/5<br />
70 =00SAV10GH001-X21 1,00 Seal plate für 281-916 281-328 WAGO YS=00SAV10GH001+00UCA/5<br />
71 =00SAV10GH001-X21 1,00 Safeguard plug 5x20 / 5x25mm 281-511 WAGO YS=00SAV10GH001+00UCA/5<br />
72 =00SAV10GH001-X21 9,00 3 leader passage clamp 0,08-2,5mm², schräg 280-641 WAGO YS=00SAV10GH001+00UCA/5<br />
73 =00SAV10GH001-5Q1 1,00 Protective switchgear of an engine transformer SIRIUS S0, 1,4-2,0A 3RV14 21-1BA10 SIEMENS YS=00SAV10GH001+00UCA/5<br />
74 =00SAV10GH001-5Q1 1,00 Auxiliary switch SIRIUS S0-S3, 1S+1Ö, QUER 3RV19 01-1E SIEMENS YS=00SAV10GH001+00UCA/5<br />
75 =00SAV10GH001-5Q1 1,00 Bus bar adapter 25A, 45x200mm, 6mm², 2 Tragschienen 32436 WOHNER YS=00SAV10GH001+00UCA/5<br />
76 =00SAV10GH001-5H1 1,00 Warning light with LED completely 230V AC, weiß 3SB3252-6AA60 SIEMENS YS=00SAV10GH001+00UCA/5<br />
77 =00SAV10GH001-5H1 1,00 Sign carrier RUND, 30/50mm M22S-ST-X, NR. 216392 MOELLER YS=00SAV10GH001+00UCA/5<br />
78 =00SAV10GH001-5H1 1,00 Inserting sign 18x27mm, ALU-BLANKO M22-XST, NR. 216480 MOELLER YS=00SAV10GH001+00UCA/5<br />
79 =00SAV10GH001-5F1 1,00 Automatic circuit breaker 2A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF25 SIEMENS YS=00SAV10GH001+00UCA/5<br />
80 =00SAV10GH001-5F2 1,00 Automatic circuit breaker 2A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF25 SIEMENS YS=00SAV10GH001+00UCA/5<br />
81 =00SAV10GH001-7G1 1,00 Current supply 400V AC / 24V DC 20A AC400 - 500V, 24VDC, 20A 6EP1 436-2BA00 SIEMENS YS=00SAV10GH001+00UCA/7<br />
82 =00SAV10GH001-X31 2,00 3 leader protective grounding clamp 0,08-4mm², schräg 281-637 WAGO YS=00SAV10GH001+00UCA/7<br />
83 =00SAV10GH001-X31 1,00 2 leaders base lead 0,08-4mm², Durchgangsklemme 281-916 WAGO YS=00SAV10GH001+00UCA/7<br />
84 =00SAV10GH001-X31 1,00 Seal plate für 281-916 281-328 WAGO YS=00SAV10GH001+00UCA/7<br />
85 =00SAV10GH001-X31 1,00 Safeguard plug 5x20 / 5x25mm 281-511 WAGO YS=00SAV10GH001+00UCA/7<br />
86 =00SAV10GH001-X31 14,00 3 leader passage clamp 0,08-4mm², schräg 281-631 WAGO YS=00SAV10GH001+00UCA/7<br />
87 =00SAV10GH001-X31 18,00 3 leader passage clamp 0,08-2,5mm², schräg 280-641 WAGO YS=00SAV10GH001+00UCA/7<br />
00SAV10GH001 (2).xls/ english Page 2 / 6
<strong>Number</strong> <strong>Component</strong> <strong>design</strong>. <strong>Amount</strong> <strong>Designation</strong> <strong>Model</strong> <strong>number</strong> Ordering details Supplier Page<br />
88 =00SAV10GH001-X31 1,00 3 leader protective grounding clamp 0,08-2,5mm², schräg 280-637 WAGO YS=00SAV10GH001+00UCA/7<br />
89 =00SAV10GH001-7Q1 1,00 Protective switchgear of an engine SIRIUS S0, 2,2-3,2A 3RV10 21-1DA10 SIEMENS YS=00SAV10GH001+00UCA/7<br />
90 =00SAV10GH001-7Q1 1,00 Auxiliary switch SIRIUS S0-S3, 1S+1Ö, QUER 3RV19 01-1E SIEMENS YS=00SAV10GH001+00UCA/7<br />
91 =00SAV10GH001-7Q1 1,00 Bus bar adapter 25A, 45x200mm, 4mm², 2 Tragschienen 32431 WOHNER YS=00SAV10GH001+00UCA/7<br />
92 =00SAV10GH001-7H1 1,00 Warning light with LED LED 24V AC/DC, weiß, Frontbefestigung 3SB32 44-6AA60 SIEMENS YS=00SAV10GH001+00UCA/7<br />
93 =00SAV10GH001-7H1 1,00 Sign carrier RUND, 30/50mm M22S-ST-X, NR. 216392 MOELLER YS=00SAV10GH001+00UCA/7<br />
94 =00SAV10GH001-7H1 1,00 Inserting sign 18x27mm, ALU-BLANKO M22-XST, NR. 216480 MOELLER YS=00SAV10GH001+00UCA/7<br />
95 =00SAV10GH001-7F1 1,00 Automatic circuit breaker 4A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF26 SIEMENS YS=00SAV10GH001+00UCA/7<br />
96 =00SAV10GH001-7F1 1,00 Feeding clamp 16mm² 8WA1 822-7VD00 SIEMENS YS=00SAV10GH001+00UCA/7<br />
97 =00SAV10GH001-7F1 1,00 Connecting rail 65A, 1POLIG, 10 ANSCHLÜSSE 8WA1 822-7VD01 SIEMENS YS=00SAV10GH001+00UCA/7<br />
98 =00SAV10GH001-7F2 1,00 Automatic circuit breaker 4A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF26 SIEMENS YS=00SAV10GH001+00UCA/7<br />
99 =00SAV10GH001-7F3 1,00 Automatic circuit breaker 2A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF25 SIEMENS YS=00SAV10GH001+00UCA/7<br />
100 =00SAV10GH001-7F4 1,00 Automatic circuit breaker 4A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF26 SIEMENS YS=00SAV10GH001+00UCA/7<br />
101 =00SAV10GH001-7F5 1,00 Automatic circuit breaker 2A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF25 SIEMENS YS=00SAV10GH001+00UCA/7<br />
102 =00SAV10GH001-7F6 1,00 Automatic circuit breaker 2A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF25 SIEMENS YS=00SAV10GH001+00UCA/7<br />
103 =00SAV10GH001-8F1 1,00 Automatic circuit breaker 4A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF26 SIEMENS YS=00SAV10GH001+00UCA/8<br />
104 =00SAV10GH001-8F2 1,00 Automatic circuit breaker 4A, 1POLIG, HS: 1S+1Ö 8WA1011-8SF26 SIEMENS YS=00SAV10GH001+00UCA/8<br />
105 =00SAV10GH001-10A1 1,00 Central building group 314 NEU, 48kB 6ES7 314-1AF10-0AB0 SIEMENS YS=00SAV10GH001+00UCA/10<br />
106 =00SAV10GH001-10A1 1,00 S7 Profiled rail S7-300 - 480 mm 6ES7 390-1AE80-0AA0 SIEMENS YS=00SAV10GH001+00UCA/10<br />
107 =00SAV10GH001-10A1 1,00 Micro memory card 512 kB, für Kompakt-CPU 6ES7 953-8LJ00-0AA0 SIEMENS YS=00SAV10GH001+00UCA/10<br />
108 =00SAV10GH001-10A1 1,00 Professional bus plug 90° Kabelabgang mit PG-Buchse, Schraubanschl. 6ES7 972-0BB12-0XA0 SIEMENS YS=00SAV10GH001+00UCA/10<br />
109 =00SAV10GH001-10A1-XMPI 1,00 Professional bus plug 90° Kabelabgang mit PG-Buchse 6ES7 972-0BB50-0XA0 SIEMENS YS=00SAV10GH001+00UCA/10<br />
110 =00SAV10GH001-11A1 1,00 Touch panel 5,7" TB177B 5,7" DP/PN STN 256 COLOR 6AV6 642-0BA01-1AX0 SIEMENS YS=00SAV10GH001+00UCA/11<br />
111 =00SAV10GH001-11A1 1,00 Professional bus plug 180° Kabelabgang für OP 6GK1 500-0EA02 SIEMENS YS=00SAV10GH001+00UCA/11<br />
112 =00SAV10GH001-X12A1 1,00 Delivery module FLK/50/32INI/PLC 00 11 61 CONTECH YS=00SAV10GH001+00UCA/12<br />
113 =00SAV10GH001-X12A1 1,00 Front plug S7-300/50/EZ-DR/200 01 10 85 CONTECH YS=00SAV10GH001+00UCA/12<br />
114 =00SAV10GH001-12A1 1,00 S7 digital input building group S7-300 - 32 DE, Potentilagetr. 6ES7 321-1BL00-0AA0 SIEMENS YS=00SAV10GH001+00UCA/12<br />
115 =00SAV10GH001-X12A2 1,00 Delivery module FLK/50/32INI/PLC 00 11 61 CONTECH YS=00SAV10GH001+00UCA/12<br />
116 =00SAV10GH001-X12A2 1,00 Front plug S7-300/50/EZ-DR/200 01 10 85 CONTECH YS=00SAV10GH001+00UCA/12<br />
117 =00SAV10GH001-12A2 1,00 S7 digital input building group S7-300 - 32 DE, Potentilagetr. 6ES7 321-1BL00-0AA0 SIEMENS YS=00SAV10GH001+00UCA/12<br />
118 =00SAV10GH001-X13A1 1,00 Delivery module FLK/50/32INI/PLC 00 11 61 CONTECH YS=00SAV10GH001+00UCA/13<br />
119 =00SAV10GH001-X13A1 1,00 Front plug S7-300/50/EZ-DR/200 01 10 85 CONTECH YS=00SAV10GH001+00UCA/13<br />
120 =00SAV10GH001-13A1 1,00 Digital output building group 32 DA 24V DC 0,5A 6ES7 322-1BL00-0AA0 SIEMENS YS=00SAV10GH001+00UCA/13<br />
121 =00SAV10GH001-14A1 1,00 Analog input building group 8 AE 6ES7 331-7KF02-0AB0 SIEMENS YS=00SAV10GH001+00UCA/14<br />
122 =00SAV10GH001-14A1 1,00 Front plug 20 polig, Einzelader 20x0,5mm², 3,2m 6ES7922-3BD20-0AB0 SIEMENS YS=00SAV10GH001+00UCA/14<br />
123 =00SAV10GH001-14A2 1,00 Analog input building group 2 AE 6ES7 331-7KB02-0AB0 SIEMENS YS=00SAV10GH001+00UCA/14<br />
124 =00SAV10GH001-14A2 1,00 Front plug 20 polig, Einzelader 20x0,5mm², 3,2m 6ES7922-3BD20-0AB0 SIEMENS YS=00SAV10GH001+00UCA/14<br />
125 =00SAV10GH001-15A1 1,00 Analog output building group 4 Analogausgänge 6ES7 332-5HD01-0AB0 SIEMENS YS=00SAV10GH001+00UCA/15<br />
126 =00SAV10GH001-15A1 1,00 Front plug 20 polig, Einzelader 20x0,5mm², 3,2m 6ES7922-3BD20-0AB0 SIEMENS YS=00SAV10GH001+00UCA/15<br />
127 =00SAV10GH001-16S1 1,00 Push-button actuator blue 1S, BLAU 3SB3202-0AA51 SIEMENS YS=00SAV10GH001+00UCA/16<br />
128 =00SAV10GH001-16S1 1,00 Sign carrier RUND, 30/50mm M22S-ST-X, NR. 216392 MOELLER YS=00SAV10GH001+00UCA/16<br />
00SAV10GH001 (2).xls/ english Page 3 / 6
<strong>Number</strong> <strong>Component</strong> <strong>design</strong>. <strong>Amount</strong> <strong>Designation</strong> <strong>Model</strong> <strong>number</strong> Ordering details Supplier Page<br />
129 =00SAV10GH001-16S1 1,00 Inserting sign 18x27mm, ALU-BLANKO M22-XST, NR. 216480 MOELLER YS=00SAV10GH001+00UCA/16<br />
130 =00SAV10GH001-16S2 1,00 Toggle switch, 2 positions resting 1S, schwarz 3SB3202-2KA11 SIEMENS YS=00SAV10GH001+00UCA/16<br />
131 =00SAV10GH001-16S2 1,00 Sign carrier RUND, 30/50mm M22S-ST-X, NR. 216392 MOELLER YS=00SAV10GH001+00UCA/16<br />
132 =00SAV10GH001-16S2 1,00 Inserting sign 18x27mm, ALU-BLANKO M22-XST, NR. 216480 MOELLER YS=00SAV10GH001+00UCA/16<br />
133 =00SAV10GH001-17H1 1,00 Warning light with LED completely 24V UC, rot 3SB3244-6AA20 SIEMENS YS=00SAV10GH001+00UCA/17<br />
134 =00SAV10GH001-17H1 1,00 Sign carrier RUND, 30/50mm M22S-ST-X, NR. 216392 MOELLER YS=00SAV10GH001+00UCA/17<br />
135 =00SAV10GH001-17H1 1,00 Inserting sign 18x27mm, ALU-BLANKO M22-XST, NR. 216480 MOELLER YS=00SAV10GH001+00UCA/17<br />
136 =00SAV10GH001-17K1 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/17<br />
137 =00SAV10GH001-17K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/17<br />
138 =00SAV10GH001-18F1 1,00 Rider safety device E27, D II 3 POLIG, 25 A SV 3427 RITTAL YS=00SAV10GH001+00UCA/18<br />
139 =00SAV10GH001-18F1 1,00 Contact protection cover E27 SV 3428 RITTAL YS=00SAV10GH001+00UCA/18<br />
140 =00SAV10GH001-18F1 1,00 Front and baseplate E27 SV 3429 RITTAL YS=00SAV10GH001+00UCA/18<br />
141 =00SAV10GH001-18F1 3,00 Fitted screw 2A 1657.002 LINDNER YS=00SAV10GH001+00UCA/18<br />
142 =00SAV10GH001-18F1 3,00 Safety device of D-fusible plugs 2A 597.0027 LINDNER YS=00SAV10GH001+00UCA/18<br />
143 =00SAV10GH001-18F1 3,00 Cylindrical fuseholder with test hole E27 690.0002 LINDNER YS=00SAV10GH001+00UCA/18<br />
144 =00SAV10GH001-18K1 1,00 Auxiliary delay S00, HS: 2S/2Ö, 230V AC 3RH11 22-1AP00 SIEMENS YS=00SAV10GH001+00UCA/18<br />
145 =00SAV10GH001-18H1 1,00 Warning light with LED completely 230V AC, rot 3SB3252-6AA20 SIEMENS YS=00SAV10GH001+00UCA/18<br />
146 =00SAV10GH001-18H1 1,00 Sign carrier RUND, 30/50mm M22S-ST-X, NR. 216392 MOELLER YS=00SAV10GH001+00UCA/18<br />
147 =00SAV10GH001-18H1 1,00 Inserting sign 18x27mm, ALU-BLANKO M22-XST, NR. 216480 MOELLER YS=00SAV10GH001+00UCA/18<br />
148 =00SAV10GH001-X101 4,00 3 leader passage clamp 0,08-2,5mm², schräg 280-641 WAGO YS=00SAV10GH001+00UCA/19<br />
149 =00SAV10GH001-21F1 1,00 LVHRC fuse switch GR. 000/100A, ABGANG UNTEN, 5/10mm T6407801 JEAN MÜLLER YS=00SAV10GH001+00UCA/21<br />
150 =00SAV10GH001-21F1 1,00 Cover GR. 000, FÜR SCHRAUBANSCHLUSS T8690527 JEAN MÜLLER YS=00SAV10GH001+00UCA/21<br />
151 =00SAV10GH001-21F1 3,00 LVHRC fuse GR. 000, 32A, AC500V, DC250V 3NA7812 SIEMENS YS=00SAV10GH001+00UCA/21<br />
152 =00SAV10GH001-21F2 1,00 Overload relay 6...25A, S0, CLASS10 3RB1026-1QB0 SIEMENS YS=00SAV10GH001+00UCA/21<br />
153 =00SAV10GH001-X12 3,00 Line-up terminal 0,82 ... 16mm², WDU10 1020300000 WEIDMÜLLER YS=00SAV10GH001+00UCA/21<br />
154 =00SAV10GH001-X12 7,00 Line-up terminal 10 ... 70mm², WDU70N 9512190000 WEIDMÜLLER YS=00SAV10GH001+00UCA/21<br />
155 =00SAV10GH001-X12 3,00 Line-up terminal 0,82 ... 25mm², WDU16/ZA 1028900000 WEIDMÜLLER YS=00SAV10GH001+00UCA/21<br />
156 =00SAV10GH001-X12 19,00 Line-up terminal 0,13 ... 6mm², WDU4 1020100000 WEIDMÜLLER YS=00SAV10GH001+00UCA/21<br />
157 =00SAV10GH001-X12 7,00 Line-up terminal 0,13 ... 6mm², WPE4 1010100000 WEIDMÜLLER YS=00SAV10GH001+00UCA/21<br />
160 =00SAV10GH001-21K1 1,00 Achievement contactor S0, 11kW, 3 polig, Spule 230V 50Hz 3RT10 26-1AP00 SIEMENS YS=00SAV10GH001+00UCA/21<br />
161 =00SAV10GH001-21K1 1,00 Auxiliary switch block 2S+2Ö, S0-S12, DIN EN 50012 3RH19 21-1HA22 SIEMENS YS=00SAV10GH001+00UCA/21<br />
162 =00SAV10GH001-21K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/21<br />
169 =00SAV10GH001-X32 141,00 3 leader passage clamp 0,08-2,5mm², schräg 280-641 WAGO YS=00SAV10GH001+00UCA/22<br />
171 =00SAV10GH001-23U1 1,00 Thyristor plate Thyro A 3x400V, 47-63Hz, 130A 2000001076 AEG YS=00SAV10GH001+00UCA/23<br />
173 =00SAV10GH001-23F1 1,00 LVHRC fuse switch GR. 00/160A, ABGANG VARIABEL, 5/10mm T5487001 JEAN MÜLLER YS=00SAV10GH001+00UCA/23<br />
174 =00SAV10GH001-23F1 1,00 Grasp protection 3 pole GR. 00, OBEN T8590462 JEAN MÜLLER YS=00SAV10GH001+00UCA/23<br />
175 =00SAV10GH001-23F1 1,00 Grasp protection 3 pole GR. 00, UNTEN T8590463 JEAN MÜLLER YS=00SAV10GH001+00UCA/23<br />
176 =00SAV10GH001-23F1 3,00 LVHRC fuse GR. 00, 125A, AC500V, DC250V 3NA7832 SIEMENS YS=00SAV10GH001+00UCA/23<br />
177 =00SAV10GH001-23F2 1,00 D-Installation fuse base 1 POLIG, E27, 25A, 500V 31173 WÖHNER YS=00SAV10GH001+00UCA/23<br />
178 =00SAV10GH001-23F2 1,00 Fitted screw 2A 1657.002 LINDNER YS=00SAV10GH001+00UCA/23<br />
179 =00SAV10GH001-23F2 1,00 Safety device of D-fusible plugs 2A 597.0027 LINDNER YS=00SAV10GH001+00UCA/23<br />
00SAV10GH001 (2).xls/ english Page 4 / 6
<strong>Number</strong> <strong>Component</strong> <strong>design</strong>. <strong>Amount</strong> <strong>Designation</strong> <strong>Model</strong> <strong>number</strong> Ordering details Supplier Page<br />
180 =00SAV10GH001-23F2 1,00 Cylindrical fuseholder with test hole E27 690.0002 LINDNER YS=00SAV10GH001+00UCA/23<br />
181 =00SAV10GH001-23K1 1,00 Achievement contactor 75kW, 3 polig, SPS, Uh 200-277 AC, 2S 2OE 3RT10 55-6NP36 SIEMENS YS=00SAV10GH001+00UCA/23<br />
183 =00SAV10GH001-24K1 1,00 Emergency stop switchgear 24V AC/DC, 3 Schließer, 1 Öffner 3TK28 21-1CB30 SIEMENS YS=00SAV10GH001+00UCA/24<br />
184 =00SAV10GH001-24K2 1,00 Auxiliary delay S00, HS: 3S+1Ö, 24VDC 3RH11 31-1BB40 SIEMENS YS=00SAV10GH001+00UCA/24<br />
187 =00SAV10GH001-26F1 1,00 LVHRC fuse switch GR. 00/160A, ABGANG VARIABEL, 5/10mm T5487001 JEAN MÜLLER YS=00SAV10GH001+00UCA/26<br />
188 =00SAV10GH001-26F1 1,00 Grasp protection 3 pole GR. 00, OBEN T8590462 JEAN MÜLLER YS=00SAV10GH001+00UCA/26<br />
189 =00SAV10GH001-26F1 1,00 Grasp protection 3 pole GR. 00, UNTEN T8590463 JEAN MÜLLER YS=00SAV10GH001+00UCA/26<br />
190 =00SAV10GH001-26F1 3,00 LVHRC fuse GR. 00, 160A, AC500V, DC250V 3NA7836 SIEMENS YS=00SAV10GH001+00UCA/26<br />
191 =00SAV10GH001-X22 6,00 3 leader passage clamp 0,08-2,5mm², schräg 280-641 WAGO YS=00SAV10GH001+00UCA/26<br />
192 =00SAV10GH001-X22 2,00 3 leader protective grounding clamp 0,08-2,5mm², schräg 280-637 WAGO YS=00SAV10GH001+00UCA/26<br />
193 =00SAV10GH001-26K1 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/26<br />
195 =00SAV10GH001-28F1 1,00 LVHRC fuse switch GR. 000/100A, ABGANG UNTEN, 5/10mm T6407801 JEAN MÜLLER YS=00SAV10GH001+00UCA/28<br />
196 =00SAV10GH001-28F1 1,00 Cover GR. 000, FÜR SCHRAUBANSCHLUSS T8690527 JEAN MÜLLER YS=00SAV10GH001+00UCA/28<br />
197 =00SAV10GH001-28F1 3,00 LVHRC fuse GR. 000, 50A, AC500V, DC250V 3NA7820 SIEMENS YS=00SAV10GH001+00UCA/28<br />
198 =00SAV10GH001-29K1 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/29<br />
200 =00SAV10GH001-30Q1 1,00 Protective switchgear of an engine SIRIUS S00, 9,0-12A 3RV10 11-1KA10 SIEMENS YS=00SAV10GH001+00UCA/30<br />
201 =00SAV10GH001-30Q1 1,00 Auxiliary switch SIRIUS S0-S3, 2S, QUER 3RV19 01-1F SIEMENS YS=00SAV10GH001+00UCA/30<br />
202 =00SAV10GH001-30Q1 1,00 Bus bar adapter 25A, 45x200mm, 6mm², 2 Tragschienen 32436 WOHNER YS=00SAV10GH001+00UCA/30<br />
203 =00SAV10GH001-30K1 1,00 Achievement contactor S00, 4kW, 3 polig, HS: 1, Spule 230V 50Hz 3RT10 16-1AP01 SIEMENS YS=00SAV10GH001+00UCA/30<br />
204 =00SAV10GH001-30K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/30<br />
206 =00SAV10GH001-31K1 1,00 Emergency stop switchgear 24V AC/DC, 3 Schließer, 1 Öffner 3TK28 21-1CB30 SIEMENS YS=00SAV10GH001+00UCA/31<br />
207 =00SAV10GH001-31K2 1,00 Auxiliary delay S00, HS: 3S+1Ö, 24VDC 3RH11 31-1BB40 SIEMENS YS=00SAV10GH001+00UCA/31<br />
210 =00SAV10GH001-33Q1 1,00 Protective switchgear of an engine SIRIUS S00, 9,0-12A 3RV10 11-1KA10 SIEMENS YS=00SAV10GH001+00UCA/33<br />
211 =00SAV10GH001-33Q1 1,00 Auxiliary switch SIRIUS S0-S3, 2S, QUER 3RV19 01-1F SIEMENS YS=00SAV10GH001+00UCA/33<br />
212 =00SAV10GH001-33Q1 1,00 Bus bar adapter 25A, 45x200mm, 6mm², 2 Tragschienen 32436 WOHNER YS=00SAV10GH001+00UCA/33<br />
213 =00SAV10GH001-33K1 1,00 Achievement contactor S00, 4kW, 3 polig, HS: 1, Spule 230V 50Hz 3RT10 16-1AP01 SIEMENS YS=00SAV10GH001+00UCA/33<br />
214 =00SAV10GH001-33K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/33<br />
216 =00SAV10GH001-34K1 1,00 Emergency stop switchgear 24V AC/DC, 3 Schließer, 1 Öffner 3TK28 21-1CB30 SIEMENS YS=00SAV10GH001+00UCA/34<br />
217 =00SAV10GH001-34K2 1,00 Auxiliary delay S00, HS: 3S+1Ö, 24VDC 3RH11 31-1BB40 SIEMENS YS=00SAV10GH001+00UCA/34<br />
227 =00SAV10GH001-40Q1 1,00 Protective switchgear of an engine SIRIUS S0, 7,0-10A 3RV10 21-1JA10 SIEMENS YS=00SAV10GH001+00UCA/40<br />
228 =00SAV10GH001-40Q1 1,00 Auxiliary switch SIRIUS S0-S3, 2S, QUER 3RV19 01-1F SIEMENS YS=00SAV10GH001+00UCA/40<br />
229 =00SAV10GH001-40Q1 1,00 Bus bar adapter 25A, 45x200mm, 4mm², 2 Tragschienen 32431 WOHNER YS=00SAV10GH001+00UCA/40<br />
232 =00SAV10GH001-40K1 1,00 Achievement contactor S0, 7,5kW, 3 polig, Spule 230V 50Hz 3RT10 25-1AP00 SIEMENS YS=00SAV10GH001+00UCA/40<br />
233 =00SAV10GH001-40K1 1,00 Auxiliary switch block 2S+2Ö, S0-S12, DIN EN 50012 3RH19 21-1HA22 SIEMENS YS=00SAV10GH001+00UCA/40<br />
234 =00SAV10GH001-40K1 1,00 Connecting component S0 -> S0, AC 3RA1921-1AA00 SIEMENS YS=00SAV10GH001+00UCA/40<br />
235 =00SAV10GH001-40K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/40<br />
237 =00SAV10GH001-42N1 1,00 Smoke detector control unit 24V AC/DC ABAV-S3.2 OPPERMANN YS=00SAV10GH001+00UCA/42<br />
242 =00SAV10GH001-X33 78,00 3 leader passage clamp 0,08-2,5mm², schräg 280-641 WAGO YS=00SAV10GH001+00UCA/42<br />
243 =00SAV10GH001-X33 7,00 2 leaders base lead 0,08-4mm², Durchgangsklemme 281-916 WAGO YS=00SAV10GH001+00UCA/42<br />
244 =00SAV10GH001-X33 7,00 Seal plate für 281-916 281-328 WAGO YS=00SAV10GH001+00UCA/42<br />
245 =00SAV10GH001-X33 7,00 Safeguard plug 5x20 / 5x25mm 281-511 WAGO YS=00SAV10GH001+00UCA/42<br />
00SAV10GH001 (2).xls/ english Page 5 / 6
<strong>Number</strong> <strong>Component</strong> <strong>design</strong>. <strong>Amount</strong> <strong>Designation</strong> <strong>Model</strong> <strong>number</strong> Ordering details Supplier Page<br />
246 =00SAV10GH001-42K1 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/42<br />
247 =00SAV10GH001-44K1 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/44<br />
248 =00SAV10GH001-44K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/44<br />
249 =00SAV11GF001-X51 1,00 Terminal box KLEMMEN 8x4², M20 RKK 4/08, NR. 606 404 01 SPELSBERG YS=00SAV10GH001+00UCA/45<br />
255 =00SAV10GH001-48Q1 1,00 Protective switchgear of an engine SIRIUS S00, 1,1-1,6A 3RV10 11-1AA10 SIEMENS YS=00SAV10GH001+00UCA/48<br />
256 =00SAV10GH001-48Q1 1,00 Auxiliary switch SIRIUS S0-S3, 2S, QUER 3RV19 01-1F SIEMENS YS=00SAV10GH001+00UCA/48<br />
257 =00SAV10GH001-48Q1 1,00 Bus bar adapter 25A, 45x200mm, 4mm², 2 Tragschienen 32431 WOHNER YS=00SAV10GH001+00UCA/48<br />
260 =00SAV10GH001-48K1 1,00 Motor contactor S00, 4kW, HS: 1S, 230V AC 3RT10 16-1AP01 SIEMENS YS=00SAV10GH001+00UCA/48<br />
261 =00SAV10GH001-48K1 1,00 Connecting component S00 -> S00, AC und DC 3RA1911-1AA00 SIEMENS YS=00SAV10GH001+00UCA/48<br />
262 =00SAV10GH001-48K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/48<br />
263 =00SAV10GH001-50Q1 1,00 Protective switchgear of an engine SIRIUS S00, 1,1-1,6A 3RV10 11-1AA10 SIEMENS YS=00SAV10GH001+00UCA/50<br />
264 =00SAV10GH001-50Q1 1,00 Auxiliary switch SIRIUS S0-S3, 2S, QUER 3RV19 01-1F SIEMENS YS=00SAV10GH001+00UCA/50<br />
265 =00SAV10GH001-50Q1 1,00 Bus bar adapter 25A, 45x200mm, 4mm², 2 Tragschienen 32431 WOHNER YS=00SAV10GH001+00UCA/50<br />
268 =00SAV10GH001-50K1 1,00 Motor contactor S00, 4kW, HS: 1S, 230V AC 3RT10 16-1AP01 SIEMENS YS=00SAV10GH001+00UCA/50<br />
269 =00SAV10GH001-50K1 1,00 Connecting component S00 -> S00, AC und DC 3RA1911-1AA00 SIEMENS YS=00SAV10GH001+00UCA/50<br />
270 =00SAV10GH001-50K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/50<br />
271 =00SAV10GH001-52Q1 1,00 Protective switchgear of an engine SIRIUS S00, 1,1-1,6A 3RV10 11-1AA10 SIEMENS YS=00SAV10GH001+00UCA/52<br />
272 =00SAV10GH001-52Q1 1,00 Auxiliary switch SIRIUS S0-S3, 2S, QUER 3RV19 01-1F SIEMENS YS=00SAV10GH001+00UCA/52<br />
273 =00SAV10GH001-52Q1 1,00 Bus bar adapter 25A, 45x200mm, 4mm², 2 Tragschienen 32431 WOHNER YS=00SAV10GH001+00UCA/52<br />
276 =00SAV10GH001-52K1 1,00 Motor contactor S00, 4kW, HS: 1S, 230V AC 3RT10 16-1AP01 SIEMENS YS=00SAV10GH001+00UCA/52<br />
277 =00SAV10GH001-52K1 1,00 Connecting component S00 -> S00, AC und DC 3RA1911-1AA00 SIEMENS YS=00SAV10GH001+00UCA/52<br />
278 =00SAV10GH001-52K2 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/52<br />
310 =00SAV10GH001-64K1 1,00 Coupling relay Us 24V AC/DC, 1 Wechsler 3TX7 002-1BB00 SIEMENS YS=00SAV10GH001+00UCA/66<br />
00SAV10GH001 (2).xls/ english Page 6 / 6
Change language
