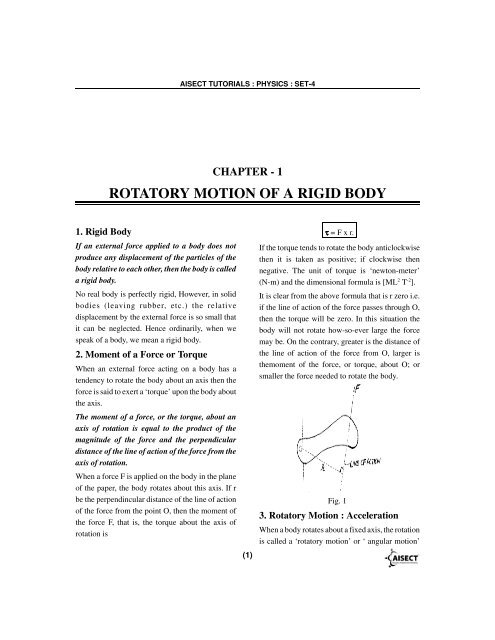

AISECT TUTORIALS : PHYSICS : SET-4<br />
CHAPTER - 1<br />
ROTATORY MOTION OF A RIGID BODY<br />
1. Rigid Body<br />
If an external force applied to a body does not<br />
produce any displacement of the particles of the<br />
body relative to each other, then the body is called<br />
a rigid body.<br />
No real body is perfectly rigid, However, in solid<br />
bodies (leaving rubber, etc.) the relative<br />
displacement by the external force is so small that<br />
it can be neglected. Hence ordinarily, when we<br />
speak of a body, we mean a rigid body.<br />
2. Moment of a Force or Torque<br />
When an external force acting on a body has a<br />
tendency to rotate the body about an axis then the<br />
force is said to exert a ‘torque’ upon the body about<br />
the axis.<br />
The moment of a force, or the torque, about an<br />
axis of rotation is equal to the product of the<br />
magnitude of the force and the perpendicular<br />
distance of the line of action of the force from the<br />
axis of rotation.<br />
When a force F is applied on the body in the plane<br />
of the paper, the body rotates about this axis. If r<br />
be the perpendincular distance of the line of action<br />
of the force from the point O, then the moment of<br />
the force F, that is, the torque about the axis of<br />
rotation is<br />
(1)<br />
τ = F x r.<br />
If the torque tends to rotate the body anticlockwise<br />
then it is taken as positive; if clockwise then<br />
negative. The unit of torque is ‘newton-meter’<br />
(N-m) and the dimensional formula is [ML 2 T -2 ].<br />
It is clear from the above formula that is r zero i.e.<br />
if the line of action of the force passes through O,<br />
then the torque will be zero. In this situation the<br />
body will not rotate how-so-ever large the force<br />
may be. On the contrary, greater is the distance of<br />
the line of action of the force from O, larger is<br />
themoment of the force, or torque, about O; or<br />
smaller the force needed to rotate the body.<br />
Fig. 1<br />
3. Rotatory Motion : Acceleration<br />
When a body rotates about a fixed axis, the rotation<br />
is called a ‘rotatory motion’ or ‘ angular motion’
AISECT TUTORIALS : PHYSICS : SET-4<br />
and the axis is called the ‘axis of rotation’. In<br />
rotatory motion, every particle of the body moves<br />
in a circle and the centres of all these circles lie at<br />
the axis of rotation. The rotating blades of an<br />
electric fan and the motion of a top are examples<br />
of rotatory motion.<br />
If the angular velocity of a rotating body about an<br />
axis is changing with time then its motion is<br />
‘accelerated rotatory motion’.<br />
The rate of change of angular velocity of a body<br />
about an axis is called the ‘angular acceleration’<br />
of the body about that axis.<br />
It is represented by α.<br />
If the angular velocity of a body about an axis<br />
changes from ω 1<br />
to ω 2<br />
in to second, then the angular<br />
acceleration of the body about that axis is<br />
α =<br />
change in angular velocity<br />
time−interval<br />
= ω 2 − ω 1<br />
t<br />
The unit of angular acceleration is ‘radian/sec 2 , and<br />
its dimensional formula is [T -2 ].<br />
3.1 Relation between Angular Acceleration and<br />
Linear Acceleration :<br />
v = PP′<br />
t<br />
= r × θ<br />
t<br />
But θ / t = ω .<br />
[. .<br />
. arc PP‘ = radius r × angle θ ]<br />
∴ v = r x ω<br />
or ω = v . ... (i)<br />
r<br />
Suppose, at any instant the agnular velocity of the<br />
body is ω 1<br />
and after t second it becomes ω 2<br />
. Then<br />
the angular acceleration of the body is<br />
α = ω 2 − ω 1<br />
t<br />
If at the above instants the linear velocities of the<br />
particle P be v 1<br />
and v 2<br />
respectively, then according<br />
to eq. (1), ω 1<br />
= v 1<br />
/ r and ω 2<br />
= v 2<br />
/ r. Therefore,<br />
α = (v 2 ⁄r) − (v 1⁄ r)<br />
t<br />
= v 2 − v 1<br />
rt<br />
..(ii)<br />
(v 2<br />
- v 1<br />
) is the change in the linear velocity of the<br />
particle P in t sec. Therefore (v 2<br />
- v 1<br />
) / t is the rate<br />
of change of linear velocity of the particle, that is,<br />
it is the linear acceleration a of the particle P.<br />
Substituting v 2 − v 1<br />
t<br />
= a in eq. (ii), we get<br />
α = a r<br />
Fig.2<br />
Suppose a particle P of the body is at a distance r<br />
from the point O. As the body rotates, the particle<br />
P rotates through angle θ in t second and reaches<br />
P ′. Thus the particle moves from P to p ′ in t second.<br />
Therefore, its linear velocity is<br />
or a = r x α.<br />
Thus, the linear acceleration of a particle of a<br />
body is equal to the product of the angular<br />
acceleration of the body and the distance of the<br />
particle from the axis of rotation.<br />
4. Moment of Inertia<br />
According to Newton’s first law of motion, a body<br />
continues in its state of rest or uniform translatory<br />
motion unless it is acted upon by some external<br />
force to change its present state. The property of<br />
bodies by virtue of which they oppose any change<br />
in their present state is called ‘inertia’.<br />
(2)
AISECT TUTORIALS : PHYSICS : SET-4<br />
In the same way, when a body rotates about an axis,<br />
then it has a tendency to opposes any change in its<br />
state of rotation about an axis is called the ‘moment<br />
of inertia’ of the body about that axis. It is<br />
represented by I.<br />
The moment of inertia of a particle about an<br />
axis is given by the product of the mass of the<br />
particle and the square of the distance of the<br />
particle from the axis of rotation.<br />
Let there be a rigid body of mass M. We have to<br />
find out its moment of inertia about a vertical axis<br />
passing through O (Fig. 3). For this, let us assume<br />
that the body is made up of a large number of<br />
minute particles. If m 1<br />
, m 2<br />
, m 3<br />
,.... be the masses of<br />
these particles and r 1<br />
,r 2<br />
,r 3<br />
, ... be their respective<br />
distances from the axis of rotation, then their<br />
moments of inertia about the axis of rotation will<br />
be m 1<br />
r 1<br />
2<br />
, m 2<br />
r 2<br />
2,<br />
m 3<br />
r 3<br />
2<br />
, ... respectively. The moment<br />
of inertia (I) of the whole body about the axis of<br />
rotation will be equal to the sum of the moments of<br />
inertia of all the particles. :<br />
I = m 1<br />
r 1<br />
2<br />
+ m 2<br />
r 2<br />
2<br />
+ m 3<br />
r 3<br />
2<br />
+ .....<br />
or I = Σ m r 2 .<br />
the moment of inertia of a rigid body about a<br />
given axis is the sum of the products of the<br />
masses of its paticles by the square of their<br />
respective disances from the axis of rotation.<br />
The unit of moment of inertia is ‘kg-meter 2 ’ and its<br />
dimensional formula is [ML 2 ].<br />
Physical Significance of Moment of Inertia :<br />
In order to rotate a body (initially at rest) about an<br />
axis or to change the angular velocity of a rotating<br />
body (i.e. to produce an angular acceleration in it),<br />
a torque has to be applied on the body. This is<br />
described by saying that the body has a ‘moment<br />
of inertia’ about the axis of rotation. The greater<br />
the moment of inertia of a body about an axis, the<br />
greater is the torque required to rotate, or to stop,<br />
the body about that axis.<br />
Thus, the moment of inertia plays the same role<br />
in the rotational motion as mass plays in<br />
translational motion.<br />
5.Radius of Gyration<br />
Rms value of distance of different particles from<br />
axis of rotation is called radius of gyration. It is<br />
denoted by K.<br />
2 2 2<br />
r<br />
K = √⎺⎺⎺⎺⎺⎺<br />
1<br />
+ r 2<br />
.....+ r n<br />
n<br />
At distance equal to radius of gyration the entire<br />
mass of body is supposed to be concentrated at a<br />
point<br />
Fig. 3<br />
Here Σ (sigma) means the sum of all terms. Thus,<br />
Fig. 4<br />
In terms of radius of gyration,<br />
(3)
AISECT TUTORIALS : PHYSICS : SET-4<br />
I = M K 2<br />
Where M = Σ m, total mass of the body.<br />
Radius of gyration depends upon distribution of<br />
mass of the body about the axis of rotation i.e. on<br />
the location of axis of rotation. Greater the part of<br />
the mass situated away from the axis of rotation,<br />
more will be K. and hence I.<br />
6. Equation of motion for uniformaly<br />
accelerated rotatory motion.<br />
Education in linear<br />
motion<br />
(i) v = u + at<br />
v = linear velocity after<br />
t second<br />
u = initial linear velocity<br />
a = linear acceleration<br />
(ii) v 2 = u 2 + 2 a S, S =<br />
linear displacement<br />
(iii) S = u t + 1 2 a t2<br />
Equation in rotatory<br />
motion<br />
(i) ω = ω o<br />
+ α t<br />
ω = angular velocity<br />
after t second<br />
ω o<br />
= initial angaular<br />
velocity<br />
a = angular<br />
acceleration<br />
(ii) ω 2 = ω ο<br />
2<br />
+ 2 α θ<br />
θ = angular diplacement<br />
(iii) θ = ω o<br />
t + 1 2 α t2<br />
7. Relation between linear and angular<br />
quantities<br />
Quantity Linear Angular<br />
Displacement S θ<br />
Initial velocity u ω o<br />
Final velocity V ω<br />
Acceleration a α<br />
If the distance of a particles from axis of rotation<br />
is r then<br />
S = r θ<br />
V = r ω<br />
a = r α<br />
8. Angular Momentum<br />
When a body moves a straight line, then the<br />
product of the mass m and the linear velocity v of<br />
the body is called the ‘linear momentum’ p of the<br />
body (p = m x v).<br />
If a body is rotating about an axis, then the sum of<br />
the moments of the linear momenta of all the<br />
particles about the given axis is called the ‘angular<br />
momentum’ of the body about that axis. It is<br />
represented by ‘J’.<br />
Let a body be rotating about an axis with an angular<br />
velocity ω. All the particles of the body will have<br />
the same angular velocity, but their linear<br />
velocities will be different. Let a particle be at a<br />
distance r 1<br />
from the axis of rotation. The linear<br />
velocity of this particles given by<br />
V 1<br />
= r 1<br />
ω.<br />
If the mass of the particle be m 1<br />
, then its linear<br />
momentum<br />
= m 1<br />
v 1.<br />
The moment of this momentum about the axis of<br />
rotation<br />
= momentum x distance<br />
= m 1<br />
v 1<br />
× r 1<br />
= m 1<br />
(r 1<br />
ω) × r 1<br />
[ . . . v 1<br />
= r 1<br />
ω ]<br />
= m 1<br />
r 1<br />
2<br />
ω .<br />
Similarly, if the masses of other particles be m 2<br />
, m 3<br />
... and their respective distances from the axis of<br />
rotation be r 2<br />
, r 3<br />
....., then the moments of their<br />
linear moment about the axis of rotation will be m 2<br />
r 2<br />
2<br />
ω, m 3<br />
r 3<br />
2<br />
ω ,…respectively. The sum of the<br />
moments of linear momenta of all the particles, that<br />
is, the angular momentum of the body is given by<br />
J = m 1<br />
r 1<br />
2<br />
ω + m 2<br />
r 2<br />
2<br />
ω + m 3<br />
r 3<br />
2<br />
ω + ....<br />
(4)
AISECT TUTORIALS : PHYSICS : SET-4<br />
= (m 1<br />
r 1<br />
2<br />
+ m 2<br />
r 2 2 + m 3<br />
r 3<br />
2<br />
+ ....) ω<br />
= (Σ mr 2 ) ω.<br />
But Σ mr 2 is the moment of inerti a I of the body<br />
about the axis of rotation. Hence the angular<br />
momentum of the body about the axis rotation is<br />
J = I x w.<br />
The unit of angular momentum is ‘kg-meter 2 /sec’<br />
or ‘joule-sec’. Its dimensional formula is [ML 2 T -1 ].<br />
9. Kinetic energy of rotation<br />
Suppose a body is rotating about an axis with a<br />
uniform angular speed ω. Angular velocity of all<br />
particles is same but they have different linear<br />
velocities. Suppose a particle of the body of mass<br />
m 1<br />
is at a distance r 1<br />
from axis of rotation . Let v 1<br />
be its linear velocity. As linear velocity of a particle<br />
is equal to product of its angular velocity and its<br />
distance from axis of rotation, we have<br />
v 1<br />
= r 1<br />
ω<br />
Kinetic energy of particle is<br />
1<br />
2 m v 2<br />
= 1 1 1<br />
2 (r 1 ω)2 = 1 2 m v 2<br />
ω 2<br />
1 1<br />
If masses of other particles be m 2<br />
, m 3<br />
, ... and their<br />
distance from axis of rotation be r 2<br />
, r 3<br />
, ... then their<br />
kinetic energies are<br />
1<br />
2 m r 2<br />
ω 2 2<br />
, m<br />
2 2 3<br />
r 3<br />
ω 2<br />
Now kinetic energy of body is equal to sum of K.E.<br />
of all particles<br />
K = 1 2 m r 2<br />
ω 2 + 1 1 1<br />
2 m r 2<br />
ω 2 + 1 2 2<br />
2 m r 2<br />
ω 2<br />
3 3<br />
or, K = 1 2 (m 1 r 2 2 + m 2 r 2 2 + m 3 r 3 2 ....)<br />
or, K = 1 2 (Σ m r2 )ω 2<br />
Here, Σ m r 2 = Moment of inertia of body about<br />
axis of rotation<br />
(5)<br />
∴<br />
K = 1 2 I ω2<br />
If ω = 1 then I = 2 K. Thus moment of inertia of a<br />
body rotating about an axis with unit angular<br />
velocity equals twice the kinetic energy of rotation<br />
about that axis.<br />
In case of linear motion work to be done to move<br />
a body is given by<br />
W = Force x displacement<br />
perpendicular to direction of force<br />
i.e.,<br />
W = F. x<br />
Similarly, in case of rotational motion work done<br />
to rotate the body is given by<br />
W = Torque x displacement<br />
Here, Torque = F r<br />
= τ θ<br />
Where, r = perpendicular distance of line of action<br />
of force from axis of rotation.<br />
∴<br />
W = F r θ<br />
Here, this F is tangential force.<br />
If this force only produces rotational motion then<br />
1<br />
2 I ω2 = F r θ<br />
but if this force results in both linear and rotational<br />
motion then<br />
1<br />
2 mV2 + 1 2 I ω2 = F r θ<br />
9.1 Relation between Angular momentum and<br />
Rotatory kinetic energy<br />
In linear motion, p = √⎺⎺⎺⎺⎺ 2 m E<br />
Similarly in rotatory motion , J = √⎺⎺⎺⎺ 2 I E<br />
9.2 Work - Energy Theorem<br />
In linear motion : 1 2 m (v2 − u 2 ) = F × S<br />
Similarly, in rotatory motion,
AISECT TUTORIALS : PHYSICS : SET-4<br />
1<br />
2 I (ω2 − ω ο2<br />
) = τ × θ<br />
9.3 Expression for power<br />
In linear motion : P = F x v<br />
Similarly, in rotatory motion, P = τ ω<br />
10. Law of conservation of angular<br />
momentum<br />
This law states that if the sum of external<br />
torques acting on the system is zero, then the<br />
total angular momentum of the system remain<br />
constant.<br />
For a system of N particles, the total external torque<br />
is due to the sum of external torques acting due to<br />
the external forces, since the internal force do not<br />
contribute to the torque. Thus<br />
(b)<br />
and ω increases.<br />
An ice-skater or a ballet-dancer can increaes<br />
her angular velocity by folding her arms or by<br />
folding her body, as this decreases moment of<br />
inertia and increases angular velocity.<br />
11. Theorem of Parallel axis<br />
This theorem states that the moment of inertia I of<br />
body about any axis is equal to its moment of<br />
inertia I cm<br />
about a parallel axis through its centre of<br />
gravity plus the product of the mass M of the body<br />
and square of the perpendicular distance between<br />
the two axis.<br />
τ<br />
→ d L → (tot)<br />
(tot) =<br />
dt<br />
If the sum of external torques acting on the system<br />
is zero, then<br />
L→ (tot) = constant vector.<br />
or,<br />
0 = d L→ (tot)<br />
dt<br />
L →+ L→ + ....L→ = constant vector.<br />
1 2 N<br />
We know that the angular moment can also be<br />
written as<br />
L = Iω ∴ Iω = constant<br />
i.e. if I increases, ω decreases and vice-versa.<br />
10.1 Applications of law of conservation of<br />
angular moemtum :<br />
Following phenomenon obey the law of<br />
conservation of angular momentum -<br />
(a)<br />
The angular velocity of a planet in its orbit<br />
round the sun increases when it gets nearer to<br />
sun, as m.I. of the planet about sun decreases<br />
Fig.5<br />
In the figure shown M.I about axis AB is given by,<br />
I = ICG + Mh2<br />
M.I. is minimum about an axis passing through<br />
CG<br />
12. Theorem of perpendicular axis<br />
This theorem states that the moment of inertia of<br />
uniform plane lamina about an axis perpendicular<br />
to it plane is equal to the sum of its moments of<br />
inertia about any two mutually perpendicular axis<br />
in its plane inter secting on the first axis.<br />
In the figure shown, l z<br />
= l x<br />
+ l y<br />
- In general, M.l about an axis perpendicular to<br />
plane is larger as compared to M.l about an axis<br />
lying in the plane.<br />
13. Moment of Inertia of Some Objects<br />
13.1 Ring<br />
(6)
AISECT TUTORIALS : PHYSICS : SET-4<br />
(i)<br />
About an axis passing through centre of<br />
gravity and perpendicular to plane<br />
I = I d<br />
+ mr 2<br />
Fig.8<br />
Fig. 6<br />
l z<br />
= mr 2 , m = mass of ring, R = radius of ring here,<br />
k = r as all particles are situated at same distance<br />
l = m r2<br />
2 + m r2 = 3 2 m r2<br />
(b) Perpendicualr to plane<br />
For ring k r = l<br />
l = k2<br />
r 2<br />
(ii) About an axis passing through centre of<br />
gravity but in plane of ring (diametrical axis).<br />
Fig.7<br />
d = diametrical moment of inertia then by<br />
perpendicular axis theorem<br />
Fig.9<br />
by parallel axis theorem<br />
13.2 Disc<br />
l = l z<br />
+ m r 2<br />
l = m r 2 + m r 2 = 2 m r 2<br />
In case of a disc mass is uniformaly distributed e.g.<br />
a coin.<br />
(i)<br />
Moment of inertia about an axis passing<br />
through centre of gravity and perpendicular to<br />
plane<br />
l d<br />
+ l d<br />
= l z<br />
= m r 2<br />
l d = 1 2 m r2<br />
About a tangential axis<br />
(a) Parallel to plane<br />
parallel axis theorem<br />
m = mass of disk<br />
Fig. 10<br />
l z = m r2<br />
2<br />
(7)
AISECT TUTORIALS : PHYSICS : SET-4<br />
r = radius of disk<br />
(ii)<br />
About an axis passing through centre of<br />
gravity and in plane i.e., about diametrical<br />
axis<br />
I d<br />
= diametrical axis<br />
Fig.11<br />
By perpendicular axis theorem<br />
l d<br />
+ l d<br />
= 2l z<br />
2 l d<br />
= m r2<br />
2<br />
By parallel axis theorem<br />
l = l z<br />
+ m r 2<br />
l = l + m r2<br />
2 + m r2<br />
l = 3 m r2<br />
2<br />
Fig.13<br />
13. 3 Rectangular Lamina<br />
(i)<br />
About an axis passing through centre of in<br />
plane of lamina parallel to breadth.<br />
or,<br />
l d<br />
= m r2<br />
4<br />
(iii) About tangential axis in plane of disc<br />
Fig.14<br />
By parallel axis theorem<br />
l = l d<br />
+ m r 2<br />
l = m r2<br />
4 + m r2<br />
l = 5 4 m r2<br />
Fig.12<br />
(iv) About tangential axis perpendicualr to plane<br />
of disc.<br />
Fig.15<br />
Its elementray strip is a rectangle of negligible<br />
breadth and length l.<br />
So, Ml of the strip = m l2<br />
12<br />
and Ml of the entire Lamina = M l2<br />
12<br />
where, m is the mass of elementary strip and l is<br />
the mass of Lamina.<br />
(8)
AISECT TUTORIALS : PHYSICS : SET-4<br />
So, l B<br />
= M L2<br />
12<br />
- Since axis is parallel to breadth, the term of<br />
breadth will not appear in the formula.<br />
(ii)<br />
About an axis parallel to length in plane of<br />
lamina and passing through centre of gravity<br />
l L<br />
= M B2<br />
12<br />
(The term of L does not appear)<br />
Fig.16<br />
(iii) About an axis passing through centre of<br />
gravity and perpendicular to plane of lamina<br />
This cuboid can be considered to be made up of a<br />
large number of laminas placed on one another.<br />
Elementry section is a lamina containing length<br />
and bredth.<br />
∴ Moment of inertia about this axis is similar to<br />
that about an axis passing through centre of gravity<br />
and perpendicular to plane of lamina.<br />
i.e., I = M 12 [l2 + b 2 ]<br />
put here, M = mass of entire cuboid<br />
(ii)<br />
About an axis passing through centre of<br />
graivity and perpendicular to plane<br />
containing breadth and height<br />
Fig.17<br />
By perpendicualr axis theorem<br />
I = I B<br />
+ I L<br />
I = ⎡ ML 2<br />
⎢ ⎣<br />
12 + MB2 ⎤<br />
12 ⎥<br />
⎦<br />
I = M 12 [L2 + B 2 ]<br />
13.4 Moment of Inertia of a cuboid<br />
(i)<br />
About an axis passing from centre of gravity<br />
and perpendicular to plane containing length<br />
and breadth<br />
Fig.19<br />
Moment of inertia about this axis is similar to that<br />
about an axis passing through centre of gravity and<br />
perpendicular to plane of lamina, this plane<br />
contains breadth and height of cuboid.<br />
i.e., I = M 12 [l2 + b 2 ]<br />
13.5 Moment of inertia of solid cylinder<br />
(i)<br />
About an axis passing through centre of<br />
gravity and parallel to length<br />
Fig.18<br />
Fig.20<br />
Since, the elementary section is disc and given axis<br />
(9)
AISECT TUTORIALS : PHYSICS : SET-4<br />
is perpendicular to plane of disc, therefore MI of<br />
the cylinder about the given axis will be same is<br />
that of a disc, about an axis passing thourgh C.G.,<br />
perpendicular to plane.<br />
∴<br />
I = M r2<br />
2<br />
Where, M = mass of whole cylinder<br />
(ii) M I of a solid cylinder about axis passing<br />
through surface and parallel to lenght<br />
perpendicular to length<br />
I = Ml2<br />
12<br />
(iv) MI of a thick cylinder about an axis passing<br />
through C.G and perpendicular to lengh.<br />
Here, elementry section is a solid disc. It may<br />
be supposed to be subjected to following two<br />
motions symultaneously :<br />
Fig.21<br />
Applying theorem of parallel axis,<br />
I = 1 2 M R2 + M R 2<br />
(a)<br />
Fig.23<br />
Each disc is changing position from l on one<br />
2<br />
side to l on the other side, i.e., each disc is<br />
2<br />
rotated through 180º in space. For this MI to<br />
I = 3 2 M R2<br />
(iii) Moment of inertia of a thin cylindrical rod<br />
about an axis passing through centre of<br />
gravity perpendicular to lengh :<br />
As it is thin cylindrical rod its radius is<br />
negligible therefore its surface is almost<br />
similar to a lamina<br />
(b)<br />
be overcome = Ml2<br />
12<br />
Each disc is also rotating about its diametrical<br />
axis. For this MI = MR2<br />
4<br />
Total MI = = Ml2<br />
12 + MR2<br />
4<br />
13.6 Moment of Inertia of Hollow Cylinder<br />
(i)<br />
About an axis passing through centre of<br />
gravity and parallel to length.<br />
Fig.22<br />
This axis is parallel to breadth and<br />
Fig.24<br />
(10)
AISECT TUTORIALS : PHYSICS : SET-4<br />
(ii)<br />
Here, elementary section is a ring and given<br />
axis parallel to length.<br />
∴ I = mR 2<br />
About an axis parallel to length and passing<br />
through surface.<br />
Applying parallel axis theorem<br />
I = 2 5 mr2<br />
Where, m = mass of sphere<br />
r = radius of sphere<br />
So, K2<br />
r 2 = 2 5<br />
(ii) About any tangetial axis :<br />
I = MR 2 + MR 2<br />
I = 2 M R 2<br />
Fig.25<br />
(iii) About an axis passing through C.G. and<br />
perpendicular to length.<br />
I = Ml2<br />
12 + MR2<br />
2<br />
Fig.26<br />
13.7. Moment of inertia of a solid sphere.<br />
(i)<br />
About any axis passing through C.G.<br />
In this case moment of inertia is same about<br />
any axis passing through centre of gravity.<br />
0r,<br />
Fig.28<br />
I = 2 5 M R2 + M R 2<br />
= 7 5 M R2<br />
K 2<br />
R 2 = 7 5<br />
13.8 Hollow sphere :<br />
(i) About Any diametrical axis :<br />
(ii)<br />
⇒<br />
I = 2 3 M R2<br />
About any tangential axis<br />
I = 5 3 M R2<br />
If M and R are same, MI of hollow sphere is<br />
greater.<br />
13.9. Moment of inertia for a hollow sphere<br />
about any diametrical axis<br />
I = 2 3 m r2<br />
Fig. 27<br />
(11)<br />
∴<br />
Moment of inertia of hollow sphere > moment<br />
of inertia of a solid sphere<br />
14. Concept of Sliding and Rolling Motion<br />
14.1. Pure Sliding :
AISECT TUTORIALS : PHYSICS : SET-4<br />
Pure rolling is a combination of spinning and<br />
translatory motion.<br />
When resultant velocity at point of contact<br />
becomes zero then motion becomes pure rolling.<br />
Fig.29<br />
In case of pure sliding translatory velocity of each<br />
particle is same but angular velocity of each<br />
particle is zero.<br />
e.g. A ball thrown on a frictionless floor without<br />
exerting any torque on it.<br />
If an object slides down smooth inclined plane of<br />
vertical height h without rolling then its velocity at<br />
bottom due to sliding motion is given by :<br />
v s<br />
= √⎺⎺ 2gh ⎺<br />
A particle executing pure sliding motion has only<br />
translatory kinetic energy.<br />
14.2. Partly rolling and partly sliding motion :<br />
When a spinning ball is thrown with a certain<br />
velocity, it has both translatory motion as well as<br />
angular velocity.<br />
fig. 30<br />
Let translatory velocity of the ball be v. The particle<br />
also have linear counterpart r ω of the angular<br />
velocity. So, resultant velocity of the highest point<br />
in v + r ω and that of the lowest point (point of<br />
contact) is v - r ω .<br />
Such a body pusses both rotatory as well as<br />
translatory kinetic energy.<br />
14.3 Pure rolling :<br />
Fig.31<br />
Velocity of the point of contact :<br />
Since, v = 0<br />
v L<br />
= v - r ω<br />
v L<br />
= r ω<br />
Velocity of the highest point :<br />
= v + v = 2 v<br />
v H<br />
= v + rω<br />
Such a motion has both translatory as well as<br />
rotatory kinetic energy.<br />
If the axis of rotation has translatory velocity<br />
then its translatory kinetic energy is equal to<br />
1<br />
2 mv2 while its rotatory kinetic energy is<br />
1<br />
2 I ω2<br />
When velocity of a ball thrown on a rough<br />
floor reduces to 5/7th of its initial velocity, its<br />
motion become pure rolling.<br />
14.4 Pure Rolling Motion Down An Inclined<br />
Plane :<br />
When an object comes down an inclined<br />
plane of vertical height h, potential energy<br />
lost by it is equal to m g h. This is also equal<br />
to total kinetic energy gained.<br />
m g h = 1 2 m v2 + 1 2 I ω2<br />
(12)
AISECT TUTORIALS : PHYSICS : SET-4<br />
= 1 2 m v2 + 1 v2<br />
m k2<br />
2 r 2<br />
= 1 2 m v2 ⎛ ⎜ ⎝<br />
1 + k2<br />
r 2 ⎞ ⎟⎠<br />
v rolling<br />
= √⎺ ⎺ 2 g h<br />
⎛<br />
⎜1 + k2 ⎞<br />
⎝ r 2 ⎟⎠<br />
substituting k 2 = I/m,<br />
v rolling<br />
= √⎺⎺⎺ 2 g h<br />
⎛<br />
⎜1 + I ⎞<br />
⎝<br />
mr 2 ⎟⎠<br />
hence, v sliding<br />
= √⎺⎺⎺ 2 g ⎺h<br />
v rolling<br />
= v sliding<br />
/ √⎺⎺⎺⎺ 1 + k2<br />
r 2<br />
similarly it can be prove that arolling = g sin θ<br />
1 + k2<br />
r 2<br />
14.5 Time taken to reach the bottom of the<br />
inclined plane :<br />
S = 1 2 a t2<br />
t r<br />
= √⎺⎺ 2 S<br />
a r<br />
2h<br />
= √⎺⎺⎺⎺⎺<br />
sin θ ⎛ g sin θ⎞<br />
⎜ ⎟<br />
⎜ 1 + k2<br />
⎝<br />
r 2 ⎟<br />
⎠<br />
=<br />
or,<br />
1<br />
sin θ √⎺⎺2h g × √⎺⎺⎺⎺⎺⎺⎺⎺ 1 + k2 ⁄ r 2<br />
t r<br />
= t s<br />
√⎺⎺⎺⎺ 1 + k2<br />
r 2<br />
14.6 Energies of a body in pure rolling :<br />
- Translatory K.E. = ⎛ ⎜ ⎝<br />
1<br />
2 m v2 ⎞ ⎟⎠ × 1 .....(i)<br />
- Rotatory K.E. = 1 2 I ω2<br />
= 1 2 m k2 × v2<br />
r 2<br />
= ⎛ 1<br />
⎜ ⎝<br />
2 m ⎞ v2 ⎟⎠ × k2<br />
r 2<br />
- Total K.E. = Tran. K.E. + Rot. K.E.<br />
= 1 2 I ω2 + 1 2 m v2<br />
= 1 2 m v2 ⎛ ⎜ ⎝<br />
1 + k2<br />
r 2 ⎞ ⎟⎠<br />
... (iii)<br />
(ii)<br />
From equations (i), (ii) and (iii) following<br />
important results can be obtained :<br />
⇒<br />
⇒<br />
⇒<br />
Rotatory kinetic energy<br />
Translatory energy<br />
= k2<br />
r 2<br />
rotatory kinetic energy k 2 ⁄ r 2<br />
=<br />
Total energy 1 + k 2 ⁄ r 2<br />
Translatory kinetic energy 1<br />
=<br />
Total kinetic energy 1 + k 2 ⁄ r 2<br />
(13)
AISECT TUTORIALS : PHYSICS : SET-4<br />
Objective Questions<br />
1. The rotational analogue of force in linear<br />
motion is<br />
(a) Torque<br />
(b) Weight<br />
(b) Moment of inertia<br />
(d) Angular momentum<br />
2. The moment of momentum is called<br />
(a) Couple<br />
(c) Impulse<br />
(b) Torque<br />
(d) Angular momentum<br />
[CPMT]<br />
3. When a steady torque is acting on a body, the<br />
body<br />
[NCERT]<br />
(a) Continues in its state of rest or uniform<br />
(b)<br />
(c)<br />
(d)<br />
motion along a straight line<br />
Gets linear acceleration<br />
Gets angular acceleration<br />
Rotated at a constant speed<br />
4. Angular momentum of a body is defined as<br />
the product of<br />
(a)<br />
Mass and angular velocity<br />
(b) Centripetal force and radius<br />
[CPMT]<br />
(c) Linear velocity and agnular velocity<br />
(d) Moment of inertia and angular velocity<br />
5. The moment of inertia of a body comes into<br />
play<br />
[AFMC]<br />
(a) In motion along a curved path<br />
(b) In linear motion<br />
(c)<br />
(d)<br />
In rotational motion<br />
None of the above<br />
6. Moment of inertia of a ring of mass M and<br />
radius R about an axis passing through the<br />
centre and perpendicular to the plane is<br />
(a) 1 2 MR2 (b) MR 2<br />
(c) 1 4 MR2<br />
(d) 3 4 MR2<br />
[CPMT]<br />
7. A hollow cylinder and a solid cylinder having<br />
the same mass and same diameter are released<br />
from rest simultanceously from the top of an<br />
inclined plane. Which will reach the bottom<br />
first<br />
(a) The solid cylinder<br />
(b) The hollow cyliner<br />
(c) Both will reach the bottom together<br />
(d) The one having greater density<br />
[CPMT]<br />
8. Moment of inertia of body in the case of<br />
rotational motion plays the same role as in the<br />
case of translatory motion is played by<br />
(a) Velocity<br />
(c) Mass<br />
(b) Acceleration<br />
(d) Force<br />
9. A small object of mass m is attached to a light<br />
string which passes through a hollow tube.<br />
(14)
AISECT TUTORIALS : PHYSICS : SET-4<br />
The tube is hold by one hand and the string by<br />
the other. The object is set into rotation in a<br />
circle of radius R and velocity v. The string is<br />
then pulled down, shortening the radius of<br />
path of r. What is conserved?<br />
(a) Angular momentum<br />
(b) Linear momentum<br />
(c) Kinetic energy<br />
(d) None of the above<br />
10. A homegeneous disc of mass 2 kg and radius<br />
15 cm is rotating about its axis (which is fixed)<br />
with an angular velocity of 4 radian / s. The<br />
linear momentum of the disc is<br />
(a) 1.2 kg-m/s<br />
(c) 0.67 kg-m / s<br />
(b) 1.0 kg-m/s.<br />
[CPMT]<br />
(d) None of the above<br />
11. A spherical solid ball of 1 kg mass and radius<br />
3 cm is rotating about an axis passing through<br />
its centre with an angular velocity of 50<br />
radian/ s. The kinetic energy of rotation is<br />
(a) 4500 J<br />
(b) 90 J<br />
(c) 910 J (d) 9<br />
20 J<br />
[CPMT]<br />
12. One solid sphere and disc of same radius are<br />
falling along an inclined plane without slip.<br />
One reaches earlier than the other due to<br />
(a) Different radius of gyration<br />
(b) Different size<br />
(c) Different friction<br />
(d) Different moment of inertia<br />
13. A sphere of mass 50 gm and diameter 20 cm<br />
rolls without slipping with a velocity of 5 cm<br />
/ sec. Its total kinetic energy is<br />
(a) 625 ergs<br />
(c) 875 ergs<br />
(b) 250 ergs<br />
(d) 875 joules<br />
14. Moment of inertia x angular acceleration =<br />
(a) Torque<br />
(b) Force<br />
(c) Angular momentum<br />
(d) Work done<br />
15. From an inclined plane a sphere, a dise, a righ<br />
and a shell are rolled without slipping. The<br />
order of their reaching at the base will be<br />
(a) Ring, shell, disc, sphere<br />
(b) Shell, sphere, disc ring<br />
(c) Sphere, disc, shell, ring<br />
(d) Ring, sphere, disc, shell<br />
16. The flywheel is so constructed that the entire<br />
mass of it is concentrated at its rim, because<br />
(a) It increases the power<br />
(b) It increases the speed<br />
(c) It increases the moment of inertia<br />
(d) It saves the flywheel fan breakage<br />
17. In heat engines, flywheel plays an important<br />
role because<br />
(a) It accelerates the speed of the engine<br />
(b) It supplies power to the engine<br />
(c) It saves the engine from damage<br />
(d) It maintains the constant speed of the<br />
engine<br />
18. If all of a sudden the radius of the earth<br />
decreases, then<br />
(a)<br />
(b)<br />
(c)<br />
(d)<br />
The angular momentum of the earth will<br />
become greater than that of the sun<br />
The orbital speed of the earth will<br />
increase<br />
The periodic time of the earth will<br />
increase<br />
The energy and angular momentum will<br />
remain constant<br />
19. The moment of inertia about an axis normal<br />
to the plane and passing through the centre of<br />
(15)
AISECT TUTORIALS : PHYSICS : SET-4<br />
gravity will be maximum for which of the<br />
following bodies of the same mass<br />
(a) A disc of radius a<br />
(b) A ring of radous a<br />
(c) A square of side 2 a<br />
[CPMT]<br />
(d) A square made by four rods of length 2a<br />
20. A mass of 10 kg connected at the end of a rod<br />
of negligible mass is rotating in a circle of<br />
radius 30 cm with an angular velocity of 10<br />
rad / sec. If this mass is brought to rest in 10<br />
sec by a brake, what is the magnitude of the<br />
torque applied?<br />
(a) 0.9 N-m<br />
(c) 2.3 N-m<br />
(b) 1.2 N-m<br />
(d) 0.5 N-m<br />
21. The moment of inertia of a solid cylinder of<br />
mass M and radius R about a line parallel to<br />
the axis of the cylinder and lying on the<br />
surface of the cylinder is<br />
(a) 2 5 MR2<br />
(c) 3 2 MR2<br />
(b) 3 5 MR2<br />
(d) 5 2 MR2<br />
[MP PET]<br />
22. A wheel rotates with a constant acceleration<br />
of 2.0 radian / sec 2 . If the wheel starts from<br />
rest the number of revolutions it makes in the<br />
first ten seconds will be approximately<br />
(a) 8 (b) 16<br />
(c) 24 (d) 32<br />
[MP PET]<br />
23. A disc is of mass M and radius r. The moment<br />
of inertia of it About an axis tangential to its<br />
edge and in plane of the disc or parallel to its<br />
diameter is<br />
[MP PET; CBSE]<br />
(a) 5 4 Mr2<br />
(c) ML2<br />
12<br />
(b) Mr2<br />
4<br />
(d) ML2<br />
3<br />
24. The moment of inertia of a uniform thin rod<br />
of length L and mass M about an axis passing<br />
through a point at a distance of L from one of<br />
3<br />
its ends and perpendicular to the rod is<br />
(a) 7ML2<br />
48<br />
(c) ML2<br />
12<br />
(b) ML2<br />
9<br />
(d) ML2<br />
3<br />
[MP PMT]<br />
25. The moments of inertia of two freely rotating<br />
bodies A and B are I A and I B respectively. I A<br />
> I B and their angular momenta are equal. If<br />
K A and K B are their kinetic energies, then<br />
(a) K A<br />
= K B<br />
(b) K A<br />
> K B<br />
[MP PET]<br />
(c) K A<br />
< K B<br />
(d) K A<br />
= 2K B<br />
26. The radius of a rotating disc is suddenly<br />
reduces to half without any change in its mass.<br />
Then its angular velocity will be<br />
(a) Four times (b) Double<br />
(c) Half<br />
(d) Unchanged<br />
[MP PMT]<br />
27. The moment of inertia of a uniform ring of<br />
mass M and radius r about a tangent lying in<br />
its own plane is<br />
(a) 2Mr 2<br />
(c) Mr 2<br />
(b) 3 2 Mr2<br />
(d) 1 2 Mr2<br />
[MP PMT]<br />
28. Two rings have their moments of inertia in the<br />
ratio 2 : 1 and their diameters are in the ratio<br />
2 : 1. The ratio of their masses will be<br />
(16)
AISECT TUTORIALS : PHYSICS : SET-4<br />
(a) 2 : 1 (b) 1 : 2<br />
(c) 1 : 4 (d) 1 :1<br />
[MP PMT / PET ]<br />
29. A solid cylinder has mass M, length L and<br />
radius R. The moment of inetia of this<br />
cylinder about a generator is<br />
(a) M ⎛ L 2<br />
⎜ ⎝<br />
12 + R2 ⎞<br />
4 ⎟<br />
⎠<br />
(c) 1 2 MR2<br />
(b) ML2<br />
4<br />
(d) 3 2 MR2<br />
[MP PET]<br />
30. A wheel is rotating at 900 r.p.m. about its axis.<br />
When the power is cut-off, it comes to rest in<br />
1 minute. The angular retardation in radian /<br />
s 2 is<br />
(a) π ⁄ 2 (b) π ⁄ 4<br />
(c) π ⁄ 6 (d) π ⁄ 8<br />
[MP PET]<br />
31. The moment of inertia of thin square plate<br />
ABCD of uniform thickness about an axis<br />
passing through the centre O and<br />
perpendicular to the plane of the plate is<br />
Fig.32<br />
(a) I 1<br />
+ I 2<br />
(b) I 3<br />
+ I 4<br />
[IIT]<br />
(c) I 1<br />
+ I 3<br />
(d) I 1<br />
+ I 2<br />
+ I 3<br />
+ I 4<br />
Where I 1, I 2, I 3, and I 4 are respectively<br />
moments of inertia about axes 1,2,3, and 3 and<br />
4 which are in the plane of the plate<br />
32. Two circular iron discs are of the same<br />
thickness. The diameter of A is twice that of<br />
B. The moment of inertia of A as compared to<br />
that of B is<br />
(a) Twice as large<br />
(b) 8 times as large<br />
[CPMT ]<br />
(b) Four times as large<br />
(d) 16 times as large<br />
33. What remains constant when the earth<br />
revolves around the sun<br />
(a) Angular momentum<br />
(b) Linear momentum<br />
(c) Angular kinetic energy<br />
(d) Linear kinetic energy<br />
[Raj. PMT]<br />
34. If the moment of inertia of a disc about an axis<br />
tangential and parallel to its surface be I, then<br />
what will be the moment of inertia about the<br />
axis tangential but perpendicular to the<br />
surface<br />
(a) 6 5 I<br />
(c) 3 2 I<br />
(b) 3 4 I<br />
(d) 5 4 I<br />
[Raj. PET]<br />
35. A body is rolling without slipping on a<br />
horizontal surface and its rotational kinetic<br />
energy is equal to the translational kinetic<br />
energy. The body is<br />
(a) Disc<br />
(c) Cylinder<br />
(b) Sphere<br />
(d) Ring<br />
[Raj. PMT]<br />
36. A loop rolls down on inclined plane. The<br />
fraction of its total kinetic energy that is<br />
associated with rotational motion is<br />
(a) 1 : 2 (b) 1 : 3<br />
(c) 1 : 4 (d) 2 : 3<br />
37. Two masses m 1 and m 2, m 1 > m 2 are connected<br />
(17)
AISECT TUTORIALS : PHYSICS : SET-4<br />
to the ends of masseless rope and allowed to<br />
move as shown in the figure. The acceleration<br />
of the centre of mass assuming pulley is<br />
massless and frictionless, is<br />
(a) m 1 − m 2<br />
m 1<br />
+ m 2<br />
g (b) zero<br />
2<br />
(c) ⎛ m 1<br />
− m 2<br />
⎞<br />
⎜ ⎟ g (d) ⎛ m 1<br />
+ m 2<br />
⎞<br />
⎜ ⎟ g<br />
⎝<br />
m 1<br />
+ m 2 ⎠<br />
⎝<br />
m 1<br />
− m 2 ⎠<br />
38. A ring of mass m and radius r rotates about an<br />
axis passing through its centre and<br />
perpendicular to its plane with angular<br />
velocity ω. Its kinetic energy is<br />
(a) 1 2 m r2 ω<br />
(b) mrω<br />
2<br />
sphere and a disc of the same mass and the<br />
same diameter to roll down through the same<br />
distance from rest on a smooth inclened plane<br />
is<br />
(a) 15 : 14<br />
(c) 15 2 : 14 2<br />
(b) √⎺ ⎺15 : √⎺ ⎺14<br />
(d) √⎺ ⎺14 : √⎺ ⎺15<br />
[AFMC]<br />
41. In figure (a) , a meter stick, half of which is<br />
wood and the other half steel is pivoted at the<br />
wooden end at O and a force F is applied to<br />
the steel end a. In figure (b) the stick is pivoted<br />
at the steel end at O’ and the same force F is<br />
applied at the wooden end at a’. The angular<br />
acceleration<br />
(c) m r 2 ω<br />
(d) 1 2 mrω<br />
39. The moment of inertia of a thin square plate<br />
ABCD (fig) of uniform thickness about an<br />
axis passing through the centre O and<br />
perpendicular to the plane of plate is<br />
(a) I 1<br />
+ I 2<br />
(b) I 3<br />
+ I 4<br />
(c) I 1<br />
+ I 3<br />
(d) I 1<br />
+ I 2<br />
+I 3<br />
+I 4<br />
Fig.34<br />
(a) in (a) is greater than in (b)<br />
(b) in (b) is greater than in (a)<br />
(c) equal both in (a) and (b)<br />
(d) none of the above.<br />
42. A cylinder of mass ‘M’ is suspended by two<br />
strings wrapped around it as shown. The<br />
acceleration ‘a’ and the tension T, when the<br />
cylinder falls and the string unwinds itself is<br />
Fig. 33<br />
Where I 1 ,I 2 ,I 3 and I 4 are moments of inertia<br />
about axis 1, 2, 3 and 4 which are in the plane<br />
of plate.<br />
40. The ratio of times taken by a uniform solid<br />
(18)<br />
Fig.35
AISECT TUTORIALS : PHYSICS : SET-4<br />
(a) a = g, T = Mg<br />
2<br />
(b) a = g 2 , T = Mg<br />
2<br />
(c) a = g 3 , T =Mg 3<br />
(d) a = 2 3<br />
g, T =<br />
Mg<br />
6<br />
43. A loaded truck has to take a sharp turn to the<br />
left. The centre of gravity of the truck can be<br />
altered by shifting concentrated load. To<br />
avoid toppling, the load must be shifted<br />
(a) up and left<br />
(c) down and left<br />
(b) up and right<br />
(d) down and right<br />
44. If the radius of earth contracts to half of its<br />
present day value, the mass remaining<br />
unchanged, the duration of the day will be<br />
(a) 48 hrs<br />
(c) 12 hrs<br />
(b) 24 hrs<br />
(d) 6 hrs<br />
45. If a running boy jumps on a rotating table.<br />
Which of the following is conserved?<br />
(a) linear momentum<br />
(b) K.E.<br />
(c) angular momentum<br />
(d) none of the above.<br />
46. A hemispherical bowl of radius R is set<br />
rotating about its axis of sysmmetry. A small<br />
body kept in the bowl rotates with the bowl<br />
without slipping on its surface. If radius<br />
through the body makes with the axis an angle<br />
θ and assuming that the surface of the bowl is<br />
smooth, the angular velocity with which bowl<br />
is rotating is given by<br />
(a)<br />
R<br />
g cos θ<br />
(c) √⎺⎺⎺ g ⎺<br />
R cos θ<br />
(b) √⎺⎺⎺⎺<br />
R<br />
g cos θ<br />
(d)<br />
g<br />
R cos θ<br />
47. The rate of change of angular momentum is<br />
equal to :<br />
(a) Force<br />
(b) Angular acceleration<br />
(c) Torque<br />
(d) Moment of Inertia<br />
48. A square Lamina lies in the X-Y plane as<br />
shown in fig. The z-axis is passing through the<br />
centre and perpendicular to the plane of the<br />
Lamina. I 1, I 2, I 3 and I 4 represent the moment of<br />
Inertia of the Lamina about the axis shown.<br />
The moment of Inertia I z of the<br />
Lamina about z-axis is :<br />
Fig.36<br />
(a) I 1<br />
+ I 4<br />
(b) I 1<br />
+ I 2<br />
(c) I 2<br />
+ I 3<br />
(d) I 3<br />
+I 4<br />
49. M.I. of a circular loop of radius R about the<br />
axis given in figure is :<br />
(a) MR 2 (b) (3/4) MR 2<br />
(c) MR 2 /2 (d) 2MR 2<br />
Fig 37<br />
(19)
AISECT TUTORIALS : PHYSICS : SET-4<br />
50. Moment of inerta of a solid sphere of mass M<br />
and radius R about any tangent is :<br />
(a) 2 5 MR2<br />
(c) 2 3 MR2<br />
(b) 7 5 MR2<br />
(d) 5 3 MR2<br />
51. When a steady torque acts on the body, the<br />
body:<br />
(a)<br />
(b)<br />
(c)<br />
(d)<br />
continues in its state of rest or of<br />
uniform circular motion<br />
gets linear acceleration<br />
gets angular acceleration<br />
rotates at constat speed<br />
52. When the torque acting on a system is zero,<br />
which of the following will be constant :<br />
(a)<br />
force<br />
(b) linear momentum<br />
(c)<br />
(d)<br />
angular momentum<br />
linear impulse<br />
53. A mass is revolving in a circle which is in the<br />
plane of paper. The direction of angular<br />
acceleration is :<br />
(a) upward the radius<br />
(b) towards the radius<br />
(c) tangential<br />
(d) at right angle to angular velocity<br />
54. Which of the following has largest moment of<br />
inetia :<br />
(a) ring about an axis perpendicular to its<br />
(b)<br />
(c)<br />
plane<br />
disc about an axis perpendicular to its<br />
plane<br />
solid sphere<br />
(d) bar magnet<br />
55. The moment of inertia of a body does not<br />
depend upon :<br />
(a)<br />
(b)<br />
(c)<br />
(d)<br />
the angular velocity of the body<br />
the mass of the body<br />
the distribution of mass in the body<br />
the axis of rotation of the body<br />
56. A hollow cylinder and a solid cylinder having<br />
the same mass and same diameter are released<br />
from rest simultaneously from the top of an<br />
inclined plane. Which will reach the bottom<br />
first :<br />
(a) the solid cylinder<br />
(b) the hollow cylinder<br />
(c)<br />
(d)<br />
both will reach the bottom together<br />
the one having greater density<br />
57. The moment of inertia of a body comes into<br />
play :<br />
(a)<br />
(b)<br />
(c)<br />
(d)<br />
in motion along a curved path<br />
in linear motion<br />
in rotational motion<br />
none of the above<br />
58. A man turns on a rotating table with an<br />
angular speed ω. He is holding two equal<br />
masses at arm’s lenght. Without moving his<br />
arms, he just drops the two masses. How will<br />
his angular speed change?<br />
(a)<br />
(b)<br />
(c)<br />
(d)<br />
it will be less than ω<br />
it will be more than ω<br />
it will remain equal to ω<br />
may be less than, greater than or equal<br />
to ω depending on the equantity of<br />
masses.<br />
59. If I, α and τ are the moment of inertia, angular<br />
acceleration and torque respectively of a body<br />
acceleration and torque respectively of a body<br />
rotating about any axis with angular velocity<br />
ω, then :<br />
(a) τ = Iα<br />
(b) τ = Iω<br />
(20)
(c) Ι = τ<br />
(d) α = τ ω<br />
60. One solid sphere and disc of same radius are<br />
falling along an inclined plane without<br />
slipping. One reaches earlier than the other<br />
due to :<br />
(a) different radius of gyration<br />
(b) different sizes<br />
(c) different friction<br />
(d) different moment of inertia<br />
61. A disc rolls over a horizontal floor without<br />
slipping with a linear speed of 5 cm/sec. Then<br />
the linear speed of a particle on its rim, with<br />
respect to the floor, when it is in its highest<br />
position is :<br />
(a) 10 cm/sec<br />
(c) 2.5 cm / sec (d) 0<br />
(b) 5 cm / sec<br />
62. The M.I. of a body about the given axis is 1.2<br />
kg x m -2 . Initially the body is at rest. In order<br />
to produce a rotational kinetic energy of 1500<br />
joule, an angular acceleration of 25 rad/sec 2<br />
must be applied about that axis for a duration<br />
of :<br />
(a) 4 sec<br />
(c) 8 sec<br />
(b) 2 sec<br />
(d) 10 sec<br />
[CBSE]<br />
63. A disc like reel with massless thread unrolls<br />
itself while fallin vertically downwards. The<br />
acceleration of its fall is :<br />
(a) g<br />
(b) zero<br />
(c) (2/3) g (d) g / 2<br />
64. A ring of radius r and mass m rotates about an<br />
axis passing through its centre and<br />
perpendicular to its plane with angular<br />
velocity ω. Its kinetic energy is :<br />
(a) mrω 2 (b) mrω 2 /2<br />
(c) mr 2 ω 2 (d) mr 2 ω 2 / 2<br />
65. A spherical ball rolls on a table without<br />
AISECT TUTORIALS : PHYSICS : SET-4<br />
(21)<br />
slipping. Then the fraction of its total energy<br />
associated with rotation is :<br />
(a) 2/5 (b) 2/7<br />
(c) 5/7 (d) 3/5<br />
66. Four masses are held rigidly by a massless<br />
circular frame of radius ‘R’ as shown in<br />
figure. The moment of inertia of the system<br />
about an axis through the centre of ring and<br />
perpendicular to the plane of the ring is :<br />
Fig.38<br />
(a) mR 2 (b) 3 mR 2<br />
(c) 5 mR 2 (d) 7 mR 2<br />
67. The angular velocity of a body change from<br />
ω 1 to ω 2 without applying a torque but<br />
changing its M.I. The ratio of moment of<br />
inertia in two cases is :<br />
(a) ω 1<br />
: ω 2<br />
(b) √⎺ ⎺ω 2<br />
: √⎺ ⎺ω 1<br />
(c) √⎺ ⎺ω 1<br />
: √⎺ ⎺ω 2<br />
(d) ω 2<br />
: ω 1<br />
68. Rotatioanl analogue of mass in linear motion<br />
is :<br />
(a) Weight<br />
(b) Moment of Inertia<br />
(c) Torque<br />
(d) Angular momentum<br />
69. A boy comes running and sits on the rotating<br />
platform. Which of the following is<br />
conserved:<br />
(a) Kinetic energy<br />
(b) Angular momentum
AISECT TUTORIALS : PHYSICS : SET-4<br />
(c) Linear momentum<br />
(d) None of these<br />
70. Angular momentum of the body is conserved<br />
:<br />
(a) always<br />
(b) never<br />
(c) in the presence of external torque<br />
(d) in the absence of external torque<br />
71. A disc, a solid sphere, a ring of same mass and<br />
radius are made to slide down an inclined<br />
plane. Which one reaches the bottom first :<br />
(a) sphere<br />
(b) ring<br />
(c) disc<br />
(d) all will reach the ground at the same<br />
time<br />
72. The product of moment of inertia and angular<br />
velocity is called :<br />
(a) torque<br />
(b) work<br />
(c) angular momentum<br />
(d) kinetic energy<br />
73. A disc has a mass of 16 kg and radius 25 cm<br />
and is to be rotated about an axis through its<br />
centre and perpendicular to its plane. What<br />
torque will increase its angular velocity from<br />
zero to 8π rad / sec in 8 seconds :<br />
(a) π Nm<br />
(c) π/4 Nm<br />
(b) π/2Nm<br />
(d) 2π Nm<br />
74. If mass as well as the radius of gyration of the<br />
body are doubled, then its moment of inertia<br />
becomes :<br />
(a) two times<br />
(c) six times<br />
(b) four times<br />
(d) eight times<br />
75. If the mass of a body moves towards the axis<br />
of rotation, its moment of inertia<br />
(a) incerases<br />
(b) remains constant<br />
(c) decreases<br />
(d) none of these is true<br />
76. The rotational analogue of mass (in linear<br />
motion) is called<br />
(a) weight<br />
(b) torque<br />
(c) moment of inertia<br />
(d) angular momentum<br />
77. The moment of momentum is called<br />
(a) angular momentum(b) torque<br />
(c) impulse<br />
(d) couple.<br />
78. If I is M.I. of the body about the axis of<br />
rotation and ω is angular velocity, then<br />
angular momentum of the body will be<br />
(a) 1 2 I ω2 (b) I ω 2<br />
(c) 2 I ω 2 (d) I ω.<br />
79. If a body is moving in a circle of radius r metre<br />
with a constant speed V m/sec, its angular<br />
velocity will be<br />
(a) n 2 / r<br />
(b) vr<br />
(c) v / r (d) r / v.<br />
80. The unit of M.I. in M.K.S. system is<br />
(a) kg-m 2 (b) kg / m 2<br />
(c) kg-m (d) kg / m.<br />
81. The M.I. of a circular ring with mass M and<br />
radius R about an axis passing through its<br />
centre and perpendicular to its place is<br />
(a) MR 2 / 4 (b) MR 2<br />
[CPMT]<br />
(c) MR 2 / 2 (d) 3 4 MR2 .<br />
82. The moment of inertia of a circular lamina<br />
about an axis passing through its centre and<br />
(22)
AISECT TUTORIALS : PHYSICS : SET-4<br />
perpendicular to the plane of mass M and<br />
radius R is<br />
(a) 1 4 MR2<br />
(c) MR 2<br />
(b) 1 2 MR2<br />
(d) 5 4 R2<br />
83. The work done by a torque in rotating a body<br />
about an axis is equal to<br />
(a) (K.E.) rot<br />
(b) (K.E.) trans<br />
(c) moment of momentum of a body<br />
(d) none of the above<br />
84. The variation of angular momentum with the<br />
frequency of the rotation (n) in fig. 39 is<br />
represented by the curve<br />
(a) P<br />
(c) R<br />
Fig.39<br />
(b) Q<br />
(d) S<br />
85. A sphere is rolling down an inclined plane of<br />
angle θ. Then its acceleration will be<br />
(a) 2 5 g sin θ<br />
(c) 5 7 g sin θ<br />
(b) 2 3 g sin θ<br />
(d) 7 5 g sin θ<br />
86. A wheel is at rest. Its angular velocity<br />
increases uniformaly and becomes 60 rad/sec<br />
after 5 sec. The total angular displacement is<br />
(a) 600 rad<br />
(c) 300 rad<br />
(b) 150 rad<br />
(d) 75 rad<br />
87. For a bar pendulum the distance between two<br />
points of minimum time period is<br />
(a) equal to the lenght of simple pendulum<br />
(b) equal to the length of compound<br />
(c)<br />
pendulum<br />
equal to the radius of gyration<br />
(d) twice the radius of gyration<br />
88. Energy of 484 joules is spent in increasing the<br />
speed of a flywheel from 60 r.p.m. to 360<br />
r.p.m. The M.I. of the flywheel in kg x m 2 is<br />
(a) 7 (b) 0.7<br />
(c) 6 (d) 0.6<br />
89. A force of 5N acts on a body of weight 9.80<br />
N. What is the acceleration produced in m/s 2<br />
?<br />
(a) 49.00 (b) 5.00<br />
(c) 1.96 (d) 0.51<br />
90. The magnitude of momentum of a particle is<br />
increased by 100% Increase in kinetic energy<br />
is<br />
(a) 100% (b) 200%<br />
(c) 300% (d) 400%<br />
91. An athlete complete one round of a circular<br />
track of radius ‘R’ in 40 seconds. What will<br />
be his displacement at the end of 2 minutes 20<br />
seconds<br />
(a) zero<br />
(b) 2 R<br />
(c) 2π R (d) 7π R.<br />
(23)
AISECT TUTORIALS : PHYSICS : SET-4<br />
Answer Sheet<br />
Q.N. Ans Q.N. Ans Q.N. Ans Q.N. Ans Q.N. Ans Q.N. Ans.<br />
1. a<br />
17. d<br />
33. a<br />
49. b<br />
65. b<br />
81. b<br />
2. d<br />
18. b<br />
34. a<br />
50. b<br />
66. d<br />
82. b<br />
3. c<br />
19. d<br />
35. d<br />
51. c<br />
67. d<br />
83. a<br />
4. d<br />
20. a<br />
36. a<br />
52. c<br />
68. b<br />
84. d<br />
5. c<br />
21. c<br />
37. d<br />
53. c<br />
69. b<br />
85. c<br />
6. b<br />
22. b<br />
38. a<br />
54. a<br />
70. d<br />
86. b<br />
7. a<br />
23. a<br />
39. a,b,c<br />
55. a<br />
71. a<br />
87. d<br />
8. c<br />
24. b<br />
40. d<br />
56. a<br />
72. c<br />
88. b<br />
9. a<br />
25. c<br />
41. b<br />
57. c<br />
73. b<br />
89. b<br />
10. a<br />
26. a<br />
42. d<br />
58. b<br />
74. d<br />
90. c<br />
11. d<br />
27. b<br />
43. c<br />
59. a<br />
75. c<br />
91. b<br />
12. a,b<br />
28. b<br />
44. d<br />
60. d<br />
76. c<br />
13. c<br />
29. c<br />
45. c<br />
61. a<br />
77. a<br />
14. a<br />
30. a<br />
46. c<br />
62. b<br />
78. d<br />
15. c<br />
31. abc<br />
47. c<br />
63. c<br />
79. c<br />
16. c<br />
32. d<br />
48. d<br />
64. d<br />
80. a<br />
(24)
AISECT TUTORIALS : PHYSICS : SET-4<br />
Hints and Solutions<br />
1. (a) Force = Mass x Acceleration<br />
Rotational analogue of mass = Inertia<br />
Rotational analogue of acc n = Angular<br />
acc n<br />
2. (d) r x mv = angular momentum<br />
3. (c) T = Iα<br />
4. (d) I = mk 2 , v = kω<br />
A.M. = mvk ⇒ mk 2 ω = Iω<br />
5. (c) It is the specific characteristic of the<br />
6. (b)<br />
body to oppose rotational motion.<br />
7. (a) It will have smaller moment of inertia.<br />
8. (c) Rotational analogue of mass is inertia.<br />
9. (a) No external torque is there.<br />
10. (a) Since linear momentum p = mv and v =<br />
rω<br />
∴ p = mrω = 2 x 0.15 x 4 = 1.2 kg m/s<br />
11. (d) Since K.E. of rotation =<br />
1<br />
2 Iω2 , I = 2 5 MR2<br />
∴ K.E. = 9 20 J<br />
12. (a,d) Let M.I. about the point of contact be<br />
given by I s and I d, then<br />
Mg sin θ r = Is . θ<br />
⇒ a s =<br />
For disc a d<br />
Mg sin θ . r2<br />
I s<br />
= g sing θ<br />
(1+2 ⁄ 5) = 5 7 g sinθ<br />
=<br />
Mg sin θ . r2<br />
I d<br />
= g sing θ 2g sing θ<br />
=<br />
(1+1 ⁄2) 3<br />
∴ a s > a d which is due to difference in I s<br />
and I d and therefore different radii of<br />
gyration.<br />
13. (c) 1<br />
2 mv cm<br />
2 + 1 2 I ω2 = 1 2 mv cm<br />
2 + 1 2 . 2 5 mv cm<br />
2<br />
= 7<br />
10 . 50 . (5)2 = 875 erg<br />
14. (a) τ = Iα for rigid bodies having fixed axis<br />
of rotation.<br />
15. (c) In increasing order of their M.I.<br />
More M.I. ⇒ lesser acceleration. (Refer<br />
Q.12)<br />
16. (c) M.I. depends upon product of mass and<br />
17. (d)<br />
square of the distance of mass from axis<br />
of rotation.<br />
18. (b) Due to decrease in radius, I decreases<br />
19. (d)<br />
and as no external torque is effective.<br />
∴ L = constant and angular velocity<br />
increases.<br />
For disc = 1 2 Ma2 , For ring = Ma 2<br />
For square of side 2a<br />
= M [(2a)2 + (2a) 2 ]<br />
12<br />
= 2 3 Ma2<br />
(25)
AISECT TUTORIALS : PHYSICS : SET-4<br />
For square by four rods of length 2a<br />
4 = ⎡ ⎢<br />
⎣<br />
M (2a) 2<br />
12<br />
+ Ma 2 ⎤<br />
⎥⎦ = 16<br />
3 Ma2<br />
20. (a) Torque τ = I α and we know that<br />
ω = ω ο + αt<br />
⇒ 0 = 10 + α . 10 ⇒ α = − 1 rad ⁄ sec 2<br />
Negative sign means retardation.<br />
∴ τ = mr 2 . α<br />
= 10 (0.30) 2 . 1 = 0.9 N−m<br />
21. (b) Applying parallel axis theorem<br />
22. (b)<br />
fig. 40<br />
I A<br />
= I G<br />
+ MR 2 = MR2<br />
2 + MR2 = 3 2 MR2<br />
θ = ω ο t + 1 2 αt2 ⇒ θ = 100 rad<br />
Number of revolution<br />
= 100<br />
2π = 16(approx).<br />
23. (a) Moment of inertia w.r.t. axis<br />
AB (diameter) = Mr2<br />
4<br />
Fig.41<br />
24. (b)<br />
Moment of inertia w.r.t parallel to axis<br />
AB and passing through point P<br />
= Mr2<br />
4 + Mr2 = 5 4 Mr2<br />
I g = ML2<br />
12<br />
(about middle point)<br />
Now I = I g + Ma 2 ⎡ ⎢a = L<br />
⎣<br />
2 − L 3 = L ⎤<br />
6⎥<br />
⎦<br />
∴ I = ML2<br />
12 + ML2<br />
36 = ML2<br />
9<br />
25. (c) In a rotating body, kinetic energy (K) =<br />
26. (a)<br />
27. (b)<br />
28. (b)<br />
29. (c)<br />
30. (a)<br />
1<br />
2 Iω2 and angular momentum (J) = I ω<br />
Hence K = J2<br />
2I<br />
If K A and K B are the kinetic energies of<br />
A and B respectively having the same<br />
angular momentum J. Then<br />
K A<br />
= J2 ⁄2I A<br />
= I B<br />
K B J 2 ⁄ 2 I B I A<br />
If I A > I B ,.then K B > K A<br />
I = MR 2 ; ∴ M 1<br />
M 2<br />
= I 1<br />
I 2<br />
× R 2 2<br />
R 1<br />
2 = 2 1 × 1 4 = 1 : 2<br />
W i = 900<br />
60 = × 2π = 30π rad ⁄ s, W f = 0, t = 60 s<br />
W f = W i + αt<br />
∴α = W f − W i<br />
t<br />
= O − 30π<br />
60<br />
= π 2 rad ⁄ s<br />
2<br />
31.(a,b,c) Applying the theorem of perpendicular<br />
axis is I = I 1 + I 2 = I 3 + I 4<br />
Because of symmetry, we have<br />
I 1 = I 2 and I 3 = I 4 Hence I = 2I 2 = 2I 3 i.e.I 2 = I 3<br />
(26)
AISECT TUTORIALS : PHYSICS : SET-4<br />
32.(d) Mass of disc is proportional to the area.<br />
Mass of A is 4 times that of B.<br />
A → m d→ v 1<br />
1 + m d → v 2<br />
dt dt<br />
cm =<br />
(m<br />
33. (a) The angular momentum remains<br />
1 + m 2 )<br />
constant in the orbit of the earth.<br />
A→<br />
cm = m 1a → 1 + m 2 a → 2<br />
34. (a)<br />
I || = MR2<br />
4 + MR2 = 5 m 1 + m 2<br />
4 MR2<br />
⎛m 1 − m 2 ⎞<br />
m 1⎜⎝ ⎟⎠ g → + m m 1 − m 2 )<br />
2 (−g → )<br />
I 1 = MR2<br />
2 + MR2 = 3 A<br />
→ m 1 + m 2 m 1 + m 2<br />
cm =<br />
2 MR2<br />
(m 1 + m 2 )<br />
Hence I I<br />
= 6 I II 5 ⇒ I I = 6 5 I A cm = ⎛ m 1 − m 2 ⎞ ⎛m 1 − m 2 ⎞<br />
II<br />
⎜ ⎟⎠ ⎜⎝ ⎟⎠ g<br />
⎝ m 1 + m 2 m 1 + m 2<br />
35. (d) For ring K = R, hence<br />
E k = 1 A cm = ⎛ 2<br />
m 1 − m 2 ⎞<br />
⎜ ⎟⎠ g<br />
2 Mv2<br />
⎝ m 1 + m 2<br />
38.(a)<br />
E r = 1 2 Iω2 = 1 2 MK2 ω 2 = 1 2 MR2 ω 2 = 1 (KE) rot = 1 2 Iω2<br />
2 Mv2<br />
36.(a)<br />
(K.E.) rot<br />
= 1<br />
Fraction =<br />
2 × mr2 ω 2<br />
(KE) rot + (KE) trans<br />
39.(a,b,c) By the use of theorem of perpendicular<br />
1<br />
axis.<br />
2 Iω2<br />
1<br />
2 Iω2 + 1 I = I 1 + I 2 = I 3 I 4<br />
2 mv2<br />
40.(b)<br />
S = 1<br />
1<br />
2 × 2 at2<br />
mr2 ω 2<br />
1<br />
2 × mr2 ω 2 + 1 a = g sin θ<br />
2 mv2<br />
1 + k2<br />
r 2<br />
1<br />
2 mv2<br />
=<br />
1<br />
2 mv2 + 1 = 1 For solid sphere :<br />
2<br />
S = 1<br />
2 mv2 2 × g sin θ 2<br />
37.(d)<br />
R→ = m 1r → 1 + m 2 r → 1 + 2 t 1<br />
5<br />
2<br />
For disc :<br />
m 1 + m 2<br />
d R → m d r→ 1<br />
+ m d r→ 2<br />
S = 1 g singθ 2<br />
2<br />
dt dt<br />
2<br />
=<br />
1 + 1 t 2<br />
dt<br />
2<br />
m 1 + m 2<br />
V→<br />
cm = m 1v → 1 + m 2 v → t 1<br />
2<br />
=<br />
t 2<br />
√⎺⎺ 14<br />
15<br />
m 1 + m 2<br />
d V → cm<br />
= d m 1 v → 1 + m 2 v → 41.(b) τ = Fr = I 1 α 1 = I 2 α 2<br />
2<br />
dt dt<br />
I<br />
m 1 + m<br />
1 > I 2<br />
2<br />
α 1 < α 2<br />
(27)
AISECT TUTORIALS : PHYSICS : SET-4<br />
43.(c)<br />
or α 2 > α 1<br />
Down and left, as the inner wheel has a<br />
tendency to leave the ground first. To<br />
avoid toppling the centre of gravity<br />
should be as low as possible.<br />
44.(d) I 1 ω 1 = I 2 ω 2<br />
46.(c)<br />
2 2π<br />
5 MR2 24 = 2 5 M ⎛ R⎞<br />
⎜ ⎝<br />
2⎟<br />
⎠<br />
T’ = 6 hours.<br />
2<br />
× 2π T<br />
The situation is shown in the figure<br />
88.(b)<br />
(2) rco2<br />
; tan θ =<br />
(1) g<br />
R sin θ ω 2<br />
=<br />
g<br />
R sin θ ω2<br />
g<br />
= sin θ<br />
cosθ<br />
or ω = √⎺⎺⎺ g ⎺<br />
R cos θ<br />
Change in K.E. = Work done<br />
= 1 2 I ω 2 2 − 1 2 Iω 1 2<br />
∴ 1 2 I [(12π)2 −(2π) 2 ] = 484<br />
r<br />
R<br />
= Sin θ<br />
Fig.42<br />
N cos θ = mg (1)<br />
N sin θ = mrω 2 (2)<br />
∴ I = 0.7 kg ⁄ ms.<br />
89.(b) W = mg ∴ 9.80 N = m 9.8<br />
∴ m = 1 kg<br />
F = ma ∴ 5 N = 1 a<br />
∴ a = 5m /sec 2<br />
91.(d) Circumference of a circle = 2π R.<br />
Athlete completes 2π R distance in 40<br />
seconds and hence in 140 seconds he<br />
will cover 7π R distance<br />
(28)
