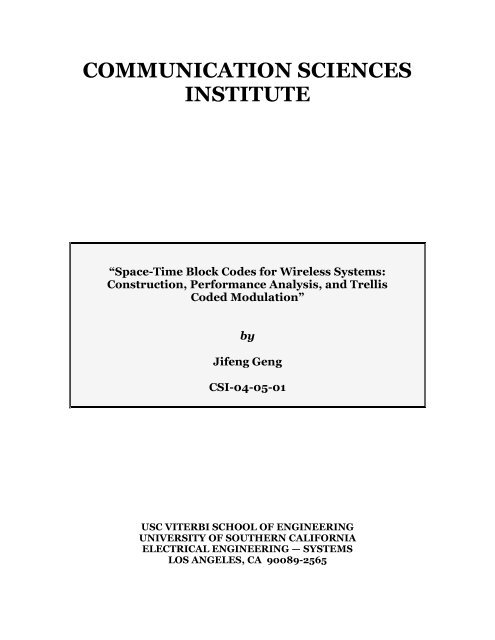

COMMUNICATION SCIENCES<br />
INSTITUTE<br />
<br />
“<strong>Space</strong>-<strong>Time</strong> <strong>Block</strong> <strong>Codes</strong> <strong>for</strong> <strong>Wireless</strong> <strong>Systems</strong>:<br />
Construction, Per<strong>for</strong>mance Analysis, and Trellis<br />
Coded Modulation”<br />
by<br />
Jifeng Geng<br />
CSI-04-05-01<br />
USC VITERBI SCHOOL OF ENGINEERING<br />
UNIVERSITY OF SOUTHERN CALIFORNIA<br />
ELECTRICAL ENGINEERING — SYSTEMS<br />
LOS ANGELES, CA 90089-2565
SPACE-TIME BLOCK CODES FOR WIRELESS SYSTEMS:<br />
CONSTRUCTION, PERFORMANCE ANALYSIS, AND TRELLIS CODED<br />
MODULATION<br />
by<br />
Jifeng Geng<br />
A Dissertation Presented to the<br />
FACULTY OF THE GRADUATE SCHOOL<br />
UNIVERSITY OF SOUTHERN CALIFORNIA<br />
In Partial Fulfillment of the<br />
Requirements <strong>for</strong> the Degree<br />
DOCTOR OF PHILOSOPHY<br />
(ELECTRICAL ENGINEERING)<br />
May 2004<br />
Copyright 2004<br />
Jifeng Geng
Dedication<br />
This dissertation is dedicated to my family <strong>for</strong> their everlasting support and love.<br />
ii
Acknowledgements<br />
I would like to thank my advisor Urbashi Mitra, who <strong>for</strong>goes many of my shortcomings<br />
and provides valuable support and guidance throughout this work.<br />
iii
Contents<br />
Dedication<br />
Acknowledgements<br />
List Of Tables<br />
List Of Figures<br />
Abstract<br />
ii<br />
iii<br />
vi<br />
vii<br />
x<br />
1 Introduction 1<br />
2 <strong>Space</strong>-<strong>Time</strong> <strong>Block</strong> <strong>Codes</strong> in Multipath CDMA <strong>Systems</strong> 6<br />
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6<br />
2.2 <strong>The</strong> Uplink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8<br />
2.2.1 <strong>The</strong> Uplink System Model . . . . . . . . . . . . . . . . . . . . . . . 10<br />
2.2.2 <strong>The</strong> Uplink Chernoff Bound and Code Design Criteria . . . . . . . 15<br />
2.2.3 <strong>The</strong> Correlated Codeword Sequence Difference Matrix Φ . . . . . . 17<br />
2.2.4 Code Design Principles . . . . . . . . . . . . . . . . . . . . . . . . 21<br />
2.2.5 <strong>The</strong> Effect of Multipath . . . . . . . . . . . . . . . . . . . . . . . . 24<br />
2.3 <strong>The</strong> Downlink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26<br />
2.3.1 <strong>The</strong> Downlink Model . . . . . . . . . . . . . . . . . . . . . . . . . . 27<br />
2.3.2 Joint Maximum Likelihood Decoder . . . . . . . . . . . . . . . . . 28<br />
2.3.3 Single user ML-based Decoder . . . . . . . . . . . . . . . . . . . . 30<br />
2.4 Non-spread systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32<br />
2.5 Optimal Minimum Metric <strong>Codes</strong> . . . . . . . . . . . . . . . . . . . . . . . 34<br />
2.5.1 OMM <strong>Codes</strong> <strong>for</strong> the Uplink . . . . . . . . . . . . . . . . . . . . . . 34<br />
2.5.2 OMM <strong>Codes</strong> <strong>for</strong> the Downlink . . . . . . . . . . . . . . . . . . . . 45<br />
2.6 Practical Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50<br />
2.6.1 Isometries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50<br />
2.6.2 Sensitivity to Correlation . . . . . . . . . . . . . . . . . . . . . . . 52<br />
2.6.3 Suboptimal <strong>Codes</strong> . . . . . . . . . . . . . . . . . . . . . . . . . . . 53<br />
2.7 Conclusions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54<br />
iv
3 On Suboptimal Linear Decoders <strong>for</strong> <strong>Space</strong>-<strong>Time</strong> <strong>Block</strong> <strong>Codes</strong> 56<br />
3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56<br />
3.2 Uplink Signal Model <strong>for</strong> Spread <strong>Systems</strong> . . . . . . . . . . . . . . . . . . . 57<br />
3.3 Linear Equalizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59<br />
3.4 <strong>The</strong> Mapper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62<br />
3.5 <strong>The</strong> Effect of Large Number of Receive Antennae . . . . . . . . . . . . . . 65<br />
3.6 Fisher’s In<strong>for</strong>mation Matrix . . . . . . . . . . . . . . . . . . . . . . . . . . 67<br />
3.7 Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69<br />
3.7.1 <strong>The</strong> BLUE and LS Decoders . . . . . . . . . . . . . . . . . . . . . 70<br />
3.7.2 <strong>The</strong> LM Decoders . . . . . . . . . . . . . . . . . . . . . . . . . . . 71<br />
3.7.3 <strong>The</strong> LMMSE Decoders . . . . . . . . . . . . . . . . . . . . . . . . . 71<br />
3.7.4 <strong>The</strong> Effect of Number of Receive Antennae L r . . . . . . . . . . . 71<br />
3.7.5 <strong>The</strong> Effect of Number of Active Users K . . . . . . . . . . . . . . . 72<br />
3.7.6 Complexity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72<br />
4 Nonlinear Hierarchical <strong>Codes</strong> 76<br />
4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76<br />
4.2 Signal Model and Isometries . . . . . . . . . . . . . . . . . . . . . . . . . . 77<br />
4.3 Building Nonlinear Hierarchical <strong>Codes</strong> . . . . . . . . . . . . . . . . . . . . 82<br />
4.4 <strong>The</strong> Hierarchical Structure of Optimal 2 × 2 QPSK <strong>Codes</strong> . . . . . . . . . 91<br />
4.5 Code Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93<br />
5 Regular Multiple Trellis Coded Modulation 98<br />
5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98<br />
5.2 Signal Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100<br />
5.3 RMTCM Design Parameters and Procedures . . . . . . . . . . . . . . . . 100<br />
5.4 Per<strong>for</strong>mance Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105<br />
5.5 RMTCM Designs Examples . . . . . . . . . . . . . . . . . . . . . . . . . . 111<br />
5.5.1 2 × 2 BPSK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112<br />
5.5.2 2 × 2 QPSK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113<br />
5.5.3 2 × 2 8PSK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117<br />
5.5.4 3 × 3 BPSK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119<br />
5.5.5 3 × 3 QPSK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123<br />
5.5.6 3 × 3 8PSK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123<br />
6 Conclusions 125<br />
Reference List 126<br />
Appendix A<br />
Code Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131<br />
Appendix B<br />
RMTCM Design Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137<br />
v
List Of Tables<br />
2.1 <strong>The</strong> distance spectra <strong>for</strong> rate 1 BPSK 2 × 2 Class 1 OMM code. . . . . . 26<br />
2.2 OMM codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36<br />
2.3 Detailed Structure of rate 1 OMM 2×2 8PSK and 16PSK <strong>Codes</strong>. ( u n = e i 2π n ) 39<br />
2.4 Rate 1 OMM 3 × 3 BPSK <strong>Codes</strong>. . . . . . . . . . . . . . . . . . . . . . . . 40<br />
2.5 Three space-time code structures and their per<strong>for</strong>mance comparison. . . . 54<br />
3.1 CPU time in seconds <strong>for</strong> 200 runs. . . . . . . . . . . . . . . . . . . . . . . 72<br />
4.1 Code list of the 2 × 2 QPSK NHC. . . . . . . . . . . . . . . . . . . . . . . 92<br />
4.2 List of Hierarchical <strong>Codes</strong> . . . . . . . . . . . . . . . . . . . . . . . . . . . 93<br />
5.1 <strong>The</strong> length M of single error event <strong>for</strong> given b and g. . . . . . . . . . . . . 108<br />
5.2 Rate 1/2 MTCM designs <strong>for</strong> 2 × 2 BPSK. . . . . . . . . . . . . . . . . . . 112<br />
5.3 Regular MTCM design <strong>for</strong> 2 × 2 BPSK |S 3 | = 8 codewords. . . . . . . . . 113<br />
5.4 MTCM design <strong>for</strong> 2 × 2 QPSK |S 4 | = 16 codewords. . . . . . . . . . . . . 114<br />
5.5 Hierarchical structure in Hamming distance. . . . . . . . . . . . . . . . . . 118<br />
A.1 2 × 2 BPSK codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131<br />
A.2 2 × 2 QPSK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132<br />
A.3 2 × 2 8PSK code list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132<br />
A.4 2 × 2 8PSK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133<br />
A.5 3 × 3 BPSK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133<br />
A.6 3 × 3 QPSK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134<br />
A.7 3 × 3 QPSK code list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134<br />
A.8 3 × 3 8PSK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135<br />
A.9 3 × 3 8PSK code list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135<br />
A.10 4 × 3 BPSK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136<br />
A.11 4 × 3 QPSK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136<br />
A.12 4 × 3 QPSK code list. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136<br />
vi
List Of Figures<br />
2.1 Transmitter encoder block diagram <strong>for</strong> user k. . . . . . . . . . . . . . . . . 11<br />
2.2 Receiver decoder block diagram. . . . . . . . . . . . . . . . . . . . . . . . 11<br />
2.3 Channel model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11<br />
2.4 Union bound as a function of path delay τ. . . . . . . . . . . . . . . . . . 26<br />
2.5 Distinction between spread and non-spread transmission. . . . . . . . . . 33<br />
2.6 Union bound versus simulation <strong>for</strong> rate 1 OMM 2 × 2 BPSK Class 1 code. 35<br />
2.7 Distance spectra <strong>for</strong> rate 1 OMM 2 × 2 BPSK codes. . . . . . . . . . . . . 38<br />
2.8 Rate 1 OMM 2 × 2 BPSK block codes at SNR=6dB. . . . . . . . . . . . . 38<br />
2.9 Rate 1 OMM 2 × 2 BPSK and 16PSK codes <strong>for</strong> ρ c = 0.3. . . . . . . . . . 39<br />
2.10 Rate 1 OMM 3 × 3 BPSK codes at SNR=6dB. . . . . . . . . . . . . . . . 41<br />
2.11 Rate 1 OMM 3 × 3 BPSK codes. . . . . . . . . . . . . . . . . . . . . . . . 41<br />
2.12 Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong> at ρ c = 1.0. . . . . . . . . . . . . . . . . 43<br />
2.13 Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong> at ρ c = 0.3. . . . . . . . . . . . . . . . . 43<br />
2.14 Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong>, Gold sequence, single user, flat fading. . 44<br />
2.15 Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong>, Gold sequence, multipath fading Γ =<br />
[0, 5; 0, 5]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44<br />
2.16 Sequence decoder M = 4, Rate 2 OMM 2×2 QPSK <strong>Codes</strong>, Gold sequence,<br />
multipath fading Γ = [0, 5, 7, 10; 0, 5, 7, 10]. . . . . . . . . . . . . . . . . . . 45<br />
2.17 Rate 1 OMM 4 × 2 BPSK <strong>Codes</strong> <strong>for</strong> ρ c = 0.3. . . . . . . . . . . . . . . . . 46<br />
2.18 Multiuser rate 1 OMM 2 × 2 BPSK codes. . . . . . . . . . . . . . . . . . . 48<br />
2.19 Decoder per<strong>for</strong>mance comparison with no near-far effect. . . . . . . . . . . 48<br />
2.20 Decoder per<strong>for</strong>mance comparison with near-far effect. . . . . . . . . . . . 49<br />
2.21 Equivalent ρ e as a function of SNR and ρ c . . . . . . . . . . . . . . . . . . 49<br />
3.1 Decoder Classification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56<br />
3.2 Decoder Structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57<br />
3.3 <strong>The</strong> BLUE and LS estimators lose diversity. . . . . . . . . . . . . . . . . . 70<br />
vii
3.4 <strong>The</strong> BLUE and LS estimators have large variance. . . . . . . . . . . . . . 71<br />
3.5 Ignoring R incurs 0.3dB loss. . . . . . . . . . . . . . . . . . . . . . . . . . 72<br />
3.6 LMMSE2 decoder has slight advantage over LMMSE1 decoder at high SNR. 73<br />
3.7 LMMSE2 decoder has less variance than LMMSE1 decoder. . . . . . . . . 73<br />
3.8 Two receive antennae. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74<br />
3.9 Two active users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74<br />
3.10 Four active users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75<br />
4.1 <strong>The</strong> relationship between {a, b} and {a ′ , b ′ }. . . . . . . . . . . . . . . . . . 88<br />
4.2 Hierarchical structure of the 2 × 2 QPSK NHC. . . . . . . . . . . . . . . . 91<br />
4.3 3×3 BPSK, 8PSK NHCs (8 codewords) vs best 8PSK unitary group codes<br />
(8 codewords). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95<br />
4.4 3 × 3 8PSK NHCs (64 codewords) vs best 21PSK unitary group codes (63<br />
codewords). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95<br />
4.5 4×3 BPSK (8 codewords) and QPSK (64 codewords) NHCs vs orthogonal<br />
codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96<br />
5.1 <strong>The</strong> shift-register configuration to generate state trellis. . . . . . . . . . . 101<br />
5.2 <strong>The</strong> shift-register configuration <strong>for</strong> 2 inputs and 3 registers and corresponding<br />
trellis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101<br />
5.3 Rate 1/2 MTCM designs <strong>for</strong> 2 × 2 BPSK. . . . . . . . . . . . . . . . . . . 112<br />
5.4 2 × 2 BPSK, Rate 2/2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113<br />
5.5 2 × 2 QPSK, |S 4 | = 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115<br />
5.6 2 × 2 QPSK, |S 4 | = 16, Ricean fading channels (h = 1). . . . . . . . . . . 115<br />
5.7 2 × 2 QPSK, |S 5 | = 32, quasi-static vs fast block fading channels. . . . . . 116<br />
5.8 Bit map of 2 × 2 QPSK, |S 4 | = 16, <strong>for</strong> serial concatenation. . . . . . . . . 118<br />
5.9 2 × 2 QPSK, |S 4 | = 16, serial concatenation vs RMTCM. . . . . . . . . . 119<br />
5.10 Rate 6/2, 2 × 2 8PSK, |S 7 | = 128 vs |S 8 | = 256. . . . . . . . . . . . . . . . 120<br />
5.11 3 × 3 BPSK, |S 3 | = 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121<br />
5.12 3 × 3 BPSK, d ∗ free<br />
of 2 × 4 × 1. . . . . . . . . . . . . . . . . . . . . . . . . 122<br />
5.13 Rate 3/3, 3 × 3 BPSK, S 4 , S 5 and S 6 . . . . . . . . . . . . . . . . . . . . . 122<br />
5.14 3 × 3 QPSK, |S 5 | = 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123<br />
5.15 3 × 3 QPSK, |S 7 | = 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124<br />
5.16 3 × 3 8PSK, rate=6/3, |S 7 | = 128 vs |S 8 | = 256. . . . . . . . . . . . . . . . 124<br />
B.1 2 × 2 BPSK, Rate 1/2, I2S2O2p1. . . . . . . . . . . . . . . . . . . . . . . 137<br />
viii
B.2 2 × 2 BPSK, Rate 1/2, I2S2O4p1. . . . . . . . . . . . . . . . . . . . . . . 138<br />
B.3 2 × 2 BPSK, Rate 1/2, I2S2O4P 1. . . . . . . . . . . . . . . . . . . . . . . 138<br />
B.4 2 × 2 BPSK, Rate 2/2, 2 × 2 × 2. . . . . . . . . . . . . . . . . . . . . . . . 138<br />
B.5 2 × 2 BPSK, Rate 2/2, 2 × 4 × 1. . . . . . . . . . . . . . . . . . . . . . . . 138<br />
B.6 2 × 2 QPSK, Rate 1/2, 8 × 2 × 1. . . . . . . . . . . . . . . . . . . . . . . . 138<br />
B.7 2 × 2 QPSK, Rate 2/2, 4 × 2 × 2. . . . . . . . . . . . . . . . . . . . . . . . 139<br />
B.8 2 × 2 QPSK, Rate 2/2, 4 × 4 × 1. . . . . . . . . . . . . . . . . . . . . . . . 139<br />
B.9 2 × 2 QPSK, Rate 3/2, 2 × 2 × 4. . . . . . . . . . . . . . . . . . . . . . . . 139<br />
B.10 2 × 2 QPSK, Rate 3/2, 2 × 4 × 2. . . . . . . . . . . . . . . . . . . . . . . . 140<br />
B.11 2 × 2 QPSK, Rate 3/2, 2 × 8 × 1. . . . . . . . . . . . . . . . . . . . . . . . 140<br />
B.12 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 2 × 8. . . . . . . . . . . . . . . . . . 140<br />
B.13 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 4 × 4. . . . . . . . . . . . . . . . . . 140<br />
B.14 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 8 × 2. . . . . . . . . . . . . . . . . . 141<br />
B.15 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 16 × 1. . . . . . . . . . . . . . . . . 141<br />
B.16 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 4 × 2 × 8. . . . . . . . . . . . . . . . . . 142<br />
B.17 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 4 × 4 × 4. . . . . . . . . . . . . . . . . . 142<br />
B.18 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 4 × 8 × 2. . . . . . . . . . . . . . . . . . 143<br />
B.19 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 2 × 16 × 1. . . . . . . . . . . . . . . . . 144<br />
ix
Abstract<br />
<strong>Space</strong>-time codes are effective means by which to combat fading by exploiting diversity<br />
in both spatial and temporal dimensions. In this work, code per<strong>for</strong>mance and design<br />
are considered in the context of Direct-Sequence Code-Division Multiple-Access (DS-<br />
CDMA) systems. <strong>The</strong> per<strong>for</strong>mance criteria, diversity gain and coding gain, are redefined<br />
as functions of the spreading code correlation. Uplink and downlink scenarios are both<br />
analyzed in multipath fading channels. Optimal codes are searched <strong>for</strong> both spread and<br />
non-spread systems. To reduce the decoding complexity, suboptimal linear decoders are<br />
classified and analyzed. <strong>The</strong> asymptotic achievable diversity level is derived when the<br />
number of receive antennae is large. Motivated by the structures found in computer<br />
optimized codes, via distance preserving isometries, <strong>Space</strong>-<strong>Time</strong> <strong>Block</strong> <strong>Codes</strong> (STBCs)<br />
are constructed bottom-up by optimizing the coding gain layer-by-layer and reusing the<br />
optimized structure. STBCs constructed in this way are dubbed Nonlinear Hierarchical<br />
<strong>Codes</strong> (NHCs). NHCs are essentially a generalization of Slepian’s group codes <strong>for</strong><br />
the Gaussian channel to the multiple-input multiple-output quasi-static fading channel.<br />
NHCs consistently offer comparable or significantly better per<strong>for</strong>mance than constrained<br />
designs (orthogonal or unitary). Systematic Regular MTCM (RMTCM) design procedures<br />
are proposed to exploit the layered structure of NHCs which leads to optimized<br />
designs <strong>for</strong> various rates/block sizes/constellation sizes. <strong>The</strong> match between the distance<br />
spectrum of NHCs to the regular trellis structure optimizes coding gain directly, and full<br />
diversity is naturally maintained given the full rank of the constituent NHCs. Several<br />
factors which affect per<strong>for</strong>mance in both quasi-static and fast block fading channels are<br />
analyzed and exploited to improve the overall per<strong>for</strong>mance. Set expansion is used to improve<br />
high rate RMTCM designs. RMTCM offers the best tradeoff between per<strong>for</strong>mance<br />
and complexity among STTC and (interleaved) serial concatenated system.<br />
x
Chapter 1<br />
Introduction<br />
Methods <strong>for</strong> introducing diversity have long been used to combat fading in wireless channels,<br />
e.g., rake receiver and Maximal Ratio Combining are classical receiver diversity<br />
schemes [Pro95]. Recently, transmit diversity techniques have received significant attention<br />
due to their efficiency in bandwidth and power [GFBK99, Ala98, TSC98, Hug00].<br />
<strong>The</strong>se works are, in part, motivated by in<strong>for</strong>mation theoretic analyses [Tel95, FG98],<br />
which show that capacity increases linearly in the minimum of the number of transmit<br />
and receive antennae. <strong>The</strong>se capacity results are shown under the assumptions of statistically<br />
independent flat Rayleigh channels between all transmit/receive antenna pairs.<br />
Significant work has been done <strong>for</strong> non-spread space-time systems. <strong>Space</strong>-time code<br />
design criteria are provided in [GFBK99, TSC98]. Alamouti [Ala98] proposed a simple<br />
orthogonal space-time block code <strong>for</strong> 2 transmit antennae, it was later generalized in<br />
[TJC99] to orthogonal space-time block codes <strong>for</strong> more transmit antennae. Motivated by<br />
in<strong>for</strong>mation theoretic results, unitary space-time codes are studied in [HM00]. A systematic<br />
way to construct full-diversity unitary group codes based on representation theory<br />
of fixed-point-free groups is presented in [SHHS01]. Differential space-time modulation<br />
based on unitary group codes are studied in [Hug00, HS00]. A layered space-time architecture<br />
is suggested in [Fos96, GARH01]. A number of these non-spread block codes<br />
are used as benchmarks <strong>for</strong> the per<strong>for</strong>mance evaluation of our optimized codes found by<br />
computer search.<br />
<strong>The</strong>re is also a lot of work to generalize <strong>Space</strong>-time coding to Direct-Sequence Code-<br />
Division Multiple-Access (DS-CDMA) systems, but very few has offered the unique view<br />
of per<strong>for</strong>mance criteria and code design as a function of spreading code in both the uplink<br />
and downlink of spread systems, and as a consequence, could not take full advantage of<br />
1
spreading. <strong>The</strong> focus of [HMP01] is to provide full diversity gain by employing existing<br />
schemes. In the sequel, it is shown that full diversity is trivially satisfied; thus a focus<br />
on optimizing coding gain is more appropriate. <strong>Space</strong>-time spreading (STS) [HMP01]<br />
relies heavily on orthogonal spreading codes, whose orthogonality cannot be maintained<br />
in a practical asynchronous frequency-selective channel. In contrast, our optimized codes<br />
maintain their good per<strong>for</strong>mance over a wide range of spreading code correlation values<br />
and multipath profiles, and hence have greater utility in real channels. In [DSAM03],<br />
spreading is combined with the so-called algebraic constellations, the per<strong>for</strong>mance is<br />
evaluated via simulation. Although multipath is considered in the modelling, the effects of<br />
spreading and multipath in per<strong>for</strong>mance analysis and code design are not analyzed. Chipinterleaving<br />
and block-spreading are used in [ZGM02] to suppress the effect of multipath<br />
fading in spread systems. Low-dimensional spread modulation was considered in [BV03],<br />
the signal model was similar to the uplink in this work except that very short spreading<br />
codes were used. <strong>The</strong> main conclusion of [BV03] is similar to Proposition 2 <strong>for</strong> the uplink<br />
in this work: single user code design is sufficient to achieve full diversity in the uplink of<br />
a multiuser environment. We will show that the decoupling of code designs among users<br />
in the uplink is not a characteristic of low-dimensional spreading, but a consequence of<br />
independent fading experienced by different users in the uplink. In [WP99], optimal<br />
decoder and several suboptimal decoders, like linear and blind decoders, are presented<br />
and analyzed.<br />
In Chapter 2 of this work, we present a general model <strong>for</strong> space-time DS-CDMA signals<br />
in a multipath fading channel, and focus on per<strong>for</strong>mance analysis and code design as a<br />
function of spreading code correlation and multipath fading. Both uplink and downlink<br />
scenarios are considered. One consequence of multipath fading is that the optimal decoder<br />
is a block sequence decoder, however, with typical channel assumptions, we show that the<br />
code design based on the worst case pairwise error probability analysis remains a block<br />
optimization problem. <strong>The</strong> presence of multiple access and spreading make code design<br />
<strong>for</strong> spread systems different from that of non-spread systems. <strong>The</strong> differences in both the<br />
design criteria and the resultant optimal codes <strong>for</strong> spread and non-spread systems are<br />
highlighted.<br />
2
Based on the design criteria, which is related to spreading code correlation, this work<br />
further attempts to optimize codes based on coding gain. <strong>The</strong> found codes, deemed Optimal<br />
Minimum Metric (OMM) code, provide solid gains over known codes which have<br />
more structure, like orthogonal codes [TJC99, Ala98] and unitary group codes [SHHS01],<br />
in flat/multipath fading channels and single-user/multiuser systems. <strong>The</strong> structure of optimized<br />
codes leads to the construction of Nonlinear Hierarchical <strong>Codes</strong> (NHC) [GM03b],<br />
which is the focus of Chapter 4. <strong>The</strong> effect of the multipath fading channel on code per<strong>for</strong>mance<br />
is evaluated. Stronger statement than those in [TNSC99] are made regarding<br />
diversity gain and coding gain.<br />
Chapter 2 only considers the optimal Maximum Likelihood (ML) decoder. When the<br />
numbers of active users and space-time block codes (STBC) are large, the ML decoder is<br />
impractical due to large decoding complexity. In Chapter 3, we consider several different<br />
suboptimal linear decoders <strong>for</strong> STBC. <strong>The</strong> suboptimal decoders considered are structurally<br />
similar to those of [NSTC98], which employ a two stage decoding algorithm. In<br />
the first stage, a linear equalizers suppresses MAI and spatial inter-symbol interference.<br />
Subsequently, a mapper is implemented to map the linear filter soft outputs to a valid<br />
STBC(see Figure 3.2). <strong>The</strong> asymptotic achievable diversity level is evaluated <strong>for</strong> each<br />
linear decoders when the number of receive antennae grows. <strong>The</strong> Fisher In<strong>for</strong>mation<br />
Matrix <strong>for</strong> random code vector is also considered to reveal the favorable code structure<br />
<strong>for</strong> Linear Minimum Mean Squared Error (LMMSE) estimator.<br />
<strong>The</strong> per<strong>for</strong>mance criteria <strong>for</strong> a space-time system, diversity gain and coding gain,<br />
demand a significantly different code design strategy than that <strong>for</strong> Gaussian channels,<br />
because the code space defined by the coding gain is a non-linear, non-metric space.<br />
<strong>The</strong> space (transmit antenna) dimension also introduces more degrees of freedom in the<br />
code space than using the time dimension only. In Chapter 2, exhaustive computer<br />
searches are used to seek the optimal STBC code set <strong>for</strong> certain STBCs with small size<br />
and low rate, but the search is NP-hard and quickly becomes infeasible when the block<br />
code size grows large and code rate is high. <strong>The</strong> computer optimized codes exhibit<br />
very nice layered structure which motivates the construction of NHC in Chapter 4. <strong>The</strong><br />
construction of NHC is fundamentally different from that of constrained designs (unitary,<br />
orthogonal) by manipulating the relationship between codewords rather than properties<br />
of the individual codewords. Two questions are to be addressed in Chapters 4 and<br />
3
5, respectively: first, <strong>for</strong> an arbitrary size STBC from an nPSK constellation, how do<br />
we find the optimal (or near optimal) code set of various rates resulting in a distance<br />
spectrum with good structure? Secondly, <strong>for</strong> such found codes, how do we introduce<br />
memory among blocks to systematically utilize the structure of the distance spectrum?<br />
Distance spectrum is the enumeration of the distance measure of interest between all<br />
possible codeword pairs.<br />
<strong>The</strong> methodology of NHC construction via isometries <strong>for</strong> MIMO quasi-static fading<br />
channels is an extension of Slepian’s group codes [Sle68], where group structure (and<br />
hence distance uni<strong>for</strong>mity), is conserved in most cases. A sufficient condition <strong>for</strong> NHCs<br />
to achieve geometric uni<strong>for</strong>mity [GDF91] is established. <strong>The</strong> NHC construction starts<br />
from some initial codeword matrices with no constraint on the size and structure, and<br />
by means of isometries, systematically builds higher rate codes from lower rate codes,<br />
while preserving the good structure of the lower rate code. It is the relationship between<br />
codewords, rather than the structure of each individual codeword, that is exploited to<br />
optimize coding gain. <strong>The</strong> found NHCs match those found via exhaustive computer<br />
search, and exhibit not only optimized coding gain at each layer, but also great symmetry<br />
and structure to be exploited in Chapter 5 of this work.<br />
STBCs are usually insufficient to provide the needed protection from the effects of a<br />
fading channel, there<strong>for</strong>e memory is needed. <strong>Space</strong>-time trellis codes (STTC) [TSC98,<br />
BBH02, YB02, Gri99] usually rely on a convolutional encoder to introduce memory among<br />
symbols, but there are no good design rules to optimize coding gain rather than exhaustive<br />
computer search. Multiple Trellis Coded Modulation (MTCM) [BDMS91, DS87, SF02,<br />
JS02] serves as an ideal bridge to combine the advantages of both block codes and trellis<br />
codes, and offers simple and intuitive design rules to optimize coding gain systematically.<br />
<strong>The</strong> MTCM designs in [SF02, ATP98] use STBCs as an inner code of a convolutional<br />
encoder. However, such serial concatenation usually cannot take full advantage of the<br />
structure in STBCs, and there<strong>for</strong>e introduces memory among blocks “blindly”. Chapter<br />
5 of this work proposes systematic MTCM designs where memory is introduced between<br />
block codes directly, instead of through an outer convolutional encoder. Because of<br />
the symmetric structure in the trellis and constituent NHCs, such designs are dubbed<br />
RMTCM designs.<br />
4
In our RMTCM design, a regular trellis constructed specifically <strong>for</strong> fading channels<br />
is generated by shift-register chains. NHCs, which admit a natural set partitioning as in<br />
[Ung82], <strong>for</strong>m the constituent codes. <strong>The</strong> parameters of the regular trellis and set partitioning<br />
are matched to exploit the layered structure of the constituent NHCs optimally.<br />
Several factors which affect per<strong>for</strong>mance in both quasi-static and fast block fading channels<br />
are analyzed and exploited to improve the overall per<strong>for</strong>mance. Set expansion is used<br />
to improve high rate MTCM designs. In each design, the per<strong>for</strong>mance/rate/complexity<br />
tradeoffs are gracefully balanced and optimized. <strong>The</strong> general design procedure can be<br />
used to serve two purposes: <strong>for</strong> a given set of NHCs, provide MTCM designs with various<br />
rates, and, <strong>for</strong> a given rate, provide MTCM designs with various complexity and<br />
per<strong>for</strong>mance.<br />
<strong>The</strong> MTCM design in [JS02] is a special case of the RMTCM design in this work,<br />
where the constituent codes are restricted to orthogonal codes and signal expansion is<br />
limited to a special isometry; the set partitioning and trellis structure of [JS02] are not<br />
systematic. RMTCM design can achieve a half dB gain over the rate 3 MTCM design in<br />
[JS02] by doubling the number of states via adjusting trellis parameters. With even more<br />
states, as much as 2dB gain can be achieved. <strong>The</strong> observation, that parallel transitions<br />
should be avoided <strong>for</strong> better per<strong>for</strong>mance in quasi-static channels, is made in [JS02] <strong>for</strong><br />
orthogonal constituent codes only, we will show that it holds <strong>for</strong> more general cases.<br />
<strong>The</strong> design principles of RMTCM do not rely on quasi-static fading channels. Thus<br />
they can be employed to design RMTCM even <strong>for</strong> fast block fading channels, where fast<br />
block fading is achieved due to perfect block interleaving. Both analysis and simulation<br />
show that parallel transitions are the major detrimental factor which should be avoided<br />
<strong>for</strong> fast block fading channels. A similar conclusion is drawn <strong>for</strong> MTCM design over<br />
Single-Input-Single-Output fast-fading (due to perfect interleaving) channels [BDMS91].<br />
This thesis is organized as follows: Chapter 2 discusses space-time block codes in<br />
multipath CDMA systems. Chapter 3 discusses suboptimal linear decoders. Chapter 4<br />
discusses the construction and properties of NHC. Chapter 5 discusses the design procedure<br />
and per<strong>for</strong>mance analysis of RMTCM. Chapter 6 summarizes this work and points<br />
out future work.<br />
5
Chapter 2<br />
<strong>Space</strong>-<strong>Time</strong> <strong>Block</strong> <strong>Codes</strong> in Multipath CDMA <strong>Systems</strong><br />
2.1 Introduction<br />
<strong>The</strong>re is a lot of work to generalize <strong>Space</strong>-time coding to Direct-Sequence Code-Division<br />
Multiple-Access (DS-CDMA) systems, but very few has offered the unique view of per<strong>for</strong>mance<br />
criteria and code design as a function of spreading code in both the uplink<br />
and downlink of spread systems, and as a consequence, couldn’t take full advantage of<br />
spreading. <strong>The</strong> focus of [HMP01] is to provide full diversity gain by employing existing<br />
schemes. In the sequel, it is shown that full diversity is trivially satisfied; thus a focus<br />
on optimizing coding gain is more appropriate. <strong>Space</strong>-time spreading (STS) [HMP01]<br />
relies heavily on orthogonal spreading codes, whose orthogonality cannot be maintained<br />
in a practical asynchronous frequency-selective channel. In contrast, our optimized codes<br />
maintain their good per<strong>for</strong>mance over a wide range of spreading code correlation values<br />
and multipath profiles, and hence have greater utility in real channels. In [DSAM03],<br />
spreading is combined with the so-called algebraic constellations, the per<strong>for</strong>mance is evaluated<br />
via simulation. Although multipath is considered in the modelling, the effects of<br />
spreading and multipath in per<strong>for</strong>mance analysis and code design are not analyzed. Chipinterleaving<br />
and block-spreading are used in [ZGM02] to suppress the effect of multipath<br />
fading in spread systems. Low-dimensional spread modulation was considered in [BV03],<br />
the signal model was similar to the uplink in this work except that very short spreading<br />
codes were used. <strong>The</strong> main conclusion of [BV03] is similar to Proposition 2 <strong>for</strong> the uplink<br />
in this work: single user code design is sufficient to achieve full diversity in the uplink of<br />
a multiuser environment. In [WP99], optimal decoder and several suboptimal decoders,<br />
like linear and blind decoders, are presented and analyzed.<br />
6
In this work, we present a general model <strong>for</strong> space-time DS-CDMA signals in a multipath<br />
fading channel, and focus on per<strong>for</strong>mance analysis and code design as a function<br />
of spreading code correlation and multipath fading. Both uplink and downlink scenarios<br />
are considered. Furthermore, the framework is general enough to encompass non-spread<br />
systems with slight modification (Section 2.4). Note that multipath fading is a consequence<br />
of signal bandwidth exceeding channel coherence bandwidth. Rich multipath fading<br />
is usually observed in spread systems where signal usually occupy large bandwidth which<br />
exceeds channel coherence bandwidth. Non-spread systems may also experience multipath<br />
fading [TNSC99], although less severe than spread systems. One consequence of multipath<br />
fading is that the optimal decoder is a block sequence decoder, however, with typical<br />
channel assumptions, we show that the code design based on the worst case pairwise error<br />
probability analysis remains a block optimization problem. <strong>The</strong> presence of multiple access<br />
and spreading make code design <strong>for</strong> spread systems different from that of non-spread<br />
systems. <strong>The</strong> differences in both the design criteria and the resultant optimal codes <strong>for</strong><br />
spread and non-spread systems are highlighted. Due to the assumption of independent<br />
channels, at the uplink, the multiuser coding problem decouples to multiple single user<br />
coding problems; in contrast, the downlink space time coding problem is truly a multiuser<br />
problem. At the uplink, all the transmissions of different users are asynchronous, but this<br />
does not affect the per<strong>for</strong>mance analysis and code design due to the decoupling among<br />
users.<br />
Based on the design criteria, which is related to spreading code correlation, this work<br />
further attempts to optimize codes based on coding gain. <strong>The</strong> found codes, deemed Optimal<br />
Minimum Metric (OMM) code, provide solid gains over known codes which have<br />
more structure, like orthogonal codes [TJC99, Ala98] and unitary group codes [SHHS01],<br />
in flat/multipath fading channels and single-user/multiuser systems. <strong>The</strong> search <strong>for</strong> optimized<br />
codes is simplified through “isometries”, trans<strong>for</strong>mations to which the design<br />
metrics are invariant. For more detailed discussion on isometry, please refer to Section<br />
4.2. We also analyze some methods to construct space-time codes and show their per<strong>for</strong>mance<br />
with respect to spreading code correlation. <strong>The</strong> structure of optimized codes<br />
leads to the construction of nonlinear hierarchical codes [GM03b].<br />
<strong>The</strong> effect of the multipath fading channel on code per<strong>for</strong>mance is evaluated. As expected,<br />
with perfect CSI, multipath provides a higher diversity level. Spread systems can<br />
7
easily achieve maximum diversity (the number of transmit antenna times the number of<br />
multipaths <strong>for</strong> one receive antenna), while non-spread systems must satisfy more stringent<br />
conditions to achieve full diversity. A similar, but weaker result was presented in<br />
[TNSC99], which showed that a space-time code will achieve at least the same diversity<br />
in a multipath fading channel as it does in a flat fading channel. Herein, the exact diversity<br />
level is easily determined. Based on the observation on diversity level, [TNSC99]<br />
concludes that a space-time code designed <strong>for</strong> a slow flat fading channel will continue<br />
to per<strong>for</strong>m well in a multipath fading channel, we will further show that this conclusion<br />
also holds in terms of coding gain when the multipath delay spread is relatively small in<br />
comparison to the symbol interval duration.<br />
This chapter is organized as follows. Section 2.2 derives the per<strong>for</strong>mance criteria and<br />
code design principles in the uplink. Section 2.3 discusses the downlink. Section 2.4<br />
briefly describes the non-spread system. Section 2.5 tabulates some of the optimized<br />
codes found via computer search, compares their per<strong>for</strong>mance with some known codes,<br />
and analyzes properties of these codes. Section 2.6 considers some application issues<br />
<strong>for</strong> the quasi-static channel: invariant operations, the sensitivity of code per<strong>for</strong>mance<br />
to spreading code correlation, and some suboptimal methods <strong>for</strong> constructing spacetime<br />
codes. Finally, conclusions and some suggestions <strong>for</strong> future work are discussed in<br />
Section 2.7.<br />
2.2 <strong>The</strong> Uplink<br />
In this section, we provide a general space-time model <strong>for</strong> the uplink of DS-CDMA systems.<br />
<strong>The</strong> generality of the <strong>for</strong>mulation incurs some added complexity, but offers the<br />
advantage of enabling analysis of coding gain as a function of the spreading code correlation.<br />
If the channel coefficients of different receive antennae are uncorrelated and<br />
the Maximum-Likelihood decoder is employed, multiple receive antennae will not affect<br />
code design based on worst case PEP analysis (but do affect per<strong>for</strong>mance). Recent work<br />
shows that as the number of receive antennae increases, the multi-input multi-output<br />
fading channel model approaches a multiple parallel AWGN channel model; as such different<br />
design metrics should be considered <strong>for</strong> the large number of receive antennae case<br />
[GF01, CYV99]. Herein, we consider a small to moderate number of receive antennae,<br />
8
hence the worst case PEP is still a valid design criterion. Furthermore, due to our consideration<br />
of the maximum likelihood decoder, we focus on a single receive antenna. Note<br />
that <strong>for</strong> other decoding rules like Minimum Mean Squared Error (MMSE), the number<br />
of receive antennae does matter in code design [GM01].<br />
Due to the large dimensionality of our problem, a variable X might have up to 4<br />
indices. To assist the reader in deciphering the notation X l(k)<br />
i<br />
(t), we generally con<strong>for</strong>m<br />
to the following rules: the subscript i is the transmit antenna index, the first superscript<br />
l is the multipath index, the second superscript (k) is the user index, and finally t is<br />
the time index.<br />
Sometimes a matrix or vector is independent of the time index t or<br />
transmit antenna index i, but we still keep that index to help track the dimension of the<br />
corresponding matrix or vector. In this case, we will point it out explicitly. Two kinds of<br />
codeword matrices are constantly used throughout the chapter, the calligraphic D, which<br />
represents the block code in its original block <strong>for</strong>m, and the regular D, which represents<br />
a reshaped version of D. A prefix ∆ in front of D or D denotes the difference between<br />
two codewords.<br />
We summarize the constants used in this chapter <strong>for</strong> quick reference:<br />
K: the # of active users<br />
L t : the # of transmit antennae<br />
L r : the # of receive antennae<br />
L c : the # of maximum resolvable multipaths <strong>for</strong> a single transmit antenna<br />
N c : the time dimension of block code in units of the symbol period<br />
L u : the # of samples per symbol period, or sampling rate, <strong>for</strong> non-spread systems,<br />
or spreading gain <strong>for</strong> chip-sampled DS-CDMA systems<br />
τ max : the largest path delay<br />
L s : the # of samples between two consecutive transmissions<br />
Note that L s is used <strong>for</strong> non-spread systems only, <strong>for</strong> spread systems, L s = L u .<br />
In this chapter, a unique integer, the code index, is used to represent a codeword. If<br />
nPSK is employed, u is the n th root of unity u = e j 2π n and d i (t) = u ci(t) , a block code<br />
matrix of size N c × L t can be represented by the index obtained from a base n number:<br />
(c Lt (N c )c Lt−1(N c )c Lt−2(N c ) · · · · · · + c 2 (1)c 1 (1)) n . (2.1)<br />
9
For example, a BPSK 2 × 2 block code,<br />
⎡<br />
⎣ 1<br />
−1<br />
⎤<br />
−1 ⎦ ,<br />
−1<br />
can be represented by code index,<br />
c 2 (2) + c 1 (2)n + c 2 (1)n 2 + c 1 (1)n 3 = 1 + 1 × 2 + 1 × 4 + 0 × 8 = 7.<br />
2.2.1 <strong>The</strong> Uplink System Model<br />
In the uplink between K active users and one base station, we will show how optimizing<br />
the per<strong>for</strong>mance of a sequence block decoder leads to the design of each block code<br />
individually and also how this problem simplifies into multiple, single user, coding problems.<br />
We shall consider an asynchronous multipath channel model. <strong>The</strong> transmitter is<br />
equipped with L t transmit antennae and the receiver is equipped with 1 receive antenna.<br />
Figure 2.1 depicts the encoder block diagram <strong>for</strong> a single block code. For each block, the<br />
transmitter maps k c in<strong>for</strong>mation bits of user k, [I (k) (1), I (k) (2), . . . , I (k) (k c )], to one of<br />
K c = 2 kc space-time block codewords,<br />
D (k) = [d (k)<br />
i<br />
(t)] ∈ C Nc×Lt , 1 ≤ i ≤ L t , 1 ≤ t ≤ N c (2.2)<br />
where N c is the block length in terms of symbol duration. Each d (k)<br />
i<br />
(t) is spread by<br />
a corresponding spreading code s (k)<br />
i<br />
(t) and transmitted via the corresponding transmit<br />
antenna T X i . Note that each row of the codeword matrix is transmitted simultaneously.<br />
A total of M such blocks are transmitted continuously, no memory exists among these<br />
blocks. <strong>The</strong> code rate is<br />
R c = k c<br />
N c<br />
. (2.3)<br />
In our <strong>for</strong>mulation, each d (k)<br />
i<br />
(t) can be taken from any point on the complex plane, but<br />
in the following discussion of code design, d (k)<br />
i<br />
(t) is constrained to PSK constellations <strong>for</strong><br />
practical purposes. <strong>The</strong> spreading code s (k)<br />
i<br />
(t) is a column vector of length L u , which has<br />
support over one symbol period. <strong>The</strong> typical entries of s (k)<br />
i<br />
(t) are {±1/ √ L u }, but this is<br />
not required in the following derivation and analysis. If one uses different spreading codes<br />
at different symbol times <strong>for</strong> the same antenna, then s (k)<br />
i<br />
(t 1 ) ≠ s (k)<br />
i<br />
(t 2 ), this model applies<br />
10
€<br />
‚ƒ<br />
„ …†<br />
‡<br />
‰ ˆ<br />
((( ( ( ( (((<br />
—<br />
˜<br />
DDD D D D DDD<br />
User k’s In<strong>for</strong>mation bits<br />
ST <strong>Block</strong> Coding<br />
ST Spreading<br />
<br />
1/24365<br />
=/=>= 1/2?3@5 ACB 8":¦<<br />
798;:¦<<br />
"!$# %%% <br />
&¦' "!$#<br />
¢¡¤£¦¥¨§© ¡¤£¦¥§<br />
)<br />
)<br />
1/24365<br />
+*-,"#.%%%<br />
7E8GFIHJ=<br />
AB 8LFIHJ<<br />
&/' +*-,0#<br />
1/243@5<br />
Figure 2.1: Transmitter encoder block diagram <strong>for</strong> user k.<br />
to long spreading codes which span several symbol times. For a non-spread system, which<br />
will be discussed briefly in Section 2.4, this vector is composed of higher rate samples of<br />
the modulation wave<strong>for</strong>m and is the same <strong>for</strong> all transmit antennae; <strong>for</strong> a spread system,<br />
s (k)<br />
i<br />
(t) is a well-designed spreading code, with a possibly different code <strong>for</strong> each antenna.<br />
We note that near orthogonality between spreading codes is not a requirement in our<br />
scheme, thus assigning unique spreading codes to different antennae of each user is not a<br />
challenge.<br />
<strong>The</strong> receiver block diagram is shown in Figure 2.2. In multipath fading channels, the<br />
optimal decoder should consider the entire received sequence of M blocks due to interblock<br />
interference from the previous and subsequent blocks. If the M blocks are among a<br />
continuous transmission of blocks, we assume that the sequence length M is long enough<br />
such that the edge effects can be safely neglected.<br />
Matched<br />
Filter Bank<br />
Sequence<br />
Decoder<br />
S-T0UVVVU R SXW R<br />
MONQP<br />
Figure 2.2: Receiver decoder block diagram.<br />
Œ Ž<br />
‘ ’“<br />
” •–<br />
žŸ<br />
Š‹<br />
Gš<br />
›œ<br />
¡/¡¦¡$¡¦¡/¡<br />
s+tu vewCx;y?z{ | }+~@<br />
r<br />
_ `+ab cedf?gh i j+kl meno?pq<br />
Y[Z;\?]^<br />
¢/¢¦¢$¢¦¢/¢<br />
Figure 2.3: Channel model.<br />
A chip spaced tap delay line model [Pro95] is used to model the channel between<br />
each transmit/receive antenna pair, as depicted in Figure 2.3. <strong>The</strong> number of resolvable<br />
11
multipaths corresponding to each transmit and receive antenna pair is denoted by L c .<br />
For simplicity, we will assume that the channels between different transmit/receive antenna<br />
pairs have the same number of multipaths. Our model handles different number<br />
of multipaths equally well, but that adds unnecessary complexity to the <strong>for</strong>mulae. Note<br />
that L c may be less than or equal to the largest path delay τ max . For user k, the delay<br />
corresponding to multipath l associated with transmit antenna i is τ l(k)<br />
i<br />
. <strong>The</strong> channel<br />
tap amplitude and phase associated with τ l(k)<br />
i<br />
at symbol time t are represented by a<br />
complex number h l(k)<br />
i<br />
(t), which is called the channel coefficient and modelled as a circularly<br />
symmetric complex Gaussian random process. We consider quasi-static fading only,<br />
there<strong>for</strong>e h l(k)<br />
i<br />
(t) is constant within the block, but independent from block to block. All<br />
unique channel coefficients are assumed to be i.i.d.. <strong>The</strong> chip spaced multipath model is<br />
an idealized model <strong>for</strong> real channels and is invoked here to facilitate an analytical understanding.<br />
<strong>The</strong> delay τ l(k)<br />
i<br />
is assumed constant within M blocks because it is determined by<br />
the propagation delay of corresponding multipath, which is fairly constant <strong>for</strong> a moderate<br />
mobility environment. Both transmit and receive antennae are assumed to be sufficiently<br />
separated such that the channel coefficients <strong>for</strong> different transmit/receive antennae are<br />
statistically independent. We use the delay profile matrix<br />
to describe the spread of the path delays <strong>for</strong> user k and<br />
⎡<br />
⎤<br />
τ 1(k)<br />
1 · · · τ Lc(k)<br />
1<br />
Γ (k) =<br />
.<br />
⎢ . .. . ⎥<br />
⎣<br />
⎦ , (2.4)<br />
τ 1(k)<br />
L t<br />
· · · τ Lc(k)<br />
L t<br />
Γ = [Γ (1) , . . . , Γ (K) ] (2.5)<br />
to describe all users’ delay profiles. Note that<br />
(t) ∈ R (Lu+τmax)×1 as the delayed duplicate of s (k) (t) corresponding to mul-<br />
Denote g l(k)<br />
i<br />
tipath l, it has τ l(k)<br />
i<br />
τ max = max τ l(k)<br />
i<br />
, ∀i, l, k (2.6)<br />
zeros preceding s (k)<br />
i<br />
(t) and possibly some trailing zeros to make its<br />
i<br />
12
length (L u + τ max ). For example, when using one sample per chip, the spreading code<br />
s (k)<br />
i<br />
(t) and its delayed version g l(k)<br />
i<br />
(t) with τ l(k)<br />
i<br />
= 2 may look like<br />
s (k)<br />
i<br />
(t) =<br />
1 √ Lu<br />
[ 1, −1, −1, 1, . . . , 1, −1 ] T<br />
g l(k)<br />
i<br />
(t) =<br />
1 √ Lu<br />
[ 0, 0, 1, −1, −1, 1, . . . , 1, −1 0 . . . 0] T (2.7)<br />
<strong>The</strong> received signal samples due to d (k)<br />
i<br />
(t) are<br />
r(t) = √ σ t<br />
∑<br />
K ∑L t L c<br />
∑<br />
k=1 i=1 l=1<br />
g l(k)<br />
i<br />
(t)d (k)<br />
i<br />
(t)h l(k)<br />
i<br />
(t) + n(t) ∈ C (Lu+τmax)×1 (2.8)<br />
where n(t) is complex white Gaussian noise ∼ CN (0, I). Note that the length of r(t)<br />
extends beyond a symbol period L u due to multipath fading.<br />
We use CN (m, R) to<br />
denote a complex Gaussian random vector with mean vector m and covariance matrix<br />
R.<br />
We will group r(t) in the order of multipath, user and block to <strong>for</strong>m a final observation<br />
vector r <strong>for</strong> the whole sequence of received blocks. We define<br />
G (k) (t) = [g 1(k)<br />
1 (t), . . . , g 1(k) (t), . . . . . . , g Lc(k)<br />
1 (t), . . . , g Lc(k)<br />
L t<br />
(t)] ∈ R (Lu+τmax)×LcLt (2.9)<br />
L t<br />
group 1<br />
group L c<br />
{ }} { { }} {<br />
D (k) (t) = diag[ d (k)<br />
1 (t), . . . , d(k)<br />
L t<br />
(t), . . . . . . d (k)<br />
1 (t), . . . , d(k)<br />
L t<br />
(t)] ∈ C LcLt×LcLt (2.10)<br />
h (k) (t) = [h 1(k)<br />
1 (t), . . . , h 1(k) (t), . . . . . . , h Lc(k)<br />
1 (t), . . . , h Lc(k)<br />
L t<br />
(t)] T ∈ C LcLt×1 (2.11)<br />
L t<br />
For symbol time t, matrix G (k) (t) collects the spreading codes corresponding to all multipaths<br />
<strong>for</strong> user k, D (k) (t) contains L c duplicates of user k’s data, and h (k) (t) collects the<br />
channel coefficients of all the multipaths <strong>for</strong> user k.<br />
Equation (2.8) can be written in matrix <strong>for</strong>m as,<br />
r(t) = √ σ t G(t)D(t)h(t) + n(t) ∈ C (Lu+τmax)×1 (2.12)<br />
13
where<br />
G(t) = [G (1) (t), . . . . . . , G (K) (t)] ∈ R (Lu+τmax)×KLcLt (2.13)<br />
D(t) = diag[D (1) (t), . . . . . . , D (K) (t)] ∈ C KLcLt×KLcLt (2.14)<br />
h(t) = [h (1) (t) T , . . . . . . , h (K) (t) T ] T ∈ C KLcLt×1 (2.15)<br />
Note that inter-symbol interference (ISI) occurs on the last τ max samples of r(t − 1)<br />
and the first τ max samples of r(t).<br />
<strong>The</strong> received vector due to block m is obtained<br />
by “concatenating” the r(t), t = 1, . . . , MN c into a larger vector with τ max overlapping<br />
samples between adjacent r(t − 1) and r(t),<br />
⎡<br />
⎤ ⎡<br />
⎤<br />
G((m − 1)N<br />
r m = √ c + 1) ∅ ∅ D((m − 1)N c + 1)<br />
[<br />
]<br />
σ<br />
.<br />
t ⎢ ∅ .. ∅ ⎥ ⎢ . ⎥ h((m − 1)N<br />
⎣<br />
⎦ ⎣<br />
⎦<br />
c + 1)<br />
∅ ∅ G(mN c ) D(mN c )<br />
(2.16)<br />
⎡<br />
⎤<br />
n((m − 1)N c + 1)<br />
+ ⎢ . ⎥<br />
⎣<br />
⎦ √ σ t G m D m h m + n m ∈ C (NcLu+τmax)×1 . (2.17)<br />
n(mN c )<br />
Note that<br />
⎡<br />
⎤<br />
G((m − 1)N c + 1) ∅ ∅<br />
G m =<br />
.<br />
⎢ ∅ .. ∅ ⎥<br />
⎣<br />
⎦<br />
∅ ∅ G(mN c )<br />
(2.18)<br />
is not block diagonal, there are τ max overlapping rows between the adjacent blocks of G(t).<br />
<strong>The</strong> matrix G m is described in this fashion <strong>for</strong> notational convenience. If a matrix is block<br />
diagonal, the notation 0 is used (versus ∅. <strong>The</strong> following block matrix shows how the<br />
last τ max rows of G(1) overlaps with the first τ max rows of G(2), the overlapping section<br />
are designated by a prime.<br />
⎡ [<br />
G(1)<br />
[<br />
⎢ G ′ (1)<br />
⎣ [<br />
0<br />
]L u×KL tL c<br />
[<br />
]τ max×KL tL c<br />
[<br />
]L u×KL tL c<br />
[<br />
]<br />
0<br />
]<br />
G ′ (2)<br />
]<br />
G(2)<br />
L u×KL tL c<br />
τ max×KL tL c<br />
L u×KL tL c<br />
⎤<br />
⎥<br />
⎦<br />
14
Due to quasi-static fading, h((m − 1)N c + 1) = · · · = h(mN c ), hence h m consists of only<br />
one h((m − 1)N c + 1). <strong>The</strong> noise vector n m is complex Gaussian n m ∼ CN (0, I).<br />
Finally, the observation vector of the whole sequence<br />
⎡<br />
⎤ ⎡<br />
⎤ ⎡ ⎤ ⎡ ⎤<br />
G<br />
r = √ 1 ∅ ∅ D σ t ⎢ ∅ . 1 0 0 h 1 n 1<br />
. . . ∅ ⎥ ⎢ 0 .. 0 ⎥ ⎢ . ⎥<br />
⎣<br />
⎦ ⎣<br />
⎦ ⎣ ⎦ + ⎢ . ⎥ (2.19)<br />
⎣ ⎦<br />
∅ ∅ G M 0 0 D M h M n M<br />
√ σ t Ḡ ¯Dh + n ∈ C (MNcLu+τmax)×1 . (2.20)<br />
Note that ¯D represents a sequence of M block codes.<br />
A matched filter bank, which is matched to each multipath of each user at every<br />
symbol time t, is constructed. <strong>The</strong> matched filter outputs, which <strong>for</strong>m a sufficient statistic<br />
(ignoring any edge effect from the first and last blocks) <strong>for</strong> the decoder, can be written<br />
as<br />
y = ḠT r = √ σ t ¯R ¯Dh + m ∈ C<br />
MN cL cKL t×1 , (2.21)<br />
where<br />
¯R ḠT Ḡ = [R ij ] ∈ R MNcLcKLt×MNcLcKLt (2.22)<br />
is the spreading code correlation matrix, note that the<br />
R ij G H i G j , 1 ≤ i, j ≤ M (2.23)<br />
are sparse or zero matrices when i ≠ j, m ḠT n is distributed as CN (0, ¯R).<br />
2.2.2 <strong>The</strong> Uplink Chernoff Bound and Code Design Criteria<br />
We derive the Chernoff bound of pairwise error probability (PEP) when the Maximum<br />
Likelihood (ML) decoder is employed at the receiver as in [GFBK99, TSC98] under the<br />
assumption of perfect channel state in<strong>for</strong>mation at the receiver. <strong>The</strong> matched filter output<br />
vector is y ∼ CN ( √ σ t R ¯Dh, R). <strong>The</strong> averaged probability of decoding codeword sequence<br />
¯D β while codeword sequence ¯D α is transmitted is upper bounded by<br />
E h [P ( ¯D α → ¯D 1<br />
β |h)] ≤ ∣<br />
∣I + σt<br />
4 Σ h( ¯D α − ¯D β ) H ¯R( ¯D α − ¯D β ) ∣ , (2.24)<br />
15
where D α and D β are two codeword sequences as defined in Equation (2.20) and Σ h =<br />
E[hh H ] ∈ R MKLtLc×MKLtLc is the correlation matrix of the channel coefficients. Due to<br />
independent fading, Σ h is a diagonal matrix, where each diagonal entry corresponds to<br />
the power of a particular multipath <strong>for</strong> a particular user at certain block m.<br />
We denote ∆ ¯D = ¯D α − ¯D β . <strong>The</strong> correlated codeword sequence difference matrix, ¯Φ,<br />
is defined as<br />
¯Φ = ∆ ¯D H ¯R∆ ¯D ∈ C<br />
MKL cL t×MKL cL t<br />
(2.25)<br />
Φ ij = ∆D H i R ij ∆D j , 1 ≤ i, j ≤ M ∈ C KLcLt×KLcLt (2.26)<br />
Notice that Φ mm , m = 1, . . . , M are the dominant blocks in Φ.<br />
For high SNR, the Chernoff bound can be approximated [GFBK99, TSC98] by<br />
E h [P (D α → D β |h)] ≤<br />
(<br />
( σt<br />
) −r r∏<br />
) −1<br />
λ i , (2.27)<br />
4<br />
i=1<br />
where λ i ’s are the nonzero eigenvalues of Σ h ¯Φ and r is the number of λi ’s. Taken over all<br />
codeword pairs, the minimum possible number of non-zero eigenvalues of Φ determines<br />
the diversity gain,<br />
∆ H = min rank(¯Φ). (2.28)<br />
∆ ¯D<br />
For those pairs of codewords which achieve ∆ H , the smallest product of non-zero eigenvalues<br />
of Φ determines the coding gain,<br />
∆∏<br />
H<br />
∆ p = min λ i . (2.29)<br />
∆ ¯D<br />
i=1<br />
In the case of full diversity,<br />
∆ p = min<br />
∆D det(¯Φ). (2.30)<br />
While diversity gain and coding gain are the classical worst-case space-time code design<br />
criteria, the distance spectrum of the code set is a more accurate per<strong>for</strong>mance indicator <strong>for</strong><br />
a small number of receive antennae [AF01]. Union bound is used in [GVM02] to optimize<br />
the whole distance spectrum, the resultant codes can achieve better per<strong>for</strong>mance than<br />
the corresponding OMM code.<br />
16
If we assume that the channel coefficients are independent <strong>for</strong> different transmit antennae,<br />
a nontrivial Σ h will be a diagonal matrix with full rank, and the code design<br />
will be independent of channel statistics. To simplify the analysis, in the sequel we will<br />
assume this and focus on ¯Φ only.<br />
2.2.3 <strong>The</strong> Correlated Codeword Sequence Difference Matrix Φ<br />
We assume each transmit antenna uses the same fixed spreading code during the M<br />
blocks<br />
s i (1) = s i (2) = · · · = s i (MN c ) (2.31)<br />
G 1 = · · · = G M and R mm exhibits a banded block Toeplitz structure. For the quasi-static<br />
fading channels, Φ mm can be put in a more compact <strong>for</strong>m.<br />
If nL u ≤ τ max < (n + 1)L u , then R mm = G T mG m ∈ R NcKLcLt×NcKLcLt has the <strong>for</strong>m<br />
⎡<br />
⎤<br />
R mm (0) R mm (1) . . . R mm (n + 1) 0<br />
R mm (1) T<br />
.<br />
R(0) .. . .. Rmm (n + 1)<br />
R mm =<br />
. .<br />
.. . .. . .. .<br />
, (2.32)<br />
⎢<br />
⎣<br />
R mm (n + 1) T . .. . .. . .. Rmm (1) ⎥<br />
⎦<br />
0 R mm (n + 1) T . . . R mm (1) T R mm (0)<br />
where R mm (0) captures the “on-time” correlation of the spreading codes,<br />
R mm (0) = G(t) T G(t) ∈ R KLcLt×KLcLt , (2.33)<br />
and R mm (t), 1 ≤ t ≤ n captures the “off-time” correlation,<br />
⎡ ⎤<br />
R mm (t) = ⎣ G(t) ⎦<br />
0<br />
⎤<br />
⎣ 0 ⎦ ∈ R LcKLt×LcKLt (2.34)<br />
G(t)<br />
T ⎡<br />
where, G(t) ∈ R (Lu+τmax)×KLcLt is defined in Equation (2.13), 0 ∈ R nLu×KLcLt is an<br />
all-zero matrix whose size depends on n.<br />
17
For the quasi-static fading channel, Φ mm can be simplified as 1<br />
n+1<br />
∑<br />
Φ mm = ∆DL H c<br />
∆D Lc ⊙ R mm (0) + ∆DL H c<br />
Q n+1 ∆D Lc ⊙ (R mm (t) + Rmm(t)) T (2.35)<br />
t=1<br />
where<br />
and<br />
L c blocks<br />
{ }} {<br />
∆D Lc = [ ∆D, . . . , ∆D] (2.36)<br />
⎡<br />
⎤<br />
0 1 · · · 0<br />
. . .. . .. .<br />
Q =<br />
⎢<br />
.<br />
⎣<br />
. .. . (2.37)<br />
1 ⎥<br />
⎦<br />
0 · · · · · · 0<br />
Regarding the rank of Φ and Φ mm , we have the following proposition that is independent<br />
of the space-time code selected.<br />
Proposition 1 If ∆D m ≠ 0 and at least one of ∆D n ≠ 0, n ≠ m,<br />
min rank ¯Φ > rank Φ mm , ∀m = 1, . . . , M, (2.38)<br />
∆ ¯D<br />
provided one of the following conditions is satisfied:<br />
1. <strong>The</strong> difference between no pairs of distinct path delays is an integer multiple of the<br />
spreading code length L u<br />
|τ lp(kp)<br />
i p<br />
− τ lq(kq)<br />
i q<br />
| ≠ nL u n = 1, 2, . . . ,<br />
1 ≤ i p ≠ i q ≤ L t or<br />
1 ≤ k p ≠ k q ≤ K.<br />
(2.39)<br />
2. If the spreading codes are not time-varying, i.e. s (k)<br />
i<br />
(1) = · · · = s (k)<br />
i<br />
(MN c ), ∀ i, k,<br />
then<br />
the set of spreading codes {s (k)<br />
i<br />
, 1 ≤ i ≤ L t , 1 ≤ k ≤ K} are linearly independent.<br />
(2.40)<br />
1 <strong>The</strong> operator ⊙ is the Schur product, and ⊗ is the Kronecker product.<br />
18
3. Without loss of generality, assume τ lp(kp)<br />
i p<br />
= τ min and τ lq(kq)<br />
i q<br />
= τ max , at least one of<br />
∆d (kp)<br />
i p<br />
(t m + (m − 1)N c ) ≠ 0, 1 ≤ t m ≤ N c , and (2.41)<br />
∆d (kq)<br />
i q<br />
(t m + (m − 1)N c ) ≠ 0, 1 ≤ t m ≤ N c . (2.42)<br />
Proof:<br />
Recall from Equations (2.25) and (2.22), ¯Φ = ∆ ¯D H ¯R∆ ¯D and ¯R = Ḡ T Ḡ. <strong>The</strong>re<strong>for</strong>e<br />
¯Φ = (Ḡ∆ ¯D) H Ḡ∆ ¯D, (2.43)<br />
rank ¯Φ = rank Ḡ∆ ¯D (2.44)<br />
where<br />
Similarly,<br />
⎡<br />
⎤<br />
G<br />
Ḡ∆ ¯D 1 ∆D 1 ∅ ∅<br />
=<br />
.<br />
⎢ ∅ .. ∅ ⎥<br />
⎣<br />
⎦ .<br />
∅ ∅ G M ∆D M<br />
rank Φ mm = rank G m ∆D m (2.45)<br />
Let’s consider the two blocks from Ḡ∆ ¯D:<br />
G m ∆D m = [g lp(kp)<br />
i p<br />
(t m + (m − 1)N c )∆d (kp)<br />
i p<br />
(t m + (m − 1)N c )], 1 ≤ t m ≤ N c , (2.46)<br />
G n ∆D n = [g lq(kq)<br />
i q<br />
(t n + (n − 1)N c )∆d (kq)<br />
i q<br />
(t n + (n − 1)N c )], 1 ≤ t n ≤ N c . (2.47)<br />
We want to prove that G m ∆D m and G n ∆D n span different column spaces of Ḡ∆ ¯D. It<br />
is sufficient to show that there exists at least one vector g lp(kp)<br />
i p<br />
(t m +(m−1)N c )∆d (kp)<br />
i p<br />
(t m +<br />
(m−1)N c ) from G m ∆D m that is not a linear combination of any components of {g lq(kq)<br />
i q<br />
(t n +<br />
(n − 1)N c )∆d (kq)<br />
i q<br />
(t n + (n − 1)N c )}, i.e., the columns of G n ∆D n from Ḡ∆ ¯D.<br />
1. For any non-zero vector g lp(kp)<br />
i p<br />
(t m + (m − 1)N c )∆d (kp)<br />
i p<br />
(t m + (m − 1)N c ), in Ḡ∆ ¯D,<br />
the non-zero segment start at sample time<br />
t m L u + (m − 1)N c L u + τ lp(kp)<br />
i p<br />
,<br />
19
and the non-zero segment of any linear combination of {g lq(kq)<br />
i q<br />
(t n +(n−1)N c )∆d (kq)<br />
i q<br />
(t n +<br />
(n − 1)N c )} can only start at sample time<br />
t n L u + (n − 1)N c L u + τ lq(kq)<br />
i q<br />
.<br />
If these times do not coincide, i.e.,<br />
|[(t m − t n ) + (m − n)N c ]L u + τ lp(kp)<br />
i p<br />
⇐⇒|τ lp(kp)<br />
i p<br />
− τ lq(kq)<br />
i q<br />
| ≠ 0 (2.48)<br />
− τ lq(kq)<br />
i q<br />
| ≠ [(t m − t n ) + (m − n)N c ]L u (2.49)<br />
the vector g lp(kp)<br />
i p<br />
(t m + (m − 1)N c )∆d (kp)<br />
i p<br />
(t m + (m − 1)N c ) can never be a linear<br />
combination of {g lq(kq)<br />
i q<br />
(t n + (n − 1)N c )∆d (kq)<br />
i q<br />
(t n + (n − 1)N c )}. Condition (2.39) is<br />
even stronger than Equation (2.49).<br />
2. If Condition (2.39) is violated, the non-zero segment of<br />
g lp(kp)<br />
i p<br />
(t m + (m − 1)N c )∆d (kp)<br />
i p<br />
(t m + (m − 1)N c )<br />
is aligned with the non-zero segments of possibly several vectors from {g lq(kq)<br />
i q<br />
(t n +<br />
(n−1)N c )∆d (kq)<br />
i q<br />
(t n +(n−1)N c )}, Condition (2.40) guarantees that g lp(kp)<br />
i p<br />
(t m +(m−<br />
1)N c )∆d (kp)<br />
i p<br />
(t m + (m − 1)N c ) still cannot be a linear combination of {g lq(kq)<br />
i q<br />
(t n +<br />
(n − 1)N c )∆d (kq)<br />
i q<br />
(t n + (n − 1)N c )} due to the linear independence amongst the set<br />
of spreading codes.<br />
3. Condition (2.41) guarantees that the non-zero segment of<br />
g lp(kp)<br />
i p<br />
(t m + (m − 1)N c )∆d (kp)<br />
i p<br />
(t m + (m − 1)N c )<br />
starts earlier than the non-zero segment of any of the vectors from subsequent blocks<br />
{g lq(kq)<br />
i q<br />
g lp(kp)<br />
i p<br />
(t n + (n − 1)N c )∆d (kq) (t n + (n − 1)N c ), n > m} in Ḡ∆ ¯D, there<strong>for</strong>e no linear<br />
i q<br />
combination of {g lq(kq)<br />
i q<br />
(t n + (n − 1)N c )∆d (kq)<br />
i q<br />
(t n + (n − 1)N c ), n > m} can yield<br />
(t m + (m − 1)N c )∆d (kp) (t m + (m − 1)N c ). <strong>The</strong> effects of Condition (2.42) can<br />
be shown in a similar fashion when n < m.<br />
i p<br />
✷<br />
20
<strong>The</strong> conditions of Proposition 1 are generally met in real applications and thus are<br />
not overly stringent. An important consequence of Proposition 1 is that, the minimum<br />
rank of ¯Φ occurs when all but one block from the sequence is identical and is determined<br />
by Φ mm of that single block. As such, the sequence coding problem decouples to a block<br />
coding problem. Thus, we will focus on the properties of Φ mm from now on. <strong>The</strong> strict<br />
inequality in Proposition 1 is critical, otherwise, the minimum rank of ¯Φ may occur when<br />
two blocks from the sequence are different, there<strong>for</strong>e, the joint design of these two blocks<br />
could improve coding gain of single block design and there is no decoupling of the blocks<br />
with regards to design.<br />
2.2.4 Code Design Principles<br />
This section discusses code design principles <strong>for</strong> quasi-static fading channels <strong>for</strong> the uplink<br />
(or the approximated downlink scenarios).<br />
Proposition 2 In the uplink, if every distinct pair of users have linearly independent<br />
spreading codes, under the assumption of independent fading <strong>for</strong> different users, the multiuser<br />
coding problem decouples to multiple single-user coding problems.<br />
Proof:<br />
Recall that Φ mm = ∆D m R mm ∆D m ∈ C KLcLt×KLcLt . Whenever the codeword difference<br />
of a certain user in ∆D m is set to zero, L c L t rows and columns of Φ mm will be zero. We<br />
consider the smaller matrix with the zero rows and columns removed. <strong>The</strong> rank of this<br />
matrix is never greater than the original. Continue removing rows and columns of users<br />
until there are only two remaining users, since every two users uses linearly independent<br />
spreading codes, removing one user always reduces rank Φ mm . So the minimum rank of<br />
Φ mm (worst case) can only occur when one user contributes to ∆D m solely. Hence we<br />
need only consider one user in the code design <strong>for</strong> the uplink. ✷<br />
Note that Proposition 2 does not require linearly independent spreading codes to be<br />
employed <strong>for</strong> different transmit antennae of the same user. From now on, only one user<br />
will be considered in the code design task at the uplink, the superscript of the user index<br />
will be dropped if no confusion is caused. Note that this decoupling will not exist in the<br />
downlink (See Section 2.3).<br />
21
Let us consider the issue of achievable diversity in multipath channels. We assume<br />
that the sampling rate L u is high enough to resolve the available diversity (the column<br />
rank of G m ):<br />
N c L u + τ max > N c L c L t . (2.50)<br />
Whether the correlation matrix R mm achieving full rank plays an important role in the<br />
following discussion, thus we have the following proposition:<br />
Proposition 3 If<br />
(a) N c L u + τ max > N c L c L t (2.51)<br />
(b) {s i (t), 1 ≤ i ≤ L t } are linearly independent ∀t ∈ [(m − 1)N c + 1, mN c ] (2.52)<br />
then R mm achieves full rank N c L c L t .<br />
Note that condition (a) is simply the a<strong>for</strong>ementioned sampling rate constraint and<br />
condition (b) implies that different transmit antenna of the same user use linearly independent<br />
spreading codes at each symbol time within the block.<br />
Proof:<br />
Consider any two spreading codes in G m , if their nonzero segments are not aligned,<br />
they are linearly independent; if their nonzero segments are aligned, they are linearly<br />
independent by condition (2.52). ✷<br />
To achieve full diversity gain, we have the following proposition.<br />
Proposition 4 In quasi-static fading channels, if R mm is full rank and<br />
<strong>for</strong> all i, ∆d i (t) ≠ 0, <strong>for</strong> at least one (m − 1)N c + 1 ≤ t ≤ mN c (2.53)<br />
block m achieves full diversity gain L c L t .<br />
Proof:<br />
Recall from Equation (2.16) and (2.10), that <strong>for</strong> the quasi-static channel,<br />
⎡<br />
⎤<br />
∆D((m − 1)N c + 1)<br />
∆D m = ⎢ . ⎥<br />
⎣<br />
⎦<br />
∆D(mN c )<br />
22
where<br />
group 1<br />
group L c<br />
{ }} { { }} {<br />
∆D(t) = diag[ ∆d 1 (t), . . . , ∆d Lt (t), . . . . . . ∆d 1 (t), . . . , ∆d Lt (t)] ∈ C LcLt×LcLt<br />
Condition (2.53) guarantees that the null space of ∆D m is empty, i.e.,<br />
∀v ≠ 0, ∆D m v = u ≠ 0<br />
when R m is full rank, it is positive definite, i.e.,<br />
∀u ≠ 0, u H R m u > 0<br />
hence<br />
∀v ≠ 0, v H ∆D H mR m ∆D m v = v H Φ mm v > 0<br />
this means Φ mm is positive definite and thus is full rank L t L c . ✷<br />
Under the assumption of equicorrelated spreading codes (a model commonly employed<br />
to gain intuition about spread systems), we can also make a statement about coding gain<br />
<strong>for</strong> flat fading channels.<br />
Proposition 5 (Coding Gain)<br />
In the quasi-static flat fading channel (L c = 1), if R mm (0) ∈ R KLt×KLt<br />
has equal<br />
cross-correlation entries − 1<br />
KL t−1 < ρ c < 1, and <strong>for</strong> all users condition (2.53) is satisfied,<br />
full diversity gain is achieved. <strong>The</strong> coding gain is a monotonically decreasing function of<br />
positive ρ c and is a monotonically increasing function of negative ρ c .<br />
Proof:<br />
Denote R mm (0) explicitly as a function of ρ c by R mm (ρ c ). For this case, Φ mm can be<br />
rewritten as Φ mm = ∆D H ∆D⊙R mm . For − 1<br />
KL t−1 < ρ c < 1, R mm (ρ c ) is positive definite.<br />
Since condition (2.53) holds <strong>for</strong> all users, ∆D H ∆D has no diagonal entries equaling zero,<br />
by [HJ91], ∆D H ∆D ⊙ R mm (ρ c ) is positive definite hence full rank.<br />
For |ρ 1 | < |ρ 2 |, R mm (|ρ 1 |/|ρ 2 |) is easily seen to be positive definite. We next plug<br />
∆D H ∆D⊙R mm (ρ 2 ) and R mm (|ρ 1 |/|ρ 2 |) into Oppenheim’s inequality (page 480 of [HJ91])<br />
23
as A and B respectively, and observe that all diagonal entries of R mm (|ρ 1 |/|ρ 2 |) are equal<br />
to unity, then we have<br />
(<br />
( ))<br />
det(∆D H ∆D ⊙ R mm (ρ 2 )) ≤ det ∆D H |ρ1 |<br />
∆D ⊙ R mm (ρ 2 ) ⊙ R mm<br />
|ρ 2 |<br />
= det(∆D H ∆D ⊙ R mm (ρ 1 ))<br />
the last equation holds if ρ 1 , ρ 2 have the same sign. Due to the positive definiteness of<br />
∆D H ∆D ⊙ R mm (ρ 1 ), we have a strict inequality if ρ 1 , ρ 2 have the same sign<br />
det(∆D H ∆D ⊙ R mm (ρ 2 )) < det(∆D H ∆D ⊙ R mm (ρ 1 )).<br />
✷<br />
We comment that Proposition 5 is about per<strong>for</strong>mance evaluation, where all the active<br />
users should be considered (condition (2.53) is required to hold <strong>for</strong> all users); while in<br />
code design, the worst case analysis tells us that if each user optimizes his own code,<br />
the overall per<strong>for</strong>mance improves, so code design is a single user problem. Increasing the<br />
spreading typically reduces |ρ c | and yields a larger coding gain by Proposition 5. We can<br />
trade off per<strong>for</strong>mance <strong>for</strong> spectrum.<br />
2.2.5 <strong>The</strong> Effect of Multipath<br />
For quasi-static channels, as was expected, multipath contributes more diversity gain<br />
<strong>for</strong> perfect CSI. For spread systems, <strong>for</strong> each block, each path typically contributes L t<br />
diversity levels. Now we look into the detailed structure of R mm (0) and discuss why, <strong>for</strong><br />
small delays and quasi-static channels, codes with good coding gain <strong>for</strong> flat channels still<br />
have good coding gain <strong>for</strong> multipath channels.<br />
Recall that in Equation (2.35),<br />
n+1<br />
∑<br />
Φ mm = ∆DL H c<br />
∆D Lc ⊙ R mm (0) + ∆DL H c<br />
Q n+1 ∆D Lc ⊙ (R mm (t) + Rmm(t))<br />
T<br />
t=1<br />
24
For small multipath delays, a typical spread system has R mm (t) ≃ 0, t ≠ 0, there<strong>for</strong>e<br />
Φ mm ≃ ∆D H L c<br />
∆D Lc ⊙ R mm (0). We partition R mm (0) as follows<br />
⎡<br />
⎤<br />
R (1,1) · · · R (1,Lc)<br />
R mm (0) =<br />
.<br />
⎢ . .. . ⎥<br />
⎣<br />
⎦ where R (i,j) = [s i 1, . . . , s i L t<br />
] T [s j 1 , . . . , sj L t<br />
]. (2.54)<br />
R (Lc,1) · · · R (Lc,L c)<br />
R (i,j) ≃ 0, i ≠ j, that is, well designed spreading codes have small cross-correlations<br />
<strong>for</strong> multiple lags. This implies det(Φ mm ) ≈ ∏ L c<br />
j=1 det(∆DH ∆D ⊙ R (j,j) ). Furthermore,<br />
if R (i,i) ≃ R (j,j) , i ≠ j, then we can further approximate det(Φ mm ) ≈ [det(∆D H ∆D ⊙<br />
R (1,1) )] Lc . Note that det(∆D H ∆D ⊙ R (1,1) ) corresponds to the coding gain <strong>for</strong> a single<br />
path system. Hence we see that good flat fading channel codes tend to give large coding<br />
gain even <strong>for</strong> multipath channels.<br />
For a spread system, based on the consideration of random sequences, we can use the<br />
following spreading code correlation model[AM00]:<br />
(s l 1<br />
i1<br />
) T (s l 2<br />
i2<br />
) =<br />
where ρ c is a common cross-correlation value.<br />
⎧<br />
1 if τ l 1<br />
i 1<br />
= τ l 2<br />
i 2<br />
and i 1 = i 2 ,<br />
⎪⎨ ρ c if τ l 1<br />
i 1<br />
= τ l 2<br />
i 2<br />
and i 1 ≠ i 2 ,<br />
ρ c × Lu−|τ l 1<br />
i1 −τ l 2<br />
i2 |<br />
L u<br />
if 0 < |τ l 1<br />
i 1<br />
− τ l 2<br />
i 2<br />
| < L u ,<br />
⎪⎩ 0 else.<br />
(2.55)<br />
To examine the effects of multipath on well-designed single path codes, we consider<br />
a specific code: the 2 × 2 rate 1 BPSK Class 1 code, which is discussed in depth in<br />
Section 2.5. If ρ c = 0.3, L u = 32, <strong>for</strong> L c = 1 with delay profile [0; 0], and <strong>for</strong> L c = 2 with<br />
delay profile [0 1; 0 1], we compare the distance spectra (the enumeration of the coding<br />
gains of all codeword pairs) in Table 2.1. As we can see, the coding gain <strong>for</strong> L c = 2<br />
is roughly the square of the coding gain <strong>for</strong> L c = 1, which agrees with our approximate<br />
analysis above. For the L c = 2 case, we have searched <strong>for</strong> optimal codes with delay profile<br />
[0, τ1 2; τ 2 1, τ 2 2], where 0 ≤ τ i l ≤ 30, the optimal codes all turn out to be the same as that<br />
<strong>for</strong> the flat fading channel. An exhaustive search <strong>for</strong> L c = 3 and τ max ≤ 5 shows that the<br />
flat fading channel code is still optimal. Figure 2.4 shows the union bounds <strong>for</strong> 2 × 2 rate<br />
25
L c = 1<br />
0 7 9 14<br />
0 0.00 30.56 16.00 30.56<br />
7 30.56 0.00 30.56 16.00<br />
9 16.00 30.56 0.00 30.56<br />
14 30.56 16.00 30.56 0.00<br />
L c = 2<br />
0 7 9 14<br />
0 0 765.06 214.58 765.06<br />
7 765.06 0 771.70 214.58<br />
9 214.58 771.70 0 771.70<br />
14 765.06 214.58 771.70 0<br />
Table 2.1: <strong>The</strong> distance spectra <strong>for</strong> rate 1 BPSK 2 × 2 Class 1 OMM code.<br />
Delay profile [0 τ; 0 τ]<br />
2.2 x 10−3 τ<br />
2<br />
1.8<br />
1.6<br />
Union Bound<br />
1.4<br />
1.2<br />
Class2 [1 7 8 14]<br />
Class1 [0 7 9 14]<br />
1<br />
0.8<br />
0.6<br />
0 5 10 15 20 25 30 35<br />
Figure 2.4: Union bound as a function of path delay τ.<br />
1 BPSK Classes 1 and 2 as a function of path delay τ with delay profile [0, τ; 0, τ]. <strong>The</strong><br />
per<strong>for</strong>mance of the two codes are quite robust to the value of the path delay τ.<br />
2.3 <strong>The</strong> Downlink<br />
In the downlink, without loss of generality, we consider the situation where the base<br />
station communicates with user 1. From the sequence decoder analysis <strong>for</strong> the uplink<br />
model in Section 2.2, we observe that the per<strong>for</strong>mance of sequence decoder, which is<br />
a function of Φ, is dominated by the per<strong>for</strong>mance of the single block code, which is<br />
a function of Φ mm . Furthermore, sequence code design decouples to single block code<br />
design. In the downlink, similar observations can be made and we jump directly to single<br />
26
lock decoder analysis. We will consider two decoder structures, the jointly optimal ML<br />
decoder <strong>for</strong> all users and a single user ML–based decoder. <strong>The</strong> key difference between the<br />
uplink and the downlink is the fact that in the downlink, all users experience the same<br />
channel, thus resulting in a multiuser coding problem. Note that the following downlink<br />
model is general enough to encompass the case where different transmit antennae of the<br />
same user employ distinct spreading codes, s (k)<br />
i<br />
(t) ≠ s (k)<br />
i<br />
(t), and the case where different<br />
transmit antennae of the same user employ identical spreading codes, s (k)<br />
i<br />
(t) = s (k)<br />
i<br />
(t).<br />
2.3.1 <strong>The</strong> Downlink Model<br />
At the base station, each user’s in<strong>for</strong>mation is encoded in the same way as shown in<br />
Figure 2.1, but the transmitted signal <strong>for</strong> each user is combined on each transmit antenna,<br />
and the sum signals are transmitted. We will initially assume that user 1 knows all users’<br />
spreading codes and the common channel state in<strong>for</strong>mation, while this assumption is<br />
impractical, the decoder will provide a bench mark <strong>for</strong> the suboptimal decoder discussed<br />
in the sequel.<br />
in<strong>for</strong>mation.<br />
<strong>The</strong> matched filter outputs are constructed using the spreading code<br />
At symbol time t, the received signal due to d (k)<br />
i<br />
(t) is,<br />
r(t) = √ σ t<br />
∑<br />
∑<br />
K ∑L t L c<br />
k=1 i=1 l=1<br />
g l(k)<br />
i<br />
(t)d (k)<br />
i<br />
(t)h l i(t) + n(t) ∈ C (Lu+τmax)×1 . (2.56)<br />
A single set of channel coefficients h l i (t) appear in (2.56), this is due to the fact that each<br />
user experiences the same channel in the downlink. Written in matrix <strong>for</strong>m<br />
r(t) = √ σ t G(t)D(t)h(t) + n(t) ∈ C (Lu+τmax)×1 , (2.57)<br />
where<br />
G(t) = [G (1) (t), . . . , G (K) (t)] ∈ R (Lu+τmax)×KLcLt , (2.58)<br />
and G (k) (t) is defined in Equation (2.9). <strong>The</strong> codeword matrix D(t) is<br />
⎡ ⎤<br />
D (1) (t)<br />
D(t) = ⎢ . ⎥<br />
⎣ ⎦ ∈ CKLcLt×LcLt , (2.59)<br />
D (K) (t)<br />
27
where D (k) (t) is defined in Equation (2.10), finally, h(t) h (1) (t) is defined in Equation<br />
(2.11).<br />
In comparison with the uplink case in Equation (2.12), we see that D(t)’s have the<br />
same nonzero entries but are arranged in a different <strong>for</strong>m; h(t) in the downlink is similar<br />
to h(t) in the uplink except that other users’ channel coefficients are not present, since<br />
they are the same as those of user 1.<br />
Similarly, “concatenating” the r(t), t = 1, . . . , N c into a larger vector, r, we have the<br />
received signal <strong>for</strong> user 1,<br />
⎡<br />
⎤ ⎡ ⎤ ⎡ ⎤<br />
G(1) ∅ ∅ D(1)<br />
n(1)<br />
r = √ σ<br />
.<br />
t ⎢ ∅ .. ∅ ⎥ ⎢ . ⎥<br />
⎣<br />
⎦ ⎣ ⎦ h(t) + ⎢ . ⎥ (2.60)<br />
⎣ ⎦<br />
∅ ∅ G(N c ) D(N c ) n(N c )<br />
√ σ t GDh + n ∈ C (NcLu+τmax)×1 . (2.61)<br />
Note h h(t) is constant within one block <strong>for</strong> the quasi-static channel, and adjacent<br />
blocks of G(t) are offset by L u rows.<br />
<strong>The</strong> matched filter output is<br />
y = G T r = √ σ t RDh + m ∈ C NcKLcLt×1 , (2.62)<br />
where R = G T G is the correlation matrix of spreading codes, m = G T n has distribution<br />
N (0, R).<br />
2.3.2 Joint Maximum Likelihood Decoder<br />
<strong>The</strong> jointly optimal ML decoder <strong>for</strong> one block is employed to decode all user’s in<strong>for</strong>mation<br />
jointly. <strong>The</strong> matched filter output vector is y ∼ N ( √ σ t RDh, R). Similar to the uplink<br />
case, the averaged pairwise error probability is upper bounded by<br />
1<br />
E h [P (D α → D β |h)] ≤ ∣<br />
∣I + σt<br />
4 Σ h(D α − D β ) H R(D α − D β ) ∣ , (2.63)<br />
where<br />
Σ h = E[hh H ]. (2.64)<br />
28
Similarly the key matrix Φ is defined as,<br />
Φ = (D α − D β ) H R(D α − D β ) = ∆D H R∆D ∈ C LcLt×LcLt . (2.65)<br />
Again, if nL u ≤ τ max < (n + 1)L u , and each transmit antenna uses the same fixed<br />
spreading code at each symbol time, the correlation matrix R has the same structure as<br />
R defined in (2.32).<br />
For the quasi-static fading channel<br />
⎡ ⎤<br />
∆D(1)<br />
∆D(2)<br />
Φ =<br />
⎢ . ⎥<br />
⎣ ⎦<br />
∆D(N c )<br />
H<br />
⎡<br />
⎤<br />
R(0) R(1) . . . R(n + 1) 0 ⎡ ⎤<br />
R(1) T<br />
.<br />
R(0) .. . .. ∆D(1)<br />
R(n + 1)<br />
. 0 .. . .. . .. ∆D(2)<br />
0<br />
.<br />
⎢<br />
⎣<br />
R(n + 1) T . .. . .. . .. ⎢ . ⎥<br />
R(1) ⎥ ⎣ ⎦<br />
⎦ ∆D(N c )<br />
0 R(n + 1) T 0 R(1) T R(0)<br />
(2.66)<br />
Note that the difference between the uplink Φ and the downlink Φ resides only in the<br />
<strong>for</strong>m of ∆D(t) (defined in Equation (2.14)) and the ∆D(t) (defined in Equation (2.59)).<br />
Note that R(0) and R(t) can be partitioned into K × K block matrices,<br />
⎡<br />
⎤<br />
R (1,1) (0) · · · R (1,K) (0)<br />
R(0) =<br />
.<br />
⎢ . .. . ⎥<br />
⎣<br />
⎦<br />
R (K,1) (0) · · · R (K,K) (0)<br />
thus ¯Φ can be simplified as<br />
⎡<br />
R(t) = ⎢<br />
⎣<br />
⎤<br />
n (t) · · · R n<br />
(1,K) (t)<br />
.<br />
. .. . ⎥<br />
⎦ , (2.67)<br />
n (t) · · · R (K,K) (t)<br />
R (1,1)<br />
R (K,1)<br />
n<br />
Φ =<br />
where<br />
K∑<br />
K∑<br />
i=1 j=1<br />
(∆D (i)<br />
L c<br />
) H ∆D (j)<br />
L c<br />
⊙ R (i,j) (0)+<br />
n∑<br />
t=1<br />
(∆D (i)<br />
L c<br />
) H Q n+1 ∆D (j)<br />
L c<br />
∆D (k)<br />
(<br />
⊙<br />
R (i,j)<br />
n<br />
(t) + (R (i,j)<br />
n (t)) T ) ∈ C LcLt×LcLt , (2.68)<br />
L c<br />
{ }} {<br />
L c<br />
= [ ∆D (k) , . . . , ∆D (k) ] ∈ C Nc×LcLt , (2.69)<br />
with D (k) defined in Equation (2.2) and Q defined in Equation (2.37).<br />
29
For this special case of fixed spreading codes, we see clearly the summation of contributions<br />
from different users’ codeword difference matrices and correlation matrices in the<br />
final Φ. <strong>The</strong> matrix Φ cannot be decomposed in such a way as to decouple the contributions<br />
of each of the active users. Again, we emphasize that this is a multiuser coding<br />
problem. Trying to design a code which is globally optimal in such a high dimensional<br />
space is computationally expensive. We want to point out the connection between downlink<br />
Φ and uplink Φ: in downlink Φ, there are K terms (i = j), which are equivalent to<br />
Φ, and these K terms have relatively large R (i,j) (0). This suggests that a good uplink<br />
code will per<strong>for</strong>m reasonably well in the downlink.<br />
2.3.3 Single user ML-based Decoder<br />
If user 1 is only interested in his own data and treats other user’s data as colored Gaussian<br />
noise, then we can <strong>for</strong>m a single user approximate ML decoder.<br />
We separate the contribution of user 1’s data and the interferers’ data in Equation<br />
(2.57)<br />
r j (t) = √ σ t G 1 (t)D 1 (t)h(t) + √ σ t G 2 (t)D 2 (t)h(t) + n j (t) ∈ C (Lu+τmax)×1 , (2.70)<br />
where<br />
G 1 (t) = G (1) (t) ∈ R (Lu+τmax)×LcLt G 2 (t) = [G (2) (t), . . . , G (K) (t)] ∈ R (Lu+τmax)×(K−1)LcLt ,<br />
and<br />
(2.71)<br />
D 1 (t) D (1) (t) ∈ C LcLt×LcLt (2.72)<br />
⎡ ⎤<br />
D (2) (t)<br />
D 2 (t) ⎢ . ⎥<br />
⎣ ⎦ ∈ C(K−1)LcLt×LcLt (2.73)<br />
D (K) (t)<br />
30
“Concatenating” the r j (t), t = 1, . . . , N c into a large vector,<br />
⎡<br />
⎤ ⎡ ⎤<br />
G<br />
r = √ 1 (1) ∅ ∅ D 1 (1)<br />
σ<br />
.<br />
t ⎢ ∅ .. ∅ ⎥ ⎢ . ⎥<br />
⎣<br />
⎦ ⎣ ⎦ h<br />
∅ ∅ G 1 (N c ) D 1 (N c )<br />
⎡<br />
⎤ ⎡ ⎤ ⎡ ⎤<br />
G<br />
+ √ 2 (1) ∅ ∅ D 2 (1) n j (1)<br />
σ<br />
.<br />
t ⎢ ∅ .. ∅ ⎥ ⎢ . ⎥<br />
⎣<br />
⎦ ⎣ ⎦ h + ⎢ . ⎥<br />
⎣ ⎦<br />
∅ ∅ G 2 (N c ) D 2 (N c ) n j (N c )<br />
(2.74)<br />
= √ σ t G 1 D 1 h + √ σ t G 2 D 2 h + n ∈ C (NcLu+τmax)×1 (2.75)<br />
<strong>The</strong> matched filter, which consists of user 1’s spreading codes only, outputs<br />
y = √ σ t G T 1 G 1 D 1¯h +<br />
√<br />
σt G T 1 G 2 D 2 h + m ∈ C LcLt×1 , (2.76)<br />
where<br />
m = G T 1 n. (2.77)<br />
Treating √ σ t G T 1 G 2D 2 h + m as Gaussian noise ˜m, we have<br />
E[ ˜m] = 0, E[ ˜m ˜m H ] = σ t G T 1 G 2 G T 2 G 1 + G T 1 G 1 . (2.78)<br />
matrix<br />
where<br />
Following our prior approach, we end up with the new correlated codeword difference<br />
˜Φ = ∆D1 H (ŘT 1 Ř−1 2 Ř 1 )∆D 1 ∈ C LcLt×LcLt (2.79)<br />
Ř 1 = G T 1 (t)G 1 (t) ∈ C LcLt×LcLt ,<br />
Ř 2 = σ t G T 1 (t)G 2 (t)G T 2 (t)G 1 (t)+G T 1 (t)G 1 (t) ∈ C LcLt×LcLt<br />
(2.80)<br />
<strong>The</strong> matrix ˜Φ can be simplified and approximated to<br />
˜Φ ≃ (∆D (1) ) H ∆D (1) ⊙ ˜R ∈ C LcLt×LcLt , (2.81)<br />
31
where<br />
˜R = ŘT 1 Ř−1 2 Ř 1 . (2.82)<br />
This <strong>for</strong>mulation converts this joint coding problem to a equivalent single user coding<br />
problem with a redefined correlation matrix ˜R. We will show in Section 2.5.2 that ˜R<br />
acts like a modified R in the uplink coding problem, thus we can apply the same code<br />
design principles and search <strong>for</strong> codes which are equally applicable to both the uplink<br />
and downlink scenario. We note that Ř1 and Ř2 can be estimated at the downlink in<br />
order to construct the decoder.<br />
2.4 Non-spread systems<br />
<strong>The</strong> system model in Section 2.2.1 can be applied to non-spread systems with slight modification.<br />
<strong>The</strong> system now consists of a single user and the spreading code is interpreted<br />
as samples of the modulation wave<strong>for</strong>m with length L u . All transmit antennae employ<br />
the same modulation wave<strong>for</strong>m, the entries of which can take on arbitrary real values.<br />
This perspective offers great advantage in analyzing non-spread systems in multipath<br />
fading channels. An important difference between spread and non-spread systems is that<br />
in non-spread systems, to enhance spectral efficiency, pulse shapes have duration longer<br />
than that of a symbol interval, see Figure 2.5 <strong>for</strong> the distinction between spread and<br />
non-spread transmissions. Thus there is significant overlap between the contributions of<br />
consecutive symbols, which causes Inter-Symbol Interference (ISI). To characterize this<br />
situation, a new parameter L s , the number of samples between consecutive transmissions,<br />
is introduced. We highlight the difference due to the new parameter in the system model.<br />
In Equation (2.16), while concatenating r(t), t = 1, . . . , N c into r, due to the ISI, the<br />
adjacent blocks of G(t) are offset by L s instead of L u . <strong>The</strong> final received vector is<br />
r = √ σ t GDh + n ∈ C ((Nc−1)Ls+Lu+τmax)×1 . (2.83)<br />
<strong>The</strong> dimension of G m ∆D m changes accordingly<br />
G m ∆D m ∈ C ((Nc−1)Ls+Lu+τmax)×NcLtLc . (2.84)<br />
32
Spread<br />
£¥¤ ¦¥§<br />
Non-spread<br />
ªX«<br />
¨¥©<br />
Figure 2.5: Distinction between spread and non-spread transmission.<br />
In Equation (2.50), to resolve the available diversity, the sampling rate is required to<br />
satisfy<br />
(N c − 1)L s + L u + τ max > N c L t L c . (2.85)<br />
<strong>The</strong> diversity gain is still the rank of F <strong>for</strong> quasi-static fading channels. For nonspread<br />
systems, F has dimension ((N c − 1)L s + L u + τ max ) × L t L c . Due to the same<br />
modulation wave<strong>for</strong>m, full diversity L t L c is not as easily achieved, we have the following<br />
proposition regarding the diversity level:<br />
Proposition 6 For non-spread systems in quasi-static multipath fading channels, the<br />
diversity level<br />
rank Φ mm ≥ max(the number of distinct path delays τ (l)<br />
i<br />
, flat fading diversity). (2.86)<br />
Proof:<br />
Recall Φ mm = F H m F m where F m = G m ∆D m . Columns in F m with distinct delays<br />
have different numbers of heading zeros and hence are linearly independent, there<strong>for</strong>e,<br />
rank Φ mm ≥ the number of distinct path delays τ (l)<br />
i<br />
. Aligning the nonzero segments of<br />
columns in F m reduces rank F m , when all columns are aligned, rank F m = flat fading diversity,<br />
there<strong>for</strong>e rank Φ mm ≥ flat fading diversity. ✷<br />
A weaker statement is made in [TNSC99] with much more complicated analysis.<br />
33
2.5 Optimal Minimum Metric <strong>Codes</strong><br />
In this section, we analyze the properties of optimized codes found via computer search.<br />
For simplicity, the setup <strong>for</strong> search is based on flat fading channels (L c = 1), but as<br />
predicted in Section 2.2.5, we will show the consistency of the per<strong>for</strong>mance of the found<br />
codes in both multipath and flat fading channels. Recall from Equation (2.35), in the<br />
uplink <strong>for</strong> flat quasi-static channels, Φ mm (we will drop the subscript mm <strong>for</strong> convenience)<br />
takes the following simple <strong>for</strong>m<br />
Φ(D α , D β ) = (D α − D β ) H R mm (0)(D α − D β ) = ∆D H ∆D ⊙ R mm (0) ∈ C Lt×Lt (2.87)<br />
and from Equation (2.68) in the downlink, Φ takes the following <strong>for</strong>m<br />
Φ(D α , D β ) =<br />
K∑ K∑<br />
(∆D (i) ) H ∆D (j) ⊙ R (i,j) (0) ∈ C Lt×Lt (2.88)<br />
i=1 j=1<br />
In the sequel, all codes are required to achieve full diversity. Optimum minimum metric<br />
(OMM) codes are optimized by maximize the minimum coding gain. Usually more than<br />
one set of codes can achieve the above criteria. In our study, the distance spectrum<br />
and the union bound are used to further evaluate the per<strong>for</strong>mance of these codes. <strong>The</strong><br />
distance spectrum is the enumeration of the coding gains of all codeword pairs. At high<br />
SNR, <strong>for</strong> a finite number of block codes, union bound is asymptotically tight, hence a<br />
good indicator of the per<strong>for</strong>mance. Figure 2.6 compares the union bound with simulated<br />
per<strong>for</strong>mance <strong>for</strong> OMM 2 × 2 BPSK Class 1 code (see Figure 2.7 <strong>for</strong> Class 1 code). In<br />
spread systems, codes are optimized <strong>for</strong> ρ c = 0.3.<br />
2.5.1 OMM <strong>Codes</strong> <strong>for</strong> the Uplink<br />
All the found codes are summarized in Table 2.2. Note that several classes of codes may<br />
satisfy the same OMM criteria, only the best in terms of the union bound at specified ρ c<br />
are listed in the table. <strong>The</strong> rate 1 2 × 2 BPSK codes consist of three equivalence classes,<br />
whose distance spectra are listed in Figure 2.7. <strong>The</strong>ir union bound versus ρ c is plotted<br />
in Figure 2.8.<br />
We observe:<br />
34
UB versus SIM, 2x2 BPSK Class 1, ρ c<br />
=0.3<br />
10 0 SNR<br />
Union Bound<br />
Simulation<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
10 −4<br />
0 2 4 6 8 10 12 14 16<br />
Figure 2.6: Union bound versus simulation <strong>for</strong> rate 1 OMM 2 × 2 BPSK Class 1 code.<br />
35
index ρ c rate size constl OMM<br />
1 1 1 2 × 2 BPSK [1,7,8,14]<br />
2 1 1 2 × 2 QPSK [1,41,156,247]<br />
3 1 1 2 × 2 8PSK [3,1314,2167,3414]<br />
4 1 1 2 × 2 16PSK<br />
[<br />
[8,14469,33744,47965]<br />
]<br />
1 84 166 248<br />
5 1 1 3 × 3 QPSK<br />
[<br />
282 335 429 499<br />
]<br />
2 42 93 117<br />
6 1 1.5 2 × 2 QPSK<br />
128 168 223 247<br />
⎡<br />
⎤<br />
0 20 42 62<br />
7 1 2 2 × 2 QPSK<br />
⎢ 70 82 107 127<br />
⎥<br />
⎣133 145 173 185⎦<br />
195 215 236 248<br />
8 0.3 1 2 × 2 BPSK [0,6,11,13]<br />
9 0.3 1 2 × 2 QPSK [1,87,174,248]<br />
10 0.3 1 2 × 2 8PSK [3,1314,2447,3246]<br />
11 1 1 2 × 2 16PSK<br />
[<br />
[8,14469,33744,47965]<br />
]<br />
0 31 99 124<br />
12 0.3 1 3 × 3 QPSK<br />
[<br />
421 442 454 473<br />
]<br />
2 42 93 117<br />
13 0.3 1.5 2 × 2 QPSK<br />
128 168 223 247<br />
⎡<br />
⎤<br />
0 10 37 47<br />
14 0.3 2 2 × 2 QPSK<br />
⎢ 82 88 119 125<br />
⎥<br />
⎣133 143 160 170⎦<br />
15 0.3 1 4 × 2 BPSK<br />
215 221 242 248<br />
⎡<br />
⎤<br />
0 15 51 60<br />
⎢ 86 89 101 106<br />
⎥<br />
⎣149 154 166 169⎦<br />
195 204 240 255<br />
Table 2.2: OMM codes.<br />
36
1. As observed by others, the space defined by coding gain is not a metric space, since<br />
the triangle inequality does not hold. Figure 2.7 shows that the Class 2 code has<br />
four “edges” with coding gain 16 and two “diagonals” with coding gain 64.<br />
2. <strong>The</strong>se codes are metric uni<strong>for</strong>m, i.e. the distance profiles are the same <strong>for</strong> all<br />
codewords. We avoid the term geometrically uni<strong>for</strong>m, as Forney’s definition of a<br />
geometrically uni<strong>for</strong>m signal set [GDF91] is predicated upon the presence of a metric<br />
space.<br />
3. <strong>The</strong> coding gain corresponds to the “length” of the shortest branch in the distance<br />
spectrum. Two codes with the same coding gain do not necessarily have the same<br />
per<strong>for</strong>mance, as they might have different distance spectra. This fact can be easily<br />
observed from the union bound plots in Figure 2.8.<br />
4. Per<strong>for</strong>mance is generally a function of ρ c . From the distance spectra figures, it is<br />
easy to note that Class 1 and Class 3 have per<strong>for</strong>mance dependent on ρ c , while<br />
Class 2 does not. This is due to the fact that Class 2 is an orthogonal code set.<br />
Class 2 is Alamouti’s orthogonal code set, which is optimal by either OMM or OUB<br />
standards. Actually all orthogonal codes [Ala98, TJC99] have coding gain independent<br />
of spreading coding correlation, because the codeword difference matrices of<br />
these orthogonal codes are still orthogonal.<br />
5. <strong>The</strong> sensitivity of code per<strong>for</strong>mance to ρ c is a function of the coefficient of ρ 2 c. For<br />
Class 1, the coefficient of ρ 2 c is 16; <strong>for</strong> Class 3, it is 64. Thus we expect Class 3 to be<br />
more sensitive to ρ c than Class 1. This conjecture is verified from the union bound<br />
plot in Figure 2.8.<br />
6. Class 3 is not an OMM code <strong>for</strong> all ρ c , because when ρ c exceeds √ 3/2, 64 − 64ρ 2 c<br />
will be less than 16.<br />
7. Class 1 outper<strong>for</strong>ms Class 2 <strong>for</strong> ρ c < 0.6.<br />
<strong>The</strong> same set of optimal codes <strong>for</strong> rate one 8PSK and 16PSK are optimal <strong>for</strong> the<br />
spread and non-spread systems. <strong>The</strong> 16PSK OMM codes have several distinguishing<br />
properties:<br />
1. It is 0.3dB better than the BPSK OMM codes (orthogonal)(see Figure 2.9).<br />
37
16<br />
0 9<br />
32-16ρ 2 32-16ρ 2<br />
16 16<br />
16<br />
1 7<br />
64 64<br />
16 16<br />
16<br />
0 6<br />
64-64ρ 2 64-64ρ 2<br />
16 16<br />
16<br />
14 7<br />
16<br />
8 14<br />
16<br />
9 15<br />
Class 1 Class 2 Class 3<br />
Figure 2.7: Distance spectra <strong>for</strong> rate 1 OMM 2 × 2 BPSK codes.<br />
0.08<br />
0.075<br />
BPSK C1<br />
BPSK C2<br />
BPSK C3<br />
SNR=6dB<br />
0.07<br />
Union Bound<br />
0.065<br />
0.06<br />
0.055<br />
0.05<br />
0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1<br />
ρ c<br />
Figure 2.8: Rate 1 OMM 2 × 2 BPSK block codes at SNR=6dB.<br />
38
[<br />
3 1314 2447 3246<br />
8PSK u<br />
0<br />
8 u 0 ] [<br />
8 u<br />
2<br />
8 u 4 ] [<br />
u 0 8 u 3 8 u<br />
4<br />
8 u 6 ] [<br />
8 u 4 8 u 2 8 u<br />
6<br />
8 u 2 ]<br />
8 u 1 8 u 7 8<br />
8 u 5 8 u 6 8<br />
8 14469 33744 47965<br />
16PSK [ u 0 16 u 0 ] [<br />
16 u<br />
3<br />
16 u 8 ] [<br />
u 0 16 u 8 16 u<br />
8<br />
16 u 3 ] [<br />
16 u 8 16 u 5 16 u<br />
11<br />
16 u 13<br />
16 u 0 16 u 11 ]<br />
16<br />
16 u 5 16 u 13<br />
16<br />
Table 2.3: Detailed Structure of rate 1 OMM 2×2 8PSK and 16PSK <strong>Codes</strong>. ( u n = e i 2π n )<br />
ρ c<br />
=0.3<br />
2X2 BPSK<br />
2X2 16PSK<br />
10 −2<br />
Union Bound<br />
10 −1 SNR<br />
10 −3<br />
10 −4<br />
6 7 8 9 10 11 12 13 14 15 16<br />
Figure 2.9: Rate 1 OMM 2 × 2 BPSK and 16PSK codes <strong>for</strong> ρ c = 0.3.<br />
2. It is unitary, but, it does not <strong>for</strong>m a group under matrix multiplication, neither is it a<br />
subset of group unitary codes [SHHS01]. <strong>The</strong> detailed structure of the OMM 8PSK<br />
and 16PSK (Table 2.3) suggests that as more degrees of freedom are introduced,<br />
code tends to be more unitary. This agrees with the general structure suggested in<br />
[MH99].<br />
3. <strong>The</strong> 16PSK optimal code is actually “correlation free”. It is OMM <strong>for</strong> all ρ!<br />
<strong>The</strong> rate 1 OMM 3 × 3 BPSK codes are listed in Table 2.4. We make the following<br />
observations:<br />
1. <strong>The</strong>re are 3 equivalence classes which are OMM codes <strong>for</strong> ρ c = 0.3, but their multiplicity<br />
of the minimum metric in the distance spectra, N p , are different. <strong>The</strong><br />
39
Class ρ ∆ p (ζ v ) N p code index<br />
C1 ρ = 0.3 122.24(0.6431) 8 [0,31,99,124,421,442,454,473]<br />
C2 ρ = 0.3 122.24(0.6431) 12 [0,31,99,124,394,433,470,493]<br />
C3 ρ = 0.3 122.24(0.6431) 16 [0,31,99,124,394,405,489,502]<br />
C4 ρ = 1.0 64(0.5774) 22 [1,84,166,248,282,335,429,499]<br />
Table 2.4: Rate 1 OMM 3 × 3 BPSK <strong>Codes</strong>.<br />
multiplicity of a certain coding gain is the number of codeword pairs which achieve<br />
that coding gain. Larger multiplicity <strong>for</strong> small coding gains results in higher probability<br />
of decoding error, thus worse per<strong>for</strong>mance. For minimum metric 122.24,<br />
Class 1 has multiplicity 8, Class 2 has multiplicity 12 and Class 3 has multiplicity<br />
16. <strong>The</strong> union bound plot confirms that Class 1 is slightly better than Class 2 and<br />
Class 2 is slightly better than Class 3.<br />
2. Class 4 is OMM code <strong>for</strong> ρ c = 1.<br />
3. <strong>The</strong> per<strong>for</strong>mances of all codes are correlation dependent, as shown in Figure 2.10.<br />
Class 1, 2, and 3 are more sensitive to correlation than Class 4.<br />
4. <strong>The</strong> union bound versus SNR plot of Class 1 and Class 4 is in Figure 2.11. Class 1<br />
is more sensitive to correlation than Class 4. At ρ c = 1, Class 1 is 1dB worse than<br />
Class 4, but at ρ c = 0.3, it is 1dB better than Class 4.<br />
5. In Figure 2.11, the best rate 1, 3 × 3 unitary group code listed in [SHHS01], which<br />
is a cyclic group achieving diversity product ζ v = 0.5134 and using the 8PSK constellation,<br />
is compared with Class 4, which is not unitary but constant envelop<br />
modulation, has diversity product ζ v = 0.5774 and uses only the BPSK constellation.<br />
We compare the rate 2 2 × 2 QPSK OMM codes with the orthogonal code.<br />
1. In a non-spread system (ρ c = 1), the per<strong>for</strong>mances of OMM spread, OMM nonspread<br />
and orthogonal codes are compared in Figure 2.12. <strong>The</strong> orthogonal code is<br />
about 0.3dB better than the OMM non-spread code, both are better than OMM<br />
spread code, which is optimized <strong>for</strong> spread systems and loses full diversity in a nonspread<br />
system. <strong>The</strong> orthogonal code turns out to have better distance spectrum<br />
than the OMM non-spread code [GVM02], there<strong>for</strong>e has better per<strong>for</strong>mance.<br />
40
SNR=6dB<br />
10 −1 ρ c<br />
Union Bound<br />
3X3 BPSK C1<br />
3X3 BPSK C2<br />
3X3 BPSK C3<br />
3X3 BPSK C4<br />
10 −2<br />
−0.5 0 0.5 1<br />
Figure 2.10: Rate 1 OMM 3 × 3 BPSK codes at SNR=6dB.<br />
10 0<br />
10 −1<br />
SNR<br />
3X3 Unitary Group ρ c<br />
=1<br />
3X3 BPSK C1 ρ c<br />
=1<br />
3X3 BPSK C4 ρ c<br />
=1<br />
3X3 BPSK C1 ρ c<br />
=0.3<br />
Union Bound<br />
10 −2<br />
10 −3<br />
10 −4<br />
0 2 4 6 8 10 12 14<br />
Figure 2.11: Rate 1 OMM 3 × 3 BPSK codes.<br />
41
2. In a spread system (ρ = 0.3), the per<strong>for</strong>mances of OMM spread, OMM non-spread<br />
and orthogonal codes are compared in Figure 2.13. OMM spread code is about<br />
0.3dB better than that of OMM non-spread code, and 0.6dB better than that of<br />
orthogonal code.<br />
3. <strong>The</strong> per<strong>for</strong>mance of OMM spread and orthogonal codes are compared in the following<br />
setup with Gold sequence of length L u = 31:<br />
(a) (Figure 2.14) Single user K = 1, flat fading L c = 1. Because Gold sequence<br />
has cross-correlation even smaller than 0.3, the OMM spread code is 0.7dB<br />
better than the orthogonal code.<br />
(b) (Figure 2.15) Single user K = 1, multipath fading channel L c = 2 with delay<br />
profile (defined in Equation (2.4) and (2.5))<br />
⎡ ⎤<br />
Γ = ⎣ 0 5 ⎦ .<br />
0 5<br />
<strong>The</strong> OMM spread code is about 1.2dB better than the orthogonal code, the<br />
gain almost doubles than that in flat fading channels.<br />
(c) (Figure 2.15) Two user K = 2, multipath fading channel L c = 2 with delay<br />
profile<br />
⎡<br />
⎤<br />
Γ = ⎣ 0 5 7 10 ⎦ .<br />
0 5 7 10<br />
<strong>The</strong> OMM spread code is still about 1.2dB better than the orthogonal code.<br />
<strong>The</strong> two user system is about 1.2dB worse than the single user system.<br />
(d) (Figure 2.16) Sequence decoder M = 4, two user K = 2, multipath fading<br />
channel L c = 2 with delay profile<br />
⎡<br />
⎤<br />
Γ = ⎣ 0 5 7 10 ⎦ .<br />
0 5 7 10<br />
<strong>The</strong> OMM spread code is about 0.7dB better than the orthogonal code.<br />
42
10 0 SNR<br />
OMM spread<br />
OMM non−spread<br />
Orthogonal<br />
Union Bound<br />
10 −1<br />
10 −2<br />
6 7 8 9 10 11 12 13 14 15 16<br />
Figure 2.12: Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong> at ρ c = 1.0.<br />
OMM spread<br />
OMM non−spread<br />
Orthogonal<br />
10 −1<br />
Union Bound<br />
10 0 SNR<br />
10 −2<br />
10 −3<br />
6 7 8 9 10 11 12 13 14 15 16<br />
Figure 2.13: Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong> at ρ c = 0.3.<br />
43
10 0 SNR<br />
OMM spread<br />
orthogonal<br />
10 −1<br />
Union Bound<br />
10 −2<br />
10 −3<br />
6 7 8 9 10 11 12 13 14 15 16<br />
Figure 2.14: Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong>, Gold sequence, single user, flat fading.<br />
10 −1<br />
K=1, OMM spread<br />
K=1, orthogonal<br />
K=2, OMM spread<br />
K=2, orthogonal<br />
Union Bound<br />
10 0<br />
10 −2<br />
10 −3<br />
SNR<br />
10 −4<br />
10 −5<br />
6 7 8 9 10 11 12 13 14 15 16<br />
Figure 2.15: Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong>, Gold sequence, multipath fading Γ =<br />
[0, 5; 0, 5].<br />
44
10 0 SNR<br />
OMM spread<br />
orthogonal<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
0 2 4 6 8 10 12<br />
Figure 2.16: Sequence decoder M = 4, Rate 2 OMM 2 × 2 QPSK <strong>Codes</strong>, Gold sequence,<br />
multipath fading Γ = [0, 5, 7, 10; 0, 5, 7, 10].<br />
For ρ c = 0.3, the rate 1, OMM 4 × 2 BPSK code is also found. In Figure 2.17, its<br />
union bound shows about a 0.4dB gain over that of two continuous rate 1 OMM 2 × 2<br />
BPSK Class 1 codes.<br />
2.5.2 OMM <strong>Codes</strong> <strong>for</strong> the Downlink<br />
As pointed out in Section 2.3.1, the optimal approach <strong>for</strong> the downlink is a joint multiuser<br />
code design. Recall that we considered two cases in Section 2.3.2 and 2.3.3. First,<br />
if the MAI in the correlated codeword difference matrix in (2.68) is ignored, the resultant<br />
expression is identical to the uplink single user code and thus the code design problem<br />
is also equivalent to the single user problem. Secondly, approximating the MAI as Gaussian<br />
noise, we also get an equivalent single user code design problem with the modified<br />
45
ρ c<br />
=0.3<br />
10 0 SNR<br />
Rate 1 4X2<br />
2 Rate 1 2X2<br />
10 −1<br />
Union Bound<br />
10 −2<br />
10 −3<br />
0 2 4 6 8 10 12 14<br />
Figure 2.17: Rate 1 OMM 4 × 2 BPSK <strong>Codes</strong> <strong>for</strong> ρ c = 0.3.<br />
correlation matrix in (2.82). To understand this equivalence, we present an example. If<br />
equicorrelated spreading codes are used <strong>for</strong> K users, the equivalent Ř is<br />
Ř =<br />
⎡<br />
1<br />
⎣ a<br />
2σ t (K − 1)ρ 2 (1 − ρ) + 1 − ρ 2<br />
b<br />
⎤<br />
b ⎦<br />
a<br />
where (2.89)<br />
a = σ t (K − 1)ρ 4 − 2σ t (K − 1)ρ 3 + σ t (K − 1)ρ 2 − ρ 2 + 1 (2.90)<br />
b = −σ t (K − 1)ρ 4 + 2σ t (K − 1)ρ 3 − ρ 3 − σ t (K − 1)ρ 2 + ρ (2.91)<br />
This is equivalent to the single user case with correlation ρ e = b/a. In Figure 2.21, we plot<br />
ρ e as a function of σ t and ρ. As seen from the plot, <strong>for</strong> a large range of σ t ∈ (0dB, 15dB)<br />
and ρ ∈ (−0.2, 1), ρ e roughly lies within (−0.6, 0.6), <strong>for</strong> which case, the Class 1 codes in<br />
Figure 2.7 are the best OMM rate 1 BPSK codes. Observe that ρ e is not a monotonic<br />
function of either ρ or the SNR. As either K or σ t goes to ∞, Ř approaches,<br />
⎡ ⎤<br />
lim Ř = lim Ř = 1 − ρ ⎣ 1 −1 ⎦ (2.92)<br />
σ t→∞ K→∞ 2 −1 1<br />
46
where Class 2 in Figure 2.7 becomes the best OMM code. We note that the MAI approximation<br />
is experienced in two ways: Ř has a modified correlation ρ c and there is a<br />
reduction in effective SNR which is captured by the constant γ where Ř = γŘ, Ř is such<br />
that Ř ii = 1.<br />
For ρ c = 0.3, if distinct spreading codes are employed <strong>for</strong> different transmit antennae<br />
of the same user, the multiuser rate 1 OMM 2 × 2 BPSK codes <strong>for</strong> two users are<br />
C 1 = [3, 20, 40, 63, 78, 89, 101, 114, 141, 154, 166, 177, 192, 215, 235, 252],<br />
its distance spectrum shows it is metric uni<strong>for</strong>m. If identical spreading codes are employed<br />
<strong>for</strong> different transmit antennae of the same user, the OMM codes <strong>for</strong> two users are<br />
C 2 = [5, 18, 46, 57, 75, 92, 96, 119, 136, 159, 163, 180, 198, 209, 237, 250].<br />
Figure 2.18 compares the per<strong>for</strong>mance of 4 sets of codes in the downlink with optimal<br />
joint ML decoding: non-spread (single user) OMM code (Alamouti’s code, Class 2 in<br />
Figure 2.7), spread single user OMM code (Class 1 in Figure 2.7), spread downlink two<br />
user OMM code with same spreading (C 2 ) and spread downlink two user OMM code with<br />
distinct spreading (C 1 ). <strong>The</strong> per<strong>for</strong>mance is improved by about 0.2dB when the next set<br />
of codewords are used. We also consider the use of single user optimal codes (Class 1 in<br />
Figure 2.7) with various ML-based decoders in Figure 2.19 and 2.20. <strong>The</strong> per<strong>for</strong>mance of<br />
the following three decoders: joint optimal decoder, single user decoder ignoring MAI and<br />
single user decoder approximating MAI as Gaussian noise, is investigated. In Figure 2.19,<br />
we assume the two users have equal power, i.e., the Near-Far-Ratio (NFR) equals 0dB.<br />
<strong>The</strong> joint ML decoder gives the best per<strong>for</strong>mance (about 1dB gain over that of single user<br />
decoder ignoring MAI), the single user decoder approximating MAI gives slightly better<br />
per<strong>for</strong>mance than the single user decoder ignoring MAI. If we increase user 2’s signal<br />
power to be 4dB larger than user 1’s, i.e., NFR= 4dB, we have resulting per<strong>for</strong>mances as<br />
seen in Figure 2.20. <strong>The</strong> joint ML decoder and the single user decoder approximating MAI<br />
provide per<strong>for</strong>mance about 4dB and 2dB better than that of single user decoder ignoring<br />
MAI, respectively. Thus we have the classic complexity and per<strong>for</strong>mance tradeoff. <strong>The</strong><br />
joint designs offer superior per<strong>for</strong>mance at the expense of a more complex decoder.<br />
47
Code Comparison, Joint ML Decoder, ρ=0.3<br />
10 0 SNR(dB)<br />
SER<br />
10 −1<br />
Joint OMM, distinct spread<br />
Single OMM, distinct spread<br />
Alamouti Code, distinct spread<br />
Joint OMM, same spread<br />
UB on Joint OMM, distinct spread<br />
UB on Single OMM, distinct spread<br />
UB on Alamouti code, distinct spread<br />
UB on Joint OMM, same spread<br />
10 −2<br />
0 1 2 3 4 5 6 7 8 9 10<br />
Figure 2.18: Multiuser rate 1 OMM 2 × 2 BPSK codes.<br />
Decoder Comparison, ρ=0.3<br />
10 0 SNR(dB)<br />
Joint ML Decoder<br />
Single ML, App MAI<br />
Single ML, Ignore MAI<br />
SER<br />
10 −1<br />
10 −2<br />
0 1 2 3 4 5 6 7 8 9 10<br />
Figure 2.19: Decoder per<strong>for</strong>mance comparison with no near-far effect.<br />
48
10 0 Decoder per<strong>for</strong>mance comparison, Single user OMM code, ρ c<br />
=0.3, NFR=4dB<br />
Joint ML Decoder<br />
Single User ML, Aprx MAI<br />
Single User ML, Ignore MAI<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
0 1 2 3 4 5 6 7 8 9 10<br />
SNR(db)<br />
Figure 2.20: Decoder per<strong>for</strong>mance comparison with near-far effect.<br />
Equivalent ρ e<br />
as a function of SNR and ρ c<br />
1<br />
0.8<br />
0.6<br />
0.4<br />
0.2<br />
ρ e<br />
0<br />
−0.2<br />
−0.4<br />
−0.6<br />
−0.8<br />
−1<br />
15<br />
10<br />
SNR(dB)<br />
5<br />
0<br />
−0.5<br />
0<br />
0.5<br />
1<br />
ρ c<br />
Figure 2.21: Equivalent ρ e as a function of SNR and ρ c .<br />
49
2.6 Practical Considerations<br />
In this section, we consider practical issues that can affect code design. We present<br />
some invariant operations which yield equivalent codes and their application to improve<br />
code searches. We observe that some codes have per<strong>for</strong>mance independent of spreading<br />
code correlation, this phenomenon is analyzed in some detail. Some suboptimal ways to<br />
construct space-time block codes are also discussed.<br />
2.6.1 Isometries<br />
Isometries are defined as “distance preserving” trans<strong>for</strong>mations, where the “distance” can<br />
be diversity gain ∆ H in (2.28) or coding gain in (2.29). For any function γ(.) on codeword<br />
D, if<br />
∆ p (γ(D i ) − γ(D j )) = ∆ p (D i − D j ) (2.93)<br />
γ(.) is an isometry of coding gain ∆ p . Likewise isometry of diversity gain ∆ H can be<br />
defined.<br />
If we restrict to the flat fading quasi-static channel, we have Φ mm = ∆D H ∆D ⊙<br />
R mm (0), the following isometries of ∆ H and ∆ p <strong>for</strong> spread systems can be identified (<strong>for</strong><br />
a discussion on isometries <strong>for</strong> non-spread systems, please refer to Section 4.2):<br />
1. φ(D) = UD, where U is arbitrary unitary matrix U H U = I.<br />
2. φ(D) = DP ,<br />
• P is a unitary permutation matrix: P H P = I, each row and column of P has<br />
only one non-zero element.<br />
• Equi-correlated spreading codes.<br />
3. φ(D) = [d ∗ ti ], componentwise complex conjugate<br />
• Real spreading codes.<br />
<strong>The</strong> right isometry P generally does not apply to spread system[Gen00], where spreading<br />
codes have non-equal correlations, but does hold true <strong>for</strong> the academic equi-correlated<br />
spreading code case.<br />
Detailed proofs of the above isometries <strong>for</strong> spread systems are<br />
omitted. We call two codes equivalent codes if they can be related by the above isometries.<br />
50
<strong>The</strong> set of equivalent codes <strong>for</strong>ms an equivalence class. Since all codes in an equivalence<br />
class achieve the same per<strong>for</strong>mance, in terms of coding gain and diversity gain, we need<br />
only investigate only one member of the equivalence class.<br />
In the search process, once one member of equivalence class is found, all other members<br />
can be ignored. This fact can greatly reduce the number of candidate codes. A<br />
fundamental set is the smallest set of codes such that all possible codes are equivalent to<br />
one code of this set. It is usually very hard to identify the fundamental set, but relatively<br />
easy to identify a larger set which contains the fundamental set. In our case, we can<br />
always use these isometries to <strong>for</strong>ce one codeword to have entries of value 1 on the top<br />
row and left column, i.e.,<br />
⎡<br />
⎤<br />
1 1 . . . 1<br />
1 ∗ . . . ∗<br />
.<br />
⎢.<br />
. .. . ⎥<br />
⎣<br />
⎦<br />
1 ∗ . . . ∗<br />
For example, if we want to search <strong>for</strong> 2 × 2 rate 1 BPSK codes, we need to search <strong>for</strong> four<br />
2 × 2 codewords, each entry of which has two possible values, thus the total number of<br />
possible combinations are 2 16 . By <strong>for</strong>cing one codeword to have the above structure, the<br />
number of cases to be searched is reduced to 2 13 . For constellation size N cstl and block<br />
size N c × L t , this can reduce the candidate set by a factor of N Nc+Lt−1<br />
cstl<br />
.<br />
Another use of these isometries is to find all the equivalent codes. Due to the symmetry<br />
of the codes, a subset of these invariant operations is sufficient to generate all the<br />
equivalent codes. For example, the equivalence class of optimal minimal metric rate 1<br />
BPSK 2 × 2 Class 1 code contains 8 equivalent codes, which can be generated from any<br />
one of these equivalent codes plus a left multiplier which comes from the Dihedral Group<br />
D 8 ,<br />
⎡<br />
⎣ 1 ⎤<br />
0 ⎦<br />
⎡<br />
⎣ −1 ⎤<br />
0 ⎦<br />
⎡<br />
⎣ 1 ⎤<br />
0 ⎦<br />
⎡<br />
⎣ −1 ⎤<br />
0 ⎦<br />
0 1 0 1 0 −1 0 −1<br />
⎡ ⎤ ⎡ ⎤ ⎡ ⎤ ⎡ ⎤<br />
⎣ 0 1 ⎦ ⎣ 0 −1 ⎦ ⎣ 0 1 ⎦ ⎣ 0 −1 ⎦ .<br />
1 0 1 0 −1 0 −1 0<br />
51
2.6.2 Sensitivity to Correlation<br />
Usually, the per<strong>for</strong>mance of the resultant codes is a function of the spreading code correlation<br />
function, but this is not true <strong>for</strong> all code sets. It can be desirable <strong>for</strong> a code to be<br />
insensitive to correlation, i.e., to maintain its optimality or relatively good per<strong>for</strong>mance<br />
<strong>for</strong> all correlation values, especially in multipath fading channels where the low valued<br />
correlation functions <strong>for</strong> spreading codes do not always exist. We observe that in our<br />
resulting optimal codes, the 2 × 2 BPSK Class 2 code (Alamouti’s code [Ala98]), which<br />
is an orthogonal code, and the 2 × 2 16PSK code, which is an unitary code, have per<strong>for</strong>mance<br />
independent of the spreading code correlation; thus we shall call these codes<br />
“correlation free”. Unitary codes [HM00, SHHS01, Hug00, HS00] U satisfy UU H = I,<br />
orthogonal codes [Ala98, TJC99] are unitary codes which have more structure. <strong>The</strong> 2 × 2<br />
orthogonal codes have following structure:<br />
⎡<br />
⎣ x<br />
y ∗<br />
⎤<br />
y ⎦<br />
−x ∗<br />
where x and y are from some constellation points. Indeed all orthogonal codes are correlation<br />
free, because the codeword difference matrix is still orthogonal. A natural conjecture<br />
is that unitary codes are correlation free too. But this is not true! For the 2-transmitantenna<br />
case, we investigate what are the sufficient conditions to be correlation free.<br />
Rewriting the two codewords D α and D β in terms of their column vectors<br />
D α = [α 1 α 2 ] D β = [β 1 β 2 ], (2.94)<br />
the condition of being correlation free is met when the off-diagonal entries of (D α −<br />
D β ) H (D α − D β ) are zero, which leads to<br />
α H 1 α 2 + β H 1 β 2 − α H 1 β 2 − β H 1 α 2 = 0. (2.95)<br />
Unitary codes <strong>for</strong>ce the first two terms in Equation (2.95) to be zero by definition, but<br />
do not necessarily cancel the last two terms. An example is<br />
⎡ ⎤ ⎡ ⎤<br />
D α = ⎣ 1 1 ⎦ D β = ⎣ i 1 ⎦ ,<br />
1 −1<br />
−1 −i<br />
52
which does not satisfy Equation (2.95) and has<br />
⎡<br />
⎤<br />
6 (−2 + 2i)ρ<br />
Φ = ⎣<br />
c<br />
⎦ ,<br />
(−2 − 2i)ρ c 2<br />
and<br />
det(Φ) = 12 − 8ρ 2 c.<br />
Furthermore, unitary group codes are not always correlation free. An example which<br />
has per<strong>for</strong>mance dependent on correlation is G 21,4 , which is given in [SHHS01]. Two<br />
elements of this fixed-point-free group are<br />
⎡ ⎤<br />
η 0 0<br />
A = ⎢<br />
⎣0 η 4 0 ⎥<br />
⎦<br />
0 0 η 16<br />
⎡ ⎤<br />
0 1 0<br />
B = ⎢<br />
⎣ 0 0 1⎥<br />
⎦ (2.96)<br />
η 7 0 0<br />
where η = e 2πj/21 . <strong>The</strong>se two codewords have<br />
Φ =<br />
⎡<br />
⎢<br />
⎣<br />
⎤<br />
2 −η −1 ρ c −η 9 ρ c<br />
−ηρ c 2 −η −4 ρ c<br />
⎥<br />
⎦ ,<br />
−η −9 ρ c −η 4 2<br />
and<br />
det(Φ) = 8 − 6ρ 2 c + ρ 3 c.<br />
Interestingly, we have checked all the smallest examples <strong>for</strong> 2 × 2 irreducible fixedpoint-free<br />
unitary group codes listed in [SHHS01], i.e., G 6,−1 , D 4,1,−1 , E 3,1 , F 3,1,−1 and<br />
J 1,1 , and found that all of these are correlation free. It seems that the group structure<br />
implicitly <strong>for</strong>ces these unitary codes to satisfy the condition of being correlation free in<br />
the 2 × 2 case, but does not do so <strong>for</strong> the 3 × 3 case.<br />
2.6.3 Suboptimal <strong>Codes</strong><br />
Most space-time block codes used in DS-CDMA systems are adopted from non-spread<br />
codes. By <strong>for</strong>cing some structure on space-time code sets (like BLAST [Fos96] and layered<br />
space-time codes [GARH01]), the code design or the received signal processing can<br />
53
structure<br />
]<br />
1 structure<br />
]<br />
2 structure<br />
]<br />
3<br />
[˜c1 ˜c<br />
space-time code<br />
2<br />
[˜c1 ˜c 1<br />
[˜c1 ˜c 2<br />
˜c 2<br />
[<br />
˜c 1<br />
]<br />
˜c 2<br />
[<br />
˜c 2<br />
]<br />
˜c 1<br />
[<br />
˜c 2<br />
]<br />
1 0 1<br />
Φ δmin<br />
2 δ<br />
0 1<br />
min<br />
2 ρc 2 0<br />
δ<br />
ρ c 1<br />
min<br />
2 0 0<br />
diversity gain 2 2 1<br />
coding gain δmin 4 δmin 4 (1 − ρ2 c) 2δmin<br />
2<br />
Table 2.5: Three space-time code structures and their per<strong>for</strong>mance comparison.<br />
be facilitated at the expense of per<strong>for</strong>mance loss. Based on our previous analysis, the<br />
per<strong>for</strong>mance of these codes are easily analyzed as a function of spreading code correlation.<br />
We consider the simplest 2 × 2 case. Two symbols from the nPSK constellation, c 1<br />
and c 2 , are mapped onto three space-time structures; their key matrices Φ, diversity gain<br />
and coding gain are delineated in Table 2.5. <strong>The</strong> smallest Euclidean distance of the nPSK<br />
constellation is denoted by δ min . In the mapping, ˜c i , i = 1, 2 can be anyone from the set<br />
{±c i , ±c ∗ i }, and the choice of ˜c i will not affect the following discussion.<br />
In Table 2.5, Structure 1 is diagonal mapping, Structure 2 is horizontal mapping<br />
and Structure 3 is vertical mapping. Structure 1 and 2 achieve full diversity of 2 and<br />
Structure 3 achieves only 1 level of diversity due to the fact that the same symbol is<br />
transmitted via the same antenna and experiences the same fading. Structure 1 is better<br />
than Structure 2 because its coding gain is independent of spreading code correlation.<br />
Alamouti’s code belongs to Structure 1. <strong>The</strong> above discussion can be easily generalized<br />
to space-time block codes of arbitrary size. <strong>The</strong> conclusions are: we want to repeat the<br />
same symbol at different transmit antenna and different time slots, because repeating at<br />
the same antenna incurs a diversity level loss and repeating at the same time slot suffers<br />
correlation loss. This explains why diagonal BLAST outper<strong>for</strong>ms vertical BLAST [Fos96]<br />
and horizontal BLAST.<br />
2.7 Conclusions<br />
In this chapter, we develop a general framework <strong>for</strong> space-time block code design in<br />
multipath fading channels <strong>for</strong> both non-spread and spread systems. This framework is<br />
facilitated by a general interpretation of the notion of a “spreading code”. From the<br />
Chernoff bound on the pairwise error probability <strong>for</strong> a maximum likelihood sequence<br />
54
decoder, the classical space-time coding design criteria–diversity gain and coding gain,<br />
are determined <strong>for</strong> quasi-static fading channels. Optimizing the sequence decoder turns<br />
out to be code design of single block, which is complicated <strong>for</strong> spread system due to<br />
the interaction of the space-time code and the spreading code. We investigated the<br />
effects of multipath and spreading on diversity level and code designs. We find the exact<br />
diversity level in multipath fading channel <strong>for</strong> both spread and non-spread systems and<br />
also demonstrate that under small delay assumptions, good space-time codes <strong>for</strong> flat<br />
fading channels tend to per<strong>for</strong>m well even in a multipath fading environment. In the<br />
uplink, the multiuser code design decouples to multiple single user code design problems;<br />
in the downlink a true multiuser coding problem exists. We provide various approaches to<br />
approximate the downlink case as single user problem. Due to the high dimensionality of<br />
computer search, only some small dimensional codes are presented here, but they exhibit<br />
solid to substantial per<strong>for</strong>mance gains over known space-time codes. <strong>The</strong> OMM codes<br />
found <strong>for</strong> two transmit antennae yield 0.5dB gain over known comparable unitary group<br />
codes when 16PSK signals are used; the non-spread optimal codes <strong>for</strong> three transmit<br />
antenna yield 4dB gain over known unitary group codes and the spread optimal codes<br />
exhibit another 1dB gain over the optimal non-spread optimal code. In the downlink, the<br />
multiuser OMM code <strong>for</strong> two users shows 0.5dB gain over the single user OMM code. Our<br />
results suggest that significant per<strong>for</strong>mance gains over some existing systematic designs<br />
are possible thus prompting the search <strong>for</strong> alternative systematic designs [GM03a].<br />
55
Chapter 3<br />
On Suboptimal Linear Decoders <strong>for</strong> <strong>Space</strong>-<strong>Time</strong> <strong>Block</strong><br />
<strong>Codes</strong><br />
3.1 Introduction<br />
Throughout Chapter 2, only the optimal Maximum Likelihood (ML) decoder is considered.<br />
When the numbers of active users and space-time block codes (STBC) are large,<br />
ML decoder is impractical due to large decoding complexity. In this chapter we consider<br />
several different suboptimal linear decoders <strong>for</strong> STBC.<br />
<strong>The</strong> suboptimal decoders considered in this paper are structurally similar to those of<br />
[NSTC98]. That is, equalization and decoding are separated (see Figure 3.1), thus a two<br />
stage decoding algorithm is proposed. In the first stage, a linear equalizers suppresses<br />
MAI and spatial inter-symbol interference. Subsequently, a mapper is implemented to<br />
map the linear filter soft outputs to a valid STBC(see Figure 3.2).<br />
Combined<br />
Equalization<br />
and Decoding<br />
All Decoders<br />
Optimal<br />
Mapper<br />
Seperate<br />
Equalizatin<br />
and Decoding<br />
Linear<br />
Equalization<br />
Suboptimal<br />
Mapper<br />
Figure 3.1: Decoder Classification.<br />
56
®°¯²±<br />
³°´µ<br />
Î<br />
À<br />
»<br />
Á<br />
Æ<br />
Ç<br />
¼>½ ¾G¿<br />
Matched<br />
Filter Bank<br />
Linear<br />
Filter<br />
Mapper<br />
to STBC<br />
Â>Ã ÄGÅ<br />
¬<br />
·°¸¹Jº<br />
È>É ÊGË<br />
Figure 3.2: Decoder Structure.<br />
ÊÍÌ<br />
3.2 Uplink Signal Model <strong>for</strong> Spread <strong>Systems</strong><br />
To make the equalizer nontrivial, the number of observations must be greater than or<br />
equal to the number of estimated signals. We setup our system under this constraint.<br />
For spread system, due to our assumption that distinct spreading codes are employed at<br />
different transmit antennae, one receive antenna is sufficient; <strong>for</strong> non-spread system, the<br />
number of receive antennae must not be less than the number of transmit antennae.<br />
We consider a general framework <strong>for</strong> space-time block codes in the uplink of spread<br />
systems. <strong>The</strong> transmitter has the same structure as Figure 2.1 in Section 2.2.1. <strong>The</strong><br />
receiver block diagram is shown in Figure 3.2. Synchronous transmission is assumed<br />
and perfect channel state in<strong>for</strong>mation is assumed available at the receiver but not at the<br />
transmitter. A matched filter bank, which is a set of filters matched to the spreading<br />
wave<strong>for</strong>m at each transmit antenna is constructed. <strong>The</strong> output of the matched filter bank<br />
is a set of sufficient statistics <strong>for</strong> the decoding problem. A two stage decoding scheme is<br />
employed. <strong>The</strong> first stage corresponds to a linear equalizer which <strong>for</strong>ms a soft estimate<br />
˜d of the transmitted codeword d. <strong>The</strong> second stage maps the soft estimate to a valid<br />
codeword which is then employed to determine an estimate of the in<strong>for</strong>mation sequence,<br />
[Îk (1), Îk (2), . . . , Îk (k c )].<br />
<strong>The</strong> signal received by receive antenna r at time n can be written as<br />
y r (n) = √ σ t R r (n)H r (n)d(n) + m r (n) ∈ C LtK×1 , (3.1)<br />
57
where σ t is signal-to-noise ratio (SNR) normalized by L t to keep the total transmit power<br />
constant and<br />
S r (n) = [s 1 1(n), . . . , s 1 L t<br />
(n), . . . . . . , s K 1 (n), . . . , s K L t<br />
(n)] ∈ R Lu×LtK (3.2)<br />
R r (n) = S r (n) T S r (n) ∈ R LtK×LtK (3.3)<br />
H r (n) = diag(h 1 1r(n), . . . , h 1 L tr(n), . . . . . . , h K 1r(n), . . . , h K L tr(n)) ∈ C LtK×LtK (3.4)<br />
d(n) = [d 1 1(n), . . . , d 1 L t<br />
(n), . . . , d K 1 (n), . . . , d K L t<br />
(n)] T ∈ C LtK×1 (3.5)<br />
m r (n) = [m 1 1r(n), . . . , m k L tr(n), . . . , m K 1r(n), . . . , m K L tr(n)] T , ∈ C LtK×1 (3.6)<br />
where s k t (n) is the spreading code used at transmit antenna t at time n <strong>for</strong> user k; R r (n)<br />
is the spreading code correlation matrix <strong>for</strong> receive antenna r at time n 1 ; h k tr(n) ∼<br />
CN (0, 1) 2 is the channel coefficient between transmit antenna t and receive antenna r <strong>for</strong><br />
user k at time n; d k t (n) is the symbol transmitted from antenna t <strong>for</strong> user k at time n;<br />
m tr (n) is complex Gaussian noise <strong>for</strong> receive antenna t at time n, m r (n) ∼ CN (0, R r (n)).<br />
Concatenating y r (n), n = 1, . . . , N c into a larger vector y r we get<br />
y r = [y r (1) T , . . . , y r (N c ) T ] T (3.7)<br />
⎡<br />
⎤ ⎡<br />
⎤ ⎡ ⎤ ⎡ ⎤<br />
R<br />
= √ r (1) 0 0 H r (1) 0 0 d(1) m r (1)<br />
σ<br />
.<br />
t ⎢ 0 .. . 0 ⎥ ⎢ 0 .. 0 ⎥ ⎢ . ⎥<br />
⎣<br />
⎦ ⎣<br />
⎦ ⎣ ⎦ + ⎢ . ⎥<br />
⎣ ⎦ (3.8)<br />
0 0 R r (N c ) 0 0 H r (N c ) d(N c ) m r (N c )<br />
√ σ t R r H r d + m r ∈ C LtKNc×1 . (3.9)<br />
1 Note that in a synchronous flat fading channel, R 1(n) = · · · = R Lr (n), we keep the subscript r simply<br />
to help keep track of the matrix size. Asynchronism and multipath could result in different effective code<br />
correlation matrices between each transmit and receive antenna pair.<br />
2 We use CN (m, K) to denote a circularly symmetric complex Gaussian random vector with mean m<br />
and variance matrix K.<br />
58
Further concatenating y r , r = 1, . . . , L r over each receive antenna into a super vector y,<br />
we have the overall received signal,<br />
y = [y1 T , . . . , yL T r<br />
] T (3.10)<br />
⎡<br />
⎤ ⎡ ⎤ ⎡ ⎤<br />
R<br />
= √ 1 0 0 H 1 m 1<br />
σ<br />
.<br />
t ⎢ 0 .. 0 ⎥ ⎢ . ⎥<br />
⎣<br />
⎦ ⎣ ⎦ d + ⎢ . ⎥<br />
(3.11)<br />
⎣ ⎦<br />
0 0 R Lr H Lr m Lr<br />
√ σ t RHd + m ∈ C LtKNcLr×1 . (3.12)<br />
where R ∈ R LtKNcLr×LtKNcLr is the spreading code correlation matrix, H ∈ C LtKNcLr×LtKNc<br />
is channel coefficient matrix and d ∈ C LtKNc×1 is codeword vector.<br />
3.3 Linear Equalizer<br />
By Equation (3.12), d is the codeword vector to be estimated and y is the observed signal<br />
vector. <strong>The</strong> linear equalizer tries to find a linear equalizer M to approximate the true<br />
data vector d by<br />
˜d = My Ad + ˜m (3.13)<br />
based on various criteria. <strong>The</strong> equalizer suppresses MAI and spatial intersymbol interference.<br />
We focus on linear equalizers and evaluate their per<strong>for</strong>mance (in terms of achievable<br />
diversity levels).<br />
<strong>The</strong> Best Linear Unbiased Estimator (BLUE), the Minumum Variance UnBiased<br />
(MVUB) estimator and the Maximum Likelihood (ML) estimator have the same <strong>for</strong>m<br />
(due to Gaussian noise vector m)<br />
˜d BLUE = 1 √<br />
σt<br />
[<br />
H H RH ] −1<br />
H H y. (3.14)<br />
Note that <strong>for</strong> one receive antenna L r = 1, random channel matrix H is diagonal, if we<br />
assume H is invertible <strong>for</strong> most channel realizations, BLUE estimator is essentially a<br />
59
decorrelator. Denote ‖x‖ 2 R xH R −1 x and ‖x‖ 2 x H x, the Weighted Least Square<br />
(WLS) estimator finds the linear equalizer M to minimize weighted squared error<br />
J W LS = ‖My − d‖ 2 R (3.15)<br />
<strong>The</strong> WLS estimator turns out to be the same as the BLUE estimator. It is easy to show<br />
that E[˜d BLUE ] = d, hence the BLUE estimator is unbiased. <strong>The</strong> residual error ˜m has<br />
covariance matrix<br />
˜R BLUE = [ σ t H H RH ] −1<br />
(3.16)<br />
error<br />
<strong>The</strong> Least Square (LS) estimator finds the linear equalizer M to minimize squared<br />
J LS = ‖My − d‖ 2 (3.17)<br />
and turns out to be<br />
˜d LS = 1 √<br />
σt<br />
[<br />
H H R 2 H ] −1<br />
H H Ry. (3.18)<br />
Again it is easy to show that the LS estimator is also unbiased and the residual error has<br />
covariance matrix<br />
˜R LS = 1 σ t<br />
[<br />
H H R 2 H ] −1 [<br />
H H R 3 H ] [ H H R 2 H ] −1<br />
. (3.19)<br />
Assuming the codeword vector d has zero-mean and correlation E[dd H ] = R d , and<br />
further that the transmitted code vector d and the noise m are also independent, we can<br />
determine the following statistics:<br />
E[dy H ] = √ σ t H H R (3.20)<br />
E[yy H ] = √ σ t RHR d ( √ σ t RH) H + R. (3.21)<br />
<strong>The</strong> Linear Minimum Mean Squared Error (LMMSE) estimator finds a linear equalizer M<br />
to minimize the Mean Squared Error (MSE) between My and the transmitted codeword<br />
vector d<br />
J LMMSE = E[‖My − d‖ 2 ]. (3.22)<br />
60
<strong>The</strong> resultant LMMSE estimator has the following <strong>for</strong>m,<br />
˜d LMMSE = E[dy H ]E[yy H ] −1 y (3.23)<br />
= √ σ t R d H H R [ σ t RHR d H H R + R ] −1<br />
y (3.24)<br />
= √ σ t R d<br />
[<br />
I − σt H H RHR d (I + σ t H H RHR d ) −1] H H y. (3.25)<br />
Matrix inversion lemma 3 is invoked in Equation (3.25) to reduce the dimension of matrix<br />
inversion from KL r L t N c in Equation (3.24) to KL t N c in Equation (3.25). For more than<br />
two receive antennae, Equation (3.25) has less complexity.<br />
<strong>The</strong> LMMSE estimator is<br />
biased. If R d is nonsingular, another <strong>for</strong>m of the LMMSE estimator is<br />
˜d LMMSE = √ [<br />
σ t σt H H RH + R −1 ] −1<br />
d H H y, <strong>for</strong> nonsingular R d . (3.26)<br />
in this case, it is easy to see that LMMSE estimator converges to BLUE estimator and<br />
is efficient,<br />
lim ˜d LMMSE = ˜d BLUE . (3.27)<br />
σ t→∞<br />
This is not true <strong>for</strong> singular R d . <strong>The</strong> residual error has covariance matrix<br />
˜R LMMSE = σ t R d H H [ I + σ t RHR d H H] −1<br />
R<br />
[<br />
I + σt HR d H H R ] −1<br />
HRd (3.28)<br />
when R d in nonsingular<br />
˜R LMMSE = [ R −1<br />
d<br />
thus it is easy to see that<br />
+ σ t HRH H] −1<br />
σt H H RH [ R −1<br />
d<br />
+ σ t HRH H] −1<br />
, <strong>for</strong> nonsingular Rd<br />
(3.29)<br />
lim ˜R LMMSE = ˜R BLUE (3.30)<br />
σ t→∞<br />
3 (A − CB −1 D) −1 = A −1 + A −1 C(B − DA −1 C) −1 DA −1 .<br />
61
3.4 <strong>The</strong> Mapper<br />
Recall that the output of linear equalizer ˜d = Ad + ˜m is the soft estimate of d. We have<br />
A BLUE = I KLtN c<br />
(3.31)<br />
A LS = I KLtN c<br />
(3.32)<br />
[<br />
A LMMSE = R d IKLtNc − σ t H H RHR d (I + σ t H H RHR d ) −1] σ t H H RH (3.33)<br />
= [ σ t H H RH + R −1 ] −1 √<br />
d σt H H RH <strong>for</strong> nonsingular R d (3.34)<br />
<strong>The</strong> optimal mapper<br />
is equivalent to ML decoder.<br />
ˆd = arg min<br />
d k<br />
‖˜d − Ad k ‖ 2˜R<br />
(3.35)<br />
= arg min<br />
d k<br />
‖y − √ σ t RHd k ‖ 2 R (3.36)<br />
Now we consider suboptimal mapper. <strong>The</strong> simplest mapper (MAP1) simply applies<br />
a hard decision rule to each component of ˜d, that is we decode ˆd bit by bit,<br />
ˆd t (n) = arg min<br />
c k<br />
| ˜d t (n) − c k | 2 , (3.37)<br />
where c k is a valid constellation point. <strong>The</strong> decoded ˆd might not be a valid codeword,<br />
in this case, the closest codeword is the one with the largest number of matches with ˆd.<br />
However, we find that the per<strong>for</strong>mance of the decoder in Equation (3.37) is significantly<br />
worse than that of the mappers to be considered and thus this mapper is not considered<br />
<strong>for</strong> further investigation.<br />
<strong>The</strong> second mapper (MAP2) is the minimum Euclidean distance mapper,<br />
ˆd = arg min<br />
d k<br />
‖˜d − d k ‖ 2 , (3.38)<br />
where d k is a valid codeword vector. If the noise ˜m in Equation (3.13) is a white Gaussian<br />
noise vector, this mapper corresponds to the maximum likelihood decoder (this is a M-ary<br />
hypothesis testing problem).<br />
62
<strong>The</strong> third mapper (MAP3) is<br />
this mapper is also considered in [BTT02].<br />
ˆd = arg min<br />
d k<br />
‖˜d − Ad k ‖ 2 , (3.39)<br />
MAP3 is equivalent to MAP2 <strong>for</strong> BLUE and LS estimators, but different <strong>for</strong> LMMSE<br />
estimators.<br />
For the ML decoder, two scenarios are considered: the optimal ML decoder (ML1)<br />
and the ML decoder ignoring the noise color (ML2)<br />
ˆd = arg min<br />
d k<br />
‖y − √ σ t RHd k ‖ 2 R, (3.40)<br />
ˆd = arg min<br />
d k<br />
‖y − √ σ t RHd k ‖ 2 . (3.41)<br />
<strong>The</strong> BLUE decoder<br />
<strong>The</strong> LS decoder<br />
ˆd = arg min<br />
d k<br />
‖˜d BLUE − d k ‖ 2 . (3.42)<br />
ˆd = arg min<br />
d k<br />
‖˜d LS − d k ‖ 2 . (3.43)<br />
For the LMMSE decoder, three possible scenarios are considered: the LMMSE estimator<br />
plus MAP2 (LMMSE1)<br />
the LMMSE estimator plus MAP3 (LMMSE2)<br />
ˆd = arg min<br />
d k<br />
‖˜d LMMSE − d k ‖ 2 , (3.44)<br />
ˆd = arg min<br />
d k<br />
‖˜d LMMSE − Ad k ‖ 2 , (3.45)<br />
and the LMMSE estimator assuming R d = I plus MAP2 (LMMSE3)<br />
ˆd = arg min<br />
d k<br />
‖˜d LMMSE (R d = I) − d k ‖ 2 . (3.46)<br />
63
Now we evaluate the overall decoder per<strong>for</strong>mance via Chernoff bound on pairwise<br />
codeword error probability conditioned on channel realization.<br />
For the ML1 decoder, when d 1 is transmitted, the probability of decoding d 2 erroneously<br />
is upperbounded by<br />
(<br />
P ML (d 1 → d 2 |H) ≤ exp − σ )<br />
t<br />
4 (d 1 − d 2 ) H H H RH(d 1 − d 2 ) CB ML1 (3.47)<br />
For the ML2 decoder<br />
P ML (d 1 → d 2 |H) ≤ exp<br />
(<br />
− σ t<br />
4<br />
[<br />
(d1 − d 2 ) H H H R 2 H(d 1 − d 2 ) ] )<br />
2<br />
(d 1 − d 2 ) H H H R 3 CB ML2 (3.48)<br />
H(d 1 − d 2 )<br />
For the BLUE decoder<br />
P BLUE (d 1 → d 2 |H) ≤ exp<br />
(<br />
− σ t<br />
4<br />
[<br />
(d1 − d 2 ) H (d 1 − d 2 ) ] 2<br />
(d 1 − d 2 ) H (H H RH) −1 (d 1 − d 2 )<br />
)<br />
CB BLUE (3.49)<br />
For the LS decoder<br />
P LS (d 1 → d 2 |H) ≤ exp<br />
(<br />
− σ t<br />
4<br />
[<br />
(d1 − d 2 ) H (d 1 − d 2 ) ] 2<br />
(d 1 − d 2 ) H (H H R 2 H) −1 (H H R 3 H)(H H R 2 H) −1 (d 1 − d 2 )<br />
CB LS (3.50)<br />
)<br />
For the LMMSE1 decoder<br />
(<br />
P LMMSE2 (d 1 → d 2 |H) ≤ exp − 1 [<br />
(ALMMSE d 1 − d 2 ) H (A LMMSE d 1 − d 2 ) ] )<br />
2<br />
4 (A LMMSE d 1 − d 2 ) H ˜R LMMSE (A LMMSE d 1 − d 2 )<br />
CB LMMSE1 (3.51)<br />
For the LMMSE2 decoder<br />
(<br />
P LMMSE3 (d 1 → d 2 |H) ≤ exp − 1 [<br />
(d1 − d 2 ) H A H LMMSE A LMMSE(d 1 − d 2 ) ] )<br />
2<br />
4 (d 1 − d 2 ) H A H ˜R LMMSE LMMSE A LMMSE (d 1 − d 2 )<br />
CB LMMSE2 (3.52)<br />
64
For the LMMSE3 decoder, the Chernoff bound CB LMMSE3<br />
is a special case of<br />
CB LMMSE1 when R d = I.<br />
3.5 <strong>The</strong> Effect of Large Number of Receive Antennae<br />
Define<br />
∑L r<br />
X H H RH = Hr H R r H r . (3.53)<br />
r=1<br />
where H r and R r defined in Equation (3.9). By noting that H r is a diagonal matrix, we<br />
have<br />
∑L r<br />
X ii = |(H r ) ii | 2 diagonal elements, (3.54)<br />
r=1<br />
L r<br />
∑<br />
X ij = (R r ) ij (H r ) ∗ ii(H r )jj off-diagonal elements. (3.55)<br />
r=1<br />
and as L r → ∞, by the assumption of i.i.d. h k tr and strong Law of Large Numbers,<br />
lim X = L rI LtKN c<br />
almost surely. (3.56)<br />
L r→∞<br />
Clearly the effect of more receive antennae is to strengthen the diagonal elements and<br />
weaken the off-diagonal elements of X.<br />
Similarly we can show that<br />
∑L r<br />
∑L r<br />
H H R 2 H = Hr H RrH 2 r H H R 3 H = Hr H RrH 3 r (3.57)<br />
r=1<br />
r=1<br />
If we assume spreading codes are equi-correlated,<br />
lim<br />
L HH R 2 H = L r [1 + (KL t − 1)ρ 2 ]I LtKN c<br />
(3.58)<br />
r→∞<br />
65
and<br />
lim<br />
L HH R 3 H =<br />
r→∞<br />
L r [1 + 6(KL t − 1)ρ 2 + 4(KL t − 1)(KL t − 2)ρ 3 + (KL t − 1)((KL t − 2) 2 + 1)ρ 4 ]I LtKN c<br />
.<br />
(3.59)<br />
Now let us explicitly consider the effect of a large number of receive antennae on the<br />
equalizer. Since BLUE and LS estimators are unbiased, we only need to evaluate the<br />
residual noise covariance. For BLUE estimator<br />
<strong>for</strong> LS estimator<br />
lim ˜R LS <br />
L r→∞<br />
lim ˜R BLUE = 1 I LtKN<br />
L r→∞ σ t L<br />
c<br />
(3.60)<br />
r<br />
α<br />
σ t L r<br />
I LtKN c<br />
(3.61)<br />
= 1 + 6(KL t − 1)ρ 2 + 4(KL t − 1)(KL t − 2)ρ 3 + (KL t − 1)((KL t − 2) 2 + 1)ρ 4<br />
(σ t L r )(1 + 2(KL t − 1)ρ 2 + (KL t − 1) 2 ρ 4 I LtKN<br />
)<br />
c<br />
.<br />
(3.62)<br />
because the LS estimator has larger variance than the BLUE estimator in the limit<br />
(α > 1), we expect the LS estimator has worse per<strong>for</strong>mance than the BLUE estimator.<br />
<strong>The</strong> LMMSE estimator, when R d in nonsingular<br />
lim A [<br />
LMMSE = lim ILtKN c<br />
+ R −1<br />
L r→∞ L<br />
d /(σ tL r ) ] −1<br />
= ILtKN c<br />
(3.63)<br />
r→∞<br />
is unbiased, the residual noise have covariance matrix<br />
lim ˜R LMMSE =<br />
L r→∞<br />
lim<br />
L r→∞<br />
1 [<br />
ILtKN<br />
σ t L<br />
c<br />
+ R −1<br />
d /(σ tL r ) ] −2 1 = I LtKN<br />
r σ t L<br />
c<br />
. (3.64)<br />
r<br />
66
Now we consider the effect of large number of receive antennae on overall decoder<br />
per<strong>for</strong>mance. Plug the above asymptotics into Equations (3.47), (3.48), (3.49), (3.50),<br />
(3.51) and (3.52).<br />
lim CB ML1 =<br />
L r→∞<br />
lim CB BLUE =<br />
L r→∞<br />
= lim<br />
L r→∞ CB LMMSE2 =<br />
lim<br />
L r→∞ CB LMMSE1<br />
lim CB LMMSE3 = exp<br />
L r→∞<br />
(<br />
− σ tL r<br />
4 ‖d 1 − d 2 )‖ 2 )<br />
(<br />
lim CB LS = lim CB ML1 = exp − σ )<br />
tL r<br />
L r→∞ L r→∞ 4α ‖d 1 − d 2 )‖ 2<br />
(3.65)<br />
(3.66)<br />
Hence <strong>for</strong> large number of receive antennae, all the BLUE decoder and LMMSE decoders<br />
achieve the same per<strong>for</strong>mance as that of optimal ML1 decoder. <strong>The</strong> LM2 and LS decoder<br />
is worse by a factor α.<br />
3.6 Fisher’s In<strong>for</strong>mation Matrix<br />
To seek the favorable structure of codeword <strong>for</strong> the LMMSE estimator, we evaluate<br />
Fisher’s In<strong>for</strong>mation Matrix (FIM) conditioned on channel realization H <strong>for</strong> random<br />
codeword vector d. Recall that<br />
y = √ σ t RHd + m<br />
where m ∼ CN (0, R). We have<br />
P (y|d, H) =<br />
1<br />
π LtKNc det(R) exp ( −(y − √ σ t RHd) H R −1 (y − √ σ t RHd) ) (3.67)<br />
If we assume d ∼ CN (0, R d ),<br />
P (d) =<br />
1<br />
( )<br />
π NcLt det(R d ) exp d H R<br />
d −1 d<br />
(3.68)<br />
the joint pdf of y and d is<br />
P (y, d|H) = P (y|d, H)P (d) (3.69)<br />
67
the FIM <strong>for</strong> random d is<br />
[ ∂ ln P (y, d|H)<br />
J = E<br />
∂d ∗<br />
= E<br />
]<br />
∂ ln P (y, d|H)<br />
∂d T<br />
[ ∂ ln P (y|d, H) ∂ ln P (y|d, H)<br />
∂d ∗ ∂d T +<br />
= σ 2 t H H RH + R −1<br />
d<br />
]<br />
∂ ln P (d) ∂ ln P (d)<br />
∂d ∗ ∂d T<br />
(3.70)<br />
(3.71)<br />
(3.72)<br />
Let I denote the inverse of J, the Cramer-Rao lower bound (CRLB) says<br />
var( ˆd i ) ≥ I ii (3.73)<br />
For large number of receive antennae, plug Equation (3.56) into J<br />
lim J =<br />
L σ2 t L r I LtKN c<br />
+ R −1<br />
r→∞ d<br />
(3.74)<br />
To seek the optimal code structure <strong>for</strong> the estimator, we try to minimize the overall<br />
lower bound of estimation variance subject to constant block energy<br />
(<br />
) −1<br />
min<br />
d trace σ t H H RH + R<br />
d<br />
−1 subject to E[d H d] = c (3.75)<br />
Recall R d = E[dd H ], if the eigenvalues of R d are {λ i } n 1 , the optimization problem is<br />
equivalent to<br />
min<br />
d<br />
n∑<br />
i=1<br />
1<br />
σ 2 t L r + 1 λ i<br />
subject to<br />
By Kuhn-Tucker conditions, the minimum is achieved when<br />
n∑<br />
λ i = c (3.76)<br />
i=1<br />
λ 1 = c, λ 1 = · · · λ n = 0 (3.77)<br />
This suggests strong correlation among d is preferred by the estimator, which agrees with<br />
common sense: the estimation of one element helps the estimation of the others. Since<br />
usually<br />
σt 2 L r ≫ 1 , (3.78)<br />
λ i<br />
68
hence<br />
1<br />
σt 2L r + 1 ≃ 1<br />
σ 2 λ i t L if λ i ≠ 0 (3.79)<br />
r<br />
1<br />
σt 2L r + 1 = 0 if λ i = 0. (3.80)<br />
λ i<br />
This suggests the minimum rank of R d will decide the minimum of Equation (3.76),<br />
rather than the relative distribution of non-zero eigenvalues.<br />
To search <strong>for</strong> good codes <strong>for</strong> LMMSE decoder, the difficulty resides in the absence of<br />
closed <strong>for</strong>m expression <strong>for</strong> PEP. <strong>The</strong> above Fisher’s In<strong>for</strong>mation Matrix analysis suggests<br />
that small number of non-zero eigenvalues of R d reduces the variance of linear estimator,<br />
but another measure which quantize the effect of mapper is still missing.<br />
Numerical<br />
results show that the mappers are very insensitive to the variance of linear estimator.<br />
Two unsatisfactory approaches have been tested to search <strong>for</strong> good codes suitable <strong>for</strong><br />
LMMSE decoder.<br />
<strong>The</strong> first approach is based on the fact that OMM codes are not<br />
unique, within the set of OMM codes, we try to find the code with the minimum rank<br />
of R d . But <strong>for</strong> all known OMM codes within the same set, R d ’s turn out to have the<br />
same rank. <strong>The</strong> second approach tries to find the code sets with minimum rank of R d , <strong>for</strong><br />
codes with the same rank of R d , worst case coding gain is minimized. This yields large<br />
number of code sets, primitive analysis shows no noticeable advantage of found codes.<br />
3.7 Simulation<br />
In the simulation, a rate 1, 2 × 2 BPSK code set optimized <strong>for</strong> spread system [GMF03]<br />
is used, it consists of four codewords:<br />
⎡ ⎤ ⎡ ⎤ ⎡ ⎤ ⎡ ⎤<br />
⎣ 1 1 ⎦ ⎣ 1 −1 ⎦ ⎣ −1 1 ⎦ ⎣ −1 −1 ⎦ . (3.81)<br />
1 1 −1 −1 1 −1 −1 1<br />
<strong>The</strong> codeword correlation is<br />
⎡ ⎤<br />
1 0 0 0<br />
0 1 1 0<br />
R d =<br />
⎢<br />
⎣0 1 1 0⎥<br />
⎦<br />
0 0 0 1<br />
(3.82)<br />
69
Apparently R d is singular, which is typical <strong>for</strong> small number of codewords and small<br />
constallation size.<br />
3.7.1 <strong>The</strong> BLUE and LS Decoders<br />
Although the BLUE and LS decoders are unbiased, they cannot achieve the same diversity<br />
level as ML decoder (Figure 3.3). An inspection of the average variance (Figure 3.4)<br />
L t<br />
=2, L r<br />
=1, K=1, ρ=0.3, BLUE and LS decoder lose diversity<br />
10 0 SNR<br />
LS<br />
BLUE<br />
LMMSE1<br />
ML1<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
0 1 2 3 4 5 6 7 8 9 10<br />
Figure 3.3: <strong>The</strong> BLUE and LS estimators lose diversity.<br />
var = ‖˜d − d‖ 2 (3.83)<br />
shows the loss of diversity is due to the large variance of estimated codeword vector. On<br />
the contrary, LMMSE decoder is biased, but has very small variance, hence achieves the<br />
same diversity level as ML decoder. <strong>The</strong> LS decoder is slightly worse than the BLUE<br />
decoder, and has slightly larger estimator variance.<br />
70
250<br />
L t<br />
=2, L r<br />
=1, K=1, ρ=0.3, BLUE and LS estimator has large variance<br />
LS<br />
BLUE<br />
LMMSE1<br />
200<br />
150<br />
VAR<br />
100<br />
50<br />
0<br />
0 1 2 3 4 5 6 7 8 9 10<br />
SNR<br />
Figure 3.4: <strong>The</strong> BLUE and LS estimators have large variance.<br />
3.7.2 <strong>The</strong> LM Decoders<br />
LM2 has about 0.3dB loss than LM1 by ignoring the color of the noise (Figure 3.5). By<br />
considering the noise color, LM1 calculates a weighted Euclidean distance, there<strong>for</strong>e the<br />
per<strong>for</strong>mance improvement is obtained by more decoding complexity.<br />
3.7.3 <strong>The</strong> LMMSE Decoders<br />
LMMSE2 decoder has slight advantage over LMMSE1 at high SNR (Figure 3.6), but it has<br />
complexity comparable to ML decoder, it is not a good candidate <strong>for</strong> multiuser detection,<br />
where the number of hypotheses grows exponentially with the number of active users K.<br />
LMMSE2 decoder has less variance than LMMSE1 decoder (Figure 3.7). Ignoring the<br />
codeword correlation incurs about 0.2dB loss in per<strong>for</strong>mance and larger variance.<br />
3.7.4 <strong>The</strong> Effect of Number of Receive Antennae L r<br />
Two receive antennae improve the per<strong>for</strong>mance of all decoders, but the BLUE and LS<br />
decoders still cannot achieve the same level of diversity as ML and LMMSE1 decoders.<br />
71
L t<br />
=2, L r<br />
=1, K=1, ρ=0.3, ignoring R incurrs 0.3dB loss<br />
10 0 SNR<br />
ML2<br />
ML1<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
0 1 2 3 4 5 6 7 8 9 10<br />
Figure 3.5: Ignoring R incurs 0.3dB loss.<br />
# of active users ML1 LMMSE3<br />
K=2 0.7500 0.1100<br />
K=4 13.7190 0.2810<br />
Table 3.1: CPU time in seconds <strong>for</strong> 200 runs.<br />
3.7.5 <strong>The</strong> Effect of Number of Active Users K<br />
For 2 (Figure 3.9) and 4 (Figure 3.10) active users, the single user LMMSE3 decoder<br />
shows per<strong>for</strong>mance close to joint LMMSE3 decoder and has much less complexity. Note<br />
the equalizer is still joint equalizer.<br />
3.7.6 Complexity<br />
Simulation results show that LMMSE3 has complexity which grows linearly with the<br />
number of active users, while ML1 has complexity which grows exponentially with the<br />
number of active users (See Table 3.7.6).<br />
72
L t<br />
=2, L r<br />
=1, K=1, ρ=0.3<br />
10 0 SNR<br />
LMMSE1<br />
LMMSE2<br />
LMMSE3<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
10 −4<br />
0 2 4 6 8 10 12 14 16<br />
Figure 3.6: LMMSE2 decoder has slight advantage over LMMSE1 decoder at high SNR.<br />
3<br />
2.5<br />
L t<br />
=2, L r<br />
=1, K=1, ρ=0.3, LMMSE2 has less variance than LMMSE1<br />
LMMSE1<br />
LMMSE2<br />
LMMSE3<br />
2<br />
VAR<br />
1.5<br />
1<br />
0.5<br />
0<br />
0 2 4 6 8 10 12 14 16<br />
SNR<br />
Figure 3.7: LMMSE2 decoder has less variance than LMMSE1 decoder.<br />
73
L t<br />
=2, L r<br />
=2, K=1, ρ=0.3, two receive antennae<br />
10 0 SNR<br />
LS<br />
BLUE<br />
LMMSE1<br />
ML1<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
10 −4<br />
0 1 2 3 4 5 6 7 8 9 10<br />
Figure 3.8: Two receive antennae.<br />
K=2, [0 7 9 14]<br />
10 0 SNR<br />
Single LMMSE3<br />
Joint LMMSE3<br />
ML<br />
SER<br />
10 −1<br />
10 −2<br />
0 1 2 3 4 5 6 7 8 9 10<br />
Figure 3.9: Two active users.<br />
74
K=4, [0 7 9 14]<br />
10 0 SNR<br />
Single LMMSE3<br />
Joint LMMSE3<br />
ML<br />
10 −1<br />
SER<br />
10 −2<br />
10 −3<br />
0 2 4 6 8 10 12 14<br />
Figure 3.10: Four active users.<br />
75
Chapter 4<br />
Nonlinear Hierarchical <strong>Codes</strong><br />
4.1 Introduction<br />
<strong>The</strong> computer optimized codes in Chapter 2 exhibit layered structure which can be characterized<br />
by isometry (see Section 4.2 <strong>for</strong> detailed discussion on isometry). This motivates<br />
the construction of Nonlinear Hierarchical <strong>Codes</strong> (NHC) based on isometries. <strong>The</strong> construction<br />
of NHC is a generalization of group codes [Sle68] to the space-time scenario.<br />
STBCs have been designed using constraints on the structure of the codewords. Such<br />
constraints often yield systematic designs making code set generation and often analysis<br />
quite straight<strong>for</strong>ward. In particular, orthogonal codes [TJC99] and unitary group codes<br />
[HM00, SHHS01] en<strong>for</strong>ce orthogonal or unitary structure on the code blocks and are easily<br />
generated. However, computer optimized codes, optimal minimum metric codes (OMM)<br />
[Gen00] and optimal union bound codes (OUB) [GVM02], can offer up to several dB gains<br />
over the a<strong>for</strong>ementioned code sets, but are computationally expensive to determine. For<br />
STBCs to be used in a serially concatenated system, this several dB gain [Gen00] is seen<br />
directly in overall per<strong>for</strong>mance. For both practical and theoretical reasons, there is strong<br />
interest in developing high per<strong>for</strong>mance code sets that have systematic constructions.<br />
As noted above, the coding gain measure does not define a metric space, which complicates<br />
systematic constructions of code sets. Operations that preserve “distance” measures<br />
like the coding gain are deemed isometries. Isometric trans<strong>for</strong>mations have been<br />
previously investigated in the context of space-time systems: to shorten search times<br />
<strong>for</strong> codes sets [Gen00, GVM02] and to per<strong>for</strong>m code set expansion <strong>for</strong> use in space-time<br />
trellis-coded modulation design [SF02]. <strong>The</strong> computer optimized codes [Gen00, GVM02]<br />
exhibit strong structure and symmetry which can be explained via isometries. This in<br />
76
turn, suggests the systematic construction of nonlinear hierarchical codes (NHC) <strong>for</strong> large<br />
block and/or constellation sizes, which we present herein.<br />
Slepian [Sle68] studied group codes <strong>for</strong> the Gaussian channel in 1967. 1 <strong>The</strong> group<br />
codes defined by Slepian possessed geometric uni<strong>for</strong>mity and can be decomposed into a<br />
direct sum of certain basic group codes. Starting from an initial vector, the basic group<br />
codes can be generated by irreducible representations of a finite group. However, finding<br />
group codes with best worst case per<strong>for</strong>mance is challenging as noted by Slepian. However,<br />
we are able to generalize and extend Slepian’s design strategy <strong>for</strong> the construction of<br />
NHCs. <strong>The</strong> methodology of NHC construction via isometries <strong>for</strong> MIMO quasi-static<br />
fading channels is an extension of Slepian’s group codes, where group structure (and<br />
hence distance uni<strong>for</strong>mity), is conserved in most cases. A sufficient condition <strong>for</strong> NHCs<br />
to achieve geometric uni<strong>for</strong>mity [GDF91] is established. <strong>The</strong> NHC construction starts<br />
from some initial codeword matrices with no constraint on the size and structure, and<br />
by means of isometries, systematically builds higher rate codes from lower rate codes,<br />
while preserving the good structure of the lower rate code. It is the relationship between<br />
codewords, rather than the structure of each individual codeword, that is exploited to<br />
optimize coding gain. <strong>The</strong> found NHCs match those found via exhaustive computer<br />
search, and exhibit not only optimized coding gain at each layer, but also great symmetry<br />
and structure to be exploited in Chapter 5 of this work.<br />
This chapter is organized as follows: Section 4.2 presents the signal model; Section 4.3<br />
discusses the construction and properties of NHCs. As an example, Section 4.4 describes<br />
in detail the generation of the 2 × 2 QPSK NHC. Section 4.5 discusses the constructed<br />
NHCs and compares their per<strong>for</strong>mance with corresponding orthogonal or unitary group<br />
codes.<br />
4.2 Signal Model and Isometries<br />
We consider a single user system where the transmitter and receiver are equipped with<br />
L t and L r antennae, respectively. We assume perfect synchronization. <strong>The</strong> received<br />
1 Distinction should be made from the unitary groups codes in [HM00], where unitary group codes are<br />
indeed matrix representations of Slepian’s groups codes.<br />
77
signal corresponding to N c symbol intervals after appropriate front-end processing can<br />
be <strong>for</strong>mulated as<br />
Y = √ σ t DH + N ∈ C Nc×Lr (4.1)<br />
where<br />
σ t = signal-to-noise ration (SNR) normalized by L t (4.2)<br />
D = [d ti ] ∈ C Nc×Lt codeword matrix (4.3)<br />
H = [h ij ] ∈ C Lt×Lr fading coefficient matrix (4.4)<br />
N = [n tj ] ∈ C Nc×Lr additive white Gaussian noise matrix (4.5)<br />
Y = [y tj ] ∈ C Nc×Lr received signal matrix (4.6)<br />
For the current work, d ti is constrained to a finite nP SK set, that is, d ti = u c ti<br />
where<br />
u = e j 2π n , c ti ∈ {0, . . . , n−1}. For ease of representation, each codeword matrix is assigned<br />
a unique index, by concatenating c ti ’s into a single base-n number:<br />
(c 1,1 . . . c 1,Lt . . . . . . c Nc,1 . . . c Nc,L t<br />
) n . (4.7)<br />
<strong>The</strong> fading coefficients are complex Gaussian, and modeled as independent <strong>for</strong> different<br />
transmit antenna i or receive antenna j. A quasi-static fading channel is considered, i.e.,<br />
H remains constant within each block of N c symbols, but independent from block to<br />
block. Perfect channel state in<strong>for</strong>mation is assumed known at the receiver. <strong>The</strong> noise,<br />
n tj ∼ CN (0, 1) is additive complex Gaussian noise, independent <strong>for</strong> different symbol times<br />
t and different receive antennae j.<br />
We define the codeword difference correlation matrix<br />
Φ(D i − D j ) (D i − D j ) H (D i − D j ), (4.8)<br />
and denote the non-zero eigenvalues of Φ(D i − D j ) by λ k . <strong>The</strong> channel vector h, which<br />
is a concatenation of the columns of H, has mean and covariance<br />
¯h E[h] (4.9)<br />
Σ h E[(h − ¯h)(h − ¯h) H ] (4.10)<br />
78
We will assume Σ h always has full rank.<br />
<strong>The</strong> averaged (over channel) pairwise error<br />
probability of decoding D j when D i is transmitted can be upper bounded by<br />
E h [P (D i → D j )|h)] ≤<br />
(<br />
exp<br />
−h H Σ −1<br />
h<br />
[<br />
I − (I +<br />
σ t<br />
4 Σ hΦ) −1] )<br />
h<br />
|I + σt<br />
4 Σ hΦ|<br />
(4.11)<br />
at high SNR, assuming Φ is full rank, which is the focus of this work, the bound can be<br />
simplified to<br />
E h [P (D i → D j )|h)] ≤<br />
( )<br />
exp −h H Σ −1<br />
h h<br />
| σt<br />
4 Σ h|<br />
1<br />
|Φ|<br />
(4.12)<br />
Because the factor in front of 1/|Φ| is a function of channel mean and covariance only,<br />
the worst case code design criteria [TSC98, GFBK99] determined by Φ are independent<br />
of channel conditions: Rayleigh (¯h = 0) or Ricean (¯h ≠ 0), uncorrelated (Σ h = I) or<br />
correlated (Σ h ≠ I). <strong>The</strong> special case when Σ h is rank deficient is not discussed in this<br />
work. <strong>The</strong> design criteria are diversity gain<br />
∆ H (D i − D j ) = rank Φ(D i − D j ), (4.13)<br />
and coding gain 2<br />
∆ p (D i − D j ) =<br />
∆ H ∏<br />
k=1<br />
λ k (4.14)<br />
= det Φ(D i − D j ) assuming full diversity gain. (4.15)<br />
Another interesting distance measure is<br />
∆ H<br />
∑<br />
∆ s (D i − D j ) = λ k = trace(Φ(D i − D j )) (4.16)<br />
k=1<br />
which characterizes the per<strong>for</strong>mance of a space-time system in Gaussian channel or when<br />
the number of receive antennae is large [SF02] and will be used in the sequel <strong>for</strong> signal<br />
set expansion (see Equation (5.8)). For a set of codewords, the worst case design goals<br />
are<br />
2 <strong>The</strong>re are other equivalent definitions of coding gain, we adopt this <strong>for</strong>m <strong>for</strong> ease of presentation.<br />
79
1. full diversity<br />
∆ H (D i − D j ) = L t , ∀i ≠ j (4.17)<br />
2. maximize minimum coding gain<br />
max min ∆ p (D i − D j ), ∀i ≠ j (4.18)<br />
To define our code construction method, we require the notion of an isometry. Isometries<br />
are defined as “distance preserving” trans<strong>for</strong>mations, where the “distance” ∆ x can<br />
be ∆ H , ∆ p or ∆ s .<br />
Definition 1 A function φ of codeword D is an isometry <strong>for</strong> ∆ x if<br />
∆ x (γ(D i ) − γ(D j )) = ∆ x (D i − D j ). (4.19)<br />
We assume that all isometries map the all zero matrix to the all zero matrix, i.e., γ(0) = 0.<br />
Lemma 1 For ∆ x = ∆ H , ∆ p , or ∆ s , the followings are isometries: 3<br />
1. γ(D) = UD, where U is arbitrary unitary matrix U H U = I.<br />
2. γ(D) = DP , where P is arbitrary unitary matrix: P H P = I.<br />
3. γ(D) = [d ∗ ti ], componentwise complex conjugation.<br />
Proof:<br />
If we can show that the three isometries do not change the eigenvalues of Φ(D i − D j ),<br />
then the “distance” ∆ x (x = H, p or s) is preserved. Let λ and v be an eigenvalue and<br />
corresponding eigenvector of Φ,<br />
Φv = λv. (4.20)<br />
3 This work focuses on non-spread systems, which applies equally well to the uplink of a multiuser<br />
Direct-Sequence Code-Division Multiple-Access (DS-CDMA) system when different transmit antennae of<br />
one user employ the same spreading code [Gen00]. <strong>The</strong> system with different spreading codes employed<br />
<strong>for</strong> different transmit antennae is called a spread system. Not all isometries <strong>for</strong> non-spread systems apply<br />
to spread systems, some limitations have to be applied. Isometry 1 holds as be<strong>for</strong>e. Isometry 2 requires:<br />
P is a unitary permutation matrix (P H P = I, each row and column of P has only one non-zero element)<br />
and equi-correlated spreading codes. Isometry 3 requires real valued spreading codes. Hence <strong>for</strong> spread<br />
systems, pragmatic isometries are essentially limited to U only.<br />
80
1. Isometry U does not change Φ at all: Φ(UD i −UD j ) = (D i −D j ) H U H U(D i −D j ) =<br />
Φ(D i − D j ).<br />
2. Let v = P v ′ , then ||v ′ || = ||v|| = 1 and<br />
ΦP v ′ = λP v ′ =⇒ P H ΦP v ′ = λv ′ ,<br />
there<strong>for</strong>e λ and v ′ are an eigenvalue and corresponding eigenvector of Φ(D i P −<br />
D j P ) = P H ΦP . Thus the eigenvalues are preserved.<br />
3. <strong>The</strong> eigenvalues of a Hermitian matrix, Φ, are real. Taking complex conjugation on<br />
both sides of Equation (4.20), Φ ∗ v ∗ = λv ∗ , there<strong>for</strong>e, λ and v ∗ are an eigenvalue<br />
and corresponding eigenvector of Φ ∗ .<br />
In summary, the eigenvalues of Φ are not changed by the these isometries and, thus the<br />
“distance”, ∆ x is preserved. ✷<br />
An interesting observation is that <strong>for</strong> 2 × 2 block codes, the effect of complex conjugation<br />
can be “emulated” by combinations of U and P . Here is an example:<br />
⎡ U ⎤ ⎡ 1 ⎤ ⎡ P ⎤ ⎡ 7 ⎤<br />
⎣ 1 0 ⎦ × ⎣ 1 1 ⎦ × ⎣ 0 1 ⎦ = ⎣ 1 1 ⎦ (4.21)<br />
0 e −j π 4 1 e j π 4 1 0 1 e −j π 4<br />
For larger block sizes, it may be challenging to find these equivalent combinations of U<br />
and P to emulate the effect of complex conjugation.<br />
To ensure closure <strong>for</strong> the isometries, we further require that U and P have only<br />
one non-zero element on each row and column, which is drawn from the same nPSK<br />
constellation as the original codeword D. With this constraint, there are n Lt L t ! possible<br />
matrices of size L t ×L t <strong>for</strong> the left isometries, and n Nc N c ! possible matrices of size N c ×N c<br />
<strong>for</strong> the right isometries. Either left or right isometries <strong>for</strong>m a non-abelian group; the fixedpoint-free<br />
groups of these isometries are well-studied[SHHS01]. Isometries consisting of all<br />
the combinations of U and P also <strong>for</strong>m a non-abelian group with cardinality n Lt L t !n Nc N c !,<br />
which includes left (or right) only isometries as a subgroup.<br />
Codewords which can be trans<strong>for</strong>med from one to another via isometries <strong>for</strong>m an<br />
equivalence class, which shall be called “double cosets” if both U and P are used, and<br />
“cosets” if only U is used. When no confusion is caused, we will simply use “coset” to<br />
81
epresent both <strong>for</strong> convenience. All codewords within a single equivalence class have the<br />
same ∆ p (D), which will be called the coding gain of the coset; but the converse is generally<br />
not true. A distinction between our defined cosets and those classical cosets defined in<br />
group theory [Arm87] is that in group theory all cosets have a common cardinality, while<br />
here, different cosets may have different cardinalities. <strong>The</strong> codeword space is naturally<br />
decomposed into cosets.<br />
<strong>The</strong> coset leader, l, has the smallest codeword index within the coset. A double coset<br />
with cardinality m will be designated by its coset leader as DC l (m), similarly a coset<br />
will be designated as C l (m). A double coset usually splits into several cosets with equal<br />
cardinality. An example <strong>for</strong> 2 × 2 QPSK codes is given below, where the optimal rate 2<br />
code (16 codewords) is found within DC 2 (64):<br />
DC 0 (64) = C 0 (16) ∪ C 17 (16) ∪ C 34 (16) ∪ C 51 (16)<br />
DC 1 (128) = C 1 (32) ∪ C 3 (32) ∪ C 18 (32) ∪ C 35 (32)<br />
DC 2 (64) = C 2 (32) ∪ C 19 (32)<br />
A coset is actually a trivial set of group codes with the largest possible cardinality.<br />
4.3 Building Nonlinear Hierarchical <strong>Codes</strong><br />
Given the nonlinear, non-metric, codeword space, finding a good set of codewords is not<br />
a simple task. With the aid of isometries, we propose the following greedy algorithm to<br />
build nonlinear hierarchical codes (NHCs):<br />
1. Pick a good initial codeword set S k with 2 k codewords.<br />
2. Generate S<br />
k ′ from S k by the following criterion<br />
S ′ k = {U mS k P n |max<br />
m,n min<br />
i,j ∆ p(D ′ i − D j ), ∆ H = L t , D ′ i ∈ S ′ k , D j ∈ S k } (4.22)<br />
3. Let S k+1 = S k ∪ S<br />
k ′ , k = k + 1 and go to step 2.<br />
Step 2 generates a new set S ′ which is isomorphic to the base set S and is as “far<br />
away” from the base set as possible. <strong>The</strong> procedure stops when the desired rate is reached<br />
or S ′ is empty. <strong>The</strong> following properties can be shown:<br />
82
1. Cardinality: |S k | = 2 k<br />
2. S<br />
k ′ and S k have the identical distance spectrum with respect to ∆ H , ∆ p and ∆ s .<br />
3. Coding gain: ∆ p (S k+1 ) ≤ ∆ p (S k )<br />
Step 2 and 3 extend the size of any code set while maintaining full diversity and good<br />
coding gain. <strong>The</strong> initial codeword set may be a single codeword matrix, in this case,<br />
all the codewords generated by the above procedure belong to the same double coset.<br />
Since each double coset is of the largest possible cardinality <strong>for</strong> group codes, the above<br />
procedure is a systematic way of carving out a good subset (or subgroup) from this double<br />
coset. We could start from a codeword set with members from different double cosets,<br />
but this set is generally difficult to expand in Step 2, because members from the same<br />
double coset lead to desirable symmetry properties 4 . To simplify code construction and<br />
analysis, we focus on codewords from the same double coset. Step 2 can be relaxed by<br />
accepting S ′ whose “distance” from S is larger than a certain threshold τ:<br />
S ′ k = {U mS k P n |min<br />
i,j ∆ p(D ′ i − D j ) ><br />
m,n<br />
τ, ∆ H = L t , D ′ i ∈ S ′ k , D j ∈ S k }. (4.23)<br />
Of course, multiple candidate sets would be found, but this makes it easier to find code<br />
sets of larger cardinality. <strong>The</strong> above procedure enables us to start from a single codeword<br />
and build a good set of codes <strong>for</strong> different rates with limited complexity by reusing the<br />
good sub-structure again and again. At each layer of the construction/expansion, the<br />
associated distance spectra have good properties and coding gains are nearly-optimized<br />
and we conjecture could in fact be optimal <strong>for</strong> several cases.<br />
are summarized in Table 4.2 of Section 4.5.<br />
<strong>The</strong> constructed NHCs<br />
<strong>The</strong> beauty of the NHC is the graceful<br />
tradeoff between per<strong>for</strong>mance and rate while maintaining good structure. Properties 2<br />
and 3 induce a natural set partitioning [Ung82] on NHCs which lays the foundation <strong>for</strong><br />
space-time trellis-coded modulation design. This is the topic of Chapter 5.<br />
To obtain a good hierarchical code, two important issues need to be addressed:<br />
1. Choice of initial codeword or lower rate code<br />
2. Choice of isometries<br />
4 <strong>The</strong>re are exceptions where codewords from different double cosets give good per<strong>for</strong>mance.<br />
83
We may construct the whole set from a single codeword, in this case, all codewords belong<br />
to the same double coset, the S k of the current step always serves as the lower rate code<br />
<strong>for</strong> next step; we may also start from a well constructed set of codewords, which may be<br />
a NHC of lower constellation, an orthogonal code or a unitary group code, in this case<br />
the constructed NHC may not belong to the same double coset.<br />
<strong>The</strong> interaction between an initial codeword and isometries is complicated when double<br />
cosets instead of cosets are considered. If we require that all codewords are drawn from<br />
the same double coset, choosing a good initial codeword is equivalent to selecting a good<br />
double coset. This significantly simplifies the task of choose a good initial codeword, but<br />
still does not solve the problem completely. Our strategy is to seek the double cosets with<br />
the maximum coding gain as motivated by the following two arguments. Consider a pair<br />
of codewords, D and D ′ , from the same double coset such that they maximize the coding<br />
gain ∆ p (D − D ′ ), the maximizing pair is simply D and −D with ∆ p (2D) = det(4D H D).<br />
Maximizing ∆ p (2D) leads to the coset with the largest coding gain,<br />
D ∗ = arg max<br />
D<br />
det(Φ(D − (−D)) = arg max<br />
D det(DH D) (4.24)<br />
Our second argument behind using the maximal determinant coset is as follows. Consider<br />
cosets <strong>for</strong>med by the left isometry U, then our goal <strong>for</strong> the initial codeword D is:<br />
D ∗ = arg max det(Φ(UD − D)) (4.25)<br />
D,U<br />
= arg max<br />
D<br />
det(DH D)max det((U −<br />
U I)H (U − I)) (4.26)<br />
<strong>The</strong> optimization can be decoupled to choosing the correct coset max<br />
D<br />
det(DH D) and<br />
the correct isometry max det((U −<br />
U<br />
I)H (U − I)). Note that the condition max det((U −<br />
U<br />
I) H (U − I)) implies det(U − I) ≠ 0, which is the condition of U being fixed point free<br />
[HM00]. Our simple argument suggests that fixed point free matrices/codes may not be<br />
the best codewords, but they are desirable isometries. Thus, fixed point free isometries<br />
should be coupled with maximal determinant code words to trans<strong>for</strong>m them into constant<br />
envelope modulation codewords. A similar argument cannot be extended to double cosets.<br />
Empirically, we have found that our strategy of starting with the coset with the largest<br />
associated determinant does indeed yield the best codes.<br />
84
We have observed that good codes from smaller constellations are embedded in codes<br />
from larger constellations and usually serve as better lower rate codes <strong>for</strong> the basis of<br />
expansion. Relaxing the maximization in Equation (4.22) to the threshold in Equation<br />
(4.23) also makes further expansion easier.<br />
Left or right isometries alone are usually insufficient to generate good higher rate<br />
codes. <strong>The</strong> theory of fixed-point free group codes enables one to eliminate inappropriate<br />
isometries and reduce the search space, thus enabling the practical search/design of block<br />
codes with very large cardinality. Recall that complex conjugation can be emulated in<br />
2 × 2 block codes by a suitable combination of left and right isometries, but this does not<br />
hold <strong>for</strong> general block sizes. We endeavor to avoid complex conjugation, or cross-coset<br />
codewords <strong>for</strong> that matter, because the fine structure maintained by focusing on left and<br />
right isometries is broken and thus makes generating a good S<br />
k ′ from S k challenging.<br />
In general, we propose cross-coset codewords and complex conjugation as methods <strong>for</strong><br />
expansion only in the last step of the design process.<br />
Given the nature of the problem (nonlinear, non-metric space, non-unique trans<strong>for</strong>mation),<br />
carrying out the procedure requires some trial and error; however very good codes<br />
can be found via a few steps and with fairly small complexity. A brute <strong>for</strong>ce search <strong>for</strong><br />
2 K codewords of size L t ×N c from nPSK constellations requires testing O(n LtNc2K) cases.<br />
In contrast, the hierarchical design requires testing only O(Kn Lt+Nc L t !N c !) cases. <strong>The</strong>re<br />
is inherent redundancy in the isometries. That is, the same code set S ′ can be generated<br />
by different isometries U m and P n from the same base set S; similarly a single initial code<br />
set S can yield multiple code sets S ′ , each with the maximal coding gain. Because we<br />
are interested in finding only one optimized code set, any other code sets with equivalent<br />
per<strong>for</strong>mance (distance spectrum) are deemed redundant. By exploiting the properties of<br />
isometries, many redundancies can be removed from the search as follows:<br />
1. About half of the left isometries U are redundant. Because U H U = I and U r = I<br />
<strong>for</strong> some r, the following pair of sets share the identical distance spectrum,<br />
S ∪ US ↔ S ∪ U H S (4.27)<br />
S ∪ U t S ↔ S ∪ U r−t S (4.28)<br />
If U is included in the search, U H becomes redundant.<br />
85
2. Most right isometries P are redundant. For example, the 2×2 QPSK NHC is found<br />
in the double coset DC 2 (64), which can be decomposed into two cosets<br />
DC 2 (64) = C 2 (32) ∪ C 19 (32) (4.29)<br />
⎡ ⎤ ⎡ ⎤<br />
= C 2 (32) ⎣ 1 ⎦ ∪ C 2 (32) ⎣ 1 ⎦ . (4.30)<br />
1<br />
i<br />
In other words, applying all other right isometries on C 2 (32) yields no new cosets,<br />
there<strong>for</strong>e, only two right isometries need to be included in the search.<br />
For 2 × 2 QPSK, the number of left/right isometry pair is reduced from 32 × 32 to 18 × 2,<br />
<strong>for</strong> 3 × 3 8PSK, the reduction is significant: from 3072 × 3072 to 1564 × 64.<br />
As noted earlier, the NHCs are strongly analogous to Slepian’s group codes <strong>for</strong> Gaussian<br />
channels [Sle68] which are geometrically uni<strong>for</strong>m signal sets [GDF91]. Our extension<br />
of Slepian’s group codes to MIMO quasi-static fading channels considers designs which<br />
endeavor to maintain geometric uni<strong>for</strong>mity via isometries. <strong>The</strong> strong analogy between<br />
NHC and Slepian’s group code is evident:<br />
NHC<br />
Coding gain ∆ p<br />
Initial block code<br />
Isometry U and P<br />
Double coset<br />
Slepian’s group code<br />
Euclidean distance<br />
Initial vector<br />
Real orthogonal matrices O<br />
Fundamental region<br />
NHCs attempt to generalize Slepian’s group codes to MIMO fading channel in a<br />
practical way. <strong>The</strong> group structure between the group of real orthogonal matrices {O i } is<br />
replaced by hierarchical structure <strong>for</strong> ease of construction. As remarked by Slepian, “the<br />
initial vector problem and the fundamental region” are complicated, general solution of<br />
these problems are not available yet.<br />
We refashion Forney’s definition [GDF91] <strong>for</strong> geometrically uni<strong>for</strong>m (GU) group codes<br />
<strong>for</strong> MIMO quasi-static fading channels:<br />
Definition 2 <strong>The</strong> codeword set S is geometrically uni<strong>for</strong>m if, given any two codeword<br />
matrices, D and D ′ in S, there exists an isometry γ that trans<strong>for</strong>ms D to D ′ while leaving<br />
S invariant; i.e. γ(D) = D ′ and γ(S) = S.<br />
86
<strong>The</strong> isometry γ could be a combination of the a<strong>for</strong>e-mentioned three isometries.<br />
Specifically, <strong>for</strong> NHC S k to be GU, we need ∀ a, b ∈ S k , ∃ U j , P j such that<br />
b = U j aP j (4.31)<br />
S k = U j S k P j . (4.32)<br />
GU is a strong kind of symmetry, a less strict symmetry is distance uni<strong>for</strong>m (DU).<br />
Definition 3 <strong>The</strong> codeword set S is distance uni<strong>for</strong>m if the distance measures (e.g. the<br />
coding gain) of any codeword to others do not depend on the choice of the codeword, in<br />
other words, the distance profile from one codeword to all others are all the same.<br />
Geometrical uni<strong>for</strong>mity implies distance uni<strong>for</strong>mity, but the reverse may not be true.<br />
An counter example is the 3 × 3 BPSK NHC (see Table A.5), the following subset is DU,<br />
{1, 172, 304, 413} (4.33)<br />
but not GU, because {1, 172} and {304, 413} belong to double coset 1 and 10, respectively,<br />
the isometries to trans<strong>for</strong>m codewords from double coset 1 to 10 do not exist. We observe<br />
that most, but not all, of our found NHCs are in fact DU. We ask what are the conditions<br />
<strong>for</strong> a NHC to be GU? Lemma 2 and <strong>The</strong>orem 1 answer this question. In the sequel, we<br />
use the notation<br />
U{code set S}P = {code set S ′ } (4.34)<br />
to represent the 1-1 isometry trans<strong>for</strong>mation that maps each codeword a from S to a<br />
codeword a ′ in S ′ such that<br />
UaP = a ′ , ∀ a ∈ S, a ′ ∈ S ′ . (4.35)<br />
Without loss of generality, we assume a and b are two arbitrary elements from S k and<br />
the following trans<strong>for</strong>mation holds (see Figure 4.1)<br />
{a ′ , b ′ } = U k {a, b}P k . (4.36)<br />
87
★<br />
✥<br />
S k<br />
✧<br />
a<br />
U j , P j ✲<br />
b<br />
✦<br />
U k , P k<br />
U k , P k<br />
★<br />
S<br />
k<br />
′ ❄<br />
a ′ ❄<br />
b ′<br />
✧<br />
✥<br />
✦<br />
Figure 4.1: <strong>The</strong> relationship between {a, b} and {a ′ , b ′ }.<br />
Lemma 2 If S k is GU, and I U and I P are the isometry sets which satisfy Definition<br />
2 <strong>for</strong> S k , then <strong>for</strong> arbitrary left and right isometries U k and P k , S<br />
k ′ = U kS k P k is also<br />
GU. A set of isometries which satisfies Definition 2 <strong>for</strong> S<br />
k ′ is {U kU j Uk H, U j ∈ I U } and<br />
{Pk HP jP k , P j ∈ I P }.<br />
Proof:<br />
First, let us find the isometries to trans<strong>for</strong>m a ′ to b ′ ,<br />
b ′ = U k bP k<br />
= U k U j aP j P k<br />
= U k U j U H k a′ P H k P jP k .<br />
If we can show S ′ k is invariant under isometries U kU j U H k<br />
holds because<br />
and P H k P jP k , S ′ k<br />
is GU. This<br />
S ′ k = U kS k P k<br />
= U k U j S k P j P k<br />
= U k U j U H k S′ k P H k P jP k .<br />
✷<br />
88
<strong>The</strong>orem 1 If S k is GU, and I U and I P are the isometry sets which satisfy Definition<br />
2, then a set of sufficient conditions <strong>for</strong> S k+1 = S k ∪ S ′ k , where S′ k = U kS k P k , to be GU<br />
is<br />
S k = (U k U j U k )S k (P k P j P k ) and (4.37)<br />
= (U H k U jU k )S k (P k P j P H k<br />
) and (4.38)<br />
= (U k U j U H k )S k(P H k P jP k ), ∀ U j ∈ I U , ∀ P j ∈ I P . (4.39)<br />
Proof:<br />
Given S ′ k = U kS k P k and b = U j aP j , we first identify the isometries to trans<strong>for</strong>m one<br />
codeword to another and the effects of these isometries on the corresponding code set.<br />
b = U j aP j S k = U j S k P j (4.40)<br />
b ′ = U k U j Uk H a′ Pk H P jP k S k ′ = U kU j Uk H S′ k P k H P jP k (4.41)<br />
b ′ = U k U j aP j P k S k ′ = U kU j S k P j P k (4.42)<br />
a = Uj H Uk H b′ Pk H P j H S k = Uj H Uk H S′ k P k H P j H , (4.43)<br />
For S k+1 = S k ∪ S ′ k<br />
to be GU, it is sufficient to establish the following three points<br />
1. Given isometries U j and P j preserve S k (Equation (4.40)), they should also preserve<br />
S ′ k . This requires S ′ k<br />
= U j S ′ k P j<br />
which is Equation (4.38).<br />
⇔ U k S k P k = U j U k S k P k P j<br />
(4.44)<br />
⇔ S k = Uk HU jU k S k P k P j Pk H, 2. Given isometries U k U j U H k and P H k P jP k preserve S ′ k<br />
also preserve S k . This requires<br />
(Equation (4.41)), they should<br />
S k = U k U j U H k S kP H k P jP k , (4.45)<br />
which is Equation (4.39).<br />
89
3. Given Isometries U k U j and P j P k trans<strong>for</strong>m S k to S<br />
k ′ (Equation (4.42)), they should<br />
trans<strong>for</strong>m S ′ k to S k at the same time. This requires<br />
S k = U k U j S ′ k P jP k = U k U j U k S k P k P j P k , (4.46)<br />
which is Equation (4.37).<br />
Similarly, given Isometries Uj HU k<br />
H and P k HP j trans<strong>for</strong>m S<br />
k ′ to S k, they should trans<strong>for</strong>m<br />
S k to S<br />
k ′ at the same time. This yields the same condition as Equation (4.37).<br />
✷<br />
We observe that the definition of GU is not constructive. Given a set of isometries<br />
which satisfies definition GU <strong>for</strong> S k , Lemma 2 and <strong>The</strong>orem 1 are able to construct a set<br />
of isometries which satisfies the definition of GU <strong>for</strong> S<br />
k ′ or S k+1 = S k ∪ S<br />
k ′ . Conditions<br />
specified in <strong>The</strong>orem 1 may be stronger than necessary, namely, if the set of isometries<br />
specified in <strong>The</strong>orem 1 fails the test of GU, other set of isometries may still pass the<br />
test. Nevertheless, <strong>The</strong>orem 1 provides a sufficient condition which is easy to test. For<br />
example, to test if the 2 × 2 BPSK NHC (Table A.1) is GU, we can start from S 1 :<br />
1. S 1 = {1, 14} is obviously GU where I U = {−I}, I P = {I}.<br />
2. Is S 2 = {1, 14, 7, 8} GU? From the structure of S 1 ,<br />
⎡ ⎤ ⎡ ⎤<br />
U j = ⎣ −1 0 ⎦ , P j = ⎣ 1 0 ⎦<br />
0 −1 0 1<br />
and from Table A.1<br />
⎡ ⎤ ⎡ ⎤<br />
U k = ⎣ 0 1 ⎦ , P k = ⎣ 1 0 ⎦ .<br />
−1 0 0 1<br />
Since U k U j U k = P k P j P k = P<br />
k ′ P jP k = P k P j P<br />
k ′ = I and U k ′ U jU k = U k U j U<br />
k ′ = −I, it<br />
is easy to verify that S 1 is invariant in <strong>The</strong>orem 1, there<strong>for</strong>e S 2 is GU. Now we have<br />
⎧⎡<br />
⎤ ⎡ ⎤ ⎡ ⎤⎫<br />
⎨<br />
I U = ⎣ −1 0 ⎦ , ⎣ 0 1 ⎦ , ⎣ 0 −1 ⎬<br />
⎦<br />
⎩ 0 −1 −1 0 1 0 ⎭<br />
⎧⎡<br />
⎤⎫<br />
⎨<br />
I P = ⎣ 1 0 ⎬<br />
⎦<br />
⎩ 0 1 ⎭ . 90
2<br />
ÕOØÙ<br />
168 30 180<br />
×<br />
42<br />
ÔÖÕ<br />
ìíïîIð0ñ<br />
òóïôöõL÷<br />
128<br />
å æçè é¦êëêå æ¦è é<br />
54<br />
àãâCä<br />
ßáà<br />
156<br />
ÚÛ@Ü<br />
93<br />
247<br />
105<br />
195<br />
ÛÝÞ<br />
ÏÐ@Ñ<br />
ÐÒÓ<br />
117<br />
223<br />
65<br />
235<br />
Figure 4.2: Hierarchical structure of the 2 × 2 QPSK NHC.<br />
3. Is S 3 = {1, 14, 7, 8, 2, 13, 4, 11} GU? For each U j ∈ I U , we have<br />
⎡ ⎤<br />
U j = ⎣ −1 0 ⎦ ,<br />
0 −1<br />
⎡ ⎤<br />
U j = ⎣ 0 1 ⎦ ,<br />
−1 0<br />
⎡ ⎤<br />
U j = ⎣ 0 1 ⎦ ,<br />
−1 0<br />
⎡ ⎤<br />
U k U j U k = U k ′ U jU k = U k U j U k ′ = ⎣ −1 0 ⎦ .<br />
0 −1<br />
⎡ ⎤<br />
U k U j U k = U k ′ U jU k = U k U j U k ′ = ⎣ 0 −1 ⎦ .<br />
1 0<br />
⎡ ⎤<br />
U k U j U k = U k ′ U jU k = U k U j U k ′ = ⎣ 0 1 ⎦ .<br />
−1 0<br />
Since P k = P j = I, P k P j P k = P ′ k P jP k = P k P j P ′ k = I. It is easy to verify that S 2 in<br />
invariant in <strong>The</strong>orem 1, there<strong>for</strong>e S 3 is GU.<br />
4.4 <strong>The</strong> Hierarchical Structure of Optimal 2×2 QPSK <strong>Codes</strong><br />
As a case-study, we consider the construction of the 2 × 2 QPSK NHC. We shall see that<br />
the NHC is in fact the optimal union bound code 5 found by brute <strong>for</strong>ce search [GVM02].<br />
<strong>The</strong> hierarchical structure of the 2×2 QPSK NHC is depicted in Figure 4.2, the codewords<br />
are delineated in Table 4.1.<br />
<strong>The</strong> steps to generate 2 × 2 QPSK 16 codeword set are described below:<br />
5 <strong>The</strong> union bound of its block error rate is lowest among all possible STBCs with the same block size<br />
and constellation size.<br />
91
[<br />
2<br />
] [<br />
168<br />
] [<br />
42<br />
] [<br />
128<br />
]<br />
1 1 −1 −1 1 −1 −1 1<br />
1 −1 −1 1 −1 −1 1 1<br />
[<br />
93<br />
] [<br />
247<br />
] [<br />
117<br />
] [<br />
223<br />
]<br />
i i −i −i i −i −i i<br />
−i i i −i i i −i −i<br />
[<br />
30<br />
] [<br />
180<br />
] [<br />
54<br />
] [<br />
156<br />
]<br />
1 i −1 −i 1 −i −1 i<br />
−i −1 i 1 i −1 −i 1<br />
[<br />
105<br />
] [<br />
195<br />
] [<br />
65<br />
] [<br />
235<br />
]<br />
i −1 −i 1 i 1 −i −1<br />
−1 i 1 −i 1 i −1 −i<br />
Table 4.1: Code list of the 2 × 2 QPSK NHC.<br />
1. Pick an initial codeword, say 2 from DC 2 .<br />
2. Generate another codeword (rate r = 0.5, coding gain ∆ p = 64.00)<br />
⎡<br />
⎣ −1<br />
⎤ ⎡ ⎤<br />
⎦ {2} ⎣ 1 ⎦ = {168}<br />
−1 1<br />
3. Generate 4 codewords (r = 1.0, ∆ p = 16.00)<br />
⎡<br />
⎣<br />
−1<br />
⎤ ⎡ ⎤<br />
1<br />
⎦ {2, 168} ⎣ 1 ⎦ = {42, 128}<br />
1<br />
4. Generate 8 codewords (r = 1.5, ∆ p = 16.00)<br />
[<br />
−1<br />
]<br />
[<br />
1<br />
1<br />
{2, 168, 42, 128}<br />
1<br />
]<br />
= {93, 247, 117, 223}<br />
5. Generate 16 codewords, (r = 2.0, ∆ p = 4.00)<br />
⎡<br />
⎣ 1<br />
⎤<br />
⎡<br />
⎦ {2, 168, 42, 128, 93, 247, 117, 223} ⎣ 1<br />
−i<br />
⎤<br />
⎦<br />
i<br />
= {30, 180, 54, 156, 105, 195, 65, 235}<br />
92
size const coset S 1 S 2 S 3 S 4 S 5 S 6 S 7 Table<br />
2 × 2 BPSK 1 64.00 16.00† A.1<br />
2 × 2 QPSK 2 64.00 16.00 16.00 4.00† A.2<br />
2 × 2 8PSK 4 64.00 16.00 16.00 4.00 1.37 0.34† A.4,A.3<br />
2 × 2 16PSK 8 64.00 16.00 16.00 4.00 1.37 0.34 0.09<br />
3 × 3 BPSK 1, 10 256.00 64.00 64.00‡† A.5<br />
3 × 3 QPSK 397 1280.00 160.00 64.00 32.00‡ 8.00‡ A.6,A.7<br />
3 × 3 8PSK 10794 1620.08 202.51 104.97 32.00‡ 7.03‡ 2.34‡ 0.69‡ A.8,A.9<br />
4 × 3 BPSK 83 4096.00 512.00 512.00 64.00‡† A.10<br />
4 × 3 QPSK 8714 4096.00 512.00 512.00 384.00 128.00 32.00‡ A.11,A.12<br />
‡ Code set which is not distance uni<strong>for</strong>m. † Code set which achieves Singleton bound.<br />
Table 4.2: List of Hierarchical <strong>Codes</strong><br />
<strong>The</strong> initial codeword 2 is not picked by chance, it belongs to the double coset DC 2<br />
which has codewords of the largest determinant. Surprisingly, all of the optimal union<br />
bound codes found by exhaustive search [GVM02] exhibit this hierarchical structure. We<br />
note that our construction does not en<strong>for</strong>ce group structure, however, the 16 generated<br />
codewords fulfill the requirement of geometric uni<strong>for</strong>mity as is clearly seen in Figure 4.2.<br />
4.5 Code Lists<br />
This section lists the hierarchical codes <strong>for</strong> various block sizes, constellation sizes and the<br />
corresponding MTCM designs. Table 4.2 summarizes the largest full diversity NHC sets<br />
<strong>for</strong> various block and constellation sizes. <strong>The</strong> double coset and minimum coding gain of<br />
each layer is also listed. If the target is not the largest full diversity set, better NHCs<br />
could be constructed <strong>for</strong> smaller sets. <strong>The</strong> detailed structure of each code set is tabulated<br />
in the tables in the Appendix.<br />
For 2 × 2 NHCs, the lower constellation code sets are “embedded” in the higher<br />
constellation code sets. For example, the 16PSK NHC is identical to 8PSK NHC up to<br />
S 6 , the 8PSK NHC is identical to QPSK NHC up to S 4 . However this embedded structure<br />
does not always exist in NHCs of larger size. Note that <strong>for</strong> 3 × 3 BPSK NHC, S 3 is a<br />
cross-coset design: the union of the two S 2 ’s from coset 1 and 10, respectively.<br />
Several of the NHCs also achieve the Singleton bound<br />
|S k | ≤ n Nc(Lt−∆ H+1)<br />
(4.47)<br />
93
which are very likely to be optimal code sets. <strong>The</strong> Singleton bound is an upper bound<br />
on the cardinality of the N c × L t STBC set with diversity gain L t and constructed from<br />
a constellation with size n. We compare the per<strong>for</strong>mance of our nonlinear hierarchical<br />
space-time block codes with the best known unitary or orthogonal codes via union bounds.<br />
For 3 × 3 STBCs, the best unitary group codes (UGC) [HM00] with cardinality 8 has the<br />
following structure: let u = e j π 4 , the UGC is a cyclic group generated by<br />
⎡ ⎤<br />
u 0 0<br />
⎢<br />
⎣0 u 0 ⎥<br />
⎦ . (4.48)<br />
0 0 u 3<br />
In Figure 4.3, Our BPSK NHC achieves the same per<strong>for</strong>mance as the 8PSK UGC; our<br />
8PSK NHC yields about a 0.9dB gain over the UGC. <strong>The</strong> best 3 × 3 UGC with 63<br />
codewords is G 21,4 [SHHS01], which is constructed from 21PSK in the <strong>for</strong>m: A l B k , l =<br />
0, . . . , 20, k = 0, 1, 2, where η = e 2π<br />
21 i ,<br />
⎡<br />
η<br />
A = ⎢<br />
⎣<br />
η 4<br />
⎤<br />
⎥<br />
⎦<br />
η 16<br />
⎡ ⎤<br />
0 1 0<br />
B = ⎢<br />
⎣ 0 0 1⎥<br />
⎦ . (4.49)<br />
η 7 0 0<br />
Figure 4.4 shows that the 64 code set NHC S 6 constructed from 8PSK is less than half<br />
dB away from the 63 code set G 21,4 in per<strong>for</strong>mance. Considering that S 6 uses only<br />
8PSK while G 21,4 uses 21PSK, S 6 offers very good per<strong>for</strong>mance. In Figure 4.5, 4 × 3<br />
BPSK/QPSK NHCs (8/64 codewords) achieve about a 2dB gain over the corresponding<br />
orthogonal designs[TH01], which have the following structure<br />
⎡<br />
s 1 s 2 s 3<br />
−s ∗ 2 s ∗ 1 0<br />
⎢<br />
⎣−s ∗ 3 0 s ∗ 1<br />
⎤<br />
. (4.50)<br />
⎥<br />
⎦<br />
0 s ∗ 3 −s ∗ 2<br />
94
3X3 NHC vs UGC, 8 Codewords<br />
10 0 SNR<br />
NHC(BPSK)<br />
NHC(8PSK)<br />
UGC(8PSK)<br />
10 −1<br />
Union Bound<br />
10 −2<br />
10 −3<br />
10 −4<br />
0 2 4 6 8 10 12 14<br />
Figure 4.3: 3 × 3 BPSK, 8PSK NHCs (8 codewords) vs best 8PSK unitary group codes<br />
(8 codewords).<br />
3X3 NHC vs UGC<br />
UGC |G 21,4<br />
|=63 (21PSK)<br />
NHC |S 6<br />
|=64, (8PSK)<br />
10 0<br />
Union Bound<br />
10 1 SNR<br />
10 −1<br />
10 −2<br />
0 2 4 6 8 10 12 14<br />
Figure 4.4: 3 × 3 8PSK NHCs (64 codewords) vs best 21PSK unitary group codes (63<br />
codewords).<br />
95
4X3 BPSK(8 Codewords) and QPSK(64 Codewords)<br />
10 0<br />
Orthogonal <strong>Codes</strong>, QPSK<br />
Hierarchical <strong>Codes</strong>, QPSK<br />
Orthogonal <strong>Codes</strong>, BPSK<br />
Hierarchical <strong>Codes</strong>, BPSK<br />
Union Bound<br />
10 1<br />
10 −1<br />
10 −2<br />
SNR<br />
10 −3<br />
10 −4<br />
0 2 4 6 8 10 12 14<br />
Figure 4.5: 4 × 3 BPSK (8 codewords) and QPSK (64 codewords) NHCs vs orthogonal<br />
codes.<br />
All the 2 × 2 NHCs happen to be orthogonal, or should be called super-orthogonal<br />
[JS02]. <strong>The</strong> super-orthogonal STBC is like a simplified NHC. For example, the 2 × 2 and<br />
4 × 4 super-orthogonal STBCs have the following structures respectively<br />
⎡ ⎤ ⎡ ⎤<br />
C(x 1 , x 2 , θ) = ⎣ x 1 x 2<br />
⎦ ⎣ ejθ 0<br />
⎦ (4.51)<br />
−x ∗ 2 x ∗ 1 0 1<br />
⎡<br />
⎤ ⎡<br />
⎤<br />
x 1 x 2 x 3 0 e jθ 1<br />
0 0 0<br />
−x ∗ 2 x ∗ 1 0 −x 3<br />
0 e jθ 2<br />
0 0<br />
C(x 1 , x 2 , x 3 , θ 1 , θ 2 , θ 3 ) =<br />
(4.52)<br />
⎢<br />
⎣ x ∗ 3 0 −x ∗ 1 −x 2<br />
⎥ ⎢<br />
⎦ ⎣ 0 0 e jθ 3<br />
0⎥<br />
⎦<br />
0 −x ∗ 3 x ∗ 2 −x 1 0 0 0 1<br />
In comparison with NHCs, the super-orthogonal STBCs have the following limits:<br />
1. Based on orthogonal code, the super-orthogonal STBCs do not exist <strong>for</strong> all possible<br />
block size. As shown by NHCs, the orthogonal code are not always the best starting<br />
base set.<br />
2. Using only a limited <strong>for</strong>m of right isometry P , the choice of parameter θ in P is not<br />
systematic.<br />
96
3. Lack of a hierarchical structure identifiable by isometry, the set partitioning of<br />
super-orthogonal STBCs is not systematic.<br />
97
Chapter 5<br />
Regular Multiple Trellis Coded Modulation<br />
5.1 Introduction<br />
In the design of STBCs, memory or redundancy is inherent within each block. But this<br />
is usually not strong enough in a fading channel, there<strong>for</strong>e, more memory needs to be<br />
introduced between STBCs.<br />
<strong>Space</strong>-time trellis codes (STTC) [TSC98, BBH02, YB02, Gri99] usually rely on a<br />
convolutional encoder to introduce memory among symbols, but there are no good design<br />
rules to optimize coding gain rather than exhaustive computer search. Multiple Trellis<br />
Coded Modulation (MTCM) [BDMS91, DS87, SF02, JS02] serves as an ideal bridge to<br />
combine the advantages of both block codes and trellis codes, and offers simple and<br />
intuitive design rules to optimize coding gain systematically. Both STBC and STTC<br />
can be viewed as certain kind of degenerated MTCM: STBC is equivalent to a single<br />
state MTCM, and STTC is MTCM with a vector signal instead of a matrix block on<br />
each transition. <strong>The</strong> MTCM designs in [SF02, ATP98] use STBCs as an inner code of a<br />
convolutional encoder. Two important features of MTCM design over quasi-static MIMO<br />
channels are pointed out in [SF02]: set expansion via isometries to generate large enough<br />
“piece-wise full-rank” signal sets and simple labeling rules to guarantee full diversity.<br />
However, such serial concatenation usually cannot take full advantage of the structure in<br />
STBCs, and there<strong>for</strong>e introduces memory among blocks “blindly”. Chapter 5 of this work<br />
proposes systematic MTCM designs where memory is introduced between block codes<br />
directly, instead of through an outer convolutional encoder. Because of the symmetric<br />
structure in the trellis and constituent NHCs, such designs are dubbed RMTCM designs.<br />
98
In our RMTCM design, a regular trellis constructed specifically <strong>for</strong> fading channels<br />
is generated by shift-register chains. NHCs, which admit a natural set partitioning as in<br />
[Ung82], <strong>for</strong>m the constituent codes. <strong>The</strong> parameters of the regular trellis and set partitioning<br />
are matched to exploit the layered structure of the constituent NHCs optimally.<br />
Several factors which affect per<strong>for</strong>mance in both quasi-static and fast block fading channels<br />
are analyzed and exploited to improve the overall per<strong>for</strong>mance. Set expansion is used<br />
to improve high rate MTCM designs. In each design, the per<strong>for</strong>mance/rate/complexity<br />
tradeoffs are gracefully balanced and optimized. <strong>The</strong> general design procedure can be<br />
used to serve two purposes: <strong>for</strong> a given set of NHCs, provide MTCM designs with various<br />
rates, and, <strong>for</strong> a given rate, provide MTCM designs with various complexity and<br />
per<strong>for</strong>mance.<br />
<strong>The</strong> MTCM design in [JS02] is a special case of the RMTCM design in this work,<br />
where the constituent codes are restricted to orthogonal codes and signal expansion is<br />
limited to a special isometry; the set partitioning and trellis structure of [JS02] are not<br />
systematic. RMTCM design can achieve a half dB gain over the rate 3 MTCM design in<br />
[JS02] by doubling the number of states via adjusting trellis parameters. With even more<br />
states, as much as 2dB gain can be achieved. <strong>The</strong> observation, that parallel transitions<br />
should be avoided <strong>for</strong> better per<strong>for</strong>mance in quasi-static channels, is made in [JS02] <strong>for</strong><br />
orthogonal constituent codes only, we will show that it holds <strong>for</strong> more general cases.<br />
<strong>The</strong> design principles of RMTCM do not rely on quasi-static fading channels. Thus<br />
they can be employed to design RMTCM even <strong>for</strong> fast block fading channels, where fast<br />
block fading is achieved due to perfect block interleaving. Both analysis and simulation<br />
show that parallel transitions are the major detrimental factor which should be avoided<br />
<strong>for</strong> fast block fading channels. A similar conclusion is drawn <strong>for</strong> MTCM design over<br />
Single-Input-Single-Output fast-fading (due to perfect interleaving) channels [BDMS91].<br />
In regular MTCM design, a sequence of STBCs are organized into frames and memory<br />
is added between STBCs in a smart way to exploit the distance spectrum of constituent<br />
code. This chapter is organized as follows. Section 5.3 provides the general regular<br />
MTCM design procedure <strong>for</strong> a given hierarchical block code and rate. <strong>The</strong> per<strong>for</strong>mance<br />
of such a design is analyzed in quasi-static and fast block fading channels (Section 5.4),<br />
the connections between per<strong>for</strong>mance and design parameters are revealed and general<br />
guidelines to improve regular MTCM designs in two fading channels are summarized.<br />
99
<strong>The</strong> high rate per<strong>for</strong>mance is poor, Section 5.3 also proposes signal set expansion to<br />
improve high rate per<strong>for</strong>mance.<br />
5.2 Signal Model<br />
In RMTCM design, a sequence of STBCs are organized into frames. We consider two<br />
extreme channel conditions: if channel is constant <strong>for</strong> all blocks, it is deemed quasi-static<br />
fading; if the channel is constant within a block, but independent from block to block<br />
(due to perfect block interleaving), it is deemed fast block fading. In both fading channels,<br />
the received signal <strong>for</strong> one block is still characterized by Equation (4.1). A single error<br />
event (SEE) consists of two paths starting from the same state and merging only once<br />
after M blocks.<br />
Quasi-static Fading Channels In quasi-static fading channels, the received signal model<br />
<strong>for</strong> the M-stage single error event is<br />
Ȳ = √ σ t ¯DH + ¯N ∈ C<br />
MN c×L r<br />
(5.1)<br />
where Ȳ = [Y T<br />
1 , Y T<br />
2 , . . . , Y T M ]T , ¯D = [D T 1 , DT 2 , . . . , DT M ]T and ¯N = [N T 1 , N T 2 , . . . , N T M ]T ,<br />
Y m , D m , N m and H are defined in Equations (4.1)-(4.5).<br />
Fast Fading Channels <strong>The</strong> received signal model <strong>for</strong> the M-stage single error event is<br />
similar to that in quasi-static fading channel<br />
Ȳ = √ σ t ¯D ¯H + ¯N ∈ C<br />
MN c×L r<br />
(5.2)<br />
except that ¯D = diag(D 1 , D 2 , . . . , D M ) and ¯H = [H T 1 , HT 2 , . . . , HT M ]T . Note that ¯D<br />
is block diagonal matrix in fast fading channels.<br />
5.3 RMTCM Design Parameters and Procedures<br />
NHCs admit a natural set partitioning as in [Ung82], and hence are a perfect candidate<br />
<strong>for</strong> MTCM design. <strong>The</strong> set partitioning is simply the reverse procedure of construction<br />
which will not be repeated here. Another design factor is the state trellis. Because the<br />
only purpose of the state trellis is to introduce memory among the block codes, we will<br />
100
S3 S2 S1<br />
0 0 0<br />
log 2<br />
g<br />
registers<br />
0 0 1<br />
0 1 0<br />
S1<br />
S3<br />
0 1 1<br />
log 2<br />
b<br />
register<br />
chains<br />
S1<br />
S2<br />
Sa+1<br />
Sa+2<br />
S2a+1<br />
S2a+2<br />
S2<br />
1 0 0<br />
1 0 1<br />
1 1 0<br />
Sa<br />
S2a<br />
1 1 1<br />
Figure 5.1: <strong>The</strong> shift-register configuration<br />
to generate state trellis.<br />
Figure 5.2: <strong>The</strong> shift-register configuration<br />
<strong>for</strong> 2 inputs and 3 registers and corresponding<br />
trellis.<br />
keep the state trellis as simple as possible. If the first a = log 2 b out of log 2 I input bits<br />
are used to generate state trellis, the rest are used <strong>for</strong> parallel transitions, <strong>for</strong> N = log 2 S<br />
registers, the simplest configuration of shift-registers to generate a state trellis is (see<br />
Figure 5.1):<br />
1. <strong>The</strong>re are a = log 2 b feed-<strong>for</strong>ward shift-register chains<br />
2. Each of the first log 2 b bits is feed into the beginning of only one shift-register chain<br />
3. No cross-links between two shift-register chains exist<br />
4. Registers s k , k = 1, . . . , N, are assigned to each chain in a round-robin fashion,<br />
states are defined as (s N , . . . , s 1 ).<br />
Figure 5.2 shows the trellis generated by a shift-register configuration of two inputs<br />
and three registers. For a regular trellis, there are b branches emerging from any given<br />
state, and each branch contains p parallel transitions. Every b starting states are fully<br />
connected to b ending states, all the branches connecting these states <strong>for</strong>m a trellis group.<br />
<strong>The</strong> number of trellis groups is denoted by g. To prevent catastrophic RMTCM designs, g<br />
must be greater than 1, this means that the first shift-register chain must contain at least<br />
2 registers (Figure 5.1). <strong>The</strong> set of parameters {g, b, p} describes the internal structure<br />
of a regular trellis. Another set of parameters {I, S, O} which characterize the external<br />
101
ehavior of a regular trellis are: the number of inputs I, the number of outputs O and<br />
the number of states S. <strong>The</strong>se two sets of parameters are related by:<br />
O = gbp (5.3)<br />
I = bp (5.4)<br />
S = gb (5.5)<br />
<strong>The</strong> overall code rate is<br />
r = 1 N c<br />
log 2 I. (5.6)<br />
<strong>The</strong> E b /N 0 is related to SNR σ t by<br />
E b<br />
N 0<br />
= L tσ t<br />
r . (5.7)<br />
When the frame error rates (FER) of designs with various rates are compared, if code<br />
efficiency is of more importance, E b /N 0 should be used; if signal power constraint L t σ t<br />
and achievable diversity level are of more importance, SNR L t σ t should be used. In this<br />
work, we find plotting the FER curves with respect to SNR L t σ t is more instructive.<br />
Using Equation (5.7), readers could easily obtain the corresponding curves with respect<br />
to E b /N 0 .<br />
If we want to assign the NHC set S K to this trellis, the number of trellis outputs<br />
should match the cardinality of S K . Given O = |S K |, the procedure <strong>for</strong> RMTCM design<br />
is:<br />
1. Factor O = gbp<br />
2. Generate the regular trellis by parameters {g, b}<br />
3. Partition S K to g subsets, assign each subset S k to each trellis group<br />
4. Per<strong>for</strong>m Catastrophe test<br />
<strong>The</strong> particular factorization of O determines the code rate r by Equations (5.3) and<br />
(5.6). Once the code rate r is determined, the only free design parameter is b, which will<br />
in turn determine p by Equation (5.4) and S by Equation (5.5). <strong>The</strong> labeling rule of<br />
Step 4 guarantees full diversity [SF02]. <strong>The</strong> coding gain is optimized through the NHC<br />
102
construction, the set partitioning principle [Ung82] and the matching between the layered<br />
distance spectrum of NHC and the structure of the regular trellis. Such a RMTCM<br />
design with g = xx, b = yy and p = zz will be labeled as xx × yy × zz. <strong>The</strong>re is<br />
still some freedom in assigning STBCs from S k to the transitions in a trellis group, we<br />
find the “cyclic-shift rule” works very well: in every trellis group, there are b starting<br />
states, if the transitions from one starting state are labeled by block codes in the order<br />
D k1 , . . . , D kI , the transitions from the next starting state are labeled by a p-cyclic shift<br />
of D k1 , . . . , D kI , namely, D kp+1 , . . . , D kI , D k1 , . . . , D kp . Special caution should be taken<br />
to avoid catastrophic codes caused by bad labeling.<br />
Due to the labeling rule that transitions diverging from and converging to the same<br />
state are uniquely labeled by codewords from the same set S k , full diversity over S k instead<br />
of S K is sufficient to guarantee full diversity of the MTCM design. This motivates<br />
the expansion of the signal set further without the requirement of full diversity. A natural<br />
criterion used in the expansion is ∆ s and the procedures to expand the signal set are<br />
similar to those based on ∆ p :<br />
1. Expand S k to S ′ k<br />
by the following criterion<br />
S ′ k = {U mS k P n |max<br />
m,n min<br />
i,j ∆ s(D ′ i − D j ), ∆ H < L t , D ′ i ∈ S ′ k , D j ∈ S k } (5.8)<br />
2. Let S k+1 = S k ∪ S<br />
k ′ , k = k + 1 and go to step 1.<br />
<strong>The</strong> procedure stops when the desired rate is reached or S ′ is empty.<br />
<strong>The</strong> expansion<br />
can also be based on ∆ p . For two transmit antennae, the two approaches are essentially<br />
identical. For more than two transmit antennae, the expanded NHCs based on two criteria<br />
have similar per<strong>for</strong>mance.<br />
Notice that full diversity ∆ H = L t is no longer required in signal set expansion. If<br />
the largest full diversity subset is S m , the highest achievable rate of RMTCM design with<br />
full diversity is r m = m N c<br />
. Similar properties hold <strong>for</strong> expanded sets m ≤ k ≤ K:<br />
1. Cardinality: |S k | = 2 k .<br />
2. S ′ k and S k have identical distance spectrum with respect to ∆ H , ∆ p and ∆ s .<br />
3. ∆ s : ∆ s (S k+1 ) ≤ ∆ s (S k ).<br />
103
All the NHCs found in this work satisfying the following property (See code lists in<br />
Table 4.2)<br />
∆ x (S k+1 ) ≤ ∆ x (S k ), x = H, p or s. (5.9)<br />
Because ∆ H and ∆ p characterize the per<strong>for</strong>mance of NHCs in Ricean channels 1 and<br />
∆ s characterize the per<strong>for</strong>mance in Gaussian channels, this property suggests that the<br />
set partitioning of NHCs is optimal in both Ricean and Gaussian channels. Although<br />
designed <strong>for</strong> Ricean channel, RMTCM designs should yield reasonably good per<strong>for</strong>mance<br />
even in a Gaussian channel.<br />
We briefly discuss two problems regarding trellis design be<strong>for</strong>e concluding this section.<br />
First, can feedback be added to the shift-register chains? <strong>The</strong> answer is yes, but proceed<br />
with caution. Section 5.4 presents an important design parameter M m : the minimum<br />
length M m of a single error event. If feedback is added at the middle of the register chain<br />
rather than the beginning, M m is reduced and per<strong>for</strong>mance will be degraded. Feedback to<br />
the beginning will not affect the frame error rate per<strong>for</strong>mance, but shuffles the mapping<br />
between input bit sequences and output block codes and makes the overall structure<br />
recursive, and could there<strong>for</strong>e potentially benefit a serial concatenated system [BDMP98].<br />
<strong>The</strong> second question is, why not serially concatenate an optimal binary convolutional<br />
encoder [LC83] with a “good” mapper, which maps the convolutional encoder’s output<br />
bit sequence to a block code? <strong>The</strong> simple answer is because serial concatenation usually<br />
cannot take advantage of the distance spectrum and the underlying finite state machine<br />
directly and hence yields inferior per<strong>for</strong>mance with respect to RMTCM (see Figure 5.9 in<br />
Section 5.5.2 <strong>for</strong> a direct comparison). Consider the following, let u denote the uncoded<br />
input bits to the convolutional encoder, S denote the states, and v denote the output<br />
bit sequence, f(.) denote the mapper from the output bit sequence to STBCs. For serial<br />
concatenation, the overall function to map input bits to a STBC is<br />
f(v(u, S)), (5.10)<br />
while <strong>for</strong> RMTCM, the overall function is<br />
f ′ (u, S). (5.11)<br />
1 Note that we consider Rayleigh channels to be a special case of Ricean channels.<br />
104
Since f ′ is a direct function of inputs u and states S, rather than through an intermediate<br />
(linear) function v, RMTCM is better adapted to match the underlying states to the<br />
output code space, namely, the set of NHCs. Secondly, the code space of NHCs is rather<br />
large due to the high dimensionality of the block code. For example, the full diversity 3×3<br />
8PSK NHC has 128 block codes, which is much larger than the number of constellation<br />
points <strong>for</strong> PSK. RMTCM can naturally exploit this large code space, while a mapper f(.)<br />
in serial concatenation appears to be inefficient and sometimes awkward. <strong>The</strong>re seems<br />
to exist the possibility to take advantage of both the well-designed binary convolutional<br />
codes and the large code space of NHCs via a smart mapper as in pragmatic TCM<br />
[VWZP89], but this topic is beyond the scope of this work.<br />
5.4 Per<strong>for</strong>mance Analysis<br />
We next analyze the per<strong>for</strong>mance of our space-time MTCM systems. We consider a single<br />
error event (SEE) with M blocks. Recall that ¯D is the sequence of M transmitted STBCs<br />
where M is the length of a SEE.<br />
Quasi-static Fading Channels In quasi-static fading channels, the pairwise error probability<br />
of decoding ¯D ′ when ¯D (see Equation (5.1)) is transmitted, after averaging<br />
over the channel, can be upper bounded by<br />
P ( ¯D → ¯D ′ ) ≤<br />
( σt<br />
) −Lt 1<br />
∣<br />
4 ∣( ¯D − ¯D ′ ) H ( ¯D − ¯D ′ ) ∣ . (5.12)<br />
Fast Fading Channels In fast fading channels, the channel-averaged pairwise error<br />
probability of decoding ¯D ′ when ¯D (see Equation (5.2)) is transmitted can be upper<br />
bounded by<br />
P ( ¯D → ¯D ′ ) ≤<br />
( σt<br />
) −MLt 1<br />
∣<br />
4 ∣( ¯D − ¯D ′ ) H ( ¯D − ¯D ′ ) ∣ . (5.13)<br />
Comparing Equations (5.12) and (5.13), the diversity gain is<br />
⎧<br />
⎪⎨ L t quasi-static fading<br />
∆ H =<br />
⎪⎩ ML t fast block fading<br />
(5.14)<br />
105
Whenever there exist parallel transitions, M = 1, and the achievable diversity level in<br />
fast block fading channels is limited to that of quasi-static fading channels. <strong>The</strong>re<strong>for</strong>e,<br />
in fast block fading channels parallel transitions should be avoided (this is verified by<br />
simulation in Figure 5.7). <strong>The</strong> coding gain is<br />
⎧<br />
⎪⎨<br />
∆ p = det[( ¯D − ¯D ′ ) H ( ¯D − ¯D<br />
det[ ∑ M<br />
′ i=1<br />
)] =<br />
(D i − D i ′)H (D i − D i ′ )] quasi-static fading<br />
⎪⎩<br />
∏ M<br />
i=1 det[(D i − D i ′)H (D i − D i ′)]<br />
fast block fading<br />
In both cases, increasing the length, M, of a SEE is preferred.<br />
(5.15)<br />
<strong>The</strong> following two theorems justify our approach to MTCM design with STBCs in<br />
quasi-static fading channels: cascading well-designed block codes. First, by Minkowski’s<br />
Inequality [HJ91], <strong>for</strong> positive definite matrices (D i − D ′ i )H (D i − D ′ i ),<br />
[ M<br />
]<br />
∑<br />
det (D i − D i) ′ H (D i − D i)<br />
′ ≥<br />
i=1<br />
M∑<br />
det [ (D i − D i) ′ H (D i − D i) ′ ] (5.16)<br />
i=1<br />
This suggests that the coding gain of an error path grows at least with the sum of coding<br />
gains of individual stages. Secondly, the monotonicity theorem [HJ91] yields<br />
µ k ((D i − D ′ i) H (D i − D ′ i) + (D j − D ′ j) H (D j − D ′ j)) ≥ µ k ((D i − D ′ i) H (D i − D ′ i)) (5.17)<br />
<strong>for</strong> positive semi-definite (D j − D j ′ )H (D j − D j ′ ), where µ k’s are eigenvalues arranged in<br />
increasing order. Similar observations <strong>for</strong> specifically orthogonal STBCs are made in<br />
[JS02], here we have shown this property holds <strong>for</strong> more general STBCs. For an example<br />
of Minkowski’s inequality, see Figure 5.12 and Equation (5.33).<br />
<strong>The</strong> minimum coding gain of all possible SEEs is defined as<br />
d free = min<br />
j<br />
det( ¯D j − ¯D ′ j) H ( ¯D j − ¯D ′ j) (5.18)<br />
where ¯D j and ¯D j ′ <strong>for</strong>m a single error event. <strong>The</strong> coding gain associated with the shortest<br />
path diverging from the zero state and converging at the zero state will be called d ∗ free . We<br />
notice that the code is nonlinear, hence d ∗ free is not necessarily equal to d free. However,<br />
d ∗ free agrees with the simulated per<strong>for</strong>mance fairly well and inspection of d∗ free<br />
reveals very<br />
106
helpful insight <strong>for</strong> code design (see Section 5.5.4). A SEE may be caused by parallel transitions<br />
(M = 1), in this case, Equation (5.18) takes a simpler <strong>for</strong>m d free = ∆ p (S k ), where<br />
S k is the subset used to label a trellis group; otherwise (M > 1), the minimum length of<br />
such a SEE not caused by parallel transitions, M m , is related to design parameters by<br />
the following theorem:<br />
<strong>The</strong>orem 2 <strong>The</strong> minimum length M m of a single error event not caused by parallel<br />
transitions <strong>for</strong> a regular trellis can be determined by<br />
M m = ⌊log b g⌋ + 2. (5.19)<br />
Proof:<br />
In the finite state machine, the number of shift-register chains is log 2 b, the number of<br />
shift-registers is log 2 S. By the construction rules of a regular trellis, the minimum length<br />
of registers per chain is ⌊log 2 S/ log 2 b⌋ = 1 + ⌊log b g⌋. Starting from the same state, the<br />
minimum number of stages <strong>for</strong> the minimum-length shift-register chain to converge to<br />
another identical state due to different inputs is obviously 2 + ⌊log b g⌋. An easier way to<br />
envision this is to consider the smallest number of stages of a “1” propagate through the<br />
all-zero shift register chains. This happens when the “1” is feed into the shortest chain<br />
with length 1 + ⌊log b g⌋. It takes 1 + ⌊log b g⌋ stages <strong>for</strong> the “1” to be shifted to the end<br />
of the chain, and one more stage to be shifted out of the chain. ✷<br />
Intuitively, increasing the number of trellis groups, g, <strong>for</strong>ces two diverging paths to<br />
traverse more branches be<strong>for</strong>e converging, and hence enlarges M m . Larger M m usually<br />
results in better per<strong>for</strong>mance. <strong>The</strong> effects of g on M m is listed in Table 5.1. <strong>The</strong> point<br />
where M m jumps is where we expect per<strong>for</strong>mance improvement. <strong>The</strong> sweet point <strong>for</strong> b =<br />
2, 4, 8 seems to be g = 8, 4, 8, respectively, where the jumps occur still within a reasonable<br />
number of states. Quadrupling the block set, coupled with RMTCM modulation, can<br />
typically achieve 2dB gain over the original block code without memory, which seems to<br />
be a good tradeoff between per<strong>for</strong>mance and complexity. <strong>The</strong>re<strong>for</strong>e, this work considers<br />
mostly g = 4. For high rate codes, signal set expansion (Equation (5.8)) is used to<br />
increase g.<br />
<strong>The</strong>orem 3 If we assume that g and b are powers of 2 (as in the case of RMTCM) and<br />
there are no parallel transitions (p = 1), then the number of distinct paths T (n) starting<br />
107
M m g=1 g=2 g=4 g=8 next jump<br />
b=2 2 3 4 5 g=16<br />
b=4 2 2 3 3 g=16<br />
b=8 2 2 2 3 g=64<br />
b=16 2 2 2 2 g=16<br />
Table 5.1: <strong>The</strong> length M of single error event <strong>for</strong> given b and g.<br />
from zero state and ending at a reachable state i after n stages is only a function of n<br />
(independent of i):<br />
⎧<br />
⎪⎨ 1 n = 1<br />
(b ≥ g) T (n) =<br />
⎪⎩ b n−1<br />
g<br />
n > 1<br />
⎧<br />
⎪⎨ 1 n ≤ log b g + 1<br />
(b < g) T (n) =<br />
⎪⎩ b n−1<br />
g<br />
n > log b g + 1<br />
(5.20)<br />
(5.21)<br />
Proof:<br />
<strong>The</strong> shift register chains employ only the linear operation: addition modulo-2, ⊕. Let the<br />
set of possible state sequences starting from the zero state be W = { ¯w| ¯w = (w 0 , . . . , w n ), w 0 =<br />
0}, and define the following binary operation of two state sequences as element-wise addition<br />
modulo-2,<br />
ā ⊕ ¯b (a 1 ⊕ b 1 , . . . , a n ⊕ b n ). (5.22)<br />
It is easy to verify the following properties<br />
1. Closure: if ¯w 1 , ¯w 2 ∈ W, ¯w 1 ⊕ ¯w 2 ∈ W, because of the linear shift register chain<br />
structure. <strong>The</strong> state a k is a linear function of previous state a k−1 and input u k−1 ,<br />
similarly, b k is a linear function of b k−1 and input v k−1<br />
a k = f(a k−1 , u k−1 ) by trellis structure (5.23)<br />
b k = f(b k−1 , v k−1 ) by trellis structure (5.24)<br />
a k ⊕ b k = f(a k−1 ⊕ b k−1 , u k−1 ⊕ v k−1 ) by linearity (5.25)<br />
108
this suggests that <strong>for</strong> any previous state a k−1 ⊕ b k−1 , there exists a valid input<br />
u k−1 ⊕v k−1 to bring the system to next state a k ⊕b k , there<strong>for</strong>e (a k−1 ⊕b k−1 , a k ⊕b k )<br />
is a valid state sequence. By induction, ¯w 1 ⊕ ¯w 2 is a valid sequence.<br />
2. Associativity: ( ¯w 1 ⊕ ¯w 2 ) ⊕ ¯w 3 = ¯w 1 (⊕ ¯w 2 ⊕ ¯w 3 ).<br />
3. Identity: the all zero state sequence ¯0, ¯w + ¯0 = ¯w.<br />
4. Inverse: every state sequence ¯w is its own inverse ¯w ⊕ ¯w = ¯0, ¯w −1 = ¯w.<br />
5. Commutativity: ¯w 1 ⊕ ¯w 2 = ¯w 2 ⊕ ¯w 1 .<br />
there<strong>for</strong>e, W <strong>for</strong>ms an abelian group under the binary operation ⊕ defined in Equation<br />
(5.22). Denote the set of all the state sequences starting from the zero state and ending<br />
in state i by W i = { ¯w|w 0 = 0, w n = i}, then we want to show that all W i ’s have equal<br />
cardinality T (n). <strong>The</strong> subset W 0 actually <strong>for</strong>ms a subgroup. This can be verified by the<br />
subgroup theorem [Arm87]: if ā, ¯b ∈ W 0 , then<br />
ā ⊕ (¯b) −1 =ā ⊕ ¯b (by inverse property 4, (¯b) −1 = ¯b) (5.26)<br />
∈W (by closure property 1) (5.27)<br />
∈W 0 (by a n ⊕ b n = 0). (5.28)<br />
By the subgroup theorem, W 0 is a subgroup, and W i ’s, i ≠ 0, are cosets. All cosets have<br />
equal cardinality, there<strong>for</strong>e T (n) is independent of ending state i.<br />
If b ≥ g, at stage n = 1, all reachable states {0, . . . , b−1} have T (1) = 1. At stage n =<br />
2, all states become reachable, and T (2) = b/g. For any stage n > 2, T (n) = bT (n − 1).<br />
This proves Equation (5.20).<br />
If b < g, at stages n = 1, . . . , log b g+1, all reachable states {0, . . . , b−1} have T (1) = 1.<br />
At stage n = log b g + 1, all states become reachable. For any stage n > log b g + 1,<br />
T (n) = bT (n − 1). This proves Equation (5.21). ✷<br />
Corollary 1 For any state with T (n) ≥ 2, the number of error events not caused by<br />
parallel transitions is ( )<br />
T (n)<br />
2 = (b 2n−2 − b n−1 )/(2g 2 ).<br />
<strong>The</strong> proof is straight<strong>for</strong>ward because any two distinct paths ending at the same state<br />
<strong>for</strong>m an error event. Because an error event may contain several SEEs, Corollary 1<br />
109
provides a lower bound on the number of SEEs. In <strong>The</strong>orem 3, the existence of error<br />
events is equivalent to T (n) ≥ 2, which in turn is equivalent to n ≥ log b g + 2. This<br />
provides another proof of <strong>The</strong>orem 2 when b and g are powers of 2. <strong>The</strong>orem 3 and<br />
Corollary 1 characterizes the number of distinct paths, T (n), and the number of error<br />
events as a function of b, g and n. A larger g always reduces the number of SEEs,<br />
and there<strong>for</strong>e improves system per<strong>for</strong>mance. Because SEEs with short length tend to<br />
dominate per<strong>for</strong>mance, a more direct improvement of per<strong>for</strong>mance due to increasing g is<br />
via reducing T (n) <strong>for</strong> small n.<br />
We want to point out that the RMTCM design is a nonlinear code once the effects<br />
of labeling is taken into account. <strong>The</strong>orems 2, 3 and Corollary 1 characterize the general<br />
structure of regular trellis without considering the effects of labeling. <strong>The</strong>re<strong>for</strong>e they<br />
apply to any code with a regular trellis structure.<br />
For a RMTCM design, the ultimate design goal is to increase d free . <strong>The</strong>re are two<br />
means by which to increase d free : if d free is caused by parallel transitions (M = 1),<br />
reducing the number of parallel transitions p can increase d free due to improving the<br />
per<strong>for</strong>mance of the constituent NHC ∆ p (S k ) ≥ ∆ p (S k+1 ); otherwise, increasing the minimum<br />
length M m of SEE not caused by parallel transitions can increase d free due to<br />
the observations on coding gain in Equation (5.15). From a design point of view, <strong>for</strong> a<br />
given rate, increasing g may increase M m ; increasing b decreases p. A negative point of<br />
increasing b, by Equation (5.19), is that M m might be decreased (See Table 5.1). Empirical<br />
results suggest that the advantage of reducing p usually outweighs the disadvantage<br />
of reduced M m . For RMTCM in fast block fading channels, p should be reduced until<br />
p = 1; while in quasi-static fading channels, p should be reduced to a sweet point where<br />
large per<strong>for</strong>mance gains can be achieved by relative small decrease of p. <strong>The</strong> sweet point<br />
is closely related to the distance spectrum of the hierarchical codes.<br />
<strong>The</strong> per<strong>for</strong>mance of RMTCM be can improved by increasing either b or g, as a consequence,<br />
the number of states, S = gb, grows linearly with g and b. <strong>The</strong> decoder employs<br />
the Viterbi algorithm, whose decoding complexity is linear in the number of states S.<br />
To calculate the branch metric <strong>for</strong> Viterbi decoder, the received signal is correlated with<br />
O = gbp block codes. <strong>The</strong>re<strong>for</strong>e both the calculation of branching metric and decoding<br />
are linear in g and b, furthermore, the calculation of branching metric is also linear in p.<br />
110
5.5 RMTCM Designs Examples<br />
This section summarizes various RMTCM designs with 2×2 and 3×3 BPSK, QPSK and<br />
8PSK NHCs. For the detailed list of NHCs, please refer to Table 4.2 and the references<br />
therein.<br />
MTCM designs following the rules outlined in Section 5.3 will be denoted Regular<br />
MTCM designs, otherwise irregular MTCM designs. <strong>The</strong> per<strong>for</strong>mance of various MTCM<br />
designs and comparable space-time trellis codes are compared. We use two sets of parameters<br />
to distinguish different designs:<br />
1. Regular MTCM designs with the three parameters g = x, b = y and p = z are<br />
denoted by x × y × z.<br />
2. Irregular MTCM designs with the four parameters I = w, S = x, O = y and p = z<br />
are denoted by IwSxOyP z.<br />
<strong>The</strong> set partitioning and labelling <strong>for</strong> 2 × 2 QPSK RMTCM designs are listed in Chapter<br />
B.<br />
<strong>The</strong> per<strong>for</strong>mance of various RMTCM designs and comparable space-time trellis codes<br />
are compared. A block code can be viewed as a trivial trellis code with a single state and<br />
every block on parallel transitions. For a RMTCM design x × y × z, the same rate trivial<br />
trellis code (block code) 1 × 1 × yz which uses only one out of the g groups of STBCs is<br />
often included <strong>for</strong> per<strong>for</strong>mance comparison.<br />
If the largest full diversity subset is S m , the highest achievable rate RMTCM design<br />
with full diversity is determined by<br />
r m = m N c<br />
. (5.29)<br />
Via simulation we observe that expanding S m 4 times is sufficient to achieve very good<br />
per<strong>for</strong>mance with a relative small increase in complexity.<br />
<strong>The</strong> super-orthogonal space-time trellis codes [JS02] coincide with a subset of nonlinear<br />
hierarchical codes and their MTCM designs. <strong>The</strong> RMTCM designs in this work<br />
are more systematic and complete. We show several ways to improve the per<strong>for</strong>mance<br />
of the super-orthogonal space-time trellis codes. With added complexity, more than 2dB<br />
111
Label S k S Comment Figure<br />
1/2 I2S2O2p1 S 1 2 regular, catastrophic B.1<br />
1/2 I2S2O4p1 S 2 2 irregular, non-catastrophic B.2<br />
1/2 2 × 2 × 1 S 2 4 regular, non-catastrophic B.3<br />
Table 5.2: Rate 1/2 MTCM designs <strong>for</strong> 2 × 2 BPSK.<br />
2X2 BPSK, Rate 1/2<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
10 −3<br />
r=0.5, 1x1x2, block<br />
r=0.5, I2S2O2p1, cata<br />
r=0.5, I2S2O4p1<br />
r=0.5, 2x2x1<br />
10 −4<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.3: Rate 1/2 MTCM designs <strong>for</strong> 2 × 2 BPSK.<br />
improvement can be made. <strong>The</strong> RMTCM designs based on 3 × 3 NHCs have no superorthogonal<br />
counterparts.<br />
5.5.1 2 × 2 BPSK<br />
Table 5.2 summarized 3 possible rate half designs based on S 1 and S 2 , the detailed<br />
labelling is depicted by the corresponding figures in Chapter B. Figure 5.3 compares<br />
their per<strong>for</strong>mance. Even the 2-state catastrophic design I2S2O2p1 is more than half dB<br />
better than the block code 1 × 1 × 2; the 2-state non-catastrophic design I2S2O4p1 is<br />
about 1dB better than the catastrophic design I2S2O2p1 by using S 2 instead of S 1 ; the<br />
4-state regular MTCM design 2 × 2 × 1 is 2dB better than the 2-state non-catastrophic<br />
design I2S2O4p1. We note that the 4-state regular MTCM design 2 × 2 × 1 achieves<br />
more than 3.5dB gain over the block code 1 × 1 × 2 by simply introducing 2-bit memory.<br />
112
Label S k O(= gbp) S(= gb) Figure<br />
2/2 1 × 1 × 4 S 2 4 1<br />
2/2 2 × 2 × 2∗ S 3 8 4 B.4<br />
2/2 2 × 4 × 1 S 3 8 8 B.5<br />
Table 5.3: Regular MTCM design <strong>for</strong> 2 × 2 BPSK |S 3 | = 8 codewords.<br />
2X2 BPSK, Rate 2/2<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
r=1.0, 1x1x4, block<br />
r=1.0, 2x2x2<br />
r=1.0, 2x4x1<br />
10 −3<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.4: 2 × 2 BPSK, Rate 2/2.<br />
<strong>The</strong> highest rate RMTCM design based on 2 × 2 BPSK NHC is determined by S 2 :<br />
r m = 2/2 = 1. For rate 2/2, the two possible expanded MTCM designs with S 3 are<br />
listed in Table 5.3; their per<strong>for</strong>mance is compared in Figure 5.4. Notice that Coset C 1 (8)<br />
contains 8 codewords only, which is partitioned as S 2 and S 2 ′ and assigned to the two<br />
trellis groups in designs 2 × 2 × 2 and 2 × 4 × 1. <strong>The</strong> RMTCM designs show 2dB gain over<br />
the block codes 1 × 1 × 4, the 8-state design 2 × 4 × 1 is slightly better than the 4-state<br />
design 2 × 2 × 2, which is reported in [JS02].<br />
5.5.2 2 × 2 QPSK<br />
<strong>The</strong> full diversity code sets are S 1 –S 4 , S 5 and S 6 are rank deficient expanded code sets.<br />
<strong>The</strong> 2 × 2 QPSK code is a very good example to show the general design procedures<br />
of RMTCM outlined in Section 5.3, the detailed labeling of each RMTCM design are<br />
113
Label S k O(= gbp) S(= gb) Figure<br />
1/2 8 × 2 × 1 S 4 16 16 B.6<br />
2/2 4 × 2 × 2∗ S 4 16 8 B.7<br />
2/2 4 × 4 × 1 S 4 16 16 B.8<br />
3/2 2 × 2 × 4 S 4 16 4 B.9<br />
3/2 2 × 4 × 2∗ S 4 16 8 B.10<br />
3/2 2 × 8 × 1 S 4 16 16 B.11<br />
4/2 1 × 1 × 16 S 4 16 1<br />
Table 5.4: MTCM design <strong>for</strong> 2 × 2 QPSK |S 4 | = 16 codewords.<br />
omitted, only their per<strong>for</strong>mance is compared.<br />
Readers can apply the general design<br />
procedure and the “cyclic shift rule” to reproduce all the RMTCM designs in the sequel.<br />
<strong>The</strong>re are seven possible ways to factor |S 4 | = 16, this yields seven possible RMTCM<br />
designs with S 4 (Table 5.4). Figure 5.5 compares their per<strong>for</strong>mance. For a given rate<br />
(I = bp), there might be several designs with different numbers of parallel transitions<br />
and states. As can be seen, the rate/per<strong>for</strong>mance/complexity tradeoffs are gracefully<br />
balanced. For rate r = 1.0, the two designs with states 8 and 16 have roughly the same<br />
per<strong>for</strong>mance, there<strong>for</strong>e the 8-state design 4 × 2 × 2 is preferred. <strong>The</strong> reason is that the<br />
two parallel transitions have coding gain ∆ p (S 1 ) = 64, which is large enough not to affect<br />
the d free of the overall RMTCM design. Similarly, <strong>for</strong> rate r = 1.5, the 8-state and<br />
16-state designs have about the same per<strong>for</strong>mance, which is about 2dB better than that<br />
of 4-state design, there<strong>for</strong>e the 8-state design 2 × 4 × 2 is preferred. <strong>The</strong> per<strong>for</strong>mance of<br />
these seven designs in Ricean channels (h = 1) is shown in Figure 5.6. Comparing Figure<br />
5.6 with Figure 5.5, the per<strong>for</strong>mance of all codes are improved by about 4dB in Ricean<br />
channel than the per<strong>for</strong>mance in Rayleigh channel. If we plug h = [1, 1] T and Σ h = I<br />
into Equation (4.12),<br />
E h [P (D i → D j )|h)] ≤<br />
1 1<br />
4 Σ h| |Φ|<br />
| eσt<br />
(5.30)<br />
the SNR gain is 10 log e = 10 log 2.718 = 4.3dB, which agrees with the simulations. Note<br />
that the purpose of this comparison is to demonstrate that the code design is independent<br />
of Rayleigh or Ricean channel, there<strong>for</strong>e we do not normalize the power of the fading to<br />
114
2X2 QPSK, |S 4<br />
|=16 codewords<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
10 −3<br />
r=2.0, 1x1x16<br />
r=1.5, 2x2x4<br />
r=1.5, 2x4x2<br />
r=1.5, 2x8x1<br />
r=1.0, 4x2x2<br />
r=1.0, 4x4x1<br />
r=0.5, 8x2x1<br />
10 −4<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.5: 2 × 2 QPSK, |S 4 | = 16.<br />
2X2 QPSK, |S 4<br />
|=16 codewords, Ricean h=1<br />
10 0 SNR<br />
10 −1<br />
10 −2<br />
FER<br />
10 −3<br />
10 −4<br />
r=2.0, 1x1x16<br />
r=1.5, 2x2x4<br />
r=1.5, 2x4x2<br />
r=1.5, 2x8x1<br />
r=1.0, 4x2x2<br />
r=1.0, 4x4x1<br />
r=0.5, 8x2x1<br />
10 −5<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.6: 2 × 2 QPSK, |S 4 | = 16, Ricean fading channels (h = 1).<br />
115
2X2 QPSK, |S 5<br />
|=32 codewords<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
10 −3<br />
10 −4<br />
r=4/2, 1x1x16, quasi−static<br />
r=4/2, 1x1x16, fast block,<br />
r=4/2, tarokh 4 state, quasi−static<br />
r=4/2, 2x2x8, quasi−static<br />
r=4/2, 2x2x8, fast block<br />
r=4/2, 2x4x4, quasi−static<br />
r=4/2, 2x4x4, fast block<br />
r=4/2, 2x8x2, quasi−static<br />
r=4/2, 2x8x2, fast block<br />
r=4/2, 2x16x1, quasi−static<br />
r=4/2, 2x16x1, fast block<br />
10 −5<br />
0 2 4 6 8 10 12 14 16 18 20<br />
Figure 5.7: 2 × 2 QPSK, |S 5 | = 32, quasi-static vs fast block fading channels.<br />
unity. If the power is normalized, then plugging h ′ = [0.5, 0.5] T<br />
Equation (4.12) yields<br />
and Σ ′ h = 0.5Σ h into<br />
E h [P (D i → D j )|h)] ≤<br />
the SNR loss would be 10 log(2/ √ e) = 0.8dB.<br />
|<br />
√ e σ t<br />
2<br />
1 1<br />
4 Σ h| |Φ|<br />
(5.31)<br />
<strong>The</strong> rate r = 2 single-state MTCM design of S 4 is just the block code without memory,<br />
it has very poor per<strong>for</strong>mance. Expanded RMTCM designs based on S 5 and S 6 can<br />
improve the per<strong>for</strong>mance at this rate. Figure 5.7 compares the per<strong>for</strong>mance of designs<br />
with S 5 in both quasi-static and fast fading channels.<br />
• In quasi-static fading channels, the 4-state design is reported in [JS02], it yields<br />
about 1.7dB gains over corresponding 4-state QPSK design by Tarokh [TSC98].<br />
As p decreases from 8 to 1, (and the number of states increases from 8 to 64),<br />
per<strong>for</strong>mance is improved consistently by an extra 0.8dB. Similar observations can<br />
be made <strong>for</strong> designs with S 6 . Designs based on S 6 have about 0.4dB gain over<br />
corresponding (same b) designs based on S 5 by doubling g. <strong>The</strong> 4-state design<br />
116
2 × 2 × 8 is reported in [JS02], the 32-state design 4 × 8 × 2 and the 8-state design<br />
4 × 2 × 8 are 1dB and 0.5dB better than 2 × 2 × 8, respectively.<br />
• In fast fading channels, all designs with parallel transitions achieve the same level of<br />
diversity (∆ H = 2) as in quasi-static fading channels eventually, the design 2×8×2<br />
shows this tendency only at SNR>16dB. <strong>The</strong> design with no parallel transitions<br />
2 × 16 × 1 is capable of exploiting more diversity (∆ H = 12) in the channel as<br />
predicted by Equation (5.14).<br />
Figure 5.9 compares the serially concatenated system with RMTCM. <strong>The</strong> concatenated<br />
system uses optimal rate 1/2 convolutional encoder from [LC83]. <strong>The</strong> three generators<br />
are: {64, 74}, {46, 72} and {554, 744}, which generate state trellises with 8, 16<br />
and 64 states respectively. <strong>The</strong> bit mapper maps every four output bits to one STBC<br />
from S 4 . Overall, two in<strong>for</strong>mation bits are transmitted over every STBC which lasts<br />
two symbols, there<strong>for</strong>e the rate is r = 1. <strong>The</strong> mapper is designed to imitate the hierarchical<br />
structure of coding gain ∆ p in S 4 in terms of Hamming distance d H , in the<br />
hope that larger Hamming distance, which is the optimization goal of convolutional encoder,<br />
will result in larger coding gain, which is a per<strong>for</strong>mance measure of interest in a<br />
MIMO fading channel. Figure 5.8 shows the correspondence between bit sequence and<br />
block codes in S 4 . Let c 1 and c 2 be two binary codewords, d be any binary vector, then<br />
d H (c 1 − c 2 ) = d H ((c 1 + d) − (c 2 + d)). Hence the isometry <strong>for</strong> Hamming distance is<br />
simply addition modulo-2 by any binary vector, via which, the hierarchical structure of<br />
the Hamming distance of the bit sequence can be described in Table 5.5 in a similar manner<br />
as the hierarchical structure of the coding gain in Table 4 of [GM04]. <strong>The</strong> mismatch<br />
between the optimization goal of convolutional encoding and per<strong>for</strong>mance measure <strong>for</strong><br />
MIMO fading channels yields the relative per<strong>for</strong>mance loss of such a concatenated system:<br />
the 8, 16 and 64 state concatenated systems are respectively, 2.5dB, 1dB and 0.5dB,<br />
worse than the corresponding RMTCM designs.<br />
5.5.3 2 × 2 8PSK<br />
For 2 × 2 8PSK NHCs, up to S 6 are full diversity code sets; S 7 and S 8 are expanded code<br />
sets. <strong>The</strong> highest achievable rate with full diversity is r m = 6/2 = 3. Various designs<br />
with rates from 1/2 to 6/2 = 3 can be realized. We note that <strong>for</strong> a given rate, p = 2 and<br />
117
S k d S k S<br />
k ′ d H<br />
S 1 (1, 1, 1, 1)<br />
{<br />
{(0, 0, 0, 0)}<br />
} {<br />
{(1, 1, 1, 1)}<br />
}<br />
4<br />
(0, 0, 0, 0) (1, 1, 0, 0)<br />
S 2 (1, 1, 0, 0)<br />
2<br />
⎧<br />
(1, 1, 1, 1)<br />
⎫ ⎧<br />
(0, 0, 1, 1)<br />
⎫<br />
(0, 0, 0, 0) (1, 0, 1, 0)<br />
⎪⎨ ⎪⎬ ⎪⎨ ⎪⎬<br />
(1, 1, 1, 1) (0, 1, 0, 1)<br />
S 3 (1, 0, 1, 0)<br />
2<br />
(1, 1, 0, 0) (0, 1, 1, 0)<br />
⎪⎩ ⎪⎭ ⎪⎩ ⎪⎭<br />
(0, 0, 1, 1) (1, 0, 0, 1)<br />
⎧ ⎫ ⎧ ⎫<br />
(0, 0, 0, 0) (0, 0, 0, 1)<br />
(1, 1, 1, 1) (1, 1, 1, 0)<br />
(1, 1, 0, 0) (1, 1, 0, 1)<br />
⎪⎨ ⎪⎬ ⎪⎨ ⎪⎬<br />
S 4 (0, 0, 0, 1)<br />
(0, 0, 1, 1)<br />
(1, 0, 1, 0)<br />
(0, 1, 0, 1)<br />
(0, 1, 1, 0) ⎪⎩ ⎪⎭<br />
(1, 0, 0, 1)<br />
(0, 0, 1, 0)<br />
(1, 0, 1, 1)<br />
(0, 1, 0, 0)<br />
(0, 1, 1, 1) ⎪⎩ ⎪⎭<br />
(1, 0, 0, 0)<br />
Table 5.5: Hierarchical structure in Hamming distance.<br />
1<br />
(0000) 2 (1111) 168<br />
(0001) 30 (1110) 180<br />
(1100) 42 (0011) 128<br />
(1101) 54 (0010) 156<br />
(1010) 93 (0101) 247<br />
(1011) 105 (0100) 195<br />
(0110) 117 (1001) 223<br />
(0111) 65 (1000) 235<br />
Figure 5.8: Bit map of 2 × 2 QPSK, |S 4 | = 16, <strong>for</strong> serial concatenation.<br />
118
2X2 QPSK, |S 4<br />
|=16, concat vs MTCM<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
r=1.0, S=8, concat<br />
r=1.0, S=16, concat<br />
r=1.0, S=64, concat<br />
r=1.0, 4x2x4, MTCM<br />
r=1.0, 4x4x2, MTCM<br />
r=1.0, 16x4x1, MTCM<br />
10 −3<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.9: 2 × 2 QPSK, |S 4 | = 16, serial concatenation vs RMTCM.<br />
p = 1 have about the same per<strong>for</strong>mance, because ∆ p (S 1 ) = 64, which is large enough<br />
not to affect d free . Figure 5.10 compares rate 6/2 design with expanded S 7 and S 8 . By<br />
doubling the number of states, both the 8-state design 2 × 4 × 16 and 4 × 2 × 32 are about<br />
0.5 dB better than the 4-state design 2 × 2 × 32, which is reported in [JS02]. For b = 16<br />
and 32, the designs based on S 8 is about 0.3dB and 0.5dB better than those based on S 7 .<br />
<strong>The</strong> best design 4 × 32 × 2 is more than 2dB better than the design 2 × 2 × 32 reported<br />
in [JS02].<br />
5.5.4 3 × 3 BPSK<br />
To the best of our knowledge, these 3 × 3 codes are new to the literature. Figure 5.11<br />
compares the per<strong>for</strong>mance of designs with S 3 . Next, we analyze the d ∗ free<br />
of two rate<br />
r = 2/3 designs: the 8-state design 2 × 4 × 1 and the 4-state design 2 × 2 × 2. Figure 5.12<br />
shows the shortest diverging path <strong>for</strong> design 2×4×1. We denote the coding gain between<br />
119
Rate 6/2 2X2 8PSK, |S 7<br />
|=128 vs |S 8<br />
|=256 Codewords<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
r=6/2, 1x1x64<br />
r=6/2, 2x2x32<br />
r=6/2, 2x4x16<br />
r=6/2, 2x16x4<br />
r=6/2, 2x32x2<br />
r=6/2, 4x2x32<br />
r=6/2, 4x16x4<br />
r=6/2, 4x32x2<br />
10 −3<br />
10 12 14 16 18 20 22 24 26<br />
Figure 5.10: Rate 6/2, 2 × 2 8PSK, |S 7 | = 128 vs |S 8 | = 256.<br />
two paths with the label (C 1 , C 2 , . . . , C M ) and (C ′ 1 , C′ 2 , . . . , C′ M ) by ∆ p((C 1 , C 2 , . . . , C M )−<br />
(C 1 ′ , C′ 2 , . . . , C′ M<br />
)). According to Equation (5.16),<br />
∆ p ((C 1 , C 2 , . . . , C M ) − (C ′ 1, C ′ 2, . . . , C ′ M)) ><br />
M∑<br />
∆ p ((C 1 ) − (C 1)) ′ (5.32)<br />
i=1<br />
<strong>The</strong> 8-state design has no parallel transitions, the shortest path starting from the zero<br />
state and merging back to the zero state takes 3 stages:<br />
d ∗ free = ∆ p((330, 413, 251) − (1, 1, 1)) = 2048 (5.33)<br />
>> ∆ p ((330) − (1)) + ∆ p ((413) − (1)) + ∆ p ((251) − (1)) (5.34)<br />
= 64 + 64 + 64 = 192 (5.35)<br />
<strong>The</strong> gain achieved by elongating the number of stages in the shortest path is usually much<br />
larger than that predicted by Minkowski’s Inequality. <strong>The</strong> 4-state design has parallel<br />
120
3X3 BPSK, |S 3<br />
|=8 Codewords<br />
10 0 SNR<br />
10 −1<br />
10 −2<br />
FER<br />
10 −3<br />
10 −4<br />
r=3/3, 1x1x8<br />
r=2/3, 2x2x2<br />
r=2/3, 2x4x1<br />
r=1/3, 4x2x1<br />
10 −5<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.11: 3 × 3 BPSK, |S 3 | = 8.<br />
transitions, the shortest path takes just one stage, hence the free distance is just the<br />
coding gain of block code set S 1 .<br />
d ∗ free = ∆ p(S 1 ) = 256.<br />
Due to the large difference in d ∗ free<br />
, the 8-state design yields 1.5dB gain over the 4-state<br />
design.<br />
For rate r = 3/3, Figure 5.13 compares the per<strong>for</strong>mance of 2×8 designs with S 4 , 4×8<br />
designs with S 5 and 8 × 8 designs with S 6 . For the same g, the per<strong>for</strong>mance is always<br />
improved by reducing the number of parallel transitions. For b = 2, increasing g does not<br />
improve per<strong>for</strong>mance, because the limiting factor is parallel transitions p = 8. For b = 4,<br />
increasing g from 2 to 4 yields about 0.5dB gains, but increasing g from 4 to 8 yields no<br />
noticeable gains. For b = 8, more than 0.5 dB gains is observed when g increases from<br />
2 to 4, but about 0.3 dB gains is observed when g increases from 4 to 8. We conjecture<br />
that <strong>for</strong> most RMTCM designs with b = 2 and b = 4, g = 4 is sufficient.<br />
121
1 172 251 330<br />
1<br />
1 1<br />
304 413 486 87<br />
172 251 330 1<br />
330<br />
251<br />
413 486 87 304<br />
251 330 1 172<br />
413<br />
486 87 304 413<br />
330 1 172 251<br />
87 304 413 486<br />
Figure 5.12: 3 × 3 BPSK, d ∗ free<br />
of 2 × 4 × 1.<br />
3X3 BPSK, Rate 3/3, |S 4<br />
| vs |S 5<br />
| vs |S 6<br />
|<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
10 −3<br />
r=3/3, 2x2x4<br />
r=3/3, 2x4x2<br />
r=3/3, 2x8x1<br />
r=3/3, 4x2x4<br />
r=3/3, 4x4x2<br />
r=3/3, 4x8x1<br />
r=3/3, 8x2x4<br />
r=3/3, 8x4x2<br />
r=3/3, 8x8x1<br />
10 −4<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.13: Rate 3/3, 3 × 3 BPSK, S 4 , S 5 and S 6 .<br />
122
3X3 QPSK, |S 5<br />
|=32 codewords<br />
10 0 SNR<br />
10 −1<br />
10 −2<br />
FER<br />
10 −3<br />
10 −4<br />
r=5/3, 1x1x32<br />
r=4/3, 2x2x8<br />
r=4/3, 2x4x4<br />
r=4/3, 2x8x2<br />
r=4/3, 2x16x1<br />
r=3/3, 4x2x4<br />
r=3/3, 4x4x2<br />
r=3/3, 4x8x1<br />
r=2/3, 8x2x2<br />
r=2/3, 8x4x1<br />
r=1/3, 16x2x1<br />
10 −5<br />
10 −6<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.14: 3 × 3 QPSK, |S 5 | = 32.<br />
5.5.5 3 × 3 QPSK<br />
S 1 to S 5 are full diversity code sets, S 6 , S 7 and S 8 are expanded code sets. <strong>The</strong> highest<br />
achievable rate of RMTCM design is r m = 5/3. Figure 5.14 shows RMTCM designs<br />
with S 5 <strong>for</strong> various rates. Figure 5.15 shows rate 5/3 RMTCM designs with S 7 . By<br />
increasing memory and decreasing the number of parallel transitions, up to 5dB gain can<br />
be obtained over the 1-state block code.<br />
5.5.6 3 × 3 8PSK<br />
S 1 to S 7 are full diversity code sets, S 8 is expanded code set. <strong>The</strong> highest achievable rate<br />
of RMTCM design is r m = 7/3. Based on S 7 , there are four rate 4/3, five rate 5/3 and six<br />
rate 6/3 RMTCM designs. For any rate, consistent per<strong>for</strong>mance improvement is observed<br />
with increased b and the best design offers more than 5dB gains over corresponding block<br />
code. Figure 5.16 compares the expanded high rate designs based on S 8 with designs<br />
based on S 7 , per<strong>for</strong>mance improvement is large <strong>for</strong> b ≥ 8.<br />
123
Rate 5/3, 3X3 QPSK, |S 7<br />
|=128 Codewords<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
r=5/3, 1x1x32<br />
r=5/3, 4x2x16<br />
r=5/3, 4x4x8<br />
r=5/3, 4x8x4<br />
r=5/3, 4x16x2<br />
10 −3<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.15: 3 × 3 QPSK, |S 7 | = 32.<br />
3X3 8PSK, rate=6/3, |S 7<br />
|=128 codwords vs |S 8<br />
|=256 codewords<br />
10 0 SNR<br />
10 −1<br />
FER<br />
10 −2<br />
r=6/3, 1x1x64<br />
r=6/3, 2x2x32<br />
r=6/3, 2x4x16<br />
r=6/3, 2x8x8<br />
r=6/3, 2x64x1<br />
r=6/3, 4x2x32<br />
r=6/3, 4x4x16<br />
r=6/3, 4x8x8<br />
r=6/3, 4x64x1<br />
10 −3<br />
0 2 4 6 8 10 12 14 16<br />
Figure 5.16: 3 × 3 8PSK, rate=6/3, |S 7 | = 128 vs |S 8 | = 256.<br />
124
Chapter 6<br />
Conclusions<br />
This dissertation covers four topics of space-time codes which are involved with my Ph.D.<br />
research: Chapter 2 discusses the code per<strong>for</strong>mance and design in spread systems, Chapter<br />
3 considers suboptimal linear decoders, Chapter 4 discusses the construction and<br />
properties of NHC, finally, Chapter 5 discusses the design procedure and per<strong>for</strong>mance<br />
analysis of RMTCM. <strong>The</strong> framework of Chapter 2 was finished during my master’s research<br />
at Ohio State University, but most analyses and proofs are tightened as part of<br />
my Ph.D. work. <strong>The</strong>re<strong>for</strong>e it is included this dissertation.<br />
<strong>The</strong> original intention of studying suboptimal decoders in Chapter 3 was to find code<br />
structures more suitable <strong>for</strong> these suboptimal linear decoders. But it was realized to be<br />
a very challenging task because no closed <strong>for</strong>m upper bounds could be obtained <strong>for</strong> these<br />
decoders.<br />
Motivated by the hierarchical structure of optimal codes found by computer search in<br />
Chapter 2, a methodology to build optimized codes hierarchically via distance preserving<br />
isometries is proposed in Chapter 4. <strong>The</strong> procedure can yield arbitrary STBCs with<br />
no constraints on the block size and code structure (unitary or orthogonal). <strong>The</strong> found<br />
hierarchical codes yield not only optimized coding gain at each layer of the hierarchy,<br />
but also symmetry and structure which can be exploited in system implementation and<br />
integration. <strong>The</strong> interaction between initial codeword and isometries is still not completely<br />
clear. Further investigation could eliminate the computer search aspect of our<br />
construction method altogether and result in a fully systematic code design.<br />
General RMTCM design techniques with NHCs and their expansions are presented<br />
in Chapter 5. For a given set of nonlinear hierarchical code, various MTCM designs are<br />
provided to show how to balance rate/per<strong>for</strong>mance/complexity tradeoffs. Two design<br />
125
parameters: the number of trellis groups g and the number of emerging branches from<br />
any state b, are used to improve the per<strong>for</strong>mance of MTCM design, this work endeavors<br />
to find the sweet point where g and b are mostly effectively used to boost per<strong>for</strong>mance.<br />
As much as 2dB gain is observed over other MTCM design via our systematic approach.<br />
<strong>The</strong>re is still some freedom in the trellis labeling, our approach, the cyclic-shift rule is<br />
perhaps not the best. Proper labeling may yield a recursive structure to facilitate serial<br />
concatenation of interleaved codes [BDMP98].<br />
126
Reference List<br />
[AF01]<br />
[Ala98]<br />
[AM00]<br />
Defne Aktas and Michael P. Fitz. Distance spectrum analysis of space-time<br />
trellis coded modulations in quasi-static rayleigh fading channels. In submitted<br />
IEEE Transactions on In<strong>for</strong>mation <strong>The</strong>ory, January 2001.<br />
S. M. Alamouti. A simple transmit diversity technique <strong>for</strong> wireless communications.<br />
IEEE Trans. on Select Areas in Comm., 16(8):1451–58, October<br />
1998.<br />
Emre. Aktas and Urbashi Mitra. Complexity reduction in subspace based<br />
blind channel identification <strong>for</strong> DS/CDMA systems. IEEE Transactions on<br />
Communications, 48(8):1392–1404, Aug 2000.<br />
[Arm87] M. A. Armstrong. Groups and Symmetry. Springer-Verlog, New York, 1987.<br />
[ATP98]<br />
Siavash M. Alamouti, Vahid Tarokh, and Patrick Poon. Trellis-coded modulation<br />
and transmit diversity: Design criteria and per<strong>for</strong>mance evaluation. In<br />
ICUPC, pages 703–707. Florence, Italy, October 5–9 1998.<br />
[BBH02] Stephan Bäro, Gerhard Bauch, and Axel Hansmann. Improved codes <strong>for</strong><br />
space-time trellis-coded modulation. IEEE Communications Letters, 4:20–<br />
22, January 2002.<br />
[BDMP98] Sergio Benedetto, Dariush Divsalar, Guido Montorsi, and Fabrizio Pollara.<br />
Serial concatenation of interleaved codes: Per<strong>for</strong>mance analysis, design and<br />
iterative decoding. IEEE Transactions on In<strong>for</strong>mation <strong>The</strong>ory, 44(3):909–<br />
926, May 1998.<br />
[BDMS91] E. Biglieri, D. Divsalar, P. J. McLane, and M. K. Simon. Introduction to<br />
Trellis-<strong>Codes</strong> Modulation with Applications. Macmillan, New York, 1991.<br />
[BTT02] Ezio Biglieri, Giorgio Taricco, and Antonia Tulino. Per<strong>for</strong>mance of spacetime<br />
codes with linear receiver interfaces. In 2002 Conference on In<strong>for</strong>mation<br />
Sciences and <strong>Systems</strong>, pages 20–22. Princeton University, NJ, March 2002.<br />
[BV03] Matthias Brehler and Mahesh K. Varanasi. Optimum receivers and lowdimensional<br />
spreaded modulation <strong>for</strong> multiuser space-time communications.<br />
IEEE Transactions on In<strong>for</strong>mation <strong>The</strong>ory, 49:901–918, April 2003.<br />
[CYV99] Zhuo Chen, Jinhong Yuan, and Branka Vucetic. An improved space-time<br />
trellis coded modulation scheme on slow rayleigh fading channels. In IEEE<br />
WCNC’99. New Orleans, LA, September 1999.<br />
127
[DS87]<br />
D. Divsalar and M. K. Simon. Trellis-coded modulation <strong>for</strong> 4800 to 9600 bps<br />
transmission over a fading satellite channel. IEEE Journal on Selected Areas<br />
of Communications, 5(2):162–175, Feburary 1987.<br />
[DSAM03] Mohamed Oussama Damen, Anahid Safavi, and Karim Abed-Meraim. On<br />
CDMA with space-time codes over multipath fading channels. IEEE Transactions<br />
on <strong>Wireless</strong> Communications, 2:11–19, January 2003.<br />
[FG98]<br />
[Fos96]<br />
Gerard J. Foschini and M. J. Gans. On limits of wireless communications<br />
in a fading environment when using multiple antennas. <strong>Wireless</strong> Personal<br />
Communications, pages 311–335, 6 1998.<br />
Gerard J. Foschini. Layered space-time architecture <strong>for</strong> wireless communication<br />
in a fading environment when using multi-element antennas. Bell Labs<br />
Technical Journal, pages 41–59, Autumn 1996.<br />
[GARH01] Hesham El Gamal and Jr. A. Roger Hammons. A new approach to layered<br />
space-time coding and signal processing. IEEE Transactions on In<strong>for</strong>mation<br />
<strong>The</strong>ory, 47:2321–34, September 2001.<br />
[GDF91]<br />
[Gen00]<br />
[GF01]<br />
Jr. G. David Forney. Geometrically uni<strong>for</strong>m codes. IEEE Transactions on<br />
In<strong>for</strong>mation <strong>The</strong>ory, 37(5):1241–60, September 1991.<br />
Jifeng Geng. Optimal space-time block codes <strong>for</strong> CDMA systems. Master’s<br />
thesis, Ohio State University, December 2000.<br />
Hesham El Gamal and Michael P. Fitz. Generalized maximum ratio combining<br />
<strong>for</strong> space-time decoding. manuscript, March 2001.<br />
[GFBK99] J. C. Guey, M. P. Fitz, M. R. Bell, and W. Y. Kuo. Signal design <strong>for</strong> transmitter<br />
diversity wireless communication systems over Rayleigh fading channels.<br />
IEEE Transaction on Communications, 46:527–537, April 1999.<br />
[GM01]<br />
[GM03a]<br />
Jifeng Geng and Urbashi Mitra. Optimal space-time block codes <strong>for</strong> reduced<br />
complexity DS-CDMA decoders. In Proc. 35rd Asilomar Conference on Signals,<br />
<strong>Systems</strong> and Computers. Pacific Grove, CA, November 2001.<br />
Jifeng Geng and Urbashi Mitra. MTCM design with nonlinear hierarchical<br />
space-time block codes. In to be submitted to IEEE Transactions on In<strong>for</strong>mation<br />
<strong>The</strong>ory, 2003.<br />
[GM03b] Jifeng Geng and Urbashi Mitra. Nonlinear hierarchical space-time block<br />
codes. In Proc. 37rd Asilomar Conference on Signals, <strong>Systems</strong> and Computers.<br />
Pacific Grove, CA, November 2003.<br />
[GM04] Jifeng Geng and Urbashi Mitra. Nonlinear hierarchical space-time block<br />
codes–part i: Construction. In submitted to IEEE Transactions on Communications,<br />
January 2004.<br />
128
[GMF03]<br />
[Gri99]<br />
[GVM02]<br />
[HJ91]<br />
[HM00]<br />
[HMP01]<br />
[HS00]<br />
[Hug00]<br />
[JS02]<br />
Jifeng Geng, Urbashi Mitra, and Michael P. Fitz. <strong>Space</strong>-time block codes in<br />
multipath CDMA systems. In to be submitted IEEE Transactions on In<strong>for</strong>mation<br />
<strong>The</strong>ory, October 2003.<br />
J. Grimm. Transmitter diversity code design <strong>for</strong> achieving full diversity on<br />
Rayleigh fading channels. PhD thesis, Purdue University, 1999.<br />
Jifeng Geng, Madhavan Vajapeyam, and Urbashi Mitra. Distance spectrum of<br />
space-time block codes: A union bound point of view. In Proc. 36rd Asilomar<br />
Conference on Signals, <strong>Systems</strong> and Computers. Pacific Grove, CA, November<br />
2002.<br />
Roger A Horn and Charles R Johnson. Topics in Matrix Analysis. Cambridge<br />
University Press, New York, 1991.<br />
Bertrand M. Hochwald and Thomas L. Marzetta. Unitary space-time modulation<br />
<strong>for</strong> multiple-antenna communications in rayleigh flat fading. IEEE<br />
Transactions on In<strong>for</strong>mation <strong>The</strong>ory, 46(2):543–564, March 2000.<br />
Bertrand Hochwald, Thomas L. Marzetta, and Constantinos B. Papadias.<br />
A transmitter diversity scheme <strong>for</strong> wideband CDMA systems based on<br />
space-time spreading. IEEE Journal on Selected Areas in Communications,<br />
19(1):48–60, January 2001.<br />
Bertrand M. Hochwald and Wim Sweldens. Differential unitary space-time<br />
modulation. IEEE Transactions on Communications, 48(12):2041–52, December<br />
2000.<br />
Brian L. Hughes. Differential space-time modulation. IEEE Transactions on<br />
In<strong>for</strong>mation <strong>The</strong>ory, 46(7):2567–78, November 2000.<br />
Hamid Jafarkhani and Nambi Seshadri. Super-orthogonal space-time trellis<br />
codes. In IEEE Transactions on In<strong>for</strong>mation <strong>The</strong>ory, volume 49, pages 937–<br />
950, April 2002.<br />
[LC83] Shu Lin and Daniel J. Costello. Error Control Coding, Fundamentals and<br />
Applications. Prentice-Hall, Inc., Englewood Cliffs, New Jersey, 1983.<br />
[MH99] Thomas L. Marzetta and Bertrand M. Hochwald. Capacity of a mobile<br />
multiple-antenna communication link in rayleigh flat fading. IEEE Transactions<br />
on In<strong>for</strong>mation <strong>The</strong>ory, 45:139–157, January 1999.<br />
[NSTC98]<br />
Ayman F. Naguib, Nambi Seshadri, Vahid Tarokh, and A. R. Calderbank.<br />
Combined interference cancellation and ML decoding of space-time block<br />
codes. In Proc. of IEEE DSP Workshop. Bryce Canyon,UT, 1998.<br />
[Pro95] J. G. Proakis. Digital Communications. McGraw-Hill, New York, NY, 1995.<br />
[SF02] Siwaruk Siwamogsatham and Michael P. Fitz. Improved high-rate spacetime<br />
codes from expanded STB-MTCM construction. In submitted IEEE<br />
Transactions on In<strong>for</strong>mation <strong>The</strong>ory, February 2002.<br />
129
[SHHS01]<br />
[Sle68]<br />
A. Shokrollahi, B. Hassibi, B. M. Hochwald, and W. Sweldens. Representation<br />
theory <strong>for</strong> high-rate multiple-antenna code design. IEEE Transactions on<br />
In<strong>for</strong>mation <strong>The</strong>ory, 47(6):2335–67, September 2001.<br />
David Slepian. Group codes <strong>for</strong> the gaussian channel. <strong>The</strong> Bell System Technical<br />
Journal, 47:575–602, April 1968.<br />
[Tel95] I. Emre Telatar. Capacity of multi-antenna gaussian channels. Technical<br />
Memorandum, Bell Laboratories, Lucent Technologies, October 1995.<br />
[TH01]<br />
[TJC99]<br />
[TNSC99]<br />
[TSC98]<br />
[Ung82]<br />
O. Tirkkonen and A. Hottinen. Classification of complex space-time block<br />
codes. In submitted IEEE Transactions on In<strong>for</strong>mation <strong>The</strong>ory, 2001.<br />
V. Tarokh, H. Jafarkhani, and A. R. Calderbank. <strong>Space</strong>-time block codes from<br />
orthogonal designs. IEEE Transactions on In<strong>for</strong>mation <strong>The</strong>ory, 45(5):1456–<br />
67, June 1999.<br />
Vahid. Tarokh, Ayman Naguib, Nambi Seshadri, and A. R. Calderbank.<br />
<strong>Space</strong>-time codes <strong>for</strong> high data rate wireless communication: Per<strong>for</strong>mance<br />
criteria in the presence of channel estimation errors, mobility, and multiple<br />
paths. IEEE Transactions on Communications, 47(2):199–206, February<br />
1999.<br />
V. Tarokh, N. Seshadri, and A. R. Calderbank. <strong>Space</strong>-time codes <strong>for</strong> high data<br />
rate wireless communication: Per<strong>for</strong>mance criterion and code construction.<br />
IEEE Transactions on In<strong>for</strong>mation <strong>The</strong>ory, 44(2):744–765, March 1998.<br />
Gottfried Ungerboeck. Channel coding with multilevel/phase signals. IEEE<br />
Transactions on In<strong>for</strong>mation <strong>The</strong>ory, 28:55–67, January 1982.<br />
[VWZP89] Andrew J. Viterbi, Jack W. Wolf, Ephraim Zehavi, and Roberto Padovani.<br />
A pragmatic approach to trellis-coded modulation. IEEE Communications<br />
Magazine, pages 11–17, July 1989.<br />
[WP99]<br />
[YB02]<br />
[ZGM02]<br />
Xiaodong Wang and Vincent Poor. <strong>Space</strong>-time multiuser detection in multipath<br />
CDMA channels. IEEE Transactions on Signal Processing, 47(9):2356–<br />
74, September 1999.<br />
Qing Yan and Rick S. Blum. Optimum space-time convolutional codes. In<br />
<strong>Wireless</strong> Communications and Networking Confernce, 2000. WCNC, pages<br />
1351–55. <strong>The</strong> Fairmont Hotel in Grant Park, Chicago, IL, September 23–28<br />
2002.<br />
Shengli Zhou, G. B. Giannakis, and C. Le Martret. Chip-interleaved blockspread<br />
code division multiple access. IEEE Transactions on Communications,<br />
50:235–248, Feburary 2002.<br />
130
Appendix A<br />
Code Lists<br />
For different block sizes and constellations, tables of nonlinear hierarchical codes are listed<br />
in this section. <strong>The</strong>re are two kinds of tables: one lists the isometries used to generate<br />
each layer of the code, together with the minimum diversity gain ∆ H , coding gain ∆ p<br />
and ∆ s ; the other lists the full code set. <strong>The</strong> second table is used only when the code<br />
lists are too large to fit in the first table. <strong>The</strong> first table is divided into two sections<br />
marked by double lines, the first section lists full diversity code, the second section lists<br />
the expanded code (see Equation (5.8) <strong>for</strong> an explanation of expanded code).<br />
S k<br />
[<br />
U<br />
]<br />
S k<br />
[<br />
P<br />
]<br />
S<br />
k ′ ∆ H ∆ p ∆ s<br />
−1 0<br />
1 0<br />
S 1 {1}<br />
{14} 2 64.00 16.00<br />
[<br />
0 −1<br />
]<br />
[<br />
0 1<br />
]<br />
0 1<br />
1 0<br />
S 2 {1, 14}<br />
{7, 8} 2 16.00 8.00<br />
−1 0<br />
0 1<br />
[ ]<br />
[ ]<br />
1 0<br />
1 0<br />
S 3 {1, 14, 7, 8}<br />
{2, 13, 4, 11} 1 8.00 8.00<br />
0 −1<br />
0 1<br />
Table A.1: 2 × 2 BPSK codes.<br />
131
ù"ú"ú"û ù"ü"ù ù"ý0øJþ ÿLù"ý"ù ú ø¢¡;þ ÿ+øJù"û ú"ù¤£ ø ÿLþ"ý ù ø"øJþ øJý ø ù"ù"ù ø ÿLúÿ+ø ú"ý¤¡"þ ÿLý"ù"û ú"ú"û;û<br />
ø<br />
ù¤¡"ü"ü ¡ ø¢¡ ú"ý;ù"ú ÿLû¤£¤¡ ú"ü"ú;ú ÿLþ"þÿ ú¤¡"ý"ü û"ú¤£ ù"üÿ"ÿ þ¤£"ü ù"û"þ¤¡ ÿ¥¡"û"ü øJý ø¢£ ÿLü"ü"ú ú"þ"ùÿ<br />
ü¤¡ÿ<br />
ùÿ¥£"þ ÿLý"û ù"ú;þ"ù ÿ¥£"ù"þ ú"ù"ü;ù ÿLù øJý ú¤£"þ"ý £"ý"û ù"ù¤¡"ý ùÿLþ ù¤£¤£"þ ÿ"ÿLù"þ ú øJý ø ÿLú¤£"ù úÿLþ;ý<br />
ú"ú"ý<br />
ù"û¤¡"þ û"ù"û ù"ü;ý"ù ÿLü"þ ø ú"þÿ ù ÿ¥¡"û"ý øJý"ú"û ü"û"ù ù¤¡"ü"ý ¡"ú"þ ú"ýÿ+ø ÿLû øJþ ú"ü"ù ø ÿLþ¤¡"ù ú¤¡"ý;ý<br />
þ¤£"ý<br />
ú"ùÿ ùÿ+øJü ü¤¡ ù"ú§¡"ú ÿ¥£"ù¤¡ ú"ù"þ;ú ÿLù"ú"ü ú¤£¤¡ÿ øJü¤¡ ù"ù"ûÿ ù"ý"ü ù¤£ øJü ÿ"ÿLù¤¡ ú"ú"ü¤£ ÿLú¤£ÿ úÿ¥¡ÿ<br />
¨¤¨¤¨¤¨§¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨§¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨§¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨§¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨§¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨§¨©¨¤¨¤¨¤¨<br />
S k<br />
[<br />
U<br />
]<br />
S k<br />
[<br />
P<br />
]<br />
S<br />
k ′ ∆ H ∆ p ∆ s<br />
−1 0<br />
1 0<br />
S 1 {2}<br />
{168} 2 64.00 16.00<br />
[<br />
0 −1<br />
]<br />
[<br />
0 1<br />
]<br />
0 1<br />
1 0<br />
S 2 {2, 168}<br />
{42, 128} 2 16.00 8.00<br />
[<br />
−1 0<br />
]<br />
[<br />
0 1<br />
]<br />
i 0<br />
1 0<br />
S 3 {2, 168, 42, 128}<br />
{93, 247, 117, 223} 2 16.00 8.00<br />
[<br />
0 −i<br />
] { } [<br />
0 1<br />
] { }<br />
1 0 2, 168, 42, 128 1 0 30, 180, 54, 156<br />
S 4 2 4.00 4.00<br />
0 −i 93, 247, 117, 223 0 i 105, 195, 65, 235<br />
⎧<br />
⎫<br />
⎧<br />
⎫<br />
[ ]<br />
2, 168, 42, 128<br />
⎪⎨<br />
⎪⎬ [ ]<br />
7, 173, 47, 133<br />
⎪⎨<br />
⎪⎬<br />
1 0 93, 247, 117, 223 1 0 82, 248, 122, 208<br />
S 5 1 4.00 4.00<br />
0 i 30, 180, 54, 156 0 1 19, 185, 59, 145<br />
⎪⎩<br />
⎪⎭<br />
⎪⎩<br />
⎪⎭<br />
⎧<br />
105, 195, 65, 235<br />
⎫<br />
⎧<br />
110, 196, 70, 236<br />
⎫<br />
2, 168, 42, 128<br />
8, 162, 138, 32<br />
93, 247, 117, 223<br />
87, 253, 213, 127<br />
30, 180, 54, 156<br />
75, 225, 201, 99<br />
⎪⎨<br />
⎪⎬<br />
⎪⎨<br />
⎪⎬<br />
[ ]<br />
1 0<br />
S 6<br />
0 1<br />
105, 195, 65, 235<br />
7, 173, 47, 133<br />
82, 248, 122, 208<br />
19, 185, 59, 145<br />
⎪⎩<br />
⎪⎭<br />
110, 196, 70, 236<br />
[ ]<br />
0 1<br />
1 0<br />
Table A.2: 2 × 2 QPSK.<br />
150, 60, 20, 190<br />
13, 167, 143, 37<br />
88, 242, 218, 112<br />
76, 230, 206, 100<br />
⎪⎩<br />
⎪⎭<br />
155, 49, 25, 179<br />
1 4.00 4.00<br />
ù"ûÿLú £"ûÿ ù"þ;ú¤¡ ÿLü"ù¤¡ ú¤¡ ø¦¡ ÿ¥¡"ý"ú ú"ü¤¡ÿ þ"ü¤¡ ù¤¡"ù¤£ û¤¡"ú ù"ü øJü ÿ¥£"üÿ ú"þ¤£"ü ÿLþÿ¥£ ú"û"ú§£<br />
¡"þ¤£<br />
ù¤£"û ù"ý"þ ø ú"ù ù"ú;ý"þ ÿ+øJû"ù ú"ùÿ þ ÿ"ÿ¥¡ ø ú¤£"ý"û øJú"ù ùÿLü"û ÿ+ø"ø ù øJþ ø ÿLý"û"ù ú"ú"ú"ý ÿLù"þ"û úÿLý;û<br />
¨¤¨¤¨¤¨§¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨§¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨§¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨§¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨§¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨¤¨¤¨¤¨¤¨¤¨©¨¤¨¤¨§¨©¨¤¨¤¨¤¨<br />
¡ÿLü ú"ý¤£ÿ ÿLý"ý¤¡ ù¤¡;û"ú ÿLüÿ¥¡ ú"û¤¡;ú ÿLû"ù"ü ú"ü"ûÿ þ"ü¤£ ù"û¤£ÿ û"ý¤¡ ù"ü"ú"ü ù"ý"ù"ü ú¤¡"þ¤£ ÿ¥¡ ø@ÿ øJý¤¡;ú<br />
¡"þ ù ø@ÿLý ú"û"û ùÿ ù"ù ÿLù¤¡"û ú¤£ ø;ø ÿ¥£"ý"ý ú"ú"ù"ý ù¤£ ø ù¤£"ù"ù ø¢¡"þ ù"ù"ü"þ ÿLú"þ"þ úÿ+ø"ø ÿ"ÿLý"ý ú øJú;ù<br />
£"ú"ú ù"þ"û¤£ þ"ùÿ ù¤£§¡¤¡ ÿLû"û¤¡ øJý"ý§¡ ÿLü¤£¤£ ú¤¡ÿLü û ø¢£ ù"ü¤¡¤¡ ü"ú"ú ù"û"þ"ü ÿLþ øJú ú"û"ý¤¡ ÿ¥£¤£¤£ ú"þ"ü§£<br />
û"ü ù øJýÿ<br />
¤¤¤§¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤§¤¤¤¤¤¤¤¤¤¤¤¤¤¤¤§¤¤¤©¤¤¤¤¤¤¤©¤¤§©¤¤¤¤¤¤¤©¤¤¤¤¤¤¤©§¤¤©¤¤¤¤¤¤¤©¤¤¤¤¤¤¤¤¤¤¤©¤¤¤¤¤¤¤©¤¤§©¤¤¤<br />
ùÿ;ÿLú ÿLù"û¤¡ ú¤£ øú ÿ+øJüÿ ú"úÿLü ù ø¢£ ù¤£ÿLú øJû"ü ù"ù"þ"ü ÿLú¤¡"ü úÿ+øJú ÿLý"üÿ ú øJúÿ<br />
ú¤£¤¡<br />
£"ù ø ù"þ¤£"û þÿLù ù¤£;û"þ ÿ¥¡"ù"ù ú"ü"ü;þ ÿLü øJû ú¤¡¤¡ ø ¡"ý"ý ù"ü"û"þ ü"ù ø ù¤¡ ø"ø ÿLþ"ú ø ú¤£"ü"þ ÿ¥£ øJû ú"þ"þ;û<br />
ú"ü¤£ ù"ù"ù"ú ÿ¥¡ÿ ù ø;ø¢¡ ÿLý"þÿ ú"ú¤£§¡ ÿLú"ý¤£ úÿLú"ú £"ü ù"ú"ú¤£ ù"þ"ú ùÿ"ÿ"ÿ ÿ"ÿLü"ú ú øJû"ü ÿ+ø@ÿ¥¡ ú"ù ø¦£<br />
¡¤¡"û ù"û"ý ø £¤£"ù ù"þ;ù"þ ÿLü"þ"ù ú¤¡"ú;þ ÿLû"ü ø øJý"ù"û ü¤£"ù ù¤¡ÿLû û"û ø ú"ý"ý ø ÿ¥£"þ"ù ú"þ¤£"ý ÿLþ"ý"û ú"û"ù;û<br />
ÿ+øJú ù ø¢¡¤£ øJúÿ ùÿ þ¤¡ ÿLú ø@ÿ ú"ý"ü§¡ ÿLý¤£"ú ú"ú"þ¤£ úÿLü ù"ý¤¡¤£ úÿ ù"ú"û"ú ÿ+ø¢£"ú ú"ù"ý"ü ÿ"ÿLû¤£ ú øJü§¡<br />
ù"ü"ú"ý þ"þ"û ù"û0øJù ÿ¥¡"ú"ù øJý"û0ø ù"ý"ù"ý ú¤¡¤¡"û ¡ÿLý ú"ý øJù ü"ü"þ ù¤¡¤£ ø ÿLü"ý"þ ú"û"û ø ÿLû"ù"ý ú"ü¤£;ù<br />
£"ü"þ<br />
Table A.3: 2 × 2 8PSK code list.<br />
132
S k [<br />
U<br />
]<br />
S k [<br />
P<br />
]<br />
S k ′ ∆ H ∆ p ∆ s<br />
−1 0<br />
1 0<br />
S 1 {4}<br />
{2336} 2 64 16<br />
[<br />
0 −1<br />
]<br />
[<br />
0 1<br />
]<br />
0 1<br />
1 0<br />
S 2 {4, 2336}<br />
{292, 2048} 2 16 8<br />
[<br />
−1 0<br />
]<br />
[<br />
0 1<br />
]<br />
i 0<br />
1 0<br />
S 3 {4, 2336, 292, 2048}<br />
{1202, 3478, 1426, 3254} 2 16 8<br />
[<br />
0 −i<br />
] { } [<br />
0 1<br />
] { }<br />
1 0<br />
4, 2336, 292, 2048<br />
1 0<br />
180, 2448, 404, 2224<br />
S 4 2 4 4<br />
0 −i<br />
⎧<br />
1202, 3478, 1426, 3254<br />
⎫<br />
0 i<br />
⎧<br />
1314, 3078, 1026, 3366<br />
⎫<br />
[ ]<br />
4, 2336, 292, 2048 [<br />
] 971, 2799, 1657, 3933<br />
⎪⎨<br />
⎪⎬<br />
1 0 1202, 3478, 1426, 3254 e jπ/4 ⎪⎨<br />
⎪⎬<br />
0<br />
747, 3023, 1881, 3709<br />
S 5 0 1<br />
180, 2448, 404, 2224<br />
⎪⎩<br />
1314, 3078, 1026, 3366<br />
⎪⎭<br />
0 e −jπ/4 2 1.37 2.34<br />
635, 2911, 1769, 4045<br />
⎪⎩<br />
859, 2687, 1993, 3821<br />
⎪⎭<br />
⎧<br />
⎫<br />
⎧<br />
⎫<br />
4, 2336, 292, 2048<br />
330, 2158, 1528, 3292<br />
1202, 3478, 1426, 3254<br />
106, 2382, 1240, 3580<br />
[ ] 180, 2448, 404, 2224<br />
1 0<br />
⎪⎨<br />
⎪⎬ [ ] 506, 2270, 1128, 3404<br />
1314, 3078, 1026, 3366<br />
1 0<br />
⎪⎨<br />
⎪⎬<br />
218, 2558, 1352, 3180<br />
S 6<br />
0 e jπ/4 971, 2799, 1657, 3933<br />
0 e j5π/4 2 0.34 2.34<br />
785, 2613, 1927, 3747<br />
747, 3023, 1881, 3709<br />
561, 2837, 1703, 3971<br />
⎪⎩<br />
635, 2911, 1769, 4045 ⎪⎭<br />
⎪⎩<br />
897, 2725, 1591, 3859⎪⎭<br />
859, 2687, 1993, 3821<br />
673, 2949, 1815, 3635<br />
[ ]<br />
1 0<br />
S 7 0 1<br />
[ ]<br />
1 0<br />
S 8 0 1<br />
[ ]<br />
1 0<br />
S 6 0 −1<br />
[ ]<br />
1 0<br />
S 7<br />
0 e jπ/4<br />
S ′ 6 1 0.34 2.34<br />
S ′ 7 1 0.20 1.17<br />
Table A.4: 2 × 2 8PSK.<br />
coset S k ⎡<br />
U S k P S k ′ ∆ H ∆ p ∆ s<br />
1 S 1 ⎣ 1 0 0<br />
⎤<br />
⎡<br />
0 −1 0 ⎦ {1}<br />
⎣ 1 0 0<br />
⎤<br />
0 −1 0⎦ {172} 3 256 20<br />
0 0 −1<br />
0 0 1<br />
⎡<br />
1 S 2 ⎣ 0 1 0<br />
⎤<br />
⎡<br />
0 0 1⎦ {1, 172}<br />
⎣ 0 0 1<br />
⎤<br />
−1 0 0⎦ {251, 330} 3 64 20<br />
1 0 0<br />
0 −1 0<br />
⎡<br />
10 S 1 ⎣ 1 0 0<br />
⎤<br />
⎡<br />
0 −1 0 ⎦ {304}<br />
⎣ 1 0 0<br />
⎤<br />
0 −1 0⎦ {413} 3 256 20<br />
0 0 −1<br />
0 0 1<br />
⎡<br />
10 S 2 ⎣ 0 1 0<br />
⎤<br />
⎡<br />
0 0 1⎦ {304, 413}<br />
⎣ 0 0 −1<br />
⎤<br />
1 0 0 ⎦ {486, 87} 3 64 20<br />
1 0 0<br />
0 1 0<br />
1,10 S 3 N/A {1, 172, 251, 330} N/A {304, 413, 486, 87} 3 64 16<br />
⎡<br />
1,10 S 4 ⎣ 0 0 1<br />
⎤<br />
⎡<br />
{ }<br />
0 1 0⎦<br />
1, 172, 251, 330 ⎣ 1 0 0<br />
⎤<br />
{ }<br />
0 0 1⎦<br />
206, 383, 181, 24<br />
2 16 12<br />
304, 413, 486, 87<br />
98, 467, 297, 388<br />
−1 0 0<br />
⎧<br />
⎫<br />
0 −1 0<br />
⎧<br />
⎫<br />
⎡<br />
1,10 S 5 ⎣ 0 0 1<br />
⎤ 1, 172, 251, 330 ⎡<br />
⎪⎨<br />
⎪⎬<br />
0 1 0⎦<br />
304, 413, 486, 87 ⎣ −1 0 0<br />
⎤ 419, 18, 472, 373<br />
⎪⎨<br />
⎪⎬<br />
0 0 1⎦<br />
271, 190, 68, 233<br />
1 8 8<br />
206, 383, 181, 24<br />
112, 221, 138, 315<br />
−1 0 0 ⎪⎩<br />
98, 467, 297, 388<br />
⎪⎭ 0 1 0 ⎪⎩<br />
321, 492, 407, 38<br />
⎪⎭<br />
⎧<br />
⎫<br />
⎧<br />
⎫<br />
1, 172, 251, 330<br />
72, 229, 178, 259<br />
304, 413, 486, 87<br />
377, 468, 431, 30<br />
⎡<br />
1,10 S 6 ⎣ 1 0 0<br />
⎤ 206, 383, 181, 24 ⎡<br />
⎪⎨<br />
⎪⎬<br />
0 1 0⎦<br />
98, 467, 297, 388 ⎣ 1 0 0<br />
⎤ 135, 310, 252, 81<br />
⎪⎨<br />
⎪⎬<br />
0 1 0 ⎦ 43, 410, 352, 461<br />
1 8 8<br />
419, 18, 472, 373<br />
490, 91, 401, 316<br />
0 0 1<br />
0 0 −1<br />
271, 190, 68, 233<br />
326, 247, 13, 160<br />
⎪⎩<br />
112, 221, 138, 315⎪⎭<br />
⎪⎩<br />
57, 148, 195, 370 ⎪⎭<br />
321, 492, 407, 38<br />
264, 421, 478, 111<br />
Table A.5: 3 × 3 BPSK.<br />
133
©¤¥¢©©©©¤©¤©©¤©¤©©¤§¥¢©©©¤©¤¥§¢¥¤©©¤©¢¥©©©¤©©¤©©¤¢©©©¥©©¤©¤©©¦©§©¤<br />
¥©©¤©©©©¦¥!©¤<br />
©©¤©¤©©©©¤©¤©©¤©¢©©¤©§¤¢¥©©¦¦¤¤©©¤©©¤©¥©¥¢©¤©¥¢¢©©¢<br />
"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""©"<br />
S k<br />
⎡<br />
U<br />
⎤<br />
S k<br />
⎡<br />
P<br />
⎤<br />
S<br />
k ′ ∆ H ∆ p ∆ s<br />
−1 0 0<br />
1 0 0<br />
S 1<br />
⎣ 0 −1 0 ⎦ {397} ⎣0 1 0⎦ {174887} 3 1280 36<br />
⎡<br />
0 0 −1<br />
⎤<br />
⎡<br />
0 0 1<br />
⎤<br />
1 0 0<br />
0 i 0<br />
S 2<br />
⎣0 −1 1 ⎦ {397, 174887} ⎣i 0 0⎦ {86892, 260550} 3 160 18<br />
0<br />
⎡<br />
0 −1<br />
⎤<br />
⎡<br />
0 0 i<br />
⎤<br />
1 0 0<br />
0 i 0<br />
S 3<br />
⎣0 1 0⎦ S 2<br />
⎣1 0 0 ⎦ S 2 ′ 3 64 16<br />
⎡<br />
0 0 1<br />
⎤<br />
⎡<br />
0 0 −i<br />
⎤<br />
1 0 0<br />
i 0 0<br />
S 4<br />
⎣0 −1 0⎦ S 3<br />
⎣0 1 0 ⎦ S 3 ′ 3 32 12<br />
⎡<br />
0 0 1<br />
⎤<br />
⎡<br />
0 0 −1<br />
⎤<br />
1 0 0<br />
1 0 0<br />
S 5<br />
⎣0 i 0 ⎦ S 4<br />
⎣0 0 1⎦ S 4 ′ 3 8 10<br />
0 0 −i<br />
0 −1 0<br />
⎡ ⎤<br />
⎡ ⎤<br />
1 0 0<br />
1 0 0<br />
S 6<br />
⎣0 0 i⎦ S 5<br />
⎣0 −i 0⎦ S 5 ′ 1 8 10<br />
⎡<br />
0 −i 0<br />
⎤<br />
⎡<br />
0 0 1<br />
⎤<br />
1 0 0<br />
1 0 0<br />
S 7<br />
⎣0 −1 0⎦ S 6<br />
⎣0 1 0⎦ S 6 ′ 1 8 10<br />
⎡<br />
0 0 1<br />
⎤<br />
⎡<br />
0 0 1<br />
⎤<br />
1 0 0<br />
1 0 0<br />
S 8<br />
⎣0 1 0⎦ S 7<br />
⎣0 0 −1⎦ S 7 ′ 1 8 8<br />
0 0 1<br />
0 1 0<br />
Table A.6: 3 × 3 QPSK.<br />
©©©#©¦©©©§¤©©¤©¢©©¤©©¤¥$¤©¤©¤¥§¢¥¢©©¤¢¤©¥©©¤¥%¢¥©¥¢&¥©©©¥©¥¢©¥©¥§%¢¤©¤<br />
¢©¤¥!©©¥¢©¤©©¤¥'¤©©¤©©¦¤©¤©¤©©©¦¥©¢¥©©©&©©¤©©¤©©¤¢©©©(©§§¥©©©¤¢(!<br />
"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""©"<br />
©©¤©§©©©¤©¤©©¤©¤©©¤©¢¥©©©¤©¤©©©¤¤©©¤¢¤©©©¤©©¤©©¤¢©¢¥©¥¢©¤©©¤©¤©©¦<br />
©©¤©¤©©©©¤©¤¢¤¥'¤©©¤§©¤©¥¥§¤©¦©©¦)¦©¤¥§¤¥$¥©©¤©¤©©¤¦©©¥©©§©©©¤¥¤§©¤<br />
"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""©"<br />
©©©¤¢¥¥§©©¤¢¤©©¤©¢©©#©¥¢©¤©¤©¤©©©¤!©¤©©§¥©¥¢©¢¥©©¤&¥¥§©¥©©¤©¥©¢¤©¤©©¤<br />
¥§©#¢¥©©©©¤¥%§©¤©¤¢¤©¥¢©¤©¤©¤¢©¤&¤©#©©¤©©©¤¥%©¦¥¢¤©©©(§©¤¢¥©©©¦¢¥©©¤<br />
*©*©*©*¤*©*©*¤*©*©*©*¤*©*©*¤*©*©*¤*©*©*©*¤*©*©*¤*©*©*©*¤*©*©*¤*©*©*¤*©*©*©*¤*©*©*©*©*¤**¤*©*©*©*©*©*¤**¤*©*©*©*©*¤*©**¤*©*©*©*©*¤*©*©*©*©*©*©*©*¤*©*©*©*©*¤**¤*©*©*©*©*©*¤**¤*©*©*©*©*¤*©*©*©*©*©*©*©*¤*©*©*©*©*¤**©*<br />
©©¥¢§¤©©©©¤©¤©©§&(§©¤©¥¢¥&¥§©%¤¥§©¤¤©©¤©©¤©©©¤©©¤©©¤¤©©©¥©¢¥©¤©©¤©©©¢<br />
©#©¦©©¢¥©¤¢¤¢)¦§#§©¤¥&¢§¤©©©¤¤©©¤©¥¢©©©¤©©¤©©¤¢©©¢ ¥©¢¥©¤©©¤©¤©©¤<br />
"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""©"<br />
©©©¤©§¢©©¤¢¤©¢¥¢)¤©©¤©©¤©¤©§¤¥©§¤&¥©©¤¥§¤¢©©§©¤¢¤¤©©©(§©¤©¥©©©¤¢¥¥§<br />
©©©¦ ©¤¥§©©©%¤©¥! ¥©¢©©¤¢©©¤©§©© ¥¢©©¤¥&©©¦©¦©¤¦§©(§©¤©¢©¦©¤©©¤<br />
"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""©"<br />
©©©¤©¤©©¢©¥©¤©©¥©¥¤#©¢¤©©¦¤©©©¤¤©©¤©©¤©©¢¥©¥¢©©¤¤©©¥#¥©©¤©¤§©¤©¦©¤<br />
¢¤©¤©©©©¤©¤©©§¤©¢¥¢§©©¤©¤©©¥¢¤©©¦ ¢¤©©©¤©©¤©©¤¢©©©¥©¥¢©¤©©¤©¤©©<br />
"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"©"¤"©"©"¤"©"©"¤"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""¤"©"©"©"©"©"¤""¤"©"©"©"©"¤"©"©"©"©"©"©"©"¤"©"©"©"©"¤""©"<br />
©©©¤©¤¥§©¢¥©§©¤©¤©¢¥©©¦¤§¤¥%¤¢©¤<br />
©©¦ ©©¤©¥§¤¢©¤©©¤¤¥§©(§©¤©¥©©¢(%¢¥©©¤<br />
©©¤©¥¢©©©¤©§©©¤ ¢#©©¦©©§©¤©©¤¤©¥§¥¢¦©©©¤©¤©©¦<br />
¢©¤¥¢©©©©¤©¤©©¤©<br />
Table A.7: 3 × 3 QPSK code list.<br />
134
S k ⎡<br />
U S k P S k ′ ∆ H ∆ p ∆ s<br />
S 1 ⎣ 1 0 0<br />
⎤<br />
⎡<br />
0 1 0⎦ {10794} ⎣ −1 0 0<br />
⎤<br />
0 −1 0 ⎦ {76702478} 3 1620.08 36.00<br />
0 0 1<br />
0 0 −1<br />
⎡<br />
S 2 ⎣ 1 0 0<br />
⎤<br />
⎡<br />
0 1 1⎦ S 1 ⎣ i 0 0<br />
⎤<br />
0 i 0 ⎦ S 1 ′ 3 202.51 18.00<br />
0 0 1<br />
0 0 −i<br />
⎡<br />
⎡<br />
S 3 ⎣ 1 0 0<br />
⎤<br />
e j π ⎤<br />
4 0 0<br />
0 1 0 ⎦ S 2<br />
⎢<br />
⎣ 0 e j π 4 0 ⎥<br />
0 0 −1<br />
0 0 e j 3π ⎦ S 2 ′ 3 104.97 16.59<br />
4<br />
⎡<br />
⎤<br />
⎡<br />
S 4 ⎣ 1 0 0<br />
⎤<br />
1 0 0<br />
0 −1 0⎦ S 3<br />
⎢<br />
⎣<br />
0 e j 3π 4 0 ⎥<br />
0 0 i<br />
0 0 e j 5π ⎦ S 3 ′ 3 32.00 15.41<br />
4<br />
⎡<br />
⎤<br />
1 0 0<br />
⎡<br />
⎢<br />
S 5 ⎣0 e j π ⎥<br />
4 0<br />
0 0 e j π ⎦ S 4 ⎣ 1 0 0<br />
⎤<br />
0 −i 0 ⎦ S 4 ′ 3 7.03 13.76<br />
4<br />
0 0 −1<br />
⎡<br />
⎤<br />
⎡<br />
1 0 0<br />
⎢<br />
S 6 ⎣<br />
0 1 0 ⎥<br />
0 0 e j 3π ⎦ S 5 ⎣ 1 0 0<br />
⎤<br />
0 −i 0 ⎦ S 5 ′ 3 2.34 5.51<br />
4<br />
0 0 −i<br />
⎡<br />
⎤<br />
⎡<br />
1 0 0<br />
e j π ⎤<br />
4 0 0<br />
S 7 ⎣0 i 0 ⎦ ⎢<br />
0 0 e j π S 6 ⎣ 0 −1 0<br />
⎥<br />
⎦ S<br />
4<br />
0 0 e j 3π 6 ′ 3 0.69 4.93<br />
4<br />
⎡<br />
⎤<br />
⎡<br />
S 8 ⎣ 0 1 0<br />
⎤<br />
1 0 0<br />
1 0 0⎦ S 7<br />
⎢<br />
⎣<br />
0 e j 3π 4 0 ⎥<br />
0 0 1<br />
0 0 e j 7π ⎦ S 7 ′ 2 0.12 4.93<br />
4<br />
Table A.8: 3 × 3 8PSK.<br />
,.-0/01#-023-4,.5413-36$70/010,.805010,9+0+470/3-.+3+ ,0,:+4/0-0,32;+
J;KL4MNL=L;L0K=O;P=Q;ORO=Q;O=Q;Q;MNL3P.M=J=K;JL0OTS;S=U;P=QVL0MTJ=Q;W=U;J=Q;OTS;O=W;O=JVL0PTJ=W;S=J;P=P;PTW;O=S;W=J;W;UNL0O=K.MXU;K;O=KTO;S;M=J=S;K;KNL0OL0SL0U.MXUTK;J=O.ML3JVLYL4MXW;P;W;M=U=QTJ;S=S.M=K=U;UNL4M(L4M;MXJ;J=K<br />
U;M=O;S=S;JZL=L0W;S=O;J=K;J[L0P=U.M=M=O=PZL3P;J;U=J;O;M=OTS.MXK.M(L0Q=J\Q=U;Q=J;Q=P;JTU;P=Q;O=K;P;STJ=K;K=O.MXP.M]W;U=J;Q=K;U;QNL0O=S;QL0W;J=WTW;JL0W=W;W;WNL0W=J;O=W;K;O=QTK;WL0K.M=M=QNL4M(L0O;U=J;K=WTK;J=K;J;P;M=QNL0U=J;P;U=S;K=W<br />
L=L0Q.MXS;OZL=L0S;U=K.M(L0ORK;ML3Q;U=PZL3P;OVL0M=QL0STS;U=W;K=K;K=P\J=Q;Q=Q;P=K;STS;KL0J=U;K;PTJ=O;U=J.MXK;STW;O=K;P=K;K;UNL0O=W;S=O;JVL3WTO;P=UVL3U;S;WNL0OL0O=O;S;O=UTK;O;M=K;S=S;QNL4MXW;W;P=U;W=QTJ;S=O;Q;O=W;UNL0U=Q;S;K=Q;U=W<br />
S k ⎡<br />
U<br />
⎤<br />
S k P S k ′ ∆ H ∆ p ∆ s<br />
1 0 0 0<br />
⎡<br />
S 1<br />
⎢0 −1 0 0<br />
⎥<br />
⎣0 0 1 0 ⎦ {83} ⎣ 1 0 0<br />
⎤<br />
0 1 0 ⎦ {4012} 3 4096.00 48.00<br />
0 0 −1<br />
0 0 0 −1<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 2<br />
⎢0 −1 0 0<br />
⎥<br />
⎣0 0 1 0 ⎦ {83, 4012} ⎣ 1 0 0<br />
⎤<br />
0 1 0 ⎦ {989, 3106} 3 512.00 24.00<br />
0 0 −1<br />
0 0 0 −1<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 3<br />
⎢0 1 0 0<br />
⎥<br />
⎣0 0 −1 0 ⎦ S 2 ⎣ 1 0 0<br />
⎤<br />
0 −1 0 ⎦ S 2 ′ 3 512.00 24.00<br />
0 0 −1<br />
0 0 0 −1<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 4<br />
⎢0 1 0 0<br />
⎥<br />
⎣0 0 1 0 ⎦ S 3 ⎣ 0 1 0<br />
⎤<br />
0 0 1⎦ S 3 ′ 3 64.00 12.00<br />
−1 0 0<br />
0 0 0 −1<br />
Table A.10: 4 × 3 BPSK.<br />
S k ⎡<br />
U<br />
⎤<br />
S k P S k ′ ∆ H ∆ p ∆ s<br />
1 0 0 0<br />
⎡<br />
S 1<br />
⎢0 −1 0 0<br />
⎥<br />
⎣0 0 1 0 ⎦ {8714}<br />
⎣ 1 0 0<br />
⎤<br />
0 1 0 ⎦ {11176096} 3 4096 48<br />
0 0 −1<br />
0 0 0 −1<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 2<br />
⎢0 −1 0 0<br />
⎥<br />
⎣0 0 1 0 ⎦ {8714, 11176096} ⎣ 1 0 0<br />
⎤<br />
0 1 0 ⎦ {696994, 10487816} 3 512 24<br />
0 0 −1<br />
0 0 0 −1<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 3<br />
⎢0 1 0 0<br />
⎥<br />
⎣0 0 −1 0 ⎦ S 2 ⎣ 1 0 0<br />
⎤<br />
0 −1 0 ⎦ S 2 ′ 3 512 24<br />
0 0 −1<br />
0 0 0 −1<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 4<br />
⎢0 1 0 0<br />
⎥<br />
⎣0 0 0 1⎦ S 3 ⎣ i 0 0<br />
⎤<br />
0 0 i⎦ S 3 ′ 3 384 24<br />
0 i 0<br />
0 0 −1 0<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 5<br />
⎢0 i 0 0<br />
⎥<br />
⎣0 0 1 0⎦ S 4 ⎣ 0 1 0<br />
⎤<br />
1 0 0⎦ S 4 ′ 3 128 20<br />
0 0 i<br />
0 0 0 i<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 6<br />
⎢0 1 0 0<br />
⎥<br />
⎣0 0 1 0⎦ S 5 ⎣ 0 i 0<br />
⎤<br />
i 0 0⎦ S 5 ′ 3 32 14<br />
0 0 1<br />
0 0 0 i<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 7<br />
⎢0 1 0 0<br />
⎥<br />
⎣0 0 1 0⎦ S 6 ⎣ 1 0 0<br />
⎤<br />
0 1 0 ⎦ S 6 ′ 1 16 14<br />
0 0 −1<br />
0 0 0 1<br />
⎡<br />
⎤<br />
1 0 0 0<br />
⎡<br />
S 8<br />
⎢0 −1 0 0<br />
⎥<br />
⎣0 0 1 0 ⎦ S 7 ⎣ 0 1 0<br />
⎤<br />
−1 0 0 ⎦ S 7 ′ 1 16 14<br />
0 0 −i<br />
0 0 0 −1<br />
Table A.11: 4 × 3 QPSK.<br />
U=P;Q.MXO;PZL=L4M=P=K;Q=Q;JRQ=UVL3Q;O;MNL3P;K;J=W.MXQ.M]S;U=KVL3K;P=S\Q=U.MXW;K=W;OTU;P=W;Q=Q;U.M]J=O;W=K;W=S.M]W;U=U;O=U;UVLYL0O=W;P=P;O.M(L^O;P=S.MXOVL;LYL0W=JVL3S;U;OL^K.MXO.M=U=OVLYL4MXU;K;S=OVL=L^J;P=J;O;K=J;WNL0U=K;W;PL0J=K<br />
W=S.M=Q=U;OZL3P;O;W=Q;J=K.M`L3O.MXU;J;MNL=L0P;S=P.MXS;OTS;K=O;U=S;O;MTJ;M=SL0W;M=OTSVL0M=P=J.M=PTQ=P.MXU;Q=K;PTOVL3W;J=S;P;KNL0O=SVL=L4ML3UTW;K=U;S=UVL;LYL0O=O;U=K;U;P=QTJ;U=J;P.MXP;KNL0U=Q;J;Q=SVL3UTK;O=Q;SVL3S;KNL4MXO;K;K;M=Q=U<br />
_=_;_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_;_=_;_=_;_=_;_=_=_;_;_=_;_=_;_;_X_;_;_=_;_=_;_=_;_;_=_=_;_=_;_=_;_;_=_=_;_=_;_=_;_;_=_;_=_=_;_=_;_=_;_;_=_;_=_=_;_=_;_;_=_;_=_<br />
J=K;J;J=U;JZL3P;Q;Q;M=S=O;JRWL0J=S;U=JZL=L0U;W;M=J=O;JTU;P=P;O=W.MXJ\J=J;O=O;W=W;JTS;W=J;P=K;U;STQ=S;Q=S;U=K.M]W;Q=P;W=K;P;WNL0W=K;K=W;OVL3QTW;S=J;U=S;PVLYL0O=U;Q=JVL0S=UTJ;P=U;U;O=K;WNL0U=O.M=K=O.MXQTK;U;M=W.M=M=UNL4MXU;U;W=J;JL<br />
O=WVL0K=K;OZL3P;K;P=W;P=O;ORS=S;W=Q;O=PZL=L;L0U=P;J=J;STS;J=K;U=Q;Q=S\J;M=J=S;J=W;PTSVL3J;W=K;O;PTQL0KL0P=J;STO;S=P;U=U;J;UNL0W=Q;Q;M=S;P=WTW;WL0WL0P;UNL0O=O;J=S.M=J=WTJVL3O;UVL3Q;QNL4MXP;U.MXU;J=QTK;K=U;K;U=P;UNL4M=M=O;P=S;J=W<br />
J=S;W.MXU;PZL3P;J;Q=S;P=S;JRU=Q;Q=OVL0MNL=L0UVL3K;J;M;M]S;J=J;K=Q;S;MTJ=J;S=Q;W=U.M]S;W=S;K=U;S.M]QL0Q=PVL3U.M]W;J=W;S=W;W;UNL0W=Q;J;M;ML3QTW.MXQ;S=P;PVLYL0O=U.M=M=Q;KL^K;Q=J;P;U=UVLYL0U=J;W;O=O.M(L^K;W=W.M;MXU;WNL4MXS;J;S=W;U=K<br />
a=a;a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a=a;a;a=a;a=a;a;a=a;a=a;a=a;a=a=a;a;a=a;a=a;a;aXa;a;a=a;a=a;a=a;a;a=a=a;a=a;a=a;a;a=a=a;a=a;a=a;a;a=a;a=a=a;a=a;a=a;a;a=a;a=a=a;a=a;a;a=a;a=a<br />
U=P;P;Q=S;K=JTJ;J;O=U;J=S;JTS;W=J;UL0S=OTQ;S;J=Q;Q=J;PNL;L0U=W;O=S;W;MbWVL3O;J=W;SZL3P;Q=Q;W=Q;W;JbJ;K=KVL0M=JTK;U;M=JL0P;WNL4MXU;U=U;SVL3QTJ;P=U;OL0S;QNL0U=O.MXWVL0Q=WZL3W;K=K;K;P=O;WTW=Q;P.MXS;W=QZL3O;U=Q;Q;K;M=WTW=S;JVL3W;K=Q<br />
S=S;S;J=S;O;M]J;Q;W=O;W;M=OTS;O=W.MXU;U=OTJ;W;U=P.MXK.McL0P.MXJ;O;M=U;MbO;Q=J;U=K;OZL=L;L3K.M=ML0P<br />
L3P.MXP;PTJ;S=S;S=P;KVLYL4M(L4MXK;W.MXQTK;J=OVL3K;S;KNL4MXW;P=K;J;Q=UZL3O;K;M=S;U=Q;KTW=O;S;K=S;S=UZL3OVL=L0Q;O=U;KTO=S.M=Q=Q;J=U<br />
S=U;W;W=U;O=PTQ;P;PL4MXJ;STS;KL0W=O;W=OTJ;O.M(L;L3J;ONL0P;OL0U=S;Q=PRK.MXU;W=W;SZL=L0S=U;W=Q;K;P`L0S=P;J=K;STJ;S=O;K=S;O;UNL0U=Q;U=P;U;S=WTK;O;M;MXW;P;UNL4MXW;W=U;P;J=WZL3O;W=S;WVL3K;UTW=O;K;S;ML3WZL3OVL3O.M=J=S;QTO=P;U;S=K;W=Q<br />
S=J;Q;P=U;U;M]J;J;S=KVL3S.M]S;W=U;P=P;U=JTQVL0J=K.MXS;PNL;L0UL0Q=W;W=PRU;Q=K;Q=P;JZL3P;J=Q;U=U;Q;JbJ;S;M=P=O;PTK;W=W;O=Q;P;WNL4MXS;J=P;P;O=KTK;Q=J;S=Q;K;KNL0U=J;W=U;Q;Q=WZL3W;Q=J;O;P=W;KTW=J;W;P=QVL3WZL3O;U;M=O.MXPVL^W;M=Q;P=W;KL<br />
S;M=K;O=O;O=JTQ;U;Q=O.MXU;JTU;P=Q;Q=U.MXJTJ;K;K=U;K=W;JNL0P;J;M=P=S;J;M[L3P;U=S;J=S;SZL=L0W=S;J=U;P;JbU.M=M=K=Q;JTK;J=J;P;M=W;QNL0U=J;P=P;J;O=WTK;W=S;PL0O;UNL4M(L0OL;L0OLdL3O;S=Q;U;S=QVL^W=U;J;J=P;U=UZL3W;J=O;KVL3U;QTW=JVL4M(L0J=W<br />
_=_;_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_=_;_;_=_;_=_;_;_=_;_=_;_=_;_=_=_;_;_=_;_=_;_;_X_;_;_=_;_=_;_=_;_;_=_=_;_=_;_=_;_;_=_=_;_=_;_=_;_;_=_;_=_=_;_=_;_=_;_;_=_;_=_=_;_=_;_;_=_;_=_<br />
S=K;O;P=J;K;M]J.M=S=U;Q=U;OTSVL3U;JL;L0M]Q;P.MXO;O=Q;ONL;L0PL0J=K;J;M`L0O=O;P=S;OZL3P;O=W;J;M;M=PbW;S=O;U=K;PTK;O=J;Q=KVL0KNL4MXO;K=Q;Q;P=UTJ;U=K;K=O;Q;UNL0U=Q;QL0Q;S=KZL3O;S=P;Q;K=QVL^OL0W;Q=J;S=QZL3O;O=U;W;J=O;UTW=K;U;U=K;W=K<br />
S=U;K.MXU;O;M]Q;U.MXU;P=Q.M]U;P=O;S=U;J=JTJ;O;W=W;P=K;PNL0P;K=J;O=Q.MXPRQ;U=P;WL0JZL=L4MXP;Q=O;S;PbU;P=K;J=U;JTJ;P=J;Q=WVL0WNL0U=K.MXK.M=W=KTK.MXO;O=K;W;WNL4MXU;K=P;SVL3KZL3O;W=P;S;P=S;KTW=U;U.MXQ.MXWZL3W;JL4M=P=WVL^O=P;S;S=Q;SL<br />
S=J;KVL3U;U=PTJ.M=J=W;WL0STSVL3J;U=U;P=OTQVL0K=U;W=U;ONL;L;L3S;Q=WVL3SRS;S=K;U=U;PZL3P;K=P;U=U;O;PbO;W=U.MXJ;STK;K=U.MXO;W;UNL4M=M=O=S;Q;U=WTJVL3O;P=K;S;WNL4MXP;U=O;J;O=UZL3W;Q=Q;S;J=S;UTO=S;P.MXK;O=WZL3O;O=J;P;K=Q;QTW=WVL0O=K;J=Q<br />
Table A.12: 4 × 3 QPSK code list.<br />
136
Appendix B<br />
RMTCM Design Examples<br />
If the regular trellis is too complicated, only the partition and labelling will be shown,<br />
readers can follow the procedures in Section 5.3 to generate the corresponding regular<br />
trellis.<br />
0 1 14<br />
1 14 1<br />
Figure B.1: 2 × 2 BPSK, Rate 1/2, I2S2O2p1.<br />
137
0 1 14<br />
1 7 8<br />
Figure B.2: 2 × 2 BPSK, Rate 1/2, I2S2O4p1.<br />
0 1 14<br />
1 7 8<br />
2 14 1<br />
3 8 7<br />
Figure B.3: 2 × 2 BPSK, Rate 1/2, I2S2O4P 1.<br />
0 1 14 7 8<br />
1 11 4 13 2<br />
2 7 8 1 14<br />
3 13 2 11 4<br />
Figure B.4: 2 × 2 BPSK, Rate 2/2, 2 × 2 × 2.<br />
0 1 14 7 8<br />
1 11 4 13 2<br />
2 14 7 8 1<br />
3 4 13 2 11<br />
4 7 8 1 14<br />
5 13 2 11 4<br />
6 8 1 14 7<br />
7 2 11 4 13<br />
Figure B.5: 2 × 2 BPSK, Rate 2/2, 2 × 4 × 1.<br />
0 2 168<br />
1 42 128<br />
2 93 247<br />
3 117 223<br />
4 30 180<br />
5 54 156<br />
6 105 195<br />
7 65 235<br />
8 168 2<br />
9 128 42<br />
10 247 93<br />
11 223 117<br />
12 180 30<br />
13 156 54<br />
14 195 105<br />
15 235 65<br />
Figure B.6: 2 × 2 QPSK, Rate 1/2, 8 × 2 × 1.<br />
138
0 2 168 42 128<br />
1 93 247 117 223<br />
2 30 180 54 156<br />
3 105 195 65 235<br />
4 42 128 2 168<br />
5 117 223 93 247<br />
6 54 156 30 180<br />
7 65 235 105 195<br />
Figure B.7: 2 × 2 QPSK, Rate 2/2, 4 × 2 × 2.<br />
0 2 168 42 128<br />
1 93 247 117 223<br />
2 30 180 54 156<br />
3 105 195 65 235<br />
4 168 42 128 2<br />
5 247 117 223 93<br />
6 180 54 156 30<br />
7 65 235 105 195<br />
8 42 128 2 168<br />
9 117 223 93 247<br />
10 54 156 30 180<br />
11 65 235 105 195<br />
12 128 2 168 42<br />
13 223 93 247 117<br />
14 156 30 180 54<br />
15 235 105 195 65<br />
Figure B.8: 2 × 2 QPSK, Rate 2/2, 4 × 4 × 1.<br />
0 2 168 42 128 93 247 117 223<br />
1 30 180 54 156 105 195 65 235<br />
2 93 247 117 223 2 168 42 128<br />
3 105 195 65 235 30 180 54 156<br />
Figure B.9: 2 × 2 QPSK, Rate 3/2, 2 × 2 × 4.<br />
139
0 2 168 42 128 93 247 117 223<br />
1 30 180 54 156 105 195 65 235<br />
2 42 128 93 247 117 223 2 168<br />
3 54 156 105 195 65 235 30 180<br />
4 93 247 117 223 2 168 42 128<br />
5 105 195 65 235 30 180 54 156<br />
6 117 223 2 168 42 128 93 247<br />
7 65 235 30 180 54 156 105 195<br />
Figure B.10: 2 × 2 QPSK, Rate 3/2, 2 × 4 × 2.<br />
0 2 168 42 128 93 247 117 223<br />
1 30 180 54 156 105 195 65 235<br />
2 168 42 128 93 247 117 223 2<br />
3 180 54 156 105 195 65 235 30<br />
4 42 128 93 247 117 223 2 168<br />
5 54 156 105 195 65 235 30 180<br />
6 128 93 247 117 223 2 168 42<br />
7 156 105 195 65 235 30 180 54<br />
8 93 247 117 223 2 168 42 128<br />
9 105 195 65 235 30 180 54 156<br />
10 247 117 223 2 168 42 128 93<br />
11 195 65 235 30 180 54 156 105<br />
12 117 223 2 168 42 128 93 247<br />
13 65 235 30 180 54 156 105 195<br />
14 223 2 168 42 128 93 247 117<br />
15 235 30 180 54 156 105 195 65<br />
Figure B.11: 2 × 2 QPSK, Rate 3/2, 2 × 8 × 1.<br />
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
3 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
Figure B.12: 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 2 × 8.<br />
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128<br />
3 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133<br />
4 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
5 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
6 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156<br />
7 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145<br />
Figure B.13: 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 4 × 4.<br />
140
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 42 128 93 247 117 223 30 180 54 156 105 195 65 235 2 168<br />
3 47 133 82 248 122 208 19 185 59 145 110 196 70 236 7 173<br />
4 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128<br />
5 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133<br />
6 117 223 30 180 54 156 105 195 65 235 2 168 42 128 93 247<br />
7 122 208 19 185 59 145 110 196 70 236 7 173 47 133 82 248<br />
8 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
9 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
10 54 156 105 195 65 235 2 168 42 128 93 247 117 223 30 180<br />
11 59 145 110 196 70 236 7 173 47 133 82 248 122 208 19 185<br />
12 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156<br />
13 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145<br />
14 65 235 2 168 42 128 93 247 117 223 30 180 54 156 105 195<br />
15 70 236 7 173 47 133 82 248 122 208 19 185 59 145 110 196<br />
Figure B.14: 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 8 × 2.<br />
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235 2<br />
3 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236 7<br />
4 42 128 93 247 117 223 30 180 54 156 105 195 65 235 2 168<br />
5 47 133 82 248 122 208 19 185 59 145 110 196 70 236 7 173<br />
6 128 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42<br />
7 133 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47<br />
8 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128<br />
9 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133<br />
10 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128 93<br />
11 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133 82<br />
12 117 223 30 180 54 156 105 195 65 235 2 168 42 128 93 247<br />
13 122 208 19 185 59 145 110 196 70 236 7 173 47 133 82 248<br />
14 223 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117<br />
15 208 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122<br />
16 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
17 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
18 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223 30<br />
19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208 19<br />
20 54 156 105 195 65 235 2 168 42 128 93 247 117 223 30 180<br />
21 59 145 110 196 70 236 7 173 47 133 82 248 122 208 19 185<br />
22 156 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54<br />
23 145 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59<br />
24 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156<br />
25 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145<br />
26 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156 105<br />
27 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145 110<br />
28 65 235 2 168 42 128 93 247 117 223 30 180 54 156 105 195<br />
29 70 236 7 173 47 133 82 248 122 208 19 185 59 145 110 196<br />
30 235 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65<br />
31 236 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70<br />
Figure B.15: 2 × 2 QPSK, Rate 4/2, |S 5 | = 32, 2 × 16 × 1.<br />
141
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 8 162 138 32 87 253 213 127 75 225 201 99 150 60 20 190<br />
3 13 167 143 37 88 242 218 112 76 230 206 100 155 49 25 179<br />
4 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
5 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
6 75 225 201 99 150 60 20 190 8 162 138 32 87 253 213 127<br />
7 76 230 206 100 155 49 25 179 13 167 143 37 88 242 218 112<br />
Figure B.16: 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 4 × 2 × 8.<br />
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 8 162 138 32 87 253 213 127 75 225 201 99 150 60 20 190<br />
3 13 167 143 37 88 242 218 112 76 230 206 100 155 49 25 179<br />
4 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128<br />
5 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133<br />
6 87 253 213 127 75 225 201 99 150 60 20 190 8 162 138 32<br />
7 88 242 218 112 76 230 206 100 155 49 25 179 13 167 143 37<br />
8 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
9 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
10 75 225 201 99 150 60 20 190 8 162 138 32 87 253 213 127<br />
11 76 230 206 100 155 49 25 179 13 167 143 37 88 242 218 112<br />
12 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156<br />
13 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145<br />
14 150 60 20 190 8 162 138 32 87 253 213 127 75 225 201 99<br />
15 155 49 25 179 13 167 143 37 88 242 218 112 76 230 206 100<br />
Figure B.17: 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 4 × 4 × 4.<br />
142
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 8 162 138 32 87 253 213 127 75 225 201 99 150 60 20 190<br />
3 13 167 143 37 88 242 218 112 76 230 206 100 155 49 25 179<br />
4 42 128 93 247 117 223 30 180 54 156 105 195 65 235 2 168<br />
5 47 133 82 248 122 208 19 185 59 145 110 196 70 236 7 173<br />
6 138 32 87 253 213 127 75 225 201 99 150 60 20 190 8 162<br />
7 143 37 88 242 218 112 76 230 206 100 155 49 25 179 13 167<br />
8 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128<br />
9 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133<br />
10 87 253 213 127 75 225 201 99 150 60 20 190 8 162 138 32<br />
11 88 242 218 112 76 230 206 100 155 49 25 179 13 167 143 37<br />
12 117 223 30 180 54 156 105 195 65 235 2 168 42 128 93 247<br />
13 122 208 19 185 59 145 110 196 70 236 7 173 47 133 82 248<br />
14 213 127 75 225 201 99 150 60 20 190 8 162 138 32 87 253<br />
15 218 112 76 230 206 100 155 49 25 179 13 167 143 37 88 242<br />
16 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
17 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
18 75 225 201 99 150 60 20 190 8 162 138 32 87 253 213 127<br />
19 76 230 206 100 155 49 25 179 13 167 143 37 88 242 218 112<br />
20 54 156 105 195 65 235 2 168 42 128 93 247 117 223 30 180<br />
21 59 145 110 196 70 236 7 173 47 133 82 248 122 208 19 185<br />
22 201 99 150 60 20 190 8 162 138 32 87 253 213 127 75 225<br />
23 206 100 155 49 25 179 13 167 143 37 88 242 218 112 76 230<br />
24 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156<br />
25 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145<br />
26 150 60 20 190 8 162 138 32 87 253 213 127 75 225 201 99<br />
27 155 49 25 179 13 167 143 37 88 242 218 112 76 230 206 100<br />
28 65 235 2 168 42 128 93 247 117 223 30 180 54 156 105 195<br />
29 70 236 7 173 47 133 82 248 122 208 19 185 59 145 110 196<br />
30 20 190 8 162 138 32 87 253 213 127 75 225 201 99 150 60<br />
31 25 179 13 167 143 37 88 242 218 112 76 230 206 100 155 49<br />
Figure B.18: 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 4 × 8 × 2.<br />
143
0 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235<br />
1 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236<br />
2 8 162 138 32 87 253 213 127 75 225 201 99 150 60 20 190<br />
3 13 167 143 37 88 242 218 112 76 230 206 100 155 49 25 179<br />
4 168 42 128 93 247 117 223 30 180 54 156 105 195 65 235 2<br />
5 173 47 133 82 248 122 208 19 185 59 145 110 196 70 236 7<br />
6 162 138 32 87 253 213 127 75 225 201 99 150 60 20 190 8<br />
7 167 143 37 88 242 218 112 76 230 206 100 155 49 25 179 13<br />
8 42 128 93 247 117 223 30 180 54 156 105 195 65 235 2 168<br />
9 47 133 82 248 122 208 19 185 59 145 110 196 70 236 7 173<br />
10 138 32 87 253 213 127 75 225 201 99 150 60 20 190 8 162<br />
11 143 37 88 242 218 112 76 230 206 100 155 49 25 179 13 167<br />
12 128 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42<br />
13 133 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47<br />
14 32 87 253 213 127 75 225 201 99 150 60 20 190 8 162 138<br />
15 37 88 242 218 112 76 230 206 100 155 49 25 179 13 167 143<br />
16 93 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128<br />
17 82 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133<br />
18 87 253 213 127 75 225 201 99 150 60 20 190 8 162 138 32<br />
19 88 242 218 112 76 230 206 100 155 49 25 179 13 167 143 37<br />
20 247 117 223 30 180 54 156 105 195 65 235 2 168 42 128 93<br />
21 248 122 208 19 185 59 145 110 196 70 236 7 173 47 133 82<br />
22 253 213 127 75 225 201 99 150 60 20 190 8 162 138 32 87<br />
23 242 218 112 76 230 206 100 155 49 25 179 13 167 143 37 88<br />
24 117 223 30 180 54 156 105 195 65 235 2 168 42 128 93 247<br />
25 122 208 19 185 59 145 110 196 70 236 7 173 47 133 82 248<br />
26 213 127 75 225 201 99 150 60 20 190 8 162 138 32 87 253<br />
27 218 112 76 230 206 100 155 49 25 179 13 167 143 37 88 242<br />
28 223 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117<br />
29 208 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122<br />
30 127 75 225 201 99 150 60 20 190 8 162 138 32 87 253 213<br />
31 112 76 230 206 100 155 49 25 179 13 167 143 37 88 242 218<br />
32 30 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223<br />
33 19 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208<br />
34 75 225 201 99 150 60 20 190 8 162 138 32 87 253 213 127<br />
35 76 230 206 100 155 49 25 179 13 167 143 37 88 242 218 112<br />
36 180 54 156 105 195 65 235 2 168 42 128 93 247 117 223 30<br />
37 185 59 145 110 196 70 236 7 173 47 133 82 248 122 208 19<br />
38 225 201 99 150 60 20 190 8 162 138 32 87 253 213 127 75<br />
39 230 206 100 155 49 25 179 13 167 143 37 88 242 218 112 76<br />
40 54 156 105 195 65 235 2 168 42 128 93 247 117 223 30 180<br />
41 59 145 110 196 70 236 7 173 47 133 82 248 122 208 19 185<br />
42 201 99 150 60 20 190 8 162 138 32 87 253 213 127 75 225<br />
43 206 100 155 49 25 179 13 167 143 37 88 242 218 112 76 230<br />
44 156 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54<br />
45 145 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59<br />
46 99 150 60 20 190 8 162 138 32 87 253 213 127 75 225 201<br />
47 100 155 49 25 179 13 167 143 37 88 242 218 112 76 230 206<br />
48 105 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156<br />
49 110 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145<br />
50 150 60 20 190 8 162 138 32 87 253 213 127 75 225 201 99<br />
51 155 49 25 179 13 167 143 37 88 242 218 112 76 230 206 100<br />
52 195 65 235 2 168 42 128 93 247 117 223 30 180 54 156 105<br />
53 196 70 236 7 173 47 133 82 248 122 208 19 185 59 145 110<br />
54 60 20 190 8 162 138 32 87 253 213 127 75 225 201 99 150<br />
55 49 25 179 13 167 143 37 88 242 218 112 76 230 206 100 155<br />
56 65 235 2 168 42 128 93 247 117 223 30 180 54 156 105 195<br />
57 70 236 7 173 47 133 82 248 122 208 19 185 59 145 110 196<br />
58 20 190 8 162 138 32 87 253 213 127 75 225 201 99 150 60<br />
59 25 179 13 167 143 37 88 242 218 112 76 230 206 100 155 49<br />
60 235 2 168 42 128 93 247 117 223 30 180 54 156 105 195 65<br />
61 236 7 173 47 133 82 248 122 208 19 185 59 145 110 196 70<br />
62 190 8 162 138 32 87 253 213 127 75 225 201 99 150 60 20<br />
63 179 13 167 143 37 88 242 218 112 76 230 206 100 155 49 25<br />
Figure B.19: 2 × 2 QPSK, Rate 4/2, |S 6 | = 64, 2 × 16 × 1.<br />
144
