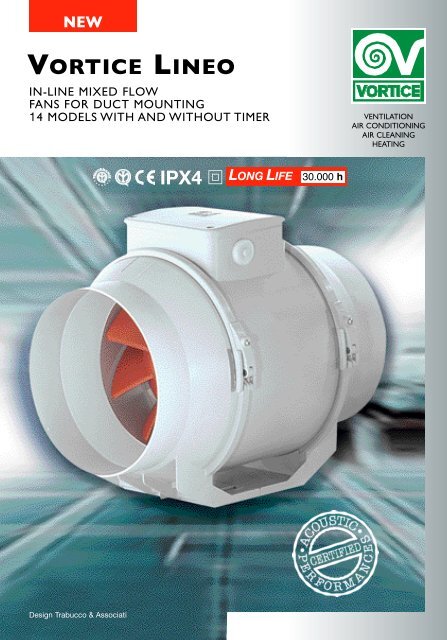

NEW<br />
<strong>VO</strong> <strong>RT</strong> I C E <strong>LI</strong> N E O<br />
IN-<strong>LI</strong>NE MIXED FLOW<br />
FANS FOR DUCT MOUNTING<br />
14 MODELS WITH AND WITHOUT T I M E R<br />
VENTILATION<br />
AIR CONDITIONING<br />
AIR CLEANING<br />
HEATING<br />
IPX4<br />
LONG <strong>LI</strong>FE<br />
30.000 h<br />
Design Trabucco & Associati
SILENT RUNNING AND CE<strong>RT</strong>IFIED, GUARANTEED<br />
PERFORMANCE<br />
Lineo series extractors have certified air flow, pressure (UNI 10531:1995,<br />
corresponding to ISO5801) and noise levels (UNI EN ISO 3741).<br />
SOUND LEVEL ENVIROMENTAL CONDITION<br />
decibels<br />
0-10 Threshold of hearing<br />
10-20 Sound studio background noise<br />
20-30 Bedroom at night(suburban home)<br />
30-40 Library<br />
40-50 Living room background (suburban residence)<br />
50-60 Office background<br />
60-70 Normal conversation<br />
70-80 Busy street traffic<br />
80-90 Inside bus, cab of a transport truck<br />
90-100 Interior of subway train<br />
100-110 Jet aircraft overhead (low level flight)<br />
<strong>LI</strong>NEO 100Q V0:<br />
only 29,7 dB(A) at min. speed.<br />
Sound level at 3 m from inlet in free<br />
air conditions.<br />
SELF-EXTINGUISHING V0 PLASTIC<br />
All models are in V0 grade plastic which guarantees the highest<br />
self-extinguishing rating as well as excellent mechanical strength.<br />
V0 GRADE (REF. UL 98)<br />
V0 is the most self-extinguishing plastic available:<br />
• V0 grade: flame self-extinguishing in 10 seconds without dripping<br />
• V1 grade: flame self-extinguishing in 30 seconds without dripping<br />
• V2 grade: flame self-extinguishing in 30 seconds with dripping<br />
IPX4<br />
SPLASHPROOF PROTECTION<br />
RATING (EN 60529)<br />
The products are protected against<br />
jets of water from all directions<br />
(360°), making them ideal for<br />
installation in humid and wet areas.<br />
IPX4 protection is granted for any<br />
installations (within ducts, duct inlet,<br />
duct outlet).<br />
DOUBLE INSULATION<br />
No earth is required.<br />
2
COMPACT DIMENSIONS<br />
Lineo Range has compact dimensions ideal for installation in cramped areas.<br />
Slim yet powerful, the overall size of the product is only slightly larger than<br />
the ventilation duct it connects to.<br />
HIGH ENERGY EFFICIENCY<br />
Our research programmes have enabled us to obtain the best possible ratio<br />
between running costs and performance.<br />
The integral IPX4 rated electrical junction box has an airtight cover.<br />
IMQ<br />
SAFE<br />
Safety, power rating, protection rating (IPX4 to EN 60529) and insulation are<br />
certified by the IMQ (Quality Mark Institute), the Italian national certifying<br />
agency.<br />
TIMER<br />
ADJUSTABLE TIMER<br />
Lineo range is available with a built-in adjustable timer ( from 3 to 20<br />
minutes).<br />
TWO SPEEDS<br />
All models fe a t u re two speed operation, including timer equipped models.<br />
ADJUSTABLE SPEED<br />
Non-timer models can be speed adjusted with the optionally available<br />
controllers.<br />
LONG <strong>LI</strong>FE 30.000 h<br />
The entire Lineo range is fitted with ball bearing motors<br />
for a minimum 30,000 hours operation without mechanical malfunction.<br />
OVERLOAD PROTECTION<br />
Lineo models from 100 to 200 are provided with thermal cut-out devices.<br />
Lineo models from 250 to 315 are equipped with manual reset limiter<br />
(thermal switch).<br />
COMP<strong>LI</strong>ANCE TO STANDARDS<br />
Lineo range is complying with EN 60335-2-80-1997. Performance conforms to<br />
UNI 10531 (Category D).They bear the CE Mark for compliance with the Low<br />
Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC).<br />
ENVIRONMENTAL SENSORS<br />
<strong>Vortice</strong> Lineo products are capable of advanced functionality in combination<br />
with optional sensor units for monitoring humidity, detecting persons,<br />
ambient temperature, pollutant levels and air quality.<br />
3
<strong>VO</strong><strong>RT</strong>ICE <strong>LI</strong>NEO<br />
<strong>VO</strong><strong>RT</strong>ICE <strong>LI</strong>NEO SERIES IN-<strong>LI</strong>NE MIXED FLOW FANS ARE<br />
IDEAL FOR DUCT-MOUNTED VENTILATION SYSTEMS<br />
REQUIRING A GOOD PRESSURE, HIGH AIR FLOW AND<br />
LOW NOISE LEVELS<br />
As a single unit at the duct inlet<br />
<strong>Vortice</strong> Lineo fans can be mounted<br />
in a wide range of options at the<br />
beginning, middle or end of the air<br />
duct and horizontally, vertically,<br />
against walls, ceilings, false ceilings or<br />
any flat surface.<br />
Lineo can be removed from situ, for<br />
inspection and maintenance, in just a<br />
few seconds.<br />
<strong>Vortice</strong> Lineo can be fitted to<br />
standard round section pipes and to<br />
rectangular air ducts (using unique<br />
special mounting accessories).<br />
The product is supplied complete with a<br />
bag of accessories including anchor bolts<br />
and plugs, cable clamps and gro m m e t s .<br />
As a single unit within the duct<br />
• Silent running and certified,<br />
guaranteed performance<br />
• Compact overall dimensions<br />
• Protection rating IPX4<br />
• Two speeds<br />
• Adjustable timer<br />
• Double insulation<br />
• Self-extinguishing V0 plastic<br />
• Eco-friendly<br />
• Adjustable speed<br />
• E n v i romental sensors avai l abl e<br />
4<br />
SPECIFICATION TEXT*<br />
In-line mixed-flow extractor fans in self-extinguishing V0 plastic with IPX4 protection<br />
for ducted installation and designed for the ventilation of domestic, commercial and<br />
industrial applications to include kitchens, bathrooms, washrooms, pubs, restaurants,<br />
shops, offices, factories, stores, theatres, dance halls, sports halls and canteens.<br />
The motor is an asynchronous induction motor, ball bearing equipped (30,000-hour<br />
guarantee) with a starting capacitor and includes a thermal cut-out devic.<br />
The units have been constructed to comply with EN 60335-2-80-1997 and third<br />
party verified performance conforms to UNI 10531 (Category D).<br />
Control options include optional speed controllers, environmental sensors or integral<br />
timer. Consult <strong>Vortice</strong> Ltd technical literature for details. <strong>Vortice</strong> Ltd can also<br />
provide a design and specification service and it is recommended that they are<br />
consulted early in the design process.<br />
*downloadable at www.vortice.ltd.uk<br />
As a single unit at the duct outlet<br />
In series (doubles the pressure)<br />
In parallel (doubles the air flow)<br />
Combined<br />
(doubles the pressure and the air flow)
QUICK, EASY<br />
INSTALLATION<br />
The mounting brackets supplied with<br />
the unit make installation quick and<br />
easy.<br />
The junction box can be rotated to<br />
fit the mounting point for even<br />
simpler installation.<br />
MOUNTING BOLTS<br />
INCLUDED<br />
SIMPLE MAINTENANCE<br />
Lineo products are equipped with a<br />
unique double-lever closure which<br />
allows to remove the fan unit in just<br />
a few seconds without affecting the<br />
installation as a whole.<br />
Refitting the unit is just as quick and<br />
easy.<br />
PROTECTION<br />
RATING IPX4<br />
ADJUSTABLE<br />
TIMER FROM 3<br />
TO 20<br />
MINUTES<br />
HERMETIC<br />
SEAL<br />
OVERLOAD<br />
PROTECTION<br />
COMPACT<br />
OVERALL<br />
DIMENSIONS<br />
DOUBLE<br />
INSULATION<br />
LEVER<br />
CLOSURE<br />
SELF-EXTINGUISHING<br />
V0 PLASTIC<br />
TWO SPEEDS<br />
BALL BEARING MOTORS<br />
LONG <strong>LI</strong>FE<br />
30.000 h<br />
6
APE<strong>RT</strong>URE<br />
COVER<br />
LEVER<br />
LEVER<br />
IMPELLER<br />
HALF-RING<br />
CONE<br />
MOTOR<br />
TERMINAL BLOCK<br />
APE<strong>RT</strong>URE<br />
APE<strong>RT</strong>URE<br />
CONE<br />
MOTOR MOUNT<br />
SOUND LEVEL AT 3 M<br />
FROM INLET IN FREE AIR<br />
CONDITIONS.<br />
FREQUENCY BANDS IN OCTAVES AND<br />
SOUND OUTPUT (MAXIMUM SPEED)<br />
Lp dB(A) 3m<br />
*EN ISO 3741:1999<br />
Frequency 100 QV 0 100 V0 125 V0 150 V0 160 V0 200 V0 250 V0 315 V0<br />
125 45,6 52,3 51,4 60,5 59,1 68,6 69,0 73,3<br />
250 56,5 62,3 61,8 68,3 68,9 68,6 73,1 78,4<br />
500 55,5 58,6 59,5 67,8 66,7 71,2 77,2 79,4<br />
1000 55,6 53,5 59,6 63,7 64,4 69,1 76,0 81,1<br />
2000 47,4 51,0 56,8 66,7 67,0 70,7 72,3 76,5<br />
4000 44,3 42,6 48,6 55,6 57,8 66,3 62,9 67,6<br />
8000 33,6 34,0 40,5 45,8 48,4 57,4 55,1 59,6<br />
Lwa (dB(A)) 58,5 60 63,6 71,1 71,3 75,7 79,7 83,9<br />
DIMENSIONS<br />
Models A Ø B C D E F L<br />
Lineo 100 Q V0 - Q T V 0 231 96 82 174 156 95 152<br />
Lineo 100 V0 - T V0 303 96 101,5 211 188,5 90 189<br />
Lineo 125 V0 - T V0 258 122 101,5 211 188,5 90 189<br />
Lineo 150 V0 - T V0 294 146 112,5 234 214,5 110 212<br />
Lineo 160 V0 - T V0 272,5 156 112,5 234 214,5 110 212<br />
Lineo 200 V0 - T V0 300 196 125,5 260,5 234,5 140 235<br />
Lineo 250 V0 385 247 152,5 317 300 176,5 292<br />
Lineo 315 V0 448 312 188,5 392,5 361,5 220,5 359<br />
7
SAFETY GUARANTEED AND CE<strong>RT</strong>IFIED<br />
The IMQ mark certifies that the product is manufactured in compliance with the provisions of<br />
established safety standards EN 60335-1 and EN 60335-2-80, the Low Voltage Directive (LVD)<br />
and the Electromagnetic Compatibility Directive (EMC). IMQ further guarantees regular, constant<br />
production quality monitoring.<br />
The IMQ mark is equivalent to the following European marks:<br />
Lineo 100 Q V0<br />
Lineo 100 Q T V0<br />
Lineo 100 V0<br />
Lineo 100 T V0<br />
Lineo 125 V0<br />
Lineo 125 T V0<br />
Lineo 150 V0<br />
Lineo 150 T V0<br />
Lineo 160 V0<br />
Lineo 160 T V0<br />
Lineo 200 V0<br />
Lineo 200 T V0<br />
V Hz W A IP Insulation Temp. max °C<br />
max min max min max min max min<br />
220-240 50 12 15 0,05 0,07 X4 cl. II 60<br />
220-240 50 20 23 0,09 0,11 X4 cl. II 60<br />
220-240 50 25 33 0,11 0,15 X4 cl. II 60<br />
220-240 50 40 58 0,18 0,26 X4 cl. II 60<br />
220-240 50 40 58 0,18 0,26 X4 cl. II 60<br />
220-240 50 98 145 0,43 0,64 X4 cl. II 60<br />
Lineo 250 V0 220-240 50 110 180 0,48 0,78 X4 cl. II 60<br />
Lineo 315 V0 220-240 50 200 300 0,90 1,32 X4 cl. II 60<br />
Lineo 100 Q V0<br />
Lineo 100 Q T V0<br />
Lineo 100 V0<br />
Lineo 100 T V0<br />
Lineo 125 V0<br />
Lineo 125 T V0<br />
Lineo 150 V0<br />
Lineo 150 T V0<br />
Lineo 160 V0<br />
Lineo 160 T V0<br />
Lineo 200 V0<br />
Lineo 200 T V0<br />
PERFORMANCE AND SILENCE GUARANTEED AND<br />
CE<strong>RT</strong>IFIED BY IMQ PERFORMANCE<br />
IMQ PERFORMANCE is an independent quality mark which certifies, to international standards *,<br />
the performance (flow rate and pressure) and noise levels of the product.<br />
Flow rate<br />
*ISO 5801 *ISO 5801<br />
Pressure<br />
Lp dB(A) 3m<br />
*EN ISO 3741:1999<br />
min max min max speed<br />
m 3 /h l/s m 3 /h l/s mm H 2 O Pa mm H 2 O Pa min max<br />
155 43,1 200 55,6 6,5 63,8 7,5 73,6 29,4 37,9<br />
180 50,0 255 70,8 13 127,5 16,5 161,9 30,7 39,4<br />
250 69,4 365 101,4 13 127,5 17 166,8 33,9 43<br />
385 106,9 550 152,8 21 206,0 27 264,9 41,4 50,5<br />
385 106,9 550 152,8 21 206,0 27 264,9 41,7 50,8<br />
790 219,4 1060 294,4 29 284,5 33 323,7 48,8 55,1<br />
Lineo 250 V0 990 275,0 1350 375,0 36 353,2 53 519,9 51,4 59,1<br />
Lineo 315 V0 1740 483,3 2300 638,9 43,5 426,7 75 735,8 50,6 63,4<br />
8<br />
Poducts codes on pag. 11
ENVIRONMENTAL SENSORS<br />
Environmental sensors are designed to detect specific environmental conditions (humidity, temperature, movement<br />
detector and air quality) and suitable with Lineo models without timer.<br />
• Supply power: 220-240 V<br />
• Frequency: 50/60Hz<br />
• Maximum load: 3 A<br />
• Protection class: IP20<br />
C HCS-HUMIDITY<br />
code 12994<br />
Measures ambient relative<br />
humidity (R.H.), and starts the fan<br />
when the R.H. exceeds 65%.<br />
The sensor can also be w i red to allow<br />
the unit to be sw i t c h e d on when the<br />
R.H. is below 65%, and incorporates<br />
an over-run timer (adjustable between<br />
3 and 20 minutes).<br />
C TEMP-TEMPERATURE<br />
code 12992<br />
Measures ambient room<br />
temperature, and starts the fan<br />
when the temperature exceeds the<br />
preset value. Once the temperature<br />
drops below the preset value, the<br />
unit will over-run for between 3 and<br />
20 minutes (dependent on setting).<br />
Te m p e r a t u re regulation range 10 - 40 C°.<br />
C SMOKE<br />
code 12993<br />
Measures the air quality,<br />
detecting the presence of cigarette<br />
smoke, odours and other pollutants,<br />
and starts the fan when the<br />
concentration of pollutants exceeds<br />
the preset value.<br />
The unit will also over-run for<br />
between 3 and 20 minutes<br />
(dependent on setting).<br />
C PIR-MOVEMENT DETECTOR<br />
code 12998<br />
Detects the presence of a<br />
moving body within its sensor<br />
range, and starts the fan automatically.<br />
The built-in over-run timer can be<br />
adjusted between 3 and 20 minutes.<br />
C TIMER<br />
code 12999<br />
Adjustable over-run timer<br />
(adjustable between 3 and 20<br />
minutes).<br />
Built-In controller adaptors<br />
- Kit SCB5 (code 22483)<br />
for controllers code 12987<br />
- Kit SCB (code 22481)<br />
for controllers code 12966,<br />
12967, 12912 and 12982<br />
Speed controllers<br />
• 5 speed controllers (excluding timer models)<br />
- C5 0.5 (code 12987) from model 100 Q V0 to 160 V0<br />
inclusive Electronic controllers (excluding timer models)<br />
• Electronic controllers (excluding timer models)<br />
- C1.5 (code 12966) from model 100 Q V0 to 200 V0 inclusive<br />
- C2.5 (code 12967) for models 250 V0 and 315 V0<br />
9
FLOW RATE / PRESSURE CURVES<br />
<strong>LI</strong>NEO 100 Q V0<br />
(cod. 17005)<br />
<strong>LI</strong>NEO 100 Q T V0<br />
(cod. 17025)<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
Pa<br />
100<br />
mmH 2 O<br />
10<br />
80<br />
8<br />
60<br />
6<br />
40<br />
4<br />
20<br />
2<br />
0 0<br />
m 3 /h 0<br />
50<br />
100 150 200 250<br />
l/s<br />
0 14 28 42 55 69<br />
q v<br />
<strong>LI</strong>NEO 100 V0<br />
(cod. 17001)<br />
<strong>LI</strong>NEO 100 T V0<br />
(cod. 17021)<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
In parallel<br />
In series<br />
<strong>VO</strong><strong>RT</strong>ICE <strong>LI</strong>NEO 100 <strong>VO</strong> - installazione in parallelo -<br />
Pa<br />
200<br />
mmH 2 O<br />
20<br />
160<br />
16<br />
120<br />
12<br />
80<br />
8<br />
40<br />
4<br />
0 0<br />
m 3 /h 0<br />
60<br />
120 180 240 300<br />
l/s<br />
0 16 33 50 66 83<br />
q v<br />
q v<br />
10
<strong>LI</strong>NEO 125 V0<br />
(cod. 17002)<br />
<strong>LI</strong>NEO 125 T V0<br />
(cod. 17022)<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
In parallel<br />
In series<br />
Pa<br />
200<br />
mmH 2 O<br />
20<br />
160<br />
16<br />
120<br />
12<br />
80<br />
8<br />
40<br />
4<br />
0 0<br />
m 3 /h 0<br />
100<br />
200 300 400 500<br />
l/s<br />
0 28 55 83 111 139<br />
q v<br />
<strong>LI</strong>NEO 150 V0<br />
(cod. 17003)<br />
<strong>LI</strong>NEO 150 T V0<br />
(cod. 17023)<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
In parallel<br />
In series<br />
Pa<br />
300<br />
mmH 2 O<br />
30<br />
240<br />
24<br />
180<br />
18<br />
120<br />
12<br />
60<br />
6<br />
0 0<br />
m 3 /h 0<br />
150<br />
300 450 600 750<br />
l/s<br />
0 41 83 125 166 208<br />
q v<br />
11
FLOW RATE / PRESSURE CURVES<br />
<strong>LI</strong>NEO 160 V0<br />
(cod. 17004)<br />
<strong>LI</strong>NEO 160 T V0<br />
(cod. 17024)<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
In parallel<br />
In series<br />
Pa<br />
300<br />
mmH 2 O<br />
30<br />
240<br />
24<br />
180<br />
18<br />
120<br />
12<br />
60<br />
6<br />
0 0<br />
m 3 /h 0<br />
150<br />
300 450 600 750<br />
l/s<br />
0 41 83 125 166 208<br />
q v<br />
<strong>LI</strong>NEO 200 V0<br />
(cod. 17006)<br />
<strong>LI</strong>NEO 200 T V0<br />
(cod. 17026)<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
In parallel<br />
In series<br />
Pa<br />
500<br />
mmH 2 O<br />
50<br />
400<br />
40<br />
300<br />
30<br />
200<br />
20<br />
100<br />
10<br />
0 0<br />
m 3 /h 0<br />
250<br />
500 750 1000 1250<br />
l/s<br />
0 69 139 208 278 347<br />
q v<br />
12
<strong>LI</strong>NEO 250 V0<br />
(cod. 17009 )<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
In parallel<br />
In series<br />
Pa<br />
750<br />
mmH 2 O<br />
75<br />
600<br />
60<br />
450<br />
45<br />
300<br />
30<br />
150<br />
15<br />
0 0<br />
m 3 /h 0<br />
300<br />
600 900 1200 1500<br />
l/s<br />
0 83 166 250 333 416<br />
q v<br />
<strong>LI</strong>NEO 315 V0<br />
(cod. 17010)<br />
SPEED<br />
Max<br />
Min<br />
APP<strong>LI</strong>CATION<br />
Single<br />
In series<br />
Pa<br />
1000<br />
100<br />
mmH 2 O<br />
800<br />
80<br />
600<br />
60<br />
400<br />
40<br />
200<br />
20<br />
0 0<br />
m 3 /h 0<br />
500<br />
1000 1500 2000 2500<br />
l/s<br />
0 139 278 416 555 694<br />
q v<br />
13
ECO-FRIENDLY<br />
<strong>LI</strong>NEO FANS GUARANTEE A LOW ENVIRONMENTAL IMPACT. RECYCLABLE<br />
MATERIALS HAVE BEEN USED AND THE “DESIGN FOR DISASSEMBLY” TECHNIQUE<br />
HAS BEEN FOLLOWED (2002/96/EC – WEEE)<br />
DISPOSAL<br />
The product is composed of<br />
the following materials:<br />
- PPV0 fire-retardant<br />
polypropylene with<br />
talcum load<br />
- Pom f.v.c. plastic with<br />
short glass fibre load<br />
- PA 66 f.v.c. polyamide with<br />
short glass fibre load<br />
MOTOR:<br />
- Zn-Cd galvanised steel sheeting<br />
- Copper<br />
- Aluminium<br />
- Foam rubber insulation and<br />
gasket<br />
- Mylar insulators<br />
- Bearing grease<br />
- Steel bearings and motor shaft<br />
ACCESSORIES<br />
A wide range of accessories is available. For further information please contact: <strong>Vortice</strong> Limited,<br />
Phone: (+ 44) 1283-49.29.49 - Fax: (+44)1283-54.41.21 - sales@vortice.ltd.uk<br />
Model<br />
Code<br />
Series installation<br />
kit (tube)<br />
Series installation<br />
plate<br />
Parallel installation kit<br />
(flanges and rails)<br />
Back draught<br />
shutters<br />
Fixed grilles<br />
Protection<br />
grilles<br />
Frames with<br />
safety mesh<br />
100 Q V0 17005<br />
- -<br />
-<br />
22551<br />
22010<br />
22701<br />
-<br />
100 V0 17001<br />
22584 22593<br />
22577<br />
22551<br />
22010<br />
22701<br />
-<br />
125 V0 17002<br />
22585 22593<br />
22578<br />
22556<br />
22020<br />
22702<br />
-<br />
150 V0 17003<br />
22586 22593<br />
22579<br />
22562<br />
22020<br />
22703<br />
-<br />
160 V0 17004<br />
22587 22593<br />
22581<br />
22563<br />
-<br />
22704<br />
51150<br />
200 V0 17006<br />
22588 22593<br />
22582<br />
22566<br />
-<br />
22705<br />
51150<br />
250 V0 17009<br />
22589 22594<br />
22583<br />
22571<br />
-<br />
22706<br />
51150<br />
315 V0 17010<br />
22592 22594<br />
-<br />
22576<br />
-<br />
22707<br />
51250<br />
100 Q T V0 17025<br />
- -<br />
-<br />
22551<br />
22010<br />
22701<br />
-<br />
100 T V0 17021<br />
22584 22593<br />
22577<br />
22551<br />
22010<br />
22701<br />
-<br />
125 T V0 17022<br />
22585 22593<br />
22578<br />
22556<br />
22020<br />
22702<br />
-<br />
150 T V0 17023<br />
22586 22593<br />
22579<br />
22562<br />
22020<br />
22703<br />
-<br />
160 T V0 17024<br />
22587 22593<br />
22581<br />
22563<br />
-<br />
22704<br />
51150<br />
200 T V0 17026<br />
22588 22593<br />
22582<br />
22566<br />
-<br />
22705<br />
51150<br />
14
ACCESSORIES<br />
KIT FOR PARALLEL APP<strong>LI</strong>CATION<br />
<strong>Vortice</strong> Lineo Lineo-PF A B C D E F ØG H<br />
100 V0 - 100 T V0 22577 320 180 32,5 180 300 160 10 2<br />
125 V0 - 125 T V0 22578 320 180 32,5 180 300 160 10 2<br />
150 V0 - 150 T V0 22579 395 220 37,5 205 375 200 10 2<br />
160 V0 - 160 T V0 22581 395 220 37,5 205 375 200 10 2<br />
200 V0 - 200 T V0 22582 440 240 37,5 225 420 220 10 2<br />
250 V0 25583 540 290 37,5 285 520 270 10 2<br />
<strong>Vortice</strong> Lineo L M N<br />
100 V0 - 100 T V0 420 75 11,5<br />
125 V0 - 125 T V0 420 75 11,5<br />
150 V0 - 150 T V0 470 75 11,5<br />
160 V0 - 160 T V0 470 75 11,5<br />
200 V0 - 200 T V0 520 75 11,5<br />
250 V0 640 75 11,5<br />
BRACKET FOR SERIES<br />
APP<strong>LI</strong>CATION<br />
<strong>Vortice</strong> Lineo Lineo-SF A B C<br />
100 V0 - 100 T V0 22593 500 130 2<br />
125 V0 - 125 T V0 22593 500 130 2<br />
150 V0 - 150 T V0 22593 500 130 2<br />
160 V0 - 160 T V0 22593 500 130 2<br />
200 V0 - 200 T V0 22593 500 130 2<br />
250 V0 22594 730 220 2<br />
315 V0 22594 730 220 2<br />
PROTECTION GRILLE<br />
COUP<strong>LI</strong>NG FOR SERIES<br />
APP<strong>LI</strong>CATION<br />
<strong>Vortice</strong> Lineo Lineo-C ØA B<br />
100 V0 - 100 T V0 22584 108 59<br />
125 V0 - 125 T V0 22585 134 59<br />
150 V0 - 150 T V0 22586 158 59<br />
160 V0 - 160 T V0 22587 168 59<br />
200 V0 - 200 T V0 22588 208 59<br />
250 V0 22589 259 59<br />
315 V0 22592 324 59<br />
<strong>Vortice</strong> Lineo Lineo-C ØA B<br />
100 Q V0-100 Q T V0 22701 101 29<br />
100 V0 - 100 T V0 22701 101 29<br />
125 V0 - 125 T V0 22702 127 29<br />
150 V0 - 150 T V0 22703 151 35,5<br />
160 V0 - 160 T V0 22704 161 35,5<br />
200 V0 - 200 T V0 22705 201 34<br />
250 V0 22706 255 42<br />
315 V0 22707 318,5 50,5<br />
15
NEW<br />
<strong>VO</strong> <strong>RT</strong> I C E <strong>LI</strong> N E O ®<br />
IN-<strong>LI</strong>NE MIXED FLOW EXTRACTOR FANS FOR DUCT MOUNTING<br />
14 MODELS WITH AND WITHOUT TIMER<br />
Sample of IMQ certificate attesting the product compliance to safety requirements and to declared values of performance, consumptions and noise emissions.<br />
Code 5.170.084.282<br />
09/05<br />
<strong>Vortice</strong> Elettrosociali S.p.A.<br />
Strada Cerca, 2<br />
Frazione di Zoate<br />
20067 Tribiano (Milano)<br />
Tel. (+39) 02 906991<br />
Fax (+39) 02 9064625<br />
Italia<br />
export@vortice-italy.com<br />
<strong>Vortice</strong> France<br />
72, Rue Baratte-Cholet<br />
94106 Saint Maur<br />
CE D E X<br />
Tél. (+33) 1.55.12.50.00<br />
Fax (+33) 1.55.12.50.01<br />
France<br />
vortice.france@free.fr<br />
<strong>Vortice</strong> Limited<br />
Beeches House-Eastern Avenue<br />
Burton on Trent<br />
DE13 0BB<br />
Tel. (+44) 1283-49.29.49<br />
Fax (+44) 1283-54.41.21<br />
United Kingdom<br />
getit@vortice.ltd.uk<br />
w w w. vo r t i c e. c o m<br />
w w w. vo r t i c e - f ra n c e. c o m<br />
www.vortice.ltd.uk<br />
The descriptions and illustrations in this catalogue are understood to be indicative and are not binding. <strong>Vortice</strong> reserves the right, while not changing the essential characteristics of the model described and illustrated, to modify products<br />
whenever necessary and without warning.
