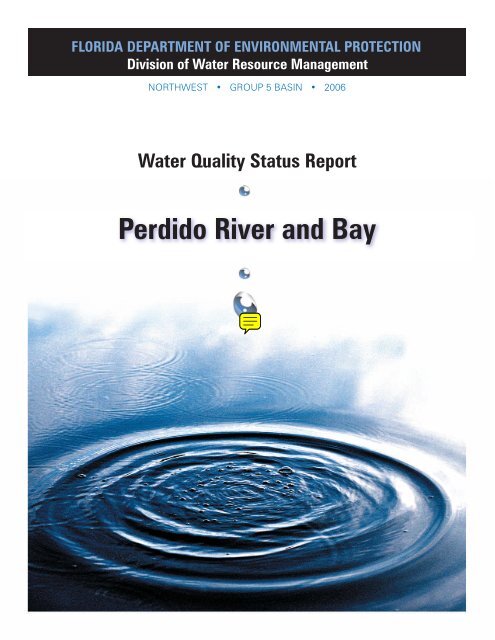

FLORIDA DEPARTMENT OF ENVIRONMENTAL PROTECTION

Division of Water Resource Management

NORTHWEST • GROUP 5 BASIN • 2006

Water Quality Status Report

Perdido River and Bay

FLORIDA DEPARTMENT OF ENVIRONMENTAL PROTECTION


2006

Water Quality Status Report

Perdido River and Bay

Water Quality Status Report: Perdido River and Bay

5

Acknowledgments

The Perdido River and Bay Water Quality Status Report was prepared by

the Northwest Florida Basin Team, Florida Department of Environmental

Protection, as part of a five-year cycle to restore and protect Florida’s water

quality. Team members include the following:

Mary Paulic, Basin Coordinator, Watershed Planning and

Coordination

Richard Wieckowicz, Watershed Assessment

Katrina Sanders, Watershed Assessment

Tricia McClenahan, GIS Support

Tom Seal, Monitoring Support

Amanda Dorsett, STORET Assistance

Barbara Ruth, Northwest District

Shelley Alexander, Northwest District

Cheryl Bunch, Northwest District

Editorial and writing assistance provided by

Linda Lord, Watershed Planning and Coordination

Production assistance provided by

Center for Information, Training, and Evaluation Services

Florida State University

210 Sliger Building

2035 E. Dirac Dr.

Tallahassee, FL 32306-2800

Map production assistance provided by

Florida Resources and Environmental Analysis Center

Florida State University

University Center, C2200


For additional information on the watershed management

approach and potentially impaired waters in the Perdido

Basin, contact

Mary Paulic

Florida Department of Environmental Protection

Bureau of Watershed Management, Watershed Planning and

Coordination Section

2600 Blair Stone Road, Mail Station 3565


mary.paulic@dep.state.fl.us

Phone: (850) 245-8560; SunCom: 205-8560

Fax: (850) 245-8434

6 Water Quality Status Report: Perdido River and Bay

Access to all data used in the development of this report can be

obtained by contacting

Richard Wieckowicz


Bureau of Watershed Management, Watershed Assessment Section



richard.wieckowicz@dep.state.fl.us

Phone: (850) 245-8468; SunCom: 205-8468

Fax: (850) 245-8536

Web Sites

Florida Department of Environmental Protection, Bureau of

Watershed Management

TMDL Program

http://www.dep.state.fl.us/water/tmdl/index.htm

Identification of Impaired Surface Waters Rule

http://www.dep.state.fl.us/water/tmdl/docs/AmendedIWR.pdf

STORET Program

http://www.dep.state.fl.us/water/storet/index.htm

2004 305(b) Report

http://www.dep.state.fl.us/water/docs/2004_Integrated_Report.pdf

Criteria for Surface Water Quality Classifications

http://www.dep.state.fl.us/legal/rules/shared/62-302.pdf

U.S. Environmental Protection Agency

Region 4: Total Maximum Daily Loads in Florida

http://www.epa.gov/region4/water/tmdl/florida/

National STORET Program

http://www.epa.gov/storet/


7

Preface

Content Features

• Executive Summary: Appears at the beginning of every report and

provides an overview of the watershed management, its implementation,

and how this approach will be used to identify impaired waters.

• Sidebar: Appears throughout the report and provides additional

information pertinent to the text on that page.

• Noteworthy: Appears on pages near text that needs additional

information but is too lengthy to fit in a sidebar.

• Definitions: Appear where scientific terms occur that may not

be familiar to all readers. The word being defined is bold-faced in

the text.

• References: Appear immediately before the Appendices and provide

a complete listing of all sources used in the text.

• Appendices: Appear at the end of the report and provide additional

information on a range of subjects such as bioassessment methodology,

rainfall and stream flow, types of natural communities,

STORET stations, water quality statistics, land use, and permitted

facilities.


9

Executive Summary

Perdido River and Bay

The Water Quality Status Report for the Perdido River and Bay Basin

is developed in the first phase of the Florida Department of Environmental

Protection’s (Department’s) watershed management approach for restoring

and protecting water resources and addressing Total Maximum Daily

Load (TMDL) Program requirements. A TMDL represents the maximum

amount of a given pollutant that a waterbody can assimilate and

meet the waterbody’s designated uses. A waterbody that does not meet its

designated uses is defined as impaired. The watershed approach, which is

implemented using a cyclical management process, provides a framework

for implementing the requirements of the federal Clean Water Act and the

1999 Florida Watershed Restoration Act (FWRA) (Chapter 99-223, Laws

of Florida).

This Status Report provides a preliminary identification of impaired

waters in the Perdido River and Bay Basin that may require the development

and implementation of TMDLs, unless the impairment is documented

to be a naturally occurring condition that cannot be abated by a

TMDL, or unless a management plan that is already in place is expected

to correct the problem. Perdido River and Bay are interstate waters that

form the boundary between Alabama and Florida. The state line bisects

the middle of the river and bay. The focus of this report is on waterbodies

located within the state of Florida, where Florida water quality standards

and criteria can be applied to identify impaired waterbodies. A similar but

independent process also occurs in Alabama to identify impaired waters

requiring TMDLs.

This preliminary assessment, based on readily available data, will be

revised as additional data are evaluated. The report broadly characterizes

the basin’s setting and its surface water and ground water resources, permitted

discharges, land uses, and ecological status. It also identifies potential

surface water quality concerns and water quality monitoring needs, and

summarizes plans and projects that are under way or projected to improve

water quality. Tables 3.4 and 3.5 in Chapter 3 present the results of the

water quality assessment for each waterbody. Table 5.1 in Chapter 5

presents the current Planning List of potentially impaired waterbodies. The

report also provides the results of a preliminary ground water quality assessment

and discusses priorities for further evaluation, resource priorities, and

proposed actions. See Noteworthy in Chapter 1 for a description of the

contents of this report, by chapter.

In the Perdido River and Bay Basin, state, federal, regional, local governments,

and nongovernmental organizations are making progress towards

identifying problems and improving water quality. Through its watershed

management activities, the Department works with these entities to support

programs that are improving water quality and restoring and protecting

ecological resources. The Department’s TMDL Program objectives will be


carried out in the basin through close coordination with the efforts of key

stakeholders and initiatives such as Escambia County, Florida Department

of Health (DOH), and Northwest Florida Water Management District

(NWFWMD).

Not only do stakeholders in the basin share responsibilities in achieving

water quality improvement objectives, they also play a crucial role in

providing the Department with important monitoring data and information

on management activities. In addition to the Department, other

monitoring support is provided by the NWFWMD, DOH, and the volunteer

monitoring groups LakeWatch and Bream Fisherman’s Association.

During the next few years, further data collection and analysis will be

done to establish TMDLs for impaired waters in the Perdido River and Bay

Basin, establish the initial allocations of pollutant load reductions needed

to meet those TMDLs, and produce a Basin Management Action Plan to

reduce the amount of pollutants that cause impairments. These activities

depend on the participation of the water management district, local

governments, businesses, and other stakeholders. The Department will

work with these groups and individuals to undertake or continue reductions

in the discharge of pollutants and achieve the established TMDLs for

impaired waterbodies.

The information in this report is being used to identify waterbodies

and parameters for which additional data are needed to verify water

quality impairments. Data gathering and monitoring will then focus on

these potentially impaired waters. Once these data are reevaluated and

reassessed, in summer 2006, the Department will present a list of waters

for which impairments have been verified and for which TMDLs will be

developed.

The Verifi ed List of impaired waters will be adopted by Secretarial

Order in accordance with the FWRA. Once adopted, the list will be

submitted to the U.S. Environmental Protection Agency for approval as the

state’s Section 303(d) list of impaired waters for the basin.

Summary of Surface Water Findings

The following summarizes, by planning unit, potential impairments

by waterbody types and the primary pollutants. Planning units are

smaller areas in the basin that provide a more detailed geographic basis for

identifying and assessing water quality improvement activities. Figures 3.3

through 3.4 (in Chapter 3) depict the results of this evaluation.

Perdido Bay Planning Unit

Of the 28 waterbody segments in the Perdido Bay Planning Unit,

13 segments have sufficient data for assessment. Of these, 10 are potentially

impaired for at least 1 parameter assessed based on the Impaired

Surface Waters Rule (IWR) methodology and 3 meet standards for at least

1 designated use. One segment (waterbody identification number [WBID]

725) did not have sufficient data for evaluation by the IWR, but is included

as potentially impaired because it was listed on the 1998 303(d) list.


11

The 11 potentially impaired segments in the planning unit, and the

parameters of impairment, are as follows:

Direct Runoff to Gulf (WBID 1015) Conductance

Elevenmile Creek (WBID 489) Biology, conductance,

dissolved oxygen (DO), fecal

coliforms, total coliforms,

turbidity, unionized ammonia,

nutrients, total suspended

solids (TSS)

Tenmile Creek (WBID 489A) Fecal coliforms, total coliforms

Eightmile Creek (WBID 624) Biology, DO, fecal coliforms

Marcus Creek (WBID 697) DO, fecal coliforms

Unnamed Branch (WBID 725) Fecal coliforms

Perdido Bay Gulf (WBID 8001) Mercury in fish

Perdido Key State Park (WBID 8001A) Mercury in fish

Johnson Beach (WBID 8001B) Mercury in fish

Big Lagoon State Park (WBID 8001C) Mercury in fish

Unnamed Stream (WBID 935) Conductance, DO

Perdido River Planning Unit

Of the 41 waterbody segments in the Perdido River Planning Unit,

12 segments have sufficient data for assessment. Of these, 8 are potentially

impaired for at least 1 parameter assessed based on the IWR methodology

and 4 meet standards for at least 1 designated use. Jacks Branch

(WBID 291) did not have sufficient data for evaluation using the IWR, but

is listed as impaired solely based on its inclusion on the 1998 303(d) list.

The nine potentially impaired segments in the planning unit, and the

parameters of impairment, are as follows:

McDavid Creek (WBID 149)

Dry Creek (WBID 290)

Jacks Branch (WBID 291)

Reedy Branch (WBID 3)

Brushy Creek (WBID 4)

Perdido River (WBID 462A)

Perdido River (WBID 462B)

Perdido River (WBID 462C)

Rest Area Run (WBID 542)

Biology

Biology

DO, fecal coliforms, turbidity

Biology

Biology, fecal coliforms, total

coliforms, DO, turbidity, TSS

Fecal coliforms, DO,

nutrients, mercury in fi sh

Conductance

Mercury in fish

Biology, DO, fecal coliforms,

total coliforms, turbidity

Summary of Ground Water Findings

This section summarizes the results of a preliminary assessment of the

quality of ground water available for potable supply, the impact of ground

water on surface water resources, and Phase 2 assessment priorities in the

Perdido Basin. The assessment uses planning units consistent with the


surface water assessment and uses readily available data. The primary

aquifer in this basin is the sand and gravel aquifer, which is unconfined and

highly susceptible to contamination. This aquifer also has the potential to

interact freely with surface waterbodies.

Basinwide Observations of Elevated Parameter Concentrations

From available data, basinwide median concentrations of phosphorus

and several metals were higher than threshold levels. Nitrate, dissolved

phosphorus, and orthophosphate in the unconfined sand and gravel aquifer

were higher than the ground water–surface water relational assessment

(SRA) thresholds for nitrate and phosphorus, which are based on surface

water guidance levels. Medians for several metals, most notably iron,

were higher than their respective SRA screening thresholds in the sand

and gravel aquifer. Each of these evaluations is protective, in that the

maximum parameter concentration per well is used. Before actual water

quality issues related to these parameters are confirmed, however, further

data evaluation and monitoring would be conducted. The likelihood of

local ground water discharge to surface waterbodies will also be evaluated

further.

Ground Water Resource Issues

Several instances of wells exceeding ground water resource indices

based on ground water standards or guidance concentrations were noted

in the basin, primarily in the Perdido Bay Planning Unit. These included

metals (lead, mercury, arsenic, chromium, and cadmium), coliform bacteria,

and nitrate. Also, although few were detected in available well data,

organics may be a significant concern in the southern part of the basin,

where numerous sources are present.

Ground Water–Surface Water Interaction Focus Areas

The Perdido Bay Planning Unit has the greatest number of monitoring

wells with water quality data. Evaluating the contribution of nutrients

from ground water to potentially impaired surface waters may be important.

Above-threshold concentrations of nitrate, phosphorus, and orthophosphate

were detected in wells near surface waters in this area that are

potentially impaired for nutrients and DO.


13

Table of Contents

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Purposes and Content of the Status Report . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Explanation of the Planning List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Explanation of the Verified List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Stakeholder Involvement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

The Watershed Management Cycle in the Florida Department of

Environmental Protection’s Northwest District . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 2: Basin Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Basin Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Surface Water Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Hydrology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Physiographic and Soil Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Surface Water Quality Classifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Special Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Outstanding Florida Waters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Biological Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Ground Water Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Aquifers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Ground Water Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Ground Water–Surface Water Interactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Ground Water Quality Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Watershed Management Activities and Processes . . . . . . . . . . . . . . . . . . . . . 37

History of Watershed Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Watershed Partners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Coastal Alabama Clean Water Partnership . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Wolf Bay Watershed Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Friends of Perdido Bay/Perdido Bay Foundation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Bream Fisherman’s Association . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Major Water Quality Improvement Programs and Projects . . . . . . . . . . . . . . . . . . . . . 40

Stormwater Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Agricultural Best Management Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Land Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Chapter 3: Preliminary Surface Water Quality Assessment . . . . . . . 45

Scope of the Preliminary Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Sources of Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Attainment of Designated Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Integrated Report Categories and Assessment Overview . . . . . . . . . . . . . . . . 48

Planning Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Assessment by Planning Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Perdido Bay Planning Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Water Quality Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Permitted Discharges and Land Uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Ecological Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Water Quality Improvement Plans and Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Perdido River Planning Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Water Quality Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Permitted Discharges and Land Uses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Ecological Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Water Quality Improvement Plans and Projects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67


Chapter 4: Ground Water Quality Assessment . . . . . . . . . . . . . . . . . 69

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Scope of the Ground Water Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Ground Water Resource Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Ground Water–Surface Water Interaction Priorities . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Ground Water Data Sources and Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Ground Water Assessments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Ground Water as a Resource: Issues Related to the Ground Water

Resource Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Use of Affected Aquifers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Data Evaluation and Priorities for Further Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Ground Water–Surface Water Interaction: Issues Related to the Ground

Water–Surface Water Relational Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Ground Water to Surface Water Pathways . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Data Evaluation and Priorities for Further Assessment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Addressing Potential Ground Water Issues . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Ground Water Resource Priorities and Proposed Actions . . . . . . . . . . . . . . . . . . . . . . 83

Ground Water–Surface Water Interaction Priorities and Proposed Actions . . . . . . . . 86

Chapter 5: The Planning List of Potentially Impaired Waters . . . . . . 87

The Planning List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Relationship Between the Planning List and the 303(d) List . . . . . . . . . . . . . . 87

Summary of Potential Impairments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Waters with Insufficient Data To Determine Impairment . . . . . . . . . . . . . . . . . 91

Chapter 6: Strategic Monitoring and Data Evaluation . . . . . . . . . . . 93

Strategic Monitoring and Data Acquisition Priorities . . . . . . . . . . . . . . . . . . . . 93

Data Acquisition Objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Phase 2 Assessment: Data Collection and Database Management

Leading to the Development of the 303(d) List of Impaired Waters . . . . . . . . 95

Verified List Development and Public Comment . . . . . . . . . . . . . . . . . . . . . . . 96

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Appendices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Tables

Table 1.1: Stakeholder Involvement in the TMDL Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 2.1: Outstanding Florida Waters within the Perdido River and Bay Basin . . . . . . . . . . . . . . . . 29

Table 2.2: Area of Natural Communities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Table 2.3: Summary of Management Issues in the Perdido River and Bay Basin . . . . . . . . . . . . . . . 38

Table 2.4: Summary of Organizations in the Perdido River and Bay Basin and Their Role in Total

Table 3.1:

Maximum Daily Load Development and Implementation . . . . . . . . . . . . . . . . . . . . . . . . . 39

Data Providers in the Perdido River and Bay Basin Including Number of Sample

Tests by Year . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Table 3.2: Designated Use Attainment Categories for Surface Waters in Florida . . . . . . . . . . . . . . . 48

Table 3.3: Categories for Waterbodies or Waterbody Segments in the 2002 Integrated Report . . . . 50

Table 3.4: Integrated Water Quality Assessment Summary for the Perdido Bay Planning Unit . . . . . 55

Table 3.5: Integrated Water Quality Assessment Summary for the Perdido River Planning Unit . . . . 64

Table 4.1: Summary of Ground Water Data Sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Table 4.2: Ground Water Assessment Categories and Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Table 4.3: Screening Thresholds and Basinwide Summary of Ground Water Quality . . . . . . . . . . . . 72

Table 4.4: Evaluation Summary: Ground Water Quality and Potential Impacts to Potable Supply . . . 74

Table 4.5: Evaluation Summary: Ground Water Infl uence on Surface Water Quality . . . . . . . . . . . . 81


15

Table 5.1: Planning List of Potentially Impaired Waters in the Perdido River and Bay Basin . . . . . . . 88

Table 5.2: Parameters Causing Potential Impairments in the Perdido River and Bay Basin . . . . . . . . 90

Table 6.1: Strategic Monitoring and Data Evaluation Needed to Meet Impaired Waters Rule

Sample Size Criteria for Verifi cation of Planning List Waters in the Perdido River and

Bay Basin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Figures

Figure 1.1: Schedule for Implementing the Watershed Management Cycle in the Department’s

Northwest District, Basin Groups 1 through 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Figure 2.1: Geopolitical Map of the Perdido River and Bay Basin . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Figure 2.2: Surface Water Resources of the Perdido River and Bay Basin . . . . . . . . . . . . . . . . . . . . . 26

Figure 2.3: Physiographic Features of the Western Panhandle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 2.4: Topography of the Western Panhandle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 2.5: Location of Public Supply Wells and Known Areas of Ground Water Contamination . . . . 34

Figure 3.1: Data Providers in the Perdido River and Bay Basin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Figure 3.2: Locations and Boundaries of Planning Units in the Perdido River and Bay Basin . . . . . . . 52

Figure 3.3: Composite Map of the Perdido Bay Planning Unit, Including the 1998 303(d) List

Figure 3.4:

and Planning List Waters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Composite Map of the Perdido River Planning Unit, Including the 1998 303(d) List

and Planning List Waters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Figure 4.1: Ground Water Resource Index Assessment for Bacteria . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Figure 4.2: Ground Water Resource Index Assessment for Metals . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Figure 4.3: Ground Water Resource Index Assessment for Organics . . . . . . . . . . . . . . . . . . . . . . . . . 79

Figure 4.4: Ground Water–Surface Water Relational Assessment for Nutrients . . . . . . . . . . . . . . . . 84

Figure 4.5: Ground Water–Surface Water Relational Assessment for Metals . . . . . . . . . . . . . . . . . . 85

Figure 5.1:

Perdido River and Bay Basin Planning List for All Causes of Potential Impairment,

with Overlay of 1998 303(d) List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89


17

Chapter 1: Introduction

Purposes and Content of the Status Report

The Florida Department of Environmental Protection (Department)

is implementing a statewide watershed management approach for restoring

and protecting water quality and addressing Total Maximum Daily Load

(TMDL) Program requirements. Under Section 303(d) of the federal

Clean Water Act and the Florida Watershed Restoration Act (FWRA)

(Chapter 99-223, Laws of Florida), TMDLs must be developed for all

waters that do not meet their designated uses (such as drinking water, recreation,

and shellfish harvesting) and are thus defined as impaired.

TMDLs will be developed, and the corresponding reductions in pollutant

loads allocated, as part of the watershed management approach, which

rotates through the state’s 52 river basins over a 5-year cycle. Extensive

public participation from diverse stakeholders in each of these basins is

crucial in all phases of the cycle.

This report presents a Planning List of potentially impaired waterbodies

in the Perdido River and Bay Basin, identifies general surface water quality

monitoring needs, and provides an overview of surface water quality

restoration plans and projects. It also describes the results of a preliminary

ground water quality assessment and discusses priorities for further evaluation,

as well as resource priorities and proposed actions (see Noteworthy

for a description of the contents of the Status Report, by chapter). The

report is intended for distribution to a broad range of potential stakeholders,

including decision makers in federal, state, regional, tribal, and

local governments; public and private interests; and citizens.

Perdido River and Bay are interstate waters that form the boundary

between Alabama and Florida. The state line bisects the middle of the river

and bay. The focus of this report is on waterbodies located within the state

of Florida, where Florida water quality standards and criteria can be applied

to identify impaired waterbodies. A similar but independent process also

occurs in Alabama to identify impaired waters requiring TMDLs.

A description of the legislative and regulatory background for TMDL

development and implementation through the watershed management

approach, and a brief explanation of the TMDL Program, are available

in Appendix A. Background information on the Department’s TMDL

Program, the process of TMDL development and implementation, lists

of impaired and potentially impaired waters, and assessments for other

parts of the state are available at http://www.dep.state.fl.us/water/tmdl/

index.htm.

Total Maximum

Daily Load

The maximum amount

of a given pollutant that a

waterbody can assimilate

and remain healthy, such that

all of its designated uses are

met.


Explanation of the Planning List

The Planning List is the preliminary list of potentially impaired

surface waterbodies or waterbody segments in the Perdido River and Bay

Basin. Under the FWRA, the Planning List is submitted to the U.S. Environmental

Protection Agency (EPA) for informational purposes only and is

not used to administer or implement any regulatory program.

To be placed on the Planning List, waters must meet specific data

sufficiency and data quality requirements in the state’s Identification of

Impaired Surface Waters Rule (IWR) (Rule 62-303, Florida Administrative

Code [F.A.C.]). Developed in cooperation with a Technical Advisory

Committee, the rule provides a science-based methodology for identifying

impaired waters (Appendix B). It addresses chemical parameters, interpretation

of narrative nutrient criteria, biological impairment, fish consumption

advisories, and ecological impairment. The complete text of the

IWR is available at http://www.dep.state.fl.us/water/tmdl/index.htm.

Explanation of the Verified List

The publication of the Status Report is followed by a period of monitoring

and data gathering and, at the end of Phase 2 of the watershed

management cycle, by an Assessment Report containing a Verifi ed List of

impaired waterbodies or segments for which TMDLs will be calculated, as

provided in Subsection 403.067(2), Florida Statutes (F.S.). This Assessment

Report also contains additional data gathered by the Department,

other agencies, and groups doing monitoring in the basin; a more complete

evaluation of water quality and biological resources; and a designated use

attainment assessment for basin waters.

The Assessment Report follows the EPA’s guidance for meshing Clean

Water Act requirements for Section 305(b) water quality reports and Section

303(d) lists of impaired waters. This integrated assessment is used to

identify the status of data sufficiency, the potential for impairment, and the

need for TMDL development for each waterbody or waterbody segment in

the basin.

The Verified List is required by Subsection 403.067(4), F.S., and

Section 303(d) of the federal Clean Water Act. It is adopted by the

Department in accordance with the FWRA and the IWR (Rule 62-303,

F.A.C.). Once adopted, the list is submitted to the EPA under Section

303(d)1.c of the Clean Water Act and becomes the 303(d) list of impaired

waters for the basin.

The first 303(d) list, which was required by the EPA in 1998, is to

be amended annually to include basin updates. Florida’s 1998 303(d) list

included a number of waterbodies in the Perdido River and Bay Basin.

Tables 3.4 and 3.5 in Chapter 3 list these waters for each planning unit.


19

Table 1.1: Stakeholder Involvement in the TMDL Program

Watershed Management Cycle

Phase 1:

Preliminary

Evaluation

Phase 2:

Strategic Monitoring

and Assessment

Phase 3:

Development and

Adoption of TMDLs

Phase 4:

Development of Basin

Management Action Plan

Phase 5:

Implementation of Basin

Management Action Plan

Nature of Stakeholder Involvement

Close coordination with local stakeholders to conduct a preliminary basin

water quality assessment, inventory existing and proposed management

activities, identify management objectives and issues of concern, develop

a Strategic Monitoring Plan, and produce a preliminary Status Report that

includes a Planning List of potentially impaired waters

Cooperative efforts between the Department and local stakeholders to collect

additional data; enter data into STORET (the EPA’s national water quality

STOrage and RETrieval database); complete the water quality assessment;

produce a final Assessment Report that includes a Verified List of impaired

waters for Secretarial adoption; and provide an opportunity for stakeholders

to document reasonable assurance (for Department review) that existing or

proposed management plans and projects are adequate to restore water quality

without the establishment of a TMDL

Coordination with stakeholders to discuss TMDL model framework, including

model requirements, parameters to be modeled, model endpoints, design run

scenarios, and preliminary allocations; communication of science used in the

process; public workshops for rule adoption of TMDLs

Broad stakeholder participation in developing a Basin Management Action

Plan (B-MAP) (including detailed allocations and implementation strategies),

incorporating it into existing management plans where feasible; public meetings

during the planning process

Emphasis on implementing the B-MAP, other voluntary stakeholder actions,

and local watershed management structures; Department will continue to

provide technical assistance, fulfill oversight responsibilities, and administer

National Pollutant Discharge Elimination System point and nonpoint source

permits

Stakeholder Involvement

The FWRA requires the Department to work closely with stake holders

to develop and implement TMDLs. In addition, the Department’s Allocation

Technical Advisory Committee (ATAC) report, submitted to the

legislature, recommends relying on stakeholder involvement. Stakeholder

involvement in the TMDL process will vary with each phase of implementation

to achieve different purposes (Table 1.1). A copy of the

ATAC report is available at http://www.dep.state.fl.us/water/tmdl/docs/

Allocation.pdf.

The Department will work cooperatively with a number of key stakeholders

to develop, allocate, and implement TMDLs in the Perdido River

and Bay Basin. These include Escambia County, Alabama Department

of Environmental Management, Northwest Florida Water Management

District, and International Paper.


The Watershed Management Cycle in

the Florida Department of Environmental

Protection’s Northwest District

Figure 1.1 shows the order in which the Department’s Northwest

District basin groups will be evaluated under the watershed management

cycle. These groups are identified according to a U.S. Geological Survey

classification system using hydrologic unit codes.

Ochlockonee–St. Marks, a Group 1 basin, was the fi rst basin in the

district to undergo a preliminary assessment in 2000. A preliminary

assessment for the Group 2 basin, Apalachicola–Chipola, was completed

in 2001 and for the Group 3 basin, Choctawhatchee–St. Andrew, in 2002.

The Group 4 preliminary assessment for the Pensacola Basin was carried

out in 2003. The Group 5 basin, Perdido River and Bay Basin, is the

subject of this report. In 2005, the cycle resumed with the Group 1 basin,

Ochlockonee–St. Marks.

Figure 1.1: Schedule for Implementing the Watershed Management Cycle in the Department’s

Northwest District, Basin Groups 1 through 5

Noteworthy

Contents of This Report

• Chapter 1: Introduction

briefly characterizes the

purpose and content of the

Status Report, discusses

stakeholder involvement, and

describes how the watershed

management cycle will be

implemented in the Department’s

Northwest District.

• Chapter 2: Basin Overview

characterizes the basin’s

general setting, surface water

and ground water resources,

major water quality trends,

and watershed management

activities and processes.

• Chapter 3: Preliminary

Surface Water Quality

Assessment discusses the

scope of the assessment,

summarizes data-gathering

activities and sources of data,

describes the EPA’s terminology

for designated use attainment

and its integrated report

categories, and provides, by

basin planning unit, an evaluation

of water quality, a discussion

of permitted discharges

and land uses, a summary

of ecological priorities and

problems, and an overview

of water quality improvement

plans and projects.

• Chapter 4: Ground Water

Quality Assessment describes

the Department’s principal

ground water monitoring

networks, the basin assessment

methodology, the

ground water assessment

results, and resource priorities

and proposed actions.

• Chapter 5: The Planning

List of Potentially Impaired

Waters contains the Planning

List of potentially impaired

waterbodies. The chapter

also describes the relationship

between the Planning and

Verified Lists, and summarizes

water quality findings for the

basin.

• Chapter 6: Strategic Monitoring

and Data Evaluation

summarizes strategic monitoring

and data evaluation

priorities and objectives that

are critical to the development

of the Verified List of impaired

waters during the next phase

of the watershed management

cycle. It includes a general

inventory of monitoring and

data-gathering activities by

other groups and programs

that could be incorporated into

the assessment.

Water Quality Status Report:


21


23

Chapter 2: Basin Overview

Basin Setting

The Perdido River and Bay Basin is located in Escambia County,

Florida, and Escambia and Baldwin Counties, Alabama, and covers an area

of about 1,215 square miles (Schropp, Calder, Sloane, Swanson, Carlton,

Holcomb, Windom, Huan, Hull, and Taylor, 1991). Most of the basin’s

drainage area is within Alabama. About 399.6 square miles of the basin is

within Florida. That area was calculated based on the total area of assessment

units, called waterbody identification numbers (WBIDs), used by

the Florida Department of Environmental Protection (Department) and

includes a portion of marine nearshore waters off Florida’s coast.

The Perdido River and Perdido Bay form the boundary between

Florida and Alabama. Florida’s western boundary is located in the

middle of the Perdido River and transects the eastern lobe of Perdido Bay.

Figure 2.1 shows the principal geographic and political features in the

Perdido River and Bay Basin.

Larger cities in the basin include the western portion of Pensacola,

Cantonment, and Walnut Hill within Florida. Bay Minette, Atmore,

Lillian, and Foley are located within Alabama. Water resource management

and regional planning are overseen by the Northwest Florida Water

Management District (NWFWMD) and West Florida Regional Planning

Council, respectively. Within the Florida portion of the basin, major land

uses based on 1995 land use maps are upland forest (50 percent), including

managed forest lands, urbanized (14.5 percent), and agriculture (15 percent).

Major timber companies (including those in Alabama) in the basin

are International Paper Corporation, DuPont Champion, and Scott Paper

Company (Department and Alabama Coastal Foundation, 2000). Facilities

associated with Naval Air Station Pensacola and the Navy’s Naval

Education and Training Professional Development Technology Center are

located in the basin.

Surface Water Resources

The Perdido River and Bay Basin contains numerous surface waterbodies.

Within Florida, surface waters including lakes, streams, and

wetlands occupy 35,661 acres, or about 16.2 percent of the total basin area.

Prominent wetland types are salt marsh, freshwater marsh, and various

forested wetlands.

Average annual rainfall in the basin varies from 60 to 64 inches

(Schropp et al., 1991; Grubbs and Pittman, 1997; and South Alabama

Regional Planning Commission [SARPC], 1993), but can range from less

Sources of

Information

Much of the information

about the Perdido River and

Bay Basin in this chapter was

obtained from the following

sources. The References

section at the end of this

report contains a complete

listing of sources.

Schropp, S. et al. 1991.

A Report on Physical

and Chemical Processes

Affecting the Management

of Perdido Bay, Results of

the Perdido Bay Interstate

Project. This report was

a cooperative project between

the Department and

the Alabama Department of

Environmental Management

(ADEM).

Miller, L. 1998. Perdido

Ecosystem Management

Strategies. Prepared for the

Perdido Ecosystem Restoration

Group and the Department.

Support provided by

the National Oceanic and

Atmospheric Administration

(NOAA) and the Florida

Department of Community

Affairs (DCA).


Figure 2.1: Geopolitical Map of the Perdido River and Bay Basin


25

than 45 inches to greater than 80 inches in a given year (U.S. Geological

Survey [USGS] Web Site: Calendar Year Stream Flow Statistics for Alabama).

The greatest amount of rainfall typically falls in July and August

(Schropp et al., 1991). Rumenik (1988) estimated that 25 inches of rainfall

per year near the Alabama border to almost 35 inches of rainfall per year

near the Gulf of Mexico was discharged as surface runoff. The surficial

geology, topography, and potential evapotranspiration of the basin are

factors that contribute to the amount of surface runoff.

This section delineates the basin’s hydrology, describes the movement

and management of water in the basin, briefly describes the major characteristics

of surface waters that influence water quality in the basin, and

describes surface water classifications and special designations. Figure 2.2

shows the locations of the largest waterbodies. More information about

individual waterbodies is contained in the planning unit discussion in

Chapter 3.

Hydrology

There are two components of the Perdido River and Bay Basin: the

Perdido River and Perdido Bay. The headwaters of the Perdido River are

near Bay Minette in Alabama. The river is formed by the confluence of

Fletcher and Perdido Creeks. The Perdido River Basin is located in eastern

Baldwin County and western Escambia County in Alabama and Escambia

County in Florida. About 810 square miles of the river basin are within

Alabama (SARPC, 1993). The Perdido River is 220 miles long with

96 miles within Florida (Florida Department of Natural Resources [DNR],

1989). The river ranges from 30 yards across in its upstream segments to

about 100 yards across near the mouth (Department, 2005). River flow is

rainfall driven and fluctuates greatly. Average discharge of the river at Barrineau

Park, as a 62-year average, was 1,174 cubic feet per second (USGS,

2006). Larger tributary watersheds are the River Styx, Blackwater River,

and Dyas Creek in Alabama and Brushy Creek, Boggy Creek, McDavid

Creek, and Jacks Branch in Florida. The River Styx and the Blackwater

River are the largest tributary watersheds. They enter the Perdido River

close to its mouth, and drainage from them provides substantial freshwater

discharge to both Perdido River and Perdido Bay (Schropp et al., 1991).

The Perdido River discharges into Perdido Bay about 15 miles west

of Pensacola. The bay is about 17 miles long and from 2 to 4 miles wide

(SARPC, 1993). The river and its tributaries are not the only sources of

water for the 28-square-mile bay. Bayou Marcus and Elevenmile Creek

in Florida and Soldier Creek and Palmetto Creek in Alabama along with

several smaller creeks add additional discharge into the bay.

Perdido Bay is a relatively shallow estuary, deeper on the Alabama

side of the bay relative to the Florida side. Average depth of Perdido Bay is

7 feet (USGS Web Site). Deeper portions of the bay (10 feet or deeper) are

located near the mouth of Perdido River and downstream of the U.S. 98

Bridge (Grubbs and Pittman, 1997).

The bay can be delineated into five different segments based on natural

constrictions and geographic features within the bay (Schropp et al., 1991).

The upper bay extends from the mouth of the Perdido River and


Figure 2.2: Surface Water Resources of the Perdido River and Bay Basin


27

Elevenmile Creek southwest to a constriction in the bay created by Grassy

and Double Points. Bayou Marcus discharges into the upper bay. The

lower limit of the middle bay is at the bay constriction created by Manuel

and Dupont Points. The main bay is bounded at the lower end by a line

from Mill Point to Inerarity Point and another line south across the Gulf

Intracoastal Waterway from Hatchet Point. Tarkiln Bayou, Soldier Creek,

and Palmetto Creek drain to the main bay. The lower bay connects the

main bay to the Gulf of Mexico through Perdido Pass and includes Bayou

St. John. This segment extends east to join the Big Lagoon at the State

Road 292 Bridge. The Big Lagoon and Intracoastal Waterway connect

Perdido Bay to Pensacola Bay. The last segment is the west bay defi ned as

the open expense of water from Hatchett Point west to the Alabama Canal.

Wolf Bay enters the west bay segment. Mobile Bay is connected to Perdido

Bay by way of Bay La Launch, Wolf Bay, and the Intracoastal Canal.

Circulation and water elevations within the bay are controlled by

wind speed, wind direction, tidal fluctuation, and freshwater discharges

from tributaries. Lowest streamflows occur during the fall and highest

streamflows occur in winter and spring. Tides are typically diurnal though

they can be semidiurnal (Grubbs and Pittman, 1997). NOAA tide tables

estimate that the tidal range is 0.5 feet, but it was observed by the USGS

during a 1994–95 water flow and loading study to have a range of 0.8 feet

(USGS Web Site). Other observers have noted that strong winds when

aligned with the north to south orientation of the bay can induce up to a

0.5 feet change in water level ([Niedoroda, 1992] as referenced in Grubbs

and Pittman, 1997).

Physiographic and Soil Features

The Perdido River and Bay Basin lays within the Western Highlands

and Gulf Coastal Lowlands physiographic provinces (Figure 2.3). The

Perdido River Basin has well-defined topographic relief with land surface

elevations in its northern portion of 300 feet or more above mean

sea level (Figure 2.4). Much of the Perdido River and its tributary

streams drain the hilly terrain of the Western Highlands. Soils that have

formed across the northern reaches of the basin originated from the Plio-

Pleistocene Citronelle Formation. This formation consists of quartz sand

with beds of clay, gravel, hardpans, fossil woods, and kaolinitic burrows

of aquatic animals. Karst topography is not evident because of the depth

of the Citronelle Formation and older impermeable clastic layers. Soils

are unconsolidated sands, silts, and clays deposited from prehistoric

seas and Appalachian deposits. Soils can be easily eroded and, coupled

with the hilly terrain, contribute to fairly severe soil erosion and stream

sedimentation problems.

The sediments within Perdido Bay are largely terrigenous clastics originating

from freshwater inflows to the bay. Finer particles have settled in

the deeper portions and more central areas of the bay resulting in accumulation

of clayey silt and silty clay sediments. Coarser sands are deposited

closer to the shoreline. Sediment grain size generally increases moving

seaward (Schropp et al., 1991).


Figure 2.3: Physiographic Features of the Western Panhandle

Figure 2.4: Topography of the Western Panhandle


29

Surface Water Quality Classifications

Florida’s water quality standards, the foundation of the state’s program

of water quality management, designate the “present and future most

beneficial uses” of the waters of the state (Subsection 403.061[10], Florida

Statutes [F.S.]). Water quality criteria for surface water and ground water,

expressed as numeric or narrative limits for specific parameters, describe the

water quality necessary to maintain these uses. Florida’s surface water is

classified using the following five designated use categories:

Class I

Class II

Class III

Class IV

Class V

Potable water supplies

Shellfi sh propagation or harvesting

Recreation, propagation, and maintenance of a healthy,

well-balanced population of fi sh and wildlife

Agricultural water supplies

Navigation, utility, and industrial use (there are no state

waters currently in this class)

All waters within this basin are designated as Class III, suitable for

recreation and propagation and maintenance of fish and wildlife. There

are no class II, shellfish waters, designated within this basin. There are no

open active shellfish harvesting areas.

Special Designations

Outstanding Florida Waters

The waterbodies listed in Table 2.1 have been given additional protection

through designation as Outstanding Florida Waters (OFWs). OFWs

are designated for “special protection due to their natural attributes”

(Section 403.061, F.S.) and have exceptional ecological or recreational

value. These waters are listed in Section 62-302.700, Florida Administrative

Code (F.A.C.). The intent of an OFW designation is to maintain

ambient water quality, even if these designations are more protective than

those required under the waterbody’s surface water classification. Most

OFWs are associated with managed areas in the state or federal park

system, such as aquatic preserves, national seashores, or wildlife refuges.

Waterbodies within the boundaries of Big Lagoon State Recreation Area,

Gulf Island National Seashore, and Perdido Key State Recreation Area are

designated as OFWs. Other OFWs may also be designated as “Special

Waters” based on a finding that the waters are of exceptional recreational

or ecological significance, and are identified as such in Rule 62-302, F.A.C.

The Perdido River was designated an OFW as a special water.

Table 2.1: Outstanding Florida Waters within the Perdido River

and Bay Basin

Waterbody Designated OFW

Date of Designation

Big Lagoon State Recreation Area 12/1/82 and modified in 5/14/86

and 8/8/94

Perdido Key State Recreation Area 12/1/82

Perdido River 1979

Gulf Islands National Seashore 1979


Biological Resources

Various researchers have devised stream classification systems in an

effort to define and describe the natural system and its biological potential

to support various organisms. Classification schemes are generally derived

based on combinations of physical, chemical, and biological factors. Variations

in velocity of flow, substratum, temperature, dissolved oxygen (DO)

levels, and water hardness are generally considered in the development of a

classification scheme (Nordlie, 1991).

Beck (as referenced in Nordlie, 1991) classified the Perdido River as

a sand-bottomed stream. In general, this type of stream has moderate

to swift currents and a streambed of shifting sand. Predominate stream

fauna are species of immature insects; examples are mayflies, caddisflies,

and blackflies. The Perdido, like the Escambia and Blackwater Rivers,

is in close connection with the sand and gravel aquifer with much of the

river’s baseflow supplied from the aquifer. The chemical characteristics of

the sand and gravel aquifer influence the quality of water in the Perdido

River. The Perdido River is characterized as having low pH and low buffering

capacity, making it susceptible to disturbances and alterations in its

watershed.

The Florida Natural Areas Inventory (FNAI) classifies the Perdido

River as a blackwater system. This type of system is characterized as

having tea-colored water with a high content of particulate and dissolved

organic matter, iron, and low pH, but with a sandy bottom substrate.

Much of the organic matter is derived by drainage from swamps and

marshes. This type of system generally lacks a floodplain (FNAI and

DNR, 1990).

Vegetation and land cover were mapped for the entire state by the

Florida Fish and Wildlife Conservation Commission (FWC) using 2003

Landsat imagery (Gilbert and Stys, 2004, and Stys, Kautz, Reed, Keris,

Kawula, Keller, and Davis, 2004). Vegetation and land cover were grouped

into 26 categories of natural and seminatural communities, 1 category

for water, and an additional 16 categories of disturbed land cover types.

Information for the Perdido River and Bay is summarized in Table 2.2.

Descriptions of the natural communities are contained in Table C.1 in

Appendix C. By far, the largest acreage of natural community within the

basin is pineland. This community type includes both forests managed for

timber and natural pine forest. Second in area is the mixed hardwood-pine

forest community type.

Natural communities provide important habitat for many rare or

imperiled species of plants and animals. In addition to the community

types listed in Table 2.2, the FNAI identifies seepage slopes as one of the

unique habitats found in this basin. Seepage slopes are wetlands at the base

of a slope where moisture is maintained (FNAI and DNR, 1990). Within

the basin, seepage slopes provide habitat for pitcher plants, including the

state-listed endangered white top pitcher plant (Sarracenia leucophylla) and

threatened sweet pitcher plant (Sarracenia rubra).


31

Table 2.2: Area of Natural Communities

Description

Acres

Square

miles

Percent

area

Coastal strand 379.18 0.592 0.15

Sand/beach 1,146.22 1.791 0.45

Xeric oak 147.45 0.230 0.06

Sand pine scrub 281.77 0.440 0.11

Sandhill 93.85 0.147 0.04

Mixed hardwood pine forest 12,801 20.002 5.02

Hardwood hammock and forest 5,911.9 9.237 2.32

Pineland 87,154.45 136.179 34.21

Freshwater marsh and wet prairie 1,105.08 1.727 0.43

Shrub swamp 133.88 0.209 0.05

Bay swamp 5,968.39 9.326 2.34

Cypress swamp 709.44 1.108 0.28

Mixed wetland forest 14,213.2 22.208 5.58

Hardwood swamp 14,046.85 21.948 5.51

Salt marsh 267.1 0.417 0.10

Tables C.2 through C.4 in Appendix C contain lists of rare and

imperiled plants and animals in the basin. There are 17 animal and

16 plant species that are listed at either the state and or federal level

(FNAI, 2005a).

The basin’s coastal beaches, scrub, and strand communities provide

important habitat for many of the listed species. Scrub and strand communities

west of Perdido Key State Recreation Area are important to migratory

birds that utilize the coastal areas for feeding and resting during migration

between the tropics and North America (Cox, Kautz, MacLaughlin,

and Gilbert, 1994). From March to August, sandy beaches provide nesting

habitat for the royal tern (Sterna maxima), state-listed snowy plover

(Charadrius alexandrinus), black skimmer (Rynchops niger), least tern

(Sterna antillarum), and federally listed endangered piping plover (Charadrius

melodus) (Gulf Islands National Seashore, 2006a; FNAI, 2005a).

The Perdido Key beach mouse (Peromyscus polionotus trissyllepsis) is a federally

endangered species limited in range to sand dunes located on Perdido

Key (Gulf Islands National Seashore, 2006c). Four species of marine sea

turtles—loggerhead (Caretta caretta), leatherback (Dermochelys coriacea),

Ridley (Lepidochelys kempii), and green sea (Chelonia mydas)—utilize

coastal beaches for nesting from May to September, though the most

common sea turtles are loggerheads and green sea turtles (Gulf Island

National Seashore, 2006b). Godfrey’s golden aster (Chrysopsis godfreyi) can

be found on patches of scrub and coastal strand (Cox et al., 1994).

Perdido Bay has three species of seagrasses: turtle grass (Thalassia

testudinum), shoal grass (Halodule wrightii), and widgeon grass (Ruppia

maritime). Eel grass (Vallisneria americana) is also present in fresh

water and brackish water portions of the bay. Comparison of acreage of


seagrasses between 1941 and 1992 revealed that total bay acreage had

decreased by 74 percent to about 307 acres (Kirschenfeld, Turpin, and

Handley, 2006). More recent seagrass coverage analysis completed in 2003

found 300 acres of shoal grass in the bay (Gulf of Mexico Program Habitat

Team, 2004). Seagrasses provide spawning, nursery, and adult habitat for

many commercially and recreationally important species.

The Perdido Basin provides habitat for several rare and imperiled fish

species. Three rare fish species were historically noted from the Perdido

River. These include the listed species of special concern saltmarsh topminnow

(Fundulus jenkinsi), crystal darter (Crystallaria asprella), and goldstripe

darter (Etheostoma parvipinne) (DNR, 1989). Bass, Hoehn, Couch,

and Mcdonald (2004) confirmed the presence of the saltmarsh topminnow

during field sampling in 2001 to 2002 in tributaries of the Perdido

Bay watershed. Striped bass use the Perdido River throughout its length

(DNR, 1989). The Gulf race of the Atlantic sturgeon (Acipenser oxyrinchus

de sotoi) utilizes the Perdido River as documented by the Alabama Geological

Survey in 2004 (referenced in Bass et al., 2004).

Ground Water Resources

Aquifers

Major aquifer systems in the basin are the sand and gravel aquifer

(local surficial aquifer system), the intermediate aquifer system, and the

Floridan aquifer system. Both the sand and gravel aquifer and the Floridan

aquifer systems are composed of moderate to highly permeable sediments

that transmit large quantities of water. In contrast, the inter mediate aquifer

system and the sub-Floridan systems are composed primarily of lowpermeability

sediments that act as regional confining units. The sand and

gravel aquifer extends under all or part of Escambia, Santa Rosa, Okaloosa,

and Walton Counties, eastward to the Choctawhatchee River. The sand

and gravel aquifer is comprised of interbedded unconsolidated quartz sand

with some gravel, clay, and silt that range in age from the middle Miocene

to Holocene (USGS, 1990). Ground water exists in this aquifer under

unconfined to semiconfined conditions. Beds and lenses of clay interspersed

with gravel form confi ning beds to create local artesian conditions.

In Escambia County, the sand and gravel aquifer is informally divided

and named into three distinct zones (Pratt, Richards, Milla, Wagner,

Johnson, and Curry, 1996). The uppermost zone, called the surficial zone,

is primarily composed of fi ne sands and is usually under unconfined conditions

(Paulic, 1999). Below the surficial zone is a low-permeability zone.

As a semiconfining layer, it impedes the downward flow of ground water.

The third and deepest zone is the main producing zone, which is composed

of very permeable coarse sand and gravel beds interspersed in places with

fine sand and clay-sand beds. Most potable drinking water for Escambia

County is obtained from the main producing zone.

This aquifer is recharged directly by rainfall. The entire geographic

extent of the sand and gravel aquifer is in effect a recharge area (Pratt et al.,

1996). The primary flow of ground water in the aquifer is laterally toward

surface waters and the coast (Richards, 1998; USGS, 1990) providing


33

discharge or baseflow into streams, lakes, and the Gulf of Mexico. Wells

also indirectly discharge a small amount of water to surface waters.

The closeness with the land surface makes the sand and gravel aquifer

highly vulnerable to contamination. Surface spills and poor waste disposal

methods can easily allow contaminants to infiltrate into this aquifer.

Below the sand and gravel aquifer lies the intermediate aquifer system,

which acts as a thick confining unit between the sand and gravel aquifer

and the Floridan aquifer system in most of the basin. Composed of thick

beds of clays, along with clayey limestone, shells, and coarse clastics of

Miocene age, the intermediate system prevents most exchange of ground

water between the two aquifer systems (Richards, 1998; Ryan, MacMillan,

Pratt, Chelette, Richards, Countryman, and Marchman, 1998; Pratt

et al., 1996).

The Floridan aquifer system, underlaying the intermediate system,

consists of a thick sequence of carbonate rock of varying permeability and

a regionally extensive clay confining layer. The top of the Floridan aquifer

system ranges from near sea level at the eastern boundary of the basin to

over 1,000 feet below sea level at the western boundary (Pratt et al., 1996).

Ground Water Usage

The primary source of drinking water in Escambia County is the main

producing zone of the sand and gravel aquifer (Pratt et al., 1996). The

Floridan aquifer is deep, approximately 350 feet below sea level in northeast

Escambia County to 1,450 feet below sea level in the southwest, and its

water is brackish and highly mineralized. Surface water is used for power

generation and some commercial and industrial self-supply.

There are 25 wells in the Perdido Basin identified in the Department’s

Public Water System database as public water supply wells (Figure 2.5).

The largest water supply system, Emerald Coast Utilities, has 13 wells.

Public supply wells in the basin range between 192 and 415 feet in depth,

with an average well depth of 255 feet. The largest consumer of water

from the sand and gravel aquifer is International Paper, which utilizes

approximately 24.7 million gallons per day (Pratt, Richards, and Milla,

1997). The discharge from International Paper is currently released into

the Perdido River. A new discharge permit proposed in April 2005 requires

that the facility discharge be moved to a treatment wetland. Additional

information on International Paper’s permit conditions is contained in the

“Perdido Bay Planning Unit” section contained in Chapter 3.

Ground Water–Surface Water Interactions

The sand and gravel aquifer is the main source of baseflow for wetlands,

streams, and lakes in the basin. Because the intermediate is an effective

confining unit, much of the recharge to the sand and gravel aquifer

ends up as discharge to surface waters. Stream baseflow is substantial and

has been estimated by Vecchioli, Tibbals, Duerr, and Hutchinson (1990)

as exceeding 1 cubic foot per second per square mile. Model estimates of

a ground water budget for the aquifer’s main producing zone in Escambia

County indicate that more than 50 percent of the recharge received in this


Figure 2.5: Location of Public Supply Wells and Known Areas of Ground Water Contamination


35

zone is discharged to the Pensacola Bay, Escambia River, Perdido River, and

Gulf of Mexico (Ryan et al., 1998).

Both the Escambia River and the Perdido River form significant discharge

boundaries for the sand and gravel aquifer. Because these discharge

boundaries are relatively close together near Cantonment, essentially no

ground water flows from the northern portion of the county to the southern

portion. Ground water south of Cantonment is hydraulically isolated from

the northern portion of the county and is derived from local recharge.

Relatively thin and discontinuous layers of clay and silt occur within

both the surficial zone and in the overlying unsaturated materials, creating

a perched water table considerably higher than that of the true water table

of the surficial zone commonly observed in the middle portion of Escambia

County. For example, in the vicinity of the intersection of Interstate 10 and

Highway 29, there is a continuous drainage of perched ground water into

the interstate drainage system (Pratt et al., 1997). The land surface elevation

at this site is approximately 120 feet above sea level. The underlying

surficial zone potentiometric surface lies at an elevation of about 65 feet

above sea level.

The surficial zone of the sand and gravel aquifer is dissected by the

Perdido and Escambia Rivers as well as by many smaller streams. Where

the streams and rivers have eroded into the water table, ground water

may discharge as springs or seeps and form steephead ravines. This has

resulted in the development of numerous independent flow systems within

the surficial zone. These steephead stream systems consist of an upland

recharge area and adjacent lowland (perennial stream) discharge area.

Steephead ravine development is particularly prevalent in the northern half

of the county where topographic relief is greatest. In the southern half of

the county, much of the surface discharge from the surficial zone occurs as

discharge to the bays and bayous.

Where baseflow predominates, the water quality of the aquifer can

influence the quality of the surface waters. Water quality of the sand and

gravel aquifer is characterized by low mineral content or low concentrations

of dissolved solids. Generally, concentrations of dissolved solids are less

than 50 milligrams per liter, except near the coast (Miller, 1997). Average

pH values are below 6, indicating acidic water with limited, if any,

buffering capacity.

Ground Water Quality Issues

Ground water has been contaminated by isolated pollution sources in

small localized areas of the basin. Leaking underground fuel storage tanks

have been identified as cleanup sites; dry cleaning solvent sites are sources

of contamination that are being addressed by the Department’s Waste

Management Division. In this basin, there are approximately 250 petroleum

facilities and 8 dry cleaners that have reported contamination. Additionally,

4 larger contaminated sites have been located in the basin. Waste

sites are shown in Figure 2.5.


• Beulah Landfill—This landfill was operated by the Escambia

County government from 1966 until all operations ceased in June

1984. The contaminated area is divided into two sections by Coffee

Creek. The site received municipal solid waste, domestic septic

tank waste, demolition debris, and municipal sludge. Benzene,

naphthalene, and pentachlorophenol were found in ground water

down gradient of sludge disposal sites. Exceedances of ground water

maximum contaminant levels were limited to a single on-site well

detection of benzene and one off-site well with naphthalene and

pentachlorophenol detections. This site was officially delisted from

the National Priorities List (NPL) with Department concurrence in

June 1998. Postclosure monitoring of the site continues. Escambia

County’s Comprehensive Plan designates the old landfill as a conservation

area and prohibits development on it (Department, 2006a).

• Pioneer Sand—This 20-acre site was operated from 1972 to 1981.

Construction debris, shredded automobile strippings, and various

industrial sludges and resins were dumped into the fill areas of this

sand mine. This fi ll area also received metal plating sludge from

the Pensacola Naval Air Station, as well as phenols and resin compounds

from the Reichold Chemical Company. Several leachate

streams existed at the base of the fill area. Environmental testing has

revealed no off-site contamination. However, long-term remediation

will be conducted until July 2011. This site was officially delisted

from the NPL with Department concurrence in August 1999

(Department, 2006b).

• Dubose Oil Products—This site is located near Cantonment and

was used for oil and hazardous waste storage and recycling from

early 1979 until 1982. The northern edge of the site is a low-lying

area forming the headwaters of Jacks Branch, which is a tributary of

the Perdido River. The site had varying degrees of contamination of

soil, surface water, and ground water with volatile and semivolatile

organics before remediation was approved by the U.S. Environmental

Protection Agency (EPA) and completed in October 2004.

During 2003, the Department agreed with the EPA proposal to

commence the deletion of the Dubose Oil Superfund Site from the

NPL (Department, 2006d).

• Maucher Property—This site is located at a private residence and

operates as a state-funded cleanup site near Molino. The property

owner purchased various military surplus supplies at auctions beginning

in the early 1970s. This site poses a threat to the underlying

aquifer. A public supply well operated by Molino Utilities is located

within 1 mile of the site. Additionally, a small stream is located

approximately 650 feet east of the site, which might reasonably

have received contaminant runoff. This stream leads to Cow Devil

Creek and eventually to the Perdido River. Fisheries and sensitive

environments are encountered within that surface water system.

Storage of military surplus items and damaged metal drums, some

containing hazardous materials, led to wide scale contamination


37

of ground water and soil primarily with trichloroethylene. On-site

investigations in 2004 found that a plume of contaminated ground

water extended beyond the property boundary. A final Decision

Memo recommending remedial cleanup actions is expected in 2006

(Department, 2006c).

Watershed Management Activities and

Processes

Over the past two decades, there have been several attempts at organizing

watershed management activities and preparing management plans to

address environmental issues in the basin. The following section describes

historical, current, and ongoing activities and processes to address water

quality problems.

History of Watershed Management

The EPA began the Perdido Bay Cooperative Management Project

in 1988 as part of the Near Coastal Waters Program. The purpose of the

project was to more accurately describe and defi ne the pollutant sources

present in this basin, engage and organize citizen involvement, create

an advisory task force, and develop and implement a management plan.

Studies characterizing the physical characteristics of the basin and land

use were completed by the Department, ADEM, and the U.S. Fish and

Wildlife Service (FWS). Citizen monitoring groups were established.

The role of the advisory task force was assumed by the Florida–

Alabama Water Resources Coordinating Council (FAWRCC). This

Council was created by resolutions of both the Florida and Alabama legislatures.

It was charged with recommending solutions to interstate pollution

problems. A product of the activities of the Resources Coordinating

Council was the preparation of the “Perdido Basin Management Strategies”

report in 1995.

The EPA funded collection and analysis of samples from the Perdido

Bay area by the FWS for contaminants analysis in 1989. Testing by the

FWS included chemical analysis of water, sediment, and biota; evaluation

of dioxin compounds; 10-day toxicity testing; and a fi sh health assessment.

The FWS presented the results in a “Toxics Characterization Report

for Perdido Bay, Alabama, and Florida” (Brim, 1993). Results of testing

indicated that there were detectable levels of contaminants at some locations

in the Perdido Bay area. Toxicity testing revealed that water and

sediments were not acutely toxic, but did indicate reduced water quality at

some locations.

The last organized initiative to develop a basin management plan

was undertaken in the late 1990s as part of the Department’s Ecosystem

Management Program and through collaboration with the FAWRCC. As

a final component of the Perdido Bay Cooperative Management Project,

the “Perdido Ecosystem Management Strategies” was prepared in 1998

(Miller, 1998). The Perdido Ecosystem Restoration Group provided much

of the content to the plan with funding for the plan provided by the Florida

Coastal Management Program. The Perdido Ecosystem Restoration Group


was created as a partnership of local and state governments and agencies

in both Florida and Alabama, and federal agencies and nongovernmental

organizations interested in the protection and restoration of the Perdido

River and Bay Basin. Updated and shortened summaries of management

issues originally identified as part of the Perdido Bay Cooperative Management

Project and Perdido Ecosystem Management Strategies plan are

summarized in Table 2.3.

Through a grant awarded to the Department’s Northwest District

Regulatory Office from the Coastal Zone Management Program, a volunteer

water quality monitoring initiative was undertaken in Perdido Bay

from August 1999 to September 2000 (Department and Alabama Coastal

Foundation, 2000). The effort engaged local volunteer watershed organizations

and was coordinated with the Alabama Coastal Foundation.

Table 2.3: Summary of Management Issues in the Perdido River

and Bay Basin

Issue Category

Water Quality

Nonpoint Source

Runoff

Watershed

Management

Problem

Nutrient inputs to Perdido Bay leading to

eutrophication

Impact of International Paper discharge on Elevenmile

Creek and Perdido Bay

Dirt road erosion and subsequent deposition of dirt

in streams. Result is loss of benthic habitat and

declines in water quality.

Loss of seagrass acreage

Stormwater runoff causes erosion of streambeds

and water quality impacts

Poor implementation of agriculture and forestry

best management practices (BMP) to control runoff

Lack of stormwater management plans

Lack of interstate coordination between Florida and

Alabama

Watershed Partners

A number of government agencies and watershed organizations are

active in the basin. Much of the progress in the Perdido River and Bay

Basin for developing water quality restoration plans and implementing

watershed and water quality improvements is attributable to coordinated

local, state, and regional efforts. Many plans share common goals, and

their implementation is based on various groups playing critical roles

in planning, funding, managing, and executing projects. The Department

continues to coordinate its efforts with these entities to obtain data,

strengthen monitoring activities, and exchange information through

periodic meetings. The implementation of TMDLs and continued

improvement of water quality will depend on the collaborative efforts of

the Department’s local partners. The local agencies and organizations

and their role in the basin are summarized in Table 2.4. The activities of

nongovernmental organizations located in both Florida and Alabama are

described in more detail in the following sections.


39

Table 2.4: Summary of Organizations in the Perdido River and Bay Basin and Their Role in

Total Maximum Daily Load Development and Implementation

Organization

Government Organizations

Department

Northwest Florida Water

Management District (NWFWMD)

Escambia County

Florida Division of Forestry

Florida Department of Agriculture

and Consumer Services

Alabama Department of


U.S. Fish and Wildlife Service

Florida Fish and Wildlife

Conservation Commission

Role

Total maximum daily loads (TMDLs), land conservation, water quality improvement,

monitoring, wetland permitting, park and recreation area management, and

National Pollutant Discharge Elimination System (NPDES) permitting

NWFWMD assists Department with water quality data collection; land

conservation

Engineering Department—road paving and stormwater management

Neighborhoods and Environmental Services Department—water quality

monitoring support, land conservation

Implementation of BMPs for silviculture

Implementation of BMPs for agriculture

TMDL development, NPDES permitting within Alabama

Environmental testing, fish assessment, listing of endangered species

Listing of endangered species, fish assessments, water quality testing

Perdido River and Bay Basin Organizations

Bream Fisherman’s Association Water quality monitoring support

Friends of Perdido Bay

Environmental advocacy group with focus on International Paper Company

permit allowing discharge into Elevenmile Creek

Coastal Alabama Clean Water

Partnership

Wolf Bay Watershed Watch/Wolf

Bay Watershed Project

Group that implements watershed management solutions for TMDLs developed

within Alabama

Water quality monitoring; prepared watershed management plan for Wolf Bay

Basin

Coastal Alabama Clean Water Partnership

The Coastal Alabama Clean Water Partnership is a coalition of

Alabama government agencies, private organizations and citizens, and

businesses created to provide solutions for the protection and preservation

of aquatic resources in Alabama. The Coastal Alabama Clean Water Partnership

specifically works with the Perdido River and Bay Basin, Mobile

Bay Basin, and Escatawpa River Basin within Alabama. The partnership

is a project of the Mobile and Baldwin County Alabama Soil and Water

Conservation Districts and the ADEM. Project facilitation is provided by

Auburn University Marine Extension and Research Center. A Steering

Committee composed of environmental interests, government, and business

interests directs the activities of the partnership by setting policy and

providing oversight.

Wolf Bay Watershed Watch

Wolf Bay Watershed Watch is a community advocacy group whose

mission is to promote the protection and preservation of the natural

resources of the Wolf Bay Watershed (Alabama Water Watch, 2002). Wolf

Bay is connected to the western end of Perdido Bay in Alabama. This


watershed organization is affi liated with the larger Alabama Watershed

Watch organization coordinated by Auburn University’s Department of

Fisheries Allied Aquaculture and International Aquaculture and Aquatic

Environments. Wolf Bay Watershed Watch, formed in 1998, collects water

quality samples from Wolf Bay and Perdido Bay, and members participate

in coastal cleanups. More recently the advocacy group participated in

the preparation of a nonpoint source pollution management guide called

the “Wolf Bay Plan: A Stakeholders Guide to Protecting the Watershed”

(Wolf Bay Watershed Project, 2005). The Wolf Bay Watershed Project is

a multiagency initiative formed for the purpose of developing the plan for

improving and protecting Wolf Bay. The plan was prepared with funding

from an ADEM Clean Water Act, Section 319 grant.

Friends of Perdido Bay/Perdido Bay Foundation

The Friends of Perdido Bay was formed in response to wastewater

discharges from International Paper’s Kraft paper plant located in Cantonment

(http://www.friendsofperdidobay.com). The Friends have participated

with government and other interest groups with a 2000 plan for

monitoring Perdido Bay.

The Perdido Bay Foundation is a charitable trust formed in 1997 for

the purpose of improving water quality in Perdido Bay (http://www

.perdidobay.us/page/izuz/home). Activities of the foundation are organized

and coordinated through a Board of Directors. Both organizations

are tax exempt.

Bream Fisherman’s Association

The Bream Fisherman’s Association is a volunteer organization

dedicated to improving water quality in northwest Florida. The organization

has assisted the Department with water quality data collection since

the 1970s.

Major Water Quality Improvement Programs and Projects

Several different regulatory, restoration, and protection initiatives have

been initiated in this basin.

Stormwater Management

Urban nonpoint source runoff is regulated through the National

Pollutant Discharge Elimination System’s (NPDES’s) Municipal Separate

Storm Sewer Systems (MS4) permits. Escambia County was granted an

MS4 permit under phase 1 of the federal program as a copermittee with the

city of Pensacola, town of Century, and Florida Department of Transportation.

The permit was renewed in May 2004 for another five-year period

(Escambia County Engineering Department Web Site). As part of the

MS4 program, Escambia County’s Stormwater Program, with the assistance

of consultants, has delineated the county into 41 drainage basins or

watersheds (http://www.co.escambia.fl.us/departments/engineering/default

.php). Individual drainage basins have been numerically ranked based on

severity of water quality and drainage issues to establish an order of priority

for remediation. A countywide Stormwater Master Plan has been completed

(Hatch Mott MacDonald, 2004). Drainage plans have either been


41

completed or are underway for 13 individual drainage basins. Contained

within each plan are descriptions of current stormwater structural controls

and identified and recommended water quality and drainage improvement

projects. Escambia County’s Engineering Department has completed the

inventorying and mapping of private and public stormwater ponds (http://

www.myescambia.com/department/engineering/documents; http://www

.myescambia.com/departments/engineering/DrainageBasins.php). Additionally,

as part of the drainage evaluation for each basin, a survey of

resident concerns for drainage and water quality is conducted.

Funding for stormwater retrofits is provided by a local option sales tax

(LOST). The tax was approved by Escambia County voters in 1992. The

intent of the tax is to help pay for capital improvement projects that address

flooding, improve access to residential and commercial properties (improve

transportation), and improve stormwater quality (Hatch Mott McDonald,

2004). The LOST became effective June 1, 1992, and was renewed by a

voter referendum in 1999. The tax expires on May 31, 2007, unless reapproved

by voters. If approved, the third local option sales tax will be in

effect until December 31, 2017 (Escambia County, 2006).

Revenue generated by LOST has provided money to pave dirt roads

and improve drainage and transportation. In total, as of February 2003,

$37.3 million had been spent for projects to primarily improve drainage,

$28.4 million to primarily improve transportation, and $16.2 million to

pave dirt roads (Hatch Mott McDonald, 2004).

Agricultural Best Management Practices

The Florida Watershed Restoration Act authorizes the Florida Department

of Agriculture and Consumer Services (DACS) to develop interim

measures and agricultural BMPs. Additional authority for agricultural

BMPs is provided in legislation on nitrates and ground water (Section

576.045, F.S.), the Lake Okeechobee Protection Program (Section

373.4595, F.S.), Agricultural Water Conservation (Section 570.085, F.S.),

and Florida Right to Farm Act Amendments (Section 823.14, F.S.). While

BMPs are often adopted by rule, they are voluntary if not covered by regulatory

programs. If they are adopted by rule and the Department verifies

their effectiveness, then implementation provides a presumption of compliance

with water quality standards.

Over the last several years, DACS has worked with agriculturists, soil

and water conservation entities, the University of Florida’s Institute of Food

and Agricultural Sciences, and other major interests to improve product

marketability and operational efficiency by implementing agricultural

BMPs, while at the same time promoting water quality and water conservation

objectives. In addition, programs have been established and are being

developed to create a network of state, local, federal, and private sources of

funds for developing and implementing BMPs.

Manuals and other Publications for Best Management Practices

To encourage growers to use BMPs, manuals have been published for

a number of Florida agricultural industries, including container-grown

plants, blended fertilizer plants, agrichemical handling and farm equipment


maintenance, cow/calf operations, aquaculture, citrus, and landscaping.

Many of these manuals can be downloaded at http://www.dep.state.fl.us/

water or http://www.floridaagwaterpolicy.com. Manuals for row crops,

equine or horse farms, and ornamental nurseries are currently being developed.

The row crop BMP manual will be of particularly great importance

for this basin. The use of a BMP manual alone, however, does not afford a

presumption of compliance with the Department’s water quality standards.

In general, qualifying for a presumption of compliance requires that a sitespecific

BMP assessment process be in place or that practices being used

have been proven effective through research and demonstration.

• Guide for Producing Container Grown Plants: This manual,

published in 1995 by the Southern Nurserymen’s Association,

includes irrigation and fertilization BMPs for the container cultivation

of nursery plants. It was produced through a cooperative effort

between the University of Florida, Auburn University, Tennessee

Tech University, and Virginia Tech. Since the manual is not Florida

specific, an effort is currently under way to use the document in

developing a Florida-specific manual.

• BMPs for Agrichemical Handling and Farm Equipment Maintenance:

This 1998 document was a cooperative effort between

DACS, the Department, other state and federal agencies, the agricultural

industry associations, and the land grant universities. The

document discusses practices for pollution prevention on the farm.

It is an educational, not a regulatory, document and has been well

received by the industry. Recently revised and reprinted in March

2000, this manual gives producers guidance on hazardous materials,

proper pesticide handling, and the proper disposal of waste products.

It is the intent of the Department to distribute this document statewide

to all persons or businesses engaged in agricultural activities.

It is available at no charge through the County Extension Service

offices, Soil and Water Conservation District offices, Department

offices, the Florida Farm Bureau, and several trade organizations.

• Water Quality BMPs for Cow/Calf Operations: Many cattle

operators statewide have been trained in using this manual and are

applying BMPs. The Florida Cattlemen’s Association and several

state, federal, and local agencies developed the manual, which was

published in 1999. Copies were printed and distributed in 2000

using EPA Section 319 grant funds. Currently, this BMP has only

been implemented in the Lake Okeechobee Basin.

• Aquaculture BMPs: As directed by the 1998 Florida legislature,

DACS worked cooperatively with industry, state agencies, and the

environmental community to develop a comprehensive BMP manual

for aquaculture. Florida law requires that the Department adopt the

manual by rule and provides regulatory exemptions under Chapters

373 and 403, F.S., for growers who implement BMPs and are certified

by DACS’ Division of Aquaculture. The manual, which was

printed and distributed in 2000, has been adopted by rule.


43

• Florida Green Industries BMPs for Protection of Water

Resources in Florida (Industrias En Áreas Verdes De Florida

Las Prácticas Más Adecuadas Para la Conservación del Agua en

Florida): This manual, published in June 2002 and also printed in

Spanish, was developed jointly by the Florida Green Industries, the

Department, DACS, DCA, water management districts, and University

of Florida. It provides information and guidance on turf grass

and landscape management practices for the purpose of conserving

and protecting Florida’s water resources. Practices cover establishment

of new turf and landscapes and the care of existing turf and

landscapes, including construction activities, irrigation, nutrient

management, and pest management. A smaller summary book is

also available on-line at http://www.dep.state.fl.us/water/nonpoint/

docs/nonpoint/Summary_BMP_book_final.pdf.

Land Conservation

Conservation and preservation of natural lands is also an effective

means of protecting water quality. Through land acquisition programs,

such as Florida Forever, funds have been provided for the purchase of

critical lands because of their importance in providing important habitat,

protecting rare and imperiled species, or protecting water quality. Some of

the basin’s conservation lands are depicted in Figure 2.2.

Within the Perdido River and Bay Basin are several conservation areas.

The Perdido Pitcher Plant Prairie is a unique savannah-type system that

is home to the rare white top pitcher plant. The prairie is approximately

7,661 acres in size with 4,070 acres in state ownership as part of the Tarkiln

Bayou Preserve State Park (Department, 2003). The most recent addition

of 226 acres occurred in 2004. The Tarkiln Bayou Preserve State Park

contains 100 other rare and imperiled plants and animals.

The Betty and Crawford Rainwater Perdido River Nature Preserve

protects an additional 2,331 acres, including 8 miles of river front, along

the Perdido River (FNAI, 2005b). The white top pitcher plant and numerous

other rare and imperiled plants are found on the preserve property.

The preserve land was purchased from International Paper by The Nature

Conservancy, which manages the land (Timber Mart–South Market Newsletter,

2003). The preserve is named for Betty and Crawford Rainwater,

whose trust contributed funds toward its purchase.

The Lower Perdido River Buffer was added to the Florida Forever

acquisition list in 2002. Future purchase of this property will add an additional

7,800 acres of conservation land along and near the Perdido River

north of the Betty and Crawford Rainwater Perdido River Nature Preserve

(Department, 2005 and FNAI, 2005b).

In Alabama, several tracts of land within the Perdido River watershed

in Baldwin County have been purchased. The Alabama Department of

Conservation and Natural Resources Forever Wild Land Trust Acquisition

Program, in partnership with NOAA’s Coastal Impact Assistance Program

funds, the Alabama Forestry Commission, and a U.S. Forest Service

Forest Legacy grant, purchased the following tracts of land: Perdido River

Longleaf Hills Tract in 2006, Lillian Swamp South Addition in 2003,


and Lillian Swamp-Caney Bayou Tract in 2003 (Alabama Department of

Conservation and Natural Resources, 2006). These tracts geographically

compliment the Nature Conservancy’s purchase of the Betty and Crawford

Rainwater Perdido River Nature Preserve and proposed state acquisition of

the Lower Perdido River Buffer.

Perdido Key State Park, Gulf Islands National Seashore, and Big

Lagoon State Park protect and preserve fragile coastal dune ecosystems,

scrub, and estuarine marsh ecosystems from development. These parks

provide important habitat for rare and imperiled species. The endangered

Perdido Key mouse is limited in range to dunes located on Perdido Key.

Four species of marine sea turtles —loggerhead, leatherback, Ridley, and

green sea—utilize these coastal parks for nesting. More detail about plants

and animals is contained in the “Biological Resources” section located

earlier in this chapter.

Gulf Coastal Plain Ecosystem Partnership

The Gulf Coastal Plain Ecosystem Partnership includes the following

government, business, and environmental interests: Department of

Defense, Department, Florida Division of Forestry, International Paper,

Conecuh National Forest, Nokuse Plantation, NWFWMD, and the

Nature Conservancy. The parties operate together under a 1996 Memorandum

of Understanding for the management of about 1 million acres of

northwest Florida and south Alabama. The partnership is directed by a

Steering Committee composed of two representatives of each participating

organization.

The purpose of the Plains Ecosystem partnership is to provide a collaborative

approach to the preservation and management of natural lands.

Members of the partnership have agreed to a set of land management

principles directed at ecosystem preservation through the use of prescribed

burns, recovering listed species, and sharing and exchanging relevant information

and technology on new land management techniques. Through

collaboration and pooling of resources, the partners are able to leverage the

purchase of additional conservation lands.

Within the Perdido River and Bay Basin, the partnership has provided

review and assistance for the Department’s Tarkiln Bayou Burn Plan and

assistance with purchases of the Betty and Crawford Rainwater Perdido

River Nature Preserve along the Perdido River.


45

Chapter 3: Preliminary Surface Water Quality

Assessment

Scope of the Preliminary Assessment

This chapter presents the results of a preliminary assessment of surface

water quality in the Perdido River and Bay Basin. The primary purpose of

this assessment is to determine if waterbodies or waterbody segments are to

be placed on the Planning List of potentially impaired waterbodies. The

listing will be in accordance with evaluation thresholds and data sufficiency

and data quality requirements in the Identification of Impaired Surface

Waters Rule (IWR) (Rule 62-303, Florida Administrative Code [F.A.C.]).

The results of the assessment will be used to identify monitoring priorities

in Phase 2 of the watershed management cycle and help the Florida Department

of Environmental Protection (Department) coordinate with regional

and local monitoring activities.

The chapter describes the planning units in the basin used as a basis

for the preliminary assessment. A section on each planning unit contains

a general description and summary of key water quality indicators (such

as nutrients, chlorophyll a, dissolved oxygen [DO], and microbiological

parameters). Permitted discharges, land uses, ecological status, and water

quality improvement plans and projects are summarized for each planning

unit. The discussion notes where applicable surface water quality criteria

have been exceeded and summarizes the report’s findings in maps, noting

potentially impaired waterbodies in each planning unit. The chapter also

contains background information on sources of data and on designated

use attainment, and explains the state’s integrated water quality assessment

process.

While potentially impaired waters and their causative pollutants are

identified, it is not within the scope of this report to identify discrete

sources of potential impairments. Information on the sources of impairment

will be developed in subsequent phases of the watershed management

cycle, including total maximum daily load (TMDL) development and

implementation.

Appendix A contains a discussion of the legislative and regulatory

background for TMDL development and implementation. The methodology

used to develop the Planning List is provided in Appendix B. The

complete text of the IWR is available at http://www.dep.state.fl.us/water/

tmdl/docs/AmendedIWR.pdf.


Sources of Data

The assessment of water quality in the Perdido River and Bay Basin

includes an analysis of quantitative data from various sources, some of

which are readily available to the public. These sources include the U.S.

Department of Environmental Protection’s (EPA’s) Legacy and “new”

STOrage and RETrieval (STORET) databases, the U.S. Geological Survey

(USGS), and the Florida Department of Health (DOH). The STORET

databases contain water quality data from a variety of sources, including

the Department, water management districts, local governments, and volunteer

monitoring groups. Appendix B contains a detailed description of

STORET and the methodology used to develop the Planning and Verified

Lists, based on the IWR.

Table 3.1 summarizes the main data providers who contributed to the

IWR Database for the Perdido River and Bay Basin for the period of record

used in this assessment. Figure 3.1 contains a chart showing the amount

of data provided by each source.

The Department and the Bream Fisherman’s Association collect most

of the water quality data in the basin. The Bream Fisherman’s Association

is a volunteer group that assists the Department with water quality

sample collection with analyses performed by the Department. The Bream

Fisherman’s Association has assisted the Department since the late 1970s.

Table 3.1: Data Providers in the Perdido River and Bay Basin Including Number of Sample Tests by Year

Organization 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2001 2003 2004 Total

U.S. Geological Survey

(USGS)

148 5 10 20 25 15 8 20 251

National Park Service

(NPS)

Alabama Department

of Environmental

Management (ADEM)

Bream Fisherman’s

Association

State of Florida

Department of Health

(DOH)

Florida Marine Research

Institute (FMRI)

Florida Fish and

Wildlife Conservation

Commission (FWC)

294 266 6 6 572

360 313 139 45 857

746 750 994 1,552 2,569 4,699 3,746 3,317 3,437 1,475 1,001 1,009 938 1,341 1,073 28,647

33 80 115 158 124 510

29 29

258 258

Florida LakeWatch 31 10 23 64


Management District

(NWFWMD)

1,296 426 1,722

Department of

Environmental

Protection (Department)

1,484 1,024 894 403 372 671 532 1,127 2,369 2,447 2,404 2,469 3,072 3,471 2,451 25,190


47

Perdido River and Bay Data Providers

Number of Samples

35,000

30,000

25,000

20,000

15,000

10,000

5,000

0

U.S. Geological Survey

National Park Service

Alabama Department of


Bream Fisherman’s Assn.

Florida Department of Health

Florida Marine Research

Institute

Florida Fish and Wildlife

Conservation Commission

Florida LakeWatch


Management District

Florida Department of

Environmental Protection

Figure 3.1: Data Providers in the Perdido River and Bay Basin

The Northwest Florida Water Management District (NWFWMD)

participates in the Department’s status and temporal variability monitoring

programs. The water management district assists with sample collection for

these programs.

The DOH initiated the Healthy Beaches Program in 1998 as a pilot

monitoring program with expansion to include all the state’s coastal counties

in August 2000. Escambia County’s Health Department participates

in the program with weekly monitoring of beaches for enterococcus and

fecal coliform bacteria. County health departments issue health advisories

or warnings when bacterial counts are too high.

In 2002, the Department created the IWR Database to evaluate data

in accordance with the methodology prescribed in the Identification of

IWR (Rule 62-303, F.A.C.). For the Planning List assessment, the data

evaluation period of record is 10 years, and for the Verified List, 7.5 years.

Table B.2 in Appendix B shows the periods of record for the Group 1

through 5 basins for the Verified and Planning Lists in the fi rst basin

rotation cycle. Data collected between January 1, 1994, and December 31,

2003, were evaluated to establish the Planning List for the Perdido River

and Bay Basin using IWR Run 19.1 (Department, 2005).

To support listing decisions, the evaluation of water quality in this

basin also includes qualitative information drawn from data in technical

reports and documents that are not yet included in the database. Some

of these sources include historical water quality or ecological information

that was not uploaded to the database because of its qualitative treatment

of issues.


Attainment of Designated Use

While the designated uses of a given waterbody are established using

the surface water quality classification system described in Chapter 2, it

is important to note that the EPA uses slightly different terminology in

its description of designated uses. Because the Department is required to

provide use attainment status for both the state’s 305(b) report and the

state’s 303(d) list of impaired waters, the Department uses EPA terminology

when assessing waters for use attainment. The water quality evaluations

and decision processes that are defined in Florida’s IWR for listing

impaired waters are based on the following designated use attainment

categories:

Aquatic Life Use Support-Based Attainment

Primary Contact and Recreation Attainment

Fish and Shellfish Consumption Attainment

Drinking Water Use Attainment

Protection of Human Health

Table 3.2 summarizes the designated uses assigned to Florida’s various

surface water classifications.

Table 3.2: Designated Use Attainment Categories for Surface

Waters in Florida

Designated Use Attainment Category Used in

Impaired Surface Waters Rule Evaluation






Applicable Florida Surface

Water Classification

Class I, II, and III


Class II

Class I


Integrated Report Categories and Assessment

Overview

The EPA has requested that the states merge their reporting requirements

under the Clean Water Act for Section 305(b) surface water quality

reports and Section 303(d) lists of impaired waters into an Integrated Water

Quality Monitoring and Assessment Report (Wayland, 2001). Following the

publication of the Status Report and further data evaluation, the Department

will produce an Assessment Report integrating the 303(d) list and the

305(b) report for the basin.

Following the EPA’s guidance, the Department delineated waterbodies

or waterbody segments in each of the state’s river basins, assessed them for

potential impairment based on individual parameters, and grouped them

into one of five major assessment categories and subcategories. These categories

provide information on a waterbody’s status based on water quality,


49

sufficiency of data, and the need for TMDL development (Table 3.3).

This Status Report contains a preliminary evaluation of waterbodies that

fall into integrated report Categories 1 through 3 in the table.

Not enough recent data on chemistry, biology, and fish consumption

advisories have been collected; therefore, currently only a few waterbodies

or waterbody segments statewide fall into Category 1 (attaining all uses).

In particular, fish tissues in many waterbodies statewide have not been

tested for mercury. None of the waterbodies in the Perdido River and Bay

Basin are in Category 1.

More waterbodies and segments statewide fall into Category 2 (attaining

some uses but with insufficient data to assess completely) than Category

1 (attaining all uses), because monitoring programs can sometimes

provide sufficient data for partially determining whether a designated use in

a particular waterbody is attained. Seven waterbody segments in the basin

fall into Category 2.

However, most waterbodies in the state fall into Category 3 (having

insufficient data). The breakdown of waterbodies or segments in Category

3 is as follows:

• Category 3a—33 segments for which no data are available to determine

their water quality status;

• Category 3b—10 segments with some data but not sufficient data for

making any determinations;

• Category 3c—10 segments that are potentially impaired based on the

Planning List criteria; and

• Category 3d—8 segments that may be impaired based on the Verified

List criteria, but require further evaluation.

Numerous Category 3c or 3d waters either fail to meet water quality

standards for DO or show signs of biological stress or nutrient impairment.

According to the IWR, specific pollutants causing DO exceedances or

biological stress, or an underlying nutrient imbalance creating an imbalance

in flora or fauna, must be documented for a waterbody or segment to be

listed as impaired on the Verified List. Sometimes these conditions cannot

be linked to a causative pollutant, and sometimes they may reflect natural

background conditions.

Once the Verified List is developed, waterbodies will be further categorized

into Categories 4 and 5. Category 4 includes those waterbodies/

segments that are impaired but do not require a TMDL for one of the

following three reasons:

• Category 4a—a TMDL has already been developed,

• Category 4b—there is reasonable assurance that the designated use

of an impaired waterbody will be attained by an existing or proposed

pollutant control measure, and

• Category 4c—the impairment is not attributable to a pollutant or

pollutants, but is due to natural conditions or physical/hydrologic

alterations to the waterbody.

Understanding the

Terms “Pollutant”

and “Pollution”

For purposes of the TMDL

Program, pollutants are

chemical and biological

constituents, introduced by

humans into a waterbody,

that may result in pollution

(water quality impairment).

There are other causes of

pollution, such as physical

alteration of a waterbody

(for example, canals, dams,

and ditches). However,

TMDLs are established only

for impairments caused by

pollutants (a TMDL quantifies

how much of a given pollutant

a waterbody can receive

and still meet its designated

uses).

Waterbodies that are verified

impaired due to specified

pollutants, and therefore

require a TMDL, are listed

under Category 5 in the Integrated

Assessment Report;

waterbodies with water quality

impairments due to other

causes, or unknown causes,

are listed under Category 4c.

Although TMDLs are not

established for Category 4c

waterbodies, these waterbodies

still may be addressed

through a watershed management

program (for example,

the Kissimmee River

Restoration). Waterbodies

with impairments attributed

to natural conditions are

listed under Category 4c.


Table 3.3: Categories for Waterbodies or Waterbody Segments in the 2002 Integrated Report

Category Description Comments

1 Attaining all designated uses If use attainment is verified for a waterbody or segment

that was previously listed as impaired, the Department will

propose that it be delisted.

2 Attaining some designated uses

and insufficient or no information

or data are present to determine if

remaining uses are attained

3a

3b

3c

3d

4a

4b

4c

No data and information are

present to determine if any

designated use is attained

Some data and information are

present but not enough to determine

if any designated use is

attained

Enough data and information are

present to determine that one or

more designated uses may not be

attained according to the Planning

List methodology

Enough data and information are

present to determine that one or

more designated uses are not attained

according to the Verified List

methodology

Impaired for one or more designated

uses but does not require TMDL

development because a TMDL has

already been completed

If attainment is verified for some designated uses of a

waterbody or segment, the Department will propose partial

delisting for the uses attained. Future monitoring will be

recommended to determine if remaining uses are attained.

Future monitoring will be recommended to determine if

designated uses are attained.

Future monitoring will be recommended to gather sufficient

information and data to determine if designated uses are

attained.

This indicates a waterbody or segment is potentially impaired

for one or more designated uses. These waters will

be prioritized for future monitoring to verify use attainment

or impaired status .

This indicates that a waterbody or segment exceeds Verified

List evaluation criteria and may be listed as impaired

at the end of Phase 2 of the watershed management cycle.

However, the data have not yet been fully evaluated and the

waters have not been formally verified as impaired. Further

monitoring and analysis may be necessary.

After the EPA approves a TMDL for the impaired waterbody

or segment, the TMDL will be included in a Basin Management

Action Plan to reduce pollutant loading toward attainment

of designated use(s).


uses but does not require TMDL water quality standards within a reasonable time frame are

Pollutant control mechanisms designed to attain applicable

development because the water will either proposed or in place.

attain water quality standards due

to existing or proposed measures


uses but does not require TMDL

development because impairment

is not caused by a pollutant

5 One or more designated uses are

not attained and a TMDL is

required

This category includes waterbodies or segments that are

impaired because of naturally occurring conditions or

other causes of pollution. The impairment is not caused

by specific pollutants. (See sidebar on previous page for a

discussion of the difference between the terms “pollutant”

and “pollution.”)

Waterbodies or segments in this category are impaired for

one or more designated uses by a pollutant or pollutants.

Waters in this category are included on the basin-specific

Verified List adopted by the Department’s Secretary as

Florida’s impaired waters list and submitted to the EPA as

Florida’s 303(d) list of impaired waters at the end of Phase 2.

Note: The descriptions in Table 3.3 are consistent with the EPA’s integrated assessment categories. In the

Status Reports for Groups 1 through 3 and in the Assessment Reports for Groups 1 through 2 that were previously

produced, Categories 4b and 4c were reversed. That is, the description of Category 4b was previously

listed as Category 4c, and the description of Category 4c was listed as Category 4b.


51

Category 5 waterbodies are determined to be impaired and require

TMDLs. These are included on the Verified List of impaired waters

adopted by the Department’s Secretary. However, no waters are formally

assigned to this category until the listing process has been completed, even

though sufficient data may be available and a waterbody may meet the

requirements for impairment under the IWR.

Planning Units

The Perdido River and Bay Basin encompasses approximately 1,219

square miles, 399.6 square miles of which is within Florida. To provide a

more detailed geographic basis for identifying and assessing water quality

improvement activities, the basin was subdivided into smaller areas called

planning units. Planning units in this basin were based on hydrological

units. Planning units help organize information and management strategies

around prominent watershed characteristics.

Water quality assessments were conducted for waterbody segments

within planning units. Each of these smaller, hydrologically based drainage

areas within a planning unit is assigned a unique waterbody identification

number (WBID). Waterbody segments are assessment units (or geographic

information system polygons) that the Department used to defi ne waterbodies

when it biennially inventoried and reported on water quality to the

EPA under Section 305(b) of the federal Clean Water Act. These WBIDs

are the assessment units identified in the Department’s lists of impaired

waters submitted to the EPA in reports under Section 303(d) of the Clean

Water Act.

Although WBIDs often encompass several waterbodies, water quality

data usually reflect the main waterbody conditions within a polygon. In

some instances, however, the data from several waterbodies within the polygon

have been aggregated. As the water quality assessments are refined in

Phase 2 of the watershed management cycle, individual waterbodies within

these aggregations that have unique water quality concerns will be assigned

unique WBIDs and evaluated individually.

The Perdido River and Bay Basin contains two planning units:

Perdido River and Perdido Bay. Figure 3.2 shows their locations and

boundaries. In general, planning units are delineated as the drainage

boundaries of watersheds that drain to major rivers and bays. Major river

and bay watersheds in the Panhandle are typically defined by unique

hydrologic unit (HUC) codes.

The remainder of this chapter provides a general description of each

planning unit, information on land use and potential point sources of pollution,

water quality assessments for individual waterbody segments, and

summaries of ecological issues and watershed quality improvement plans

and projects.

To determine the status of surface water quality in the Perdido River

and Bay Basin, chemistry data, biological data, and, if available, fi sh

consumption, bathing beach closures, and shellfish-harvesting advisories

were evaluated to determine potential impairment. Appendix B contains


Figure 3.2: Locations and Boundaries of Planning Units in the Perdido River and Bay Basin


53

a detailed description of the methodology used to determine potential

impairment. Appendix D contains definitions and specific methods for

the generation and analysis of bioassessment data. Appendix E includes

summary information, by planning unit, for permitted wastewater treatment

facilities and permitted landfill facilities in the basin. Appendix F,

which provides a water quality summary by planning unit, contains a list of

water quality monitoring stations and the integrated assessment summary.

Appendix G provides detailed land use information, by planning unit.

Assessment by Planning Unit

• Perdido Bay Planning Unit

General Description

The Perdido Bay Planning Unit (as delineated for assessment purposes)

is located in Escambia County, Florida, covers about 165 square miles,

and contains 28 segments or waterbodies with WBIDs. Nearshore

coastal waters are included as waterbodies. The boundary of the planning

unit generally follows the delineation for HUC 03140107. The boundary

between Florida and Alabama traverses the western part of Perdido

Bay. Major waterbodies include Perdido Bay, Big Lagoon, Tarkiln Bayou,

Elevenmile Creek, Tenmile Creek, Marcus Creek, Turner Creek, and

Eightmile Creek.

The larger cities within the planning unit are western Pensacola and

Warrington. Smaller communities include Gonzalez, Ensley, Bellview,

Brent, and Myrtle Grove.

Water Quality Summary

Ten segments within this planning unit are listed as potentially

impaired. Figure 3.3, a composite map of the planning unit, shows waters

on the 1998 303(d) list and the Planning List. Table 3.4 summarizes

the water quality assessment status of all waterbody segments in the planning

unit. A total of 87 water quality monitoring stations were assessed to

determine the impairment status of waterbodies within this planning unit.

Monitoring data were collected from 3 coastal, 51 estuarine, 7 lake, and

26 stream locations.

Four streams are listed as potentially impaired because of low DO and

two of those streams are also listed because of bacteria violations. Four

coastal segments are potentially impaired because of fi sh consumption advisories

based on high levels of mercury in fi sh. This is a limited consumption

advisory directed at marine and nearshore fish (Florida Department of

Health [DOH] 2005).

Unnamed Branch (WBID 725) was placed on the 1998 303(d) list

because of suspected impairment from fecal coliform bacteria. There are

no data available to assess this waterbody; thus, it is listed as Category 3a

in Table 3.5. This waterbody will be included on the Planning List.

Additional data will be collected during Phase 2 of the watershed cycle.

None of the waters in this planning unit are listed for nutrients.

Perdido Bay, Big Lagoon, Elevenmile Creek, and two segments that


Figure 3.3: Composite Map of the Perdido Bay Planning Unit, Including the 1998 303(d)

List and Planning List Waters


55

Table 3.4: Integrated Water Quality Assessment Summary for the Perdido Bay Planning Unit

WBID

Waterbody

Name

Type 1 Class 2 of Concern

1998 303(d)

Waterbody List Parameters

1004 Big Lagoon Estuary IIIM Chlorophyll a, DO,

Fecal Coliforms,

Total Coliforms,

Turbidity

1014 Direct Runoff

to Bay


to Gulf



489 Elevenmile

Creek

Data Evaluation under the Impaired Surface Waters Rule Criteria

Category 2 3 Category 3c 3 Category 3d 3 Category 4

Overall

Estuary IIIM 3b

Stream IIIF Chlorophyll a, DO,



Turbidity, Unionized

Ammonia

Conductance 3c

Estuary IIIM 3a

Stream IIIF BOD, DO, Fecal

Coliforms,

Nutrients,

TSS, Turbidity,

Unionized

Ammonia

Chlorophyll a,

Fluoride, Fecal

Coliforms, Histori -

cal Chlorophyll,


Turbidity

489A Tenmile Creek Stream IIIF Conductance, DO,


Ammonia

Unionized

Ammonia


Total Coliforms

Biology,

Conductance,

DO

489B Coffee Creek Stream IIIF 3b

624 Eightmile

Creek

Stream IIIF Fecal

Coliforms,

Turbidity

Conductance,



Ammonia

Biology, DO,

Fecal Coliforms

681 Hurst Branch Stream IIIF 3a

697 Marcus Creek Stream IIIF Fecal

Coliforms

Biology, Conductance,

Turbidity,

Unionized Ammonia

DO, Fecal

Coliforms,

Total Coliforms

697A Crescent Lake Lake IIIF 3b

725 Unnamed Branch Stream IIIF Fecal

3a

Coliforms

730 Turner Creek Stream IIIF 3b

763 Direct Runoff Stream IIIF 3a


779 Bellshead Branch Stream IIIF 3a



797 Perdido Bay Estuary IIIM DO, Nutrients Chlorophyll a, DO,

Fecal Coliforms, Historical

Chlorophyll,


Turbidity, pH

2

8001 Perdido Bay Gulf Coastal IIIM Mercury in Fish 3d

2

3d

3c

3c

3d


Table 3.4 (continued)

WBID

8001A

Waterbody

Name

Perdido Key

State Park


1998 303(d)




Overall

Coastal IIIM Fecal Coliforms Mercury in Fish 3d

8001B Johnson Beach Coastal IIIM Fecal Coliforms Mercury in Fish 3d

8001C Big Lagoon Coastal IIIM Fecal Coliforms Mercury in Fish 3d

State Park





872 Bridge Creek Estuary IIIM 3b

935 Unnamed

Stream

Stream IIIF DO Fecal Coliforms,



Ammonia

Conductance,

DO

945 Tarkiln Bayou Estuary IIIM 3b

974 Perdido Bay Estuary IIIM 3a



Notes:

Estuary IIIM DO Chlorophyll a, DO,



Turbidity, pH

1

The designation “stream” includes canals, rivers, and sloughs. The designation “lake” includes some marshes.

2

The state’s surface water classifications are as follows:

Class I: Potable water supplies

Class II: Shellfish propagation or harvesting

Class III: Recreation, propagation, and maintenance of a healthy, well-balanced population of fish and wildlife

Class IV: Agricultural water supplies

Class V: Navigation, utility, and industrial use (there are no state waters currently in this class)

3

The EPA’s 305(b)/303(d) Integrated Report categories are as follows:

1— Attains all designated uses;

2—Attains some designated uses;

3a—No data and information are available to determine if any designated use is attained;

3b—Some data and information are available, but they are insufficient for determining if any designated use is attained;

3c—Meets Planning List criteria and is potentially impaired for one or more designated uses;

4a—Impaired for one or more designated uses and the TMDL is complete;

4b—Impaired for one or more designated uses, but no TMDL is required because an existing or proposed pollutant

control mechanism provides reasonable assurance that the water will attain standards in the future; and

4c—Impaired for one or more designated uses but no TMDL is required because the impairment is not caused by a

pollutant;

5—Water quality standards are not attained and a TMDL is required.

4

The assessment categories listed in this column represent the status of each WBID as a whole, based on multiple parameters.

The hierarchy for assigning these categories is Category 5, then 4, then 3c, then 2, and then 3b, i.e., each WBID is assigned a

category based on the highest category assigned to an individual parameter. For example, if WBID 9999 has total coliforms as

Category 5, fecal coliforms as Category 3c, and coliforms-shellfish as Category 2, the single assessment call for the WBID is

Category 5.

BOD = Biological oxygen demand

DO = Dissolved oxygen

F = Fresh water

M = Marine

TSS = Total suspended solids

3c

2


57

transmit runoff to Perdido Bay and the Gulf of Mexico met their designated

use for nutrients and bacteria. With the exception of Elevenmile

Creek these same four segments also met criteria for DO. Historically,

fish kills occurred in the bay as a result of low DO levels (Department and

Alabama Coastal Foundation, 2000).

The erosion of dirt roads and subsequent deposition of dirt in streams

is a problem in many of the freshwater stream segments in this planning

unit. Hilly terrain and easily erodible soils contribute to the erosion

problem.

Permitted Discharges and Land Uses

Point Sources. Figure 3.3 shows permitted wastewater treatment

facilities, landfi lls, and hazardous waste sites in the planning unit (see

Noteworthy for a definition of point sources and discussions of environmental

remediation and delineated ground water contamination areas).

Table E.1 in Appendix E lists the basin’s domestic and industrial surface

discharge facilities, along with their permitted amount of wastewater

discharge. Table E.2 lists landfi lls or solid waste facilities.

There are 19 permitted wastewater dischargers in the Perdido Bay

Planning Unit in Florida: 15 are industrial dischargers, 1 is a petroleum

cleanup site, 1 is a permit for residuals, and 2 are domestic wastewater dischargers.

Sixteen of the permits are active and, of that number, 4 discharge

waste water to surface waters. The largest surface discharger of industrial

wastewater is International Paper’s Integrated Bleached Kraft Pulp and

Fine Paper Manufacturing Mill in Cantonment. The mill is permitted

to discharge up to 28 million gallons per day (mgd) into Elevenmile

Creek. There is a history of water quality problems and violations related

to this facility and International Paper has been under a Consent Order

since 1989 (with the previous owner of the mill, Champion International

Corporation). The largest surface water discharger of domestic wastewater

is the Bayou Marcus Water Reclamation Facility at 8.2 mgd. The only

other discharger permitted for more than 0.1 mgd is the Clark/Sand and

Dirt Rilling Hills Pit, allowed a discharge up to 2.3 mgd. The Naval Air

Station Pensacola also holds a permit for industrial stormwater.

There are additional wastewater dischargers in the Alabama portion

of the Perdido River and Bay Basin. These include, but are not limited to,

industrial waste discharges from Masland Carpets, Plasmine Tech, Baldwin

Pole and Piling, and Swift Lumber and domestic waste water discharges

from the cities of Foley, Atmore, Robertsdale, and Bay Minette (Department

and Alabama Coastal Foundation, 2000).

There are 29 landfi lls listed in Table E.2 in Appendix E. Only 3 of

those are solid waste facilities—the Mobile Highway Landfi ll, Auto Shredders

Industrial Landfi ll, and Klondike Landfi ll. All 3 are closed but are

monitored for potential contamination of ground water. The remaining

26 landfi lls are construction and demolition debris, many of which were

opened after Hurricane Ivan in 2004. As of August 2005, only 12 of the

construction and demolition debris landfills remained open.

There are two delisted National Priorities List (NPL) sites in this

planning unit: Beulah Landfi ll and Pioneer Sand. Figure 3.3 displays


ground water contamination areas associated with both sites. A discussion

of the threats to ground water from both of these sites is contained in the

“Ground Water Quality Issues” section in Chapter 2.

The 101-acre Beulah Landfill, located northwest of Pensacola, was

operated by Escambia County until June 1984. Coffee Creek, a tributary

of Elevenmile Creek, transects the property. The site received municipal

solid waste, domestic septic tank waste, demolition debris, and municipal

sludge. Sludge pits were located on the site. Benzene, naptholene, and

pentachlorophenol (PCP) were found in ground water down gradient of

the sludge pits and up gradient of Elevenmile Creek. Polyaromatic hydrocarbons,

pesticides, PCP, and metals were found in soils and residual sludge

on the site. A remedial Investigation and Feasibility Study completed in

1993 found low levels of contaminants on site. Exceedances of maximum

contaminant levels in ground water were limited to a single on-site well

detection of benzene and off-site single well detections of naphthalene and

PCP. Tributaries near the landfill were free of contamination. In 1993 the

county’s Comprehensive Plan designated the old landfi ll acreage as conservation

and prohibited any type of development on it. Though delisted in

1998, ground water monitoring continues (Department, 2005a).

The 20-acre Pioneer Sand Company site is located on Saufley Field

Road. It was operated from 1972 to 1981 as a disposal site for construction

debris, shredded automobile strippings, and various industrial sludges

and resins, which were dumped into the fi ll areas of this sand mine. This

fill area also received metal plating sludge from the Pensacola Naval Air

Station, as well as phenols and resin compounds from the Reichold Chemical

Company. Several leachate streams existed at the base of the fi ll area,

though environmental testing has revealed no off-site contamination.

With the signing of a Record of Decision, the state and EPA agreed that

the site would be remediated by long-term monitoring, grading and capping

of the landfi ll, and installation of a leachate collection system. Longterm

remediation will be conducted until July 2011. This site was officially

delisted from the NPL with Department concurrence in August 1999

(Department, 2005b).

Nonpoint Sources. Based on land use information delineated from

1995 aerial photography, the primary land use in this planning unit is

urban and built-up (36.6 percent). About half the urban area is represented

by medium density residential housing. High density residential

occupies about 6.6 percent of the planning unit area, while low density

residential occupies about 3.5 percent of the area. Industrial and commercial

uses account for another 3.4 percent of the total area. Agriculture is

also present in the planning unit (5.4 percent), with crop and pastureland

accounting for 4.9 percent of the area of the planning unit. Upland pine

forests cover 17.6 percent of the planning unit and wetlands cover another

16.7 percent of the total area. Tables G3 and G.4 in Appendix G summarize

land use information for the planning unit.

These land uses can be associated with nonpoint discharges of pollutants

and eroded sediments (see Noteworthy for a definition of nonpoint

sources). Urban stormwater is managed through National Pollutant

Discharge Elimination System (NPDES) municipal separate storm sewer

Noteworthy

Water Quality Status Report:


59

Information on Point Sources in Planning Units

Point sources discharging

pollutants to surface water or

ground water originate from

discrete, well-defined areas such

as a facility discharge from the

end of a pipe, a disposal well, or

a wastewater sprayfield. Point

sources generally fall into two

major types: domestic wastewater

sources (which consist of

sewage from homes, businesses,

and institutions) and industrial

wastewater sources (which

Environmental Remediation

Environmental remediation

activities cover a broad spectrum

of cleanup programs. These

include state-managed hazardous

waste, dry cleaning, and

petroleum cleanup programs,

as well as the federal Superfund

and Resource Conservation

and Recovery Act programs.

These programs are designed

to remediate ground water and

soil contamination that pose a

threat to public health and the

environment.

The National Priorities List

(NPL) is a consolidated list of

the uncontrolled hazardous

waste sites that pose the greatest

threat to public health or the

environment. Sites are listed on

The Department’s Delineation

Program was established

in response to the discovery of

ground water contaminated by

ethylene dibromide, a soil fumigant

that was historically used

in thirty-eight Florida counties

to control nematodes in citrus

groves and row crops. The program

currently includes ground

water contaminated by other pesticides,

industrial solvents, and

nutrients. However, the coverage

of delineated areas in this program

is not intended to include all

sources of contaminated ground

Rainfall generates stormwater

runoff. As it flows over the land

and through the ground, runoff

may carry nonpoint source pollutants

from many different sources

to lakes, rivers, and estuaries in a

include wastewater, runoff, and

leachate from industrial or commercial

storage, handling, or

processing facilities). Landfills,

hazardous waste sites, Dry Cleaning

Solvent Cleanup Program

sites, and petroleum facility discharges

are also considered point

sources. These sites have the

potential to leach contaminants

into ground water and surface

water.

the NPL upon the completion of

a preliminary assessment, site

inspection, and hazardous ranking

system evaluation to determine

their potential for adverse

impacts and priority for corrective

action. The EPA Superfund

program administers the cleanup

of NPL sites.

The Department’s state-funded

cleanup program administers the

cleanup of contaminated hazardous

waste sites when enforcement

action taken against a

responsible party is unsuccessful

or when no responsible party is

identified.

Brownfields are abandoned,

idled, or underused industrial

and commercial facilities where

Delineated Ground Water Contamination Areas

Nonpoint Sources and Land Uses

water in Florida. The Delineation

Program is designed to ensure

the protection of public health

when consuming potable ground

water supplies and to minimize

the potential for cross-contamination

of adjacent ground water

resources.

The Delineation Program’s

primary responsibilities are as

follows:

• Delineate areas of ground

water contamination,

• Implement a water well

construction permitting/application

process that requires

watershed, and into ground water

supplies. Nonpoint sources also

include atmospheric deposition

and leaching from agricultural

lands, urban areas, and unvegetated

lands. The pollutants in

Identifying the source of

waterbody impairment is an

important part of assessing

water quality and developing

TMDLs. As part of

this report, information is

presented on point sources,

including permitted facilities

that discharge wastewater

and landfills.

expansion or redevelopment

is complicated by real

or perceived environmental

contamination. The EPA

launched the Brownfields

Economic Redevelopment

Initiative in January 1995 to

empower states, communities,

and other stakeholders

in economic redevelopment

to work together in a timely

manner to prevent, inventory,

assess, safely clean

up, and sustainably reuse

Brownfields. The federal and

state Brownfields program is

funded through the Superfund

taxing authority.

stringent construction

standards, and

• Require water testing after

completion of the well to

ensure the potable quality

of the water source.

Any newly-constructed

water wells in delineated

areas, and existing water

wells found to be contaminated,

are remediated by

installing individual water

treatment systems or by connecting

the users to public

water supply systems.

runoff often include fertilizers,

bacteria, metals,

sediments, and petroleum

compounds.


system (MS4) permits. Escambia County, Pensacola, and Florida Department

of Transportation are copermittees under one MS4 permit. The

permit only applies to publicly owned stormwater management systems.

Ecological Summary

The lower reaches of the Perdido River cut through soil hardpans to

form low but steep bluffs and escarpments around the bay and lower river

segments (Florida Department of Natural Resources [DNR], 1989).

The Perdido Bay area provides important habitat for several rare and

imperiled species. Bass et al. (2004) confi rmed the presence of the saltmarsh

topminnow during field sampling in 2001 to 2002 in tributaries

of the Perdido Bay watershed. Striped bass use the Perdido River and

Bay throughout its length (DNR, 1989). The Gulf race of the Atlantic

sturgeon (Acipenser oxyrinchus de sotoi) utilizes the Perdido River as

documented by the Alabama Geological Survey in 2004 (referenced in

Bass et al., 2004).

The state listed black skimmer, least tern, snowy plover, and federally

listed threatened piping plover nests along the sandy coastal beaches (Gulf

Islands National Seashore, 2006a and Florida Natural Areas Inventory

[FNAI], 2005a). Perdido Key is the home of the federally endangered

Perdido Key mouse (Gulf Islands National Seashore, 2006b). Sea turtles

use the planning unit’s sandy beaches as nesting habitat. Sea turtle species

include the loggerhead, green, Ridley’s, and leatherback (Gulf Islands

National Seashore, 2006c).

Perdido Bay has three species of seagrasses: turtle grass (Thalassia testudinum),

shoal grass (Halodule wrightii), and widgeon grass (Ruppia maritime).

Seagrasses provide habitat for many commercially and recreationally

important species, including shrimp (Penaeus sp.), crabs (Callinectes sp.),

scallops (Argopecten sp.), speckled trout (Cynoscion sp.), redfish (Sciaenops

sp.), and mullet (Mugil sp.). Eel grass (Vallisneria americana) is also present

in fresh water and brackish water portions of the bay. Comparison

of acreage of submerged vegetation between 1941 and 1992 revealed that

total bay acreage had decreased by 74 percent to 307.1 acres (Kirschenfeld,

Turpin, and Handley, 2006). From 1940 to 1987 the area around Lillian

(Upper Perdido Bay) showed an increase in acreage of seagrass (Miller,

1998), but subsequently declined to 3.3 acres in 1992 (Kirschenfeld et al.,

2006). Seagrasses were not detected in the Middle Perdido Bay, and the

Lower Perdido Bay declined to about 303.8 acres based on analysis of 1992

data (Kirschenfeld et al., 2006). More recent data (2003) indicated about

300 acres of shoal grass remained in Perdido Bay (Gulf of Mexico Program

Habitat Team, 2004). Most of this acreage is located around or near Ono

Island and Big Lagoon (Department, 2001b.)

Sediments from numerous locations in the Perdido Bay area, Bayou

Marcus, Tarkiln Bay, Bayou Garcon, and Elevenmile Creek were collected

by the U.S. Fish and Wildlife Service in 1989 and the Alabama Department

of Environmental Management (ADEM) from 1993 to 1994. Sediment

samples were analyzed for organic contaminants and trace metals.

Only polyaromatic hydrocarbons were found in sediments in detectable

amounts, but levels were below recommended threshold effects level


61

guidelines. Concentrations below the threshold effects levels are considered

to be concentrations that should not cause biological effects. Pesticides and

polychlorinated biphenyls were not detected. Varying levels of trace metals

were found and in some instances concentrations exceeded threshold effects

levels and in a few instances exceeded possible effects levels developed as

sediment quality guidelines for metals. Sediment quality guidelines consider

possible effects levels to be the concentrations of specific trace metals

that would most likely cause biological effects. Most exceedances of threshold

effects and possible effects levels were found for Elevenmile Creek,

Tarkiln Bayou, and Bayou Garcon (Miller, 1998; Brim, 1993).

Water Quality Improvement Plans and Projects

The Department issued a Notice of Intent to issue a new permit for

International Paper Company in April 2005. Along with the permit is a

Consent Order requiring corrective actions that will improve the treatment

of the plant’s discharge. Improvements include the construction of

treatment wetlands bordering Elevenmile Creek and Perdido Bay. The

discharge from the Kraft mill will be mixed with 5 mgd of wastewater from

an Emerald Coast Utility Authority advanced wastewater treatment plant

before discharge to the wetland (Department, 2005).

In 1991, Escambia County had 282 miles of unpaved dirt roads. More

than 100,000 cubic yards of fi ll material per year were used by the county

to grade dirt roads. Most of the material washed off the roadways and frequently

entered streams or stormwater drainage systems. Escambia County

started the Hilltop to Hilltop Paving Project to address dirt road problems.

Countywide, 120 miles of dirt road have been paved and best management

practices (BMPs) for those newly paved dirt roads instituted as of the end

of 2002. BMPs generally constitute creation of grass-lined swales and a

greater frequency of road grading. Within the Perdido Bay Planning Unit,

32.1 miles of dirt roads were paved. An additional 12.6 miles are proposed

for paving in this planning unit by 2007 (Hatch Mott MacDonald, 2004).

A Stormwater Management Master Plan was completed for Escambia

County by Hatch Mott MacDonald Consultants with funding provided

from the local option sales tax (Hatch Mott MacDonald, 2004). Watershed-specific

Stormwater Management Master Plans have been completed

for Elevenmile Creek and Eightmile Creek watersheds and are in development

for the Bayou Marcus, Millview, Herron Bayou, Garcon Swamp, and

Southwest Side (north portion) watersheds.

Escambia County completed two dry retention ponds in the Eightmile

Creek watershed. The ponds treat stormwater, thus improving its

quality. Additional dry retention ponds are proposed to treat stormwater

in the Elevenmile Creek and Bayou Marcus watershed (Hatch Mott

MacDonald, 2004).

As part of Escambia County’s MS4 Program individual watershed

drainage evaluations, residents were surveyed about their drainage and

water quality concerns in the northern half of the Southwest Side Drainage

Basin in fall 2004. The Southwest Side Drainage Basin is located north

of Big Lagoon and Bayou St. John. The survey revealed that 83 residents


identified drainage as a problem and 26 residents identified water quality as

a problem (GECI and Associates, 2004).

Escambia County received legislative funding in 2005 for the Perdido

Bay Monitoring and Assessment Study (Kirschenfeld and DeBusk, 2006).

The focus of the project is water quality and sediment sampling of the bay

with an emphasis on pollutants associated with urban and agricultural

runoff (nutrients, metals, organics). The purpose of the study is to map

contaminant levels found in the bay to aid in tracking sources of pollution

and for use in ecological risk assessments.

• Perdido River Planning Unit

General Description

The Perdido River Planning Unit covers about 240 square miles (as

delineated for assessment purposes) of Escambia County, Florida, and

contains 41 waterbodies or segments with WBIDs. The prominent waterbody

in this planning unit is the Perdido River. Overall, the Perdido River

watershed drains 925 square miles of southern Alabama and western Florida

and serves as the boundary between Florida and Alabama. Generally,

the stateline splits the river in half. The larger portion of the river’s drainage

area, about 75 percent, is located in Baldwin County, Alabama (DNR,

1989). Perdido River starts at the confluence of Fletcher and Perdido

Creeks near Bay Minette, Alabama. The Perdido River travels 65.2 miles

before discharging to Perdido Bay at a point 15 miles west of Pensacola.

The largest tributary of the Perdido River is the River Styx located

in Alabama. Larger tributaries within Florida are Brushy Creek, Boggy

Creek, Bowman/McDavid Creek, Alligator Creek, and Jacks Branch.

Florida communities located in this planning unit include Barrineau

Park, McKinnon, and Walnut Hill. These communities are small and

generally rural in character.

Water Quality Summary

Eight segments within this planning unit are listed as potentially

impaired. Figure 3.4, a composite map of the planning unit, shows waters

on the 1998 303(d) list and the Planning List. Table 3.5 summarizes the

water quality assessment status of all waterbody segments in the planning

unit. A total of 31 water quality monitoring stations were assessed to

determine the impairment status of waterbodies within this planning unit.

Monitoring data were collected from 7 estuarine and 24 stream locations.

Jacks Branch (WBID 291) was listed on the 1998 303(d) list for DO,

fecal coliform bacteria, and turbidity. There are no data available for this

waterbody to make a preliminary assessment of impairment; thus, this

waterbody is listed as Category 3a in Table 3.5. Additional data will be

collected during Phase 2 of the watershed cycle before the Verified List is

prepared.

McDavid Creek, Dry Creek, Reedy Branch, Brushy Creek, and the

Rest Area Run are all listed as potentially impaired for biology because they

failed bioassessment monitoring. The next step is to identify if the source

of impairment is a pollutant or the result of habitat damage or loss. Boggy


63

Figure 3.4: Composite Map of the Perdido River Planning Unit, Including the 1998 303(d) List and

Planning List Waters


Table 3.5: Integrated Water Quality Assessment Summary for the Perdido River Planning Unit

Waterbody

WBID Name

105 Freeman Springs

Branch

Waterbody

Type 1 Class 2 1998 303(d)

List Parameters

of Concern


Overall


Stream IIIF 3b

135 Boggy Creek Stream IIIF Biology 2

138 Rocky Creek Stream IIIF 3a

14 Hubbard Creek Stream IIIF 3a

148 Helverson Creek Stream IIIF 3a

149 McDavid Creek Stream IIIF Biology 3c

169 Buckeye Branch Stream IIIF 3a

172 Reedy Branch Stream IIIF 3a

182 West Fork Stream IIIF Biology 2

197 Narrow Gap Stream IIIF 3a

Branch

208 McDade Creek Stream IIIF 3a

228 Jackson Springs Stream IIIF 3a

Branch

243 Schoolhouse Stream IIIF 3a

Branch

245 Alligator Creek Stream IIIF Biology 2

252 Still Branch Stream IIIF 3a

259 Pond Branch Stream IIIF 3a

278 Cowhide Creek Stream IIIF 3b

290 Dry Creek Stream IIIF Biology 3c

291 Jacks Branch Stream IIIF DO, Fecal Coliforms,

3a

Turbidity

297 Penasula Creek Stream IIIF 3a

2F Perdido River Stream IIIF 3a

3 Reedy Branch Stream IIIF Biology 3c

311 Bowman Creek Stream IIIF 3b

345 Cow Devil Creek Stream IIIF 3a

357 Churchhouse

Branch

Stream IIIF 3a

4 Brushy Creek Stream IIIF DO, Fecal

Coliforms,

TSS, Turbidity

Chlorophyll a,

Conductance, DO,

Fluoride, Historical

Chlorophyll, Turbidity,

Unionized

Ammonia

Biology


Total

Coliforms

407 Farm Hill Run Stream IIIF 3a

462A Perdido River Estuary IIIM DO, Fecal

Coliforms,

Mercury in

Fish, Nutrients

DO, Total

Coliforms,

Turbidity

Mercury in

Fish

3d

Fecal Coliforms 3d


65


WBID

Waterbody

Name


1998 303(d)


462B Perdido River Stream IIIF Fecal

Coliforms,

Mercury in

Fish

462C Perdido River Stream IIIF Fecal

Coliforms,

Mercury in

Fish



Overall

DO, Fecal

Coliforms,



Ammonia

Biology, Conductance,

DO, Fecal

Coliforms, Total

Coliforms, Turbidity,

Unionized Ammonia

Mercury in Fish Conductance 3d

Mercury in Fish

494 Jacks Branch Stream IIIF 3a

542 Rest Area Run Stream IIIF Conductance Biology, DO,



Turbidity

3c

607 Claypit Branch Stream IIIF 3a

616 Beulah Drain Stream IIIF 3a

696 Black Lake Lake IIIF 3a

696A Black Lake Drain Lake IIIF 3a


to Stream

72D

72E

72F

Direct Runoff

to Stream


to Stream


to Stream

Stream IIIF Chlorophyll a,

Conductance, DO,

Fluoride, Fecal

Coliforms, Historical

Chlorophyll, Total

Coliforms, Turbidity

Stream IIIF 3b



73 Unnamed Branch Stream IIIF 3a

Notes:

1

The designation “stream” includes canals, rivers, and sloughs. The designation “lake” includes some marshes.

2

The state’s surface water classifications are as follows:






3

The EPA’s 305(b)/303(d) Integrated Report categories are as follows:

1— Attains all designated uses;

2—Attains some designated uses;

3a—No data and information are available to determine if any designated use is attained;

3b—Some data and information are available, but they are insufficient for determining if any designated use is attained;

3c—Meets Planning List criteria and is potentially impaired for one or more designated uses;

4a—Impaired for one or more designated uses and the TMDL is complete;

3c

2



4b—Impaired for one or more designated uses, but no TMDL is required because an existing or proposed pollutant

control mechanism provides reasonable assurance that the water will attain standards in the future; and

4c—Impaired for one or more designated uses but no TMDL is required because the impairment is not caused by a

pollutant;

5—Water quality standards are not attained and a TMDL is required.

4

The assessment categories listed in this column represent the status of each WBID as a whole, based on multiple parameters.

The hierarchy for assigning these categories is Category 5, then 4, then 3c, then 2, and then 3b, i.e., each WBID is assigned a

category based on the highest category assigned to an individual parameter. For example, if WBID 9999 has total coliforms as

Category 5, fecal coliforms as Category 3c, and coliforms-shellfish as Category 2, the single assessment call for the WBID is

Category 5.


F = Fresh water

M = Marine


Creek, West Fork, Alligator Creek, and the Perdido River passed bioassessments

and are listed as meeting designated use for biology.

All three segments of Perdido River are listed because of a fish consumption

advisory recommending limited consumption due to high levels

of mercury in fish. The advisory is directed at the consumption of largemouth

bass, bluegill, redear sunfish, gar, and bowfin (DOH, 2005).

All three segments of Perdido River were listed on the 1998 303(d) list

as impaired for coliform bacteria. Evaluation under the IWR methodology

determined that only segment number 462A was potentially impaired for

bacteria while the remaining two segments of the Perdido River met their

designated use for bacteria.

Hilly terrain and easily erodible soils have resulted in erosion and sedimentation

problems in many streams within the basin. Failed bioassessments

are frequently the result of sedimentation of the streambed. One of

the larger sources of sediments has been poorly graded and maintained dirt

roads. The problem is evident in both Florida and Alabama.

Permitted Discharges and Land Uses

Point Sources. Figure 3.4 shows permitted wastewater treatment

facilities, landfi lls, and hazardous waste sites in the planning unit.

Table E.1 in Appendix E lists the basin’s domestic and industrial surface

discharge facilities, along with their permitted amount of wastewater

discharge. Table E.2 lists landfi lls or solid waste facilities.

There are three permitted wastewater dischargers in the planning unit.

Two permits are for active industrial waste dischargers and one permit is

for the inactive Milkaway Dairy animal feeding operation. None of the

permitted dischargers have surface water discharges.

There are three landfi lls located in the Perdido River Planning Unit.

The Perdido Landfill in Muskogee has permits for both Class 3 and Class

1 facilities. The third landfill is a construction and demolition debris land

fill. As of August 2005 all three landfills were active.

There is one active state-funded hazardous waste site and one delisted

NPL (Superfund) site in the planning unit. The Maucher property became

a state-funded hazardous waste site in November 2002 (Department,

2006d). The property is located near a tributary of Cow Devil Creek.

Storage of military surplus items and damaged drums, some containing


67

various hazardous materials, led to wide-scale contamination of ground

water and soil with primarily trichlorethylene. The extent of ground

water contamination is displayed in Figure 3.4. A second phase of onsite

investigations in 2004 revealed that a plume of contaminated ground

water extends beyond the property boundary. The Department succeeded

through negotiations with the Navy to have the drums containing hazardous

material removed from the property. The Department anticipates

finalizing a Decision Memo recommending remedial cleanup action and

initiating design and construction of those recommended actions in 2006.

Dubose Oil was first listed on the NPL in October 1984 (Department,

2006c). The site was located in the headwaters of Jacks Branch and

was used from 1979 to 1982 for storage of oil and hazardous waste. The

site had contained varying degrees of contamination of soil, ground water,

and surface water with volatile and semivolatile organics from oil and

hazardous waste before remediation was completed and approved by EPA.

The site was listed in the Federal Register for delisting by EPA in October

2004. A discussion of the threats to ground water from both of these sites

is contained in the Ground Water Quality Issues Section in Chapter 2.

Nonpoint Sources. Based on land use information from 1995, the

primary land use in this planning unit is upland pine forest (49.8 percent).

Of the total acreage of pine forest, 21.1 percent is in managed pine plantation.

Agriculture represented by crop and pastureland occupies another

18.9 percent of the planning unit’s area. Wetland forests account for

another 11.5 percent of the planning unit area. Residential development

accounts for 4.3 percent of the planning unit. Most residential development

is a mix of medium and low density. Tables G.1 and G.2 summarize

land uses in the basin.

These land uses can be associated with nonpoint discharges of pollutants

and eroded sediments Urban stormwater is managed through MS4

permits. Escambia County is a Phase 1 MS4 permit. The permit only

applies to publicly owned stormwater management systems.

Ecological Summary

The Perdido River provides important habitat for rare and imperiled

fish species. Gravel and sand bars are evident on most of the river’s bends.

Historic records indicate the use of the Perdido River by three rare fi sh

species. These include the species of special concern saltmarsh topminnow,

crystal darter, and goldstripe darter (DNR, 1989). Bass et al. (2004)

confirmed the presence of the saltmarsh topminnow during field sampling

in 2001 to 2002 in tributaries of the Perdido Bay watershed. Striped bass

use the Perdido River and Bay throughout its length (DNR, 1989). The

Gulf race of the Atlantic sturgeon (Acipenser oxyrinchus de sotoi) utilizes the

Perdido River as documented by the Alabama Geological Survey in 2004

(referenced in Bass et al., 2004).

Water Quality Improvement Plans and Projects

In 1991 Escambia County had 282 miles of unpaved dirt roads. The

county used more than 100,000 cubic yards of fi ll material each year

to grade dirt roads. Most of the material washed off the roadways and


frequently entered streams or stormwater drainage systems. Escambia

County started the Hilltop to Hilltop Paving Project to address dirt road

problems. Countywide, 120 miles of dirt road have been paved and BMPs

for those newly paved dirt roads instituted as of the end of 2002. Within

the Perdido River Planning Unit, 34.5 miles of dirt roads were paved.

BMPs generally constitute creation of grass-lined swales and a greater frequency

of road grading. An additional 45.6 miles is proposed for paving in

this planning unit by 2007 (Hatch Mott MacDonald, 2004).

Baldwin County Alabama amended subdivision rules to stop the

creation of dirt roads in large subdivisions. Baldwin County anticipates

paving 30 miles or more of dirt roadway with most public dirt roads in the

county paved by 2020 (Miller, 1998).


Chapter 4: Ground Water Quality Assessment

69

Introduction

Historically, Florida’s ground water monitoring activities focused

almost entirely on protecting drinking water supplies. In addition to this

focus, the Florida Department of Environmental Protection (Department)

now also integrates ground water data into its watershed assessments to

help in the evaluation of ground water impacts on surface water quality.

This is especially important in Florida, where ground water discharges

into streams, canals, lakes, and estuaries and can provide as much as

80 percent of the total flow to some surface waters. Because of this ground

water– surface water interaction, it is important to assess ground water

quality, identify potential pollutants, establish whether they are likely to be

discharged to surface water, and identify any potential impacts that may

already be expressed as surface water impairments.

The assessment presented in this chapter uses ground water data to

evaluate water quality in the potable ground water resource, as well as the

impact of ground water on surface water resources in the Perdido Basin.

Although the data historically collected through ground water monitoring

do not specifically serve this purpose, the Department is using the information

that is currently available.

Scope of the Ground Water Assessment

This chapter presents the results of a preliminary ground water quality

assessment in the Perdido Basin, in addition to resource priorities and proposed

management actions. It includes an evaluation of the quality of the

ground water resource used as a potable supply by residents of the basin, as

well as an evaluation of potential ground water influences on water quality

and ecological conditions in the basin’s surface waters. The ground water

resource index assessment (GRI) is based on aquifer use and human healthrelated

criteria. The ground water–surface water relational assessment

(SRA) includes an evaluation of ground water quality in planning units

where potentially impaired surface waters were identified, using threshold

values derived from surface water quality standards or ecological guidelines.

These newly developed screening tools provide an indication of potential

issues that justify more detailed evaluations.

While these preliminary results on the quality and availability of

ground water do not have regulatory significance, they can assist in identifying

priority ground water resource and surface water quality issues that

should be further evaluated to protect human health and/or the ecological

integrity of the basin’s surface waterbodies. In particular, they may be


instrumental in furthering the goals of the Total Maximum Daily Load

(TMDL) Program by contributing to an understanding of the extent to

which ground water may be a source of pollutants that impair surface

waters or may lead to naturally occurring conditions that cause surface

water to exceed water quality standards. For example, ground water data

can be used to verify impairment, identify natural causes of impairment

(such as the seepage of ground water low in dissolved oxygen (DO) or high

in iron into surface waters), contribute to the knowledge of water budgets

for lakes and rivers receiving ground water seepage or base flow, contribute

to an understanding of the freshwater/saltwater balance in estuarine waters,

provide documentation for calculating TMDLs, and determine the ground

water quality component of individual TMDLs. Ground water data can

also affect TMDL allocations.

In the preliminary ground water assessment for the Perdido Basin, a

number of significant issues were identified pertaining to the ground water

resource and potential ground water impacts to surface water. These are

listed below and discussed in this chapter.

Ground Water Resource Priorities

• Areas where organic contaminant plumes have the potential to affect

potable water supplies, and

• Primary metals that exceed primary ground water standards.

Ground Water–Surface Water Interaction Priorities

• Nutrients exceeding screening threshold limits in the sand and gravel

aquifer in planning units where potential nutrient-related surface

waterbody impairments have been identified.

Ground Water Data Sources and Parameters

The Department established a ground water quality monitoring

network in 1984, under the authority and direction of the 1983 Water

Quality Assurance Act. From 1984 to 1999, the Background Network was

maintained to establish the background and baseline ground water quality

of major aquifer systems in Florida. In 1999, the Department initiated a

probabilistic sampling Status Network to assess the water quality over areas

defined as reporting units. Since the Department initiated the watershed

management approach, the state’s basin groups have become ground water

quality assessment units. The Status and Background Networks, and the

additional sources described in Table 4.1, were the data sources used in the

ground water quality assessment for this report.

This chapter contains parameter-specific evaluations of ground water

data and findings. Evaluations conducted for the Perdido Basin were for

nutrients, bacteria, metals, and organics. Table 4.2 summarizes the assessment

categories and the specific analytes evaluated. Data were retrieved

from several databases maintained by the Department using the Hydroport

retrieval system maintained by the Ground Water Protection Section.

Hydroport was also used to produce statistical summaries for the evaluations

performed for this report.


71

Table 4.1: Summary of Ground Water Data Sources

Monitoring Network or Program Period Description

Status Network 1999–

ongoing

Statewide probabilistic sampling network for surface water and

ground water data. Sample locations are randomly selected

from a list frame of wells. Each year includes approximately 30

samples from unconfined aquifers and 30 from confined aquifers.

Objective is to characterize water quality on a basinwide scale.

Ground water parameters correspond with those targeted in

surface water evaluation.

Background Network 1985–99 Part of statewide network of 1,600 water wells and monitoring

wells to spatially monitor general background water quality of

local aquifers (surficial, intermediate, and Floridan). On average,

each well was sampled once every 3 years for an extensive list of

analytes.

Very Intense Study Area

(VISA) Network

Florida Department of Health

(DOH)/ Department Water

Supply Restoration Program

(WSRP) Private Well Sampling

Program

1989–99 Network monitored the effects of land uses on ground water

quality in 23 selected areas of the state. Individual VISAs consisted

of approximately 20 wells sampled 3 times over an 11-year

period. Sampled for a targeted list of analytes.

Ongoing

Private well data collected in investigations of potential ground

water contamination, maintained in a Department WSRP database.

Parameter list is variable, depending on contaminants of

concern.

Table 4.2: Ground Water Assessment Categories and Parameters

Evaluation Category

Nutrients

Bacteria

Metals

Organics

Parameters Evaluated

Nitrate, Phosphorus

Total Coliforms, Fecal Coliforms

Primary Metals (Antimony, Arsenic, Barium, Beryllium, Cadmium, Chromium, Lead,

Mercury, Nickel, Selenium, Thallium)

Secondary Metals (Aluminum, Copper, Iron, Manganese, Silver, Strontium, Vanadium,

Zinc)

Volatile and Semivolatile Organics, Pesticides

Ground Water Assessments

This section includes basinwide and more detailed evaluations of

ground water quality by parameter-category using the GRI thresholds and

ground water–surface water interaction using the SRA thresholds; the

evaluation incorporates a spatial analysis of the data. For reporting the

data, this chapter uses planning units consistent with the surface water

assessment. This approach allows the Department to conduct a preliminary

assessment of large regional aquifer systems and multiple watersheds,

rather than individual waterbody segments. The initial step in the ground

water quality evaluation included a basinwide screening for wells in unconfined

and confined aquifers. Table 4.3 summarizes the basinwide results of

this evaluation for the Perdido Basin, and Appendix H contains statistical

data by parameter.


Table 4.3: Screening Thresholds and Basinwide Summary of Ground Water Quality

(Median concentrations that are higher than the GRI and/or SRA screening threshold in the Unconfined Aquifer and

Confined Aquifer columns are shown in boldface type with gray highlighting.)

Parameter Screening Thresholds Unconfined Aquifer Confined Aquifers

GRI 1 SRA 2 Nutrients (mg/L)

Wells Concentration Wells Concentration

Number of Median Number of Median

Nitrate + Nitrite (dissolved as N) 10 0.46 26 0.245 2 0.028

Nitrate + Nitrite (total as N) 10 0.46 28 0.6 2 2 7.85 2

Phosphorus (dissolved as P) — 0.025 26 0.03 2 2 0.165 2

Orthophosphate (dissolved as P) — 0.025 28 0.095 2 2 0.735 2

Bacteria (Colonies/100mL)

Total Coliforms 4 1,000 — — — —

Fecal Coliforms 4 400 29 0 2 0

Metals (µg/L, total)

Primary Metals:

Antimony 6 14 — — — —

Arsenic 50 10 30 1 2 2.25

Barium 2,000 1,000 30 31.5 2 64

Beryllium 4 0.0077 — — — —

Cadmium 5 0.38 30 0.555 2 2 2.7

Chromium 100 27.7 30 5 2 116.25 1,2

Lead 15 0.54 30 8.6 2 2 9.5 2

Mercury 2 0.012 30 0.2 2 2 0.075 2

Nickel 100 8.3 30 5 2 24 2

Selenium 50 5 30 BDL 2 BDL

Thallium 2 1.7 — — — —

Secondary Metals:

Aluminum 200 1,500 22 330 1 2 995 1

Copper 1,000 2.85 30 13 2 11.75

Iron 300 300 30 1,150 1,2 2 3,900 1,2

Manganese 20 100 30 43 1 — —

Silver 100 100 30 BDL — —

Strontium 4,200 — 22 10 — —

Vanadium 49 — — — — —

Zinc 5,000 37 30 44 2 41.5

Organics 3 (µg/L)

Benzene 1 — — BDL — BDL

Xylenes 20 — — BDL — BDL

Notes:

1

Median values in bold are higher than the GRI screening threshold; the threshold value is based on the potable

ground water maximum contaminant level (MCL) or guidance level.

2

Median values in bold are higher than the SRA screening threshold; the threshold value is based on the surface water

standard or guidance level based on adverse effects on aquatic life.


73


3

The organic compounds listed were found in ground water at levels that exceed MCLs and/or guidance levels.

Organics data were obtained from the VISA Network and the WSRP private drinking water well sampling. Information

on the total number of samples, aquifer, etc., was not available for some wells and is not reported in this table.

4

Drawing basinwide conclusions is not possible due to the small number of wells.

— = Not applicable. In the case of water quality data, the threshold is not applicable to this analyte.

BDL—Median is below detection limit for this analyte. Basinwide median concentrations are derived from the

maximum value for each well.

Table 4.3 shows that the basinwide median concentrations of several

analytes are higher than the GRI and/or SRA screening threshold levels.

These exceedances may reflect natural conditions (in the case of phosphorus

or some metals) or may be caused by anthropogenic sources (in the case

of nitrate). In wells monitoring unconfined zones of the sand and gravel

aquifer, median concentrations of several secondary metals (aluminum,

iron, and manganese) are higher than the GRI thresholds, which are based

on secondary ground water standards. Basinwide median concentrations of

iron, plus other metals (cadmium, lead, and mercury), are higher than the

SRA thresholds, which were established based on surface water criteria or

guidance levels and are an issue only when ground water has the potential

to affect surface waterbodies. Median concentrations of nutrients (nitrate

and phosphorus) are also higher than the SRA thresholds in unconfi ned

aquifer wells. Table 4.3 provides ground water summary information

for confined zones of the sand and gravel aquifer, but there were only two

wells in this category and drawing basinwide conclusions from them is not

possible.

The following sections describe more detailed steps in the evaluation.

These are based on data from all sources currently in the Department’s

ground water database. Most data are from the Status Network, the Background

Network, or the Very Intense Study Area Network. The Florida

Department of Health (DOH)/Department’s Water Supply Restoration

Program (WSRP) private well sampling data were also used in the GRI

evaluation. Other sources of data were not available for the detailed

evaluation but were considered.

Ground Water as a Resource: Issues Related to the Ground

Water Resource Index

The GRI screening identified parameters that could be significant

because they exceed ground water standards or guidance concentrations.

For a specific parameter, this index is based on the percentage of well

samples that exceed the applicable ground water maximum contaminant

level (MCL), or Risk Indicator (in the absence of an MCL or when an

MCL cannot be directly related to the data). To be protective, the maximum

parameter concentration detected in each well is used, no minimum

number of samples is required, and data used are not restricted to a specific

period of record for this screening. This evaluation is performed by aquifer

category (i.e., confined or unconfined). Typically, if more than 10 percent

of the ground water samples in a category were to exceed a particular GRI


threshold, this would warrant a more intensive evaluation. Table 4.3 provides

the thresholds that are pertinent to this report.

Table 4.4 provides a detailed summary of the findings of the evaluation

to identify potential concerns for ground water used for potable supply.

The significance of potential problems was evaluated using available

ground water data for each planning unit. The table identifies waterbody

segments that may be affected by ground water for which further evaluation

is required. This information may be relevant to assessing waters that

are identified as impaired.

Table 4.4: Evaluation Summary: Ground Water Quality and Potential Impacts to Potable Supply

(Samples above threshold are shown in boldface type with gray highlighting.)

.

Nutrients

(# samples

exceeding the

GRI threshold for

nitrate)¹

Bacteria

(# samples exceeding

the GRI threshold for

total coliforms and/or

fecal coliforms)¹

Data Evaluation

Primary Metals



primary metals)¹

Organics



an organic compound,

or other significant

evidence) 1,2

Planning Unit

Unconfined sand and

gravel aquifer zones

Confined sand and














Use of

Affected

Aquifer(s)

Priority

for Further

Evaluation

Perdido

Bay

NO 3

-3

Total

Coliforms-

2, Fecal

Coliforms-1

Fe-17, Al-7,

Mn-8, Cd-1,

Hg-2, Cr-1,

As-2, Pb-4

Al-2,

Cr-1,

Fe-2

Benzene-1

Other


River

— Total

Coliforms-

3, Fecal

Coliforms-1

— Al-5, Fe-5,

Mn-6, Pb-2,

Cd-1

Xylenes-1

Other

— Potable

supply (sand

and gravel

aquifer);

Floridan

aquifer not

used

High

(organics,

primary metals,

nutrients, and

bacteria in

sand and gravel

aquifer)

Notes:

1

Value indicates number of well samples exceeding the MCL or Risk Indicator threshold.

2

Assessment includes Department and DOH/Department WSRP private well sampling data, information on delineated contamination

areas, and known sources.

NO 3

= Nitrate; Cr = Chromium; Pb = Lead; As = Arsenic; Hg = Mercury; Cd = Cadmium; Fe = Iron; AI = Aluminum; Mn =

Manganese; Other = Planning unit includes one or more significant areas of contamination based on other information.

— = Not applicable; no evidence of ground water criteria exceedance.

Significance:

Low— No samples above the MCL or Risk Indicator, and issue does not need further evaluation at this time.

Medium—Samples above the MCL and/or Risk Indicator, but affected aquifer is not a significant potable water source; issue is

a medium priority for further evaluation.

High—Samples above the MCL and/or Risk Indicator, and affected aquifer is a significant potable water source; issue justifies

further evaluation in this cycle.


75

Use of Affected Aquifers

Unconfined aquifer data are from wells representing both the unconfined

and semiconfined systems of the sand and gravel aquifer. These wells

are distributed throughout the basin in a zone that is used as a potable

water source. Confined aquifer data are from two wells in the southern

portion of the basin that are established in what is called the main producing

zone (Pratt et al., 1996) of the sand and gravel aquifer. This zone

is composed of very permeable coarse sand and gravel beds interspersed

in places with fine sand and clayey-sand beds. Public water supplies

in Escambia County withdraw water from this zone. Findings of GRI

threshold exceedances in aquifers used for potable supply are of the greatest

significance.

Data Evaluation and Priorities for Further Assessment

Data insufficiency for the evaluation of ground water used as a potable

supply is a significant concern. Nearly all wells with available data are

located in the southern part of the basin, with only three sample sites in the

northern part of the basin. There were only two wells monitoring confined

aquifer zones, and these were also located in the southern part of the basin.

Using the available data, the potential for ground water to be adversely

affected was evaluated for nutrients, bacteria, metals, and organics.

The sections below discuss data fi ndings and potential issues of concern

in the Perdido Basin. Table 4.4 presents the data discussed in this section,

by planning unit.

Nitrate

Although the evaluation included 28 wells in both the Perdido Bay

and Perdido River Planning Units, there were only 3 unconfined aquifer

wells with nitrate levels higher than the GRI screening threshold. All

3 elevated nitrate levels were found in samples located in the Perdido Bay

Planning Unit. The presence of these 3 wells does not suggest that there is

a basinwide problem with nitrate contamination. Neither of the 2 confined

aquifer wells in Perdido Bay had nitrate levels above the threshold. The

data suggest that nitrate could be of concern in localized areas near specific

sources.

Bacteria

Bacteria were found in six unconfined aquifer wells at levels that were

higher than the GRI screening threshold for either total coliforms or fecal

coliforms (or both). Figure 4.1 shows wells sampled for bacteria and

above-GRI threshold detections. The data suggest that bacteria could be of

concern in localized areas near specific sources.

Metals

Elevated metals were found in samples from wells throughout the

basin, but most wells associated with elevated metals are located in the

Perdido Bay Planning Unit because of the distribution of wells with data.

Figure 4.2 shows wells sampled for metals and wells with primary metals

detections in the basin. Lead, mercury, arsenic, cadmium, and chromium

were detected in one or more well samples at levels higher than their GRI


Figure 4.1: Ground Water Resource Index Assessment for Bacteria


77

Figure 4.2: Ground Water Resource Index Assessment for Metals


thresholds, which are based on primary ground water standards. It must

be assumed that all of these samples were from aquifers that may be used as

a potable supply.

The data from locations where primary metals may be an issue should

be further evaluated, and a review of the quality assurance data and possible

follow-up sampling may be appropriate. Metals concentrations may

be related to well construction, sampling technique, and natural occurrences,

as well as contamination sources.

Basinwide median concentrations of aluminum, iron, and manganese

are higher than their respective GRI thresholds, which are based on secondary

ground water standards related to taste, odor, and other nuisances.

Their abundance often reflects background conditions that are not attributable

to contaminant sources. For this reason, secondary metals are considered

less significant in terms of protecting the drinking water resource.

Metals samples used in the evaluation were from Background Network

monitoring wells, which are supposed to represent ambient conditions.

For that reason, concentrations of metals may be attributed to the

soil and aquifer matrix material through which the ground water flows.

However, elevated metals concentrations may also be associated with well

construction, turbid samples, sampling/analytical biases, or ground water

contaminant sources.

Organics

A broad suite of organic compounds was sampled for, but only two

compounds, benzene and xylene, were found above GRI thresholds in any

of the Department’s ambient monitoring network wells. These two compounds

were also found in private wells sampled by the WSRP. Figure 4.3

shows benzene and xylene detections in the basin. From these data and

from other information, it appears that organics are present in ground

water at scattered locations throughout the basin. Figure 2.5 in Chapter

2 shows the distribution of point sources of volatile organic compounds

such as petroleum storage and dry cleaning solvent facilities throughout

the basin; these are mainly concentrated in the most urbanized areas. State

waste cleanup sites and federal Superfund sites are known to be significant

sources of organics in ground water (Figure 4.3).

Ground water contamination by volatile organics is a priority issue

for further evaluation, because of their distribution and occurrence in an

aquifer that is widely used as a drinking water source.

Ground Water–Surface Water Interaction: Issues Related to

the Ground Water–Surface Water Relational Assessment

The SRA methodology was applied to identify wells in subregional

areas where ground water contributions to surface water could adversely

affect surface waterbodies. In an initial SRA screening, ground water

concentrations that exceed surface water “adverse impact” thresholds are

identified. The SRA thresholds are based on surface water standards or

targets related to maintaining healthy aquatic communities.

In this evaluation, the results of the SRA and lists of potentially

impaired surface waterbodies are reviewed together. Where similar


79

Figure 4.3: Ground Water Resource Index Assessment for Organics


pollutants or analytes occur, the potential for discharge from ground water

to surface water is assessed. This evaluation is also conservative. As with

the GRI screening, the maximum value measured for each well is used in

the analysis, and there are no minimum sample population restrictions or

specified periods of record for ground water data. In addition, the threshold

values selected are intentionally protective. If more than 10 percent

of the wells in a basin were to exceed the SRA screening threshold for a

particular parameter, further assessment might be warranted. Table 4.3

provides the SRA thresholds used in this evaluation.

Table 4.5 summarizes the findings of the evaluation for each parameter

category for unconfined and confined aquifers, and identifies (also for

each parameter category) individual waterbody segments in each planning

unit where ground water could adversely affect surface water quality. The

two right-hand columns in the table, which list the ground water to surface

water pathways and the priority for further evaluation, provide information

that can be used in making the final determination of impairment and

should be considered in developing TMDLs for verified impaired waters.

The significance and likelihood of potential ground water to surface

water impacts were evaluated by considering the coincidence of elevated

concentrations in ground water with impaired or potentially impaired surface

waterbodies in the same planning unit. Next, the presence or absence

of pathways between the aquifer and impaired/potentially impaired surface

waterbodies was considered. Finally, the type of pathway and its potential

for transporting pollutants over distances was considered. Where evidence

exists that the pathway is present and a surface waterbody is possibly

affected, the significance of the ground water issue increases. Following

this logic, the need for further evaluation in the planning unit is based on

the following:

• Sufficient data for a planning unit showing that ground water

exceeds the SRA threshold value for a specific parameter;

• The identification of that specific parameter as causing the potential

impairment of one or more surface waterbodies in the planning unit;

• Evidence that a potential pathway exists between the affected aquifer

and the impaired or potentially impaired waterbody;

• Reason to believe that the pathway would have an effect over a

significant subregional area, such as a springshed; and

• The 1998 303(d) listing status of the potentially impaired surface

water and schedule for TMDL development, if any.

Ground Water to Surface Water Pathways

The potential for constituents in ground water to affect surface

water quality and ecological health adversely depends on the proximity

and available pathway by which ground water to surface water discharge

would occur. In the Perdido Basin, all lakes, rivers, and streams depend

on recharge from ground water, particularly during periods of low rainfall

when runoff does not occur.


81

Table 4.5: Evaluation Summary: Ground Water Influence on Surface Water Quality

(Samples above the SRA screening thresholds are shown in boldface type with gray highlighting.)

Data Evaluation

Nutrients (ground water samples

exceeding SRA threshold

for nitrate and/or phosphorus;

planning unit includes surface

waters potentially impaired

by nutrients [based on TSI,

chlorophyll a, DO, or biology]) 1 Bacteria (ground water

samples exceeding SRA

threshold for total and/or

fecal coliforms; planning Metals (ground water samples exceeding

unit includes surface SRA threshold for one or more metals;

waters potentially impaired planning unit includes surface waters

by bacteria) 1

samples exceeding SRA threshold

for specific conductance;

planning unit includes surface

waters potentially impaired

by metals) 1

potentially impaired by metals) 1 Saline Water (ground water

Planning

Unit

Ground Water to

Surface Water

Pathways

Priority

for Further

Evaluation

Unconfined surficial aquifer

Confined intermediate or

Floridan aquifer

Potentially impaired surface

waters (WBIDs)


















NO 3

-16,

P-19

NO3-2,

P-2

WBIDs 489,

542, 624,

697, 797,

935

— — WBIDs 489,

489A, 624,

679

Cd-9, Cu-14,

Fe-17, Pb-20,

Zn-12, Al-3,

Mn-5, Hg-8,

Cr-2, As-2,

Ni-3

Cd-2, Fe-2,

Al-1, Hg-1,

Cr-1, Pb-2,

Cu-1, Ni-1

— — Seepage from

surficial aquifer,

possible upwelling

or pumpage

from Floridan

aquifer



Notes:

NO 3

-6,

P-9

— WBIDs 3, 4,

160, 341

— — WBIDs 149,

290, 3, 4,

462A, 542

Al-2, Zn-7,

Hg-4, Cr-2,

Cd-4, Cu-5,

Fe-5, Mn-2,

Ni-2, Pb-7,

As-1

— — Seepage

from surficial

zone

of sand

and gravel

aquifer; no

pathway

from main

producing

zone

Medium

(nutrients

in unconfined

zones of

sand and

gravel

aquifer)

— Seepage from

surficial aquifer,

possible upwelling

or pumpage

from Floridan

aquifer

1 Value next to parameter indicates number of wells exceeding SRA threshold(s).

— = Not applicable; no evidence of ground water threshold exceedance for ground water columns or potential impairment for surface water columns.

NO 3

= Nitrate As = Arsenic Cr = Chromium

P = Phosphorus Cd = Cadmium Ni = Nickel

Cu = Copper Hg = Mercury Al = Aluminum

Pb = Lead Fe = Iron Mn = Manganese

Zn = Zinc TSI = Total suspended solids WBID = Waterbody Identification Number

High

(Nutrients)

High

(Nutrients,

Cu, Fe, Zn)



Priority for further evaluation:

Low—No potentially impaired surface waters, or potentially impaired surface

waters, but no ground water samples above the SRA threshold for the

listed category and no need for further evaluation at this time.

Medium—Potentially impaired surface waters and corresponding ground

water samples above the SRA threshold for the listed category; ground

water seepage from unconfined aquifers is the only pathway; issue is a

medium priority for further evaluation.

High—Potentially impaired surface waters and corresponding ground water

samples above the SRA threshold for listed category; unconfined ground

water seepage and springs discharge from confined aquifers identified as

pathways; issue justifies further evaluation in this cycle.

In the Perdido Basin, ground water to surface water interaction occurs

via small springs and seepage. Ground water from the surficial zone of

the sand and gravel aquifer sustains lake levels and stream baseflow, and

discharges fresh water to estuaries and the Gulf of Mexico. Seepage and

discharge from small springs from the sand and gravel aquifer occur

through granular material such as sand, silt, and clay at a relatively slow

rate but can account for very significant volumes of water over time. In the

Perdido Basin, the potential influence of substances being discharged by

ground water depends on many factors that extend beyond the information

available for this preliminary evaluation.

Data Evaluation and Priorities for Further Assessment

Data insufficiency ranks as a high concern for the evaluation of ground

water to surface water influences in the basin. The reviewed data included

only two wells from the main producing zone (confined) of the sand and

gravel aquifer. Using the available data, the potential for ground water to

affect surface water quality adversely was evaluated for nutrients, bacteria,

and metals. SRA threshold criteria have not yet been developed to evaluate

the potential adverse effects of organics that may be introduced via

ground water. Table 4.4 presents the data discussed in this section, by

planning unit.

With only three sample sites in the northern portion of the basin, the

geographic distribution of the data is skewed to the southernmost portion

of the basin. Consequently, fewer conclusions can be reached regarding the

status of the northern portions of the basin. For confi ned aquifers, only

two wells were sampled in the basin, and no basinwide conclusions can be

deduced because of the lack of data.

Nutrients

Acknowledging the lack of data for the Perdido River Planning Unit,

it appears that nutrients are clearly the most significant concern for ground

water to surface water discharge. The nutrient category having the greatest

number of samples exceeding the SRA threshold criteria is phosphorus.

Phosphorus levels (measured as dissolved phosphorus and orthophosphate)

were higher than the SRA screening threshold of 0.025 milligrams per liter

in more than 65 percent of the unconfined aquifer wells and 100 percent

of the 2 confined aquifer wells. Nitrate concentrations were also elevated,


83

with 68 percent of the 28 unconfi ned aquifer wells exceeding the SRA

threshold of 0.045 mg/L. Nutrients have caused potential impairment of

13 waterbodies or waterbody segments in the basin. In particular, in the

vicinity of 3 potentially impaired streams (Elevenmile Creek [waterbody

identification number (WBID 489)], Eightmile Creek [WBID 624],

and Marcus Creek [WBID 697]), there are wells with elevated nutrients.

Figure 4.4 shows the ground water results for nutrients and potentially

impaired waterbodies associated with nutrients in the basin.

Bacteria

The SRA thresholds for total and fecal coliforms were not exceeded

in any of the well samples. However, 10 surface waters are potentially

impaired by bacteria.

Metals

Metals are abundant throughout the Perdido Basin at levels that exceed

SRA threshold criteria, and pathways exist to transport metals to surface

waterbodies. SRA thresholds for many metals—including cadmium, chromium,

lead, mercury, aluminum, and nickel—were exceeded in samples

from both confined and unconfined aquifers. Metals samples used in the

evaluation were from Background Network monitoring wells, which are

supposed to represent ambient conditions. For that reason, the concentrations

of these metals are considered to be largely attributed to the soil

and aquifer matrix material through which the ground water flows. The

incidence of metals exceeding SRA threshold criteria is summarized by the

planning units listed in Table 4.5 and shown in aggregate in Figure 4.5.

There are currently no surface waterbodies on the Verified or Planning

Lists for metals in the basin. In the future, it may be important to consider

metals from ground water as more monitoring of surface waters occurs in

the next watershed management cycle.

Addressing Potential Ground Water Issues

Beginning in Phase 2 of the watershed management cycle, the Department

will address the higher priority potential issues identified in the GRI

and SRA screening evaluations. The following describes the high- and

medium-priority issues identified in these evaluations and proposed actions

to better understand and verify conditions. These are organized by GRI

and SRA, respectively.

Ground Water Resource Priorities and Proposed Actions

• Issue: Organic contaminant plumes.

• Actions: Although multiple waste cleanup sites were located in the

basin, only limited basinwide sampling for organic contaminants

has been carried out. Continued coordination must occur between

agencies to review existing delineated areas. Examine other areas in

the basin where the potential exists for organic contaminant plumes


Figure 4.4: Ground Water–Surface Water Relational Assessment for Nutrients


85

Figure 4.5: Ground Water–Surface Water Relational Assessment for Metals


to affect potable water supplies, including a review of assessments

conducted by the Department’s Division of Waste Management and

the Source Water Assessment and Protection Program.

• Issue: Metals that exceed primary ground water standards.

• Actions: Review and verify the presence of elevated metals concentrations

in ground water; follow up by resampling critical wells.

Identify wells with elevated concentrations that may be in service

for potable supply and work with DOH/WSRP to minimize

health risks.

• Issue: Bacteria and nutrients that exceed primary ground water

standards.

• Actions: Review and verify the presence of bacteria in ground

water; follow up by resampling wells used for potable supply.

Identify wells with elevated concentrations that may be in service

for potable supply and work with DOH/WSRP to minimize

health risks.

Ground Water–Surface Water Interaction Priorities and

Proposed Actions

• Issue: Nutrients exceeding screening threshold limits in the surficial

aquifer in planning units where verified and potential nutrientrelated

surface waterbody impairments have been identified.

• Actions: Refine nutrient evaluation to identify where ground water

contributions to these waterbodies are likely to be significant and

where they are not. Prioritize based on surface waterbody listing

status and evidence of ground water interaction, and conduct intensive

surveys where necessary.


87

Chapter 5: The Planning List of Potentially

Impaired Waters

The Planning List

The Planning List (Table 5.1) includes all waterbody segments (waterbody

identification numbers) in the Perdido River and Bay Basin that are

identified as potentially impaired. The table also indicates the parameters

of concern.

Figure 5.1 shows waterbody segments on the Planning List. In this

figure, the entire watersheds for listed waterbody segments are highlighted.

Often, however, only the main waterbody in the assessment unit has been

assessed. Other waters in the assessment unit may not be impaired, or data

may not be available.

The Impaired Surface Waters Rule (IWR) methodology used to

develop the Planning List follows the tenet of “independent applicability,”

which means that a waterbody will be listed if any of its designated uses are

potentially impaired. Waterbody segments on the Planning List must meet

specific thresholds and data sufficiency and data quality requirements in the

IWR (Rule 62-303, Florida Administrative Code). Appendix A describes

the legislative and regulatory background for the development of the Planning

and Verified Lists. The methodology in Appendix B describes the

criteria and thresholds required for both lists under the IWR.

Relationship Between the Planning List and

the 303(d) List

The state’s Section 303(d) list of impaired waters for the Perdido River

and Bay Basin is updated in two stages. The Planning List represents the

first stage of this process (see sidebar for a discussion of the significance of

the Planning List).

Potentially impaired waters identified in this report will be further

assessed in Phase 2 of the watershed management cycle to verify their

impairment. In addition to evaluating more thoroughly the data used to

place these waters on the Planning List (including the verification of quality

assurance and data sufficiency), the Florida Department of Environmental

Protection (Department) working with local stakeholders, will identify

other existing data and collect additional data as needed to complete the

assessment.

Once the additional monitoring is completed, the data will be assessed

and the Department will develop a Verified List of impaired waters.

Appendix B describes the criteria for data evaluation used to verify

impaired waterbodies and produce the Verified List. The Verified List will

be adopted by Secretarial Order by October 2006 and then submitted to

Significance of the

Planning List

Under the Florida Watershed

Restoration Act,

Planning Lists of potentially

impaired waters are submitted

to the EPA for informational

purposes only and are

not used in administering or

implementing any regulatory

programs. The Planning List

is important, as it is used

to guide monitoring in the

basin and is the precursor to

the Verified List of impaired

waters. As such, stakeholders

are encouraged to review

the Planning List carefully,

including the data used by

the Department to produce

the list. If reviewers identify

and have access to pertinent

data that were not used, they

should enter the data into

STORET or submit the data to

the Department so that it can

be used in evaluating waterbodies

to be included on the

Verified List.


Table 5.1: Planning List of Potentially Impaired Waters in the Perdido River and Bay Basin

WBID

Waterbody Segment

Waterbody

Type 1

1998 303(d) List Parameters

of Concern

Perdido Bay Planning Unit

1015 Direct Runoff to Gulf Stream Conductance

489 Elevenmile Creek Stream BOD, DO, Fecal Coliforms,

Unionized Ammonia,

Nutrients, TSS, Turbidity

Causes of Potential Waterbody

Impairment Identified under the IWR

Biology, Conductance, DO,

Fecal Coliforms, Total Coliforms,

Turbidity, Unionized Ammonia

489A Tenmile Creek Stream Fecal Coliforms, Total Coliforms

624 Eightmile Creek Stream Fecal Coliforms, Turbidity Biology, DO, Fecal Coliforms

697 Marcus Creek Stream Fecal Coliforms DO, Fecal Coliforms

725 Unnamed Branch Stream Fecal Coliforms

8001 Perdido Bay Gulf Coastal Mercury in Fish

8001A Perdido Key Coastal


State Park

8001B Johnson Beach Coastal Mercury in Fish

8001C Big Lagoon Coastal


State Park

935 Unnamed Stream Stream DO Conductance, DO

Perdido River Planning Unit

4 Brushy Creek Stream DO, Fecal Coliforms, TSS,

Turbidity

Biology, Fecal Coliforms, Total

Coliforms

3 Reedy Branch Stream Biology

462A Perdido River Estuary DO, Fecal Coliforms, Fecal Coliforms

Mercury in Fish, Nutrients

462B Perdido River Stream Fecal Coliforms, Mercury

in Fish

Conductance

462C Perdido River Stream Mercury in Fish

542 Rest Area Run Stream Biology, DO, Fecal Coliforms,

Total Coliforms, Turbidity

149 McDavid Creek Stream Biology

290 Dry Creek Biology

291 Jacks Branch Stream DO, Fecal Coliforms,

Turbidity

Notes:

1

The designation “stream” includes canals, rivers, and sloughs. The designation “lake” includes some

marshes.



TSS = Total suspended solids


89

Figure 5.1: Perdido River and Bay Basin Planning List for All Causes of Potential Impairment, with

Overlay of 1998 303(d) List


the U.S. Environmental Protection Agency (EPA) as an update to Florida’s

current 303(d) list. Subsequently, the Department will develop total maximum

daily loads for 303(d)-listed waterbodies.

Summary of Potential Impairments

The Perdido River and Bay Basin contains a total of 71 waterbody

segments. Of these, 20 are on the Planning List as potentially impaired

based on the IWR evaluation criteria and/or the 1998 303(d) list criteria.

Table 5.2 summarizes the major parameters for which potential impairments

were identified.

Table 5.2 shows that dissolved oxygen (DO) levels exceeding criteria

are a potential cause of impairment in 10 waterbody segments in this basin.

As previously mentioned, low DO levels are often natural and not always

attributable to pollutants. For this reason, additional work will be conducted

to differentiate between pollutant-related and other causes of low

DO before the Verified List for the basin is developed.

Six streams were listed because of biological impairment measured as at

least one failed bioassessment. To be listed on the Verified List the stream

must fail a second bioassessment. Additionally, a causative pollutant for

the biological impairment must be determined before the water is verified

impaired.

Bacteria are another common source of impairment in streams. Nine

streams were identified for exceedances of bacteriological criteria, either

fecal or total coliforms or both. The distribution of bacterially impaired

waters was split evenly between 1998 303(d)-listed waters, IWR evaluation,

and both.

Perdido Bay, Elevenmile Creek, and part of Perdido River are listed as

potentially impaired because either they were on the 1998 303(d) or in the

Table 5.2: Parameters Causing Potential Impairments in the Perdido River and Bay Basin

Parameter

Included Only

on the 1998

303(d) List

Potential Waterbody Segment Impairments

Identified Only

by the IWR

Evaluation

Identified on Both

the 1998 303(d)

List and by the IWR

Evaluation

Total

Potential

Impairments

Dissolved Oxygen 3 3 2 8

Nutrients (General,

3 — 3

Chlorophyll a, Other Data)

Coliforms (General, Total,

Fecal)

3 3 3 9

Biology 7 7

Conductance 4 4

Suspended Solids/Turbidity 3 1 1 5

Fish Advisory 2 5 7

Fish = Fish consumption advisory issued by the Florida Department of Health based on mercury.


91

case of Perdido Bay the average chlorophyll a level exceeds the 11 micrograms

per liter threshold of impairment.

All coastal nearshore waters of the Gulf of Mexico are listed as potentially

impaired because of a fish consumption advisory for several marine

fish species. The concentration of mercury in fi sh exceeds the health

threshold of 0.5 milligrams.

At the completion of Phase 2 of the watershed management cycle, the

data for these parameters will be reevaluated to verify the condition of the

waterbody segments being monitored. Chapter 6 provides more information

about the Phase 2 monitoring activities.

Waters with Insufficient Data To Determine

Impairment

Any waters that do not have sufficient data to be analyzed in accordance

with the requirements of the IWR, but that were included on the

1998 303(d) list, will remain on the 303(d) list maintained by EPA. They

will also be included on the Planning List until sufficient data are available

to evaluate their condition. The Department intends to collect data on

these waters in Phase 2 of the watershed management cycle to verify their

condition.

Many waterbodies in the Perdido River and Bay Basin are not identified

on the 1998 303(d) list and do not have sufficient (or any) data to be

assessed under the IWR methodology. Because of resource limitations, it

may not be possible for the Department to monitor all of these waterbodies

during the first five-year watershed management cycle. The priority during

Phase 2 of the cycle is to conduct monitoring and other data gathering to

address potentially impaired waters identified on the Planning List.

While the Department plans to monitor waters without enough data

to determine potential impairment during subsequent watershed cycles,

available data gathered by others will also be used for this purpose. It is

important that the Department and stakeholders in the basin coordinate

their monitoring plans to collect data most efficiently for these waterbodies.

Chapter 6 discusses monitoring and data evaluation priorities

and objectives, database management issues, and the development of the

Verified List.


93

Chapter 6: Strategic Monitoring and Data

Evaluation

Strategic Monitoring and Data Acquisition

Priorities

Waters on the Planning List must meet specific thresholds and data

sufficiency and data quality requirements in the Impaired Surface Waters

Rule (IWR) (Rule 62-303, Florida Administrative Code [F.A.C.]).). The

Planning List includes waterbody segments that were previously on the

1998 303(d) list, but for which the Florida Department of Environmental

Protection (Department) had insufficient data for assessment under the

IWR. Additional data that are collected will be used to verify the status of

waters listed as potentially impaired, assess those with insufficient data, and

support modeling efforts to develop total maximum daily loads (TMDLs)

for impaired waterbodies.

Due to resource limitations, the Department alone is not capable of

addressing all of the strategic monitoring objectives within the first fiveyear

cycle for the six Group 5 basins. The Department’s monitoring focus

during the months prior to submitting the Verified List of impaired waters

to the U.S. Environmental Protection Agency (EPA) is to obtain data necessary

to verify the status of potentially impaired waters.

Priority for data acquisition has been given to Planning List waterbody

segments that are also on the 1998 303(d) list and the potentially impaired

waterbodies that did not have sufficient data to verify their condition at the

time the Planning List was generated. Data from other monitoring organizations

will be included in the evaluation to help verify the condition of

potentially impaired waterbodies and provide data by which other waterbodies

can be evaluated.

Data Acquisition Objectives

Currently, 22 waterbody segments on the Planning List in this basin

are targeted for additional monitoring. As discussed, the Department’s

focus prior to producing the Verified List is to collect and assemble sufficient

data to evaluate waterbodies that are potentially impaired for parameters

that do not have sufficient data to meet the Verified List evaluation

criteria (Section 62-303.400, F.A.C.). The priority is to collect data for

waterbodies on the 1998 303(d) list. An additional monitoring priority is

to develop data that may be needed to identify pollutants causing dissolved

oxygen (DO) exceedances or biological impairments. As mentioned in

Chapter 3, these conditions are at times not attributable to pollutants.

Table 6.1 summarizes the objectives of data gathering and evaluation

to verify the condition of waterbody segments on the Planning List.


Table 6.1: Strategic Monitoring and Data Evaluation Needed to Meet Impaired Waters Rule Sample

Size Criteria for Verification of Planning List Waters in the Perdido River and Bay Basin

WBID


Monitoring and Data Evaluation Objectives To Address Planning List Waterbody Segments

Samples needed to verify Potential

Impairment (parameters exceeding

Planning List evaluation criteria [3c]

and/or included on the 1998 303[d] list)

Samples needed to confirm

Impairment ( parameters

exceeding Verified List

evaluation criteria [3d])

3 Reedy Branch 1 SCI

4 Brushy Creek 1 SCI, 12 TSS 10 fecal coliforms, 10

total coliforms collected

in 3 seasons

149 McDavid Creek 1 SCI, 22 alkalinity, 12 chlorophyll a,

12 conductance, 12 DO, 12 fecal coliforms,

12 total coliforms, 12 turbidity,

12 ammonia

245 Alligator Creek 1 SCI

290 Dry Creek 1 SCI

291 Jacks Branch 12 total and fecal coliforms, 12 DO, 12

turbidity

357 Churchhouse Branch 1 SCI

489 Elevenmile Creek 12 nitrogen and phosphorus, 4 fecal

coliforms, 4 total coliforms, 4 turbidity,

12 ammonia, 12 chlorophyll a, 22

TSS

542 Rest Area Run 1 SCI, 22 DO, 22 fecal coliforms, 22

total coliforms, 22 turbidity, 12 alkalinity,

12 chlorophyll a, 12 ammonia

624 Eightmile Creek 1 SCI, 10 DO, 10 nitrogen, 10 phosphorus,

10 chlorophyll a, 12 ammonia,

12 turbidity, 12 total coliforms, 10

fecal coliforms

697 Marcus Creek 22 alkalinity, 10 nitrogen, 10

phosphorus, 1 SCI

797 Perdido Bay Chlorophyll a

725 Unnamed (Marcus

Creek Arm)

20 BOD, 12 fecal coliforms

872 Bridge Creek 12 chlorophyll a, 12 DO, 12 fecal

coliforms, 12 fluoride, 12 turbidity

935 Unnamed stream 4 conductance, 10 total nitrogen, 10

total phosphorus, 4 DO, 4 fecal coliforms,

4 total coliforms, 4 turbidity

945 Tarkiln Bayou 12 chlorophyll a, 12 DO, 12 fecal coliforms,

12 total coliforms, 12 turbidity

1 SCI, 12 conductance,

12 DO,

22 DO, 4 fecal coliforms,

4 total coliforms

1015 Direct Runoff to Gulf 20 conductance

462A Perdido River 5 fecal coliforms, 12 chlorophyll a, 12

nitrogen, 12 phosphorus

462B Perdido River 12 chlorophyll a 5 conductance

Samples needed

to Identify/Verify

Causative Pollutant(s)

12 BOD

22 BOD

10 BOD


95


WBID


Monitoring and Data Evaluation Objectives To Address Planning List Waterbody Segments

Samples needed to verify Potential

Impairment (parameters exceeding

Planning List evaluation criteria [3c]

and/or included on the 1998 303[d] list)

462C Perdido River 12 chlorophyll a, 2 conductance, 10

DO, 12 fecal coliforms

489A Tenmile Creek 11 total coliforms, 11 fecal coliforms,

1 SCI, 12 chlorophyll a



SCI = Stream Condition Index


Samples needed to confirm

Impairment ( parameters

exceeding Verified List

evaluation criteria [3d])

Samples needed

to Identify/Verify

Causative Pollutant(s)

Phase 2 Assessment: Data Collection and

Database Management Leading to the

Development of the 303(d) List of Impaired

Waters

The Department has been working to update the database that will be

used in the Phase 2 assessment, collecting its own data as well as working

with the other key data providers to obtain the most current and comprehensive

water quality data. The data to be used in evaluating waterbodies

to be included on the Verified List include the following:

• Existing data in the database that were not collected during the

Planning List period of record,

• Existing data that had not been imported into the IWR Database at

the time of the Planning List evaluation, and

• Monitoring data that had not been collected or reported.

The database now includes monitoring data collected before and after

the Planning List period of record that were not evaluated for the Planning

List. The 10-year period of record for the data used to produce the

Planning List for the Perdido River and Bay Basin extends from January 1,

1994, to December 31, 2003. The 7.5-year period of record for the Verified

List evaluation, from January 1, 1999, to June 30, 2006, will capture more

recent data.

The IWR contains data that were uploaded since the Planning List

evaluation was conducted. Over the past year, the Department has provided

support to organizations that are interested in uploading their water

quality data to the national STOrage and RETrieval (STORET) database.

Data uploaded since the Planning List evaluation will be included in the

database.

Based on preliminary data reviewed for the production of this Water

Quality Status Report, the Department developed a plan to address


potential data gaps. The Water Quality Section of the Department’s

Northwest District began a strategic monitoring program in 2005 to

address TMDL Program data needs. The focus of this program is to

collect additional data to verify conditions in many of the potentially

impaired waterbody segments.

Verified List Development and Public

Comment

The Verified List of impaired waters for the Perdido River and Bay

Basin will be produced by the Department in summer 2006, and will be

adopted by the Secretary of the Department and submitted to the EPA

later that year. Prior to the Secretary’s action, the Department will distribute

the draft Verified List to the public. As part of the review process,

public workshops will be advertised and held in each basin to help explain

the process for developing the Verified List, exchange information, and

encourage public involvement.

If additional information or data is provided during the public comment

period or before, the Department will consider it before submitting

the proposed list to the Secretary and EPA.


97

References

Alabama Department of Conservation and Natural Resources. January 20,

2006. Forever Wild Program Acquisitions. Available:

http://www.dcnr.state.al.us/public-lands/stateLands/foreverWild.

Alabama Water Watch. January 2002. Citizen Volunteer Water Quality

Monitoring on Alabama’s Coast Wolf Bay. Edited by Dr. Bill Deutsch.

Alabama Water Watch Coastal Series.

Bass, G., T. Hoehn, J. Couch, and K. Mcdonald. November 16, 2004.

Florida Imperiled Fish Species Investigation. Final Report to the U.S. Fish

and Wildlife Service. Florida Fish and Wildlife Conservation Commission,

Blackwater Fisheries Research and Development Center, Holt, FL.

Brim, M. 1993. Toxics Characterization Report for Perdido Bay, Alabama,

and Florida. Publication Number PCFO-EC-93-04. U.S. Fish and

Wildlife Service, Panama City Field Office, Panama City, FL.

Copeland, R., S. Upchurch, K. Summers, A. Janicki, P. Hansard, M.

Paulic, G. Maddox, J. Silvanima, and P. Craig. 1999. Overview of

the Florida Department of Environmental Protection’s Integrated Water

Resource Monitoring Efforts and the Design Plan of the Status Network.

Tallahassee, FL: Florida Department of Environmental Protection,

Ambient Monitoring Section.

Cox, J., R. Kautz, M. MacLaughlin, and T. Gilbert. 1994. Closing the

Gaps in Florida’s Wildlife Habitat Conservation System. Office of Environmental

Services, Florida Game and Fresh Water Fish Commission,

Tallahassee, FL.

Escambia County. January 17, 2006. History of Escambia County’s Local

Option Sales Tax. Available: http://www.co.escambia.fl.us/

departments/public_info_commun/documents/Timeline_000.pdf.

Escambia County Engineering Department Web Site. Available:

http://www.co.escambia.fl.us/departments/engineering/NPDES4.php.

Federal Clean Water Act. Section 303(d).

Fernald, E. A., and E. D. Purdum, Eds. 1998. Water Resources Atlas of

Florida. Tallahassee, FL: Institute of Science and Public Affairs,

Florida State University.

Florida Administrative Code. Rule 62-302. Surface Water Quality

Standards.

Florida Administrative Code. Rule 62-303. Identifi cation of Impaired

Waters Rule.

Florida Department of Environmental Protection. January 5, 2006a.

Available: http://www.floridadep.com/waste/quick_topics/

publications/wc/sites/summary/082.pdf. Tallahassee, FL: Bureau of

Waste Cleanup, Division of Waste Management.

Florida Department of Environmental Protection. January 5, 2006b.



Waste Cleanup, Division of Waste Management.


Florida Department of Environmental Protection. January 23, 2006c.



Waste Cleanup, Division of Waste Management:

Florida Department of Environmental Protection. January 5, 2006(d).



Waste Cleanup, Division of Waste Management.

Florida Department of Environmental Protection. November 12, 2003.

Perdido Pitcher Plant Prairie Parcel Acquired. Press Release.

Florida Department of Environmental Protection. 2005. “Lower Perdido

River Buffer” pp. 293–295. The 2005 Interim Report of the Florida

Forever Program is prepared for the Board of Trustees of the Internal

Improvement Trust Fund of the State of Florida. Division of State

Lands.

Florida Department of Environmental Protection. June 6, 2005. Impaired

Waters Rule Database Run 19.1.

Florida Department of Environmental Protection. February 1, 2001a. A

Report to the Governor and the Legislature on the Allocation of Total

Maximum Daily Loads in Florida. Tallahassee, FL: Bureau of Watershed

Management, Division of Water Resource Management.

Florida Department of Environmental Protection. December 2001b.

Seagrass Management Plan for Big Lagoon and Santa Rosa Sound.

Ecosystem Restoration Section, Northwest District.

Florida Department of Environmental Protection and Alabama Coastal

Foundation. October 2000. Volunteer Monitoring in the Perdido Bay.

Funded by the National Oceanic and Atmospheric Administration and

the Florida Department of Community Affairs.

Florida Department of Environmental Protection. April 12, 2005. Intent

to Issue Permit noticed by Northwest District.

Florida Department of Health. 2005. Your Guide to Eating Fish Caught in

Florida. Prepared in cooperation with Florida Department of Environmental

Protection and the Florida Fish and Wildlife Conservation

Commission.

Florida Department of Natural Resources. 1989. “Perdido River”. Florida

Rivers Assessment.

Florida Natural Areas Inventory. January 25, 2005b. Florida Forever

Board of Trustees Projects GIS Layer.

Florida Natural Areas Inventory. December 2005a. Element Occurrence

2006 GIS Layer.

Florida Natural Areas Inventory and Florida Department of Natural

Resources. February 1990. Guide to the Natural Communities of

Florida.

Florida Watershed Restoration Act. 1999. Chapter 99-223, Laws of

Florida.

GECI and Associates, Inc. Survey conducted between October 22 and

December 15, 2004. Final Report Public Involvement Study of North ½

Southwest Side Drainage Basin Study. Prepared for Escambia County

Engineering Department.


99

Gilbert, T. and B. Stys. March 17, 2004. Descriptions of Vegetation and

Land Cover Types Mapped Using Landsat Imagery. Florida Fish and

Wildlife Conservation Commission.

Grubbs, J. W. and J. R. Pittman. 1997. Application of Acoustical Methods

for Estimating Water Flow and Constituent Loads in Perdido Bay,

Florida. Water Resources Investigations Report 97-4101. U.S.

Geological Survey, U.S. Department of the Interior.

Gulf Coastal Plain Ecosystem Partnership. 2006. Fire Learning Network

Participating Landscape Fourth (Final) Progress Report.

Gulf Islands National Seashore–Florida District. Downloaded February

20, 2006a. Shorebird Nesting. Available: http://www.nps.gov/guis/

extended/FLA/Nature/birdnest.htm.


20, 2006b. Marine Turtles. Available: http://www.nps.gov/guis/

extended/FLA/Nature/Turtle.htm.


20, 2006c. Other Beach and Dune Dwellers. Available: http://www

.nps.gov/guis/extended/FLA/Nature/Turtle.htm.

Gulf of Mexico Program Habitat Team. 2004. Seagrass Habitat in the

Northern Gulf of Mexico: Degradation, Conservation and Restoration of

a Valuable Resource. U.S. Geological Survey and The Gulf of Mexico

Program. Publication Number 855-R-04-001.

Harrington, D. J. 2003. Data Quality Assurance and Statistical Analysis

Protocols for the Status Network. Ground Water Protection Section

Technical Document No. 2003-103. Tallahassee, FL: Florida Department

of Environmental Protection.

Harrington, D. J., J. E. McNeal, and R. W. Hicks. 2004. Integrating

Ground Water into Watershed Management. Ground Water Protection

Section Technical Document 2004-101 (in press). Tallahassee, FL.

Hatch Mott MacDonald. January 2004. LOST—Funding for Stormwater

Management Flooding and Water Quality Enhancement Program

Escambia County, Florida. Prepared for Escambia County Engineering

Department, FL.

Kirschenfeld, T. and B. DeBusk. February 20, 2006. Personal Communication.

Perdido Bay Monitoring and Assessment Study. Escambia

County Engineering Department.

Kirschenfeld, T., R. K. Turpin, and L. Handley. February 20, 2006.

Personal Communication. Perdido Bay.

Maddox, G. L., J. M. Lloyd, T. M. Scott, S. B. Upchurch, and R. Copeland

(Eds.). 1992. Florida Ground Water Quality Monitoring Program—

Volume 2, Background Hydrogeochemistry. Florida Geological Survey,

Special Publication No. 34.

Miller, J. A. 1997. “Hydrogeology of Florida,” in Geology of Florida (A. F.

Randazzo and D. S. Jones, Eds.). Tallahassee, FL: University Press

of Florida.

100


Miller, L. July 1998. Perdido Ecosystem Management Strategies. Prepared

for the Perdido Ecosystem Restoration Group and the Florida Department

of Environmental Protection. Support provided by the National

Oceanic and Atmospheric Administration and the Florida Department

of Community Affairs.

Nordlie, F. 1991. “Chapter 12 Rivers and Springs.” In Ecosystems of

Florida, edited by R. L. Myers and J. J. Ewel, 398-401. Orlando:

University of Central Florida Press.

Northwest Florida Water Management District. 2003. Water Supply

Projections.

Paulic, M. December 31, 1999. Draft Fact Sheet, Heavy Industrial Land

Use and Ground Water Quality in the Pensacola, Florida Very Intense

Study Area. Tallahassee, FL: Ambient Monitoring Section, Florida

Department of Environmental Protection.

Perdido Bay Cooperative Management Program. June 1995. Perdido

Basin Management Strategies Report. Funded by the U.S. Environmental

Protection Agency’s Near Coastal Waters Program.

Pratt, T., C. Richards, K. Milla, J. Wagner, J. Johnson, and R. Curry.

1996. Hydrogeology of the Northwest Florida Water Management

District. Water Resources Special Report 96-4. Havana, FL:

Northwest Florida Water Management District.

Pratt, T., C. Richards, and K. Milla. 1997. Wellhead Protection Area

Delineation in Southern Escambia County, Florida. Water Resources

Special Report 97-4. Havana, FL: Northwest Florida Water Management

District.

Richards, C. J. September 1998. Results of the Milton T-Field Aquifer

Test Sand-and-Gravel Aquifer, Santa Rosa County Florida. Northwest

Florida Water Management District.

Rumenik, R. 1988. Runoff to Streams in Florida. Map Series 122.

Prepared by U.S. Geological Survey in cooperation with the Florida

Department of Environmental Regulation and Florida Department of

Natural Resources, Tallahassee, FL.

Ryan, P. L., T. L. MacMillan, T. R. Pratt, A. R. Chelette, C. R. Richards,

R. A. Countryman, and G.L. Marchman. June 1998. District

Water Supply Assessment, Northwest Florida Water Management District.

Water Resources Assessment 98-2.

Schropp, S., F. Calder, G. Sloane, K. Swanson, J. Carlton, G. Holcomb,

H. Windom, F. Huan, T. Hull, and B. Taylor. January 25, 1991. A

Report on Physical and Chemical Processes Affecting the Management of

Perdido Bay, Results of the Perdido Bay Interstate Project. A cooperative

project between Florida Department of Environmental Regulation and

the Alabama Department of Environmental Management.

South Alabama Regional Planning Commission. April 1993. Draft

Baldwin County Long Range Development and Management Plan.

Stys, B, R. Kautz, D. Reed, M. Keris, R. Kawula, C. Keller, and A. Davis.

March 17, 2004. Florida Vegetation and Land Cover Data Derived from

2003 Landsat ETM+ Imagery. Florida Fish and Wildlife Conservation

Commission. Tallahassee, FL.


101

Timber Mart-South Market Newsletter. 4th Quarter 2003. “Timberland

Transactions.” Volume 8(4):6.

U.S. Geological Survey. 1990. Ground Water Atlas of the United States:

Alabama, Florida, Georgia, South Carolina. Hydrologic Investigations

Atlas 730-G.

U.S. Geological Survey Web Site: Calendar Year Streamflow Statistics for

Alabama. Available: http://nwis.waterdata.usgs.gov/al/nwis/annual/

calendar_year.

U.S. Geological Survey. January 10, 2006. Available: http://waterdata

.usgs.gov/al/nwis. USGS Water Resources of Alabama.

Vecchioli, J., C. H. Tibbals, A. D. Duerr, and C. B. Hutchinson. 1990.

Ground-Water Recharge in Florida—A Pilot Study in Okaloosa, Pasco,

and Volusia Counties. Water Resources Investigations Report 90-4195.

U.S. Geological Survey.

Wayland, R. H., III. November 19, 2001. 2002 Integrated Water Quality

Monitoring and Assessment Report Guidance. Memorandum to

EPA Regional Water Management Directors; EPA Regional Science

and Technology Directors; and State, Territory, and Authorized Tribe

Water Quality Program Directors. Washington, D.C.: U.S. Environmental

Protection Agency.

Wolf Bay Watershed Project. March 2005. Wolf Bay Plan: A Stakeholder

Guide to Protecting the Watershed.

Water Quality Status Report 2006

Perdido River and Bay Appendices

TABLE OF CONTENTS

Appendix A: Legislative and Regulatory Background on the Watershed Management

Approach and the Implementation of TMDLs ...................................................................... 105

Federal and State Legislation on Surface Water Quality and TMDLs .....................................................105

Determining Impairment Based on the State’s Impaired Surface Waters Rule........................................107

Implementing TMDLs ..............................................................................................................................109

Table A.1: Basin Groups for Implementing the Watershed Management Cycle, by Department

District Office...................................................................................................................111

Table A.2: Basin Rotation Schedule for TMDL Development and Implementation..........................111

Figure A.1: Five-Year Rotating Basin Cycle in the Department’s Six Districts ...............................112

Table A.3: Potentially Affected Stakeholders and Actions To Achieve TMDLs ................................113

Appendix B: Methodology for Determining Impairment Based on the Impaired

Surface Waters Rule................................................................................................................. 116

The Impaired Surface Waters Rule...........................................................................................................116

Attainment of Designated Use(s)..............................................................................................................116

Table B.1: Designated Use Attainment Categories for Surface Waters in Florida...........................117

Sources of Data.........................................................................................................................................117

Table B.2: Data Used in Developing the Planning and Verified Lists, First Basin Rotation Cycle .118

Methodology.............................................................................................................................................118

Appendix C: Supplementary Ecological Information for the Perdido River and

Bay Basin ................................................................................................................................... 124

Table C.1: Types of Natural Communities ........................................................................................124

Table C.2: Rare and Imperiled Animal Species in the Perdido Bay Planning Unit..........................126

Table C.3: Rare and Imperiled Plant Species in the Perdido Bay Planning Unit.............................127

Table C.4: Rare and Imperiled Plants and Animals in the Perdido River Planning Unit.................128

Appendix D: Bioassessment Methodology............................................................................. 129

Methodology.............................................................................................................................................129

Metric Definitions.....................................................................................................................................130

References.................................................................................................................................................131

Table D.1: Stream Condition Index (SCI) Scoring and Evaluation Worksheet.................................132

Table D.2: Lake Condition Index (LCI) Scoring and Evaluation Worksheet for Clear Florida

Lakes.................................................................................................................................133

Appendix E: Permitted Discharge Facilities and Landfills in the Perdido River and

Bay Basin ................................................................................................................................... 134

Table E.1: Permitted Facilities with Discharges to Surface Water and Ground Water, by

Planning Unit. ..................................................................................................................134

Table E.2: Permitted Landfill Facilities............................................................................................135


Appendix F: Integrated Assessment (Master List) for the Perdido River and Bay

Basin by Parameter and Monitoring Stations........................................................................ 137

Table F.1: Integrated Assessment (Master List)................................................................................137

Table F.2: Water Quality Monitoring Stations, by Planning Unit ....................................................150

Appendix G: 2000 Land Use by Planning Unit..................................................................... 156

Table G.1: Land Use for the Perdido River Planning Unit...............................................................156

Table G2: Detailed Land Use Analysis for the Perdido River Planning Unit....................................157

Table G.3: Land Use for the Perdido Bay Planning Unit .................................................................159

Table G4: Detailed Land Use Analysis for the Perdido Bay Planning Unit ......................................159

Appendix H: Statistical Summary Sheets for Ground Water Evaluations........................ 161

Water Quality Status Report: Perdido River and Bay 105

Appendix A: Legislative and Regulatory Background on the

Watershed Management Approach and the Implementation of TMDLs

Federal and State Legislation on Surface Water Quality and TMDLs

Clean Water Act

Congress enacted the Clean Water Act in 1972 with the goal of restoring and maintaining

the “chemical, physical, and biological integrity of the nation’s waters” (33 U.S.C. § 1251[a]).

The ultimate goal of the act is to eliminate the “discharge of [all] pollutants into navigable

waters” (33 U.S.C. § 1251[a][1]).

Section 305(b) of the Clean Water Act requires states to report biennially to the EPA on

their water quality. The 305(b) report provides information on the physical, chemical,

biological, and cultural features of each river basin in Florida. This initial assessment provides a

common factual basis for identifying information sources and major issues, and for determining

the future changes, strategies, and actions needed to preserve, protect, and/or restore water

quality. Understanding the physical framework of each basin allows the development of a

science-based methodology for assessing water quality and an accurate picture of the waters that

are most impaired or vulnerable to contamination.

Section 303(d) of the Clean Water Act requires states to submit to the EPA lists of surface

waters that do not meet applicable water quality standards and establish total maximum daily

loads (TMDLs) for each of these waters on a schedule. A pollution limit is then allocated to

each pollutant source in an individual river basin.

A TMDL represents the maximum amount of a given pollutant that a waterbody can

assimilate and meet all of its designated uses (see Noteworthy on Florida’s surface water quality

classifications for a listing of these classifications). A waterbody that does not meet its

designated use is defined as impaired.

NOTEWORTHY: FLORIDA’S SURFACE WATER QUALITY CLASSIFICATIONS

Florida’s water quality standards program, the foundation of the state’s program of water quality

management, designates the “present and future most beneficial uses” of the waters of the state

(Subsection 403.061[10], F.S.). Water quality criteria, expressed as numeric or narrative limits for specific

parameters, describe the water quality necessary to maintain these uses for surface water and ground

water. Florida’s surface water is protected for five designated use classifications, as follows:

Class I

Class II

Class III

Class IV

Class V

Potable water supplies

Shellfish propagation or harvesting

Recreation, propagation, and maintenance of a healthy, well-balanced population

of fish and wildlife

Agricultural water supplies

Navigation, utility, and industrial use (there are no state waters currently in this

class)


Florida Watershed Restoration Act

In 1998, the EPA settled a lawsuit with the environmental group Earthjustice over Florida’s

TMDL Program. The Consent Decree resulting from the lawsuit requires all TMDLs on the

state’s 1998 Section 303(d) list of impaired waters to be developed in thirteen years. If the state

fails to develop the TMDLs, the EPA is required to do so.

In response to concerns about the TMDL lawsuit and in recognition of the important role

that TMDLs play in restoring state waters, the 1999 Florida legislature enacted the Florida

Watershed Restoration Act (Chapter 99-223, Laws of Florida). The act clarified the

Department’s statutory authority to establish TMDLs, required the Department to develop a

methodology for identifying impaired waters, specified that the Department could develop

TMDLs only for waters on a future state list of impaired waters developed using this new

methodology, and directed the Department to establish an Allocation Technical Advisory

Committee to address the allocation process for TMDLs. The act also declared Lake

Okeechobee impaired and, as required under the TMDL Consent Decree, allowed the state to

develop a TMDL for the lake (see Noteworthy for a description of the legislation’s major

provisions).

NOTEWORTHY: THE FLORIDA WATERSHED RESTORATION ACT

The Florida Watershed Restoration Act contains the following major provisions:

• Establishes that the 303(d) list submitted to the EPA in 1998 is for planning purposes only.

• Requires the Department to adopt 303(d) listing criteria (that is, the methodology used to define

impaired waters) by rule.

• Requires the Department to verify impairment and then establish a Verified List for each basin. The

Department must also evaluate whether proposed pollution control programs are sufficient to meet

water quality standards, list the specific pollutant(s) and concentration(s) causing impairment, and

adopt the basin-specific 303(d) list by Secretarial Order.

• Requires the Department’s Secretary to adopt TMDL allocations by rule. The legislation requires the

Department to establish “reasonable and equitable” allocations of TMDLs, but does not mandate how

allocations will be made among individual sources.

• Requires that TMDL allocations consider existing treatment levels and management practices; the

differing impacts that pollutant sources may have; the availability of treatment technologies, best

management practices (BMPs), or other pollutant reduction measures; the feasibility, costs, and

benefits of achieving the allocation; reasonable time frames for implementation; the potential

applicability of moderating provisions; and the extent that nonattainment is caused by pollutants from

outside Florida, discharges that have ceased, or alteration to a waterbody.

• Required a report to the legislature by February 2001 addressing the allocation process.


• Authorizes the Department to develop basin plans to implement TMDLs, coordinating with the water

management districts, the Florida Department of Agriculture and Consumer Services (DACS), the

Soil and Water Conservation Districts, regulated parties, and environmental groups in assessing

waterbodies for impairment, collecting data for TMDLs, developing TMDLs, and conducting at least

one public meeting in the watershed. Implementation is voluntary if not covered by regulatory

programs.

• Authorizes the Department and DACS to develop interim measures and BMPs to address nonpoint

sources. While BMPs would be adopted by rule, they will be voluntary if not covered by regulatory

programs. If they are adopted by rule and the Department verifies their effectiveness, then

implementation will provide a presumption of compliance with water quality standards.

• Directs the Department to document the effectiveness of the combined regulatory/voluntary approach

and report to the legislature by January 1, 2005. The report will include participation rates and

recommendations for statutory changes.

Determining Impairment Based on the State’s Impaired Surface Waters Rule

Section 303(d) of the federal Clean Water Act and the Florida Watershed Restoration Act

describe impaired waters as those waterbodies or waterbody segments that do not meet

applicable water quality standards. “Impairment” is a broad term that includes designated uses,

water quality criteria, the Florida antidegradation policy, and moderating provisions (see

Noteworthy for explanations of these terms).

The state’s Identification of Impaired Surface Waters Rule (Rule 62-303, F.A.C.) was

developed in cooperation with a Technical Advisory Committee and adopted by the Florida

Environmental Regulation Commission on April 26, 2001. It provides a science-based

methodology for evaluating water quality data in order to identify impaired waters, and it

establishes specific criteria for impairment based on chemical parameters, the interpretation of

narrative nutrient criteria, biological impairment, fish consumption advisories, and ecological

impairment. The complete text of the rule is available at http://www.dep.state.fl.us/water/tmdl/

docs/AmendedIWR.pdf.

The Impaired Surface Waters Rule also establishes thresholds for data sufficiency and data

quality, including the minimum sample size required and the number of exceedances of the

applicable water quality standard for a given sample size that identify a waterbody as impaired.

The number of exceedances is based on a statistical approach designed to provide greater

confidence that the outcome of the water quality assessment is correct. Waters that are

identified as impaired through the Impaired Surface Waters Rule are prioritized for

TMDL development and implementation.

NOTEWORTHY: EXPLANATION OF TERMS

• Designated uses, discussed in an earlier sidebar, comprise the five classifications applied to each of

the state’s surface waterbodies.

• Water quality criteria comprise numeric or narrative limits of pollutants.


• The Florida Antidegradation Policy (Sections 62-302.300 and 62-4.242, F.A.C.) recognizes that

pollution that causes or contributes to new violations of water quality standards or to the continuation

of existing violations is harmful to the waters of the state. Under this policy, the permitting of new or

previously unpermitted existing discharges is prohibited where the discharge is expected to reduce

the quality of a receiving water below the classification established for it. Any lowering of water

quality caused by a new or expanded discharge to surface waters must be in the public interest (that

is, the benefits of the discharge to public health, safety, and welfare must outweigh any adverse

impacts on fish and wildlife or recreation). Further, the permittee must demonstrate that other

disposal alternatives (for example, reuse) or pollution prevention are not economically and

technologically reasonable alternatives to the surface water discharge.

• Moderating provisions (provided in Subsection 62-302.300[10] and Rules 62-4 and 62-6, F.A.C.,

and described in Sections 62-302.300, 62-4.244, 62-302.800, 62-4.243, F.A.C., and Sections

403.201 and 373.414, F.S.) include mixing zones, zones of discharge, site-specific alternative criteria,

exemptions, and variances. These provisions are intended to moderate the applicability of water

quality standards where it has been determined that, under certain special circumstances, the social,

economic, and environmental costs of such applicability outweigh the benefits.

Determining impairment in individual waterbodies takes place in two phases. First, in each

river basin the Department evaluates the existing water quality data, using the methodology

prescribed in the Impaired Surface Waters Rule, to determine whether waters are potentially

impaired. Waters found to be potentially impaired are included on a Planning List for further

assessment under Subsections 403.067(2) and (3), F.S. As required by Subsection 403.067(2),

F.S., the Planning List is not used to administer or implement any regulatory program. It is

submitted to the EPA for informational purposes only.

The second step is to assess waters on the Planning List under Subsection 403.067(3), F.S.,

as part of the Department’s watershed management approach (described in the following

section). The Department carries out additional data gathering and strategic monitoring,

focusing on these potentially impaired waters, and determines—using the methodology in Part

III, Section 62-303.400, F.A.C.—if a waterbody is, in fact, impaired and if the impairment is

caused by pollutant discharges.

An Assessment Report is produced containing the results of this updated evaluation and a

Verified List of impaired waters. The criteria for the Verified List are more stringent than those

for the Planning List. The Department is required to develop TMDLs for waters on the Verified

List under Subsection 403.067(4), F.S. A watershed management plan (called a Basin

Management Action Plan) to reduce the amount of pollutants that cause impairments must also

be produced and implemented.

The Verified List is adopted by Secretarial Order in accordance with the Florida Watershed

Restoration Act. Once adopted, the list is submitted to the EPA for approval as the state’s

Section 303(d) list of impaired waters for the basin.


Implementing TMDLs

The Watershed Management Approach

The Department's statewide approach to water resource management, called the watershed

management approach, is the framework for implementing TMDLs as required by the federal

and state governments. The approach does not focus on individual causes of pollution. Instead,

each basin is assessed as an entire functioning system, and aquatic resources are evaluated from a

basinwide perspective that considers the cumulative effects of human activities. Water resources

are managed on the basis of natural boundaries, such as river basins, rather than political or

regulatory boundaries. Federal, state, regional, tribal, and local governments identify watersheds

not meeting clean water or other natural resource goals and work cooperatively to focus

resources and implement effective strategies to restore water quality. Extensive public

participation in the decision-making process is crucial.

The watershed management approach is not new, nor does it compete with or replace

existing programs. Rather than relying on single solutions to water resource issues, it is intended

to improve the health of surface water and ground water resources by strengthening coordination

among such activities as monitoring, stormwater management, wastewater treatment, wetland

restoration, land acquisition, and public involvement.

By promoting the management of entire natural systems and addressing the cumulative

effects of human activities on a watershed basis, this approach is intended to protect and enhance

the ecological structure, function, and integrity of Florida’s watersheds. It provides a framework

for setting priorities and focusing the Department’s resources on protecting and restoring water

quality, and aims to increase cooperation among state, regional, local, and federal interests. By

emphasizing public involvement, the approach encourages stewardship by all Floridians to

preserve water resources for future generations.

The watershed approach is intended to speed up projects by focusing funding and other

resources on priority water quality problems, strengthening public support, establishing

agreements, and funding multiagency projects. It avoids duplication by building on existing

assessments and restoration activities and promotes cooperative monitoring programs. It

encourages accountability for achieving water quality improvements through improved

monitoring and the establishment of TMDLs.

The Watershed Management Cycle

As part of the Department’s watershed management approach, TMDLs will be developed,

and the corresponding pollutant loadings allocated, as part of a watershed management cycle that

rotates through the state’s fifty-two river basins over a nine-year period. The cycle’s five phases

are as follows:

• Phase 1: Preliminary Watershed Evaluation. For each river basin, a Basin Status

Report is developed, containing a Planning List of potentially impaired waters that may

require the establishment of TMDLs. The report characterizes each basin’s hydrologic,

ecological, and socioeconomic setting as well as historical, current, and proposed

watershed management issues and activities. It also contains a preliminary evaluation of


major water quality parameters, water quality issues by planning unit, ecological

resources, and basinwide pollutant loading trends related to land uses. At the end of

Phase 1, a Strategic Monitoring Plan is developed.

• Phase 2: Strategic Monitoring and Assessment. Additional data are collected through

strategic monitoring and uploaded to STORET. The data are used to verify whether

potentially impaired waters in each basin are impaired and to calibrate and verify models

for TMDL development. At the end of Phase 2, an Assessment Report is produced for

each basin that contains a Verified List of impaired waters. The report also provides an

updated and more thorough evaluation of water quality, associated biological resources,

and current management plans. The Department will adopt the Verified List through a

Secretarial Order and submit it to the EPA as the state’s Section 303(d) list of impaired

waters.

• Phase 3: Development and Adoption of TMDLs. TMDLs for priority impaired waters

in the basin will be developed and adopted by rule. Because TMDLs cannot be

developed for all listed waters during a single watershed management cycle due to fiscal

and technical limitations, waterbodies will be prioritized using the criteria in the

Identification of Impaired Surface Waters Rule (Rule 62-303, F.A.C.).

• Phase 4: Development of a Basin Management Action Plan (BMAP). A BMAP will

be developed for each basin to specify how pollutant loadings from point and nonpoint

sources will be allocated and reduced in order to meet TMDL requirements. The plans

will include regulatory and nonregulatory (i.e., voluntary) and structural and

nonstructural strategies, and existing management plans will be used where feasible. The

involvement and support of affected stakeholders in this phase will be especially critical.

• Phase 5: Implementation of a Basin Management Action Plan. Implementation of the

activities specified in the BMAP will begin. This includes carrying out rule development

as needed, securing funding, informing stakeholders and the public, and monitoring and

evaluating the implementation of the plan.

To implement the watershed cycle, the state’s river basins have been divided into five

groups within each of the Department’s six districts statewide, and each district will assess one

basin each year. Table A.1 shows the basin groups for implementing the cycle in the

Department’s districts, and Figure A.1 shows these groups and the rotating cycle in the districts.

Table A.2, which lists the basin rotation schedule for TMDL development and implementation,

shows that it will take nine years to complete one full cycle of the state.

The watershed management cycle is an iterative, or repeated, process. One of its key

components is that the effectiveness of management activities (TMDL implementation) will be

monitored in successive cycles. Monitoring conducted in Phase 2 of subsequent cycles will be

targeted at evaluating whether water quality objectives are being met and whether individual

waters are no longer impaired. The Department also will track the implementation of scheduled

restoration activities, whether required or voluntary, to ensure continued progress towards

meeting the TMDLs.


Table A.1: Basin Groups for Implementing the Watershed Management Cycle, by Department District Office

District

Group 1

Group 2

Group 3

Group 4

Group 5

Basins

Basins

Basins

Basins

Basins

Northwest

Choctawhatchee

Ochlockonee–- Apalachicola–

Perdido River and

River and Bay and Pensacola Bay

St. Marks Rivers Chipola Rivers


St. Andrews Bay

Northeast

Central

Southwest

South

Southeast

Suwannee River

Ocklawaha River

Tampa Bay

Everglades West

Coast

Lake Okeechobee

Lower St. Johns


Middle St. Johns


Tampa Bay

Tributaries

Charlotte Harbor

St.Lucie–

Loxahatchee

Rivers

Upper St. Johns


Sarasota Bay and

Peace–Myakka


Caloosahatchee


Lake Worth

Lagoon/Palm

Beach Coast

St. Marys–Nassau


Kissimmee River

Withlacoochee


Fisheating Creek

Southeast Urban

Coast

Northeast Coast

Lagoons

Indian River

Lagoon

Springs Coast

Florida Keys

Everglades

Table A.2: Basin Rotation Schedule for TMDL Development and Implementation

Year 00 01 01 02 02 03 03 04 04 05 05 06 06 07 07 08 08 09 09 10

Group 1

PHASE PHASE PHASE PHASE PHASE PHASE PHASE PHASE PHASE PHASE

1 2 3 4 5 1 2 3 4 5

Group 2

PHASE PHASE PHASE PHASE PHASE PHASE PHASE PHASE PHASE

1 2 3 4 5 1 2 3 4

Group 3

PHASE PHASE PHASE PHASE PHASE PHASE PHASE PHASE

1 2 3 4 5 1 2 3

Group 4

PHASE PHASE PHASE PHASE PHASE PHASE PHASE

1 2 3 4 5 1 2

Group 5

PHASE

1

PHASE

2

PHASE

3

PHASE

4

PHASE

5

PHASE

1

1 st Five-Year Cycle – High-Priority Waters 2 nd Five-Year Cycle – Medium-Priority Waters

Note: Projected years for Phases 3, 4, and 5 may change due to accelerated local activities, length of plan

development, legal challenges, etc.


Figure A.1: Five-Year Rotating Basin Cycle in the Department’s Six Districts


Pollutants can enter a waterbody through point source discharges (generally from a

specific facility) or nonpoint discharges (e.g., stormwater runoff, septic tanks).

Government agencies, businesses, organizations, and individuals who contribute to these

discharges will be asked to share the responsibility of attaining TMDLs through load

allocations (the amount of a specified pollutant allotted for discharge) that are based on

an established TMDL. Table A.3 summarizes these potentially affected stakeholders and

the actions they may be asked to take to help achieve a TMDL.

Table A.3: Potentially Affected Stakeholders and Actions To Achieve TMDLs

Potentially Affected Stakeholders

Municipal stormwater/wastewater programs

Commercial developers, homebuilders, individual

homeowners

Municipal and industrial wastewater treatment

facilities, National Pollutant Discharge Elimination

System (NPDES) permitted facilities

Farming and silviculture operations

Federal, regional, state agencies; regional and

local water quality coalitions

Actions To Achieve TMDL

Reduce and treat urban stormwater runoff through

stormwater retrofits, replacement of septic tanks

Improve development design and construction,

enhance best management practices, replace septic

tanks

Reduce pollutant loadings from permitted

discharges

Reduce and treat runoff through best management

practices

Carry out waterbody restoration projects

Permitting and Other Approaches

NPDES PERMITS

All point sources that discharge to surface waterbodies require a NPDES permit.

These permits can be classified into two types: domestic or industrial wastewater

discharge permits, and stormwater permits. NPDES-permitted point sources may be

affected by the development and implementation of a TMDL. All NPDES permits

include “reopener clauses” that allow the Department to incorporate new discharge limits

when a TMDL is established. These new limitations may be incorporated into a permit

when a TMDL is implemented or at the next permit renewal, depending on the timing of

the permit renewal and workload. For NPDES municipal stormwater permits, the

Department intends to insert the following statement once a BMAP is completed:

“The permittee shall undertake those activities specified in the (Name of Waterbody)

Basin Management Action Plan in accordance with the approved schedule set forth in the

BMAP.”


DOMESTIC AND INDUSTRIAL WASTEWATER PERMITS

In addition to NPDES-permitted facilities, all of which discharge to surface waters,

Florida also regulates domestic and industrial wastewater discharges to ground water via

land application. Since ground water and surface water are so intimately linked in much

of the state, reductions in loadings from these facilities may be needed to meet TMDL

limitations for pollutants in surface waters. If such reductions are identified in the

BMAP, they would be implemented through modifications of the existing state permits.

FLORIDA STORMWATER/ENVIRONMENTAL RESOURCE PERMITS

With the implementation of the state’s stormwater treatment rule in 1982, Florida

became the first state to require the treatment of stormwater from all new development.

Today, except in the area served by the Northwest Florida Water Management District,

new development projects receive an Environmental Resource Permit that combines

stormwater flood protection, stormwater treatment, and wetland protection/mitigation

into a single permit. These permits are designed to obtain 80 percent average annual load

reduction of total suspended solids. This level of treatment may need to be increased,

depending on the allocation of load reductions, especially for nutrients. For example, the

St. Johns River Water Management District recently adopted basin-specific criteria for

the Lake Apopka Basin that require the phosphorus loading from new development not to

exceed predevelopment phosphorus loading.

LOCAL LAND DEVELOPMENT CODES

Since structural stormwater treatment practices can only achieve certain levels of

load reductions, and because the hydrologic changes accompanying urban development

often cause ecological impacts to aquatic systems, local land development codes that

promote “low-impact development” are an important component of restoring impaired

waters. Local codes may need to be reviewed to determine how to promote

developments that minimize impervious surfaces (such as reduced street widths or the use

of pervious pavements), promote the protection of vegetation, promote the protection and

restoration of riparian buffers along streams and lakes, and adopt the principles of the

Florida Yards and Neighborhoods Program in local landscaping codes.

BEST MANAGEMENT PRACTICES (BMPS)

Typically, BMPs refer to a practice or combination of practices that, based on sound

science and best professional judgment, are determined to be the most effective and

practicable means of reducing nonpoint source pollutant discharges and improving water

quality. Both economic and technological considerations are included in the evaluation

of what is practicable. BMPs may include structural controls (such as retention areas or

detention ponds) or nonstructural controls (such as street sweeping or public education).

Many BMPs have been developed for urban stormwater to reduce pollutant loadings and

peak flows. These BMPs accommodate site-specific conditions, including soil type,

slope, depth to groundwater, and the designation of receiving waters.


The passage of the Florida Watershed Restoration Act increased the emphasis on

implementing BMPs to reduce nonpoint source pollutant discharges from agricultural

operations. Recognizing that the development and adoption of BMPs might take several

years, the legislature authorized the use of Interim Measures (IMs) during the BMP

development process for agricultural operations. In essence, IMs are a set of logical

conservation practices designed to reduce agricultural nonpoint pollutant discharges

based on current knowledge and best professional judgment. These practices will evolve

into more formal BMPs as better scientific data on their effectiveness is obtained.

Once the Florida Department of Agriculture and Consumer Services adopts BMPs,

the Department is charged with verifying their effectiveness in reducing agricultural

nonpoint sources. Once verified, agricultural operations that have implemented BMPs

will receive a waiver of liability and presumption of compliance similar to that granted a

developer who obtains an Environmental Resource Permit.

OTHER STRATEGIES

The success of implementing nonpoint source TMDL load allocations will require

variety, creativity, stakeholder commitment to watershed management, and personal

stewardship. In addition to BMPs, other possible strategies for meeting TMDLs,

restoring water quality, and preventing the further degradation of Florida’s watersheds

include cost sharing, waste minimization, pollution prevention, new approaches to land

use design and development, and pollutant trading. The Department will assemble a

Technical Advisory Committee to help develop a pollutant trading rule, which must be

reviewed by the legislature prior to its adoption. The Department will also continue to

work with local stakeholders on TMDL allocation issues and implementation plans.

Sources of Information

For additional information on the Department’s Watershed Management Program

and TMDLs, please contact the following basin coordinators:

• Southwest Florida and Lake Okeechobee, Pat Fricano (850) 245-8559

• Southeast Florida and Ochlockonee-St. Marks Basins, Kevin O’Donnell (850)

245-7607

• Northwest and Central Florida, Mary Paulic, (850) 245-8560

• Northeast Florida and Suwannee Basin, Jennifer Gihring (850) 245-8418

• West Central Florida and Tampa Bay Region, Tom Singleton (850) 245-8561

For information on establishing and implementing TMDLs, contact Jan Mandrup-

Poulsen at (850) 245-8448. Additional information is available on the Department’s Web

site at http://www.dep.state.fl.us/water/watersheds/index.htm.


Appendix B: Methodology for Determining Impairment Based

on the Impaired Surface Waters Rule

The Impaired Surface Waters Rule

To identify impaired waters in each of the state’s river basins, the Department

evaluates water quality data using the science-based methodology in the Identification of

Impaired Surface Waters Rule (Rule 62-303, F.A.C.). The rule establishes specific

criteria and thresholds for impairment, in addition to data sufficiency and data quality

requirements. The methodology described in the rule is based on a statistical approach

designed to provide greater confidence that the outcome of the water quality assessment

is correct. The complete text of the Impaired Surface Waters Rule is available at

http://www.dep.state.fl.us/water/tmdl/docs/AmendedIWR.pdf

As part of the watershed management approach, for each river basin in the state the

Department will follow the methodology in Section 62-303.300, F.A.C., to develop a

Planning List of potentially impaired waters to be assessed under Subsections 403.067(2)

and (3), F.S. The methodology for developing the Planning List includes an evaluation

of aquatic life use support, primary contact and recreational use support, fish and

shellfish consumption use support, drinking water use support, and protection of human

health. Data older than ten years cannot be used to evaluate water quality criteria

exceedances for the Planning List. As required by Subsection 403.067(2), F.S., the

Planning List will not be used to administer or implement any regulatory program, and is

submitted to the EPA for informational purposes only.

After further assessment, using the methodology in Part III, Section 62-303.400,

F.A.C., the Department will determine if waters on the Planning List are, in fact,

impaired and if the impairment is caused by pollutant discharges. These waters are

placed on a Verified List. The criteria for the Verified List are more stringent than those

for the Planning List. Data older than 7.5 years should not be used to verify impairment.

The Verified List will be adopted by Secretarial Order and forwarded to the EPA for

approval as Florida’s Section 303(d) list of impaired waters. The Department will

develop TMDLs for these waters under Subsection 403.067(4), F.S.

Attainment of Designated Use(s)

While the designated uses of a given waterbody are established using the surface

water quality classification system described previously, it is important to note that the

EPA uses slightly different terminology in its description of designated uses. Because the

Department is required to provide use attainment status for both the state’s 305(b) report

and the state’s 303(d) list of impaired waters, the Department uses EPA terminology

when assessing waters for use attainment. The water quality evaluations and decision

processes for listing impaired waters that are defined in Florida’s Impaired Surface

Waters Rule are based on the following designated use attainment categories:







Table B.1 summarizes the designated uses assigned to Florida’s various surface

water classifications.

Table B.1: Designated Use Attainment Categories for Surface Waters in Florida

Designated Use Attainment Category Used in Applicable Florida Surface Water Classification

Impaired Surface Waters Rule Evaluation






Class II


Class I



Sources of Data

The Department’s assessment of water quality for each basin statewide includes an

analysis of quantitative data from a variety of sources, many of which are readily

available to the public. These sources include the EPA’s Legacy and modernized

STOrage and RETrieval (STORET) databases, the U.S. Geological Survey (USGS), the

Department, the Florida Department of Health (DOH), the water management districts,

local governments, and volunteer monitoring groups.

Historically, the Department carried out statewide water quality assessments using

data available in the EPA’s Legacy STORET Database; STORET makes up

approximately 60 percent of the statewide data used in the Impaired Surface Waters Rule

assessment. The Legacy STORET Database is a repository of data collected and

uploaded by numerous organizations through 1999. The Legacy STORET Database can

be accessed at http://www.dep.state.fl.us/water/storet/index.htm

In 2000, the EPA created a modernized version of STORET that included new

features designed to address data quality assurance/quality control concerns (see the new

STORET Web site at http://www.epa.gov/storet/). However, because of software

difficulties associated with batch uploading of data to the modernized STORET, the data

being uploaded to the national repository decreased dramatically, and lingering problems

have temporarily reduced STORET’s importance as a statewide data source. It houses

only about 5 percent of the statewide Impaired Surface Waters Rule Database.

Approximately 35 percent of the data used in the assessment under the Impaired

Surface Waters Rule was provided by individual organizations that for various reasons,

such as time constraints or resource limitations, were not able to enter their data into the

national database. The organizations providing the largest datasets include the South

Florida, Southwest Florida, and St. Johns River Water Management Districts; the USGS;

and the University of Florida LakeWatch volunteer monitoring group. Several of these


databases are readily available to the public via the Internet: the South Florida Water

Management District at http://www.envirobase.usgs.gov/, the USGS at

http://water.usgs.gov/, and LakeWatch at http://lakewatch.ifas.ufl.edu/.

The Department created the Impaired Surface Waters Rule Database in 2002 to

evaluate data simultaneously in accordance with the Impaired Surface Waters Rule

methodology for every basin in the state, based on the appropriate data “window.” For

the Verified List assessment, the window is 7.5 years (for the Impaired Surface Waters

Rule Database), and the Planning List assessment window is 10 years. Table B.2 shows

the periods of record for the Verified and Planning Lists for the five basin groups.

The evaluation of water quality in the state’s basins also includes some qualitative

information. These sources are described in the Basin Status Reports and Assessment

Reports for each basin.

Table B.2: Data Used in Developing the Planning and Verified Lists, First Basin Rotation Cycle

Basin Group Reporting

Period of Data Record Used in Impaired

Surface Waters Rule Evaluation

Group 1 Planning List January 1, 1989 – December 31, 1998

Verified List January 1, 1995 – June 30, 2002









Note: Typically, a 10-year data record is used for the development of the Planning Lists, and a 7.5-year record is used for

the Verified Lists.

Methodology

To determine the status of surface water quality in individual river basins in Florida,

three categories of data—chemistry data, biological data, and fish consumption

advisories—were evaluated to determine potential impairments for the four designated

use attainment categories discussed earlier: aquatic life, primary contact and recreation,

fish and shellfish consumption, and drinking water use and protection of human health.

Aquatic Life Based Attainment

The Impaired Surface Waters Rule follows the principle of independent applicability.

A waterbody is listed for potential impairment of aquatic life use support based on

exceedances of any one of four types of water quality indicators (numeric water quality

criteria, nutrient thresholds, biological thresholds, and toxicity data).


EXCEEDANCES OF NUMERIC WATER QUALITY CRITERIA

The chemistry data from STORET used in evaluating impairment were also used for

preparing the state’s 2000 305(b) report. Only ambient surface water quality stations

were included in the assessment of impairment. Water quality information from point

sources or wells was excluded. Monitoring stations were classified as one of five

waterbody types—spring, stream, lake, estuary, or blackwater—based on criteria

described in the latest 305(b) report. The assessments included the following parameters:

Metals

Nutrients

Conventionals

Arsenic, aluminum, cadmium, chromium VI, chromium III,

copper, iron, lead, mercury, nickel, selenium, silver,

thallium, and zinc

Chlorophyll a for streams and estuaries, and Trophic State

Index (TSI) (chlorophyll a, total nitrogen, and total

phosphorus) for lakes

Dissolved oxygen (DO), fecal coliforms, total coliforms,

pH, un-ionized ammonia

The requirements for placing waters on the Planning List included a minimum of 10

temporally independent samples from the ten-year period of record shown in Table B.2,

unless there were 3 exceedances of water quality or 1 exceedance of an acute toxicity

criterion in a three-year period. The screening methodology for the Verified List requires

at least 20 samples from the last five years preceding the Planning List assessment. For

most parameters, an exceedance is recorded any time the measured value is higher than

the applicable water quality criterion by any amount. However, for the DO criterion,

which is expressed as a minimum numeric value, an "exceedance" is recorded whenever

the measured value is lower than the applicable DO criterion.

To determine if a water should be placed on the Planning List for each parameter, the

chemical data were analyzed using a computer program written to assess the data, based

on criteria established in the Impaired Surface Waters Rule, with two exceptions. First,

un-ionized ammonia data were not analyzed by the program, but rather with an Excel

spreadsheet. Second, because the full complexity of the pH criterion could not be

programmed, the incomplete listings for pH are not included. They will be further

examined while additional data are collected during Phase 2 of the watershed

management cycle. Data analysis and statistical summaries of WBIDs, waterbody types,

and parameters obtained from the STORET Database were conducted using Access, SAS

statistical software, and ArcView GIS applications.

The data for metals and conventional parameters were compared with the state

surface water quality criteria in Section 62-302.530, F.A.C. (Identification of Impaired

Surface Waters Rule). The rule contains a table of sample numbers versus exceedances.

A waterbody was placed on the Planning List if there was at least 80 percent confidence

that the actual criteria exceedance rate was greater than or equal to 10 percent. To be

placed on the Verified List, at least a 90 percent confidence rate was required.


EXCEEDANCES OF NUTRIENT THRESHOLDS

The state currently has a narrative nutrient criterion instead of a numeric value for

nutrient thresholds. The narrative criterion states, “In no case shall nutrient

concentrations of a body of water be altered so as to cause an imbalance in natural

populations of aquatic flora or fauna.” The Impaired Surface Waters Rule provides an

interpretation of the narrative nutrient criterion. In general, the Trophic State Index (TSI)

and the annual mean chlorophyll a values are the primary means for assessing whether a

waterbody should be assessed further for nutrient impairment.

The rule also considers other information that might indicate an imbalance in flora or

fauna due to nutrient enrichment, such as algal blooms, excessive macrophyte growth, a

decrease in the distribution (either in density or aerial coverage) of seagrasses or other

submerged aquatic vegetation, changes in algal species richness, and excessive diel

oxygen swings.

Potential nutrient impairment was evaluated by calculating annual mean chlorophyll

a values for estuaries and streams and the TSI for lakes. For lakes, the TSI was

calculated using chlorophyll a, total phosphorus, and total nitrogen measurements. Direct

evidence of imbalances of flora and fauna in waterbodies was also considered in the

evaluation of nutrient impairments.

In estuarine areas, a water was considered nutrient enriched if the annual mean

chlorophyll a values were greater than 11 micrograms per liter (μg/L) or if annual mean

chlorophyll a values increased by more than 50 percent over historical values for at least

two consecutive years. For streams, a water was considered nutrient enriched if the

annual mean chlorophyll a values were greater than 20 μg/L or if the annual mean

increased by more than 50 percent over historical values for at least two consecutive

years.

A lake with a mean color greater than 40 platinum cobalt units (PCUs) was

considered nutrient enriched if the annual mean TSI exceeded 60. A lake with a mean

color less than or equal to 40 PCUs was considered nutrient enriched if the annual mean

TSI exceeded 40. In addition, a lake was considered nutrient enriched if there was an

increase in TSI over the 1989 to 2000 period or if TSI measurements were 10 units higher

than historical values.

EXCEEDANCES OF BIOLOGICAL THRESHOLDS

Bioassessments were carried out for streams, lakes, canals, and rivers using the

Impaired Surface Waters Rule as guidance and following the Department’s standard

operating procedures, which provide definitions and specific methods for the generation

and analysis of bioassessment data. These are referenced in the individual bioassessment

data tables contained in the Basin Status Reports. The purpose behind using a

bioassessment methodology in surface water characterizations is that biological

components of the environment manifest long-term water quality conditions and thus

provide a better indication of a waterbody’s true health than discrete chemical or physical

measurements alone. Similar to water quality criteria, bioassessment methods involve

the identification of a biological reference condition, based on data from unimpaired or

least impacted waters in a given region.


For the Planning and Verified List assessments, the reference condition data were

used to establish expected scores, ranging from best to worst, for various measures of

community structure and function, such as numbers or percentages of particular species

or feeding groups. Data on community structure and function from waters of unknown

quality in the same region as reference waters were compared with the expected scores of

metrics to evaluate their biological integrity.

Metrics (e.g., number of taxa, percent Diptera, percent filter feeders) were used

independently and as an aggregated group called an index. Indices have advantages over

individual metrics in that they can integrate several related metrics into one score that

reflects a wider range of biological variables. A number of bioassessment metrics and

indices exist for assessing populations of plant and animal life, including fish, diatoms

(e.g., microscopic algae and unicellular plankton), and macroinvertebrates (e.g., insects,

crayfish, snails, and mussels).

Only macroinvertebrate data from ambient sites in state surface waters were used in

the bioassessments analyzed for the Planning and Verified Lists. The data included sites

designated as test and background sites for National Pollutant Discharge Elimination

System (NPDES) fifth-year inspections, but excluded data from effluent outfalls from

discharging facilities or data from monitoring sites not clearly established to collect

ambient water quality data. Because site-specific habitat and physicochemical

assessment information (e.g., percent suitable macroinvertebrate habitat, water velocities,

extent of sand or silt smothering, and riparian [Definition: Of, on, or relating to the

banks of a natural course of water.]) buffer zone widths) was not available at the time of

reporting, it was not included. However, this information is instrumental in pinpointing

the causes for failed bioassessment metrics and will be included in future reporting.

The data used to develop the Planning and Verified Lists were obtained from the

Department’s Biological Database (SBIO) and the EPA’s STORET Water Quality

Database, where it could be substantiated that the data were generated in compliance with

the bioassessment standard operating procedures referenced in the Impaired Surface

Waters Rule (Section 62-303.330, F.A.C.).

The data from these databases are used without regard to the randomness of sample

site selection. For the purposes of the Basin Status Reports, the seasons are defined as

follows: winter (1/1–3/31), spring (4/1–6/30), summer (7/1–9/30), and fall (10/1–12/31).

Wet seasons are generally spring and summer, and dry seasons are fall and winter,

although conditions can vary in the state as a whole.

LAKE CONDITION INDEX

The scoring of the individual metrics of the Lake Condition Index (LCI), except

percent Diptera, was performed according to the following formula:

100(B/A) where A = the 95 percentile of the reference population and B = observed

value


For percent Diptera, the following formula was used:

100 (100-B)/(100-A) where A = the 95 percentile of the reference population and B

= observed value

An average LCI score was calculated by averaging the scores of the six metrics in

the method: total number of taxa; total number of taxa belonging to the orders

Ephemeroptera, Odonata, and Trichoptera (EOT taxa); percent EOT taxa; Shannon-

Wiener Diversity Index score; Hulbert Index score; and percent Dipteran individuals.

LCI calculations were only provided for clear lakes (< 20 platinum cobalt units [PCUs]).

As macroinvertebrate-based indices have not been shown to assess colored lakes in

Florida accurately (> 20 PCUs), they have been excluded from bioassessments. A poor

or very poor rating based on the average score constituted a failed bioassessment, based

on the Impaired Surface Waters Rule.

STREAM CONDITION INDEX

A total Stream Condition Index (SCI) score was calculated by adding the scores of

the seven metrics in the method: total number of taxa; total number of taxa belonging to

the orders Ephemeroptera, Plecoptera, and Trichoptera (EPT taxa); percent Chironomid

taxa; percent dominant taxa; percent Diptera; percent filter feeders; and Florida Index. A

poor or very poor rating based on the total score constituted a failed bioassessment, based

on the Impaired Surface Waters Rule. The Basin Status Reports contain definitions and

specific methods for the generation and analysis of bioassessment data.

BIORECON

To establish an impairment rating based on BioRecon data, three metrics were used:

the Florida Index score, total number of taxa, and total number of EPT taxa. If all three

metrics failed to meet thresholds, the water was deemed “impaired” based on the

Impaired Surface Waters Rule.

BIOLOGICAL INTEGRITY STANDARD

Quantitative data, generated through the use of Hester-Dendy artificial substrate

samplers, were used to calculate Shannon-Wiener Diversity Index scores for paired

background and test sites, as specified in the Biological Integrity Standard, Subsection

62-302.530(11), F.A.C. One failure of the standard meant that a waterbody segment was

listed as potentially impaired.

EVALUATION OF TOXICITY DATA

Although the Impaired Surface Waters Rule describes the use of toxicity data for the

assessment of aquatic life-based attainment, no ambient toxicity data are available for

assessment and this metric was not used.



For Class I, II, or III waters, a waterbody was potentially impaired if the following

criteria were met:

• The waterbody segment did not meet the applicable water quality criteria for

bacteriological quality,

• The waterbody segment included a bathing area that was closed by a local health

department or county government for more than one week or more than once

during a calendar year based on bacteriological data,

• The waterbody segment included a bathing area for which a local health

department or county government issued closures, advisories, or warnings totaling

twenty-one days or more during a calendar year based on bacteriological data, or

• The waterbody segment included a bathing area that was closed or had advisories

or warnings for more than twelve weeks during a calendar year based on previous

bacteriological data or on derived relationships between bacteria levels and

rainfall or flow.


For Class I, II, or III waters, a waterbody was potentially impaired if it did not meet

the applicable Class II water quality criteria for bacteriological quality, or if a fish

consumption advisory had been issued. Fish consumption advisories were based on the

Florida Department of Health’s “limited consumption” or “no consumption” advisories

for surface waters because of high levels of mercury in fish tissue. In addition, for Class

II waters, waterbody segments that had been approved for shellfish harvesting but were

downgraded to a more restrictive classification were listed as potentially impaired.

Drinking Water Attainment and Protection of Human Health

For Class I waters, a waterbody was potentially impaired if it did not meet the

applicable Class I water quality criteria.


Appendix C: Supplementary Ecological Information for the Perdido River and Bay Basin

Table C.1: Types of Natural Communities

Community Type Description of Community Acreage Square

Miles

Coastal Strand Coastal strand community occurs on well-drained sandy soils and typically includes the zoned vegetation 379.2 0.6

of the upper beach, dunes, or coastal rock formations. Community forms along high energy shorelines

and is strongly affected by wind, waves, and salt spray. Vegetation typically consists of low growing vines,

grasses, herbaceous plants, and small trees or shrubs. Common plants are morning glory, Spanish

bayonet, sea oats, saw palmetto, wax myrtle, and sea grape.

Sand/beach Barren land with little or no vegetation. Areas constantly affected by waves and tidal actions and dune 1146.2 1.8

sands or other bare areas of sand.

Xeric oak scrub A xeric hardwood community composed of clumped patches of low growing oaks interspersed with bare 147.45 0.23

areas of sand. Community type occurs on deep, well-washed, sterile sands, and is also found as the

understory in sand pine scrub communities. Dominant plant species are Chapman’s oak, myrtle oak,

sand-live oak, scrub holly, scrub plum, scrub hickory, rosemary, and saw palmetto.

sand pine scrub Sand pine scrub is found on extremely well drained, sorted, sterile sands deposited along ancient 281.8 0.44

shorelines and islands of ancient seas. Overstory is dominated by sand pine with a woody understory of

myrtle oak, Chapman’s oak, sand-live oak, and scrub holly. This community is found almost exclusively

within Florida. Fire is an important factor in the maintenance and survival of this type of community.

sandhill

These communities are found in areas of rolling terrain on deep, well drained, white to yellow, sterile

sands. Community is dominated by an overstory of long leaf pine and an understory of turkey oak and

bluejack oak. A diverse assemblage of herbaceous plants comprise the ground cover. Fire is an

important factor in controlling the community.

93.85 0.15

mixed hardwoodpine

forest

hardwood hammock

and forests

pinelands

Upland forest that contain a mixture of conifers and hardwoods as co-dominant overstory components.

This community may include longleaf pine, slash pine, and loblolly pine in association with live oak, laurel

oak, water oak and other hardwood species.

Major upland hardwood associations occurring on fairly rich sandy soils. Species composition and local

distributions are due in part to differences in soil moisture regimes, soil type, and location within the state.

Both mesic and xeric hammocks exist. Mesic hammocks are characterized by laurel oak, hop hornbeam,

blue beech, sweetgum, cabbage palm, American holly, and southern magnolia. Xeric hammocks occur on

deep, well-drained soils where fire has been absent for long periods of time. Common xeric hammock

species are live oak, sand-live oak, and pignut hickory.

This category includes both pine flatwoods and pine plantations. Pine flatwood occur on flat sandy terrain

where the overstory is characterized by longleaf pine, slash pine, or pond pine depending on soil moisture

and drainage at a given location. Scrubby flatwoods is another pineland type that is found on drier ridges

and on or near old coastal dunes.

12,801 20

5,911.9 9.2

87154.5 136.2


Community Type Description of Community Acreage Square

Miles

freshwater marsh Wetland communities dominated by herbaceous plants growing on a variety of substrates in areas of 1,105.1 1.7

and wet prairie variable water depth and inundation regimes. Generally, freshwater marshes occur in deeper water with

more regular inundation and are characterized by tall emergent and floating-leaved species. Freshwater

marshes can occur within flatwood depressions, along lakes and river shorelines, and as open areas

within hardwood and cypress swamps. Wet prairies commonly occur as scattered, shallow depressions

within dry prairies. Combinations of pickerel weed, sawgrass, maidencane, arrowhead, fire flag, cattail,

spike rush, bulrush, water lily, water shield, and various sedges dominate freshwater marshes and wet

prairies.

shrub swamp Shrub swamps are wetland communities dominated by dense, low-growing, woody shrubs or small trees. 133.9 .21

They are usually characteristic of wetland areas that are experiencing environmental change and are early

to mid-successional in species composition and structure. Common species include willow, wax myrtle,

primrose willow, buttonbush, and saplings of red maple, sweetbay, and other hydric trees.

bay swamp Hardwood swamps contain broadleaf alternate leafed evergreen trees that grow in shallow, stagnant 5,968.4 9.3

drainages or depressions. Overstory trees are dominated by sweetbay, swamp bay, and loblolly bay.

cypress swamp These communities are strongly dominated by either bald cypress or pond cypress. They occur as 709.4 1.1

forested borders along streams and lakes, or in depressions as circular domes or linear strands.

mixed wetland forest This is a mixed wetland forest community in which neither hardwoods nor conifers achieve dominance. 14,213.2 22.2

hardwood swamp Wooded wetland communities composed of either pure stands of hardwoods or occur as a mixture of 14,046.8 21.95

hardwood and cypress where hardwoods achieve dominance. Occur on organic soils and form the

forested floodplain of non-alluvial rivers, creeks and broad lake basins. Tree species include black gum,

water tupelo, bald cypress, dahoon holly, red maple, swamp ash, sweetbay, and cabbage palm.

salt marsh

Herbaceous and shrubby wetland community found in low energy estuarine shorelines. Salt marshes can 267.1 0.4

be found interspersed within mangrove communities or as transition zones between freshwater marshes

and mangroves. Plant composition and distribution is largely dependent on the degree of tidal inundation.

open water Freshwater lakes and streams and estuarine and coastal marine waters. 36,795.1 57.5

shrub and brushland Areas where natural upland communities have recently been disturbed through clear-cutting on

8,147.8 12.7

commercial pine plantations, land clearing or fire and are recovering by succession. Common species

include wax myrtle, saltbrush, sumac, elderberry, saw palmetto, blackberry, gall berry, dog fennel, broom

sedge together with hardwood and pine seedlings or saplings.

bare soil/clearcut Areas of bare soil representing recent timber cutting, fire, natural areas of exposed soil, or soil exposure 3,337.0 5.2

from clearing for unknown reasons.

Information Source: Terry Gilbert and Beth Stys, March 17, 2004. Descriptions of Vegetation and Land Cover Types Mapped Using Landsat Imagery. Florida

Fish and Wildlife Conservation Commission.


Table C.2: Rare and Imperiled Animal Species in the Perdido Bay Planning Unit

Species Name Common Name Global

Rank

State

Rank

Federal

Status

State

Status

ALLIGATOR MISSISSIPPIENSIS AMERICAN ALLIGATOR G5 S4 T(S/A) LS

ARDEA ALBA GREAT EGRET G5 S4 N N

CHARADRIUS ALEXANDRINUS SNOWY PLOVER G4 S2 (PS) LT

FUNDULUS JENKINSI SALTMARSH TOPMINNOW G2 S2 C LS

MACROCLEMYS TEMMINCKII ALLIGATOR SNAPPING G3G4 S3 N LS

TURTLE

NERODIA CLARKII CLARKII GULF SALT MARSH SNAKE G4T3 S3 N N

RALLUS LONGIROSTRIS FLORIDA CLAPPER RAIL G5T3 S3 N N

SCOTTII

RYNCHOPS NIGER BLACK SKIMMER G5 S3 N LS

STERNA ANTILLARUM LEAST TERN G4 S3 (PS) LT

STERNA MAXIMA ROYAL TERN G5 S3 N N

STERNA SANDVICENSIS SANDWICH TERN G5 S2 N N

CHARADRIUS MELODUS PIPING PLOVER G3 S2 (LE-LT) LT

PANDION HALIAETUS OSPREY G5 S3S4 N LS*

ALLIGATOR MISSISSIPPIENSIS AMERICAN ALLIGATOR G5 S4 T(S/A) LS

EGRETTA CAERULEA LITTLE BLUE HERON G5 S4 N LS

EGRETTA THULA SNOWY EGRET G5 S4 N LS

EPTESICUS FUSCUS BIG BROWN BAT G5 S3 N N

EUDOCIMUS ALBUS WHITE IBIS G5 S4 N LS

GOPHERUS POLYPHEMUS GOPHER TORTOISE G3 S3 (PS) LS

MACROCLEMYS TEMMINCKII ALLIGATOR SNAPPING G3G4 S3 N LS

TURTLE

NERODIA CLARKII CLARKII GULF SALT MARSH SNAKE G4T3 S3 N N

PANDION HALIAETUS OSPREY G5 S3S4 N LS*

PEROMYSCUS POLIONOTUS

TRISSYLLEPSIS

PERDIDO KEY BEACH

MOUSE

G5T1 S1 LE LE

Caretta caretta Loggerhead sea turtle G3 S3 Lt LT

Chelonia mydas Green sea turtle G3 S2 LE/LT LE

Lepidochelys kempii Kemp’s Ridley sea turtle G1 S1 LE LE

Dermochelys coriacea Leatherback sea turtle G2 S2 LE LE


Table C.3: Rare and Imperiled Plant Species in the Perdido Bay Planning Unit


Rank

State

Rank

Federal

Status

State

Status

XYRIS SCABRIFOLIA

HARPER'S YELLOW-EYED G3 S3 N LT

GRASS

AGRIMONIA INCISA INCISED GROOVE-BUR G3 S2 N LE

DROSERA INTERMEDIA SPOON-LEAVED SUNDEW G5 S3 N LT

LACHNOCAULON DIGYNUM BOG BUTTON G3 S2 N LT

LILAEOPSIS CAROLINENSIS CAROLINA LILAEOPSIS G3 S3 N N

CHRYSOPSIS GODFREYI GODFREY'S GOLDEN G2 S2 N LE

ASTER


LILAEOPSIS CAROLINENSIS CAROLINA LILAEOPSIS G3 S3 N N

POLYGONELLA

LARGE-LEAVED

G2 S2 N LT

MACROPHYLLA

JOINTWEED

SARRACENIA LEUCOPHYLLA WHITE-TOP

G3 S3 N LE

PITCHERPLANT

SARRACENIA RUBRA SWEET PITCHERPLANT G3 S3 (PS) LT

CALYCANTHUS FLORIDUS SWEET-SHRUB G5 S2 N LE

CHRYSOPSIS GODFREYI GODFREY'S GOLDEN G2 S2 N LE

ASTER


PINGUICULA PRIMULIFLORA PRIMROSE-FLOWERED G3G4 S3 N LE

BUTTERWORT

PLATANTHERA NIVEA SNOWY ORCHID G5 S3S4 N LT

POLYGONELLA

LARGE-LEAVED

G2 S2 N LT

MACROPHYLLA

JOINTWEED

RHYNCHOSPORA

NARROW-LEAVED

G4 S2S3 N LT

STENOPHYLLA

BEAKRUSH

XYRIS DRUMMONDII

DRUMMOND'S YELLOW-

EYED GRASS

G3 S3 N N


Table C.4: Rare and Imperiled Plants and Animals in the Perdido River Planning Unit


Rank

State

Rank

Federal

Status

State

Status

CROTALUS ADAMANTEUS EASTERN DIAMONDBACK G4 S3 N N

RATTLESNAKE

DRYMARCHON CORAIS

EASTERN INDIGO SNAKE G4T3 S3 LT LT

COUPERI

LACHNOCAULON DIGYNUM BOG BUTTON G3 S2 N LT

XYRIS LOUISIANICA KRAL'S YELLOW-EYED GRASS G3 S1 N LE

SARRACENIA LEUCOPHYLLA WHITE-TOP PITCHERPLANT G3 S3 N LE

STEWARTIA MALACODENDRON SILKY CAMELLIA G4 S3 N LE

Notes for Tables C.2, C.3, and C4:

Global Rank /StateRank

G1/S1:Critically imperiled globally because of extreme rarity (5 or fewer occurrences or less than 1000

individuals or because of extreme vulnerability to extinction

G2/S2: Imperiled globally because of rarity (6 to 20 occurrences or less thann 3000 individuals) or

because of vulnerability to extinction

G3/S3: Either very rare and local throughout its range (21-100 occurrences or less than 10,000

individuals) or found locally in a restricted range or vulnerable to extinction from other factors.

G4/S4: Apparently secure globally.

G5/S5: Demonstrably secure globally.

G3/S3: Tentative ranking.

G3G4/S3S4: range of rankings because of insufficient data to assign rank.

G4T3: Rank of a taxonomic subgroup such as a subspecies or variety. The G portion of the rank

refers to the entire species and the T portion refers to the specific subgroup. Numbers follow same ranking

in scarcity.

Federal Status

N: not listed

LT: Threatened

LE: Endangered

(PS): Proposed listing as species of special concern

T(S/A): Listed because of similarity to listed species

C: candidate for listing

State Status:

N: Not listed

LT: Threatened

LE: Endangered

LS*: Listed for part of the specie’s range in Florida Department of Environmental Protection


Methodology

Appendix D: Bioassessment Methodology

An increasingly accepted tool for evaluating the biological integrity of surface water

is bioassessment. The premise behind using bioassessment methodology in surface water

characterizations is that biological components of the environment manifest long-term

water quality conditions and can presumably give a better indication of the true health of

the waters involved than discrete chemical or physical measurements alone.

Similar to water quality criteria, bioassessment methods involve the identification of

a biological reference condition, based on data from unimpaired or least impacted waters

in a given region. The reference condition data are used to establish expected scores,

ranging from best to worst, for various measures of community structure and function,

such as numbers or percentages of particular species or feeding groups. Data on

community structure and function from waters of unknown quality in the same region as

reference waters are compared with the expected scores of metrics to evaluate their

biological integrities. Metrics may be used independently or as an aggregated group

called an index. Indices have advantages over individual metrics in that they can

integrate several related metrics into one score that reflects a wider range of biological

variables. A number of bioassessment metrics and indices exist for assessing populations

of plant and animal life, including fish, diatoms, and macroinvertebrates.

Only macroinvertebrate data are included in the following bioassessments. Because

site-specific habitat and physicochemical assessment information (e.g., percent suitable

macroinvertebrate habitat, water velocities, extent of sand or silt smothering, and riparian

buffer zone widths) was not available at the time of reporting, it is not included here.

However, habitat and physicochemical assessment information is instrumental in

pinpointing the causes for failed bioassessment metrics and should be included in future

reporting.

Data used in this report were obtained from the Department’s Biological Database

(SBIO) and the EPA’s STORET Water Quality Database, where it could be substantiated

that such data were generated in compliance with the bioassessment standard operating

procedures referenced in the Impaired Surface Waters Rule (Section 62-303.330, F.A.C.).

Bioassessments are provided from streams, canals, and rivers, with data generated

according to Department standard operating procedures FS-7420 and FS-7430 and

analyzed according to the Stream Condition Index (SCI) for Florida (Barbour et al., 1996;

FDEP SOP #LT-7200) and/or Subsection 62-302.530(11), F.A.C. (Biological Integrity

Standard). Table D.1 lists the metrics used for assessment of streams. Bioassessments for

clear lakes (< = 20 platinum cobalt units) evaluated according to Department standard

operating procedure FS-6460 and analyzed according to the Lake Condition Index (LCI)

for Florida (Gerritsen et al., 2000; FDEP SOP #LT-7300). Table D.2 lists the metrics

used in the LCI. Since macroinvertebrate-based indices have not been shown to assess

colored lakes in Florida accurately (>20 platinum cobalt units), they have been excluded

from analysis for this report.

Only ambient data from state surface waters were used in bioassessments, excluding

data from effluent outfalls from discharging facilities or data from monitoring sites not


clearly established to collect ambient water quality data. Data were used from the

databases noted above without regard to the randomness of sample site selection. For the

purposes of this report, the seasons are defined as follows: winter (1/1-3/31), spring (4/1-

6/30), summer (7/1-9/30), and fall (10/1-12/31). Wet seasons are generally spring and

summer and dry seasons are fall and winter, although conditions can vary within the state

as a whole.

Metric Definitions

# of Taxa—This metric is otherwise known as taxa richness. In this report, it

indicates the total number of macroinvertebrate taxa found in a sample of stream or lake

bottom, other in-water substrate such as fallen branches or roots, or artificial surface in

the waterbody for invertebrate colonization. A taxon (singular) is a group of organisms

with common traits and characteristics, such as dragonflies (taxon Odonata). As the

environment is stressed, the number of taxa generally decreases.

# of Chironomid Taxa—Chironomids are larval flies that are prevalent in many

surface waters. This metric is also a measure of taxa richness.

# of EPT or EOT Taxa—Particular organisms or groups of organisms in a given

surface water habitat are more sensitive to changes in the environment than others,

making them good indicators of environmental stress. Mayflies (Ephemeroptera),

stoneflies (Plecoptera), caddisflies (Trichoptera), and dragonflies and damselflies

(Odonata) are four such taxa.

% Diptera—Dipterans are larval flies, many of which are tolerant of poor water

quality conditions. This metric represents the fraction of the total number of dipteran

organisms in a sample. A large fraction indicates an invertebrate community that is

predominantly tolerant of low water quality.

Florida Index—The Florida Index is a weighted measurement of the numbers of

Class I and Class II macroinvertebrate species known in Florida. It assigns points to

stream-dwelling macroinvertebrates based on their sensitivities to pollution. It is an

index in itself, but the results can be incorporated into other indices as measurements of

biological integrity.

% Filter Feeders—Filter-feeding organisms indicate the flow regime in a

waterbody. The larger the fraction of the total community consisting of filter feeders, the

more likely it is that the waterbody has a good flow regime.

% Dominant Taxon—In all waterbodies, the taxon that exists in greater number

than all others is known as the dominant taxon. A high percentage of the dominant taxon

in a sample indicates lower diversity and poorer water quality.

Shannon-Wiener Diversity Index—This is a measurement of macroinvertebrate

community health, which is specified in Rule 62-302, F.A.C. It incorporates level of taxa

richness (how many taxa are present) within the distribution of individuals among taxa

present (how evenly they are distributed). Like the Florida Index, it is an index in itself.

However, the result is often included in other indices of biological integrity. Low

diversity scores are indicative of conditions where only a few species are present to the

exclusion of other taxa.


Hulbert Index—This index is also a weighted measurement of the numbers of Class

A and Class B species of macroinvertebrates known in Florida lakes. It is also an index

in itself, but the result is included in the calculation of the LCI as a separate metric value.

References

Barbour, M.T., J. Gerrisen, and J.S. White. 1996. Development of the Stream Condition

Index (SCI) for Florida. Prepared for the Florida Department of Environmental

Protection. Owings Mills, Maryland: Tetra Tech, Inc.

Gerritsen, J., B. Jessup, E. Leppo, and J. White. 2000. Development of Lake Condition

Indexes (LCI) for Florida. Owings Mills, Maryland: Tetra Tech, Inc.


Table D.1: Stream Condition Index (SCI) Scoring and Evaluation Worksheet

Summer Index Period (May-October): Stream Condition Index for Florida (SCI)

Macroinvertebrate Dipnet (20

sweeps of most productive Value Panhandle Peninsula Northeast

substrates)

5 3 1 Score 5 3 1 Score 5 3 1 Score

Total Number of Taxa ≥ 31 30-16 < 16 ≥ 26 25-14 < 14 ≥ 22 21-12 < 12

EPT Index ≥ 7 6-4 < 4 ≥ 4 3-2 < 2 --- ≥ 2 < 2

# Chironomid Taxa ≥ 9 8-5 < 5 ≥ 7 6-4 < 4 ≥ 7 6-4 < 4

% Contribution of Dominant

Taxon

≤ 22 23-61 > 61 ≤ 29 30-64 > 64 ≤ 31 32-66 > 66

% Diptera --- ≤ 50 > 50 --- ≤ 37 > 37 --- ≤ 47 > 47

Florida Index ≥ 16 15-8 < 8 ≥ 7 6-4 < 4 ≥ 8 7-5 < 5

% Suspension Feeders/Filterers ≥ 12 11-6 < 6 --- ≥ 7 < 7 --- ≥ 7 < 7

Total Score

Evaluation Excellent 27-33 Excellent 26-31 Excellent 25-29

Good 21-26 Good 20-25 Good 19-24

Poor 14-20 Poor 13-19 Poor 13-18

Very Poor 7-13 Very Poor 7-12 Very Poor 7-12

Winter Index Period (November-April): Stream Condition Index for Florida (SCI)

Macroinvertebrate Dipnet (20

sweeps of most productive Value Panhandle Peninsula Northeast

substrates)

5 3 1 Score 5 3 1 Score 5 3 1 Score

Total Number of Taxa ≥ 27 26-14 < 14 ≥ 27 26-14 < 14 ≥ 18 17-9 < 9

EPT Index ≥ 6 5-3 < 3 ≥ 4 3-2 < 2 --- ≥ 3 < 3

# Chironomid Taxa ≥ 9 8-5 < 5 ≥ 9 8-5 < 5 ≥ 4 3-2 < 2

% Contribution of Dominant

Taxon

≤ 25 26-62 > 62 ≤ 30 31-65 > 65 ≤ 37 38-69 > 69

% Diptera --- ≤ 60 > 60 --- ≤ 52 > 52 --- ≤ 67 > 67

Florida Index ≥ 13 12-7 < 7 ≥ 10 9-5 < 5 ≥ 6 5-3 < 3

% Suspension Feeders/Filterers ≥ 13 12-7 < 7 ≥ 15 14-8 < 8 ≥ 25 25-13 < 13

Total Score

Evaluation Excellent 27-33 Excellent 27-33 Excellent 26-31

Good 21-26 Good 21-26 Good 20-25

Poor 14-20 Poor 14-20 Poor 14-19

Very Poor 7-13 Very Poor 7-13 Very Poor 7-13


Table D.2: Lake Condition Index (LCI) Scoring and Evaluation Worksheet for Clear Florida Lakes

(< 20 platinum cobalt units)

Macroinvertebrate 12-benthic grab composite A B 100(B/A)

95th Percentile

of Reference Population

Total Number of Taxa 30.5

Observed

Values

Metric

Score

Total Number of EOT Taxa 5.2

% EOT Taxa 34.4

Shannon-Wiener Index 4.39

Hulbert Index 17.4

A B 100(100-B)/(100-A)

95th Percentile

of Reference Population

% Dipteran Individuals 13.6

Observed

Values

Metric

Score

Total of Metric Scores

LCI Score (average metric score)

Acid (pH < 6.5) Alkaline (pH > 6.5) Evaluation

Ecoregion 65 Ecoregion 75

> 55 > 44 > 50 Very Good

> 35 > 30 > 35 Good

> 18 > 15 > 18 Poor

> 18 > 15 > 18 Very Poor


Appendix E: Permitted Discharge Facilities and Landfills in the Perdido River and Bay Basin

Table E.1: Permitted Facilities with Discharges to Surface Water and Ground Water, by Planning Unit. Permit Numbers in bold and italic typeface are

located within the Perdido River Planning Unit.

Permit

Number

Facility Name City Where Located Facility Type STATUS NPDES

Permit

Faciltiy Design

Capacity (mgd)

FLA016856 CLARK SITE CONTRACTORS - WINGFOOT WAY PENSACOLA IW A N 0

FLA010030 ERNEST WARD MIDDLE SCHOOL WALNUT HILL DW A N 0.0140

FLA016534 OUTPOST EQUIPMENT RENTAL PENSACOLA IW A N 0

FLA016675 CLARK SAND COMPANY - EAST FENCE PENSACOLA IW A N 0

FLA183881 PENSACOLA TRACTOR & EQUIPMENT, INC CANTONMENT IW A N 0

FLA181862 MILKAWAY DAIRY #3 WALNUT HILL AFO N N 0

FLA016166 EVERGREEN TRANSPORTATION CANTONMENT IW A N 0

FLG911000 HAPPY STORE #521 CANTONMENT PET A Y 0

FL0184624 CLARK/SAND & DIRT ROLLING HILLS PIT PENSACOLA IW A Y 2.3

FLA184551 MCDIRT INDUSTRIES PENSACOLA IW A N 0

FLA185094 NATIONS RENT-PENSACOLA PENSACOLA IW A N 0

FLA016808 GULF-ATLANTIC CONSTRUCTORS PENSACOLA IW A N 0

FLA016910 GREENS FILL DIRT - BLOSSOM TRAIL MINE PENSACOLA IW X N 0

FLA017366 ESCAMBIA COUNTY NORTH ROAD CAMP CENTURY IW A N 0

FL0031801 BAYOU MARCUS WATER RECLAMATION FACILITY PENSACOLA DW A Y 8.2

FLA010053 COWIN EQUIPMENT COMPANY, INC PENSACOLA IW A N 0.0144

FLA010055 COUCH READY MIX - PENSACOLA PENSACOLA IW N N 0.0011

FLA010058 INNERARITY ISLAND PENSACOLA DW A N 0.09

FLA016989 CARPENTERS CAMPERS INC PENSACOLA IW A N 0

FLA416274 ZACHARJC SEPTAGE RECOVERY AND PROCESS CANTONMENT RES A N 0.037

FL0002526 INTERNATIONAL PAPER COMPANY CANTONMENT IW A Y 28

FLR04E058 NAVAL AIR STATION PENSACOLA MS2 A Y 0


Table E.2: Permitted Landfill Facilities

Facility ID Facility Name Address City Status Facility Type

Number

3029 D. H. GRIFFIN WRECKING CO. C&D IN BEULAH, ON TOWER RIDGE

RD.

CANTONMENT A Construction and

Demolition Debris

3026 HEATON BROS. CONSTR. CO. C&D

DEBRIS

5805 SAUFLEY FIELD RD. PENSACOLA I Construction and


3066 SAUFLEY LF(MORTON C.A. C & C

FACILITY)

4512 TRICE ST MILTON A Construction and


3351 FAIRGROUNDS PIT N OF GODWIN LN, W OF

MOBILE HW

PENSACOLA J Construction and


1744 MOBILE HIGHWAY LF 3100 MOBILE HIGHWAY PENSACOLA K Class 3 Landfill

3116 CERNY RD C&D MILFORD RD, NEAR CERNY

BLVD

PENSACOLA A Construction and


3079 GULF COAST PAVING &

GRADING,INC. #1

7320 HAYWARD ST. PENSACOLA A Construction and


4056 GREEN FILL DIRT NORTH WINGFOOT WAY PENSACOLA A Construction and


3133 ROLLING HILLS RD C&D DISPOSAL 200FT SOUTH OF KEMP RD PENSACOLA A Construction and


2984 GILLEY'S DOZER SERVICE, INC. POST OFFICE BOX 728 LILLIAN A Construction and


3154 AUTO SHRED INDUSTRIAL

BEDFORD AVENUE PENSACOLA K Class 3 Landfill

LANDFILL

3459 LANEY E. STRANGE 6640 FRANK REEDER ROAD PENSACOLA J Construction and


3032 SURREY PIT (PANHANDLE

GRADING & PAVING 8 MILE)

8 MILE CREEK RD - NEAR I-10 PENSACOLA A Construction and


3770 BANKHEAD C&D SITE BANKHEAD ROAD PENSACOLA A Construction and


3400 COVE AVENUE C & D-RAPID

MANAGEMENT COMPANY

10350 COVE AVE - COVE

AVE;+/- 1 MI N OF 9 MI RD



3027 SAUFLEY PIT (CLARK SAND CO) E. FENCE RD.-NEXT TO

SAUF.FLD.



3040 GULF-ATLANTIC CONST.,INC. (H-

WOOD)

HOLLYWOOD @ FAIRFIELD PENSACOLA J Construction and


3031 ESCAMBIA DISTRICT SCHOOL BD.

C&D

2400 LONGLEAF DR PENSACOLA J Construction and


3060 CLARK SAND CO. 395 N EHRMANN STREET PENSACOLA K Construction and

Demolition Debris


Facility ID Facility Name Address City Status Facility Type

Number

1690 KLONDIKE SLF 7219 MOBILE HWY PENSACOLA K Class 1 Landfill

3345 UNITED SOUTHCO, INC 9235 PINE FOREST ROAD PENSACOLA J Construction and


3005 LANGFORD & MILLS HOME

BUILDERS,INC.

CORNER LEPLEY & ASHLAND

STRTS.



3157 PANHANDLE PAVING & GRADING

(LONG LF)

2390 LONGLEAF DR. PENSACOLA J Construction and


1688 PERDIDO LANDFILL BEULAH-MUSKOGEE RD MUSCOGEE A Class 1 Landfill

3051 G.F.D. CONSTR. CO., INC. C&D

DEBRIS

END OF BLOSSOM TRAIL PENSACOLA K Construction and


3028 BEDFORD PIT OFF GODWIN - N. END OF

BEDFORD



3030 GULF-ATLANTIC CONST.

INC.(GODWIN)

OFF GODWIN-E OF PINE

FOREST RD



1688 PERDIDO LANDFILL BEULAH-MUSKOGEE RD MUSCOGEE A Class 3 Landfill

91106 CLARK SITE CONTRACTORS, INC. 3131 NAVY BLVD. PENSACOLA O Construction and


3037 ENGLISH BROTHERS DEMOLITION

C&D

OFF OF HWY.297-A (PINE

FOREST)



2997 LANGFORD C & D DISPOSAL OFF OF PINE FOREST RD.

(7500 PINE FOREST RD)



4034 FAIRGROUNDS LAND CLEARING

DEBRIS

.4M W MOBILE HWY ON

BELLVIEW A


Demolition Debris


Appendix F: Integrated Assessment (Master List) for the Perdido River and Bay Basin by

Parameter and Monitoring Stations

Table F.1: Integrated Assessment (Master List)

WBID Waterbody Segment Waterbody

Type

Waterbody

Class 1

Parameters

Included on the

1998 303(d) List

Parameters Identified Under

the Impaired Waters Rule

Proposed

Integrated

Report

Category2

Proposed Integrated

Report Category

Description

696 Black Lake Lake 3F N/A 3A No Data

1004 Big Lagoon Estuary 3M Chlorophyll 2 Not Impaired

1004 Big Lagoon Estuary 3M Conductance 3A No Data

1004 Big Lagoon Estuary 3M Dissolved Oxygen 2 Not Impaired

1004 Big Lagoon Estuary 3M Fecal Coliform 2 Not Impaired

1004 Big Lagoon Estuary 3M pH 2 Not Impaired

1004 Big Lagoon Estuary 3M Total Coliform 2 Not Impaired

1004 Big Lagoon Estuary 3M Turbidity 2 Not Impaired

1004 Big Lagoon Estuary 3M Unionized Ammonia 3A No Data

1014 Direct Runoff to Bay Estuary 3M Dissolved Oxygen 3B Insufficient Data

1014 Direct Runoff to Bay Estuary 3M pH 3B Insufficient Data

1015 Direct Runoff to Gulf Stream 3F Chlorophyll 2 Not Impaired

1015 Direct Runoff to Gulf Stream 3F Conductance 3C Planning List

1015 Direct Runoff to Gulf Stream 3F Dissolved Oxygen 2 Not Impaired

1015 Direct Runoff to Gulf Stream 3F Fecal Coliform 2 Not Impaired

1015 Direct Runoff to Gulf Stream 3F pH 2 Not Impaired

1015 Direct Runoff to Gulf Stream 3F Total Coliform 2 Not Impaired

1015 Direct Runoff to Gulf Stream 3F Turbidity 2 Not Impaired

1015 Direct Runoff to Gulf Stream 3F Unionized Ammonia 2 Not Impaired

1018 Direct Runoff to Bay Estuary 3M N/A 3A No Data

105 Freeman Springs Branch Stream 3F Chloride 3A No Data

105 Freeman Springs Branch Stream 3F Chlorophyll 3B Insufficient Data

105 Freeman Springs Branch Stream 3F Conductance 3B Insufficient Data

105 Freeman Springs Branch Stream 3F Dissolved Oxygen 3B Insufficient Data

105 Freeman Springs Branch Stream 3F Dissolved Solids 3A No Data



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

105 Freeman Springs Branch Stream 3F Fecal Coliform 3B Insufficient Data

105 Freeman Springs Branch Stream 3F Fluoride 3B Insufficient Data

105 Freeman Springs Branch Stream 3F pH 3B Insufficient Data

105 Freeman Springs Branch Stream 3F Turbidity 3B Insufficient Data

135 Boggy Creek Stream 3F Alkalinity 3B Insufficient Data

135 Boggy Creek Stream 3F Biology 2 Not Impaired

135 Boggy Creek Stream 3F Chloride 3A No Data

135 Boggy Creek Stream 3F Chlorophyll 3B Insufficient Data

135 Boggy Creek Stream 3F Conductance 3B Insufficient Data

135 Boggy Creek Stream 3F Dissolved Oxygen 3B Insufficient Data

135 Boggy Creek Stream 3F Fecal Coliform 3B Insufficient Data

135 Boggy Creek Stream 3F pH 3B Insufficient Data

135 Boggy Creek Stream 3F Total Coliform 3B Insufficient Data

135 Boggy Creek Stream 3F Turbidity 3B Insufficient Data

135 Boggy Creek Stream 3F Unionized Ammonia 3B Insufficient Data

138 Rocky Creek Stream 3F N/A 3A No Data

14 Hubbard Creek Stream 3F N/A 3A No Data

148 Helverson Creek Stream 3F N/A 3A No Data

149 McDavid Creek Stream 3F Alkalinity 3C Planning List

149 McDavid Creek Stream 3F Biology 3C Planning List

149 McDavid Creek Stream 3F Chloride 3A No Data

149 McDavid Creek Stream 3F Chlorophyll 3B Insufficient Data

149 McDavid Creek Stream 3F Conductance 3B Insufficient Data

149 McDavid Creek Stream 3F Dissolved Oxygen 3B Insufficient Data

149 McDavid Creek Stream 3F Fecal Coliform 3B Insufficient Data

149 McDavid Creek Stream 3F pH 3C Planning List

149 McDavid Creek Stream 3F Total Coliform 3B Insufficient Data

149 McDavid Creek Stream 3F Turbidity 3B Insufficient Data

149 McDavid Creek Stream 3F Unionized Ammonia 3B Insufficient Data



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

169 Buckeye Branch Stream 3F N/A 3A No Data

172 Reedy Branch Stream 3F N/A 3A No Data

182 West Fork Stream 3F Alkalinity 3B Insufficient Data

182 West Fork Stream 3F Biology 2 Not Impaired

182 West Fork Stream 3F Chloride 3A No Data

182 West Fork Stream 3F Chlorophyll 3B Insufficient Data

182 West Fork Stream 3F Conductance 3B Insufficient Data

182 West Fork Stream 3F Dissolved Oxygen 3B Insufficient Data

182 West Fork Stream 3F Fecal Coliform 3B Insufficient Data

182 West Fork Stream 3F pH 3B Insufficient Data

182 West Fork Stream 3F Total Coliform 3B Insufficient Data

182 West Fork Stream 3F Turbidity 3B Insufficient Data

182 West Fork Stream 3F Unionized Ammonia 3B Insufficient Data

197 NARROW GAP BRANCH Stream 3F N/A 3A No Data

208 MCDADE CREEK Stream 3F N/A 3A No Data

228 JACKSON SPRINGS BRANCH Stream 3F N/A 3A No Data

243 SCHOOLHOUSE BRANCH Stream 3F N/A 3A No Data

245 ALLIGATOR CREEK Stream 3F Biology 2 Not Impaired

252 STILL BRANCH Stream 3F N/A 3A No Data

259 POND BRANCH Stream 3F N/A 3A No Data

278 Cowhide Creek Stream 3F Chloride 3A No Data

278 Cowhide Creek Stream 3F Chlorophyll 3B Insufficient Data

278 Cowhide Creek Stream 3F Conductance 3B Insufficient Data

278 Cowhide Creek Stream 3F Dissolved Oxygen 3B Insufficient Data

278 Cowhide Creek Stream 3F Dissolved Solids 3A No Data

278 Cowhide Creek Stream 3F Fecal Coliform 3B Insufficient Data

278 Cowhide Creek Stream 3F Fluoride 3B Insufficient Data

278 Cowhide Creek Stream 3F pH 3B Insufficient Data

278 Cowhide Creek Stream 3F Turbidity 3B Insufficient Data



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

290 Dry Creek Stream 3F Alkalinity 3B Insufficient Data

290 Dry Creek Stream 3F Biology 3C Planning List

290 Dry Creek Stream 3F Chloride 3A No Data

290 Dry Creek Stream 3F Chlorophyll 3B Insufficient Data

290 Dry Creek Stream 3F Conductance 3B Insufficient Data

290 Dry Creek Stream 3F Dissolved Oxygen 3B Insufficient Data

290 Dry Creek Stream 3F Fecal Coliform 3B Insufficient Data

290 Dry Creek Stream 3F pH 3B Insufficient Data

290 Dry Creek Stream 3F Total Coliform 3B Insufficient Data

290 Dry Creek Stream 3F Turbidity 3B Insufficient Data

290 Dry Creek Stream 3F Unionized Ammonia 3B Insufficient Data

291 JACKS BRANCH Stream 3F Turbidity Turbidity 3A No Data

291 JACKS BRANCH Stream 3F Dissolved Oxygen Dissolved Oxygen 3A No Data

291 JACKS BRANCH Stream 3F Fecal Coliform Fecal Coliform 3A No Data

297 PENASULA CREEK Stream 3F N/A 3A No Data

2F Perdido River Stream 3F N/A 3A No Data

3 REEDY BRANCH Stream 3F Biology 3C Planning List

311 Bowman Creek Stream 3F Chloride 3A No Data

311 Bowman Creek Stream 3F Chlorophyll 3B Insufficient Data

311 Bowman Creek Stream 3F Conductance 3B Insufficient Data

311 Bowman Creek Stream 3F Dissolved Oxygen 3B Insufficient Data

311 Bowman Creek Stream 3F Dissolved Solids 3A No Data

311 Bowman Creek Stream 3F Fecal Coliform 3B Insufficient Data

311 Bowman Creek Stream 3F Fluoride 3B Insufficient Data

311 Bowman Creek Stream 3F pH 3B Insufficient Data

311 Bowman Creek Stream 3F Turbidity 3B Insufficient Data

345 COWDEVIL CREEK Stream 3F N/A 3A No Data

357 CHURCHHOUSE BRANCH Stream 3F N/A 3A No Data

4 Brushy Creek Stream 3F Biology 3C Planning List



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

4 Brushy Creek Stream 3F Chloride 3A No Data

4 Brushy Creek Stream 3F Chlorophyll 2 Not Impaired

4 Brushy Creek Stream 3F Conductance 2 Not Impaired

4 Brushy Creek Stream 3F Dissolved Oxygen Dissolved Oxygen 2 Proposed Delist

4 Brushy Creek Stream 3F Dissolved Solids 3A No Data

4 Brushy Creek Stream 3F Fecal Coliform Fecal Coliform 3D Impaired

4 Brushy Creek Stream 3F Fluoride 2 Not Impaired

4 Brushy Creek Stream 3F Historic Chlorophyll 2 Not Impaired

4 Brushy Creek Stream 3F pH 3D Impaired

4 Brushy Creek Stream 3F Total Coliform 3D Impaired

4 Brushy Creek Stream 3F Turbidity Turbidity 2 Proposed Delist

4 Brushy Creek Stream 3F Unionized Ammonia 2 Not Impaired

4 Brushy Creek Stream 3F Total Suspended Total Suspended Solids (TSS) 3A No Data

Solids (TSS)

407 FARM HILL RUN Stream 3F N/A 3A No Data

462A Perdido River Estuary 3M Chloride 3A No Data

462A Perdido River Estuary 3M Nutrients Chlorophyll 3B Insufficient Data

462A Perdido River Estuary 3M Conductance 3A No Data

462A Perdido River Estuary 3M Dissolved Oxygen Dissolved Oxygen 2 Proposed Delist

462A Perdido River Estuary 3M Fecal Coliform Fecal Coliform 3C Planning List

462A Perdido River Estuary 3M pH 3D Impaired

462A Perdido River Estuary 3M Total Coliform 2 Not Impaired

462A Perdido River Estuary 3M Turbidity 2 Not Impaired

462A Perdido River Estuary 3M Unionized Ammonia 3A No Data

462A Perdido River Estuary 3M Fish Mercury (in Fish Tissue) 3A No Data

462B Perdido River Stream 3F Chloride 3A No Data

462B Perdido River Stream 3F Chlorophyll 3B Insufficient Data

462B Perdido River Stream 3F Conductance 3D Impaired

462B Perdido River Stream 3F Dissolved Oxygen 2 Not Impaired



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

462B Perdido River Stream 3F Fecal Coliform Fecal Coliform 2 Proposed Delist

462B Perdido River Stream 3F pH 3D Impaired

462B Perdido River Stream 3F Total Coliform 2 Not Impaired

462B Perdido River Stream 3F Turbidity 2 Not Impaired

462B Perdido River Stream 3F Unionized Ammonia 2 Not Impaired

462B Perdido River Stream 3F Fish Mercury (in Fish Tissue) 3A No Data

462C Perdido River Stream 3F Biology 2 Not Impaired

462C Perdido River Stream 3F Chloride 3A No Data

462C Perdido River Stream 3F Chlorophyll 3B Insufficient Data

462C Perdido River Stream 3F Conductance 2 Not Impaired

462C Perdido River Stream 3F Dissolved Oxygen 2 Not Impaired

462C Perdido River Stream 3F Fecal Coliform Fecal Coliform 2 Proposed Delist

462C Perdido River Stream 3F pH 3C Planning List

462C Perdido River Stream 3F Total Coliform 2 Not Impaired

462C Perdido River Stream 3F Turbidity 2 Not Impaired

462C Perdido River Stream 3F Unionized Ammonia 2 Not Impaired

462C Perdido River Stream 3F Fish Mercury (in Fish Tissue) 3A No Data

489 Elevenmile Creek Stream 3F Biology 3D Impaired

489 Elevenmile Creek Stream 3F Chloride 3A No Data

489 Elevenmile Creek Stream 3F Nutrients Chlorophyll 2 Proposed Delist

489 Elevenmile Creek Stream 3F Conductance 3D Impaired

489 Elevenmile Creek Stream 3F Dissolved Oxygen Dissolved Oxygen 3D Impaired

489 Elevenmile Creek Stream 3F Dissolved Solids 3A No Data

489 Elevenmile Creek Stream 3F Fecal Coliform Fecal Coliform 2 Proposed Delist

489 Elevenmile Creek Stream 3F Fluoride 2 Not Impaired

489 Elevenmile Creek Stream 3F Nutrients Historic Chlorophyll 2 Proposed Delist

489 Elevenmile Creek Stream 3F pH 2 Not Impaired

489 Elevenmile Creek Stream 3F Total Coliform 2 Not Impaired

489 Elevenmile Creek Stream 3F Turbidity Turbidity 2 Proposed Delist



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

489 Elevenmile Creek Stream 3F Unionized Ammonia 3C Planning List

489 Elevenmile Creek Stream 3F Total Suspended Total Suspended Solids (TSS) 3A No Data

Solids (TSS)

489 Elevenmile Creek Stream 3F Un-ionized

Unionized Ammonia 3A No Data

Ammonia

489 Elevenmile Creek Stream 3F BOD 5Day BOD 5Day 3A No Data

489A Tenmile Creek Stream 3F Chloride 3A No Data

489A Tenmile Creek Stream 3F Chlorophyll 3B Insufficient Data

489A Tenmile Creek Stream 3F Conductance 2 Not Impaired

489A Tenmile Creek Stream 3F Dissolved Oxygen 2 Not Impaired

489A Tenmile Creek Stream 3F Fecal Coliform 3C Planning List

489A Tenmile Creek Stream 3F pH 3C Planning List

489A Tenmile Creek Stream 3F Total Coliform 3C Planning List

489A Tenmile Creek Stream 3F Turbidity 2 Not Impaired

489A Tenmile Creek Stream 3F Unionized Ammonia 2 Not Impaired

489B Coffee Creek Stream 3F Chloride 3A No Data

489B Coffee Creek Stream 3F Conductance 3B Insufficient Data

489B Coffee Creek Stream 3F Dissolved Oxygen 3B Insufficient Data

489B Coffee Creek Stream 3F Fecal Coliform 3B Insufficient Data

489B Coffee Creek Stream 3F pH 3B Insufficient Data

489B Coffee Creek Stream 3F Total Coliform 3B Insufficient Data

489B Coffee Creek Stream 3F Turbidity 3B Insufficient Data

489B Coffee Creek Stream 3F Unionized Ammonia 3B Insufficient Data

494 JACKS BRANCH Stream 3F N/A 3A No Data

542 Rest Area Run Stream 3F Alkalinity 3B Insufficient Data

542 Rest Area Run Stream 3F Biology 3C Planning List

542 Rest Area Run Stream 3F Chloride 3A No Data

542 Rest Area Run Stream 3F Chlorophyll 3B Insufficient Data

542 Rest Area Run Stream 3F Conductance 2 Not Impaired

542 Rest Area Run Stream 3F Dissolved Oxygen 3C Planning List



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

542 Rest Area Run Stream 3F Fecal Coliform 3C Planning List

542 Rest Area Run Stream 3F pH 3C Planning List

542 Rest Area Run Stream 3F Total Coliform 3C Planning List

542 Rest Area Run Stream 3F Turbidity 3C Planning List

542 Rest Area Run Stream 3F Unionized Ammonia 3B Insufficient Data

607 CLAYPIT BRANCH Stream 3F N/A 3A No Data

616 BEULAH DRAIN Stream 3F N/A 3A No Data

624 Eightmile Creek Stream 3F Biology 3C Planning List

624 Eightmile Creek Stream 3F Chloride 3A No Data

624 Eightmile Creek Stream 3F Chlorophyll 3B Insufficient Data

624 Eightmile Creek Stream 3F Conductance 2 Not Impaired

624 Eightmile Creek Stream 3F Dissolved Oxygen 3C Planning List

624 Eightmile Creek Stream 3F Fecal Coliform Fecal Coliform 3C Planning List

624 Eightmile Creek Stream 3F pH 3C Planning List

624 Eightmile Creek Stream 3F Total Coliform 2 Not Impaired

624 Eightmile Creek Stream 3F Turbidity Turbidity 2 Proposed Delist

624 Eightmile Creek Stream 3F Unionized Ammonia 2 Not Impaired

681 HURST BRANCH Stream 3F N/A 3A No Data

696A BLACK Lake DRAIN Lake 3F N/A 3A No Data

697 Marcus Creek Stream 3F Alkalinity 3C Planning List

697 Marcus Creek Stream 3F Biology 2 Not Impaired

697 Marcus Creek Stream 3F Chloride 3A No Data

697 Marcus Creek Stream 3F Chlorophyll 3B Insufficient Data

697 Marcus Creek Stream 3F Conductance 2 Not Impaired

697 Marcus Creek Stream 3F Dissolved Oxygen 3D Impaired

697 Marcus Creek Stream 3F Fecal Coliform Fecal Coliform 3D Impaired

697 Marcus Creek Stream 3F pH 3D Impaired

697 Marcus Creek Stream 3F Total Coliform 3D Impaired

697 Marcus Creek Stream 3F Turbidity 2 Not Impaired



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

697 Marcus Creek Stream 3F Unionized Ammonia 2 Not Impaired

697A Cressent Lake Lake 3F Alkalinity 3B Insufficient Data

697A Cressent Lake Lake 3F Chloride 3A No Data

697A Cressent Lake Lake 3F Conductance 3B Insufficient Data

697A Cressent Lake Lake 3F Dissolved Oxygen 3B Insufficient Data

697A Cressent Lake Lake 3F Dissolved Solids 3A No Data

697A Cressent Lake Lake 3F Fecal Coliform 3B Insufficient Data

697A Cressent Lake Lake 3F Fluoride 3B Insufficient Data

697A Cressent Lake Lake 3F pH 3B Insufficient Data

697A Cressent Lake Lake 3F Total Coliform 3B Insufficient Data

697A Cressent Lake Lake 3F TSI 3B Insufficient Data

697A Cressent Lake Lake 3F Turbidity 3B Insufficient Data

697A Cressent Lake Lake 3F Unionized Ammonia 3B Insufficient Data

72 Direct Runoff to Stream Stream 3F Chloride 3A No Data

72 Direct Runoff to Stream Stream 3F Chlorophyll 2 Not Impaired

72 Direct Runoff to Stream Stream 3F Conductance 2 Not Impaired

72 Direct Runoff to Stream Stream 3F Dissolved Oxygen 2 Not Impaired

72 Direct Runoff to Stream Stream 3F Dissolved Solids 3A No Data

72 Direct Runoff to Stream Stream 3F Fecal Coliform 2 Not Impaired

72 Direct Runoff to Stream Stream 3F Fluoride 2 Not Impaired

72 Direct Runoff to Stream Stream 3F Historic Chlorophyll 2 Not Impaired

72 Direct Runoff to Stream Stream 3F pH 3D Impaired

72 Direct Runoff to Stream Stream 3F Total Coliform 2 Not Impaired

72 Direct Runoff to Stream Stream 3F Turbidity 2 Not Impaired

725 Unnamed Branch Stream 3F Fecal Coliform Fecal Coliform 3A No Data

72D Direct Runoff to Stream Stream 3F Chloride 3A No Data

72D Direct Runoff to Stream Stream 3F Chlorophyll 3B Insufficient Data

72D Direct Runoff to Stream Stream 3F Conductance 3B Insufficient Data

72D Direct Runoff to Stream Stream 3F Dissolved Oxygen 3B Insufficient Data



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

72D Direct Runoff to Stream Stream 3F Dissolved Solids 3A No Data

72D Direct Runoff to Stream Stream 3F Fecal Coliform 3B Insufficient Data

72D Direct Runoff to Stream Stream 3F Fluoride 3B Insufficient Data

72D Direct Runoff to Stream Stream 3F pH 3B Insufficient Data

72D Direct Runoff to Stream Stream 3F Turbidity 3B Insufficient Data

72E Direct Runoff to Stream Stream 3F N/A 3A No Data

72F Direct Runoff to Stream Stream 3F N/A 3A No Data

73 Unnamed Branch Stream 3F N/A 3A No Data

730 Turner Creek Stream 3F Fecal Coliform 3B Insufficient Data

730 Turner Creek Stream 3F Total Coliform 3B Insufficient Data

763 Direct Runoff to Bay Stream 3F N/A 3A No Data

779 Bellshead Branch Stream 3F N/A 3A No Data

784 Direct Runoff to Bay Stream 3F Non-Point Source N/A 3A No Data

797 Perdido Bay Estuary 3M Alkalinity 3A No Data

797 Perdido Bay Estuary 3M Chloride 3A No Data

797 Perdido Bay Estuary 3M Nurtients Chlorophyll 2 Proposed Delist

797 Perdido Bay Estuary 3M Conductance 3A No Data

797 Perdido Bay Estuary 3M Dissolved Oxygen Dissolved Oxygen 2 Proposed Delist

797 Perdido Bay Estuary 3M Fecal Coliform 2 Not Impaired

797 Perdido Bay Estuary 3M Nurtients Historic Chlorophyll 2 Proposed Delist

797 Perdido Bay Estuary 3M pH 2 Not Impaired

797 Perdido Bay Estuary 3M Total Coliform 2 Not Impaired

797 Perdido Bay Estuary 3M Turbidity 2 Not Impaired

797 Perdido Bay Estuary 3M Unionized Ammonia 3A No Data

797 Perdido Bay Estuary 3M N/A 3A No Data

8001 Perdido Bay Gulf Coastal 3M Mercury (in fish tissue) 3D Impaired

8001A Perdido Key State Park Coastal 3M Fecal Coliform 2 Not Impaired

8001A Perdido Key State Park Coastal 3M Mercury (in fish tissue) 3D Impaired

8001B Johnson Beach Coastal 3M Fecal Coliform 2 Not Impaired



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

8001B Johnson Beach Coastal 3M Mercury (in fish tissue) 3D Impaired

8001C Big Lagoon State Park Coastal 3M Fecal Coliform 2 Not Impaired

8001C Big Lagoon State Park Coastal 3M Mercury (in fish tissue) 3D Impaired



872 Bridge Creek Estuary 3M Chloride 3A No Data

872 Bridge Creek Estuary 3M Chlorophyll 3B Insufficient Data

872 Bridge Creek Estuary 3M Conductance 3A No Data

872 Bridge Creek Estuary 3M Dissolved Oxygen 3B Insufficient Data

872 Bridge Creek Estuary 3M Dissolved Solids 3A No Data

872 Bridge Creek Estuary 3M Fecal Coliform 3B Insufficient Data

872 Bridge Creek Estuary 3M Fluoride 3B Insufficient Data

872 Bridge Creek Estuary 3M pH 3B Insufficient Data

872 Bridge Creek Estuary 3M Turbidity 3B Insufficient Data

935 Unnamed Stream Stream 3F Alkalinity 3B Insufficient Data

935 Unnamed Stream Stream 3F Chloride 3A No Data

935 Unnamed Stream Stream 3F Conductance 3C Planning List

935 Unnamed Stream Stream 3F Dissolved Oxygen Dissolved Oxygen 3C Planning List

935 Unnamed Stream Stream 3F Fecal Coliform 2 Not Impaired

935 Unnamed Stream Stream 3F pH 3C Planning List

935 Unnamed Stream Stream 3F Total Coliform 2 Not Impaired

935 Unnamed Stream Stream 3F Turbidity 2 Not Impaired

935 Unnamed Stream Stream 3F Unionized Ammonia 2 Not Impaired

945 Tarkiln Bayou Estuary 3M Chlorophyll 3B Insufficient Data

945 Tarkiln Bayou Estuary 3M Conductance 3A No Data

945 Tarkiln Bayou Estuary 3M Dissolved Oxygen 3B Insufficient Data

945 Tarkiln Bayou Estuary 3M Fecal Coliform 3B Insufficient Data

945 Tarkiln Bayou Estuary 3M pH 3B Insufficient Data

945 Tarkiln Bayou Estuary 3M Total Coliform 3B Insufficient Data



Type

Waterbody

Class 1

Parameters


1998 303(d) List



Proposed

Integrated

Report

Category2



Description

945 Tarkiln Bayou Estuary 3M Turbidity 3B Insufficient Data

945 Tarkiln Bayou Estuary 3M Unionized Ammonia 3A No Data

974 Perdido Bay Estuary 3M N/A 3A No Data

991 Direct Runoff to Bay Estuary 3M Alkalinity 3A No Data

991 Direct Runoff to Bay Estuary 3M Chloride 3A No Data

991 Direct Runoff to Bay Estuary 3M Chlorophyll 2 Not Impaired

991 Direct Runoff to Bay Estuary 3M Conductance 3A No Data

991 Direct Runoff to Bay Estuary 3M Dissolved Oxygen Dissolved Oxygen 2 Proposed Delist

991 Direct Runoff to Bay Estuary 3M Fecal Coliform 2 Not Impaired

991 Direct Runoff to Bay Estuary 3M pH 2 Not Impaired

991 Direct Runoff to Bay Estuary 3M Total Coliform 2 Not Impaired

991 Direct Runoff to Bay Estuary 3M Turbidity 2 Not Impaired

991 Direct Runoff to Bay Estuary 3M Unionized Ammonia 3A No Data

1 The designation "stream" includes canals, rivers, and sloughs. The designation “lake” includes some marshes.

2 The state’s surface water classifications are as follows:






3 The waterbody’s proposed status is as follows:

NI — Not impaired — Parameter has sufficient data to assess and is not impaired under the Impaired Surface Waters Rule.

ND — No data — No data have been reported to the agency for this parameter or WBID.

ID — Insufficient data — Some data have been reported to the agency; however, they are insufficient to assess the parameter fully under the Impaired

Surface Waters Rule.

PL — Planning List — Enough data exist to assess the parameter during the planning period, and the parameter meets the requirements set forth in the

Impaired Surface Waters Rule to be placed on the Planning List

VL — Verified List — Enough data exist to assess the parameter during the verified period, and the parameter meets the requirements set forth in the

Impaired Surface Waters Rule to be placed on the Verified List.

4 The EPA’s 305(b)/303(d) Integrated Report categories are as follows:

1 – Attains all designated uses;

2 – Attains some designated uses;


3a – No data and information are available to determine if any designated use is attained;

3b – Some data and information are available, but they are insufficient for determining if any designated use is attained;

3c – Meets Planning List criteria and is potentially impaired for one or more designated uses;

4a – Is impaired for one or more designated uses and the TMDL is complete;

4b – Is impaired for one or more designated uses, but no TMDL is required because an existing or proposed pollutant control mechanism provides

reasonable assurance that the water will attain standards in the future;

4c – Is impaired for one or more designated uses but no TMDL is required because the impairment is not caused by a pollutant; and

5 – Water quality standards are not attained and a TMDL is required.

5 The assessment categories listed in this column represent the status of each WBID as a whole, based on multiple parameters. The hierarchy for assigning these

categories is Category 5, then 4, then 3C, then 2, and then 3b, i.e., each WBID is assigned a category based on the highest category assigned to an individual

parameter. For example, if WBID 9999 has total coliforms as Category 5, fecal coliforms as Category 3c, and coliforms-shellfish as Category 2, the single

assessment call for the WBID is Category 5.

F = Fresh water M = Marine - = Not applicable, i.e., there are no parameters listed.


Table F.2: Water Quality Monitoring Stations, by Planning Unit

WBID Waterbody Name Waterbody

Type

Class Station Number Station Name Start

Year

1004 Big Lagoon Estuary 3M 21FLA 330100H5 PERDIDO B SEC H STA BUOY 65 1996 1996 24

1004 Big Lagoon Estuary 3M 21FLA 330200M3 Big Lagoon 500FT SOUTH ROD AND 1994 1996 20

REEL MARINA PIER

1004 Big Lagoon Estuary 3M 21FLA 33020M15 Big Lagoon TWEEN REDFISH

1994 1994 25

SPANISH PTS 100YD 15DPT

1004 Big Lagoon Estuary 3M 21FLBFA 33010H91 ICW MARKER 35 EAST OLD RIVER 1994 1999 464

1004 Big Lagoon Estuary 3M 21FLBFA 330200M3 Big Lagoon 500FT SOUTH ROD AND 1994 1999 491

REEL MARINA PIER

1004 Big Lagoon Estuary 3M 21FLBFA 330200M7 Big Lagoon FT MCREE LNDING

1994 1999 492

SOUTH CUT MID CHANNEL

1004 Big Lagoon Estuary 3M 21FLBFA 33020M10 Big Lagoon 500FT SOUTH OF

1994 1999 465

SEAGLADES PIER

1004 Big Lagoon Estuary 3M 21FLBFA 33020M13 Big Lagoon BETWEEN TROUT PT AND 1994 1999 488

REDFISH PT

1004 Big Lagoon Estuary 3M 21FLBFA 33020M15 Big Lagoon TWEEN

1994 1999 474

REDFISH/SPANISH PTS 100YD 15DEP

1004 Big Lagoon Estuary 3M 21FLBFA 33020M29 Big Lagoon WEST END ICW MARKER 1994 1999 476

18

1004 Big Lagoon Estuary 3M 21FLBFA 33020M32 Big Lagoon 500FT OFFSHORE N 1994 1999 471

JOHNSON BCHRDCULDESA

1004 Big Lagoon Estuary 3M 21FLBFA 33020M33 SEQUIENZA COVE SR 292 "BRENTS 1994 2003 472

DITCH

1004 Big Lagoon Estuary 3M 21FLKWATESC-ESC4-835 Escambia-ESC4-835 2000 2001 6








End

Year

NOBS



Type


Year

1004 Big Lagoon Estuary 3M 21FLPNS 33020M4G East of Trout Point within Big Lagoon - 1999 1999 29

Seagrass

1004 Big Lagoon Estuary 3M 21FLPNS 33020M9G Grande Lagoon at Seaglades (Big 1999 1999 29

Lagoon)-Seagrass

1004 Big Lagoon Estuary 3M 21FLPNS 3302M12G Langley Point at Big Lagoon (GNIS) - 1999 1999 29

Seagrass

1004 Big Lagoon Estuary 3M 21FLPNS 3302M13G Redfish Point within Big Lagoon (GINS) - 1999 1999 30

Seagrass

1004 Big Lagoon Estuary 3M 21FLPNS 3302M16G Spanish Cove within Big Lagoon -

1999 1999 29

Seagrass

1004 Big Lagoon Estuary 3M 21FLPNS 3302M20G Big Lagoon State Park-Seagrass Station 1999 1999 39

1004 Big Lagoon Estuary 3M 21FLPNS 3302M30G Big Lagoon Near Johnson Beach

1999 1999 30

(GNIS)-Seagrass

1014 DIRECT RUNOFF

TO BAY

Estuary 3M 11NPSWRDGUIS_WI_083 PERDIDO KEY POND 6 1994 1994 6

1015 DIRECT RUNOFF

TO GULF

Stream 3F 21FLBFA 33010H21 OLD RIVER AT FLORIDA/ALABAMA

LINE

End

Year

NOBS

1994 1999 479

489 Elevenmile Creek Stream 3F 112WRD 02376115 Elevenmile Creek NEAR PENSACOLA, 1995 2002 90

FL.

489 Elevenmile Creek Stream 3F 21FLA 33010010 11 MILE CREEK SR 186 ST REGIS EF 1995 1996 62

489 Elevenmile Creek Stream 3F 21FLA 33010011 11 MILE CREEK AT SR 297A BR 1995 1996 120

489 Elevenmile Creek Stream 3F 21FLA 33010013 11 MILE CR AT HWY 90 BR 1995 1995 11

489 Elevenmile Creek Stream 3F 21FLA 33010018 TRIB TO 11MILE CR AT 297A S OF 1996 1996 5

ESC.CO RD PRISON

489 Elevenmile Creek Stream 3F 21FLA 33010043 11 MILE CREEK 800 YDS ABOVE 1994 1994 53

MOUT

489 Elevenmile Creek Stream 3F 21FLA 33010045 11 MILE CR 300 YDS N. HWY 186 1996 1996 5

489 Elevenmile Creek Stream 3F 21FLA 33010046 11 MILE CREEK 15 YARDS N OF SR18 1995 1996 39

489 Elevenmile Creek Stream 3F 21FLBFA 33010011 11 MILE CREEK AT SR 297A BR 1994 2003 1092

489 Elevenmile Creek Stream 3F 21FLBFA 33010014 11 MI CR 1/2 MI BELO SAUFLEY FLD 1994 1997 308

489 Elevenmile Creek Stream 3F 21FLGW 17366 NWD-SL-1006 2003 2003 30

489 Elevenmile Creek Stream 3F 21FLGW 17373 NWD-SL-1015 2003 2003 26



Type


Year

489 Elevenmile Creek Stream 3F 21FLGW 3565 S145 1998 2003 1738

489A Tenmile Creek Stream 3F 21FLBFA 33010080 TEN MILE CREEK AT HWY 297 1994 2003 643

489B Coffee Creek Stream 3F 21FLA 33010068 COFFE CREEK N OF JAMESVILLE RD. 1995 1996 34

624 Eightmile Creek Stream 3F 21FLBFA 33010016 8 MI CR HWY 90 BRIDGE 1994 2003 704

697 Marcus Creek Stream 3F 21FLA 33010021 MARCUS CR W ARM LONGLEAF RD 1997 1997 9

697 Marcus Creek Stream 3F 21FLA 33010030 Marcus Creek HWY 90 BR 1995 1997 15

697 Marcus Creek Stream 3F 21FLBFA 33010021 Marcus Creek at Longleaf Drive 1999 2003 296

697 Marcus Creek Stream 3F 21FLBFA 33010030 Marcus Creek HWY 90 BR 1994 2003 1044

697 Marcus Creek Stream 3F 21FLBFA 33010036 MARCUS CR ABOVE AVONDALE STP 1994 2003 781

697 Marcus Creek Stream 3F 21FLBFA 33010039 MARCUS CR E ARM ABOVE

1994 1998 432

CRESENT LK

697A Cressent Lake LAKE 3F 21FLA 33010064 CRESCENT LAKE 1997 1997 30

697A Cressent Lake LAKE 3F 21FLGW 19167 NWD-LL-1006 2003 2003 30



697A Cressent Lake LAKE 3F 21FLKWATESC-

Escambia-Crescent-1 1998 1998 10

CRESCENT-1



CRESCENT-2



CRESCENT-3

730 Turner Creek Stream 3F 21FLA 33010032 MARCUS CR W ARM HWY 90 1995 1995 2

797 Perdido Bay Estuary 3M 112WRD 302417087255100 Perdido Bay AT SR 298 NR

1995 1995 72

PENSACOLA, FL

797 Perdido Bay Estuary 3M 21FLA 330100A5 PERDIDO B 100 YDS OFFSHORE 1995 1995 20

797 Perdido Bay Estuary 3M 21FLA 330100C6 Perdido Bay SEC C BACKGROUND 1994 1995 135

STA

797 Perdido Bay Estuary 3M 21FLA 330100D3 Perdido Bay SEC D BACKGROUND 1994 1996 45

STA

797 Perdido Bay Estuary 3M 21FLA 330100D4 Perdido Bay AT PARADISE BEACH 1996 1996 8

End

Year

NOBS



Type


Year

797 Perdido Bay Estuary 3M 21FLA 33010C14 Perdido Bay ESCAMBIA COUNTY 1996 1998 676

797 Perdido Bay Estuary 3M 21FLA 33010D15 Perdido Bay 75YDS OFF BRONSON 1996 1996 8

FIELD ESC. CO.

797 Perdido Bay Estuary 3M 21FLA 33010F16 LOWER Perdido Bay N OF INERARITY 1996 1996 24

ISLAND

797 Perdido Bay Estuary 3M 21FLA 33010G10 LOWER Perdido Bay OFF PALE MOON 1998 1998 328

DR NR PAPAGO RD

797 Perdido Bay Estuary 3M 21FLBFA 330100A3 Perdido Bay 100YDS OFF MOUTH OF 1997 1999 167

Elevenmile Creek

797 Perdido Bay Estuary 3M 21FLBFA 330100C6 Perdido Bay PNS 1997 1999 169

797 Perdido Bay Estuary 3M 21FLBFA 330100E2 Perdido Bay BETWEEN INERARITY PT 1997 1999 204

AND RED BLUFF

797 Perdido Bay Estuary 3M 21FLBFA 33010D16 Perdido Bay CENTER OFF DU PONT 1997 1999 198

POINT

797 Perdido Bay Estuary 3M 21FLPNS 33010C14 Perdido Bay ESCAMBIA COUNTY 1997 2003 3002

797 Perdido Bay Estuary 3M 21FLPNS 33010G10 LOWER Perdido Bay OFF PALE MOON 1998 2003 2743

DR NR PAPAGO RD

8001A Perdido Key State Coastal 3M 21FLDOH ESCAMBIA92 PERDIDO KEY STATE PARK 2000 2003 128

Park

8001B Johnson Beach Coastal 3M 21FLDOH ESCAMBIA94 JOHNSON BEACH 2000 2003 128

8001C Big Lagoon State Coastal 3M 21FLDOH ESCAMBIA93 Big Lagoon STATE PARK 2000 2003 130

Park

872 Brdige Creek Estuary 3M 21FLA 33010078 BRIDGE CR HWY98 HERON BAYOU 1996 1996 11

LILLIAN HWY ESC CO.

872 Bridge Creek Estuary 3M 21FLA 33010C19 Perdido Bay BRIDGE CR 1996 1996 8

872 Bridge Creek Estuary 3M 21FLGW 17887 NWD-SS-1031 2003 2003 26

935 UNNAMED Stream Stream 3F 21FLBFA 33010082 WEEKLY BAYOU CREEK CO RD 293 1994 2003 689

ESC.CO.

935 UNNAMED Stream Stream 3F 21FLBFA 33010G4W WEEKLY BAYOU 1997 1999 161

945 Tarkiln Bayou Estuary 3M 21FLBFA 33010G4T TARKILN BAYOU 1997 1999 119

945 Tarkiln Bayou Estuary 3M 21FLPNS 33010G4T Tarkiln Bayou 2002 2002 12

End

Year

NOBS



Type

991 Direct Runoff to






105 Freeman Springs


Year

Estuary 3M 21FLA 33020M19 Big Lagoon STATE PARK BOAT RAMP

ICW

Estuary 3M 21FLBFA 33020M31 Big Lagoon HWY. 292 ICW BRIDGE

ESC.CO.

End

Year

NOBS

1996 1998 926

1994 2003 661

Estuary 3M 21FLPNS 33020M20 Big Lagoon State Park West Beach 2002 2003 918

Stream 3F 21FLGW 17876 NWD-SS-1019 2003 2003 26

Branch

135 Boggy Creek Stream 3F 21FLA 33010056 BOGGY CREEK AT SR 97A 1998 1998 23

149 McDavid Creek Stream 3F 21FLA 33010054 MCDAVID CREEK AT SR99 1994 1998 140

182 West Fork Stream 3F 21FLA 33010120 WEST FORK BOGGY CREEK C97A 1998 1998 24

BELOW DAM

278 Cowhide Creek Stream 3F 21FLGW 17866 NWD-SS-1006 2003 2003 26

290 Dry Creek Stream 3F 21FLA 33010086 DRY CREEK 20M.E OF HWY29 SOUTH 1995 1996 42

OF CR182

311 Bowman Creek Stream 3F 21FLGW 17391 NWD-SL-1038 2003 2003 30

4 Brushy Creek Stream 3F 21FLBFA 33010055 Brushy Creek AT COUNTY RD 1994 2003 751

4 Brushy Creek Stream 3F 21FLBFA 33010060 Brushy Creek AT HWY 31 1994 2003 729

4 Brushy Creek Stream 3F 21FLBFA 33010063 Brushy Creek AT NAKOMIS RD. ALSO 1995 1996 307

FDEP STATION

4 Brushy Creek Stream 3F 21FLGW 3550 S380 1998 2003 1740

462A Perdido River Estuary 3M 21FLA 33010008 PERDIDO R ABOVE MO

1994 1994 13

BLACKWATER R

462A Perdido River Estuary 3M 21FLBFA 33010004 Perdido River AT HWY 90 BRIDGE 1994 2003 755

462A Perdido River Estuary 3M 21FLBFA 33010005 PERDIDO R S BLACKWATER R JUNCT 1994 1997 260

462A Perdido River Estuary 3M 21FLBFA 33010006 PERDIDO R Perdido Bay MIDStream 1994 1999 431

462A Perdido River Estuary 3M 21FLBFA 33010007 PERDIDO RIV BELOW MOUTH STYX 1994 1997 266

RIV

462A Perdido River Estuary 3M 21FLBFA 33010008 PERDIDO R ABOVE MO

1994 1997 267

BLACKWATER R

462A Perdido River Estuary 3M 21FLFMRISTR200201 StateNonTrend - Perdido River 2002 2002 23

462B Perdido River Stream 3F 21FLBFA 33010002 PERDIDO R BARRINEAU PARK BR 1994 2003 1007



Type


Year

462B Perdido River Stream 3F 21FLBFA 33010092 BLACKWATER RIVER CR91

1997 2003 449

WAYBURN RD ALA

462C Perdido River Stream 3F 21FLA 33010003 PERDIDO R HWY 184 BR MUSGOGEE 1994 1994 22

462C Perdido River Stream 3F 21FLBFA 33010001 PERDIDO R ABOVE JUNC BRUSHY 1994 2003 1052

CR

462C Perdido River Stream 3F 21FLBFA 33010003 PERDIDO R HWY 184 BR MUSGOGEE 1994 1997 304

542 Rest Area Run Stream 3F 21FLA 33010065 I10 REST STOP CREEK(UNNAMED) 1995 1996 87

ECO REG 75A

542 Rest Area Run Stream 3F 21FLA 33010066 BEAVER POND CREEK I10 ECO REG 1995 1996 89

75A

542 Rest Area Run Stream 3F 21FLA 33010077 E. TRIB TO I10 REST STOP CR E OF 1995 1996 46

PERDIDO FILL

72 Direct Runoff to Stream 3F 21FLGW 17872 NWD-SS-1015 2003 2003 26

Stream

72 Direct Runoff to Stream 3F 21FLGW 19253 NWD-LR-1016 2003 2003 30

Stream

72 Direct Runoff to Stream 3F 21FLGW 3542 S250 1998 2003 1799

Stream

72D Direct Runoff to Stream 3F 21FLGW 19262 NWD-LR-1025 2003 2003 30

Stream

72D Direct Runoff to

Stream

Stream 3F 21FLGW 19267 NWD-LR-1030 2003 2003 30

End

Year

NOBS


Appendix G: 2000 Land Use by Planning Unit

Table G.1: Land Use for the Perdido River Planning Unit

FLUC

Code

Description Acres Square Miles Percentage

of Basin

0 Outside Study Area 25.25 0.04 0.02

1000 Urban and Built Up 7577.95 11.84 4.95

2000 Agriculture 29429.09 45.98 19.23

3000 Rangeland 871.09 1.36 0.57

4000 Upland Forests 90128.44 140.83 58.88

5000 Water 1052.74 1.64 0.69

6000 Wetlands 22474.34 35.12 14.68

7000 Barren Land 573.02 0.90 0.37

8000 Transportation, Communication

and Utilities

929.25 1.45 0.61


Table G2: Detailed Land Use Analysis for the Perdido River Planning Unit

FLUC

Code

Description Acres Square

Miles

Percentage



1100 Residential, low density 2102.88 3.29 1.37

1200 Residential, medium density 3750.87 5.86 2.45

1220 Mobile home units, medium density 6.92 0.01 0.00

1300 Residential, high density 773.96 1.21 0.51

1320 Mobile home units, high density 2.64 0.00 0.00

1400 Commercial and Services 163.29 0.26 0.11

1420 Junk Yards 10.40 0.02 0.01

1480 Cemeteries 3.69 0.01 0.00

1500 Industrial 17.24 0.03 0.01

1600 Extractive 30.49 0.05 0.02

1610 Strip Mines 318.45 0.50 0.21

1620 Sand and Gravel pits 12.61 0.02 0.01

1660 Holding ponds 48.67 0.08 0.03

1700 Institutional 39.76 0.06 0.03

1710 Educational facilities 31.08 0.05 0.02

1720 Religious 34.16 0.05 0.02

1730 Military 14.27 0.02 0.01

1800 Recreational 8.61 0.01 0.01

1820 Golf Courses 45.41 0.07 0.03

1860 Community Recreational Facilities 17.09 0.03 0.01

1900 Open Land (Urban) 145.43 0.23 0.10

2100 Cropland and Pastureland 28910.41 45.17 18.89

2200 Tree Crops 282.85 0.44 0.18

2300 Feeding Operations 57.18 0.09 0.04

2400 Nurseries and Vineyards 12.71 0.02 0.01

2540 Aquaculture 34.98 0.05 0.02

2600 Other Open Lands (Rural) 130.95 0.20 0.09

3200 Shrub and Brushland 871.09 1.36 0.57

4100 Upland Coniferous Forests 43892.81 68.58 28.68

4200 Upland Hardwood Forests 192.78 0.30 0.13

4340 Mixed Coniferous/Hardwood 7474.53 11.68 4.88

4400 Tree Plantations 6.72 0.01 0.00

4410 Coniferous Plantations 32339.77 50.53 21.13

4430 Forest Regeneration Areas 6221.81 9.72 4.06

5100 Streams and Waterways 593.59 0.93 0.39

5200 Lakes 49.84 0.08 0.03

5300 Reservoirs 394.44 0.62 0.26

5600 Slough Waters 14.87 0.02 0.01

6100 Wetland Hardwood Forests 14865.90 23.23 9.71

6110 Bay Swamps 95.89 0.15 0.06

6120 Mangrove Swamps 42.30 0.07 0.03

6150 Stream and Lake Swamps 3339.19 5.22 2.18

6160 Inland Ponds and Sloughs 117.87 0.18 0.08

6200 Wetland Coniferous Forests 374.10 0.58 0.24

6210 Cypress 135.01 0.21 0.09


FLUC

Code


Miles

Percentage


6300 Wetland Forested Mixed 2232.28 3.49 1.46

6410 Freshwater Marshes 344.21 0.54 0.22

6420 Saltwater Marshes 135.54 0.21 0.09

6440 Emergent Aquatic Vegetation 0.92 0.00 0.00

6500 Non-Vegetated 13.43 0.02 0.01

6530 Intermittent Ponds 1.09 0.00 0.00

6900 Wetland Scrub Shrub 776.62 1.21 0.51

7400 Disturbed Land 47.42 0.07 0.03

7450 Burned Areas 517.16 0.81 0.34

7500 Riverine Sandbars 8.44 0.01 0.01

8100 Transportation 9.47 0.01 0.01

8140 Roads and Highways 245.70 0.38 0.16

8170 Oil, Water, or Gas Transmission

95.05 0.15 0.06

Lines

8320 Electrical Power Transmission

458.75 0.72 0.30

Lines

8350 Solid Waste Disposal 120.28 0.19 0.08


Table G.3: Land Use for the Perdido Bay Planning Unit

FLUC

Code


Miles

Percentage



1000 Urban and Built Up 24448.80 38.20 36.59

2000 Agriculture 3604.96 5.63 5.40

3000 Rangeland 3198.56 5.00 4.79

4000 Upland Forests 20321.53 31.75 30.42

5000 Water 795.95 1.24 1.19

6000 Wetlands 11174.52 17.46 16.72

7000 Barren Land 815.87 1.27 1.22

8000 Transportation, Communication and

Utilities

2428.11 3.79 3.63

Table G4: Detailed Land Use Analysis for the Perdido Bay Planning Unit

FLUC

Code


Miles

Percentage



1100 Residential, low density 2321.67 3.63 3.47

1120 Mobile home units 50.93 0.08 0.08

1200 Residential, medium density 11603.96 18.13 17.37

1220 Mobile home units, medium density 58.70 0.09 0.09

1300 Residential, high density 4412.82 6.90 6.60

1320 Mobile home units, high density 194.21 0.30 0.29

1400 Commercial and Services 1629.45 2.55 2.44

1420 Junk Yards 22.47 0.04 0.03

1450 Tourist services 1.75 0.00 0.00

1480 Cemeteries 11.23 0.02 0.02

1500 Industrial 655.57 1.02 0.98

1600 Extractive 148.45 0.23 0.22

1610 Strip Mines 727.98 1.14 1.09

1620 Sand and Gravel pits 30.06 0.05 0.05

1660 Holding ponds 102.09 0.16 0.15

1700 Institutional 78.17 0.12 0.12

1710 Educational facilities 569.13 0.89 0.85

1720 Religious 155.12 0.24 0.23

1730 Military 682.61 1.07 1.02

1800 Recreational 210.52 0.33 0.32

1820 Golf Courses 398.05 0.62 0.60

1830 Race Tracks 118.63 0.19 0.18

1840 Marinas and Fish Camps 4.07 0.01 0.01

1880 Historic Sites 4.32 0.01 0.01

1900 Open Land (Urban) 256.87 0.40 0.38

2100 Cropland and Pastureland 3293.90 5.15 4.93

2200 Tree Crops 292.10 0.46 0.44

2300 Feeding Operations 18.97 0.03 0.03

3200 Shrub and Brushland 1811.25 2.83 2.71

3220 Coastal Scrub 1387.32 2.17 2.08


FLUC

Code


Miles

Percentage


4100 Upland Coniferous Forests 11729.61 18.33 17.56

4200 Upland Hardwood Forests 253.53 0.40 0.38

4340 Mixed Coniferous/Hardwood 4397.13 6.87 6.58

4400 Tree Plantations 69.72 0.11 0.10

4410 Coniferous Plantations 3337.84 5.22 5.00

4430 Forest Regeneration Areas 533.71 0.83 0.80

5100 Streams and Waterways 152.63 0.24 0.23

5200 Lakes 103.34 0.16 0.15

5300 Reservoirs 534.99 0.84 0.80

5420 Embayments < Gulf 4.99 0.01 0.01

6100 Wetland Hardwood Forests 1506.50 2.35 2.25

6130 Gum Swamps 1.12 0.00 0.00

6160 Inland Ponds and Sloughs 32.50 0.05 0.05

6200 Wetland Coniferous Forests 975.74 1.52 1.46

6210 Cypress 8.06 0.01 0.01

6300 Wetland Forested Mixed 5250.24 8.20 7.86

6400 Vegetated Non-Forested Wetlands 17.95 0.03 0.03

6410 Freshwater Marshes 239.85 0.37 0.36

6420 Saltwater Marshes 667.26 1.04 1.00

6440 Emergent Aquatic Vegetation 23.55 0.04 0.04

6900 Wetland Scrub Shrub 2451.74 3.83 3.67

7100 Beaches 683.58 1.07 1.02

7200 Sand other than Beaches 41.43 0.06 0.06

7400 Disturbed Land 90.03 0.14 0.13

7500 Riverine Sandbars 0.82 0.00 0.00

8100 Transportation 200.73 0.31 0.30

8110 Airports 968.72 1.51 1.45

8140 Roads and Highways 531.41 0.83 0.80

8170 Oil, Water, or Gas Transmission Lines 12.64 0.02 0.02

8180 Auto parking facilities 4.55 0.01 0.01

8200 Communications 2.92 0.00 0.00

8300 Utilities 114.65 0.18 0.17

8310 Electrical Power Facilities 21.97 0.03 0.03

8320 Electrical Power Transmission Lines 419.18 0.66 0.63

8340 Sewage Treatment 151.34 0.24 0.23


Appendix H: Statistical Summary Sheets for Ground Water

Evaluations

All Networks—PERDIDO—UNCONFINED AQUIFER—NUTRIENTS

Parameter Name

Nitrate+Nitrite,

Dissolved (as

N)

Nitrate, Total

(as N)

Orthophosphate,

Total (as P)

Phosphorus,

Dissolved (as

P)

Parameter Code 631 620 70507 666

Units mg/L mg/L mg/L mg/L

Total Wells 26 28 28 26

Number BDLs 5 0 5 2

Number MCL/GCL

Exceedances

- 2 - -

Percent MCL/GCL

Exceedances

- 7.14% - -

Minimum 0.009 0.061 0.005 0.002

1st Quartile 0.023 0.185 0.06 0.02

Median 0.245 0.6 0.095 0.03

3rd Quartile 1.9 1.425 0.213 0.06

Maximum 19 28 0.6 0.16

Interquartile Range 1.878 1.24 0.153 0.04

Mean 1.9 2.48 0.16 0.05

Standard Deviation 4.04 5.73 0.15 0.04

Relative Standard

Deviation

212.30% 231.30% 91.10% 84.60%

Standard Error 0.79 1.08 0.03 0.01

Variance 16.28 32.86 0.02 0

Coefficient of Skewness 1352.442 1192.609 2642.23 2788.07

Number Risk Indicators - - - -

Percent Risk Indicators 3.85% - - -

Number SRA Indicators 12 19 24 18

Percent SRA Indicators 46.15% 67.86% 85.71% 69.23%

BDL – Median is below detection limit for this analyte.

MCL – Maximum contaminant level.

GCL – Guidance concentration level.

- – Not applicable.

SRA – Ground Water–Surface Water Relational Assessment.


All Networks—PERDIDO—CONFINED AQUIFER—NUTRIENTS


Nitrate+Nitrite,

Dissolved (as

N)

Nitrate, Total

(as N)

Orthophosphate,

Total (as P)

Phosphorus,

Dissolved

(as P)

Parameter Code 631 620 70507 666

Units mg/L mg/L mg/L mg/L

Total Wells 2 2 2 2

Number BDLs 1 0 0 0


Exceedances


Exceedances

- 0 - -

- 0.00% - -

Minimum 0.021 6.5 0.27 0.16

1st Quartile 0.025 7.175 0.503 0.163

Median 0.028 7.85 0.735 0.165

3rd Quartile 0.032 8.525 0.968 0.168

Maximum 0.035 9.2 1.2 0.17

Interquartile Range 0.007 1.35 0.465 0.005

Mean 0.03 7.85 0.74 0.17

Standard Deviation 0.01 1.91 0.66 0.01


Deviation

35.40% 24.30% 89.50% 4.30%

Standard Error 0.01 1.35 0.46 0

Variance 0 3.65 0.43 0

Coefficient of

Skewness

5656.854 8223.39 2235.37 46669.048

Number Risk

Indicators

0 - - -

Percent Risk Indicators 0.00% - - -

Number SRA

Indicators

0 2 2 2

Percent SRA

0.00% 100.00% 100.00% 100.00%

Indicators







All Networks—PERDIDO—

UNCONFINED AQUIFER—BIOLOGICALS


Coliform, Fecal (MF)

Parameter Code 31616

Units

#/100mL

Total Wells 29

Number BDLs 25


Exceedances


Exceedances

-

-

Minimum 0

1st Quartile 0

Median 0

3rd Quartile 1

Maximum 80

Interquartile Range 1

Mean 3.59

Standard Deviation 14.92


Deviation

416.20%

Standard Error 2.77

Variance 222.75

Coefficient of Skewness 720.853

Number Risk Indicators 2

Percent Risk Indicators 6.90%

Number SRA Indicators 0

Percent SRA Indicators 0.00%







All Networks—PERDIDO—

CONFINED AQUIFER—BIOLOGICALS


Coliform, Fecal (MF)

Parameter Code 31616

Units

#/100mL

Total Wells 2

Number BDLs 2


Exceedances

-


Exceedances

Minimum 0

1st Quartile 0

Median 0

3rd Quartile 0

Maximum 0

Interquartile Range 0

Mean 0

Standard Deviation 0

-


Deviation

0.00%

Standard Error 0

Variance 0

Coefficient of Skewness 0

Number Risk Indicators 0

Percent Risk Indicators 0.00%

Number SRA Indicators 0

Percent SRA Indicators

0.00%








Arsenic,

Total

All Networks—PERDIDO—UNCONFINED AQUIFER—METALS

Barium,

Total

Cadmium,

Total

Chromium,

Total

Lead,

Total

Mercury,

Total

Nickel,

Total

Selenium,

Total

Parameter Code 1002 1007 1027 1034 1051 71900 1067 1147

Units ug/L ug/L ug/L ug/L ug/L ug/L ug/L ug/L

Total Wells 30 30 30 30 30 30 30 30

Number BDLs 18 2 18 16 3 19 25 30


Exceedances


Exceedances

1 0 2 2 7 2 0 0

3.33% 0.00% 6.67% 6.67% 23.33% 6.67% 0.00% 0.00%

Minimum 0.5 2.5 0.25 2.5 0.5 0.05 5 0.5

1st Quartile 0.5 17.5 0.25 3.125 5 0.05 5 0.5

Median 1 31.5 0.555 5 8.6 0.2 5 0.5

3rd Quartile 1.925 43.5 2.075 12.25 12.75 0.363 5 1

Maximum 1,400.00 230 10 170 50 4 23 1

Interquartile Range 1.425 26 1.825 9.125 7.75 0.313 0 0.5

Mean 48.59 37.82 1.66 17.57 10.36 0.59 6.57 0.67

Standard Deviation 255.26 41.08 2.46 34.91 9.79 0.98 4.17 0.24


Deviation

525.40% 108.60% 148.80% 198.70% 94.40% 167.40% 63.60% 36.00%

Standard Error 46.6 7.5 0.45 6.37 1.79 0.18 0.76 0.04

Variance 65156.45 1687.97 6.07 1218.67 95.79 0.97 17.43 0.06


Skewness

567.113 1994.647 1790.9 1366.393 2297.94 1588.176 3521.381 6256.996

Number Risk

Indicators

2 - - - - - - -

Percent Risk

Indicators

6.67% - - - - - - -

Number SRA

Indicators

1 0 13 4 27 12 5 0

Percent SRA

Indicators

3.33% 0.00% 43.33% 13.33% 90.00% 40.00% 16.67% 0.00%








Arsenic,

Total

All Networks—PERDIDO—CONFINED AQUIFER—METALS

Barium,

Total

Cadmium,

Total

Chromium,

Total

Lead,

Total

Mercury,

Total

Nickel,

Total

Selenium,

Total

Parameter Code 1002 1007 1027 1034 1051 71900 1067 1147

Units ug/L ug/L ug/L ug/L ug/L ug/L ug/L ug/L

Total Wells 2 2 2 2 2 2 2 2

Number BDLs 1 0 0 1 0 1 1 2


Exceedances

0 0 0 1 0 0 0 0


Exceedances

0.00% 0.00% 0.00% 50.00% 0.00% 0.00% 0.00% 0.00%

Minimum 0.5 28 2.2 2.5 6 0.05 5 0.5

1st Quartile 1.375 46 2.45 59.375 7.75 0.063 14.5 0.5

Median 2.25 64 2.7 116.25 9.5 0.075 24 0.5

3rd Quartile 3.125 82 2.95 173.125 11.25 0.088 33.5 0.5

Maximum 4 100 3.2 230 13 0.1 43 0.5

Interquartile Range 1.75 36 0.5 113.75 3.5 0.025 19 0

Mean 2.25 64 2.7 116.25 9.5 0.08 24 0.5

Standard Deviation 2.47 50.91 0.71 160.87 4.95 0.04 26.87 0


Deviation

110.00% 79.50% 26.20% 138.40% 52.10% 47.10% 112.00% 0.00%

Standard Error 1.75 36 0.5 113.75 3.5 0.03 19 0

Variance 6.13 2592 0.5 25878.13 24.5 0 722 0


Skewness

Number Risk

Indicators

Percent Risk

Indicators

1818.275 2514.157 7636.753 1445.295 3838.58 4242.641 1786.375 0

0 - - - - - - -

0.00% - - - - - - -

Number SRA

0 0 2 1 2 1 1 0

Indicators

Percent SRA

0.00% 0.00% 100.00% 50.00% 100.00% 50.00% 50.00% 0.00%

Indicators








All Networks—PERDIDO—UNCONFINED AQUIFER—METALS

Aluminum,

Total

Copper,

Total

Iron,

Total

Manganese,

Total

Silver,

Total

Strontium,

Total

Parameter Code 1105 1042 1045 1055 1077 1082 1092

Units ug/L ug/L ug/L ug/L ug/L ug/L ug/L

Total Wells 22 30 30 30 30 22 30

Number BDLs 1 11 0 1 30 0 0

Zinc,

Total


Exceedances

12 0 22 14 0 0 0


Exceedances

54.55% 0.00% 73.33% 46.67% 0.00% 0.00% 0.00%

Minimum 10 0.5 30 2 0.5 2 10

1st Quartile 52.75 5 250 20 0.5 6.625 30

Median 330 13 1,150.00 43 0.5 10 44

3rd Quartile 1,225.00 20 4,675.00 89.5 5 30 102

Maximum 12,000.00 380 15,000.00 350 5 360 1,000.00

Interquartile Range 1,172.25 15 4,425.00 69.5 4.5 23.375 72

Mean 1,614.27 26.63 3,389.67 68.67 1.85 49.81 157.5

Standard Deviation 2900.75 67.97 4074.11 75.2 2.1 93.59 266.83


Deviation

179.70% 255.20% 120.20% 109.50% 113.40% 187.90% 169.40%

Standard Error 618.44 12.41 743.83 13.73 0.38 19.95 48.72

Variance 8414330.3 4619.65 16598403 5655.06 4.4 8758.8 71199.09

Coefficient of Skewness 1555.744 984.286 2213.733 2167.55 2407.729 1489.791 1605.882

Number Risk Indicators - - - - - - -

Percent Risk Indicators - - - - - - -

Number SRA Indicators 5 18 22 7 0 - 20

Percent SRA Indicators 22.73% 60.00% 73.33% 23.33% 0.00% - 66.67%







All Networks—PERDIDO—CONFINED AQUIFER—METALS


Aluminum,

Total

Copper,

Total

Iron,

Total

Manganese,

Total

Silver,

Total

Strontium,

Total

Zinc,

Total

Parameter Code 1105 1042 1045 1055 1077 1082 1092

Units ug/L ug/L ug/L ug/L ug/L ug/L ug/L

Total Wells 2 2 2 2 2 2 2

Number BDLs 0 1 0 0 2 0 0


Exceedances


Exceedances

2 0 2 0 0 0 0

100.00% 0.00% 100.00% 0.00% 0.00% 0.00% 0.00%

Minimum 390 0.5 3,100.00 26 0.5 11 38

1st Quartile 692.5 6.125 3,500.00 29.5 0.5 16 39.75

Median 995 11.75 3,900.00 33 0.5 21 41.5

3rd Quartile 1,297.50 17.375 4,300.00 36.5 0.5 26 43.25

Maximum 1,600.00 23 4,700.00 40 0.5 31 45

Interquartile

Range

605 11.25 800 7 0 10 3.5

Mean 995 11.75 3,900.00 33 0.5 21 41.5

Standard

Deviation

855.6 15.91 1131.37 9.9 0 14.14 4.95


Deviation

86.00% 135.40% 29.00% 30.00% 0.00% 67.30% 11.90%

Standard Error 605 11.25 800 7 0 10 3.5

Variance 732050 253.13 1280000 98 0 200 24.5


Skewness

Number Risk

Indicators

Percent Risk

Indicators

Number SRA

Indicators

Percent SRA

Indicators

2325.855 1477.067 6894.291 6667.007 0 2969.848 16768.532

N/A N/A N/A N/A N/A N/A N/A

N/A N/A N/A N/A N/A N/A N/A

1 1 2 0 0 N/A 2

50.00% 50.00% 100.00% 0.00% 0.00% N/A 100.00%







All Networks—PERDIDO—UNCONFINED AQUIFER—ORGANICS

Parameter Name Benzene Xylenes

Parameter Code 78124 81551

Units ug/L ug/L

Total Wells 30 24

Number BDLs 30 24


Exceedances


Exceedances

3 1

10.00% 4.17%

Minimum 0.5 0.25

1st Quartile 0.5 0.25

Median 0.5 0.25

3rd Quartile 0.5 0.5

Maximum 27 80

Interquartile Range 0 0.25

Mean 2.19 3.67

Standard Deviation 6.12 16.26


Deviation

279.40% 443.50%

Standard Error 1.12 3.32

Variance 37.45 264.38

Coefficient of Skewness 991.862 661.136

Number Risk Indicators - -

Percent Risk Indicators - -

Number SRA Indicators - -

Percent SRA Indicators - -








Bureau of Watershed Management


Tallahassee, Florida 32399-2400

(850) 245-8561

www.dep.state.fl.us/water

Perdido River and Bay - Florida Department of Environmental ...

You also want an ePaper? Increase the reach of your titles

Delete template?

Save as template?
