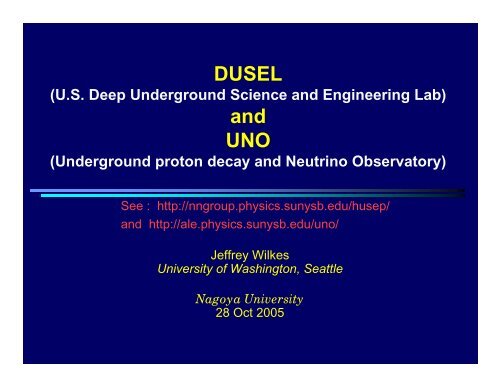

<strong>DUSEL</strong><br />
(U.S. Deep Underground Science <strong>and</strong> Engineering Lab)<br />
<strong>and</strong><br />
<strong>UNO</strong><br />
(Underground proton decay <strong>and</strong> Neutrino Observatory)<br />
See : http://nngroup.physics.sunysb.edu/husep/<br />
<strong>and</strong> http://ale.physics.sunysb.edu/uno/<br />
Jeffrey Wilkes<br />
University of Washington, Seattle<br />
Nagoya University<br />
28 Oct 2005
J. Wilkes, 28 Oct '05<br />
Outline<br />
• <strong>DUSEL</strong> in USA<br />
• <strong>DUSEL</strong> @ Henderson Mine (Colorado)<br />
• <strong>UNO</strong>, <strong>and</strong> where it could go<br />
– Overview<br />
– Physics goals, briefly<br />
– Neutrino beams to <strong>UNO</strong><br />
– Outreach <strong>and</strong> education<br />
2
J. Wilkes, 28 Oct '05<br />
<strong>DUSEL</strong>: Deep Underground Science <strong>and</strong> Engineering Lab<br />
• Initiative by US National Science Foundation (NSF)<br />
– Create a new national lab for underground science<br />
– Mission: support research on<br />
• physics<br />
• geoscience<br />
• evolution of biological organisms under harsh conditions<br />
• Advanced mine <strong>and</strong> tunnel engineering<br />
• Now = 2nd attempt to do this!<br />
– 2003: ‘Selection’ of Homestake mine<br />
• Many people felt selection process was biased<br />
• State of South Dakota failed to act promptly<br />
– Mine was sold to Canadian company, closed, <strong>and</strong> allowed to flood!<br />
3
U.S. <strong>DUSEL</strong> process now<br />
J. Wilkes, 28 Oct '05<br />
• Solicitation 1 (last year): Define requirements for<br />
potential underground experiments in physics,<br />
geosciences, biology, & engineering<br />
– 14 working groups established<br />
– Meetings <strong>and</strong> workshops (too many!): final report soon<br />
• Solicitation 2 (this year): Different sites respond:<br />
conceptual designs for <strong>DUSEL</strong><br />
– Proposals from sites in California (San Jacinto), Washington<br />
(Icicle Creek), Minnesota (Soudan), <strong>and</strong> several others<br />
– Two finalist sites: Homestake Mine <strong>and</strong> Henderson Mine<br />
– Funding of 0.5M$ each provided to prepare proposal<br />
• Solicitation 3 (next year): submit construction<br />
proposals; final choice of site mid-2006 ?<br />
All this is happening NOW!<br />
4
J. Wilkes, 28 Oct '05<br />
<strong>DUSEL</strong> C<strong>and</strong>idates: first round<br />
Icicle Creek<br />
Soudan<br />
Homestake<br />
Henderson<br />
San Jacinto<br />
2875 km<br />
Kimballton<br />
WIPP<br />
5
J. Wilkes, 28 Oct '05<br />
<strong>DUSEL</strong> C<strong>and</strong>idates: current round<br />
Homestake<br />
Henderson<br />
6
Henderson Underground Science/Engineering Project<br />
• HUSEP = Colorado’s team<br />
J. Wilkes, 28 Oct '05<br />
7
Henderson Mine (near Denver, Colorado USA)<br />
J. Wilkes, 28 Oct '05<br />
10 miles<br />
Using site details for<br />
simulations <strong>and</strong> proposal<br />
• Working molybdenum mine; 150M$<br />
modernization completed in 2000<br />
Henderson<br />
Mine<br />
Denver<br />
Airport<br />
• Easily accessible, roads kept clear in<br />
winter<br />
• Near major urban/industrial area <strong>and</strong><br />
airline hub<br />
– ~1 hr drive from Denver<br />
International Airport<br />
Aspen<br />
Echo Lake<br />
(JW thesis)<br />
~60 miles<br />
Colorado<br />
Springs<br />
– Nearby research infrastructure,<br />
institutes <strong>and</strong> universities:<br />
U. Colorado, NIST, Colorado State<br />
U., Denver U., USAFA, Colorado<br />
College, Aspen Center for Physics<br />
– Direct flights to major cities around<br />
the world<br />
8
J. Wilkes, 28 Oct '05<br />
Henderson Mine<br />
• Owned by Climax Molybdenum Company, a subsidiary of<br />
Phelps Dodge Corporation<br />
• Established in 1970’s<br />
– modern mine developed under strict environmental <strong>and</strong> safety<br />
regulations: company just spent $150M updating<br />
• Mining: Molybdenum (Moly) ore, via Panel Caving (Block<br />
Caving)<br />
• Huge elevator/hoist available<br />
– 8.5 m diameter shaft with with two hoisting compartments<br />
– Large hoist: 7m long X 2.5m wide X 4m tall, 20 tons normal<br />
capacity<br />
• can carry a ship container!<br />
• >1000m deep, minimum overburden ~3000 mwe<br />
• Can go deeper…<br />
9
Henderson Mine, Empire, Colorado<br />
J. Wilkes, 28 Oct '05<br />
10
J. Wilkes, 28 Oct '05<br />
Henderson Mine parameters<br />
• Excavation Capacity: ~40,000 - 50,000 ton/day<br />
– Actual operation: ~20,000 - 30,000 ton/day: under-utilized<br />
capacity<br />
• 15km tunnel with high speed conveyor <strong>and</strong> train track<br />
– Conveyor belt: 50kton/day max capacity, 20kton/day normal<br />
operation<br />
• Electric power station: 2 x 30 MW<br />
• Rock disposal site with huge capacity<br />
• Large office building <strong>and</strong> warehouses<br />
• Anticipated mine closing in 10~20 years<br />
– Mine Co. <strong>and</strong> local politicians see science as one possible way of<br />
retaining employment, revitalizing the area, etc<br />
11
Excellent <strong>DUSEL</strong> Site<br />
J. Wilkes, 28 Oct '05<br />
Red Mtn.<br />
12,300' asl<br />
Harrison Mtn.<br />
7500' asl<br />
<strong>DUSEL</strong><br />
(to surface)<br />
(mining area)<br />
core sample<br />
<strong>DUSEL</strong> cavity?<br />
6750' asl<br />
(4200 mwe)<br />
Access drifts <strong>and</strong> ventilation shafts<br />
12
J. Wilkes, 28 Oct '05<br />
Deep Access<br />
Capability<br />
Central Campus<br />
Elev. 6750 ft<br />
(4200 mwe)<br />
EarthLab/<br />
Geoscience<br />
Area<br />
Midway Campus<br />
Elev. 5825 ft<br />
(5100 mwe)<br />
Lower Campus<br />
Elev. 4900 ft<br />
(6000 mwe)<br />
Internal Shaft<br />
13
Gigantic Rock H<strong>and</strong>ling/Removal System<br />
J. Wilkes, 28 Oct '05<br />
1. 80 ton trucks dump rock at crusher.<br />
2. 15 km underground conveyors belts<br />
remove rock.<br />
3. 6 km surface conveyor to mill site.<br />
40~50 kton/day capacity<br />
1<br />
2<br />
Cheap excavation cost: ~ $60/ton<br />
3<br />
14
<strong>UNO</strong> Detector Concept<br />
Water Cherenkov Detector<br />
optimized for:<br />
• Light attenuation length limit<br />
• PMT pressure limit<br />
• Cost (staging built-in)<br />
(Total $500M incl. contingency)<br />
J. Wilkes, 28 Oct '05<br />
3 sections, each (60m) 3<br />
13x Super-K total mass<br />
20x Super-K fiducial mass<br />
excavation: $100~250M<br />
60m<br />
60m<br />
40%<br />
photocathode<br />
2.5m veto layer with<br />
outward-facing PMTs<br />
10%<br />
photocathode<br />
optical separation<br />
between sections<br />
60x60x180m 3<br />
Total Vol: 650 kton<br />
Fid. Vol: 440 kton<br />
Inner: 56,000 20” PMTs<br />
Outer: 14,900 8” PMTs<br />
Detector cost: $250M<br />
15
J. Wilkes, 28 Oct '05<br />
Salient features<br />
• ~ 20X Super-K fiducial mass<br />
• Build on well-known water Cherenkov techniques<br />
– Significant new detector development not required<br />
• Cost estimates can be made with reasonable confidence, BUT<br />
• Detector R&D may reduce costs significantly<br />
• Site independent proposal!<br />
– Henderson site would be ideal, but…<br />
– More or less independent of <strong>DUSEL</strong> site selection process<br />
– Physics goals can be met at any site with >3000 mwe depth<br />
16
J. Wilkes, 28 Oct '05<br />
<strong>UNO</strong> Collaboration: 98 members, 40 institutes<br />
joined in past year<br />
17
J. Wilkes, 28 Oct '05<br />
Advisory committees<br />
• <strong>UNO</strong> advisory committee<br />
• Theoretical advisory committee<br />
– Jacques Bouchez (Saclay)<br />
– Maury Goodman (ANL)<br />
– Tom Kirk (BNL)<br />
– Takahaki Kajita (ICRR)<br />
– Tony Mann (Tufts)<br />
– Kenzo Nakamura (KEK)<br />
– Masayuki Nakahata (ICRR)<br />
– Yoichiro Suzuki (ICRR)<br />
– Jeff Wilkes (U. of Washington)<br />
– Bob Wilson (Colorado State U.)<br />
– John Bahcall (IAS/Princeton)<br />
– John Beacom (FNAL)<br />
– Adam Burrows (U. of Arizona)<br />
– Maria Concepcion Gonzales-<br />
Garcia (<strong>Stony</strong> <strong>Brook</strong>)<br />
– Jim Lattimer (<strong>Stony</strong> <strong>Brook</strong>)<br />
– Bill Marciano (BNL)<br />
– Hitoshi Murayama (Berkeley)<br />
– Jogesh Pati (U. of Maryl<strong>and</strong>)<br />
– Robert Shrock (<strong>Stony</strong> <strong>Brook</strong>)<br />
– Frank Wilczek (MIT)<br />
– Edward Witten (IAS/Princeton)<br />
18
<strong>UNO</strong> Physics Goals<br />
J. Wilkes, 28 Oct '05<br />
Nucleon decay<br />
Supernova<br />
Neutrinos<br />
Atmospheric<br />
Neutrinos<br />
Supernova<br />
Relic Neutrinos<br />
Super-beam<br />
(+Beta-beam)<br />
Solar Neutrinos<br />
Astrophysical<br />
Neutrino sources<br />
• Multi-purpose detector<br />
• Comprehensive programs in astrophysics, nuclear <strong>and</strong> particle physics<br />
• Synergy between accelerator <strong>and</strong> non-accelerator physics<br />
• Nominal cost: $500M total (for strawman site @ Henderson mine)<br />
19
<strong>UNO</strong> Proton Decay Sensitivity<br />
J. Wilkes, 28 Oct '05<br />
Not yet updated!)<br />
Conclusion<br />
Theorists are<br />
smarter than<br />
experimentalists<br />
20
J. Wilkes, 28 Oct '05<br />
Supernovae<br />
<strong>UNO</strong>'s<br />
Supernova<br />
Reach:<br />
~ 1 Mpc<br />
(Local <strong>Group</strong><br />
of galaxies)<br />
Supernova Rate:<br />
~ 1 per 10 ~ 15 yr<br />
140K events for<br />
SN @ 10 kpc<br />
21
Galactic Supernova<br />
J. Wilkes, 28 Oct '05<br />
high stats:<br />
observe millisec-scale<br />
time structure;<br />
Perhaps see cutoff as<br />
black hole swallows<br />
neutrinosphere?<br />
Beacom, Boyd<br />
<strong>and</strong> Mezzacappa<br />
~140,000 events in <strong>UNO</strong>:<br />
msec timing structure of the flux ⇒ Determination of core collapse mechanism<br />
Possible Observation of Birth of a Black Hole via cutoff<br />
22
J. Wilkes, 28 Oct '05<br />
Diffuse supernova relic flux<br />
• Super-K limit (1.2 ν e /cm 2 s >19 Mev @ 90%CL)<br />
must be reduced by factor of ~6 to address all<br />
current predictions<br />
• Can be reached by <strong>UNO</strong> in ~6 yrs @ 4000 MWE<br />
depth (longer if shallower)<br />
– Event rate 20~60 / year for 450 MT fiducial volume<br />
– BG-limited search<br />
23
J. Wilkes, 28 Oct '05<br />
Direct Observation of Oscillatory Behavior in atm ν L/E<br />
~7 years of <strong>UNO</strong> exposure<br />
(Δm 2 = 0.003 eV 2 , sin 2 2θ = 1.0)<br />
Cuts:<br />
• 1 muon w/ E > 1GeV or<br />
• E vis<br />
(μ) > 0.5 E vis<br />
(total)<br />
• removal of horizontal events<br />
P ν−−>ν’<br />
= sin 2 2θ sin 2 (1.27 Δm 2 L/E)<br />
24
<strong>UNO</strong> Design <strong>and</strong> Construction Timeline<br />
J. Wilkes, 28 Oct '05<br />
Conceptual <strong>UNO</strong> Schedule<br />
R&D Proposal/LOI<br />
Tech. Proposal<br />
2003 Year 2004-5 -1 Year 1 2 3 4 5 6 7 8 9 10<br />
Year -2<br />
Excavation<br />
Water containment<br />
PMT delivery<br />
Preparation<br />
Installation<br />
Water fill<br />
contingency<br />
Two years of rigorous detector design needed<br />
Proposal just submitted (10/05) for R&D funding<br />
25
<strong>UNO</strong> already has<br />
an active outreach<br />
program!<br />
SALTA: Snowmass Area Large<br />
Time-Coincidence Array<br />
Empire<br />
• Aspen High School, Aspen, CO<br />
• Basalt High School, Basalt, CO<br />
SALTA began independently of<br />
<strong>UNO</strong>, as part of Snowmass 2001<br />
Secondary-school students <strong>and</strong><br />
teachers are now collecting<br />
underground muon data<br />
• Roaring Fork Valley High School,<br />
Carbondale, CO<br />
• Lake County High School,<br />
Leadville, CO<br />
The highest-elevation school in U.S.<br />
-- 10,152 feet above sea level<br />
• Clear Creek High School,<br />
Empire, CO
J. Wilkes, 28 Oct '05<br />
Aspen Center for Physics Education & Outreach Workshop<br />
July 6-8, 2004: SALTA schools take over the library, setting up<br />
cosmic ray telescopes, for training in the new DAQcard<br />
that will be used in all their data-taking.<br />
27
J. Wilkes, 28 Oct '05<br />
A portable st<strong>and</strong> holds each muon telescopes.<br />
with dust a problem for a PC<br />
we house a low-power serial digital data logger<br />
28
J. Wilkes, 28 Oct '05<br />
SALTA’s underground muon effort is launched September, 2004<br />
29
<strong>DUSEL</strong> C<strong>and</strong>idate Sites <strong>and</strong><br />
Potential LBL/Superbeam Experiments<br />
J. Wilkes, 28 Oct '05<br />
Homestake<br />
Henderson<br />
1315 km<br />
1500 km<br />
2760 km<br />
730 km<br />
2560 km<br />
FNAL<br />
BNL<br />
30
Why VLBL?<br />
J. Wilkes, 28 Oct '05<br />
• Marciano pointed out that for HE neutrino beams, 2nd <strong>and</strong> 3rd<br />
oscillation dips can be very h<strong>and</strong>y...<br />
neutrino, max CP δ<br />
antineutrino<br />
M. Diwan, B. Viren<br />
31
3-D Neutrino Super Beam Perspective<br />
J. Wilkes, 28 Oct '05<br />
US Department of Energy<br />
T. Kirk<br />
<strong>Brook</strong>haven Science Associates February 15, 2003<br />
32
J. Wilkes, 28 Oct '05<br />
Now <strong>and</strong> near future<br />
• <strong>UNO</strong> R&D proposal submitted to US DOE <strong>and</strong> NSF<br />
– <strong>UNO</strong> is still site-independent<br />
• Will build it wherever we can!<br />
• <strong>DUSEL</strong> Workshop planned for Nov 18-19<br />
See http://hep45.hep.colostate.edu/~wilson/<strong>DUSEL</strong>/TopicalWorkshops/Physics-<br />
WorkshopNov05.html<br />
33
