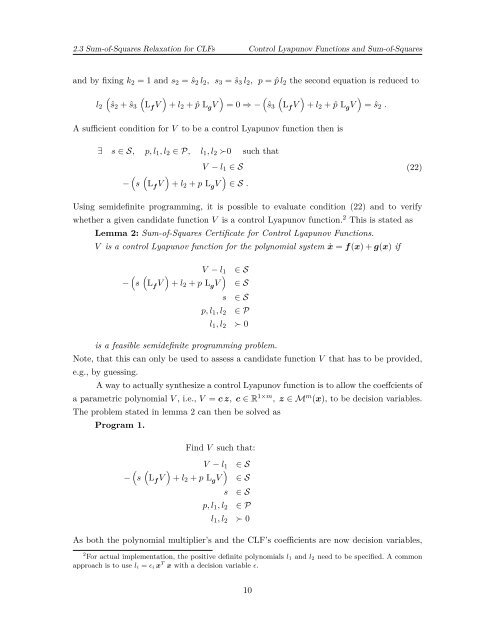

2.3 Sum-of-Squares Relaxation for CLFs Control Lyapunov Functions and Sum-of-Squaresand by fixing k 2 = 1 and s 2 = ŝ 2 l 2 , s 3 = ŝ 3 l 2 , p = ˆp l 2 the second equation is reduced to())( ))l 2 ŝ 2 + ŝ 3(L f V + l 2 + ˆp L g V = 0 ⇒ −(ŝ 3 L f V + l 2 + ˆp L g V = ŝ 2 .A sufficient condition for V to be a control Lyapunov function then is∃ s ∈ S, p, l 1 , l 2 ∈ P, l 1 , l 2 ≻0 such thatV − l 1 ∈ S( ( ))− s L f V + l 2 + p L g V ∈ S .(22)Using semidefinite programming, it is possible to evaluate condition (22) and to verifywhether a given candidate function V is a control Lyapunov function. 2 This is stated asLemma 2: Sum-of-Squares Certificate for Control Lyapunov Functions.V is a control Lyapunov function for the polynomial system ẋ = f(x) + g(x) ifV − l( ( )) 1− s L f V + l 2 + p L g Vs∈ S∈ S∈ Sp, l 1 , l 2 ∈ Pl 1 , l 2 ≻ 0is a feasible semidefinite programming problem.Note, that this can only be used to assess a candidate function V that has to be provided,e.g., by guessing.A way to actually synthesize a control Lyapunov function is to allow the coeffcients ofa parametric polynomial V , i.e., V = c z, c ∈ R 1×m , z ∈ M m (x), to be decision variables.The problem stated in lemma 2 can then be solved asProgram 1.Find V such that:V − l( ( )) 1− s L f V + l 2 + p L g Vs∈ S∈ S∈ Sp, l 1 , l 2 ∈ Pl 1 , l 2 ≻ 0As both the polynomial multiplier’s and the CLF’s coefficients are now decision variables,2 For actual implementation, the positive definite polynomials l 1 and l 2 need to be specified. A commonapproach is to use l i = ɛ i x T x with a decision variable ɛ.10
2.3 Sum-of-Squares Relaxation for CLFs Control Lyapunov Functions and Sum-of-Squaresthe associated semidefinite program will include bilinear constraints of the formn∑n∑ n∑Q 0 + Q k y k + R kl y k y l ≽ 0. (23)k=1k=1 l=1The numerical solution of these bilinear matrix inequalities (BMI) is still subject to ongoingresearch, since these problems are no longer convex. Current approaches include iterativeschemes which fix one bilinear variable and solve the resulting linear matrix inequality inthe other variables. In a next step, a different bilinear variable is fixed and the procedureis repeated. This is computanially expensive and convergence to a global extremum cannotbe guaranteed. The only available direct solver for bilinear problems currently is PENBMI,a commercial solver that uses a local penalty method. YALMIP [13] and its sum-of-squaresmodule [14] can be used as a parser.We consider this software to be still in an early stage and in our opinion it lacksboth performance and reliability compared to the dedicated polynomial manipulation toolboxMULTIPOLY [2]. For linear sum-of-squares programs, i.e., to verify that a candidatefunction is a CLF, we therefore recommend the use of the toolbox SOSTOOLS [16], thatprovides a number of advantages including the integration of MULTIPOLY. Furthermore,we recommend to verify results obtained from bilinear sum-of-squares problems throughYALMIP/PENBMI with SOSTOOLS. We nevertheless conclude that the available toolsallow for our method to attack the problem and if they are successful produce a meaningfulcertificate. If unsuccessful, however, no conclusions about possible intractability of theproblem can be drawn. We expect further development in this field.11
