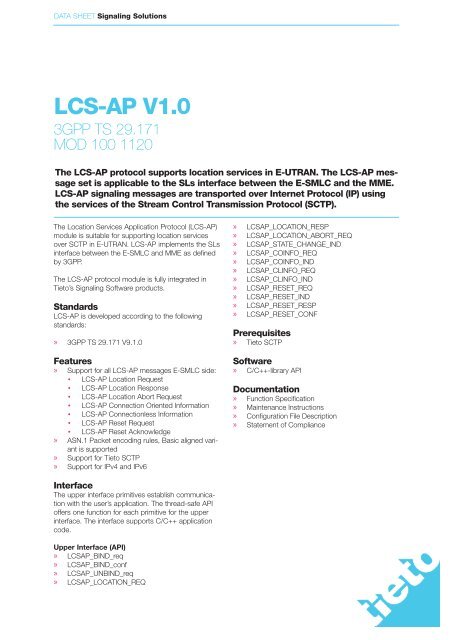

DATA SHEET Signaling Solutions<br />
<strong>LCS</strong>-<strong>AP</strong> <strong>V1.0</strong><br />
3GPP TS 29.171<br />
MOD 100 1120<br />
The <strong>LCS</strong>-<strong>AP</strong> protocol supports location services in E-UTRAN. The <strong>LCS</strong>-<strong>AP</strong> message<br />
set is applicable to the SLs interface between the E-SMLC and the MME.<br />
<strong>LCS</strong>-<strong>AP</strong> signaling messages are transported over Internet Protocol (IP) using<br />
the services of the Stream Control Transmission Protocol (SCTP).<br />
The Location Services Application Protocol (<strong>LCS</strong>-<strong>AP</strong>)<br />
module is suitable for supporting location services<br />
over SCTP in E-UTRAN. <strong>LCS</strong>-<strong>AP</strong> implements the SLs<br />
interface between the E-SMLC and MME as defined<br />
by 3GPP.<br />
The <strong>LCS</strong>-<strong>AP</strong> protocol module is fully integrated in<br />
<strong>Tieto</strong>’s Signaling Software products.<br />
Standards<br />
<strong>LCS</strong>-<strong>AP</strong> is developed according to the following<br />
standards:<br />
» 3GPP TS 29.171 V9.1.0<br />
Features<br />
» Support for all <strong>LCS</strong>-<strong>AP</strong> messages E-SMLC side:<br />
• <strong>LCS</strong>-<strong>AP</strong> Location Request<br />
• <strong>LCS</strong>-<strong>AP</strong> Location Response<br />
• <strong>LCS</strong>-<strong>AP</strong> Location Abort Request<br />
• <strong>LCS</strong>-<strong>AP</strong> Connection Oriented Information<br />
• <strong>LCS</strong>-<strong>AP</strong> Connectionless Information<br />
• <strong>LCS</strong>-<strong>AP</strong> Reset Request<br />
• <strong>LCS</strong>-<strong>AP</strong> Reset Acknowledge<br />
» ASN.1 Packet encoding rules, Basic aligned variant<br />
is supported<br />
» Support for <strong>Tieto</strong> SCTP<br />
» Support for IPv4 and IPv6<br />
Interface<br />
The upper interface primitives establish communication<br />
with the user’s application. The thread-safe <strong>AP</strong>I<br />
offers one function for each primitive for the upper<br />
interface. The interface supports C/C++ application<br />
code.<br />
Upper Interface (<strong>AP</strong>I)<br />
» <strong>LCS</strong><strong>AP</strong>_BIND_req<br />
» <strong>LCS</strong><strong>AP</strong>_BIND_conf<br />
» <strong>LCS</strong><strong>AP</strong>_UNBIND_req<br />
» <strong>LCS</strong><strong>AP</strong>_LOCATION_REQ<br />
» <strong>LCS</strong><strong>AP</strong>_LOCATION_RESP<br />
» <strong>LCS</strong><strong>AP</strong>_LOCATION_ABORT_REQ<br />
» <strong>LCS</strong><strong>AP</strong>_STATE_CHANGE_IND<br />
» <strong>LCS</strong><strong>AP</strong>_COINFO_REQ<br />
» <strong>LCS</strong><strong>AP</strong>_COINFO_IND<br />
» <strong>LCS</strong><strong>AP</strong>_CLINFO_REQ<br />
» <strong>LCS</strong><strong>AP</strong>_CLINFO_IND<br />
» <strong>LCS</strong><strong>AP</strong>_RESET_REQ<br />
» <strong>LCS</strong><strong>AP</strong>_RESET_IND<br />
» <strong>LCS</strong><strong>AP</strong>_RESET_RESP<br />
» <strong>LCS</strong><strong>AP</strong>_RESET_CONF<br />
Prerequisites<br />
» <strong>Tieto</strong> SCTP<br />
Software<br />
» C/C++-library <strong>AP</strong>I<br />
Documentation<br />
» Function Specification<br />
» Maintenance Instructions<br />
» Configuration File Description<br />
» Statement of Compliance<br />
pertise set us apart from our competitors.
MAM 100 1006-122/104 Ver 1.0<br />
DATA SHEET Signaling Solutions<br />
<strong>Tieto</strong> is an IT service company providing IT, R&D and consulting<br />
services. With approximately 18 000 experts, we<br />
are among the leading IT service companies in Northern<br />
Europe and the global leader in selected segments. We<br />
specialize in areas where we have the deepest understanding<br />
of our customers’ businesses and needs. Our superior<br />
customer centricity and Nordic expertise set us apart from<br />
our competitors.<br />
Address: Kanikenäsbanken 12, P.O Box 1038, SE-651 15 Karlstad, Sweden<br />
Telephone: +46 10 481 00 00, email: signaling@tieto.com, www.tieto.com/signaling
