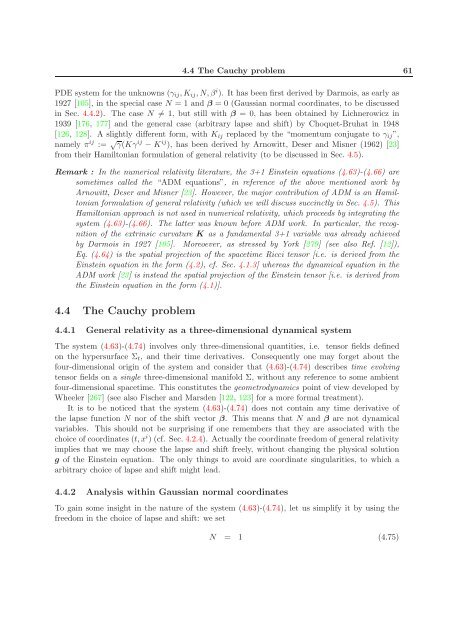

4.4 The Cauchy problem 61<br />
PDE system for the unknowns (γij,Kij,N,β i ). It has been first derived by Darmois, as early as<br />
1927 [105], in the special case N = 1 <strong>and</strong> β = 0 (Gaussian normal coordinates, to be discussed<br />
in Sec. 4.4.2). The case N = 1, but still with β = 0, has been obtained by Lichnerowicz in<br />
1939 [176, 177] <strong>and</strong> the general case (arbitrary lapse <strong>and</strong> shift) by Choquet-Bruhat in 1948<br />
[126, 128]. A slightly different form, with Kij replaced by the “momentum conjugate to γij”,<br />
namely π ij := √ γ(Kγ ij − K ij ), has been derived by Arnowitt, Deser <strong>and</strong> Misner (1962) [23]<br />
from their Hamiltonian formulation <strong>of</strong> general <strong>relativity</strong> (to be discussed in Sec. 4.5).<br />
Remark : In the <strong>numerical</strong> <strong>relativity</strong> literature, the <strong>3+1</strong> Einstein equations (4.63)-(4.66) are<br />
sometimes called the “ADM equations”, in reference <strong>of</strong> the above mentioned work by<br />
Arnowitt, Deser <strong>and</strong> Misner [23]. However, the major contribution <strong>of</strong> ADM is an Hamiltonian<br />
formulation <strong>of</strong> general <strong>relativity</strong> (which we will discuss succinctly in Sec. 4.5). This<br />
Hamiltonian approach is not used in <strong>numerical</strong> <strong>relativity</strong>, which proceeds by integrating the<br />
system (4.63)-(4.66). The latter was known before ADM work. In particular, the recognition<br />
<strong>of</strong> the extrinsic curvature K as a fundamental <strong>3+1</strong> variable was already achieved<br />
by Darmois in 1927 [105]. Moreoever, as stressed by York [279] (see also Ref. [12]),<br />
Eq. (4.64) is the spatial projection <strong>of</strong> the spacetime Ricci tensor [i.e. is derived from the<br />
Einstein equation in the form (4.2), cf. Sec. 4.1.3] whereas the dynamical equation in the<br />
ADM work [23] is instead the spatial projection <strong>of</strong> the Einstein tensor [i.e. is derived from<br />
the Einstein equation in the form (4.1)].<br />
4.4 The Cauchy problem<br />
4.4.1 General <strong>relativity</strong> as a three-dimensional dynamical system<br />
The system (4.63)-(4.74) involves only three-dimensional quantities, i.e. tensor fields defined<br />
on the hypersurface Σt, <strong>and</strong> their time derivatives. Consequently one may forget about the<br />
four-dimensional origin <strong>of</strong> the system <strong>and</strong> consider that (4.63)-(4.74) describes time evolving<br />
tensor fields on a single three-dimensional manifold Σ, without any reference to some ambient<br />
four-dimensional spacetime. This constitutes the geometrodynamics point <strong>of</strong> view developed by<br />
Wheeler [267] (see also Fischer <strong>and</strong> Marsden [122, 123] for a more formal treatment).<br />
It is to be noticed that the system (4.63)-(4.74) does not contain any time derivative <strong>of</strong><br />
the lapse function N nor <strong>of</strong> the shift vector β. This means that N <strong>and</strong> β are not dynamical<br />
variables. This should not be surprising if one remembers that they are associated with the<br />
choice <strong>of</strong> coordinates (t,x i ) (cf. Sec. 4.2.4). Actually the coordinate freedom <strong>of</strong> general <strong>relativity</strong><br />
implies that we may choose the lapse <strong>and</strong> shift freely, without changing the physical solution<br />
g <strong>of</strong> the Einstein equation. The only things to avoid are coordinate singularities, to which a<br />
arbitrary choice <strong>of</strong> lapse <strong>and</strong> shift might lead.<br />
4.4.2 Analysis within Gaussian normal coordinates<br />
To gain some insight in the nature <strong>of</strong> the system (4.63)-(4.74), let us simplify it by using the<br />
freedom in the choice <strong>of</strong> lapse <strong>and</strong> shift: we set<br />
N = 1 (4.75)
