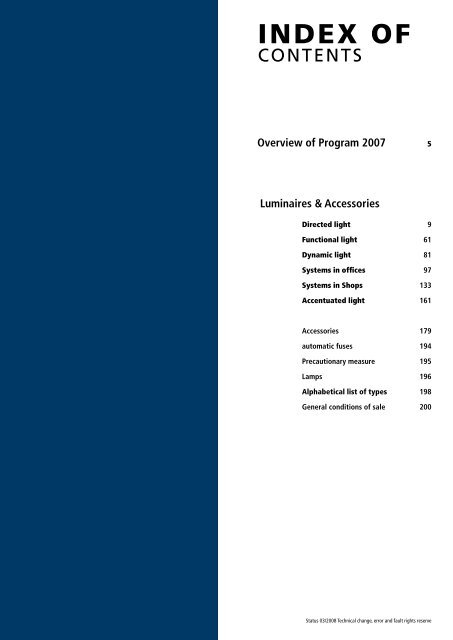

INDEX OF<br />
CONTENTS<br />
Overview of Program 2007 5<br />
<strong>Luminaires</strong> & <strong>Accessories</strong><br />
Directed light 9<br />
Functional light 61<br />
Dynamic light 81<br />
Systems in offices 97<br />
Systems in Shops 133<br />
Accentuated light 161<br />
<strong>Accessories</strong> 179<br />
automatic fuses 194<br />
Precautionary measure 195<br />
Lamps 196<br />
Alphabetical list of types 198<br />
General conditions of sale 200<br />
Status 03/2008 Technical change, error and fault rights reserve
Staedler, Nürnberg
Ucolicht.de<br />
leuchten nach mass<br />
In today’s world, which is strongly orientated<br />
toward outward appearance, the annotation<br />
“designed by” has become an important<br />
selling feature. Often enough this label is<br />
attached to luminaires with a design value far<br />
beyond their lighting efficiency.<br />
In our living area the decorative character of a<br />
product is usually in the foreground.<br />
As RICO LIGHTING defines the value of a<br />
luminaire in terms of its lighting effect, our<br />
selection includes few luminaires for the living<br />
area.<br />
A well-designed exterior is only the shell for<br />
technology, through which light in all its<br />
varieties can be produced.<br />
Our motto is:<br />
We form space through light.<br />
We live architecture through emphasis of<br />
silhouettes, details and zones.<br />
We create light to work, to wonder,<br />
to relax and to sell in.<br />
Managing Director
Wiestal-drugstore, Hallein - Austria
index of contents<br />
pages 9 – 49<br />
DIRECTED<br />
LIGHT<br />
pages 50 – 73<br />
FUNCTIONAL<br />
LIGHT<br />
NEW<br />
NEW<br />
11 12<br />
36<br />
38<br />
63 64<br />
NEW<br />
NEW<br />
14<br />
17<br />
18 19<br />
20<br />
23<br />
NEW<br />
NEW<br />
21<br />
24<br />
39<br />
46<br />
48<br />
41<br />
42<br />
45<br />
69<br />
70<br />
47<br />
51<br />
75 76<br />
65<br />
71<br />
73<br />
NEW NEW<br />
67<br />
25 27<br />
52<br />
55<br />
77<br />
79<br />
NEW<br />
28<br />
30<br />
58<br />
NEW<br />
31<br />
33<br />
NEW<br />
34<br />
35
pages 75 – 89<br />
pages 90 – 115<br />
pages 117 – 143<br />
DYNAMIC<br />
LIGHT<br />
SYSTEMS<br />
IN OFFICES<br />
systeme<br />
IN SHOPS<br />
NEW<br />
83<br />
85<br />
99<br />
100<br />
135<br />
136<br />
87<br />
89<br />
101<br />
103<br />
137 138<br />
NEW<br />
NEW<br />
NEW<br />
91 92<br />
105<br />
106<br />
141<br />
142<br />
93<br />
94<br />
107<br />
108<br />
143 146<br />
NEW<br />
95<br />
111<br />
112<br />
147<br />
148<br />
NEW NEU<br />
NEW<br />
113 114<br />
151<br />
152<br />
NEW<br />
NEW<br />
115<br />
117/118<br />
153<br />
154<br />
120<br />
123<br />
157<br />
158<br />
125 126<br />
<br />
129<br />
130
Inhaltsverzeichnis<br />
pages 145 – 161<br />
ACCENTUATED<br />
LIGHT<br />
pages 163 – 179<br />
ACCESSORIES<br />
LUMINAIRES<br />
pages 180 – 186<br />
APPENDIX<br />
leitungsschutz-<br />
AUTOMATEN<br />
aBSICHERUNG<br />
163 165<br />
180<br />
181<br />
194<br />
195<br />
NEW<br />
lEUCHTMITTEL<br />
tYPENLISTE<br />
167<br />
168<br />
182<br />
183<br />
196<br />
198<br />
aLLGEMEINE<br />
VERKAUFS-<br />
BEDINGUNGEN<br />
169<br />
171<br />
184<br />
185<br />
200<br />
NEW<br />
86<br />
172<br />
174<br />
186<br />
187<br />
175<br />
177<br />
188 189<br />
190<br />
191<br />
192 193
Intersport Schoell, Crailsheim
Ucolicht.de<br />
DIRECTED<br />
LIGHT<br />
NEW<br />
NEU<br />
11<br />
It is the play of light and shadow that enables<br />
us to discern the three dimensional nature<br />
NEW<br />
NEW<br />
of objects. Directed light attracts attention.<br />
Through consciously selected lighting angles<br />
and careful positioning objects are experienced<br />
as a plastic form.<br />
Replaceable reflectors, calculated use of<br />
coloured filters, precise adjustability of pan-<br />
12<br />
NEW<br />
14<br />
ning and directing as well as a wide variety<br />
of constructional forms are features of the<br />
directed light program.<br />
17<br />
18<br />
Accentuate the characteristics of materials,<br />
the depth of space, the sensuality of<br />
NEW<br />
architecture.<br />
Presentation of space and product.<br />
19<br />
20<br />
NEW<br />
NEW<br />
21<br />
23 24<br />
25<br />
27<br />
28<br />
NEW<br />
NEW<br />
30<br />
31 33<br />
34<br />
35<br />
36<br />
38<br />
39 41<br />
42<br />
45<br />
46<br />
NEW<br />
47 48<br />
51<br />
52<br />
55<br />
58
DIRECTED<br />
LIGHT<br />
TUbo<br />
❚ minimum dimensions<br />
❚ clear design style<br />
❚ functional light engineering<br />
10<br />
Habel, Wiesbaden
Ucolicht.de<br />
tubo<br />
SPOTLIGHT<br />
❚ brilliant light with true colours in sales rooms<br />
❚ Illumination of shop windows and shelves<br />
z Object illumination<br />
z Application in light systems<br />
mounting on 3-phase track<br />
lamp article no. weight (kg)<br />
1x 20 W TZTC 20/A-MFL 2,00<br />
1x 35 W TZTC 35/A-MFL 2,00<br />
1x 70 W TZTC 70/A-MFL 2,00<br />
mounting on ceiling rosette<br />
lamp article no. weight (kg)<br />
1x 20 W TZTC 20/R-MFL 2,00<br />
1x 35 W TZTC 35/R-MFL 2,00<br />
1x 70 W TZTC 70/R-MFL 2,00<br />
z aluminium housing<br />
z arm: aluminium pressure casting<br />
z rotating by 355° and swivelling by 180°<br />
z reflectors can be exchanged without tools<br />
z 3-phase adapter with electronic phase pre-selection<br />
further technical data:<br />
further information:<br />
page<br />
37<br />
page<br />
36<br />
11
tubo<br />
SPOTLIGHT HIGH<br />
❚ brilliant light with true colours in sales rooms<br />
❚ illumination of shop windows and shelves<br />
❚ object illumination<br />
❚ application in light systems<br />
mounting on 3-phase track<br />
lamp article no. weight (kg)<br />
1x 20 W THTC 20/A-MFL 1,60<br />
1x 35 W THTC 35/A-MFL 1,60<br />
1x 70 W THTC 70/A-MFL 1,60<br />
mounting on ceiling rosette<br />
lamp article no. weight (kg)<br />
1x 20 W THTC 20/R-MFL 1,60<br />
1x 35 W THTC 35/R-MFL 1,60<br />
1x 70 W THTC 70/R-MFL 1,60<br />
z aluminium housing<br />
z arm: sheet metal and aluminium pressure casting<br />
z rotating by 355° and swivelling by 180°<br />
z reflectors can be exchanged without tools<br />
z 3-phase adapter with electronic phase pre-selection<br />
further technical data:<br />
further information:<br />
12<br />
page<br />
37<br />
page<br />
36
Ucolicht.de<br />
Schmitt & Hahn, airport Nürnberg<br />
13
tubo<br />
SPOTLIGHT<br />
TRANSVERSE<br />
❚ brilliant light with true colours in sales rooms<br />
❚ illumination of shop windows and shelves<br />
❚ object illumination<br />
❚ application in light systems<br />
mounting on 3-phase track<br />
lamp article no. weight (kg)<br />
1x 20 W TLTC 20/A-MFL 2,00<br />
1x 35 W TLTC 35/A-MFL 2,00<br />
1x 70 W TLTC 70/A-MFL 2,00<br />
mounting on ceiling rosette<br />
lamp article no. weight (kg)<br />
1x 20 W TLTC 20/R-MFL 2,00<br />
1x 35 W TLTC 35/R-MFL 2,00<br />
1x 70 W TLTC 70/R-MFL 2,00<br />
z aluminium housing<br />
z rotating by 355° and swivelling by 180°<br />
z reflectors can be exchanged without tools<br />
z 3-phase adapter with electronic phase pre-selection<br />
further technical data:<br />
further information:<br />
14<br />
page<br />
37<br />
page<br />
36
Ucolicht.de<br />
book store Habel, Wiesbaden<br />
15
DIRECTED<br />
LIGHT<br />
PICCO<br />
❚ flexible in application<br />
❚ low installation height<br />
❚ replaceable reflectors<br />
❚ reflectors replaceable<br />
without use of tools<br />
16<br />
book store Aigner, Ludwigsburg
Ucolicht.de<br />
picco<br />
SPOTLIGHT<br />
❚ brilliant light with true colours in sales rooms<br />
❚ illumination of shop windows and shelves<br />
❚ object illumination<br />
❚ application in light systems<br />
❚ standard reflector 2x17°<br />
mounting on 3-phase track<br />
lamp article no. weight (kg)<br />
1x 35 W QZTC 35/A-MFL 1,20<br />
1x 70 W QZTC 70/A-MFL 1,30<br />
1x max 90 W QZQT 90/A-MFL 1,10<br />
mounting on ceiling rosette<br />
lamp article no. weight (kg)<br />
1x 35 W QZTC 35/R-MFL 1,20<br />
1x 70 W QZTC 70/R-MFL 1,30<br />
1x max 90 W QZQT 90/R-MFL 1,10<br />
z diecast aluminum housing<br />
z reflectors replaceable without tools<br />
z integrated electronic control gear<br />
further technical data:<br />
further information:<br />
page<br />
37<br />
page<br />
36<br />
17
picco<br />
duo<br />
❚ brilliant light with true colours in sales rooms<br />
❚ illumination of shop windows and shelves<br />
❚ application in light systems<br />
❚ standard reflector 2x17°<br />
lamp article no. weight (kg)<br />
2x 35 W MH QZTC 235/A-MFL 2,30<br />
230<br />
2x 70 W MH QZTC 270/A-MFL 2,30<br />
z diecast aluminium housing<br />
in combination with sheet steel<br />
z double electronic control gear installed<br />
z reflectors can be exchanged without tools<br />
z 3-phase adapter<br />
further technical data:<br />
further informations:<br />
Esterle, Schönau<br />
18<br />
page<br />
37<br />
page<br />
36
Ucolicht.de<br />
Picco<br />
biblo<br />
❚ brilliant light with true colours in sales rooms<br />
❚ illumination of shop windows and shelves<br />
❚ object illumination<br />
❚ application in light systems<br />
❚ standard reflector 2x17°<br />
mounting on 3-phase track<br />
lamp article no. weight (kg)<br />
1x 35 W QSTC 35/A-MFL 1,40<br />
1x 70 W QSTC 70/A-MFL 1,20<br />
mounting on ceiling rosette<br />
lamp article no. weight (kg)<br />
1x 35 W QSTC 35/R-MFL 1,40<br />
1x 70 W QSTC 70/R-MFL 1,20<br />
z diecast aluminium housing<br />
in combination with sheet steel<br />
z reflectors can be exchanged without tools<br />
z electronic control gear installed<br />
further technical data:<br />
further informations:<br />
page<br />
37<br />
page<br />
36<br />
Sutor, Rosenheim<br />
13 19
picco<br />
SPOTLIGHT<br />
❚ brilliant light with true colours in sales rooms<br />
❚ illumination of shop windows and shelves<br />
❚ object illumination<br />
❚ application in light systems<br />
❚ standard reflector 2x17°<br />
mounting on 3-phase track<br />
lamp article no. weight (kg)<br />
1x 35 W QLTC 135/A-MFL 1,10<br />
1x 70 W QLTC 170/A-MFL 1,20<br />
1x max 90 W QLQT 90/A-MFL 1,00<br />
z diecast aluminum housing in combination with sheet steel<br />
z reflectors replaceable without tools<br />
z electronic transformer integrated<br />
further technical data:<br />
further information:<br />
20<br />
Lox, Sinsheim<br />
page<br />
37<br />
page<br />
36
Ucolicht.de<br />
picco<br />
SPOTLIGHT<br />
❚ brilliant light with true colours in sales rooms<br />
z shelf lighting<br />
z adaptable for various shelf systems<br />
❚ standard reflector 2x17°<br />
extension length overall: 800 mm<br />
lamp article no. weight (kg)<br />
1x max 70 W QZTC 170/M01-0 2,00<br />
1x max 90 W QZQT 190/M01-0 2,00<br />
z die cast aluminum<br />
z order electronic control gear and<br />
electronic transformer separately<br />
z reflectors replaceable without tools<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
182<br />
page<br />
37<br />
page<br />
36<br />
Feneberg, Kempten<br />
21
22<br />
Faix, Darmstadt
Ucolicht.de<br />
PICCO<br />
PENDulum<br />
❚ brilliant light with true colours in sales rooms<br />
❚ object illumination<br />
❚ presentation of sales scenes<br />
❚ basic and accentuating lighting<br />
❚ standard reflector 2x17°<br />
square design<br />
lamp article no. weight (kg)<br />
2x 35 W QQTC 235 00 2,60<br />
2x 70 W QQTC 270 00 2,70<br />
rectangular design<br />
lamp article no. weight (kg)<br />
2x 35 W QQTC 235 10 2,60<br />
2x 70 W QQTC 270 10 2,70<br />
z luminaire housing from sheet steel and lighting head from aluminum<br />
z reflectors replaceable without tools<br />
z 4 point wire suspension<br />
z light head rotating and piroting<br />
z no light loss in housing when light head is pivoting<br />
further technical data:<br />
further information:<br />
page<br />
37<br />
page<br />
36<br />
23
PICCO<br />
PENDULUM<br />
❚ brilliant light with true colours in sales rooms<br />
❚ light design in shop windows<br />
❚ light as part of architecture<br />
❚ two individually adjustable spotlight modules<br />
lamp article no. weight (kg)<br />
2x 35W QRTC 235-5 3,90<br />
2x 70 W QRTC 270-5 3,90<br />
lamp article no. weight (kg)<br />
3x 35W QRTC 335-5 5,80<br />
3x 70 W QRTC 370-5 5,80<br />
lamp article no. weight (kg)<br />
4x 35W QRTC 435-5 7,80<br />
4x 70 W QRTC 470-5 7,80<br />
z aluminium profile, design with cardan modules<br />
z reflectors can be exchanged without tools<br />
z Y-wire suspension<br />
z luminaire head gimbal-mounted<br />
further technical data:<br />
further information:<br />
24<br />
page<br />
37<br />
page<br />
36
Ucolicht.de<br />
light<br />
Field<br />
❚ brilliant light with true colours in sales rooms<br />
❚ ceiling designing<br />
❚ presenting sales scenes<br />
❚ basic and accentuated lighting<br />
❚ various sizes<br />
lamp article no. weight (kg)<br />
4x 35 W LS800/435-MFL 12,50<br />
4x 70 W LS800/470-MFL 12,50<br />
Schmitt & Co., Heidelberg<br />
z luminaire housing from sheet steel and lighting head from aluminum<br />
z reflectors replaceable without tools<br />
z 4 point wire suspension<br />
z light head rotating and piroting<br />
z no light loss in housing when light head is pivoting<br />
further technical data:<br />
further information:<br />
page<br />
37<br />
page<br />
36<br />
25
26<br />
Brockmann, book store, Brühl
Ucolicht.de<br />
PICCO<br />
PENDulum<br />
❚ brilliant light with true colours in sales rooms<br />
❚ light presenting in sales scenes<br />
❚ light as part of architecture<br />
❚ lighting the ceiling area<br />
❚ 4 individually adjustable spots<br />
lamp article no. weight (kg)<br />
4x 35 W + 1x 18 W QHTC 435 00 13,00<br />
4x 70 W + 1x 18 W QHTC 470 00 13,00<br />
DULUX-EL<br />
z transparent luminaire body<br />
z reflectors replaceable without tools<br />
z 4 point wire suspension<br />
z light head rotating and piroting<br />
z no light loss in housing when light head is pivoting<br />
further technical data:<br />
further information:<br />
page<br />
37<br />
page<br />
36<br />
27
cylinder<br />
❚ large-area luminaire for light design in sales rooms<br />
or focusing on architectonic priorities<br />
❚ can be equipped individually as illuminating element<br />
or with up to four spots in the PICCO system<br />
❚ lower cover optional<br />
decor lamp<br />
lamp article no. diameter height (mm) weight (kg)<br />
1x Dulux EL + 4x 35 W QHTC 435-5-GB 600 mm 402 6,40<br />
1x Dulux EL + 4x 70 W QHTC 470-5-GB 600 mm 402 6,40<br />
decor lamp, closed<br />
lamp article no. diameter height (mm) weight (kg)<br />
1x max 20 W QHEG-0600 600 mm 402 2,50<br />
1x max 20 W QHEG-0900 900 mm 402 3,10<br />
1x max 20 W QHEG-1200 1200 mm 402 3,80<br />
decor lamp, open at the bottom<br />
lamp article no. diameter height (mm) weight (kg)<br />
1x max 20 W QHEL-0600 600 mm 402 2,30<br />
1x max 20 W QHEL-0900 900 mm 402 2,80<br />
1x max 20 W QHEL-1200 1200 mm 402 3,40<br />
z material: translucent fabric<br />
z reflectors can be exchanged without tools for spotlight type<br />
z luminaire heads rotating and swivelling<br />
z 4-point wire suspension, quick adjustment without tools<br />
further technical data:<br />
28<br />
page<br />
37<br />
page<br />
36
Ucolicht.de<br />
Brenner, Neuburg<br />
29
picco<br />
recessedSYMMETRIC<br />
❚ brilliant light with true colours in sales rooms<br />
z light technology from spot to flood<br />
for every lighting task<br />
z symmetric pivot axis for use in room center<br />
cardan symmetrically pivoded<br />
Leuchtmittel Artikel-Nr. Länge (mm) Einbaulänge (mm) Gewicht (kg)<br />
1x max 70 W QZTC 70/E-1 L166 LE150 1,25<br />
cardan symmetrically pivoded<br />
Leuchtmittel Artikel-Nr. Länge (mm) Einbaulänge (mm) Gewicht (kg)<br />
2x max 70 W QZTC 70/E-2 L286 LE270 2,50<br />
3x max 70 W QZTC 70/E-3 L408 LE390 3,80<br />
Shoe house Robers, Ahaus<br />
z luminaire head of aluminum, lightproof at top<br />
z sheet steel housing with laser-treated frame<br />
z reflectors replaceable without tools<br />
z plug between luminaire and supply unit<br />
further technical data:<br />
z separate electronic control gear<br />
required<br />
z patented assembly spring for quick<br />
installation<br />
z housing closed at top<br />
further information:<br />
30<br />
page<br />
181<br />
page<br />
37<br />
page<br />
36<br />
page<br />
185
Ucolicht.de<br />
picco<br />
recessedASYMMETRIC<br />
❚ brilliant light with true colours in sales rooms<br />
z light technology from spot to flood<br />
for every lighting task<br />
z optimal shelf lighting through asymmetric pivoting<br />
z ideal lighting for room corners<br />
z no light loss in hollow ceilings through<br />
asymmetric pivot axis drive symmetrically pivoted<br />
cardan symmetrically pivoted<br />
lamp article no. lenght (mm) installationlength (mm) weight (kg)<br />
1x max 70 W QZTC 70/E-1-ASY L166 LE150 1,25<br />
2x max 70 W QZTC 70/E-2-ASY L286 LE270 2,50<br />
cardan asymmetrically pivoted, pivot axes offset 180° to each other<br />
lamp article no. lenght (mm) installationlength (mm) weight (kg)<br />
2x max 70 W QZTC 70/E-2 (BIDI) L286 LE270 2,50<br />
cardan asymmetrically pivoted, pivot axes offset 90° to each other<br />
lamp article no. lenght (mm) installationlength (mm) weight (kg)<br />
2x max 70 W QZTC 70/E-2-ASY 10 (1) L286 LE270 2,50<br />
2x max 70 W QZTC 70/E-2-ASY 11 (2) L286 LE270 2,50<br />
(1) (2)<br />
z luminaire head of aluminum, lightproof at top<br />
z sheet steel housing with laser-treated frame<br />
z reflectors replaceable without tools<br />
z plug between luminaire and electronic control gears<br />
further technical data:<br />
z separate electronic control gear<br />
required<br />
z patented assembly spring for quick<br />
installation<br />
z housing closed at top<br />
further information:<br />
page<br />
181<br />
page<br />
37<br />
page<br />
36<br />
page<br />
185<br />
31
32<br />
Abele optic, Augsburg
Ucolicht.de<br />
picco<br />
CARDAN ROUND<br />
❚ brilliant light with true colours in sales rooms<br />
z light technology from spot to flood<br />
for every lighting task<br />
z filigree optic<br />
z installation depth 110 mm<br />
lamp article no. weight (kg)<br />
1x max 70 W QMTC 70/ER-1 0,80<br />
lamp article no. weight (kg)<br />
2x max 70 W QMTC 70/ER-2 1,60<br />
lamp article no. weight (kg)<br />
3x max 70 W QMTC 70/ER-3 2,40<br />
z luminaire head of aluminum, lightproof at top<br />
z reflectors replaceable without tools<br />
z separate electronic control gear required<br />
z spring held installation – no tools<br />
z installation frame of sheet steel, open at top<br />
z plug between luminaire and electronic control gears<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
37<br />
page<br />
36<br />
page<br />
185<br />
33
picco<br />
CARDAN ROUND<br />
❚ brilliant light with true colours in sales rooms<br />
z light technology from spot to flood<br />
for every lighting task<br />
z filigree optic<br />
z installation depth 110 mm<br />
lamp article no. length (mm) installationlength (mm) weight (kg)<br />
1x max 70 W QMTC 70/EQ-1 L179 LE155 1,30<br />
2x max 70 W QMTC 70/EQ-2 L314 LE290 2,20<br />
3x max 70 W QMTC 70/EQ-3 L449 LE425 3,10<br />
Leiser, Potsdam<br />
z luminaire head of aluminum, lightproof at top<br />
z reflectors replaceable without tools<br />
z separate electronic control gear required<br />
z spring held installation – no tools<br />
z installation frame of sheet steel, open at top<br />
z plug between luminaire and electronic control gears<br />
further technical data:<br />
further information:<br />
34<br />
page<br />
181<br />
page<br />
37<br />
page<br />
36<br />
page<br />
185
Ucolicht.de<br />
Picco<br />
Rondo<br />
❚ brilliant light with true colours in sales rooms<br />
❚ light technology from spot to flood for any<br />
illumination task<br />
❚ luminaire head swivelling by 52°<br />
❚ optimal shelf illumination by asymmetric mounting<br />
of the swivel axis<br />
❚ no loss of light in the ceiling opening;<br />
no view into the ceiling<br />
lamp article no. weight (kg)<br />
1x max 70 W QTTC 70/E 0,80<br />
1x max 70 W QTTC 70/OWA 0,80<br />
❚ accessories<br />
installation with patented spring in<br />
inaccessible ceilings (plasterboards)<br />
installation with push spring in<br />
accessible ceilings (OWA)<br />
z diecast aluminium housing<br />
z reflectors can be exchanged without tools<br />
z rotating by 355° and swivelling by 52°<br />
z separate electronic control gear required<br />
z universal spring fastener from 1-15 mm<br />
z plug-in connection between luminaire and<br />
elecronic control gear<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
37<br />
page<br />
36<br />
page<br />
185<br />
35
Picco<br />
Tubo<br />
ACCESSORIES<br />
❚ reflectors<br />
spot reflector (SP)<br />
description article no.<br />
2x7° Z/QZ-SP<br />
action flood (AFL)<br />
description article no.<br />
2x12° Z/QZ-AFL<br />
medium flood reflector (MFL)<br />
description article no.<br />
2x17° Z/QZ-MFL<br />
medium flood reflector (MFL-GO)<br />
description article no.<br />
2x17° Z/QZ-MFL(GO)<br />
flood reflector (FL)<br />
description article no.<br />
2x35° Z/QZ-FL<br />
flood reflector (FL-GO)<br />
description article no.<br />
2x35° Z/QZ-FL(GO)<br />
❚ filters/shutters<br />
anti-dazzle grid, one side<br />
PICCO<br />
Z/QZ-BR<br />
TUBO<br />
Z/TZTC-BR<br />
anti-glare filter<br />
PICCO<br />
Z/QZ-WR<br />
TUBO<br />
Z/TZTC-WR<br />
anti-dazzle flaps 4 sides<br />
36<br />
Furniture Zurbrüggen, Oelde<br />
PICCO<br />
Z/QZ-BK4<br />
TUBO<br />
Z/TZTC-BK4
Ucolicht.de<br />
❚ filters<br />
❚ filters<br />
UV-filters<br />
discribtion<br />
UV filter type 1<br />
UV filter type 2<br />
article no.<br />
Z/QZ-UV I<br />
Z/QZ-UVII<br />
colour effect filter<br />
Beschreibung<br />
red<br />
green<br />
blue<br />
yellow<br />
article no.<br />
Z/QZ-UVI-RO<br />
Z/QZ-UVI-GR<br />
Z/QZ-UVI-BL<br />
Z/QZ-UVI-GE<br />
discribtion<br />
furniture/bakery<br />
meat<br />
article no.<br />
Z/QZ-UVI-K2500<br />
Z/QZ-FW<br />
light effect filter to widen light<br />
cone in one axis<br />
article no.<br />
Z/QZ-UVI-RG<br />
light effect filter to advancement<br />
the constancy in accociation with<br />
flood reflectors<br />
article no.<br />
Z/QZ-UVI-S<br />
❚ further documentation on reflectors and filters<br />
on pages 191 - 193<br />
37
quadro<br />
roller<br />
❚ brilliant light with true colours in sales rooms<br />
z light head pivoted 45°<br />
z light technology from spot to flood<br />
for all lighting task<br />
z no light loss in hollow ceilings<br />
through asymmetric pivot axis<br />
lamp article no. weight (kg)<br />
1x max 70 W QFT 70/E 1,20<br />
1x max 100 W QFSG 100/E 1,20<br />
z diecast aluminum housing<br />
z reflectors replaceable<br />
z separate electronic control gear required<br />
z no tools required for installation<br />
further technical data:<br />
further information:<br />
38<br />
page<br />
181<br />
page<br />
49<br />
page<br />
185
Ucolicht.de<br />
quadro<br />
display<br />
z low installation height<br />
z widespread and brilliant light<br />
z low dazzle<br />
z asymmetric pivoted through 40°<br />
one direction pivoting<br />
lamp article no. Gewicht (kg)<br />
1x 70 W QVTS 70/E-S 1,55<br />
1x max 100 W QVSG 100/E-S 1,55<br />
one direction pivoting<br />
lamp article no. weight (kg)<br />
1x max 70 W QVTC 170/E-S 0,90<br />
z dappled reflector for uniform lighting<br />
z separate electronic control gear required<br />
z patented assembly spring for quick installation<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
185<br />
39
DIRECTED<br />
LIGHT<br />
quadro<br />
❚ square drive<br />
❚ same reflector size<br />
as CDM-T, SDW-TG, low voltage QR111<br />
❚ symmetric and asymmetric pivot<br />
❚ replaceable reflectors<br />
❚ frame laser treated<br />
40<br />
Shoe house Robers, Borken
Ucolicht.de<br />
quadro<br />
SUSPENDED<br />
❚ brilliant light with true colours in sales rooms<br />
z light technology from spot to flood<br />
for all lighting task<br />
❚ strong lighting module for higher ceilings<br />
z completes lighting system WOF from page 134<br />
lamp article no. exterior length (mm) weight (kg)<br />
2x 70 W QRT 270/S-1500 L728 5,10<br />
3x 70 W QRT 370/S-1500 L1270 8,10<br />
2x 100 W QRSG 2100/S-1500 L728 5,50<br />
3x 100 W QRSG 3100/S-1500 L1270 8,10<br />
Holzland Wicht, Hückelhoven<br />
z luminaire head of aluminum, lightproof at top<br />
z profile aluminum design with drive modules<br />
z reflectors replaceable without tools<br />
z luminaire heads gimbal-mounted<br />
further technical data:<br />
further information:<br />
page<br />
49<br />
page<br />
48<br />
41
quadro<br />
SUSPENDED<br />
❚ light projectors with 6 adjustable beams<br />
z for use in rooms with high ceilings or<br />
little possibility for positioning of lights<br />
❚ special reflectors for ceiling heights up to 20 m<br />
lamp article no. weight (kg)<br />
6x 70 W QRT 670-5 10,50<br />
Furniture, Zurbrüggen<br />
z luminaire head of aluminum, lightproof at top<br />
z sheet steel housing with drive modules<br />
z reflectors replaceable without tools<br />
z each light head individually adjustable<br />
further technical data:<br />
further information:<br />
42<br />
page<br />
49<br />
page<br />
48
Ucolicht.de<br />
KIKA, Prag<br />
43
44<br />
Krane optic, Köln
Ucolicht.de<br />
quadro<br />
recessed<br />
❚ brilliant light with true colours<br />
in sales rooms<br />
❚ light technology from spot to flood<br />
for all lighting tasks<br />
z combination of various light sources<br />
in one design<br />
z symmetric pivot for use in room center<br />
cardan pivoted symmetrically<br />
lamp article no. length (mm) installation length (mm) weight (kg)<br />
1x max 70 W QCT 70/1 L206 LE175 1,80<br />
2x max 70 W QCT 70/2 L367 LE335 2,80<br />
3x max 70 W QCT 70/3 L528 LE495 3,80<br />
1x max 100 W QCSG 100/1 L206 LE175 1,80<br />
2x max 100 W QCSG 100/2 L367 LE335 2,80<br />
1x max 18 W QCD 118/1* L206 LE175 1,80<br />
*electronic control gear wired to light unit<br />
cardan pivoted symmetrically<br />
lamp article no. length (mm) installation length (mm) weight (kg)<br />
1x HCI-T / 1x SDW-TG QC2 00 L367 LE335 2,80<br />
1x HCI-T / 1x QR 111 QC2 01 L367 LE335 2,80<br />
1x SDW-TG / 1x QR111 QC2 02 L367 LE335 2,80<br />
z luminaire head of aluminum, lightproof at top<br />
z sheet steel housing with laser-treated frame<br />
z reflectors replaceable without tools<br />
z separate electronic control gear required<br />
z patented assembly spring for quick installation<br />
z drive rotating and pivoted<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
49<br />
page<br />
185<br />
45
quadro<br />
recessedASYMMETRIC<br />
❚ brilliant light with true colours in sales rooms<br />
z optimal lighting of shelf area through asymmetric<br />
pivoting of cardan<br />
z ideal lighting of room corners<br />
z light technology from spot to flood<br />
for all lighting tasks<br />
z no light loss in the ceiling<br />
cardan pivoted asymmetrically<br />
lamp article no. length (mm) installation length (mm) weight (kg)<br />
1x max 70 W QCT 70/1-ASY L206 LE175 1,80<br />
2x max 70 W QCT 70/2-ASY L367 LE335 2,80<br />
3x max 70 W QCT 70/3-ASY L528 LE495 3,80<br />
1x max 100 W QCSG 100/1-ASY L206 LE175 1,80<br />
2x max 100 W QCSG 100/2-ASY L367 LE335 2,80<br />
note: pivot angle in light housing limited to 15°<br />
cardan asymmetrically pivoted, pivot axis reversed 180°<br />
lamp article no. length (mm) installation length (mm) weight (kg)<br />
2x max 70 W QCT 70/2-BIDI L367 LE335 2,80<br />
3x max 70 W QCT 70/3-BIDI L528 LE495 3,80<br />
2x max 100 W QCSG 100/2-BIDI L367 LE335 2,80<br />
3x max 100 W QCSG 100/3-BIDI L528 LE495 3,80<br />
note: pivot angle in light housing limited to 15°<br />
z luminaire head of aluminum, lightproof at top<br />
z sheet steel housing with laser-treated frame<br />
z reflectors replaceable without tools<br />
z separate electronic control gear required<br />
z plug connection between light and electronic<br />
control gear<br />
z patented assembly spring for quick installation<br />
z cardan rotating and pivoted<br />
further technical data:<br />
further information:<br />
46<br />
page<br />
181<br />
page<br />
49<br />
page<br />
48<br />
page<br />
185
Ucolicht.de<br />
quadro<br />
recessed<br />
LOW VOLTAGE<br />
❚ space saving cardan technology<br />
❚ formal complement to the QUADRO series<br />
lamp article no. length (mm) installation length (mm) weight (kg)<br />
1x max 50 W QACB 51/1 L137 B137 LE115 BE115 0,90<br />
2x max 50 W QACB 51/2 L226 B137 LE195 BE115 1,20<br />
3x max 50 W QACB 51/3 L315 B137 LE285 BE115 1,40<br />
lamp article no. length (mm) installation length (mm) weight (kg)<br />
1x max 90 W QCQR 111/1 L206 B206 LE175 BE175 1,30<br />
2x max 90 W QCQR 111/2 L367 B206 LE335 BE175 1,80<br />
3x max 90 W QCQR 111/3 L528 B206 LE495 BE175 2,20<br />
Baufritz, Erkheim<br />
z sheet steel housing with laser-treated frame<br />
z connecting terminal<br />
z separate electronic control gear required<br />
z patented assembly spring for quick installation<br />
z drive rotating and pivoted<br />
further technical data:<br />
further information:<br />
page<br />
182<br />
page<br />
185<br />
47
Quadro<br />
ACCESSORIES<br />
❚ reflectors<br />
spot reflector (SP)<br />
description article no.<br />
2x7° Z/QC-SP<br />
medium flood reflector (MFL)<br />
description article no.<br />
2x17° Z/QC-MFL<br />
medium flood reflector (MFL-GO)<br />
description article no.<br />
2x17° Z/QC-MFL (GO)<br />
floodreflector (FL)<br />
description article no.<br />
2x35° Z/QC-FL<br />
floodreflector gold (FL-GO)<br />
description Artikel-Nr.<br />
2x35° Z/QC-FL (GO)<br />
❚ anti-dazzle flaps, black<br />
article no.<br />
Z/QC-BK<br />
48<br />
Shoe house Robers, Borken
Ucolicht.de<br />
❚ filters<br />
colour effect filters<br />
description<br />
red<br />
green<br />
blue<br />
yellow<br />
article no.<br />
Z/QC-UVI-RO<br />
Z/QC-UVI-GR<br />
Z/QC-UVI-BL<br />
Z/QC-UVI-GE<br />
UV-filters<br />
description<br />
UV filter type 1<br />
UV filter type 2<br />
article no.<br />
Z/QC-UV I<br />
Z/QC-UVII<br />
special-filters<br />
description<br />
furniture/textiles<br />
meat<br />
article no.<br />
Z/QC-K2500<br />
Z/QC-FW<br />
light effect filter for linear spreading<br />
of light cone through one axis<br />
article no.<br />
Z/QC-UVI-RG<br />
❚ for further documentation on reflectors and<br />
filters see pages 191-193<br />
Bakery, Feneberg<br />
49
DIRECTED<br />
LIGHT<br />
vision<br />
❚ brilliant effect<br />
❚ one light source – five light spots<br />
❚ filament luminaire light effect through<br />
conversion technology<br />
❚ homely atmosphere<br />
❚ installation in all ceiling grids<br />
50<br />
Furniture, Rogg
Ucolicht.de<br />
vision<br />
Swivel<br />
TECHNOLOGY<br />
❚ basic and accentuated lighting<br />
❚ 5 light effects with one luminaire<br />
❚ very economical<br />
❚ module plates for all ceiling grids<br />
installation in ceilings<br />
lamps article no. connection weight (kg)<br />
1x 70 W ULTC 170 E-20 Wielandstecker 3000* 1,60<br />
1x 70 W ULTC 170 E-30 Schukostecker 3000* 1,60<br />
for ceiling grids 120/16 (height/strength) or U-canal 100/70 (height/strength)<br />
Leuchtmittel Artikel-Nr. connection weight (kg)<br />
1x 70 W ULTC 170/EQ-20 Wielandstecker 3000* 2,40<br />
1x 70 W ULTC 170/EQ-30 Schukostecker 3000* 2,40<br />
* connection, 3 m long, white<br />
Staedtler, Nürnberg<br />
z 4-fold mirror unit, rotating and pivoting completely<br />
z each light spot individually focusing<br />
z UV1 protective glass<br />
further technical data:<br />
further information:<br />
page<br />
55<br />
page<br />
185<br />
51
vision<br />
PENDulum<br />
❚ basic and accentuated lighting in one luminaire<br />
❚ 5 light effects with one luminaire<br />
❚ assembly on powertracks or suspension with wires<br />
❚ very economical<br />
mounting on wire suspensions<br />
lamp articel no. wire suspension weight (kg)<br />
1x 70 W ULTC 170/ S-... als Zubehör 2,60<br />
mounting on powertrack<br />
lamp article no. adapter angel weight (kg)<br />
1x 70 W ULTC 170/A-... contingent on wire suspension 2,60<br />
❚ accessories filter<br />
z 4-fold mirror unit, rotating and pivoting completely<br />
z installation without tools<br />
z each light spot individually focusing<br />
conversion filter to achieve<br />
filament luminaire light effect<br />
Artikel-Nr.<br />
further technical data:<br />
further information:<br />
52<br />
Z/UL-K2500<br />
page<br />
55<br />
page<br />
55
Ucolicht.de<br />
Leicht Kittchen, Löhne<br />
53
54<br />
Furniture Zurbrüggen, Oelde
Ucolicht.de<br />
ULTC<br />
<strong>Accessories</strong><br />
❚ filter<br />
tempered glass pane<br />
article no.<br />
Z/UL-UV 1<br />
conversion filter to achieve an illumination<br />
similar to a light bulb<br />
article no.<br />
Z/UL-K2500<br />
❚ wire suspensions for ULTC/S<br />
❚ mounting accessories for tracks for ULTC/A<br />
with ceiling canopy 2 pcs. required for each<br />
luminaire adjustable without tools<br />
article no.<br />
length (mm)<br />
Z/SA 1500 00 1500<br />
Z/SA 3000 00 3000<br />
adapter plate for 3-phase tracks EUTRAC<br />
article no.<br />
colour<br />
ULTC-ADP 00.WS<br />
white<br />
ULTC-ADP 00.9006 RAL 9006<br />
with loop 2 pcs. required for each luminaire<br />
adjustable without tools<br />
article no.<br />
length (mm)<br />
Z/SA 1500 10 1500<br />
Z/SA 3000 10 3000<br />
adapter plate for 3-phase track<br />
NOKIA XTS<br />
article no.<br />
ULTC-ADP 10.WS<br />
colour<br />
white<br />
ULTC-ADP 10.9006 RAL 9006<br />
suspension module with infeed, white,<br />
adjustable without tools<br />
article no.<br />
length (mm)<br />
OFFQ-SA 1500 01 1500<br />
OFFQ-SA 3000 01 3000<br />
55
DIRECTED<br />
LIGHT<br />
cube<br />
❚ installed without visible frame<br />
❚ light heads rotating and pivoting<br />
in all directions<br />
❚ coloured designs available<br />
❚ directed light<br />
without visible light source<br />
56<br />
Daniels, Bonn<br />
Design Bettina Getto
Ucolicht.de<br />
57
cube<br />
SPOT<br />
housing four fould<br />
article no. light aperture (mm) housing dimension (mm) weight (kg)<br />
CB4 00 LA 190x190 L340 B340 4,80<br />
housing only, order light heads separately<br />
z housing is installed before ceiling is closed<br />
z each light head rotates and pivots in all directions<br />
z housing can be fitted with 1 to 4 light heads (use dummy plates)<br />
housing single<br />
article no. light aperture (mm) housing dimension (mm) weight (kg)<br />
CB1 00 LA 112x112 L200 B200 2,30<br />
housing only, order light heads separately<br />
z housing is installed before ceiling is closed<br />
z each light head rotates and pivots in all directions<br />
light head<br />
article no.<br />
weight (kg)<br />
CB-CBC51 (+colour) 0,40<br />
dummy plate<br />
article no.<br />
weight (kg)<br />
CB-BP (+colour) 0,10<br />
further technical data:<br />
further information:<br />
58<br />
Seite<br />
182
60<br />
Intersport Haisermann
Ucolicht.de<br />
FUNCTIONAL<br />
LIGHT<br />
When the basic lighting of a room is being selected,<br />
economic, design and safety factors are<br />
of primary importance. Consistent and dazzlefree<br />
light is often a pre-requirement for an atmosphere,<br />
in which selling over a long working<br />
day is possible. Unobtrusive light similar to<br />
normal daylight from free mounted or ceiling<br />
flush luminaires also provides a pleasant light<br />
atmosphere in vestibules, corridors or adjoining<br />
rooms.<br />
Through the extensive selection of luminaires,<br />
filters and reflectors it is possible to meet all<br />
economic or room related requirements.<br />
Office, sales display room, market hall or administrative<br />
corridor.<br />
Downlights are the allrounders among the<br />
luminaires.<br />
63<br />
64<br />
65<br />
NEW<br />
67<br />
69<br />
70<br />
71<br />
73<br />
75 76 77<br />
79<br />
61
FUNCTIONAL<br />
LIGHT<br />
ARENA<br />
❚ brilliant effect<br />
❚ lightens the ceiling<br />
❚ aluminum and acryl reflectors<br />
❚ ceiling mounted, suspended and<br />
recessed variations<br />
62<br />
Reitsport, Völzing
Ucolicht.de<br />
Arena<br />
classic<br />
❚ ideal basic light for high ceilings<br />
z attractive design<br />
z acryl and aluminum reflectors<br />
acyrl reflector<br />
lamp article no. weight (kg)<br />
1x 42 W HRAD 142-5 2,10<br />
1x 57 W HRAD 157-5 2,10<br />
1x 35 W HRAT 35-5 2,20<br />
1x 70 W HRAT 70-5 2,20<br />
1x 100 W HRASG 100-5 2,20<br />
aluminium reflector<br />
lamp article no. weight (kg)<br />
1x 42 W HRAD 142-5/AL 2,20<br />
1x 57 W HRAD 157-5/AL 2,20<br />
1x 35 W HRAT 35-5/AL 2,20<br />
1x 70 W HRAT 70-5/AL 2,20<br />
1x 100 W HRASG 100-5/AL 2,20<br />
z high quality perforated sheet metal housing<br />
z reflectors replaceable<br />
z luminaires prepared for suspension<br />
from steel wire or chain<br />
z burst protection device for CDM-T<br />
further technical data:<br />
further information:<br />
page<br />
65<br />
page<br />
186<br />
63
Arena<br />
classic<br />
❚ ideal basic light for high ceilings<br />
z attractive design<br />
z acryl and aluminum reflectors<br />
acryl reflector<br />
lamp article no. weight (kg)<br />
1x 42 W HRCD 142-5 3,50<br />
1x 57 W HRCD 157-5 3,50<br />
1x 70 W HRCT 70-5 3,50<br />
1x 150 W HRCT 150-5 3,70<br />
1x 100 W HRCSG 100-5 3,70<br />
aluminium reflector<br />
lamp article no. weight (kg)<br />
1x 42 W HRCD 142-5/AL 3,50<br />
1x 57 W HRCD 157-5/AL 3,50<br />
1x 70 W HRCT 70-5/AL 3,50<br />
1x 150 W HRCT 150-5/AL 3,70<br />
1x 100 W HRCSG 100-5/AL 3,70<br />
z high quality perforated sheet metal housing<br />
z reflectors replaceable<br />
z luminaires prepared for suspension<br />
from steel wire or chain<br />
z burst protection device for CDM-T<br />
further technical data:<br />
further information:<br />
64<br />
page<br />
65<br />
page<br />
186
Ucolicht.de<br />
Arena<br />
ACCESSORIES<br />
❚ secondary reflectors<br />
secondary reflectors for directed light, mainly food applications,<br />
retrofitting without tools<br />
beam surface Article No.<br />
2x7° (SP) chrome Z/HAT-SP<br />
2x17° (MFL) chrome Z/HAT-MFL<br />
2x17° (MFL) gold Z/HAT-MFL(GO)<br />
2x35° (FL) chrome Z/HAT-FL<br />
2x35° (FL) gold Z/HAT-FL(GO)<br />
❚ filters<br />
colour effect filters<br />
Verwendung article no. in connection with<br />
bakery goods filter Z/QC-K2500 CDM-T/reflector chrome<br />
meat counter filter Z/QC-UVI-FW SDW-T/reflector gold<br />
Fruit/vegetables Z/QC-K2500 CDS*/reflector chrome<br />
* shop light<br />
❚ cover plates<br />
smooth decorative lenses fitted with tension ring without securing<br />
mechanism, suitable only for acryl reflectors<br />
description article no. reflector diameter weight (kg)<br />
for lamp type HRA Z/HA-DL 315 mm 1,10<br />
for lamp type HRC Z/HC-DL 410 mm 1,90<br />
Intersport Aksamit, Memmingen<br />
65
66<br />
University of applied sciences, Augsburg
Ucolicht.de<br />
Arena<br />
rondo<br />
❚ unobstrusive luminaire design<br />
with cylindric shape<br />
❚ minimal dimensions<br />
❚ suitable for basic and accentuated lighting<br />
❚ light technology from spot to flood<br />
for any lighting task<br />
lamp article no. weight (kg)<br />
1x 35 W HFT 135/S-1500 2,20<br />
1x 70 W HFT 170/S-1500 2,20<br />
z reflectors can be exchanged without tools<br />
z luminaires prepared for suspension with steel cable<br />
z ceiling canopies as accessory<br />
further technical data:<br />
further information:<br />
page<br />
65<br />
page<br />
186<br />
page<br />
186<br />
67
FUNCTIONAL<br />
LIGHT<br />
DOWNLIGHT<br />
❚ economical<br />
❚ high light yield<br />
❚ long life<br />
❚ for all room proportions<br />
❚ decor glass panes<br />
❚ filter for foods<br />
68<br />
Ammerseebank, Landsberg
Ucolicht.de<br />
downlight<br />
round<br />
INSTALLATION<br />
z decorativ by coloured adaption the installation<br />
ring and the pattern glas<br />
lamp article no. ceiling ring (mm) installation dimensions (mm) weight (kg)<br />
1x 18 W PAK 118-50 D185 DE167 HE125 1,20<br />
2x 18 W PAK 218-50 D220 DE200 HE135 1,40<br />
1x 26 W PAK 126-50 D185 DE167 HE125 1,20<br />
2x 26 W PAK 226-50 D220 DE200 HE135 1,60<br />
1x 32 W PAK 132-50 D220 DE200 HE135 1,30<br />
2x 32 W PAK 232-50 D255 DE235 HE145 1,70<br />
1x 18 W PBK 118-50 DE220 DE200 HE135 1,20<br />
2x 18 W PBK 218-50 DE220 DE200 HE135 1,40<br />
1x 26 W PBK 126-50 DE220 DE200 HE140 1,40<br />
2x 26 W PBK 226-50 DE255 DE235 HE145 1,70<br />
LEW, Donauwörth<br />
z installation frame from white sheet steel with<br />
integrated reflector holder clips and electronic<br />
control gear<br />
z faceted high gloss reflector<br />
z installation without tools using tension springs<br />
further technical data:<br />
z to reduce lamp height the electronic<br />
control gear is located beside the lamp<br />
further information:<br />
page<br />
185<br />
69
ACCESSORIEs<br />
decorative pane made of float glass, with central hole, satin finish on one side, edge transparent<br />
description article no. dimensions (mm) weight (kg)<br />
für Ring 185 DG 220/185 10 D220 0,30<br />
für Ring 220 DG 260/225 10 D260 0,40<br />
für Ring 255 DG 315/255 10 D315 0,80<br />
decorative pane made of flat glass satin finish on one side, edge transparent<br />
description article no. dimensions (mm) weight (kg)<br />
für Ring 185 DS 220/185 10 D220 0,30<br />
für Ring 220 DS 260/225 10 D260 0,40<br />
für Ring 255 DS 315/255 10 D315 0,80<br />
extra mosquito screen of perforated sheet metal, for mounting between glass and frame<br />
description<br />
für Ring 185<br />
für Ring 220<br />
für Ring 255<br />
article no.<br />
Z/PBK 185-MS<br />
Z/PBK 220-MS<br />
Z/PBK 255-MS<br />
70<br />
Aigner, bookstore, Ludwigsburg
Ucolicht.de<br />
display<br />
BEAM<br />
z optimal anti-dazzle through retracted lamps<br />
z decorative front panes<br />
z filters for special departments such as fruit,<br />
vegetables, bakery products, sausage<br />
lamp article no. ceiling ring (mm) installation dimensions (mm) weight (kg)<br />
1x max 150 W RETT 150-0.WS D185 DE165 HE160 0,90<br />
1x max 100 W RESG 100-0.WS D185 DE165 HE160 0,90<br />
with decor glass pane<br />
lamp article no. ceiling ring (mm) installation dimensions (mm) weight (kg)<br />
1x max 150 W RETT 150-0-DG.WS D220 DE165 HE160 1,30<br />
1x max 100 W RESG 100-0-DG.WS D220 DE165 HE160 1,30<br />
lamp article no. ceiling ring (mm) installation dimensions (mm) weight (kg)<br />
1x max 70 W RETC 70-0.WS D140 DE125 HE145 0,90<br />
with decor glass pane<br />
lamp article no. ceiling ring (mm) installation dimensions (mm) weight (kg)<br />
1x max 70 W RETC 70 0-DG.WS D160 DE125 HE145 1,10<br />
z separate electronic control gear required<br />
z installation without tools using tension springs<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
192<br />
page<br />
185<br />
71
FUNCTIONAL<br />
LIGHT<br />
❚ clear design<br />
❚ real glass<br />
❚ ceiling structures<br />
72<br />
School, Pfaffenhausen
Ucolicht.de<br />
SURFACE<br />
LUMINAIRES<br />
❚ large surface light elements<br />
z artificial ceilings<br />
pane direct mounted<br />
lamp article no. dimmensions (mm) weight (kg)<br />
4x 24 W GFK 424-5/10 L450 B450 14,40<br />
4x 14/24 W GFM 424-5/10 L690 B690 20,00<br />
Luminaire with 20 mm clearance to glass<br />
lamp article no. dimmensions (mm) weight (kg)<br />
4x 24 W GFK 424-5/00 L450 B450 14,40<br />
4x 14/24 W GFM 424-5/00 L690 B690 20,00<br />
4x 21/39 W GFM 439-5/00 L1000 B1000 29,00<br />
❚ suspension set<br />
suspension set consisting of 4 steel<br />
cords and small canopy<br />
D13 with steel cord 1500 mm<br />
length (mm)<br />
article no.<br />
1500 Z/GF-SA 1500 00<br />
z attractive sheet steel housing<br />
z indirect light 20%<br />
z real glass pane<br />
(luminaire 1000x 1000 with electronic control gear, mat film)<br />
further technical data:<br />
further information:<br />
Pfister, Augsburg<br />
73
FUNCTIONAL<br />
LIGHT<br />
quadro<br />
❚ harmonious, soft light<br />
❚ clear expression of form<br />
❚ uniform surface lighting<br />
74<br />
University of applied sciences, Augsburg
Ucolicht.de<br />
quadro<br />
flooD<br />
❚ for ceiling and wall mounting<br />
z installation height only 115 mm<br />
surface mounted luminaire<br />
lamp article no. dimensions (mm) weight (kg)<br />
2x 18 W QWD 218/A L320 B320 H75 4,60<br />
2x 24 W QWD 224/A L440 B440 H106 5,40<br />
4x 55 W QWD 455/A* L650 B650 H106 6,20<br />
*frame mounted with visible screws<br />
flush mounted luminaire<br />
lamp article no. dimensions (mm) weight (kg)<br />
2x 18 W QWD 218/E LE290 BE290 H75 4,60<br />
2x 24 W QWD 224/E LE400 BE400 H115 5,40<br />
4x 55 W QWD 455/E* LE610 BE610 H115 6,20<br />
*frame mounted with visible screws<br />
King Ludwig-Musical, Füssen<br />
BIS Heimhausen<br />
z installation brackets for suspended ceilings 1mm – 15 mm thick<br />
z satin finish float glass<br />
z cover frame mounted without tools<br />
further technical data:<br />
further information:<br />
75
quadro<br />
flood<br />
❚ clear and simple design<br />
z various sizes and lamp types<br />
lamp article no. dimensions (mm) installation dimensions (mm) weight (kg)<br />
1x max 50 W QTQT 150-0 L100 B100 LE90 BE90 HE115 0,90<br />
lamp article no. dimensions (mm) installation dimensions (mm) weight (kg)<br />
2x 18 W QTD 218-5 L226 B226 LE190 BE190 HE169 2,40<br />
lamp article no. dimensions (mm) installation dimensions (mm) weight (kg)<br />
2x 26 W QTD 226-5 L258 B258 LE225 BE225 HE169 3,10<br />
further technical data:<br />
further information:<br />
Küche Aktuell, Hamburg<br />
76
Ucolicht.de<br />
recessed<br />
SQUARE<br />
❚ basic lighting in sales rooms<br />
❚ office lighting<br />
with decorative glass pane<br />
lamp article no. weight (kg)<br />
2x 26 W PBQ 226-5 DG 2,40<br />
2x 32 W PBQ 232-5 DG 2,40<br />
extra mosquito screen of perforated sheet metal, for mounting between glass and frame<br />
article no.<br />
weight (kg)<br />
Z/PBQ-MS 0,30<br />
with cross and ring grid<br />
lamp article no. weight (kg)<br />
2x 26 W PBQ 226-5 PR2 2,40<br />
2x 32 W PBQ 232-5 PR2 2,40<br />
z square installation frame of white sheet steel<br />
z installation without tools using tension springs<br />
further technical data:<br />
further information:<br />
page<br />
185<br />
77
FUNCTIONAL<br />
LIGHT<br />
FLOODS<br />
❚ economical lighting<br />
❚ long life of lamps<br />
❚ functional design<br />
❚ recessed luminaires to match<br />
module ceilings 625<br />
78<br />
Intersport Förg, Augsburg
Ucolicht.de<br />
TRAPEZE<br />
FLOOD<br />
❚ directed surface light<br />
z for flexible use on 3-phase lighting tracks<br />
solid sheet metal housing, 3-phase adapter, black, throwing, catch<br />
lamp article no. length (mm) weight (kg)<br />
1x 55 W POVK 155/A3-PM L630 2,50<br />
1x 80 W POVK 180/A3-PM L630 2,50<br />
solid sheet metal housing, 3-phase adapter, black, fixed, grid<br />
lamp article no. length (mm) weight (kg)<br />
1x 55 W POVK 155/A2-PM L630 2,40<br />
1x 80 W POVK 180/A2-PM L630 2,40<br />
solid sheet metal housing, 3-phase adapter, black, fixed, grid<br />
lamp article no. length (mm) weight (kg)<br />
1x 28/54 W POVM 154/A2-PM L1250 4,80<br />
1x 35/49/80 W POVM 180/A2-PM L1550 5,80<br />
perforate housing, 3-phase adapter, black, fixed, grid<br />
lamp article no. length (mm) weight (kg)<br />
2x 28/54 W POSM 254/A2-PM L1250 5,10<br />
2x 35/49/80 W POSM 280/A2-PM L1550 6,10<br />
z also without grid available<br />
z alternative available on request of perforated plate<br />
further technical data:<br />
further information:<br />
79
80<br />
Hotel bar Drei Mohren, Augsburg
Ucolicht.de<br />
DYNAMIC<br />
LIGHT<br />
Creativity, atmosphere, sensuality – coloured<br />
light produces unusual moods.<br />
Light emitted from floors, walls and ceilings–<br />
using a wide variety of translucent materials it<br />
is possible to design objects in all shapes and<br />
sizes.<br />
The technology, consisting of discretely mounted<br />
luminaires and control elements is tailor<br />
made to provide the desired effect and itself<br />
remains in the background.<br />
Prefabricated modules facilitate planning:<br />
whether neon tubes or LED units, the requirements<br />
of the project determine he technical<br />
components selected.<br />
Wandering light, pulsing light, colour change<br />
on the threshold of consciousness or deliberately<br />
striking an effect:<br />
Dynamic light is pure fascination.<br />
83<br />
85<br />
87<br />
89<br />
91<br />
92<br />
93<br />
94 95<br />
81
The variety of natural daylight<br />
is shown to us by nature: from<br />
the bluish gleaming morning to<br />
a steel blue sky at noon to the<br />
afterglow of sunset.<br />
Today‘s light engineering enables<br />
us to emulate these natural<br />
effects with artificial light.<br />
82
FUNCTION<br />
LIGHT MIXING<br />
rUcolicht.de<br />
The principle of surfaces lighting<br />
in different colours is based on<br />
additive colour mixing.<br />
The combination of red, green<br />
and blue light produces white<br />
light. By dimming the individual<br />
colour channels any required<br />
number of colour variations can<br />
be produced. Thereby the limits<br />
are drawn by the quality of the<br />
light sources used and their colour<br />
type.<br />
The selection of the light source<br />
is independent of the light intensity<br />
and shade of the colour.<br />
The most important light sources<br />
are neon tubes and LED’s. The<br />
latter are used in particular for<br />
smaller objects with greater colour<br />
depth. Neon tubes in combination<br />
with the appropriate<br />
filters are used mainly for larger<br />
surfaces.<br />
The larger the surface, the more<br />
important is the selection of the<br />
diffuser.<br />
The advantages are low weight<br />
and the production in one piece<br />
without unsightly joints. For<br />
surfaces with an area of several<br />
square meters films with a very<br />
high diffusion factor and high<br />
light permeability are required.<br />
Hotel bar Drei Mohren, Augsburg<br />
83
system components<br />
An answer to the profile of qualification of the architecture, affiliated to the today‘s technical needs. The components allow us a realization<br />
of economical and reproducible designs of light-, wall- and ceiling systems. Your product for professional planning and realization of special<br />
solutions:<br />
Rucotec® frameless page 84-85 Rucotec® spot page 88-89<br />
Rucotec® profile frame page 86-87 Rucotec® profile page 90-91<br />
84<br />
Pater-Rupert-Mayer centrum, Regensburg
Ucolicht.de<br />
Frameless<br />
❚ design can be adapted to object, rectangle,<br />
square, polygon, circle, ellipse<br />
❚ static or dynamic light ambience, depending<br />
on the light components used<br />
❚ light-effective diffuser with high fire resistance<br />
(DIN 4102)<br />
❚ ceiling construction has to accept the tensile forces;<br />
construction must be designed correspondingly<br />
❚ foil width without weld seam up to max. 2.200 mm<br />
❚ Positioning<br />
❚ Installation/commissioning procedure<br />
1) preparation of the gypsum board body (dry construction)<br />
(tolerances as indicated)<br />
2) installation of the light modules and function test (initialising of tubes/control)<br />
3) installation of the moulding for acceptance of the foil (dry construction)<br />
4) foil may be inserted after acceptance of lighting technology<br />
5) programming of the mood lighting<br />
❚ Weight:<br />
The weight of the light ceiling and the tensile forces principally<br />
must be suspended at statically load-bearing components on site.<br />
❚ Maintenance of illuminant:<br />
Only the foil is loosened for the exchange of illuminant, the mouldings remain<br />
attached to the structure. After exchange of illuminant foil is reinserted again.<br />
further technical data:<br />
further information:<br />
85
BSH, München<br />
86<br />
Lighting technique used:<br />
z T5-module in combination with low voltage<br />
and CDM-T technology.<br />
Depending on the use of the room single light<br />
sources can be switched on or off.<br />
Controls:<br />
z EIB Controll with actuators to<br />
switch the CDM-T luminaires, low<br />
voltage and fluorescent lamps<br />
dimmable; with DALI interface.<br />
Diffuser:<br />
z Streched film, easy to turn<br />
down for changing lamps
Ucolicht.de<br />
profile frame<br />
❚ only rectangular shape up to max. 3.500 x 2.400 mm<br />
❚ static or dynamic light mood, depending on the light<br />
components used<br />
❚ light-effective diffuser with high fire resistance<br />
(DIN 4102)<br />
❚ foil completely tiltable for maintenance of illuminants<br />
❚ installation variants: ceiling installation,<br />
ceiling extension<br />
❚ degree of transmission:<br />
depending on constructive structure<br />
❚ foil width without weld seam up to max. 2.200 mm<br />
❚ Profile frame in gypsum board ceiling<br />
❚ Profile frame/enclosure/structure<br />
The installation dimensions relate to the outside edge of the profile frames.<br />
The shadow gap or contact area has to be considered for dimensioning.<br />
❚ Profile frame in grid T-rail<br />
The installation dimensions relate to the outside edge of the profile frames.<br />
The shadow gap or contact area has to be considered for dimensioning.<br />
The installation dimensions relate to the outside edge of the profile frames.<br />
Individual enclosures can be mounted to one another in modular construction.<br />
The height of the enclosure is determined depending on the structural situation and<br />
number of lighting components.<br />
❚ Installation/commissioning procedure<br />
1) preparation of the gypsum board body (dry construction)<br />
2) installation of the light modules and function test (initialising of tubes/control)<br />
3) installation of the moulding for acceptance of the covered profile frames<br />
4) profile frame covered with foil may be inserted after acceptance of lighting<br />
technology<br />
5) programming of the mood lighting<br />
❚ Weight:<br />
The weight of the light ceiling and the tensile forces principally must be suspended<br />
at statically load-bearing components on site.<br />
❚ Maintenance of illuminant:<br />
Particular existing screw connections between profile frame and connection to<br />
the structure must be loosened for the exchange of illuminant. Frames must be<br />
completely removed with the cover facing down. After exchange of illuminant the<br />
frames are hooked in again or fastened with screws.<br />
further technical data:<br />
further information:<br />
87
88<br />
Office, Munich
Ucolicht.de<br />
spot<br />
❚ square and rectangular shapes for arrangement<br />
❚ static and dynamic light mood,<br />
depending of the light components used<br />
❚ partly pre-installed laminated safety glass<br />
as light-effective diffuser<br />
❚ easy to maintain construction<br />
❚ degree of transmission: approx. 42%<br />
glass thickness and statics depending on dimensions<br />
standard 600x1200 1200x1200<br />
625x1250 1250x1250<br />
❚ Positioning<br />
❚ Maintenance<br />
❚ Installation/commissioning procedure:<br />
1) Preparation of the gypsum board body (dry construction)<br />
(tolerances as indicated)<br />
2) Installation of the light modules and function test (initialising of tubes/control)<br />
3) Installation of the substructure in centre-to-centre grid of construction; fastening<br />
of spacers true to position<br />
4) after acceptance of lighting technology the safety glass will be mounted to the<br />
fixed points with four position clamps and at the pivotal point of the construction,<br />
if provided<br />
5) programming of the mood lighting<br />
❚ Weight:<br />
The weight of the light ceiling and the tensile forces principally must be<br />
suspended at statically load-bearing components on site.<br />
❚ Maintenance of illuminant:<br />
Two position clamps are solved for each glass pane for the exchange of illuminant;<br />
the individual panes can be turned downwards via an axis by 90 degrees<br />
from a horizontal into a vertical position.<br />
The construction with spacer remains attached to the building structure.<br />
After replacement of the illuminant the glass panes are screwed together again to<br />
the position clamps at the construction.<br />
further technical data:<br />
further information:<br />
89
90<br />
LEW, Donauwörth
Ucolicht.de<br />
PROFILE<br />
❚ plate material resting on four or two sides,<br />
centre-to-centre grid may be selected according<br />
to structural requirements<br />
❚ static or dynamic light mood, depending on the light<br />
components used<br />
❚ safety glazing or acrylic plate material as light-effective<br />
diffuser<br />
❚ easy to maintain construction<br />
❚ degree of transmission: VSG approx. 42%<br />
frosted cameo glass approx. 36%, acrylic glass approx. 60%<br />
fabric frame light and acoustics approx. 35%<br />
fabric frame light approx. 70%<br />
❚ Positioning<br />
❚ Types of laying<br />
acoustical ceiling<br />
gypsum board ceiling<br />
height offset with gypsum board<br />
❚ Installation/commissioning procedure<br />
1) preparation of the gypsum board body (dry construction)<br />
(tolerances as indicated)<br />
2) installation of the light modules and function test (initialising of tubes/control)<br />
3) installation of the aluminium profiles in the planned ceiling grid for acceptance<br />
of glass, acrylic or frame with diffusor<br />
4) plate material/diffusor may be inserted to the construction after acceptance<br />
of lighting technology<br />
5) programming of the mood lighting<br />
❚ Weight:<br />
Das Gewicht der Lichtdecke ist grundsätzlich an statisch tragende Bauteile<br />
bauseits abzutragen.<br />
❚ Maintenance of illuminant:<br />
For exchange of illuminant the plate material is lifted, removed transversally or<br />
displaced within the suspended ceiling.<br />
The profile construction will remain attached to the structure. After exchange of<br />
illuminant the glass panes or the frames with diffusor are inserted again.<br />
further technical data:<br />
further information:<br />
91
lightfield<br />
z presentation of large exhibits<br />
z fixed colour settings<br />
z light intensity adjustable with dimmer version<br />
z also available as ceiling installation<br />
without dimmer<br />
lamp article no. dimensions (mm) number of suspension points weight (kg)<br />
6x FH 28 W LD-5 1310-1310 L1310 B1310 4 41,00<br />
6x FH 35 W LD-5 1610-1610 L1610 B1610 4 47,00<br />
12x FH 28 W LD-5 2510-1310 L2510 B1310 6 68,00<br />
with dimmer<br />
lamp article no. dimensions (mm) number of suspension points weight (kg)<br />
6x FH 28 W LD-6 1310-1310 L1310 B1310 4 41,00<br />
6x FH 35 W LD-6 1610-1610 L1610 B1610 4 47,00<br />
12x FH 28 W LD-6 2510-1310 L2510 B1310 6 68,00<br />
z aluminum profile frame<br />
z lamp change without damaging stretched film<br />
z film, fire hazard classification B1 per DIN 4102, transmission grade 48%<br />
further technical data:<br />
further information:<br />
92
Ucolicht.de<br />
module<br />
❚ for use in lighted walls, furniture or<br />
similar applications<br />
❚ practically unlimited colours programmable<br />
❚ adaptation to specific project<br />
individual module without through wiring - RGB<br />
lamp article no. dimensions (mm) weight (kg)<br />
3x FH 21 W (RGB) C3E 321 (-EVG) L8980 B130 5,00<br />
3x FH 28 W (RGB) C3E 328 (-EVG) L1180 B130 5,50<br />
3x FH 35 W (RGB) C3E 335 (-EVG) L1480 B130 6,00<br />
individual module without through wiring - RGB + white<br />
4x FH 21 W (RGB-W) C4E 421 (-EVG) L880 B180 5,00<br />
4x FH 28 W (RGB-W) C4E 428 (-EVG) L1180 B180 6,00<br />
4x FH 35 W (RGB-W) C4E 435 (-EVG) L1480 B180 6,50<br />
surface module without through wiring - RGB<br />
6xFH 14 W (RGB) C3F 614 (-EVG) L580 B390 7,50<br />
6xFH 21 W (RGB) C3F 621 (-EVG) L880 B390 8,00<br />
6xFH 28 W (RGB) C3F 628 (-EVG) L1180 B390 8,50<br />
6xFH 35 W (RGB) C3F 635 (-EVG) L1480 B390 9,00<br />
Surface module without through wiring - RGB + white<br />
8x FH 14 W (RGB-W) C4F 814 (-EVG) L580 B490 8,50<br />
8x FH 21 W (RGB-W) C4F 821 (-EVG) L880 B490 9,00<br />
8x FH 28 W (RGB-W) C4F 828 (-EVG) L1180 B490 9,50<br />
8x FH 35 W (RGB-W) C4F 835 (-EVG) L1480 B490 10,00<br />
z sheet steel housing<br />
z terminal plugs<br />
z ready to plug in wiring optional<br />
z luminaire type slave module without DMX converter<br />
further technical data:<br />
further information:<br />
page<br />
188<br />
page<br />
95<br />
93
module<br />
❚ Linearmodul mit Fassungsüberdeckung<br />
für schattenfreies Licht<br />
❚ einfache Montage<br />
❚ Ideal für farbige Lichtvouten<br />
❚ keine dunklen Stellen im Bereich der Fassung<br />
Linearmodul mit Fassungsüberdeckung - RGB<br />
Leuchtmittel Artikel-Nr. Maße (mm) Gewicht (kg)<br />
3x FH 21 W (RGB) C3L 321-6 L880 B210 5,50<br />
3x FH 28 W (RGB) C3L 328-6 L1180 B210 5,50<br />
3x FH 35 W (RGB) C3L 335-6 L1480 B210 6,60<br />
Linearmodul mit Fassungsüberdeckung - RGB + weiß<br />
2x 3x FH 21 W (RGB) C3L 621-6 L1666 B210 8,00<br />
2x 3x FH 28 W (RGB) C3L 628-6 L2266 B210 8,50<br />
Linearmodul mit Fassungsüberdeckung - RGB + weiß<br />
4x FH 21 W (RGB-W) C4L 421-6 L880 B280 6,00<br />
4x FH 28 W (RGB-W) C4L 428-6 L1180 B280 6,00<br />
4x FH 35 W (RGB-W) C4L 435-6 L1480 B280 6,60<br />
2x 4x FH 21 W (RGB-W) C4L 821-6 L1666 B280 8,50<br />
2x 4x FH 28 W (RGB-W) C4L 828-6 L2266 B280 9,00<br />
z Stahlblechgehäuse<br />
z Durchgangsverdrahtung 3x1,5/5x0,75<br />
mit Steckklemme<br />
z Ausführung der Leuchte als Slavemodul ohne DMX-Konverter<br />
Weitere technische Angaben:<br />
Weitere Infos:<br />
94<br />
Seite<br />
188<br />
Seite<br />
95
Ucolicht.de<br />
ACCESSORIES<br />
The luminaire with the integrated DMX<br />
converter is referred to as the master<br />
luminaire. All luminaires connected to<br />
this luminaire via the electronic control<br />
gears are slave luminaires.<br />
All luminaires show the same lighting<br />
effects.<br />
The maximum number of slave luminaires<br />
connected to one master luminaire<br />
depends on the type of electronic<br />
control gear used.<br />
Swimming pool, Potsdam<br />
integrated DMX converter in luminaire<br />
master module for interface<br />
article no.<br />
1-10 V DMX-KON 60<br />
DALI DMX-KON 80<br />
ready to plug in wiring for linear<br />
and surface lighting modules, consisting<br />
of the integrated through<br />
wiring, Wieland GST 3-pole for<br />
30 V,GST blue, 5-pole for dimmer<br />
connection<br />
connection plugs, loose<br />
description<br />
for DMX signal<br />
for dimmer connection<br />
article no.<br />
DMX-BU<br />
BU 5 POL-GST BL<br />
connector cable for DMX signal<br />
length (mm)<br />
article no.<br />
1000 DMX-VB 1000<br />
2000 DMX-VB 2000<br />
3000 DMX-VB 3000<br />
connector cable dimmer signal/code blue<br />
1500 DIM-VB 1500<br />
3000 DIM-VB 3000<br />
description<br />
for master luminaire<br />
for slave luminaire<br />
article no.<br />
C4-DV/DMX/ST<br />
C4-DV/ST<br />
z To intensify colours the neon tubes can be fitted with extra colour<br />
filters. Selection of the filter should be based on an individual<br />
check on the object.<br />
further technical data:<br />
further information:<br />
page<br />
148<br />
95
96<br />
Biology, Martinsried
Ucolicht.de<br />
LIGHTING SYSTEMS<br />
OFFICE AND ADMINISTRATIVE<br />
AREAS<br />
It is becoming increasingly difficult to separate<br />
private and working life. In many cases the<br />
two areas meet at a monitor working place<br />
and in a modern home office.<br />
Modern lighting systems can take his situation<br />
into account through the use of very varied<br />
luminaires and lighting properties.<br />
Whether with direct or indirect light, anti-dazzle<br />
grid, integration of other technical components<br />
such as loudspeakers or control sensors,<br />
additional decorative elements and luminaires<br />
– the advantage of the system lies in its flexibility<br />
and adaptability.<br />
Ceiling and room design through creative play<br />
with the possible.<br />
NEW<br />
99<br />
Light systems shape (work) rooms.<br />
100<br />
101<br />
NEW<br />
103<br />
105<br />
106<br />
NEW<br />
107<br />
108<br />
109 111 112<br />
NEW<br />
NEW<br />
NEW<br />
113<br />
114 115 117/118 120<br />
123<br />
125 126 129<br />
130<br />
97
LIGHTING<br />
SYSTEMS<br />
FOR OFFICES<br />
OFFICE<br />
❚ optimal working atmosphere<br />
❚ lighting technology according<br />
to DIN standard<br />
❚ individual or light band arrangement<br />
❚ integration of media technology<br />
in the systems<br />
98<br />
School, Pfaffenhausen
Ucolicht.de<br />
office<br />
flat<br />
❚ extremely flat construction (36 mm)<br />
❚ efficient lighting through refracting glass<br />
❚ individual or light band arrangement (2 lengths)<br />
❚ high grade glass and aluminum materials<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 Watt und<br />
35/49/50 Watt)<br />
individual luminaire<br />
lamp article no. length (mm) number of suspension points weight (kg)<br />
2x 28/54 W OMM 254-5/S L1210 2 6,30<br />
2x 35/49/80 W OMM 280-5/S L1510 2 7,00<br />
2 length light band<br />
lamp article no. length (mm) number of suspension points weight (kg)<br />
2x 2x 28/54 W OMM 2254-5/S L2416 3 11,90<br />
2x 2x 35/49/80 W OMM 2280-5/S L3016 3 12,60<br />
Augsburg Technical College<br />
z housing of aluminum profile<br />
z real glass reflector<br />
z y-suspension wire to be ordered separately as an accessory<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
186<br />
99
OFFice<br />
GRID<br />
❚ extremely flat construction (36 mm)<br />
❚ design as pendular luminaire with Y-wire suspension<br />
❚ as individual or light band arrangement (2 lengths)<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
Individual luminaire<br />
lamp article no. number of suspensions length (mm) weight (kg)<br />
1x 28/54 W ORM 154-5/S 2 1231 3,80<br />
1x 35/49/80 W ORM 180-5/S 2 1531 4,50<br />
2 length light band<br />
lamp article no. number of suspensions length (mm) weight (kg)<br />
2x 1x 28/54 W ORM 2154-5/S 3 2432 7,60<br />
2x 1x 35/49/80 W ORM 2180-5/S 3 3032 9,50<br />
Individual luminaire, two-lamp<br />
lamp article no. number of suspensions length (mm) weight (kg)<br />
2x 28/54 W ORM 254-5/S 2 1231 3,80<br />
2x 35/49/80 W ORM 280-5/S 2 1531 4,50<br />
2 length light band, two-lamp<br />
lamp article no. number of suspensions length (mm) weight (kg)<br />
2x 2x 28/54 W ORM 2254-5/S 3 2432 7,60<br />
2x 2x 35/49/80 W ORM 2280-5/S 3 3032 9,50<br />
z housing of aluminum profile<br />
z parabolic grid with indirect portion of reflection-enhanced MIRO<br />
z y-suspension wire Z/SAY to be ordered separately as an accessory<br />
further technical data:<br />
further information:<br />
100<br />
page<br />
186
Ucolicht.de<br />
OFFICE<br />
ACCESSORIES<br />
❚ suspenders<br />
suspension module without power line, wire adjustable without tools<br />
length (mm) surface article no.<br />
L1500 white OFFQ-SA 1500 00<br />
L3000 white OFFQ-SA 3000 00<br />
University of applied sciences, Augsburg<br />
suspension module with power line, wire adjustable without tools<br />
length (mm) surface article no.<br />
L1500 white OFFQ-SA 1500 01<br />
L3000 white OFFQ-SA 3000 01<br />
❚ additional head mirror<br />
additional reflector to cut out<br />
indirect light portion<br />
for luminaire types<br />
article no.<br />
OFFQ 154 OFFQ-RFL 1180<br />
OFFQ 149/180 OFFQ-RFL 1480<br />
further technical data:<br />
Handwerkskammer, Augsburg<br />
101
102<br />
University of applied sciences, Augsburg
Ucolicht.de<br />
office<br />
Basic<br />
❚ available as suspended or ceiling mounted model<br />
❚ individual or light band luminaire<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
individual luminaire suspended<br />
Leuchtmittel Artikel-Nr. Länge (mm) Gewicht (kg)<br />
1x 28/54 W OFM 154-5/S L1184 5,00<br />
1x 35/49/80 W OFM 180-5/S L1484 7,00<br />
light band luminaire suspended<br />
Leuchtmittel Artikel-Nr. Länge (mm) Gewicht (kg)<br />
1x 28/54 W OFM 154-5/S/LB L1184 5,00<br />
1x 35/49/80 W OFM 180-5/S/LB L1484 7,00<br />
individual luminaire ceiling mounted<br />
Leuchtmittel Artikel-Nr. Länge (mm) Gewicht (kg)<br />
1x 28/54 W OFM 154-5 L1184 5,00<br />
1x 35/49/80 W OFM 180-5 L1484 7,00<br />
light band ceiling mounted<br />
Leuchtmittel Artikel-Nr. Länge (mm) Gewicht (kg)<br />
1x 28/54 W OFM 154-5/LB L1184 5,00<br />
1x 35/49/80 W OFM 180-5/LB L1484 7,00<br />
z parabolic grid made of highly reflective aluminum (MIRO)<br />
z feed-through wiring optional possible<br />
z indirect proportion approx. 20%<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
186<br />
page<br />
183<br />
103
LIGHTING<br />
SYSTEMS<br />
OFFICE<br />
H-PROFILE<br />
❚ clear structures defining space<br />
❚ model 62x90 mm<br />
❚ direct/indirect light<br />
❚ produced in lengths up to 5.50 m<br />
104<br />
Augsburg Technical College
Ucolicht.de<br />
H-profil 62<br />
COMPLETE SYSTEM<br />
❚ minimal design of 62x90 mm with simultaneous<br />
light to top and bottom<br />
❚ Complete systems, predefined as one or<br />
multiple length units<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
direct/indirect illumination, different grids and covers<br />
lamp article no. article no. length (mm) wire- weight (kg)<br />
direct/indirect<br />
illumination<br />
grid below, free<br />
illumination to top<br />
direct/indirect<br />
illumination<br />
acrylic below, free<br />
illumination to top<br />
total length<br />
suspension<br />
1x 2x 28/54 W HP62 K 1254-5/DI-PR HP62 K 1254-5 DI-AC 1240 2 3,60<br />
2x 2x 28/54 W HP62 K 2254-5/DI-PR HP62-K 2254-5 DI-AC 2410 3 7,00<br />
1x 2x 35/49/80 W HP62 K 1280-5/DI-PR HP62-K 1280-5 DI-AC 1540 2 4,40<br />
2x 2x 35/49/80 W HP62 K 2280-5/DI-PR HP62-K 2280-5 DI-AC 3010 2 8,60<br />
3x 2x 35/49/80 W HP62 K 3280-5/DI-PR HP62-K 3280-5 DI-AC 4480 3 12,90<br />
4x 2x 35/49/80 W HP62 K 4280-5/DI-PR HP62-K 4280-5 DI-AC 5950 4 17,20<br />
5x 2x 35/49/80 W HP62 K 5280-5/DI-PR HP62-K 5280-5 DI-AC 7420 5 21,50<br />
6x 2x 35/49/80 W HP62 K 6280-5/DI-PR HP62-K 6280-5 DI-AC 8890 6 25,70<br />
7x 2x 35/49/80 W HP62 K 7280-5/DI-PR HP62-K 7280-5 DI-AC 10360 6 30,00<br />
direct illumination, different grids and covers<br />
lamp article no. article no. length (mm) wire- weight (kg)<br />
direct illumination<br />
grid below<br />
direct illumination<br />
acrylic below<br />
total length<br />
suspension<br />
1x 28/54 W HP62 K 1154-5/D-PR HP62 K 1154-5 D-AC 1240 2 3,40<br />
2x 28/54 W HP62 K 1254-5/D-PR HP62-K 1254-5 D-AC 2410 3 6,70<br />
1x 1x 35/49/80 W HP62 K 1180-5/D-PR HP62-K 1180-5 D-AC 1540 2 4,20<br />
2x 1x 35/49/80 W HP62 K 2180-5/D-PR HP62-K 2180-5 D-AC 3010 2 8,30<br />
3x 1x 35/49/80 W HP62 K 3180-5/D-PR HP62-K 3180-5 D-AC 4480 3 12,30<br />
4x 1x 35/49/80 W HP62 K 4180-5/D-PR HP62-K 4180-5 D-AC 5950 4 16,40<br />
5x 1x 35/49/80 W HP62 K 5180-5/D-PR HP62-K 5180-5 D-AC 7420 5 20,50<br />
6x 1x 35/49/80 W HP62 K 6180-5/D-PR HP62-K 6180-5 D-AC 8890 6 24,50<br />
7x 1x 35/49/80 W HP62 K 7180-5/D-PR HP62-K 7180-5 D-AC 10360 6 28,40<br />
z use of 2-lamp electronic control gear for direct and indirect illumination;<br />
single-lamp electronic control gear for directly illuminating units<br />
z luminaires continuously cabled 3x1.5 mm², connection from luminaire to luminaire on site<br />
z wire suspensions length 1.500 mm, type 00<br />
z infeed canopy with transparent connection line<br />
z direct and indirect light components can be equipped with individual electronic control<br />
gear as special design (min. length of luminaries 1.180 mm)<br />
further technical data:<br />
C<br />
further information:<br />
page<br />
190<br />
page<br />
183<br />
105
H-profil 62<br />
wall mounting<br />
❚ minimal design of 62x90 mm with simultaneous<br />
light to top and bottom<br />
❚ adaption facility for the installation of the profile<br />
at walls<br />
❚ equal illumination direct and indirect<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
complete type as individual luminaire, beaming direct, with acrylic white, top open<br />
lamp article no. length (mm) weight (kg)<br />
1x 21/39 W HP62-WA 139-5 D L940 2,30<br />
1x 28/54 W HP62-WA 154-5 D L1240 3,10<br />
1x 35/49/80 W HP62-WA 180-5 D L1540 3,80<br />
complete type as individual luminaire, beaming indirect, profile bottom open<br />
lamp article no. length (mm) weight (kg)<br />
1x 21/39 W HP62-WA 139-5 I L940 2,30<br />
1x 28/54 W HP62-WA 154-5 I L1240 3,10<br />
1x 35/49/80 W HP62-WA 180-5 I L1540 3,80<br />
complete type as individual luminaire, beaming direct/indirect, acrylic top clear, acrylic bottom white<br />
lamp article no. length (mm) weight (kg)<br />
1x 21/39 W HP62-WA 139-5 DI L940 2,40<br />
1x 28/54 W HP62-WA 154-5 DI L1240 3,20<br />
1x 35/49/80 W HP62-WA 180-5 DI L1540 3,90<br />
z light inserts not continuously cabled<br />
z light inserts can be inserted without tools<br />
z light technologies exchangeable<br />
z the direct and indirect light components can be designed<br />
with individual electronic control gear as special design<br />
(length of luminaire min 1180 mm)<br />
further technical data:<br />
106
Ucolicht.de<br />
H-profil 62<br />
kit<br />
❚ minimal design of 62x90 mm with simultaneous<br />
light to top and bottom<br />
❚ light figures possible<br />
❚ combination with spots<br />
❚ combination with light ceiling modules<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
extruded aluminium profile, manufacture length up to 5.400 mm<br />
article no. kg/running m<br />
HP62-P (+length) 1,95<br />
light insert, direct/indirect illumination<br />
lamp article no. length (mm) weight (kg)<br />
1x 2x 28/54 W HP62 254-5/DI L1170 1,20<br />
1x 2x 35/49/80 W HP62 280-5/DI L1470 1,40<br />
light insert, direct illumination<br />
lamp article no. length (mm) weight (kg)<br />
1x 28/54 W HP62 154-5/D L1170 1,00<br />
1x 35/49/80 W HP62 180-5/D L1470 1,20<br />
light insert, only indirect illumination<br />
lamp article no. length (mm) weight (kg)<br />
1x 28/54 W HP62 154-5/I L1170 1,10<br />
1x 35/49/80 W HP62 180-5/I L1470 1,20<br />
z light inserts continuously cabled 3x1.5 mm², connection from<br />
luminaire to luminaire on site<br />
z light inserts can be inserted without tools<br />
z light technologies exchangeable<br />
z the direct and indirect light components can be designed with<br />
individual electronic control gear as special design<br />
further technical data:<br />
further information:<br />
C<br />
page<br />
183<br />
107
H-PROFILE ACCESSORIES<br />
decor glass<br />
for light insert article no. glass length (mm) weight (kg)<br />
1x 28/54 W HP62-DG54 L1300 1,60<br />
1x 35/49/80 W HP62-DG80 L1600 2,20<br />
parabolic grid<br />
for light insert article no. grid length (mm) weight (kg)<br />
1x 28/54 W HP62-PR54 L1170 1,00<br />
1x 35/49/80 W HP62-PR80 L1470 1,20<br />
acrylic cover for H-profile, light-effective below and above, installation without tools<br />
article no. kg/running m<br />
HP62-AC WS 0,20<br />
HP62-AC KL 0,20<br />
108<br />
Kreissparkasse Diedorf
Ucolicht.de<br />
H-PROFILE ACCESSORIES<br />
❚ profiles<br />
❚ decor<br />
E11<br />
E10<br />
E12<br />
aluminium cover profile for closing<br />
the profile, mountable at top and<br />
bottom without tool<br />
article no. kg/running m<br />
HP62-ADP (+length) 0,20<br />
end piece RAL<br />
article no.<br />
HP62-E10 in RAL<br />
end piece real wood<br />
article no.<br />
HP62-E11 at real wood oak<br />
HP62-E12 at real wood beech<br />
❚ connectors and end plates<br />
lengthwise connector<br />
for 2 H-profiles<br />
article no.<br />
HP62-LV<br />
90° connector<br />
article no.<br />
HP62-L 90<br />
end plate<br />
article no.<br />
HP62-E 00<br />
lengthwise connector in combination<br />
with wire suspension fitting<br />
length (mm)<br />
article no.<br />
1500 HP62-LV/SA 1500 00<br />
3000 HP62-LV/SA 3000 00<br />
90° connector in combination with<br />
wire suspension fitting<br />
length (mm)<br />
article no.<br />
1500 HP62-L90/SA 1500 00<br />
3000 HP62-L90/SA 3000 00<br />
end piece in connection with wire<br />
suspension fitting<br />
length (mm)<br />
article no.<br />
1500 HP62-E/SA 1500 00<br />
3000 HP62-E/SA 3000 00<br />
wire suspension fitting for positioning<br />
at any location in profile<br />
length (mm)<br />
article no.<br />
1500 HP62-SA 1500 00<br />
3000 HP62-SA 3000 00<br />
current supply unit<br />
colour<br />
white<br />
article no.<br />
HP62-BA<br />
109
110<br />
NCR VIP-Lounge, FCA-Augsburg
Ucolicht.de<br />
H-PROFILE<br />
curve<br />
❚ low voltage light inserts<br />
for extra effects<br />
❚ high grade glass reflector<br />
outside high gloss, inside dulled<br />
low voltage insert pivoted<br />
lamp article no. length (mm)<br />
1x max 35 W HP62-LSQT-60 0,80<br />
low voltage insert fixed position<br />
lamp article no. dimensions (mm) weight (kg)<br />
1x max 35 W HP62-LSQT-50 D68 H35 0,80<br />
z separate transformer required, to be fitted into profile<br />
z lighting techniques interchangeable<br />
z position of luminaires in profile is factory adjusted<br />
further information:<br />
111
lightline up62<br />
COMPLETE SYSTEM<br />
light engineering with parabolic grid<br />
❚ minimal design of 62x90 mm for light lines and grid systems<br />
❚ ceiling or wire pendulum installation<br />
❚ complete systems, predefined as single or<br />
multiple length units<br />
❚ light elements with lamp holder overlap for shadow-free<br />
light only for acrylic covering<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
lamp article no. article no. length (mm) wire- weight (kg)<br />
ceiling installation pendularwithsteelcable total length suspensions<br />
1x 28/54 W UP62 K 1154-5/D-PR UP62 K 1154-5 S-PR 1240 2 3,60<br />
2x 1x 28/54 W UP62 K 2154-5/D-PR UP62-K 2154-5 S-PR 2410 2 7,10<br />
1x 35/49/80 W UP62 K 1180-5/D-PR UP62-K 1180-5 S-PR 1540 2 4,40<br />
2x 1x 35/49/80 W UP62 K 2180-5/D-PR UP62-K 2180-5 S-PR 3010 2 8,60<br />
3x 1x 35/49/80 W UP62 K 3180-5/D-PR UP62-K 3180-5 S-PR 4480 3 12,90<br />
4x 1x 35/49/80 W UP62 K 4180-5/D-PR UP62-K 4180-5 S-PR 5950 4 17,20<br />
5x 1x 35/49/80 W UP62 K 5180-5/D-PR UP62-K 5180-5 S-PR 7420 5 21,50<br />
6x 1x 35/49/80 W UP62 K 6180-5/D-PR UP62-K 6180-5 S-PR 8890 6 25,70<br />
7x 1x 35/49/80 W UP62 K 7180-5/D-PR UP62-K 7180-5 S-PR 10360 6 30,00<br />
light engineering with acrylic diffuser white or lucid<br />
lamp article no. article no. length (mm) wire- weight (kg)<br />
ceiling installation pendularwithsteelcable total length suspensions<br />
1x 28/54 W UP62 K 1154-5/D-AC UP62 K 1154-5 S-AC 1250 2 3,60<br />
2x 1x 28/54 W UP62 K 2154-5/D-AC UP62-K 2154-5 S-AC 2340 2 7,10<br />
1x 35/49/80 W UP62 K 1180-5/D-AC UP62-K 1180-5 S-AC 1550 2 4,40<br />
2x 1x 35/49/80 W UP62 K 2180-5/D-AC UP62-K 2180-5 S-AC 2940 2 8,60<br />
3x 1x 35/49/80 W UP62 K 3180-5/D-AC UP62-K 3180-5 S-AC 4330 3 12,90<br />
4x 1x 35/49/80 W UP62 K 4180-5/D-AC UP62-K 4180-5 S-AC 5720 4 17,20<br />
5x 1x 35/49/80 W UP62 K 5180-5/D-AC UP62-K 5180-5 S-AC 7110 5 21,50<br />
6x 1x 35/49/80 W UP62 K 6180-5/D-AC UP62-K 6180-5 S-AC 8490 6 25,70<br />
7x 1x 35/49/80 W UP62 K 7180-5/D-AC UP62-K 7180-5 S-AC 9880 6 30,00<br />
z luminaires continuously cabled 3x1.5 mm², connection from luminaire<br />
to luminaire on site<br />
z infeed canopy with connection line for pendular installation<br />
z acrylic white or lucid<br />
further technical data:<br />
C<br />
further information:<br />
112<br />
page<br />
190<br />
page<br />
183
Ucolicht.de<br />
lightline up62<br />
kit<br />
❚ minimal design of 62x90 mm for light lines and grid systems<br />
❚ ceiling or wire pendulum installation<br />
❚ light elements with lamp holder overlap for shadow-free<br />
light with acrylic covering<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
extruded aluminium profile, manufacture length up to 5.400 mm<br />
articel no. kg/running m<br />
UP62-P (+length) 1,95<br />
light insert without lamp holder overlap<br />
lamp article no. length (mm) weight (mm)<br />
1x 28/54W UP62 154-5 1170 1,10<br />
1x 35/49/80 W UP62-180-5 1470 1,20<br />
parabolic grid<br />
lamp article no. grid length (mm) weight (mm)<br />
1 x 54 W HP62-PR 54 1170 1,10<br />
1 x 80 W HP62-PR 80 1470 1,20<br />
light insert with lamp holder overlap for light lines<br />
lamp article no. length (mm) weight (mm)<br />
1x 28/54W VL62 154-5 1180 1,10<br />
1x 35/49/80 W VL62-180-5 1480 1,20<br />
z installation of light units without tools<br />
z light inserts continuously cabled 3x1.5 mm²,<br />
connection from luminaire to luminaire on site<br />
z acrylic white or opal<br />
further technical data:<br />
further information:<br />
page<br />
190<br />
page<br />
183<br />
113
U-PROFILE ACCESSORIES<br />
❚ profile<br />
❚ decor<br />
E11<br />
E10<br />
E12<br />
acrylic cover, effective lighting,<br />
installation without tools<br />
article no. kg/running m<br />
HP62-AC 00 1,95<br />
end piece RAL<br />
article no.<br />
UP62-E10 in RAL<br />
end piece real wood<br />
article no.<br />
UP62-E11 in real wood oak<br />
UP62-E12 real wood beech<br />
❚ connectors<br />
longitudinal connectors of 2 pcs.<br />
U-profiles<br />
90° connectors<br />
end plate<br />
article no.<br />
article no.<br />
article no.<br />
UP62-LV<br />
UP62-L 90<br />
HP62-E 00<br />
❚ wire suspension<br />
slidable over the entire profile<br />
length, wire with tool-less quick<br />
adjustment type 00<br />
infeed with clamping option<br />
length (mm)<br />
article no.<br />
length (mm)<br />
article no.<br />
1500 Z/SA 1500 00<br />
1500 HP62-BA<br />
3000 Z/SA 3000 00<br />
114
Ucolicht.de<br />
Media<br />
channel<br />
❚ multifunction luminaire in aluminium profile<br />
design<br />
❚ integration of light engineering, communication<br />
technology and fire alarm system<br />
❚ Installation with pendular cable pipe or directly<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
1-lamp<br />
lamp article no. length (mm) weight (kg)<br />
1x 28/54 W HRM 154-5/A-PR L1205 6,20<br />
1x 35/49/80 W HRM 180-5/A-PR L1505 7,80<br />
2-lamp<br />
lamp article no. length (mm) weight (kg)<br />
2x 28/54 W HRM 254-5/A-PR L1205 7,20<br />
2x 35/49/80 W HRM 280-5/A-PR L1505 9,00<br />
❚ accessories<br />
with cover plate for length compensation<br />
University of applied sciences, Augsburg<br />
z aluminium profile for channel unit up to 5.500 mm<br />
z Variant: Prismatic acrylic cover and aluminium cover<br />
z 5-pole plug terminal<br />
further technical data:<br />
C<br />
further information:<br />
page<br />
190<br />
page<br />
183<br />
1-lamp<br />
2-lamp<br />
115
LIGHTING<br />
SYSTEMS<br />
SHOP<br />
❚ emphasize room contours with light<br />
❚ mark routes with light<br />
❚ allocate ceiling zones with light<br />
❚ use light to provide guidelines<br />
in a room<br />
❚ use light to provide dazzle free visibility<br />
and to emphasize the salient points<br />
of the room<br />
❚ creative ceiling and wall arrangement<br />
116<br />
Finance office, Augsburg
Ucolicht.de<br />
LIGHT<br />
channelC E I L I N G<br />
❚ optically continuous light without shadows<br />
❚ individual design regarding width and height<br />
❚ special production process on the sharp edged<br />
detailed solutions in the areas supporting glass,<br />
optically similar to a sharp edged aluminum profile<br />
❚ custom built production<br />
❚ versions also for modifiable buildings<br />
installation in suspended ceilings with surrounding edge<br />
light diffusion article no. diffuser thickness weight (kg/running m)<br />
acryl satin finish LGG-E00-AC+... whole channel length 4 mm 6,90<br />
safety glass satin finish LGG-E00-ESG+... whole channel length 4 mm 8,60<br />
LSG with mat film LGG-E00-VSG+... whole channel length 7 mm 10,00<br />
z channel from sheet steel with pressed edge for sharp corners<br />
z production in parts up to length 2450 mm, overlaps, end pieces and fittings<br />
z installation in cut ceilings<br />
z integrated mounting facilities for fitting inserts without tools<br />
z power supper facility at end/top, at each channel start<br />
z stepped edge of the acrylic cover<br />
installation in suspended ceilings without a visible edge<br />
light diffusion article no. diffuser thickness weight (kg/running m)<br />
acryl satin finish LGG-E01-AC+... whole channel length 4 mm 6,90<br />
safety glass satin finish LGG-E01-ESG+... whole channel length 4 mm 8,60<br />
LSG with mat film LGG-E01-VSG+... whole channel length 7 mm 10,00<br />
z channel from sheet steel without visible edge<br />
z production in parts up to length 2450 mm, overlaps, end pieces and fittings<br />
z installation is carried out before the suspended ceiling is closed<br />
z integrated mounting facilities for fitting inserts without tools<br />
z power feed facility at end/top, at each channel start<br />
z acryl covers have a stepped edge<br />
z stepped edge of the acrylic cover<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
117
LIGHT<br />
ductwaLL<br />
❚ optically continuous light without shadows<br />
❚ individual design regarding width and height<br />
❚ special production process on the sharp edged<br />
detailed solutions in the areas supporting glass,<br />
optically similar to a sharp edged aluminum profile<br />
❚ custom built production<br />
horizontal installation in walls<br />
light diffusion article no. diffuser thickness weight (kg/m length)<br />
acryl satin finish LGG-W01-AC+... whole channel length 4 mm 6,90<br />
safety glass satin finish LGG-W01-ESG+... whole channel length 4 mm 8,60<br />
LSG with mat film LGG-W01-VSG+... whole channel length 7 mm 10,00<br />
z channel from sheet steel with pressed edge for sharp corners<br />
z production in parts up to length 2450 mm, overlaps, end pieces and fittings<br />
z horizontal installation in walls according to specified installation conditions<br />
z integrated mounting facilities for fitting light modules without tools<br />
z power feed facility at end/top, at each channel start<br />
z diffusers inserted without tools and with no visible screws<br />
vertical installation in walls<br />
light diffusion article no. diffuser thickness weight (kg/m length)<br />
safety glass satin finish LGG-W00-ESG+... whole channel length 4 mm 8,40<br />
LSG with mat film LGG-W00-VSG+... whole channel length 7 mm 10,00<br />
z channel from sheet steel with flange to cover cutout tolerance<br />
z production in parts up to length 2450 mm, overlaps, end pieces and fittings<br />
z horizontal installation in walls according to specified installation conditions<br />
z integrated mounting facilities for fitting light modules without tools<br />
z diffusers screw fixed<br />
further technical data:<br />
further information:<br />
118<br />
pge<br />
181
Ucolicht.de<br />
Wüstenrot, school center<br />
Chapel, Harlaching<br />
Holzland Wicht<br />
119
Licht<br />
DUCT<br />
❚ light panel for installation in a light duct<br />
❚ lamp holder overlap for shadow-free illumination,<br />
even in the area of the lamp holder<br />
❚ light panel can be installed anywhere in the channel<br />
❚ lamp holder overlap can be individually adjusted<br />
from 0-94 mm<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (28/54 watt and<br />
35/49/80 watt)<br />
lamp article no. length (mm) lamp holder overlap weight (kg)<br />
1x 14/24 W LGM 124- 5 L580 94 1,00<br />
1x 21/39 W LGM 139- 5 L880 94 1,20<br />
1x 28/54 W LGM 154- 5 L1180 94 1,40<br />
1x 35/49/80 W LGM 180- 5 L1480 94 1,70<br />
2x 21/39 W LGM 239-5 L1666 94 2,10<br />
2x 28/54 W LGM 254-5 L2266 94 2,80<br />
1x 21/39 / 1x 28/54 W LGM 139/154-5 L1966 94 2,60<br />
2x 21/39 / 1x 14/24 W LGM 239/124-5 L2152 94 2,10<br />
z continuously wired 3x1.5 mm² with plug clamp (electronic control gear not dimmable)<br />
z continuously wired 3x1.5 mm²/2x0.75 with plug clamp (electronic control gear dimmable)<br />
z light panel can be installed over the entire duct length<br />
z lamp holder overlap 94 mm for shadow-free illumination<br />
further technical data:<br />
further information:<br />
120<br />
page<br />
183
Ucolicht.de<br />
Art Deco, Karlsfeld<br />
Finance office, Augsburg<br />
121
LIGHTING<br />
SYSTEMS<br />
SHOP<br />
❚ flexible arrangement of light units<br />
❚ combination of working and<br />
atmosphere lighting<br />
❚ individual colour design<br />
122<br />
Senior complex, Pfaffenhausen
Ucolicht.de<br />
LIGHT<br />
CHANNEL<br />
❚ frameless mounting<br />
❚ control via DALI possible<br />
❚ luminaire positions variable<br />
lamp article no. dimensions (mm) weight (kg)<br />
1x max 50 W LMK-QZQT50-5 L190 B118 H170 0,80<br />
1x max 70 W LMK-QZTC70-5 L190 B118 H170 1,20<br />
lamp article no. dimensions (mm) weight (kg)<br />
1x 55 W LMK-TC-L55-5 L600 B148 H137 4,10<br />
1x 80 W LMK-TC-L80-5 L600 B148 H137 4,10<br />
light channel to installation in ceilings, visible trim, 10 mm wide<br />
length (mm) article no. dimensions (mm) weight (kg)<br />
1800 LMK-P1800 E01 L1800 B150 H150 14,00<br />
2400 LMK-P2400 E01 L2400 B150 H150 18,50<br />
light channel to installation in ceilings, without visible trim<br />
length (mm) article no. dimensions (mm) weight (kg)<br />
1800 LMK-P1800 E00 L1800 B150 H150 14,00<br />
2400 LMK-P2400 E00 L2400 B150 H150 18,50<br />
dummy plate for<br />
electrical connections not in use<br />
article no.<br />
LMK-BP<br />
z prefabricated mounting facilities for spotlights<br />
z electrical connections via pre-assembled terminal plugs<br />
z through wiring one site<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
123
LIGHTING<br />
SYSTEMS<br />
OFFICE<br />
LBL<br />
❚ straight design for linear room axes<br />
❚ consequent reduced design<br />
124<br />
Biology, Martinsried
Ucolicht.de<br />
LBL<br />
LIGHT LINE<br />
❚ minimal model<br />
❚ line guide in buildings<br />
❚ free beaming, sockets luminaireclad<br />
basic type, single luminaire<br />
lamp article no. length (mm) weight (kg)<br />
1x 36 W LBL 136-5 L1314 2,50<br />
1x 58 W LBL 158-5 L1614 3,20<br />
for light band arrangement<br />
lamp article no. length (mm) weight (kg)<br />
2x 58 W LBL 158-5/2 L3168 6,40<br />
3x 58 W LBL 158-5/3 L4722 9,60<br />
4x 58 W LBL 158-5/4 L6276 12,80<br />
5x 58 W LBL 158-5/5 L7830 16,00<br />
❚ accessories<br />
diffusers from acryl, also for<br />
retrofitting<br />
for type<br />
LBL 136<br />
LBL 158<br />
article no.<br />
Z/LBL-AC36<br />
Z/LBL-AC58<br />
wire suspension, adjustable<br />
without tools, type 00<br />
above: canopy small<br />
length (mm)<br />
article no.<br />
1500 LBL-SA 1500 00<br />
3000 LBL-SA 3000 00<br />
lengthwise connector to join<br />
2 profile units<br />
article no.<br />
LBL-LV<br />
z aluminum profile as a module construction<br />
z all electronic components integrated<br />
z wire suspension possible from all points<br />
z direct ceiling installation possible<br />
z through wiring optional<br />
further technical data:<br />
further information:<br />
page<br />
183<br />
125
LBL<br />
recessed<br />
❚ minimal model<br />
❚ line guide in buildings<br />
❚ luminaire free beaming, sockets clad<br />
lamp article no. dimensions (mm) installation dimensions (mm) weight (kg)<br />
1x 36 W LBL 136-5/E L1335 LE1315 2,10<br />
1x 58 W LBL 158-5/E L1635 LE1615 2,50<br />
Biology, Martinsried<br />
z installation in cut ceiling 12.5 mm thick<br />
z socket cover removable for luminaire change<br />
z optional diffuser of acrylic<br />
z light band arrangement on request<br />
z through wiring optional<br />
further technical data:<br />
further information:<br />
126<br />
page<br />
183
Ucolicht.de<br />
Biology, Martinsried<br />
127
LIGHTING<br />
SYSTEMS<br />
OFFICE<br />
MEDIA CHANNEL<br />
❚ modular design<br />
❚ light and building technology<br />
combined in one system<br />
❚ optically unobtrusive<br />
128<br />
Volksbank, Rheine
Ucolicht.de<br />
MEDIA<br />
CHANNEL<br />
❚ integration of light, communication<br />
and fire warning in one system<br />
❚ clear and tidy ceilings<br />
❚ lights inserts independent<br />
from channel<br />
light inserts with decor glass<br />
lamp article no. length (mm) weight (kg)<br />
1x 55 W MK-LK 155-5 L750 4,20<br />
1x 80 W MK-LK 180-5 L750 6,50<br />
light inserts with parabol grid<br />
lamp article no. length (mm) weight (kg)<br />
1x 35/49/80 W MK-M 180-5/PR 1500 5,90<br />
2x 35/49/80 W MK-M 280-5/PR 1500 6,20<br />
light inserts systems QUADRO<br />
Leuchtmittel article no. length (mm) weight (kg)<br />
2x 35 W MK-QCT 35/2 L750 3,20<br />
2x 70 W MK-QCT 70/2 L750 3,40<br />
lamp article no. length (mm) weight (kg)<br />
3x max 50 W MK-QCQR 111/3 L750 4,80<br />
z channel is mounted before ceiling is closed, suspension from<br />
unfinished ceiling or ceiling basis<br />
z through wiring optional possibel<br />
z light inserts secured against<br />
accidental falling out<br />
further technical data:<br />
further information:<br />
page<br />
48<br />
page<br />
183<br />
129
medien<br />
chanal<br />
system channel<br />
length (mm) article no. length (mm)<br />
2400 MK-P 2400 L2400<br />
adaptor<br />
MK-P-(...length)<br />
z the total length is comprised of equal channels with 2400 mm and the fitting length<br />
z the light inserts can be inserted at any place, including the joint between two channels<br />
total length<br />
adaptor<br />
dummy plate without insert<br />
length (mm) article no. length (mm) weight (kg)<br />
750 MK-BP 750 L750 1,90<br />
the covers for loudspeakers, sprinklers and communication technology are<br />
selected according to the make of the equipment used<br />
130
Ucolicht.de<br />
Otto consignment, Hamburg<br />
131
132<br />
Intersport BEGR0, Biedenkopf
Ucolicht.de<br />
LIGHTING SYSTEMS<br />
shop<br />
Modern sales rooms live from change, from<br />
the adaptation to meet changing buying patterns<br />
and markets. Shop light is as flexible as<br />
the trend requires: today a palette of bargain<br />
articles has to be lighted, tomorrow<br />
at the same spot lighting is required for a<br />
branded article or a large photograph.<br />
The rapid replacement of one light or luminaire<br />
for another is possible by means of a few<br />
simple operations or through plug connectors.<br />
A professionally designed basic structure provides<br />
all prerequisites for modern lighting over<br />
many years.<br />
Luminaire changing – as fast as trends change.<br />
135<br />
136<br />
137<br />
NEW<br />
NEW<br />
138<br />
141<br />
142<br />
143<br />
146<br />
147 148<br />
151<br />
NEW<br />
152<br />
153<br />
154<br />
157<br />
158<br />
133
Lichtsysteme<br />
shop<br />
wof<br />
❚ flat light system<br />
❚ modular construction<br />
building set principle<br />
❚ clear form language<br />
❚ light elements mounted<br />
without use of tools<br />
134<br />
Shoes Kauffmann, Bobfingen
Ucolicht.de<br />
wof<br />
system<br />
lamp article no. length (mm) weight (kg)<br />
1x 35 W WOF3-QZTC 135-5 L300 2,30<br />
1x 70 W WOF3-QZTC 170-5 L300 2,30<br />
1x max 90 W WOF3-QZQT 190-5 L300 2,20<br />
lamp article no. length (mm) weight (kg)<br />
2x 35 W WOF3-QZTC 235-5 L600 4,70<br />
2x 70 W WOF3-QZTC 270-5 L600 4,70<br />
lamp article no. length (mm) weight (kg)<br />
2x 35 W/1x 90 W WOF3-QZ 10 L800 5,30<br />
2x 70 W/1x 90 W WOF3-QZ 11 L800 5,30<br />
corner version<br />
lamp article no. length (mm) weight (kg)<br />
2x 35 W/1x 90 W WOF3-QZ 30 L490 5,30<br />
2x 70 W/1x 90 W WOF3-QZ 40 L490 5,30<br />
z ready to plug in with Wieland GST<br />
(socket and plug)<br />
z replacement reflectors<br />
z electronic control gears<br />
z mounting without tools<br />
further technical data:<br />
further information:<br />
page<br />
26<br />
page<br />
184<br />
135
wof<br />
system<br />
lamp article no. weight (kg)<br />
1x 55 W WOF3-POKK 155-5 2,40<br />
1x 80 W WOF3-POKK 180-5 2,40<br />
fluted real glass panes for optimal light distribution without dazzle<br />
lamp article no. weight (kg)<br />
1x 55 W WOF3-OMKK 155-5 2,60<br />
1x 80 W WOF3-OMKK 180-5 2,60<br />
system profile<br />
article no. length (mm) weight (kg)<br />
WOF3-P 1500 L1500 3,90<br />
WOF3-P 2000 L2000 5,20<br />
WOF3-P 2500 L2500 6,50<br />
WOF3-P 3000 L3000 7,80<br />
WOF3-P 3500 L3500 9,10<br />
z ready to plug in with Wieland GST<br />
(socket and plug)<br />
z replacement reflectors<br />
z electronic control gears<br />
z mounting without tools<br />
further technical data:<br />
further information:<br />
136<br />
page<br />
184
Ucolicht.de<br />
WOF ACCESSORIES<br />
❚ suspended units, adjustable without tools, for positioning at any position in profile<br />
Type 00 Type 10 Type 30<br />
suspended unit<br />
on decorative canopy<br />
article no.<br />
length (mm)<br />
WOF3-SE 1500 00 1500<br />
WOF3-SE 3000 00 3000<br />
WOF3-SE 6000 00 6000<br />
suspended unit<br />
with simple loop<br />
article no.<br />
length (mm)<br />
WOF3-SE 1500 10 1500<br />
WOF3-SE 3000 10 3000<br />
WOF3-SE 6000 10 6000<br />
suspended unit<br />
with continuous ceiling canopy<br />
article no.<br />
length (mm)<br />
WOF3-SE 1500 30 1500<br />
WOF3-SE 3000 30 3000<br />
WOF3-SE 3000 30 6000<br />
❚ suspended units, adjustable without tools,<br />
for mounting at joint connectors, including joint connectors<br />
article no. length (mm)<br />
WOF3-SE/LV 1500 00 1500<br />
WOF3-SE/LV 3000 00 3000<br />
WOF3-SE/LV 6000 00 6000<br />
article no. length (mm)<br />
WOF3-SE/LV 1500 10 1500<br />
WOF3-SE/LV 3000 10 3000<br />
WOF3-SE/LV 6000 10 6000<br />
article no. length (mm)<br />
WOF3-SE/LV 1500 30 1500<br />
WOF3-SE/LV 3000 30 3000<br />
WOF3-SE/LV 6000 30 6000<br />
Intersport Begro, Biedenkopf<br />
❚ suspended units for mounting in corner connectors,<br />
including cross member and angled connector<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
WOF3-SE/L090 1500 00 1500<br />
WOF3-SE/L090 1500 10 1500<br />
WOF3-SE/L090 1500 30 1500<br />
WOF3-SE/L090 3000 00 3000<br />
WOF3-SE/L090 3000 10 3000<br />
WOF3-SE/L090 3000 30 3000<br />
WOF3-SE/L090 6000 00 6000<br />
WOF3-SE/L090 6000 10 6000<br />
WOF3-SE/L090 6000 30 6000<br />
137
WOF ACCESSORIES<br />
❚ system connectors, also useable for mounting suspended units<br />
lengthwise connector<br />
90° connector<br />
135° connector<br />
support plate/brackets<br />
article no.<br />
article no. dimm. (mm) kg<br />
article no. dimm. (mm) kg<br />
article no.<br />
WOF3-LV (Paar)<br />
WOF3-L90 L500 B500 H40 0,30<br />
WOF3-L135 L500 B500 H40 0,50<br />
WOF-A (Paar)<br />
additional cross bar<br />
article no.<br />
WOF3-BG<br />
end cap<br />
article no.<br />
WOF-E (Paar)<br />
138<br />
Groß Garage, Wettingen
Ucolicht.de<br />
Intersport BEGR0, Giessen<br />
139
LIGHTING<br />
SYSTEMS<br />
SHOP<br />
VT<br />
❚ chamfered flanks let the system<br />
virtually float in the room<br />
❚ linear structures or individual luminaries<br />
❚ modular conception<br />
❚ combination of spots<br />
and basic light possible<br />
❚ different equipment<br />
❚ can be used for further installations<br />
140<br />
BEGRO, Giessen
Ucolicht.de<br />
VT<br />
INDIVIDUAL<br />
MODULES<br />
❚ complete system with different lengths<br />
and designs<br />
❚ Y-cable suspension<br />
❚ plug-and-play design<br />
overall length 1.200 mm<br />
lamp article no. dimensions (mm) weight (kg)<br />
2x 35 W/1x 80 W VT 1200/235-180/S 1200 9,80<br />
2x 70 W/1x 80 W VT 1200/270-180/S 1200 9,80<br />
3x 35 W VT 1200/335/S 1200 10,10<br />
3x 70 W VT 1200/370/S 1200 10,10<br />
overall length 900 mm<br />
lamp article no. dimensions (mm) weight (kg)<br />
2 x 35 W VT 0900/235/S 900 7,40<br />
2 x 70 W VT 0900/270/S 900 7,40<br />
1 x 35 W/1 x 70 W VT 0900/35-70/S 900 7,40<br />
z luminaire unit cabled with one another<br />
z connection line 2.000 mm, free end<br />
further technical data:<br />
further information:<br />
page<br />
37<br />
page<br />
36<br />
141
VT<br />
LIGHT MODULES<br />
❚ functional channel for light for sales rooms<br />
and object illumination<br />
❚ Y-cable suspension<br />
❚ clean and straightened ceiling<br />
luminaire head rotating and swivelling<br />
lamp article no. refector weight (kg)<br />
1x max 70 W VT-QZTC 170-0 MFL 1,10<br />
area luminaire type POKK<br />
lamp article no. dimmension (mm) weight (kg)<br />
1x max 80 W VT-POKK 180-5 630 2,20<br />
z max. length 2.400 mm / 1.200 mm<br />
z light modules can be inserted without tools<br />
z all PICCO system accessories can be used<br />
z connecting lines required<br />
z please order electronic control gear<br />
separately<br />
z luminaire heads PICCO rotating and<br />
swivelling<br />
further technical data:<br />
further information:<br />
142<br />
page<br />
181<br />
page<br />
37<br />
page<br />
36<br />
page<br />
184
Ucolicht.de<br />
VT<br />
system<br />
❚ sheet steel, laterally chamfered<br />
❚ standard length of 1.200/2.400 mm<br />
with option for different equipment<br />
profile types for luminaire heads of PICCO system and area luminaries<br />
length (mm) article no. number of PICCO number of areas weight (kg)<br />
1200 VT-K T 1200 (+type) 3 1 1,80<br />
2400 VT-K T 2400 (+type) 6 2 3,60<br />
type 1<br />
type 1<br />
type 2<br />
type 2<br />
type 3<br />
type 3<br />
type 4<br />
type 4<br />
type 5<br />
type 6<br />
type 7<br />
z light modules can be inserted without tools<br />
z connecting lines required<br />
further information:<br />
143
144<br />
BEGRO, Biedenkopf
Ucolicht.de<br />
ACCESSORIES VT<br />
❚ wire suspensions<br />
wire suspension in each case for<br />
suspension at joints between 2<br />
channels<br />
wire suspension can be positioned<br />
at any place (not above light<br />
modules)<br />
wire suspension<br />
integrated in chamfered front end ,<br />
adjustable without tools<br />
Typ 00 Typ 10<br />
dimmensions<br />
(mm)<br />
article no.<br />
dimmensions<br />
(mm)<br />
article no.<br />
dimmensions<br />
(mm)<br />
article no.<br />
1500 VT-SA 1500 +type<br />
1500 VT-ABH/SA 1500 +type<br />
1500 VT-E/SA 1500 +type<br />
3000 VT-SA 3000 +type<br />
3000 VT-ABH/SA 3000 +type<br />
3000 VT-E/SA 3000 +type<br />
❚ front end<br />
chamfered front end<br />
chamfered front end<br />
dimmensions (mm)<br />
article no.<br />
dimmensions (mm)<br />
article no.<br />
B300 x H70<br />
VT-E<br />
B300 x H70<br />
VT-00<br />
145
LIGHTING<br />
SYSTEMS<br />
SHOP<br />
VZ<br />
❚ elegant ceiling system<br />
❚ linear structures<br />
❚ building set principle<br />
❚ functional<br />
❚ equipment variable<br />
❚ useable for further installations<br />
146<br />
Furniture Gammerdinger
Ucolicht.de<br />
VZ<br />
system<br />
❚ functional channel for light<br />
for sales rooms<br />
and object illumination<br />
❚ suspension pendular mounting<br />
❚ clean and straightened ceiling<br />
❚ application of multi-watt electronic<br />
control gear<br />
light head rotating and pivoted<br />
lamp article no. reflector weight (kg)<br />
1x max 70 W VZ-QZTC 170-0 MFL 1,10<br />
system channel of sheet steel<br />
Anzahl Ausschnitte article no. distance L1 external dimensions weight (kg)<br />
2 Stück VZ-P 1600/2 800 L1600 5,80<br />
3 Stück VZ-P 1600/3 400 L1600 5,80<br />
3 Stück VZ-P 2400/3 800 L2400 10,40<br />
5 Stück VZ-P 2400/5 400 L2400 10,40<br />
dummy plate to cover cutouts not used<br />
article no.<br />
weight (kg)<br />
VZ-BP 0,20<br />
z modules inserted without tools<br />
z light heads rotating and pivoted<br />
z connector cables required<br />
z all PICCO accessories useable<br />
z control gear to order separate<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
37<br />
page<br />
36<br />
page<br />
184<br />
147
ACCESSORIES VZ<br />
❚ connector/suspenders<br />
❚ end plate/suspenders<br />
suspension possibility<br />
at any location<br />
article no.<br />
VZ-ABH<br />
lengthwise connector<br />
with suspension facility<br />
article no.<br />
VZ-LV/SA<br />
end plate<br />
with suspension facility<br />
article no.<br />
VZ-E/SA<br />
❚ system connectors<br />
❚ wire suspenders<br />
Type 10<br />
system connector<br />
without suspension facility<br />
article no.<br />
VZ-LV<br />
end plate<br />
without suspension facility<br />
article no.<br />
VZ-E<br />
Type 00<br />
148<br />
Furniture Gammerdinger, Böblingen
Ucolicht.de<br />
Werdich, Heidenheim<br />
149
LIGHTING<br />
SYSTEMS<br />
SHOP<br />
VS<br />
❚ function channel for light<br />
and technology<br />
❚ building set system<br />
❚ system connectors for light figures<br />
❚ many luminaires from the standard<br />
program adaptable<br />
❚ light system for large areas<br />
150<br />
Feneberg
Ucolicht.de<br />
VS<br />
system<br />
❚ functional channel for light<br />
for sales rooms<br />
and object illumination<br />
❚ suspension pendular mounting<br />
❚ clean and straightened ceiling<br />
❚ application of multi-watt electronic<br />
control gear in luminaries of the same<br />
length (28/54 watt and 35/49/80 watt)<br />
light inserts/grid<br />
lamp article no. outside dimmensions<br />
(mm)<br />
weight (kg)<br />
1x 28/54 W VS-M 154-5/PM L1180 1,90<br />
1x 35/49/80 W VS-M 180-5/PM L1480 2,30<br />
2x 28/54 W VS-M 254-5/PM L1180 2,40<br />
2x 35/49/80 W VS-M 280-5/PM L1480 2,90<br />
light inserts/decorative glass one side satin finish, edge clear<br />
lamp article no. glass length (mm) weight (kg)<br />
1x 28/54 W VS-M 154-5/DG L1300 3,10<br />
1x 35/49/80 W VS-M 180-5/DG L1600 3,80<br />
light inserts/reflector asymmetrical<br />
lamp article no. length (mm) weight (kg)<br />
1x 28/54 W VS-M 154-5/ASY L1180 1,90<br />
1x 35/49/80 W VS-M 180-5/ASY L1480 2,30<br />
light inserts/reflector symmetrical<br />
lamp article no. length (mm) weight (kg)<br />
1x 28/54 W VS-M 154-5/SYM L1180 1,90<br />
1x 35/49/80 W VS-M 180-5/SYM L1480 2,30<br />
z light units mounted z luminaires through wired 3x 1.5 mm 2<br />
without tools<br />
z at each end socket and plug system<br />
z connector cables GST system<br />
Wieland GST 18<br />
as accessories<br />
z light technology interchangeable<br />
further technical data:<br />
further information:<br />
page<br />
181<br />
page<br />
184<br />
151
VS ACCESSORIES<br />
❚ <strong>Luminaires</strong> from the standard program can be adapted to suit the channel system.<br />
Instead of the /A or /R nomenclature these types receive the order code /V.<br />
article no.<br />
article no.<br />
article no.<br />
article no.<br />
QZ.../V1<br />
QZ.../V<br />
POVK.../V<br />
HRA.../V<br />
HRC.../V<br />
❚ carrier system<br />
light band arrangement individual<br />
article no. length (mm) weight (kg)<br />
axis dimension 2000 mm, luminaire 54W/80W<br />
VS-P5 1900/154/180 L1900 2,80<br />
axis dimension 2500 mm, luminaire 54W/80W<br />
VS-P5 2400/154/180 L2400 3,50<br />
light band arrangement luminaire to luminaire<br />
article no. length (mm) weight (kg)<br />
54 W<br />
49/80 W<br />
VS-P5E 1200/54 L1200 1,80<br />
VS-P5E 2400/54 L2400 3,50<br />
VS-P5E 1500/80 L1500 2,20<br />
VS-P5E 2250/80 L2250 3,30<br />
further information:<br />
152
Ucolicht.de<br />
VS ACCESSORIES<br />
❚ joint connectors<br />
end piece<br />
L connector<br />
T connector<br />
lengthwise connector<br />
article no.<br />
weight (kg)<br />
article no.<br />
weight (kg)<br />
article no.<br />
weight (kg)<br />
article no.<br />
weight (kg)<br />
VS-E+ ... (RAL Nr) 0,50<br />
VS-L90+ ... (RAL Nr) 0,70<br />
VS-T+ ... (RAL Nr) 0,80<br />
VS-V+ ... (RAL Nr) 0,70<br />
X connector<br />
flexible connector 60° - 300°<br />
article no.<br />
weight (kg)<br />
article no.<br />
weight (kg)<br />
VS-X+ ... (RAL Nr) 1,00<br />
VS-FX+ ... (RAL Nr) 1,00<br />
❚ system connectors<br />
lengthwise connector<br />
end plate<br />
support plate<br />
wall connector<br />
article no.<br />
weight (kg)<br />
article no.<br />
weight (kg)<br />
article no.<br />
weight (kg)<br />
article no.<br />
weight (kg)<br />
VS-LVP5 0,30<br />
VS-ST+ ...(RAL Nr) 0,20<br />
VS-A+ ...(RAL Nr) 0,20<br />
VS-WA+ ...(RAL Nr) 0,12<br />
❚ suspenders<br />
fast adjustment without tools, length of cord to cut,<br />
fixation on top: cord thimble<br />
❚ wire suspenders<br />
Type 00 Type 10<br />
channel upper edge flush<br />
surmounted for<br />
light band arrangement<br />
for junction<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
article no.<br />
Länge (mm)<br />
VS-SA 1500 +Typ 1500<br />
VS-SA 3000 +Typ 3000<br />
VS-SE 1500 +Typ 1500<br />
VS-SE 3000 +Typ 3000<br />
VS-SK 1500 +Typ 1500<br />
VS-SK 3000 +Typ 3000<br />
suspension for knot chain, chain available with product or as accessory<br />
channel upper edge flush<br />
surmounted for<br />
light band arrangement<br />
channel upper edge flush<br />
article no.<br />
chain<br />
article no.<br />
chain<br />
article no.<br />
chain<br />
VS-K<br />
bauseits<br />
VS-KE<br />
bauseits<br />
VS-KK<br />
bauseits<br />
153
light<br />
CHANNEL<br />
❚ light modules mounted flush into the ceiling,<br />
trim-less or with visible trim<br />
❚ asymmetric mounting of luminaire heads for optimal<br />
shelf illumination<br />
❚ maximum length: 2.400 mm<br />
light module<br />
lamp article no. dimmensions (mm) weight (kg)<br />
1x max 50 W LMT-QZQT50-0 L190 B118 H170 0,8<br />
1x max 70 W LMT-QZTC70-0 L190 B118 HH170 1,20<br />
light channel for ceiling installation, circumferential trim 10 mm wide<br />
lamp (mm) article no. max. numbers<br />
luminaire heads<br />
dimmension<br />
(mm)<br />
installation<br />
dimmensions (mm)<br />
weight (kg)<br />
1200 LMT-P 1200 E00 4 L1200 B171 LE153 9,50<br />
1500 LMT-P 1500 E00 5 L1500 B171 LE153 11,75<br />
1800 LMT-P 1800 E00 6 L1800 B171 LE153 14,00<br />
2100 LMT-P 2100 E00 7 L2100 B171 LE153 16,25<br />
2400 LMT-P 2400 E00 8 L2400 B171 LE153 18,50<br />
light channel for ceiling installation, without visible trim<br />
lamp (mm) article no. max. numbers<br />
luminaire heads<br />
dimmension<br />
(mm)<br />
installation<br />
dimmensions (mm)<br />
weight (kg)<br />
1200 LMT-P 1200 E01 4 L1200 B153 LE153 9,50<br />
1500 LMT-P 1500 E01 5 L1500 B153 LE153 11,75<br />
1800 LMT-P 1800 E01 6 L1800 B153 LE153 14,00<br />
2100 LMT-P 2100 E01 7 L2100 B153 LE153 16,25<br />
2400 LMT-P 2400 E01 8 L2400 B153 LE153 18,50<br />
installation in OWA ceiling<br />
length (mm) article no. max. numbers<br />
luminaire heads<br />
dimmension<br />
(mm)<br />
installation<br />
dimmensions (mm)<br />
weight (kg)<br />
635 LMT-P 625 E5 3 L635 B153 LE153 5,00<br />
installation in plasterboard ceiling<br />
length (mm) article no. max. numbers<br />
luminaire heads<br />
dimmension<br />
(mm)<br />
installation<br />
dimmensions (mm)<br />
weight (kg)<br />
635 LMT-P 625 E01 3 L635 B153 LE153 5,00<br />
635 LMT-P 625 E00 3 L635 B153 LE153 5,00<br />
❚ accessories<br />
z prefabricated installation options for spotlights<br />
z weight of the channels must be supported by the ceiling; (e.g. threaded rods)<br />
z consistent wiring optional<br />
blind plate for not used electrical<br />
connections<br />
further technical information:<br />
further information:<br />
colour<br />
article no.<br />
154<br />
RAL 9006<br />
LMK-BP<br />
page<br />
181<br />
page<br />
182<br />
page<br />
191<br />
page<br />
183
Ucolicht.de<br />
Adlmaier, Rosenheim<br />
155
LIGHTING<br />
SYSTEMS<br />
SHOP<br />
Light panels<br />
❚ shadow free light over whole<br />
alcove length<br />
❚ Wieland plug in system permits simple<br />
mounting even in small channels<br />
❚ system mounted without the use<br />
of any tools<br />
❚ also available in RGB technology<br />
(page 93)<br />
156<br />
Abele Optic, Augsburg
Ucolicht.de<br />
Light<br />
panels<br />
❚ indirect cove lighting without shadows<br />
between the lamps<br />
❚ plug in mounting without use of tools<br />
❚ surround cover width up to max. 94 mm<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (14/24 Watt,<br />
21/39 Watt, 28/54 Watt und 35/49/80 Watt)<br />
lamp article no. length (mm) surround cover<br />
width<br />
weight (kg)<br />
1x 14/24 W VLM 124-5 L580 94 1,00<br />
1x 21/39 W VLM 139-5 L880 94 1,20<br />
1x 28/54 W VLM 154-5 L1180 94 1,40<br />
1x 35/49/80 W VLM 180-5 L1480 94 1,70<br />
2x 21/39 W VLM 239-5 L1666 94 2,10<br />
2x 28/54 W VLM 254-5 L2266 94 2,80<br />
1x 21/39 / 1x 28/54 W VLM 139/154-5 L1966 94 2,60<br />
2x 21/39 / 1x 14/21 W VLM 239/124-5 L2152 94 2,10<br />
❚ accessories<br />
plug on reflectors for additional light directing<br />
for luminaire length<br />
L580<br />
L880<br />
L1180<br />
L1480<br />
L1666<br />
L1966<br />
L2152<br />
L2266<br />
reflector symmetrical<br />
Z/VL-RFL 0580-SYM<br />
Z/VL-RFL 0880-SYM<br />
Z/VL-RFL 1180-SYM<br />
Z/VL-RFL 1480-SYM<br />
Z/VL-RFL 1666-SYM<br />
Z/VL-RFL 1966-SYM<br />
Z/VL-RFL 2152-SYM<br />
Z/VL-RFL 2266-SYM<br />
z through wired 3x 1.5 mm2 with Wieland GST system<br />
z through wired 3x 1.5 mm2/2x 0.75 with Wieland GST<br />
system, dimmer version<br />
further technical data:<br />
further information:<br />
page<br />
168<br />
page<br />
167<br />
157
LIGHT<br />
PANELS<br />
❚ indirect cove lighting without shadows<br />
between the lamps<br />
❚ plug in mounting without use of tools<br />
❚ surround cover width up to max. 94 mm<br />
❚ 2-lamps unit<br />
❚ application of multi-watt electronic control gear<br />
in luminaries of the same length (14/24 Watt,<br />
21/39 Watt, 28/54 Watt und 35/49/80 Watt)<br />
lamp article no. length (mm)<br />
surround cover<br />
width<br />
weight (kg)<br />
2x 21/39 W VPM 239-5 L927 94 1,20<br />
2x 28/54 W VPM 254-5 L1272 94 1,40<br />
2x 35/49/80 W VPM 280-5 L1572 94 1,70<br />
2x 2x 21/39 W VPM 239/239-5 L1850 94 2,10<br />
2x 2x 28/54 W VPM 254/254-5 L2450 94 2,80<br />
2x 21/39 / 2x 28/54 W VPM 239/254-5 L2150 94 2,60<br />
z through wired 3x 1.5 mm2 with Wieland GST system<br />
z through wired 3x 1.5 mm2/2x 0.75 with Wieland GST<br />
system, dimmer version<br />
further technical data:<br />
further information:<br />
158<br />
page<br />
184
Ucolicht.de<br />
Brockmann bookstore, Brühl<br />
159
160<br />
Echion, Augsburg
Ucolicht.de<br />
accentuated<br />
LIGHT<br />
Rooms reduced graphically, walls and ceilings<br />
in one colour or playful interiors - every form<br />
of architecture requires not only light but<br />
luminaires as well.<br />
<strong>Luminaires</strong> capable of providing decorative accents,<br />
delicate touches of colour on white ceilings<br />
or cosy effects of light on the wall are in<br />
demand. But here also the main requirements<br />
are perfect lighting effect, efficient technical<br />
processing and a design which facilitates<br />
installation. Delicate Table and floor luminaires,<br />
representative suspended or luxurious<br />
sparkling integrated luminaires.<br />
Decorative luminaires are the complement to<br />
perfect room lighting.<br />
163<br />
165 86<br />
167<br />
NEW<br />
168<br />
169<br />
171 172<br />
NEW<br />
174<br />
175 177<br />
161
accentuated<br />
LIGHT<br />
curve<br />
❚ decorative<br />
❚ high grade real glass reflectors<br />
❚ modern design<br />
❚ filigree construction<br />
162<br />
FCA Fanshop, Augsburg
Ucolicht.de<br />
curve<br />
recessed<br />
❚ one installation diameter for all versions<br />
❚ highly polished aluminum reflector<br />
rigid, lamp protruding<br />
lamp article no. weight (kg)<br />
1x max 35 W LSQT-70-AL 0,30<br />
rigid, partly sunken<br />
lamp article no. weight (kg)<br />
1x max 35 W LSQT-50-AL 0,30<br />
light head rotating and pivoted<br />
lamp article no. weight (kg)<br />
1x max 35 W LSQT-60-AL 0,30<br />
z separate transformer required<br />
z installation springs for ceilings from 10 to 20 mm<br />
z reflectors replaceable<br />
further technical data:<br />
further information:<br />
page<br />
182<br />
163
164<br />
Senior complex, Pfaffenhausen
Ucolicht.de<br />
curve<br />
CYLINDER<br />
❚ simple design<br />
❚ high grade stainless steel, buffed<br />
❚ inconspicuous transparent connector cable<br />
❚ bar lighting<br />
lamp article no. height (mm) weight (kg)<br />
1x max 75 W KCH 200/S-1500 H200 0,90<br />
1x max 75 W KCH 400/S-1500 H400 1,80<br />
stainless<br />
steel<br />
brushed<br />
Zitherbäck, Kempten<br />
z transparent connector cable<br />
z order canopy separately<br />
further technical data:<br />
further information:<br />
page<br />
186<br />
165
166<br />
Echion, Augsburg
Ucolicht.de<br />
GLASS<br />
CYLINDER<br />
❚ high grade materials<br />
❚ extra reflector for light directed at a compact<br />
neon lamp prevents unpleasant heat build-up<br />
at working area<br />
lamp article no. weight (kg)<br />
1x 24 W KKL 124/S-1500 1,70<br />
without accessory reflector<br />
lamp article no. weight (kg)<br />
1x max 60 W KKQH 160/S-1500 1,70<br />
z transparent connector cable<br />
z real glass cylinder, inner surface satin effect<br />
z required electronic components integrated in luminaire<br />
z order canopy separately<br />
further technical data:<br />
further information:<br />
page<br />
186<br />
167
glass<br />
PENDULUM<br />
LUMINAIRES<br />
❚ high-quality glass reflector<br />
with transparent connecting line<br />
❚ type high-voltage halogen or light bulb<br />
lamp article no. dimmensions (mm) weight (kg)<br />
1x max. 40 W GPLG 40/S-1500 H159 D110 2,60<br />
lamp article no. dimmensions (mm) weight (kg)<br />
1x max. 60 W GPLW 60/S-1500 H360 D110 2,60<br />
Leuchtmittel article no. dimmensions (mm) weight (kg)<br />
1x max. 75 W GPLW 75/S-1500 H195 D250 2,30<br />
z transparent connecting line<br />
further technical data:<br />
further information:<br />
168<br />
page<br />
182<br />
page<br />
186
Ucolicht.de<br />
GLASS<br />
CONE<br />
❚ translucent glass reflector in conic design<br />
❚ glass reflector provides indirect light<br />
lamp article no. weight (kg)<br />
1x max 35 W KGH 50.WS/S-1500 0,30<br />
ceiling canopy with integrated transformer, page 186<br />
z transparent connector cable<br />
z separate transformer required<br />
further technical data:<br />
further information:<br />
page<br />
182<br />
page<br />
186<br />
Quick Shoe, Überlingen<br />
169
170
Ucolicht.de<br />
lumina<br />
STANDARD<br />
LUMINAIRE<br />
❚ stable, non tilting base plate<br />
❚ minimized diameter of 22 mm<br />
❚ wide illumination of reading area<br />
without unpleasant heat build-up<br />
❚ highly polished reflector<br />
with transparent protective cover<br />
lamp article no. weight (kg)<br />
1x 13 W PSM 113-5 5,80<br />
z connector cable with rocker switch and three pin plug<br />
z luminaire pipe rotating 210°<br />
z highly polished reflector, transparent cover<br />
further information:<br />
171
lumina<br />
TABLE LUMINAIRE<br />
❚ minimized diameter of 22 mm<br />
❚ wide and uniform lighting of the work area<br />
without unpleasant heat build-up<br />
❚ stable, non tilting base plate or integrated in furniture<br />
❚ highly polished reflector with transparent<br />
protective cover<br />
with base plate<br />
lamp article no. weight (kg)<br />
1x 11 W PFM 111-5 3,60<br />
z luminaire tube rotating 210°<br />
z luminaire pipe rotates through flexible tube<br />
z non tilting base plate<br />
z connector cable with rocker switch and three pin plug<br />
for integration in furniture<br />
lamp article no. weight (kg)<br />
1x 11 W PGM 111-5 3,60<br />
z luminaire pipe rotating 210°<br />
z luminaire pipe rotates through flexible tube<br />
z electronic control gears integrated in furniture<br />
z rocker or toggle switch<br />
further information:<br />
172
Ucolicht.de<br />
173
wall<br />
luminaire<br />
❚ illumination for dressing rooms<br />
❚ illumination of staircases<br />
❚ diffuse and evenly spread light<br />
lamp article no. weight (mm)<br />
1x 28/54 W WEM 154-5 8,20<br />
Sport 2000, Höfer<br />
z canted steel sheets, front float glass cover<br />
z form-fit wall connection<br />
further information:<br />
174
Ucolicht.de<br />
WALL<br />
LUMINAIRE<br />
❚ dressing room lighting<br />
❚ diffused and spaced light<br />
lamp article no. weight (mm)<br />
2x 13 W RQTC 213-1 1,60<br />
Intersport BEGRO, Giessen<br />
z sheet steel combined with acryl<br />
z acryl cylinder with perforated sheet metal shade<br />
further information:<br />
175
accentuated<br />
LIGHT<br />
freeline<br />
❚ decoration can be changed to<br />
suit special wishes<br />
❚ extremely flat design<br />
❚ individual or light band arrangement<br />
176<br />
Segmüller, Friedberg
Ucolicht.de<br />
freeline<br />
WALL<br />
LUMINAIRE<br />
❚ extremely flat luminaires<br />
❚ decoration variable according to customer wish<br />
❚ stair wells, corridors<br />
Dekor 52<br />
Freeline „S“<br />
lamp article no. length (mm) weight (kg)<br />
1x 36 W SAK 136-5 01 L480 B185 H100 1,80<br />
Dekor 01<br />
Freeline „L“<br />
lamp article no. length (mm) weight (kg)<br />
2x 14 W SCFH 214-5 00 L675 B300 H85 3,40<br />
3x 14 W SCFH 314-5 00 L675 B300 H85 3,60<br />
2x 24 W SCFQ 224-5 00 L675 B300 H85 3,40<br />
3x 24 W SCFQ 324-5 00 L675 B300 H85 3,60<br />
Dekor 00<br />
Freeline „XL“<br />
lamp article no. length (mm) weight (kg)<br />
2x 28 W SDFH 228-5 00 L1400 B300 H85 3,40<br />
3x 28 W SDFH 328-5 00 L1400 B300 H85 3,60<br />
2x 54 W SDFQ 254-5 00 L1400 B300 H85 3,40<br />
3x 54 W SDFQ 354-5 00 L1400 B300 H85 3,60<br />
Dekor 00<br />
further technical data:<br />
further information:<br />
177
178<br />
Baufritz, Erkheim
Ucolicht.de<br />
ACCESSORIES<br />
Here you can find all the necessary complementary<br />
elements for the luminaires in the<br />
main part of the catalogue.<br />
Lighting tracks with and without controls,<br />
adapters, ceiling suspenders, filter discs, electronic<br />
control gears, plug in connector cables<br />
or mounting plates for acoustic ceilings - well<br />
planned and in excellent quality.<br />
Through the multitude of possible combinations<br />
of luminaires and special components in<br />
the course of a year also many accessories are<br />
created. Please let us know if there is<br />
something you are looking for or you need<br />
further technical details on.<br />
Many products which seem to be special are at<br />
least in a very similar form already included in<br />
the program.<br />
180<br />
Make use of our technicians’ experience.<br />
181<br />
182<br />
183<br />
184<br />
185<br />
186 187<br />
188<br />
189<br />
190<br />
191 192 193<br />
179
POWER<br />
TRACKS<br />
❚ 3 phase lighting tracks<br />
made from extruded aluminum<br />
white, plastic parts white<br />
length (mm) article no. weight (kg)<br />
1000 S230-1.WS 1,10<br />
2000 S230-2.WS 2,20<br />
3000 S230-3.WS 3,30<br />
4000 S230-4.WS 4,40<br />
alu natural, plastic parts black<br />
length (mm) article no. weight (kg)<br />
1000 S230-1.CM 1,10<br />
2000 S230-2.CM 2,20<br />
3000 S230-3.CM 3,30<br />
4000 S230-4.CM 4,40<br />
❚ supply module/connector<br />
supply earth conductor left<br />
supply earth conductor right<br />
central supply conductor<br />
end piece<br />
article no.<br />
article no.<br />
article no.<br />
article no.<br />
S230-EL (+colour)<br />
S230-ER (+colour)<br />
S230-EM (+colour)<br />
S230-E (+colour)<br />
electr. length connector<br />
corner connector inner earth<br />
conductor<br />
corner connector outer earth<br />
conductor<br />
flexible connector<br />
article no.<br />
article no.<br />
article no.<br />
article no.<br />
S230-V (+colour)<br />
S230-LI (+colour)<br />
S230-LA (+colour)<br />
S230-FX (+colour)<br />
T connector earth conductor left<br />
T connector earth conductor right<br />
cross connector<br />
further information:<br />
article no.<br />
article no.<br />
article no.<br />
S230-TL (+colour)<br />
S230-TR (+colour)<br />
S230-X (+colour)<br />
180
Ucolicht.de<br />
ELECTRONIC<br />
CONTROL<br />
GEARS<br />
❚ for rapid installation various plug systems<br />
for luminaire or 230 V supply side are offered<br />
❚ plug on luminaire side colour coded according<br />
to the luminaire<br />
❚ grey: CDM-T/CDM-TC, green: SDW-TG<br />
type 10 type 20 type 30 type 50<br />
primary: terminal inside<br />
secondary: terminal inside<br />
primary: Wieland GST 18. 0.3 m long<br />
secondary: Wieland GST 18 coded<br />
primary: safety plug 3 m long<br />
secondary: Wieland GST 18 coded<br />
primary: terminal inside<br />
secondary: Wieland GST 18 coded<br />
for lamp group CDM-T/CDM-TC/CDM-DE<br />
lamp article no. dimensions* weight (kg)<br />
1x 35 W EVG-HQI 135 (+Typ) L155 B83 H32 0,30<br />
1x 70 W EVG-HQI 170 (+Typ) L155 B83 H32 0,30<br />
1x 150 W EVG-HQI 1150 (+Typ) L190 B88 H89 0,50<br />
2x 35 W EVG-HQI 235 (+Typ) L195 B80 H32 0,60<br />
2x 70 W EVG-HQI 270 (+Typ) L195 B80 H32 0,60<br />
*dimensions can vary according to manufacturer<br />
slim design (type 20 only)<br />
lamp article no. dimensions* weight (kg)<br />
35 W EVG-HQI135 11 L180 B45 H32 0,30<br />
70 W EVG-HQI 170 11 L180 B45 H32 0,30<br />
*dimensions can vary according to manufacturer<br />
lamp article no. dimensions* weight (kg)<br />
50 W EVG SD 50 (+Typ) L134 B90 H32 0,30<br />
100 W EVG SD 100 (+Typ) L134 B90 H32 0,30<br />
*dimensions can vary according to manufacturer<br />
z strain relief for 230 Volt luminaire<br />
z for connection diagram see type<br />
z plastic case (metal)<br />
181
TRANS-<br />
FORMERS<br />
type 10 type 20 type 30<br />
output article no. dimensions (mm) weight (mm)<br />
20-105 VA TR-E 105 (+type) L117 B43 H34 0,20<br />
50-150 VA TR-E 150 (+type) L220 B47 H44 0,30<br />
output article no. dimensions (mm) weight (mm)<br />
20-75 VA TR-E 75 02 (+type) L104 B33 H22 0,30<br />
20-105 VA TR-E 105 02 (+type) L108 B52 H33 0,30<br />
z strain relief for 230 Volt/12 Volt<br />
z plastic case<br />
182
Ucolicht.de<br />
FEED-THROUGH<br />
WIRING<br />
❚ a multiplicity of luminaires can be additionally<br />
equipped on site with feed-through wiring<br />
❚ diameter for power supply: 1.5 mm²<br />
❚ diameter of control lines:<br />
0.75 mm²<br />
luminaire length<br />
up to<br />
3pole<br />
not dimmable<br />
5pole<br />
not dimmable<br />
3pole+2pole<br />
not dimmable<br />
5pole + 2pole<br />
not dimmable<br />
900 mm MP DV 0900 3-0 MP DV 0900 5-0 MP DV 0900 3-2 MP DV 0900 5-2<br />
1200 mm MP DV 1200 3-0 MP DV 1200 5-0 MP DV 1200 3-2 MP DV 1200 5-2<br />
1500 mm MP DV 1500 5-0 MP DV 1500 5-0 MP DV 1500 3-2 MP DV 1500 5-2<br />
HP/UP HRM MK LK C3 E/C4 E<br />
WOF VS LBL LGG<br />
further information:<br />
183
CONNECTOR<br />
CABLES<br />
❚ 230 V<br />
loose connection<br />
socket/plug<br />
connector cables<br />
socket/plug Wieland GST 18<br />
unit connection cables<br />
socket/three pin plug<br />
distribution component<br />
1 Eingang/3 Ausgänge<br />
description<br />
article no.<br />
article no.<br />
length (mm)<br />
article no.<br />
Länge (mm)<br />
article no.<br />
Buchse<br />
BU 3POL-GST<br />
VB-V GST 500.SW 500<br />
VB-A(GST) 2000 01.SW 2000<br />
VB-Z(GST) 3/1 SW<br />
Stecker ST 3POL-GST<br />
ready to plug connector<br />
VB-V GST 1000.SW 1000<br />
VB-V GST 1500.SW 1500<br />
socket/free end<br />
distribution kit<br />
1 Eingang/2 Ausgänge<br />
article no.<br />
VB-V GST 2000.SW 2000<br />
article no.<br />
Länge (mm)<br />
article no.<br />
ST 3P0L GST 300<br />
VB-V GST 2500.SW 2500<br />
VB-A(GST) 3000 00.SW 3000<br />
VB-T(GST) 2/1<br />
z for cable connections between luminaires custom made cables of the Wieland<br />
GST system are used. The maximum number of luminaires that can be run in<br />
one circuit depends on their output and the type of light source<br />
z ready to plug wiring 230 V (3 pole)<br />
z system Wieland GST 18<br />
z colour black<br />
❚ 12 V<br />
loose plug connector<br />
article no.<br />
ST 2 POL<br />
connector cables socket/plug<br />
article no. length (mm)<br />
VN-V 500.WS 500<br />
VN-V 1000.WS 1000<br />
VN-V 1500.WS 1500<br />
VN-V 2000.WS 2000<br />
distributor unit, 1 input 5 outputs<br />
article no.<br />
VN-Z 5/1<br />
z ready to plug wiring 12 V (2 pole)<br />
z system Wieland ST 16<br />
z colour white<br />
z connector cable cut to length and factory assembled<br />
z connector end can be shortened on site<br />
z cable type: 3 x 0.75 mm2 (3 x 1.5 mm 2 ) according to requirement<br />
z colour: transparent<br />
184
Ucolicht.de<br />
REINFORCER<br />
BRACKET SET/<br />
PLATES<br />
❚ material galvanized sheet steel<br />
❚ to bear the module weight in non load<br />
bearing module ceilings system 625<br />
❚ to accommodate electronic control gear<br />
❚ rectangular luminaries<br />
description article no.<br />
1 lamp Z/MW-5<br />
2 lamps Z/MW-5<br />
for type<br />
QVTS<br />
QVSD<br />
QVTC<br />
article no.<br />
Z/MW-5<br />
Z/MW-5<br />
Z/MW-5<br />
description<br />
article no.<br />
description<br />
article no.<br />
article no.<br />
for type<br />
article no.<br />
1 lamp Z/MW-5<br />
1 lamp Z/MW-5<br />
Z/MW-5<br />
QTD 226<br />
Z/MW-5<br />
2 lamps Z/MW-5<br />
2 lamps Z/MW-5<br />
QT 218<br />
Z/MW-5<br />
3 lamps Z/MW-5<br />
❚ round luminaries<br />
for outer diameter<br />
outer diameter installation diameter article no.<br />
140 125 Z/MP 140-5<br />
185 165 Z/MP 185-5<br />
220 200 Z/MP 220-5<br />
255 235 Z/MP 255-5<br />
315 285 Z/MP 315-5<br />
185
SUSPENDER SETS<br />
Each suspender module consists of the ceiling fixture shown, the wire in the length indicated<br />
and the rapid adjuster device to set wire length.<br />
type 00 type 10<br />
type 20<br />
type 40<br />
with ceiling canopy<br />
with loop<br />
with plastic canopy<br />
with decorative canopy<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
Z/SA 1500 00 1500<br />
Z/SA 1500 10 1500<br />
Z/SA 1500 20 1500<br />
Z/SAY 1500 00 1500<br />
Z/SA 3000 00 3000<br />
Z/SA 3000 10 3000<br />
Z/SA 3000 20 3000<br />
Z/SAY 3000 00 3000<br />
for suspended ceilings,<br />
suitable for metal sheet ceiling<br />
and plasterboard/wood up to max.<br />
15 mm<br />
suspender unit for luminaries up to<br />
3 kg using the connection cable as<br />
a suspender<br />
cable 3 x 0,75/3 x 1,5 (transparent)<br />
for suspended ceilings,<br />
suitable for metal sheet ceiling<br />
and plasterboard/wood up to max.<br />
15 mm<br />
only with middle hole for steel<br />
cable suspensions<br />
cable length 1500 mm<br />
for suspended ceilings,<br />
suitable for metal sheet ceiling<br />
and plasterboard/wood up to max.<br />
15 mm<br />
middle hole for steel cable and<br />
cable 3 x 1,5/5 x 0,75 (transparent)<br />
cable length 1500 mm<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
article no.<br />
length (mm)<br />
Z/ABH 00 D80 DE 68<br />
Z/ABH 01 D80 DE 68<br />
Z/ABH 02 D80 DE 68<br />
for concrete ceilings,<br />
suspender unit for up to 3 kg<br />
using the connection cable as a<br />
suspender<br />
decorative suspender unit for<br />
luminaries over 3 kg with extra<br />
steel cable<br />
decorative suspender<br />
unit for transformer 60VA for<br />
luminaries up to 3 kg using the<br />
connection cable as a suspender<br />
article no.<br />
dimensions (mm)<br />
article no.<br />
dimensions (mm)<br />
article no.<br />
dimensions (mm)<br />
Z/ACH 00<br />
D60 DE H60<br />
Z/ACH 01<br />
D60 DE H60<br />
Z/ACH 10<br />
D60 H120<br />
186
Ucolicht.de<br />
SUSPENDER SETS<br />
for lighting tracks<br />
wire suspender<br />
above: ceiling canopy<br />
below: rapid adjustment device<br />
with steel claw requiring no tools<br />
article no.<br />
length (mm)<br />
S230-SA 1500 00 1500<br />
S230-SA 3000 00 3000<br />
pipe suspender<br />
above: ceiling canopy, pipe for<br />
shortening on site, below: fixing<br />
claw for lighting track<br />
article no.<br />
length (mm)<br />
S230-P600 (+colour) 600<br />
S230-P1200 (+colour) 1200<br />
universal hook for fixing steel<br />
wires in lighting tracks,<br />
colour white (ws), black (sw)<br />
article no.<br />
S230-UH/01 (+colour)<br />
187
LIGHTING CONTROL RGB TECHNOLOGY<br />
Two different controllers are available to control RGB units based on neon lamp technology. Using the professional version<br />
colour sequences/time tracks can be programmed freely and stored in the control unit (DMX STG). The basic version permits<br />
only fixing or adjusting the speed of change from one colour to another. Access to the program is not possible (DMX-SEQ).<br />
Freely programmable control unit, programmed through PC via the series interface/USB. The control unit<br />
is mounted in the wiring cabinet. Up to 4 scenes with as many differing transition times as required can<br />
be stored without computer. The individual scenes can be called off by means of button, timer or any<br />
other activator device.<br />
No. of channels article no. segments upper track dimensions (mm)<br />
48 DMX-STG 048 7 L105 B90 H60<br />
144 DMX-STG 144 7 L105 B90 H60<br />
smoother module, required for controlling ECG’s with a 1-10 Volt interface<br />
article no. segments upper track dimensions (mm)<br />
DMX-SIG 60 3 L35 B90 H60<br />
for installation in the distributor box<br />
➝<br />
DMX ... article no. segments dimensions (mm)<br />
1-10 Volt DMX-KON 61(+smoother module) 7 L105 B90 H60<br />
DALI DMX-KON 81 7 L105 B90 H60<br />
Signal transformer to convert the DMX signal for the dimmable ECG units,<br />
for installation in the luminaire<br />
➝<br />
DMX ... article no. dimensions (mm)<br />
1-10 Volt DMX-KON 60 (+smoother module) L159 B63 H30<br />
DALI DMX-KON 80 L159 B63 H30<br />
According to a fixed preprogrammed sequence one after another the colours blue, turquoise, green,<br />
yellow, red, magenta, warm white and daylight are shown. The transition from one colour to another is<br />
gradual and smooth. A connected potentiometer (DMX-P100) changes the speed of colour change.<br />
At the O setting the colour remains static. The number of ECG’s that can be controlled is limited.<br />
interface article no. number of RGB modules dimensions (mm)<br />
1-10 Volt DMX-SEQ 60 (+smoother module) 10 L167 B42 H31<br />
DALI DMX-SEQ 80 4 L167 B42 H31<br />
external potentiometer, connector cable 0.5 m 2 x 0.75 ws<br />
description<br />
article no.<br />
100 k(ohm), linear DMX-P100L<br />
control tableau to call off 4 programmed<br />
scenes, for wall or in wall<br />
mounting<br />
article no.<br />
188<br />
DMX-TAB 01
Ucolicht.de<br />
LIGHTING CONTROL LED TECHNOLOGY<br />
Two different controllers are available to the actuation of LED’s. Using the professional version colour sequences/time tracks<br />
can be programmed freely and stored in the control unit (DMX-STG). The basic version permits only fixing or adjusting the<br />
speed of change from one colour to another. Access to the program is not possible (DMX-LED-SEQ).<br />
Freely programmable control unit, programmed through PC via the series interface/USB. The control unit<br />
is mounted in the wiring cabinet. Up to 4 scenes with as many differing transition times as required can<br />
be stored without computer. The individual scenes can be called off by means of button, timer or any<br />
other activator device.<br />
No. of channels article no. segments upper track dimensions (mm)<br />
48 DMX-STG 048 7 L105 B90 H60<br />
144 DMX-STG 144 7 L105 B90 H60<br />
Signal transformer to convert the DMX signal for the dimming of the individual LED channels;<br />
one RGB LED consists of three channels<br />
Schnittstelle article no. max. load per channel Maße (mm)<br />
DMX DMX-LED-STG 2 Ampère L167 B42 H31<br />
According to a fixed preprogrammed sequence one after another the colours blue, turquoise, green,<br />
yellow, red, magenta, warm white and daylight are shown. The transition from one colour to another is<br />
gradual and smooth. A connected potentiometer (DMX-P100) changes the speed of colour change. At the<br />
O setting the colour remains static. The number of ECG’s that can be controlled is limited.<br />
article no. max. load per channel dimensions (mm)<br />
DMX-SEQ -LED 2 Ampère L167 B42 H31<br />
external potentiometer, connector cable 0.5 m 2 x 0.75 ws<br />
description<br />
article no.<br />
100 k(ohm), linear DMX-P100L<br />
LED transformer<br />
output/voltage article no. dimensions<br />
10 W/10 V LED-TRE 10/10 L150 B22 H22<br />
50 W/10 V LED-TRE 50/10 L220 B47 H44<br />
20W/24 V LED-TRE 20/24 L109 B50 H35<br />
75 W/24 V LED-TRE 75/24 L220 B47 H44<br />
189
evg - dimmable<br />
light control<br />
❚ to connect the luminaires with the conducting technology<br />
of the building one need dimmable control gears.<br />
At present 2 systemes are established on the market,<br />
which optionally can be inserted in our luminaires.<br />
interface 1-10V<br />
+<br />
luminaire 1/mg<br />
DIM60-FH1<br />
luminaire 2lamps incl.<br />
DIM60-FH2<br />
+<br />
DIM60-TC1<br />
DIM60-TC2<br />
interface DALI<br />
+<br />
luminaire 1/mg<br />
DIM80-FH1<br />
luminaire 2lamps incl.<br />
DIM80-FH2<br />
+<br />
DIM80-TC1<br />
DIM80-TC2<br />
OMM<br />
ORFQ/OFM HP/UP HRM<br />
LGG LBL MK-LK QTD<br />
LMK<br />
WOF<br />
VS<br />
PAK<br />
190
Ucolicht.de<br />
REFLECTORS<br />
SELECTION<br />
Whether emphasis on the product, the favourable price or<br />
sheer appeal to emotions – the objective of a lighting plan is<br />
to select the suitable components for the task on hand. The<br />
ideal combination of the number of luminaries used, the radiating<br />
angle of the reflectors and the selection of the right lamps<br />
sets the products in the proper scene and stimulates buying.<br />
We shed light on the products, but our aim is the customer.<br />
Wattage 2xCDM-TC 70/W Shoplight<br />
2 x medium flood (2x 17°)<br />
2 x action flood (2 x 12°)<br />
series<br />
reflector<br />
series<br />
reflector<br />
Picco<br />
Z/QZ-MFL<br />
Picco<br />
Z/QZ-AFL<br />
Quadro<br />
Z/QC-MFL<br />
2 x flood (2 x 35°)<br />
2 x spot (2 x 7°)<br />
series<br />
reflector<br />
series<br />
reflector<br />
Picco<br />
Z/QZ-FL<br />
Picco<br />
Z/QZ-SP<br />
Quadro<br />
Z/QC-FL<br />
Quadro<br />
Z/QC-SP<br />
191
LIGHTING EFFECTS<br />
WITH FILTERS<br />
❚ highlighting the detail “poster”<br />
without lighting<br />
z product takes up foreground<br />
z lack of emotion<br />
spot reflector or /CDM-TC 70 W<br />
z poster lighting too powerful<br />
z reflection dazzles<br />
horizontal filter/CDM TC 70 W<br />
z well balanced lighting<br />
series Serie<br />
Artikel-Nr. article no.<br />
series Serie<br />
Artikel-Nr. article no.<br />
Picco<br />
Z/QZ-SP<br />
Picco<br />
Z/QZ-RG<br />
Quadro<br />
Z/QC-SP<br />
Quadro<br />
Z/QC-RG<br />
❚ Insert of texturelens Z/QZ-RG or Z/QC-RG<br />
flood reflector<br />
without texturelens 63°<br />
flood reflector<br />
with texturelens 85°, 53°<br />
spot reflector<br />
without texturelens 12°<br />
spot reflector<br />
with texturelens 53°, 12°<br />
series<br />
article no.<br />
series<br />
article no.<br />
series<br />
article no.<br />
series<br />
article no.<br />
Picco<br />
Z/QZ-FL<br />
Picco<br />
Z/QZ-FL+(RG)<br />
Picco<br />
Z/QZ-SP<br />
Picco<br />
Z/QZ-SP+(RG)<br />
Quadro<br />
Z/QC-FL<br />
Quadro<br />
Z/QC-FL+(RG)<br />
Quadro<br />
Z/QC-SP<br />
Quadro<br />
Z/QC-SP+(RG)<br />
By turning the lens the direction of the distortion, can be modified in any order.<br />
❚ colour effect filter<br />
series<br />
article no.<br />
series<br />
article no.<br />
series<br />
article no.<br />
Picco<br />
Z/QZ-RO<br />
Picco<br />
Z/QZ-GR<br />
Picco<br />
Z/QZ-BL<br />
Quadro<br />
Z/QC-RO<br />
Quadro<br />
Z/QC-GR<br />
Quadro<br />
Z/QC-BL<br />
192
Ucolicht.de<br />
❚ without filter<br />
❚ furniture<br />
❚ with selected filter<br />
series reflector filter<br />
Picco silver satin finish Z/QZ-K2500<br />
Quadro silver satin finish Z/QC-K2500<br />
❚ fruit and vegetables<br />
series reflector filter<br />
Picco gold satin finish without<br />
Quadro gold satin finish without<br />
❚ meat and sausage<br />
series reflector filter<br />
Picco gold satin finish Z/QZ-FW<br />
Quadro gold satin finish Z/QC-FW<br />
*<br />
❚ cheese<br />
series reflector filter<br />
Picco silver satin finish without<br />
Quadro silver satin finish without<br />
❚ bakery ware<br />
series reflector filter<br />
Picco silver satin finish Z/QZ-K2500<br />
Quadro silver satin finish Z/QC-K2500<br />
❚ fish<br />
series reflector filter<br />
Picco silver satin finish Z/QC-UVI<br />
Quadro silver satin finish Z/QC-UVI<br />
193
AUTOMATIC<br />
FUSES<br />
Loading of automatic fuses. Supply current differing from the nominal current value of the luminaire make correct dimensioning<br />
of the fuses protecting the circuit necessary. In the following a guideline to the maximum number of light sources that can be<br />
switched via a one pole automatic fuse. If multiple pole fuses are used, this figure is reduced by 20%. The data can differ according<br />
to manufacturer. The basis for the data is always the technical data sheet of the electronic control gears used in the luminaries.<br />
neon lamps/compact neon lamps<br />
lamp type<br />
Fq<br />
switch off characteristic<br />
protection value (Ampere)<br />
ECG 1 or 2 lamps<br />
B<br />
10<br />
1 lamps<br />
B<br />
10<br />
2 lamps<br />
B<br />
16<br />
1 lamps<br />
number of lamps<br />
FH 14 W 37 12 61 19<br />
FH 21 W 25 12 41 19<br />
FH 28 W 17 12 41 19<br />
FH 35 W 17 8 28 13<br />
FQ 24 W 25 12 41 19<br />
FQ 39 W 25 8 41 13<br />
FQ 54 W 17 8 28 13<br />
FQ 49 W 17 8 28 13<br />
FQ 80 W 8 o.A. 13 o.A.<br />
FC 22 W 15 25 25 25<br />
FC 40 W 12 19 19 19<br />
FC 55 W 8 13 13 13<br />
TC-L 18 W 26 13 32 16<br />
TC-L 24 W 26 10 32 16<br />
TC-L 36 W 26 8 32 12<br />
TC-L 40 W 18 8 26 12<br />
TC-L 55 W 18 8 26 12<br />
TC-L 80 W o.A. o.A. o.A. o.A.<br />
TC-DE/TE 13 15 13 25 21<br />
TC-DE/TE 18 15 13 25 21<br />
TC-DE/TE 26 12 8 25 19<br />
TC-TE 32 12 8 25 13<br />
TC-TE 42 12 8 19 13<br />
TC-TE 57 12 o.A. 19 o.A.<br />
B<br />
16<br />
2 lamps<br />
discharge lamps<br />
lamps type<br />
switch off characteristic<br />
protection value (Ampere)<br />
CG type<br />
B<br />
10<br />
ECG<br />
B<br />
10<br />
CCG<br />
B<br />
16<br />
ECG<br />
B<br />
16<br />
CCG<br />
C<br />
10<br />
ECG<br />
number of luminaires<br />
CDM-T / TC 35 W 8 11 14 18 16 22 28 36<br />
C<br />
10<br />
CCG<br />
C<br />
16<br />
ECG<br />
C<br />
16<br />
CCG<br />
CDM-DE / T / TC 70 W 6 6 13 12 10 12 26 23<br />
CDM -DE / T 150 W 4 4 7 7 7 7 20 14<br />
HQI-E 250 W 3 5 5 10<br />
HQI-E 400 W 2 3 3 6<br />
SDW-T 50 W 8 15 18 31<br />
SDW-T 100 W 5 10 10 20<br />
SDW-TG 100 W 5 10 8 22<br />
194
Ucolicht.de<br />
PRECAUTIONARY<br />
MEASURE<br />
All lamps fitted with electronic control gears connected within a three phase star circuit with a common neutral lead will be<br />
permanently damaged or destroyed when the neutral lead connection is interrupted.<br />
The technical background:<br />
The disconnection of the common neutral lead can lead to a disparity in loading of the phases L1, L2, L3 so that a potential<br />
difference of up to 400 Volts is applied to the electronic control gear.<br />
Voltage distribution of a 3 phase net with properly connected<br />
neutral lead<br />
results of an interruption:<br />
star point displacement with up to 400 V potential difference<br />
applied to ECG<br />
Notes on installation:<br />
For luminaire in 3 phase star circuit connect power supply only to luminaire terminals.<br />
Check that the neutral lead is properly connected to all luminaire.<br />
Work on network according to VDE only with power off.<br />
protection in 3 phase net (star circuit) through common 3 phase automatic fuse.<br />
Check the supply voltage of the individual phases.<br />
<strong>Luminaires</strong> in a 3 phase net with a common neutral lead can be subjected to excessively<br />
high voltage if the neutral lead is interrupted.<br />
195
LAMPS<br />
The following list is a complete summary of the lamps used in our range of<br />
products. The technical data can vary somewhat according to the manufacturer<br />
(lighting current, radiation angle)<br />
description symbol order code light colour beaming- power output- luminosity max: light- dimmensions holder type<br />
RUCO LICHT angle (degree) (Watt) voltage (V) (lm) strength (candela) (mm) conv. electr.<br />
ceramic lamp HCI-TC 35/WDL warmwhite 39 230 3300 D15 L81 G8,5<br />
HCI-TC 70/WDL warmwhite 72 230 6600 D15 L81 G8,5<br />
HCI-TC 70/NDL neutralwhite 72 230 6000 D15 L81 G8,5<br />
Osram Shoplight CDS-TC 70/WDL RA 93 72 230 5700 D125 L81 G8,5<br />
Philips Elite CDE-TC 70/WDL RA 93 72 230 7100 D125 L81 G8,5<br />
CDE-TC 35/WDL RA 93 39 230 3800 D125 L81 G8,5<br />
CDM-T 35/WDL warmwhite 39 230 3300 D20 L100 G12<br />
CDM-T 70/WDL warmwhite 72 230 6600 D20 L100 G12<br />
CDM-T 70/NDL neutralwhite 72 230 5800 D20 L100 G12<br />
CDM-T 150/WDL warmwhite 147 230 14000 D20 L105 G12<br />
CDM-T 150/NDL neutralwhite 147 230 12700 D20 L105 G12<br />
Philips Elite CDE-T 70/WDL RA 93 72 230 7100 D20 L100 G12<br />
CDM-DE 70/WDL warmwhite 72 230 6500 D21 L114,2 R7s<br />
CDM-DE 70/NDL neutralwhite 72 230 5700 D21 L114,2 R7s<br />
CDM-DE 150/WDL warmwhite 147 230 13500 D24 L132 R7s<br />
CDM-DE 150/NDL neutralwhite 147 230 13400 D24 L132 R7s<br />
CDM-R 35/09 warmwhite 9° 38 230 37000 D97 L125 E27<br />
CDM-R 35/40 warmwhite 40° 38 230 7000 D97 L125 E27<br />
CDM-R 70/09 warmwhite 9° 73 230 55000 D97 L125 E27<br />
CDM-R 70/40 warmwhite 40° 73 230 10000 D97 L125 E27<br />
metal vapour halogen HQI-E 250/D Daylight 250 230 19000 D90 L226 E40<br />
HQI-E 400/D Daylight 460 230 30000 D120 L290 E40<br />
HQI-E 400/N neutralwhite 460 230 43000 (1) D120 L290 E40<br />
CDM-E 250 warmwhite 250 230 24500 D90 L226 E40<br />
SDW-TG 50 2550 K 54 230 2400 D20 L90 GX12-1<br />
SDW-TG 100 2550 K 99 230 4900 D20 L97 GX12-1<br />
low voltage QT 9 5 5 12 60 D9,5 L33 G4<br />
halogen lamp QT 9 10 10 12 130 D9,5 L33 G4<br />
freely radiating QT 9 20 20 12 320 D9,5 L33 G4<br />
QT 12 20 20 12 320 D12 L44 GY6,35<br />
QT 12 35 35 12 600 D12 L44 GY6,35<br />
QT 12 50 50 12 910 D12 L44 GY6,35<br />
QT 12 75 75 12 1450 D12 L44 GY6,35<br />
QT 12 90 90 12 1800 D12 L44 GY6,35<br />
low voltage- QR-IRC 20/10 10° 20 12 6000 D51 L45 GU 5,3<br />
halogen lamp QR-IRC 20/24 24° 20 12 2300 D51 L45 GU 5,3<br />
cold light reflector QR-IRC 20/38 38° 20 12 1000 D51 L45 GU 5,3<br />
infra-red coated QR-IRC 20/60 60° 20 12 450 D51 L45 GU 5,3<br />
QR-IRC 35/10 10° 35 12 12500 D51 L45 GU 5,3<br />
QR-IRC 35/24 24° 35 12 4400 D51 L45 GU 5,3<br />
QR-IRC 35/38 38° 35 12 2200 D51 L45 GU 5,3<br />
QR-IRC 35/60 60° 35 12 1100 D51 L45 GU 5,3<br />
QR-IRC 50/10 10° 50 12 15000 D51 L45 GU 5,3<br />
QR-IRC 50/24 24° 50 12 5700 D51 L45 GU 5,3<br />
QR-IRC 50/38 38° 50 12 2850 D51 L45 GU 5,3<br />
QR-IRC 50/60 60° 50 12 1430 D51 L45 GU 5,3<br />
low voltage- QR-IRC 35/08 8 35 12 20000 D111 L58 G53<br />
halogen lamp with QR-IRC 35/24 24 35 12 4000 D111 L58 G53<br />
aluminum reflector QR-IRC 50/08 8 50 12 30000 D111 L58 G53<br />
infra-red coated QR-IRC 50/24 24 50 12 5300 D111 L58 G53<br />
standard QR 111 available at 35 Watt ( 4/24 degree) 50 Watt (4,8,24 degree) 75 Watt (8,24,45 degree) 100 Watt (8,24,45 degree)<br />
high voltage lamp- QH9 25 (+ surface) 25 230 260 D14 L51 G9<br />
freely beaming QH9 40 (+ surface) 40 230 490 D14 L51 G9<br />
bulb clear: K QH9 60 (+ surface) 60 230 820 D14 L54 G9<br />
bulb mat: M QH9 75 (+ surface) 75 230 1100 D14 L54 G9<br />
QT 15 60 60 230 820 D18 L 86 B15d<br />
QT 15 75 75 230 1100 D18 L 86 B15d<br />
QT 15 100 100 230 1500 D18 L 86 B15d<br />
QT 15 150 150 230 2500 D18 L 98 B15d<br />
QT 15 250 250 230 4350 D18 L 98 B15d<br />
QT 32 60 60 230 820 D32 L105 E27<br />
QT 32 75 75 230 1100 D32 L105 E27<br />
QT 32 100 100 230 1500 D32 L105 E27<br />
QT 32 150 150 230 2500 D32 L105 E27<br />
QT 32 250 250 230 4350 D32 L105 E27<br />
196
Ucolicht.de<br />
description symbol order code light colour beaming- power output- luminosity max light- dimmensions holder type<br />
RUCO LICHT angle (degree) (Watt) voltage (V) (lm) strength (candela) (mm) conv. electr.<br />
high voltage PAR 63 50/52 XXXXX 25 50 230 1500 2800 D64 H64 GU10<br />
halogen lamp PAR 63 75/52 XXXXX 25 75 230 1000 2800 D64 H64 GU10<br />
compact neon TC-D 10/.../4pin 827/830/840 10 230 600 L95 G24-q1<br />
lamp TC-D 13/.../4pin 827/830/840 13 230 900 L130 G24-q1<br />
TC-D 18/.../4pin 827/830/840 18 230 1200 L140 G24-q2<br />
TC-D 26/.../4pin 827/830/840 26 230 1800 L160 G24-q3<br />
TC-T 13/.../2pin 827/830/840 13 230 900 L90 G24-d1<br />
TC-T 18/.../2pin 827/830/840 18 230 1200 L110 G24-d2<br />
TC-T 26/.../2pin 827/830/840 26 230 1800 L130 G24-d3<br />
TC-T 13/../4pin 827/830/840 13 230 900 L90 G24-q1<br />
TC-T 18/../4pin 827/830/840 18 230 1200 L110 G24-q2<br />
TC-T 26/../4pin 827/830/840 26 230 1800 L130 G24-q3<br />
TC-T 32/../4pin 827/830/840 32 230 2400 L145 G24-q3<br />
TC-T 42/../4pin 827/830/840 42 230 3200 L155 G24-q4<br />
TC-T 57/../4pin 827/830/840 57 230 4300 L181 G24-q5<br />
TC-L 18/ ... 827/830/840 18 230 1200 L225 2G11<br />
TC-L 24/... 827/830/840 24 230 1800 L320 2G11<br />
TC-L 36/ ... 827/830/840 36 230 2900 L415 2G11<br />
TC-L 40/ ... 827/830/840 40 230 3500 L535 2G11<br />
TC-L 55/ ... 827/830/840 55 230 4800 L535 2G11<br />
TC-L 80/ ... 830/840 80 6000 L535 2G11<br />
TC-EL/G 20/... 827 20 230 1150 L190 E27<br />
Dulux<br />
Dulux-EL<br />
TC-EL 15/... 827 15 230 900 L128 E27<br />
TC-EL 20/... 827 20 230 1230 L145 E27<br />
TC-EL 23/... 827 23 230 1500 L173 E27<br />
TC-EL 30/... 827 30 230 1900 L180 E27<br />
neon lamp FH 14/ ... 827/830/840 14 230 1200 (2) D16 L549 G5<br />
T5 technology FH 14/ Rot/Grün/Blau 14 230 D16 L549 G5<br />
FH 21/ ... 827/830/840 21 230 1900 (2) D16 L849 G5<br />
FH 21/ Rot/Grün/Blau 21 230 D16 L849 G5<br />
FH 28/ ... 827/830/840 28 230 2600 (2) D16 L1149 G5<br />
FH 28/ Rot/Grün/Blau 28 230 D16 L1149 G5<br />
FH 35/ ... 827/830/840 35 230 3300 (2) D16 L1449 G5<br />
FH 35/ Rot/Grün/Blau 35 230 D16 L1449 G5<br />
Fq<br />
FQ 24/ ... 827/830/840 24 230 1750 (2) D16 L549 G5<br />
FQ 39/ ... 827/830/840 39 230 3100 (2) D16 L849 G5<br />
FQ 54/ ... 827/830/840 54 230 4450 (2) D16 L1149 G5<br />
FQ 49/ ... 827/830/840 49 230 4300 (2) D16 L1449 G5<br />
FQ 80/ ... 827/830/840 80 230 6150 (2) D16 L1449 G5<br />
FC 22/ ... 827/830/840 22 230 1800 D16/225 2GX13<br />
FC 40/ ... 827/830/840 40 230 3200 D16/300 2GX13<br />
FC 55/ ... 827/830/840 55 230 4200 D16/300 2GX13<br />
neon lamp FM 06/... 730/740 6 230 330 D7 L218,5 W4,3<br />
T2 technology FM 06/... 760 6 230 310 D7 L218,5 W4,3<br />
FM 08/... 730/740 8 230 540 D7 L320 W4,3<br />
FM 08/... 760 8 230 500 D7 L320 W4,3<br />
FM 11/... 730/740 11 230 750 D7 L421,6 W4,3<br />
FM 11/... 760 11 230 680 D7 L421,6 W4,3<br />
FM 13/... 730/740 13 230 930 D7 L523 W4,3<br />
FM 13/... 760 13 230 860 D7 L523 W4,3<br />
(1) only with NAV control gear (2) measured at 25°C luminaire ambient temperature<br />
197
H<br />
HF<br />
HP62<br />
HRA<br />
HRC<br />
HRM<br />
67<br />
105,106,107,109,111<br />
63,152<br />
64,152<br />
115<br />
198<br />
Artikel-Nr.<br />
Seite<br />
B<br />
BU 95,184<br />
D<br />
DG<br />
DI<br />
DMX<br />
DS<br />
70<br />
95<br />
95,188,189<br />
70<br />
G<br />
GF<br />
GPLG<br />
GPLW<br />
73<br />
168<br />
168<br />
C<br />
C3<br />
C4<br />
CB<br />
93,94<br />
93,94<br />
58<br />
K<br />
KC<br />
KG<br />
KK<br />
165<br />
169<br />
167<br />
L<br />
LBL<br />
LBL/E<br />
LD<br />
LE<br />
LGG...<br />
LGM<br />
LMK<br />
LMT<br />
LS<br />
LSQT<br />
125<br />
126<br />
92<br />
189<br />
117,118<br />
120<br />
123<br />
154<br />
25<br />
163<br />
M<br />
MK<br />
MP<br />
129,130<br />
183<br />
O<br />
OF<br />
OM<br />
OR<br />
55,100,103<br />
99<br />
100<br />
P<br />
PAK<br />
PBK<br />
PBQ<br />
PFM<br />
PGM<br />
PO<br />
PSM<br />
69<br />
69<br />
77<br />
172<br />
172<br />
79,152<br />
171<br />
Artikel-Nr.<br />
Seite<br />
Q<br />
QA<br />
QC<br />
QF<br />
QH<br />
QL<br />
QM<br />
QQ<br />
QRTC<br />
QRT<br />
QSTC<br />
QT<br />
QV<br />
QW<br />
QZ<br />
47<br />
45-47<br />
38<br />
27,28<br />
20<br />
33,34<br />
23<br />
24<br />
41,42<br />
19<br />
35<br />
39<br />
75<br />
17,18,21,30,31,152<br />
R<br />
RE<br />
RQ<br />
71<br />
175<br />
U/V<br />
ULTC<br />
UP<br />
VB<br />
VL<br />
VN<br />
VP<br />
VS<br />
VT<br />
VZ<br />
51,52,55<br />
112,113,114<br />
184<br />
113<br />
184<br />
158<br />
151-153<br />
141-145<br />
147-148<br />
W<br />
WOF3<br />
WEM<br />
135-138<br />
174<br />
Z<br />
Z/ABH<br />
Z/ACH<br />
Z/GF<br />
Z/HA<br />
Z/HC<br />
Z/LBL<br />
Z/MP<br />
Z/MW<br />
Z/PBK<br />
Z/PBQ<br />
Z/QC<br />
Z/QZ<br />
Z/SA<br />
Z/VL<br />
186<br />
186<br />
73<br />
65<br />
65<br />
125<br />
185<br />
185<br />
70<br />
77<br />
48, 49, 65, 191, 192, 193<br />
36, 37, 191, 192,193<br />
55,186<br />
157<br />
E<br />
EVG 181<br />
S<br />
S230<br />
SA<br />
SC<br />
SD<br />
ST<br />
180,187<br />
177<br />
177<br />
177<br />
184<br />
T<br />
THTC<br />
TLTC<br />
TR-E<br />
TZTZ<br />
12<br />
14<br />
182<br />
11<br />
ALPHABETICAL TYPE LIST
Ucolicht.de<br />
KIKA, Riyadh<br />
199
General Terms and Conditions of Sale of Ruco Licht GmbH 01.03.08<br />
§1. Area of application<br />
(1) These terms and Conditions of Sale<br />
apply only to companies, legal entities<br />
under public law or public law entities<br />
with special funds as well as for all future<br />
business with the purchaser in so far as<br />
legal transactions of a related nature are<br />
involved.<br />
(2) The purchaser’s General Terms and<br />
Conditions of Business do not become<br />
the subject matter of the contract unless<br />
we expressly agree to their application in<br />
writing.<br />
§2. Prices, offsetting and right of retention.<br />
(1) Unless agreed to the contrary in writing,<br />
our prices are exclusively ex works<br />
excluding packing and delivery; VAT is to<br />
be added at the rate in force at the time<br />
of invoicing. Packing and delivery charges<br />
as well as any disposal surcharges for the<br />
manufacturer/supplier of the lighting materials<br />
and any disposal charges we incur<br />
will be invoiced separately.<br />
(2) If the value of the goods ordered is<br />
less than EUR 100.00 (excluding VAT), we<br />
will add an additional handling fee of EUR<br />
10.00 plus VAT.<br />
(3) The purchaser is only entitled to the<br />
right of offsetting if his counter-claims<br />
have been judged to be absolute or are<br />
not contested. The purchaser may only<br />
assert a right of retention in so far as his<br />
counter-claim is based on the same contract.<br />
(4) If the purchaser should cancel an order<br />
which has been confirmed, we may<br />
demand 10% of the sales price for the<br />
costs arising from handling the order and<br />
for loss of profit. However, the purchaser<br />
may demonstrate that a smaller loss or no<br />
loss at all has arisen.<br />
(5) Goods which are returned for reasons<br />
other than a right of withdrawal by the<br />
purchaser forming part of the warranty<br />
rights will only be credited if we have so<br />
agreed in advance. The credit for undamaged<br />
goods in their original packaging will<br />
be for 85% of the invoiced price. Any costs<br />
for refurbishment which are necessary as<br />
well as packaging and freight charges we<br />
incur will also be deducted without separate<br />
notification. Goods which are specially<br />
manufactured and special electrical<br />
fittings will not be taken back.<br />
§3. Delivery time, transfer of risk<br />
(1) The commencement of the delivery<br />
time we have indicated or agreed assumes<br />
that the purchaser will comply<br />
with his obligations at the correct time<br />
and in a proper manner. We reserve the<br />
right to the objection of non-performance<br />
of contract.<br />
(2) If the purchaser fails to accept the<br />
goods without a reason in law or if he<br />
should be culpably in breach of other obligations<br />
to cooperate, the risk of accidental<br />
destruction or accidental deterioration<br />
of the goods passes to the purchaser at<br />
the point in time at which the latter is in<br />
breach of his obligations to accept the<br />
goods or is in default of payment. This<br />
applies independently of whether the<br />
goods are despatched from the place of<br />
performance or of whoever pays the delivery<br />
charges.<br />
§4. Retention of title<br />
(1) We retain title to the goods we have<br />
delivered until all debts arising from the<br />
supply contract have been paid in full.<br />
This also applies to all future deliveries<br />
even if we have not always expressly referred<br />
to this condition. We are entitled to<br />
take the goods back if the purchaser acts<br />
in breach of contract.<br />
(2) So long as title has not passed to the<br />
purchaser, the latter must take good care<br />
of the goods and inform us immediately in<br />
writing if the object of the sale has been<br />
attached or is subject to other third party<br />
interference. However, the purchaser is<br />
only liable for any intervention costs we<br />
incur in the event of an action pursuant<br />
to § 771 of the Code of Civil Procedure<br />
in so far as the third party is unable to<br />
reimburse the costs.<br />
(3) The purchaser is entitled to sell the<br />
goods to which title is retained in the normal<br />
course of business. The purchaser hereby<br />
assigns to us the receivables arising<br />
from the sale of the goods in the amount<br />
of the agreed invoice total (including VAT).<br />
This assignment applies independently of<br />
whether the goods were re-sold before or<br />
after processing.<br />
The purchaser remains authorised to collect<br />
the debt even after the assignment.<br />
Our authority to collect the debt ourselves<br />
remains unaffected thereby. However,<br />
we will not collect the debt so long as the<br />
purchaser complies with his payment obligations<br />
arising from the proceeds he has<br />
collected, is not in default with payments<br />
and, in particular, no application for the<br />
opening of insolvency proceedings has<br />
been filed or payments have not been<br />
suspended.<br />
(4) Processing and conversion of the goods<br />
by the purchaser is always in the name of<br />
and on behalf of ourselves. In this case<br />
the purchaser’s expectant right attached<br />
to the goods continues in existence with<br />
respect to the goods after transformation.<br />
In so far as the goods are processed with<br />
other objects which do not belong to us,<br />
we acquire joint ownership of the new<br />
item pro rata to the objective value at the<br />
time of processing of our goods to the<br />
other objects which were processed. The<br />
same applies in the event of amalgamation.<br />
In so far as the amalgamation occurred<br />
in such a way that the goods belonging<br />
to the purchaser can be regarded as<br />
the main item, it is deemed to be agreed<br />
that the purchaser hereby transfers joint<br />
ownership to us pro rata and that the sole<br />
or joint ownership which thereby arises is<br />
held for us. In order to secure our receivables<br />
from the purchaser, the latter also assigns<br />
such receivables to us as accrue to<br />
the purchaser from a third party through<br />
the combination of the goods to which<br />
title is retained with a building; we hereby<br />
accept such an assignment.<br />
(5) If so requested by the purchaser, we<br />
undertake to release the securities to<br />
which we are entitled in so far as their<br />
value exceeds the value of the receivables<br />
for which security is required by more<br />
than 20%.<br />
§ 5. Warranty, limitation of actions, recourse<br />
(1) The purchaser’s warranty rights assume<br />
that he has properly complied with his<br />
obligations of investigation and notification<br />
of complaints pursuant to §377 of<br />
the Commercial Code.<br />
(2) Claims for defects are time barred after<br />
12 months from hand-over of the goods<br />
we supplied to the purchaser. This does<br />
not apply in so far as the law in § 438,<br />
Paragraph 1, Number 2 of the Civil Code<br />
(Buildings and Items for Buildings), § 479,<br />
Paragraph 1 of the Civil Code (Claims for<br />
Recourse) and § 634a, Paragraph 1 of<br />
the Civil Code (Defect or Deficiencies in<br />
Construction) stipulate that the time period<br />
must be longer.<br />
(3) Our agreement must be obtained before<br />
goods are returned.<br />
(4) If, in spite of all the care which is exercised,<br />
the goods which were supplied<br />
should contain a defect which was already<br />
present at the time of the transfer of<br />
risk, we will, at our option and subject to<br />
the defect being notified within the time<br />
allowed, either rectify the defect in the<br />
goods or supply a replacement. We must<br />
always be given the opportunity of subsequent<br />
performance within a reasonable<br />
time. Claims for recourse remain unaffected<br />
without limitation by the above<br />
provision.<br />
(5) If subsequent performance should fail,<br />
the purchaser may withdraw from the<br />
contract or reduce the payment without<br />
prejudice to any claims for compensation.<br />
(6) No claims will be accepted if there<br />
is/are only insubstantial deviations from<br />
the agreed quality, non-material prejudice<br />
to serviceability, natural wear and tear or<br />
damage which followed transfer of risk<br />
and originates in deficient or careless<br />
treatment, unsuitable operating or electrical<br />
equipment, defective installation or<br />
in the event of claims arising from unusual<br />
external circumstances which were<br />
not assumed to exist after the contract.<br />
Claims will also not be accepted if the<br />
purchaser or third parties should carry out<br />
commissioning work, maintenance work<br />
or modifications in an improper manner;<br />
claims will not be accepted for the consequences<br />
of such work.<br />
(7) Claims by the purchaser for expenses<br />
incurred necessarily for the purpose of<br />
subsequent performance, particularly<br />
freight, travelling and labour costs or<br />
costs of materials are excluded in so far as<br />
the expenditure arises because the goods<br />
we supplied were subsequently moved<br />
to a location other than the purchaser’s<br />
premises unless the goods were moved<br />
as part of the use for which they were<br />
intended.<br />
(8) Claims for recourse against us by the<br />
purchaser are only valid in so far as the<br />
purchaser has not made any agreement<br />
with his customer in respect of claims<br />
for defective goods which go above and<br />
beyond those which are compulsory by<br />
law. Paragraph 6 applies correspondingly<br />
in respect of the extent of such claims for<br />
recourse.<br />
(9) In the event that a defect should be<br />
fraudulently concealed or if a warranty<br />
should be provided for the quality of the<br />
goods at the time of the transfer of risk<br />
within the meaning of § 444 of the Civil<br />
Code (declaration by the seller that the<br />
purchased goods have a specific property<br />
at the transfer of risk and that the seller<br />
is willing to be answerable for all consequences<br />
of its deficiencies independently<br />
of fault), the purchaser’s rights are determined<br />
solely by the provisions of law.<br />
§ 6. Use for the purpose intended<br />
Lights are technical working appliances<br />
under the Equipment and Product Safety<br />
Act (Geräte- und Produktsicherheitsgesetz)<br />
and may only be used for the<br />
purpose intended. The use of lights and<br />
accessories for purposes other than those<br />
intended as well as arbitrary modifications<br />
to our lights without our express written<br />
consent release us from all obligations in<br />
the event of damage.<br />
§ 7. Disposal<br />
The purchaser undertakes to ensure that<br />
the disposal of the goods supplied will be<br />
in accordance with the provisions of the<br />
Electrical and Electronic Equipment Act<br />
(Elektro- und Elektronikgerätegesetz). If<br />
the goods should be resold, the purchaser<br />
will transfer this obligation to his contractual<br />
partner. We are registered with<br />
the Old Electrical Equipment Register<br />
(Elektro-Altgeräteregister) under WEEE<br />
number DE 64392354. We are affiliated<br />
to the INTERSEROH return system. Official<br />
disposal depots are published on the<br />
web-site www.INTERSEROH-WEEE.de.<br />
§ 8. Choice of law, place of performance<br />
and place of jurisdiction<br />
(1) German law applies exclusively. Application<br />
of the United Nations Convention<br />
on Contracts for the International Sale of<br />
Goods is excluded.<br />
(2) The place of performance for all obligations<br />
arising from this contract or<br />
contractual negotiations and the exclusive<br />
place of jurisdiction for all disputes<br />
relating to this contract and contractual<br />
negotiations is our Head Office.
