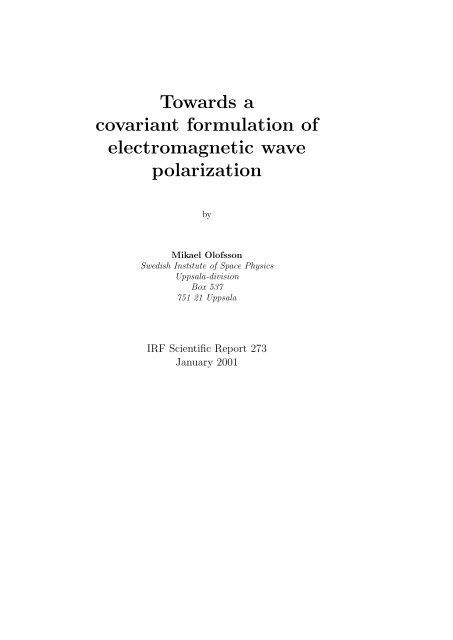

Towards a

covariant formulation of

electromagnetic wave

polarization

by

Mikael Olofsson

Swedish Institute of Space Physics

Uppsala-division

Box 537

751 21 Uppsala

IRF Scientific Report 273

January 2001

i

Abstract

A covariant formulation of electromagnetic wave polarization is introduced. It

is shown that 36 parameters are needed to fully describe the polarization of a

partially coherent wave. The 36 parameters becomes more understandable when

they are organized according to their tensor nature. An attempt is made to find

the largest set of tensor constituents, which uniquely determines the 36 polarization

parameters. The formulation is based on an irreducible representation

of electromagnetic wave polarization, using geometrical quantities with known

transformation properties under certain groups. The groups we concentrate on

are the Cartesian rotation group, SO(3), and the proper homogeneous Lorentz

group, SO(3, 1). Specifically, the parameters are obtained by decomposing tensor

products, of the electric and magnetic vector fields, ⃗ E and ⃗ B respectively,

into scalars, vectors and tensors. A set of Lorentz covariant polarization tensors,

the group SO(3, 1), are constructed from the electromagnetic field strength

tensor and its dual tensor. These covariant tensors have the SO(3) parameters

as components. The geometric quantities under SO(3) have a known physical

interpretation, only two are not previously found in the literature. One application

of these polarization parameters is to characterize the polarization of waves

in plasma, e.g., by determining the refractive index vector, ⃗n. The covariant

spectral density tensor is introduced and defined as the tensor product of the

field strength tensor with it-self. The covariant spectral density tensor is expanded

in a basis (the Dirac gamma matrices) and decomposed into a reducible

tensor representation. It is found that this reducible representation consists of

known covariant quantities. Since waves are considered, it is convenient to use

the frequency domain which implies the use of complex spaces.

ii

Preface

This report is a Master thesis in physics at the University of Uppsala. The thesis

was performed at the Swedish Institute of Space Physics, Uppsala division (IRF-

U). Supervisors for this work have been Jan Bergman and Tobia Carozzi and

examinator was professor Bo Thidé.

I would like to thank my supervisors Jan Bergman and Tobia Carozzi for

suggesting this problem to me and for their help and tutoring in completing

this thesis. I would also like to thank professor Bo Thidé for giving me the

opportunity to do my thesis at the Swedish Institute of Space Physics, Uppsala

division (IRF-U) and for his help with correcting and completing this report.

Thanks to all the personnel at IRF-U for a pleasant time.

Contents

1 Introduction 1

2 Background 3

2.1 Covariant formulation of Maxwell equations . . . . . . . . . . . . 3

2.1.1 Basic relativity and tensor operations . . . . . . . . . . . 3

2.1.2 Microscopic Maxwell equations . . . . . . . . . . . . . . . 6

2.1.3 Construction of the electromagnetic field strength tensor . 8

2.1.4 Electromagnetic energy-momentum tensor . . . . . . . . . 9

2.2 Generalized Stokes parameters . . . . . . . . . . . . . . . . . . . 11

2.2.1 Spectral density matrix . . . . . . . . . . . . . . . . . . . 11

2.2.2 Instantaneous Stokes’ parameters . . . . . . . . . . . . . . 11

2.2.3 Three-dimensional polarization parameters . . . . . . . . 13

2.2.4 Interpretation of the 3D polarization parameters . . . . . 13

2.2.5 The Storey and Lefeuvre six-quasivector . . . . . . . . . . 15

2.3 Irreducible representation . . . . . . . . . . . . . . . . . . . . . . 17

2.3.1 Complex vector algebra . . . . . . . . . . . . . . . . . . . 17

2.3.2 The electromagnetic field . . . . . . . . . . . . . . . . . . 18

2.3.3 The product E ⃗ ⊗ B ⃗ . . . . . . . . . . . . . . . . . . . . . 20

2.4 Group theory of transformation matrices . . . . . . . . . . . . . . 22

2.4.1 The general linear group and subgroups . . . . . . . . . . 22

2.4.2 Physical use of the groups . . . . . . . . . . . . . . . . . . 23

2.4.3 Irreducible tensor representation of Lie groups . . . . . . 23

3 Covariant spectral density tensor 27

3.1 Covariant spectral density tensor . . . . . . . . . . . . . . . . . . 27

3.2 Pauli spin matrices . . . . . . . . . . . . . . . . . . . . . . . . . . 28

3.3 Dirac gamma matrices . . . . . . . . . . . . . . . . . . . . . . . . 28

3.4 Decomposition of τ αβγδ . . . . . . . . . . . . . . . . . . . . . . . 29

4 Irreducible representation of polarization 31

4.1 The irreducible parameters under SO(3) . . . . . . . . . . . . . . 31

4.1.1 Σ, the sum . . . . . . . . . . . . . . . . . . . . . . . . . . 32

4.1.2 ∆, the difference . . . . . . . . . . . . . . . . . . . . . . . 33

4.1.3 χ, the real part . . . . . . . . . . . . . . . . . . . . . . . . 33

4.1.4 ψ, the imaginary part . . . . . . . . . . . . . . . . . . . . 34

4.2 Table of the parameters . . . . . . . . . . . . . . . . . . . . . . . 34

4.3 Normalization of the S, V, T parameters . . . . . . . . . . . . . . 35

4.3.1 Example: the refractive index . . . . . . . . . . . . . . . . 35

iii

iv

CONTENTS

4.4 Stokes parameters from the S, V, T parameters . . . . . . . . . . 36

D Covariant polarization tensors 61

D.1 The X tensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

D.2 The Y tensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

D.3 The K and K tensors . . . . . . . . . . . . . . . . . . . . . . . . 64

6 Reducible representation of τ αβγδ 45

6.1 The covariant spectral density tensor . . . . . . . . . . . . . . . . 45

6.2 The irreducible tensors . . . . . . . . . . . . . . . . . . . . . . . . 46

6.3 Reducible representation . . . . . . . . . . . . . . . . . . . . . . . 47

7 Conclusions 49

A Generalized polarization parameters 51

B Parameters from Dirac gamma matrices 53

C E, ⃗ B ⃗ component form of S, V, T parameters 57

C.1 Σ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

C.2 ∆ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

C.3 χ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

C.4 ψ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

D Covariant polarization tensors 61

D.1 The X tensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

D.2 The Y tensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

D.3 The K and K tensors . . . . . . . . . . . . . . . . . . . . . . . . 64

Chapter 1

Introduction

A fundamental principle in constructing a physical law is to define it with equations

that are independent of the choice of coordinates. This way of formulating

physics is known as a covariant formulation. The word covariant relates to tensors

which are geometrical objects defined by their transformation properties.

The simplest example is a scalar, being a rank zero tensor, which is known to

be invariant for any choice of coordinate system.

The purpose of this theoretical work is to find a manifestly covariant set of

parameters describing classical electromagnetic wave polarization. Traditionally,

electromagnetic wave polarization is characterized using Stokes’ parameters

(see e.g. Stokes [22] and Born & Wolf [3]). Considering Stokes’ parameters,

which are manifestly covariant in the two-dimensional representation (this is

shown in Section 2.4, using the SO(2) group), it is not immediately apparent

how they transform under the Lorentz group. Furthermore it is not clear how

Stokes’ parameters handle waves which are not simply quasi-monochromatic

transverse waves.

The approach used in this thesis is that of classical macroscopic electromagnetic

field waves and not the photonic or quantum mechanical picture. In

this context, we define polarization as the second order statistical correlation

between electric and magnetic field components. Therefore we compare the

components of the field pairwise to see how they are related to each other, i.e.,

one has quadratic components. Invariants are generally quadratic quantities in

some way, for example the length of a vector (using the Euclidean three dimensional

space with the ordinary metric) is invariant under rotation but the

three different components of the vector are changed under a rotation of coordinates.

Many of the calculations presented in this work are not restricted to

electromagnetic fields but can be applied to a general field.

As we consider the wave properties of electric and magnetic fields, it is convenient

to use the frequency domain representation, i.e., the Fourier transform

of the wave. When using the frequency domain representation of the wave it

becomes necessary to use complex spaces. In a complex space, one ends up with

36 correlation parameters with two components combined into the form AB † ,

where A and B are two of the six field components (A and B can be the same

component).

After formulating polarization using the covariant formalism, the main emphasis

is on combining these 36 quantities to obtain parameters which transform

1

2 CHAPTER 1. INTRODUCTION

according to certain transformation rules (the number of degrees of freedom will

not change). These parameters are obtained by means of an irreducible tensor

representation of the spectral density matrix.

Chapter 2 gives an introduction and a background where some useful concepts

are introduced: Stokes’ parameters and their three dimensional generalization

(see Barut [5] and Carozzi, Karlsson & Bergman [6]) are introduced and

the Storey and Lefeuvre [23] representation of the electromagnetic field is discussed.

A general decomposition of second rank tensors, in three dimensions, is

introduced and applied to a general field. The relativistic meaning of covariance

and the tensor algebra of relativity is presented, together with the construction

of the electromagnetic field strength tensor (often referred to as just the field

tensor). In Chapter 3 we introduce and define the covariant spectral density

tensor. This tensor is expanded in a basis consisting of the Dirac gamma matrices.

In Chapter 4 a new set of parameters giving a covariant representation of

the electromagnetic field with geometrical quantities is presented. The covariance

here refers to real rotations, SO(3), and the space is the three dimensional

complex Euclidean space. Chapter 5 contains a construction of relativistically

covariant tensors in which the new parameters are found as entries. The group

we use here is the real proper homogeneous Lorentz group, SO(3, 1). In Chapter

6 the covariant spectral density tensor is decomposed into a reducible tensor

representation, consisting of irreducible tensors and a reducible rest tensor. All

tensors in this representation are manifestly covariant and the irreducible tensors

are identified with known physical quantities. In Chapter 7 the thesis is

summarized and concluded.

Chapter 2

Background

2.1 Covariant formulation of Maxwell equations

In this Section we introduce some basic concepts from the theory of relativity

and a covariant formulation of Maxwell equations. In the process we derive

the field strength tensor, which is a fundamental object in electromagnetism,

that will be used later in this paper. With the field strength tensor we express

Maxwell’s equations as covariant 1 tensor equations. We will use Lorentz

notation with the proper four-vector x µ = (ct, x, y, z). This notation together

with the Lorentz scalar product, Equation (2.11), is often called Lorentz space

(Barut [1]).

2.1.1 Basic relativity and tensor operations

In relativity one considers the concept of Lorentz invariance. The Lorentz transformations

are the transformations that keep the expression

c 2 ∆t 2 − ∆x 2 − ∆y 2 − ∆z 2 , (2.1)

invariant. The ∆ refers to a difference between two vectors, which gives the

invariance under translations. These transformations form a group, which is

usually divided into different parts.

The transformations satisfying Equation (2.1) include translations and form

the inhomogeneous Lorentz group, which is also called the Poincaré group (see

Barut [1] or Tung [24]). The transformations which keep the expression

c 2 t 2 − x 2 − y 2 − z 2 , (2.2)

invariant form the inhomogeneous Lorentz group and does not include translations.

All homogeneous Lorentz transformations, denoted by L, have det L =

±1, see Barut [1]. Transformations with det L = 1 are the proper Lorentz transformations

and the transformations with det L = −1 are the improper Lorentz

transformations, which include reflections. The proper Lorentz transformations

1 The covariance refers to a specific group, in this case the Lorentz group (see Section

2.4). Lorentz covariant quantities and equations are often referred to as proper quantities and

equations.

3

4 CHAPTER 2. BACKGROUND

form a subgroup, the improper transformations does not. 2 In the literature,

the proper homogeneous Lorentz group is often referred to as just the Lorentz

group. A proper four-vector is a vector that transforms like x µ = (ct, x, y, z), µ =

0, 1, 2, 3, under Lorentz transformations.

A space similar to Lorentz space is the Minkowski space. In Minkowski

space, the time coordinate is imaginary and a four-vector is written as x µ =

(x, y, z, ict), where µ = 1, 2, 3, 4. The Lorentz transformations are in this space

orthogonal transformations that preserves the ordinary Cartesian scalarproduct.

The reason for not using the Minkowski space is that it is very complicated to

add a curvature to this space.

Considering Lorentz space, every object is a tensor. A scalar is a rank zero

tensor, a vector is a tensor of rank one and so on. When dealing with tensors

there are a number of tools and operations at our disposal. These are called

permissible tensor operation since the results are new tensor components. The

operations are (Schutz [21]) 3 :

1. Linear combinations of tensors of the same type, meaning that the tensors

have the same number of covariant (subscripts) indices and same number

of contravariant (superscripts) indices.

2. Multiplication of components of two tensors (the tensor product 4 ) gives

a new tensor of type equal to the sum of the types.

3. Contraction on a pair of indices. (only between covariant (lower) and

contravariant (upper) indices)

4. Covariant differentiation, see Dirac [8] or Schutz [21], defined for a covariant

vector as (using Einstein sum convention 5 )

and for a contravariant vector as

A µ;ν ≡ ∂A µ

∂x ν − Γα µνA α , (2.3)

A µ ;ν ≡ ∂Aµ

∂x ν + Γµ ανA α . (2.4)

For tensors of higher rank, a Γ term appears for each index, with a minus

sign for a covariant index and a plus sign for a contravariant index. The

covariant derivative of a rank two tensor will be

T µ ν;σ ≡ ∂T µ ν

∂x σ + Γµ ασT α ν − Γ α νσT µ α . (2.5)

The Γ’s are called the Christoffel symbols and are defined later in this

section.

2 The group theory of the Lorentz groups are further discussed in Section 2.4

3 For further information on tensors and tensor algebra see e.g. Schutz [21], Arfken &

Weber [10], Barut [1] [18] or Misner, Thorne & Wheeler [7].

4 Also called the outer product or the direct product, but these terms are sometimes used

for other types of products.

5 The Einstein sum convention is that in a term you sum over repeated indices. Note that

in general relativity you can only sum over a covariant index and a contravariant index, i.e.,

contraction.

2.1. COVARIANT FORMULATION OF MAXWELL EQUATIONS 5

The metric, g µν , is a symmetric tensor, which describes the curvature of space,

and is used to ’raise’ and ’lower’ indices. This metric is constant under covariant

differentiation. The metric we use is the flat metric 6

⎛

⎞

1 0 0 0

g µν = g µν = ⎜0 −1 0 0

⎟

⎝0 0 −1 0 ⎠ . (2.6)

0 0 0 −1

We are also allowed to use the four dimensional Levi-Civita symbol or the

totally anti-symmetric tensor 7 (see e.g. Goldstein [11] or Misner, Thorne &

Wheeler [7]). With the flat metric, g µν , it is defined by

ɛ αβγδ = −ɛ αβγδ

ɛ 0123 = 1

ɛ αβγδ = [αβγδ] =

{

1 αβγδ even permutation of 0,1,2,3,

−1 αβγδ odd permutation of 0,1,2,3,

(2.7)

where [αβγδ] is the permutation symbol. Generalizing the Levi-Civita tensor

to an arbitrary metric it is defined as

ɛ αβγδ = √ −g[αβγδ], (2.8)

where

g = det g µν . (2.9)

The contravariant and mixed Levi-Civita tensors are then formed by raising the

indices. Note that the sign convention of ɛ 0123 varies and some authors define

it as -1, which just changes the sign of ɛ αβγδ and ɛ αβγδ .

The differential invariant distance can, in our flat space be written

ds 2 = g µν dx µ dx ν = c 2 dt 2 − dx 2 − dy 2 − dz 2 = c 2 dτ 2 . (2.10)

In the last step here we have introduced the proper time, τ, a term used in

relativity and it is the time experienced by the particle in question and not

by an observer of the particle. Note that the coordinate time, t, is the time

experienced by the observer defining the coordinate system and also defining

the metric.

The scalar product in Lorentz space is defined according to contraction. The

procedure is the following: a vector a µ , multiplied with a vector b µ , gives a rank

two tensor, which via contraction gives a scalar. This is also the covariant trace

of a tensor, the formula is

a µ b ν = c µν , g µν c µν = c µ µ = a 0 b 0 − a 1 b 1 − a 2 b 2 − a 3 b 3 . (2.11)

6 The strong equivalence principle (see Schutz [21]) states that ’any physical law which can

be expressed in tensor notation in special relativity has exactly the same form in a locally

inertial frame of curved space-time’, i.e. if we find a tensor equation using the flat metric, it

will be the same in a curved space time but with another metric.

7 The totally anti-symmetric tensor will be further discussed in Section 2.4, when the group

theory of the Lorentz group is considered.


For a tensor of rank two, the trace is defined as contraction of the indices, which

is a permissible tensor operation. In contrast, the ordinary trace is not a permissible

operation. The four-gradients, ∂ µ (contravariant) and ∂ µ (covariant),

are defined as

∂ µ ≡

∂

∂x µ = ( ∂

∂ct , ∂

∂x , ∂ ∂y , ∂ ). (2.12)

∂z

An often used notation is ∂ µ A = A, µ (compare with the covariant derivative,

A ;µ ).

In covariant differentiation, Equation (2.3), the Γ α µν comes in to assure covariance.

These Γ’s are called Christoffel symbols and are defined as

Γ γ βµ = 1 2 gαγ (g αβ,µ + g αµ,β − g µβ,α ). (2.13)

In flat space, these Christoffel symbols vanish everywhere and from Equation

(2.3) we have

A ,µ = A ;µ . (2.14)

To find a covariant form of an equation one needs to find proper four-vectors

and (or) proper tensors that, by performing the permissible operations on them,

leads to the equation in question. This is what we will do with the Maxwell

equations in the next section.

2.1.2 Microscopic Maxwell equations

In vacuum the Maxwell equations in the general differential form do not include

the ⃗ H and ⃗ D fields. These are the so-called microscopic Maxwell equations (see

Arfken & Weber [10], Wangsness [25] or Jackson [12]) and have the following

form

∇ · ⃗E = ρ ε 0

, (2.15)

∇ · ⃗B = 0, (2.16)

∇ × ⃗ E = − ∂ ∂t ⃗ B, (2.17)

∇ × ⃗ B = µ 0

⃗j + 1 c 2 ∂

∂t ⃗ E, (2.18)

where ⃗j is the current density and ρ is the charge density. It is now convenient

to use Lorentz gauge, which is the condition

∇ · ⃗A + ɛµ ∂φ

∂t

+ µσφ = 0, (2.19)

where σ is the conductivity, ɛ is the permittivity and µ is the permeability.

In vacuum (σ = 0, ɛ = ɛ 0 , µ = µ 0 ), using ɛ 0 µ 0 = 1/c 2 , the Lorentz condition

reduces to

∇ · ⃗A + 1 ∂φ

c 2 = 0. (2.20)

∂t

Here we have introduced the electric potential, φ, and the magnetic vector potential,

A. ⃗ The electric and magnetic field can be calculated from the potentials

as

⃗B = ∇ × A, ⃗ (2.21)


⃗E = −∇ · φ − 1 ∂A

⃗

c ∂t . (2.22)

By inserting Equation (2.21) and Equation (2.22) into the inhomogeneous Maxwell

equations (Eq. (2.15) and Eq. (2.18)) and using the Lorentz condition for vacuum

(Eq. (2.20)) we get two separated equations for the potentials,

for the magnetic vector potential, and

∇ 2 ⃗ A −

1

c 2 ∂ 2 ⃗ A

∂ 2 t = −µ 0 ⃗ j, (2.23)

∇ 2 φ − 1 c 2 ∂ 2 φ

∂ 2 t = − ρ ɛ 0

, (2.24)

for the electric scalar potential. The differential operator in the above equations

is known as the d’Alembertian (with a minus sign) and is a fundamental operator

in electrodynamics and is known to be invariant (see e.g. Wagnsness [25], Arfken

& Weber [10] or Jackson [12]). Using four-vector notation it it can be written:

□ 2 = 1 c 2 ∂ 2

∂ 2 t − ∇2 = ∂ 2 = ∂ µ ∂ µ . (2.25)

From Equation (2.23) and Equation (2.24) we get the following definitions of

four-vectors,

A µ = (φ, c ⃗ A), (2.26)

J µ = (ρ,⃗j/c), (2.27)

which are the four-potential and the four-current, respectively. We insert the c

to get the correct dimension. 8 Then we can write Equations (2.23) and (2.24)

together as a four-vector differential equation

∂ 2 A µ = µ 0 cJ µ . (2.28)

To see that this is a tensor equation, i.e. showing that A µ and J µ are proper

four-vectors, it suffices to show that J µ is a proper four-vector. This is because

the d’Alembertian is an invariant scalar (see e.g. Jackson [12] or Barut [1]).

Then, by the quotient rule (see Schutz [21], Arfken & Weber [10]), A µ is a

four-vector if J µ is a four-vector. Since an electric charge element de = ρd 3 x is

invariant we compare this with the four-dimensional volume element d 4 x. We

see that ρ must transform the same way as dx 0 . Consider J 1 , we have

J 1 = ρv x = ρ dx1

dt

= cρ dx1

d(ct) = J 0 dx1

dx 0 . (2.29)

Since J 0 transforms as dx 0 , the equation above shows that J 1 transforms as dx 1

and thus J 2 and J 3 transform as dx 2 and dx 3 , respectively. So, Equation (2.28)

is a proper tensor equation and A µ and J µ are proper four-vectors. However, A µ

is not a measurable quantity and it also depends on the gauge we have chosen.

What we would like to have is a covariant expression that involves ⃗ E and ⃗ B

since these are the quantities we measure and they are gauge invariant, which

is not the case with the potential.

8 The potentials can be defined differently and different units can be used, and thus gives

a different field strength tensor, see e.g. Jackson [12] or Wangsness [25].


2.1.3 Construction of the electromagnetic field strength

tensor

The relation between the potentials and the electric and magnetic fields are

given by in Equations (2.21) and (2.22), so we first rewrite these equations

using the four-vector potential, A µ . Considering the i:th component of the field

we have

⃗B = ∇ × ⃗ A ⇒ cB i = ∂Ak

∂x j − ∂Aj

∂x k = ∂j A k − ∂ k A j (i, j, k) = (1, 2, 3), (2.30)

and

⃗E = −∇φ − ∂ A ⃗

∂t ⇒ E i = ∂A0

∂x i − ∂Ai

∂x 0 = ∂i A 0 − ∂ 0 A i (i = 1, 2, 3). (2.31)

Equations (2.30) and (2.31), are proper tensor equations since ∂ µ and A µ are

proper four-vectors. Thus we have the equations on the form we want and

proceed by defining an antisymmetric rank two tensor, F µν , with elements given

by the equations above (Eqs. (2.30) and (2.31)). The tensor is found to be

⎛

⎞

0 −E 1 −E 2 −E 3

F µν ≡ ∂ µ A ν − ∂ ν A µ = ⎜ E 1 0 −cB 3 cB 2

⎟

⎝ E 2 cB 3 0 −cB 1

⎠ . (2.32)

E 3 −cB 2 cB 1 0

This is the field strength tensor which is not uniquely defined. The form of

the components depends on the choice of space (Lorentz or Minkowski space)

and the choice of units. 9 Note that an invariant four-vector multiplied with a

constant is again an invariant four-vector. Next step is to rewrite the Maxwell

equations in terms of the field strength tensor, but first we define the dual tensor

of F µν , in the following way

⎛

⎞

0 −cB 1 −cB 2 −cB 3

F αβ = 1 2 ɛαβγδ F γδ = 1 2 ɛαβγδ g γµ g δν F µν = ⎜ cB 1 0 E 3 −E 2

⎟

⎝ cB 2 −E 3 0 E 1

⎠ .

cB 3 E 2 −E 1 0

(2.33)

Now using the field strength tensor and its dual we can rewrite the Maxwell

equations in the covariant form for the flat metric, g µν from Equation (2.6),

which is valid in special relativity. We have the continuity equation

∂ µ J µ = ∂J µ

= 0, (2.34)

∂x

µ

the inhomogeneous Maxwell equations (Eqs. (2.15) and (2.18))

∂ µ F µν = µ 0 cJ ν , (2.35)

and the homogeneous Maxwell equations (Eqs. (2.16) and (2.17))

∂ µ F µν = 0. (2.36)

9 For some other variants of the field strength tensor see Barut [1] or Wangsness [25].


To generalize these equations to an arbitrary metric we need to replace the

derivative with the covariant derivative (see Eq. (2.3)). We the obtain a manifestly

covariant form of Maxwell’s equations. The continuity equation

the inhomogeneous Maxwell equations

and the homogeneous Maxwell equations

J µ ;µ = 0, (2.37)

F µν

;µ = µ 0 cJ ν , (2.38)

F µν

;µ = 0. (2.39)

According to the strong equivalence principle (SEP), see Schutz [21], we can

replace the four-gradient, ∂ µ , with the covariant derivative if we have the equations

as proper tensor equations in special relativity, i.e. using the flat metric

g µν . In the form above (Eqs. (2.34), (2.35) and (2.36)), Maxwell equations are

proper tensor equations and thus we can just replace the ordinary derivative

with the covariant derivative.

Invariant quadratic quantities from the field strength tensor

Using the permissible tensor operations on the field strength tensor tensor and

its dual, it is possible to construct invariant scalars. This is done by contracting

the tensor product of the field strength tensor with itself or its dual tensor.

From this we get the invariant scalars

and

F µν F ∗ µν = −2c ⃗ E · ⃗B † − 2c ⃗ B · ⃗E † = −4cRe[ ⃗ E · ⃗B † ] (2.40)

F µν F ∗ µν = 2(c 2 ⃗ B 2 − ⃗ E 2 ). (2.41)

The first invariant is the real part of the scalar product of ⃗ E and ⃗ B, and the

second is recognised as the Lagrangian, which corresponds to the free energy of

an electromagnetic wave in vacuum.

2.1.4 Electromagnetic energy-momentum tensor

This is a good time to introduce another proper rank two tensor , the electromagnetic

energy-momentum tensor 10 . The fields are real valued and we first

define the energy density E and the Poynting vector ⃗ S to be

E = 1 2 ( ⃗ E 2 + c 2 ⃗ B 2 ), (2.42)

⃗S = ⃗ E × c ⃗ B. (2.43)

In terms of the field strength tensor, the electromagnetic energy-momentum

tensor can be defined as (Dirac [8])

T µν = −F µ α F να + 1 4 gµν F αβ F αβ . (2.44)

10 Also called the stress-energy tensor or the canonical stress tensor, and is a fundamental

object in general relativity (see Schutz [21], Dirac [8], Barut [1], Jackson [12] or Misner, Thorne

& Wheeler [7]).


With the energy density, E, and the Poynting vector, S, the energy-momentum

tensor can be written as

⎛

⎞

E S 1 S 2 S 3

T µν = ⎜S 1 −E1 2 − c 2 B1 2 + E −E 1 E 2 − c 2 B 1 B 2 −E 1 E 3 − c 2 B 1 B 3

⎟

⎝S 2 −E 2 E 1 − c 2 B 2 B 1 −E2 2 − c 2 B2 2 + E −E 2 E 3 − c 2 B 2 B 3

⎠ .

S 3 −E 3 E 1 − c 2 B 3 B 1 E 3 E 1 − c 2 B 3 B 1 −E3 2 − c 2 B3 2 + E

(2.45)

The components T mn (m, n = 1, 2, 3) together form the Maxwell stress tensor

(see Section 2.3 Equation (2.95)).

2.2. GENERALIZED STOKES PARAMETERS 11

2.2 Generalized Stokes parameters

In this Section we give the definitions of the two-dimensional Stokes parameters

and the generalized polarization parameters introduced by T. Carozzi, R. Karlsson

and J. Bergman [6]. These polarization parameters are a generalization of

the Stokes parameters into three-dimensions. A similar set of parameters were

introduced by Brosseau [5]. The Poynting vector and the Maxwell stress tensor

are introduced and defined. Storey and Lefeuvre’s [23] six dimensional electromagnetic

quasi-vector and their representation of the quadratic quantities of an

electromagnetic field are also discussed.

2.2.1 Spectral density matrix

Consider an arbitrary vector field, ⃗ f(⃗r, t). The field is a superposition of all

waves and stationary fields at the point ⃗r. The spectral components of the field

⃗f(⃗r, t), one obtains by taking the Fourier transform, ⃗ F (⃗r, ω), of the field, defined

as

⃗F (⃗r, ω) =

∫ ∞

−∞

⃗f(⃗r, t)e iωt dt. (2.46)

The vector, ⃗ F , represents a complex valued vector field which can be separated

into three complex amplitudes (the x, y, z components), or into three real

amplitudes (F 1 , F 2 , F 3 ) and their real phases (δ 1 , δ 2 , δ 3 ), in the following way

⎛

⃗F (⃗r, ω) = ⎝ F ⎞ ⎛

⎞

x(⃗r, ω) F 1 (⃗r, ω)e δ1(⃗r,ω)

F y (⃗r, ω) ⎠ = ⎝F 2 (⃗r, ω)e δ2(⃗r,ω) ⎠ . (2.47)

F z (⃗r, ω) F 3 (⃗r, ω)e δ3(⃗r,ω)

The spectral density matrix, S d (⃗r, ω), is constructed by taking the tensor product

between F ⃗ = F ⃗ (⃗r, ω), and its Hermitian conjugate, F ⃗ † = F ⃗ † (⃗r, ω). This

gives

⎛

⎞

S d (⃗r, ω) = F ⃗ ⊗ F ⃗ F x F † x ∗ F x Fy ∗ F x Fz

∗

= ⎝F y Fx ∗ F y Fy ∗ F y Fz

∗ ⎠ , (2.48)

F z Fx ∗ F z Fy ∗ F z Fz

∗

where F ∗ denotes complex conjugate. We will assume (⃗r, ω)-dependence and

the notation S d = S d (⃗r, ω) will be used in the following.

2.2.2 Instantaneous Stokes’ parameters

Stokes’ parameters describe the polarization state of a transverse electromagnetic

wave in the polarization plane. One usually assumes that the wave propagates

in the z-direction and the polarization ellipse lies in the xy-plane (see

Brosseau [4]). Stokes parameters can be written (using the notation 11 of R.

11 The notation for Stokes’ parameters is not universal. The notation of Stokes [22] was

(A,B,C,D), another notation is (S 0 , S 1 , S 2 , S 3 ) used by e.g. Jackson [12] and Brosseau [4].


Karlsson [13], Born and Wolf [3])

I = F 2 x + F 2 y , (2.49)

Q = F 2 x − F 2 y , (2.50)

U = 2Re[F y F ∗ x ] = F x F ∗ y + F y F ∗ x , (2.51)

V = 2Im[F y F ∗ x ] = i ( F x F ∗ y − F y F ∗ x

)

, (2.52)

where I denotes the intensity of the field, Q and U describe the linear polarization

and V is related to circular polarization. 12 In the two-dimensional case the

spectral density tensor, Equation (2.48), is reduced to

( )

Fx Fx S d = ∗ F x Fy

∗

F y Fx

∗ F y Fy

∗ . (2.53)

The two-dimensional spectral density matrix can be decomposed using the unit

matrix, I 2 , and the generators of the special unitary symmetry group, SU(2),

which are recognized as the Pauli spin matrices, σ i , i = 1, 2, 3. These can be

written

σ 1 =

( 0 1

1 0

) ( 0 −i

, σ 2 =

i 0

) ( 1 0

, σ 3 =

0 −1

) ( 1 0

, I 2 =

0 1

(2.54)

Writing the spectral density matrix, S d , as a linear combination of I 2 and the

Pauli spin matrices, Equation (2.54), one identifies the coefficients as the Stokes

parameters, I, Q, U and V. The spectral density matrix, S d , can then be written

in the following form

S d = 1 )

(II 2 + Uσ 1 + Vσ 2 + Qσ 3 = 1 ( )

I + Q U − iV

. (2.55)

2

2 U + iV I − Q

This is a convenient way to express the spectral density matrix, S d , since the

Stokes parameters are just scalars and the Pauli spin matrices are unitary with

determinant equal to ±1. This procedure can be generalized into three dimensions,

and leads to a similar relation.

For a deterministic wave we have

)

.

I 2 = U 2 + Q 2 + V 2 , (2.56)

which means that the wave is totally polarized and hence one of the parameters

is abundant for a complete description of the state of polarization. In reality

we can not have a deterministic wave and must therefore integrate over a small

interval (bandwidth). The relation above then becomes

I 2 ≥ U 2 + Q 2 + V 2 . (2.57)

This means that for a deterministic (or a fully polarized wave) wave we do

not need all the parameters to describe the polarization of the wave, but for a

partially polarized wave all four parameters are needed.

12 For a longer discussion on Stokes parameters see Brosseau [4] or Born & Wolf [3].


2.2.3 Three-dimensional polarization parameters

We want to obtain a more general form of Equation (2.53) applicable to an

arbitrary wave in three dimensions (to use Stokes parameters it is necessary to

know the direction of propagation). To achieve this we expand the full spectral

density matrix, S d , using the unit matrix, I 3 , and the generators of the SU(3)

symmetry group, λ i , (i = 1, . . . , 8), as given by Gell-Mann and Ne’eman [17]

(see Appendix A Equation (A.2)). The spectral density matrix is then formed

as a linear combination of these matrices in the following way

S d = 1 3 Λ 0I 3 + 1 8∑

Λ i λ i =

2

i=1

⎛

1

3

⎜

Λ 0 + 1 2 Λ 3 + 1

1

⎝ 2 Λ 1 + i 2 Λ 2

1

2 Λ 4 + i 2 Λ 5

2 √ 3 Λ 8

1

2 Λ 1 − i 2 Λ 2

1

3 Λ 0 − 1 2 Λ 3 + 1

1

2 Λ 6 + i 2 Λ 7

2 √ 3 Λ 8

1

2 Λ 4 − i 2 Λ ⎞

5

1

2 Λ 6 − i 2 Λ ⎟

7 ⎠ , (2.58)

1

3 Λ 0 − √ 1

3

Λ 8

where Λ i , i = 0, 1, . . . 8, are the generalized Stokes parameters. The trace of

this matrix, S d , is Λ 0 which is the energy density of the field. For the two

dimensional case this is the Stokes parameter I. The Λ i are found by comparing

Equation (2.48) with Equation (2.58), the explicit expressions for the Λ i are

found in Appendix A. In the case of a transverse wave propagating in the z-

direction, i.e. F z = 0, the spectral density matrix, Equation (2.58), reduces to

two-dimensional form

⎛

⎞

S d = 1 Λ 0 + Λ 3 Λ 1 − iΛ 2 0

⎝Λ 1 + iΛ 2 Λ 0 − Λ 3 0⎠ , (2.59)

2

0 0 0

where the Λ i have reduced to the Stokes parameters as in Equation (2.53). This

is just a rotation of the coordinate system into the one of the wave with the

z-axis being the direction of propagation.

There are different normalizations of the generalized polarization parameters.

Brosseau [5] uses 1 3 instead of 1 2

, which we have used, in front of the SU(3)

generators in Equation (2.58). If one uses 1 2

, Equation (2.59) (transverse wave

propagating in the z-direction) reduces to Stokes parameters, Equation (2.55),

which is not the case if one uses 1 3 .

2.2.4 Interpretation of the 3D polarization parameters

Every tensor can be decomposed into its symmetric and anti-symmetric parts,

Arfken & Weber [10]. Thus, Equation (2.58) can be written

S d = S S d + S A d = 1 2(

Sd + S T d

) 1( + Sd − S T )

d . (2.60)

2

The superscript T denotes a transposed tensor. From Equation (2.58) it is easily

seen that the symmetric part, Sd S, and anti-symmetric part, SA d

, are given by

⎛

1

3

Sd S ⎜

Λ 0 + 1 2 Λ 3 + 1

2 √ Λ 1

3

8

2 Λ 1

1

2 Λ ⎞

4

1

= ⎝

2 Λ 1

1

3 Λ 0 − 1 2 Λ 3 + 1

2 √ Λ 1

3

8 2 Λ ⎟

6 ⎠ (2.61)

1

2 Λ 1

4

2 Λ 1

6

3 Λ 0 − √ 1

3

Λ 8


and

⎛

0 − i

Sd A 2 Λ 2 − i 2 Λ ⎞

5

= ⎝ i

2 Λ 2 0 − i 2 Λ ⎠

7 , (2.62)

i

2 Λ i

5 2 Λ 7 0

respectively. To any anti-symmetric rank two tensor, in three dimensions 13 a

dual pseudo-vector is associated (see Arfken & Weber [10]). This dual pseudovector

is defined by

V i = 1 2 ɛ ijkT jk , (2.63)

where ɛ ijk is the totally anti-symmetric tensor, also known as the Levi-Civita

tensor. 14 The dual pseudo vector to Sd

A is then

⃗V ′ = i(−Λ 7 , Λ 5 , −Λ 2 ). (2.64)

The totally anti-symmetric tensor, ɛ ijk , contracted with a vector of ones, (1,1,1)

becomes

⎛

0 1

⎞

−1

ɛ ijk (1, 1, 1) k = ⎝−1 0 1 ⎠ . (2.65)

1 −1 0

We see that it has a different sign convention compared to λ 7 and λ 2 and

therefore we get the minus sign on them (see Appendix A). This vector ⃗ V ′ is

an imaginary vector and for later use we would like to have a real vector so

following Carozzi, Karlsson and Bergman [6] we therefore define a vector ⃗ V by

which is real. The components of ⃗ V are

⃗V ≡ (Λ 7 , −Λ 5 , Λ 2 ). (2.66)

Λ 7 = i(F y F ∗ z − F z F ∗ y ) = 2Im(F z F ∗ y ) = −2Im(F y F ∗ z ),

Λ 5 = i(F x F ∗ z − F z F ∗ x ) = 2Im(F z F ∗ x ) = −2Im(F x F ∗ z ),

Λ 2 = i(F x F ∗ y − F y F ∗ x ) = 2Im(F y F ∗ x ) = −2Im(F x F ∗ y ).

(2.67a)

(2.67b)

(2.67c)

Recalling that ⃗ V is a pseudo-vector and that a crossproduct between two polar

(ordinary) vectors or two axial (pseudo) vectors is a pseudo-vector, we can from

the form of the components conclude that ⃗ V can be defined by

⃗V = i ⃗ F × ⃗ F † . (2.68)

The complex vector F ⃗ and its complex conjugate F ⃗ † form a polarization plane

in space, see e.g. Lindell [14] or Karlsson [13], and because V ⃗ = iF ⃗ × F ⃗ † it is

perpendicular to both F ⃗ and F ⃗ † and thus parallel or anti-parallel to the normal

of the polarization plane (see Karlsson [13] or Lindell [14]). Λ 2 , Λ 5 and Λ 7 are

the three-dimensional generalization of circular polarization. Comparing the

13 In four dimensions a dual second rank tensor is associated to an anti-symmetric second

rank tensor (see Sections 2.1 and 2.4).

14 The sign of the metric in the three-dimensional Euclidean space (the ordinary threedimensional

space) is (1, 1, 1). This gives that the totally anti-symmetric tensor of this space

is equal to the permutation symbol and contraction between indices of the same kind is allowed

(compare with Sections 2.1 and 2.4)


expressions for the Λ i ’s, Equation (2.67), with Stokes’ parameter for circular

polarization, V, we have the relation (see Carozzi, Karlsson and Bergman [6])

|V| =

√

Λ 2 7 + Λ2 5 + Λ2 2 = |⃗ V |. (2.69)

We define left- and right-handed polarization as seen by the wave (opposite to

an observer looking into the wave). For a right-handed polarized wave, V ⃗ will

be parallel to the direction of propagation and anti-parallel for a left-handed

polarized wave. 15 Because measurements is generally made in one point, i.e.

we have the field components in one point, we really have two possibilities with

opposite signs (opposite direction of propagation). To get a correct sign on V ⃗

one needs further information about the direction of propagation of the wave.

2.2.5 The Storey and Lefeuvre six-quasivector

In order to obtain a straightforward description of the electromagnetic field with

all possible combinations of the electromagnetic field components, Storey and

Lefeuvre introduced a six dimensional quasivector, for the field components,

defined as

⃗E = (E 1 , E 2 , E 3 , cB 1 , cB 2 , cB 3 ). (2.70)

For a continuum of plane waves Storey and Lefeuvre introduces a generalized

electric field, e m i (⃗r, t), where the i-th component is the real part of the evolution

e m i (⃗r, t) = Re[e i exp i(ωt − ⃗ k · ⃗r)]. (2.71)

Here e i is the complex amplitude. The 6 × 6 matrix they define is constructed

as

a ij = e ie ∗ j

δ . (2.72)

These are constant since the complex amplitude is constant for the plane wave

in Equation (2.71). The six-vector, Equation (2.70), is not a vector, in the

geometrical meaning, more than in the sense that it has six entries. The first

three components, the electric part, together form the E ⃗ vector (polar vector)

and the last three form the B ⃗ vector which is a pseudo-vector (axial vector). So,

the six-vector defined here has three components transforming as a polar vector

and three components transforming as a pseudo-vector. 16 Anyhow, using this

six-vector we obtain a spectral density matrix

⎛

⎞

E1 2 E 1 E2 ∗ E 1 E3 ∗ E 1 B1 ∗ E 1 B2 ∗ E 1 B3

∗ E 2 E1 ∗ E2 2 E 2 E3 ∗ E 2 B1 ∗ E 2 B2 ∗ E 2 B ∗ 3

S d =

E 3 E1 ∗ E 3 E2 ∗ E3 2 E 3 B1 ∗ E 3 B2 ∗ E 3 B3

∗ ⎜B 1 E1 ∗ B 1 E2 ∗ B 1 E3 ∗ B1 2 B 1 B2 ∗ B 1 B3

∗ . (2.73)

⎟

⎝B 2 E1 ∗ B 2 E2 ∗ B 2 E3 ∗ B 2 B1 ∗ B2 2 B 2 B3

∗ ⎠

B 3 E1 ∗ B 3 E2 ∗ B 3 E3 ∗ B 3 B1 ∗ B 3 B2 ∗ B3

2

As seen from its structure, this matrix is symmetric in the real part and antisymmetric

in the imaginary part. It has 36 different entries of which 21 are

15 For more information on the ⃗ V and complex vector analysis see Lindell [14] [15].

16 More information on polar and axial vectors are found in Arfken & Weber [10]


real and 15 imaginary. Since the six-vector, ⃗ E, is not a geometrical quantity

and do not have the convenient transformation properties of a rank one tensor,

this matrix is no more than a table of the 36 correlation components. Even so,

these 36 correlation components are those components we want to combine into

geometrical quantities to get a more physical representation of polarization.

2.3. IRREDUCIBLE REPRESENTATION 17

2.3 Irreducible representation in terms of geometrical

objects

A quite natural way of representing a complex vector field in quadratic components

is to take the tensor product of the field and its hermitian conjugate. The

tensor product between any two three-dimensional vectors is defined as

⎛

⃗A ⊗ B ⃗ † = ⎝ A ⎞

1B1 ∗ A 1 B2 ∗ A 1 B3

∗

A 2 B1 ∗ A 2 B2 ∗ A 2 B3

∗ ⎠ , (2.74)

A 3 B1 ∗ A 3 B2 ∗ A 3 B3

∗

where † denotes Hermitian conjugate and ∗ denotes complex conjugate. This

tensor product is the fundamental object in this chapter and we will decompose

it into different geometrical objects. Since it is constructed from the tensor

product of two vectors it is also clear that it is a tensor. This matrix is often

called the correlation matrix. The symmetry used here is that of the rotation

group, SO(3) (see Arfken & Weber [10], Tung [24] or Barut & Raczka [18]), since

we are in the complex Euclidean three dimensional space and we are restricting

the rotations to real rotations.

2.3.1 Complex vector algebra

In the spectral domain, the Fourier transform of the electromagnetic field, we

have a complex vector field. For a good introduction to complex algebra, the

paper[14] and book [15] by Lindell is recommended. The complex vector algebra,

with notations, used in this work is presented here.

The Hermitian conjugate of a scalar is the same as the complex conjugate,

and for a vector

⃗F = ⃗a + i ⃗ b ⇒ ⃗ F † = ⃗a − i ⃗ b, (2.75)

it is also the same. The main rule is that in in a multiplication of components,

we have the conjugation on the second factor. This gives the scalar product of

⃗A and ⃗ B, to be

scalar( ⃗ A, ⃗ B) = ⃗ A · ⃗B † , (2.76)

and the cross product

cross( ⃗ A, ⃗ B) = ⃗ A × ⃗ B † . (2.77)

For a matrix or tensor, the Hermitian conjugate is conjugation and transponation,

A † = (A T ) ∗ . In this work we use the products defined in a real space and

write out the conjugate, ⃗ A · ⃗B † .

Following Lindell [14], we have some useful relations for complex vectors.

For determining if a vector is zero, we have

⃗A · ⃗A † = 0 ⇒ ⃗ A = 0, (2.78)

⃗A × ⃗ B = 0, ⃗ A · ⃗ B † = 0 ⇒ ⃗ A = 0 or ⃗ B = 0. (2.79)

If the cross product of two vectors is zero, we have the relation

⃗A × ⃗ B = 0, ⃗ A ≠ 0 ⇒ ∃α ∈ C, ⃗ B = α ⃗ A, (2.80)


and if the scalar product is zero, we have

⃗A · ⃗B = 0, A ≠ 0 ⇒ ∃ ⃗ C, ⃗ B = ⃗ C × ⃗ A. (2.81)

With complex field ⃗ A, the condition for linear polarization is

⃗A × ⃗ A † = 0, (2.82)

having ⃗ A = ⃗a+i ⃗ b, this becomes ⃗a× ⃗ b = 0. The condition for circular polarization

is

⃗A · ⃗A = 0, (2.83)

which means that |Im[A]| = |Re[A]|, i.e. the complex and real part are of equal

size. This section gives the main features of complex vector algebra, which

we are using in this work. Complex vector algebra is used extensively when

considering electromagnetic waves, but is generally not thoroughly explained in

the literature.

2.3.2 The electromagnetic field

For the complex electric or the magnetic field separately ( F ⃗ = F ⃗ (⃗r, ω) is either

⃗E or B) ⃗ the tensor product is usually called the spectral density matrix. We

have

⎛

⎞

⃗F ⊗ F ⃗ F 1 F † 1 ∗ F 1 F2 ∗ F 1 F3

∗

= ⎝F 2 F1 ∗ F 2 F2 ∗ F 2 F3

∗ ⎠ . (2.84)

F 3 F1 ∗ F 3 F2 ∗ F 3 F3

∗

This matrix contains 9 parameters which is the number of degrees of freedom

needed to completely describe the wave field. Since ⃗ F is a complex vector we

can separate its real and imaginary parts. With this in mind one can easily

show that Equation (2.84) is symmetric in the real part and anti-symmetric in

the imaginary part. We have that the spectral density matrix consists of six real

(the components on the diagonal are real) and three imaginary components, a

total of 9 different degrees of freedom.

This way of describing the wave is not very convenient since the parameters

are in general not very physical and are not invariant under coordinate transformations.

A better way is to write the spectral density matrix as a sum of

geometric quantities. Recall from the previous chapter, with ⃗ F = ⃗a + i ⃗ b, the

quantities

I F = ⃗ F · ⃗F † = a 2 + b 2 = | ⃗ F | 2 (2.85)

and

⃗V = i ⃗ F × ⃗ F † = i(⃗a + i ⃗ b) × (⃗a − i ⃗ b) = 2⃗a × ⃗ b. (2.86)

I F is the energy density of the field in question. This V ⃗ is parallel (or antiparallel

depending on whether the wave is left or rigthand polarized) to the

direction of propagation of the wave. Note that E ⃗ is a polar vector and B ⃗ is an

axial vector, but E ⃗ × E ⃗ † and B ⃗ × B ⃗ † are both axial vectors, since B ⃗ × B ⃗ † is a

product of two axial vectors.

The trace of the spectral density matrix is equal to the energy density of the

field, which is an invariant scalar. From Equation (2.63) we know that we can


associate a vector to the anti-symmetric part of the matrix. This means that

we can write the spectral density matrix in the following way

⃗F ⊗ ⃗ F † = 1 3 Iδ ij + iɛ ijk v k + Q ij , (2.87)

where I is a real scalar, ⃗v is the real dual pseudo-vector (associated to the antisymmetric

imaginary part, see Eq. (2.63) ) and Q is a real symmetric tensor (the

anti-symmetric part is contained in ɛ ijk v k ). This way of representing a tenor is

termed an irreducible tensor representation (see e.g. Sakurai [20] and Arfken

& Weber [10]). Since I and Q are real valued we know that ⃗v must contain the

imaginary part. Hence,

⎛

⎞

0 Im[F 1 F2 ∗ ] Im[F 1 F3 ∗ ]

ɛ ijk v k = ⎝Im[F 2 F1 ∗ ] 0 Im[F 2 F3 ∗ ] ⎠ , (2.88)

Im[F 3 F1 ∗ ] Im[F 3 F2 ∗ ] 0

which gives

⃗v = ( Im[F 2 F ∗ 3 ], Im[F 3 F ∗ 1 ], Im[F 1 F ∗ 2 ] ) . (2.89)

To get ⃗v in terms of ⃗ F , we look at one component of ⃗ V , say V 3 (see Eq. (2.66))

V 3 = i(F 1 F ∗ 2 − F 2 F ∗ 1 ) = i2i(b 1 a 2 − a 1 b 2 ) = −2Im(F 1 F ∗ 2 ) = 2Im(F 2 F ∗ 1 ). (2.90)

And similarly for the other two components. We want ⃗v to be the imaginary

part and thus we get

⃗V = 2 ( Im(F 3 F ∗ 2 ), Im(F 1 F ∗ 3 ), Im(F 2 F ∗ 1 ) ) = −2⃗v. (2.91)

Rewriting ⃗v in terms of ⃗ F we have the following expression for ⃗v

⃗v = i [

(F3 F2 ∗ − F 2 F3 ∗ ), (F 1 F3 ∗ − F 3 F1 ∗ ), (F 2 F1 ∗ − F 1 F2 ∗ ) ]

2

= ( − Im(F 3 F ∗ 2 ), −Im(F 1 F ∗ 3 ), −Im(F 2 F ∗ 1 ) ) = − i 2 ⃗ F × ⃗ F † . (2.92)

Comparing ⃗v with V ⃗ , we have that ⃗v defines left-handed and right-handed circular

polarization as seen by an observer receiving the wave (standing in the

direction of propagation), the size of this vector, ⃗v is 1 π

times the area of the polarization

ellipse (see Lindell [14]). The relation between ⃗v and Stokes parameter

V is (compare with Equation (2.69))

√

|V| = 2 v1 2 + v2 2 + v2 3 = |2⃗v|. (2.93)

By subtraction we get Q from Equation (2.87), and we have

⎛

F1 2 − 1 3 I 1

2 (F 1F2 ∗ + F 2 F ∗ 1

1 )

2 (F ⎞

3F1 ∗ + F 1 F3 ∗ )

Q = ⎝ 1

2 (F 1F2 ∗ + F 2 F1 ∗ ) F2 2 − 1 3 I 1

2 (F 3F2 ∗ + F 2 F3 ∗ ) ⎠ . (2.94)

1

2 (F 3F1 ∗ + F 1 F3 ∗ 1

)

2 (F 3F2 ∗ + F 2 F3 ∗ ) F3 2 − 1 3 I

We see that ⃗v contains the imaginary part of the matrix ⃗ F ⊗ ⃗ F † and that Q is

real valued and symmetric.


Maxwell stress tensor

A tensor similar to Q is the Maxwell stress tensor (see Wangsness [25], Jackson

[12] and Marion & Heald [16]), for real fields defined as

T ij = ɛ 0

(

Ei E j − 1 2 ⃗ E 2 δ ij

)

+

1

µ 0

(

Bi B j − 1 2 ⃗ B 2 δ ij

)

=

⎛

E1 2 − 1 2E ⃗ 2 ⎞

E 1 E 2 E 1 E 3

ɛ 0

⎝ E 2 E 1 E2 2 − 1 ⃗ 2E 2 E 2 E 3

⎠ +

E 3 E 1 E 3 E 2 E3 2 − 1 ⃗ 2E 2

The trace of this symmetric tensor is

⎛

B

1

1 2 − 1 2B ⃗ 2 ⎞

B 1 B 2 B 1 B 3

⎝ B

µ 2 B 1 B2 2 − 1 ⃗ 2B 2 B 2 B 3

⎠ . (2.95)

0

B 3 B 1 B 3 B 2 B3 2 − 1 ⃗ 2B 2

T r(T ij ) = − ɛ 0

2 ⃗ E 2 − 1

2µ 0

⃗ B 2 , (2.96)

which is minus the energy density of the electromagnetic field.

2.3.3 The product ⃗ E ⊗ ⃗ B

We now form the tensor product of E ⃗ and B ⃗ † , which is

⎛

⃗E ⊗ B ⃗ † = ⎝ E ⎞

1B1 ∗ E 1 B2 ∗ E 1 B3

∗

E 2 B1 ∗ E 2 B2 ∗ E 2 B3

∗ ⎠ . (2.97)

E 3 B1 ∗ E 3 B2 ∗ E 3 B3

∗

This matrix has a total of 18 components and is a tensor since it is constructed

from two vectors. Since it is a tensor and we can write any tensor as a sum of

its symmetric and anti-symmetric parts we follow the same procedure as we did

with the field ⃗ F in the previous section, Equation (2.87), and we get

I EB = E 1 B ∗ 1 + E 2 B ∗ 2 + E 3 B ∗ 3,

(2.98a)

⃗v EB = i 2[

(E3 B ∗ 2 − E 2 B ∗ 3), (E 1 B ∗ 3 − E 3 B ∗ 1), (E 2 B ∗ 1 − E 1 B ∗ 2) ] , (2.98b)

⎛

E 1 B1 ∗ − 1 3 I EB

Q EB = ⎝ 1

2 (E 1B2 ∗ + E 2 B1) ∗ E 2 B2 ∗ − 1 3 I EB

1

2 (E 1B2 ∗ + E 2 B1) ∗ 1

2 (E ⎞

3B1 ∗ + E 1 B3)

∗

1

2 (E 3B2 ∗ + E 2 B3)

∗ ⎠ . (2.98c)

1

2 (E 3B1 ∗ + E 1 B3) ∗ 1

2 (E 3B2 ∗ + E 2 B3) ∗ E 3 B3 ∗ − 1 3 I EB

When considering reflections, these quantities are different from the decomposition

of the tensor product of the fields with themselves (see previous Section,

decomposition of Equation (2.84)). In Equation (2.98), we have that I EB is a

pseudo-scalar (odd under spatial inversion) and Q EB is a pseudo-tensor (odd

under spatial inversion). The vector, ⃗v EB , is a polar vector which is odd under

spatial inversion. 17 Spatial inversion, or reflection, is an example of an improper

17 For definitions and transformation properties of pseudo-quantities, see Goldstein [11],

Arfken & Weber [10] or Jackson [12].


rotation, which changes the coordinate system from right-handed to left-handed

or vice versa.

All the components in the equations above (Eq. (2.98)) are complex so we

separate the real and imaginary parts according to

⃗E ⊗ ⃗ B † = Re[ ⃗ E ⊗ ⃗ B † ] + iIm[ ⃗ E ⊗ ⃗ B † ]. (2.99)

These two matrices, the real and imaginary parts, are two real matrices and

can be divided in the same way just taking real and imaginary parts of the

EB-components separately, and we have

This is a separation we will use later on.

The Poynting vector

Re[ ⃗ E ⊗ ⃗ B † ] = 1 2( ⃗E ⊗ ⃗ B † + ⃗ B ⊗ ⃗ E †) , (2.100)

iIm[ ⃗ E ⊗ ⃗ B † ] = 1 2( ⃗E ⊗ ⃗ B † − ⃗ B ⊗ ⃗ E †) . (2.101)

The vector ⃗v EB (Eq. (2.98b)) is very similar to the Poynting vector. For real

valued vector fields, the Poynting vector is defined as

⃗S = ⃗ E × ⃗ H, (2.102)

where H ⃗ is the magnetic H-field (see Wagnsness [25] or Jackson [12]). Compared

to the vector ⃗v EB , the Poynting vector is recognised as a polar vector. The

Poynting vector, S, is the instantaneous energy flow and points in the direction

of energy flow. In the complex case, using our notation with E ⃗ and B, ⃗ it becomes

(

)

⃗S = cE ⃗ × B ⃗ † = c E 2 B3 ∗ − E 3 B2, ∗ E 3 B1 ∗ − E 1 B3, ∗ E 1 B2 ∗ − E 2 B1

∗ . (2.103)

The real part of Equation (2.103) is the instantaneous energy flow of the field

and is varying with time. The time average of the energy flow, 〈 ⃗ S〉, is often

more useful. Using the complex notation for a plane wave where ⃗ E and ⃗ B are

the complex vector amplitudes this time average is very easy to calculate, we

get

〈 ⃗ S〉 = 1 2 cRe[ ⃗ E × ⃗ B † ]. (2.104)

Comparing Equa-

Which is just half of the real part of Equation (2.103).

tion (2.103) with Equation (2.98b) we see that

⃗S = 2i⃗v EB . (2.105)

Thus, we have a simple relation between the complex Poynting vector and the

⃗v EB vector.


2.4 Group theory of transformation matrices

In this section we give an introduction to the group theory of the Lie groups

used in this thesis. The definitions of the groups are given together with physical

interpretations. We also introduce the mathematical concept of irreducible

tensor representation and apply it to the groups SO(2), SO(3) and SO(3, 1).

2.4.1 The general linear group and subgroups

In this thesis there are a number of different symmetry groups consisting of operations,

such as rotation or reflection, on a real or complex vector space. These

groups can be thought of as matrices (see Fieseler [9] or Arfken & Weber [10]),

i.e. transformation matrices. These groups are continuous groups or Lie groups.

For more information on these groups, see Barut & Raczka [18] or Tung [24].

The first group, the general linear group, is the group of all invertible matrices,

and can be expressed as

GL n (K) = {A ∈ K n,n ; det A ≠ 0}, (2.106)

where K, in our case, is either the real numbers, R, or the complex numbers,

C.

A subgroup to GL n (K) is the the Special linear group, and is defined as

SL n (K) = {A ∈ GL n (K); det A = 1} = {A ∈ K n,n ; det A = 1}. (2.107)

This group leaves any totally anti-symmetric tensor of rank n invariant.

The orthogonal group is the subgroup of GL n (K) given by

O(n) = {A ∈ GL n (R); A⃗x · A⃗y = ⃗x · ⃗y ∀⃗x, ⃗y ∈ R n }

= {A ∈ GL n (R); A T A = I n }. (2.108)

This is the set of all linear transformations that leaves the Euclidean metric in n

dimensions, δ µν (n) , invariant. This notation can be extended to any metric tensor

with signature (n + , n − ), and the group is O(n + , n − ). For the flat metric, g µν

(Eq. (2.6)), with signature (1, −1, −1, −1), we have the group O(1, 3), which is

called the orthogonal group of signature (1, −1, −1, −1).

The special orthogonal group, SO(n), or SO(n + , n − ), is the subgroup of

O(n) which admits the totally anti-symmetric tensor, ɛ [n] (the [n] on ɛ [n] is the

number of suffixes, the rank, of the tensor), as an additional invariant tensor.

This group is the intersection

SO(n) = SL n (C) ∩ O(n), (2.109)

of the special linear group and the orthogonal group. An important difference

between the O(n) and SO(n) groups is that the O(n) groups include improper

rotations (reflection, inversion), which is not included in the SO(n) groups because

of the detA = 1 condition. This absence of reflections gives the SO(n)

groups the extra invariant tensor ɛ [n] , the totally anti-symmetric tensor.

Similar to the orthogonal group, O(n), which is real, we have in a complex

vector space the unitary group, defined as

U(n) = {A ∈ GL n (C); A⃗x · (A⃗y) † = ⃗x · ⃗y † ∀⃗x, ⃗y ∈ C n }

= {A ∈ GL n (C); A † A = AA † = I n }. (2.110)

2.4. GROUP THEORY OF TRANSFORMATION MATRICES 23

This is the group of linear unitary transformations that leave a metric, δ α β ,

invariant. Here we also have the possibility of different signature and it it is

written in the the same way as for O(n + , n − ). The special unitary group is a

subgroup of U(n), given by

SU(n) = SL n (C) ∩ U(n). (2.111)

This is a subgroup of U(n), which admits a totally anti-symmetric tensor of

rank n as an invariant tensor. As in the real case, the orthogonal groups,

the unitary group, U(n), includes reflections, while the special unitary group,

SU(n), do not have reflections, but allows the totally anti-symmetric tensor as

as invariant. Similar to U(n + , n − ), we can have a signature of the metric tensor,

with the same notation, SU(n + , n − ).

2.4.2 Physical use of the groups

The groups considered in this work are SO(2), SU(2), SO(3), SU(3), SO(3, 1)

and SU(3, 1).

The generators of the first group, SU(2), are known as the Pauli spin matrices,

σ ν , given by Equation (2.54). The group SU(2) is isomorphic to the

next group, SO(3), which is the rotation group in three-dimensional Euclidean

space. The SU(3) group is similar to SO(3), but is a complex group, consisting

of complex rotations in C 3 . The generators of SU(3) are found in Appendix A

and are used to extract the generalized polarization parameters.

The proper homogeneous Lorentz group, with the flat metric g µν , given

by Equation (2.6), is the group SO(3, 1) and the generalization to a complex

vector space is the group SU(3, 1). Note that the signature of the metric is

(1, −1, −1, −1), which really is the same as (−1, 1, 1, 1) considering Lorentz

transformations, i.e. SU(3, 1) = SU(1, 3).

If we enlarge the groups SO(3, 1) and SU(3, 1) to include reflections, we

have the groups O(3, 1) and U(3, 1), respectively. These groups includes the

improper Lorentz transformations, which have det A = −1 . The proper Lorentz

transformations, together with translations, forms the Poincare group (proper

inhomogeneous Lorentz group), a group often encountered in the subject of the

Lorentz group.

The groups we are considering are SU(2), SO(3), SU(3), SO(3, 1) and SU(3, 1).

The special unitary and special orthogonal groups have their respective metric

tensor and the totally anti-symmetric tenor as invariant tensors. Using these invariant

tensors we can decompose tensors of the groups into lower rank tensors.

The unitary groups will include complex rotations, given by spherical tensors

(see Sakurai [20]), which can be interpreted as a change in the phase of the wave.

Restricting the rotations to only be real rotations of the Cartesian coordinate

axes, we can use the groups SO(3) and SO(3, 1) on complex vector spaces.

2.4.3 Irreducible tensor representation of Lie groups

In Section 2.3 we made a decomposition of a tensor product, ⃗ A ⊗ B, which is a

rank two tensor, into a scalar (rank zero tensor), a vector (rank one tensor) and

a tensor (rank two tensor). The tensors produced in this process are irreducible,

which means that they can not be written as a product of lower rank tensors


using the metric tensor, g µν , and the totally anti-symmetric tensor, ɛ [n] . In

the rotation group, SO(3), the irreducible tensor representation of a general

second rank tensor is just the decomposition done in Section 2.3, with the metric

g ab = δ ab , the Kronecker delta. The decomposition is given by

where

and

A ij = 1 3 Θδ ij + 1 2 ɛ ijkω k + σ ij , (2.112)

θ = A i i, (2.113)

ω i = ɛ ijk A jk (2.114)

σ ij = 1 2 (A ij + A ji ) − 1 3 g ijA k k (2.115)

are the trace, twice the dual vector and the symmetric part of A ij , respectively.

Here we considered SO(3), but this decomposition is the same for SU(3) in the

complex vector space, which we have done in Section 2.3 (where we use a vector

algebra approach), but under SU(3) this representation is not irreducible (see

Section 2.4.2). The constant, 1 2 , in the anti-symmetric term, ωk , is dependent

on how one defines the dual vector (compare with Equation (2.87)).

Considering the groups SO(3, 1), real vector space, and SU(3, 1), complex

vector space, the representations are the equivalent (compare with SU(3) ↔

SO(3) above) but SO(3, 1) is real and SU(3, 1) is complex. In the four-dimensional

groups, SO(3, 1) and SU(3, 1), the invariant tensors are a rank two tensor, the

metric tensor, and a rank four tensor, the totally anti-symmetric tensor. For the

flat metric, g µν , with signature (1, −1, −1, −1), and the definition of complex

scalar product, ⃗a · ⃗b † , SO(3, 1) and SU(3, 1) are the proper Lorents groups for

real and complex vector spaces, respectively. The decomposition for a general

rank two tensor, A µν , is given by

A µν = 1 4 Sg µν + 1 2 ɛ µναβT (a)αβ + T µν , (2.116)

where S is a scalar, recognised as the trace of A. T (a) is a dual tensor and

contains the anti-symmetric part of A, ɛ is antisymmetric. T is a tensor and

is the symmetric part of A. Comparing with the three-dimensional case, Equation

(2.112), S, T (a) and T are given by

and

S = A µν g µν , (2.117)

T (a)

µν = ɛ µναβ A αβ (2.118)

T µν = 1 2 (A µν + A νµ ) − 1 4 g µνA α α. (2.119)

Comparing with Equation (2.112), there are no vectors, i.e. rank one tensors,

in Equation (2.116). This is due to the fact that we have an even number of

dimensions and the invariant tensors has even rank. This gives that a traceless

2.4. GROUP THEORY OF TRANSFORMATION MATRICES 25

rank two tensor is irreducible under SO(3, 1) but can be split into its symmetric

and anti-symmetric parts, T and T (a) in Equation (2.116) respectively. Since

contraction is over two indices we do not get any odd rank tensors. Note, this

does not mean that proper four-vectors are forbidden but we can not construct

them directly using the invariant tensors of the group. To achieve the odd rank

tensors we have to consider the pertinent physical equations.

Before moving on, there are some remarks concerning index notation of

tensors under different groups. In the group SO(3) we have a diagonal metric

with signature (1, 1, 1), i.e. the metric is the Kronecker delta. With this metric

there is no difference between a covariant (lower) and contravariant (upper)

index. I.e. the relation A ij... = A ij... is valid for every tensor and the relation

holds for randomly mixed indices. In contrast to SO(3) we have SO(3, 1) with a

metric signature (1, −1, −1, −1). For a general second rank tensor we have that

A µν ≠ A µν and A µ ν ≠ Aµ ν , where the last relation is the difference between

raising (or lowering) the first or the second index. With mixed indices the

metric tensor is just the Kronecker delta, which can be convenient to use in

certain calculations. In decomposition and construction of lower rank tensors it

is favourable to use non-mixed tensors since it allows direct permutation of the

indices.

This decomposition can be generalized for tensors of higher rank and will

include pseudo-scalars and higher order pseudo-tensors, but to obtain an irreducible

form we must form all possible invariant tensors, using products of the

invariant tensors, g µν and ɛ αβγδ , and lower rank tensors. The number of terms

will increase dramatically with higher rank and it is very difficult to determine

what each tensor has as its components. To make it simple we can do a reducible

representation with fewer terms, where it is much easier to identify each tensor.

Considering a general rank four tensor, A αβγδ , we can get it in a representation

similar to a tensor product of a rank two representation, Equation (2.116). This

gives the following decomposition

A αβγδ = Sg αβ g γδ + (1) T µν g αβ ɛ γδµν + (2) T γδ g αβ

+ (3) T µν ɛ αβµν g γδ + (4) T µν (5) T ψχ ɛ αβµν ɛ γδψχ

+ (6) T µν (7) T γδ ɛ αβµν + (8) T αβ g γδ + (9) T αβ (10) T µν ɛ γδµν + U αβγδ , (2.120)

where S is a scalar, the n T ’s are rank two tensors that are either symmetric

or anti-symmetric and U is a rank four tensor. This representation is generally

not an irreducible representation. For this to be a proper tensor representation

the S, T and U tensors have to be proper tensors, and for a general rank four

tensor, they are difficult to determine. The technique we use is to construct

lower rank tensors from the original tensor, A, and use these lower rank tensors

in the decomposition. We construct the tensors

and

S = A αβγδ g αβ g γδ ,

S (p) = A αβγδ ɛ αβγδ

(2.121)

T αβ = A αβγδ g γδ − 1 S. (2.122)

4


Using these tensors to decompose A αβγδ , we obtain

A αβγδ = 1 16 Sgαβ g γδ + 1 4! S(p) ɛ αβγδ + 1 2 T αβ g γδ + Ψ αβγδ , (2.123)

where Ψ is a reducible rank four tensor. The tensor T αβ is a rank two tensor and

thus can be reduced according to Equation (2.116). The irreducible tensors are

scalar, pseudo-scalar, symmetric traceless rank two tensor and anti-symmetric

rank two tensor.

To do a decomposition of higher rank tensors, one makes a representation

consisting of these irreducible tensors and products thereof, iterating the symmetry

and anti-symmetry between indices. Comparing this with the symmetries

of the tensor we want to decompose, it will be easier to construct the proper

tensors in the representation.

Example: Irreducible tensor representation of the two-dimensional

spectral density matrix

A simple example of irreducible tensor representation is to take the two dimensional

spectral density tensor, Equation (2.53), which is a tensor under the

group SO(2), and decompose it into an irreducible representation. In SO(2)

we have the invariant metric tensor, δ αβ , and the totally anti-symmetric tensor,

ɛ αβ . For a general rank two tensor, A αβ , the irreducible representation will be

A αβ = 1 2 Sδ αβ + 1 2 S(p) ɛ αβ + T αβ , (2.124)

where we have S as the trace, S = A αβ δ αβ , and the anti-symmetric part, S (p) =

A αβ ɛ αβ , which is a pseudo-scalar. Performing this on the two dimensional

spectral density matrix, S d (Eq. (2.53)), we have

( )

F1 F1 S d = ∗ F 1 F2

∗

F 2 F1 ∗ F 2 F2

∗ = 1 2 (F 1 2 + F2 2 )δ αβ + 1 2 (F 1F † 2 − F 2F † 1 )ɛ αβ+

( F

2

1 − F2 2 F 1 F2 ∗ + F 2 F1

∗

1

2

F 1 F † 2 + F 2F ∗ 1 F 2 2 − F 2 1

)

. (2.125)

Comparing this representation with Stokes’ parameters, Equation (2.49), we see

that it can be written

(

F1 F †

S d =

1 F 1 F † )

2

F 2 F † 1 F 2 F † = 1

2

2 Iδ αβ − i 2 Vɛ αβ + 1 ( ) Q U

, (2.126)

2 U −Q

where the energy density, I, is the invariant scalar and the degree of circular

polarization, V, is the invariant pseudo scalar. The last two Stokes parameters,

corresponding to linear polarization along the axis (Q) and linear polarization in

45 ◦ angle to the axis (U), together form a traceless symmetric rank two tensor.

This is the irreducible tensor representation of the two-dimensional spectral

density tensor under SO(2).

Chapter 3

The covariant spectral

density tensor and a generic

decomposition scheme

In this chapter we introduce the covariant spectral density tensor, τ αβγδ ≡

F αβ (F γδ ) ∗ , which is a manifestly Lorentz covariant rank four tensor, containing

all quadratic components of the electromagnetic field. An alternative way

of constructing a covariant spectral density tensor is to consider A µ A ν (see

Barut [1]), where A µ is the electromagnetic four-potential (see Section 2.1.2),

The four-potential is however not a measurable physical quantity and it also

depends on the choice of gauge. Since our approach is to consider measurable

parameters of polarization (just as Stokes’ parameters) the seemingly more complicated

rank four tensor τ αβγδ is preferable. One way to expand the covariant

spectral density tensor is to use the Dirac gamma matrices. In this chapter

two different definitions of the Dirac gamma matrices is presented and we use

the one that comes from the flat metric g µν (see Section 2.1, Equation (2.6)) to

extract the 36 parameters needed for a complete representation of the field. The

technique here is similar to that in Section 2.2, where a three-dimensional tensor

of rank two is decomposed in terms of a basis of matrices. In this Chapter we

use the original four Dirac gamma matrices and expand them into a complete

16 dimensional matrix basis. The covariant spectral density tensor is expanded

in this basis.

3.1 Covariant spectral density tensor

To have all quadratic electromagnetic field components collected into one object,

we introduce and define the covariant spectral density tensor, τ αβγδ , by

τ αβγδ ≡ F αβ (F γβ ) ∗ . (3.1)

The definition for real fields is the same but the complex conjugate is then

abundant. This is the deterministic version where we know the pertinent field

completely. For a physical field, where one considers a certain bandwidth, this

27

28 CHAPTER 3. COVARIANT SPECTRAL DENSITY TENSOR

tensor becomes

τ αβγδ ≡ 〈F αβ (F γβ ) ∗ 〉, (3.2)

where the average is taken separately on each component. When performing calculations

we can ignore the average, 〈〉, and do the analysis for a deterministic

wave.

The deterministic approach, in contrast to consider a stochastical wave, is

used throughout this thesis due to the fact that the average can be defined

differently. To keep the generality we therefore do not explicitly define the

〈〉-operator. 1

3.2 Pauli spin matrices

The gamma matrices are usually written in terms of the Pauli spin matrices

(σ 1 , σ 2 , σ 3 ) and the 2 × 2 unit matrix (I 2 ). The Pauli matrices comes from the

non-relativistic treatment of spin- 1 2

particles and they are defined as

σ 1 =

( 0 1

1 0

) ( 0 −i

, σ 2 =

i 0

) ( 1 0

, σ 3 =

0 −1

) ( 1 0

, I 2 =

0 1

These are the well known Pauli spin matrices from quantum mechanics.

3.3 Dirac gamma matrices

)

.

(3.3)

The gamma matrices arise in the relativistic treatment of spin- 1 2

particles and is

the four dimensional generalization of the Pauli matrices. There are two different

ways of defining the gamma matrices, one comes from using the Minkowski

notation, (x, y, z, ict), and the second one from using Lorentz space with the

flat metric, g µν (Eq. (2.6)).

The first notation (used by Sakurai [19]) is the one originally used by Dirac,

who defined the matrices as

( )

( )

0 −iσµ

I2 0

γ µ =

, µ = 1, 2, 3, γ

iσ µ 0

4 =

. (3.4)

0 −I 2

One also defines a fifth matrix as

γ 5 = γ 1 γ 2 γ 3 γ 4 (3.5)

Here the γ µ ’s are Hermitian for µ=1,2,3,4,5. The second notation (used by for

example Bjorken & Drell [2], Arfken & Weber [10]) one gets when using the

metric g µν (see Eq. (2.6)), Lorentz notation, and has the following form

(

γ µ 0 σ

µ

=

−σ µ 0

The fifth matrix in this case looks as

)

, µ = 1, 2, 3 , γ 0 =

( )

I2 0

. (3.6)

0 −I 2

γ 5 = γ 5 = iγ 0 γ 1 γ 2 γ 3 . (3.7)

1 Compare with quantum mechanics, where the 〈〉-operator is completely different from

the classical operator (see e.g. Sakurai [19] [20]).

3.4. DECOMPOSITION OF τ αβγδ 29

These matrices have the properties

γ µ γ ν + γ ν γ µ = 2g µν µ, ν = 0, 1, 2, 3, (3.8)

γ 0† = γ 0 , γ k† = −γ k , k = 1, 2, 3. (3.9)

With these matrices we can form a 16-dimensional algebra, using the unit matrix

and the symmetric combinations of the matrices. It is a complete basis

with convenient Lorentz transformation properties. These 16 matrices are constructed

in the following way 2

I 4 , γ 5 = iγ 0 γ 1 γ 2 γ 3 , γ µ , γ 5 γ µ , σ µν = i(γ µ γ ν − γ ν γ µ )/2. (3.10)

Considering Lorentz transformations, the first four tensors, γ µ , µ = 0, 1, 2, 3,

transforms as a vector and γ 5 γ µ transforms as an axial vector (pseudo-vector).

The six anti-symmetric combinations, σ µν transforms as a tensor. 3

3.4 Decomposition of τ αβγδ

We want to extract the quadratic forms of the components in the covariant

spectral density tensor, τ αβγδ = F αβ (F γδ ) ∗ . This tensor contains all correlation

components and is Lorentz covariant. 4

Here we use the notation that γ 4 is the unit 4 × 4 matrix and perform the

operations

F µν (F αβ ) ∗ γ n µνγ n αβ , n = 0, 1, . . . , 15. (3.11)

This gives a total of 256 scalars (16 × 16) but only 36 are non-zero (all 36 are

found in appendix B). These 36 nonzero are the combinations of γ 1 , γ 3 , γ 6 , γ 8 , γ 11

and γ 14 , which are the antisymmetric gamma matrices. We make the contractions

F µν γ n µν, which yields

F µν γ 1 µν = −2(E 3 + cB 3 ),

F µν γ 3 µν = −2(E 2 + cB 2 ),

F µν γ 6 µν = 2(E 2 − cB 2 ),

F µν γ 8 µν = 2i(−E 1 + cB 1 ),

F µν γ 11

µν = 2(−E 3 + cB 3 ),

F µν γ 14

µν = −2i(E 1 + cB 1 ).

(3.12)

Performing this operation with the symmetric gamma matrices gives zero since

the field strength tensor is antisymmetric and has zeroes as its diagonal elements.

Our 36 quadratic parameters are then the combinations of any two of the linear

expressions in Equation (3.12), remembering that in general, ab ∗ ≠ a ∗ b.

Rewriting the field strength tensor as a sum, using the Dirac gamma matrices,

we obtain

2F µν = −(E 3 + cB 3 )γ 1 − (E 2 + cB 2 )γ 3 + (E 2 − cB 2 )γ 6

− i(−E 1 + cB 1 )γ 8 + (−E 3 + cB 3 )γ 11 + i(E 1 + cB 1 )γ 14 . (3.13)

2 All 16 gamma matrices are found in appendix B where they are written out in matrix

form.

3 More information on the transformation properties of Dirac gamma matrices is found in

Bjorken & Drell [2], Sakurai [19] and Arfken & Weber [10].

4 The covariant spectral density tensor is explored and used more extensively in Chapter 6.

30 CHAPTER 3. COVARIANT SPECTRAL DENSITY TENSOR

We have here a method of constructing 36 linearly independent parameters

of the electromagnetic field but it is not an easy and direct method, since the

parameters we gain are not collected into different geometrical quantities. On

the good side we are just using the field strength tensor and the Dirac gamma

matrices, which have known transformation properties under the Lorentz group.

Chapter 4

Irreducible representation

of SO(3) covariant

polarization

In Section 2.3 we defined the tensor product between two fields and represented

it as a sum of a scalar, a vector and a tensor, using SO(3) symmetry. In this

chapter we use this to define a new set of parameters describing the electromagnetic

field. The number of linearly independent components for a total

description of the fields are 36. Comparing with Storey and Lefeuvre [23], this

is the number of quadratic terms in the product ( E, ⃗ B) ⃗ ⊗ ( E ⃗ † , B ⃗ † ).

4.1 The irreducible parameters under SO(3)

The three-dimensional rotation group, SO(3) (see Section 2.4), is just rotation

of coordinates in three-dimensional Euclidean space. The generators of SO(3)

are rotation around each of the coordinate axis. The geometrical objects of this

group, SO(3), and the ordinary Cartesian three-dimensional space are scalars,

vectors and tensors. 1 To label the parameters in a convenient way we use the

letters S, V, T , which are mnemonics for Scalar, V ector and T ensor. The general

decomposition scheme can be written

F ⊗ F † = S ⊕ V ⊕ T. (4.1)

This is a mathematical way of displaying the decomposition into different subspaces

of geometrical objects and that the subspaces are closed under SO(3)

transformations.

The superscripts used to label the parameters are Σ, ∆, χ, ψ. The labels Σ

and ∆ denotes the autocorrelated parameters involving only multiplication of ⃗ E

with itself and ⃗ B with itself. Σ stands for the sum between electric and magnetic

components and ∆ is the difference. The last two labels, χ and ψ, denotes the

cross-correlated parameters, where the components only contain multiplication

1 For more information on SO(3) and similar groups, good sources are Arfken & Weber [10],

Goldstein [11] and Tung [24].

31

32CHAPTER 4. IRREDUCIBLE REPRESENTATION OF POLARIZATION

between an electric and a magnetic quantity. The label χ corresponds to the sum

which means that it is the real part. The label ψ corresponds to the difference

and thus the imaginary part. The parameters are defined as

Σ : ⃗ E ⊗ ⃗ E † + ⃗ B ⊗ ⃗ B † = 1 3 δ ijS Σ + iɛ ijk V Σ

k + T Σ ij , (4.2)

∆ : ⃗ E ⊗ ⃗ E † − ⃗ B ⊗ ⃗ B † = 1 3 δ ijS ∆ + iɛ ijk V ∆

k + T ∆ ij , (4.3)

χ : ⃗ E ⊗ ⃗ B † + ⃗ B ⊗ ⃗ E † = 1 3 δ ijS χ + iɛ ijk V χ

k + T χ ij , (4.4)

ψ : ⃗ E ⊗ ⃗ B † − ⃗ B ⊗ ⃗ E † = 1 3 δ ijS ψ + iɛ ijk V ψ

k + T ψ ij . (4.5)

The number of components and degrees of freedom are distributed as

Adding up to a total of 36 components.

4.1.1 Σ, the sum

parameter label S V i T ij Sum

Σ 1 3 5 9

∆ 1 3 5 9

χ 1 3 5 9

ψ 1 3 5 9

total 4 12 20 36

The first three parameters S Σ , V Σ and T Σ are labelled with Σ to denote the

sum. The first parameter, S Σ , given by

S Σ = ⃗ E 2 + c 2 ⃗ B 2 = E 2 1 + E 2 2 + E 2 3 + c 2 B 2 1 + c 2 B 2 2 + c 2 B 2 3, (4.6)

is a real scalar and corresponds to the total energy density of the fields. The

second parameter, ⃗ V Σ , is a real pseudo-vector that holds the imaginary part of

the sum. This is easy to see since it is a crossproduct (pseudo-vector) and the

components have the form A − A † . It has the following form

⃗V Σ = ( Im[E 2 E ∗ 3 + c 2 B 2 B ∗ 3], Im[E 3 E ∗ 1 + c 2 B 3 B ∗ 1], Im[E 1 E ∗ 2 + c 2 B 1 B ∗ 2] )

= − i 2( ⃗E × ⃗ E † + c 2 ⃗ B × ⃗ B

† ) . (4.7)

In the case of transverse waves, V ⃗ is parallel or anti-parallel to the direction of

propagation. The third parameter is

⎛

⎞

E1 2 + c 2 B1 2 − 1 3 SΣ Re[E 1 E2 ∗ + c 2 B 1 B2] ∗ Re[E 1 E3 ∗ + c 2 B 1 B3]

∗ Tij Σ =

⎜Re[E 1 E2 ∗ + c 2 B 1 B2] ∗ E2 2 + c 2 B2 2 − 1 3

⎝

SΣ Re[E 2 E3 ∗ + c 2 B 2 B3]

∗ ⎟

⎠ .

Re[E 1 E3 ∗ + c 2 B 1 B3] ∗ Re[E 2 E3 ∗ + c 2 B 2 B3] ∗ E3 2 + c 2 B3 2 − 1 3 SΣ (4.8)

This parameter, Tij Σ , is similar to the Maxwell stress tensor, see Equation (2.95),

the only difference being the 1 3 on the SΣ ’s on the diagonal. This tensor is

traceless (it is made traceless in the definition), this is not the case with the

Maxwell stress tensor, which has the trace equal to the energy density.

4.1. THE IRREDUCIBLE PARAMETERS UNDER SO(3) 33

4.1.2 ∆, the difference

The next label, ∆, corresponds to the difference between the tensor products.

The first one, S ∆ , is the difference in energy

S ∆ = ⃗ E 2 − c 2 ⃗ B 2 = E 2 1 + E 2 2 + E 2 3 − c 2 B 2 1 − c 2 B 2 2 − c 2 B 2 3, (4.9)

and is recognised as the Lagrangian for a free electromagnetic field, which is a

known invariant scalar. 2 The vector, ⃗ V ∆ , is given by

⃗V ∆ = ( Im[E 2 E ∗ 3 − c 2 B 2 B ∗ 3], Im[E 3 E ∗ 1 − c 2 B 3 B ∗ 1], Im[E 1 E ∗ 2 − c 2 B 1 B ∗ 2] )

= − i 2( ⃗E × ⃗ E † − c 2 ⃗ B × ⃗ B

† ) . (4.10)

Recalling the V ⃗ defined in Section 2.4, V ⃗ Σ is the difference V ⃗ E − V ⃗ B , i.e. a

measure of the difference of the polarization ellipses. Here we get the tensor to

be

⎛

⎞

E1 2 − c 2 B1 2 − 1 3 S∆ Re[E 1 E2 ∗ − c 2 B 1 B2] ∗ Re[E 1 E3 ∗ − c 2 B 1 B3]

∗ Tij ∆ =

⎜Re[E 1 E2 ∗ − c 2 B 1 B2] ∗ E2 2 − c 2 B2 2 − 1 3

⎝

S∆ Re[E 2 E3 ∗ − c 2 B 2 B3]

∗ ⎟

⎠ .

Re[E 1 E3 ∗ − c 2 B 1 B3] ∗ Re[E 2 E3 ∗ − c 2 B 2 B3] ∗ E3 2 − c 2 B3 2 − 1 3 S∆ (4.11)

It is real, symmetric and traceless as it should be. Again all parameters are real

and V ⃗ ∆ is the imaginary part. Rewriting Tij Σ and T ij ∆ in the same manner as

the Maxwell stress tensor (Eq. (2.95)) we have

T Σ ∆

ij = ( E i E j − 1 3 ⃗ E 2 δ i j ) ± c 2( B i B j − 1 3 ⃗ B 2 δ i j ) , (4.12)

where the plus-sign corresponds to Tij Σ and the minus to T ij ∆ , and it is easy to

see the similarity with the Maxwell stress tensor.

4.1.3 χ, the real part

The label χ corresponds to the real part of the cross-correlated components,

i.e. the components containing EB ∗ and BE ∗ parts. The scalar S χ is just two

times the real part of the trace of Equation (2.97), the correlation matrix for ⃗ E

and ⃗ B, and is given by

S χ = c ⃗ E · ⃗B † + c ⃗ B · ⃗E † = 2Re[c ⃗ E · ⃗B † ], (4.13)

The vector ⃗ V χ corresponds to the antisymmetric imaginary part of the correlation

matrix and the imaginary part of the Poynting vector and is given by

(

)

⃗V χ = c Im[E 2 B3 ∗ + B 2 E3], ∗ Im[E 3 B1 ∗ + B 3 E1], ∗ Im[E 1 B2 ∗ + B 1 E2]

∗

= −c i 2( ⃗E × ⃗ B † + ⃗ B × ⃗ E †) . (4.14)

2 The Lagrangian is really half of this (see Barut [1]) but the 1 is just a constant that can

2

be ommited since we are just interested in covariance of the parameters.


The tensor, T χ ij , is the symmetric real part of Equation (2.97) made traceless

with S χ , and is written

⎛

⎞

2cRe[E 1 B1] ∗ − 1 3 Sχ cRe[E 1 B2 ∗ + E 2 B1] ∗ cRe[E 1 B3 ∗ + E 3 B1]

∗ T χ ij = ⎜cRe[E 1 B2 ∗ + E 2 B1] ∗ 2cRe[E 2 B2] ∗ − 1 3

⎝

Sχ cRe[E 2 B3 ∗ + E 3 B2]

∗ ⎟

⎠ .

cRe[E 1 B3 ∗ + E 3 B1] ∗ cRe[E 2 B3 ∗ + E 3 B2] ∗ 2cRe[E 3 B3] ∗ − 1 3 Sχ

(4.15)

4.1.4 ψ, the imaginary part

The last label, ψ, is a bit different. The scalar S ψ is two times the imaginary

part of the trace of the correlation matrix ( ⃗ E ⊗ ⃗ B † ), hence

S ψ = c ⃗ E · ⃗B † − c ⃗ B · ⃗E † = 2icIm[ ⃗ E · ⃗B † ]. (4.16)

The vector, V ψ , contains the antisymmetric real part and is given by

(

)

⃗V ψ = −ic Re[E 2 B3 ∗ − E 3 B2], ∗ Re[E 3 B1 ∗ − E 1 B3], ∗ Re[E 1 B2 ∗ − E 2 B1]

∗

= −c i 2( ⃗E × ⃗ B † − ⃗ B × ⃗ E †) . (4.17)

This is also the real part of the complex Poynting vector, Equation (2.103). The

tensor T ψ ij holds the symmetric imaginary part and is written

⎛

⎞

2icIm[E 1 B1] ∗ − 1 3 Sψ icIm[E 1 B2 ∗ + E 2 B1] ∗ icIm[E 1 B3 ∗ + E 3 B1]

∗ T ψ ij = ⎜icIm[E 1 B2 ∗ + E 2 B1] ∗ 2icIm[E 2 B2] ∗ − 1 3

⎝

Sψ icIm[E 2 B3 ∗ + E 3 B2]

∗ ⎟

⎠ .

icIm[E 1 B3 ∗ + E 3 B1] ∗ icIm[E 2 B3 ∗ + E 3 B2] ∗ 2icIm[E 3 B3] ∗ − 1 3 Sψ

The total complex Poynting vector is then given by

(4.18)

⃗S = i ⃗ V ψ + i ⃗ V χ . (4.19)

4.2 Table of the parameters

There is a total of 12 parameters in the form of scalars, vectors and tensors.

Here is a table of the parameters for a better overview:

4.3. NORMALIZATION OF THE S, V, T PARAMETERS 35

S Σ

S ∆

Total energy density

Lagrangian for a free electromagnetic field

S χ Re[cE ⃗ · ⃗B † ]

S ψ Im[cE ⃗ · ⃗B † ]

⃗V Σ

⃗V ∆

⃗V χ

⃗V ψ

Tij

Σ

Tij

∆

T χ ij

Sum of the ⃗v vectors (see Section 2.3) for E ⃗ and B. ⃗ Sum of the

polarization ellipses.

Difference of the ⃗v vectors for E ⃗ and B. ⃗ Difference

of the polarization ellipses

Imaginary part of the complex Poynting vector.

Real part of the complex Poynting vector.

Similar to Maxwell stress tensor but traceless.

Similar to Tij Σ but corresponds to the difference of the tensors for E ⃗ and B ⃗

Not found in the literature. Real part of a cross-correlated

version of Maxwell stress tensor.

T ψ ij

Not found in the literature. The imaginary part to T χ ij

The last two are of special interesting since to the best of our knowledge they

have not previously been defined or used in the literature.

4.3 Normalization of the S, V, T parameters

The parameter S Σ , the total energy density, is the only parameter that is a

positive real number for any electromagnetic field. Using s, v and t as mnemonics

for the normalized parameters, we have

s Σ = SΣ

S Σ = 1,

⃗v Σ = ⃗ V Σ

S Σ ,

t Σ ij = T Σ ij

S Σ ,

s∆ = S∆

S Σ ,

⃗v∆ = ⃗ V ∆

S Σ ,

t∆ ij = T ∆ ij

S Σ ,

sχ = Sχ

S Σ ,

⃗vχ = ⃗ V χ

S Σ ,

tχ ij = T χ ij

S Σ ,

sψ = Sψ

S Σ , (4.20)

⃗vψ = ⃗ V ψ

S Σ , (4.21)

tψ ij = T ψ ij

S Σ . (4.22)

These are normalized versions where the components of the parameters have a

maximum absolute value of one.

4.3.1 Example: the refractive index

In this section we use some complex vector algebra. A good source of information

on this subject is Lindell [14]. This example illustrates how to determine

the refractive index vector ⃗n which is then expressed in terms of the parameters

S, V and T . The refractive index is defined by

⃗n ≡ c ω ⃗ k. (4.23)

The Fourier transformed version of Faraday’s law is given by

⃗ k × ⃗ E = ω ⃗ B ⇔ ⃗n × ⃗ E = c ⃗ B. (4.24)


The condition of a divergence free magnetic field is easily seen from this equation.

By taking the scalar product with ⃗n, from the left we obtain

⃗n · (⃗n × ⃗ E) = c⃗n · ⃗B ⇒ ⃗n · ⃗B = 0, (4.25)

where we have used the vector relations ⃗a · ( ⃗ b × ⃗c) = (⃗a × b) · ⃗c and ⃗n × ⃗n = 0.

We also multiply with ⃗n † , from the left, hence

⃗n † · (⃗n × ⃗ E) = c⃗n † · ⃗B ⇒ ⃗n † · ⃗B = 0. (4.26)

The condition for the last equation to be zero is that ⃗n † ×⃗n = 0. This is fulfilled

if ⃗n can be written ⃗n = n⃗r, where n is a complex scalar and ⃗r is a real vector.

This means that the refractive index is the same in all direction, which is true

for a homogeneous medium. To get an expression for ⃗n we use Faraday’s law

cross multiplied from the right with ⃗ B †

(⃗n × ⃗ E) × ⃗ B † = c ⃗ B × ⃗ B † , (4.27)

which leads to

−⃗n( ⃗ B † · ⃗E) + ⃗ E( ⃗ B † · ⃗n) = c ⃗ B × ⃗ B † . (4.28)

If we restrict ourself to the case ⃗n × ⃗n † = 0 (homogeneous medium), the second

term on the left hand side vanishes and we are left with

which for ⃗ E · ⃗B † ≠ 0 can be rewritten as

−⃗n( ⃗ E · ⃗B † ) = c ⃗ B × ⃗ B † , (4.29)

B

⃗n = −c ⃗ × B ⃗ †

. (4.30)

⃗E · ⃗B

†

If we compare this expression with the parameters defined earlier in this chapter

we have

⃗B × ⃗ B † = i

c 2 ( ⃗V Σ − ⃗ V ∆) , (4.31)

and

Inserting this in the expression for ⃗n we get

⃗E · ⃗B † = 1 2c(

S χ + S ψ) . (4.32)

⃗n = −2 i( ⃗ V Σ − ⃗ V ∆)

S χ + S ψ . (4.33)

Given the S, V and T parameters this is a simple calculation.

4.4 Stokes parameters from the S, V, T parameters

In the two dimensional case, with E 3 = 0 and only considering the electric field

(putting ⃗ B = 0), we have Stokes parameters. In terms of the S, V, T parameters

4.4. STOKES PARAMETERS FROM THE S, V, T PARAMETERS 37

they can be written

I = F 2 x + F 2 y = S Σ , (4.34)

Q = F 2 x − F 2 y = T Σ 11 − T Σ 22, (4.35)

U = 2Re[F y F ∗ x ] = 2T Σ 12, (4.36)

V = 2Im[F y F ∗ x ] = −2V Σ

3 , (4.37)

where Σ can be replaced by ∆, since the magnetic field, ⃗ B , is zero. It is similar

for the polarization of the magnetic field. The two dimensional spectral density

matrix (Eq. (2.53)) becomes

( )

Fx Fx S d = ∗ F x Fy

∗

F y Fx

∗ F y Fy

∗ = 1 2

( )

S Σ + T11 Σ − T22 Σ 2T12 Σ + i2V3

Σ

2T12 Σ − i2V3 Σ S Σ − T11 Σ + T22

Σ , (4.38)

where we have put in the Stokes parameters in the S, V, T parameter form. We

can simplify this to

( )

T

Σ

S d = 11 T12 Σ + iV3

Σ

T12 Σ − iV3 Σ T22

Σ . (4.39)

38CHAPTER 4. IRREDUCIBLE REPRESENTATION OF POLARIZATION

Chapter 5

Covariant polarization

tensors in E,B-component

form

In Chapter 5 we saw that the S, V, T parameters can be found in Lorentz covariant

tensors. These tensors were constructed according to

where

is the metric,

and

1 X µν = F αµ (F αδ ) ∗ g δν , (5.1)

2 X µν = F αµ (F αδ ) ∗ g δν , (5.2)

3 X µν = F αµ (F αδ ) ∗ g δν , (5.3)

4 X µν = F αµ (F αδ ) ∗ g δν , (5.4)

⎛

⎞

1 0 0 0

g µν = g µν = ⎜0 −1 0 0

⎟

⎝0 0 −1 0 ⎠ , (5.5)

0 0 0 −1

⎛

⎞

0 −E 1 −E 2 −E3

F µν = ⎜E 1 0 −cB 3 cB 2

⎟

⎝E 2 cB 3 0 −cB 1

⎠ (5.6)

E 3 −cB 2 cB 1 0

⎛

⎞

0 E 1 E 2 E 3

F µν = ⎜−E 1 0 −cB 3 cB 2

⎟

⎝−E 2 cB 3 0 −cB 1

⎠ (5.7)

−E 3 −cB 2 cB 1 0

are the contravariant and covariant field strength tensors, respectively, and

⎛

⎞

0 −cB 1 −cB 2 −cB 3

F µν = ⎜cB 1 0 E 3 −E 2

⎟

⎝cB 2 −E 3 0 E 1

⎠ (5.8)

cB 3 E 2 −E 1 0

39

40 CHAPTER 5. COVARIANT POLARIZATION TENSORS

and

⎛

⎞

0 cB 1 cB 2 cB 3

F µν = ⎜−cB 1 0 E 3 −E 2

⎟

⎝−cB 2 −E 3 0 E 1

⎠ (5.9)

−cB 3 E 2 −E 1 0

are the corresponding dual tensors.

5.1 The X tensors

In E, B-component form the n X µν tensors are given by

1 X µν =

[−E 1 E ∗ 1 − E 2 E ∗ 2 − E 3 E ∗ 3, −E 2 cB ∗ 3 + E 3 cB ∗ 2, E 1 cB ∗ 3 − E 3 cB ∗ 1, −E 1 cB ∗ 2 + E 2 cB ∗ 1]

[−cB 3 E ∗ 2 + cB 2 E ∗ 3, E 1 E ∗ 1 − c 2 B 3 B ∗ 3 − c 2 B 2 B ∗ 2, E 1 E ∗ 2 + c 2 B 2 B ∗ 1, E 1 E ∗ 3 + c 2 B 3 B ∗ 1]

[cB 3 E ∗ 1 − cB 1 E ∗ 3, E 2 E ∗ 1 + c 2 B 1 B ∗ 2, E 2 E ∗ 2 − c 2 B 3 B ∗ 3 − c 2 B 1 B ∗ 1, E 2 E ∗ 3 + c 2 B 3 B ∗ 2]

[−cB 2 E ∗ 1 +cB 1 E ∗ 2, E 3 E ∗ 1 +c 2 B 1 B ∗ 3, E 3 E ∗ 2 +c 2 B 2 B ∗ 3, E 3 E ∗ 3 −c 2 B 2 B ∗ 2 −c 2 B 1 B ∗ 1]

(5.10)

2 X µν =

[−c 2 B 1 B ∗ 1−c 2 B 2 B ∗ 2−c 2 B 3 B ∗ 3, −cB 3 E ∗ 2+cB 2 E ∗ 3, cB 3 E ∗ 1−cB 1 E ∗ 3, −cB 2 E ∗ 1+cB 1 E ∗ 2]

[−E 2 cB ∗ 3 + E 3 cB ∗ 2, c 2 B 1 B ∗ 1 − E 3 E ∗ 3 − E 2 E ∗ 2, E 2 E ∗ 1 + c 2 B 1 B ∗ 2, E 3 E ∗ 1 + c 2 B 1 B ∗ 3]

[E 1 cB ∗ 3 − E 3 cB ∗ 1, E 1 E ∗ 2 + c 2 B 2 B ∗ 1, c 2 B 2 B ∗ 2 − E 3 E ∗ 3 − E 1 E ∗ 1, E 3 E ∗ 2 + c 2 B 2 B ∗ 3]

[−E 1 cB ∗ 2 + E 2 cB ∗ 1, E 1 E ∗ 3 + c 2 B 3 B ∗ 1, E 2 E ∗ 3 + c 2 B 3 B ∗ 2, c 2 B 3 B ∗ 3 − E 2 E ∗ 2 − E 1 E ∗ 1]

(5.11)

3 X µν =

[−cB 1 E ∗ 1−cB 2 E ∗ 2−cB 3 E ∗ 3, −c 2 B 2 B ∗ 3+c 2 B 3 B ∗ 2, c 2 B 1 B ∗ 3−c 2 B 3 B ∗ 1, −c 2 B 1 B ∗ 2+c 2 B 2 B ∗ 1]

[E 3 E ∗ 2 − E 2 E ∗ 3, cB 1 E ∗ 1 + E 3 cB ∗ 3 + E 2 cB ∗ 2, cB 1 E ∗ 2 − E 2 cB ∗ 1, cB 1 E ∗ 3 − E 3 cB ∗ 1]

[−E 3 E ∗ 1 + E 1 E ∗ 3, cB 2 E ∗ 1 − E 1 cB ∗ 2, cB 2 E ∗ 2 + E 3 cB ∗ 3 + E 1 cB ∗ 1, cB 2 E ∗ 3 − E 3 cB ∗ 2]

[E 2 E ∗ 1 − E 1 E ∗ 2, cB 3 E ∗ 1 − E 1 cB ∗ 3, cB 3 E ∗ 2 − E 2 cB ∗ 3, cB 3 E ∗ 3 + E 2 cB ∗ 2 + E 1 cB ∗ 1]

(5.12)

4 X µν =

[−E 1 cB ∗ 1 − E 2 cB ∗ 2 − E 3 cB ∗ 3, −E 3 E ∗ 2 + E 2 E ∗ 3, E 3 E ∗ 1 − E 1 E ∗ 3, −E 2 E ∗ 1 + E 1 E ∗ 2]

[c 2 B 2 B ∗ 3 −c 2 B 3 B ∗ 2, E 1 cB ∗ 1 +cB 3 E ∗ 3 +cB 2 E ∗ 2, −cB 2 E ∗ 1 +E 1 cB ∗ 2, −cB 3 E ∗ 1 +E 1 cB ∗ 3]

[−c 2 B 1 B ∗ 3+c 2 B 3 B ∗ 1, −cB 1 E ∗ 2+E 2 cB ∗ 1, cB 3 E ∗ 3+E 2 cB ∗ 2+cB 1 E ∗ 1, −cB 3 E ∗ 2+E 2 cB ∗ 3]

[c 2 B 1 B ∗ 2−c 2 B 2 B ∗ 1, −cB 1 E ∗ 3+E 3 cB ∗ 1, −cB 2 E ∗ 3+E 3 cB ∗ 2, cB 2 E ∗ 2+E 3 cB ∗ 3+cB 1 E ∗ 1]

(5.13)

5.2. THE Y TENSORS 41

5.2 The Y tensors

The Y tensors, constructed by the combinations

Σ Y µν = 1 2

( 1

X µν + 2 X µν )

,

χ Y µν = 1 ( 3

X µν + 4 X µν )

,

2

∆ Y µν = 1 ( 1

X µν − 2 X µν )

(5.14)

,

2

ψ Y µν = 1 ( 3

X µν − 4 X µν )

,

2

and are then found to be

Σ Y µν = 1 2

[−E 1 E ∗ 1−E 2 E ∗ 2−E 3 E ∗ 3−cB 1 cB ∗ 1−cB 2 cB ∗ 2−cB 3 cB ∗ 3, −cB 3 E ∗ 2+cB 2 E ∗ 3−E 2 cB ∗ 3+E 3 cB ∗ 2,

E 1 cB ∗ 3 − E 3 cB ∗ 1 + cB 3 E ∗ 1 − cB 1 E ∗ 3, −E 1 cB ∗ 2 + E 2 cB ∗ 1 − cB 2 E ∗ 1 + cB 1 E ∗ 2]

[−cB 3 E ∗ 2+cB 2 E ∗ 3−E 2 cB ∗ 3+E 3 cB ∗ 2, E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2+cB 1 cB ∗ 1−E 3 E ∗ 3−E 2 E ∗ 2,

E 2 E ∗ 1 + cB 1 cB ∗ 2 + E 1 E ∗ 2 + cB 2 cB ∗ 1, E 3 E ∗ 1 + cB 1 cB ∗ 3 + E 1 E ∗ 3 + cB 3 cB ∗ 1]

[E 1 cB ∗ 3 − E 3 cB ∗ 1 + cB 3 E ∗ 1 − cB 1 E ∗ 3, E 2 E ∗ 1 + cB 1 cB ∗ 2 + E 1 E ∗ 2 + cB 2 cB ∗ 1,

E 2 E ∗ 2−cB 3 cB ∗ 3−cB 1 cB ∗ 1+cB 2 cB ∗ 2−E 3 E ∗ 3−E 1 EC 1 , E 3 E ∗ 2+cB 2 cB ∗ 3+E 2 E ∗ 3+cB 3 cB ∗ 2]

[−E 1 cB ∗ 2 + E 2 cB ∗ 1 − cB 2 E ∗ 1 + cB 1 E ∗ 2, E 3 E ∗ 1 + cB 1 cB ∗ 3 + E 1 E ∗ 3 + cB 3 cB ∗ 1,

E 3 E ∗ 2+cB 2 cB ∗ 3+E 2 E ∗ 3+cB 3 cB ∗ 2, E 3 E ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+cB 3 cB ∗ 3−E 2 E ∗ 2−E 1 E ∗ 1]

(5.15)

χ Y µν = 1 2

[−cB 1 E ∗ 1−cB 2 E ∗ 2−cB 3 E ∗ 3−E 1 cB ∗ 1−E 2 cB ∗ 2−E 3 cB ∗ 3, −cB 2 cB ∗ 3+cB 3 cB ∗ 2−E 3 E ∗ 2+E 2 E ∗ 3,

cB 1 cB ∗ 3 − cB 3 cB ∗ 1 + E 3 E ∗ 1 − E 1 E ∗ 3, −cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2]

[E 3 E ∗ 2−E 2 E ∗ 3+cB 2 cB ∗ 3−cB 3 cB ∗ 2, cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1+cB 3 E ∗ 3+cB 2 E ∗ 2,

cB 1 E ∗ 2 − E 2 cB ∗ 1 − cB 2 E ∗ 1 + E 1 cB ∗ 2, cB 1 E ∗ 3 − E 3 cB ∗ 1 − cB 3 E ∗ 1 + E 1 cB ∗ 3]

[−E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1, cB 2 E ∗ 1 − E 1 cB ∗ 2 − cB 1 E ∗ 2 + E 2 cB ∗ 1,

cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1+cB 3 E ∗ 3+cB 2 E ∗ 2, cB 2 E ∗ 3−E 3 cB ∗ 2−cB 3 E ∗ 2+E 2 cB ∗ 3]

[E 2 E ∗ 1 − E 1 E ∗ 2 + cB 1 cB ∗ 2 − cB 2 cB ∗ 1, cB 3 E ∗ 1 − E 1 cB ∗ 3 − cB 1 E ∗ 3 + E 3 cB ∗ 1,

cB 3 E ∗ 2−E 2 cB ∗ 3−cB 2 E ∗ 3+E 3 cB ∗ 2, cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1+cB 3 E ∗ 3+cB 2 E ∗ 2]

(5.16)

42 CHAPTER 5. COVARIANT POLARIZATION TENSORS

∆ Y µν = 1 2

[−E 1 E ∗ 1−E 2 E ∗ 2−E 3 E ∗ 3+cB 1 cB ∗ 1+cB 2 cB ∗ 2+cB 3 cB ∗ 3, cB 3 E ∗ 2−E 2 cB ∗ 3−cB 2 E ∗ 3+E 3 cB ∗ 2,


[cB 2 E ∗ 3−E 3 cB ∗ 2−cB 3 E ∗ 2+E 2 cB ∗ 3, E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+E 3 E ∗ 3+E 2 E ∗ 2,

− cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2, −E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1]

[cB 3 E ∗ 1 − E 1 cB ∗ 3 − cB 1 E ∗ 3 + E 3 cB ∗ 1, E 2 E ∗ 1 − E 1 E ∗ 2 + cB 1 cB ∗ 2 − cB 2 cB ∗ 1,

E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+E 3 E ∗ 3+E 2 E ∗ 2, −cB 2 cB ∗ 3+cB 3 cB ∗ 2−E 3 E ∗ 2+E 2 E ∗ 3]

[cB 1 E ∗ 2 − E 2 cB ∗ 1 − cB 2 E ∗ 1 + E 1 cB ∗ 2, cB 1 cB ∗ 3 − cB 3 cB ∗ 1 + E 3 E ∗ 1 − E 1 E ∗ 3,

E 3 E ∗ 2−E 2 E ∗ 3+cB 2 cB ∗ 3−cB 3 cB ∗ 2, E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+E 3 E ∗ 3+E 2 E ∗ 2]

(5.17)

ψ Y µν = 1 2

[−cB 1 E ∗ 1−cB 2 E ∗ 2−cB 3 E ∗ 3+E 1 cB ∗ 1+E 2 cB ∗ 2+E 3 cB ∗ 3, E 3 E ∗ 2−E 2 E ∗ 3−cB 2 cB ∗ 3+cB 3 cB ∗ 2,

cB 1 cB ∗ 3 − cB 3 cB ∗ 1 − E 3 E ∗ 1 + E 1 E ∗ 3, −cB 1 cB ∗ 2 + cB 2 cB ∗ 1 + E 2 E ∗ 1 − E 1 E ∗ 2]

[E 3 E ∗ 2−E 2 E ∗ 3−cB 2 cB ∗ 3+cB 3 cB ∗ 2, cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2−E 1 cB ∗ 1−cB 3 E ∗ 3−cB 2 E ∗ 2,

cB 2 E ∗ 1 − E 1 cB ∗ 2 + cB 1 E ∗ 2 − E 2 cB ∗ 1, cB 3 E ∗ 1 − E 1 cB ∗ 3 + cB 1 E ∗ 3 − E 3 cB ∗ 1]

[cB 1 cB ∗ 3 − cB 3 cB ∗ 1 − E 3 E ∗ 1 + E 1 E ∗ 3, cB 2 E ∗ 1 − E 1 cB ∗ 2 + cB 1 E ∗ 2 − E 2 cB ∗ 1,

cB 2 E ∗ 2+E 3 cB ∗ 3+E 1 cB ∗ 1−cB 3 E ∗ 3−E 2 cB ∗ 2−cB 1 E ∗ 1, cB 3 E ∗ 2−E 2 cB ∗ 3+cB 2 E ∗ 3−E 3 cB ∗ 2]

[−cB 1 cB ∗ 2 + cB 2 cB ∗ 1 + E 2 E ∗ 1 − E 1 E ∗ 2, cB 3 E ∗ 1 − E 1 cB ∗ 3 + cB 1 E ∗ 3 − E 3 cB ∗ 1,

cB 3 E ∗ 2−E 2 cB ∗ 3+cB 2 E ∗ 3−E 3 cB ∗ 2, cB 3 E ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1−cB 2 E ∗ 2−E 3 cB ∗ 3−cB 1 E ∗ 1]

(5.18)

5.3 The K and K tensors

The K and K tensors are formed by removing the trace from ∆ Y µν and χ Y µν ,

respectively, and are given by

K µν = 1 2

[0, cB 3 E ∗ 2 − E 2 cB ∗ 3 − cB 2 E ∗ 3 + E 3 cB ∗ 2, cB 1 E ∗ 3 − E 3 cB ∗ 1 − cB 3 E ∗ 1 + E 1 cB ∗ 3,

cB 2 E ∗ 1 − E 1 cB ∗ 2 − cB 1 E ∗ 2 + E 2 cB ∗ 1]

[cB 2 E ∗ 3 − E 3 cB ∗ 2 − cB 3 E ∗ 2 + E 2 cB ∗ 3, 0, −cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2,

− E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1]

[cB 3 E ∗ 1 − E 1 cB ∗ 3 − cB 1 E ∗ 3 + E 3 cB ∗ 1, E 2 E ∗ 1 − E 1 E ∗ 2 + cB 1 cB ∗ 2 − cB 2 cB ∗ 1, 0,

− cB 2 cB ∗ 3 + cB 3 cB ∗ 2 − E 3 E ∗ 2 + E 2 E ∗ 3]


E 3 E ∗ 2 − E 2 E ∗ 3 + cB 2 cB ∗ 3 − cB 3 cB ∗ 2, 0] (5.19)

5.3. THE K AND K TENSORS 43

and

K µν = 1 2

[0, −cB 2 cB ∗ 3 + cB 3 cB ∗ 2 − E 3 E ∗ 2 + E 2 E ∗ 3, cB 1 cB ∗ 3 − cB 3 cB ∗ 1 + E 3 E ∗ 1 − E 1 E ∗ 3,

− cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2]

[E 3 E ∗ 2 − E 2 E ∗ 3 + cB 2 cB ∗ 3 − cB 3 cB ∗ 2, 0, cB 1 E ∗ 2 − E 2 cB ∗ 1 − cB 2 E ∗ 1 + E 1 cB ∗ 2,

cB 1 E ∗ 3 − E 3 cB ∗ 1 − cB 3 E ∗ 1 + E 1 cB ∗ 3]

[−E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1, cB 2 E ∗ 1 − E 1 cB ∗ 2 − cB 1 E ∗ 2 + E 2 cB ∗ 1, 0,

cB 2 E ∗ 3 − E 3 cB ∗ 2 − cB 3 E ∗ 2 + E 2 cB ∗ 3]


respectively.

cB 3 E ∗ 2 − E 2 cB ∗ 3 − cB 2 E ∗ 3 + E 3 cB ∗ 2, 0], (5.20)

44 CHAPTER 5. COVARIANT POLARIZATION TENSORS

Chapter 6

Reducible representation of

the covariant spectral

density tensor

In Chapter 3 we introduced the covariant spectral density tensor, τ αβγδ , as

the tensor product of the field strength tensor with its complex conjugate,

F αβ (F γδ ) ∗ . This tensor contains all correlation components of the electromagnetic

field and it is manifestly Lorentz covariant. One would like to decompose

the covariant spectral density tensor in an irreducible tensor representation (see

Sections 2.3 and 2.4). To keep it simple one can begin with a reducible representation,

which can be expanded into an irreducible representation. In this

Chapter we decompose the covariant spectral density tensor, into a reducible representation

consisting of irreducible tensors The irreducible tensors are identified

as known scalars and tensors. The covariant polarization tensors in Chapter 5

are reconstructed directly from the covariant spectral density tensor.

6.1 The covariant spectral density tensor

As shown in Chapter 3, it is the possible to construct a rank four tensor, τ αβγδ =

F αβ (F γδ ) ∗ , which consists of quadratic components. This tensor is the covariant

spectral density tensor, and it contains all quadratic correlation components of

the electromagnetic field.

Since τ αβγδ is the tensor product of of the field strength tensor with itself,

it has some convenient symmetries and zeroes:

τ αβγδ = (τ γδαβ ) ∗ , (6.1)

τ αβγδ = −τ βαγδ = −τ αβδγ = τ βαδγ , (6.2)

τ αβγδ = 0 , if α = β or(and) γ = β. (6.3)

45

46 CHAPTER 6. REDUCIBLE REPRESENTATION OF τ αβγδ

6.2 The irreducible tensors

The decomposition we make is in terms of proper Lorentz tensors, i.e. the

tensors are manifestly covariant under Lorentz transformations. The decomposition

is similar to Equation (2.123) but here we construct the tensors in the

decomposition from the original tensor. By considering which tensors we can

construct using τ αβγδ and the invariant tensors of the group SO(3, 1) (see Section

2.4 Equation (2.44)) we obtain a decomposition of the tensor. From the

covariant spectral density we form the following tensors

(p) S = τ αβγδ ɛ αβγδ ,

S = τ αβγδ g αγ g βδ ,

T αγ = τ αβγδ g βδ − 1 4 Sgαγ ,

(6.4)

(p) T µν = τ αβγδ g αγ ɛ βδµν ,

where S is an ordinary scalar, (p) S is a pseudo-scalar, T αγ and (p) T µν are tensor

and pseudo tensor, respectively. We can construct several similar tensors, but

due to the symmetries of τ αβγδ several of them will be zero and for simplicity,

we decompose τ αβγδ into a reducible representation.

Calculating the scalars, S and (p) S, in the representation, they are found to

be

S = −2(E 2 − c 2 B 2 ),

(p) S = 4( ⃗ E · ⃗B † + ⃗ B · ⃗E † ).

(6.5)

These are recognised as the Lagrangian for a free electromagnetic field and the

real part of the scalar product ⃗ E · ⃗B † , respectively, both known invariants. The

first tensor, T αγ , is the complex electromagnetic energy-momentum tensor (see

Section 2.1.4 Equation (2.44)). The second tensor, (p) T µν , is found to be −2K µν ,

a tensor introduced in the previous Chapter (Chapter 5, Equation (??)).

In Chapter 5 we introduced ten covariant polarization tensors, the X and Y

tensors together with the two tenors K and K. These tensors can be constructed

from the covariant spectral density tensor directly, using the metric tensor, g µν

and the totally anti-symmetric tensor, ɛ µναβ . In terms of the covariant spectral

density tensor, 3 X νδ and 4 X νδ (Eq. (??)) are given by

and

3 X νδ = F αν (F αµ ) ∗ g µδ = 1 2 g µγɛ µν

αβ τ αβγδ (6.6)

4 X νδ = F αν (F αµ ) ∗ g µδ = 1 2 g αµɛ µν

γδ τ αβγδ . (6.7)

From these expressions we get the expressions for χ Y νδ (plus sign) and ψ Y νδ

(minus sign), and we have

χ νδ 1( ψ Y = 3

X νδ ± 4 X νδ ) 1 =

2

4 τ αβγδ( g µγ ɛ µν

αβ ± g αµɛ µν )

γδ . (6.8)

For 1 X and 2 X, the expressions are

1 X νδ = F αν F ∗ αµg µδ = τ ανβδ g αβ (6.9)

6.3. REDUCIBLE REPRESENTATION 47

and

2 X νδ = F αν Fαµg ∗ µδ = 1 4 ɛαν α ′ β ′ɛ α δ

γ ′ σ ′τ α′ β ′ γ ′ σ ′ , (6.10)

where the prime, ” ′ ” denotes dummy indices. The expression for the corresponding

Y tensors is

Σ νδ 1( ∆ Y = 3

X νδ ± 4 X νδ ) 1 =

2

2 τ α′ β ′ γ ′ δ ′( gβ ν ′gδ δ ′g α ′ γ ′ ± 1 4 ɛαν α ′ β ′ɛ α δ )

δ ′ γ . (6.11)

′

These equations are examples of the variety of tensors one is able to construct,

just using the metric tensor and the totally anti-symmetric tensor and combine

them into new tensors.

6.3 Reducible representation

In this Chapter we use the covariant spectral density tensor with purely contravariant

components. The tensors and decompositions can clearly be altered

into any mixed or covariant form using the metric, g µν . Having all indices in

the same position (upper or lower) makes it simple to combine the elements in a

correct manner, in contrast to a mixed representation where one must be careful

in which order one has the indices. Furthermore it is only in the purely covariant

or contravariant notation one can form symmetric and anti-symmetric parts

directly by adding and subtracting the transposed tensor (see Section 2.4). One

reason to use a mixed representation is that the metric reduces to the Kronecker

delta, g µ ν = δ µ ν , which can be more convenient in some cases. 1

The tensors in Equation (6.4) are, due to their construction, manifestly

covariant and irreducible under SO(3, 1). With these tensor we can decompose

τ αβγδ in terms of irreducible tensors and a rest tensor, which will be reducible.

We have

τ αβγδ = F αβ (F γδ ) ∗ =

1

16 Sgαγ g βδ + 1 4! S(p) ɛ αβγδ + 1 (1) T αγ g βδ + 1 (2) T µν g αγ ɛ βδµν + Ψ αβγδ . (6.12)

4 8

The rest tensor Ψ will be a proper rank four tensor since all other tensors are

proper tensors, and it is formed by a linear combination of proper tensors.

Since τ αβγδ is constructed from the field strength tensor it is antisymmetric

in the first two indices and also in the last two, but is symmetric between the

first two indices and the last two indices. By looking at the symmetries we can

see how we can decompose Ψ further, using similar tensors but permuting the

indices. 2 This process of performing a simple decomposition to get a reduced

rest tensor, can be applied to a general rank four tensor.

The covariant spectral density tensor is a basic and fundamental object

considering polarization. Because of its construction the components of this

tensor only contains one correlation component, and from it one can construct

a variety of tensors consisting of different components.

1 See Sections 2.1 and 2.4 for more details on mixed form.

2 For further info and examples of this ”index gymnastics” see Misner, Thorne & Wheeler [7]

(”the big black book”) or Schutz [21].

48 CHAPTER 6. REDUCIBLE REPRESENTATION OF τ αβγδ

Chapter 7

Conclusions

The purpose of this work was to derive covariant a representation for the polarization

properties of an electromagnetic field. I.e. the parameters in the

representation should have known transformation properties. The basic idea

has been to make a decomposition of each of the correlation matrices into a

scalar, a vector and a tensor, an irreducible tensor representation under SO(3).

Performing this decomposition, one gets parameters with components very similar

to the generalized polarization parameters, defined by Carozzi, Karlsson

and Bergman [6] who used the generators of the SU(3) symmetry group (see

Gell-Mann et. al. [17]).

The representation of the electromagnetic field given by Storey and Lefeuvre

[23] uses a six dimensional ”quasi-vector” which gives a 6×6 spectral density

matrix, with 36 correlation parameters. The problem with this representation

is that the six-vector is not a genuine vector (see Section 2.2) and that it does

not give a geometrical interpretation for the field.

The decomposition in Chapter 3 has some similar problems. We obtain 36

parameters but they are not combined in such a way that one can use them to

get a geometrical interpretation of how the field behaves.

The new set of polarization parameters introduced and defined in Chapter

4 does not exhibit these problems. These parameters represent well known geometrical

quantities, covariant under the group SO(3), and they have separately

been found in the literature, i.e. they have a known physical meaning. E.g., the

Poynting vector and the total energy density of the field. Two of the parameters

have not been found in the literature. These are the tensors T χ and T ψ . These

parameters has so-far no physical interpretation but can be thought of like two

cross-correlated Maxwell stress tensors.

A set of Lorentz covariant tensors, i.e. covariant under the group SO(3, 1),

are constructed in Chapter 5, the Y tensors. These tensors have the S, V, T

parameters as components and the tensors are valid in any curved space-time.

In Chapter 3 we introduce and define the covariant spectral density tensor, a

manifestly Lorentz covariant rank four tensor, consisting of all quadratic correlation

components. The Y tensors can be constructed from the covariant spectral

density tensor, τ αβγδ (Chapters 3 and 6), using the algebra of general relativity.

The covariant spectral density tensor is a more fundamental object than the

Y tensors and for a further investigation of polarization τ αβγδ is a favourable

object to consider.

49

50 CHAPTER 7. CONCLUSIONS

The new parameters defined in this work give a representation that consists

of SO(3)-covariant, and in some cases relativistically covariant, parameters that

give a full description of the polarization state of an electromagnetic wave.

From the relativistic tensors in Chapter 5 we deduce how the S, V, T parameters

transform under proper Lorentz transformations.

In the calculations we have considered deterministic fields, which means that

we have a field which is completely known. In measurements one considers bandlimited

stochastical fields, i.e., one considers the correlation in a bandwidth, in

contrast to the deterministic fields considered in this work. In this process of averaging

over a bandwidth, The formulas for S, V, T parameters are not affected

which means that the parameters are directly applicable to measurements.

A direct continuation of this work would be to find a physical interpretation

of T χ and T ψ , the previously unknown tensors, and to calculate the parameters

for different waves with known dispersion relations. This would make the parameters

useful in identification of wave modes in space plasma or other media

supporting electromagnetic wave propagation. Also lacking is the irreducble

representation of the covariant spectral density tensor and calculation of all

non-zero components in this representation, which would be convenient for a

deeper investigation of the gravitational effect on wave polarization. An interesting

question for the future is if it is possible to detect gravitational waves by

polarization effects in space plasma.

Appendix A

Generalized polarization

parameters and generators

of SU(3) symmetry group

Given the spectral density matrix for a vector field ⃗ F (using the notation x, y, z

instead of 1,2,3)

⎛

⎞

S d = F ⃗ ⊗ F ⃗ F x F † x ∗ F x Fy ∗ F x Fz

∗

= ⎝F y Fx ∗ F y Fy ∗ F y Fz

∗ ⎠ .

F z Fx ∗ F z Fy ∗ F z Fz

∗

(A.1)

The spectral density matrix can be written as a linear combination, using the

generators of the SU(3) symmetry group, λ i , and the three dimensional unit

matrix, I 3 , as a basis. In the form given by Gell-Mann [17], these matrices are

given by

⎛

I 3 = ⎝ 1 0 0 ⎞ ⎛

0 1 0⎠ , λ 1 = ⎝ 0 1 0 ⎞ ⎛

1 0 0⎠ , λ 2 = ⎝ 0 −i 0 ⎞

i 0 0⎠ ,

0 0 1 0 0 0 0 0 0

⎛

λ 3 = ⎝ 1 0 0 ⎞ ⎛

0 −1 0⎠ , λ 4 = ⎝ 0 0 1 ⎞ ⎛

0 0 0⎠ , λ 5 = ⎝ 0 0 −i ⎞

0 0 0 ⎠ ,

0 0 0 1 0 0 i 0 0

(A.2)

⎛

λ 6 = ⎝ 0 0 0 ⎞ ⎛

0 0 1⎠ , λ 7 = ⎝ 0 0 0 ⎞ ⎛

0 0 −i⎠ , λ 8 = √ 1 ⎝ 1 0 0 ⎞

0 1 0 ⎠ .

0 1 0 0 i 0

3 0 0 −2

51

52 APPENDIX A. GENERALIZED POLARIZATION PARAMETERS

Denoting the coefficients in this expansion by Λ i , we obtain

S d = 1 3 I 3 + 1 8∑

Λ i λ i =

2

i=1

⎛

1

3

⎜

Λ 0 + 1 2 Λ 3 + 1

1

⎝ 2 Λ 1 + i 2 Λ 2

1

2 Λ 4 + i 2 Λ 5

2 √ 3 Λ 8

1

2 Λ 1 − i 2 Λ 2

1

3 Λ 0 − 1 2 Λ 3 + 1

1

2 Λ 6 − i 2 Λ 7

2 √ 3 Λ 8

1

2 Λ 4 − i 2 Λ ⎞

5

1

2 Λ 6 − i 2 Λ ⎟

7 ⎠ ,

1

3 Λ 0 − √ 1

3

Λ 8

(A.3)

where the Λ i ’s are

Λ 0 = F 2 x + F 2 y + F 2 z ,

Λ 1 = F x F ∗ y + F y F ∗ x = 2Re[F x F ∗ y ],

(A.4)

(A.5)

Λ 2 = i [ F x F ∗ y − F y F ∗ x

]

= −2Im[Fx F ∗ y ], (A.6)

Λ 3 = F 2 x − F 2 y ,

Λ 4 = F x F ∗ z + F z F ∗ x = 2Re[F x F ∗ z ],

(A.7)

(A.8)

Λ 5 = i [ F x F ∗ z − F z F ∗ x

]

= −2Im[Fx F ∗ z ], (A.9)

Λ 6 = F y F ∗ z + F z F ∗ y = 2Re[F y F ∗ z ],

(A.10)

Λ 7 = i [ F y Fz ∗ − F z Fy ∗ ]

= −2Im[Fy Fz ∗ ], (A.11)

Λ 8 = √ 1 [

F

2

x + F 2 ] 2

y − √3 Fz 2 .

3

(A.12)

These Λ i ’s are the generalized polarization parameters.

Appendix B

Parameters from Dirac

gamma matrices

In Chapter 3, the Dirac gamma matrices are used to obtain a decomposition of

the electromagnetic field, which is represented by the field strength tensor

⎛

⎞

0 −E 1 −E 2 −E 3

F µν = ⎜E 1 0 −cB 3 cB 2

⎟

⎝E 2 cB 3 0 −cB 1

⎠ .

E 3 −cB 2 cB 1 0

(B.1)

In Lorentz space ((ct, x, y, z) notation) the original four gamma matrices are

given by

γ 0 =

( )

I2 0

0 −I 2

( )

γ i 0 σ

i

=

−σ i , i = 1, 2, 3 , (B.2)

0

where σ i are the Pauli spin matrices and I 2 is the two dimensional unit matrix,

Equation (3.3). These are the four matrices which appear in the relativistic

treatment of a spin - 1 2 particle.

The four gamma matrices are then expanded into a 16 dimensional basis

defined as

I 4 , γ 5 = iγ 0 γ 1 γ 2 γ 3 , γ µ , γ 5 γ µ , σ µν = i(γ µ γ ν − γ ν γ µ )/2, (B.3)

where µ, ν = 0, 1, 2, 3. Explicitly, the original four gamma matrices are

⎛

⎞ ⎛

⎞

1 0 0 0

0 0 0 1

γ 0 = ⎜0 1 0 0

⎟

⎝0 0 −1 0 ⎠ , γ1 = ⎜ 0 0 1 0

⎟

⎝ 0 −1 0 0⎠ ,

0 0 0 −1

−1 0 0 0

⎛

⎞ ⎛

⎞

0 0 0 −i

0 0 1 0

γ 2 = ⎜ 0 0 i 0

⎟

⎝ 0 i 0 0 ⎠ , γ3 = ⎜ 0 0 0 −1

⎟

⎝−1 0 0 0 ⎠ .

−i 0 0 0

0 1 0 0

(B.4)

53

54 APPENDIX B. PARAMETERS FROM DIRAC GAMMA MATRICES

The four dimensional unit matrix and the γ 5 are given by

⎛ ⎞ ⎛ ⎞

1 0 0 0

0 0 1 0

I 4 = ⎜0 1 0 0

⎟

⎝0 0 1 0⎠ , γ5 = ⎜0 0 0 1

⎟

⎝1 0 0 0⎠ .

0 0 0 1

0 1 0 0

(B.5)

And the ten constructed matrices, γ 5 γ µ and σ µν , are found to be

⎛

⎞

⎛

⎞

0 0 −1 0

0 −1 0 0

γ 6 = γ 5 γ 0 = ⎜0 0 0 −1

⎟

⎝1 0 0 0 ⎠ , γ7 = γ 5 γ 1 = ⎜−1 0 0 0

⎟

⎝ 0 0 0 1⎠ ,

0 1 0 0

0 0 1 0

⎛

⎞

⎛

⎞

0 i 0 0

−1 0 0 0

γ 8 = γ 5 γ 2 = ⎜−i 0 0 0

⎟

⎝ 0 0 0 −i⎠ , γ9 = γ 5 γ 3 = ⎜ 0 1 0 0

⎟

⎝ 0 0 1 0 ⎠ ,

0 0 i 0

0 0 0 −1

⎛ ⎞

⎛

⎞

0 0 0 i

0 0 0 1

γ 10 = σ 01 = ⎜0 0 i 0

⎟

⎝0 i 0 0⎠ , γ11 = σ 02 = ⎜ 0 0 −1 0

⎟

⎝ 0 1 0 0⎠ , (B.6)

i 0 0 0

−1 0 0 0

⎛

⎞

⎛

⎞

0 0 i 0

1 0 0 0

γ 12 = σ 03 = ⎜0 0 0 −i

⎟

⎝i 0 0 0 ⎠ , γ13 = σ 12 = ⎜0 −1 0 0

⎟

⎝0 0 1 0 ⎠ ,

0 −i 0 0

0 0 0 −1

⎛

⎞

⎛ ⎞

0 i 0 0

0 1 0 0

γ 14 = σ 13 = ⎜−i 0 0 0

⎟

⎝ 0 0 0 i⎠ , γ15 = σ 23 = ⎜1 0 0 0

⎟

⎝0 0 0 1⎠ .

0 0 −i 0

0 0 1 0

The 36 polarization parameters are obtained by the contractions

τ αβµν γ n αβγ m µν = F αβ (F µν ) ∗ γ n αβγ m µν,

(B.7)

and they are found to be:

1

4 F αβ (F µν ) ∗ γ 1 γ 1 = E 3 E3 ∗ + E 3 cB3 ∗ + cB 3 E3 ∗ + cB 3 cB3, ∗ (B.8)

1


1

4 F αβ (F µν ) ∗ γ 6 γ 6 = E 2 E2 ∗ − E 2 cB2 ∗ − cB 2 E2 ∗ + cB 2 cB2, ∗ (B.10)

1

4 F αβ (F µν ) ∗ γ 8 γ 8 = −E 1 E1 ∗ + E 1 cB1 ∗ + 4cB 1 E1 ∗ − cB 1 cB1, ∗ (B.11)

1

4 F αβ (F µν ) ∗ γ 11 γ 11 = E 3 E3 ∗ − E 3 cB3 ∗ − cB 3 E3 ∗ + cB 3 cB3, ∗ (B.12)

1

4 F αβ (F µν ) ∗ γ 14 γ 14 = −E 1 E1 ∗ − E 1 cB1 ∗ − cB 1 E1 ∗ − cB 1 cB1, ∗ (B.13)

1


1

4 F αβ (F µν ) ∗ γ 1 γ 6 = −E 3 E2 ∗ − E 3 cB2 ∗ + cB 3 E2 ∗ + cB 3 cB2, ∗ (B.15)

1

4 F αβ (F µν ) ∗ γ 1 γ 8 = i(E 3 E1 ∗ − E 3 cB1 ∗ + cB 3 E3 ∗ − cB 3 cB1), ∗ (B.16)

1

4 F αβ (F µν ) ∗ γ 1 γ 11 = E 3 E3 ∗ − E 3 cB3 ∗ + cB 3 E3 ∗ − cB 3 cB3, ∗ (B.17)

1

4 F αβ (F µν ) ∗ γ 1 γ 14 = i(E 3 E3 ∗ + E 3 cB3 ∗ + cB 3 E3 ∗ + cB 3 cB3), ∗ (B.18)

1

4 F αβ (F µν ) ∗ γ 3 γ 6 = −E 2 E2 ∗ + E 2 cB2 ∗ − cB 2 E2 ∗ + cB 2 cB2, ∗ (B.19)

1


1

4 F αβ (F µν ) ∗ γ 3 γ 11 = E 2 E3 ∗ − E 2 cB3 ∗ + cB 2 E3 ∗ − cB 2 cB3, ∗ (B.21)

1


1

4 F αβ (F µν ) ∗ γ 6 γ 8 = i(−E 2 E1 ∗ + E 2 cB1 ∗ + cB 2 E1 ∗ − cB 2 cB1), ∗ (B.23)

1

4 F αβ (F µν ) ∗ γ 6 γ 11 = −E 2 E3 ∗ + E 2 cB3 ∗ + cB 2 E3 ∗ − cB 2 cB3, ∗ (B.24)

1

4 F αβ (F µν ) ∗ γ 6 γ 14 = i(−E 2 E1 ∗ − E 2 cB1 ∗ + cB 2 E1 ∗ + cB 2 cB1), ∗ (B.25)

1

4 F αβ (F µν ) ∗ γ 8 γ 11 = i(E 1 E3 ∗ − E 1 cB3 ∗ − cB 1 E3 ∗ + cB 1 cB3), ∗ (B.26)

1

4 F αβ (F µν ) ∗ γ 8 γ 14 = −E 3 E3 ∗ + E 3 cB3 ∗ + cB 3 E3 ∗ + cB 3 cB3, ∗ (B.27)

1

4 F αβ (F µν ) ∗ γ 11 γ 14 = iE 3 E1 ∗ + E 3 cB1 ∗ − cB 3 E1 ∗ − cB 3 cB1, ∗ (B.28)

1


1

4 F αβ (F µν ) ∗ γ 14 γ 8 = −E 1 E1 ∗ + E 1 cB1 ∗ − cB 1 E1 ∗ + cB 1 cB1, ∗ (B.30)

1

4 F αβ (F µν ) ∗ γ 14 γ 6 = i(−E 1 E2 ∗ + E 1 cB2 ∗ − cB 1 E2 ∗ + cB 1 cB2), ∗ (B.31)

1


1


1

4 F αβ (F µν ) ∗ γ 11 γ 8 = i(E 3 E1 ∗ − E 3 cB1 ∗ − cB 3 E1 ∗ + cB 3 cB1), ∗ (B.34)

1

4 F αβ (F µν ) ∗ γ 11 γ 6 = −E 3 E2 ∗ + E 3 cB2 ∗ + cB 3 E2 ∗ − cB 3 cB2, ∗ (B.35)

55

56 APPENDIX B. PARAMETERS FROM DIRAC GAMMA MATRICES

1

4 F αβ (F µν ) ∗ γ 11 γ 3 = E 3 E2 ∗ + E 3 cB2 ∗ − cB 3 E2 ∗ − cB 3 cB2, ∗ (B.36)

1

4 F αβ (F µν ) ∗ γ 11 γ 1 = E 3 E3 ∗ + E 3 cB3 ∗ − cB 3 E3 ∗ − cB 3 cB3, ∗ (B.37)

1

4 F αβ (F µν ) ∗ γ 8 γ 6 = i(−E 1 E2 ∗ + E 1 cB2 ∗ + cB 1 E2 ∗ − cB 1 cB2), ∗ (B.38)

1

4 F αβ (F µν ) ∗ γ 8 γ 3 = i(E 1 E2 ∗ + E 1 cB2 ∗ − cB 1 E2 ∗ − cB 1 cB2), ∗ (B.39)

1

4 F αβ (F µν ) ∗ γ 8 γ 1 = i(E 1 E3 ∗ + E 1 cB3 ∗ − cB 1 E3 ∗ − cB 1 cB3), ∗ (B.40)

1


1


1

4 F αβ (F µν ) ∗ γ 3 γ 1 = E 2 E3 ∗ + E 2 cB3 ∗ + cB 2 E3 ∗ + cB 2 cB3. ∗ (B.43)

Appendix C

⃗E, ⃗ B component form of the

S, V, T parameters

In Chapter 4 we defined and labelled the S, V, T parameters in the following

way

Σ : ⃗ E ⊗ ⃗ E † + ⃗ B ⊗ ⃗ B † = 1 3 δ ijS Σ + iɛ ijk V Σ

k + T Σ ij , (C.1)

∆ : ⃗ E ⊗ ⃗ E † − ⃗ B ⊗ ⃗ B † = 1 3 δ ijS ∆ + iɛ ijk V ∆

k + T ∆ ij , (C.2)

χ : ⃗ E ⊗ ⃗ B † + ⃗ B ⊗ ⃗ E † = 1 3 δ ijS χ + iɛ ijk V χ

k + T χ ij , (C.3)

ψ : ⃗ E ⊗ ⃗ B † − ⃗ B ⊗ ⃗ E † = 1 3 δ ijS ψ + iɛ ijk V ψ

k + T ψ ij . (C.4)

Here we list the parameters in component form.

C.1 Σ

S Σ = E 2 + c 2 B 2 = E 1 E ∗ 1 + E 2 E ∗ 2 + E 3 E ∗ 3 + c 2 B 1 B ∗ 1 + c 2 B 2 B ∗ 2 + c 2 B 3 B ∗ 3, (C.5)

(

⃗V Σ = − i 2

E 2 E3 ∗ −E 3 E2 ∗ +c 2 B 2 B3 ∗ −c 2 B 3 B2, ∗ E 3 E1 ∗ −E 1 E3 ∗ +c 2 B 3 B1 ∗ −c 2 B 1 B3

∗

)

, E 1 E2 ∗ − E 2 E1 ∗ + c 2 B 1 B2 ∗ − c 2 B 2 B1

∗ , (C.6)

Tij Σ =

[E1+c 2 2 B1− 2 1 3 SΣ , 1 2 (E 1E2+E ∗ 2 E1+c ∗ 2 B 1 B2+c ∗ 2 B 2 B1), ∗ 1 2 (E 1E3+E ∗ 3 E1+c ∗ 2 B 1 B3+c ∗ 2 B 3 B1)]

∗

[ 1 2 (E 1E2+E ∗ 2 E1+c ∗ 2 B 1 B2+c ∗ 2 B 2 B1), ∗ E2+c 2 2 B2− 2 1 3 SΣ , 1 2 (E 2E † 3 +E 3E † 2 +c2 B 2 B3+c ∗ 2 B 3 B2)]

∗

[ 1 2 (E 1E3+E ∗ 3 E1+c ∗ 2 B 1 B3+c ∗ 2 B 3 B1), ∗ 1 2 (E 2E3+E ∗ 3 E2+c ∗ 2 B 2 B3+c ∗ 2 B 3 B2), ∗ E3+B 2 3− 2 1 3 SΣ ].

(C.7)

57

58 APPENDIX C. ⃗ E, ⃗ B COMPONENT FORM OF S, V, T PARAMETERS

C.2 ∆

S ∆ = E 2 −c 2 B 2 = E 1 E ∗ 1 +E 2 E ∗ 2 +E 3 E ∗ 3 −c 2 B 1 B ∗ 1 −c 2 B 2 B ∗ 2 −c 2 B 3 B ∗ 3, (C.8)

(

⃗V ∆ = − i 2

E 2 E3 ∗ −E 3 E2 ∗ −c 2 B 2 B3+c ∗ 2 B 3 B2, ∗ E 3 E1 ∗ −E 1 E3 ∗ −c 2 B 3 B1+c ∗ 2 B 1 B3

∗

)

, E 1 E2 ∗ − E 2 E1 ∗ − c 2 B 1 B2 ∗ + c 2 B 2 B1

∗ , (C.9)

Tij ∆ =

[E1−c 2 2 B1− 2 1 3 S∆ , 1 2 (E 1E2+E ∗ 2 E1−c ∗ 2 B 1 B2−c ∗ 2 B 2 B1), ∗ 1 2 (E 1E3+E ∗ 3 E1−c ∗ 2 B 1 B3−c ∗ 2 B 3 B1)]

∗

[ 1 2 (E 1E2+E ∗ 2 E1−c ∗ 2 B 1 B2−c ∗ 2 B 2 B1), ∗ E2−c 2 2 B2− 2 1 3 S∆ , 1 2 (E 2E3+E ∗ 3 E2−c ∗ 2 B 2 B3−c ∗ 2 B 3 B2)]

∗

[ 1 2 (E 1E3+E ∗ 3 E1−c ∗ 2 B 1 B3−c ∗ 2 B 3 B1), ∗ 1 2 (E 2E3+E ∗ 3 E2−c ∗ 2 B 2 B3−c ∗ 2 B 3 B2), ∗ E3−c 2 2 B3− 2 1 3 S∆ ].

(C.10)

C.3 χ

S χ = c ⃗ E· ⃗B † +c ⃗ B· ⃗E † = c ( E 1 B ∗ 1 +E 2 B ∗ 2 +E 3 B ∗ 3 +B 1 E ∗ 1 +B 2 E ∗ 2 +B 3 E ∗ 3)

, (C.11)

(

⃗V χ = −c i 2

E 2 B3 ∗ − E 3 B2 ∗ + B 2 E3 ∗ − B 3 E2, ∗ E 3 B1 ∗ − E 1 B3 ∗ + B 3 E1 ∗ − B 1 E3

∗

)

, E 1 B2 ∗ − E 2 B1 ∗ + B 1 E2 ∗ − B 2 E1

∗ , (C.12)

T χ ij =

[cE 1 B1+cB ∗ 1 E1− ∗ 1 3 Sχ , c 2 (E 1B2+E ∗ 2 B1+B ∗ 1 E2+B ∗ 2 E1), ∗ c 2 (E 1B3+E ∗ 3 B1+B ∗ 1 E3+B ∗ 3 E1)]

∗

[ c 2 (E 1B2+E ∗ 2 B1+B ∗ 1 E2+B ∗ 2 E1), ∗ cE 2 B2+cB ∗ 2 E2− ∗ 1 3 Sχ , c 2 (E 2B3+E ∗ 3 B2+B ∗ 2 E3+B ∗ 3 E2)]

∗

[ c 2 (E 1B3+E ∗ 3 B1+B ∗ 1 E3+B ∗ 3 E1), ∗ c 2 (E 2B3+E ∗ 3 B2+B ∗ 2 E3+B ∗ 3 E2), ∗ cE 3 B3+cB ∗ 3 E3− ∗ 1 3 Sχ ].

(C.13)

C.4 ψ

S ψ = c ⃗ E· ⃗B † −c ⃗ B· ⃗E † = c ( E 1 B ∗ 1 +E 2 B ∗ 2 +E 3 B ∗ 3 −B 1 E ∗ 1 −B 2 E ∗ 2 −B 3 E ∗ 3)

, (C.14)

(

⃗V ψ = −c i 2

E 2 B3 ∗ − E 3 B2 ∗ − B 2 E3 ∗ + B 3 E2, ∗ E 3 B1 ∗ − E 1 B3 ∗ − B 3 E1 ∗ + B 1 E3

∗

)

, E 1 B2 ∗ − E 2 B1 ∗ − B 1 E2 ∗ + B 2 E1

∗ , (C.15)

C.4. ψ 59

T ψ ij =

[cE 1 B1−cB ∗ 1 E ∗ − 1 3 Sψ , c 2 (E 1B2+E ∗ 2 B1−B ∗ 1 E2−B ∗ 2 E1), ∗ c 2 (E 1B3+E ∗ 3 B1−B ∗ 1 E3−B ∗ 3 E1)]

∗

[ c 2 (E 1B2+E ∗ 2 B1−B ∗ 1 E2−B ∗ 2 E1), ∗ cE 2 B2−cB ∗ 2 E2− ∗ 1 3 Sψ , c 2 (E 2B3+E ∗ 3 B2−B ∗ 2 E3−B ∗ 3 E2)]

∗

[ c 2 (E 1B3+E ∗ 3 B1−B ∗ 1 E3−B ∗ 3 E1), ∗ c 2 (E 2B3+E ∗ 3 B2−B ∗ 2 E3−B ∗ 3 E2), ∗ cE 3 B3−cB ∗ 3 E3− ∗ 1 3 Sψ ].

(C.16)

60 APPENDIX C. ⃗ E, ⃗ B COMPONENT FORM OF S, V, T PARAMETERS

Appendix D

Covariant polarization

tensors in E,B-component

form

In Chapter 5 we saw that the S, V, T parameters can be found in Lorentz covariant

tensors. These tensors were constructed according to

where

is the metric,

and

1 X µν = F αµ (F αδ ) ∗ g δν , (D.1)




⎛

⎞

1 0 0 0

g µν = g µν = ⎜0 −1 0 0

⎟

⎝0 0 −1 0 ⎠ ,

0 0 0 −1

⎛

⎞

0 −E 1 −E 2 −E3

F µν = ⎜E 1 0 −cB 3 cB 2

⎟

⎝E 2 cB 3 0 −cB 1

⎠

E 3 −cB 2 cB 1 0

⎛

⎞

0 E 1 E 2 E 3

F µν = ⎜−E 1 0 −cB 3 cB 2

⎟

⎝−E 2 cB 3 0 −cB 1

⎠

−E 3 −cB 2 cB 1 0

(D.5)

(D.6)

(D.7)

are the contravariant and covariant field strength tensors, respectively, and

⎛

⎞

0 −cB 1 −cB 2 −cB 3

F µν = ⎜cB 1 0 E 3 −E 2

⎟

⎝cB 2 −E 3 0 E 1

⎠

(D.8)

cB 3 E 2 −E 1 0

61

62 APPENDIX D. COVARIANT POLARIZATION TENSORS

and

⎛

⎞

0 cB 1 cB 2 cB 3

F µν = ⎜−cB 1 0 E 3 −E 2

⎟

⎝−cB 2 −E 3 0 E 1

⎠

−cB 3 E 2 −E 1 0

are the corresponding dual tensors.

(D.9)

D.1 The X tensors

In E, B-component form the n X µν tensors are given by

1 X µν =

[−E 1 E ∗ 1 − E 2 E ∗ 2 − E 3 E ∗ 3, −E 2 cB ∗ 3 + E 3 cB ∗ 2, E 1 cB ∗ 3 − E 3 cB ∗ 1, −E 1 cB ∗ 2 + E 2 cB ∗ 1]

[−cB 3 E ∗ 2 + cB 2 E ∗ 3, E 1 E ∗ 1 − c 2 B 3 B ∗ 3 − c 2 B 2 B ∗ 2, E 1 E ∗ 2 + c 2 B 2 B ∗ 1, E 1 E ∗ 3 + c 2 B 3 B ∗ 1]

[cB 3 E ∗ 1 − cB 1 E ∗ 3, E 2 E ∗ 1 + c 2 B 1 B ∗ 2, E 2 E ∗ 2 − c 2 B 3 B ∗ 3 − c 2 B 1 B ∗ 1, E 2 E ∗ 3 + c 2 B 3 B ∗ 2]

[−cB 2 E ∗ 1 +cB 1 E ∗ 2, E 3 E ∗ 1 +c 2 B 1 B ∗ 3, E 3 E ∗ 2 +c 2 B 2 B ∗ 3, E 3 E ∗ 3 −c 2 B 2 B ∗ 2 −c 2 B 1 B ∗ 1]

(D.10)

2 X µν =

[−c 2 B 1 B ∗ 1−c 2 B 2 B ∗ 2−c 2 B 3 B ∗ 3, −cB 3 E ∗ 2+cB 2 E ∗ 3, cB 3 E ∗ 1−cB 1 E ∗ 3, −cB 2 E ∗ 1+cB 1 E ∗ 2]

[−E 2 cB ∗ 3 + E 3 cB ∗ 2, c 2 B 1 B ∗ 1 − E 3 E ∗ 3 − E 2 E ∗ 2, E 2 E ∗ 1 + c 2 B 1 B ∗ 2, E 3 E ∗ 1 + c 2 B 1 B ∗ 3]

[E 1 cB ∗ 3 − E 3 cB ∗ 1, E 1 E ∗ 2 + c 2 B 2 B ∗ 1, c 2 B 2 B ∗ 2 − E 3 E ∗ 3 − E 1 E ∗ 1, E 3 E ∗ 2 + c 2 B 2 B ∗ 3]

[−E 1 cB ∗ 2 + E 2 cB ∗ 1, E 1 E ∗ 3 + c 2 B 3 B ∗ 1, E 2 E ∗ 3 + c 2 B 3 B ∗ 2, c 2 B 3 B ∗ 3 − E 2 E ∗ 2 − E 1 E ∗ 1]

(D.11)

3 X µν =

[−cB 1 E ∗ 1−cB 2 E ∗ 2−cB 3 E ∗ 3, −c 2 B 2 B ∗ 3+c 2 B 3 B ∗ 2, c 2 B 1 B ∗ 3−c 2 B 3 B ∗ 1, −c 2 B 1 B ∗ 2+c 2 B 2 B ∗ 1]

[E 3 E ∗ 2 − E 2 E ∗ 3, cB 1 E ∗ 1 + E 3 cB ∗ 3 + E 2 cB ∗ 2, cB 1 E ∗ 2 − E 2 cB ∗ 1, cB 1 E ∗ 3 − E 3 cB ∗ 1]

[−E 3 E ∗ 1 + E 1 E ∗ 3, cB 2 E ∗ 1 − E 1 cB ∗ 2, cB 2 E ∗ 2 + E 3 cB ∗ 3 + E 1 cB ∗ 1, cB 2 E ∗ 3 − E 3 cB ∗ 2]

[E 2 E ∗ 1 − E 1 E ∗ 2, cB 3 E ∗ 1 − E 1 cB ∗ 3, cB 3 E ∗ 2 − E 2 cB ∗ 3, cB 3 E ∗ 3 + E 2 cB ∗ 2 + E 1 cB ∗ 1]

(D.12)

4 X µν =

[−E 1 cB ∗ 1 − E 2 cB ∗ 2 − E 3 cB ∗ 3, −E 3 E ∗ 2 + E 2 E ∗ 3, E 3 E ∗ 1 − E 1 E ∗ 3, −E 2 E ∗ 1 + E 1 E ∗ 2]

[c 2 B 2 B ∗ 3 −c 2 B 3 B ∗ 2, E 1 cB ∗ 1 +cB 3 E ∗ 3 +cB 2 E ∗ 2, −cB 2 E ∗ 1 +E 1 cB ∗ 2, −cB 3 E ∗ 1 +E 1 cB ∗ 3]

[−c 2 B 1 B ∗ 3+c 2 B 3 B ∗ 1, −cB 1 E ∗ 2+E 2 cB ∗ 1, cB 3 E ∗ 3+E 2 cB ∗ 2+cB 1 E ∗ 1, −cB 3 E ∗ 2+E 2 cB ∗ 3]

[c 2 B 1 B ∗ 2−c 2 B 2 B ∗ 1, −cB 1 E ∗ 3+E 3 cB ∗ 1, −cB 2 E ∗ 3+E 3 cB ∗ 2, cB 2 E ∗ 2+E 3 cB ∗ 3+cB 1 E ∗ 1]

(D.13)

D.2. THE Y TENSORS 63

D.2 The Y tensors

The Y tensors, constructed by the combinations

Σ Y µν = 1 2

( 1

X µν + 2 X µν )

,

χ Y µν = 1 ( 3

X µν + 4 X µν )

,

2

∆ Y µν = 1 ( 1

X µν − 2 X µν )

(D.14)

,

2

ψ Y µν = 1 ( 3

X µν − 4 X µν )

,

2

and are then found to be

Σ Y µν = 1 2

[−E 1 E ∗ 1−E 2 E ∗ 2−E 3 E ∗ 3−cB 1 cB ∗ 1−cB 2 cB ∗ 2−cB 3 cB ∗ 3, −cB 3 E ∗ 2+cB 2 E ∗ 3−E 2 cB ∗ 3+E 3 cB ∗ 2,

E 1 cB ∗ 3 − E 3 cB ∗ 1 + cB 3 E ∗ 1 − cB 1 E ∗ 3, −E 1 cB ∗ 2 + E 2 cB ∗ 1 − cB 2 E ∗ 1 + cB 1 E ∗ 2]

[−cB 3 E ∗ 2+cB 2 E ∗ 3−E 2 cB ∗ 3+E 3 cB ∗ 2, E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2+cB 1 cB ∗ 1−E 3 E ∗ 3−E 2 E ∗ 2,

E 2 E ∗ 1 + cB 1 cB ∗ 2 + E 1 E ∗ 2 + cB 2 cB ∗ 1, E 3 E ∗ 1 + cB 1 cB ∗ 3 + E 1 E ∗ 3 + cB 3 cB ∗ 1]

[E 1 cB ∗ 3 − E 3 cB ∗ 1 + cB 3 E ∗ 1 − cB 1 E ∗ 3, E 2 E ∗ 1 + cB 1 cB ∗ 2 + E 1 E ∗ 2 + cB 2 cB ∗ 1,

E 2 E ∗ 2−cB 3 cB ∗ 3−cB 1 cB ∗ 1+cB 2 cB ∗ 2−E 3 E ∗ 3−E 1 EC 1 , E 3 E ∗ 2+cB 2 cB ∗ 3+E 2 E ∗ 3+cB 3 cB ∗ 2]

[−E 1 cB ∗ 2 + E 2 cB ∗ 1 − cB 2 E ∗ 1 + cB 1 E ∗ 2, E 3 E ∗ 1 + cB 1 cB ∗ 3 + E 1 E ∗ 3 + cB 3 cB ∗ 1,

E 3 E ∗ 2+cB 2 cB ∗ 3+E 2 E ∗ 3+cB 3 cB ∗ 2, E 3 E ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+cB 3 cB ∗ 3−E 2 E ∗ 2−E 1 E ∗ 1]

(D.15)

χ Y µν = 1 2

[−cB 1 E ∗ 1−cB 2 E ∗ 2−cB 3 E ∗ 3−E 1 cB ∗ 1−E 2 cB ∗ 2−E 3 cB ∗ 3, −cB 2 cB ∗ 3+cB 3 cB ∗ 2−E 3 E ∗ 2+E 2 E ∗ 3,

cB 1 cB ∗ 3 − cB 3 cB ∗ 1 + E 3 E ∗ 1 − E 1 E ∗ 3, −cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2]

[E 3 E ∗ 2−E 2 E ∗ 3+cB 2 cB ∗ 3−cB 3 cB ∗ 2, cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1+cB 3 E ∗ 3+cB 2 E ∗ 2,


[−E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1, cB 2 E ∗ 1 − E 1 cB ∗ 2 − cB 1 E ∗ 2 + E 2 cB ∗ 1,

cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1+cB 3 E ∗ 3+cB 2 E ∗ 2, cB 2 E ∗ 3−E 3 cB ∗ 2−cB 3 E ∗ 2+E 2 cB ∗ 3]


cB 3 E ∗ 2−E 2 cB ∗ 3−cB 2 E ∗ 3+E 3 cB ∗ 2, cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1+cB 3 E ∗ 3+cB 2 E ∗ 2]

(D.16)

64 APPENDIX D. COVARIANT POLARIZATION TENSORS

∆ Y µν = 1 2

[−E 1 E ∗ 1−E 2 E ∗ 2−E 3 E ∗ 3+cB 1 cB ∗ 1+cB 2 cB ∗ 2+cB 3 cB ∗ 3, cB 3 E ∗ 2−E 2 cB ∗ 3−cB 2 E ∗ 3+E 3 cB ∗ 2,


[cB 2 E ∗ 3−E 3 cB ∗ 2−cB 3 E ∗ 2+E 2 cB ∗ 3, E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+E 3 E ∗ 3+E 2 E ∗ 2,

− cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2, −E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1]

[cB 3 E ∗ 1 − E 1 cB ∗ 3 − cB 1 E ∗ 3 + E 3 cB ∗ 1, E 2 E ∗ 1 − E 1 E ∗ 2 + cB 1 cB ∗ 2 − cB 2 cB ∗ 1,

E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+E 3 E ∗ 3+E 2 E ∗ 2, −cB 2 cB ∗ 3+cB 3 cB ∗ 2−E 3 E ∗ 2+E 2 E ∗ 3]


E 3 E ∗ 2−E 2 E ∗ 3+cB 2 cB ∗ 3−cB 3 cB ∗ 2, E 1 E ∗ 1−cB 3 cB ∗ 3−cB 2 cB ∗ 2−cB 1 cB ∗ 1+E 3 E ∗ 3+E 2 E ∗ 2]

(D.17)

ψ Y µν = 1 2

[−cB 1 E ∗ 1−cB 2 E ∗ 2−cB 3 E ∗ 3+E 1 cB ∗ 1+E 2 cB ∗ 2+E 3 cB ∗ 3, E 3 E ∗ 2−E 2 E ∗ 3−cB 2 cB ∗ 3+cB 3 cB ∗ 2,

cB 1 cB ∗ 3 − cB 3 cB ∗ 1 − E 3 E ∗ 1 + E 1 E ∗ 3, −cB 1 cB ∗ 2 + cB 2 cB ∗ 1 + E 2 E ∗ 1 − E 1 E ∗ 2]

[E 3 E ∗ 2−E 2 E ∗ 3−cB 2 cB ∗ 3+cB 3 cB ∗ 2, cB 1 E ∗ 1+E 3 cB ∗ 3+E 2 cB ∗ 2−E 1 cB ∗ 1−cB 3 E ∗ 3−cB 2 E ∗ 2,

cB 2 E ∗ 1 − E 1 cB ∗ 2 + cB 1 E ∗ 2 − E 2 cB ∗ 1, cB 3 E ∗ 1 − E 1 cB ∗ 3 + cB 1 E ∗ 3 − E 3 cB ∗ 1]

[cB 1 cB ∗ 3 − cB 3 cB ∗ 1 − E 3 E ∗ 1 + E 1 E ∗ 3, cB 2 E ∗ 1 − E 1 cB ∗ 2 + cB 1 E ∗ 2 − E 2 cB ∗ 1,

cB 2 E ∗ 2+E 3 cB ∗ 3+E 1 cB ∗ 1−cB 3 E ∗ 3−E 2 cB ∗ 2−cB 1 E ∗ 1, cB 3 E ∗ 2−E 2 cB ∗ 3+cB 2 E ∗ 3−E 3 cB ∗ 2]

[−cB 1 cB ∗ 2 + cB 2 cB ∗ 1 + E 2 E ∗ 1 − E 1 E ∗ 2, cB 3 E ∗ 1 − E 1 cB ∗ 3 + cB 1 E ∗ 3 − E 3 cB ∗ 1,

cB 3 E ∗ 2−E 2 cB ∗ 3+cB 2 E ∗ 3−E 3 cB ∗ 2, cB 3 E ∗ 3+E 2 cB ∗ 2+E 1 cB ∗ 1−cB 2 E ∗ 2−E 3 cB ∗ 3−cB 1 E ∗ 1]

(D.18)

D.3 The K and K tensors

The K and K tensors are formed by removing the trace from ∆ Y µν and χ Y µν ,

respectively, and are given by

K µν = 1 2

[0, cB 3 E ∗ 2 − E 2 cB ∗ 3 − cB 2 E ∗ 3 + E 3 cB ∗ 2, cB 1 E ∗ 3 − E 3 cB ∗ 1 − cB 3 E ∗ 1 + E 1 cB ∗ 3,

cB 2 E ∗ 1 − E 1 cB ∗ 2 − cB 1 E ∗ 2 + E 2 cB ∗ 1]

[cB 2 E ∗ 3 − E 3 cB ∗ 2 − cB 3 E ∗ 2 + E 2 cB ∗ 3, 0, −cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2,

− E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1]

[cB 3 E ∗ 1 − E 1 cB ∗ 3 − cB 1 E ∗ 3 + E 3 cB ∗ 1, E 2 E ∗ 1 − E 1 E ∗ 2 + cB 1 cB ∗ 2 − cB 2 cB ∗ 1, 0,

− cB 2 cB ∗ 3 + cB 3 cB ∗ 2 − E 3 E ∗ 2 + E 2 E ∗ 3]


E 3 E ∗ 2 − E 2 E ∗ 3 + cB 2 cB ∗ 3 − cB 3 cB ∗ 2, 0]

(D.19)

D.3. THE K AND K TENSORS 65

and

K µν = 1 2

[0, −cB 2 cB ∗ 3 + cB 3 cB ∗ 2 − E 3 E ∗ 2 + E 2 E ∗ 3, cB 1 cB ∗ 3 − cB 3 cB ∗ 1 + E 3 E ∗ 1 − E 1 E ∗ 3,

− cB 1 cB ∗ 2 + cB 2 cB ∗ 1 − E 2 E ∗ 1 + E 1 E ∗ 2]

[E 3 E ∗ 2 − E 2 E ∗ 3 + cB 2 cB ∗ 3 − cB 3 cB ∗ 2, 0, cB 1 E ∗ 2 − E 2 cB ∗ 1 − cB 2 E ∗ 1 + E 1 cB ∗ 2,

cB 1 E ∗ 3 − E 3 cB ∗ 1 − cB 3 E ∗ 1 + E 1 cB ∗ 3]

[−E 3 E ∗ 1 + E 1 E ∗ 3 − cB 1 cB ∗ 3 + cB 3 cB ∗ 1, cB 2 E ∗ 1 − E 1 cB ∗ 2 − cB 1 E ∗ 2 + E 2 cB ∗ 1, 0,

cB 2 E ∗ 3 − E 3 cB ∗ 2 − cB 3 E ∗ 2 + E 2 cB ∗ 3]


respectively.

cB 3 E ∗ 2 − E 2 cB ∗ 3 − cB 2 E ∗ 3 + E 3 cB ∗ 2, 0],

(D.20)

66 APPENDIX D. COVARIANT POLARIZATION TENSORS

Bibliography

[1] A. O. Barut. Electrodynamics and Classical Theory of Fields and Particles.

Dover Publications, New York, 1980.

[2] J. D. Bjorken and S. D. Drell. Relativistic Quantum Mechanics. McGraw-

Hill Publishing Company, New York, 1964.

[3] M. Born and E. Wolf. Principles of Optics. Pergamon Press, London, 1959.

[4] C. Brosseau. Fundamentals of Polarized Light. John Wiley & Sons, New

York.

[5] C. Brosseau. Entropy of a classical stochastic wavefield: Effect of polarization.

Optik, 104(1):21–26, 1996.

[6] T. Carozzi, R. Karlsson, and J. Bergman. Parameters characterizing

electromagnetic wave polarization. Physical Review E, 61(2):2024–2028,

Febuary 2000.

[7] John Archibald Wheeler Charles W. Misner, Kip S. Thorne. Gravitation.

W. H. Freeman and Company, New York, 1973.

[8] P. A. M. Dirac. General Theory of Relativity. Princeton University Press,

Princeton, New Jersey, 1996.

[9] Karl-Heinz Fieseler. Algebra mn3. University of Uppsala, August 1998.

[10] J. Weber G. B. Arfken, H. Mathematical Methods for Physicists. Academic

Press, San Diego, 1995.

[11] Herbert Goldstein. Classical Mechanics. Addison-Wesley Publishing Company,

Reading, 1980.

[12] J. D. Jackson. Classical Electrodynamics. John Wiley & Sons, New York,

1975.

[13] Roger Karlsson. Three-dimensional spectral stokes parameters. Master’s

thesis, Institute of Technology, Uppsala University, April 1997.

[14] Ismo Lindell. Complex vector algebra in electromagnetics. Int. J. Elect.

Enging Educ., 20:33–47, 1983.

[15] Ismo V. Lindell. Methods for Electromagnetic Field Analysis, chapter 1,

pages 1–16. Oxford University Press, New York, 1992.

67

68 BIBLIOGRAPHY

[16] Jerry B. Marion and Mark A. Heald. Classical Electromagnetic Radiation.

Academic Press, Orlando, Florida, 1980.

[17] M. Gell-Mann & Y. Ne’eman. The Eightfold Way. W. A. Benjamin Inc.,

new York, 1964.

[18] A. O. Barut & R. Raczka. Theory of Group Representations and Applications.

World Scientific Publishing, Singapore, 1986.

[19] J. J. Sakurai. Advanced Quantum Mechanics. Addison-Wesley Publishing

Company, Reading.

[20] J. J. Sakurai. Modern Quantum Mechanics. Addison-Wesley Publishing

Company, Reading, Massachusetts, 1994.

[21] Bernard F. Schutz. A First Course in General Relativity. Cambridge University

Press, Cambridge, 1998.

[22] G. G. Stokes. Trans. cambridge philos. soc. 9. In Mathematical and Physical

Papers, Vol III, page 233. Cambridge University Press, 1901.

[23] L. R. O. Storey and F. Lefeuvre. Theory for the interpretations of measurements

of the six components of a random electromagnetic wave field in

space. Space Research, 14:381–386, 1974.

[24] Wu-Ki Tung. Group Theory in Physics. World Scientific Publishing, Singapore,

1985.

[25] Roald K. Wagnsness. Electromagnetic Fields. John Wiley & Sons, New

York, 1986.

Towards a covariant formulation of electromagnetic wave polarization

You also want an ePaper? Increase the reach of your titles

Delete template?

Save as template?
