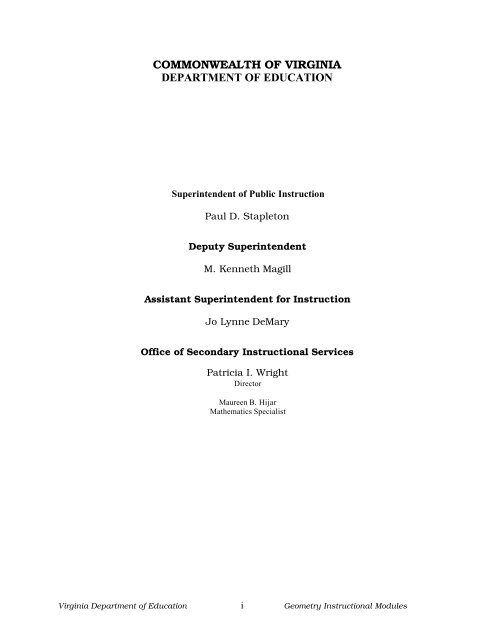

COMMONWEALTH OF VIRGINIA<br />
DEPARTMENT OF EDUCATION<br />
Superintendent <strong>of</strong> Public Instruction<br />
Paul D. Stapleton<br />
Deputy Superintendent<br />
M. Kenneth Magill<br />
Assistant Superintendent for Instruction<br />
Jo Lynne DeMary<br />
Office <strong>of</strong> Secondary Instructional Services<br />
Patricia I. Wright<br />
Director<br />
Maureen B. Hijar<br />
Mathematics Specialist<br />
Virginia Department <strong>of</strong> Education i Geometry Instructional Modules
Table <strong>of</strong> Contents<br />
Page<br />
Correlation <strong>of</strong> Activities to SOL iv<br />
Foreword vii<br />
Introduction viii<br />
I. Lines and Angles<br />
Exploring Vertical Angles 1<br />
Parallel Lines with Patty Paper 4<br />
Parallel Lines on the Graphing Calculator 6<br />
Angles and Parallel Lines 8<br />
The Three Parallel Lines Investigation 12<br />
Constructing a Line Segment Congruent<br />
to a Given Line Segment 14<br />
Constructing the Bisector <strong>of</strong> a Line<br />
Segment 17<br />
Constructing the Circumcenter <strong>of</strong> a<br />
Triangle 20<br />
Constructing the Medians and Centroids<br />
<strong>of</strong> a Triangle 22<br />
Constructing a Perpendicular to a Given<br />
Line from a Point not on the Line 24<br />
Constructing the Altitudes and Orthocenter<br />
<strong>of</strong> a Triangle 27<br />
Constructing a Perpendicular to a Given<br />
Line at a Point on the Line 30<br />
Constructing the Bisector <strong>of</strong> a Given<br />
Angle 33<br />
Constructing the Incenter <strong>of</strong> a Triangle 36<br />
Constructing an Angle Congruent to a<br />
Given Angle 38<br />
II.<br />
Triangles and Logic<br />
Types <strong>of</strong> Pro<strong>of</strong>s 41<br />
Venn Diagrams 46<br />
Properties <strong>of</strong> Similar and Congruent<br />
Triangles 49<br />
Triangles and Midpoints 52<br />
Transformations and Congruence 54<br />
How Many Triangles? 56<br />
Tangram Activities 58<br />
Tangram Activities for Area and<br />
Perimeter 60<br />
Virginia Department <strong>of</strong> Education ii Geometry Instructional Modules
Tangram Activity for Spatial Problem<br />
Solving 63<br />
Geoboard Exploration <strong>of</strong> the<br />
Pythagorean Theorem 66<br />
Pro<strong>of</strong>s <strong>of</strong> the Pythagorean Theorem 68<br />
Egyptian Rope Stretching 71<br />
III.<br />
Polygons and Circles<br />
Quadrilaterals and their Properties 72<br />
Quadrilateral Properties Laboratory 76<br />
Quadrilateral Sorting Laboratory 80<br />
Quadrilateral Diagonal Investigation 84<br />
Triangle and Quadrilateral Angle<br />
Laboratory 89<br />
The Sum <strong>of</strong> the Angles in a Polygon 94<br />
Interior Angles in a Polygon 99<br />
Circumference 102<br />
Cake Problem 103<br />
Geometer’s Sketchpad Investigation<br />
<strong>of</strong> Π 105<br />
Problem Solving with Circles 108<br />
Investigation <strong>of</strong> Secants and Circles 113<br />
IV.<br />
Three-Dimensional Figures<br />
Euler’s Formula 116<br />
Constructing the Soma Cube 117<br />
Building other Structures with the<br />
Soma Cube 122<br />
Making Two-Dimensional Drawings <strong>of</strong><br />
Three-Dimensional Figures 126<br />
Spatial Problem Solving 129<br />
Architect’s Square 130<br />
Exploring Surface Area and Volume 134<br />
Gulliver’s Travels and Proportional<br />
Reasoning 145<br />
Comparing the Edge Length, Surface<br />
Area, and Volume <strong>of</strong> Cubes 149<br />
Comparing the Radius, Surface Area,<br />
and Volume <strong>of</strong> Spheres 151<br />
V. Coordinate Relations, Transformations, and Vectors<br />
Patty Paper Translations 154<br />
Patty Paper Rotations 155<br />
Patty Paper Reflections 156<br />
Mira Explorations 157<br />
Coordinates and Symmetry 160<br />
Polygons and Symmetry 162<br />
Virginia Department <strong>of</strong> Education iii Geometry Instructional Modules
Correlation <strong>of</strong> Activities to the Standards <strong>of</strong> Learning for<br />
Geometry<br />
Lines and Angles<br />
Activity Related SOL Page Number<br />
Exploring Vertical Angles G.3 1<br />
Parallel Lines with Patty Paper<br />
G.4 4<br />
Parallel Lines on the Graphing<br />
Calculator G.4 6<br />
Angles and Parallel Lines G.4 8<br />
Three Parallel Lines<br />
Investigation G.4 12<br />
Constructing a Line Segment<br />
Congruent to a Given Line<br />
Segment G.11 14<br />
Constructing the Bisector <strong>of</strong> a<br />
Line Segment<br />
G.11 17<br />
Constructing the Circumcenter<br />
<strong>of</strong> a Triangle<br />
G.11 20<br />
Constructing the Medians and<br />
Centroids <strong>of</strong> a Triangle<br />
G.11 22<br />
Constructing a Perpendicular<br />
to a Given Line From a Point<br />
Not on the Line<br />
G.11 24<br />
Constructing the Altitudes and<br />
Orthocenter <strong>of</strong> a Triangle<br />
G.11 27<br />
Constructing a Perpendicular<br />
to a Given Line at a Point on<br />
the Line<br />
G.11 30<br />
Constructing the Bisector <strong>of</strong> a<br />
Given Angle G.11 33<br />
Constructing the Incenter <strong>of</strong> a<br />
Triangle G.11 36<br />
Constructing an Angle<br />
Congruent to a Given Angle<br />
G.11 38<br />
Virginia Department <strong>of</strong> Education iv Geometry Instructional Modules
Triangles and Logic<br />
Activity Related SOL Page Number<br />
Types <strong>of</strong> Pro<strong>of</strong> G.1 41<br />
Venn Diagrams G.1 46<br />
Properties <strong>of</strong> Similar and<br />
Congruent Triangles G.5 49<br />
Triangles and Midpoints G.5 52<br />
Transformations and<br />
Congruence G.5 54<br />
How Many Triangles? G.6 56<br />
Tangram Activities G.5 & G.7 58<br />
Tangram Activities for Area<br />
and Perimeter G.5 60<br />
Tangram Activity for Spatial<br />
Problem Solving G.5 63<br />
Geoboard Exploration <strong>of</strong> the<br />
Pythagorean Relationship<br />
G.7 66<br />
Pro<strong>of</strong>s <strong>of</strong> the Pythagorean<br />
Theorem G.7 68<br />
Egyptian Rope Stretching<br />
G.7 71<br />
Polygons and Circles<br />
Activity Related SOL Page Number<br />
Quadrilaterals and their<br />
Properties G.8 72<br />
Quadrilateral Properties<br />
Laboratory G.8 76<br />
Quadrilateral Sorting<br />
Laboratory G.8 80<br />
Quadrilateral Diagonal<br />
Investigation G.8 84<br />
Triangle and Quadrilateral<br />
Angle Laboratory<br />
G.9 89<br />
The Sum <strong>of</strong> the Angles in a<br />
Polygon G.9 94<br />
Interior Angles in a Polygon<br />
G.9 99<br />
Circumference G.10 102<br />
Cake Problem G.10 103<br />
Geometer’s Sketchpad<br />
Investigation <strong>of</strong> ∏ G.10 105<br />
Problem Solving with Circles<br />
G.10 108<br />
Investigation <strong>of</strong> Secants and<br />
Circles G.10 113<br />
Virginia Department <strong>of</strong> Education v Geometry Instructional Modules
Three-Dimensional Figures<br />
Activity Related SOL Page Number<br />
Euler’s Formula G.12 116<br />
Constructing the Soma Cube<br />
G.12 117<br />
Building Other Structures with<br />
the Soma Cube<br />
G.12 122<br />
Making Two-Dimensional<br />
Drawings <strong>of</strong> Three-<br />
Dimensional Figures<br />
G.12 127<br />
Spatial Problem Solving G.12 129<br />
Architect’s Square G.12 & G.13 130<br />
Exploring Surface Area and<br />
Volume G.13 134<br />
Gulliver’s Travels and<br />
Proportional Reasoning G.13 & G.14 145<br />
Comparing the Edge Length,<br />
Surface Area, and Volume <strong>of</strong><br />
Cubes G.14 149<br />
Comparing the Radius,<br />
Surface Area, and Volume <strong>of</strong><br />
Spheres G.14 151<br />
Coordinate Relations, Transformations, and Vectors<br />
Activity Related SOL Page Number<br />
Patty Paper Translations G.2 154<br />
Patty Paper Rotations G.2 155<br />
Patty Paper Reflections G.2 156<br />
Mira Explorations G.2 157<br />
Coordinates and Symmetry<br />
G.2 160<br />
Polygons and Symmetry G.2 162<br />
Virginia Department <strong>of</strong> Education vi Geometry Instructional Modules
Foreword<br />
The Geometry Instructional Modules are intended to assist classroom teachers <strong>of</strong><br />
geometry in implementing the Virginia Standards <strong>of</strong> Learning for mathematics. These modules<br />
are organized into the five SOL Assessment Reporting Categories for Geometry set out in the<br />
Virginia Standards <strong>of</strong> Learning Assessment: Test Blueprints from the Virginia Department <strong>of</strong><br />
Education. Each activity in the modules is correlated to the appropriate Standards <strong>of</strong> Learning.<br />
The purpose <strong>of</strong> these modules is to provide additional activities for teachers <strong>of</strong> Geometry<br />
as they implement the use <strong>of</strong> graphing calculators, computer s<strong>of</strong>tware, and different approaches to<br />
SOL instruction into their classrooms. These activities are not intended to replace complete<br />
instruction <strong>of</strong> any SOL. The intent is for the activities to reinforce and enhance student<br />
understanding <strong>of</strong> concepts that have been taught as part <strong>of</strong> the local curriculum.<br />
The use <strong>of</strong> technology, particularly the graphing calculator and computer s<strong>of</strong>tware, is<br />
important in the instruction <strong>of</strong> the Geometry Standards <strong>of</strong> Learning. Some <strong>of</strong> the activities in<br />
these modules support the use <strong>of</strong> these technology tools. Basic knowledge <strong>of</strong> the technology tools<br />
is assumed in the activities.<br />
The activities were field tested in classrooms around the state in the spring <strong>of</strong> 1999 and in<br />
a 1998 summer workshop at the College <strong>of</strong> William and Mary. Virginia teachers are encouraged<br />
to modify and adapt the activities in the Geometry Instructional Modules to meet the needs <strong>of</strong><br />
students in their classrooms. The activities in these modules may be duplicated as needed for use<br />
in Virginia.<br />
The Geometry Instructional Modules are provided to school divisions through an<br />
appropriation from the General Assembly and in accordance with the Virginia Department <strong>of</strong><br />
Education’s responsibility to develop and pilot model teacher, principal, and superintendent<br />
training activities geared to the Standards <strong>of</strong> Learning content and assessments, and to technology<br />
applications.<br />
Acknowledgements<br />
The Department <strong>of</strong> Education wishes to express sincere appreciation to Dr. Marguerite<br />
Mason and Dr. Dana Johnson, College <strong>of</strong> William and Mary; Dr. Sara D. Moore, University <strong>of</strong><br />
Kentucky; and Mr. Bruce Mason for the development <strong>of</strong> these modules.<br />
Virginia Department <strong>of</strong> Education vii Geometry Instructional Modules
Introduction<br />
The van Hiele Levels <strong>of</strong> Geometry Understanding<br />
Description:<br />
The van Hiele theory <strong>of</strong> geometric understanding describes how students learn geometry and provides a<br />
framework for structuring student experiences which<br />
should lead to conceptual growth and understanding. The sorting task included<br />
in this introduction is appropriate for all ages and levels <strong>of</strong> students. It can<br />
serve as an activity to help students advance their level <strong>of</strong> understanding as well<br />
as an assessment tool for teachers to use in identifying what van Hiele level the<br />
student is thinking at with regard to triangles.<br />
____________________________________________________________________________________<br />
Background:<br />
After observing their own students, Dutch teachers P.M. van Hiele and Dina<br />
van Hiele-Geld<strong>of</strong> described learning as a discontinuous process with jumps<br />
which suggest "levels." They identified five sequential levels <strong>of</strong> geometric<br />
understanding or thought:<br />
1) Visualization<br />
2) Analysis<br />
3) Abstraction<br />
4) Deduction<br />
5) Rigor.<br />
Clements and Battista (1992) proposed the existence <strong>of</strong> a Level 0 which they<br />
call Pre-recognition.<br />
In Kindergarten through grade two, most students will be at Level 1. By<br />
grade three, students should be transitioning to Level 2. If the content in<br />
the Virginia Standards <strong>of</strong> Learning is mastered, students should attain<br />
Level 3 by the end <strong>of</strong> sixth grade. Level 4 is usually attained by students who<br />
can prove theorems using deductive techniques. One problem is that most<br />
current textbooks provide activities requiring only Level 1 thinking up through<br />
sixth grade and teachers must provide different types <strong>of</strong> tasks to facilitate the development <strong>of</strong> the high<br />
levels <strong>of</strong> thought.<br />
Virginia Department <strong>of</strong> Education viii Geometry Instructional Modules
The van Hiele Levels <strong>of</strong> Geometry Understanding<br />
____________________________________________________________________________<br />
Objectives:<br />
Teachers will be able to describe the developmental sequence <strong>of</strong><br />
geometric thinking according to the van Hiele theory <strong>of</strong> geometric<br />
understanding and activities suitable for each level. In addition,<br />
teachers will be able to assess the van Hiele levels <strong>of</strong> their students.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Explanation Sheets<br />
• Paper triangles from the Triangle Sorting Pieces Sheet, cut out and placed<br />
in a plastic baggy or manila envelope.<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 1 hour<br />
____________________________________________________________________________________<br />
Directions:<br />
1. Teachers should study the Explanation Sheet: The van Hiele Levels.<br />
2. Turn to the Explanation Sheet: Additional Points. Note for Point 1 that the<br />
levels are hierarchical. Students can not be expected to write a geometric<br />
pro<strong>of</strong> successfully unless they have progressed through each level <strong>of</strong><br />
thought in turn. At Point 2, college students and even some teachers have<br />
been found who are at Level 1 while there are middle schoolers at Level 3<br />
and above. (If the content in the SOL is mastered, students should attain<br />
Level 3 by the end <strong>of</strong> sixth grade.) As an example <strong>of</strong> an experience that can<br />
impede progress (Point 3), think <strong>of</strong> the illustration <strong>of</strong> the teacher who knew<br />
that the relationship between squares and rectangles was a difficult one for<br />
her fourth graders so she had them memorize "Every square is a rectangle,<br />
but not every rectangle is a square." When tested a couple <strong>of</strong> weeks later,<br />
half the students remembered that a square is a type <strong>of</strong> rectangle, while the<br />
other half thought that a rectangle was a type <strong>of</strong> square. It was almost impossible for these<br />
students to learn the true relationship between squares and rectangles because every time they<br />
heard the words square and rectangle together, they insisted on relying on their memorized<br />
sentence<br />
rather than on the properties <strong>of</strong> the two types <strong>of</strong> figures.<br />
3. Continue on to Point 4: Properties <strong>of</strong> Levels . As an example <strong>of</strong> separation, consider the meaning<br />
<strong>of</strong> the word "square." When someone such as a teacher who is thinking at Level 3 or above says<br />
"square", the word conveys the properties and relationships <strong>of</strong> a square such as having four<br />
congruent sides; having four congruent angles; having perpendicular diagonals; and being a<br />
type <strong>of</strong> polygon, quadrilateral, parallelogram, and rectangle. To a student<br />
thinking at Level 1, the word "square" will only evoke an image <strong>of</strong> something<br />
that looks like a square such as a CD case or first base. The same word<br />
is being used, but it has entirely different meaning to the teacher and the<br />
student. The teacher must keep in mind what the meaning <strong>of</strong> the word or<br />
Virginia Department <strong>of</strong> Education ix Geometry Instructional Modules
symbol is to the student and how the student thinks about it. For<br />
Attainment, it is important to note that there are five phases <strong>of</strong> learning<br />
that lead to understanding at the next higher level.<br />
4. Divide students into small groups. Distribute the sets <strong>of</strong> cut-out triangles,<br />
at least one set per three participants. Instruct the students to lay out the<br />
pieces with the letters up. Do not call them triangles. Tell the students<br />
that the objects can be grouped together in many different ways. For<br />
example, if we sorted the shapes that make up the American flag (the red<br />
stripes, the white stripes, the blue field, the white stars), we might sort by<br />
color and put the white stripes and the stars together because they are<br />
white, the red stripes in another group because they are red, and the blue<br />
field by itself because it is the only blue object. Another way the flag parts could be grouped<br />
would be to put all the stripes and the blue field together because they are all rectangles and all<br />
the stars together because they are<br />
not rectangles. Have students sort the shapes into groups that belong<br />
together, recording the letters <strong>of</strong> the pieces they put together and the<br />
criteria they used to sort. Have them sort two or three times, recording<br />
each sort.<br />
5. Ask the students for some <strong>of</strong> their ways <strong>of</strong> sorting. Expect answers like<br />
"acute, right, and obtuse triangles" or "scalene, isosceles, and equilateral". Have them compare<br />
their ways <strong>of</strong> sorting with those <strong>of</strong> other groups.<br />
6. Refer to Sample Student Sort sheets. Sample Student Sort 1 is a low<br />
Level 1 sort where the student is sorting strictly by size and may not even<br />
know that the figures are triangles. Sample Student Sort 2 is another<br />
Level 1 sort. Here the student thinks that triangles must have at least two sides the same length or<br />
possibly that triangles must be symmetric. Sample<br />
Student Sort 3 is another Level 1 sort. This student also believes that<br />
triangles must have at least two sides the same length or possibly that<br />
triangles must be symmetric. Additionally, this student recognized the<br />
figures with right angles or "corners" as a separate category. The Sample<br />
Student Sort 4 is at least a Level 2 or 3 sort in which the sorter focuses<br />
on the lengths <strong>of</strong> the sides, a criteria which separates the figures into<br />
categories which overlap. The student has actually sorted into groups with<br />
no sides the same length, two sides the same length, and all sides the<br />
same length. It is unclear whether the student knows that equilateral<br />
triangles are a type <strong>of</strong> isosceles triangle. The Sample Student Sort 5<br />
focuses on parts <strong>of</strong> the figures and so is a Level 2 sort, but the student does<br />
not have the vocabulary to adequately describe the figures. The Sample<br />
Student Sort 6 is similar to the Sample Student Sort 4, but the word "Perfect"<br />
is incorrect and indicates that the student may be thinking more <strong>of</strong> the shape as a whole rather<br />
than <strong>of</strong> the individual parts. This sort is probably Level 2.<br />
7. Compare student responses to the samples to help identify what van Hiele level describes his/her<br />
geometric thinking.<br />
Virginia Department <strong>of</strong> Education x Geometry Instructional Modules
Explanation Sheet:<br />
The van Hiele Levels<br />
Level 1: Visualization Geometric figures are recognized as entities, without any awareness <strong>of</strong> parts<br />
<strong>of</strong> figures or relationships between components <strong>of</strong> the figure.<br />
A student should recognize and name figures and distinguish a given figure from others that look<br />
somewhat the same. Identification is based on a visual model.<br />
Typical student response: "I know it's a rectangle because it looks like a door and<br />
I know that the door is a rectangle."<br />
Level 2: Analysis Properties are perceived, but are isolated and unrelated. A student should<br />
recognize and name properties <strong>of</strong> geometric figures. All the properties known are listed since the<br />
student does not perceive any relationship between the properties.<br />
Typical student response: "I know it's a rectangle because it is closed, it has four<br />
sides and four right angles, opposite sides are parallel, opposite sides are congruent, diagonals bisect<br />
each other, adjacent sides are perpendicular, ..."<br />
Level 3: Abstraction Definitions are meaningful, with relationships being<br />
perceived between properties and between figures. Logical implications and class inclusions are<br />
understood, but the role and significance <strong>of</strong> deduction is not understood. If a student is required to "know<br />
a definition" before attaining Level 3,<br />
it will be a memorized definition with little meaning to the student.<br />
Typical student response: "I know it's a rectangle because it's a parallelogram with right angles."<br />
Level 4: Deduction The student can construct pro<strong>of</strong>s, understand the role <strong>of</strong> axioms and definitions,<br />
and know the meaning <strong>of</strong> necessary and sufficient conditions. A student should be able to supply<br />
reasons for steps in a pro<strong>of</strong>.<br />
Generally speaking, most high school geometry courses are taught at this level.<br />
Level 5: Rigor The standards <strong>of</strong> rigor and abstraction represented by modern geometries characterize<br />
Level 5. Symbols without referents can be manipulated according to the laws <strong>of</strong> formal logic. A student<br />
should understand the role and necessity <strong>of</strong> indirect pro<strong>of</strong> and pro<strong>of</strong> by contrapositive.<br />
Virginia Department <strong>of</strong> Education xi Geometry Instructional Modules
Explanation Sheet:<br />
Additional Points<br />
1. The learner can not achieve one level without passing through the previous levels.<br />
2. Progress from one level to another is more dependent on <strong>education</strong>al experience than on age or<br />
maturation.<br />
3. Certain types <strong>of</strong> experiences can facilitate or impede progress within a level or to a higher level.<br />
4. Properties <strong>of</strong> levels:<br />
• Adjacency: what was intrinsic in the preceding level is extrinsic in the current level<br />
• Distinction: each level has its own linguistic symbols and its own network <strong>of</strong> relationships<br />
connecting those symbols<br />
• Separation: two individuals reasoning at different levels can not understand one another<br />
• Attainment: the learning process leading to complete understanding at the next higher level<br />
has five phases: inquiry, directed orientation, explanation, free orientation and integration<br />
Virginia Department <strong>of</strong> Education xii Geometry Instructional Modules
Explanation Sheet:<br />
Phases <strong>of</strong> Learning<br />
Information: Gets acquainted with the working domain (e.g., examines examples and nonexamples)<br />
Guided orientation: Does tasks involving different relations <strong>of</strong> the network that is to be formed<br />
(e.g., folding, measuring, looking for symmetry)<br />
Explicitation: Becomes conscious <strong>of</strong> the relations, tries to express them in words, and learns<br />
technical language which accompanies the subject matter (e.g., expresses ideas about properties <strong>of</strong><br />
figures)<br />
Free orientation: Learns, by doing more complex tasks, to find his/her own way in the network <strong>of</strong><br />
relations (e.g., knowing properties <strong>of</strong> one kind <strong>of</strong> shape, investigates these properties for a new shape,<br />
such as kites)<br />
Integration: Summarizes all that has been learned about the subject, then reflects on actions and<br />
obtains an overview <strong>of</strong> the newly formed network <strong>of</strong> relations now available (e.g., properties <strong>of</strong> a<br />
figure are summarized)<br />
Virginia Department <strong>of</strong> Education xiii Geometry Instructional Modules
Triangle Sorting Pieces<br />
A<br />
B<br />
C<br />
D<br />
E<br />
F<br />
G<br />
N<br />
H<br />
J<br />
S<br />
K<br />
Q<br />
R<br />
L<br />
M<br />
W<br />
O<br />
P<br />
V<br />
Z<br />
T<br />
U<br />
X<br />
Y<br />
Virginia Department <strong>of</strong> Education xiv Geometry Instructional Modules
Sample Student Sort 1<br />
F<br />
X<br />
H<br />
Q<br />
B<br />
N<br />
Z<br />
S<br />
K<br />
W<br />
R<br />
V<br />
Small<br />
Large<br />
T<br />
U<br />
Medium<br />
O<br />
A<br />
M<br />
C<br />
P<br />
E<br />
G<br />
L<br />
D<br />
J<br />
Virginia Department <strong>of</strong> Education xv Geometry Instructional Modules
T<br />
M<br />
A<br />
Z<br />
Sample Student Sort 2<br />
Q<br />
S<br />
C<br />
H<br />
K<br />
B<br />
R<br />
J<br />
O<br />
U<br />
W<br />
X<br />
Triangles<br />
G<br />
N<br />
NOT Triangles<br />
P<br />
L<br />
D<br />
E<br />
V<br />
Virginia Department <strong>of</strong> Education xvi Geometry Instructional Modules
Sample Student Sort 3<br />
H<br />
C<br />
K<br />
Q<br />
B<br />
U<br />
R<br />
J<br />
O<br />
X<br />
S<br />
W<br />
Triangles<br />
Z<br />
T<br />
E<br />
G<br />
N<br />
Look alike...<br />
N is smaller...<br />
NOT triangles<br />
D<br />
M<br />
V<br />
A<br />
L<br />
look like ramps... NOT triangles<br />
Virginia Department <strong>of</strong> Education xvii Geometry Instructional Modules
Sample Student Sort 4<br />
S<br />
X<br />
W<br />
K<br />
EQUILATERAL<br />
T<br />
E<br />
Z<br />
A<br />
V<br />
M<br />
D<br />
P<br />
L<br />
G<br />
SCALENE<br />
B<br />
Y<br />
J<br />
N<br />
U<br />
H<br />
F<br />
C<br />
O<br />
Q<br />
ISOSCELES<br />
Virginia Department <strong>of</strong> Education xviii Geometry Instructional Modules
Sample Student Sort 5<br />
B<br />
H<br />
one longest side<br />
C<br />
T<br />
E<br />
G<br />
P<br />
O<br />
J<br />
U<br />
irregular & very narrow<br />
2 sides are similar,<br />
one is shorter<br />
R<br />
K<br />
S<br />
Q<br />
Y<br />
W<br />
X<br />
same shape &<br />
small size<br />
F<br />
2 sides are similar,<br />
one is longer<br />
N<br />
V<br />
L<br />
M<br />
D<br />
Z<br />
A<br />
irregular sides<br />
3 uneven sides<br />
Virginia Department <strong>of</strong> Education xix Geometry Instructional Modules
Sample Student Sort 6<br />
N<br />
V<br />
E<br />
Z<br />
P<br />
M<br />
L<br />
A<br />
G<br />
T<br />
D<br />
Every side has a different size<br />
C<br />
B<br />
U<br />
J<br />
O<br />
H<br />
F<br />
Q<br />
Y<br />
2 sides =, 3rd side smaller or larger<br />
Perfect<br />
Triangles<br />
R<br />
X<br />
W<br />
S<br />
K<br />
Virginia Department <strong>of</strong> Education xx Geometry Instructional Modules
Exploring Vertical Angles<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.3<br />
______________________________________________________________________________<br />
Description:<br />
Students will examine a variety <strong>of</strong> vertical angles constructed with patty<br />
paper, geo-strips, and/or graphing s<strong>of</strong>tware to verify that vertical<br />
angles are congruent.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Patty Paper or waxed paper<br />
• Geo-strips and fasteners; or straws, skewers, pick-up sticks, or pencils and<br />
rubber bands; or paper strips and safety pins<br />
• Graphing calculators or graphing s<strong>of</strong>tware,<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 1 Geometry Instructional Modules
Activity Sheet:<br />
Exploring Vertical Angles<br />
Directions:<br />
Use Patty Paper or waxed paper.<br />
1) Fold a line on a sheet <strong>of</strong> Patty Paper. Unfold. Fold a second line intersecting<br />
the first line. Label the angles as shown below.<br />
a<br />
d<br />
b<br />
c<br />
2) What appears to be true about
4) Instead <strong>of</strong> geo-strips, this task can be done by fastening a rubber band<br />
around the middle <strong>of</strong> two pencils, skewers, straws, or pick-up sticks and flexing<br />
them back and forth.<br />
Use graphing s<strong>of</strong>tware or a TI-92 calculator.<br />
1) Construct two lines that intersect.<br />
2) Measure the four angles. Verify that the vertical angles are congruent.<br />
Drag one <strong>of</strong> the lines to change the size <strong>of</strong> the angles. Verify that the<br />
vertical angles are still congruent.<br />
Virginia Department <strong>of</strong> Education 3 Geometry Instructional Modules
Parallel Lines with Patty Paper<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.4<br />
______________________________________________________________________________<br />
Description:<br />
Students will investigate ways <strong>of</strong> making parallel lines with patty paper.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Patty Paper<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 4 Geometry Instructional Modules
Activity Sheet:<br />
Parallel Lines with Patty Paper<br />
Question:<br />
How can you be sure two lines are parallel?<br />
Preparing for Research:<br />
1) Start by folding a line on your patty paper and marking a point not on the<br />
line. See Figure 1.<br />
Figure 1<br />
2) You can construct a line perpendicular to another line and through a<br />
point by folding the patty paper so that the point is on the fold and the line<br />
matches across the fold.<br />
3) How can you use this information to construct a line parallel to the line you<br />
made and through the point you marked? What if you construct a<br />
perpendicular then construct another perpendicular?<br />
Making Observations:<br />
Describe your method for constructing a parallel line. Will your method always<br />
Work when given a line and a point not on the line? How do you know?<br />
Inferring:<br />
1) Test your method with another line and points.<br />
2) Compare your method with that <strong>of</strong> a classmate.<br />
Drawing Conclusions:<br />
Can a parallel line always be constructed through a given point not on the given<br />
line?<br />
How can you use your knowledge here to construct a parallelogram using patty<br />
paper?<br />
Virginia Department <strong>of</strong> Education 5 Geometry Instructional Modules
Parallel Lines on the Graphing Calculator<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.4<br />
______________________________________________________________________________<br />
Description:<br />
Students will investigate the graphs <strong>of</strong> parallel lines on a graphing calculator<br />
and determine how to tell if two lines are parallel by looking at their equations.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Graphing calculator<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 15 minutes<br />
_____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 6 Geometry Instructional Modules
Activity Sheet:<br />
Parallel Lines on the Graphing Calculator<br />
Question:<br />
How can you use your graphing calculator to draw a line parallel to a<br />
given line?<br />
Preparing for Research:<br />
1) On the y= menu <strong>of</strong> your calculator, enter the equation Y=2X+1 into Y1. Press<br />
graph and adjust the viewing area so that you see the origin and the line<br />
(Zoom/Standard).<br />
2) When two lines are parallel, they share the same slope. What is the slope<br />
<strong>of</strong> the line you have graphed?<br />
3) On the Y= menu, enter a second equation with the same slope but a different<br />
intercept. Enter Y=2X –4 into Y2. Press graph so that you see both lines.<br />
Making Observations:<br />
1) Do the lines appear parallel? Use the Trace function to identify two pairs <strong>of</strong><br />
coordinates from each line. Each pair <strong>of</strong> coordinates should have the same X<br />
value and your coordinates should be whole numbers to make the calculations<br />
easier.<br />
2) What is true about the distance between two lines if they are parallel? How can<br />
you use the distance formula to show that your two lines are the same distance<br />
apart?<br />
Remember, the distance formula is this: D = √ (x2 - x1) 2 + (y2 - y1) 2<br />
Inferring:<br />
Is the distance between each pair <strong>of</strong> points the same? What does this tell you<br />
about the lines?<br />
Drawing Conclusions:<br />
1) What additional information do you need to prove that the distance between<br />
any pair <strong>of</strong> points on two parallel lines is constant?<br />
2) Given the equations <strong>of</strong> two lines, can you tell if they are parallel without<br />
graphing them?<br />
Virginia Department <strong>of</strong> Education 7 Geometry Instructional Modules
Angles and Parallel Lines<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.4<br />
______________________________________________________________________________<br />
Description:<br />
Students will color in corresponding angles and alternate interior angles on a<br />
parallelogram grid and draw conclusions about these angles. On a second<br />
parallelogram grid, they will prove various types <strong>of</strong> angles are congruent.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Colored pencils, crayons, or markers<br />
• Parallel line grid sheets #1 and #2.<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 8 Geometry Instructional Modules
Activity Sheet:<br />
Angles and Parallel Lines<br />
Questions:<br />
What angle relationships do you see in a grid <strong>of</strong> parallel lines which form<br />
parallelograms?<br />
Preparing for Research:<br />
1) Look at the grid on Parallelogram Grid Handout 1. What shapes do you<br />
see?<br />
2) Color in one set <strong>of</strong> corresponding angles.<br />
3) Using a different color, color another set <strong>of</strong> corresponding angles.<br />
4) Using a third and fourth color, color in two sets <strong>of</strong> alternate interior angles.<br />
Making Observations:<br />
Your drawing should have four pairs <strong>of</strong> angles marked, with each pair a<br />
different color. Is each pair <strong>of</strong> angles congruent? How do you know?<br />
Inferring:<br />
On Parallelogram Grid Handout 2, you see three sections <strong>of</strong> the grid, each<br />
with some angles marked. Use what you know about parallel lines and<br />
congruent angles to explain and justify the conclusions drawn beneath each<br />
grid. Use at least two different pro<strong>of</strong> methods (flow pro<strong>of</strong>, paragraph pro<strong>of</strong>,<br />
two column pro<strong>of</strong>, or another method you and your teacher agree on) to<br />
justify the conclusions given.<br />
Drawing Conclusions:<br />
1) When lines in a grid are parallel, are corresponding angles always congruent?<br />
2) When lines in a grid are parallel, are alternate interior angles always<br />
congruent?<br />
Virginia Department <strong>of</strong> Education 9 Geometry Instructional Modules
Angles and Parallel Lines<br />
Parallelogram Grid Handout #1<br />
Virginia Department <strong>of</strong> Education 10 Geometry Instructional Modules
Angles and Parallel Lines<br />
Parallelogram Grid Handout #2<br />
j<br />
k<br />
t<br />
r<br />
Show that angle k is congruent to angle t.<br />
Show that angle j is congruent to angle r.<br />
c<br />
a<br />
Show that angle a is congruent to angle c.<br />
n<br />
w<br />
p<br />
Show that angle n is congruent to angle p.<br />
Show that angle p is congruent to angle w.<br />
Virginia Department <strong>of</strong> Education 11 Geometry Instructional Modules
The Three Parallel Lines Investigation<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.4<br />
_____________________________________________________________________________<br />
Description:<br />
Using the TI-92 or a graphing utility, the students will conjecture the<br />
following theorem:<br />
If three parallel lines cut <strong>of</strong>f congruent segments on one transversal,<br />
then they cut <strong>of</strong>f congruent segments on every transversal.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Graphing utility or TI-92<br />
____________________________________________________________________________________<br />
Prerequisite Constructions:<br />
Parallel lines, perpendicular line, point <strong>of</strong> intersection, segments.<br />
____________________________________________________________________________________<br />
SAMPLE SKETCH:<br />
D<br />
A<br />
l<br />
E<br />
B<br />
m<br />
F<br />
C<br />
n<br />
(adapted from lesson by Mary Staniger and Barb Koble, Cedar Falls High School, Cedar<br />
Falls, IA, staniger@forbin.com, found at http://www.ti.com/calc/docs/)<br />
Virginia Department <strong>of</strong> Education 12 Geometry Instructional Modules
Activity Sheet:<br />
The Three Parallel Lines Investigation<br />
In this activity you are asked to investigate the properties <strong>of</strong> segments cut on a<br />
transversal by three parallel lines using a graphing calculator.<br />
SKETCH<br />
Step 1: Construct 3 parallel lines.<br />
Step 2: Construct a perpendicular transversal to the 3 parallel lines.<br />
Step 3: Construct points at each intersection on the transversal. Label them A, B, and<br />
C.<br />
Step 4: Measure the lengths <strong>of</strong> segments AB and BC.<br />
Step 5: Position the parallel lines so that the segments are congruent.<br />
Step 6: Construct another transversal.<br />
Step 7: Construct points at each intersection on the transversal in Step 6. Label them<br />
D, E, and F.<br />
Step 8: Measure the lengths <strong>of</strong> segments DE and EF.<br />
INVESTIGATION<br />
Investigate the measures <strong>of</strong> the segments on the transversal constructed in step 6 as<br />
you drag it to change its slant.<br />
Record at least 3 observations.<br />
m∠D<br />
m∠E<br />
m∠F<br />
DE<br />
EF<br />
EB<br />
CONJECTURE:<br />
Virginia Department <strong>of</strong> Education 13 Geometry Instructional Modules
Constructing a Line Segment Congruent<br />
to a Given Line Segment<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct the bisector <strong>of</strong> a line segment, using a<br />
compass and straightedge, patty paper, and a graphing utility program.<br />
The accuracy <strong>of</strong> each construction will be justified as well.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Method 1) Straightedge, Compass; Method 2) Straightedge, Patty Paper;<br />
Method 3) Graphing Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes each<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 14 Geometry Instructional Modules
Activity Sheet:<br />
Constructing a Line Segment Congruent<br />
to a Given Line Segment<br />
Directions:<br />
Given a line segment, construct a line segment congruent to the given segment.<br />
__<br />
Given: AB<br />
A<br />
B<br />
Method 1: Using a straightedge and compass.<br />
1. Use a straightedge to draw a line. Call it l.<br />
l<br />
2. Choose any point on l and label it X.<br />
l X<br />
3. Set your compass for radius AB.<br />
A<br />
B<br />
B<br />
4. Using X as the center, draw an arc intersecting line l. Label the point <strong>of</strong> the<br />
intersection Y.<br />
l<br />
X<br />
Y<br />
__<br />
__<br />
XY is congruent to AB .<br />
__<br />
Justification: Since AB was used as the radius <strong>of</strong> circle X, XY<br />
__<br />
≅ AB<br />
.<br />
Method 2: Using patty paper<br />
1. Use a straightedge to draw a line on a piece <strong>of</strong> patty paper. Call it l.<br />
l<br />
2. Choose any point on l and label it X.<br />
X<br />
l<br />
Virginia Department <strong>of</strong> Education 15 Geometry Instructional Modules
__<br />
3. Put the patty paper containing l on top <strong>of</strong> AB<br />
superimposing point X on point A.<br />
l<br />
X<br />
A B<br />
__<br />
, aligning l with AB<br />
and<br />
4. Mark <strong>of</strong>f point Y on l where point B is.<br />
X<br />
Y<br />
l A B<br />
5. Remove the patty paper.<br />
X<br />
Y<br />
l<br />
__<br />
__<br />
XY is congruent to AB .<br />
__<br />
__<br />
Justification: Since XY was made by tracing AB<br />
__<br />
, XY<br />
__<br />
≅ AB<br />
.<br />
Method 3: Using a graphing utility program<br />
1. Click on the given line segment so that it is active.<br />
2. From the Edit Menu, choose “Copy.”<br />
3. From the Edit Menu, choose “Paste.”<br />
The new line segment should be a carbon copy <strong>of</strong> the original one.<br />
Justification: The line segment has been electronically copied.<br />
Virginia Department <strong>of</strong> Education 16 Geometry Instructional Modules
Constructing the Bisector <strong>of</strong> a Line Segment<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
_____________________________________________________________________________<br />
Description:<br />
Student will construct the bisector <strong>of</strong> a given line segment, using a<br />
compass and straightedge, patty paper, or a graphing utility program.<br />
The accuracy <strong>of</strong> each construction will be justified as well.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Method 1) Straightedge, Compass; Method 2) Straightedge, Patty Paper;<br />
Method 3) Graphing Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 17 Geometry Instructional Modules
Activity Sheet:<br />
Constructing the Perpendicular Bisector<br />
<strong>of</strong> a Line Segment<br />
Directions:<br />
Given a line segment, construct its perpendicular bisector.<br />
__<br />
Given: AB A B<br />
Method 1: Using a straightedge and compass<br />
1. Using any radius greater than 1 AB, draw four arcs <strong>of</strong> equal radii, two with center<br />
2<br />
A and two with center B. Label the points <strong>of</strong> intersection <strong>of</strong> these arcs X and Y.<br />
X<br />
A<br />
B<br />
Y<br />
< __ ><br />
2. Draw XY .<br />
X<br />
A<br />
B<br />
Y<br />
< __ > __<br />
XY is the perpendicular bisector <strong>of</strong> AB . ___ ___<br />
Justification: Since the same radius was used to construct AX and BX, X is equidistant<br />
from A and B. Likewise, since the same radius was used to construct AY and BY, Y is<br />
< __ > __<br />
equidistant from A and B. So XY is the perpendicular bisector <strong>of</strong> AB .<br />
Virginia Department <strong>of</strong> Education 18 Geometry Instructional Modules
Method 2: Using patty paper<br />
__<br />
1. Use a straightedge to draw AB<br />
on a piece <strong>of</strong> patty paper.<br />
2. Fold the patty paper so that point A is superimposed on point B and crease.<br />
__<br />
3. This creased line is the perpendicular bisector <strong>of</strong> AB .<br />
__<br />
Justification: Since the distance from point A to the intersection <strong>of</strong> AB and the crease<br />
and the distance from point B to this point are the same, this point is the midpoint <strong>of</strong><br />
__<br />
AB .<br />
Method 3: Using a graphing utility program<br />
1. Click on the given line segment so that it is active.<br />
2. From the Construct Menu, choose “Point at Midpoint.”<br />
3. Choose both the line segment and its midpoint so that they are both active. (i.e.,<br />
hold down the space bar and click on each.)<br />
4. From the Construct Menu, choose “Perpendicular Line.”<br />
The perpendicular bisector <strong>of</strong> the given line segment will be constructed.<br />
Justification: The perpendicular bisector <strong>of</strong> the given line segment has been<br />
electronically found.<br />
Virginia Department <strong>of</strong> Education 19 Geometry Instructional Modules
Constructing the Circumcenter <strong>of</strong> a Triangle<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct the circumcenter <strong>of</strong> various types <strong>of</strong> triangles,<br />
using a compass and straightedge, patty paper, or a graphing utility<br />
program. They will conjecture whether the circumcenter <strong>of</strong> the triangle will<br />
be interior, exterior, or on the triangle depending on whether the triangle is<br />
acute, obtuse, or right.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity sheet<br />
• Straightedge and Compass; or Straightedge and Patty Paper; or a Graphing<br />
Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 20 Geometry Instructional Modules
Constructing the Circumcenter <strong>of</strong> a Triangle<br />
Directions:<br />
1. Get into groups <strong>of</strong> 3-4.<br />
2. Draw several different triangles. Be sure to include obtuse, acute, and right<br />
triangles.<br />
3. The circumcenter <strong>of</strong> a triangle is the point <strong>of</strong> intersection <strong>of</strong> the three<br />
perpendicular bisectors <strong>of</strong> the sides <strong>of</strong> the triangle. Construct the circumcenters<br />
<strong>of</strong> the triangles you drew. Use any <strong>of</strong> the three methods that were investigated in<br />
the Constructing the Perpendicular Bisector <strong>of</strong> a Line Segment activity.<br />
4. Where are the circumcenters <strong>of</strong> the acute triangles located? Where are the<br />
circumcenters <strong>of</strong> the obtuse triangles located? Where are the circumcenters <strong>of</strong><br />
the right triangles located?<br />
5. Compare your results with other groups and make a conjecture about the<br />
location <strong>of</strong> the circumcenters.<br />
Virginia Department <strong>of</strong> Education 21 Geometry Instructional Modules
Constructing the Medians and<br />
Centroid <strong>of</strong> a Triangle<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct the medians and find the centroid <strong>of</strong> various<br />
types <strong>of</strong> triangles, using a compass and straightedge, patty paper, or a<br />
graphing utility program. They will conjecture the location <strong>of</strong> the centroid.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Straightedge and Compass; or Straightedge and Patty Paper; or a Graphing<br />
Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 22 Geometry Instructional Modules
Activity Sheet:<br />
Constructing the Medians and Centroid <strong>of</strong> a Triangle<br />
Directions:<br />
1. Get into groups <strong>of</strong> 3-4.<br />
2. Draw several different triangles, labeling the vertices A, B, and C. Be sure to<br />
include obtuse, acute, and right triangles.<br />
3. The median <strong>of</strong> a triangle is the line segment that connects the vertex to the<br />
midpoint <strong>of</strong> the opposite side. Use the perpendicular bisector <strong>of</strong> a line segment<br />
construction to locate the midpoint <strong>of</strong> each side <strong>of</strong> each triangle. Label the<br />
__<br />
midpoint <strong>of</strong> AB<br />
__<br />
as point D, the midpoint <strong>of</strong> BC as point E, and the midpoint <strong>of</strong><br />
__<br />
CA as point F.<br />
A<br />
D<br />
B<br />
F<br />
E<br />
C<br />
4. Join each midpoint to the opposite vertex to form the medians.<br />
The centroid <strong>of</strong> a triangle is the point <strong>of</strong> intersection <strong>of</strong> the three medians <strong>of</strong> the<br />
triangle. Label the centroids <strong>of</strong> the triangles you drew as point G.<br />
A<br />
D<br />
B<br />
G<br />
F<br />
E<br />
C<br />
5. Make a table using paper, a spreadsheet, a graphing utility program, or a table<br />
on a graphing calculator. Include the following categories:<br />
__ __<br />
__ __<br />
__<br />
Length <strong>of</strong> AE , Length <strong>of</strong> AG , the ratio <strong>of</strong> AG t o AE , Length <strong>of</strong> BF , Length <strong>of</strong><br />
__<br />
__ __ __ __<br />
__<br />
BG the ratio <strong>of</strong> BG to BF , Length <strong>of</strong> CD , Length <strong>of</strong> CG , and the ratio <strong>of</strong> CG to<br />
__<br />
CD .<br />
6. Compare your results with other groups and make a conjecture about the<br />
Location <strong>of</strong> the centroids.<br />
Virginia Department <strong>of</strong> Education 23 Geometry Instructional Modules
Constructing a Perpendicular to a Given Line<br />
From a Point Not on the Line<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
______________________________________________________________________________<br />
Description:<br />
Students will construct a perpendicular to a given line from a point not<br />
on the line, using a compass and straightedge, patty paper, and a graphing<br />
utility program. The accuracy <strong>of</strong> each construction will be justified as<br />
well.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Method 1) Straightedge, Compass; Method 2) Straightedge, Patty Paper;<br />
Method 3) Graphing Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 24 Geometry Instructional Modules
Activity Sheet:<br />
Constructing a Perpendicular to a Given Line From a Point<br />
Not on the Line<br />
Directions:<br />
Given a line and a point not on the line, construct a perpendicular from the point to<br />
the line.<br />
• A<br />
Given: line l and point A, not on l<br />
l<br />
Method 1: Using a straightedge and compass<br />
1. Using A as center, draw two arcs <strong>of</strong> equal radii that intersect l at points X and Y.<br />
A<br />
l X Y<br />
2. Using X and Y as centers and a suitable radius, draw arcs that intersect at point<br />
Z.<br />
A<br />
l X Y<br />
Z<br />
< __ ><br />
3. Draw AZ .<br />
A<br />
l X Y<br />
Z<br />
< __ ><br />
AZ is perpendicular to l.<br />
Virginia Department <strong>of</strong> Education 25 Geometry Instructional Modules
__ ><br />
Justification: Both A and Z are equidistant from X and Y. So AZ is the<br />
__ < __ ><br />
perpendicular bisector <strong>of</strong> XY , and AZ is perpendicular to l.<br />
Method 2: Using patty paper<br />
1. Fold or draw a line on a piece <strong>of</strong> patty paper. Draw a dot on your patty paper,<br />
not on this line, to represent the given point.<br />
2. Fold your patty paper so that the crease passes through the given point. The line<br />
folds over on itself. Use a corner <strong>of</strong> another patty paper or a protractor to check if<br />
the angles formed by the crease and the given line are right angles.<br />
Justification: This is a trial and error procedure in which you crease the patty paper so<br />
that the crease goes through the given point and is perpendicular to the given line.<br />
Method 3: Using a graphing utility program<br />
1. Click on the given line segment and the given point so that they are active.<br />
2.From the Construct Menu, choose “Perpendicular Line.”<br />
Justification: The perpendicular to the given line segment from a point not on the line<br />
has been electronically found.<br />
Virginia Department <strong>of</strong> Education 26 Geometry Instructional Modules
Constructing the Altitudes and<br />
Orthocenter <strong>of</strong> a Triangle<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct the altitudes and find the orthocenter <strong>of</strong> various<br />
types <strong>of</strong> triangles, using a compass and straightedge, patty paper, or a<br />
graphing utility program. They will conjecture the location <strong>of</strong> the<br />
orthocenter.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Straightedge and Compass; or Straightedge and Patty Paper; or a Graphing<br />
Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 27 Geometry Instructional Modules
Activity Sheet:<br />
Constructing the Altitudes and Orthocenter <strong>of</strong> a Triangle<br />
Directions:<br />
1. Get into groups <strong>of</strong> 3-4.<br />
2. Draw several different triangles, labeling the vertices A, B, and C. Be sure to<br />
include obtuse, acute, and right triangles.<br />
3. The altitude <strong>of</strong> a triangle is the line segment drawn from a vertex perpendicular<br />
to the opposite side (or the line through the opposite side). Use the construction<br />
<strong>of</strong> a perpendicular to a given line from a point not on the line to construct each<br />
__ __<br />
__ __<br />
altitude. Label the altitude to side AB as CD , the altitude to side BC as AE ,<br />
__<br />
and the altitude to side AC<br />
__<br />
as BF .<br />
D<br />
A<br />
F<br />
B<br />
E<br />
C<br />
Notice that not all altitudes stay inside the triangle. Sometimes the line<br />
containing the side needs to be extended so that the perpendicular will intersect it.<br />
A<br />
F<br />
E<br />
B<br />
C<br />
D<br />
Virginia Department <strong>of</strong> Education 28 Geometry Instructional Modules
4. The orthocenter <strong>of</strong> a triangle is the point <strong>of</strong> intersection <strong>of</strong> the lines containing<br />
the three altitudes <strong>of</strong> the triangle. Label the orthocenters <strong>of</strong> the triangles you<br />
drew as point G.<br />
A<br />
F<br />
B<br />
D<br />
A<br />
G<br />
E<br />
F<br />
C<br />
E<br />
G<br />
B<br />
D<br />
C<br />
___<br />
↔<br />
NOTE: CD is the altitude but CG is needed to<br />
find the point <strong>of</strong> intersection.<br />
5. Where are the orthocenters <strong>of</strong> the acute triangles located?<br />
Where are the orthocenters <strong>of</strong> the obtuse triangles located?<br />
Where are the orthocenters <strong>of</strong> the right triangles located?<br />
7. Compare your results with other groups and make a conjecture about the<br />
Location <strong>of</strong> the orthocenters.<br />
Virginia Department <strong>of</strong> Education 29 Geometry Instructional Modules
Constructing a Perpendicular to a Given Line<br />
At a Point on the Line<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct a perpendicular to a given line at a point on the<br />
line, using a compass and straightedge, patty paper, or a graphing utility<br />
program. The accuracy <strong>of</strong> each construction will be justified as well.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Method 1) Straightedge, Compass; Method 2) Straightedge, Patty Paper;<br />
Method 3) Graphing Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 30 Geometry Instructional Modules
Activity Sheet:<br />
Constructing a Perpendicular to a Given Line At a Point on<br />
the Line<br />
Directions:<br />
Given a line and a point on the line, construct a perpendicular to that point on the line.<br />
Given: line l and point A on l<br />
l<br />
Method 1: Using a straightedge and compass<br />
1. Using A as center and any radius, draw two arcs intersecting l at points X and Y.<br />
A<br />
l X Y<br />
2. Using X as a center and a radius greater than AX, draw an arc. Using Y as a<br />
center and the same radius, draw an arc intersecting the arc with center X at<br />
point Z.<br />
Z<br />
A<br />
l X Y<br />
A<br />
< __ ><br />
3. Draw AZ .<br />
Z<br />
A<br />
l X Y<br />
< __ ><br />
AZ is perpendicular to l at A.<br />
Justification: A is equidistant from points X and Y by the way they were constructed.<br />
< __ ><br />
Then Z was constructed equidistant from X and Y as well. So AZ is the perpendicular<br />
__ < __ ><br />
bisector <strong>of</strong> XY , and AZ is perpendicular to l at A.<br />
Virginia Department <strong>of</strong> Education 31 Geometry Instructional Modules
Method 2: Using patty paper<br />
1. Fold or draw a line on a piece <strong>of</strong> patty paper. Draw a dot on your patty paper,<br />
on this line, to represent the given point.<br />
2. Fold your patty paper so that the crease passes through the given point. The line<br />
folds over onto itself. Use a corner <strong>of</strong> another patty paper or a protractor to<br />
check if the angles formed by the crease and the given line are right angles.<br />
Justification: This is a trial and error procedure in which you crease the patty paper so<br />
that the crease goes through the given point and is perpendicular to the given line.<br />
Method 3: Using a graphing utility program<br />
1. Click on the given line segment and the given point so that they are active.<br />
2. From the Construct Menu, choose “Perpendicular Line.”<br />
Justification: The perpendicular to the given line segment at a given has been<br />
electronically found.<br />
Virginia Department <strong>of</strong> Education 32 Geometry Instructional Modules
Constructing the Bisector <strong>of</strong> a Given Angle<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct the bisector <strong>of</strong> a given angle, using a compass<br />
and straightedge, patty paper, or a graphing utility program. The<br />
accuracy <strong>of</strong> each construction will be justified as well.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Method 1) Straightedge, Compass; Method 2) Straightedge, Patty Paper;<br />
Method 3) Graphing Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 33 Geometry Instructional Modules
Activity Sheet:<br />
Constructing the Bisector <strong>of</strong> a Given Angle<br />
Directions:<br />
Given an angle, construct its bisector.<br />
A<br />
Given: ∠ ABC<br />
B<br />
C<br />
Method 1: Using a straightedge and compass<br />
__ ><br />
1. Using B as center and any radius, draw an arc intersecting BA at point X<br />
__ ><br />
and BC at point Y.<br />
A<br />
X<br />
B<br />
Y<br />
C<br />
2. Using X as a center and suitable radius, draw an arc. Using Y as a center and<br />
the same radius, draw an arc intersecting the arc with center X at point Z.<br />
A<br />
Z<br />
X<br />
B<br />
Y<br />
C<br />
Virginia Department <strong>of</strong> Education 34 Geometry Instructional Modules
__ ><br />
3. Draw BZ .<br />
A<br />
Z<br />
X<br />
B<br />
Y<br />
C<br />
__ ><br />
BZ bisects ∠ ABC.<br />
__<br />
Justification: If you draw XZ<br />
__<br />
and YZ<br />
, XBZ ≅ YBZ by Side-Side-Side Postulate.<br />
__ ><br />
Then ∠ XBZ ≅ ∠ YBZ and BZ bisects ∠ABC.<br />
Method 2: Using patty paper<br />
1. Use your straightedge to draw an angle on a piece <strong>of</strong> patty paper or trace a given<br />
angle.<br />
2. Fold your patty paper so that the rays that form the angle are superimposed on<br />
each other. Crease the paper to form the angle bisector.<br />
Justification: This is a trial and error procedure in which you crease the patty paper so<br />
that the crease is the angle bisector because all the points on the crease are<br />
equidistance from the sides <strong>of</strong> the angle.<br />
Method 3: Using a graphing utility program<br />
1. Select three points that determine the angle to be bisected. The second selected point<br />
will be the vertex <strong>of</strong> the angle.<br />
2. From the Construct Menu, choose Angle Bisector.<br />
Justification: The bisector <strong>of</strong> the given angle has been electronically found.<br />
Virginia Department <strong>of</strong> Education 35 Geometry Instructional Modules
Constructing the Incenter <strong>of</strong> a Triangle<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct the incenter <strong>of</strong> various types <strong>of</strong> triangles, using<br />
a compass and straight edge, patty paper, or a graphing utility program.<br />
They will conjecture what the incenter <strong>of</strong> the triangle is equidistant from<br />
The vertices <strong>of</strong> the triangle.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Straightedge and Compass; or Straightedge and Patty Paper; or a Graphing<br />
Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 36 Geometry Instructional Modules
Activity Sheet:<br />
Constructing the Incenter <strong>of</strong> a Triangle<br />
Directions:<br />
1. Get into groups <strong>of</strong> 3-4.<br />
2. Draw several different triangles. Be sure to include obtuse, acute, and right<br />
triangles.<br />
3. The incenter <strong>of</strong> a triangle is the point <strong>of</strong> intersection <strong>of</strong> the three angle<br />
bisectors <strong>of</strong> the triangle. Construct the incenters <strong>of</strong> the triangles you drew.<br />
4. Compare the distances from the incenter to the sides <strong>of</strong> the triangles. Also,<br />
compare the distances from the incenters to the vertices <strong>of</strong> the triangles.<br />
Which distances appear to be the same?<br />
5. Compare your results with other groups and make a conjecture about the<br />
location <strong>of</strong> the incenters.<br />
Virginia Department <strong>of</strong> Education 37 Geometry Instructional Modules
Constructing an Angle Congruent to a Given Angle<br />
Reporting Category: Lines and Angles<br />
Related SOL: G.11<br />
____________________________________________________________________________________<br />
Description:<br />
Students will construct an angle congruent to a given angle, using a<br />
compass and straightedge, patty paper, or a graphing utility program.<br />
The accuracy <strong>of</strong> each construction will be justified as well.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Method 1) Straightedge, Compass; Method 2) Straightedge, Patty Paper;<br />
Method 3) Graphing Utility<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 38 Geometry Instructional Modules
Activity Sheet:<br />
Constructing an Angle Congruent to a Given Angle<br />
Directions:<br />
Given an angle, construct an angle congruent to it.<br />
A<br />
Given: ∠ ABC<br />
B<br />
C<br />
Method 1: Using a straightedge and compass<br />
__ ><br />
1. Draw a ray. Label it YT .<br />
Y<br />
T<br />
__ ><br />
2. Using B as center and any radius, draw an arc intersecting BA at point D<br />
__ ><br />
and BC at point E.<br />
A<br />
D<br />
B<br />
E<br />
C<br />
3. Using Y as a center and the same radius as in step 2, draw an arc<br />
__ ><br />
intersecting YT at point Z.<br />
Y<br />
Z<br />
T<br />
Virginia Department <strong>of</strong> Education 39 Geometry Instructional Modules
4. Using Y as a center and a radius equal to DE, draw an arc that intersects the<br />
arc containing Y at point X.<br />
A<br />
D<br />
X<br />
B<br />
__ ><br />
5. Draw YX .<br />
E<br />
C<br />
Y<br />
Z<br />
T<br />
X<br />
Y<br />
T<br />
Z<br />
∠XYZ ≅ ∠ABC.<br />
__<br />
Justification: If you draw DE<br />
Then ∠XYX ≅ ∠ABC.<br />
__<br />
and XZ<br />
, XYZ ≅ DBE by Side-Side-Side Postulate.<br />
Method 2: Using patty paper<br />
Place a patty paper on top <strong>of</strong> the given angle. Use your straightedge to trace<br />
the given angle.<br />
Justification: Since you traced the given angle, the angle you made should be<br />
congruent to the given angle.<br />
Method 3: Using a graphing utility program<br />
1. Select three points that determine the angle to be bisected. The second selected<br />
point will be the vertex <strong>of</strong> the angle.<br />
2. From the Construct Menu, choose Copy.<br />
3. From the Construct Menu, choose Paste.<br />
4. These three points determine the new angle. Select the point that will be the vertex<br />
and one <strong>of</strong> the other points. From the Construct Menu, choose Line Segment.<br />
5. Select the point that will be the vertex and the third point. From the Construct<br />
Menu, choose Line Segment.<br />
Justification: The given angle has been electronically copied.<br />
Virginia Department <strong>of</strong> Education 40 Geometry Instructional Modules
Types <strong>of</strong> Pro<strong>of</strong><br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.1<br />
____________________________________________________________________________________<br />
Description:<br />
Students will prove the theorem that the diagonals <strong>of</strong> a rectangle are<br />
congruent using a two column pro<strong>of</strong>, a paragraph pro<strong>of</strong>, a flow pro<strong>of</strong>, and a<br />
coordinate pro<strong>of</strong>.<br />
____________________________________________________________________________________<br />
Materials:<br />
Example Sheets<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 40 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
1. Discuss how one might prove that the diagonals <strong>of</strong> a rectangle are<br />
congruent.<br />
2. Depending on the expertise <strong>of</strong> the students, either have small groups<br />
prove the theorem, each using a different technique and then present<br />
the pro<strong>of</strong> to the class or work as a large group. In either case, compare<br />
the advantages and disadvantages <strong>of</strong> each technique.<br />
Virginia Department <strong>of</strong> Education 41 Geometry Instructional Modules
Example Sheet:<br />
Two Column Pro<strong>of</strong><br />
The statements and reasons are organized into two separate columns. All necessary steps are<br />
included.<br />
A<br />
B<br />
Given:<br />
Prove:<br />
Rectangle ABCD<br />
__ __<br />
AC ≅ BD<br />
D<br />
C<br />
Statements<br />
Reasons<br />
1. ABCD is a rectangle. 1. Given<br />
__<br />
2. AD ≅ BC<br />
2. Opposite sides <strong>of</strong> a rectangle are ≅.<br />
3. ∠ADC and ∠BCD are right ∠s. 3. A rectangle contains 4 right ∠s.<br />
4. ∠ADC ≅ ∠BCD 4. All right ∠s are ≅.<br />
__ __<br />
5. DC ≅ DC<br />
5. Identity<br />
6. ∆ADC ≅ ∆BCD 6. SAS<br />
__ __<br />
7. AC ≅ BD<br />
7. Corresponding Parts <strong>of</strong> Congruent Triangles<br />
are Congruent (CPCTC)<br />
Virginia Department <strong>of</strong> Education 42 Geometry Instructional Modules
Example Sheet:<br />
Paragraph Pro<strong>of</strong><br />
Statements and reasons are interwoven to make a convincing argument. They are<br />
written in complete sentences.<br />
A<br />
B<br />
Given:<br />
Prove:<br />
Rectangle ABCD<br />
__ __<br />
AC ≅ BD<br />
D<br />
C<br />
Since ABCD is a rectangle, its opposite sides are congruent and it contains 4 right<br />
__<br />
angles. So AD ≅BC and since all right angles are ≅, ∠ADC ≅ ∠BCD. By identity,<br />
__ __<br />
DC ≅ DC . Using the SAS Postulate, ∆ADC ≅ ∆BCD. By Corresponding Parts <strong>of</strong><br />
__ __<br />
Congruent Triangles are Congruent, AC ≅ BD .<br />
Virginia Department <strong>of</strong> Education 43 Geometry Instructional Modules
Example Sheet:<br />
Flow Pro<strong>of</strong><br />
The argument is made through the use <strong>of</strong> a flowchart with justifications keyed to the<br />
reasoning by numbers.<br />
A<br />
B<br />
Given:<br />
Prove:<br />
Rectangle ABCD<br />
__ __<br />
AC ≅ BD<br />
D<br />
C<br />
1. ABCD is a rectangle.<br />
2. 3.<br />
AD ≅ BC<br />
Example Sheet:<br />
Coordinate Pro<strong>of</strong><br />
In a coordinate pro<strong>of</strong>, you place the figure on the coordinate plane. Generally, to make<br />
calculations easier, place as many vertices as possible on the axes.<br />
A<br />
B<br />
Given:<br />
Prove:<br />
Rectangle ABCD<br />
__ __<br />
AC ≅ BD<br />
D<br />
C<br />
__<br />
Using the distance formula, find the length <strong>of</strong> AC<br />
is (0,n); B is (m,n); C is (m,0); and D is (0,0).<br />
__<br />
AC<br />
__<br />
BD<br />
____________________<br />
= √ (0 – m) 2 + ( n – 0) 2<br />
________<br />
= √ m 2 + n 2<br />
___________________<br />
= √ ( m – 0) 2 + ( n – 0) 2<br />
_________<br />
= √ m 2 + n 2<br />
__<br />
and BD<br />
in rectangle ABCD where A<br />
Virginia Department <strong>of</strong> Education 45 Geometry Instructional Modules
Venn Diagrams<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.1:<br />
____________________________________________________________________________________<br />
Description:<br />
Students will create a variety <strong>of</strong> Venn diagrams to describe the inclusion<br />
relationships between various attribute pieces. They solve a puzzle<br />
involving attribute pieces using a Venn diagram.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Attribute blocks<br />
• Loops <strong>of</strong> string<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
• Assess student familiarity with Venn diagrams by creating a Venn<br />
diagram using attribute blocks and having students identify the<br />
proper labels for the circles and area <strong>of</strong> overlap.<br />
• Have students use loops <strong>of</strong> string and attribute blocks to create Venn diagrams<br />
with 3 circles.<br />
• Once you are certain students understand how Venn diagrams work, have them<br />
create the diagrams specified on the activity sheet.<br />
• Discuss the role <strong>of</strong> Venn diagrams in organizing information about groups.<br />
Virginia Department <strong>of</strong> Education 46 Geometry Instructional Modules
Activity Sheet:<br />
Venn Diagrams<br />
Sketch a Venn diagram for each <strong>of</strong> the situations listed below.<br />
1. All equilateral triangles have three congruent sides. Some isosceles<br />
triangles have three equal sides while some have only two equal sides.<br />
2. Some rectangles are squares. Some rhombi are squares. No kites are<br />
rectangles or rhombi.<br />
3. Insert the appropriate name <strong>of</strong> a quadrilateral into the Venn diagram sketched<br />
below.<br />
Parallelogram<br />
Rectangle<br />
Rhombus<br />
Square<br />
Trapezoid<br />
Virginia Department <strong>of</strong> Education 47 Geometry Instructional Modules
Imagine the standard set <strong>of</strong> Attribute Pieces to be available and that in subset A,<br />
there are 6 triangles, 7 large pieces and 7 red pieces. But also you find<br />
• Exactly 2 pieces are large red triangles.<br />
• Only 2 pieces are red and triangular but not large.<br />
• Exactly 1 piece is triangular and large but not red.<br />
• Only 1 piece is large and red but not triangular.<br />
There are _____ pieces in subset A. Use a Venn diagram to illustrate your solution.<br />
Hint: The solution is not twenty.<br />
Virginia Department <strong>of</strong> Education 48 Geometry Instructional Modules
Properties <strong>of</strong> Similar and Congruent Triangles<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.5<br />
______________________________________________________________________________<br />
Description:<br />
Students will create two congruent triangles and two similar triangles using<br />
geo-strips. They then compare corresponding angles and corresponding<br />
sides and make conclusions about the corresponding angles and<br />
corresponding sides in congruent and similar triangles.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Geo-strips<br />
• Protractor<br />
• Ruler or angle ruler<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 49 Geometry Instructional Modules
Activity Sheet: Properties <strong>of</strong> Similar and Congruent Triangles<br />
Questions:<br />
How can you find out if two triangles are congruent or similar by examining<br />
properties?<br />
Preparing for Research:<br />
1. Using your geo-strips, construct two identical triangles with each side a<br />
different color.<br />
2. Construct a third triangle using short red, blue, and yellow strips.<br />
3. Construct a fourth triangle using the middle red and the longer blue and yellow strips.<br />
Making Observations:<br />
1. First, examine your two identical triangles. Measure each <strong>of</strong> the angles using your<br />
protractor. What do you notice about the pairs <strong>of</strong> corresponding angles?<br />
2. Measure the length <strong>of</strong> each side using your ruler. It is easiest to measure from one<br />
fastener to the next. What do you notice?<br />
3. Make notes <strong>of</strong> the same measurements on your third and fourth triangles.<br />
Inferring:<br />
• Compare your results with those <strong>of</strong> a classmate. What did you each find about your<br />
first pair <strong>of</strong> identical triangles?<br />
• Were your triangles the same? Even if they were not, did the measurements<br />
match between them?<br />
These triangles are congruent — all <strong>of</strong> their corresponding parts (sides and<br />
angles) are exactly the same.<br />
• Compare your second pair <strong>of</strong> triangles. Were the angles the same?<br />
Were the side lengths the same?<br />
• What is the relationship between the side lengths?<br />
These triangles are similar — their corresponding angles are the same and their<br />
corresponding side lengths are proportional.<br />
Virginia Department <strong>of</strong> Education 50 Geometry Instructional Modules
Drawing Conclusions:<br />
1. What do you need to know about two triangles in order to be sure they are<br />
congruent?<br />
By building different triangles, see if you can identify the smallest amount <strong>of</strong><br />
information that will let you be sure two triangles are congruent.<br />
2. What do you need to know about two triangles in order to be sure they are<br />
similar?<br />
3. If you know two triangles are similar and you know the lengths <strong>of</strong> one pair <strong>of</strong><br />
corresponding sides, can you find the lengths <strong>of</strong> the other sides given one <strong>of</strong> each<br />
pair?<br />
Virginia Department <strong>of</strong> Education 51 Geometry Instructional Modules
Triangles from Midpoints<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.5<br />
______________________________________________________________________________<br />
Description:<br />
Students will use the Geometer’s Sketchpad or similar s<strong>of</strong>tware or a TI-92<br />
graphing calculator to investigate what happens when the midpoints <strong>of</strong> the<br />
sides <strong>of</strong> a triangle are connected. The investigation ends with the students<br />
proving that the four triangles formed are congruent.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Geometer’s Sketchpad or similar s<strong>of</strong>tware<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 52 Geometry Instructional Modules
Activity Sheet:<br />
Triangles from Midpoints<br />
Questions:<br />
When you construct a triangle from the midpoints <strong>of</strong> a given triangle, what<br />
is true about the four triangles you create?<br />
Preparing for Research:<br />
1) Use your s<strong>of</strong>tware to construct a triangle ABC.<br />
2) Mark the midpoints <strong>of</strong> each side and draw triangle DEF.<br />
C<br />
F<br />
D<br />
A<br />
E<br />
B<br />
3) Measure each <strong>of</strong> the six angles A - F.<br />
Making Observations:<br />
1. Can you show that triangles ABC and DEF are similar?<br />
2. Do you think this is always true?<br />
You can use sketchpad to try to create a counterexample.<br />
Remember that even if you can not find a case where this is not true,<br />
that does not mean it is true.<br />
3. Your drawing includes four small triangles. Use the measurement tools in<br />
Sketchpad to investigate any relationship among these triangles.<br />
Inferring:<br />
What conclusions can you draw about these four small triangles?<br />
Drawing Conclusions:<br />
How can you prove that these four small triangles are always congruent,<br />
no matter what the starting triangle looks like?<br />
Virginia Department <strong>of</strong> Education 53 Geometry Instructional Modules
Transformations and Congruence<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.5<br />
______________________________________________________________________________<br />
Description:<br />
Students will use the Geometer’s Sketchpad or similar s<strong>of</strong>tware or a TI-92<br />
graphing calculator to investigate using transformations to map one<br />
congruent triangle onto another. They also will investigate what is needed<br />
to show that two triangles are congruent.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Geometer’s Sketchpad or similar s<strong>of</strong>tware or TI-92 calculator<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 54 Geometry Instructional Modules
Activity Sheet:<br />
Transformations and Congruence<br />
Investigation One<br />
Questions:<br />
How can you use transformations to show that two triangles are congruent?<br />
Preparing for Research:<br />
Draw two congruent triangles anywhere on the coordinate plane.<br />
Making Observations:<br />
Use transformations (reflection, rotation, translation) to map one triangle onto<br />
the other. What is the smallest number <strong>of</strong> transformations needed?<br />
Inferring:<br />
What do you know about the properties <strong>of</strong> these triangles when you see them<br />
mapped one onto the other?<br />
Drawing Conclusions:<br />
How does this show you that they are congruent?<br />
Investigation Two<br />
Questions:<br />
How can you use transformations to show that two triangles are congruent?<br />
Preparing for Research:<br />
Construct two triangles with two sides and the included angle congruent.<br />
Use transformations to map one triangle onto the other.<br />
Making Observations:<br />
What do you notice about the other parts <strong>of</strong> the triangles?<br />
Inferring:<br />
Are these two triangles congruent?<br />
Drawing Conclusions:<br />
Is any pair <strong>of</strong> triangles congruent when two sides and the included angle are<br />
congruent?<br />
You have probably studied other ways <strong>of</strong> showing two triangles are<br />
congruent. Explore using transformations with these relationships.<br />
Virginia Department <strong>of</strong> Education 55 Geometry Instructional Modules
How Many Triangles?<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.6<br />
______________________________________________________________________________<br />
Description:<br />
Students will use straws or strips <strong>of</strong> paper to investigate the triangle inequality<br />
theorem.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Paper straws or narrow strips <strong>of</strong> paper 12 cm long<br />
• Metric ruler<br />
• Marker<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 56 Geometry Instructional Modules
Activity Sheet:<br />
How Many Triangles?<br />
Questions:<br />
Are there sets <strong>of</strong> three segments that will not make a triangle? What segments can<br />
be combined to make a triangle? How many triangles can you make from a given<br />
set <strong>of</strong> segments?<br />
Preparing for Research:<br />
Trim your straw or strip to 12 cm in length and mark it at one cm intervals.<br />
Making Observations:<br />
Folding only at your marks, make as many different triangles as you can.<br />
Keep a record <strong>of</strong> your triangles by sketching them and noting the side lengths.<br />
Inferring:<br />
1. Are there some combinations <strong>of</strong> side lengths that do not appear?<br />
2. For example, do you have a triangle with side lengths 1, 2, 9?<br />
3. Do you have a triangle with side lengths 3, 4, 5?<br />
4. Do you see a pattern in the side length combinations that appear?<br />
5. Think about the saying “The shortest distance between two points is a<br />
straight line.” What does this say about the relationship between the<br />
sum <strong>of</strong> two sides <strong>of</strong> a triangle and the length <strong>of</strong> the third side?<br />
Drawing Conclusions:<br />
The triangle inequality theorem states that the sum <strong>of</strong> the lengths <strong>of</strong> any two<br />
sides <strong>of</strong> a triangle must be greater than the length <strong>of</strong> the third side.<br />
Are your data consistent with this statement?<br />
Virginia Department <strong>of</strong> Education 57 Geometry Instructional Modules
Tangram Activities<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.5 & G.7<br />
______________________________________________________________________________<br />
Description:<br />
Students will construct their own tangrams and observe properties <strong>of</strong> the seven<br />
tangram pieces.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Directions for making Tangrams<br />
• Paper suitable for folding such as copy paper (one sheet per student)<br />
• Scissors<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 58 Geometry Instructional Modules
Directions for Making Tangrams<br />
1<br />
5<br />
2<br />
6<br />
4<br />
7<br />
3<br />
1. Fold the lower right corner to the upper left corner along the diagonal. Crease sharply.<br />
Cut along the diagonal.<br />
2. Fold the upper triangle formed in half, bisecting the right angle, to form Piece 1<br />
and Piece 2. Crease and cut along this fold. Label these two triangles "1" and "2".<br />
3. Connect the midpoint <strong>of</strong> the bottom side <strong>of</strong> the original square to the midpoint <strong>of</strong> the<br />
right side <strong>of</strong> the original square. Crease sharply along this line and cut. Label the<br />
triangle cut <strong>of</strong>f "3".<br />
4. Fold the remaining trapezoid in half, matching the short sides. Cut along this fold.<br />
5. Take the lower trapezoid you just made and connect the midpoint <strong>of</strong> the longest side to<br />
the vertex <strong>of</strong> the right angle opposite it. Fold and cut along this line. Label the small<br />
triangle "4" and the remaining parallelogram "7".<br />
6. Take the upper trapezoid you made in Step 4. Connect the midpoint <strong>of</strong> the longest side<br />
to the vertex <strong>of</strong> the obtuse angle opposite it. Fold and cut along this line. Label the small<br />
triangle "5" and the square "6".<br />
7. Ask students to make a square out <strong>of</strong> all seven tangram pieces.<br />
8. Which pieces are congruent? How do you know?<br />
9. Which triangles are similar? How do you know? Can you write a proportion to express<br />
the relationship?<br />
Virginia Department <strong>of</strong> Education 59 Geometry Instructional Modules
Tangram Activities for Area and Perimeter<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.5<br />
______________________________________________________________________________<br />
Description:<br />
Students will consider parts <strong>of</strong> the composite tangram as fractions <strong>of</strong> the whole<br />
and will consider each piece relative to a given non-standard unit, namely small<br />
square and the small triangle. They will find the perimeter <strong>of</strong> each piece by using<br />
the length <strong>of</strong> the side <strong>of</strong> the small square as the unit. This will require the<br />
application <strong>of</strong> the Pythagorean Theorem.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• A set <strong>of</strong> tangrams for each student<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 - 40 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 60 Geometry Instructional Modules
Activity Sheet:<br />
Area and Perimeter With Tangrams<br />
1. If the area <strong>of</strong> the composite square (all seven pieces -- see below) is<br />
1 unit, find the area <strong>of</strong> each <strong>of</strong> the separate pieces.<br />
piece #<br />
area<br />
1<br />
2<br />
3<br />
4<br />
5<br />
6<br />
7<br />
2. If the smallest triangle (piece #4 or #5) is the unit for area, find the area <strong>of</strong><br />
each <strong>of</strong> the separate pieces in terms <strong>of</strong> that triangle.<br />
piece #<br />
area<br />
1<br />
2<br />
3<br />
4<br />
5<br />
6<br />
7<br />
2<br />
7<br />
1<br />
4<br />
6<br />
3<br />
5<br />
3. If the smallest square (piece #6) is the unit for area, find the area <strong>of</strong> each<br />
<strong>of</strong> the separate pieces in terms <strong>of</strong> that square. Enter your findings in the<br />
table below.<br />
4. If the side <strong>of</strong> the small square (piece #6) is the unit <strong>of</strong> length, find the<br />
perimeter <strong>of</strong> each piece and enter your findings in the table.<br />
Virginia Department <strong>of</strong> Education 61 Geometry Instructional Modules
piece # area perimeter<br />
1<br />
2<br />
3<br />
4<br />
5<br />
6<br />
7<br />
5. Pieces #1, #2, #3, #4, and #5 are all similar right triangles. How can you<br />
verify that they are similar?<br />
• Compare their bases, heights, and areas. What relationships do you<br />
find?<br />
• How does change in one <strong>of</strong> the measures <strong>of</strong> the object affect the others?<br />
• Does this occur if the triangles are not similar?<br />
Virginia Department <strong>of</strong> Education 62 Geometry Instructional Modules
Tangram Activity for Spatial Problem Solving<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.5<br />
______________________________________________________________________________<br />
Description:<br />
Students will develop spatial reasoning skills by using tangrams to solve<br />
puzzles.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheets<br />
• A set <strong>of</strong> tangrams for each student<br />
____________________________________________________________________________________<br />
Time Required:<br />
Variable, allow 30 minutes to get started. Students may work<br />
independently over a period <strong>of</strong> a week or so and turn in solutions later.<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 63 Geometry Instructional Modules
Activity Sheet:<br />
Spatial Problem Solving with Tangrams<br />
Use the number <strong>of</strong> pieces in the first column to form each <strong>of</strong> the geometric shapes that<br />
appear in the top <strong>of</strong> the table. Make a sketch <strong>of</strong> your solution(s). Some have more<br />
than one solution while some have no solution.<br />
Make These Polygons<br />
Use this<br />
many<br />
pieces ↓<br />
Square Rectangle Triangle Trapezoid Trapezoid Parallel<br />
-ogram<br />
2<br />
3<br />
4<br />
5<br />
6<br />
7<br />
Virginia Department <strong>of</strong> Education 64 Geometry Instructional Modules
Activity Sheet:<br />
Tangram Puzzles<br />
Can you make these shapes with the seven Tangram<br />
pieces? Make a sketch <strong>of</strong> your solutions.<br />
1. 2.<br />
3. 4.<br />
5. 6.<br />
Design your own tangram picture. Trace the outline and give it a name. Submit the<br />
outline and a solution key.<br />
Virginia Department <strong>of</strong> Education 65 Geometry Instructional Modules
Geoboard Exploration <strong>of</strong> the Pythagorean Relationship<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.7<br />
_________________________________________________________________________________<br />
Description:<br />
Students will investigate the Pythagorean relationship by constructing right<br />
triangles on a geoboard.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• 11 pin geoboards or dot paper<br />
• overhead geoboard<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
1. On a transparent geoboard on the overhead projector, construct a right<br />
triangle in which one leg is horizontal and the other is vertical. Ask a<br />
student to construct a square on each leg and then on the hypotenuse <strong>of</strong><br />
the triangle. Ask students to find the area <strong>of</strong> each square. It may be<br />
difficult for some students to recognize a way to find the area <strong>of</strong> the square<br />
on the hypotenuse so you may need to assist them.<br />
2. Give students the handout “Geoboard Exploration <strong>of</strong> Right Triangles”.<br />
Have them fill in the data from the example done by the whole class. Then<br />
have small groups work to find several other examples and record them in<br />
the chart.<br />
3. Debrief the examples with the whole class.<br />
4. What patterns do you see? (If students have not seen it before, you may tell<br />
them that this is the Pythagorean relationship that will be stated later as a<br />
theorem.)<br />
5. Can you state the relationship in words? In symbols?<br />
6. Do you think this is always true?<br />
7. If you label the sides <strong>of</strong> the triangle, can you write a statement <strong>of</strong> what you<br />
think is true?<br />
8. Does this procedure provide a pro<strong>of</strong> that the relationship is always true?<br />
Virginia Department <strong>of</strong> Education 66 Geometry Instructional Modules
Activity Sheet:<br />
Geoboard Exploration <strong>of</strong> Right Triangles<br />
Make a right triangle on a large geoboard or dot paper. Construct a square on each<br />
side <strong>of</strong> the triangle. Label the shortest side a, the middle side b, and the longest side<br />
(hypotenuse) c.<br />
Complete the Table<br />
Length <strong>of</strong><br />
side a<br />
Length <strong>of</strong><br />
side b<br />
Length <strong>of</strong><br />
side c<br />
Area <strong>of</strong><br />
square on<br />
side a<br />
Area <strong>of</strong><br />
square on<br />
side b<br />
Area <strong>of</strong><br />
square on<br />
side c<br />
a 2 + b 2<br />
Virginia Department <strong>of</strong> Education 67 Geometry Instructional Modules
Pro<strong>of</strong>s <strong>of</strong> the Pythagorean Theorem<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.7<br />
______________________________________________________________________________<br />
Description:<br />
Students will experience two pro<strong>of</strong>s <strong>of</strong> the Pythagorean Theorem--<br />
an algebraic pro<strong>of</strong>; and a transformational geometry pro<strong>of</strong>--<br />
in which they will cut up the diagram and rearrange the pieces as<br />
if it were a puzzle.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheets<br />
• Scissors<br />
• Crayons or markers (2 colors)<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 50 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 68 Geometry Instructional Modules
An Algebraic Approach to the Pythagorean Theorem<br />
W b U a<br />
a<br />
T<br />
c<br />
b<br />
c<br />
b<br />
c<br />
V<br />
c<br />
a<br />
X a S b Y<br />
Fill in expressions for each <strong>of</strong> the indicated areas:<br />
1. Area <strong>of</strong> the large square WXYZ= (a + b) 2 = (a + b)(a + b) = ______________________<br />
2. Area <strong>of</strong> the large square WXYZ =<br />
area <strong>of</strong> square STUV + 4(area <strong>of</strong> triangle XST) = ______________ + ______________<br />
3. Set the expressions from #1 and #2 equal to each other and simplify.<br />
Where have you seen this before? Shade a right triangle in the drawing above for which the<br />
relationships hold.<br />
Virginia Department <strong>of</strong> Education 69 Geometry Instructional Modules
A Transformational Geometry Approach to the Pythagorean Theorem<br />
W b U a Z<br />
a<br />
c<br />
V b<br />
c<br />
b<br />
c<br />
T<br />
c<br />
X a S b Y<br />
1. Mark <strong>of</strong>f the square that has area <strong>of</strong> b 2 in the drawing above and shade it. Mark <strong>of</strong>f<br />
the square that has area <strong>of</strong> a 2 in the drawing above and shade it.<br />
2. Cut <strong>of</strong>f triangle XSV and triangle SYT and rearrange them to show that the<br />
combined area <strong>of</strong> the shaded sections is the same as the area <strong>of</strong> the interior square<br />
whose area is c 2 . Label the diagram to help write an explanation or what you did.<br />
(Note: there are two ways to do this. One involves translating the pieces, the other<br />
involves rotating the pieces.)<br />
Virginia Department <strong>of</strong> Education 70 Geometry Instructional Modules
Egyptian Rope Stretching<br />
Reporting Category: Triangles and Logic<br />
Related SOL: G.7<br />
______________________________________________________________________________<br />
Description:<br />
Students are presented with a problem that shows an application <strong>of</strong> the<br />
Pythagorean Theorem in ancient Egyptian culture.<br />
____________________________________________________________________________________<br />
Materials:<br />
A rope that has 13 knots tied in equal intervals.<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30-40 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
1. Show students the rope that has 13 knots tied in equal intervals. Tell them that a<br />
picture <strong>of</strong> a rope like this was found on inscriptions in tombs <strong>of</strong> ancient Egyptian<br />
kings. Ask students to work in groups to figure out what the purpose <strong>of</strong> the rope<br />
might have been.<br />
2. Ask students to suggest ideas for the way the Egyptians used the rope. If students<br />
come up with the idea that it was a used to make a template for determining right<br />
angles, let them demonstrate. If they do not, you should have two students help<br />
you demonstrate. Have a student hold knot #1 and knot #13 together. Have<br />
another hold knot #4. You should hold knot # 8. All three <strong>of</strong> you should stretch<br />
the rope and have the class observe the resulting shape. Make sure they<br />
understand that the only shape that can be formed when you pull is a right<br />
triangle.<br />
3. Have students conjecture about how the Egyptians might have used this rope. (To<br />
build right angled corners on pyramids? To redraw the boundaries <strong>of</strong> the fields<br />
after the spring flooding <strong>of</strong> the Nile?)<br />
4. Ask students what other numbers <strong>of</strong> knots in a rope might be used to serve the<br />
same purpose <strong>of</strong> forming a right triangle. For example:<br />
• Could you obtain the right triangle result with a rope that has 20<br />
equally spaced knots? Try it.<br />
• Could you do it with a rope with 31 knots (30 spaces)?<br />
Why or why not?<br />
Virginia Department <strong>of</strong> Education 71 Geometry Instructional Modules
Quadrilaterals and their Properties<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.8<br />
_________________________________________________________________________________<br />
Description:<br />
Students will investigate quadrilaterals and their properties through the use <strong>of</strong><br />
various manipulatives such as sorting pieces and geo-strips and the use <strong>of</strong><br />
graphing utilities. The sequence <strong>of</strong> activities is designed to facilitate an increase in<br />
a learner's van Hiele level <strong>of</strong> thinking about quadrilaterals from Level 1 to Level 3.<br />
_________________________________________________________________________________________<br />
Materials:<br />
• Quadrilateral Sorting Pieces<br />
• Activity Sheets<br />
_________________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
_________________________________________________________________________________________<br />
Directions:<br />
1. Students sort a set <strong>of</strong> quadrilateral pieces, an activity which enables the teacher<br />
to assess their van Hiele levels.<br />
2. Then they play the game "What's My Rule?" to develop the ability to classify<br />
quadrilaterals by various attributes and to focus on more than one attribute at a<br />
time.<br />
Refer back to the Introduction for additional descriptions <strong>of</strong> the van Hiele levels.<br />
Virginia Department <strong>of</strong> Education 72 Geometry Instructional<br />
Modules
Activity Sheet: Quadrilateral Sort<br />
Directions:<br />
• Divide the students into small groups. Distribute the quadrilateral sorting<br />
sheet, have the students cut out the quadrilaterals.<br />
• Instruct the students to lay out the pieces with the letters up. Do not call<br />
them quadrilaterals. Tell the students that objects can be grouped together<br />
in many different ways. For example, if we sorted the shapes that make up<br />
the American flag (the red stripes, the white stripes, the blue field, the white<br />
stars), we might sort by color and put the white stripes and the stars together<br />
because they are white, the red stripes in another group because they are red,<br />
and the blue field by itself because it is the only blue object. Another way the<br />
flag parts could be grouped would be all the stripes and the blue field together<br />
because they are all rectangles and all the stars together because they are not<br />
rectangles.<br />
• Have them sort the shapes into groups that belong together, recording the<br />
letters <strong>of</strong> the pieces they put together and the criteria they used to sort.<br />
• Have them sort two or three times, recording each sort.<br />
• Ask the students for some <strong>of</strong> their ways <strong>of</strong> sorting.<br />
• Have them compare their ways with those <strong>of</strong> other groups.<br />
Virginia Department <strong>of</strong> Education 73 Geometry Instructional<br />
Modules
Quadrilateral Sorting Pieces<br />
Virginia Department <strong>of</strong> Education 74 Geometry Instructional Modules
Activity Sheet: What's My Rule?<br />
Directions:<br />
Divide the students into groups <strong>of</strong> 3 or 4. Pass out the sets <strong>of</strong> cut-out<br />
quadrilaterals, one set per group. Go over the rules with the students.<br />
Rules<br />
1. Choose one player to be the sorter. The sorter writes down a "secret rule" to<br />
classify the set <strong>of</strong> quadrilaterals into two or more piles and uses that rule to<br />
slowly sort the pieces as the other players observe.<br />
2. At any time, the players can call "stop" and guess the rule. The correct<br />
identification is worth 5 points. A correct answer, but not the written one, is<br />
worth 1 point. Each incorrect guess results in a 2-point penalty.<br />
3. After the correct rule identification, the player who figured out the rule<br />
becomes the sorter.<br />
4. The winner is the first one to accumulate 10 points.<br />
Virginia Department <strong>of</strong> Education 75 Geometry Instructional Modules
Quadrilateral Properties Laboratory<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.8<br />
______________________________________________________________________________<br />
Description:<br />
Students will construct parallelograms, rectangles, rhombi, and squares<br />
using D-stix, geo-strips, or toothpicks and marshmallows and make<br />
observations as the figures are flexed.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheets<br />
• D-stix, geo-strips, or miniature marshmallows and toothpicks cut into two different<br />
lengths<br />
• square corner (the corner <strong>of</strong> an index card or book)<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
• Divide the students into groups <strong>of</strong> 3 or 4 and direct each group to<br />
experiment as you ask questions. Be sure to model constructing the<br />
polygons and flexing them.<br />
• Have the students pick two pairs <strong>of</strong> congruent segments and connect them<br />
as shown below. Have them flex the figure to different positions.<br />
. .<br />
. .<br />
• Ask<br />
• What stays the same? (lengths <strong>of</strong> the sides, the opposite sides are<br />
parallel, opposite angles are the same, sum <strong>of</strong> angles, perimeter)<br />
• What changes? (size <strong>of</strong> angles, area, lengths <strong>of</strong> diagonals)<br />
• What do you notice about the opposite sides <strong>of</strong> this quadrilateral?<br />
(They remain parallel and congruent.)<br />
A parallelogram is a quadrilateral with opposite sides parallel.<br />
• What is the sum <strong>of</strong> the interior angles <strong>of</strong> this quadrilateral? (360°)<br />
• What do you notice about the opposite angles? (congruent)<br />
Virginia Department <strong>of</strong> Education 76 Geometry Instructional Modules
Note to Teacher: Some students will likely turn the strips so that they<br />
cross forming two triangles. If no one does, you should. Ask if this figure<br />
is a polygon. Elicit from the group what the essential elements <strong>of</strong> a polygon<br />
are, i.e.,<br />
a) composed <strong>of</strong> straight line segments connected end to end<br />
b) simple (the segments do not cross)<br />
c) closed<br />
d) lies in a plane (e.g., if you take a wire square and twist it so<br />
that it isn't flat, it is no longer a polygon)<br />
• Make one <strong>of</strong> the angles a right angle. (You can use the square corner<br />
to check your accuracy.)<br />
• Ask<br />
• What happens to the other angles? (They become right angles.)<br />
• Will this always be true when you make one angle <strong>of</strong> a parallelogram a right<br />
angle? (Yes)<br />
• How do you know? (The sum <strong>of</strong> the angles in a parallelogram is 360°. One<br />
angle is given as 90°. Its opposite angle must be the same or 90°.<br />
Subtracting these two angles from 360°, the remaining two angles, which<br />
are congruent since they are opposite angles in a parallelogram, must total<br />
180°. Therefore, each is 90°. Note: This is Level 3 thinking.)<br />
• Is it still a parallelogram? (Yes)<br />
• Is it still a quadrilateral? (Yes)<br />
• Is it still a polygon? (Yes)<br />
• What other name, besides polygon, quadrilateral, and parallelogram, can be<br />
given to it now? (rectangle)<br />
A rectangle is a parallelogram with four right angles.<br />
• Make a parallelogram that has all four sides equal in length. What<br />
is another name for this parallelogram? (rhombus)<br />
A rhombus is a parallelogram with four congruent sides.<br />
• Flex the figure to different positions.<br />
.<br />
.<br />
.<br />
• Ask<br />
• What stays the same? (lengths <strong>of</strong> the sides, the opposite sides<br />
are parallel, opposite angles are the same, sum <strong>of</strong> angles, perimeter)<br />
• What changes? (size <strong>of</strong> angles, area, lengths <strong>of</strong> diagonals)<br />
.<br />
Virginia Department <strong>of</strong> Education 77 Geometry Instructional Modules
• What is the sum <strong>of</strong> the interior angles <strong>of</strong> this quadrilateral? (360°)<br />
• What do you notice about the opposite angles? (congruent)<br />
• Is it still a quadrilateral? (Yes)<br />
• Is it still a polygon? (Yes)<br />
• Make one <strong>of</strong> the angles <strong>of</strong> this rhombus a right angle, checking with<br />
your square corner.<br />
• Ask<br />
• What happens to the other angles? (All right angles)<br />
• Is it still a parallelogram? (yes)<br />
• What other name, besides polygon, quadrilateral, parallelogram,<br />
and rhombus, can be given to this new figure? (square)<br />
A square is a parallelogram with four congruent sides and four right angles.<br />
• Is it a rectangle? (Yes)<br />
• How do you know? (It has four right angles.)<br />
• Distribute the Types <strong>of</strong> Quadrilaterals sheet and discuss the definitions<br />
for quadrilateral, parallelogram, rectangle, rhombus, and square.<br />
Discuss the examples <strong>of</strong> each, noticing their orientations and how each<br />
example fits the definition even though they are not necessarily the<br />
stereotype figure usually seen.<br />
Virginia Department <strong>of</strong> Education 78 Geometry Instructional Modules
TYPES OF QUADRILATERALS<br />
A quadrilateral is a<br />
four sided polygon.<br />
A parallelogram is a<br />
quadrilateral with opposite<br />
sides parallel .<br />
These sides<br />
are parallel.<br />
A square is a quadrilateral<br />
with 4 right angles and<br />
4 congruent sides .<br />
A trapezoid is a<br />
quadrilateral with exactly<br />
one pair <strong>of</strong> parallel sides.<br />
These sides<br />
are parallel.<br />
A rectangle is a quadrilateral<br />
with all right angles<br />
A rhombus is a quadrilateral<br />
with all sides congruent.<br />
A kite is a quadrilateral with 2<br />
pair <strong>of</strong> consecutive<br />
congruent sides but not all<br />
congruent sides.<br />
A dart is a concave<br />
quadrilateral.<br />
Virginia Department <strong>of</strong> Education 79 Geometry Instructional Modules
Quadrilateral Sorting Laboratory<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.8<br />
______________________________________________________________________________<br />
Description:<br />
Students will record which quadrilaterals meet the various descriptions<br />
listed in the properties table, determine which sets are identical and are<br />
subsets <strong>of</strong> one another, attach labels to each category, and create a<br />
quadrilateral family tree.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheets<br />
• Paper quadrilaterals (from Quadrilateral Sorting Pieces)cut out and placed<br />
in a plastic baggy or manila envelope.<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
• Distribute the Quadrilateral Table activity sheet. Divide the students into groups <strong>of</strong> 3 or 4<br />
and direct each group to experiment and answer the questions on the handout.<br />
• After the students have filled out the table, have pairs <strong>of</strong> groups compare their answers,<br />
and reconcile any discrepancies.<br />
• Distribute the Quadrilateral Sorting Laboratory activity sheet.<br />
• Have the students continue with Steps 5-10.<br />
• For Step 11 the students can construct the family tree as small groups or as a large<br />
group. Pass out the Family Tree activity sheet.<br />
Virginia Department <strong>of</strong> Education 80 Geometry Instructional Modules
Activity Sheet: Quadrilateral Table<br />
___________________________________________________<br />
1. has 4 right angles<br />
___________________________________________________<br />
2. has exactly one pair <strong>of</strong> parallel sides<br />
___________________________________________________<br />
3. has two pair <strong>of</strong> opposite sides congruent<br />
___________________________________________________<br />
4. has 4 congruent sides<br />
___________________________________________________<br />
5. has two pair <strong>of</strong> opposite sides parallel<br />
___________________________________________________<br />
6. has no sides congruent<br />
___________________________________________________<br />
7. has two pair <strong>of</strong> adjacent sides congruent, but not all sides congruent<br />
___________________________________________________<br />
8. has perpendicular diagonals<br />
___________________________________________________<br />
9. has opposite angles congruent<br />
___________________________________________________<br />
10. is concave<br />
___________________________________________________<br />
11. is convex<br />
___________________________________________________<br />
12. its diagonals bisect one another<br />
___________________________________________________<br />
13. has four sides<br />
___________________________________________________<br />
14. has four congruent angles<br />
___________________________________________________<br />
15. has four congruent sides and four congruent angles<br />
___________________________________________________<br />
Virginia Department <strong>of</strong> Education 81 Geometry Instructional Modules
RH<br />
O<br />
MB<br />
I<br />
PA<br />
RA<br />
LL<br />
EL<br />
OG<br />
RA<br />
MS<br />
QU<br />
AD<br />
RIL<br />
AT<br />
ER<br />
AL<br />
S<br />
OT<br />
HE<br />
RS<br />
Activity Sheet: Family Tree<br />
Virginia Department <strong>of</strong> Education 82 Geometry Instructional Modules
Activity Sheet:<br />
Quadrilateral Sorting Laboratory<br />
Directions:<br />
1. Spread out your Quadrilateral Set with the letters facing up so you can see them.<br />
2. Find all <strong>of</strong> the quadrilaterals having 4 right angles. List them by letter alphabetically in<br />
the corresponding row <strong>of</strong> the Table.<br />
3. Consider all <strong>of</strong> the quadrilaterals again. Find all <strong>of</strong> the quadrilaterals having exactly one<br />
pair <strong>of</strong> parallel sides. List them by letter alphabetically in the corresponding row <strong>of</strong> the<br />
Table.<br />
4. Continue in this manner until the Table is complete.<br />
5. Which category is the largest? What name can be used to describe this category?<br />
6. Which lists are the same? What name can be used to describe quadrilaterals with these<br />
properties?<br />
7. Are there any lists which are proper subsets <strong>of</strong> another list? If so, which ones?<br />
8. Are there any lists which are not subsets <strong>of</strong> one another which have some but not all<br />
members in common? If so, which ones?<br />
9. Which lists have no members in common?<br />
10. Label each <strong>of</strong> the categories in the Table with the most specific name possible using the<br />
labels kite, quadrilateral, parallelogram, rectangle, rhombus, square, and trapezoid.<br />
For example, #1 - a quadrilateral which has 4 right angles is a rectangle. (Having 4 right<br />
angles is not enough to make it a square; it would need 4 congruent sides as well.)<br />
11. Compare your results to that <strong>of</strong> the other Lab Groups. Then fill out the family tree by<br />
inserting the names kites, rectangles, squares, and trapezoids into the appropriate places<br />
on the diagram.<br />
Virginia Department <strong>of</strong> Education 83 Geometry Instructional Modules
Quadrilateral Diagonal Investigation<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.8<br />
______________________________________________________________________________<br />
Description:<br />
Working in small groups, students will choose all the squares from the sample<br />
quadrilaterals, draw in their diagonals, and make observations about<br />
whether they are congruent, perpendicular, or bisect one another. They<br />
repeat the task with rhombi, rectangles, parallelograms, trapezoids, kites,<br />
and darts, supplementing their quadrilateral by drawing additional ones as<br />
needed to test their conjectures. Finally, they fill out a table summarizing<br />
their findings and other observations about various types <strong>of</strong> quadrilaterals.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Sample quadrilateral pieces<br />
• Straightedge<br />
• Protractor or angle ruler<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 55 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
• Divide the students into small groups. Distribute the sample quadrilateral pieces .<br />
• Distribute the activity sheet.<br />
• Have students complete the activity sheet table.<br />
• Summarize the characteristics found from the table.<br />
Virginia Department <strong>of</strong> Education 84 Geometry Instructional Modules
Sample Quadrilateral Pieces<br />
A<br />
B<br />
C<br />
D<br />
E<br />
F<br />
Virginia Department <strong>of</strong> Education 85 Geometry Instructional Modules
Sample Quadrilateral Pieces<br />
page 2<br />
G<br />
H<br />
J<br />
J<br />
I<br />
L<br />
Virginia Department <strong>of</strong> Education 86 Geometry Instructional Modules
Activity Sheet:<br />
Quadrilateral Properties Investigation<br />
Both pair opposite sides must be //.<br />
Both pair opposite sides must be ≅.<br />
All sides must be ≅.<br />
Both pair opposite
Activity Sheet:<br />
Proving a Quadrilateral is a Parallelogram<br />
Directions:<br />
• Divide the students into small groups. Have them examine the<br />
Quadrilateral Properties table completed in this activity. In particular, have them<br />
examine the ways that you can insure that a quadrilateral is a parallelogram; that<br />
a parallelogram is a rectangle; and that a parallelogram is a rhombus.<br />
• Summarize this information using the summary sheet.<br />
Summary Information<br />
Ways to Prove that a Quadrilateral is a Parallelogram<br />
Show that:<br />
1. both pairs <strong>of</strong> opposite sides are //.<br />
2. both pairs <strong>of</strong> opposite sides are ≅.<br />
3. both pairs <strong>of</strong> opposite angles are ≅.<br />
4. one pair <strong>of</strong> opposite sides is both // and ≅.<br />
5. the diagonals bisect each other.<br />
Ways to Prove that a Parallelogram is a Rectangle<br />
Show that:<br />
1. its diagonals are ≅.<br />
2. it contains a right angle.<br />
Ways to Prove that a Parallelogram is a Rhombus<br />
Show that:<br />
1. its diagonals are ⊥.<br />
2. two consecutive sides are ≅.<br />
Virginia Department <strong>of</strong> Education 88 Geometry Instructional Modules
Triangle and Quadrilateral Angle Laboratory<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.9<br />
______________________________________________________________________________<br />
Description:<br />
One property <strong>of</strong> the angles <strong>of</strong> a triangle is extremely important in<br />
understanding which polygons tessellate: The sum <strong>of</strong> the interior angles <strong>of</strong><br />
any triangle equals 180°. Students will verify that the interior angles <strong>of</strong> a<br />
triangle add up to 180° by cutting three random triangles out <strong>of</strong> paper,<br />
numbering and tearing <strong>of</strong>f their vertices, and rearranging them adjacent to<br />
each other to form a straight angle. They will also explore the meanings <strong>of</strong><br />
counterexample and conjecture. Students then verify that the sum <strong>of</strong> the<br />
angles in a quadrilateral is 360° in a similar manner.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Straightedge<br />
• Scissors<br />
• Tape (optional)<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 15 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 89 Geometry Instructional Modules
Activity Sheet:<br />
Triangle and Quadrilateral Angles Laboratory<br />
Questions:<br />
What is the sum <strong>of</strong> the internal angles in a triangle? in a quadrilateral?<br />
Is it always the same?<br />
Preparing for research:<br />
1. Draw 3 large triangles using a straightedge. Cut the 3 triangles out. Label<br />
the vertices <strong>of</strong> one triangle as 1, 2, and 3. Label the vertices <strong>of</strong> the second<br />
triangles as 1*, 2*, and 3*. Label the vertices <strong>of</strong> the third triangle as 1', 2', and<br />
3'.<br />
3<br />
1<br />
2<br />
2. Tear <strong>of</strong>f the corners. (That's right. Tear, not cut. By tearing, you can still<br />
determine which was the vertex. It will be the cut part.)<br />
1<br />
2<br />
3. Draw a dot on the page and a straight line through the dot. Place the cut<br />
vertex <strong>of</strong>
Making Observations:<br />
1. What angle do these combined corners appear to form?<br />
2. Repeat this procedure with the other two triangles. Does the same thing<br />
happen with all three triangles?<br />
Inferring:<br />
Compare your predictions to your actual findings.<br />
Drawing conclusions:<br />
Add your results to that <strong>of</strong> the other Lab Groups in your class. Then form<br />
conclusions focused on the following issues.<br />
• Do the angles from all <strong>of</strong> their triangles always equal the same amount?<br />
• Examine any triangle that turned out differently. Why do you think it did?<br />
• Based on this activity, what conjecture can you make about the sum <strong>of</strong> the<br />
angles in a triangle? (You have probably known about this for many years.)<br />
• If you and your classmates made 200 triangles, tore <strong>of</strong>f the vertices, lined<br />
them up, and they all totaled the same, would this insure that the 201st<br />
triangle would come out the same?<br />
• What if you made 1,000 triangles this way and they all came out the same?<br />
Would this insure that the 1,001st triangle that you made would come out<br />
the same?<br />
• What if you made 1,000,000 triangles and they all came out the same?<br />
Would this insure that the 1,000,001st triangle that you made would come<br />
out the same?<br />
If you could find a single triangle that came out differently, you would disprove<br />
the conjecture that the sum <strong>of</strong> the measures <strong>of</strong> the interior angles in a triangle<br />
always is 180°. Any item that does not fit your conjecture is called a<br />
counterexample.<br />
A single counterexample is enough to disprove a conjecture. Did you or any <strong>of</strong><br />
your classmates find a triangle whose angles did not add up to 180°?<br />
Unfortunately, not finding one does not mean that one does not exist. However,<br />
it does give us more confidence in our conjecture. We can prove that, in<br />
Euclidean Geometry: the sum <strong>of</strong> the interior angles <strong>of</strong> all triangles equals 180°.<br />
Virginia Department <strong>of</strong> Education 91 Geometry Instructional Modules
Now, do the same thing with quadrilaterals.<br />
Preparing for research:<br />
1. Draw 3 different large quadrilaterals using a straightedge. Cut the 3<br />
quadrilaterals out. Label the vertices.<br />
2<br />
3<br />
1<br />
4<br />
2. Tear <strong>of</strong>f the vertices <strong>of</strong> each figure and arrange them adjacent to one another<br />
around a dot you have drawn. Trace or tape them in place.<br />
Virginia Department <strong>of</strong> Education 92 Geometry Instructional Modules
3. Repeat this sequence <strong>of</strong> steps until all the angles from one figure are<br />
adjacent to one another.<br />
Making Observations:<br />
1. What angle do these combined corners appear to form?<br />
2. Repeat this procedure with the other two quadrilaterals. Does the same thing<br />
happen with all three quadrilaterals?<br />
Drawing conclusions:<br />
Add your results to that <strong>of</strong> the other Lab Groups in your class. Then form<br />
conclusions focused on the following issues.<br />
• Do the angles from all <strong>of</strong> their quadrilaterals always equal the same<br />
amount?<br />
• Examine any quadrilateral that turned out differently. Why do you think it<br />
did?<br />
• Based on this activity, what conjecture can you make about the sum <strong>of</strong> the<br />
measures <strong>of</strong> the interior angles in a quadrilateral?<br />
• What if you made 1,000,000 quadrilaterals and they all came out the<br />
same? Would this insure that the 1,000,001st quadrilateral that you<br />
made would come out the same?<br />
• Does this conjecture work with concave quadrilaterals? How could you<br />
test it?<br />
Virginia Department <strong>of</strong> Education 93 Geometry Instructional Modules
The Sum <strong>of</strong> the Angles in A Polygon<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.9<br />
______________________________________________________________________________<br />
Description:<br />
Students will construct various polygons on a geoboard and put in all the<br />
diagonals from one vertex to divide each polygon into non-overlapping<br />
triangles. The students will compute the sum <strong>of</strong> the degrees in the<br />
triangles to get the sum <strong>of</strong> degrees in the polygon. They will generalize their<br />
findings into the formula for the sum <strong>of</strong> the interior and exterior angles in<br />
any convex polygon and then the size <strong>of</strong> each interior and exterior angle in<br />
a regular polygon.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Recording Table<br />
• Square geoboards and rubber bands<br />
• Paper and pencil<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 94 Geometry Instructional Modules
Activity Sheet:<br />
The Sum <strong>of</strong> the Angles in a Polygon<br />
Questions:<br />
What is the sum <strong>of</strong> the measures <strong>of</strong> the internal angles in any polygon?<br />
Is there a pattern? Is there a general formula? What is the sum <strong>of</strong> the<br />
measures <strong>of</strong> the external angles <strong>of</strong> any polygon? Is there a pattern?<br />
Preparing for research:<br />
Make a triangle <strong>of</strong> any kind on the geoboard. You can observe that it has 3<br />
sides and 3 interior angles. From your previous work, you know that the<br />
sum <strong>of</strong> its interior angles is 180°.<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
Making Observations:<br />
1. Remove the triangle and make a quadrilateral on the geoboard. As you can<br />
see, it has 4 sides and 4 interior angles. Put your index finger on any vertex<br />
peg in your quadrilateral. Join that peg to the peg at the non-adjacent<br />
vertex with a rubber band (i.e., put in all the diagonals from one vertex). It<br />
should form 2 triangles. Does it? If the sum <strong>of</strong> the interior angles in each <strong>of</strong><br />
those two triangles is 180°, the sum <strong>of</strong> the angles in both triangles is 360°.<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
2. Remove the quadrilateral and its diagonal. Make a pentagon on the geoboard.<br />
Fill in the number <strong>of</strong> sides and interior angles on the table.<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
. . . . .<br />
3. Put your finger on one <strong>of</strong> the vertices. Put in all the diagonals from it. Fill in<br />
the number <strong>of</strong> diagonals and number <strong>of</strong> triangles made when you put in the<br />
diagonals.<br />
Virginia Department <strong>of</strong> Education 95 Geometry Instructional Modules
Inferring:<br />
• Based on the number <strong>of</strong> triangles you've made, figure out what the sum <strong>of</strong> the<br />
interior angles in the figure is and enter it into the table.<br />
• Repeat steps 2-3 for the rest <strong>of</strong> the polygons listed in the table.<br />
Drawing conclusions:<br />
• The last entry is for an n-gon. An n-gon is a polygon with n sides. How many<br />
interior angles must this polygon have if it has n sides?<br />
• Observe the relationship between the number <strong>of</strong> sides the polygon has and the<br />
number <strong>of</strong> diagonals. This relationship should indicate the expression or<br />
formula for finding the number <strong>of</strong> diagonals you can make from one vertex in<br />
an n-gon.<br />
• Similarly, observe the relationship between the number <strong>of</strong> diagonals from one<br />
vertex and the number <strong>of</strong> triangles formed. Fill in your table with this<br />
information.<br />
• Now, generalize the information in your table to find an expression to find the<br />
sum <strong>of</strong> the interior angles <strong>of</strong> a n-gon.<br />
Virginia Department <strong>of</strong> Education 96 Geometry Instructional Modules
Recording Table:<br />
Type <strong>of</strong> # <strong>of</strong> # <strong>of</strong> # <strong>of</strong> # <strong>of</strong> s Sum <strong>of</strong><br />
Polygon Sides Interior
If the sum <strong>of</strong> the interior angles <strong>of</strong> a triangle is 180°, how large is each <strong>of</strong> the 3<br />
congruent angles in a regular triangle? How large is any exterior angle? What<br />
is the sum <strong>of</strong> all the exterior angles?<br />
Using the table you made above to help you, fill in the following table.<br />
Type <strong>of</strong> # <strong>of</strong> Sum <strong>of</strong> Size <strong>of</strong> Size <strong>of</strong> Sum <strong>of</strong><br />
Regular Interior Interior Each Each Exterior<br />
Polygon
Interior Angles in Polygon<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.9<br />
______________________________________________________________________________<br />
Description:<br />
Students will compare the graph <strong>of</strong> y = 180(x-2) to the scatterplot produced<br />
by plotting the number <strong>of</strong> sides <strong>of</strong> a polygon vs. the sum <strong>of</strong> the interior<br />
angles in the polygon.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Graphing Calculator<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 10 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 99 Geometry Instructional Modules
Activity Sheet:<br />
INTERIOR ANGLES OF POLYGONS<br />
1. Complete the chart.<br />
Number <strong>of</strong> Sides<br />
Sum <strong>of</strong> the Measures <strong>of</strong><br />
the Interior Angles<br />
3<br />
4<br />
5<br />
6<br />
7<br />
8<br />
2. Clear any data stored in the first two lists in your calculator.<br />
Press STAT 2nd [L 1 ]<br />
, 2nd [L 2 ] ENTER<br />
3. Enter data from the chart into lists L1 and L2.<br />
Press STAT ENTER . Enter the number <strong>of</strong> sides in L1 and the<br />
sum <strong>of</strong> the measures <strong>of</strong> the interior angles in L2.<br />
4. Press WINDOW and enter the following settings:<br />
Xmin = 0<br />
Xmax = 9<br />
Xscl = 1<br />
Ymin = 0<br />
Ymax = 1300<br />
Yscl = 100<br />
5. Make a scatter plot. Clear all functions from the Y = list. Press Y = .and<br />
CLEAR as needed. Press 2nd [STAT PLOT] and select Plot1 by pressing<br />
ENTER . Choose the scatter plot, L1 as the Xlist, and L2 as the Ylist. Press<br />
GRAPH<br />
. Make a sketch <strong>of</strong> the results.<br />
Virginia Department <strong>of</strong> Education 100 Geometry Instructional Modules
6. Now graph the function y = (x-2)180. To do this, press Y = .and enter (X-<br />
2)180 where you see the blinking cursor. Press GRAPH .<br />
a. Does the graph <strong>of</strong> the function seem to go through the points on the<br />
scatter plot?<br />
b. What do the variables x and y represent in the function<br />
y = (x - 2)180?<br />
7. Change the window settings to have Xmax = 25, Ymax = 4200, and Yscl =<br />
200. Press GRAPH .<br />
8. Now find the value <strong>of</strong> y when x = 17. Press 2nd [CALC] . Enter 17<br />
after the prompt by pressing 17 ENTER .<br />
What value is displayed?<br />
What does this value represent?<br />
9. Find the sum <strong>of</strong> the measures <strong>of</strong> the interior angles for the given number <strong>of</strong><br />
sides:<br />
12 _____ 18 _____ 22 _____<br />
Virginia Department <strong>of</strong> Education 101 Geometry Instructional Modules
Circumference<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.10<br />
______________________________________________________________________<br />
Description:<br />
Students will presented with a problem that will challenge their<br />
intuition about measurements <strong>of</strong> the circumference <strong>of</strong> a tennis ball can<br />
and the height <strong>of</strong> the can.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Can <strong>of</strong> tennis balls<br />
• Piece <strong>of</strong> string<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 15 - 20 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
1) Have students bring a tennis ball can to class. Ask students which they<br />
think is greater: the height <strong>of</strong> the can or the circumference <strong>of</strong> the can?<br />
Have each participant write down his/her answer supported with<br />
reasons. Then they should discuss it in groups before having a whole<br />
class discussion.<br />
2) Discuss student conclusions with the whole class.<br />
3) Have students wrap a string around their tennis ball and compare this to<br />
the height <strong>of</strong> the can. Get participant reactions.<br />
Virginia Department <strong>of</strong> Education 102 Geometry Instructional Modules
Cake Problem<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.10<br />
______________________________________________________________________________<br />
Description:<br />
Students will be presented with a problem that requires them to apply what<br />
they know about area <strong>of</strong> circles.<br />
____________________________________________________________________________________<br />
Materials:<br />
Activity Sheet<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 15 - 20 minutes<br />
____________________________________________________________________________________<br />
Directions:<br />
1) Present the cake problem to students. Make sure everyone understands<br />
the problem. Put a 10-inch diameter circle on the overhead projector to<br />
model the cake and ask a volunteer to make an estimate <strong>of</strong> the placement<br />
<strong>of</strong> the cut that solves the problem.<br />
2) Give out the handout and have students work in small groups to solve it.<br />
Have each student write up their solution.<br />
3) Ask for volunteers to share solutions. Discuss variations on solutions.<br />
4) Return to the transparency <strong>of</strong> the cake and draw the correct solution.<br />
How close did the estimate come?<br />
Virginia Department <strong>of</strong> Education 103 Geometry Instructional Modules
Activity Sheet:<br />
Cake Problem<br />
You have a cake that is 10 inches in diameter. You expect 12 people to share it, so<br />
you cut it into 12 equal pieces (see Figure A).<br />
Before you get a chance to serve the cake, 12 more people arrive! So you decide to cut<br />
a concentric circle in the cake so that you will have 24 pieces (see Figure B).<br />
How far from the center <strong>of</strong> the cake should the circle cut be made so that all 24 people<br />
get the same amount <strong>of</strong> cake?<br />
Figure A Figure B<br />
Virginia Department <strong>of</strong> Education 104 Geometry Instructional Modules
Geometer’s Sketchpad Investigation <strong>of</strong> ð<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.10<br />
______________________________________________________________________________<br />
Description:<br />
Students will investigate the relationship <strong>of</strong> circumference and diameter<br />
using The Geometer’s Sketchpad. Using the dynamic medium <strong>of</strong> the<br />
Sketchpad script, they should observe that changes in the diameter <strong>of</strong> the<br />
circle result in a corresponding change in circumference but that the ratio<br />
<strong>of</strong> circumference to diameter is fixed.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Geometer’s Sketchpad s<strong>of</strong>tware<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 40 minutes<br />
____________________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 105 Geometry Instructional Modules
Activity Sheet:<br />
Geometer’s Sketchpad Investigation <strong>of</strong> ð<br />
1) Make sure that labels will be displayed automatically. Click on DISPLAY<br />
from the menu bar at the top <strong>of</strong> screen. Choose PREFERENCES and then<br />
make sure the box “points” is checked under “Autoshow Labels.”<br />
2) Return to the blank screen. Click on the circle icon on the left <strong>of</strong> the<br />
screen. Click on the center <strong>of</strong> the screen and drag to form a circle. The<br />
center should be labeled A and a point on the edge <strong>of</strong> the circle should be<br />
labeled B.<br />
3) Click on the line segment icon on the left <strong>of</strong> the screen. Click on point A at<br />
the center <strong>of</strong> the circle, drag to point B, and release. A radius should be<br />
displayed.<br />
4) Click on the pointer arrow on the left <strong>of</strong> the screen. Click on the circle to<br />
highlight it.<br />
5) Click on MEASURE at the top <strong>of</strong> the screen on the menu bar. Slide down to<br />
RADIUS and release. The radius <strong>of</strong> the circle will appear on the screen.<br />
6) Click on MEASURE again, slide down to CIRCUMFERENCE and release. .<br />
The circumference <strong>of</strong> the circle will appear on the screen.<br />
7) To measure and display the diameter <strong>of</strong> the circle: click MEASURE, slide<br />
down to CALCULATOR and release. Click on the line that displays the<br />
measure <strong>of</strong> the radius <strong>of</strong> circle AB; it will be automatically copied onto the<br />
calculator window. Click ∗ and 2 from the calculator keypad to double the<br />
radius. Click OK and the new expression representing the diameter <strong>of</strong> the<br />
circle will be transferred to the main screen.<br />
8) Return to CALCULATOR by way <strong>of</strong> MEASURE. Click on the circumference<br />
expression on the script screen. Click the / symbol on the calculator<br />
keypad (division) and then click on the diameter expression from the main<br />
screen. Click OK and the quotient expression for<br />
(circumference)/(diameter) should appear on the main screen along with the<br />
value for the circle that appears on the screen.<br />
9) Debrief the activity with questions such as the following:<br />
• How did the circumference <strong>of</strong> the circle change when the radius<br />
increased? when the radius decreased?<br />
• How did the ratio <strong>of</strong> the circumference to the diameter change when you<br />
made the circles larger and smaller?<br />
• How could you verify that the constant value, 3.14, was not just a bug in<br />
the s<strong>of</strong>tware -- that circumference divided by diameter <strong>of</strong> any circle is<br />
always a constant?<br />
Virginia Department <strong>of</strong> Education 106 Geometry Instructional Modules
10) Now you are ready to observe how changes in the radius affect the<br />
diameter and circumference <strong>of</strong> a circle. Click and drag point B to make the<br />
circle larger and smaller. Stop it in five different places and record the<br />
values for radius, diameter, circumference, and C/D in the table below.<br />
radius diameter circumference C/D<br />
Virginia Department <strong>of</strong> Education 107 Geometry Instructional Modules
Problem Solving With Circles<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.10<br />
______________________________________________________________________________<br />
Description:<br />
Students will use circumference, perimeter, and the formula for volume <strong>of</strong><br />
a cylinder to solve applied problems.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Problem Solving Sheet<br />
• Graphing calculator<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 45 minutes<br />
____________________________________________________________________________________<br />
Virginia Department <strong>of</strong> Education 108 Geometry Instructional Modules
Problem Solving with Circles<br />
Teacher Guide<br />
Using the Activity:<br />
In this activity, students can use the calculator to find the lengths <strong>of</strong> three<br />
different ramps in-line skaters might use. Students will use the pi, square, and<br />
square-root keys on the calculator. The teacher may want to review the formula<br />
for finding the circumference (perimeter) <strong>of</strong> a circle. Discuss how to find the<br />
lengths <strong>of</strong> various arcs <strong>of</strong> the circle. To find the length <strong>of</strong> the third ramp,<br />
participants will need to use the Pythagorean Theorem.<br />
Another important extension to this activity is finding the steepness <strong>of</strong> the<br />
various ramps. Students can use this data to determine the level <strong>of</strong> difficulty <strong>of</strong><br />
each ramp.<br />
Answers:<br />
First ramp: 51.41592654 ft.<br />
The length <strong>of</strong> the arc AB is one quarter the circumference <strong>of</strong> the circle.<br />
Second ramp: 40.943951 ft<br />
The length <strong>of</strong> the arc is one sixth the circumference <strong>of</strong> the circle.<br />
Third ramp: 41.540659 ft<br />
The length <strong>of</strong> the ramp x is found by using the Pythagorean Theorem.<br />
Discussion Questions:<br />
1. What makes one ramp better than another?<br />
2. Which ramp is safest? Why?<br />
3. Which construction is more challenging? Why?<br />
Thinking Cap:<br />
D = 2L + (2)(1/2)(Pi)d = 2L + (Pi)d<br />
(adapted from lesson by Ann Mele, Assistant Principal, Offsite Educational Services; NY Public<br />
Schools; NY, NY found at http://pegasus.cc.ucf.edu/~ucfcasio/)<br />
Virginia Department <strong>of</strong> Education 109 Geometry Instructional Modules
Activity Sheet:<br />
Problem Solving with Circles<br />
In-line skating has become a popular city sport. The parks <strong>department</strong> is<br />
thinking <strong>of</strong> constructing ramps in some <strong>of</strong> the local playgrounds. A "half-pipe"<br />
ramp is formed by two quarter circle ramps each 10 feet high with a flat space<br />
<strong>of</strong> 20 feet between the diameters.<br />
1. Find the distance a skater travels from the top <strong>of</strong> one ramp to the top <strong>of</strong> the<br />
other.<br />
∩<br />
(hint: What is the length <strong>of</strong> AB?)<br />
2. Another launch ramp is formed by 2 arcs each with a central angle <strong>of</strong> 60<br />
degrees and a radius <strong>of</strong> 10 ft. Find the length from the top <strong>of</strong> one ramp to<br />
the top <strong>of</strong> the other. (Hint: What fractional part <strong>of</strong> the circle is each arc?)<br />
Virginia Department <strong>of</strong> Education 110 Geometry Instructional Modules
3. A third ramp is a straight ramp 4 ft high and 10 ft long with a flat space<br />
<strong>of</strong> 20 ft in point P to point R. Find the distance a skater travels from the top<br />
<strong>of</strong> one ramp to the top <strong>of</strong> the other. (Hint: Use the Pythagorean Theorem)<br />
Thinking Cap<br />
A school track is formed by 2 straight segments joined by 2 half circles.<br />
Each segment is L long and each half circle diameter is D in length. Write<br />
a formula for finding the distance, D, around the track.<br />
Virginia Department <strong>of</strong> Education 111 Geometry Instructional Modules
Problem Solving Sheet<br />
SODA STRAWS<br />
How many straws-full <strong>of</strong> pineapple juice can be taken from a 46 fl.oz. can <strong>of</strong> juice that<br />
is filled to the top?<br />
diameter <strong>of</strong> the can__________<br />
height <strong>of</strong> the can____________<br />
diameter <strong>of</strong> straw____________<br />
length <strong>of</strong> straw______________<br />
1. Guess and check <strong>of</strong>f home screen<br />
2. Create an algebraic expression and use tables<br />
DUCT TAPE<br />
How many rolls <strong>of</strong> duct tape would it take to create a one-mile strip <strong>of</strong> tape? (you may<br />
not unroll the duct tape or read its length from the packaging). You may have one 6-<br />
inch piece <strong>of</strong> tape to experiment with.<br />
1. Imagine tape as concentric circles...1st method<br />
2. Find volume <strong>of</strong> tape...2nd method<br />
(adapted from lesson by Bob Garvey, Louisville Collegiate School, Louisville, KY, bgarvey@aol.com,<br />
found at http://www.ti.com/calc/docs/act83geom.htm)<br />
Virginia Department <strong>of</strong> Education 112 Geometry Instructional Modules
Investigation <strong>of</strong> Secants and Circles<br />
Reporting Category: Polygons and Circles<br />
Related SOL: G.10<br />
____________________________________________________________________________________<br />
Description:<br />
Students will be given instructions on how to use the Sketchpad to investigate<br />
the relationship between the measure <strong>of</strong> an angle formed by two secants drawn<br />
from a point outside a circle and the measure <strong>of</strong> the intercepted arcs. They will<br />
then use what they have learned to set up a demonstration to illustrate the<br />
relationships <strong>of</strong> segment lengths when two secants are drawn from a point<br />
outside the circle.<br />
__________________________________________________________________________________________<br />
Materials:<br />
Geometer’s Sketchpad<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
____________________________________________________________________________________________<br />
Directions:<br />
1) Introduce the following relationships:<br />
a) The measure <strong>of</strong> an angle formed by two secants drawn from a point<br />
outside a circle is equal to half the difference <strong>of</strong> the measures <strong>of</strong> the<br />
intercepted arcs.<br />
b) When two secant segments are drawn to a circle from an external<br />
point, the product <strong>of</strong> the lengths <strong>of</strong> one secant segment and its external<br />
segment equals the product <strong>of</strong> the lengths <strong>of</strong> the other secant segment<br />
and its external segment.<br />
2) Give students the worksheet and ask them to work with a partner at the<br />
computer to use the Geometer’s Sketchpad to investigate these two<br />
statements or use the s<strong>of</strong>tware to do a whole-class demonstration.<br />
3) After students have a chance to try out the Sketchpad investigation,<br />
discuss their findings.<br />
4) Ask students to write, in their own words and with a diagram <strong>of</strong> their own,<br />
what the key ideas are from this investigation.<br />
Virginia Department <strong>of</strong> Education 113 Geometry Instructional Modules
Activity Sheet:<br />
Investigation <strong>of</strong> Secants and Circles<br />
1. Draw a circle with a radius about one inch long. The center should be labeled A<br />
and the point on the circle B.<br />
2. Draw a second point on the circle and label it C.<br />
3. Draw a point outside the circle and label it D.<br />
4. Draw segment BD and segment CD. If these segments are not secants, move point<br />
D and point C until BD and CD are secants.<br />
5. Mark the point on segment CD where the secant intersects the circle and label it<br />
E.<br />
Mark the point on segment BD where the secant intersects the circle and label it<br />
F.<br />
6. Now we want to measure arc FE.<br />
a) Highlight the center <strong>of</strong> the circle (A), then while holding down the shift key,<br />
highlight point F and then point E.<br />
b) Choose “Arc on Circle” from the CONSTRUCT menu.<br />
c) While the arc is highlighted, choose “Show Label” from the DISPLAY menu.<br />
(It should read a1.)<br />
d) While the arc is still highlighted, choose, “Arc angle” from the MEASURE<br />
menu. Note the measure <strong>of</strong> arc a1 is displayed on the screen.<br />
7. To measure arc CB: repeat the process outlined in #6. Remember that the<br />
Sketchpad reads the endpoints <strong>of</strong> the arc in the counterclockwise direction!<br />
8. Now that you have labeled and measured the two arcs that are intercepted by the<br />
secants, you are ready to explore the relationship <strong>of</strong> those arcs (arc FE and arc<br />
CB) and the angle formed by the secants (angle EDF).<br />
• Measure angle EDF: Hold the SHIFT key and highlight points E, D, and F.<br />
Then while they are still highlighted, go to the MEASURE menu and choose<br />
“Angle.” On the screen, you will see the measure <strong>of</strong> angle EDF stated.<br />
• Go to the MEASURE menu; choose “Calculate.” In the box at the top <strong>of</strong> the<br />
calculator, set up the expression needed to express half the difference <strong>of</strong> the<br />
two arcs. (Click on the expressions that appear on the Sketchpad screen to<br />
use them in the calculator.)<br />
• Compare the two quantities you have set up in part a and part b.<br />
•<br />
•<br />
•<br />
•<br />
•<br />
•<br />
Virginia Department <strong>of</strong> Education 114 Geometry Instructional Modules
• Keep an eye on those two quantities as you gently drag point D away from<br />
the circle. What do you notice?<br />
• Now gently drag point D closer to the circle. What do you notice? Does it<br />
matter how far point D is from the circle?<br />
9. Now that you have some experience in investigating the relationship between the<br />
angle formed by two secants and the intercepted arcs, use the Sketchpad to<br />
study the following relationship:<br />
When two secant segments are drawn to a circle from an external point, the<br />
product <strong>of</strong> the lengths <strong>of</strong> one secant segment and its external segment equals the<br />
product <strong>of</strong> the lengths <strong>of</strong> the other secant segment and its external segment.<br />
You can use the diagram you made on the Sketchpad to test this idea.<br />
a) For each relevant segment, highlight the endpoints, CONSTRUCT the<br />
“segment” and MEASURE it.<br />
b) Then set up and “calculate” (under the MEASURE menu) the appropriate<br />
products required by the statement above.<br />
c) Gently drag point D to different positions and see if the relationship still<br />
holds.<br />
Virginia Department <strong>of</strong> Education 115 Geometry Instructional Modules
Euler’s Formula<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.12<br />
______________________________________________________________________________<br />
Description:<br />
By examining models, students will derive Euler’s formula (F+E - V =2).<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Spreadsheet s<strong>of</strong>tware<br />
• Cubes for model building<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 45 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1) Have each student set up a spreadsheet (or provide each with a spreadsheet)<br />
set up as seen here:<br />
Shape # faces # edges # vertices F+E-V<br />
1 x 1 cube<br />
1 x 2 rectangle<br />
1 x 3 rectangle<br />
2 x 3 rectangle<br />
3 x 3 rectangle<br />
your choice #1<br />
your choice #2<br />
2) Provide each student with 10-15 unit cubes with which to build models.<br />
Review the terms face, edge, vertex to be sure all participants can count<br />
these accurately.<br />
3) Have each student build the first four rectangles listed in the spreadsheet<br />
and enter the numbers <strong>of</strong> faces, edges, and vertices into the spreadsheet.<br />
4) Have the students work in small groups to develop possible relationships<br />
among these numbers and test them on their spreadsheet.<br />
5) Once students have hypothesized a relationship that fits their data, have<br />
them use the cubes to construct two more figures and test their hypothesis<br />
on these.<br />
Virginia Department <strong>of</strong> Education 116 Geometry Instructional Modules
Introduction to the Soma Cube:<br />
Constructing the Soma Pieces<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.12<br />
______________________________________________________________________________<br />
Description:<br />
Students will build the seven Soma Cube pieces as a spatial problem solving<br />
task and will find the surface area and volume <strong>of</strong> each <strong>of</strong> the seven pieces.<br />
_____________________________________________________________________________________<br />
Vocabulary:<br />
Tricube: solid made <strong>of</strong> three unit cubes joined face-to-face.<br />
Tetracube: solid made <strong>of</strong> four unit cubes joined face-to-face.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• 27 wooden cubes, 27 sugar cubes, or 27 Snap cubes for each student<br />
• glue<br />
• permanent markers<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 45 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1) Give out 27 wooden 1-inch cubes or 27 Snap cubes to each student or small<br />
group <strong>of</strong> students if materials are limited. Present them with the following<br />
problem:<br />
• How many different ways can you join 3 cubes face-to-face? These<br />
are called “tricubes.”<br />
Have students try finding them with the cubes and discuss the<br />
results with the class. Tell them that if a tricube can be flipped or<br />
repositioned (reflected, rotated) in such a way that it is exactly like<br />
a tricube already made, then it is not different from the other one.<br />
There are only two different tricubes. However, for this activity we<br />
only need to save the non-rectangular one. Have students put<br />
aside the rectangular one (every face is a rectangle!).<br />
2) Have students find all possible non-rectangular tetracubes (4 unit cubes<br />
joined face-to-face). Discuss what they find. There should be six different<br />
ones (see teacher reference page that accompanies this lesson). You may<br />
have students glue the wooden cubes together or snap the Snap cubes<br />
together and number the completed pieces according to the teacher<br />
reference page.<br />
Virginia Department <strong>of</strong> Education 117 Geometry Instructional Modules
Discuss the nature <strong>of</strong> the pieces:<br />
• Are any <strong>of</strong> the pieces reflections <strong>of</strong> each other? (If you put a mirror<br />
next to one piece, will you see the other in the mirror?)<br />
(Pieces #5 and #6)<br />
• Which pieces can be placed so that they are only one unit high?<br />
(Pieces #1, #2, #3, #4)<br />
• Which pieces must occupy space that is 2 units high?<br />
(Pieces #5, #6, #7)<br />
• Which <strong>of</strong> the pieces have a line <strong>of</strong> symmetry on a given face?<br />
3) Review the concept <strong>of</strong> volume by identifying one <strong>of</strong> the wooden cubes or<br />
one <strong>of</strong> the Snap cubes as the unit. Discuss the face <strong>of</strong> the unit cube as<br />
the unit <strong>of</strong> area. Have students find the surface area and volume <strong>of</strong> each<br />
<strong>of</strong> the numbered solids #1 - #7 and complete the table in the activity sheet<br />
Surface Area and Volume.<br />
Discuss their findings:<br />
• Did the pieces with the same volume have the same surface area?<br />
• Did the pieces with the same surface area have the same volume?<br />
4) Give students diagrams <strong>of</strong> the top, side, and bottom view <strong>of</strong> Soma pieces<br />
in the Handout “Soma Views from the Top, Front, and Side” and have them<br />
identify the pieces from these views. Have them draw the diagrams for the<br />
remaining pieces.<br />
Extension: Ask students to build with Snap cubes, all “pentacubes” that<br />
can be made with five cubes each.<br />
Virginia Department <strong>of</strong> Education 118 Geometry Instructional Modules
Instructor Reference Sheet<br />
A<br />
1<br />
B<br />
2<br />
C<br />
4<br />
D<br />
3<br />
1 1<br />
2 2 2<br />
4 4<br />
3<br />
3 3<br />
4<br />
E<br />
7<br />
7<br />
7<br />
F<br />
5<br />
5<br />
5<br />
G<br />
6<br />
6<br />
Virginia Department <strong>of</strong> Education 119 Geometry Instructional Modules
SOMA Views from Top, Front, and Side<br />
top front right side<br />
top<br />
front<br />
right side<br />
Virginia Department <strong>of</strong> Education 120 Geometry Instructional Modules
Surface Area and Volume <strong>of</strong> the Soma Pieces<br />
surface<br />
piece # area<br />
vol.<br />
1<br />
2<br />
3<br />
4<br />
5<br />
6<br />
7<br />
Virginia Department <strong>of</strong> Education 121 Geometry Instructional Modules
Building the Soma Cube and other Structures with Soma Pieces<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.12<br />
______________________________________________________________________________<br />
Description:<br />
Students will use the seven Soma pieces to build the 3x3x3 cube and<br />
other structures that use all seven pieces.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheets<br />
• Recording Sheet<br />
• Seven Soma pieces<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 45 minutes; some students may want to extend the activities<br />
independently.<br />
_____________________________________________________________________________________<br />
Directions:<br />
1. Give students some history <strong>of</strong> the Soma Cube. It was invented by Piet Hein<br />
in Denmark. He was listening to a lecture on quantum physics when the<br />
speaker talked about slicing up space into cubes. Hein then thought about<br />
all the irregular shapes that could be formed by combining no more than<br />
four cubes, all the same size and joined at their faces. In his head he<br />
figured out what these would be and that it would take 27 cubes to build<br />
them all. From there he showed that the pieces could form a 3x3x3 cube.<br />
2. Tell students: So now we know that the seven pieces fit together to form a<br />
3x3x3 cube. In fact, there are 1,105,920 different ways to assemble the<br />
cube. Try to find one.<br />
Let students work until they get a solution.<br />
3. Ask students how they might make a record <strong>of</strong> the solution they got before<br />
they take the cube apart. You may show them one way by sharing the<br />
solution recording sheet that accompanies this lesson. It requires that the<br />
numbers <strong>of</strong> the unit cubes be recorded in three layers: top, middle, and<br />
bottom. Have students record their solutions. (Note that some will need<br />
help in making the correct correspondence <strong>of</strong> the numbers to the grid).<br />
Then have them try to find a different solution and record it.<br />
Virginia Department <strong>of</strong> Education 122 Geometry Instructional Modules
Discuss:<br />
• How many dimensions are represented in the Soma cube?<br />
• How many dimensions are represented in the solution sheet?<br />
• Does anyone want to share any strategies that might help in<br />
transferring the 3-dimensional information onto the 2-dimensional<br />
representation?<br />
4. Now reverse the order <strong>of</strong> the task. Give students the activity sheet, Build<br />
This Cube, to do.<br />
Top Middle Bottom<br />
5 5<br />
2<br />
5<br />
3 4<br />
3 3 3<br />
6<br />
5<br />
2<br />
6<br />
4 4<br />
7<br />
1 1<br />
6 6<br />
2<br />
7<br />
4<br />
2<br />
7 7<br />
1<br />
5. Give students the activity sheet with pictures <strong>of</strong> structures that can be<br />
built with the seven Soma pieces. Once they have succeeded at<br />
building any <strong>of</strong> the structures, they should label the drawings<br />
with the numbers <strong>of</strong> the appropriate pieces.<br />
6. Have students complete a table in which they compare the volume <strong>of</strong> the<br />
structures and the surface area. Discuss their observations with the whole<br />
class:<br />
• What is the volume <strong>of</strong> the completed Soma cube?<br />
• What is the volume <strong>of</strong> the other structures you built?<br />
• How can you tell the volume <strong>of</strong> the structures by only studying the<br />
picture and not actually building them?<br />
• How can you figure out the surface area <strong>of</strong> the structures without<br />
actually building the figures?<br />
Virginia Department <strong>of</strong> Education 123 Geometry Instructional Modules
Activity Sheet:<br />
Build This Cube<br />
Top Middle Bottom<br />
5 5<br />
2<br />
5<br />
3 4<br />
3 3 3<br />
6<br />
5<br />
2<br />
6<br />
4 4<br />
7<br />
1 1<br />
6 6<br />
2<br />
7<br />
4<br />
2<br />
7 7<br />
1<br />
Virginia Department <strong>of</strong> Education 124 Geometry Instructional Modules
Soma Solutions Recording Sheet<br />
Top Middle Bottom<br />
Top Middle Bottom<br />
Top Middle Bottom<br />
Virginia Department <strong>of</strong> Education 125 Geometry Instructional Modules
Making 2-Dimensional Drawings<br />
<strong>of</strong> 3-Dimensional Figures<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.12<br />
______________________________________________________________________________<br />
Description:<br />
Students will use isometric dot paper to make drawings <strong>of</strong> Soma pieces.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Isometric dot paper<br />
• Soma pieces<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 45 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1) Distribute the isometric dot paper to students. Have them study it and<br />
discuss how it is different from regular graph paper. Discuss:<br />
• What does the prefix “iso” mean?<br />
• How does this apply to the way the paper is designed?<br />
2) Demonstrate on the overhead projector how to draw a single unit cube<br />
using the paper. Have students practice drawing single cubes while<br />
working in small groups so they can help each other.<br />
(Hint: the easiest way to show this is by drawing a Y in the center and<br />
then circumscribing a hexagon around it.)<br />
Virginia Department <strong>of</strong> Education 126 Geometry Instructional Modules
3) Show students how to position one <strong>of</strong> the seven Soma pieces on a<br />
diagonal so that they can draw it on the isometric paper. Draw one<br />
on the overhead while talking through the process as you go.<br />
4) Have students work in groups to draw all seven Soma pieces on<br />
isometric dot paper. Each student should complete his or her own<br />
drawings with the help <strong>of</strong> group members.<br />
5) Challenge students to design a structure using all seven Soma<br />
pieces and draw it on the isometric dot paper.<br />
Virginia Department <strong>of</strong> Education 127 Geometry Instructional Modules
Isometric Dot Paper<br />
Virginia Department <strong>of</strong> Education 128 Geometry Instructional Modules
Spatial Problem Solving<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.12<br />
______________________________________________________________________________<br />
Description:<br />
Students will do paper folding and cutting activities and activities with<br />
Cuisenaire Rods to help develop their spatial problem solving skills.<br />
_____________________________________________________________________________________<br />
Materials:<br />
Books by Patricia S. Davidson and Robert E. Willicutt<br />
1) Spatial Problem Solving with Paper Folding and Cutting available<br />
from Cuisenaire Co.<br />
ISBN 0-914040-36-7<br />
2) Spatial Problem Solving with Cuisenaire Rods available from<br />
Cuisenaire Co. ISBN 0-914040-99-5<br />
_____________________________________________________________________________________<br />
Time Required:<br />
open-ended<br />
_____________________________________________________________________________________<br />
Directions:<br />
These books provide a wealth <strong>of</strong> spatial problem solving activities. Each<br />
book contains black line masters for duplication in the classroom. They<br />
can be used with the whole class or as extensions for independent work.<br />
Virginia Department <strong>of</strong> Education 129 Geometry Instructional Modules
Architect’s Square<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.12 & G.13<br />
______________________________________________________________________________<br />
Description:<br />
Students will work in small groups to create all possible four-cube figures<br />
and arrange them into a housing development.<br />
____________________________________________________________________________________<br />
Materials:<br />
• Activ<br />
ity Sheets<br />
• Unit<br />
cubes (approximately 60 per group)<br />
• Isom<br />
etric dot paper<br />
____________________________________________________________________________________<br />
Time Required:<br />
Approximately 5 class sessions<br />
____________________________________________________________________________________<br />
Directions:<br />
1. Have the<br />
students work in groups <strong>of</strong> 2-4. Instruct them to build all possible<br />
arrangements <strong>of</strong> four unit cubes. These will be houses, and the first<br />
memorandum sets the stage for the activity. Students should record their<br />
figures on isometric dot paper (p.129). (2 days)<br />
2. Onc<br />
e students have found all 15 possible arrangements, they should<br />
use the information in activity sheet #2 to calculate costs for each<br />
house. (1-2 days)<br />
3. Using their<br />
information, students should next plan a brochure advertising their houses. They should<br />
think about the features <strong>of</strong> each house for an elderly couple, a single person, and a family<br />
with small children. Activity Sheet #3 contains this information.<br />
Virginia Department <strong>of</strong> Education 130 Geometry Instructional Modules
Activity Sheet #1<br />
TO: All Architects<br />
RE: Housing Designs<br />
We are beginning work on a new subdivision <strong>of</strong> modular homes. Each home<br />
will include four units. All units are shaped as cubes and adjacent units must<br />
touch over a full face. It is not acceptable to have faces overlap partially, nor is<br />
it acceptable for cubes to touch at edges only.<br />
Your task is to figure out how many different houses we can design. A design is<br />
considered different from another if they cannot be superimposed without<br />
reflection. Use the cubes provided to you to design and record (on dot paper) all<br />
possible home designs.<br />
Virginia Department <strong>of</strong> Education 131 Geometry Instructional Modules
Activity Sheet #2<br />
TO: All Architects<br />
RE: Housing Costs<br />
Now that you have drawn all possible houses, you must figure the cost <strong>of</strong> each house.<br />
There are three factors which influence the cost <strong>of</strong> our houses. Each square unit <strong>of</strong><br />
land has a fixed cost, each square unit <strong>of</strong> wall has a fixed cost, and each square unit<br />
<strong>of</strong> ro<strong>of</strong> has a fixed cost. These costs are as follows:<br />
Land<br />
$10,000 per square unit<br />
Wall<br />
$ 5,000 per square unit<br />
Ro<strong>of</strong><br />
$ 7,500 per square unit<br />
Using your drawings, models you build, and these figures, complete a chart like the<br />
one below to price each home.<br />
Design<br />
#<br />
Units <strong>of</strong><br />
Land<br />
Land<br />
Cost<br />
Units <strong>of</strong><br />
Wall<br />
Walls<br />
Cost<br />
Units <strong>of</strong><br />
Ro<strong>of</strong><br />
Ro<strong>of</strong><br />
Cost<br />
Total<br />
Cost<br />
Virginia Department <strong>of</strong> Education 132 Geometry Instructional Modules
Activity Sheet #3<br />
TO:<br />
RE:<br />
All Architects<br />
Advertising<br />
Now that your houses are designed and costs calculated, we need your help<br />
with a marketing plan. There are three groups we would like to target — elderly<br />
couples, families with small children, and single people. Look at your design<br />
and consider such factors as stairs to climb, space for people to spread out, and<br />
cost. Which home design would be best for each <strong>of</strong> these three groups?<br />
Plan a brochure which includes designs for at least six different homes, including the<br />
three you selected above. For each home, include a sketch <strong>of</strong> the home on dot paper,<br />
the calculations for the cost <strong>of</strong> the home, and three to five selling points for that<br />
design. Your brochure should be colorful and easy to read.<br />
Virginia Department <strong>of</strong> Education 133 Geometry Instructional Modules
Exploring Surface Area and Volume<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.13<br />
______________________________________________________________________________<br />
Description:<br />
Students will derive the formulas for the surface area <strong>of</strong> a<br />
rectangular prism, a cylinder, and a sphere.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheets<br />
• Calculator<br />
• Cans<br />
• Scissors<br />
• Boxes <strong>of</strong> light cardboard (to cut into nets)<br />
• Oranges, waxed paper, knife to cut oranges in half<br />
______________________________________________________________________________<br />
Teacher Note:<br />
Nets for shapes are commercially available from publishers such as<br />
ETA and Cuisinaire/Dale Seymour.<br />
Virginia Department <strong>of</strong> Education 134 Geometry Instructional Modules
Activity Sheet:<br />
Exploring Surface Area<br />
Questions:<br />
What are the formulas for determining surface area <strong>of</strong> solid<br />
figures? How can these formulas be used to solve problems?<br />
Preparing for Research:<br />
Working with a partner, complete the Finding Formulas activity<br />
sheets to derive the formulas for surface areas and volumes <strong>of</strong><br />
rectangular prisms and the surface area <strong>of</strong> a sphere.<br />
Making Observations:<br />
Complete the second activity, Making Nets, to extend your<br />
knowledge <strong>of</strong> surface area <strong>of</strong> a variety <strong>of</strong> solid shapes.<br />
Inferring:<br />
Finally, use your learning from these first activities to complete<br />
the Solving Problems activity sheet. You may use your<br />
calculator here.<br />
Drawing Conclusions:<br />
Bring together learning from these exercises by discussing<br />
the relationship <strong>of</strong> surface area to two-dimensional perimeter<br />
and area.<br />
Virginia Department <strong>of</strong> Education 135 Geometry Instructional Modules
Activity Sheet:<br />
Finding Formulas<br />
1. After purchasing a gift for a friend, you decide to cover the box sides and<br />
bottom with wrapping paper. A diagram <strong>of</strong> the box appears below. How much<br />
wrapping paper will you need to cover the sides and bottom <strong>of</strong> the box?<br />
Your gift box is called an open box; it has no top surface. If this were a closed box<br />
— with a top surface — how much additional paper would be required to cover the<br />
surface? How much total paper is required?<br />
How can you generalize the process you used to find the surface area <strong>of</strong> the closed<br />
box? Let l = length, w = width, and h = height <strong>of</strong> the box.<br />
Compare the formula you and your partner developed to that <strong>of</strong> another group.<br />
Did you have the same result? You should be able to justify your formula to your<br />
classmates.<br />
2. If your gift were a can <strong>of</strong> tennis balls, the surface area would be the surface<br />
<strong>of</strong> the cylinder (the lateral area) and the areas <strong>of</strong> the top and bottom (the bases).<br />
Use a can (soup can, soda can, tennis ball can) for this activity.<br />
Wrap a piece <strong>of</strong> paper around the can, trim it to fit exactly, and<br />
spread it out flat. What shape is it? How can you find its area?<br />
What relationship does the length <strong>of</strong> the label have to the can? The<br />
height <strong>of</strong> the label?<br />
What shape are the bases <strong>of</strong> the can? Are the two bases identical? What is the<br />
area <strong>of</strong> each base?<br />
The surface area <strong>of</strong> the can = the lateral area + the area <strong>of</strong> the two bases. For your<br />
can, what is the surface area? Use your calculator to find decimal approximations<br />
to the nearest tenth.<br />
Virginia Department <strong>of</strong> Education 136 Geometry Instructional Modules
Finding Formulas (continued)<br />
3. The surface area <strong>of</strong> a sphere is more difficult to figure out. On a globe, a great<br />
circle is a circle drawn so that, when the sphere is cut along the line, the cut<br />
passes through the center <strong>of</strong> the sphere. The equator is a great circle on a globe.<br />
Take an orange from your teacher and draw a great<br />
circle on the orange. Cut the orange (carefully!) along<br />
the circle and trace five cut halves on a piece <strong>of</strong> waxed<br />
paper (see figure).<br />
Now, carefully peel both halves <strong>of</strong> the orange and fill in<br />
as many circles as you can with the peel. How many<br />
circles did your group fill? How does this compare<br />
with the findings <strong>of</strong> other groups? What is the class<br />
estimate for the number <strong>of</strong> great circles filled by the<br />
peel?<br />
Using one <strong>of</strong> your great circle tracings, find the radius <strong>of</strong> your orange and the area<br />
<strong>of</strong> one great circle.<br />
Given the area <strong>of</strong> one great circle and your estimate <strong>of</strong> the number <strong>of</strong> circles filled<br />
by the peel, what is the surface area <strong>of</strong> your orange?<br />
What is the general formula for the surface area <strong>of</strong> a sphere in terms <strong>of</strong> its radius?<br />
Virginia Department <strong>of</strong> Education 137 Geometry Instructional Modules
Activity Sheet:<br />
Making Nets<br />
A net is a flattened paper model <strong>of</strong> a solid shape. For example, the net below, when<br />
folded, makes a cube.<br />
Can you draw a different net which, when folded, will make a cube? Cut out your net<br />
and fold it to test your drawing.<br />
A net is helpful because it represents the surface area <strong>of</strong> a shape. Take a box from<br />
your teacher’s supply and cut it into a net. Note whether your box is open or closed.<br />
Sketch your box and net below.<br />
Use the formula you derived in Finding Formulas problem 1 to find the surface area <strong>of</strong><br />
your box. Explain to a classmate how your net relates to your formula.<br />
Virginia Department <strong>of</strong> Education 138 Geometry Instructional Modules
Making Nets (continued)<br />
Now sketch a net <strong>of</strong> the can you used in Finding Formulas #2.<br />
How does this net relate to the surface area formula you found?<br />
Sketch a net <strong>of</strong> the pyramid below. Use your net to find the<br />
surface area <strong>of</strong> the pyramid.<br />
What shape does the net below make?<br />
Virginia Department <strong>of</strong> Education 139 Geometry Instructional Modules
Activity Sheet:<br />
Solving Problems<br />
1. Two cylindrical lampshades 40 cm in diameter and 40 cm high are to be covered with new fabric.<br />
The fabric chosen is 1m wide. If you purchase a 1.5 m length <strong>of</strong> this fabric, will you have enough to<br />
cover the shades? Justify your answer.<br />
2. An umbrella designer has created a new model for an umbrella that<br />
when opened has the form <strong>of</strong> a hemisphere with a diameter <strong>of</strong> 1 meter.<br />
If a dozen sample models are to be made using a special waterpro<strong>of</strong><br />
material, approximately how much fabric will be needed, allowing 0.5 m<br />
for seams and waste for each model? Explain your plan, strategies, and<br />
how you solved the problem.<br />
Virginia Department <strong>of</strong> Education 140 Geometry Instructional Modules
Activity Sheet:<br />
Exploring Volume<br />
Questions:<br />
How do you calculate the volume <strong>of</strong> a solid figure? How do you use<br />
volume to help solve problems?<br />
Materials:<br />
• Activity Sheet<br />
• Unit cubes<br />
• Milk cartons or other boxes <strong>of</strong> the same shape and different sizes<br />
• Hollow solid figures (e.g., Power Solids)<br />
• Sand/rice/water to pour between figures to show volume relationships<br />
• Rulers<br />
• Calculators<br />
• Cans<br />
• Graduated cylinder<br />
Preparing for Research:<br />
1. Distribute milk cartons (with the tops cut <strong>of</strong>f) or open boxes <strong>of</strong> other sizes<br />
along with unit cubes. Ask students to fill the boxes with cubes as best they<br />
can and estimate the volume <strong>of</strong> the box based on counting the cubes used to<br />
fill the box.<br />
2. Ask students to develop a quick method (quicker than counting) for figuring<br />
out how many whole cubes fill the box. They should rapidly decide on<br />
length x width x height.<br />
Making Observations:<br />
Now ask students to generalize this finding to other prisms/cylinders<br />
by relating the area <strong>of</strong> the base to the height. Use a can as a model <strong>of</strong><br />
a right circular cylinder. Students calculate the area <strong>of</strong> the base and<br />
multiply by the height to find the volume. Since 1 cm 3 = 1 ml, a<br />
graduated cylinder can be used to compare the estimated volume with<br />
the actual volume.<br />
Inferring:<br />
Ask students to use these procedures and findings to solve the<br />
problems on the Exploring Volume worksheet.<br />
Virginia Department <strong>of</strong> Education 141 Geometry Instructional Modules
Drawing Conclusions:<br />
Discuss the relationship <strong>of</strong> volume to surface area and the<br />
relationship <strong>of</strong> these measures to area and perimeter <strong>of</strong> two<br />
dimensional figures. Both Gulliver’s Travels and Architect’s Square<br />
(other activities in this toolkit) extend these concepts.<br />
Virginia Department <strong>of</strong> Education 142 Geometry Instructional Modules
Activity Sheet: Exploring Volume<br />
1. Which will carry the most water in a given length, two pipes where one has a 3 dm<br />
radius and the other a 4 dm radius, or one pipe with a 5 dm radius? Explain.<br />
2. A company delivers 36 cartons <strong>of</strong> paper to your school. Each carton measures 40<br />
cm x 30 cm x 25 cm. Is it possible to fit all cartons in an empty storage closet 1m<br />
x 1m x 2m? Justify your conclusion with a visual explanation.<br />
3. You have studied the pyramids and want to make a scale model <strong>of</strong> a pyramid with<br />
a square base and sides which are isosceles triangles. How much clay is required<br />
if the base <strong>of</strong> the actual pyramid is 30 m on each side and the height <strong>of</strong> the<br />
pyramid is 30 m? Your scale is 1 cm : 15 m.<br />
NOTE: You may wish to use power solids to explore the relationship between the area<br />
<strong>of</strong> a pyramid such as this and the area <strong>of</strong> a cube or prism with the same base<br />
and height. Your teacher should have a station set up with power solids and<br />
sand/water/rice to use in this exploration.<br />
Virginia Department <strong>of</strong> Education 143 Geometry Instructional Modules
Exploring Volume (continued)<br />
4. A movie theater decides to change the shape <strong>of</strong> its popcorn holder from a<br />
rectangular box to a pyramidal box. The tops <strong>of</strong> both boxes are the same and the<br />
height remains the same. If the rectangular box <strong>of</strong> popcorn cost $4.00, what is a<br />
fair price for the new box?<br />
5. A manufacturer <strong>of</strong> globes (approximately 1m in diameter) packs the globes in 1<br />
cubic meter boxes for shipping. How much packing material (e.g., styr<strong>of</strong>oam<br />
peanuts) is needed for a shipment <strong>of</strong> 100 globes?<br />
6. Take two sheets <strong>of</strong> paper the same size. Roll one<br />
sheet vertically and tape to form a right circular cylinder. Roll the second sheet<br />
horizontally and tape to form a second right circular cylinder. Tape each<br />
cylinder so that there is no overlap <strong>of</strong> paper; the edges should meet exactly. If<br />
each cylinder were filled with popcorn, would they contain the same amount?<br />
Explain and justify your answer.<br />
Virginia Department <strong>of</strong> Education 144 Geometry Instructional Modules
Gulliver’s Travels and Proportional Reasoning<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.14 & G.13<br />
______________________________________________________________________________<br />
Questions:<br />
How small are the Lilliputians? How can proportional reasoning help us<br />
understand the use <strong>of</strong> scale? Are the proportional relationships different<br />
for length, area, and volume? In what ways?<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Gulliver’s Travels excerpt (handout)<br />
• Calculator<br />
• Objects from Gulliver’s pockets (optional — handkerchief, comb, folded &<br />
tied paper, snuff box, pocket watch, knife and/or other objects described),<br />
• Measuring tools (optional — to be used with objects from Gulliver’s pockets)<br />
_____________________________________________________________________________________<br />
Preparing for Research:<br />
1. Read the excerpt from Gulliver’s Travels, taking time to discuss the objects<br />
which are described there. Help students identify at least five <strong>of</strong> the objects<br />
described.<br />
2. Using the objects found in Gulliver’s pockets, estimate the size <strong>of</strong> the<br />
Lilliputians. If you have brought real combs, handkerchiefs, etc. to class,<br />
measure both the objects and the students to investigate the proportional<br />
relationships.<br />
3. At an earlier point in the story, the Lilliputians feed Gulliver and are amazed<br />
by the amount <strong>of</strong> food he consumes. This is related to his volume and<br />
overall size as much as his height. While the volume <strong>of</strong> a human is difficult<br />
to calculate, the volume <strong>of</strong> cubes and spheres is not. We will use these<br />
shapes to investigate the relationship between changes <strong>of</strong> side<br />
length/diameter and surface area and volume.<br />
Making Observations:<br />
1. Our investigation will begin with a cube. Using unit cubes, build at least<br />
three cubes with side lengths 1, 2, and 3. Use these models to review the<br />
formulas for surface area and volume in terms <strong>of</strong> side length.<br />
(V = l 3 ; SA = 6l 2 )<br />
Virginia Department <strong>of</strong> Education 145 Geometry Instructional Modules
2. For 10-12 cubes <strong>of</strong> steadily increasing side length, have students enter three<br />
lists <strong>of</strong> data into the calculator: side length, surface area, and volume. The<br />
lists can be entered numerically or through formulas, depending on student<br />
facility with the calculations and the calculator.<br />
3. Use the graphing function <strong>of</strong> the calculator to plot length vs. surface area and<br />
length vs. volume, being careful to use different symbols for each plot.<br />
4. Repeat steps 1-3 for spheres, reviewing the formulas for calculating surface<br />
area and volume (SA = 4Πr 2 , V =4Πr 3 /3 ), entering data for 10 - 12 spheres <strong>of</strong><br />
increasing diameter. Again, graph the relationships.<br />
Inferring:<br />
Discuss the data lists and graphs, noting the increasing rate <strong>of</strong> change for<br />
area/surface area and volume when compared to a steady rate <strong>of</strong> change for<br />
length.<br />
Drawing Conclusions:<br />
Students should recognize the exponential growth <strong>of</strong> area and volume<br />
measures when compared to the linear growth <strong>of</strong> length/diameter. They<br />
should be able to apply this information to such situations as unit conversion<br />
(if there are 100 cm in a meter, how many square centimeters are there in a<br />
square meter?), estimation <strong>of</strong> surface area or volume given length/diameter,<br />
and the interpretation <strong>of</strong> scale drawings.<br />
Virginia Department <strong>of</strong> Education 146 Geometry Instructional Modules
Gulliver’s Travels<br />
by Jonathan Swift<br />
Gulliver’s ship was caught in a storm. He swam to safety on a mysterious island called<br />
Lilliput. He was taken to the Emperor’s castle, bound and captive, and was presented<br />
to the Emperor and Empress. He was released from his rope bindings and the<br />
Lilliputians wanted to ensure that he had no weapons. This is the inventory <strong>of</strong> the<br />
contents <strong>of</strong> his pockets. (From part I, chapter II)<br />
Imprimis, In the right coat-pocket <strong>of</strong> the Great Man-Mountain [the Lilliputian’s<br />
name for Gulliver] after the strictest search, we found only one great piece <strong>of</strong> coarse<br />
cloth, large enough to be a foot-cloth for your Majesty’s chief room <strong>of</strong> state. In the left<br />
pocket, we saw a huge silver chest, with a cover <strong>of</strong> the same metal, which we, the<br />
searchers, were not able to lift. We desired it should be opened, and one <strong>of</strong> us,<br />
stepping into it, found himself up to the midleg in a sort <strong>of</strong> dust, some part where<strong>of</strong>,<br />
flying up to our faces, set us both a sneezing for several times together. In his right<br />
waistcoat-pocket, we found a prodigious bundle <strong>of</strong> white thin substances, folded one<br />
over another, about the bigness <strong>of</strong> three men, tied with a strong cable and marked<br />
with black figures; which we humbly conceive to be writings, every letter almost half<br />
as large as the palm <strong>of</strong> our hands. In the left, there was a sort <strong>of</strong> engine [a term used<br />
for any mechanical device], from the back <strong>of</strong> which were extended twenty long poles,<br />
resembling the palisados before your Majesty’s court; wherewith we conjecture the<br />
Man-Mountain combs his head, for we did not always trouble him with questions,<br />
because we found it a great difficulty to make him understand us. In the large pocket<br />
on the right side <strong>of</strong> his middle cover (so I translate the word ranfu-lo, by which they<br />
meant my breeches) we saw a hollow pillar <strong>of</strong> iron, about the length <strong>of</strong> a man, fastened<br />
to a strong piece <strong>of</strong> timber, larger than the pillar; and upon one side <strong>of</strong> the pillar were<br />
huge pieces <strong>of</strong> iron sticking out, cut into strange figures, which we know not what to<br />
make <strong>of</strong>. In the left pocket, another engine <strong>of</strong> the same kind. In the smaller pocket on<br />
the right side, were several round flat pieces <strong>of</strong> white and red metal, <strong>of</strong> different bulk;<br />
some <strong>of</strong> the white, which seemed to be silver, were so large and heavy, that my<br />
comrade and I could hardly lift them. In the left pocket were two black pillars,<br />
irregularly shaped: we could not, without difficulty, reach the top <strong>of</strong> them as we stood<br />
at the bottom <strong>of</strong> his pocket. One <strong>of</strong> them was covered, and seemed all <strong>of</strong> a piece; but<br />
at the upper end <strong>of</strong> the other, there appeared a white round substance, about twice<br />
the bigness <strong>of</strong> our heads. Within each <strong>of</strong> these were enclosed a prodigious plate <strong>of</strong><br />
Virginia Department <strong>of</strong> Education 147 Geometry Instructional Modules
steel; which, by our orders, we obliged him to show us, because we apprehended they<br />
might be dangerous engines. He took them out <strong>of</strong> their cases, and told us, that in his<br />
own country his practice was to shave his beard with one <strong>of</strong> these, and to cut his meat<br />
with the other. There were two pockets which we could not enter: these he called his<br />
fobs; they were two large slits cut into the top <strong>of</strong> his middle cover, but squeezed close<br />
by the pressure <strong>of</strong> his belly. Out <strong>of</strong> the right fob hung a great silver chain, with a<br />
wonderful kind <strong>of</strong> engine at the bottom. We directed him to draw out whatever was at<br />
the end <strong>of</strong> that chain; which appeared to be a globe, half silver, and half <strong>of</strong> some<br />
transparent metal: for on the transparent side we saw strange figures circularly<br />
drawn, and thought we could touch them, until we found our fingers stopped with<br />
that lucid substance. He put this engine to our ears, which made an incessant noise<br />
like that <strong>of</strong> a watermill. And we conjecture it is either some unknown animal, or the<br />
god that he worships: but we are more inclined to the latter opinion, because he<br />
assured us (if we understood him right, for he expressed himself very imperfectly), that<br />
he seldom did anything without consulting it. He called it his oracle, and said that it<br />
pointed out the time for every action <strong>of</strong> his life. From the left fob he took out a net<br />
almost large enough for a fisherman, but contrived to open and shut like a purse, and<br />
served him for the same use: we found therein several massy pieces <strong>of</strong> yellow metal,<br />
which, if they be <strong>of</strong> real gold, must be <strong>of</strong> immense value.<br />
Having thus, in obedience to your Majesty’s commands, diligently searched all<br />
his pockets, we observed a girdle about his waist made <strong>of</strong> the hide <strong>of</strong> some prodigious<br />
animal; from which, on the left side, hung a sword <strong>of</strong> the length <strong>of</strong> five men, and on<br />
the right, a bag or pouch divided into two cells, each cell capable <strong>of</strong> holding three <strong>of</strong><br />
your Majesty’s subjects. In one <strong>of</strong> these cells were several globes or balls <strong>of</strong> a most<br />
ponderous metal, about the bigness <strong>of</strong> our heads, and required a strong hand to lift<br />
them: the other cell contained a heap <strong>of</strong> certain black grains, but <strong>of</strong> no great bulk or<br />
weight, for we could hold above fifty <strong>of</strong> them in the palms <strong>of</strong> our hands.<br />
This is an exact inventory <strong>of</strong> what we found about the body <strong>of</strong> the Man-<br />
Mountain, who used us with great civility, and due respect to your Majesty’s<br />
commission. Signed and sealed on the fourth day <strong>of</strong> the eighty-ninth moon <strong>of</strong> your<br />
Majesty’s auspicious reign.<br />
CLEFREN FRELOCK, MARSI FRELOCK.<br />
Virginia Department <strong>of</strong> Education 148 Geometry Instructional Modules
Comparing the Edge Length, Surface Area,<br />
and Volume <strong>of</strong> Cubes<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.14<br />
______________________________________________________________________________<br />
Description:<br />
Students will examine the surface area and volume <strong>of</strong> a cube as a function<br />
<strong>of</strong> its edge length. They will graph these functions and describe the<br />
relationships.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Graphing Calculator or Graphing S<strong>of</strong>tware<br />
• Spreadsheet (optional)<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
Give students the Activity sheet and discuss their conclusions.<br />
_____________________________________________________________________________________<br />
Background:<br />
To use a TI-83 for this exercise,<br />
• press STAT and clear the first three lists by positioning the cursor over<br />
the name <strong>of</strong> the list and pressing CLEAR ENTER .<br />
• Enter the edge lengths as L1. Position the cursor over L2 and type in the<br />
expression for the surface area, 6L1 2 and press ENTER .<br />
• Similarly, create a volume column by entering its formula for L3.<br />
• To graph the surface area as a function <strong>of</strong> edge length, press 2nd<br />
[STATPLOT] ENTER . Turn Plot1 on, choose the scatter plot picture, L1 for<br />
Xlist, and L2 for Ylist.<br />
• Press ZOOM and choose 9:ZoomStat.<br />
• To graph the volume as a function <strong>of</strong> edge length, repeat the procedure<br />
above to change Ylist to L3.<br />
Virginia Department <strong>of</strong> Education 149 Geometry Instructional Modules
Activity Sheet:<br />
Comparing the Edge Length, Surface Area, and Volume <strong>of</strong> Cubes<br />
Directions:<br />
Use graphing s<strong>of</strong>tware or a graphing calculator.<br />
1) Sketch four cubes with different edge lengths. Record the edge length<br />
and find the surface area and volume <strong>of</strong> each cube. Use a spreadsheet<br />
or record your data in a table.<br />
2) Graph the surface area as a function <strong>of</strong> edge length. Describe the shape<br />
<strong>of</strong> the graph.<br />
3) Graph the surface area as a function <strong>of</strong> edge length. Describe the shape<br />
<strong>of</strong> the graph.<br />
4) What do the graphs in parts (2) and (3) tell you about how surface area<br />
and volume change as the edge length changes?<br />
Virginia Department <strong>of</strong> Education 150 Geometry Instructional Modules
Comparing the Radius, Surface Area,<br />
and Volume <strong>of</strong> Spheres<br />
Reporting Category: Three-Dimensional Figures<br />
Related SOL: G.14<br />
______________________________________________________________________________<br />
Description:<br />
Students will examine the surface area and volume <strong>of</strong> a sphere as a function<br />
<strong>of</strong> its radius. They will graph these functions and describe the relationships.<br />
_____________________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Graphing Calculator or Graphing S<strong>of</strong>tware<br />
• Spreadsheet (optional)<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 20 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
Give students the activity sheet and discuss their conclusions.<br />
_____________________________________________________________________________________<br />
Background:<br />
To use a TI-83 for this exercise,<br />
• Press STAT and clear the first four lists by positioning the cursor<br />
over the name <strong>of</strong> the list and pressing CLEAR ENTER .<br />
• Enter the radii as L1.<br />
• Position the cursor over L2 and type in the expression for the volume, (4/3)ΠL1 3 .<br />
• Similarly, create a surface area column by entering its formula for L3.<br />
• For L4, enter the formula L2/L3 to get the ratios <strong>of</strong> volume to surface area. and<br />
press ENTER .<br />
• To graph this ratio as a function <strong>of</strong> the radius, press 2nd [STATPLOT]<br />
ENTER . Turn Plot1 on, choose the scatter plot picture, L1 for Xlist, and L4 for<br />
Ylist. Press ZOOM and choose 9:ZoomStat.<br />
Virginia Department <strong>of</strong> Education 151 Geometry Instructional Modules
On the TI-89/92<br />
• Press APPS, 6 (Data Matrix Editor), 3 (New), ENTER .<br />
• Choose type as a list. Give the variable a name and press<br />
ENTER .<br />
• Enter the radii in Column 1.<br />
• Put your cursor over c2 and press ENTER . Put in the volume formula,<br />
which is 4/3Πc1 3 , ENTER .<br />
• Put your cursor over c3 and press ENTER . Put in the surface area<br />
formula, which is 4Πc1 2 , ENTER .<br />
• Put your cursor over c4 and press ENTER . Put in the ratio c2/c3,<br />
ENTER .<br />
• Press F2 (Plot Set-up), choose F1 (Define). Select Plot Type as scatter.<br />
Choose the mark you wish. X is c1; Y is c4. Use Frequency and Categories<br />
should be No. Press ENTER .<br />
• Choose GRAPH, F2 (Zoom), 9 (ZoomData), ENTER . The graph should be<br />
visible.<br />
NOTE:<br />
V<br />
In this exercise, students look at a graph <strong>of</strong> the ratio as a<br />
S.A.<br />
function <strong>of</strong> the radius. They should notice that the graph is<br />
linear. Challenge students to find the equation <strong>of</strong> this line.<br />
V<br />
You may also want to ask them to show the same result algebraically. (<br />
S.A.<br />
= 1 3<br />
r.) For any sphere, the ratio <strong>of</strong> its volume to surface area is given by the<br />
formula y = 1 3 r.<br />
= r 3<br />
Virginia Department <strong>of</strong> Education 152 Geometry Instructional Modules
Activity Sheet:<br />
Comparing the Radius, Surface Area, and Volume <strong>of</strong> Spheres<br />
Directions:<br />
Use graphing s<strong>of</strong>tware or a graphing calculator.<br />
1) The radii <strong>of</strong> four spheres are 1 m, 2 m, 3 m, and 4 m. Find the surface area and volume <strong>of</strong><br />
each sphere. Use a spreadsheet or record your data in a table.<br />
2) Find the ratio <strong>of</strong> volume to surface area ( V ) for each sphere in part (1).<br />
S.A.<br />
3) Use a graphing calculator to graph V<br />
S.A.<br />
as a function <strong>of</strong> the radius. What do you notice?<br />
Virginia Department <strong>of</strong> Education 153 Geometry Instructional Modules
Patty Paper Translations<br />
Reporting Category: Coordinate Relations, Transformations, and Vectors<br />
Related SOL: G.2<br />
______________________________________________________________________________<br />
Description:<br />
Students will translate figures using patty paper.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Patty paper<br />
• Pencil<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 15 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1. Have students draw a simple shape on the patty paper with a dot in the interior <strong>of</strong> the<br />
shape.<br />
2. Next, students should draw a ray from the dot to an edge <strong>of</strong> the paper and mark a<br />
second dot on the ray outside the simple shape. Students will translate the figure<br />
along this ray. This is a good time to discuss the meaning <strong>of</strong> the word translate in<br />
geometry. Note that the word has a different meaning around foreign language<br />
translating.<br />
3. On a second sheet <strong>of</strong> patty paper, ask the students to mark the distance between the<br />
two dots. This is the translation distance.<br />
4. Have students place a third patty paper over the first and trace the figure, ray, and<br />
interior dot. Now ask students to carefully slide the interior dot on the tracing along<br />
the ray until it is on top <strong>of</strong> the second dot on the first paper.<br />
5. Use the patty paper with the translation distance marked to measure the distance<br />
between corresponding points on the two figures. Encourage students to discuss their<br />
findings. Lead the discussion towards the fact that a translated figure is congruent to<br />
the original except that its location in the plane is different. Students should also note<br />
that each point moves by the same distance and in the same direction during<br />
translation.<br />
Reference:<br />
Serra, M. (1994). Patty Paper Geometry: Student Workbook. Berkeley, CA:<br />
Key Curriculum Press.<br />
Virginia Department <strong>of</strong> Education 154 Geometry Instructional Modules
Patty Paper Rotations<br />
Reporting Category: Coordinate Relations, Transformations, and Vectors<br />
Related SOL: G.2<br />
_____________________________________________________________________________________<br />
Description:<br />
Students will rotate a figure using patty paper.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Patty paper<br />
• Pencil<br />
• Straightedge<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
______________________________________________________________________________<br />
Directions:<br />
1. Ask students to draw a simple shape on the patty paper. They should place a dot<br />
on an edge or in the interior <strong>of</strong> the shape and place a second dot outside the shape.<br />
The second dot will be the center <strong>of</strong> rotation.<br />
2. Next, tell students to draw a ray from the second dot through the first and draw a<br />
second ray from the center <strong>of</strong> rotation (second dot) to create an acute angle <strong>of</strong> rotation.<br />
3. Students should place a second patty paper over the first and trace the figure, the dots,<br />
and the first ray. Using a pencil to hold the two sheets <strong>of</strong> patty paper together at the<br />
center <strong>of</strong> rotation, turn the second patty paper until the tracing <strong>of</strong> the first ray is<br />
aligned with the second ray.<br />
4. Ask students to place a third sheet <strong>of</strong> patty paper over this rotation and carefully trace<br />
the two figures and the angle <strong>of</strong> rotation. They will use this tracing for the remainder<br />
<strong>of</strong> the exercise.<br />
5. Allow students to use another patty paper or a ruler to measure the distance between<br />
corresponding parts <strong>of</strong> the two figures. What patterns do they notice? How is this<br />
finding different from a translation transformation?<br />
6. Use another patty paper and a straightedge to create an angle with the center <strong>of</strong><br />
rotation as its vertex, a point on the original figure along one ray and the<br />
corresponding point on the rotated figure along its other ray. What do students notice<br />
about this angle and the original angle <strong>of</strong> rotation? Does this finding hold true for all<br />
parts <strong>of</strong> the rotated figure?<br />
Reference:<br />
Serra, M. (1994). Patty Paper Geometry: Student Workbook.<br />
Berkeley, CA: Key Curriculum Press.<br />
Virginia Department <strong>of</strong> Education 155 Geometry Instructional Modules
Patty Paper Reflections<br />
Reporting Category: Coordinate Relations, Transformations, and Vectors<br />
Related SOL: G.2<br />
_____________________________________________________________________________________<br />
Description:<br />
Students will use patty paper to reflect a figure over a line.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Patty paper<br />
• Pencil<br />
• Straightedge<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 15 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1. Ask students to draw a simple shape on their patty paper and to fold the paper so<br />
that the fold does not intersect the shape. This line is the line <strong>of</strong> reflection.<br />
2. Students should fold the paper along the line <strong>of</strong> reflection and trace the figure onto the<br />
other side <strong>of</strong> the patty paper.<br />
3. Have students draw two segments, each connecting a point on the original figure with<br />
its corresponding point on the reflected figure. Use patty paper to measure the lengths<br />
<strong>of</strong> these segments. Encourage students to discuss their findings and describe what<br />
happens when a figure is reflected.<br />
4. To extend this activity, encourage students to think about the relationship between the<br />
line <strong>of</strong> reflection and the segments connecting corresponding parts <strong>of</strong> the two figures.<br />
They should notice that the line <strong>of</strong> reflection is perpendicular to the segments and that<br />
the line bisects each segment.<br />
Reference:<br />
Serra, M. (1994). Patty Paper Geometry: Student Workbook.<br />
Berkeley, CA: Key Curriculum Press.<br />
Virginia Department <strong>of</strong> Education 156 Geometry Instructional Modules
Mira Explorations<br />
Reporting Category: Coordinate Relations, Transformations, and Vectors<br />
Related SOL: G.2<br />
_____________________________________________________________________________________<br />
Description:<br />
Students will use a Mira to complete various constructions on shapes. The<br />
Mira practices reflective symmetry and students review important concepts<br />
about triangles, bisectors, and constructions.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Mira<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 45 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1. Allow students to explore the Mira by drawing simple shapes and reflecting them<br />
along a line.<br />
2. Assist students as they work through the worksheet activities using the Mira. Be sure<br />
to discuss the role reflective symmetry plays in the Mira constructions they are<br />
completing. Encourage students to use correct vocabulary as they discuss their<br />
constructions.<br />
Reference: NCTM Addenda Series, Geometry in the Middle Grades, Activity 15.<br />
Virginia Department <strong>of</strong> Education 157 Geometry Instructional Modules
Activity Sheet:<br />
Mira Explorations<br />
1. Use the Mira to draw the perpendicular bisectors <strong>of</strong> the segments below.<br />
2. The circumcenter <strong>of</strong> a triangle is the point where the perpendicular bisectors <strong>of</strong> the sides<br />
meet. Find the circumcenter <strong>of</strong> each triangle below.<br />
circumcenters you located in #2 in different places? Where do you<br />
think the circumcenter <strong>of</strong> a right triangle is located? Use the space below and<br />
your Mira to test your hypothesis.<br />
3.<br />
3. Why are<br />
the<br />
Virginia Department <strong>of</strong> Education 158 Geometry Instructional Modules
4. A median <strong>of</strong> a triangle is a line from a vertex to the midpoint <strong>of</strong> the opposite side. The point<br />
where the three medians <strong>of</strong> a triangle meet is called the centroid. Use your Mira to draw the<br />
medians <strong>of</strong> the triangle below.<br />
5. Use your Mira to find a position where the image <strong>of</strong> ray QA maps onto ray QB. Draw the Mira<br />
line. What does this line do to angle AQB?<br />
Q<br />
A<br />
B<br />
Virginia Department <strong>of</strong> Education 159 Geometry Instructional Modules
Coordinates and Symmetry<br />
Reporting Category: Coordinate Relations, Transformations, and Vectors<br />
Related SOL: G.2<br />
__________________________________________________________________<br />
Description:<br />
Students will generalize the changes in coordinates when points are reflected<br />
over the X and Y axes.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• Graph paper<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 30 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1. Ask students to mark the X and Y axes on their graph paper. They can construct 2<br />
sets <strong>of</strong> axes ranging from -10 to +10 on one sheet <strong>of</strong> graph paper.<br />
2. On the first set <strong>of</strong> axes, mark the X axis as the line <strong>of</strong> symmetry. On the second set<br />
<strong>of</strong> axes, mark the Y axis as the line <strong>of</strong> symmetry. On the worksheet, students should<br />
record the coordinates <strong>of</strong> each point as it is reflected across the line <strong>of</strong> symmetry<br />
indicated. Students then generalize the pattern for any coordinates (x,y).<br />
Reference: NCTM Addenda Series, Geometry in the Middle Grades<br />
Virginia Department <strong>of</strong> Education 160 Geometry Instructional Modules
Activity Sheet:<br />
Coordinates and Symmetry<br />
1. Draw two sets <strong>of</strong> axes on your graph paper. Each set <strong>of</strong> axes should include the range -10 to<br />
+10.<br />
2. On the first set <strong>of</strong> axes, mark the X axis as the line <strong>of</strong> reflection.<br />
3. Plot the points listed below on your first set <strong>of</strong> axes. Then reflect each point across<br />
the line <strong>of</strong> symmetry and write in the coordinates <strong>of</strong> the reflection.<br />
(-6, 1) --> (__,__) (0, 4) --> (__,__)<br />
( 2, 3) --> (__,__) (4, 0) --> (__,__)<br />
(-2, -2) --> (__,__)<br />
What pattern do you see in the new coordinates? In general, if a point (x,y) is<br />
reflected across the X axis, the coordinates <strong>of</strong> the reflection are (__,__).<br />
4. On the second set <strong>of</strong> axes, mark the Y axis as the line <strong>of</strong> reflection.<br />
5. Plot the points listed below on your second set <strong>of</strong> axes. Then reflect each point across the line<br />
<strong>of</strong> symmetry and write in the coordinates <strong>of</strong> the reflection.<br />
(-6, 1) --> (__,__) (0, 4) --> (__,__)<br />
( 2, 3) --> (__,__) (4, 0) --> (__,__)<br />
(-2, -2) --> (__,__)<br />
What pattern do you see in the new coordinates?<br />
In general, if a point (x,y) is<br />
reflected across the Y axis, the coordinates <strong>of</strong> the reflection are (__,__).<br />
Virginia Department <strong>of</strong> Education 161 Geometry Instructional Modules
Polygons and Symmetry<br />
Reporting Category: Coordinate Relations, Transformations, and Vectors<br />
Related SOL: G.2<br />
_____________________________________________________________________________________<br />
Description:<br />
Students will work in pairs or small groups to construct polygons with<br />
varying numbers <strong>of</strong> sides and lines <strong>of</strong> symmetry.<br />
_____________________________________________________________________________________<br />
Materials:<br />
• Activity Sheet<br />
• scratch paper<br />
• straightedge<br />
• Mira (optional)<br />
_____________________________________________________________________________________<br />
Time Required:<br />
Approximately 45 minutes<br />
_____________________________________________________________________________________<br />
Directions:<br />
1. Review with students the line(s) <strong>of</strong> symmetry in polygons. If you wish, include<br />
the use <strong>of</strong> the Mira in finding lines <strong>of</strong> symmetry.<br />
2. Distribute the activity sheet, scratch paper, and straightedges to each small<br />
group. Encourage students to work collaboratively to come up with figures that meet<br />
the specified conditions. When students say there is no figure to meet a given<br />
condition, encourage them to be specific about why the condition cannot be met.<br />
Reference:<br />
NCTM Addenda Series, Geometry in the Middle Grades<br />
Virginia Department <strong>of</strong> Education 162 Geometry Instructional Modules
Activity Sheet:<br />
Polygons and Symmetry<br />
Working with your group, sketch polygons to fill in as many spaces on the grid<br />
below as possible. There are some that cannot be filled in. Be ready to<br />
explain why you think each empty space must remain empty.<br />
lines <strong>of</strong><br />
symmetry<br />
1<br />
2<br />
3<br />
4<br />
5<br />
6<br />
3 sides 4 sides 5 sides 6 sides<br />
For a given number <strong>of</strong> sides, can you always make a polygon with no lines <strong>of</strong> symmetry?<br />
Can you identify patterns in your chart which would help you continue it?<br />
Virginia Department <strong>of</strong> Education 163 Geometry Instructional Modules
