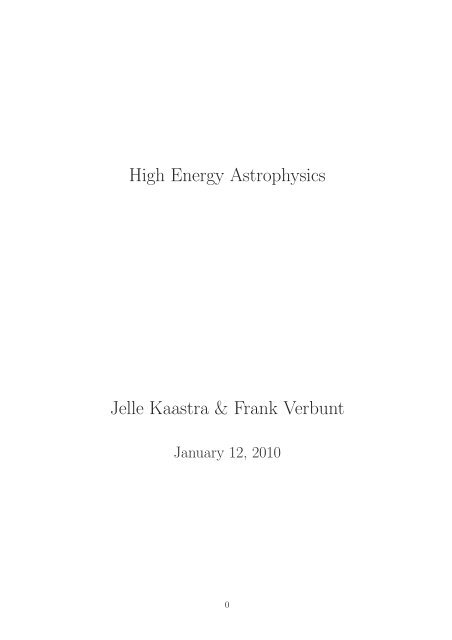

High Energy Astrophysics<br />
Jelle Kaastra & Frank Verbunt<br />
January 12, 2010<br />
0
Chapter 3<br />
<strong>Thermal</strong> X-<strong>ray</strong> <strong>radiation</strong><br />
1
3.1 Introduction<br />
<strong>Thermal</strong> X-<strong>ray</strong> <strong>radiation</strong> is an important diagnostic tool for studying cosmic sources<br />
where high-energy processes are important. One can think of the hot corona of the<br />
Sun and of stars, solar and stellar flares, supernova remnants, cataclysmic variables,<br />
accretion disks in binary stars and around black holes (galactic and extragalactic),<br />
the diffuse interstellar medium of our Galaxy or external galaxies, the outer parts of<br />
active galactic nuclei (AGN), the hot intracluster medium, the diffuse intercluster<br />
medium. In all these cases there is thermal X-<strong>ray</strong> emission or absorption.<br />
We will see in this chapter that it is possible to derive many different physical<br />
parameters from an X-<strong>ray</strong> spectrum: temperature, density, chemical abundances,<br />
plasma age, degree of ionisation, irradiating continuum, geometry etc. In this chapter<br />
we focus on X-<strong>ray</strong> emission and absorption in optically thin plasma’s. For optically<br />
thick plasmas one needs to take account of the full <strong>radiation</strong> transport in<br />
order to understand these plasmas. In that case stellar atmosphere models become<br />
relevant. However, we will not treat those cases here and restrict our discussion to<br />
plasmas with τ 1.<br />
The power of high-resolution X-<strong>ray</strong> spectroscopy is shown in Fig. 3.1. This shows<br />
a simulated spectrum of Capella based on old low-resolution observations with the<br />
EXOSAT satellite. That the predictions work is shown in Fig. 3.2. This shows the<br />
success of the plasma emission codes developed at <strong>SRON</strong> by Rolf Mewe (1935–2004)<br />
and his colleagues.<br />
The strength of spectral analysis lies often in the details. While there are many<br />
spectral lines, some lines contain more information than others. Fig. 3.3 shows an<br />
example of this. It is a part of the spectrum of a flare star. The three lines shown –<br />
the famous Ovii triplet that we will encounter more often during this course – have<br />
an enormous diagnostic power.<br />
This triplet occurs in many other sources, with often totally different intensity<br />
ratio. See for example Fig. 3.4 and compare the intensities of the triplet with those<br />
in Fig. 3.3. While EQ Peg is in collisional ionisation equilibrium, NGC 1068 is in<br />
photoionisation equilibrium. These terms will be explained later.<br />
Up to now you only saw examples of emission spectra. A nice example of an<br />
absorption spectrum is shown in Fig. 3.5.<br />
In order to see thermal imprints on a spectrum sometimes requires the skills<br />
of a spectroscopist. See for example Fig. 3.6. There has been a fierce debate in<br />
the literature whether the sharp change in the spectrum near 18 Å is due to an<br />
absorption edge (lower flux to the left) or a broad emission line (higher flux to the<br />
right). Here we only note that this course is meant to train you as a spectroscopist<br />
so that you can judge such issues yourself.<br />
For the proper calculation of an X-<strong>ray</strong> spectrum, one should consider three different<br />
steps:<br />
1. the determination of the ionisation balance<br />
2. the determination of the emitted spectrum<br />
3. possible absorption of the photons on their way towards Earth<br />
However, before discussing these processes we will first give a short summary of<br />
atomic structure and radiative transitions, as these are needed to understand the<br />
basic processes.<br />
2
Figure 3.1: The predicted X-<strong>ray</strong> spectrum of Capella. The picture illustrates the<br />
remarkable increase in sensitivity and resolution afforded by the Reflection Grating<br />
Spectrometer (RGS) of XMM-Newton by comparing the predicted RGS spectrum<br />
of the star Capella with that obtained with the EXOSAT gratings (inset). The<br />
throughput is three orders of magnitude, and the spectral resolution more than<br />
a factor of 20, better than achieved with EXOSAT. ( c○ G. Branduardi-Raymont,<br />
www.mssl.ucl.ac.uk/www astro/rgs/rgs impact.html)<br />
3
Figure 3.2: The observed X-<strong>ray</strong> spectrum of Capella. The spectrum is taken with<br />
the Reflection Grating Spectrometer (RGS) of XMM-Newton. The plot shows the<br />
wealth of emission lines in this source. From Audard et al., A&A, 365, L329 (2001).<br />
4
Figure 3.3: The observed X-<strong>ray</strong> spectrum<br />
with the RGS of XMM-Newton<br />
of the flare star EQ Pegasi. The plot<br />
shows the so-called Ovii triplet, consisting<br />
of the resonance, intercombination<br />
and forbidden line. The relative<br />
line ratio’s of this triplet contain a<br />
wealth of physical information. Image<br />
courtesy of J. Schmitt, Hamburger<br />
Sternwarte, Germany and ESA.<br />
Figure 3.4: X-<strong>ray</strong> spectrum of the<br />
Seyfert 2 galaxy NGC 1068. From<br />
Kinkhabwala et al., ApJ, 575, 732<br />
(2002).<br />
Figure 3.5: X-<strong>ray</strong> spectrum of the Seyfert 1 galaxy IRAS 13349+2438, obtained<br />
with the RGS of XMM-Newton. From: Sako et al., A&A 365, L168.<br />
5
Figure 3.6: X-<strong>ray</strong> spectrum of the Seyfert 1 galaxy MCG 6-30-15, obtained with the<br />
RGS of XMM-Newton.<br />
6
3.2 Summary of spectroscopic notations<br />
3.2.1 Atoms or ions with one valence electron<br />
The electrons in an atom have orbits with discrete energy levels and quantum numbers.<br />
The valence electron or light-electron in an atom or charged ion is the electron<br />
in the outermost atomic shell which is responsible for the emission of light. The<br />
energy configuration can be described by four quantum numbers:<br />
n - principal quantum number, characteristic for the relevant shell. It takes discrete<br />
values n =1, 2, 3, . . .. An atomic shell consists of all electrons with the same<br />
value of n.<br />
l - quantum number of angular momentum of orbital motion of the electron: l =<br />
0, 1, 2, . . . n − 1.<br />
s - quantum number of spin of electron: s = ±1/2 (for l > 0) or s = 1/2 (for<br />
l = 0).<br />
j - quantum number of total angular momentum of electron: j = l±1/2 (for l > 0)<br />
or j = 1/2 (for l = 0).<br />
All angular momenta are measured in units of = h/2π (h is Planck’s constant).<br />
The magnitude of the angular momentum vectors is given by<br />
| ⃗ l| = √ l(l + 1) ≈ l (l ≫ 1).<br />
Note that ⃗j = ⃗ l + ⃗s.<br />
For hydrogenic orbits (Coulomb field) in the theory of Bohr, the semi-major<br />
axis r of an elliptical orbit in shell n is given by r = n 2 a 0 /Z, where Z is the<br />
nuclear charge and the Bohr radius a 0 equals 5.291772108 × 10 −11 m (∼0.529 Å).<br />
Note that a 0 = α/4πR ∞ with α the fine structure constant and R ∞ the Rydberg<br />
constant R ∞ = m e cα 2 /2h; R ∞ hc = 1 2 α2 m e c 2 is the Rydberg energy (13.6056923 eV,<br />
2.17987209 × 10 −18 J). Thus, heavy nuclei are more compact, and also the orbits<br />
with small n are more compact than orbits with large n.<br />
The principal quantum number n corresponds to the energy I n of the orbit.<br />
In the classical Bohr model for the hydrogen atom the energy I n = E H n −2 with<br />
E H = 13.6 eV the Rydberg energy. Thus, electrons with large value of n have small<br />
energies (and therefore are most easily lost from an atom by collisons).<br />
Further, the characteristic velocity of the electron in the Bohr model is given<br />
by v = αZc/n. Electrons withsmall n or in atoms with large Z have the highest<br />
velocities. These velocities are sometimes useful to see if an interaction is important<br />
or not. For instance, if a free electron or proton collides with an atom, it will have the<br />
longest and most intense interaction with those electrons that have similar orbital<br />
velocity as the velocity of the invader.<br />
The following notation for electron orbits is frequently used:<br />
l = 0 1 2 3 4 5 6 7 8 9<br />
s p d f g h i k l m electrons<br />
and further alphabetic (with no duplication of s and p, or course!). The characters<br />
s, p, d and f originate from sharp, principal, diffuse and fundamental series (the line<br />
7
series of alkaline spectra). The notation is complicated, but could have been worse<br />
if for example the Chinese alphabet would have been used.<br />
Example 3.1. Take the hydrogen atom. An electron in the ground state has n = 1<br />
and l = 0; this is called a 1s orbit. For n = 2, l = 0 we have a 2s orbit; for n = 2,<br />
l = 1 we have a 2p orbit. Which are the orbits and quantum numbers for n = 3?<br />
The spin quantum number s of an electron can take values s = ±1/2, and the<br />
combined total angular momentum j has a quantum number with values between<br />
l − 1/2 (for l > 0) and l + 1/2. Subshells are subdivided according to their j-value<br />
and are designated as nl j . Example: n = 2, l = 1, j = 3/2 is designated as 2p 3/2 .<br />
3.2.2 Atoms or ions with more than one electron<br />
Above we summarised the situation where only one electron plays a role in the<br />
formation of spectra. Now we consider a multi-electron system. For each of the<br />
electrons one may, in analogy with the single electron configuration, give the orbital<br />
and spin angular momentum of the electrons, like ⃗ l 1 , ⃗ l 2 , ⃗ l 3 , . . . and ⃗s 1 , ⃗s 2 , ⃗s 3 , . . .. Similar<br />
to the single electron system, we need to compose the total angular momentum ⃗ J<br />
from individual angular momenta. Now one needs to consider the coupling between<br />
the electrons. In general, two different types of coupling are used, the so-called jj<br />
coupling and the Russell-Saunders or LS coupling:<br />
1. jj coupling:<br />
⃗j i = l ⃗ i + ⃗s i<br />
∑<br />
⃗j i = J ⃗<br />
This coupling may occur in complicated energy configurations.<br />
i<br />
2. LS coupling: relevant for simple configurations, for example the light elements,<br />
alkaline and earth-alkaline elements (groups I and II of the periodic system).<br />
As the LS coupling is applicable in many situations, we will give a more detailed<br />
treatment here. The coupling is determined by first combining the individual orbital<br />
angular momenta and spins, and then adding the total angular momentum to the<br />
total spin:<br />
∑<br />
i<br />
⃗ li<br />
∑<br />
⃗s i<br />
i<br />
⃗L + ⃗ S =<br />
= ⃗ L<br />
= ⃗ S<br />
⃗ J<br />
In these equations, ⃗ L is the total orbital angular momentum, ⃗ S the total spin, and<br />
⃗J the total angular momentum.<br />
8
The corresponding quantum number L is an integer: L = 0, 1, 2, . . .. Further,<br />
S is integer (for an even number of electrons), or broken (for an odd number of<br />
electrons), because the individual ⃗s i must be either parallel or anti-parallel.<br />
Example 3.2. For helium, with two electrons, we have S = 0 or S = 1.<br />
Finally, J is also integer or broken, for an even or odd number of electrons,<br />
respectively. The allowed values for J are:<br />
J = |L − S|, |L − S| + 1, . . ., |L + S|<br />
Example 3.3. Below are a few illustrative cases:<br />
L S allowed values for J<br />
2 1 1,2,3<br />
3 1/2 5/2, 7/2<br />
1 0 1<br />
Similar to the single electron notation, there is a standard notation for the orbital<br />
angular momentum of the multi-electron configurations:<br />
L = 0 1 2 3 4 5 6 7 8 9<br />
S P D F G H I K L M levels<br />
Note the capitals in the notation!<br />
For L ≥ S there are r = 2S + 1 levels for a given value of L. These levels are<br />
only distinguished by a different magnetic interaction of ⃗ L and ⃗ S, and sometimes<br />
they have the same energy (so-called degeneration). Such a group with r levels are<br />
called a term with multiplicity r.<br />
Although for L < S the multiplicity is given by 2L + 1 ≠ r, even in those cases<br />
we call r the multiplicity.<br />
Example 3.4. In Helium or any other two electron system, for the situation with<br />
one 1s electron and another electron in the 2s orbit, the S = 1 state has L = 0<br />
(because both electrons have l = 0). Therefore, only J = 1 is allowed here, and the<br />
multiplicity of 1 is less than 2S + 1.<br />
The following notation for multiplicity is used:<br />
S = 0 1/2 1 3/2 2 5/2 3 7/2<br />
r = 1 2 3 4 5 6 7 8<br />
singlet doublet triplet quartet quintet sextet septet octet<br />
3.2.3 Building electron configurations<br />
A multi-electron atom or ion can be build by starting from a bare nucleus and adding<br />
subsequently electrons one by one. In doing this, we should take account of the Pauli<br />
principle, which states that no two identical electron states can occur. Therefore in a<br />
single atom there cannot exist two electrons with the same combination of quantum<br />
numbers, for example n, l, j and m j (for m j see §3.2.5). Electrons with the same<br />
value of n and l but with different value of j are called equivalent electrons.<br />
How is then such a complex ion build?<br />
9
• The first atomic shell (n = 1) has l = 0, and there are two possible orientations<br />
of the spin ⃗s, hence there are two 1s orbits. If there is one electron in this<br />
shell, the designation is 1s. If the shell is full, with two electrons, we write 1s 2<br />
for a closed shell.<br />
• The second shell (n = 2) has as one particular possibility l = 0, s = ±1/2,<br />
and these orbits are called 2s orbits. But however for n = 2 we also can have<br />
l = 1.<br />
• For l = 1, the orbital angular momentum can have three orientations, given<br />
by m l = −1, 0, 1, and again the electron spins can have two different values,<br />
s = ±1/2. This then leads to 6 different p-orbits, and since n = 2, these are<br />
2p orbits. The full n = 2 shell is now designated as 1s 2 2s 2 2p 6 . Frequently one<br />
omits the filled shells, so that for example 1s 2 2s 2 2p 5 is abbreviated as simply<br />
2p 5 .<br />
• The third closed shell is 1s 2 2s 2 2p 6 3s 2 3p 6 3d 10 , etc. There are 10 d-orbits<br />
because there we have l = 2 and hence m l = −2, −1, 0, 1, 2 which can be<br />
combined with two different electron spin values.<br />
• The sequence of filling subshells obeys the following rules: first fill orbits in<br />
order of increasing n + l, and where n + l has the same value, fill the orbits<br />
in order of increasing n. Therefore, the order of filling is 1s, 2s, 2p, 3s, 3p, 4s,<br />
3d, 4p, 5s, 4d, 5p, 6s, 4f, 5d, 6p, . . .. The 4f orbit is an inner orbit, that is<br />
filled only at relatively high nuclear charge (the rare earth elements).<br />
A closed shell has no net contribution to the angular momentum:<br />
∑<br />
⃗l i = 0<br />
i<br />
∑<br />
⃗s i = 0<br />
i<br />
∑<br />
⃗j i = 0<br />
i<br />
∑<br />
l i = even<br />
i<br />
∑<br />
s i = integer.<br />
Each given electron configuration corresponds to a certain group of terms which<br />
all have approximately similar energies (see also §3.4.3).<br />
3.2.4 Term notation<br />
In general, a term with quantum numbers LSJ is designated as r (L-symbol) J . We<br />
can illustrate this with an example.<br />
Example 3.5. Take the electron configuration 1s 2 2s 2 2p 6 3s 2 3p 2 , with L = 1,<br />
S = 1, J = 2. This is designated as 1s 2 2s 2 2p 6 3s 2 3p 2 3 P 2 , or shortly with omission<br />
of the closed shells, as 3p 2 3 P 2 (pronounce as ”three p two triplet p two”). This is<br />
a triplet term.<br />
In general we omit all shells from the designation that are spectroscopically<br />
irrelevant. Whenever the algebraic sum ∑ l i = even or odd, the term is even or<br />
i<br />
odd. For example, the doublet term 2 D is even, while the triplet term 3 P o is odd.<br />
Therefore sometimes the index o from ”odd” is added just like in the triplet P term<br />
above. In the table below we give as examples the ground state configuration of a<br />
few atoms.<br />
i<br />
10
Z Element configuration term<br />
1 H 1s 2 S 1/2<br />
2 He 1s 2 1 S 0<br />
3 Li 2s 2 S 1/2<br />
4 Be 2s 2 1 S 0<br />
5 B 2p 2 P 1/2<br />
6 C 2p 2 3 P 0<br />
All noble gases have a closed shell with L = 0, S = 0 and as a consequence their<br />
ground state is always 1 S 0 . The ground term of a shell that is filled only half is<br />
always an S term, for example for nitrogen 2p 3 4 S 3/2 .<br />
3.2.5 Statistical weight<br />
The statistical weight of an energy level with quantum number J is the number<br />
of directions that the vector ⃗ J can take with respect to some preferred direction,<br />
for example the magnetic field. This is also the allowed number of sublevels. The<br />
projection of ⃗ J on the preferred direction is called MJ (or m j for a single electron<br />
with angular momentum ⃗j). In the case of a magnetic field M J is the socalled<br />
magnetic quantum number (Zeeman effect). M J can take any value between<br />
−J, −J + 1,...,0,...,J − 1, J. This gives 2J + 1 possible orientations of ⃗ J with<br />
respect to the preferred direction. Therefore the statistical weight g J = 2J + 1.<br />
Example 3.6. The 3 D 2 level has g 2 = 5. Note that for 3 D we have L = 2,<br />
S = 1. The total statistical weight of the 3 D term (levels with J = 3, 2, and 1) is<br />
g = 7 + 5 + 3 = 15.<br />
In a strong magnetic field the vectors ⃗ L and ⃗ S are decoupled ( ⃗ J does not exist<br />
any more) and they are arranged independently with respect to ⃗ B. Instead of the<br />
4 quantum numbers n, L, J and M J (Zeeman effect), one then takes n, L, M L and<br />
M S , with M L and M S the projections of ⃗ L and ⃗ S on ⃗ B (Paschen Back effect). In that<br />
case we find for the 3 D term M L = −2, −1, 0, 1, 2, M S = −1, 0, 1 → g = 5 × 3 = 15.<br />
3.2.6 The periodic system<br />
With the knowledge obtained before we now consider the periodic system. The<br />
table shows how the electronic subshells are being filled. Note also that there are<br />
sometimes small irregularities, such as for Mn.<br />
11
Z El 1s 2s 2p 3s 3p 3d 4s Ground term<br />
1 H 1 2 S 1/2<br />
2 He 2 1 S 0<br />
3 Li 2 1 2 S 1/2<br />
4 Be 2 2 1 S 0<br />
5 B 2 2 1 2 P 1/2<br />
6 C 2 2 2 3 P 0<br />
7 N 2 2 3 4 S 3/2<br />
8 O 2 2 4 3 P 2<br />
9 F 2 2 5 2 P 3/2<br />
10 Ne 2 2 6 1 S 0<br />
11 Na 2 2 6 1 2 S 1/2<br />
12 Mg 2 2 6 2 1 S 0<br />
13 Al 2 2 6 2 1 2 P 1/2<br />
14 Si 2 2 6 2 2 3 P 0<br />
15 P 2 2 6 2 3 4 S 3/2<br />
16 S 2 2 6 2 4 3 P 2<br />
17 Cl 2 2 6 2 5 2 P 3/2<br />
18 Ar 2 2 6 2 6 1 S 0<br />
19 K 2 2 6 2 6 1 2 S 1/2<br />
20 Ca 2 2 6 2 6 2 1 S 0<br />
21 Sc 2 2 6 2 6 1 2 2 D 3/2<br />
22 Ti 2 2 6 2 6 2 2 3 F 2<br />
23 V 2 2 6 2 6 3 2 4 F 3/2<br />
24 Cr 2 2 6 2 6 5 1 7 S 3<br />
25 Mn 2 2 6 2 6 5 2 6 S 5/2<br />
26 Fe 2 2 6 2 6 6 2 5 D 4<br />
27 Co 2 2 6 2 6 7 2 4 F 9/2<br />
28 Ni 2 2 6 2 6 8 2 3 F 4<br />
29 Cu 2 2 6 2 6 10 1 2 S 1/2<br />
30 Zn 2 2 6 2 6 10 2 1 S 0<br />
Atoms or ions with multiple electrons in most cases have their shells filled starting<br />
from low to high n and l. For example, neutral oxygen has 8 electrons, and the shells<br />
are filled like 1s 2 2s 2 2p 4 , where the superscripts denote the number of electrons in<br />
each shell. Ions or atoms with completely filled subshells (combining all allowed<br />
j-values) are particularly stable. Examples are the noble gases neutral helium, neon<br />
and argon, and more general all ions with 2, 10 or 18 electrons. In chemistry, it is<br />
common practice to designate ions by the number of electrons that they have lost,<br />
like O 2+ for doubly ionised oxygen. In astronomical spectroscopic practice, more<br />
often one starts to count with the neutral atom, such that O 2+ is designated as Oiii.<br />
As the atomic structure and the possible transitions of an ion depend primarily on<br />
the number of electrons it has, there are all kinds of scaling relationships along<br />
so-called iso-electronic sequences. All ions on an iso-electronic sequence have the<br />
same number of electrons; they differ only by the nuclear charge Z. Along such<br />
a sequence, energies, transitions or rates are often continuous functions of Z. A<br />
well known example is the famous 1s−2p triplet of lines in the helium iso-electronic<br />
sequence (2-electron systems).<br />
12
3.2.7 How to determine allowed terms<br />
In the example below we illustrate how it is possible to determine the allowed terms<br />
for a given electron configuration. We will determine the terms that may arise for a<br />
carbon atom described by the ground state configuration.<br />
The electron configuration is: 1s 2 2s 2 2p 2 . We have two closed subshells, 1s and<br />
2s, which both give 1 S 0 . We may therefore concentrate on the p-shell with two<br />
equivalent p-electrons. In this we include only states that are allowed with respect<br />
to the Pauli principle. Of course, we omit also states that are symmetric, i.e. a<br />
situation with electron 1 in state a and electron 2 in state b is the same as electron<br />
1 in state b and electron 2 in state a.<br />
The recipe is as follows:<br />
m l1 s 1 m l2 s 2 M L M S<br />
+1 + 0 + +1 +1 x<br />
+1 + −1 + 0 +1 x<br />
0 + −1 + −1 +1 x<br />
+1 + +1 − +2 0<br />
+1 + 0 − +1 0 x<br />
+1 − 0 + +1 0<br />
+1 + −1 − 0 0 x<br />
0 + 0 − 0 0<br />
−1 + +1 − 0 0<br />
−1 + 0 − −1 0 x<br />
−1 − 0 + −1 0<br />
−1 + −1 − −2 0<br />
+1 − 0 − +1 −1 x<br />
+1 − −1 − 0 −1 x<br />
−1 − 0 − −1 −1 x<br />
1. Choose the state with highest M S , in this case 1. This will also be the value<br />
of S for the term. Hence, the multiplicity defined by r = 2S + 1 = 3.<br />
2. Determine the highest M L for this M S . The value will also be the value of L<br />
for the term.<br />
3. Cross out one state function for each pair M L , M S which correspond to the<br />
possible quantum numbers M L = −L, −L + 1, . . ., 0, . . .,L − 1, L and M S =<br />
−S, −S + 1, . . ., 0, . . .,S − 1, S.<br />
4. Repeat the procedure stepwise for remaining functions.<br />
Application to the above case:<br />
1. Maximum M S = 1 ⇒ S = 1, thus, this is a triplet.<br />
2. The highest M L for M S = 1 is M L = 1 ⇒ L = 1, thus, it is a P state. The<br />
first term is thus 3 P.<br />
3. Cross out a state function for each set of combinations of M L = −1, 0, +1 with<br />
M S = −1, 0, +1, for instance the states labeled x in the table above. See table<br />
below for what is left over.<br />
13
m l1 s 1 m l2 s 2 M L M S<br />
+1 + +1 − +2 0 x<br />
+1 − 0 + +1 0 x<br />
0 + 0 − 0 0 x<br />
−1 + +1 − 0 0<br />
−1 − 0 + −1 0 x<br />
−1 + −1 − −2 0 x<br />
We see that there are only states left with M S = 0. A repetition of the steps<br />
1–3 gives S = 0 and L = 2, therefore we get a 1 D state. Next we cross out a state<br />
for each combination of M L = −2, −1, 0, +1, +2 with M S = 0, for instance those<br />
indicated with x above. See below what is left:<br />
m l1 s 1 m l2 s 2 M L M S<br />
−1 + +1 −1 0 0<br />
The remainder is clearly a 1 S state. Thus, we have shown that the allowed terms<br />
for the combination 2p 2 are given by 3 P, 1 D and 1 S.<br />
exercise 3.1. Show that the total statistical weight for these three configurations<br />
is 15. It is equal to the number of combinations that we had in our original table,<br />
as it should be.<br />
3.2.8 Allowed terms<br />
The allowed terms for some configurations are shown in Table 3.1 and Table 3.2.<br />
Table 3.1: Terms for non-equivalent electrons<br />
Configuration<br />
s s<br />
s p<br />
s d<br />
p p<br />
p d<br />
d d<br />
Terms<br />
1 S, 3 S<br />
1 P, 3 P<br />
1 D, 3 D<br />
1 S, 1 P, 1 D, 3 S, 3 P, 3 D<br />
1 P, 1 D, 1 F, 3 P, 3 D, 3 F<br />
1 S, 1 P, 1 D, 1 F, 1 G, 3 S, 3 P, 3 D, 3 F, 3 G<br />
14
Table 3.2: Terms for equivalent electrons<br />
Configuration<br />
s 2<br />
p 2<br />
p 3<br />
p 4<br />
p 5<br />
p 6<br />
d 2<br />
d 3<br />
d 4<br />
d 5<br />
Terms<br />
1 S<br />
1 S, 1 D, 3 P<br />
2 P, 2 D, 4 S<br />
1 S, 1 D, 3 P<br />
2 P<br />
1 S<br />
1 S, 1 D, 1 G, 3 P, 3 F<br />
2 P, 2 D(2), 2 F, 2 G, 2 H, 4 P, 4 F<br />
1S(2), 1 D(2), 1 F, 1 G(2), 1 I, 3 P(2), 3 D, 3 F(2), 3 G, 3 H, 5 D<br />
2 S, 2 P, 2 D(3), 2 F(2), 2 G(2), 2 H, 2 I, 4 P, 4 D, 4 F, 4 G, 6 S<br />
15
3.3 Energy levels<br />
We have seen the notation for the various electronic shells in an ion being designated<br />
as 1s, 2p etc. Except for this notation, there is yet another notation that is commonly<br />
being used in X-<strong>ray</strong> spectroscopy. Shells with principal quantum number n =1, 2,<br />
3, 4, 5, 6 and 7 are indicated with K, L, M, N, O, P, Q. A further subdivision is<br />
made starting from low values of l up to higher values of l and from low values of<br />
J up to higher values of J:<br />
1s 2s 2p 1/2 2p 3/2 3s 3p 1/2 3p 3/2 3d 3/2 3d 5/2 4s etc.<br />
K L I L II L III M I M II M III M IV M V N I<br />
The binding energy I of K-shell electrons in neutral atoms increases approximately<br />
as I ∼ Z 2 (see Table 3.3 and Figs. 3.7–3.8). Also for other shells the energy increases<br />
strongly with increasing nuclear charge Z.<br />
Figure 3.7: Energy levels of atomic<br />
subshells for neutral atoms.<br />
Figure 3.8: Energy levels of atomic<br />
subshells for neutral atoms.<br />
The binding energy of more highly ionised ions is in general larger than for neutral<br />
atoms (see Table 3.3). For example, neutral iron has a K-shell energy of 7.1 keV,<br />
Fexxvi has I = 9.3 keV. In general, if there is an ionised layer of gas between us<br />
and any X-<strong>ray</strong> source, the position of absorption edges tells you immediately which<br />
ions are present.<br />
It is common practice in X-<strong>ray</strong> spectroscopy to designate ions also according to<br />
the number of electrons, thus Fexxvi is hydrogen-like iron, Fexxv is helium-like,<br />
etc. The atomic physics for ions with the same number of electrons is very similar,<br />
and often the relevant parameters are smooth functions of Z, allowing interpolation<br />
along the so-called iso-electronic sequences.<br />
16
Table 3.3: Binding energies (in eV) of 1s electrons in the K-shell of free atoms and<br />
ions in the ground state<br />
Z el I II III IV V VI VII VIII IX X XI XII XIII<br />
1 H 13.6<br />
2 He 24.59 54.4<br />
3 Li 58 76 122<br />
4 Be 115 126 154 218<br />
5 B 192 206 221 259 340<br />
6 C 288 306 325 344 392 490<br />
7 N 403 426 448 471 494 552 667<br />
8 O 538 565 592 618 645 671 739 871<br />
9 F 694 724 754 785 815 846 876 954 1103<br />
10 Ne 870 903 937 971 1005 1039 1074 1108 1196 1362<br />
11 Na 1075 1101 1139 1177 1215 1253 1291 1329 1367 1465 1649<br />
12 Mg 1308 1333 1360 1402 1444 1486 1528 1570 1612 1654 1762 1963<br />
13 Al 1564 1590 1618 1646 1692 1738 1784 1830 1876 1922 1968 2086 2304<br />
14 Si 1844 1872 1901 1930 1959 2009 2059 2109 2160 2210 2260 2310 2438<br />
15 P 2148 2178 2208 2238 2269 2300 2354 2408 2462 2517 2571 2625 2679<br />
16 S 2476 2508 2540 2571 2603 2636 2668 2726 2785 2843 2902 2960 3018<br />
17 Cl 2829 2862 2896 2929 2962 2996 3030 3064 3126 3189 3252 3315 3377<br />
18 Ar 3206 3241 3276 3311 3346 3381 3417 3452 3488 3554 3621 3688 3755<br />
19 K 3610 3644 3681 3718 3754 3791 3828 3866 3902 3940 4010 4081 4152<br />
20 Ca 4041 4075 4110 4149 4187 4225 4264 4303 4342 4380 4420 4494 4569<br />
21 Sc 4494 4530 4567 4604 4644 4684 4724 4764 4805 4846 4886 4928 5006<br />
22 Ti 4970 5008 5047 5086 5125 5167 5209 5251 5292 5335 5378 5420 5464<br />
23 V 5470 5511 5551 5592 5633 5674 5717 5761 5805 5848 5893 5938 5982<br />
24 Cr 5995 6038 6080 6122 6165 6208 6250 6295 6341 6387 6432 6479 6526<br />
25 Mn 6544 6589 6633 6677 6721 6766 6810 6854 6901 6949 6997 7045 7094<br />
26 Fe 7117 7164 7210 7256 7301 7348 7394 7440 7486 7535 7585 7636 7686<br />
27 Co 7715 7763 7811 7859 7906 7954 8002 8050 8098 8146 8198 8250 8303<br />
28 Ni 8338 8387 8436 8486 8535 8585 8635 8685 8735 8785 8835 8889 8943<br />
29 Cu 8986 9035 9086 9137 9188 9240 9294 9344 9396 9448 9500 9552 9609<br />
30 Zn 9663 9708 9760 9813 9866 9919 9973 10028 10082 10136 10190 10244 10298<br />
Z el XIV XV XVI XVII XVIII XIX XX XXI XXII XXIII XXIV XXV XXVI<br />
14 Si 2673<br />
15 P 2817 3070<br />
16 S 3076 3224 3494<br />
17 Cl 3439 3501 3658 3946<br />
18 Ar 3821 3887 3953 4121 4426<br />
19 K 4223 4293 4363 4433 4611 4934<br />
20 Ca 4644 4719 4793 4867 4941 5129 5470<br />
21 Sc 5085 5164 5243 5321 5399 5477 5675 6034<br />
22 Ti 5546 5629 5712 5795 5877 5959 6041 6249 6626<br />
23 V 6028 6114 6201 6288 6375 6461 6547 6633 6851 7246<br />
24 Cr 6572 6621 6711 6802 6893 6984 7074 7164 7254 7482 7895<br />
25 Mn 7143 7191 7242 7336 7431 7526 7621 7715 7809 7903 8141 8572<br />
26 Fe 7737 7788 7838 7891 7989 8088 8187 8286 8384 8482 8580 8828 9278<br />
27 Co 8355 8408 8461 8513 8569 8671 8774 8877 8980 9082 9184 9286 9544<br />
28 Ni 8998 9053 9108 9163 9217 9275 9381 9488 9595 9702 9808 9914 10020<br />
29 Cu 9665 9722 9779 9836 9893 9949 10009 10119 10230 10341 10452 10562 10672<br />
30 Zn 10357 10415 10474 10533 10592 10651 10709 10772 10886 11001 11116 11231 11345<br />
17
3.4 Transitions between different levels<br />
3.4.1 Relative ordering of terms with the same configuration<br />
First we discuss the rules of Hund 1 for terms that correspond with one electron<br />
configuration in LS coupling:<br />
1. Of all terms with the same value of L the term with the highest multiplicity<br />
(i.e., maximum S, spin vectors ↑↑) has the lowest energy. For example triplet<br />
terms have a lower energy than the corresponding singlet terms.<br />
2. Of all terms with the same multiplicity the one with the highest L value (i.e.,<br />
orbital angular momenta ↑↑) has the lowest energy.<br />
3. Of all levels of one term the lowest energy is due to the state with the minimum<br />
value of J if the corresponding outer electron shell is filled with less than half of<br />
the maximum number of electrons, and due to the maximum value of J if the<br />
outer shell is filled with more than half of the maximum number of electrons.<br />
Example 3.7. Calcium in a 3dnp state has terms 3 F, 3 D, 3 P, 1 F, 1 D and 1 P; of<br />
all these terms, the 3 F term has the lowest energy.<br />
Example 3.8. See Fig. 3.9.<br />
Figure 3.9: Illustration of Hund’s rules and Landé’s interval rule.<br />
Furthermore, there is the interval rule of Landé 2 , which is strictly speaking only<br />
valid in LS coupling: the energy interval between two subsequent levels (J and J+1)<br />
in a multiplet is proportional to the highest quantum level (J + 1).<br />
Example 3.9. In a 4 D term (J = 1, 3<br />
2<br />
3:5:7.<br />
, 5<br />
and 7<br />
2 2 2<br />
) the separations have the ratio<br />
1 Named after Friedrich Hund (1896-1997)<br />
2 named after Alfred Landé (1888-1976)<br />
18
3.4.2 Selection rules<br />
The transition or combination between two terms corresponds to a spectral line.<br />
However, not all transitions between levels are possible. We will consider here only<br />
electric dipole <strong>radiation</strong>, which is the most important process. Magnetic dipole<br />
<strong>radiation</strong> is 5 orders of magnitude weaker and electric quadrapole <strong>radiation</strong> is 8<br />
orders of magnitude weaker.<br />
We start first with some general rules that are valid for both LS and JJ coupling.<br />
1. There is no restriction on n, ∆n = integer and can be ∆n = 0, 1, 2, 3, . . ..<br />
2. Rule of Laporte 3 : only transitions between even and odd terms and vice-versa<br />
are allowed: ∆( ∑ l i ) = ±1, ±3, . . .. Thus in principle there can be transitions<br />
with more than one electron involved, although these will be weaker. For<br />
example for the two-electron transition: ∆l 1 = ±1, ∆l 2 = δ (and reversed),<br />
with δ even. In most cases δ = −2, 0, 2 (1-electron jump: ∆l = ±1).<br />
3. ∆J = 0, ±1 and J = 0 cannot be combined with J = 0.<br />
4. ∆M J = 0, ±1 and M J = 0 cannot combine with M J = 0, in case ∆J = 0.<br />
For LS coupling only the additional rules apply:<br />
1. ∆L = 0, ±1<br />
2. ∆S = 0 (intercombinations are forbidden). This is for example strictly valid<br />
for helium (the singlet system does not combine with the triplet system), but<br />
not for Hg (deviation from LS coupling), and also not for higher ions.<br />
Finally for JJ coupling only the following condition applies:<br />
1. for 2 electron jumps: ∆j 1 = 0, ∆j 2 = 0, ±1 (and of course the other way<br />
around).<br />
3.4.3 Examples of combinations between terms.<br />
Because a single term can have more than one level, in general we talk about multiplet<br />
terms or simply multiplets. The combination between two multiplets gives rise<br />
to composite spectral lines; those composites are usually also called multiplets. The<br />
few rules that are applicable to combinations of lines have already been discussed<br />
above.<br />
It is in general also possible to make statements about the relative intensity of<br />
all lines belonging to a multiplet. The famous sum rule of Ornstein, Burger and<br />
Dorgelo 4 states that the sum of the intensities of all lines in a multiplet that belong<br />
to the same lower or upper level is proportional to the statistical weight (g J = 2J+1)<br />
of that level.<br />
When we combine this with the selection rules it follows that<br />
1. The strongest transitions in a multiplet are those for which J and L change<br />
in the same way.<br />
2. Transitions corresponding to large values of J are stronger than those with<br />
smaller values of J.<br />
19
Figure 3.10: Transitions between a 2 D and 2 P term.<br />
Example 3.10. We combine a doublet D term with a doublet P term. In the<br />
spectrum, this gives a triplet (see Fig. 3.10):<br />
a: 2 P 3/2 – 2 D 3/2<br />
b: 2 P 3/2 – 2 D 5/2<br />
c: 2 P 1/2 – 2 D 3/2<br />
Note that the 2 P 1/2 – 2 D 5/2 transition is not allowed (why?). Applying the sum rule<br />
we find:<br />
I b : (I a + I c ) = 6:4<br />
(I a + I b ) : I c = 4:2<br />
and this implies<br />
I a : I b : I c = 1 : 9 : 5 (3.1)<br />
Figure 3.11: Illustration of the relative line intensities for the 2p 2 P − 3d 2 D triplet<br />
of Fexxiv.<br />
Example 3.11. We illustrate this transition with a practical example. Consider<br />
Fexxiv. This is Fe 23+ ; because an iron nucleus has Z = 26 protons, this ion has<br />
26−23 = 3 electrons. Hence, it has a similar electronic structure as lithium (Z = 3).<br />
For most transitions, the core of two 1s electrons can be ignored, and then only the<br />
outer valence electron is relevant. The ground state of this ion is a 2 S 1/2 state (why?),<br />
3 Named after Otto Laporte (1902-1971); paper in JOSA 11, 459 (1925)<br />
4 L.S. Ornstein & H.C. Burger, Z.Phys. 24, 41 (1924)<br />
20
ut of course the ion can also be in a higher state, for instance the valence electron<br />
can be in a 2p orbit or a 3d orbit. Suppose now that it is excited to a 3d orbit.<br />
This orbit has n = 3 and L = 2. The single electron produces S = 1/2. Therefore,<br />
the multiplicity r = 2S + 1 = 2, hence we have a 2 D term. Allowed values of J<br />
are 3/2 and 5/2. If the electron falls back to one of the n = 2 states, than it can<br />
be seen that only a transition to L = 1 is allowed (why?). It is easy to show that<br />
this is the 2p 2 P 1/2 , 2 P 3/2 doublet. Therefore, we will get the radiative transition<br />
triplet 2 P− 2 D as treated above. The three lines can be found easily in a simulated<br />
spectrum (Fig. 3.11). The lines are found at 11.029, 11.171 and 11.188 Å. The<br />
spectral region shows several other lines from other (mainly iron) ions, so knowing<br />
the predicted line ratios is helpfull in identifying these triplets. Verify the relative<br />
intensity of these lines.<br />
A more complex example is given by the following.<br />
Example 3.12. Transition from 3 D to 3 P. In the spectrum, this gives a sextet:<br />
a: 3 D 1 – 3 P 2<br />
b: 3 D 2 – 3 P 2<br />
c: 3 D 3 – 3 P 2<br />
d: 3 D 1 – 3 P 1<br />
e: 3 D 2 – 3 P 1<br />
f: 3 D 1 – 3 P 1<br />
Applying the sum rule we find:<br />
I c : (I b + I e ) : (I a + I d + I f ) = 7:5:3<br />
(I a + I b + I c ) : (I d + I e ) : I f = 5:3:1<br />
and this implies<br />
I a : I b : I c : I d : I e : I f = 1.2 : 17.9 : 100 : 17.9 : 53.6 : 23.8 (3.2)<br />
exercise 3.2. For the above example, make a plot similar to Fig. 3.10. Use Hund’s<br />
law to plot a realistic relative distance between the terms of the upper and lower<br />
multiplet.<br />
The spectroscopic notation is based on the LS-coupling, because that applies<br />
in the most simple cases. LS-coupling dominates whenever the distance between<br />
two multiplets (determined by the electrostatic interaction of the electrons) is much<br />
larger than the multiplet-splitting (= largest distance within one multiplet, caused<br />
by the spin-orbit interaction), which is the case for a low nuclear charge Z (the<br />
light elements). Because the spin-orbit interaction increases faster with Z than<br />
the electrostatic interaction, for the heavier elements in the end JJ-coupling will<br />
dominate, in particular for complicated term configurations, where there are many<br />
terms close together. In an excited state (with large principle quantum number<br />
n), where the electrostatic interaction decreases rapidly, already for lower values of<br />
Z JJ-coupling can occur. For example, for Pb, Sn and Ge for the ground term<br />
LS-coupling applies, while the higher excited states have JJ-coupling.<br />
21
3.5 Abundances of the elements<br />
With high spectral resolution and sensitivity, optical spectra of stars sometimes show<br />
spectral features from almost all elements of the Periodic Table, but in practice only<br />
a few of the most abundant elements show up in X-<strong>ray</strong> spectra of cosmic plasmas.<br />
In several situations the abundances of the chemical elements in an X-<strong>ray</strong> source are<br />
similar to (but not necessarily equal to) the abundances for the Sun or a constant<br />
fraction of that. There have been many significant changes over the last several<br />
years in the adopted set of standard cosmic abundances. A still often used set of<br />
abundances is that of Anders & Grevesse (1989), but a more recent one is the set of<br />
proto-Solar abundances of Lodders (2003), that we list in Table 3.4 for a few of the<br />
key elements.<br />
Table 3.4: Proto-Solar abundances for the 15 most common chemical elements.<br />
Abundances A are given with respect to hydrogen. Data from Lodders (2003).<br />
Element abundance Element abundance Element abundance<br />
H ≡ 1 Ne 89.1 × 10 −6 S 18.2 × 10 −6<br />
He 0.0954 Na 2.34 × 10 −6 Ar 4.17 × 10 −6<br />
C 288 × 10 −6 Mg 41.7 × 10 −6 Ca 2.57 × 10 −6<br />
N 79.4 × 10 −6 Al 3.47 × 10 −6 Fe 34.7 × 10 −6<br />
O 575 × 10 −6 Si 40.7 × 10 −6 Ni 1.95 × 10 −6<br />
In general, for absorption studies the strength of the lines is mainly determined<br />
by atomic parameters that do not vary much along an iso-electronic sequence, and<br />
the abundance of the element. Therefore, in the X-<strong>ray</strong> band the oxygen lines are the<br />
strongest absorption lines, as oxygen is the most abundant metal. The emissivity<br />
of ions in the X-<strong>ray</strong> band often increases with a strong power of the nuclear charge.<br />
For that reason, in many X-<strong>ray</strong> plasmas the strongest iron emission lines are often<br />
of similar strength to the strongest oxygen lines, despite the fact that the cosmic<br />
abundance of iron is only 6 % of the cosmic oxygen abundance.<br />
Without being complete or giving too many details, we give here a short list of<br />
situations where the abundances differ from proto-Solar, and where X-<strong>ray</strong> spectroscopic<br />
observations are key to determine these abundances:<br />
• Stellar coronae: here due to the (inverse) FIP effect (FIP = First Ionisation<br />
potential), abundances can be different from Proto-Solar. Elements with high<br />
FIP, for instance noble gases line Ne, remain longer neutral in the transition<br />
zones between photosphere and corona. Neutral particles are not tied to the<br />
magnetic field in stellar flares, hence segregration between neutral and ionised<br />
species is possible, leading to deviant abundances.<br />
• Some hot stars show strong effects of the CNO cycle, leading e.g. to enhnced<br />
nitrogen abundances in some O-stars like ζ Pup.<br />
• In several young supernova remnants (e.g. Cas A) one sees directly the freshly<br />
produced chemical elements lighten-up in X-<strong>ray</strong>s<br />
22
• In older supernova remnants, emission is dominated by swept-up Interstellar<br />
matter. This offers a unique opportunity to sample the ISM of for instance<br />
metal-poor galaxies like the LMC and SMC, by observing their old supernova<br />
remnants.<br />
• In clusters of galaxies, the hot gas is a fair sample of the chemical composition<br />
of the Universe as a whole, which differs from the Solar composition.<br />
• One of the poorest known environments is the cosmic web between clusters<br />
of galaxies. depending upon the galacitic evolution scenario of the galaxies<br />
in that web, one predicts models with low metallicity (say 0.1 time Solar), or<br />
models with strongly varying abundances, ranging from 0.001 to 1 times Solar.<br />
• Active Galactic Nuclei sample the composition of galactic cores, which due<br />
to higher stellar birth rates in those environments is higher than in the Solar<br />
neighbourhood.<br />
23
3.6 Basic processes<br />
In order to be able to calculate X-<strong>ray</strong> spectra, it is necessary to determine first the<br />
concentrations of the various ions. There are several ionisation and recombination<br />
processes that are important for determining these concentrations. Some of these<br />
processes also play directly a role in spectral line formation processes. We will<br />
first introduce the basic processes in some detail, then we will discuss how the ion<br />
concentrations can be determined, and then we return to the continuum and line<br />
formation processes. The relevant basic processes that we discuss here are:<br />
1. excitation processes:<br />
(a) collisional excitation<br />
(b) collisional de-excitation<br />
(c) radiative excitation<br />
2. Radiative transitions<br />
3. Auger processes and fluorescence<br />
4. ionisation processes:<br />
(a) collisional (direct) ionisation<br />
(b) Excitation-Autoionisation<br />
(c) Photoionisation<br />
(d) Compton ionisation<br />
5. recombination processes:<br />
(a) Radiative recombination<br />
(b) Dielectronic recombination<br />
6. charge transfer processes:<br />
(a) Charge Transfer ionisation<br />
(b) Charge Transfer recombination<br />
All these processes will be treated below.<br />
24
3.6.1 Collisional excitation<br />
A bound electron in an ion can be brought into a higher, excited energy level through<br />
a collision with a free electron or by absorption of a photon. The latter will be<br />
discussed in more detail in Sect. 3.10. Here we focus upon excitation by electrons.<br />
The cross section Q ij for excitation from level i to level j for this process can be<br />
conveniently parametrised by<br />
Q ij (U) = πa2 0<br />
w i<br />
E H Ω(U)<br />
E ij U , (3.3)<br />
where U = E/E ij with E ij the excitation energy from level i to j, E the energy of<br />
the exciting electron, E H the Rydberg energy (13.6 eV), a 0 the Bohr radius and w i<br />
the statistical weight of the lower level i. The dimensionless quantity Ω(U) is the socalled<br />
collision strength. For a given transition on an iso-electronic sequence, Ω(U)<br />
is not a strong function of the atomic number Z, or may be even almost independent<br />
of Z.<br />
Mewe (1972) introduced a convenient formula that can be used to describe most<br />
collision strengths, written here as follows:<br />
Ω(U) = A + B U + C U + 2D + F lnU, (3.4)<br />
2 U3 where A, B, C, D and F are parameters that differ for each transition. The expression<br />
can be integrated analytically over a Maxwellian electron distribution, and the<br />
result can be expressed in terms of exponential integrals.<br />
The Maxwell velocity distribution is given by<br />
f(v) = ( 2 v 2<br />
π )1/2 e −v2 /2ve, 2 (3.5)<br />
where v 2 e ≡ kT/m e and m e is the electron mass. Transforming this to energy units<br />
using E = 1 2 m ev 2 gives<br />
f(E) =<br />
v 3 e<br />
2E 0.5<br />
√ π(kT)<br />
3/2 e−E/kT , (3.6)<br />
exercise 3.3. Verify that<br />
∞∫<br />
0<br />
f(v)dv = 1. Also verify that<br />
∞∫<br />
0<br />
f(E)dE = 1.<br />
After averaging over a Maxwellian electron distribution the number of excitations<br />
can be determined as:<br />
∞∫<br />
√<br />
8πkT a 2 0<br />
S ij = Q ij (E)f(E)v(E)dE =<br />
E ∫∞<br />
H<br />
y 2 Ω(U)e −Uy dU, (3.7)<br />
m e w i E ij<br />
E 1<br />
ij<br />
where y ≡ E ij /kT.<br />
We now define the average collision strength ¯Ω(y) as:<br />
∫∞<br />
¯Ω(y) ≡ ye y<br />
1<br />
25<br />
Ω(U)e −Uy dU (3.8)
leading to<br />
Here the constant S 0 is given by<br />
S ij = S 0 ¯Ω(y)T −1/2 e −y , (3.9)<br />
S 0 ≡ √ 8π/m e k a 2 0 E H = h 2 (2πm e ) −3/2 k −1/2 ≃ 8.629 × 10 −12 K 0.5 m 3 s −1 (3.10)<br />
(using E H = 1 2 α2 m e c 2 and a 0 = h/2παm e c).<br />
For the special choice (3.4) it follows that<br />
¯Ω(y) = A + (By − Cy 2 + Dy 3 + F)e y E 1 (y) + (C + D)y − Dy 2 . (3.11)<br />
In the above, E 1 (x) is the exponential integral, defined by (see for example<br />
Abramowitz & Stegun, chapter 5):<br />
E 1 (x) ≡<br />
∫ ∞<br />
e −t<br />
x<br />
t<br />
dt. (3.12)<br />
It is possible to show that the asymptotic behaviour of E 1 (x) is given by:<br />
x ≪ 1 :<br />
x ≫ 1 :<br />
E 1 (x) = −γ − ln x −<br />
E 1 (x) = e−x<br />
x<br />
where γ = 0.5772156649 is the constant of Euler.<br />
With (3.13) and (3.14) we find (check!):<br />
∞∑<br />
n=0<br />
∞∑<br />
n=1<br />
(−x) n<br />
nn!<br />
(3.13)<br />
n!<br />
(−x) n (3.14)<br />
kT ≪ E ij , y ≫ 1 : S ij ≃ S 0 (A + B + C + 2D)T −1 2 e<br />
−E ij /kT<br />
(3.15)<br />
kT ≫ E ij , y ≪ 1 : S ij ≃ S 0 FT −1 2 ln(kT/Eij ) (3.16)<br />
For low T there are exponentially few excitations (only the tail of the Maxwellian has<br />
sufficient energy for excitation); for high T the number of excitations also approaches<br />
zero, because of the small collision cross section.<br />
exercise 3.4. Derive (3.15) and (3.16).<br />
Not all transitions have this asymptotic behaviour, however. For instance, socalled<br />
forbidden transitions have F = 0 and hence have much lower excitation rates<br />
at high energy. So-called spin-forbidden transitions even have A = B = F = 0.<br />
exercise 3.5. Derive the high-temperature limit equivalent of (3.16) for forbidden<br />
and spin-forbidden transitions.<br />
In most cases, the excited state is stable and the ion will decay back to the<br />
ground level by means of a radiative transition, either directly or through one or<br />
more steps via intermediate energy levels. Only in cases of high density or high<br />
<strong>radiation</strong> fields, collisional excitation or further radiative excitation to a higher level<br />
may become important, but for typical cluster and ISM conditions these processes<br />
are not important in most cases. Therefore, the excitation rate immediately gives<br />
the total emission line power.<br />
26
3.6.2 Collisional de-excitation<br />
A collision between an ion and a free electron can either bring an electron into a<br />
higher orbit or into a lower orbit. When a bound electron ends up in a lower energy<br />
orbit, the process is called collisional de-excitation. Of course, de-excitation can<br />
only occur when the ion is already in an excited state. Therefore, de-excitation is<br />
in practice important only for high density plasmas, where due to collisions higher<br />
levels are populated, or for so-called metastable levels (levels that have only a small<br />
probability to decay radiatively to a lower level).<br />
The rate coefficient S ′ ji of de-excitation j → i is related to S ij, the rate coefficient<br />
of the inverse excitation process i → j. The relation can be derived from the<br />
principles of detailed balance, and is given by:<br />
S ′ ji = w i<br />
w j<br />
e E ij/kT Sij . (3.17)<br />
27
3.6.3 Radiative transition probabilities<br />
It is well known from quantum mechanics that the occurence of radiative transitions<br />
from one upper level j to a lower level i cannot be predicted in advance. However,<br />
the transition probability can be calculated, and it is usualy denoted by A ji . It has<br />
units of s −1 . The transition probability is related to the dimensionless absorption<br />
oscillator strength f ij that we encounter later (see Sect. 3.10) as<br />
A ji = 4παw if ij E 2 ij<br />
w j m e c 2 h = 4.33 × 1013 s −1 w i<br />
w j<br />
f ij E 2 ij,keV, (3.18)<br />
where E ij is the energy difference between level i and j (the energy of the emitted<br />
line).<br />
28
• Auger channels<br />
[1s]µ K−MM(p)<br />
−→<br />
K−MM(s)<br />
−→<br />
K−LM(p)<br />
−→<br />
K−LM(s)<br />
−→<br />
K−LL<br />
−→<br />
⎧<br />
⎨<br />
⎩<br />
⎧<br />
⎨<br />
µ −2 + e −<br />
[3p]µ −1 + e −<br />
[3s] µ −1 + e −<br />
⎫<br />
⎬<br />
⎭<br />
[3p] 2 µ + e −<br />
[3s] [3p]µ + e −<br />
⎩<br />
[3s] 2 µ + e −<br />
{ }<br />
[2s] µ −1 + e −<br />
[2p] µ −1 + e −<br />
⎧<br />
⎪⎨<br />
⎪⎩<br />
⎧<br />
⎨<br />
⎩<br />
⎫<br />
⎬<br />
⎭<br />
(3.22)<br />
(3.23)<br />
(3.24)<br />
[2s] [3p]µ + e<br />
⎫⎪ −<br />
⎬<br />
[2p][3p] µ + e −<br />
[2s] [3s] µ + e −<br />
(3.25)<br />
⎪ ⎭<br />
[2p][3s]µ + e −<br />
[2s] 2 µ + e −<br />
[2s] [2p]µ + e −<br />
[2p] 2 µ + e −<br />
⎫<br />
⎬<br />
⎭<br />
(3.26)<br />
where the negative exponent of µ stands for the number of electrons that have<br />
been extracted from the outer subshells. In the radiative channels, forbidden and<br />
two-electron transitions have been excluded as it has been confirmed by calculation<br />
that they display very small transition probabilities (log A r < 11). Therefore, the<br />
two main photo-decay pathways are the result of the 2p → 1s and 3p → 1s single<br />
electron jumps that give rise respectively to the Kα (∼ λ1.94) and Kβ (∼ λ1.75)<br />
ar<strong>ray</strong>s.<br />
Let us focus now upon a useful example. If for example neutral Fe (Fei) looses a<br />
K-shell electron by photoionisation, there is a hole in the K-shell. This state should<br />
formally be considered of course as a (core-excited) state of Feii, since now there are<br />
not 26 but 25 electrons left. This hole will be filled. For Fe, in approximately 30 %<br />
of all cases the hole is filled by a radiative transition from the L 2 or L 3 shell (2p),<br />
and in the other 70 % by an Auger transition, usually a K–L 2,3 L 2,3 transition (L 2,3<br />
means here either L 2 or L 3 , i.e. 2p). Therefore, in 30 % of all cases a single vacancy<br />
in the L 2,3 shells is produced, and in 70 % of all cases there are two vacancies in<br />
the L 2,3 shell. These L 2,3 vacancies are in turn filled in most cases by a L 2,3 –MM<br />
transition, etc. In this way one single photoionisation can release several electrons.<br />
For neutral iron one finds that a single K-shell ionisation leads to on average 5.7<br />
free electrons (including the first photo-electron). One L 1 -shell ionisation even leads<br />
to 5.8 electrons, an L 2,3 -shell ionisation to 3.3 electrons, a M 1 -shell ionisation to 2.9<br />
electrons and a M 2,3 -shell ionisation to 2 electrons.<br />
The fluorescence yield ω is defined as the probability of a radiative transition<br />
(fluorescence) to fill a vacancy in an inner shell of an atom or ion. It depends upon<br />
the nuclear charge (see Fig. 3.12).<br />
In general the fluorescence yield is increasing with nuclear charge, and largest for<br />
the innermost shells. For the most abundant elements ω L is small (for Fe < 0.5 %).<br />
For the labelling of fluorescent lines there is a distinct naming convention, invented<br />
by Manne Siegbahn 5 in the 1920’s. See Table 3.5. The notation is based<br />
5 Nobel Prize in Physics in 1924 for his discoveries and research in the field of X-<strong>ray</strong> spectroscopy<br />
30
Figure 3.12: Fluorescence yield as a<br />
function of atomic number Z.<br />
Figure 3.13: Probability of fluorescence,<br />
Coster-Kronig and Auger transitions<br />
for a vacancy in the L 1 subshell.<br />
Table 3.5: Siegbahn notation for inner shell transitions. The table gives the recommended<br />
notation by the IUPAC.<br />
Siegbahn IUPAC Siegbahn IUPAC Siegbahn IUPAC Siegbahn IUPAC<br />
Kα 1 K–L 3 Lα 1 L 3 –M 5 Lγ 1 L 2 –N 4 Mα 1 M 5 –N 7<br />
Kα 2 K–L 2 Lα 2 L 3 –M 4 Lγ 2 L 1 –N 2 Mα 2 M 5 –N 6<br />
Kβ 1 K–M 3 Lβ 1 L 2 –M 4 Lγ 3 L 1 –N 3 Mβ M 4 –N 6<br />
K I β 2 K–N 3 Lβ 2 L 3 –N 5 Lγ 4 L 1 –O 3 Mγ M 3 –N 5<br />
K II β 2 K–N 2 Lβ 3 L 1 –M 3 Lγ 4 ′ L 1 –O 2 Mζ<br />
Kβ 3 K–M 2 Lβ 4 L 1 –M 2 Lγ 5 L 2 –N 1<br />
M 4,5 –N 2,3<br />
K I β 4 K–N 5 Lβ 5 L 3 –O 4,5 Lγ 6 L 2 –O 4<br />
K II β 4 K–N 4 Lβ 6 L 3 –N 1 Lγ 8 L 2 –O 1<br />
Kβ 4x K–N 4 Lβ 7 L 3 –O 1 Lγ 8 ′ L 2 –N 6(7)<br />
K I β 5 K–M 5 Lβ 7 ′ L 3 –N 6,7 Lη L 2 –M 1<br />
K II β 5 K–M 4 Lβ 9 L 1 –M 5 Ll L 3 –M 1<br />
Lβ 10 L 1 –M 4 Ls L 3 –M 3<br />
Lβ 15 L 3 –N 4 Lt L 3 –M 2<br />
Lβ 17 L 2 –M 3 Lu L 3 –N 6,7<br />
Lv L 2 –N 6(7)<br />
upon the relative intensity of lines from different series. The system is still widely<br />
used but incomplete in particular for the M and N series. For this reason the IUPAC<br />
(International Union of Pure and Applied Chemistry) recommends another, more<br />
logical notation (see Table 3.5).<br />
The intensity ratio between Kα 1 and Kα 2 is 2:1. exercise 3.6. Argue why the<br />
above ratio is 2:1. In general Kβ is weaker than Kα. For neutral iron for example<br />
Kβ has about 12 % of the intensity of Kα.<br />
31
3.6.5 Collisional ionisation<br />
Collisional ionisation occurs when during the interaction of a free electron with an<br />
atom or ion the free electron transfers a part of its energy to one of the bound<br />
electrons, which is then able to escape from the ion. A necessary condition is that<br />
the kinetic energy E of the free electron must be larger than the binding energy I<br />
of the atomic shell from which the bound electron escapes.<br />
Q (m 2 )<br />
0 2×10 −26 4×10 −26 6×10 −26<br />
Fe I<br />
Fe XXV<br />
Fe XXVI<br />
10 100 1000<br />
Energy (keV)<br />
Figure 3.14: Illustration of the Lotz formula for three iron ions. Shown is the K-shell<br />
ionisation cross section. Note that Fei and Fexxv have two electrons in this shell,<br />
while Fexxvi only has one (therefore its cross section is half that of Fexxv).<br />
The Lotz formula<br />
There are several formulae that describe the effective cross section Q as a function<br />
of E. A formula that gives a correct order of magnitude estimate of the cross section<br />
σ of this process and that has the proper asymptotic behaviour (first calculated by<br />
Bethe and Born) is the formula of Lotz (1968):<br />
where<br />
and further<br />
uI 2 Q = C ln u, (3.27)<br />
u ≡ E/I (3.28)<br />
C = an s , (3.29)<br />
where n s is the number of electrons in the shell and the normalisation a = 4.5 ×<br />
10 −24 m 2 keV 2 . See Fig. 3.14 for an illustration of the shape and scaling of this<br />
formula.<br />
exercise 3.7. Show that for E → I, Q → 0 and in particular Q ∼ E−I. Determine<br />
the constant of proportionality.<br />
It is further evident that for E → ∞ the cross section Q ∼ (ln E)/E → 0. This<br />
shows that energetic electrons are not very efficient in ionising an atom or ion. They<br />
pass too fast.<br />
32
The formula of Younger<br />
While the Lotz formula in general gives the right order of magnitude for the cross<br />
section, it is not the most accurate and flexible formula for representation of the<br />
direct ionisation cross section Q. A better formula was obtained by Younger (1981):<br />
uI 2 Q = A(1 − 1 u ) + B(1 − 1 u )2 + C ln u + D ln u<br />
u . (3.30)<br />
The constants A, B, C and D differ per ion and shell. Note that the Lotz formula<br />
is a special case of this equation.<br />
Figure 3.15: Example of a fit to direct ionisation cross sections. From Arnaud &<br />
Rothenflug (1985).<br />
In general it is not always simple to calculate Q theoretically, and sometimes<br />
discrepancies between theory and observations remain. However, experimental data<br />
are also not always available, or sometimes the experiments suffer from ”contamination”,<br />
for instance because of contamination from so-called metastable levels. In<br />
general an uncertainty of 5 −10 % is not uncommon in the cross sections. The same<br />
holds by the way for many of the other processes that we describe elsewhere in this<br />
chapter. See Fig. 3.15 for an example of a fit to direct ionisation cross sections.<br />
Integration over an electron distribution<br />
You may have wondered why we have expressed the left hand side of eqns. (3.27)<br />
and (3.30) in the strange form uI 2 Q. The reason is that we need to average the<br />
effective cross section over a Maxwellian electron distribution:<br />
f(v) = n e ( 2 v 2<br />
π )1/2 e −v2 /2ve, 2 (3.31)<br />
where v 2 e ≡ kT/m e and m e is the electron mass. The total number of direct ionisations<br />
per unit volume per unit time is then given by:<br />
∫∞<br />
C DI = n i<br />
0<br />
v 3 e<br />
vf(v)Q(v)dv. (3.32)<br />
33
In this equation n i is the ion density of the ion that is being considered. It is easy<br />
to show (see exercise below) that this implies<br />
C DI =<br />
2√ ∫∞<br />
2n e n i<br />
√ (uI 2 Q)e −uy du, (3.33)<br />
πme (kT) 3<br />
1<br />
where<br />
y ≡ I/kT. (3.34)<br />
exercise 3.8. Show that by substituting E = 1 2 m ev 2 and u = E/I you arrive at<br />
eqn. (3.33).<br />
We see that the direct ionisation rate follows immediately from the Laplace<br />
transform of uI 2 Q.<br />
It can be shown that by substitution of the Lotz formula (3.27) into (3.33) the<br />
integral can be expressed as:<br />
C DI = 2√ 2n e n i C E<br />
√ 1 (y)<br />
, (3.35)<br />
πme (kT) 3 y<br />
where E 1 (x) is the exponential integral (see 3.12).<br />
We apply the asymptotic approximations (3.13) and (3.14) now to eqn. (3.35)<br />
and we see that<br />
kT ≪ I :<br />
C DI ≃ ( 2√ 2C<br />
√ πme<br />
) n en i<br />
√<br />
kTe<br />
−I/kT<br />
I 2 (3.36)<br />
and<br />
kT ≫ I :<br />
C DI ≃ ( 2√ 2C<br />
√ πme<br />
) n en i ln(kT/I)<br />
I √ kT<br />
(3.37)<br />
For low temperatures, the ionisation rate therefore goes exponentially to zero. This<br />
can be understood simply, because for low temperatures only the electrons from the<br />
exponential tail of the Maxwell distribution have sufficient energy to ionise the atom<br />
or ion. For higher temperatures the ionisation rate also approaches zero, but this<br />
time because the cross section at high energies is small.<br />
For each ion the direct ionisation rate per atomic shell can now be determined.<br />
The total rate follows immediately by adding the contributions from the different<br />
shells. Usually only the outermost two or three shells are important. That is because<br />
of the scaling with I −2 and I −1 in (3.36) and (3.37), respectively.<br />
34
3.6.6 Excitation-Autoionisation<br />
In the previous section we showed how a collision of a free electron with an ion can<br />
lead to ionisation. In principle, if the free electron has insufficient energy (E < I),<br />
there will be no ionisation. However, even in that case it is sometimes possible to<br />
ionise, but in a more complicated way. The process is as follows. The collision<br />
can bring one of the electrons in the outermost shells in a higher quantum level<br />
(excitation). In most cases, the ion will return to its ground level by a radiative<br />
transition. But in some cases the excited state is unstable, and a <strong>radiation</strong>less Auger<br />
transition can occur. Later on we will treat the Auger process in more detail, but<br />
shortly speaking the vacancy that is left behind by the excited electron is being filled<br />
by another electron from one of the outermost shells, while the excited electron is<br />
able to leave the ion (or a similar, process with the role of both electrons reversed).<br />
Because of energy conservation, this process only occurs if the excited electron<br />
comes from one of the inner shells (the ionisation potential barrier must be taken<br />
anyhow). The process is in particular important for Li-like and Na-like ions, and<br />
for several other individual atoms and ions.<br />
Figure 3.16: The Excitation-Autoionisation process for a Li-like ion.<br />
As an example we treat here Li-like ions (see Fig. 3.16). In that case the most<br />
important contribution comes from a 1s–2p excitation. The effective cross section<br />
Q for excitation from 1s to 2p followed by auto-ionisation can be approximated by<br />
(E H = 13.6 eV):<br />
Q = πa 2 0 2B<br />
Z2<br />
Z 2 eff (1s) E H<br />
E Ω H (3.38)<br />
in which a 0 is the Bohr radius, and Z eff = Z − 0.43 is the effective charge that<br />
a 1s electron experiences because of the presence of the other 1s electron and the<br />
2s electron in the Li-like ion. Just as before, E is the energy of the free electron<br />
that causes the excitation. Further, B is the so-called branching ratio. It gives<br />
the probability that after the excitation there will be an auto-ionisation (the other<br />
possibility was a radiative transition). The following approximation for B can be<br />
used:<br />
1<br />
B ≃<br />
(3.39)<br />
1 + (Z/17) 3<br />
Finally, the scaled hydrogenic collision strength is given by:<br />
Z 2 Ω H ≃ 2.22 lnǫ + 0.67 − 0.18<br />
ǫ<br />
35<br />
+ 1.20<br />
ǫ 2 (3.40)
where ǫ ≡ E/E ex and the excitation energy E ex ≡ I 1s − I 2p . Similar to the case of<br />
direct ionisation, it is straightforward to average the excitation-autoionisation cross<br />
section over a Maxwellian electron distribution.<br />
Figure 3.17: Collisional ionisation<br />
cross section for Ovi.<br />
Figure 3.18: Collisional ionisation<br />
cross section for Fexvi.<br />
In Figs. 3.17 and 3.18 we show the total collisional ionisation cross section (direct<br />
+ excitation-autoionisation) for an ion in the Li electronic sequence and the Na<br />
isoelectronic sequence. Clearly, for Fexvi the excitation autoionisation process is<br />
very important. The increasing importance of excitation autoionisation relative to<br />
direct ionisation is also illustrated in Fig. 3.19.<br />
Figure 3.19: Ratio between the Excitation-Autoionisation cross section to the Direct<br />
Ionisation cross section for Na-like ions. From Arnaud & Rothenflug (1985).<br />
36
3.6.7 Photoionisation<br />
Figure 3.20: Photoionisation cross section in barn (10 −28 m −2 ) for Fei (left) and<br />
Fexvi (right). The p and d states (dashed and dotted) have two lines each because<br />
of splitting into two sublevels with different j.<br />
This process is very similar to direct ionisation. The difference is that in the case<br />
of photoionisation a photon instead of an electron is causing the ionisation. Further,<br />
the effective cross section is in general different from that for direct ionisation. As<br />
an example Fig. 3.20 shows the cross section for neutral iron and Na-like iron. It<br />
is evident that for the more highly ionised iron the so-called ”edges” (ionisation<br />
potentials) are found at higher energies than for neutral iron. Contrary to the case<br />
of direct ionisation, the cross section at threshold for photoionisation is not zero. The<br />
effective cross section just above the edges sometimes changes rapidly (the so-called<br />
Cooper minima and maxima).<br />
Contrary to the direct ionisation, all the inner shells have now the largest cross<br />
section. For the K-shell one can approximate for E > I<br />
σ(E) ≃ σ 0 (I/E) 3 (3.41)<br />
where as before I is the edge energy. For a given ionising spectrum F(E) (photons<br />
per unit volume per unit energy) the total number of photoionsations follows as<br />
C PI = c<br />
For hydrogenlike ions one can write:<br />
∫ ∞<br />
0<br />
n i σ(E)F(E)dE. (3.42)<br />
σ PI = 64πng(E, n)αa2 0<br />
3 √ 3Z 2 ( I E )3 , (3.43)<br />
where n is the principal quantum number, α the fine structure constant and A 0 the<br />
Bohr radius. The gaunt factor g(E, n) is of order unity and varies only slowly. It<br />
has been calculated and tabulated by Karzas & Latter (1961). The above equation<br />
is also applicable to excited states of the atom, and is a good approximation for all<br />
excited atoms or ions where n is larger than the corresponding value for the valence<br />
electron.<br />
37
3.6.8 Compton ionisation<br />
Scattering of a photon on an electron generally leads to energy transfer from one<br />
of the particles to the other. In most cases only scattering on free electrons is<br />
considered. But Compton scattering also can occur on bound electrons. If the energy<br />
transfer from the photon to the electron is large enough, the ionisation potential can<br />
be overcome leading to ionisation. This is the Compton ionisation process.<br />
Figure 3.21: Compton ionisation cross section for neutral atoms of H, He, C, N, O,<br />
Ne and Fe.<br />
In the Thomson limit the differential cross section for Compton scattering is<br />
given by<br />
dσ<br />
dΩ = 3σ T<br />
16π (1 + cos2 θ), (3.44)<br />
with θ the scattering angle and σ T the Thomson cross section (6.65 × 10 −29 m −2 ).<br />
The energy transfer ∆E during the scattering is given by (E is the photon energy):<br />
∆E =<br />
E 2 (1 − cosθ)<br />
m e c 2 + E(1 − cosθ) . (3.45)<br />
Only those scatterings where ∆E > I contribute to the ionisation. This defines a<br />
critical angle θ c , given by:<br />
cosθ c = 1 −<br />
m ec 2 I<br />
E 2 − IE . (3.46)<br />
For E ≫ I we have σ(E) → σ T (all scatterings lead in that case to ionisation) and<br />
further for θ c → π we have σ(E) → 0. Because for most ions I ≪ m e c 2 , this last<br />
condition occurs for E ≃ √ Im e c 2 /2 ≫ I. See Fig. 3.21 for an example of some<br />
cross sections. In general, Compton ionisation is important if the ionising spectrum<br />
contains a significant hard X-<strong>ray</strong> contribution, for which the Compton cross section<br />
is larger than the steeply falling photoionisation cross section.<br />
One sees immediately that for E ≫ I we have σ(E) → σ T (all scatterings lead<br />
in that case to ionisation) and further that for θ c → π we have σ(E) → 0. Because<br />
for most ions I ≪ m e c 2 , this last condition occurs for E ≃ √ Im e c 2 /2 ≫ I. See<br />
Fig. 3.21 for an example of some cross sections.<br />
exercise 3.9. Estimate for which energy Compton ionisation becomes more important<br />
than photoionisation for neutral iron.<br />
38
3.6.9 Radiative recombination<br />
Radiative recombination is the reverse process of photoionisation. A free electron is<br />
captured by an ion while emitting a photon. The released <strong>radiation</strong> is the so-called<br />
free-bound continuum emission. It is relatively easy to show that there is a simple<br />
relation between the photoionisation cross section σ bf (E) and the recombination<br />
cross section σ fb , namely the Milne-relation:<br />
σ fb (v) = E2 g n σ bf (E)<br />
m e c 2 m e v 2 (3.47)<br />
where g n is the statistical weight of the quantum level into which the electron is captured<br />
(for an empty shell this is g n = 2n 2 ). By averaging over a Maxwell distribution<br />
one gets the recombination-coefficient to level n:<br />
∫∞<br />
R n = n i n e<br />
Of course there is energy conservation, so E = 1 2 m ev 2 + I.<br />
0<br />
vf(v)σ fb (v)dv. (3.48)<br />
exercise 3.10. Demonstrate that for the photoionisation cross section (3.43) and<br />
for g = 1, constant and g n = 2n 2 :<br />
R n = 128√ 2πn 3 αa 2 0I 3 e I/kT n i n e<br />
3 √ 3m e kTZ 2 kTm e c 3 E 1 (I/kT) (3.49)<br />
With the asymptotic relations (3.13) and (3.14) it is seen that<br />
kT ≪ I : R n ∼ T −1 2 (3.50)<br />
kT ≫ I : R n ∼ ln(I/kT)T −3/2 (3.51)<br />
Therefore for T → 0 the recombination coefficient approaches infinity: a cool plasma<br />
is hard to ionise. For T → ∞ the recombination coefficient goes to zero, because of<br />
the Milne relation (v → ∞) and because of the sharp decrease of the photoionisation<br />
cross section for high energies.<br />
As a rough approximation we can use further that I ∼ (Z/n) 2 . Substituting<br />
this we find that for kT ≪ I (recombining plasma’s) R n ∼ n −1 , while for kT ≫ I<br />
(ionising plasma’s) R n ∼ n −3 . In recombining plasma’s therefore in particular many<br />
higher excited levels will be populated by the recombination, leading to significantly<br />
stronger line emission (see Sect. 3.9). On the other hand, in ionising plasmas (such<br />
as supernova remnants) recombination mainly occurs to the lowest levels. Note<br />
that for recombination to the ground level the approximation (3.49) cannot be used<br />
(the hydrogen limit), but instead one should use the exact photoionisation cross<br />
section of the valence electron. By adding over all values of n and applying an<br />
approximation Seaton (1959) found for the total radiative recombination rate α RR<br />
(in units of m −3 s −1 ):<br />
α RR ≡ ∑ n<br />
R n = 5.197 × 10 −20 Zλ 1/2 {0.4288 + 0.5 lnλ + 0.469λ −1/3 } (3.52)<br />
39
with λ ≡ E H Z 2 /kT and E H the Rydberg energy (13.6 eV). Note that this equation<br />
only holds for hydrogen-like ions. For other ions usually an analytical fit to numerical<br />
calculations is used:<br />
α RR ∼ T −η (3.53)<br />
where the approximation is strictly speaking only valid for T near the equilibrium<br />
concentration. The approximations (3.50) and (3.51) raise suspicion that for T → 0<br />
or T → ∞ (3.53) could be a poor choice.<br />
40
3.6.10 Dielectronic recombination<br />
This process is more or less the inverse of excitation-autoionisation. Now a free<br />
electron interacts with an ion, by which it is caught (quantum level n ′′ l ′′ ) but at the<br />
same time it excites an electron from (nl) → (n ′ l ′ ). The doubly excited state is in<br />
general not stable, and the ion will return to its original state by auto-ionisation.<br />
However there is also a possibility that one of the excited electrons (usually the<br />
electron that originally belonged to the ion) falls back by a radiative transition to<br />
the ground level, creating therefore a stable, albeit excited state (n ′′ l ′′ ) of the ion.<br />
In particular excitations with l ′ = l+1 contribute much to this process. In order to<br />
calculate this process, one should take account of many combinations (n ′ l ′ )(n ′′ l ′′ ).<br />
The final transition probability is often approximated by<br />
α DR = A<br />
T 3/2e−T 0/T (1 + Be −T 1/T ) (3.54)<br />
where A, B, T 0 and T 1 are adjustable parameters. Note that for T → ∞ the<br />
asymptotic behaviour is identical to the case of radiative recombination. For T → 0<br />
however, dielectronic recombination can be neglected; this is because the free electron<br />
has insufficient energy to excite a bound electron. Dielectronic recombination<br />
is a dominant process in the Solar corona, and also in other situations it is often<br />
very important.<br />
41
3.6.11 Charge transfer ionisation and recombination<br />
In most cases ionisation or recombination in collisionally ionised plasmas is caused<br />
by interactions of an ion with a free electron. At low temperatures (typically below<br />
10 5 K) also charge transfer reactions become important. During the interaction<br />
of two ions, an electron may be transferred from one ion to the other; it is usually<br />
captured in an excited state, and the excited ion is stabilised by one or more radiative<br />
transitions. As hydrogen and helium outnumber by at least a factor of 100 any other<br />
element, in practice only interactions between those elements and heavier nuclei are<br />
important. Reactions with Hi and Hei lead to recombination of the heavier ion,<br />
and reactions with Hii and Heii to ionisation.<br />
Figure 3.22: The effects of charge transfer reactions on the ionisation balance.<br />
We show the role of charge transfer processes on the ionisation balance in Fig. 3.22.<br />
The electron captured during charge transfer recombination of an oxygen ion<br />
(for instance Ovii, Oviii) is usually captured in an intermediate quantum state<br />
(principal quantum number n = 4 − 6). This leads to enhanced line emission from<br />
that level as compared to the emission from other principal levels, and this signature<br />
can be used to show the presence of charge transfer reactions. Another signature –<br />
actually a signature for all recombining plasmas – is of course the enhancement of<br />
the forbidden line relative to the resonance line in the Ovii triplet (Sect. 3.9).<br />
An important example is the charge transfer of highly charged ions from the<br />
Solar wind with the neutral or weakly ionised Geocorona. Whenever the Sun is<br />
more active, this process may produce enhanced thermal soft X-<strong>ray</strong> emission in<br />
addition to the steady foreground emission from our own Galaxy. See Bhardwaj et<br />
al. (2006) for a review of X-<strong>ray</strong>s from the Solar System. Care should be taken not<br />
to confuse this temporary enhanced Geocoronal emission with soft excess emission<br />
in a background astrophysical source.<br />
42
3.7 The ionisation balance<br />
In order to calculate the X-<strong>ray</strong> emission or absorption from a plasma, apart from the<br />
physical conditions also the ion concentrations must be known. These ion concentrations<br />
can be determined by solving the equations for ionisation balance (or in more<br />
complicated cases by solving the time-dependent equations). A basic ingredient in<br />
these equations are the ionisation and recombination rates, that we discussed in the<br />
previous section. Here we consider three of the most important cases: collisional<br />
ionisation equilibrium, non-equilibrium ionisation and photoionisation equilibrium.<br />
3.7.1 Collisional Ionisation Equilibrium (CIE)<br />
The simplest case is a plasma in collisional ionisation equilibrium (CIE). In this case<br />
one assumes that the plasma is optically thin for its own <strong>radiation</strong>, and that there<br />
is no external <strong>radiation</strong> field that affects the ionisation balance.<br />
Photo-ionisation and Compton ionisation therefore can be neglected in the case<br />
of CIE. This means that in general each ionisation leads to one additional free electron,<br />
because the direct ionisation and excitation-autoionisation processes are most<br />
efficient for the outermost atomic shells. The relevant ionisation processes are collisional<br />
ionisation and excitation-autoionisation, and the recombination processes<br />
are radiative recombination and dielectronic recombination. Apart from these processes,<br />
at low temperatures also charge transfer ionisation and recombination are<br />
important.<br />
We define R z as the total recombination rate of an ion with charge z to charge<br />
z −1, and I z as the total ionisation rate for charge z to z +1. Ionisation equilibrium<br />
then implies that the net change of ion concentrations n z should be zero:<br />
z > 0 : n z+1 R z+1 − n z R z + n z−1 I z−1 − n z I z = 0 (3.55)<br />
and in particular for z = 0 one has<br />
n 1 R 1 = n 0 I 0 (3.56)<br />
(a neutral atom cannot recombine further and it cannot be created by ionisation).<br />
Next an arbitrary value for n 0 is chosen, and (3.56) is solved:<br />
n 1 = n 0 (I 0 /R 1 ). (3.57)<br />
This is substituted into (3.55) which now can be solved. Using induction, it follows<br />
that<br />
n z+1 = n z (I z /R z+1 ). (3.58)<br />
Finally everything is normalised by demanding that<br />
Z∑<br />
n z = n element (3.59)<br />
z=0<br />
where n element is the total density of the element, determined by the total plasma<br />
density and the chemical abundances.<br />
Examples of plasmas in CIE are the Solar corona, coronae of stars, the hot<br />
intracluster medium, the diffuse Galactic ridge component. Fig. 3.23 shows the ion<br />
fractions as a function of temperature for two important elements.<br />
43
Figure 3.23: Ion concentration of oxygen ions (left panel) and iron ions (right panel)<br />
as a function of temperature in a plasma in Collisional Ionisation Equilibrium (CIE).<br />
Ions with completely filled shells are indicated with thick lines: the He-like ions Ovii<br />
and Fexxv, the Ne-like Fexvii and the Ar-like Feix; note that these ions are more<br />
prominent than their neighbours.<br />
3.7.2 Non-Equilibrium Ionisation (NEI)<br />
The second case that we discuss is non-equilibrium ionisation (NEI). This situation<br />
occurs when the physical conditions of the source, like the temperature, suddenly<br />
change. A shock, for example, can lead to an almost instantaneous rise in temperature.<br />
However, it takes a finite time for the plasma to respond to the temperature<br />
change, as ionisation balance must be recovered by collisions. Similar to the CIE<br />
case we assume that photoionisation can be neglected. For each element with nuclear<br />
charge Z we write:<br />
1<br />
n e (t)<br />
d<br />
⃗n(Z, t) = A(Z, T(t))⃗n(Z, t) (3.60)<br />
dt<br />
where ⃗n is a vector of length Z + 1 that contains the ion concentrations, and which<br />
is normalised according to Eqn. 3.59. The transition matrix A is a (Z +1) ×(Z +1)<br />
matrix given by<br />
⎛<br />
A =<br />
⎜<br />
⎝<br />
⎞<br />
−I 0 R 1 0 0 . . .<br />
I 0 −(I 1 + R 1 ) R 2 0<br />
0 I 1 . . . . . .<br />
.<br />
. .. . . . .<br />
. . . R Z−1 0<br />
⎟<br />
. . . 0 I Z−2 −(I Z−1 + R Z−1 ) R Z<br />
⎠<br />
. . . 0 I Z−1 −R Z<br />
We can write the equation in this form because both ionisations and recombinations<br />
are caused by collisions of electrons with ions. Therefore we have the uniform scaling<br />
with n e .<br />
In general, the set of equations (3.60) must be solved numerically. Because the<br />
characteristic time constants of the ions can have quite different values, solution<br />
through standard methods (for example Runge-Kutta integration) will take a lot<br />
44<br />
.
of computing time. Therefore one uses a trick. First, the eigenvalues (λ) of A<br />
are determined, and also the corresponding eigenvectors ⃗ V . These are put into a<br />
matrix V. We now transform the concentrations ⃗n to the eigenvector basis; the<br />
concentrations on the eigenvector basis will be denoted by ⃗m. By definition, we<br />
then have<br />
⃗n = V⃗m. (3.61)<br />
We now define a diagonal matrix Λ which has the eigenvalues on its diagonal. We<br />
then have<br />
AV = ΛV. (3.62)<br />
Using this we rewrite (3.60) as<br />
1 d<br />
V⃗m = ΛV⃗m. (3.63)<br />
n e dt<br />
For small steps in T the transition matrix A does not vary much. Therefore, for<br />
any time interval where T changes by only a small amount we can assume A and<br />
thereby Λ and V to be constant. In that case, one can interchange the order of<br />
matrix multiplication and differentiation in the left hand side of (3.63). It is then<br />
simple to solve this equation. One finds as a solution<br />
⃗m(t) = V −1 PV⃗m(t 1 ) (3.64)<br />
where the solution is valid for t ≥ t 1 and as long as T(t) − T(t 1 ) is small. Here P is<br />
a diagonal matrix with elements e λ∆u where<br />
∆u ≡<br />
∫ t<br />
t 1<br />
n e (t)dt. (3.65)<br />
For each interval in T one can now determine the eigenvectors and eigenvalues<br />
once and for all and store these for example in the computer memory. By systematically<br />
subdividing the range of T(t) in small intervals ∆T, one finds the final solution<br />
simply by applying repeatedly simple exponentiation and matrix multiplication.<br />
The time evolution of the plasma can be described in general well by the parameter<br />
∫<br />
U = n e dt. (3.66)<br />
The integral should be done over a co-moving mass element. Typically, for most<br />
ions equilibrium is reached for U ∼ 10 18 m −3 s. We should mention here, however,<br />
that the final outcome also depends on the temperature history T(t) of the mass<br />
element, but in most cases the situation is simplified to T(t) = constant.<br />
3.7.3 Photoionisation Equilibrium (PIE)<br />
The third case that we treat are the photoionised plasmas. Usually one assumes<br />
equilibrium (PIE), but there are of course also extensions to non-equilibrium photoionised<br />
situations. Apart from the same ionisation and recombination processes that<br />
play a role for plasmas in NEI and CIE, also photoionisation and Compton ionisation<br />
are relevant. Because of the multiple ionisations caused by Auger processes, the<br />
45
equation for the ionisation balance is not as simple as (3.55), because now one needs<br />
to couple more ions. Moreover, not all rates scale with the product of electron<br />
and ion density, but the balance equations also contain terms proportional to the<br />
product of ion density times photon density. In addition, apart from the equation<br />
for the ionisation balance, one needs to solve simultaneously an energy balance<br />
equation for the electrons. In this energy equation not only terms corresponding<br />
to ionisation and recombination processes play a role, but also several <strong>radiation</strong><br />
processes (Bremsstrahlung, line <strong>radiation</strong>) or Compton scattering. The equilibrium<br />
temperature must be determined in an iterative way. A classical paper describing<br />
such photoionised plasmas is Kallman & McG<strong>ray</strong> (1982).<br />
46
3.8 Continuum emission processes<br />
After we have determined the ionisation balance, and solved for the ion concentrations,<br />
it is possible to calculate the X-<strong>ray</strong> spectrum of a plasma. We distinguish<br />
continuum <strong>radiation</strong> and line <strong>radiation</strong>. Here we discuss briefly the continuum emission<br />
processes: Bremsstrahlung, free-bound emission and two-photon emission.<br />
3.8.1 Bremsstrahlung<br />
Bremsstrahlung is caused by a collision between a free electron and an ion. The<br />
emissivity ǫ ff (photonsm −3 s −1 J −1 ) can be written as:<br />
ǫ ff = 2√ 2ασ T cn e n i Zeff<br />
2 ( me c 2 ) 1<br />
2<br />
√ g ff e −E/kT , (3.67)<br />
3πE kT<br />
where α is the fine structure constant, σ T the Thomson cross section, n e and n i the<br />
electron and ion density, and E the energy of the emitted photon. The factor g ff is<br />
the so-called Gaunt factor and is a dimensionless quantity of order unity. Further,<br />
Z eff is the effective charge of the ion, defined as<br />
Z eff =<br />
( n<br />
2 )1<br />
r I r 2<br />
E H<br />
(3.68)<br />
where E H is the ionisation energy of hydrogen (13.6 eV), I r the ionisation potential of<br />
the ion after a recombination, and n r the corresponding principal quantum number.<br />
Example 3.14. For the Bremsstrahlung of Feii (Fe + ) one should take the ionisation<br />
potential of neutral iron (7.87 eV); the outermost electron for neutral iron has a 4s<br />
orbit, implying n r = 4 and hence for Feii we find Z eff = 3.04.<br />
Figure 3.24: The Gaunt factor for Bremsstrahlung. Note that ζ is Euler’s constant<br />
(1.781 . . .).<br />
It is also possible to write (3.67) as ǫ ff = P ff n e n i with<br />
P ff = 3.031 × 10−21 Z 2 eff g effe −E/kT<br />
E keV T 1/2<br />
keV<br />
47<br />
, (3.69)
where in this case P ff is in photons ×m 3 s −1 keV −1 and E keV is the energy in keV.<br />
The total amount of <strong>radiation</strong> produced by this process is given by<br />
W tot = 4.856 × 10−37 Wm 3<br />
√<br />
TkeV<br />
∫∞<br />
0<br />
Z 2 eff g ffe −E/kT dE keV . (3.70)<br />
From (3.67) we see immediately that the Bremsstrahlung spectrum (expressed in<br />
Wm −3 keV −1 ) is flat for E ≪ kT, and for E > kT it drops exponentially. In order<br />
to measure the temperature of a hot plasma, one needs to measure near E ≃ kT. The<br />
Gaunt factor g ff can be calculated analytically; there are both tables and asymptotic<br />
approximations available. In general, g ff depends on both E/kT and kT/Z eff . See<br />
Fig. 3.24.<br />
For a plasma (3.67) needs to be summed over all ions that are present in order<br />
to calculate the total amount of Bremsstrahlung <strong>radiation</strong>. For cosmic abundances,<br />
hydrogen and helium usually yield the largest contribution. Frequently, one defines<br />
an average Gaunt factor G ff by<br />
G ff = ∑ ( ni<br />
)<br />
Zeff,i 2 g eff,i . (3.71)<br />
n<br />
i e<br />
3.8.2 Free-bound emission<br />
Free-bound emission occurs during radiative recombination (Sect. 3.6.9).<br />
exercise 3.11. Why is there no free-bound emission for dielectronic recombination?<br />
The energy of the emitted photon is at least the ionisation energy of the recombined<br />
ion (for recombination to the ground level) or the ionisation energy that<br />
corresponds to the excited state (for recombination to higher levels). From the<br />
recombination rate (see Sect. 3.6.9) the free-bound emission is determined immediately:<br />
ǫ fb = ∑ i<br />
n e n i R r . (3.72)<br />
Also here it is possible to define an effective Gaunt factor G fb . Free-bound emission<br />
is in practice often very important. For example in CIE for kT = 0.1 keV, free-bound<br />
emission is the dominant continuum mechanism for E > 0.1 keV; for kT = 1 keV<br />
it dominates above 3 keV. For kT ≫ 1 keV Bremsstrahlung is always the most<br />
important mechanism, and for kT ≪ 0.1 keV free-bound emission dominates. See<br />
also Fig. 3.25.<br />
Of course, under conditions of photoionisation equilibrium free-bound emission<br />
is even more important, because there are more recombinations than in the CIE<br />
case (because T is lower, at comparable ionisation).<br />
3.8.3 Two photon emission<br />
This process is in particular important for hydrogen-like or helium-like ions. After<br />
a collision with a free electron, an electron from a bound 1s shell is excited to the<br />
2s shell. The quantum-mechanical selection rules do not allow that the 2s electron<br />
48
decays back to the 1s orbit by a radiative transition. Usually the ion will then be<br />
excited to a higher level by another collision, for example from 2s to 2p, and then it<br />
can decay radiatively back to the ground state (1s). However, if the density is very<br />
low (n e ≪ n e,crit , Eqn. 3.74–3.75), the probability for a second collision is very small<br />
and in that case two-photon emission can occur: the electron decays from the 2s<br />
orbit to the 1s orbit while emitting two photons. Energy conservation implies that<br />
the total energy of both photons should equal the energy difference between the 2s<br />
and 1s level (E 2phot = E 1s −E 2s ). From symmetry considerations it is clear that the<br />
spectrum must be symmetrical around E = 0.5E 2phot , and further that it should be<br />
zero for E = 0 and E = E 2phot . An empirical approximation for the shape of the<br />
spectrum is given by:<br />
√<br />
F(E) ∼ sin(πE/E 2phot ). (3.73)<br />
An approximation for the critical density below which two photon emission is important<br />
can be obtained from a comparison of the radiative and collisional rates from<br />
the upper (2s) level, and is given by Mewe, Gronenschild & van den Oord (1986):<br />
H − like : n e,crit = 7 × 10 9 m −3 Z 9.5 (3.74)<br />
He − like : n e,crit = 2 × 10 11 m −3 (Z − 1) 9.5 . (3.75)<br />
For example for carbon two photon emission is important for densities below 10 17 m −3 ,<br />
which is the case for many astrophysical applications. Also in this case one can determine<br />
an average Gaunt factor G 2phot by averaging over all ions. Two photon<br />
emission is important in practice for 0.5 kT 5 keV, and then in particular for<br />
the contributions of C, N and O between 0.2 and 0.6 keV. See also Fig. 3.25.<br />
3.9 Line <strong>radiation</strong><br />
Apart from continuum <strong>radiation</strong>, line <strong>radiation</strong> plays an important role for thermal<br />
plasmas. In some cases the flux, integrated over a broad energy band, can be<br />
completely dominated by line <strong>radiation</strong> (see Fig. 3.25). The production process of<br />
line <strong>radiation</strong> can be broken down in two basic steps: the excitation and the emission<br />
process.<br />
3.9.1 Line <strong>radiation</strong>: excitation<br />
Collisional excitation<br />
A bound electron in an ion can be brought into a higher, excited energy level through<br />
a collision with a free electron. Before we already discussed the case where the<br />
excited state is unstable, which sometimes can lead to auto-ionisation. In most<br />
cases, however, the excited state is stable and the ion will decay back to the ground<br />
level by means of a radiative transition, either directly or through one or more steps<br />
through intermediate energy levels.<br />
We have seen before that the excitation rate from level i to level j can be written<br />
as (Eq. 3.9):<br />
S ij = S 0 ¯Ω(Eij /kT)T −1/2 e −E ij/kT , (3.76)<br />
For sufficient low density every excitation is followed immediately by a radiative<br />
de-excitation to the ground level (or an intermediate level). Apart of a small<br />
49
Figure 3.25: Emission spectra of plasmas with solar abundances. The histogram<br />
indicates the total spectrum, including line <strong>radiation</strong>. The spectrum has been binned<br />
in order to show better the relative importance of line <strong>radiation</strong>. The thick solid<br />
line is the total continuum emission, the thin solid line the contribution due to<br />
Bremsstrahlung, the dashed line free-bound emission and the dotted line two-photon<br />
emission. Note the scaling with Ee E/kT along the y-axis.<br />
correction factor C 1 for cascades from higher excited levels to level k, and possibly<br />
a correction factor B for decay to intermediate levels or for autoionisation, (3.9)<br />
gives the line power from level k to the ground level. The factor B is the so-called<br />
branching ratio.<br />
Radiative recombination<br />
When a free electron is captured by an ion, continuum <strong>radiation</strong> is produced (freebound<br />
emission). The captured electron not always reaches the ground level immediately.<br />
We have seen before that in particular for cool plasma’s (kT ≪ I) the<br />
higher excited levels are frequently populated. In order to get to the ground state,<br />
one or more radiative transitions are required. Apart from cascade corrections from<br />
and to higher levels the recombination line <strong>radiation</strong> is essentially given by (3.49).<br />
A comparison of recombination with excitation tells that in particular for low temperatures<br />
(compared to the line energy) recombination <strong>radiation</strong> dominates, and for<br />
high temperatures excitation <strong>radiation</strong>.<br />
50
Inner-shell ionisation<br />
The third line <strong>radiation</strong> process is inner–shell ionisation. An electron from one of<br />
the inner shells can be removed from an ion not only by photoionisation, but also<br />
through a collision with electrons. This last process is in particular important under<br />
NEI conditions, for example in supernova remnants. There the plasma temperature<br />
can be much higher than the typical ionisation energy of the ions that are present.<br />
By means of fluorescence (discussed before) the hole in the shell can be filled again.<br />
Obviously, the line power is proportional to the ionisation cross section times the<br />
fluorescence yield.<br />
Dielectronic recombination<br />
Dielectronic recombination produces more than one line photon. Consider for example<br />
the dielectronic recombination of a He-like ion into a Li-like ion:<br />
e + 1s 2 → 1s2p3s → 1s 2 3s + hν 1 → 1s 2 2p + hν 2 → 1s 2 2s + hν 3 (3.77)<br />
The first arrow corresponds to the electron capture, the second arrow to the<br />
stabilising radiative transition 2p→1s and the third arrow to the radiative transition<br />
3s→2p of the captured electron. This last transition would have also occurred if the<br />
free electron was caught directly into the 3s shell by normal radiative recombination.<br />
Finally, the electron has to decay further to the ground level and this can go through<br />
the normal transitions in a Li-like ion (fourth arrow). This single recombination thus<br />
produces three line photons.<br />
Because of the presence of the extra electron in the higher orbit, the energy hν 1<br />
of the 2p→1s transition is slightly different from the energy in a normal He-like ion.<br />
The stabilising transition is therefore also called a satellite line. Because there are<br />
many different possibilities for the orbit of the captured electron, one usually finds<br />
a forest of such satellite lines surrounding the normal 2p→1s excitation line in the<br />
He-like ion (or analogously for other iso-electronic sequences). Fig. 3.26 gives an<br />
example of these satellite lines.<br />
3.9.2 Line <strong>radiation</strong>: emission<br />
It does not matter by whatever process the ion is brought into an excited state j,<br />
whenever it is in such a state it may decay back to the ground state or any other<br />
lower energy level i by emitting a photon. The probability per unit time that this<br />
occurs is given by the spontaneous transition probability A ij (units: s −1 ) which is a<br />
number that is different for each transition. The total line power P ij (photons per<br />
unit time and volume) is then given by<br />
P ij = A ij n j (3.78)<br />
where n j is the number density of ions in the excited state j. For the most simple<br />
case of excitation from the ground state g (rate S gj ) followed by spontaneous<br />
emission, one can simply approximate n g n e S gj = n j A gj . From this equation, the<br />
relative population n j /n g ≪ 1 is determined, and then using (3.78) the line flux<br />
is determined. In realistic situations, however, things are more complicated. First,<br />
51
Figure 3.26: Spectrum of a plasma in collisional ionisation equilibrium with kT =<br />
2 keV, near the Fe-K complex. Lines are labelled using the most common designations<br />
in this field. The Fexxv ”triplet” consists of the resonance line (w),<br />
intercombination line (actually split into x and y) and the forbidden line (z). All<br />
other lines are satellite lines. The labelled satellites are lines from Fexxiv, most of<br />
the lines with energy below the forbidden (z) line are from Fexxiii. The relative<br />
intensity of these satellites is a strong indicator for the physical conditions in the<br />
source.<br />
the excited state may also decay to other intermediate states if present, and also<br />
excitations or cascades from other levels may play a role. Furthermore, for high densities<br />
also collisional excitation or de-excitation to and from other levels becomes<br />
important. In general, one has to solve a set of equations for all energy levels of<br />
an ion where all relevant population and depopulation processes for that level are<br />
taken into account. For the resulting solution vector n j , the emitted line power is<br />
then simply given by Eqn. (3.78).<br />
Note that not all possible transitions between the different energy levels are<br />
allowed. There are strict quantum mechanical selection rules that govern which<br />
lines are allowed; see for instance Herzberg (1944) or Mee (1999). Sometimes there<br />
are higher order processes that still allow a forbidden transition to occur, albeit with<br />
much smaller transition probabilities A ij . But if the excited state j has no other<br />
(fast enough) way to decay, these forbidden lines occur and the lines can be quite<br />
strong, as their line power is essentially governed by the rate at which the ion is<br />
brought into its excited state j.<br />
One of the most well known groups of lines is the He-like 1s–2p triplet. Usually<br />
the strongest line is the resonance line, an allowed transition. The forbidden line<br />
has a similar strength as the resonance line, for the low density conditions in the<br />
ISM and intracluster medium, but it can be relatively enhanced in recombining<br />
plasmas, or relatively reduced in high density plasmas like stellar coronal loops. In<br />
between both lines is the intercombination line. In fact, this intercombination line<br />
is a doublet but for the lighter elements both components cannot be resolved. But<br />
see Fig. 3.26 for the case of iron.<br />
52
3.9.3 Line width<br />
For most X-<strong>ray</strong> spectral lines, the line profile of a line with energy E can be approximated<br />
with a Gaussian exp (−∆E 2 /2σ 2 ) with σ given by σ/E = σ v /c where the<br />
velocity dispersion is<br />
σ 2 v = σ2 t + kT i/m i . (3.79)<br />
Here T i is the ion temperature (not necessarily the same as the electron temperature),<br />
and σ t is the root mean squared turbulent velocity of the emitting medium. For large<br />
ion temperature, turbulent velocity or high spectral resolution this line width can<br />
be measured, but in most cases the lines are not resolved for CCD type spectra.<br />
3.9.4 Resonance scattering<br />
Resonance scattering is a process where a photon is absorbed by an atom and then<br />
re-emitted as a line photon of the same energy into a different direction. As for<br />
strong resonance lines (allowed transitions) the transition probabilities A ij are large,<br />
the time interval between absorption and emission is extremely short, and that is<br />
the reason why the process effectively can be regarded as a scattering process. We<br />
discuss the absorption properties in Sect. 3.10.3, and have already discussed the<br />
spontaneous emission in Sect. 3.9.2.<br />
Resonance scattering of X-<strong>ray</strong> photons is potentially important in the dense cores<br />
of some clusters of galaxies for a few transitions of the most abundant elements, as<br />
first shown by Gilfanov et al. (1987). The optical depth for scattering can be written<br />
conveniently as (cf. also Sect. 3.10.3):<br />
τ =<br />
4240 fN 24<br />
(<br />
ni<br />
n Z<br />
) (<br />
nZ<br />
n H<br />
) ( M<br />
T keV<br />
) 1/2<br />
E keV<br />
{<br />
1 + 0.0522Mv2 100<br />
T keV<br />
} 1/2<br />
, (3.80)<br />
where f is the absorption oscillator strength of the line (of order unity for the<br />
strongest spectral lines), E keV the energy in keV, N 24 the hydrogen column density<br />
in units of 10 24 m −2 , n i the number density of the ion, n Z the number density of the<br />
element, M the atomic weight of the ion, T keV the ion temperature in keV (assumed<br />
to be equal to the electron temperature) and v 100 the micro-turbulence velocity in<br />
units of 100 km/s. Resonance scattering in clusters causes the radial intensity profile<br />
on the sky of an emission line to become weaker in the cluster core and stronger in<br />
the outskirts, without destroying photons. By comparing the radial line profiles of<br />
lines with different optical depth, for instance the 1s−2p and 1s−3p lines of Ovii<br />
or Fexxv, one can determine the optical depth and hence constrain the amount of<br />
turbulence in the cluster.<br />
Another important application was proposed by Churazov et al. (2001). They<br />
show that for WHIM filaments the resonance line of the Ovii triplet can be enhanced<br />
significantly compared to the thermal emission of the filament due to resonant scattering<br />
of X-<strong>ray</strong> background photons on the filament. The ratio of this resonant line<br />
to the other lines of the triplet therefore can be used to estimate the column density<br />
of a filament.<br />
53
3.9.5 Some important line transitions<br />
In Tables 3.6–3.7 we list the 100 strongest emission lines under CIE conditions.<br />
Note that each line has its peak emissivity at a different temperature. In particular<br />
some of the H-like and He-like transitions are strong, and further the so-called Fe-L<br />
complex (lines from n = 2 in Li-like to Ne-like iron ions) is prominent. At longer<br />
wavelengths, the L-complex of Ne Mg, Si and S gives strong soft X-<strong>ray</strong> lines. At<br />
very short wavelengths, there are not many strong emission lines: between 6–7 keV,<br />
the Fe-K emission lines are the strongest spectral features.<br />
We conclude here with mentioning some important iron lines.<br />
First, in hydrogen-like ions the Lyman series (np→1s) and the Balmer series<br />
(n → 2) are important. For He-like ions in particular the 2 → 1 transitions are<br />
very prominent, and thee lines from the He-like ions are often stronger than for<br />
hydrogen-like ions. Also thee Ne-like ions often have a very pronounced spectrum.<br />
Some important lines from iron are mentioned in Table 3.8.<br />
54
Table 3.6: The strongest emission lines for a plasma with proto-solar abundances (Lodders 2003) in the X-<strong>ray</strong><br />
band 43 Å < λ < 100 Å. At longer wavelengths sometimes a few lines from the same multiplet have been added.<br />
All lines include unresolved dielectronic satellites. T max (K) is the temperature at which the emissivity peaks,<br />
Q max = P/(n en H ), with P the power per unit volume at T max, and Q max is in units of 10 −36 Wm 3 .<br />
E λ − log log ion iso-el. lower upper<br />
(eV) (Å) Q max T max seq. level level<br />
126.18 98.260 1.35 5.82 Neviii Li 2p 2 P 3/2 3d 2 D 5/2<br />
126.37 98.115 1.65 5.82 Neviii Li 2p 2 P 1/2 3d 2 D 3/2<br />
127.16 97.502 1.29 5.75 Nevii Be 2s 1 S 0 3p 1 P 1<br />
128.57 96.437 1.61 5.47 Siv Ne 2p 1 S 0 3d 1 P 1<br />
129.85 95.483 1.14 5.73 Mgvi N 2p 4 S 3/2 3d 4 P 5/2,3/2,1/2<br />
132.01 93.923 1.46 6.80 Fexviii F 2s 2 P 3/2 2p 2 S 1/2<br />
140.68 88.130 1.21 5.75 Nevii Be 2p 3 P 1 4d 3 D 2,3<br />
140.74 88.092 1.40 5.82 Neviii Li 2s 2 S 1/2 3p 2 P 3/2<br />
147.67 83.959 0.98 5.86 Mgvii C 2p 3 P 3d 3 D, 1 D, 3 F<br />
148.01 83.766 1.77 5.86 Mgvii C 2p 3 P 2 3d 3 P 2<br />
148.56 83.457 1.41 5.90 Feix Ar 3p 1 S 0 4d 3 P 1<br />
149.15 83.128 1.69 5.69 Sivi F 2p 2 P 3/2 ( 3 P)3d 2 D 5/2<br />
149.38 83.000 1.48 5.74 Mgvi N 2p 4 S 3/2 4d 4 P 5/2,3/2,1/2<br />
150.41 82.430 1.49 5.91 Feix Ar 3p 1 S 0 4d 1 P 1<br />
154.02 80.501 1.75 5.70 Sivi F 2p 2 P 3/2 ( 1 D) 3d 2 D 5/2<br />
159.23 77.865 1.71 6.02 Fex Cl 3p 2 P 1/2 4d 2 D 5/2<br />
165.24 75.034 1.29 5.94 Mgviii B 2p 2 P 3/2 3d 2 D 5/2<br />
165.63 74.854 1.29 5.94 Mgviii B 2p 2 P 1/2 3d 2 D 3/2<br />
170.63 72.663 1.07 5.76 Svii Ne 2p 1 S 0 3s 3 P 1,2<br />
170.69 72.635 1.61 6.09 Fexi S 3p 3 P 2 4d 3 D 3<br />
171.46 72.311 1.56 6.00 Mgix Be 2p 1 P 1 3d 1 D 2<br />
171.80 72.166 1.68 6.08 Fexi S 3p 1 D 2 4d 1 F 3<br />
172.13 72.030 1.44 6.00 Mgix Be 2p 3 P 2,1 3s 3 S 1<br />
172.14 72.027 1.40 5.76 Svii Ne 2p 1 S 0 3s 1 P 1<br />
177.07 70.020 1.18 5.84 Sivii O 2p 3 P 3d 3 D, 3 P<br />
177.98 69.660 1.36 6.34 Fexv Mg 3p 1 P 1 4s 1 S 0<br />
177.99 69.658 1.57 5.96 Siviii N 2p 4 S 3/2 3s 4 P 5/2,3/2,1/2<br />
179.17 69.200 1.61 5.71 Sivi F 2p 2 P 4d 2 P, 2 D<br />
186.93 66.326 1.72 6.46 Fexvi Na 3d 2 D 4f 2 F<br />
194.58 63.719 1.70 6.45 Fexvi Na 3p 2 P 3/2 4s 2 S 1/2<br />
195.89 63.294 1.64 6.08 Mgx Li 2p 2 P 3/2 3d 2 D 5/2<br />
197.57 62.755 1.46 6.00 Mgix Be 2s 1 S 0 3p 1 P 1<br />
197.75 62.699 1.21 6.22 Fexiii Si 3p 3 P 1 4d 3 D 2<br />
198.84 62.354 1.17 6.22 Fexiii Si 3p 3 P 0 4d 3 D 1<br />
199.65 62.100 1.46 6.22 Fexiii Si 3p 3 P 1 4d 3 P 0<br />
200.49 61.841 1.29 6.07 Siix C 2p 3 P 2 3s 3 P 1<br />
203.09 61.050 1.06 5.96 Siviii N 2p 4 S 3/2 3d 4 P 5/2,3/2,1/2<br />
203.90 60.807 1.69 5.79 Svii Ne 2p 1 S 0 3d 3 D 1<br />
204.56 60.610 1.30 5.79 Svii Ne 2p 1 S 0 3d 1 P 1<br />
223.98 55.356 1.00 6.08 Siix C 2p 3 P 3d 3 D, 1 D, 3 F<br />
234.33 52.911 1.34 6.34 Fexv Mg 3s 1 S 0 4p 1 P 1<br />
237.06 52.300 1.61 6.22 Sixi Be 2p 1 P 1 3s 1 S 0<br />
238.43 52.000 1.44 5.97 Siviii N 2p 4 S 3/2 4d 4 P 5/2,3/2,1/2<br />
244.59 50.690 1.30 6.16 Six B 2p 2 P 3/2 3d 2 D 5/2<br />
245.37 50.530 1.30 6.16 Six B 2p 2 P 1/2 3d 2 D 3/2<br />
251.90 49.220 1.45 6.22 Sixi Be 2p 1 P 1 3d 1 D 2<br />
252.10 49.180 1.64 5.97 Arix Ne 2p 1 S 0 3s 3 P 1,2<br />
261.02 47.500 1.47 6.06 Six O 2p 3 P 3d 3 D, 3 P<br />
280.73 44.165 1.60 6.30 Sixii Li 2p 2 P 3/2 3d 2 D 5/2<br />
283.46 43.740 1.46 6.22 Sixi Be 2s 1 S 0 3p 1 P 1<br />
55
Table 3.7: As Table 3.6, but for λ < 43 Å.<br />
E λ − log log ion iso-el. lower upper<br />
(eV) (Å) Q max T max seq. level level<br />
291.52 42.530 1.32 6.18 Sx N 2p 4 S 3/2 3d 4 P 5/2,3/2,1/2<br />
298.97 41.470 1.31 5.97 Cv He 1s 1 S 0 2s 3 S 1 (f)<br />
303.07 40.910 1.75 6.29 Sixii Li 2s 2 S 1/2 3p 2 P 3/2<br />
307.88 40.270 1.27 5.98 Cv He 1s 1 S 0 2p 1 P 1 (r)<br />
315.48 39.300 1.37 6.28 Sxi C 2p 3 P 3d 3 D, 1 D, 3 F<br />
336.00 36.900 1.58 6.19 Sx N 2p 4 S 3/2 4d 4 P 5/2,3/2,1/2<br />
339.10 36.563 1.56 6.34 Sxii B 2p 2 P 3/2 3d 2 D 5/2<br />
340.63 36.398 1.56 6.34 Sxii B 2p 2 P 1/2 3d 2 D 3/2<br />
367.47 33.740 1.47 6.13 Cvi H 1s 2 S 1/2 2p 2 P 1/2 (Lyα)<br />
367.53 33.734 1.18 6.13 Cvi H 1s 2 S 1/2 2p 2 P 3/2 (Lyα)<br />
430.65 28.790 1.69 6.17 Nvi He 1s 1 S 0 2p 1 P 1 (r)<br />
500.36 24.779 1.68 6.32 Nvii H 1s 2 S 1/2 2p 2 P 3/2 (Lyα)<br />
560.98 22.101 0.86 6.32 Ovii He 1s 1 S 0 2s 3 S 1 (f)<br />
568.55 21.807 1.45 6.32 Ovii He 1s 1 S 0 2p 3 P 2,1 (i)<br />
573.95 21.602 0.71 6.33 Ovii He 1s 1 S 0 2p 1 P 1 (r)<br />
653.49 18.973 1.05 6.49 Oviii H 1s 2 S 1/2 2p 2 P 1/2 (Lyα)<br />
653.68 18.967 0.77 6.48 Oviii H 1s 2 S 1/2 2p 2 P 3/2 (Lyα)<br />
665.62 18.627 1.58 6.34 Ovii He 1s 1 S 0 3p 1 P 1<br />
725.05 17.100 0.87 6.73 Fexvii Ne 2p 1 S 0 3s 3 P 2<br />
726.97 17.055 0.79 6.73 Fexvii Ne 2p 1 S 0 3s 3 P 1<br />
738.88 16.780 0.87 6.73 Fexvii Ne 2p 1 S 0 3s 1 P 1<br />
771.14 16.078 1.37 6.84 Fexviii F 2p 2 P 3/2 3s 4 P 5/2<br />
774.61 16.006 1.55 6.50 Oviii H 1s 2 S 1/2 3p 2 P 1/2,3/2 (Lyβ)<br />
812.21 15.265 1.12 6.74 Fexvii Ne 2p 1 S 0 3d 3 D 1<br />
825.79 15.014 0.58 6.74 Fexvii Ne 2p 1 S 0 3d 1 P 1<br />
862.32 14.378 1.69 6.84 Fexviii F 2p 2 P 3/2 3d 2 D 5/2<br />
872.39 14.212 1.54 6.84 Fexviii F 2p 2 P 3/2 3d 2 S 1/2<br />
872.88 14.204 1.26 6.84 Fexviii F 2p 2 P 3/2 3d 2 D 5/2<br />
896.75 13.826 1.66 6.76 Fexvii Ne 2s 1 S 0 3p 1 P 1<br />
904.99 13.700 1.61 6.59 Neix He 1s 1 S 0 2s 3 S 1 (f)<br />
905.08 13.699 1.61 6.59 Neix He 1s 1 S 0 2s 3 S 1 (f)<br />
916.98 13.521 1.35 6.91 Fexix O 2p 3 P 2 3d 3 D 3<br />
917.93 13.507 1.68 6.91 Fexix O 2p 3 P 2 3d 3 P 2<br />
922.02 13.447 1.44 6.59 Neix He 1s 1 S 0 2p 1 P 1 (r)<br />
965.08 12.847 1.51 6.98 Fexx N 2p 4 S 3/2 3d 4 P 5/2<br />
966.59 12.827 1.44 6.98 Fexx N 2p 4 S 3/2 3d 4 P 3/2<br />
1009.2 12.286 1.12 7.04 Fexxi C 2p 3 P 0 3d 3 D 1<br />
1011.0 12.264 1.46 6.73 Fexvii Ne 2p 1 S 0 4d 3 D 1<br />
1021.5 12.137 1.77 6.77 Nex H 1s 2 S 1/2 2p 2 P 1/2 (Lyα)<br />
1022.0 12.132 1.49 6.76 Nex H 1s 2 S 1/2 2p 2 P 3/2 (Lyα)<br />
1022.6 12.124 1.39 6.73 Fexvii Ne 2p 1 S 0 4d 1 P 1<br />
1053.4 11.770 1.38 7.10 Fexxii B 2p 2 P 1/2 3d 2 D 3/2<br />
1056.0 11.741 1.51 7.18 Fexxiii Be 2p 1 P 1 3d 1 D 2<br />
1102.0 11.251 1.73 6.74 Fexvii Ne 2p 1 S 0 5d 3 D 1<br />
1352.1 9.170 1.66 6.81 Mgxi He 1s 1 S 0 2p 1 P 1 (r)<br />
1472.7 8.419 1.76 7.00 Mgxii H 1s 2 S 1/2 2p 2 P 3/2 (Lyα)<br />
1864.9 6.648 1.59 7.01 Sixiii He 1s 1 S 0 2p 1 P 1 (r)<br />
2005.9 6.181 1.72 7.21 Sixiv H 1s 2 S 1/2 2p 2 P 3/2 (Lyα)<br />
6698.6 1.851 1.43 7.84 Fexxv He 1s 1 S 0 2p 1 P 1 (r)<br />
6973.1 1.778 1.66 8.17 Fexxvi H 1s 2 S 1/2 2p 2 P 3/2 (Lyα)<br />
56
Table 3.8: Some important iron lines<br />
Ion E (keV) transition remark<br />
Fexxvi 6.97 2p–1s Lyα<br />
Fexxvi 8.21 3p–1s Lyβ<br />
Fexxvi 1.29 3p–2s Hα<br />
Fexxv 6.70 2p–1s 1 P 1 , resonance line<br />
Fexxv 6.67 2p–1s 3 P 2,1 , intercombination line<br />
Fexxv 6.63 2s–1s 3 S 1 , forbidden line<br />
Fexxv 7.90 3p–1s 1 P 1<br />
Fexxv 1.22 3p–2s 1 P 1<br />
Feii 6.40 2p–1s Kα (from ionisation of Fei)<br />
Feii 7.06 3p–1s ”Kβ” (from ionisation of Fei)<br />
Feii 0.79 3p–2s ”Lβ” (from ionisation of Fei)<br />
57
3.10 Absorption of X-<strong>ray</strong> <strong>radiation</strong><br />
3.10.1 Continuum versus line absorption<br />
X-<strong>ray</strong>s emitted by cosmic sources do not travel unattenuated to a distant observer.<br />
This is because intervening matter in the line of sight absorbs a part of the X-<br />
<strong>ray</strong>s. With low-resolution instruments, absorption can be studied only through<br />
the measurement of broad-band flux depressions caused by continuum absorption.<br />
However, at high spectral resolution also absorption lines can be studied, and in<br />
fact absorption lines offer more sensitive tools to detect weak intervening absorption<br />
systems. We illustrate this in Fig. 3.27. At an Oviii column density of 10 21 m −2 , the<br />
absorption edge has an optical depth of 1 %; for the same column density, the core<br />
of the Lyα line is already saturated and even for 100 times lower column density,<br />
the line core still has an optical depth of 5 %.<br />
Figure 3.27: Continuum (left) and Lyα (right) absorption spectrum for a layer<br />
consisting of Oviii ions with column densities as indicated.<br />
3.10.2 Continuum absorption<br />
Continuum absorption can be calculated simply from the photoionisation cross sections,<br />
that we discussed already in Sect. 3.6.7. The total continuum opacity τ cont<br />
can be written as<br />
τ cont (E) ≡ N H σ cont (E) = ∑ N i σ i (E) (3.81)<br />
i<br />
i.e, by averaging over the various ions i with column density N i . Accordingly,<br />
the continuum transmission T(E) of such a clump of matter can be written as<br />
T(E) = exp (−τ cont (E)). For a worked out example see also Sect. 3.10.6.<br />
3.10.3 Line absorption<br />
When light from a background source shines through a clump of matter, a part of<br />
the <strong>radiation</strong> can be absorbed. We discussed already the continuum absorption.<br />
The transmission in a spectral line at wavelength λ is given by<br />
T(λ) = e −τ(λ) (3.82)<br />
58
with<br />
τ(λ) = τ 0 ϕ(λ) (3.83)<br />
where ϕ(λ) is the line profile and τ 0 is the opacity at the line centre λ 0 , given by:<br />
τ 0 = αhλfN i<br />
2 √ 2πm e σ v<br />
. (3.84)<br />
Apart from the fine structure constant α and Planck’s constant h, the optical<br />
depth also depends on the properties of the absorber, namely the ionic column<br />
density N i and the velocity dispersion σ v . Furthermore, it depends on the oscillator<br />
strength f which is a dimensionless quantity that is different for each transition and<br />
is of order unity for the strongest transitions.<br />
In the simplest approximation, a Gaussian profile ϕ(λ) = exp −(λ−λ 0 ) 2 /b 2 ) can<br />
be adopted, corresponding to pure Doppler broadening for a thermal plasma. Here<br />
b = √ 2σ with σ the normal Gaussian root-mean-square width. The full width at<br />
half maximum of this profile is given by √ ln 256σ or approximately 2.35σ. One may<br />
even include a turbulent velocity σ t into the velocity width σ v , such that<br />
σ 2 v = σ 2 t + kT/m i (3.85)<br />
with m i the mass of the ion (we have tacitly changed here from wavelength to<br />
velocity units through the scaling ∆λ/λ 0 = ∆v/c).<br />
The equivalent width W of the line is calculated from<br />
W = λσ c<br />
∫ ∞<br />
[1 − exp (−τ 0 e −y2 /2 )]dy. (3.86)<br />
−∞<br />
For the simple case that τ 0 ≪ 1, the integral can be evaluated as<br />
τ 0 ≪ 1 :<br />
W = αhλ2 fN i<br />
2m e c<br />
= 1 2 α hν<br />
m e c 2 fλ2 N i . (3.87)<br />
A Gaussian line profile is only a good approximation when the Doppler width<br />
of the line is larger than the natural width of the line. The natural line profile for<br />
an absorption line is a Lorentz profile ϕ(λ) = 1/(1 + x 2 ) with x = 4π∆ν/A. Here<br />
∆ν is the frequency difference ν − ν 0 and A is the total transition probability from<br />
the upper level downwards to any level, including all radiative and Auger decay<br />
channels.<br />
Convolving the intrinsic Lorentz profile with the Gaussian Doppler profile due<br />
to the thermal or turbulent motion of the plasma, gives the well-known Voigt line<br />
profile<br />
ϕ = H(a, y) (3.88)<br />
where<br />
a = Aλ/4πb (3.89)<br />
and y = c∆λ/bλ. The dimensionless parameter a (not to be confused with the a in<br />
Eqn. 3.27) represents the relative importance of the Lorentzian term (∼ A) to the<br />
Gaussian term (∼ b). It should be noted here that formally for a > 0 the parameter<br />
τ 0 defined by (3.84) is not exactly the optical depth at line centre, but as long as<br />
a ≪ 1 it is a fair approximation. For a ≫ 1 it can be shown that H(a, 0) → 1/a √ π.<br />
59
3.10.4 Some important X-<strong>ray</strong> absorption lines<br />
There are several types of absorption lines. The most well-known are the normal<br />
strong resonance lines, which involve electrons from the outermost atomic shells.<br />
Examples are the 1s–2p line of Ovii at 21.60 Å, the Oviii Lyα doublet at 18.97 Å<br />
and the well known 2s–2p doublet of Ovi at 1032 and 1038 Å. See Richter et al.<br />
(2008) for an extensive discussion on these absorption lines in the WHIM.<br />
The other class are the inner-shell absorption lines. In this case the excited<br />
atom is often in an unstable state, with a large probability for the Auger process<br />
(Sect. 3.6.4). As a result, the parameter a entering the Voigt profile (Eqn. 3.89) is<br />
large and therefore the lines can have strong damping wings.<br />
In some cases the lines are isolated and well resolved, like the Ovii and Oviii<br />
1s–2p lines mentioned above. However, in other cases the lines may be strongly<br />
blended, like for the higher principal quantum number transitions of any ion in case<br />
of high column densities. Another important group of strongly blended lines are the<br />
inner-shell transitions of heavier elements like iron. They form so-called unresolved<br />
transition ar<strong>ray</strong>s (UTAs); the individual lines are no longer recognisable. The first<br />
detection of these UTAs in astrophysical sources was in a quasar (Sako et al. 2001).<br />
In Table 3.9 we list the 70 most important X-<strong>ray</strong> absorption lines for λ < 100 Å.<br />
The importance was determined by calculating the maximum ratio W/λ that these<br />
lines reach for any given temperature.<br />
Note the dominance of lines from all ionisation stages of oxygen in the 17–24 Å<br />
band. Furthermore, the Feix and Fexvii lines are the strongest iron features. These<br />
lines are weaker than the oxygen lines because of the lower abundance of iron; they<br />
are stronger than their neighbouring iron ions because of somewhat higher oscillator<br />
strengths and a relatively higher ion fraction (cf. Fig. 3.23).<br />
Note that the strength of these lines can depend on several other parameters,<br />
like turbulent broadening, deviations from CIE, saturation for higher column densities,<br />
etc., so some care should be taken when the strongest line for other physical<br />
conditions are sought.<br />
3.10.5 Curve of growth<br />
In most practical situations, X-<strong>ray</strong> absorption lines are unresolved or poorly resolved.<br />
As a consequence, the physical information about the source can only be retrieved<br />
from basic parameters such as the line centroid (for Doppler shifts) and equivalent<br />
width W (as a measure of the line strength).<br />
As outlined in Sect. 3.10.3, the equivalent width W of a spectral line from an<br />
ion i depends, apart from atomic parameters, only on the column density N i and<br />
the velocity broadening σ v . A useful diagram is the so-called curve of growth. Here<br />
we present it in the form of a curve giving W versus N i for a fixed value of σ v .<br />
The curve of growth has three regimes. For low column densities, the optical<br />
depth at line centre τ 0 is small, and W increases linearly with N i , independent of σ v<br />
(Eqn. 3.87). For increasing column density, τ 0 starts to exceed unity and then W<br />
increases only logarithmically with N i . Where this happens exactly, depends on σ v .<br />
In this intermediate logarithmic branch W depends both on σ v and N i , and hence by<br />
comparing the measured W with other lines from the same ion, both parameters can<br />
be estimated. At even higher column densities, the effective opacity increases faster<br />
(proportional to √ N i ), because of the Lorentzian line wings. Where this happens<br />
60
Table 3.9: The most important X-<strong>ray</strong> absorption lines with λ < 100 Å. Calculations<br />
are done for a plasma in CIE with proto-solar abundances (Lodders 2003) and only<br />
thermal broadening. The calculations are done for a hydrogen column density of<br />
10 24 m −2 , and we list equivalent widths for the temperature T max (in K) where it<br />
reaches a maximum. Equivalent widths are calculated for the listed line only, not<br />
taking into account blending by other lines. For saturated, overlapping lines, like<br />
the Oviii Lyα doublet near 18.97 Å, the combined equivalent width can be smaller<br />
than the sum of the individual equivalent widths.<br />
λ ion W max log λ ion W max log<br />
(Å) (mÅ) T max (Å) (mÅ) T max<br />
9.169 Mgxi 1.7 6.52 31.287 N i 5.5 4.04<br />
13.447 Neix 4.6 6.38 33.426 C v 7.0 5.76<br />
13.814 Nevii 2.2 5.72 33.734 C vi 12.9 6.05<br />
15.014 Fexvii 5.4 6.67 33.740 C vi 10.3 6.03<br />
15.265 Fexvii 2.2 6.63 34.973 C v 10.3 5.82<br />
15.316 Fexv 2.3 6.32 39.240 S xi 6.5 6.25<br />
16.006 O viii 2.6 6.37 40.268 C v 17.0 5.89<br />
16.510 Feix 5.6 5.81 40.940 C iv 7.2 5.02<br />
16.773 Feix 3.0 5.81 41.420 C iv 14.9 5.03<br />
17.396 O vii 2.8 6.06 42.543 S x 6.3 6.14<br />
17.768 O vii 4.4 6.11 50.524 Six 11.0 6.14<br />
18.629 O vii 6.9 6.19 51.807 S vii 7.6 5.68<br />
18.967 O viii 8.7 6.41 55.305 Siix 14.0 6.06<br />
18.973 O viii 6.5 6.39 60.161 S vii 12.2 5.71<br />
19.924 O v 3.2 5.41 61.019 Siviii 11.9 5.92<br />
21.602 O vii 12.1 6.27 61.070 Siviii 13.2 5.93<br />
22.006 O vi 5.1 5.48 62.751 Mgix 11.1 5.99<br />
22.008 O vi 4.1 5.48 68.148 Sivii 10.1 5.78<br />
22.370 O v 5.4 5.41 69.664 Sivii 10.9 5.78<br />
22.571 O iv 3.6 5.22 70.027 Sivii 11.3 5.78<br />
22.739 O iv 5.1 5.24 73.123 Sivii 10.7 5.78<br />
22.741 O iv 7.2 5.23 74.858 Mgviii 17.1 5.93<br />
22.777 O iv 13.8 5.22 80.449 Sivi 13.0 5.62<br />
22.978 O iii 9.4 4.95 80.577 Sivi 12.7 5.61<br />
23.049 O iii 7.1 4.96 82.430 Feix 14.0 5.91<br />
23.109 O iii 15.1 4.95 83.128 Sivi 14.2 5.63<br />
23.350 O ii 7.5 4.48 83.511 Mgvii 14.2 5.82<br />
23.351 O ii 12.6 4.48 83.910 Mgvii 19.8 5.85<br />
23.352 O ii 16.5 4.48 88.079 Neviii 15.2 5.80<br />
23.510 O i 7.2 4.00 95.385 Mgvi 15.5 5.67<br />
23.511 O i 15.0 4.00 95.421 Mgvi 18.7 5.69<br />
24.779 N vii 4.6 6.20 95.483 Mgvi 20.5 5.70<br />
24.900 N vi 4.0 5.90 96.440 Siv 16.8 5.33<br />
28.465 C vi 4.6 6.01 97.495 Nevii 22.8 5.74<br />
28.787 N vi 9.8 6.01 98.131 Nevi 16.7 5.65<br />
depends on the Voigt parameter a (Eqn. 3.89). In this range of densities, W does<br />
not depend any more on σ v .<br />
In Fig. 3.28 we show a few characteristic examples. The examples of Oi and<br />
Ovi illustrate the higher W for UV lines as compared to X-<strong>ray</strong> lines (cf. Eqn. 3.87)<br />
as well as the fact that inner shell transitions (in this case the X-<strong>ray</strong> lines) have<br />
61
Figure 3.28: Equivalent width versus column density for a few selected oxygen<br />
absorption lines. The curves have been calculated for Gaussian velocity dispersions<br />
σ = b/ √ 2 of 10, 50 and 250 kms −1 , from bottom to top for each line. Different<br />
spectral lines are indicated with different line styles.<br />
larger a-values and hence reach sooner the square root branch. The example of<br />
Ovii shows how different lines from the same ion have different equivalent width<br />
ratios depending on σ v , hence offer an opportunity to determine that parameter.<br />
The last frame shows the (non)similarties for similar transitions in different ions.<br />
The innershell nature of the transition in Ovi yields a higher a value and hence an<br />
earlier onset of the square root branch.<br />
3.10.6 Galactic foreground absorption<br />
All <strong>radiation</strong> from X-<strong>ray</strong> sources external to our own Galaxy has to pass through<br />
the interstellar medium of our Galaxy, and the intensity is reduced by a factor of<br />
e −τ(E) with the optical depth τ(E) = ∑ i σ i(E) ∫ n i (l)dl, with the summation over<br />
all relevant ions i and the integration over the line of sight dl. The absorption<br />
cross section σ i (E) is often taken to be simply the (continuum) photoionisation<br />
cross section, but for high-resolution spectra it is necessary to include also the line<br />
opacity, and for very large column densities also other processes such as Compton<br />
ionisation or Thomson scattering.<br />
For a cool, neutral plasma with cosmic abundances one often writes<br />
τ = σ eff (E)N H (3.90)<br />
62
where the hydrogen column density N H ≡ ∫ n H dx. In σ eff (E) all contributions to<br />
the absorption from all elements as well as their abundances are taken into account.<br />
Figure 3.29: Left panel: Neutral interstellar absorption cross section per hydrogen<br />
atom, scaled with E 3 . The most important edges with associated absorption lines<br />
are indicated, as well as the onset of Thompson scattering around 30 keV. Right<br />
panel: Contribution of the various elements to the total absorption cross section as<br />
a function of energy, for solar abundances.<br />
The relative contribution of the elements is also made clear in Fig. 3.29. Below<br />
0.28 keV (the carbon edge) hydrogen and helium dominate, while above 0.5 keV in<br />
particular oxygen is important. At the highest energies, above 7.1 keV, iron is the<br />
main opacity source.<br />
Figure 3.30: Left panel: Column density for which the optical depth becomes unity.<br />
Right panel: Distance for which τ = 1 for three characteristic densities.<br />
Yet another way to represent these data is to plot the column density or distance<br />
for which the optical depth becomes unity (Fig. 3.30). This figure shows that in<br />
particular at the lowest energies X-<strong>ray</strong>s are most strongly absorbed. The visibility<br />
in that region is thus very limited. Below 0.2 keV it is extremely hard to look outside<br />
our Milky Way.<br />
63
exercise 3.12. The hydrogen column density to the Galactic pole is about 10 24 m −2 .<br />
How large is the transmission for photons of 0.1, 0.2, 1 and 10 keV?<br />
Complexity of the ISM<br />
Figure 3.31: Left panel: Simulated 100 ks absorption spectrum as observed with the<br />
Explorer of Diffuse Emission and Gamma-<strong>ray</strong> Burst Explosions (EDGE), a mission<br />
proposed for ESA’s Cosmic Vision program. The parameters of the simulated source<br />
are similar to those of 4U 1820−303 (Yao et al. 2006). The plot shows the residuals<br />
of the simulated spectrum if the absorption lines in the model are ignored. Several<br />
characteristic absorption features of both neutral and ionised gas are indicated.<br />
Right panel: Simulated spectrum for the X-<strong>ray</strong> binary 4U 1820−303 for 100 ks with<br />
the WFS instrument of EDGE. The simulation was done for all absorbing oxygen in<br />
its pure atomic state, the models plotted with different line styles show cases where<br />
half of the oxygen is bound in CO, water ice or olivine. Note the effective shift of<br />
the absorption edge and the different fine structure near the edge. All of this is well<br />
resolved by EDGE, allowing a determination of the molecular composition of dust<br />
in the line of sight towards this source. The absorption line at 0.574 is due to highly<br />
ionised Ovii.<br />
The interstellar medium is by no means a homogeneous, neutral, atomic gas. In<br />
fact, it is a collection of regions all with different physical state and composition.<br />
This affects its X-<strong>ray</strong> opacity. We briefly discuss here some of the most important<br />
features.<br />
The ISM contains cold gas (< 50 K), warm, neutral or lowly ionised gas (6000<br />
− 10000 K) as well as hotter gas (a few million K). We have seen before that for<br />
ions the absorption edges shift to higher energies for higher ionisation. Thus, with<br />
instruments of sufficient spectral resolution, the degree of ionisation of the ISM can<br />
be deduced from the relative intensities of the absorption edges. Cases with such<br />
high column densities are rare, however (and only occur in some AGN outflows), and<br />
for the bulk of the ISM the column density of the ionised ISM is low enough that only<br />
the narrow absorption lines are visible (see Fig. 3.27). These lines are only visible<br />
when high spectral resolution is used (see Fig. 3.31). It is important to recognise<br />
these lines, as they should not be confused with absorption line from within the<br />
64
source itself. Fortunately, with high spectral resolution the cosmologically redshifted<br />
absorption lines from the X-<strong>ray</strong> source are separated well from the foreground hot<br />
ISM absorption lines. Only for lines from the Local Group this is not possible, and<br />
the situation is here complicated as the expected temperature range for the diffuse<br />
gas within the Local Group is similar to the temperature of the hot ISM.<br />
Another ISM component is dust. A significant fraction of some atoms can be<br />
bound in dust grains with varying sizes, as shown below (from Wilms et al. 2000):<br />
H He C N O Ne Mg Si S Ar Ca Fe Ni<br />
0 0 0.5 0 0.4 0 0.8 0.9 0.4 0 0.997 0.7 0.96<br />
The numbers represent the fraction of the atoms that are bound in dust grains.<br />
Noble gases like Ne and Ar are chemically inert hence are generally not bound in<br />
dust grains, but other elements like Ca exist predominantly in dust grains. Dust has<br />
significantly different X-<strong>ray</strong> properties compared to gas or hot plasma. First, due to<br />
the chemical binding, energy levels are broadened significantly or even absent. For<br />
example, for oxygen in most bound forms (like H 2 O) the remaining two vacancies in<br />
the 2p shell are effectively filled by the two electrons from the other bound atom(s)<br />
in the molecule. Therefore, the strong 1s–2p absorption line at 23.51 Å (527 eV)<br />
is not allowed when the oxygen is bound in dust or molecules, because there is<br />
no vacancy in the 2p shell. Transitions to higher shells such as the 3p shell are<br />
possible, however, but these are blurred significantly and often shifted due to the<br />
interactions in the molecule. Each constituent has its own fine structure near the<br />
K-edge (Fig. 3.31b). This fine structure offers therefore the opportunity to study<br />
the (true) chemical composition of the dust, but it should be said that the details of<br />
the edges in different important compounds are not always (accurately) known, and<br />
can differ depending on the state: for example water, crystalline and amorphous ice<br />
all have different characteristics. On the other hand, the large scale edge structure,<br />
in particular when observed at low spectral resolution, is not so much affected. For<br />
sufficiently high column densities of dust, self-shielding within the grains should be<br />
taken into account, and this reduces the average opacity per atom.<br />
Finally, we mention here that dust also causes scattering of X-<strong>ray</strong>s. This is in<br />
particular important for higher column densities. For example, for the Crab nebula<br />
(N H = 3.2×10 25 m −2 ), at an energy of 1 keV about 10 % of all photons are scattered<br />
in a halo, of which the widest tails have been observed out to a radius of at least<br />
half a degree; the scattered fraction increases with increasing wavelength.<br />
3.10.7 Absorption from ionised gas<br />
The absorption properties become different when the plasma is ionised. Fig. 3.32<br />
gives the effective cross section for plasmas in CIE.<br />
For 10 4 K, σ is essentially at the neutral limit. For 2 × 10 4 K hydrogen is fully<br />
ionised, and therefore σ for energies of a few hundred eV is decreasing; at 10 5 K also<br />
He is ionised and σ is in particular small below the C-edge. Around the O-edge (the<br />
region between 0.5–1 keV) we see that by increasing the ionisation of oxygen the<br />
edge shifts from 533 eV (Oi) to 870 eV (Oviii). Below the O-edge σ becomes very<br />
small for increasing temperatures, because the most important absorbers (H, He)<br />
are fully ionised. But unless oxygen is fully ionised (3 × 10 6 K) σ above the oxygen<br />
K-edge is decreasing only slowly. Because of this the contrast around the K-edge of<br />
65
Figure 3.32: The optical depth per hydrogen atom times E 3 for a plasma in CIE.<br />
Figure 3.33: The optical depth per hydrogen atom times E 3 for a plasma in PIE.<br />
oxygen increases for increasing T. Similar features are seen around the K-edge of<br />
Si (∼ 2 keV), S (∼ 2.5 keV) and in particular Fe (7–8.5 keV) between 10 5 K and<br />
3 × 10 8 K.<br />
Therefore we see that for T > 10 7 K the plasma is almost transparent below<br />
2 keV. between 10 7 and 10 8 K, σ between 2-6 keV is an order of magnitude smaller<br />
than for neutral plasma’s, while above the K-edge of iron the effective cross section<br />
hardly changes, unless T > 10 8 K.<br />
For plasmas in photoionisation one finds qualitatively a similar behaviour (Fig. 3.33).<br />
The parameter Ξ is the so-called ionisation parameter:<br />
Ξ ≡ L/4πcr 2 n H kT. (3.91)<br />
Essentially, it represents the ratio between <strong>radiation</strong> pressure and gas pressure. In<br />
general, Ξ depends on the precise form of the incoming X-<strong>ray</strong> spectrum. For a<br />
power law spectrum with energy index 1, or photon index 2 (dF/dE ∼ E −1 ) the<br />
equilibrium solution for the temperature as a function of Ξ is shown in Fig. 3.34.<br />
66
Figure 3.35: Stability for the ionisation<br />
equilibrium.<br />
Figure 3.34: Equilibrium temperature<br />
versus ionisation parameter.<br />
Arrows indicate the points<br />
that are shown in Fig. 3.33. From<br />
Krolik & Kallman 1984.<br />
Note that in general for a single value of Ξ more temperature solutions are possible<br />
(in particular for Ξ close to 10). Only those solutions where dT/dΞ > 0 are stable:<br />
in that case a small increase in temperature brings the material to a region where<br />
cooling is stronger than heating and hence the temperature will decrease again (see<br />
Fig. 3.35). In the opposite case temperature variations will become stronger, hence<br />
instability.<br />
We see that for Ξ < 0.03 the absorption properties are almost identical to those<br />
for neutral matter. Further, there are significant differences with the CIE case: in<br />
photoionisation equilibrium a temperature of 10 5 K is already sufficient to reduce<br />
σ eff to the same level as for CIE at 10 6 K. Plasmas in photoionisation equilibrium<br />
therefore are much more ”transparent” than CIE plasmas.<br />
67
3.11 The He-like triplets<br />
Now you have seen most of the important <strong>radiation</strong> mechanisms, it is time to have<br />
a closer look to the He-like triplets. This triplet has very important applications,<br />
and therefore is important to understand.<br />
First, we speak about a triplet, but in fact there are four spectral lines involved.<br />
Two of these lines often have very similar wavelengths, hence are sometimes considered<br />
to be one spectral line.<br />
Figure 3.36: Simplified level scheme for helium-like ions. w (or r), x; y (or i), and<br />
z (or f): resonance, intercombination, and forbidden lines, respectively. Full upward<br />
arrows: collisional excitation transitions, broken arrows: radiative transitions<br />
(including photo-excitation from n = 2 3 S 1 to n = 2 3 P 0,1,2 levels, and 2-photon continuum<br />
from n = 2 1 S 0 to the ground level), and thick skew arrows: recombination<br />
(radiative and dielectronic) plus cascade processes. From Porquet et al. 2001.<br />
These lines correspond to transitions between the n = 2 shell and the n = 1<br />
ground-state shell (see Fig. 3.36). Gabriel & Jordan (1969) were the first to show<br />
that the line ratios can be used to estimate temperature and electron density:<br />
R(n e ) =<br />
z<br />
x + y<br />
(also designated as f/i), (3.92)<br />
G(T e ) = z + x + y (also designated as (f + i)/r). (3.93)<br />
w<br />
In the low-density limit, all n = 2 states are populated directly, or via upperlevel<br />
radiative cascades by electron impact from the He-like ground state and/or<br />
by (radiative and dielectronic) recombination of H-like ions. These states decay<br />
radiatively directly or by cascades to the ground level. The relative intensities of<br />
the three intense lines are then independent of density. As n e increases from the<br />
low-density limit, some of these states (1s2s 3 S 1 and 1 S 0 ) are depleted by collisions<br />
to the nearby states where n crit C ∼ A, with C being the collisional coefficient rate,<br />
68
Table 3.10: Wavelengths in Å of the triplet lines for some elements<br />
Ion resonance intercombination intercombination forbidden<br />
w x y z<br />
Cv 40.268 40.728 40.731 41.472<br />
Nvi 28.787 29.082 29.084 29.534<br />
Ovii 21.602 21.804 21.807 22.101<br />
Neix 13.447 13.550 13.553 13.699<br />
Mgxi 9.1685 9.2279 9.2310 9.3141<br />
Sixiii 6.6477 6.6848 6.6879 6.7400<br />
Fexxv 1.8505 1.8554 1.8595 1.8682<br />
A being the radiative transition probability from n = 2 to n = 1 (ground state),<br />
and n crit being the critical density. Collisional excitation depopulates first the 1s2s<br />
3 S 1 level (upper level of the forbidden line) to the 1s2p 3 P 0,1,2 levels (upper levels<br />
of the intercombination lines). The intensity of the forbidden line decreases while<br />
those of the intercombination lines increase, hence implying a reduction of the ratio<br />
R (according to Eq. 3.92), over approximately two or three decades of density. For<br />
much higher densities, 1s2s 1 S 0 is also depopulated to 1s2p 1 P 1 , and the resonance<br />
line becomes sensitive to the density (this has been nicely illustrated by Gabriel &<br />
Jordan (1972) in their Fig. 4.6.9).<br />
As the critical density for each ion is different, using more than one triplet allows<br />
one to cover a broad range of densities.<br />
However, there are other ways to modify the triplet ratio. If the source has a<br />
strong UV <strong>radiation</strong> field, the upper level of the forbidden line can be photo-excited<br />
to the upper level of the intercombination lines, and therefore a strong UV field will<br />
also decrease the R ratio.<br />
Further, we note that the triplet is also an excellent indicator of the ionisation<br />
balance. For collisionally ionised plasmas, the resonance line has a similar intensity<br />
as the sum of the forbidden and intercombination lines. However, for a photoionised<br />
plasma, in general these last two lines contain most power. This is because<br />
recombination is proportional to the statistical weight of the level towards which<br />
the recombination occurs. While the upper level of the resonance line (a singlet)<br />
has w = 3, while that of the intercombination line has w = 9 and the forbidden<br />
line w = 3. Hence, as a rough approximation G = (9 + 3)/3 = 4 for a photoionised<br />
plasma.<br />
Finally, because the oscillator strength for the intercombination and forbidden<br />
line are much smaller than for the resonance line, if one observes the triplet in absorption,<br />
one usually only sees the resonance line. Only for high nuclear charge (like<br />
iron, Z = 26) the intercombination line also starts contributing to the absorption.<br />
69
