i.e., with C K = 1.5, we should have, for homogeneous<br />
isotropic turbulence MaDo ≃ 0.81. In our closed system<br />
with blades, we recover the same order of magnitude,<br />
<strong>an</strong>d the fact that MaDo is almost independent of the<br />
driving system. Thus, there is no obvious optimum for<br />
the hydrodynamical efficiency. Between various impellers<br />
producing <strong>dynamo</strong> action, the choice will be dominated<br />
by the value of the threshold R c m .<br />
Let us first eliminate the effect of the blade height h.<br />
The power factor K p varies quasi-linearly with h. As<br />
MaDo is almost const<strong>an</strong>t, smaller h impellers require<br />
higher rotation frequencies, increasing the technical difficulties.<br />
We choose h = 0.2, a compromise between stirring<br />
efficiency <strong>an</strong>d the necessity to keep the free volume<br />
sufficiently large.<br />
σ<br />
0<br />
−5<br />
−10<br />
−15<br />
Tm71<br />
Tm73<br />
−20<br />
0.5 0.6 0.7 0.8 0.9 1<br />
Γ<br />
D. Influence of the poloidal/toroidal ratio Γ<br />
In our cylindrical <strong>von</strong> Kármán flow without a conducting<br />
layer (w = 0), there seems to be <strong>an</strong> optimal value for<br />
Γ close to 0.7. Since the me<strong>an</strong> flow is axisymmetric <strong>an</strong>d<br />
divergence-free, the ratio Γ c<strong>an</strong> be ch<strong>an</strong>ged <strong>numerical</strong>ly<br />
by introducing <strong>an</strong> arbitrary multiplicative factor on, say,<br />
the toroidal part of the velocity field. In the following, Γ 0<br />
st<strong>an</strong>ds for the <strong>experimental</strong> ratio for the measured me<strong>an</strong><br />
velocity field v exp , whereas Γ st<strong>an</strong>ds for a <strong>numerical</strong>ly<br />
adjusted velocity field v adj . This flow is simply adjusted<br />
as follows:<br />
⎧<br />
⎨<br />
⎩<br />
v adj<br />
vr<br />
adj<br />
θ<br />
= v exp<br />
θ<br />
= (Γ/Γ 0 ) · vr<br />
exp<br />
v adj<br />
z<br />
= (Γ/Γ 0 ) · v exp<br />
z<br />
In Fig. 5, we plot the magnetic energy growth rate σ<br />
(twice the magnetic field growth rate) for different values<br />
of Γ, for magnetic Reynolds number R m = 100 <strong>an</strong>d<br />
without conducting layer (w = 0). The two curves correspond<br />
to two different me<strong>an</strong> velocity fields which have<br />
been <strong>experimental</strong>ly measured in the water model (they<br />
correspond to the TM71 <strong>an</strong>d TM73 impellers, see table I<br />
for their characteristics). We notice that the curves show<br />
the same shape with maximum growth rate at Γ ≃ 0.7,<br />
which confirms the results of Ref. [22].<br />
For Γ 0.6, oscillating damped regimes (open symbols<br />
in Fig. 5) are observed. We plot the temporal evolution of<br />
the magnetic energy in the corresponding case in Fig. 6:<br />
these regimes are qualitatively different from the oscillating<br />
regimes already found in [22] for non R π -symmetric<br />
Γ = 0.7 velocity fields, consisting of one mode with a<br />
complex growth rate: the magnetic field is a single traveling<br />
wave, <strong>an</strong>d the magnetic energy, integrated over the<br />
volume, evolves monotonically in time.<br />
In our case, the velocity field is axisymmetric <strong>an</strong>d R π -<br />
symmetric, i.e., corresponds to the group O(2) [33]. The<br />
evolution operator for the magnetic field also respects<br />
these symmetries. It is known that symmetries strongly<br />
constrain the nature of eigenvalues <strong>an</strong>d eigenmodes of<br />

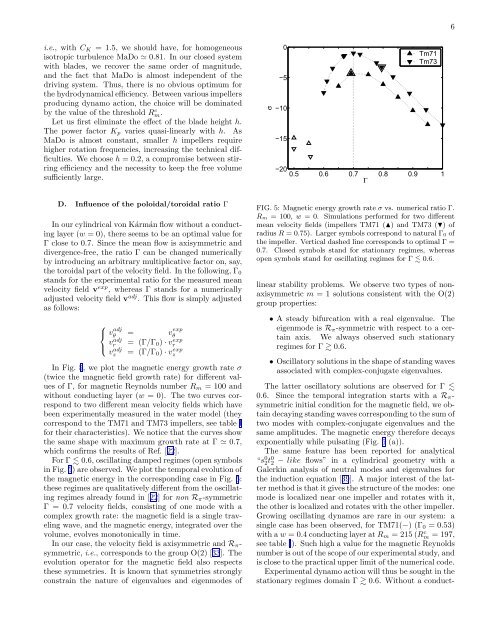

FIG. 5: Magnetic energy growth rate σ vs. <strong>numerical</strong> ratio Γ.<br />
R m = 100, w = 0. Simulations performed for two different<br />
me<strong>an</strong> velocity fields (impellers TM71 () <strong>an</strong>d TM73 () of<br />
radius R = 0.75). Larger symbols correspond to natural Γ 0 of<br />
the impeller. Vertical dashed line corresponds to optimal Γ =<br />
0.7. Closed symbols st<strong>an</strong>d for stationary regimes, whereas<br />
open symbols st<strong>an</strong>d for oscillating regimes for Γ 0.6.<br />
linear stability problems. We observe two types of nonaxisymmetric<br />
m = 1 solutions consistent with the O(2)<br />
group properties:<br />
• A steady bifurcation with a real eigenvalue. The<br />
eigenmode is R π -symmetric with respect to a certain<br />
axis. We always observed such stationary<br />
regimes for Γ 0.6.<br />
• Oscillatory solutions in the shape of st<strong>an</strong>ding waves<br />
associated with complex-conjugate eigenvalues.<br />
The latter oscillatory solutions are observed for Γ <br />
0.6. Since the temporal integration starts with a R π -<br />
symmetric initial condition for the magnetic field, we obtain<br />
decaying st<strong>an</strong>ding waves corresponding to the sum of<br />
two modes with complex-conjugate eigenvalues <strong>an</strong>d the<br />
same amplitudes. The magnetic energy therefore decays<br />
exponentially while pulsating (Fig. 6 (a)).<br />
The same feature has been reported for <strong>an</strong>alytical<br />
“s 0 2t 0 2 − like flows” in a cylindrical geometry with a<br />
Galerkin <strong>an</strong>alysis of neutral modes <strong>an</strong>d eigenvalues for<br />
the induction equation [39]. A major interest of the latter<br />
method is that it gives the structure of the modes: one<br />
mode is localized near one impeller <strong>an</strong>d rotates with it,<br />
the other is localized <strong>an</strong>d rotates with the other impeller.<br />
Growing oscillating <strong>dynamo</strong>s are rare in our system: a<br />
single case has been observed, for TM71(−) (Γ 0 = 0.53)<br />
with a w = 0.4 conducting layer at R m = 215 (R c m = 197,<br />
see table I). Such high a value for the magnetic Reynolds<br />
number is out of the scope of our <strong>experimental</strong> study, <strong>an</strong>d<br />
is close to the practical upper limit of the <strong>numerical</strong> code.<br />
Experimental <strong>dynamo</strong> action will thus be sought in the<br />
stationary regimes domain Γ 0.6. Without a conduct-
