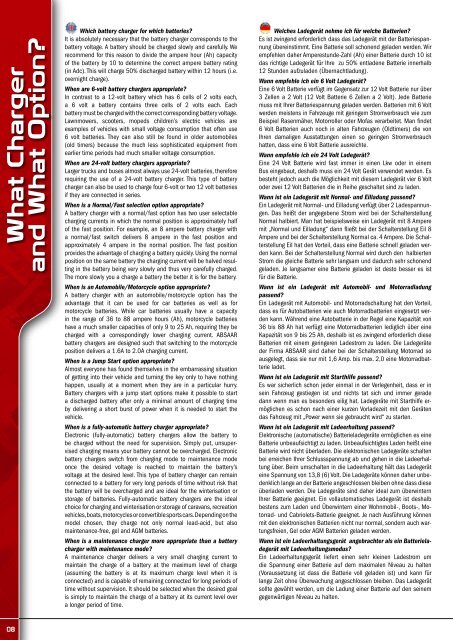

What Charger<br />
and What Option?<br />
08<br />
Which battery charger for which batteries?<br />
It is absolutely necessary that the battery charger corresponds to the<br />
battery voltage. A battery should be charged slowly and carefully. We<br />
recommend for this reason to divide the ampere hour (Ah) capacity<br />
of the battery by 10 to determine the correct ampere battery rating<br />
(in Adc). This will charge 50% discharged battery within 12 hours (i.e.<br />
overnight charge).<br />
When are 6-volt battery chargers appropriate?<br />
In contrast to a 12-volt battery which has 6 cells of 2 volts each,<br />
a 6 volt a battery contains three cells of 2 volts each. Each<br />
battery must be charged with the correct corresponding battery voltage.<br />
Lawnmowers, scooters, mopeds children’s electric vehicles are<br />
examples of vehicles with small voltage consumption that often use<br />
6 volt batteries. They can also still be found in older automobiles<br />
(old timers) because the much less sophisticated equipment from<br />
earlier time periods had much smaller voltage consumption.<br />
When are 24-volt battery chargers appropriate?<br />
Larger trucks and buses almost always use 24-volt batteries, therefore<br />
requiring the use of a 24-volt battery charger. This type of battery<br />
charger can also be used to charge four 6-volt or two 12 volt batteries<br />
if they are connected in series.<br />
When is a Normal/Fast selection option appropriate?<br />
A battery charger with a normal/fast option has two user selectable<br />
charging currents in which the normal position is approximately half<br />
of the fast position. For example, an 8 ampere battery charger with<br />
a normal/fast switch delivers 8 ampere in the fast position and<br />
approximately 4 ampere in the normal position. The fast position<br />
provides the advantage of charging a battery quickly. Using the normal<br />
position on the same battery the charging current will be halved resulting<br />
in the battery being very slowly and thus very carefully charged.<br />
The more slowly you a charge a battery the better it is for the battery.<br />
When is an Automobile/Motorcycle option appropriate?<br />
A battery charger with an automobile/motorcycle option has the<br />
advantage that it can be used for car batteries as well as for<br />
motorcycle batteries. While car batteries usually have a capacity<br />
in the range of 36 to 88 ampere hours (Ah), motorcycle batteries<br />
have a much smaller capacities of only 9 to 25 Ah, requiring they be<br />
charged with a correspondingly lower charging current. <strong>ABSAAR</strong><br />
battery chargers are designed such that switching to the motorcycle<br />
position delivers a 1.6A to 2.0A charging current.<br />
When is a Jump Start option appropriate?<br />
Almost everyone has found themselves in the embarrassing situation<br />
of getting into their vehicle and turning the key only to have nothing<br />
happen, usually at a moment when they are in a particular hurry.<br />
Battery chargers with a jump start options make it possible to start<br />
a discharged battery after only a minimal amount of charging time<br />
by delivering a short burst of power when it is needed to start the<br />
vehicle.<br />
When is a fully-automatic battery charger appropriate?<br />
Electronic (fully-automatic) battery chargers allow the battery to<br />
be charged without the need for supervision. Simply put, unsupervised<br />
charging means your battery cannot be overcharged. Electronic<br />
battery chargers switch from charging mode to maintenance mode<br />
once the desired voltage is reached to maintain the battery’s<br />
voltage at the desired level. This type of battery charger can remain<br />
connected to a battery for very long periods of time without risk that<br />
the battery will be overcharged and are ideal for the winterisation or<br />
storage of batteries. Fully-automatic battery chargers are the ideal<br />
choice for charging and winterisation or storage of caravans, recreation<br />
vehicles, boats, motorcycles or convertible sports cars. Depending on the<br />
model chosen, they charge not only normal lead-acid, but also<br />
maintenance-free, gel and AGM batteries.<br />
When is a maintenance charger more appropriate than a battery<br />
charger with maintenance mode?<br />
A maintenance charger delivers a very small charging current to<br />
maintain the charge of a battery at the maximum level of charge<br />
(assuming the battery is at its maximum charge level when it is<br />
connected) and is capable of remaining connected for long periods of<br />
time without supervision. It should be selected when the desired goal<br />
is simply to maintain the charge of a battery at its current level over<br />
a longer period of time.<br />
Welches Ladegerät nehme ich für welche Batterien?<br />
Es ist zwingend erforderlich dass das Ladegerät mit der Batteriespannung<br />
übereinstimmt. Eine Batterie soll schonend geladen werden. Wir<br />
empfehlen daher Amperestunde-Zahl (Ah) einer Batterie durch 10 ist<br />
das richtige Ladegerät für Ihre zu 50% entladene Batterie innerhalb<br />
12 Stunden aufzuladen (Übernachtladung).<br />
Wann empfehle ich ein 6 Volt Ladegerät?<br />
Eine 6 Volt Batterie verfügt im Gegensatz zur 12 Volt Batterie nur über<br />
3 Zellen a 2 Volt (12 Volt Batterie 6 Zellen a 2 Volt). Jede Batterie<br />
muss mit Ihrer Batteriespannung geladen werden. Batterien mit 6 Volt<br />
werden meistens in Fahrzeuge mit geringem Stromverbrauch wie zum<br />
Beispiel Rasenmäher, Motorroller oder Mofas verarbeitet. Man findet<br />
6 Volt Batterien auch noch in alten Fahrzeugen (Oldtimers) die von<br />
Ihren damaligen Ausstattungen einen so geringen Stromverbrauch<br />
hatten, dass eine 6 Volt Batterie ausreichte.<br />
Wann empfehle ich ein 24 Volt Ladegerät?<br />
Eine 24 Volt Batterie wird fast immer in einen Lkw oder in einem<br />
Bus eingebaut, deshalb muss ein 24 Volt Gerät verwendet werden. Es<br />
besteht jedoch auch die Möglichkeit mit diesem Ladegerät vier 6 Volt<br />
oder zwei 12 Volt Batterien die in Reihe geschaltet sind zu laden.<br />
Wann ist ein Ladegerät mit Normal- und Eilladung passend?<br />
Ein Ladegerät mit Normal- und Eilladung verfügt über 2 Ladespannungen.<br />
Das heißt der angegebene Strom wird bei der Schalterstellung<br />
Normal halbiert. Man hat beispielsweise ein Ladegerät mit 8 Ampere<br />
mit „Normal und Eilladung“ dann fließt bei der Schalterstellung Eil 8<br />
Ampere und bei der Schalterstellung Normal ca. 4 Ampere. Die Schalterstellung<br />
Eil hat den Vorteil, dass eine Batterie schnell geladen werden<br />
kann. Bei der Schalterstellung Normal wird durch den halbierten<br />
Strom die gleiche Batterie sehr langsam und dadurch sehr schonend<br />
geladen. Je langsamer eine Batterie geladen ist desto besser es ist<br />
für die Batterie.<br />
Wann ist ein Ladegerät mit Automobil- und Motorradladung<br />
passend?<br />
Ein Ladegerät mit Automobil- und Motorradschaltung hat den Vorteil,<br />
dass es für Autobatterien wie auch Motorradbatterien eingesetzt werden<br />
kann. Während eine Autobatterie in der Regel eine Kapazität von<br />
36 bis 88 Ah hat verfügt eine Motorradbatterien lediglich über eine<br />
Kapazität von 9 bis 25 Ah, deshalb ist es zwingend erforderlich diese<br />
Batterien mit einem geringeren Ladestrom zu laden. Die Ladegeräte<br />
der Firma <strong>ABSAAR</strong> sind daher bei der Schalterstellung Motorrad so<br />
ausgelegt, dass sie nur mit 1,6 Amp. bis max. 2,0 eine Motorradbatterie<br />
ladet.<br />
Wann ist ein Ladegerät mit Starthilfe passend?<br />
Es war sicherlich schon jeder einmal in der Verlegenheit, dass er in<br />
sein Fahrzeug gestiegen ist und nichts tat sich und immer gerade<br />
dann wenn man es besonders eilig hat. Ladegeräte mit Starthilfe ermöglichen<br />
es schon nach einer kurzen Vorladezeit mit den Geräten<br />
das Fahrzeug mit „Power wenn sie gebraucht wird“ zu starten.<br />
Wann ist ein Ladegerät mit Ladeerhaltung passend?<br />
Elektronische (automatische) Batterieladegeräte ermöglichen es eine<br />
Batterie unbeaufsichtigt zu laden. Unbeaufsichtigtes Laden heißt eine<br />
Batterie wird nicht überladen. Die elektronischen Ladegeräte schalten<br />
bei erreichen Ihrer Schlussspannung ab und gehen in die Ladeerhaltung<br />
über. Beim umschalten in die Ladeerhaltung hält das Ladegerät<br />
eine Spannung von 13,8 (6) Volt. Die Ladegeräte können daher unbedenklich<br />
lange an der Batterie angeschlossen bleiben ohne dass diese<br />
überladen werden. Die Ladegeräte sind daher ideal zum überwintern<br />
Ihrer Batterie geeignet. Ein vollautomatisches Ladegerät ist deshalb<br />
bestens zum Laden und Überwintern einer Wohnmobil-, Boots-, Motorrad-<br />
und Cabriolets-Batterie geeignet. Je nach Ausführung können<br />
mit den elektronischen Batterien nicht nur normal, sondern auch wartungsfreien,<br />
Gel oder AGM Batterien geladen werden.<br />
Wann ist ein Ladeerhaltungsgerät angebrachter als ein Batterieladegerät<br />
mit Ladeerhaltungsmodus?<br />
Ein Ladeerhaltungsgerät liefert einen sehr kleinen Ladestrom um<br />
die Spannung einer Batterie auf dem maximalen Niveau zu halten<br />
(Voraussetzung ist dass die Batterie voll geladen ist) und kann für<br />
lange Zeit ohne Überwachung angeschlossen bleiben. Das Ladegerät<br />
sollte gewählt werden, um die Ladung einer Batterie auf den seinem<br />
gegenwärtigen Niveau zu halten.
