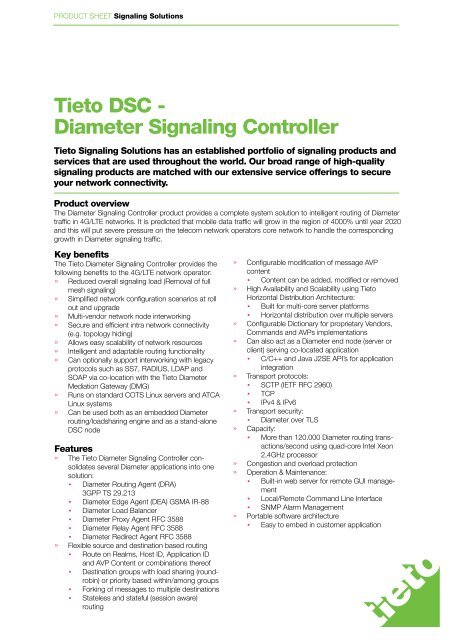

PRODUCT SHEET <strong>Signaling</strong> Solutions<br />
<strong>Tieto</strong> <strong>DSC</strong> -<br />
<strong>Diameter</strong> <strong>Signaling</strong> <strong>Controller</strong><br />
<strong>Tieto</strong> <strong>Signaling</strong> Solutions has an established portfolio of signaling products and<br />
services that are used throughout the world. Our broad range of high-quality<br />
signaling products are matched with our extensive service offerings to secure<br />
your network connectivity.<br />
Product overview<br />
The <strong>Diameter</strong> <strong>Signaling</strong> <strong>Controller</strong> product provides a complete system solution to intelligent routing of <strong>Diameter</strong><br />
traffic in 4G/LTE networks. It is predicted that mobile data traffic will grow in the region of 4000% until year 2020<br />
and this will put severe pressure on the telecom network operators core network to handle the corresponding<br />
growth in <strong>Diameter</strong> signaling traffic.<br />
Key benefits<br />
The <strong>Tieto</strong> <strong>Diameter</strong> <strong>Signaling</strong> <strong>Controller</strong> provides the<br />
following benefits to the 4G/LTE network operator:<br />
» Reduced overall signaling load (Removal of full<br />
mesh signaling)<br />
» Simplified network configuration scenarios at roll<br />
out and upgrade<br />
» Multi-vendor network node interworking<br />
» Secure and efficient intra network connectivity<br />
(e.g. topology hiding)<br />
» Allows easy scalability of network resources<br />
» Intelligent and adaptable routing functionality<br />
» Can optionally support interworking with legacy<br />
protocols such as SS7, RADIUS, LDAP and<br />
SOAP via co-location with the <strong>Tieto</strong> <strong>Diameter</strong><br />
Mediation Gateway (DMG)<br />
» Runs on standard COTS Linux servers and ATCA<br />
Linux systems<br />
» Can be used both as an embedded <strong>Diameter</strong><br />
routing/loadsharing engine and as a stand-alone<br />
<strong>DSC</strong> node<br />
Features<br />
» The <strong>Tieto</strong> <strong>Diameter</strong> <strong>Signaling</strong> <strong>Controller</strong> consolidates<br />
several <strong>Diameter</strong> applications into one<br />
solution:<br />
• <strong>Diameter</strong> Routing Agent (DRA)<br />
3GPP TS 29.213<br />
• <strong>Diameter</strong> Edge Agent (DEA) GSMA IR-88<br />
• <strong>Diameter</strong> Load Balancer<br />
• <strong>Diameter</strong> Proxy Agent RFC 3588<br />
• <strong>Diameter</strong> Relay Agent RFC 3588<br />
• <strong>Diameter</strong> Redirect Agent RFC 3588<br />
» Flexible source and destination based routing<br />
• Route on Realms, Host ID, Application ID<br />
and AVP Content or combinations thereof<br />
• Destination groups with load sharing (roundrobin)<br />
or priority based within/among groups<br />
• Forking of messages to multiple destinations<br />
• Stateless and stateful (session aware)<br />
routing<br />
» Configurable modification of message AVP<br />
content<br />
• Content can be added, modified or removed<br />
» High Availability and Scalability using <strong>Tieto</strong><br />
Horizontal Distribution Architecture:<br />
• Built for multi-core server platforms<br />
• Horizontal distribution over multiple servers<br />
» Configurable Dictionary for proprietary Vendors,<br />
Commands and AVPs implementations<br />
» Can also act as a <strong>Diameter</strong> end node (server or<br />
client) serving co-located application<br />
• C/C++ and Java J2SE API’s for application<br />
integration<br />
» Transport protocols:<br />
• SCTP (IETF RFC 2960)<br />
• TCP<br />
• IPv4 & IPv6<br />
» Transport security:<br />
• <strong>Diameter</strong> over TLS<br />
» Capacity:<br />
• More than 120.000 <strong>Diameter</strong> routing transactions/second<br />
using quad-core Intel Xeon<br />
2,4GHz processor<br />
» Congestion and overload protection<br />
» Operation & Maintenance:<br />
• Built-in web server for remote GUI management<br />
• Local/Remote Command Line Interface<br />
• SNMP Alarm Management<br />
» Portable software architecture<br />
• Easy to embed in customer application
MAM 100 1007-122/101 Ver 1.1<br />
PRODUCT SHEET <strong>Signaling</strong> Solutions<br />
Standards<br />
The <strong>Diameter</strong> <strong>Signaling</strong> <strong>Controller</strong> is developed<br />
according to the following standards:<br />
» IETF RFC 3588, <strong>Diameter</strong> Base<br />
» IETF RFC 3539, AAA Transport Profile<br />
» IETF RFC 4006, <strong>Diameter</strong> Credit-Control App.<br />
» IETF RFC 4005, AAA Access Server App.<br />
» IETF RFC 4072, Extensible Auth. Protocol App.<br />
» IETF RFC 4740, <strong>Diameter</strong> SIP App.<br />
» IETF RFC 5447, NAS to <strong>Diameter</strong> Interaction<br />
» 3GPP TS 29.109, Zh & Zn Interfaces<br />
» 3GPP TS 29.140, MM10 Interface<br />
» 3GPP TS 29.172, SLg Interface<br />
» 3GPP TS 29.173, SLh Interface<br />
» 3GPP TS 32.225, Ro & Rf Interface<br />
» 3GPP TS 29.228, Cx & Dx Interface<br />
» 3GPP TS 29.229, Cx & Dx Interface<br />
» 3GPP TS 29.272, S13 & S13’ Interface<br />
» 3GPP TS 29.328, Sh & Dh Interface<br />
» 3GPP TS 29.329, Sh & Dh Interface<br />
» 3GPP TS 29.213, S9 interface<br />
» 3GPP TS 29.272, S6a & S6d interface<br />
» 3GPP TS 29.211 & TS 29.212, Gx interface<br />
» 3GPP TS 29.211 & TS 29.212, Rx interface<br />
» 3GPP TS 29.209, Gq interface<br />
» 3GPP TS 29.299, Gy interface<br />
The <strong>DSC</strong> is compliant with 3GPP releases 7, 8, 9, 10<br />
and 11.<br />
The <strong>DSC</strong> is IMS ready, supports all 3GPP specific<br />
identities, command codes and result codes defined<br />
in TS 29.230.<br />
Alarm interface<br />
Alarms are normally sent as SNMP traps to an external<br />
SNMP manager via Ethernet connection. Alarm<br />
notifications can also be viewed locally. Alarms are<br />
saved in an alarm log.<br />
User Security<br />
The Linux system is hardened to prevent remote<br />
access and system manipulation<br />
HW Configurations<br />
The <strong>Diameter</strong> <strong>Signaling</strong> <strong>Controller</strong> is built for standard<br />
Linux x86 server platforms<br />
<strong>Tieto</strong> is the leading IT service company in Northern Europe<br />
providing IT and product engineering services. With<br />
approximately 18 000 experts, we are the global leader in<br />
selected segments. We specialize in areas where we have<br />
the deepest understanding of our customers’ businesses<br />
and needs. Our superior customer centricity and expertise<br />
in digital services set us apart from our competitors.<br />
