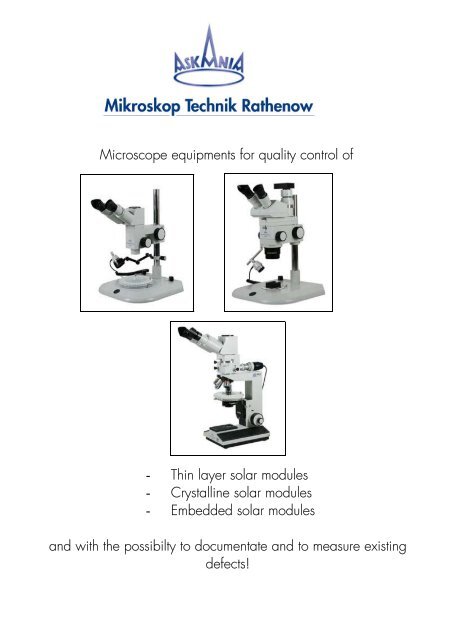

Microscope equipments for quality control of<br />
- Thin layer solar modules<br />
- Crystalline solar modules<br />
- Embedded solar modules<br />
and with the possibilty to documentate and to measure existing<br />
defects!
Leaflets<br />
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
2
Leaflets<br />
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
Stereo microscope SMT 4<br />
When working with and checking technical products and when supervising technical production<br />
sequences, speedy and reproducible adjustment of fixed magnifications is essential. The requirement<br />
is fulfilled by the SMT 4 with its five-stage magnification changer. Simple attachment facility to<br />
machines, compact construction and greater object freedom ensure easy manipulations of the<br />
specimen. Carefully arranged points of intersection makes it possible to add interchangeable lenses<br />
and accessories for photographic and video picture documentation..<br />
Technical Data<br />
Zoomfactor<br />
Magnification<br />
Object field (mm)<br />
Working distance (mm)<br />
Interpupillary distance (mm)<br />
Adjustment ametropia<br />
Weight (kg)<br />
Dimension W x D x H (mm)<br />
Photo-/TV-Exit<br />
SMT 4<br />
10:1 (5 steps)<br />
8x; 16x; 25x; 40x; 80x<br />
32; 16; 10; 6,3; 3,2<br />
100<br />
52 ... 78<br />
+/-5 dpt.<br />
5,3<br />
320 x 320 x 380<br />
yes (optional)<br />
Please contact our company or dealer for any price information!<br />
3
Specimens - Documentations<br />
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
Incident light microscope RMA 5<br />
Siliciumwafer solar panel Siliciumwafer solar panel<br />
Thin layer solar panel Thin layer solar panel<br />
Stereo Microscope SMT 4<br />
Solar panel embedded in glass Solar panel embedded in glass<br />
4
Specimens - Documentations<br />
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
Mono – Zoom - Microscope MZM 1<br />
Thin layer solar panel circuit path Thin layer solar panel circuit path<br />
5
History – ASKANIA <strong>Mikroskop</strong> <strong>Technik</strong> <strong>Rathenow</strong> GmbH<br />
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
...Some words regarding our historical background:<br />
200 years of optical industry in Germany and <strong>Rathenow</strong><br />
Microscopes have been manufractured in <strong>Rathenow</strong> for more than 200 years. This tradition of<br />
microscope making stretches from J.H.A. Duncker, the founder of the optical industry in Germany,<br />
through Emil Busch and his affiliates to the state combine VEB Carl Zeiss Jena.<br />
<strong>Mikroskop</strong> <strong>Technik</strong> <strong>Rathenow</strong> GmbH offers microscopes for teaching and education, for practical<br />
biological and medical applications and also stereomicroscopes for wide use in the natural sciences<br />
and engineering. Precise construction and practically based design are the characteristics of the<br />
products from <strong>Mikroskop</strong> <strong>Technik</strong> <strong>Rathenow</strong> GmbH.<br />
A comprehensive range of auxiliary equipment and special variants meet the demands made on a<br />
modern microscope. We will advise you when you bye, be your partners during use and will ensure<br />
the servicing of your microscopes.<br />
6
Contact<br />
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------<br />
Information and Ordering under:<br />
Tel.: +49 (0) 33 85 53 71 0<br />
Fax: +49 (0) 33 85 53 71 22<br />
Email: mikro.ra@askania.de<br />
Internet: www.askania.de<br />
All necessary leaflets are also available for download at our website.<br />
Contact information:<br />
<strong>Mikroskop</strong> <strong>Technik</strong> <strong>Rathenow</strong> GmbH<br />
Grünauer Fenn 40<br />
D-14712, <strong>Rathenow</strong><br />
Amtsgericht Potsdam HRB 9648<br />
USt-Id.Nr. DE 811962592<br />
Geschäftsführer: Ralf-Peter Lautenschläger; Carla Lautenschläger<br />
Stand: May 2010<br />
