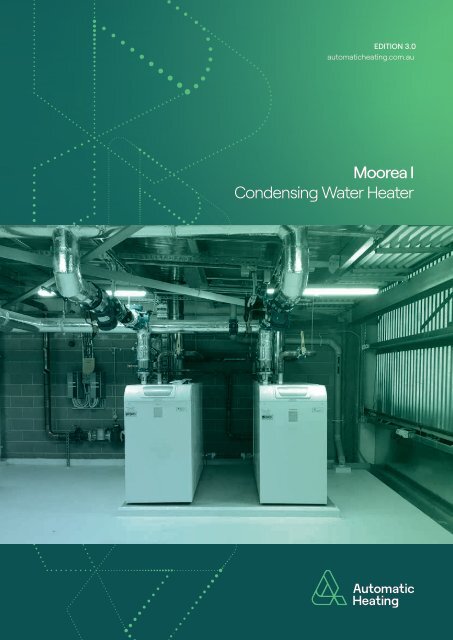

EDITION <strong>3.0</strong><br />
automaticheating.com.au<br />
<strong>Moorea</strong> I<br />
Condensing Water Heater
<strong>Moorea</strong> I Condensing Water Heaters<br />
<strong>Moorea</strong> I<br />
Condensing Water Heater<br />
125 – 610kW<br />
The new floor standing condensing gas<br />
water heater, <strong>Moorea</strong> I, represents the<br />
highest evolution stage within the middle<br />
output range of gas fired condensing water<br />
heaters.<br />
The continuous development of floor standing<br />
condensing water heaters has identified a smaller<br />
foot print, improved modulation range and reduced<br />
operating noise as key product features. <strong>Moorea</strong> I is<br />
improved in all three areas.<br />
Available in eight outputs; 170, 215, 260, 300, 400,<br />
470, 540 and 610kW, the <strong>Moorea</strong> I is designed<br />
with the customer, installer and specifier in mind.<br />
Using the very latest heating technology with a<br />
heat exchanger made from aluminium/silicon and<br />
a combustion system which delivers exceptional<br />
energy efficiency as well as advanced ultra low NOx<br />
performance of 35mg/kWh (Class 5).<br />
Integrated<br />
Controller<br />
Painted<br />
Cover<br />
Control Panel<br />
with LED Screen<br />
Variable<br />
Speed Fan<br />
Aluminium<br />
Alloy Heat<br />
Exchanger<br />
Gas<br />
Valve<br />
Condensate<br />
Recovery<br />
Tank<br />
Product Quick Check<br />
Type<br />
Range<br />
Efficiency<br />
Outdoor Option<br />
Fuel Type<br />
Gas Approval Type<br />
Condensing Premixed<br />
170-610kW<br />
108% (Net) 97.5% (Gross)<br />
Yes<br />
Natural Gas (All models)<br />
LPG (Models MR170I-MR300I only)<br />
Type B approved to AS3814<br />
Modulation 1:6.25<br />
Cascadeable Yes<br />
Max Pressure 600kPa<br />
Low Nox<br />
Yes<br />
Building J Code Yes<br />
2019 compliant<br />
2<br />
Automatic Heating
<strong>Moorea</strong> I Condensing Water Heaters<br />
Features<br />
• Very high efficiency up to 108 %<br />
• Wide modulation range<br />
• No capacity constraints<br />
• Low pollution discharges<br />
• Small footprint & weight limits<br />
• Install up to 16 water heaters in cascade<br />
• Very quiet operation<br />
Advantages<br />
• Outputs available from 125 to 610 kW<br />
• Maximum energy utilisation<br />
• Efficiency of up to 108% net (97.5% gross)<br />
• High modulation range from 16% to 100% of<br />
nominal output (6.25 to 1)<br />
• Heat exchanger profile designed to ensure highly<br />
efficient heat transfer<br />
• Compact dimensions and small footprint<br />
• Lightweight aluminium/silicon heat exchanger<br />
• Top mounted hydraulic and flue connections<br />
revised<br />
• Easier to connect and less space needed for<br />
working access<br />
• NOx 35mg/kWh<br />
Application Examples<br />
Cascade without<br />
booster pump<br />
Not to be used if there are<br />
any high temperature circuits<br />
60/80 °C (no instant DHW) the<br />
motorised 2-channel valves<br />
isolate the water heaters when<br />
they are not operating. On<br />
start up the water heaters are<br />
blocked until their respective<br />
isolating valves are fully open. The<br />
Cascade function is integrated<br />
and a BUS module just needs to<br />
be added to each water heater<br />
regulator.<br />
<strong>Moorea</strong> I HTE<br />
125-610<br />
Hot Water<br />
Tank<br />
Optimising the condensing<br />
"Cold" returns are used more,<br />
Thanks to the buffer tank, short<br />
cycles at high temperature are<br />
made smoother: loop losses, low<br />
drawing. The time for the water<br />
heater to reach its temperature<br />
is covered by the buffer tank; the<br />
tank's contents must be at least<br />
2.5 l /kW of installed power at<br />
high temperature.<br />
<strong>Moorea</strong> I HTE<br />
125-610<br />
Primary Buffer Tank<br />
Automatic Heating 3
<strong>Moorea</strong> I Condensing Water Heaters<br />
Performance Data<br />
Model<br />
Output<br />
50/30°C kW<br />
Min/Max*<br />
Net<br />
Efficiency<br />
50/30°C %<br />
Dimensional Data<br />
MR170I - MR300I (Indoor)<br />
Output<br />
80/60°C kW<br />
Min/Max*<br />
Net<br />
Efficiency<br />
80/60°C %<br />
Nominal<br />
Input MJ/<br />
hr<br />
Modulation<br />
Ratio<br />
Flow Rate<br />
Min/Max<br />
L/s**<br />
Waterside<br />
Pressure<br />
Drop kPa<br />
Total<br />
Water<br />
Volume<br />
litres<br />
Dry<br />
Weight<br />
Kg<br />
Power Supply<br />
V/A/Hz<br />
MR170I 29.8/181.3 106.8 26.8/165.8 97.6 675 1:6.08 2.03/4.06 4 34 255 240/0.833/50<br />
MR215I 37.4/229.6 106.9 33.5/210.1 97.8 860 1:6.14 2.57/5.14 4 38 285 240/1.375/50<br />
MR260I 44.9/278.1 107.1 40.2/254.5 98 998 1:6.19 3.11/6.21 4 45 305 240/1.458/50<br />
MR300I 52.3/322.1 107.2 45.9/294.3 98.1 1176 1:6.16 3.58/7.17 4 53 340 240/1.708/50<br />
MR400I 88.9/426 109.4 80.4/393.8 106.4 1565 1:4.79 4.78/9.56 10 73 540 240/1.929/50<br />
MR470I 102.8/496.6 109.3 9<strong>3.0</strong>/459.0 106.1 1839 1:4.83 5.61/11.23 12 84 598 240/2.429/50<br />
MR540I 117.7/570.3 109.2 106.6/526.9 106.2 2113 1:4.85 6.45/12.9 12 97 636 240/3.291/50<br />
MR610I 131.5/644.8 109.1 119.2/595.7 106.3 2386 1:4.90 7.29/14.57 13 108 674 240/3.125/50<br />
* Output calculations based on Natural Gas<br />
** Requested rated flow rate in l/s (Δt=20K) / Maximum flow rate in l/s (Δt=10K). Primary pump must be controlled by the water heater.<br />
K<br />
K<br />
K<br />
Back View<br />
J<br />
J<br />
Top View<br />
J<br />
Front<br />
View<br />
Side<br />
View<br />
I<br />
I<br />
I<br />
MR400I - MR610I (Indoor)<br />
K<br />
G<br />
H<br />
I<br />
669<br />
G 505<br />
214<br />
Front<br />
View<br />
Side<br />
View<br />
Back View<br />
Top View<br />
L M N<br />
659<br />
Model<br />
A<br />
Gas<br />
Supply<br />
B<br />
Safety<br />
Valve<br />
C<br />
Flue<br />
mm<br />
D<br />
HHW Outlet/<br />
Flow<br />
E<br />
HHW Inlet/<br />
Return<br />
F<br />
Condensate<br />
Drain mm<br />
MR170I-I 1 ½” 1” Ø160 DN 65 PN6 DN 65 PN6 Ø25 401 301 134 687 1008 - - -<br />
MR215I-I 1 ½” 1 ¼” Ø200 DN 65 PN6 DN 65 PN6 Ø25 514 351 163 851 1171 - - -<br />
MR260I-I 1 ½” 1 ¼” Ø200 DN 65 PN6 DN 65 PN6 Ø25 607 351 163 944 1264 - - -<br />
MR300I-I 1 ½” 1 ¼” Ø200 DN 65 PN6 DN 65 PN6 Ø25 700 351 163 1037 1357 - - -<br />
MR400I-I 2" 2" Ø250 DN 80 PN6 DN 80 PN6 Ø32 709 - - - 1882 642 798 442<br />
MR470I-I 2" 2" Ø250 DN 80 PN6 DN 80 PN6 Ø32 1018 - - - 2192 642 1009 540<br />
MR540I-I 2" 2" Ø250 DN 80 PN6 DN 80 PN6 Ø32 1018 - - - 2192 642 1009 540<br />
MR610I-I 2" 2" Ø250 DN 80 PN6 DN 80 PN6 Ø32 1018 - - - 2192 642 1009 540<br />
G<br />
mm<br />
H<br />
mm<br />
I<br />
mm<br />
J<br />
mm<br />
K<br />
mm<br />
L<br />
mm<br />
M<br />
mm<br />
N<br />
mm<br />
4<br />
Automatic Heating
<strong>Moorea</strong> I Condensing Water Heaters<br />
Dimensional Data<br />
MR170 - MR300 (Outdoor)<br />
Front View<br />
Side View<br />
Top View<br />
MR400 - MR610 (Outdoor)<br />
Front View<br />
Side View<br />
Top View<br />
Model<br />
A<br />
Gas<br />
Supply<br />
B<br />
Safety<br />
Valve<br />
C<br />
Flue<br />
mm<br />
D<br />
HHW<br />
Outlet/Flow<br />
E<br />
HHW Inlet/<br />
Return<br />
F<br />
Condensate<br />
Drain mm<br />
MR170I-O 1-1/2” 1” ø160 DN 65 PN6 DN 65 PN6 ø25 401 315 148 702 1036 - - -<br />
MR215I-O 1-1/2” 1-1/4” ø200 DN 65 PN6 DN 65 PN6 ø25 514 365 177 865 1199 - - -<br />
MR260I-O 1-1/2” 1-1/4” ø200 DN 65 PN6 DN 65 PN6 ø25 607 365 177 958 1292 - - -<br />
MR300I-O 1-1/2” 1-1/4” ø200 DN 65 PN6 DN 65 PN6 ø25 700 365 177 1051 1385 - - -<br />
MR400I-O 2” 2” ø250 80 DIN-6 80 DIN-6 ø32 709 524 234 1241 1920 662 798 461<br />
MR470I-O 2” 2” ø250 80 DIN-6 80 DIN-6 ø32 1018 524 234 1551 2230 662 1010 559<br />
MR540I-O 2” 2” ø250 80 DIN-6 80 DIN-6 ø32 1018 524 234 1551 2230 662 1010 559<br />
MR610I-O 2” 2” ø250 80 DIN-6 80 DIN-6 ø32 1018 524 234 1551 2230 662 1010 559<br />
G<br />
mm<br />
H<br />
mm<br />
I<br />
mm<br />
J<br />
mm<br />
K<br />
mm<br />
L<br />
mm<br />
M<br />
mm<br />
N<br />
mm<br />
Automatic Heating 5
<strong>Moorea</strong> I Condensing Water Heaters<br />
Case Studies<br />
333 George St<br />
Sydney<br />
4 x <strong>Moorea</strong> 260kW<br />
Calvary Bruce Hospital<br />
Canberra<br />
3 x <strong>Moorea</strong> 610kW<br />
Clyde Hub<br />
Sydney<br />
2 x <strong>Moorea</strong> Outdoor Units<br />
6<br />
Automatic Heating
<strong>Moorea</strong> I Condensing Water Heaters<br />
420 Collins St<br />
Melbourne<br />
2 x <strong>Moorea</strong> 300kW<br />
Frankston Target<br />
1 x <strong>Moorea</strong> 300kW<br />
Ryde Hospital NSW<br />
1 x <strong>Moorea</strong> 200kW<br />
Automatic Heating 7
Automatic Heating Global Pty Ltd<br />
T. +613 8352 7000<br />
E. sales@automaticheating.com.au<br />
67 Gateway Boulevard, Epping VIC 3076<br />
P.O. Box 35a Epping VIC 3076 Australia<br />
W. automaticheating.com.au 18678 210407
