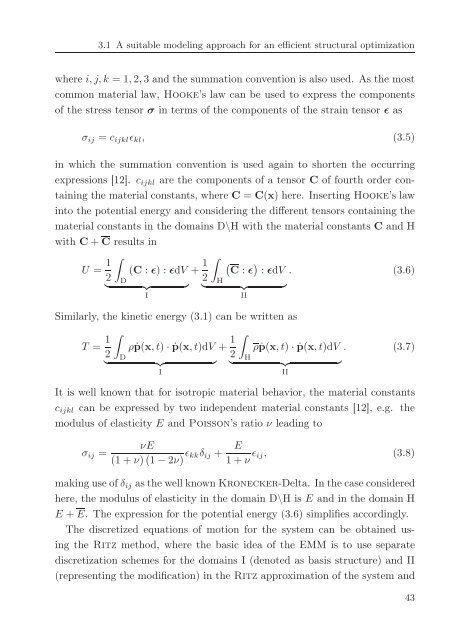

3.1 A suitable modeling approach for an efficient structural optimization<br />
where i,j,k = 1,2,3 and <strong>the</strong> summation convention is also used. As <strong>the</strong> most<br />
common material law, Hooke’s law can be used to express <strong>the</strong> components<br />
<strong>of</strong> <strong>the</strong> stress tensor σ in terms <strong>of</strong> <strong>the</strong> components <strong>of</strong> <strong>the</strong> strain tensor ǫ as<br />
σ ij = c ijkl ǫ kl , (3.5)<br />
in which <strong>the</strong> summation convention is used again to shorten <strong>the</strong> occurring<br />
expressions [12]. c ijkl are <strong>the</strong> components <strong>of</strong> a tensor C <strong>of</strong> fourth order containing<br />
<strong>the</strong> material constants, where C = C(x) here. Inserting Hooke’s law<br />
into <strong>the</strong> potential energy and considering <strong>the</strong> different tensors containing <strong>the</strong><br />
material constants in <strong>the</strong> domains D\H with <strong>the</strong> material constants C and H<br />
with C+C results in<br />
∫ ∫<br />
( )<br />
(C : ǫ) : ǫdV C : ǫ : ǫdV . (3.6)<br />
U = 1 2<br />
D<br />
} {{ }<br />
I<br />
+ 1 2<br />
H<br />
} {{ }<br />
II<br />
Similarly, <strong>the</strong> kinetic energy (3.1) can be written as<br />
T = 1 ∫<br />
ρṗ(x,t)·ṗ(x,t)dV + 1 ∫<br />
ρṗ(x,t)·ṗ(x,t)dV . (3.7)<br />
2 D 2 H<br />
} {{ } } {{ }<br />
I<br />
II<br />
It is well known that for isotropic material behavior, <strong>the</strong> material constants<br />
c ijkl can be expressed <strong>by</strong> two independent material constants [12], e.g. <strong>the</strong><br />
modulus <strong>of</strong> elasticity E and Poisson’s ratio ν leading to<br />
σ ij =<br />
νE<br />
(1+ν)(1−2ν) ǫ kkδ ij + E<br />
1+ν ǫ ij, (3.8)<br />
making use <strong>of</strong>δ ij as <strong>the</strong> well known Kronecker-Delta. In <strong>the</strong> case considered<br />
here, <strong>the</strong> modulus <strong>of</strong> elasticity in <strong>the</strong> domain D\H is E and in <strong>the</strong> domain H<br />
E +E. The expression for <strong>the</strong> potential energy (3.6) simplifies accordingly.<br />
The discretized equations <strong>of</strong> motion for <strong>the</strong> system can be obtained using<br />
<strong>the</strong> Ritz method, where <strong>the</strong> basic idea <strong>of</strong> <strong>the</strong> EMM is to use separate<br />
discretization schemes for <strong>the</strong> domains I (denoted as basis structure) and II<br />
(representing <strong>the</strong> modification) in <strong>the</strong> Ritz approximation <strong>of</strong> <strong>the</strong> system and<br />
