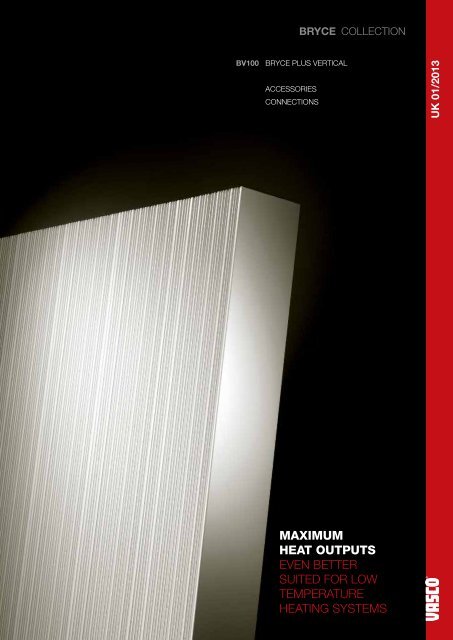

Bryce COLLECTION<br />
BV100<br />
Bryce plus Vertical<br />
Accessories<br />
Connections<br />
UK 01/2013<br />
Maximum<br />
heat outputs<br />
Even better<br />
suited for low<br />
temperature<br />
heating systems
Bryce plus Vertical (BV100)<br />
type<br />
ref. nr.<br />
11209<br />
BV100<br />
width<br />
(L mm)<br />
height<br />
(H mm)<br />
75/65/20<br />
(Watt)<br />
90/70/20<br />
(Watt)<br />
n-exp.<br />
weight<br />
(kg)<br />
water content<br />
(l)<br />
tubes<br />
(n)<br />
price<br />
S600<br />
price<br />
colour<br />
electr.<br />
resistance<br />
(Watt)<br />
375 1600 1238 1568 1,34 19,65 1,35 - 649 746 -<br />
375 1800 1373 1733 1,32 22,03 1,48 - 689 792 -<br />
375 2000 1503 1890 1,30 24,40 1,60 - 707 813 -<br />
375 2200 1628 2047 1,30 26,65 1,75 - 752 865 -<br />
450 1600 1482 1874 1,33 23,73 1,60 - 758 872 -<br />
450 1800 1644 2075 1,32 26,53 1,80 - 804 925 -<br />
450 2000 1799 2266 1,31 29,33 2,00 - 827 951 -<br />
450 2200 1950 2452 1,30 32,20 2,07 - 883 1015 -<br />
525 1600 1726 2182 1,33 27,82 1,85 - 863 992 -<br />
525 1800 1914 2416 1,32 31,04 2,13 - 919 1057 -<br />
525 2000 2095 2644 1,32 34,27 2,40 - 946 1088 -<br />
525 2200 2270 2855 1,30 37,75 2,38 - 1011 1163 -<br />
600 1600 1969 2489 1,33 31,90 2,10 - 971 1117 -<br />
600 1800 2184 2756 1,32 35,55 2,45 - 1035 1190 -<br />
600 2000 2391 3017 1,32 39,20 2,80 - 1065 1225 -<br />
600 2200 2590 3263 1,31 43,30 2,70 - 1140 1311 -<br />
in conformity with EN442-1: radiators and convectors<br />
type<br />
stock radiators (S600, M301)<br />
width<br />
(L mm)<br />
height<br />
(H mm)<br />
colour<br />
short<br />
ref. nr.<br />
price<br />
BV100 450 1800 0600 11209-01 804<br />
450 1800 0301 11209-02 925<br />
525 1800 0600 11209-03 919<br />
525 1800 0301 11209-04 1057<br />
600 2000 0600 11209-05 1065<br />
600 2000 0301 11209-06 1225<br />
112,5 112,5<br />
118<br />
H - 263<br />
123<br />
103<br />
H<br />
15<br />
Prices in £ (excl. VAT)<br />
23<br />
59<br />
93<br />
L<br />
50
Bryce plus Vertical (BV100)<br />
Types<br />
• Vertical: Bryce Plus BV100 (depth)<br />
Colours<br />
• Standard colour S600 (fine texture white)<br />
• Not available in M350 (stainless steel look)<br />
• Extensive colour chart see technical price list<br />
Special<br />
• Composed out of vertical aluminium profiles<br />
• Protection against internal corrosion: protecting product Protect 1+1<br />
• The Bryce is awarded with the Henry van de Velde label 2007, the<br />
Product Design Award Hannover 2008, Design Plus Award - Material<br />
Vision, Frankfurt 2007, the Red Dot Product Design Award 2008 and<br />
nominated for the Designpreis 2009 and the European Aluminium<br />
Award 2008.<br />
Brackets<br />
• Wall brackets standard<br />
Technical<br />
• Aluminium radiators are manufactured by way of a patented press<br />
process that goes into making a world class radiator.<br />
• KTL priming coat, powder coating<br />
• Standard operating pressure: 10 bar<br />
• Maximum operating temperature: 110°C<br />
BV100<br />
return supply<br />
ref. nr. 118210300000099<br />
price £ 142<br />
Bryce plus<br />
Electrical<br />
Pure electrical radiator prefilled<br />
Mixed radiator<br />
✘<br />
✘<br />
Connection<br />
One-point connection for one-pipe system ✘<br />
One-point connection for two-pipe system ✘<br />
Two-point connection for one-pipe system ✔<br />
(connection by way of the central connection)<br />
Two-point connection for two-pipe system ✔<br />
(standard)<br />
Integrated valve<br />
✘<br />
• A standard automatic air vent is fitted on the top left hand side of the radiator<br />
• Attention: The water should be PH neutral. Protect 1+1 or a similar product should be added to the circuit<br />
(1 liter for 100 liters installation water).<br />
Delivery terms Transport duration not included !<br />
• Stock radiators in S600 and M301: 5 working days<br />
• Non-stock radiators: 15 to 30 working days, dependent on the type of radiator<br />
Prices in £ (excl. VAT)<br />
BV100<br />
Centre between the connections 50<br />
Centre between the brackets L-225
BRYCE PLUS Accessories<br />
In option<br />
ACCESSORIES COLOUR WIDTH RADIATOR REF.NR. £<br />
ALUMINIUM 375 mm 118324400000000 141<br />
TOWEL RAIL<br />
ALUMINIUM 450 mm 118324500000000 141<br />
ALUMINIUM 525 mm 118324600000000 141<br />
ALUMINIUM 600 mm 118324700000000 141<br />
• Towel rail in aluminium<br />
• h = 50 mm; b = 435, 510, 585, 660 mm; d = 47 mm; a = 43 mm<br />
BV100<br />
d = distance front of the accessory up to front of the radiator<br />
a = distance accessory up to the radiator<br />
BRYCE PLUS Connections<br />
BRYCE Plus Vertical: BV100<br />
MM<br />
MM<br />
0066 0066<br />
• Attention: connecting the radiator can only be as shown by the connecting icons. For any other<br />
connection method, we take no responsibility.<br />
Prices in £ (excl. VAT)<br />
<strong>Vasco</strong> bvba Factory (Belgium)<br />
Kruishoefstraat 50<br />
B-3650 Dilsen<br />
T: +32-(0)89 79 04 11<br />
F: +32-(0)89 79 05 00<br />
@: marketing@vasco.be<br />
www.vasco.eu<br />
@: info@theheatingcompany.com<br />
www.theheatingcompany.com<br />
UK-Office<br />
11 Winward Close<br />
Lower Darwen<br />
Darwen<br />
Lancashire<br />
BB3 0SE<br />
Dave Thornback<br />
UK Sales Manager<br />
T: 01254704420<br />
F: 01254704420<br />
M: 07545338162<br />
@: dave.thornback@theheatingcompany.com<br />
Dave Hassall<br />
Area Sales Manager<br />
M: 07450880416<br />
@: dave.hassall@theheatingcompany.com<br />
01/2013
