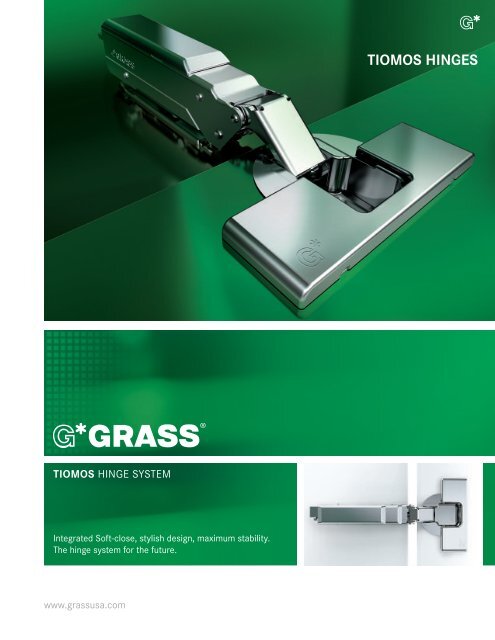

TIOMOS HINGES - Grass America, Inc.

Tiomos, an elegant hinge system today that meets the technicaland functional requirements of tomorrow.Our developers set out to create aproduct innovation – a completelynew hinge system. The result wasTiomos. Not only does Tiomos outperform any other hinge in the industry,it offers a timeless design as well as itsown individual character.Tiomos is a completely new hingeconcept. The product range providesperfect movement for virtually everyapplication, from standard doors to wideangle doors, from framelessapplications to face frame applications.Tiomos is available in a 45mm or 42mmboring pattern for dowelled hinges and45mm for screw-on hinges and now inthe ever popular tool free version -Tiomos Impresso.The Tiomos offers an adjustableSoft-close mechanism, which is fullyintegrated and concealed in the hingearm. The closing process is extremelysmooth from the degree that theSoft-close is activated until the door iscompletely shut. With the superbengineering and design, size and weightof the door will not be a factor. Thecabinet doors pull open with ease andminimal gaps can be achieved with thenew design of the hinge.In summary, Tiomos offers the idealsolution to the ever increasingrequirements of today’s manufacturers.3

One hinge system to cover all applications.Tiomos provides movement systems for virtuallyevery application.Tiomos is not a revamp of anexisting hinge system but anevoutionary new development.The product range provides perfectmovement for virtually every application,from standard doors to wide angle doors,from diagonal corner hinges to pie cutcorner hinges, in both frameless andface frame applications. The Tiomos isoffered in a Self-close version or a Softcloseversion, in a 42mm boring pattern,45mm boring pattern, and the tool-lessImpresso in a 42/45mm pattern. Insummary, Tiomos offers the idealsolution to the ever increasingrequirements of today’s manufacturers.4

TIOMOS HINGE SYSTEMOne hinge system featuring a multitude ofinnovative aspects.Soft-close technology is concealedwithin the hinge arm.Three levels of closing pressure areavailable with the Tiomos adjustableSoft-close mechanism, which is fullyintegrated and concealed in the hingearm. The hinges arrive with theadjustment lever in the horizontalposition. A turn to the left or the rightwill adjust the Soft-close mechanism toyour individual requirements.Perfect alignment with a twist ofthe hand.For fine adjustment, the Tiomos hingesystem offers three dimensionaladjustment. Depth adjustment(+3/-2mm) is based on the worm gearprinciple and is continuous and selflocking.Depending on the type of baseplate chosen, height adjustment(± 2.5mm) can be achieved via a wormgear or through elongated holes. Sideadjustment (± 2mm) is on thehinge arm.The new kinematics inside Tiomos.The complex inner workings of thishigh-tech hinge are hidden from view,but they are most impressive whenworking as one. With the newkinematics in place the doors areextremely easy to open. And thismechanism makes alignment with thesmallest of gaps and reveals possibleopening up new possibilities to cabinetdesigners.For stronger damping action,turn the adjustment leverby 90° to the right.Tiomos hinges leave the factorywith the adjustment lever in thehorizontal position.For a gentler closing action, theadjustment lever of the Soft-close damperis turned to the left by 90°.5

Technical InformationFor TiomosFeatures• Adjustable soft-close mechanism integratedand concealed in the hinge arm• Continuous, smooth closing action from the degree that theSoft-close is activated until the door is completely closed• Uniform closing action regardless of the door size, weight, or materials• Soft-close mechanism can be adjusted easily and without tools, evenafter doors are installed• Each Tiomos hinge has 3 settings for closing performance• Increased applications:* Full overlay from 24 - 13.5mm* Overlay from 19 - 11.5mm* Half Overlay from 12.5 - 5mm* Inset• Depth adjustment (+3/-2mm)is smooth and self-locking via worm screw principle• Easy height adjustment (± 2.5mm)via hinge arm• Side adjustment (±2mm)with overturn stop• Integrated damper adjustmentwith 3 Soft-close settings.Adjustment system is concealed inthe hinge arm.• Ergonomic cliprelease with audiblelocking3 Soft-close settingsadjust to meet yourindividual Soft-closerequirements.Wide selectionof hinge overlays andspecialty hinges cover allapplication needs.6

Features & Benefits• One hinge type for all door thicknesses 14 - 24mm• 3-dimensional adjustment with suitable base plate* Depth adjustment +3/-2mm via self-locking worm screw* Height adjustment +/-2.5mm via hinge arm* Side adjustment with overturn stop +/-2 via hinge arm• Soft-close or Self-close hinges are available• For face frame or frameless cabinets• Impresso for tool free application• 42mm and 45mm boring patternsDowelled and Screw-oncup attachments. Dowelledavailable in both 42mm and45mm patterns. Screw-onavailable in 45mm pattern.• New Kenematicreduces opening force and minimizes reveals• Impresso Hingesfor tool free application• Tiomos Styles42mm pattern, Screw-on,45mm pattern, Screw-on and Dowelled,and Impresso 42/45mm pattern• Cup depth12.6mm (1/2”)7

TiomosTable of ContentOpeningangle DescriptionFull overlay Overlay Half overlay Inset Page110°Technical InformationTiomos 110•Optimal reveals up to 24 mm door thickness•Convenient depth adjustment via worm gear6-914120°Tiomos 120•Optimal reveals up to 24 mm door thickness•Convenient depth adjustment via worm gear16160°Tiomos 160•Optimal reveals up to 32 mm door thickness•Zero protrusion•For cabinets with inset drawers or pull-out shelves1895°Tiomos 95•Optimal reveals up to 36 mm door thickness•Convenient depth adjustment via worm gear20110°Tiomos 110/90A•Hinge for blind corner cabinets, overlay•Convenient depth adjustment via worm gear22110°Tiomos 110/90E•Hinge for blind corner cabinets, inset•Convenient depth adjustment via worm gear24110°Tiomos 110/30A•For 30° angled cabinets, overlay•Convenient depth adjustment via worm gear26110°Tiomos 110/30E•For 30° angled cabinets, inset•Convenient depth adjustment via worm gear28110°Tiomos 110/37A•For 37° angled cabinets, overlay•Convenient depth adjustment via worm gear30110°Tiomos 110/37E•For 37° angled cabinets, inset•Convenient depth adjustment via worm gear32110°Tiomos 110/45A•For 45° angled cabinets, overlay•Convenient depth adjustment via worm gear346

Openingangle DescriptionFull overlay Overlay Half overlay Inset Page110°Tiomos 110/45E•For 45° angled cabinets, inset•Convenient depth adjustment via worm gear36120°Tiomos 120/-15A•For -15° angled cabinets, overlay•Convenient depth adjustment via worm gear38120°Tiomos 120/-30A•For -30° angled cabinets, overlay•Convenient depth adjustment via worm gear40120°Tiomos 120/-45A•For -45° angled cabinets, overlay•Convenient depth adjustment via worm gear42110°Tiomos PCC•For pie cut corner application•Convenient depth adjustment via worm gear44Tiomos base plates46Accessories•Hinge arm cover caps•Opening angle reduction clips50Machinery52Test Criteria549

Technical InformationFor TiomosNumber of hinges per doorThe number of hinges is determined by the door height, door weight,quality of the material and the fixing of the cup and base plate.The load and height data refer to 24” standard door widths.96"84"2 3 4 5The table refers to hinges with and without integrated dampers.Grass strongly recommends a trial mount for all hinges and base plates.Attach base plates using all available screw holes.Example:For doors measuring 56” x 24” and weighing 19 lbs., Grassrecommends the installation of 3 hinges.63"56"35"24"Note: The distance between the top and bottom hinge must be greaterthan the width of the door.24"The Tiomos hinge meets and exceeds the minimum requirements ofANSI/BHMA A156.9 Standard.inchespounds15 20 3045 60Tool-less Soft-close adjustmentSoft-closing performance can be regulated for any door size and weight with the Tiomos adjustable integrated Soft-close. Depending upon the requirement,the Soft-closing settings can be adjusted easily and without tools. With 2 hinges there are 6 Soft-close settings.1 2 3Light settingAdjustment lever points toward the cabinet wallAppropriate for:• Small, light doorsMedium setting (factory setting)Adjustment lever is parallel to the cabinetwall. This setting covers 80% of doorapplications.Appropriate for:• Standard doorsStrong settingAdjustment lever points toward thecabinet interiorAppropriate for:• Large, heavy doors10

AdjustmentsThe options for height adjustmentdepend on the type of base plate.All adjustments can be madeindependent of one another.For depth adjustment, select baseplates have worm gear adjustmentaccess through the hinge arm.Use a #2 POZI drive screw driver forhinge adjustment.Attach base plates using allavailable screw holes.Side adjustment±2 mm +3/-2 mm ±2.5 mmDepth adjustmentvia worm gearHeight adjustmentvia base plateRevealFull Overlay/Overlay Door Half Overlay Door Inset DoorThe reveal (R) is the distance required betweentwo doors or between the door and side wall ofthe cabinet to allow sufficient space for openingthe door. The required reveal width (R) depends onthe thickness of the door.Most cabinet makers prefer a reveal (R) ofbetween 3mm and 6mm.Reveal (R)Reveal 2 x (R)Reveal (R)Reveal for full overlay, overlay, and half overlay doorsReveal for inset door:The table shows the revealnecessary between twodoors or between door andside wall to allow enoughspace for opening the door.Example:For a door thickness of19mm and a drilling distance(DD) of 6mm a (R) reveal of0.9 is needed.Note:Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 2.4 2.1 2.1 2.1 2.022.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.5 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 0.6 0.6 0.6 0.6 0.616.0 0.6 0.6 0.6 0.6 0.6Reveal (min.) (R)Reveal dimensions were determined with a door edge radius of 1mm.Hinge dimensions and calculation of reveal with factory setting.The table shows theminimum reveal for an insetdoor, depending on thedrilling distance (DD) andthe base plate height (BPH).Example:A drilling distance (DD) of6mm results from using abase plate with height 03and a reveal (R) of 1.0mm.Minimum Reveal (R)Drilling Distance (DD)3 4 5 6 70.0 0 2 30.5 3.51.0 0 2 31.5 3.52.0 2 33.0 2 34.0 3Base Plate Height (BPH)IMPORTANT To determine the correct application Grass stronglyrecommends a trial mounting for all hinges and base plates.11

Technical InformationFor TiomosMinimum gap – Drilling distanceThe Minimum gap is the gapbetween the closed door and thefront of the cabinet.Gap = 1.5 mm(Factory setting)Drillingdistance (DD)Cup Center (CC)DrillingDistanceDD18”532”316”14”932”516”CupCenterCC13316” 20.527432” 21.5758”22.515616” 23.531732” 24.58 1” 25.5Example:For a door thickness (DT) of 17mmand a drilling distance (DD) of 6mma minimum gap of 1.0mm isneeded.Door Thickness (DT)Drilling Distance (DD)3 4 5 6 724.0 1.0 1.0 1.0 1.2 2.122.0 1.0 1.0 1.0 1.0 1.521.0 1.0 1.0 1.0 1.0 1.220.0 1.0 1.0 1.0 1.0 1.019.0 1.0 1.0 1.0 1.0 1.018.0 1.0 1.0 1.0 1.0 1.017.0 1.0 1.0 1.0 1.0 1.016.0 1.0 1.0 1.0 1.0 1.0Minimum gapThe drilling distance (DD) is thedistance between the edge of thedoor and the cup hole.The cup center is the distance ofthe drilling distance plus ½ of thecup diameter.Door overlay max.The door overlay is thepart of the cabinet side wallor face frame that iscovered by the door.Example:For a hinge with a cranking of 03, a baseplate height (BPH) of 2mm, and a drillingdistance (DD) of 4mm, the door overlayis 14mm.Drilling Distance (DD)3 4 5 6 719.0 018.0 017.0 0 216.516.0 0 2 315.5 3.5Door overlay15.0 0 2 314.5 3.514.0 2 3Door overlay max.13.5 3.513.0 2 312.5 3.512.0 311.5 3.5 Base Plate Height (BPH)Door edge protrusionThe door edge protrusion is theamount by which the edge of the opendoor protrudes into the opening andvaries depending on the type of hingeand method of fixing. It is stated onthe respective catalog page and refersto the stated base plate for the factorysetting. It can be changed bychanging the height of the base plateand operation the lateral adjustment.Protrusion12

Door positionsAchieve overlay with hinge crankingFull Overlay (Cranking 00)The cup overlay (factory setting)plus drilling distance determine thedoor overlay. Dimensions can befound in a table on the respectivepage of the catalog.Or achieve overlay with base plateFull OverlayUsing a hinge with acranking of 00 and a baseplate height (BPH) 00Cup overlayReveal (R)Drilling distanceDoor overlayOverlay (Cranking 03)The cup overlay (factory setting)plus drilling distance determine thedoor overlay. Dimensions can befound in a table on the respectivepage of the catalog.OverlayUsing a hinge with acranking of 00 and a baseplate height (BPH) 03Cup overlayReveal (R)Drilling distanceDoor overlayHalf Overlay (Cranking 9.5)The cup overlay (factory setting)plus drilling distance determine thedoor overlay. Dimensions can befound in a table on the respectivepage of the catalog.Half OverlayUsing a hinge with acranking of 00 and a baseplate height (BPH) 9.5Cup overlayReveal 2 x (R)Drilling distanceDoor overlayInset (Cranking 19)InsetThere is no door overlay. Thereveal between the side of thecabinet and the door dependson the base plate height (BPH)and the drilling distance (DD).Dimensions can be found in atable on the respective page ofthe catalog.ProtrusionReveal (R)Drilling distanceUsing a hinge with a cranking of 03and a base plate height 19 (BPH).13

Tiomos 110110° hinge for standard doors• 3-dimensional adjustment with suitable base plate• Accommodates overlays up to 24mm (15/16”)• Optimal reveal up to 24 mm door thickness• Soft-close or Self-close hinges available• For face frame or frameless cabinets• Convenient depth adjustment with worm gearTiomos 110 Opening Angle 110°Impresso Screw-on DowelledFull overlay Cranking 00 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139414228Soft-close F028138519228 F028138523228 15045Self-close F034139385228 Self-close F045138457228 F045138461228 15042Soft-close - F028138341228 150Self-close - F045138279228 150Overlay Cranking 03 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139415228Soft-close F028138520228 F028138524228 15045Self-close F034139386228 Self-close F045138458228 F045138462228 15042Soft-close - F028138342228 150Self-close - F045138280228 150Half overlay Cranking 9.5 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139416228Soft-close F028138521228 F028138525228 15045Self-close F034139387228 Self-close F045138459228 F045138463228 15042Soft-close - F028138343228 150Self-close - F045138281228 150Inset Cranking 19 Pattern Type Item No. Pattern Type Item No. Item No. PUSoft-close F017139417228Soft-close F028138522228 F028138526228 15042 / 4545Hinge cup: steel, nickel-platedSelf-close F034139388228 Self-close F045138460228 F045138464228 150Hinge arm: zinc, nickel-platedSoft-close - F028138344228 15042Self-close - F045138282228 150Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Opening angle reduction clip to 85° Item No. PUPlastic, black F072135751517 50Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit14 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Full overlay24 [ 15 /16”]BPHOverlay24[ 15 /16”]BPHHalf overlay31 [1 7 /32”]BPHInset40.5 [1 9 /16”]BPH[3 5 /16”]84.537[1 7 /16”]13[ 1 /2”][3 5 /16”]84.537[1 7 /16”][3 5 /16”]84.537[1 7 /16”][3 3 /8”]86XDTDD12R[ 15 /32”]OverlayCCDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)DTDD10 [153 /8”][ 19 /32”] ROverlayCCDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)DT2x R21.5[ 27 /32”]DD3.5[ 1 /8”]OverlayCCDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)6 [ 1 /4”]DTDDR31 [ 7 /32”]Drawing shows Tiomos with a base plateheight (BPH) 02. X = 38.5+ DTDrilling Distance (DD)3 4 5 6 722.0 021.0 020.0 0 219.0 0 2 318.5 3.518.0 0 2 317.5 3.517.0 2 3 143 4 5 6 719.0 018.0 017.0 0 216.516.0 0 2 315.5 3.515.0 0 2 314.5 3.53 4 5 6 712.5 011.5 010.5 0 210.09.5 0 2 39.0 3.58.5 0 2 38.0 3.53 4 5 6 70.0 0 2 30.5 3.51.0 0 2 31.5 3.52.0 2 33.0 2 34.0 316.5 3.514.0 2 37.5 2 316.0 2 313.5 3.57.0 3.5Door overlay15.5 3.515.0 314.5 3.5Base Plate Height (BPH)Door overlay13.0 2 312.5 3.512.0 311.5 3.5 Base Plate Height (BPH)Door overlay6.5 2 36.0 3.55.5 35.0 3.5 Base Plate Height (BPH)Reveal min (R)Base Plate Height (BPH)Minimum gaps Reveal With 85° angle reduction clipDrilling Distance (DD)Drilling Distance (DD)Drilling Distance (DD)The minimum gap isReveal dimensions3 4 5 6 73 4 5 6 73 4 5 6 7the gap between thewere determined with24.0 1.0 1.0 1.0 1.2* 2.1*an edge radius (of 24.0 2.4 2.1 2.1 2.1 2.036.0 11.1 10.3 9.7 9.1 8.5closed door and the22.0 1.0 1.0 1.0 1.0 1.5*the door) of 1mm! 22.0 1.6 1.6 1.6 1.5 1.530.0 5.4 4.8 4.4 4.3 4.2front of the cabinet.Hinge dimensions21.0 1.0 1.0 1.0 1.0 1.2*and reveal calculation21.0 1.4 1.3 1.3 1.3 1.328.0 3.7 3.6 3.5 3.4 3.3*only achievable with20.0 1.0 1.0 1.0 1.0 1.019.0 1.0 1.0 1.0 1.0 1.0based on factorysetting.20.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.926.0 2.9 2.8 2.8 2.7 2.624.0 2.2 2.1 2.1 2.1 2.085° angle reduction18.0 1.0 1.0 1.0 1.0 1.0IMPORTANT To 18.0 0.7 0.7 0.7 0.7 0.722.0 1.6 1.6 1.6 1.5 1.5clip17.0 1.0 1.0 1.0 1.0 1.0determine the 17.0 0.6 0.6 0.6 0.6 0.621.0 1.4 1.3 1.3 1.3 1.316.0 1.0 1.0 1.0 1.0 1.0correct applicationGrass stronglyrecommends a trial16.0 0.6 0.6 0.6 0.6 0.620.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.9mounting for all18.0 0.7 0.7 0.7 0.7 0.7hinges and baseMinimum gap plates.Reveal (R)16.0 0.6 0.6 0.6 0.6 0.6Reveal (R)Door ThicknessDoor ThicknessDoor ThicknessScrew-onImpresso and DowelledCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 15

Tiomos 120120° hinge for standard doors• 3-dimensional adjustment with suitable base plate• Accommodates overlays up to 24mm (15/16”)• Optimal reveal up to 24mm door thickness• Soft-close or Self-close hinges available• For face frame or frameless cabinets• Convenient depth adjustment with worm gearTiomos 120 Opening Angle 120°Impresso Screw-on DowelledFull overlay Cranking 00 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139428228Soft-close F028138547228 F028138855228 15045Self-close F034139399228 Self-close F045138485228 F045138489228 15042Soft-close - F028138369228 150Self-close - F045138307228 150Overlay Cranking 03 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139429228Soft-close F028138548228 F028138552228 15045Self-close F034139400228 Self-close F045138486228 F045138490228 15042Soft-close - F028138370228 150Self-close - F045138308228 150Half overlay Cranking 9.5 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139430228Soft-close F028138549228 F028138553228 15045Self-close F034139401228 Self-close F045138487228 F045138491228 15042Soft-close - F028138371228 150Self-close - F045138309228 150Cover cap Item No. PUSteel, nickel-plated F072135500247 150Opening angle reduction clip to 85° Item No. PUPlastic, black F072135751517 50Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit16 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Full overlay24 [ 15 /16”]BPHOverlay24 [ 15 /16”]BPHHalf overlay31[1 7 /32”]Door overlayDT[3 5 /16”]84.512.5[ 1 /2”]OverlayCCDrilling Distance (DD)37[1 7 /16”]DDReveal13 [ 1 /2”]Drawing shows Tiomos with a base plateheight (BPH) 02.3 4 5 6 722.0 021.0 020.0 0 219.0 0 2 318.5 3.518.0 0 2 317.5 3.517.0 2 3 1416.5 3.516.0 2 315.5 3.515.0 314.5 3.5Base Plate Height (BPH)Door overlayDT84.5 [3 5 /16”]15.5 [ 5 /8”]CCDrilling Distance (DD)37[1 7 /16”]Drawing shows Tiomos with a base plateheight (BPH) 02.3 4 5 6 719.0 018.0 017.0 0 216.516.0 0 2 315.5 3.515.0 0 2 314.5 3.514.0 2 313.5 3.513.0 2 312.5 3.512.0 311.5 3.5 Base Plate Height (BPH)DD10 [ 13 /32”]OverlayDTDoor overlay[3 5 /16”]84.522[ 7 /8”]CC37[1 7 /16”]2x ROverlay3.5 [ 1 /8”]DDDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)3 4 5 6 712.5 011.5 010.5 0 210.09.5 0 2 39.0 3.58.5 0 2 38.0 3.57.5 2 37.0 3.56.5 2 36.0 3.55.5 35.0 3.5 Base Plate Height (BPH)Minimum gapsThe minimum gap isthe gap between theclosed door and thefront of the cabinet.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 1.2 2.1 3.0 3.9 4.722.0 1.0 1.1 2.0 2.9 3.821.0 1.0 1.0 1.6 2.4 3.320.0 1.0 1.0 1.1 2.0 2.919.0 1.0 1.0 1.0 1.5 2.418.0 1.0 1.0 1.0 1.0 1.917.0 1.0 1.0 1.0 1.0 1.516.0 1.0 1.0 1.0 1.0 1.0Minimum gapRevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 6.4 5.4 4.4 3.4 2.422.0 3.0 2.0 1.5 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 1.0 1.0 1.0 1.0 1.516.0 1.0 1.0 1.0 1.0 1.0Reveal (R)With 85° angle reduction clipDrilling Distance (DD)3 4 5 6 736.0 11.1 10.3 9.7 9.1 8.530.0 5.4 4.8 4.4 4.3 4.228.0 3.7 3.6 3.5 3.4 3.326.0 2.9 2.8 2.8 2.7 2.624.0 2.2 2.1 2.1 2.1 2.022.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.3Door Thickness20.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.716.0 0.6 0.6 0.6 0.6 0.6Reveal (R)Screw-onImpresso and DowelledCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 17

Tiomos 160160° Wide angle hinge• 3-dimensional adjustment with suitable base plate• Accommodates overlays up to 25.4 mm (1”)• Soft-close or Self-close hinges available• For face frame or frameless cabinets• Convenient depth adjustment with worm gear• Zero protrusion when door is opened 90°• 10mm cup depth• For door thicknesses up to 32 mm (1 1/4”)• Minimal revealTiomos 160 Opening Angle 160°Impresso Screw-on DowelledFull overlay Cranking 00 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139435217Soft-close F028138561217 F028138564217 5045Self-close F034139406217 Self-close F045138499217 F045138502217 5042Soft-close - F028138382217 50Self-close - F045138320217 50Overlay Cranking 03 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139436217Soft-close F028138562217 F028138565217 5045Self-close F034139407217 Self-close F045138500217 F045138503217 5042Soft-close - F028138383217 50Self-close - F045138321217 50Half overlay Cranking 9.5 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139437217Soft-close F028138563217 F028138566217 5045Self-close F034139408217 Self-close F045138501217 F045138504217 5042Soft-close - F028138384217 50Self-close - F045138322217 50Mitered corner applicationUse 120° opening anglereduction clip.Prevents doors from bumpingwith the cabinet side in insetapplications and mitered cornerapplications.8619120°811913.61937561.5194231Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Zero door protrusion at 90°Zero protrusion for application with insetdrawers. With 00 cranking and 00 heightof base plate the door is flush with thecabinet at 90°.Angle reduction clip to 120° Item No. PUPlastic, black F072135753117 50Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit18 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Full overlay64 [2 17 /32”]BPHOverlay67 [2 5 /8”]Half overlay73.5[2 29 /32”]Inset83[3 9 /32”]19 [ 3 /4”]DT84.5 [3 5 /16”]3.4OverlayCC37[1 15 /16”]DDReveal13 [ 1 /2”]84.5 [3 5 /16”]DT37[1 15 /16”]0.4 [ 1 /64”] DDOverlayCC10[ 13 /32”]Reveal84.5 [3 5 /16”]DTOverlayCC6.1[ 1 /4”]37[1 15 /16”]2x R3.5[ 1 /8”]DD[3 3 /8”]86DT15.6 [ 5 /8”]CC6[ 1 /4”]DDRXDoor overlayDrilling Distance (DD)3 4 5 6 7 8 9 1025.0 024.0 023.0 0 222.0 0 2 321.0 0 2 320.0 0 2 319.0 0 2 318.5 3.518.0 0 2 317.5 3.517.0 2 316.5 3.516.0 2 315.5 3.515.0 314.5 3.5Base Plate Height (BPH)Door overlayDrilling Distance (DD)3 4 5 6 7 8 9 1022.0 021.0 020.0 0 219.0 0 2 318.0 0 2 317.0 0 2 316.5 3.516.0 0 2 315.5 3.515.0 0 2 314.5 3.514.0 2 313.5 3.513.0 2 312.5 3.512.0 311.5 3.5 Base Plate Height (BPH)Door overlayDrilling Distance (DD)3 4 5 6 7 8 9 1015.5 014.5 013.5 0 212.5 0 2 311.5 0 2 310.5 0 2 310.0 3.59.5 0 2 39.0 3.58.5 0 2 38.0 3.57.5 2 37.0 3.56.5 2 36.0 3.55.5 35.0 3.5 Base Plate Height (BPH)Drawing shows Tiomos with a cranking 03hinge, Base Plate Height (BPH) 19X = 38.5 + DTDrilling Distance (DD)3 4 5 6 70.0 190.51.0 191.52.0 193.0 194.0Reveal (R)Base Plate Height (BPH)Minimum gapsThe minimum gap is the gapbetween the closed door and thefront of the cabinet.*only achievable with 120° anglereduction clipDoor ThicknessDrilling Distance (DD)3 4 5 6 7 8 9 1032.0 1.0 1.031.0 1.0 1.0 1.030.0 1.0 1.0 1.029.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.028.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.026.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.025.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.024.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.022.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.021.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.020.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.018.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.016.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0Minimum gapRevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 7 8 9 1032.00.2*0.2*31.0 0.2*0.2*0.2*0.2*30.0 0.2 0.2 0.2*0.2*0.2*29.0 0.2 0.2 0.2 0.2 0.2 0.2*0.2*28.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.026.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.025.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.024.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.022.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.021.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.020.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.018.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.016.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0Reveal (R)Screw-onImpresso and DowelledCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 19

Tiomos 9595° hinge for thick doors• 3-dimensional adjustment with suitable base plate• Accommodates overlays up to 24mm (15/16”)• Optimal reveal up to 36 mm (1 7/16”) door thickness• Soft-close or Self-close hinges available• For face frame or frameless cabinets• Convenient depth adjustment with worm gearTiomos 95 Opening Angle 95°Impresso Screw-on DowelledFull overlay Cranking 00 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139438228Soft-close F028138567228 F028138571228 15045Self-close F034139409228 Self-close F045138505228 F045138509228 15042Soft-close - F028138389228 150Self-close - F045138327228 150Overlay Cranking 03 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: steel, nickel-plated42 / 45Soft-close F017139439228Soft-close F028138568228 F028138572228 15045Self-close F034139410228 Self-close F045138506228 F045138510228 15042Soft-close - F028138390228 150Self-close - F045138328228 150Half overlay Cranking 9.5 Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139440228Soft-close F028138569228 F028138573228 15045Self-close F034139411228 Self-close F045138507228 F045138511228 15042Soft-close - F028138391228 150Self-close - F045138329228 150Inset Cranking 19 Pattern Type Item No. Pattern Type Item No. Item No. PUSoft-close F017139441228Soft-close F028138570228 F028138574228 15042 / 4545Hinge cup: steel, nickel-platedSelf-close F034139412228 Self-close F045138508228 F045138512228 150Hinge arm: zinc, nickel-platedSoft-close - F028138392228 15042Self-close - F045138330228 150Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Opening angle reduction clip to 85° Item No. PUPlastic, black F072135751517 50Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit20 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Full overlay24 [ 15 /16”]BPHOverlay24[ 15 /16”]BPHHalf overlay31 [1 7 /32”]BPHInset40.5 [1 9 /16”]BPH84.5 [3 5 /16”]37[1 7 /16”]13[ 1 /2”]DDDT13R[ 1 /2”]OverlayCCDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)DT[3 5 /16”]84.537[1 7 /16”]DD10 [163 /8”][ 5 /8”] ROverlayCCDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)DT[3 5 /16”]84.537[1 7 /16”]2x R22.5 [ 13 /16”]DD3.5[ 1 /8”]OverlayCCDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)86 [3 3 /8”]6 [ 1 /4”]DDDTR32[1 1 /4”]Drawing shows Tiomos with a base plateheight (BPH) 02. X = 38.5+ DTDrilling Distance (DD)XDoor overlay3 4 5 6 722.0 021.0 020.0 0 219.0 0 2 318.5 3.518.0 0 2 317.5 3.517.0 2 3 1416.5 3.516.0 2 315.5 3.515.0 314.5 3.5Base Plate Height (BPH)Door overlay3 4 5 6 719.0 018.0 017.0 0 216.516.0 0 2 315.5 3.515.0 0 2 314.5 3.514.0 2 313.5 3.513.0 2 312.5 3.512.0 311.5 3.5 Base Plate Height (BPH)Door overlay3 4 5 6 712.5 011.5 010.5 0 210.09.5 0 2 39.0 3.58.5 0 2 38.0 3.57.5 2 37.0 3.56.5 2 36.0 3.55.5 35.0 3.5 Base Plate Height (BPH)Reveal min (R)3 4 5 6 70.0 0 2 30.5 3.51.0 0 2 31.5 3.52.0 2 33.0 2 34.0 3Base Plate Height (BPH)Minimum gapsThe minimum gap isthe gap between theclosed door and thefront of the cabinet.Door ThicknessDrilling Distance (DD)3 4 5 6 736.0 1.0 1.0 1.0 1.0 2.430.0 1.0 1.0 1.0 1.0 1.828.0 1.0 1.0 1.0 1.0 1.726.0 1.0 1.0 1.0 1.2 1.524.0 1.0 1.0 1.0 1.0 1.522.0 1.0 1.0 1.0 1.0 1.520.0 1.0 1.0 1.0 1.0 1.018.0 1.0 1.0 1.0 1.0 1.016.0 1.0 1.0 1.0 1.0 1.0Minimum gapRevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 736.010.5 10.0 8.6 7.6 6.730.0 4.0 3.0 2.5 1.9 2.428.0 2.0 1.5 1.5 1.3 1.326.0 1.0 1.0 1.0 1.0 1.024.0 0.6 0.6 0.6 0.6 0.622.0 0.5 0.5 0.5 0.5 0.520.0 0.3 0.3 0.3 0.3 0.318.0 0.2 0.2 0.2 0.2 0.216.0 0.2 0.2 0.2 0.2 0.2Reveal (R)Screw-onImpresso and DowelledCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 21

Tiomos 110/90A110° blind corner hinge for overlay doors• For blind corner construction• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/90A Opening Angle 110°Impresso Screw-on DowelledOverlay Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139426223Soft-close F028138535223 F028138545223 10045Self-close F034139397223 Self-close F045138473223 F045138483223 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit22 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Insetmin. 90 [3 9 /16”]X22.519DTOverlayDDDDXXDrawing shows Tiomos with a base plateheight (BPH) 03.Drillingdistance (X)Drilling Distance (DD)3 4 5 6 730 18 19 20 21 2229 17 18 19 20 2128 16 17 18 19 2027 15 16 17 18 1928 14 15 16 17 18Door OverlayDrillingdistance (X)Drilling Distance (DD)3 4 5 6 713 18 19 20 21 2212 17 18 19 20 2111 16 17 18 19 2010 15 16 17 18 199 14 15 16 17 18Door OverlayRevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 1.0 1.0 1.0 1.2 2.122.0 1.0 1.0 1.0 1.0 1.521.0 1.0 1.0 1.0 1.0 1.220.0 1.0 1.0 1.0 1.0 1.019.0 1.0 1.0 1.0 1.0 1.018.0 1.0 1.0 1.0 1.0 1.017.0 1.0 1.0 1.0 1.0 1.016.0 1.0 1.0 1.0 1.0 1.0Reveal (R)Screw-on Dowelled ImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 23

Tiomos 110/90E110° blind corner hinge for inset doors• For blind corner construction• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/90E Opening Angle 110°Impresso Screw-on DowelledInset Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139427223Soft-close F028138536223 F028138546223 10045Self-close F034139398223 Self-close F045138474223 F045138484223 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit24 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Insetmin. 90 [3 9 /16”]DTRXDD22.5 + BPH[ 7 /8”] + BPHXXDrawing shows Tiomos with a base plateheight (BPH) 03.Drillingdistance (X)Drilling Distance (DD)4 5 6 728.0 1 027.0 2 1 026.0 3 2 1 0Door revealDrillingdistance (X)Drilling Distance (DD)4 5 6 711.0 1 010.0 2 1 09.0 3 2 1 0Door revealRevealDrilling Distance (DD)Reveal dimensions3 4 5 6 7were determined withan edge radius (of 24.0 2.4 2.1 2.1 2.1 2.0the door) of 1mm! 22.0 1.6 1.6 1.6 1.5 1.5Hinge dimensions21.0 1.4 1.3 1.3 1.3 1.3and reveal calculationbased on factory 20.0 1.1 1.1 1.1 1.1 1.1setting.19.0 0.9 0.9 0.9 0.9 0.9IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door Thickness18.0 0.7 0.7 0.7 0.7 0.717.0 0.6 0.6 0.6 0.6 0.616.0 0.6 0.6 0.6 0.6 0.6Reveal (R)Screw-on Dowelled ImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 25

Tiomos 110/30A+30° angle corner cabinet hinge for overlay doors• For 30° angle corner cabinets• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/30A Opening Angle 110°Impresso Screw-on DowelledOverlay Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139420223Soft-close F028138529223 - 10045Self-close F034139391223 Self-close F045138467223 - 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit26 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Overlay26 + BPH[1 1 /32” + BPH]19 [ 3 /4”]32 [1 1 /4”]19 [ 3 /4”]35 [1 3 /8”] 16 [ 5 /8”]Door overlayX + 47.5 [1 7 /8”]XGapDTDrawing shows Tiomos with a base plateheight (BPH) 0.Drilling Distance (DD)3 4 5 6 720.5 019.5 018.5 0 217.5 0 2 316.5 0 3.516.0 2 315.5 3.515.0 2 3 1414.5 3.514.0 2 313.5 3.513.0 312.5 3.5 611.5 610.5 6Base Plate Height (BPH)Max. 6.5 [ 1 /4”]DDOverlayMinimum gapsDrilling Distance (DD)The minimum gap is3 4 5 6 7the gap between the24.0 1.0 1.0 1.0 1.2 2.1closed door and the22.0 1.0 1.0 1.0 1.0 1.5front of the cabinet.21.0 1.0 1.0 1.0 1.0 1.220.0 1.0 1.0 1.0 1.0 1.019.0 1.0 1.0 1.0 1.0 1.018.0 1.0 1.0 1.0 1.0 1.017.0 1.0 1.0 1.0 1.0 1.0Door Thickness16.0 1.0 1.0 1.0 1.0 1.0Minimum gap1.5 [ 1 /16”]19 [ 3 /4”]XRevealX + 47.5 [1 7 /8”]Drawing shows Tiomos with a base plateheight (BPH) 6.Base plate height0 2 3 3.5 6X 34.0 33.0 32.0 32.0 30.5Wing base plate position (X)Reveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door Thickness4 [ 5 /32”]10.5 [ 7 /16”]Drilling Distance (DD)3 4 5 6 724.0 2.4 2.1 2.1 2.1 2.022.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 .06 .06 .06 .06 .0616.0 .06 .06 .06 .06 .06Reveal (R)1.5 [ 1 /16”]X + 47.5 [1 7 /8”]X19 [ 3 /4”]04.0 [ 5 /32”]6.6 [ 1 /4”]Drawing shows Tiomos with a base plateheight (BPH) 9.5.XBase plate height0 2 3 3.5X 17.0 16.0 15.0 15.0Straight base plate position (X)Screw-onImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 27

Tiomos 110/30E+30° angle corner cabinet hinge for inset doors• For 30° angle corner cabinets• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/30E Opening Angle 110°Impresso Screw-on DowelledInset Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139421223Soft-close F028138530223 - 10045Self-close F034139392223 Self-close F045138468223 - 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit28 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Inset43.5 + BPH[1 11 /16” + BPH]X + 47.5 [1 7 /8”]XDTRDDXDrawing shows Tiomos with a base plateheight (BPH) 9.5.Door thicknessDrilling Distance (DD)3 4 5 6 722.0 9.5 1221.020.0 1219.0 9.518.017.0 9.5 1416.0 9.515.0 6Base Plate Height (BPH)Door thicknessDrilling Distance (DD)3 4 5 6 722.0 63.5 61.521.020.0 60.019.0 60.018.017.0 58.0 1416.0 56.515.0 57.5Wing Base Plate position (X)RevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 2.4 2.1 2.1 2.1 2.022.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 0.6 0.6 0.6 0.6 0.616.0 0.6 0.6 0.6 0.6 0.615.0 0.6 0.6 0.6 0.6 0.6Reveal (R)Screw-onImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 29

Tiomos 110/37A+37° angle corner cabinet hinge for overlay doors• For 37° angle corner cabinets• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/37A Opening Angle 110°Impresso Screw-on DowelledOverlayHinge cup: steel, nickel-platedHinge arm: zinc, nickel-platedPattern Type Item No. Pattern Type Item No. Item No. PUSoft-close F017139422223Soft-close F028138531223 F028138541223 10042 / 4545Self-close F034139393223 Self-close F045138469223 F045138479223 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit30 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Overlay26 + BPH [1 1 /32” + BPH]38 [1 1 /2”]19 [ 3 /4”]38 [1 1 /2”]16 [ 5 /8”]X + 47.5 [1 7 /8”]XMax. 8.5 [ 5 /16”]X + 47.5 [1 7 /8”]X1.2 [ 1 /16”]X + 47.5 [1 7 /8”]X0.2 [ 1 /64”]1.5 [ 1 /16”]19 [ 3 /4”]1.5 [ 1 /16”]19 [ 3 /4”]GapDTDDoverlay7 [ 1 /4”]5 [ 3 /16”]Door overlayDrawing shows Tiomos with a base plate height (BPH) 0.Drilling Distance (DD)3 4 5 6 721.5 021.0 020.0 019.0 018.5 218.0 0 317.5 217.0 3 1416.5 216.0 315.5 22215.0 314.5 614.0 313.0 612.0 611.0 610.0 6Base Plate Height (BPH)Drawing shows Tiomos with a base plateheight (BPH) 12.XBase plate height0 2 3 3.5 6X 33.5 32.0 31.0 31.0 29.0Wing base plate position (X)Drawing shows Tiomos with a base plateheight (BPH) 12.XBase plate height0 2 3 3.5X 16.5 15.0 14.0 14.0Straight base plate position (X)Minimum gapsThe minimum gap isthe gap between theclosed door and thefront of the cabinet.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 1.0 1.0 1.0 1.2 2.122.0 1.0 1.0 1.0 1.0 1.521.0 1.0 1.0 1.0 1.0 1.220.0 1.0 1.0 1.0 1.0 1.019.0 1.0 1.0 1.0 1.0 1.018.0 1.0 1.0 1.0 1.0 1.017.0 1.0 1.0 1.0 1.0 1.016.0 1.0 1.0 1.0 1.0 1.0Minimum gapRevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 2.4 2.1 2.1 2.1 2.022.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 .06 .06 .06 .06 .0616.0 .06 .06 .06 .06 .06Reveal (R)Screw-on Dowelled ImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 31

Tiomos 110/37E+37° angle corner cabinet hinge for inset doors• For 37° angle corner cabinets• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/37E Opening Angle 110°Impresso Screw-on DowelledInset Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139423223Soft-close F028138532223 - 10045Self-close F034139394223 Self-close F045138470223 - 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit32 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Inset43.5 + BPH [1 11 /16” + BPH]X + 47.5 [1 7 /8”]XRDDDTXDrawing shows Tiomos with a base plateheight (BPH) 12.Door thicknessDrilling Distance (DD)3 4 5 6 722.0 1221.0 1220.0 1219.0 1218.017.0 9.5 112416.0 9.515.0Base Plate Height (BPH)Door overlayDrilling Distance (DD)3 4 5 6 722.0 59.021.0 57.520.0 56.519.0 55.018.017.0 54.5 53.0 1416.0 53.015.0Wing Base Plate position (X)RevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 722.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 0.6 0.6 0.6 0.6 0.616.0 0.6 0.6 0.6 0.6 0.615.0 0.6 0.6 0.6 0.6 0.6Reveal (R)Screw-onImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 33

Tiomos 110/45A+45° angle corner cabinet hinge for overlay doors• For 45° angle corner cabinets• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/45A Opening Angle 110°Impresso Screw-on DowelledOverlay Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139424223Soft-close F028138533223 F028138543223 10045Self-close F034139395223 Self-close F045138471223 F045138481223 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit34 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Overlay28 + BPH[1 1 /8” + BPH]19 [ 3 /4”]36 [1 7 /16”]19 [ 3 /4”]40 [1 9 /16”]16 [ 5 /8”]Door overlayX + 47.5 [1 7 /8”]XDTRvariableDrawing shows Tiomos with a base plateheight (BPH) 0.Drilling Distance (DD)3 4 5 6 719.5 019.018.5 0 18.018.017.5 0 1417.016.5 0 216.015.5 0 215.0 314.5 2 3.514.0 313.5 2 3.513.0 312.5 2 3.512.0 311.0 3 610.0 6Base Plate Height (BPH)DDoverlayMinimum gapsDrilling Distance (DD)The minimum gap is3 4 5 6 7the gap between the24.0 1.0 1.0 1.0 1.2 2.1closed door and the22.0 1.0 1.0 1.0 1.0 1.5front of the cabinet.21.0 1.0 1.0 1.0 1.0 1.220.0 1.0 1.0 1.0 1.0 1.019.0 1.0 1.0 1.0 1.0 1.0Door Thickness18.0 1.0 1.0 1.0 1.0 1.017.0 1.0 1.0 1.0 1.0 1.016.0 1.0 1.0 1.0 1.0 1.0Minimum gapX + 47.5 [1 7 /8”]X1.5 [ 1 /16”]19 [ 3 /4”]XBase plate height0 2 3 3.5 6X 30.5 28.5 27.5 27.0 24.5Wing base plate position (X)RevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door Thickness07 [ 9 /32”]6.6 [ 1 /4”]Drawing shows Tiomos with a base plateheight (BPH) 9.5.Drilling Distance (DD)X + 47.5 [1 7 /8”]X1.5 [ 1 /16”]3 4 5 6 724.0 2.4 2.1 2.1 2.1 2.022.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 .06 .06 .06 .06 .0616.0 .06 .06 .06 .06 .06Reveal (R)19 [ 3 /4”]X06.5 [ 1 /4”]2 [ 3 /32”]16.5 [ 11 /16”]Drawing shows Tiomos with a base plateheight (BPH) 12.Base plate height0 2 3 3.5X 13.5 11.5 10.5 10.0Straight base plate position (X)Screw-on Dowelled ImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 35

Tiomos 110/45E+45° angle corner cabinet hinge for inset doors• For 45° angle corner cabinets• 110° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 110/45E Opening Angle 110°Impresso Screw-on DowelledInset Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139425223Soft-close F028138534223 F028138544223 10045Self-close F034139396223 Self-close F045138472223 F045138482223 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit36 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Inset42 + BPH[1 5 /8” + BPH]X + 47.5 [1 7 /8”]XRDDDTXDrawing shows Tiomos with a base plateheight (BPH) 12.Door thicknessDrilling Distance (DD)3 4 5 6 722.021.020.019.0 1218.0 1217.0 1216.0 1215.0 12Base Plate Height (BPH)Door thicknessDrilling Distance (DD)3 4 5 6 722.021.020.019.0 52.018.0 50.517.0 49.0 1416.0 47.515.0 46.0Wing Base Plate position (X)RevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 2.4 2.1 2.1 2.1 2.022.0 1.6 1.6 1.6 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 0.6 0.6 0.6 0.6 0.616.0 0.6 0.6 0.6 0.6 0.6Reveal (R)Screw-on Dowelled ImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 37

Tiomos 120/-15A-15° angle corner cabinet hinge for overlay doors• For -15° angle corner cabinets• 120° opening angle• 3-dimensional adjustment with suitable base plate• Soft-close or Self-close hinges available• Convenient depth adjustment with worm gearTiomos 120/-15A Opening Angle 120°Impresso Screw-on DowelledOverlay Pattern Type Item No. Pattern Type Item No. Item No. PUHinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated42 / 45Soft-close F017139432223Soft-close F028138555223 - 10045Self-close F034139403223 Self-close F045138493223 - 100Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit38 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

ROverlay22.5 + BPH[ 7 /8” + BPH]DT75°XX + 47.5 [1 7 /8”]overlayDDDoor overlayDrawing shows Tiomos with a base plateheight (BPH) 0.Drilling Distance (DD)3 4 5 6 718.0 017.0 016.0 015.0 014.5 2 314.0 0 3.513.5 2 313.0 3.5 1412.5 2 312.0 3.511.5 3 611.0 3.510.5 3 610.0 3.59.5 68.5 6Base Plate Height (BPH)RevealReveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Screw-onDoor ThicknessDrilling Distance (DD)3 4 5 6 724.0 6.4 5.4 4.4 3.4 2.422.0 3.0 2.0 1.5 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 1.0 1.0 1.0 1.0 1.516.0 1.0 1.0 1.0 1.0 1.0Reveal (R)ImpressoXBase plate height0 2 3 3.5 6X 40 40.5 40.5 41 41.5Wing base plate position (X)XBase plate height0 2 3 3.5X 23 23.5 23.5 24Straight base plate position (X)Cup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 39


overlayROverlay22.5 + BPH[ 7 /8” + BPH]DT60°XX + 47.5 [1 7 /8”]DDDoor overlayDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)3 4 5 6 719.0 018.0 017.0 0 18.016.5 216.0 0 1415.5 215.0 0 314.5 2 3.514.0 313.5 2 3.513.0 312.5 2 3.512.0 3 611.5 3.511.0 3 610.5 3.510.0 69.0 68.0 6Base Plate Height (BPH)RevealXBase plate height0 2 3 3.5 6X 53.5 55 55.5 55.5 57Wing base plate position (X)XBase plate height0 2 3 3.5X 36.5 38 38.5 38.5Straight base plate position (X)Reveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Screw-onDoor ThicknessDrilling Distance (DD)3 4 5 6 724.0 6.4 5.4 4.4 3.4 2.422.0 3.0 2.0 1.5 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 1.0 1.0 1.0 1.0 1.516.0 1.0 1.0 1.0 1.0 1.0Reveal (R)ImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 41


DDOverlay22.5 + BPH[ 7 /8” + BPH]DT45°XX + 47.5 [1 7 /8”]overlayRDoor overlayDrawing shows Tiomos with a base plateheight (BPH) 02.Drilling Distance (DD)3 4 5 6 712.0 011.5 010.5 09.5 0 28.5 0 28.0 37.5 2 3.57.0 36.5 2 3.56.0 35.5 2 3.55.0 34.5 3.54.0 3 63.5 3.53.0 62.0 61.0 60.0 6Base Plate Height (BPH)RevealXBase plate height0 2 3 3.5 6X 60.5 62.5 63.5 64 66.5Wing base plate position (X)XBase plate height0 2 3 3.5X 43.5 45.5 46.5 47Straight base plate position (X)Reveal dimensionswere determined withan edge radius (ofthe door) of 1mm!Hinge dimensionsand reveal calculationbased on factorysetting.IMPORTANT Todetermine thecorrect applicationGrass stronglyrecommends a trialmounting for allhinges and baseplates.Door ThicknessDrilling Distance (DD)3 4 5 6 724.0 6.4 5.4 4.4 3.4 2.422.0 3.0 2.0 1.5 1.5 1.521.0 1.4 1.3 1.3 1.3 1.320.0 1.1 1.1 1.1 1.1 1.119.0 0.9 0.9 0.9 0.9 0.918.0 0.7 0.7 0.7 0.7 0.717.0 1.0 1.0 1.0 1.0 1.516.0 1.0 1.0 1.0 1.0 1.0Reveal (R)Screw-onImpressoCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 43

Tiomos PCCPie-cut corner cabinet hinge• 3-dimensional adjustment with suitablebase plate• Designed for connecting two folding doors incorner cabinet• For door thicknesses 16 to 22 mm• Self-close hinges available• Used in conjunction with Tiomos 160 hingesTiomos PCCScrew-onDowelledOverlay Pattern Type Item No. Item No. PU42 Self-close - F045138336228 150Hinge cup: steel, nickel-platedHinge arm: zinc, nickel-plated45 Self-close F045138517228 F045138518228 150Cover cap Item No. PUSteel, nickel-plated F072135500247 1000Hinge cup cover cap Item No. PUSteel, nickel-plated F072135503228 150Wood screw, nickel-plated Item No. PU#6 x 5/8” FHP, NI 81001-43 500PU = packaging unit44 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Hinge ApplicationDD 3.537 (1 15 /16”)0.584.5 (3 3 /8”) 84.5 (3 3 /8”) 84.5 (3 3 /8”)65°23 ( 7 /8”)19 ( 3 /4”)DD 3.523 ( 7 /8”)14 ( 9 /16”)DD 3.537 (1 15 /16”) 37 (1 15 /16”)0.565°0.565°23 ( 7 /8”)15 ( 19 /32”)19 ( 3 /4”) 14 ( 9 /16”)15 ( 1 /2”)19mm door thickness with base plate height 0 14mm door thickness with base plate height 0 15mm door thickness with base plate height 0DD 3.584.5 (3 3 /8”)37 (1 15 /16”)0.565°23 ( 7 /8”)16 ( 1 /2”)DD 3.584.5 (3 3 /8”)37 (1 15 /16”)0.565°23 ( 7 /8”)24 ( 15 /16”)16 ( 1 /2”)24 ( 15 /16”)16mm door thickness with base plate height 0 24mm door thickness with base plate height 0Tiomos 160 HingeTiomos PCC HingeAdjustment for doorthickness 14-24mm.Factory setting is 19mmTS65°TS25°Screw-onDowelledCup dimensions4535 +0.19.539 (40.5)min. 12.639 (40.5)3 (8)62 (64.5) ( ) ImpressoSubject to technical modifications without notice. 45

Tiomos base platesFor Tiomos hingesTiomos wing base plates• Steel, nickel plated• Depth adjustment via worm gear• Height adjustment via worm gear or elongated hole• Side adjustment via hinge• Use a #2 Pozi drive screwdriver for hinge adjustment• Attach baseplates using all available screw holesHeight adjustment viabase plateVia worm gear± 2 mmVia elongated holes ± 2.5mmSide Adjustment±2 mmDepth adjustment+3/-2 mmAll adjustment options can be made independently of one another.Wing base plate, 4 point fixing 37/32 For wood screws37Height Item No. PU0 F058139746228 150322 F058139747228 1503 F058139748228 150• Height adjustment via worm gear20 323.5 F058139749228 150Wing base plate, 4 point fixing 37/32 For Euro screws• Height adjustment via worm gear37 (Ø6.3 x13.5) 12Ø520 3232Height Item No. PU0 F058139756228 1502 F058139757228 1503 F058139758228 1503.5 F058139759228 150Wing base plate, 4 point fixing 37/32 With pre-mounted Euro screws (13.5 mm)• Height adjustment via worm gear37 (Ø6.3 x13.5) 12Ø520 3232Height Item No. PU0 F058139761228 1502 F058139762228 1503 F058139763228 1503.5 F058139764228 150Wing base plate, 4 point fixing 37/32 With pre-mounted Euro screws (10 mm)37(Ø 6.3 x 10)7.5Height Item No. PU0 F058139863228 150322 F058139864228 1503 F058139865228 150• Height adjustment via worm gear• For twin applicationØ 520 323.5 F058139866228 150PU = packaging unit46 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Wing base plate, 2 point fixing 37/32 For wood screws• Zinc die-cast/Steel, nickel plated• Height adjustment via worm gear37 Ø 3.5 x 1532XHeight(x) Item No. PU6 F058139892217 509.5 F058139898217 5012 F058139893217 5019 F058139894217 50Wing base plate, 2 point fixing 37/32 With pre-mounted euro screws (13.5 mm)37(ø6.3x13.5) 12Height(x) Item No. PU6 F058139873217 509.5 F058139882217 503212 F058139874217 50Ø5X19 F058139875217 50• Zinc die-cast/Steel, nickel plated• Height adjustment via worm gearWing steel base plate, 3 point fixing 37/32 For wood screws37 2632Height Item No. PU0 F058139721228 1502 F058139722228 1503 F058139723228 1503.5 F058139724228 150• Height adjustment via elongated screw holesWing steel base plate, 3 point fixing 37/32 With pre-mounted euro screws (13.5 mm)3726(ø6.3x13.5)12Height Item No. PU0 F058139736228 1502 F058139737228 150323 F058139738228 150• Height adjustment via elongated screw holesØ53.5 F058139739228 150PU = packaging unitSubject to technical modifications without notice. 47

5°Tiomos base platesFor Tiomos hingesTiomos straight base plates• Steel, nickel plated• Height and depth adjustment via worm gear• Side adjustment via hinge• Use a #2 Pozi drive screwdriver for hinge adjustment• Attach baseplates using all available screw holesHeight adjustment via base plateVia worm gear ±2 mmSide Adjustment±2 mmDepth adjustment+3/-2 mmAll adjustment options can be made independently of one another.Straight base plate, 2 point fixing 20/32 For wood screwsØ 3.520 32Height Item No. PU0 F059139701228 1502 F059139702228 1503 F059139703228 150• Height adjustment via worm gearStraight base plate, 2 point fixing 20/32 With pre-mounted Euro screws• Height adjustment via worm gear20 32513(Ø6.3x13.5)Height Item No. PU0 F059139711228 1502 F059139712228 1503 F059139713228 150+5° Wedge for screw fixing 37/32 For wood screws• Zinc, nickel plated• For placing under wing mounting plates• Can be stacked (max. 3)1Height Item No. PU3 F072135757217 50X5°Height Item No. PU3 F072135758217 50X32132-5° Wedge for screw fixing 37/32 For wood screws• Zinc, nickel plated• For placing under wing mounting plates• Cannot be stackedPU = packaging unit48 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Tiomos face frame adapter plates23231• Steel, nickel plated• Depth adjustment via worm gear• Height adjustment via worm gear or elongated hole• Side adjustment via hinge• Use a #2 Pozi drive screwdriver for hinge adjustment• Attach baseplates using all available screw holes1Height adjustment via base platevia worm gear ±2 mmvia elongated holes ±2.5 mmSide Adjustment±2 mmDepth adjustment+3/-2 mmAll adjustment options can be made independently of one another.FFA base plate, 2 point fixing 9.5/32 For wood screws9.5Height Item No. PU1.5 F058139821228 150323.5 F058139822228 1504.5 F058139823228 1505 F058139824228 150• Height adjustment via elongated screw holesFFA base plate, 2 point fixing 9.5/32 For wood screws9.532Height Item No. PU1.5 F058139825228 1503.5 F058139826228 1504.5 F058139827228 1505 F058139828228 150• Height adjustment via worm gearFFAL base plate with flange, 4 point fixing 9.5/32 For wood screws9.593273Height Item No. PU3.5 F058139829228 1505 F058139830228 150• Height adjustment via elongated screw holesInset FFA base plate, 3 point fixing 10/32 For wood screws• Steel, diecast, nickel plated107.54832Height Item No. PU0 F058139831228 15021.5Note: Requires a 9.5 crank hinge (half-overlay)• Height adjustment via elongated screw holesPU = packaging unitSubject to technical modifications without notice. 49

Tiomos AccessoriesCover capsHinge arm cover capFor all crankingsHinge arm cover cap, longFor 00 and 03 Cranking onlyItem No.PUF072135500247 1000Item No.PUF072135504247 1000Steel, nickel plated, without imprint*Steel, nickel plated, without imprint*Hinge cup cover cap* Imprinting available upon special requestItem No.PUF072135503228 150Steel, nickel platedAngle reduction clipsOpening angle reduction clip to 85°Steel, nickel85°Works for all Tiomos 110° and 120°standard hinges. Reduces the openingangle to 85° to prevent doors frombumping fronts or walls in cornerinstallations.Item No.PUF072135751517 50Opening angle reduction clip to 120°120°Works for all Tiomos 160° standardhinges. Reduces the opening angleto 120° to prevent doors frombumping the cabinet side in insetand mitered corner applications.Item No.PUF072135753117 50Black plastic9PU = packaging unit50 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

ScrewsEuro screw, nickel-platedØ 6.3Length Ø 7Description Item No. PU13mm Euro Screw (1/2”) 81015-43 50018mm Euro Screw (11/16”) 83000-43 5007.5mm Euro Screw (5/16”) 83001-43 50013mm Pan head Euro Screw 13398-43 500Wood screw, nickel-platedØ 3.5Length Ø 7Description Item No. PU#6 x 1/2” FHP, NI 81014-43 500#6 x 7/16” FHP, NI 81016-43 500#6 x 5/8” FHP, NI 81001-43 500#6 x 3/4” FHP, NI 81003-43 500#6 x 1” FHP, NI 81004-43 500Pozidrive screwdriver#2 Pozidrive screwdriver for hingesDescription Item No. PUPozidrive screwdriver 98000-01 1Pozidrive screwdriver 98000-08 50PU = packaging unitSubject to technical modifications without notice. 51

EcopressDrilling and insertion machine for 45mm boring pattern• Bore depth automatically adjusts to material thickness• Functional design• Accurate fence is easily adjusted• Chip removal by air on pneumatic machines• Easy, fast and efficient operation• Easy maintenanceMotor configuration Item No. PU110v single phase pneumatic F146077951299 1220v single phase pneumatic F146077952299 1220v three phase pneumatic F146079520299 1Scale barGraduated scale for exactmeasurement on the machine.Pneumatic controlPneumatic feed and pneumatichold-down device.Hold-down blockOptimum fixing on the EcopressPneumatic with the pneumatichold-down device.PU = packaging unit52 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Carbide drill bits for EcopressDiameter Direction Item no. PU35 mm RH 00077-01 18 mm LH 00160-01 1Bit set for hinge drilling Item no. PU1 x 35 mm/RH, 2 x 8 mm/LH 00213-01 1Extension bars for use with EcopressType From/ Up to Item no. PUType 1 360 mm - 1360 mm 37535-01 1Type 2 1360 mm - 2350 mm 37536-01 1Additional stops for EcopressType Item no. PULeft 89610-01 1Right 89510-01 1Insertion rams for EcopressInsertion Dies for Tiomos Item no. PUFor Tiomos 110°/120° hinge, aluminum F146135759299 1For Tiomos 110°/120°hinge plastic F146101310201 1Universal insertion die for Tiomos 110°/120°/160°hinge, plastic F146101308201 1F146135759299F146101310201PU = packaging unitSubject to technical modifications without notice. 53

100 mmTechnical InformationFor TiomosTEST CRITERIA FOR HINGESFunctional testStatic load -verticalAdditional load: 44 pounds (20 kg)Opening angle: max. -10°Static load - horizontalForce: 40 NEndurance testOpening angle: max. -5°Open and close movements: 100,000100 mm40 N45°max. -10°max. -5°Overload testingVerticalAdditional load: 66 pounds (30 kg)Opening angle: max. -10°HorizontalForce: 80 NTest doorWeight approx. 11.5 pounds (5.2 kg)600 mm100 mm100 mm60 mm700 mm45°max. -10°60 mm19 mmSalt spray and humidity testBased on DIN ISO 9227 and DIN 6270-254 www.grassusa.com Dimensions in millimeters, fractional inch equivalents as noted.

Notes55

Grass America Inc.1202 Highway 66 SouthKernersville, NC 27284Phone 1-800-334-3512Fax 1-800-525-8406Internet: www.grassusa.comE-Mail: info@grassusa.comGrass Canada Inc.475 Finchdene Square, Unit 9Toronto, ON M1X 1B7Phone 1-800-461-4975Fax 1-416-335-5907Internet: www.grasscanada.comE-Mail: info@grasscanada.com#02006-TB-1/13-MAP-10M
