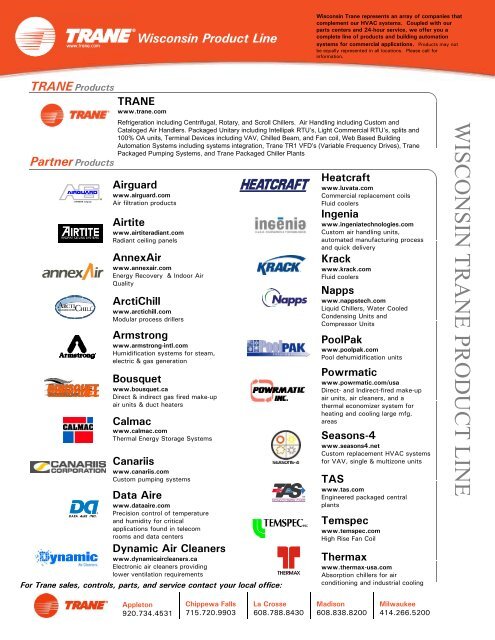

<strong>Wisconsin</strong> <strong>Trane</strong> represents an array of companies that<br />
complement our HVAC systems. Coupled with our<br />
parts centers and 24-hour service, we offer you a<br />
complete line of products and building automation<br />
systems for commercial applications. <strong>Product</strong>s may not<br />
be equally represented in all locations. Please call for<br />
information.<br />
TRANE<br />
www.trane.com<br />
Refrigeration including Centrifugal, Rotary, and Scroll Chillers. Air Handling including Custom and<br />
Cataloged Air Handlers. Packaged Unitary including Intellipak RTU’s, Light Commercial RTU’s, splits and<br />
100% OA units, Terminal Devices including VAV, Chilled Beam, and Fan coil, Web Based Building<br />
Automation Systems including systems integration, <strong>Trane</strong> TR1 VFD’s (Variable Frequency Drives), <strong>Trane</strong><br />
Packaged Pumping Systems, and <strong>Trane</strong> Packaged Chiller Plants<br />
Heatcraft<br />
Airguard<br />
www.luvata.com<br />
www.airguard.com<br />
Commercial replacement coils<br />
Air filtration products<br />
Fluid coolers<br />
Ingenia<br />
Airtite<br />
www.ingeniatechnologies.com<br />
www.airtiteradiant.com<br />
Custom air handling units,<br />
Radiant ceiling panels<br />
automated manufacturing process<br />
SCONSIN<br />
AnnexAir<br />
www.annexair.com<br />
Energy Recovery & Indoor Air<br />
Quality<br />
ArctiChill<br />
www.arctichill.com<br />
Modular process drillers<br />
Armstrong<br />
www.armstrong-intl.com<br />
Humidification systems for steam,<br />
electric & gas generation<br />
Bousquet<br />
www.bousquet.ca<br />
g p<br />
air units & duct heaters<br />
and quick delivery<br />
Krack<br />
www.krack.com<br />
Fluid coolers<br />
Napps<br />
www.nappstech.com<br />
Liquid Chillers, Water Cooled<br />
Condensing Units and<br />
Compressor Units<br />
PoolPak<br />
www.poolpak.com<br />
Pool dehumidification units<br />
Powrmatic<br />
www.powrmatic.com/usa<br />
Direct- and Indirect-fired make-up<br />
air units, air cleaners, and a<br />
thermal economizer system for<br />
heating and cooling large mfg.<br />
areas<br />
Direct & indirect gas fired make-up<br />
Calmac<br />
www.calmac.com<br />
Thermal Energy Storage Systems<br />
Seasons-4<br />
UCT<br />
www.seasons4.net<br />
Custom replacement HVAC systems<br />
Canariis<br />
for VAV, single & multizone units<br />
www.canariis.com<br />
Custom pumping systems<br />
LIN<br />
Data Aire<br />
www.dataaire.com<br />
Precision control of temperature<br />
and humidity for critical<br />
applications found in telecom<br />
rooms and data centers<br />
Dynamic Air Cleaners<br />
www www.dynamicaircleaners.ca<br />
dynamicaircleaners ca<br />
Electronic air cleaners providing<br />
lower ventilation requirements<br />
For <strong>Trane</strong> sales, controls, parts, and service contact your local office:<br />
Appleton<br />
920.734.4531<br />
Chippewa Falls<br />
715.720.9903<br />
La Crosse<br />
608.788.8430<br />
TAS<br />
www.tas.com<br />
Engineered packaged central<br />
plants<br />
Temspec<br />
www.temspec.com<br />
High Rise Fan Coil<br />
Thermax<br />
www.thermax-usa.com<br />
Absorption chillers for air<br />
conditioning and industrial cooling<br />
Madison<br />
608.838.8200<br />
Milwaukee<br />
414.266.5200<br />
WIS<br />
N TRANEE<br />
PRODU<br />
NE
TRANE Commercial and Industrial Service Solutions<br />
Professionalism and Expertise in HVAC Service and Maintenance<br />
Factory trained service technicians, latest up-to-date technical information on equipment service and design modifications, parts for all brands and<br />
components of HVAC systems, specialized tools and diagnostic equipment, servicing all manufacturers equipment, genuine TRANE parts stocked locally and<br />
fast parts information, and 24/7 emergency service.<br />
Service and Maintenance Programs Tailored to Your Needs<br />
Performance Guaranteed Contracts, Extended Service Program for total maintenance including repair coverage, comprehensive preventative maintenance<br />
agreements, startup and first year service program, emergency service for immediate problem diagnosis, and major equipment overhaul.<br />
Specialized Services<br />
Chiller conversions to provide CFC free units, Control adjustment and modifications, chemical analysis of bromide or refrigerant, magnetic starter inspection<br />
and test, motor insulation testing, ASHRAE Std. 15, ASHRAE Guideline 3, Colorado Reg. 15 surveys and upgrades, burner combustion efficiency testing,<br />
fan balancing, vibration analysis, vane axial fan service, leak testing, Eddycurrent tube testing, motor repair and rewinding, boiler service and repair, and<br />
wear metal oil analysis.<br />
Equipment<br />
Chillers, rooftop units, condensing units, air handlers, coils, furnaces and building automation control systems.<br />
Energy Conservation Measures & Performance Contracting<br />
Equipment retrofits for energy savings, load shedding and demand metering, heat exchanger cleaning, remote monitoring, energy management systems,<br />
operating recommendations and much more.<br />
Owner and Operator Training<br />
Factory equipment seminars, local maintenance seminars, and on-site instruction.<br />
TRANE EarthWise TM Systems<br />
TRANE Supports EarthWise TM Systems<br />
An EarthWiseTM System uses state-of-the-art <strong>Trane</strong> products, systems and controls to optimize performance.<br />
This includes the ability to balance installed cost and operating cost while improving comfort, indoor air quality, and acoustics. EarthWiseTM Systems provide<br />
high efficiency/low emissions performance over the entire lifetime of the building; performance that can be proven via advanced documentation.<br />
Green Seal Certification<br />
<strong>Trane</strong> offers EarthWiseTM CenTraVac Centrifugal Chillers with Green Seal Certification. Green Seal certifies products based on a life-cycle<br />
approach, ensuring that all significant environmental impacts of a product are considered, from raw materials extraction and manufacturing<br />
to use and disposal. If all new centrifugal chillers matched the energy efficiency of <strong>Trane</strong>’s EarthWiseTM Green Seal Certified HCFC-123<br />
chiller the environmental benefit would equate to planting 1.4 million trees each year for the next 23 years. If all new centrifugal chillers<br />
matched the energy efficiency of <strong>Trane</strong>’s EarthWiseTM matched the energy efficiency of <strong>Trane</strong> s EarthWise HCFC-123 HCFC 123 chiller: reduce annual power plant emissions of CO2 by 777 million tons, tons<br />
eliminate about 250,000 pounds of SO2 annually, eliminate one million pounds of NOx annually.<br />
Useful Formulas<br />
All Motors<br />
BHP ∗0.746<br />
KW =<br />
Efficiency<br />
Single Phase<br />
Amps∗<br />
Volts∗Power<br />
Factor<br />
KW =<br />
1000<br />
746∗BHP<br />
Amps =<br />
Efficiency ∗ Volts∗Power<br />
Factor<br />
Three Phase<br />
Amps∗<br />
Volts∗1.73∗Power<br />
Factor<br />
KW =<br />
1000<br />
746 ∗BHP<br />
Amps =<br />
Efficiency ∗Volts∗Power<br />
Factor ∗1.73<br />
Changing Fan RPM On A Given Fan System<br />
Fan Horsepower<br />
CFM∗Static<br />
Pressure ( (Inches) h )<br />
BHP =<br />
6356∗<br />
Static Efficiency<br />
RPM<br />
CFM2 = CFM1<br />
∗<br />
RPM<br />
2<br />
1<br />
3<br />
⎛RPM<br />
⎞ 2<br />
HP2 HP1<br />
RPM ⎟<br />
1<br />
⎟<br />
⎛ ⎞<br />
= ∗ ⎜<br />
⎝ ⎠<br />
2<br />
RPM2<br />
SP2 SP1<br />
RPM ⎟<br />
1<br />
⎟<br />
⎛ ⎞<br />
= ∗ ⎜<br />
⎝<br />
⎠<br />
Changing Water Flow In A Given Closed Piping System<br />
Pump Horsepower<br />
GPM GPM∗<br />
Head In Feet<br />
BHP =<br />
3960∗Pump<br />
Efficiency<br />
Pressure of Water<br />
In Feet = 2.31∗PSI<br />
In PSI = 0.433∗Feet<br />
Capacities p<br />
Chilled Water<br />
GPM∗<br />
TD<br />
Tons =<br />
24<br />
Cooling Air<br />
Sensible BTUH = 1.1∗CFM∗<br />
TD<br />
Condenser Water<br />
GPM∗<br />
TD<br />
Tons =<br />
24∗N<br />
Latent BTUH = 0.68∗<br />
CFM∗Grain<br />
Difference<br />
Total BTUH = 4.5∗<br />
CFM∗Enthalpy<br />
Difference<br />
2<br />
GPM2<br />
PD PD ⎟ ⎟⎞<br />
⎛ 2<br />
PD ∗ ⎜<br />
2 PD1<br />
GPM ⎟<br />
1<br />
⎟<br />
= ∗ ⎜<br />
⎝<br />
⎠<br />
Hot Water<br />
BTUH = 500∗GPM∗<br />
TD<br />
72012V3
